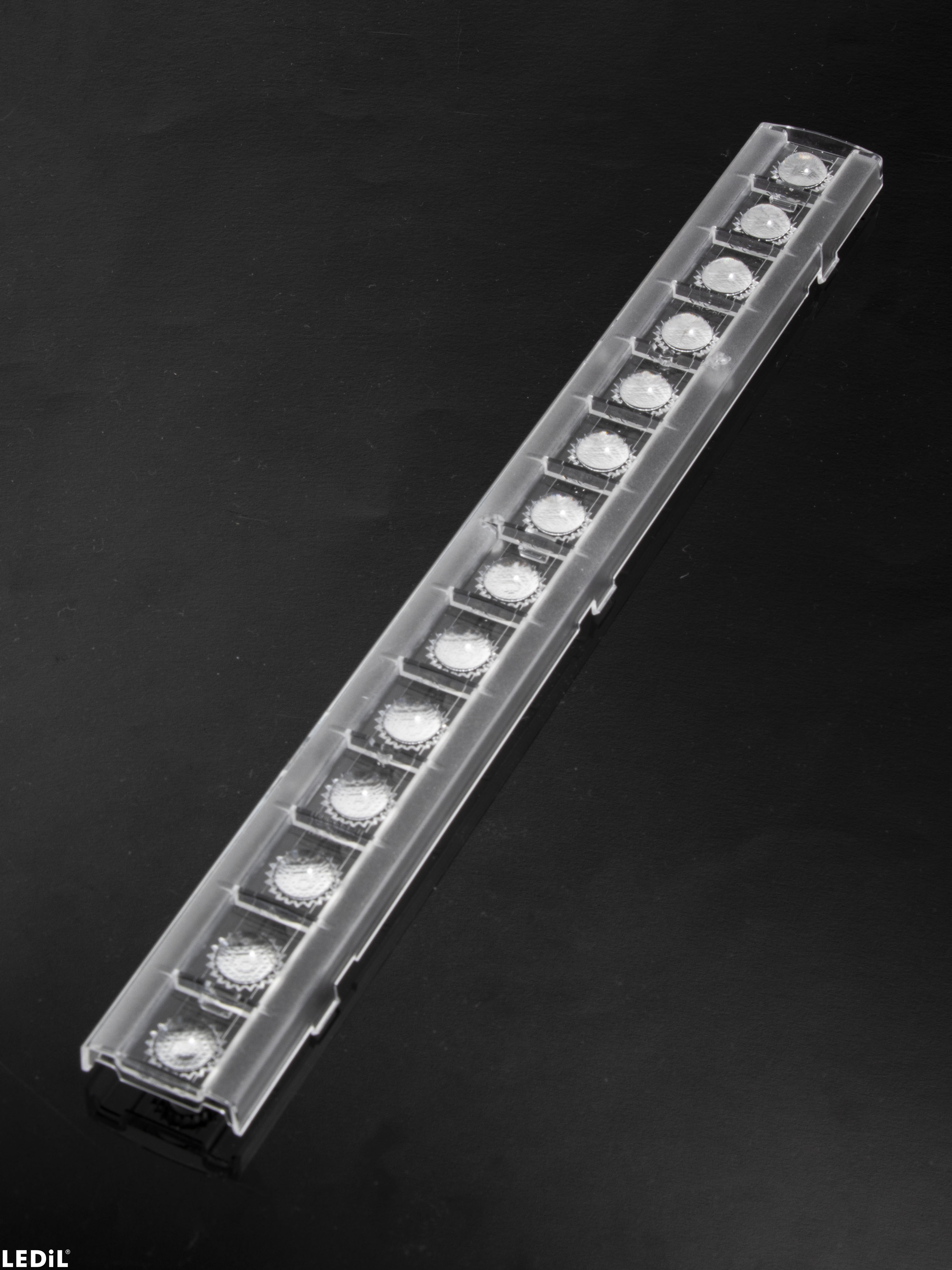

    C16613_CLAUDIA-90

    Print

    ~90° wide beam

    Specification
    • Dimensions:
      279 x  29 mm
    • Height:
      8.10 mm
    • Fastening:
      clips
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      228 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      6.6 kg
    • MPQ:
      12 pcs
    • MOQ:
      96 pcs
    • MOQ size:
      400 x 300 x 140 mm
    • MOQ weight:
      2.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C16613_CLAUDIA-90
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR165 - Change of packaging method and packaging amounts

    Luminaire, example

    Linear luminaire with CLAUDIA

    Application example

    Supermarket lighting with CLAUDIA

    Application guide

    Guide for Retail Lighting Optics

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    News

    NEW PRODUCTS - 2018-11-13

    News

    CLAUDIA The affordable choice for supermarket and retail lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Retail Lighting

    Optical results

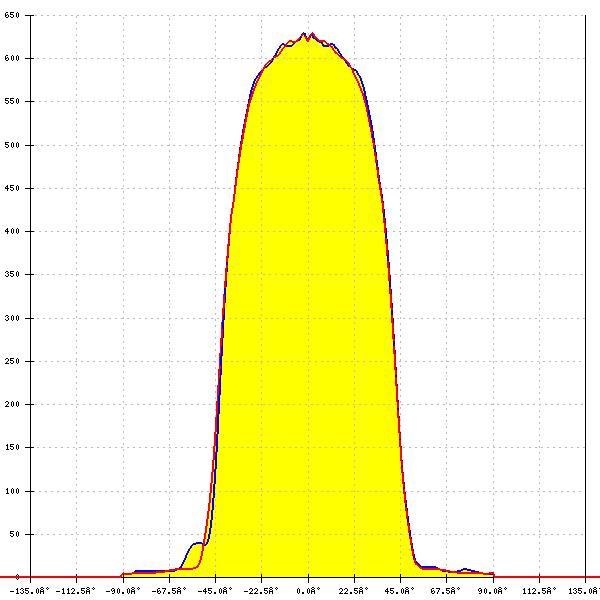

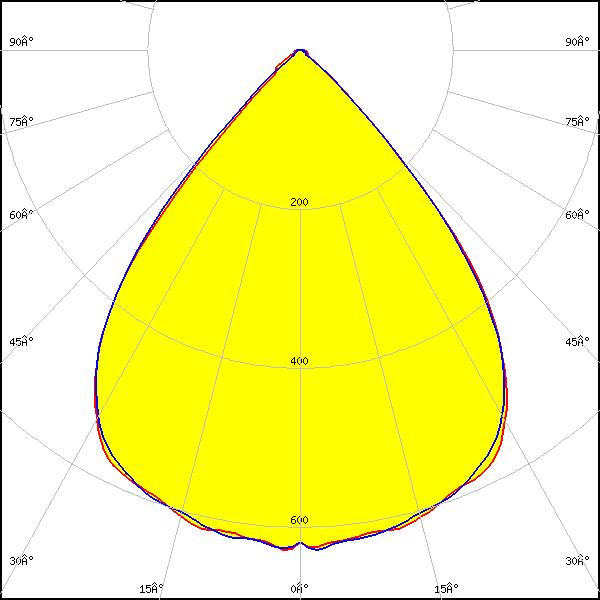

    LED: J Series 2835
    FWHM: 81°
    FWTM: 98°
    Peak intensity: 0.650 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

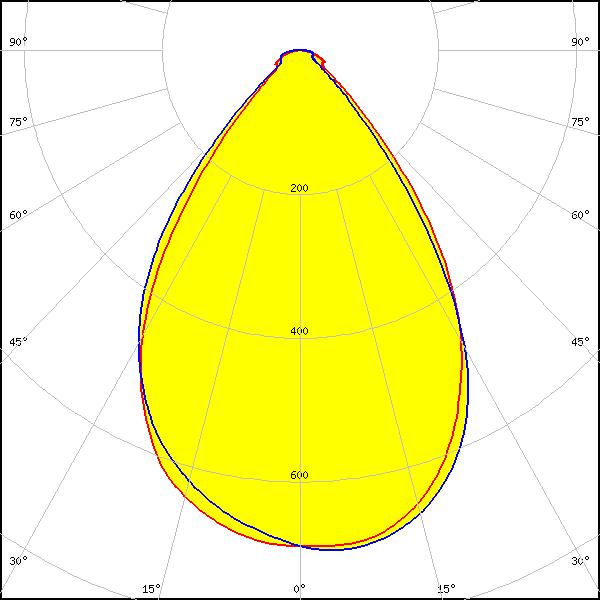

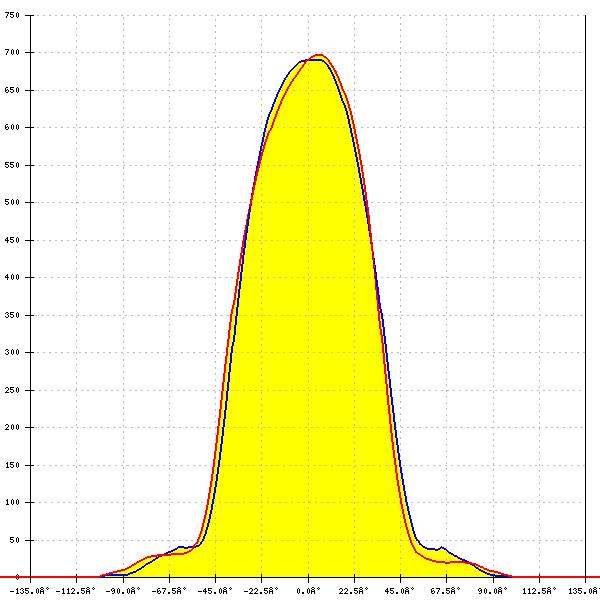

    LED: J Series 2835
    FWHM: 72°
    FWTM: 99°
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 2
    Light colour/type: White

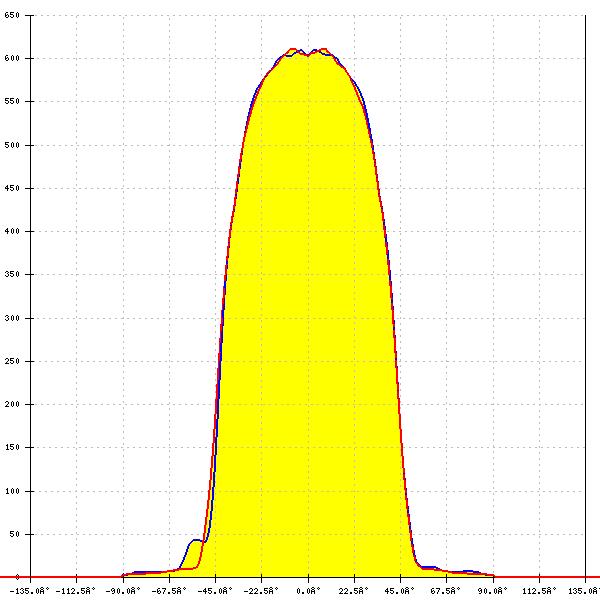

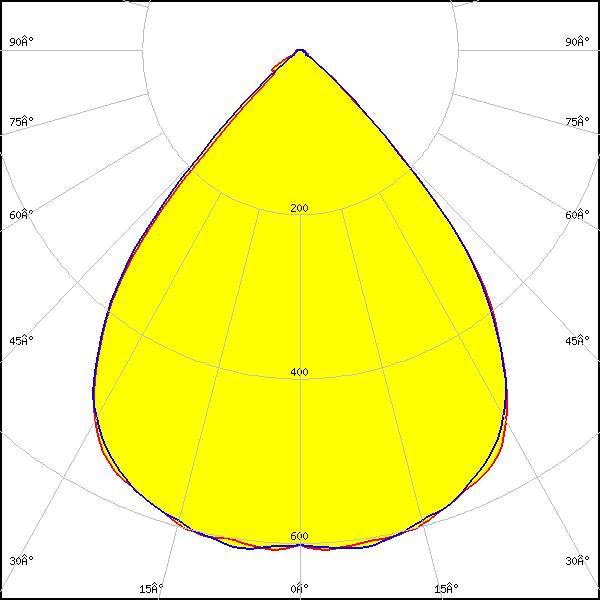

    LED: LUXEON 2835 Architectural
    FWHM: 83°
    FWTM: 100°
    Peak intensity: 0.620 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

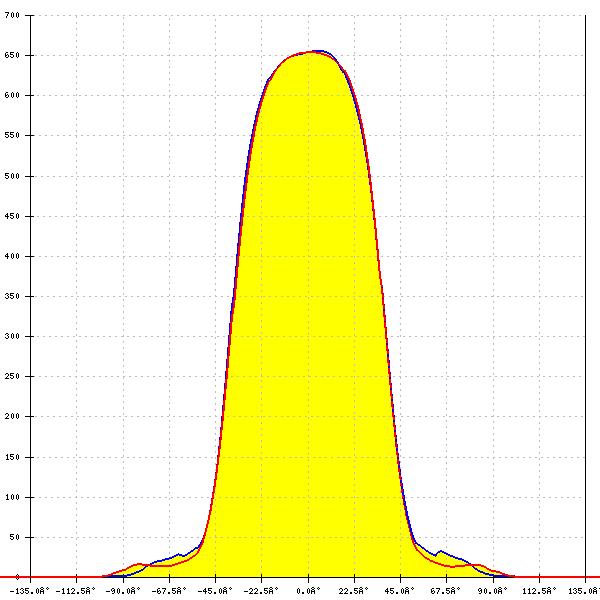

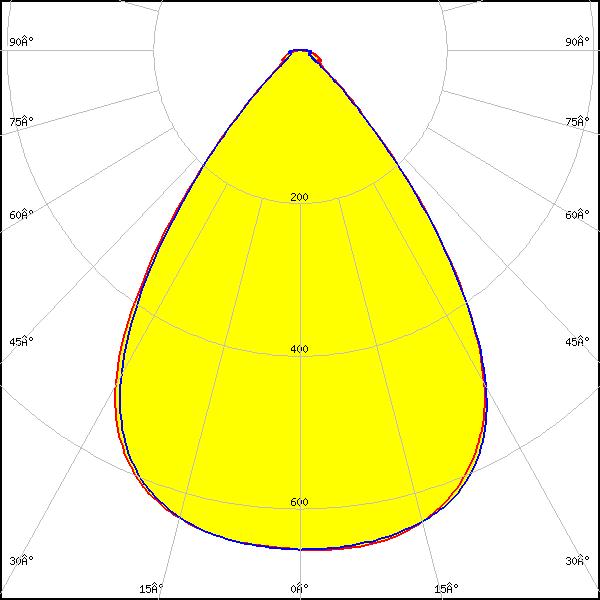

    LED: LUXEON 3030 2D (Square LES)
    FWHM: 74°
    FWTM: 99°
    Peak intensity: 0.655 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 2
    Light colour/type: White

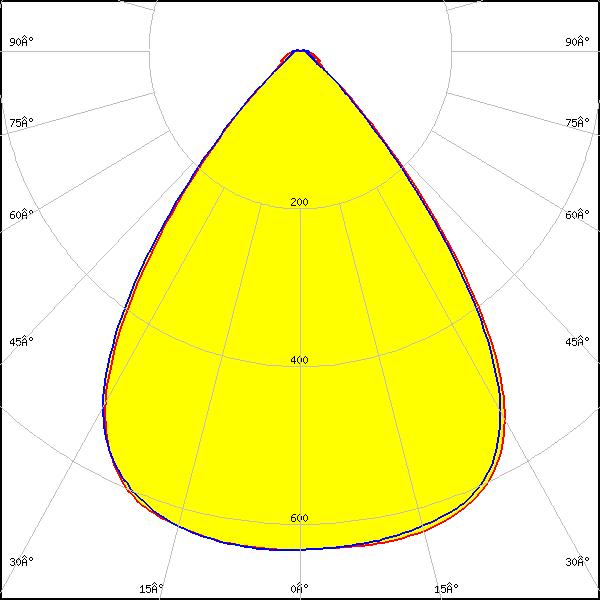

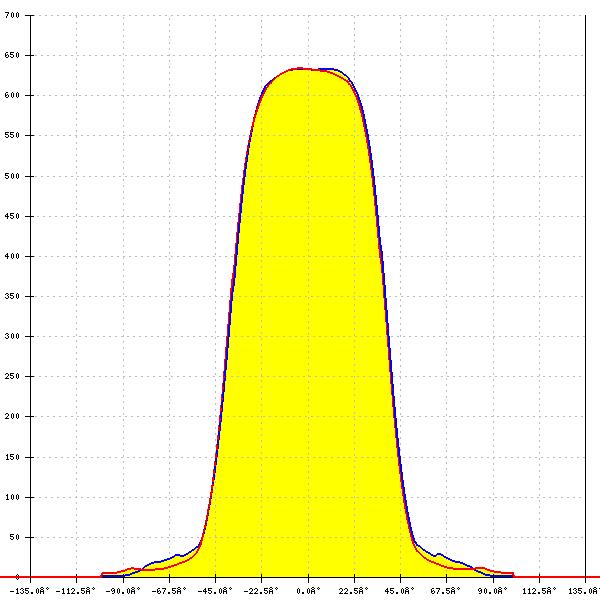

    LED: LinLED 280x26mm 1300lm 840 2C 42V Opt G1
    FWHM: 77°
    FWTM: 100°
    Peak intensity: 0.634 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

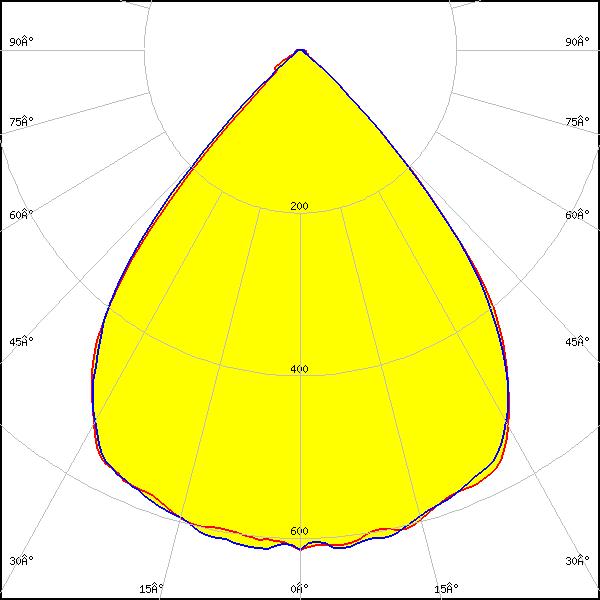

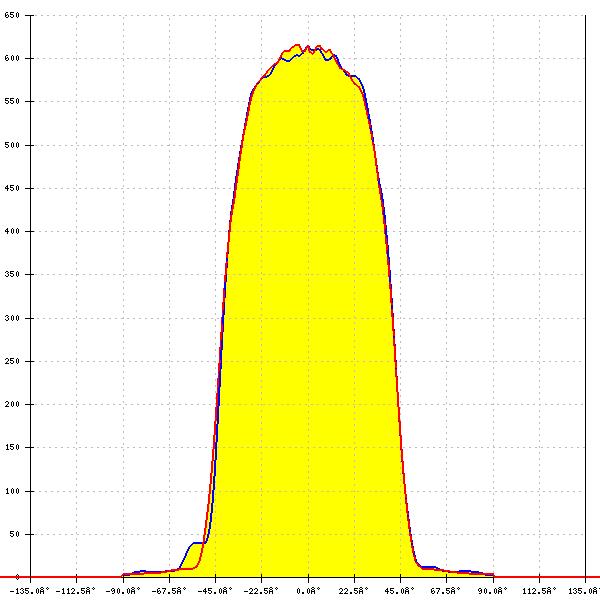

    LED: NF2x757G
    FWHM: 82°
    FWTM: 99°
    Peak intensity: 0.630 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

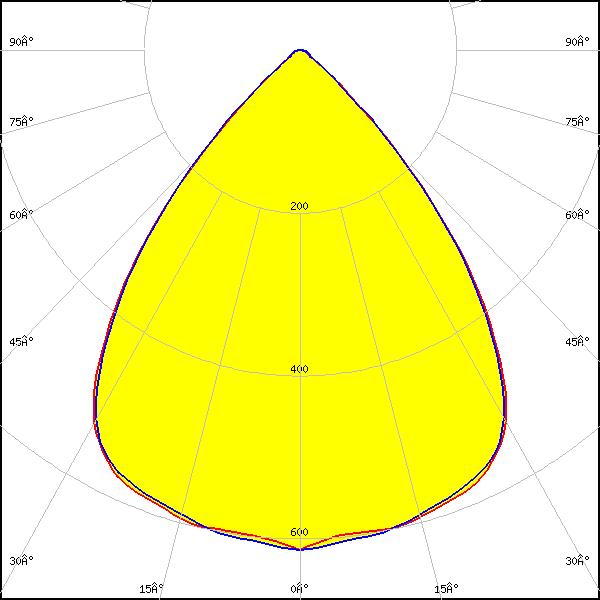

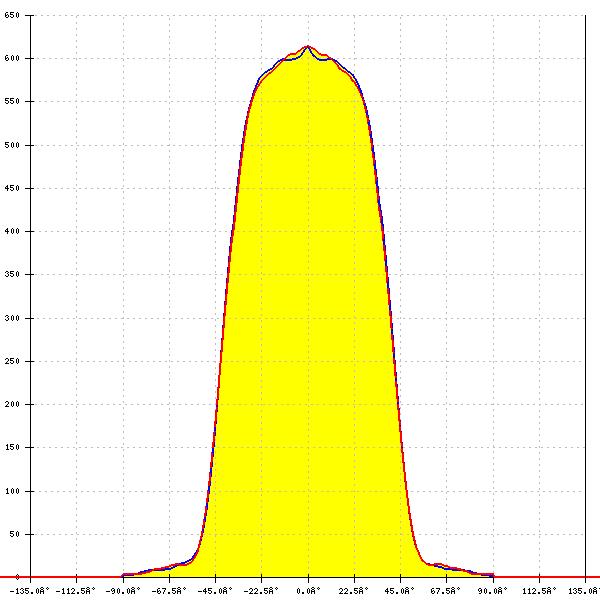

    LED: NFMW48xA
    FWHM: 80°
    FWTM: 102°
    Peak intensity: 0.615 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

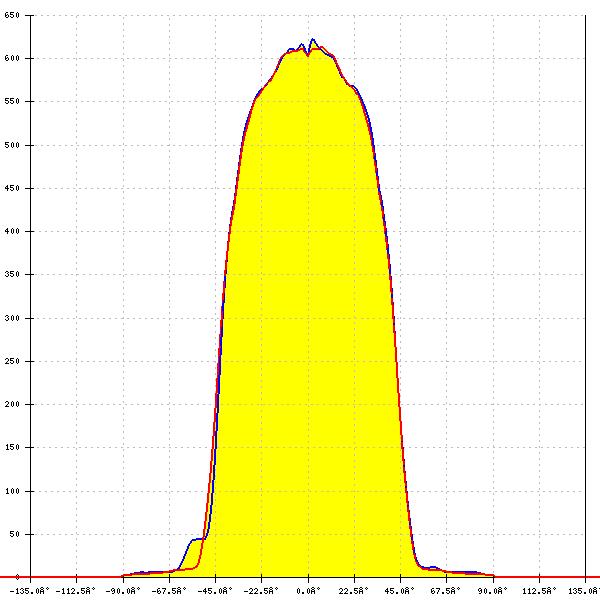

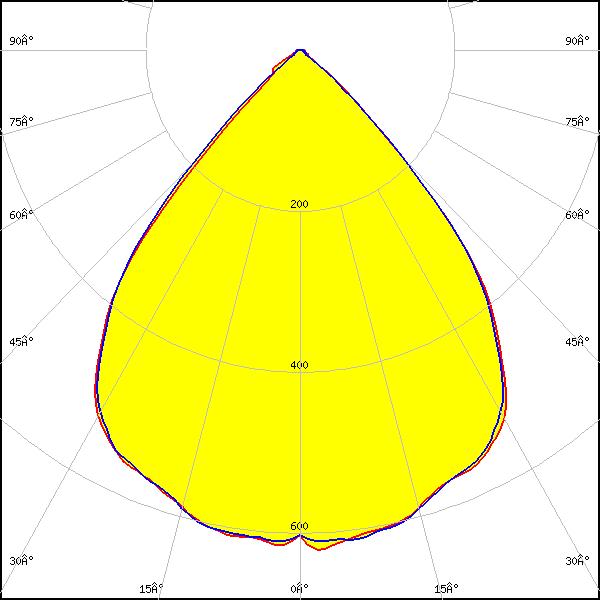

    LED: Duris E 2835
    FWHM: 83°
    FWTM: 100°
    Peak intensity: 0.630 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

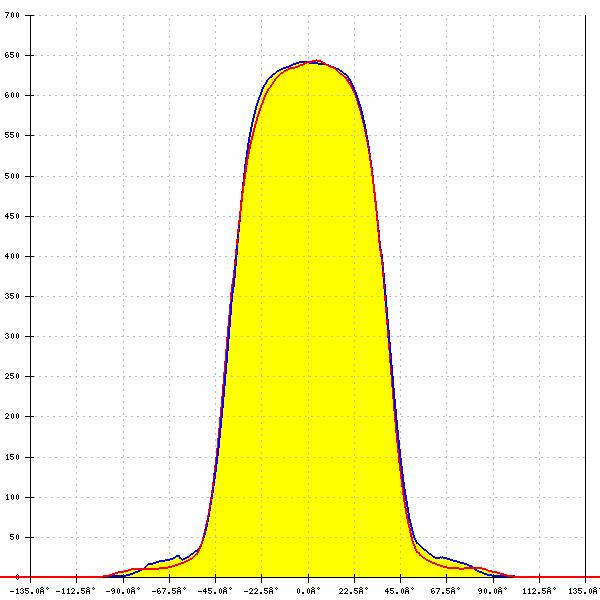

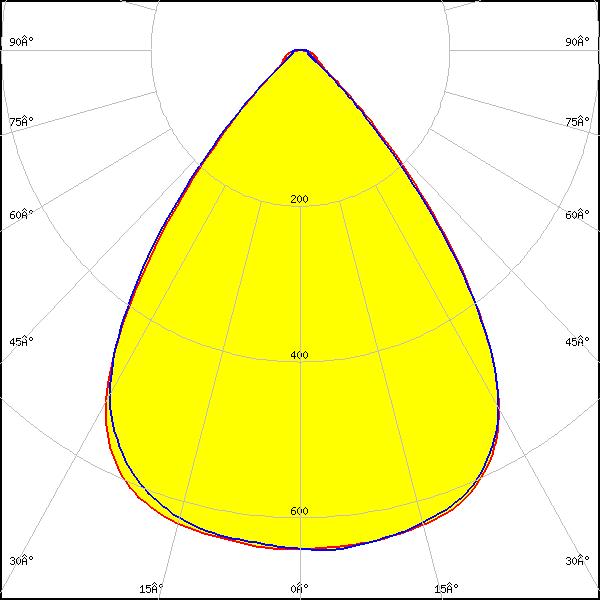

    LED: DURIS S5 (2 chip)
    FWHM: 77°
    FWTM: 99°
    Peak intensity: 0.644 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 2
    Light colour/type: White

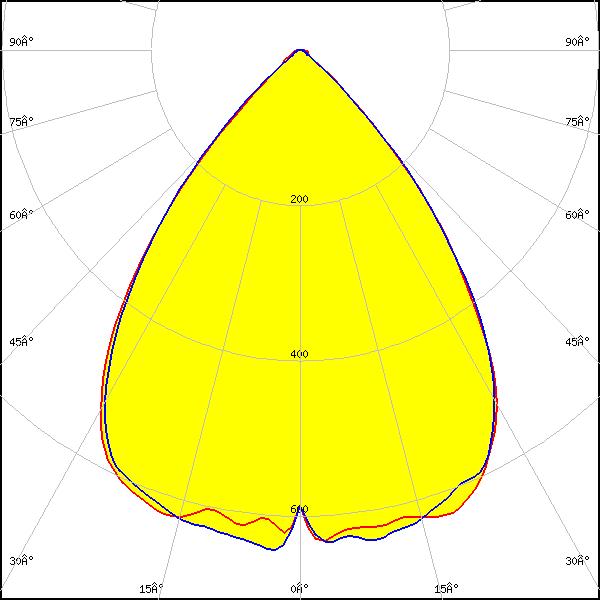

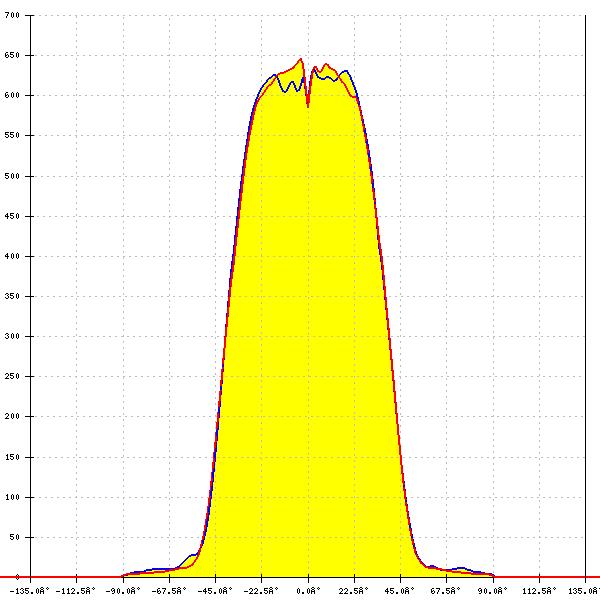

    LED: Duris S8
    FWHM: 78°
    FWTM: 100°
    Peak intensity: 0.652 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

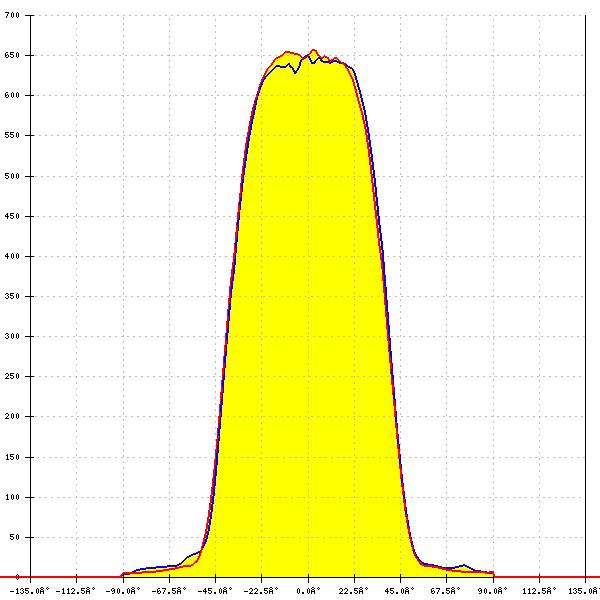

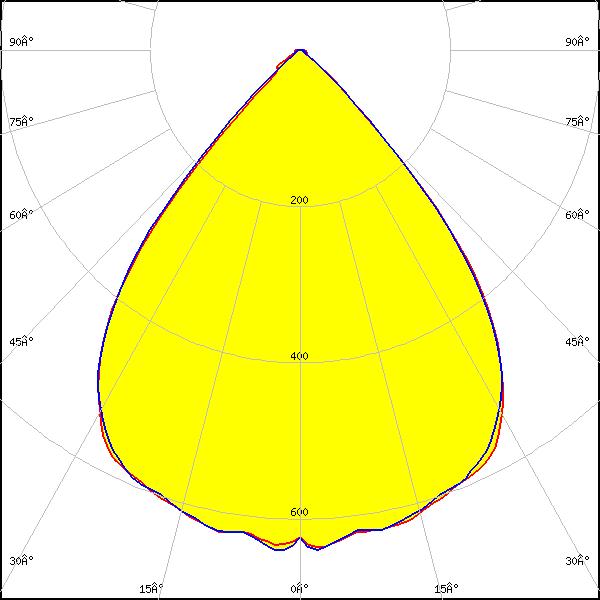

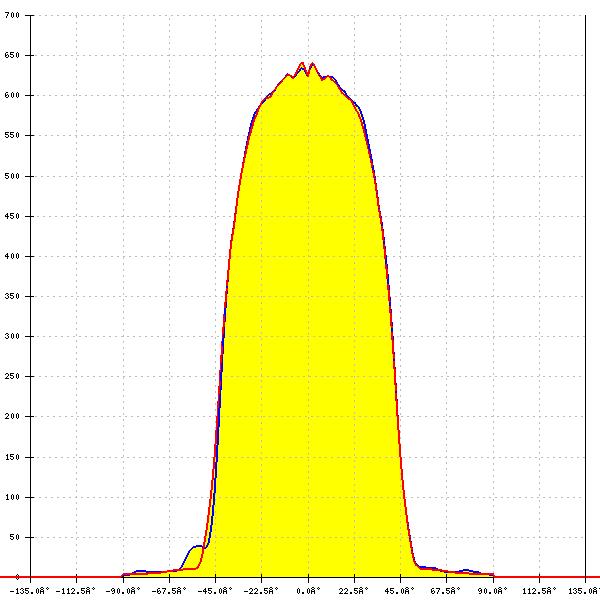

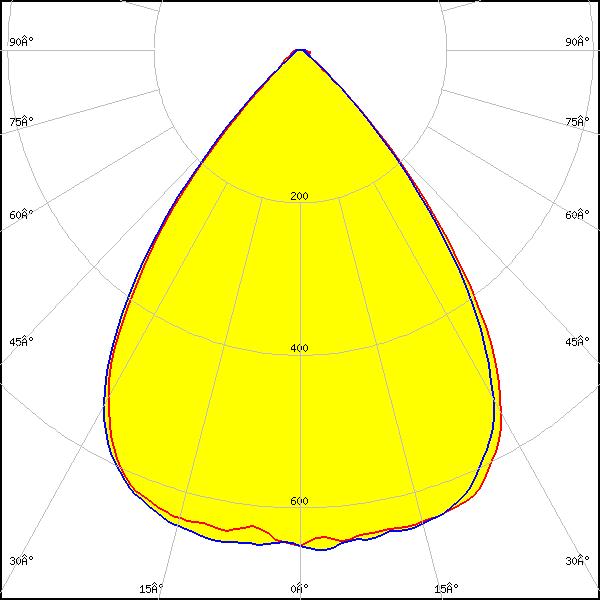

    LED: LM28xB Series
    FWHM: 77°
    FWTM: 98°
    Peak intensity: 0.666 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: LM28xB Series
    FWHM: 81°
    FWTM: 98°
    Peak intensity: 0.650 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

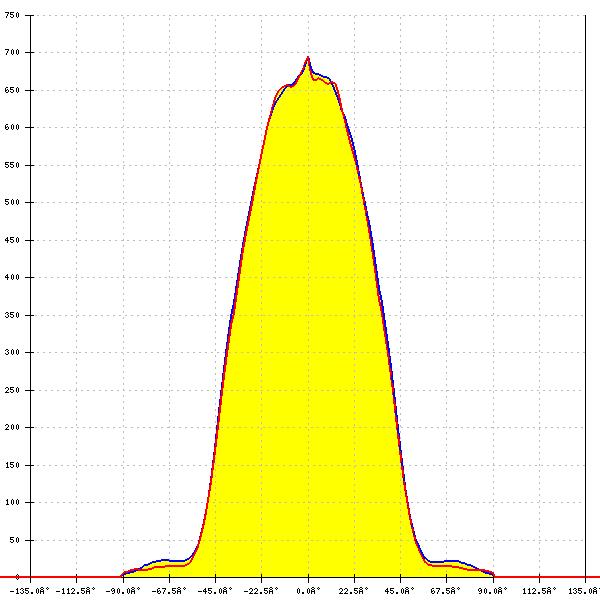

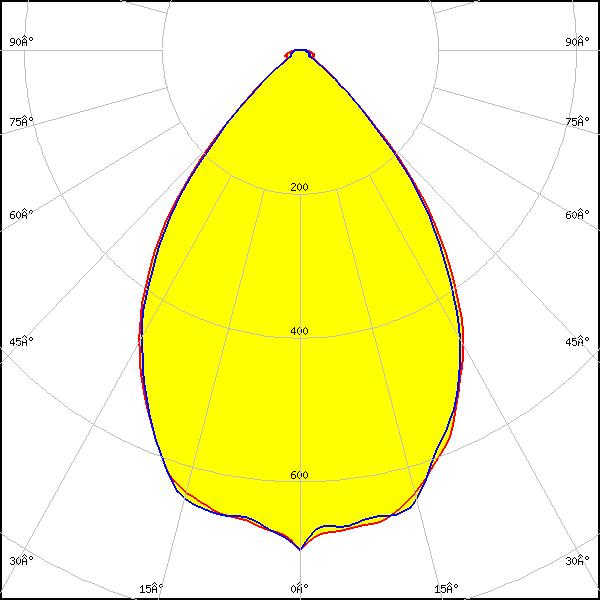

    LED: LM28xB Series
    FWHM: 73°
    FWTM: 102°
    Peak intensity: 0.695 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

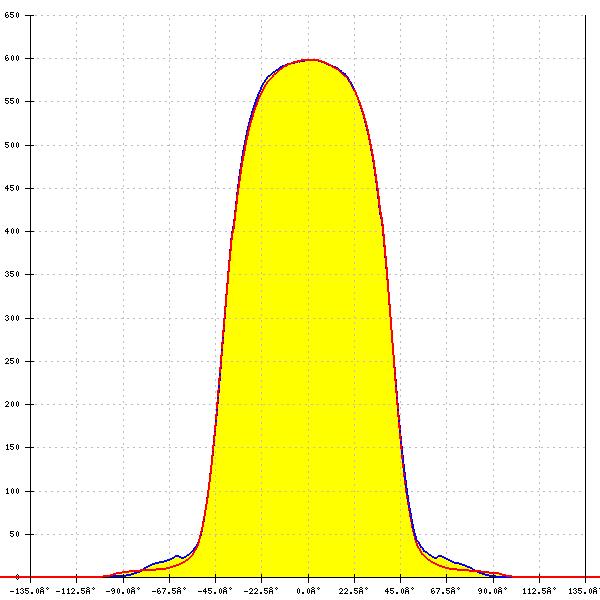

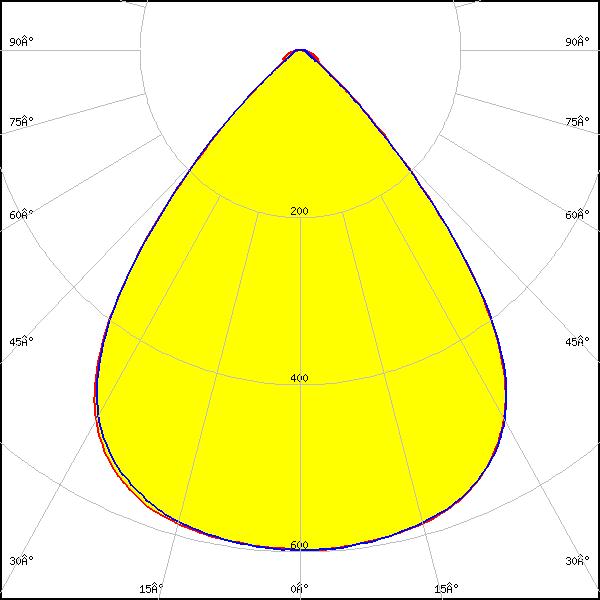

    LED: LM301B
    FWHM: 81°
    FWTM: 103°
    Peak intensity: 0.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 2
    Light colour/type: Tunable White

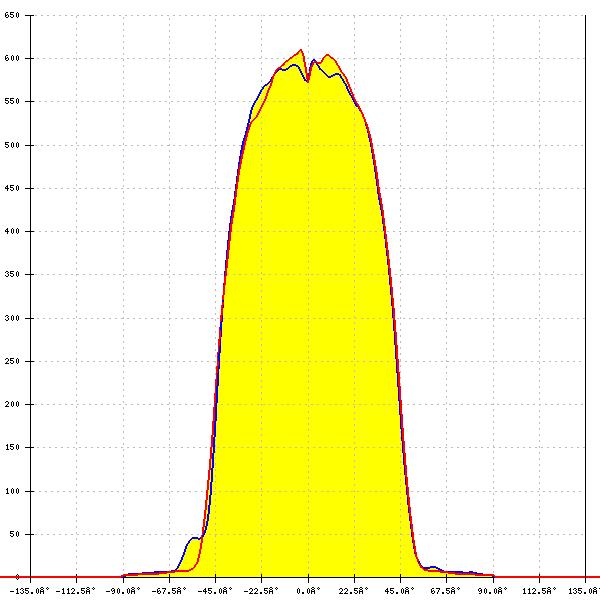

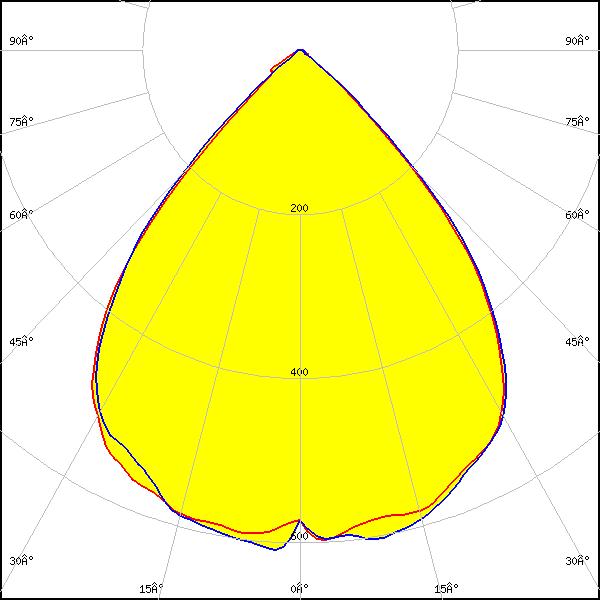

    LED: SEOUL DC 3528
    FWHM: 82°
    FWTM: 100°
    Peak intensity: 0.630 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
