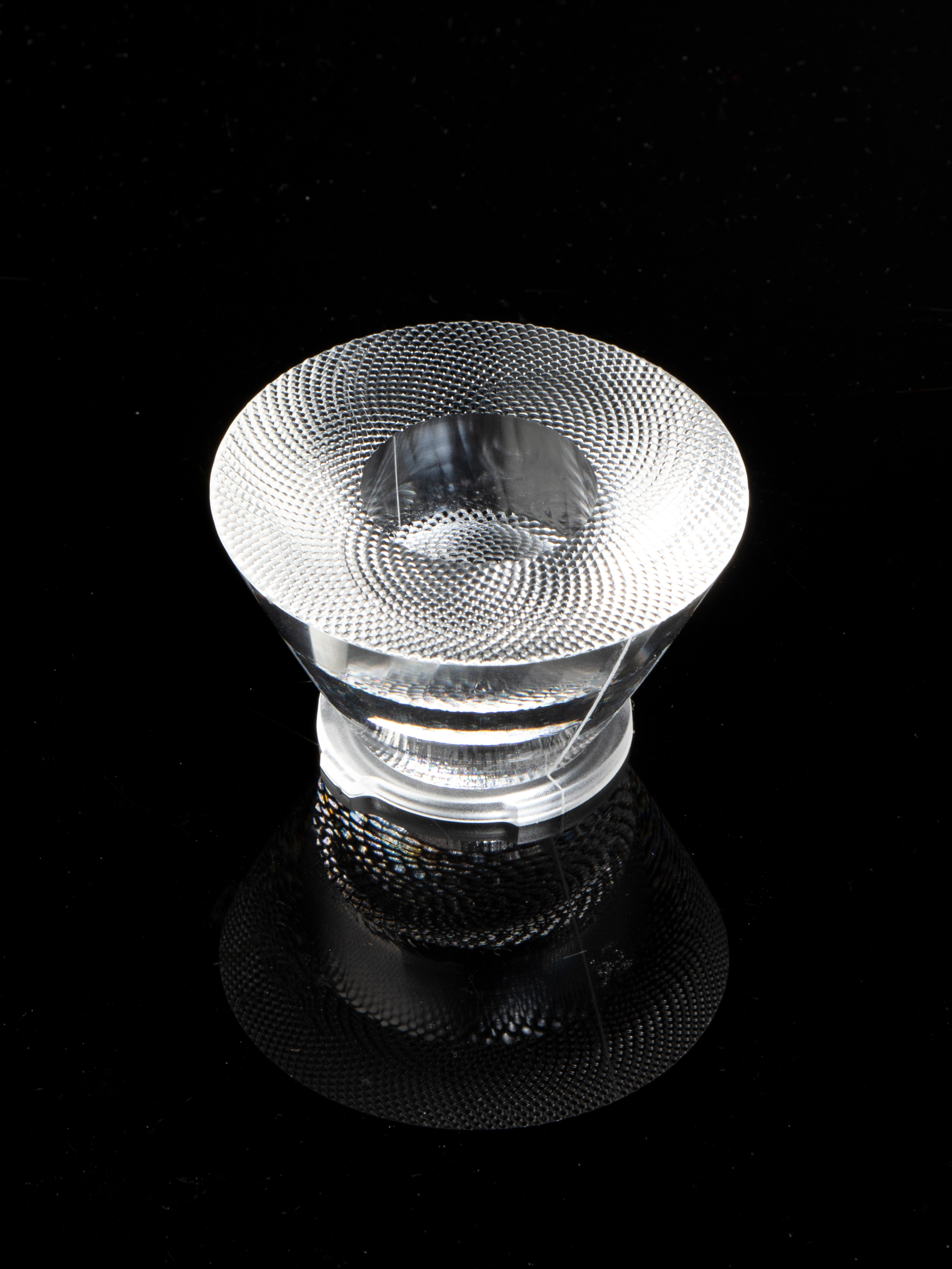

    C16688_ILONA-W

    Print

    ~35° wide beam

    Specification
    • Dimensions:
      50 mm
    • Height:
      29.65 mm
    • Fastening:
      socket
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      264 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.1 kg
    • MPQ:
      33 pcs
    • MOQ:
      99 pcs
    • MOQ size:
      480 x 280 x 110 mm
    • MOQ weight:
      3.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16688_ILONA-W

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    Introducing best TIR lens family for retail lighting

    PCN

    Product change notification NR177 - Change of amount in carton

    Case story

    Moscow Paleontological Museum

    PCN

    Product change notification NR162 - Changes in product mechanics

    Luminaire, example

    Track lights with ILONA-ZOOM & ILONA

    News

    New Products 2020-1-9

    Application guide

    LEDiL guide for retail lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Compatible product

    B+W 630 Hekla datasheet

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    Effective fashion retail lighting

    News

    ILONA TIR lens family for highly efficient retail lighting

    Luminaire, example

    Track light luminaire with ILONA

    Application example

    Retail lighting with DAISY and ILONA

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

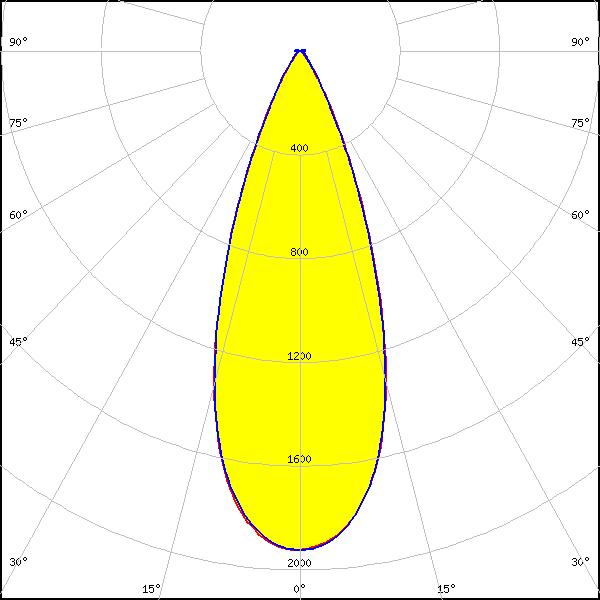

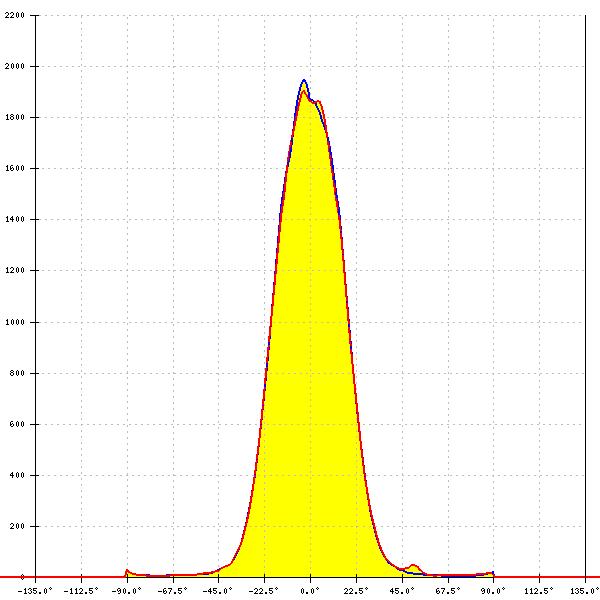

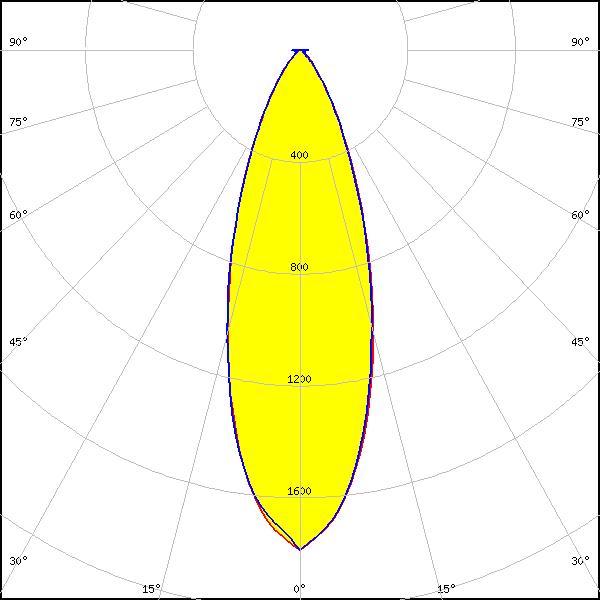

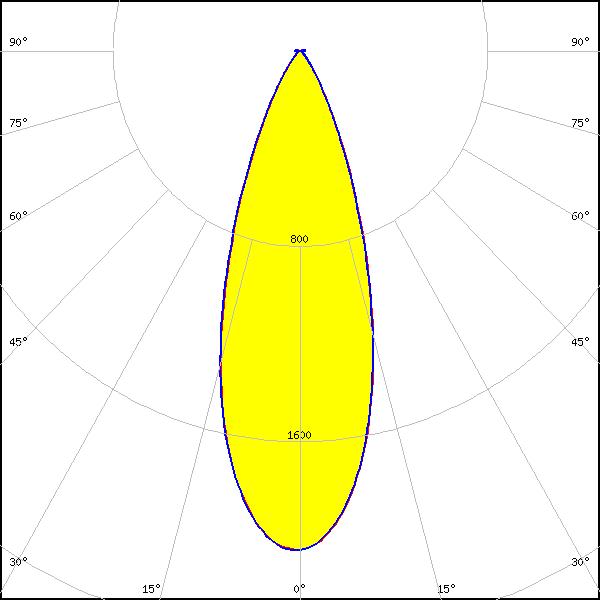

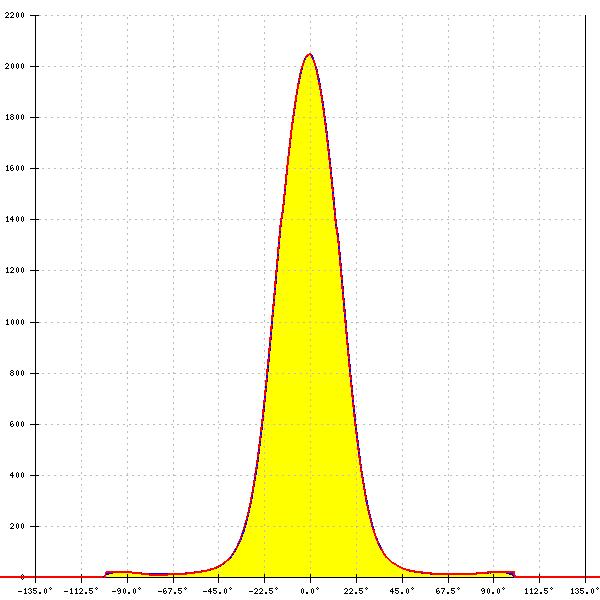

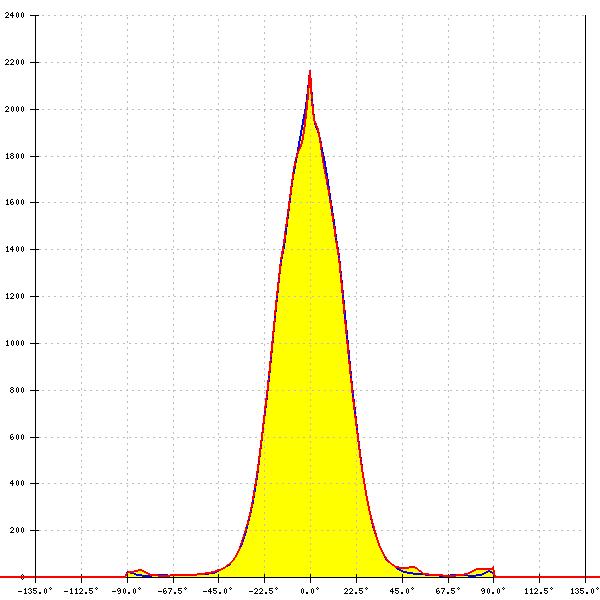

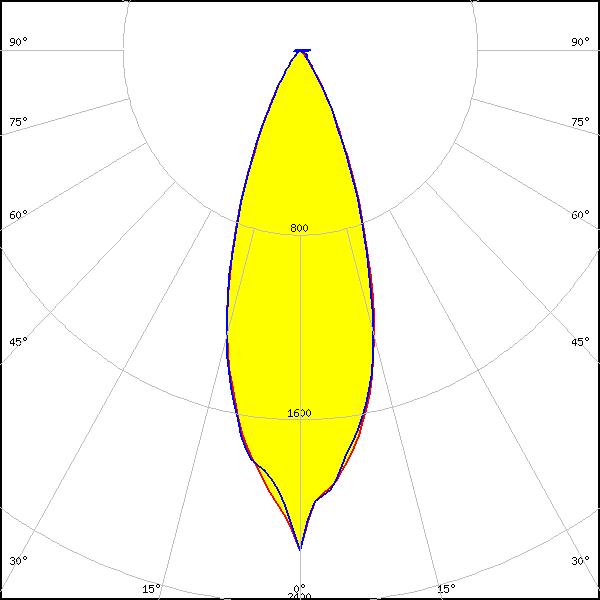

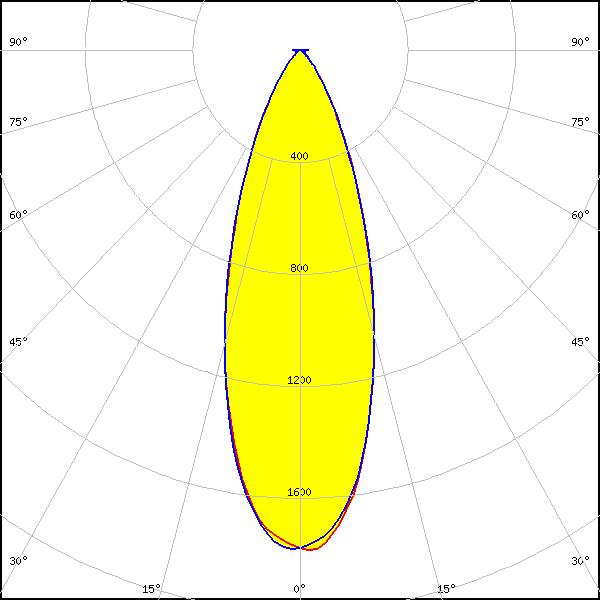

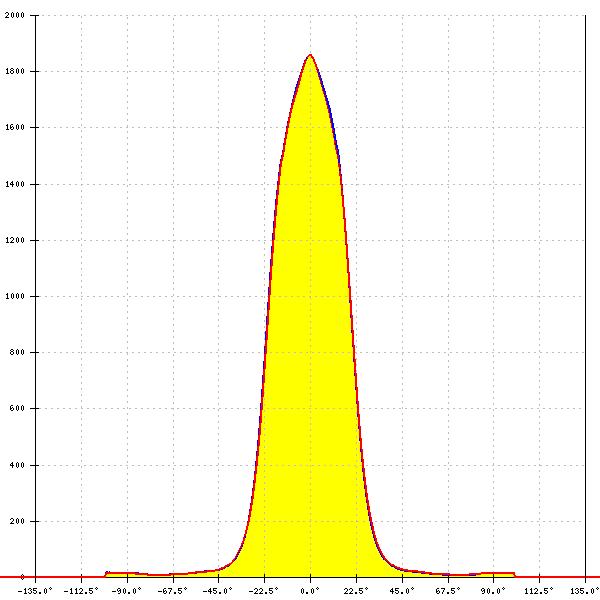

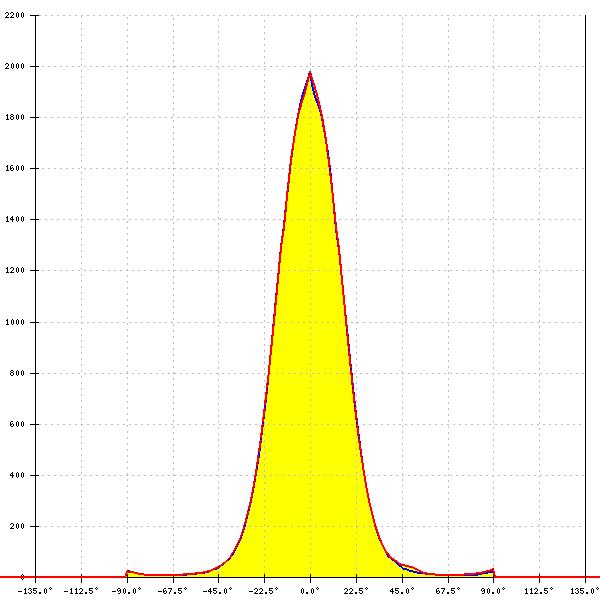

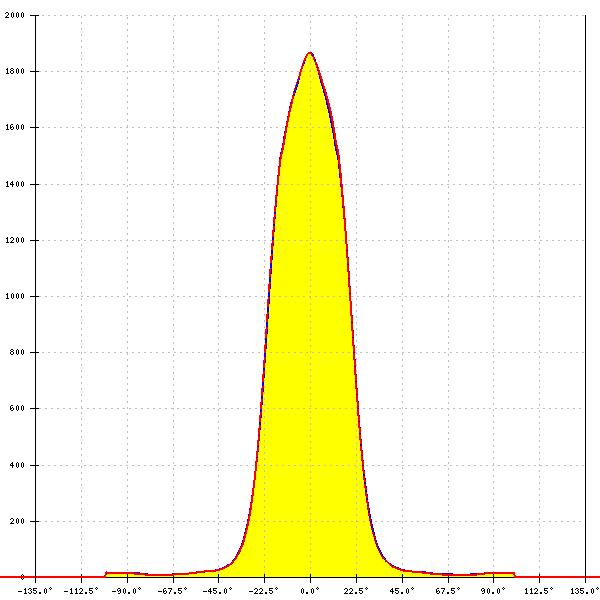

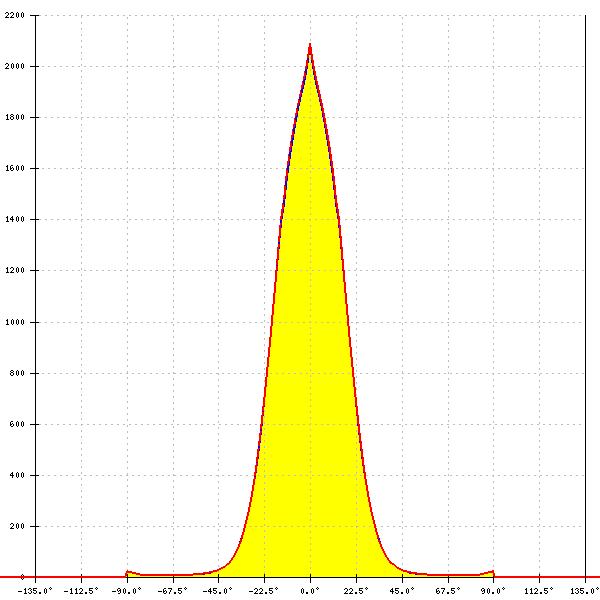

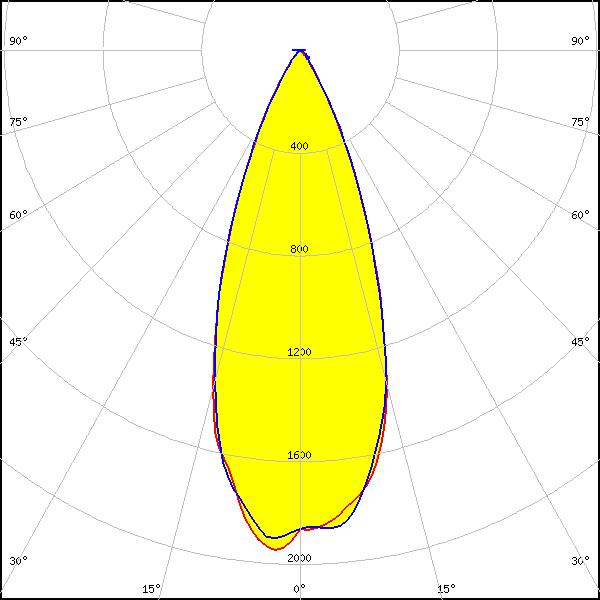

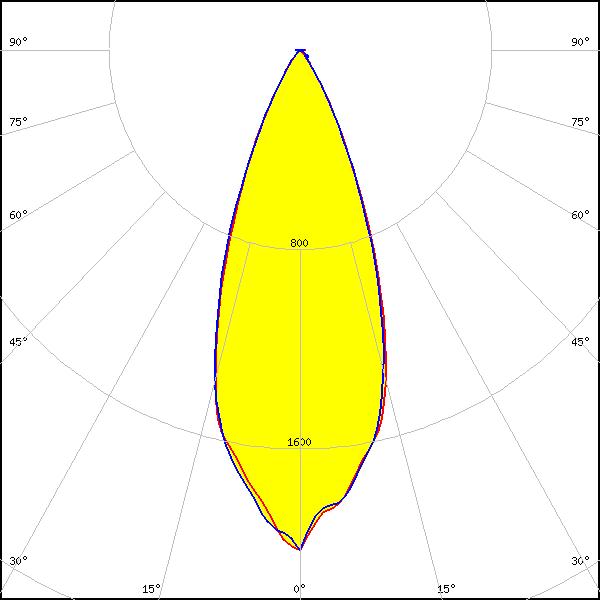

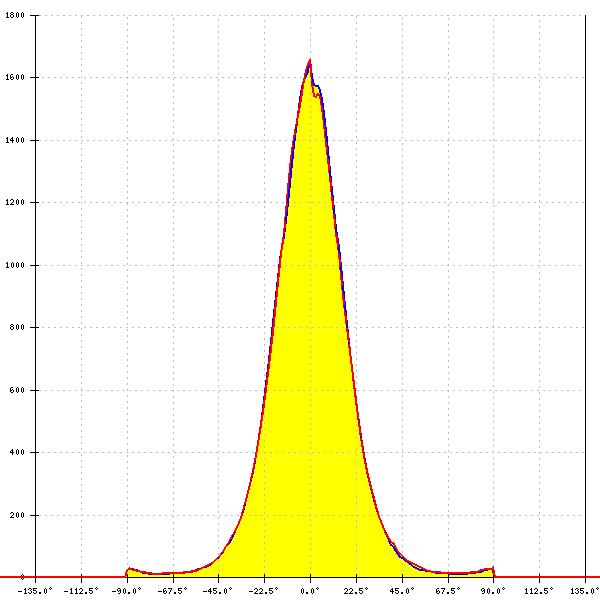

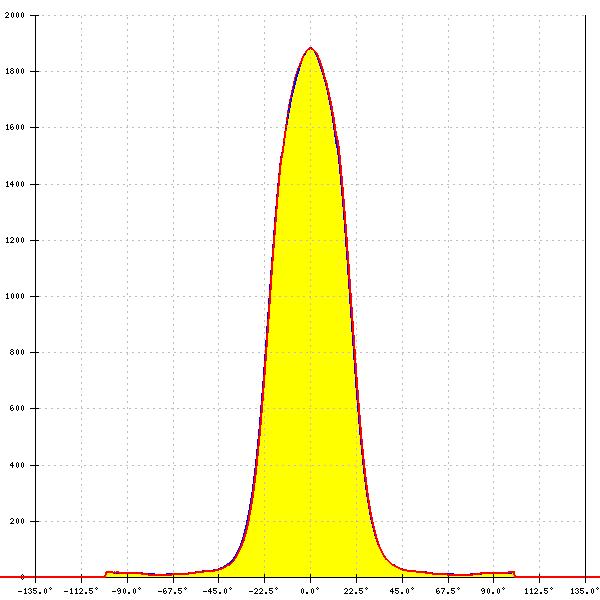

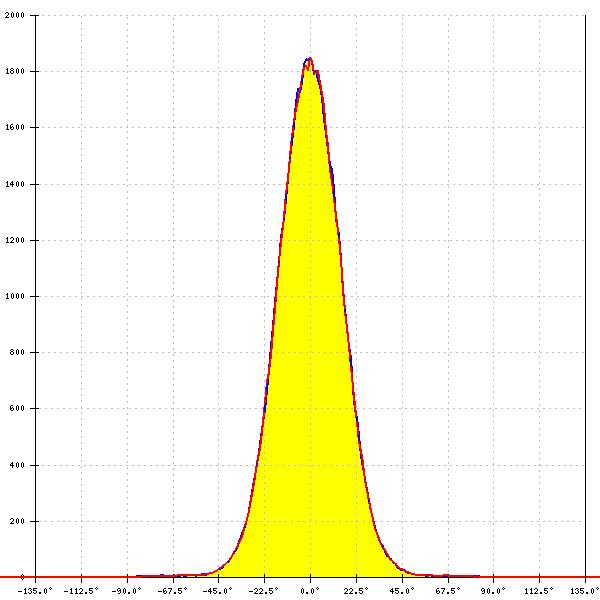

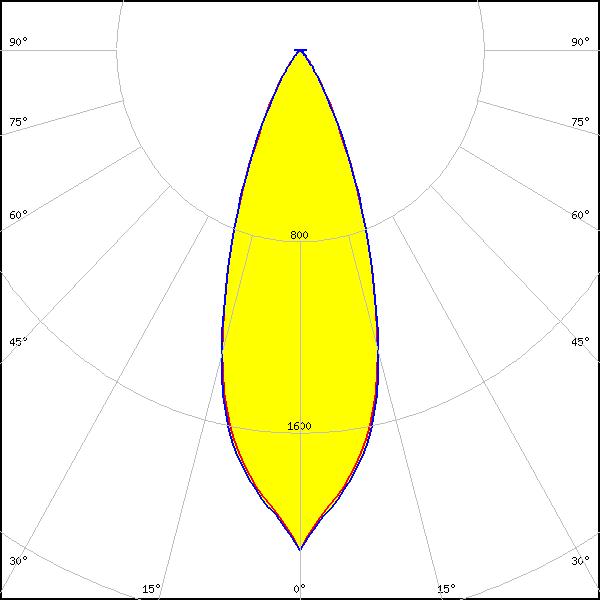

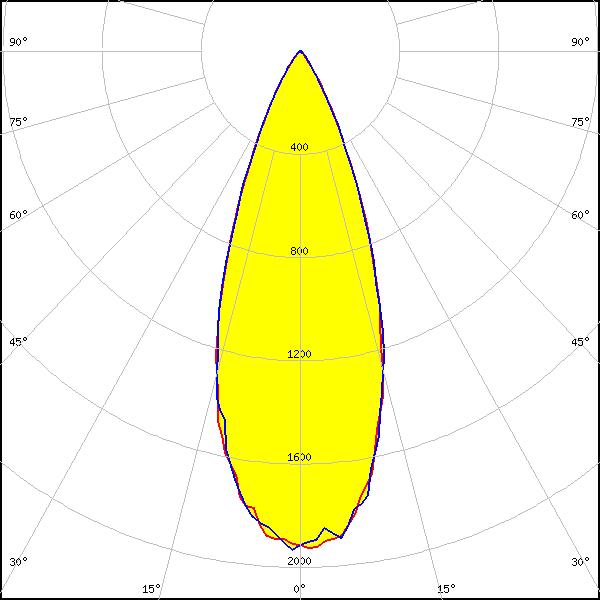

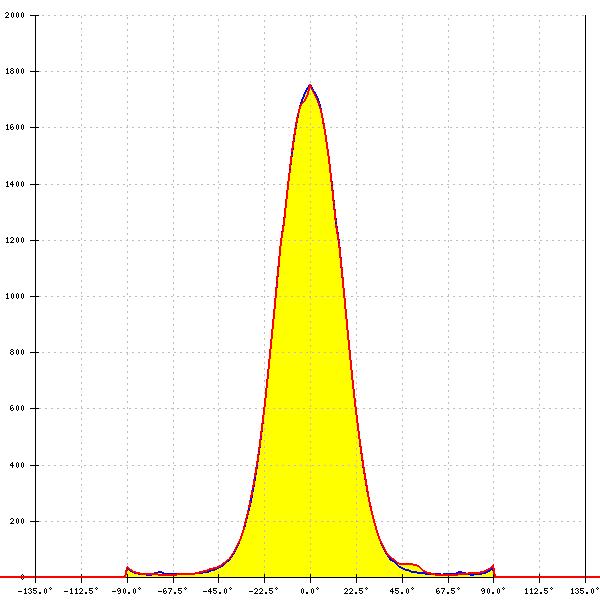

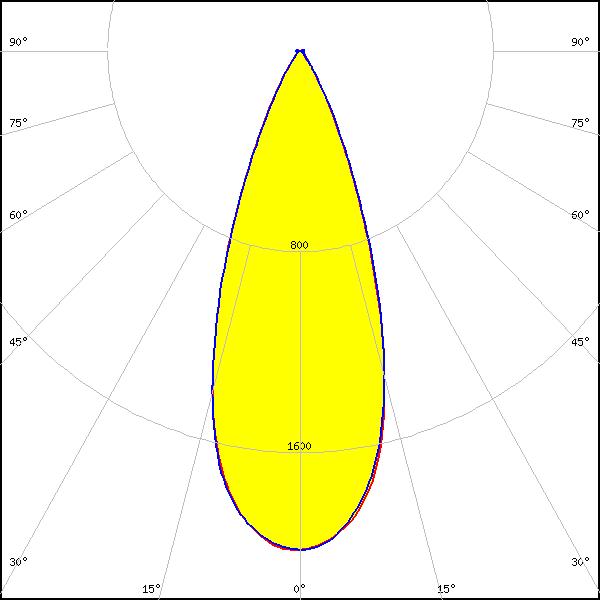

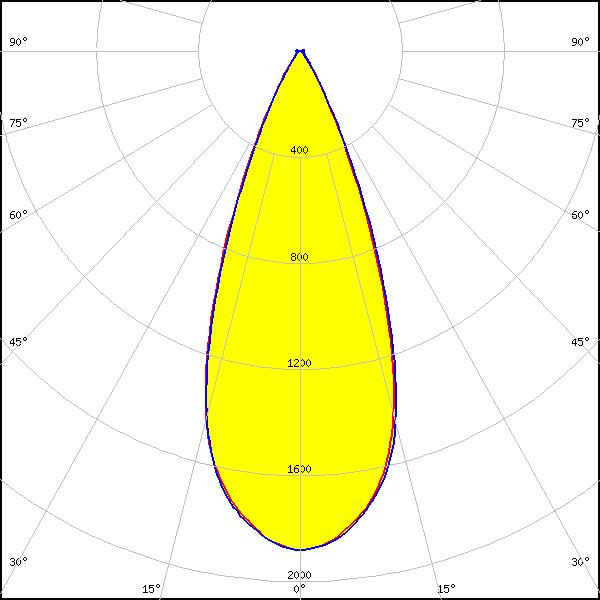

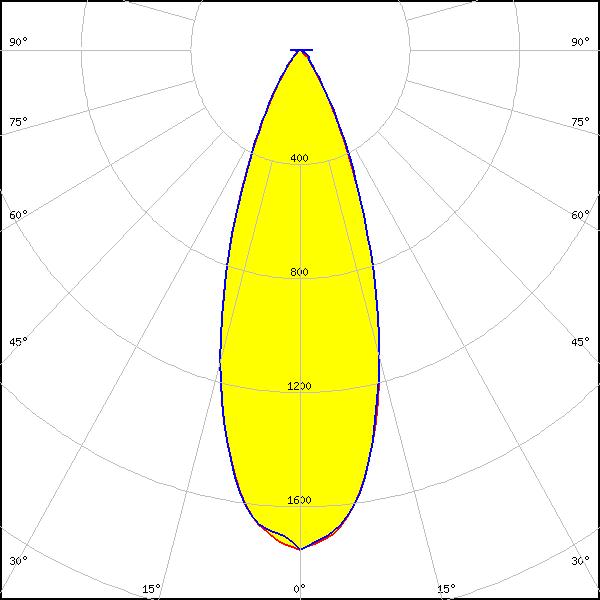

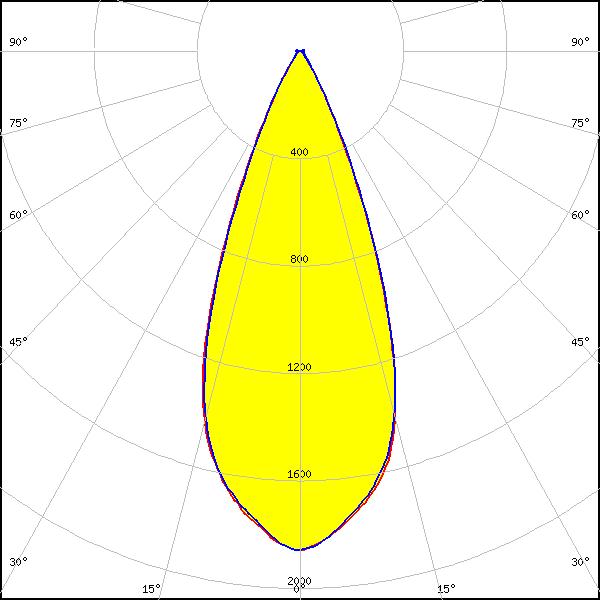

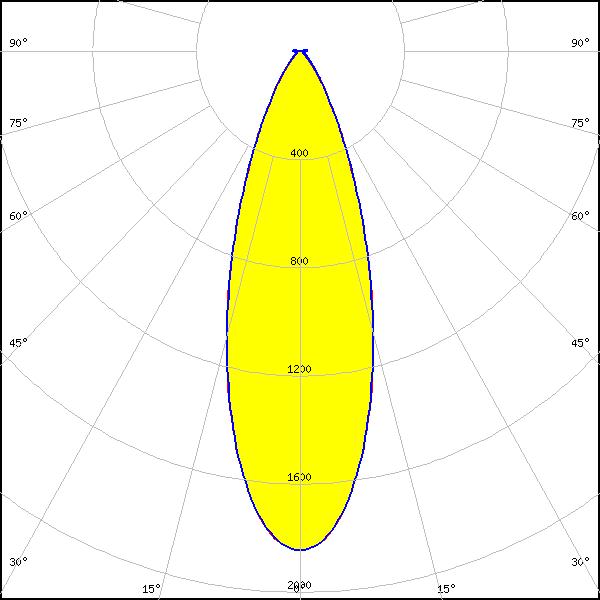

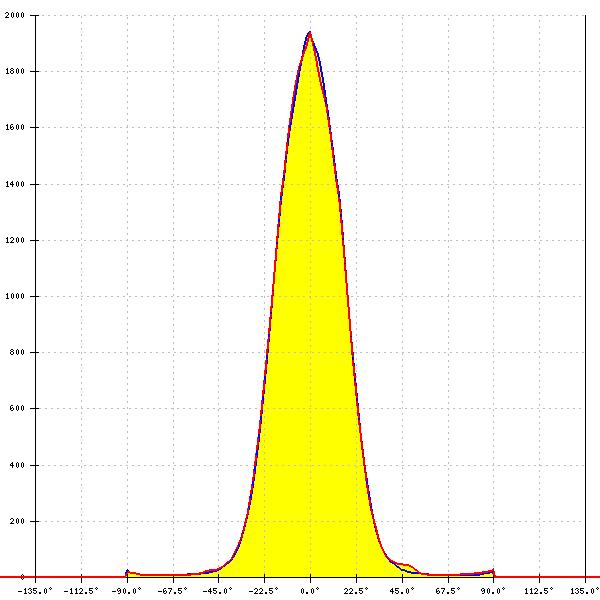

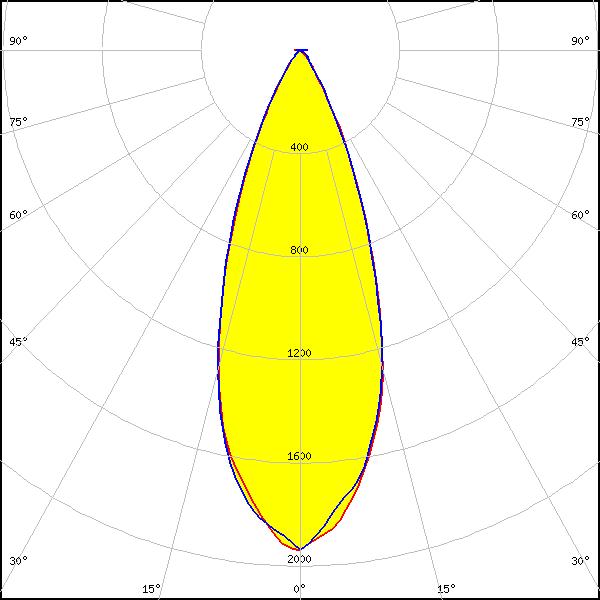

    Optical results

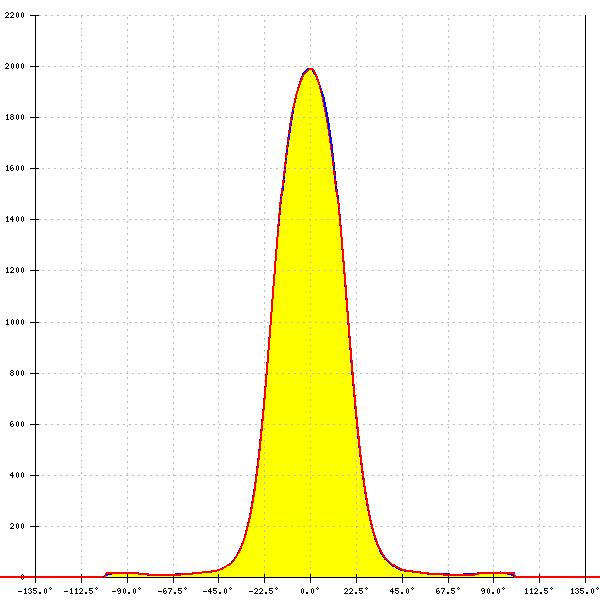

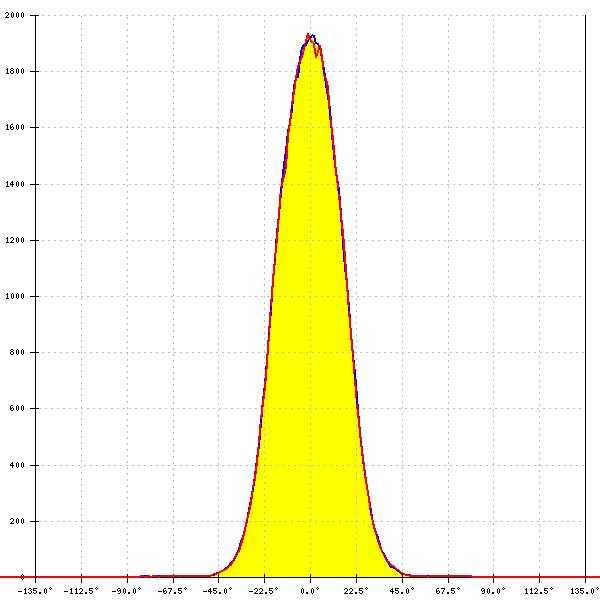

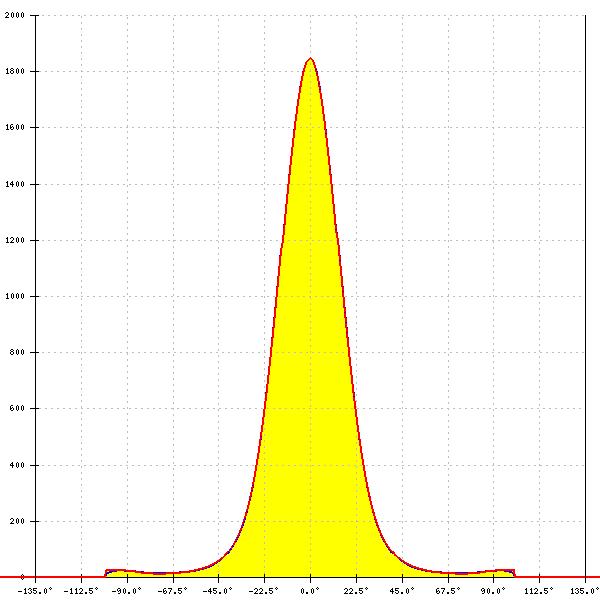

    LED: V11 HD Gen 8
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 35°
    FWTM: 67°
    Peak intensity: 1.847 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

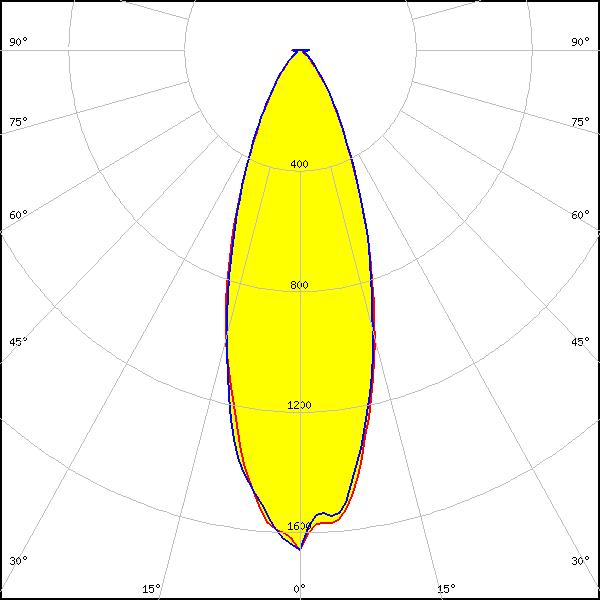

    LED: V13 Gen 8-9
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 36°
    FWTM: 72°
    Peak intensity: 1.686 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

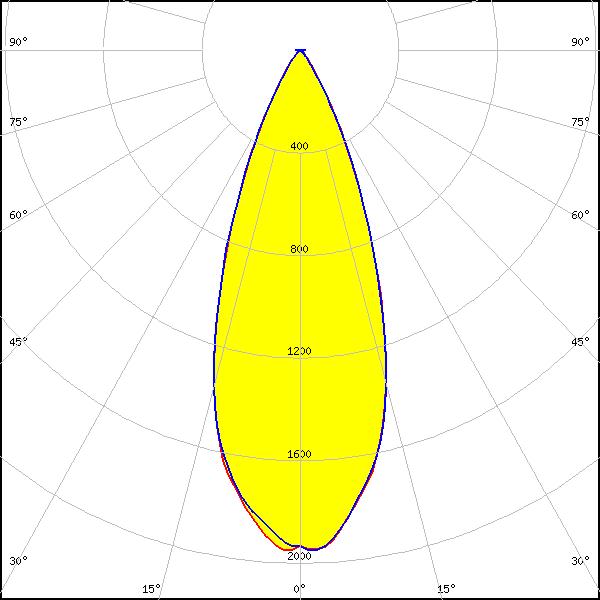

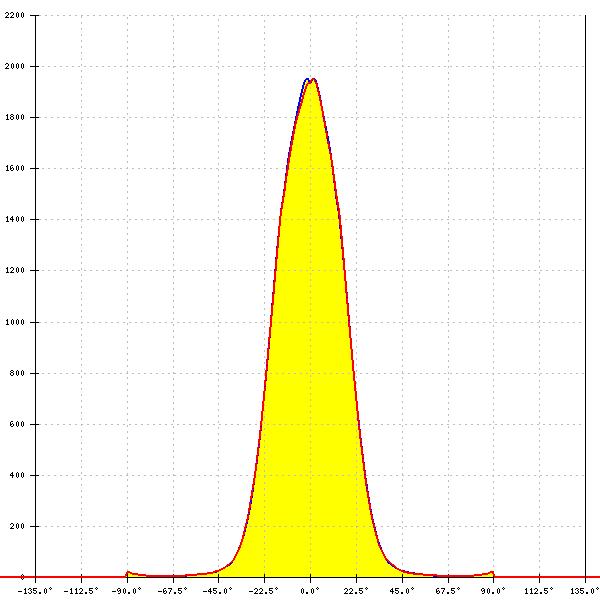

    LED: V4 HD Gen 7
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 38°
    FWTM: 64°
    Peak intensity: 1.983 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

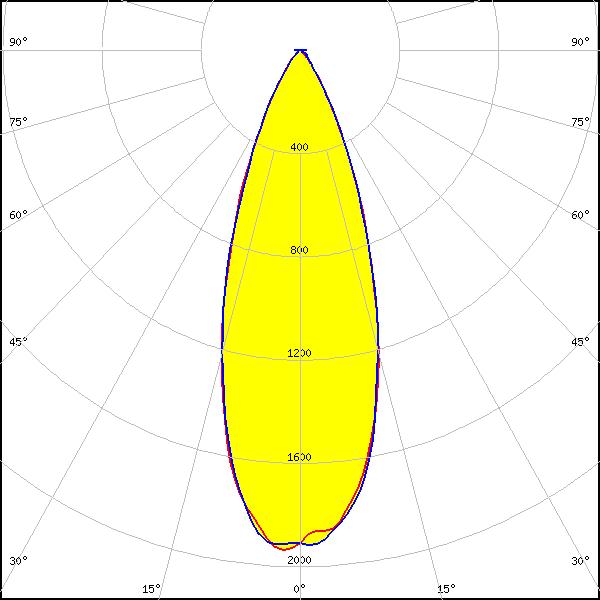

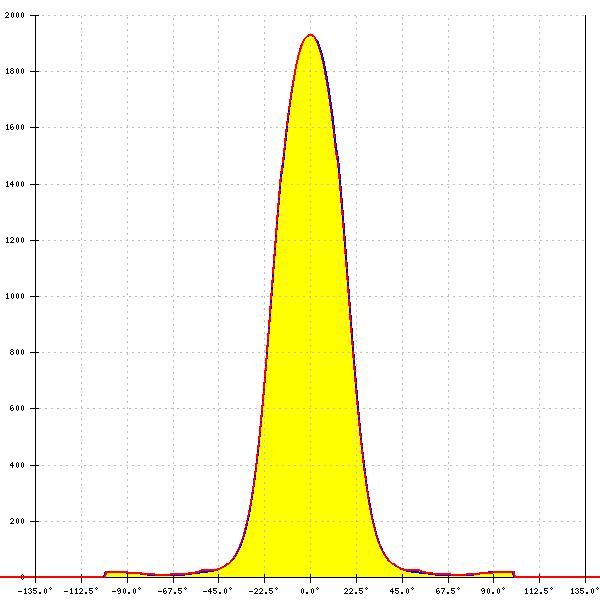

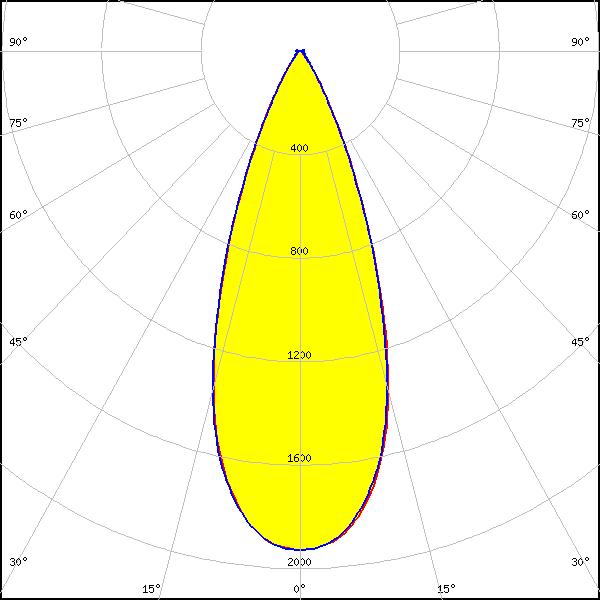

    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 39°
    FWTM: 62°
    Peak intensity: 1.930 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 38°
    FWTM: 62°
    Peak intensity: 1.925 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V9 HD Gen7
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 36°
    FWTM: 64°
    Peak intensity: 1.976 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

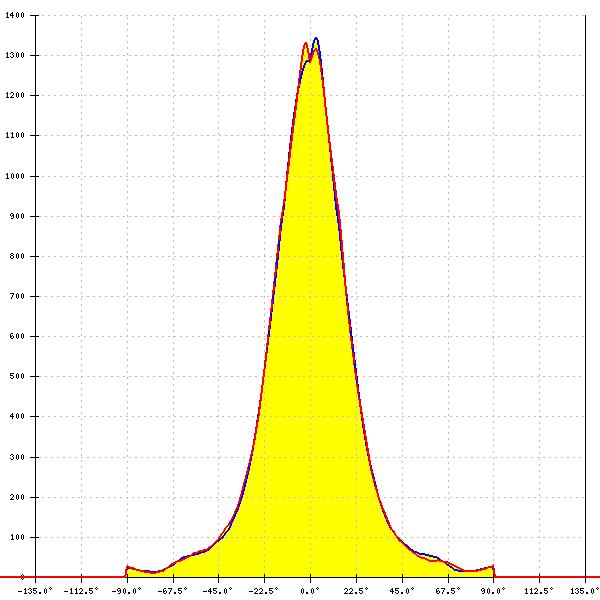

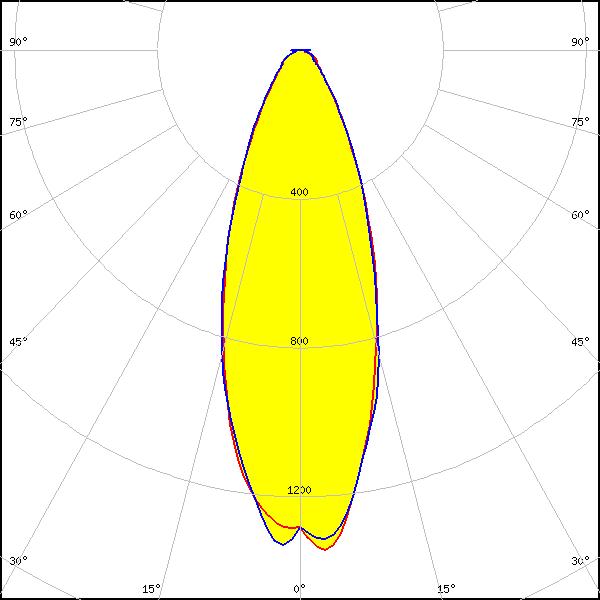

    LED: Vero SE 13
    LES size: 13.4 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 37°
    FWTM: 78°
    Peak intensity: 1.346 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

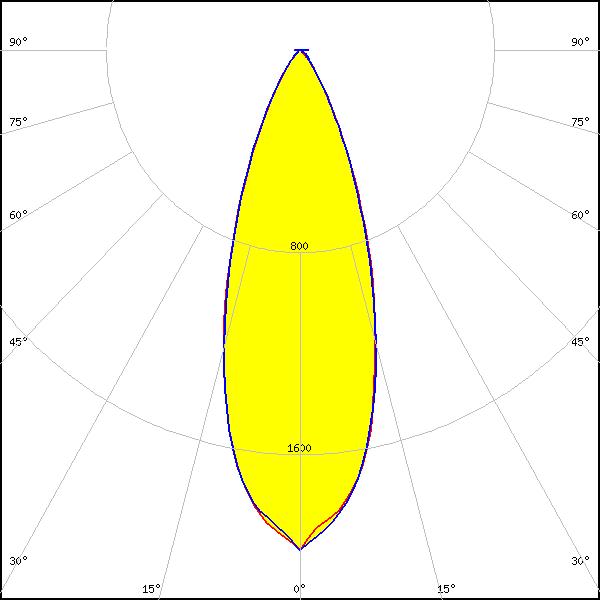

    LED: VERO10
    LES size: 9.9 mm
    Required components:
    F15616_HEKLA-SOCKET-F
    FWHM: 36°
    FWTM: 64°
    Peak intensity: 1.980 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

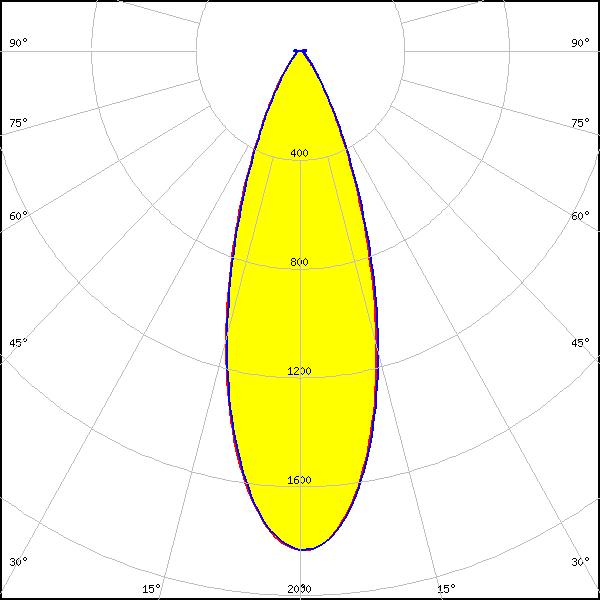

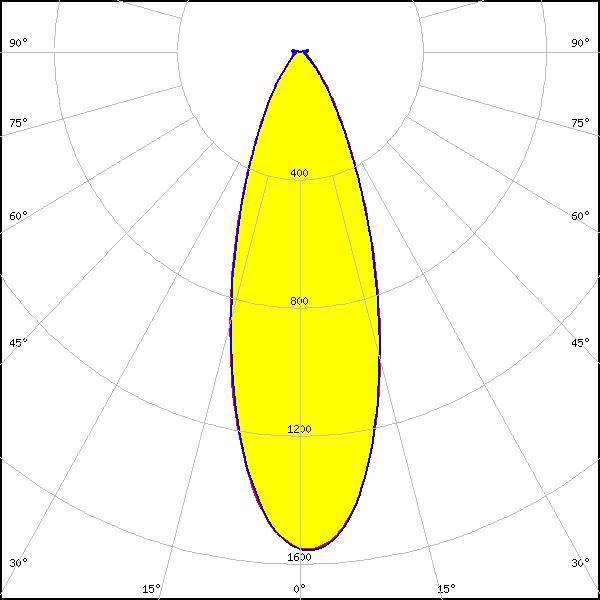

    LED: Vesta DTW 13mm (21W)
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: 35°
    FWTM: 72°
    Peak intensity: 1.559 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta DTW 9mm (4W/6W/12W)
    LES size: 9.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 490 Typ L8
    FWHM: 36°
    FWTM: 64°
    Peak intensity: 1.930 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 6mm DP
    LES size: 6.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 504 Typ L8
    FWHM: 39°
    FWTM: 63°
    Peak intensity: 1.786 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

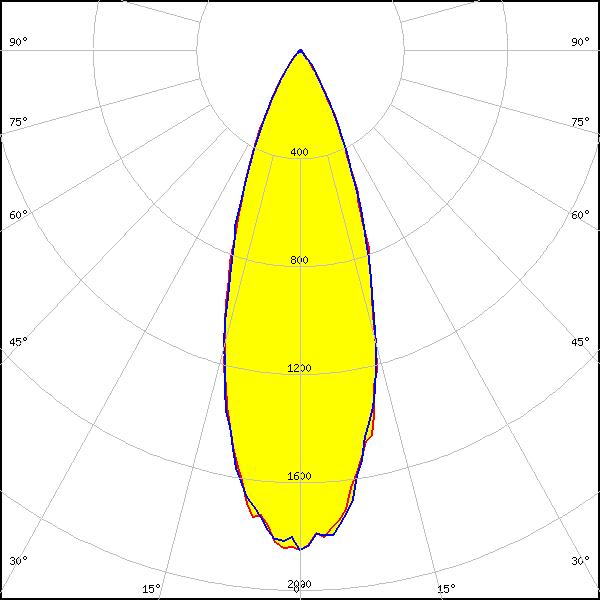

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 35°
    FWTM: 64°
    Peak intensity: 1.870 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 38°
    FWTM: 63°
    Peak intensity: 1.950 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

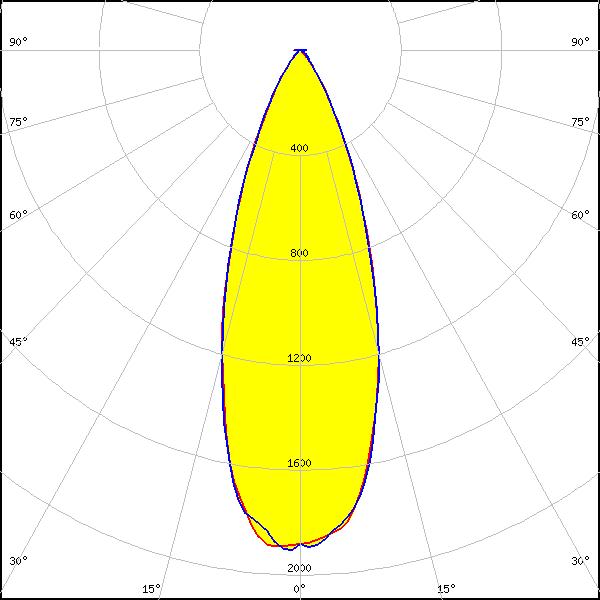

    LED: CLU712/713
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 36°
    FWTM: 66°
    Peak intensity: 1.982 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU7B2
    LES size: 3.3 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 41°
    FWTM: 61°
    Peak intensity: 1.859 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHA0304
    LES size: 3.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 38°
    FWTM: 62°
    Peak intensity: 2.019 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CHA0410
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 38°
    FWTM: 63°
    Peak intensity: 2.005 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

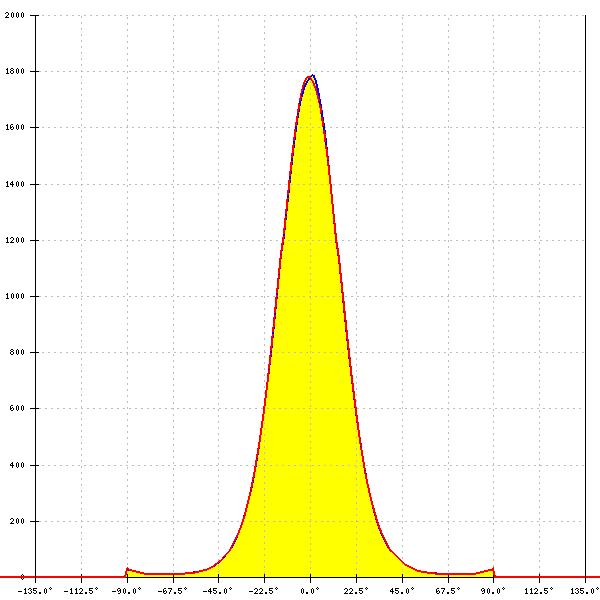

    LED: CMA1825
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 35°
    FWTM: 68°
    Peak intensity: 1.791 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

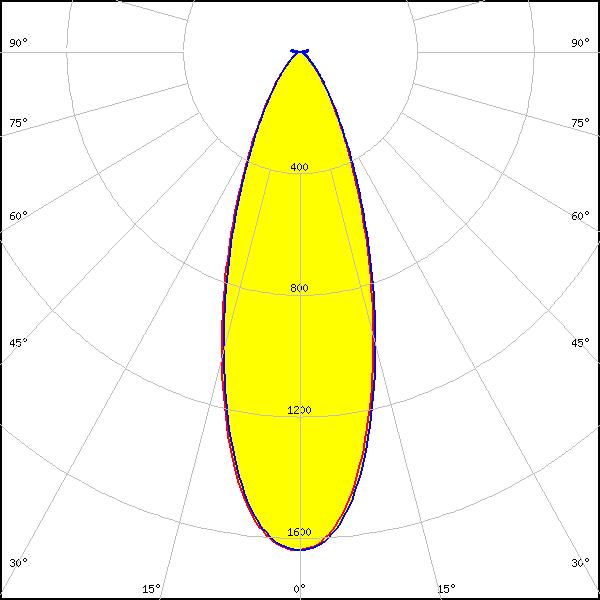

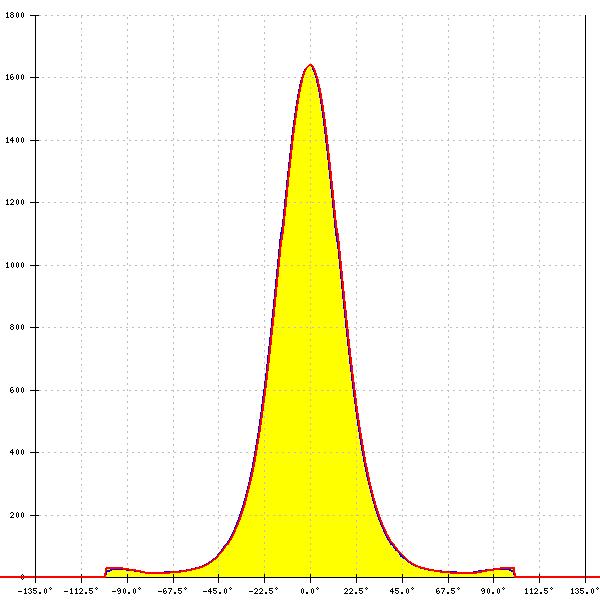

    LED: LUXEON CX Plus CoB L08 (Gen2)
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 36°
    FWTM: 72°
    Peak intensity: 1.639 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

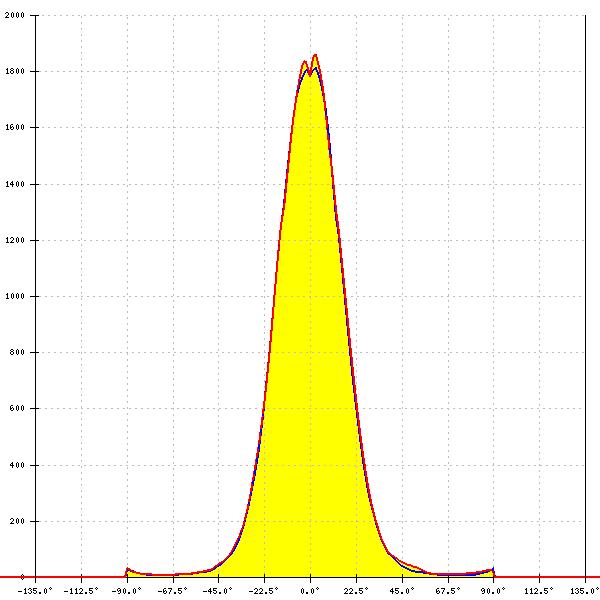

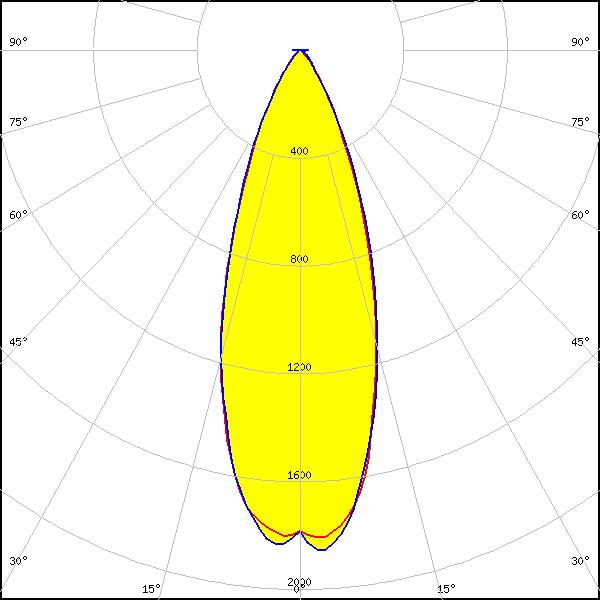

    LED: LUXEON CoB 1202/1203
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 36°
    FWTM: 66°
    Peak intensity: 1.920 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202s
    LES size: 6.5 mm
    FWHM: 36°
    FWTM: 64°
    Peak intensity: 2.090 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

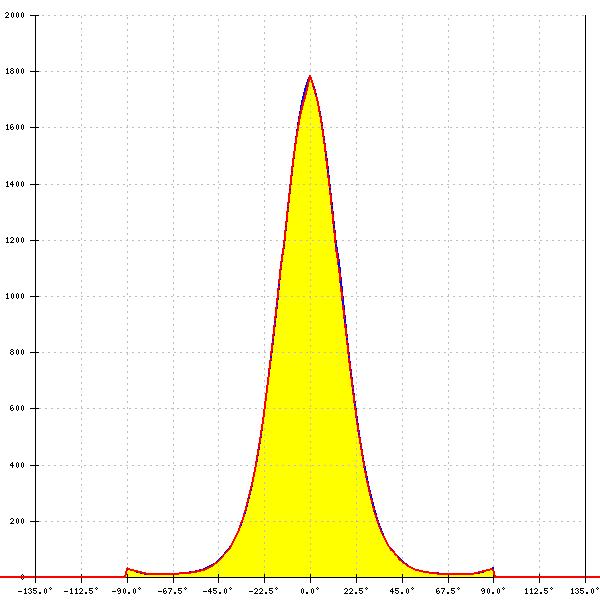

    LED: LUXEON CoB 1204/1205
    LES size: 13.0 mm
    FWHM: 35°
    FWTM: 69°
    Peak intensity: 1.790 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    FWHM: 32°
    FWTM: 62°
    Peak intensity: 2.149 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

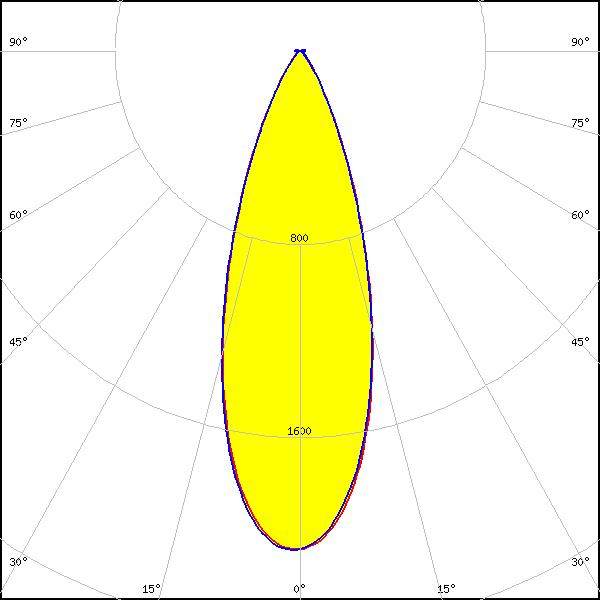

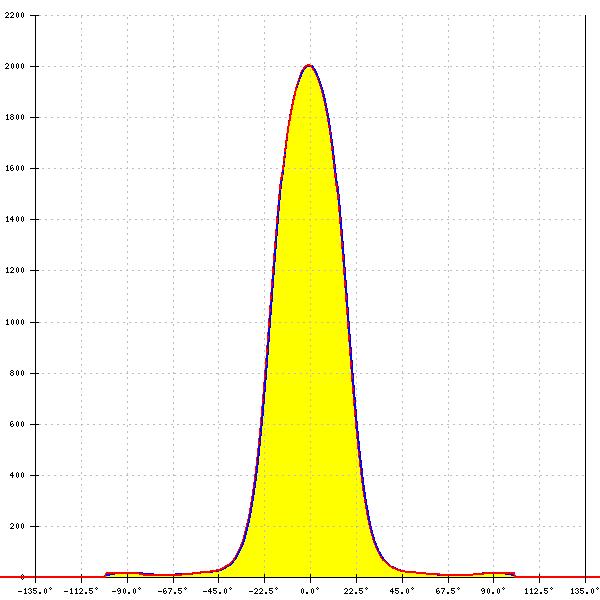

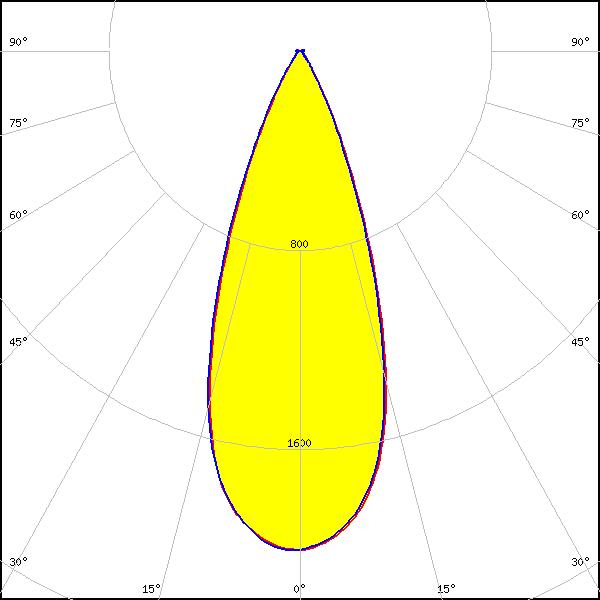

    LED: LUXEON CX Plus CoB - HD S01H4
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 39°
    FWTM: 61°
    Peak intensity: 2.004 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB - HD S02H6
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 38°
    FWTM: 61°
    Peak intensity: 1.990 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

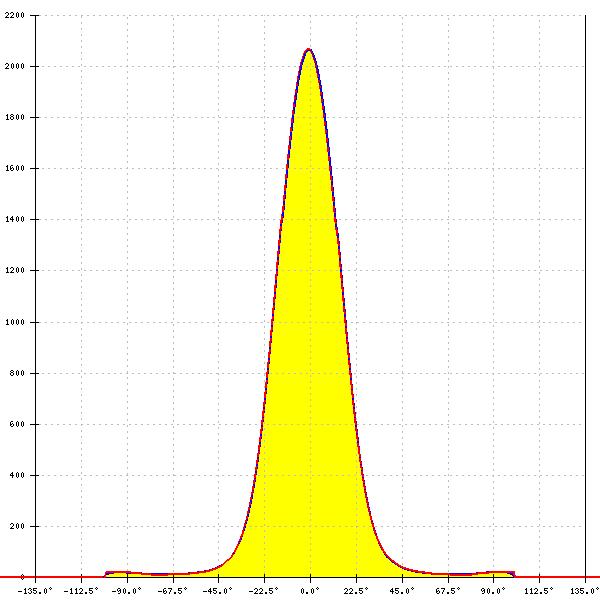

    LED: LUXEON CX Plus CoB - HD S04H9
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 35°
    FWTM: 63°
    Peak intensity: 2.068 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 34°
    FWTM: 66°
    Peak intensity: 1.923 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 641a Hekla
    FWHM: 35°
    FWTM: 63°
    Peak intensity: 2.047 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

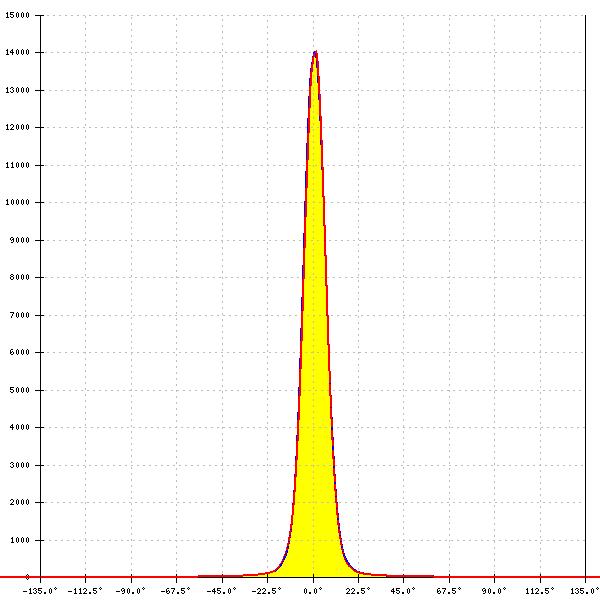

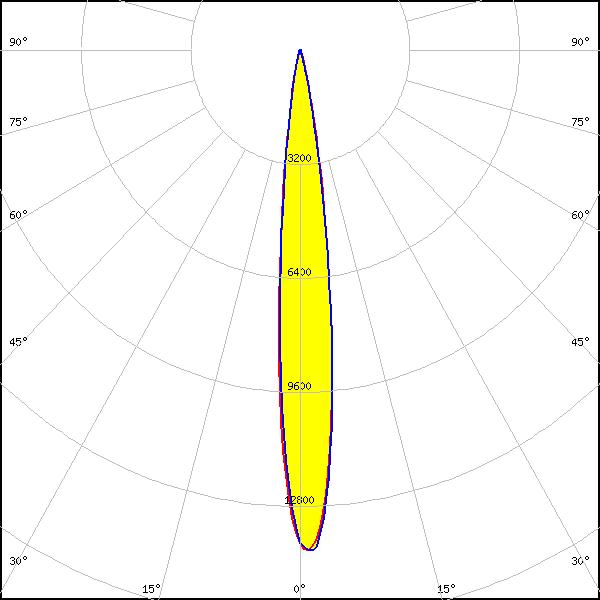

    LED: LUXEON CX Plus CoB S01 (Gen2)
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 14.348 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Fusion 21-up (20x24)
    LES size: 7.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 37°
    FWTM: 64°
    Peak intensity: 1.862 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 21
    Light colour/type: White

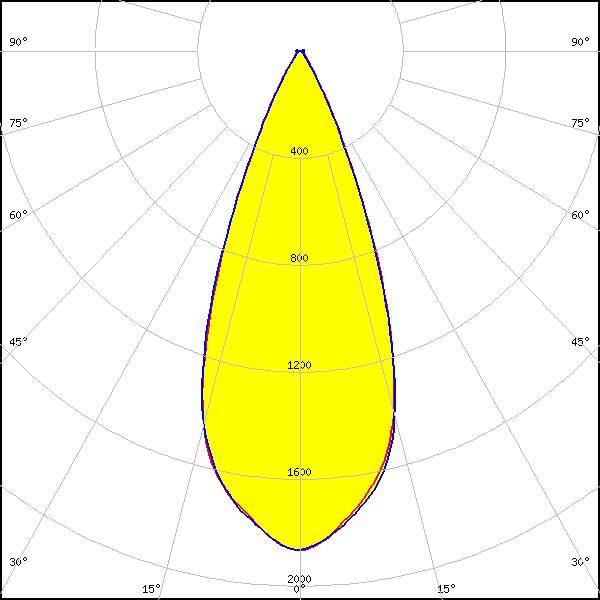

    LED: CXM-3
    LES size: 3.5 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 41°
    FWTM: 61°
    Peak intensity: 1.866 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXM-4
    LES size: 4.5 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 41°
    FWTM: 62°
    Peak intensity: 1.882 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    LES size: 6.7 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 36°
    FWTM: 64°
    Peak intensity: 1.910 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSWE11A
    LES size: 0.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 36°
    FWTM: 65°
    Peak intensity: 1.753 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 30
    Light colour/type: White

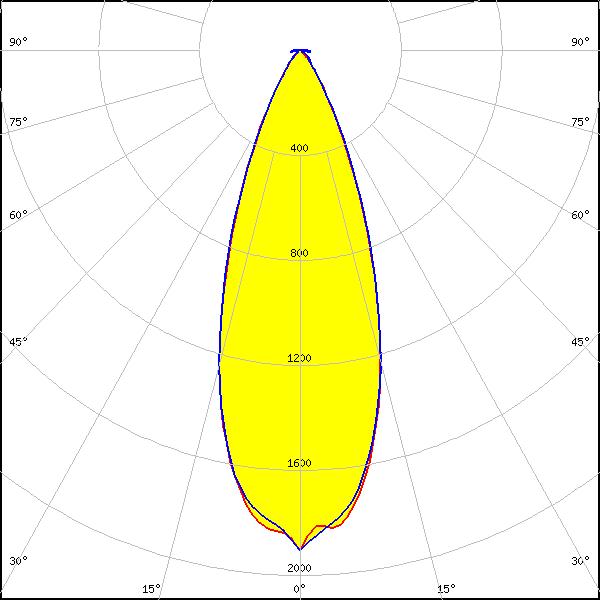

    LED: Duris S8
    LES size: 0.0 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 38°
    FWTM: 64°
    Peak intensity: 1.950 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

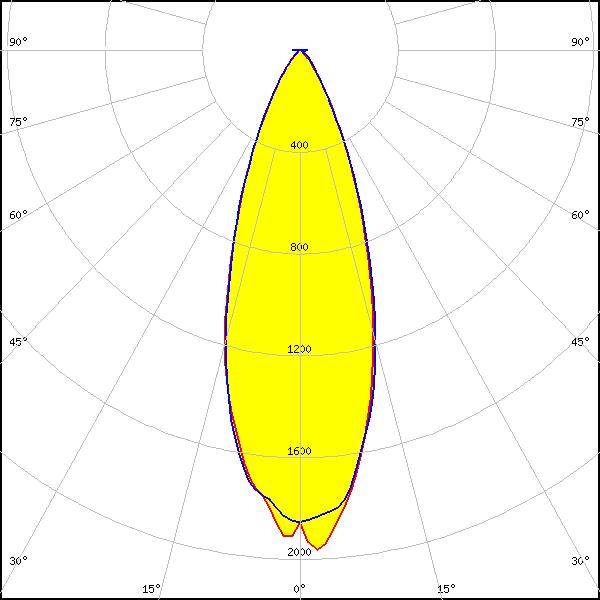

    LED: Fortimo SLM L09 CoB
    LES size: 9.0 mm
    Required components:

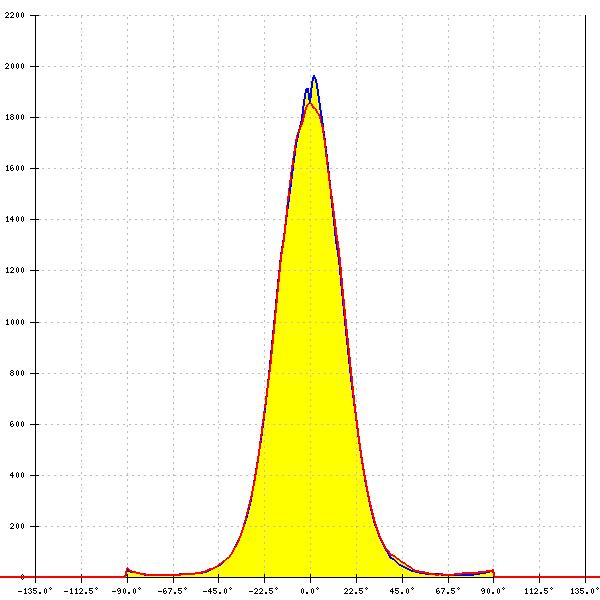

    F17437_HEKLA-G2-H
    FWHM: 35°
    FWTM: 66°
    Peak intensity: 1.968 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 35°
    FWTM: 70°
    Peak intensity: 1.734 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L15 CoB
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 37°
    FWTM: 74°
    Peak intensity: 1.569 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

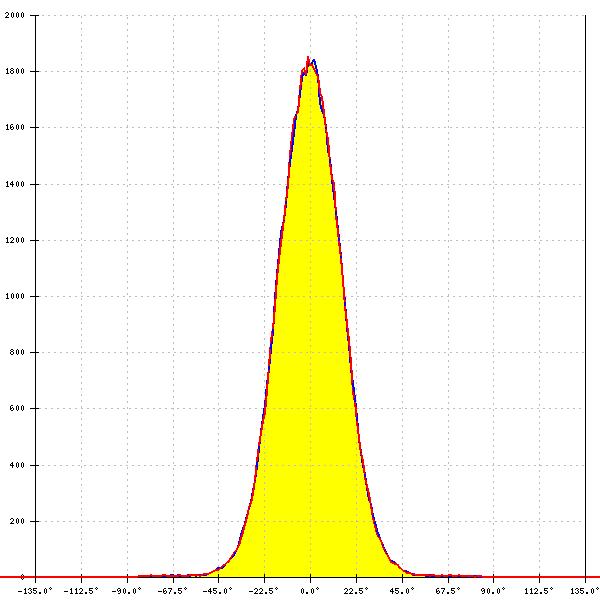

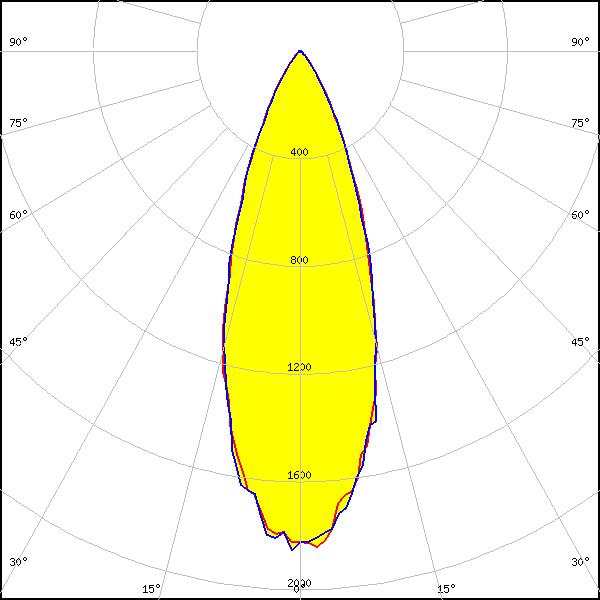

    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 35°
    FWTM: 64°
    Peak intensity: 1.860 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

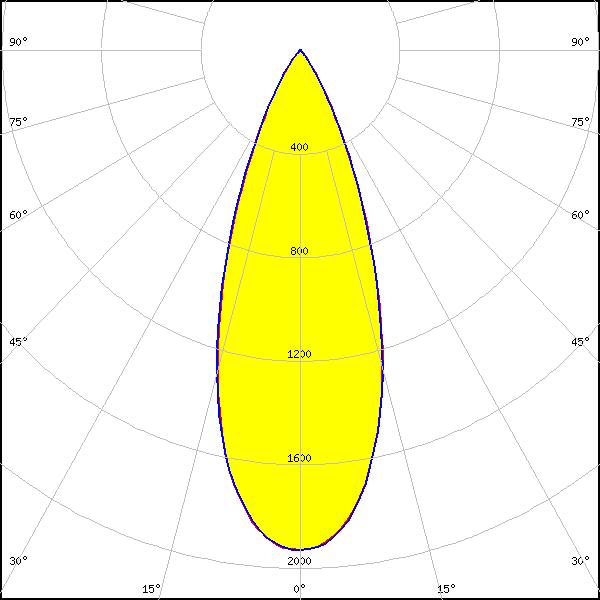

    LED: LC010C
    LES size: 6.0 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 38°
    FWTM: 64°
    Peak intensity: 1.930 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010T (Tunable White)
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 35°
    FWTM: 65°
    Peak intensity: 1.834 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC020C
    LES size: 8.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 34°
    FWTM: 62°
    Peak intensity: 2.166 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

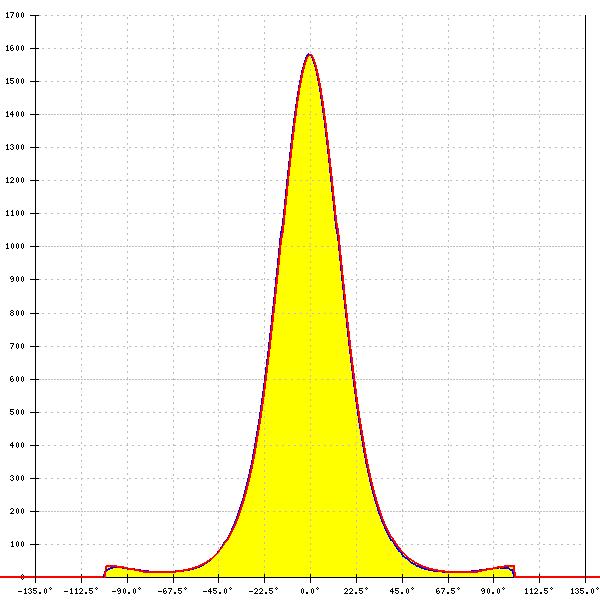

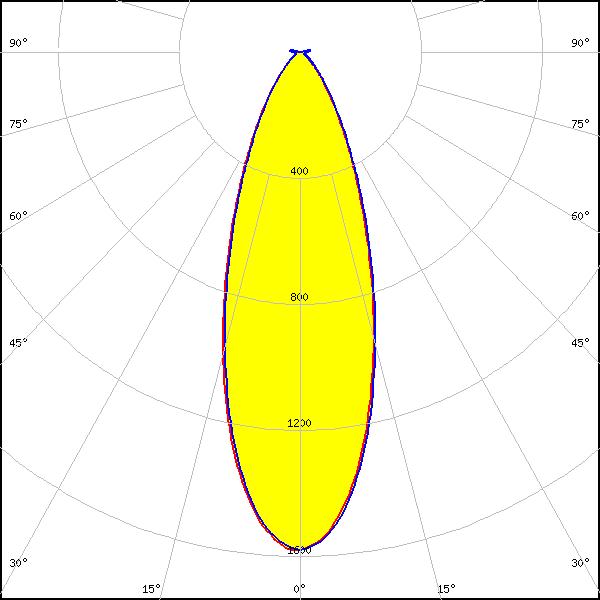

    LED: MJT COB LES 14.5
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 36°
    FWTM: 74°
    Peak intensity: 1.581 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

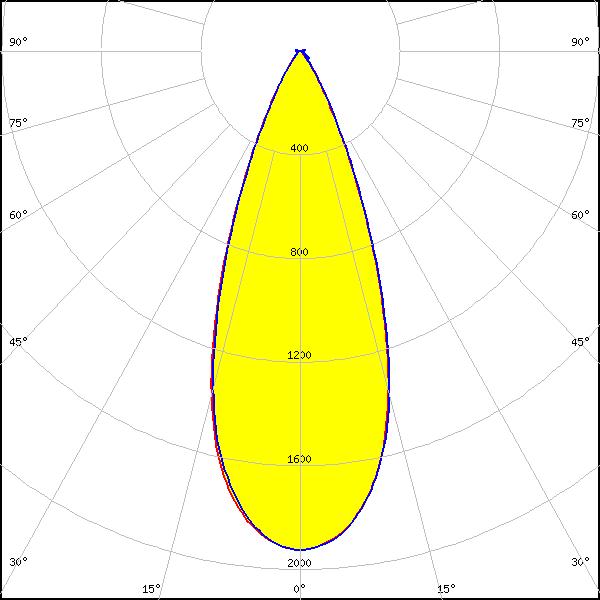

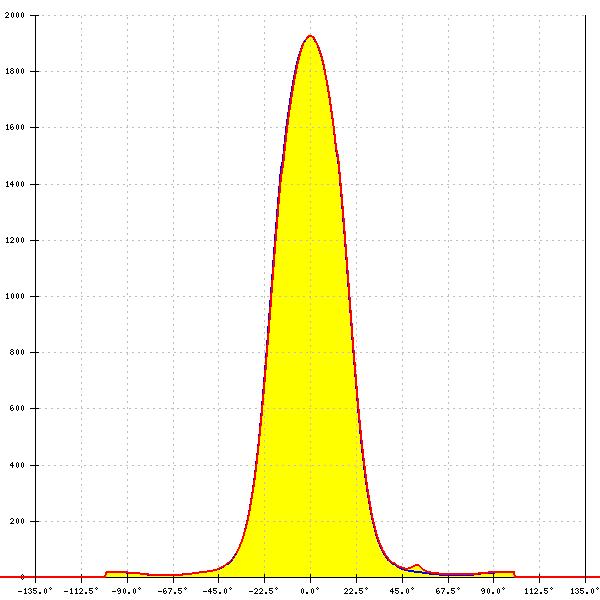

    LED: MJT COB LES 6
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 39°
    FWTM: 63°
    Peak intensity: 1.927 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

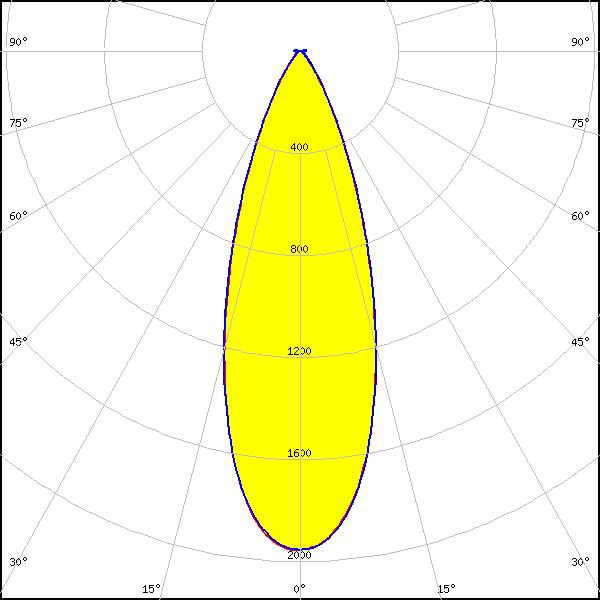

    LED: MJT COB LES 9.8
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 35°
    FWTM: 65°
    Peak intensity: 1.956 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

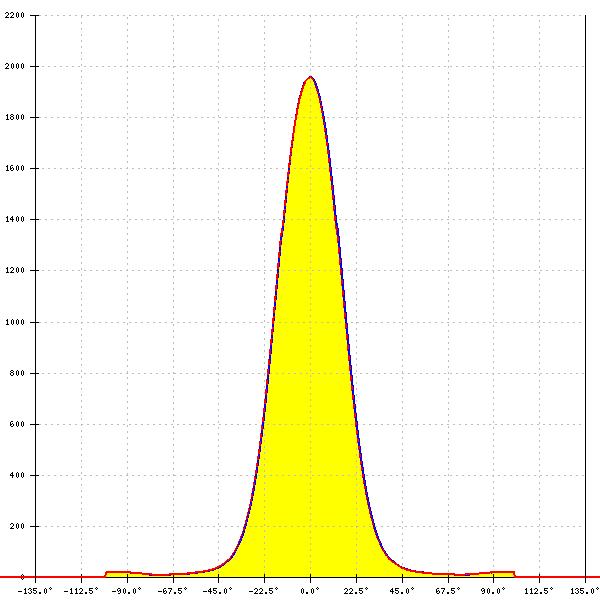

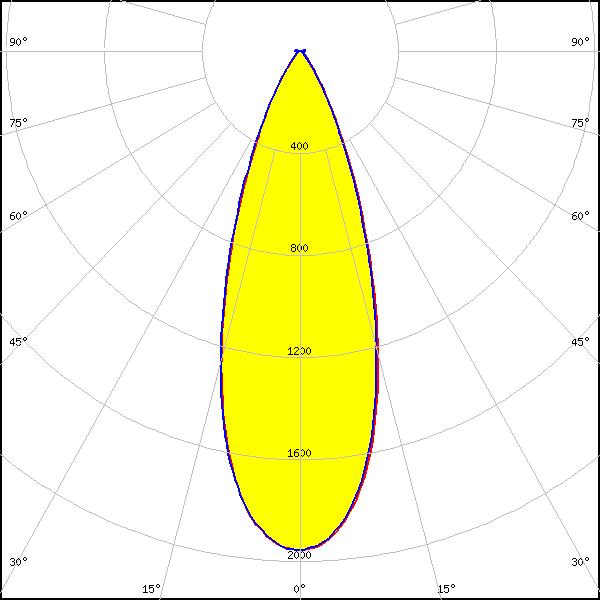

    LED: SLE G7 LES09
    LES size: 9.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 36°
    FWTM: 64°
    Peak intensity: 1.959 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

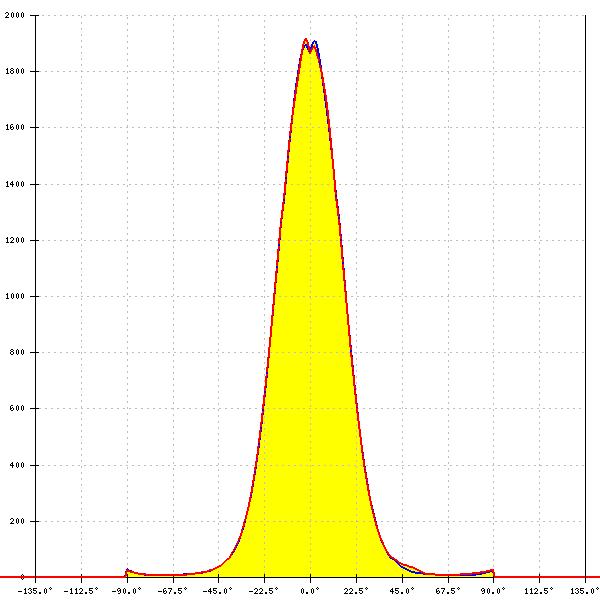

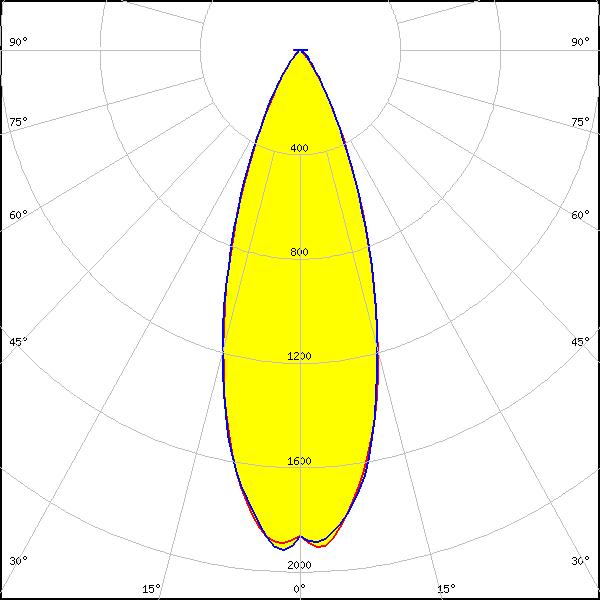

    LED: XOB 9.8 mm
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 36°
    FWTM: 65°
    Peak intensity: 1.930 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

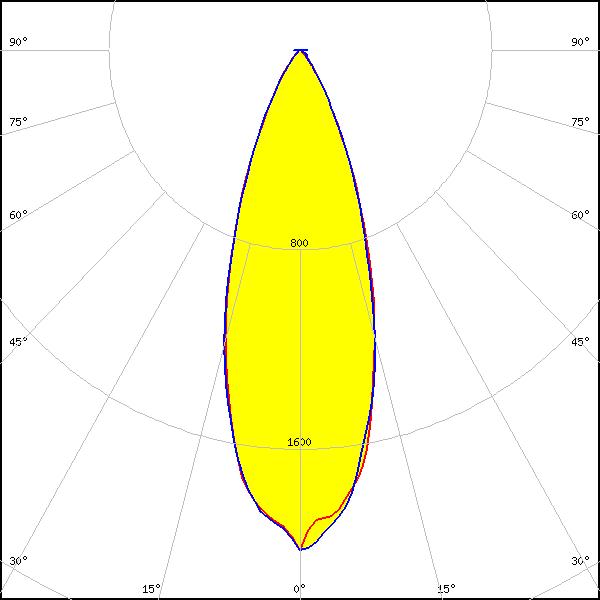

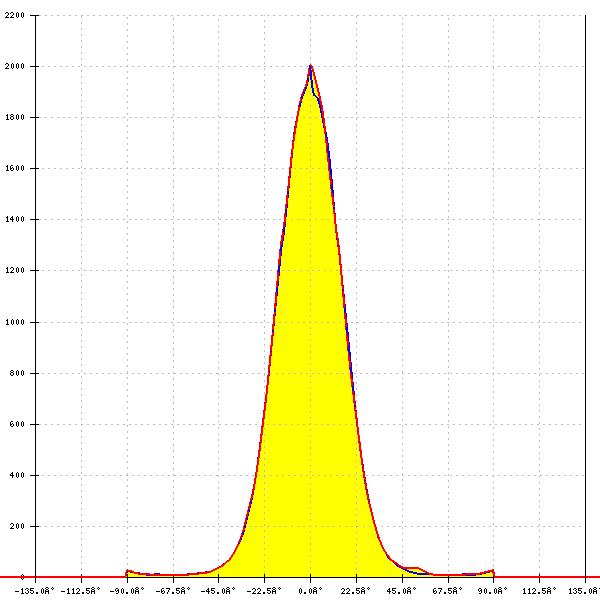

    LED: XTM - 9mm LES
    LES size: 9.0 mm
    Required components:
    C15743_XTM-ADAPTER-50-B
    FWHM: 35°
    FWTM: 64°
    Peak intensity: 2.009 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
