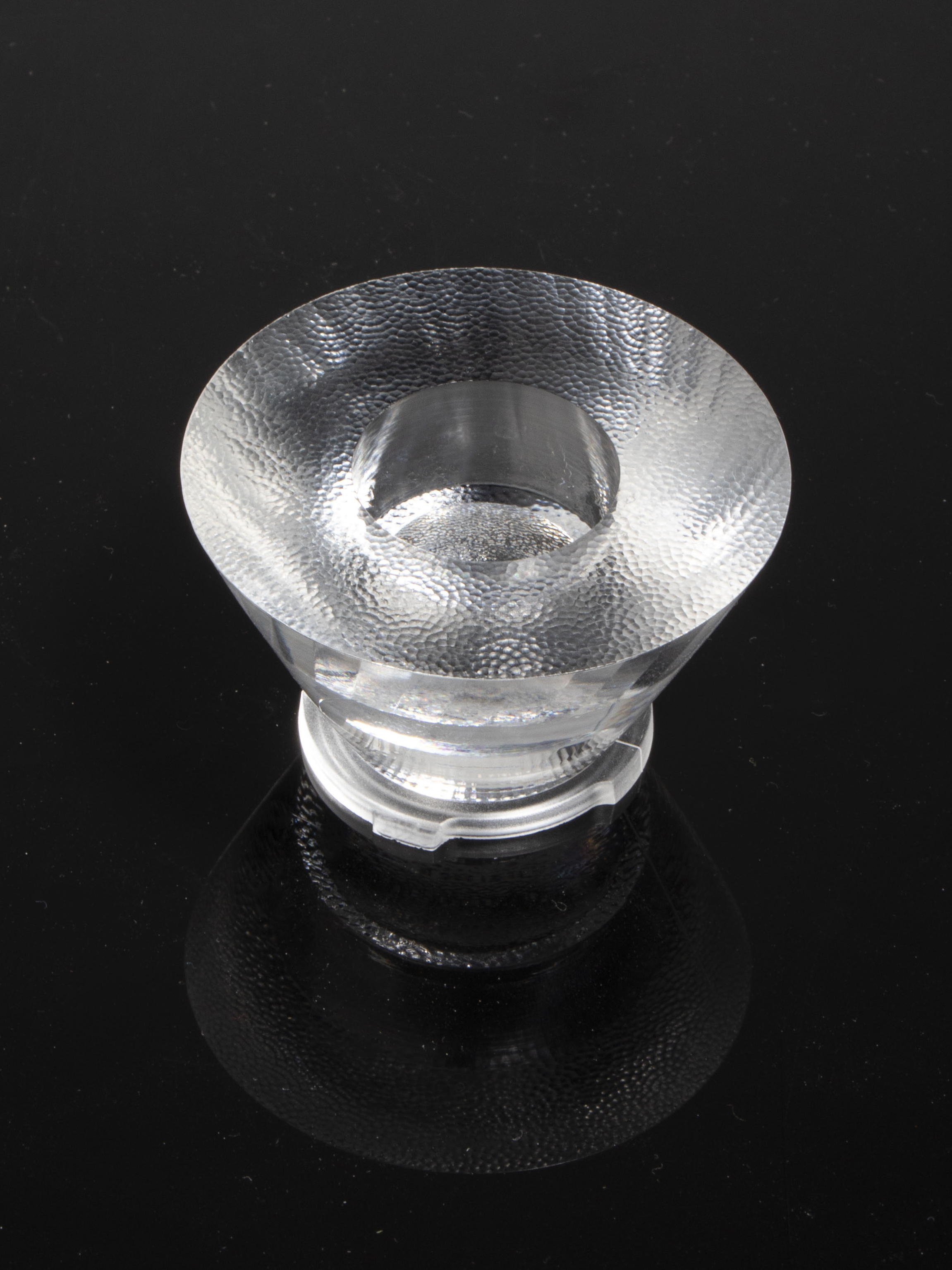

C16731_ILONA-SS

Print

~14° smooth spot beam

Specification
  • Dimensions:
    50 mm
  • Height:
    29.33 mm
  • Fastening:
    socket
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    264 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.7 kg
  • MPQ:
    33 pcs
  • MOQ:
    99 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    3.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16731_ILONA-SS

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

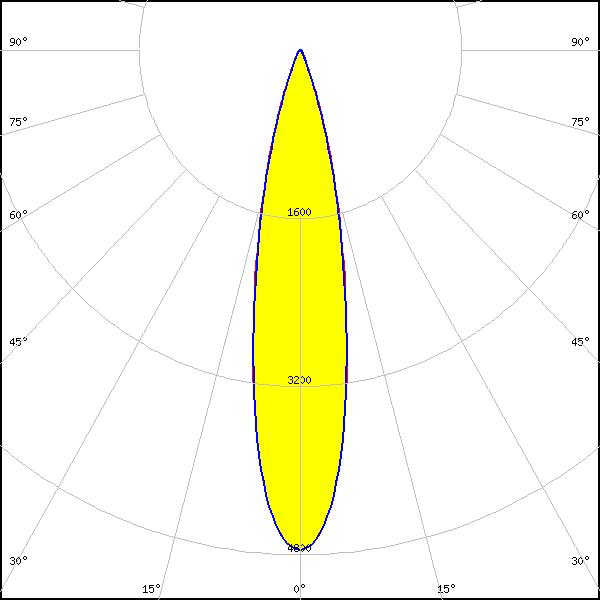

LED: V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: 22°
FWTM: 41°
Peak intensity: 4.759 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

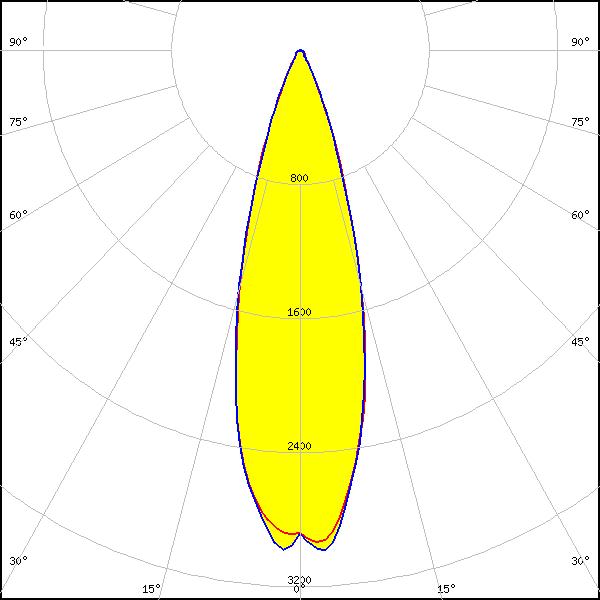

LED: V13 Gen 8
Required components:
FWHM: 30°
FWTM: 52°
Peak intensity: 3.009 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

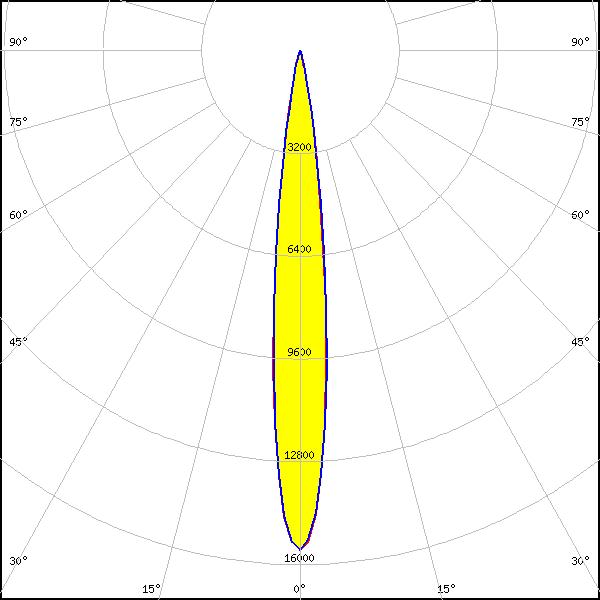

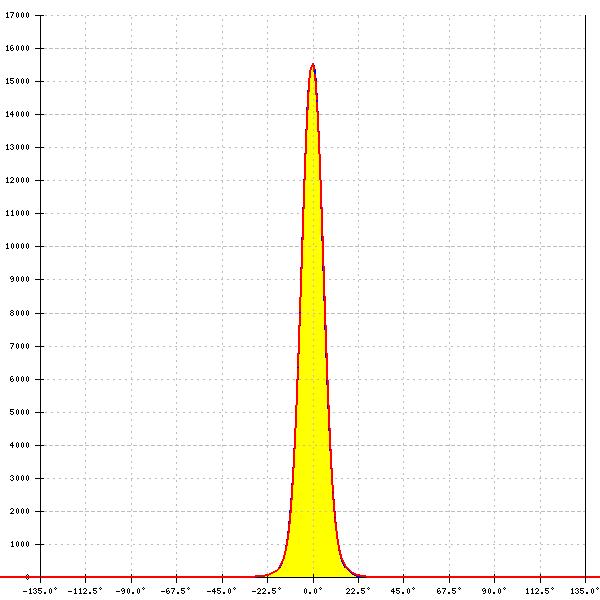

LED: V4 HD Gen 7
Required components:
FWHM: 12°
FWTM: 23°
Peak intensity: 15.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

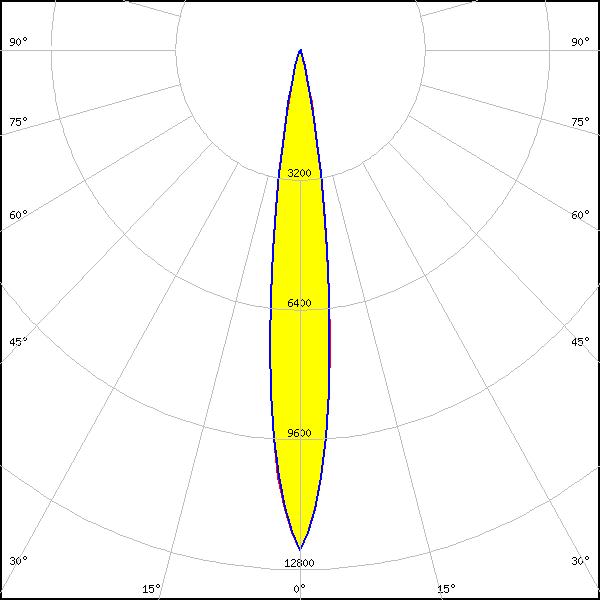

LED: V6 HD Gen 7
Required components:
FWHM: 14°
FWTM: 26°
Peak intensity: 12.326 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

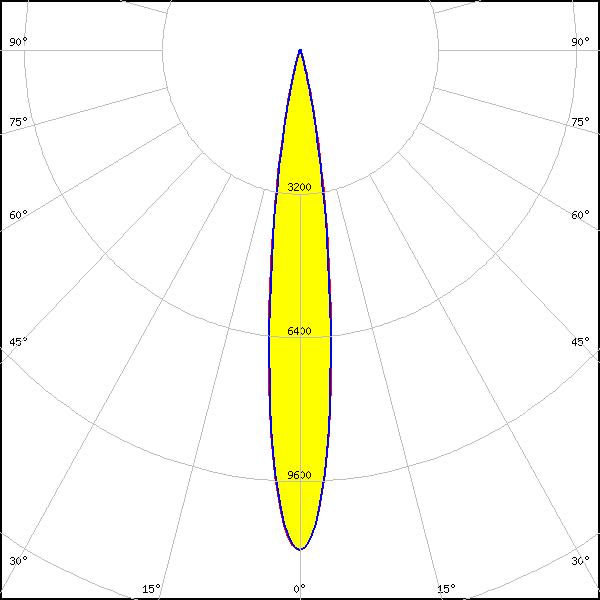

LED: V6 HD Gen 7
Required components:
Bender Wirth: 634c Hekla
FWHM: 15°
FWTM: 27°
Peak intensity: 11.134 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: V6 HD Gen 7
Required components:
FWHM: 15°
FWTM: 27°
Peak intensity: 11.370 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

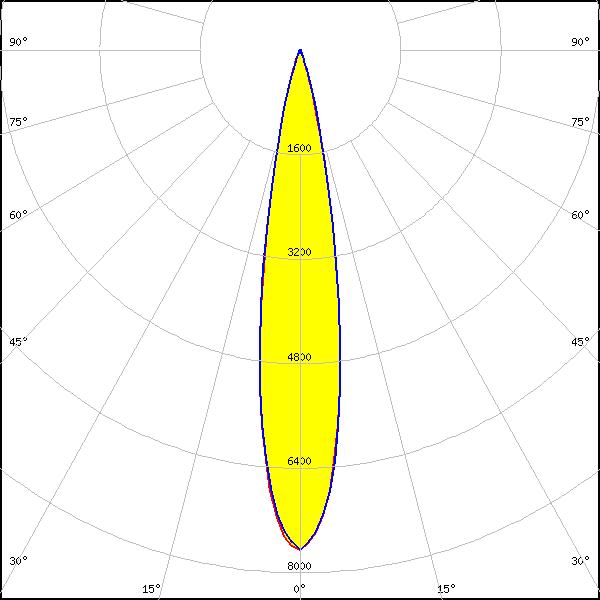

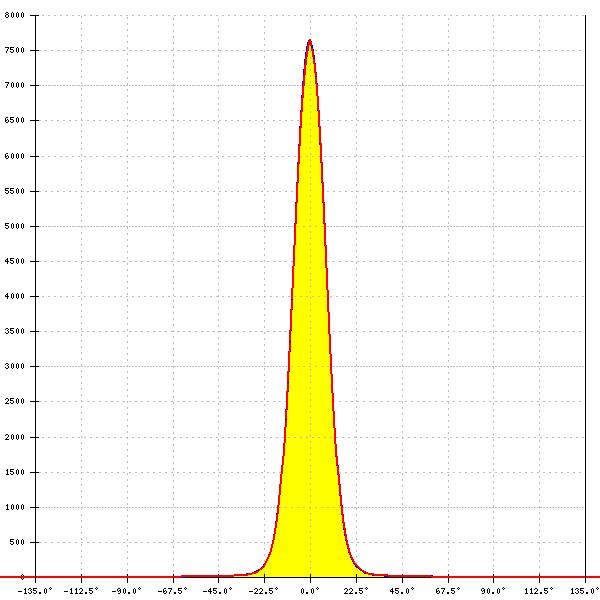

LED: V9 HD Gen7
Required components:
FWHM: 18°
FWTM: 32°
Peak intensity: 7.657 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Vero SE 10
FWHM: 18°
FWTM: 36°
Peak intensity: 6.739 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

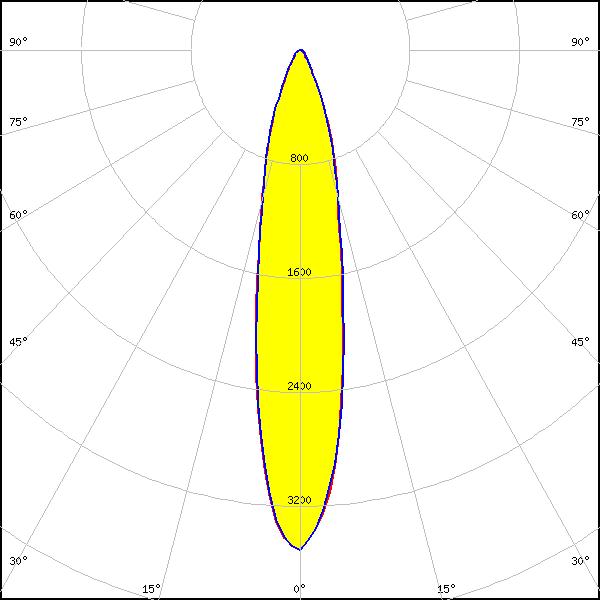

LED: Vero SE 13
Required components:
FWHM: 20°
FWTM: 50°
Peak intensity: 3.526 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

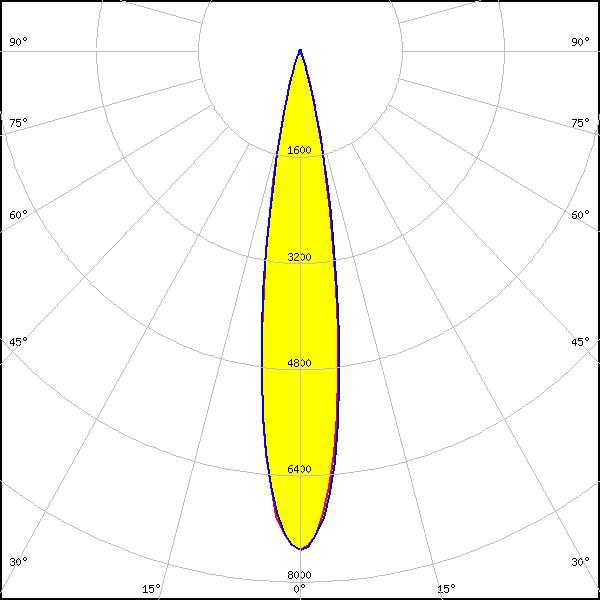

LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 18°
FWTM: 32°
Peak intensity: 7.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 18°
FWTM: 36°
Peak intensity: 6.539 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 14°
FWTM: 28°
Peak intensity: 10.265 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

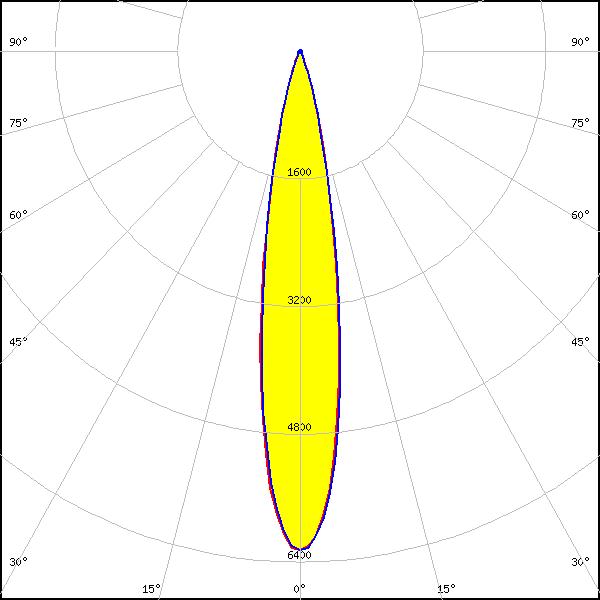

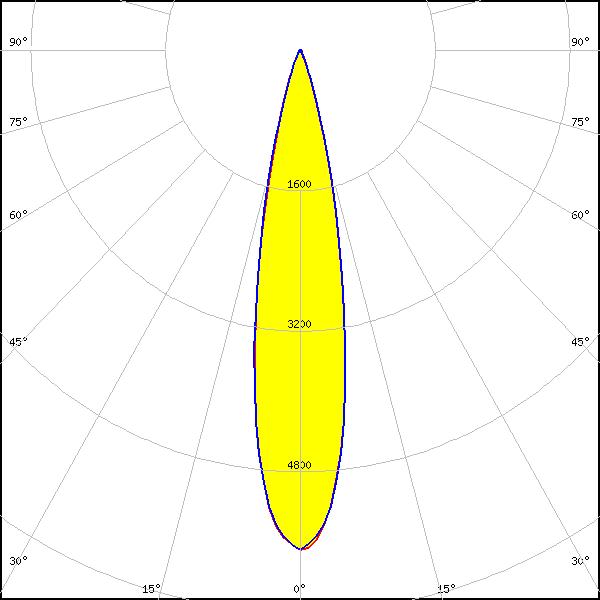

LED: Vesta TW 9mm (9W) DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 18°
FWTM: 35°
Peak intensity: 6.300 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 21°
FWTM: 35°
Peak intensity: 6.200 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

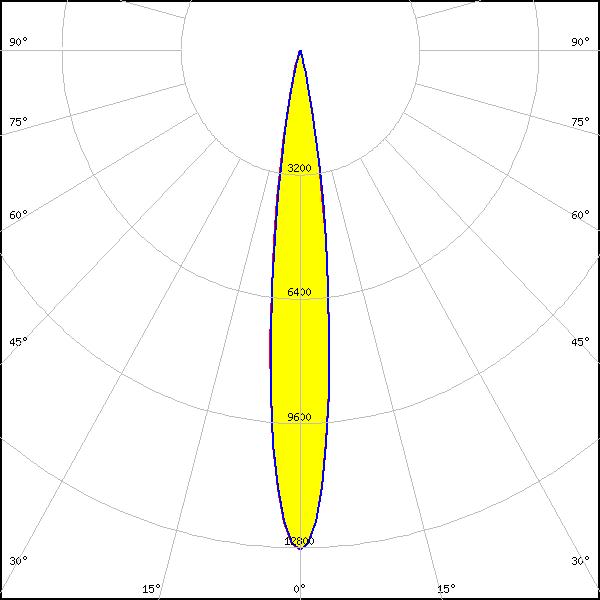

LED: CLU700/701/702/703
Required components:
FWHM: 14°
FWTM: 25°
Peak intensity: 12.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

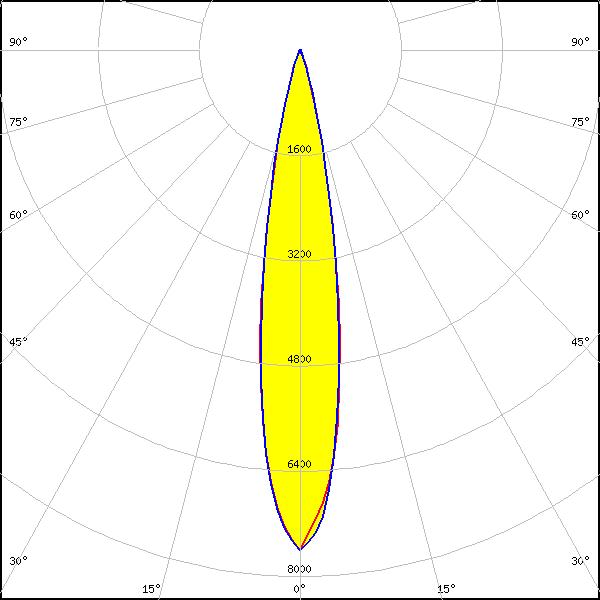

LED: CLU712/713
Required components:
FWHM: 18°
FWTM: 33°
Peak intensity: 7.605 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

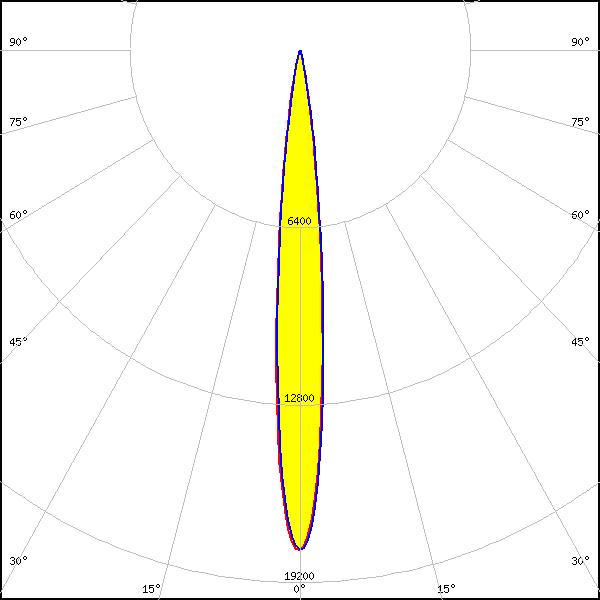

LED: CLU7A2/7A3
Required components:
FWHM: 11°
FWTM: 21°
Peak intensity: 18.040 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

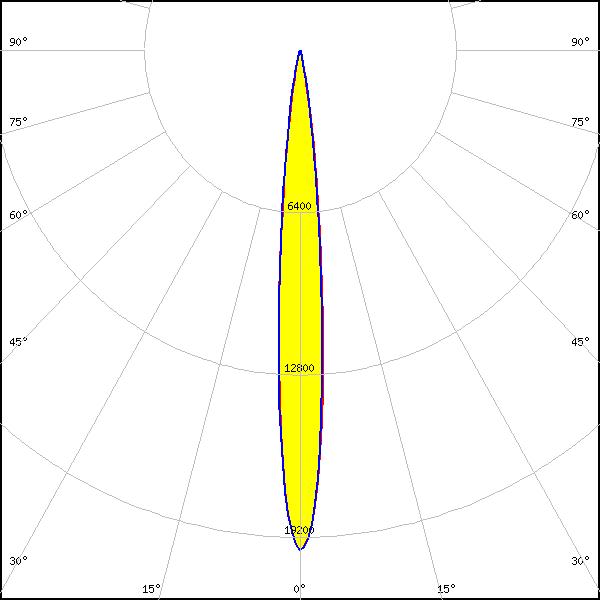

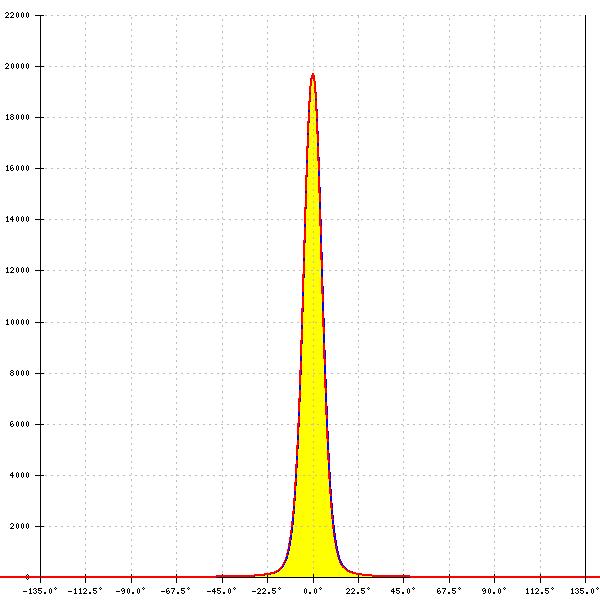

LED: CLU7B2
Required components:
FWHM: 10°
FWTM: 20°
Peak intensity: 19.714 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

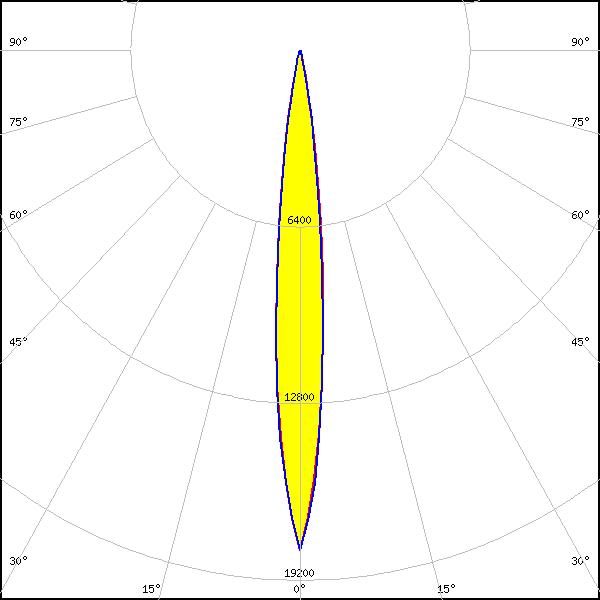

LED: CHA0304
Required components:
FWHM: 11°
FWTM: 22°
Peak intensity: 18.119 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

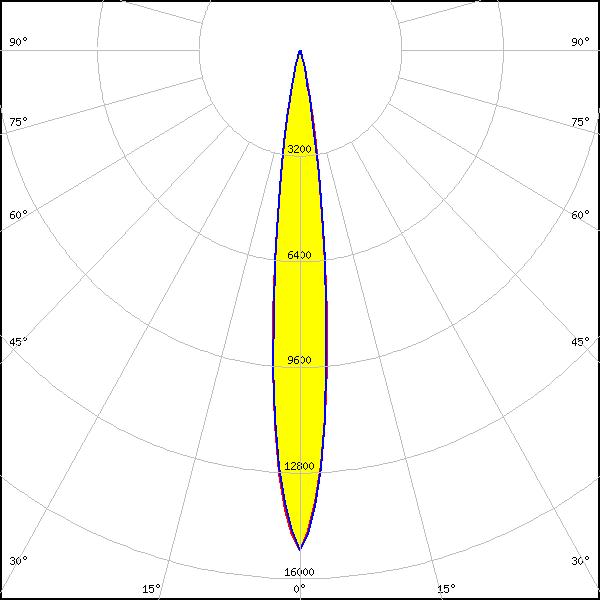

LED: CHA0410
Required components:
FWHM: 12°
FWTM: 24°
Peak intensity: 15.143 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

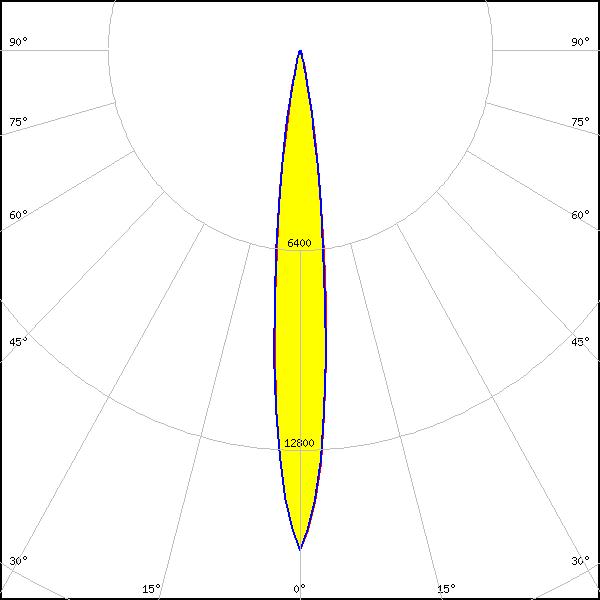

LED: CMA1303
Required components:
FWHM: 12°
FWTM: 24°
Peak intensity: 16.001 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

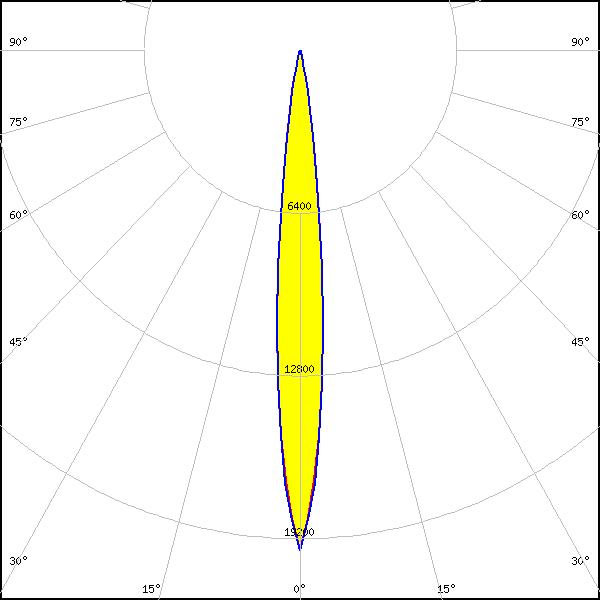

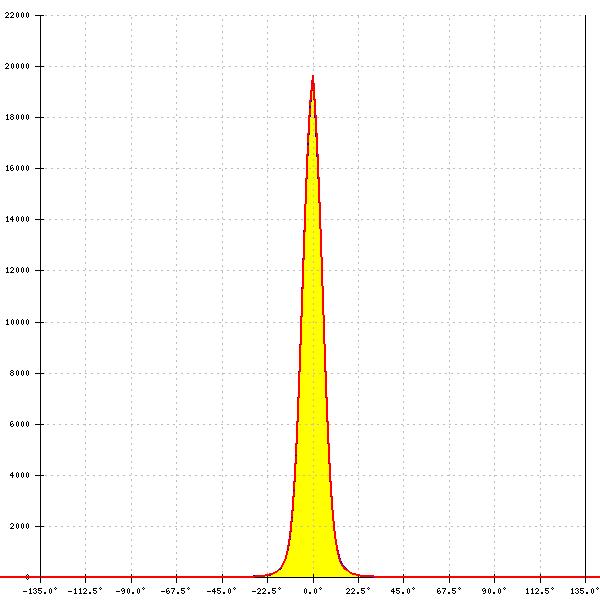

LED: LZ4-00XX08
Required components:
FWHM: 10°
FWTM: 22°
Peak intensity: 19.659 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

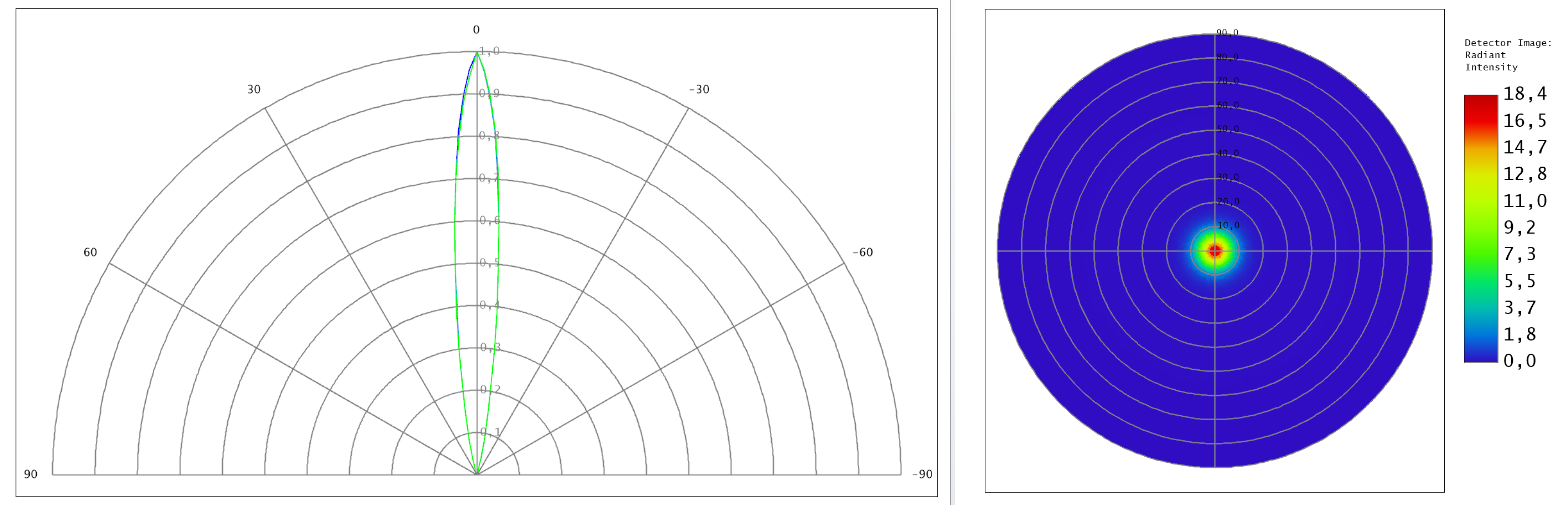

LED: LZ4-00XX08
Required components:
FWHM: 12°
FWTM: 23°
Efficiency: 96 %
LEDs/each optic: 1
Light colour: IR

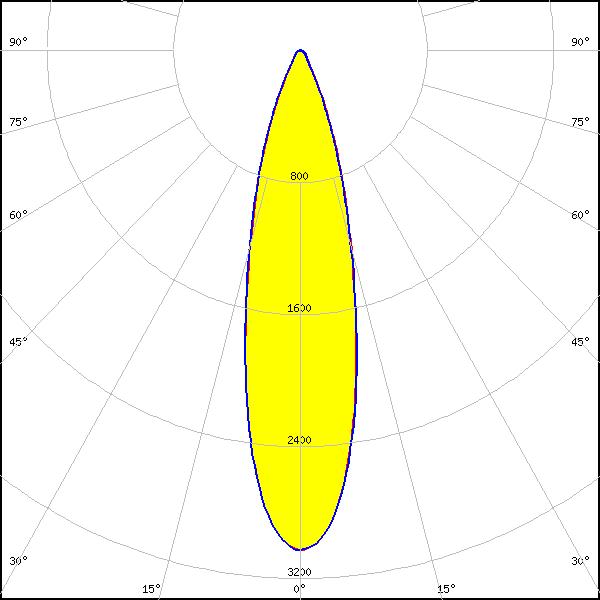

LED: LUXEON CX Plus CoB L08 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 26°
FWTM: 52°
Peak intensity: 3.029 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

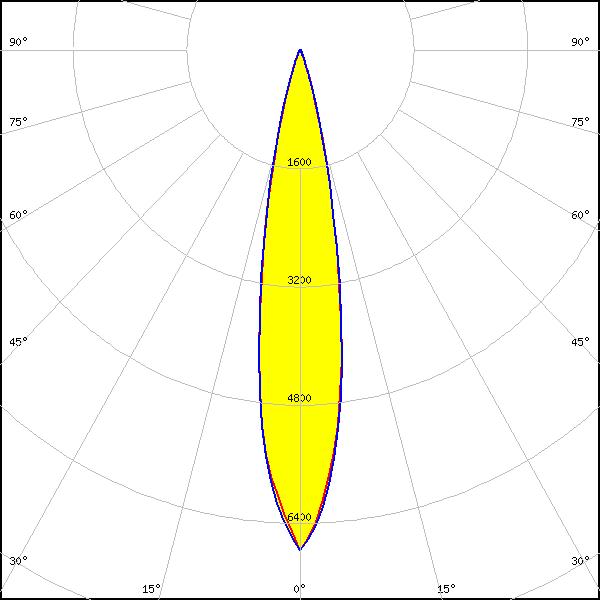

LED: LUXEON CoB 1202/1203
Required components:
FWHM: 19°
FWTM: 35°
Peak intensity: 6.764 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

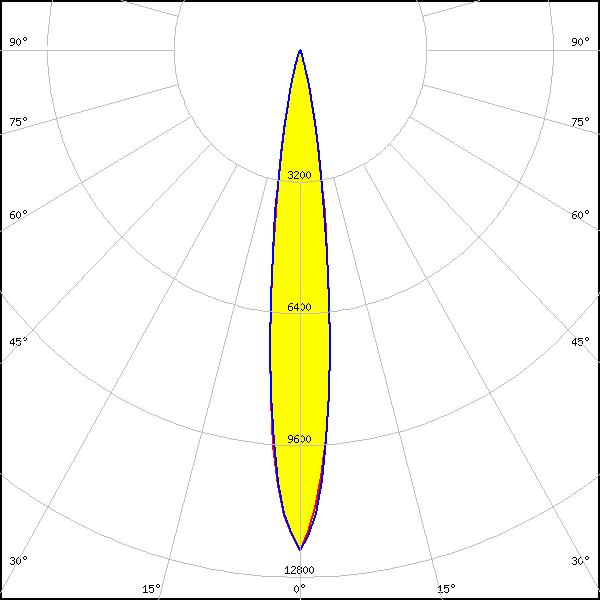

LED: LUXEON CoB 1202s
Required components:
FWHM: 14°
FWTM: 26°
Peak intensity: 12.149 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

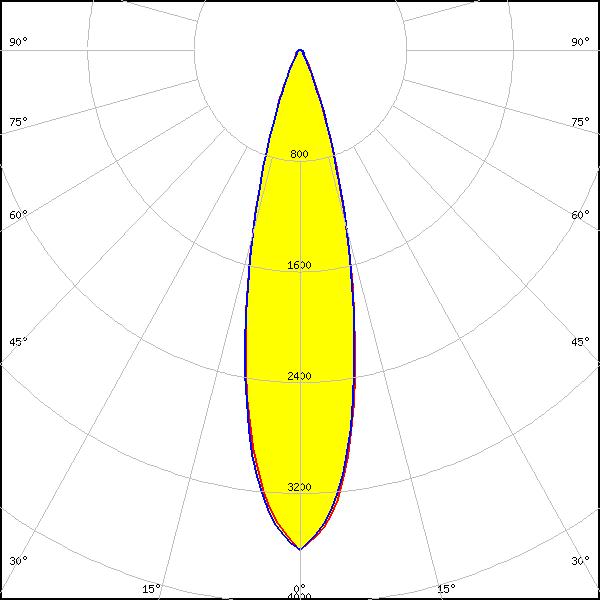

LED: LUXEON CoB 1204/1205
FWHM: 26°
FWTM: 47°
Peak intensity: 3.611 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

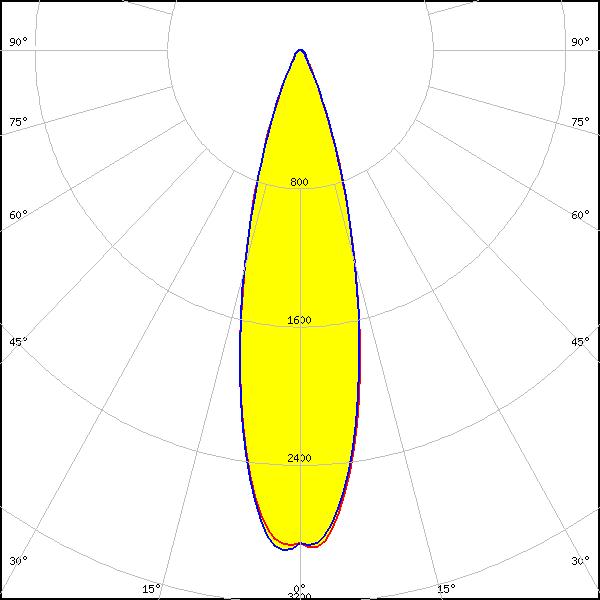

LED: LUXEON CoB 1208
FWHM: 28°
FWTM: 52°
Peak intensity: 2.903 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

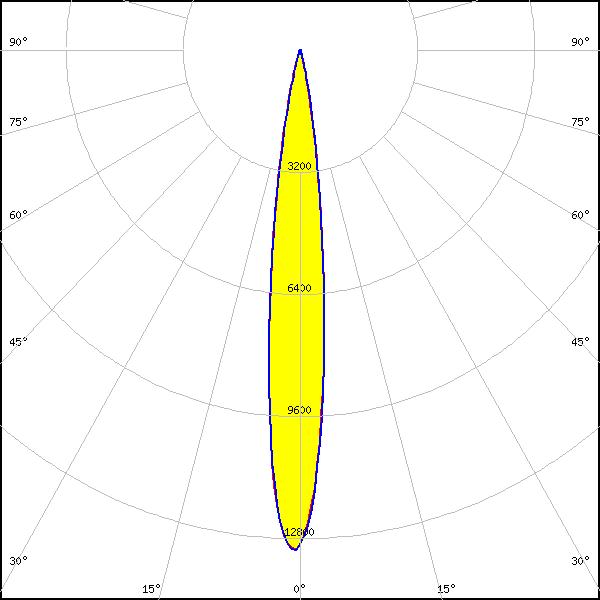

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
FWHM: 13°
FWTM: 25°
Peak intensity: 13.211 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

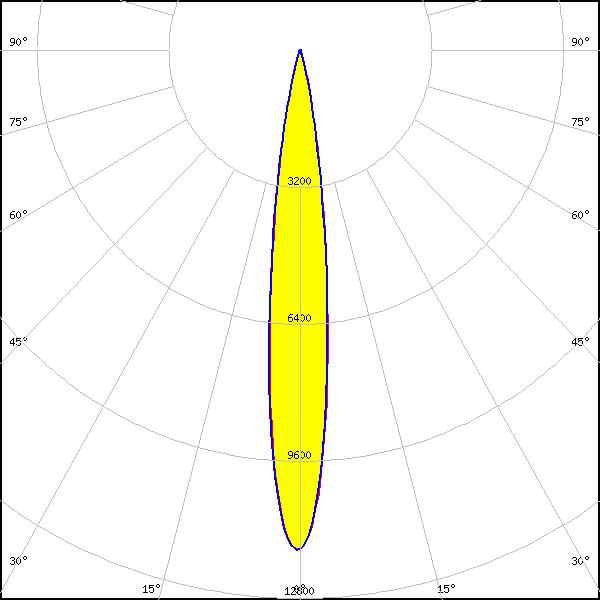

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: 14°
FWTM: 27°
Peak intensity: 11.681 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

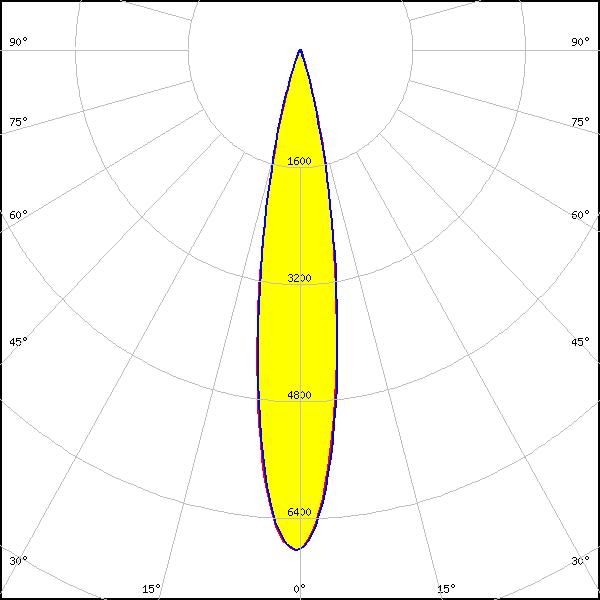

LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: 19°
FWTM: 35°
Peak intensity: 6.836 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 22°
FWTM: 43°
Peak intensity: 4.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

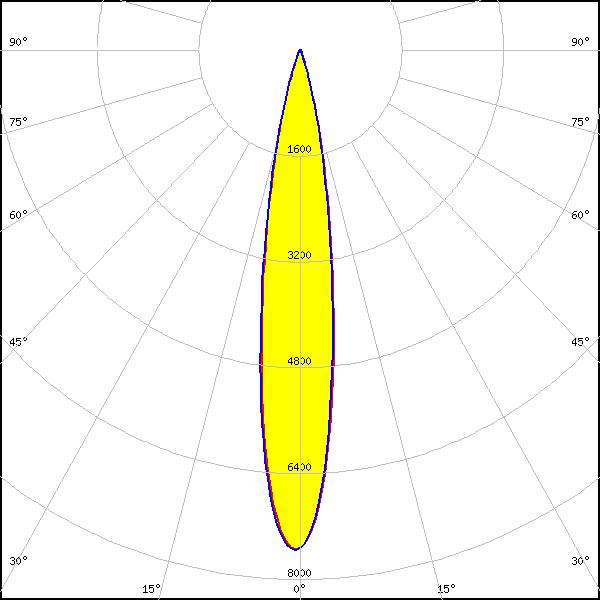

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
FWHM: 17°
FWTM: 33°
Peak intensity: 7.575 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

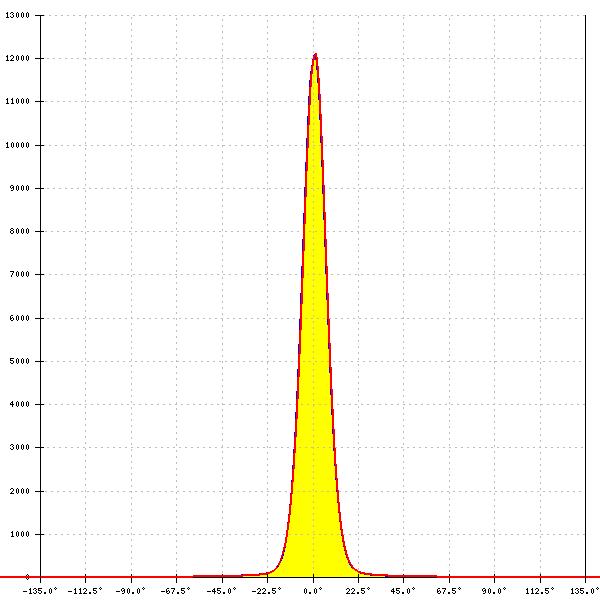

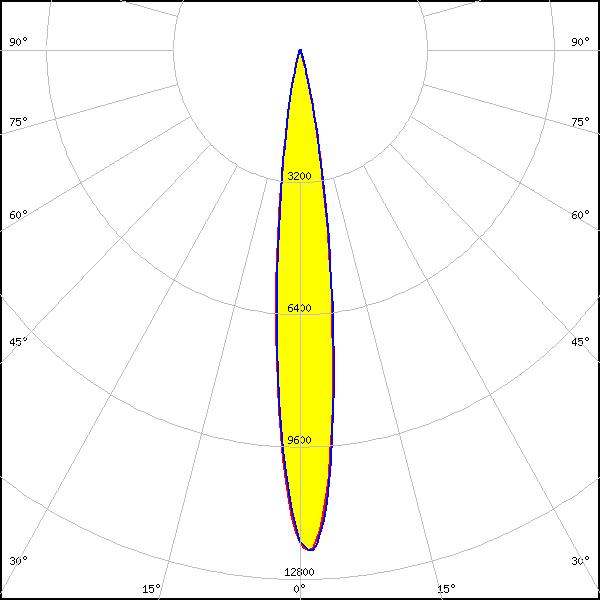

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
FWHM: 13°
FWTM: 26°
Peak intensity: 12.302 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

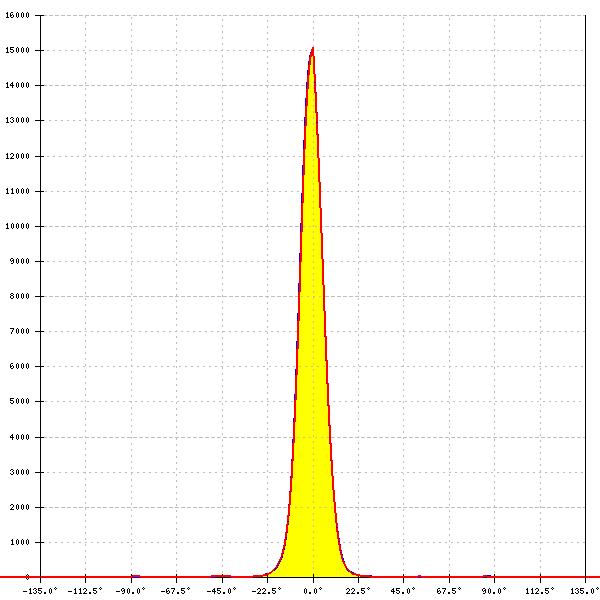

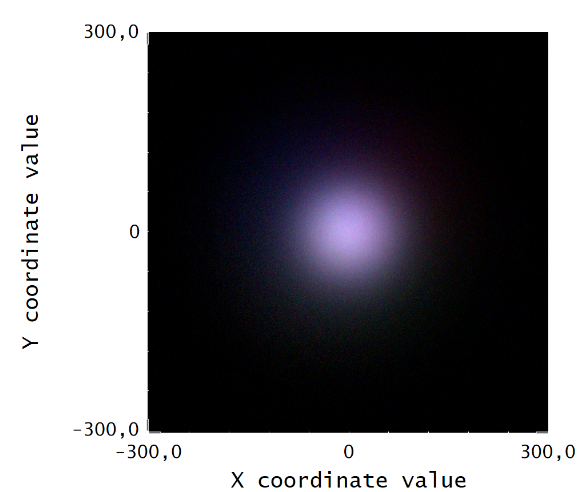

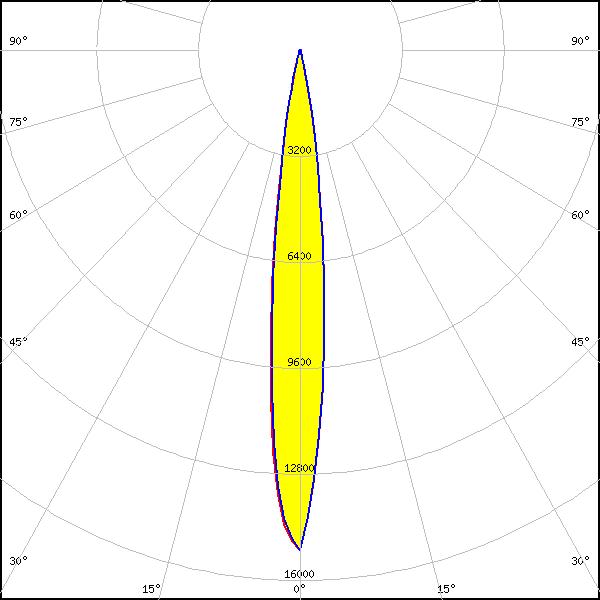

LED: LUXEON Rubix
FWHM: 13°
FWTM: 24°
Peak intensity: 15.092 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour: RGBW

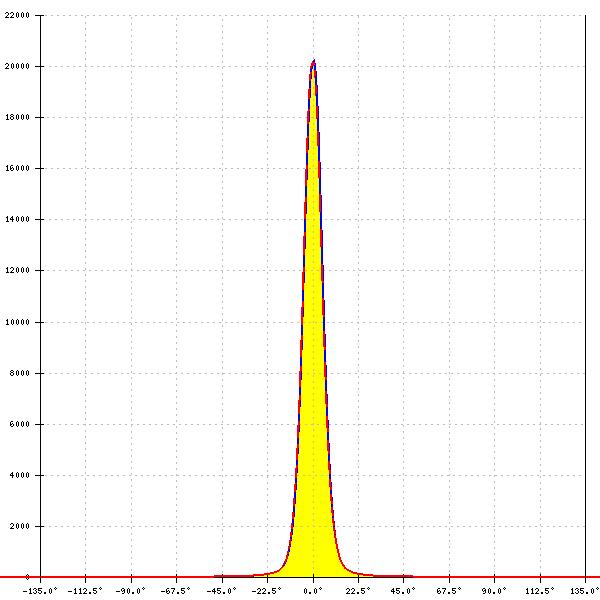

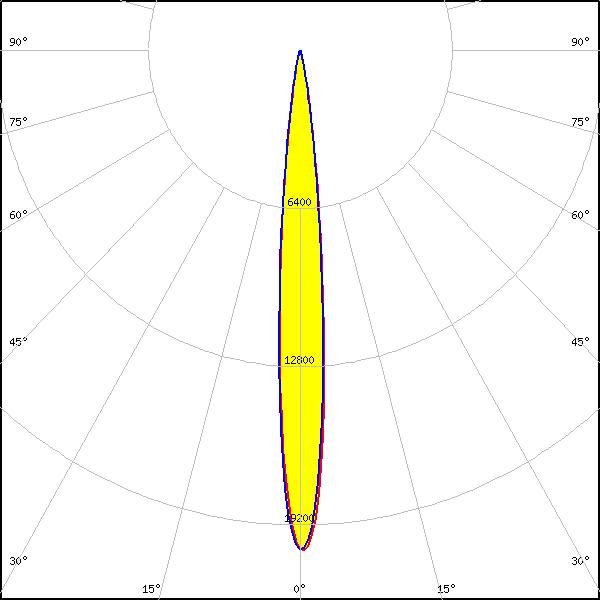

LED: CXM-3
Required components:
FWHM: 11°
FWTM: 20°
Peak intensity: 20.235 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

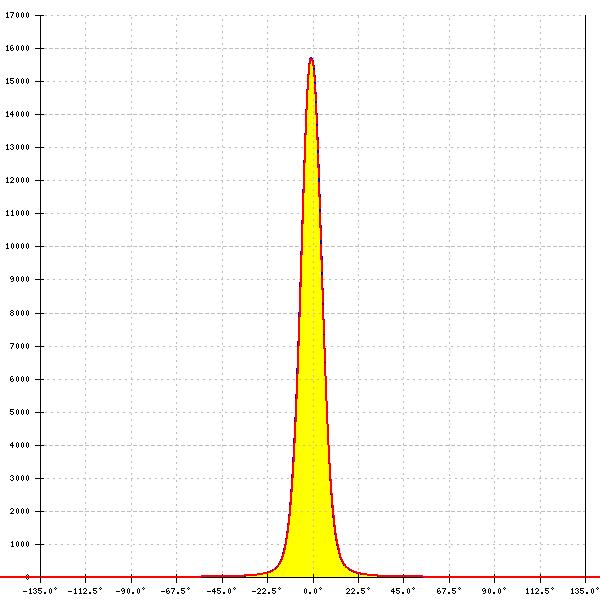

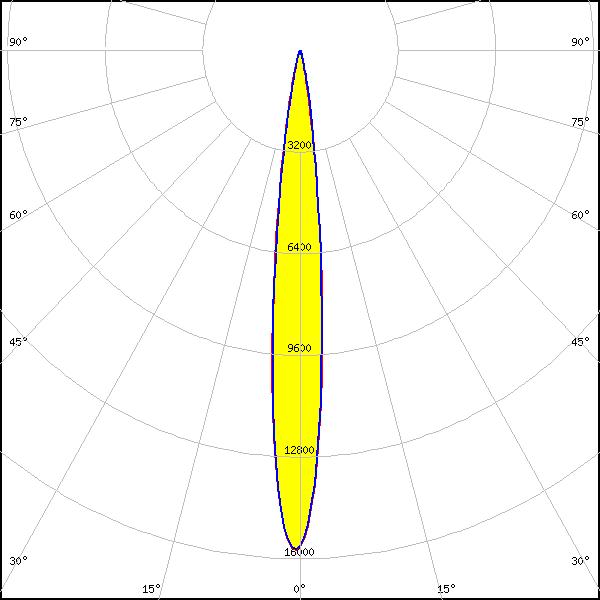

LED: CXM-4
Required components:
FWHM: 12°
FWTM: 23°
Peak intensity: 15.757 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: COB S-Type (LES 6)
Required components:
FWHM: 14°
FWTM: 26°
Peak intensity: 12.104 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: COB S-Type (LES 6)
Required components:
FWHM: 14°
FWTM: 26°
Peak intensity: 12.227 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: COB S-Type (LES 7)
Required components:
FWHM: 16°
FWTM: 30°
Peak intensity: 10.198 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

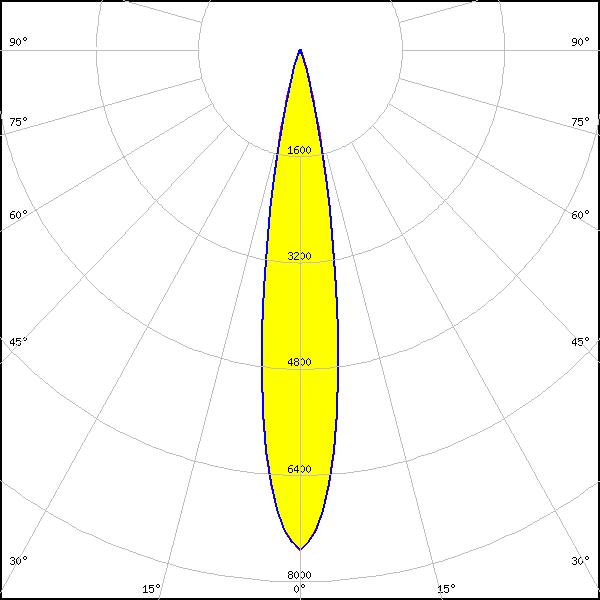

LED: NFSWE11A
Required components:
FWHM: 18°
FWTM: 32°
Peak intensity: 7.529 cd/lm
Efficiency: 88 %
LEDs/each optic: 30
Light colour: White

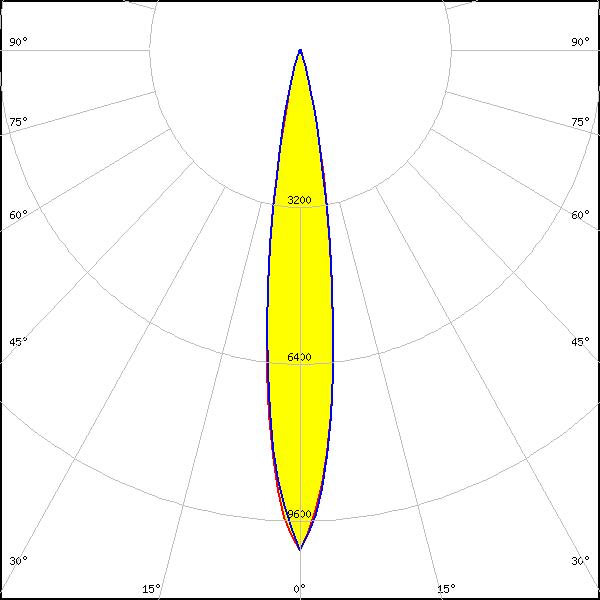

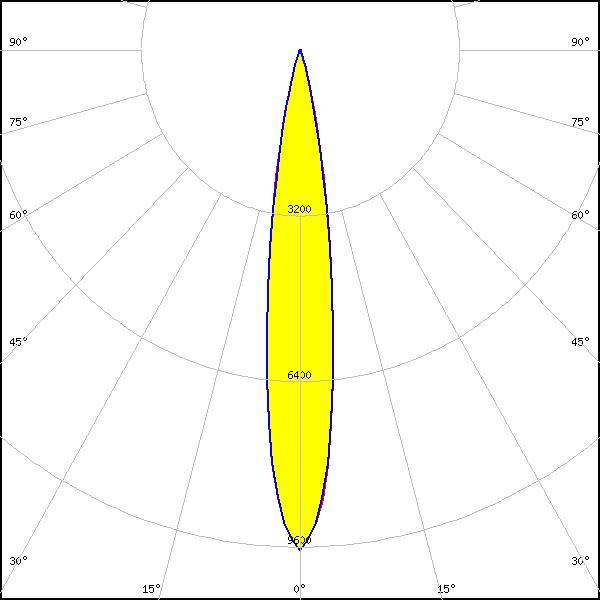

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: 16°
FWTM: 30°
Peak intensity: 9.665 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

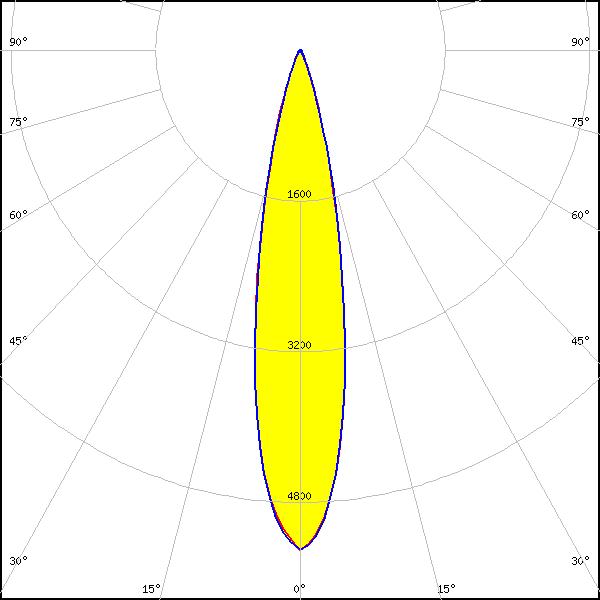

LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8
FWHM: 20°
FWTM: 40°
Peak intensity: 5.309 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: OSTAR Stage (S2WN)
Required components:
FWHM: 10°
FWTM: 19°
Peak intensity: 22.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

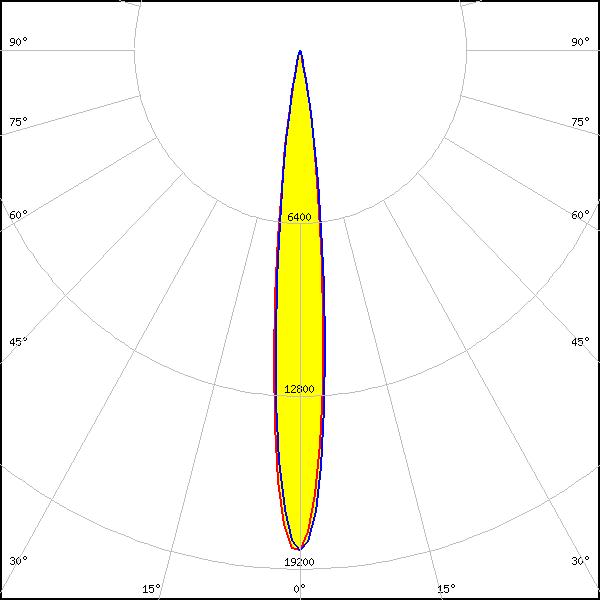

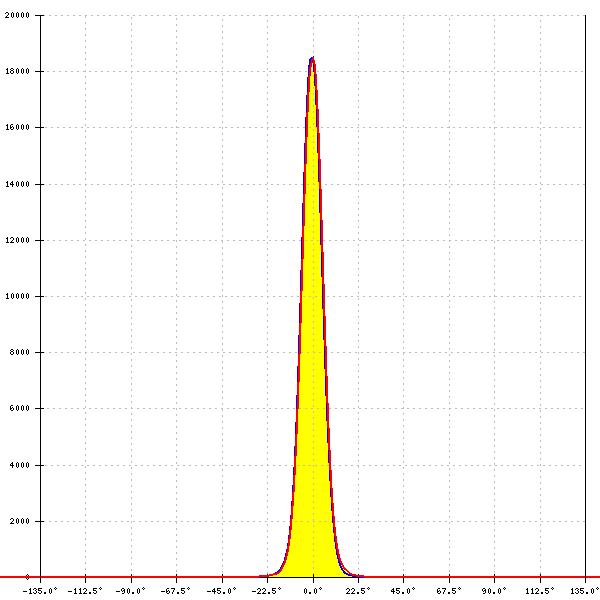

LED: OSTAR Stage (S2WP)
FWHM: 12°
FWTM: 21°
Peak intensity: 18.500 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: OSTAR Stage (S2WP)
Required components:
FWHM: 11°
FWTM: 21°
Peak intensity: 18.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 24°
FWTM: 46°
Peak intensity: 3.886 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L15 CoB
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 26°
FWTM: 51°
Peak intensity: 3.224 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

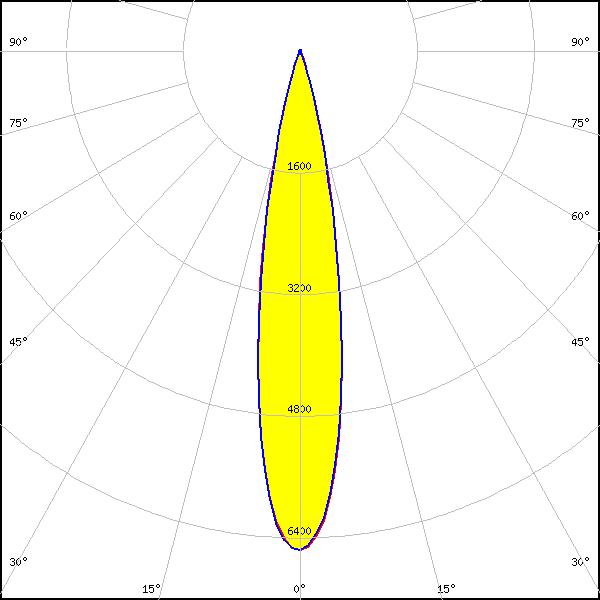

LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 19°
FWTM: 34°
Peak intensity: 6.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

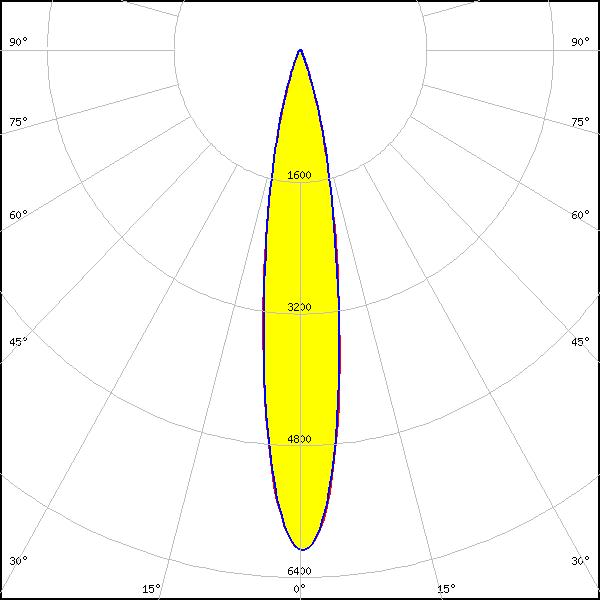

LED: LC010T (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 18°
FWTM: 37°
Peak intensity: 6.087 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: Tunable White

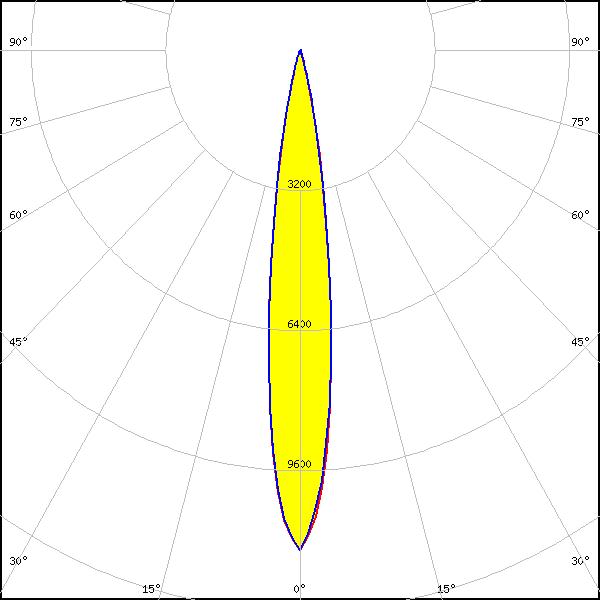

LED: LC020C
Required components:
FWHM: 14°
FWTM: 28°
Peak intensity: 11.418 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

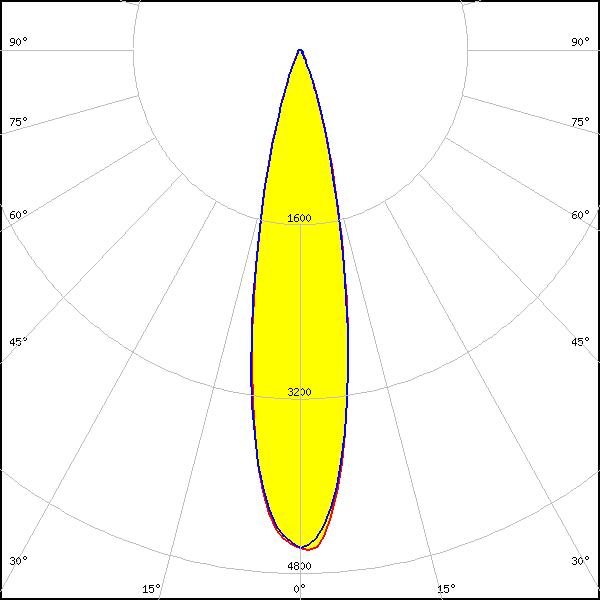

LED: LC020T (Tunable white)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 22°
FWTM: 42°
Peak intensity: 4.596 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

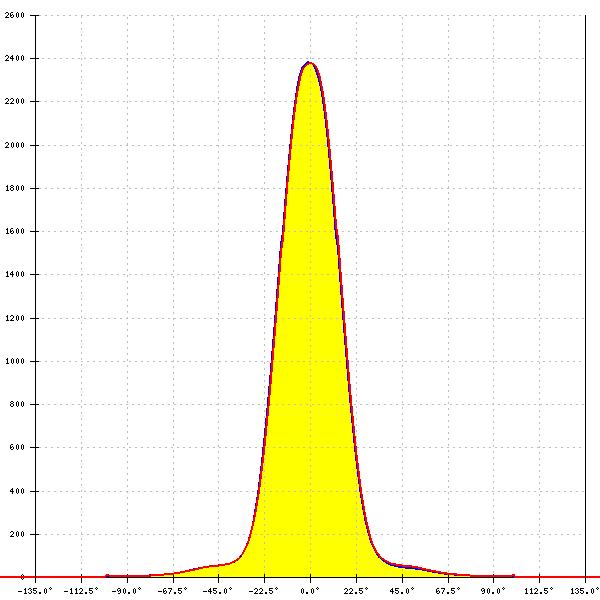

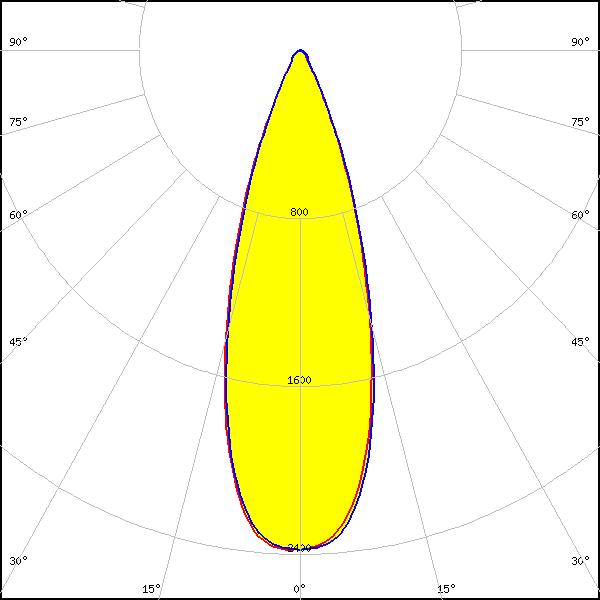

LED: MJT COB LES 14.5
Required components:
FWHM: 33°
FWTM: 57°
Peak intensity: 2.381 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

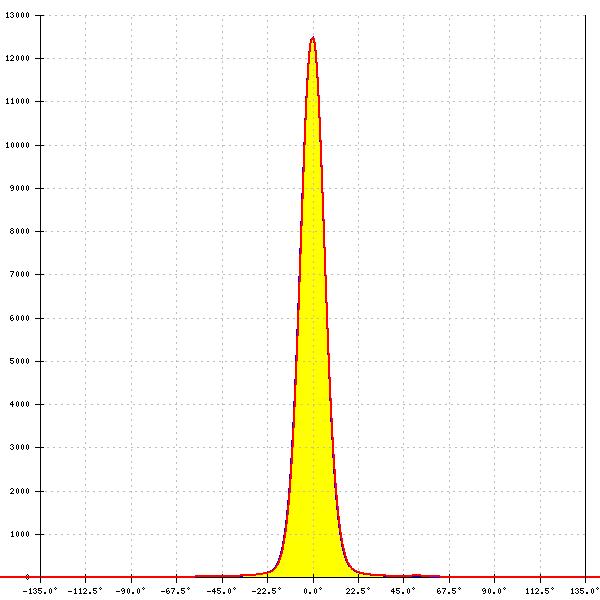

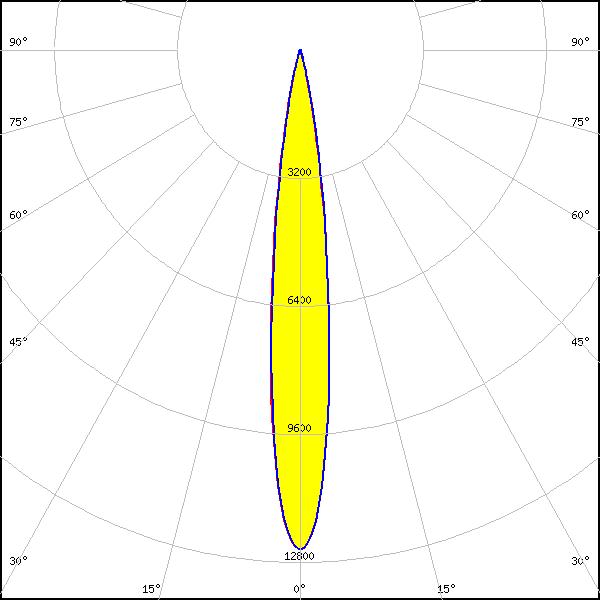

LED: MJT COB LES 6
Required components:
FWHM: 14°
FWTM: 26°
Peak intensity: 12.521 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

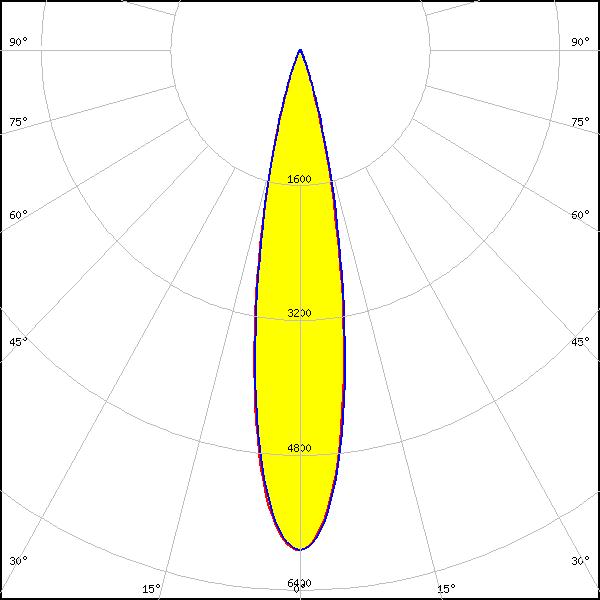

LED: MJT COB LES 9.8
Required components:
FWHM: 21°
FWTM: 37°
Peak intensity: 5.928 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

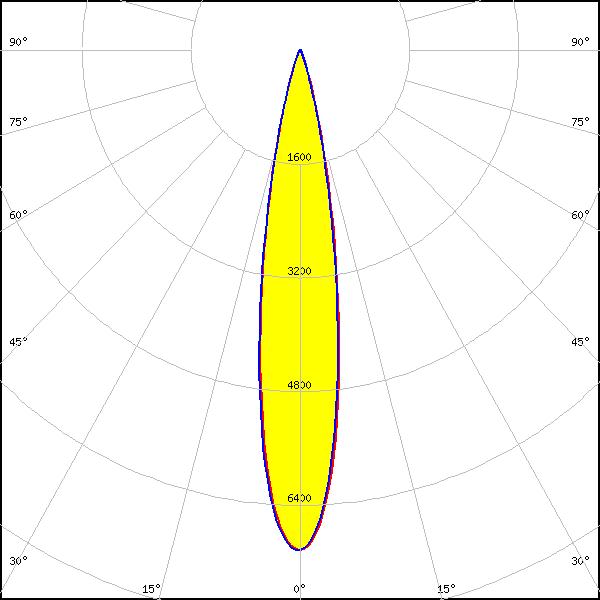

LED: SLE G7 LES09
Required components:
FWHM: 18°
FWTM: 34°
Peak intensity: 7.037 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

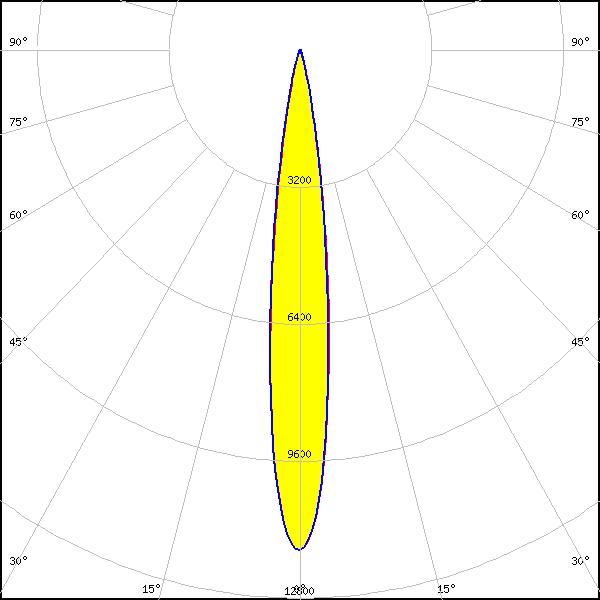

LED: XOB 6 mm
Required components:
FWHM: 14°
FWTM: 26°
Peak intensity: 11.684 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

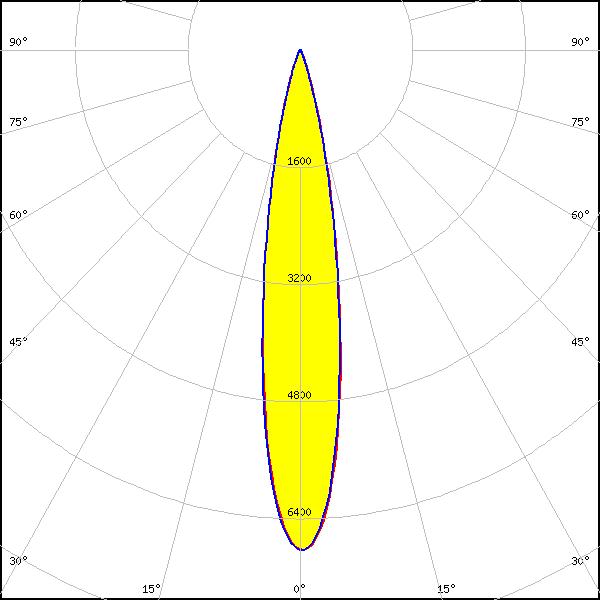

LED: XOB 9.8 mm
Required components:
FWHM: 19°
FWTM: 35°
Peak intensity: 6.839 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XTM - 9mm LES
Required components:
FWHM: 18°
FWTM: 34°
Peak intensity: 7.506 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
