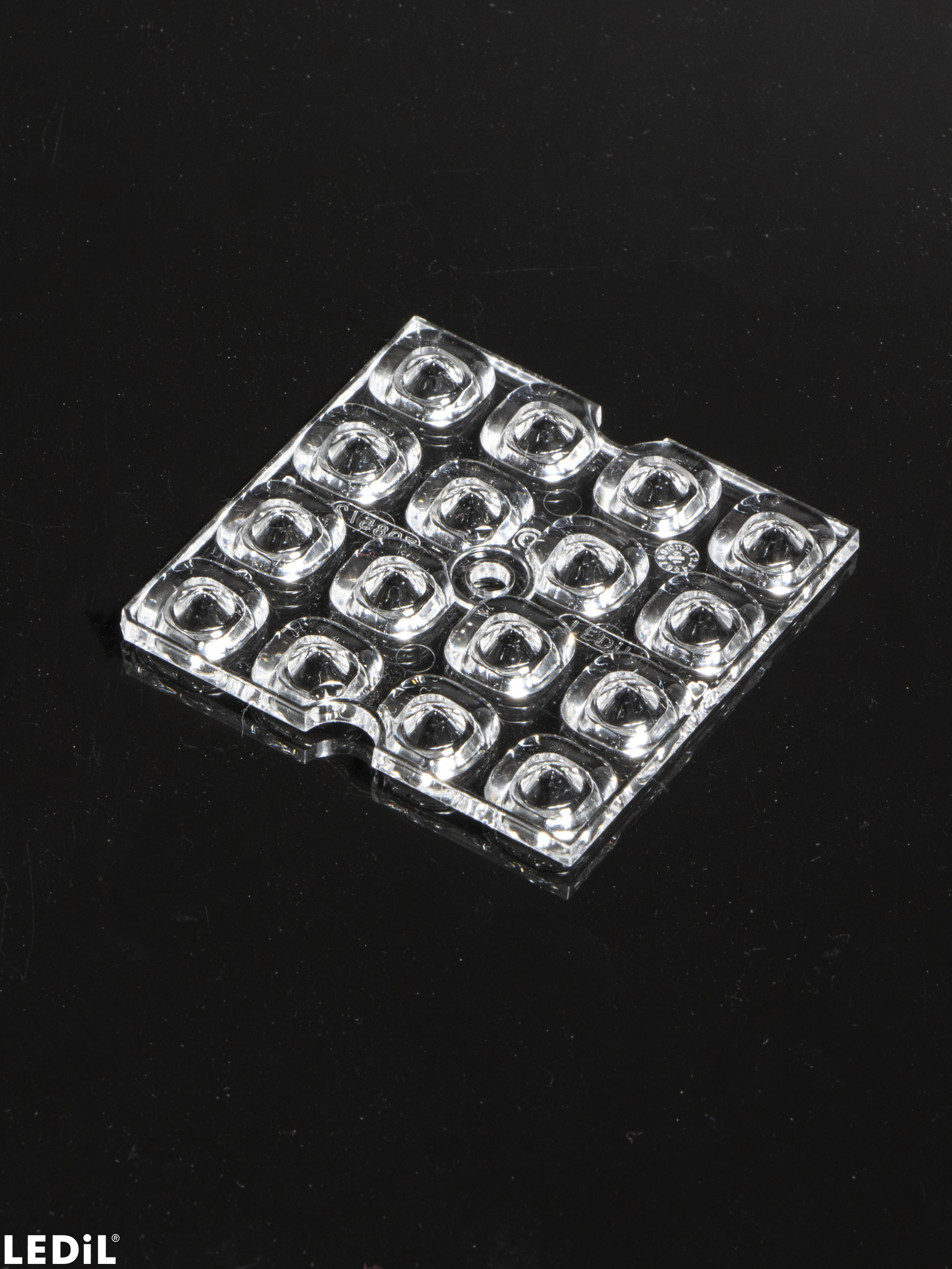

C17085_STRADELLA-16-VSM

Print

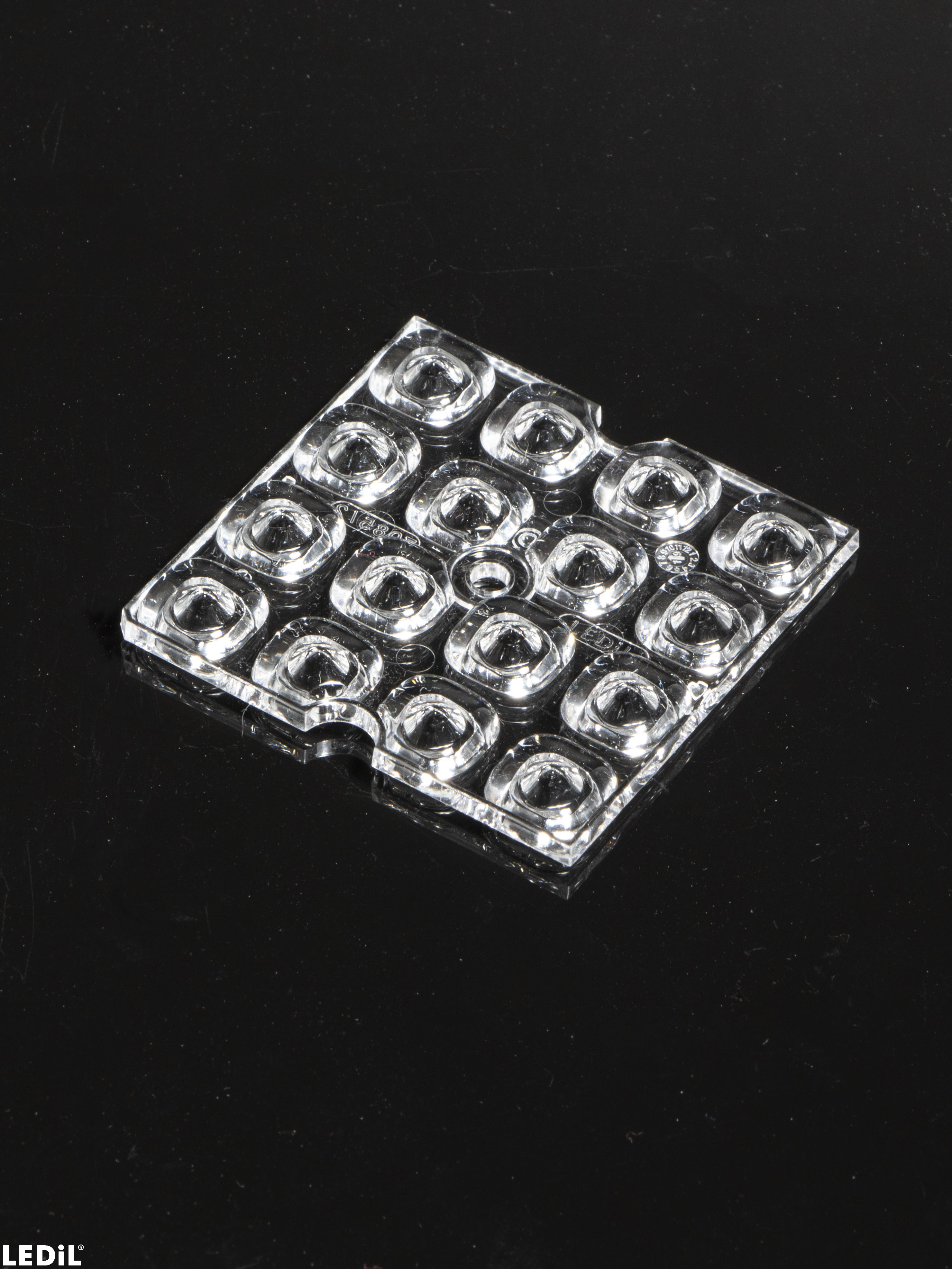

IESNA Type V (square) beam for wide areas such as car parks.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    4.20 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.5 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17085_STRADELLA-16-VSM

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

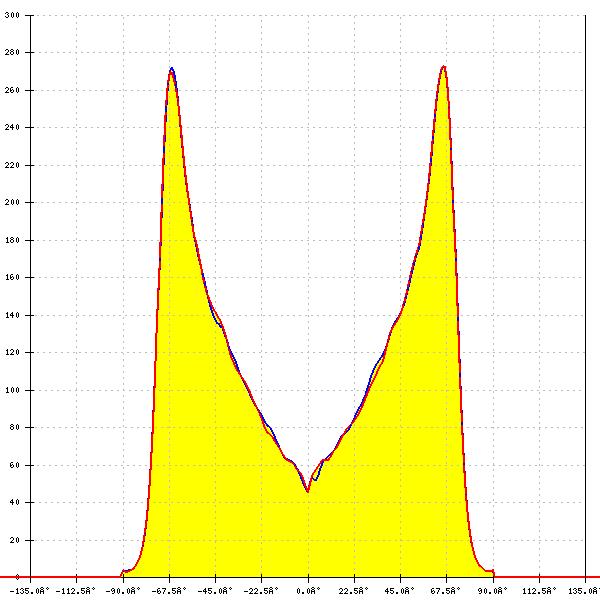

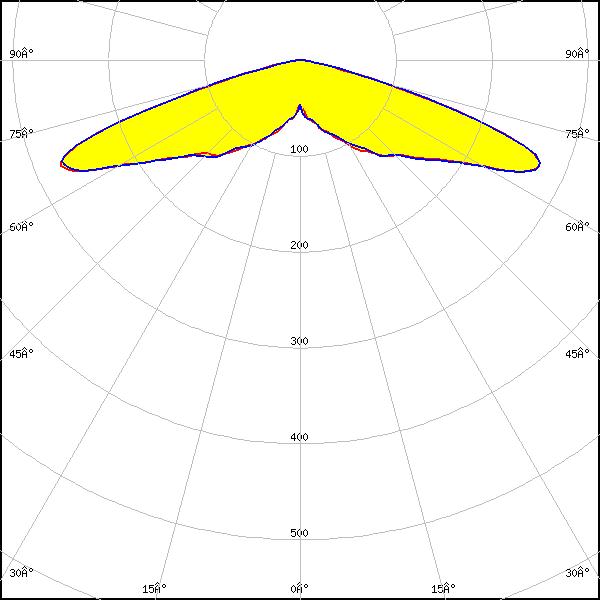

LED: Bridgelux SMD 2835
FWHM: 146°
FWTM: 158°
Peak intensity: 0.419 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

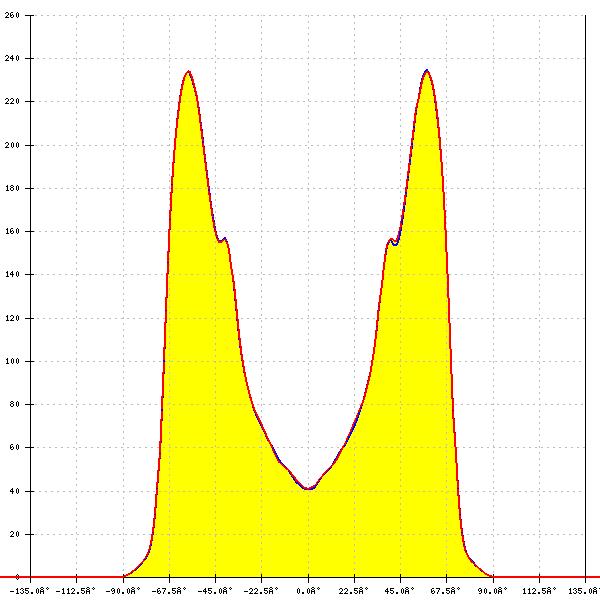

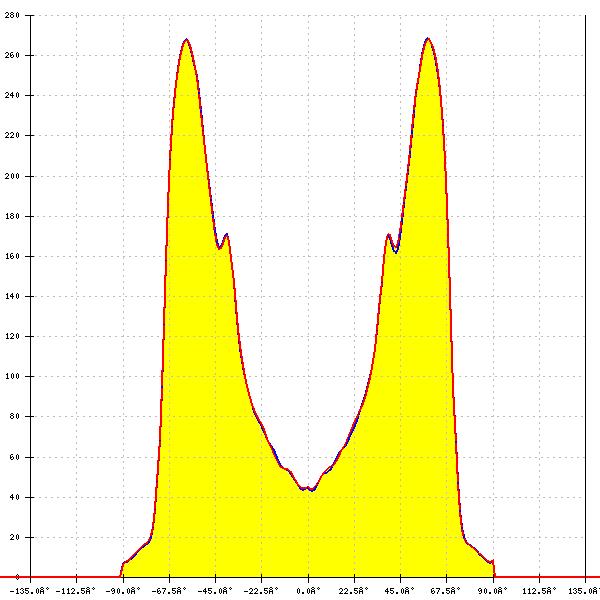

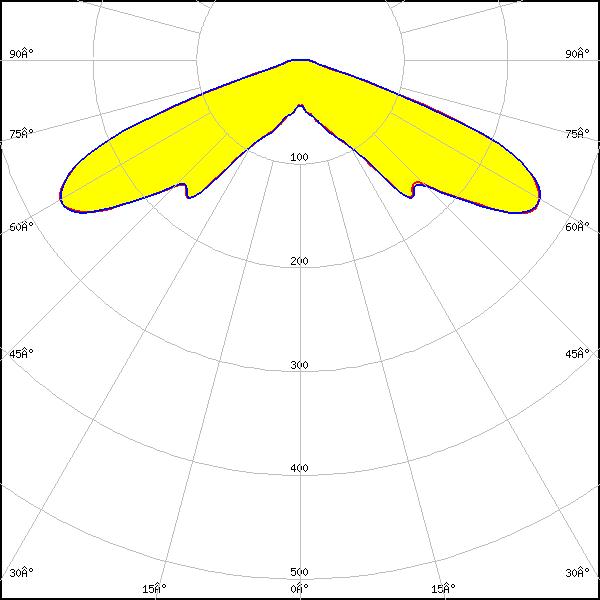

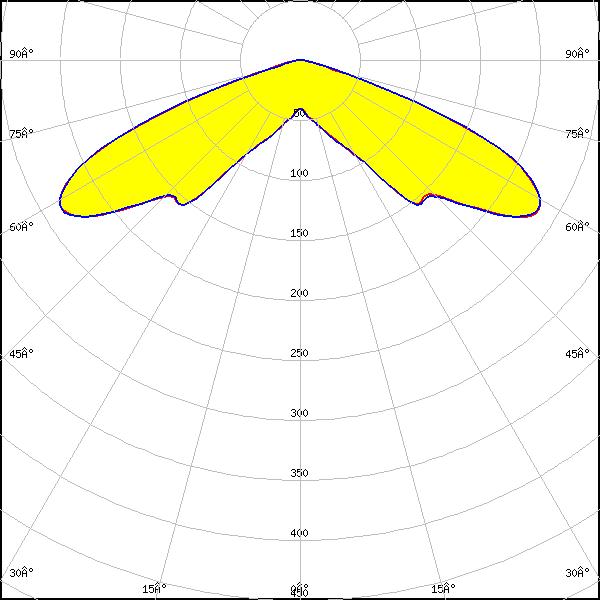

LED: CSP 2727 (BXCP)
FWHM: 140°
FWTM: 150°
Peak intensity: 0.405 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: CSP 2727 (BXCP)
FWHM: 138°
FWTM: 150°
Peak intensity: 0.315 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

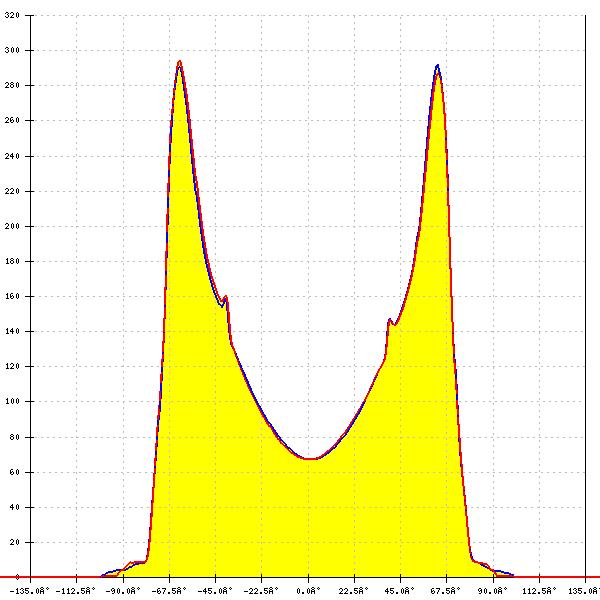

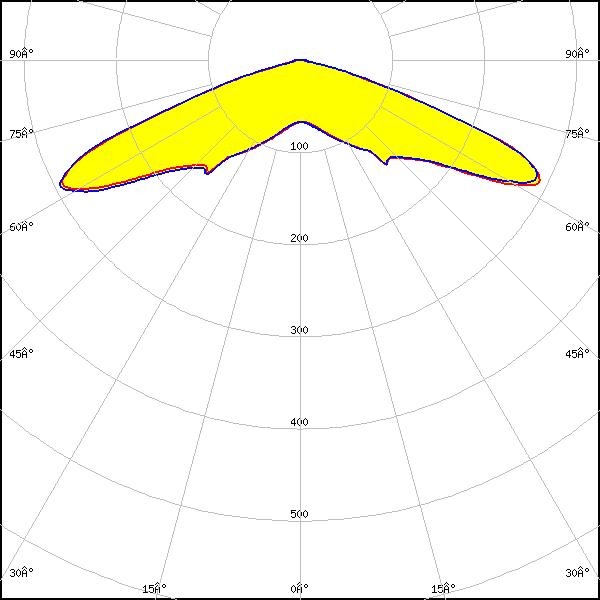

LED: J Series 3030
FWHM: asymmetric
Peak intensity: 0.491 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

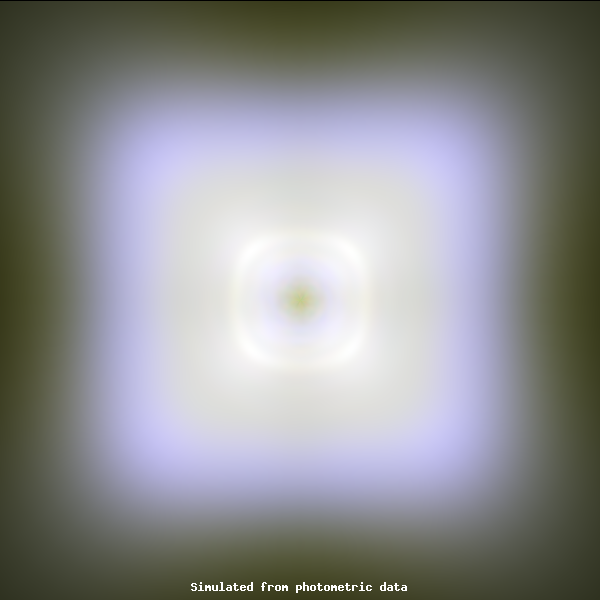

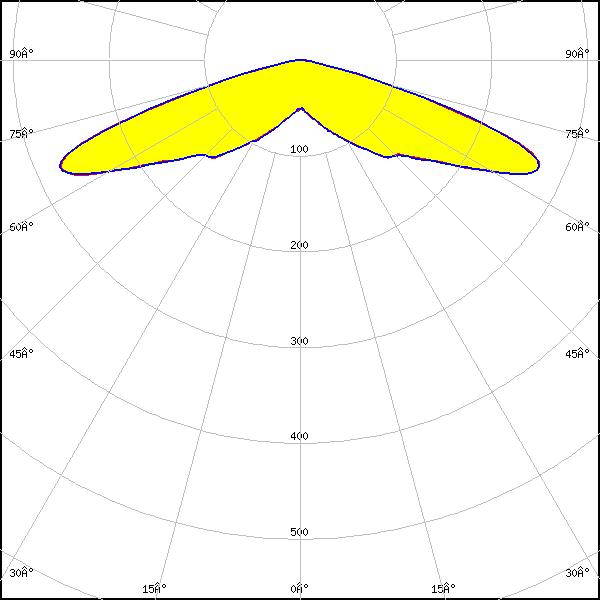

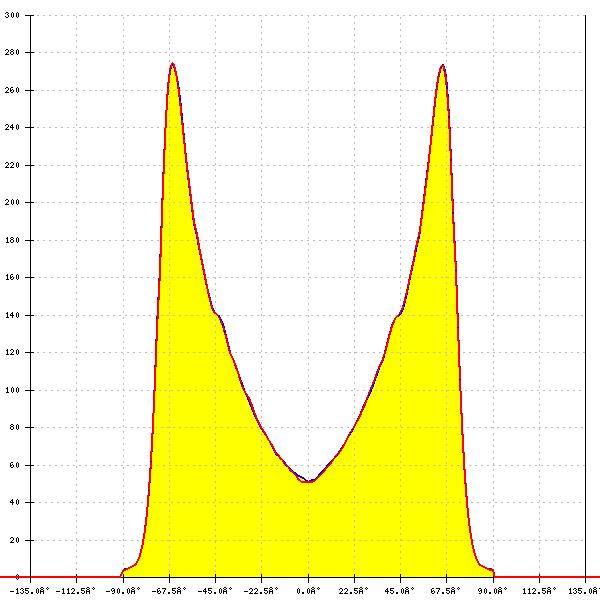

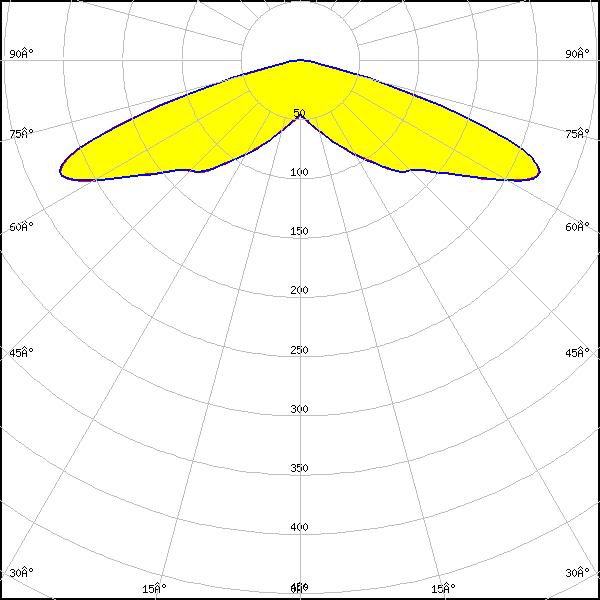

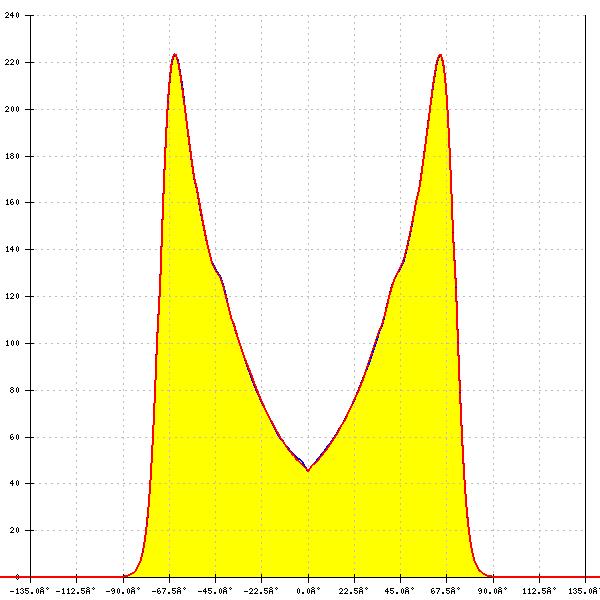

LED: J Series 3030C
FWHM: 146°
FWTM: 158°
Peak intensity: 0.429 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 3030C
FWHM: 146°
FWTM: 156°
Peak intensity: 0.300 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

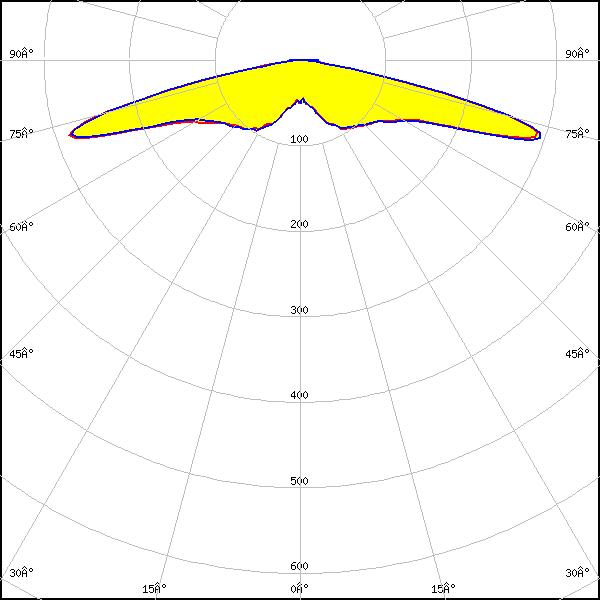

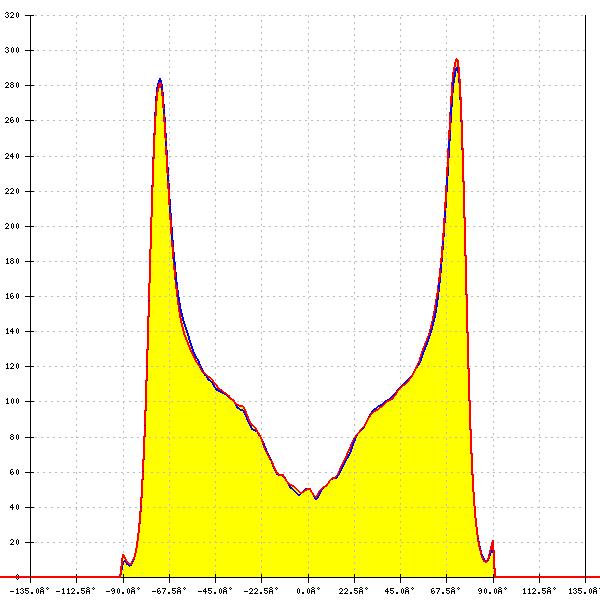

LED: XP-E2
FWHM: 155°
FWTM: 164°
Peak intensity: 0.575 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Far Red

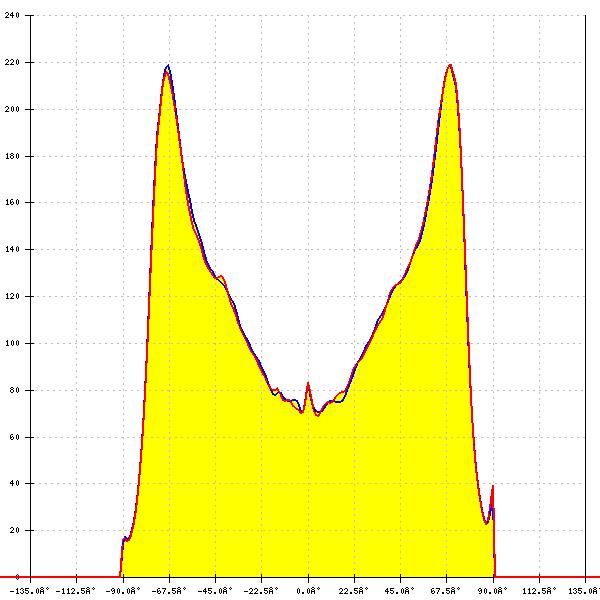

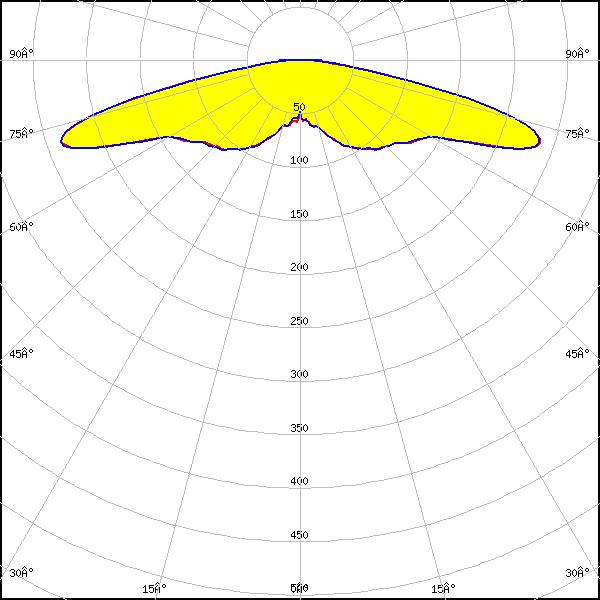

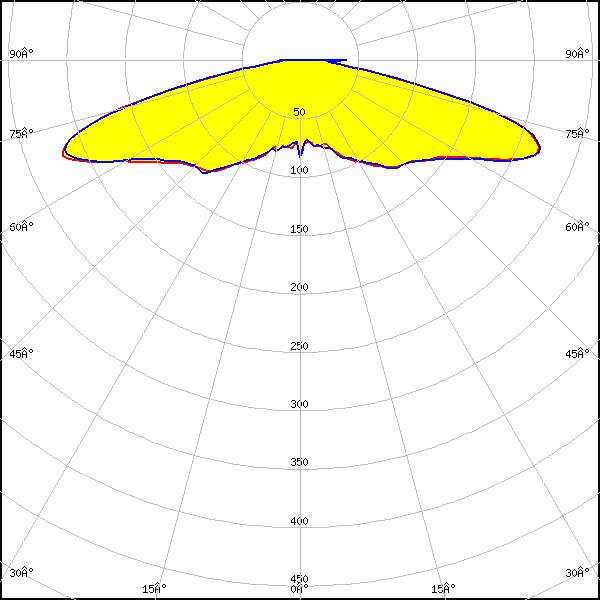

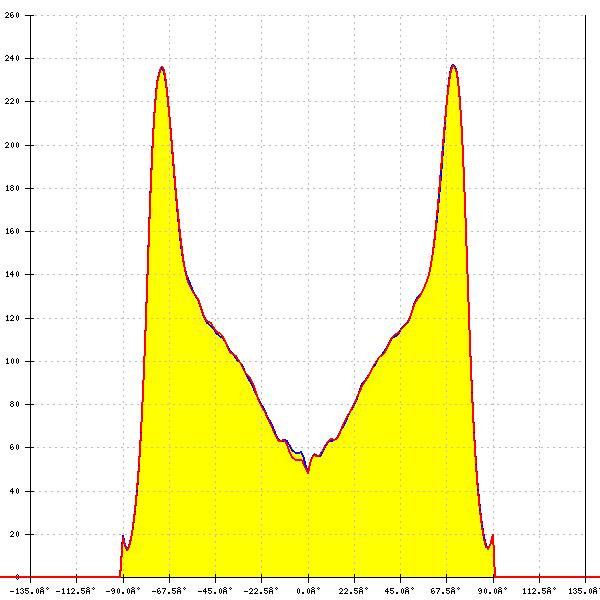

LED: XP-G3
FWHM: 155°
FWTM: 175°
Peak intensity: 0.369 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

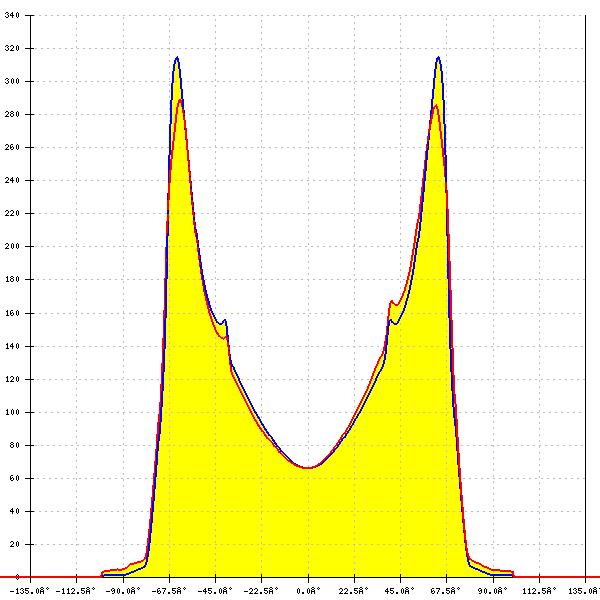

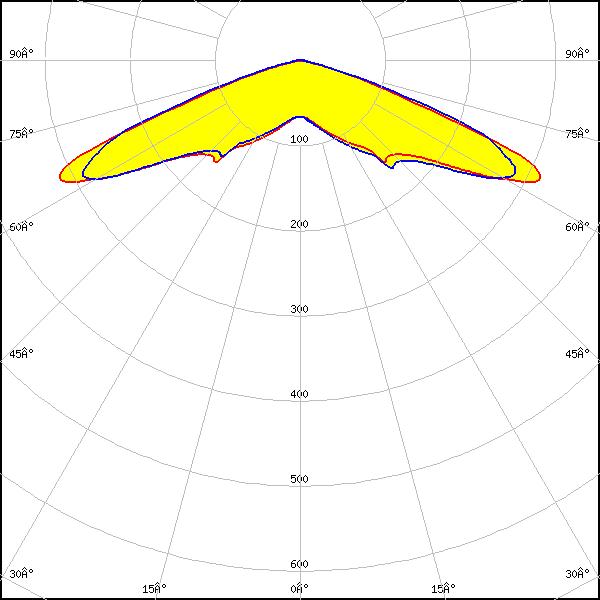

LED: EHP-223.5x50-1604-xx-70-LS30-06-NTC
FWHM: asymmetric
Peak intensity: 0.526 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

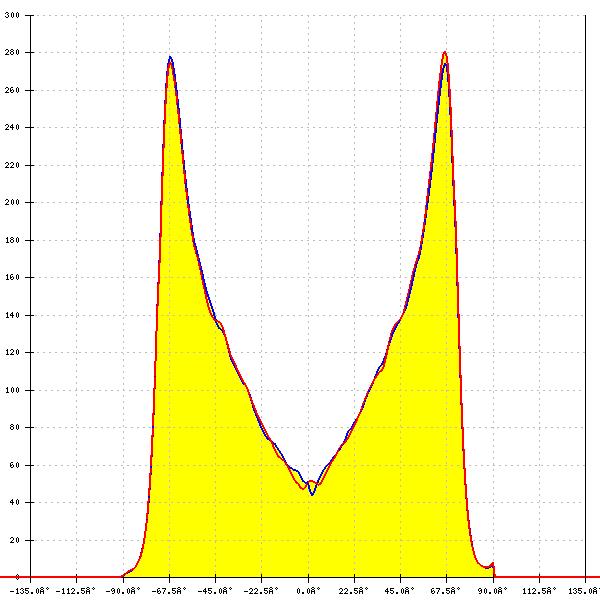

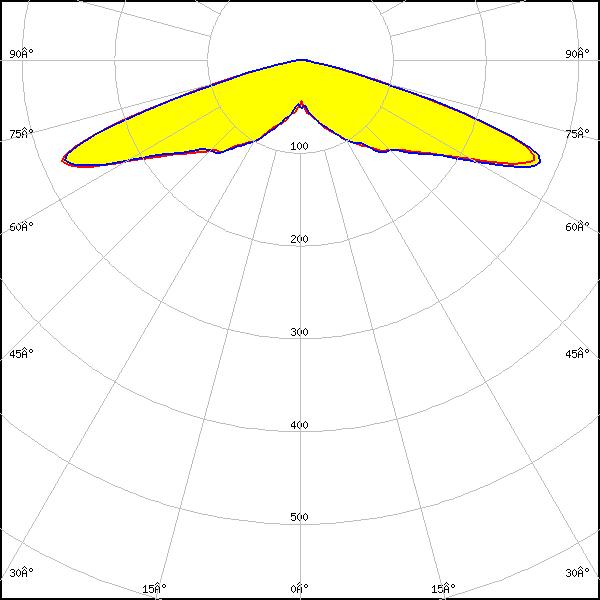

LED: LUXEON 2835 Line
FWHM: 146°
FWTM: 157°
Peak intensity: 0.481 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

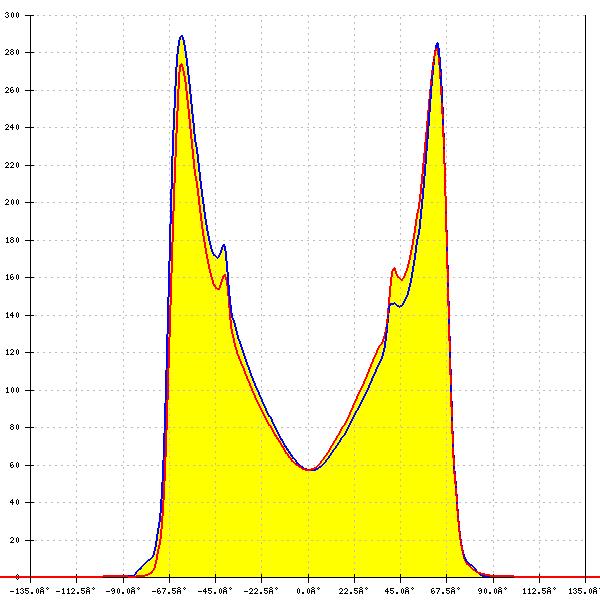

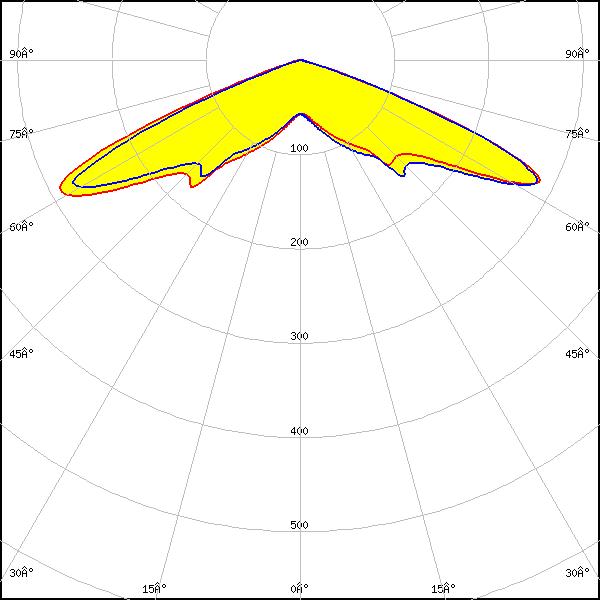

LED: LUXEON 3030 2D (Square LES)
FWHM: 139°
FWTM: 147°
Peak intensity: 0.453 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

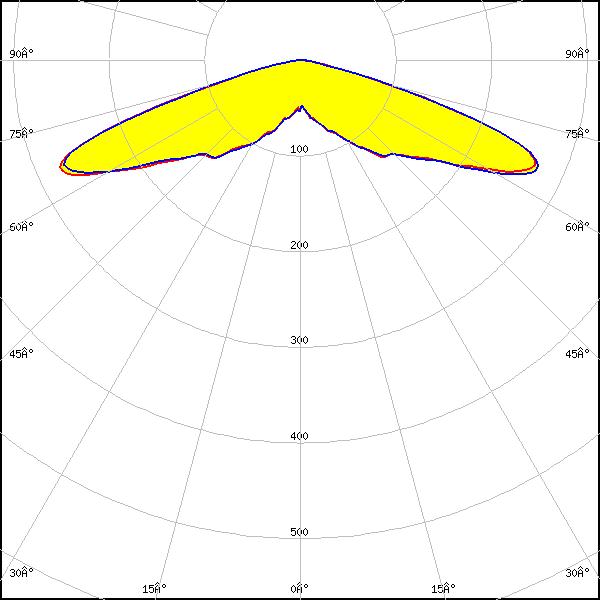

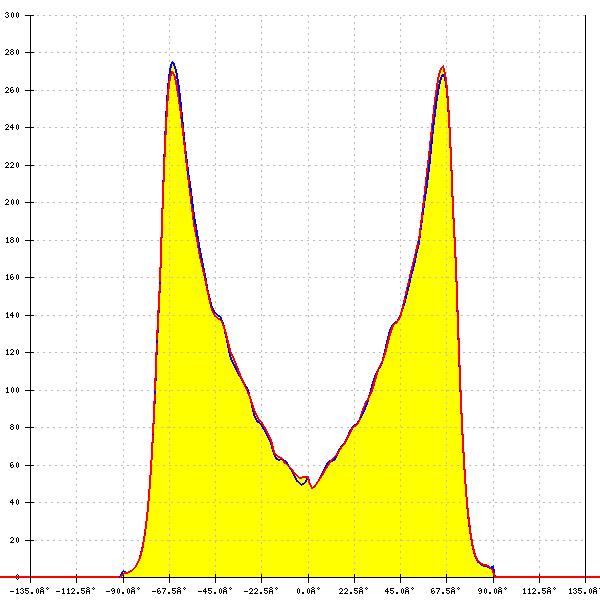

LED: LUXEON 3030 HE Plus
FWHM: 146°
FWTM: 158°
Peak intensity: 0.461 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

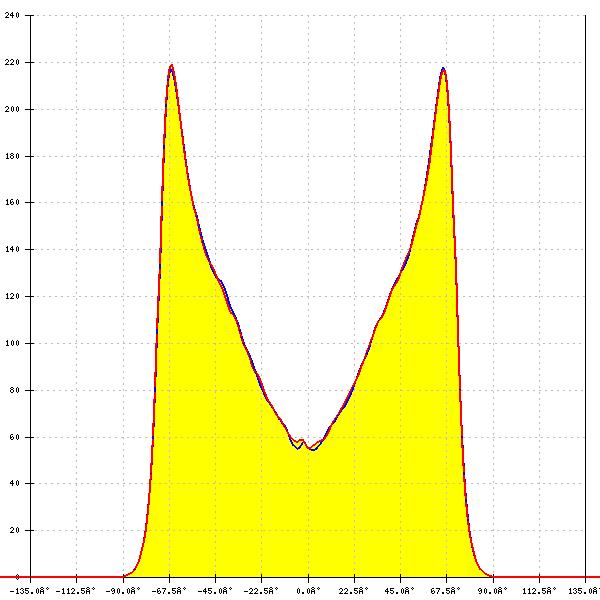

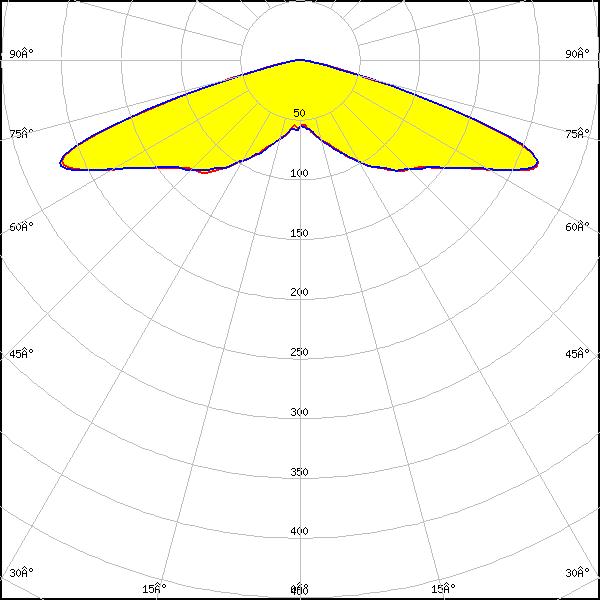

LED: LUXEON 3535L HE PLUS
FWHM: 146°
FWTM: 156°
Peak intensity: 0.341 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

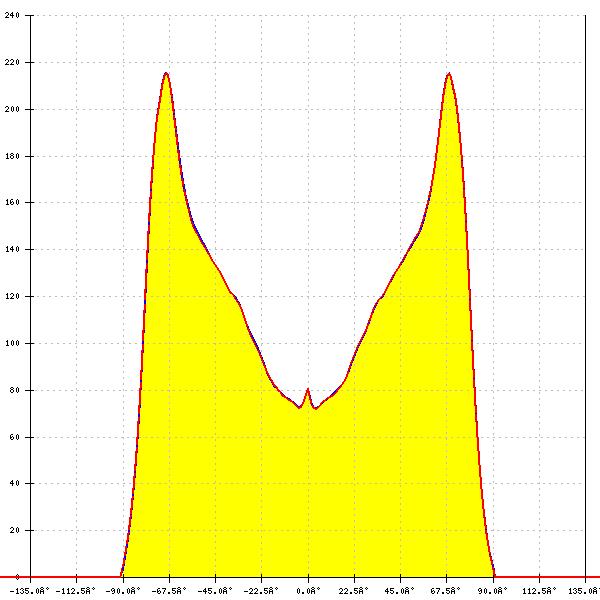

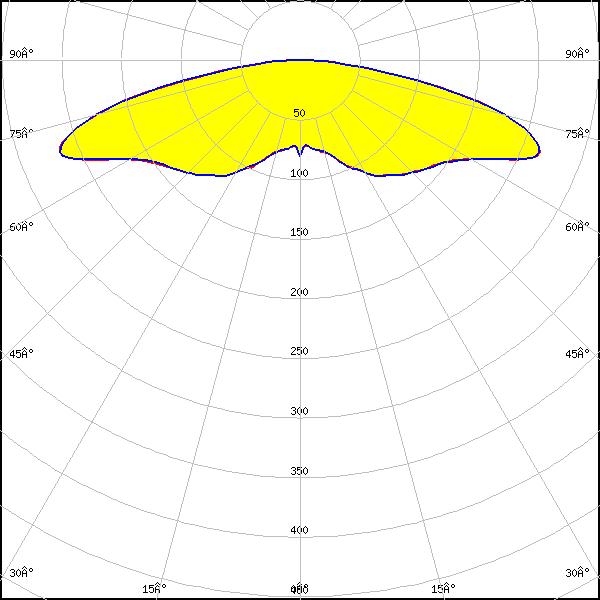

LED: LUXEON HL2X
FWHM: 160°
FWTM: 174°
Peak intensity: 0.299 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

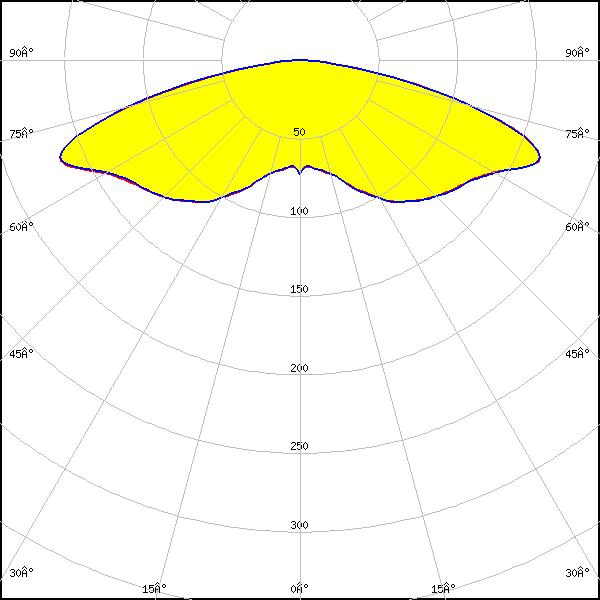

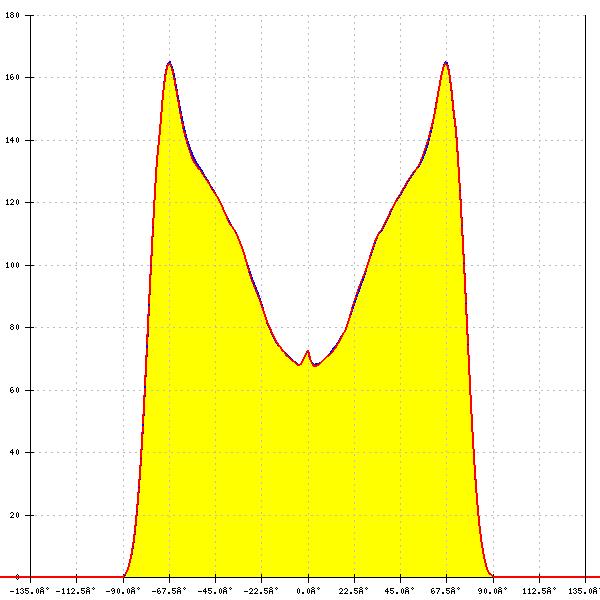

LED: LUXEON HL2X
FWHM: 154°
FWTM: 168°
Peak intensity: 0.202 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White

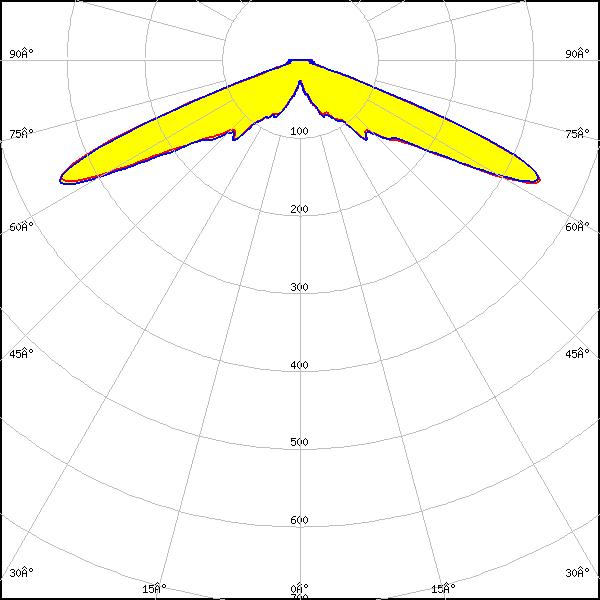

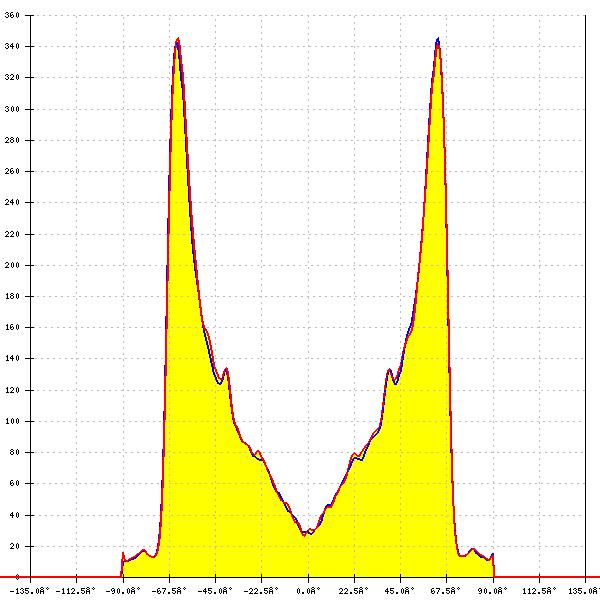

LED: NCSxE17A
FWHM: 137°
FWTM: 143°
Peak intensity: 0.650 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

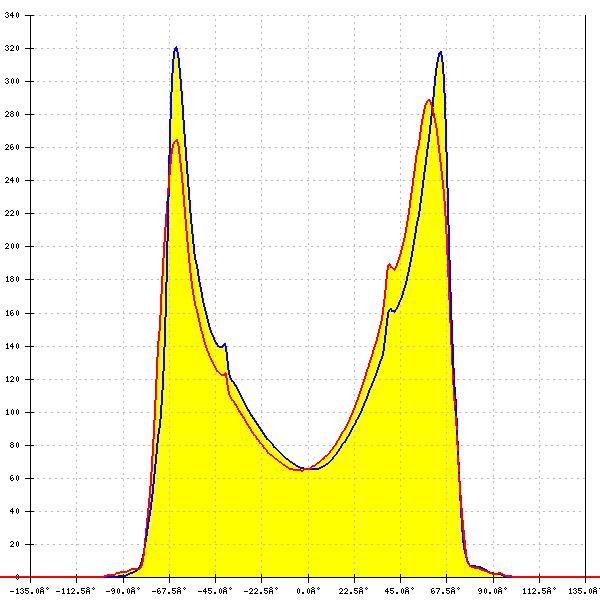

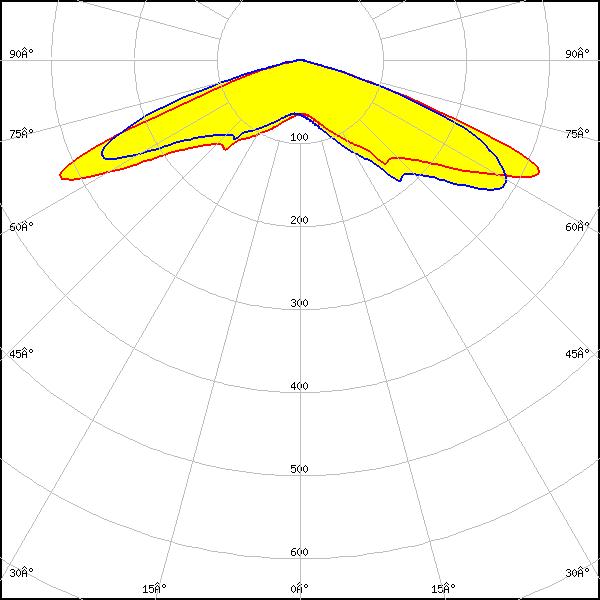

LED: NF2x757G
FWHM: 141°
FWTM: 153°
Peak intensity: 0.525 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

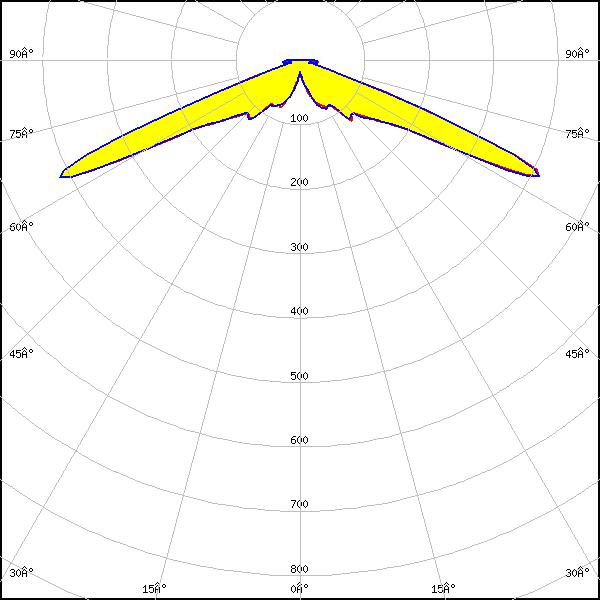

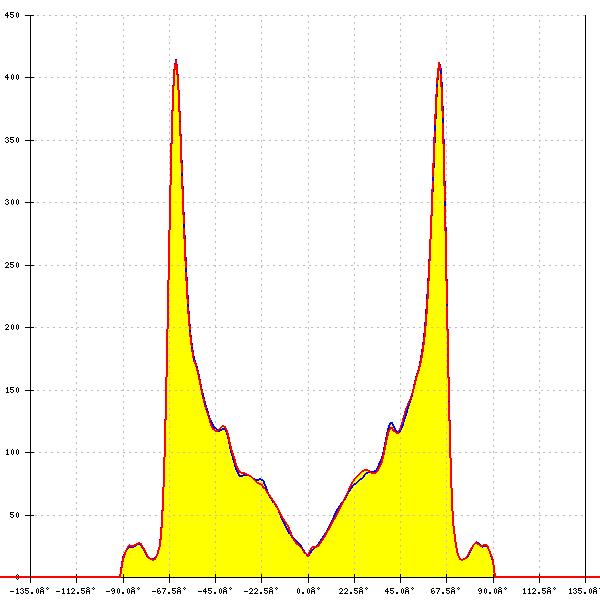

LED: NFSWE11A
FWHM: 136°
FWTM: 142°
Peak intensity: 0.790 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

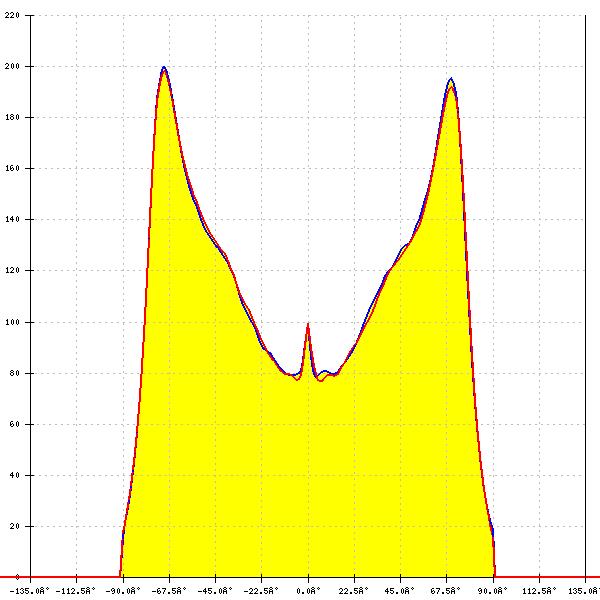

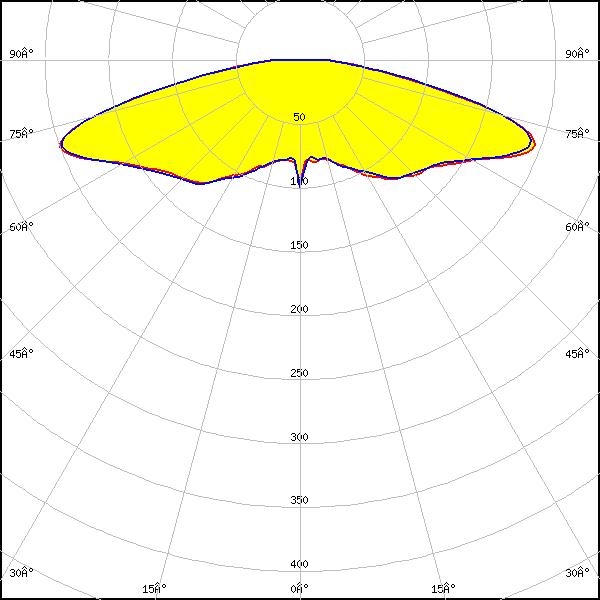

LED: NVSW519A
FWHM: 158°
FWTM: 179°
Peak intensity: 0.275 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

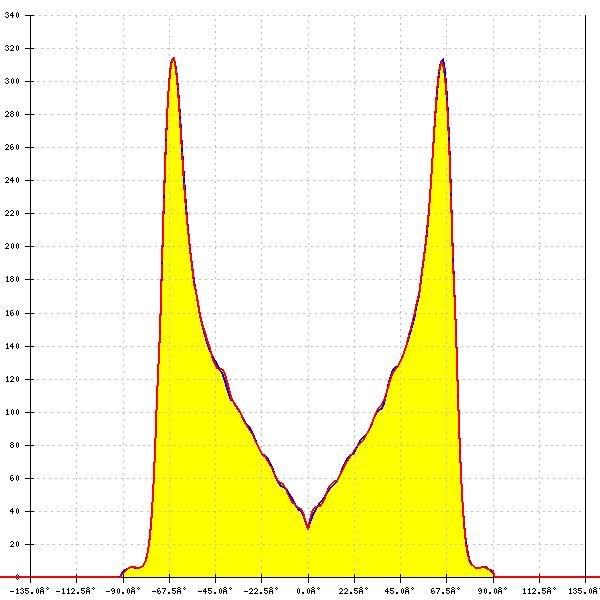

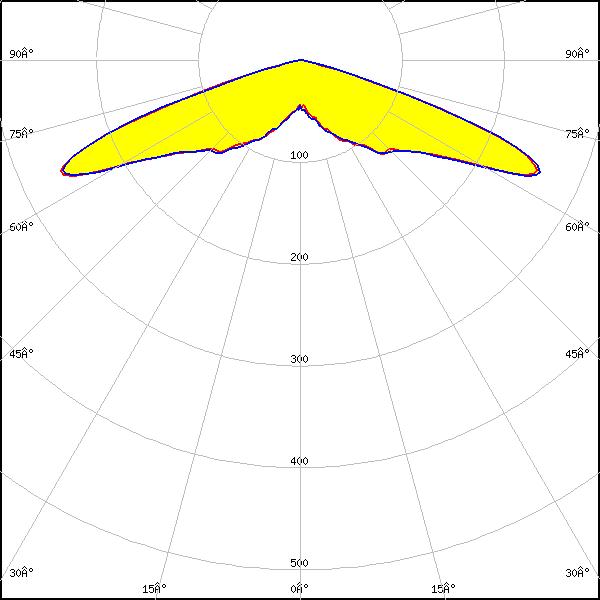

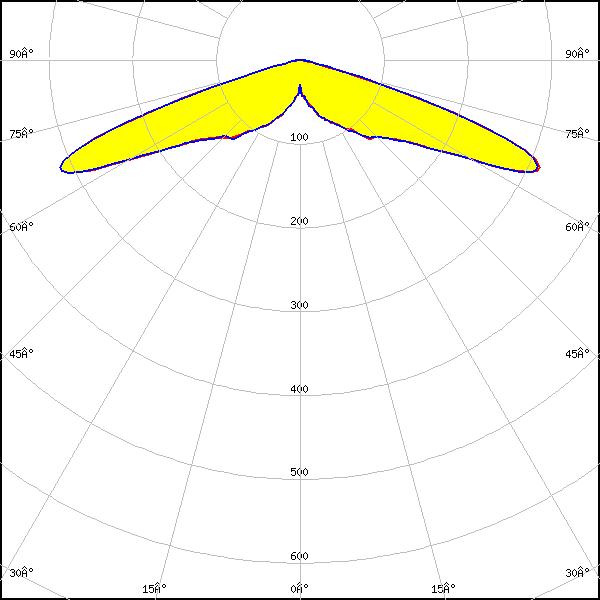

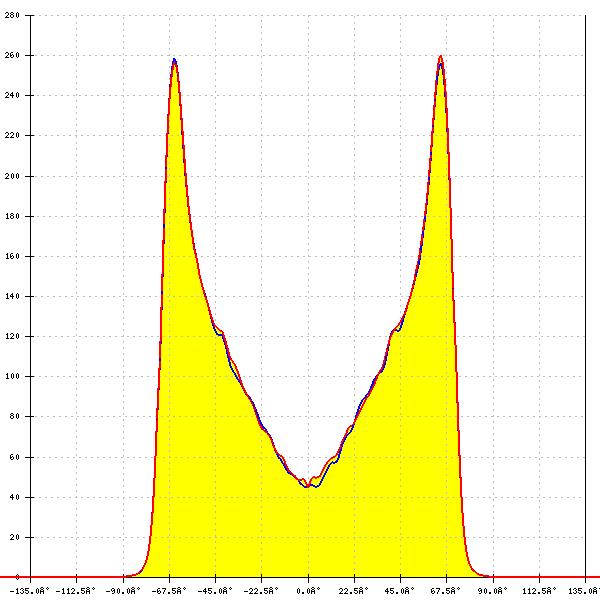

LED: OSCONIQ C 2424
FWHM: 144°
FWTM: 152°
Peak intensity: 0.572 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 2424
FWHM: 142°
FWTM: 152°
Peak intensity: 0.428 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

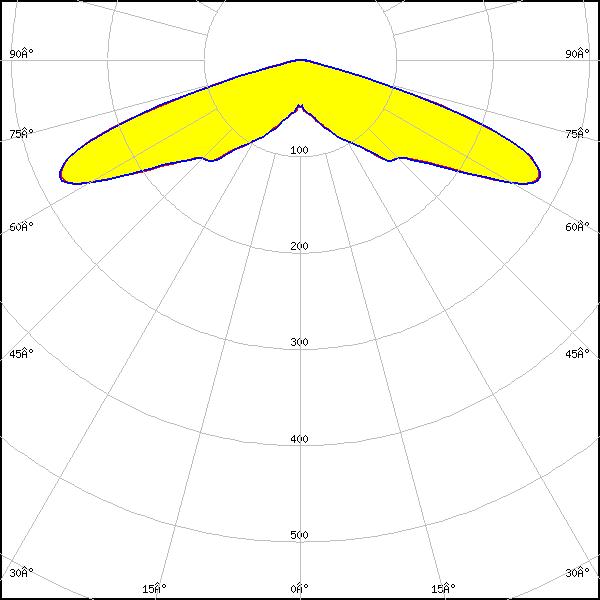

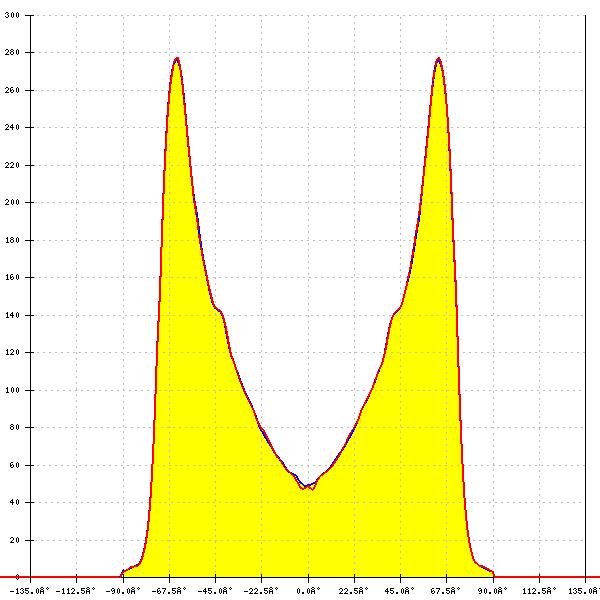

LED: OSCONIQ C 3030
FWHM: 144°
FWTM: 156°
Peak intensity: 0.433 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 3030
FWHM: 144°
FWTM: 154°
Peak intensity: 0.309 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

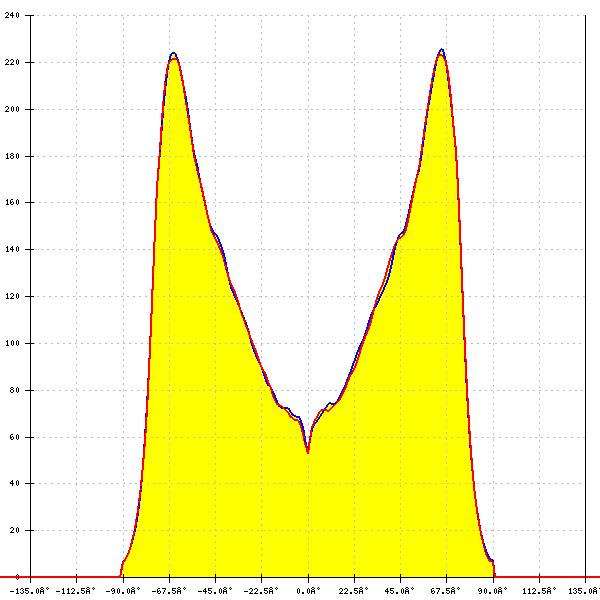

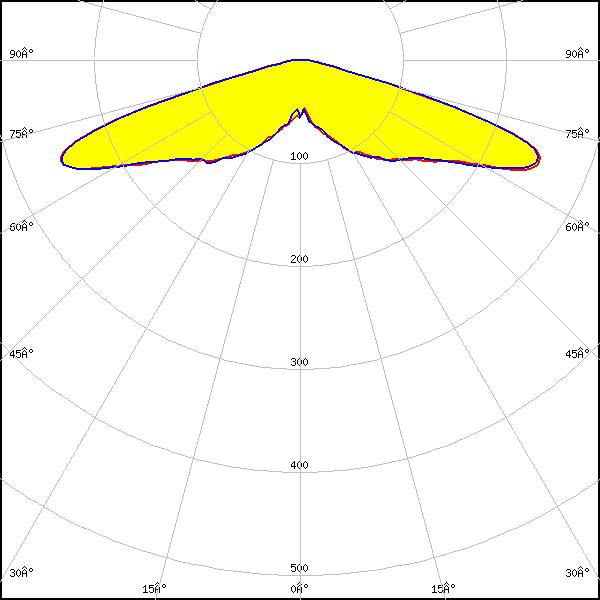

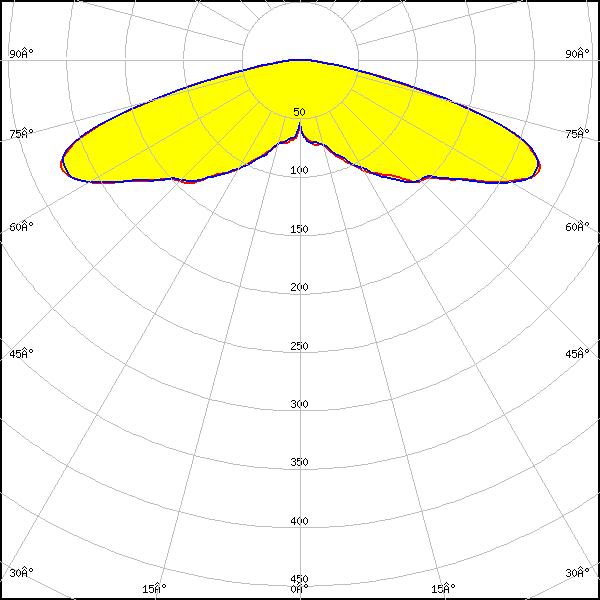

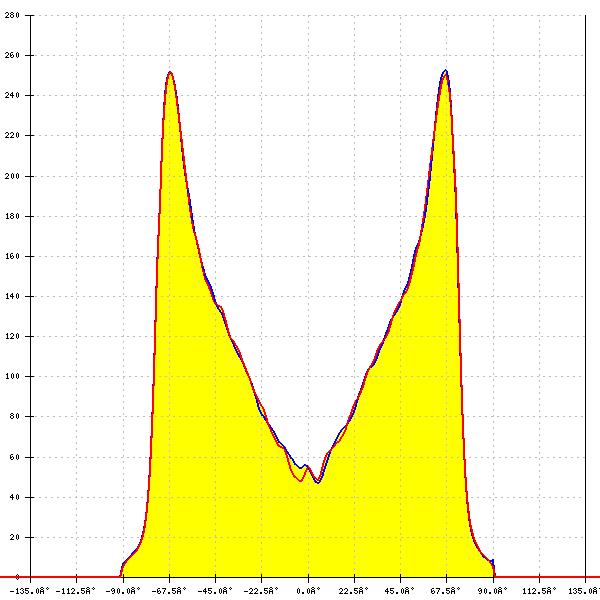

LED: OSCONIQ P 3737 (3W version)
FWHM: 152°
FWTM: 167°
Peak intensity: 0.328 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (3W version)
FWHM: 148°
FWTM: 162°
Peak intensity: 0.240 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

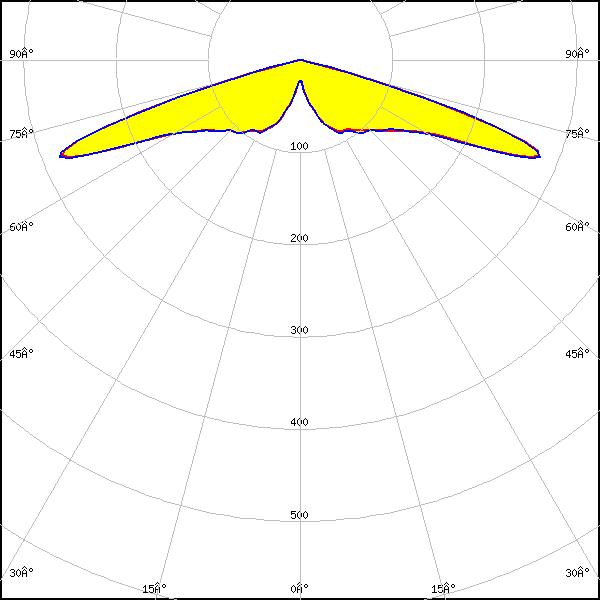

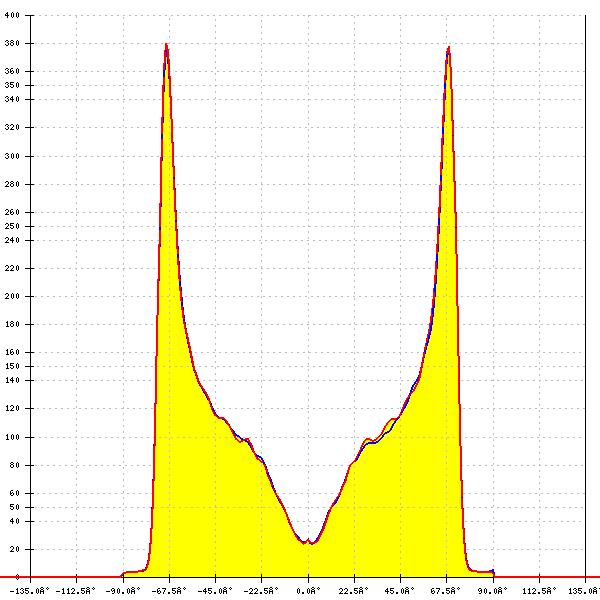

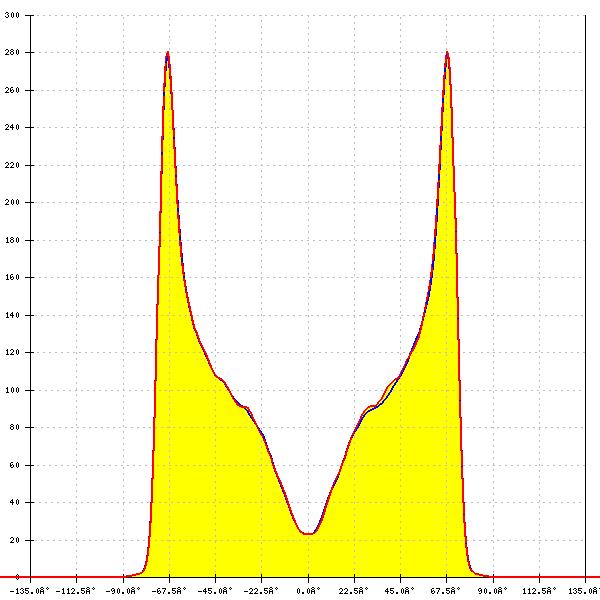

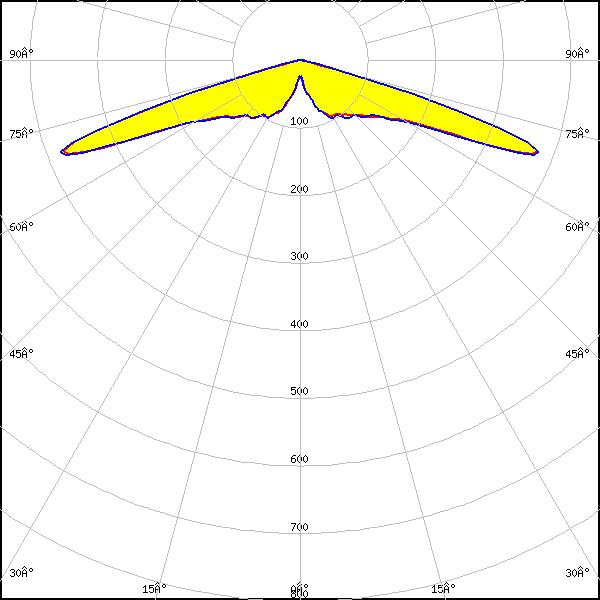

LED: OSLON Pure 1414
FWHM: 146°
FWTM: 152°
Peak intensity: 0.675 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Pure 1414
FWHM: 146°
FWTM: 152°
Peak intensity: 0.405 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

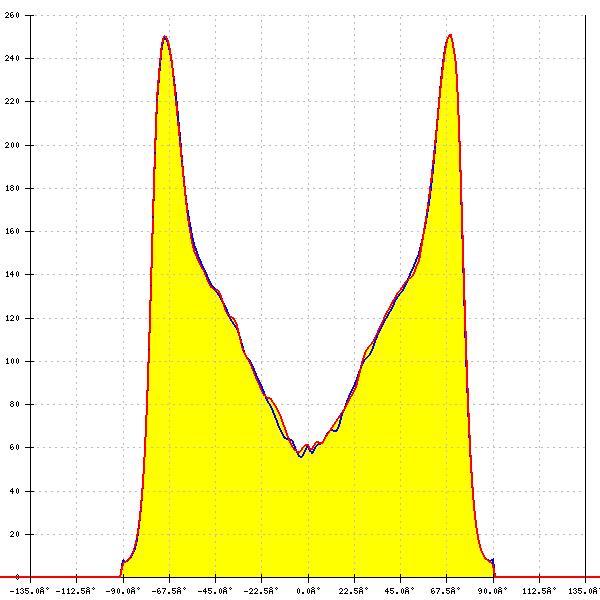

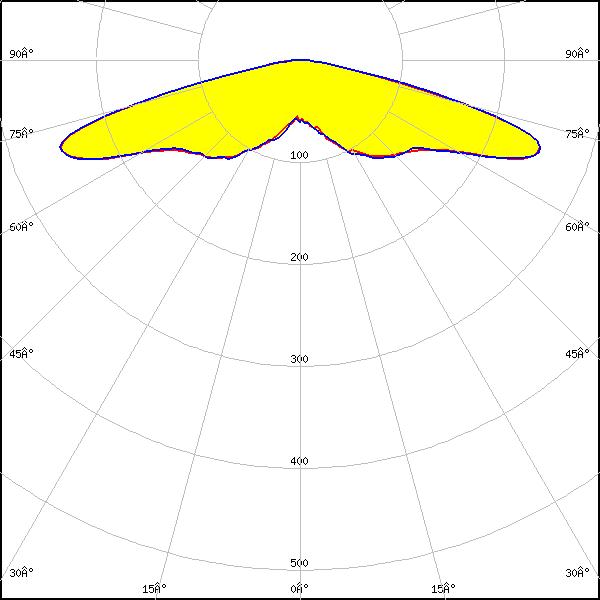

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 152°
FWTM: 164°
Peak intensity: 0.373 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

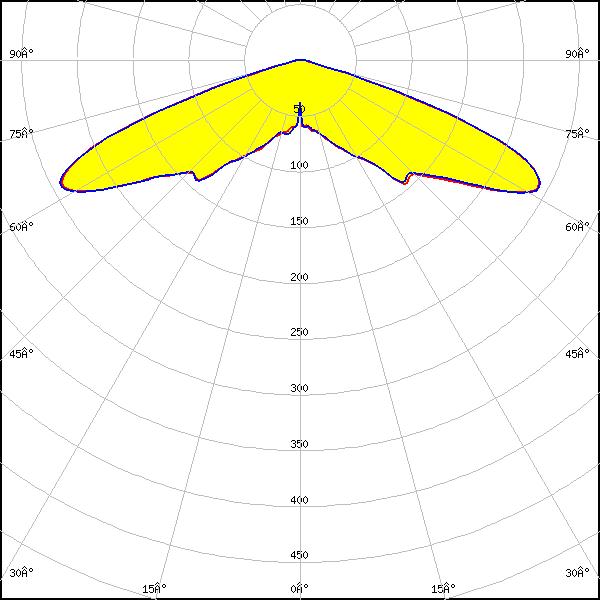

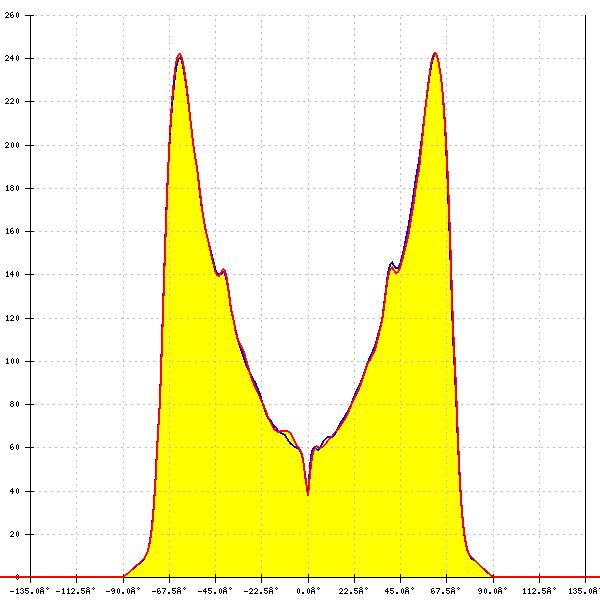

LED: LH181B
FWHM: 142°
FWTM: 151°
Peak intensity: 0.357 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

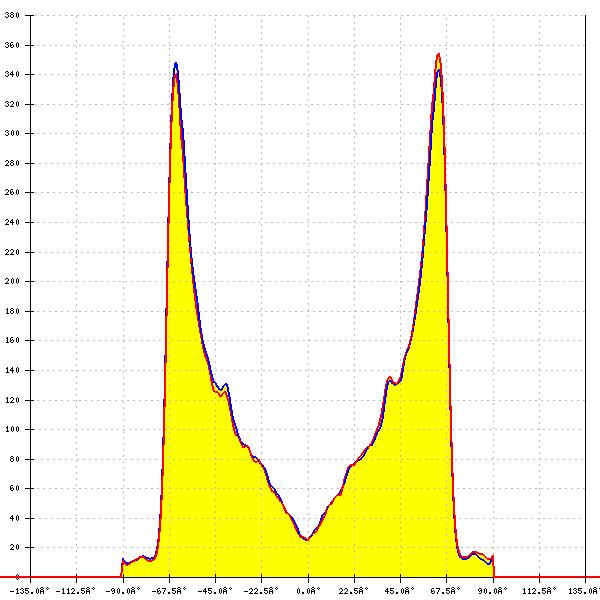

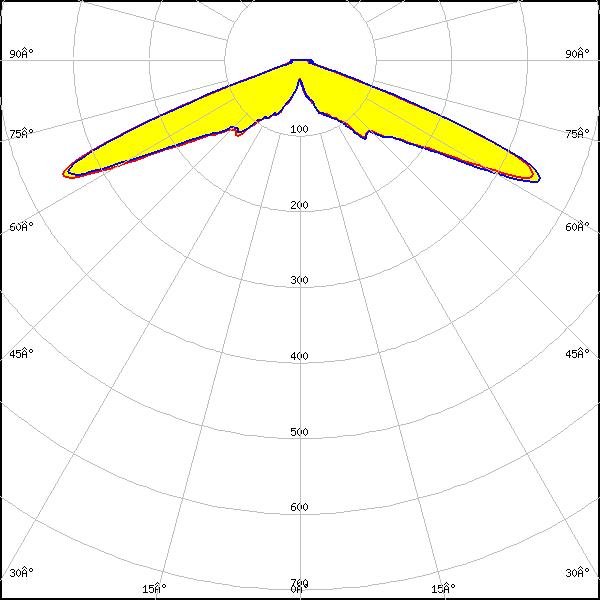

LED: LM101B
FWHM: 137°
FWTM: 143°
Peak intensity: 0.660 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

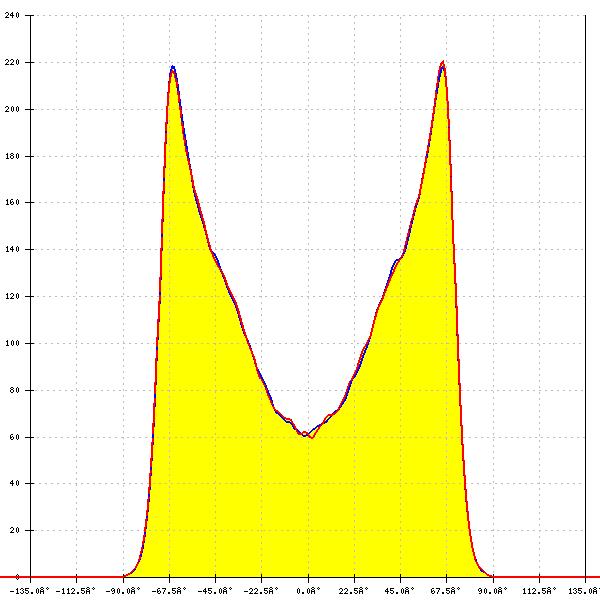

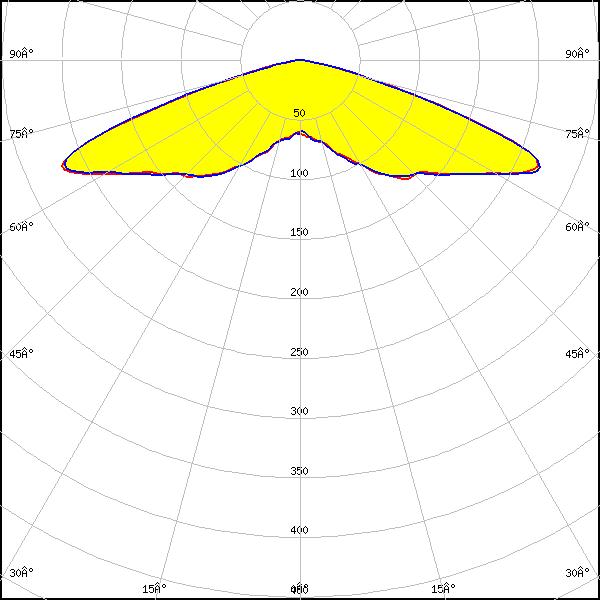

LED: LM301B
FWHM: asymmetric
Peak intensity: 0.343 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

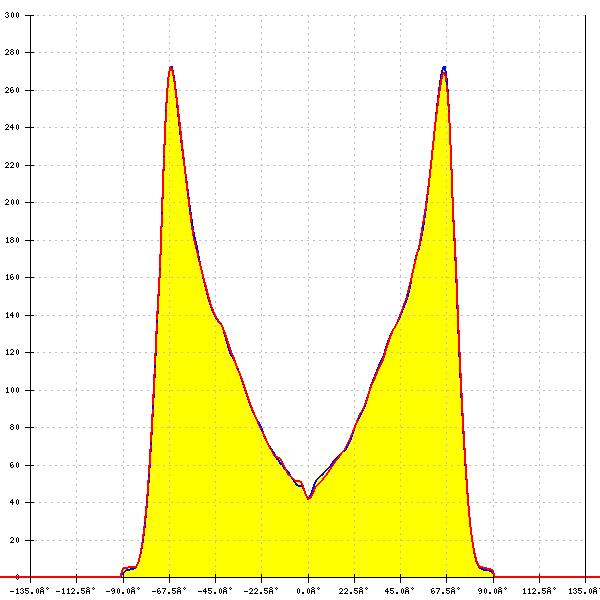

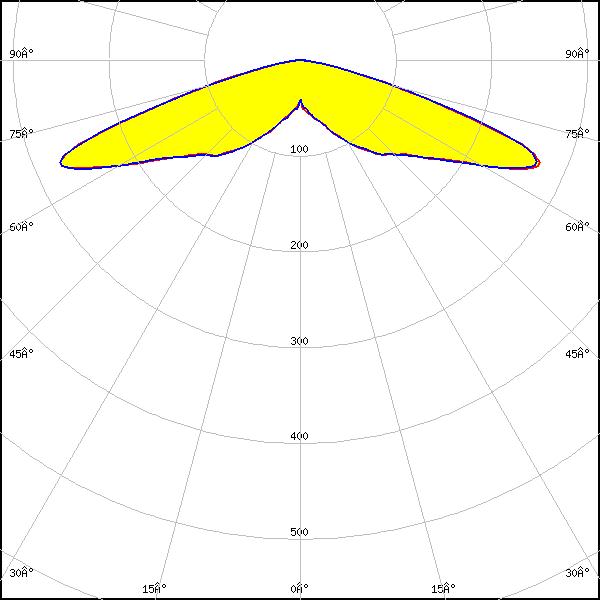

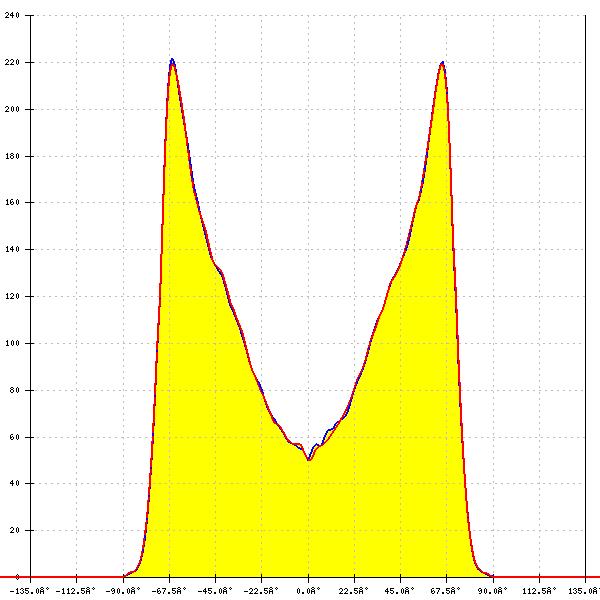

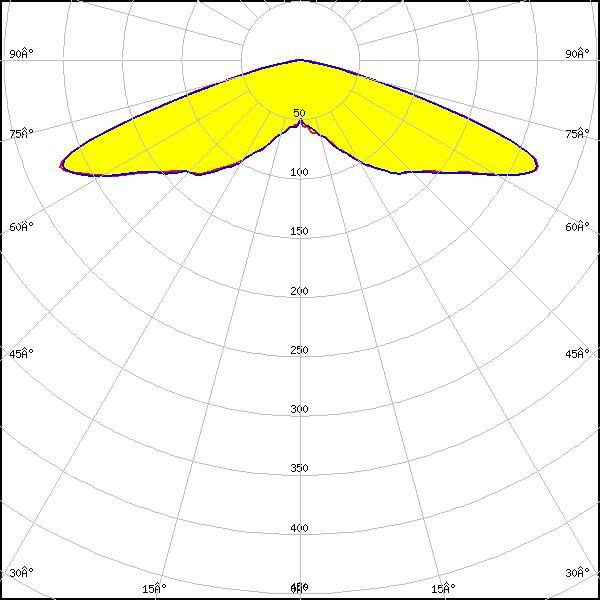

LED: LM301B EVO
FWHM: 146°
FWTM: 158°
Peak intensity: 0.480 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: LM301B EVO
FWHM: 144°
FWTM: 157°
Peak intensity: 0.351 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

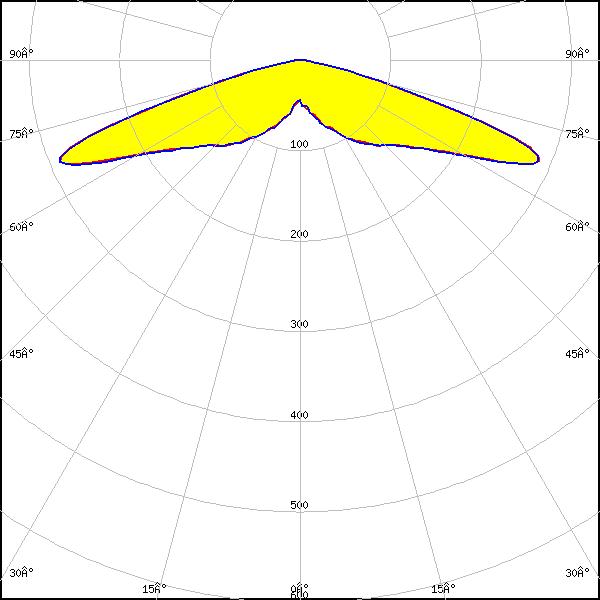

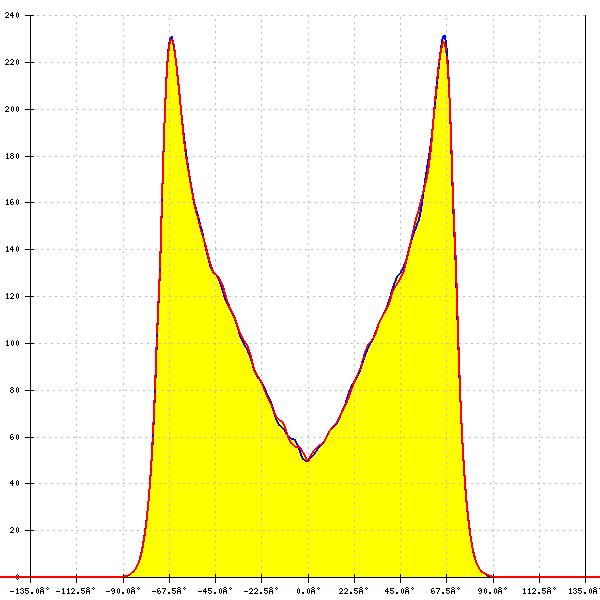

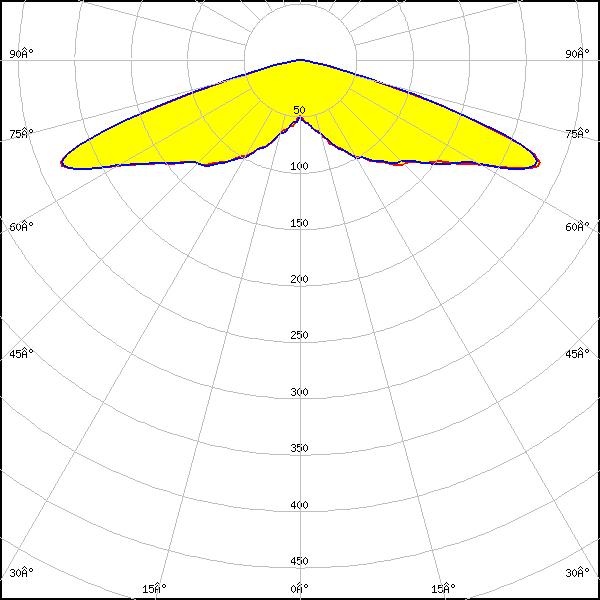

LED: SEOUL DC 3030C
FWHM: 146°
FWTM: 158°
Peak intensity: 0.465 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3030C
FWHM: 146°
FWTM: 156°
Peak intensity: 0.336 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

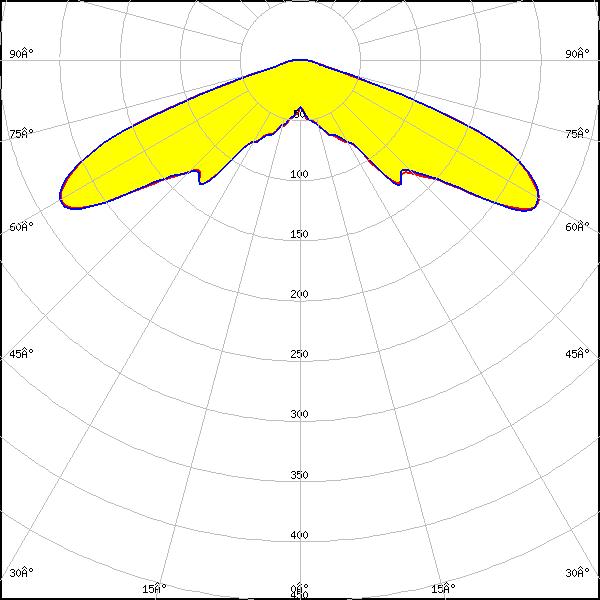

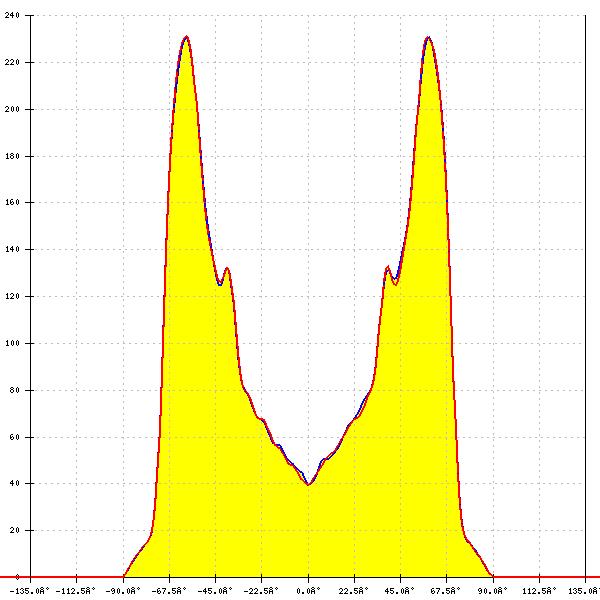

LED: Z8Y19
FWHM: 140°
FWTM: 150°
Peak intensity: 0.370 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

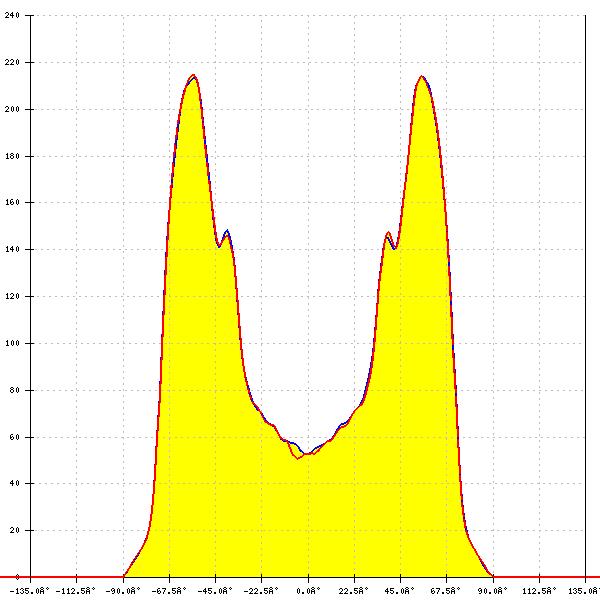

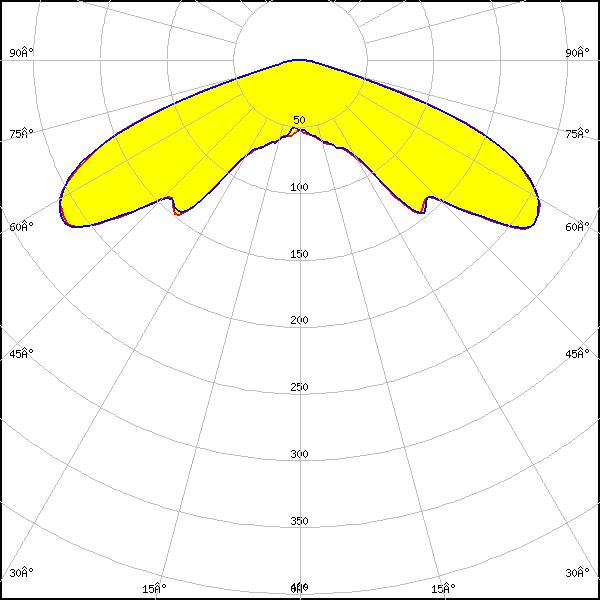

LED: Z8Y22
FWHM: 142°
FWTM: 154°
Peak intensity: 0.323 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

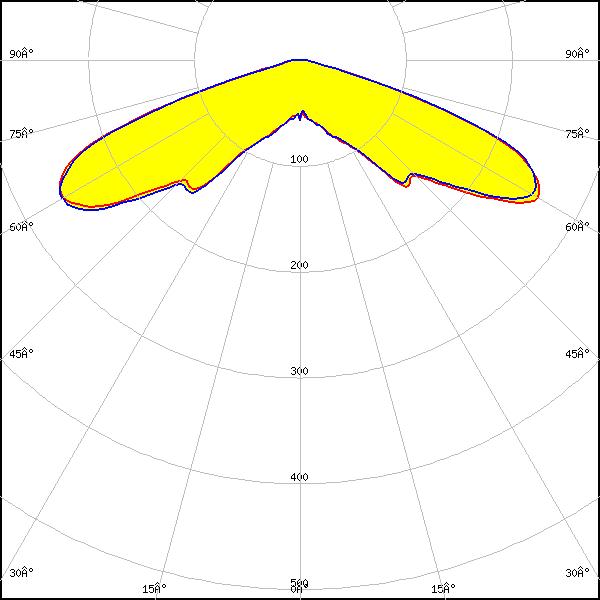

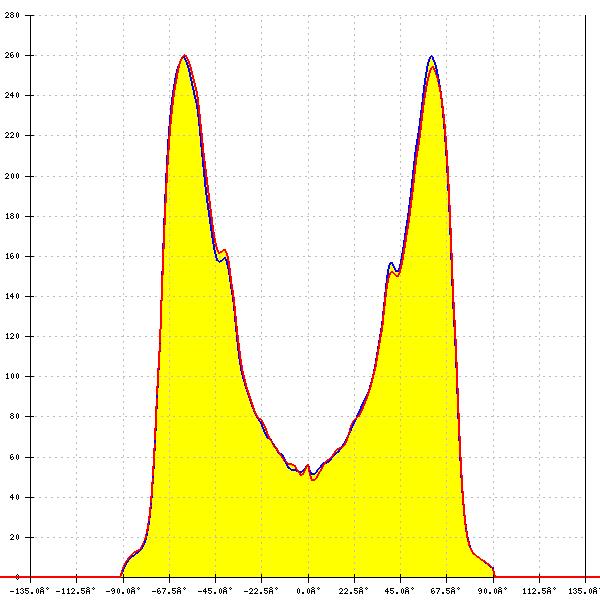

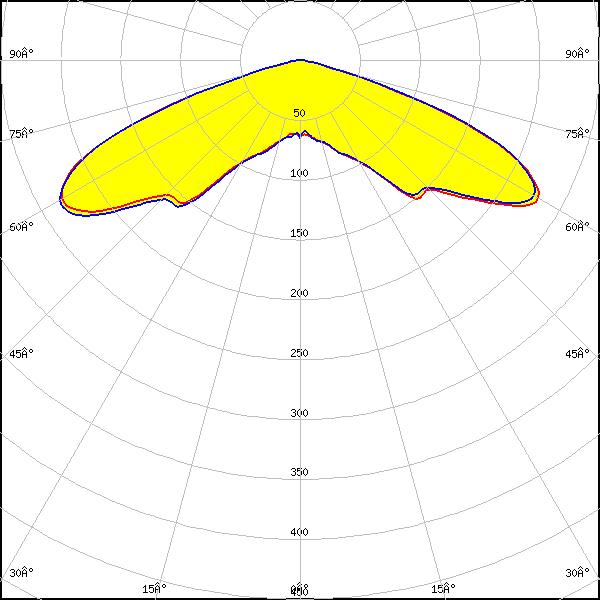

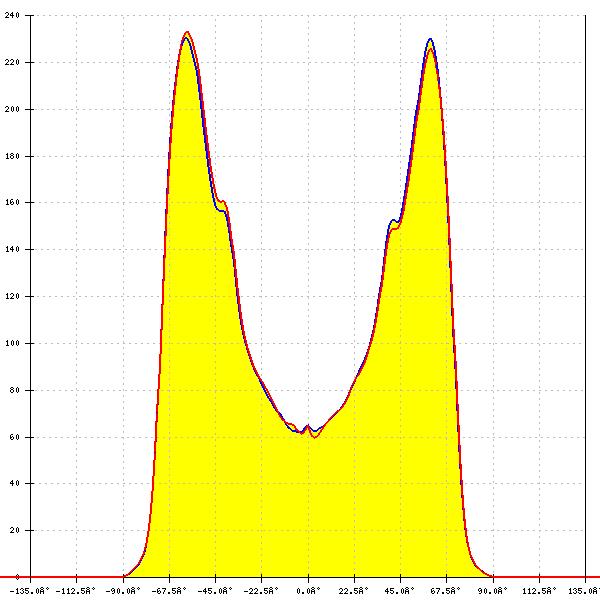

LED: Z8Y22T
FWHM: 143°
FWTM: 154°
Peak intensity: 0.389 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y22T
FWHM: 142°
FWTM: 153°
Peak intensity: 0.308 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

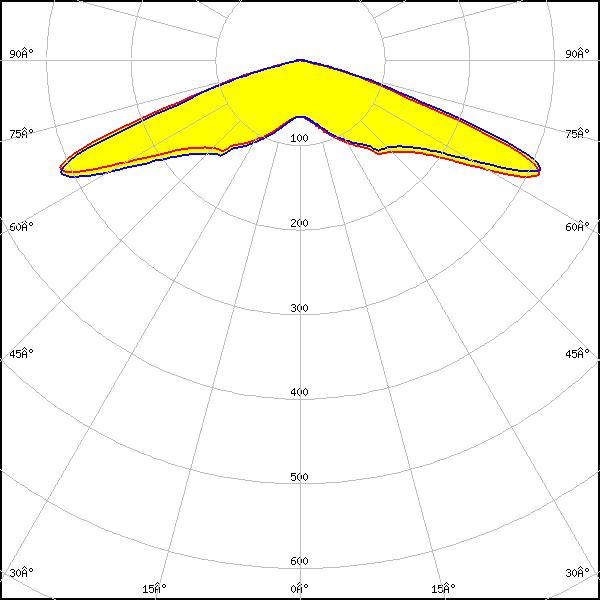

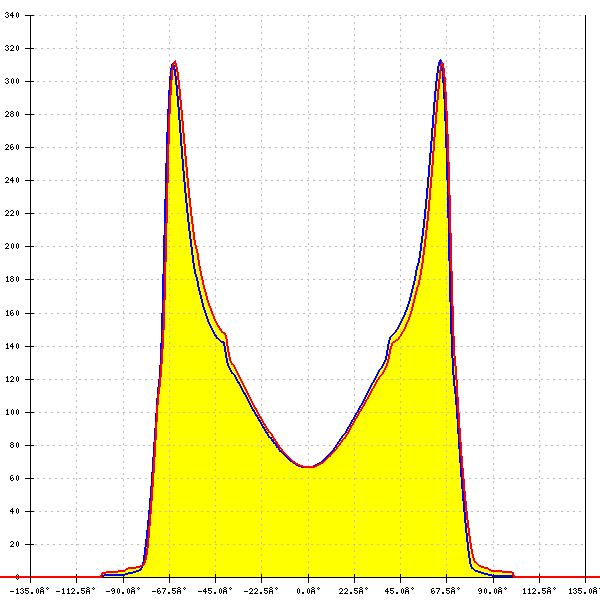

LED: RLE 4x16 4000lm MP ADV2 OTD
FWHM: 141°
FWTM: 155°
Peak intensity: 0.574 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White
