C17224_STRADELLA-8-HV-CSP-VSM
Print

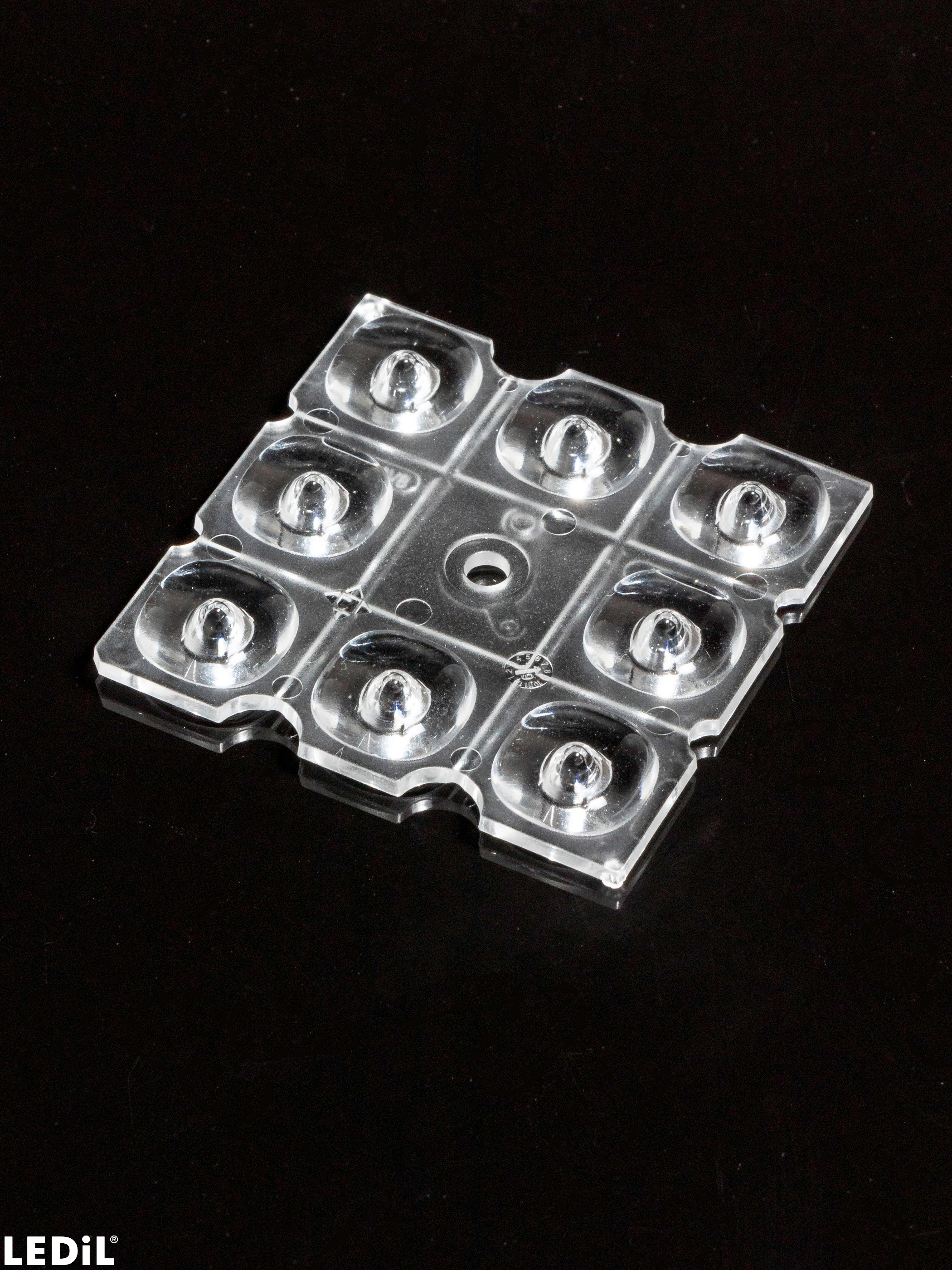

IESNA Type V (square) beam for wide areas such as car parks. Variant with improved creepage distance for high voltage circuit design.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

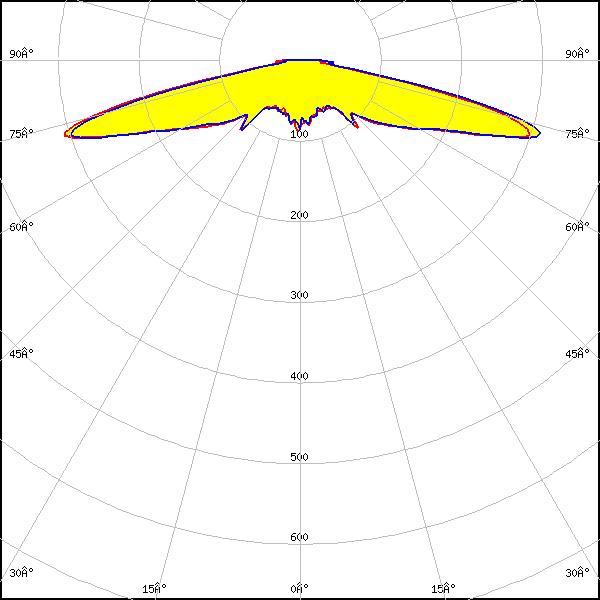

LED:
XD16
FWHM: asymmetric
Peak intensity:
0.623 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

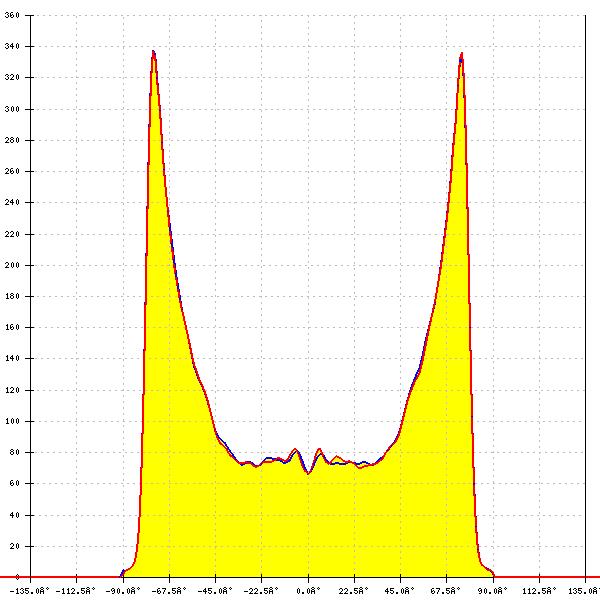

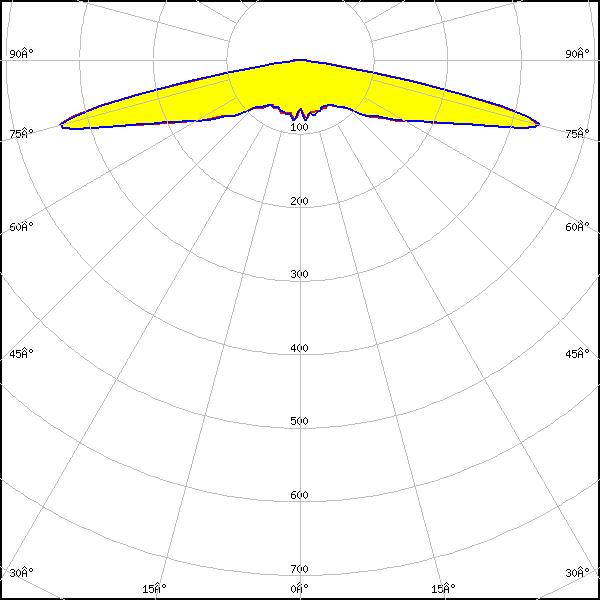

LED:
LUXEON CZ
FWHM:
158°
FWTM:
164°
Peak intensity:
0.618 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

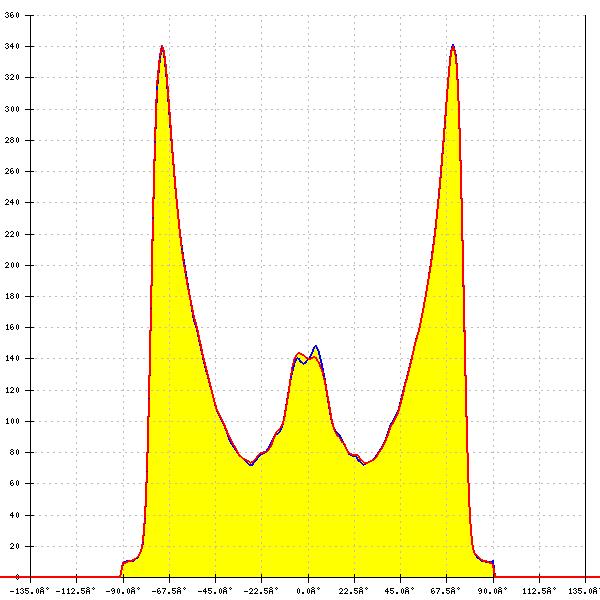

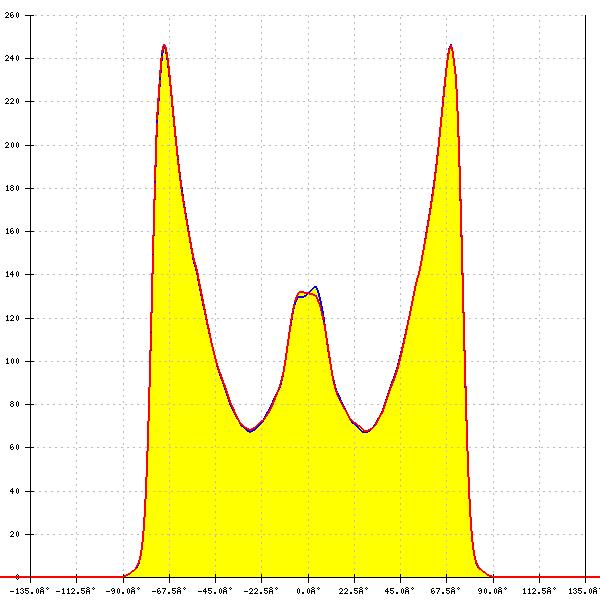

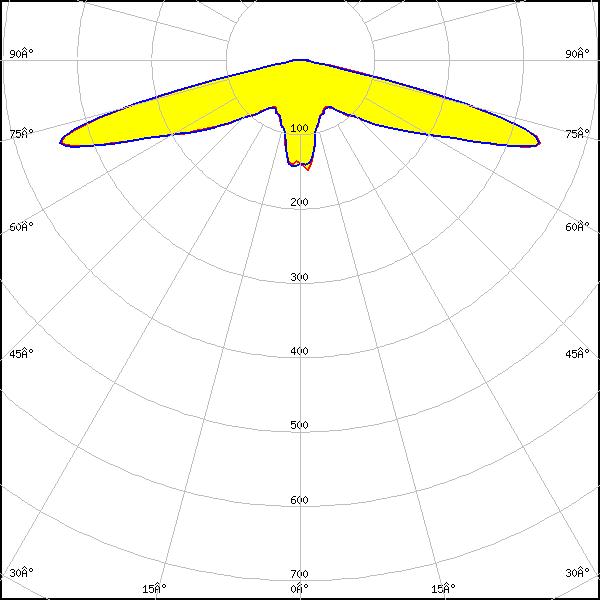

LED:
LUXEON HL2Z
FWHM:
152°
FWTM:
158°
Peak intensity:
0.583 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

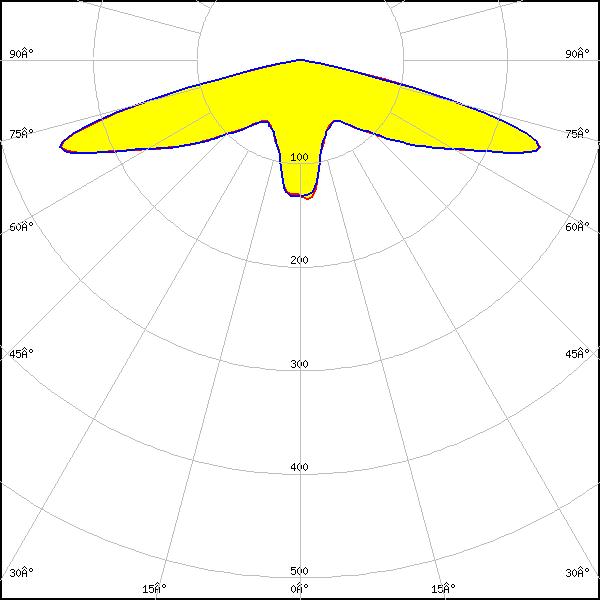

LED:
LUXEON HL2Z
FWHM:
152°
FWTM:
158°
Peak intensity:
0.357 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

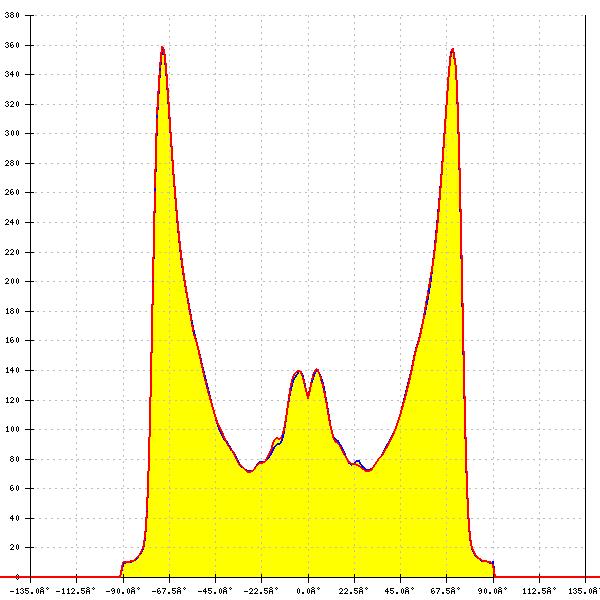

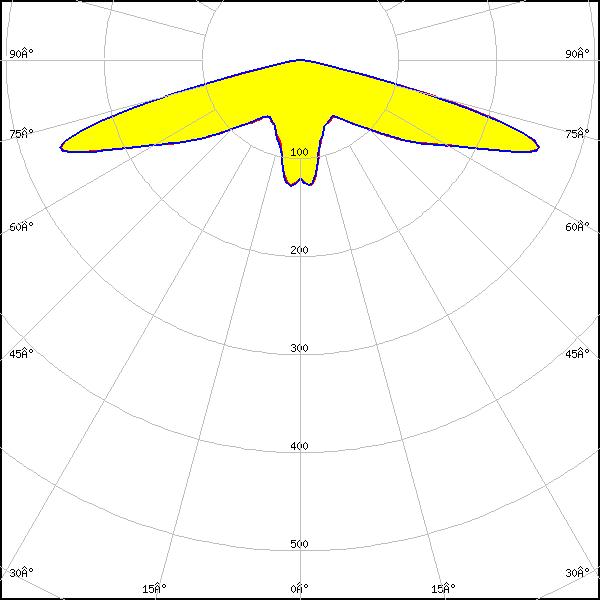

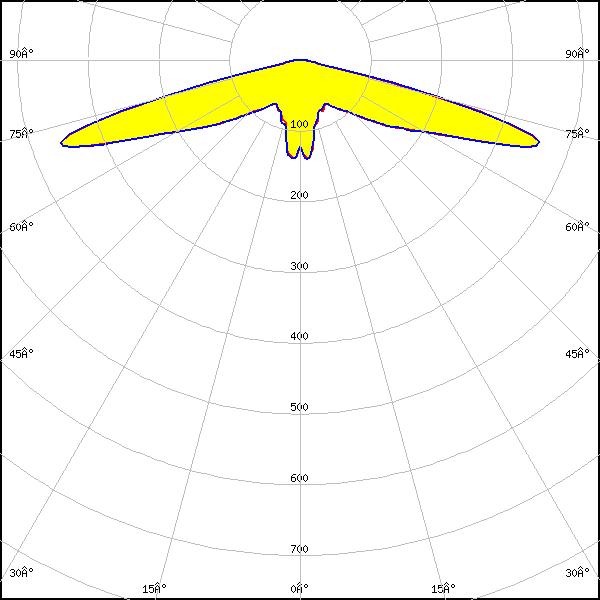

LED:
NVSxE21A
FWHM:
150°
FWTM:
156°
Peak intensity:
0.621 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

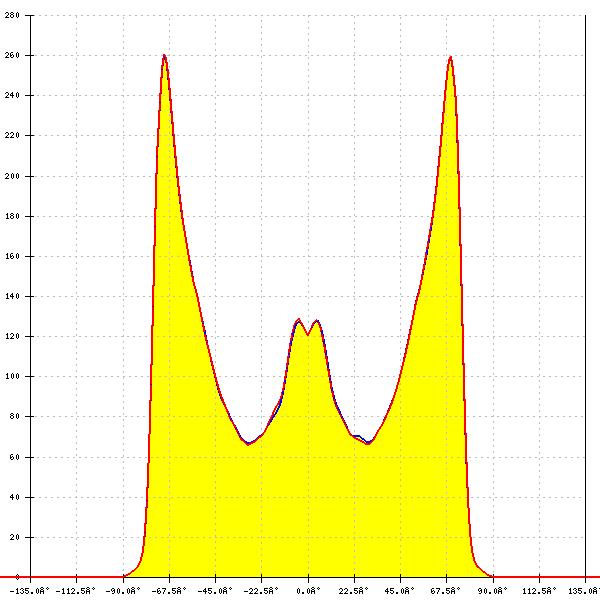

LED:
NVSxE21A
FWHM:
150°
FWTM:
158°
Peak intensity:
0.385 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

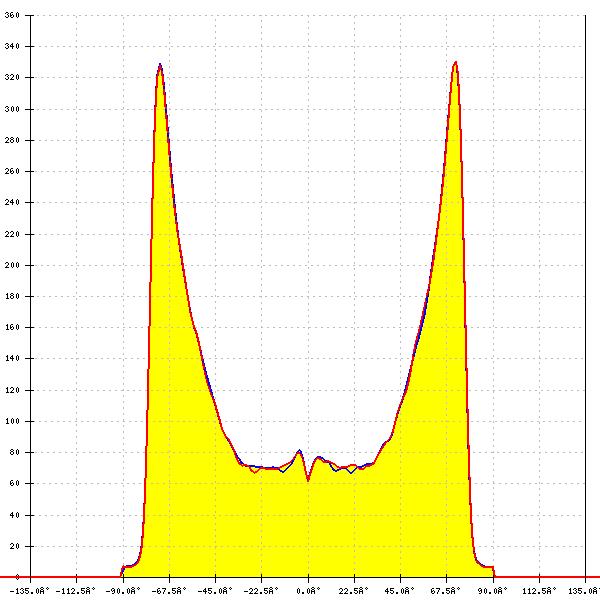

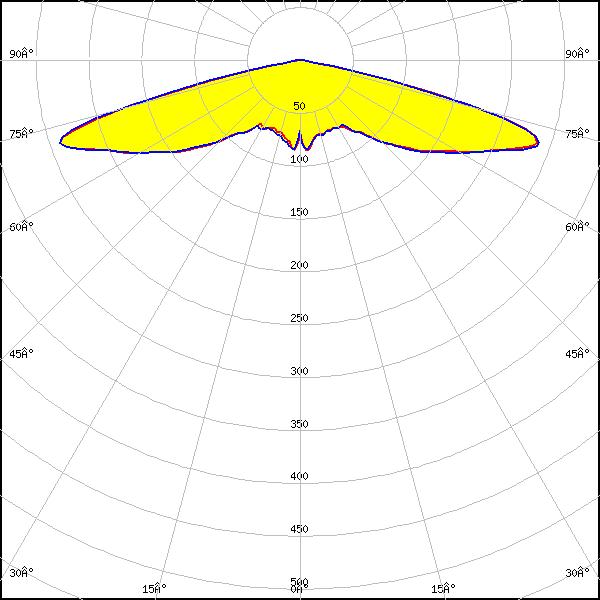

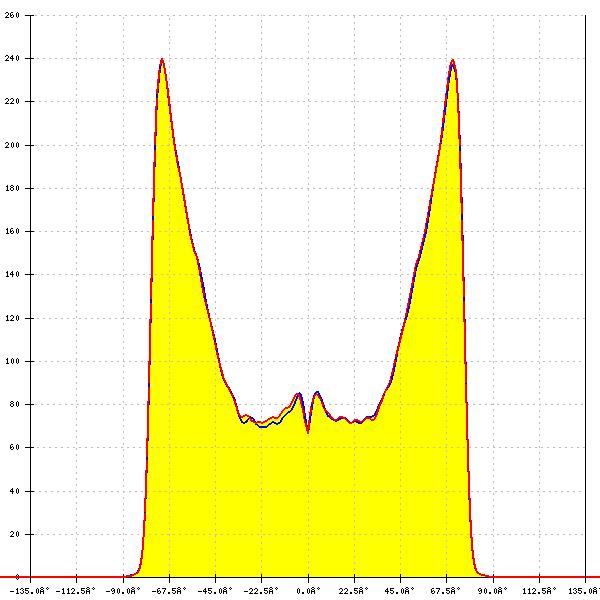

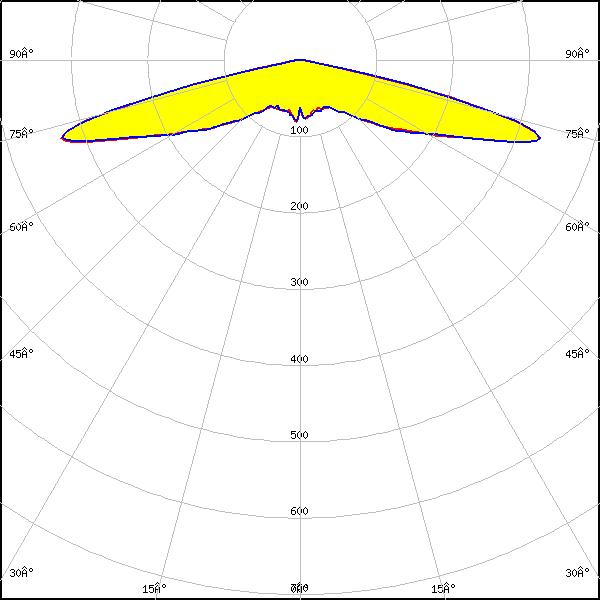

LED:
OSCONIQ C 2424
FWHM:
154°
FWTM:
160°
Peak intensity:
0.591 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM:
152°
FWTM:
158°
Peak intensity:
0.389 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

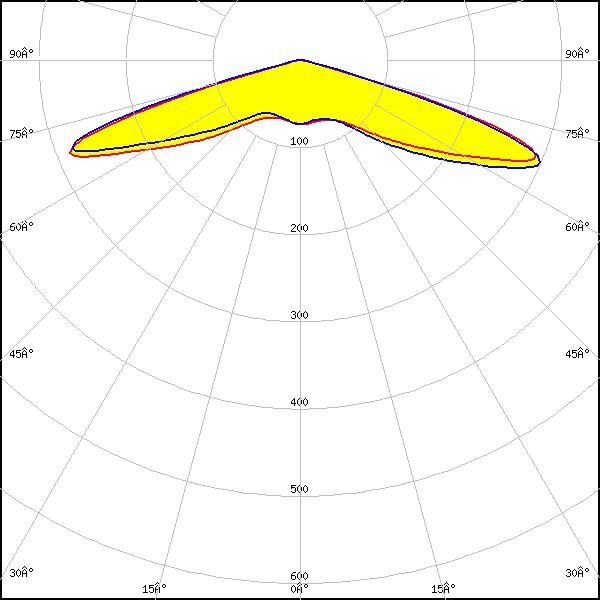

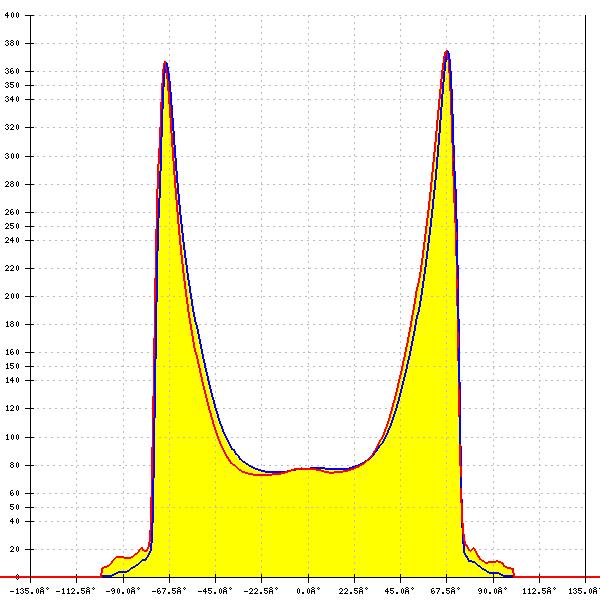

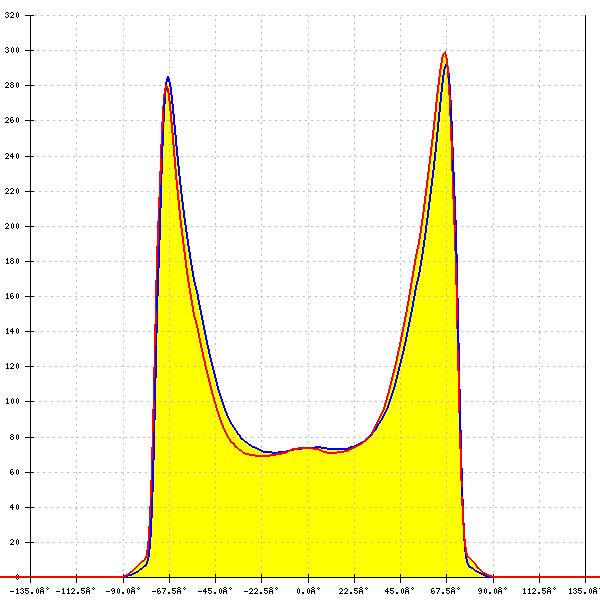

LED:
Fortimo FastFlex LED 4x8up PR G5
FWHM: asymmetric
Peak intensity:
0.443 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

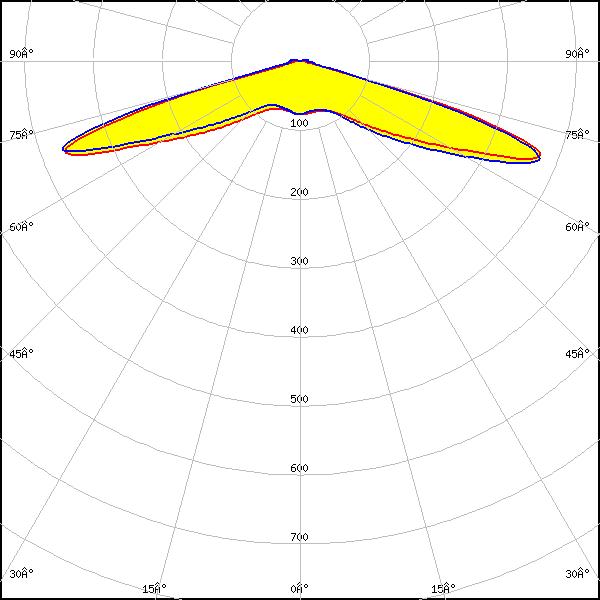

LED:
Fortimo FastFlex LED 4x8up PR G5
FWHM:
147°
FWTM:
151°
Peak intensity:
0.646 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

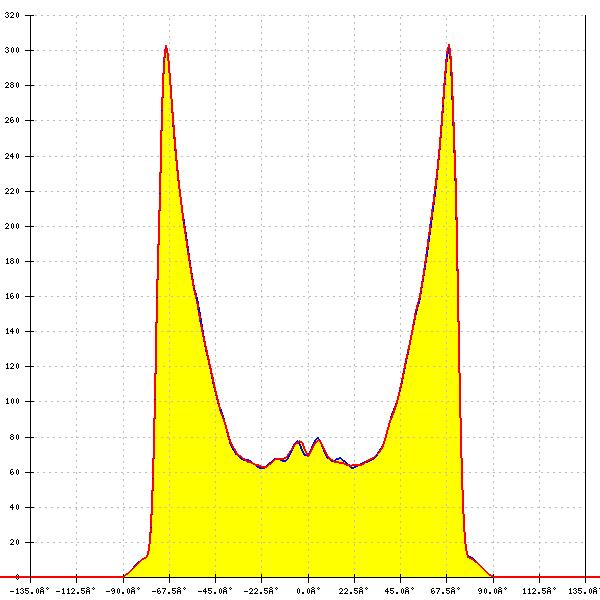

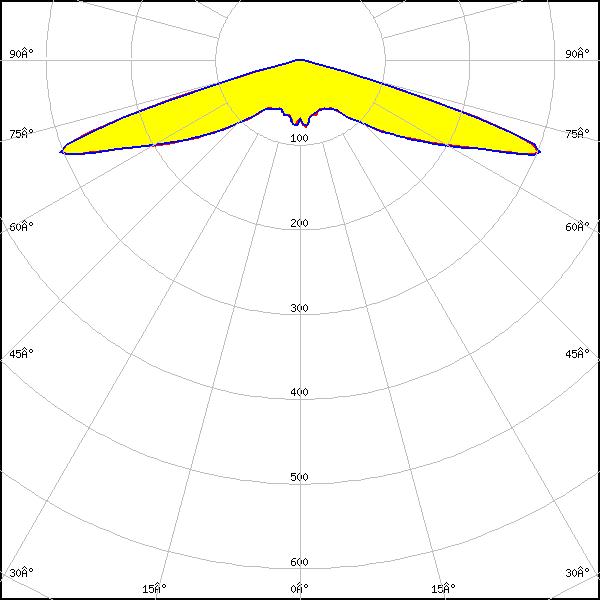

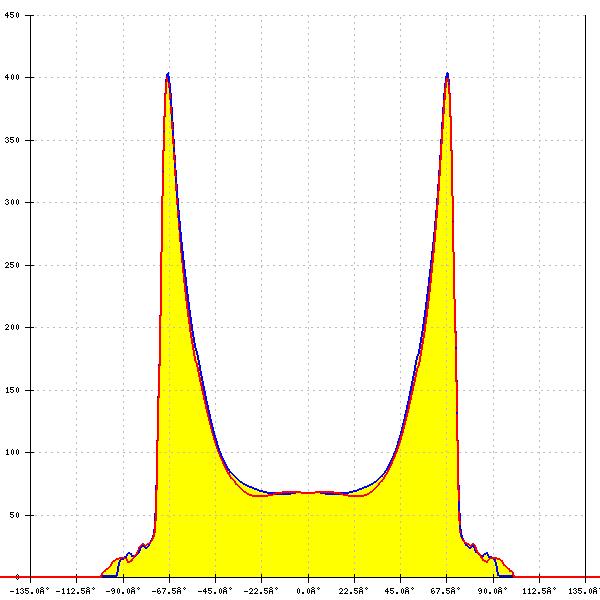

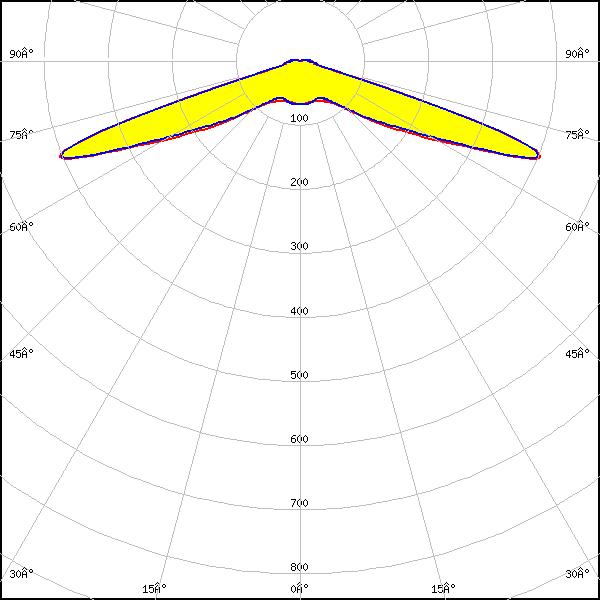

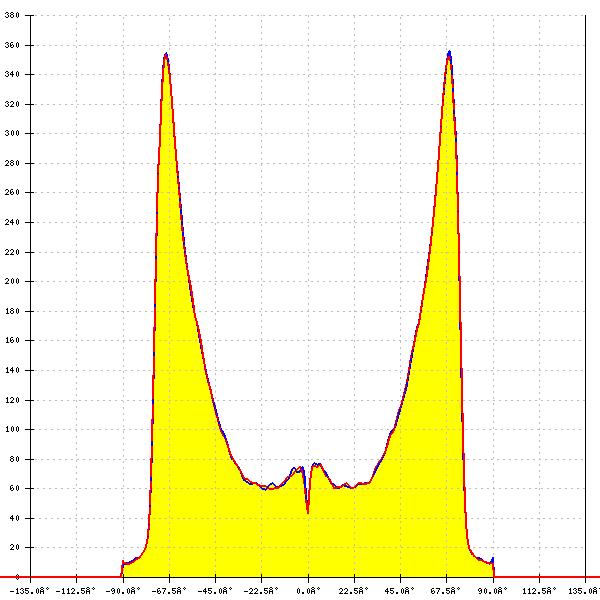

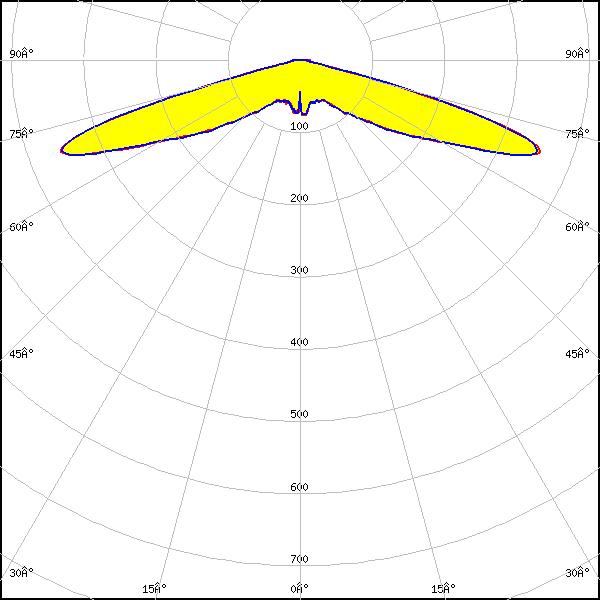

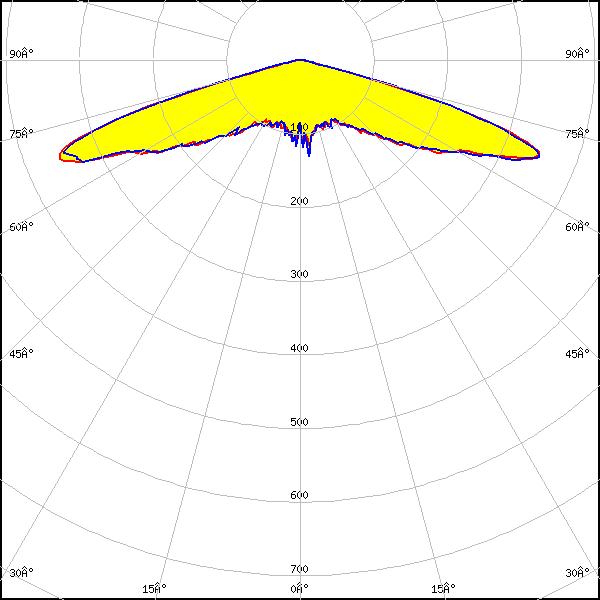

LED:
LH151B
FWHM:
144°
FWTM:
148°
Peak intensity:
0.854 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
