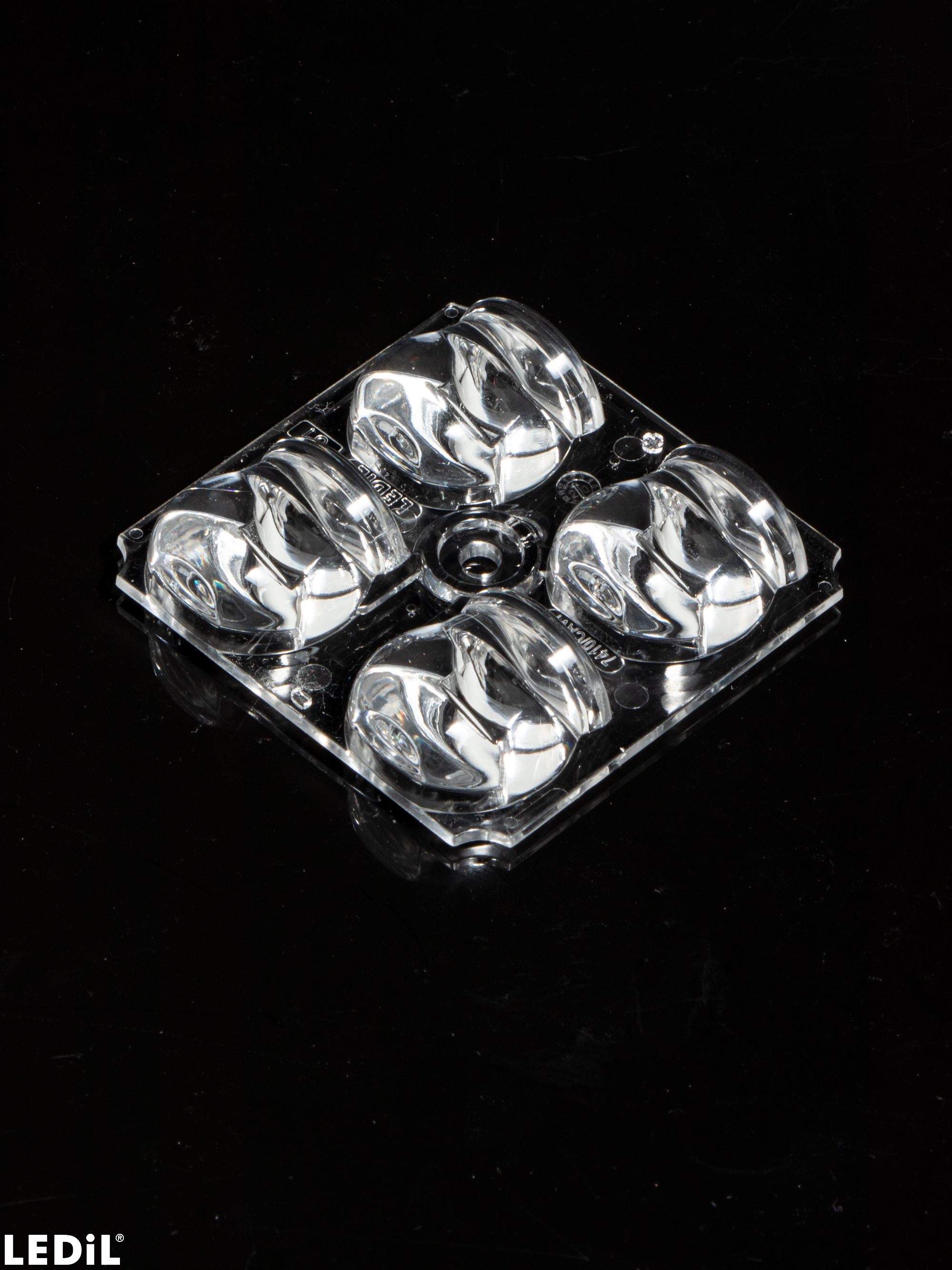

C17410_SPORT-2X2-FT6

Print

Narrow forward throw beam with optimized cut-off for high masts

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    11.00 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    640 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.8 kg
  • MPQ:
    128 pcs
  • MOQ:
    128 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17410_SPORT-2X2-FT6

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

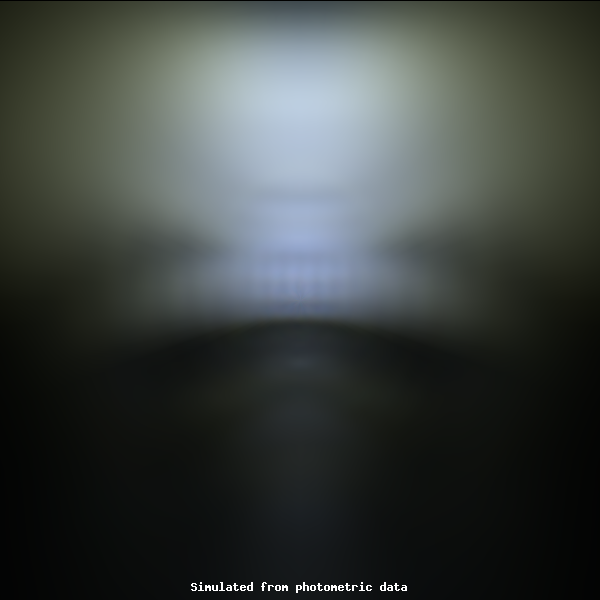

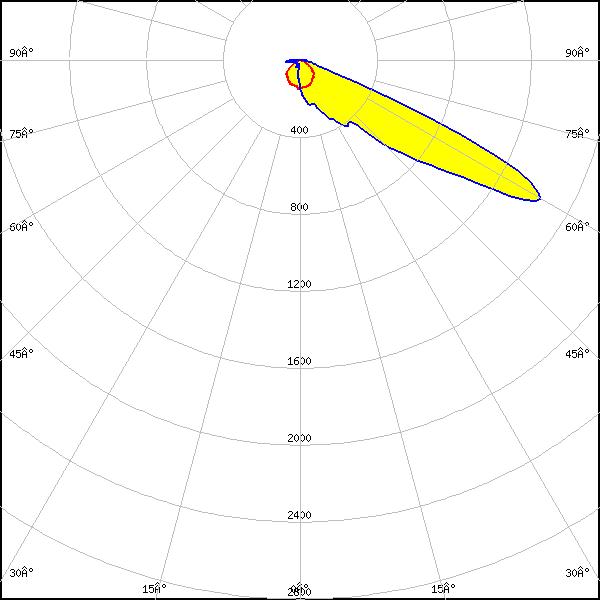

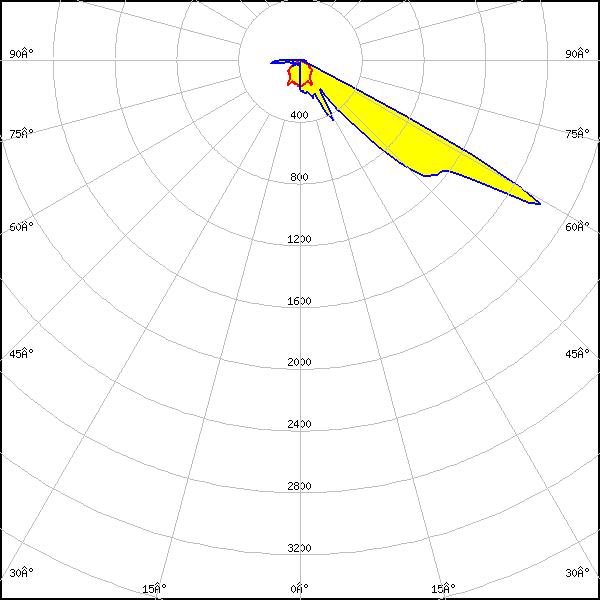

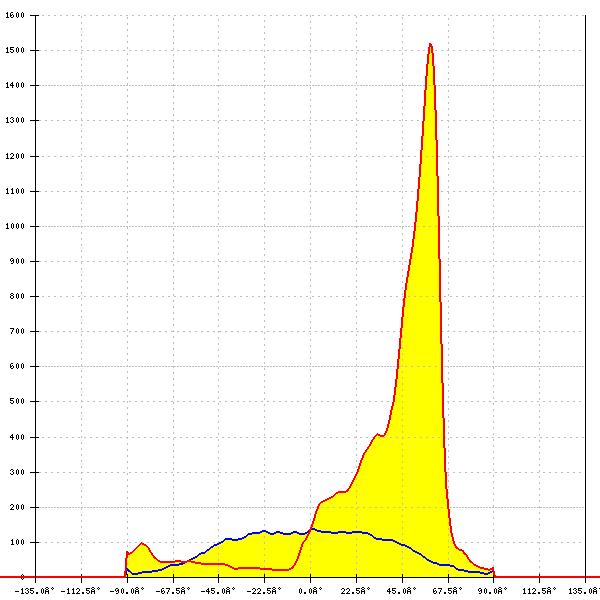

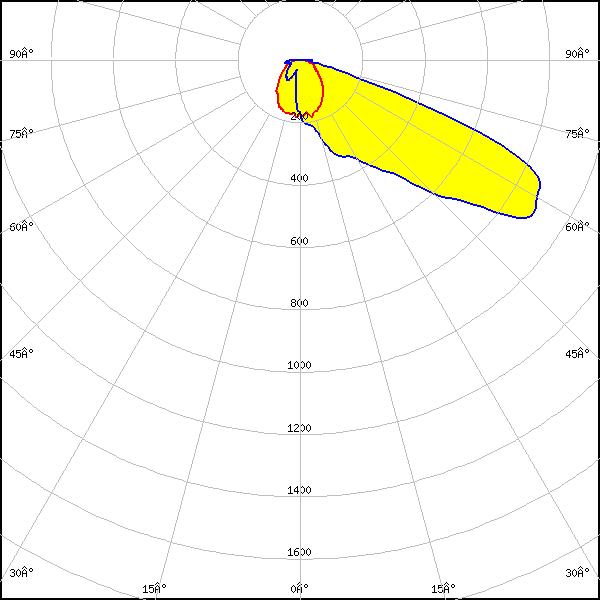

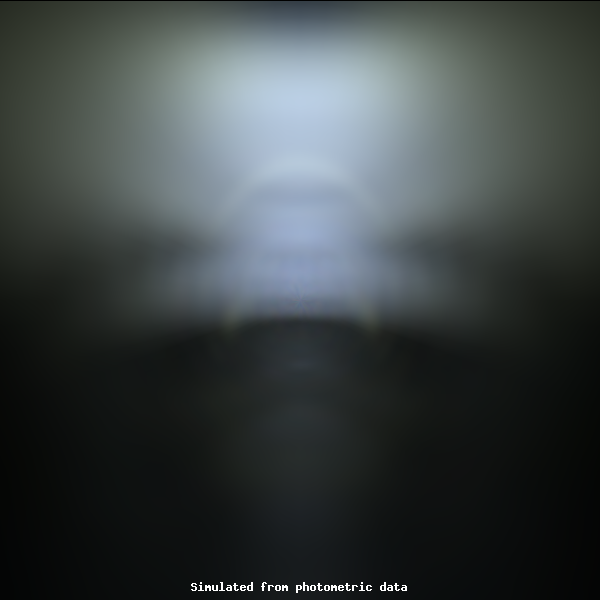

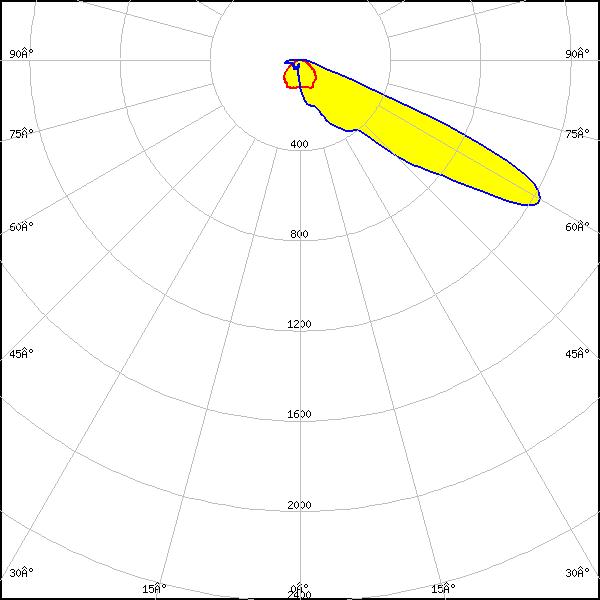

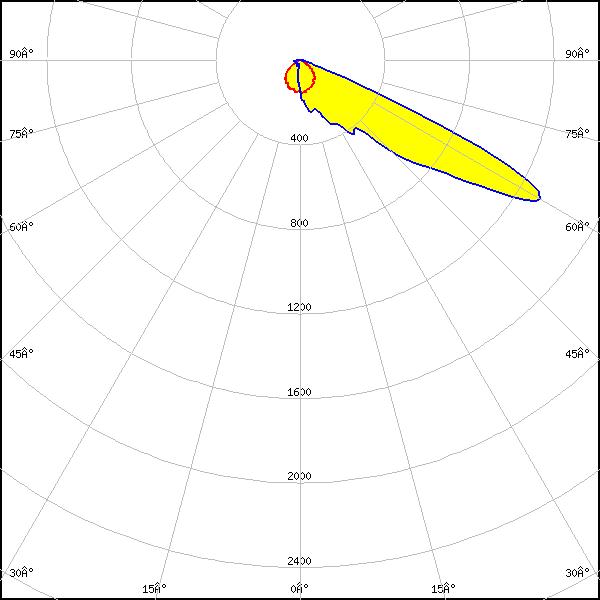

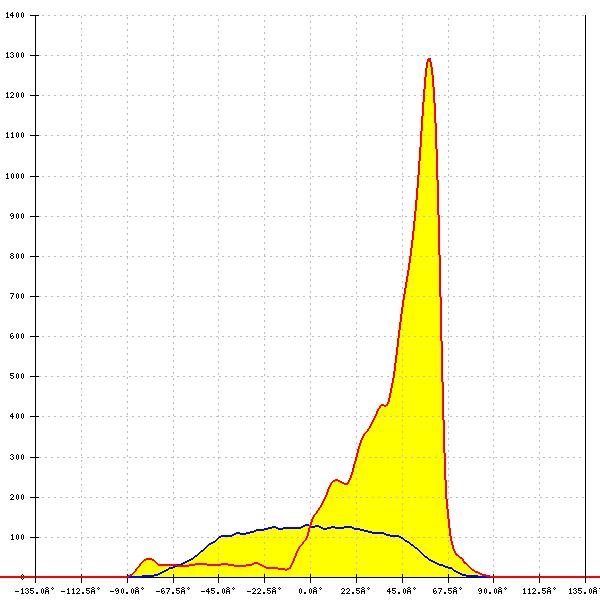

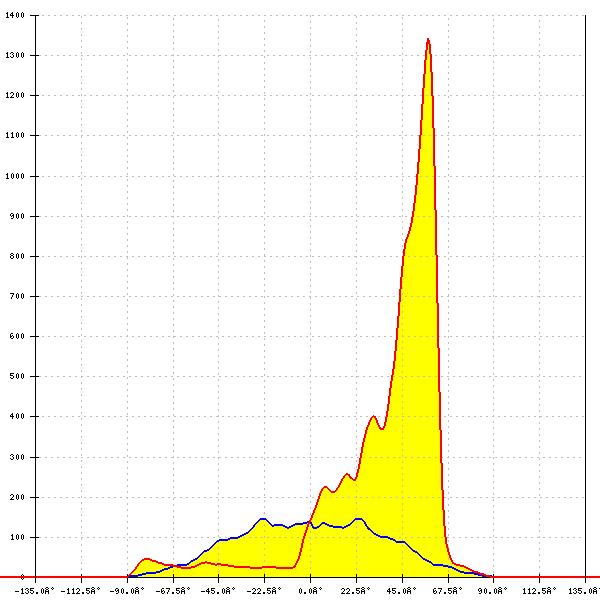

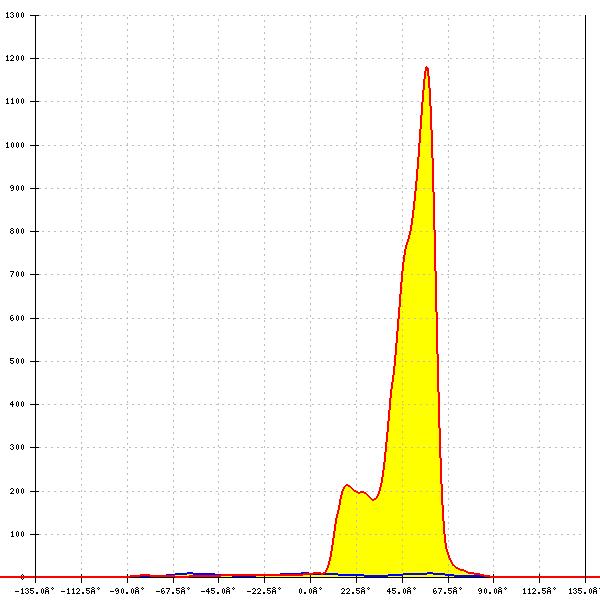

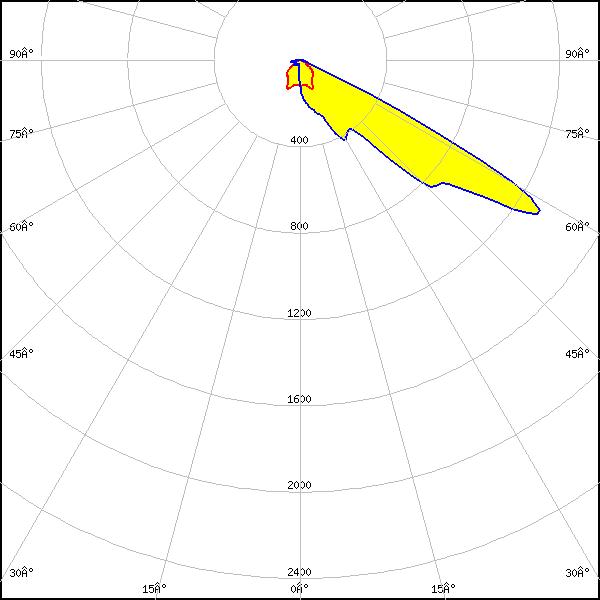

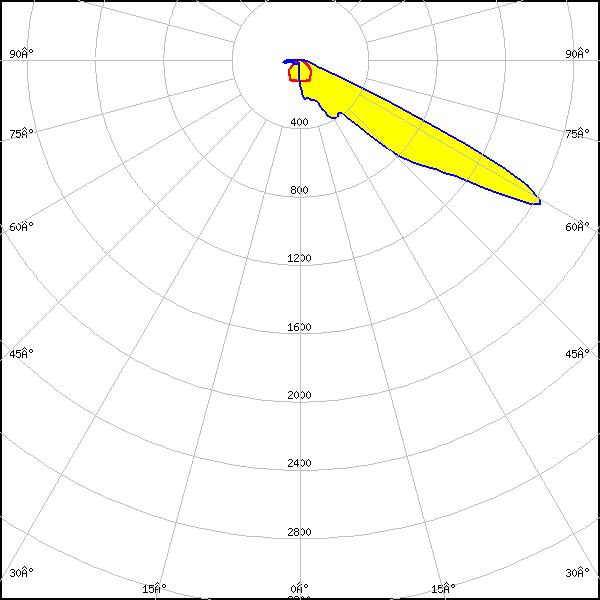

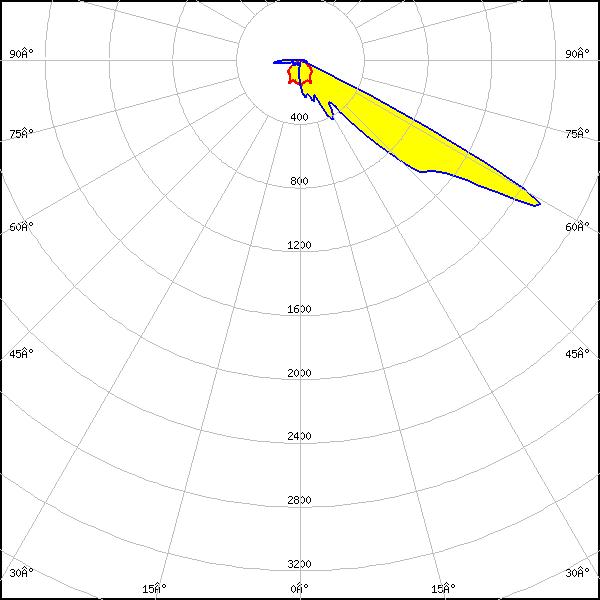

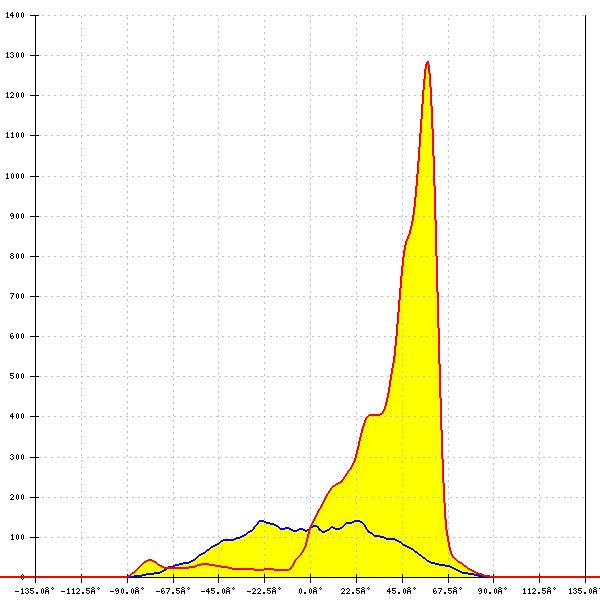

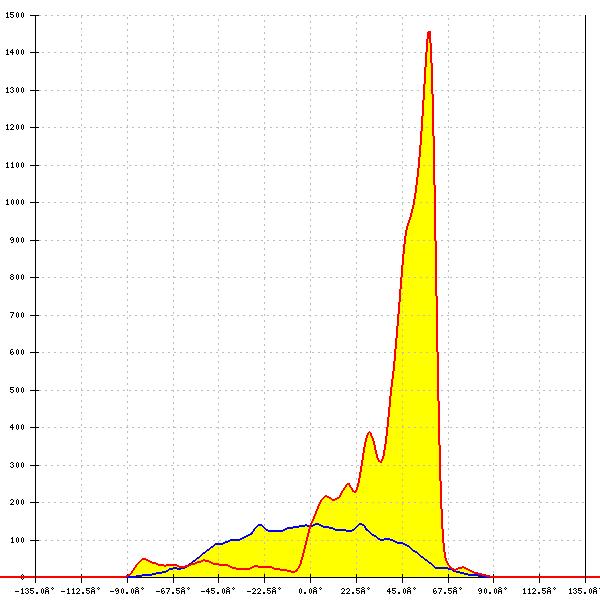

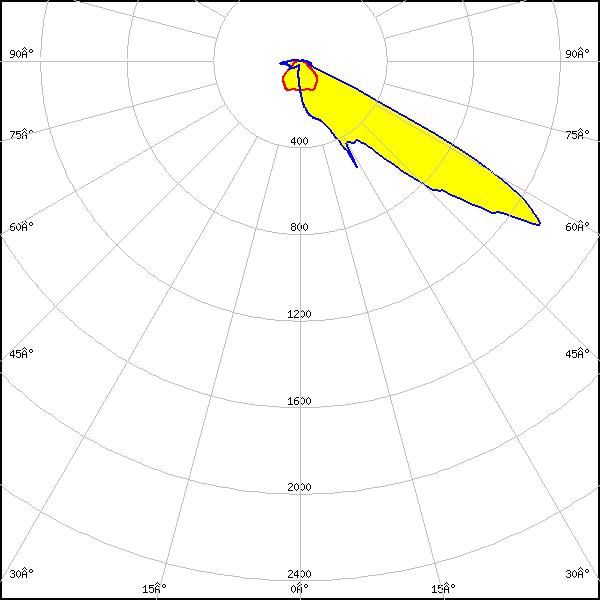

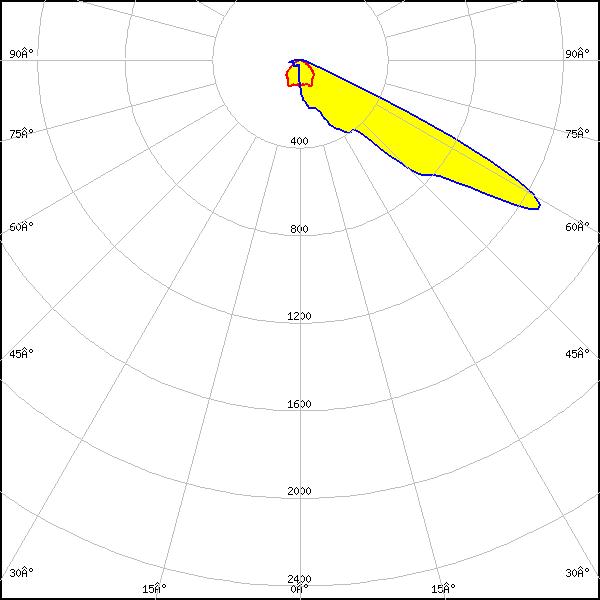

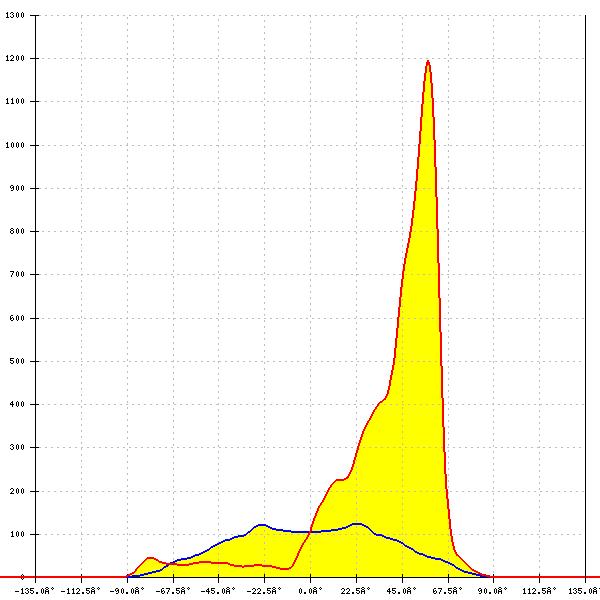

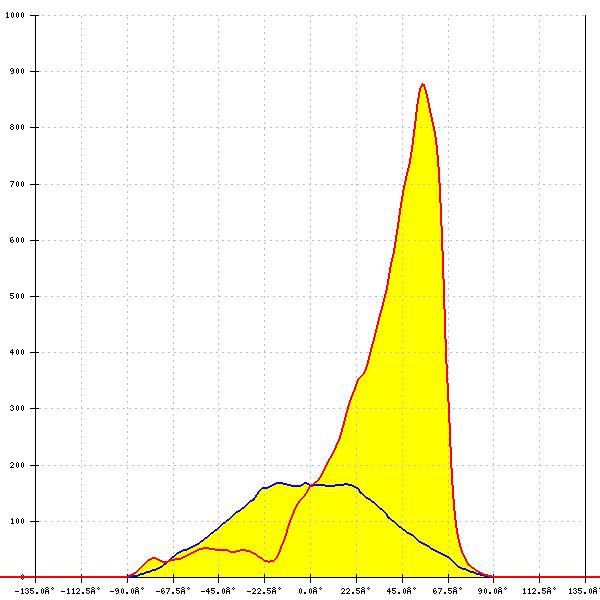

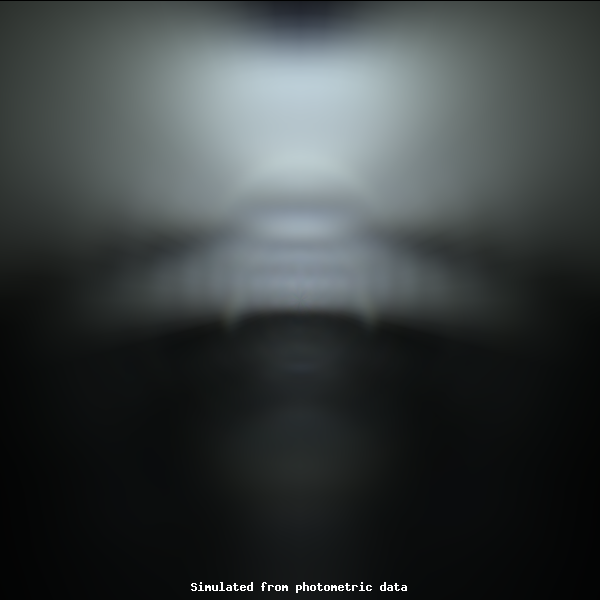

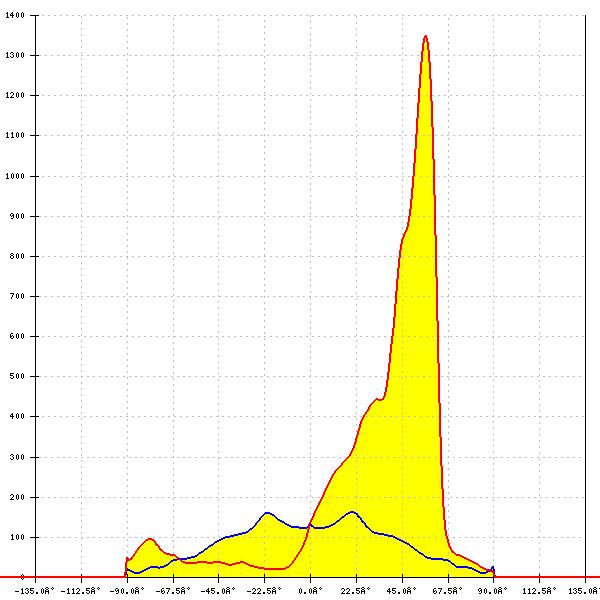

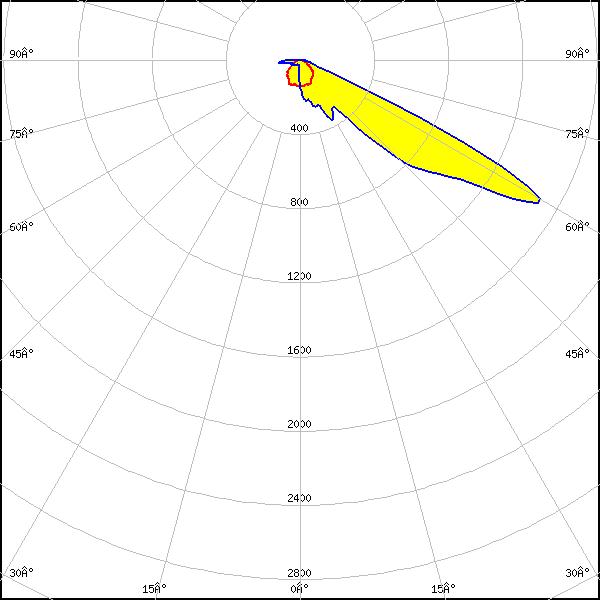

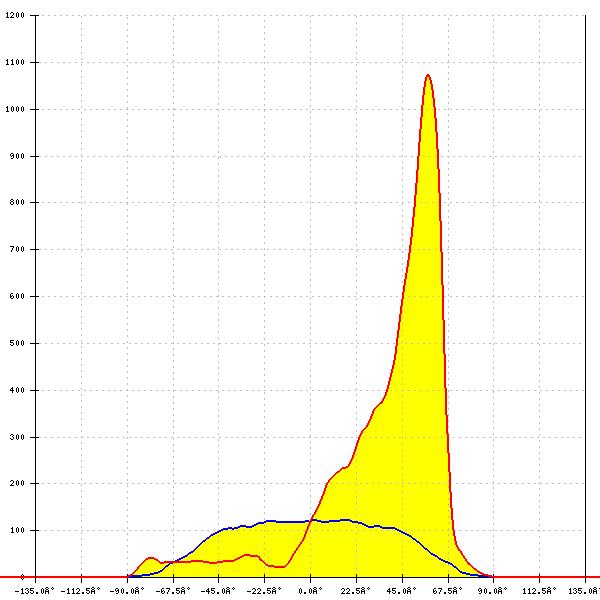

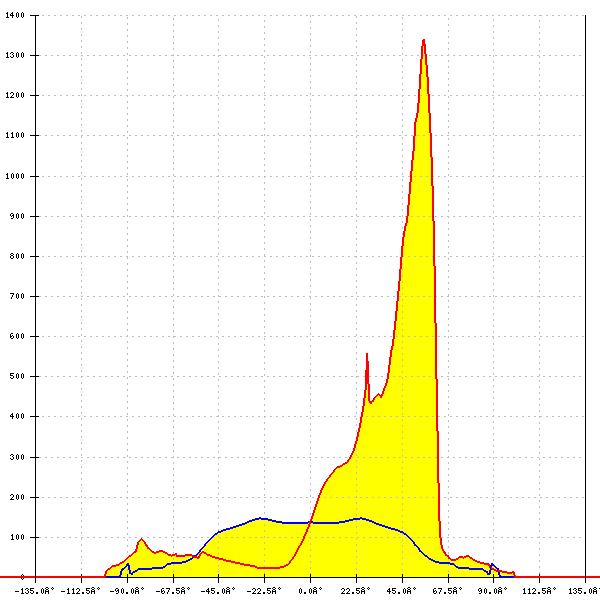

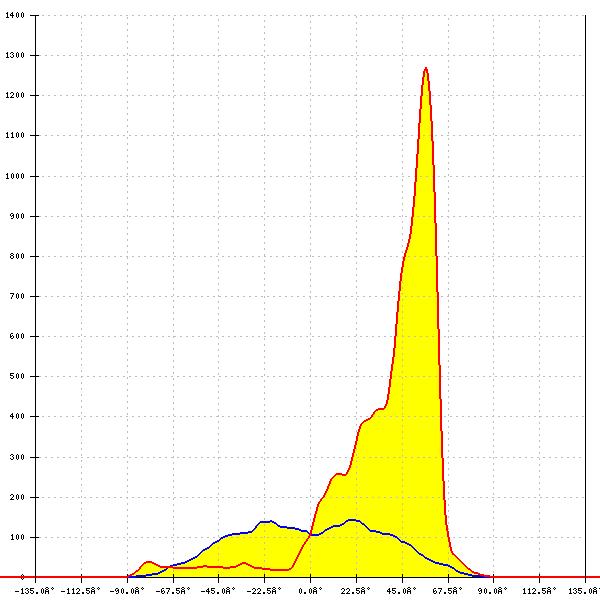

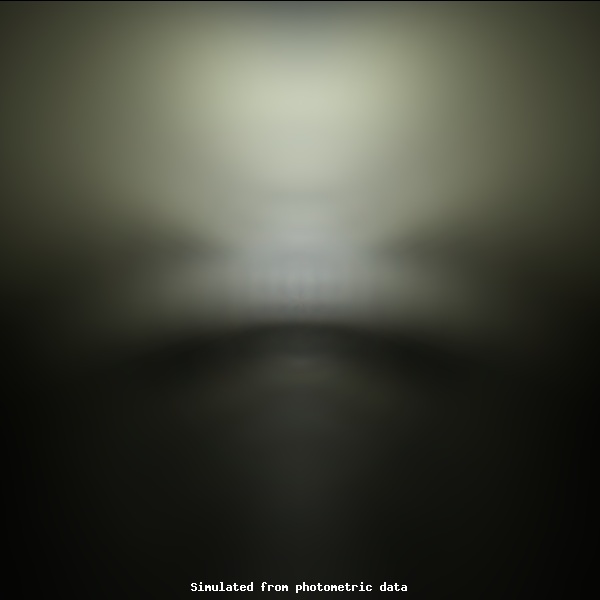

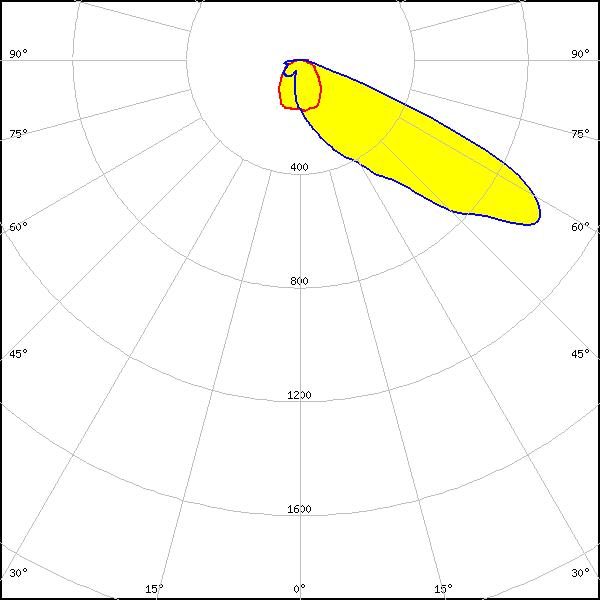

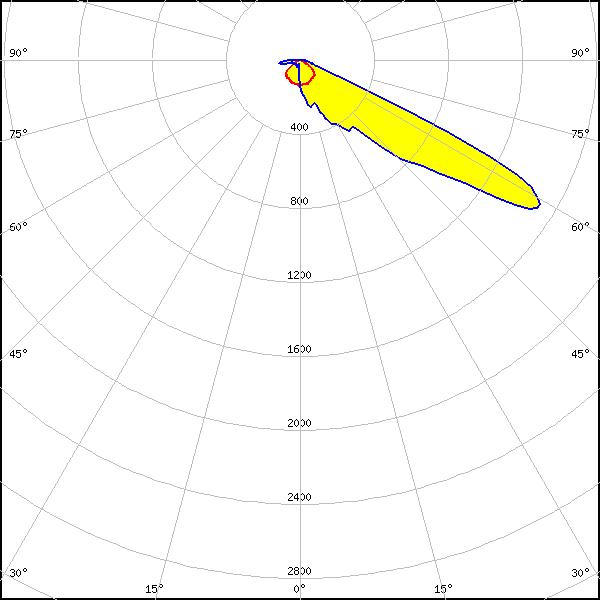

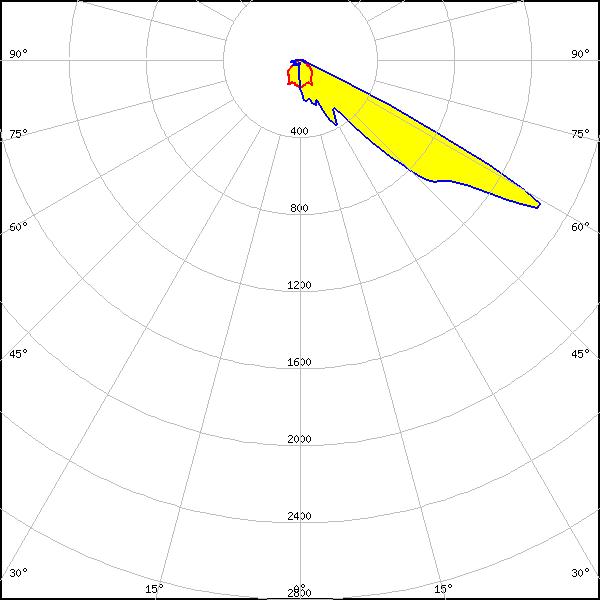

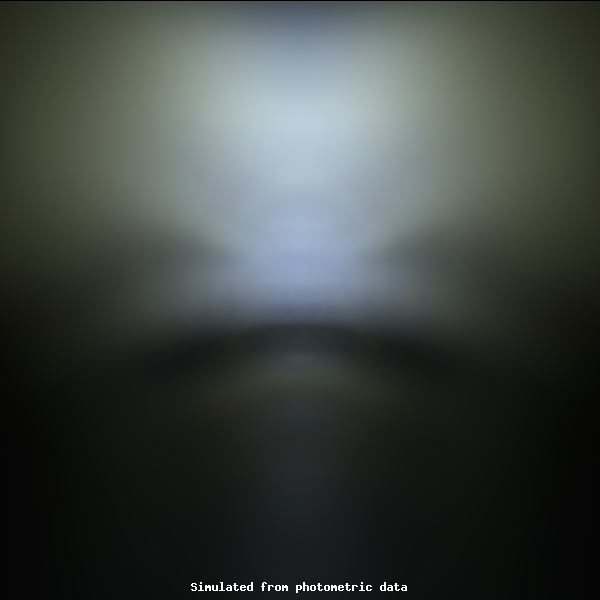

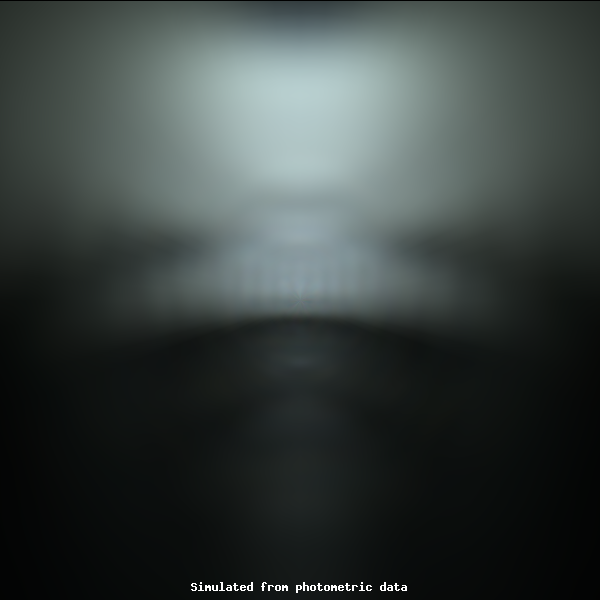

Optical results

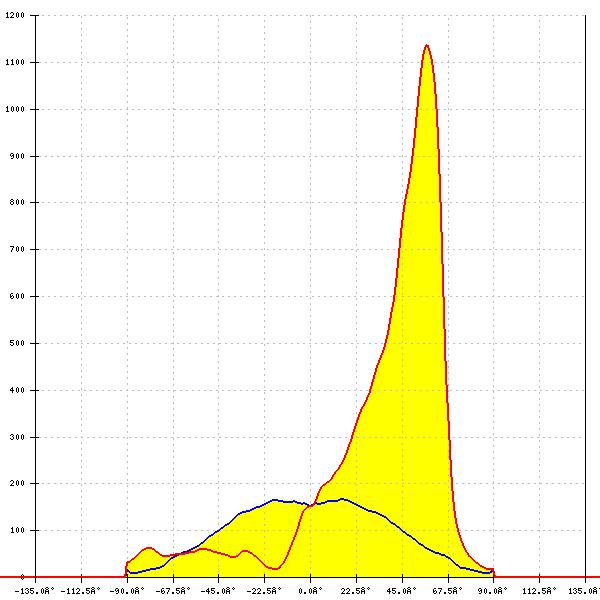

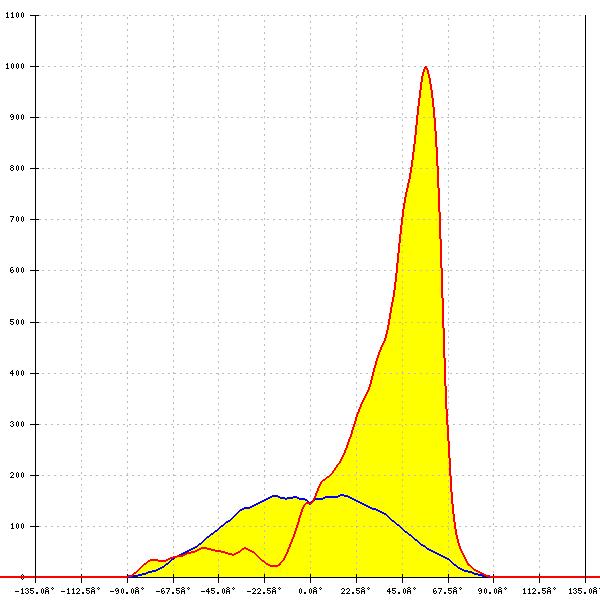

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 1.136 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.999 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

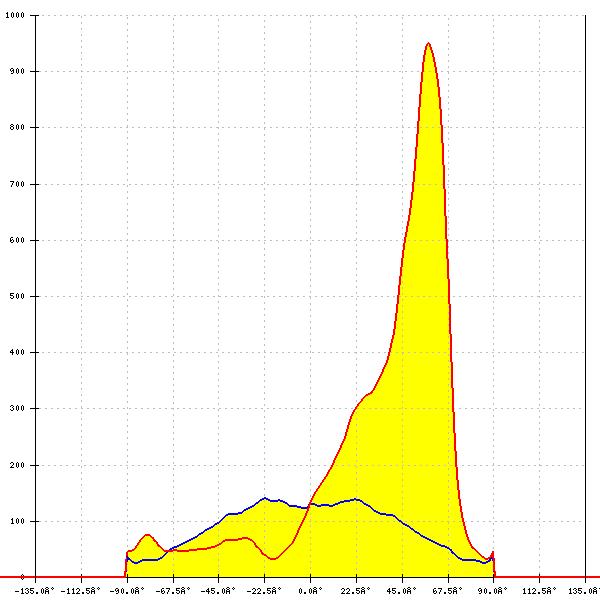

LED: XHP35.2 HD
FWHM: asymmetric
Peak intensity: 0.950 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

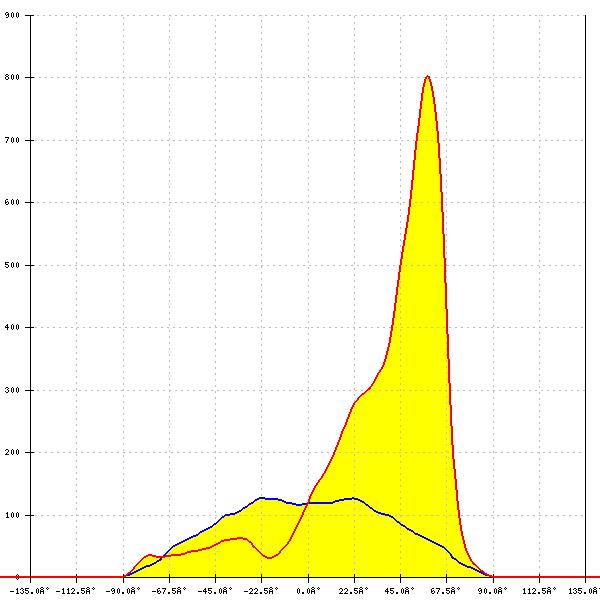

LED: XHP35.2 HD
FWHM: asymmetric
Peak intensity: 0.802 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: XHP35.2 HI
FWHM: asymmetric
Peak intensity: 1.188 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

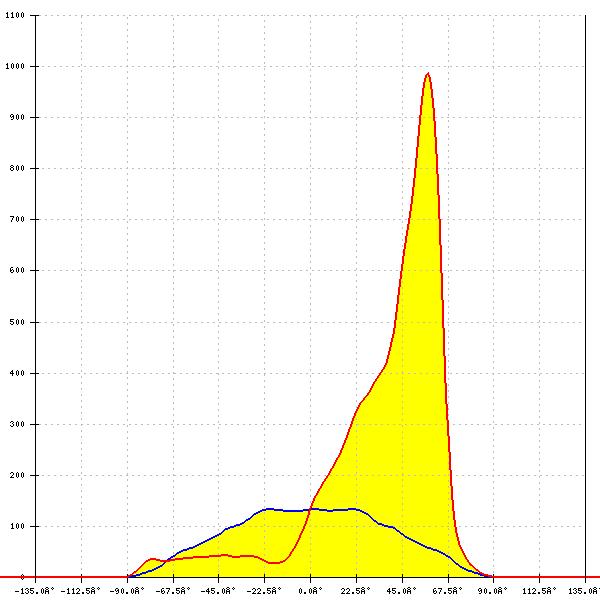

LED: XHP35.2 HI
FWHM: asymmetric
Peak intensity: 0.987 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: XHP50.3 HI
FWHM: asymmetric
Peak intensity: 1.149 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XHP50.3 HI
FWHM: asymmetric
Peak intensity: 0.955 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

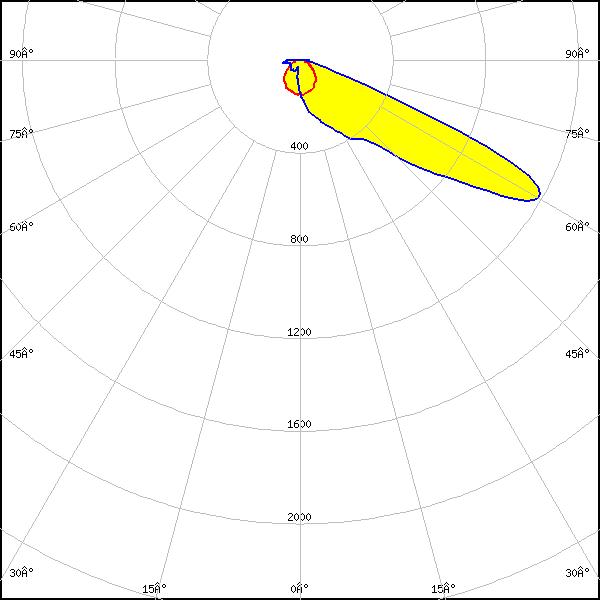

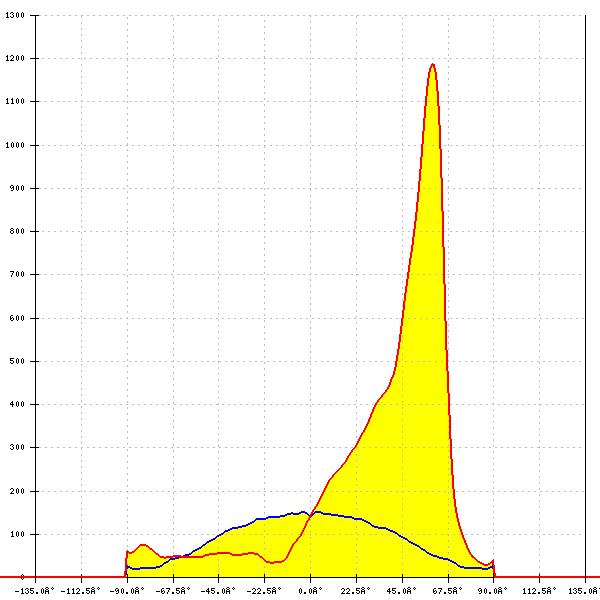

LED: XM-L3
FWHM: asymmetric
Peak intensity: 1.187 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: XM-L3
FWHM: asymmetric
Peak intensity: 0.970 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

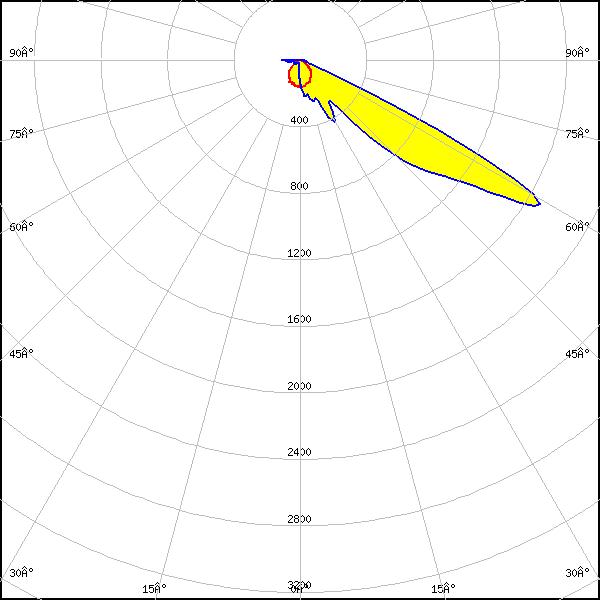

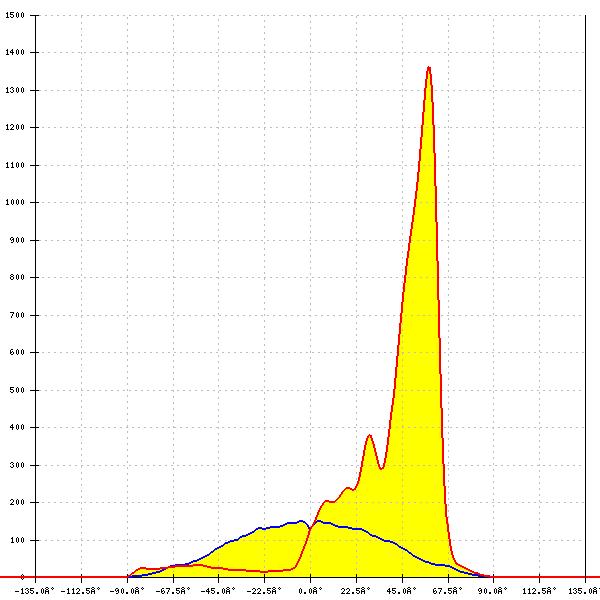

LED: XP-E2
FWHM: asymmetric
Peak intensity: 1.684 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-E2
FWHM: asymmetric
Peak intensity: 1.361 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

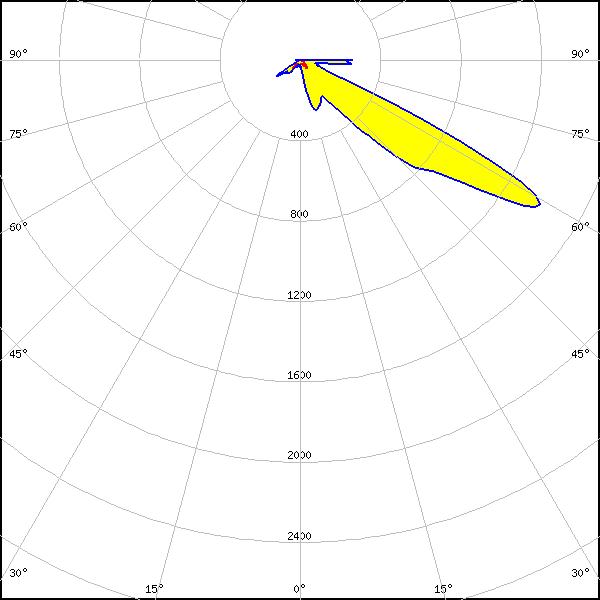

LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 1.583 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

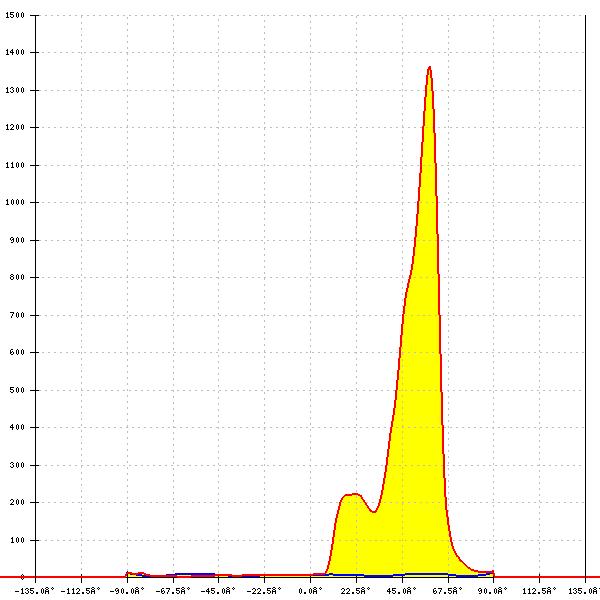

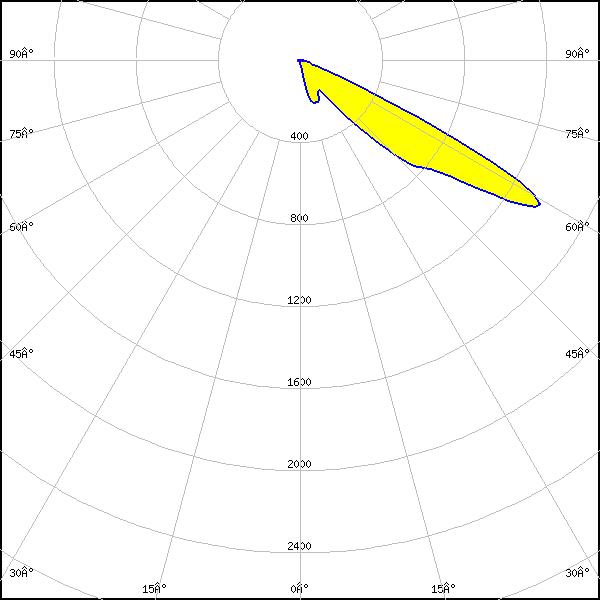

LED: XP-G2 HE
Required components:
FWHM: asymmetric
Peak intensity: 1.365 cd/lm
Efficiency: 63 %
LEDs/each optic: 1
Light colour: White

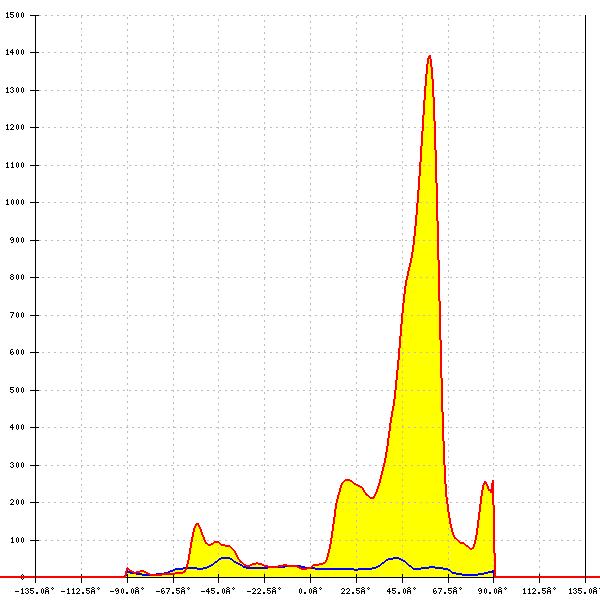

LED: XP-G2 HE
Required components:
FWHM: asymmetric
Peak intensity: 1.394 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 1.117 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

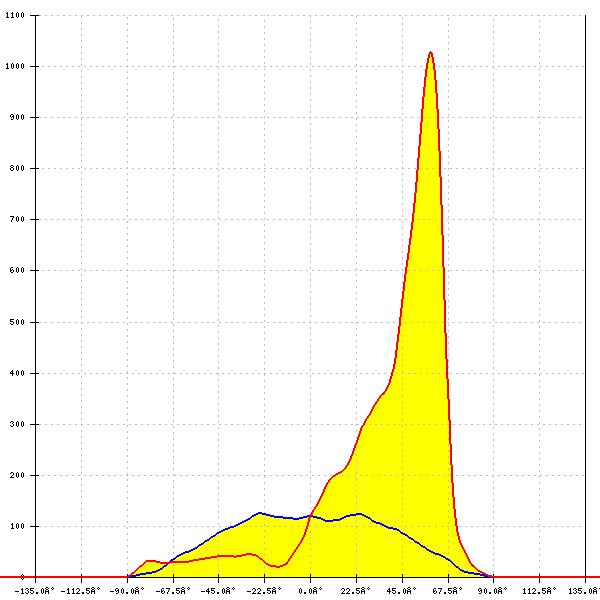

LED: XP-L HD
FWHM: asymmetric
Peak intensity: 1.027 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: XP-L HD
FWHM: asymmetric
Peak intensity: 1.239 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

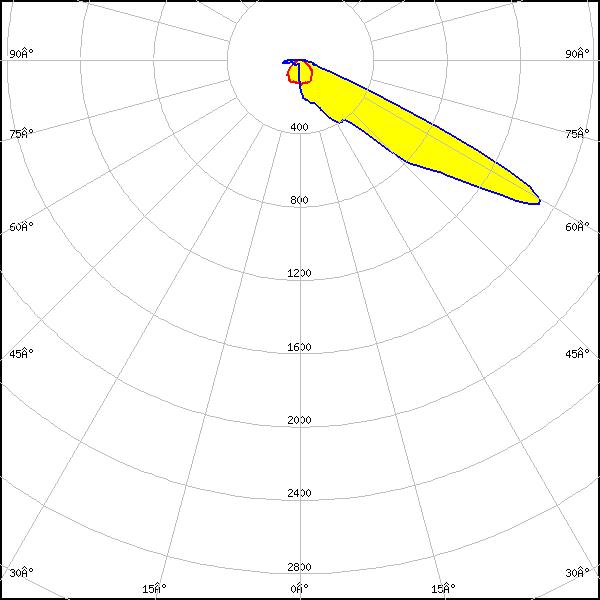

LED: XP-L HI
FWHM: asymmetric
Peak intensity: 1.231 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: XP-L HI
FWHM: asymmetric
Peak intensity: 1.065 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: XP-L HI
FWHM: asymmetric
Peak intensity: 1.221 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: XP-L HI
FWHM: asymmetric
Peak intensity: 1.521 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 1.124 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

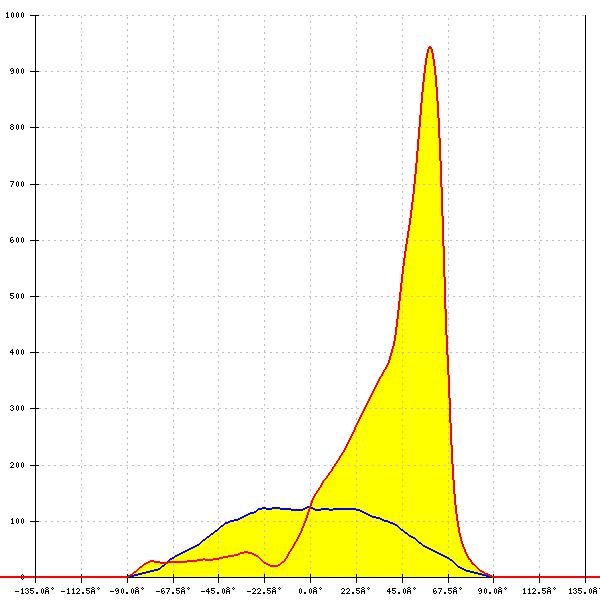

LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.944 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: XP-P
FWHM: asymmetric
Peak intensity: 1.773 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: XP-P
FWHM: asymmetric
Peak intensity: 1.392 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 1.075 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

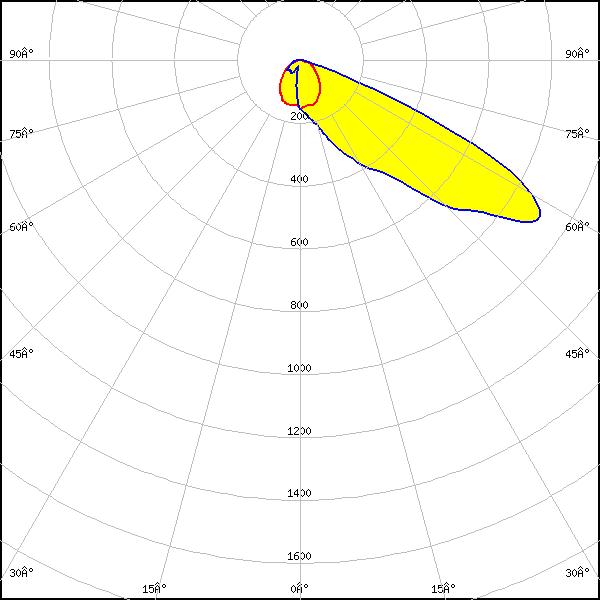

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.911 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 1.025 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

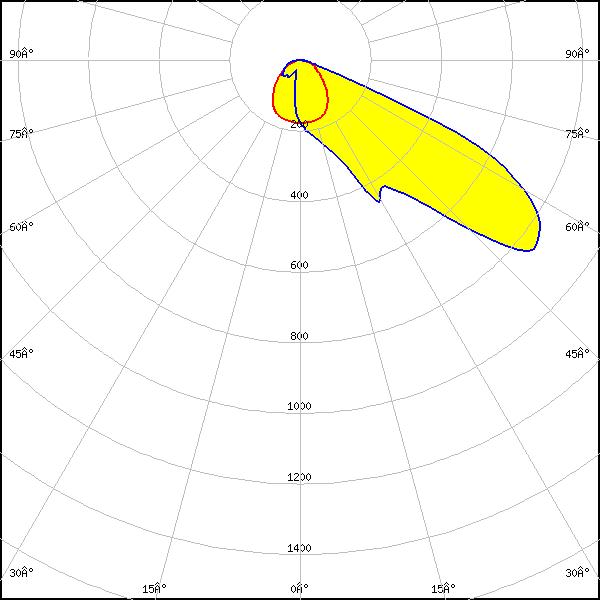

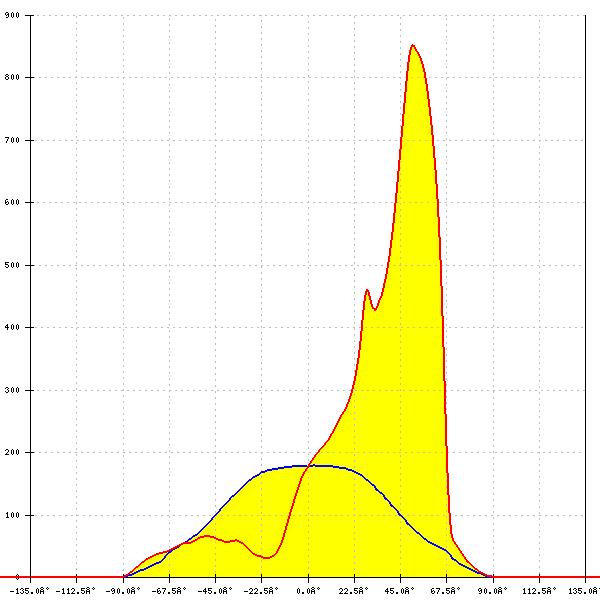

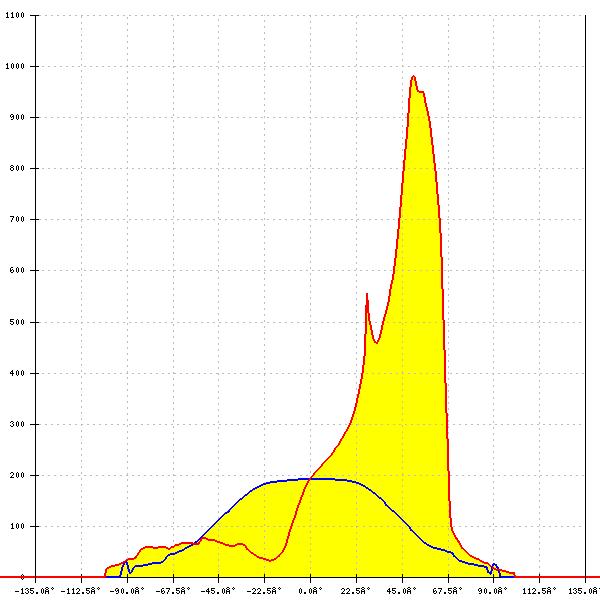

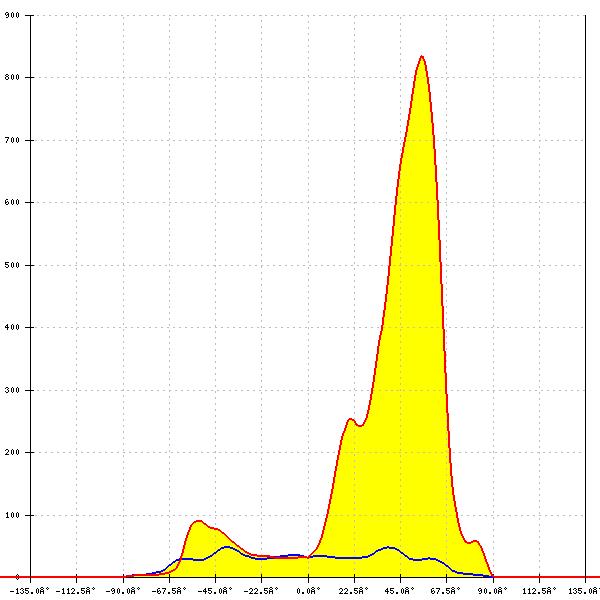

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.931 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

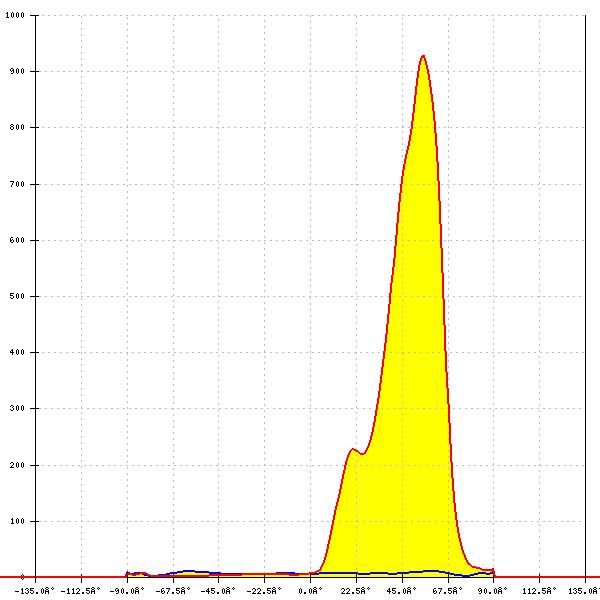

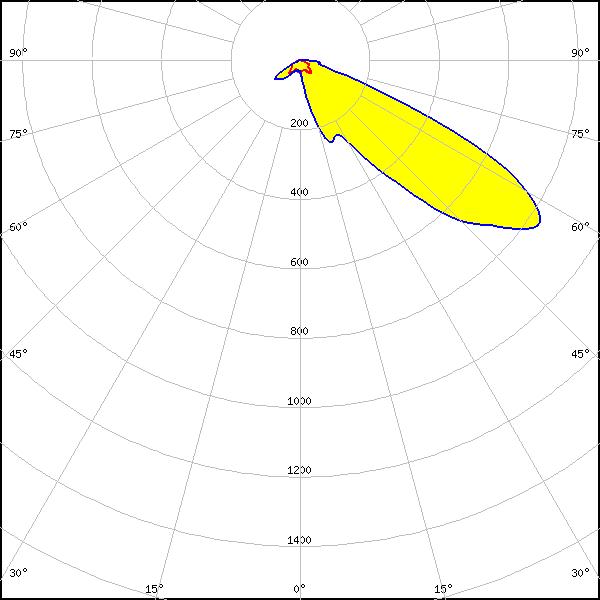

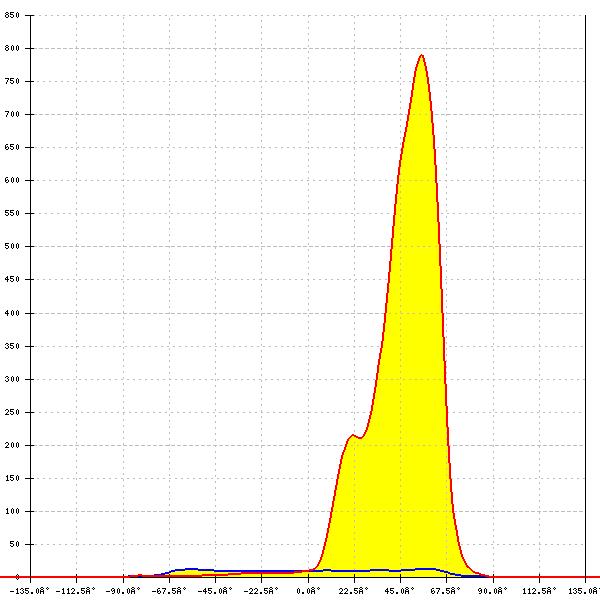

LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.927 cd/lm
Efficiency: 59 %
LEDs/each optic: 1
Light colour: White

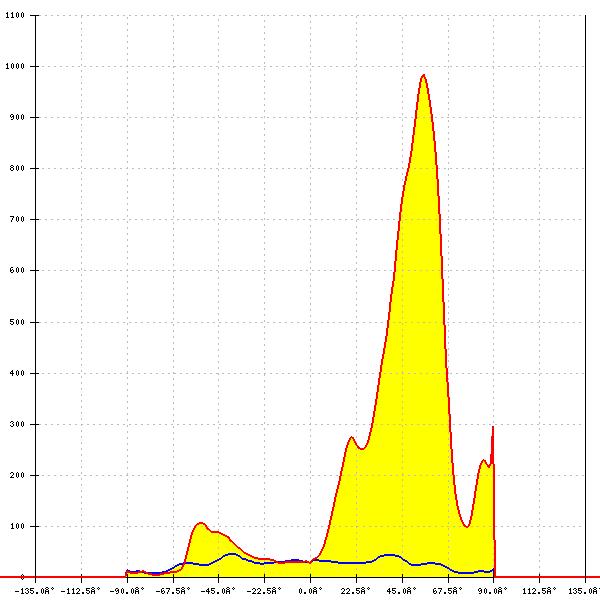

LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.983 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

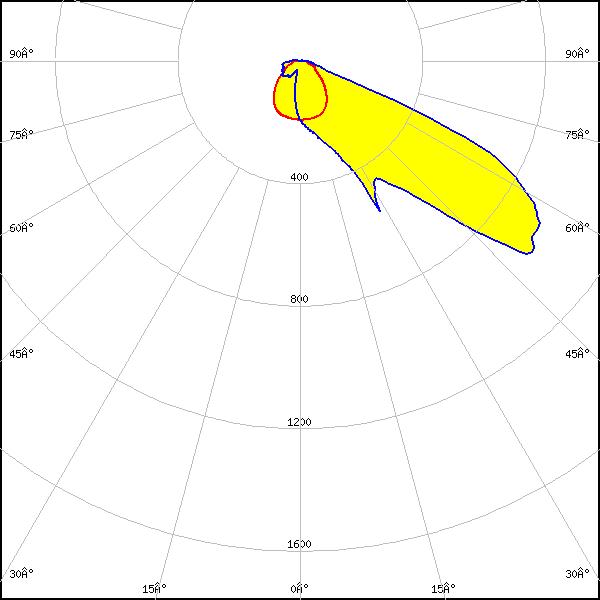

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 1.079 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

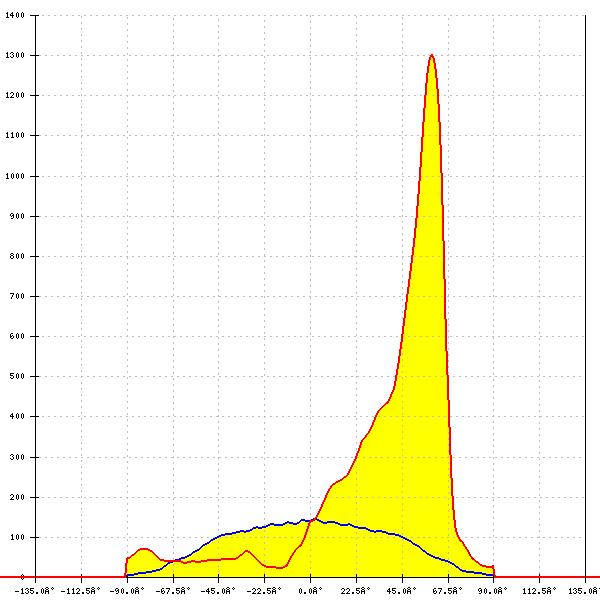

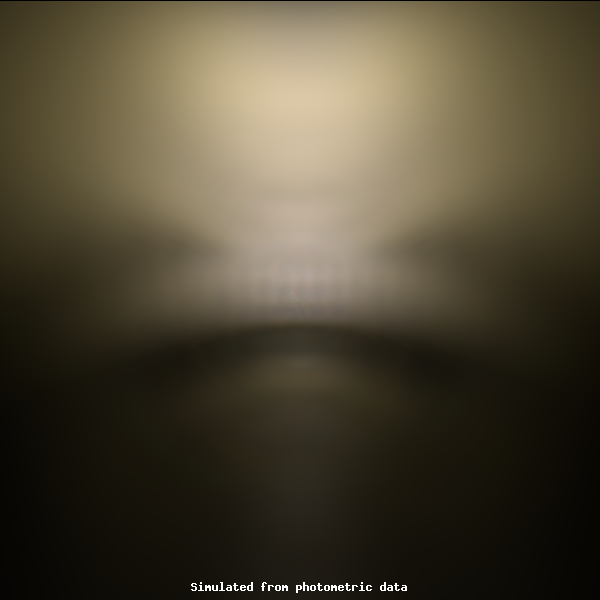

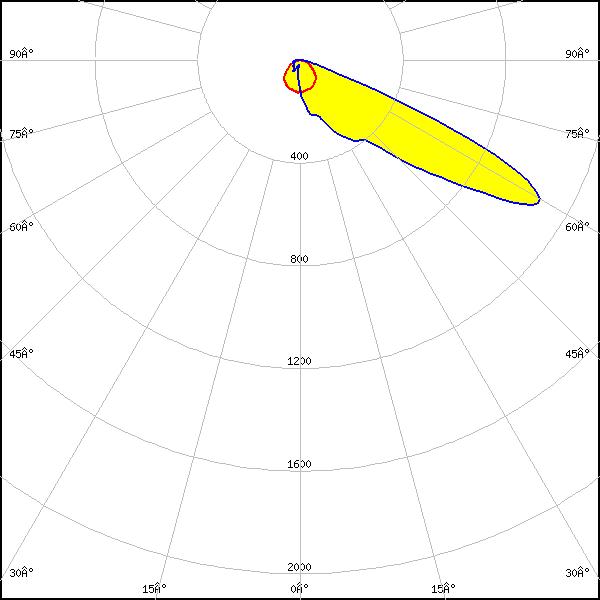

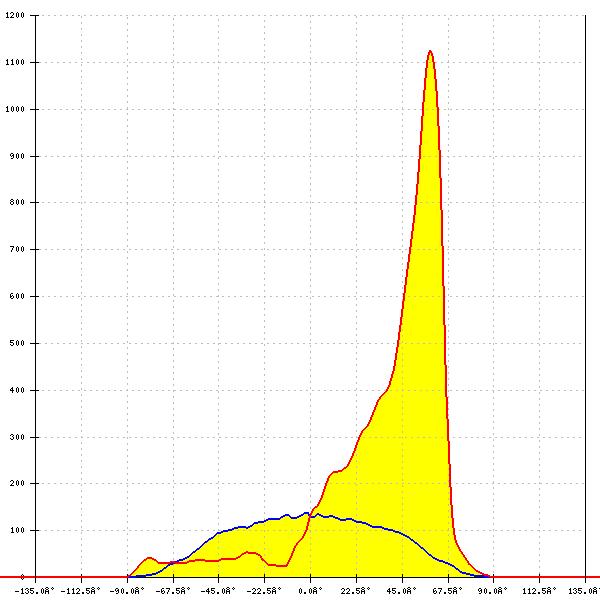

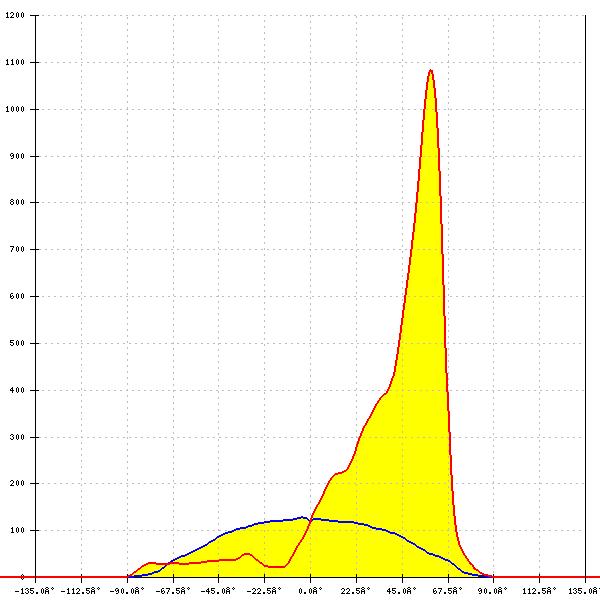

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 1.441 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

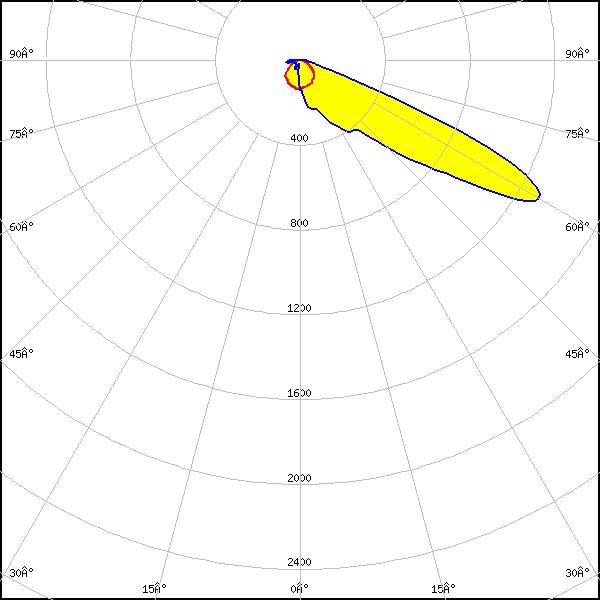

LED: LUXEON HL2X-P
FWHM: asymmetric
Peak intensity: 1.303 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON TX
FWHM: asymmetric
Peak intensity: 1.488 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

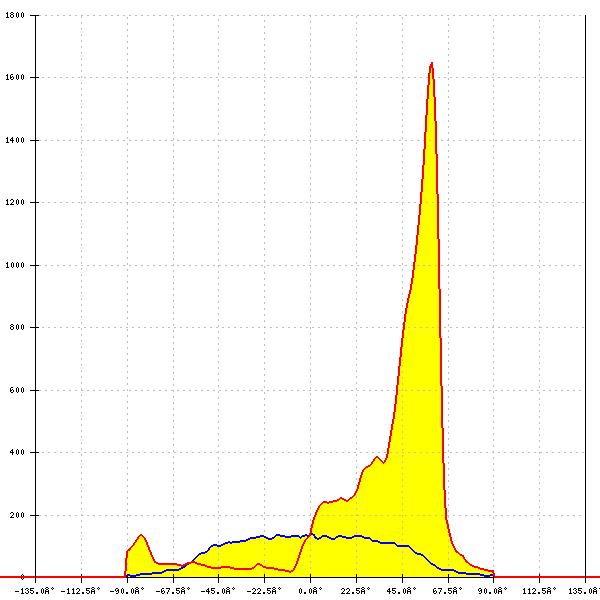

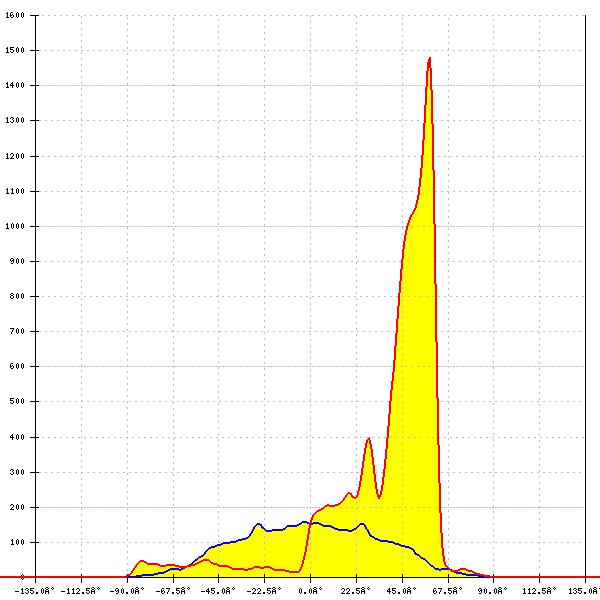

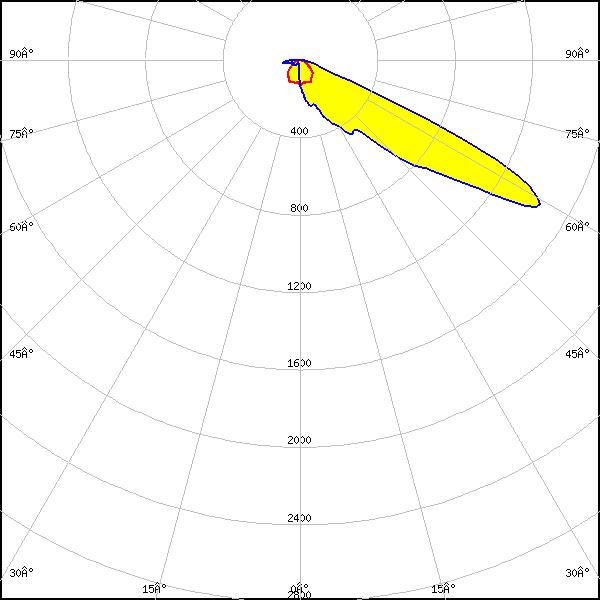

LED: SFT-70X-WCS
FWHM: 106° + 18°
FWTM: 180° + 66°
Peak intensity: 1.638 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: SFT-70X-WCS
FWHM: 106° + 20°
FWTM: 156° + 67°
Peak intensity: 1.447 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

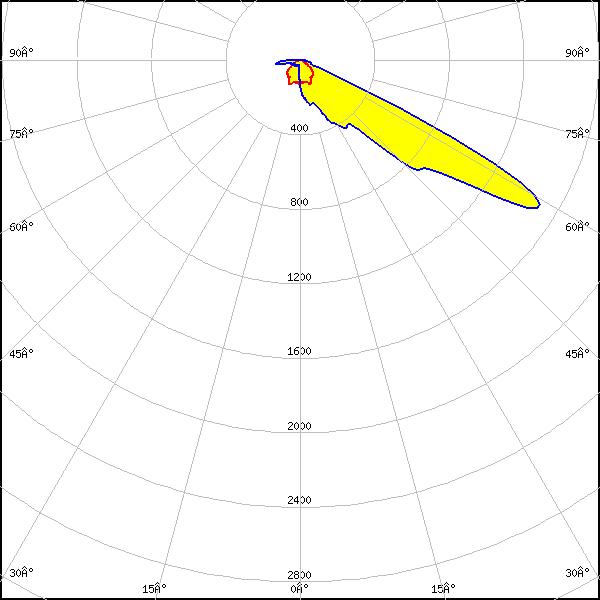

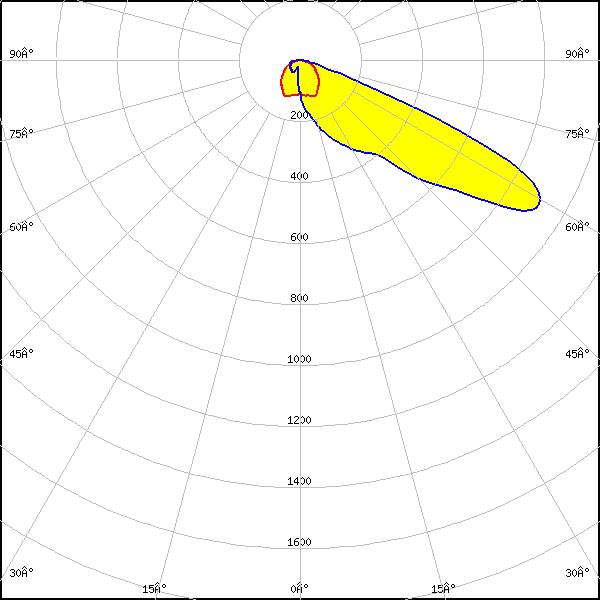

LED: SST-70X-WCS
FWHM: asymmetric
Peak intensity: 1.084 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: SST-70X-WCS
FWHM: asymmetric
Peak intensity: 0.915 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

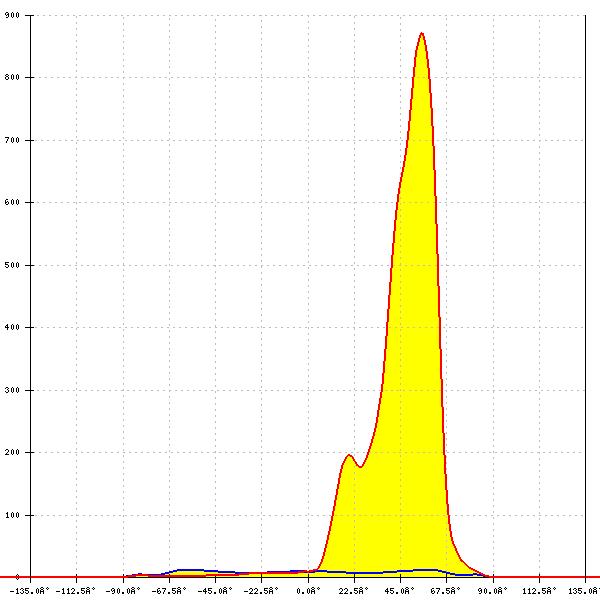

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 1.190 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour: White

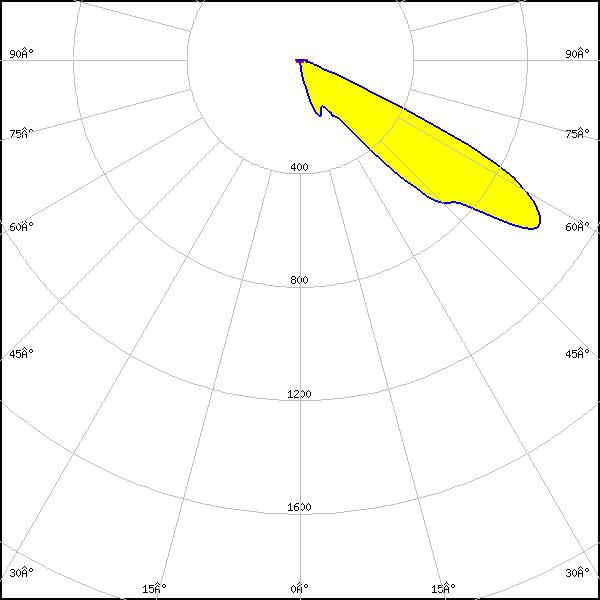

LED: NV4WB35AM
Required components:
FWHM: asymmetric
Peak intensity: 1.024 cd/lm
Efficiency: 58 %
LEDs/each optic: 1
Light colour: White

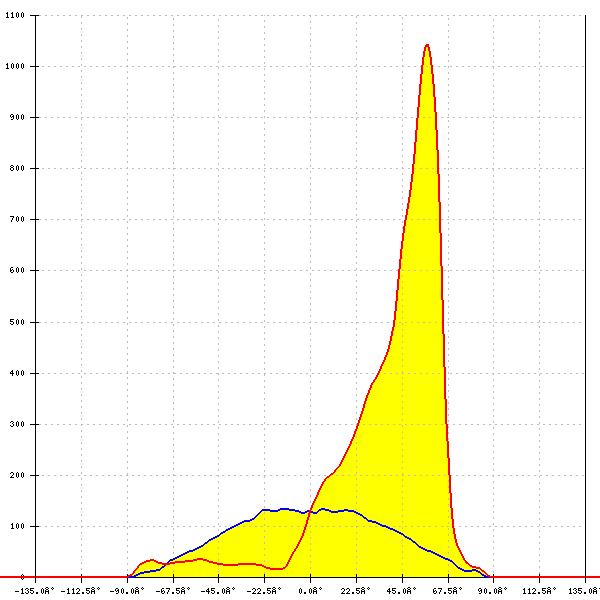

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 1.042 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

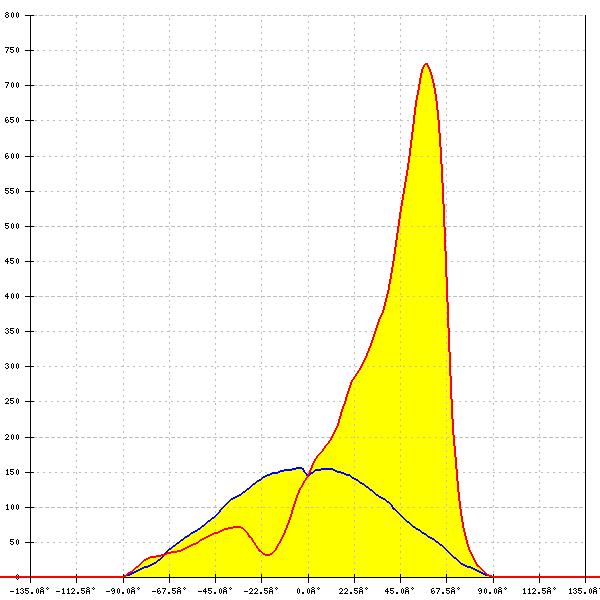

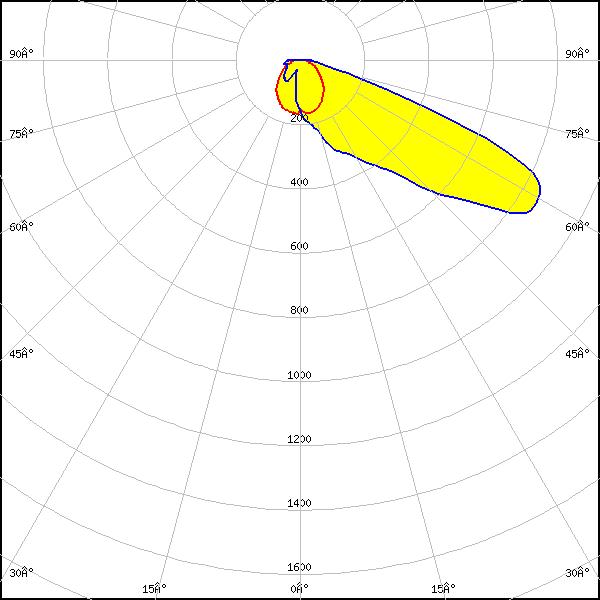

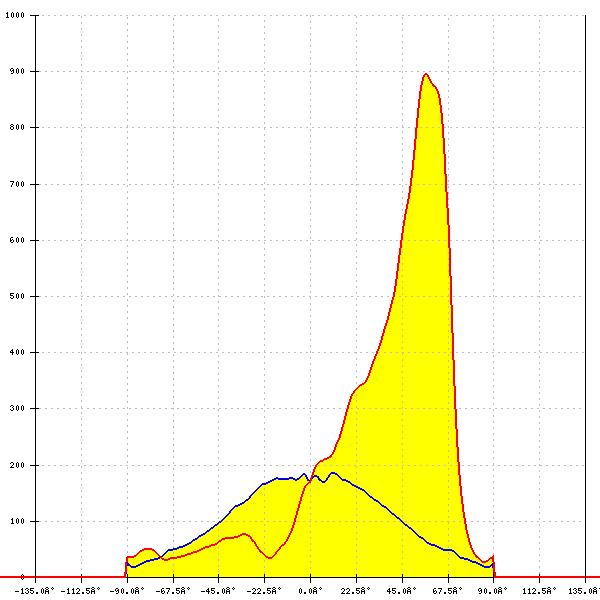

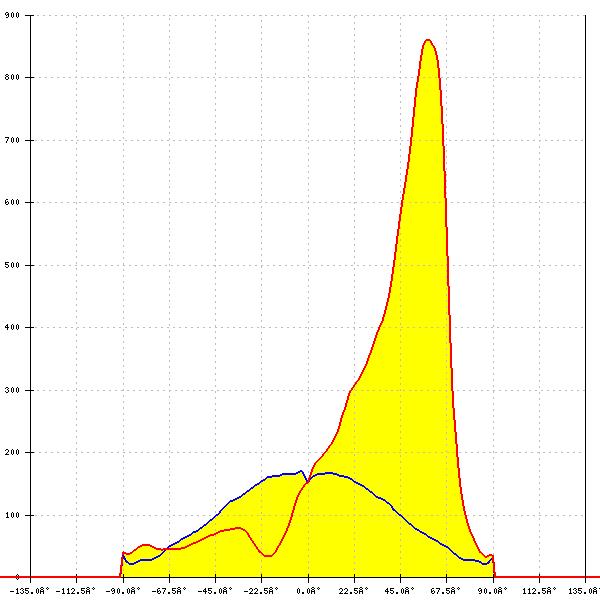

LED: NV4x144A
FWHM: asymmetric
Peak intensity: 0.895 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: NV4x144A
FWHM: asymmetric
Peak intensity: 0.861 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: NV4x144A
FWHM: asymmetric
Peak intensity: 0.731 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

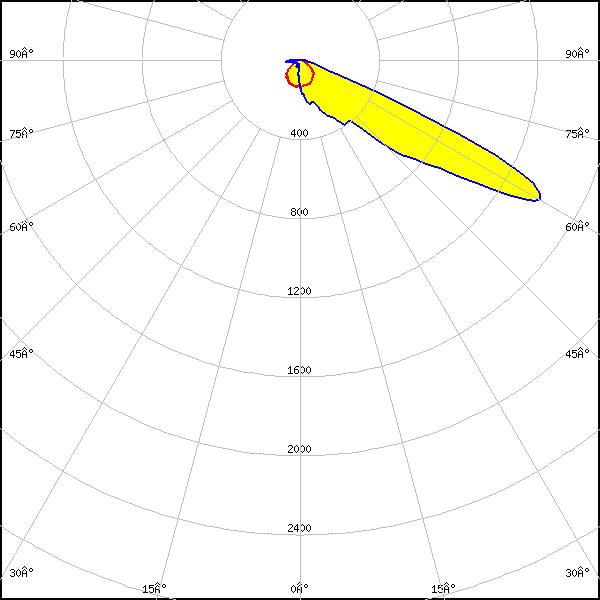

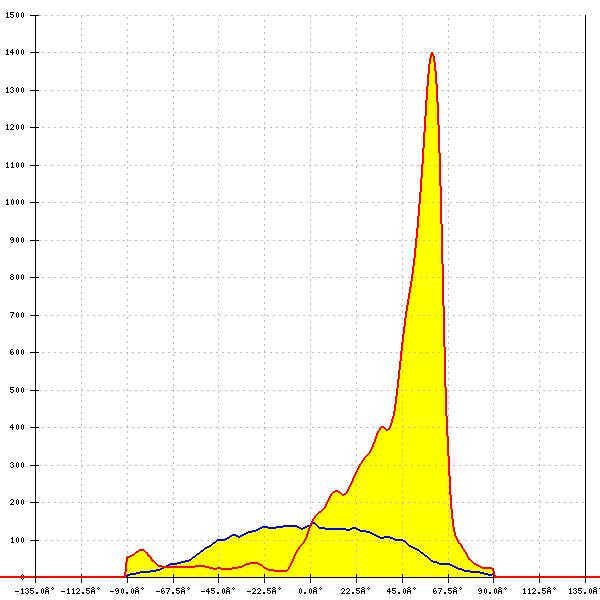

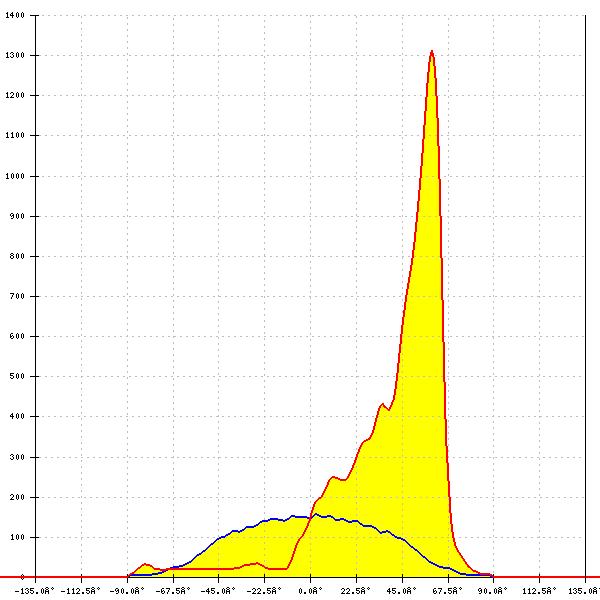

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 1.401 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

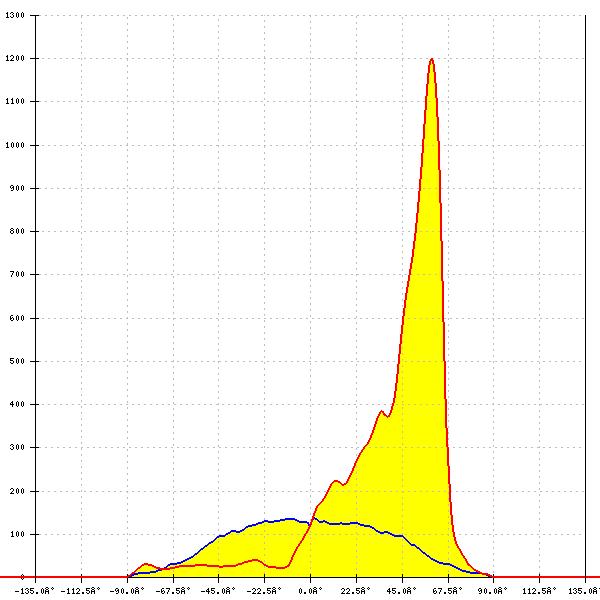

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 1.201 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: NVSW3x9A
FWHM: asymmetric
Peak intensity: 1.110 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

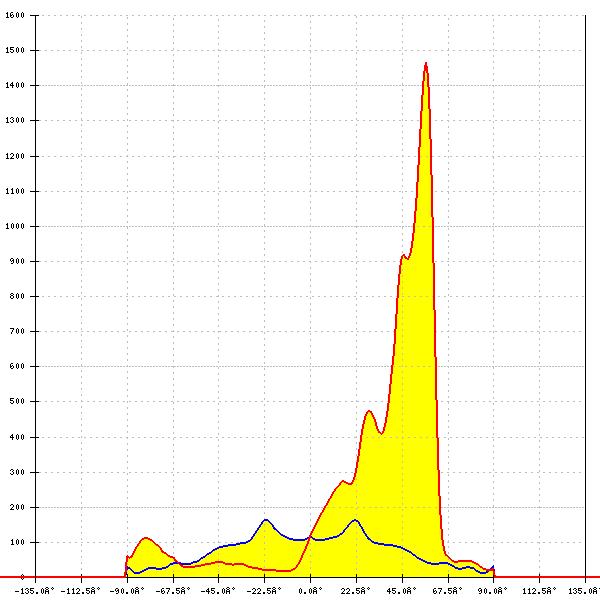

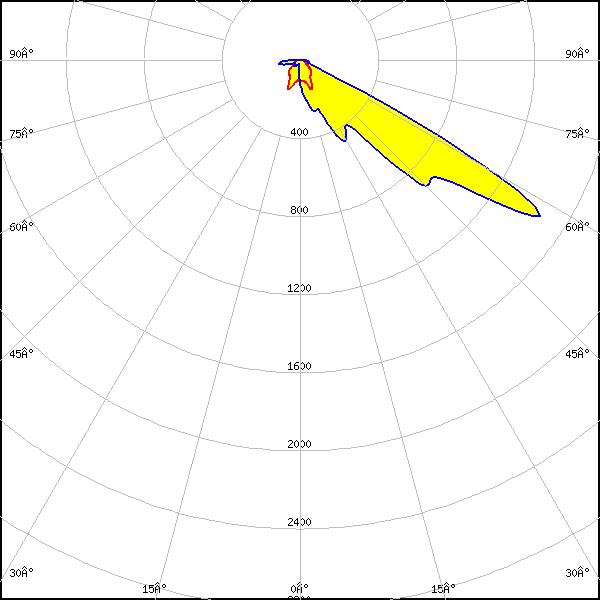

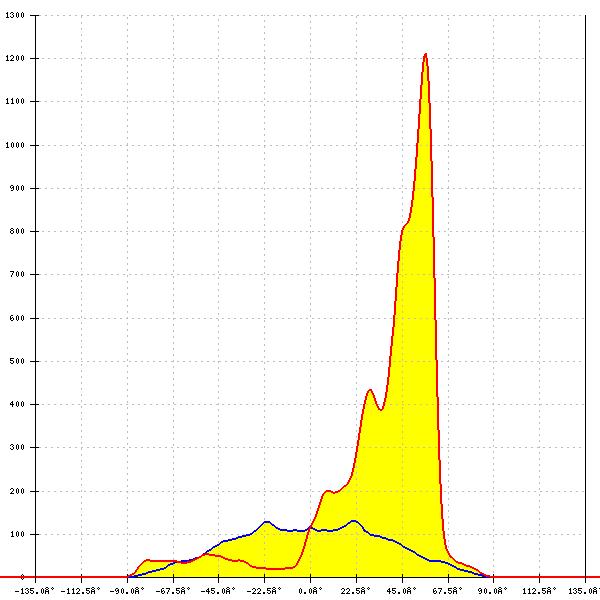

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 1.212 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 1.219 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 1.407 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

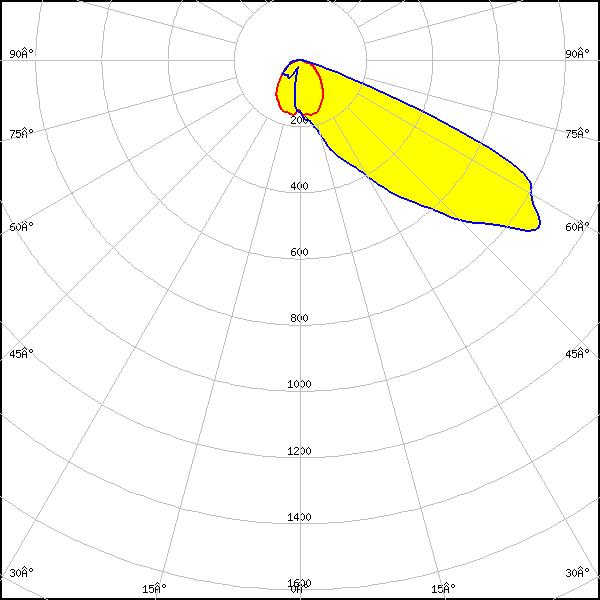

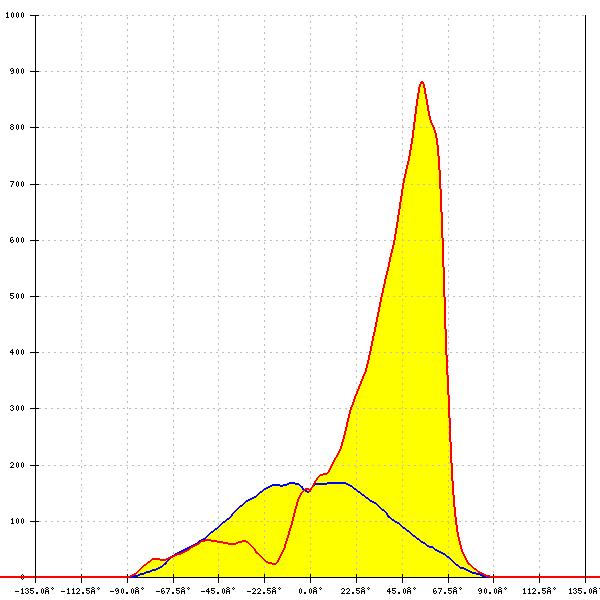

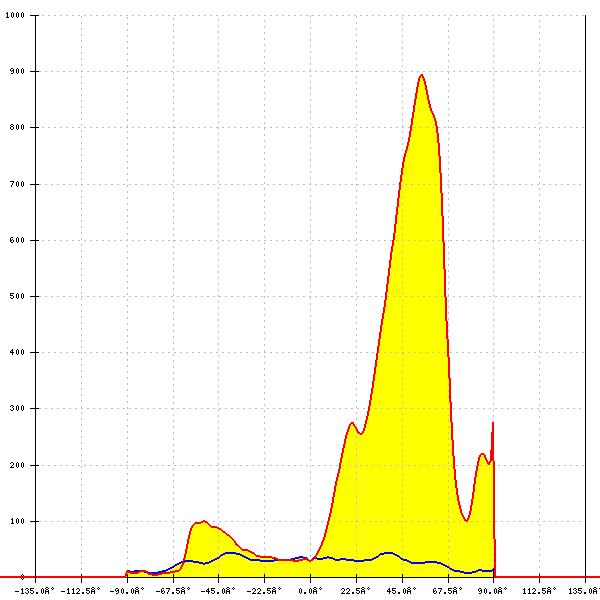

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.882 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

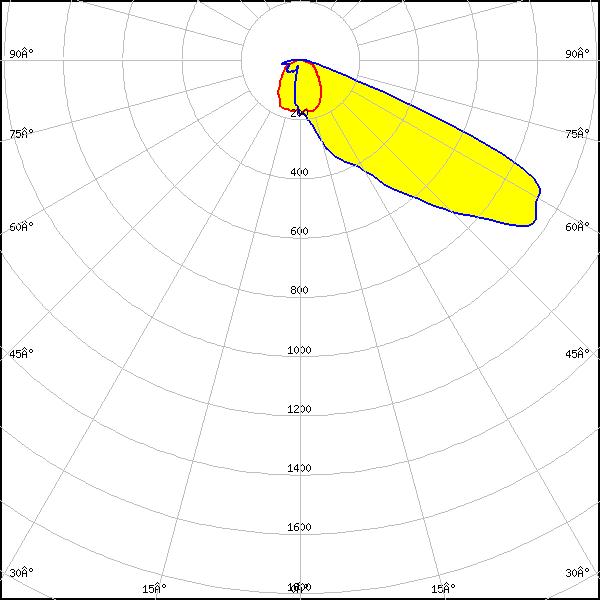

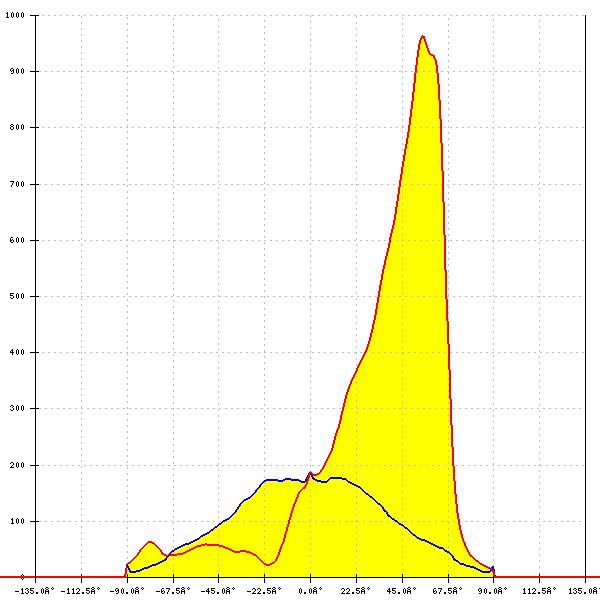

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.962 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

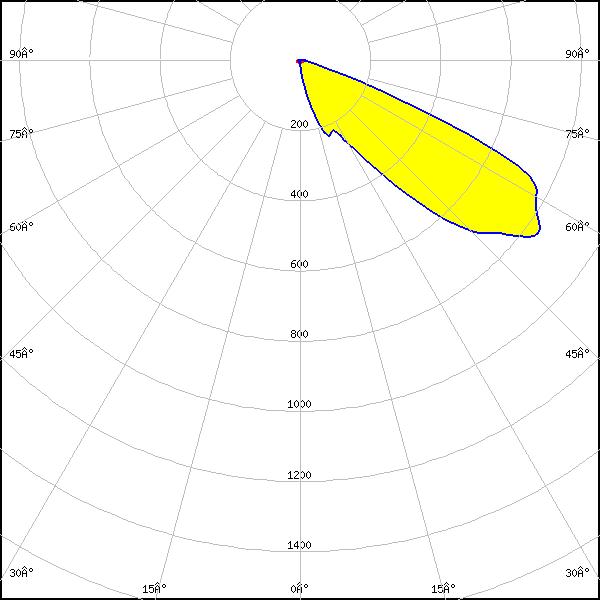

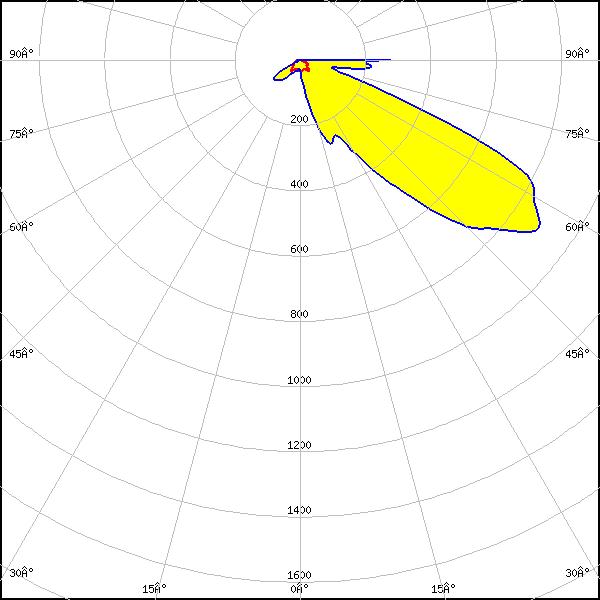

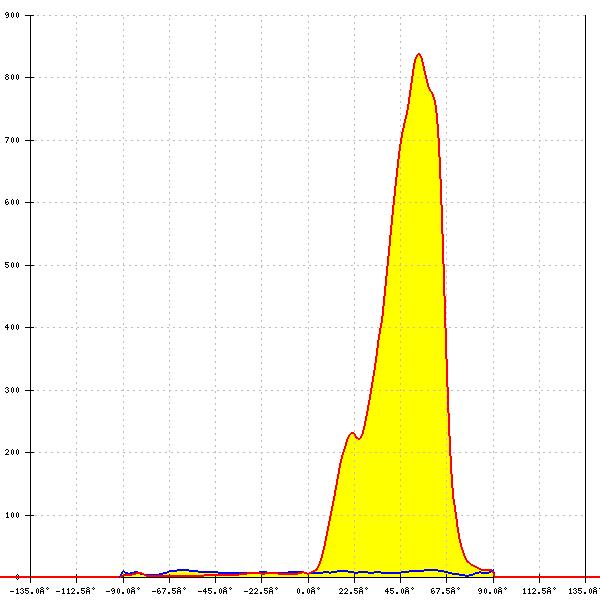

LED: Duris S8
Required components:
FWHM: asymmetric
Peak intensity: 0.839 cd/lm
Efficiency: 58 %
LEDs/each optic: 1
Light colour: White
LED: Duris S8
Required components:
FWHM: asymmetric
Peak intensity: 0.894 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

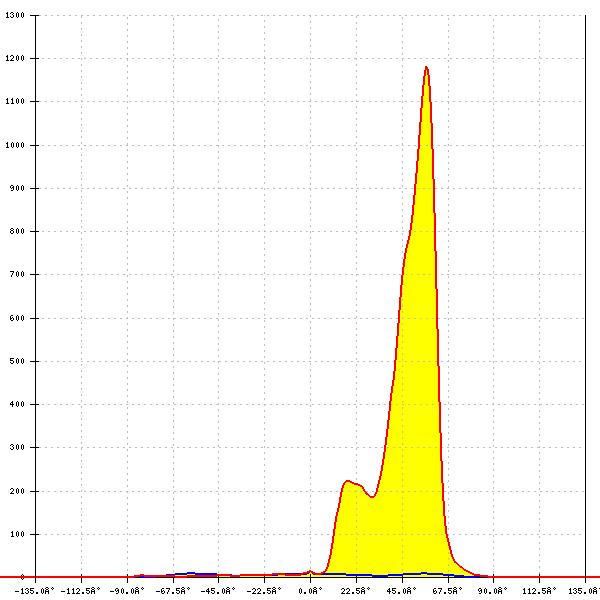

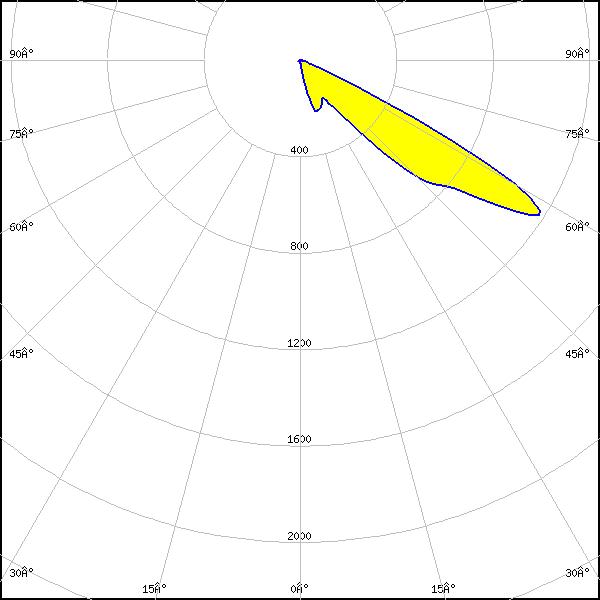

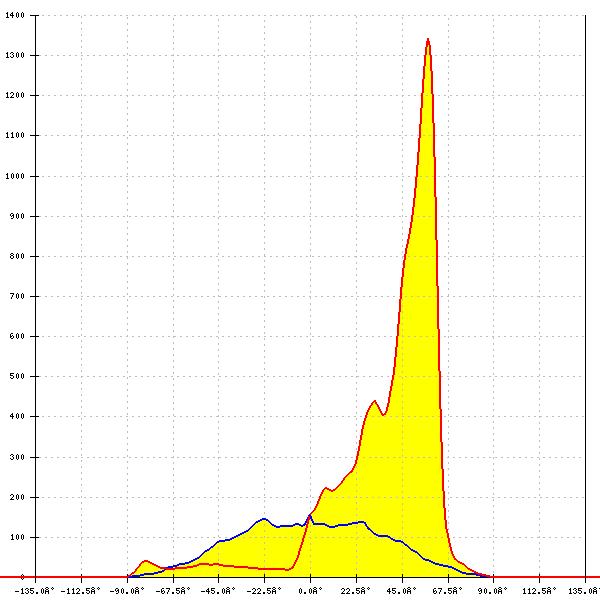

LED: OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity: 1.342 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

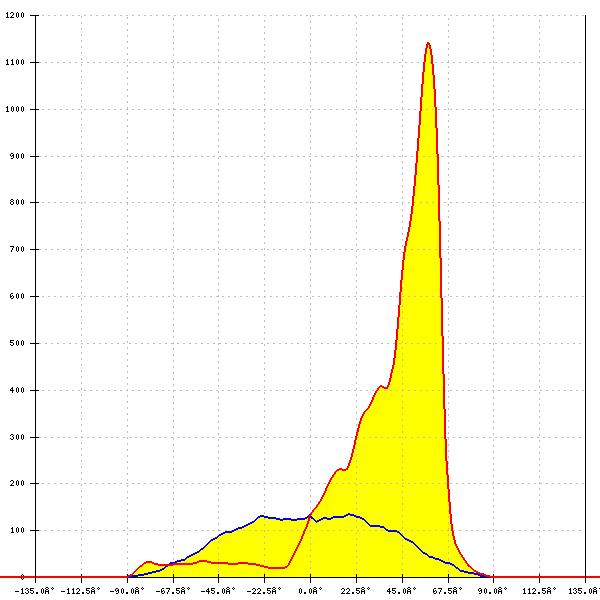

LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 1.142 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

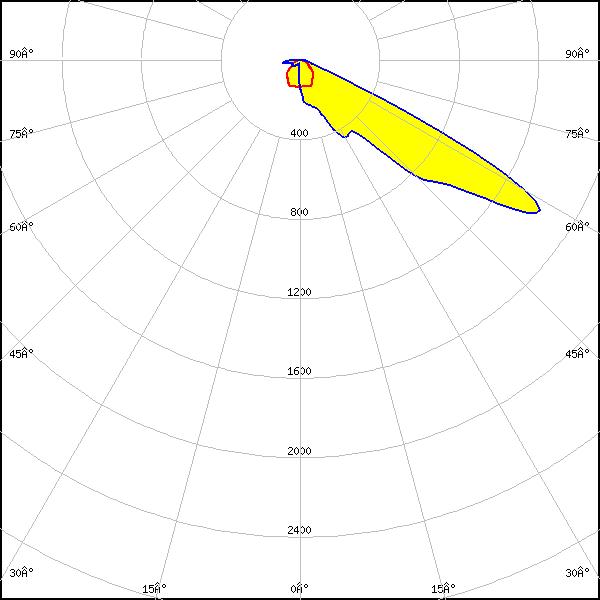

LED: OSCONIQ P 3737 Flat
FWHM: asymmetric
Peak intensity: 1.425 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 Flat
FWHM: asymmetric
Peak intensity: 1.224 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

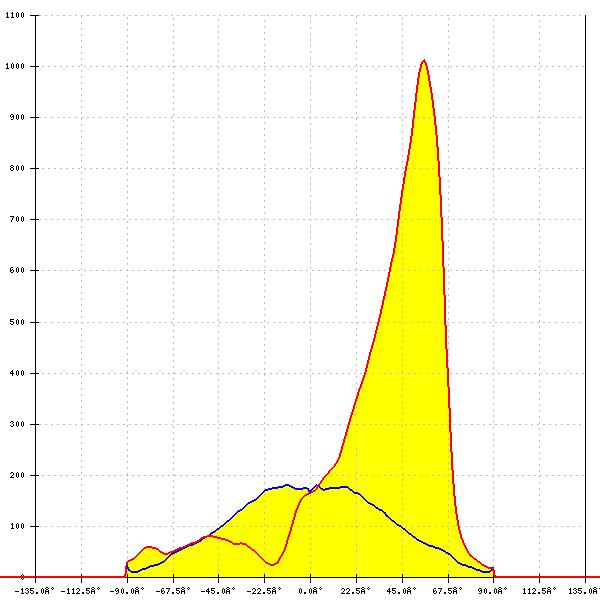

LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 1.011 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

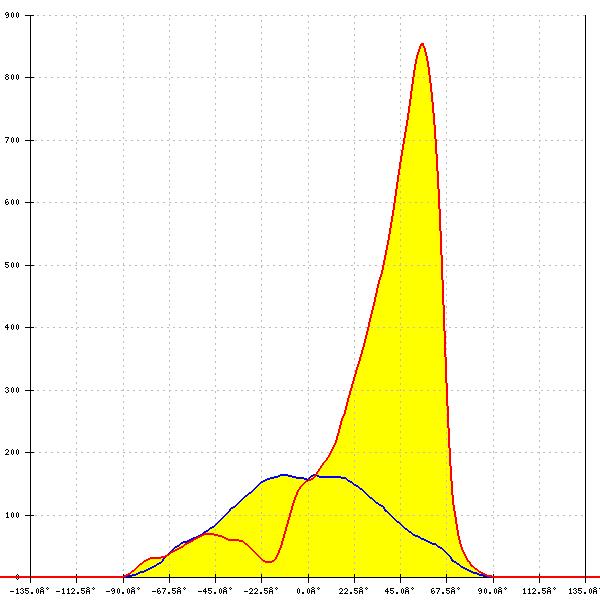

LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.853 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

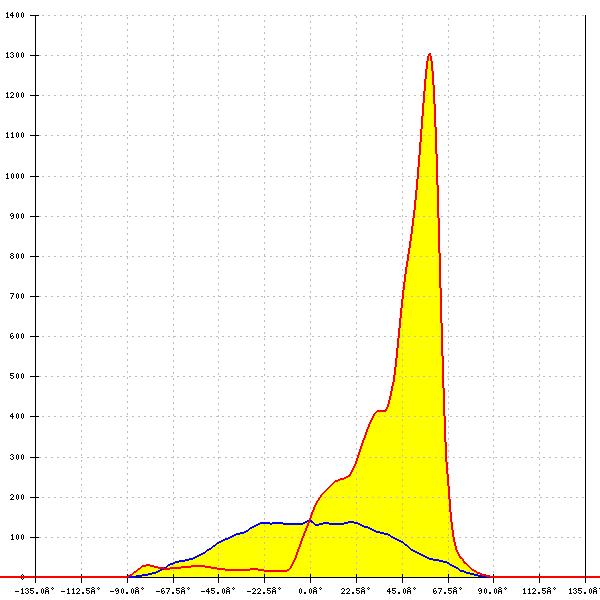

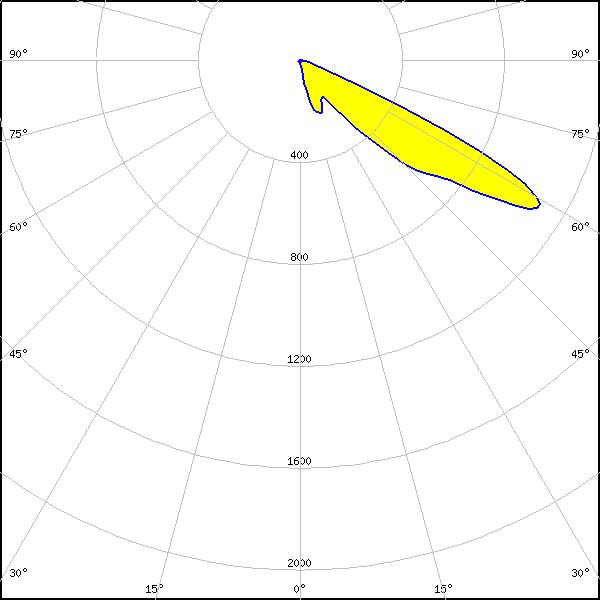

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 1.460 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 1.306 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

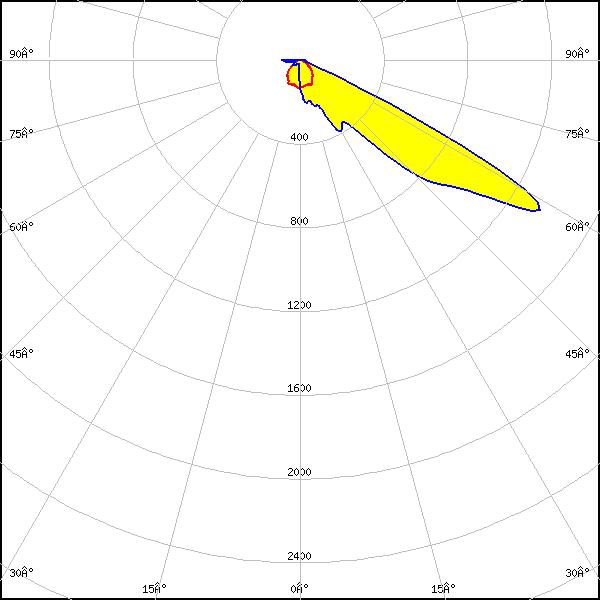

LED: OSLON Square Flat
FWHM: asymmetric
Peak intensity: 1.552 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

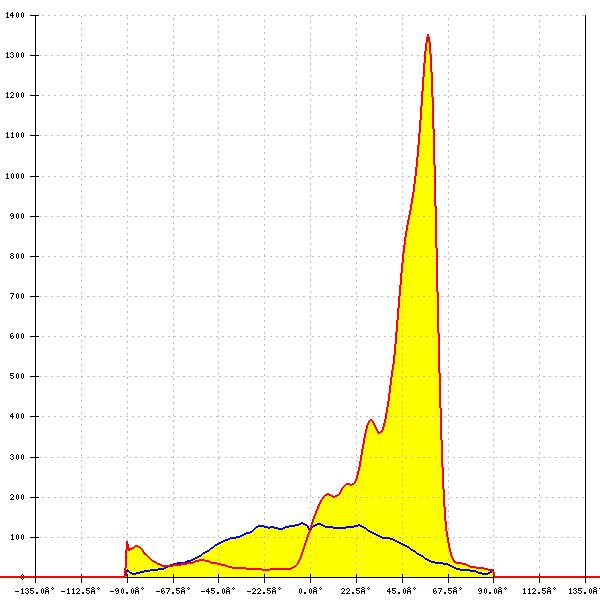

LED: OSLON Square Flat
FWHM: asymmetric
Peak intensity: 1.352 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: OSTAR Projection Compact (Kx.CSLNM1.xx)
FWHM: asymmetric
Peak intensity: 1.598 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

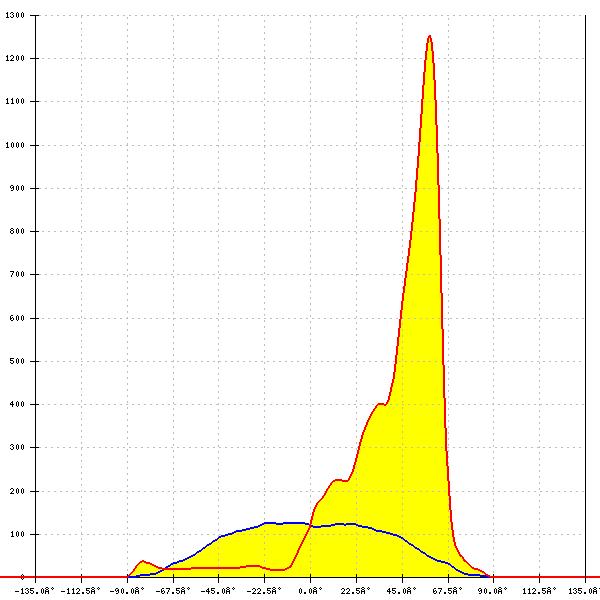

LED: LH351B
FWHM: asymmetric
Peak intensity: 1.255 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 1.420 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LH351C
FWHM: asymmetric
Peak intensity: 1.226 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

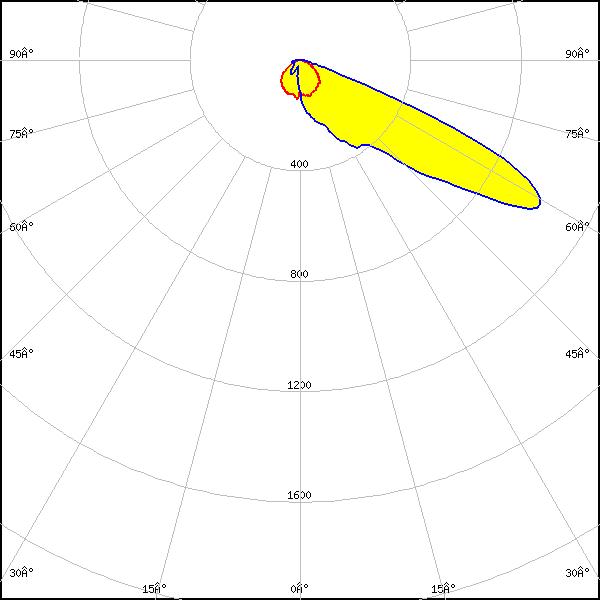

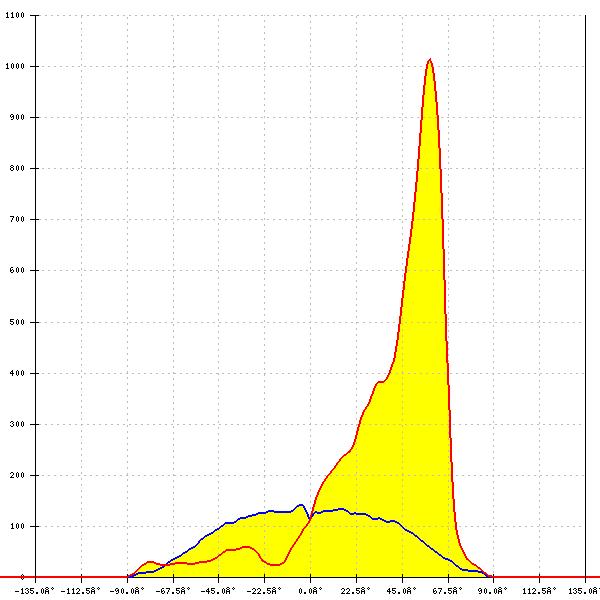

LED: LH351D
FWHM: asymmetric
Peak intensity: 1.014 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

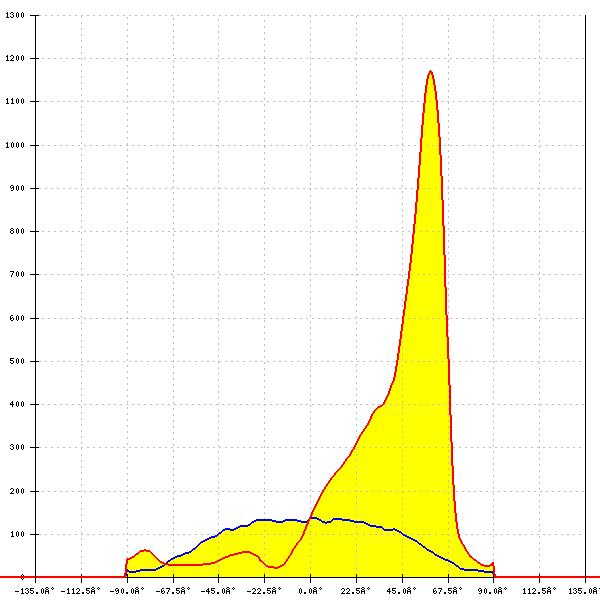

LED: LH351D
FWHM: asymmetric
Peak intensity: 1.170 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LH502C
FWHM: asymmetric
Peak intensity: 1.036 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LH502C
FWHM: asymmetric
Peak intensity: 0.888 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: LH508A Plus
FWHM: asymmetric
Peak intensity: 1.031 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LH508A Plus
FWHM: asymmetric
Peak intensity: 0.915 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.929 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

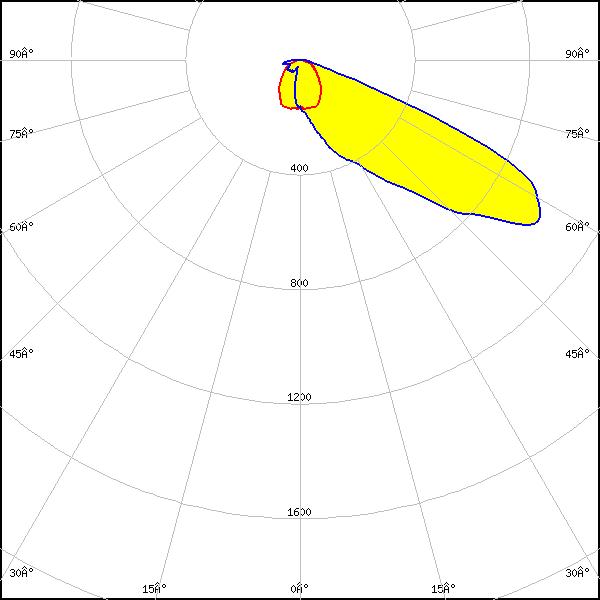

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 1.022 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

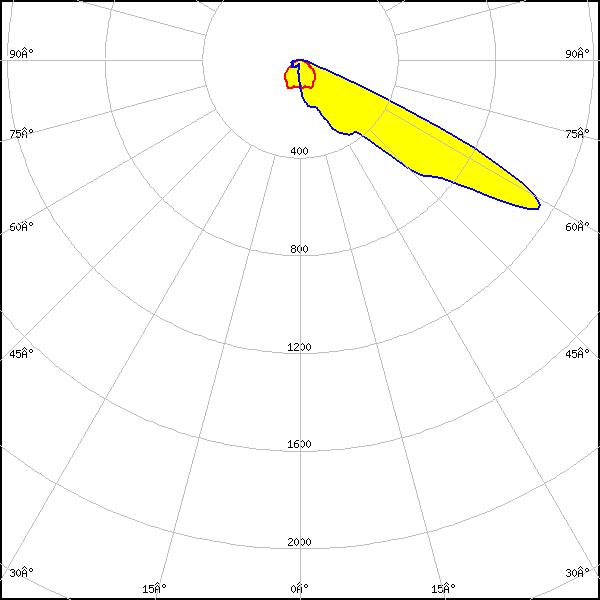

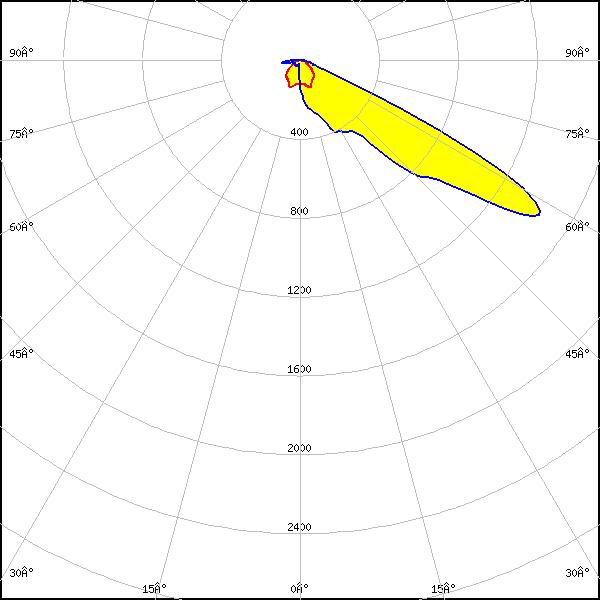

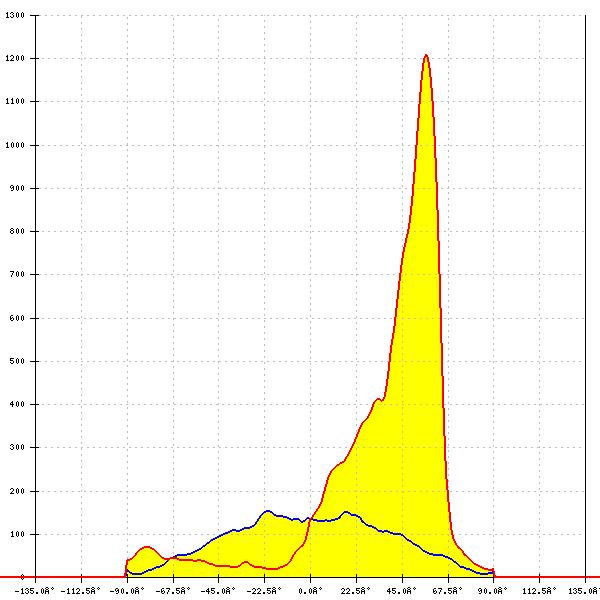

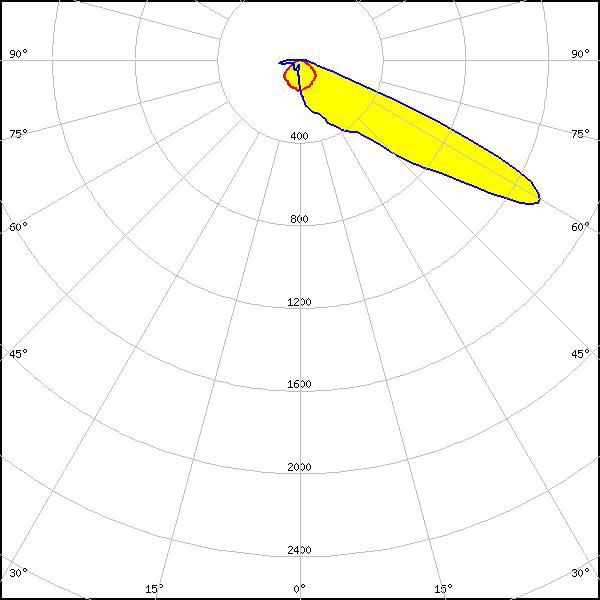

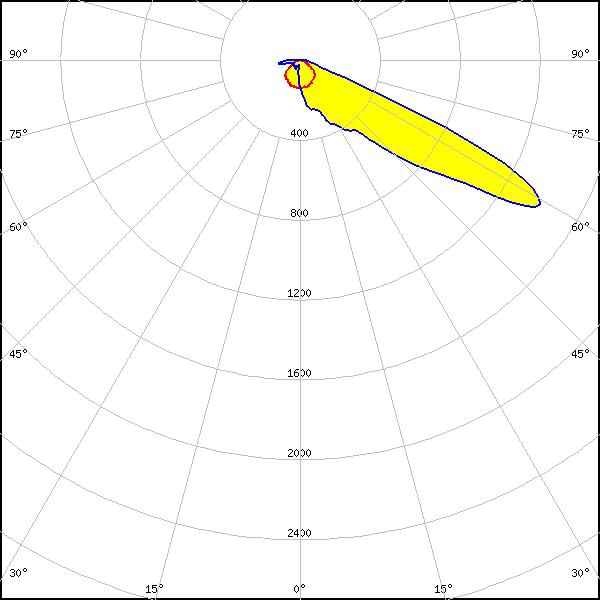

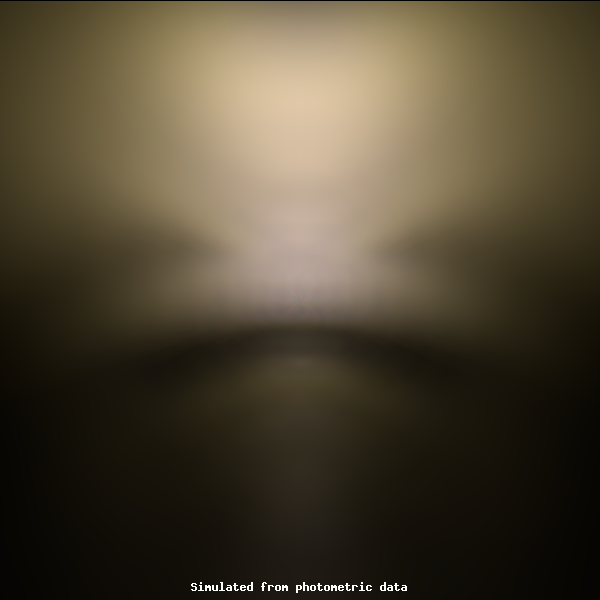

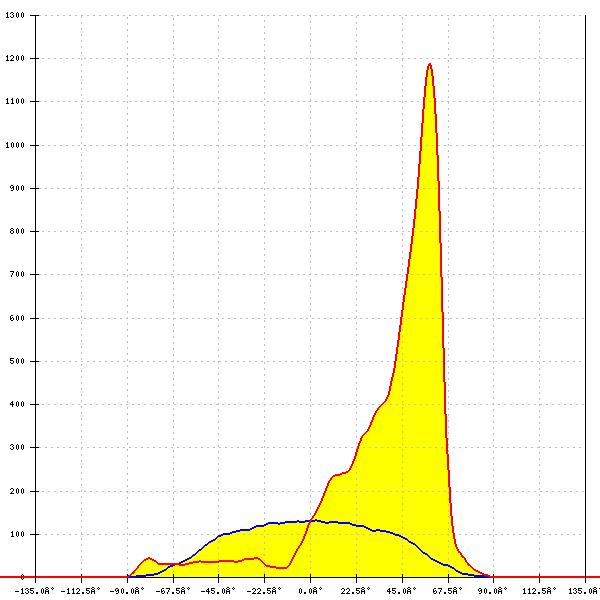

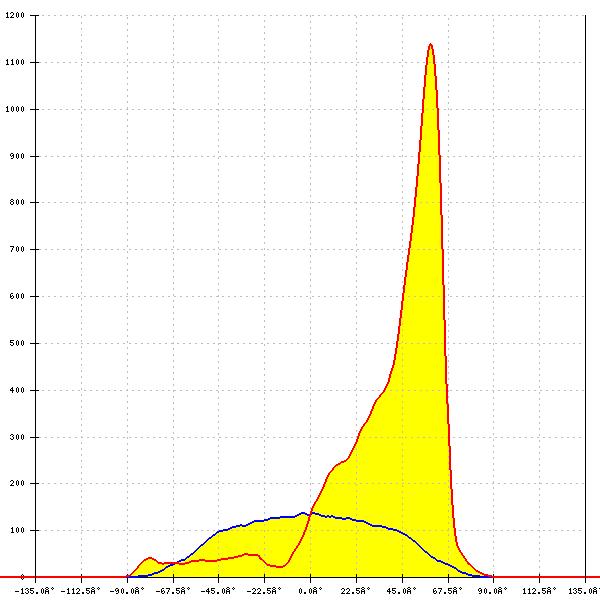

LED: Z5M3
FWHM: asymmetric
Peak intensity: 1.147 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

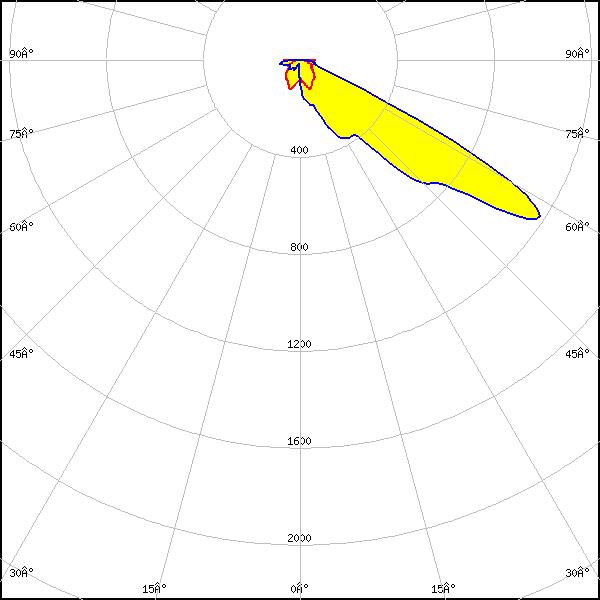

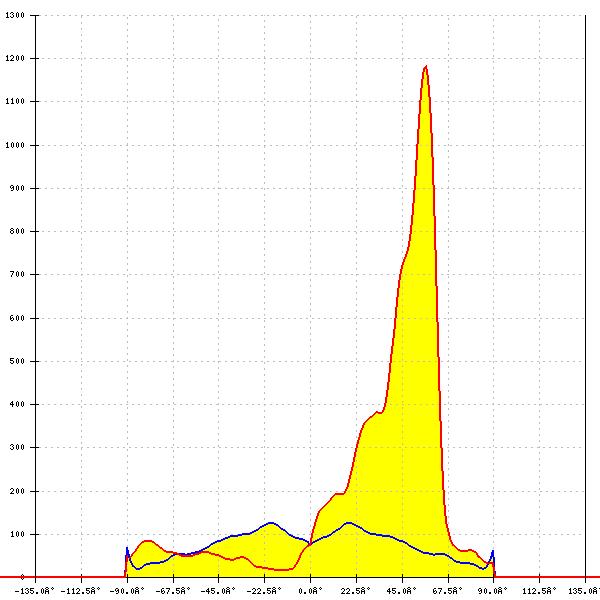

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 1.181 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

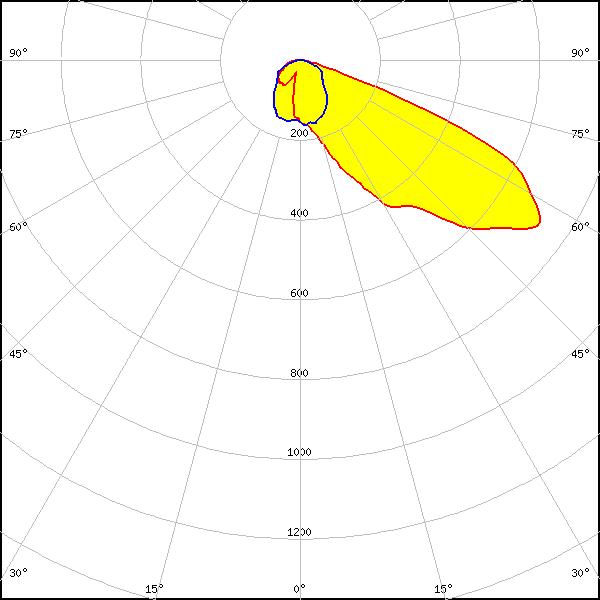

LED: Z8Y50P
FWHM: asymmetric
Peak intensity: 0.725 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

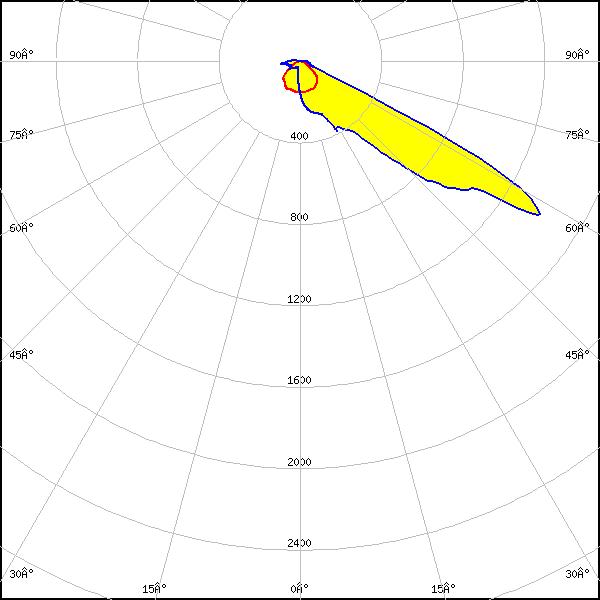

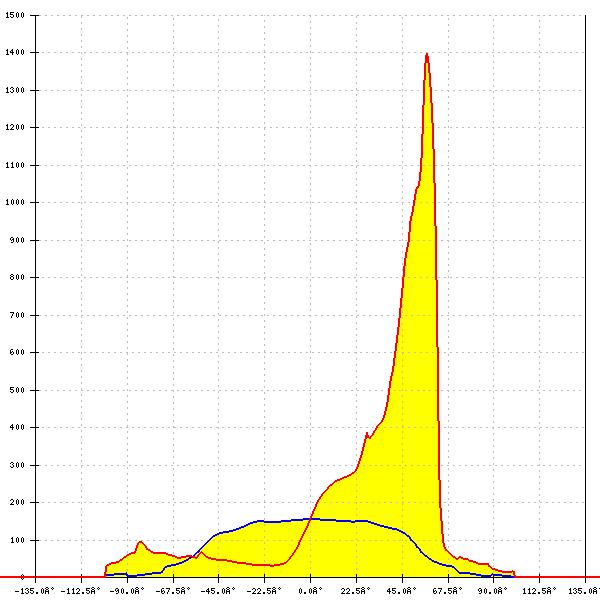

LED: PassivePAQ-R-222x50.OS1.9.7K-750-5 V1.0
FWHM: asymmetric
Peak intensity: 1.476 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

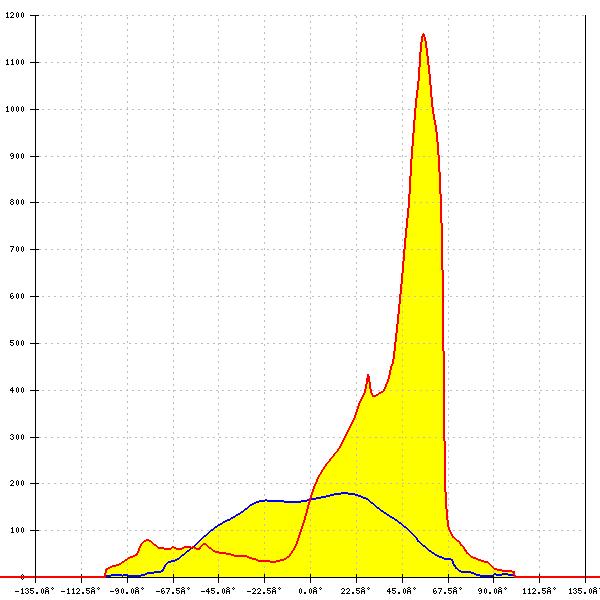

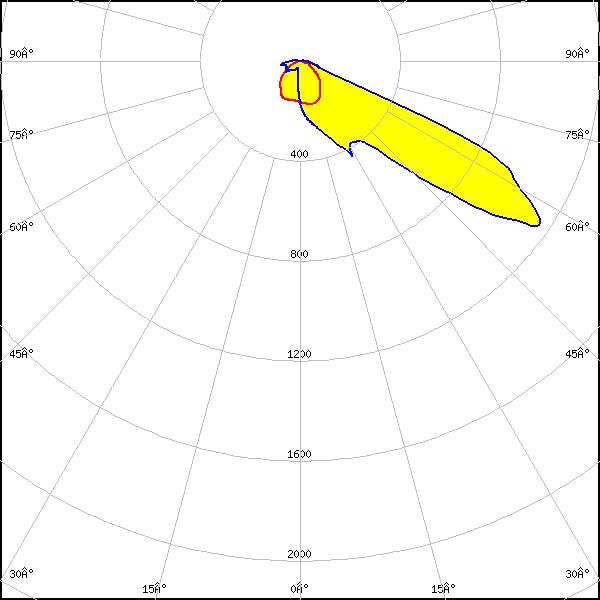

LED: PassivePAQ-R-274x51-NI0-21K-857-5
FWHM: asymmetric
Peak intensity: 1.176 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
