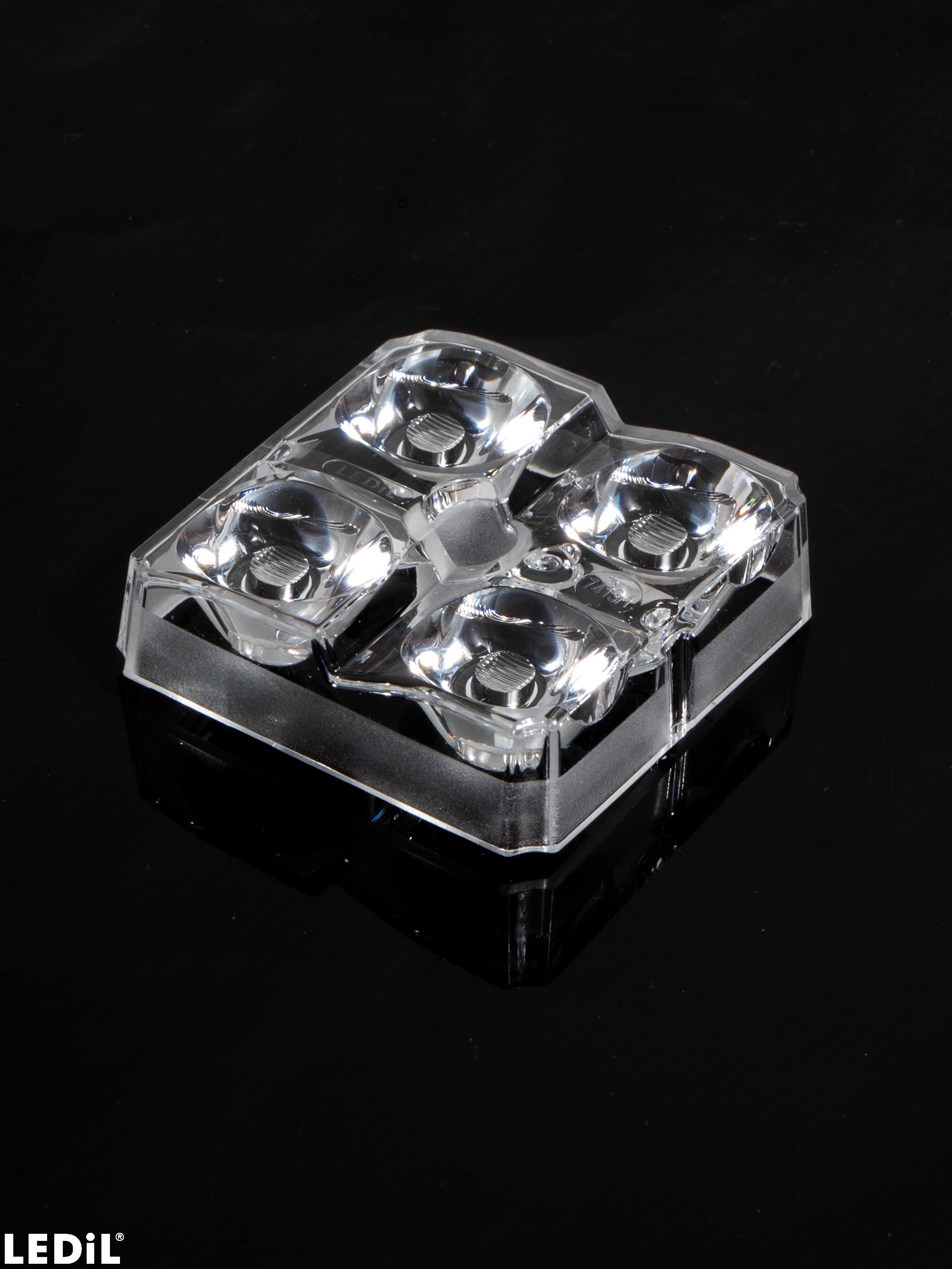

    C17413_SPORT-2X2-S4

    Print

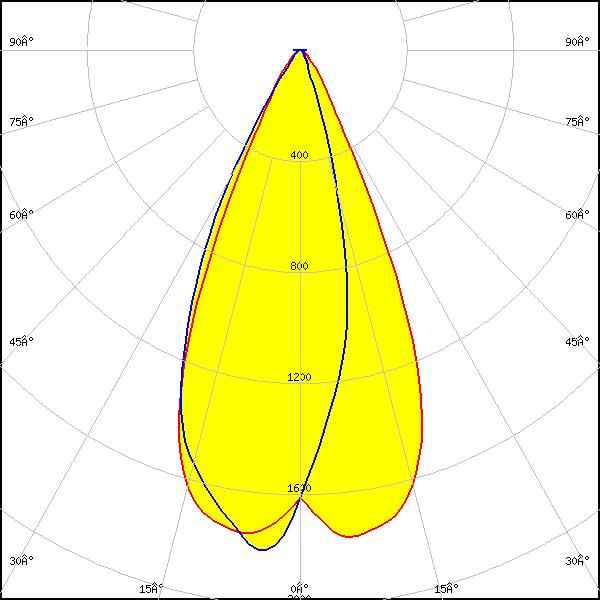

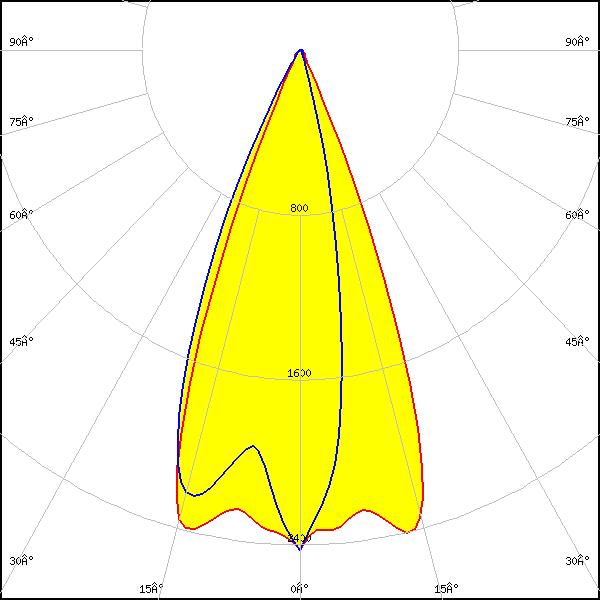

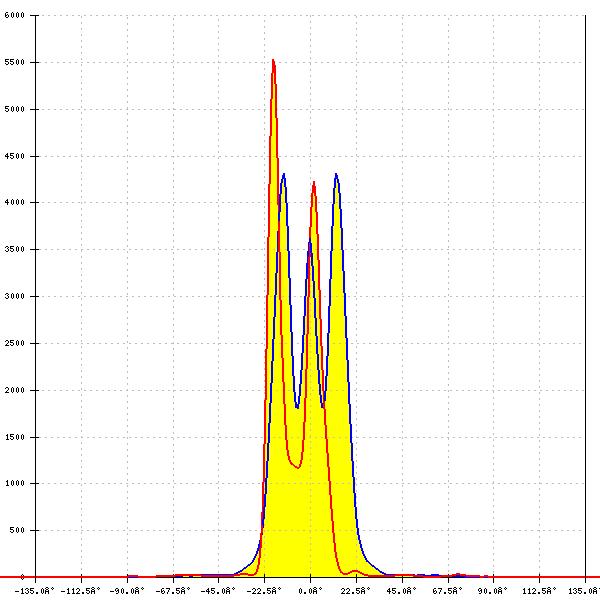

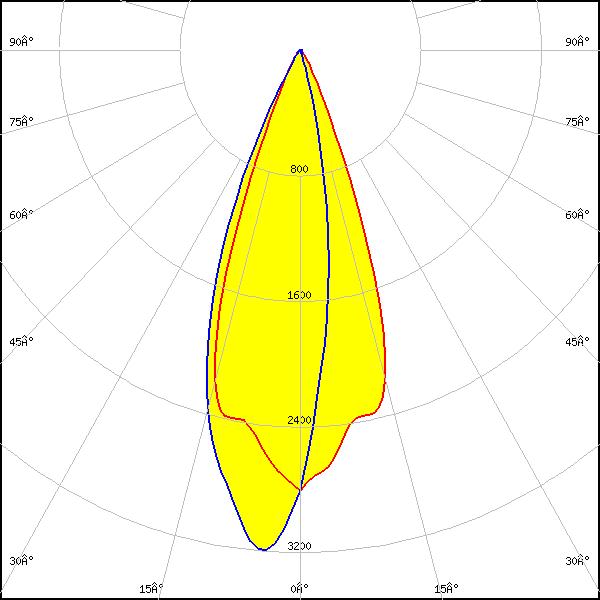

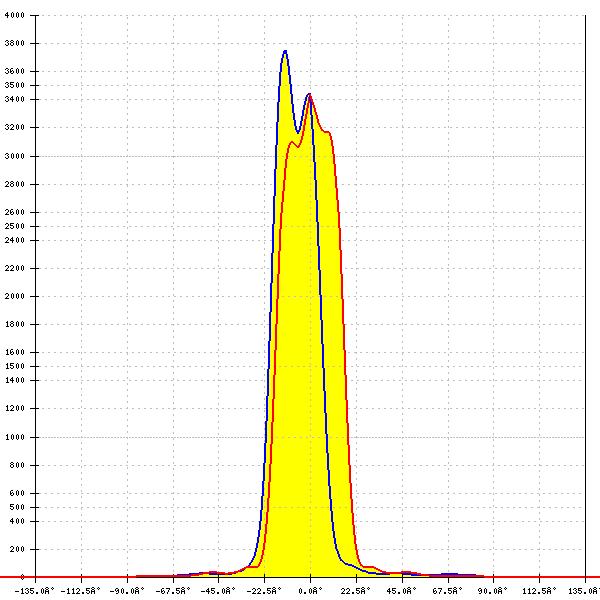

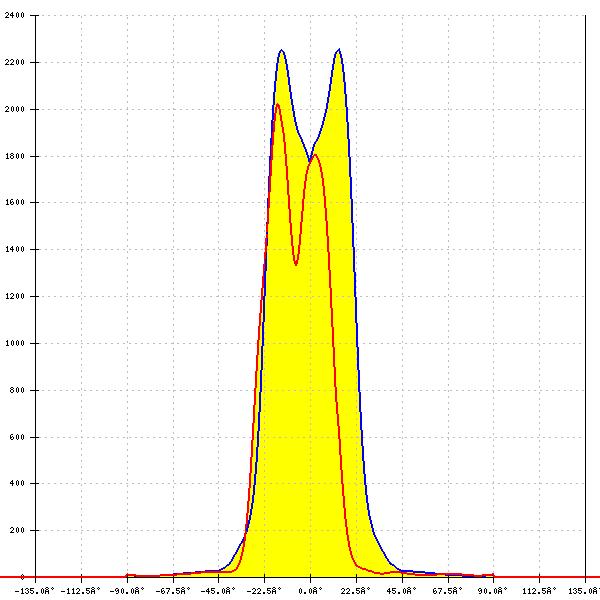

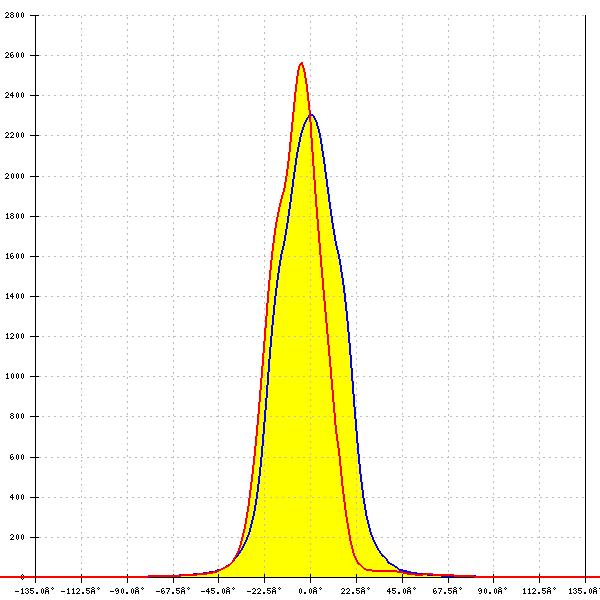

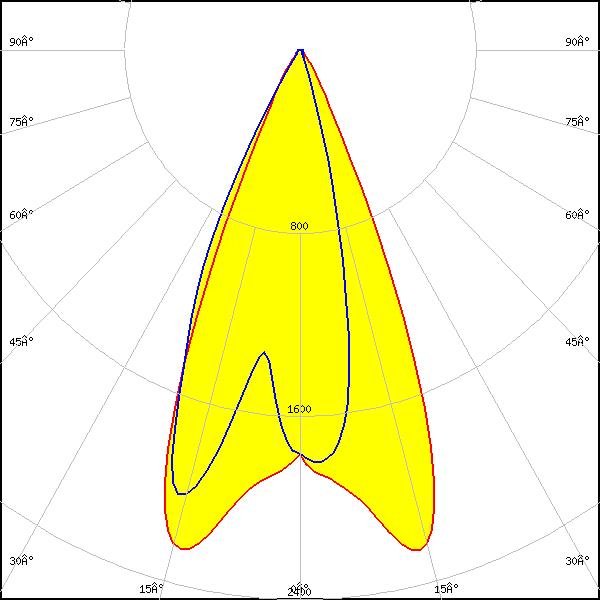

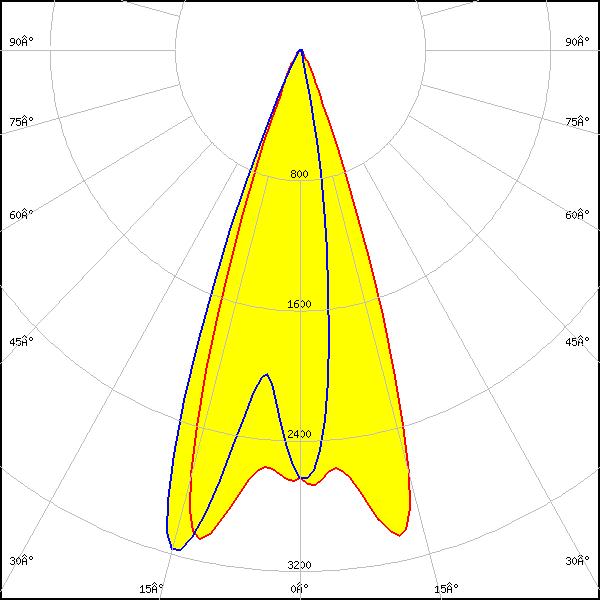

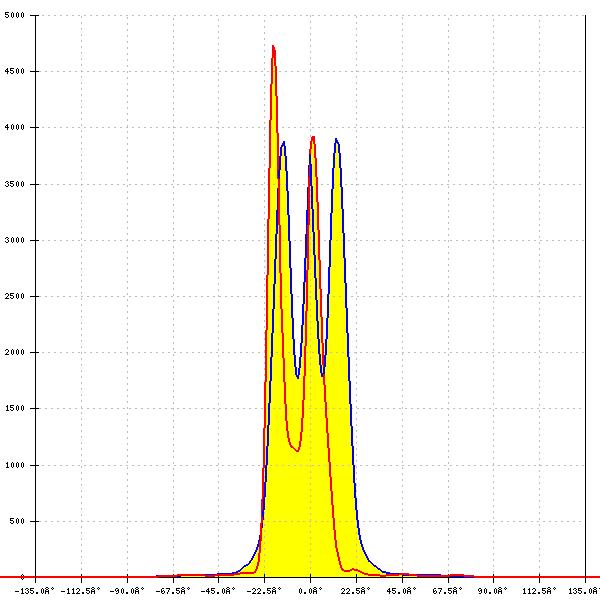

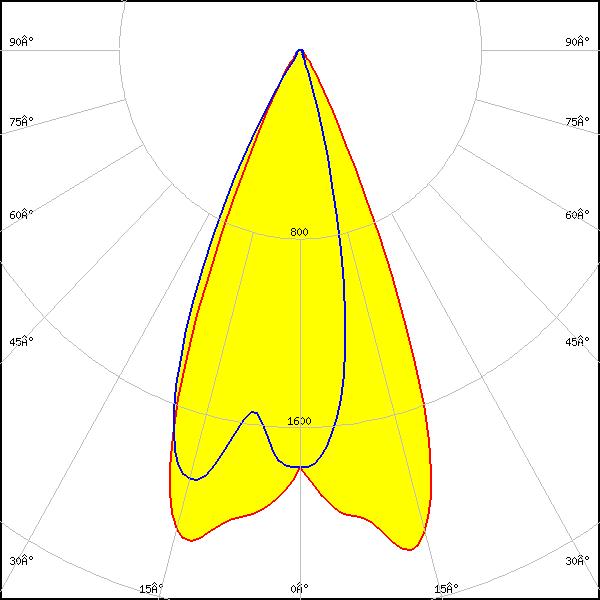

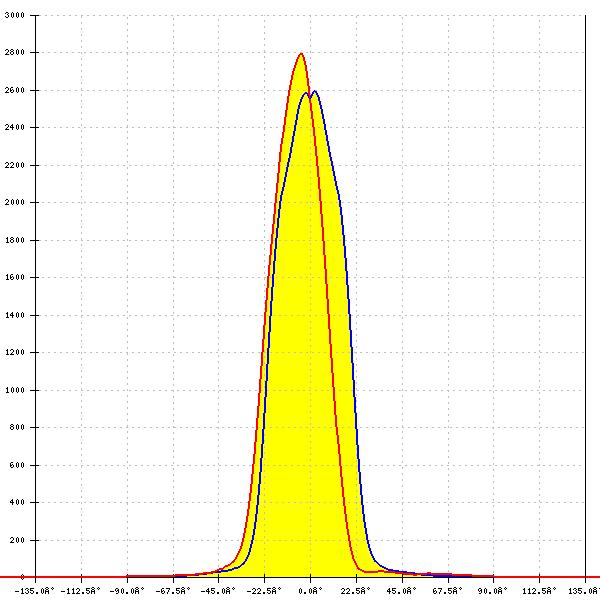

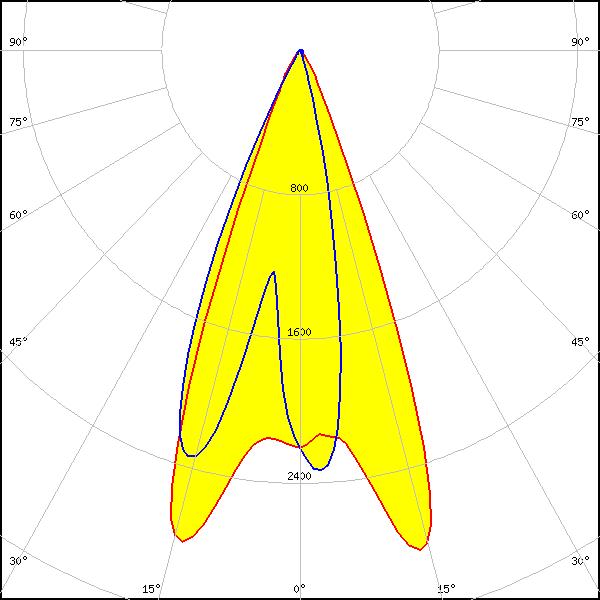

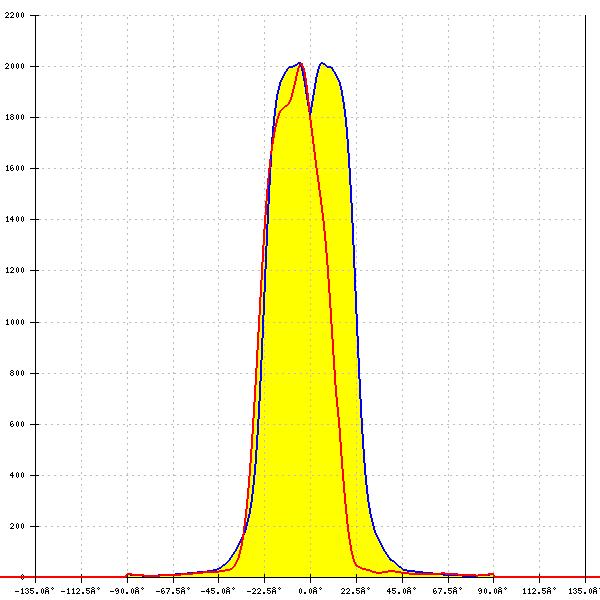

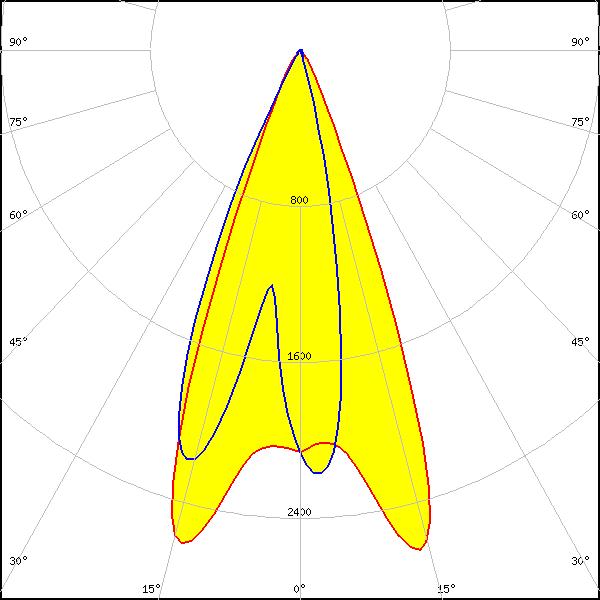

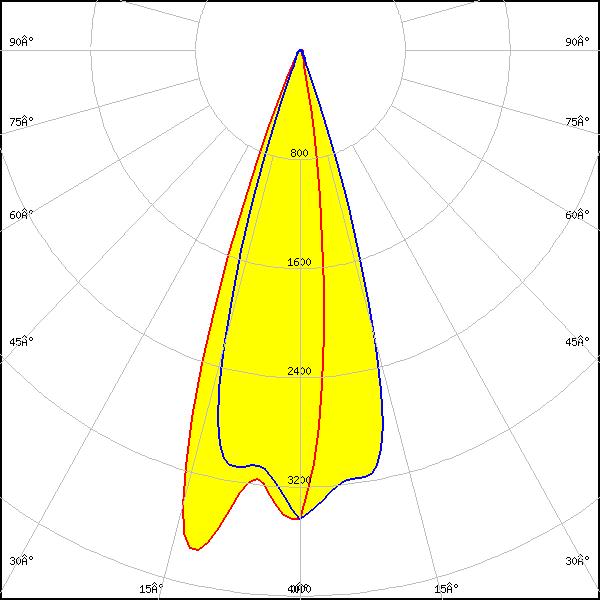

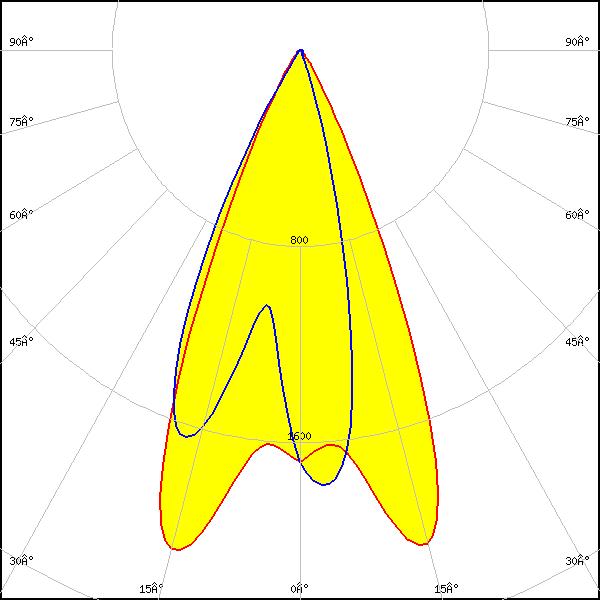

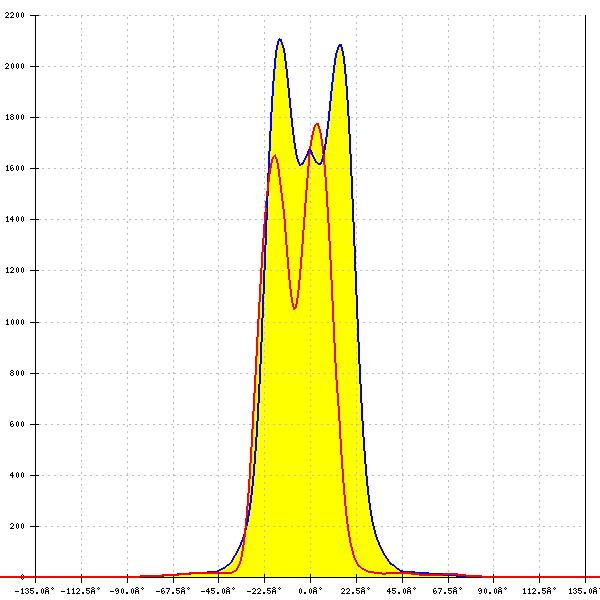

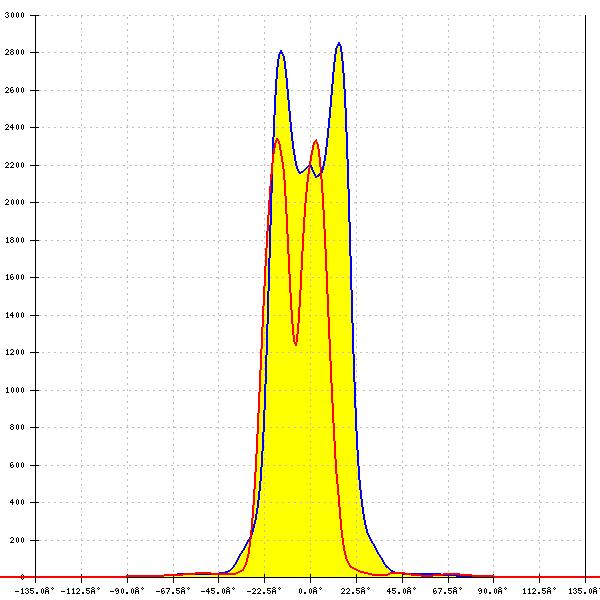

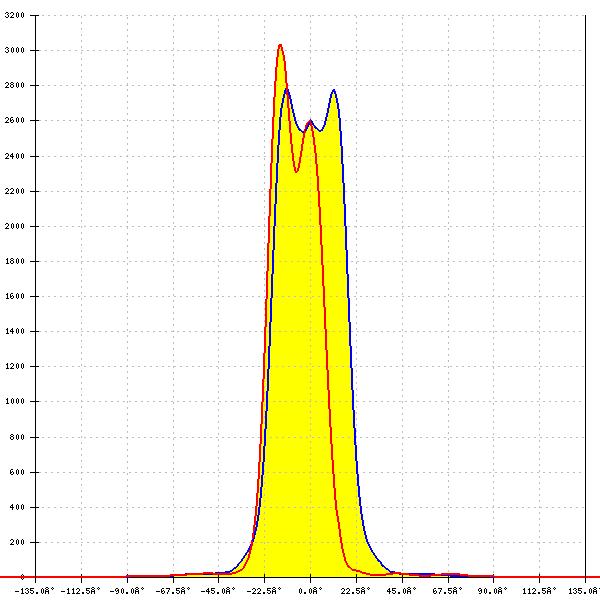

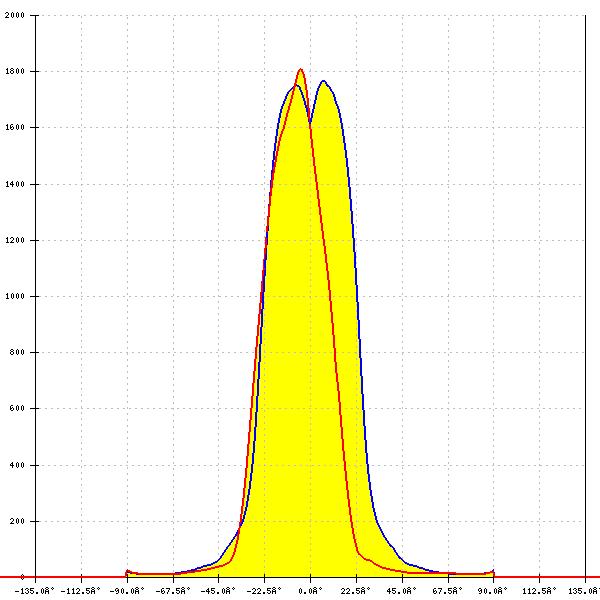

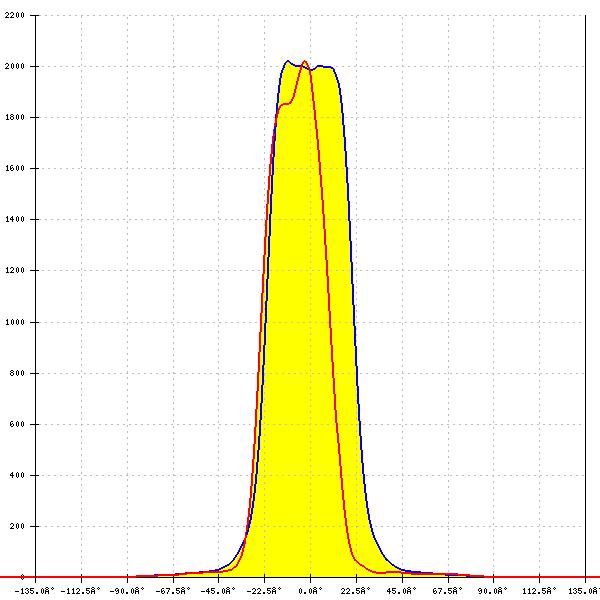

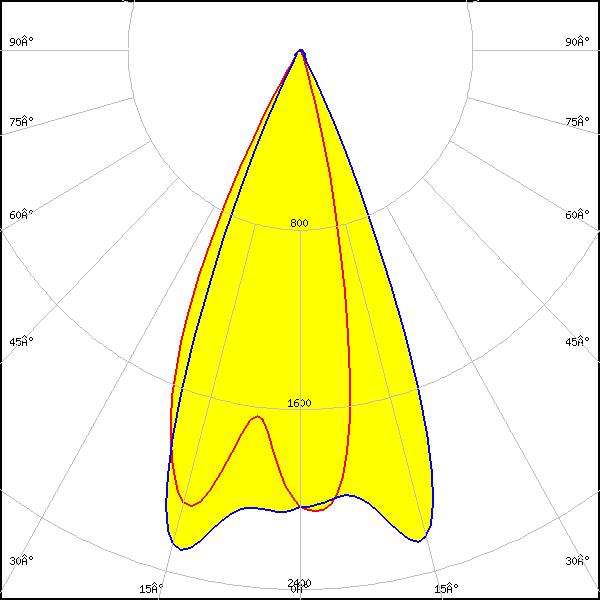

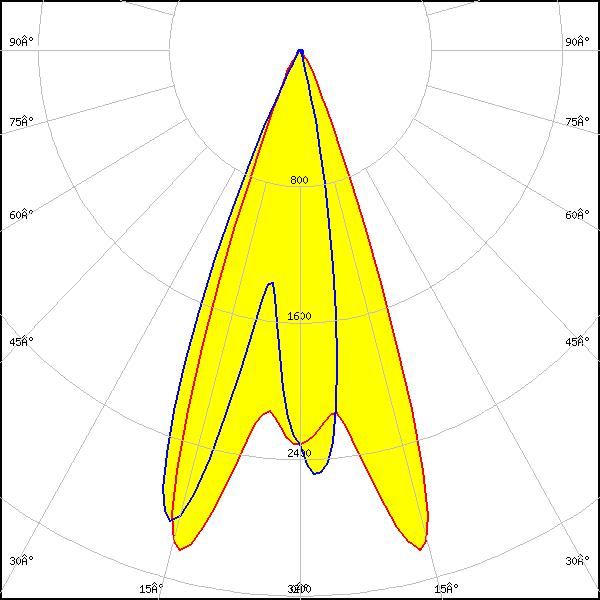

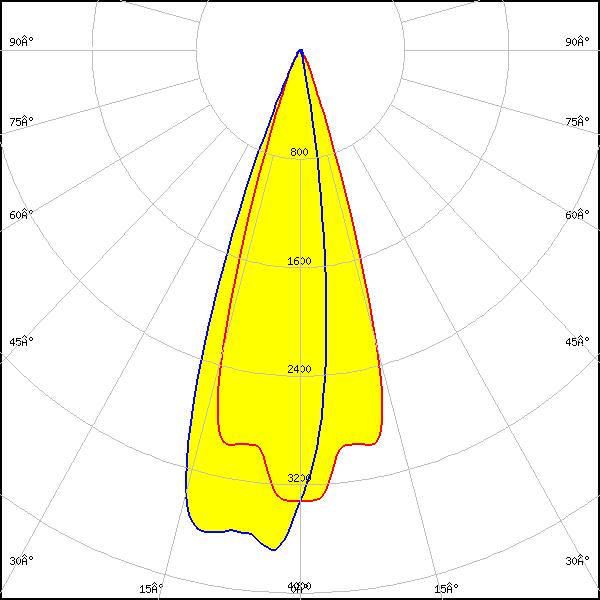

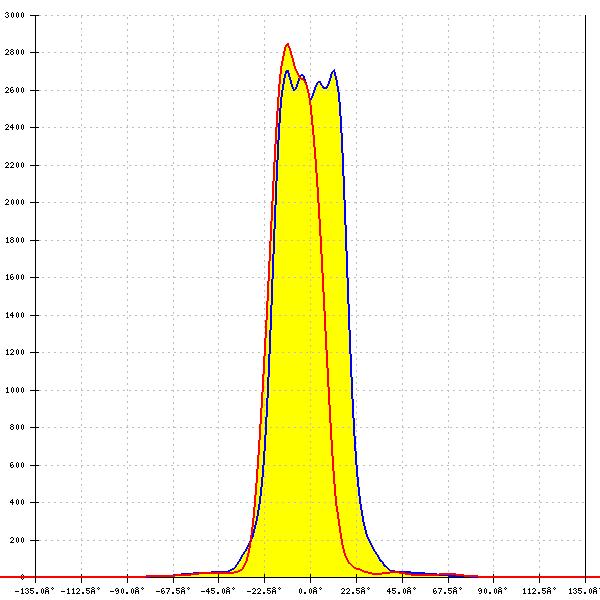

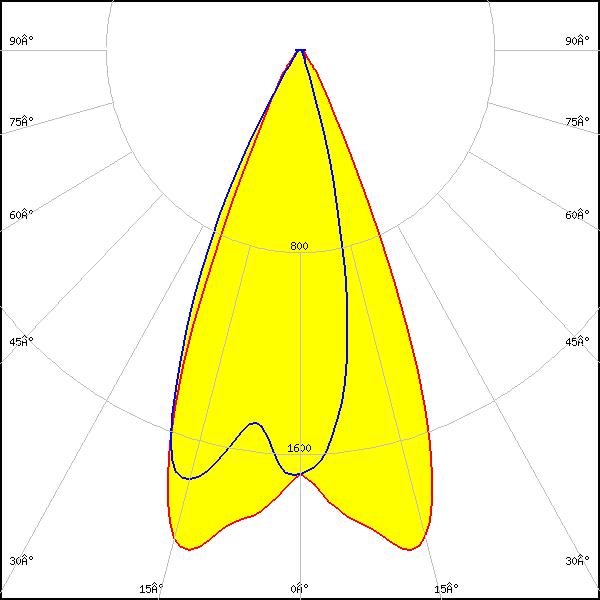

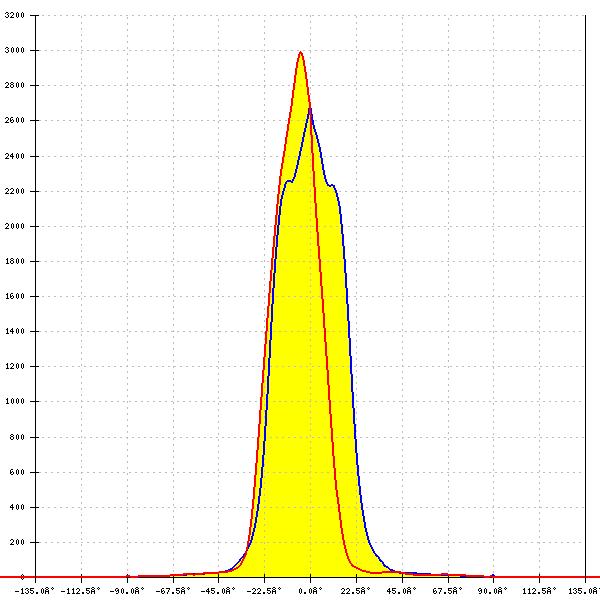

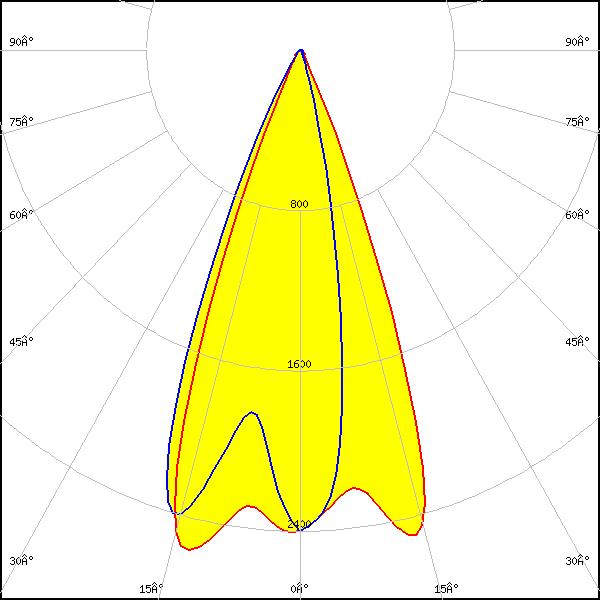

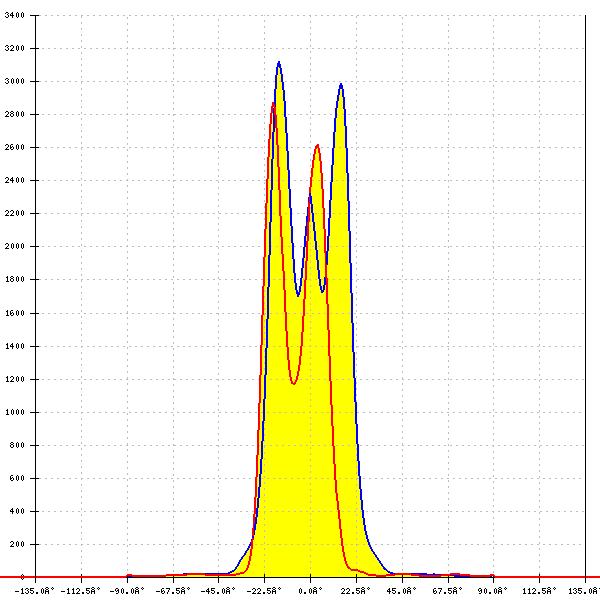

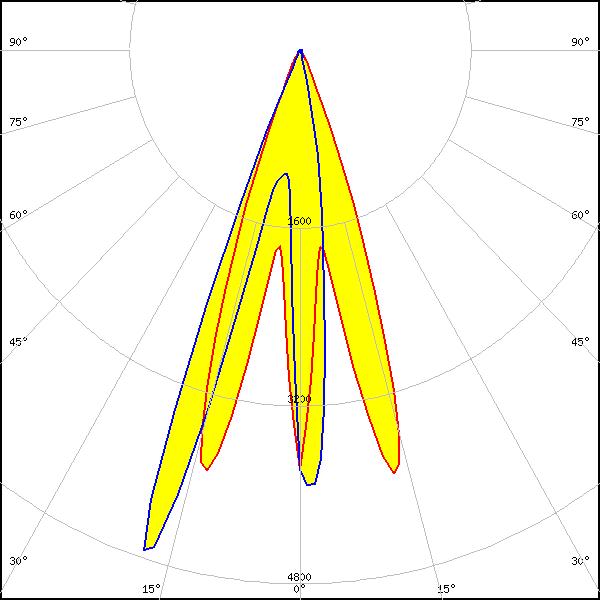

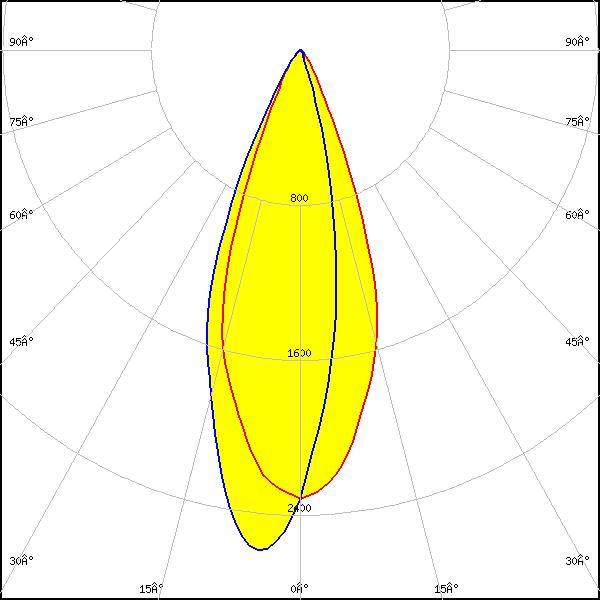

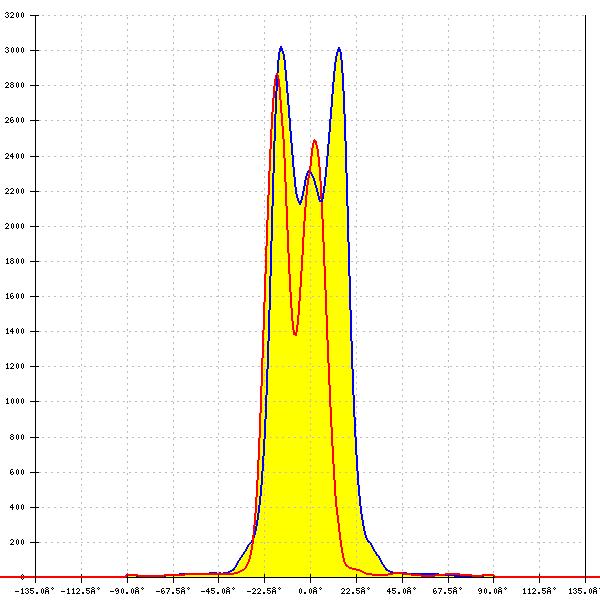

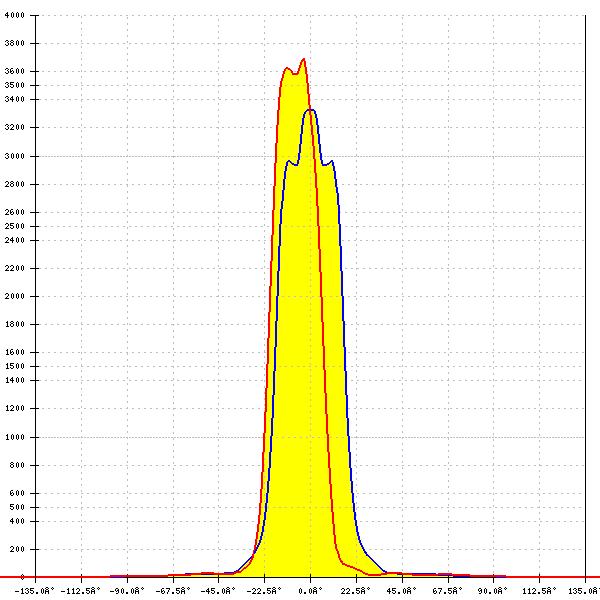

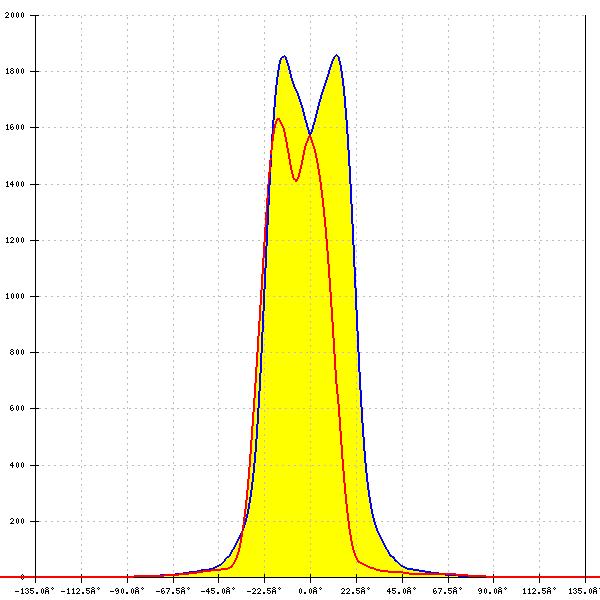

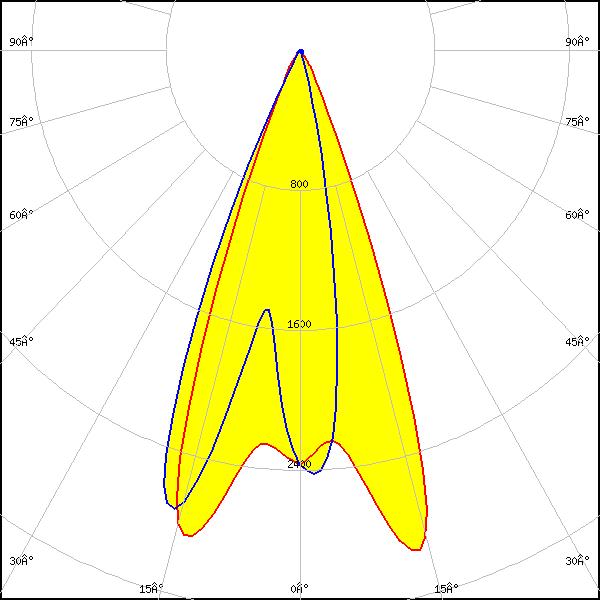

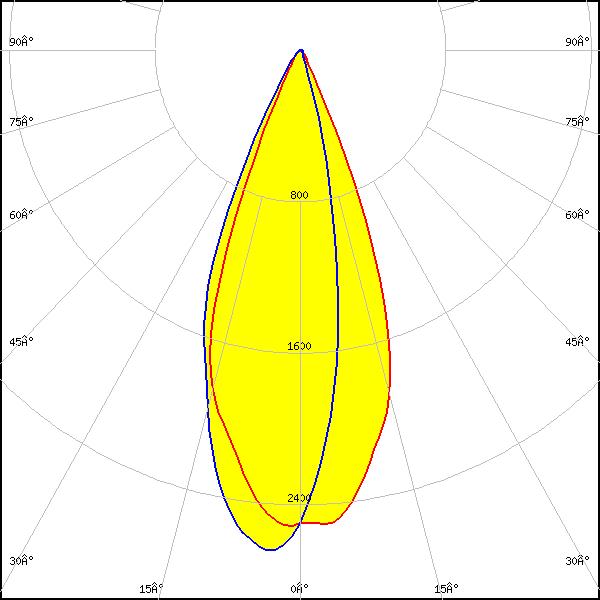

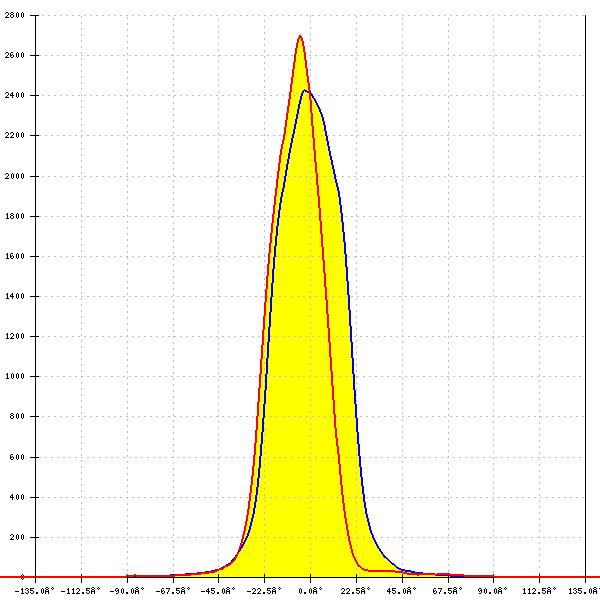

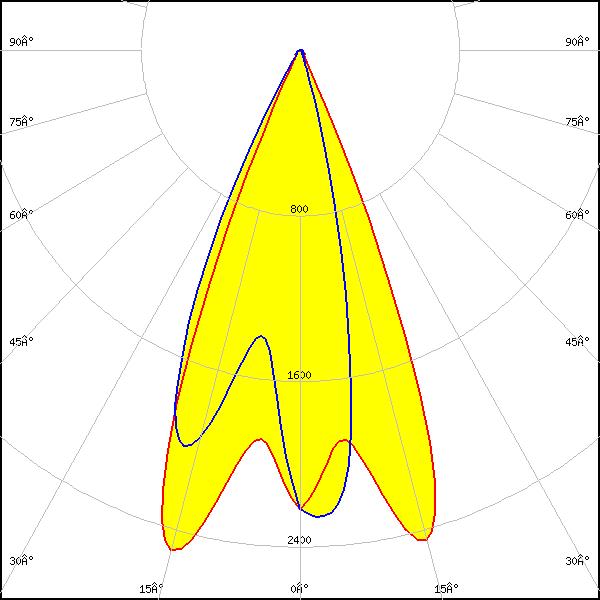

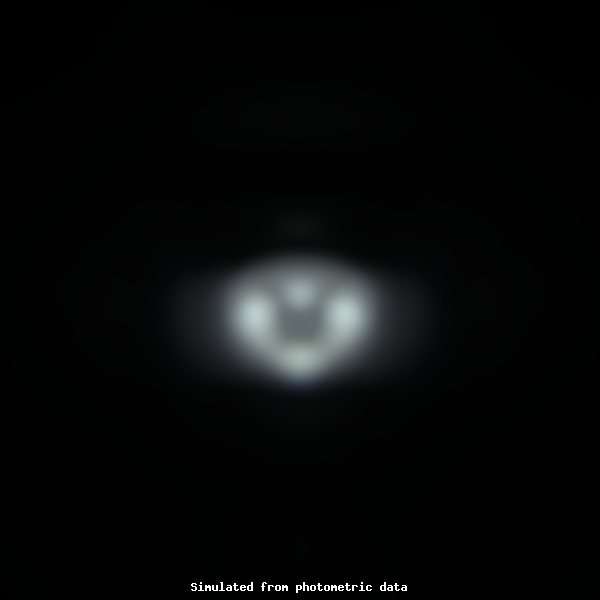

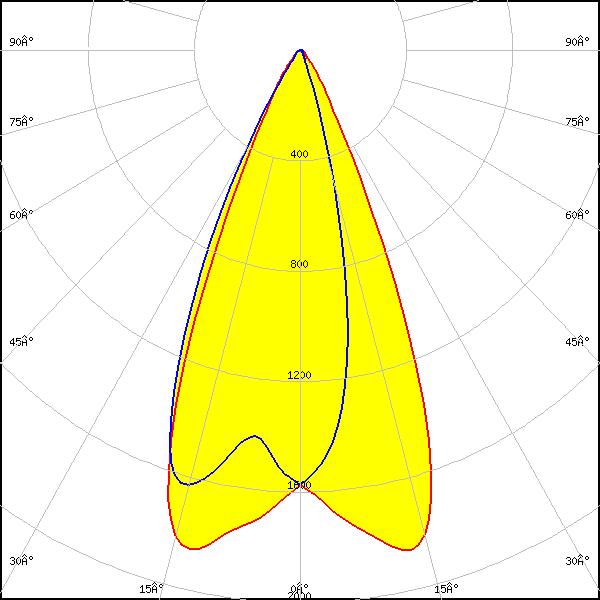

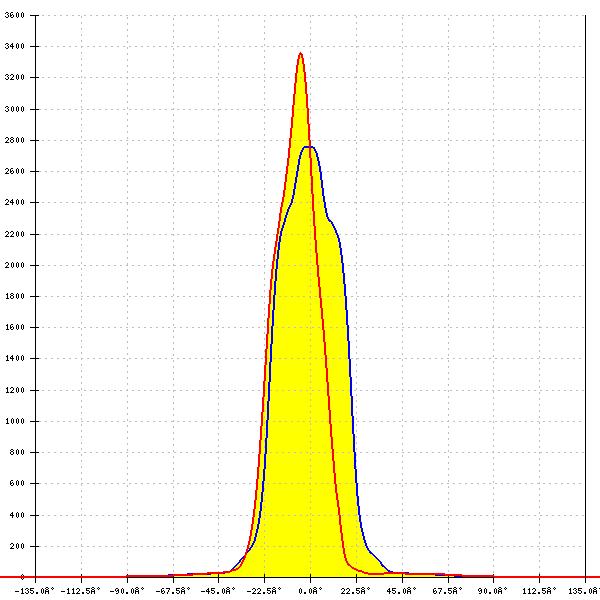

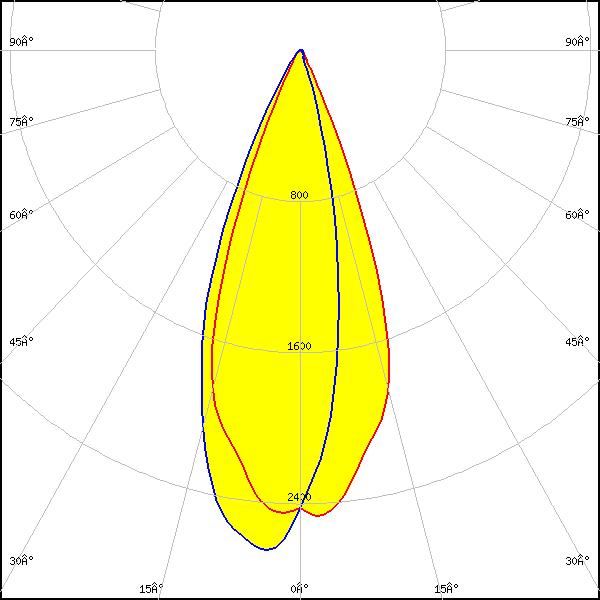

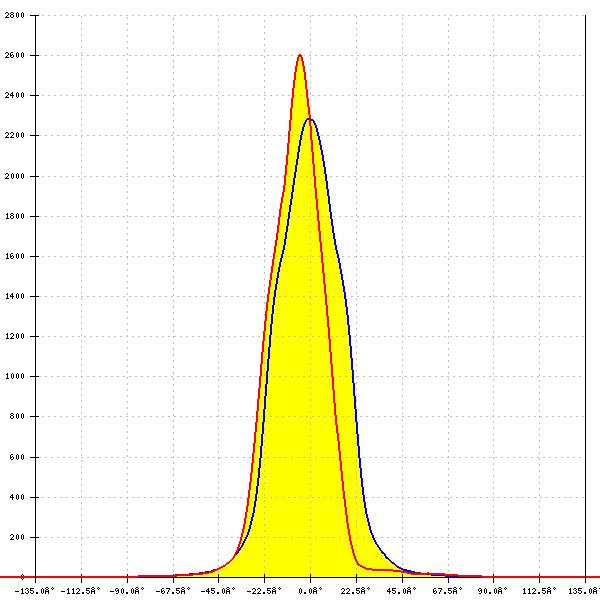

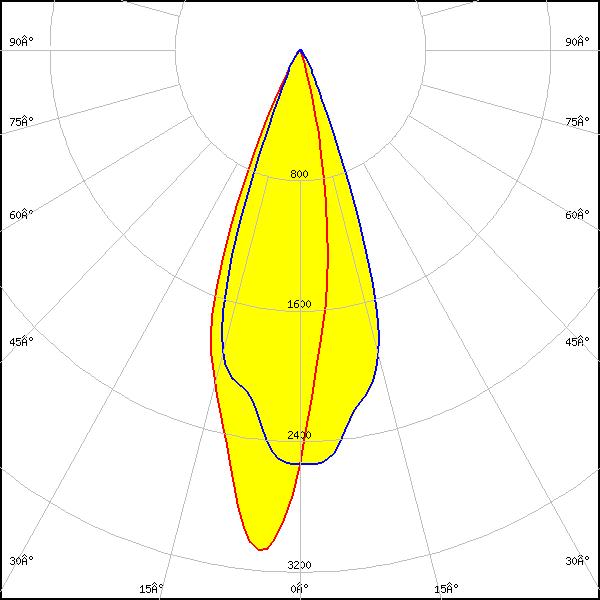

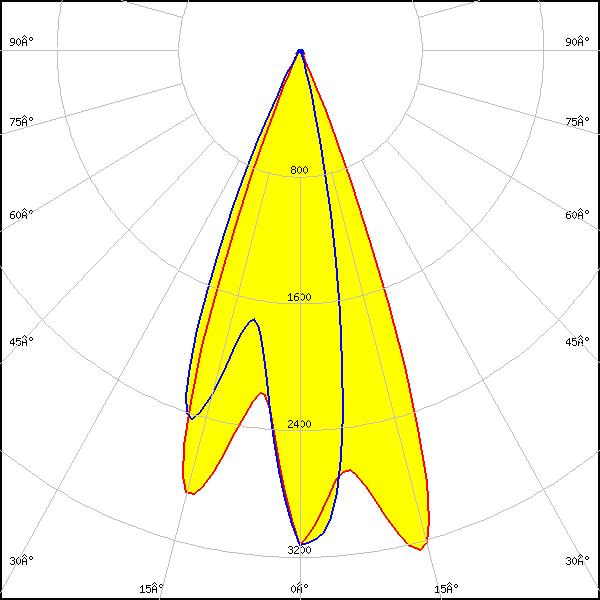

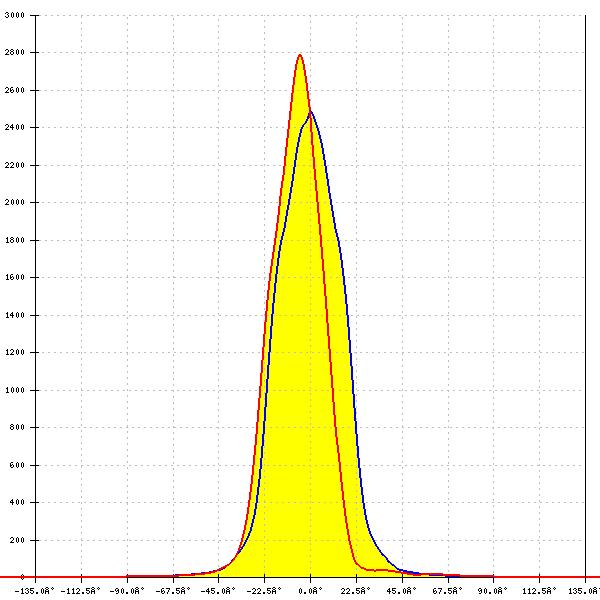

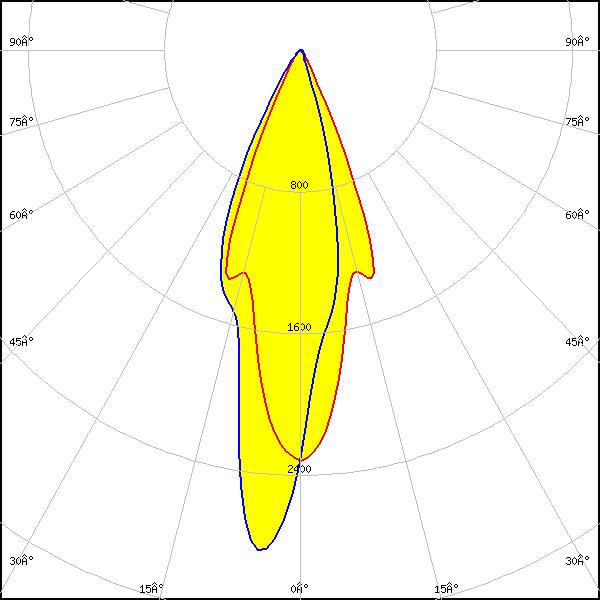

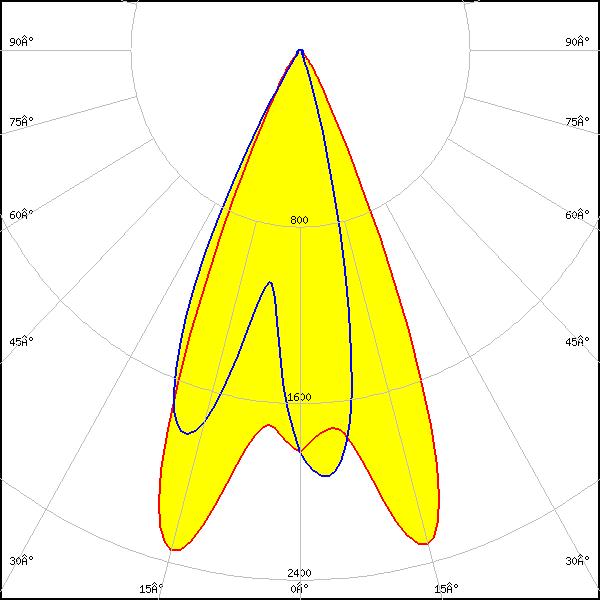

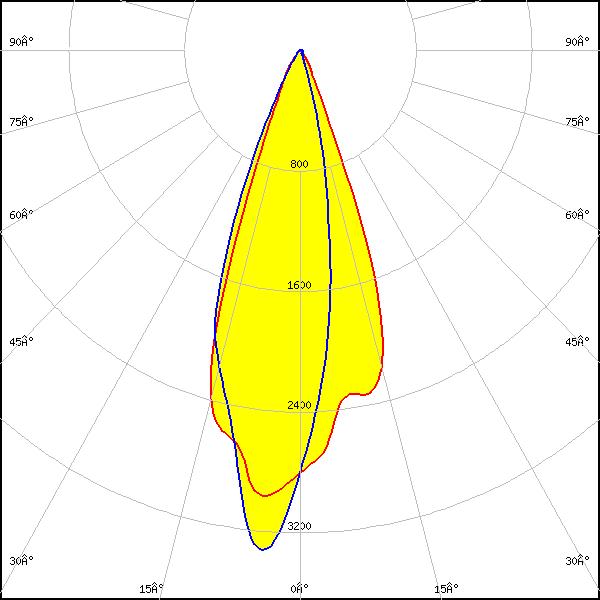

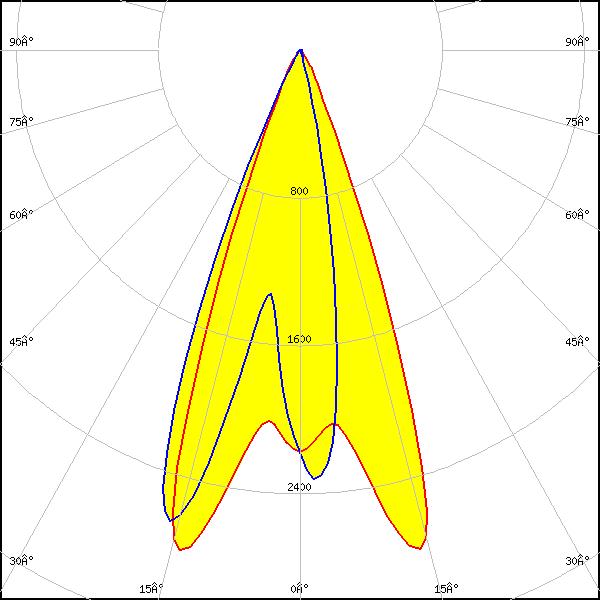

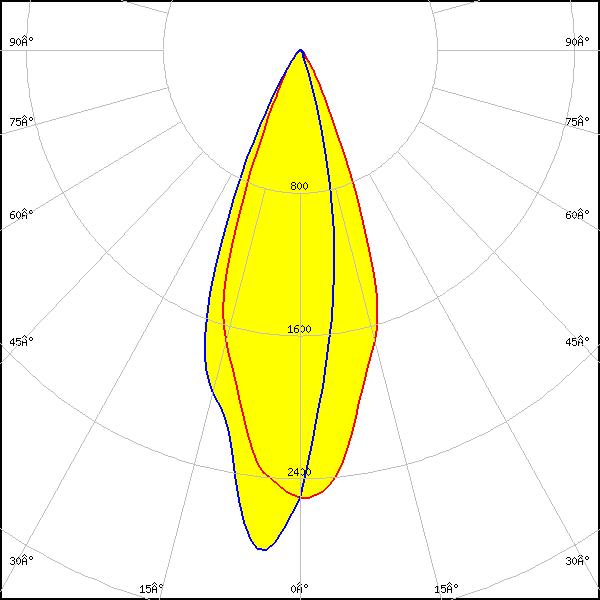

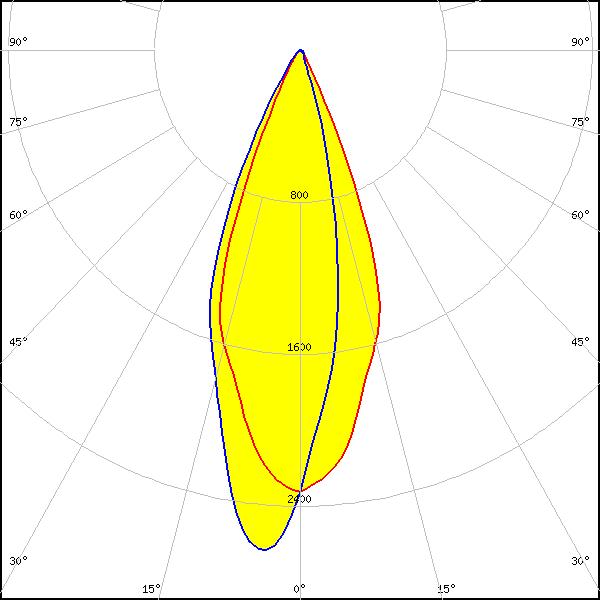

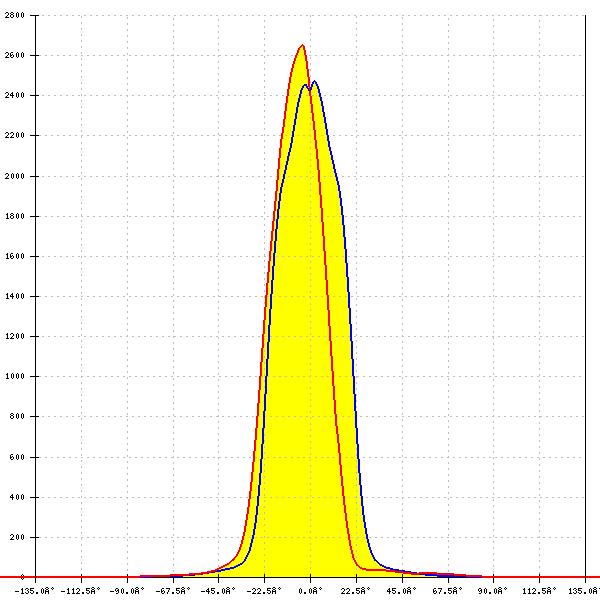

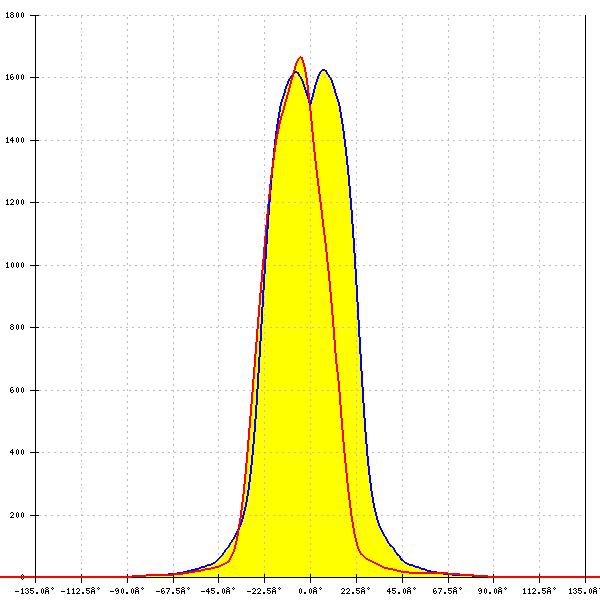

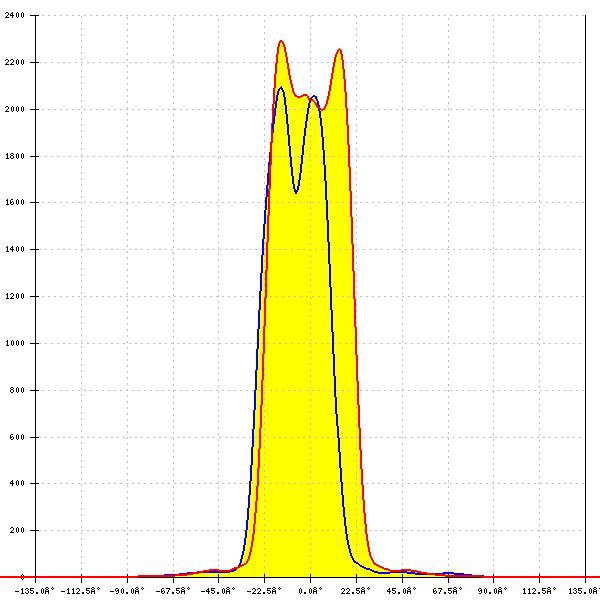

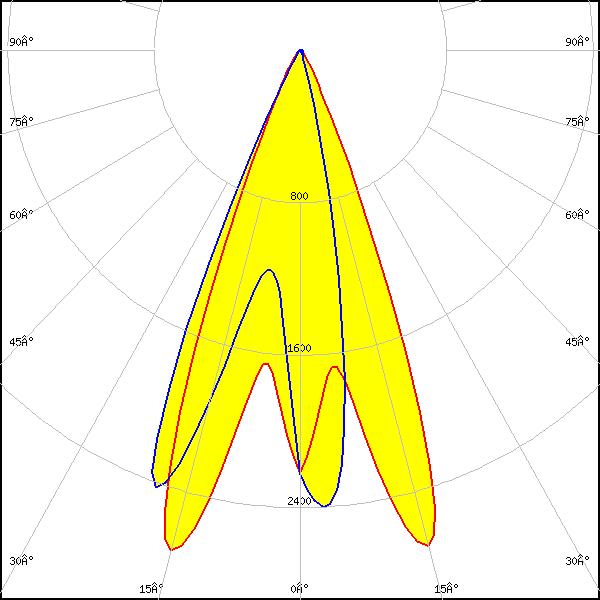

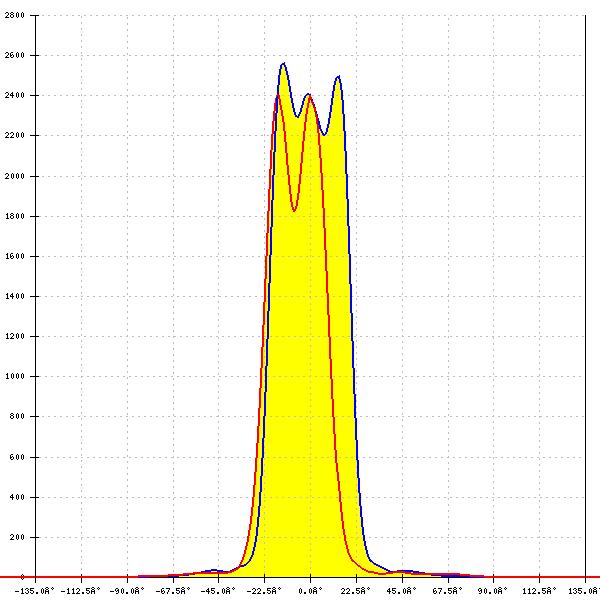

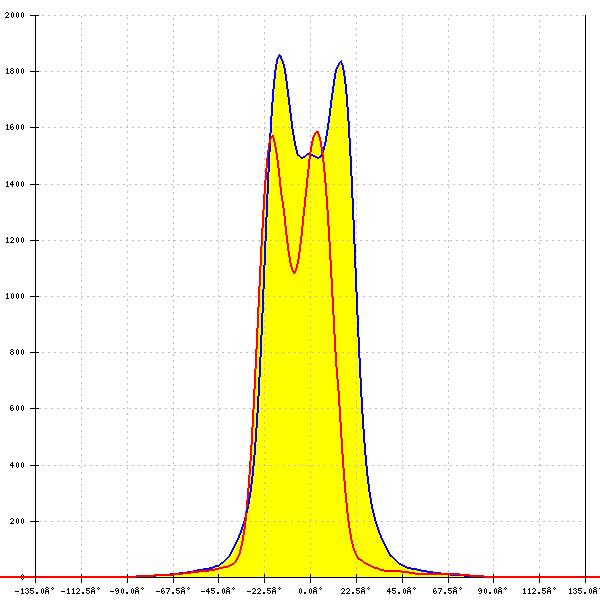

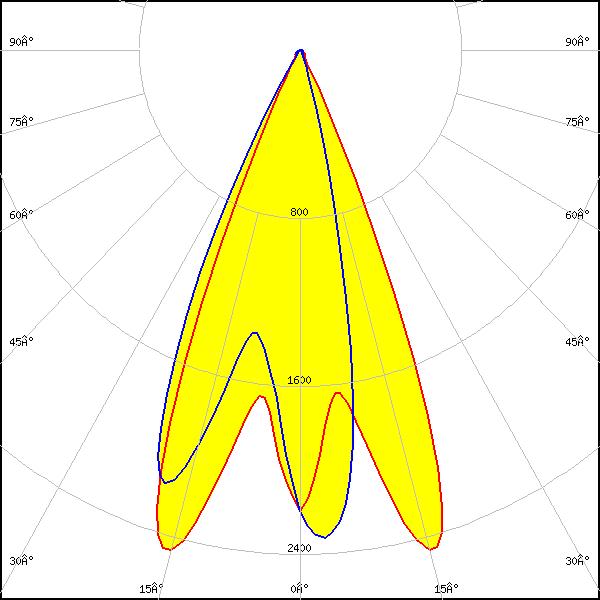

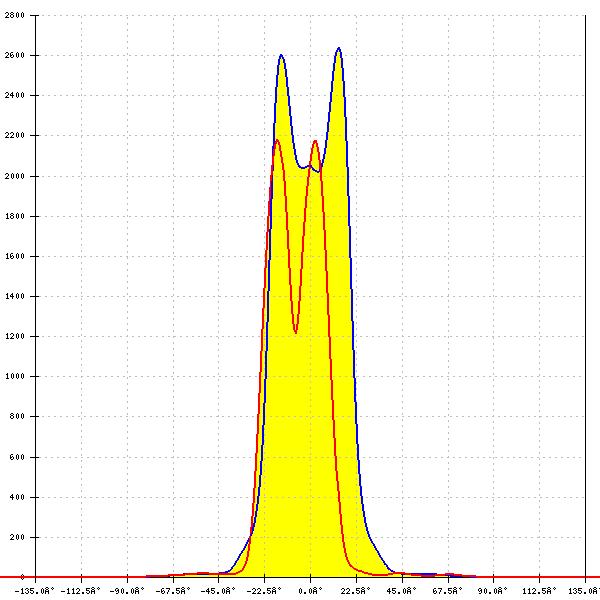

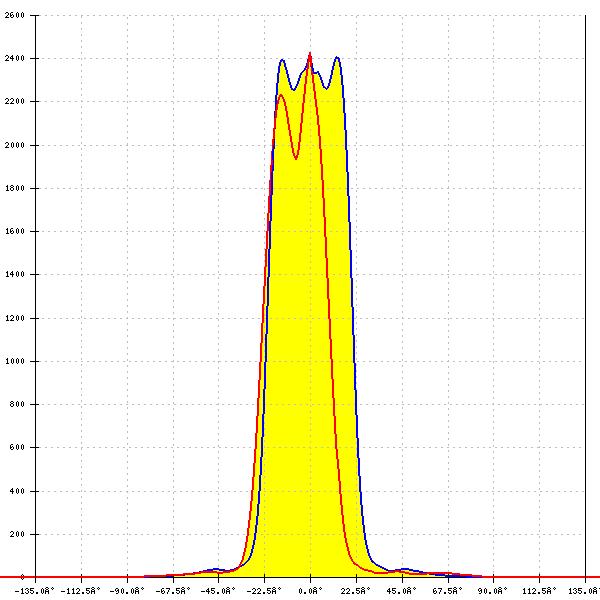

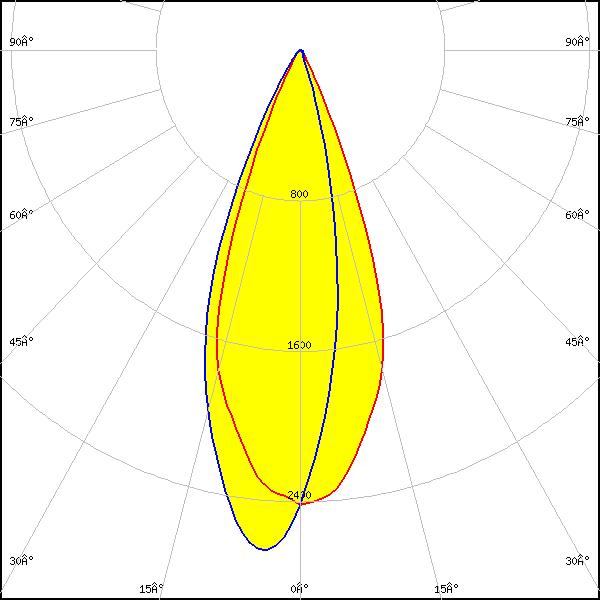

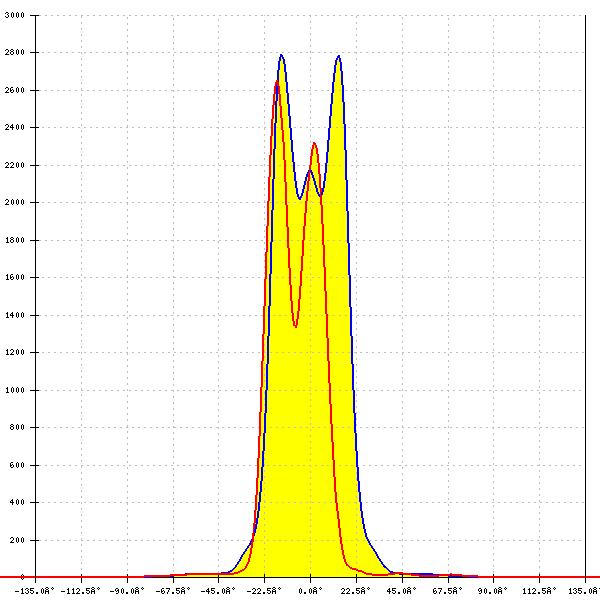

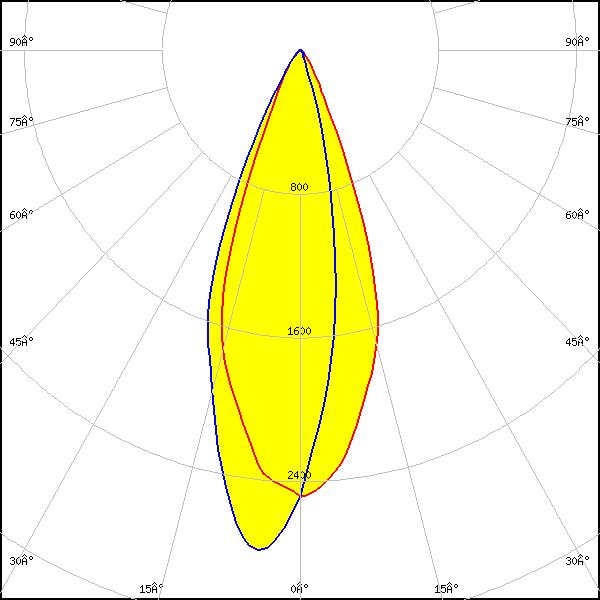

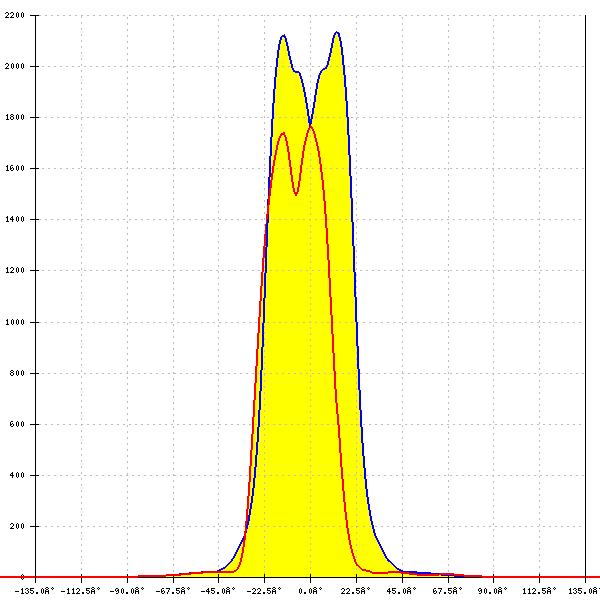

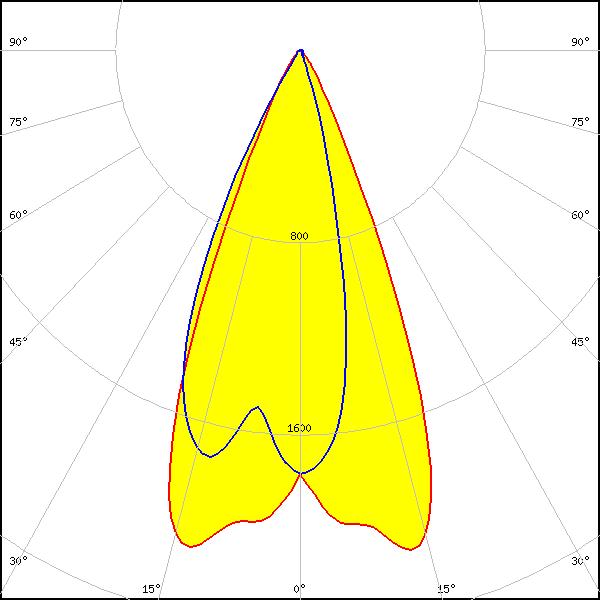

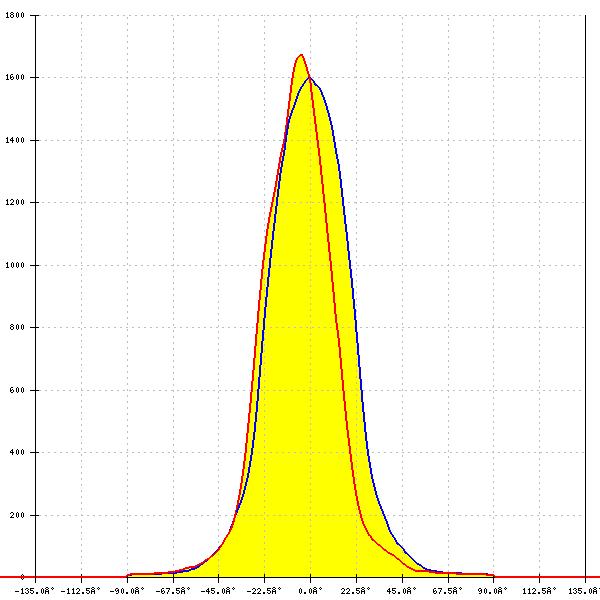

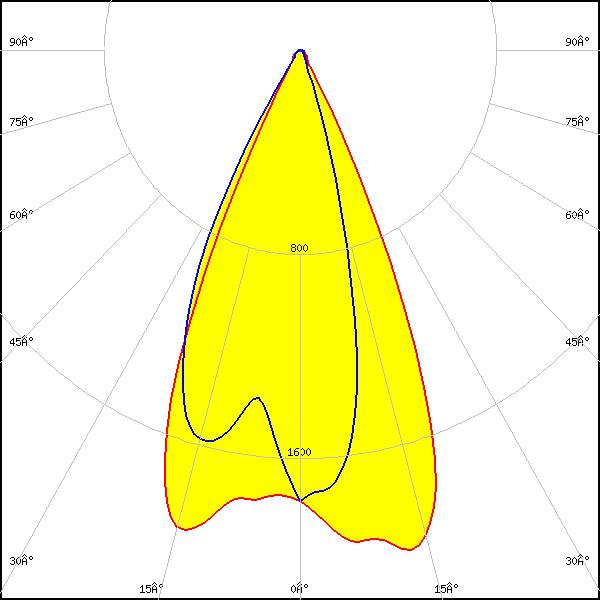

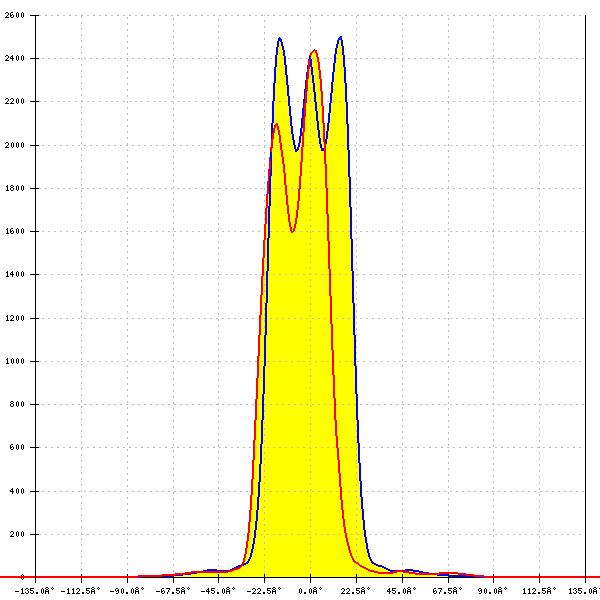

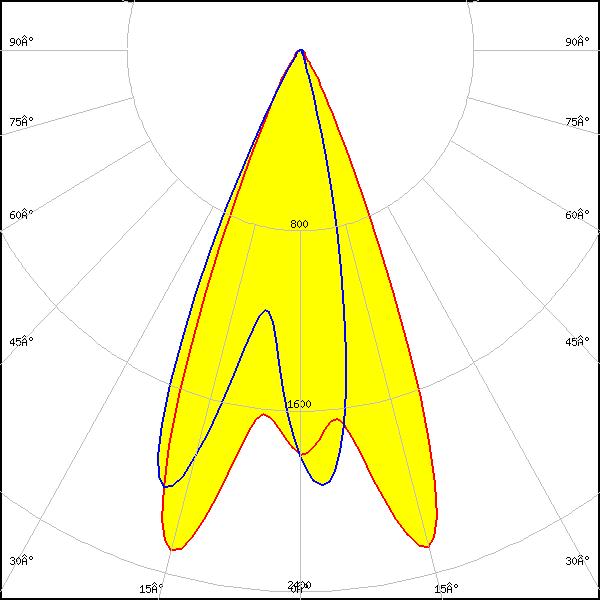

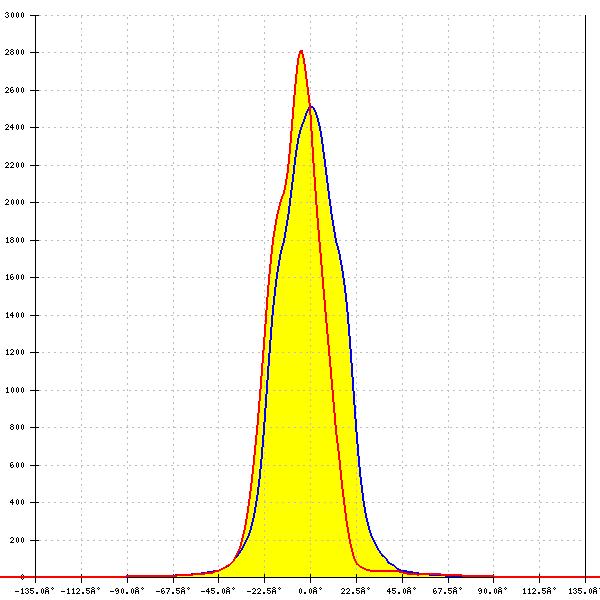

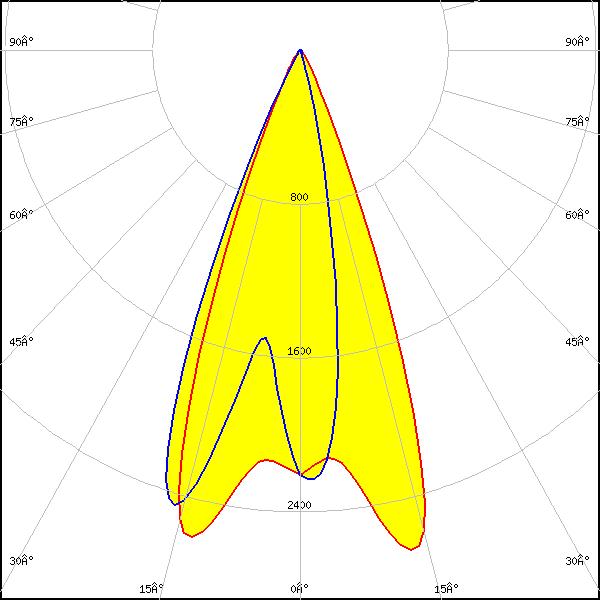

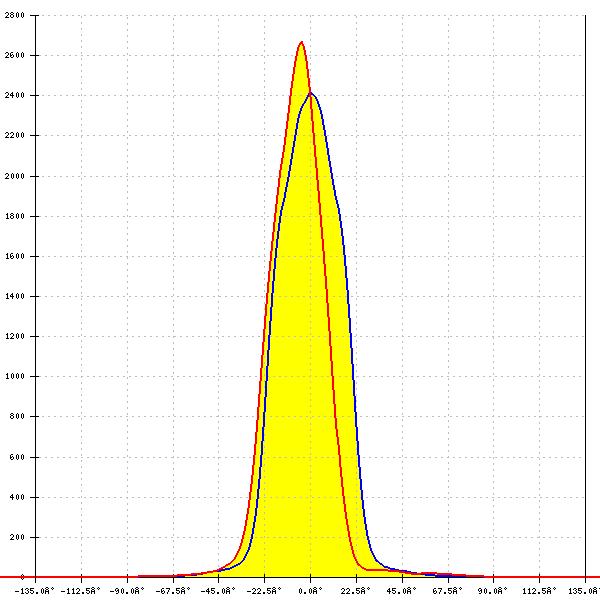

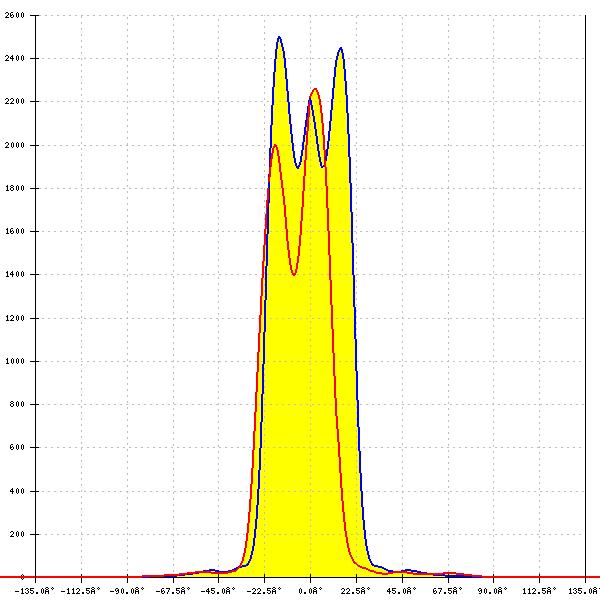

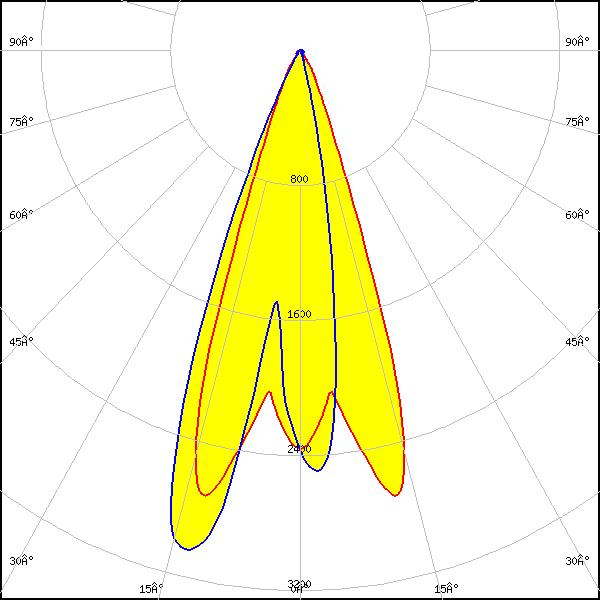

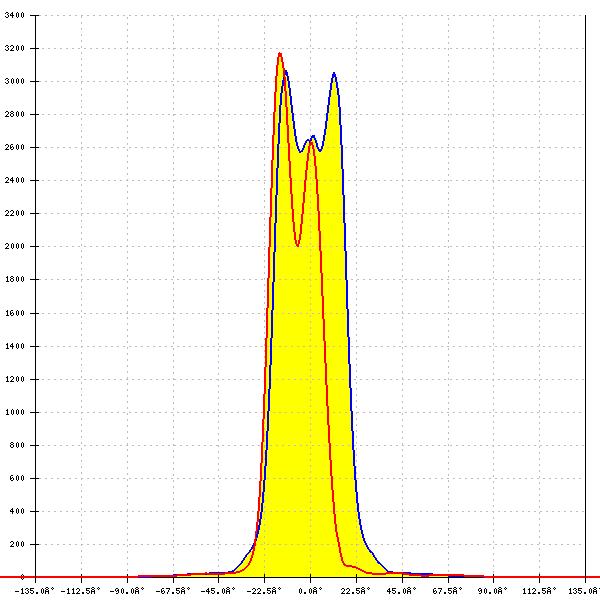

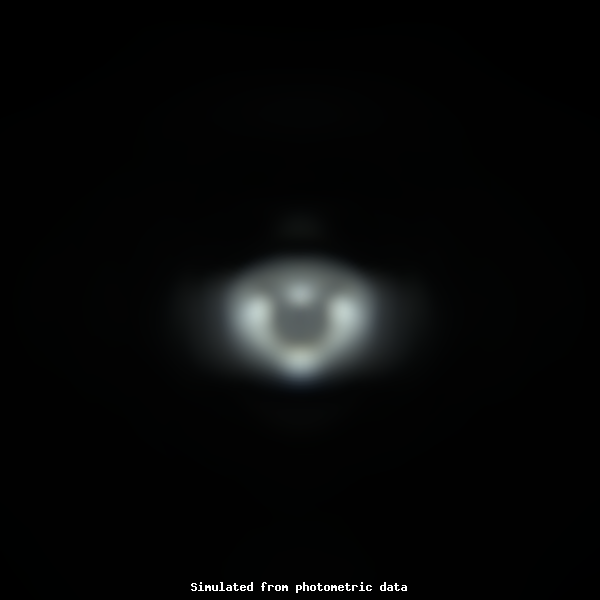

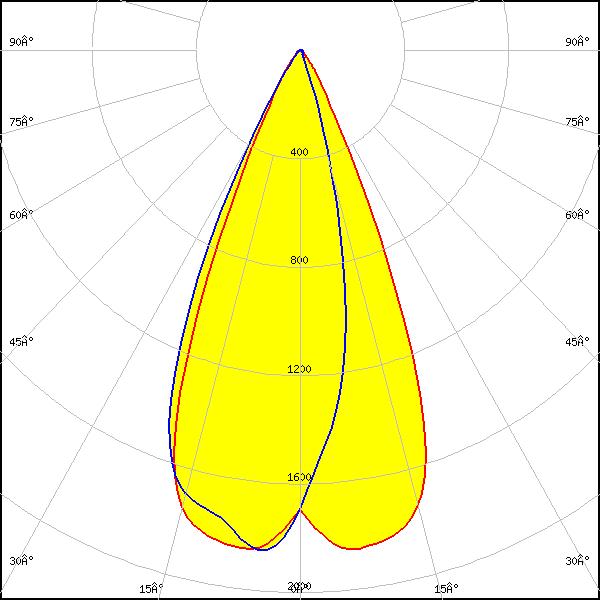

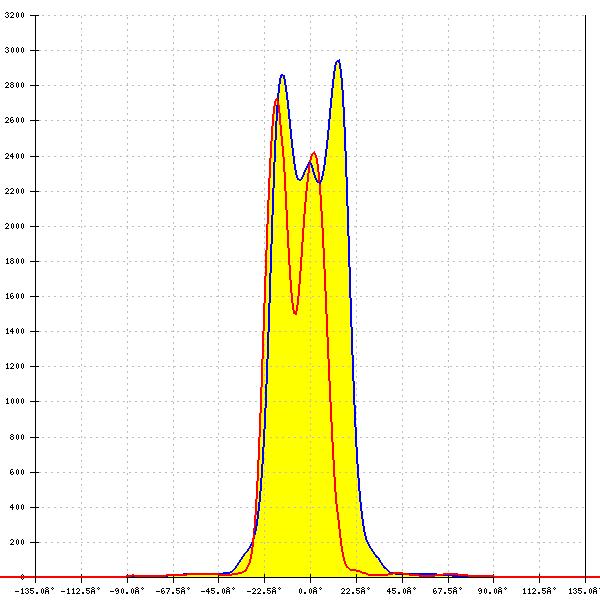

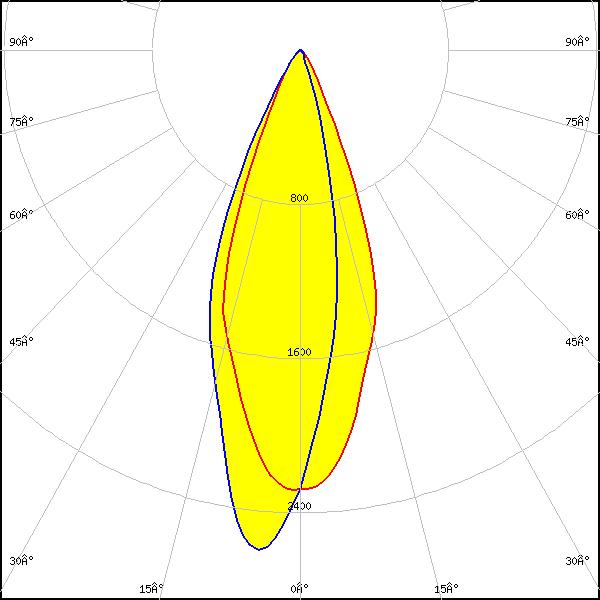

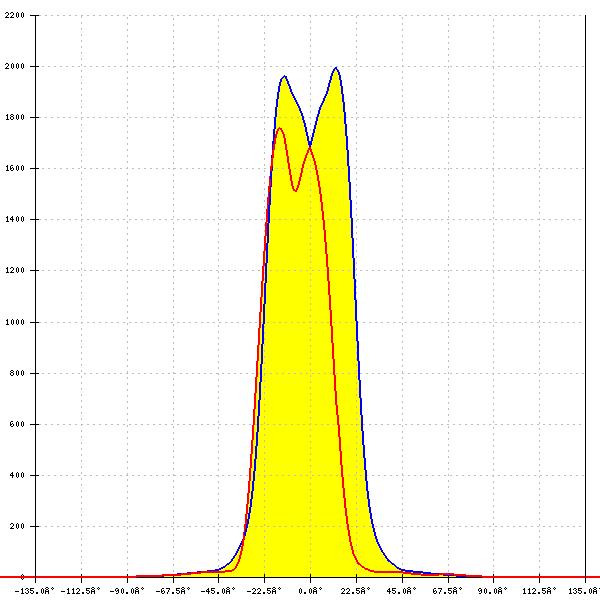

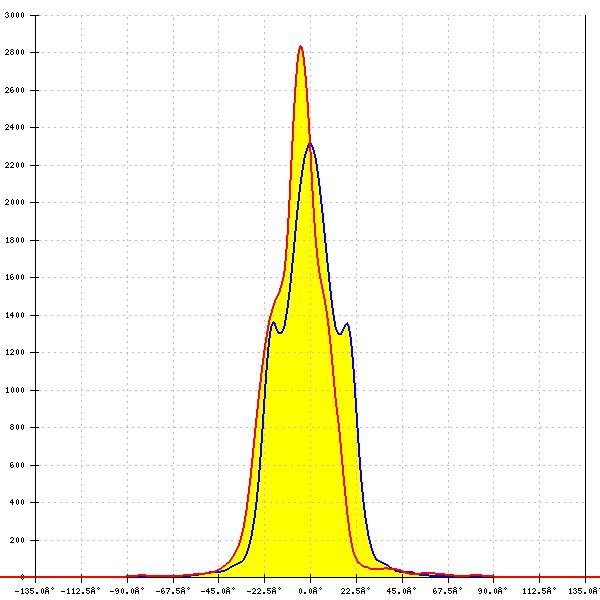

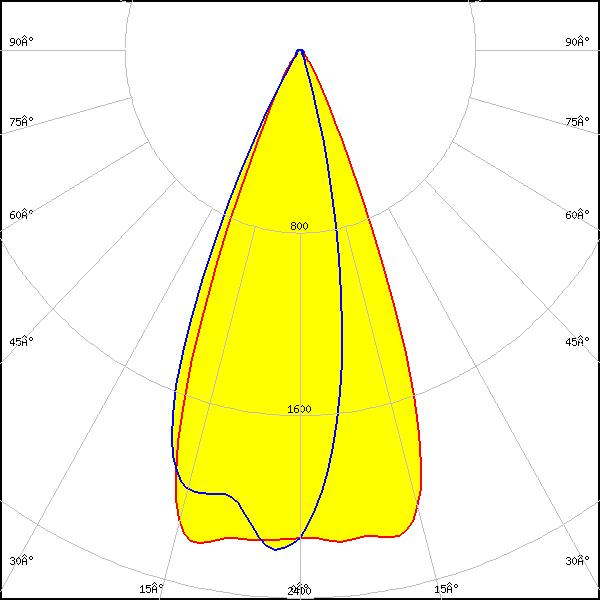

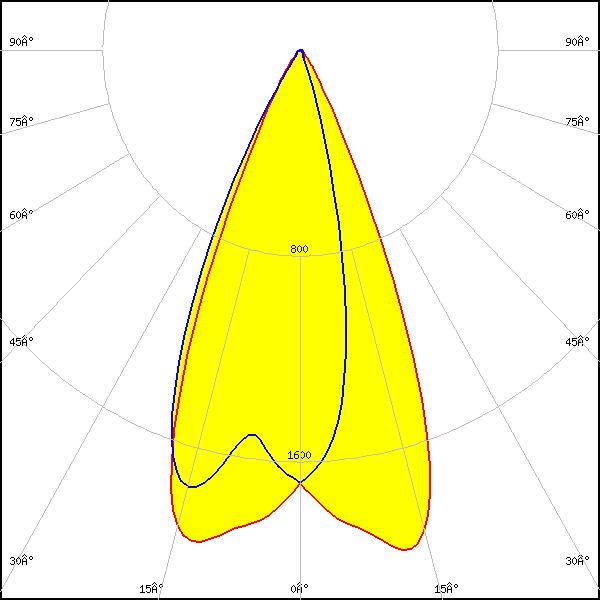

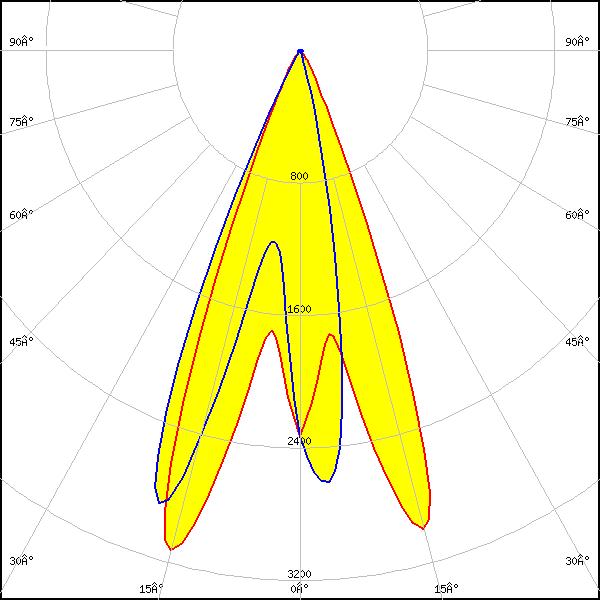

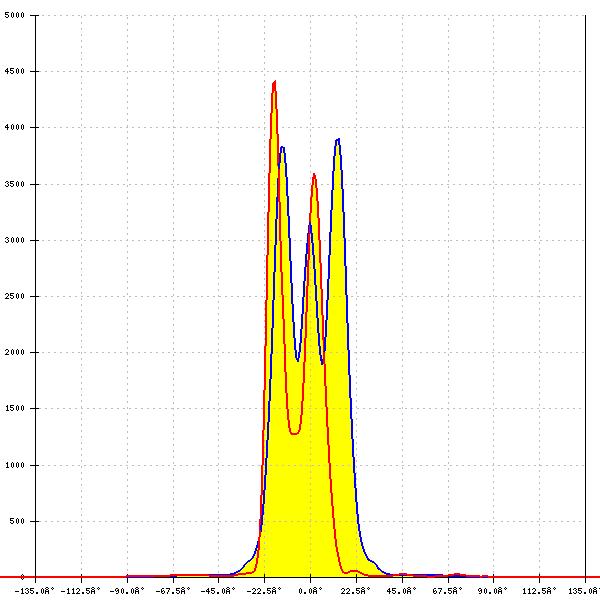

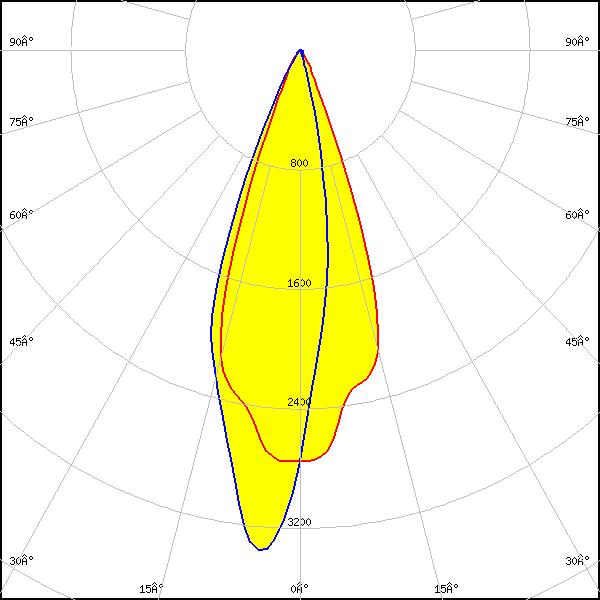

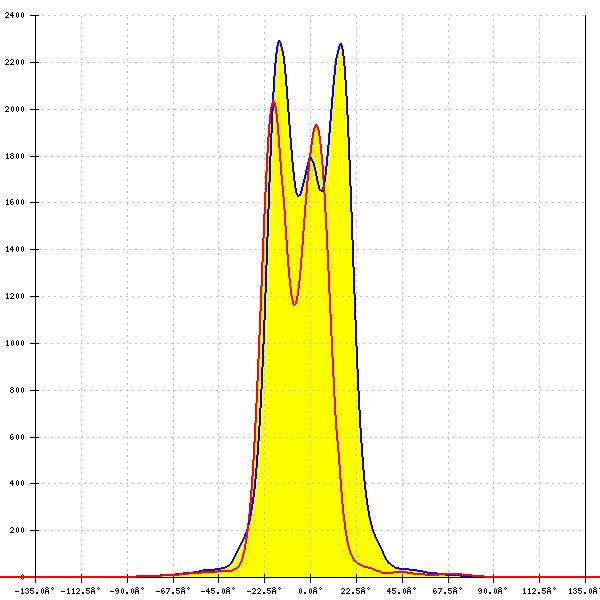

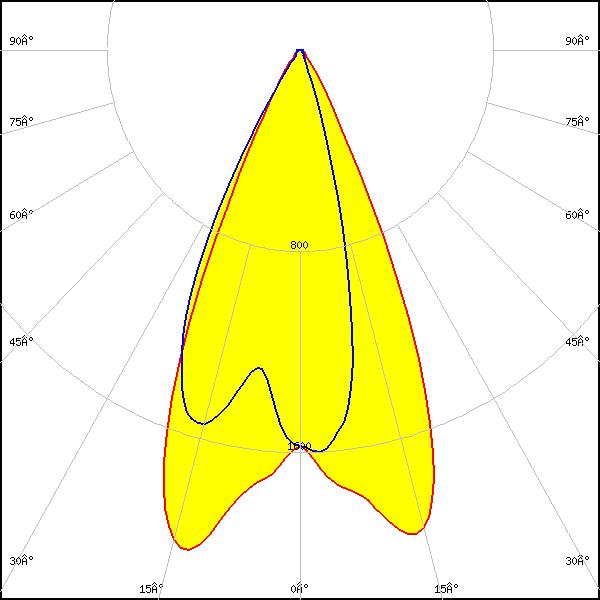

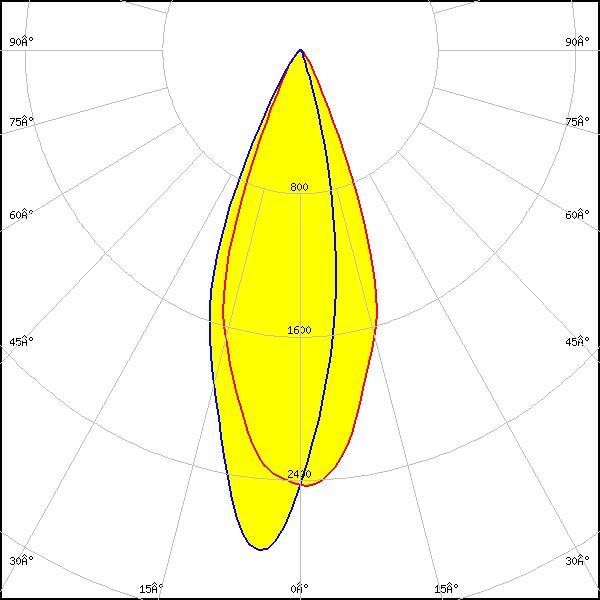

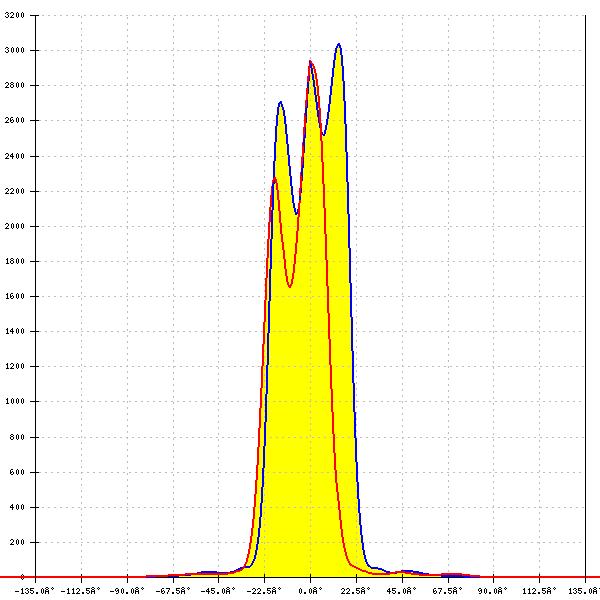

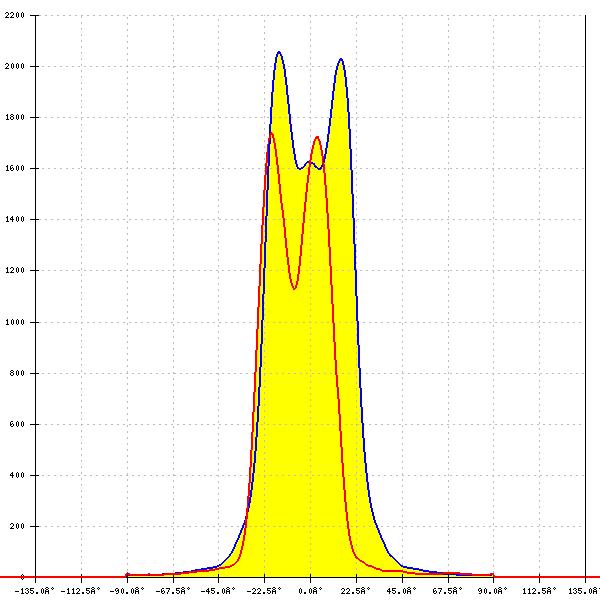

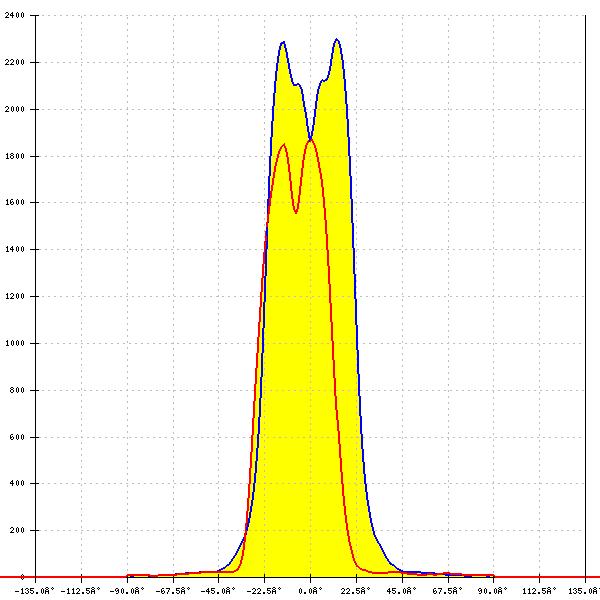

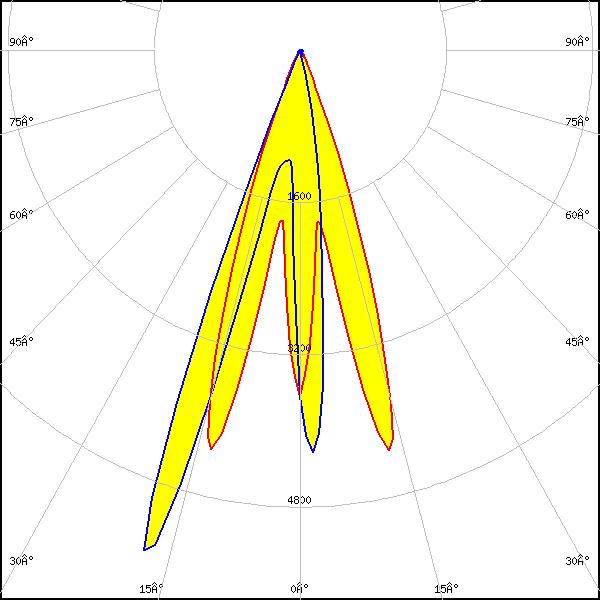

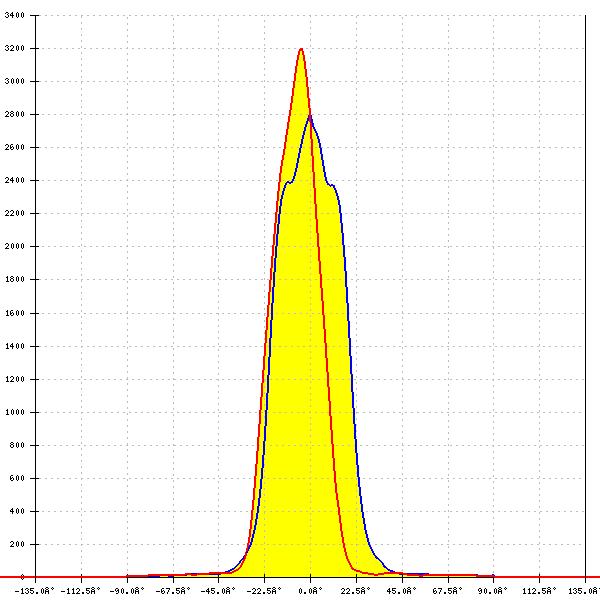

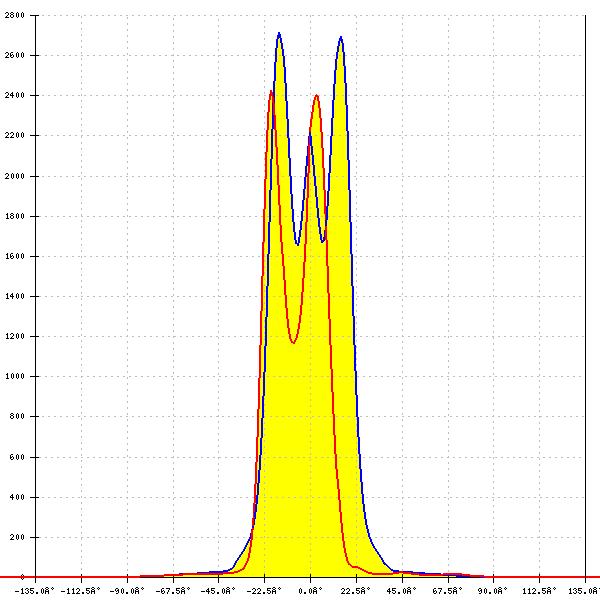

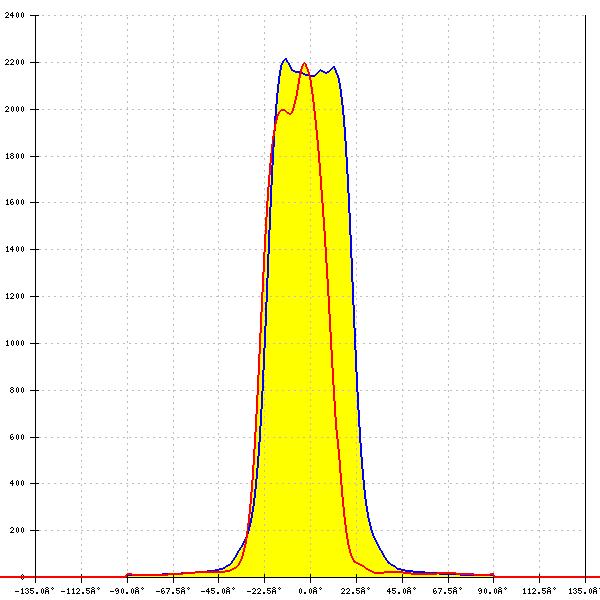

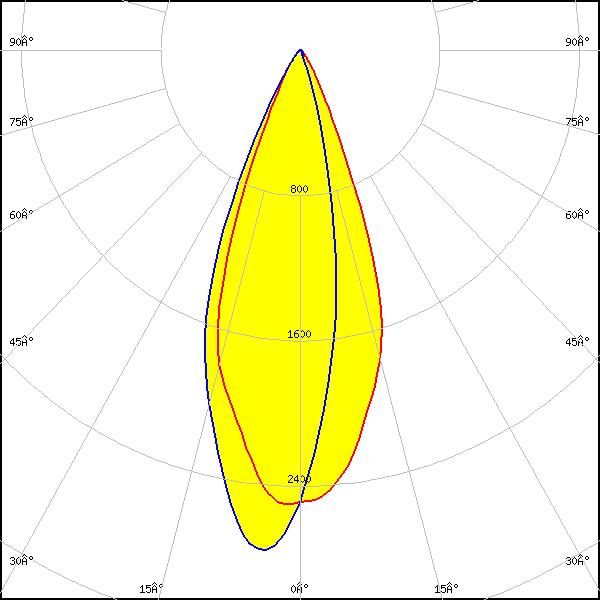

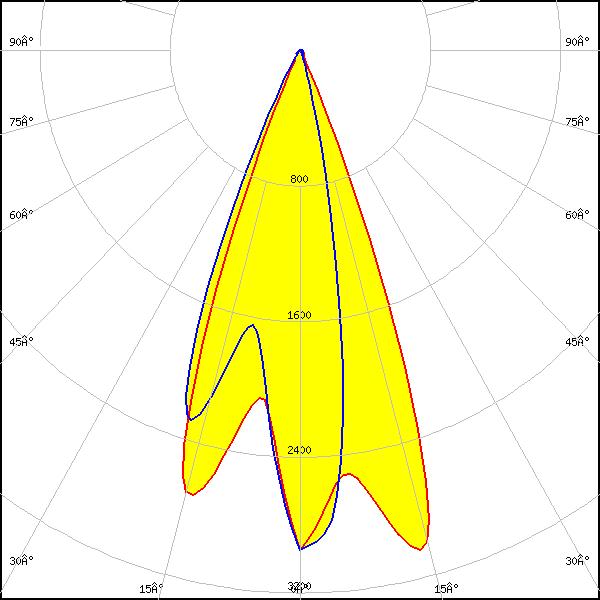

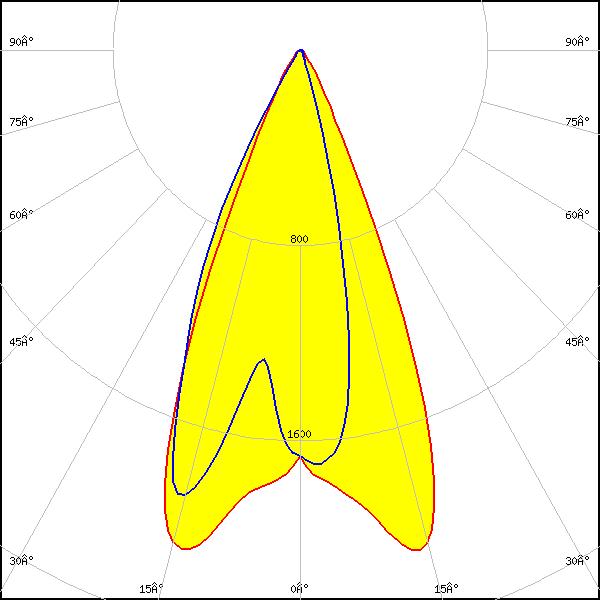

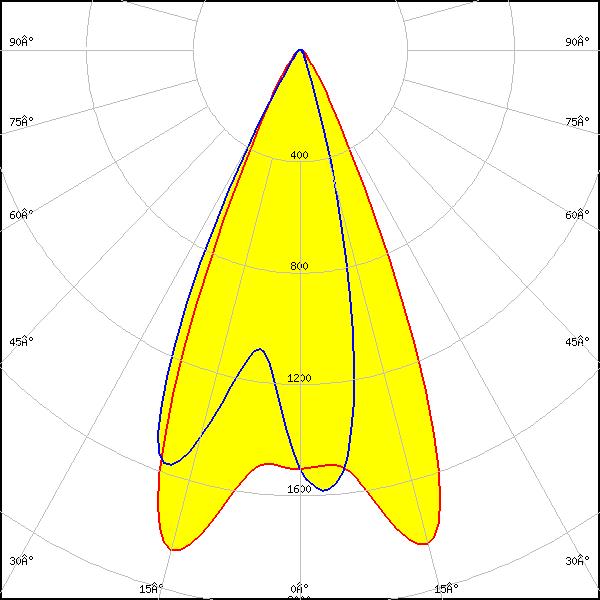

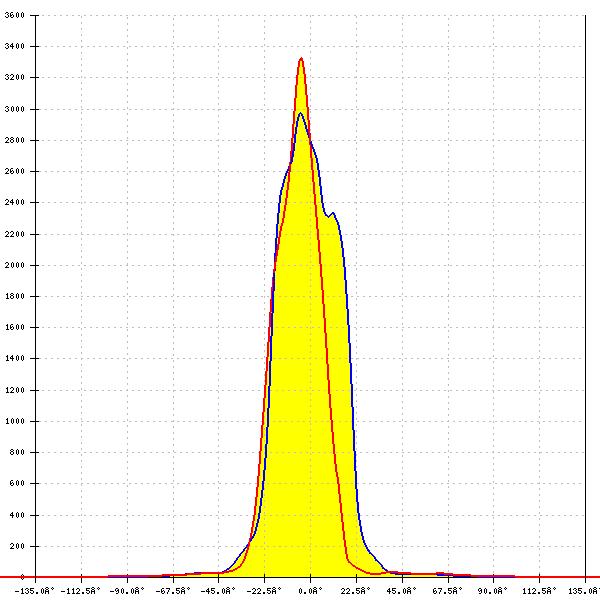

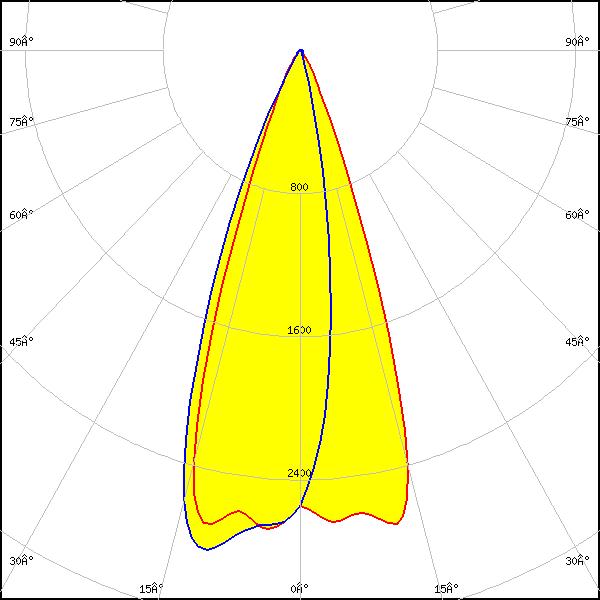

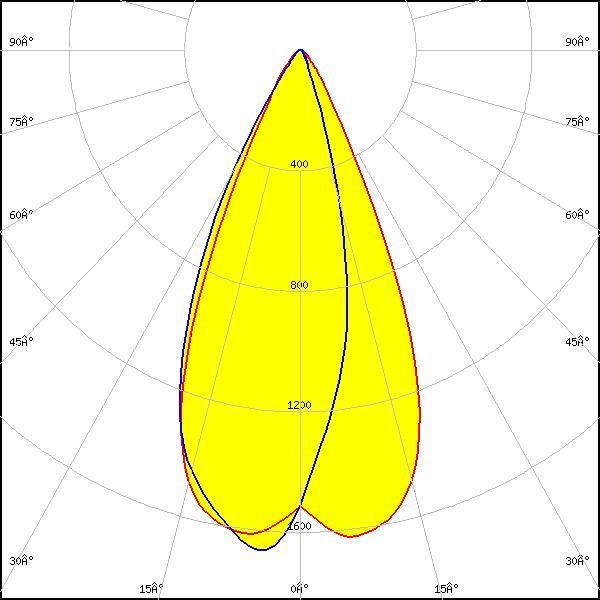

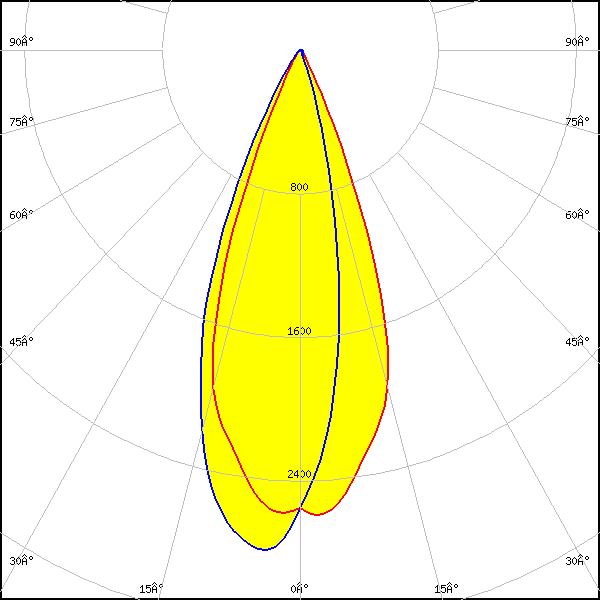

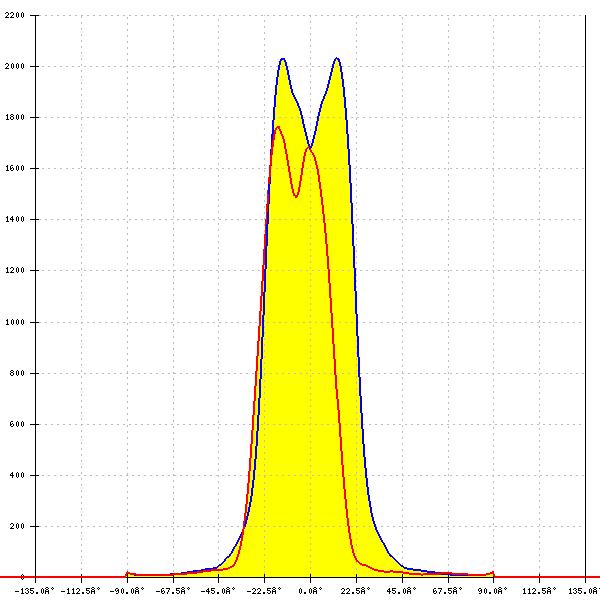

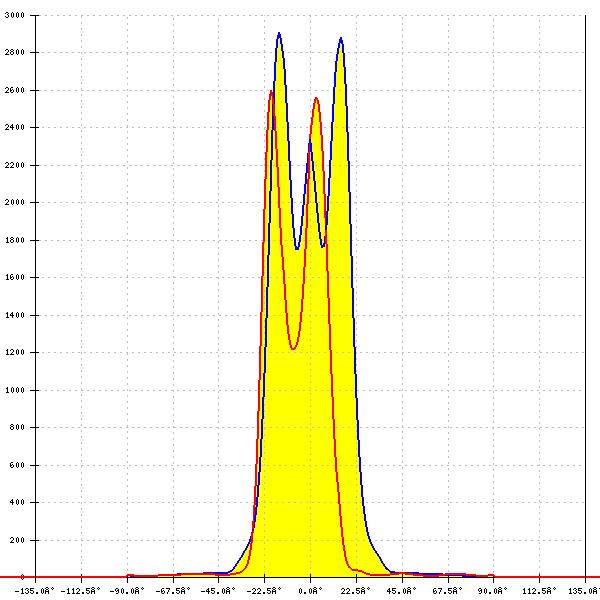

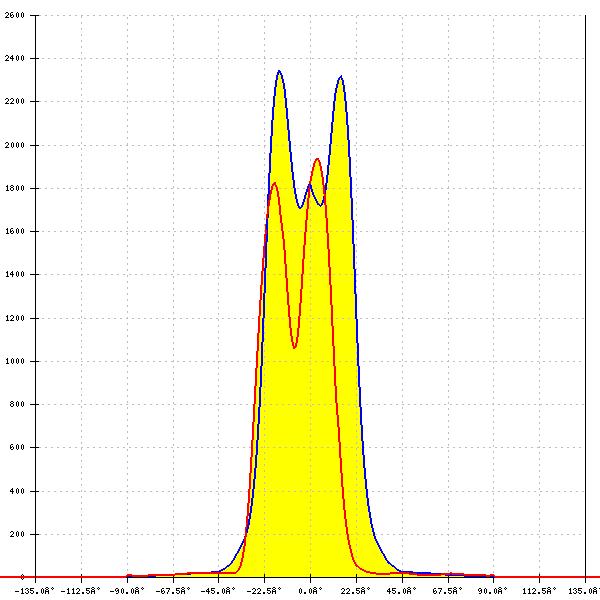

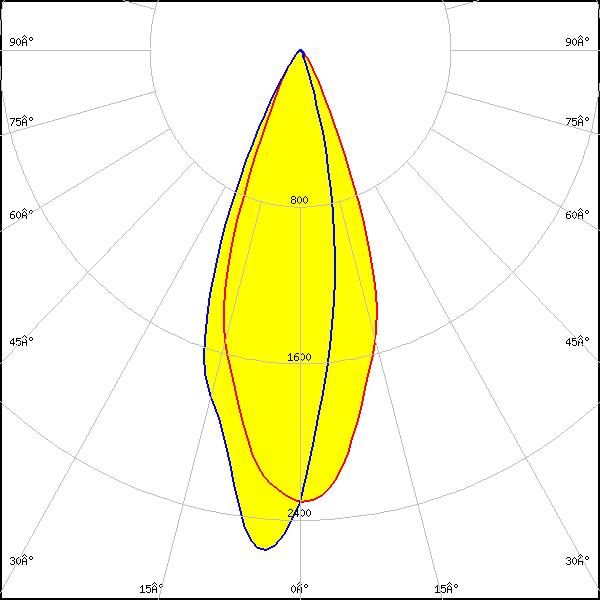

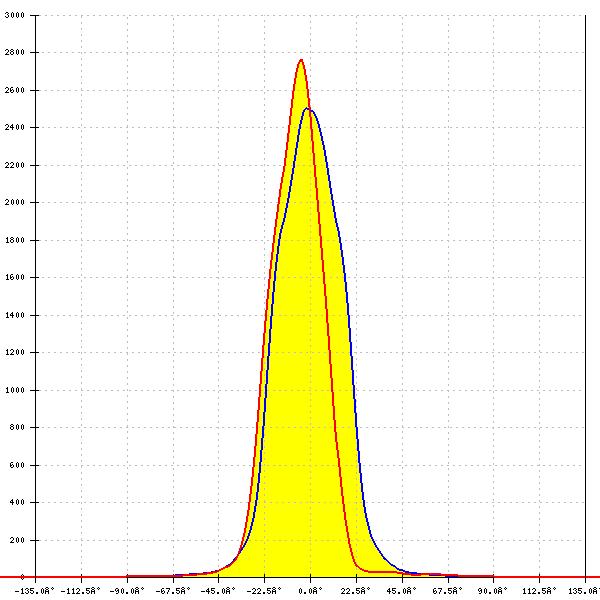

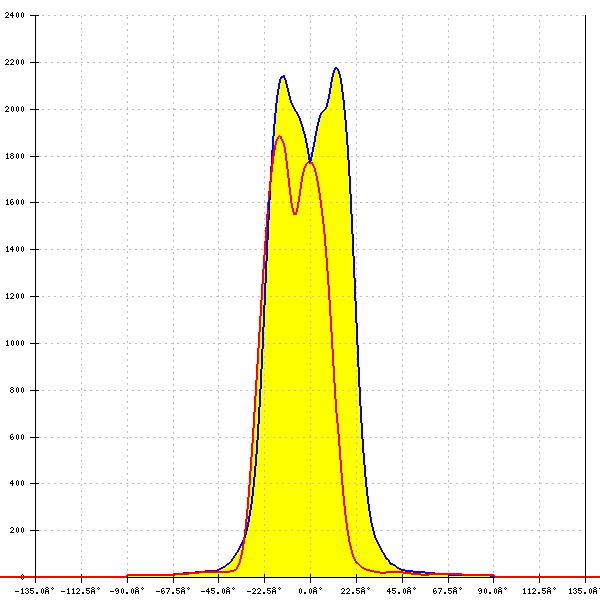

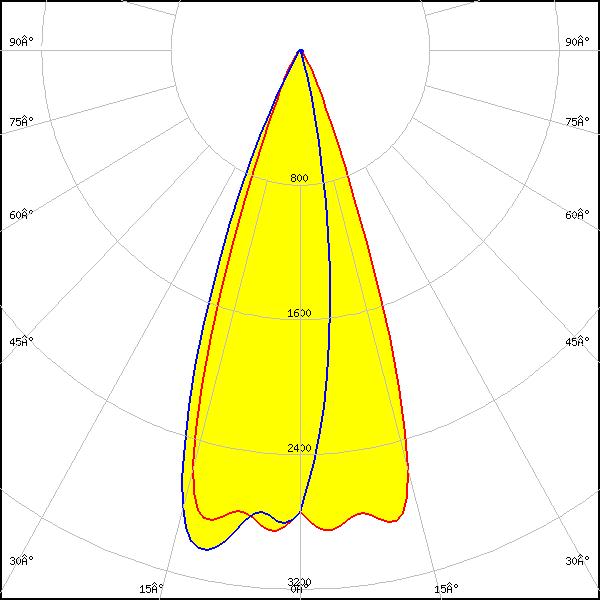

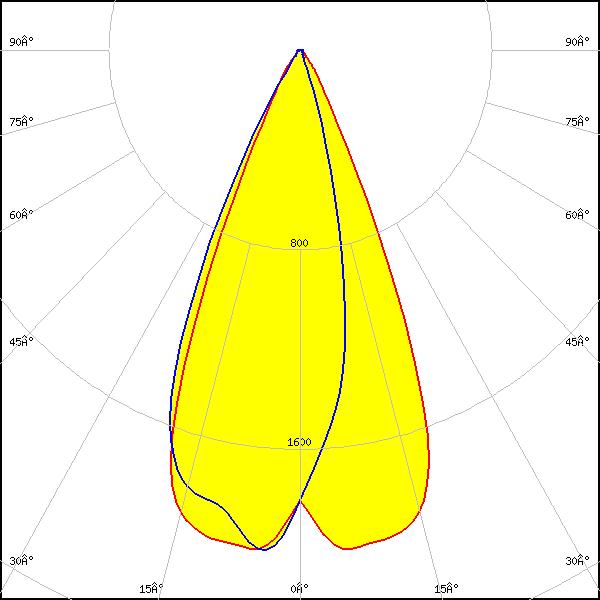

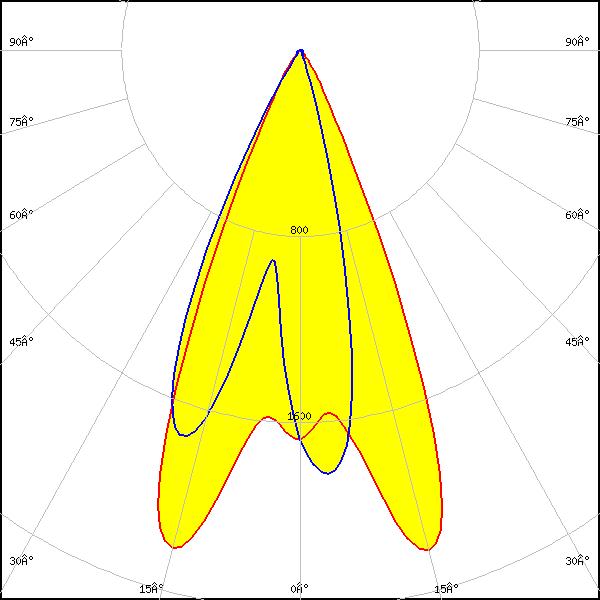

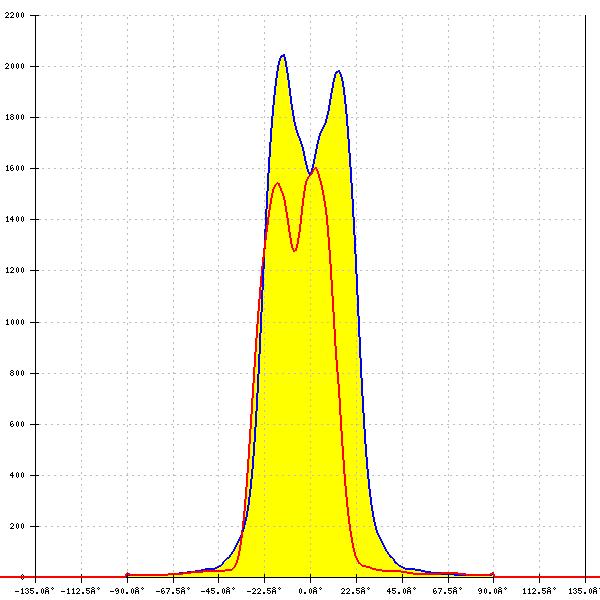

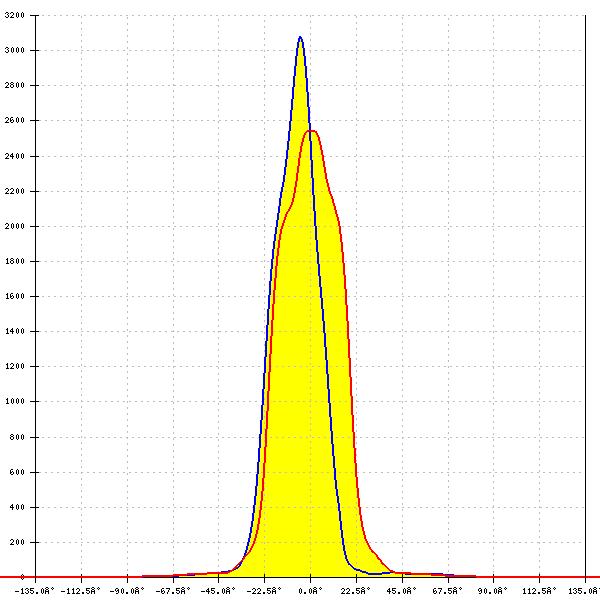

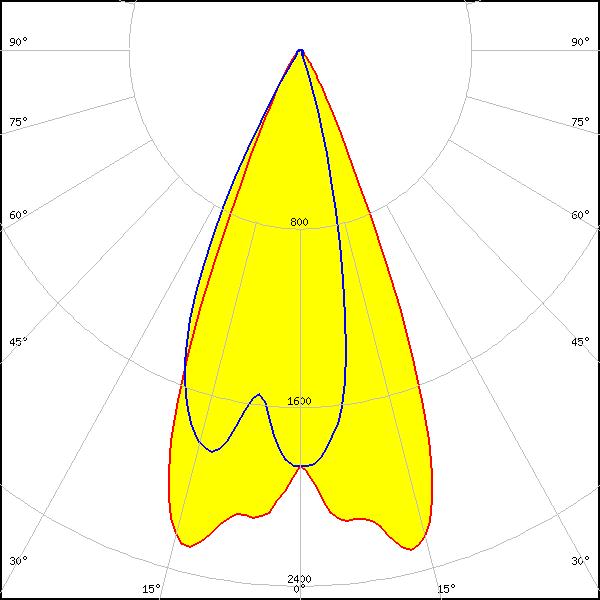

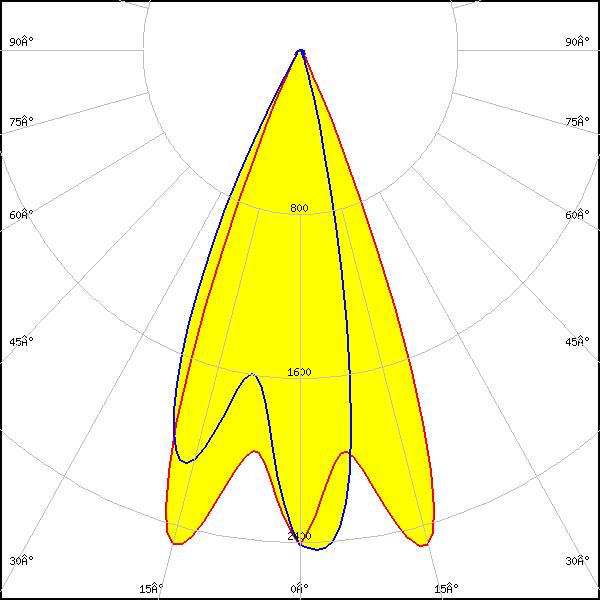

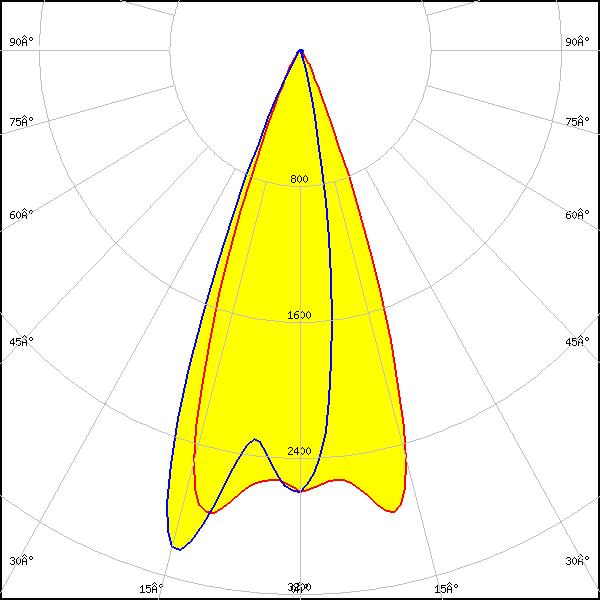

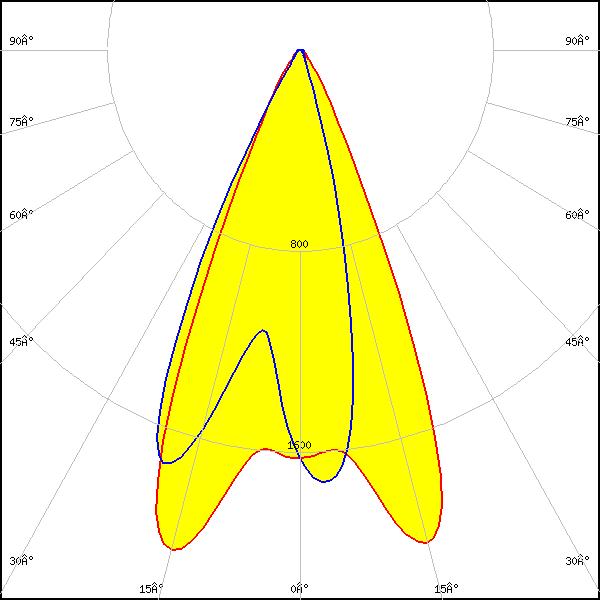

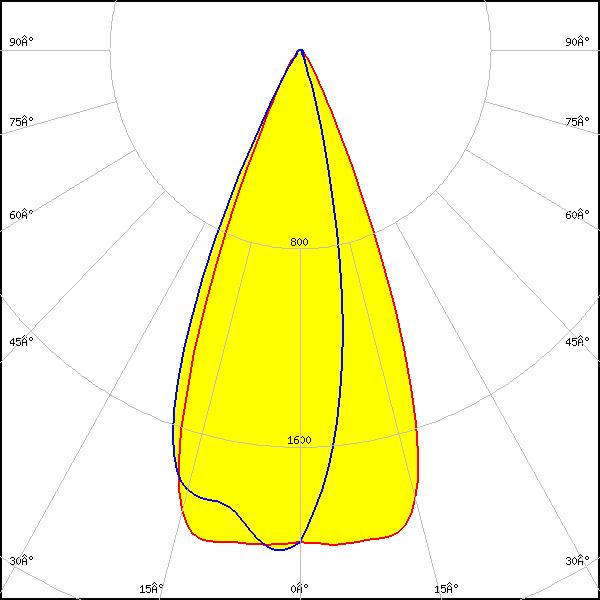

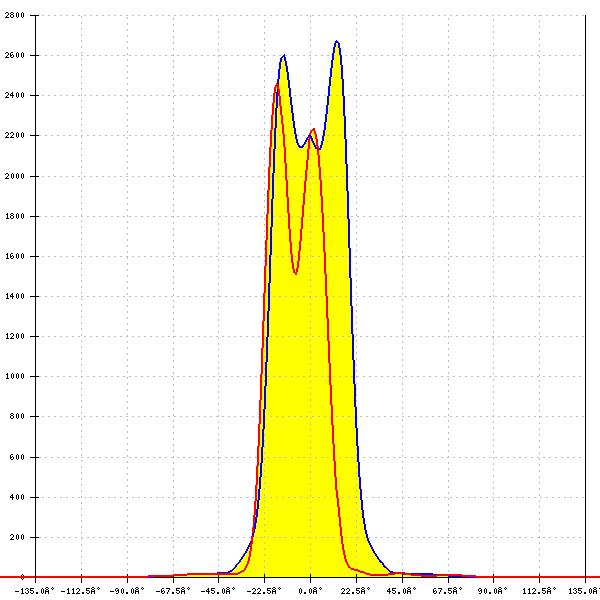

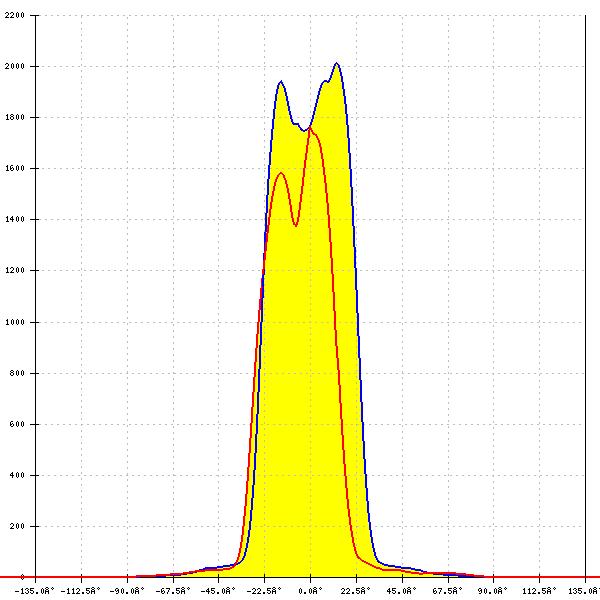

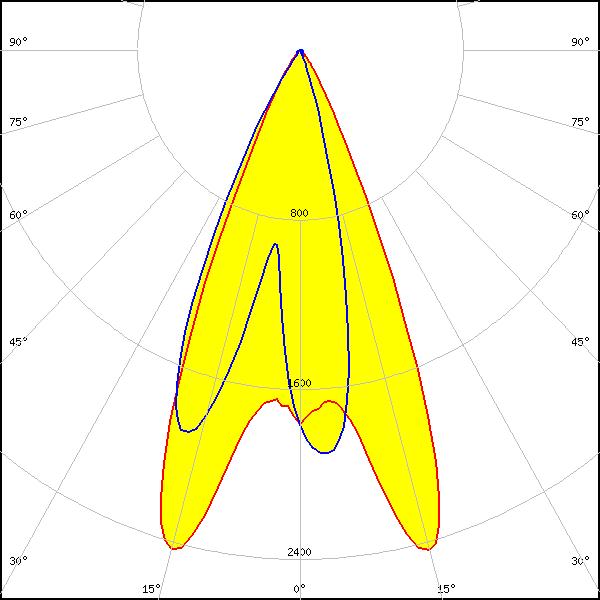

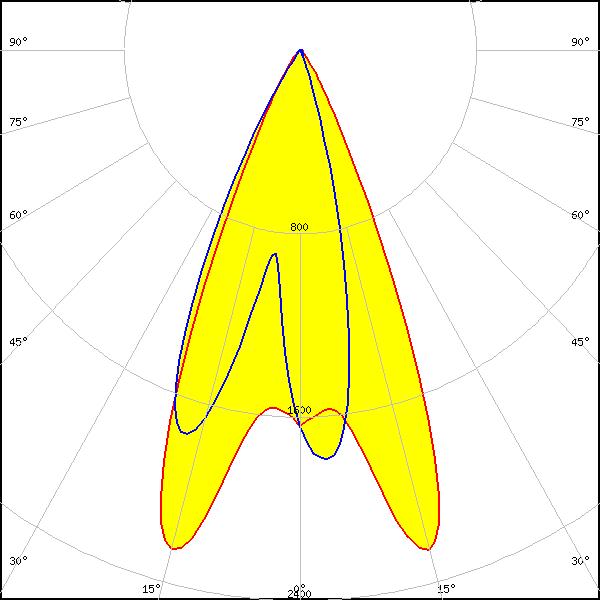

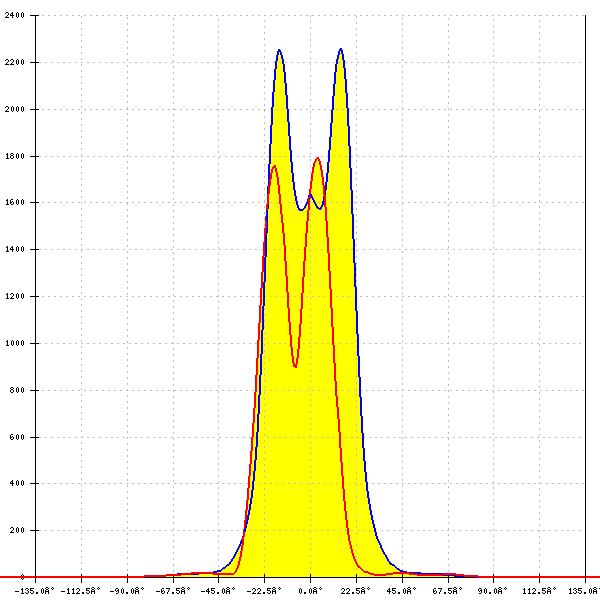

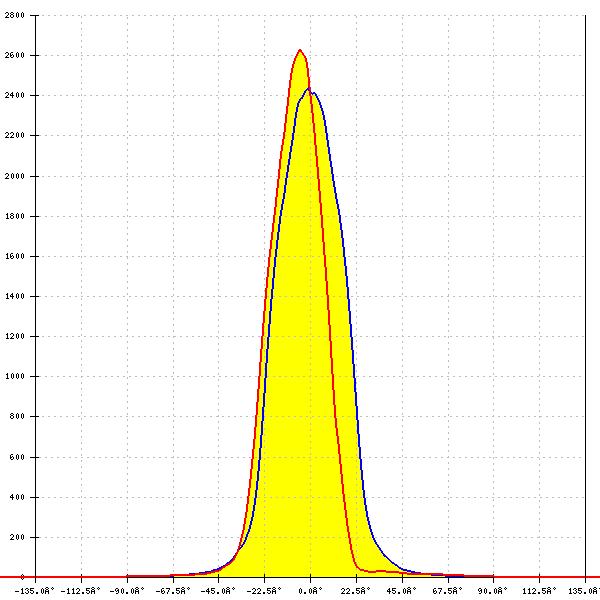

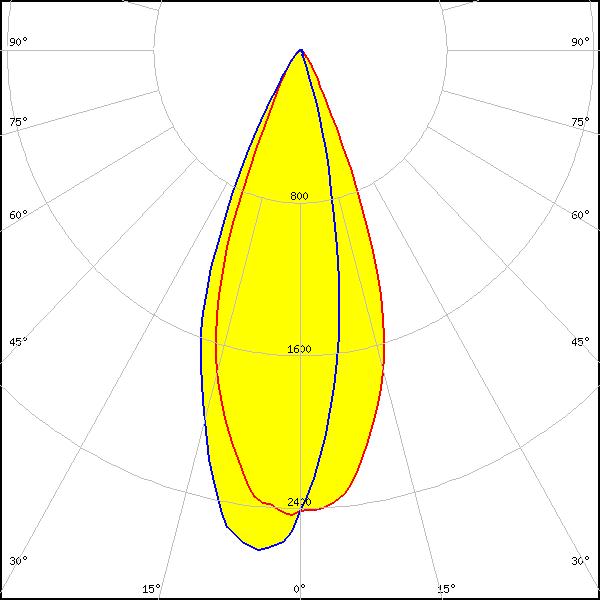

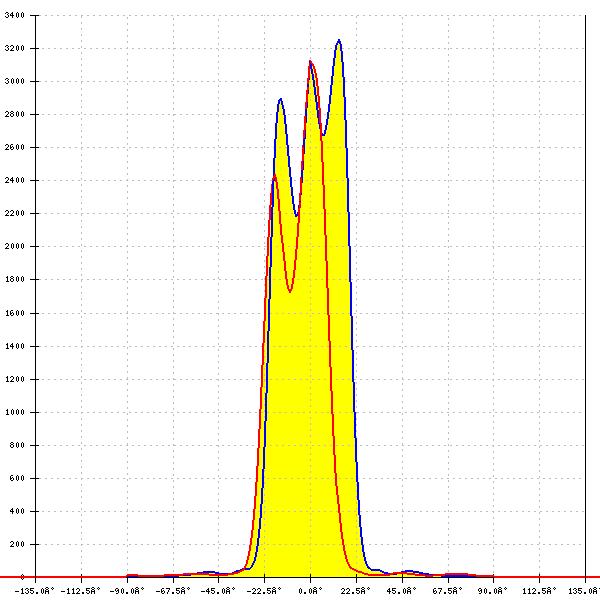

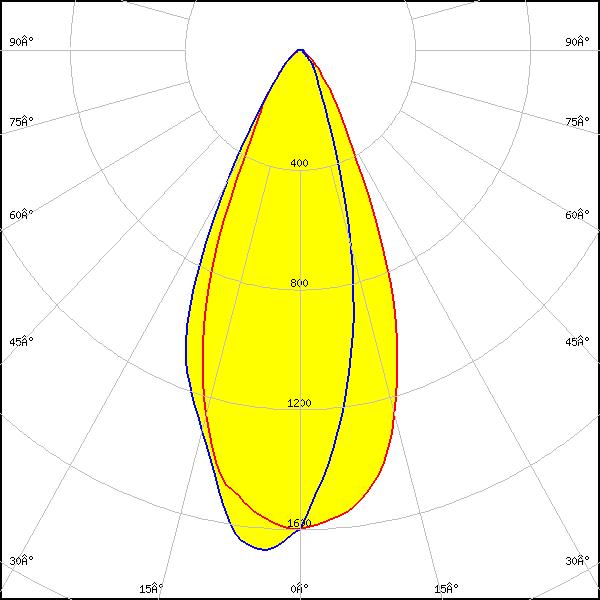

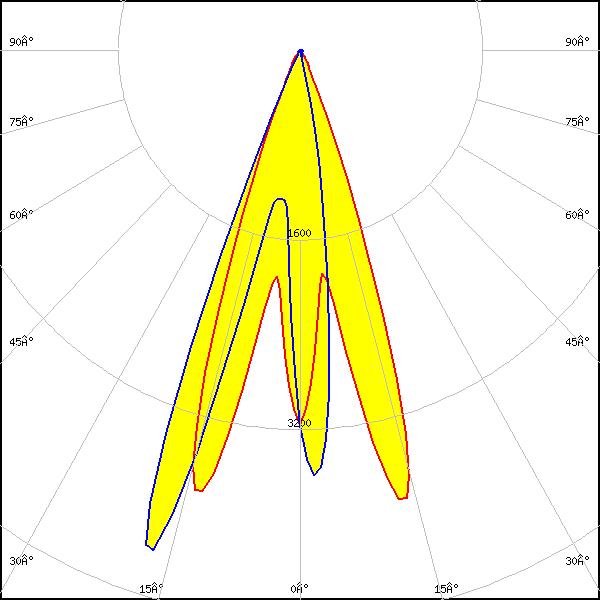

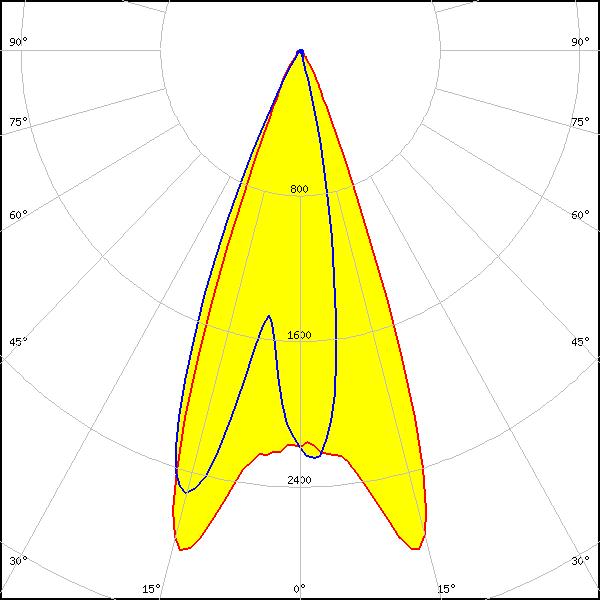

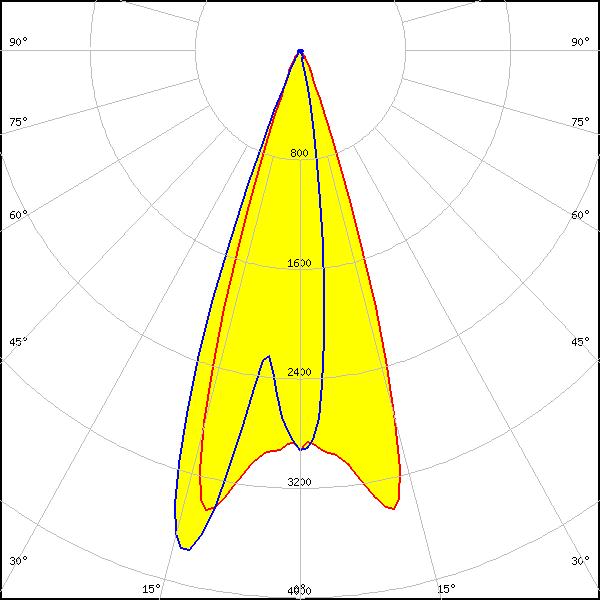

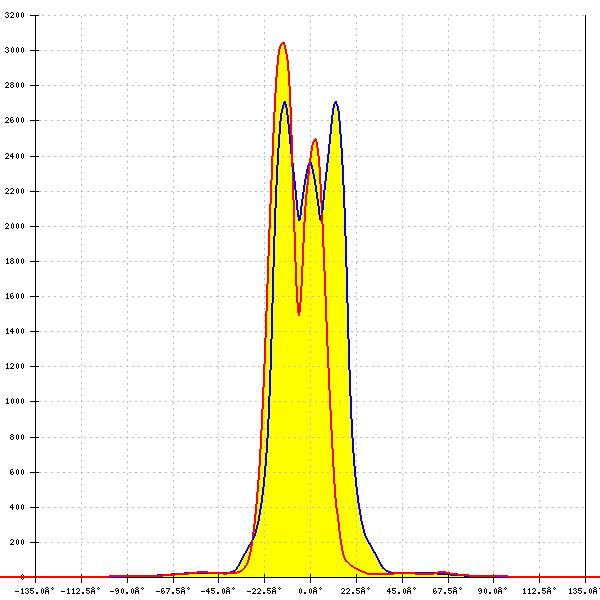

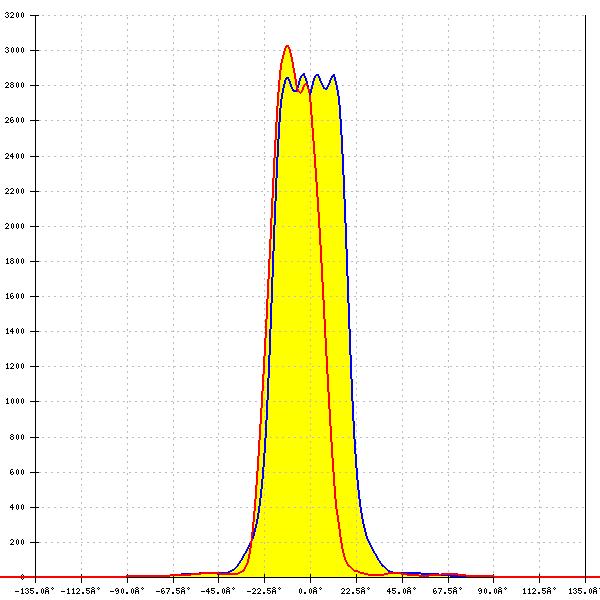

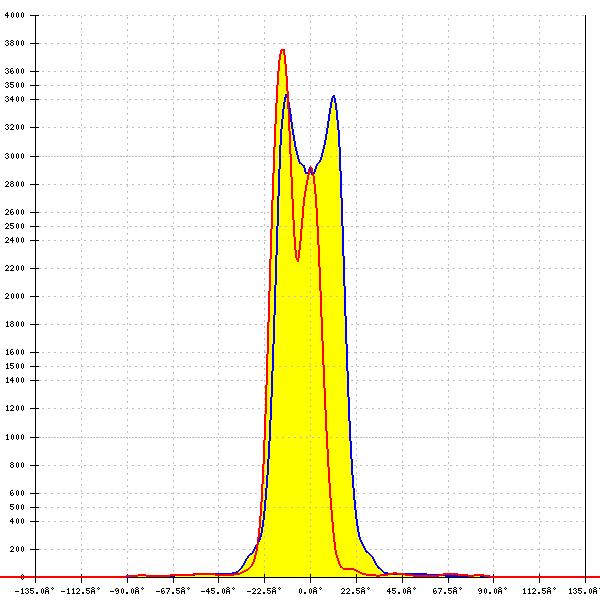

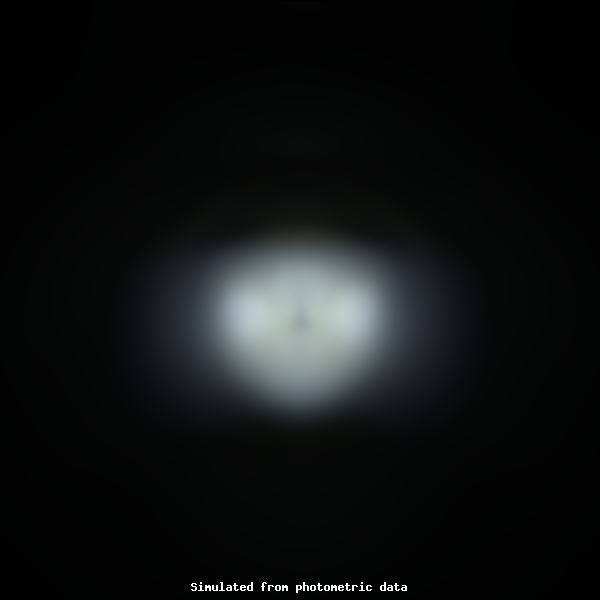

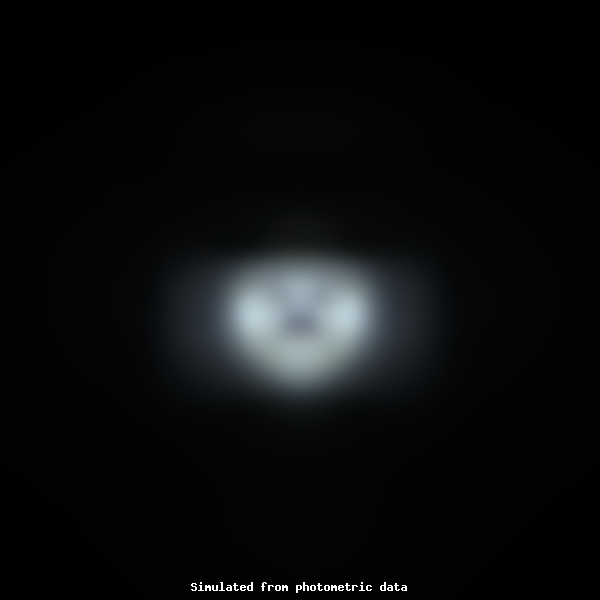

    Slightly asymmetric ~40° spot beam with minimum spill light

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      14.42 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      476 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.2 kg
    • MPQ:
      28 pcs
    • MOQ:
      140 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      3.2 kg
