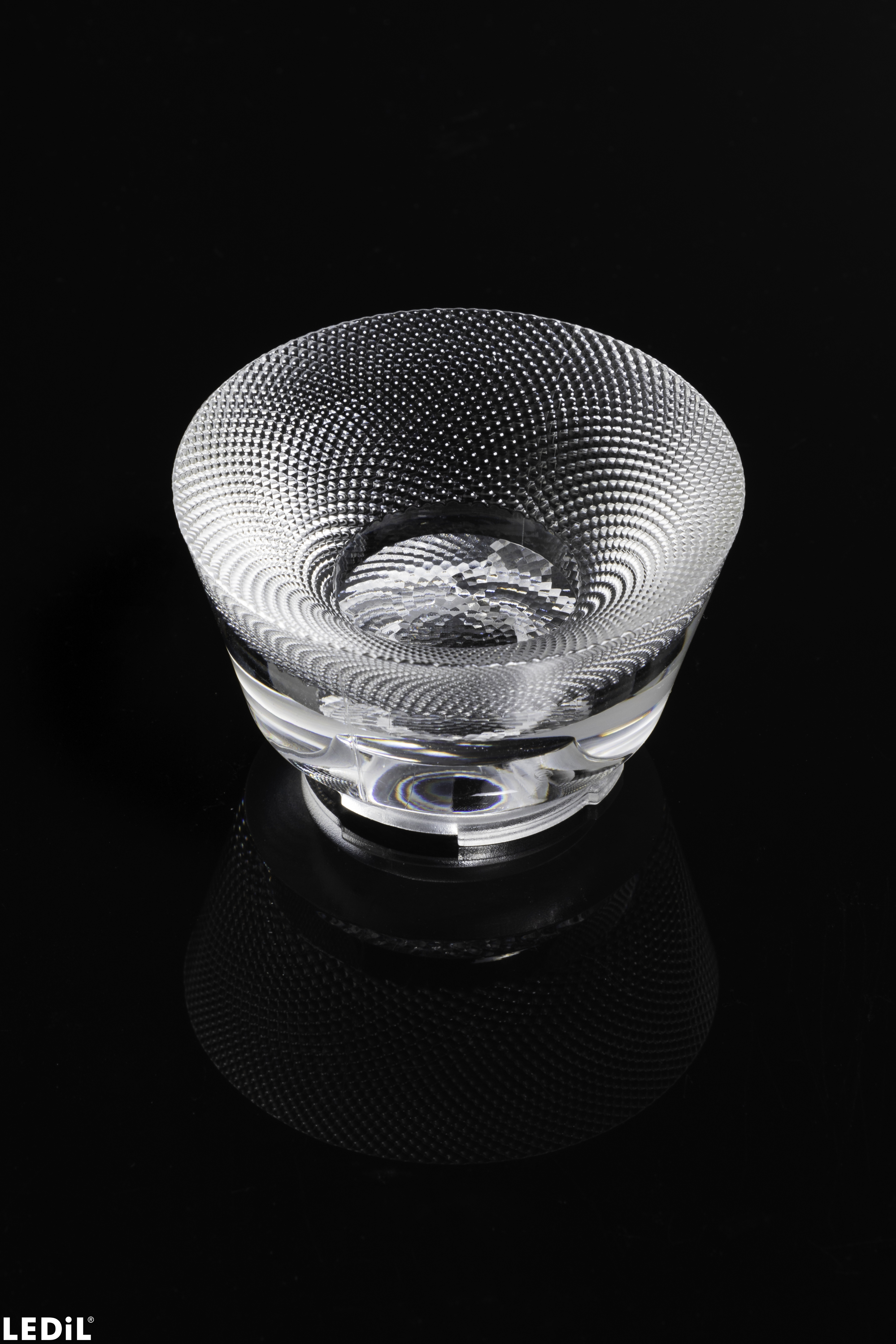

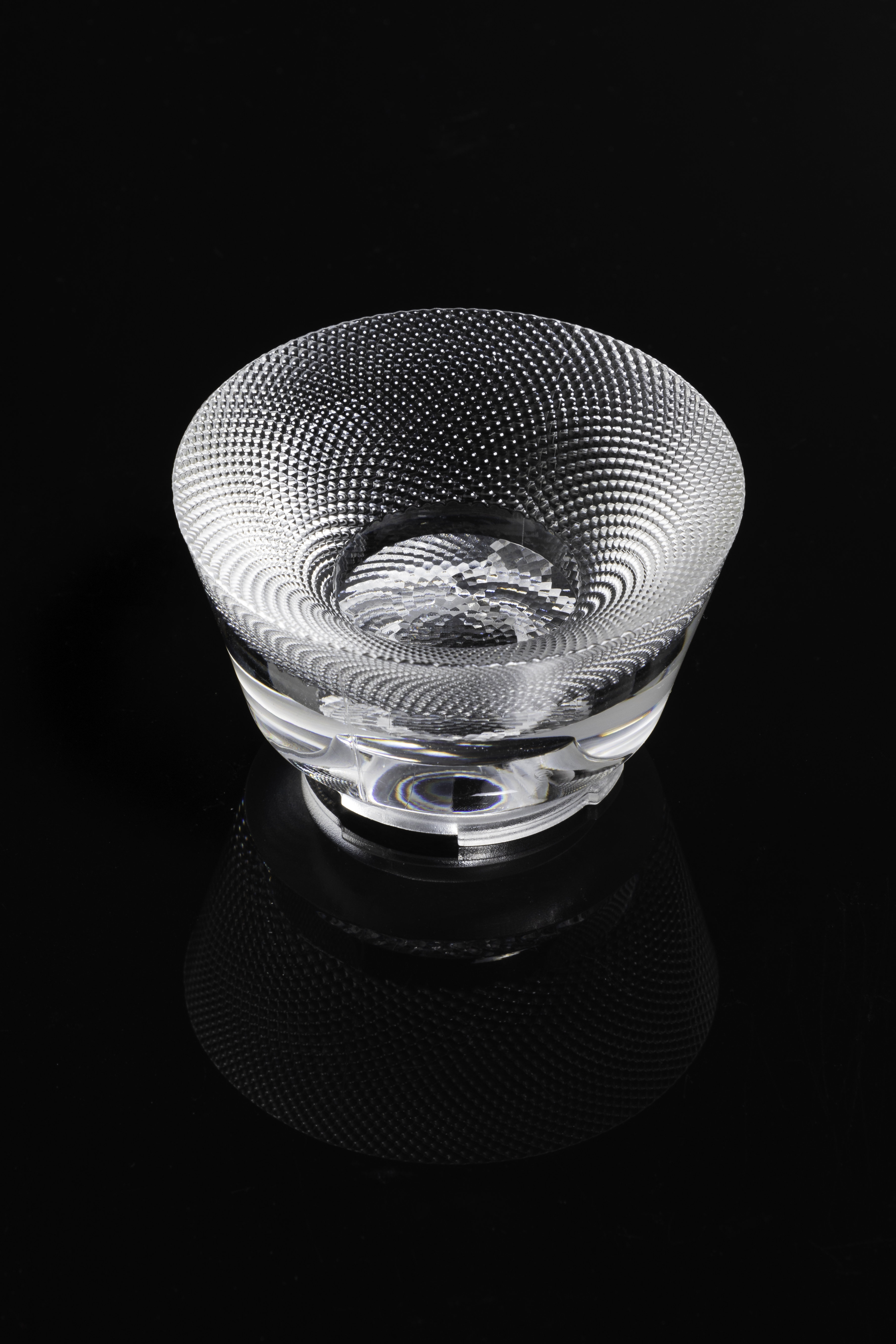

C17434_ILONA-WW

Print

~55° wide beam

Specification
  • Dimensions:
    50 mm
  • Height:
    29.44 mm
  • Fastening:
    socket
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    264 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.2 kg
  • MPQ:
    33 pcs
  • MOQ:
    99 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    3.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17434_ILONA-WW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

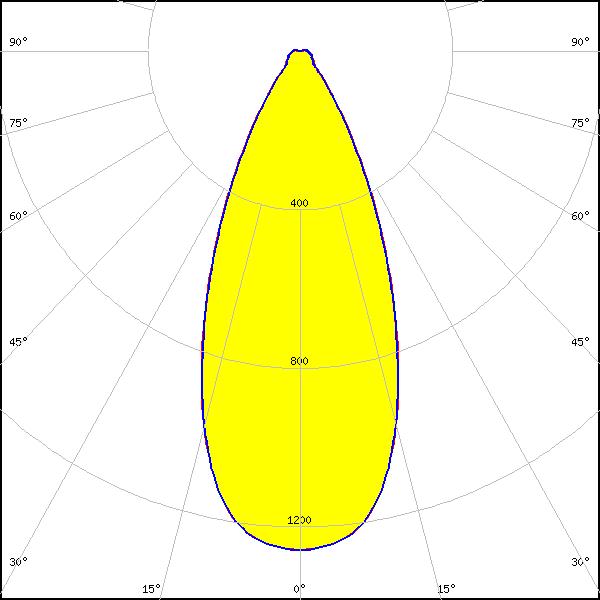

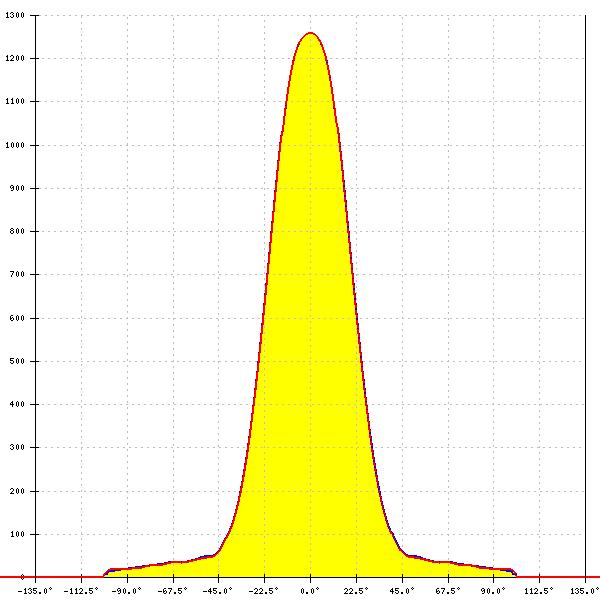

LED: V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: 45°
FWTM: 77°
Peak intensity: 1.262 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

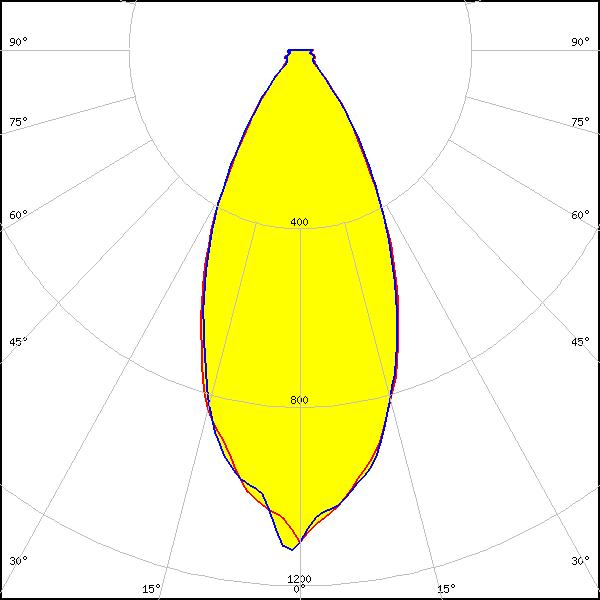

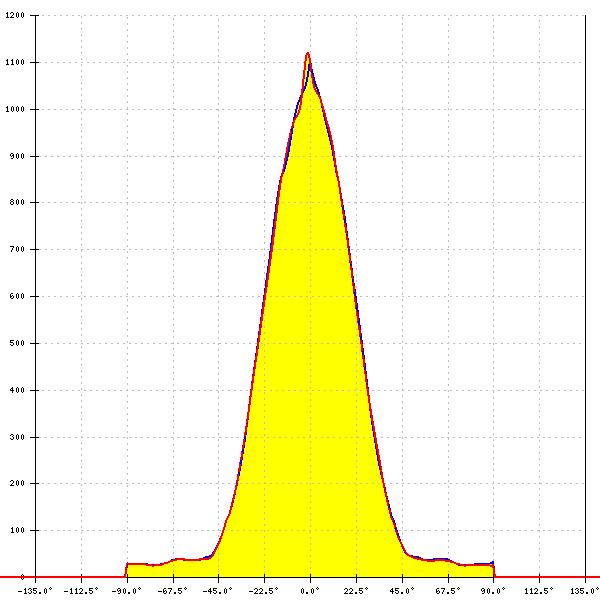

LED: V13 Gen 8
Required components:
FWHM: 47°
FWTM: 83°
Peak intensity: 1.138 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

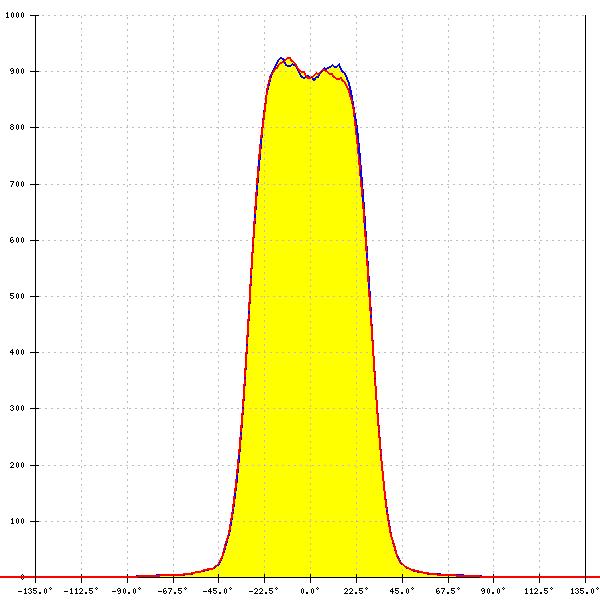

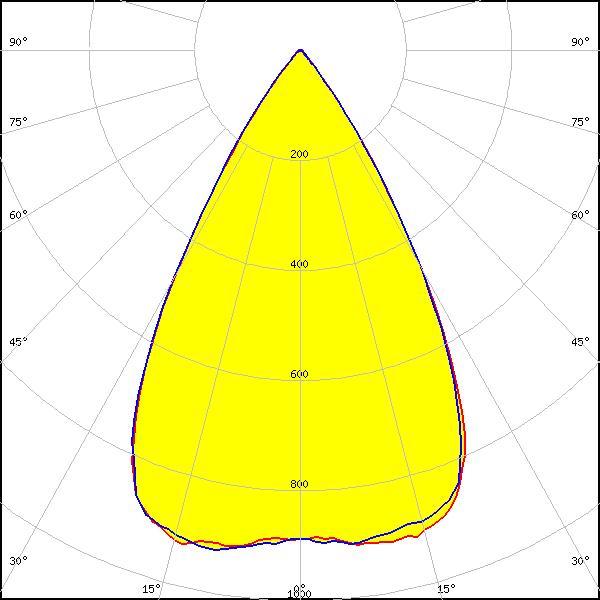

LED: V4 HD Gen 7
Required components:
FWHM: 58°
FWTM: 78°
Peak intensity: 0.923 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

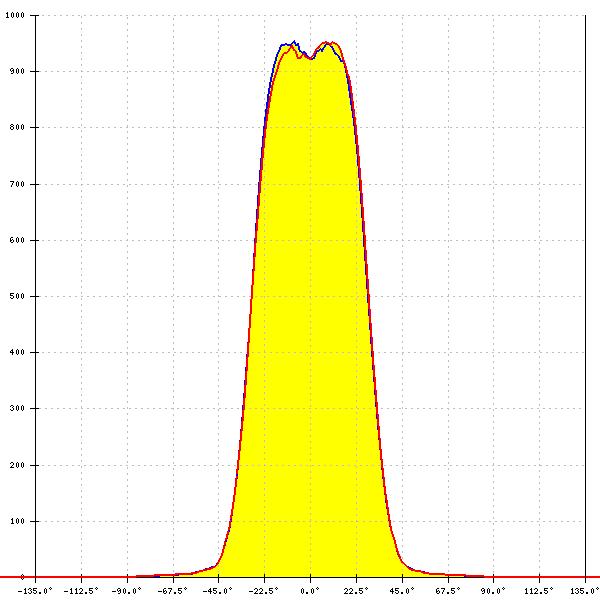

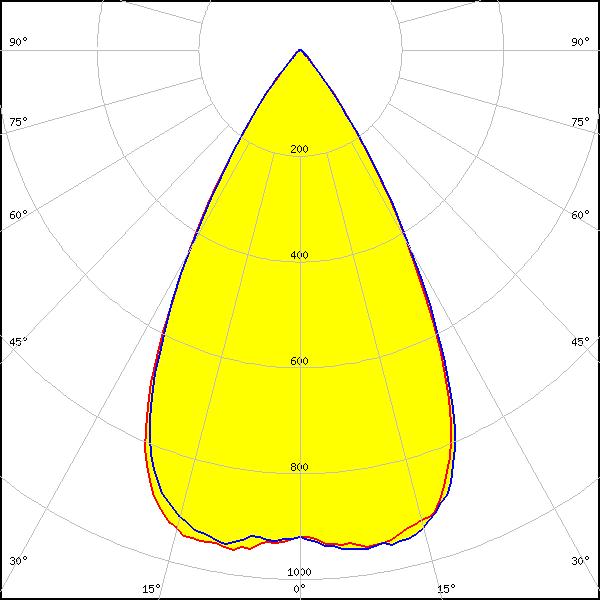

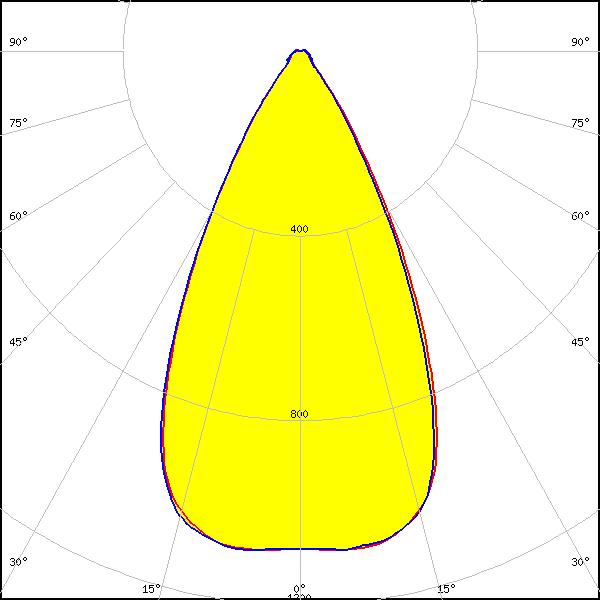

LED: V6 HD Gen 7
Required components:
FWHM: 57°
FWTM: 79°
Peak intensity: 0.959 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

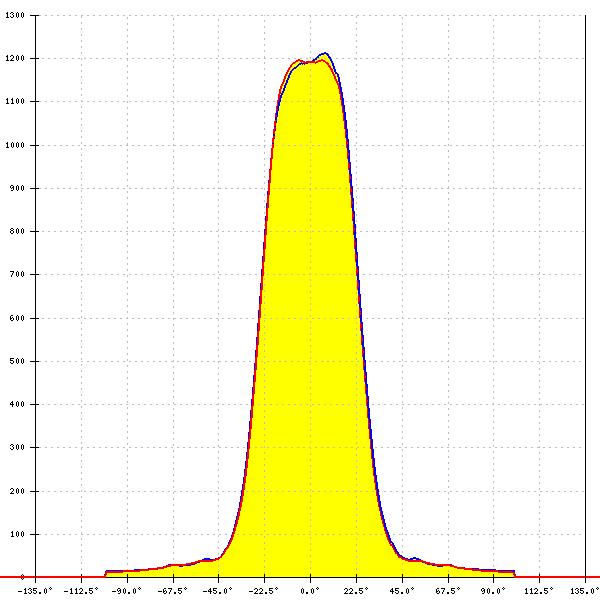

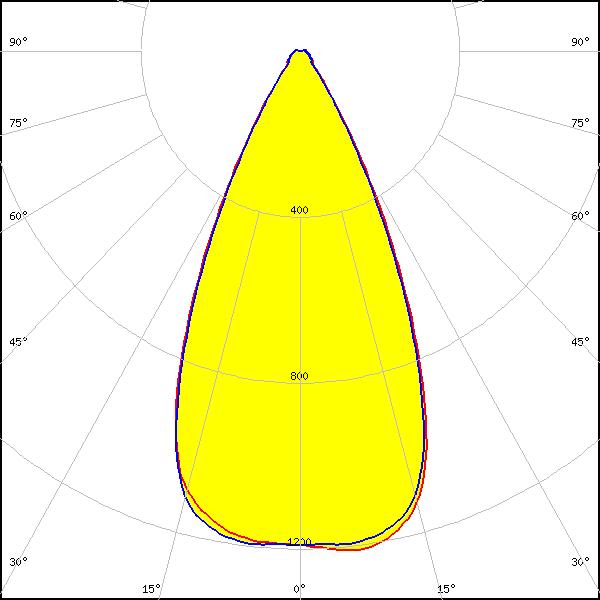

LED: V6 HD Gen 7
Required components:
Bender Wirth: 634c Hekla
FWHM: 50°
FWTM: 74°
Peak intensity: 1.215 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V6 HD Gen 7
Required components:
FWHM: 54°
FWTM: 78°
Peak intensity: 1.118 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

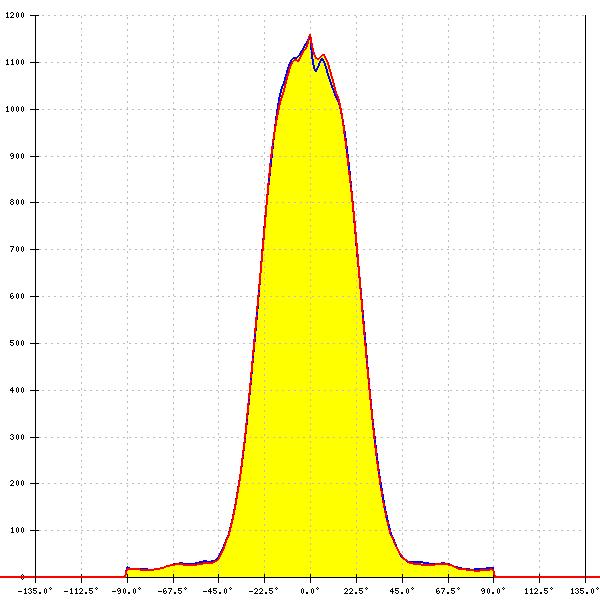

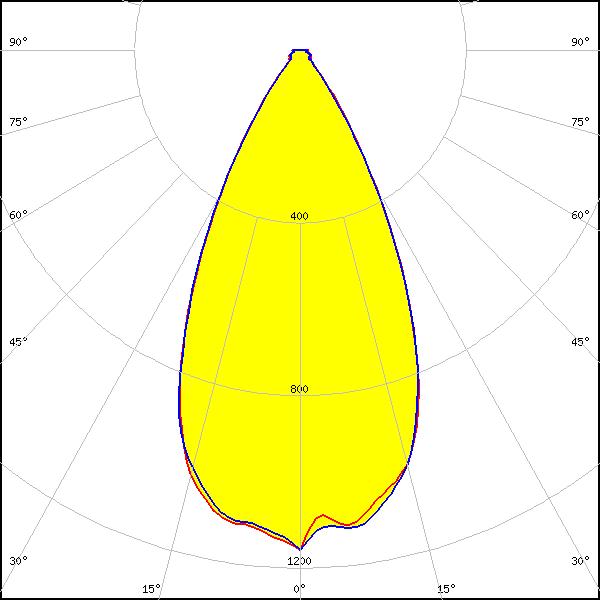

LED: V9 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: 52°
FWTM: 78°
Peak intensity: 1.159 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

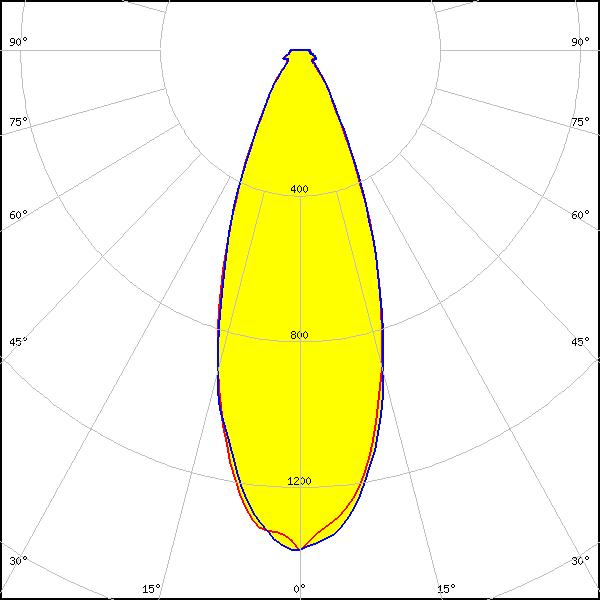

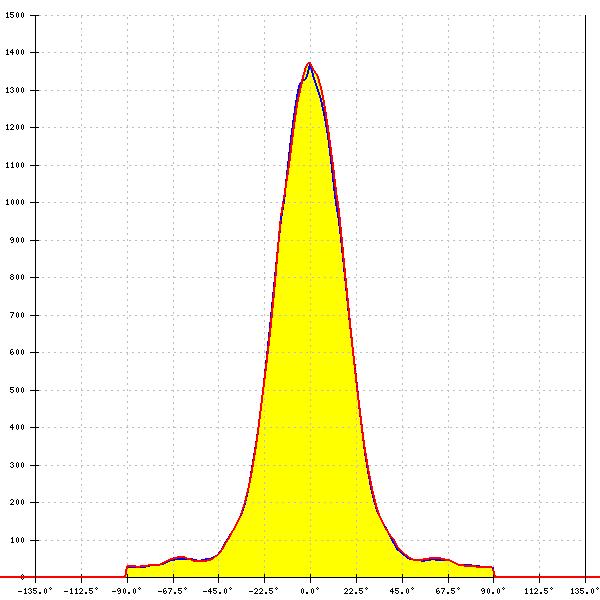

LED: Vero SE 13
Required components:
FWHM: 38°
FWTM: 74°
Peak intensity: 1.400 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

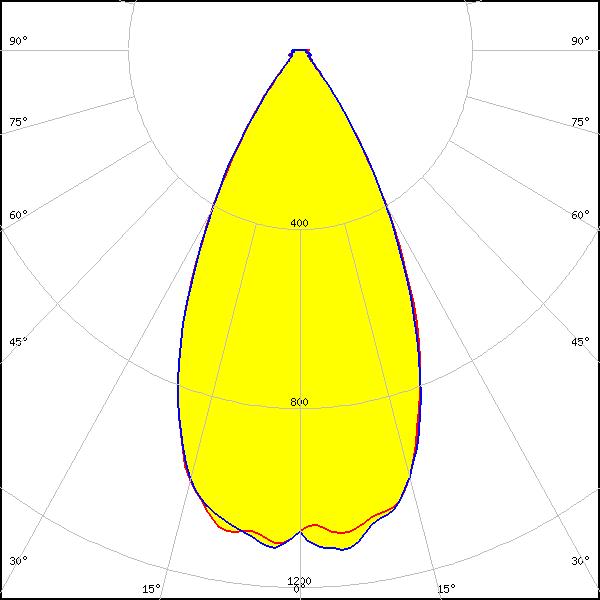

LED: VERO10
Required components:
FWHM: 53°
FWTM: 80°
Peak intensity: 1.132 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

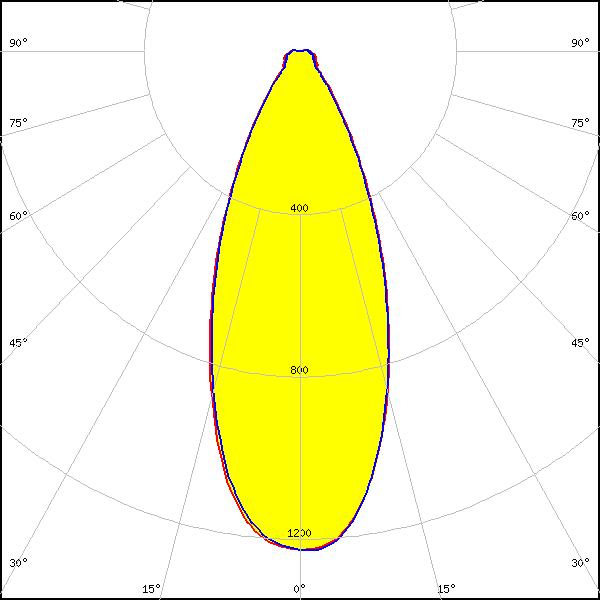

LED: Vesta DTW 13mm (21W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 42°
FWTM: 78°
Peak intensity: 1.227 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: Tunable White
LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 52°
FWTM: 78°
Peak intensity: 1.134 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

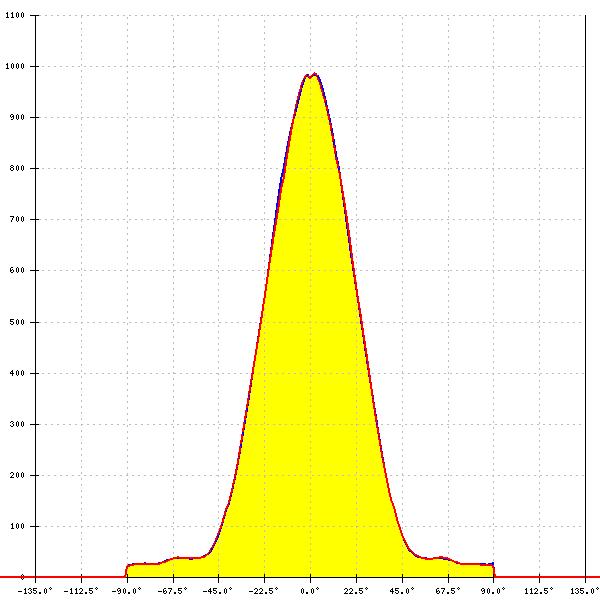

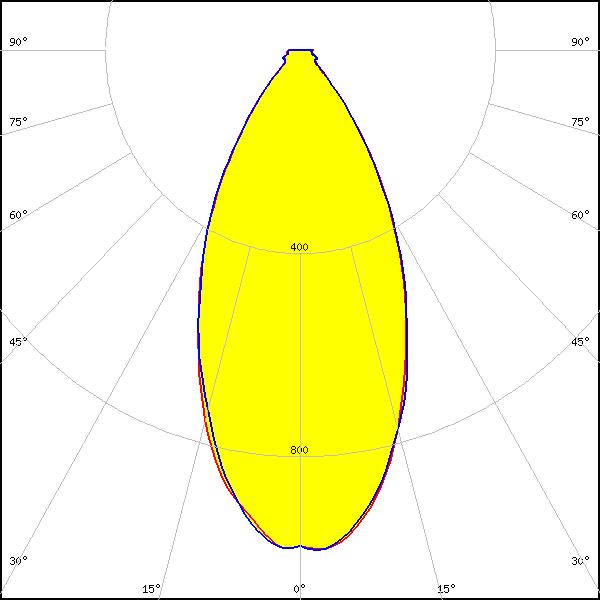

LED: Vesta TW 15mm DP
FWHM: 49°
FWTM: 87°
Peak intensity: 0.996 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

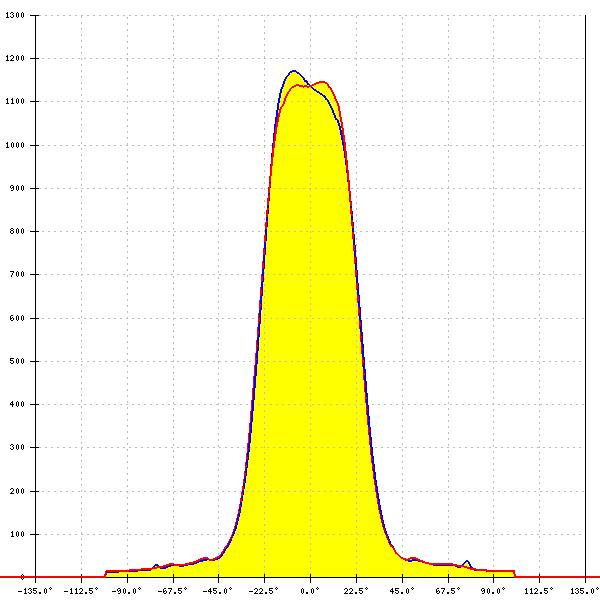

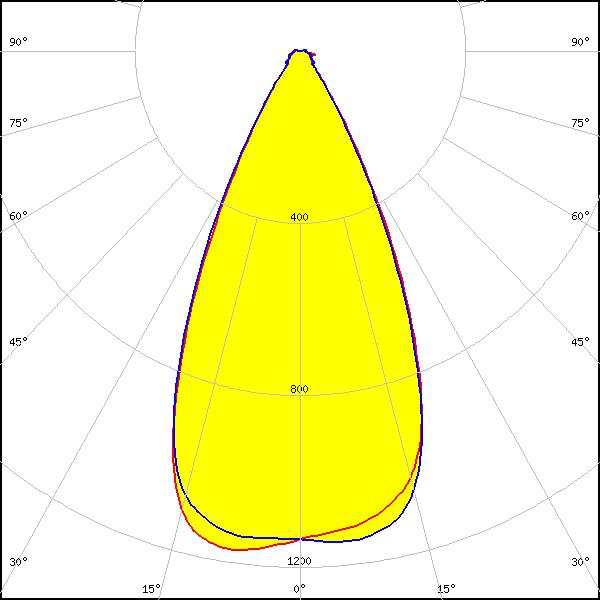

LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 50°
FWTM: 73°
Peak intensity: 1.171 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

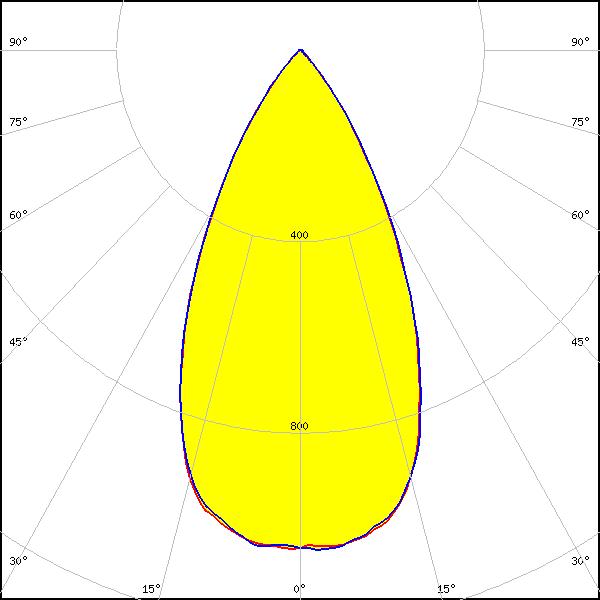

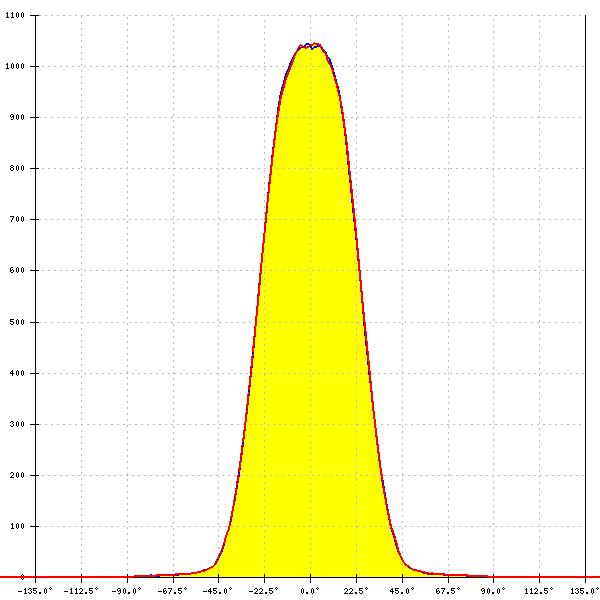

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 52°
FWTM: 80°
Peak intensity: 1.040 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

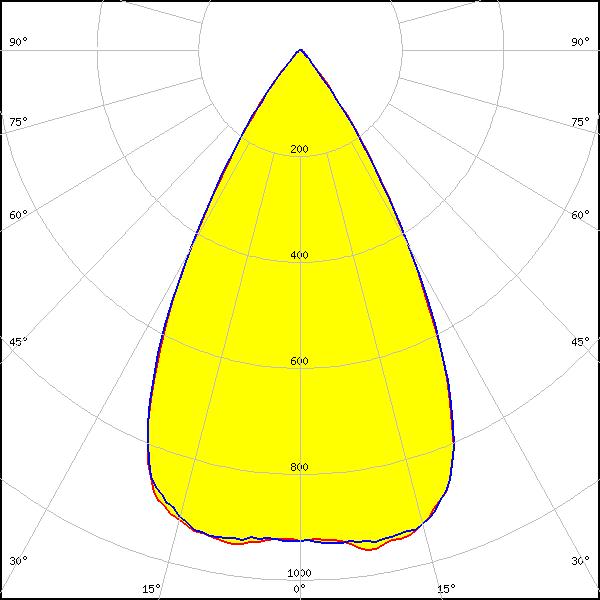

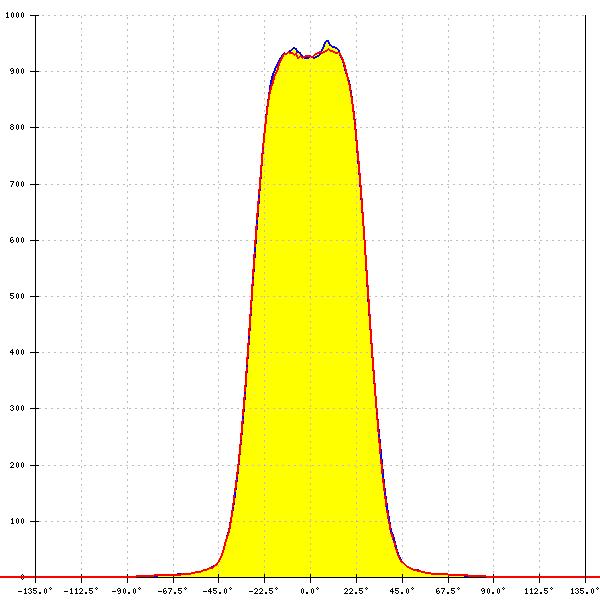

LED: CLU700/701/702
Required components:
FWHM: 57°
FWTM: 78°
Peak intensity: 0.954 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

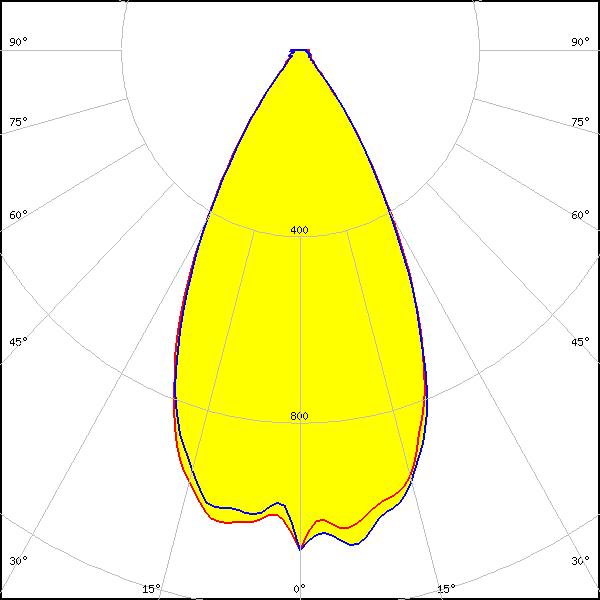

LED: CLU712
Required components:
FWHM: 54°
FWTM: 82°
Peak intensity: 1.094 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

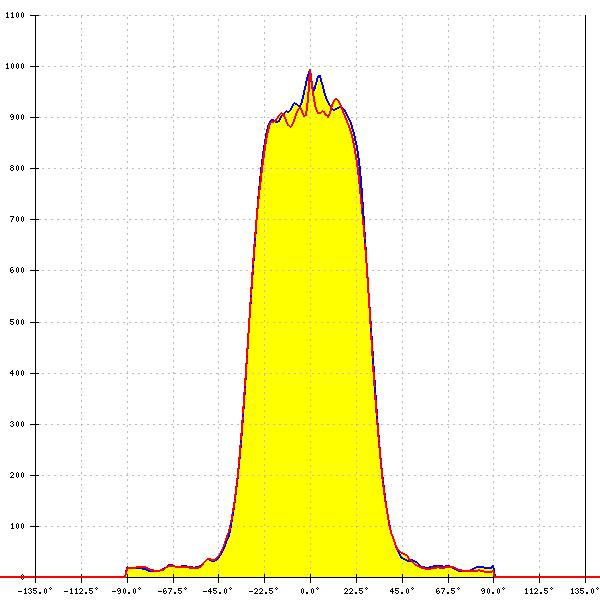

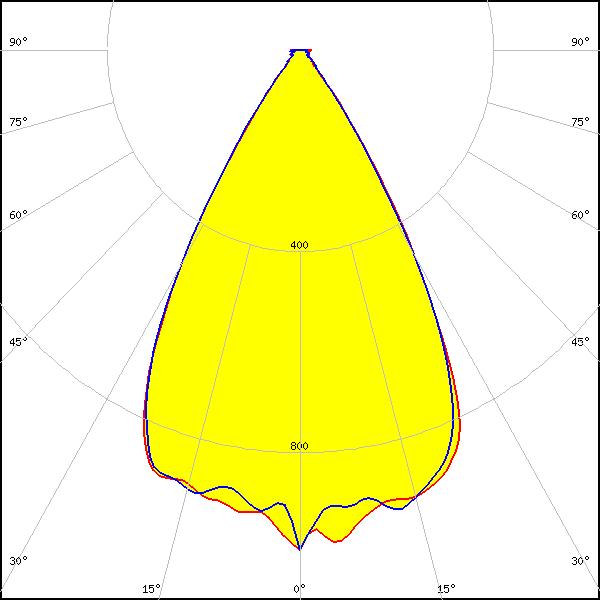

LED: CHA0304
Required components:
FWHM: 60°
FWTM: 78°
Peak intensity: 1.017 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

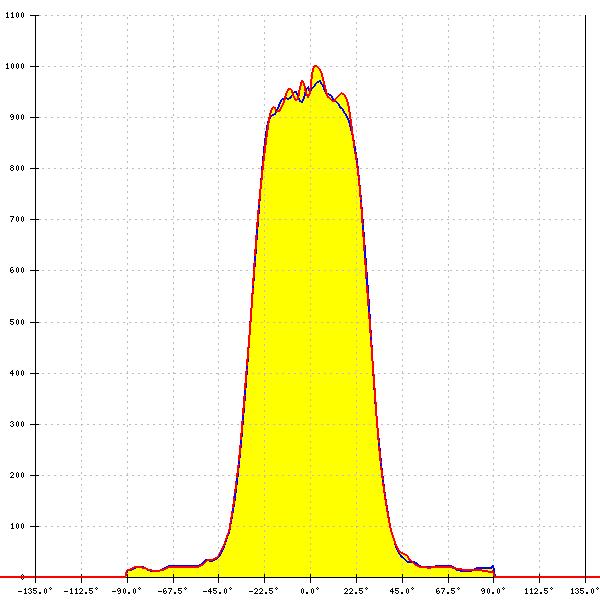

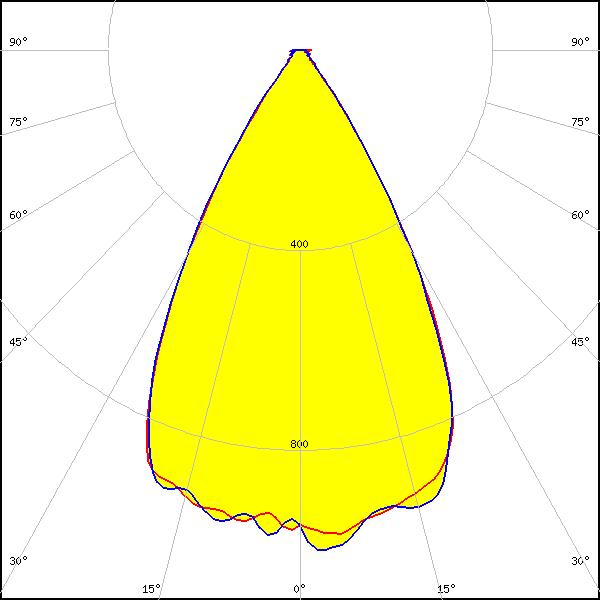

LED: CHA0410
Required components:
FWHM: 59°
FWTM: 80°
Peak intensity: 1.025 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

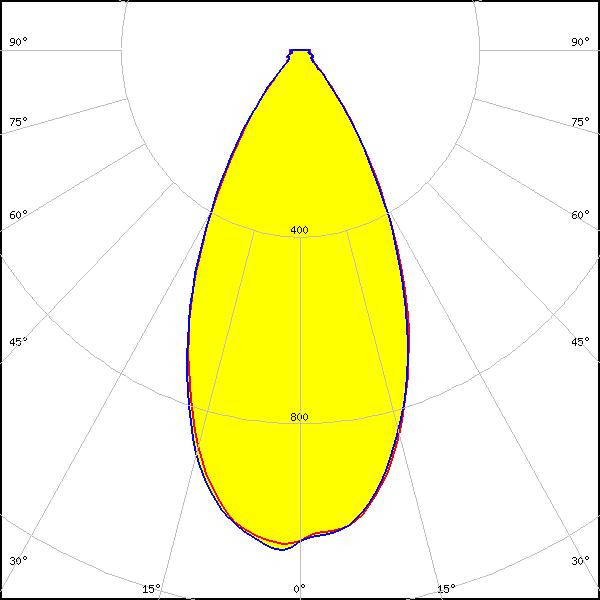

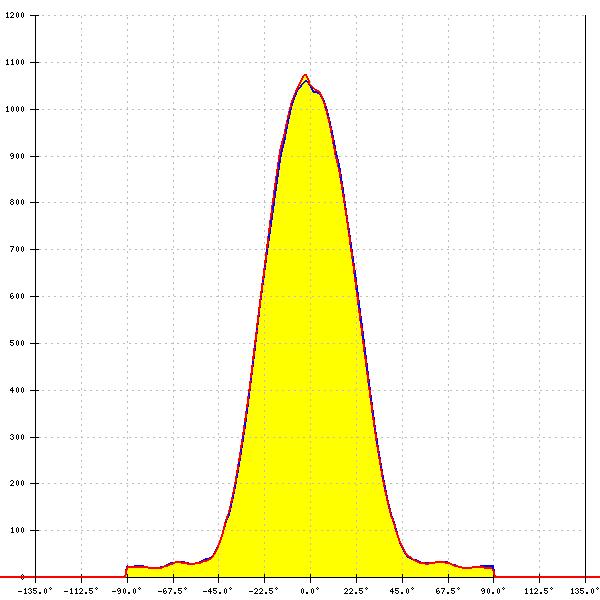

LED: CMA1825
Required components:
FWHM: 52°
FWTM: 84°
Peak intensity: 1.072 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LZ4 (00xW00)
Required components:
FWHM: 59°
FWTM: 78°
Efficiency: 96 %
LEDs/each optic: 1
Light colour: IR

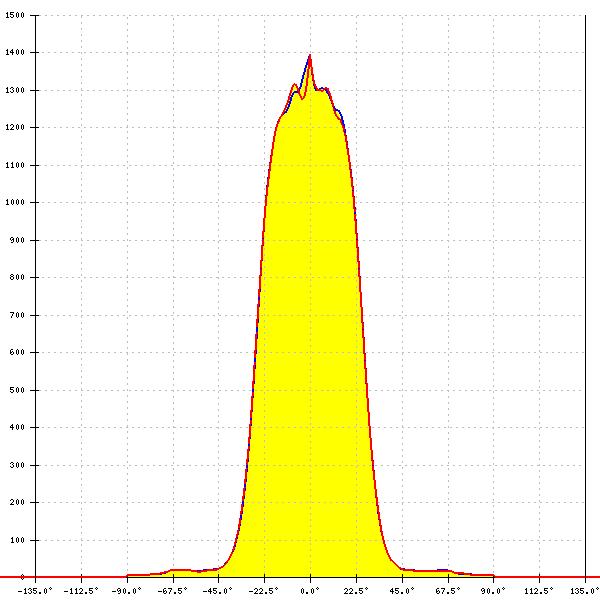

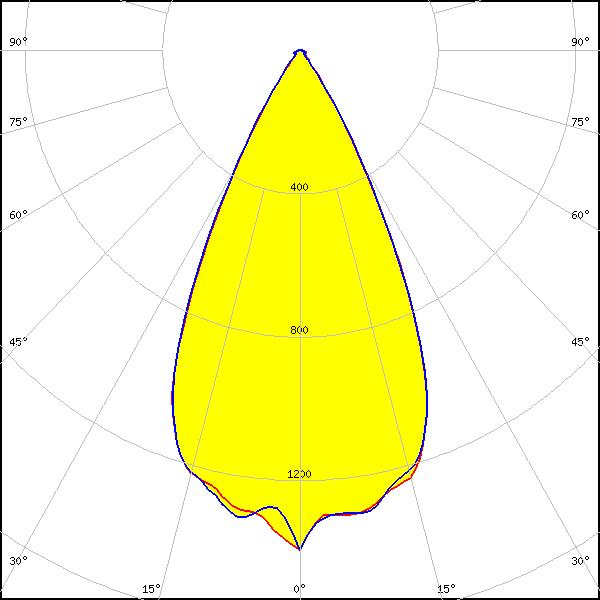

LED: LZ4-00XX08
Required components:
FWHM: 52°
FWTM: 70°
Peak intensity: 1.405 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: COB S-Type (LES 7)
Required components:
FWHM: 56°
FWTM: 81°
Peak intensity: 1.047 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

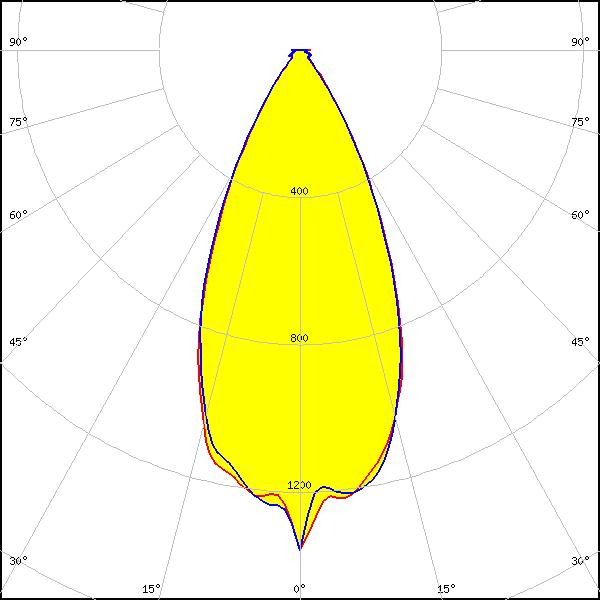

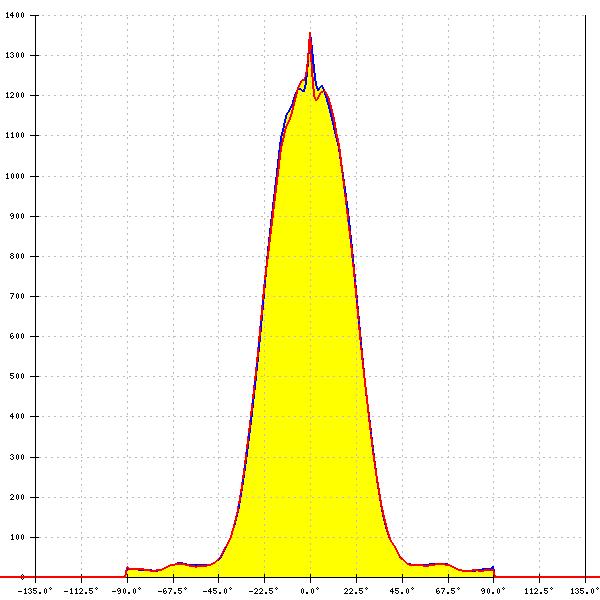

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 46°
FWTM: 74°
Peak intensity: 1.358 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 48°
FWTM: 81°
Peak intensity: 1.147 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L15 CoB
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 44°
FWTM: 82°
Peak intensity: 1.197 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

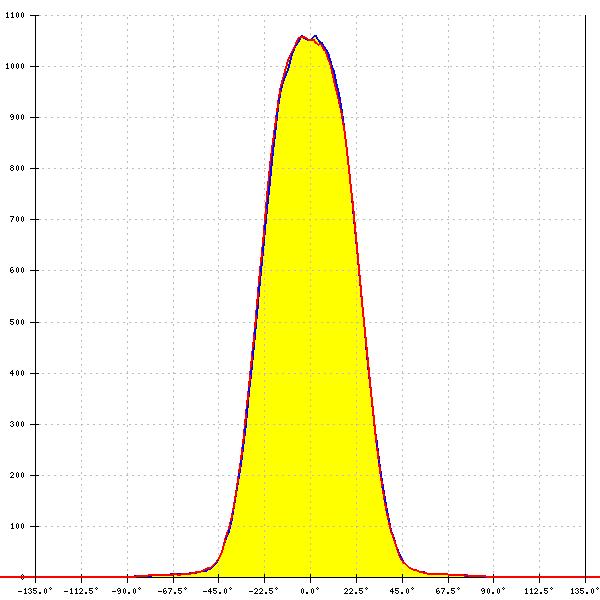

LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 51°
FWTM: 79°
Peak intensity: 1.065 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

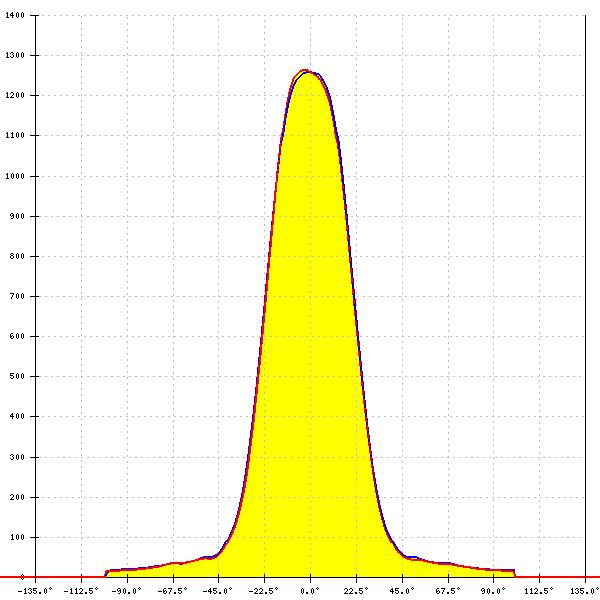

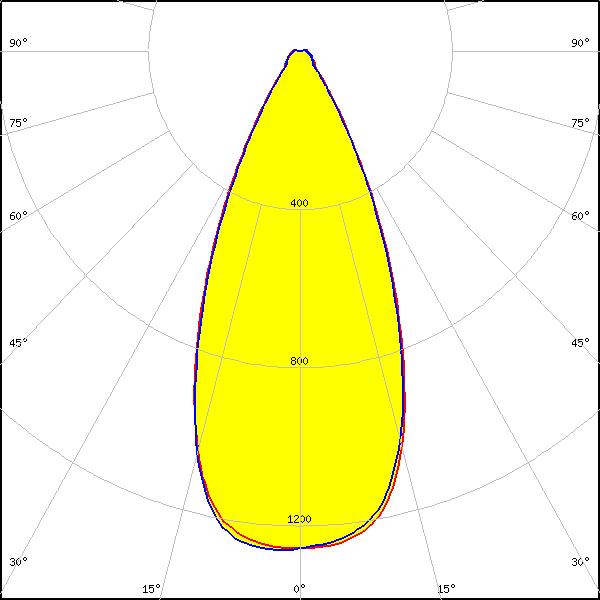

LED: LC010T (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 46°
FWTM: 75°
Peak intensity: 1.263 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: Tunable White

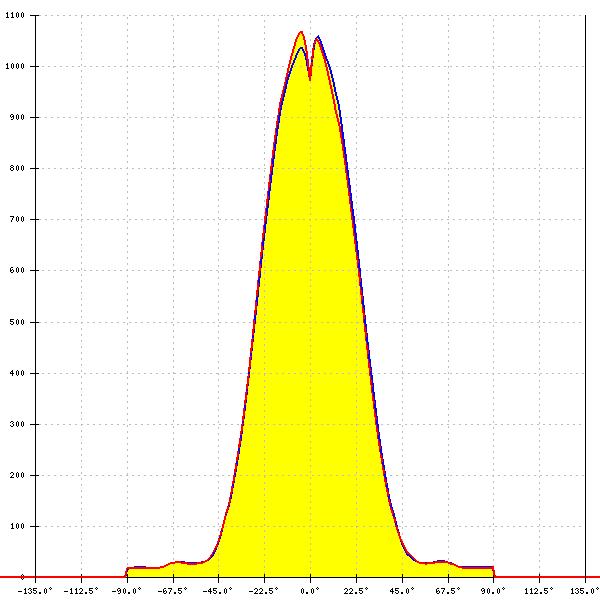

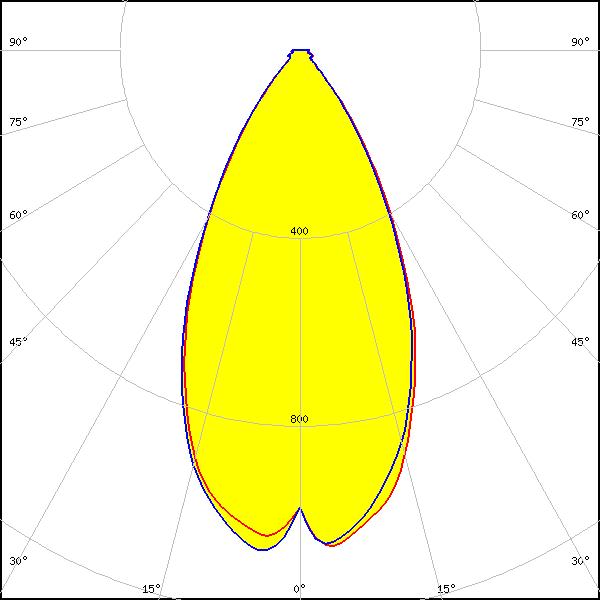

LED: LC020T (Tunable white)
Required components:
FWHM: 52°
FWTM: 84°
Peak intensity: 1.075 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

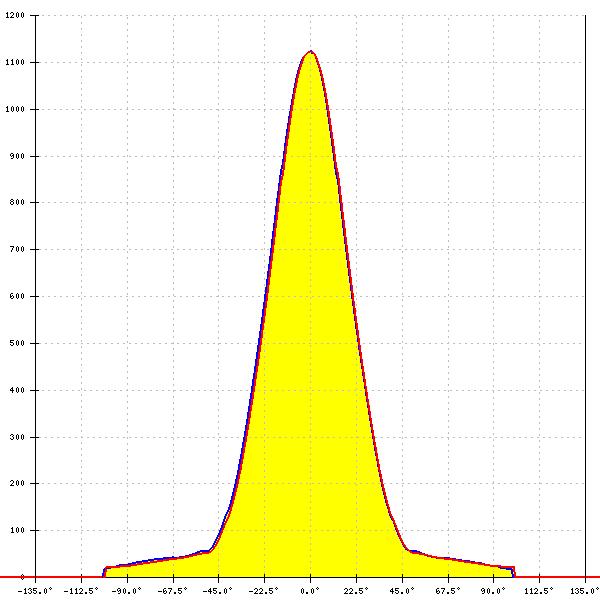

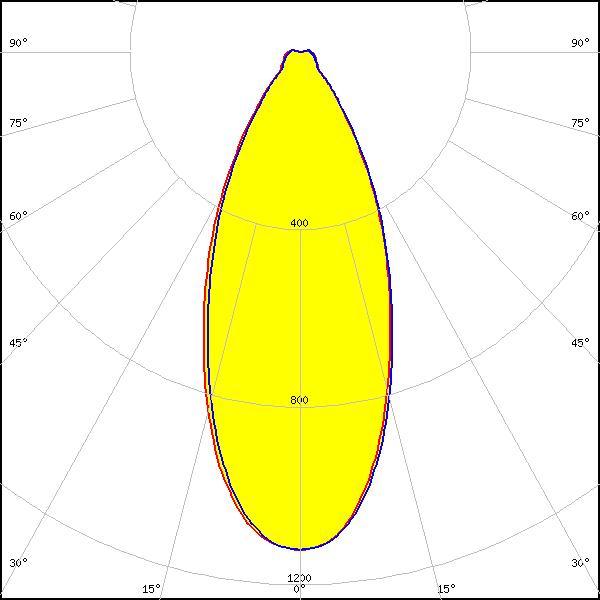

LED: MJT COB LES 14.5
Required components:
FWHM: 45°
FWTM: 84°
Peak intensity: 1.123 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

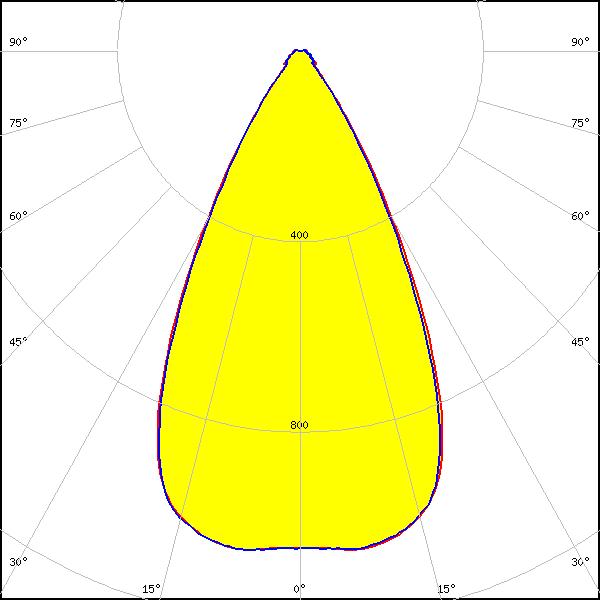

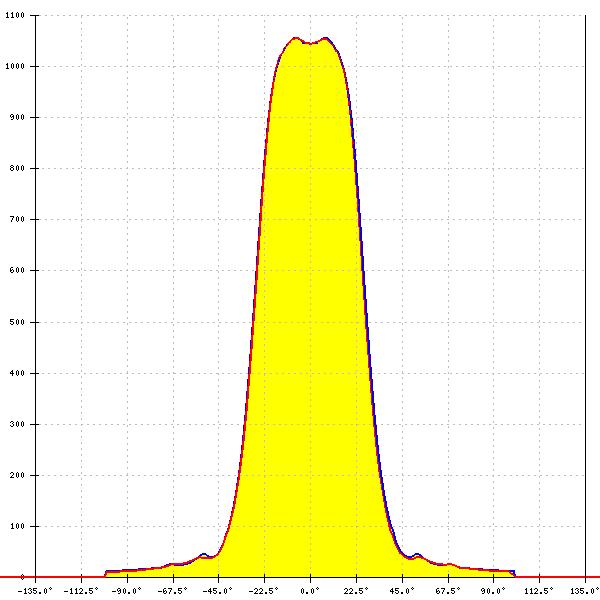

LED: MJT COB LES 6
Required components:
FWHM: 55°
FWTM: 79°
Peak intensity: 1.060 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

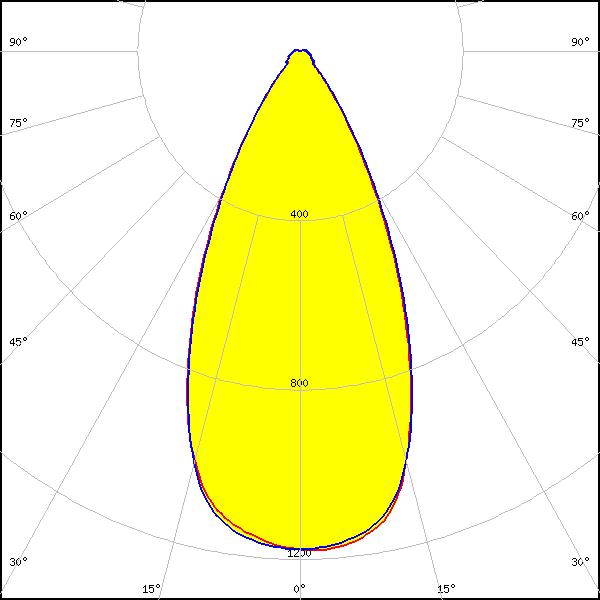

LED: MJT COB LES 9.8
Required components:
FWHM: 49°
FWTM: 79°
Peak intensity: 1.183 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: SLE G7 LES09
Required components:
FWHM: 50°
FWTM: 79°
Peak intensity: 1.186 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

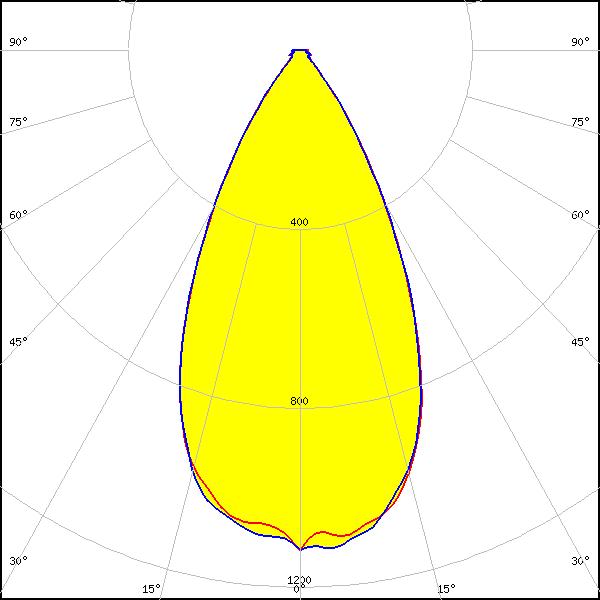

LED: XOB 9.8 mm
Required components:
FWHM: 52°
FWTM: 80°
Peak intensity: 1.119 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

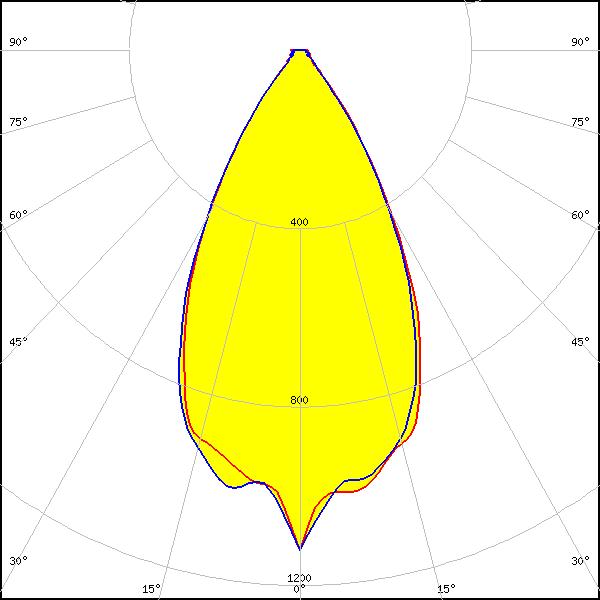

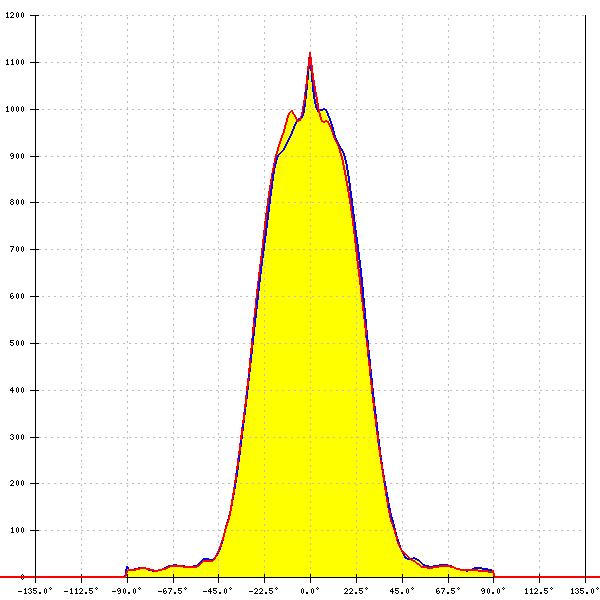

LED: XTM - 9mm LES
Required components:
FWHM: 54°
FWTM: 82°
Peak intensity: 1.122 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
