C18289_SPORT-2X2-FT6-HT

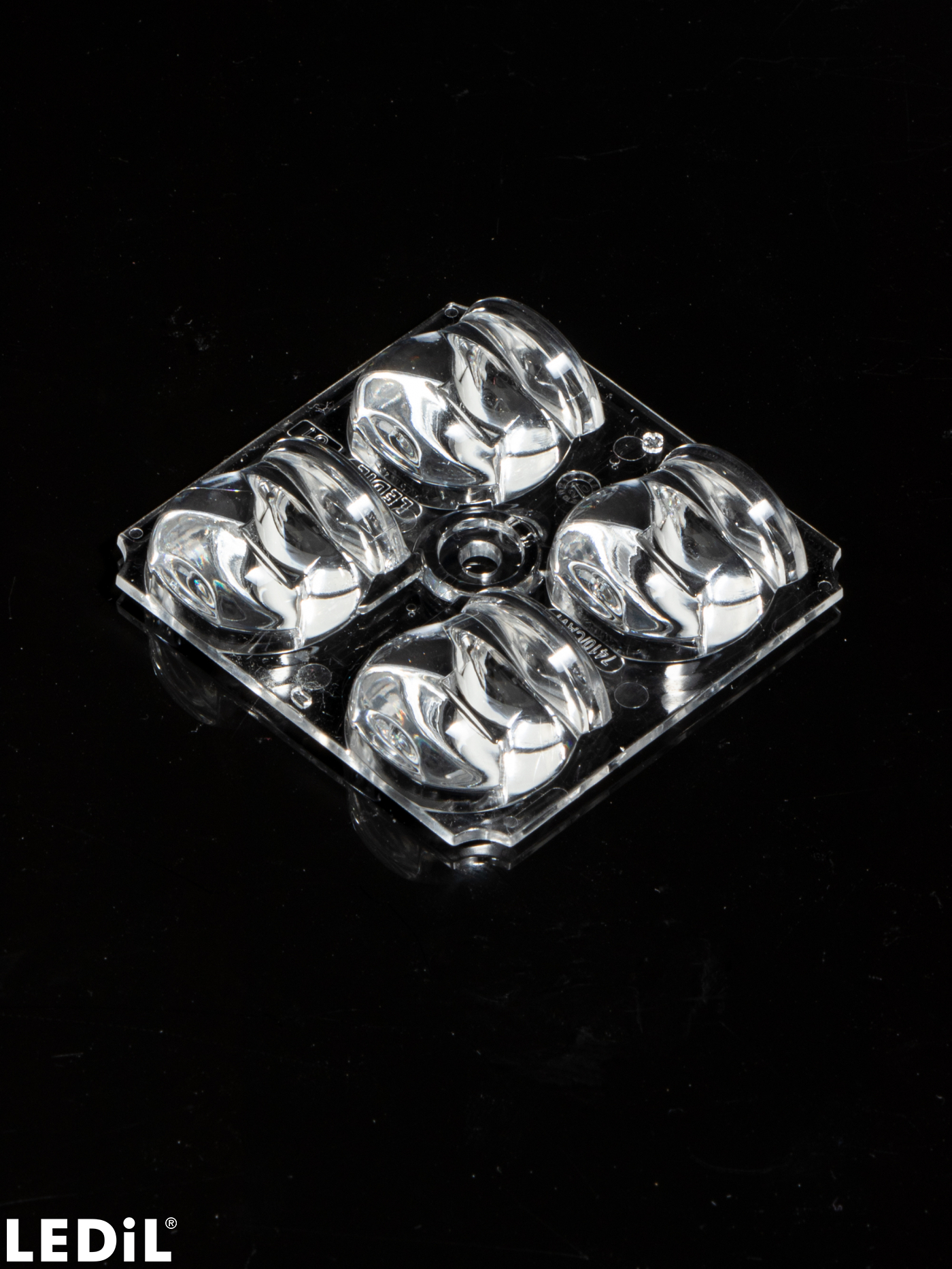

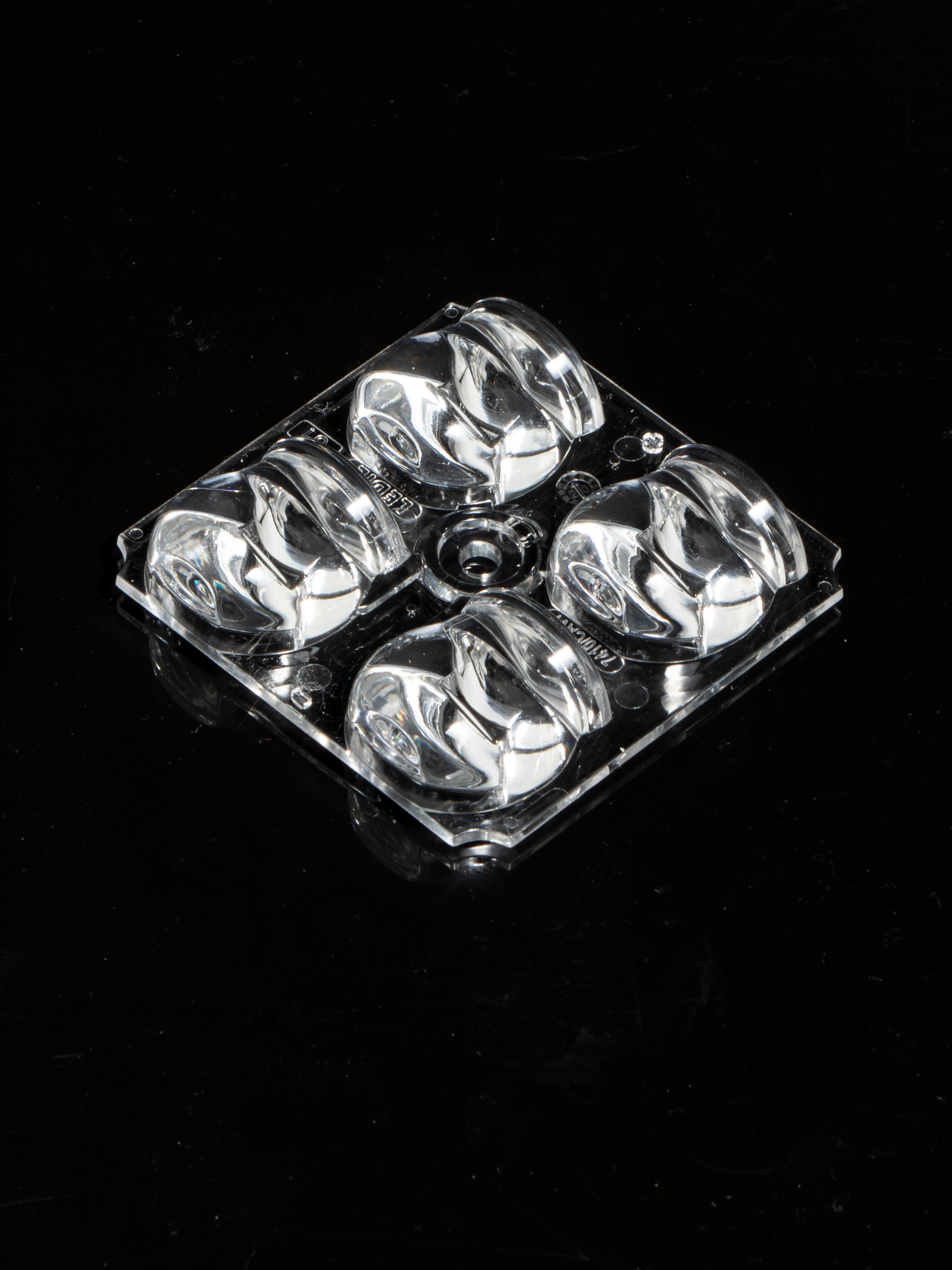

Narrow forward throw beam with optimized cut-off for high masts. Variant from High Temperature PMMA.

Specification

Dimensions:

50 x 50 mm
Height:

11.00 mm
Fastening:

screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

HT-PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

640 pcs
Box size:

480 x 280 x 300 mm
Box weight:

8.8 kg
MPQ:

128 pcs
MOQ:

128 pcs
MOQ size:

480 x 280 x 80 mm
MOQ weight:

1.9 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: C18289_SPORT-2X2-FT6-HT

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C18289_SPORT-2X2-FT6-HT

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Product video

The teaser for the SPORT-2X2 optics

Application example

Difference of F-beams on the ground

Application example

Tennis court lighting with SPORT-2X2-FT4 & -FT6

PCN

Product change notification NR186 - Additional High Temperature PMMA material approved

Application area

Tunnel and Transportation Lighting

News

SPORT-2X2 – All you need to know

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

News

SPORT-2X2 - the right light for any sports activity

Application area

SPORTS INDOOR LIGHTING

Application area

Area and Car Park Lighting

Application guide

Guide for Sports lighting optics

Application guide

Guide for Street lighting optics

News

SPORT-2X2-S1 – Our narrowest, most powerful sport beam + new optic material for higher temperatures

Application area

Sports outdoor lighting

AVAILABLE LEDiL ACCESSORIES

SPORT-2X2-FT-SHD-BLK

Black shade for additional backlight control.

SPORT-2X2-FT-SHD-WHT

White shade for additional backlight control.

Optical results

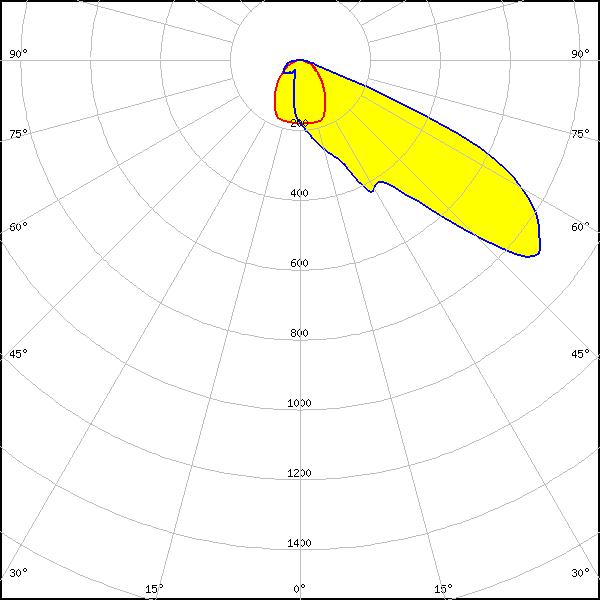

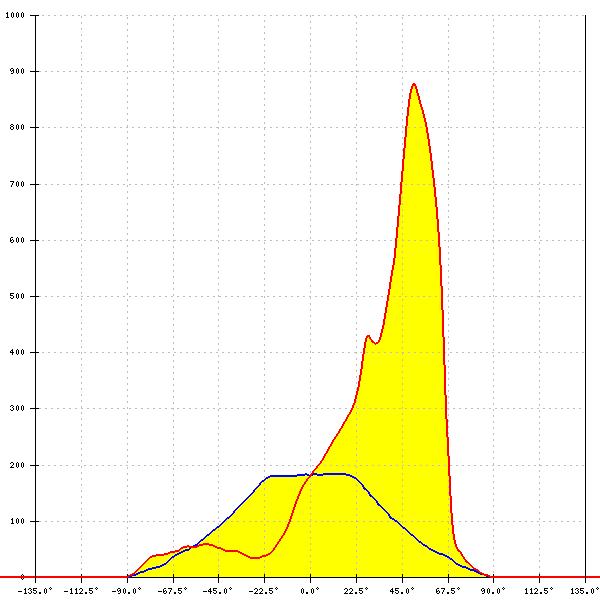

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 0.879 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

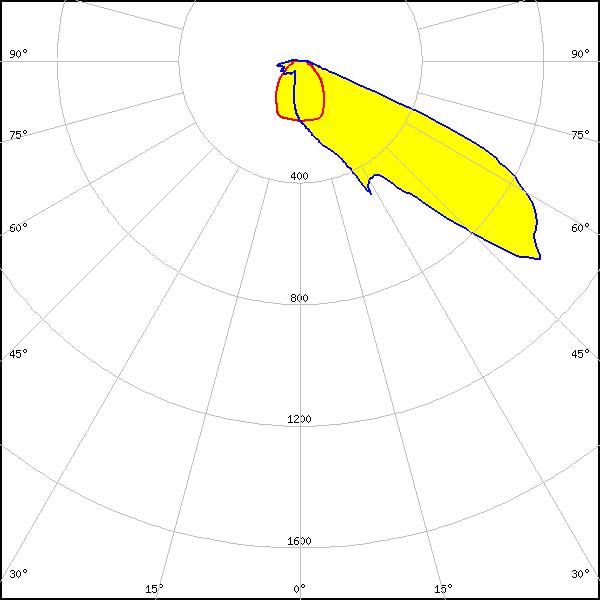

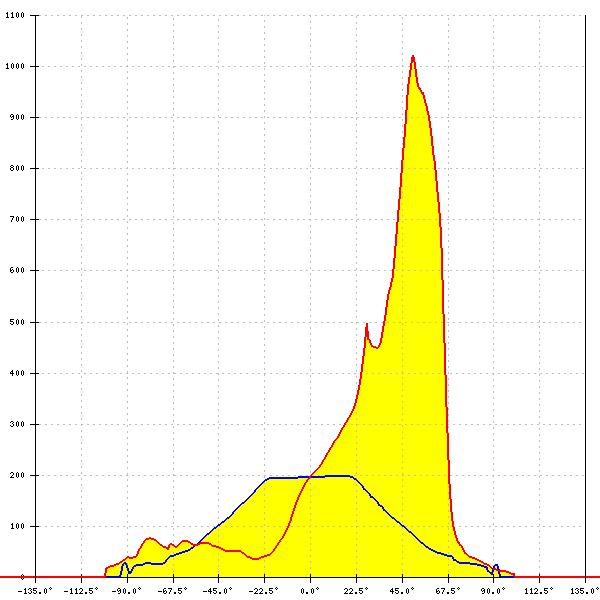

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 1.022 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

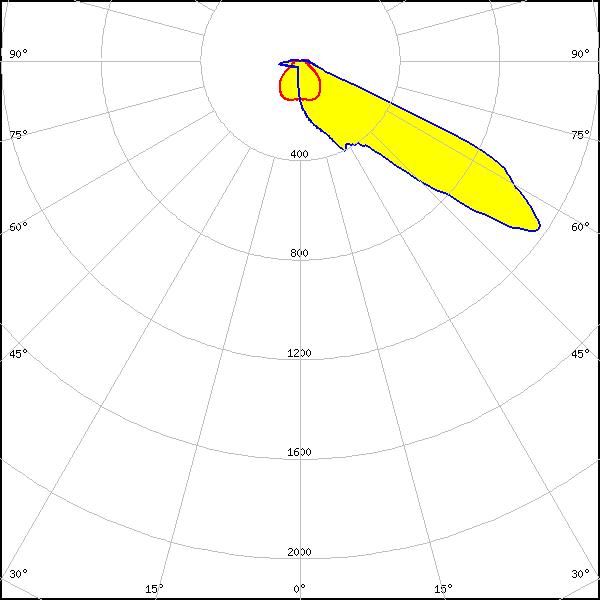

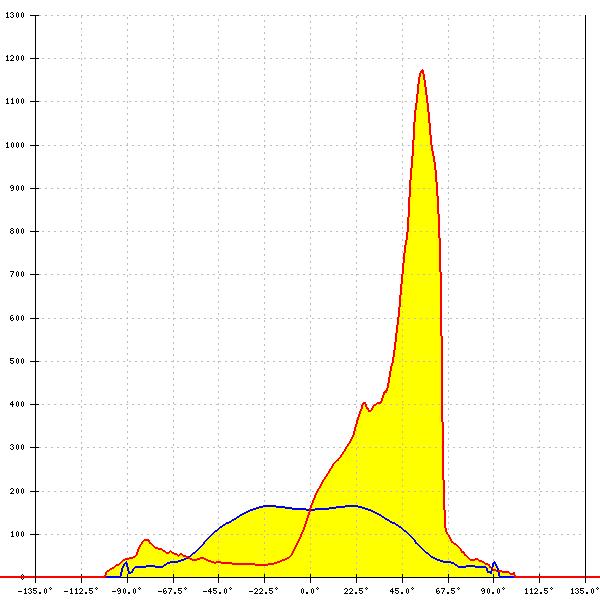

LED: NV4WB35AM

FWHM: asymmetric

Peak intensity: 1.196 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

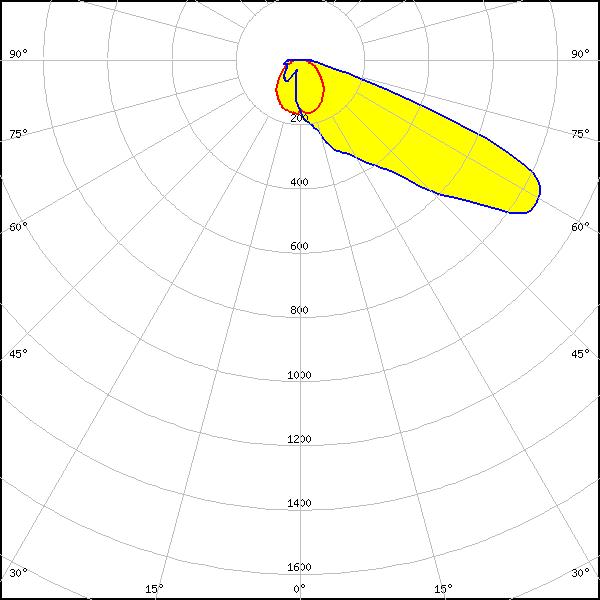

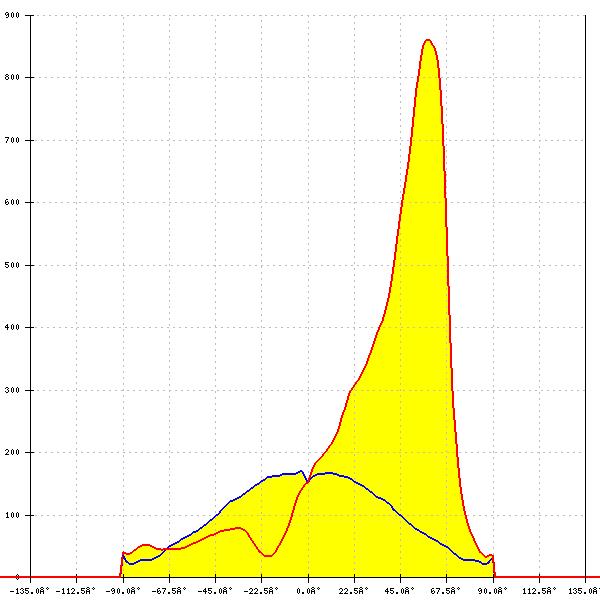

LED: NV4x144A

FWHM: asymmetric

Peak intensity: 0.861 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

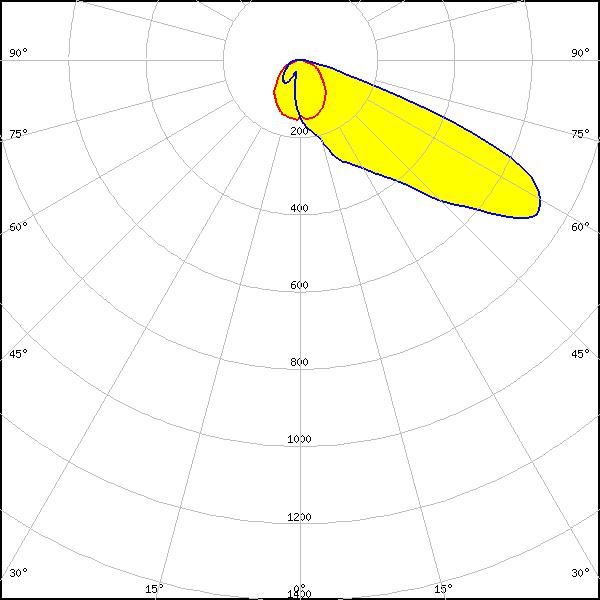

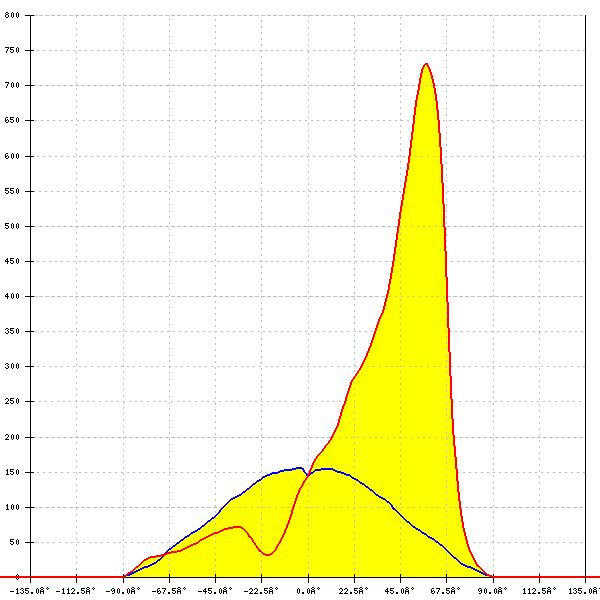

LED: NV4x144A

FWHM: asymmetric

Peak intensity: 0.731 cd/lm

Efficiency: 75 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

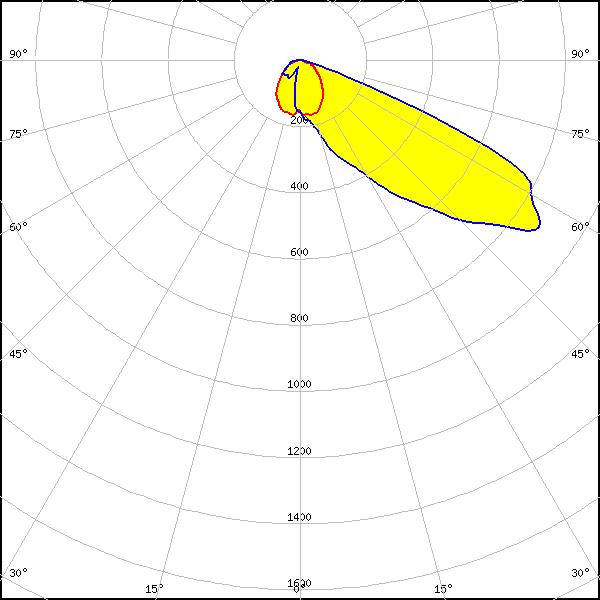

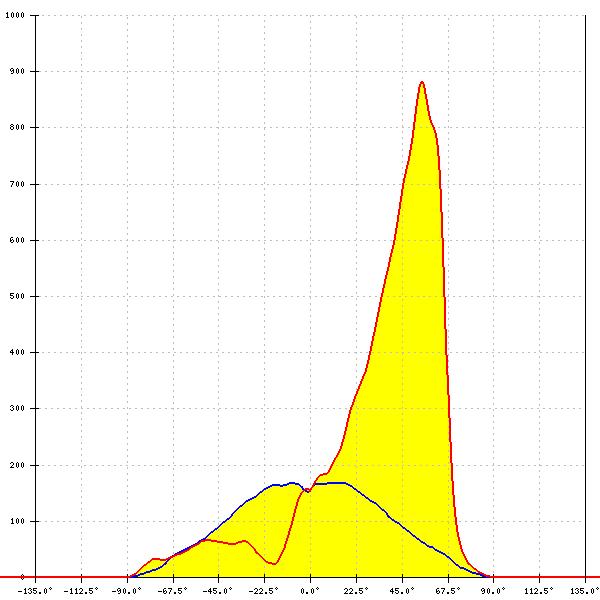

LED: Duris S8

FWHM: asymmetric

Peak intensity: 0.882 cd/lm

Efficiency: 81 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

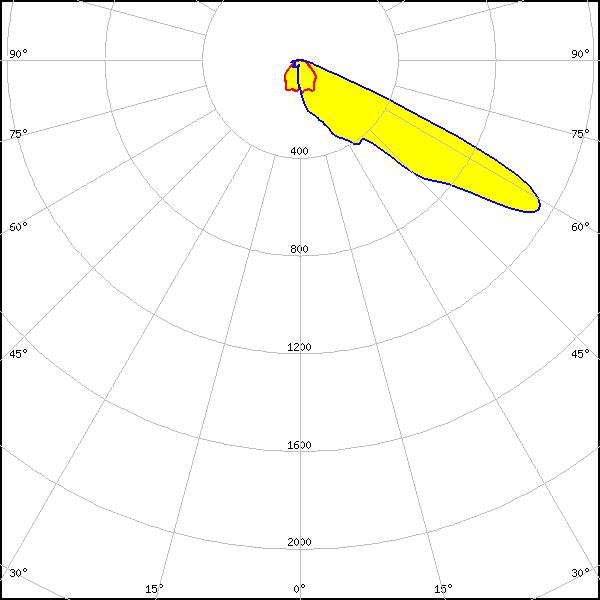

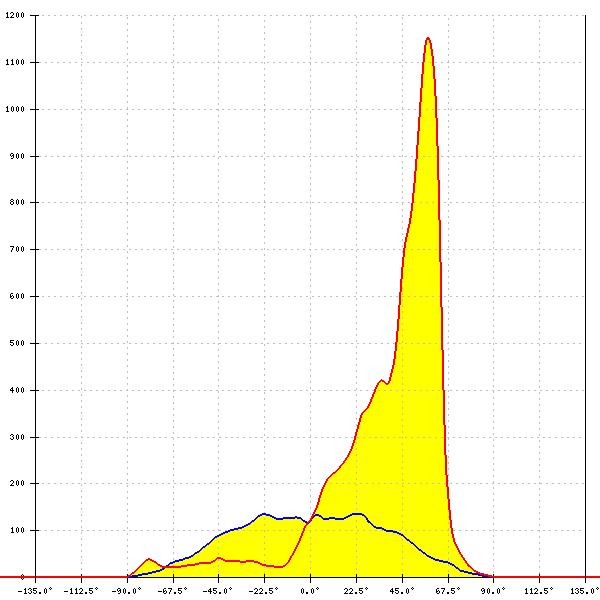

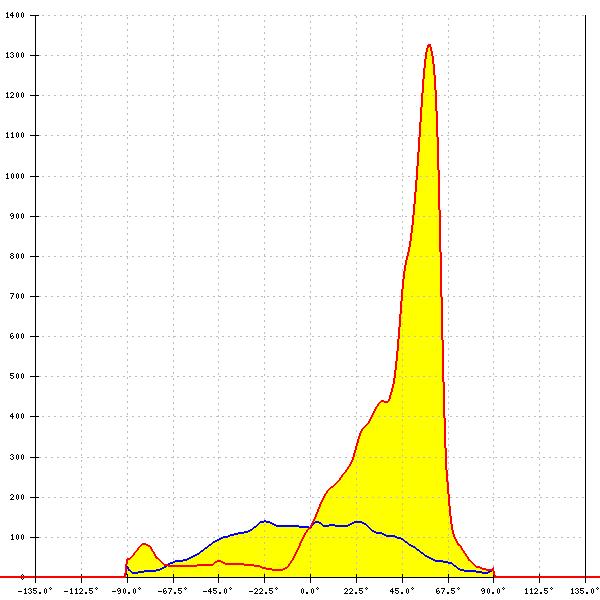

LED: OSCONIQ P 3737 (3W) PUSTA1

FWHM: asymmetric

Peak intensity: 1.324 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSCONIQ P 3737 (3W) PUSTA1

FWHM: asymmetric

Peak intensity: 1.154 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

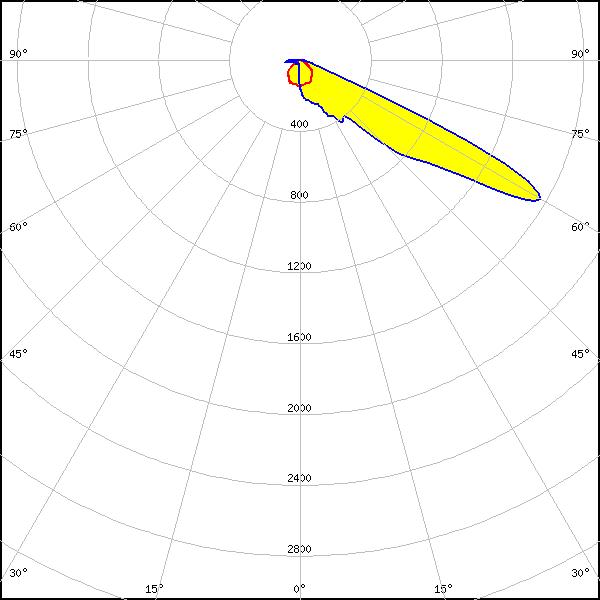

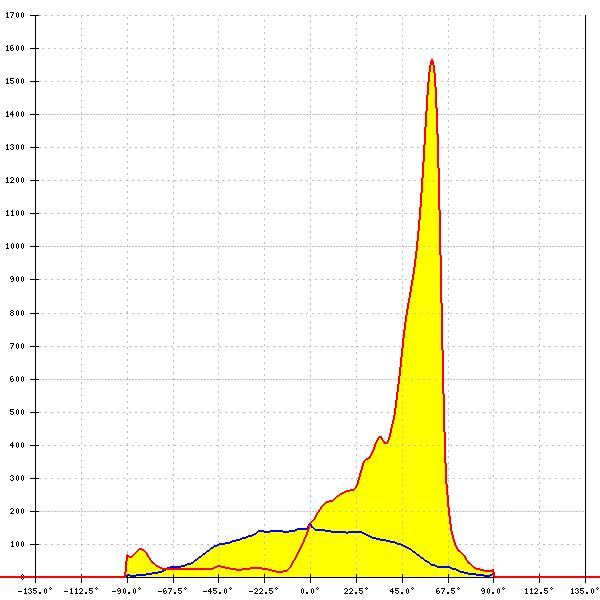

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 1.565 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

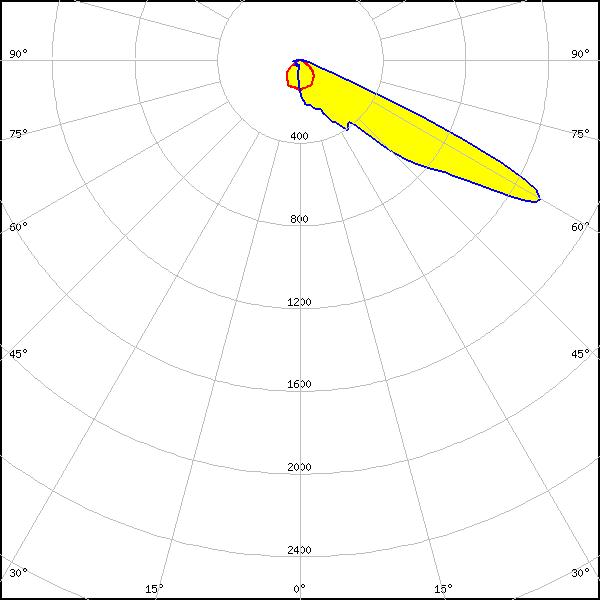

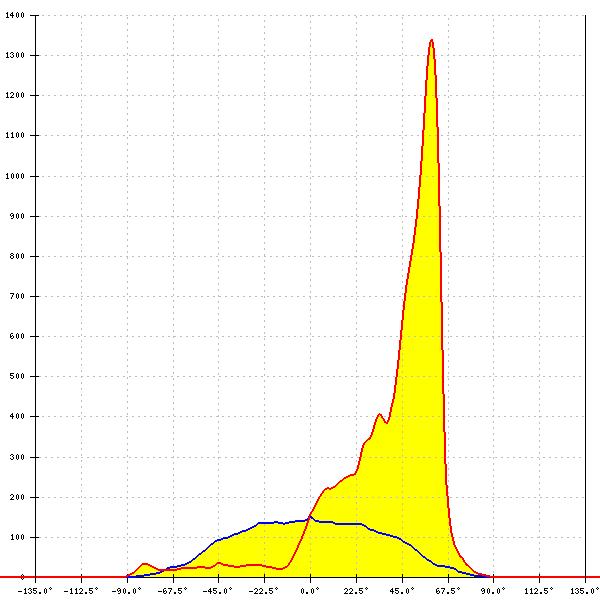

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 1.340 cd/lm

Efficiency: 81 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

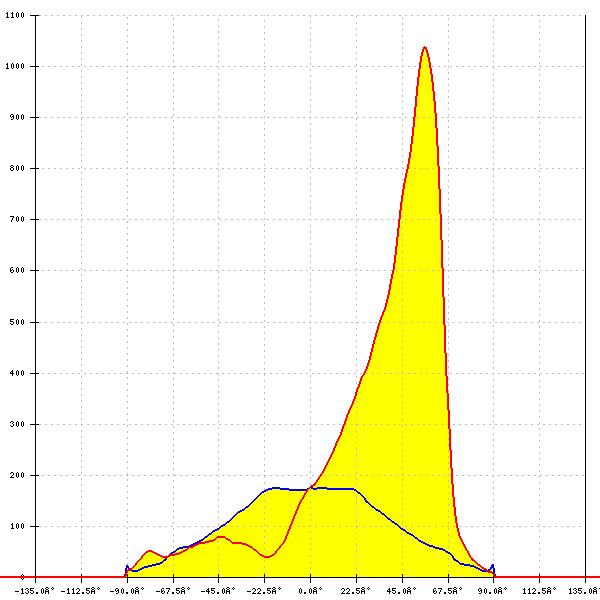

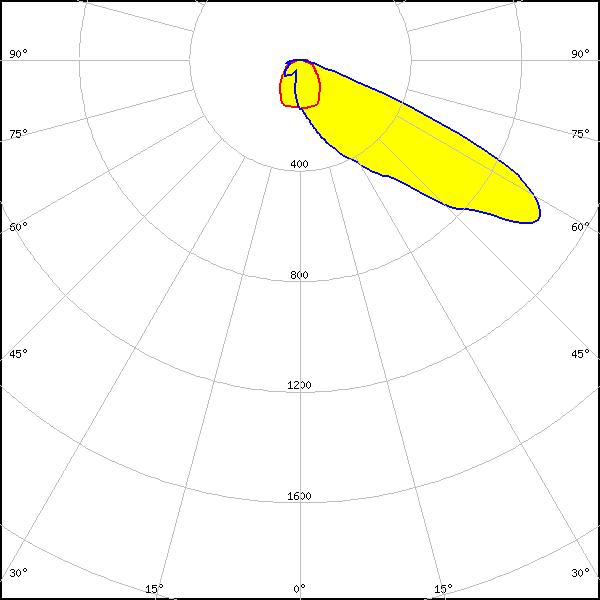

LED: RLE 2x8 6000lm HP HE EXC3 OTD

FWHM: asymmetric

Peak intensity: 1.037 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: RLE 2x8 6000lm HP HE EXC3 OTD

FWHM: asymmetric

Peak intensity: 0.918 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
