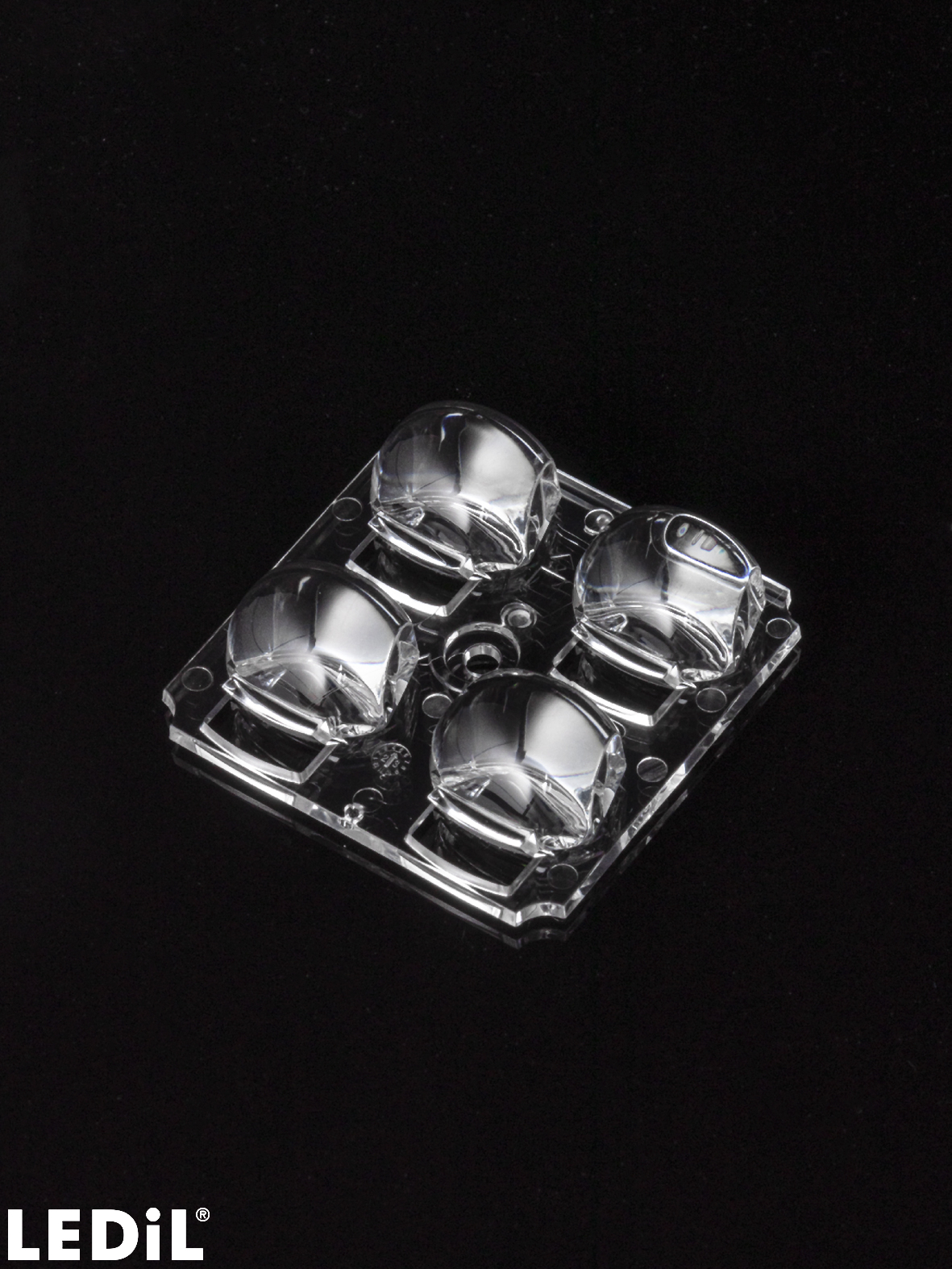

    C18450_SPORT-2X2-FT4

    Print

    Narrow forward throw beam with balanced spill light control and backlight.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      10.23 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      640 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.6 kg
    • MPQ:
      128 pcs
    • MOQ:
      128 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18450_SPORT-2X2-FT4

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    The teaser for the SPORT-2X2 optics

    News

    New beams and products – October 2023

    Application example

    Tennis court lighting with SPORT-2X2-FT4 & -FT6

    News

    SPORT-2X2 – All you need to know

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    SPORT-2X2 - the right light for any sports activity

    Application area

    SPORTS INDOOR LIGHTING

    Application area

    Area and Car Park Lighting

    Application guide

    LEDiL guide for sports lighting optics

    News

    SPORT-2X2-S1 – Our narrowest, most powerful sport beam + new optic material for higher temperatures

    Application area

    Sports outdoor lighting

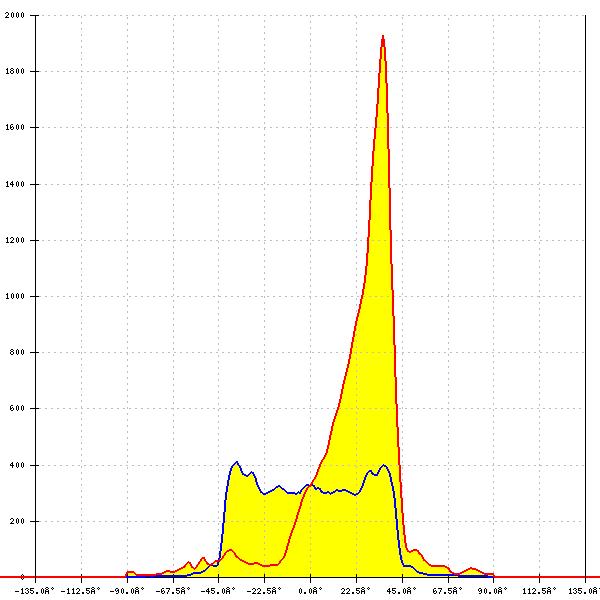

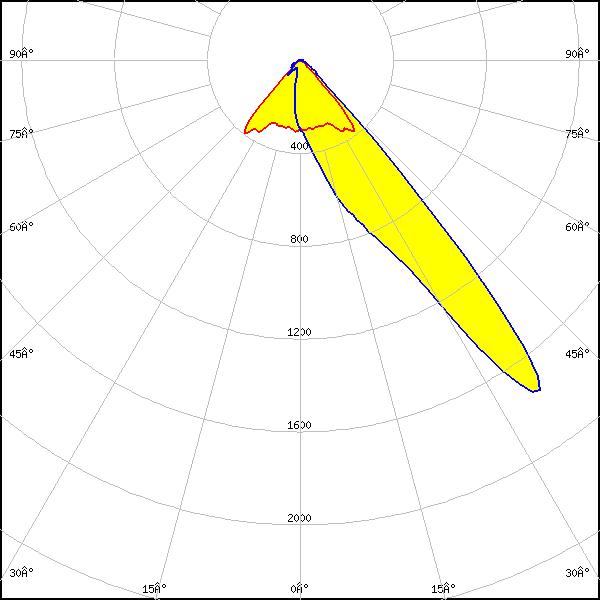

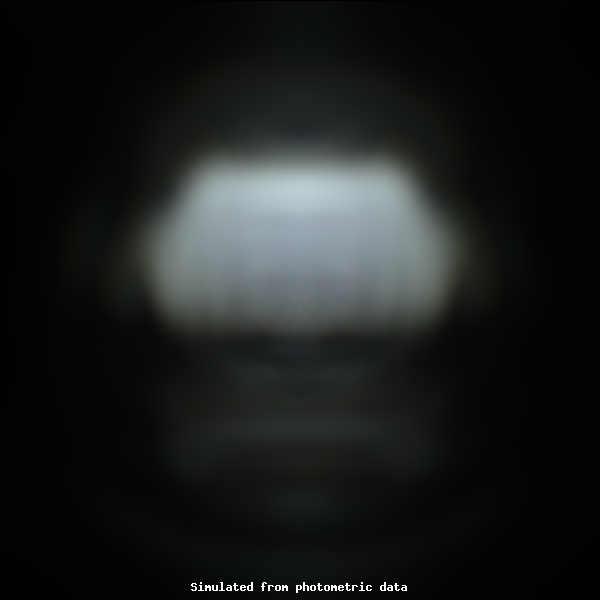

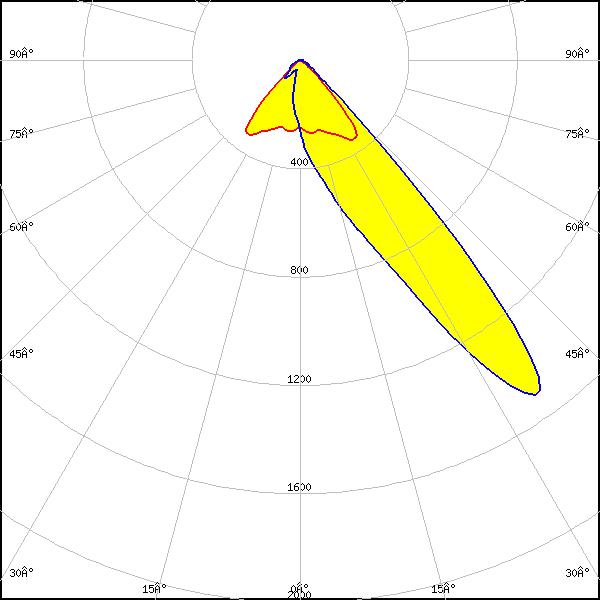

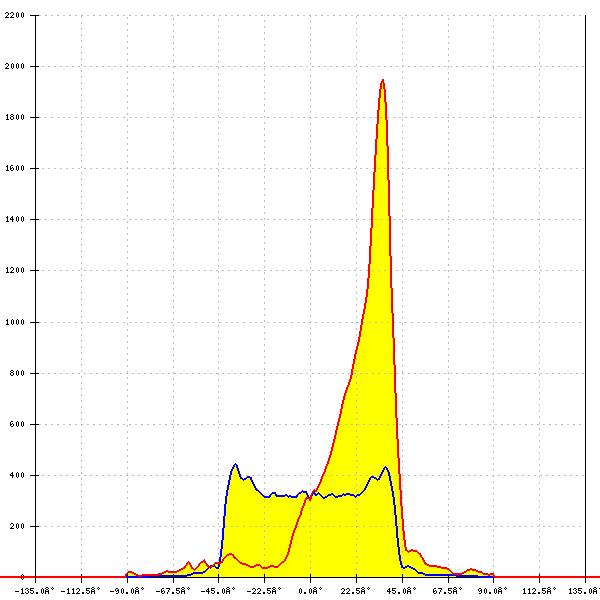

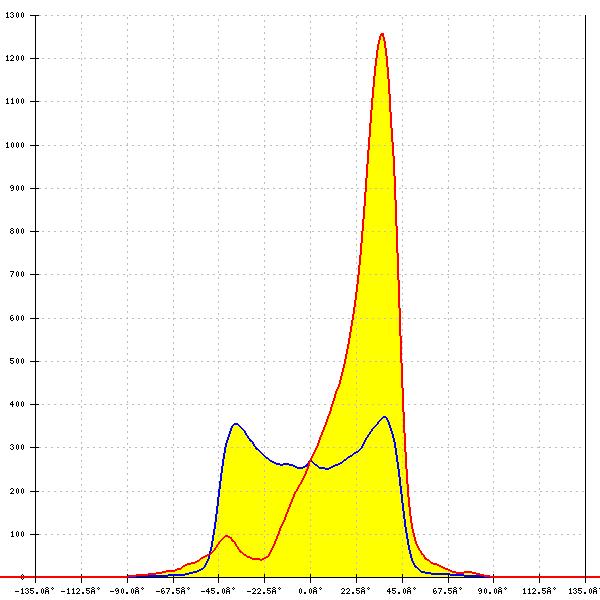

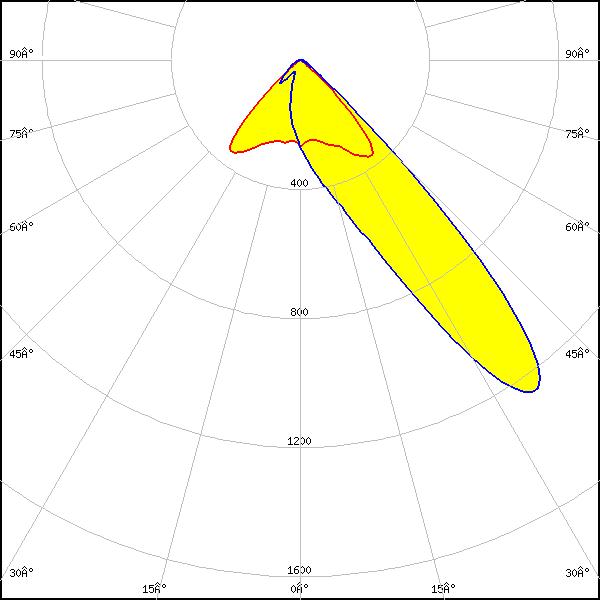

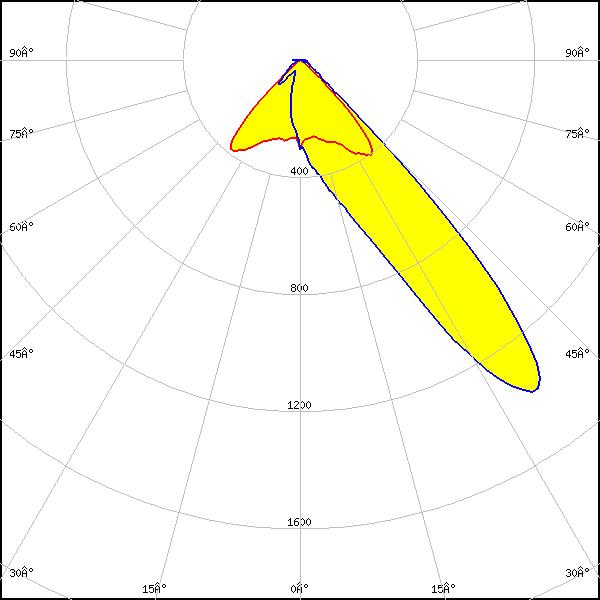

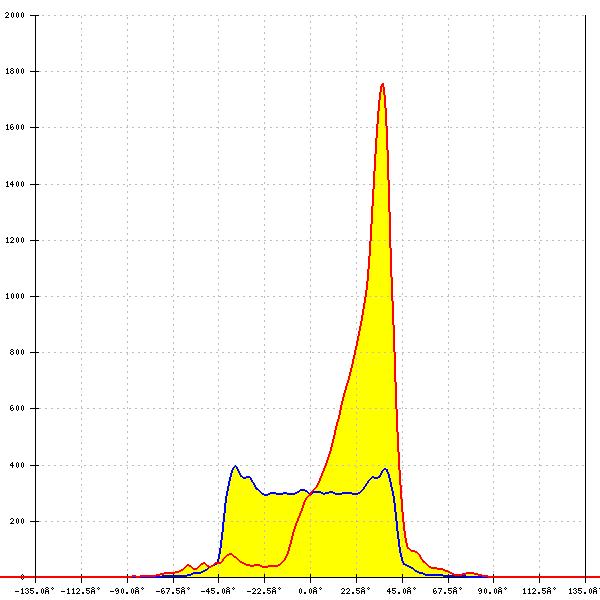

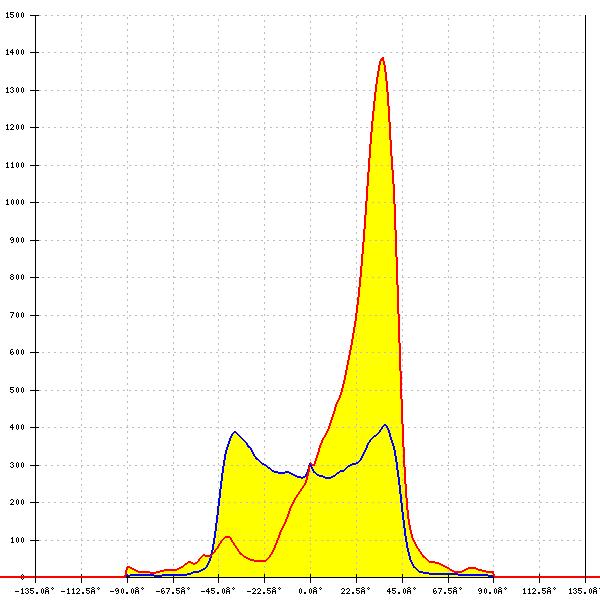

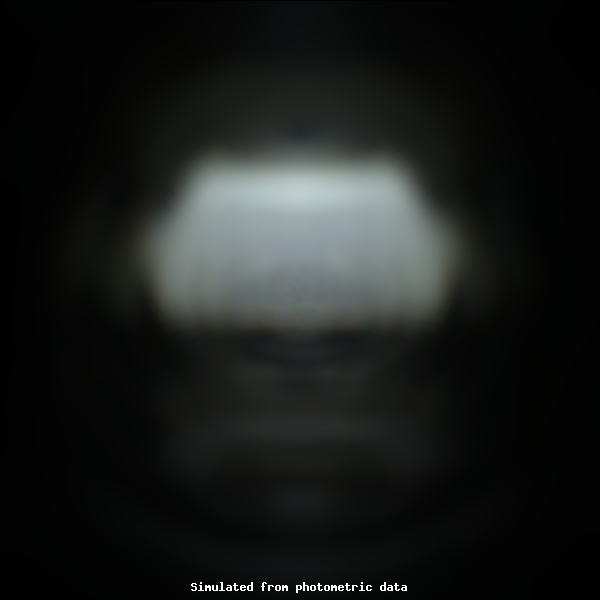

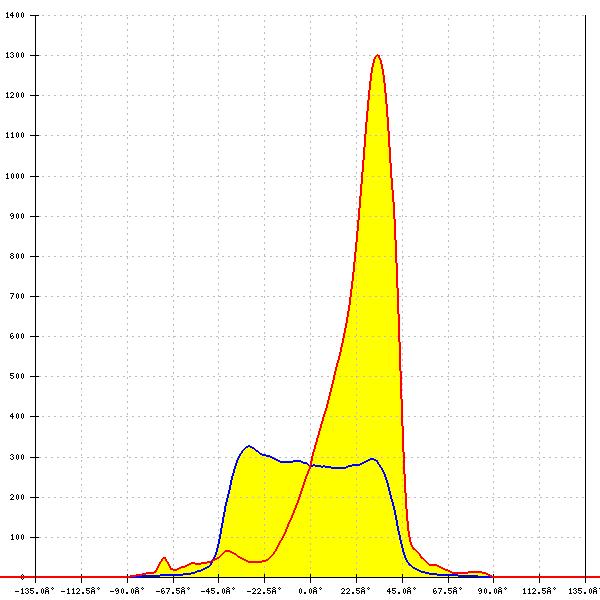

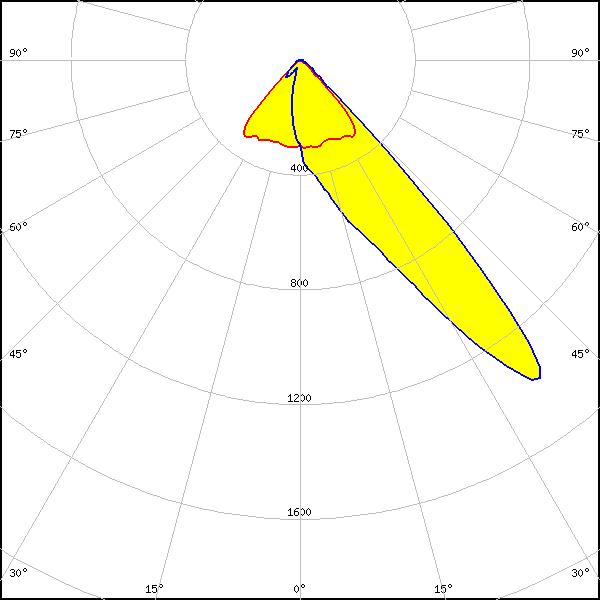

    Optical results

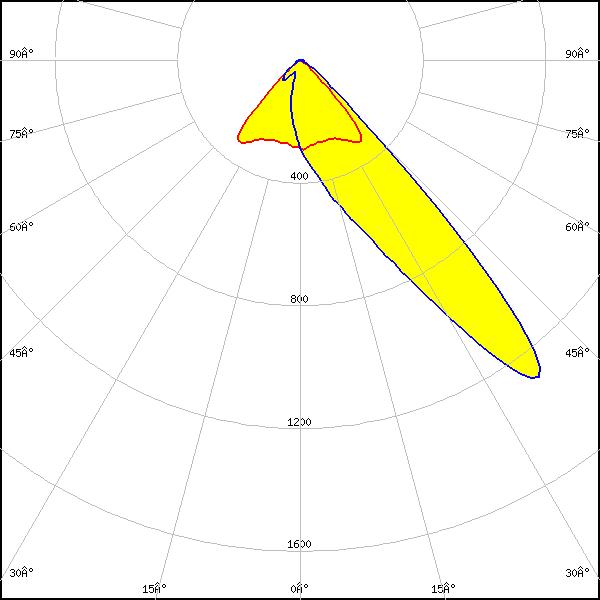

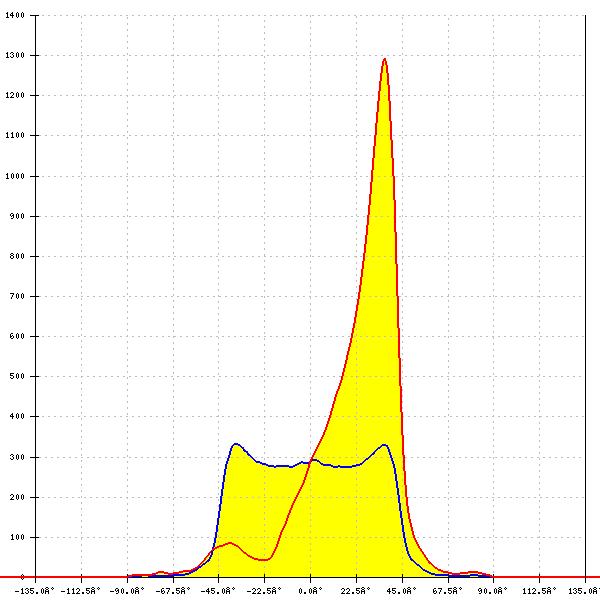

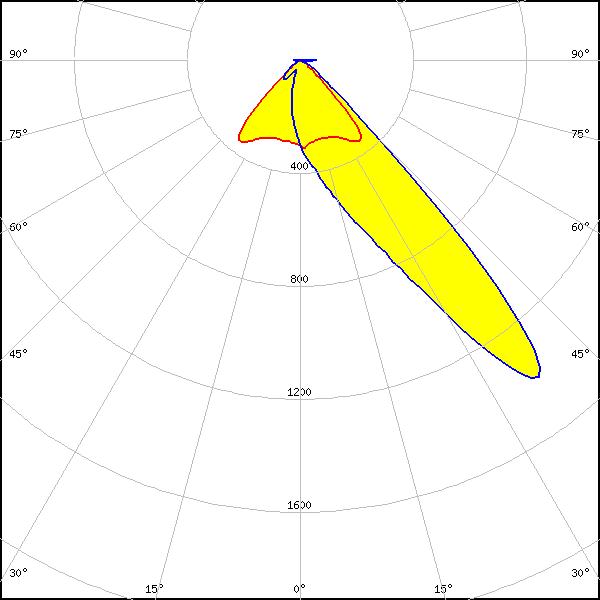

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.404 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 1.293 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

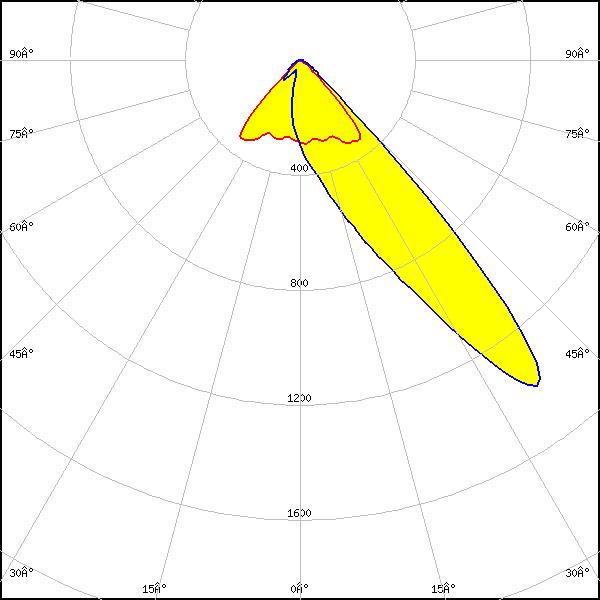

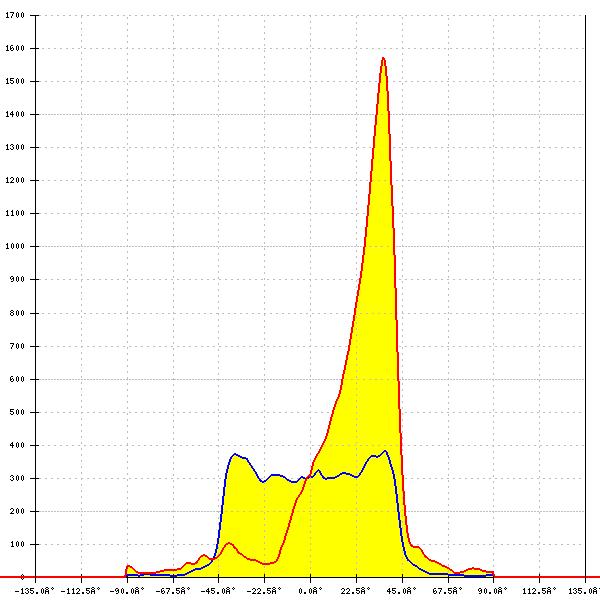

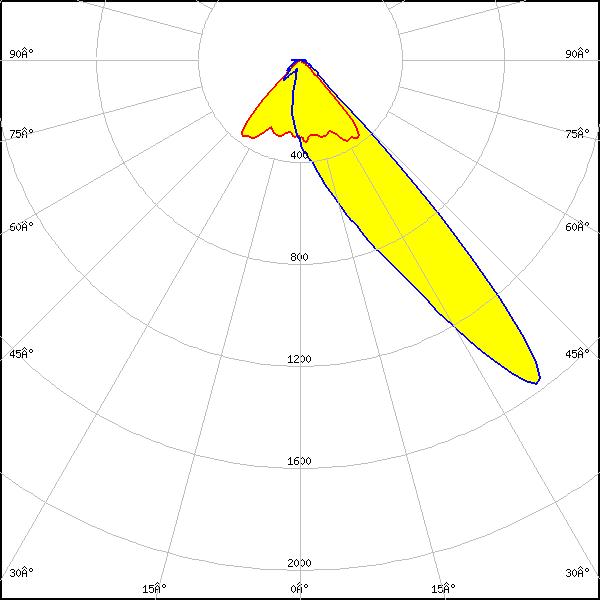

    LED: XP-G4 HI
    FWHM: asymmetric
    Peak intensity: 1.573 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4 HI
    FWHM: asymmetric
    Peak intensity: 1.401 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

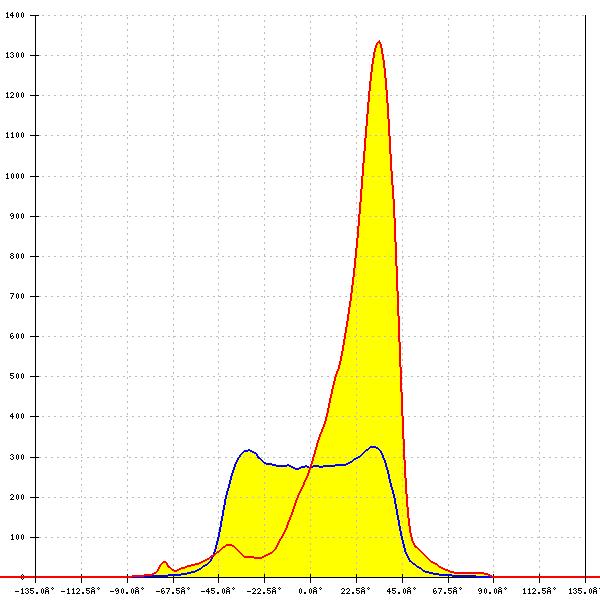

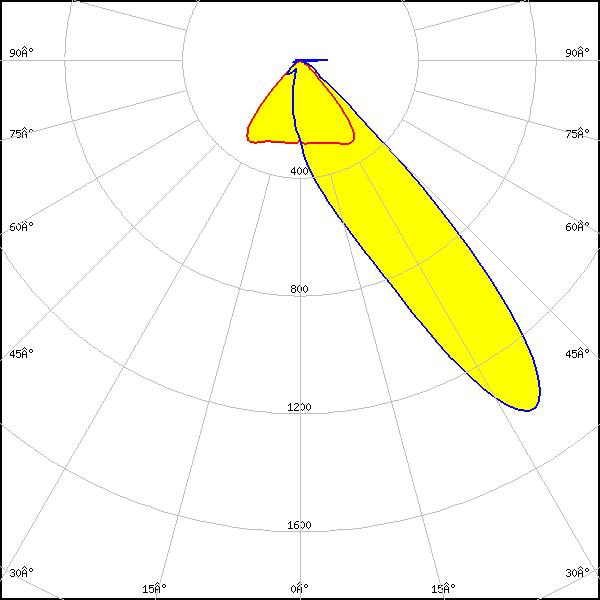

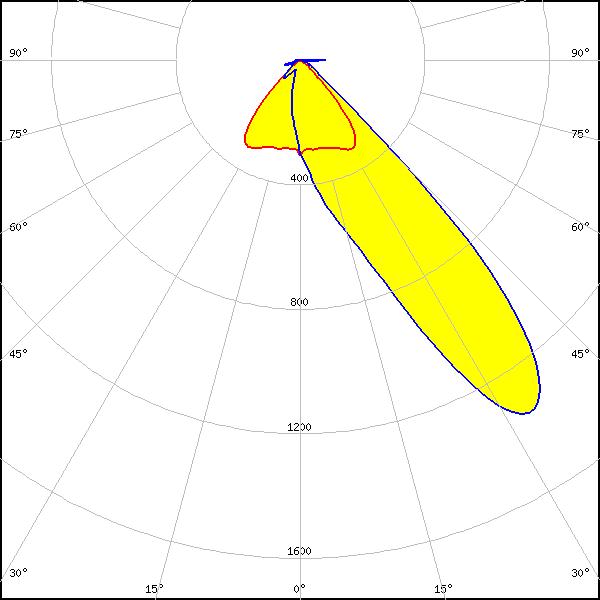

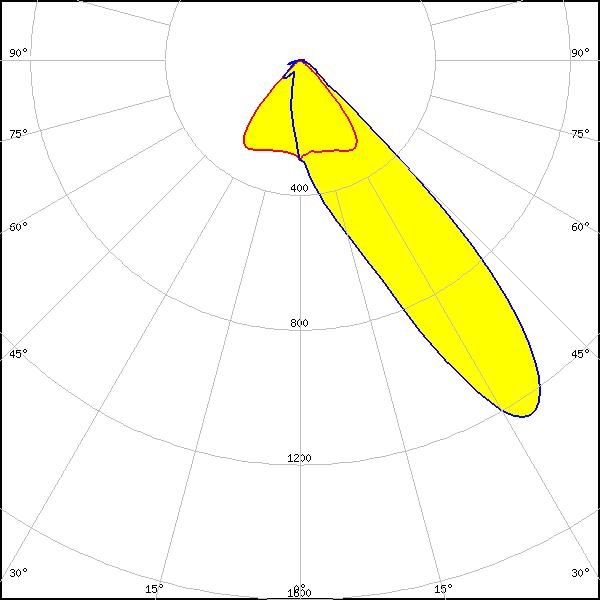

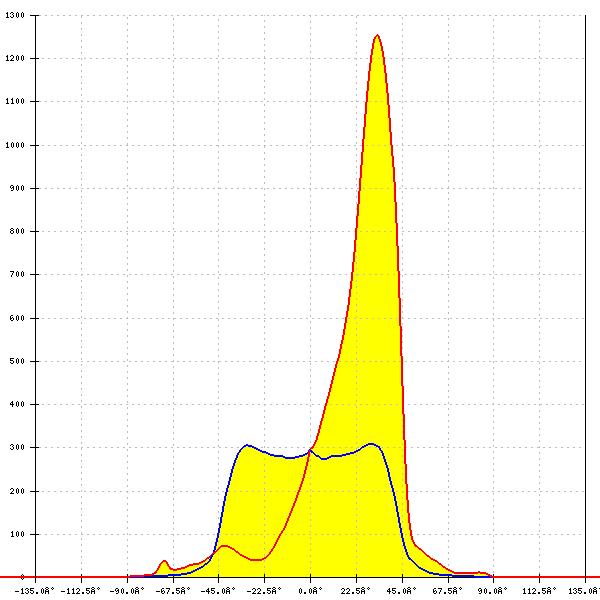

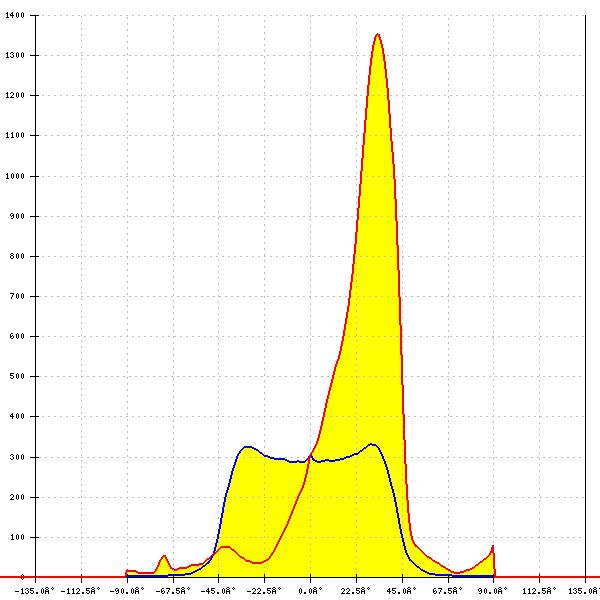

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 1.425 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

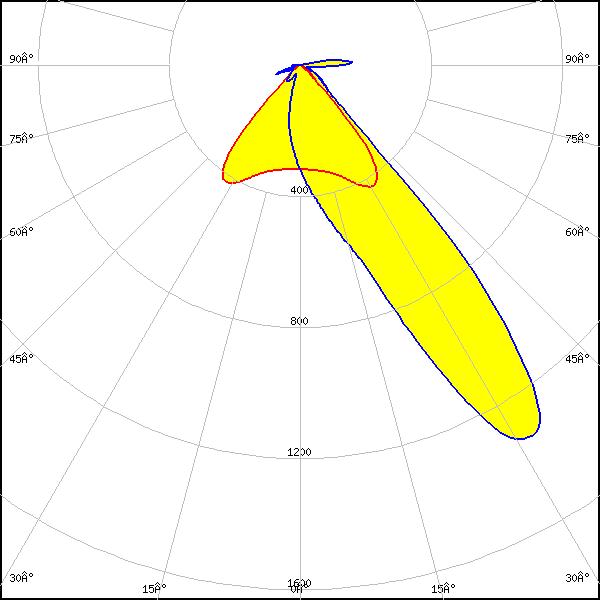

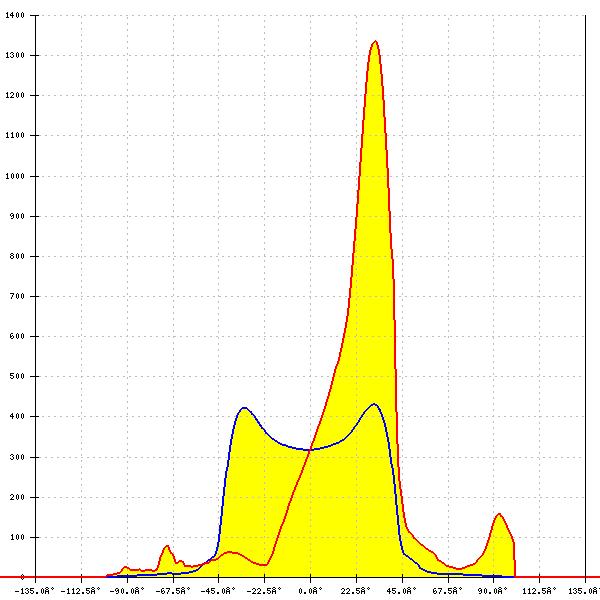

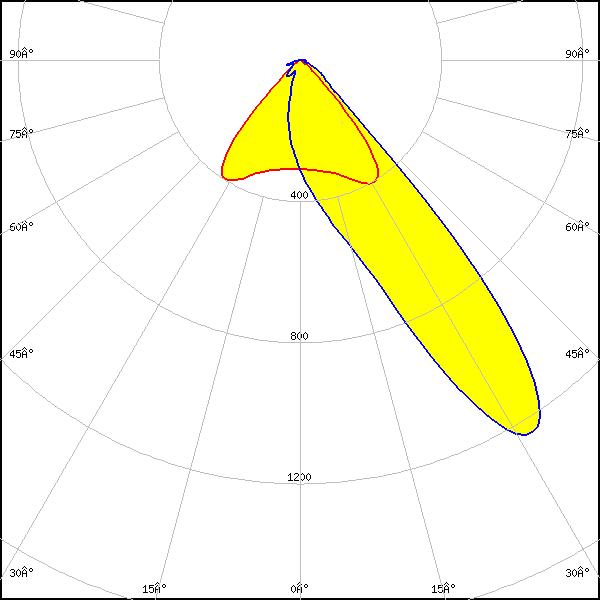

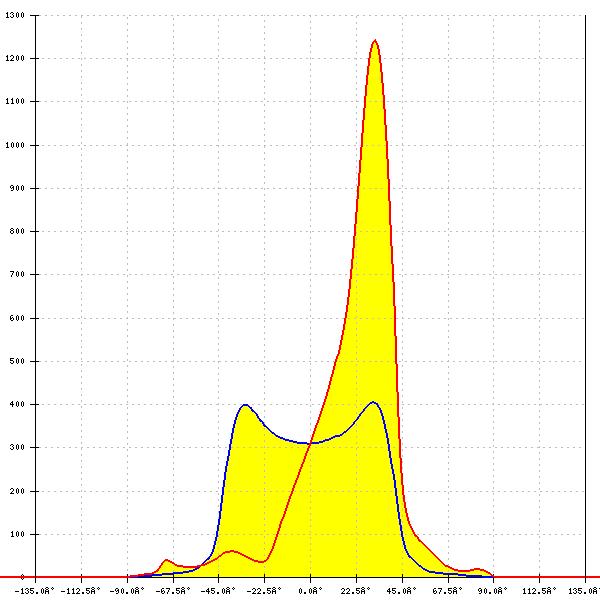

    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 1.243 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 1.337 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-20
    FWHM: asymmetric
    Peak intensity: 1.594 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

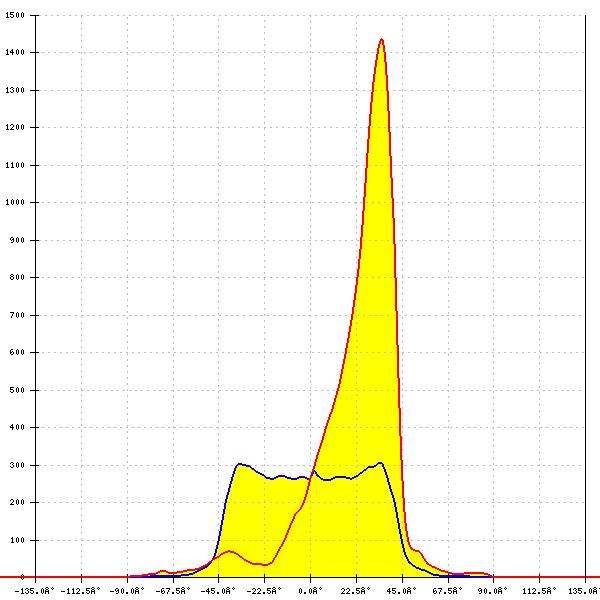

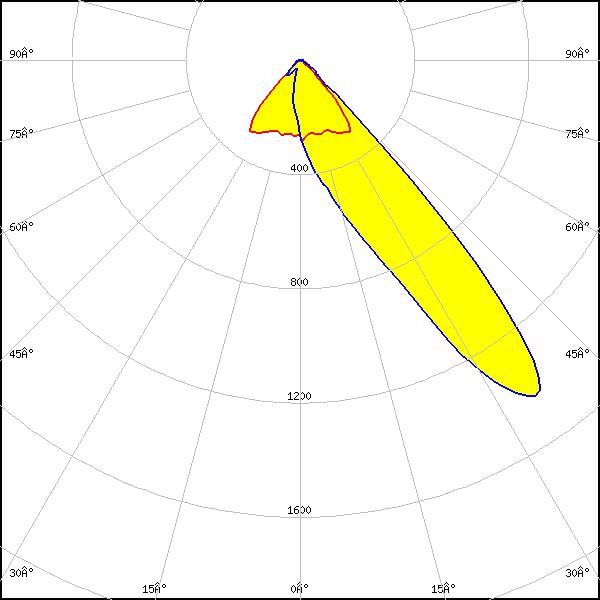

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.435 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.550 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

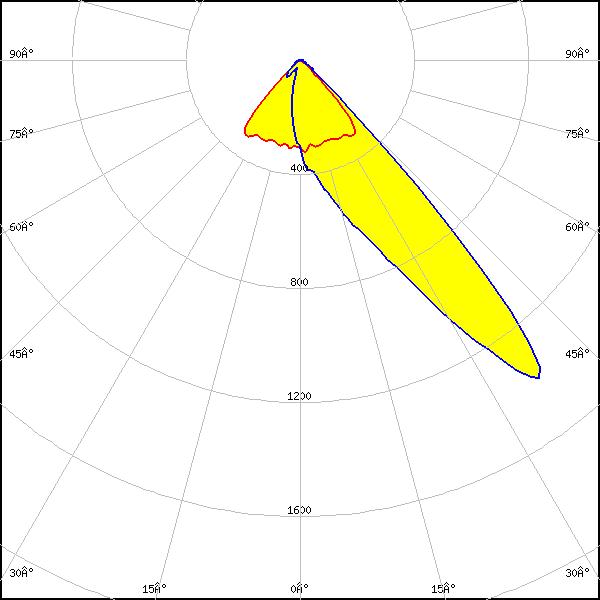

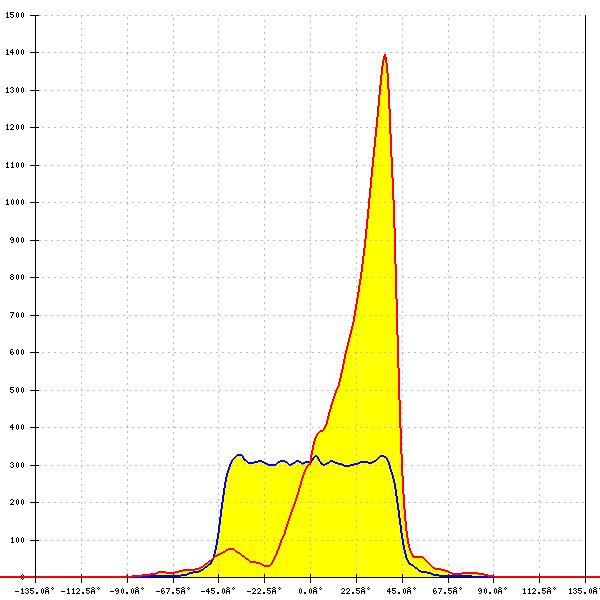

    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.396 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

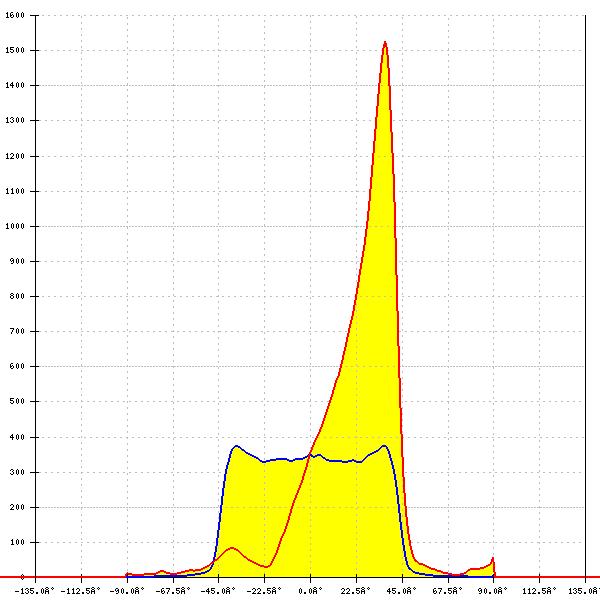

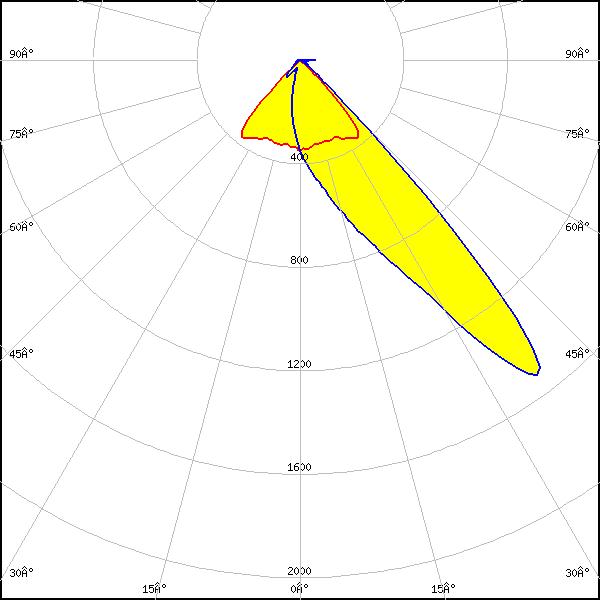

    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.525 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

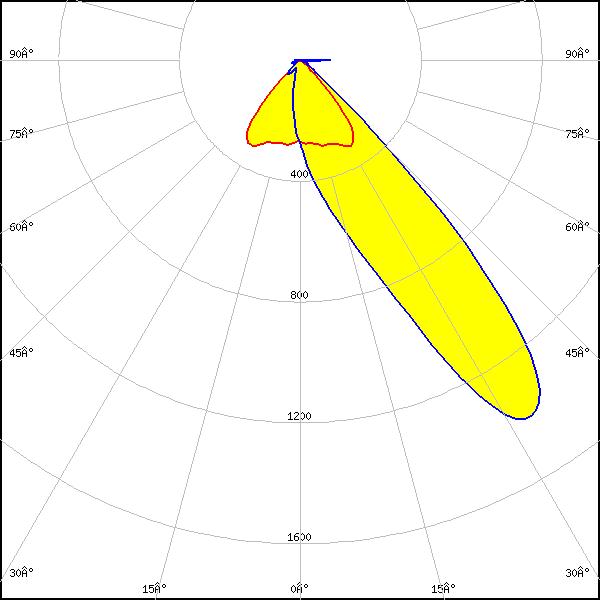

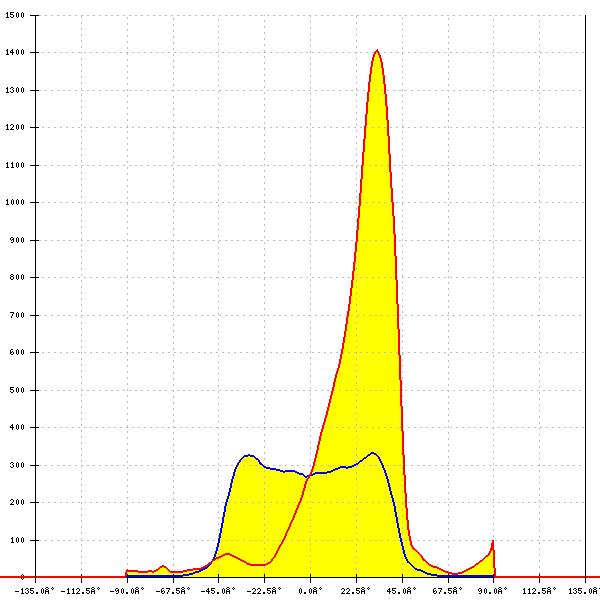

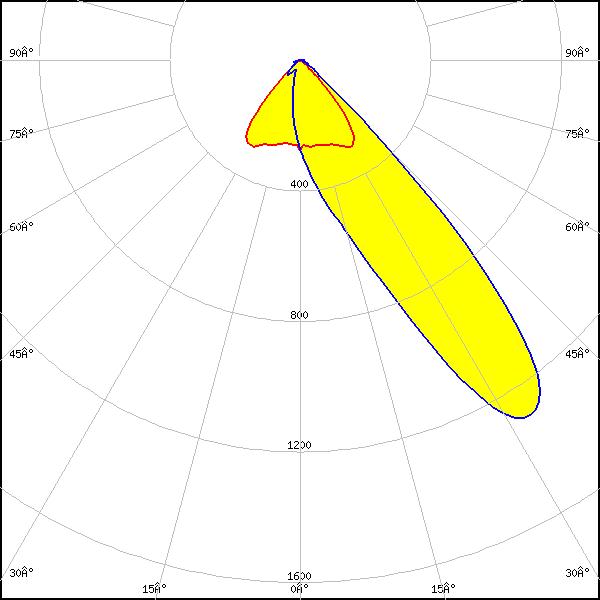

    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 1.405 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 1.298 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
