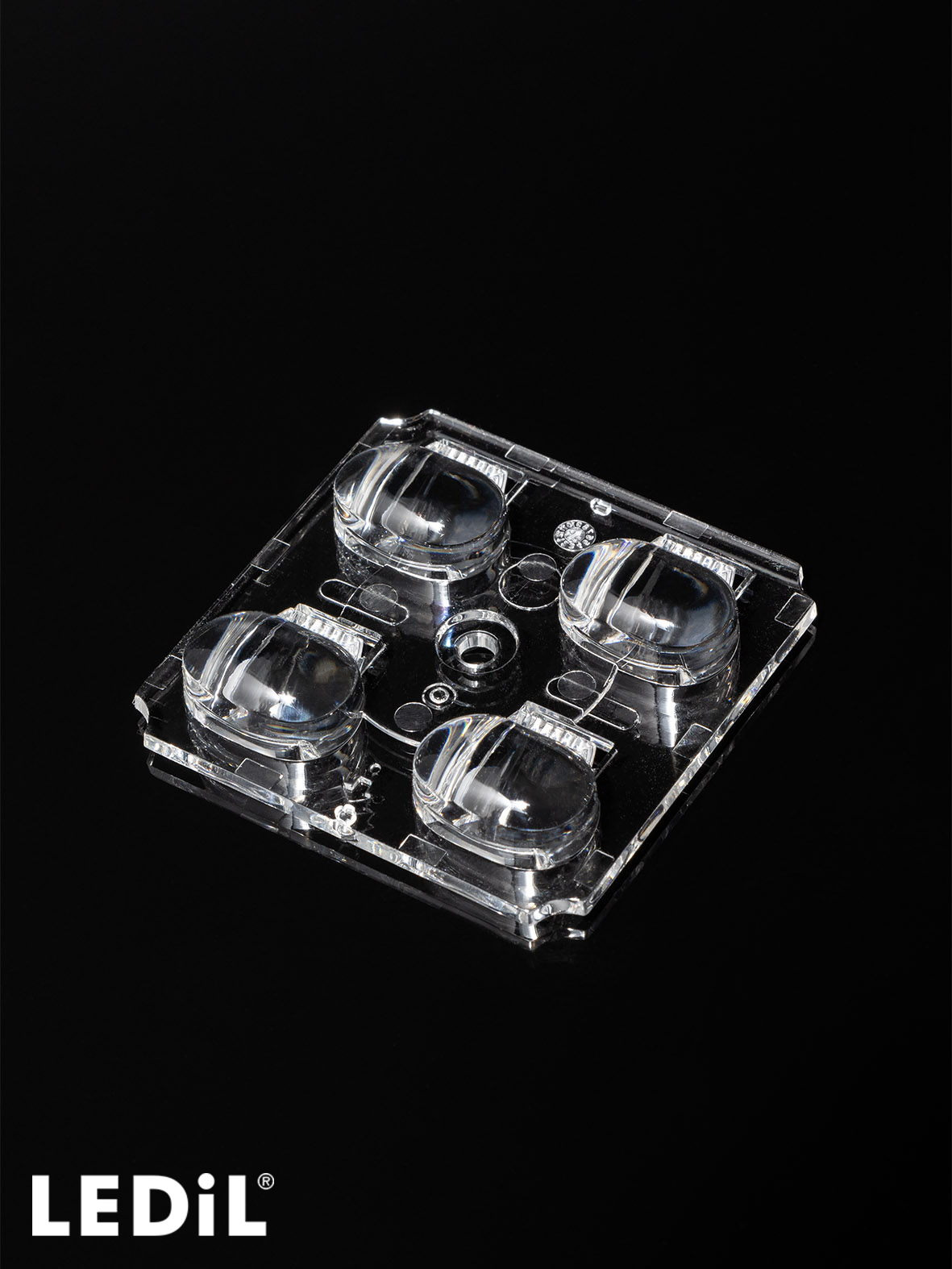

C19904_SPORT-2X2-FT4W

Wide forward throw beam with optimised cut-off for smaller fields.

Specification

Dimensions:

50 x 50 mm
Height:

9.80 mm
Fastening:

screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

640 pcs
Box size:

480 x 280 x 300 mm
Box weight:

7.0 kg
MPQ:

128 pcs
MOQ:

128 pcs
MOQ size:

480 x 280 x 80 mm
MOQ weight:

1.5 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: C19904_SPORT-2X2-FT4W

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C19904_SPORT-2X2-FT4W

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Product video

The teaser for the SPORT-2X2 optics

News

New beams and products – April 2025

Application example

Tennis court lighting with SPORT-2X2-FT4W

News

SPORT-2X2 – All you need to know

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

News

SPORT-2X2 - the right light for any sports activity

Application area

SPORTS INDOOR LIGHTING

Application area

Area and Car Park Lighting

Application guide

Guide for Sports lighting optics

Application guide

Guide for Street lighting optics

News

SPORT-2X2-S1 – Our narrowest, most powerful sport beam + new optic material for higher temperatures

Application area

Sports outdoor lighting

Optical results

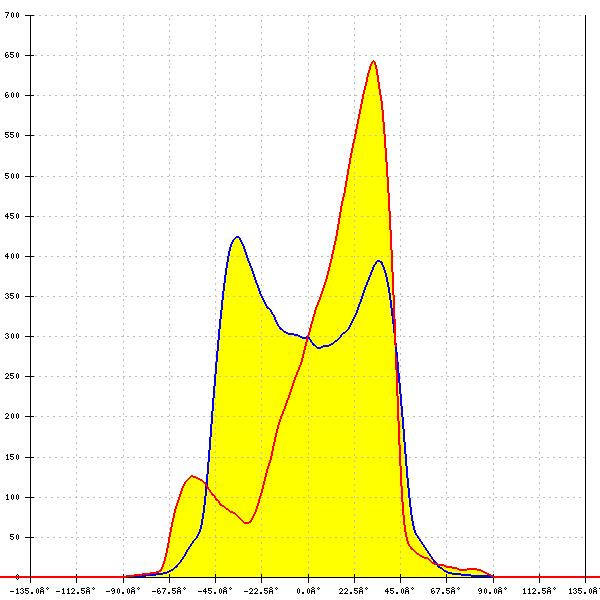

LED: J Series 5050B 6V K Class

FWHM: asymmetric

Peak intensity: 0.891 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

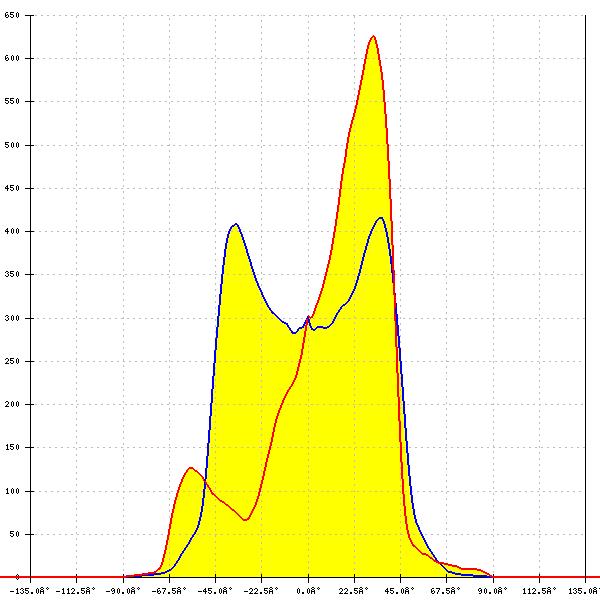

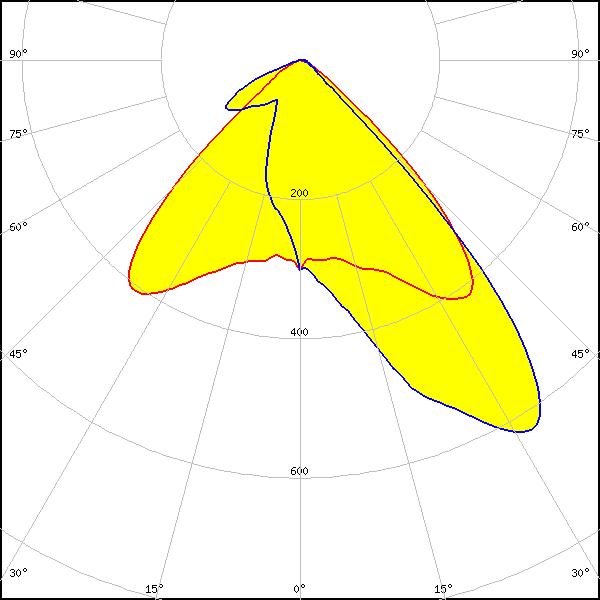

LED: LUXEON 5050 HE

FWHM: asymmetric

Peak intensity: 0.949 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

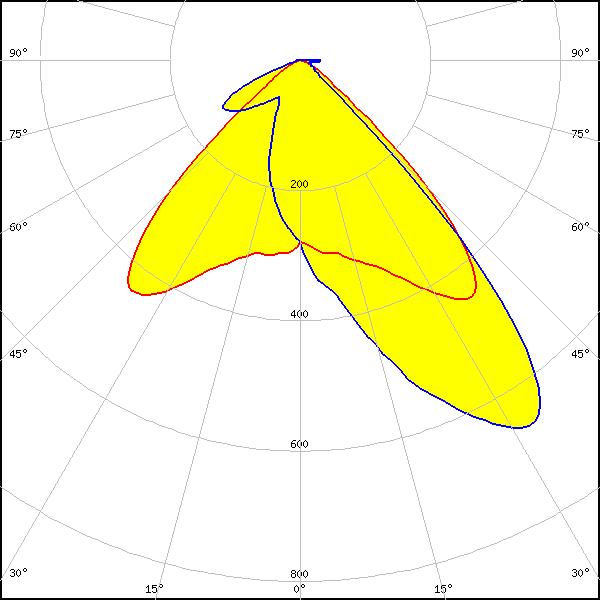

LED: LUXEON 5050 HE

FWHM: asymmetric

Peak intensity: 0.877 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

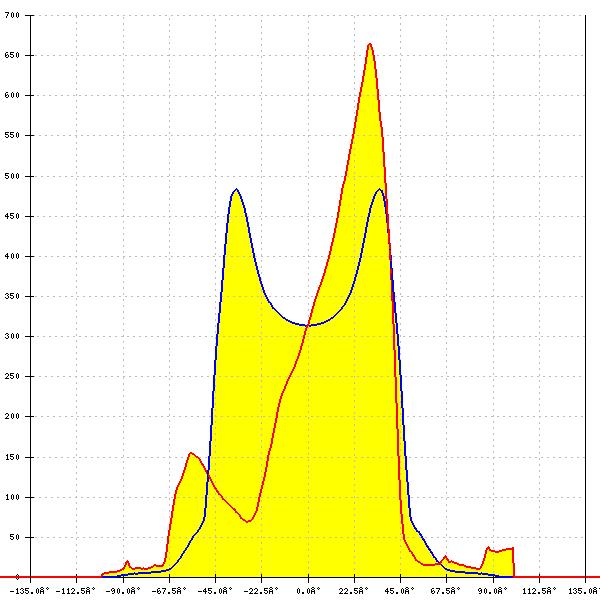

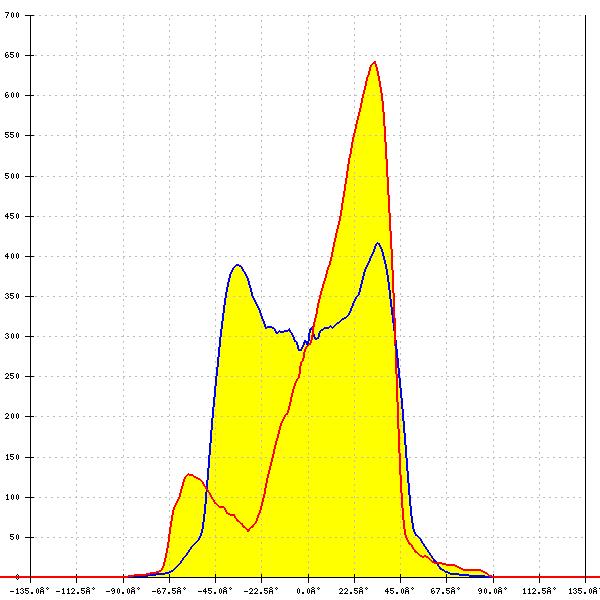

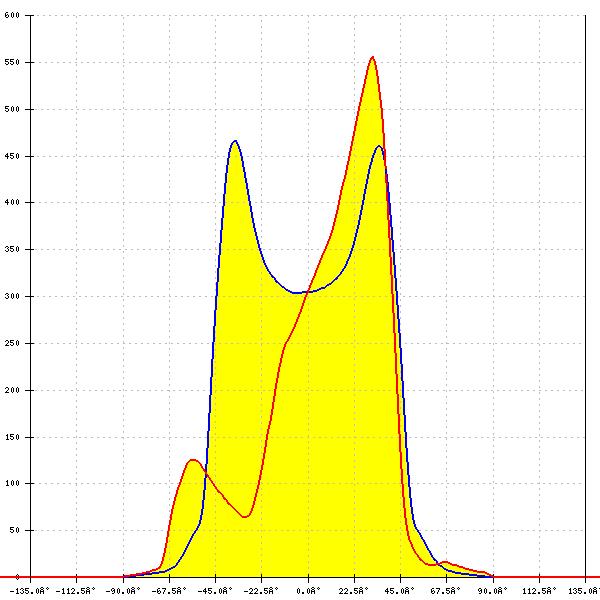

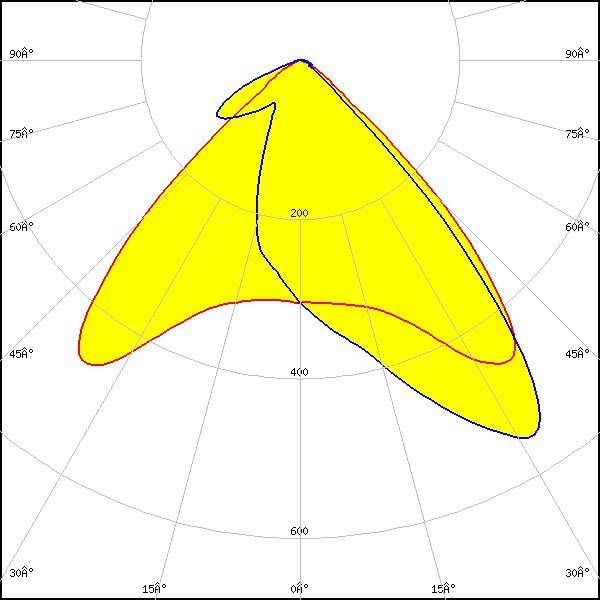

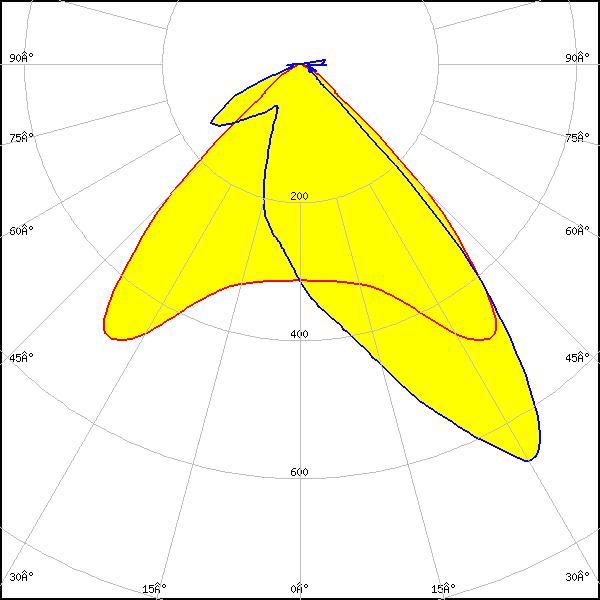

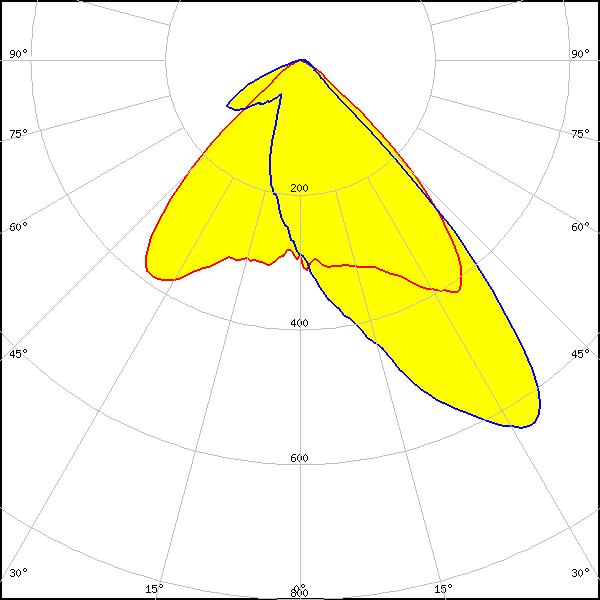

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 1.145 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 0.947 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

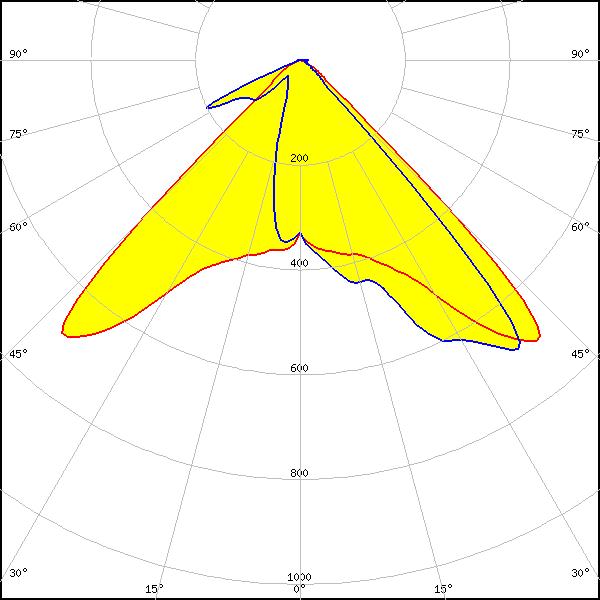

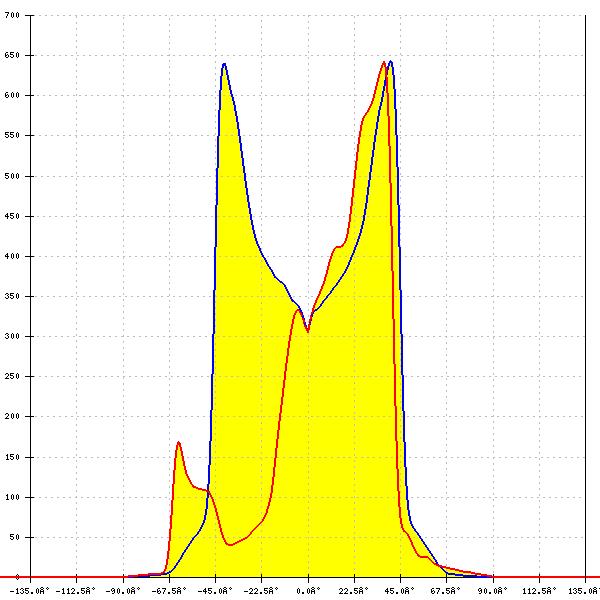

LED: SFT-12R-W-A

FWHM: asymmetric

Peak intensity: 1.052 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: SFT-12R-W-A

FWHM: asymmetric

Peak intensity: 0.971 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

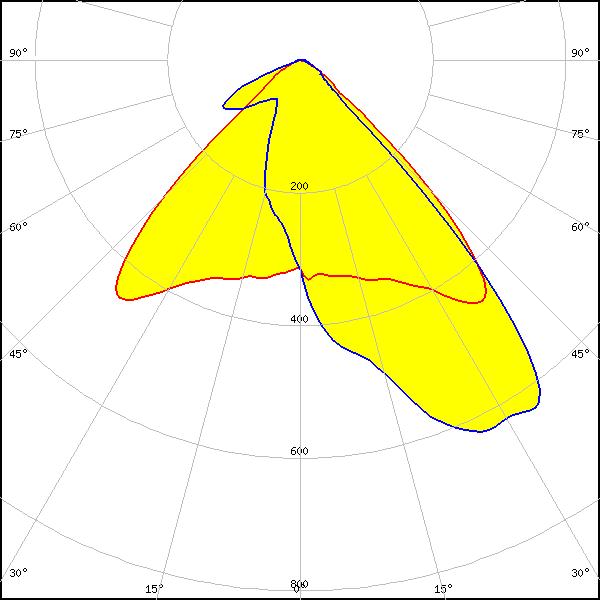

LED: NV4WB35AM

FWHM: asymmetric

Peak intensity: 0.949 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

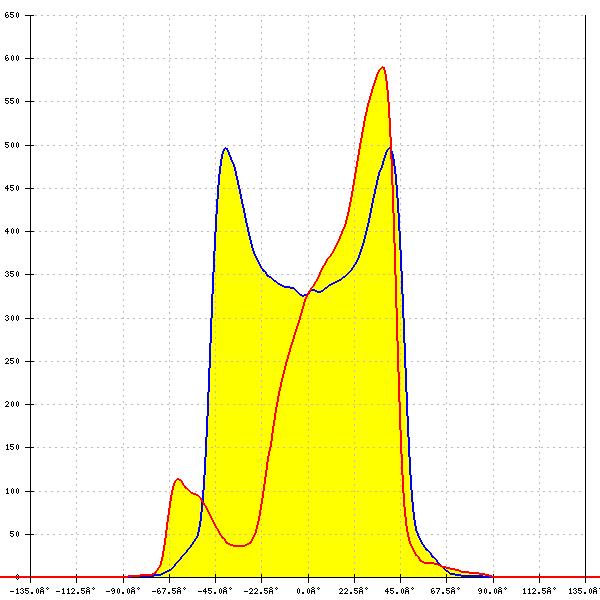

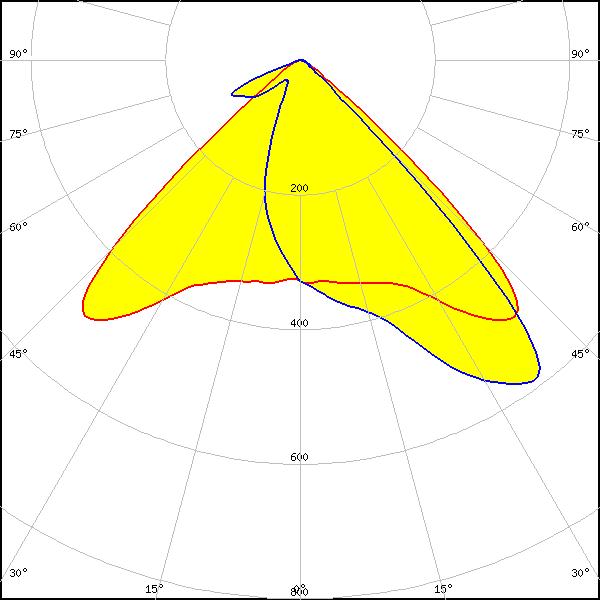

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 0.936 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

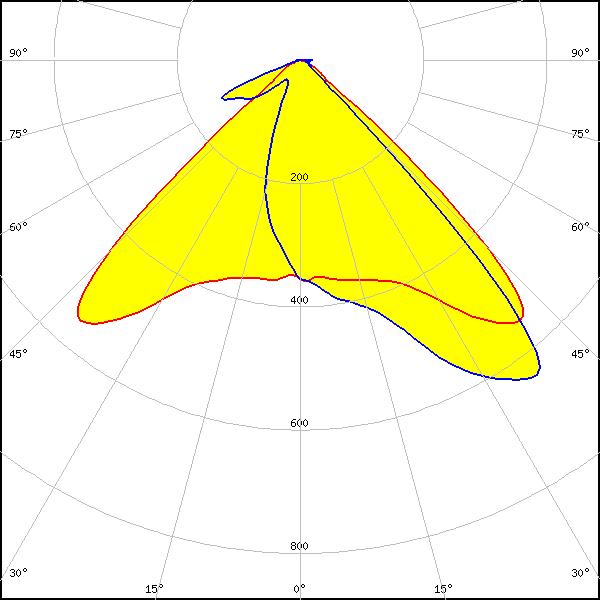

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 0.823 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

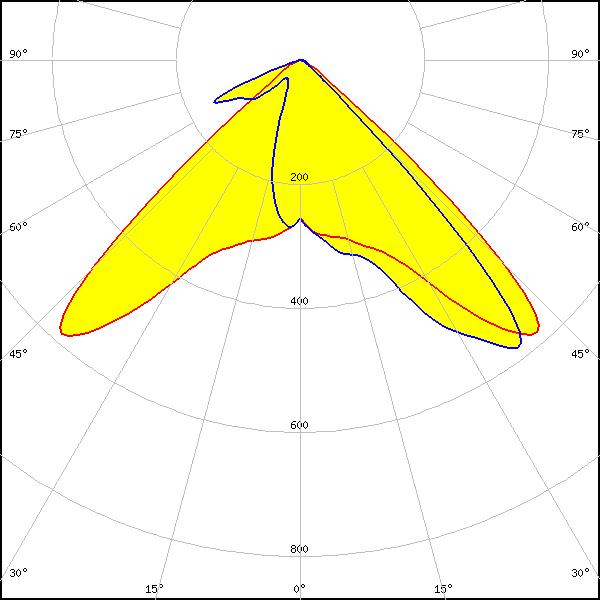

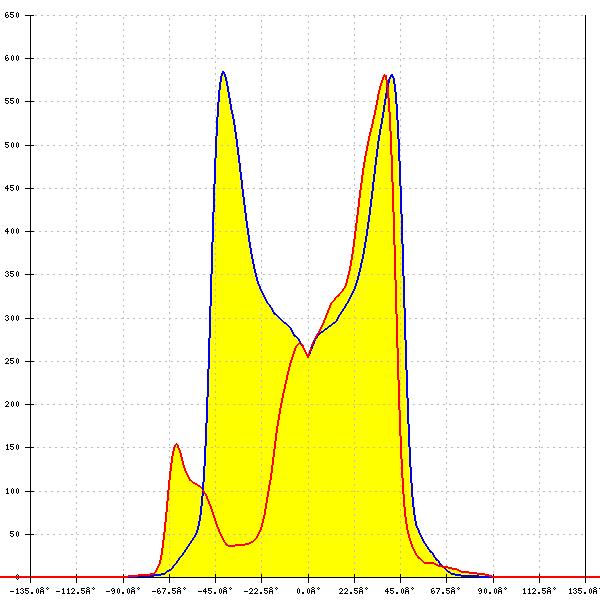

LED: OSLON SSL 150

FWHM: asymmetric

Peak intensity: 1.035 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

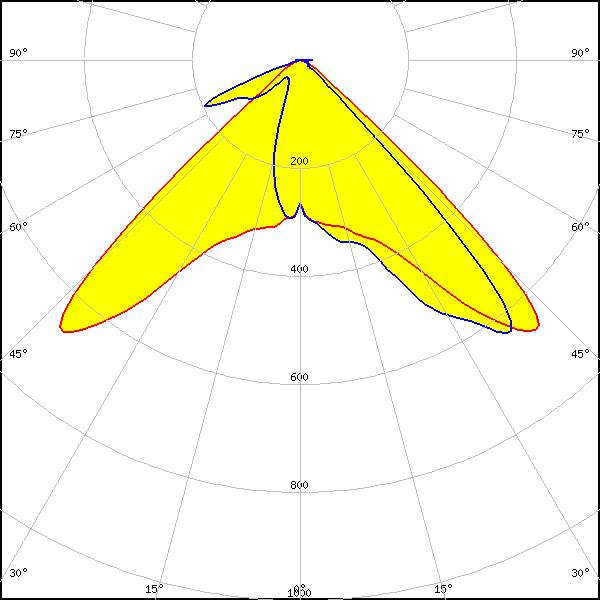

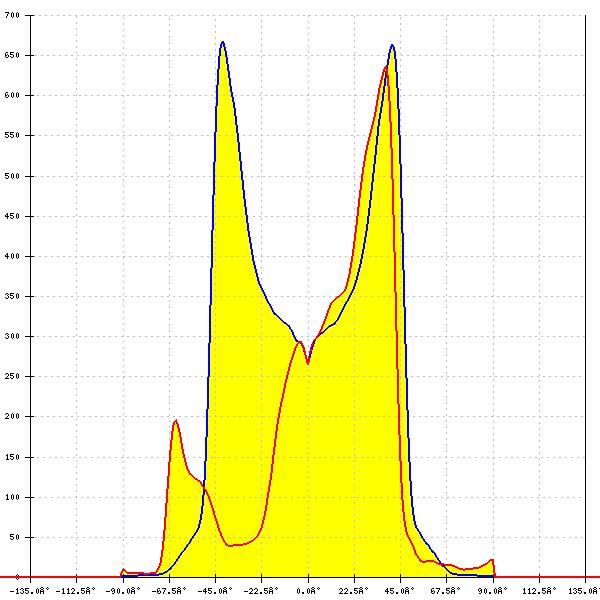

LED: OSLON SSL 150

FWHM: asymmetric

Peak intensity: 0.898 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
