    IRIS

    Print

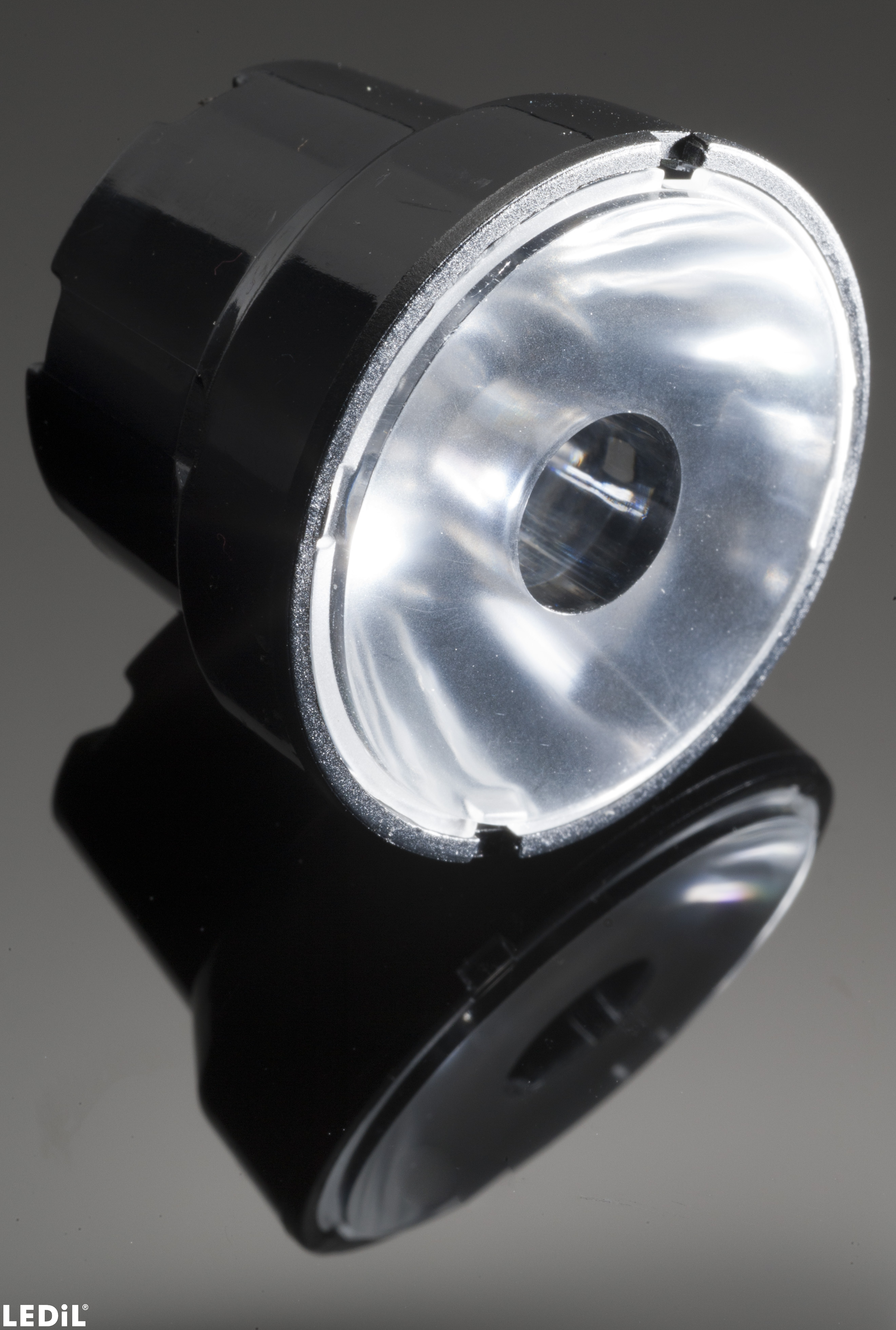

    ~10° spot beam with holder

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      38 mm
    • Height:
      28.50 mm
    • Fastening:
      glue, screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Single lens
      1 pcs
    • Holder
      1 pcs
    • Single lens
    • C10781_IRIS
      clear
    • Quantity in box:
      580 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.00 kg
    • MPQ:
      58 pcs
    • MOQ:
      116 pcs
    • MOQ Size:
      480 x 280 x 80 mm
    • MOQ Weight:
      1.90 kg
    • Holder
    • C10860_IRIS-HLD
      black
    • Quantity in box:
      1044 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.20 kg
    • MPQ:
      29 pcs
    • MOQ:
      116 pcs
    • MOQ Size:
      480 x 280 x 70 mm
    • MOQ Weight:
      1.00 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C10781_IRIS
      C10860_IRIS-HLD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Training video

    Seeing further with LEDiL´s IR optics

    Application guide

    Seeing further with LEDiL’s IR optics

    PCN

    Product change notification NR140 -Change of packaging quantities and carton sizes 081217

    PCN

    Product change notification NR134.c - Change of packaging quantities 200417

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR175 - Change of amount in carton

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Victory Square in Saint-Petersburg

    Application area

    Outdoor Special Applications

    Application area

    Architectural Outdoor Lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Installation guide

    IRIS Lens Assembly Instructions

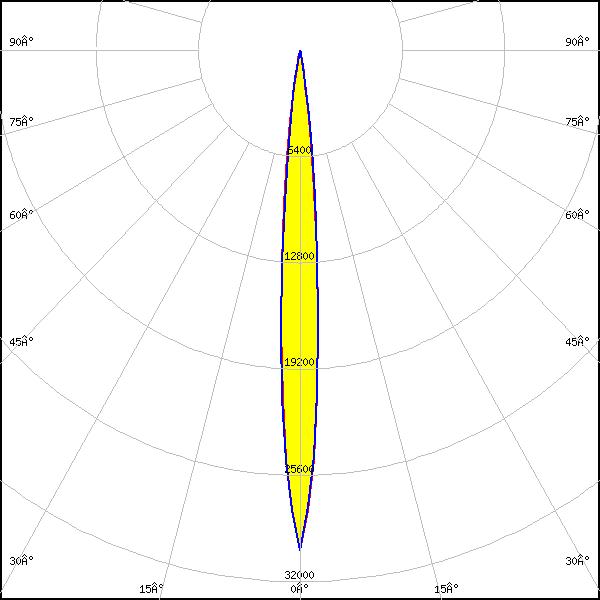

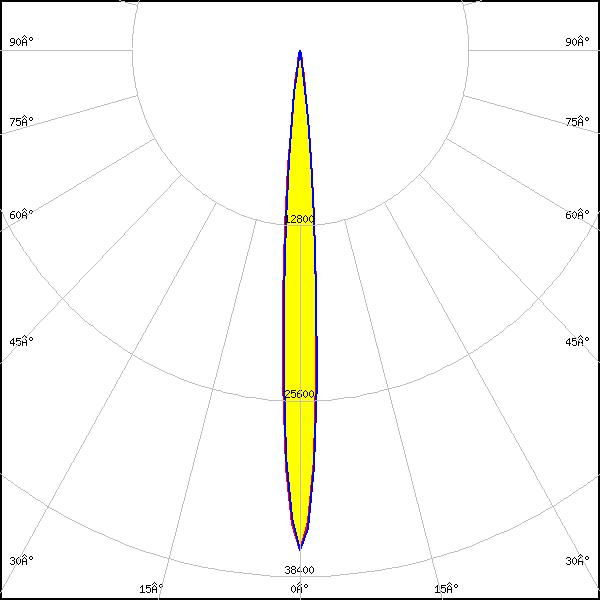

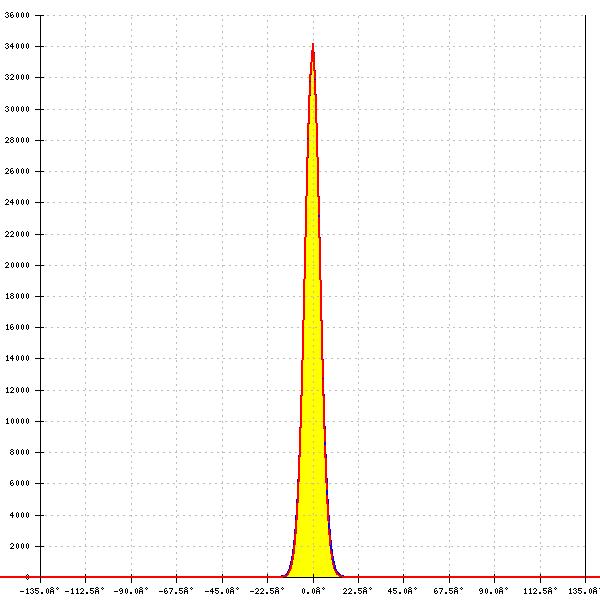

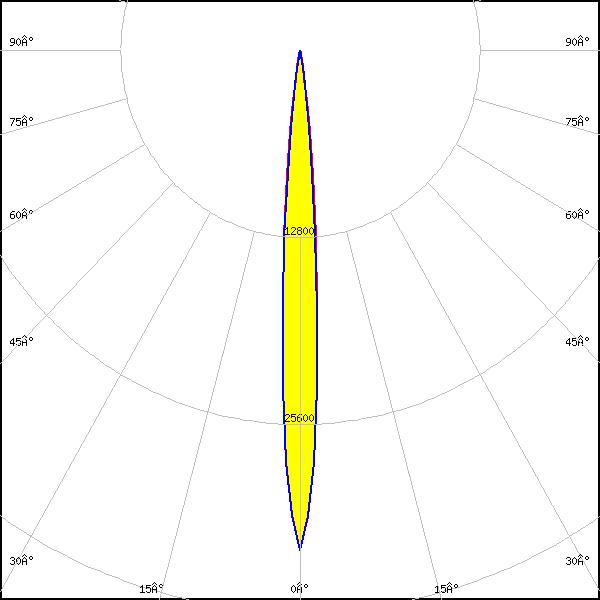

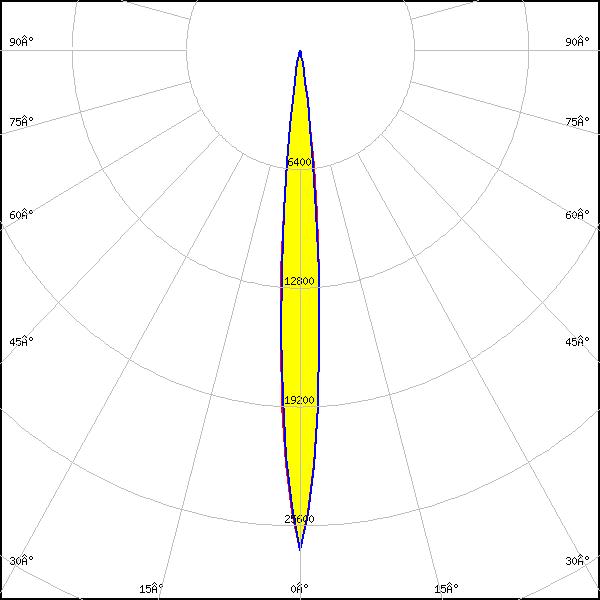

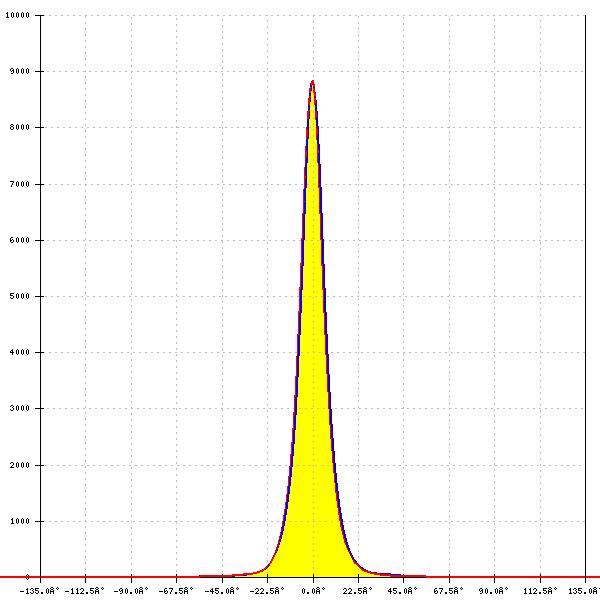

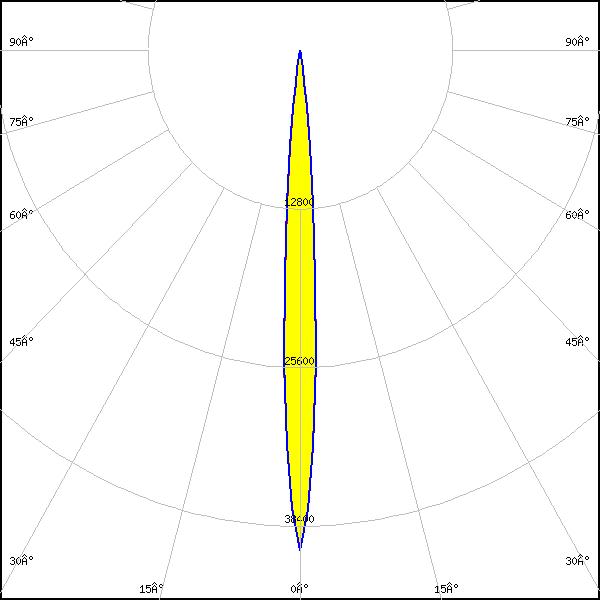

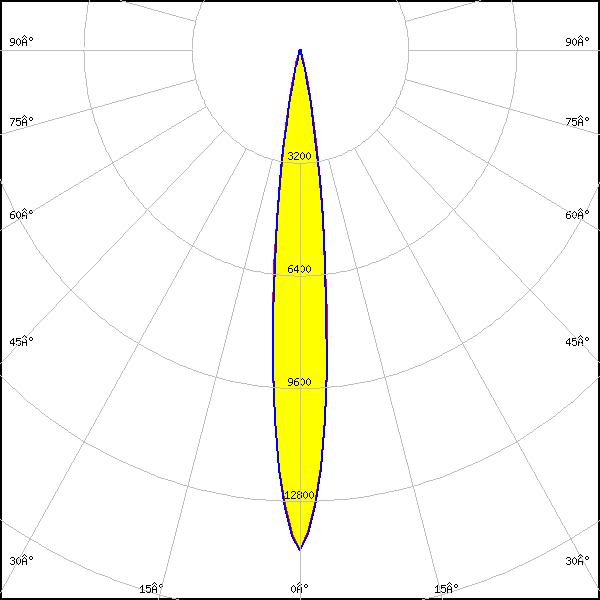

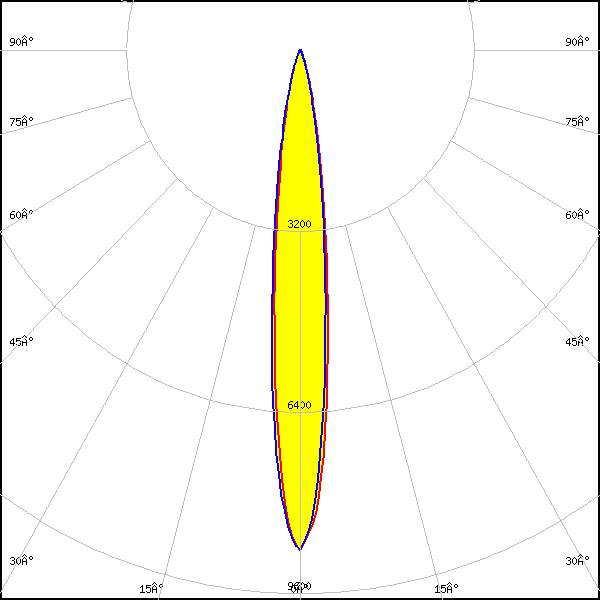

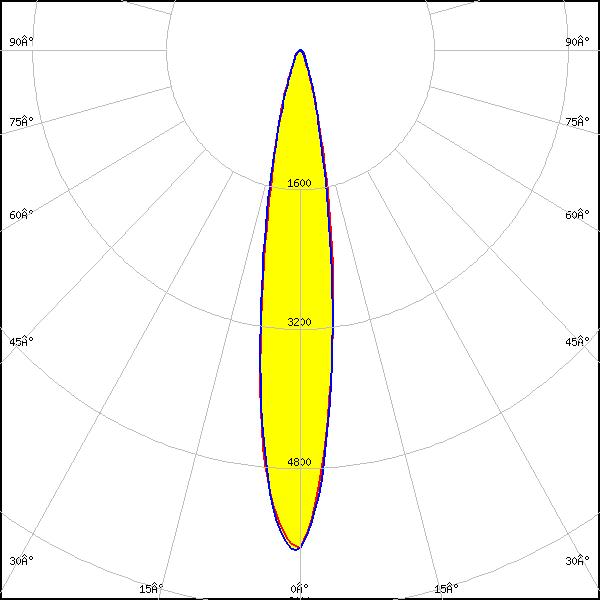

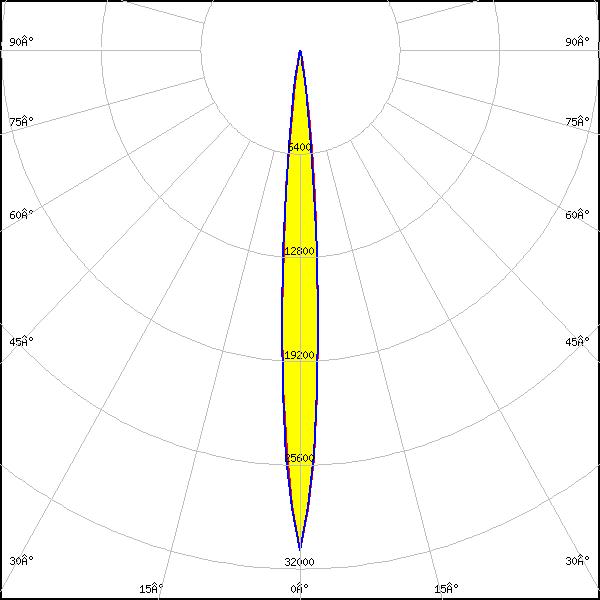

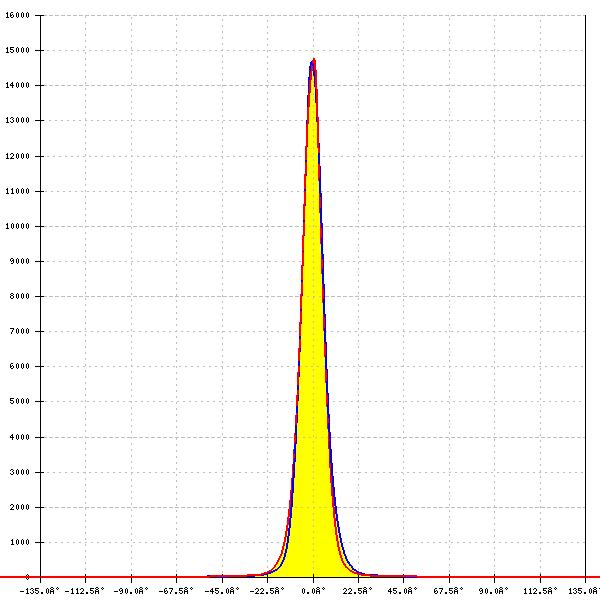

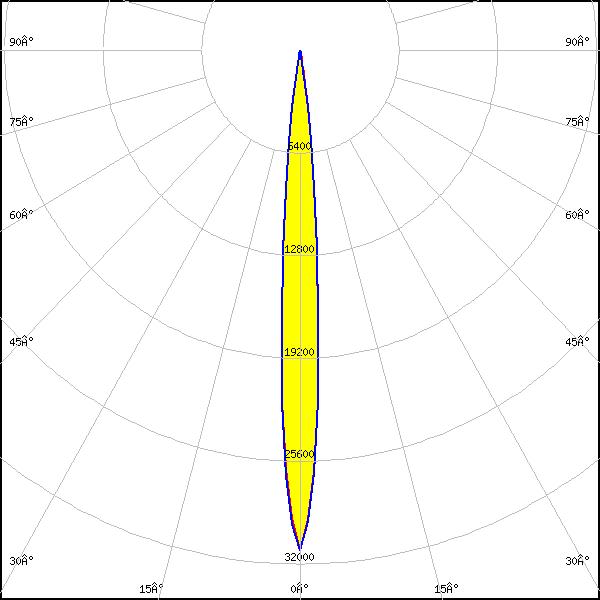

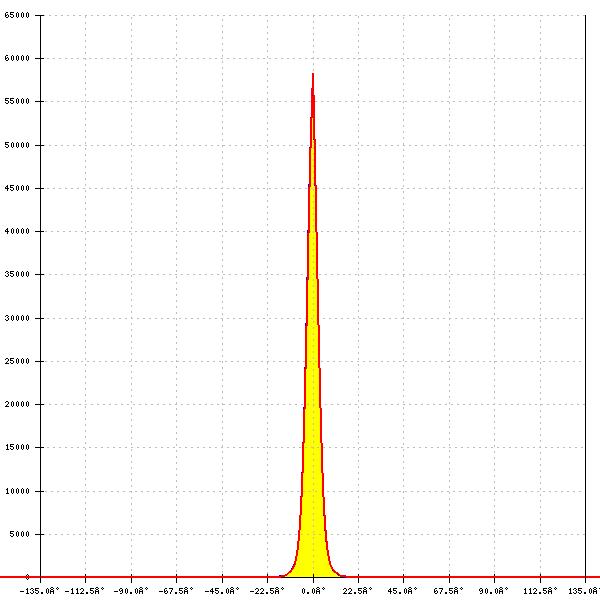

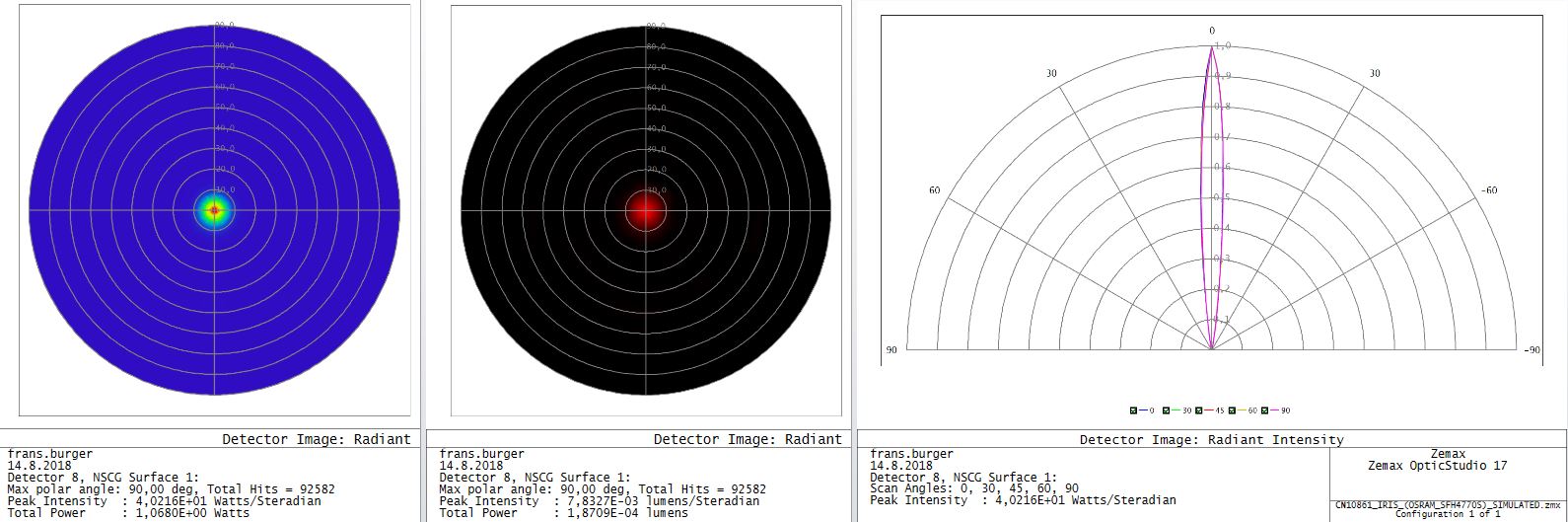

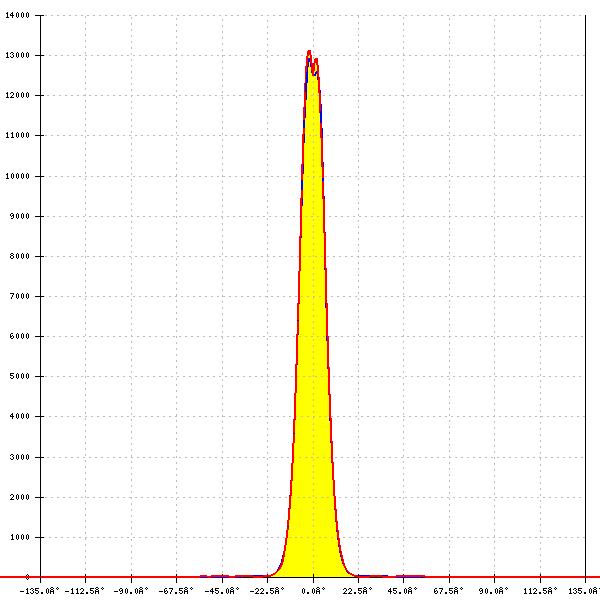

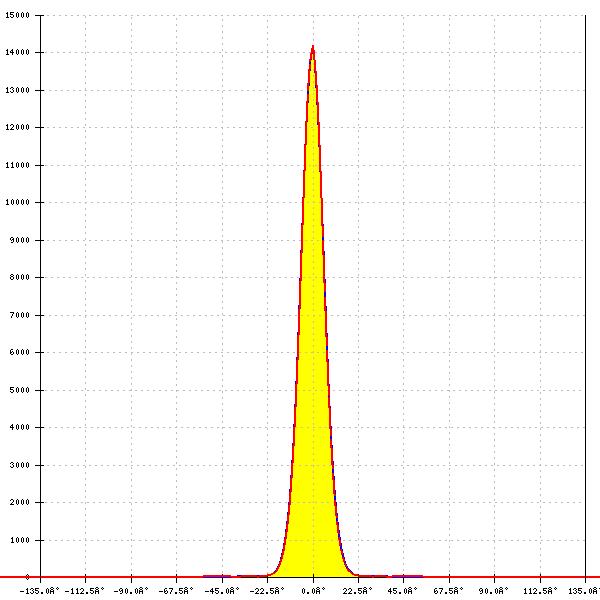

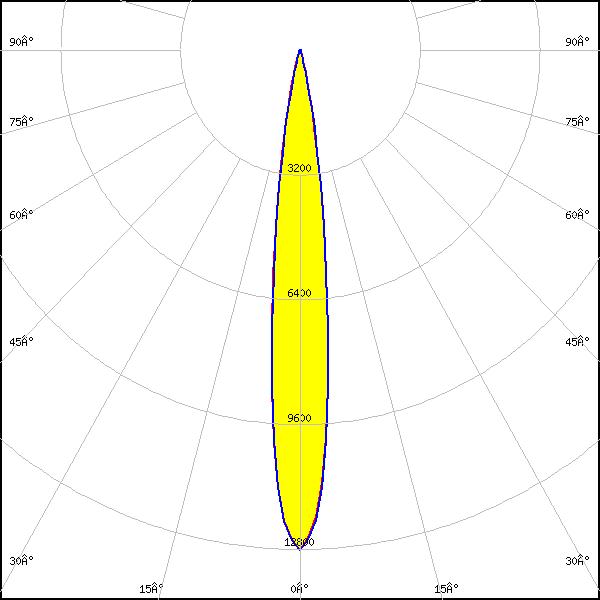

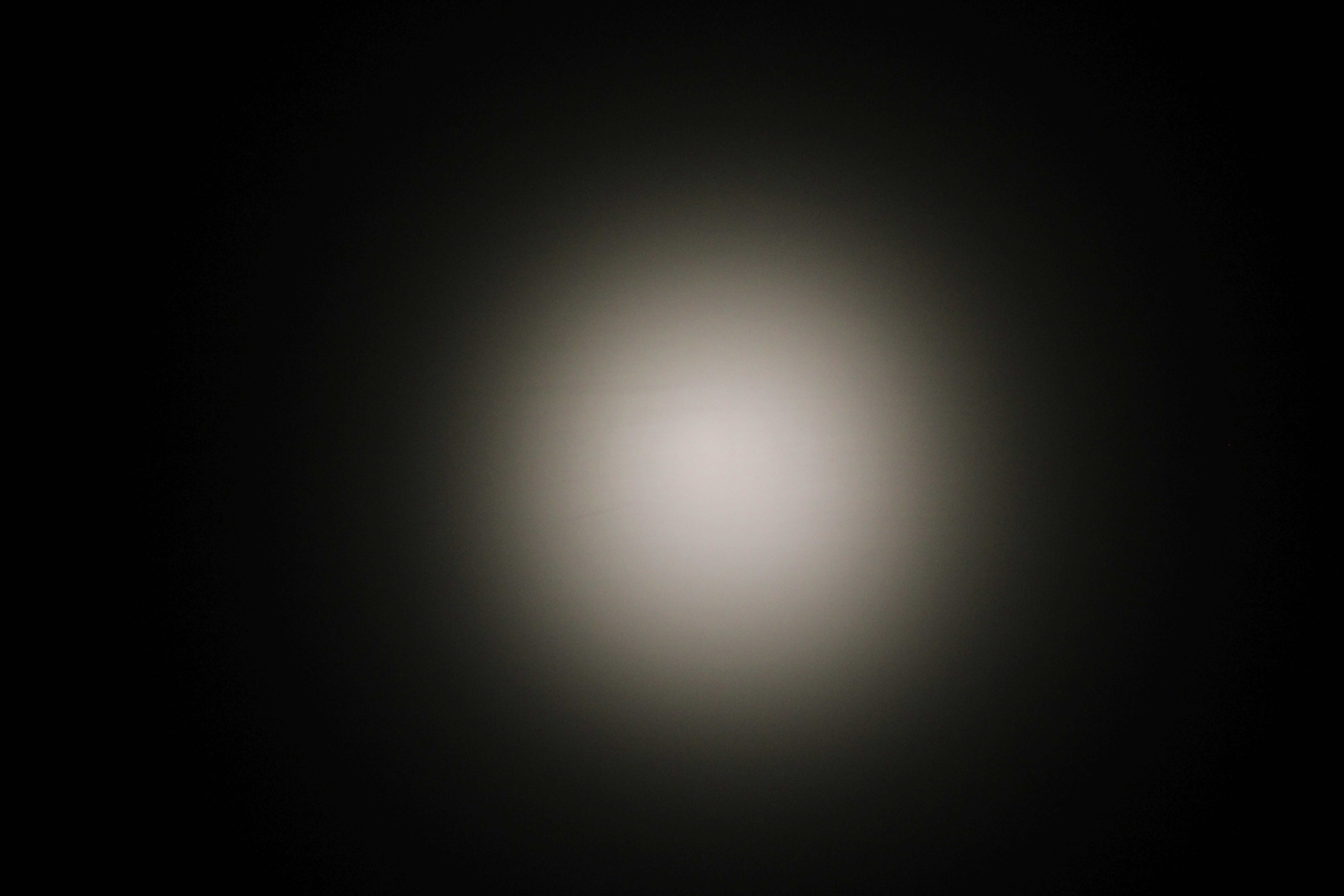

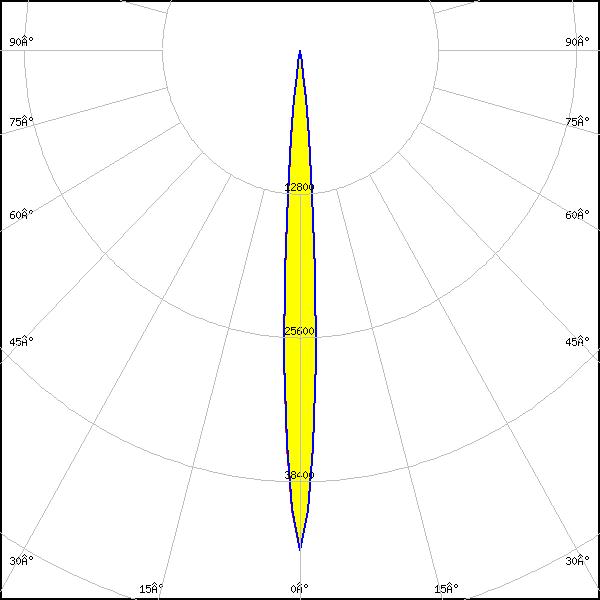

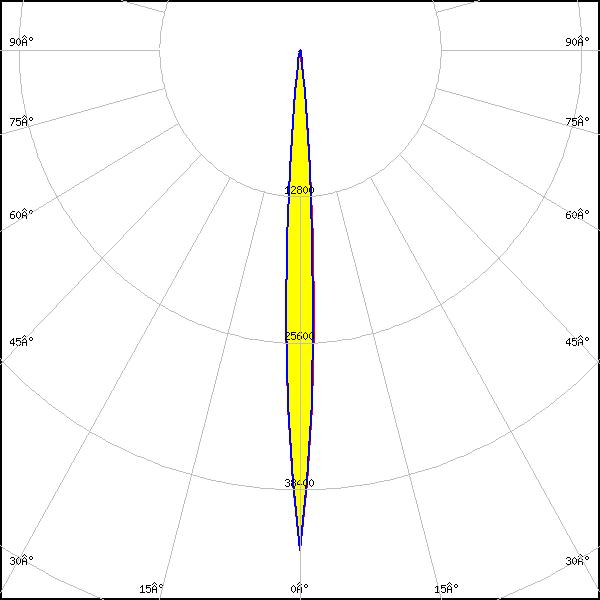

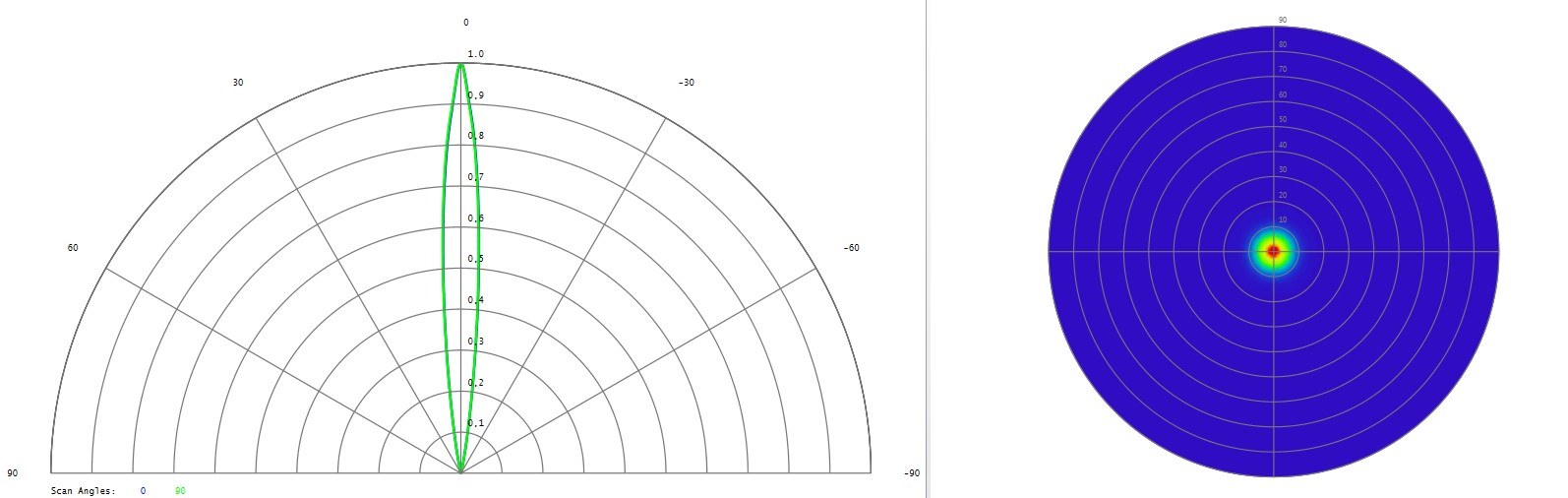

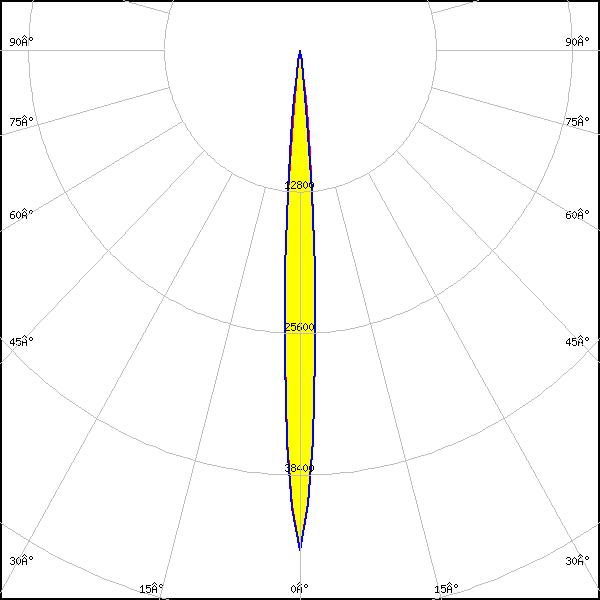

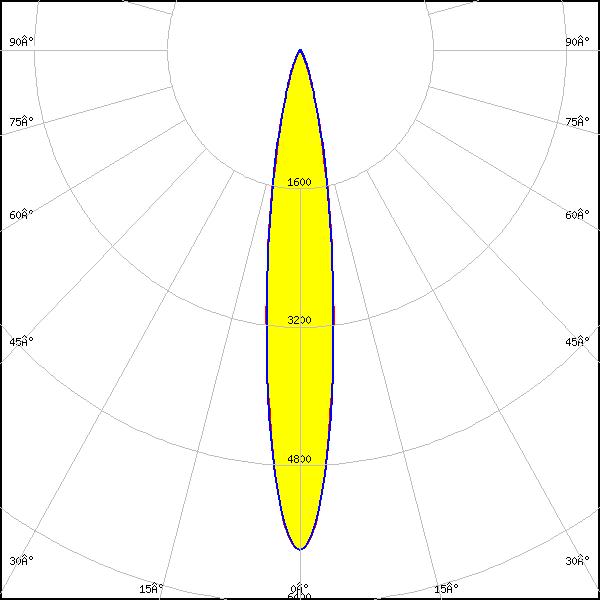

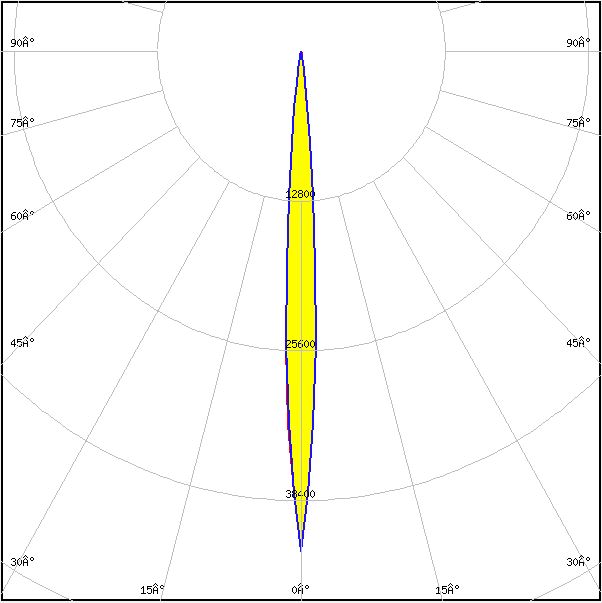

    Optical results

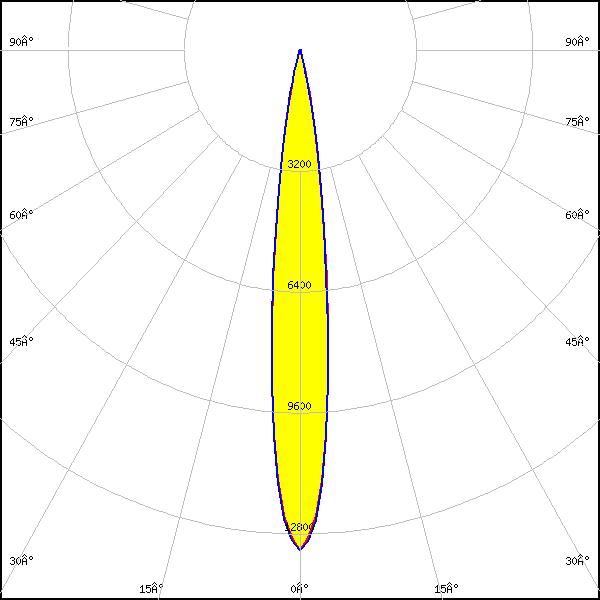

    LED: Bridgelux SMD 5050
    FWHM: 13°
    FWTM: 25°
    Peak intensity: 13.230 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 14.188 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

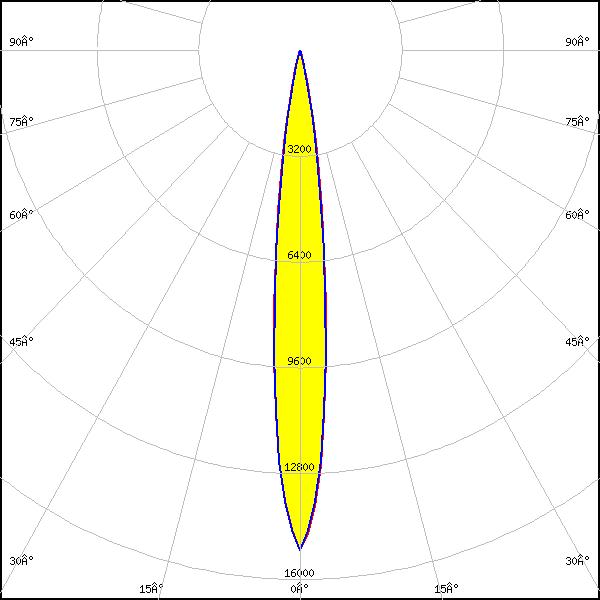

    LED: J Series 5050C 6V E Class
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.117 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

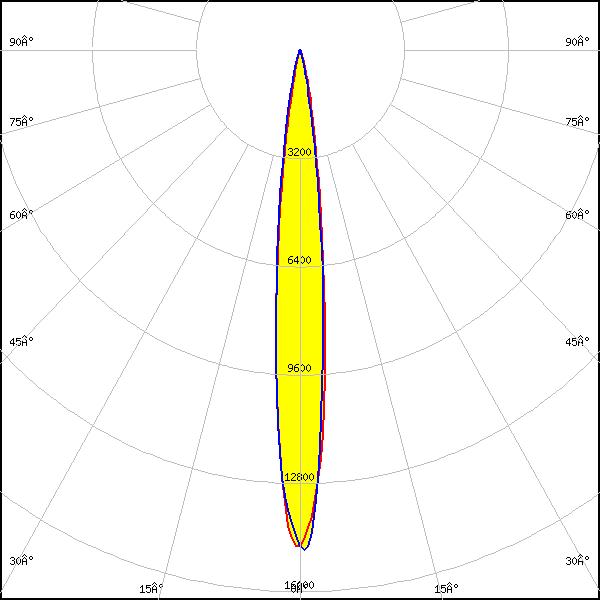

    LED: MC-E
    FWHM: 11°
    FWTM: 24°
    Peak intensity: 15.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MHD-E/G
    FWHM: 17°
    FWTM: 37°
    Peak intensity: 5.700 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

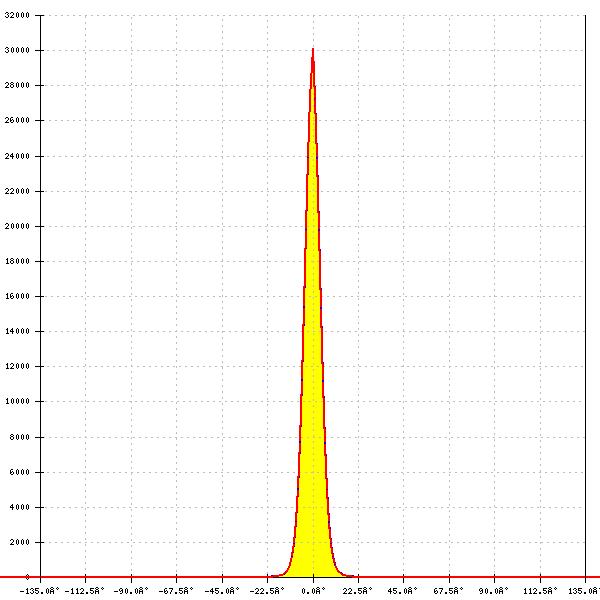

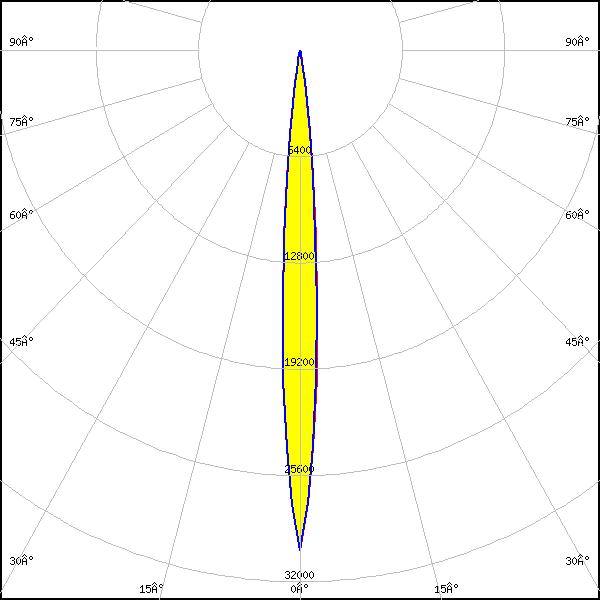

    LED: XD16
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 30.106 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

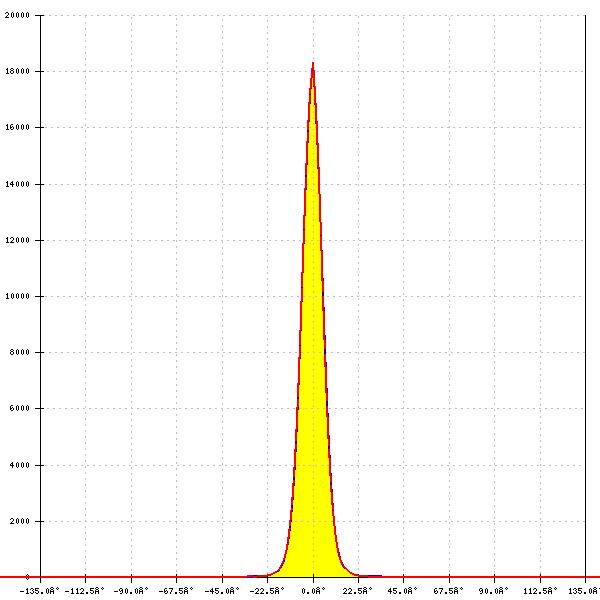

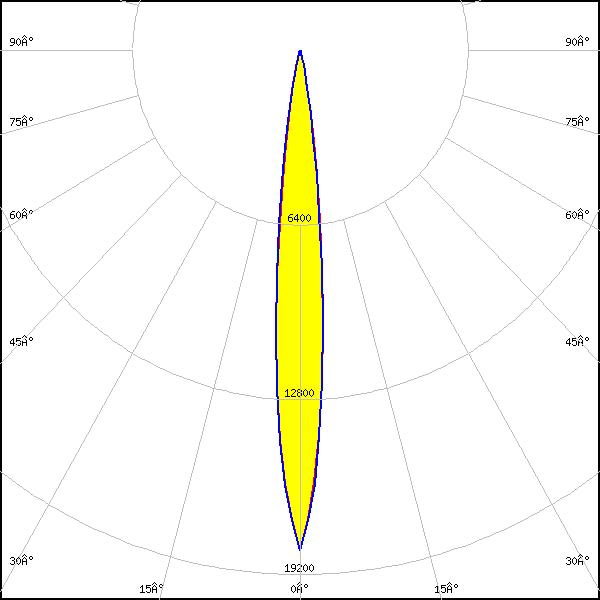

    LED: XHP35 HD
    FWHM: 11°
    FWTM: 22°
    Peak intensity: 18.315 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

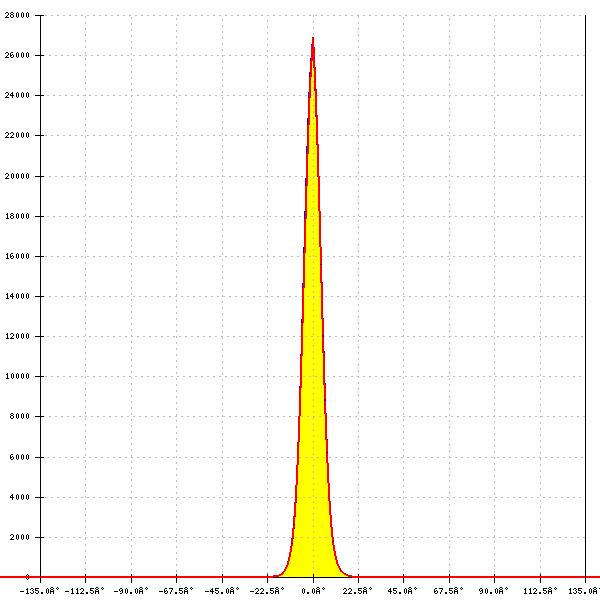

    LED: XHP35 HI
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 26.927 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

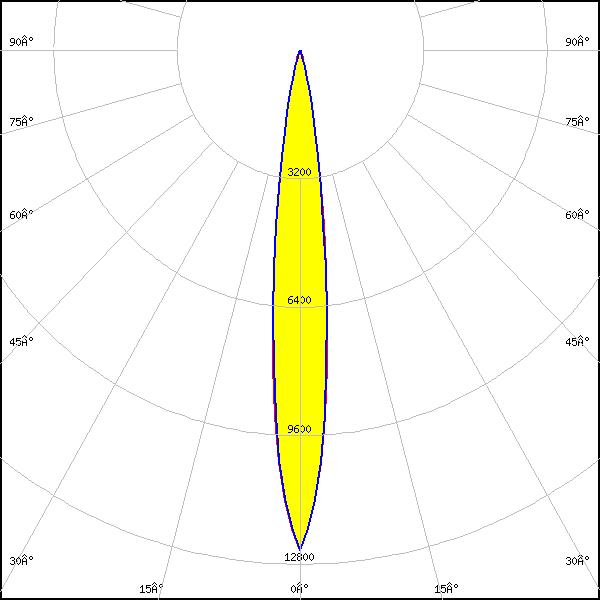

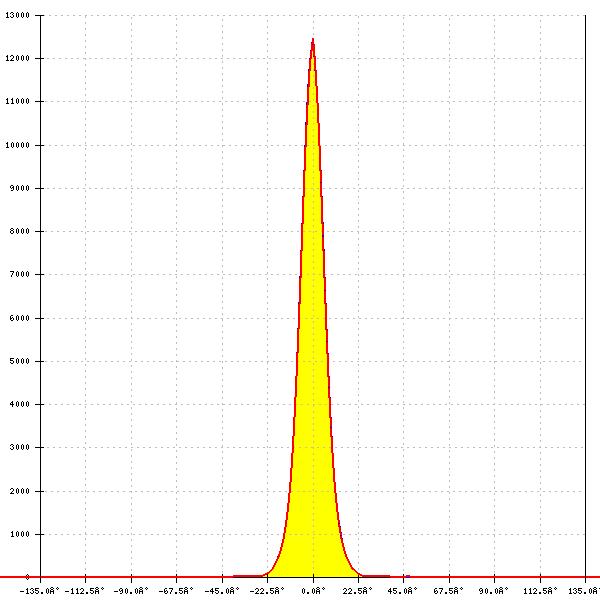

    LED: XHP35.2 HD
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 12.456 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

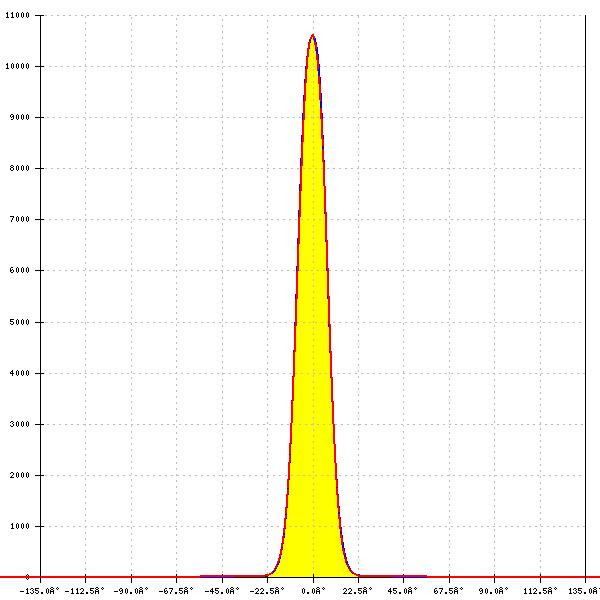

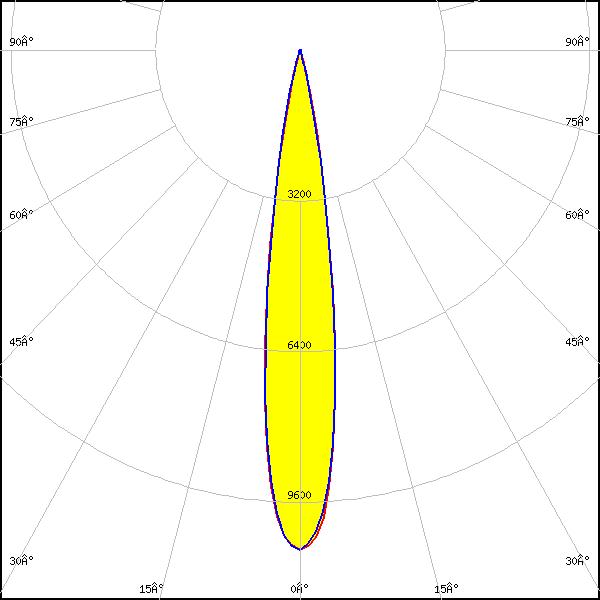

    LED: XHP50
    FWHM: 16°
    FWTM: 27°
    Peak intensity: 10.620 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

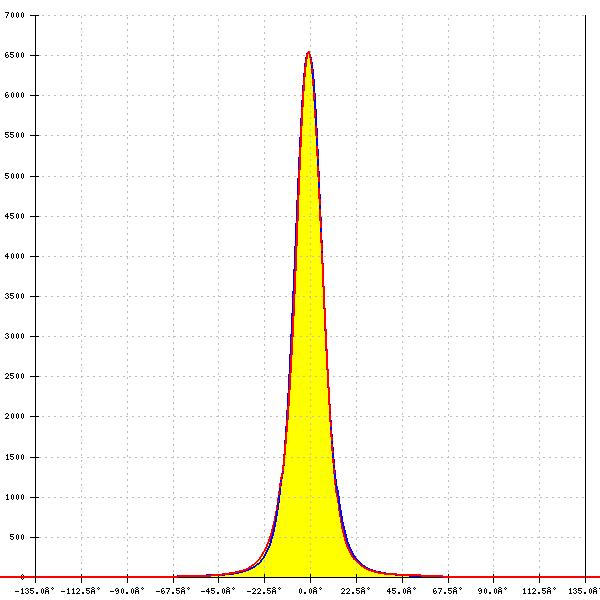

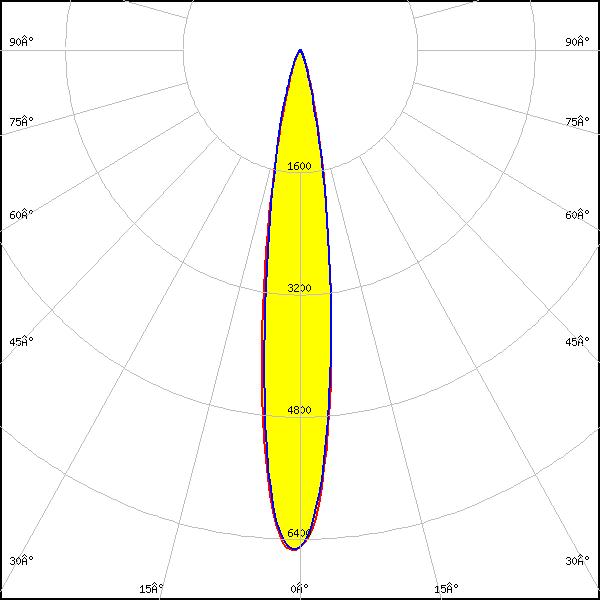

    LED: XHP50
    FWHM: 16°
    FWTM: 33°
    Peak intensity: 6.580 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

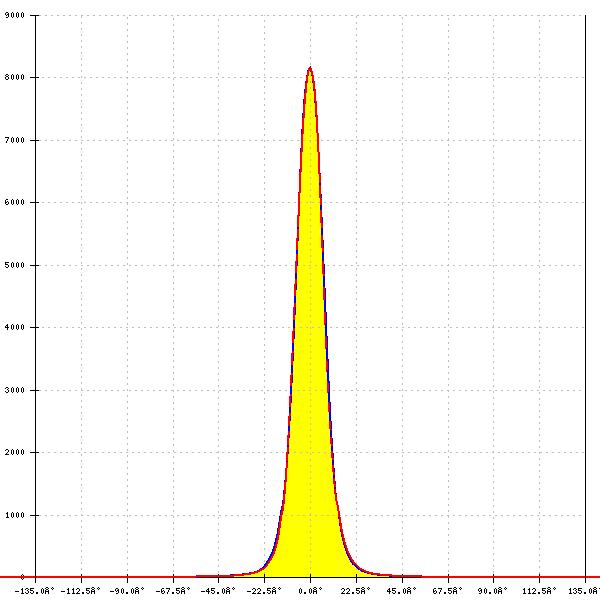

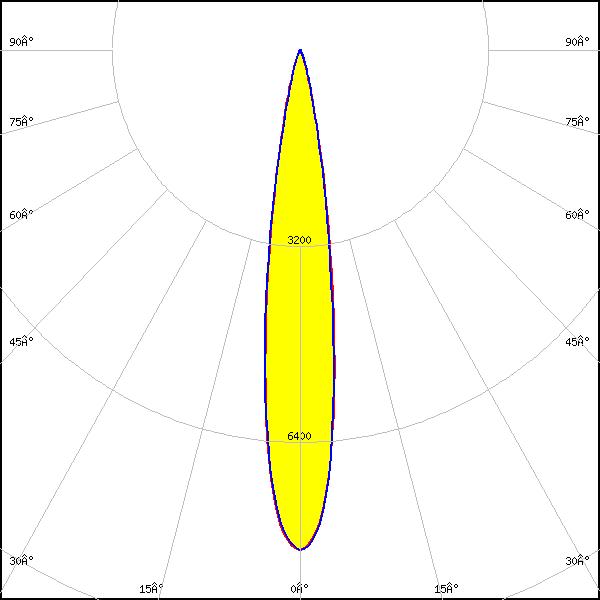

    LED: XHP50.2
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 8.200 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

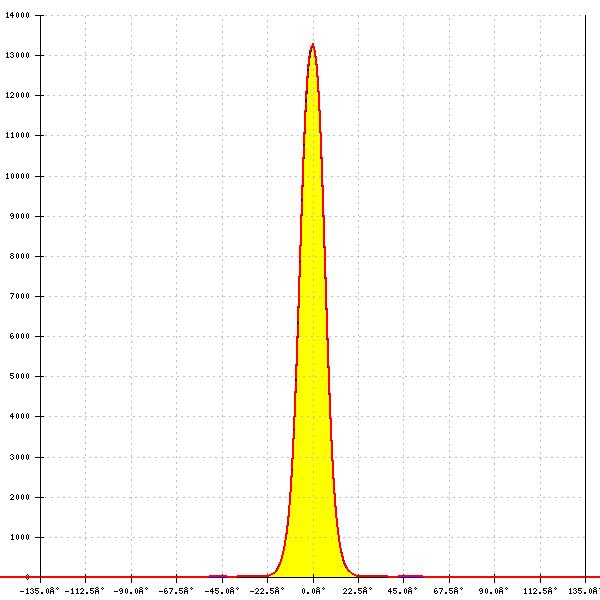

    LED: XHP50.3 HD
    FWHM: 14°
    FWTM: 24°
    Peak intensity: 13.294 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

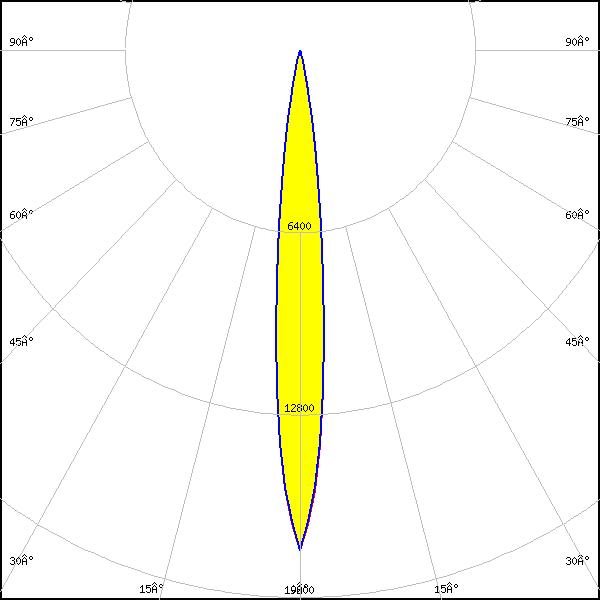

    LED: XHP50.3 HI
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.551 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

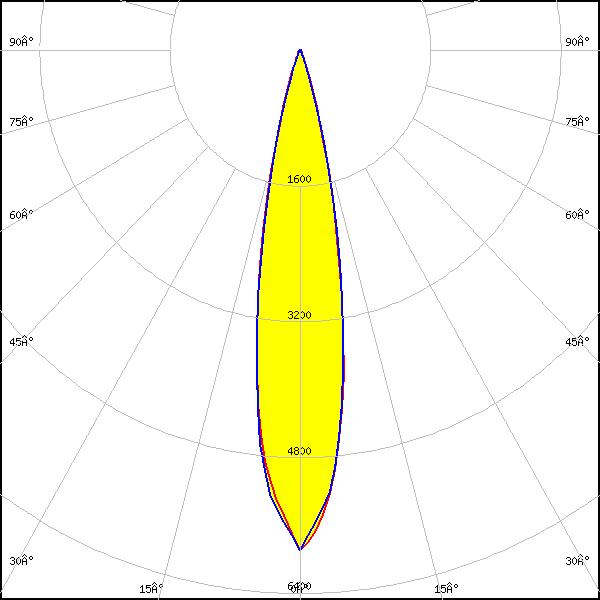

    LED: XHP70.2
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 5.895 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

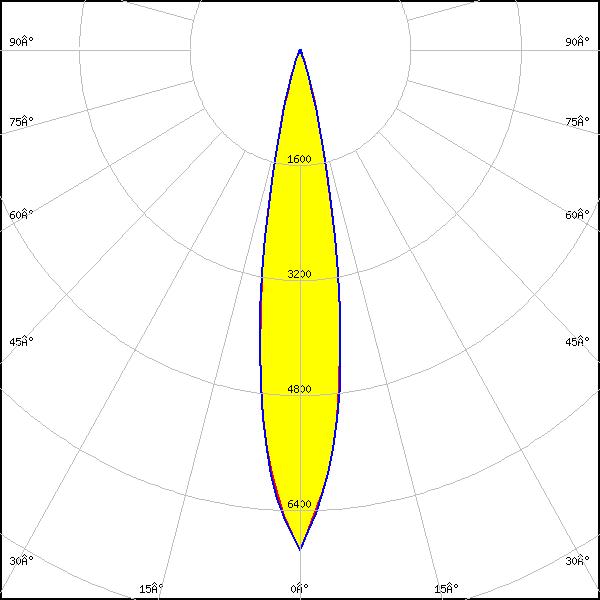

    LED: XHP70.3 HD
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.951 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP70.3 HI
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 12.826 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

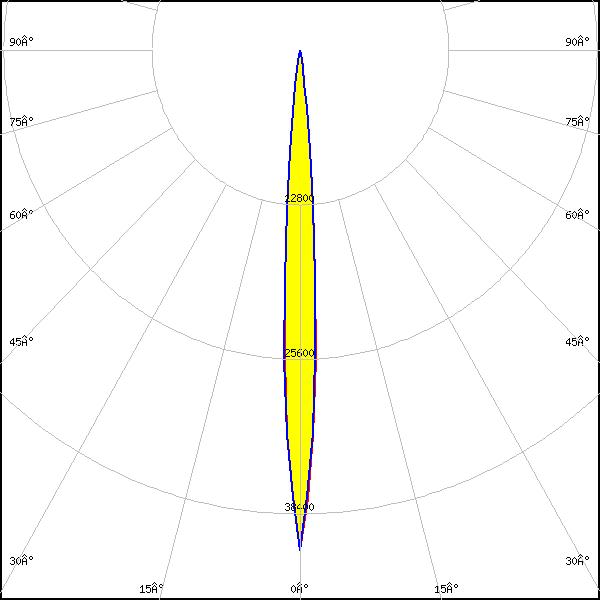

    LED: XP-E2
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 41.419 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

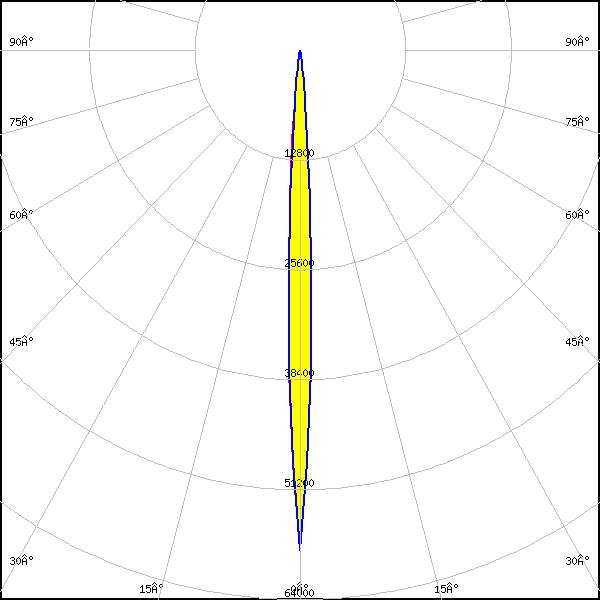

    LED: XP-G4 HI
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 58.279 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

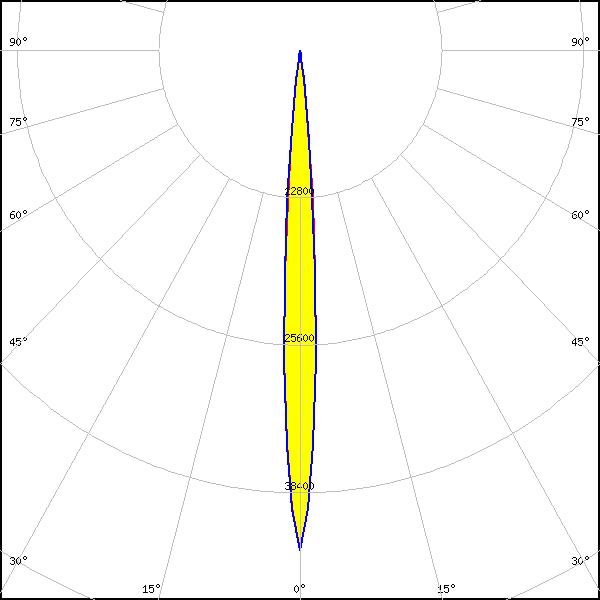

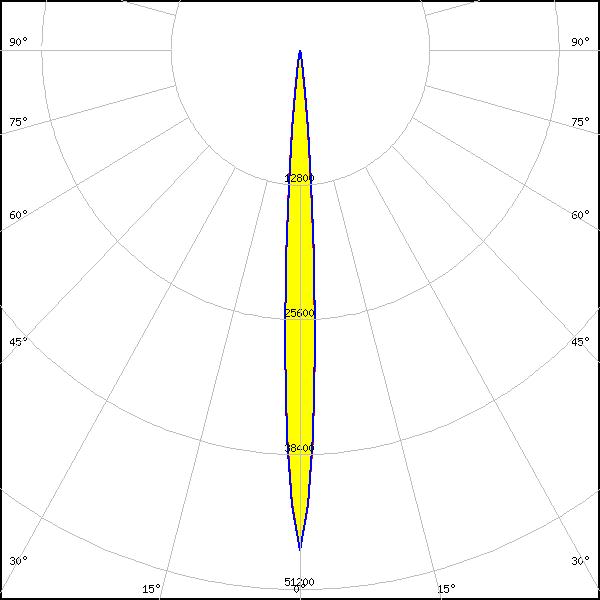

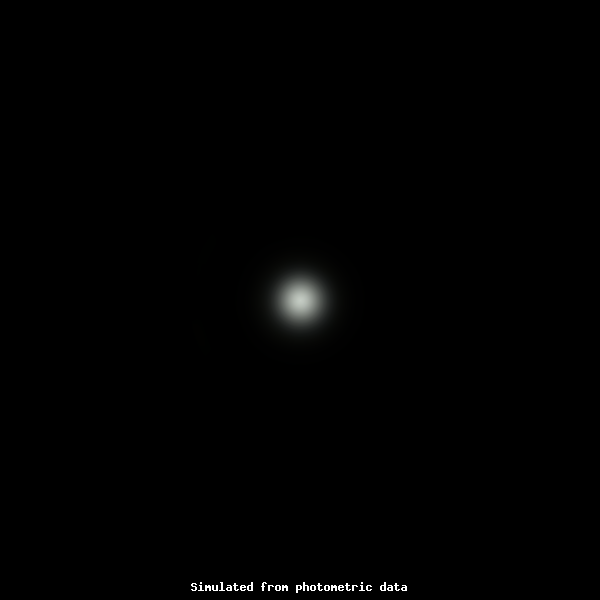

    LED: XP-GR
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 47.510 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

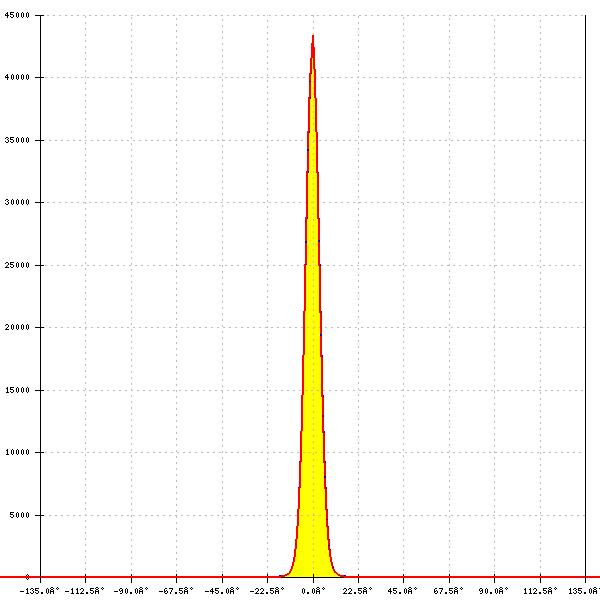

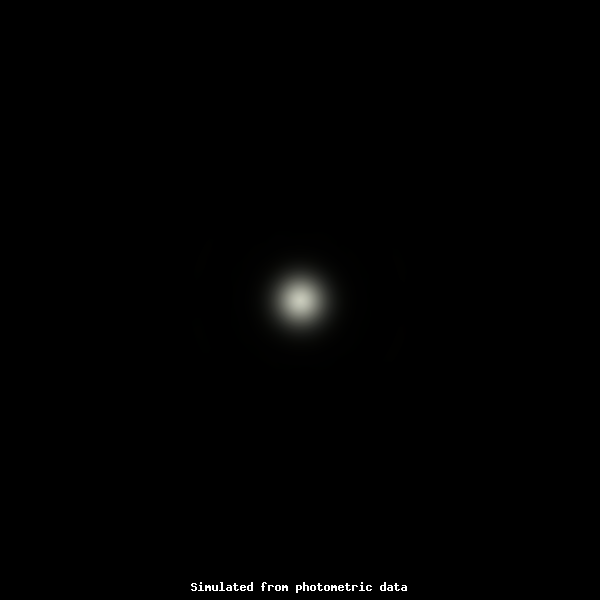

    LED: XP-LR
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 43.417 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

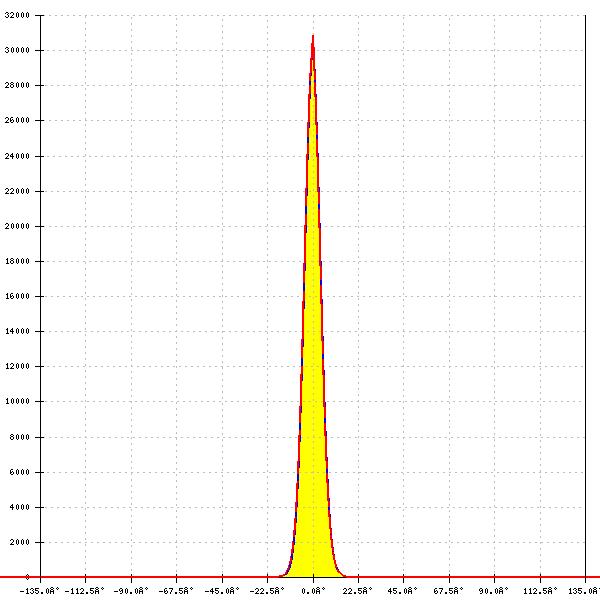

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 8°
    FWTM: 17°
    Peak intensity: 30.858 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

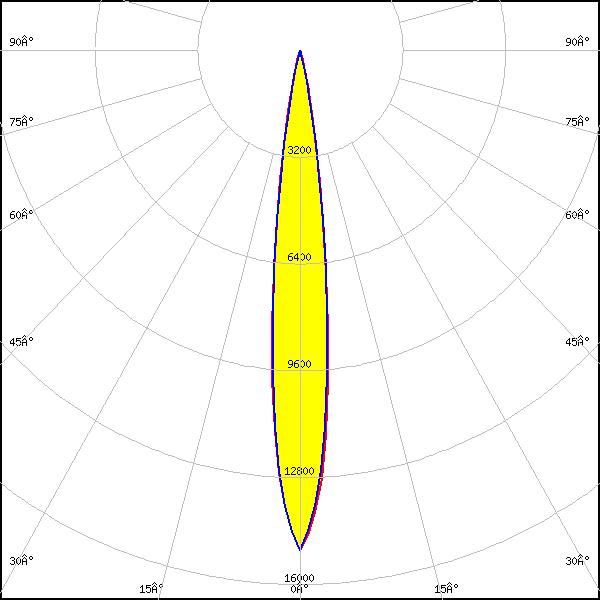

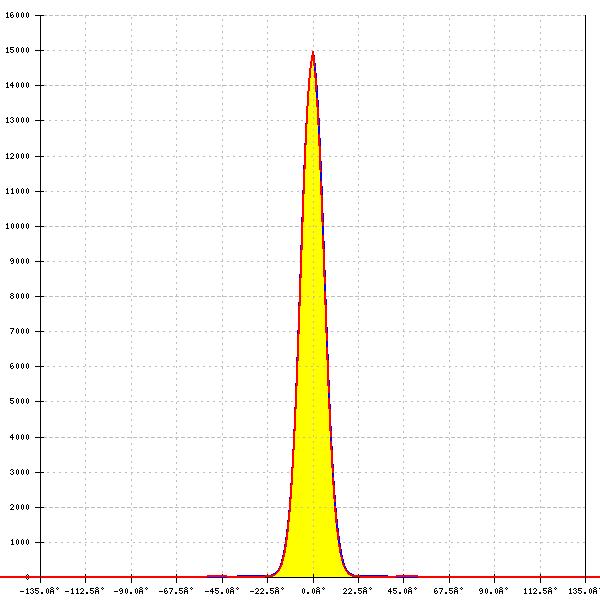

    LED: LUXEON 5050 Round LES
    FWHM: 13°
    FWTM: 24°
    Peak intensity: 14.981 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5258
    FWHM: 11°
    FWTM: 22°
    Peak intensity: 17.800 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

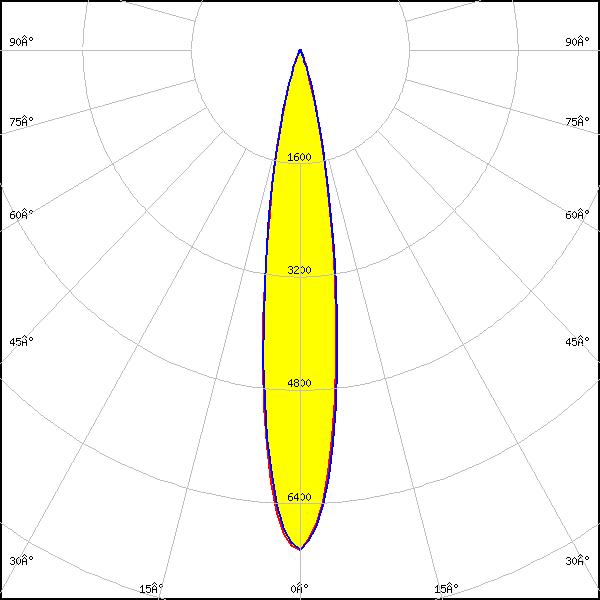

    LED: LUXEON 7070
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 7.060 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

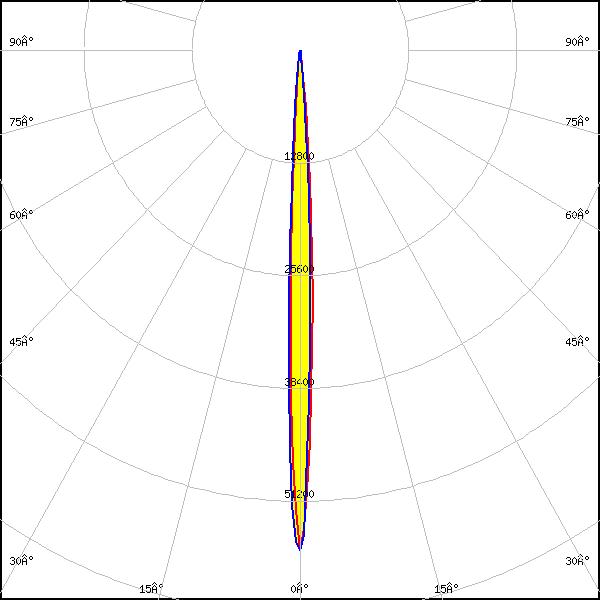

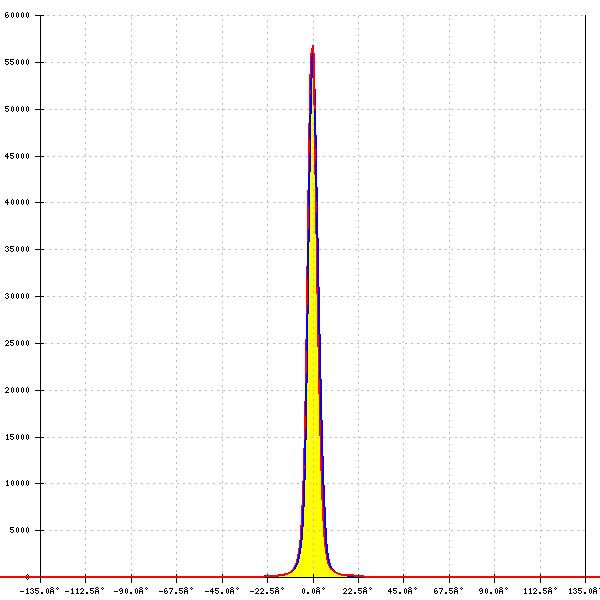

    LED: LUXEON CZ white
    FWHM: 5°
    FWTM: 11°
    Peak intensity: 57.000 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

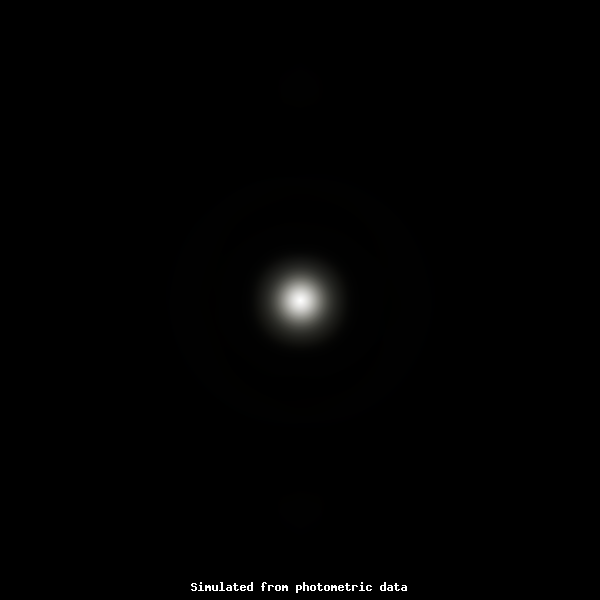

    LED: LUXEON HL4Z
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 42.745 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

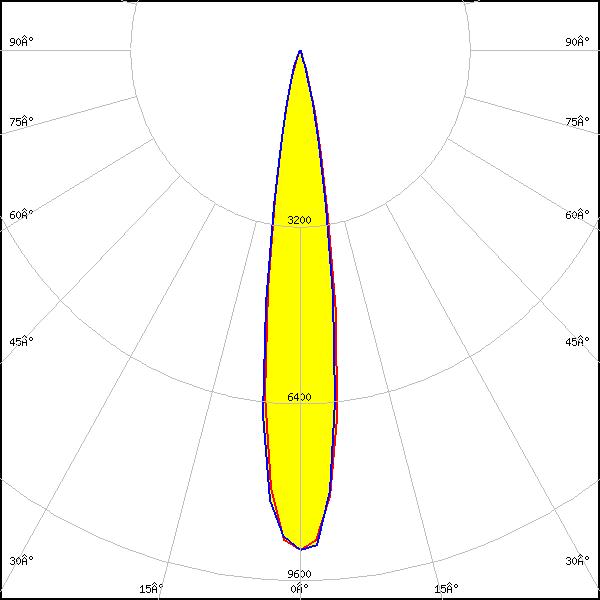

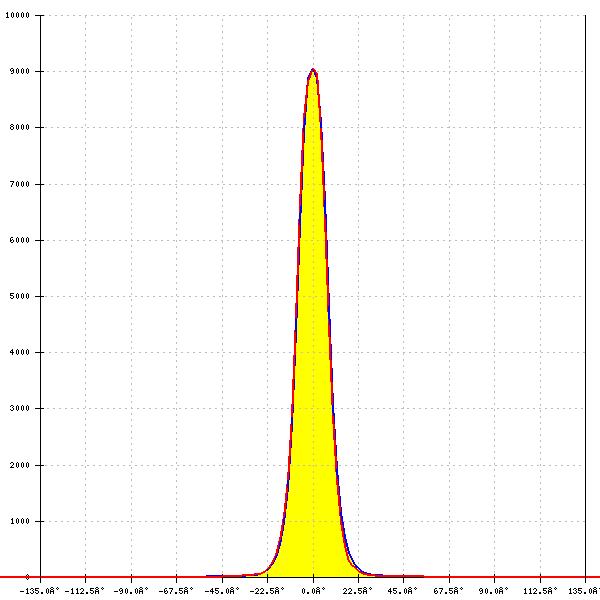

    LED: LUXEON M/MX
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 9.100 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

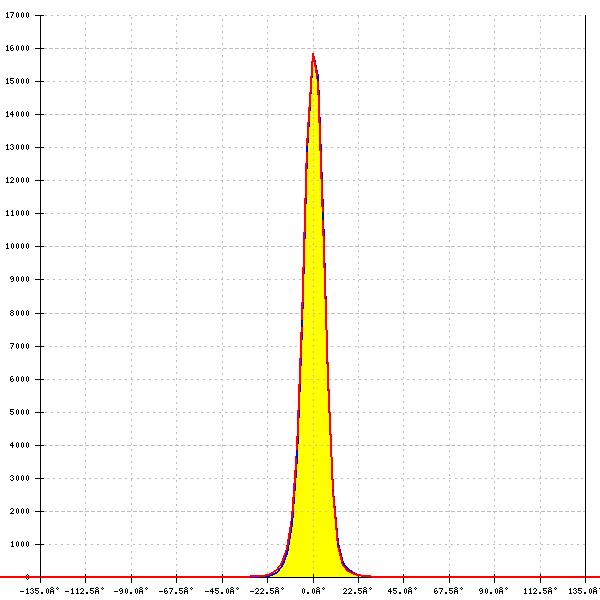

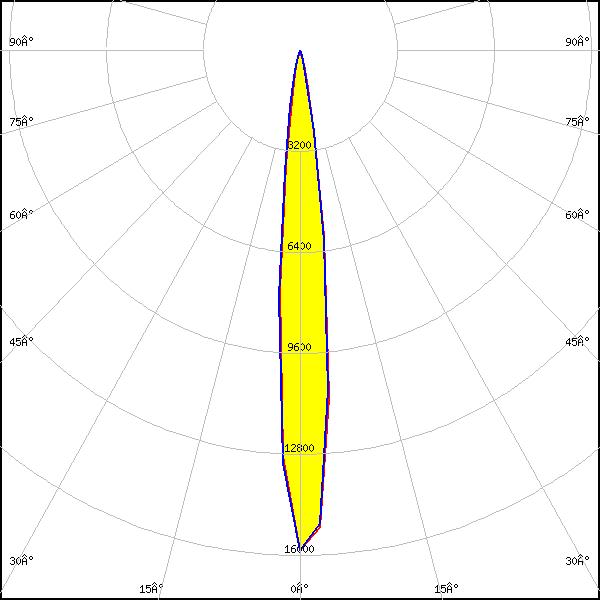

    LED: LUXEON MZ
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 15.840 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

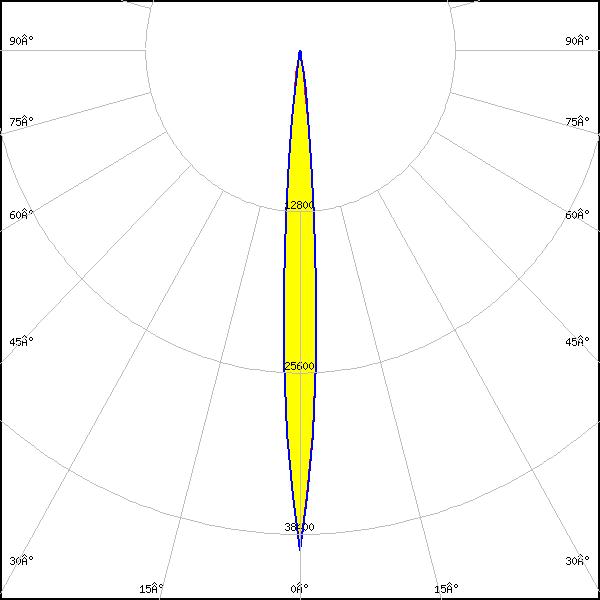

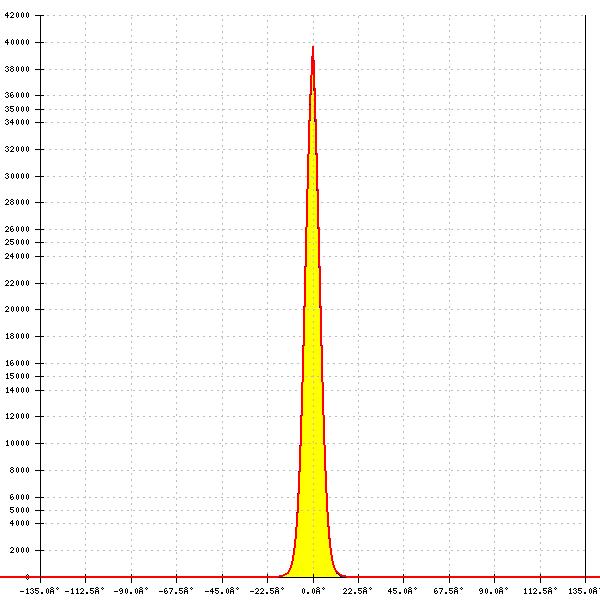

    LED: SFT-40-WCS
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 39.684 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

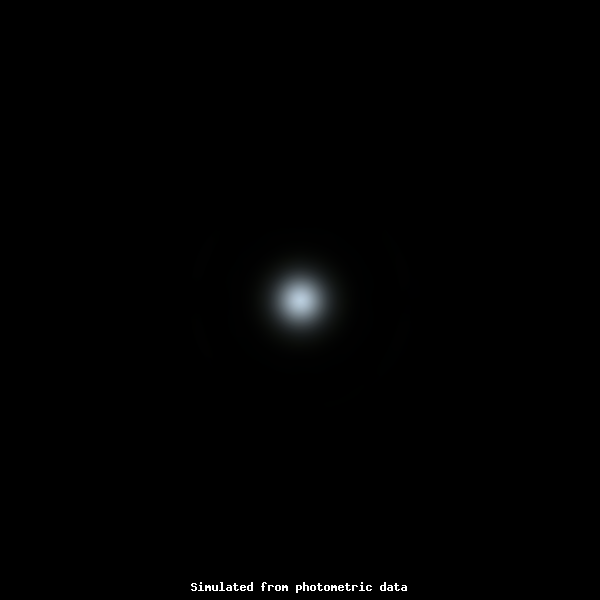

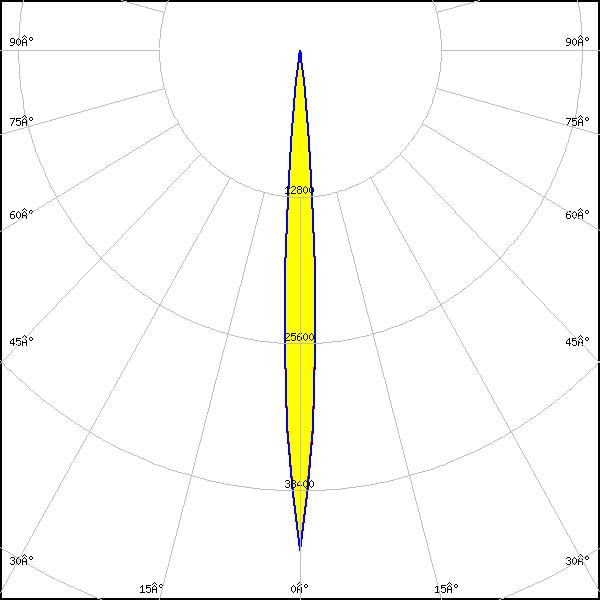

    LED: SST-12 Gen1
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 43.614 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-12 Gen2
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 40.348 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

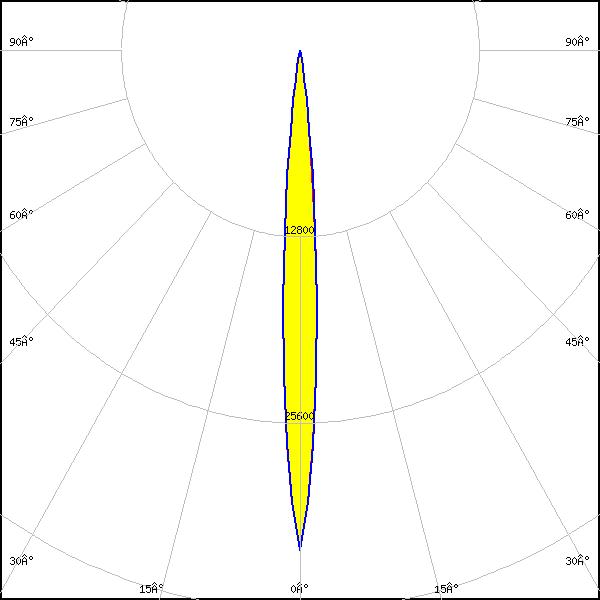

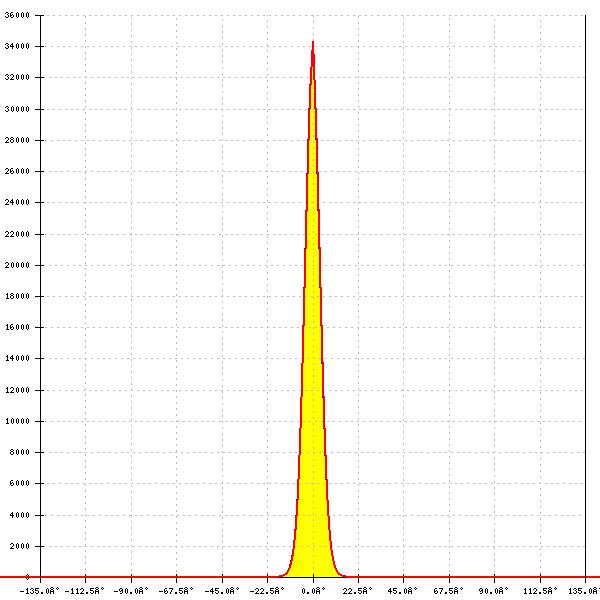

    LED: SST-20 Gen1
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 34.338 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

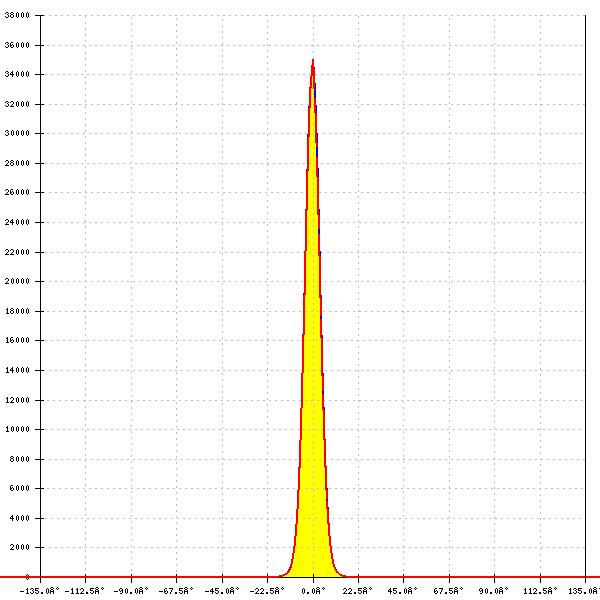

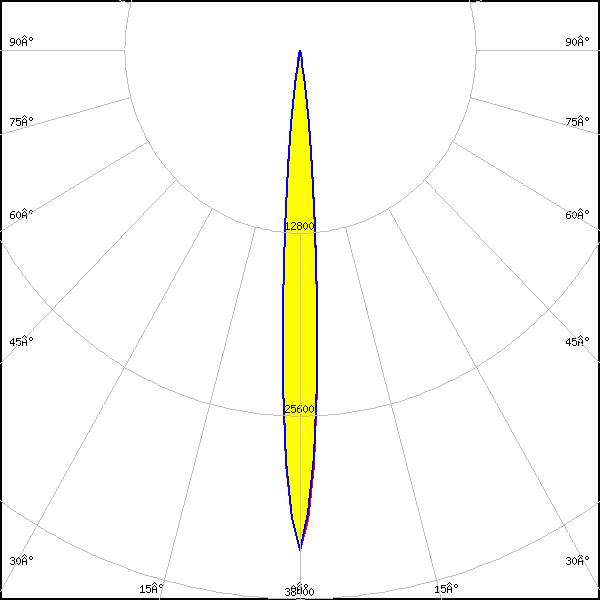

    LED: SST-20 Gen2
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 35.002 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

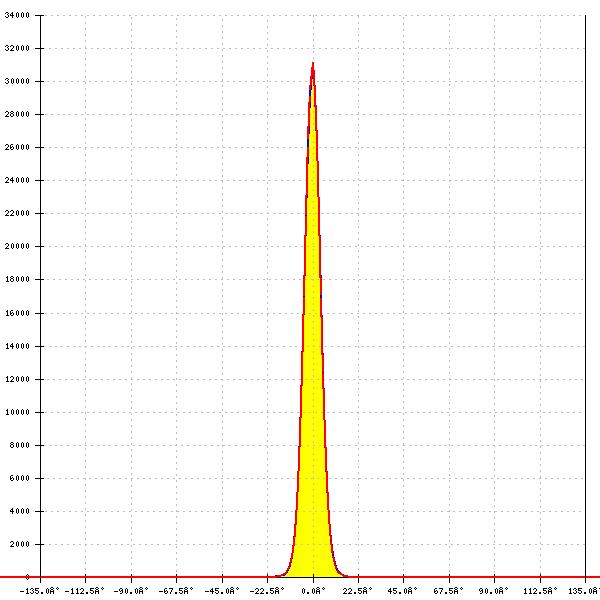

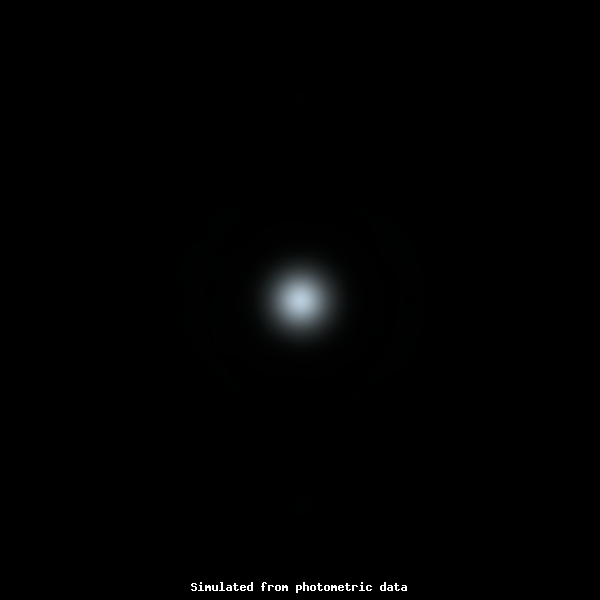

    LED: SST-25-W
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 31.157 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

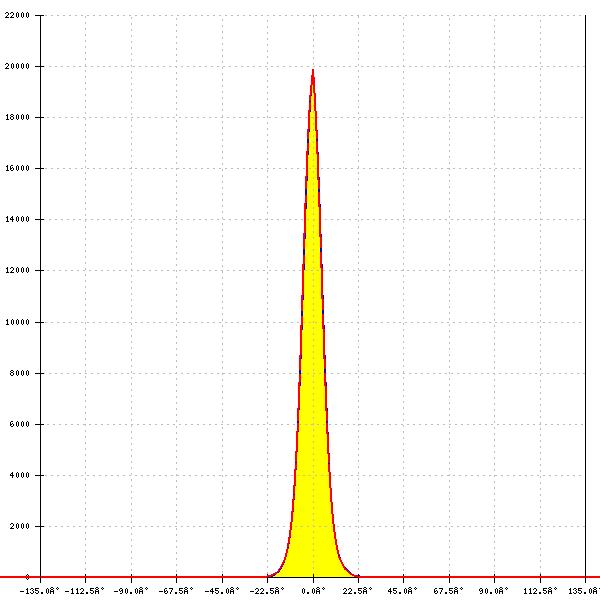

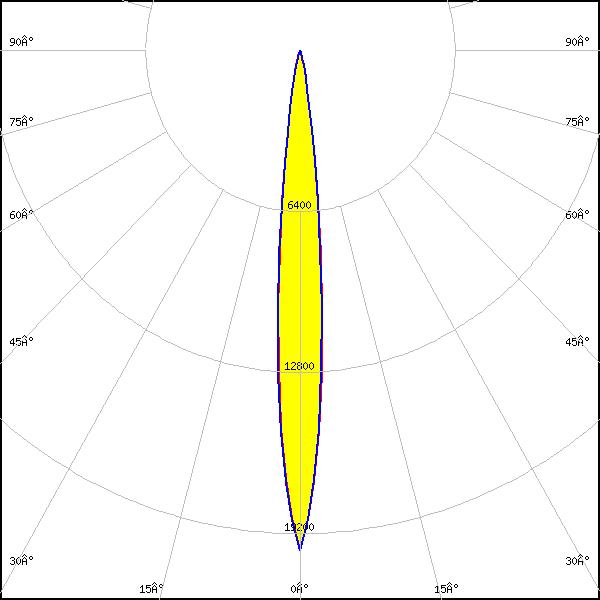

    LED: SST-40
    FWHM: 10°
    FWTM: 21°
    Peak intensity: 19.868 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

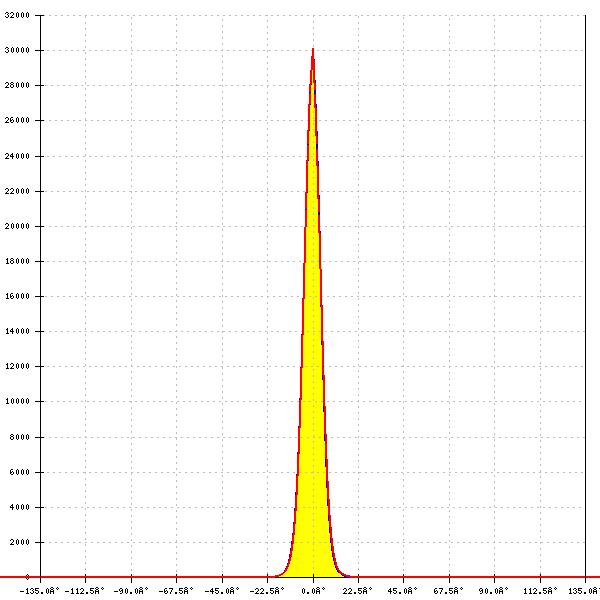

    LED: NF2x757G
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 30.114 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFMW48xA
    FWHM: 12°
    FWTM: 25°
    Peak intensity: 12.800 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

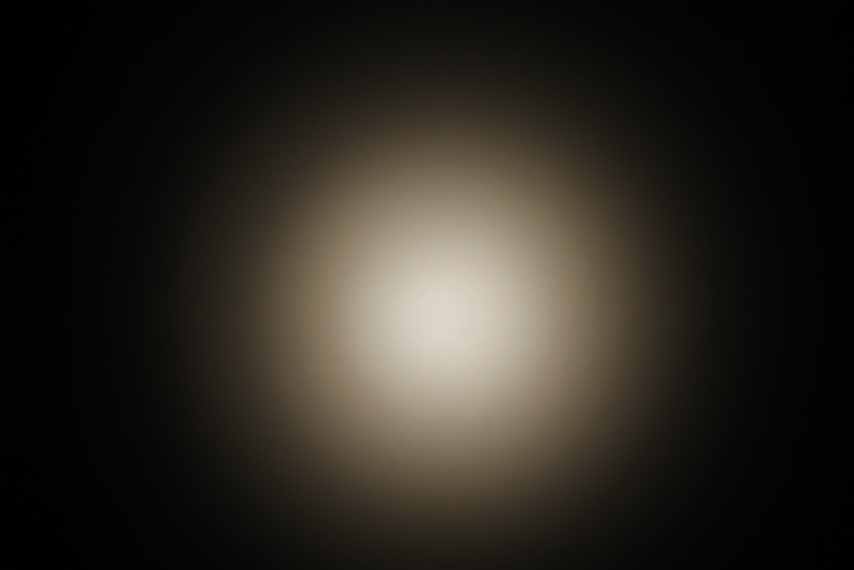

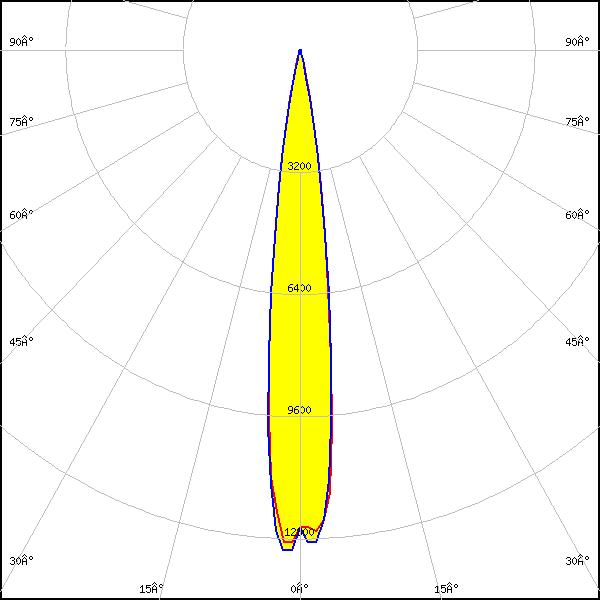

    LED: Duris S10
