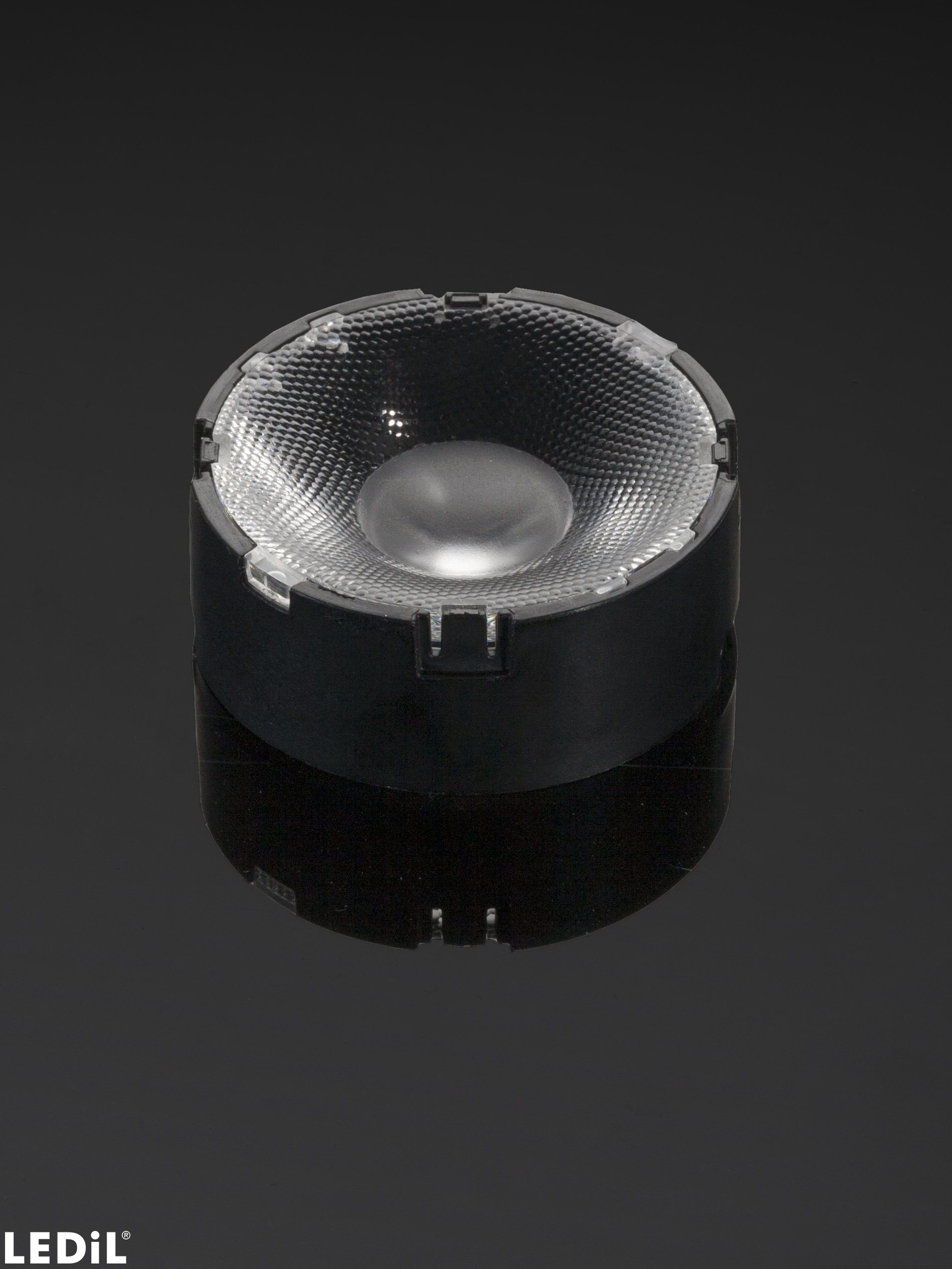

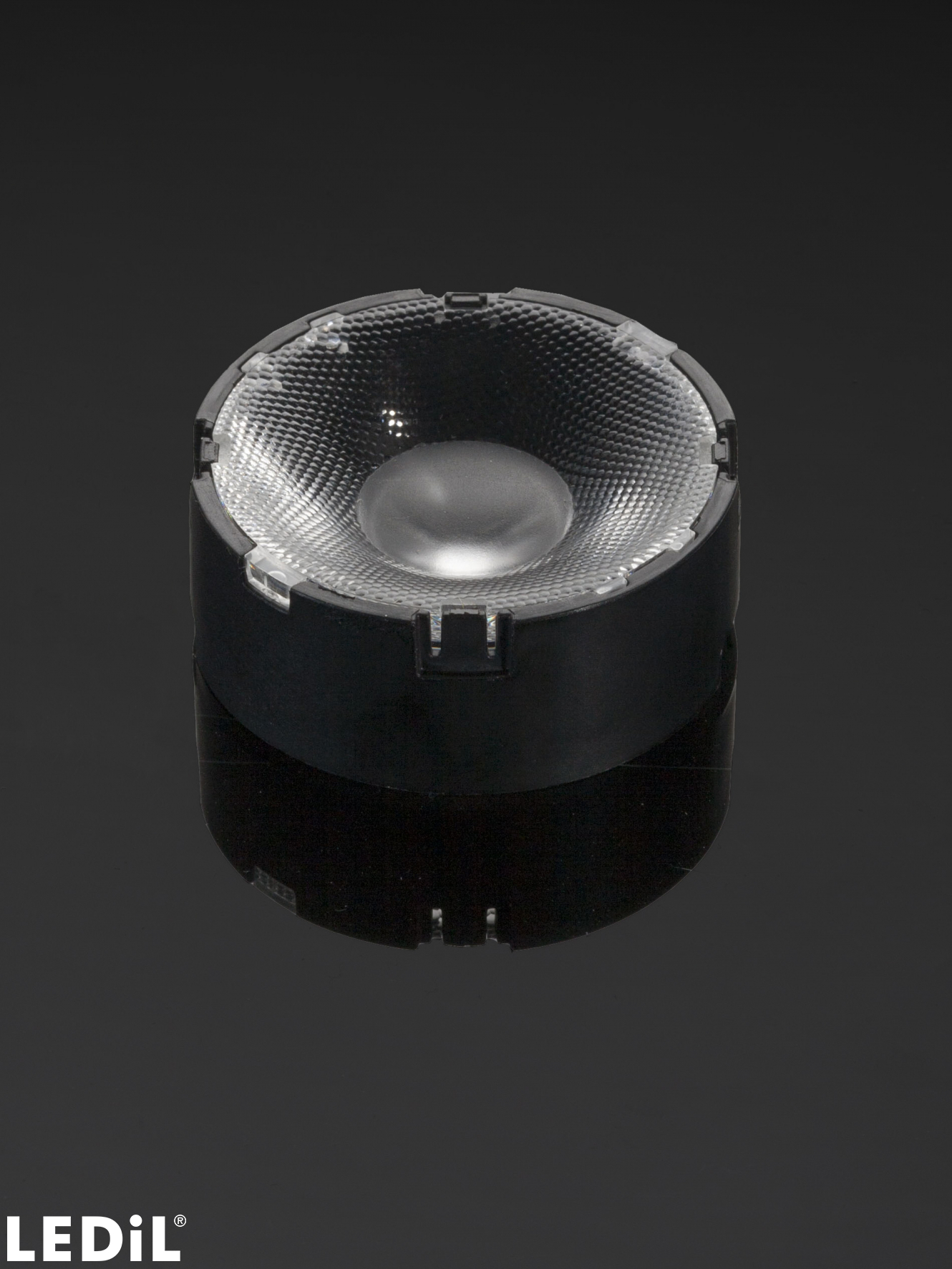

WINNIE-M-C

Print

~35° spot beam with holder C compatible with LEDiL HEKLA

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    50 mm
  • Height:
    19.50 mm
  • Fastening:
    tape
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • C14233_WINNIE-M
    clear
  • Quantity in box:
    364 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.50 kg
  • MPQ:
    28 pcs
  • MOQ:
    84 pcs
  • MOQ Size:
    480 x 280 x 80 mm
  • MOQ Weight:
    1.70 kg
  • Holder
  • C15821_WINNIE-HLD-C
    black
  • Quantity in box:
    420 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    4.10 kg
  • MPQ:
    28 pcs
  • MOQ:
    pcs
  • MOQ Size:
  • MOQ Weight:
    0.00 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C14233_WINNIE-M
    C15821_WINNIE-HLD-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

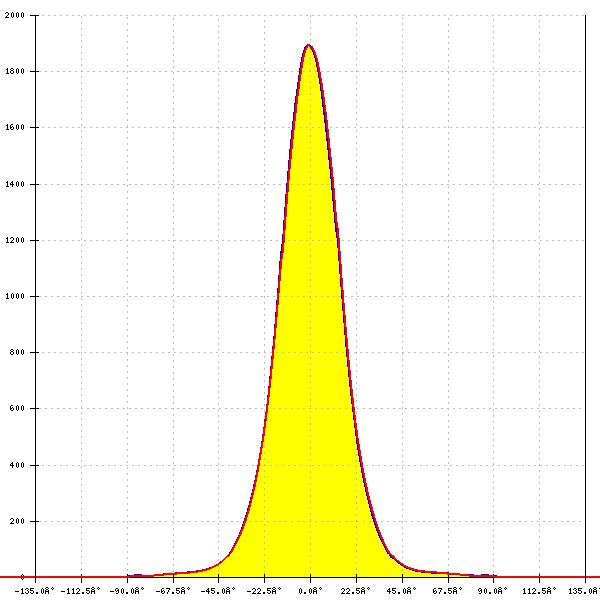

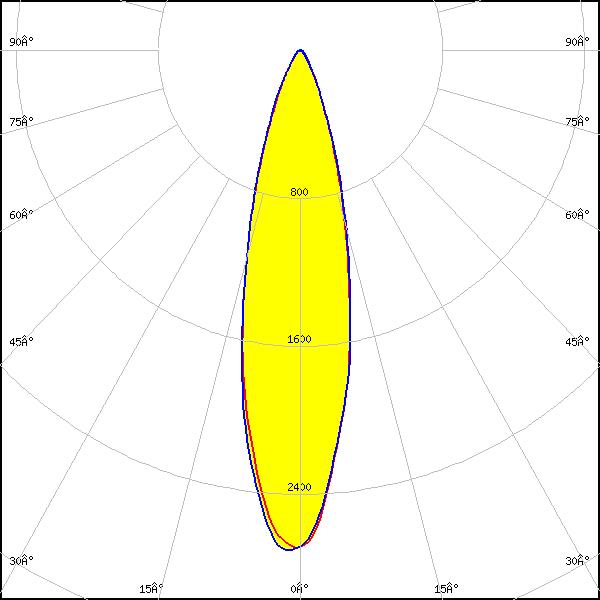

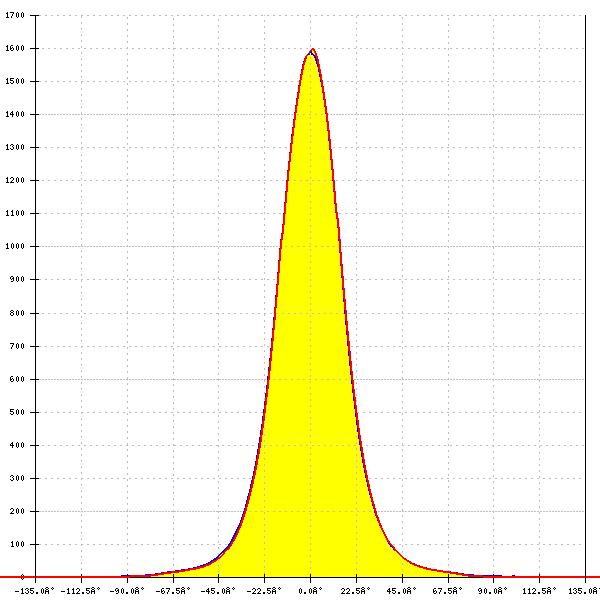

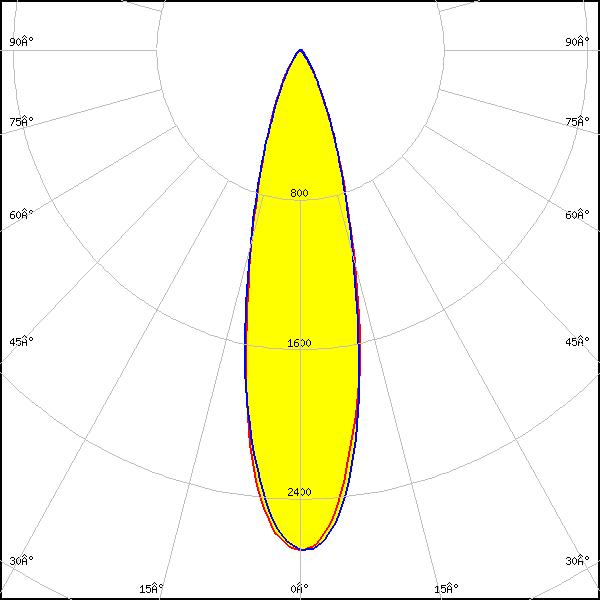

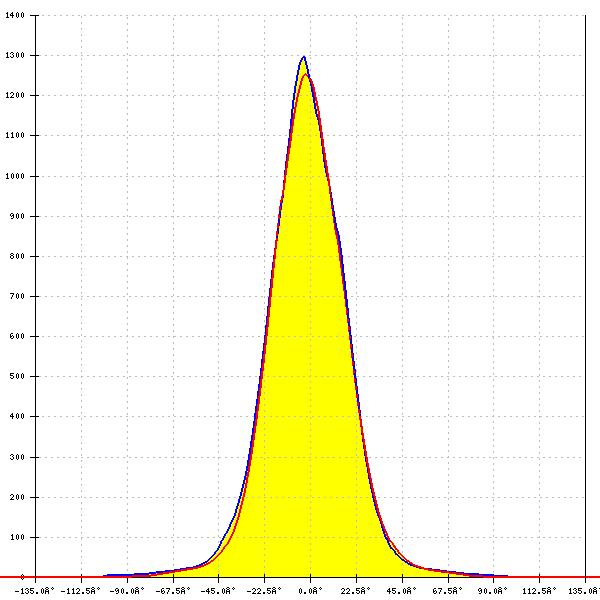

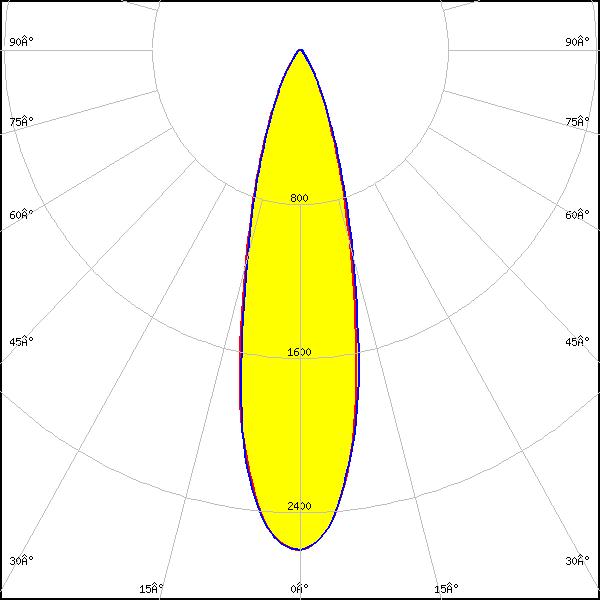

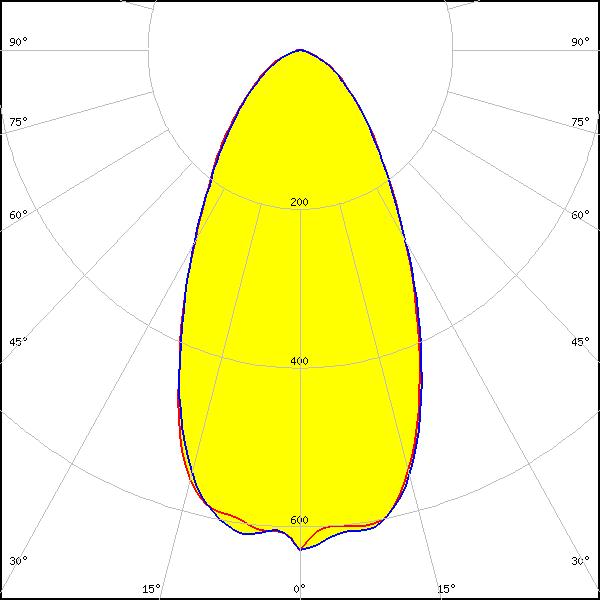

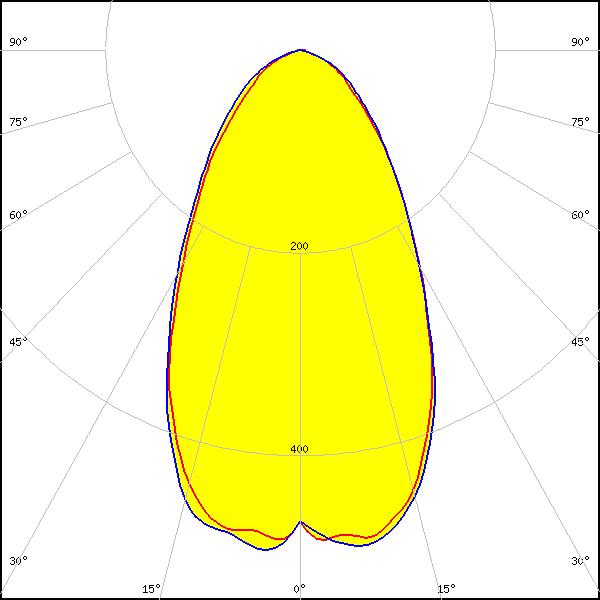

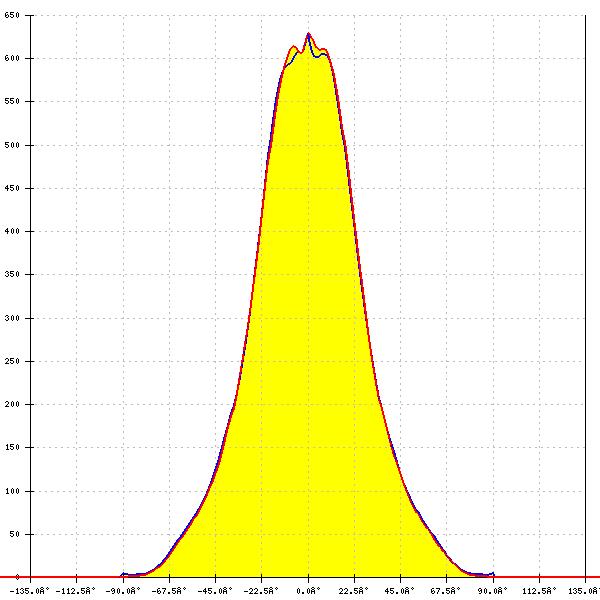

Optical results

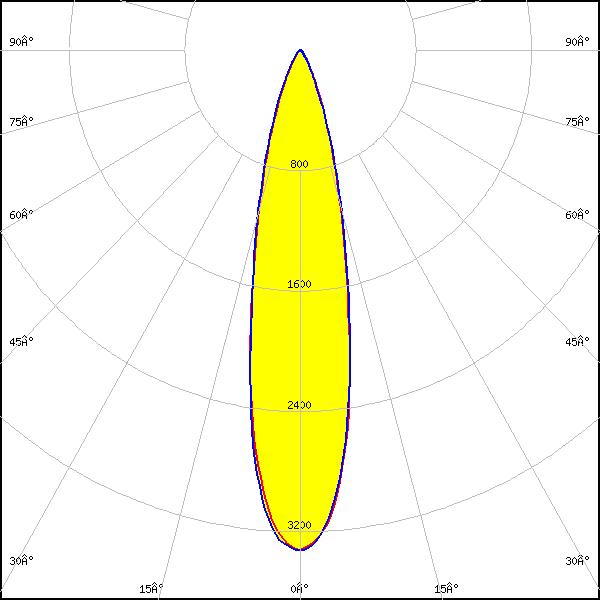

LED: V4 HD Gen 7
Required components:
FWHM: 23°
FWTM: 48°
Peak intensity: 3.300 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

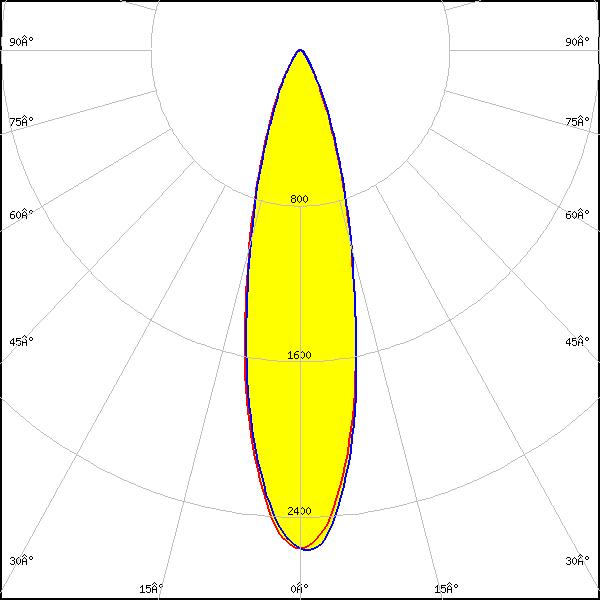

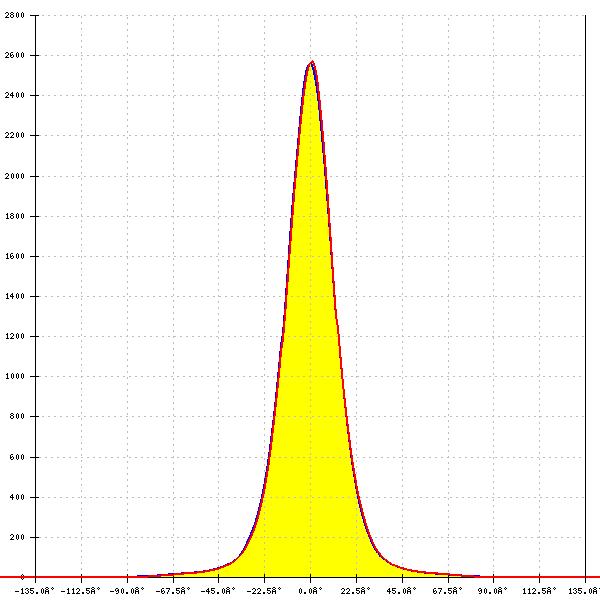

LED: V6 Gen6
Required components:
FWHM: 26°
FWTM: 55°
Peak intensity: 2.600 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

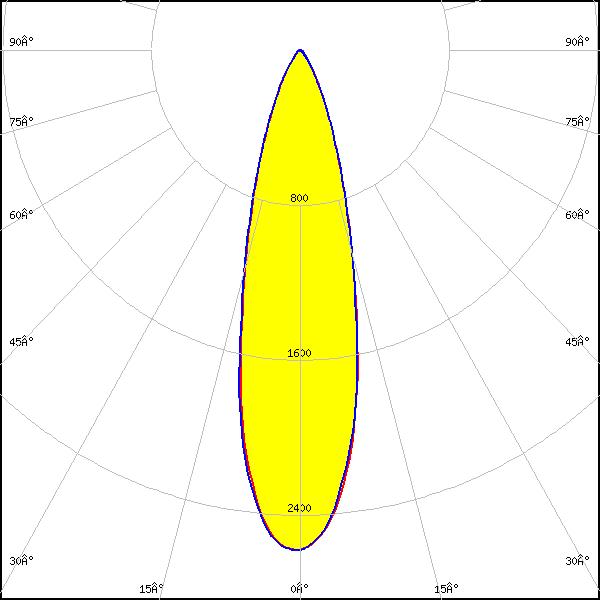

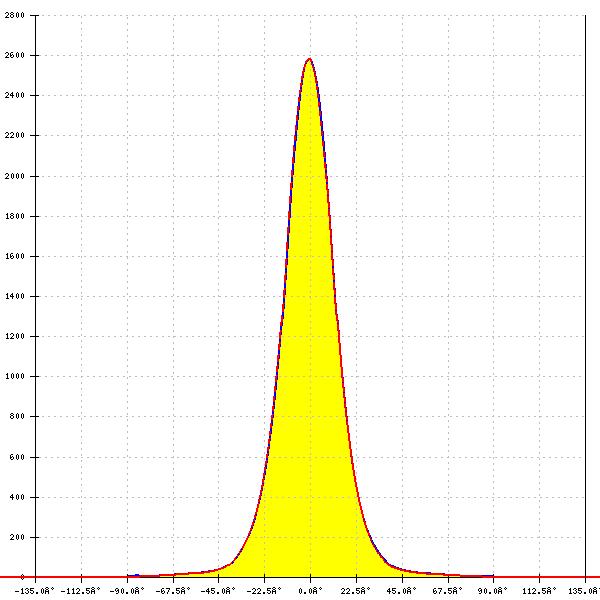

LED: V6 HD Gen 7
Required components:
FWHM: 27°
FWTM: 56°
Peak intensity: 2.600 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: V8 Gen6
Required components:
LEDs/each optic: 1
Light colour: White

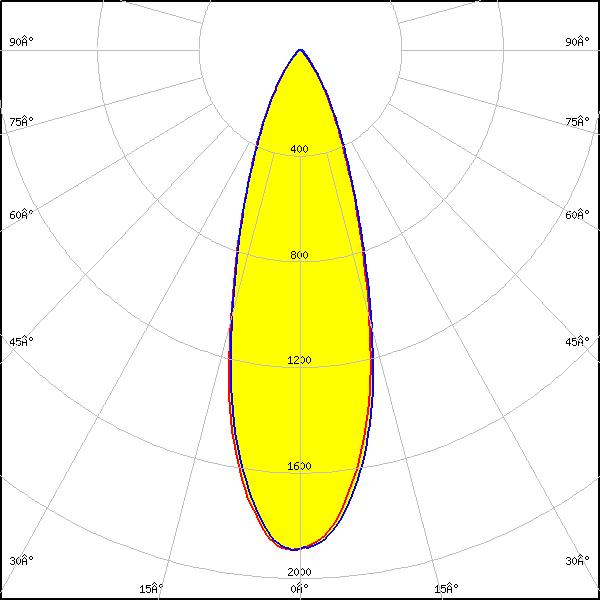

LED: V9 HD Gen7
Required components:
FWHM: 33°
FWTM: 65°
Peak intensity: 1.900 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

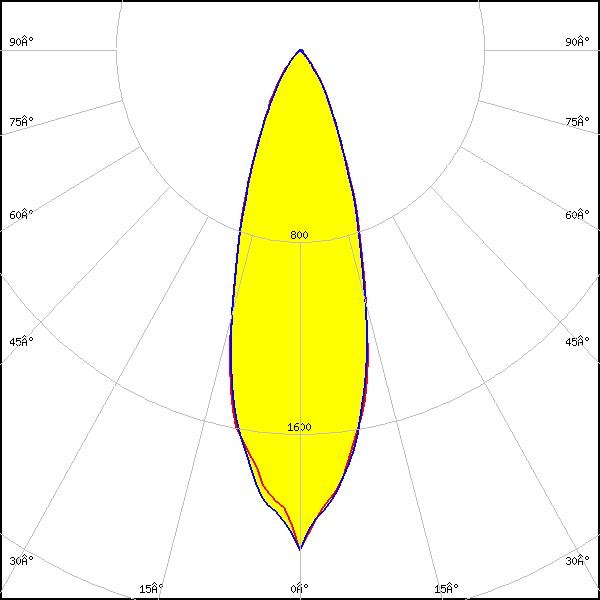

LED: VERO10
Required components:
FWHM: 32°
FWTM: 65°
Peak intensity: 2.085 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

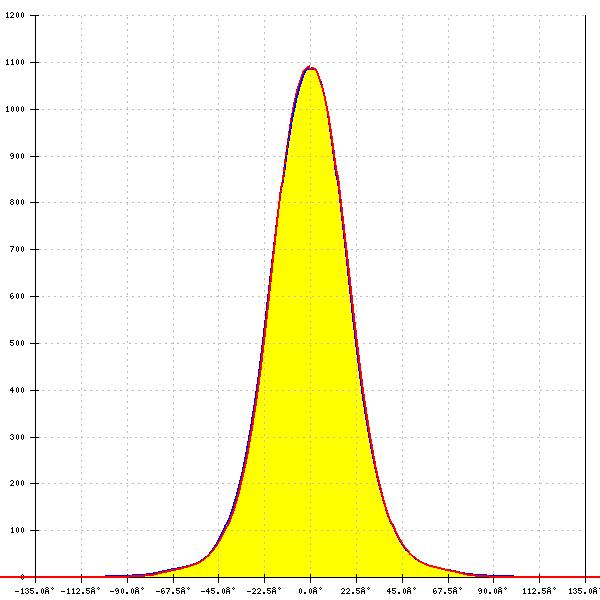

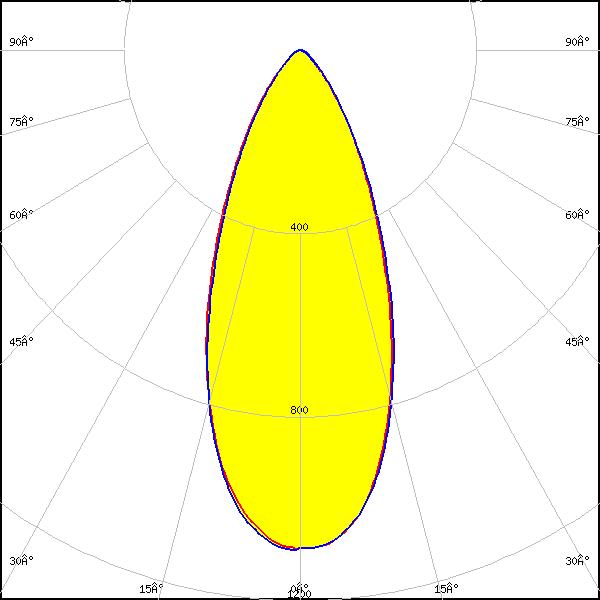

LED: VERO13
Required components:
FWHM: 43°
FWTM: 82°
Peak intensity: 1.100 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

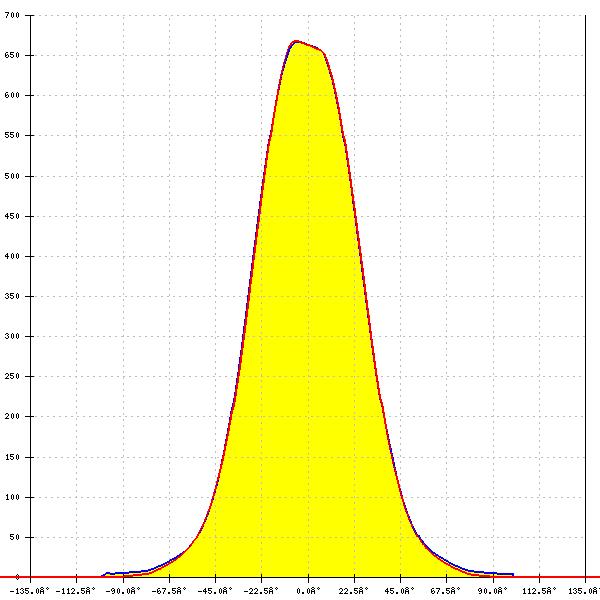

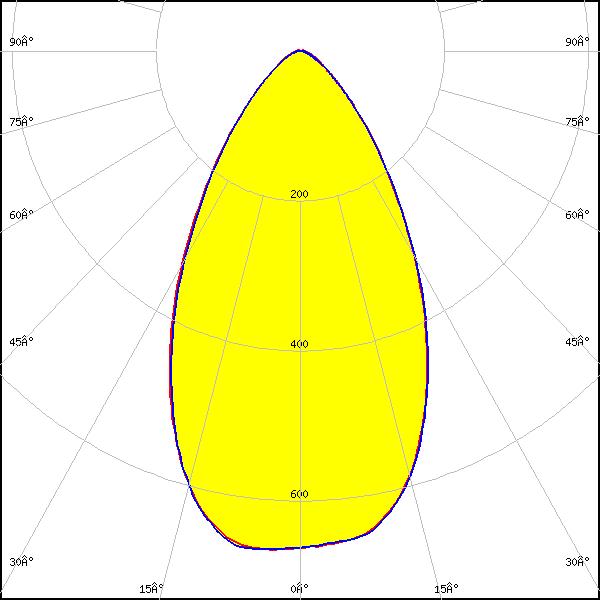

LED: VERO18
Required components:
FWHM: 59°
FWTM: 101°
Peak intensity: 0.670 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White

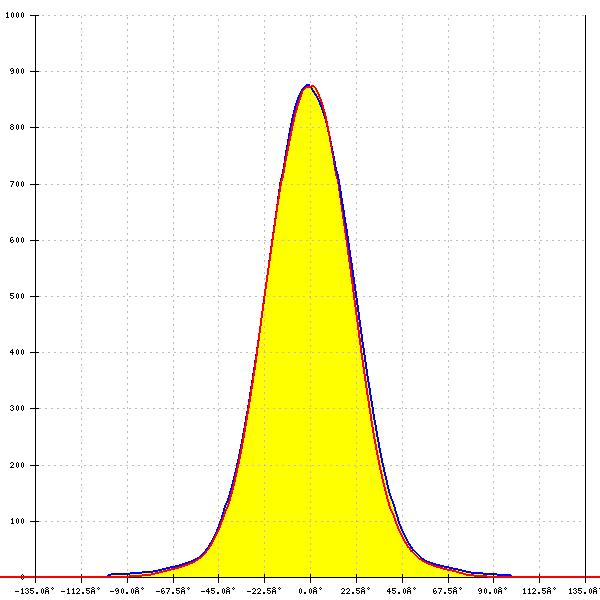

LED: Vesta DTW 13mm (21W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 49°
FWTM: 89°
Peak intensity: 0.876 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: Tunable White

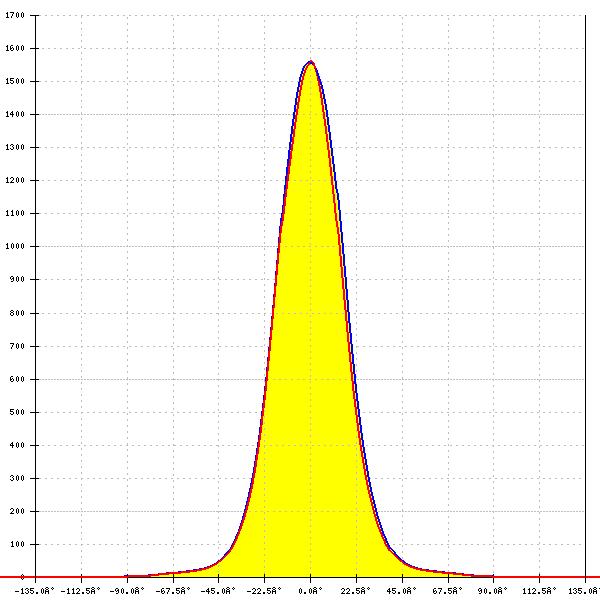

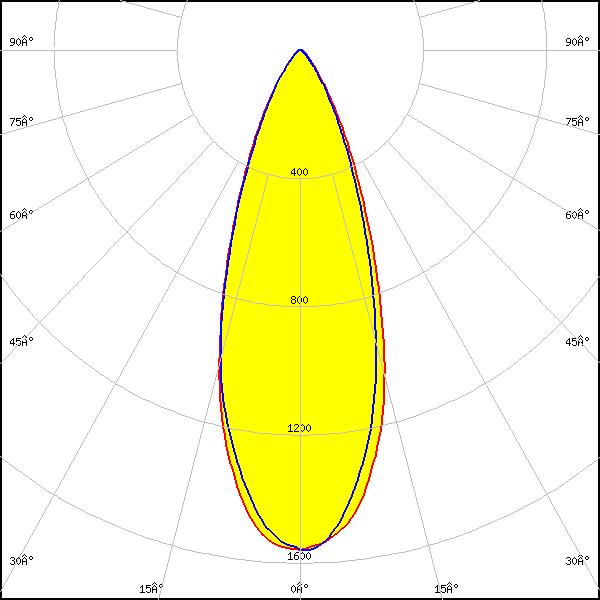

LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 37°
FWTM: 68°
Peak intensity: 1.600 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

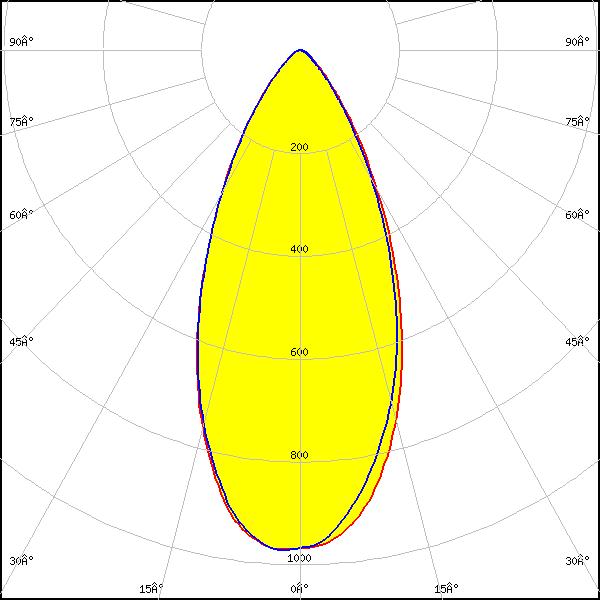

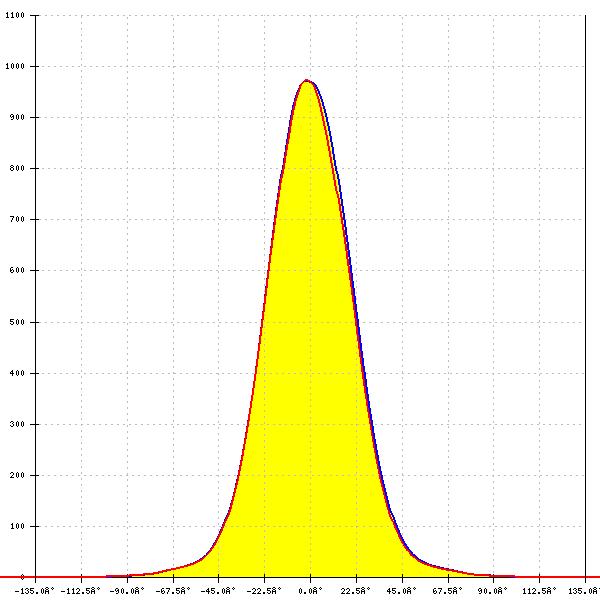

LED: Vesta TW 13mm (25W) CSP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 492 Typ L8
FWHM: 47°
FWTM: 85°
Peak intensity: 0.970 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 31°
FWTM: 61°
Peak intensity: 1.962 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

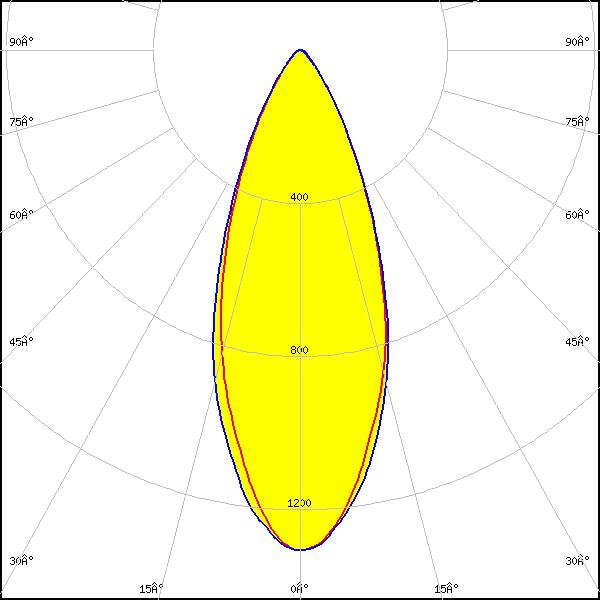

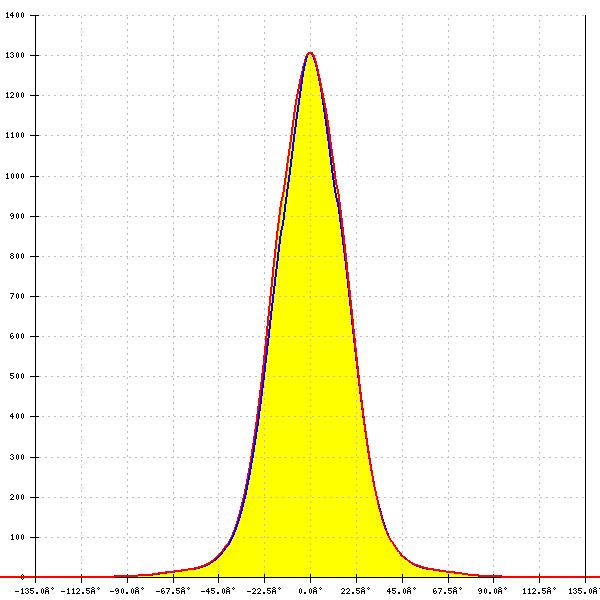

LED: Vesta TW 9mm (12W) CSP
Required components:
FWHM: 40°
FWTM: 73°
Peak intensity: 1.300 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

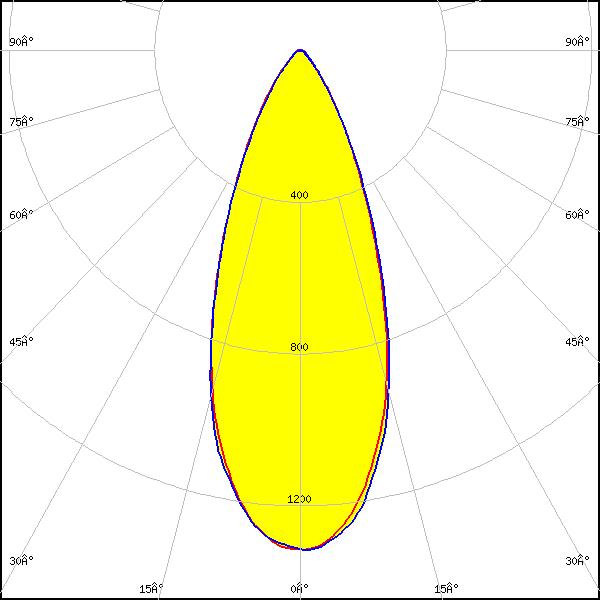

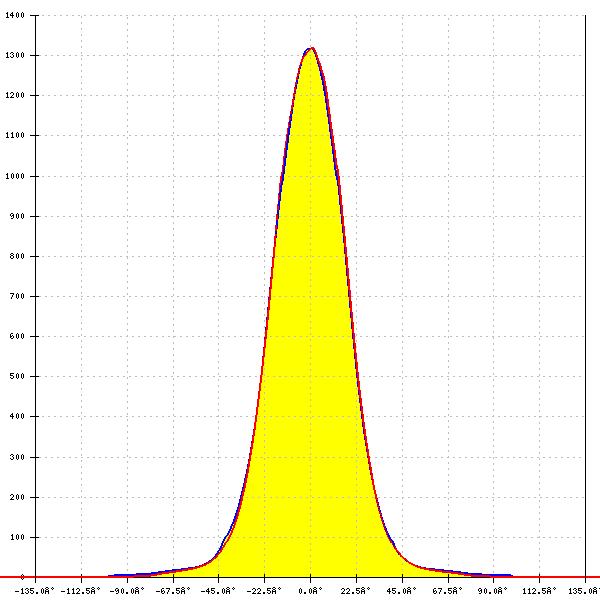

LED: CLC020 Series (Dim-To-Warm)
Required components:
FWHM: 41°
FWTM: 75°
Peak intensity: 1.300 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

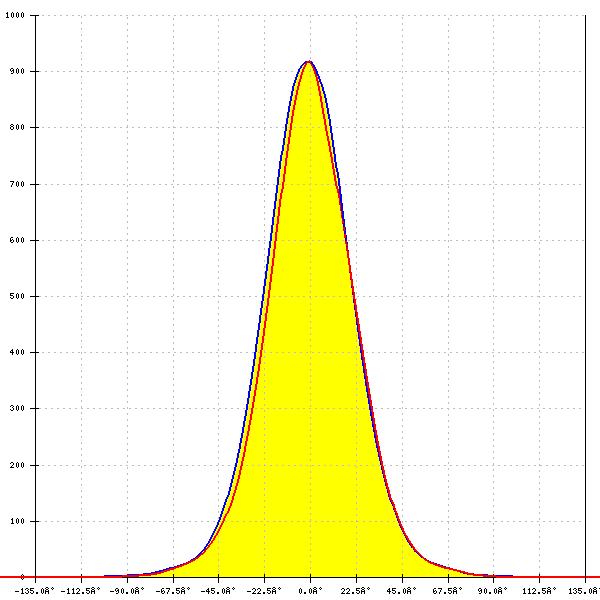

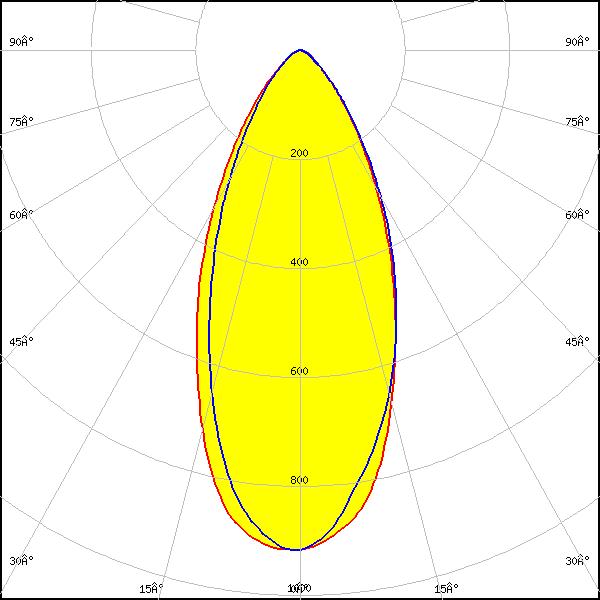

LED: CLC030 Series (Dim-To-Warm)
Required components:
FWHM: 47°
FWTM: 90°
Peak intensity: 0.920 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White

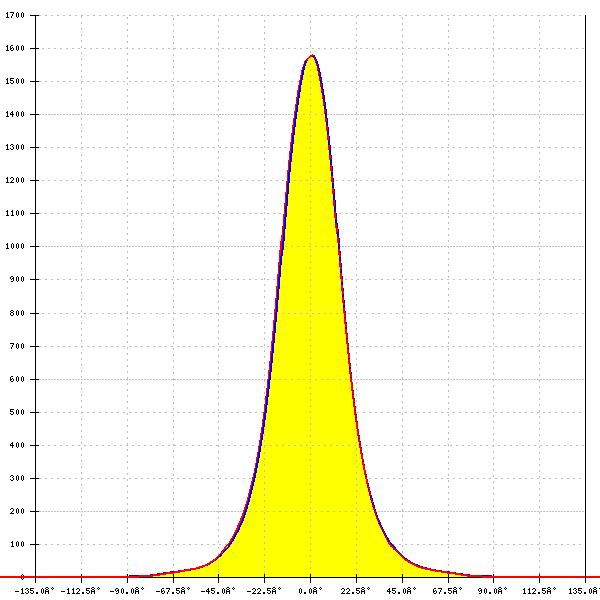

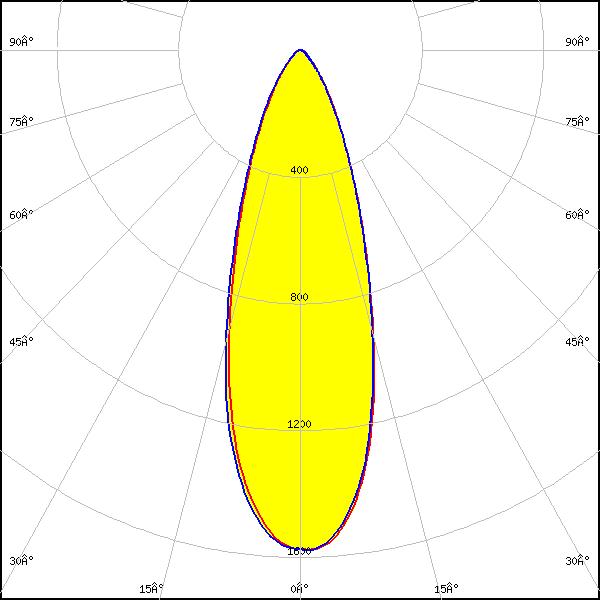

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 34°
FWTM: 69°
Peak intensity: 1.600 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

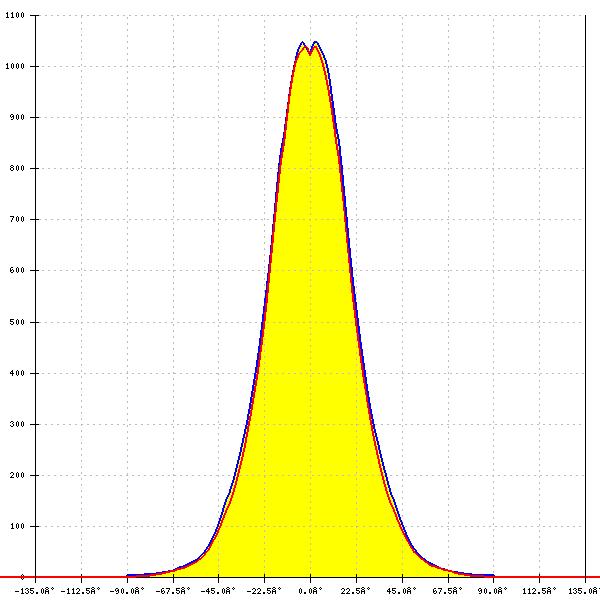

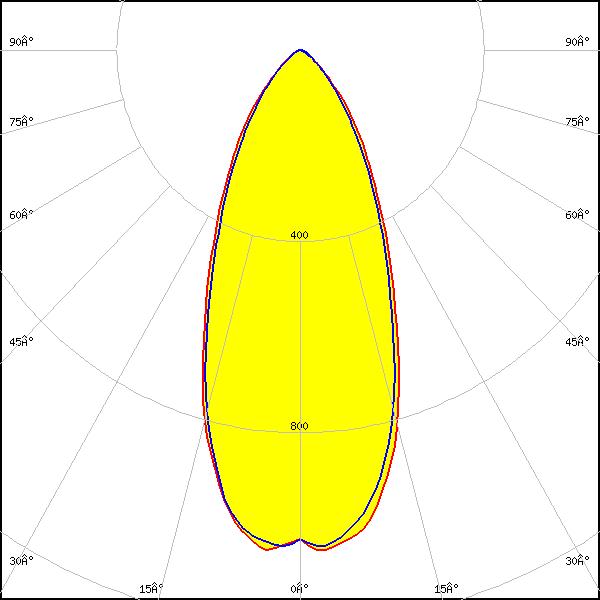

LED: CLL03x/CLU03x
Required components:
FWHM: 45°
FWTM: 89°
Peak intensity: 1.055 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

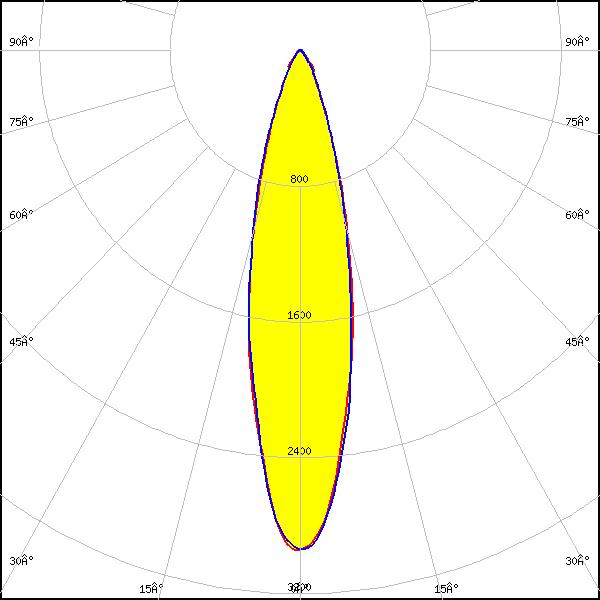

LED: CLU7A2/7A3
Required components:
FWHM: 25°
FWTM: 51°
Peak intensity: 2.900 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

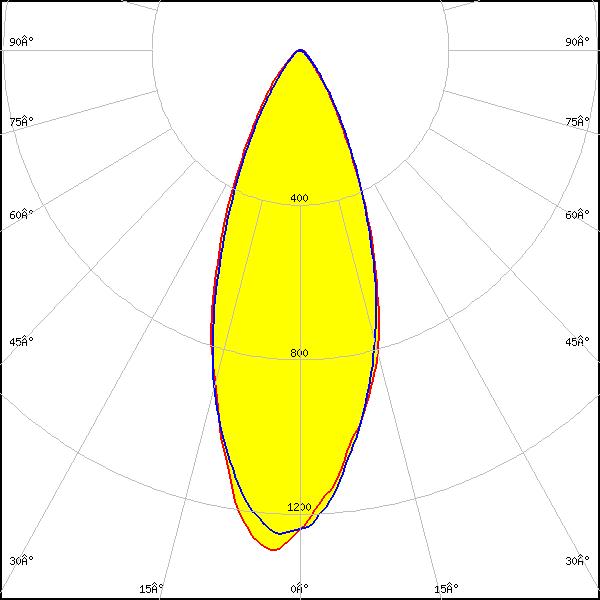

LED: LCN-C01B (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 481 Typ L8
FWHM: 40°
FWTM: 74°
Peak intensity: 1.300 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

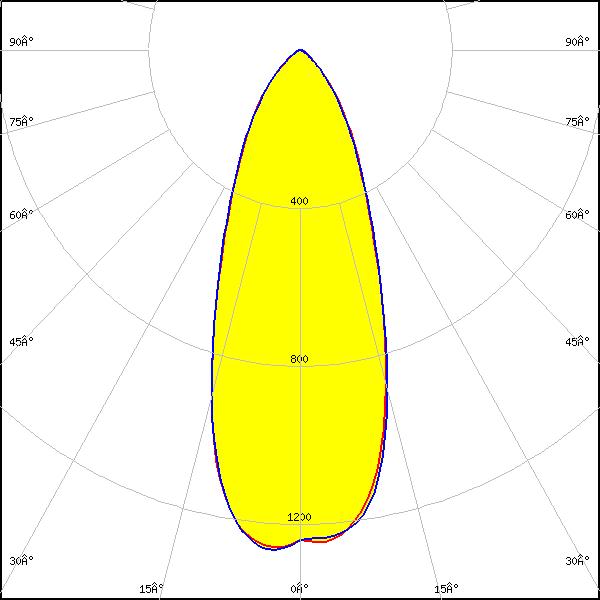

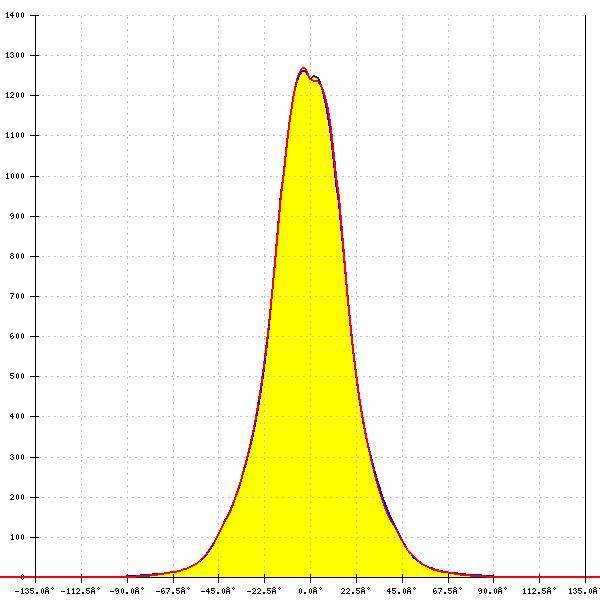

LED: CMA1825
Required components:
FWHM: 40°
FWTM: 84°
Peak intensity: 1.272 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

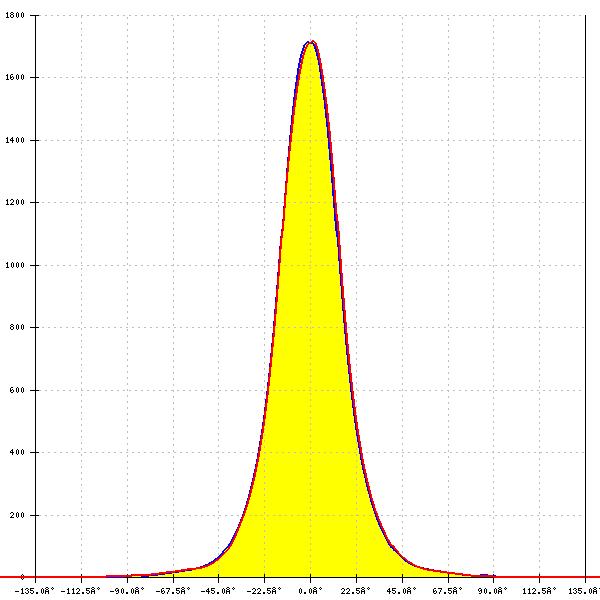

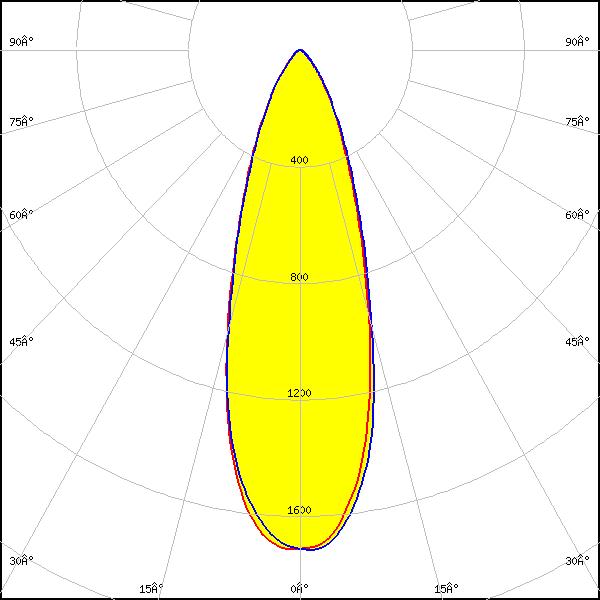

LED: CMT14xx
Required components:
FWHM: 33°
FWTM: 69°
Peak intensity: 1.700 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

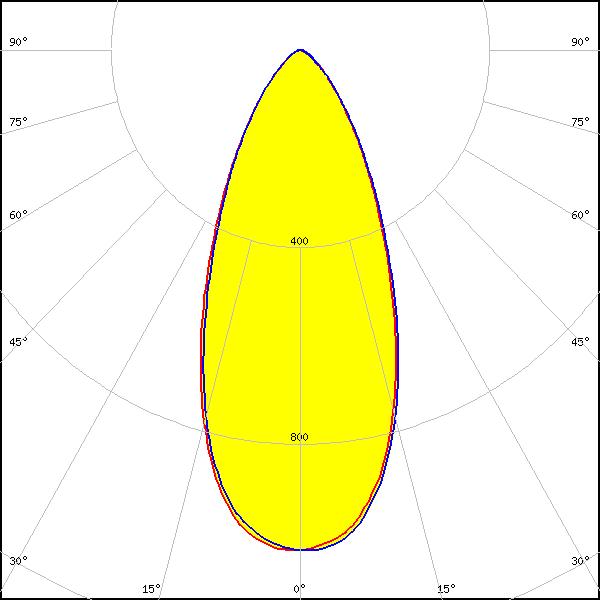

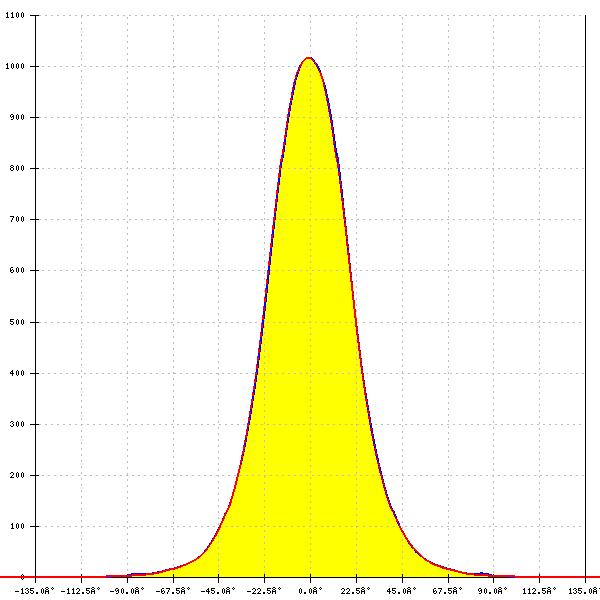

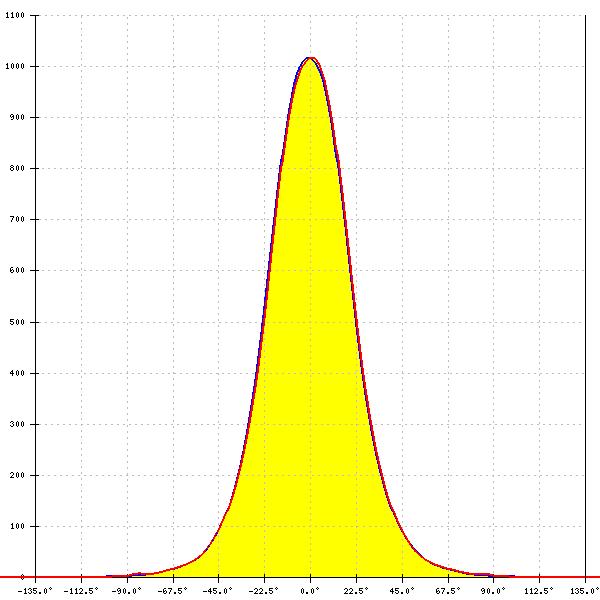

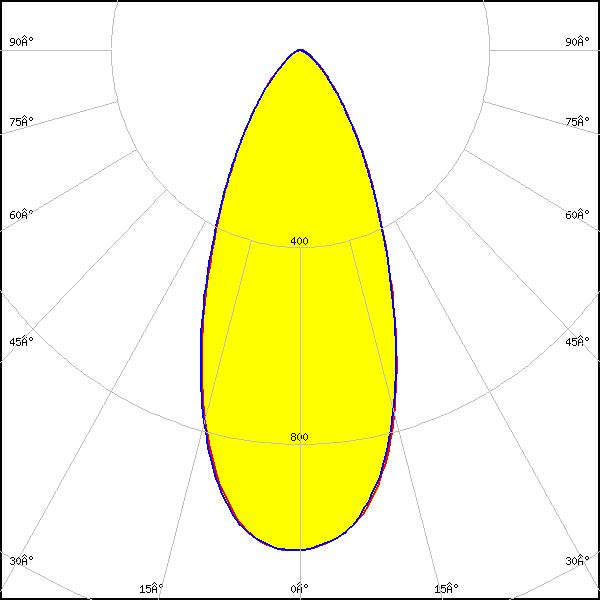

LED: CMT19xx
Required components:
FWHM: 45°
FWTM: 87°
Peak intensity: 1.018 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

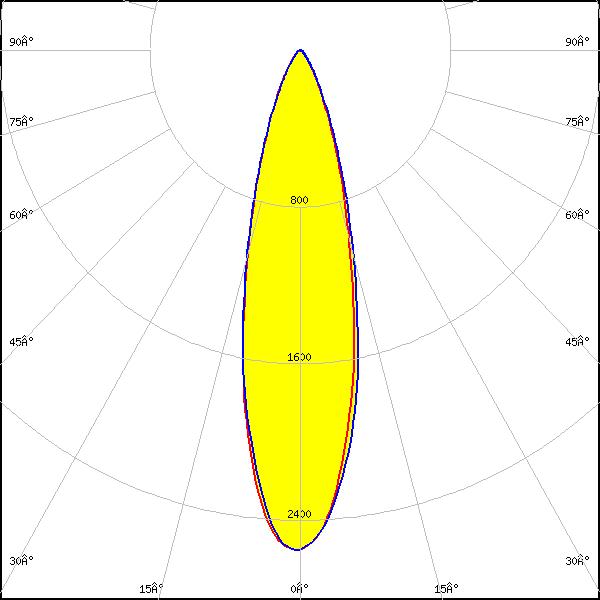

LED: CXA/B 13xx
Required components:
FWHM: 27°
FWTM: 55°
Peak intensity: 2.600 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

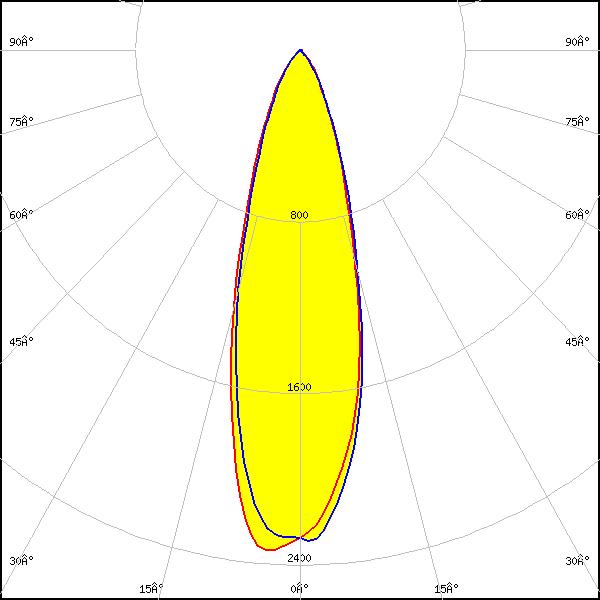

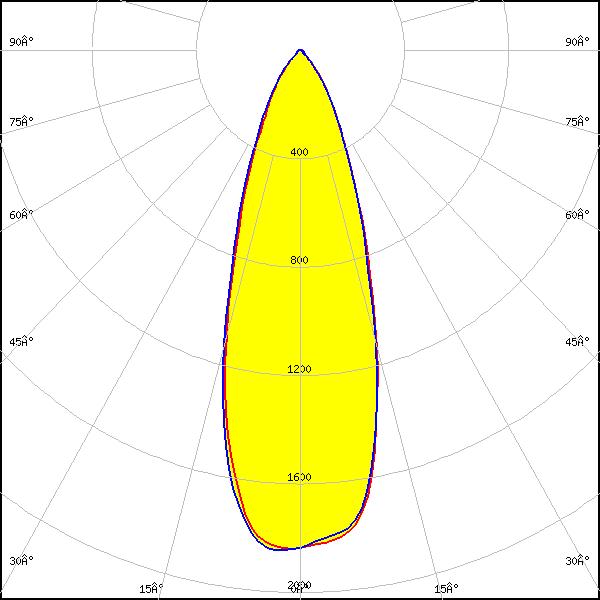

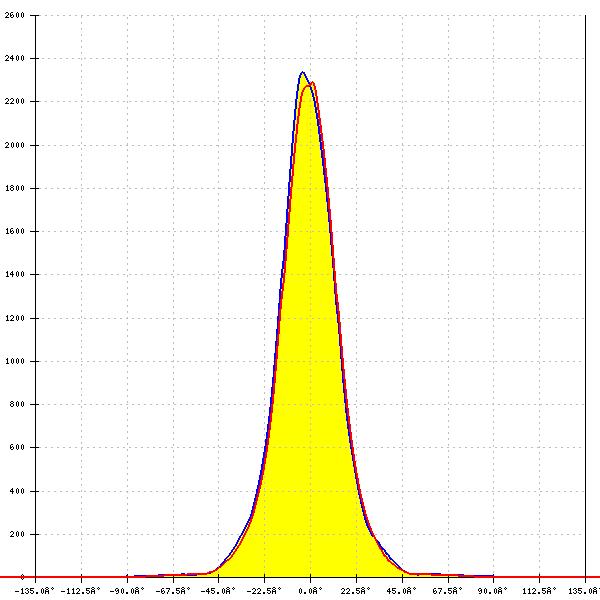

LED: CXA/B 15xx
Required components:
FWHM: 30°
FWTM: 61°
Peak intensity: 2.372 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

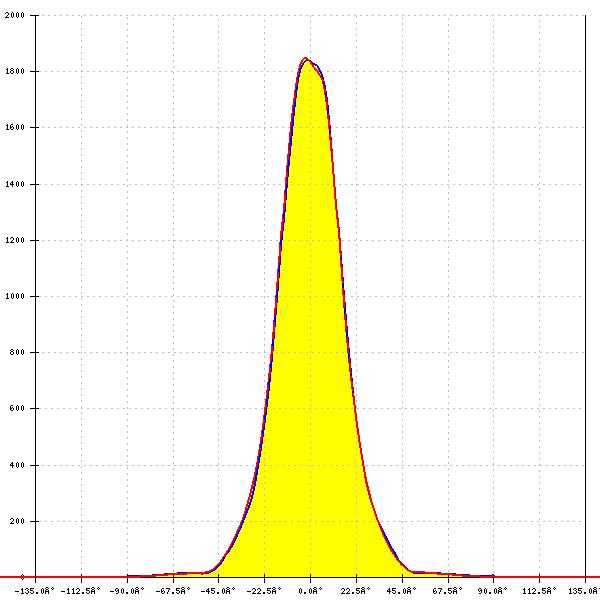

LED: CXA/B 15xx
Required components:
FWHM: 24°
FWTM: 68°
Peak intensity: 1.900 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

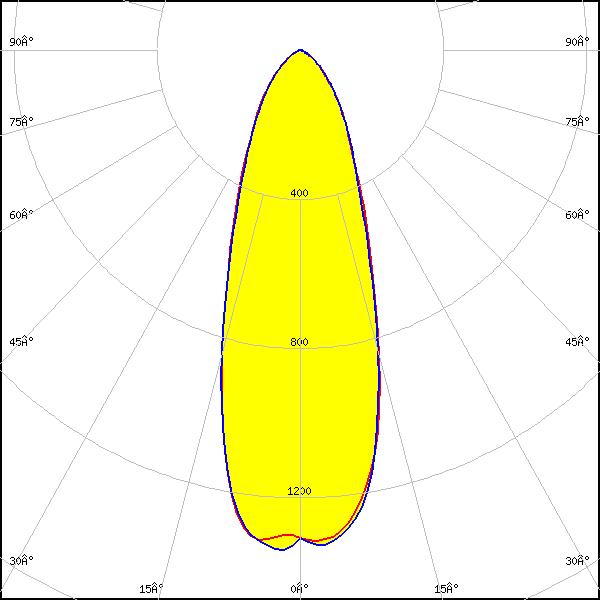

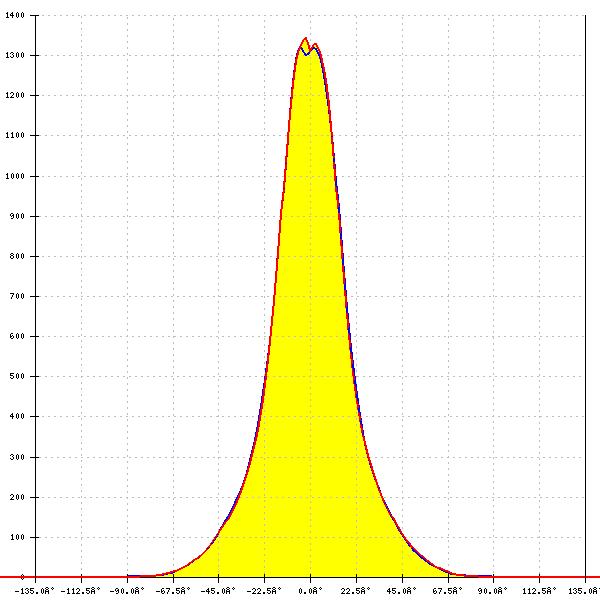

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 36°
FWTM: 84°
Peak intensity: 1.400 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L08 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 46°
FWTM: 87°
Peak intensity: 1.008 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1202HD
Required components:
FWHM: 27°
FWTM: 55°
Peak intensity: 2.600 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

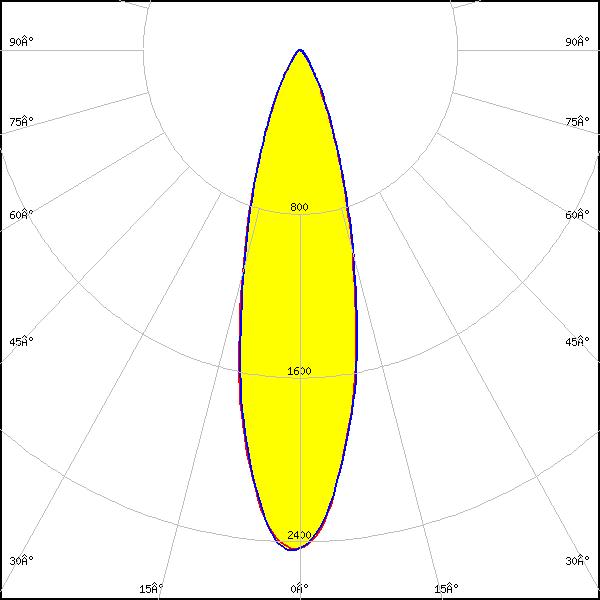

LED: LUXEON CoB 1202s
Required components:
FWHM: 27°
FWTM: 57°
Peak intensity: 2.400 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

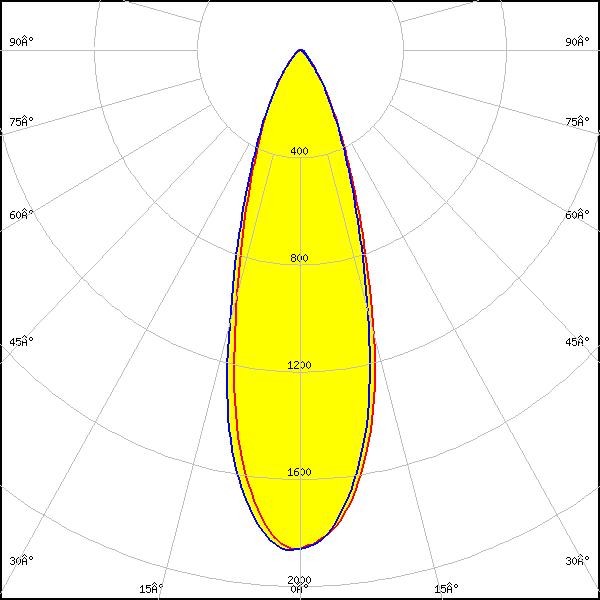

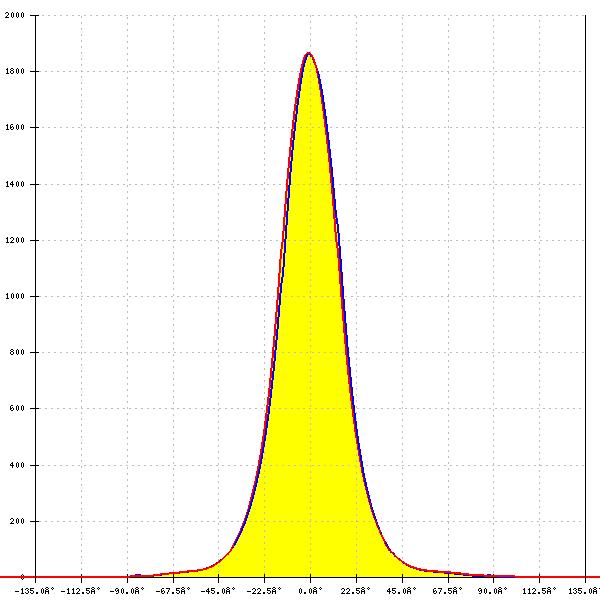

LED: LUXEON CoB 1204HD
Required components:
FWHM: 32°
FWTM: 66°
Peak intensity: 1.870 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

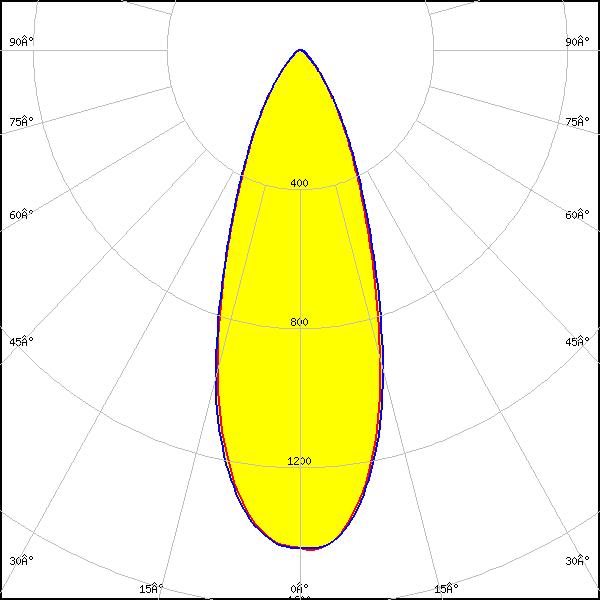

LED: LUXEON CoB 1205HD
Required components:
FWHM: 38°
FWTM: 75°
Peak intensity: 1.400 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

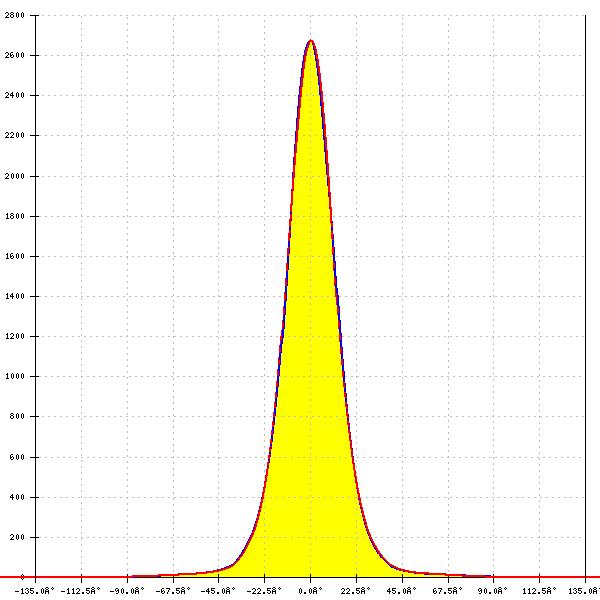

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Lena
FWHM: 27°
FWTM: 54°
Peak intensity: 2.674 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

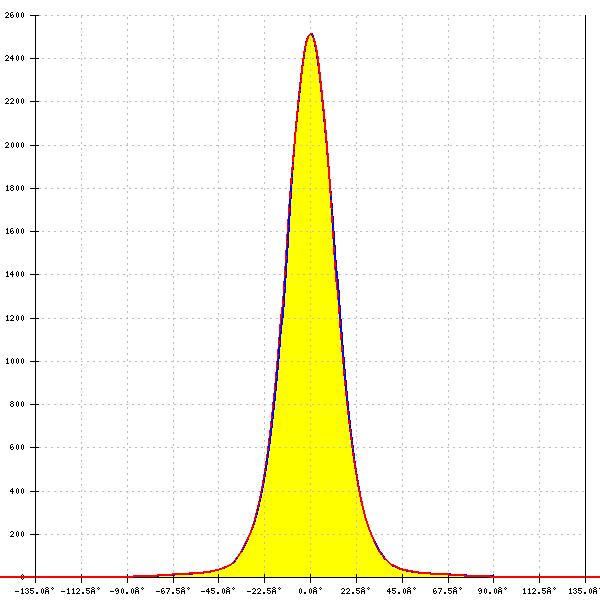

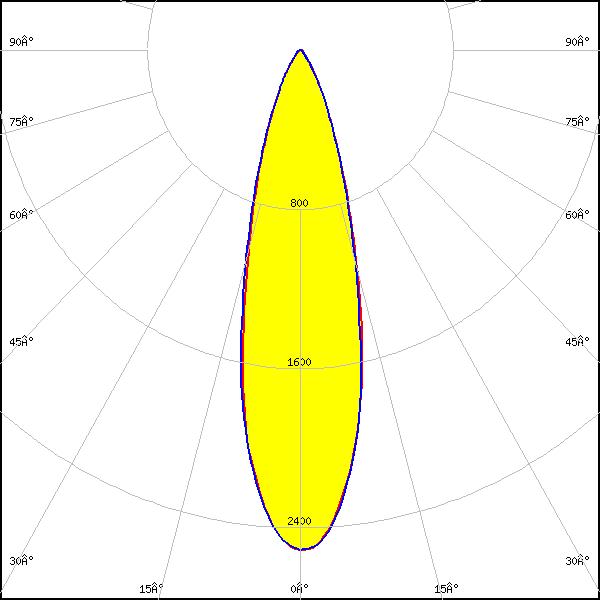

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: 28°
FWTM: 56°
Peak intensity: 2.514 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: 33°
FWTM: 67°
Peak intensity: 1.789 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 39°
FWTM: 76°
Peak intensity: 1.348 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

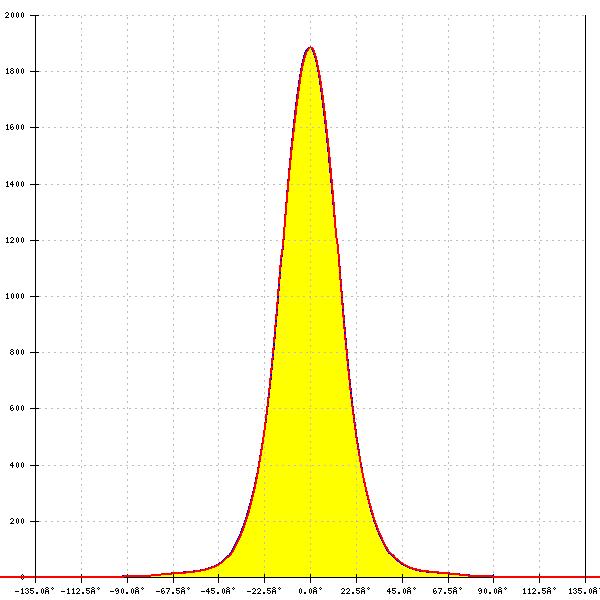

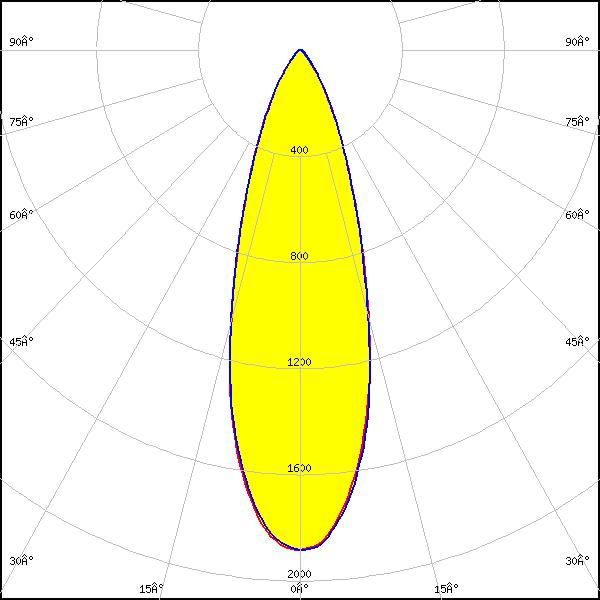

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
FWHM: 32°
FWTM: 65°
Peak intensity: 1.886 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

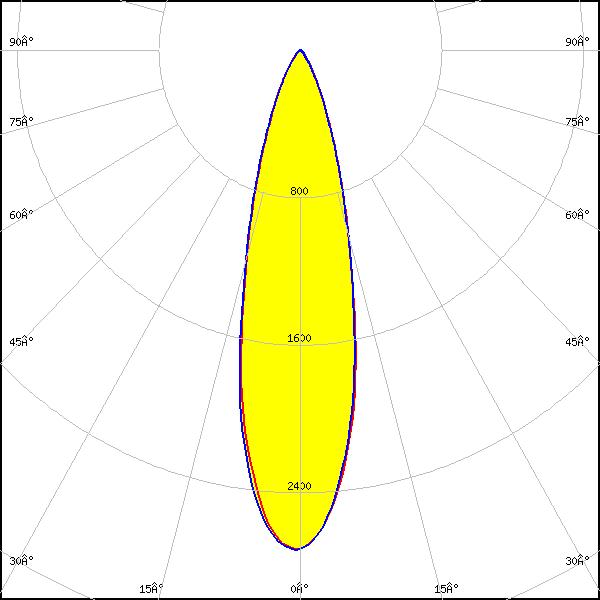

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
FWHM: 27°
FWTM: 54°
Peak intensity: 2.714 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON Fusion 12-up (20x24)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
FWHM: 35°
FWTM: 67°
Peak intensity: 1.649 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: Tunable White

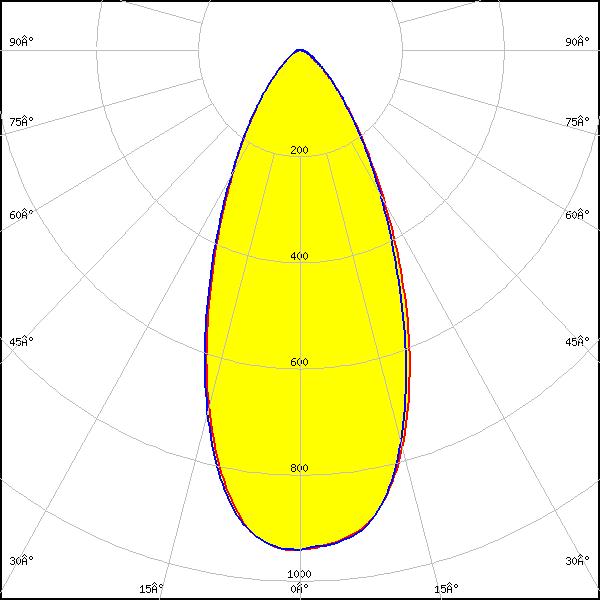

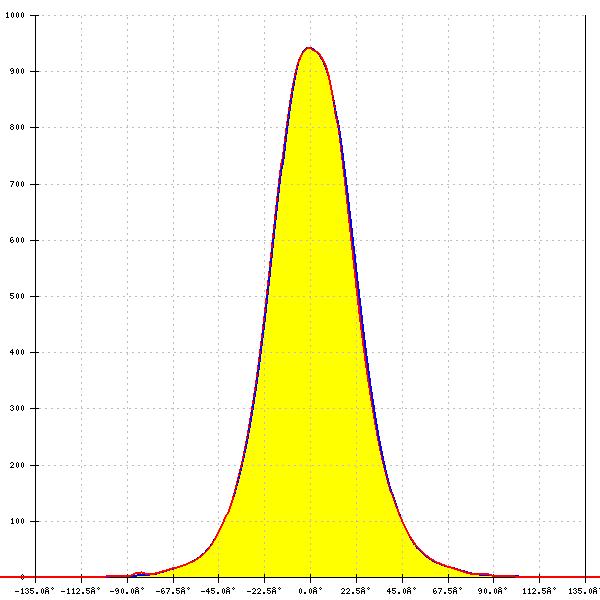

LED: CxM-14 (19x19)
Required components:
FWHM: 47°
FWTM: 89°
Peak intensity: 0.940 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

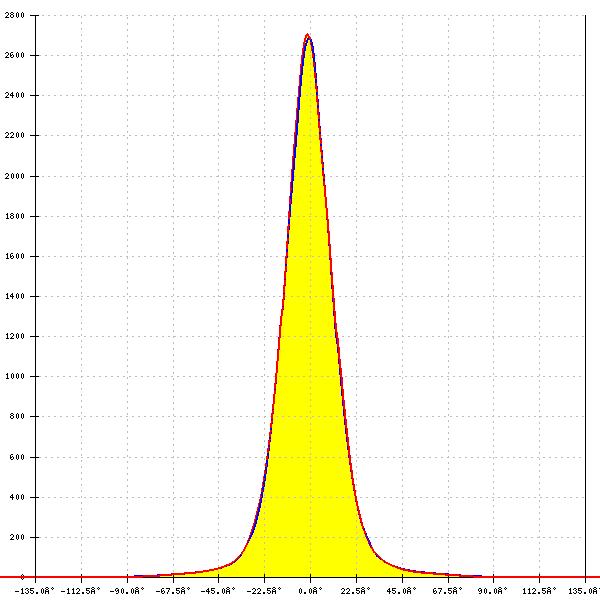

LED: CXM-4
Required components:
FWHM: 26°
FWTM: 53°
Peak intensity: 2.715 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

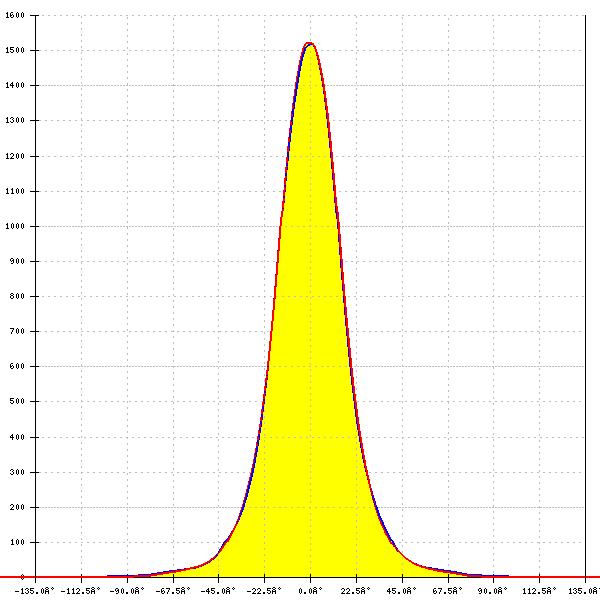

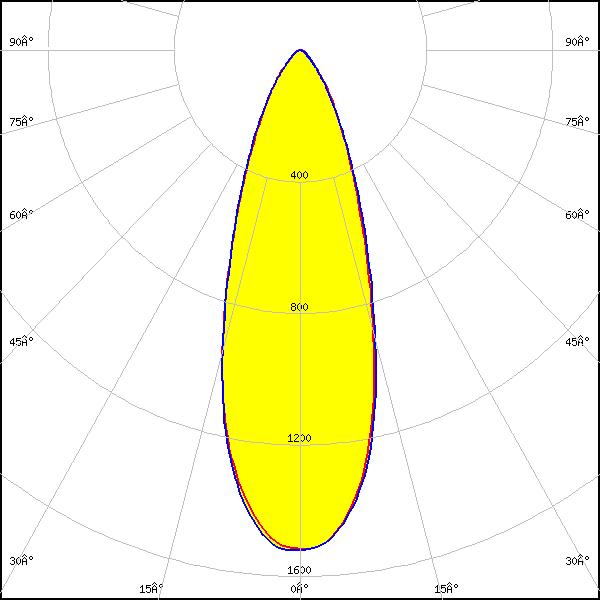

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 35°
FWTM: 72°
Peak intensity: 1.500 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

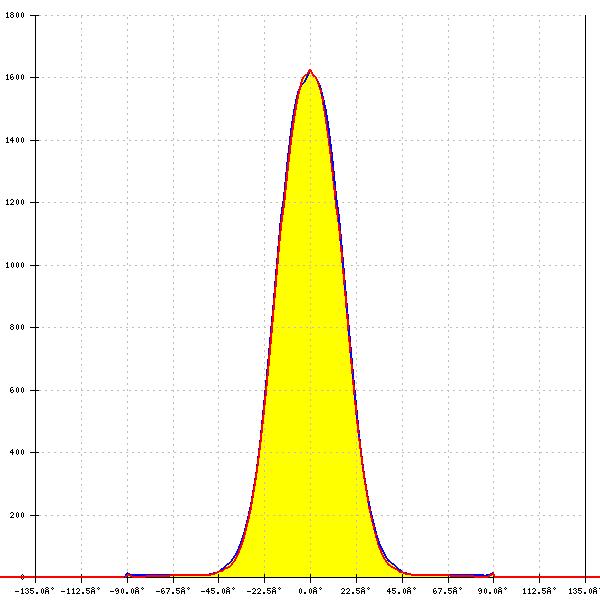

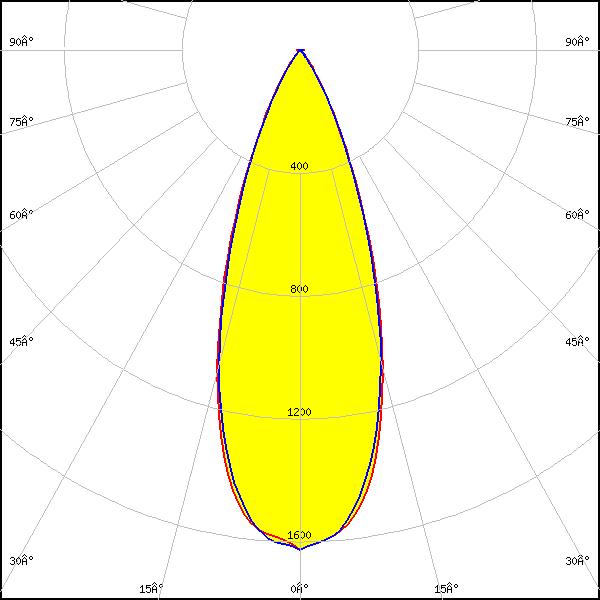

LED: NFSWE11A
FWHM: 37°
FWTM: 63°
Peak intensity: 1.628 cd/lm
Efficiency: 72 %
LEDs/each optic: 30
Light colour: White

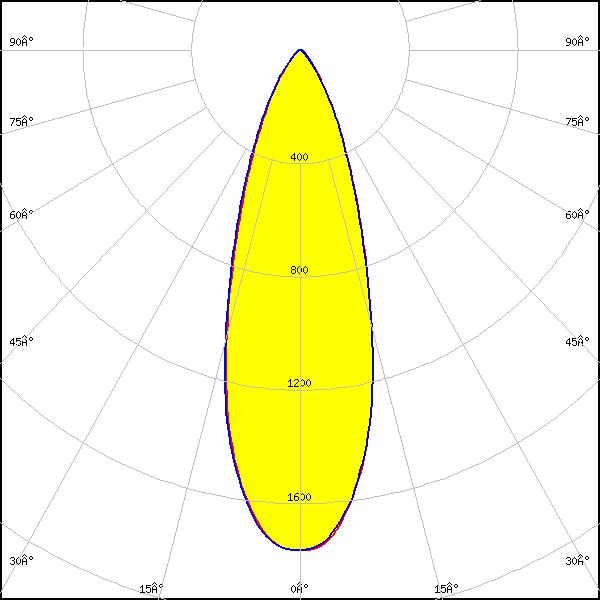

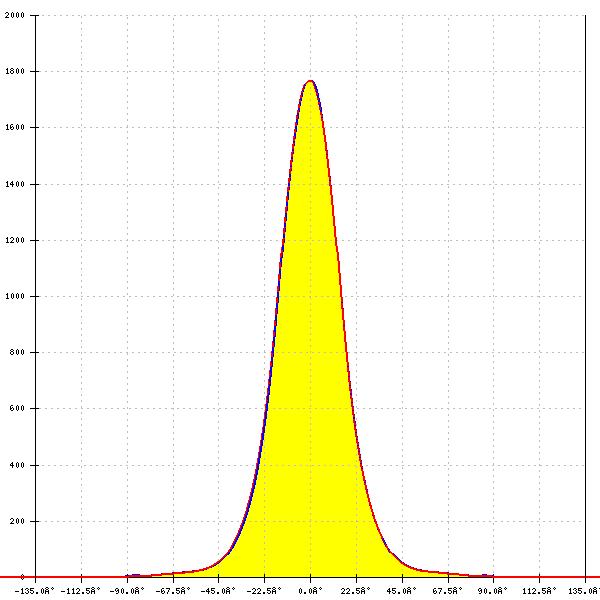

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 34°
FWTM: 67°
Peak intensity: 1.770 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

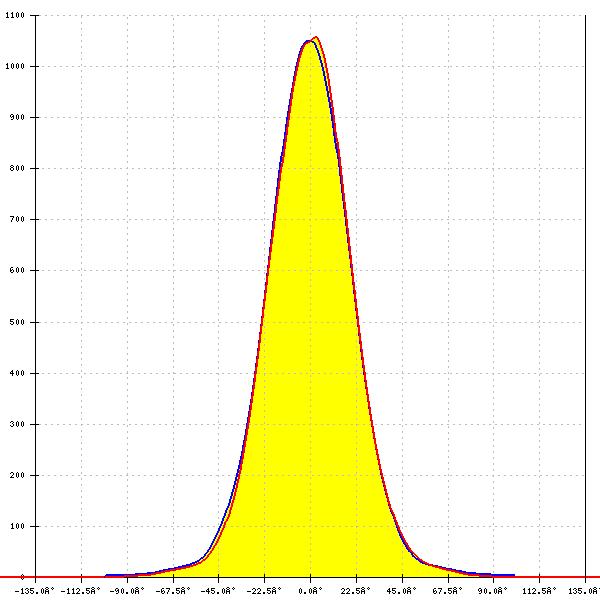

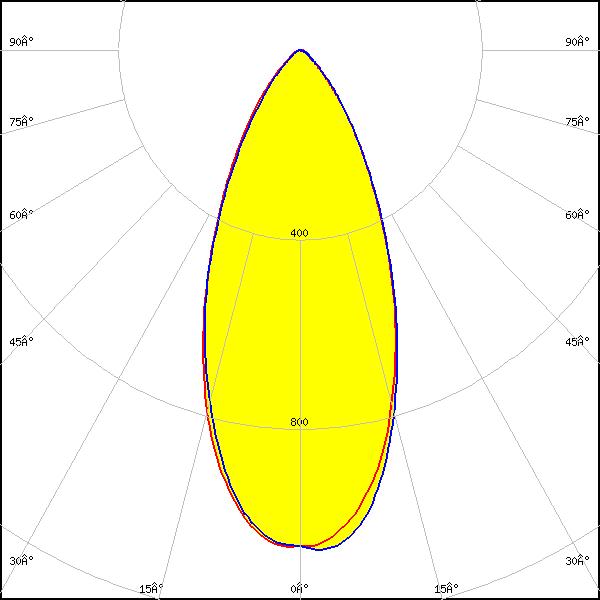

LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 45°
FWTM: 84°
Peak intensity: 1.100 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

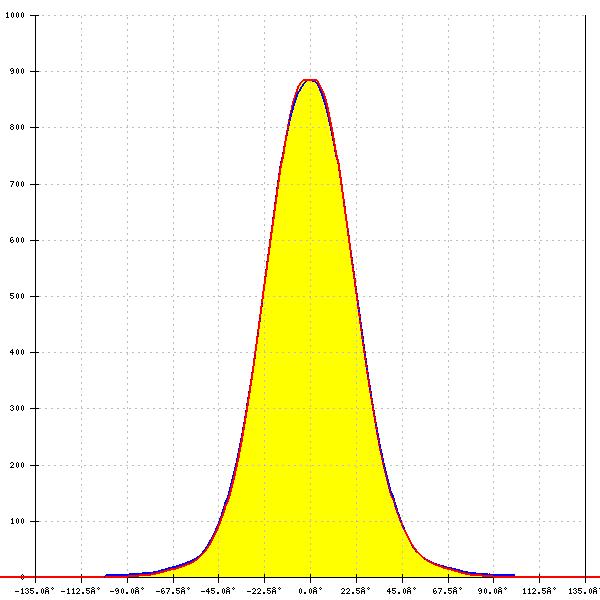

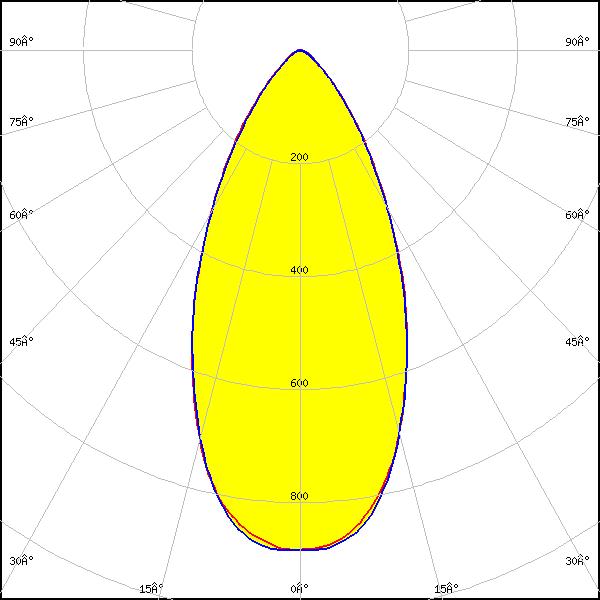

LED: Fortimo SLM L15 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 499 Typ L8
FWHM: 50°
FWTM: 91°
Peak intensity: 0.900 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

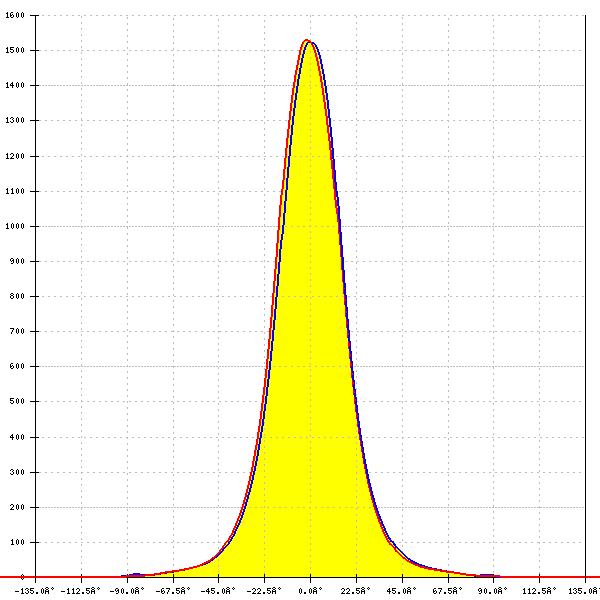

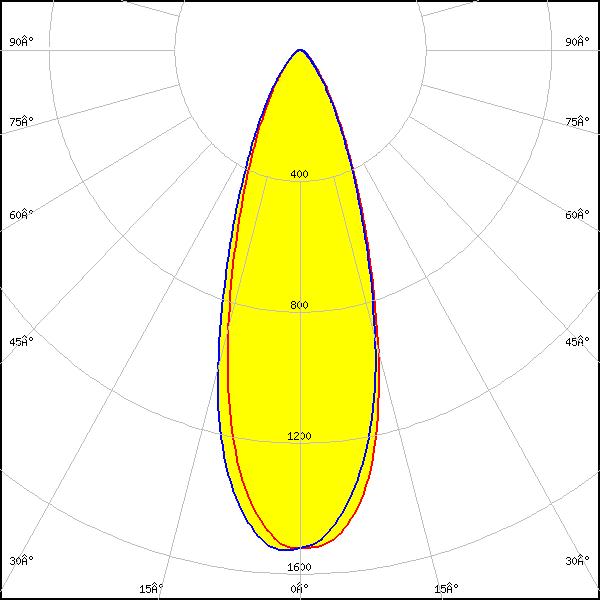

LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 35°
FWTM: 71°
Peak intensity: 1.500 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

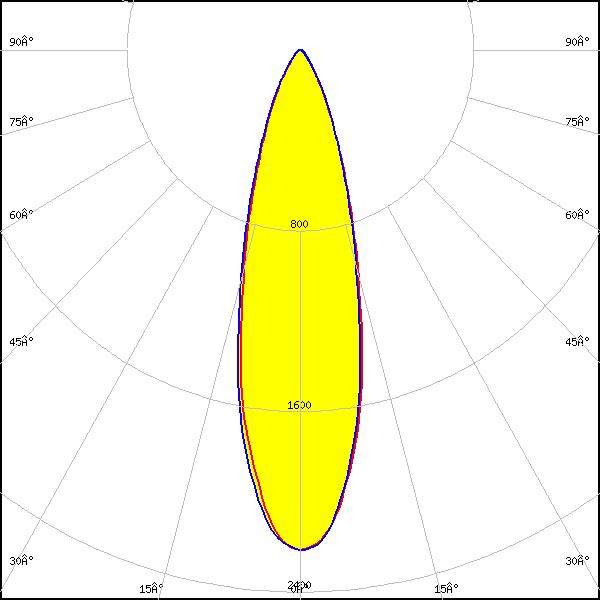

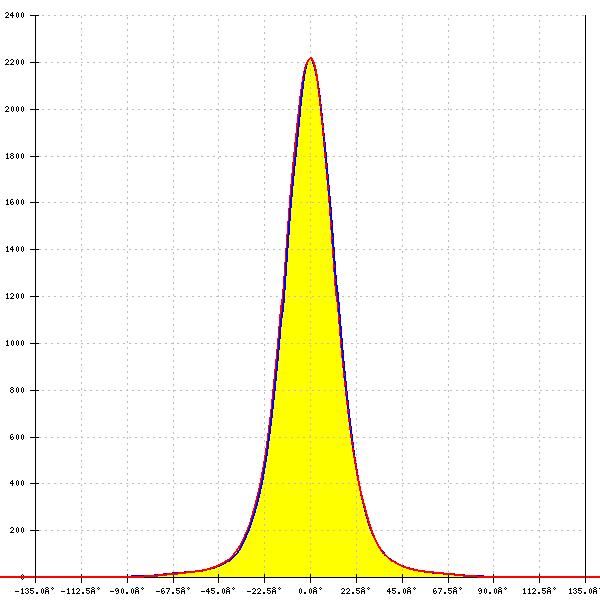

LED: LC010C
Required components:
FWHM: 28°
FWTM: 59°
Peak intensity: 2.200 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

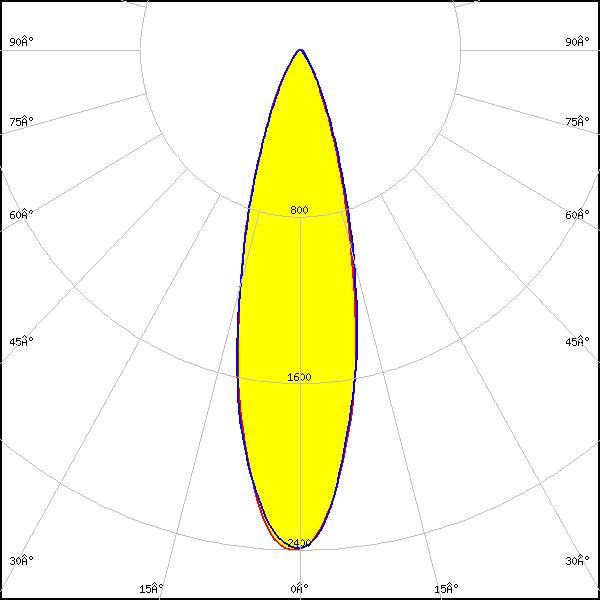

LED: LC010C G2
Required components:
FWHM: 28°
FWTM: 56°
Peak intensity: 2.400 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 48°
FWTM: 91°
Peak intensity: 0.900 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

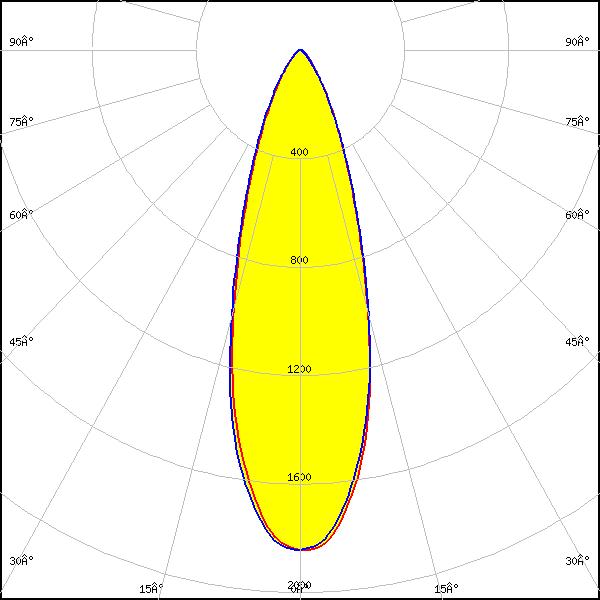

LED: LC020C
FWHM: 32°
FWTM: 64°
Peak intensity: 1.800 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

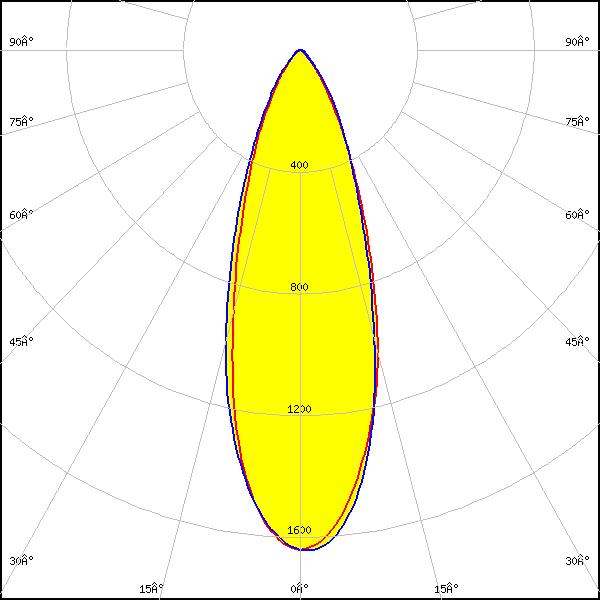

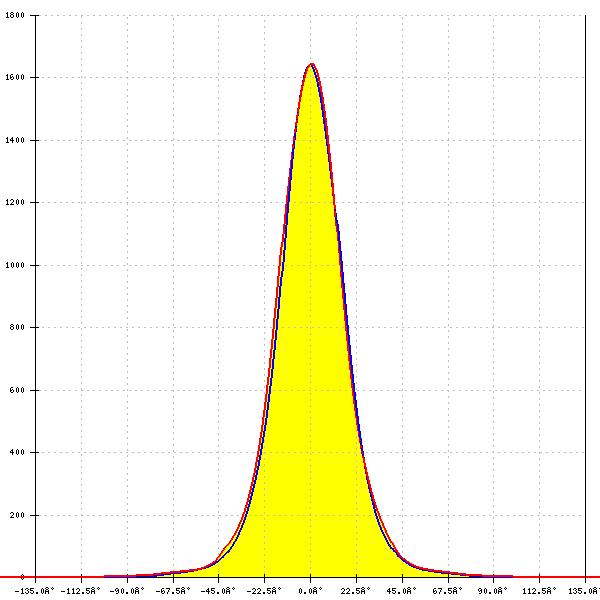

LED: LC020C G2
Required components:
FWHM: 34°
FWTM: 68°
Peak intensity: 1.650 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

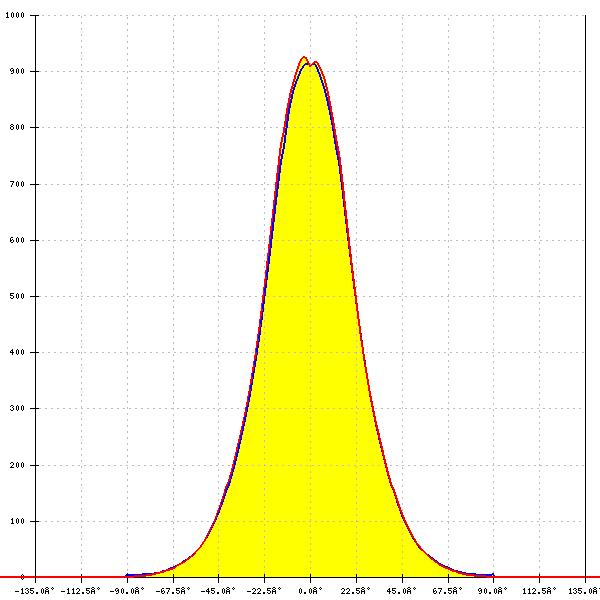

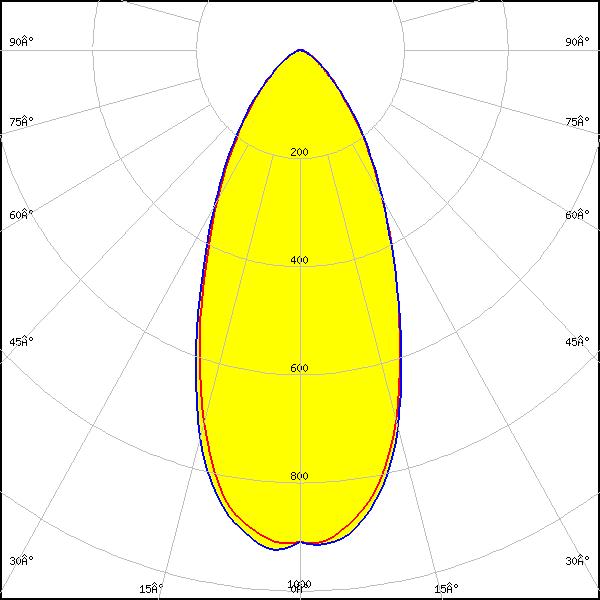

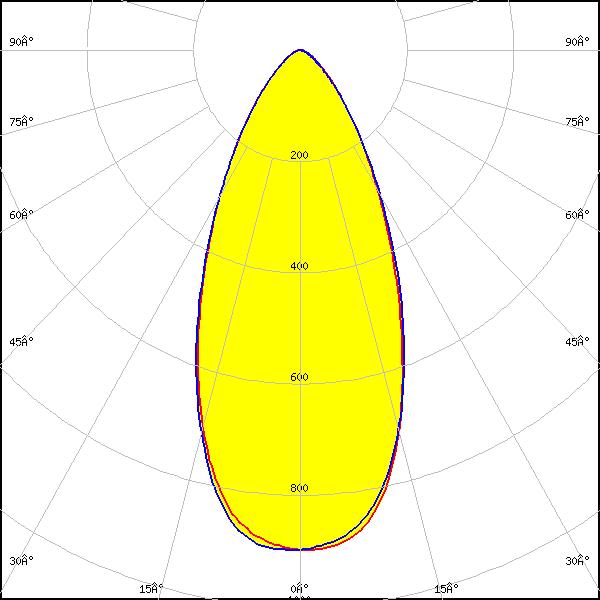

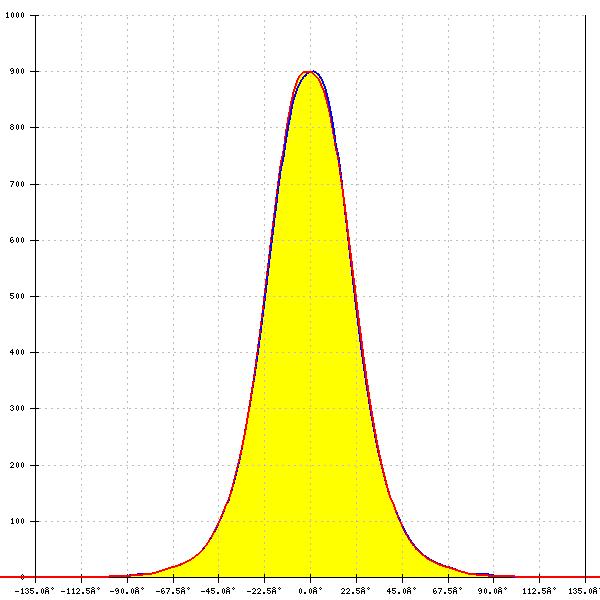

LED: MJT COB LES 14.5
Required components:
FWHM: 48°
FWTM: 95°
Peak intensity: 0.926 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

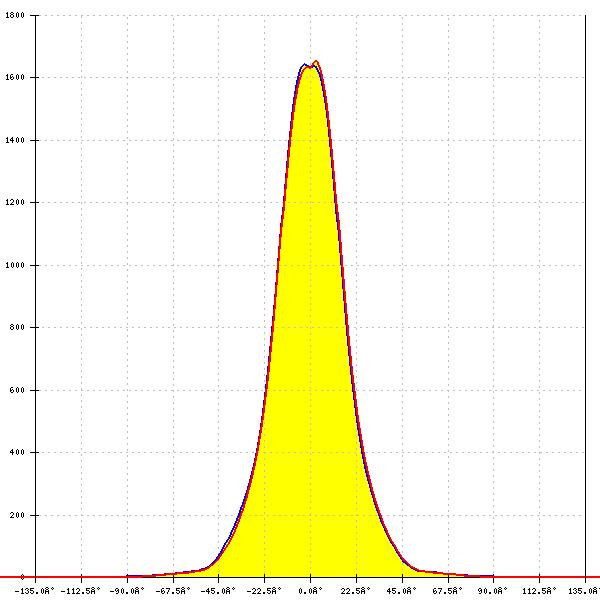

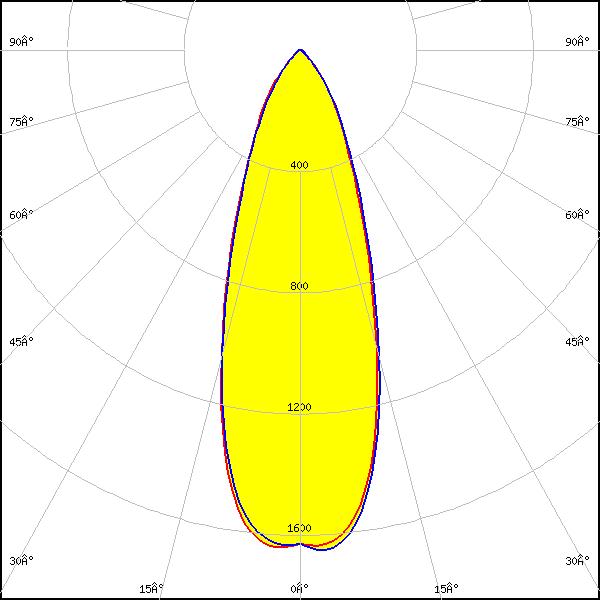

LED: MJT COB LES 9.8
Required components:
FWHM: 36°
FWTM: 73°
Peak intensity: 1.667 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

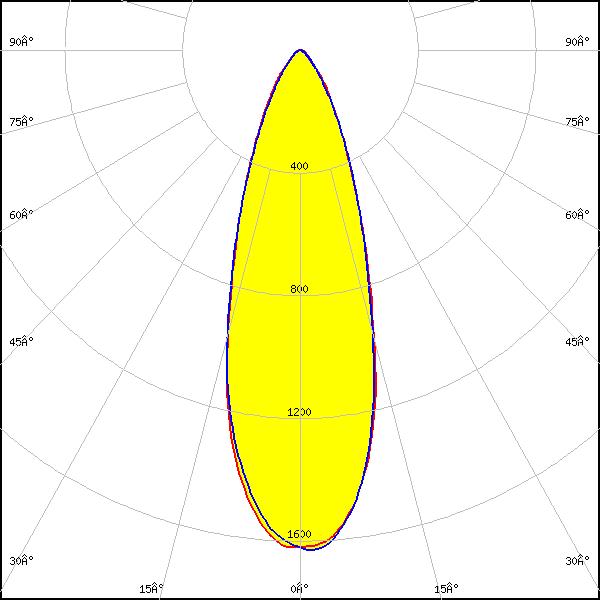

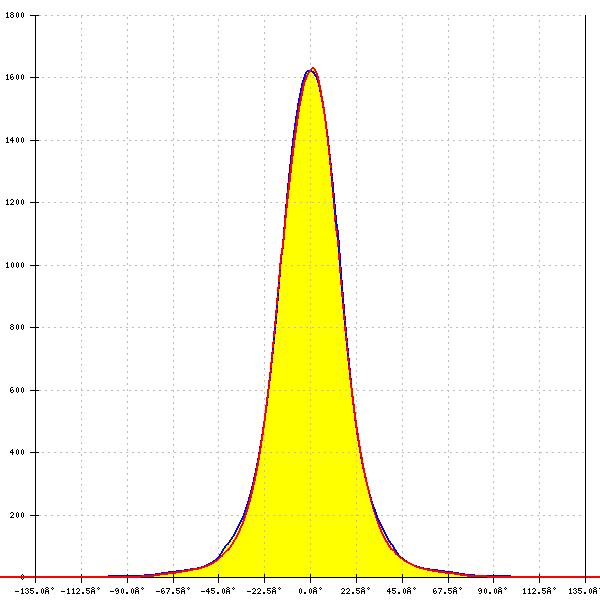

LED: SLE G7 LES09
Required components:
FWHM: 34°
FWTM: 69°
Peak intensity: 1.600 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

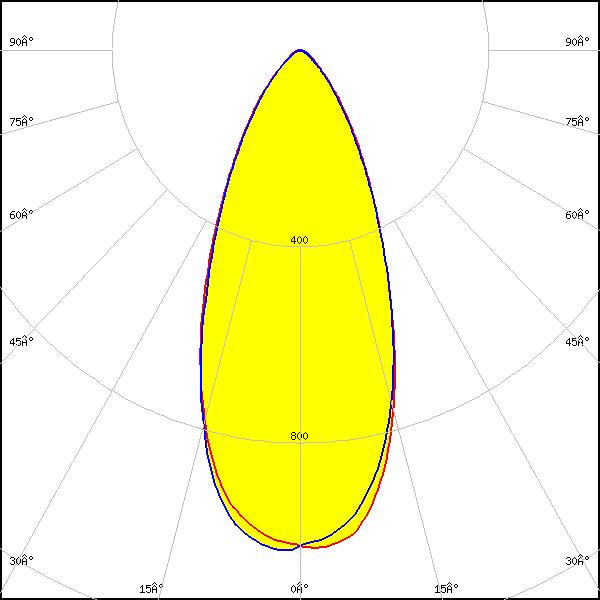

LED: SLE G7 LES13
Required components:
FWHM: 45°
FWTM: 86°
Peak intensity: 1.000 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

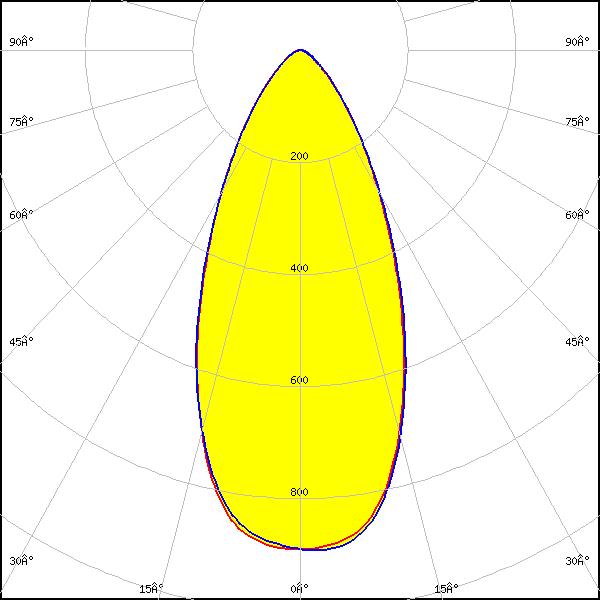

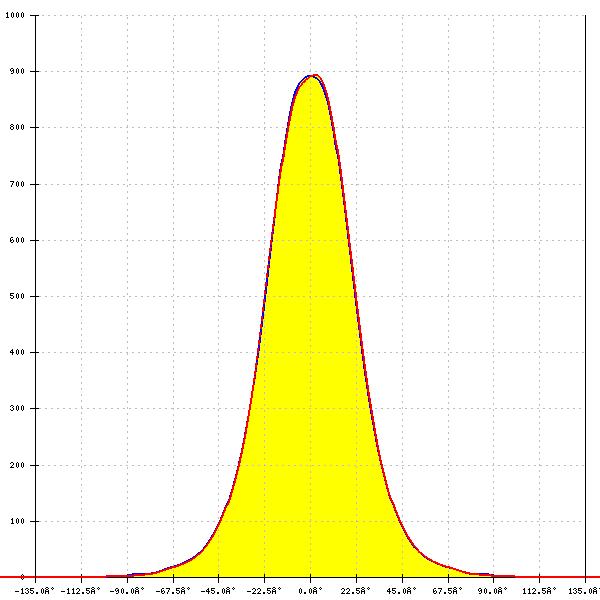

LED: SLE G7 LES15
Required components:
FWHM: 48°
FWTM: 91°
Peak intensity: 0.890 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

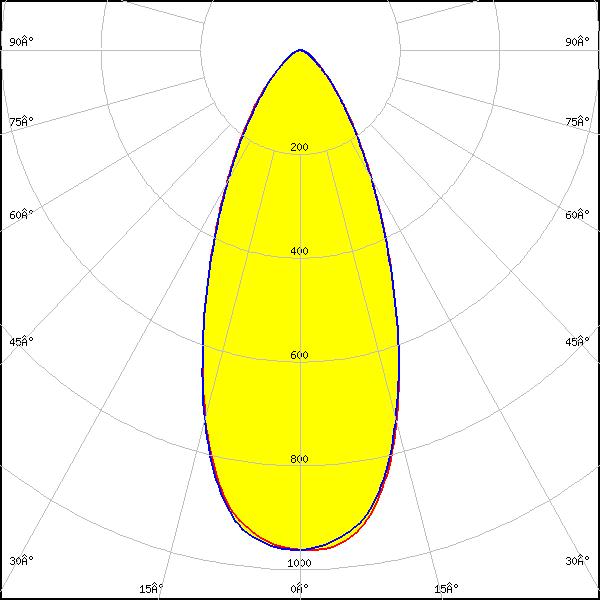

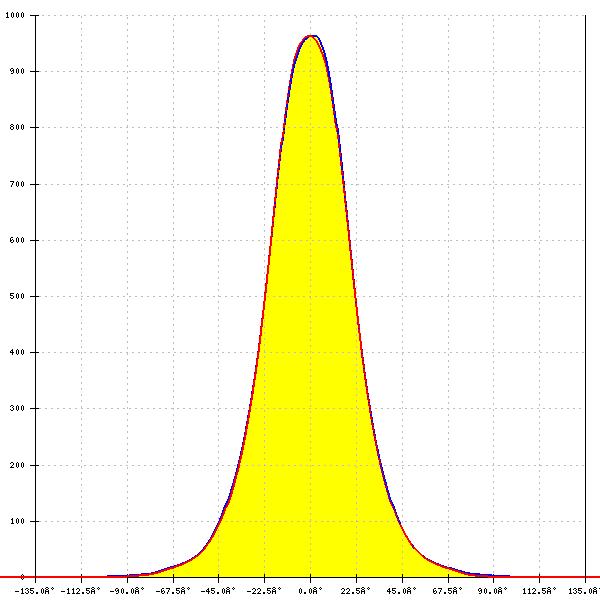

LED: XOB 14.5 mm
Required components:
FWHM: 45°
FWTM: 88°
Peak intensity: 0.963 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

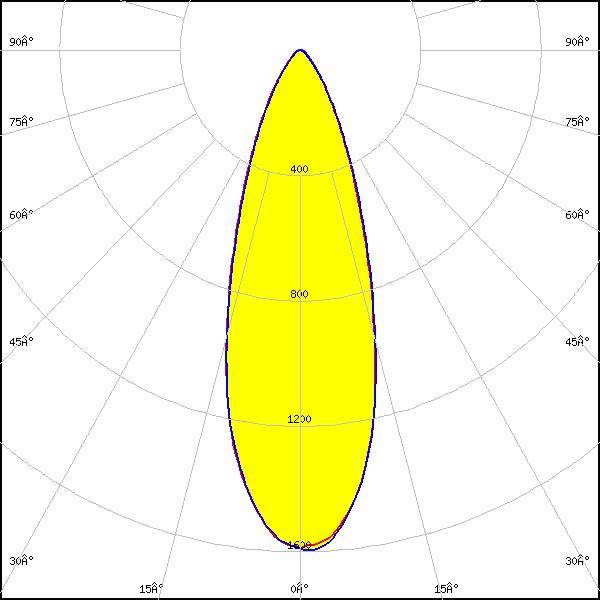

LED: XOB 9.8 mm
Required components:
FWHM: 35°
FWTM: 69°
Peak intensity: 1.596 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
