CS15363_STRADA-IP-2X6-T2-B

Print

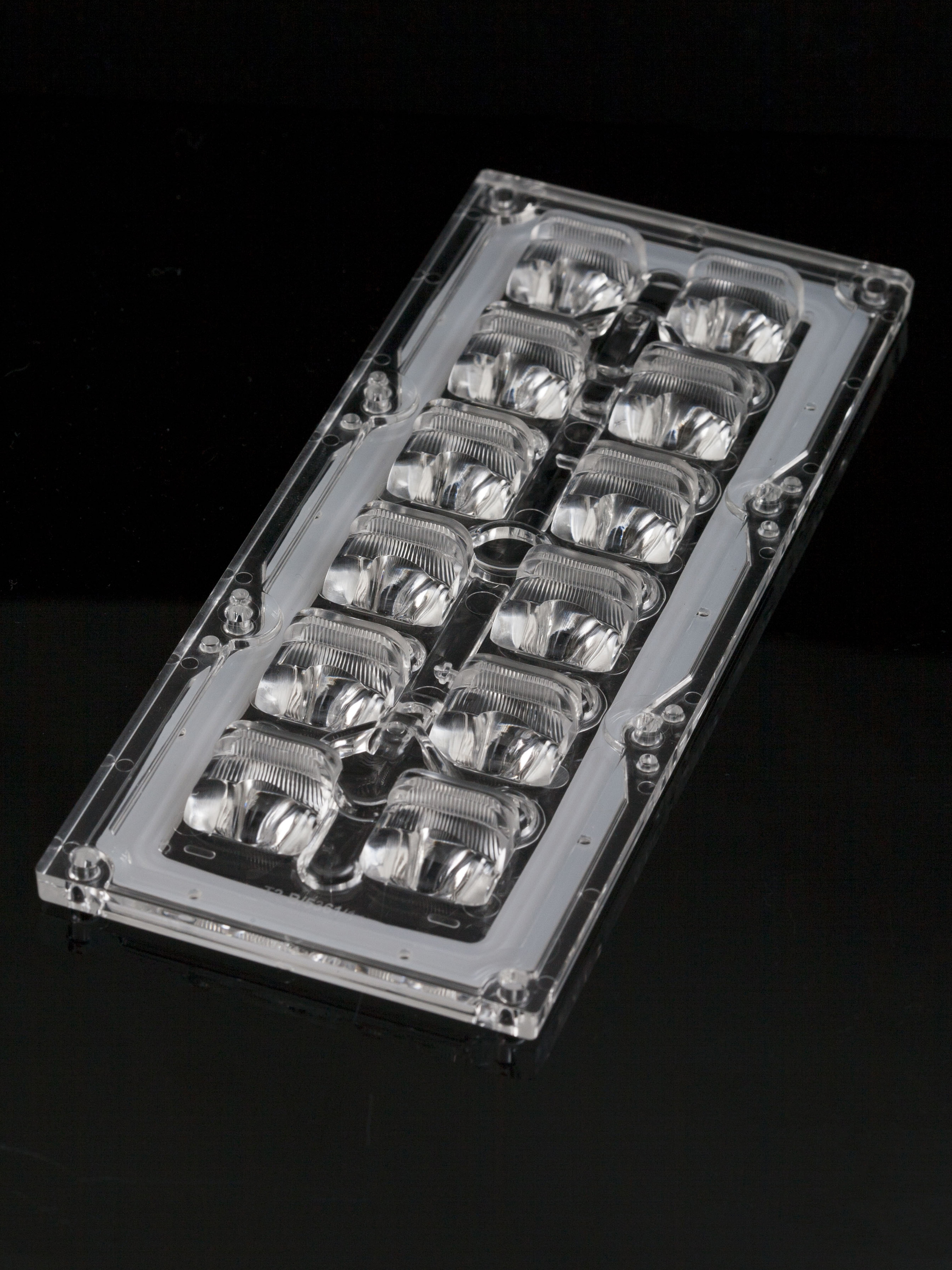

IESNA Type II (medium) beam with minimized house side backlight.

Specification
  • Dimensions:
    71 x  173 mm
  • Height:
    12.0 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials
  • STRADA-IP-2X6-T2-B, Multi-lens, PMMA
  • 2X6-SEAL25, Seal, Silicone

WARNING: Cancer – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    120 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    8.0 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    2.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

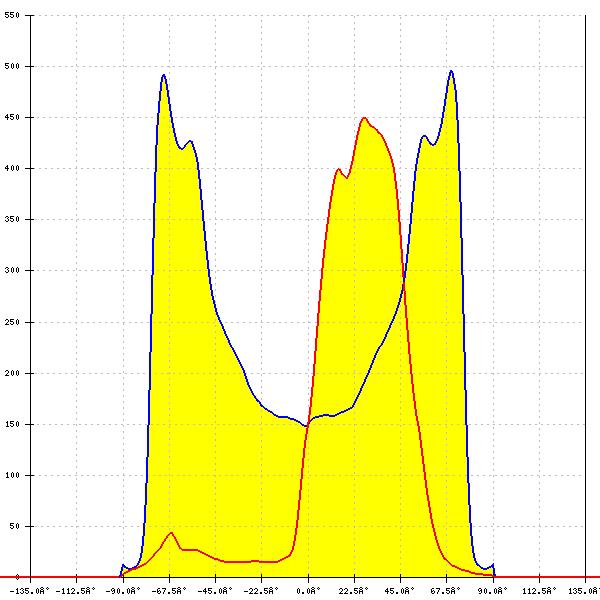

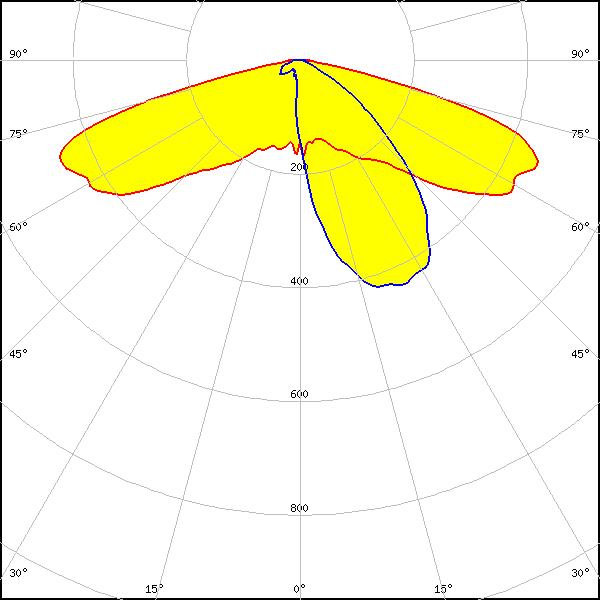

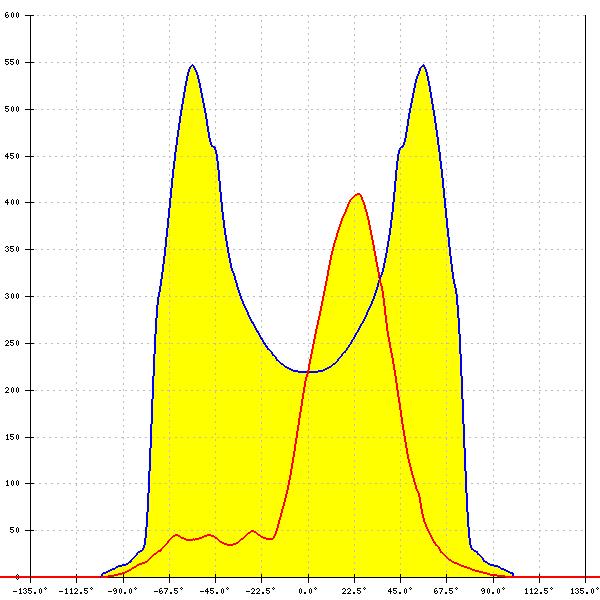

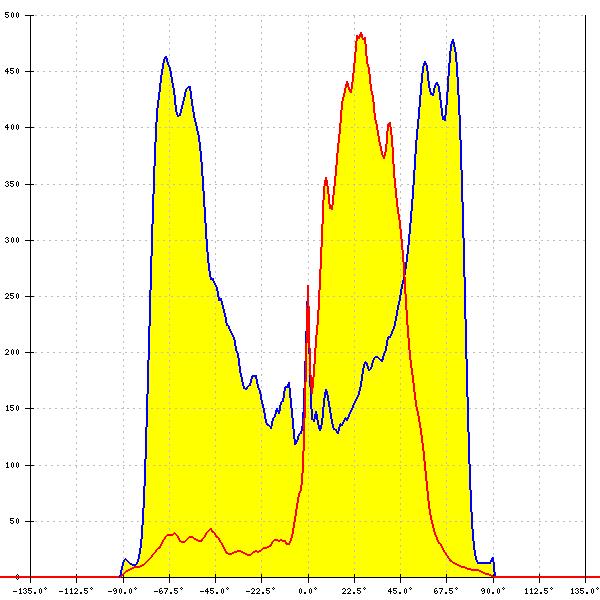

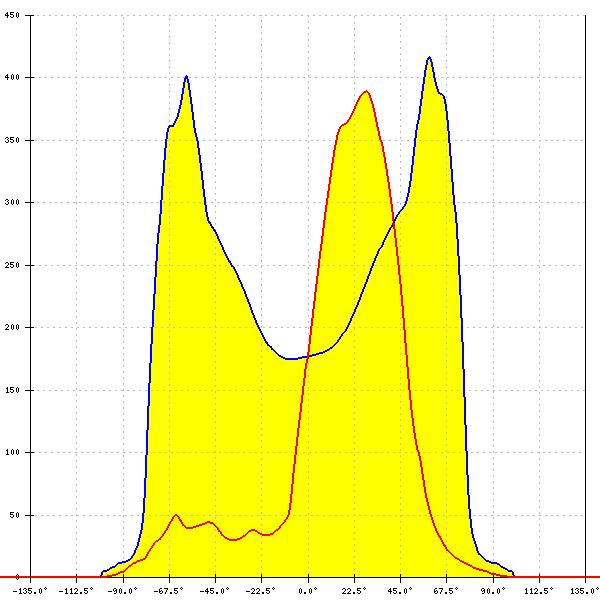

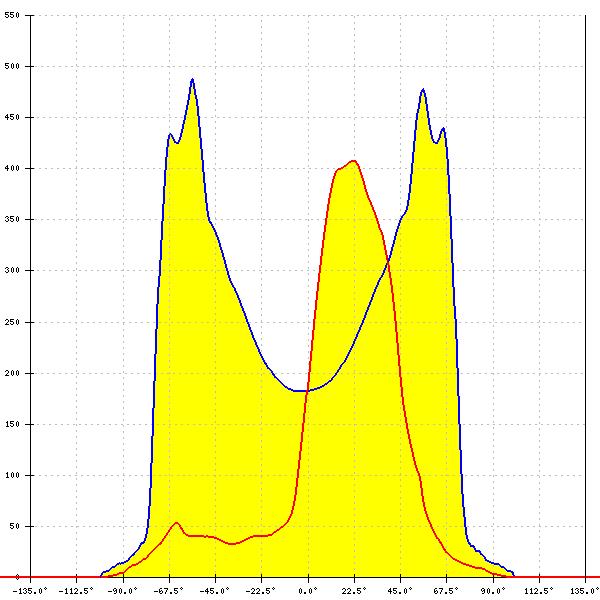

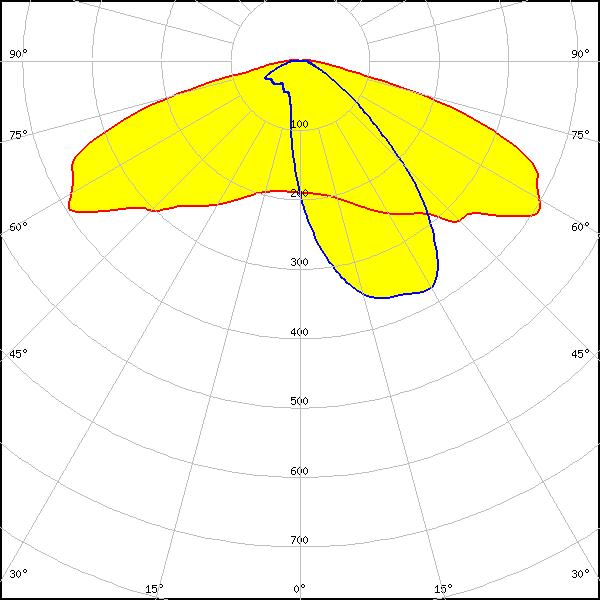

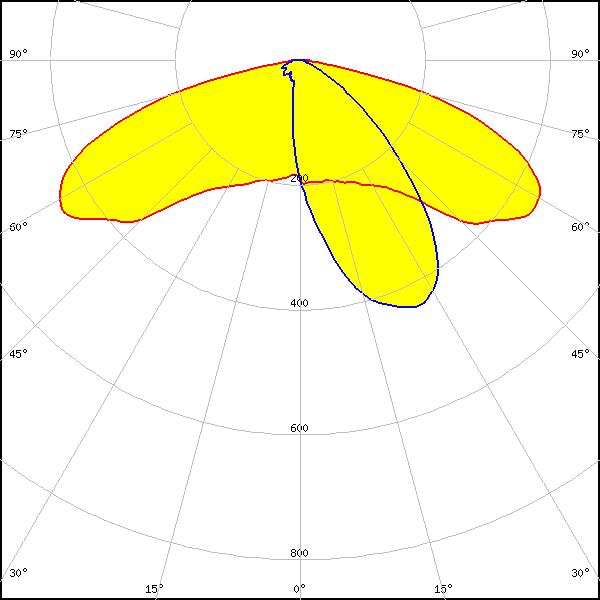

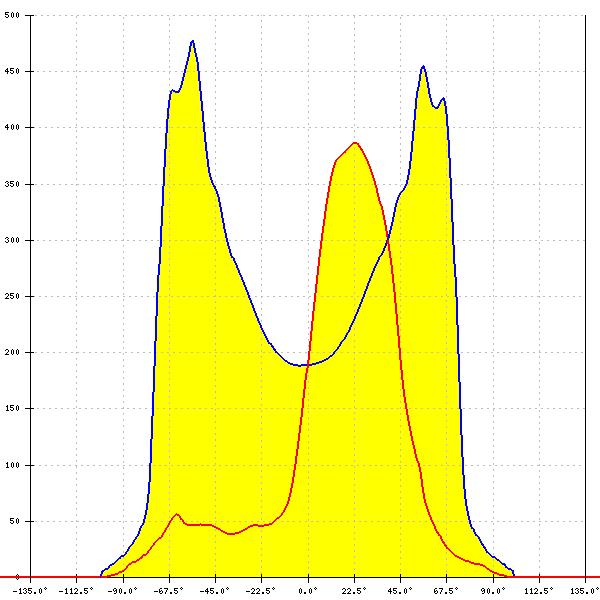

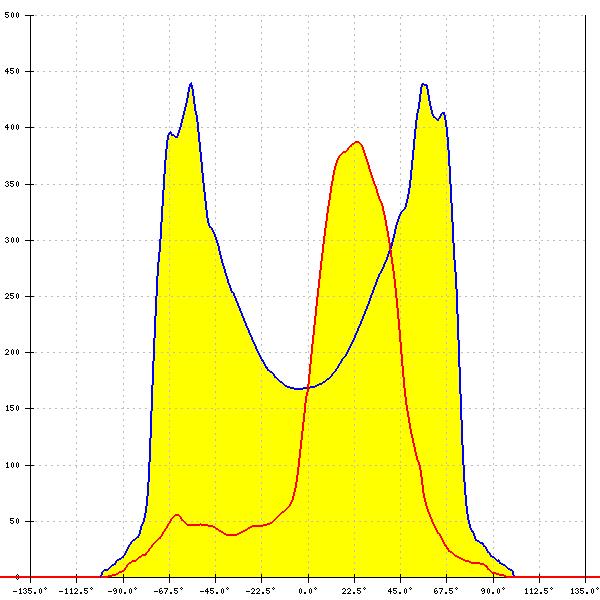

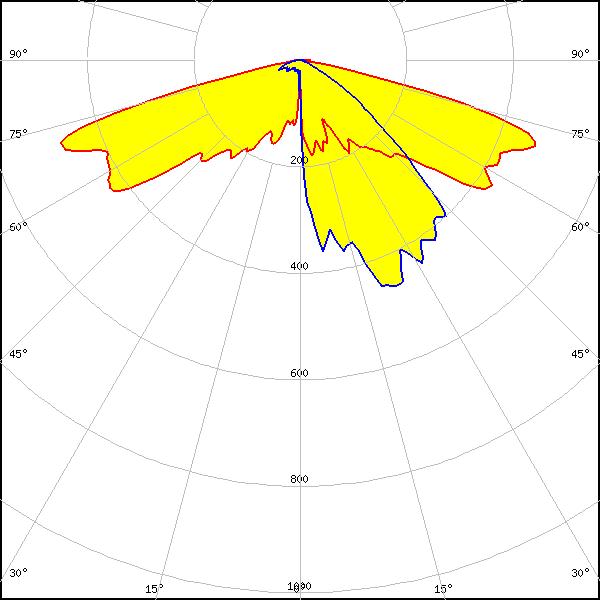

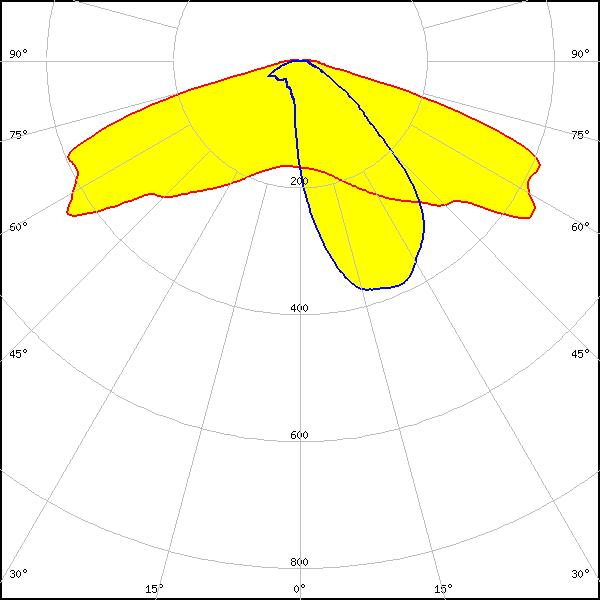

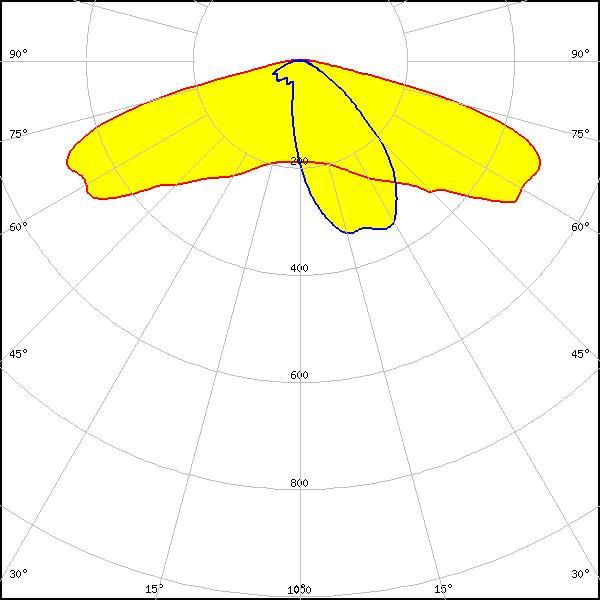

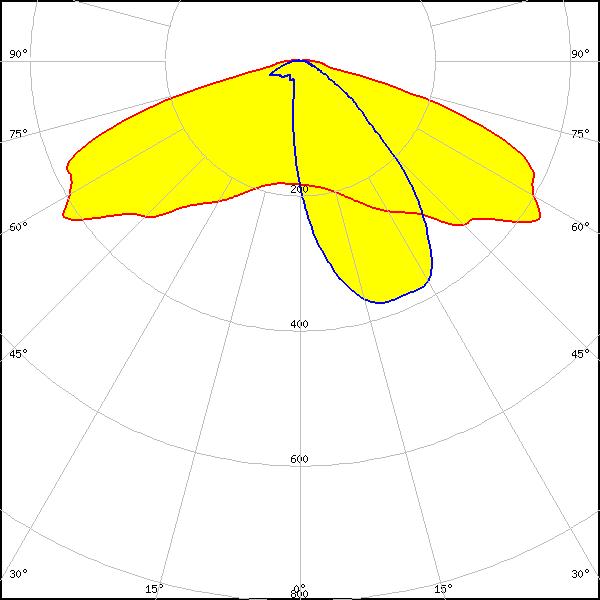

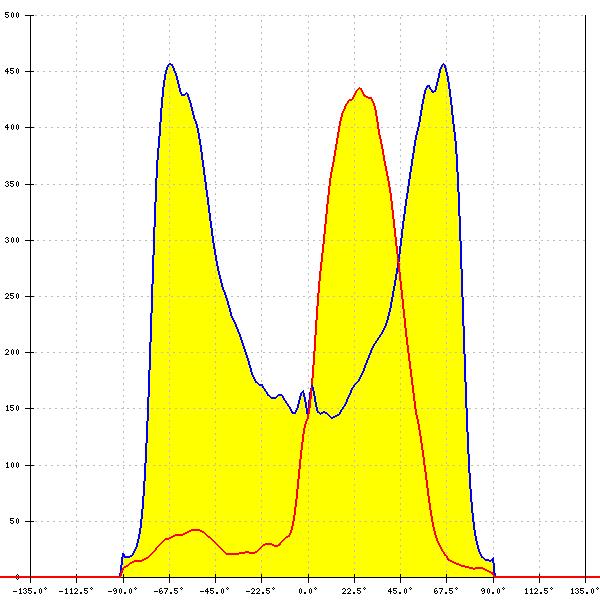

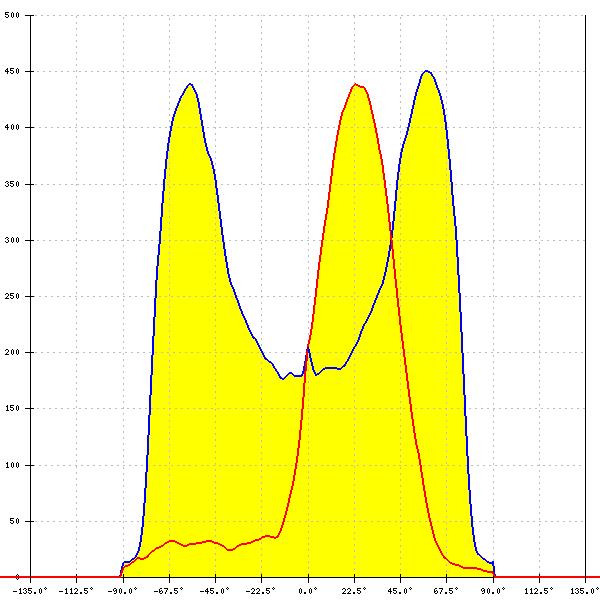

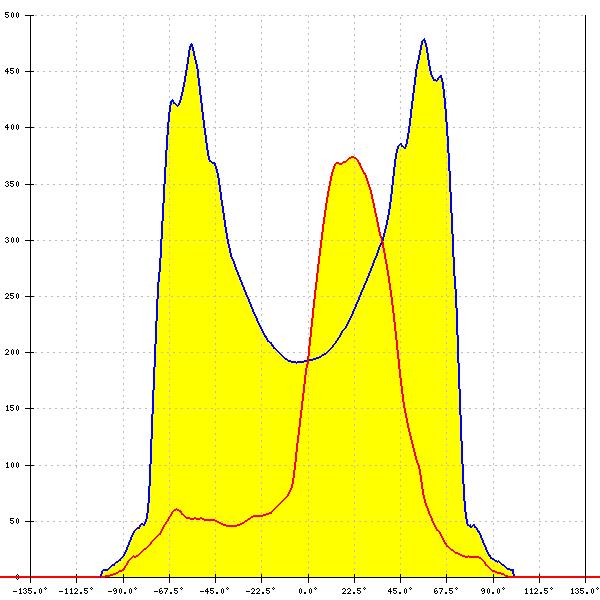

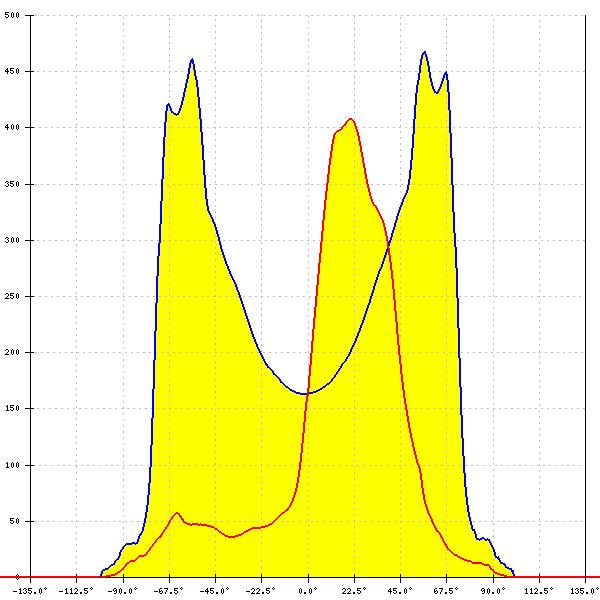

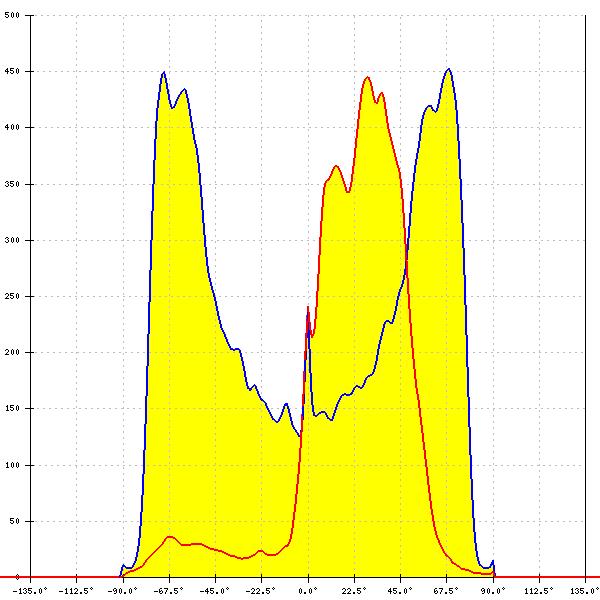

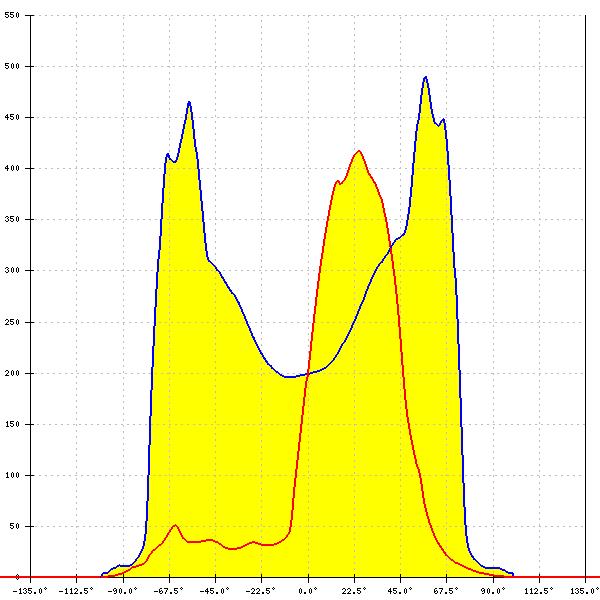

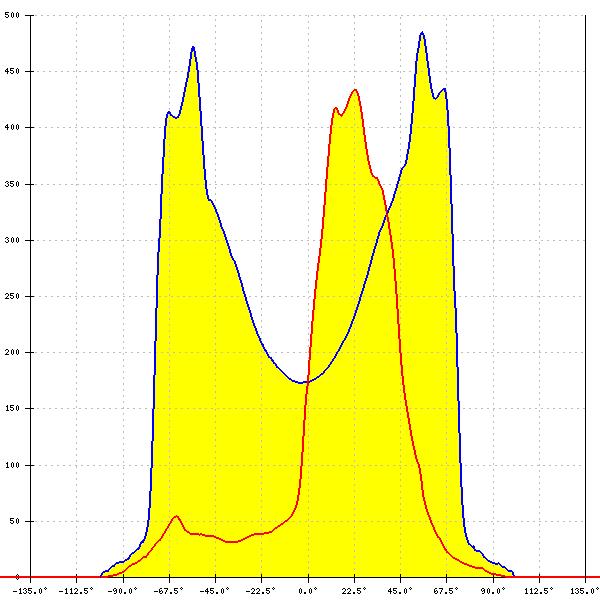

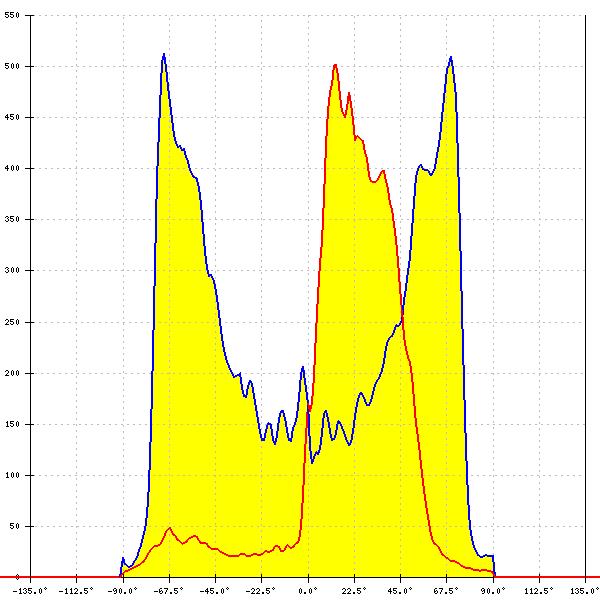

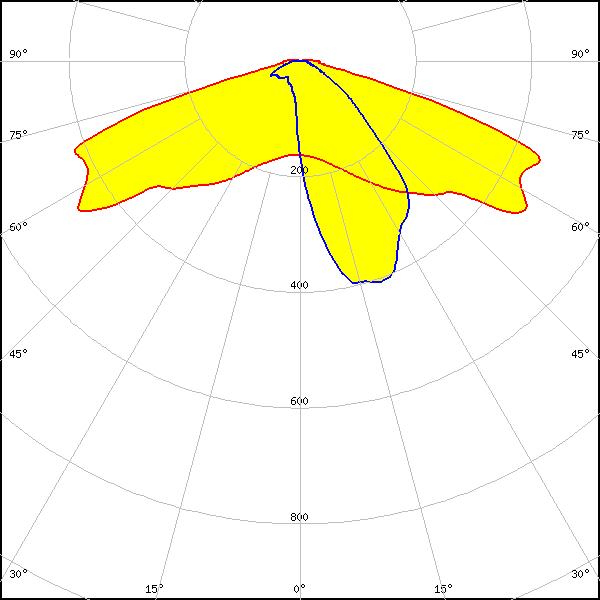

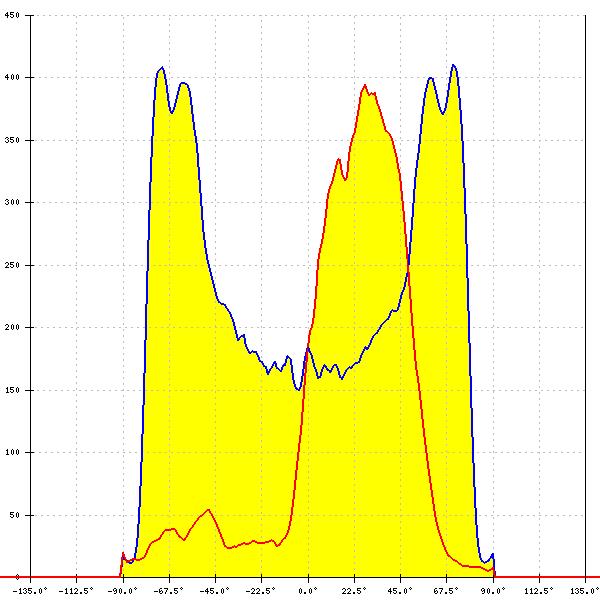

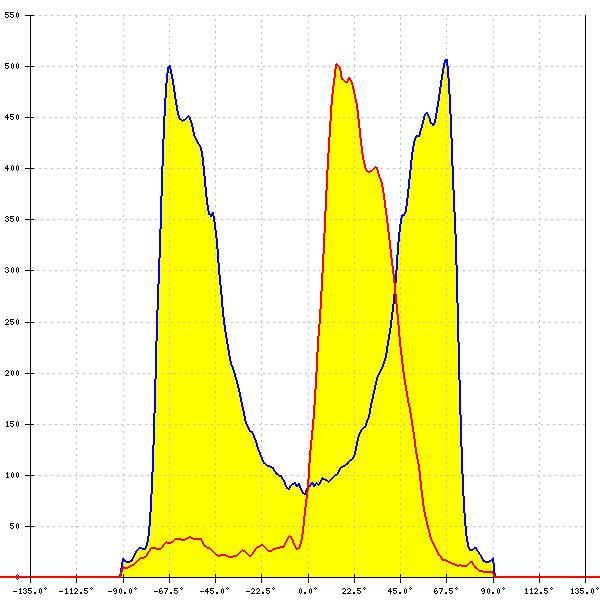

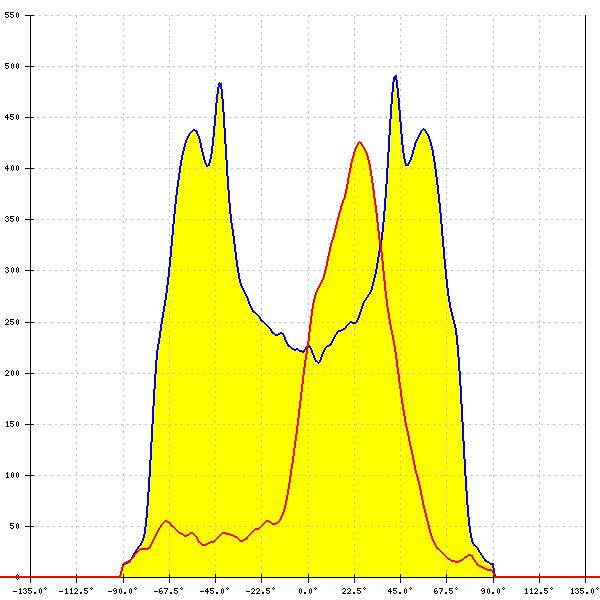

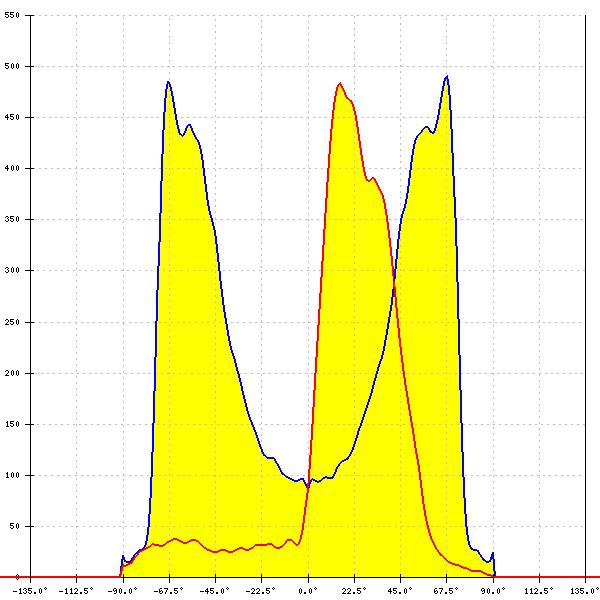

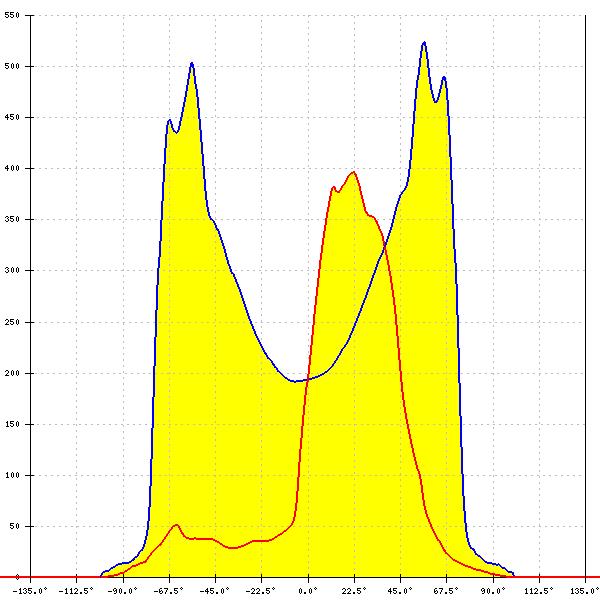

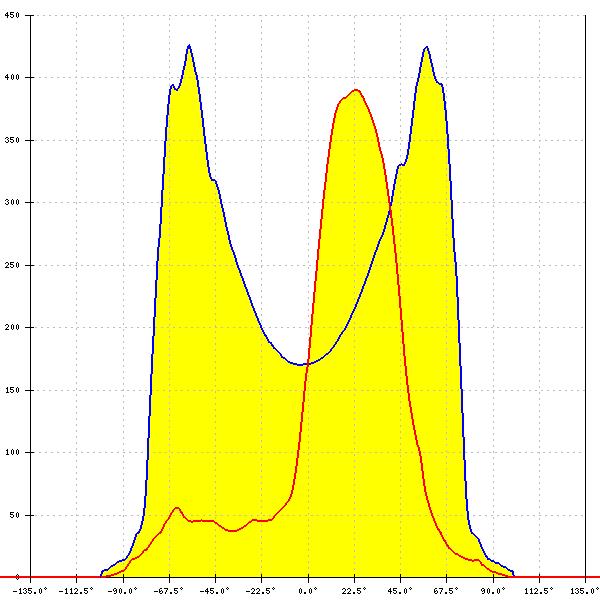

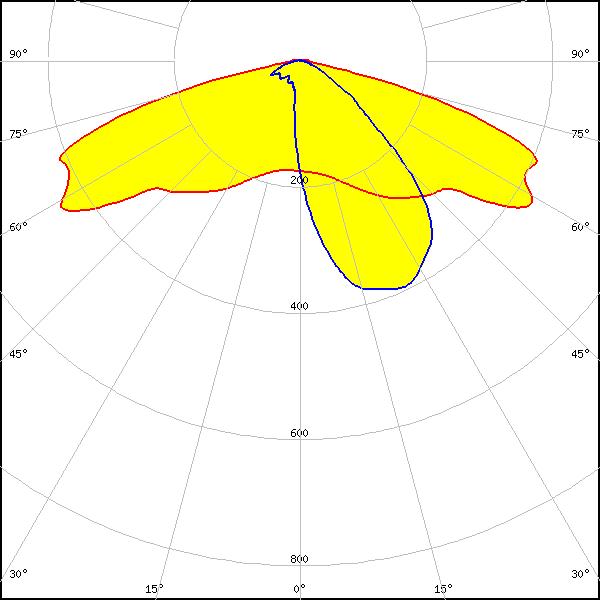

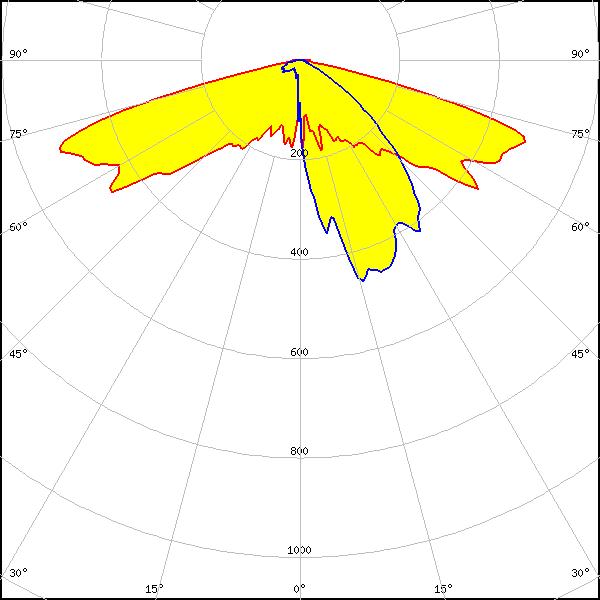

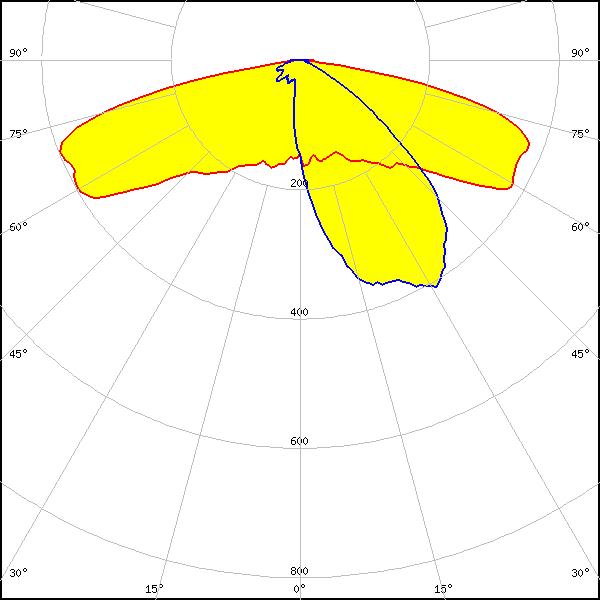

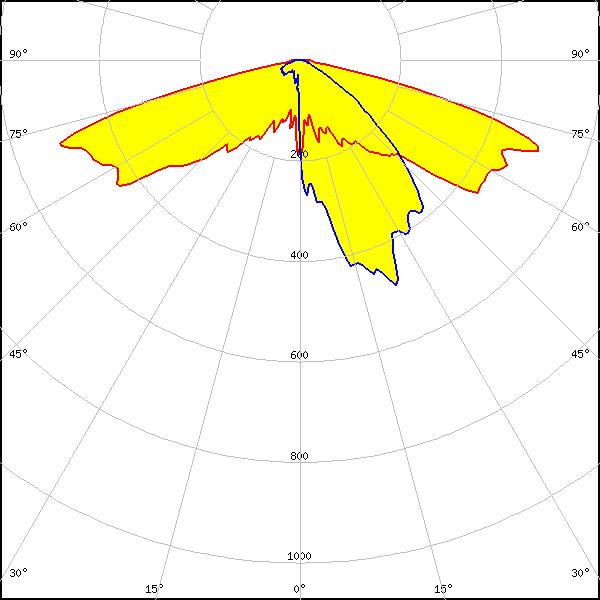

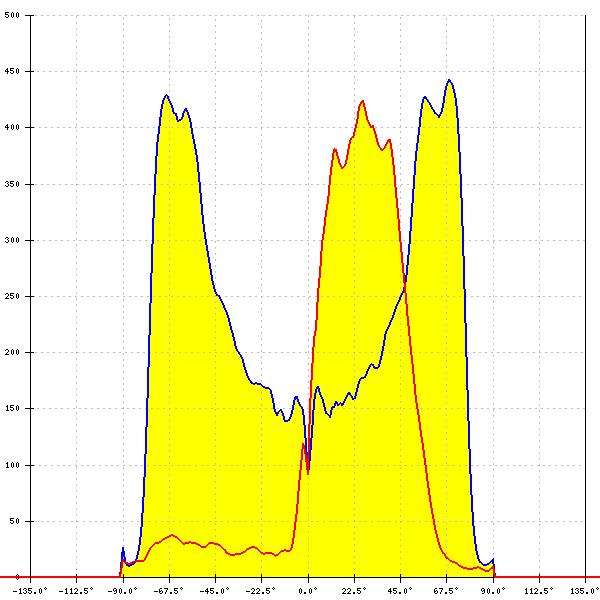

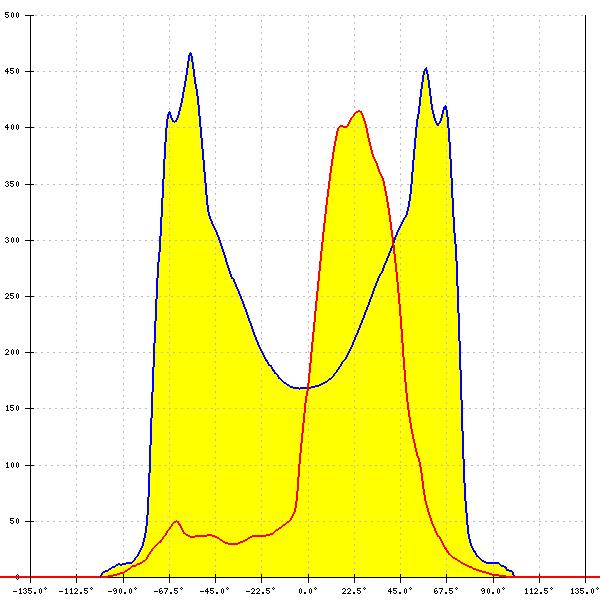

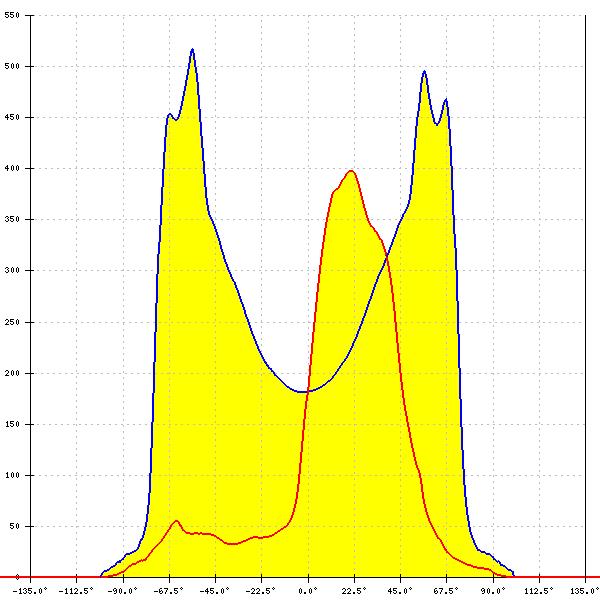

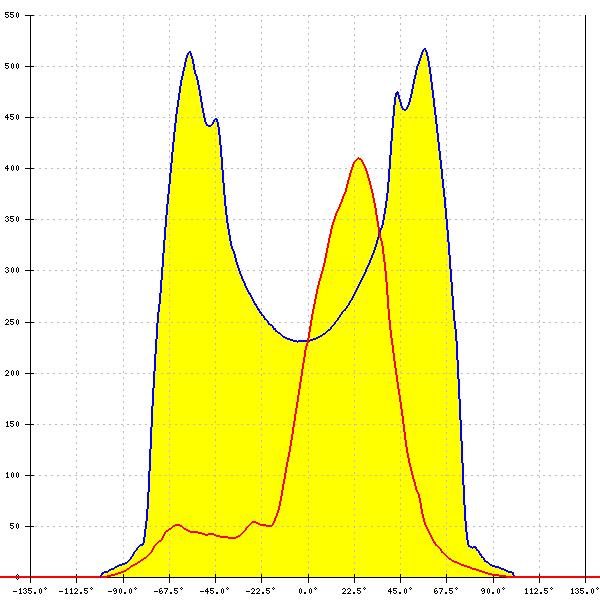

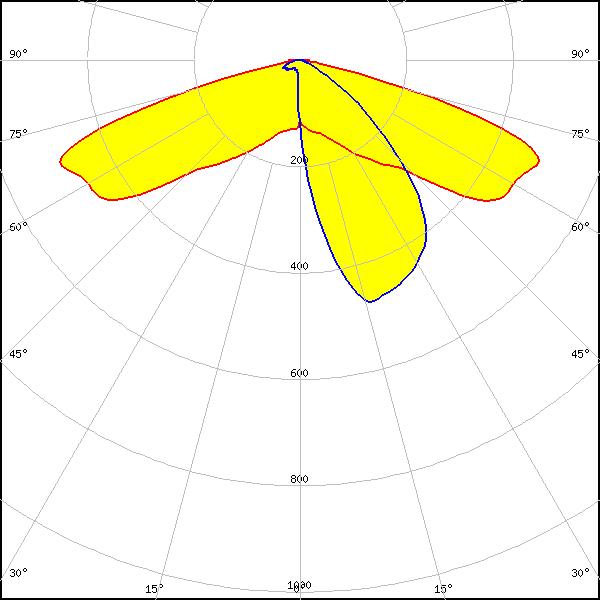

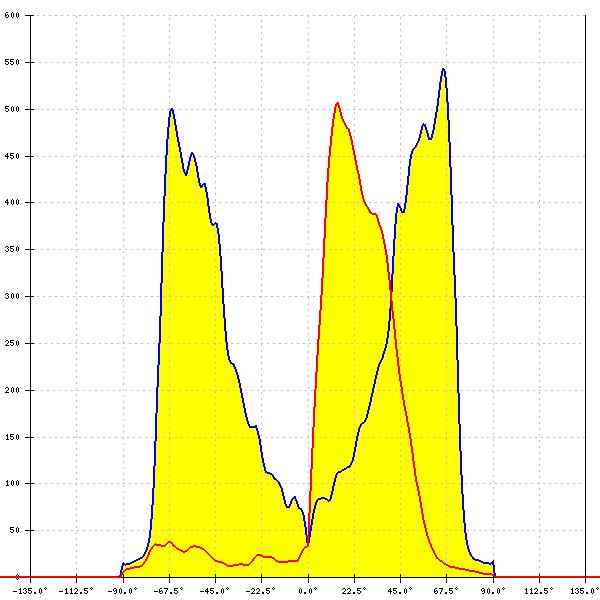

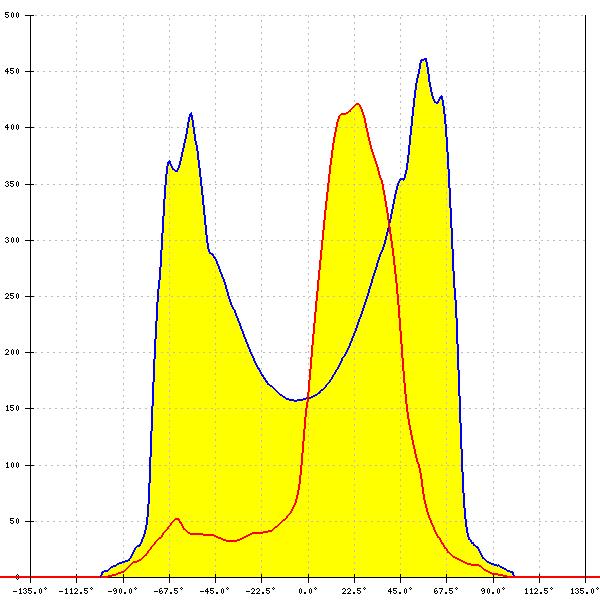

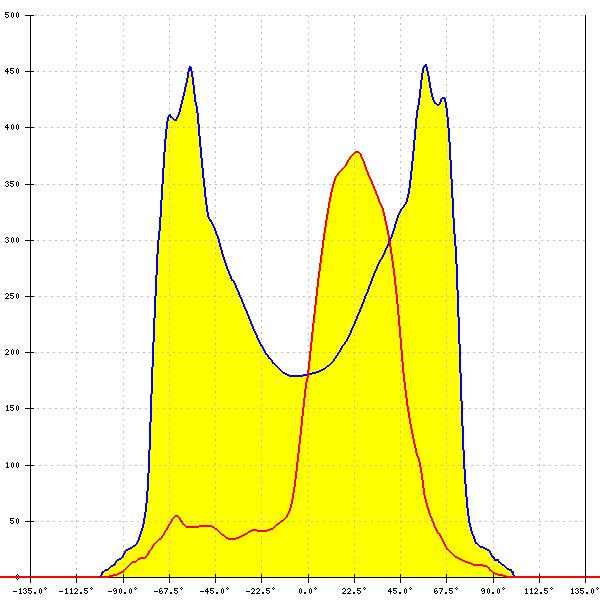

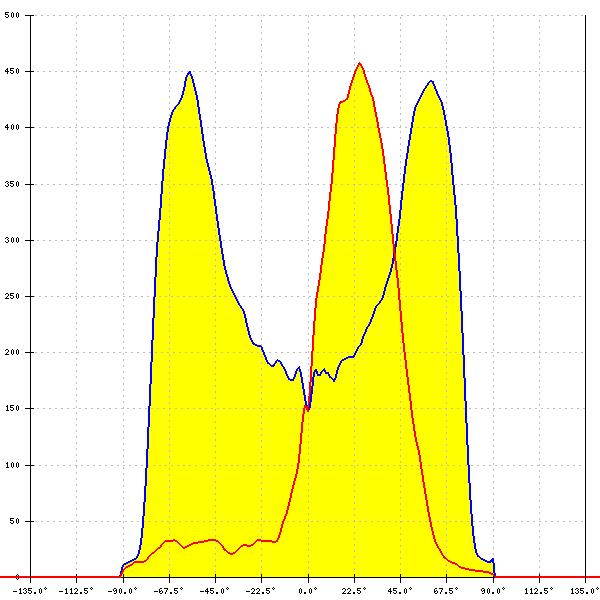

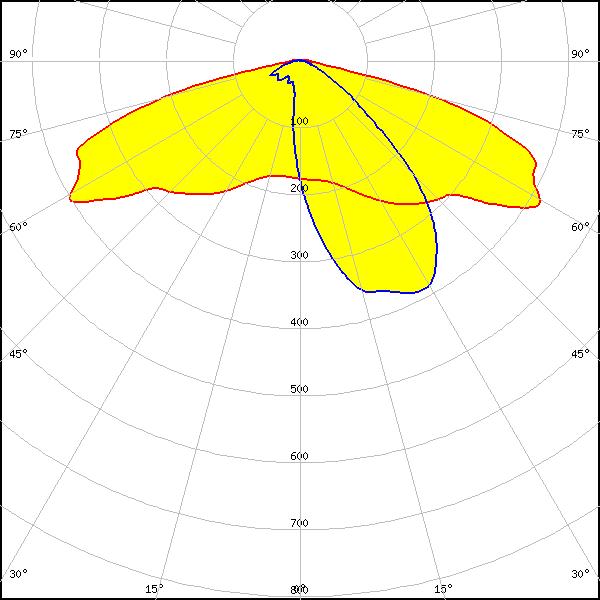

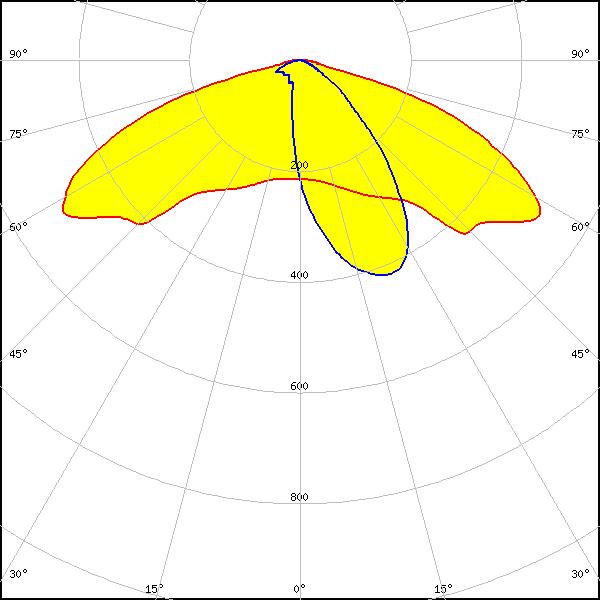

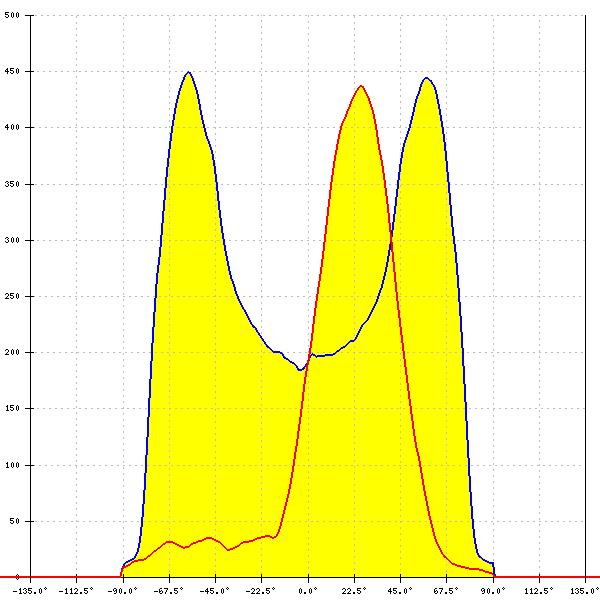

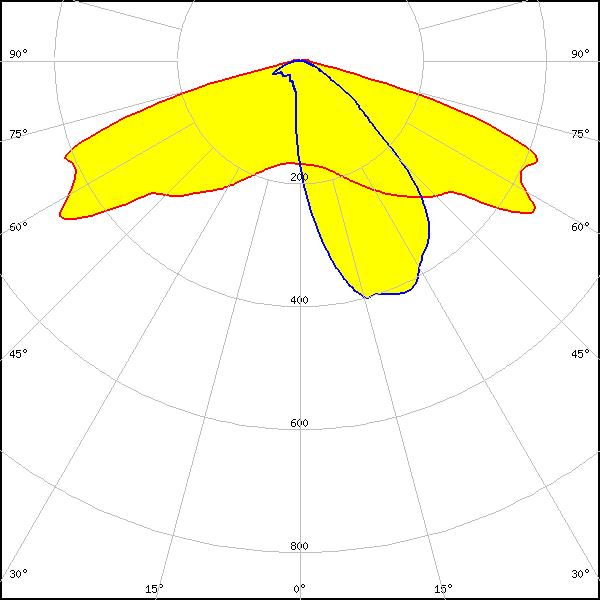

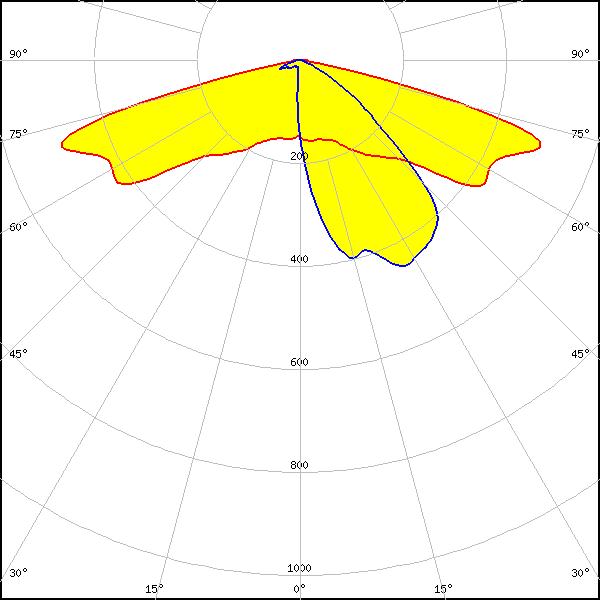

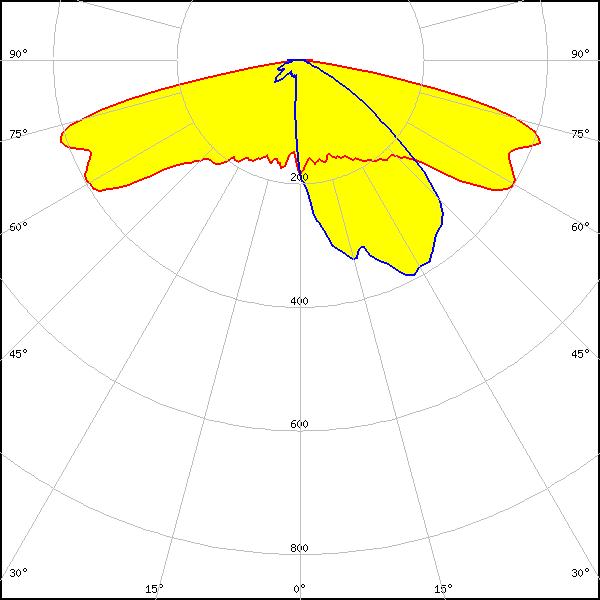

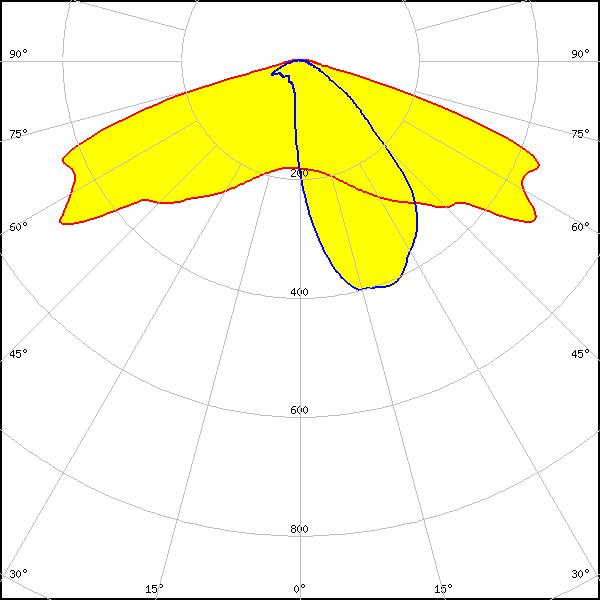

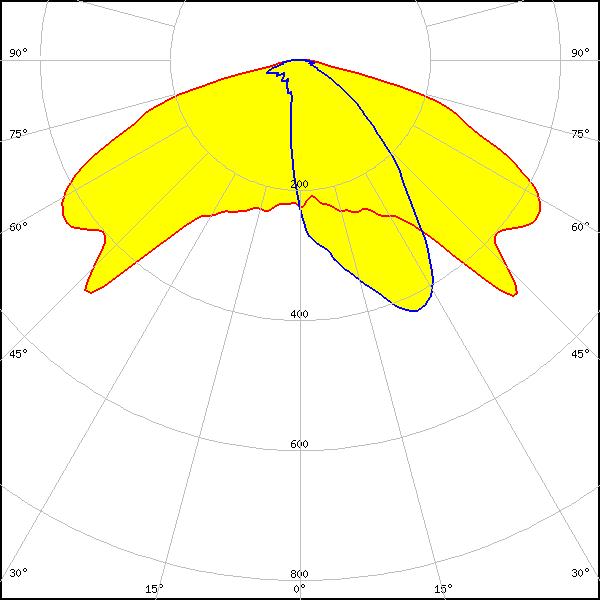

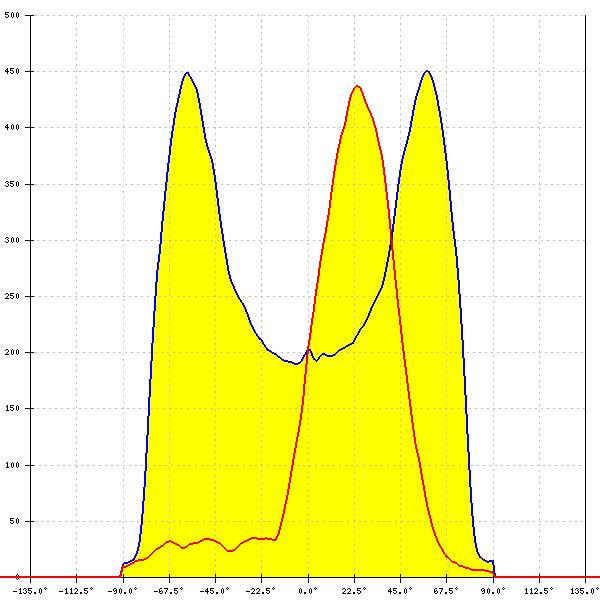

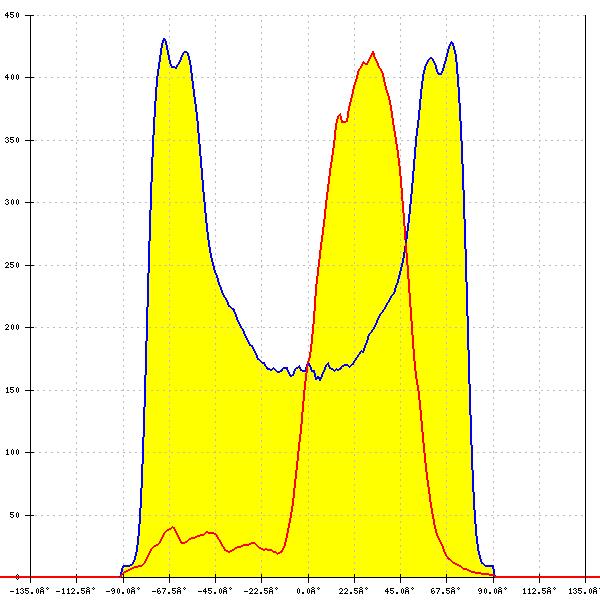

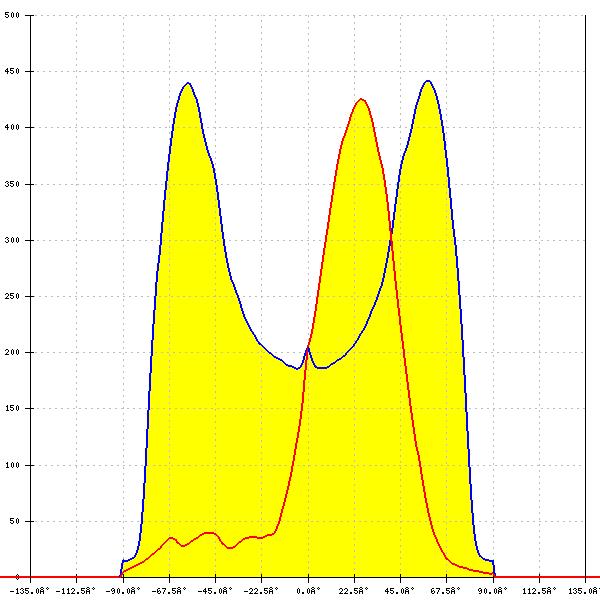

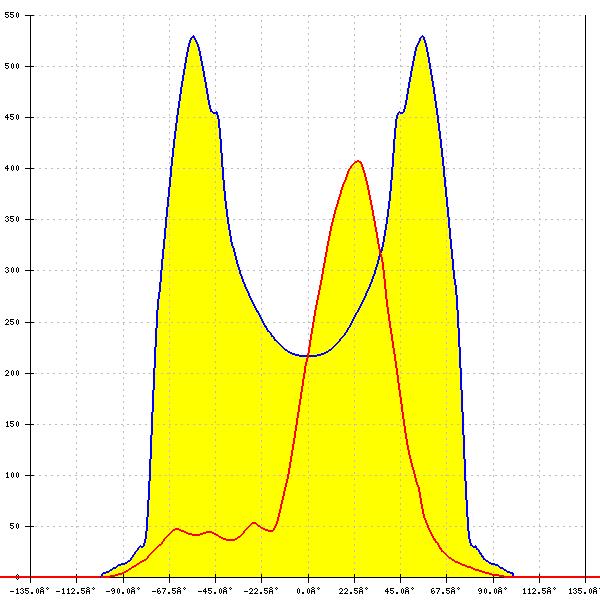

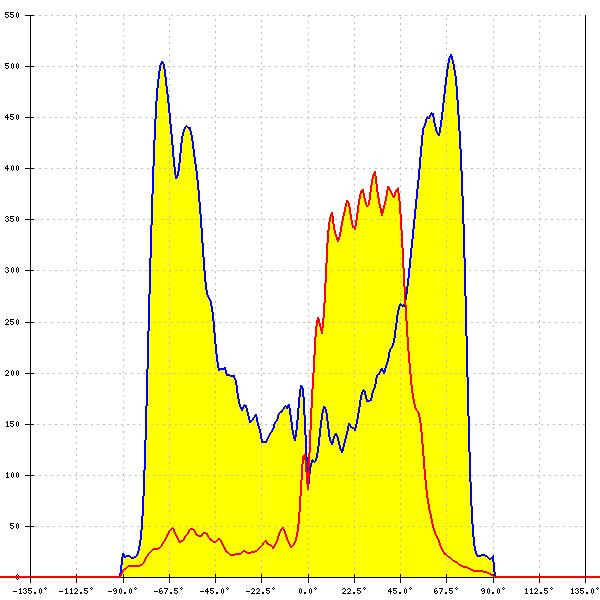

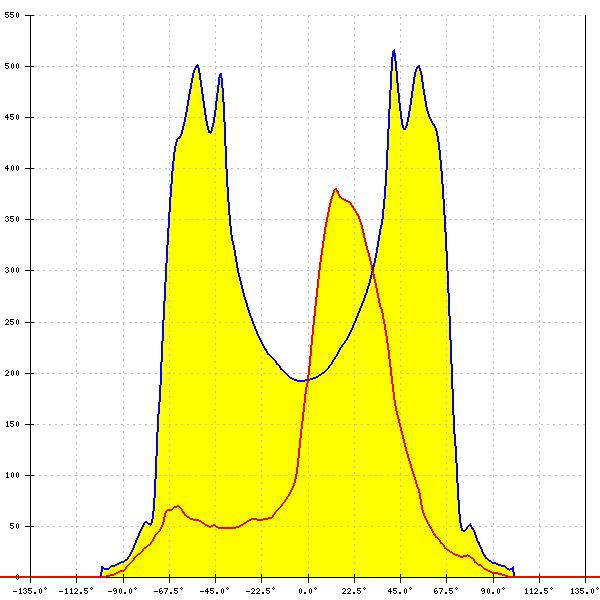

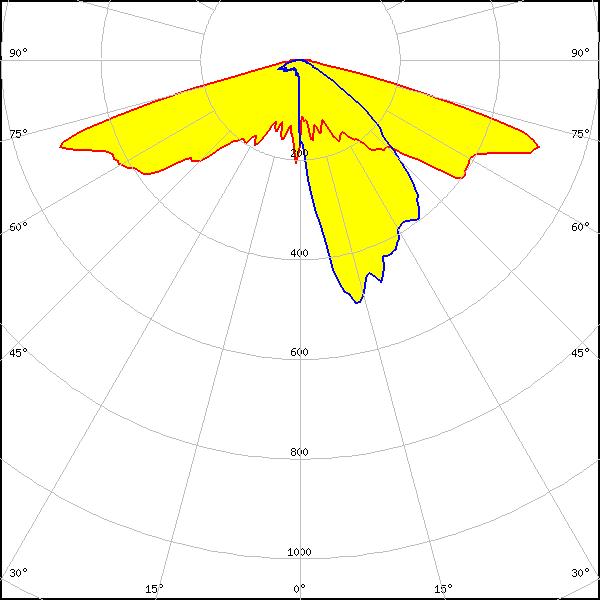

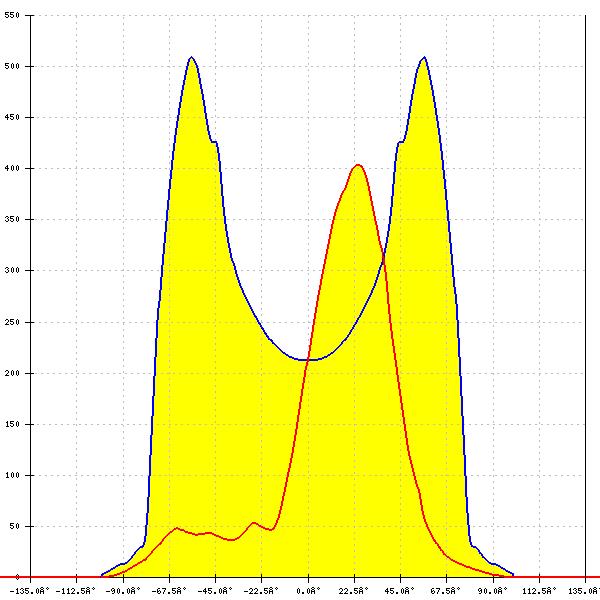

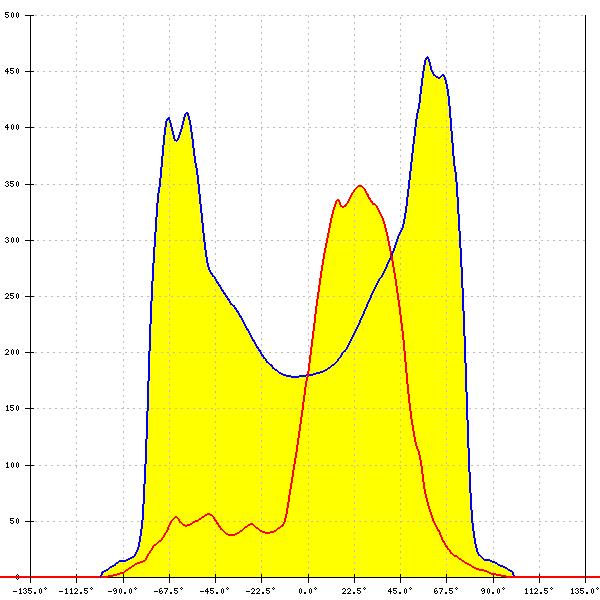

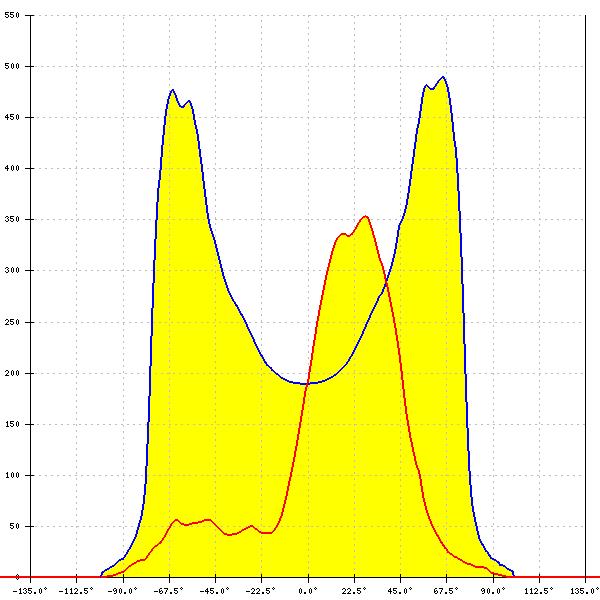

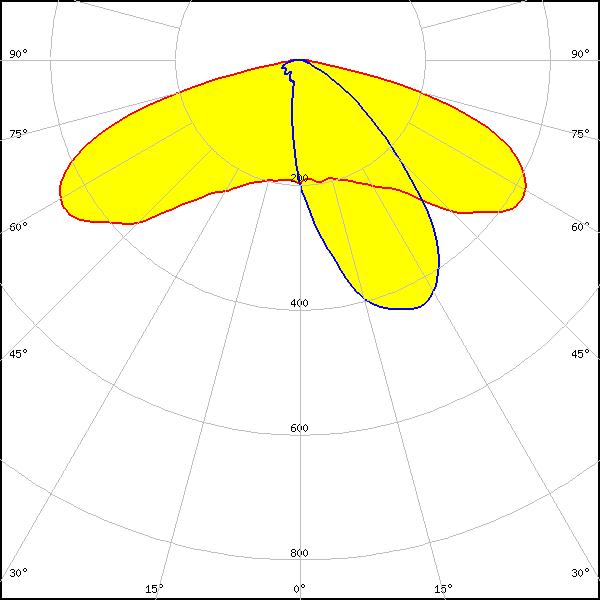

Optical results

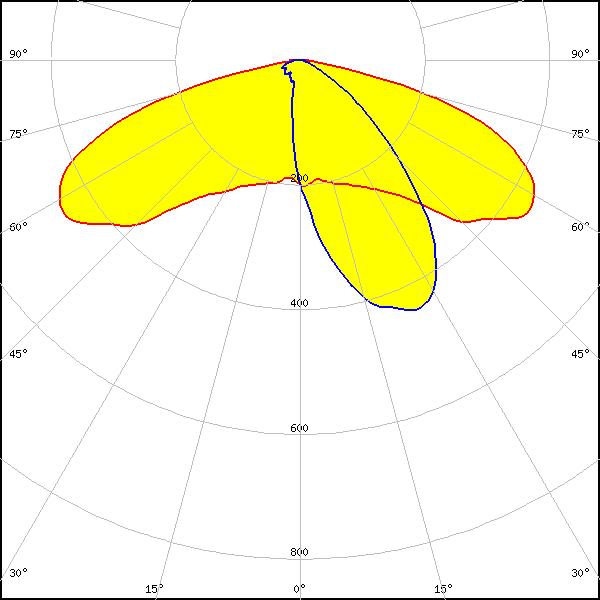

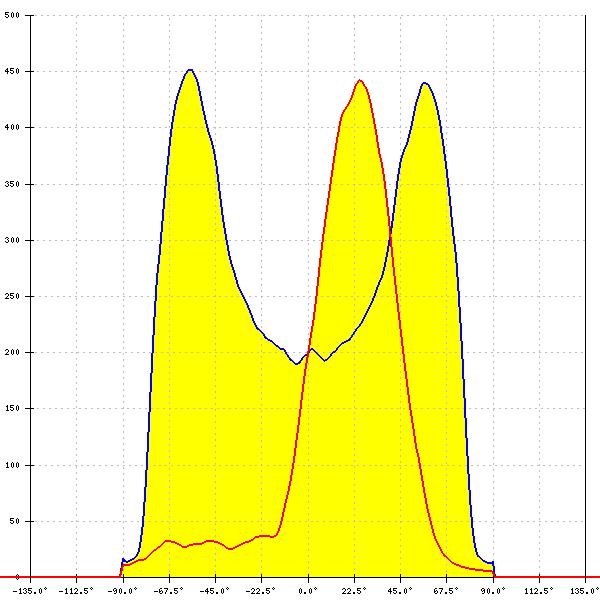

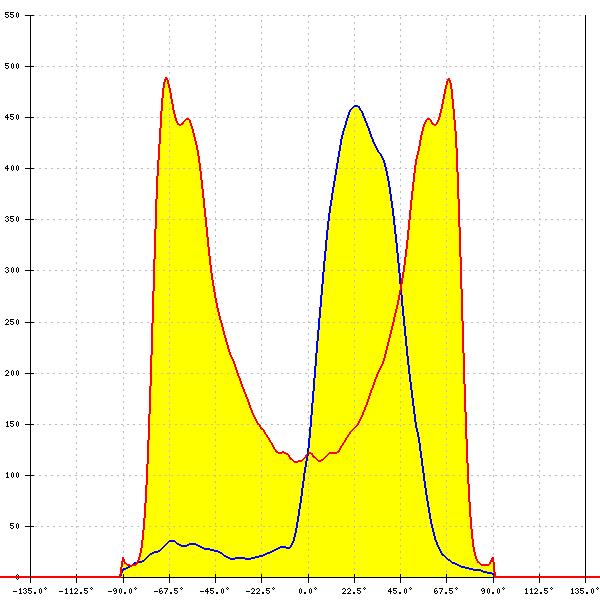

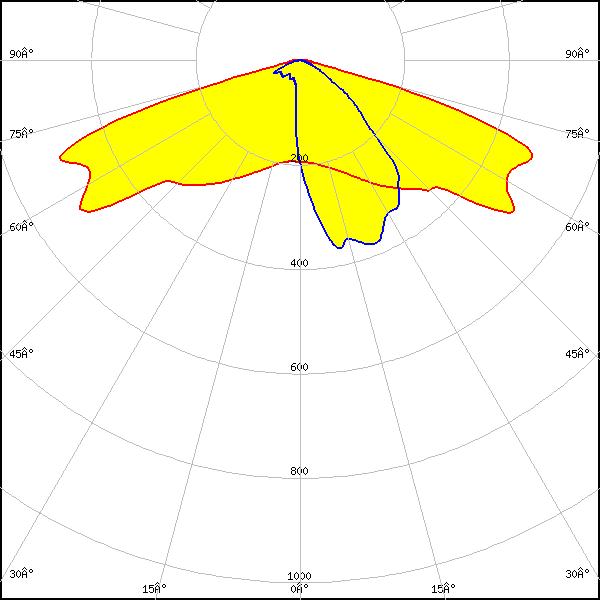

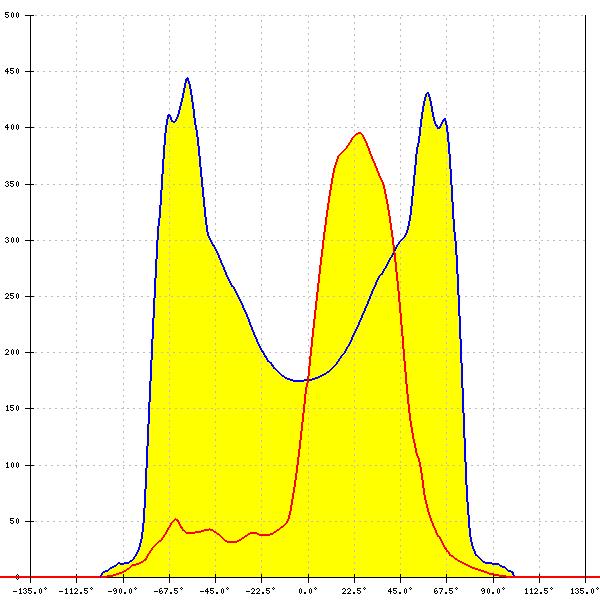

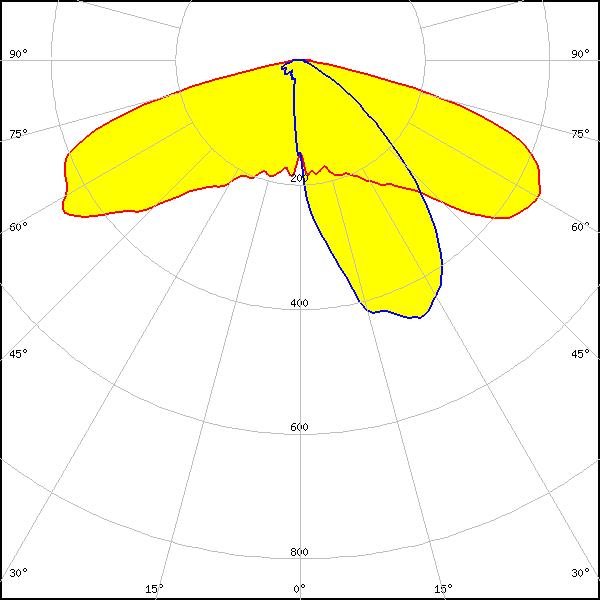

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

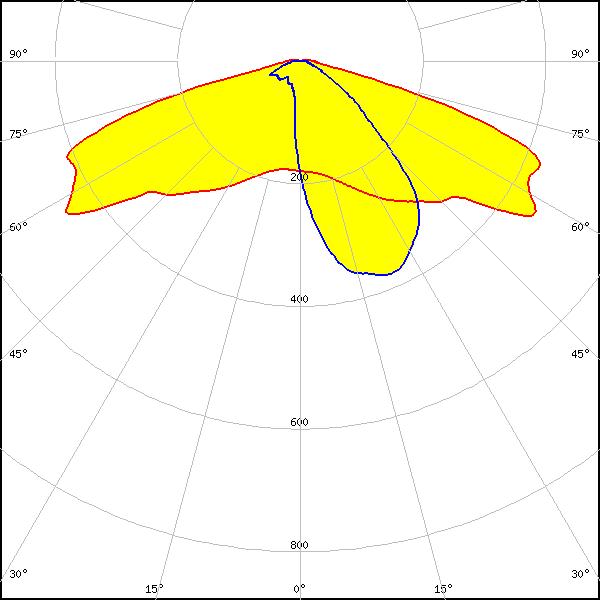

LED: QUICK FLUX 2x6 LED XG xxx G7+
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX 2x6 LED XT xxx G5
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

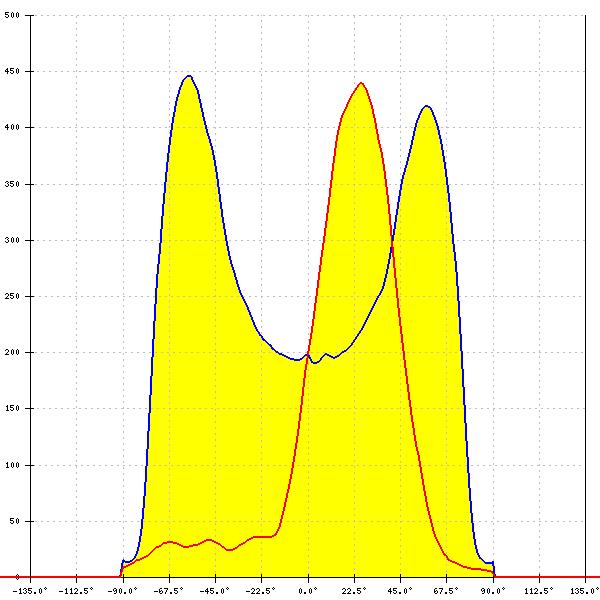

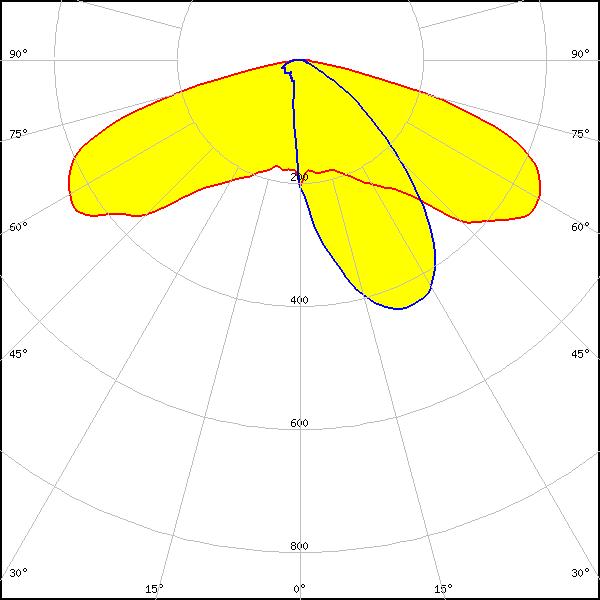

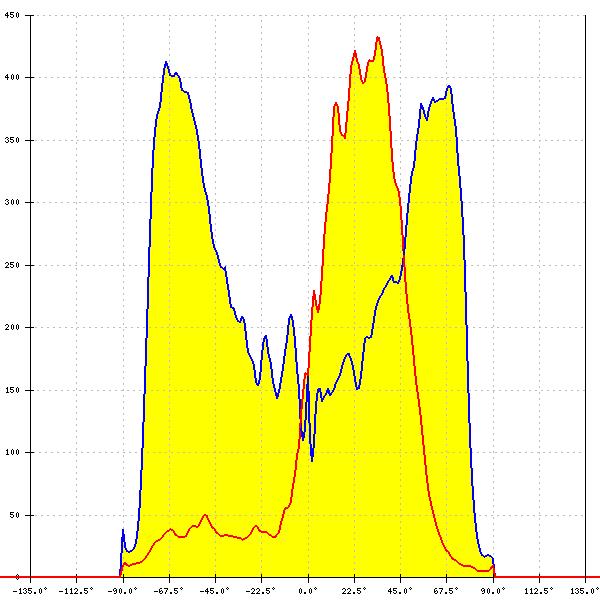

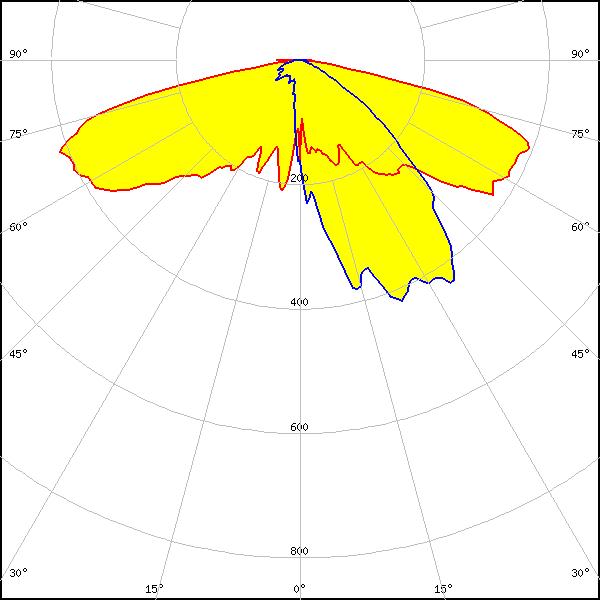

LED: XHP35 HD
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

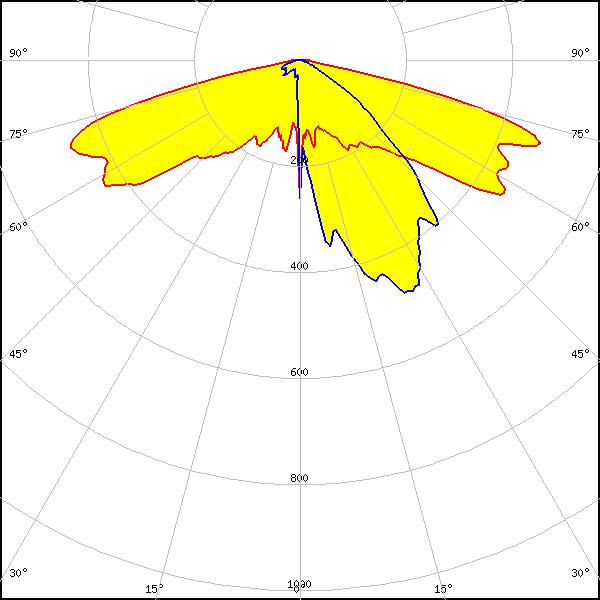

LED: XHP35 HI
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

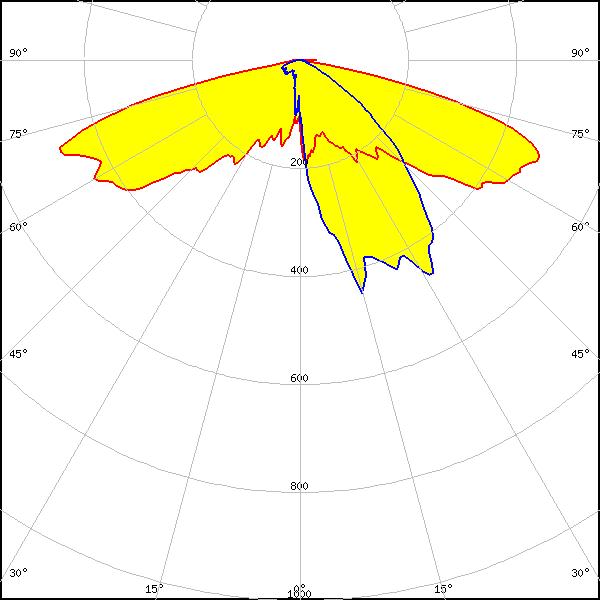

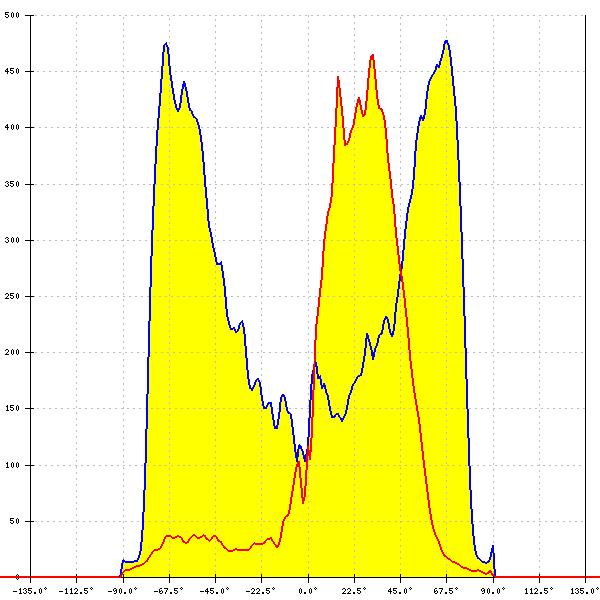

LED: XM-L2
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: XP-G
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: XP-G2
FWHM: asymmetric
Peak intensity: 1.1 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-L HD
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

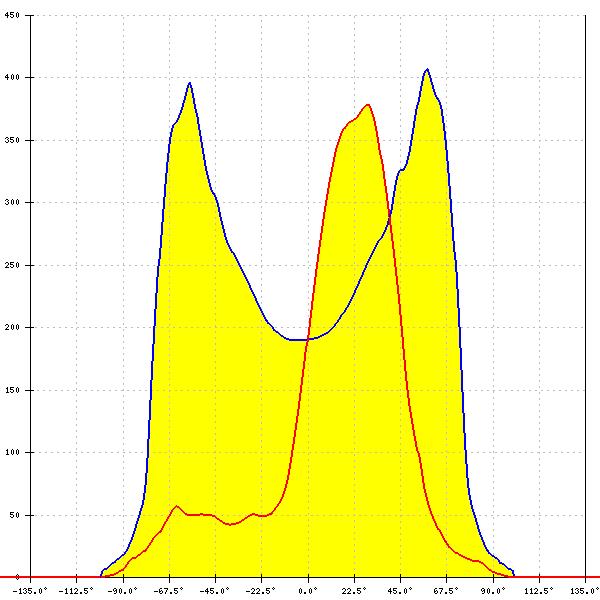

LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XT-E
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XT-E HE
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: H35C1 (LEMWA33)
LEDs/each optic: 1
Light colour: White

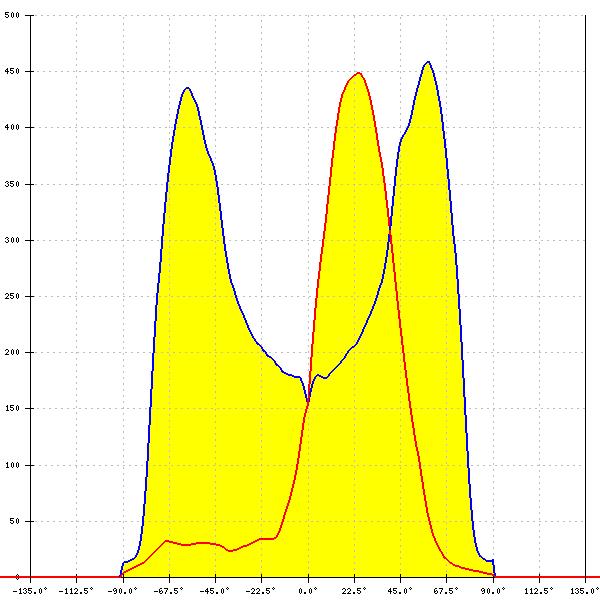

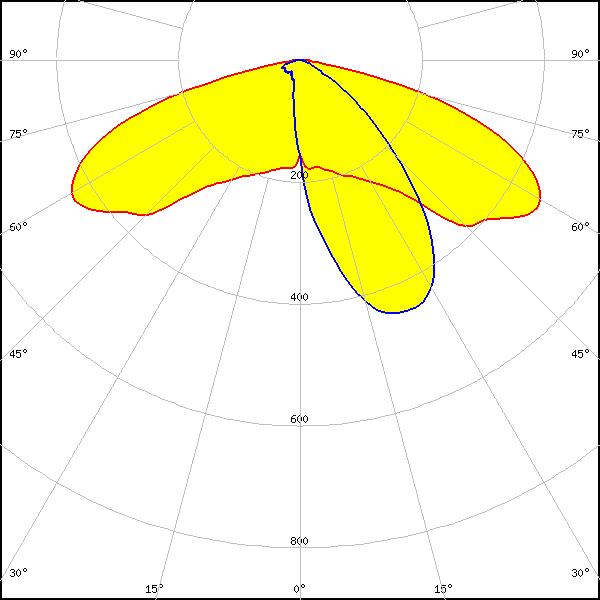

LED: LUXEON 5050
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

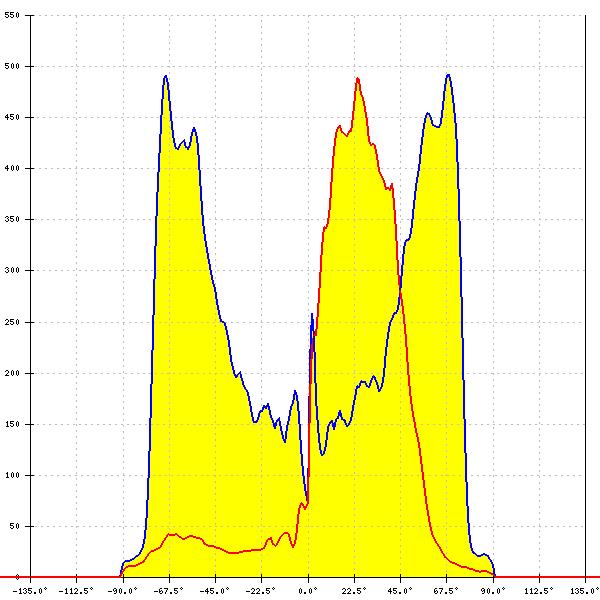

LED: LUXEON R
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

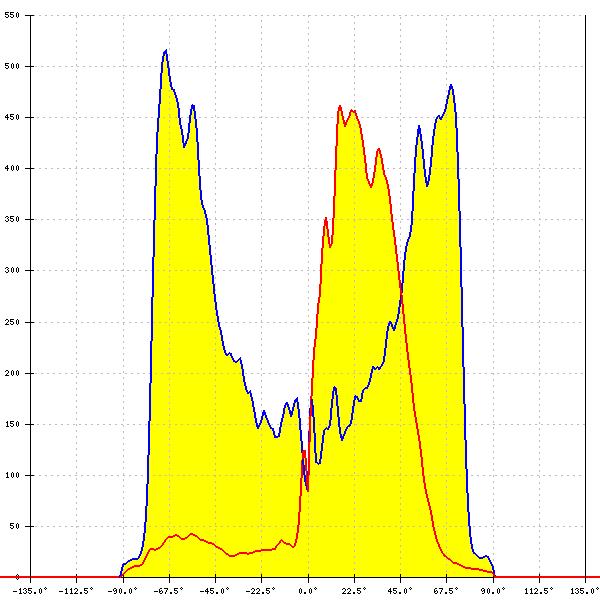

LED: LUXEON Rebel ES
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

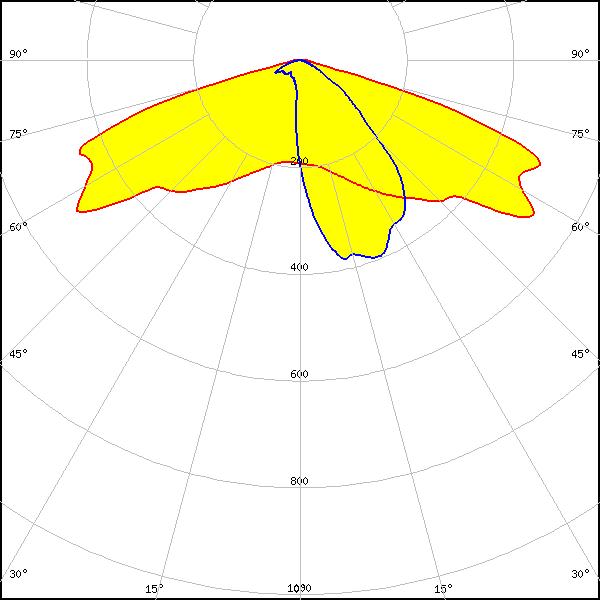

LED: LUXEON T
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON T
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

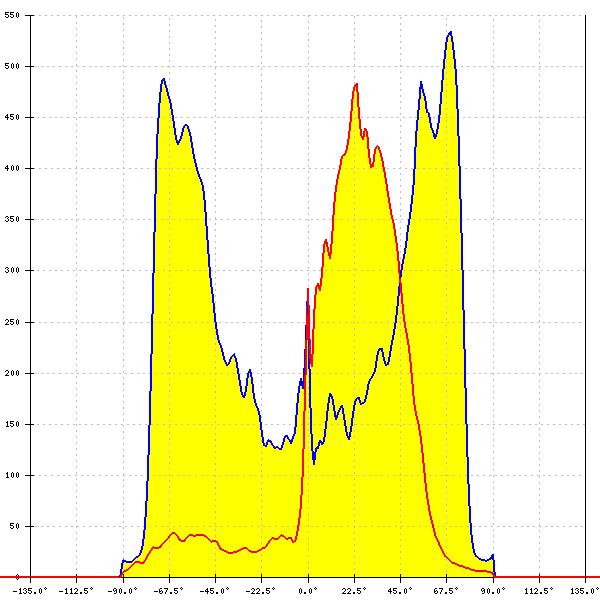

LED: LUXEON TX
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

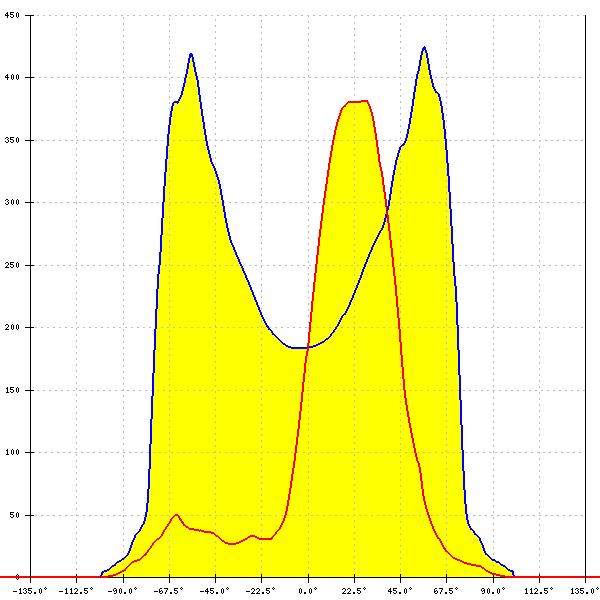

LED: LUXEON V
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON V2
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON XR-TX (L2T0-xxyy012M)
LEDs/each optic: 1
Light colour: White

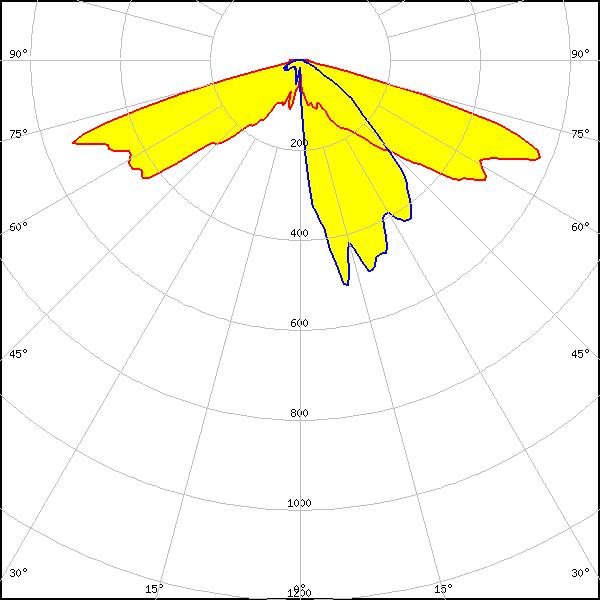

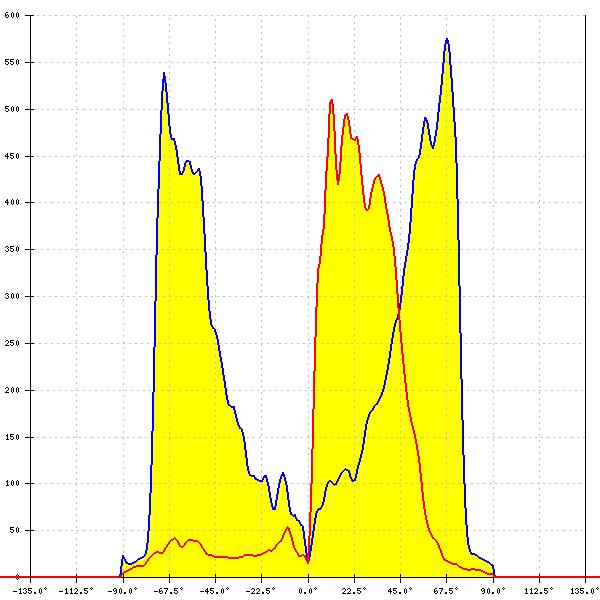

LED: LUXEON Z ES
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

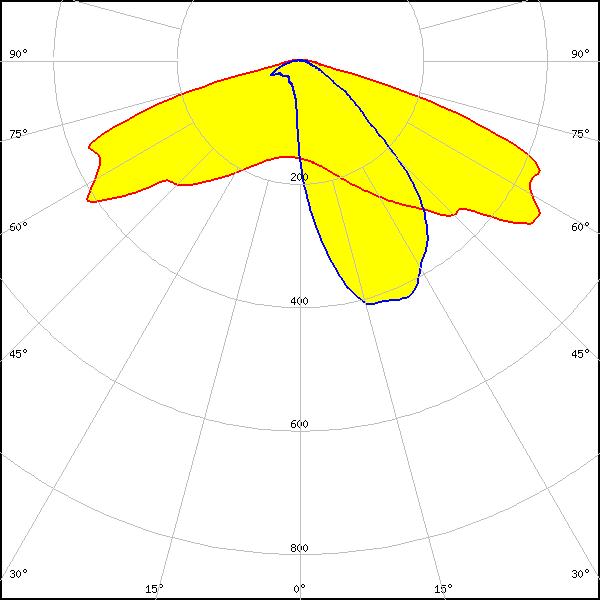

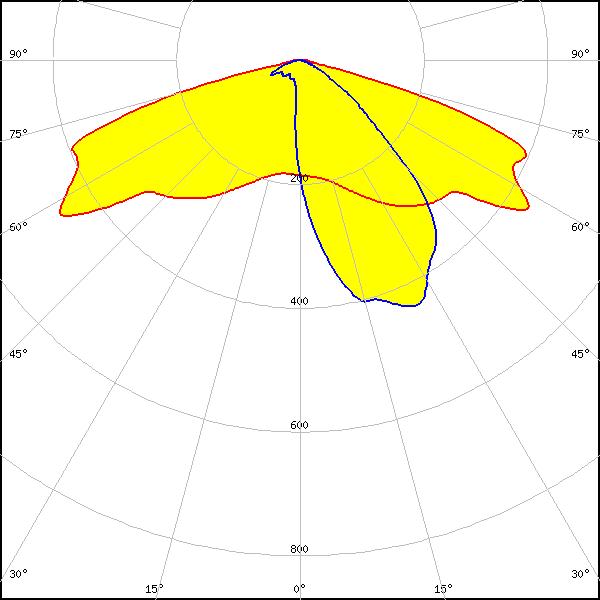

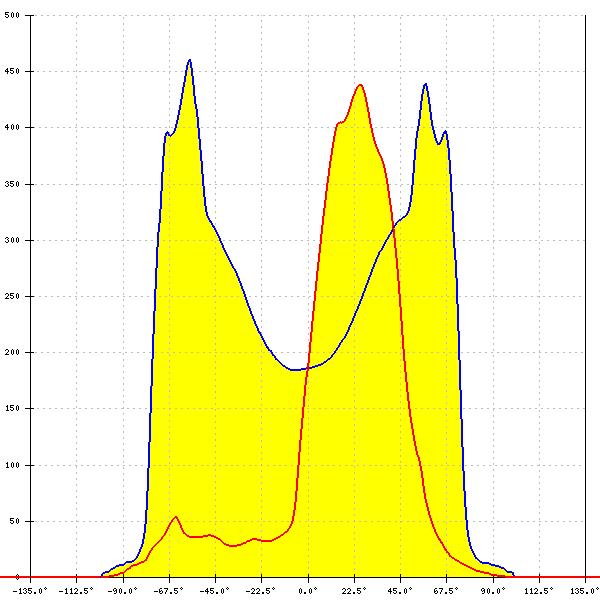

LED: NVSW219D
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

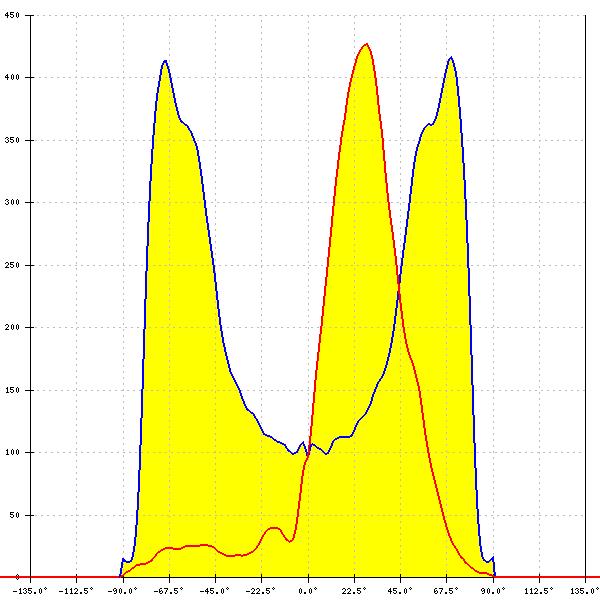

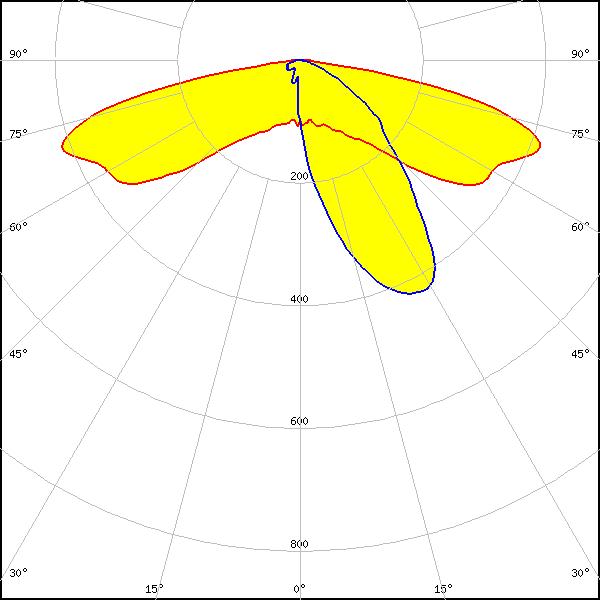

LED: NVSW319B
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

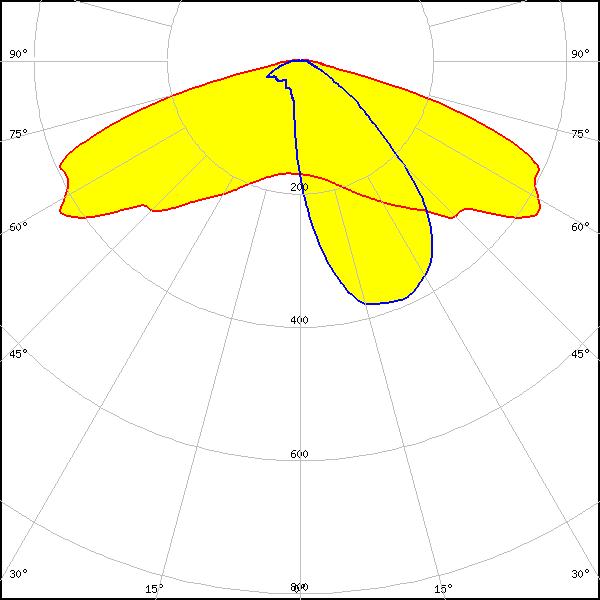

LED: NVSW3x9A
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

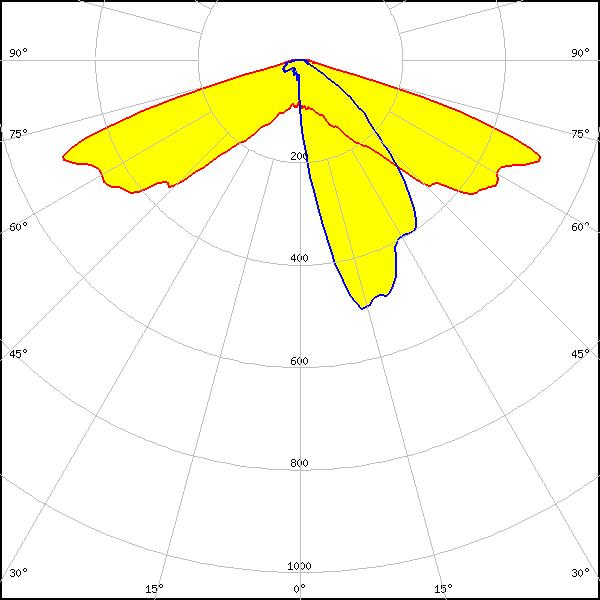

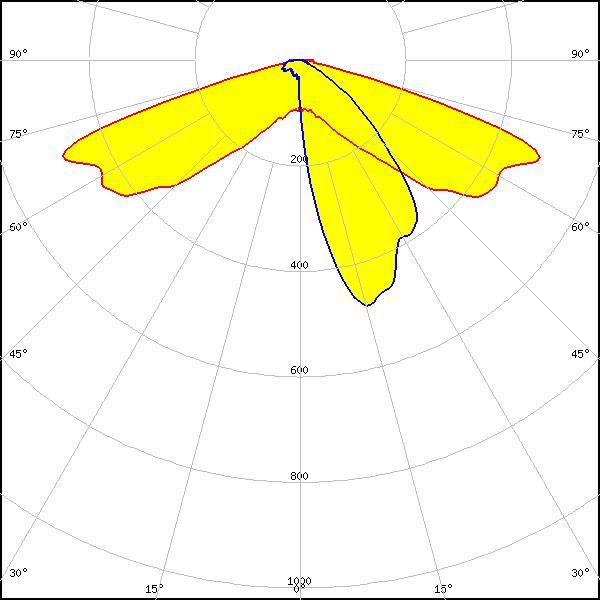

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 1.1 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

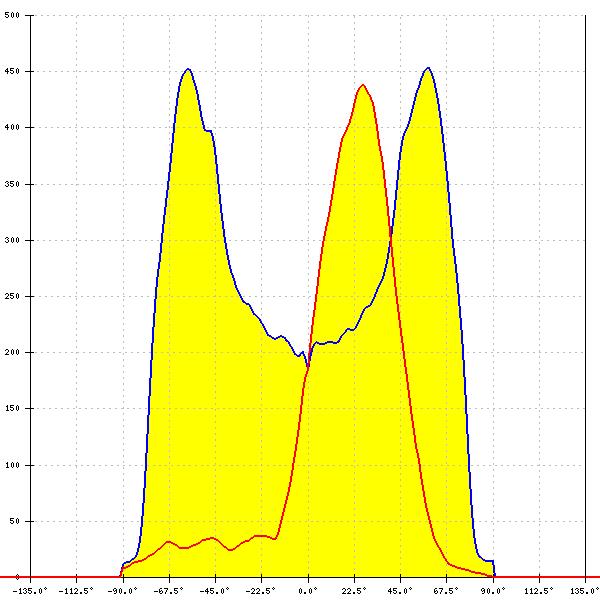

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

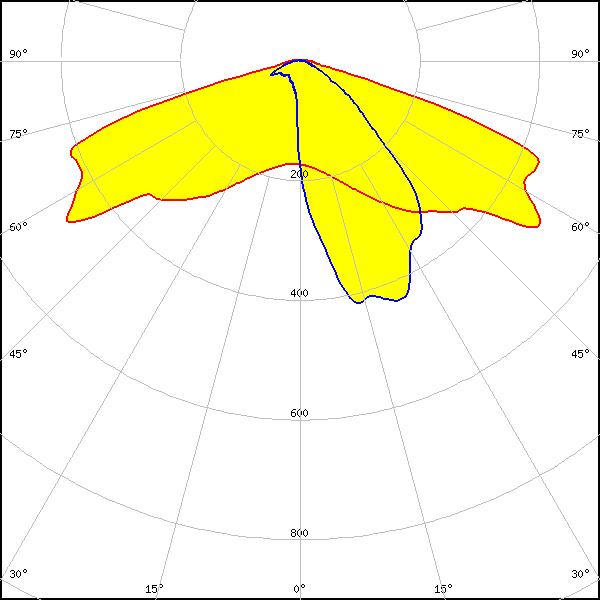

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square PC
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

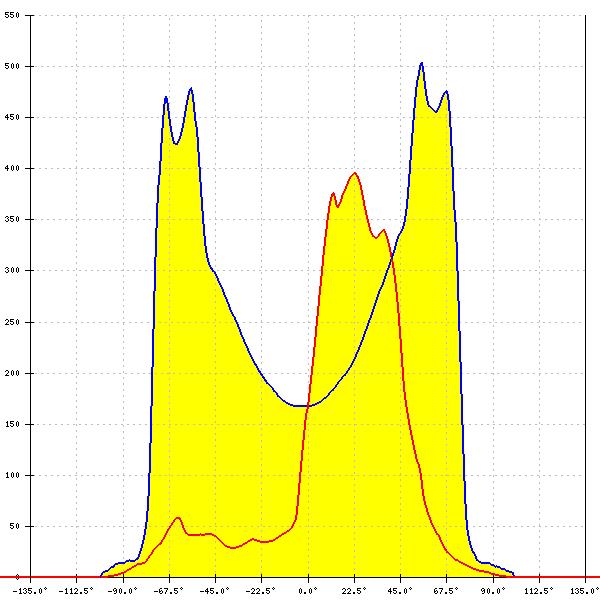

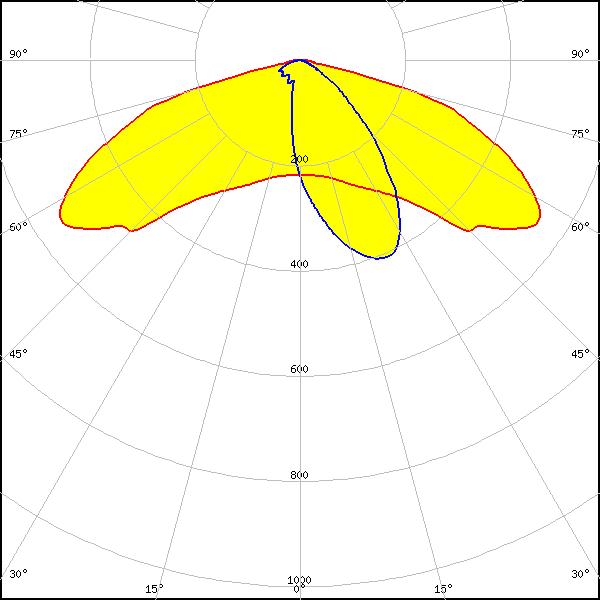

LED: Fortimo FastFlex LED 2x6 DP G4
FWHM: asymmetric
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

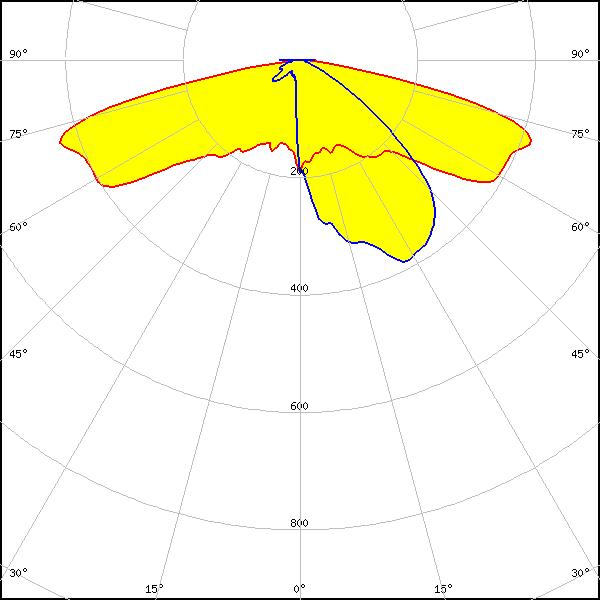

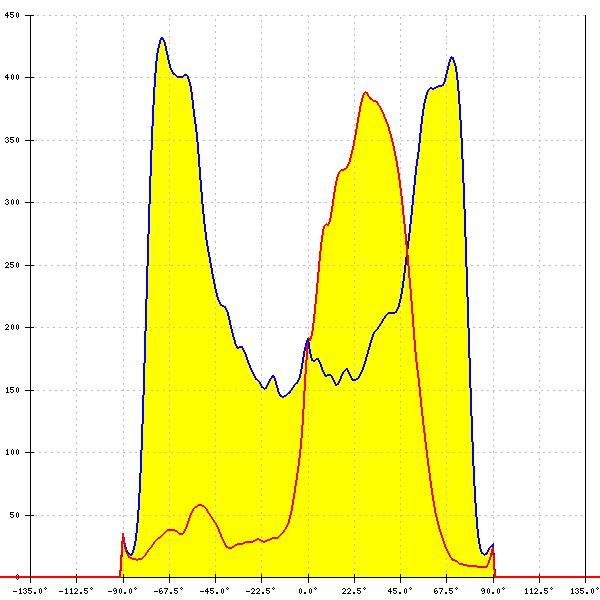

LED: Fortimo FastFlex LED 2x6 DPX G4
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

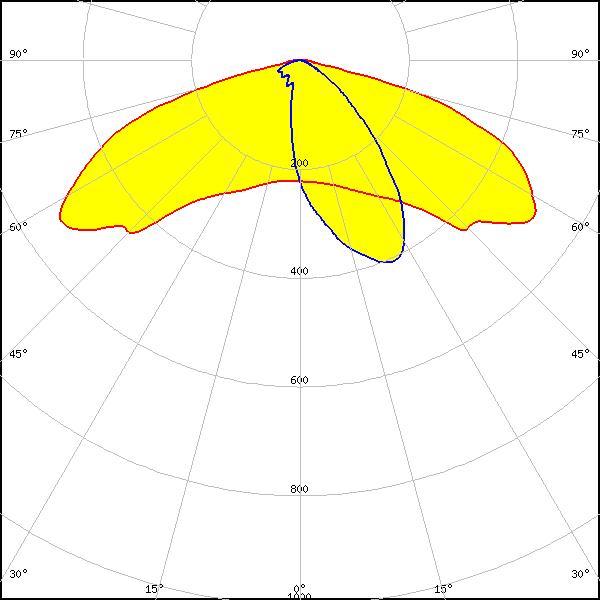

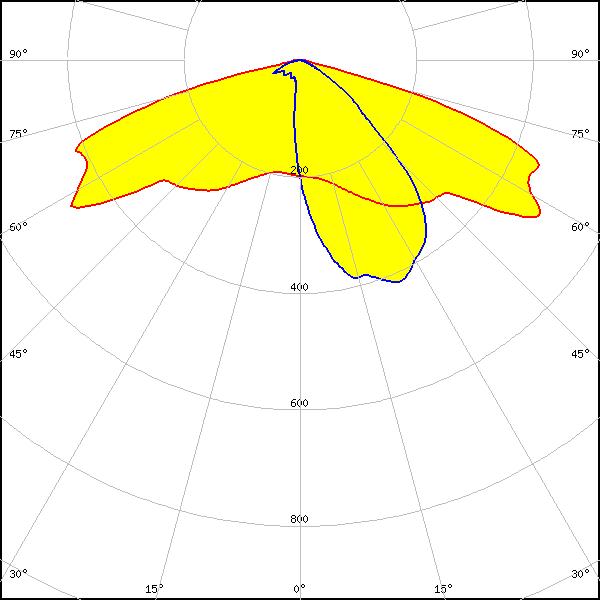

LED: HiLOM RH12 (LH351C)
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LH351B
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

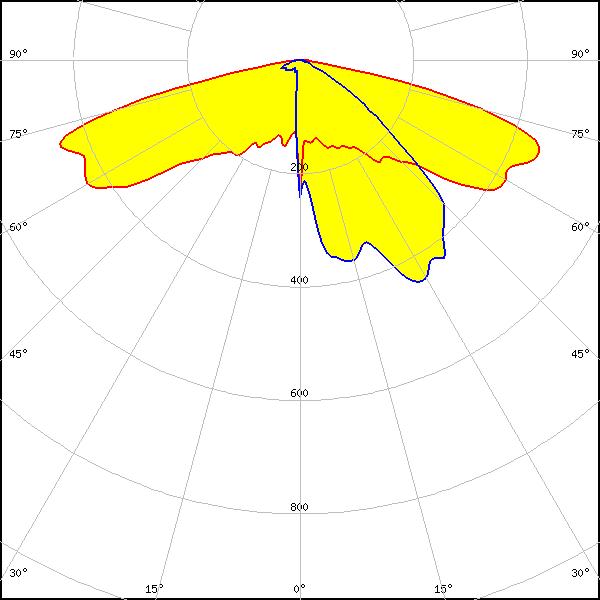

LED: LH351C
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

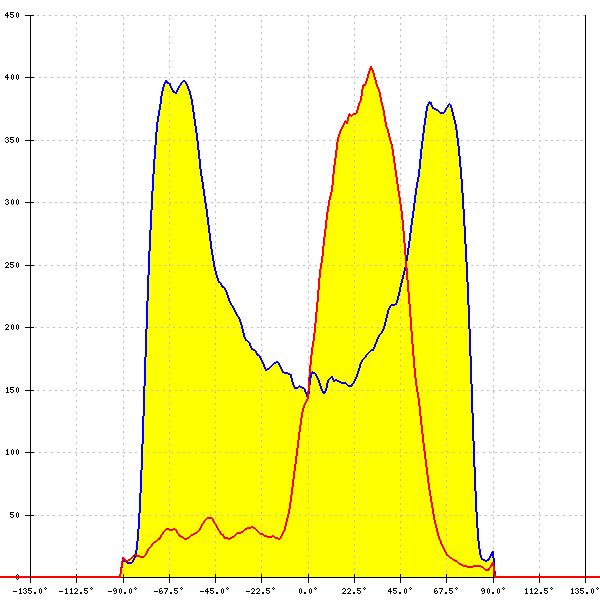

LED: LH351D
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LH351Z
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

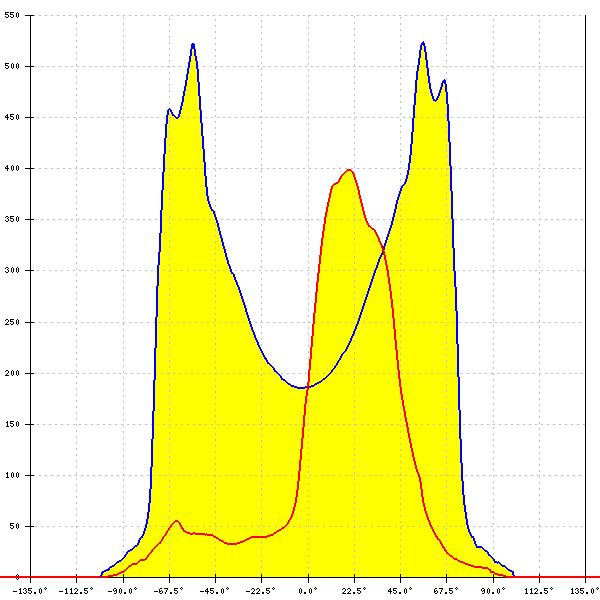

LED: XLE-S22C4XTEHE (XT-E HE)
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

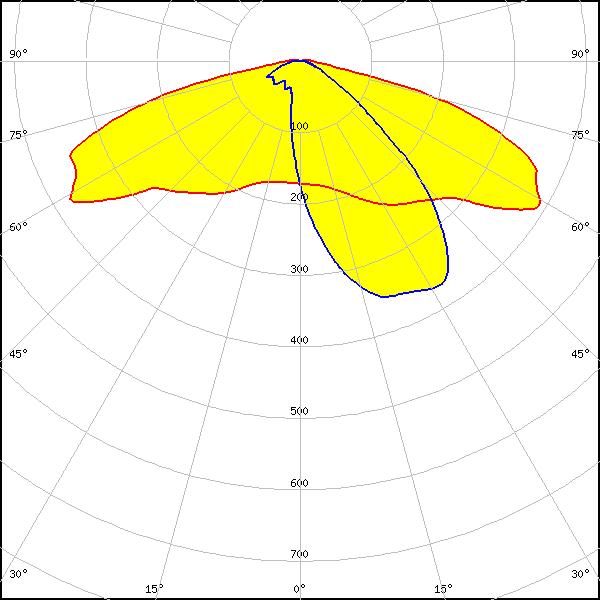

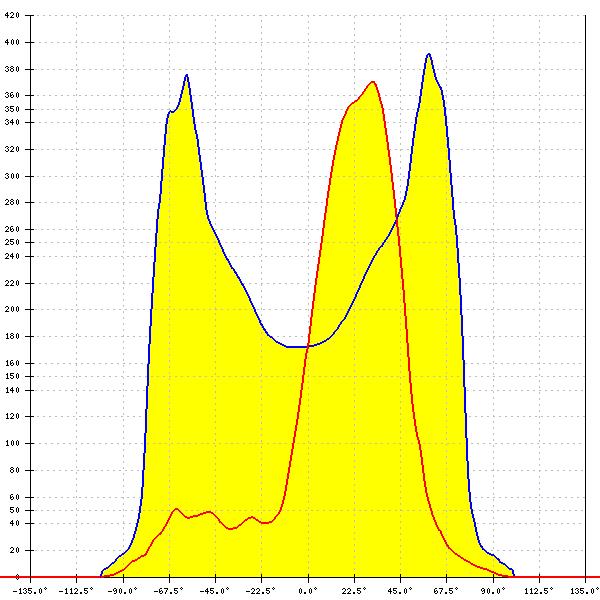

LED: XLE-S26XHP35 (XHP35 HD)
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Acrich MJT 4040
LEDs/each optic: 1
Light colour: White

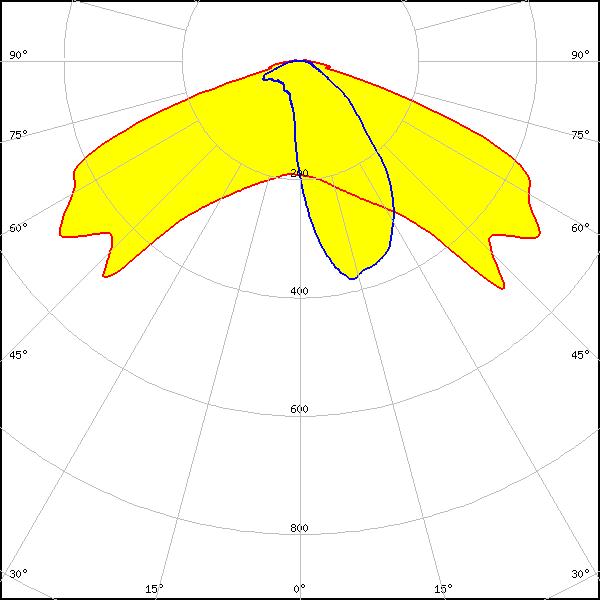

LED: SMJQ-D36W12Mx
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: SMJQ-D36W12Px
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

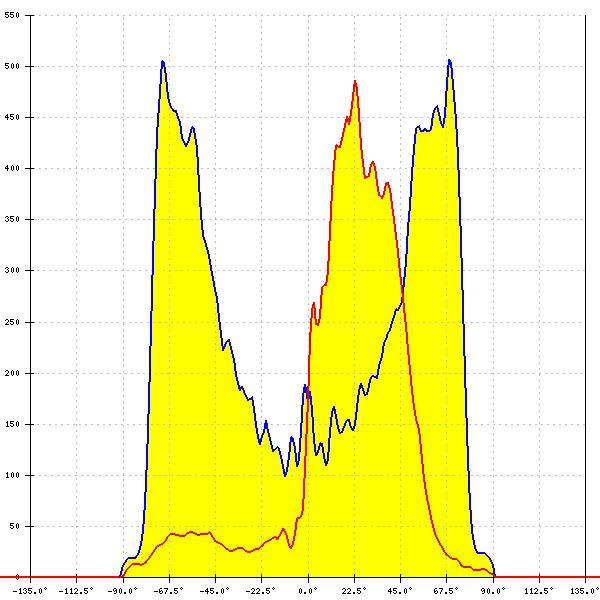

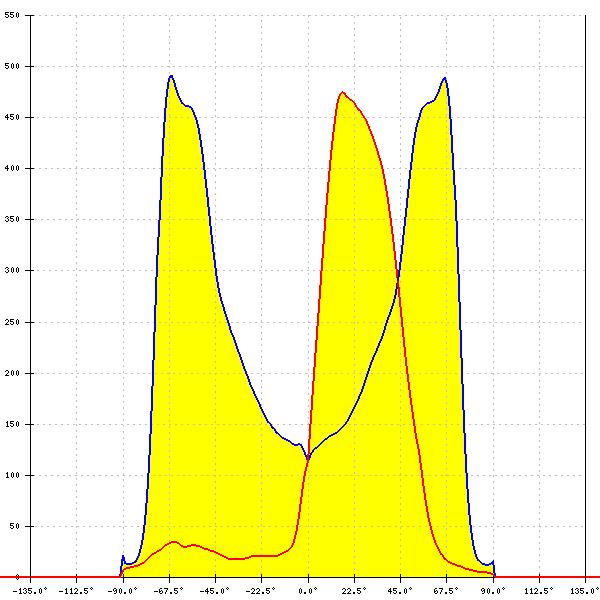

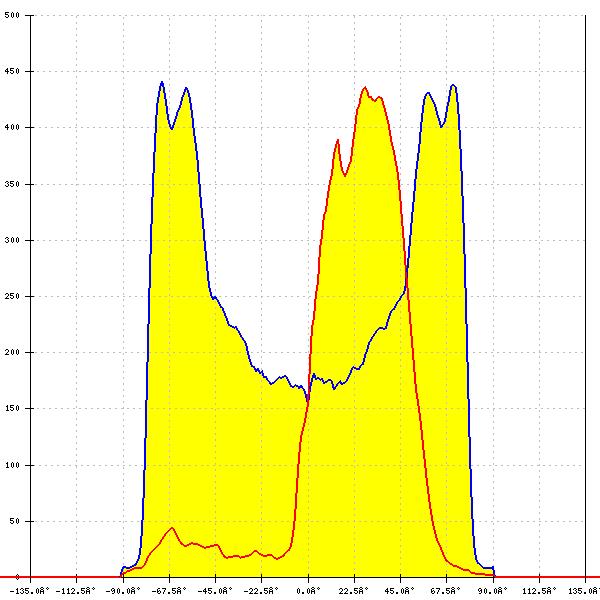

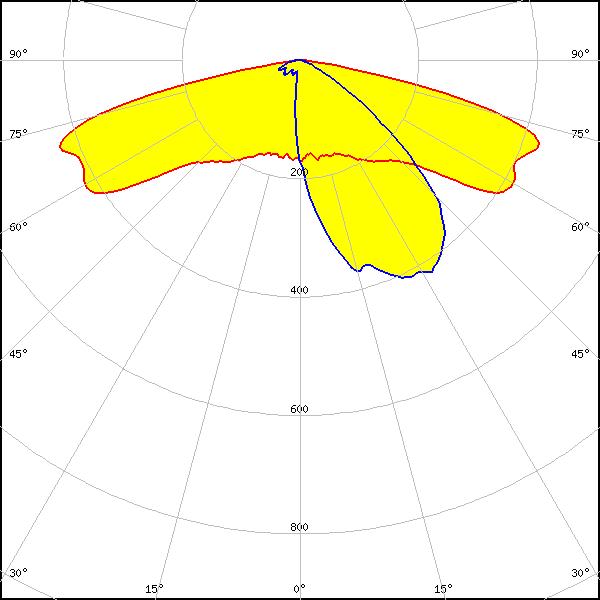

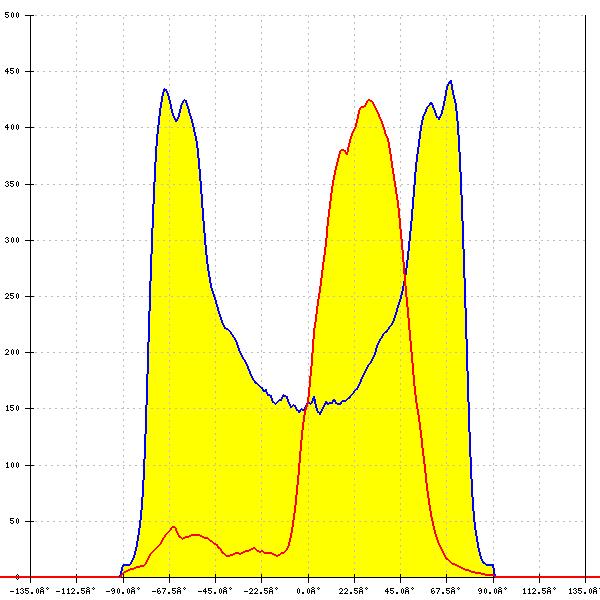

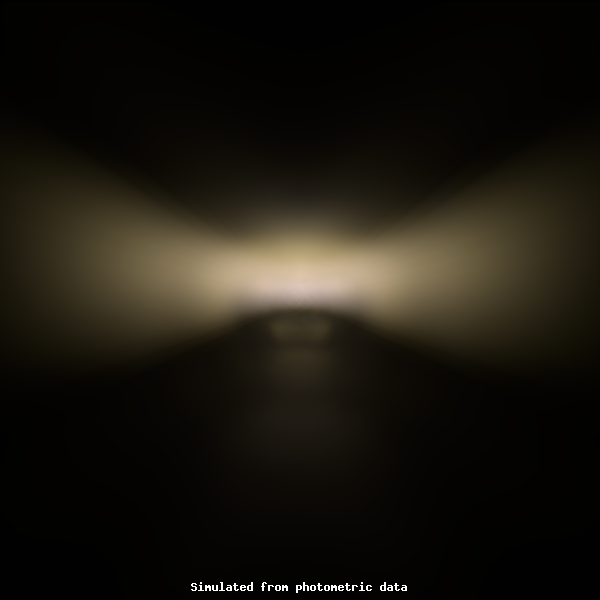

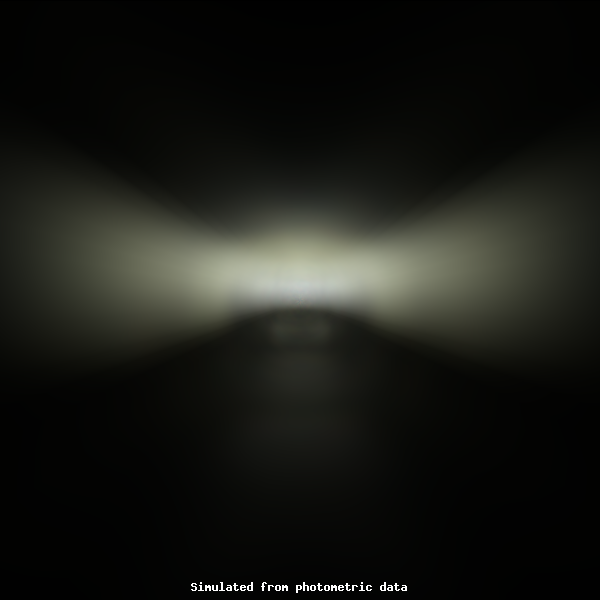

LED: Z5M
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

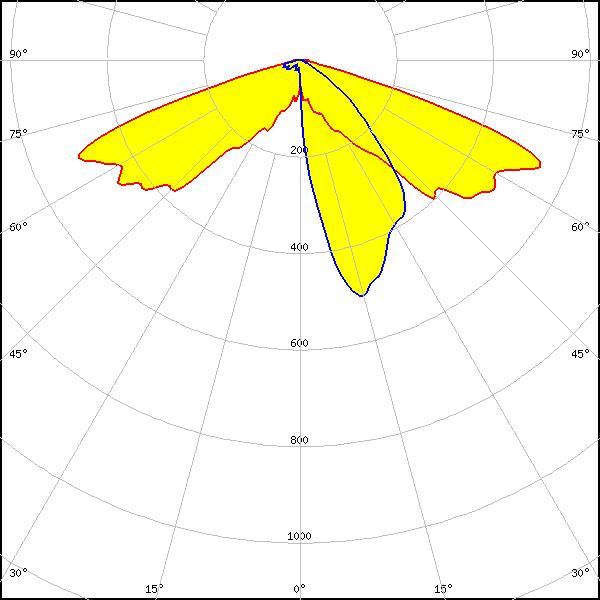

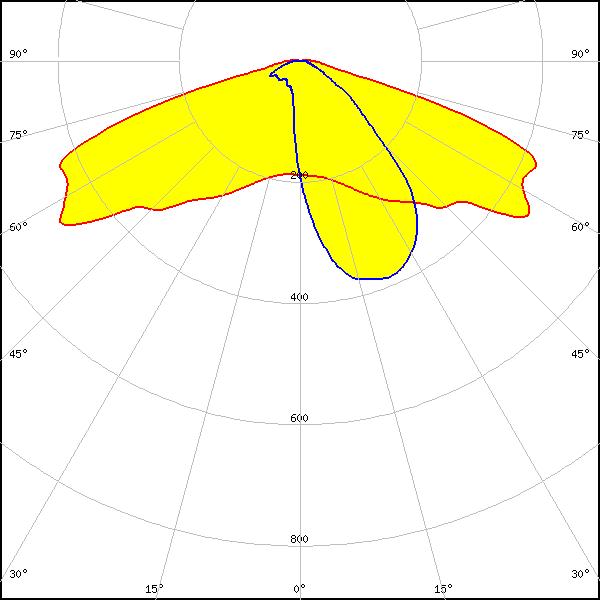

LED: Z5M1/Z5M2
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

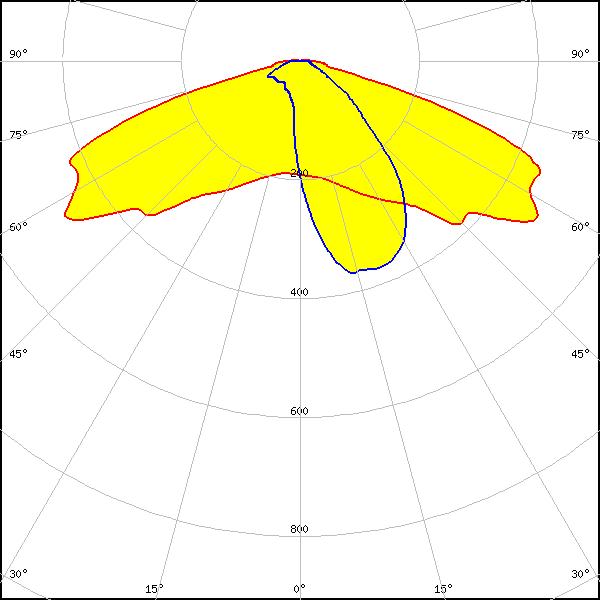

LED: Z8Y22P
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: TL1L2
LEDs/each optic: 1
Light colour: White
LED: TL1L3
LEDs/each optic: 1
Light colour: White
LED: TL1L4
LEDs/each optic: 1
Light colour: White

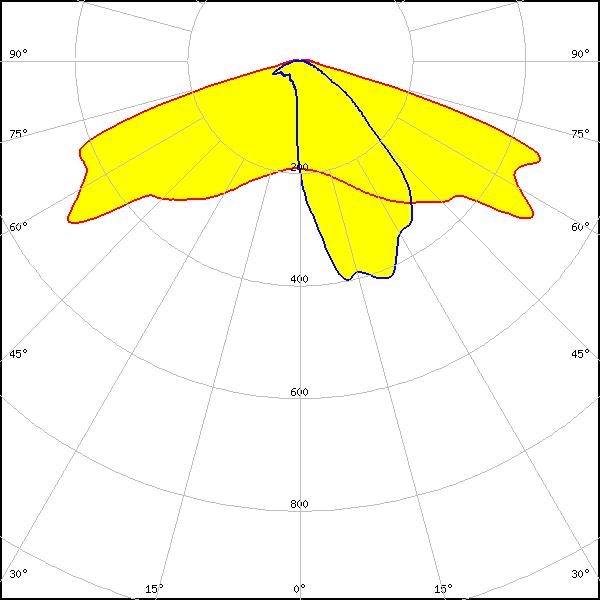

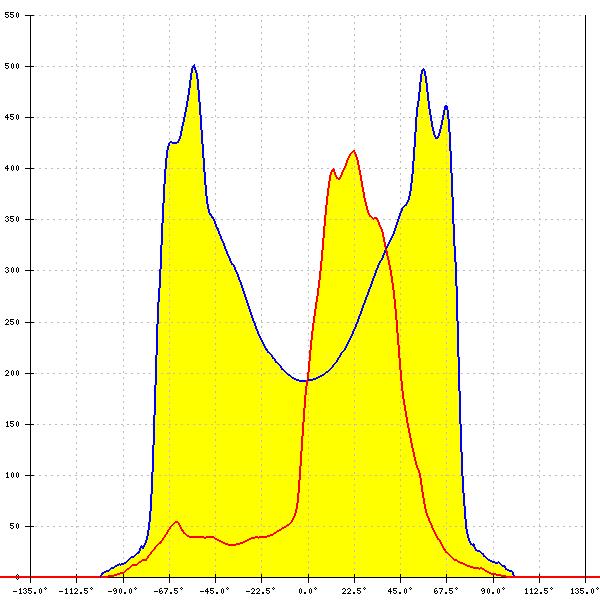

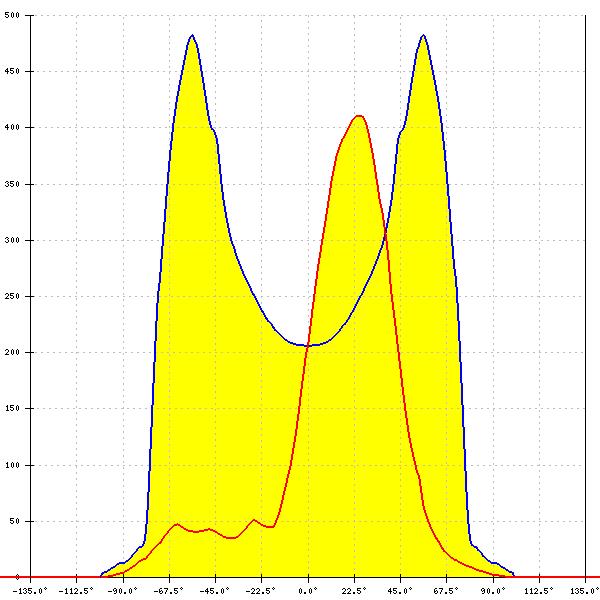

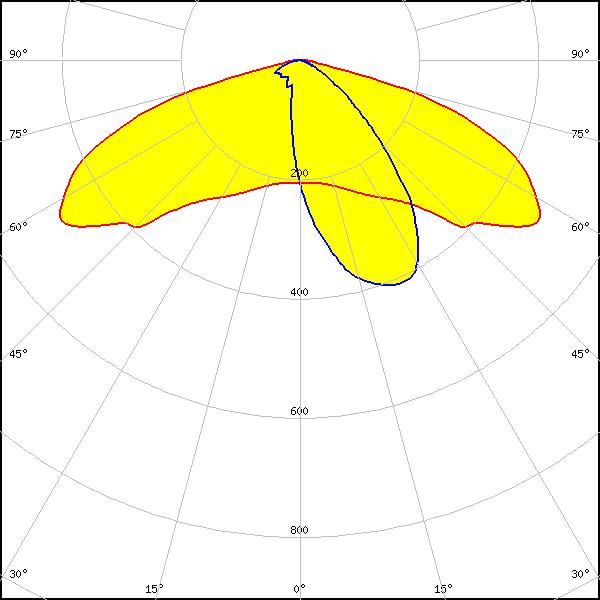

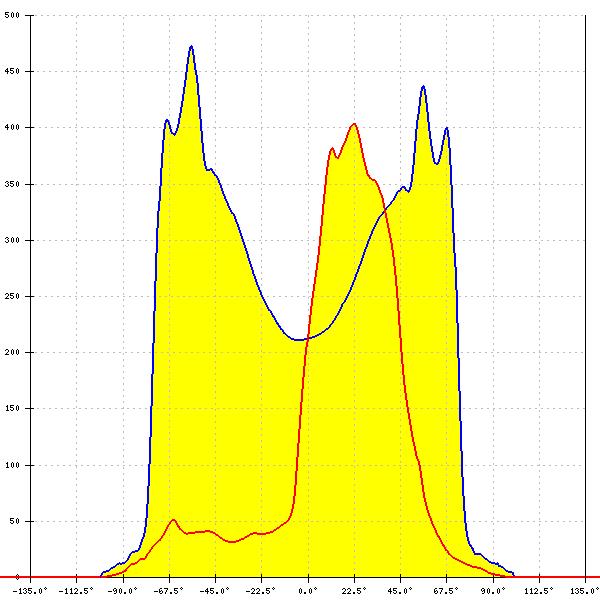

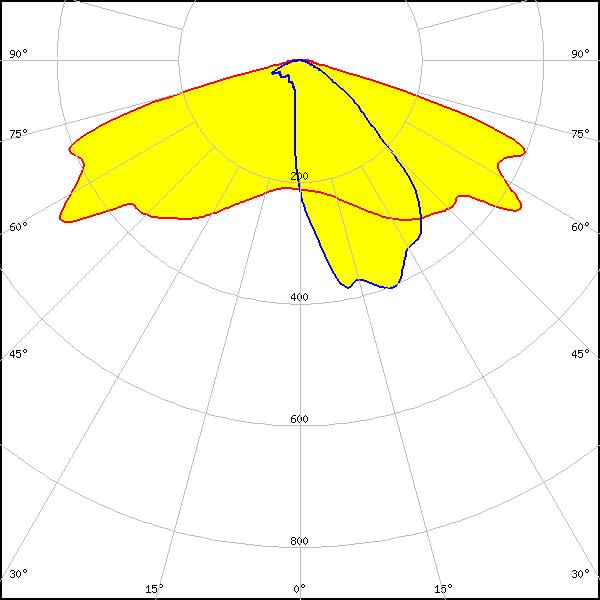

LED: RLE 2x6 3000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
