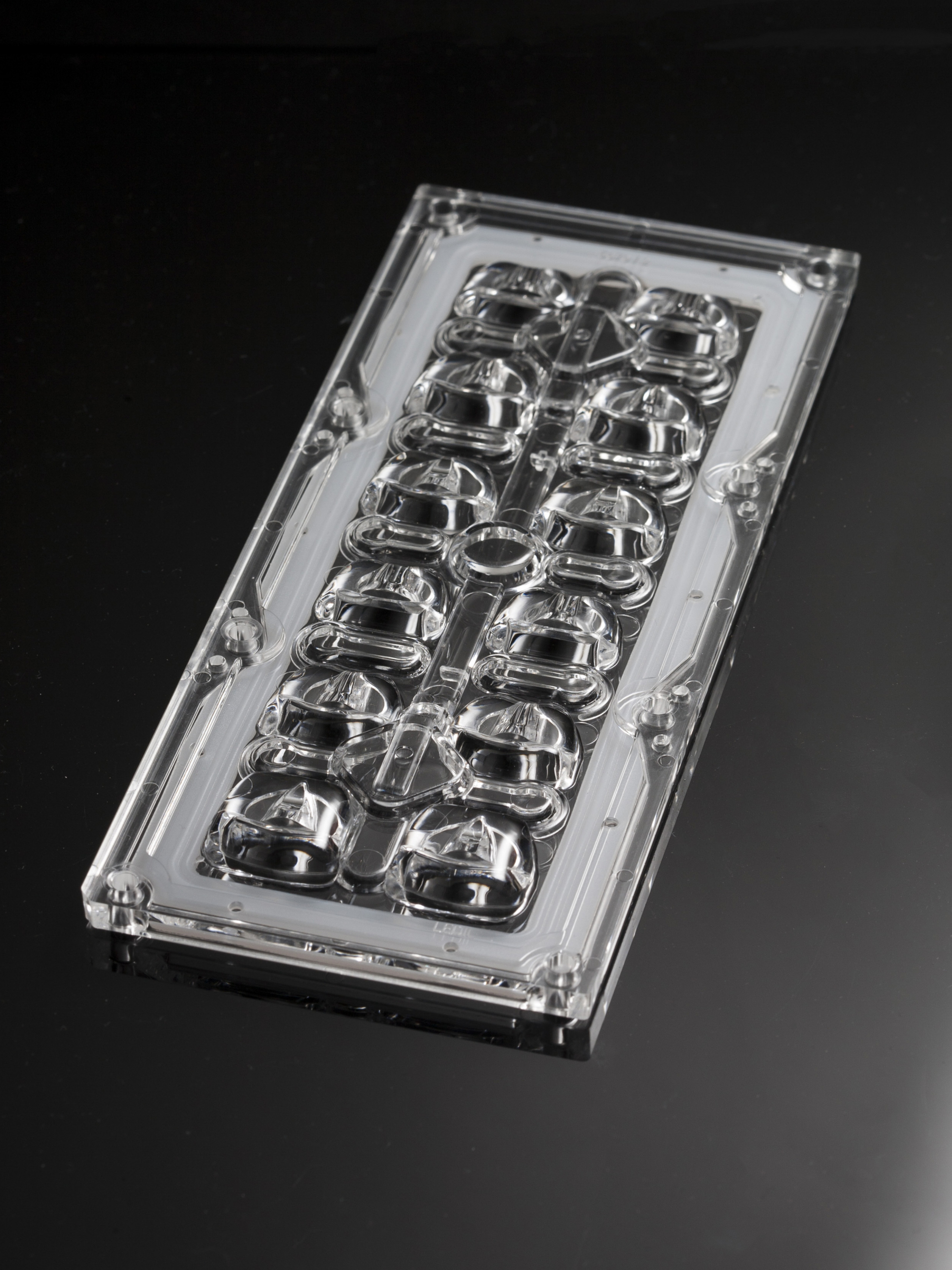

CS15671_STRADA-IP-2X6-DWC-B

Print

Universal road lighting (IESNA Type II Medium) beam with excellent mixed illuminance, luminance uniformity and minimized backlight.

Specification
  • Dimensions:
    173 x  71 mm
  • Height:
    8.90 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    7.4 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    2.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS15671_STRADA-IP-2X6-DWC-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: QUICK FLUX 2x6 LED XG xxx G7+
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: QUICK FLUX 2x6 LED XT xxx G5
FWHM: asymmetric
Peak intensity: 0.560 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.419 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.395 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.428 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XT-E
FWHM: asymmetric
LEDs/each optic: 1
Light colour/type: White
LED: XT-E HE
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.450 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.391 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON V2
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

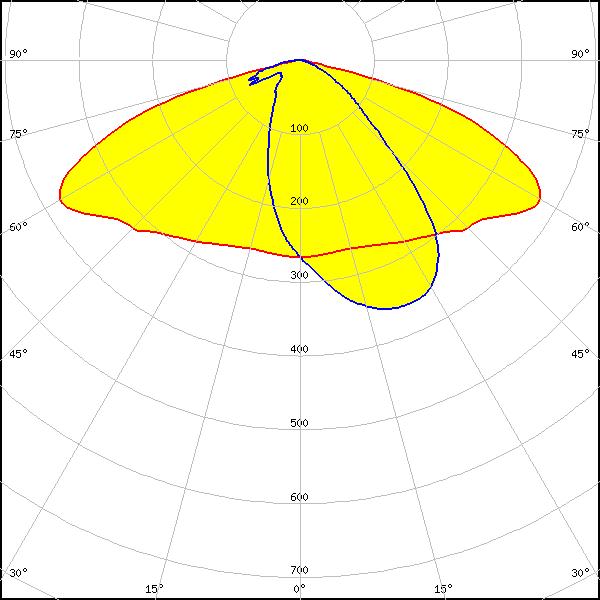

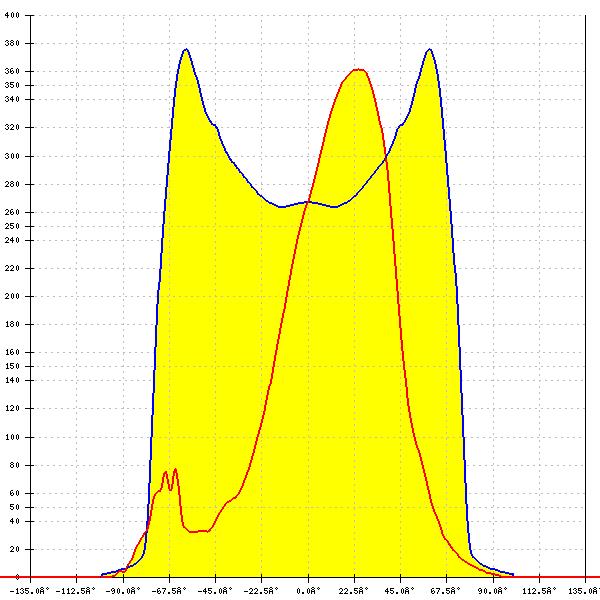

LED: RecLED 146x45mm 2900lm 730 2x6 IP G1
FWHM: asymmetric
Peak intensity: 0.589 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.340 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW3x9A
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.601 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Brick HP IP 2x6
FWHM: asymmetric
Peak intensity: 0.493 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.403 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 0.405 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x6 DP HE
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RH12 (LH351C)
FWHM: asymmetric
Peak intensity: 0.520 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RM12 ZP (LH502C)
FWHM: asymmetric
Peak intensity: 0.472 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
FWHM: asymmetric
Peak intensity: 0.429 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351D
FWHM: asymmetric
Peak intensity: 0.360 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502D
FWHM: asymmetric
Peak intensity: 0.408 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: ROY-S26XPL2 (XP-L2)
FWHM: asymmetric
Peak intensity: 0.428 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XLE-S22C4XTEHE (XT-E HE)
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: 2x6 5050 module - SMJD-3625012F-XX
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: SMJQ-D36W12Mx
FWHM: asymmetric
Peak intensity: 0.570 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: SMJQ-D36W12Px
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M1/Z5M2
FWHM: asymmetric
Peak intensity: 0.520 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.502 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.482 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.570 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x6 3000lm HP EXC2 OTD
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x6 4500lm HP HE EXC3 OTD Z19
FWHM: asymmetric
Peak intensity: 0.484 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
