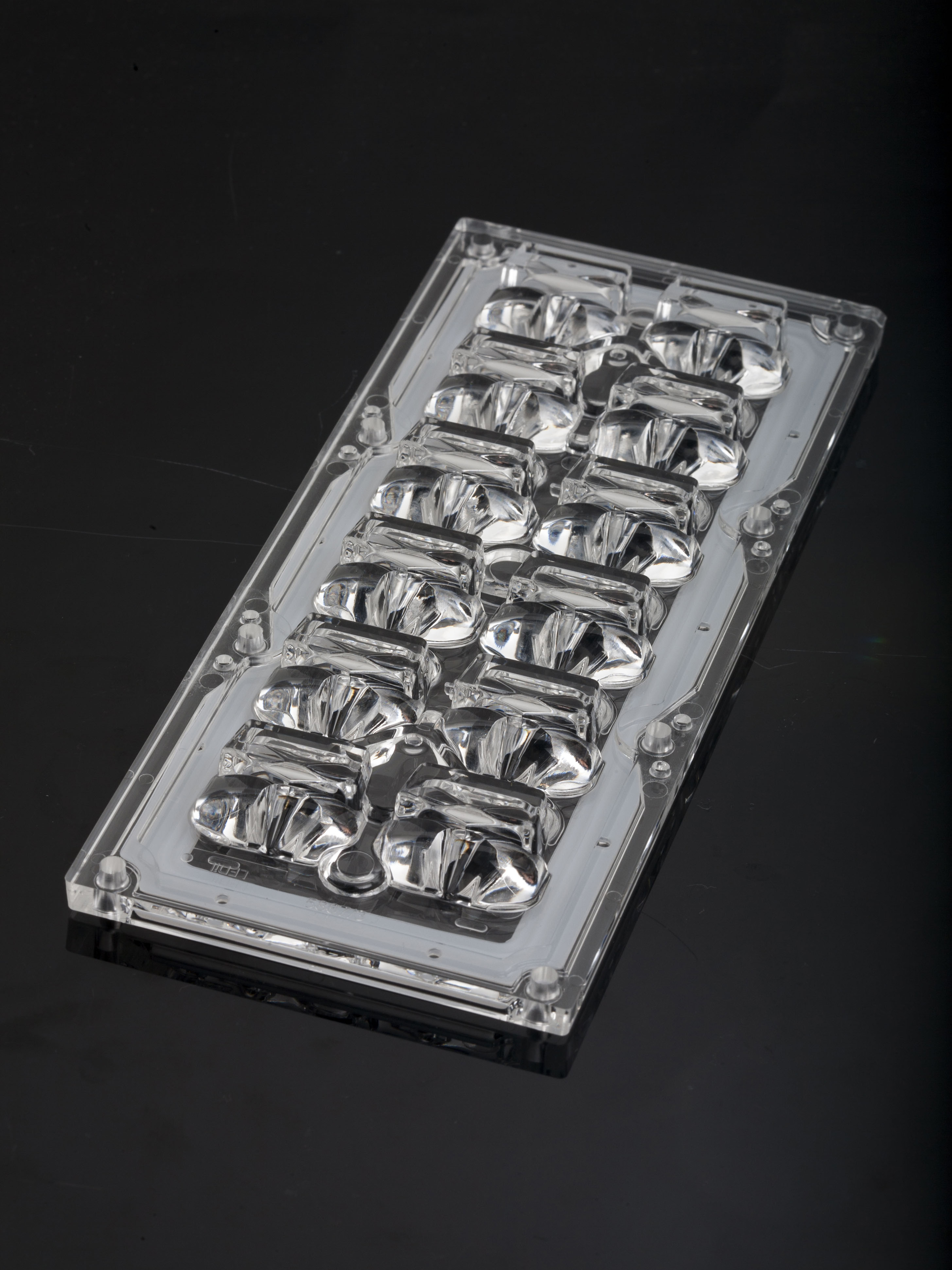

CS15870_STRADA-IP-2X6-T2-L

Print

IESNA Type II (medium) beam for long pole distances and up to 8x mounting height. Suitable for European P-class and pathway lighting.

Specification
  • Dimensions:
    173 x  71 mm
  • Height:
    13.00 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    8.8 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    3.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS15870_STRADA-IP-2X6-T2-L

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

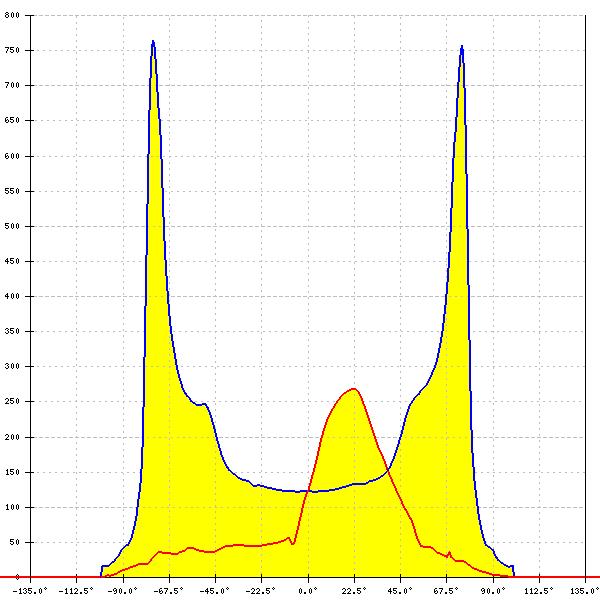

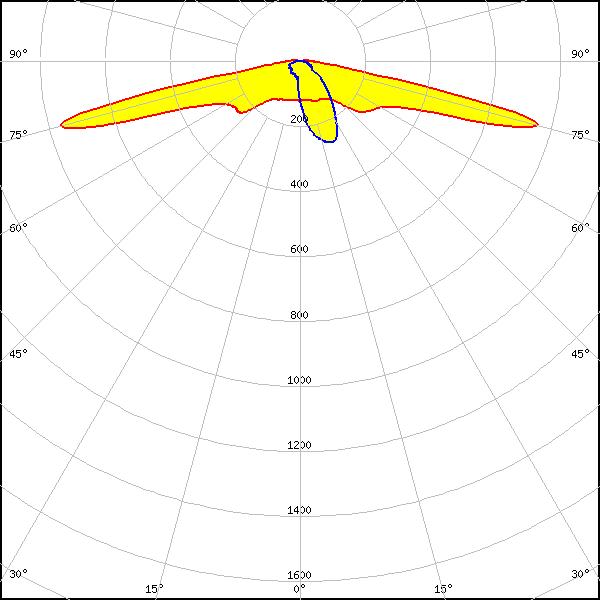

LED: QUICK FLUX 2x6 LED XG xxx G7+
FWHM: asymmetric
Peak intensity: 1.400 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

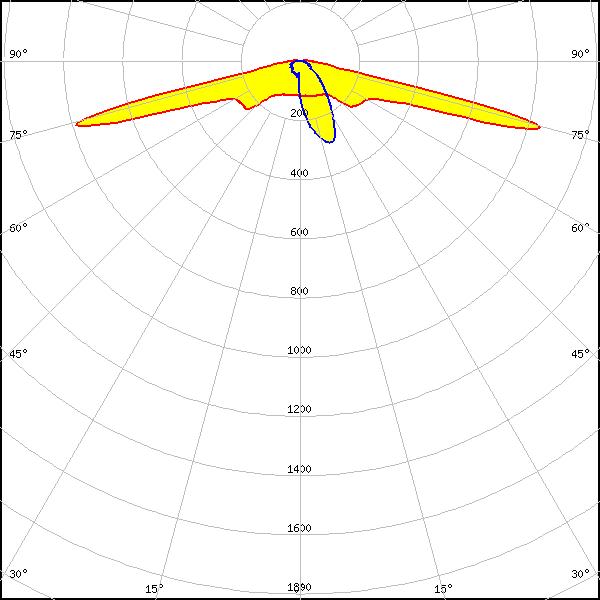

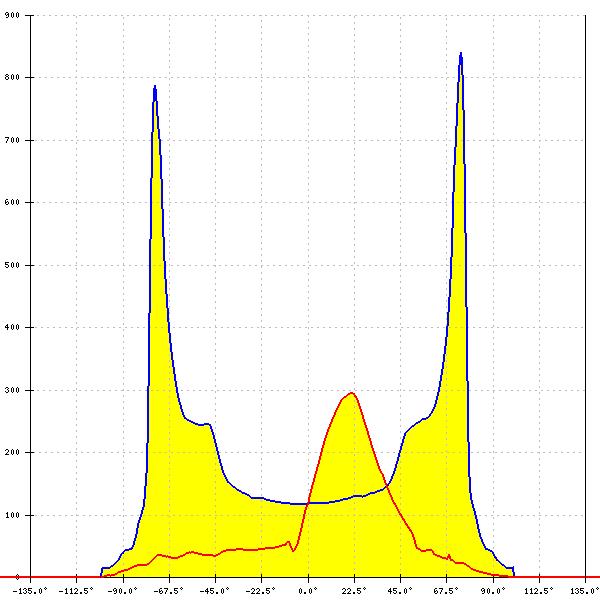

LED: QUICK FLUX 2x6 LED XT xxx G5
FWHM: asymmetric
Peak intensity: 1.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.762 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

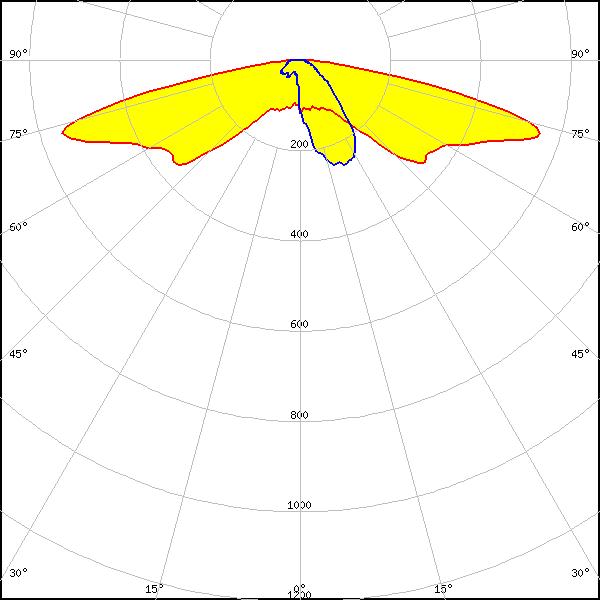

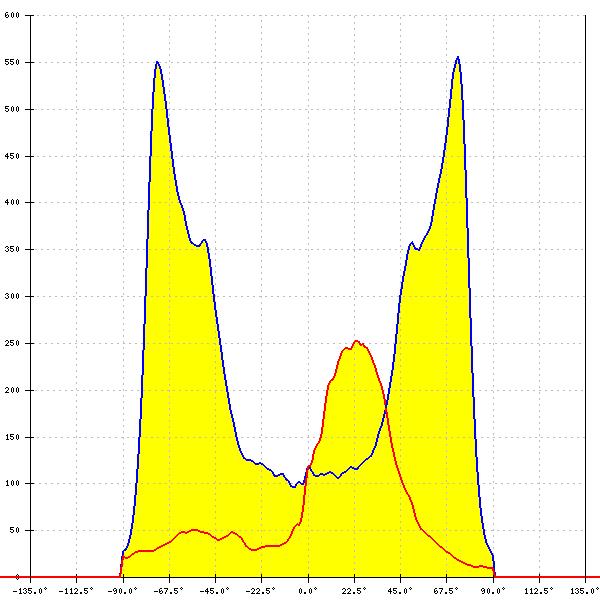

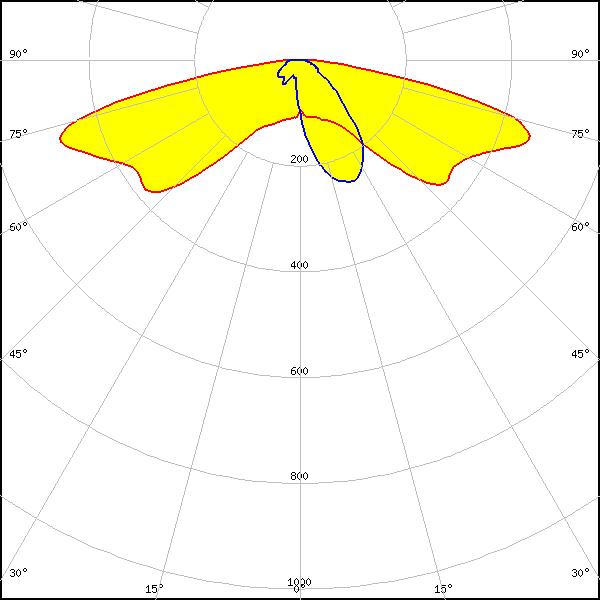

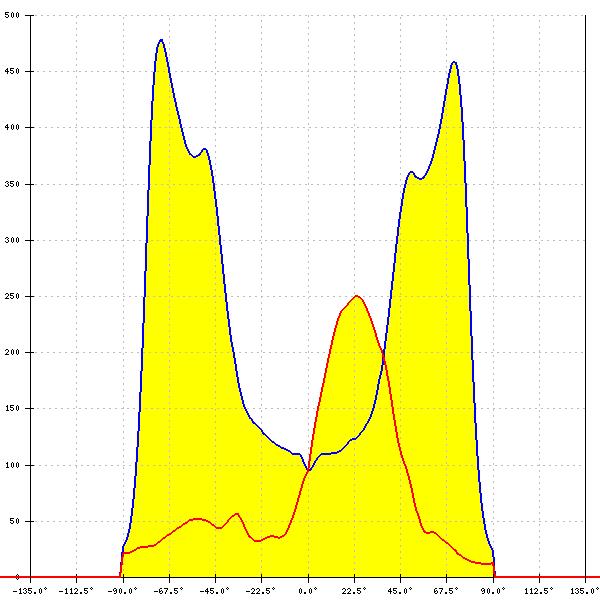

LED: J Series 5050 Square LES 6V
FWHM: asymmetric
Peak intensity: 0.627 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

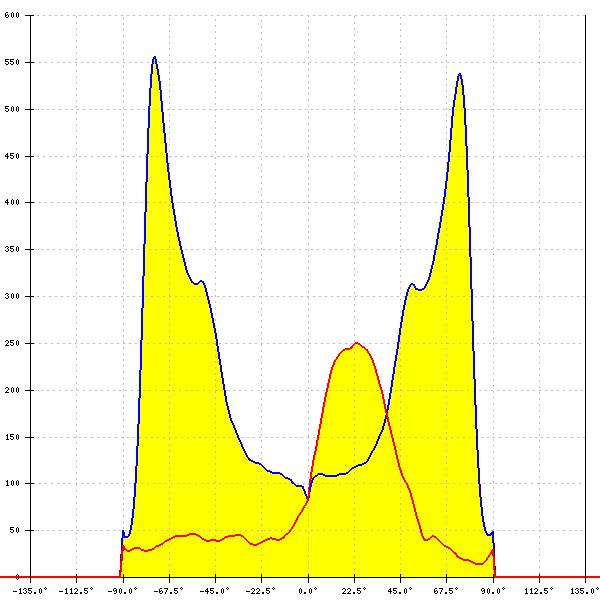

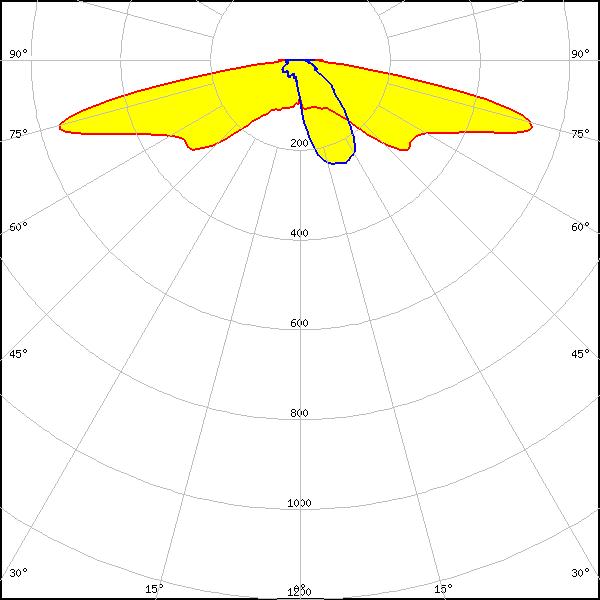

LED: XHP50.3 HI
FWHM: asymmetric
Peak intensity: 0.792 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

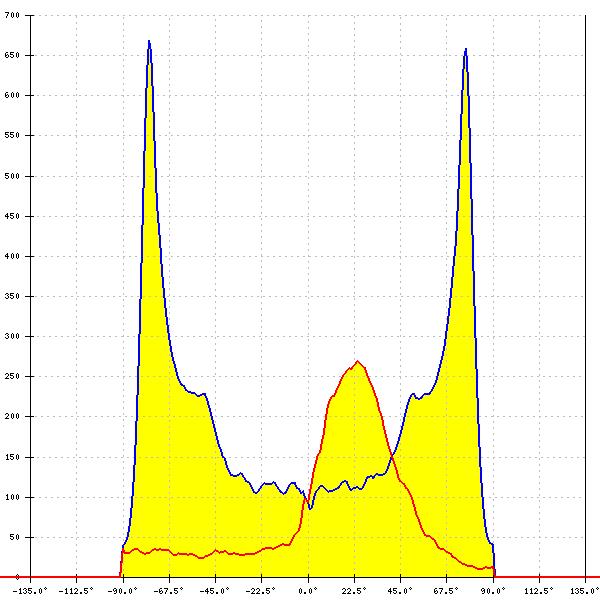

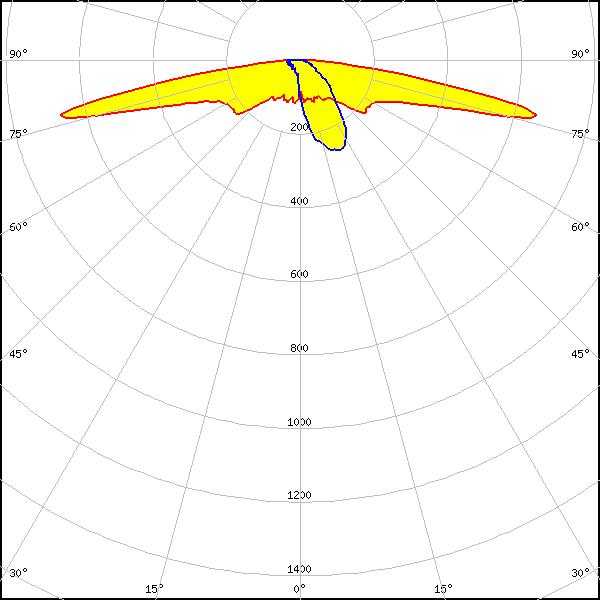

LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 1.196 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

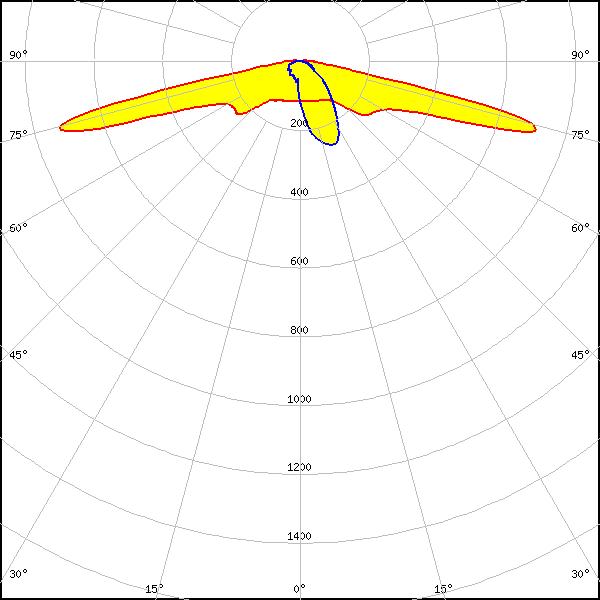

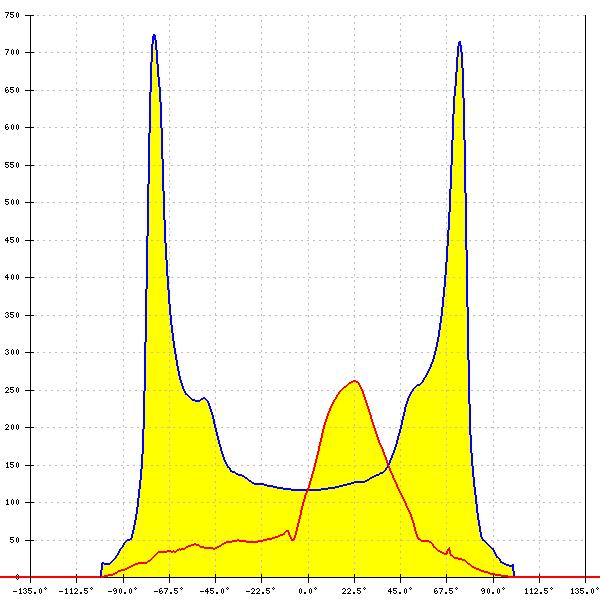

LED: XP-G3
FWHM: asymmetric
Peak intensity: 1.400 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.902 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

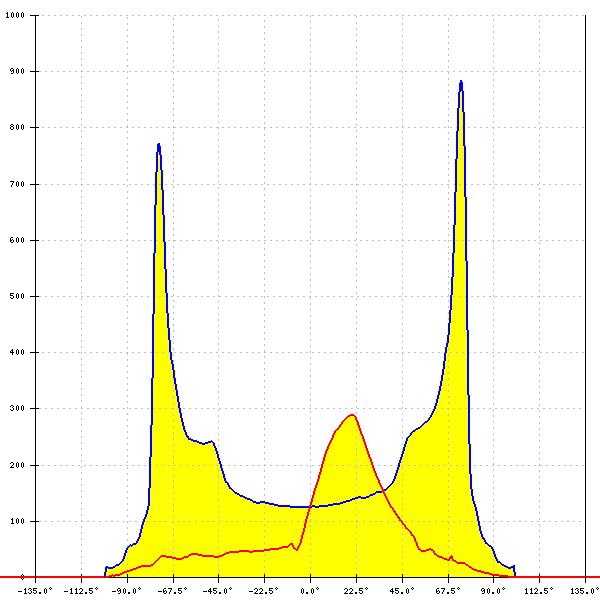

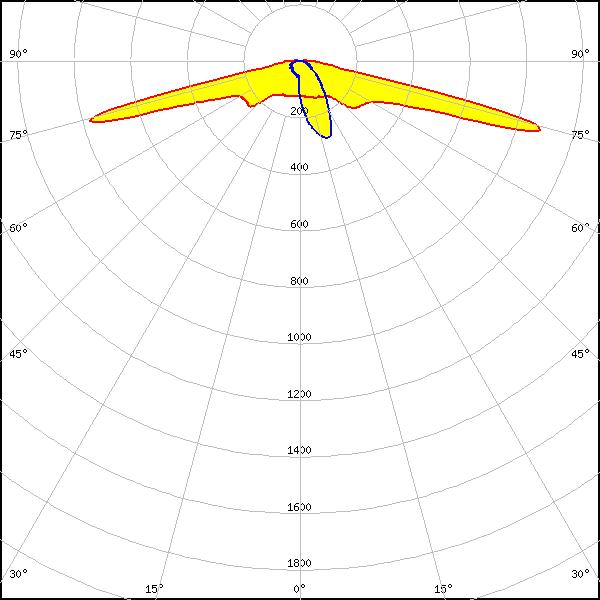

LED: XT-E
FWHM: asymmetric
Peak intensity: 1.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

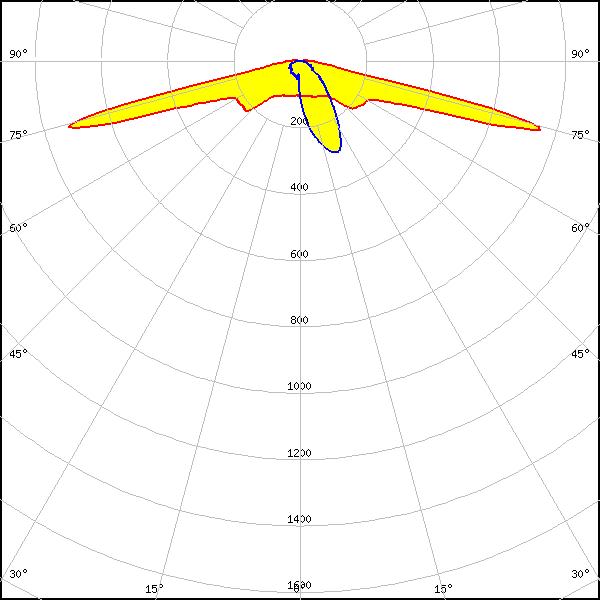

LED: XT-E HE
FWHM: asymmetric
Peak intensity: 1.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

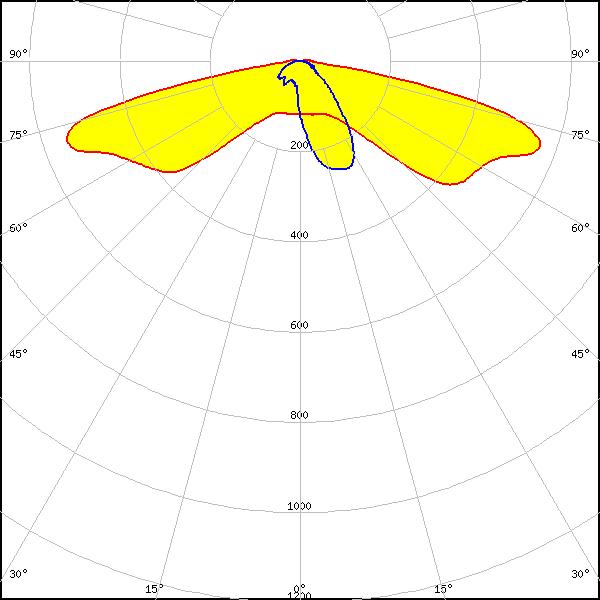

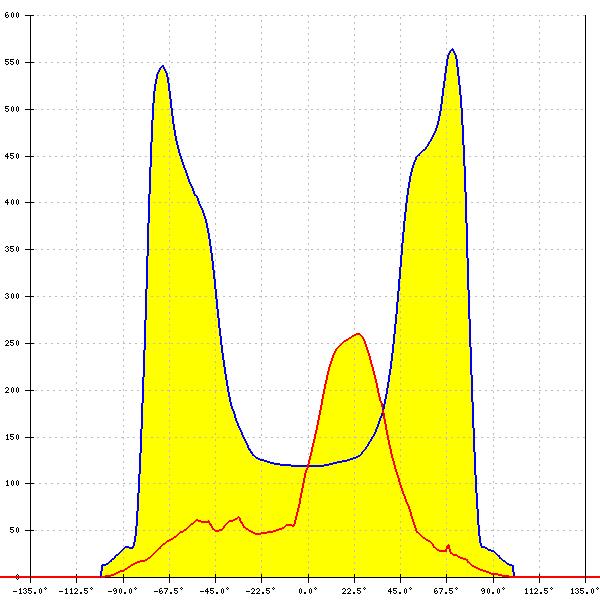

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.761 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

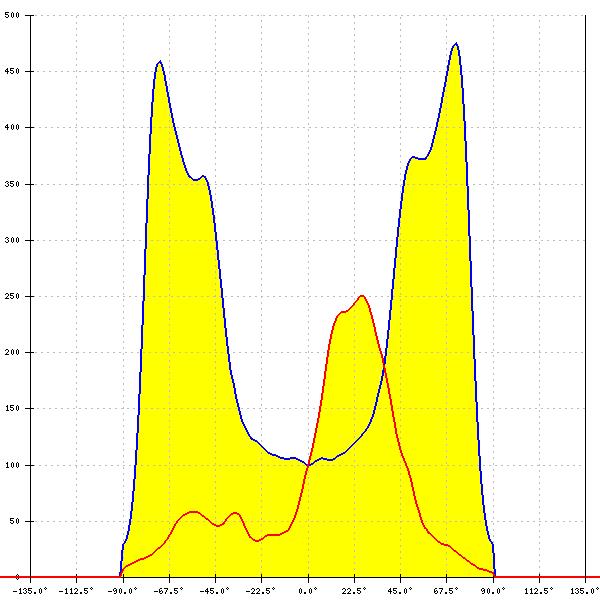

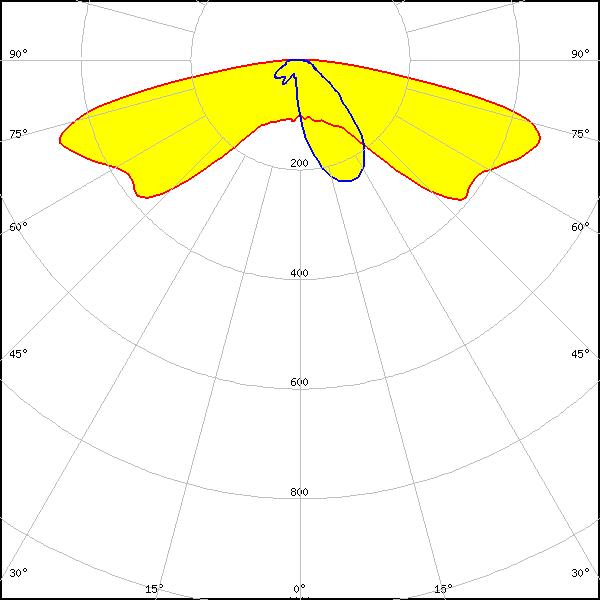

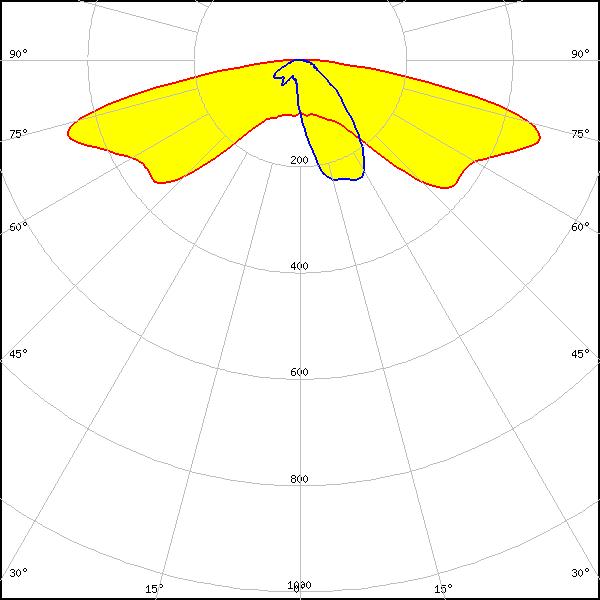

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.617 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

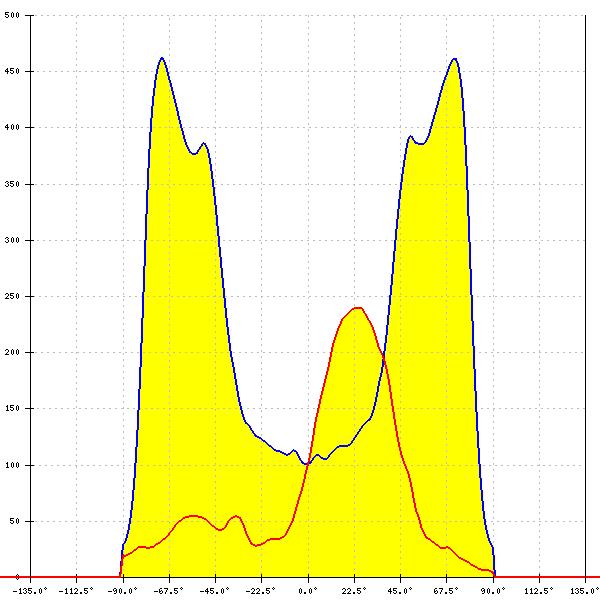

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

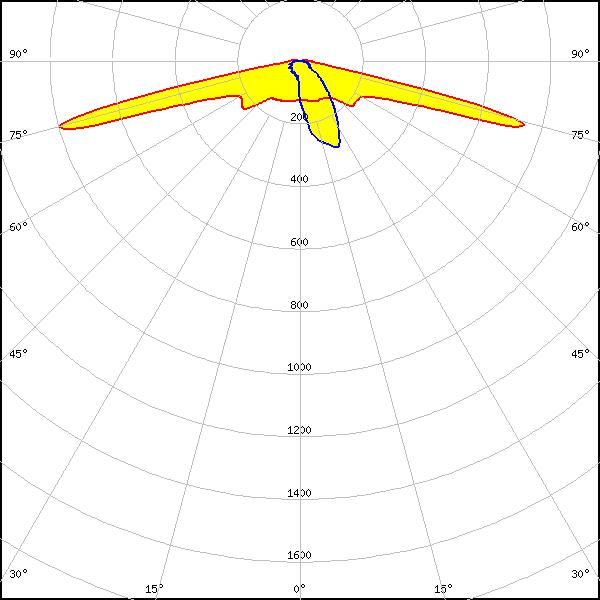

LED: RecLED 146x45mm 2900lm 730 STRADA-IP-2x6 G1
FWHM: asymmetric
Peak intensity: 1.731 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

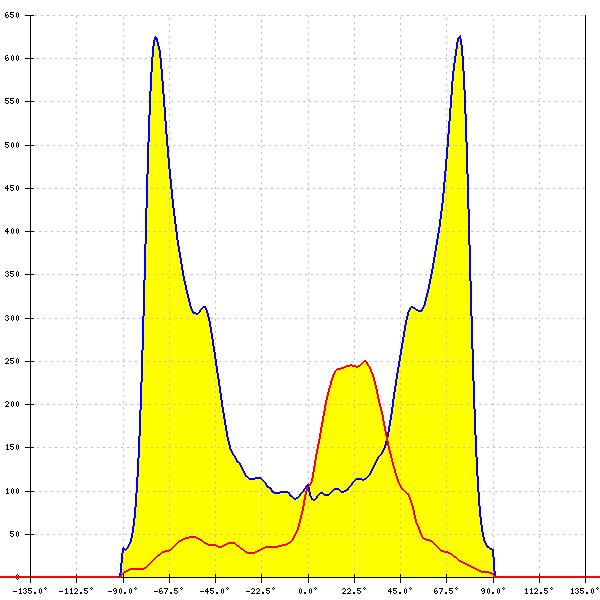

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.924 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

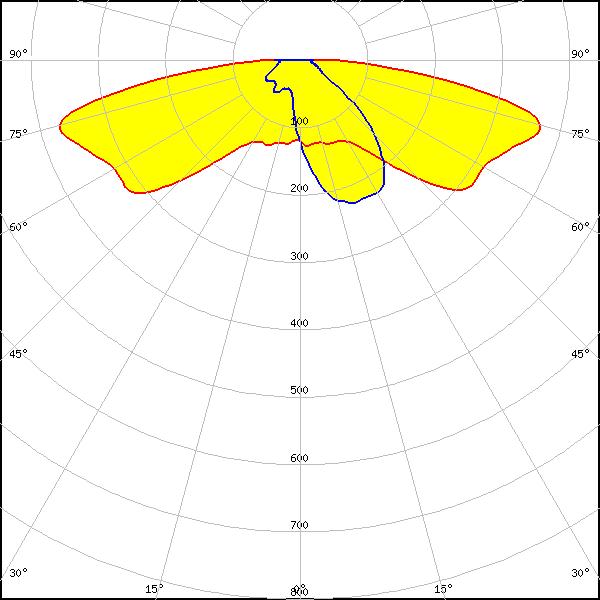

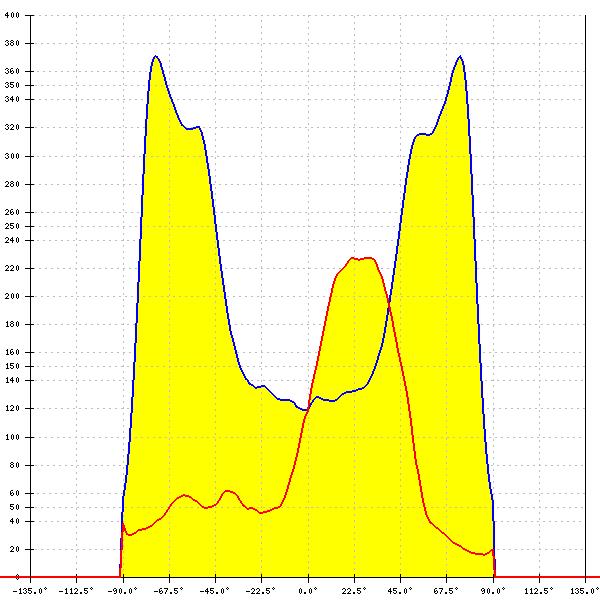

LED: NV4x144A
FWHM: asymmetric
Peak intensity: 0.482 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

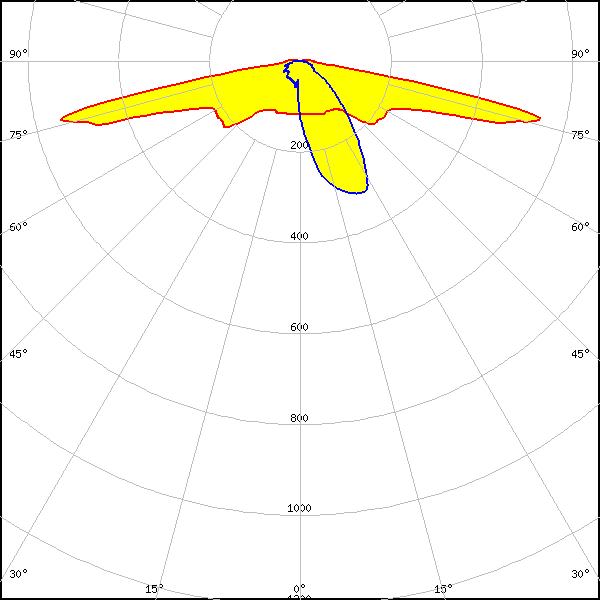

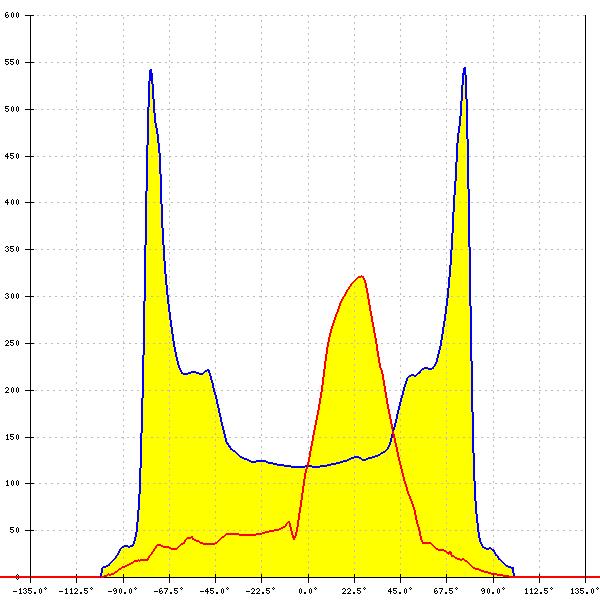

LED: NVSW219D
FWHM: asymmetric
Peak intensity: 1.500 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

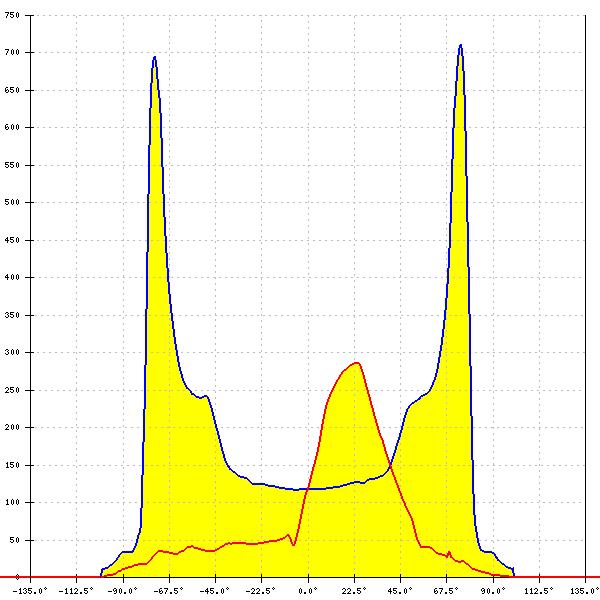

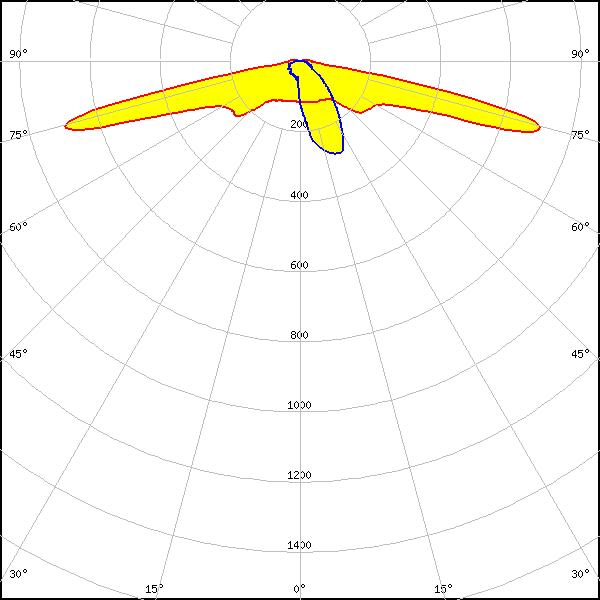

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 1.500 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

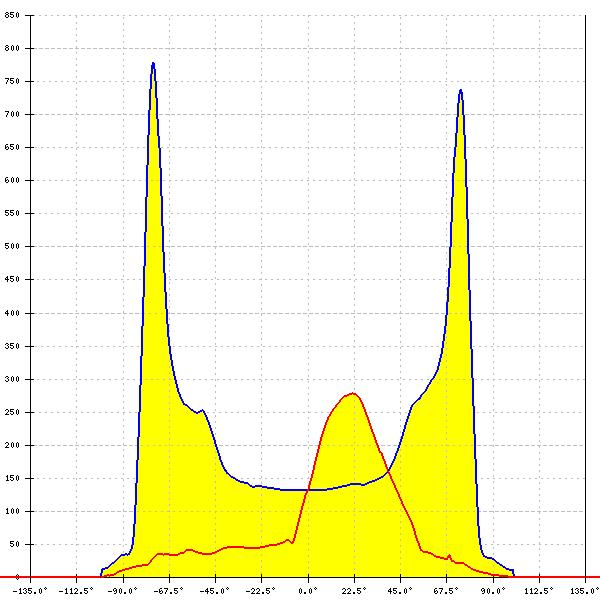

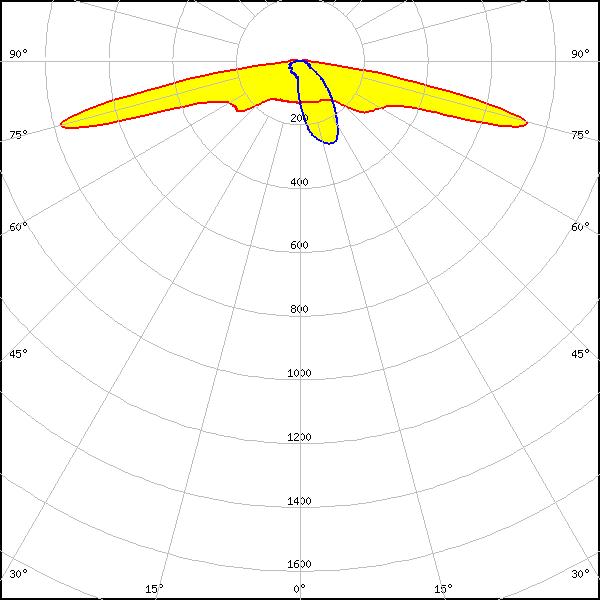

LED: NVSW319B
FWHM: asymmetric
Peak intensity: 1.200 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

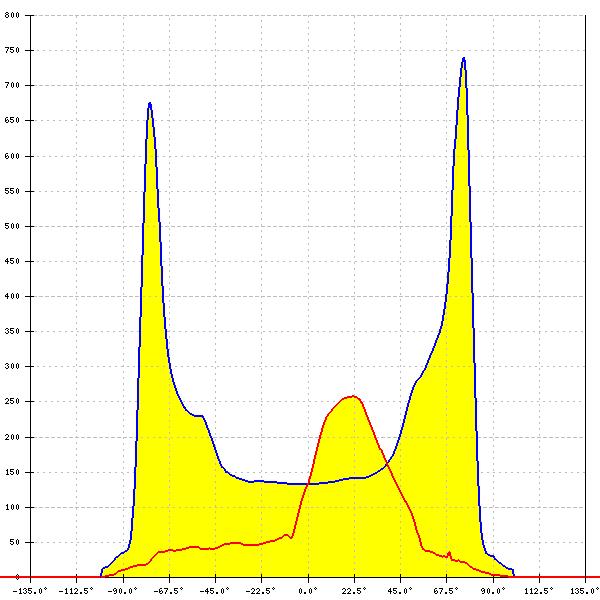

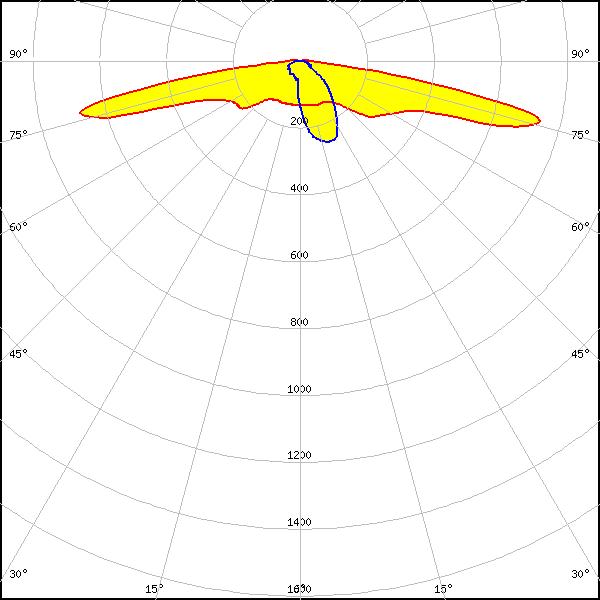

LED: NVSW519A
FWHM: asymmetric
Peak intensity: 1.078 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

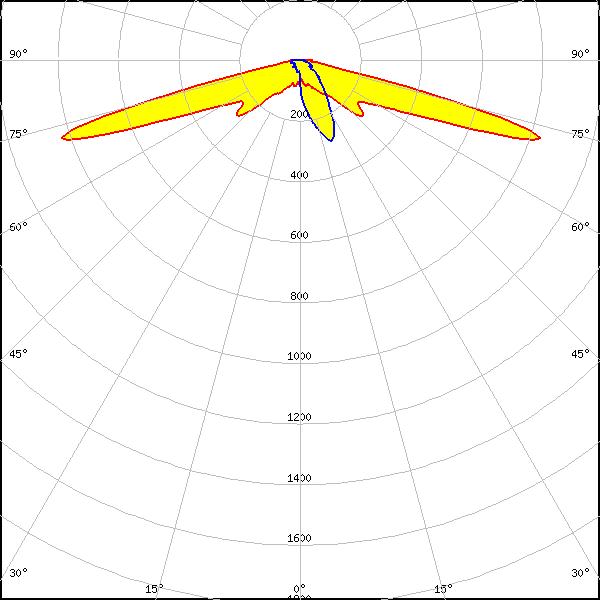

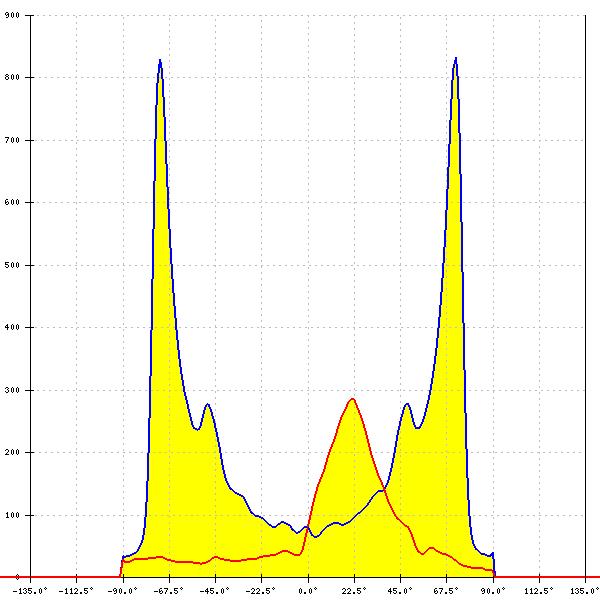

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 1.324 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

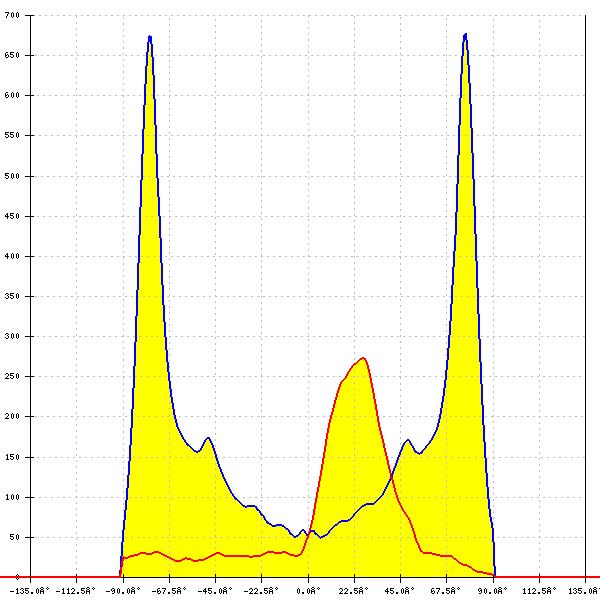

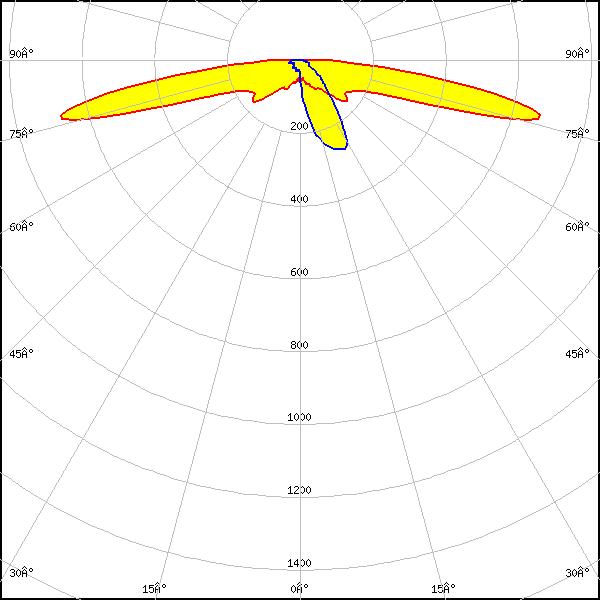

LED: PrevaLED Brick HP IP 2x6
FWHM: asymmetric
Peak intensity: 1.060 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

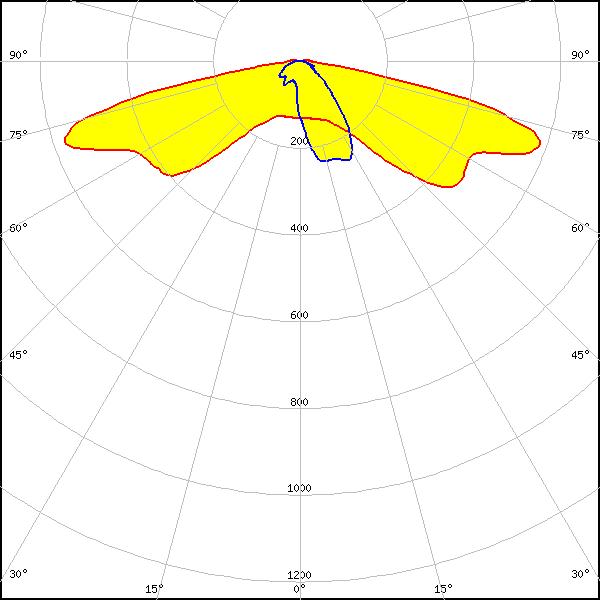

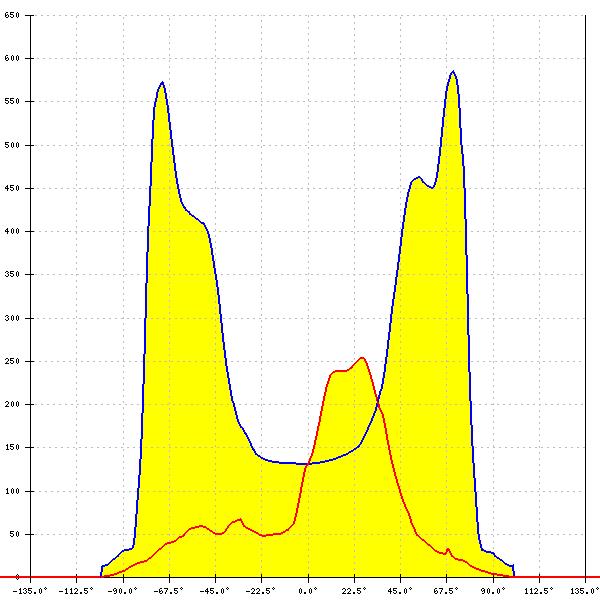

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.820 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

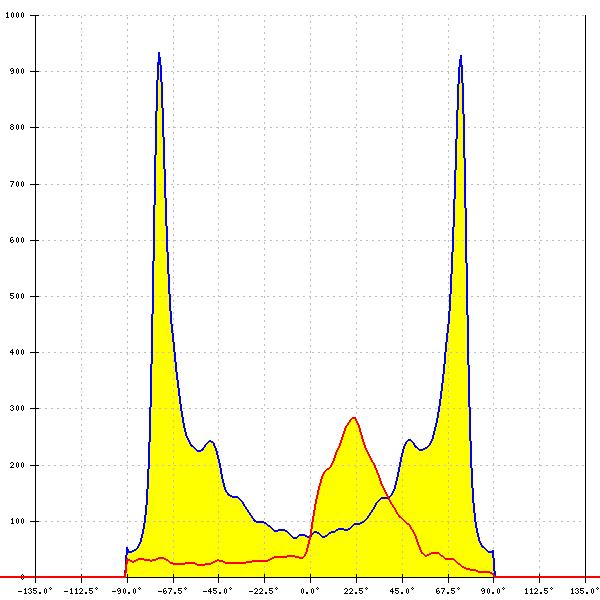

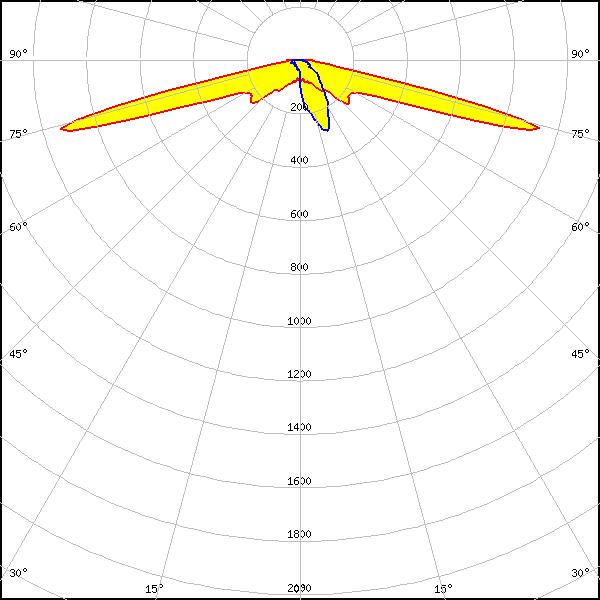

LED: OSCONIQ P 3030
FWHM: asymmetric
Peak intensity: 1.524 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

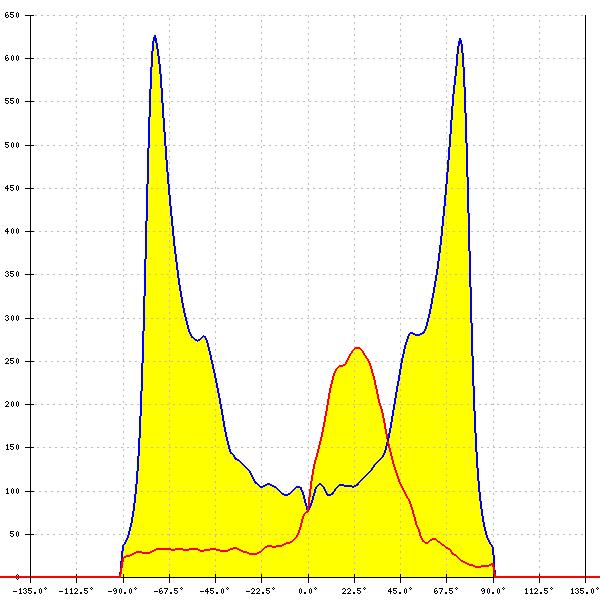

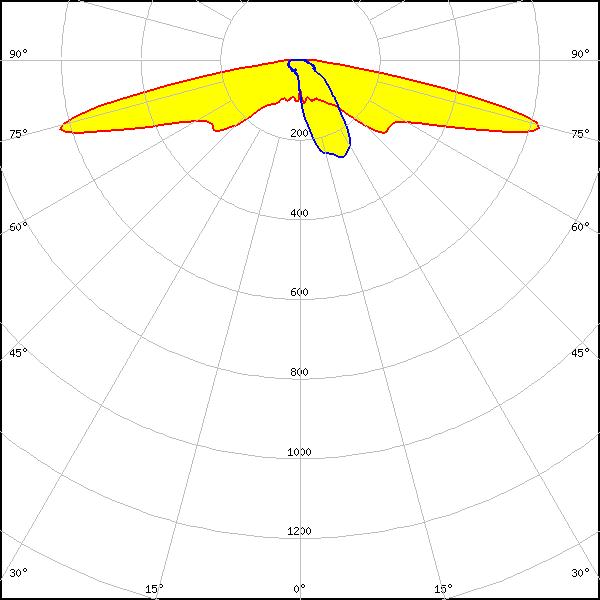

LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 0.936 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

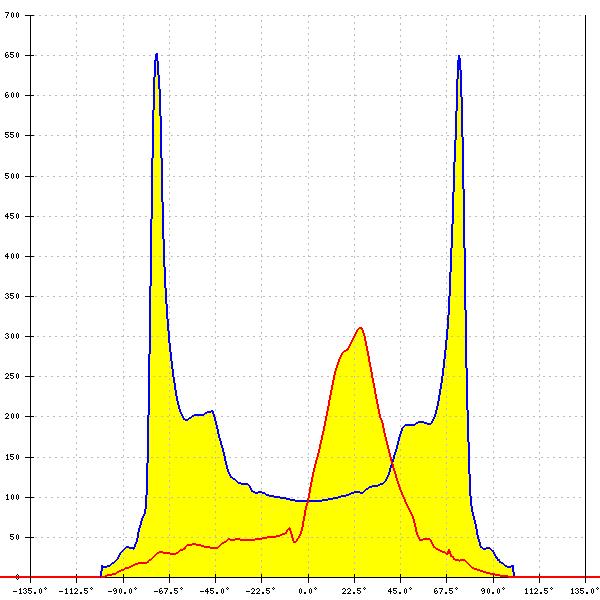

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 1.920 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

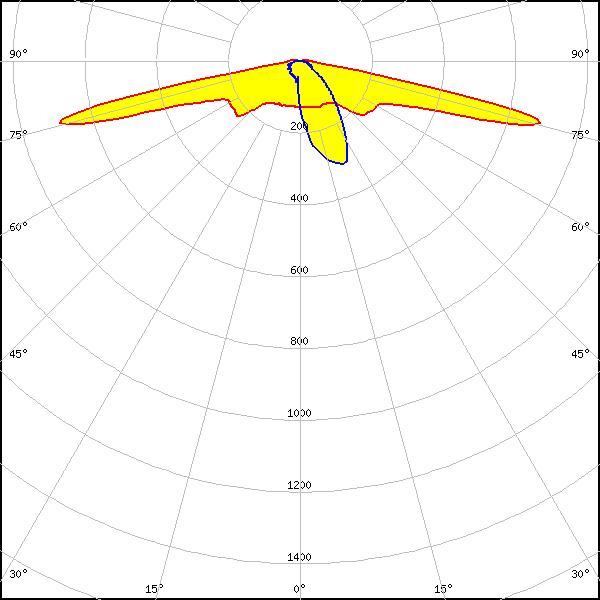

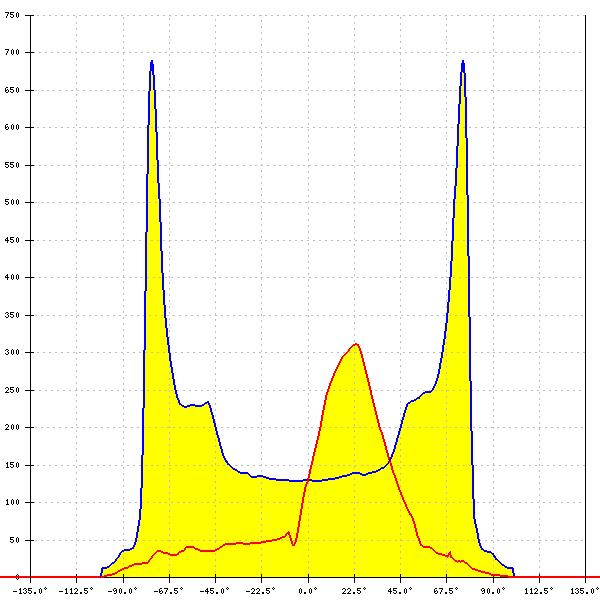

LED: Fortimo FastFlex LED 2x6 DP G4
FWHM: asymmetric
Peak intensity: 1.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x6 DP G5
FWHM: asymmetric
Peak intensity: 1.615 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

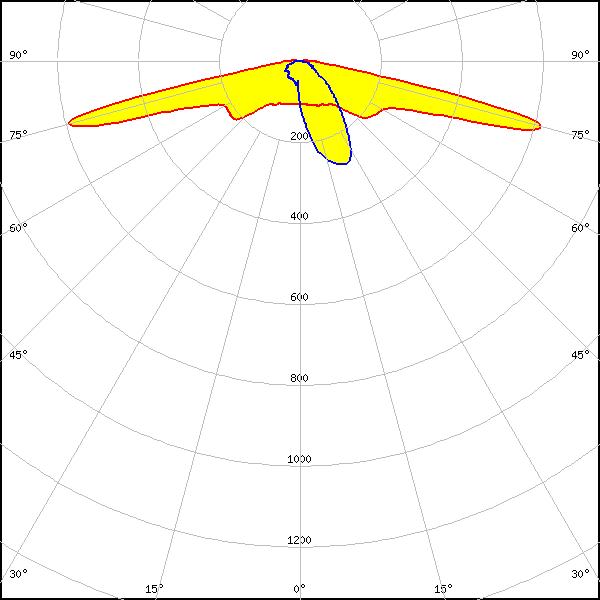

LED: Fortimo FastFlex LED 2x6 DPX G4
FWHM: asymmetric
Peak intensity: 1.400 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

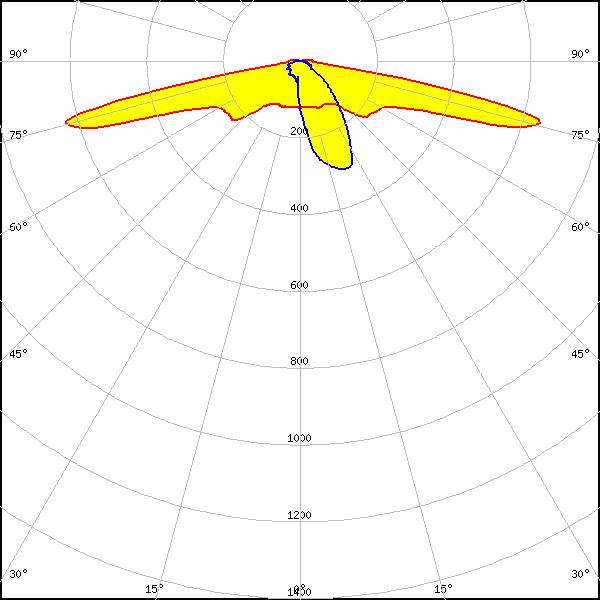

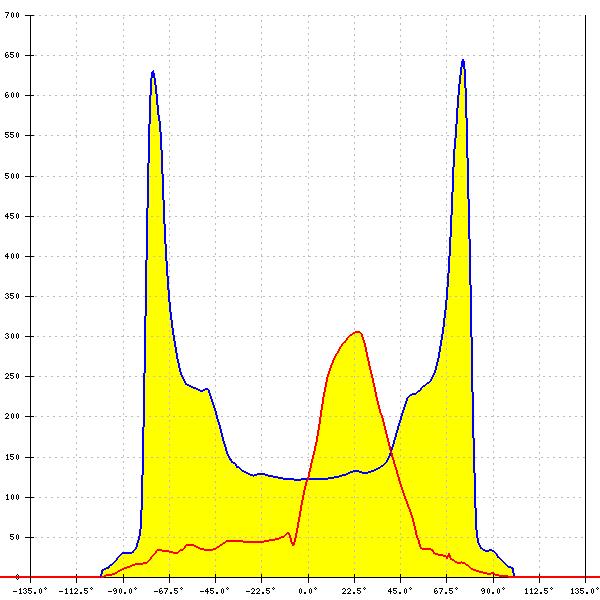

LED: HiLOM RH12 (LH351C)
FWHM: asymmetric
Peak intensity: 1.400 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

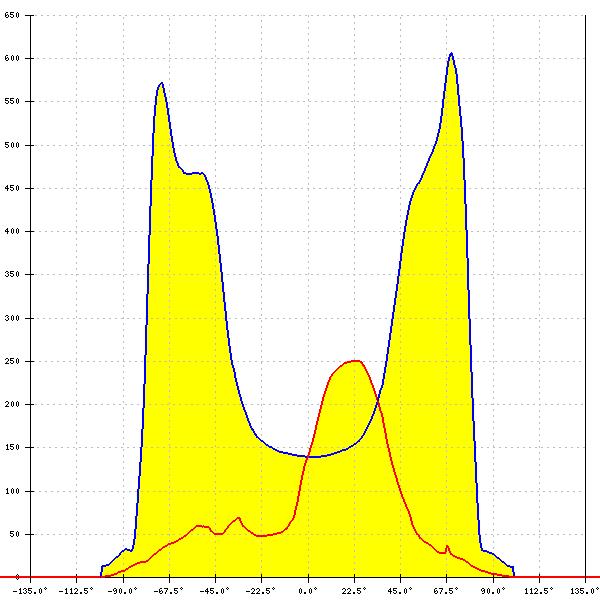

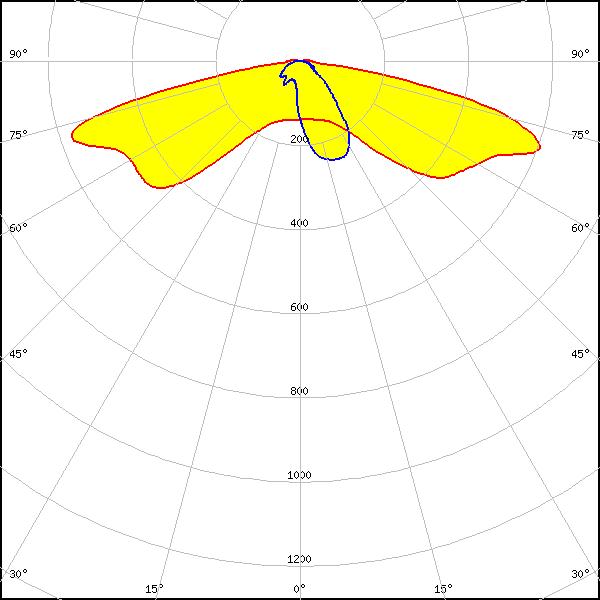

LED: HiLOM RM12 ZP (LH502C)
FWHM: asymmetric
Peak intensity: 0.711 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LH181B
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

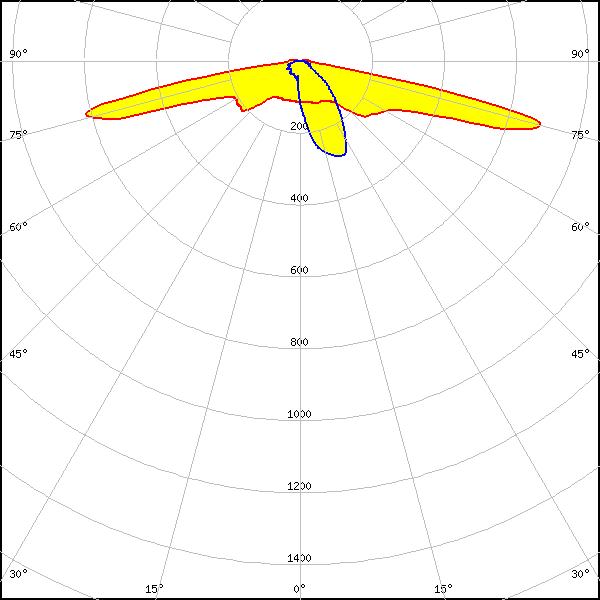

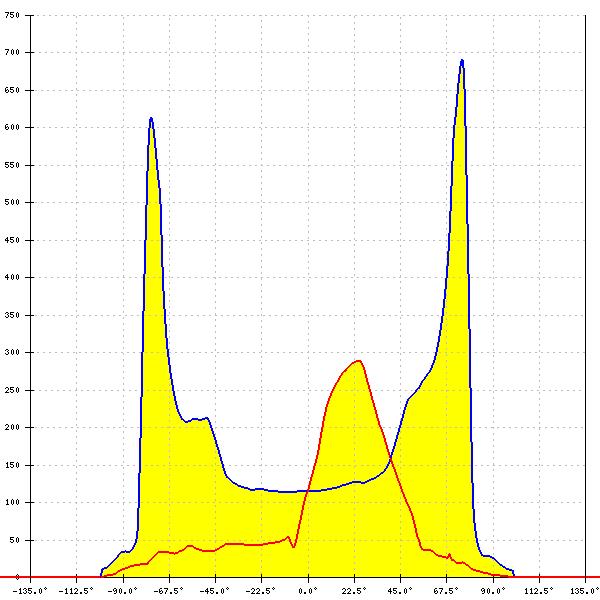

LED: LH351C
FWHM: asymmetric
Peak intensity: 1.400 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

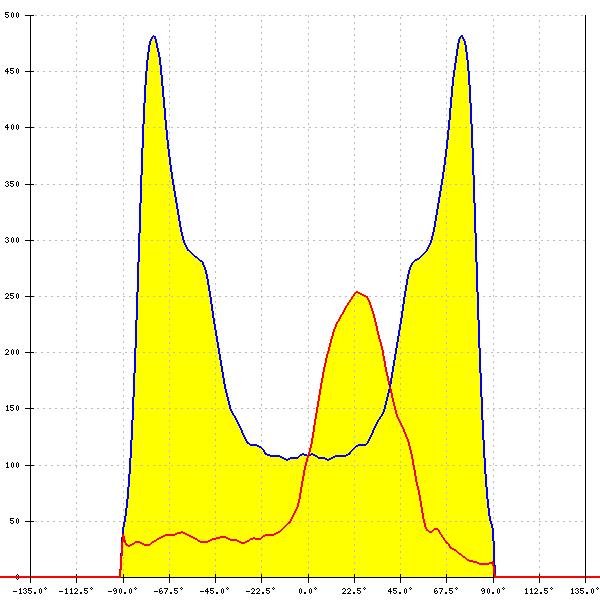

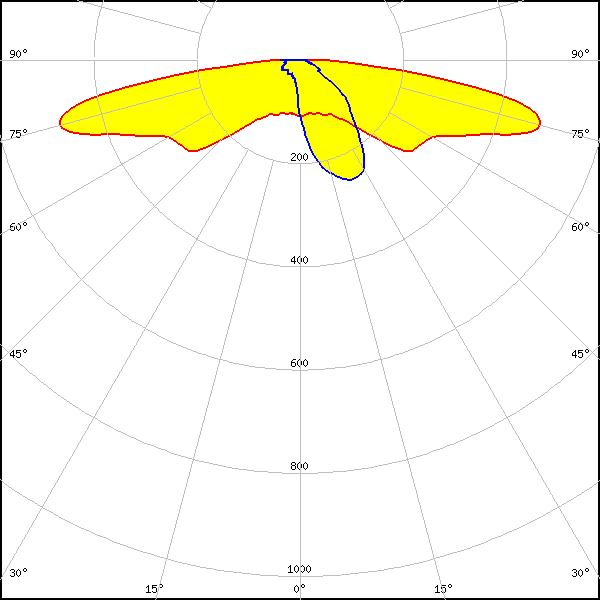

LED: LH351D
FWHM: asymmetric
Peak intensity: 0.737 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

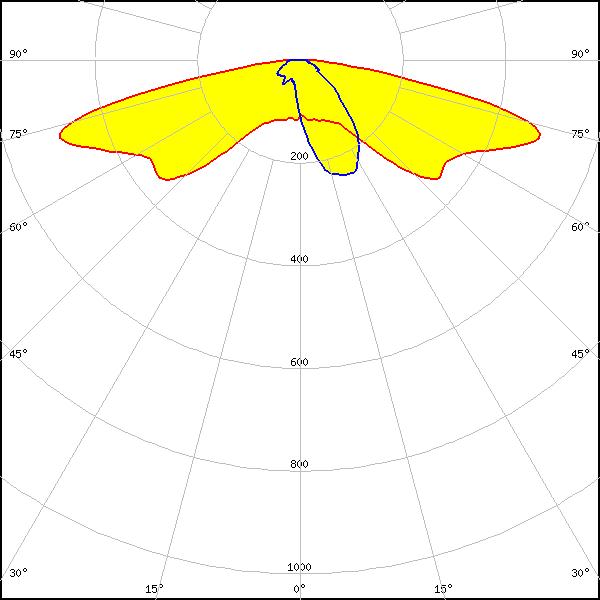

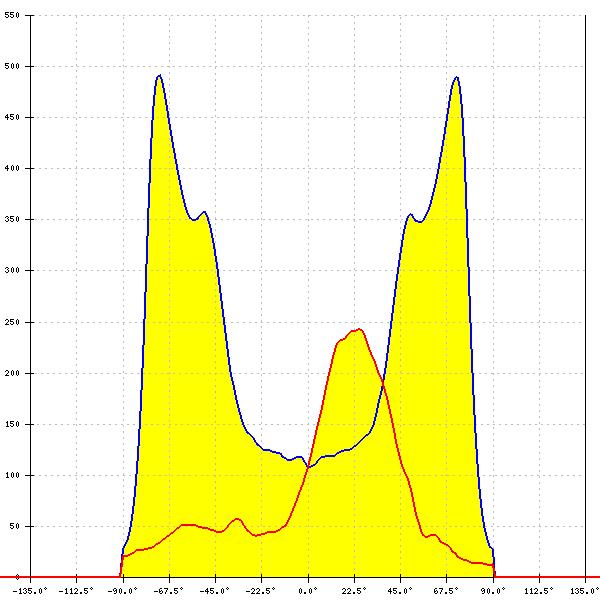

LED: LH502C
FWHM: asymmetric
Peak intensity: 0.683 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

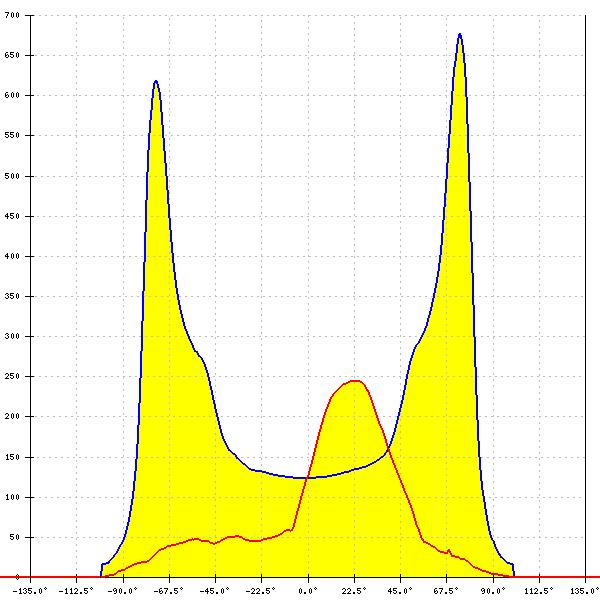

LED: ROY-S26XPL2 (XP-L2)
FWHM: asymmetric
Peak intensity: 0.902 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

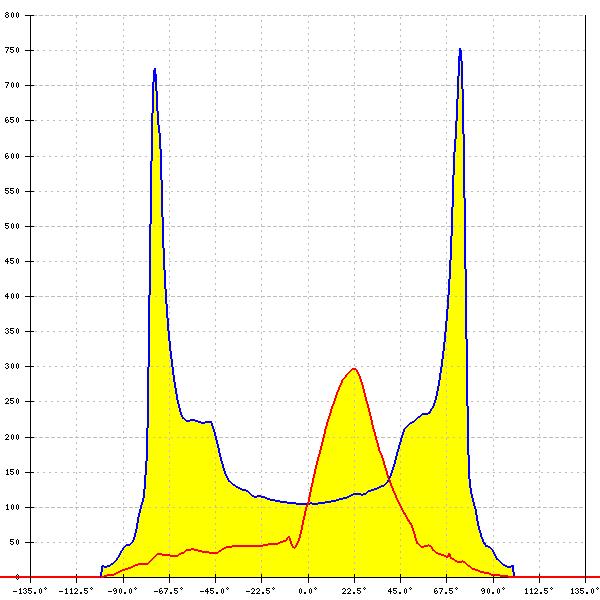

LED: XLE-S22C4XTEHE (XT-E HE)
FWHM: asymmetric
Peak intensity: 1.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

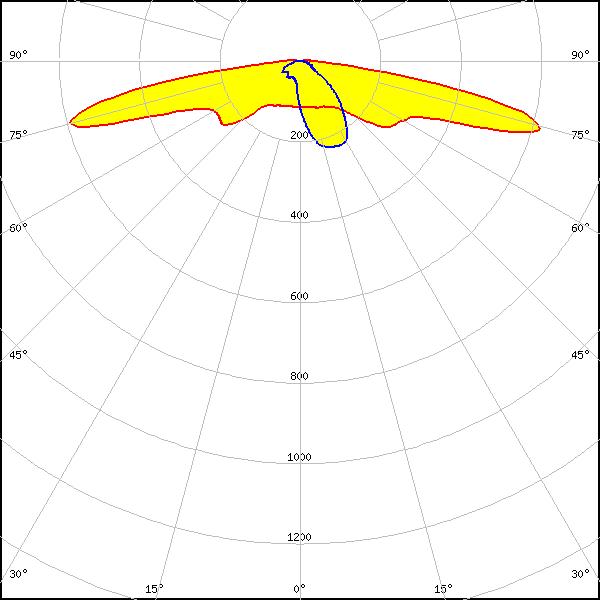

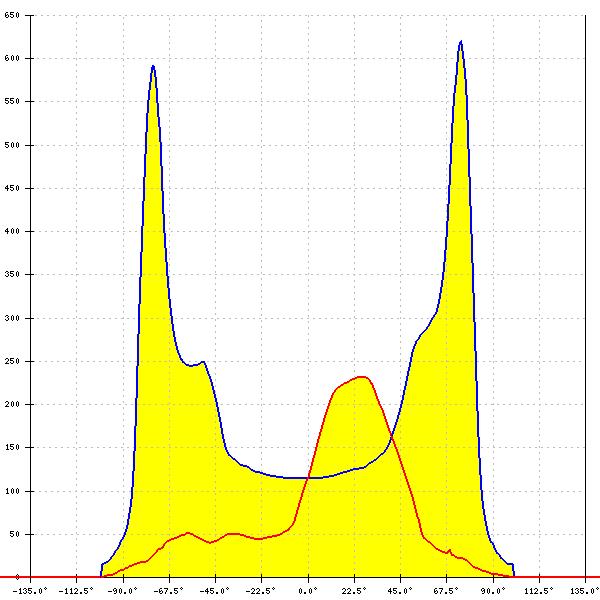

LED: XLE-S26XHP35 (XHP35 HD)
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

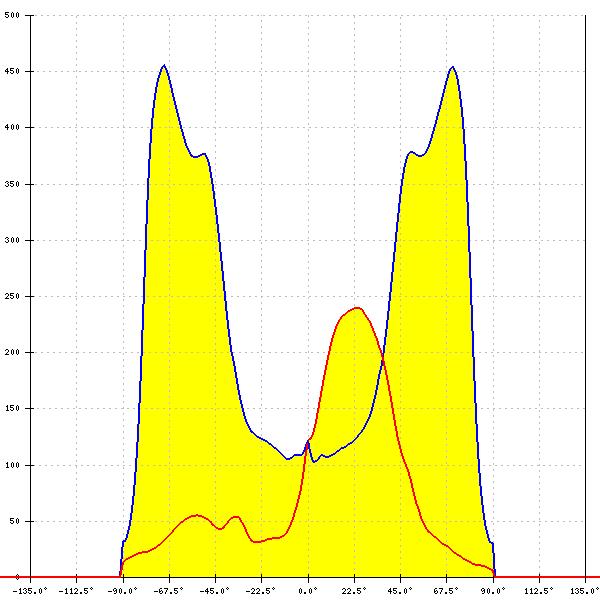

LED: 2x6 5050 module - SMJD-3625012F-XX
FWHM: asymmetric
Peak intensity: 0.608 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

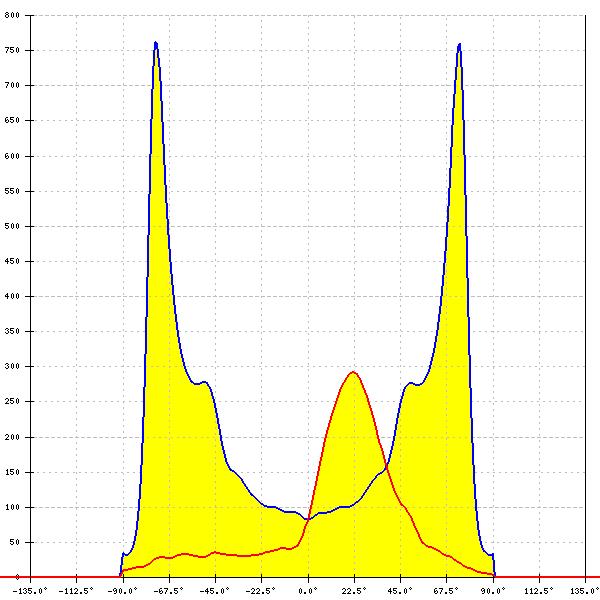

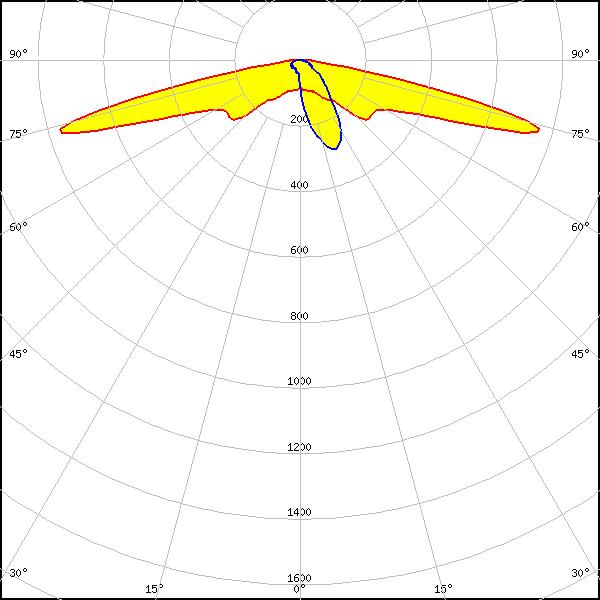

LED: SEOUL DC 3030C
FWHM: asymmetric
Peak intensity: 1.109 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.594 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

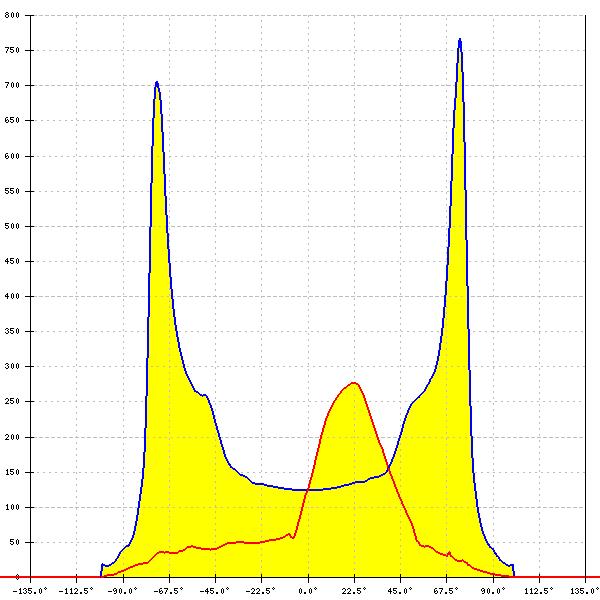

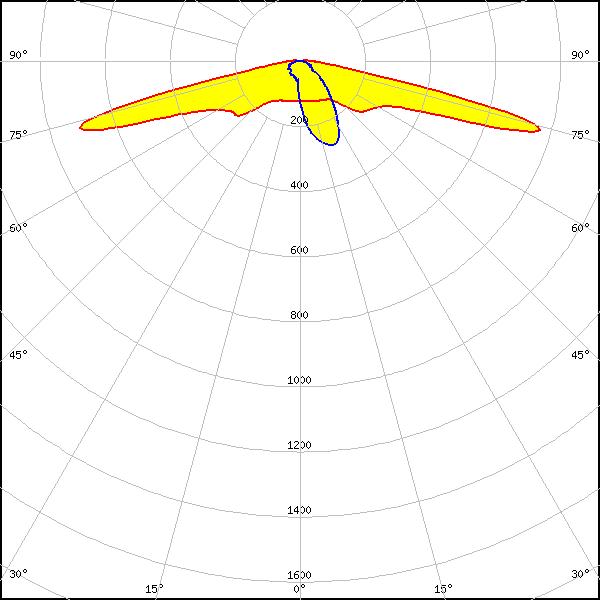

LED: Z5M3
FWHM: asymmetric
Peak intensity: 1.347 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

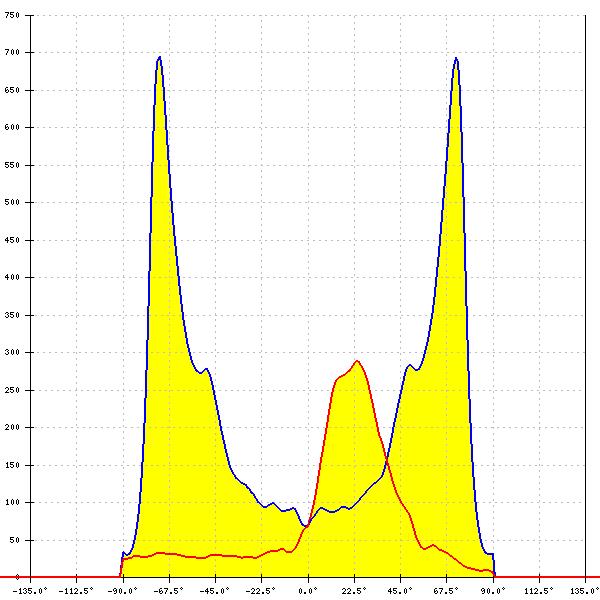

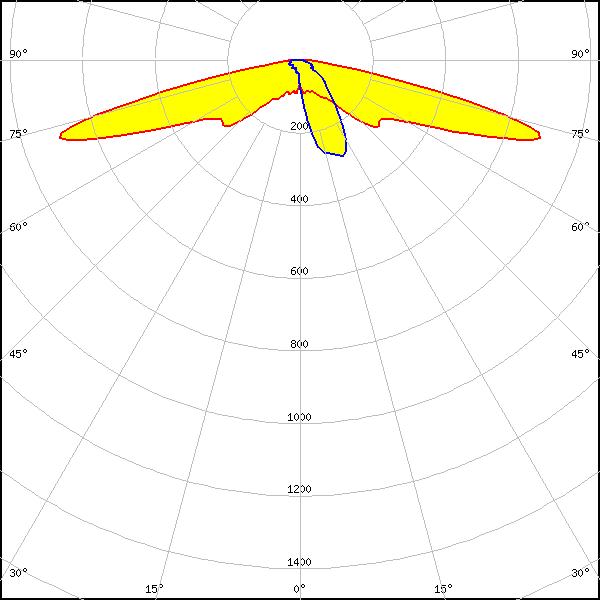

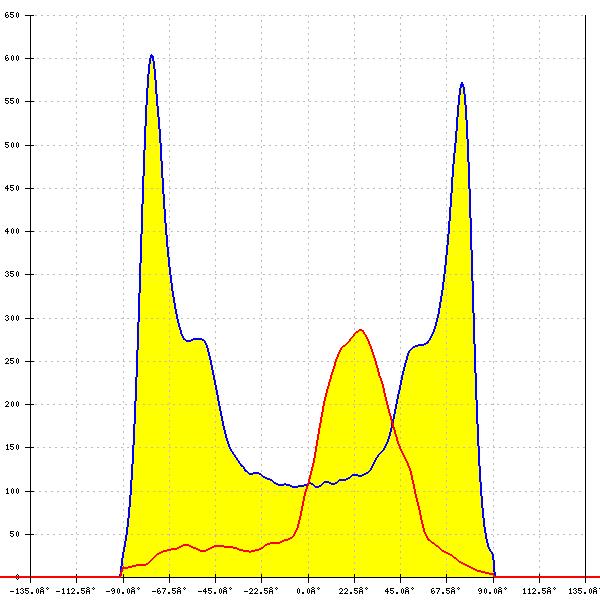

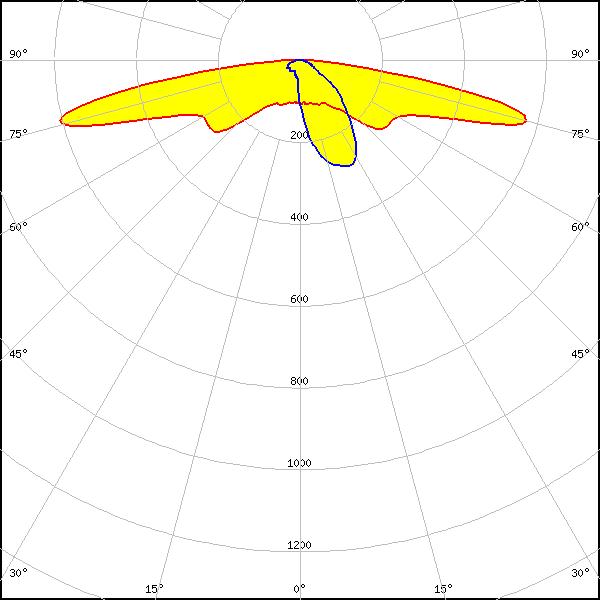

LED: Z5M4
FWHM: asymmetric
Peak intensity: 1.084 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
