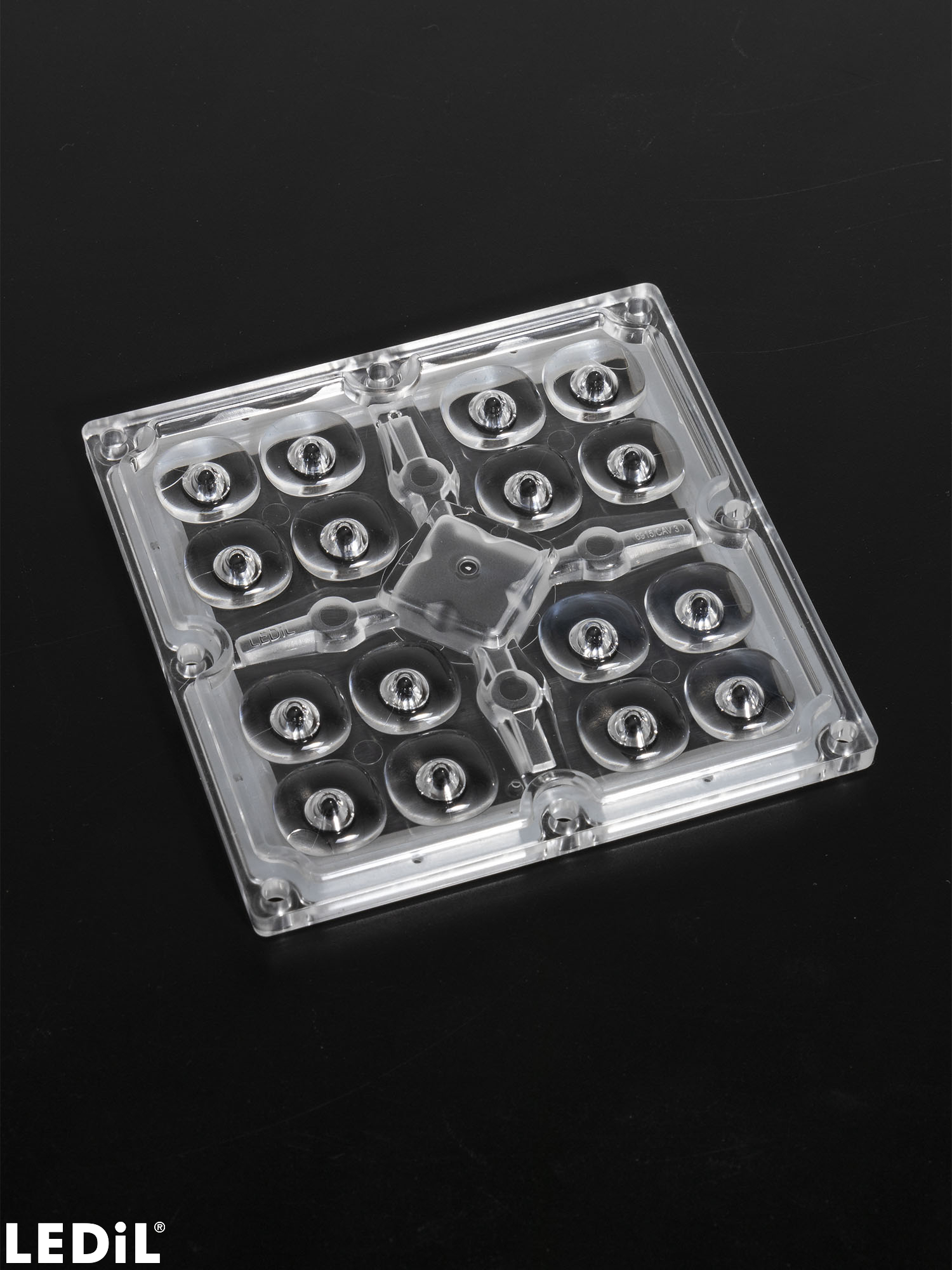

    CS16973_STRADA-IP-16MX-VSM

    Print

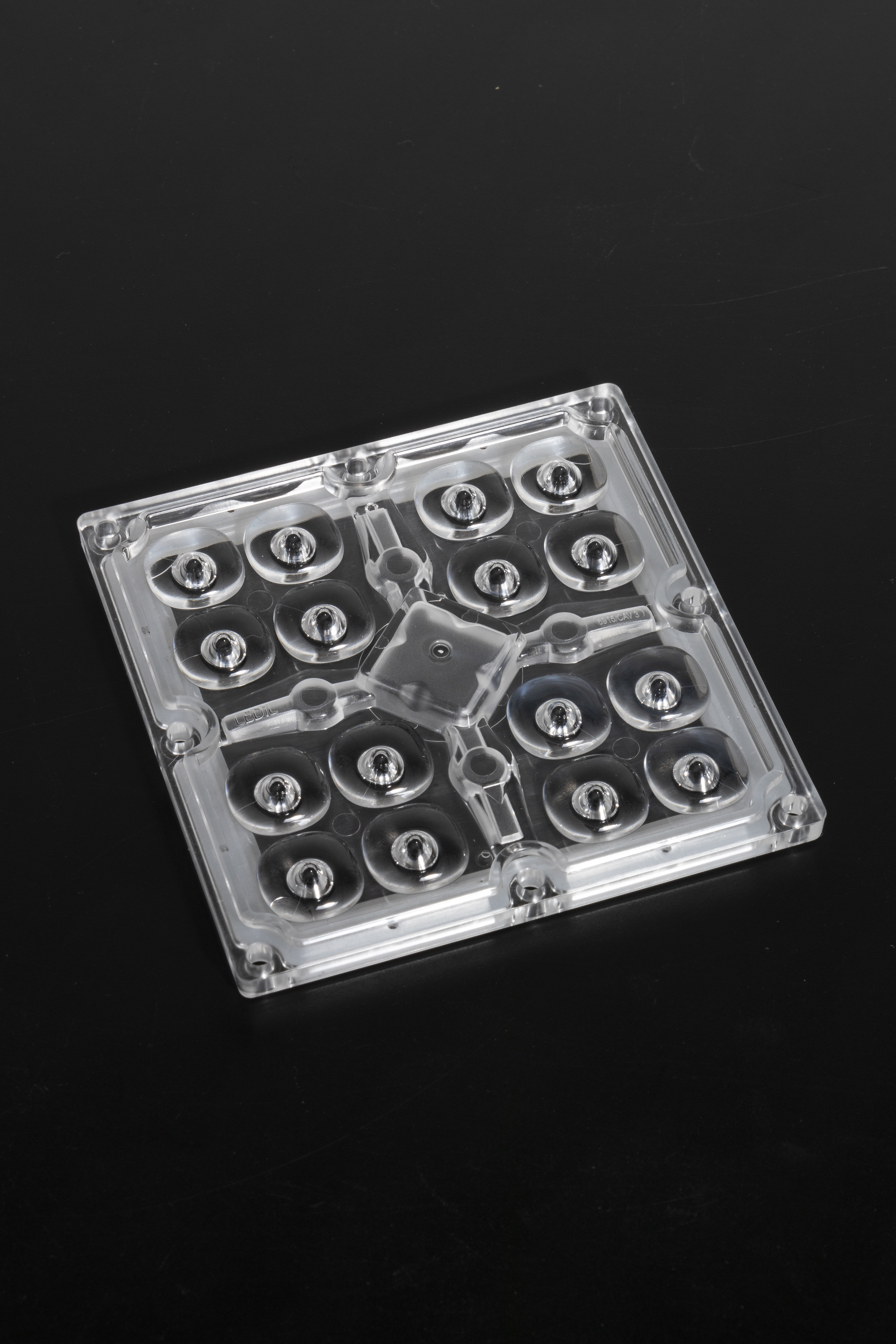

    IESNA Type V (square) beam for wide areas lighting such as car parks.

    Specification
    • Dimensions:
      90 x  90 mm
    • Height:
      8.62 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      156 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.9 kg
    • MPQ:
      52 pcs
    • MOQ:
      52 pcs
    • MOQ size:
      480 x 280 x 110 mm
    • MOQ weight:
      2.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS16973_STRADA-IP-16MX-VSM
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    News

    New street and high bay beams

    Application example

    Street lighting with STRADA-IP-8MX-DWC2 (M4)

    Application guide

    Guide for Street lighting optics

    News

    MX series the ultimate in street area car park and industrial lighting optics

    Application guide

    Guide for Urban lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

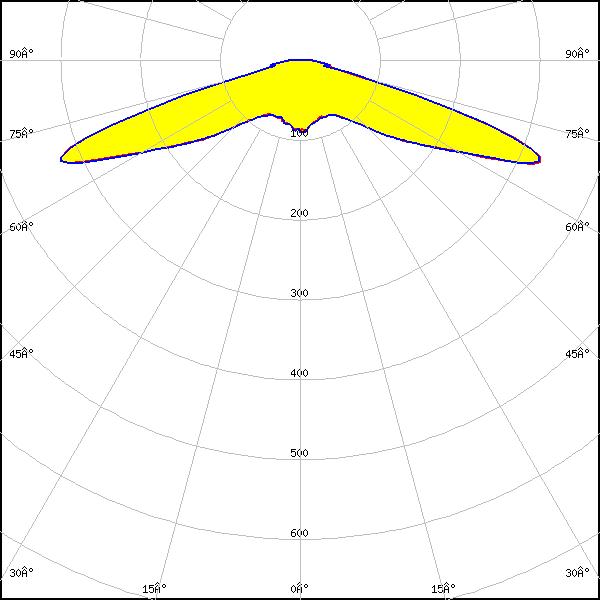

    LED: CSP 2323 (BXCP)
    FWHM: 146°
    FWTM: 164°
    Peak intensity: 0.565 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2Z
    FWHM: 146°
    FWTM: 166°
    Peak intensity: 0.553 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

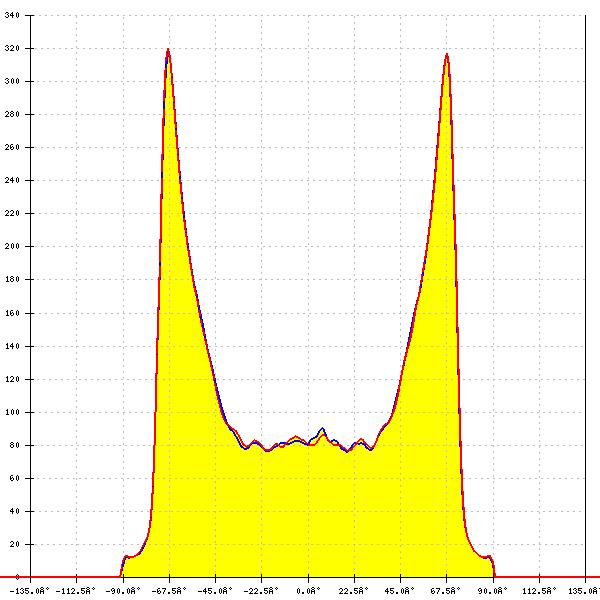

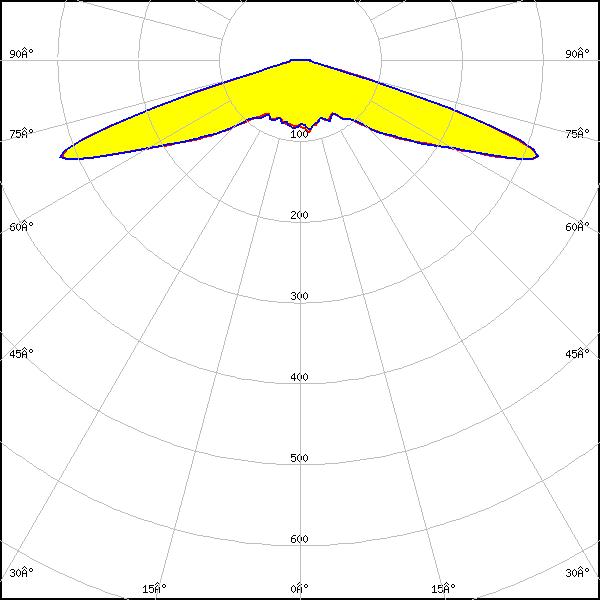

    LED: NCSxE17A
    FWHM: 146°
    FWTM: 154°
    Peak intensity: 0.534 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

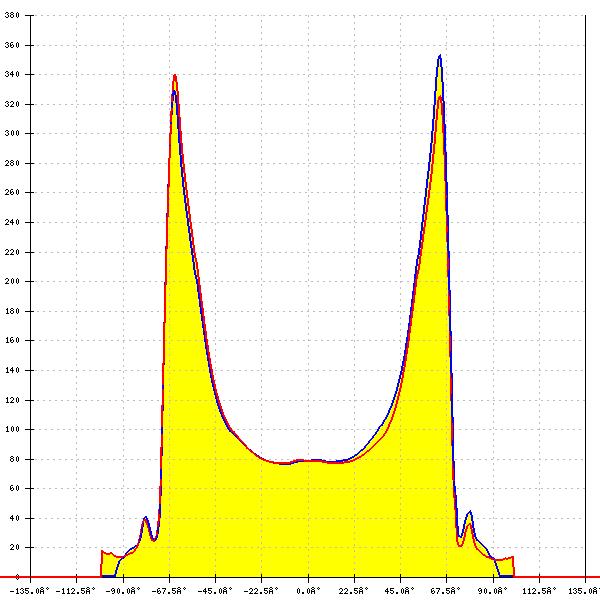

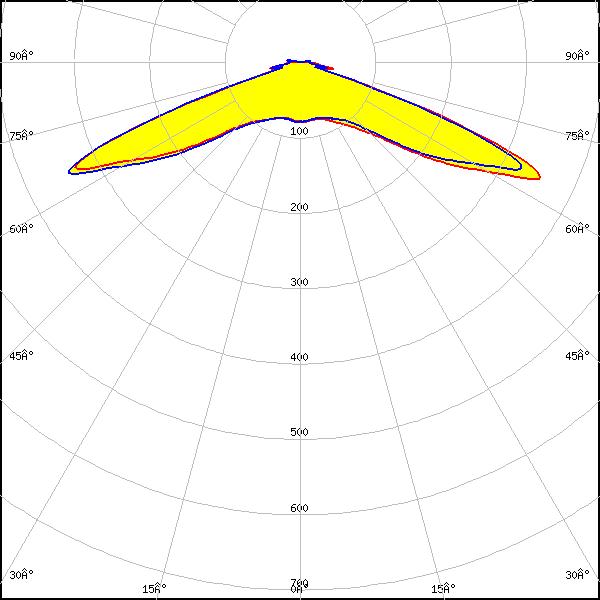

    LED: NVSxE21A
    FWHM: 140°
    FWTM: 162°
    Peak intensity: 0.710 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

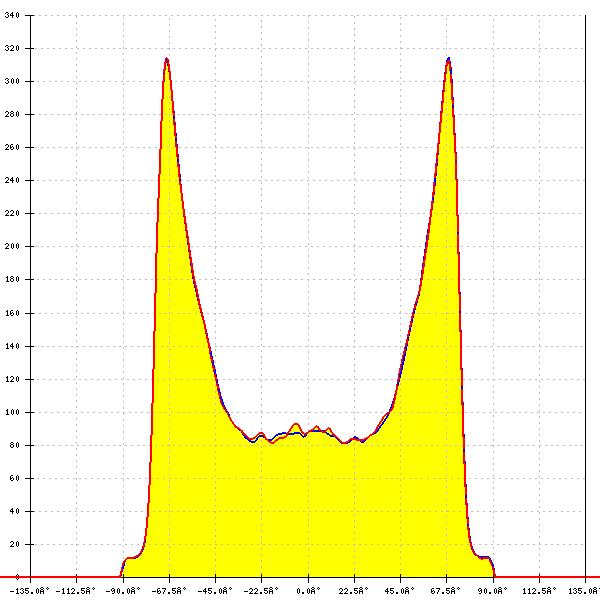

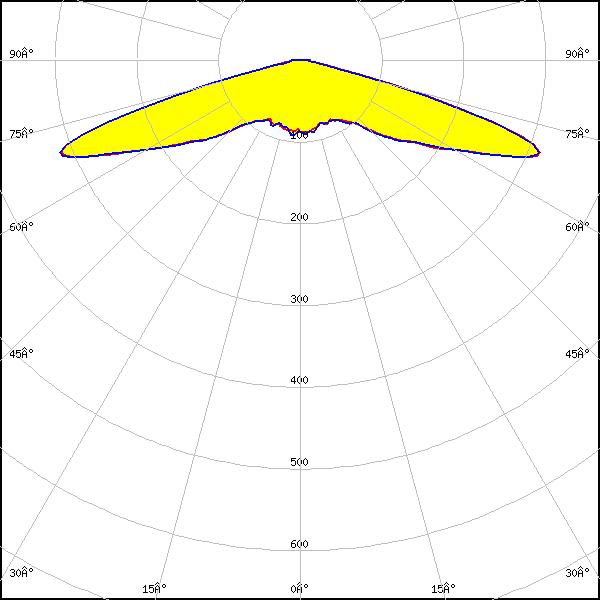

    LED: OSCONIQ C 2424 Gen1
    FWHM: 148°
    FWTM: 156°
    Peak intensity: 0.491 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

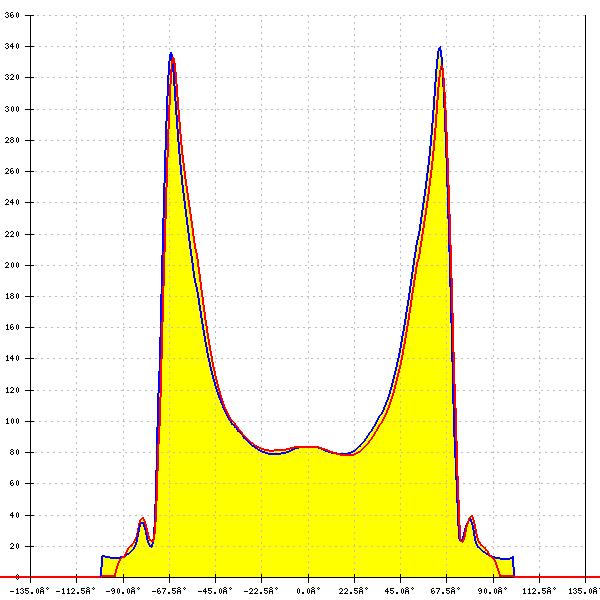

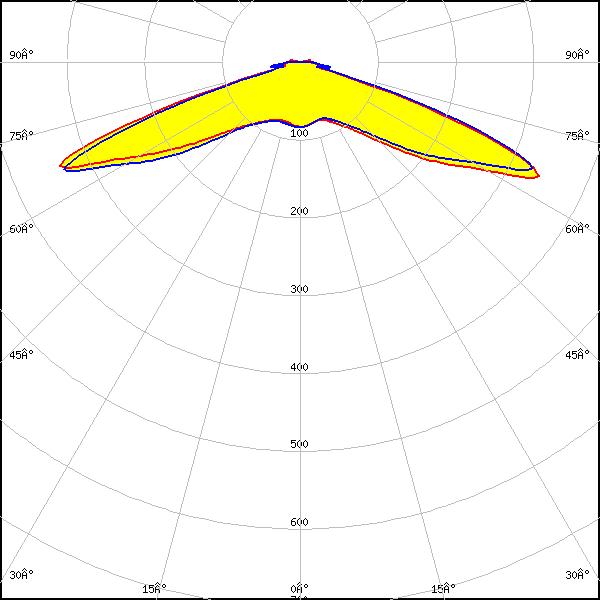

    LED: HiLOM SC16 S1 (LH181B)
    FWHM: 142°
    FWTM: 162°
    Peak intensity: 0.652 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

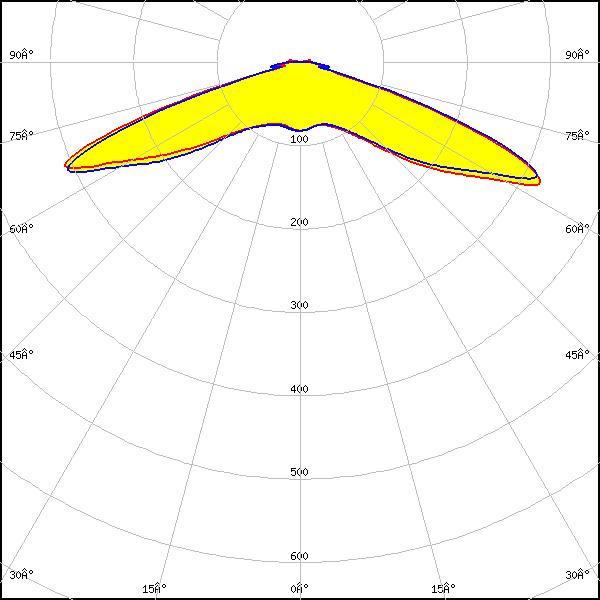

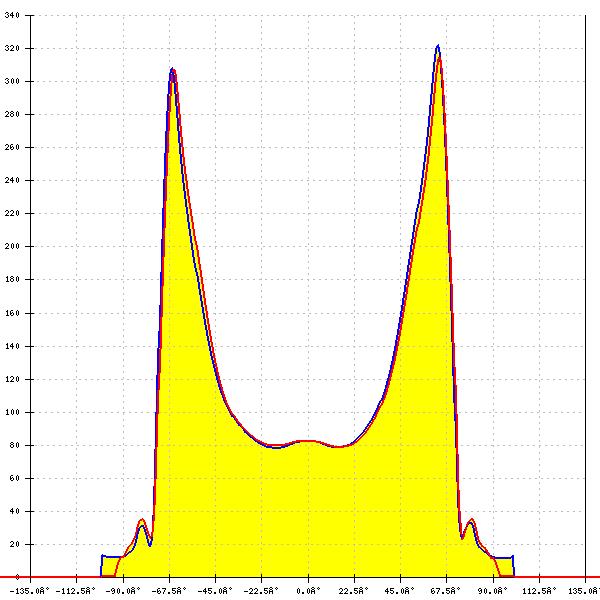

    LED: HiLOM SC16 S2 (LH231B)
    FWHM: 142°
    FWTM: 160°
    Peak intensity: 0.555 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

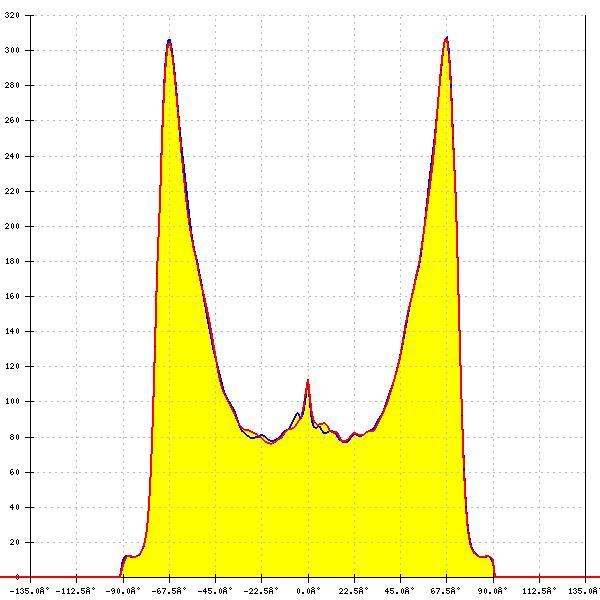

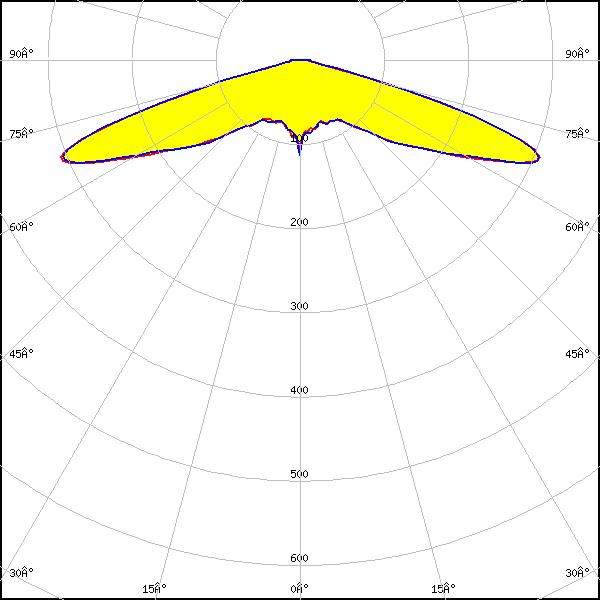

    LED: LH181B
    FWHM: 146°
    FWTM: 156°
    Peak intensity: 0.460 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

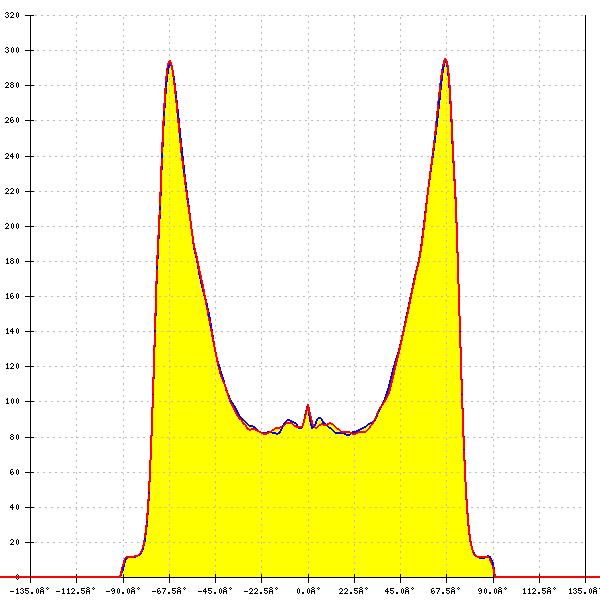

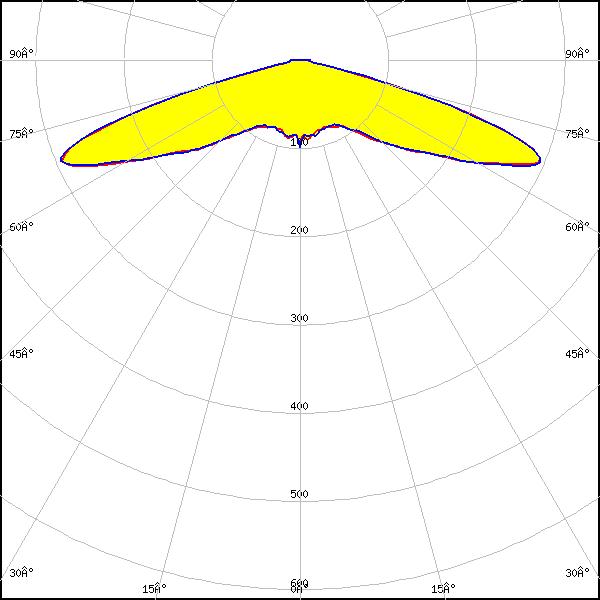

    LED: LH231B
    FWHM: 148°
    FWTM: 156°
    Peak intensity: 0.430 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

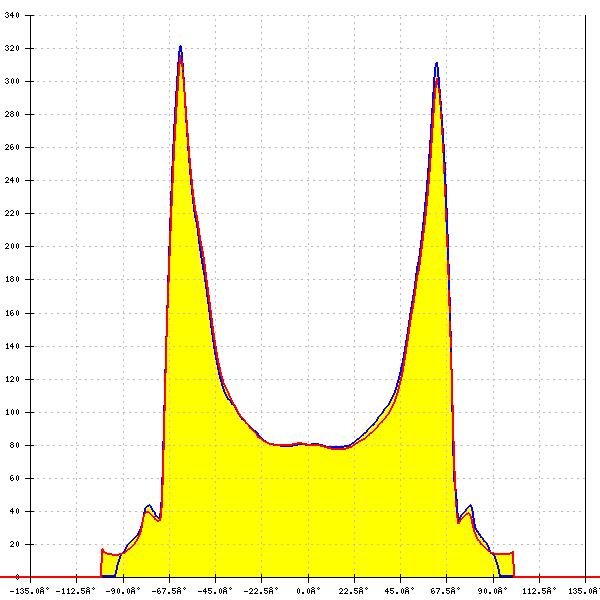

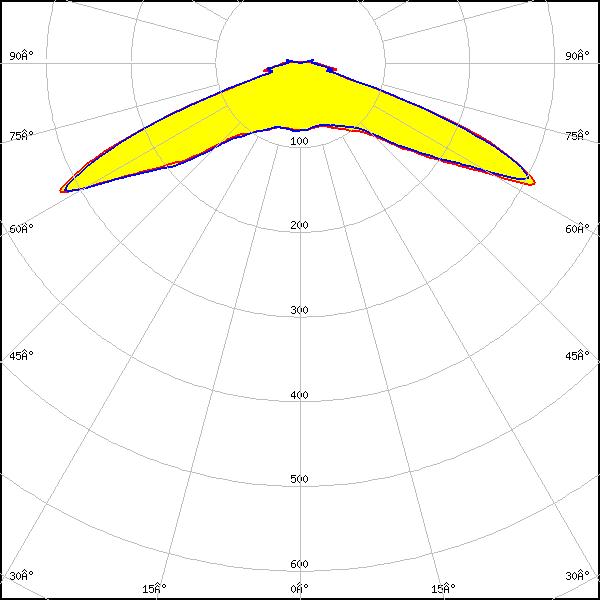

    LED: Z8Y19
    FWHM: 139°
    FWTM: 165°
    Peak intensity: 0.620 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

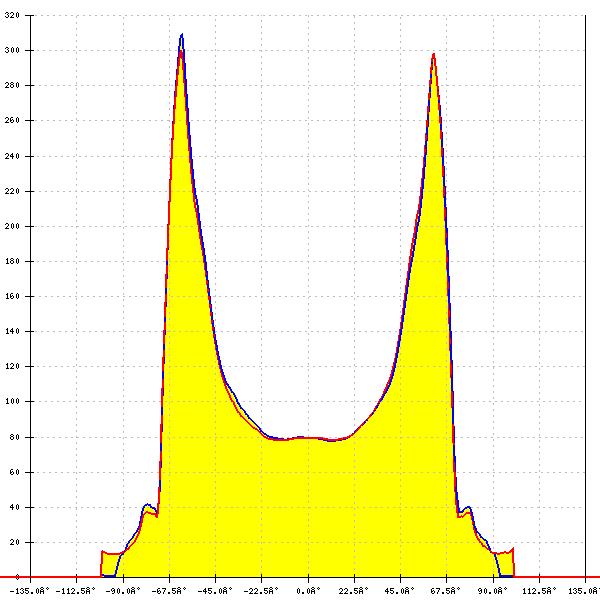

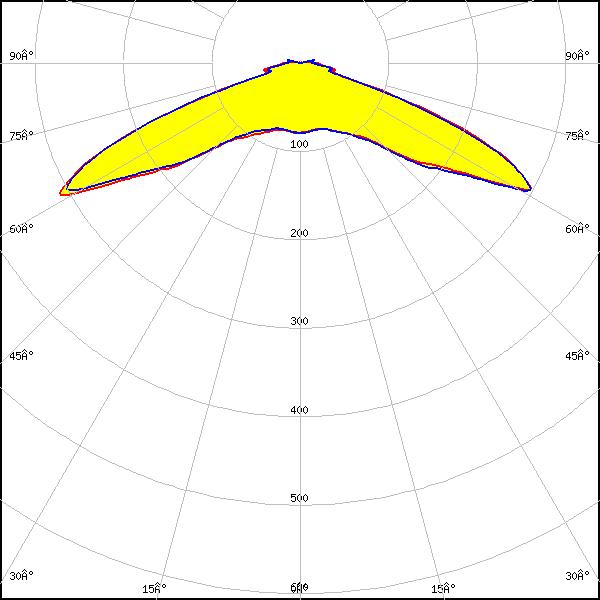

    LED: Z8Y22
    FWHM: 140°
    FWTM: 164°
    Peak intensity: 0.540 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

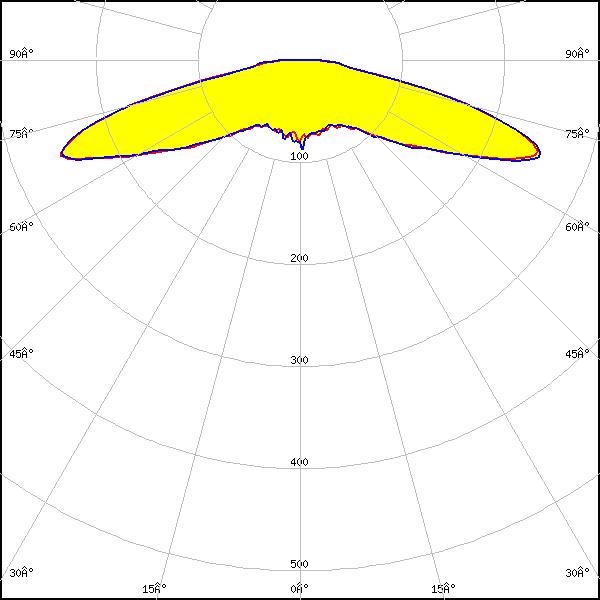

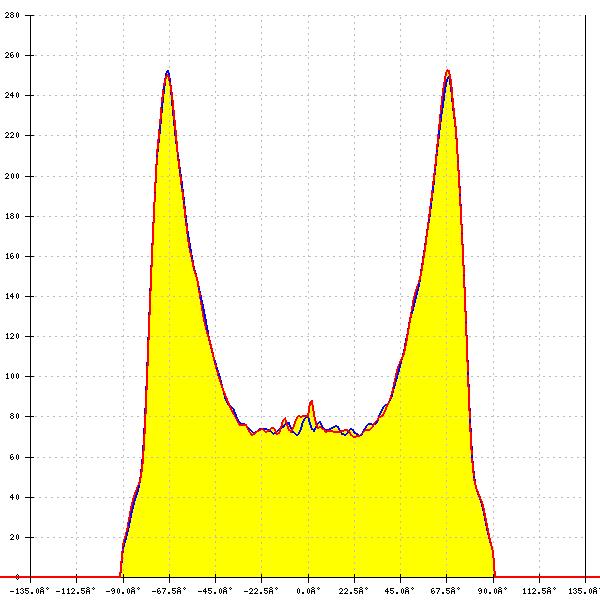

    LED: Z8Y22P
