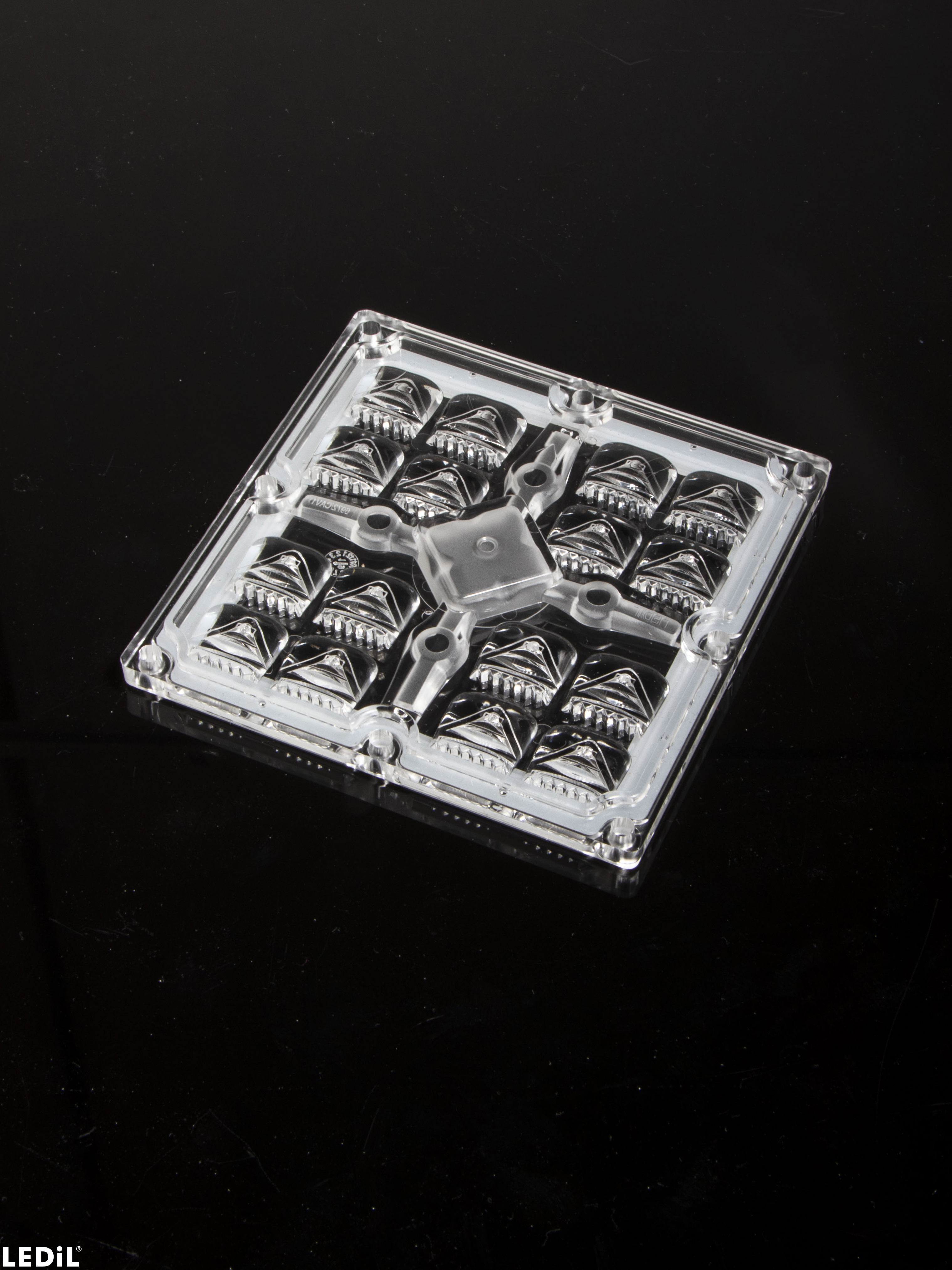

CS16975_STRADA-IP-16MX-T2-M

Print

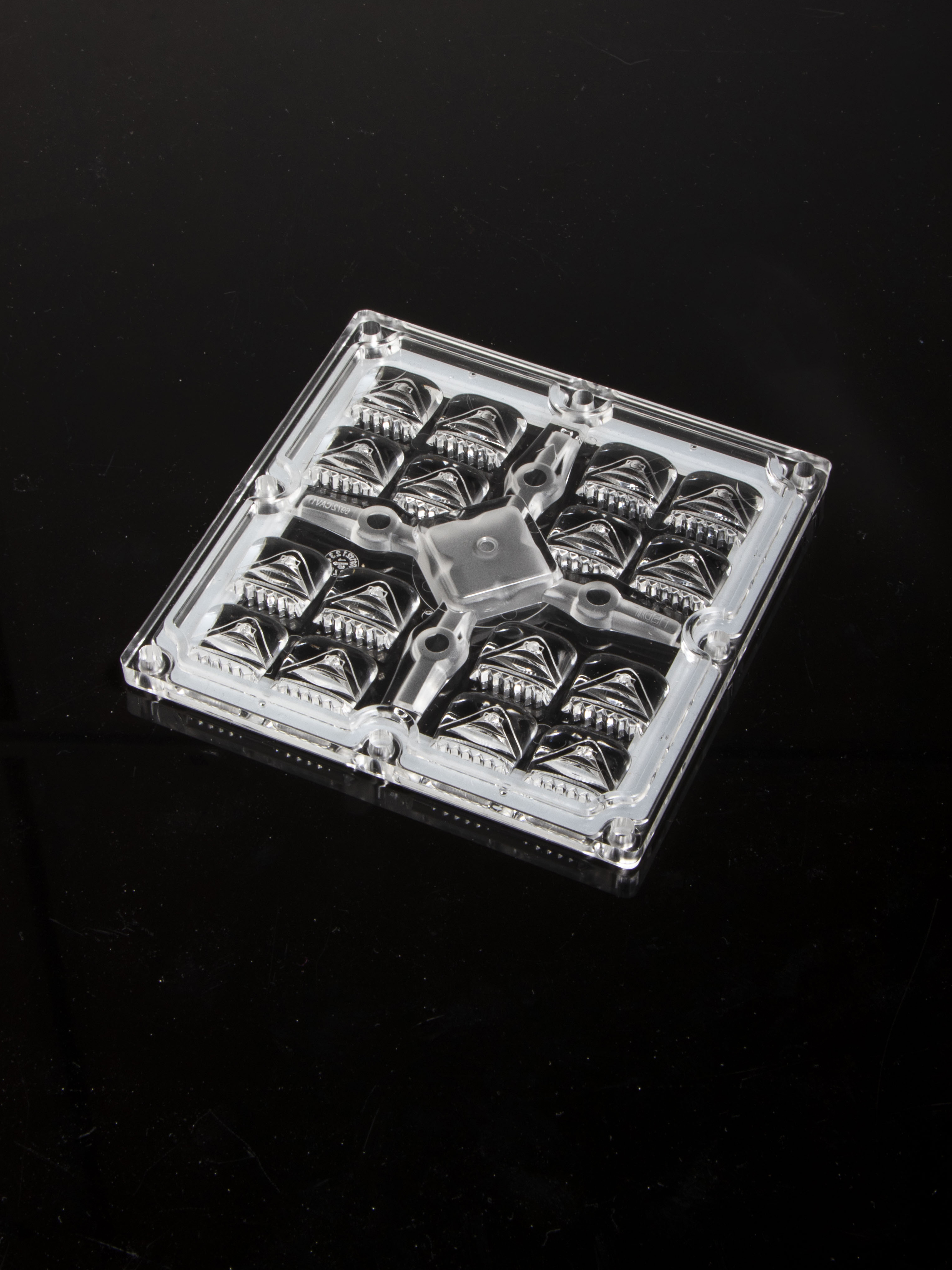

IESNA Type II Medium beam with excellent back light control, illuminance uniformity and cutoff

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    8.6 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials
  • STRADA-IP-16MX-T2-M, Multi-lens, PMMA
  • STRADA-IP-8MX-SEAL, Seal, Silicone

WARNING: Cancer – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    156 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.4 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    2.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing

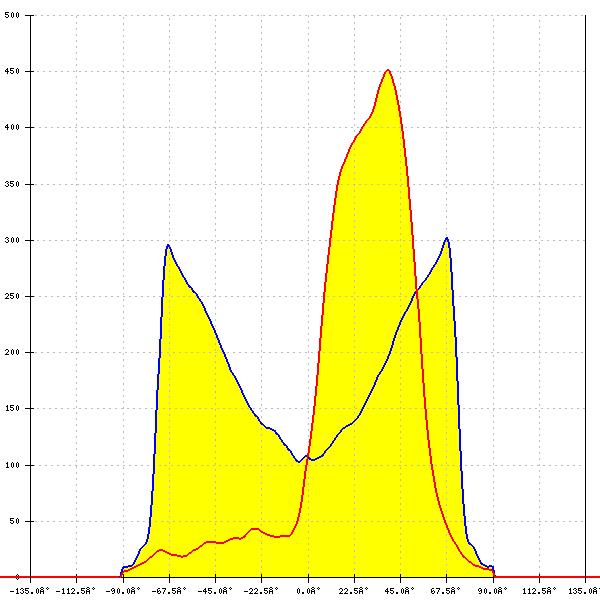

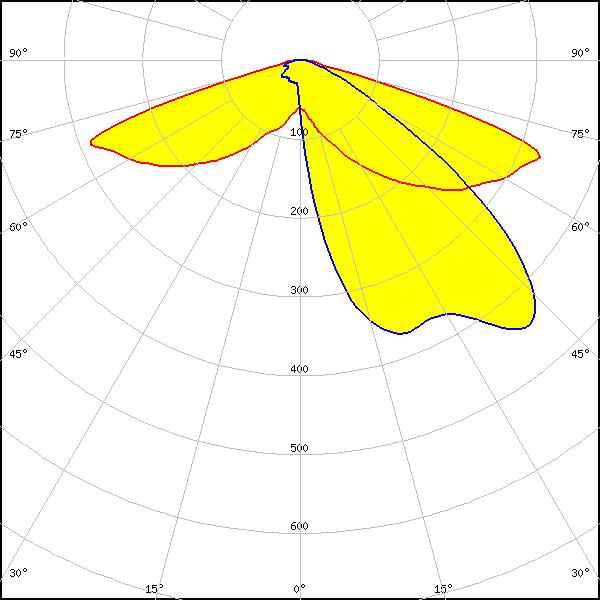

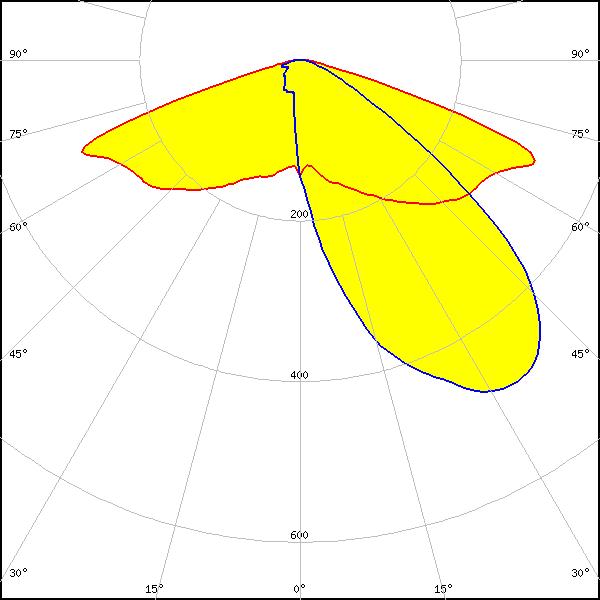

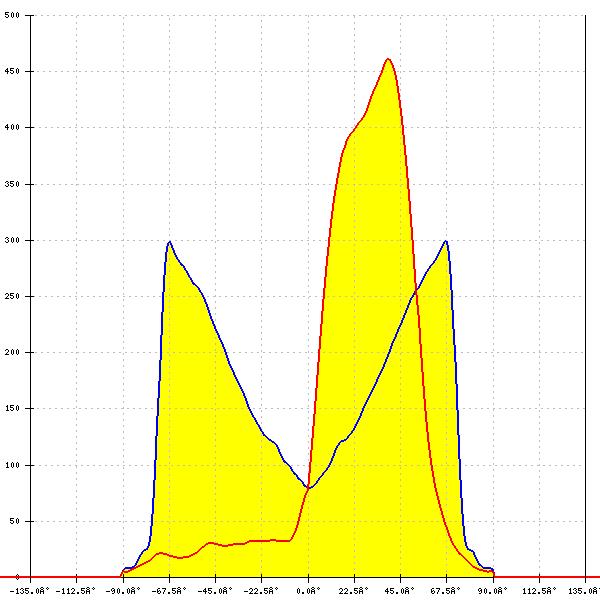

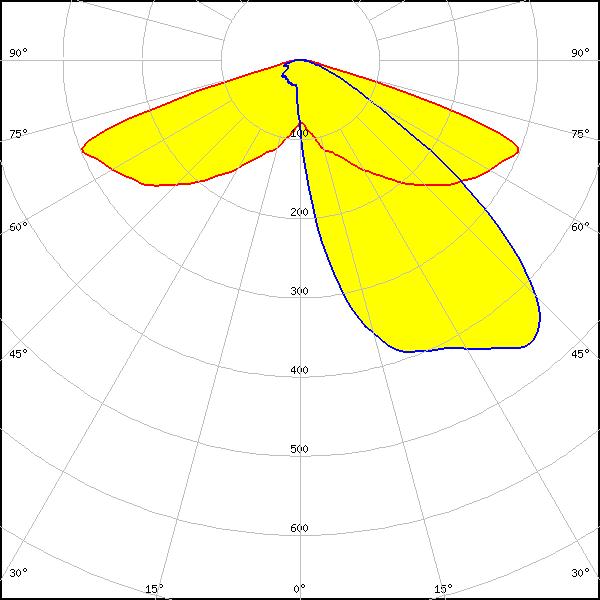

Typical Applications

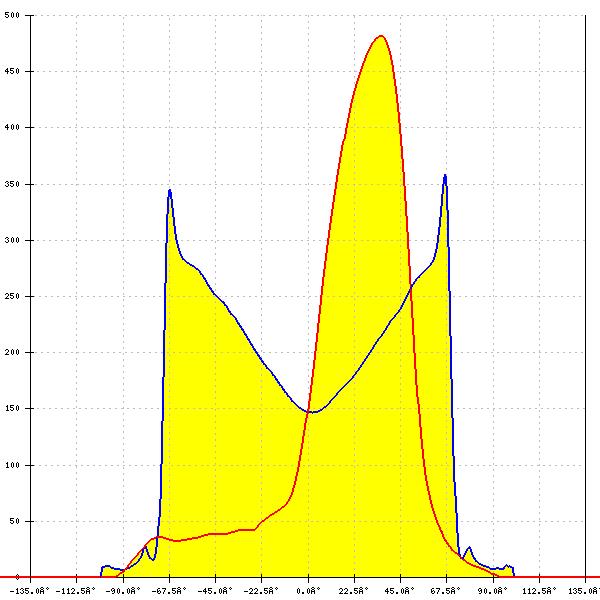

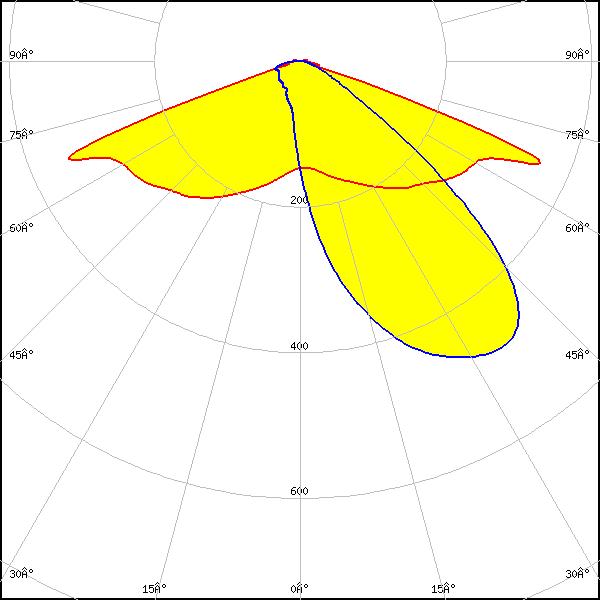

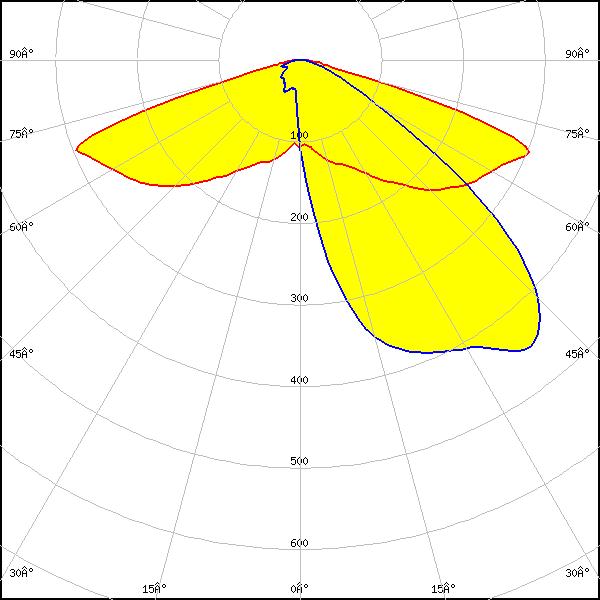

Optical results

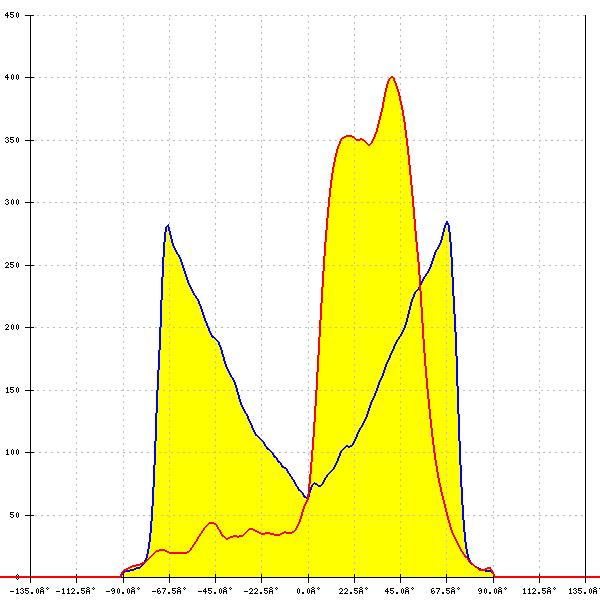

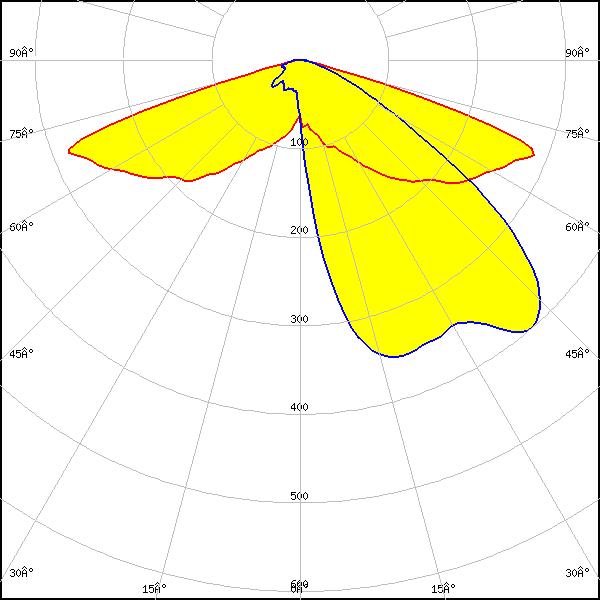

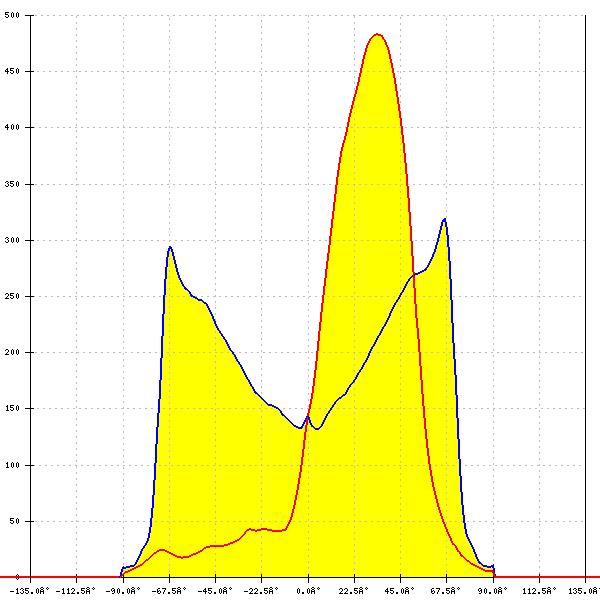

LED: NCSxE17A
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

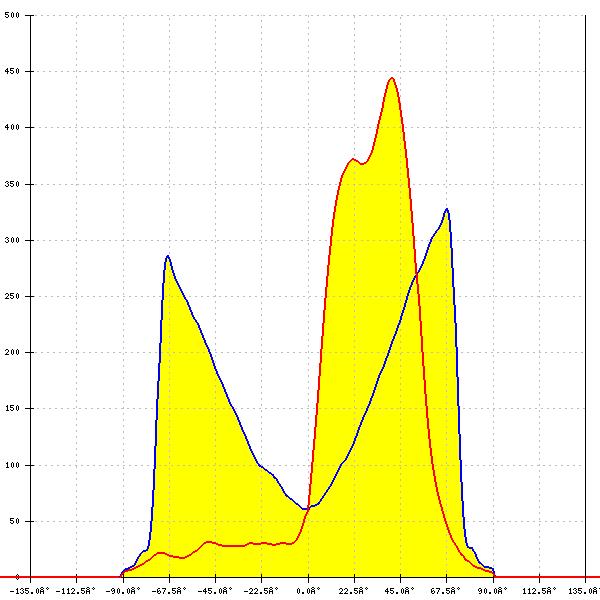

LED: NCSxE17A
LEDs/each optic: 1
Light colour: White

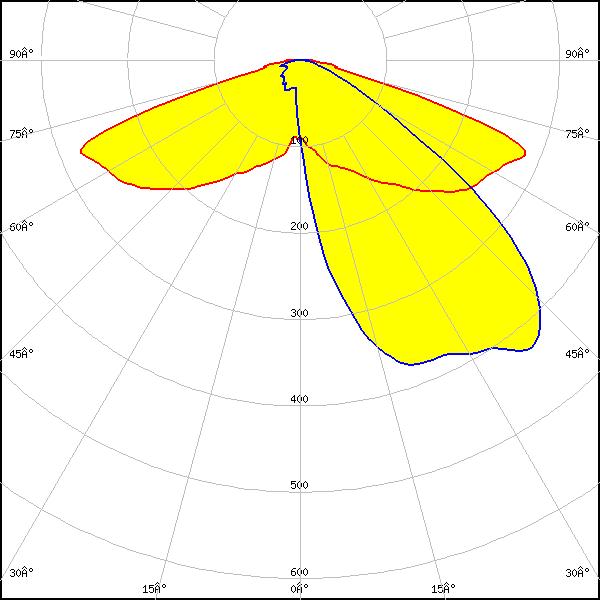

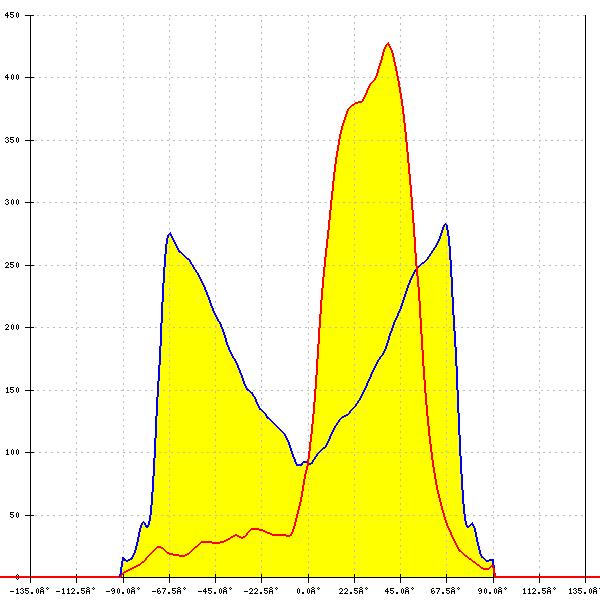

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: NVSxE21A
LEDs/each optic: 1
Light colour: White

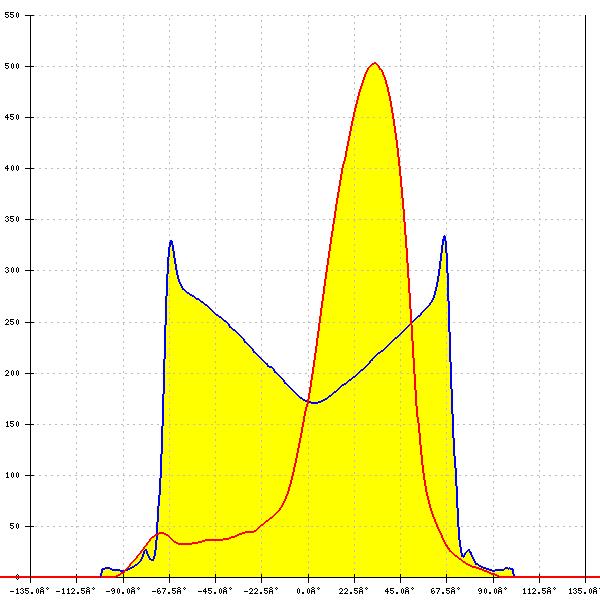

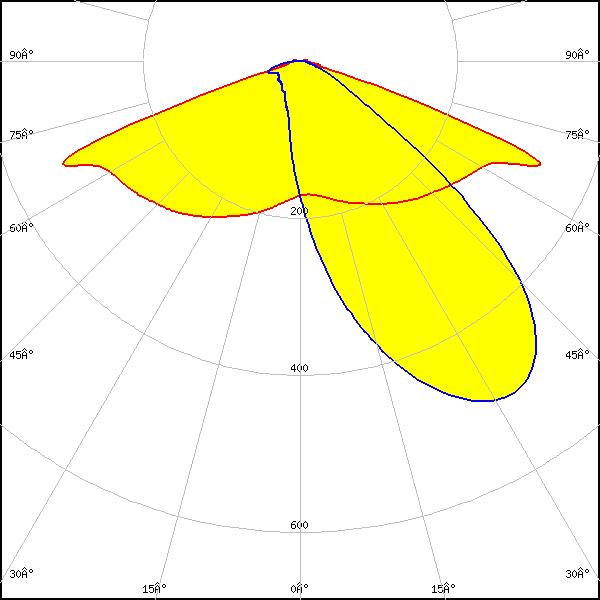

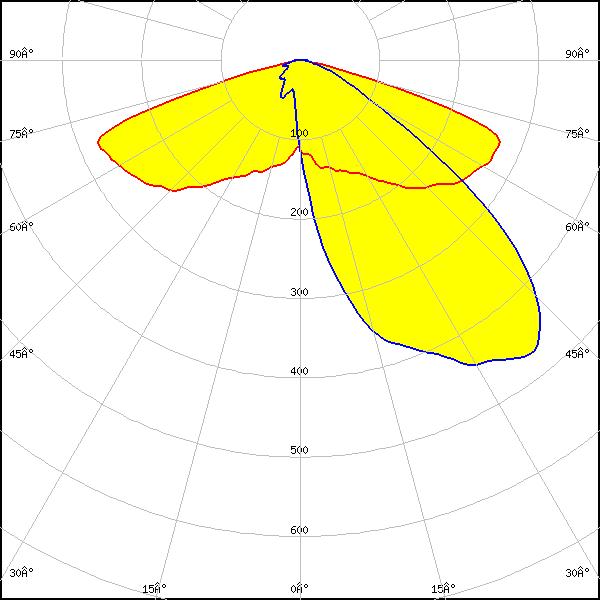

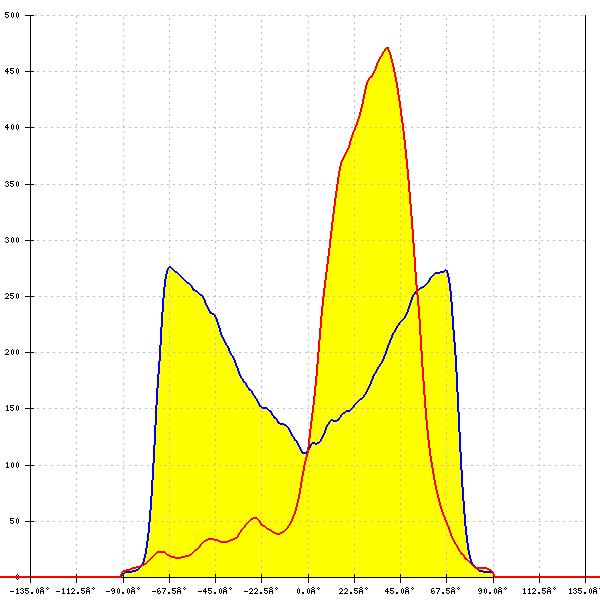

LED: LH181B
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LH181B
LEDs/each optic: 1
Light colour: White

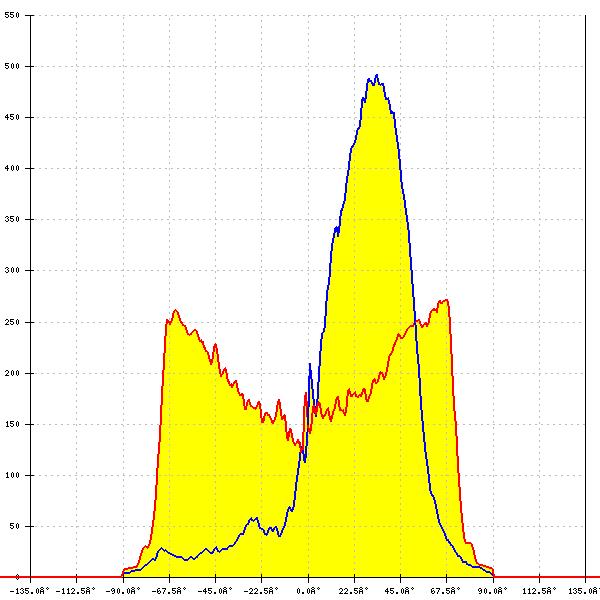

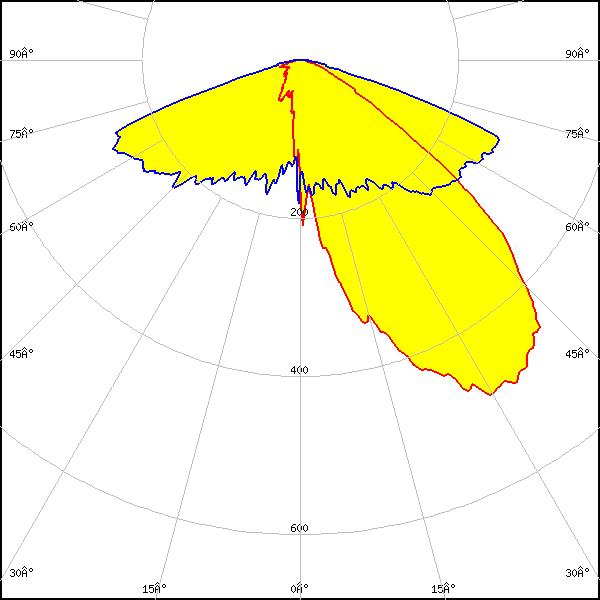

LED: LH231B
LEDs/each optic: 1
Light colour: White

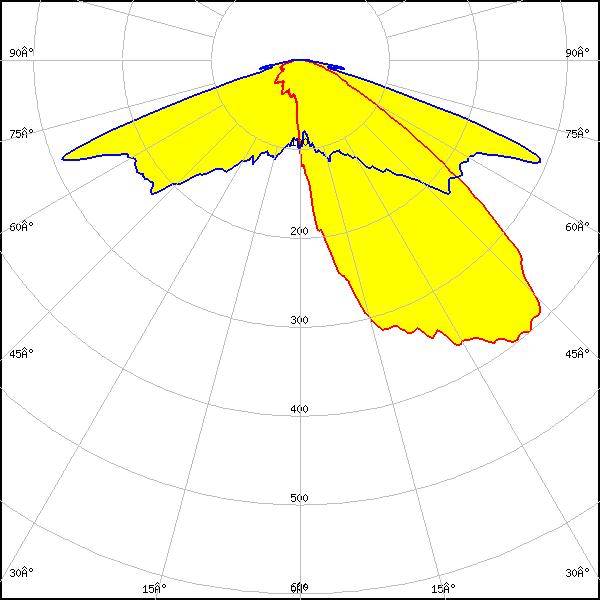

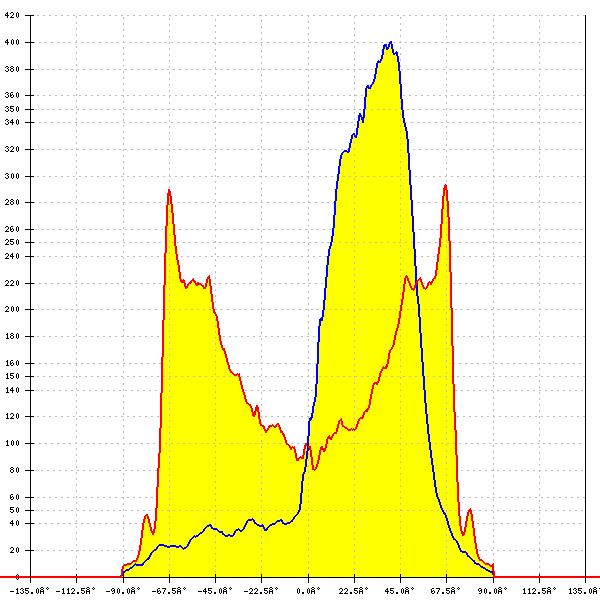

LED: Z8Y19
LEDs/each optic: 1
Light colour: White

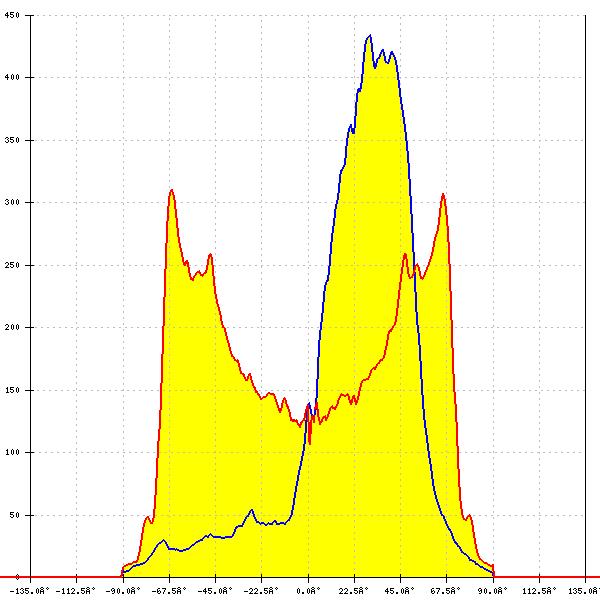

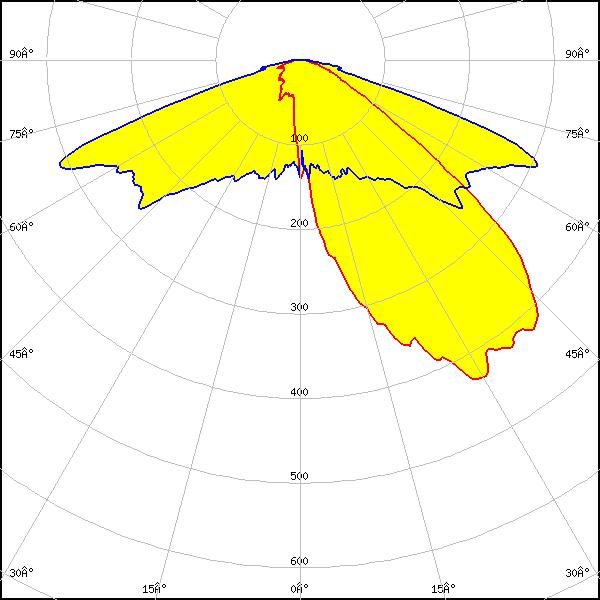

LED: Z8Y22
LEDs/each optic: 1
Light colour: White
