CS17147_HB-IP-2X6-G2-WWW-PC
Print

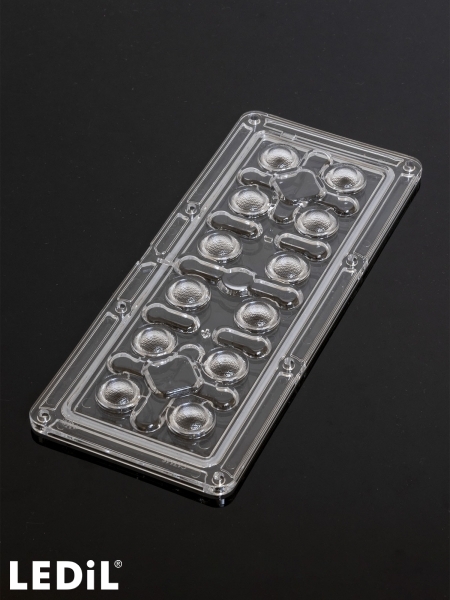

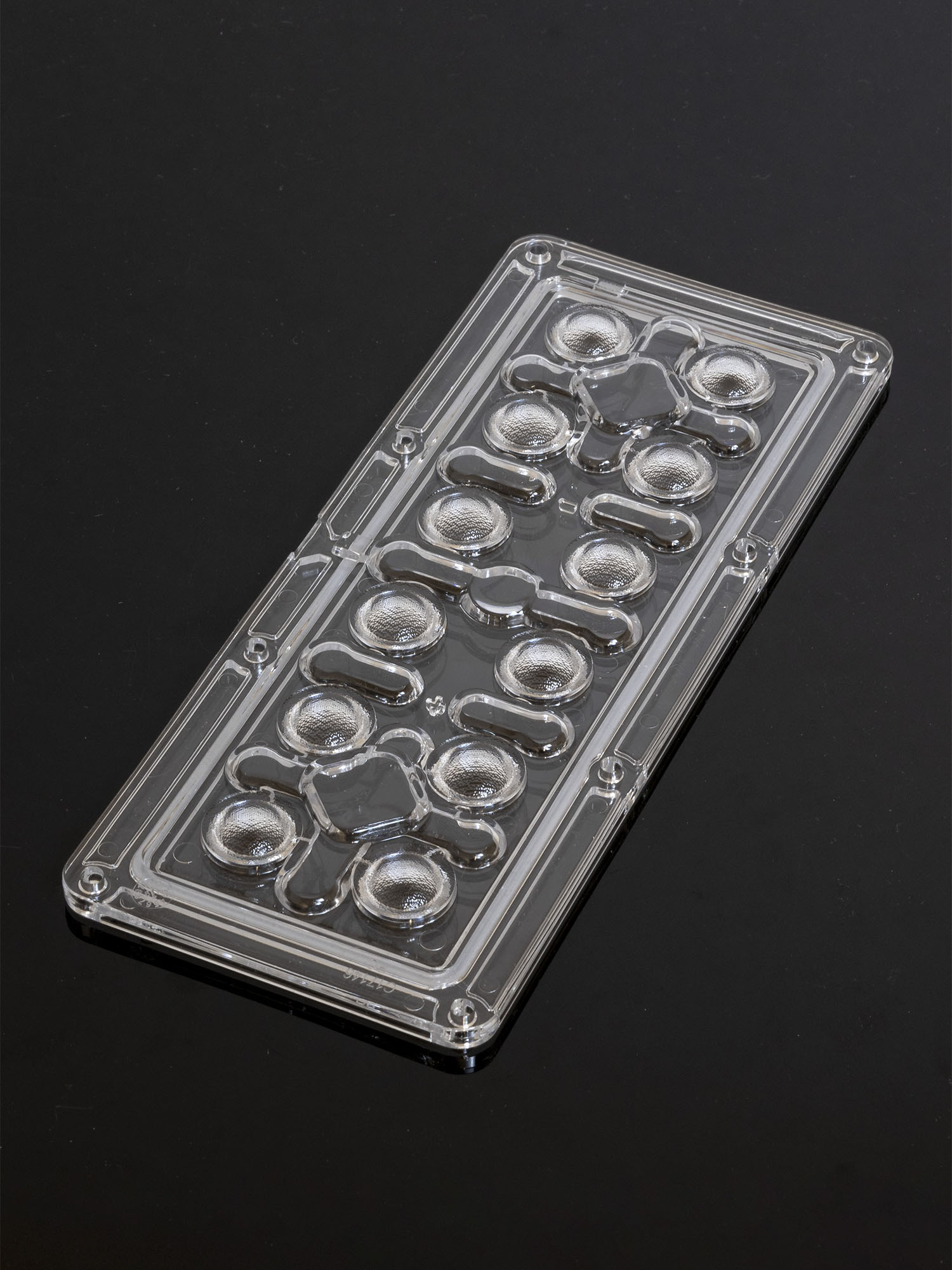

~90° wide beam. Variant made from PC.
Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.
Materials
- HB-IP-2X6-G2-WWW-PC, Multi-lens, PC
- SEAL-IP-2X6-G2, Seal, Silicone
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT USWHERE TO BUY
Related Content
Optical results
LED:

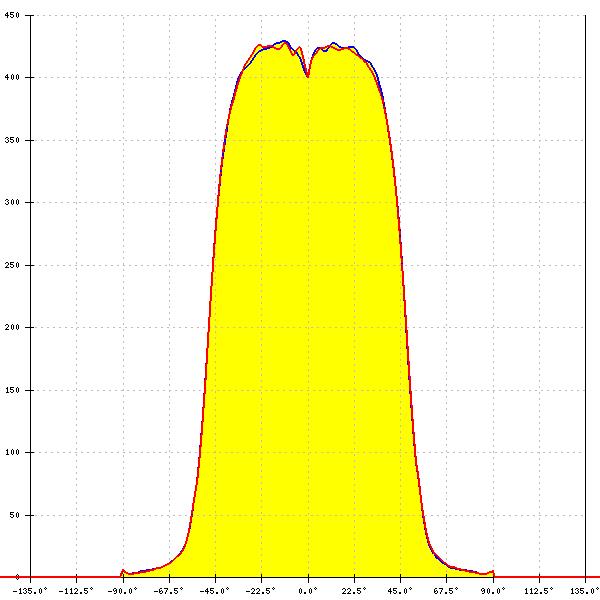

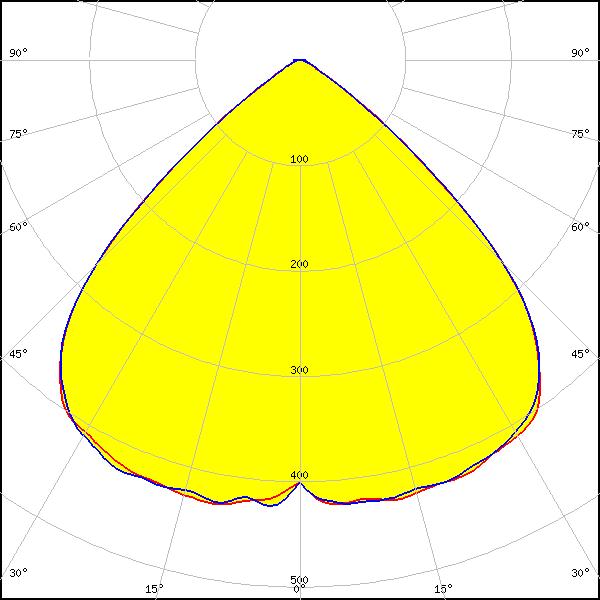

XP-G2 HE
FWHM:
96°
FWTM:
114°
Peak intensity:
0.435 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

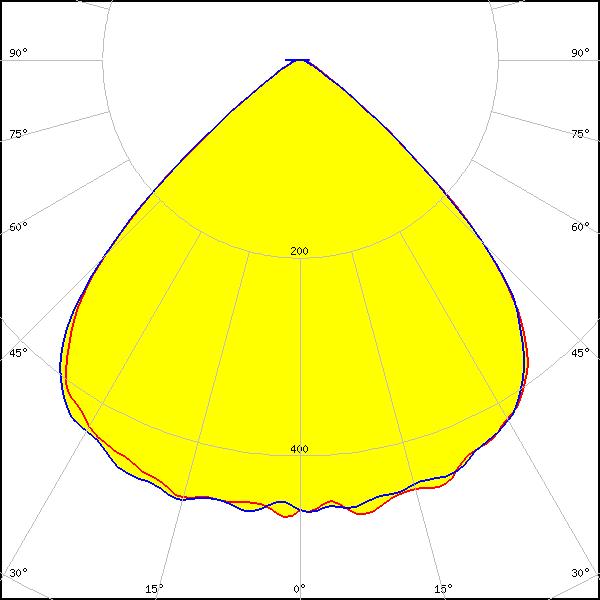

LED:

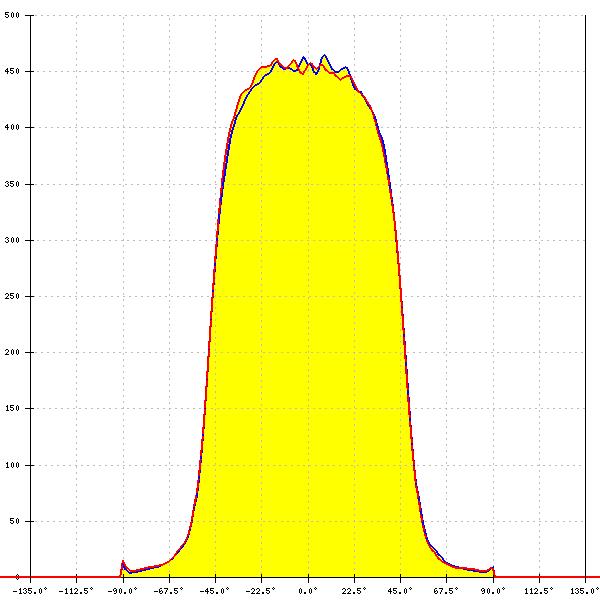

XP-G3
FWHM:
93°
FWTM:
113°
Peak intensity:
0.470 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

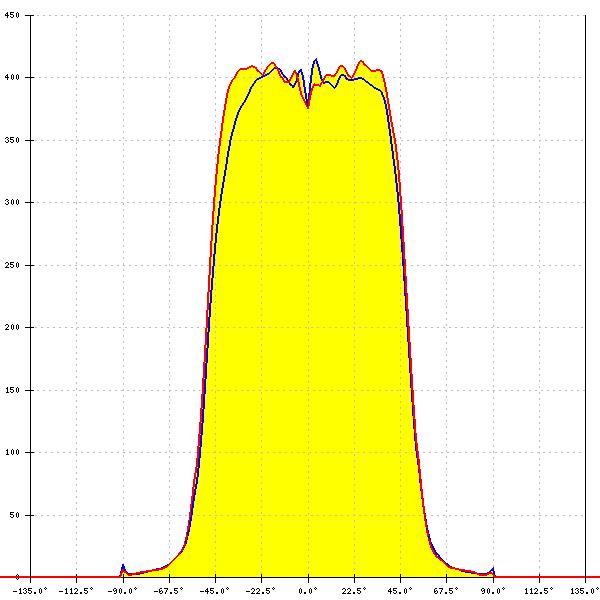

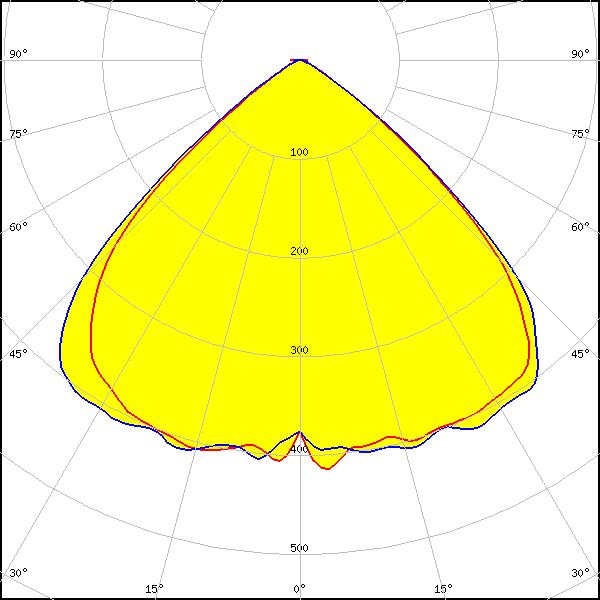

NF3W585AR
FWHM:
97°
FWTM:
115°
Peak intensity:
0.420 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

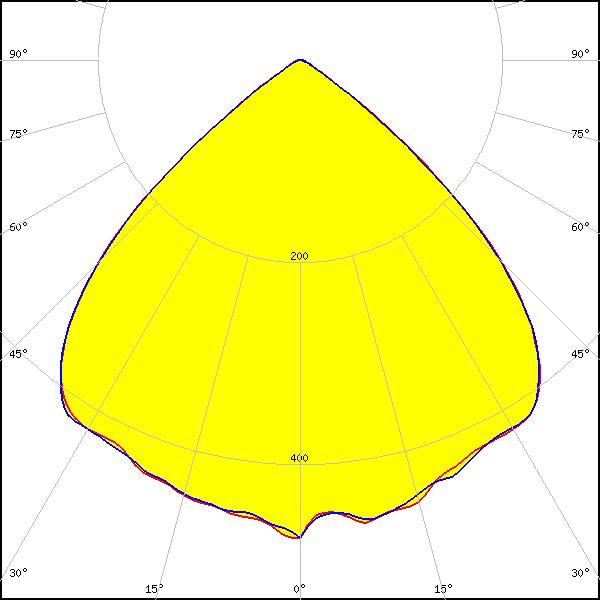

LED:

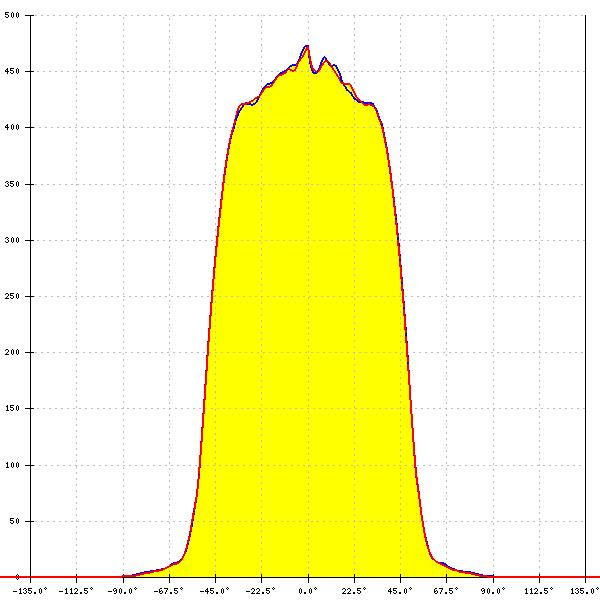

NV4WB35AM
FWHM:
94°
FWTM:
112°
Peak intensity:
0.481 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

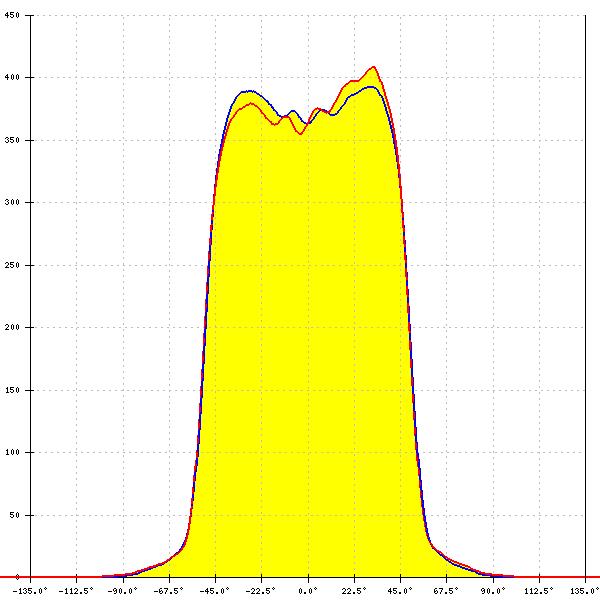

LED:

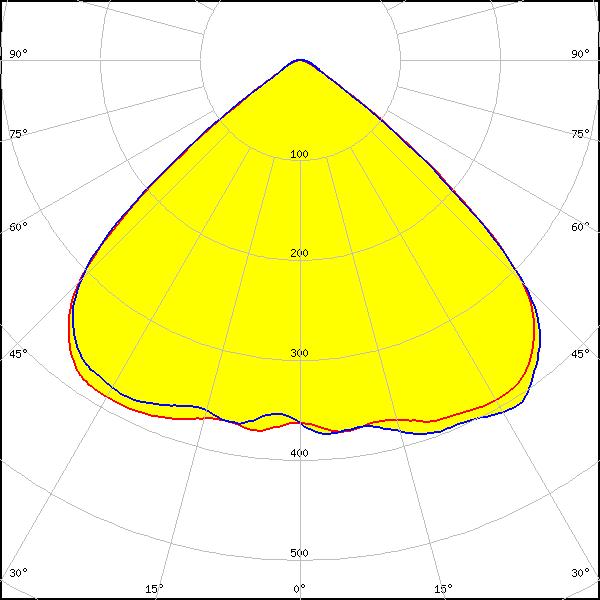

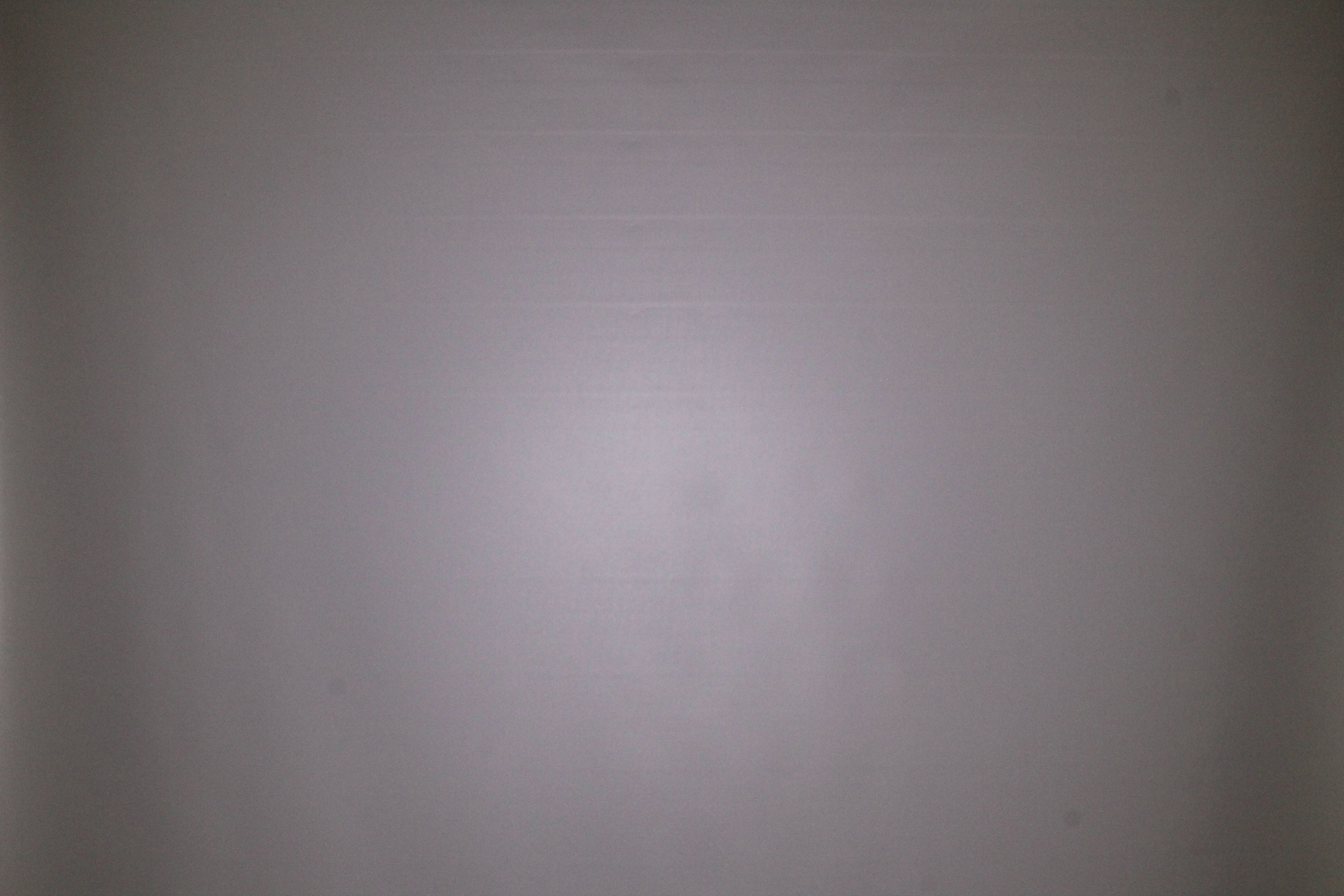

NVSW519A
FWHM:
100°
FWTM:
116°
Peak intensity:
0.409 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

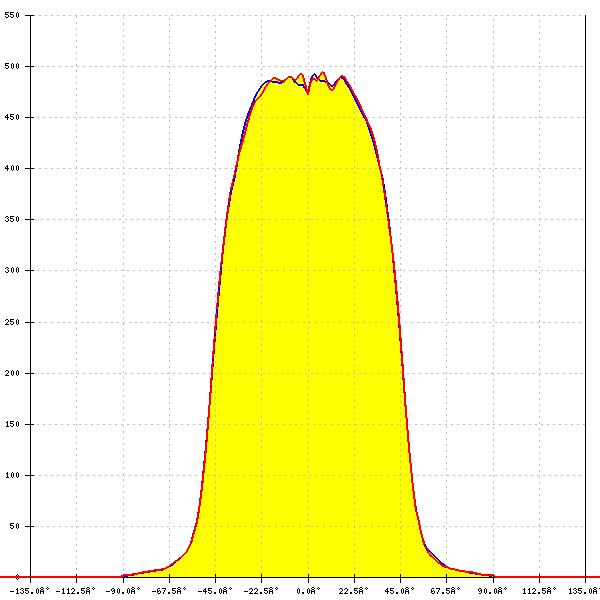

LED:

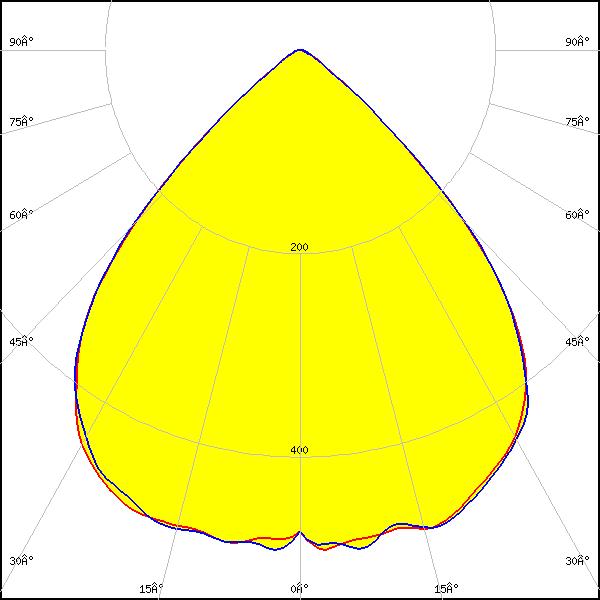

PrevaLED Brick HP IP 2x6
FWHM:
90°
FWTM:
109°
Peak intensity:
0.502 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

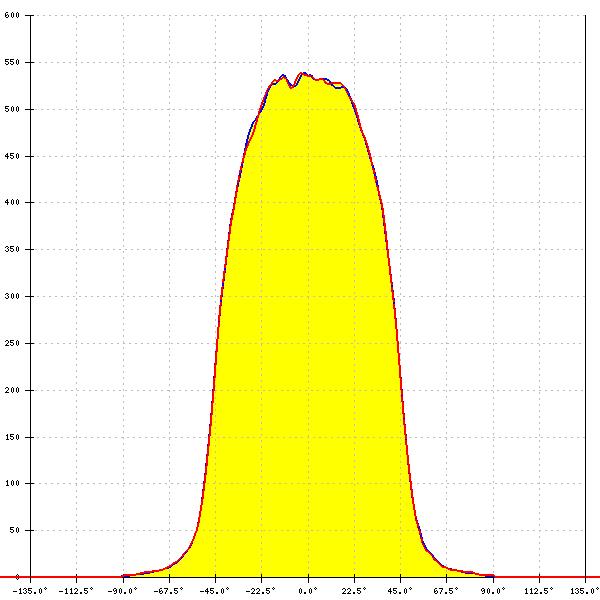

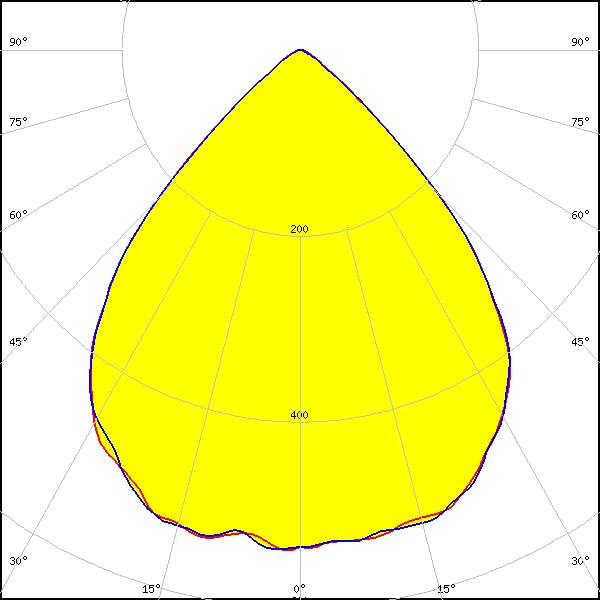

LED:
OSCONIQ P 3737 (2W version)
FWHM:
86°
FWTM:
108°
Peak intensity:
0.561 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

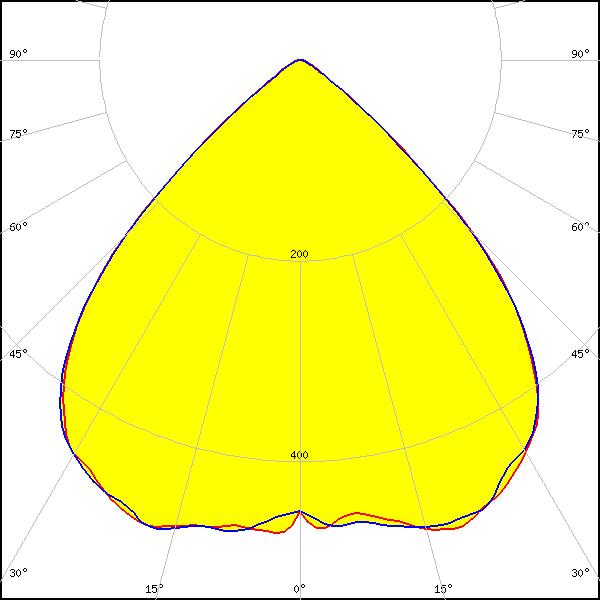

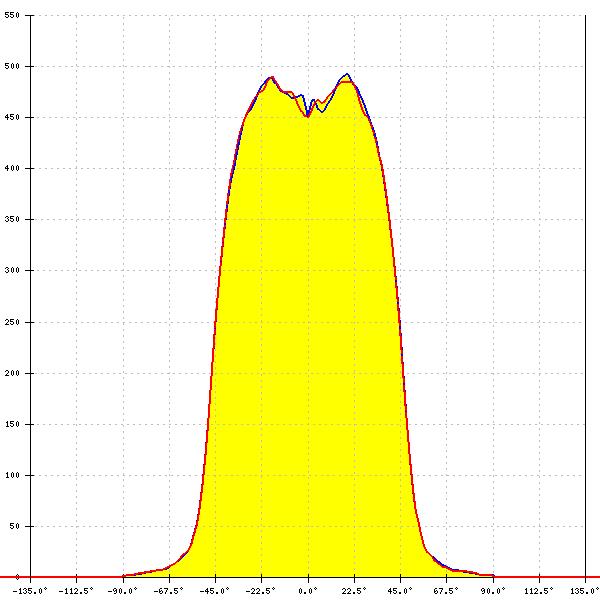

OSLON Square CSSRM2/CSSRM3
FWHM:
90°
FWTM:
108°
Peak intensity:
0.494 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

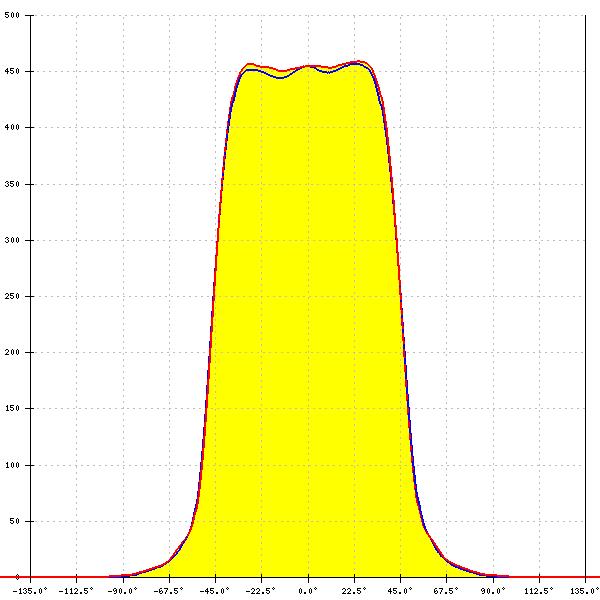

LED:

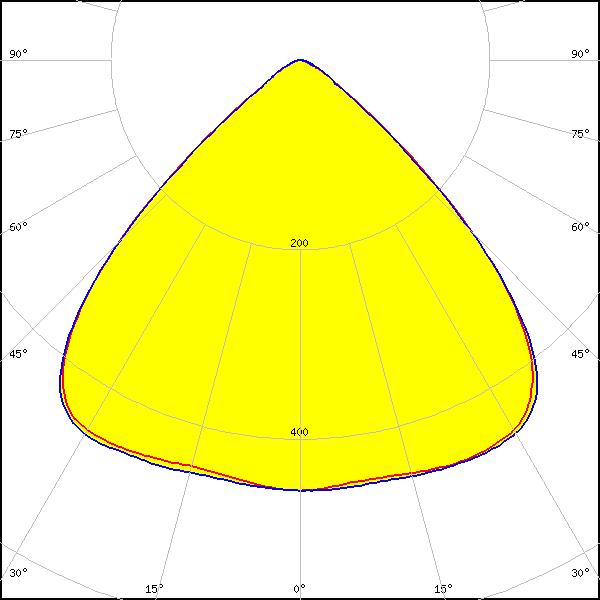

2x6 5050 module - SMJD-3625012F-XX
FWHM:
93°
FWTM:
113°
Peak intensity:
0.459 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
