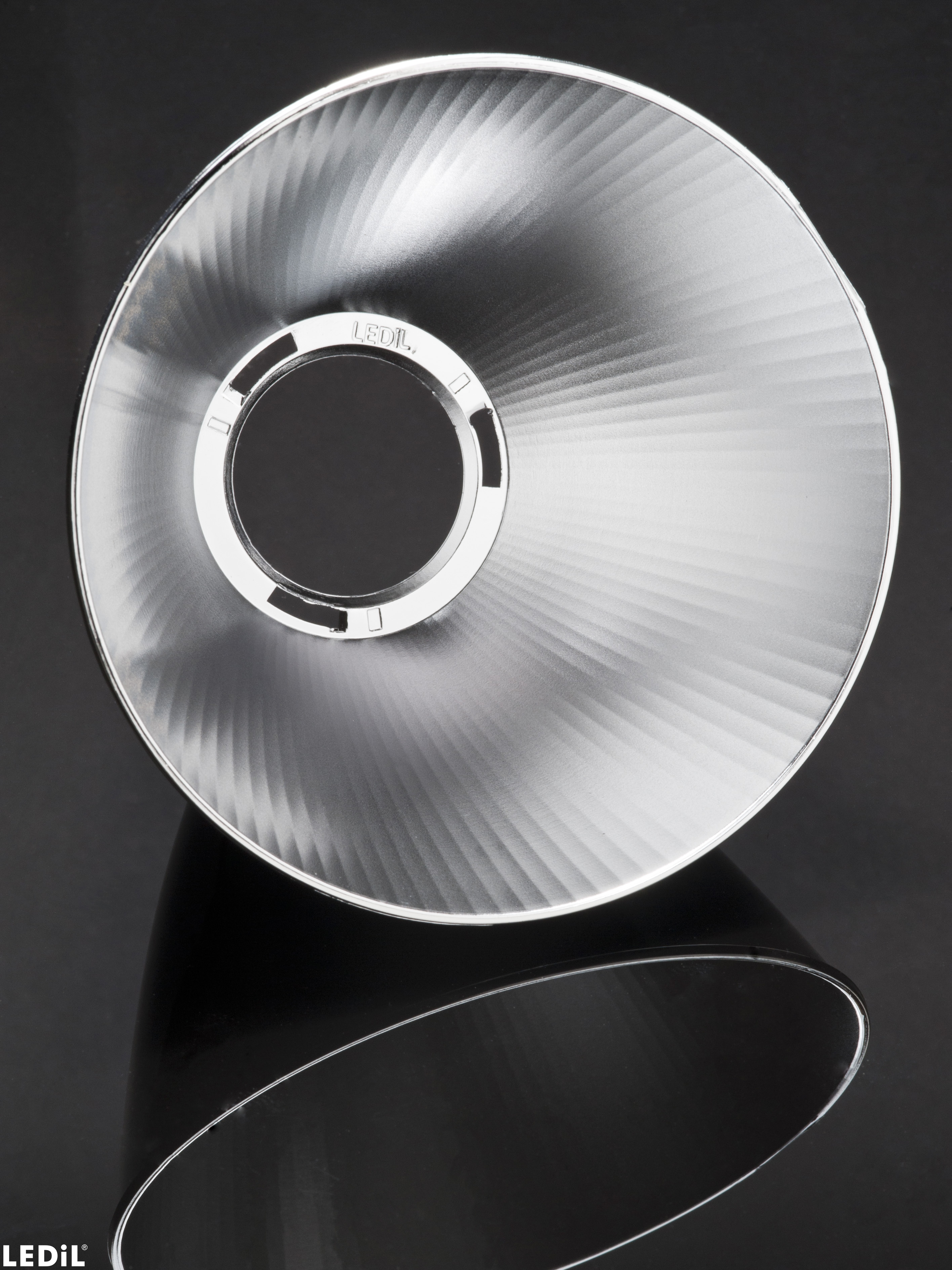

F13379_ANGELA-S

Print

~10° spot beam

Specification
  • Dimensions:
    120 mm
  • Height:
    74.27 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    200 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    9.3 kg
  • MPQ:
    50 pcs
  • MOQ:
    100 pcs
  • MOQ size:
    480 x 280 x 150 mm
  • MOQ weight:
    5.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F13379_ANGELA-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

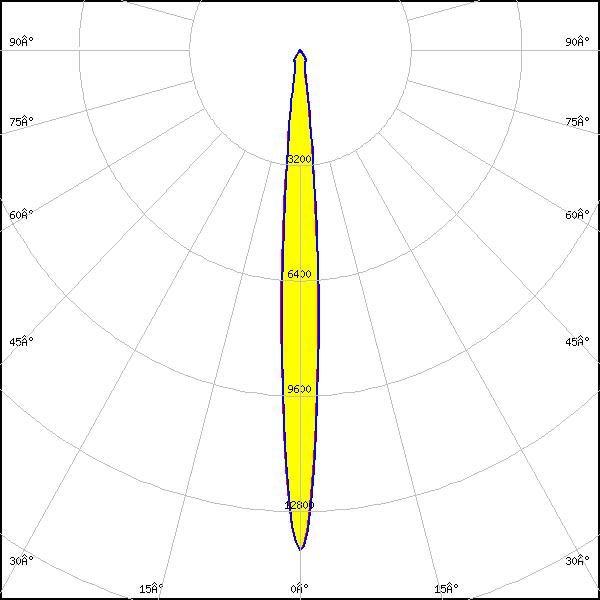

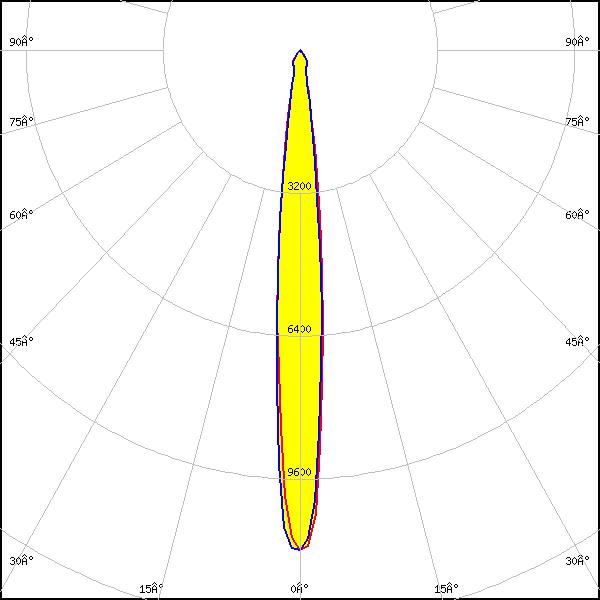

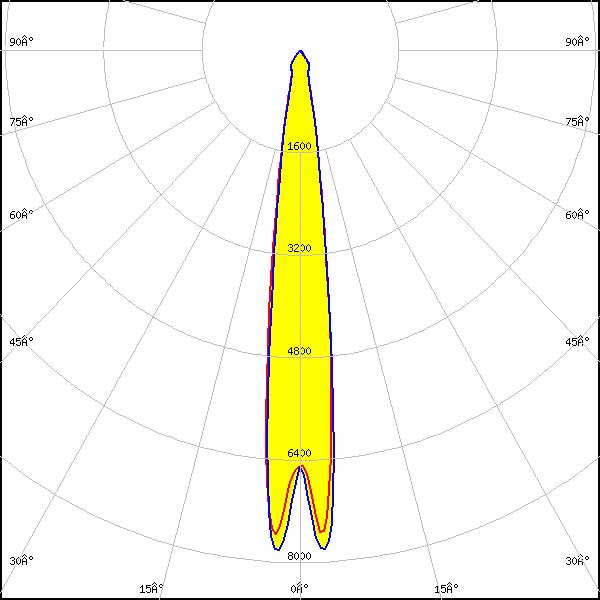

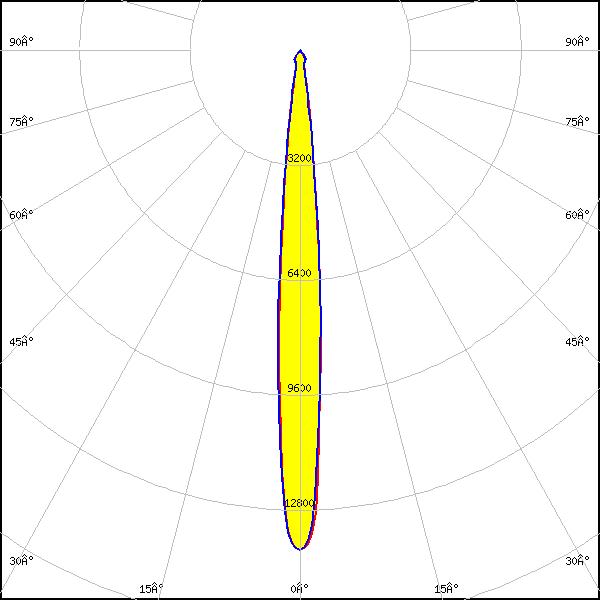

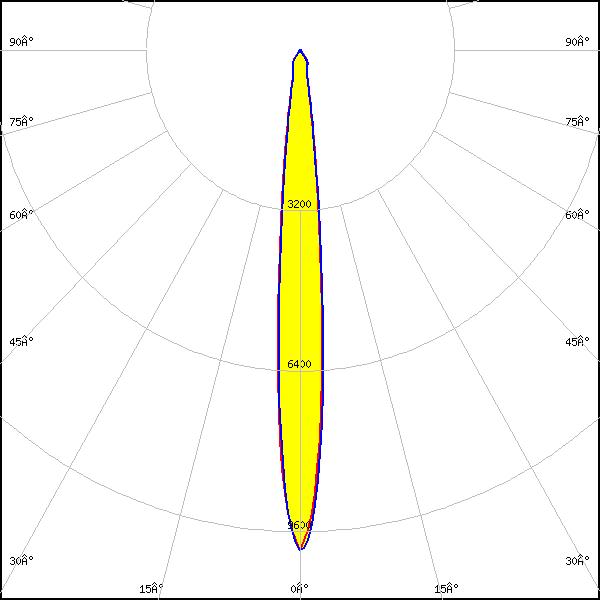

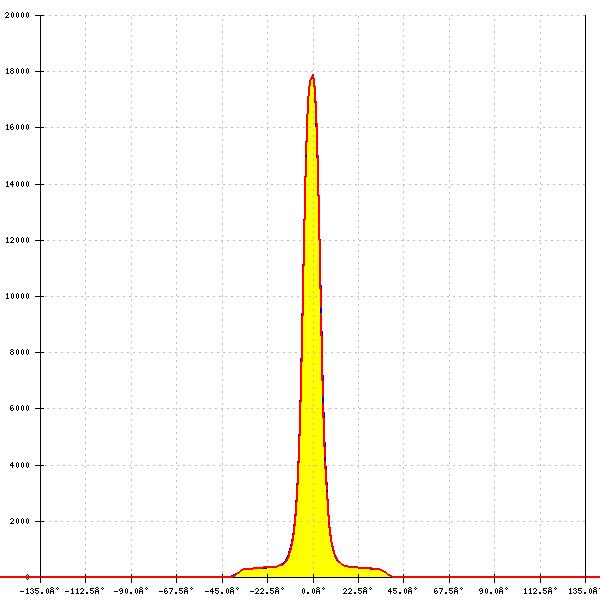

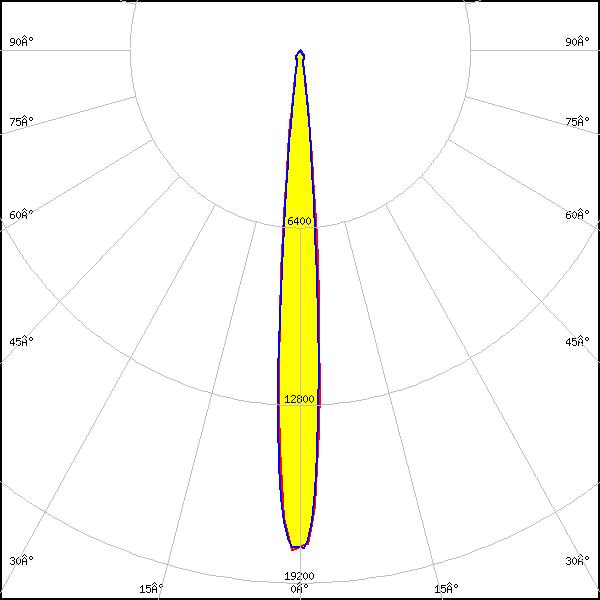

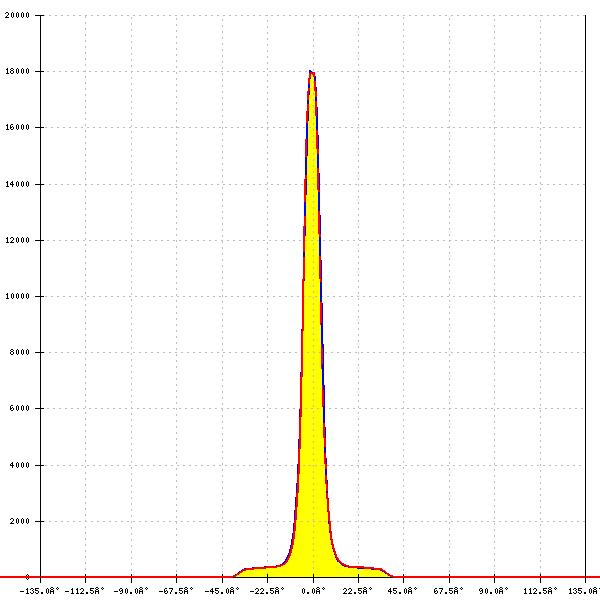

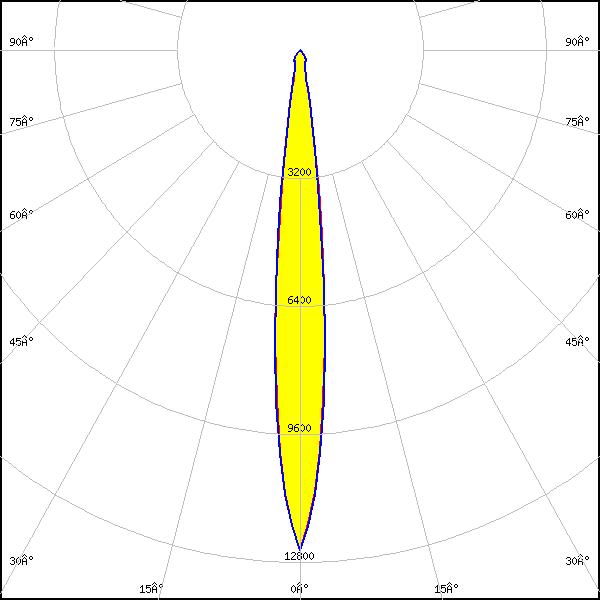

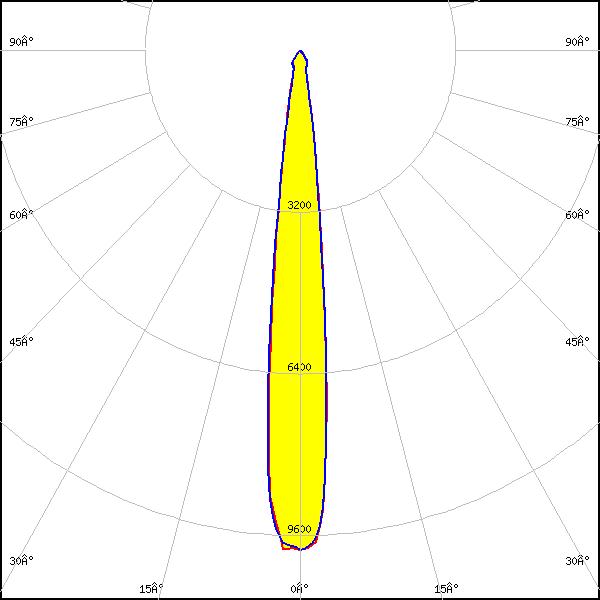

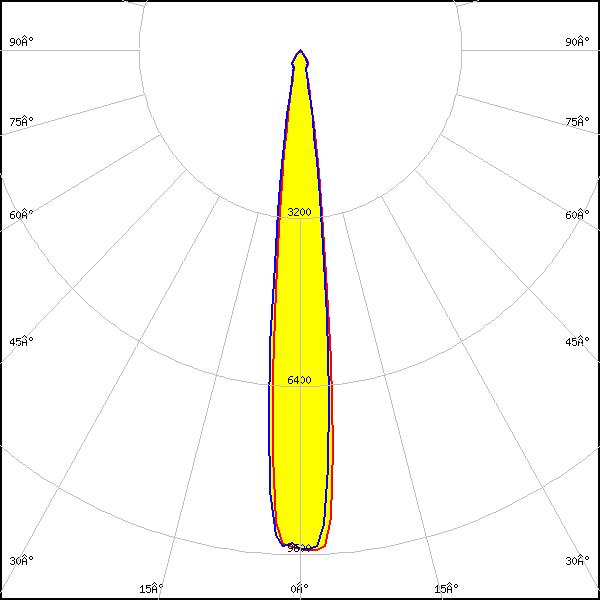

Optical results

LED: V10 Gen7
LES size: 10.2 mm
Required components:
FWHM: 8°
FWTM: 17°
Peak intensity: 16.200 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

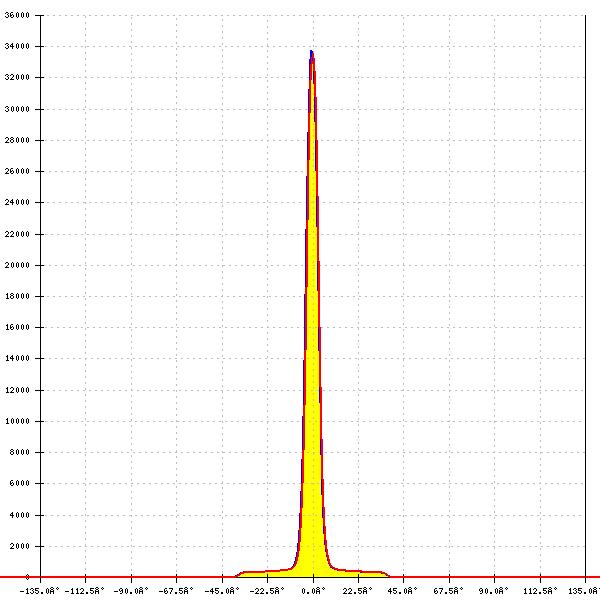

LED: V10 Gen7
LES size: 10.2 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 6°
FWTM: 11°
Peak intensity: 33.800 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 11°
FWTM: 22°
Peak intensity: 11.520 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

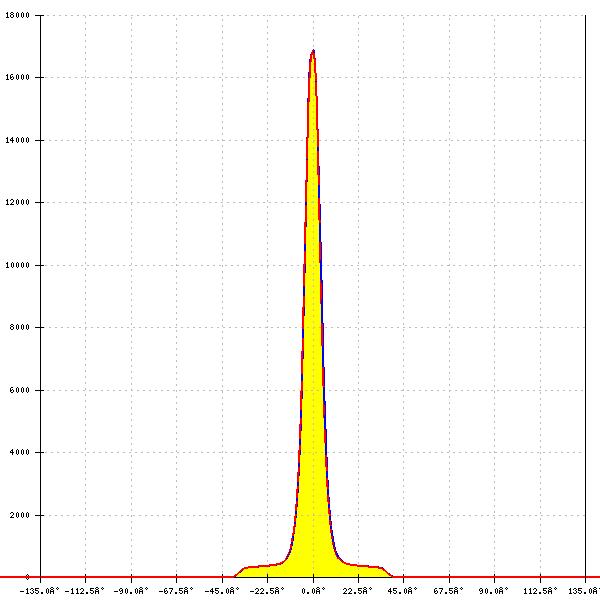

LED: V13 Gen7
LES size: 14.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 9°
FWTM: 17°
Peak intensity: 17.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 10°
FWTM: 23°
Peak intensity: 10.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: V15 Gen6
LES size: 15.2 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 456 Typ L2
FWHM: 10°
FWTM: 22°
Peak intensity: 15.300 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: V22 Gen7
LES size: 22.6 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 12°
FWTM: 30°
Peak intensity: 8.348 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Vero SE 13
LES size: 13.4 mm
Required components:
FWHM: 9°
FWTM: 15°
Peak intensity: 19.900 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

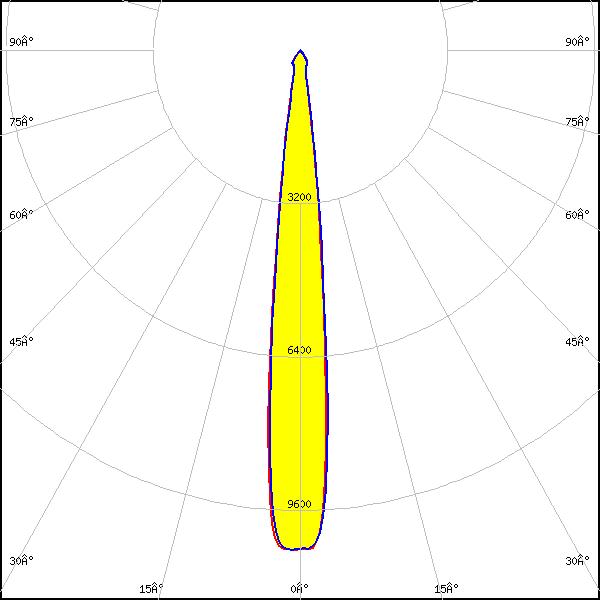

LED: Vero SE 18
LES size: 18.6 mm
Required components:
FWHM: 12°
FWTM: 22°
Peak intensity: 10.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

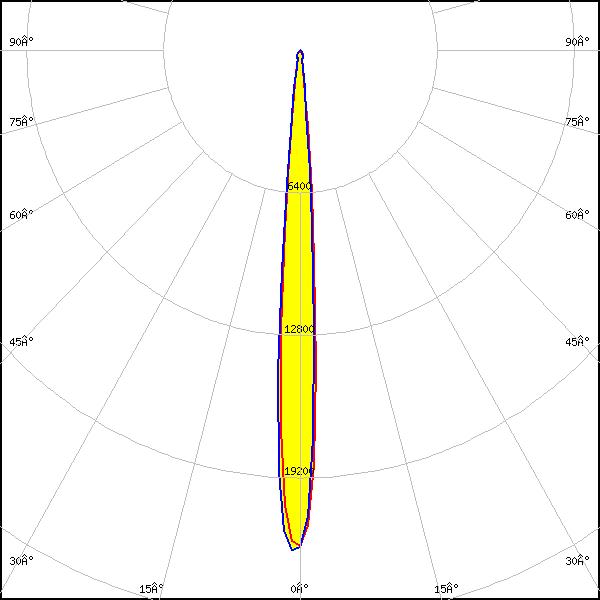

LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 8°
FWTM: 15°
Peak intensity: 22.480 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

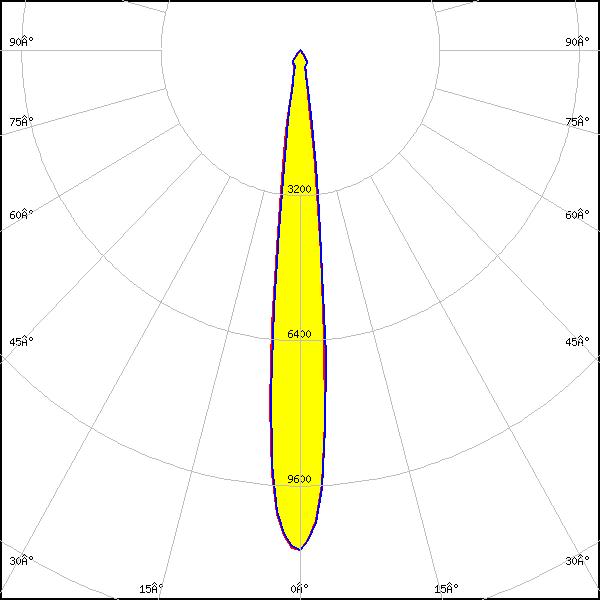

LED: VERO18
LES size: 18.6 mm
Required components:
FWHM: 12°
FWTM: 22°
Peak intensity: 11.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO29
LES size: 29.2 mm
Required components:
FWHM: 22°
FWTM: 55°
Peak intensity: 3.580 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO29
LES size: 29.2 mm
Required components:
FWHM: 22°
FWTM: 57°
Peak intensity: 3.410 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 15mm DP
LES size: 16.3 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 482 Typ L2
FWHM: 11°
FWTM: 19°
Peak intensity: 14.020 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 15mm DP
LES size: 16.3 mm
Required components:
FWHM: 11°
FWTM: 24°
Peak intensity: 10.756 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 18mm (31W) DP
LES size: 19.7 mm
Required components:
FWHM: 13°
FWTM: 29°
Peak intensity: 7.655 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 18mm (31W) DP
LES size: 19.7 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 483 Typ L3
FWHM: 13°
FWTM: 25°
Peak intensity: 9.297 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White

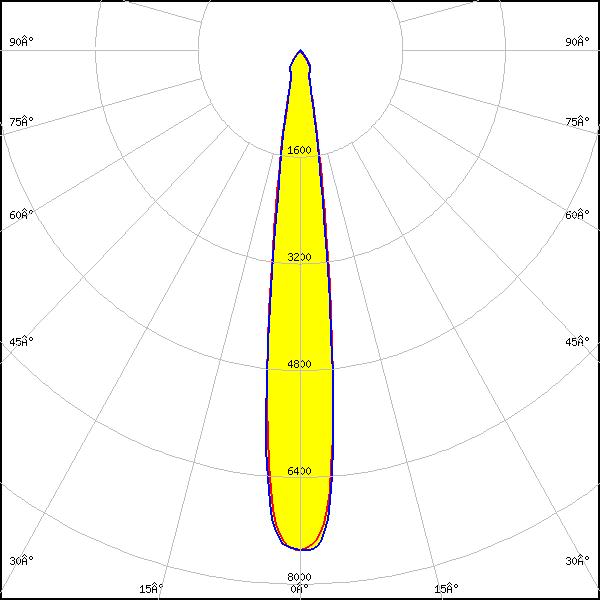

LED: Vesta TW 22mm DP
LES size: 23.1 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
FWHM: 14°
FWTM: 29°
Peak intensity: 7.494 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: Vesta TW 22mm DP
LES size: 23.1 mm
Required components:
FWHM: 15°
FWTM: 35°
Peak intensity: 6.026 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White

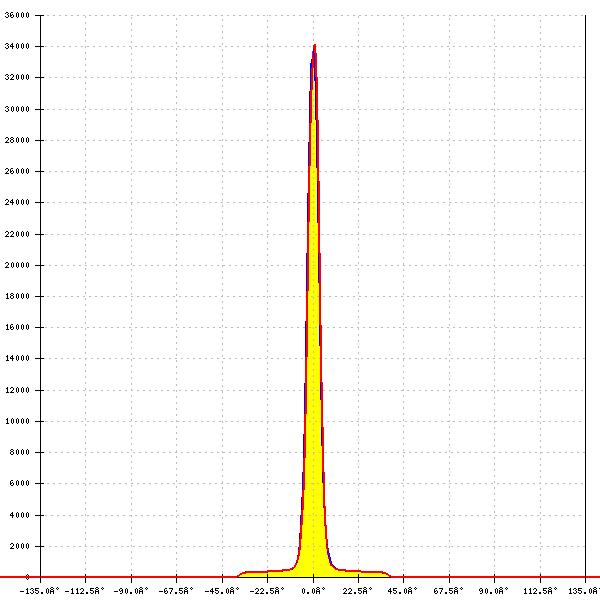

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 6°
FWTM: 12°
Peak intensity: 34.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

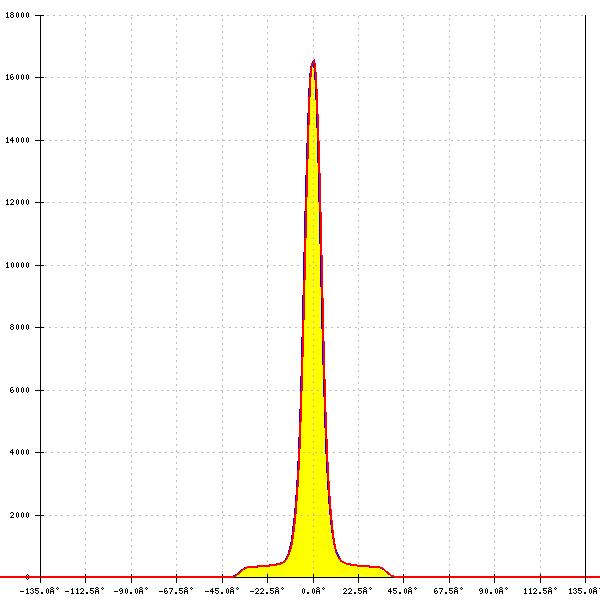

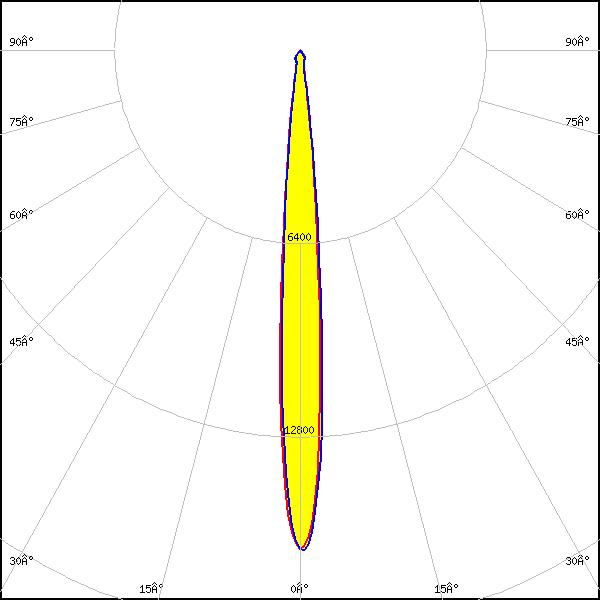

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
FWHM: 9°
FWTM: 18°
Peak intensity: 16.600 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

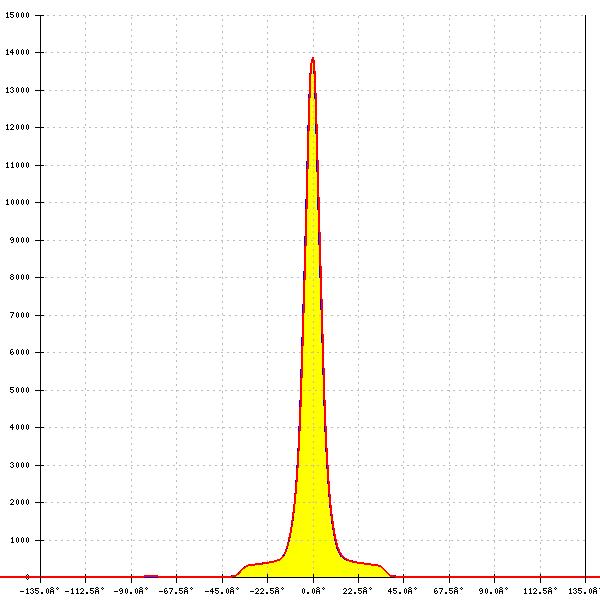

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 9°
FWTM: 20°
Peak intensity: 14.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

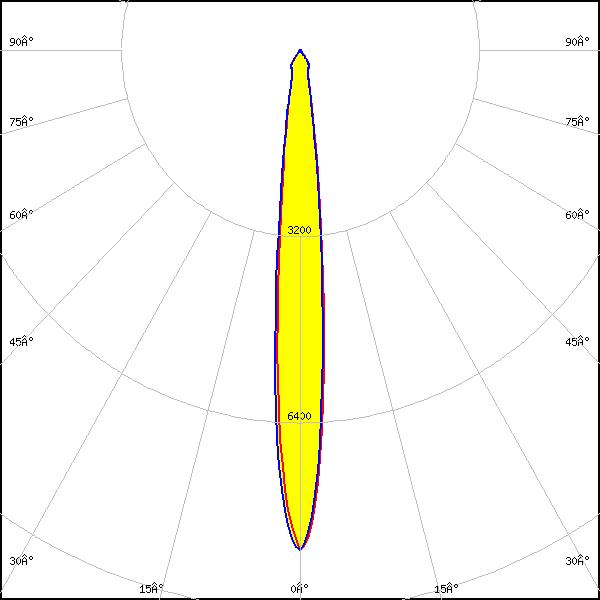

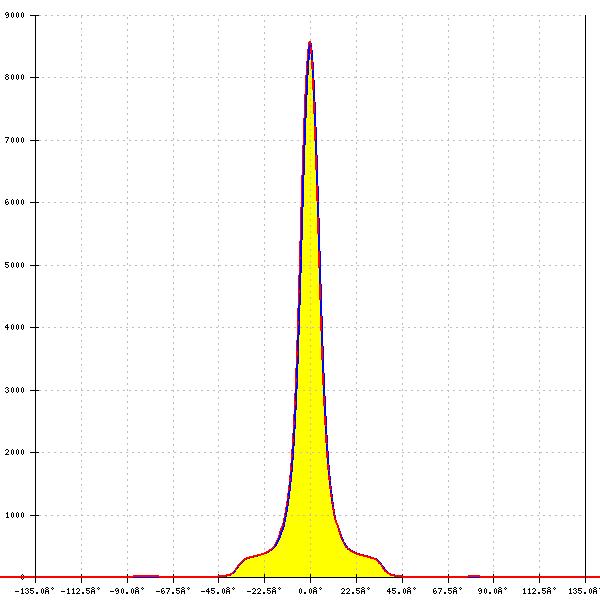

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 11°
FWTM: 26°
Peak intensity: 8.600 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
C16791_CLAMP-Z45-A
TE Connectivity: 2325807-3
F13671_ANGE-RZ-LENS
FWHM: 10°
FWTM: 23°
Peak intensity: 11.200 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

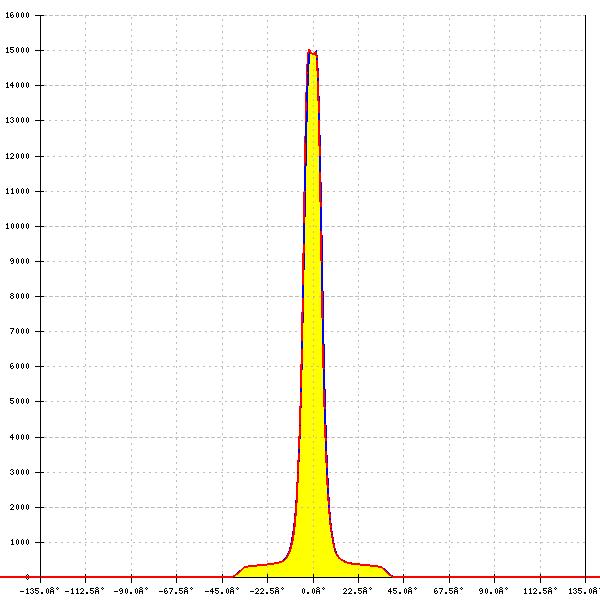

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 10°
FWTM: 18°
Peak intensity: 15.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 11°
FWTM: 24°
Peak intensity: 10.000 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 9°
FWTM: 17°
Peak intensity: 18.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 431 Typ L3
FWHM: 14°
FWTM: 31°
Peak intensity: 6.800 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

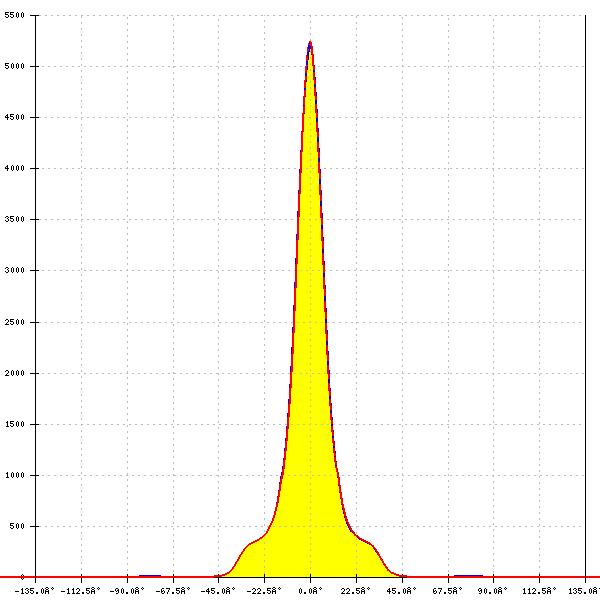

LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 16°
FWTM: 37°
Peak intensity: 5.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 5°
FWTM: 9°
Peak intensity: 57.800 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

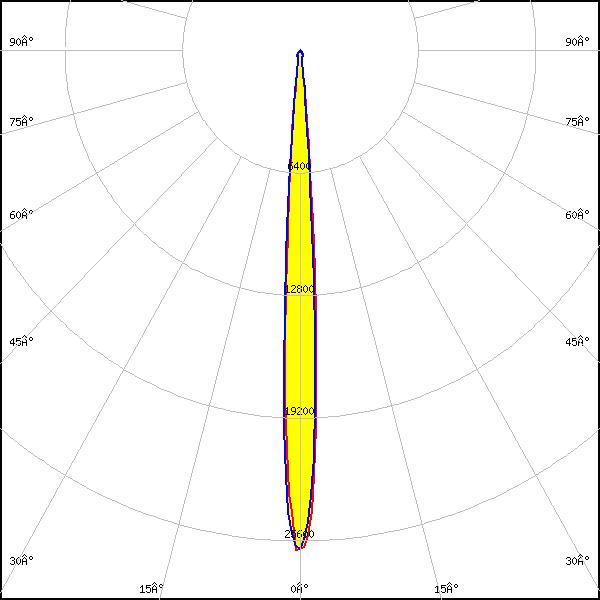

LED: CLU720/721/723
LES size: 11.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 7°
FWTM: 13°
Peak intensity: 26.100 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU720/721/723
LES size: 11.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 7°
FWTM: 14°
Peak intensity: 24.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU730/731/733
LES size: 13.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 8°
FWTM: 18°
Peak intensity: 16.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

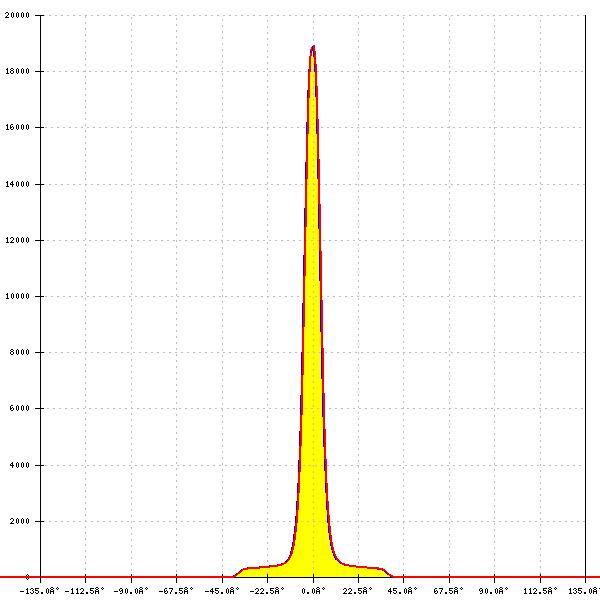

LED: CLU730/731/733
LES size: 13.0 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 471 Typ L3
FWHM: 9°
FWTM: 16°
Peak intensity: 18.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

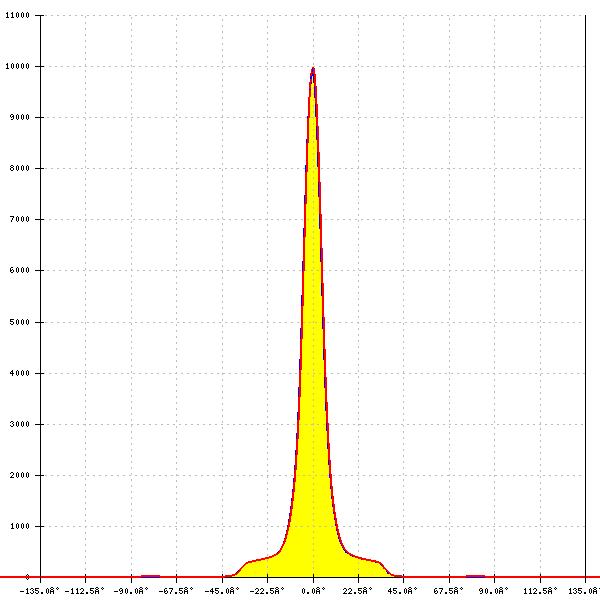

LED: CLU730/731/733
LES size: 13.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 10°
FWTM: 24°
Peak intensity: 10.000 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1840
LES size: 14.0 mm
Required components:
FWHM: 10°
FWTM: 17°
Peak intensity: 16.900 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

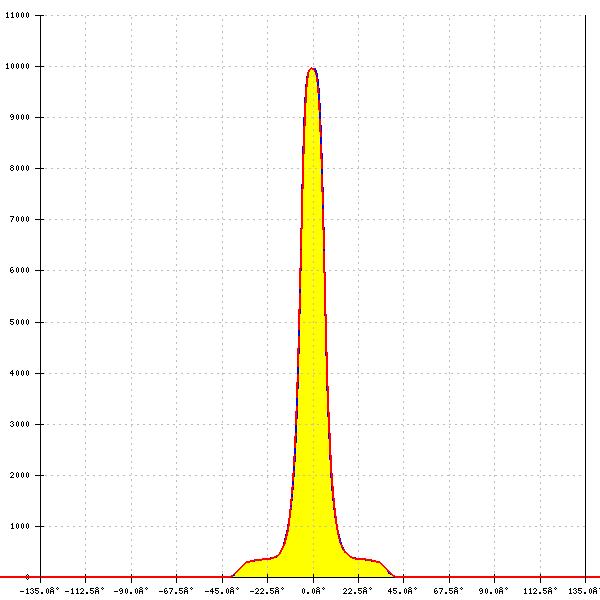

LED: CMA2550
LES size: 19.0 mm
Required components:
FWHM: 13°
FWTM: 24°
Peak intensity: 10.000 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

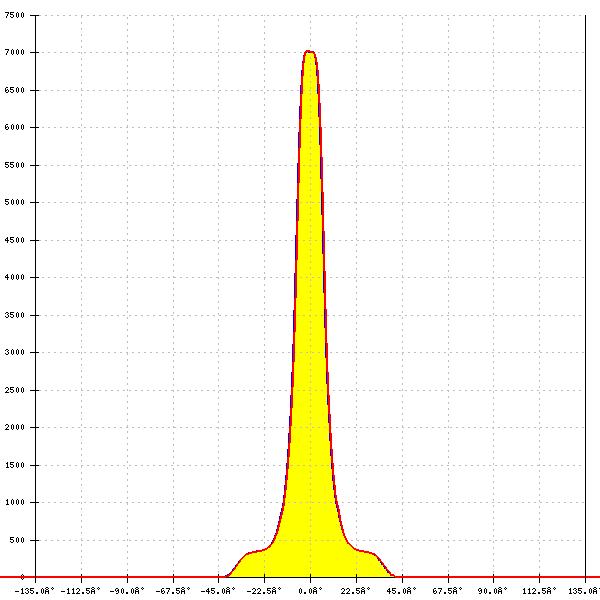

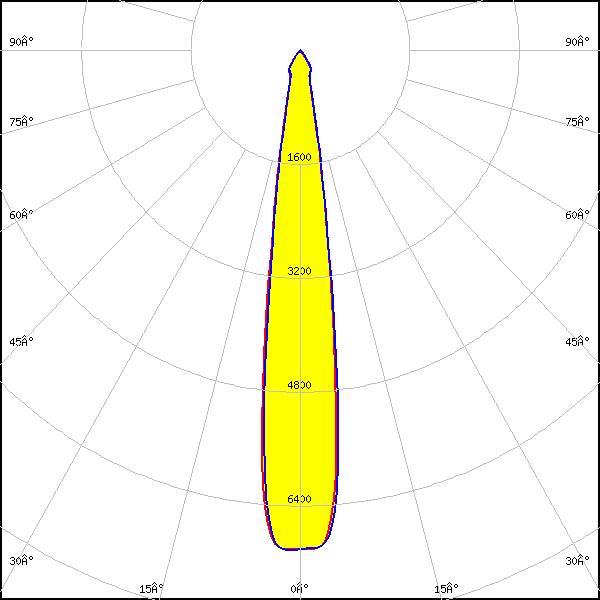

LED: CMA3090
LES size: 23.0 mm
Required components:
FWHM: 15°
FWTM: 30°
Peak intensity: 7.000 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT14xx
LES size: 9.8 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 7°
FWTM: 12°
Peak intensity: 33.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

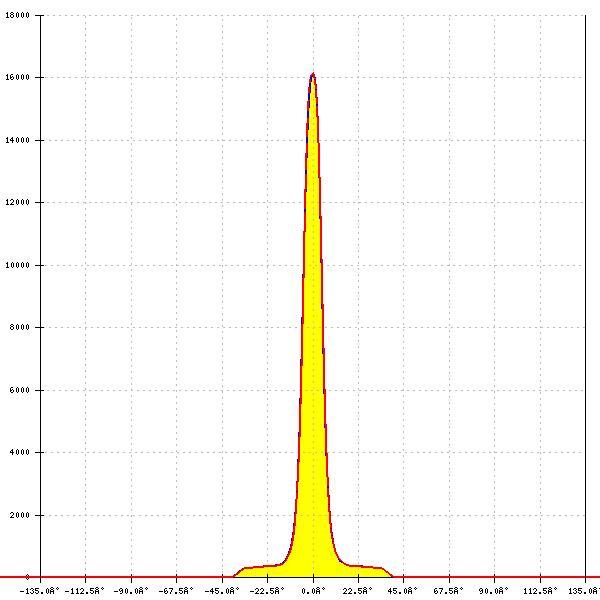

LED: CMT19xx
LES size: 14.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: 10°
FWTM: 18°
Peak intensity: 16.127 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT28xx
LES size: 22.0 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 471 Typ L3
FWHM: 15°
FWTM: 30°
Peak intensity: 7.100 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

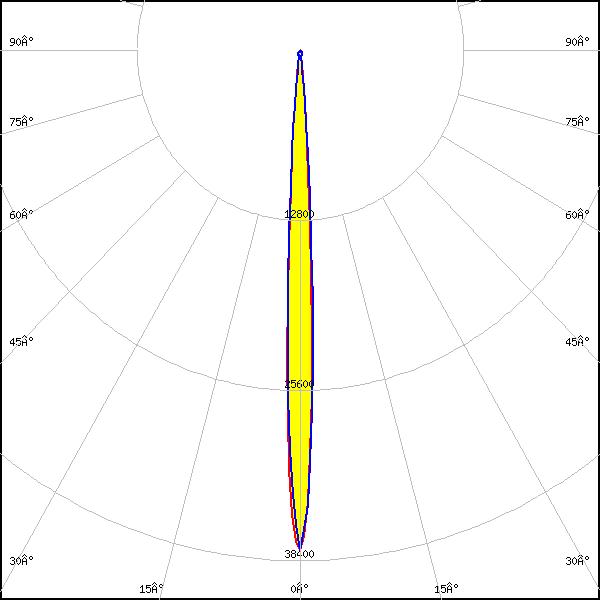

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 441 Typ L1
FWHM: 6°
FWTM: 11°
Peak intensity: 37.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 8°
FWTM: 14°
Peak intensity: 22.600 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: 9°
FWTM: 15°
Peak intensity: 24.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1830
LES size: 14.0 mm
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 12°
FWTM: 24°
Peak intensity: 10.200 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

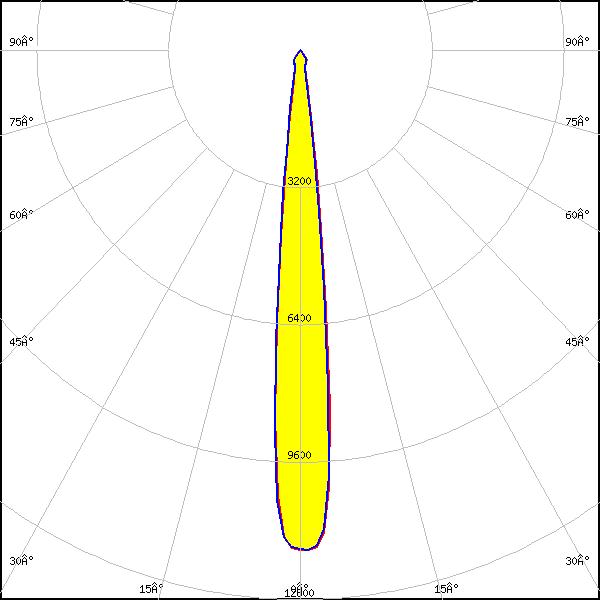

LED: CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM: 11°
FWTM: 21°
Peak intensity: 11.700 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

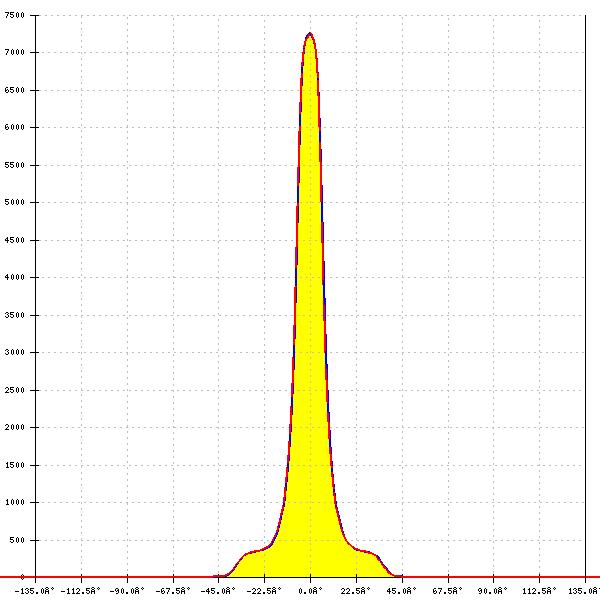

LED: CXA/B 30xx
LES size: 23.0 mm
Required components:
FWHM: 14°
FWTM: 29°
Peak intensity: 7.300 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CHI3030 19W
LES size: 20.0 mm
Required components:
FWHM: 14°
FWTM: 35°
Peak intensity: 6.100 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CHI3030 29W
LES size: 26.0 mm
Required components:
FWHM: 18°
FWTM: 47°
Peak intensity: 5.100 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

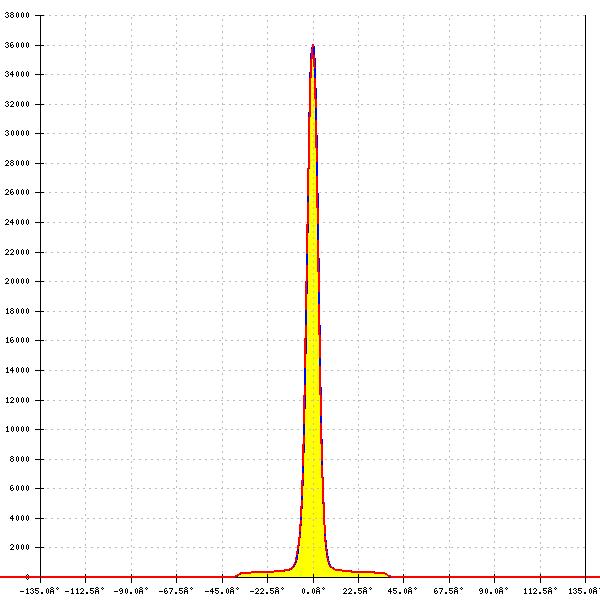

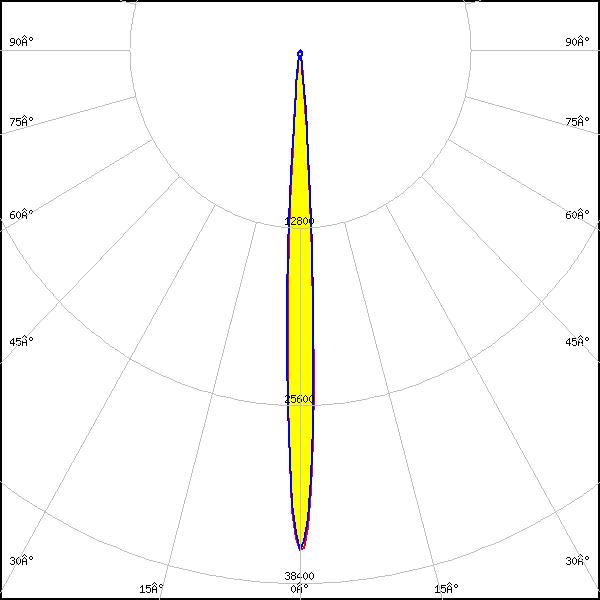

LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 6°
FWTM: 11°
Peak intensity: 36.000 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1204/1205
LES size: 13.0 mm
FWHM: 10°
FWTM: 16°
Peak intensity: 20.700 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

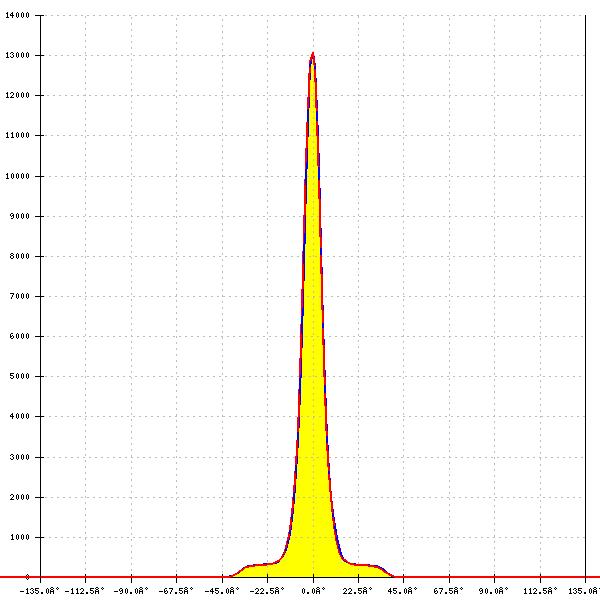

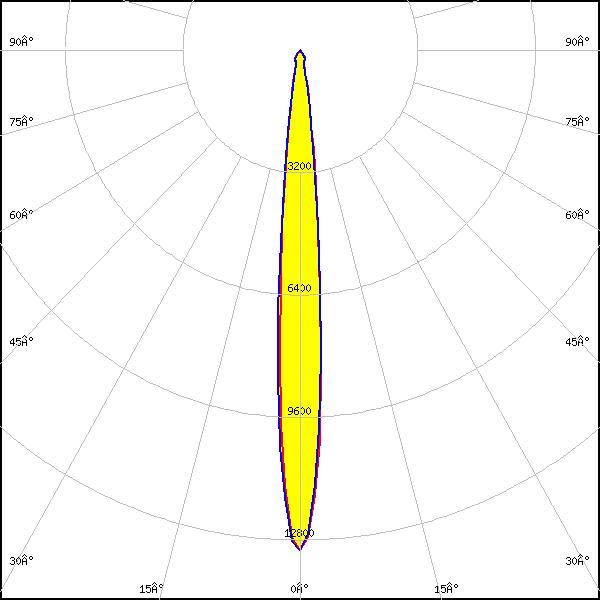

LED: LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 10°
FWTM: 22°
Peak intensity: 13.100 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

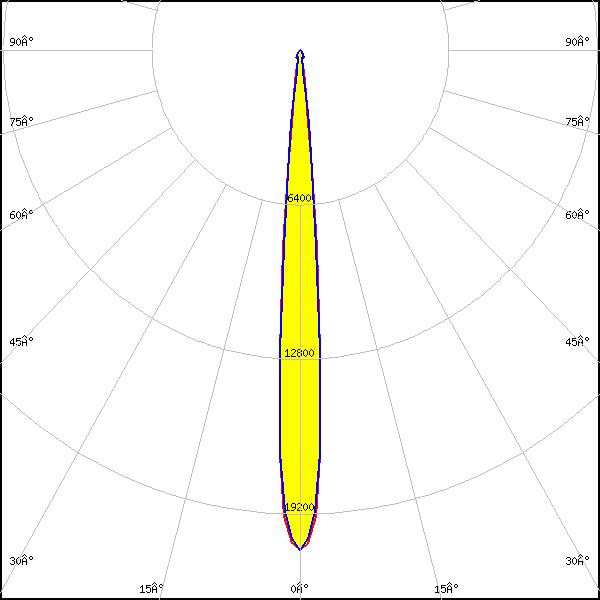

LED: LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 8°
FWTM: 16°
Peak intensity: 19.940 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

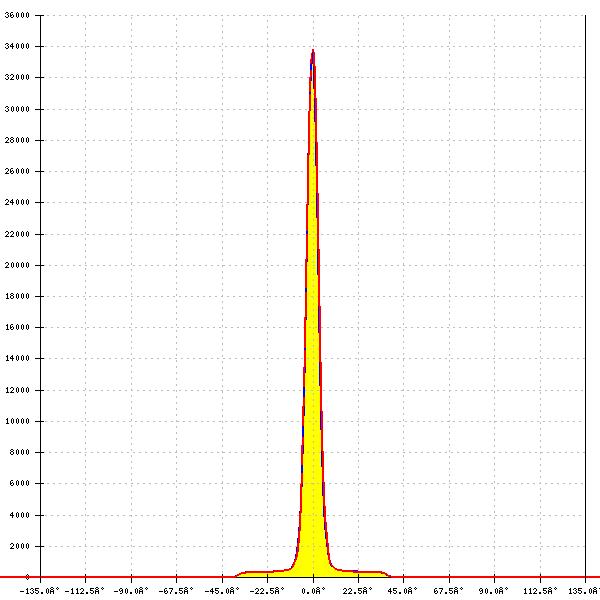

LED: LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 6°
FWTM: 12°
Peak intensity: 34.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 8°
FWTM: 15°
Peak intensity: 24.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

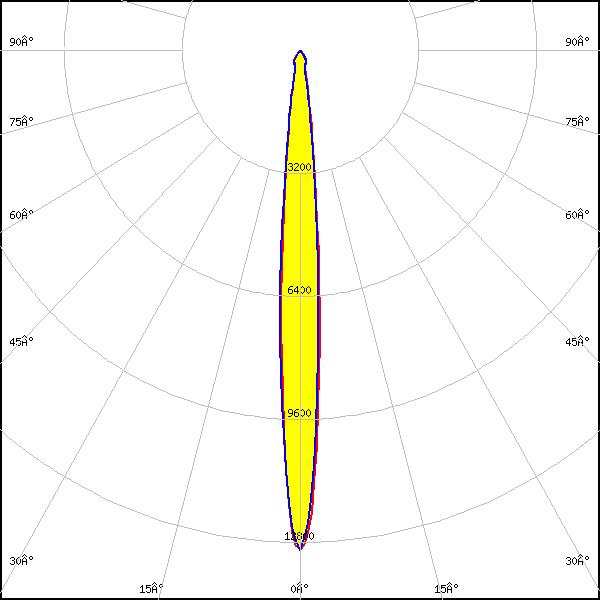

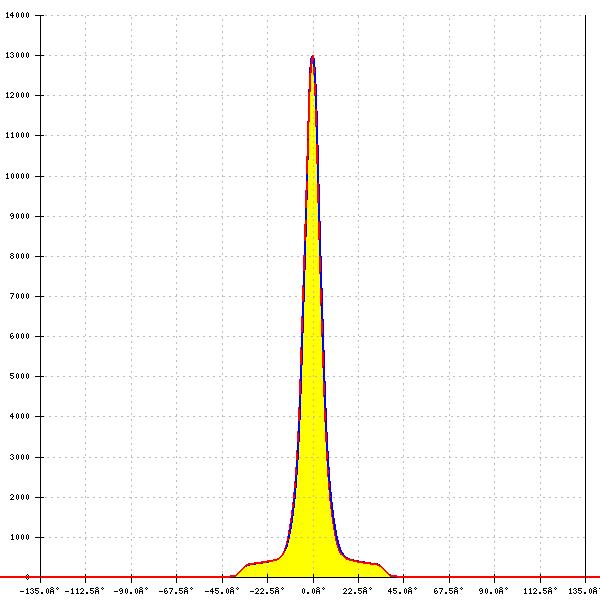

LED: LUXEON CoB 1208
LES size: 15.0 mm
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
FWHM: 9°
FWTM: 21°
Peak intensity: 13.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1208
LES size: 15.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 12°
FWTM: 27°
Peak intensity: 8.600 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

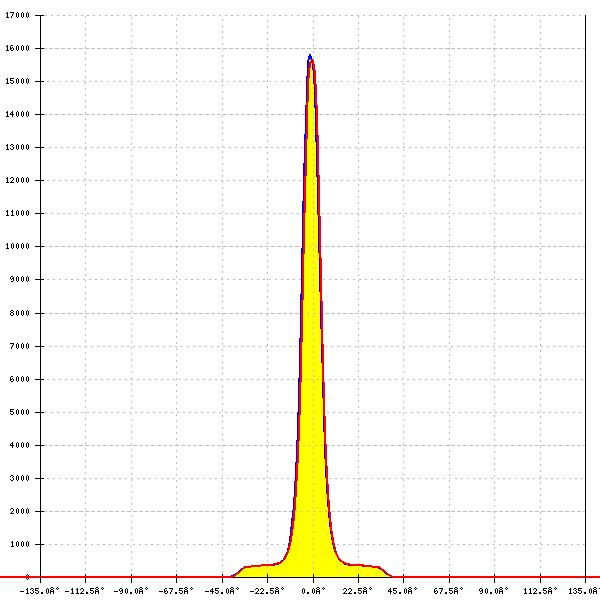

LED: LUXEON CoB 1208
LES size: 15.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 19°
Peak intensity: 15.850 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

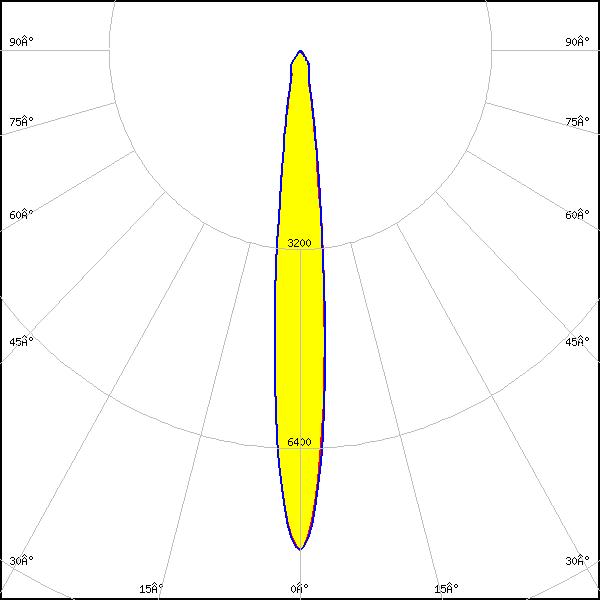

LED: LUXEON CoB 1208
LES size: 15.0 mm
Required components:
IDEAL: 50-2100SH
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 12°
FWTM: 28°
Peak intensity: 8.000 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1208
LES size: 15.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 11°
FWTM: 24°
Peak intensity: 9.900 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

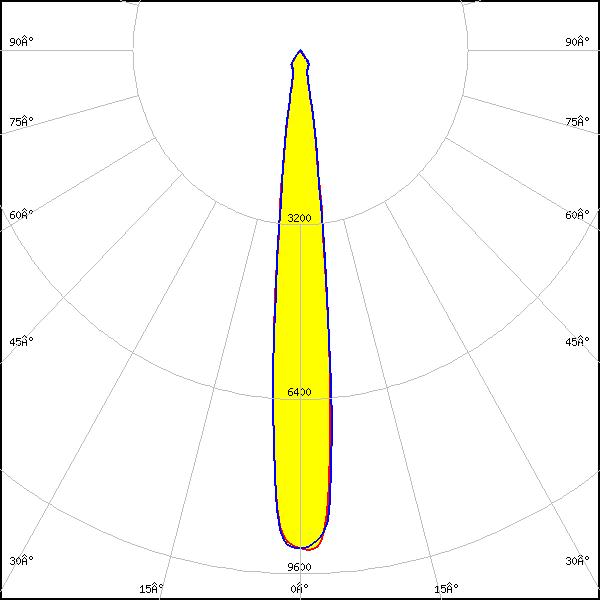

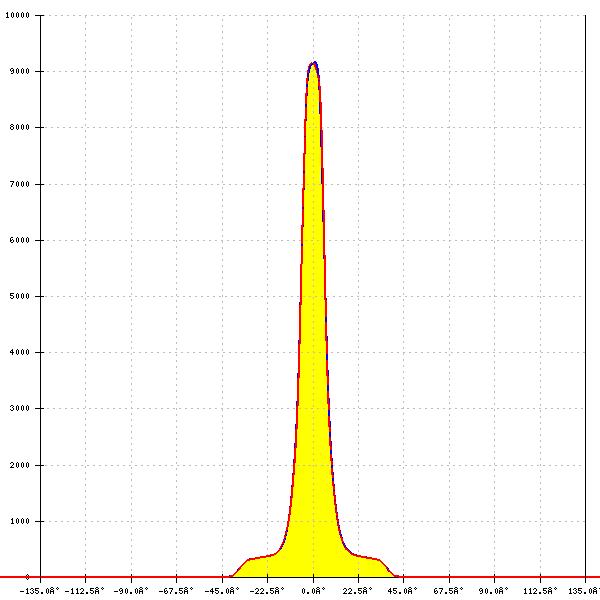

LED: LUXEON CoB 1211
LES size: 18.5 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 431 Typ L3
FWHM: 13°
FWTM: 25°
Peak intensity: 9.200 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

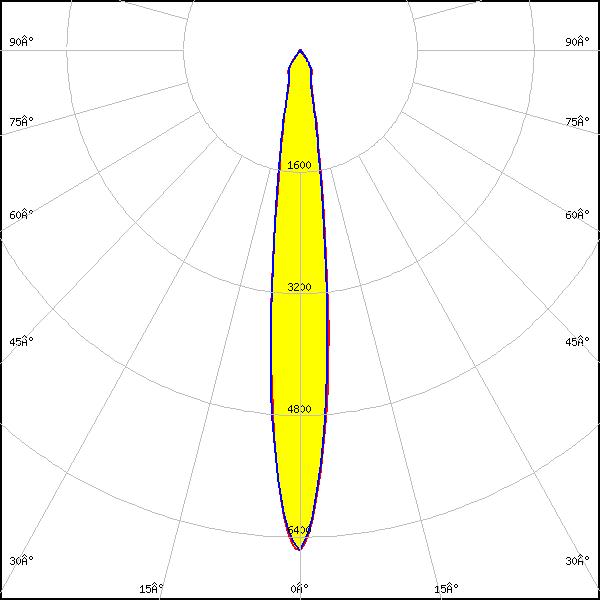

LED: LUXEON CoB 1211
LES size: 18.5 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 13°
FWTM: 32°
Peak intensity: 6.600 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
FWHM: 14°
FWTM: 33°
Peak intensity: 6.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

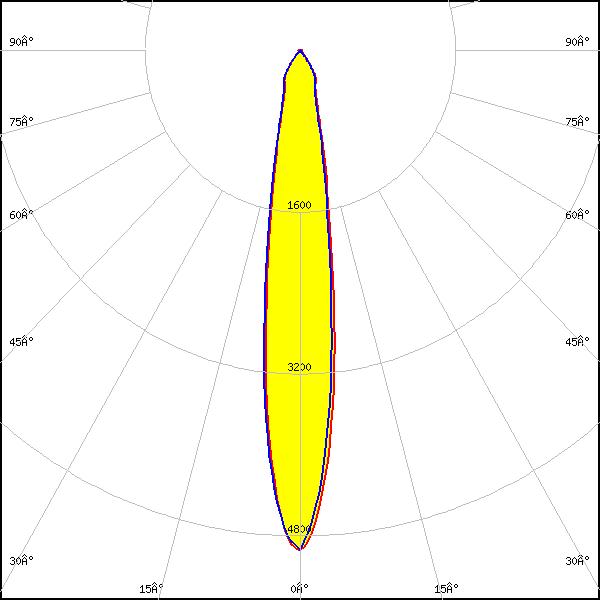

LED: LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
IDEAL: 50-2204-CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 16°
FWTM: 39°
Peak intensity: 4.900 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

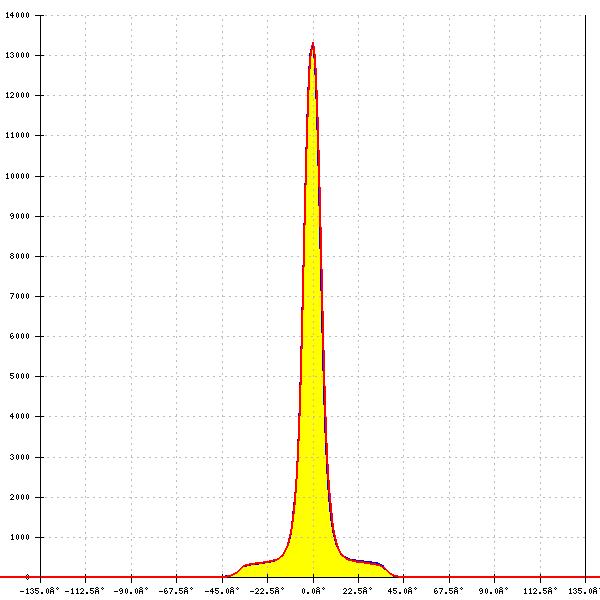

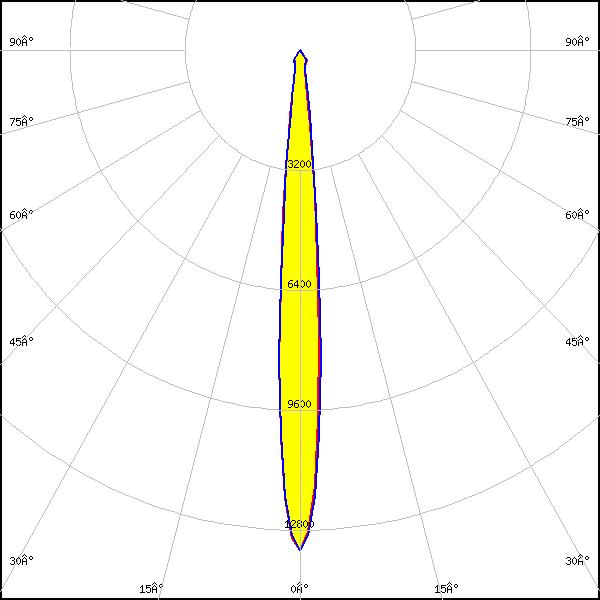

LED: LUXEON K12
LES size: 13.5 mm
Required components:
TE Connectivity: 2213134-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 9°
FWTM: 19°
Peak intensity: 13.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON K16
LES size: 17.0 mm
Required components:
TE Connectivity: 2213134-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 10°
FWTM: 22°
Peak intensity: 11.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON S2000
LES size: 10.5 mm
Required components:
FWHM: 9°
FWTM: 19°
Peak intensity: 16.000 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

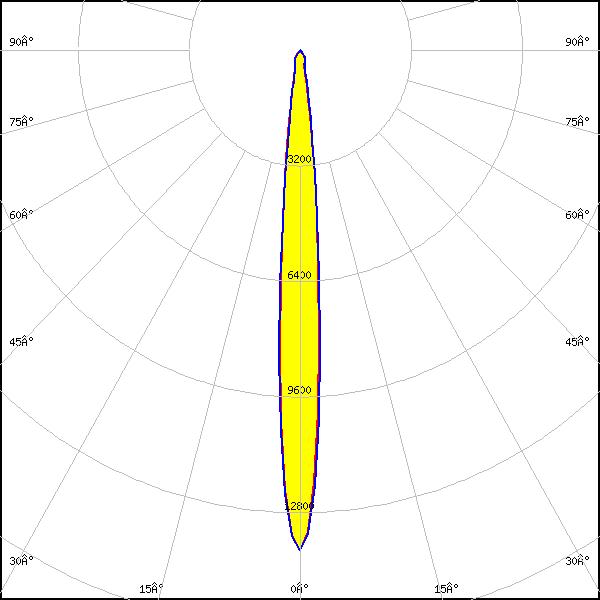

LED: LUXEON S3000
LES size: 13.5 mm
Required components:
FWHM: 10°
FWTM: 21°
Peak intensity: 13.800 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

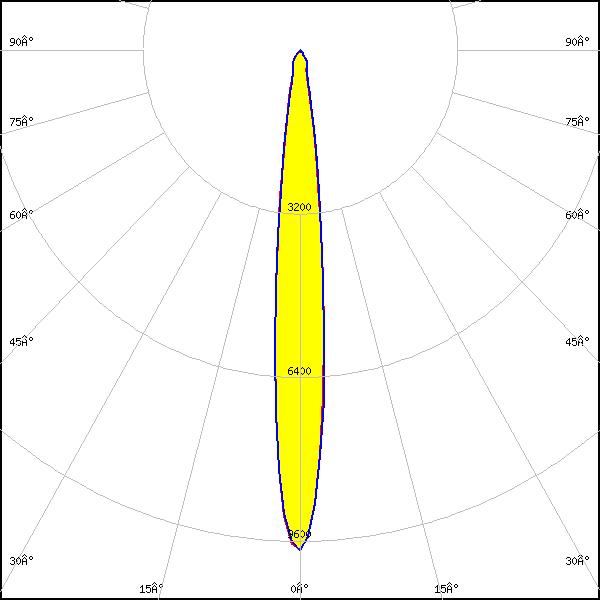

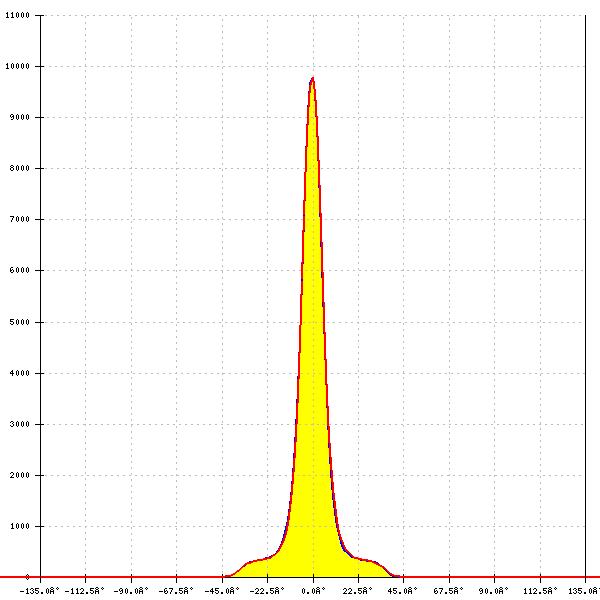

LED: LUXEON S5000
LES size: 17.0 mm
Required components:
FWHM: 12°
FWTM: 26°
Peak intensity: 9.800 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

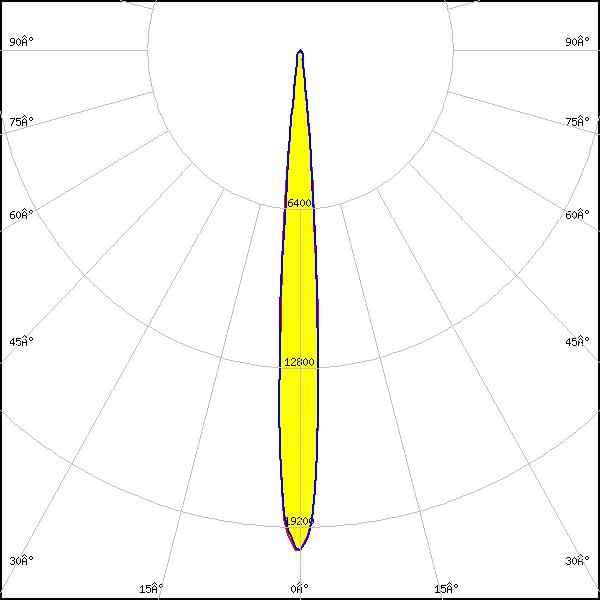

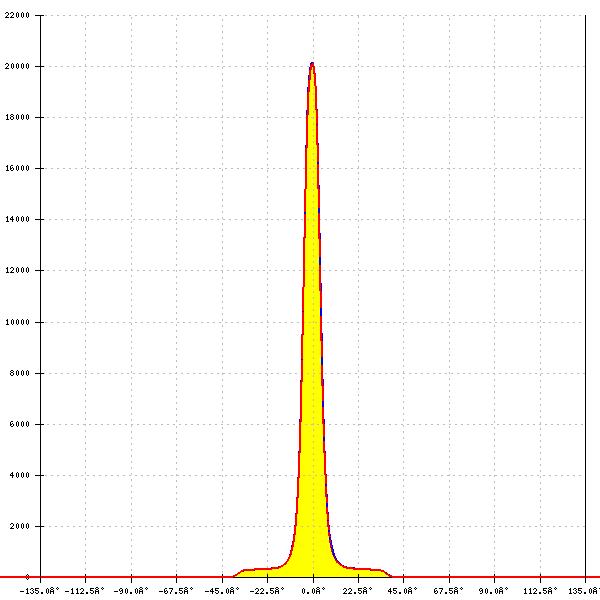

LED: CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
FWHM: 9°
FWTM: 16°
Peak intensity: 20.300 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM: 10°
FWTM: 21°
Peak intensity: 13.400 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

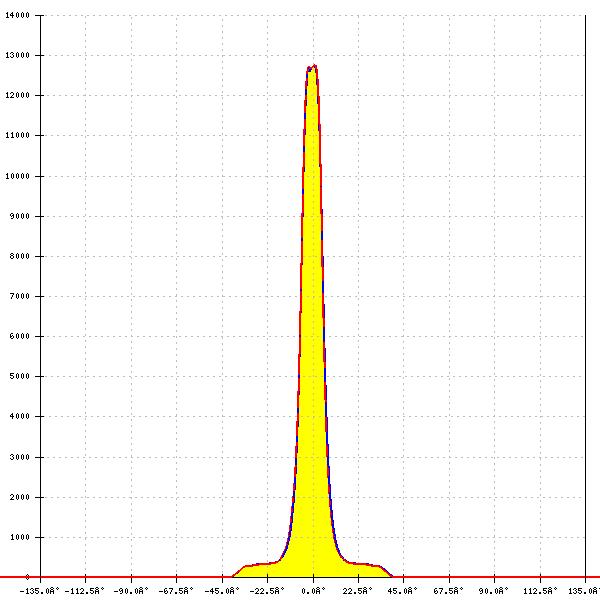

LED: CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 491 Typ L2
FWHM: 11°
FWTM: 21°
Peak intensity: 12.800 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM: 11°
FWTM: 25°
Peak intensity: 10.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM: 7°
FWTM: 16°
Peak intensity: 20.100 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

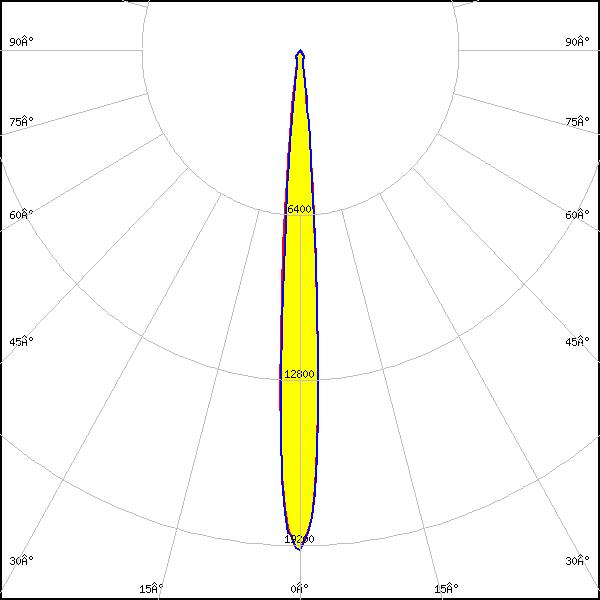

LED: CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 442 Typ L3
FWHM: 8°
FWTM: 16°
Peak intensity: 19.600 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

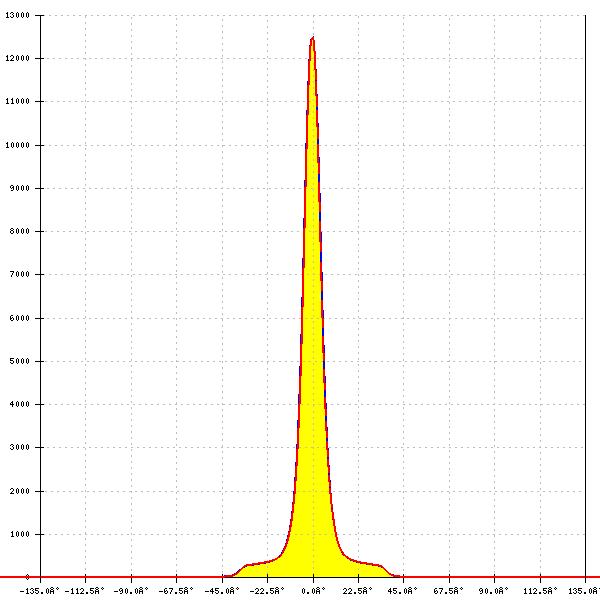

LED: CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM: 9°
FWTM: 21°
Peak intensity: 12.500 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

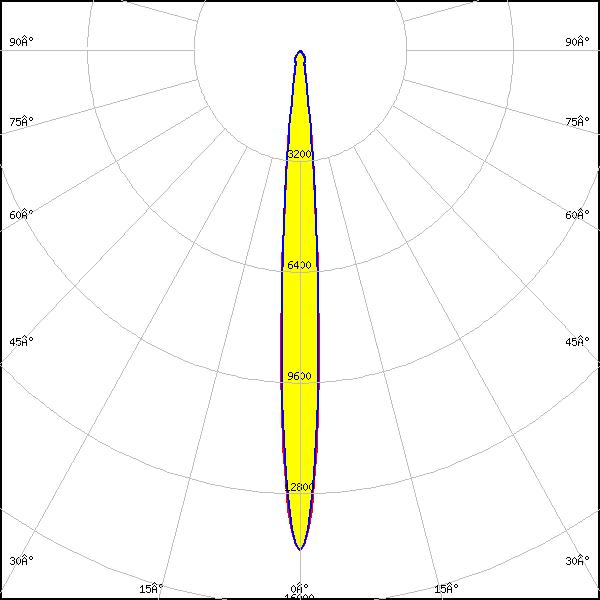

LED: CTM-14 RGBW
LES size: 14.5 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 500 Typ L3-1
F13671_ANGE-RZ-LENS
FWHM: 9°
FWTM: 20°
Peak intensity: 14.431 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: RGBW

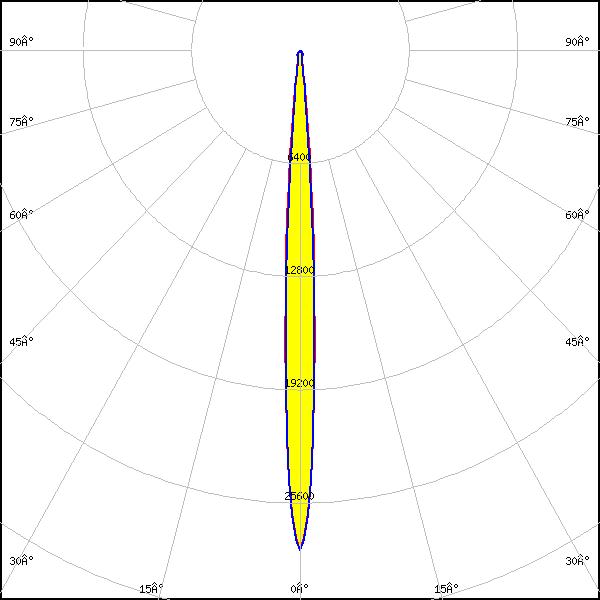

LED: CTM-14 RGBW
LES size: 14.5 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 500 Typ L3-1
FWHM: 7°
FWTM: 14°
Peak intensity: 28.274 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: RGBW
LED: CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 494 Typ L3
FWHM: 14°
FWTM: 28°
Peak intensity: 7.860 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM: 15°
FWTM: 33°
Peak intensity: 6.300 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 486 Typ L1
FWHM: 10°
FWTM: 18°
Peak intensity: 15.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 9°
FWTM: 17°
Peak intensity: 19.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 6°
FWTM: 12°
Peak intensity: 34.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

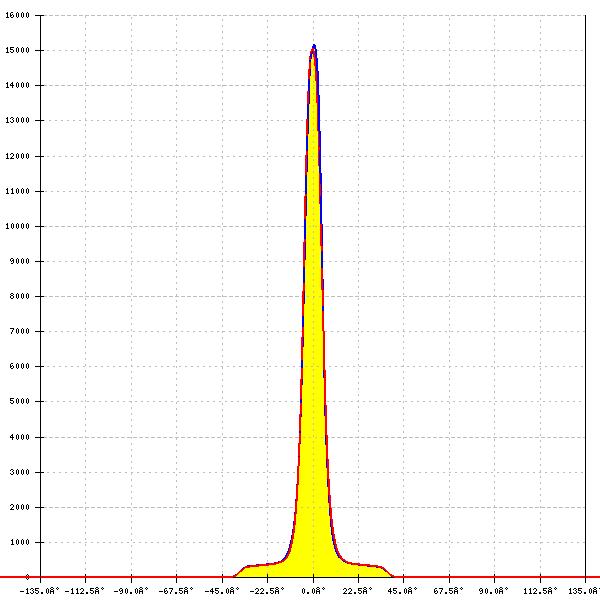

LED: COB J-Type
LES size: 14.6 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 463 Typ L2
FWHM: 9°
FWTM: 18°
Peak intensity: 15.200 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

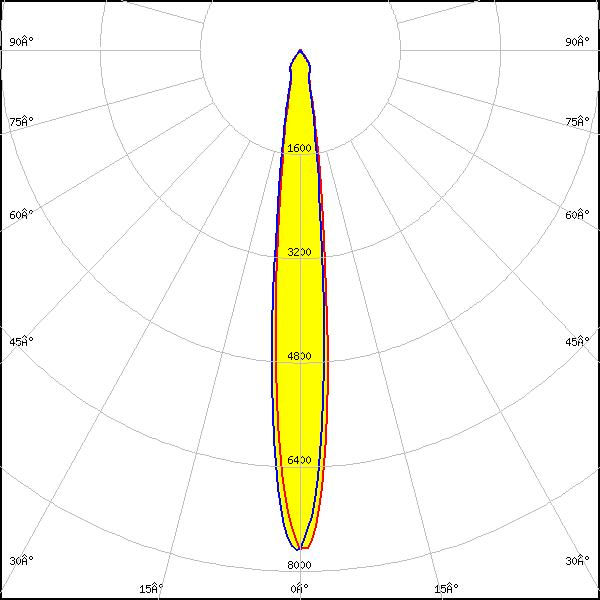

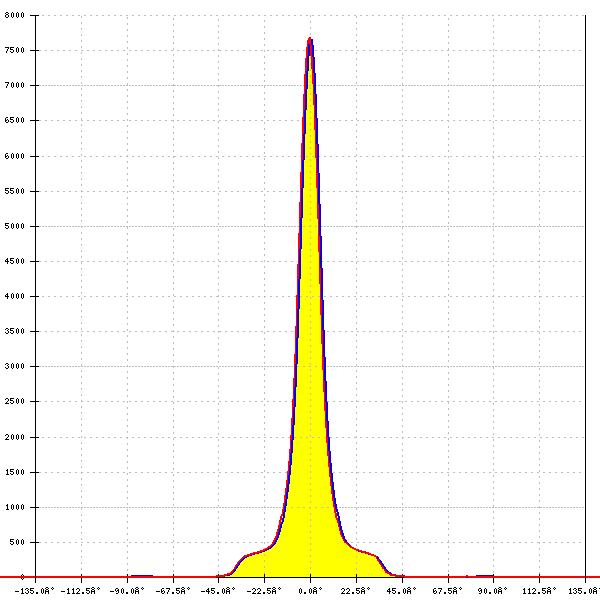

LED: COB J-Type
LES size: 14.6 mm
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 12°
FWTM: 28°
Peak intensity: 7.700 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: COB J-Type
LES size: 14.6 mm
Required components:
IDEAL: 50-2103NC
IDEAL: 50-2100AN
FWHM: 9°
FWTM: 22°
Peak intensity: 12.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
FWHM: 8°
FWTM: 16°
Peak intensity: 19.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

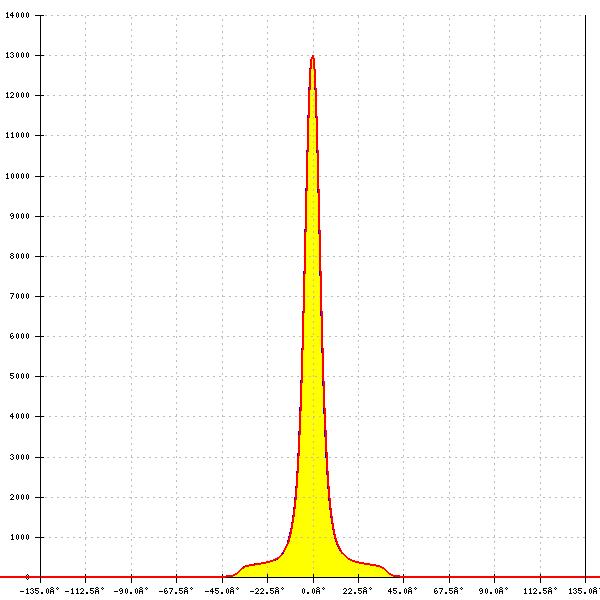

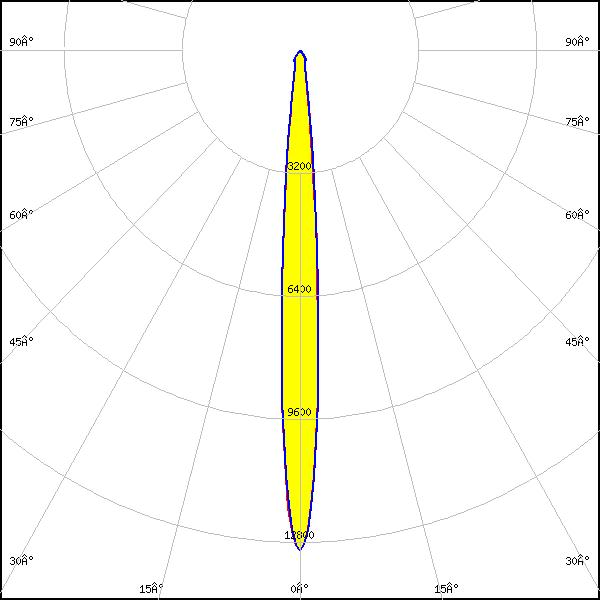

LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 9°
FWTM: 20°
Peak intensity: 13.000 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 7°
FWTM: 14°
Peak intensity: 24.300 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
Molex: 180580-0005
FWHM: 8°
FWTM: 14°
Peak intensity: 24.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

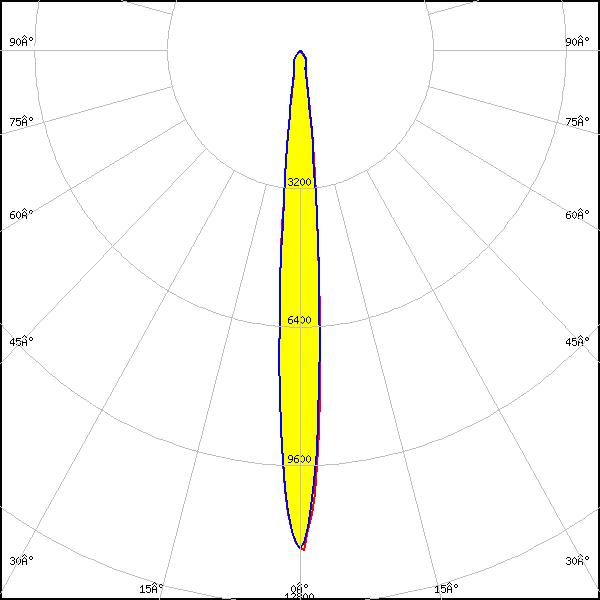

LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 9°
FWTM: 21°
Peak intensity: 12.000 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 6°
FWTM: 11°
Peak intensity: 39.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 498 Typ L2
FWHM: 7°
FWTM: 13°
Peak intensity: 28.000 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM: 9°
FWTM: 19°
Peak intensity: 14.400 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

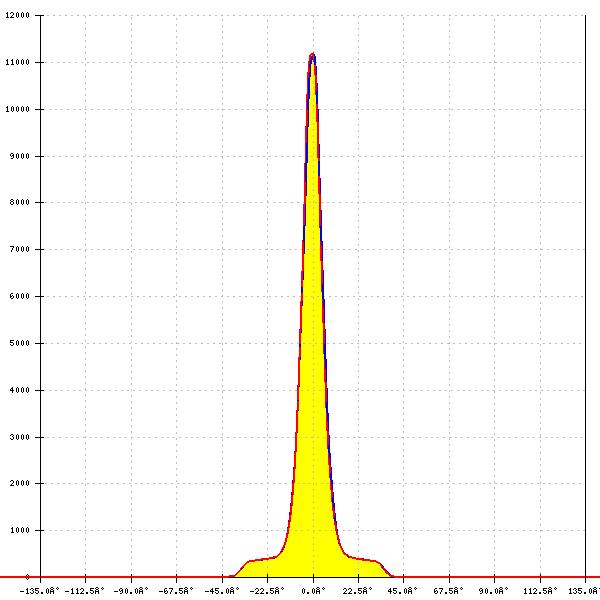

LED: PrevaLED Core AC (LEP-2000)
LES size: 19.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 11°
FWTM: 23°
Peak intensity: 11.200 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core AC (LEP-800)
LES size: 13.5 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 8°
FWTM: 17°
Peak intensity: 19.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM: 10°
FWTM: 20°
Peak intensity: 14.400 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core G7 L15 H1
LES size: 15.0 mm
Required components:
FWHM: 11°
FWTM: 24°
Peak intensity: 10.300 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

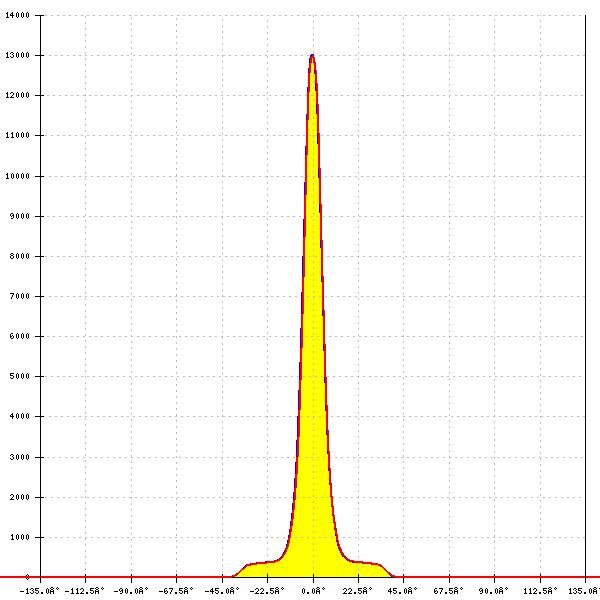

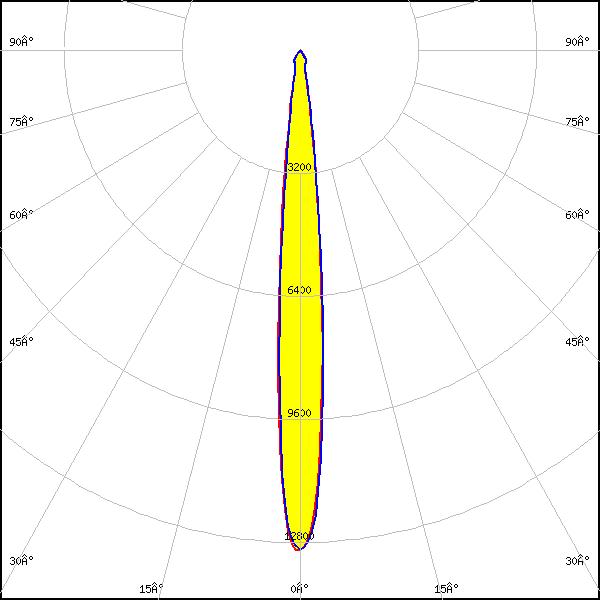

LED: PrevaLED Core Z3 LES19
LES size: 19.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 21°
Peak intensity: 13.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core Z3 LES23
LES size: 23.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 13°
FWTM: 27°
Peak intensity: 8.790 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

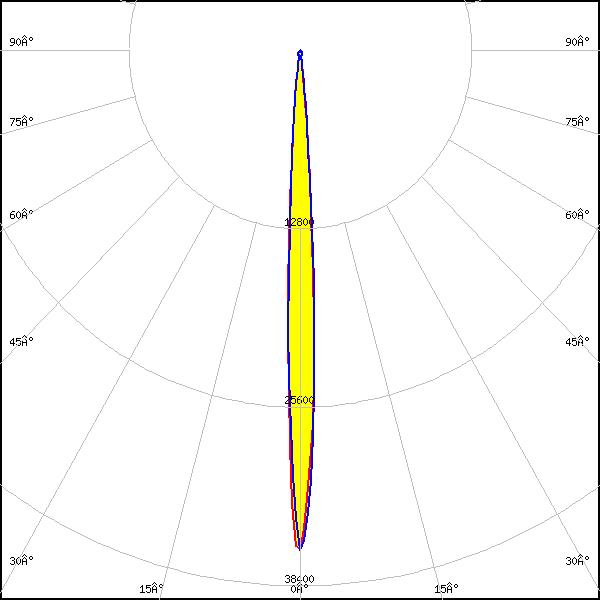

LED: PrevaLED Core Z3 LES9
LES size: 9.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 6°
FWTM: 12°
Peak intensity: 36.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core Z4 LES19
LES size: 19.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 12°
FWTM: 28°
Peak intensity: 8.100 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: PrevaLED Core Z4 LES19
LES size: 19.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 21°
Peak intensity: 13.300 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

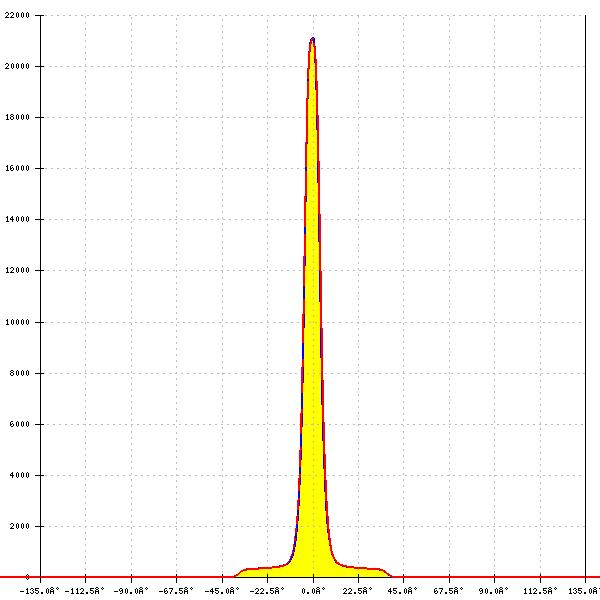

LED: Soleriq S13
LES size: 13.2 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 8°
FWTM: 15°
Peak intensity: 21.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S13
LES size: 13.2 mm
Required components:
TE Connectivity: 2213401-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 8°
FWTM: 15°
Peak intensity: 22.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S13 19x19
LES size: 13.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
F13671_ANGE-RZ-LENS
FWHM: 10°
FWTM: 23°
Peak intensity: 11.000 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

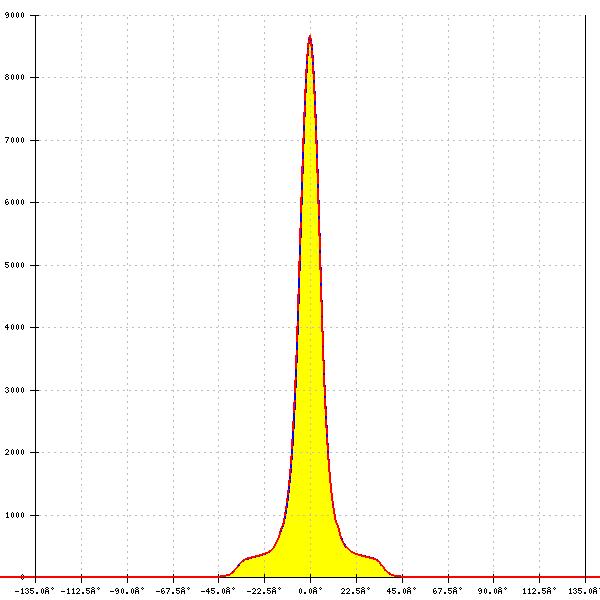

LED: Soleriq S13 19x19
LES size: 13.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 9°
FWTM: 20°
Peak intensity: 13.000 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

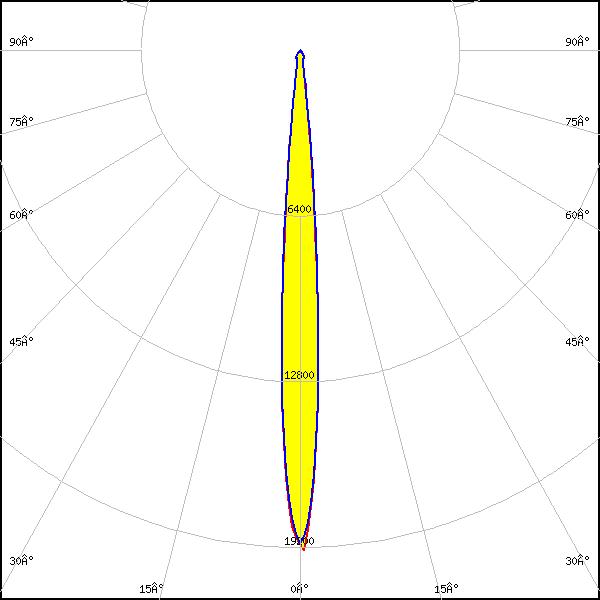

LED: Soleriq S13 19x19
LES size: 13.0 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 8°
FWTM: 16°
Peak intensity: 19.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

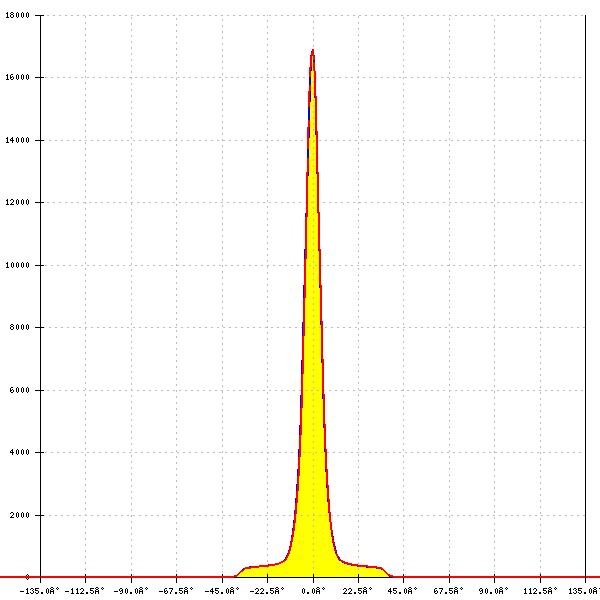

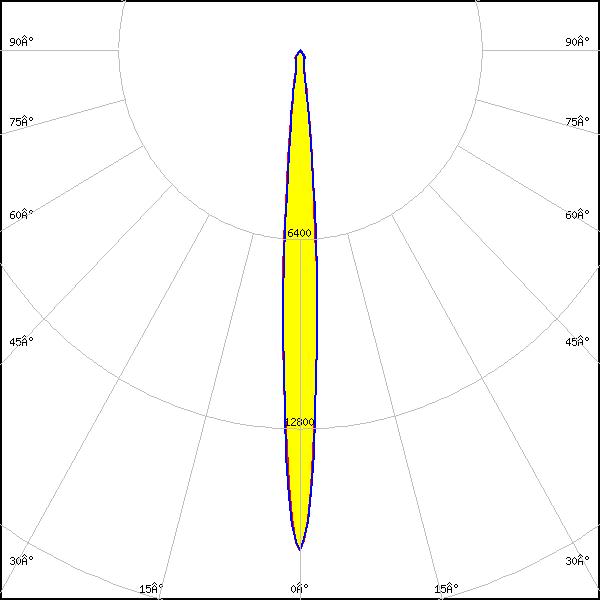

LED: Soleriq S13 19x19
LES size: 13.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 8°
FWTM: 18°
Peak intensity: 16.900 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

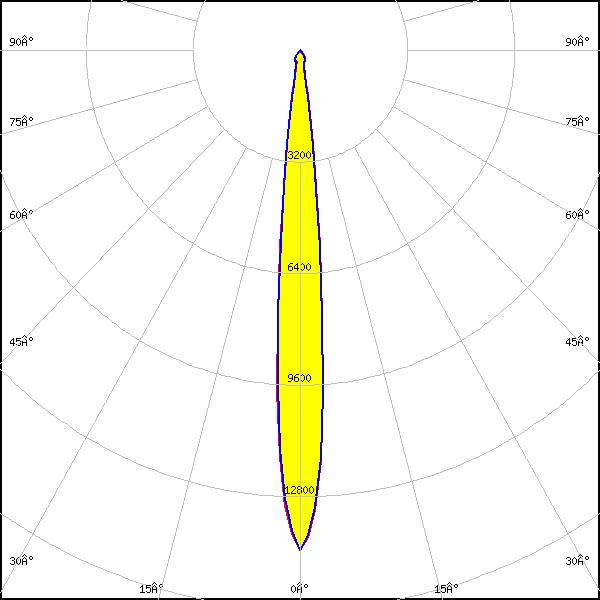

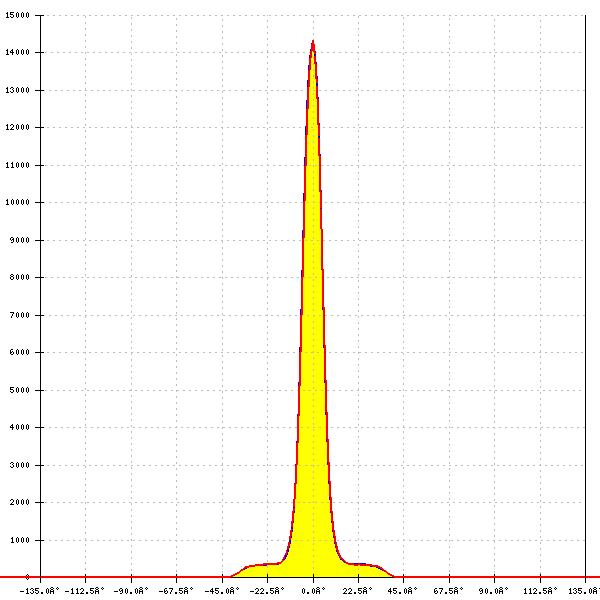

LED: Soleriq S15
LES size: 14.7 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 19°
Peak intensity: 14.300 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

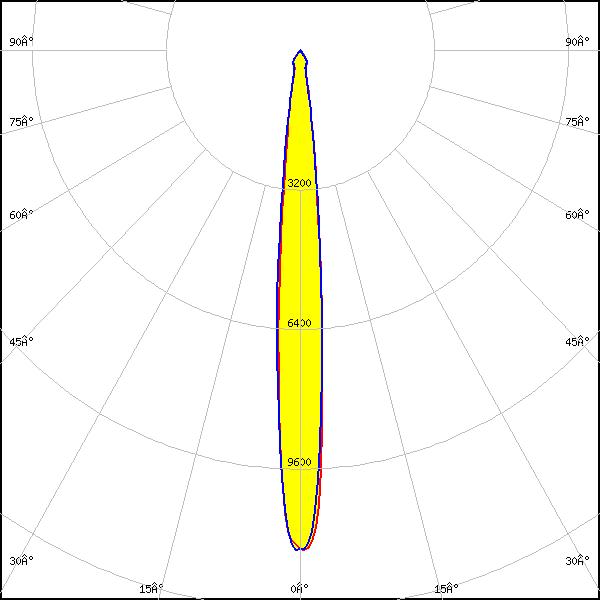

LED: Soleriq S19
LES size: 17.9 mm
Required components:
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S19
LES size: 17.9 mm
Required components:
TE Connectivity: 2213407-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 12°
FWTM: 26°
Peak intensity: 8.700 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

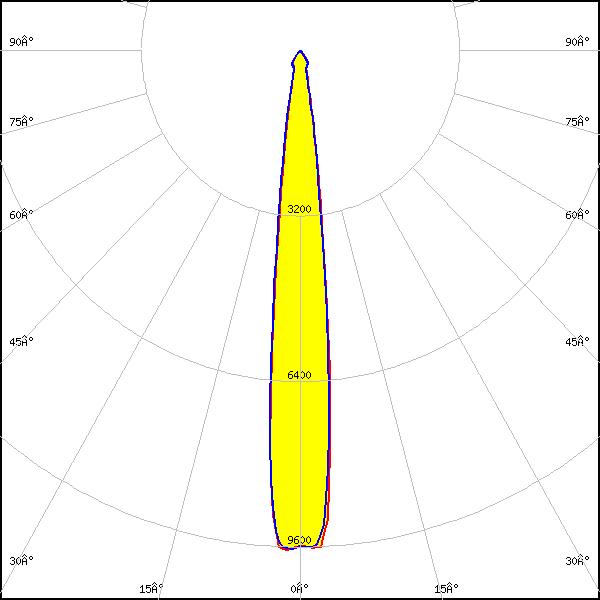

LED: Soleriq S19
LES size: 17.9 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 462 Typ L3
FWHM: 11°
FWTM: 23°
Peak intensity: 11.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

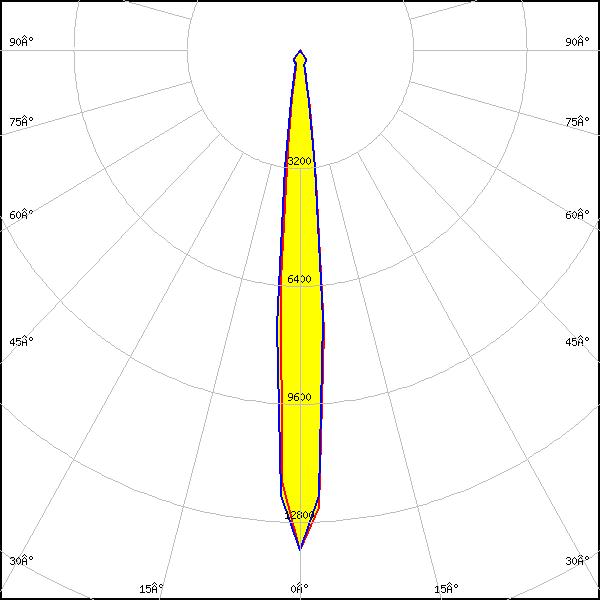

LED: Soleriq S19
LES size: 17.9 mm
Required components:
TE Connectivity: 2213407-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 20°
Peak intensity: 13.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L09 + SLM holder
LES size: 9.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 7°
FWTM: 13°
Peak intensity: 30.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L13 + SLM holder
LES size: 13.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 10°
FWTM: 22°
Peak intensity: 11.000 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L13 + SLM holder
LES size: 13.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 9°
FWTM: 17°
Peak intensity: 17.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

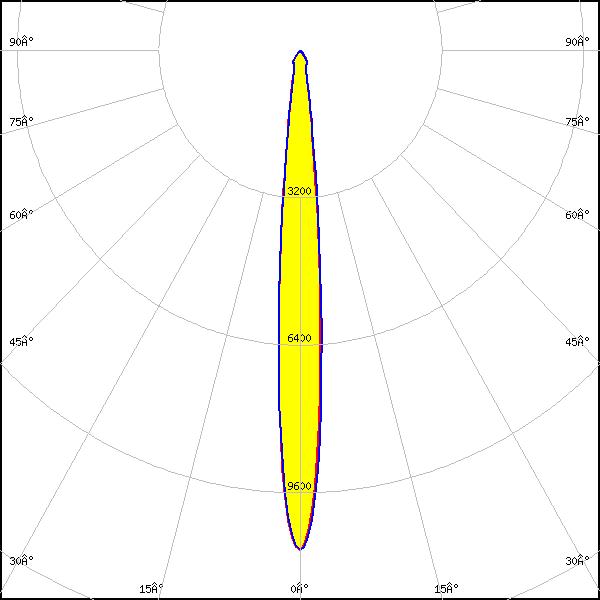

LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 10°
FWTM: 22°
Peak intensity: 11.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

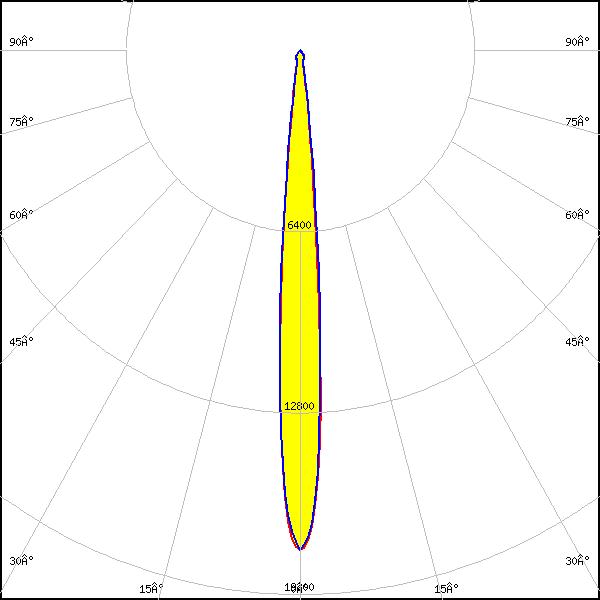

LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 9°
FWTM: 17°
Peak intensity: 17.700 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L15 + SLM holder
LES size: 15.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 20°
Peak intensity: 13.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

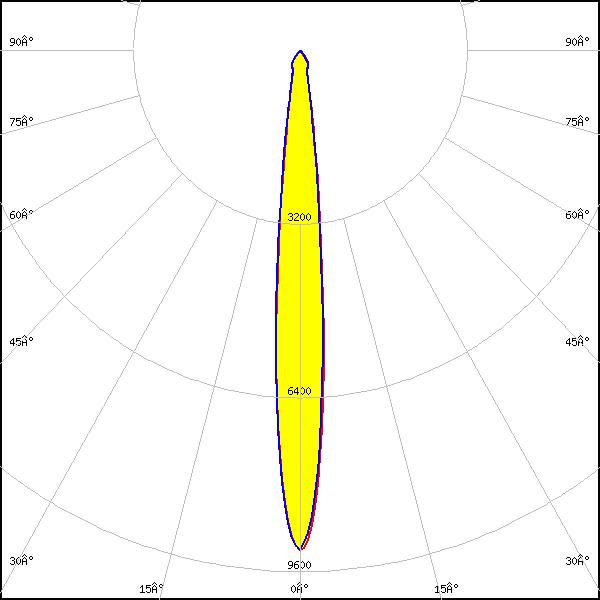

LED: Fortimo SLM L15 + SLM holder
LES size: 15.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 11°
FWTM: 25°
Peak intensity: 9.200 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 11°
FWTM: 24°
Peak intensity: 9.700 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

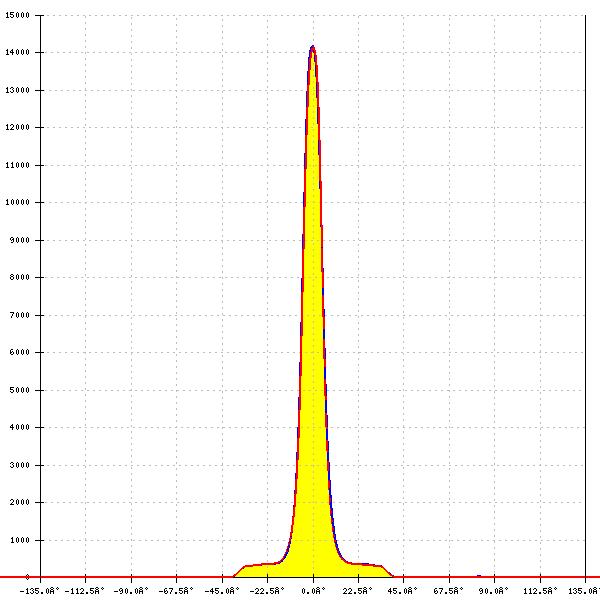

LED: Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
TE Connectivity: 2213130-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 20°
Peak intensity: 14.200 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L19 + SLM holder
LES size: 19.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 13°
FWTM: 31°
Peak intensity: 6.800 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L19 + SLM holder
LES size: 19.0 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 13°
FWTM: 25°
Peak intensity: 9.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

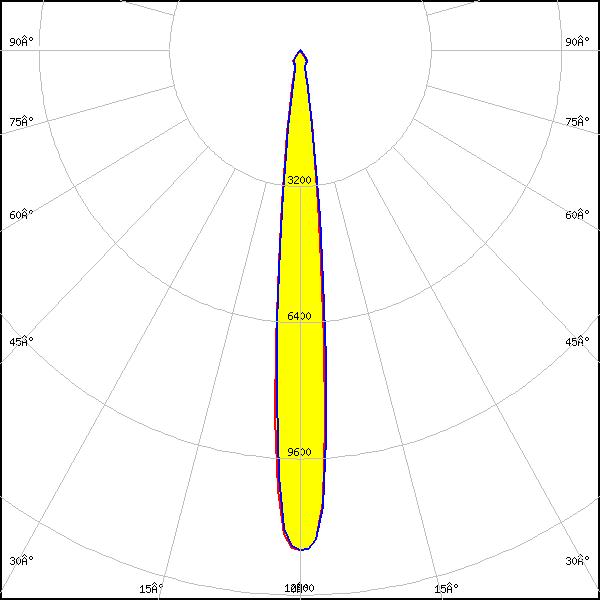

LED: LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
TE Connectivity: 2213258-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 11°
FWTM: 22°
Peak intensity: 11.750 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 450 Typ L2
FWHM: 11°
FWTM: 21°
Peak intensity: 10.700 cd/lm
Efficiency: 8 %
LEDs/each optic: 1
Light colour/type: White
LED: LC035T (Tunable white)
LES size: 22.0 mm
Required components:
FWHM: 15°
FWTM: 35°
Peak intensity: 5.895 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White

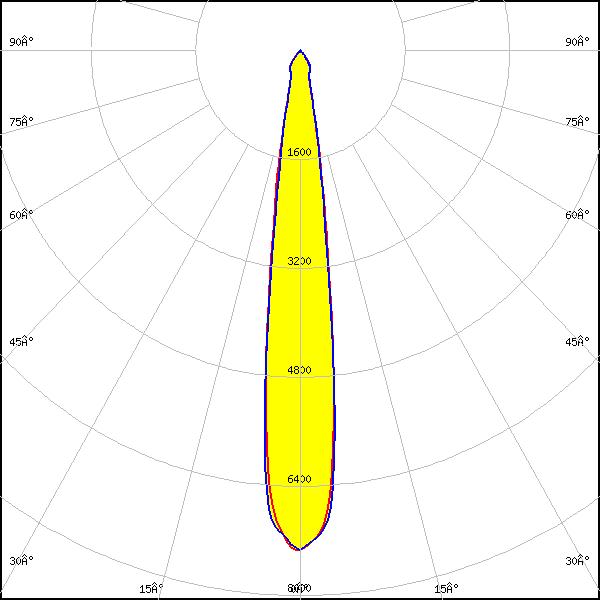

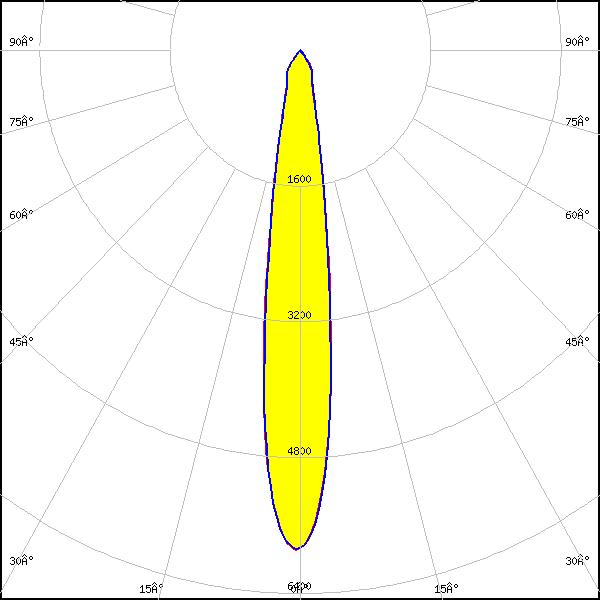

LED: LC035T (Tunable white)
LES size: 22.0 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 502 Typ L3
FWHM: 15°
FWTM: 30°
Peak intensity: 7.342 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Tunable White

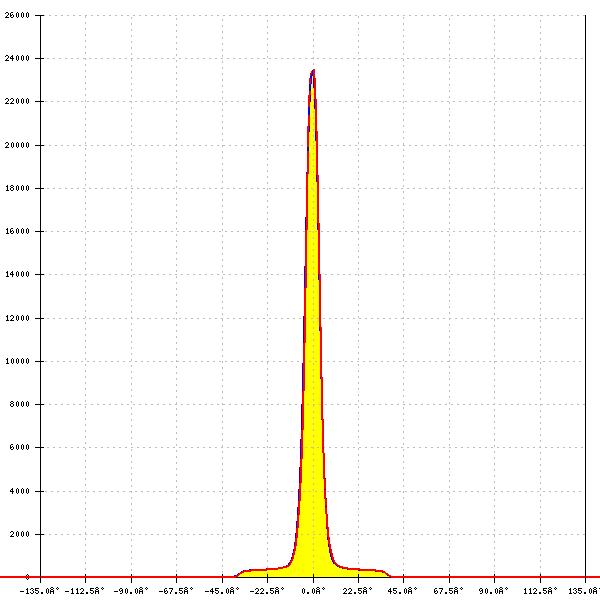

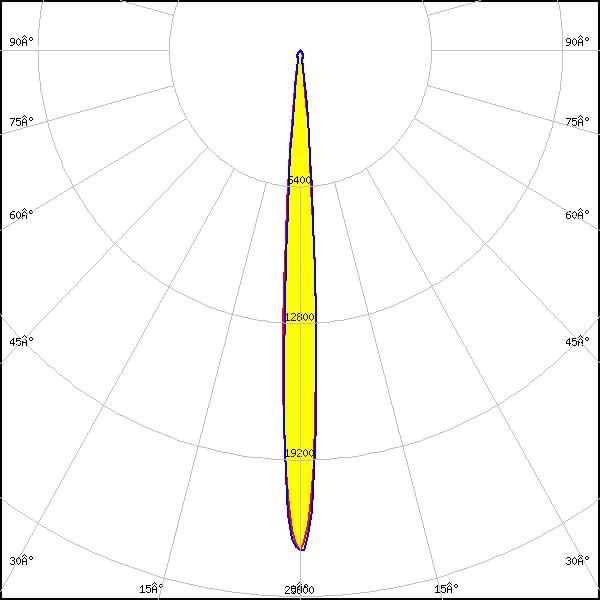

LED: LC040C
LES size: 11.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 7°
FWTM: 15°
Peak intensity: 23.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

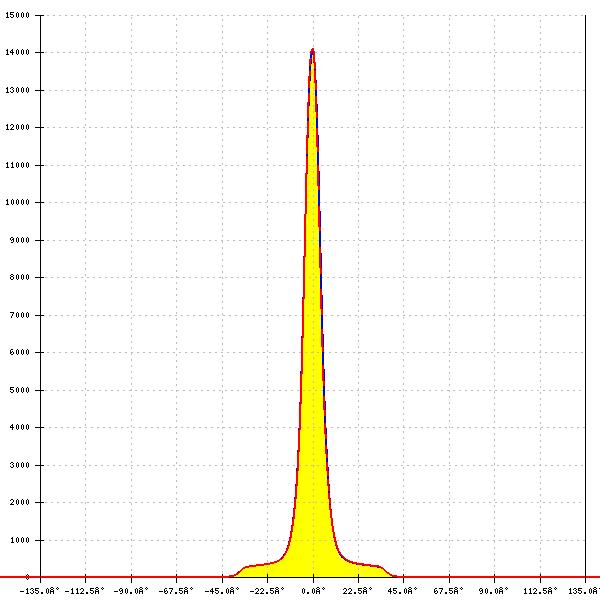

LED: LC040C
LES size: 11.0 mm
Required components:
TE Connectivity: 2213382-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 9°
FWTM: 19°
Peak intensity: 14.000 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

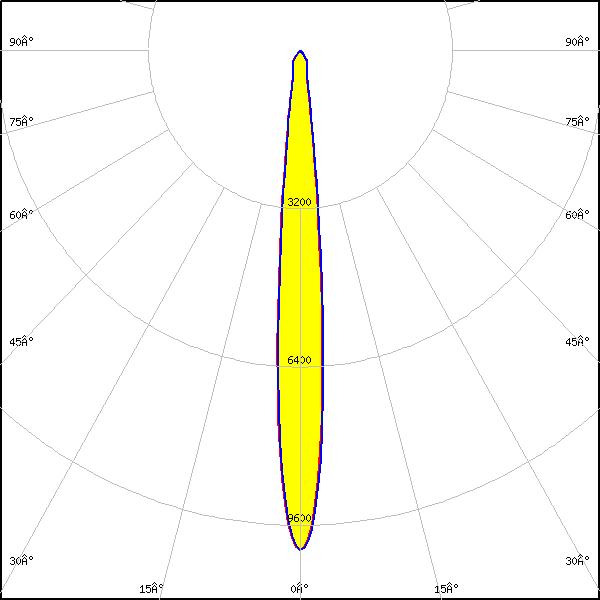

LED: AC Zhaga COB
LES size: 14.5 mm
Required components:
Optosource: SEHSMJD-A
F13671_ANGE-RZ-LENS
FWHM: 10°
FWTM: 23°
Peak intensity: 10.100 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

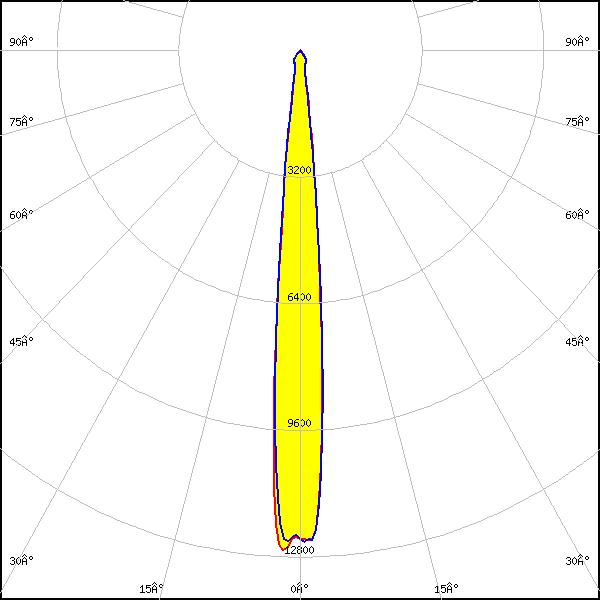

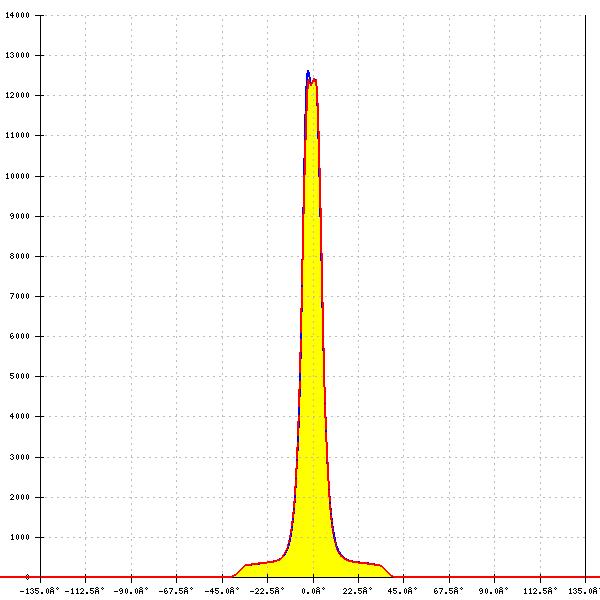

LED: MJT COB LES 14.5
LES size: 14.5 mm
Required components:
TE Connectivity: 2213254-2
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 10°
FWTM: 20°
Peak intensity: 12.600 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 22
LES size: 22.0 mm
Required components:
C13584_CLAMP-VERO29
Bender Wirth: 431 Typ L3
FWHM: 14°
FWTM: 31°
Peak intensity: 6.600 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC12/18
LES size: 14.6 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 10°
FWTM: 18°
Peak intensity: 15.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC4/6
LES size: 8.6 mm
Required components:
C13658_CLAMP-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 6°
FWTM: 12°
Peak intensity: 34.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE G7 LES13
LES size: 13.0 mm
Required components:
Bender Wirth: 633c 3Hook
FWHM: 12°
FWTM: 22°
Peak intensity: 12.496 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: WU-M-461
LES size: 14.9 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 9°
FWTM: 17°
Peak intensity: 18.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

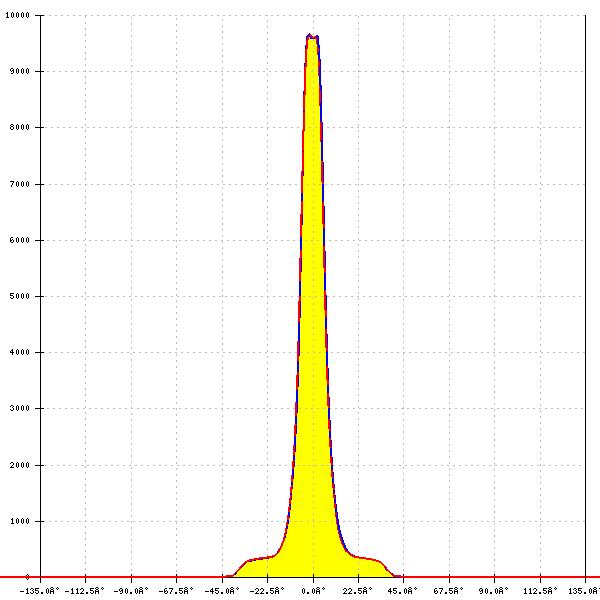

LED: WU-M-462
LES size: 20.6 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 13°
FWTM: 25°
Peak intensity: 9.680 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

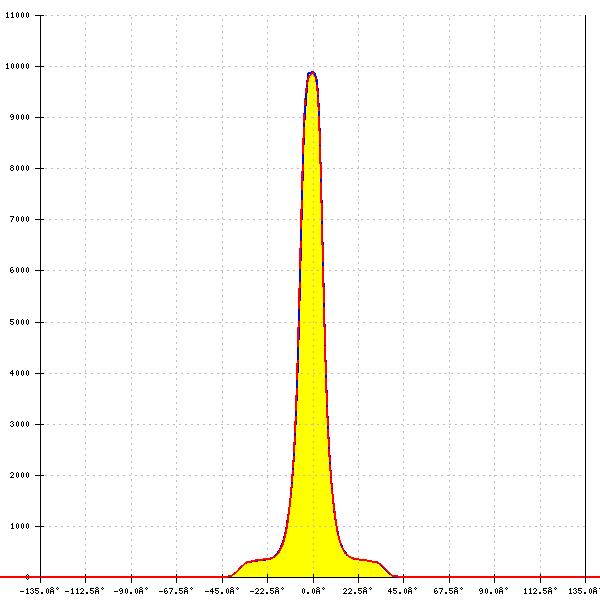

LED: WU-M-464
LES size: 20.6 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 12°
FWTM: 24°
Peak intensity: 9.910 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: WU-M-484
LES size: 14.9 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 9°
FWTM: 17°
Peak intensity: 17.900 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

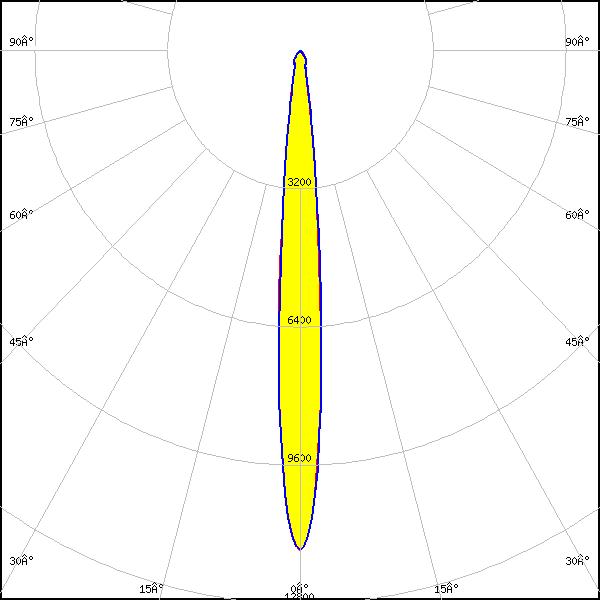

LED: WU-M-484
LES size: 14.9 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
F13671_ANGE-RZ-LENS
FWHM: 10°
FWTM: 22°
Peak intensity: 12.000 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: WU-M-485
LES size: 20.6 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 13°
FWTM: 25°
Peak intensity: 9.530 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: WU-M-486
LES size: 20.6 mm
Required components:
TE Connectivity: OPTIC CLIP Z50 TYPE1 2213194-1
FWHM: 13°
FWTM: 25°
Peak intensity: 9.600 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
