    F13662_ANGELA-S-B

    Print

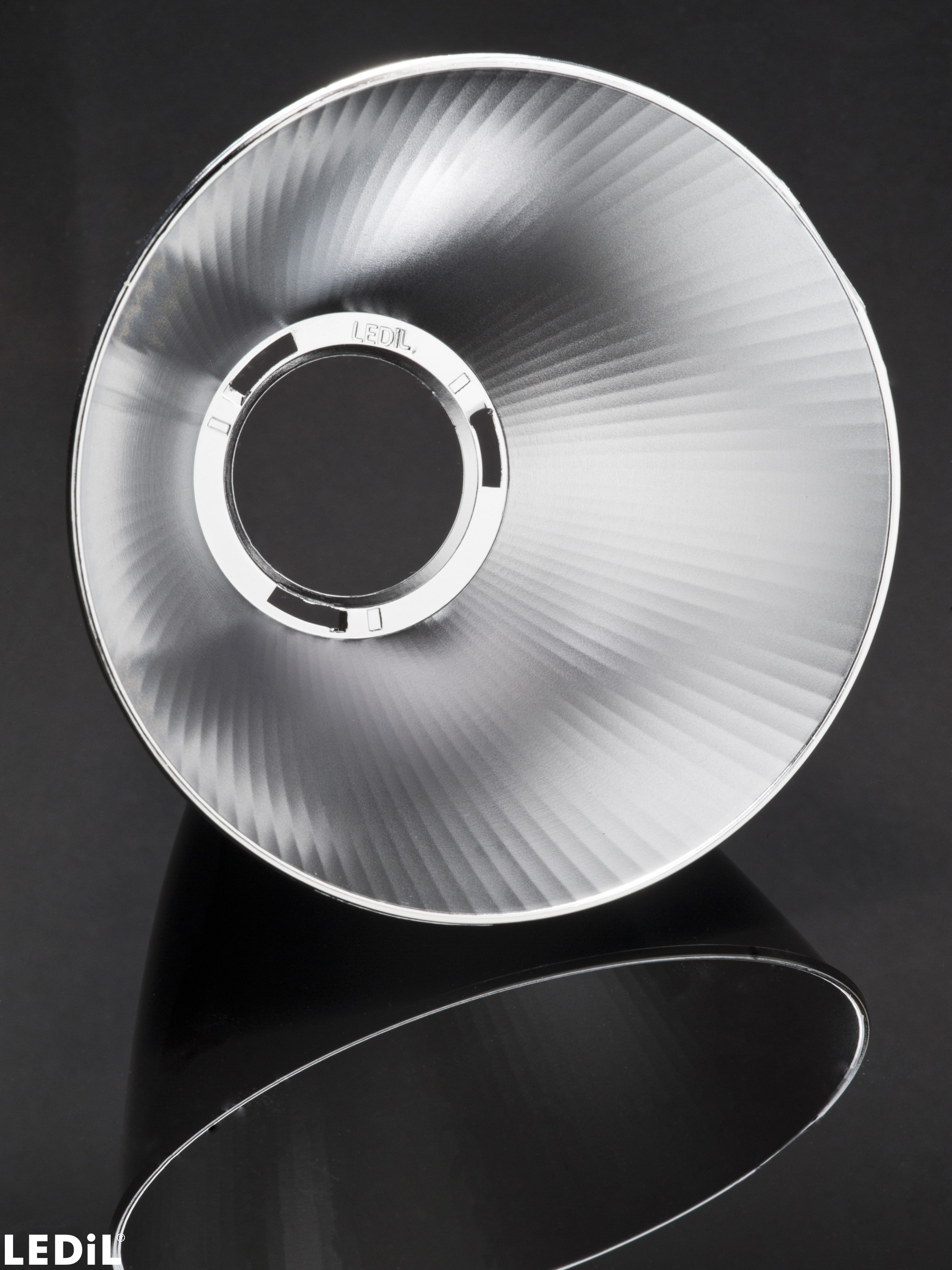

    ~10° spot beam compatible with BJB connectors

    Specification
    • Dimensions:
      120 mm
    • Height:
      74.5 mm
    • Fastening:
      socket
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • PC

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      180 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      8.6 kg
    • MPQ:
      45 pcs
    • MOQ:
      90 pcs
    • MOQ size:
      480 x 280 x 140 mm
    • MOQ weight:
      4.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
       Subscribe to LEDiL Newsletters
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F13662_ANGELA-S-B

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    Installation Guide

    General Installation Guide

    Application guide

    Guide_for_Retal_Lighting_Optics_v.1.4_2020_WEB

    Compatibility document

    B+W 630 Bayonet50 datasheet

    Case story

    Outstanding illumination of the Buenos Aires Argentina Temple of The Church of Jesus Christ of Latter-Day Saints

    Case story

    Korean bridge lighting spectacular

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    PRODUCT NEWS - SYSTEM REFLECTORS

    PCN

    Product change notification NR128.e - Change of packaging quantities 241016

    Application area

    Indoor Architectural Lighting

    Compatibility guide

    LEDiL System Reflector Compatibility Guide

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    F13671_ANGE-RZ-LENS

    Colour mixing sublens for ANGELA, ANGELINA and ANGELETTE

    C15743_XTM-ADAPTER-50-B

    ∅50 mm basepart for Xicato XTM/XIM modules compatible with HEKLA (∅30 mm) and B-type reflectors (∅50 mm) interfaces.

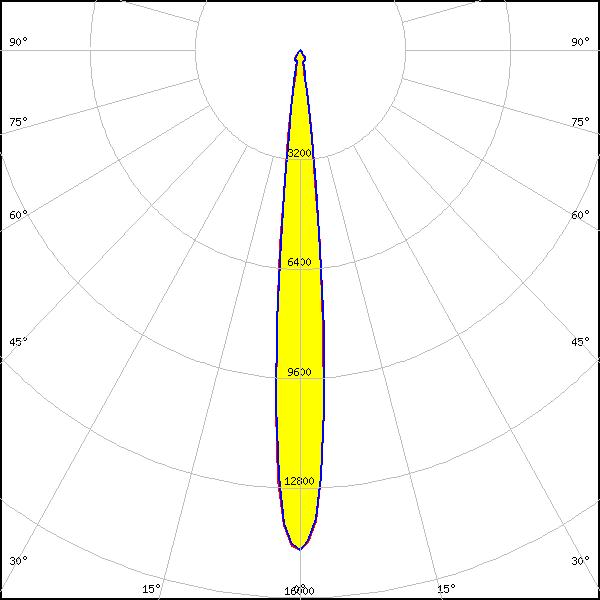

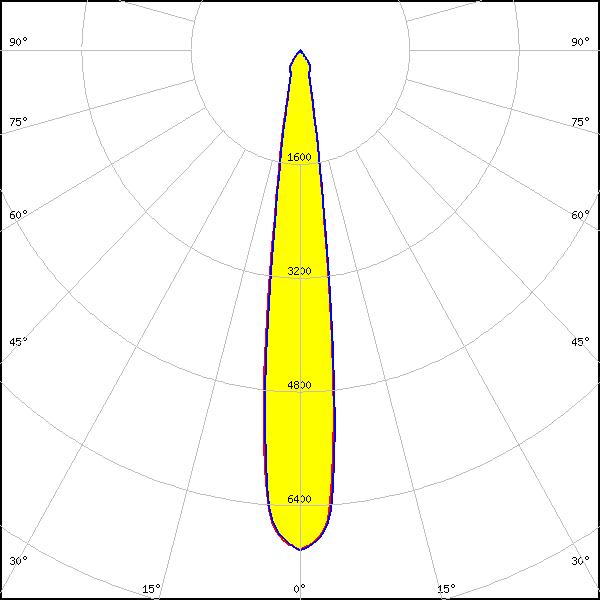

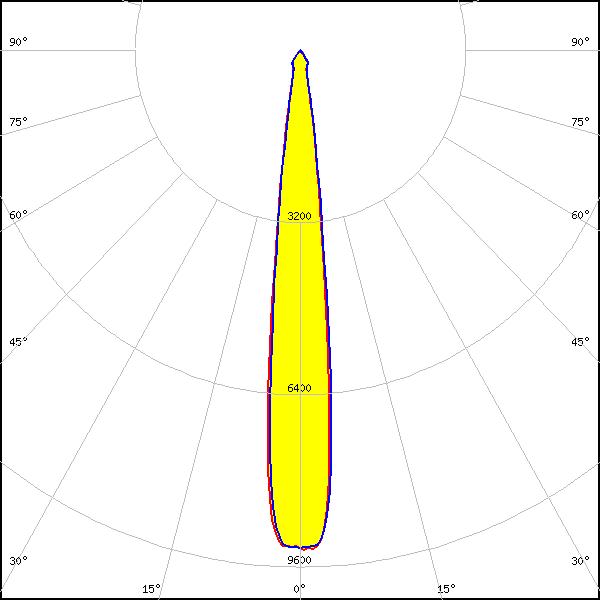

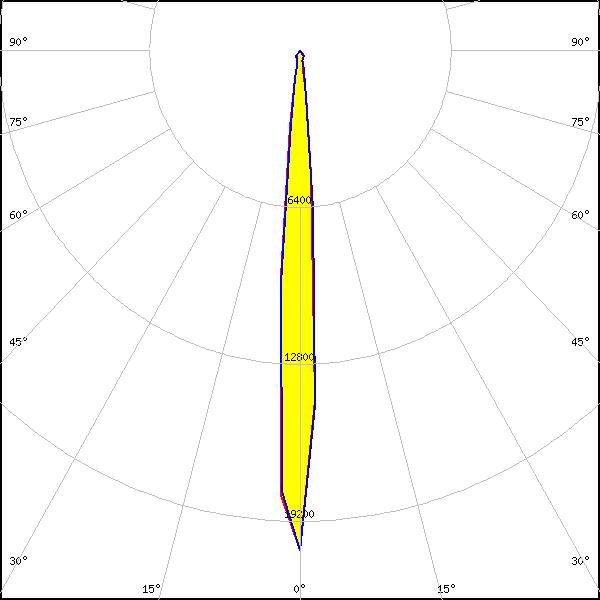

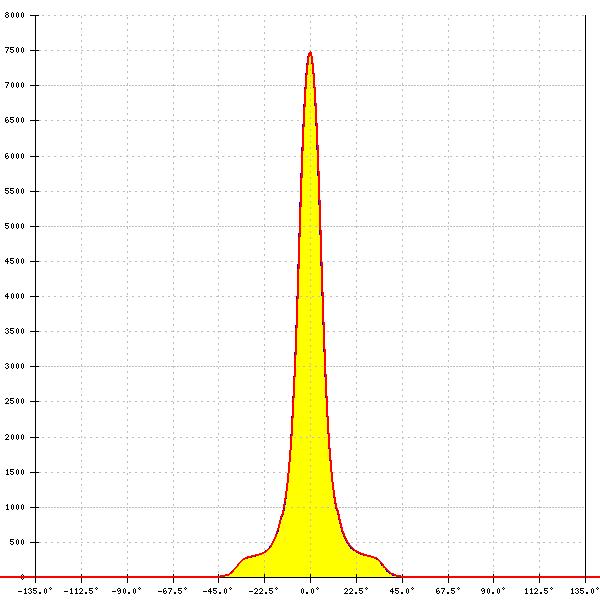

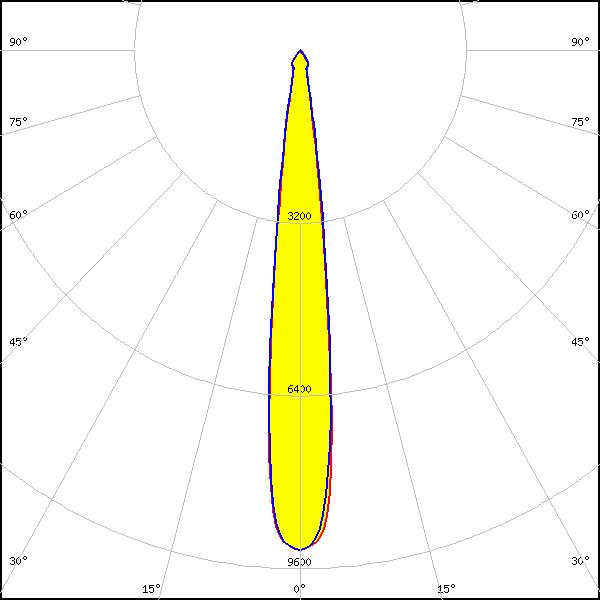

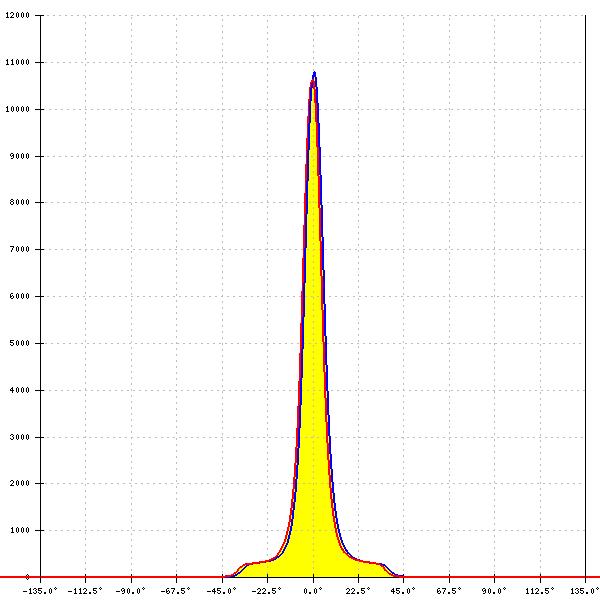

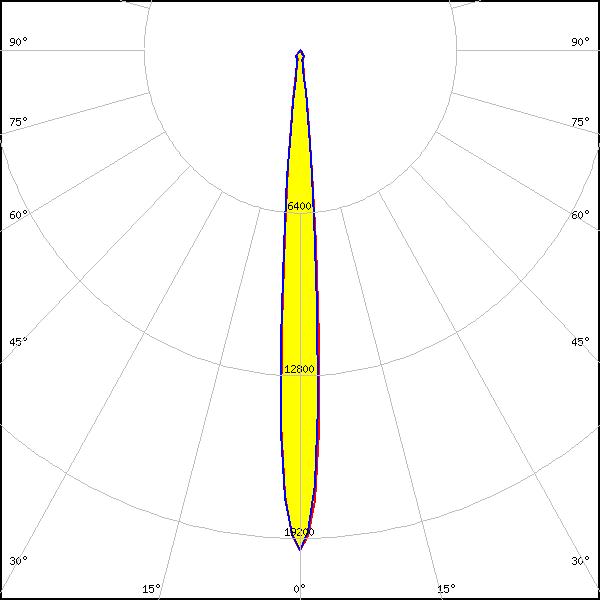

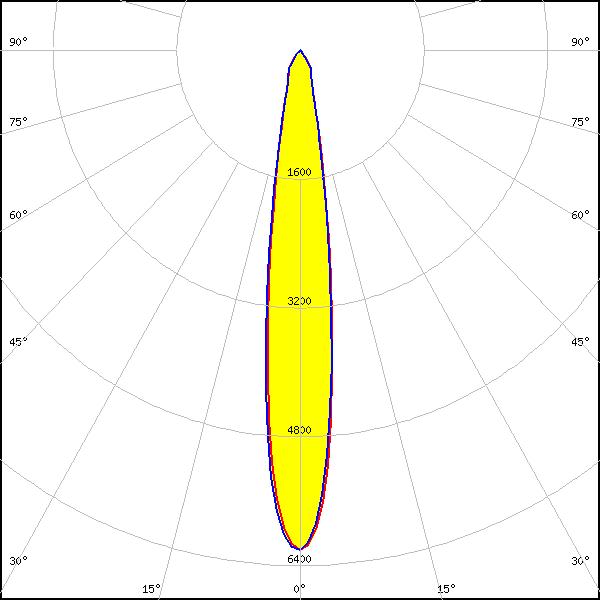

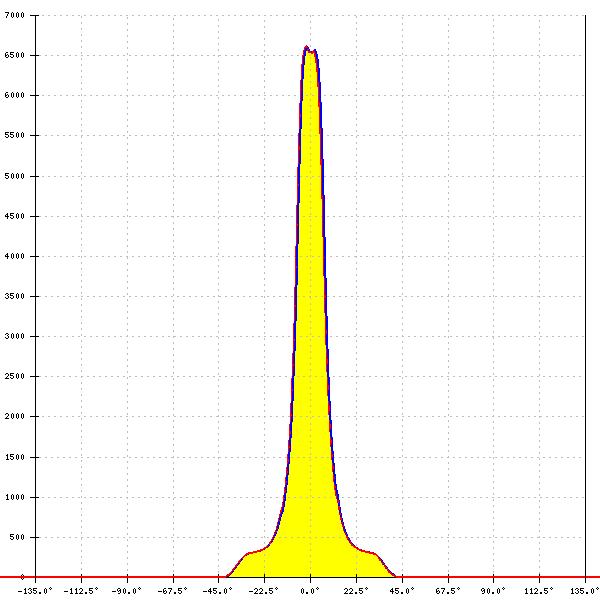

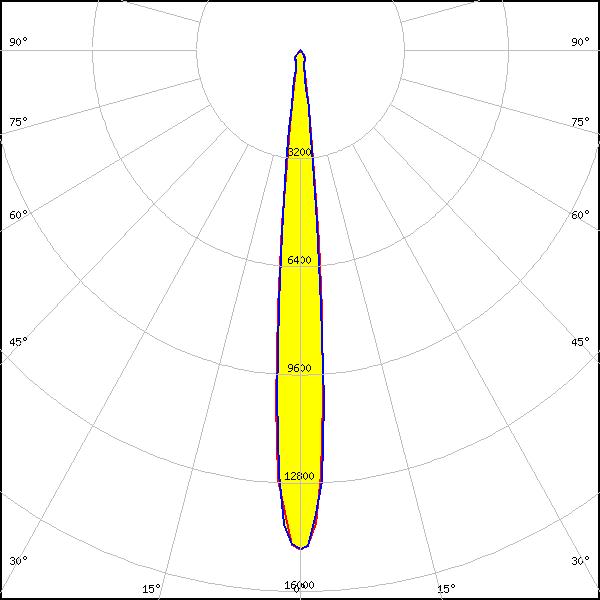

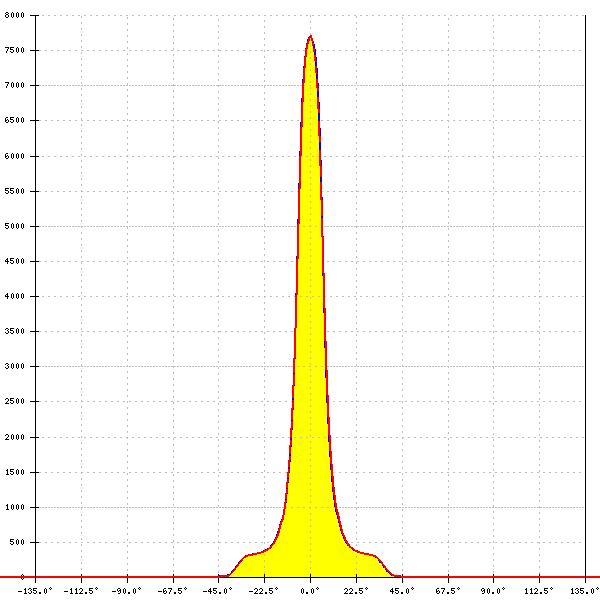

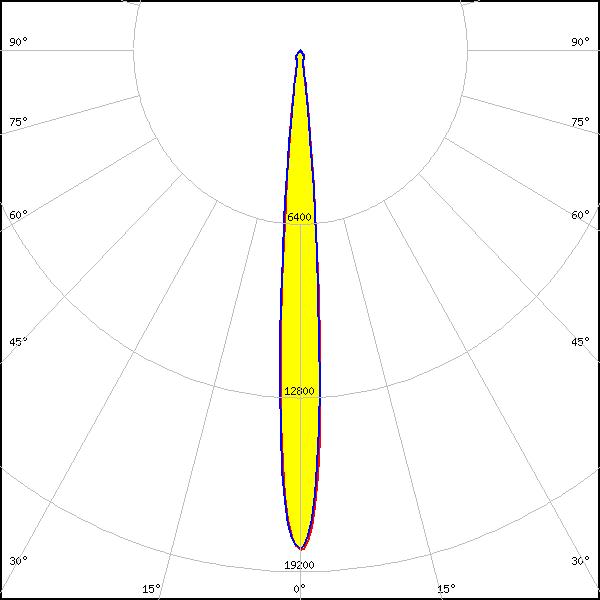

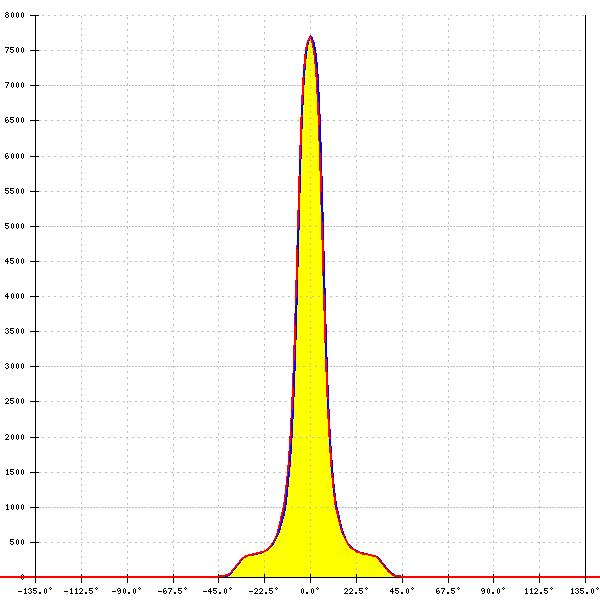

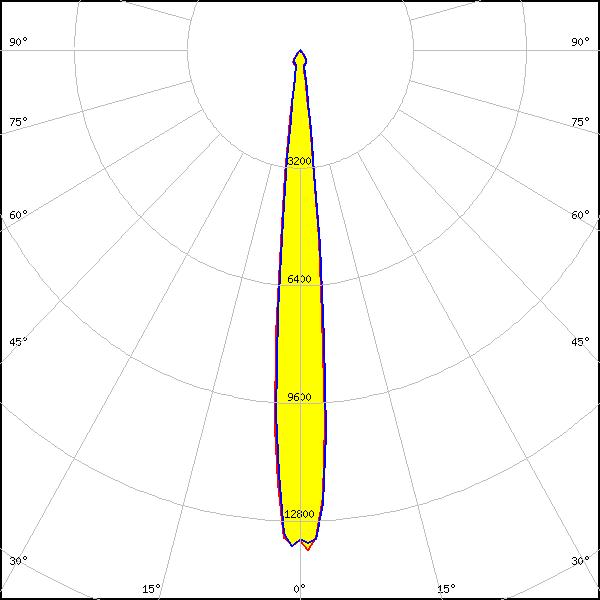

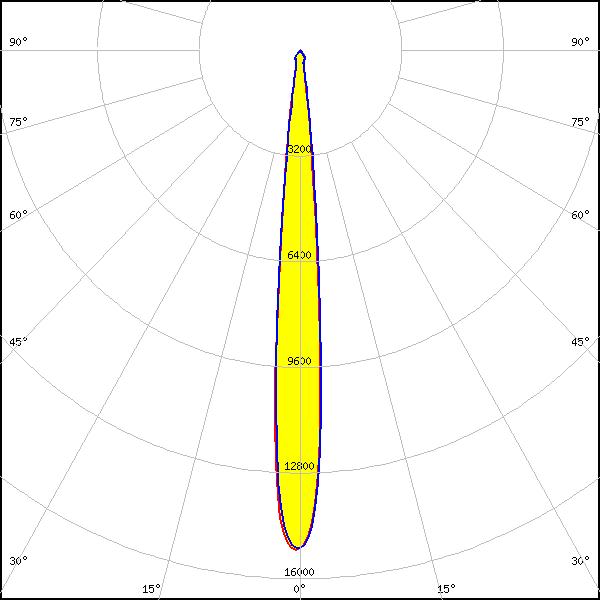

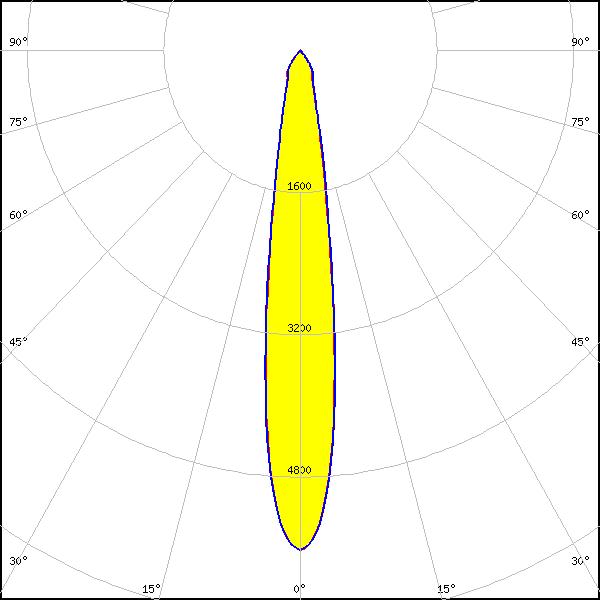

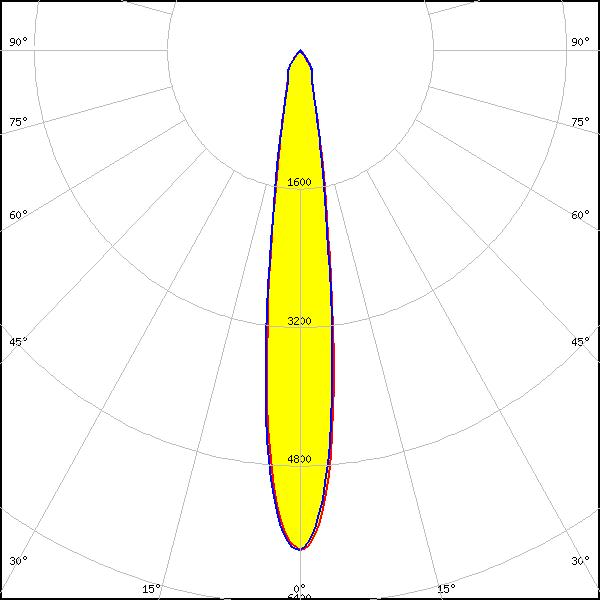

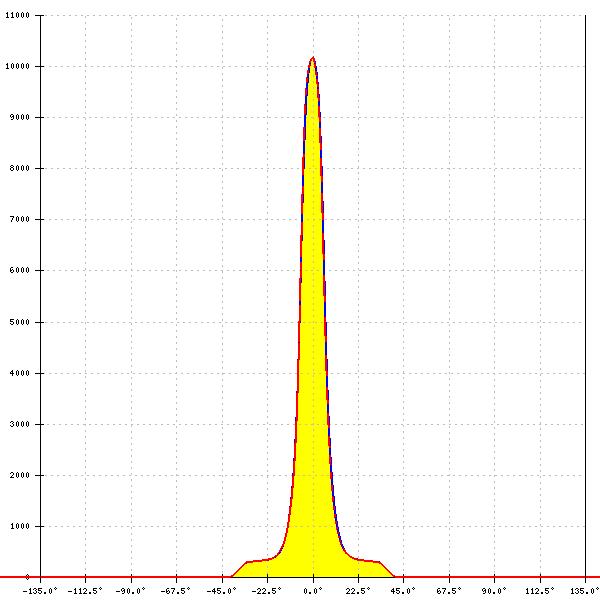

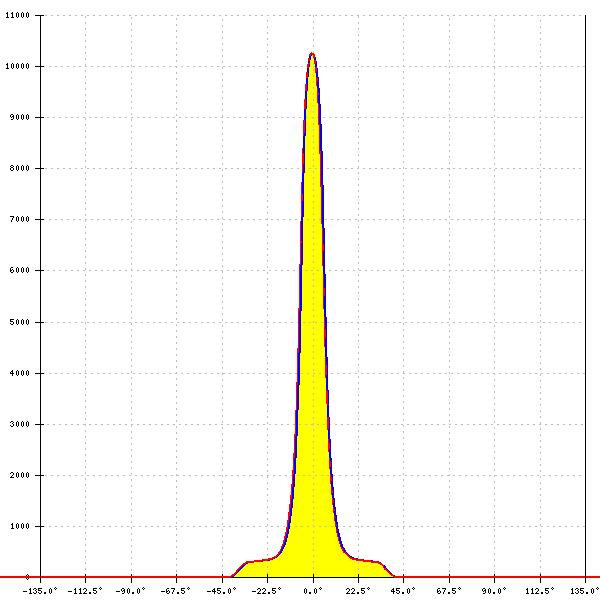

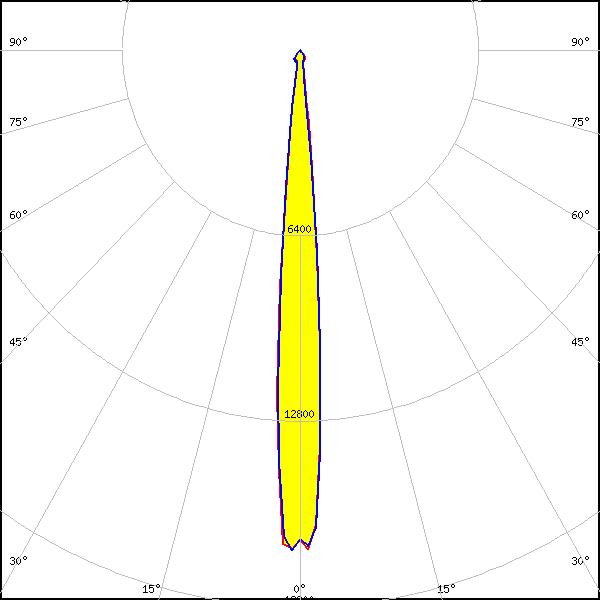

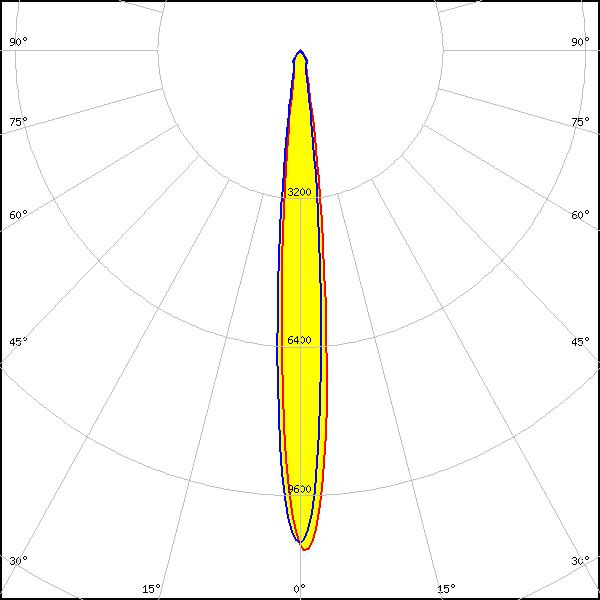

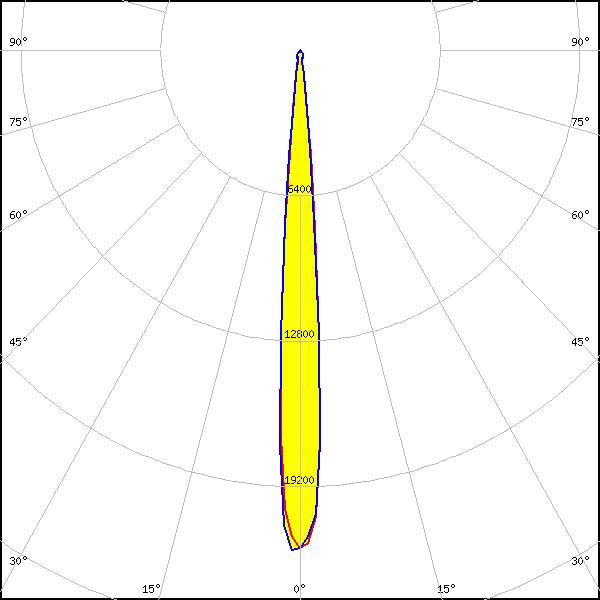

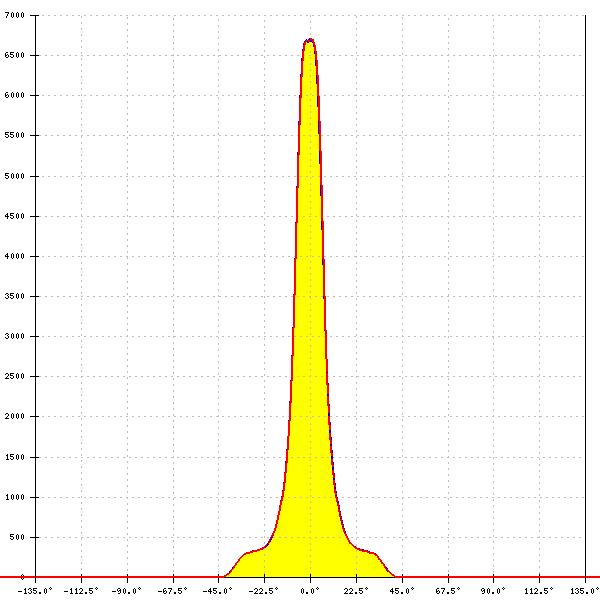

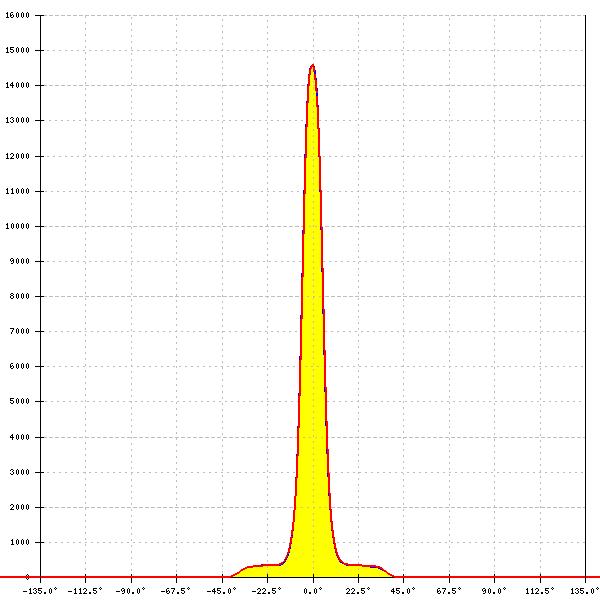

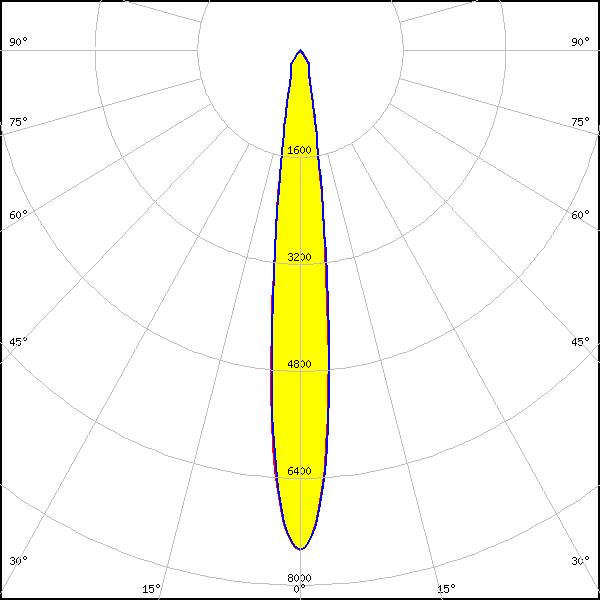

    Optical results

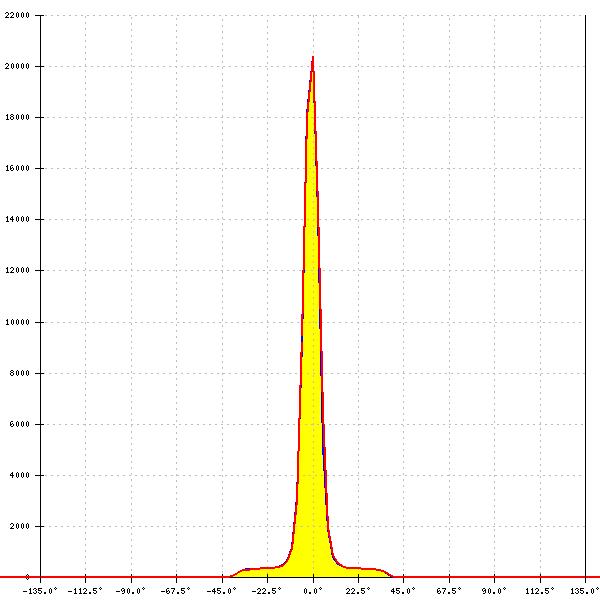

    LED: BXRA ES Rectangle
    Required components:
    BJB: 47.319.2040
    FWHM: 8°
    Peak intensity: 20.7 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

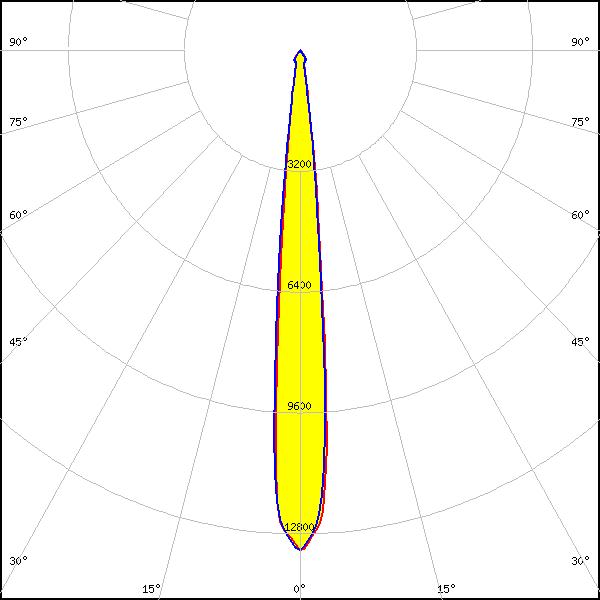

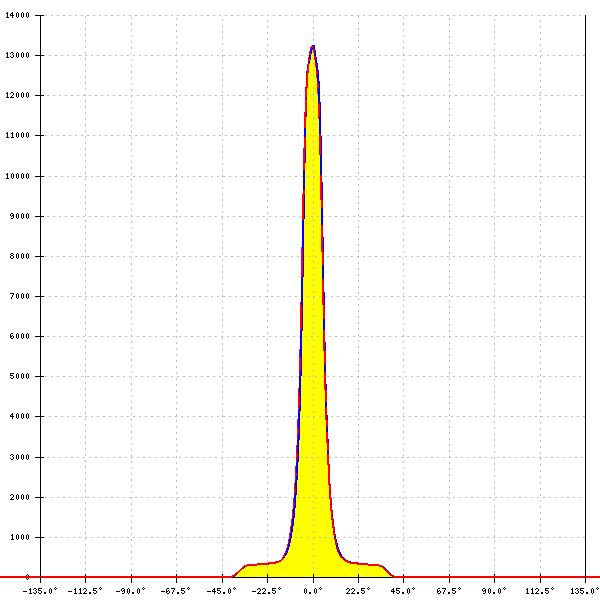

    LED: V15 Gen6
    Required components:
    BJB: 47.319.2224
    FWHM: 11°
    Peak intensity: 13.0 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

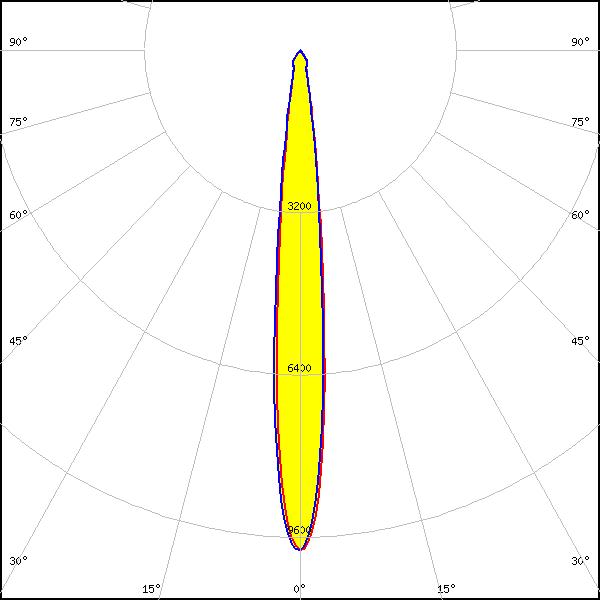

    LED: V15 Gen6
    Required components:
    BJB: 47.319.2274
    F13671_ANGE-RZ-LENS
    FWHM: 11°
    Peak intensity: 9.9 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

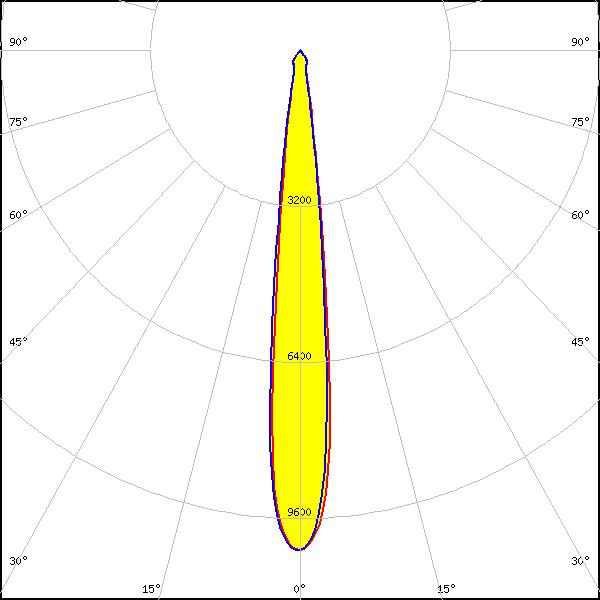

    LED: V18 Gen6
    Required components:
    BJB: 47.319.2274
    FWHM: 12°
    Peak intensity: 10.0 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White
    LED: V18 Gen6
    Required components:
    BJB: 47.319.2274
    F13671_ANGE-RZ-LENS
    FWHM: 13°
    Peak intensity: 8.2 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

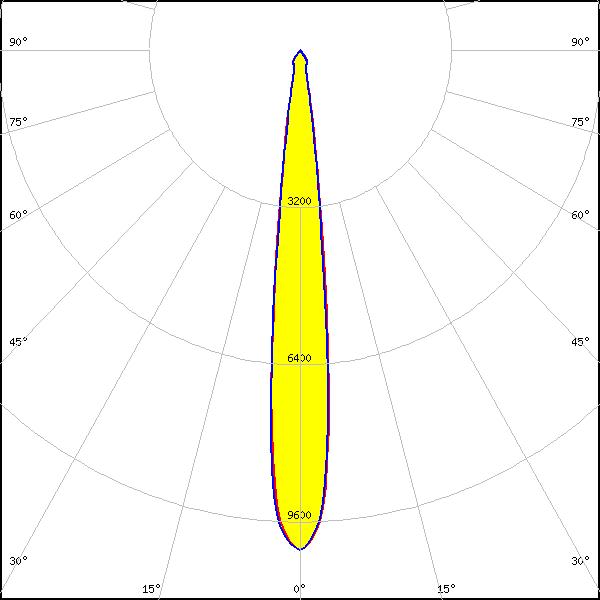

    LED: V18 Gen7
    Required components:
    BJB: 47.319.2350
    FWHM: 12°
    Peak intensity: 10.2 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White
    LED: V22 Gen6
    Required components:
    A.A.G. STUCCHI: 8102/G2
    F13671_ANGE-RZ-LENS
    FWHM: 15°
    Peak intensity: 5.8 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour: White

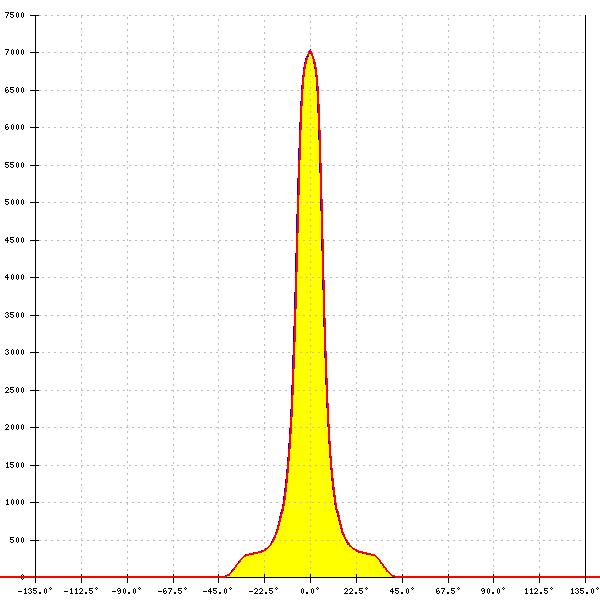

    LED: V22 Gen6
    Required components:
    A.A.G. STUCCHI: 8102/G2
    FWHM: 15°
    Peak intensity: 7.0 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White

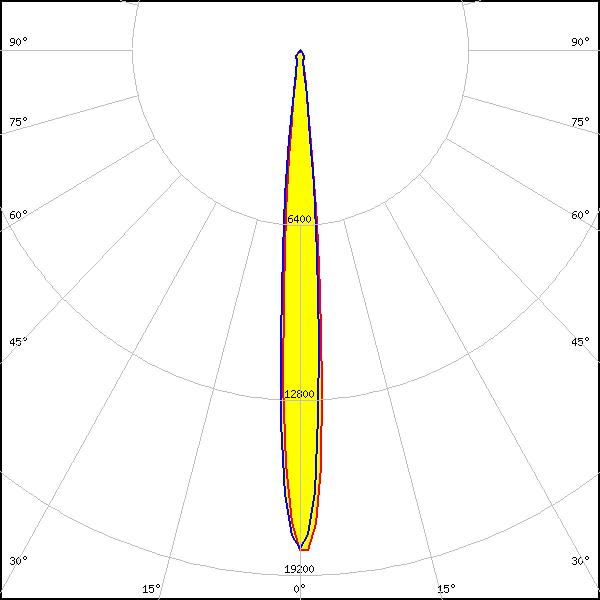

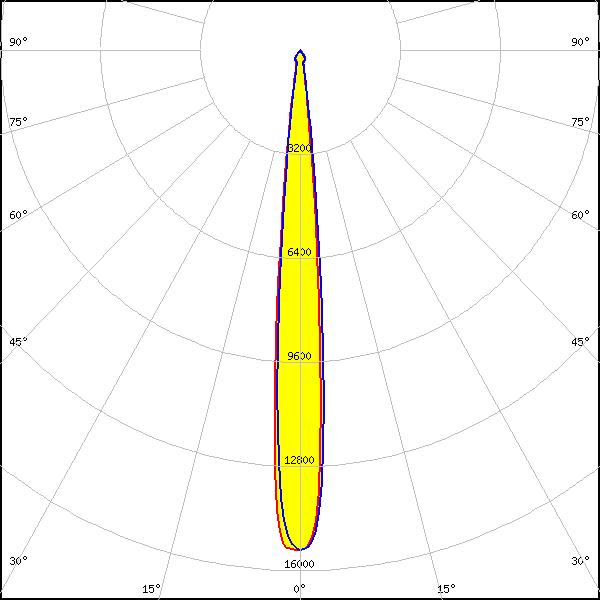

    LED: CLL03x/CLU03x
    Required components:
    A.A.G. STUCCHI: 8101/G2
    FWHM: 10°
    Peak intensity: 15.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White
    LED: CLL03x/CLU03x
    Required components:
    BJB: 47.319.2021
    FWHM: 9°
    Peak intensity: 18.3 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White
    LED: CLL03x/CLU03x
    Required components:
    A.A.G. STUCCHI: 8101/G2
    F13671_ANGE-RZ-LENS
    FWHM: 10°
    Peak intensity: 10.8 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

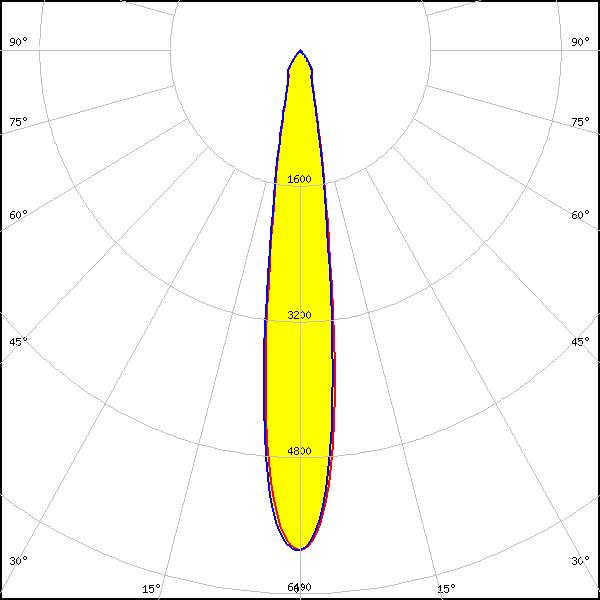

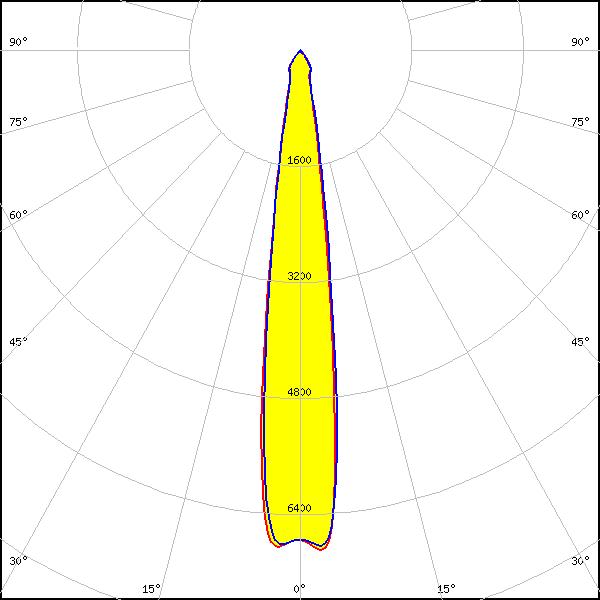

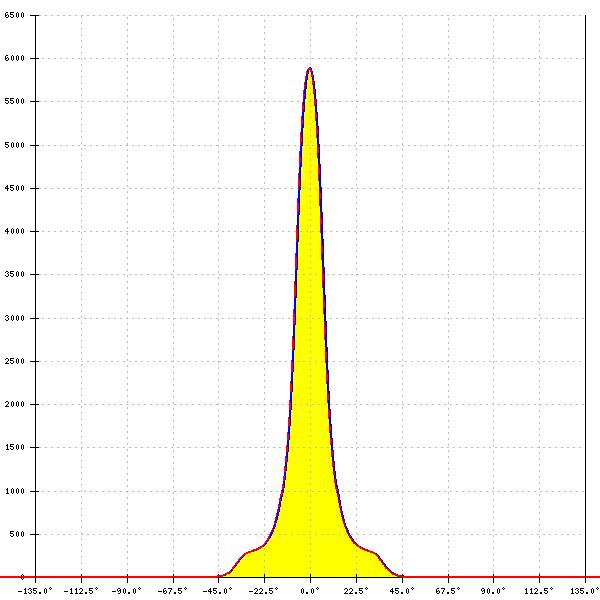

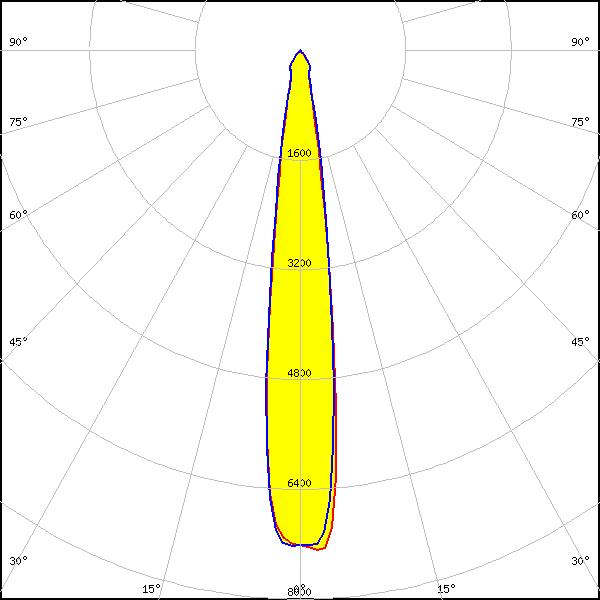

    LED: CLL04x/CLU04x
    Required components:
    A.A.G. STUCCHI: 8102/G2
    F13671_ANGE-RZ-LENS
    FWHM: 15°
    Peak intensity: 5.9 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

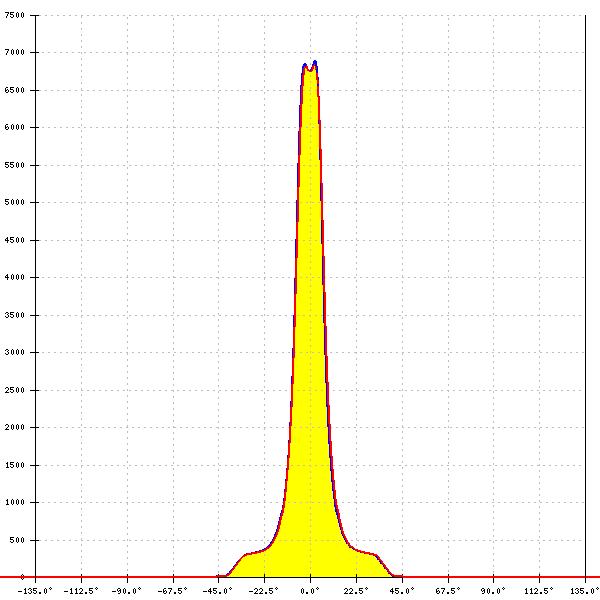

    LED: CLL04x/CLU04x
    Required components:
    A.A.G. STUCCHI: 8102/G2
    FWHM: 15°
    Peak intensity: 6.9 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

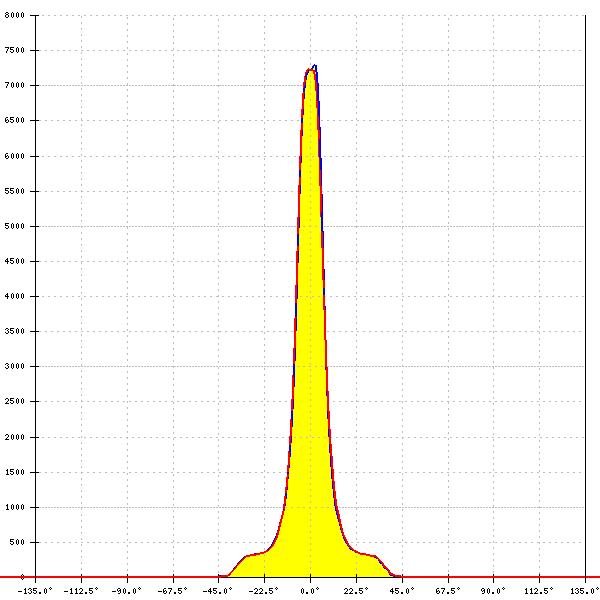

    LED: CLL04x/CLU04x
    Required components:
    BJB: 47.319.2030
    FWHM: 15°
    Peak intensity: 7.3 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

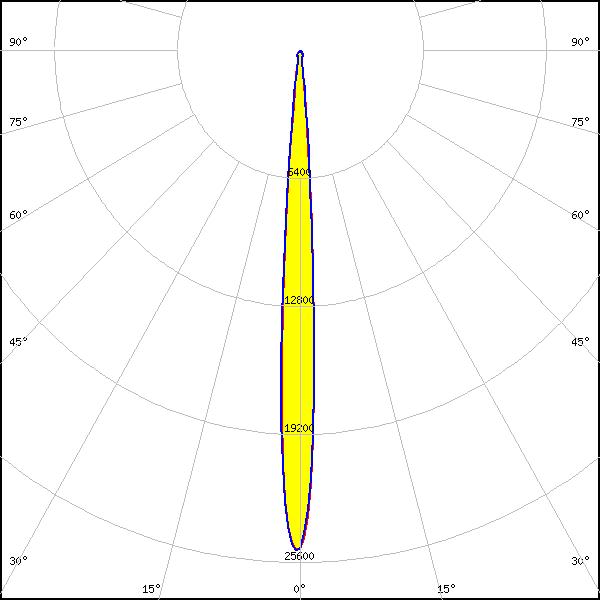

    LED: CLU720/721
    Required components:
    BJB: 47.319.2021
    FWHM: 7°
    Peak intensity: 25.3 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

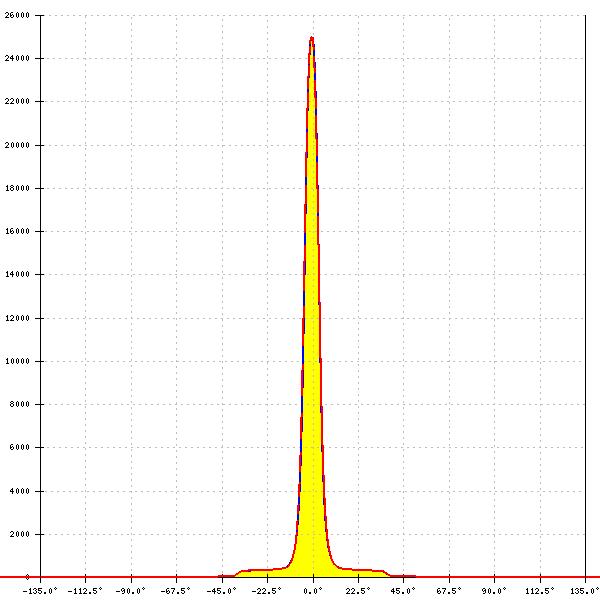

    LED: CLU720/721
    Required components:
    A.A.G. STUCCHI: 8101/G2
    FWHM: 7°
    Peak intensity: 25.0 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

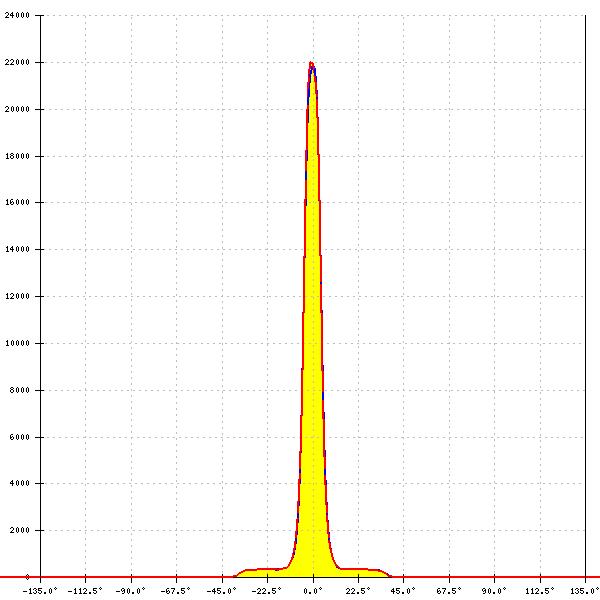

    LED: CLU730/731
    Required components:
    BJB: 47.319.2030
    FWHM: 9°
    Peak intensity: 22.2 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White
    LED: CXA/B 25xx
    Required components:
    BJB: 47.319.2141
    F13671_ANGE-RZ-LENS
    FWHM: 13°
    Peak intensity: 7.5 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White
    LED: CXA/B 25xx
    Required components:
    BJB: 47.319.2141
    FWHM: 13°
    Peak intensity: 9.3 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White

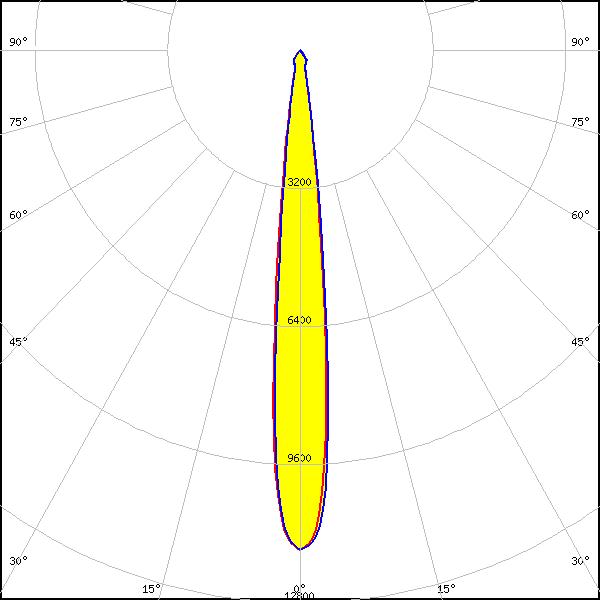

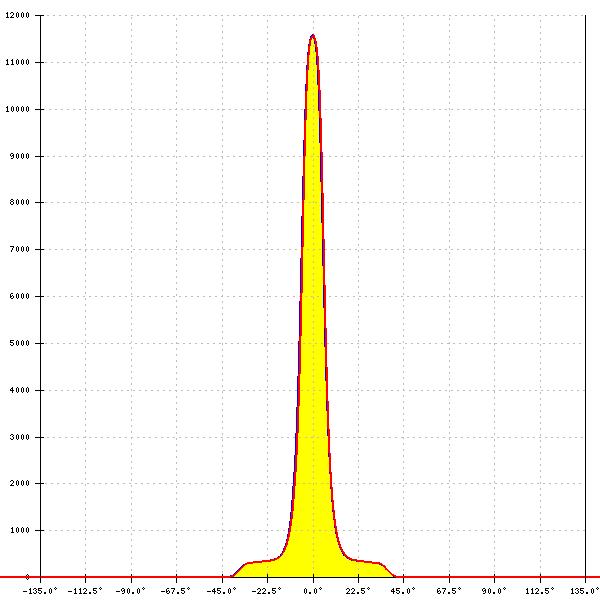

    LED: CXA/B 25xx
    Required components:
    A.A.G. STUCCHI: 8401/G2
    FWHM: 11°
    Peak intensity: 11.6 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

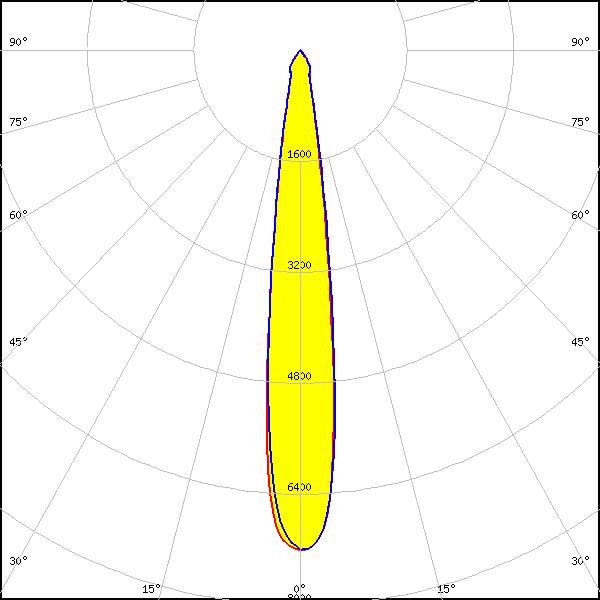

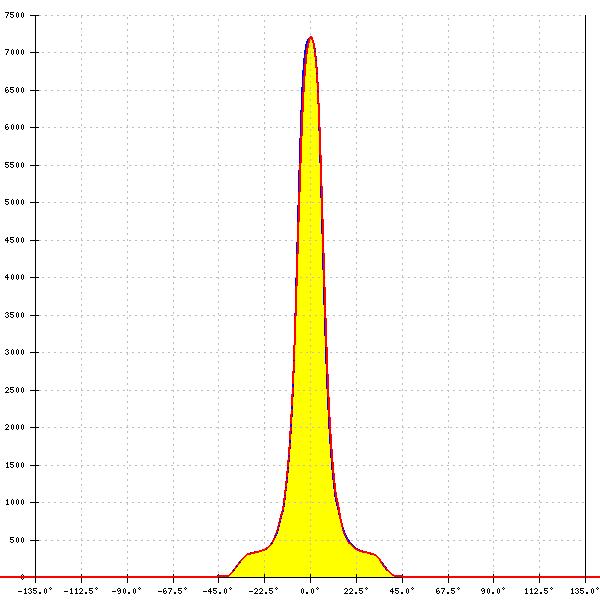

    LED: CXA/B 30xx
    Required components:
    A.A.G. STUCCHI: 8404/G2
    FWHM: 15°
    Peak intensity: 7.2 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

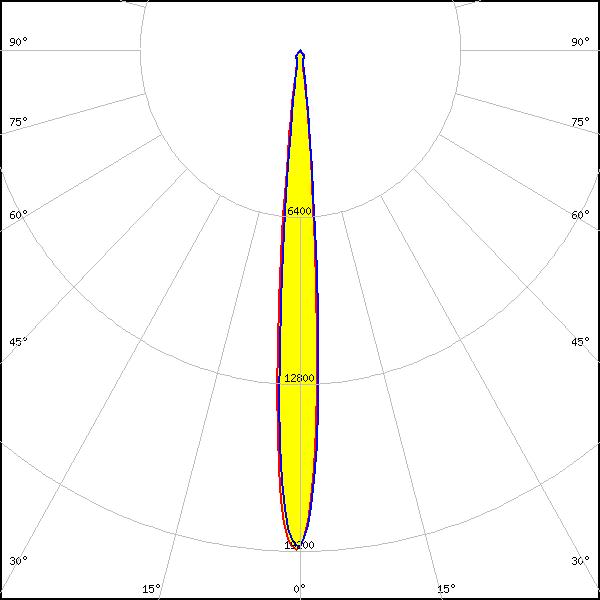

    LED: LUXEON CoB 1204/1205
    Required components:
    A.A.G. STUCCHI: 8301/G2
    FWHM: 9°
    Peak intensity: 19.2 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

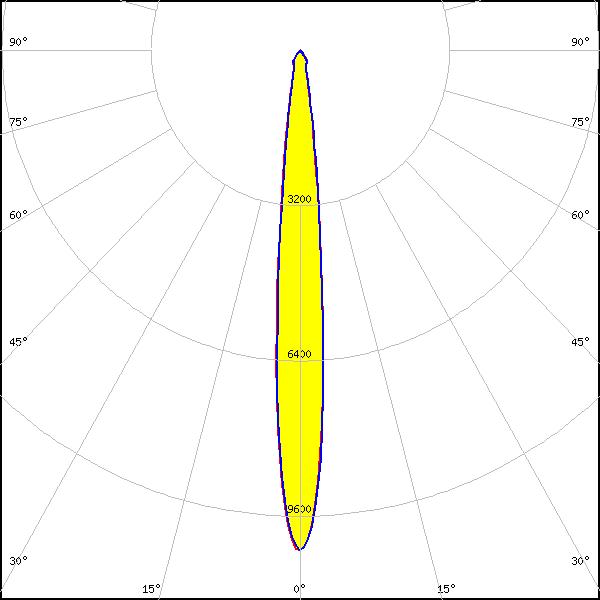

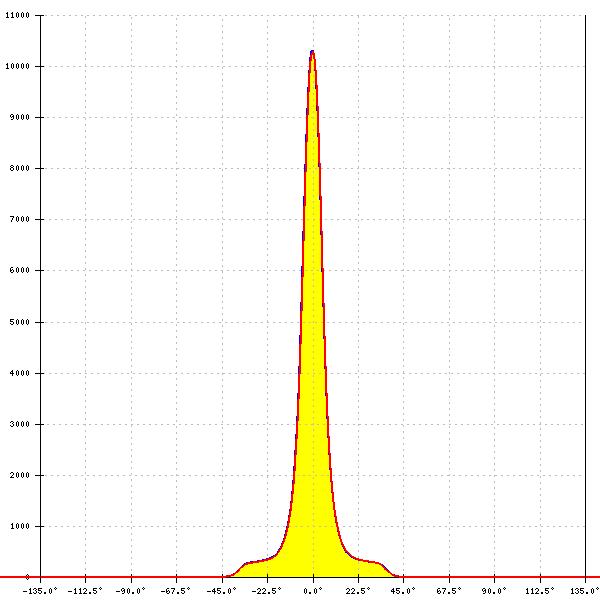

    LED: LUXEON CoB 1208
    Required components:
    A.A.G. STUCCHI: 8301/G2
    F13671_ANGE-RZ-LENS
    FWHM: 11°
    Peak intensity: 10.0 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White
    LED: LUXEON CoB 1208
    Required components:
    A.A.G. STUCCHI: 8301/G2
    FWHM: 10°
    Peak intensity: 14.8 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

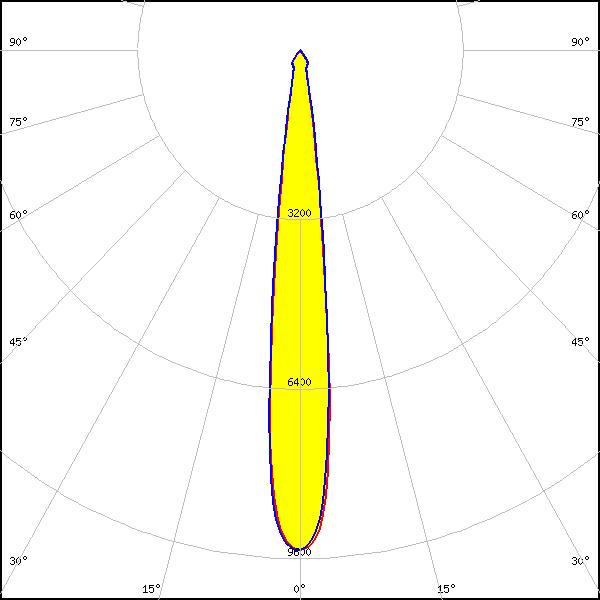

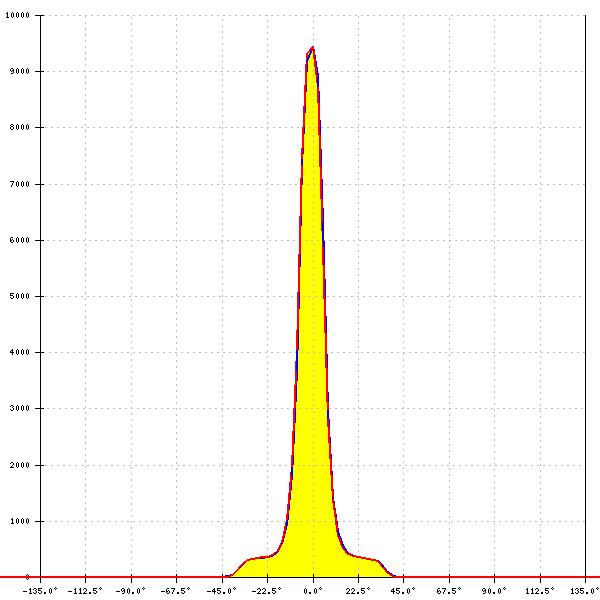

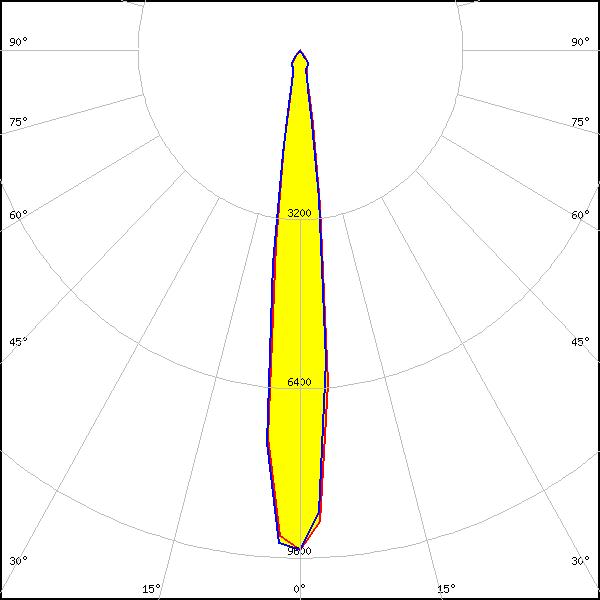

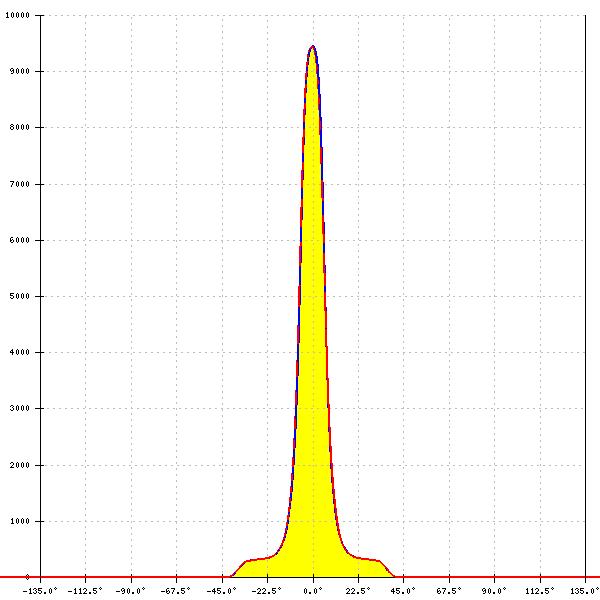

    LED: LUXEON CoB 1211
    Required components:
    BJB: 47.319.2030
    FWHM: 13°
    Peak intensity: 9.4 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White
    LED: LUXEON CoB 1211
    Required components:
    A.A.G. STUCCHI: 8102/G2
    FWHM: 13°
    Peak intensity: 9.5 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

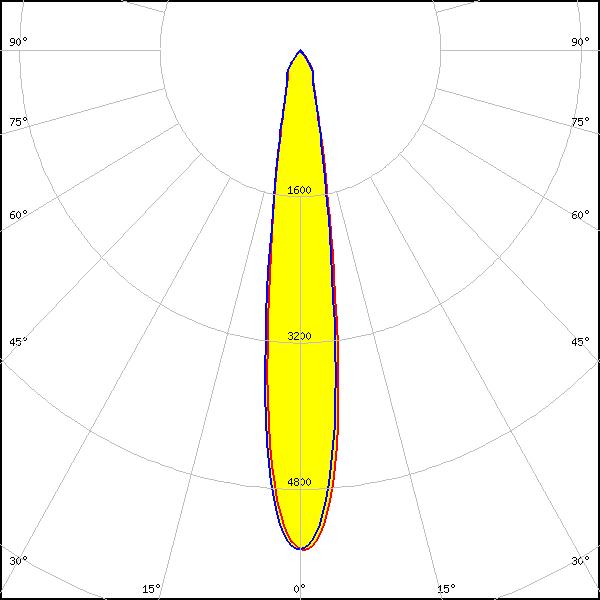

    LED: LUXEON CoB 1216/1812
    Required components:
    BJB: 47.319.2030
    F13671_ANGE-RZ-LENS
    FWHM: 16°
    Peak intensity: 5.5 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour: White

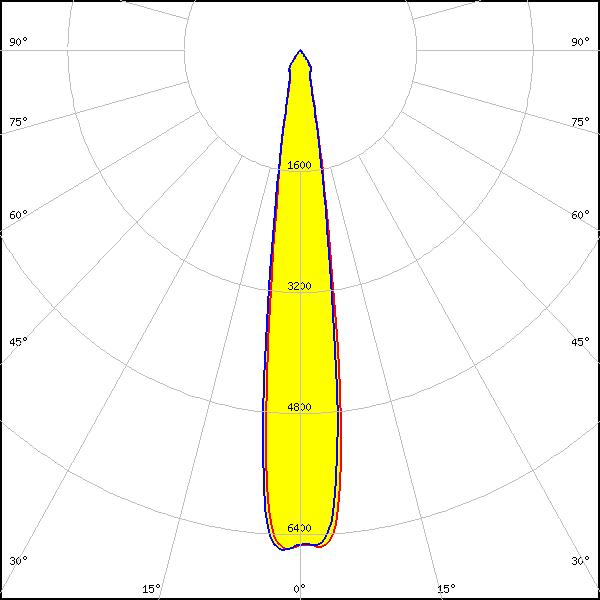

    LED: LUXEON CoB 1216/1812
    Required components:
    BJB: 47.319.2030
    FWHM: 15°
    Peak intensity: 6.6 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White
    LED: LUXEON K12
    Required components:
    BJB: 47.319.2070
    F13671_ANGE-RZ-LENS
    LEDs/each optic: 1
    Light colour: White
    LED: LUXEON K12
    Required components:
    BJB: 47.319.2070
    FWHM: 9°
    Peak intensity: 17.3 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White
    LED: LUXEON K16
    Required components:
    BJB: 47.319.2070
    F13671_ANGE-RZ-LENS
    LEDs/each optic: 1
    Light colour: White

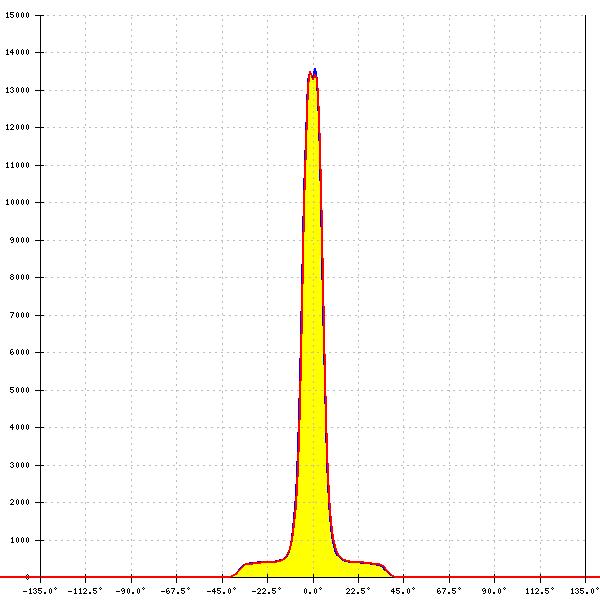

    LED: LUXEON K16
    Required components:
    BJB: 47.319.2070
    FWHM: 11°
    Peak intensity: 13.6 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White
    LED: LUXEON S2000
    LEDs/each optic: 1
    Light colour: White

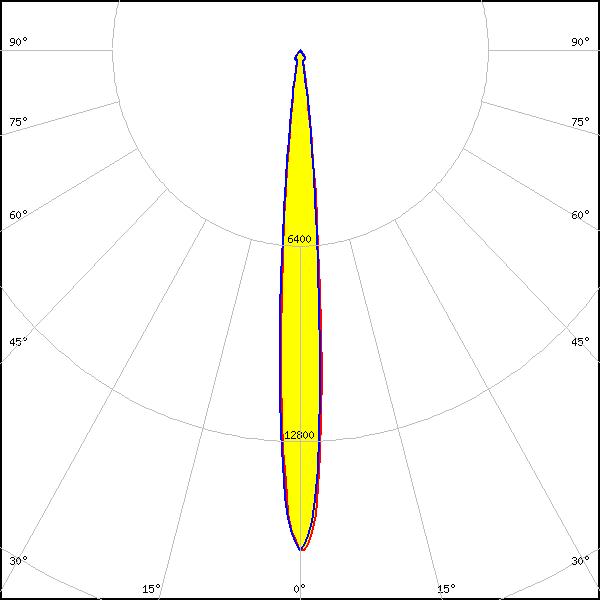

    LED: CxM-14 (19x19)
    Required components:
    BJB: 47.319.2021
    FWHM: 9°
    Peak intensity: 16.3 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

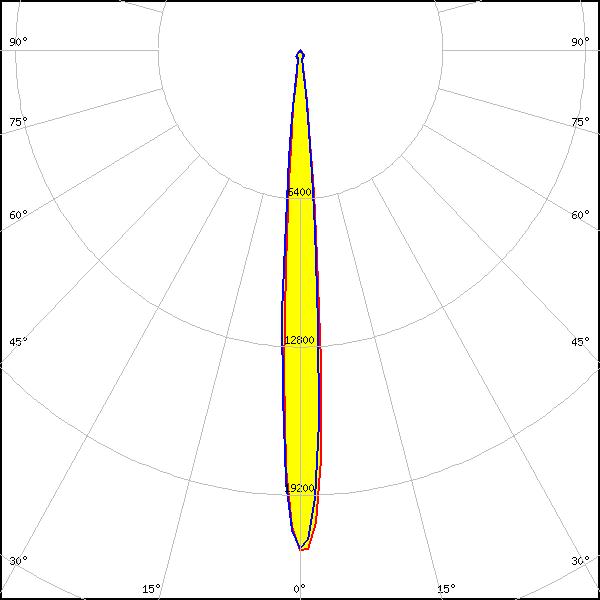

    LED: Soleriq S13
    Required components:
    A.A.G. STUCCHI: 8502/G2
    FWHM: 8°
    Peak intensity: 21.6 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

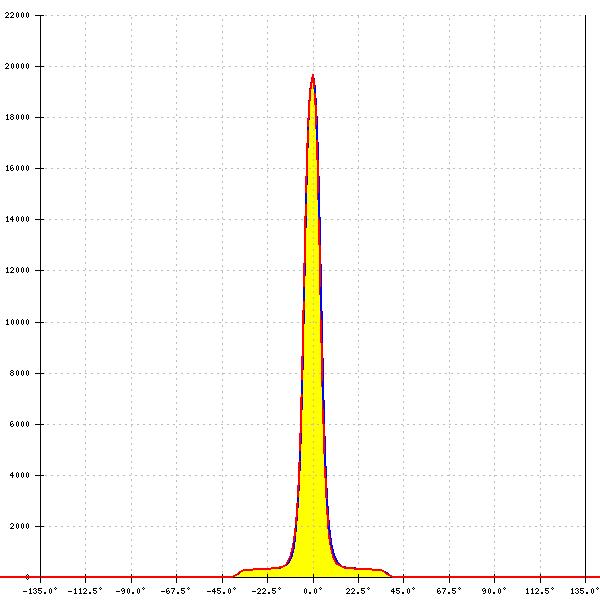

    LED: Soleriq S13 19x19
    Required components:
    BJB: 47.319.2021
    FWHM: 9°
    Peak intensity: 19.7 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour: White
    LED: Soleriq S15
    Required components:
    BJB: 47.319.2021
    FWHM: 10°
    Peak intensity: 14.6 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

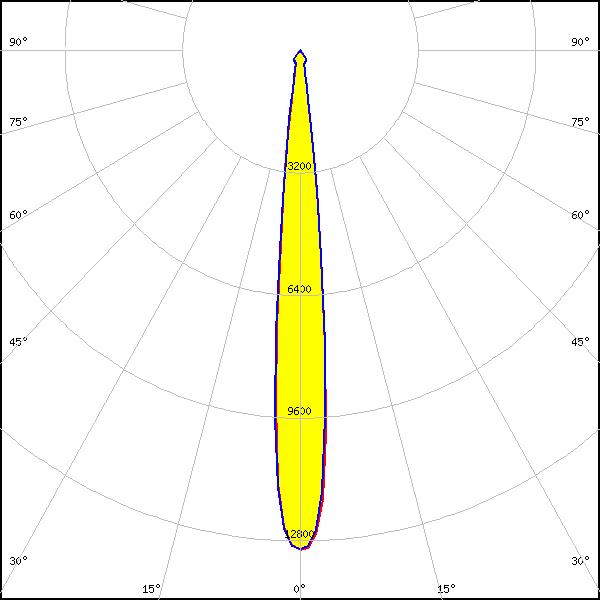

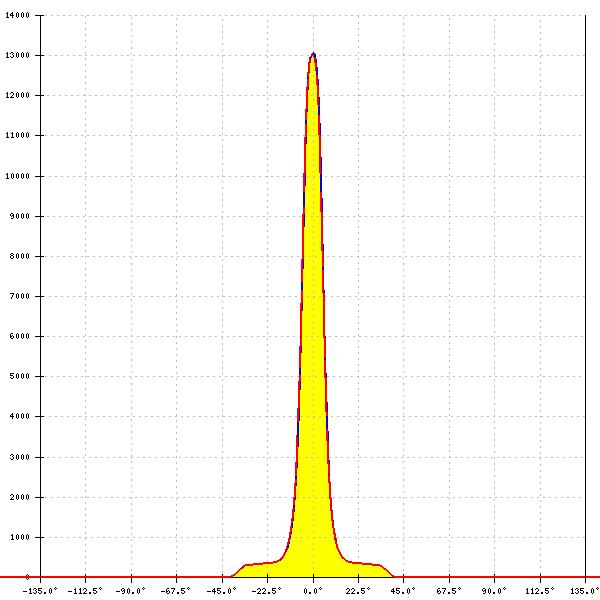

    LED: Soleriq S19
    Required components:
    BJB: 47.319.2170
    FWHM: 11°
    Peak intensity: 13.1 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

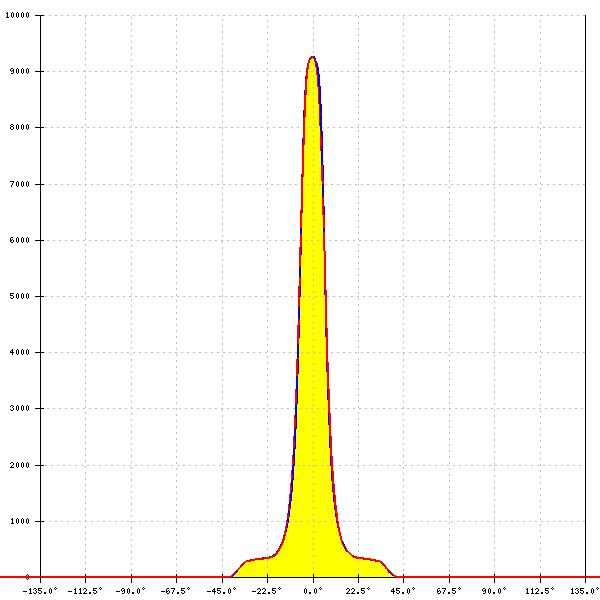

    LED: Fortimo SLM L19 CoB
    Required components:
    BJB: 47.319.2030
    FWHM: 13°
    Peak intensity: 9.3 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

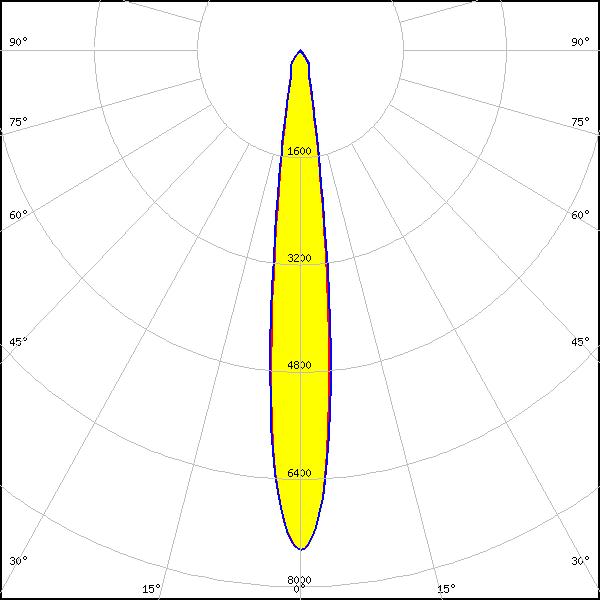

    LED: Fortimo SLM L19 CoB
    Required components:
    BJB: 47.319.2030
    F13671_ANGE-RZ-LENS
    FWHM: 13°
    Peak intensity: 7.5 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White

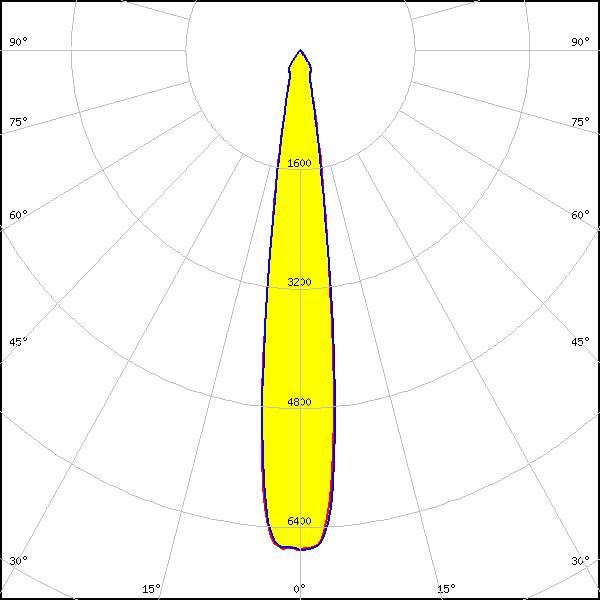

    LED: Fortimo SLM L23 CoB
    Required components:
    BJB: 47.319.2030
    FWHM: 15°
    Peak intensity: 6.7 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White
    LED: Fortimo SLM L23 CoB
    Required components:
    BJB: 47.319.2030
    F13671_ANGE-RZ-LENS
    FWHM: 16°
    Peak intensity: 5.6 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: White
    LED: LC016D / LC019D / LC026D / LC033D
    Required components:
    A.A.G. STUCCHI: 8101/G2
    F13671_ANGE-RZ-LENS
    FWHM: 11°
    Peak intensity: 11.0 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White
    LED: LC016D / LC019D / LC026D / LC033D
    Required components:
    BJB: 47.319.2021
    F13671_ANGE-RZ-LENS
    FWHM: 11°
    Peak intensity: 11.0 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White

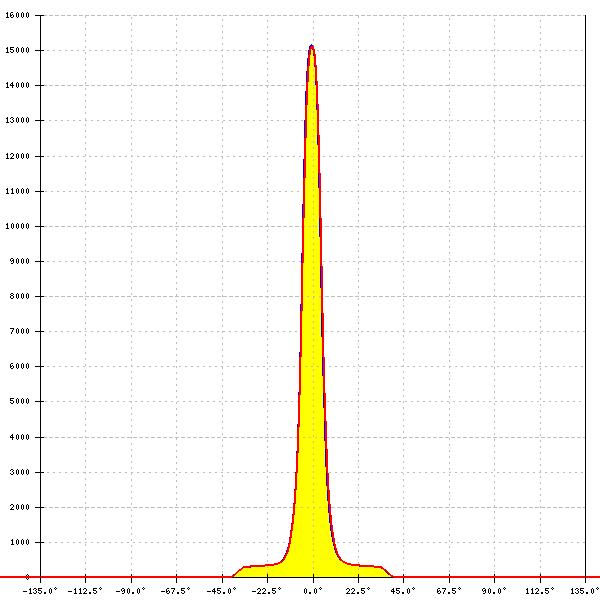

    LED: LC016D / LC019D / LC026D / LC033D
    Required components:
    A.A.G. STUCCHI: 8101/G2
    FWHM: 10°
    Peak intensity: 15.2 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White
    LED: LC016D / LC019D / LC026D / LC033D
    Required components:
    BJB: 47.319.2021
    FWHM: 10°
    Peak intensity: 15.2 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White
    LED: LC040D / LC060D / LC080D
    Required components:
    BJB: 47.319.2030
    FWHM: 17°
    Peak intensity: 5.8 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White
    LED: ZC12/18
    Required components:
    A.A.G. STUCCHI: 8101/G2
    FWHM: 9°
    Peak intensity: 18.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

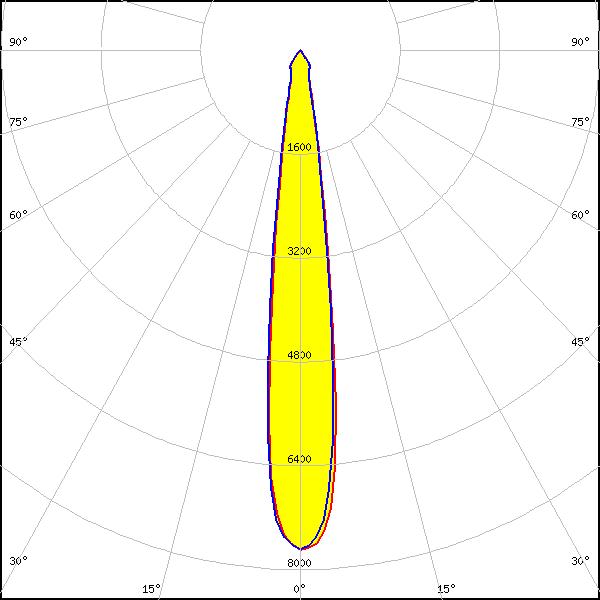

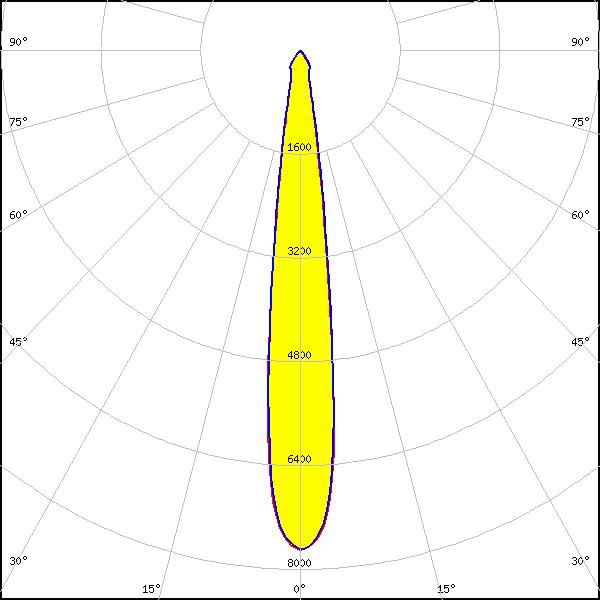

    LED: ZC25/40/60
    Required components:
    BJB: 47.319.2030
    FWHM: 14°
    Peak intensity: 7.7 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White
    LED: ZC25/40/60
    Required components:
    A.A.G. STUCCHI: 8102/G2
    FWHM: 14°
    Peak intensity: 7.7 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White
    LED: ZC25/40/60
    Required components:
    BJB: 47.319.2030
    F13671_ANGE-RZ-LENS
    FWHM: 16°
    Peak intensity: 6.2 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White

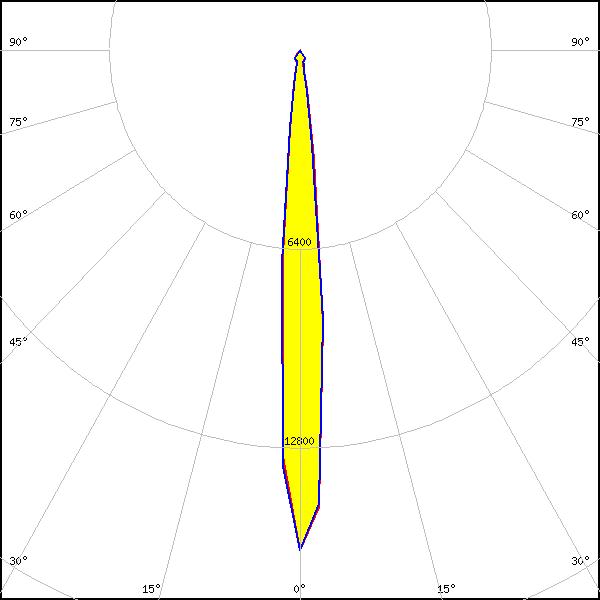

    LED: Mega Zenigata (GW5DGC)
    Required components:
    BJB: 47.319.2011
    LEDs/each optic: 1
    Light colour: White

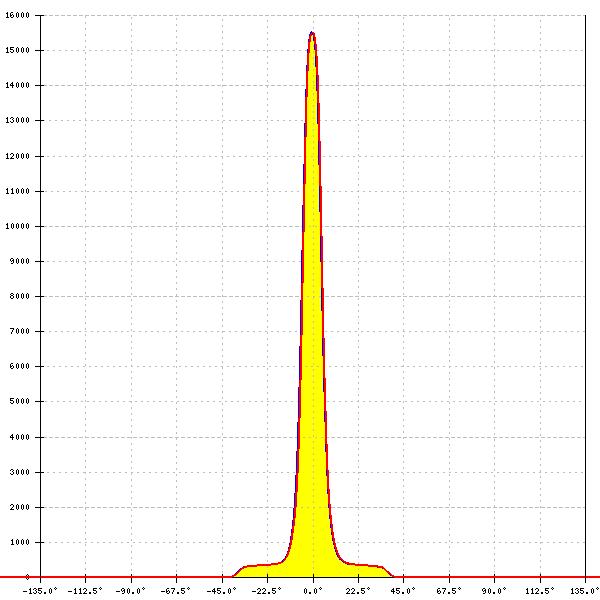

    LED: Mega Zenigata (GW6DME)
    Required components:
    A.A.G. STUCCHI: 8301/G2
    FWHM: 10°
    Peak intensity: 15.5 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

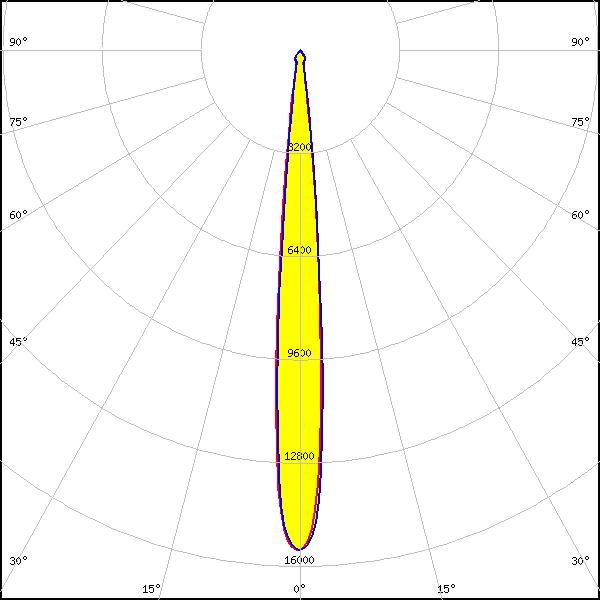

    LED: Mega Zenigata (GW6DME)
    Required components:
    BJB: 47.319.2011
    FWHM: 10°
    Peak intensity: 16.1 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

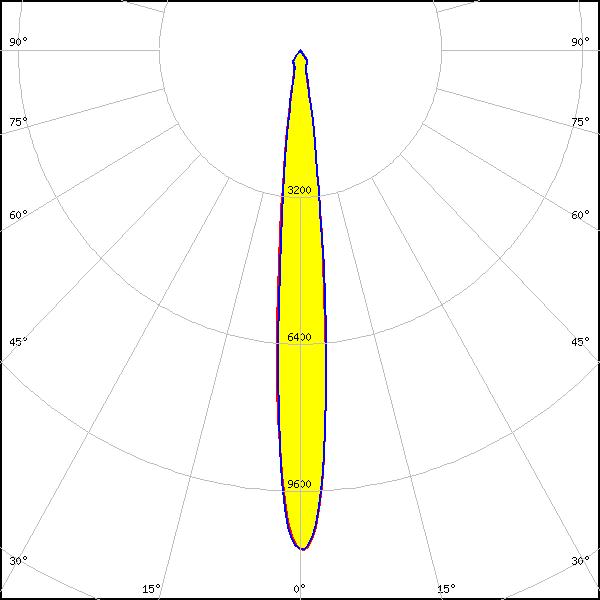

    LED: SLE G7 LES17 H
    FWHM: 11°
    Peak intensity: 10.9 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

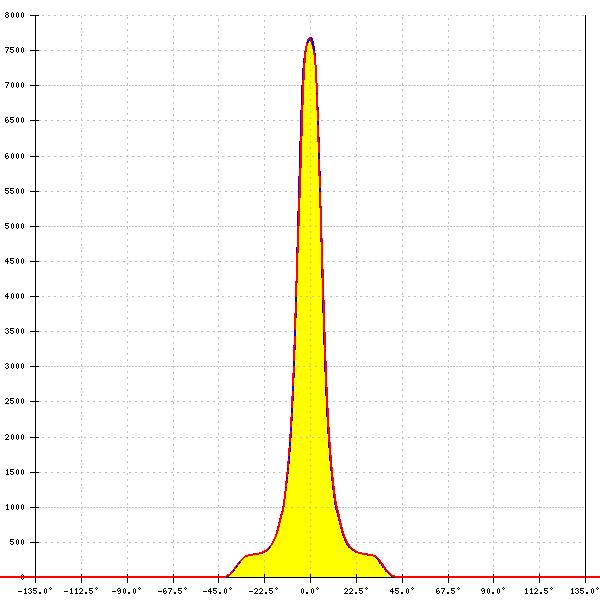

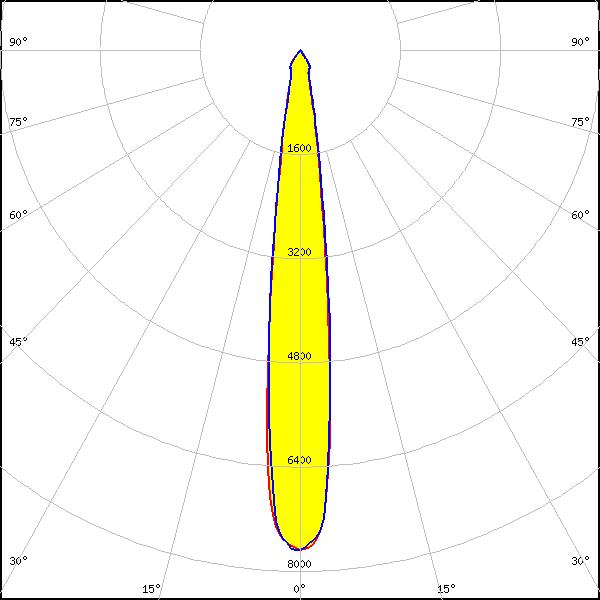

    LED: SLE G7 LES21 H
    FWHM: 14°
    Peak intensity: 7.7 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

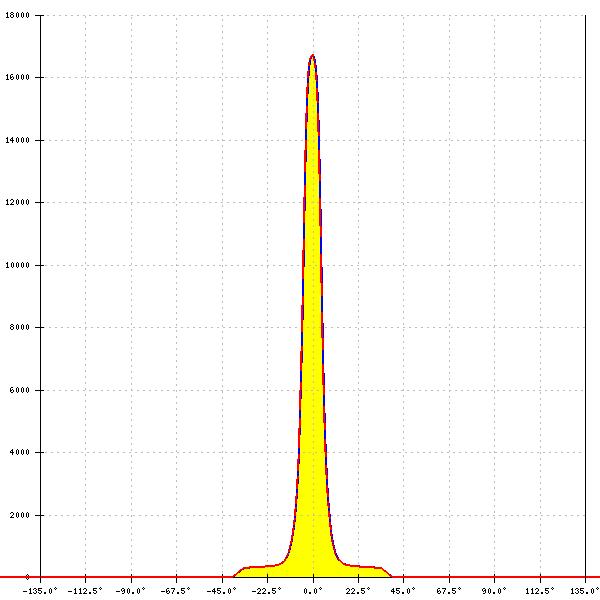

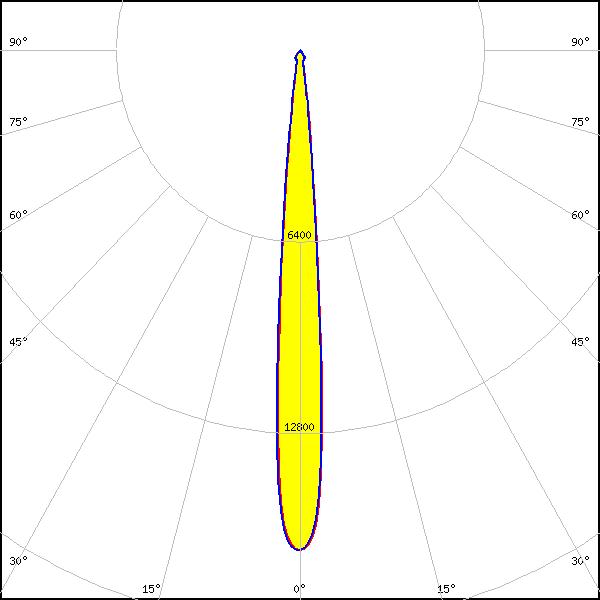

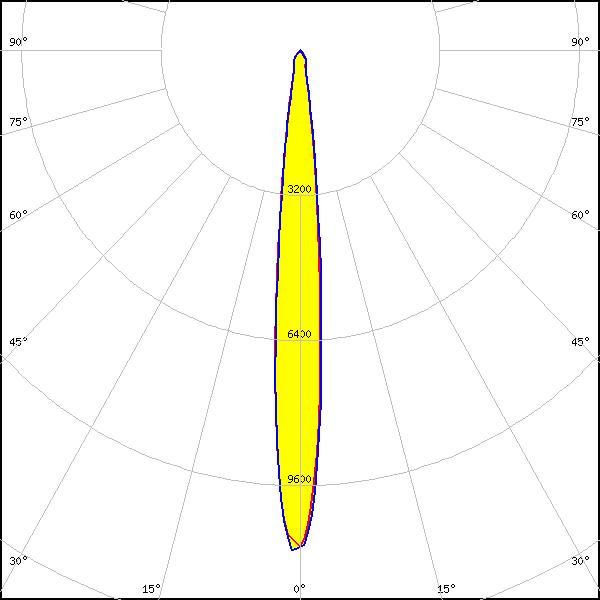

    LED: XOB 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 9°
    Peak intensity: 16.7 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

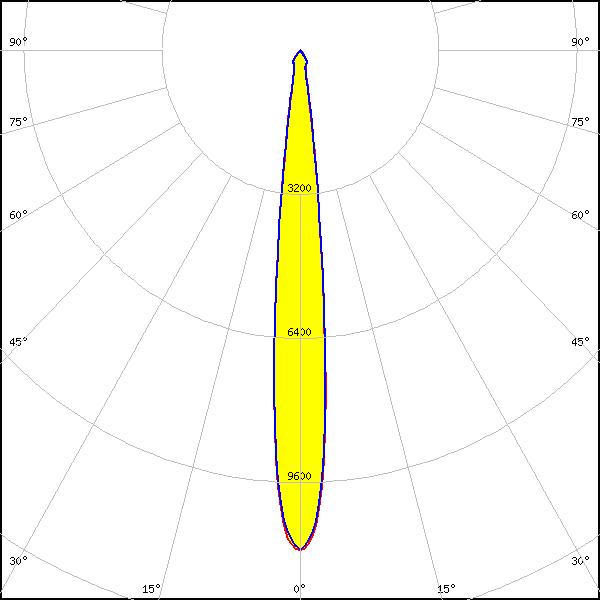

    LED: XTM - 19mm LES
    Required components:
    C15743_XTM-ADAPTER-50-B
    FWHM: 12°
    Peak intensity: 11.0 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
