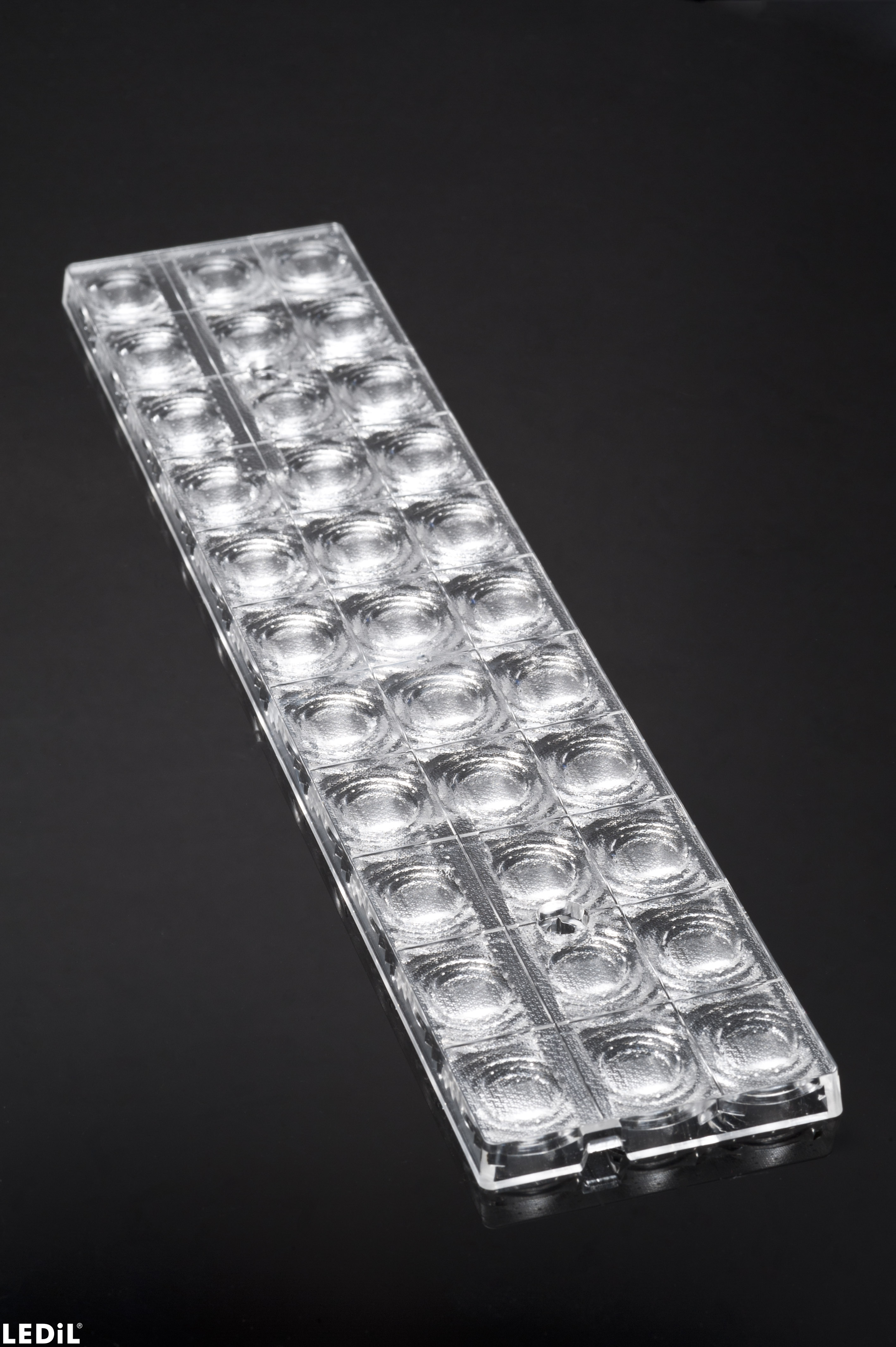

F14112_FLORENCE-Z60

Print

~60° wide beam. Ideal for retail and industrial lighting. Can be used for general office lighting with shade.

Specification
  • Dimensions:
    286 x  61 mm
  • Height:
    8.50 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    72 pcs
  • Box size:
    398 x 298 x 140 mm
  • Box weight:
    7.3 kg
  • MPQ:
    6 pcs
  • MOQ:
    18 pcs
  • MOQ size:
    390 x 300 x 40 mm
  • MOQ weight:
    2.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F14112_FLORENCE-Z60

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

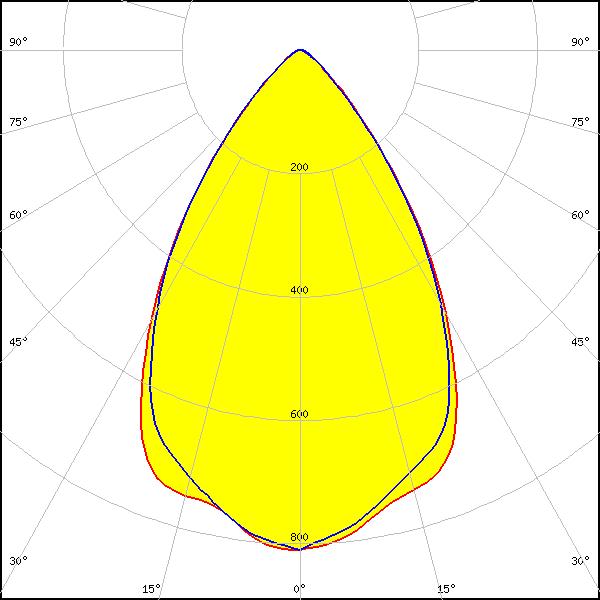

Optical results

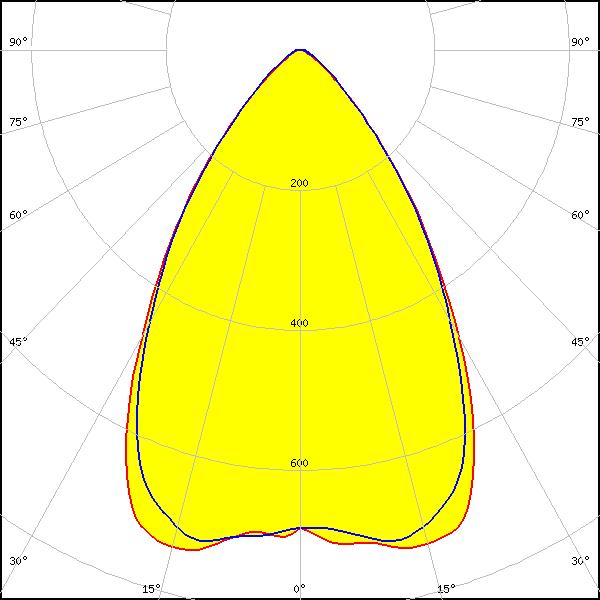

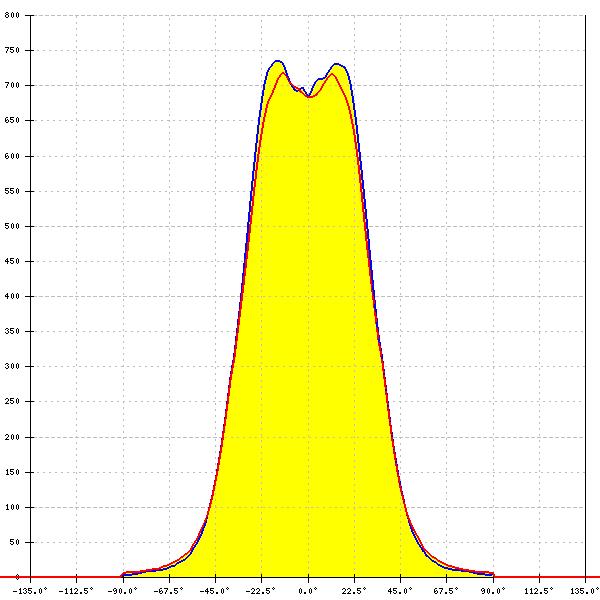

LED: J Series 5050 Round LES
FWHM: 68°
FWTM: 101°
Peak intensity: 0.741 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050C 6V E Class
FWHM: 66°
FWTM: 102°
Peak intensity: 0.756 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

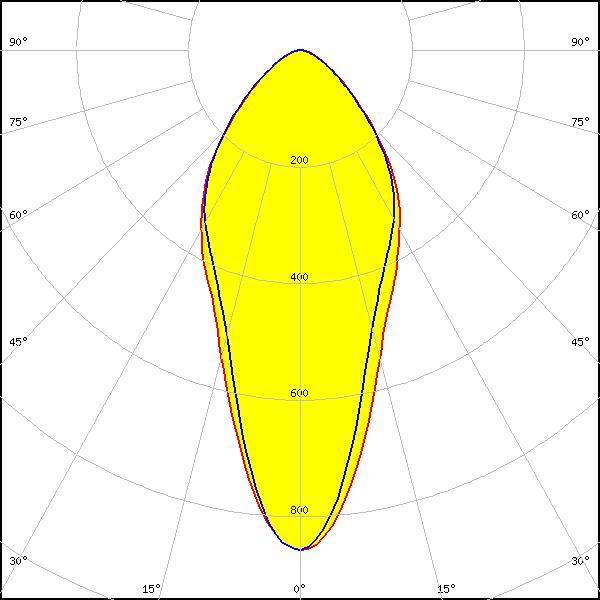

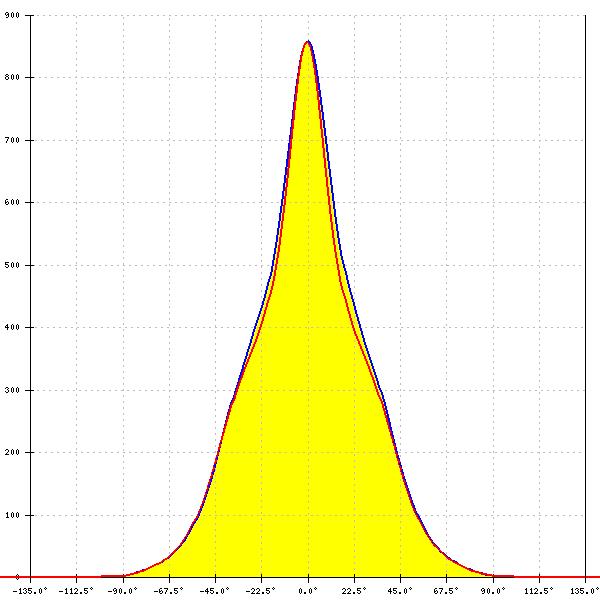

LED: XH-B/G
FWHM: 43°
FWTM: 111°
Peak intensity: 0.860 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

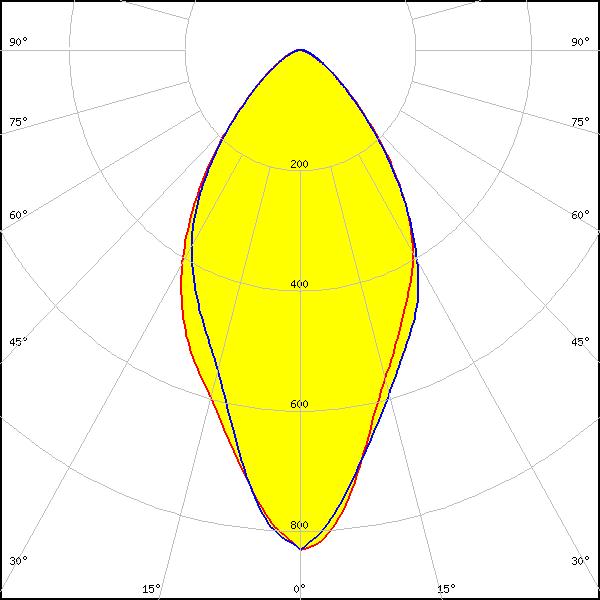

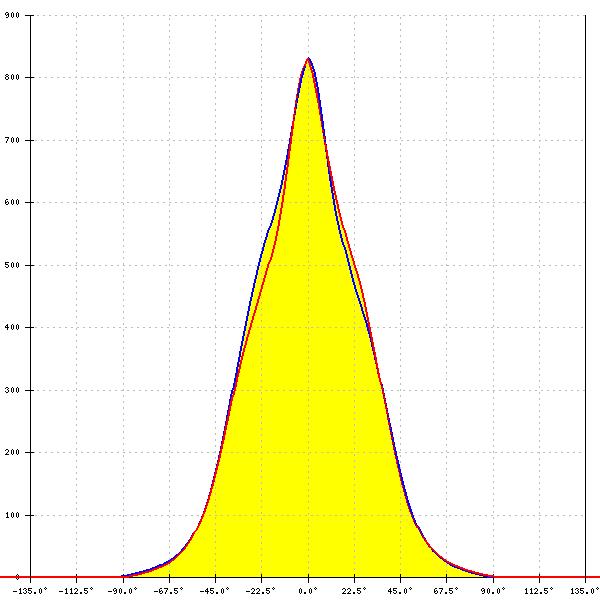

LED: LUXEON 3030 2D (Round LES)
FWHM: 57°
FWTM: 107°
Peak intensity: 0.830 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

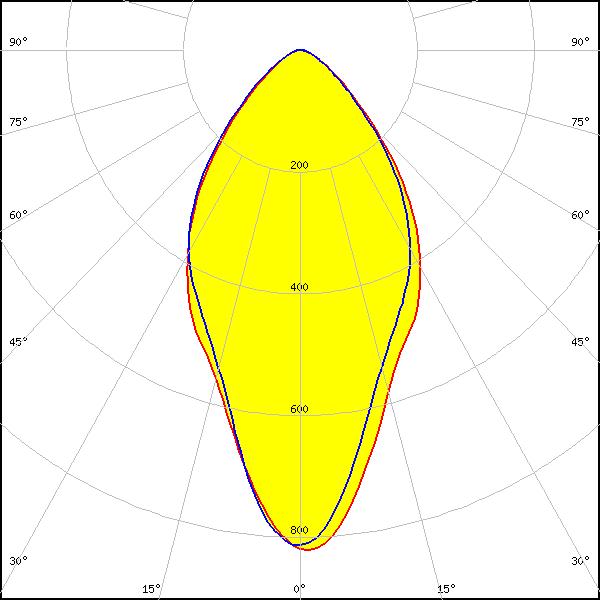

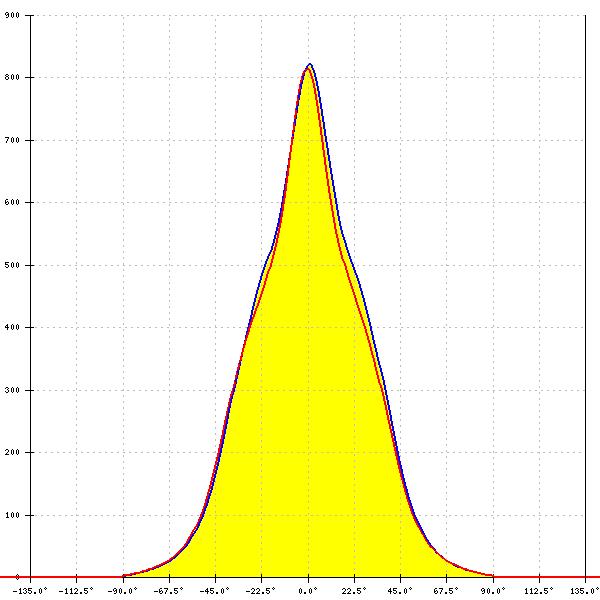

LED: LUXEON 3535 2D
FWHM: 57°
FWTM: 108°
Peak intensity: 0.822 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

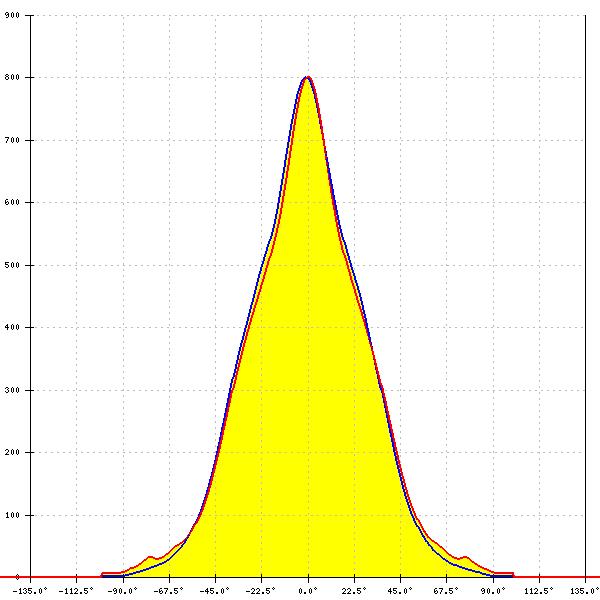

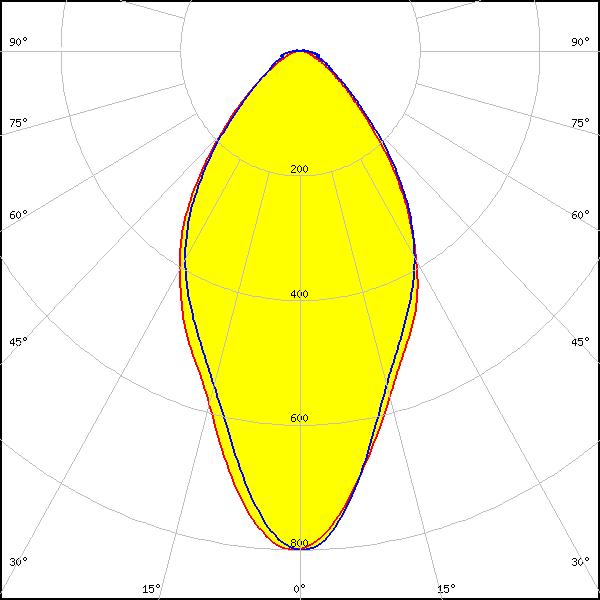

LED: LUXEON 3535L HE
FWHM: 58°
FWTM: 110°
Peak intensity: 0.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

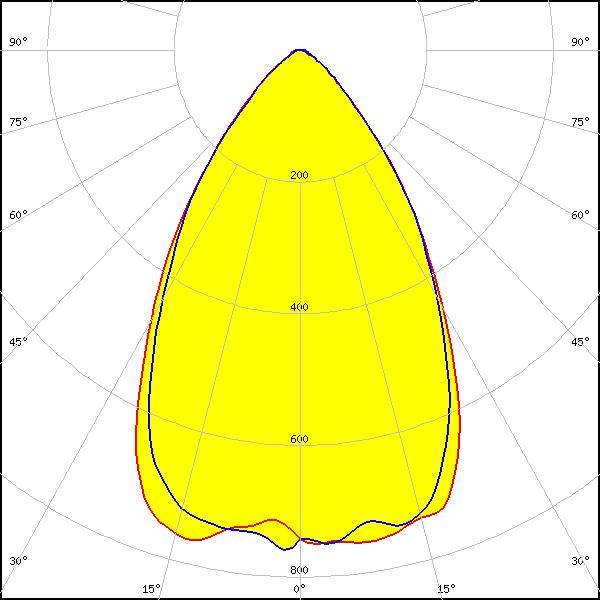

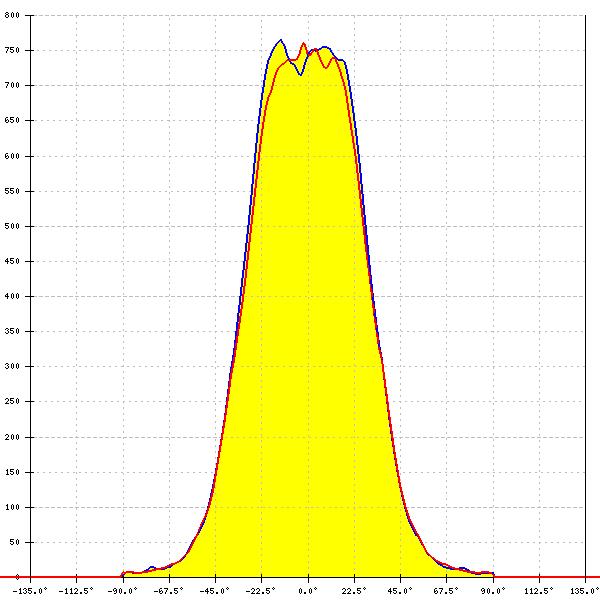

LED: LUXEON 5050 Round LES
FWHM: 65°
FWTM: 101°
Peak intensity: 0.770 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

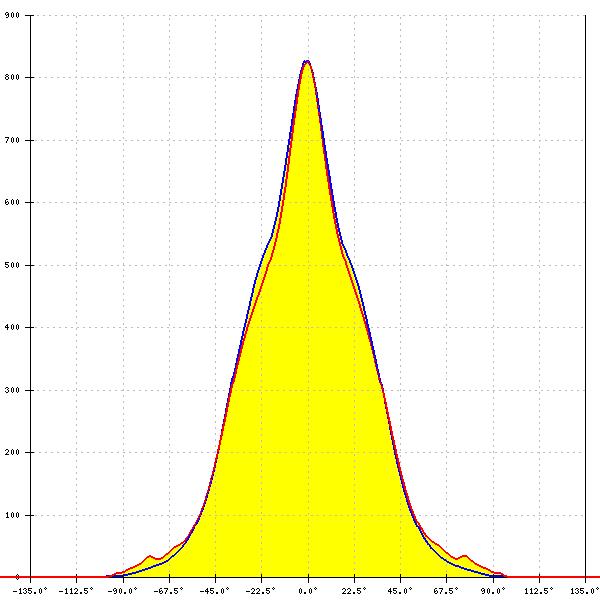

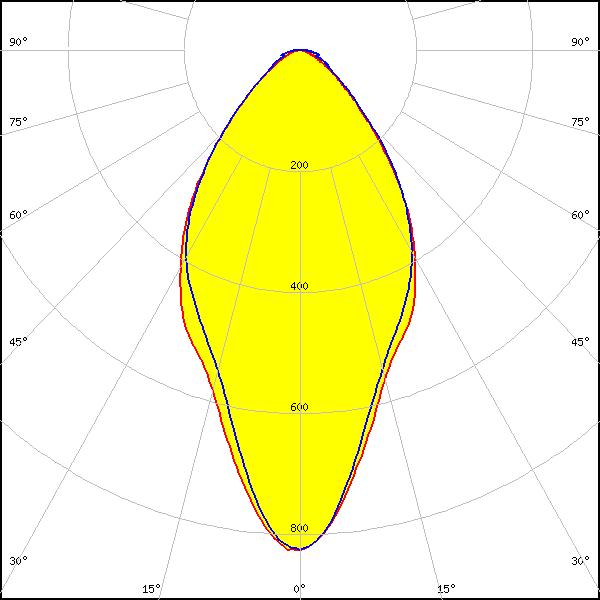

LED: LUXEON XR-3535L (L202 - xxxx033C30001)
FWHM: 59°
FWTM: 108°
Peak intensity: 0.830 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

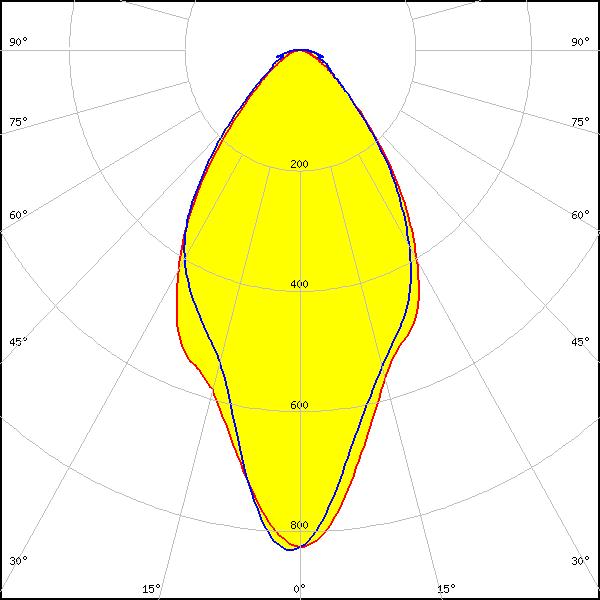

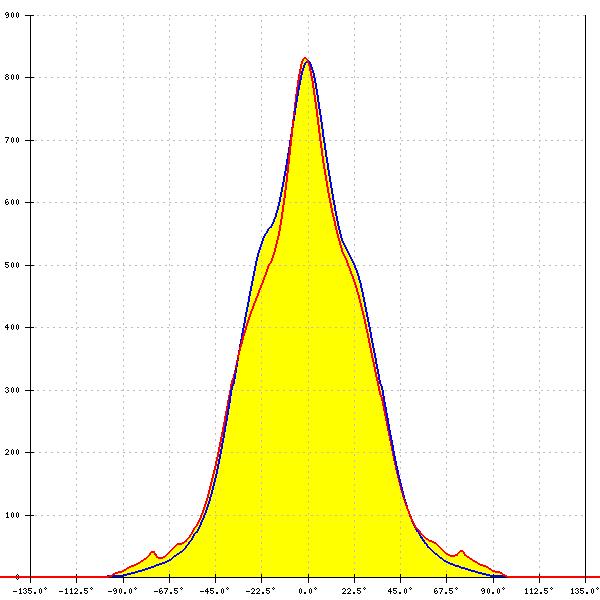

LED: MP-2016
FWHM: 58°
FWTM: 105°
Peak intensity: 0.830 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

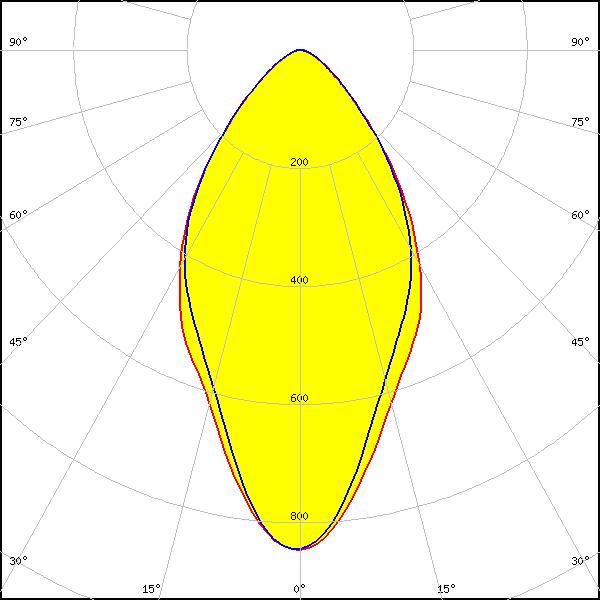

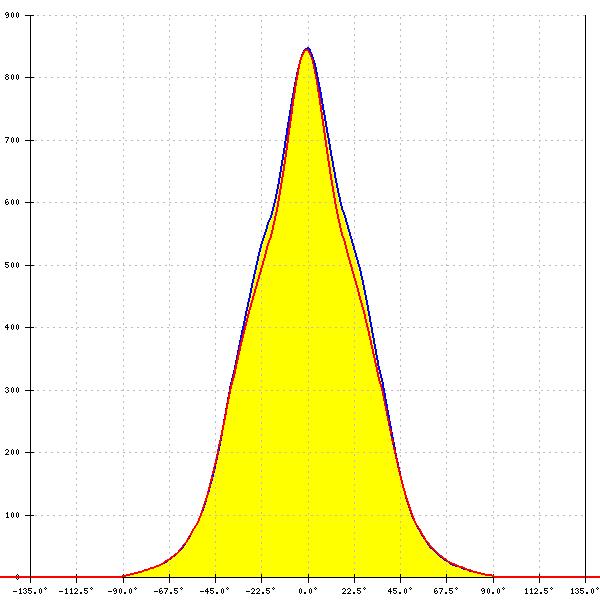

LED: NF2x757D
FWHM: 58°
FWTM: 107°
Peak intensity: 0.847 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

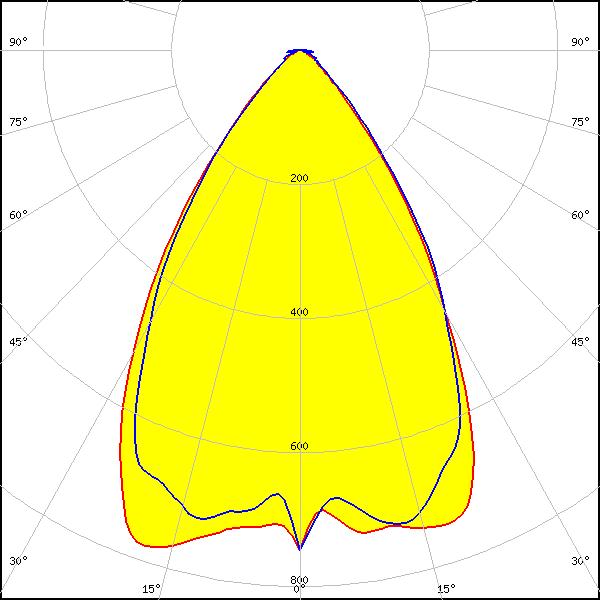

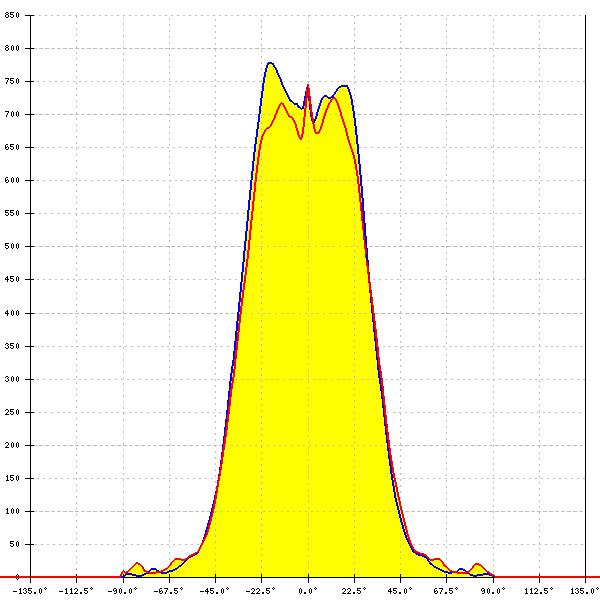

LED: NF2x757G
FWHM: 62°
FWTM: 94°
Peak intensity: 0.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

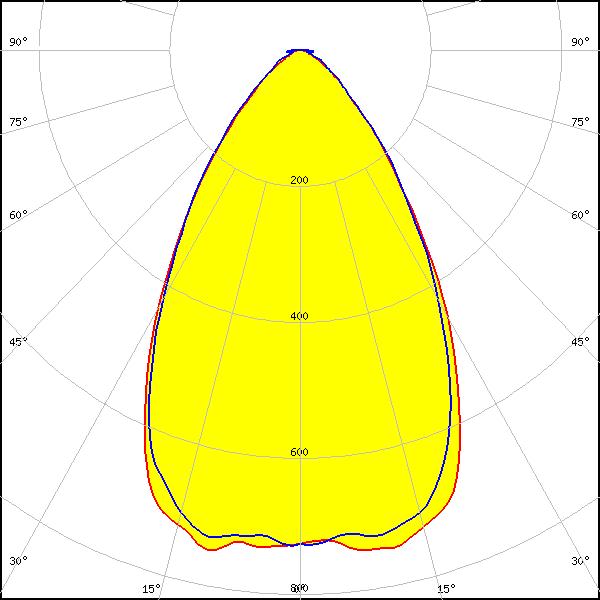

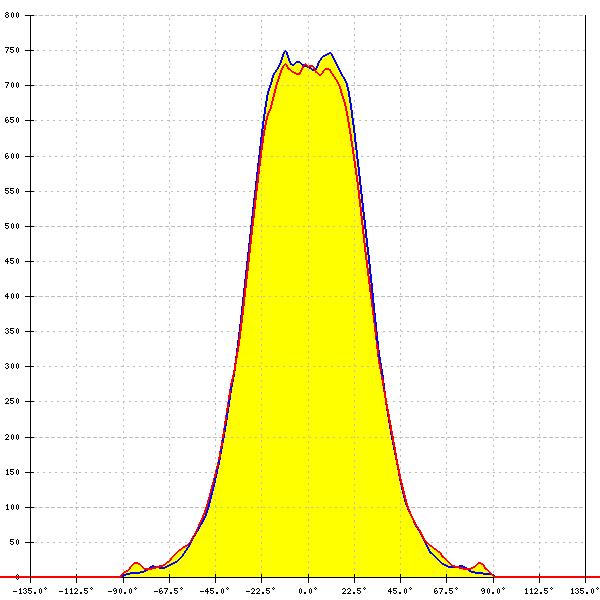

LED: NFMW48xA
FWHM: 64°
FWTM: 105°
Peak intensity: 0.760 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

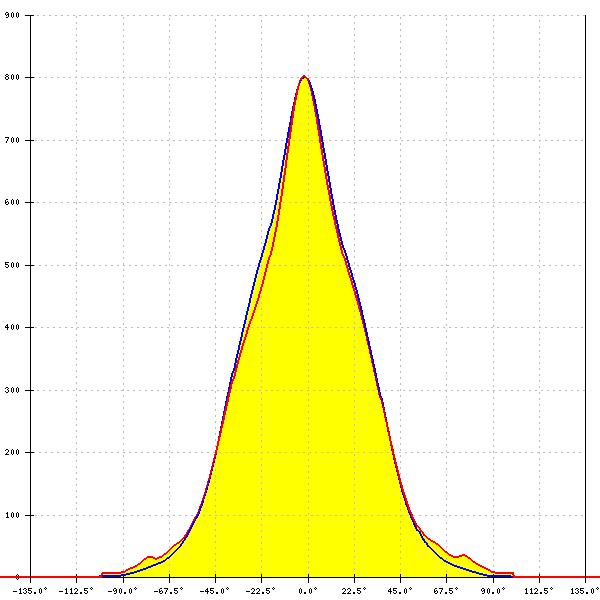

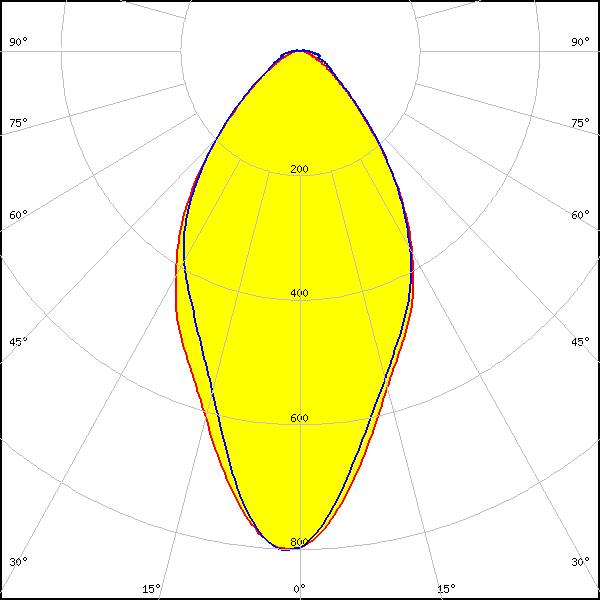

LED: NFSW757H
FWHM: 58°
FWTM: 110°
Peak intensity: 0.805 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

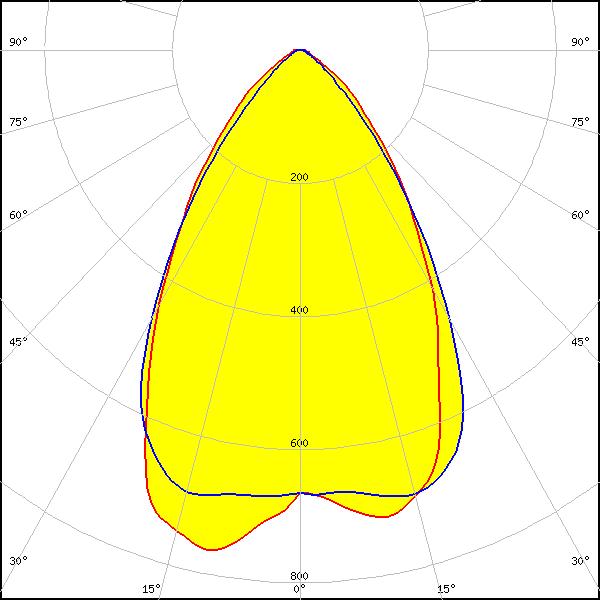

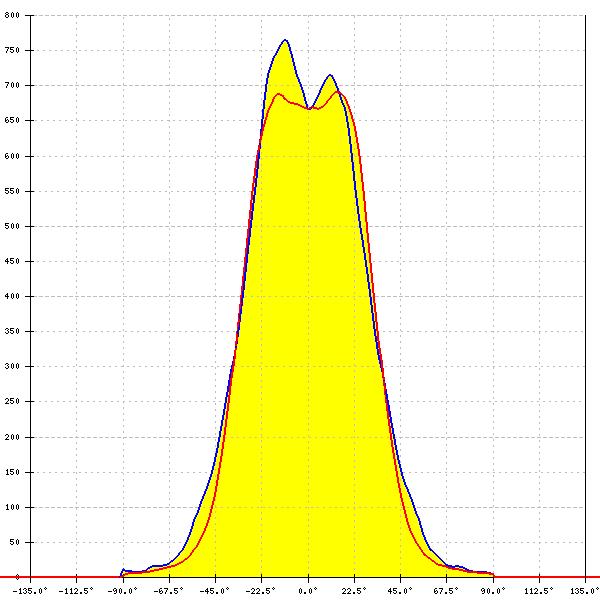

LED: NFSx757G
FWHM: 63° + 68°
FWTM: 110° + 100°
Peak intensity: 0.765 cd/lm
Efficiency: 94 %
LEDs/each optic: 2
Light colour/type: White

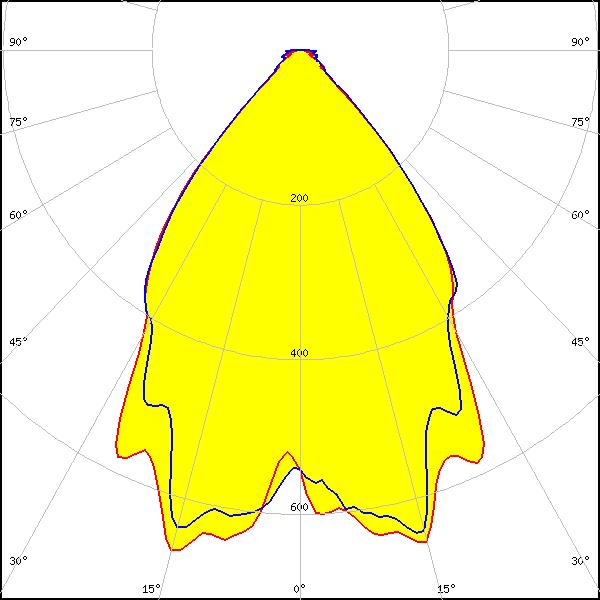

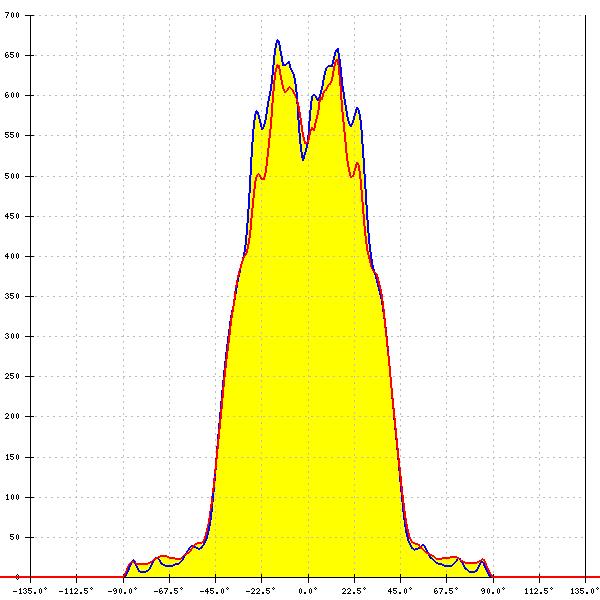

LED: NVSxE21A
FWHM: 70°
FWTM: 94°
Peak intensity: 0.680 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: PL-BAR-G3 1100 280x55
FWHM: 57°
FWTM: 109°
Peak intensity: 0.820 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: PLG2-BAR-1100-xxx-280x55-DC
FWHM: 57°
FWTM: 108°
Peak intensity: 0.810 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

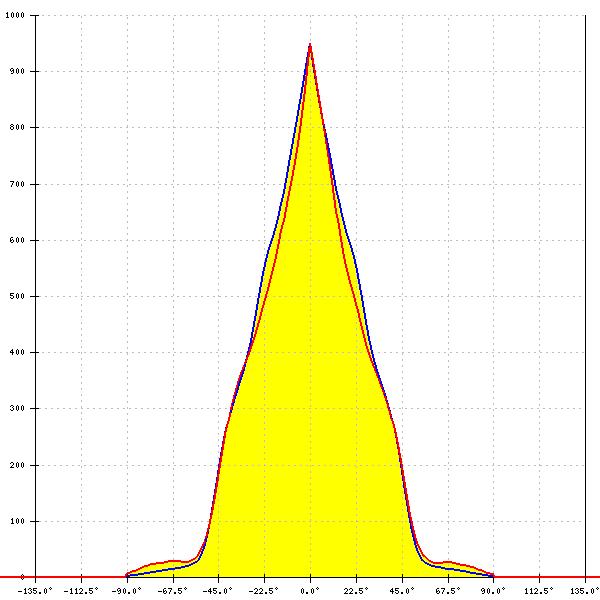

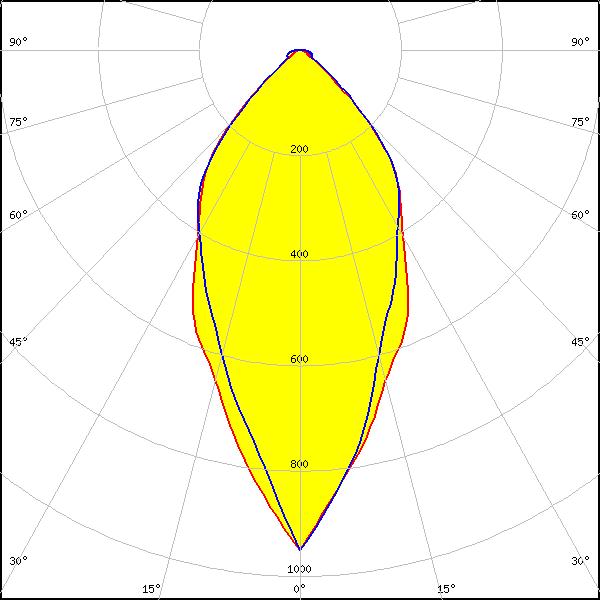

LED: Duris E 2835
FWHM: 50°
FWTM: 99°
Peak intensity: 0.950 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

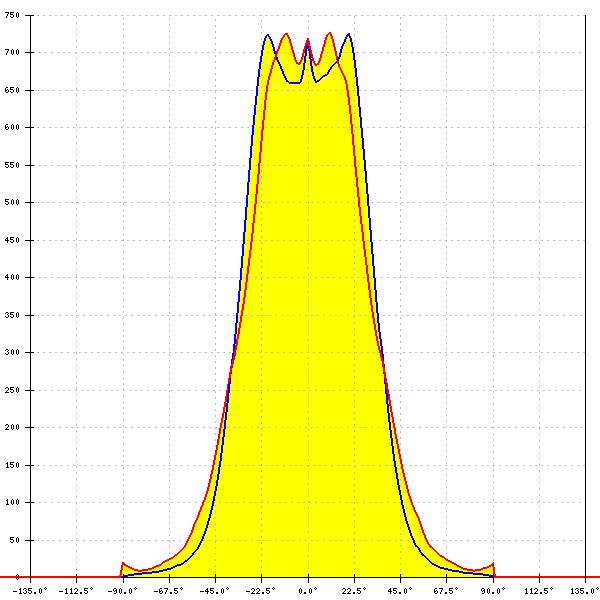

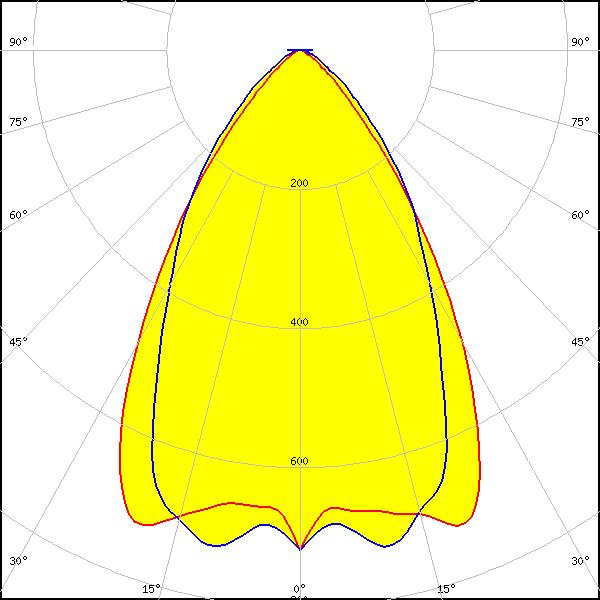

LED: Duris E 2835
FWHM: 68° + 57°
FWTM: 100° + 97°
Peak intensity: 0.740 cd/lm
Efficiency: 92 %
LEDs/each optic: 2
Light colour/type: White

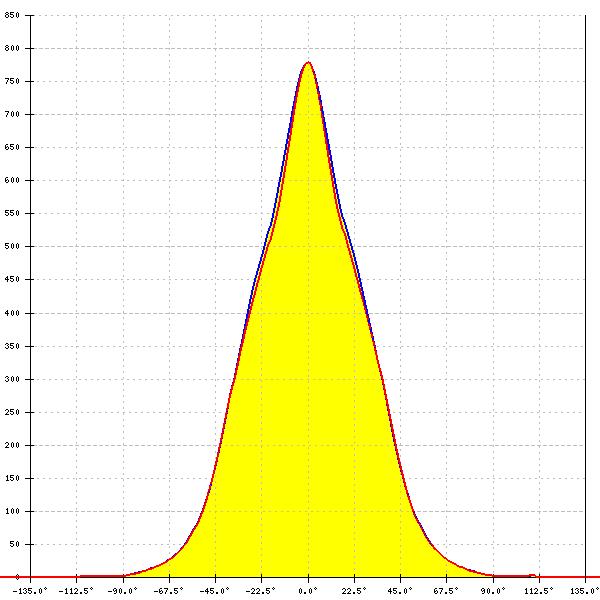

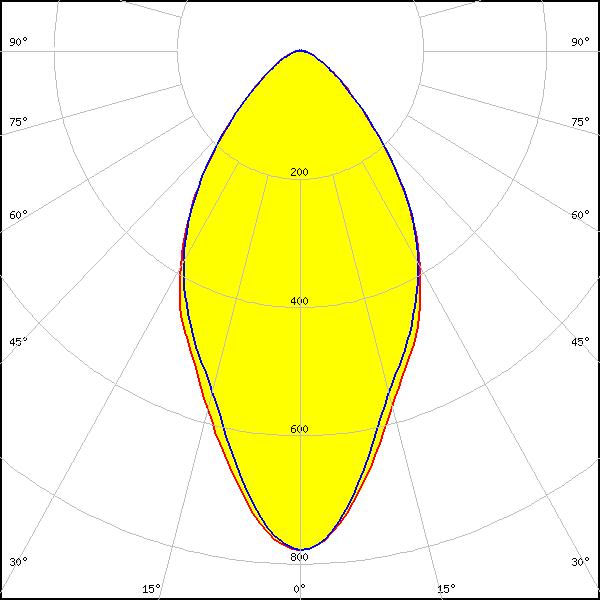

LED: Duris E5
FWHM: 59°
FWTM: 109°
Peak intensity: 0.800 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

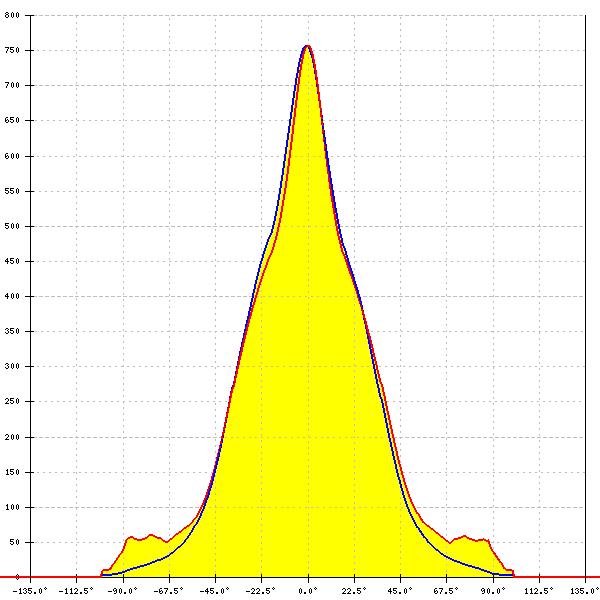

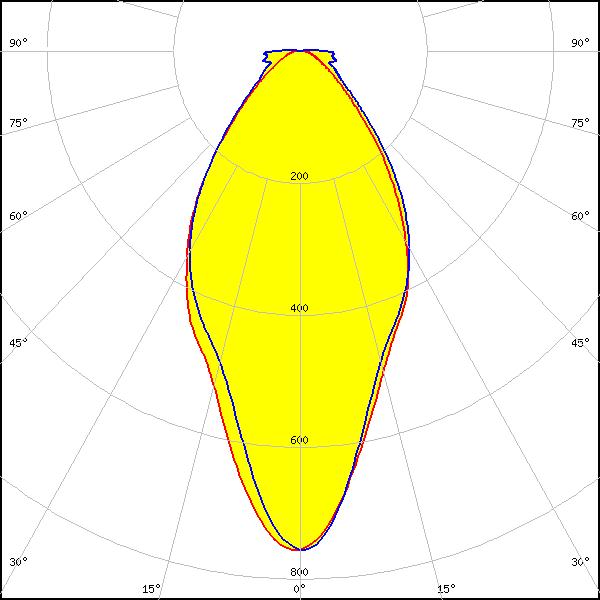

LED: Duris S2
FWHM: 55°
FWTM: 111°
Peak intensity: 0.760 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

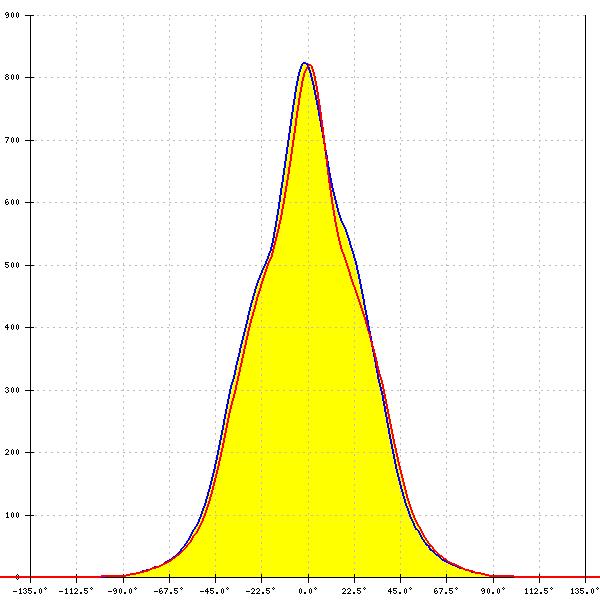

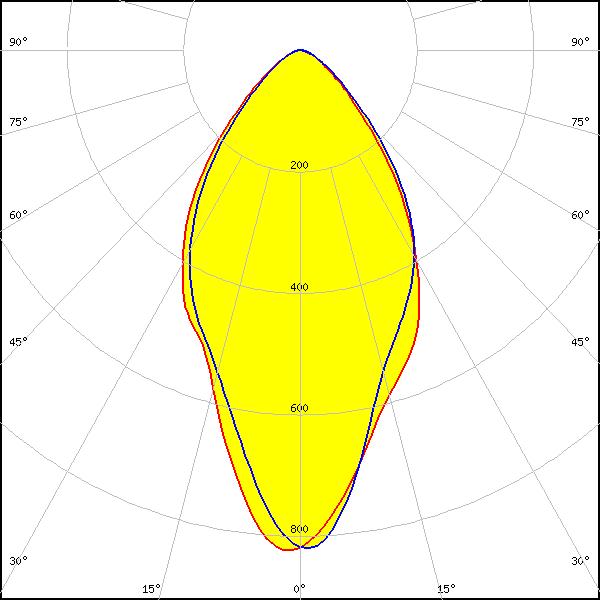

LED: Duris S5 (Single chip)
FWHM: 58°
FWTM: 107°
Peak intensity: 0.820 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

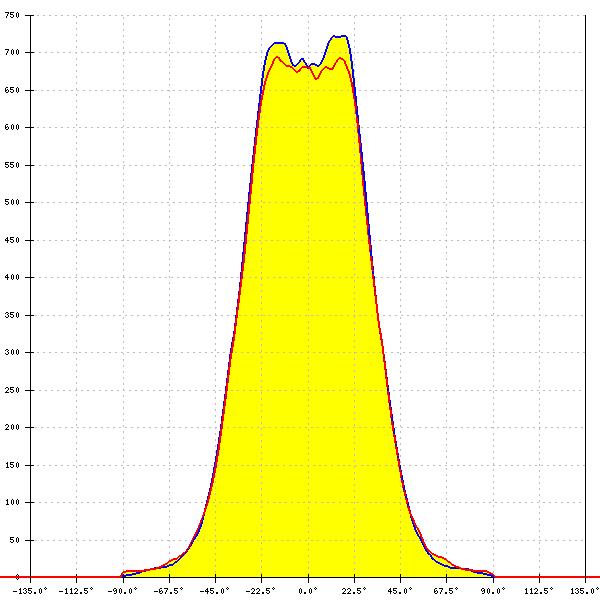

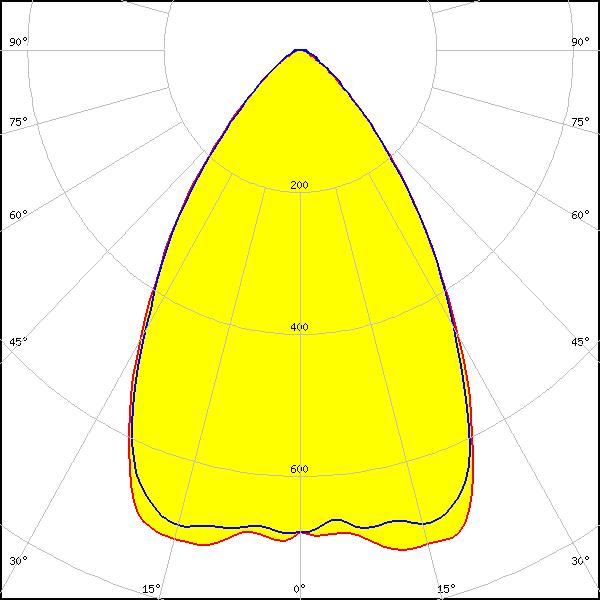

LED: Duris S8
FWHM: 70°
FWTM: 106°
Peak intensity: 0.732 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

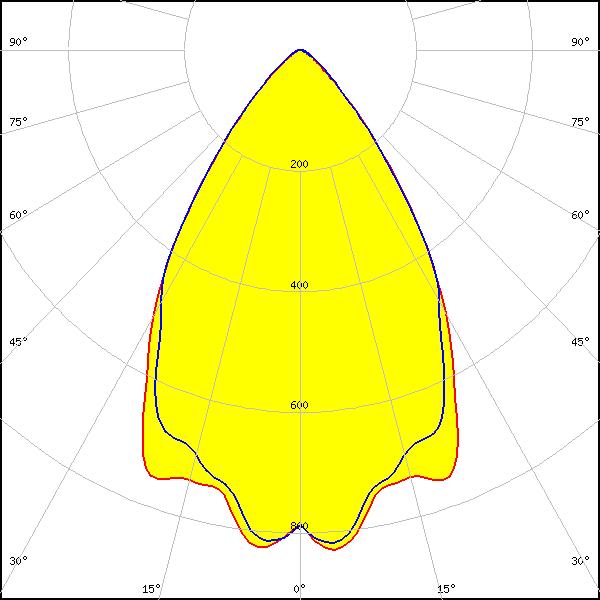

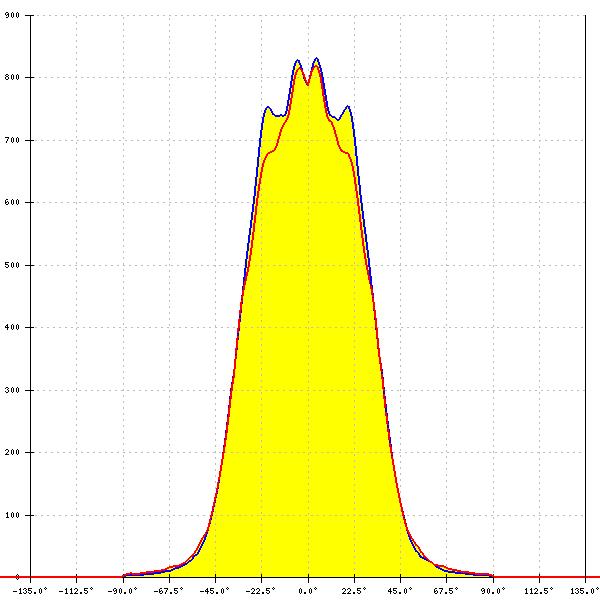

LED: OSCONIQ C 2424
FWHM: 66°
FWTM: 96°
Peak intensity: 0.836 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

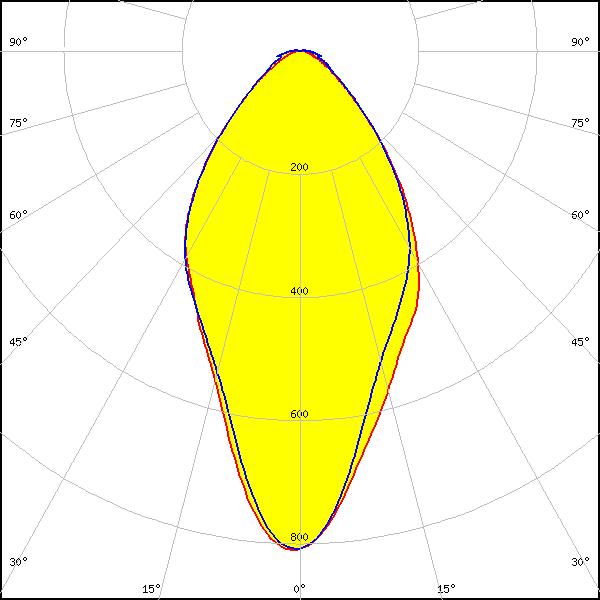

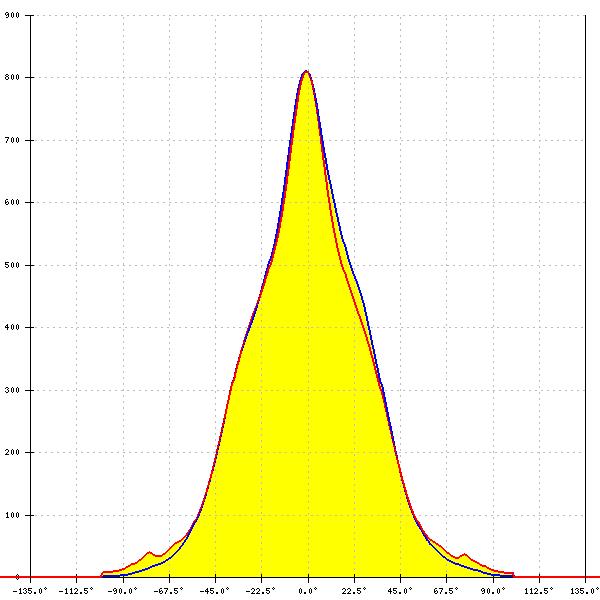

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 56°
FWTM: 111°
Peak intensity: 0.810 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

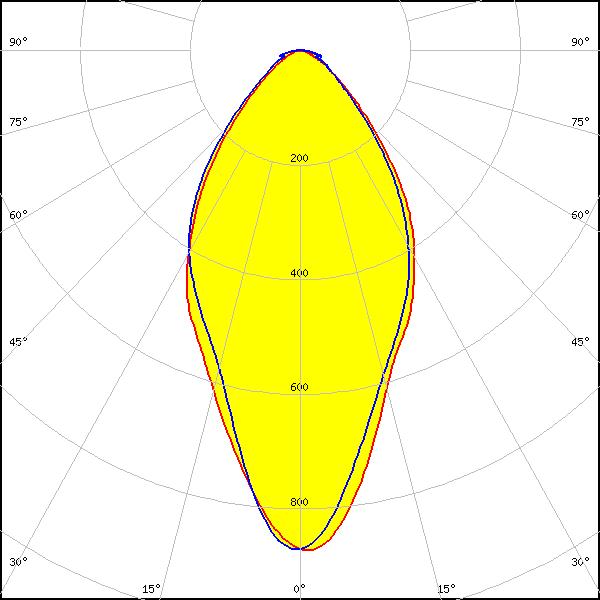

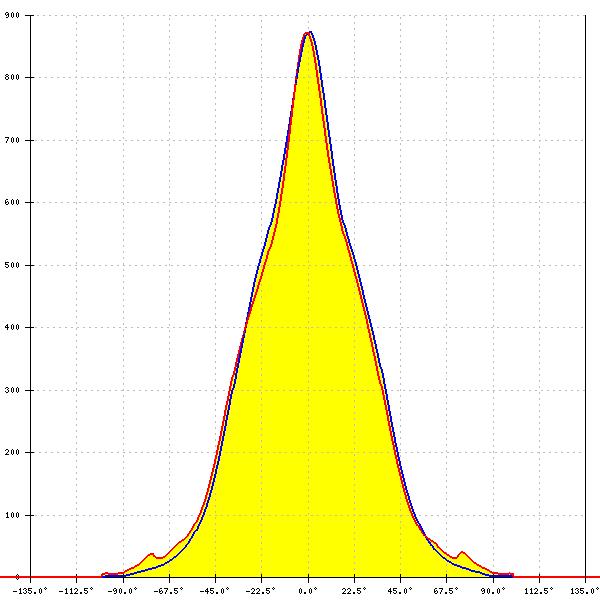

LED: Fortimo LED Line VO 1ft MF 3R HV5
FWHM: 55°
FWTM: 107°
Peak intensity: 0.874 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line 1ft 650lm 3R HV4 & LV4
FWHM: 58°
FWTM: 108°
Peak intensity: 0.819 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line 1ft HF 3R HV5
FWHM: 56°
FWTM: 107°
Peak intensity: 0.848 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line 1ft LF 3R HV5 & LV5
FWHM: 57°
FWTM: 107°
Peak intensity: 0.851 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line 1ft MF 3R HV5 & LV5
FWHM: 56°
FWTM: 108°
Peak intensity: 0.857 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

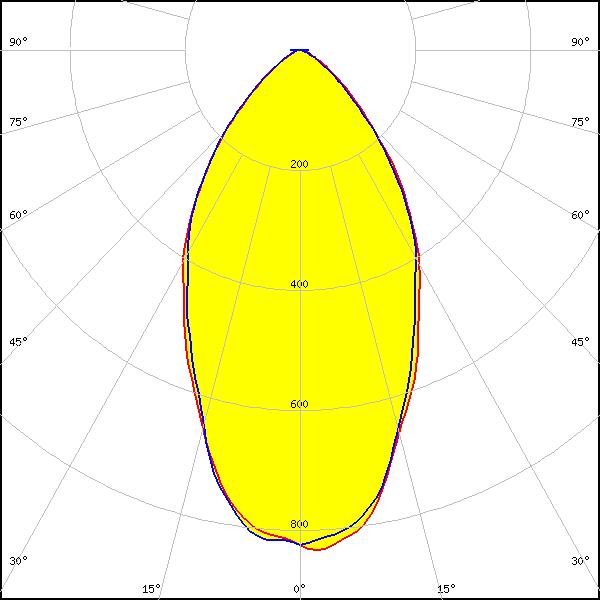

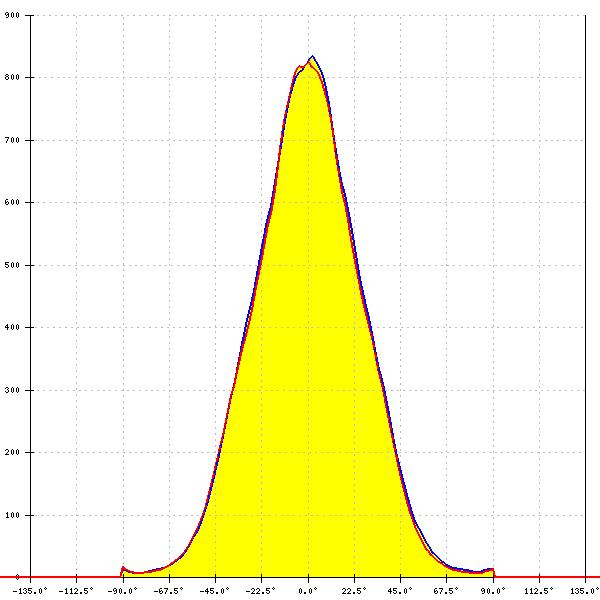

LED: LH351D
FWHM: 59°
FWTM: 106°
Peak intensity: 0.840 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

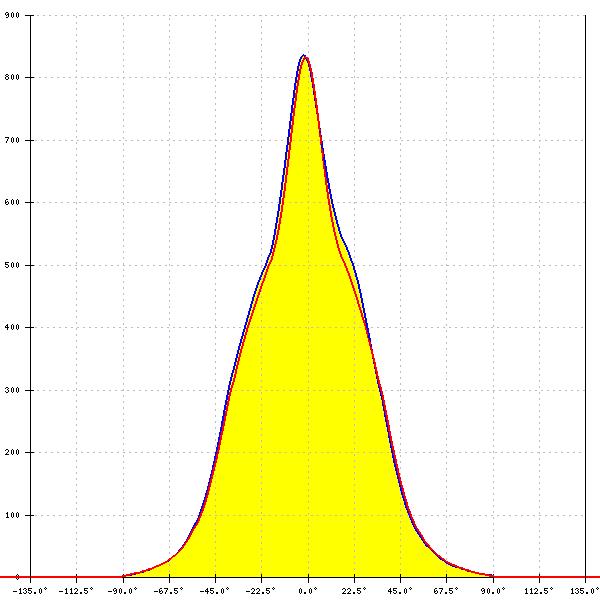

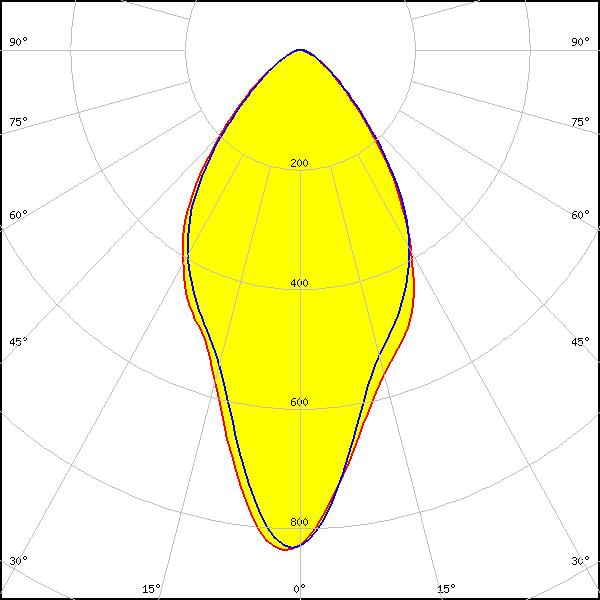

LED: LM231 A/B
FWHM: 56°
FWTM: 107°
Peak intensity: 0.880 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

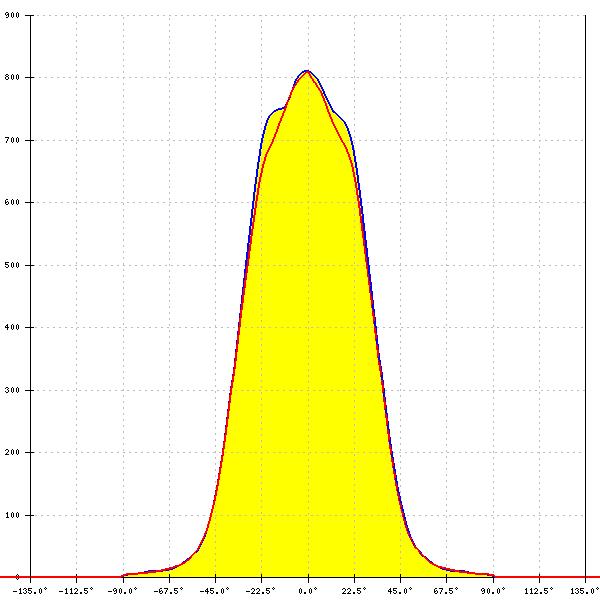

LED: LM28xB Series
FWHM: 66°
FWTM: 97°
Peak intensity: 0.810 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

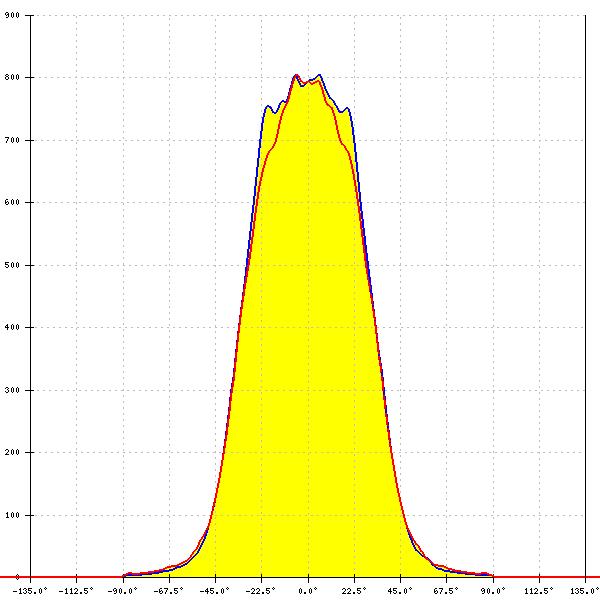

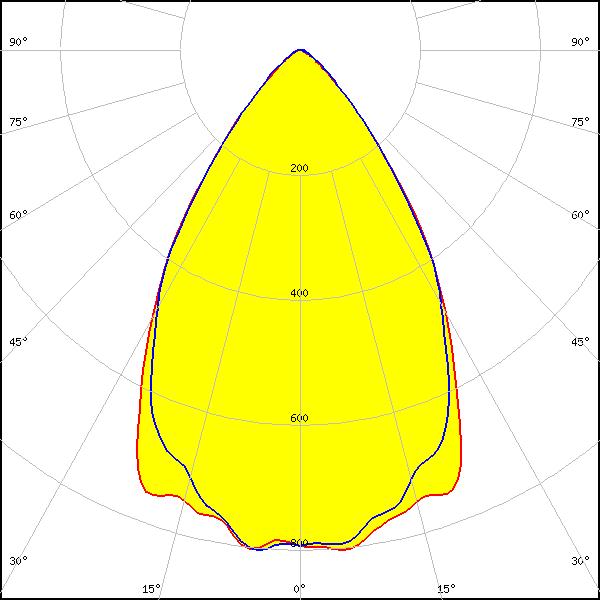

LED: LM301B
FWHM: 66°
FWTM: 98°
Peak intensity: 0.814 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

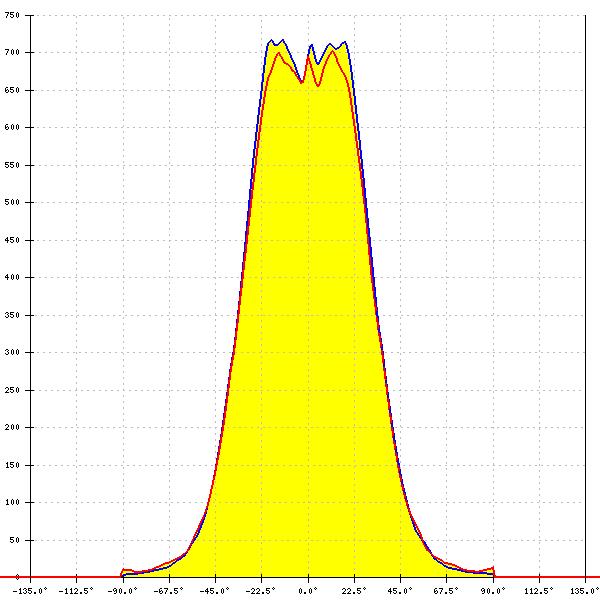

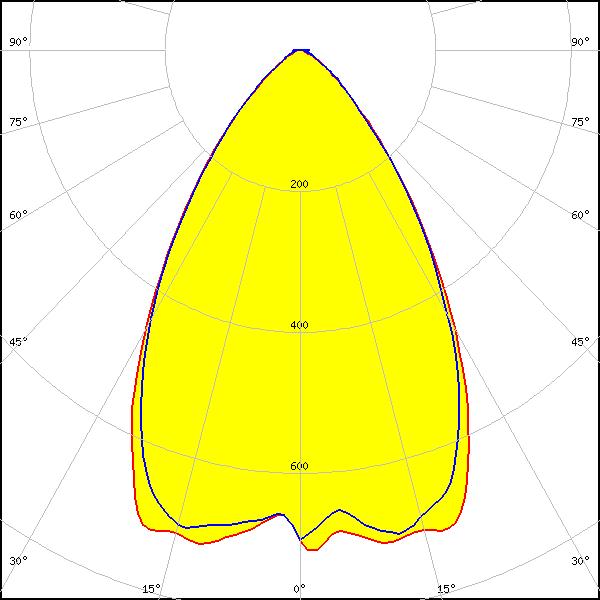

LED: LM301B
FWHM: 68°
FWTM: 106°
Peak intensity: 0.719 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour/type: White

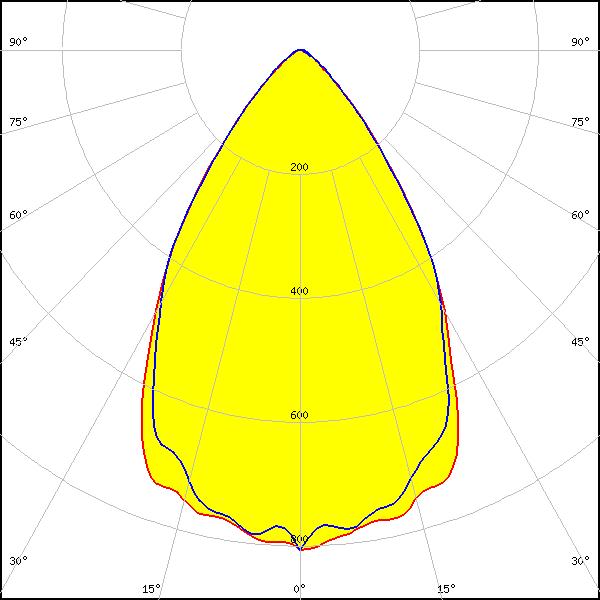

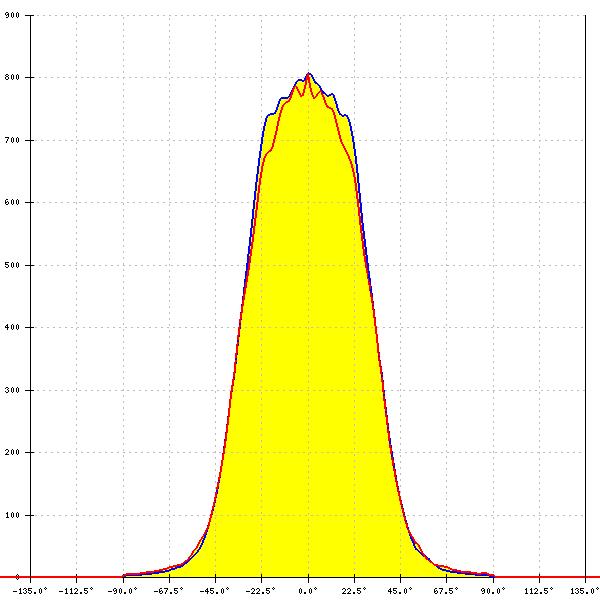

LED: LM302Z plus
FWHM: 66°
FWTM: 98°
Peak intensity: 0.822 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

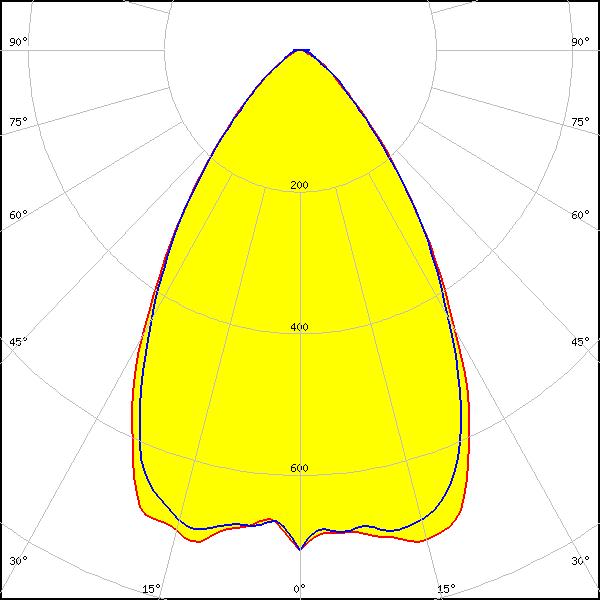

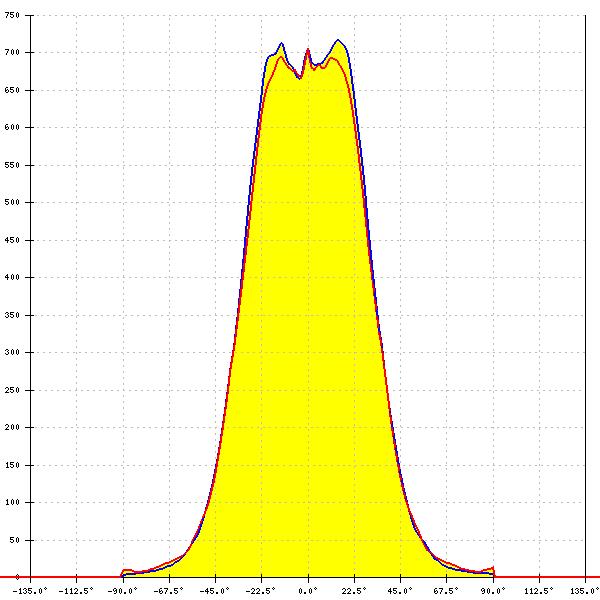

LED: LM302Z plus
FWHM: 68°
FWTM: 105°
Peak intensity: 0.719 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour/type: White

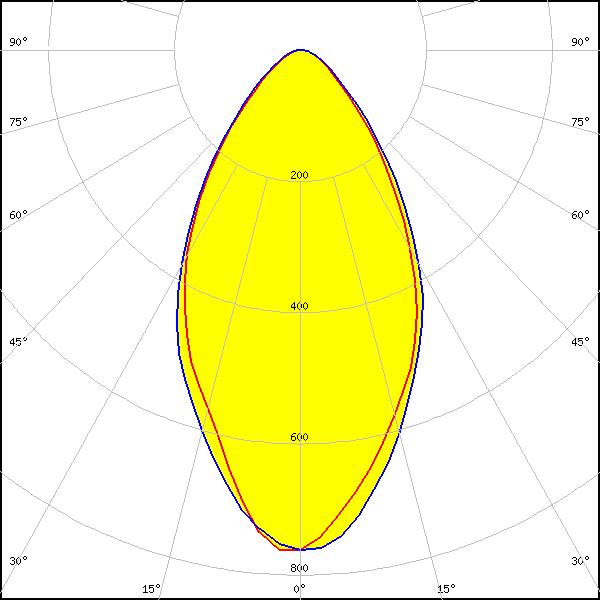

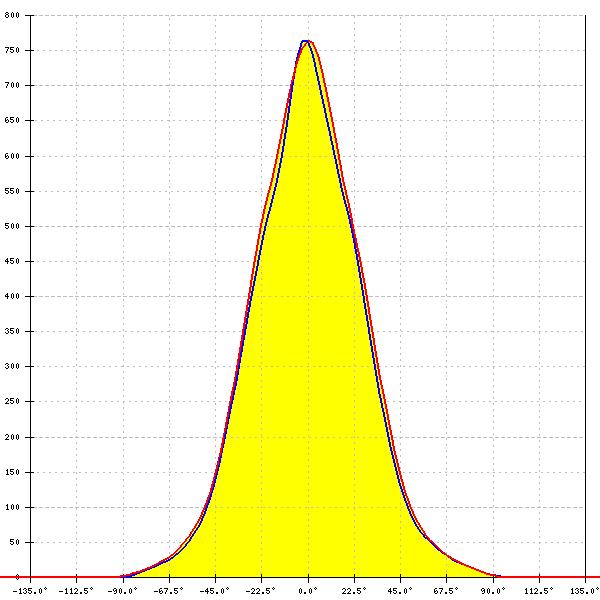

LED: LM362A
FWHM: 59°
FWTM: 107°
Peak intensity: 0.766 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

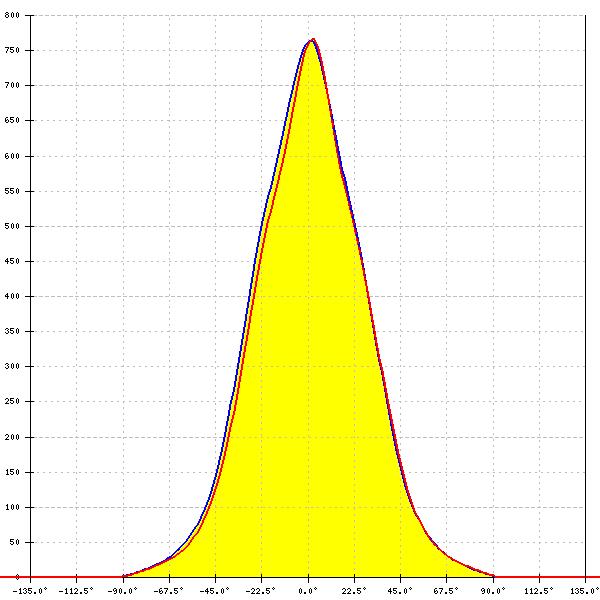

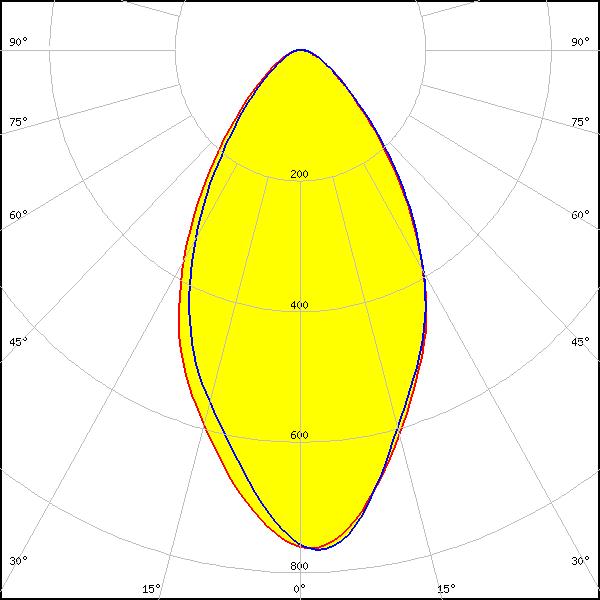

LED: LM561B
FWHM: 59°
FWTM: 108°
Peak intensity: 0.770 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

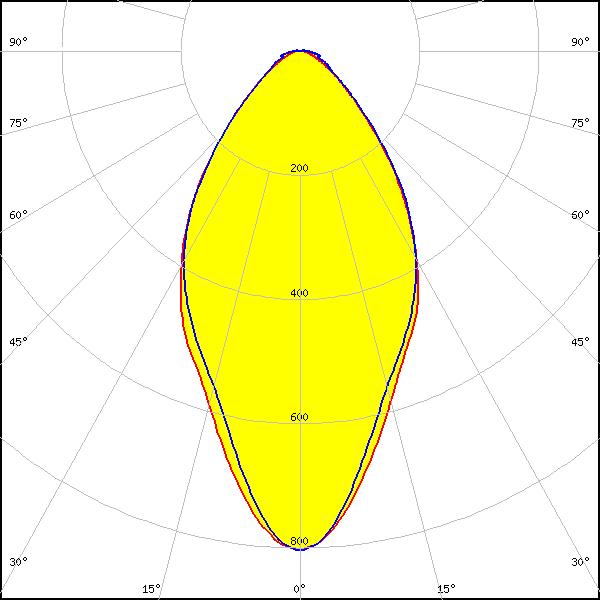

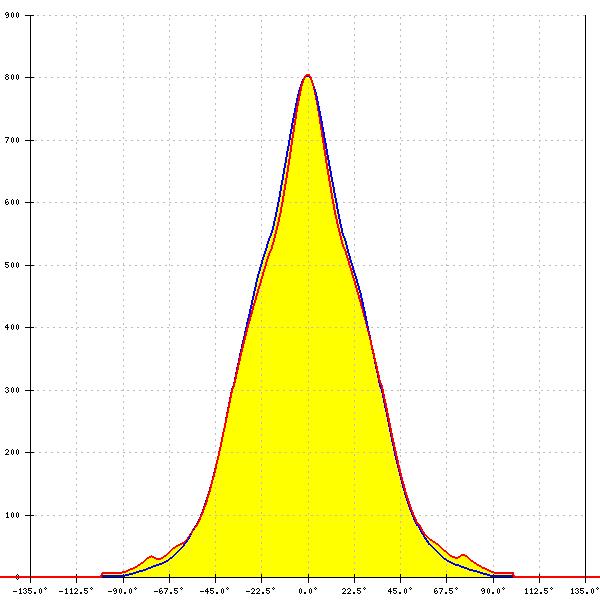

LED: LM561B Plus
FWHM: 59°
FWTM: 109°
Peak intensity: 0.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

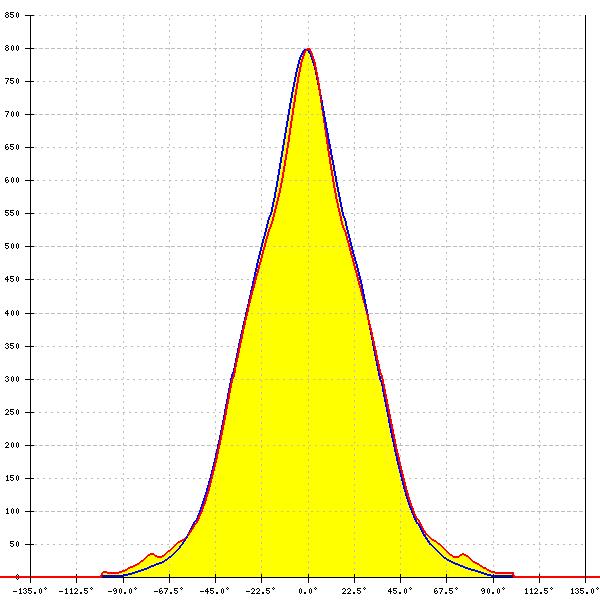

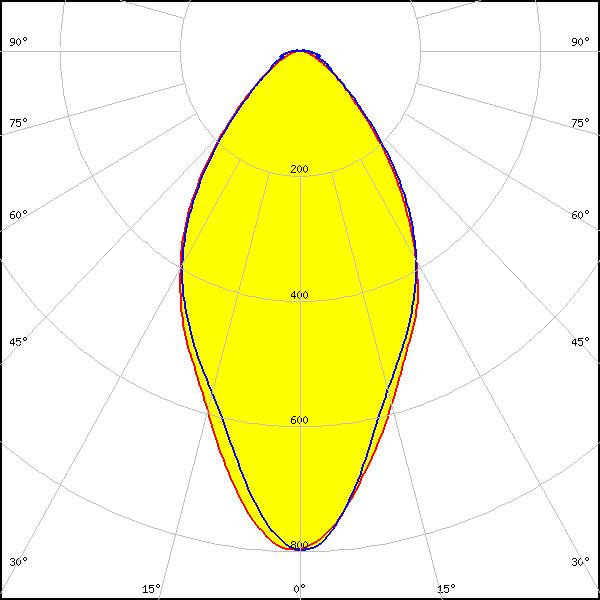

LED: LM561C
FWHM: 59°
FWTM: 110°
Peak intensity: 0.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

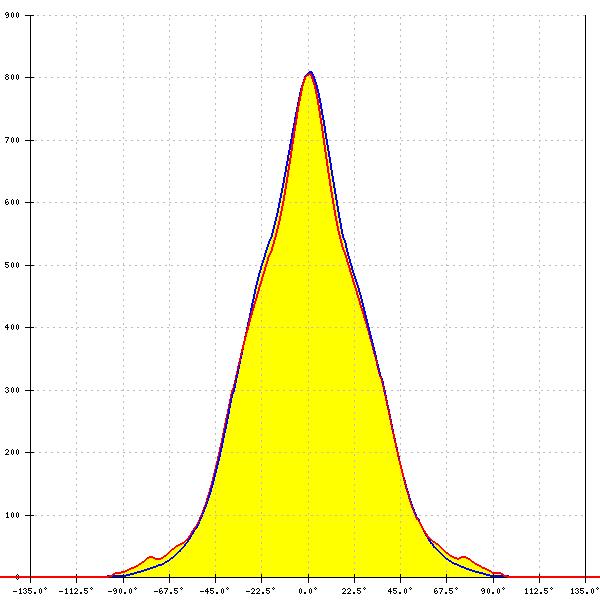

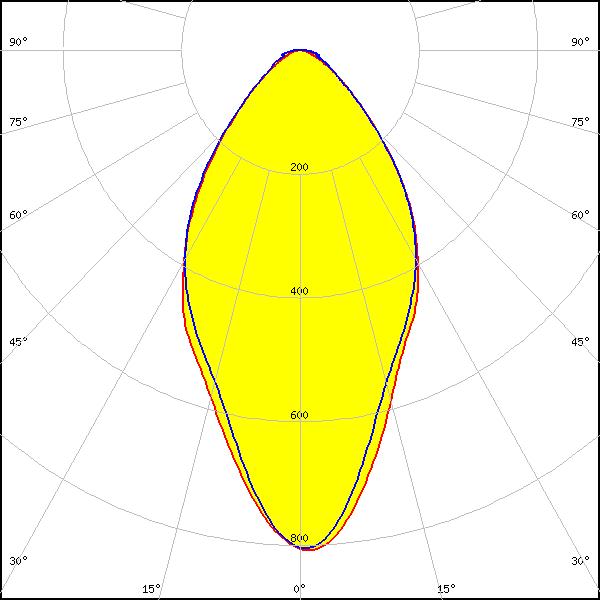

LED: LT-R286A
FWHM: 58°
FWTM: 110°
Peak intensity: 0.810 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

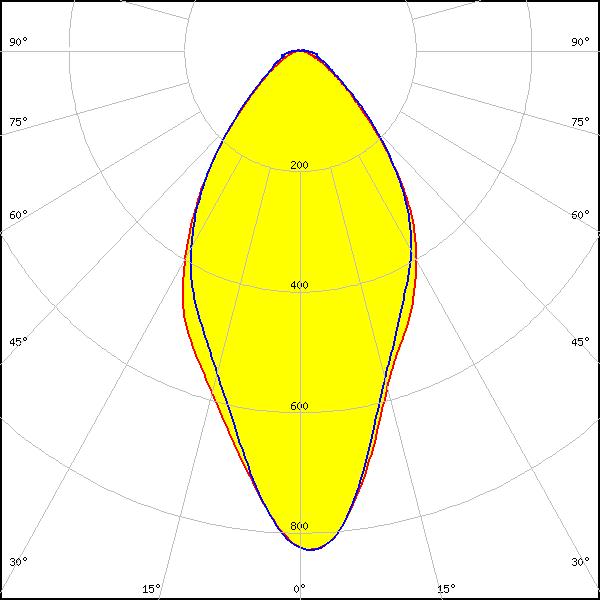

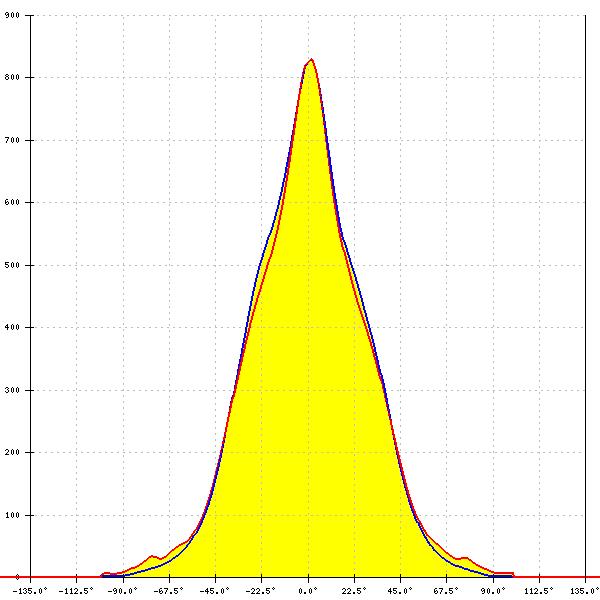

LED: SEOUL 3030
FWHM: 56°
FWTM: 108°
Peak intensity: 0.830 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

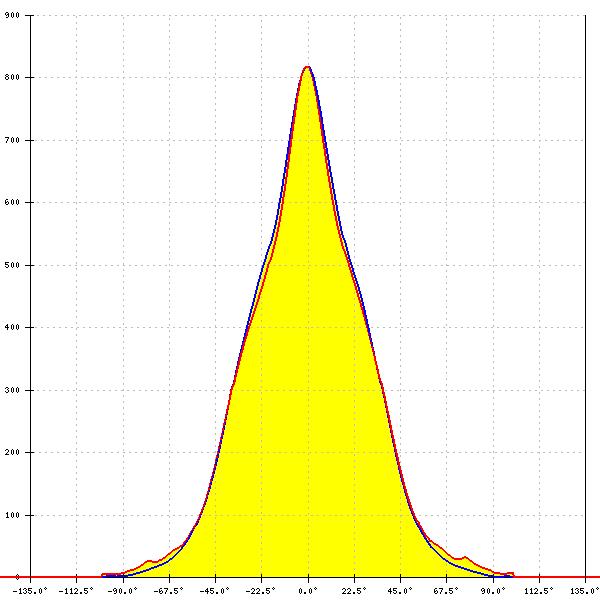

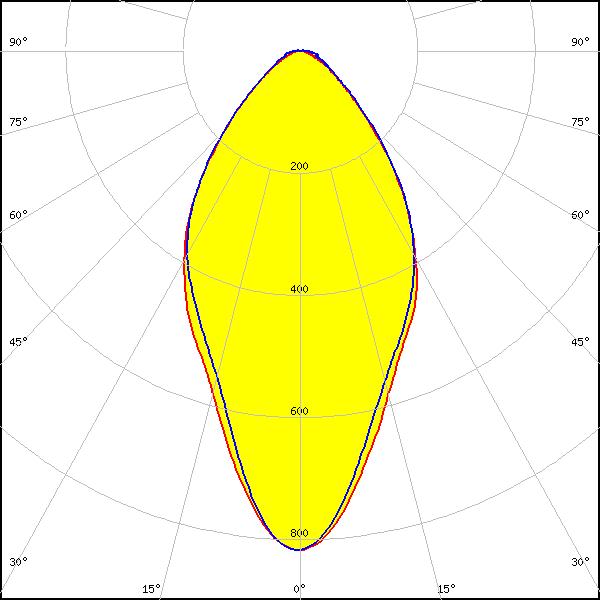

LED: SEOUL 5630C
FWHM: 57°
FWTM: 109°
Peak intensity: 0.820 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

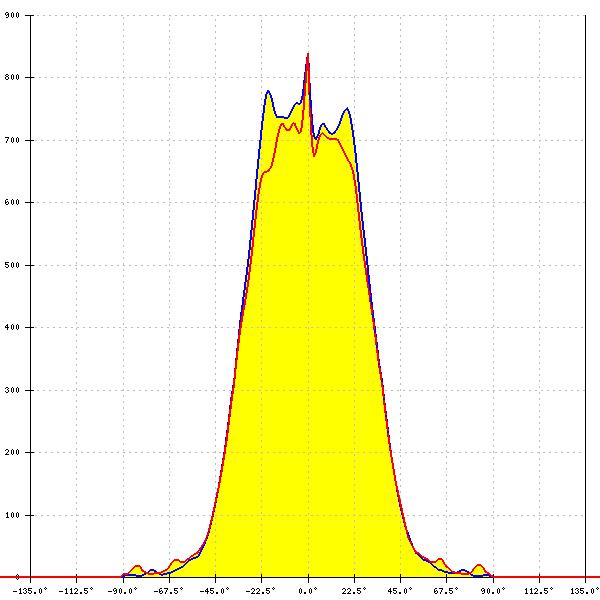

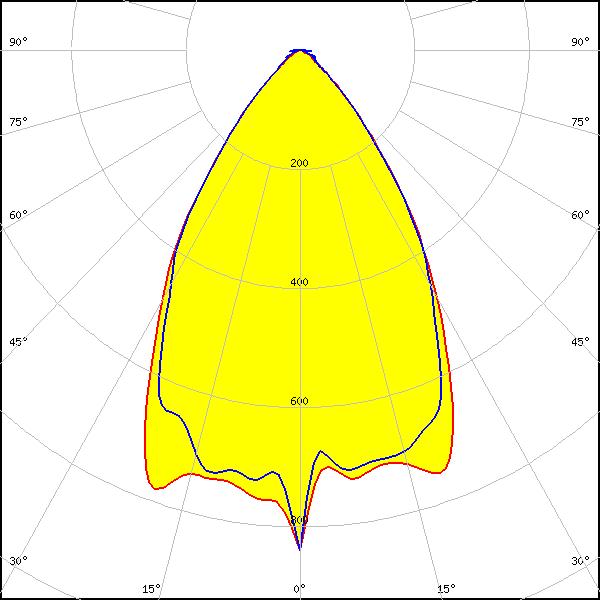

LED: SEOUL 5630D
FWHM: 65°
FWTM: 95°
Peak intensity: 0.840 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3030
FWHM: 59° + 55°
FWTM: 106° + 108°
Peak intensity: 0.850 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

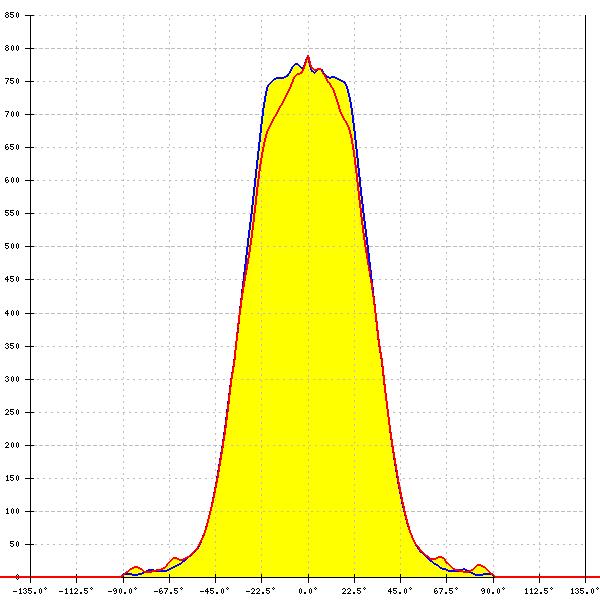

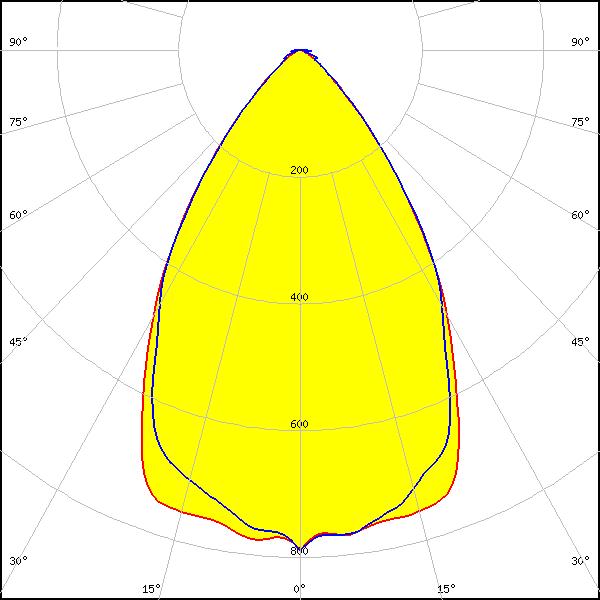

LED: SEOUL DC 3030C
FWHM: 66°
FWTM: 98°
Peak intensity: 0.789 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y22
FWHM: 62°
FWTM: 100°
Peak intensity: 0.750 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

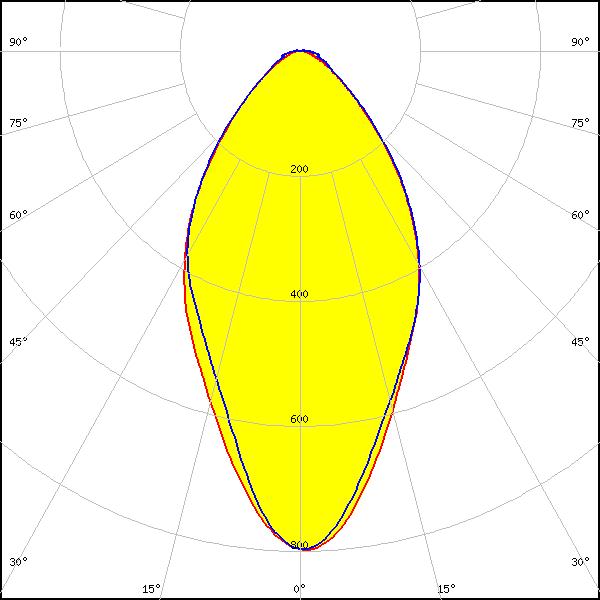

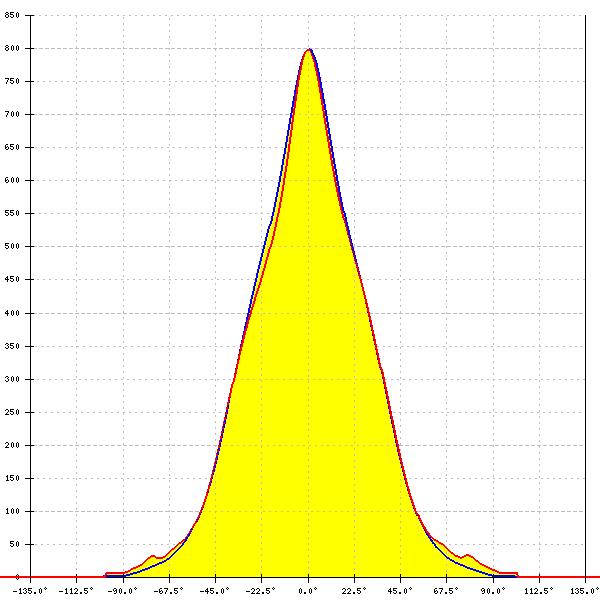

LED: LLE G2 55x280mm 2000lm
FWHM: 58°
FWTM: 111°
Peak intensity: 0.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
