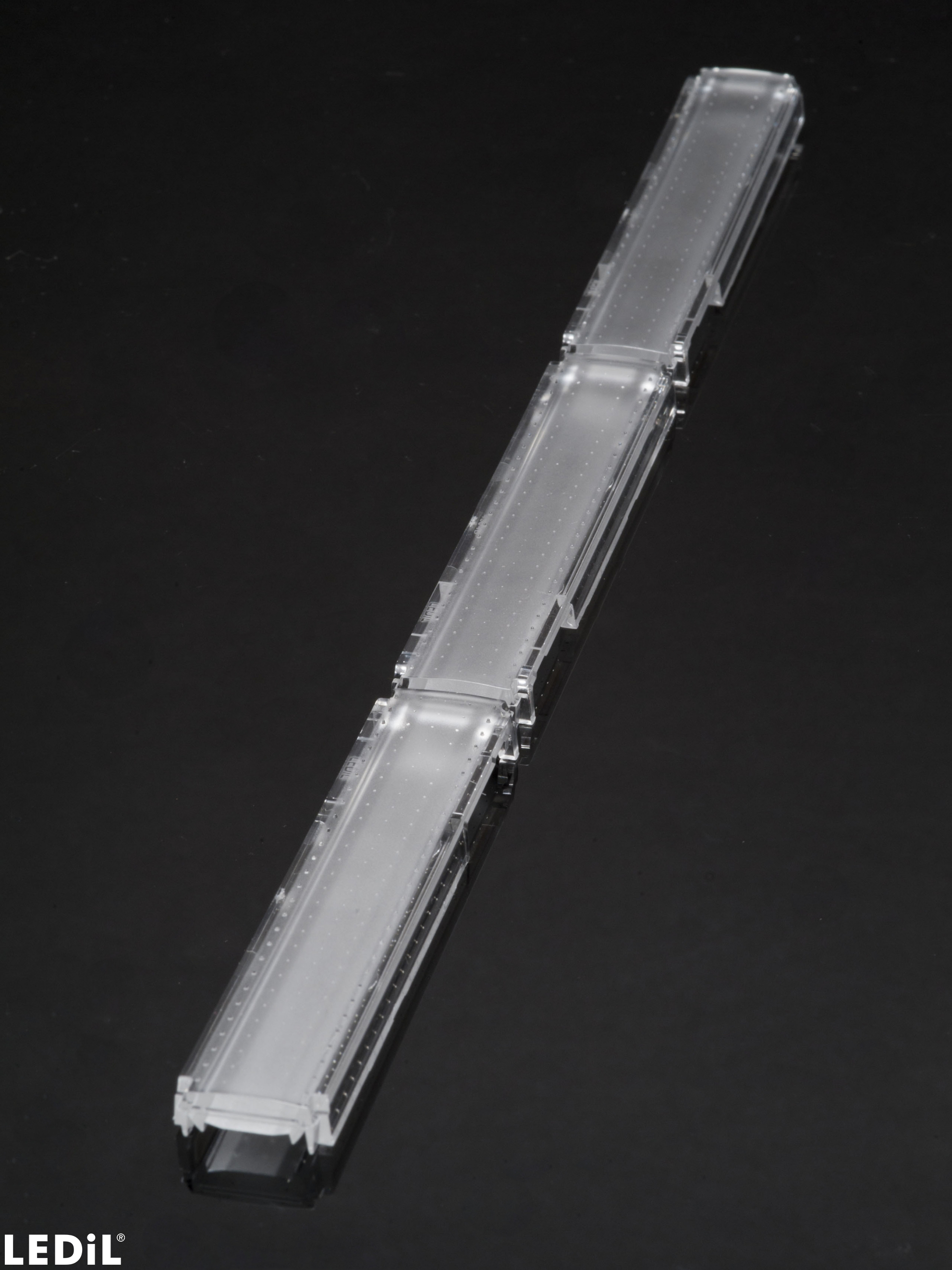

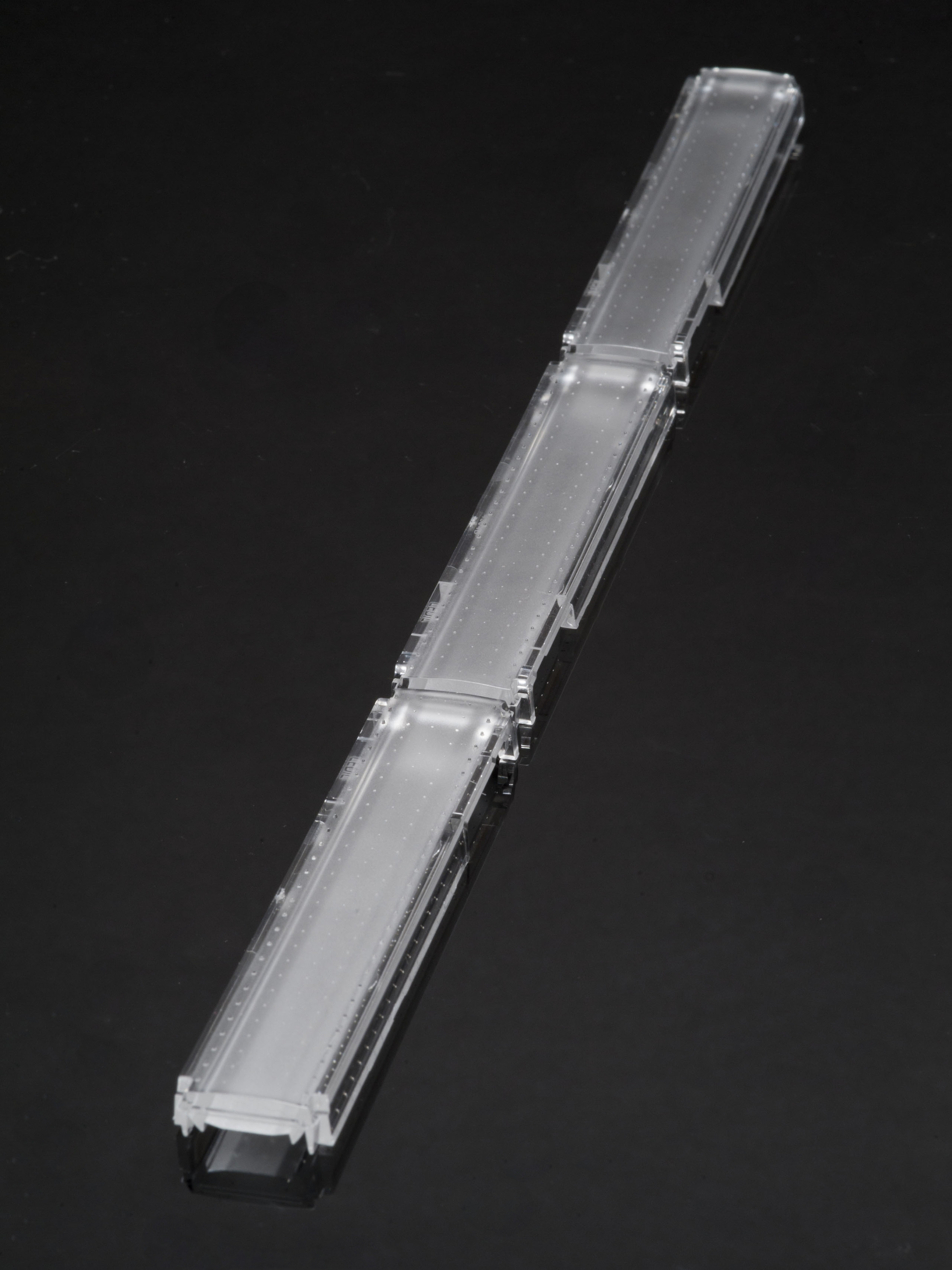

    F14304_FLORENCE-1R-Z90

    Print

    ~90° + 110° wide beam

    Specification
    • Dimensions:
      20 x  286 mm
    • Height:
      7.0 mm
    • Fastening:
      clips
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • PMMA
    Ordering information
    • Quantity in box:
      165 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      7.5 kg
    • MPQ:
      15 pcs
    • MOQ:
      45 pcs
    • MOQ size:
      400 x 300 x 100 mm
    • MOQ weight:
      2.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F14304_FLORENCE-1R-Z90

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    Installation Guide

    General Installation Guide

    Product video

    FLORENCE-1R assembly instruction

    Application example

    Office lighting with FLORENCE-1R-GC and FLORENCE-1R

    PCN

    Product change notification NR102.a - Change of packaging quantities 230415

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    Linear lighting solutions

    News

    PRODUCT NEWS - FLORENCE-1R

    News

    PRODUCT NEWS - FLORENCE-1R

    News

    PRODUCT NEWS - FLORENCE-1R

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Compatibility guide

    FLORENCE-1R Compatibility Guide

    Application area

    Office Lighting

    Application guide

    Guide_for_Retail_Lighting_Optics_v.1.0_2021_WEB

    Article

    Illuminating supermarkets with LEDiL optics

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    C14519_FLORENCE-1R-SHD-GR

    Grey glare lowering shade for FLORENCE-1R-Z90 and FLORENCE-1R-Z60 optics

    C14593_FLORENCE-1R-SHD-BLK

    Black glare lowering shade for FLORENCE-1R-Z90 and FLORENCE-1R-Z60 optics

    C14751_FLORENCE-1R-CLIP-C

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 24 mm wide PCB

    C14409_FLORENCE-1R-CLIP-B

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD to extrusion profiles

    C14353_FLORENCE-1R-CLIP-A

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 40 mm wide PCB

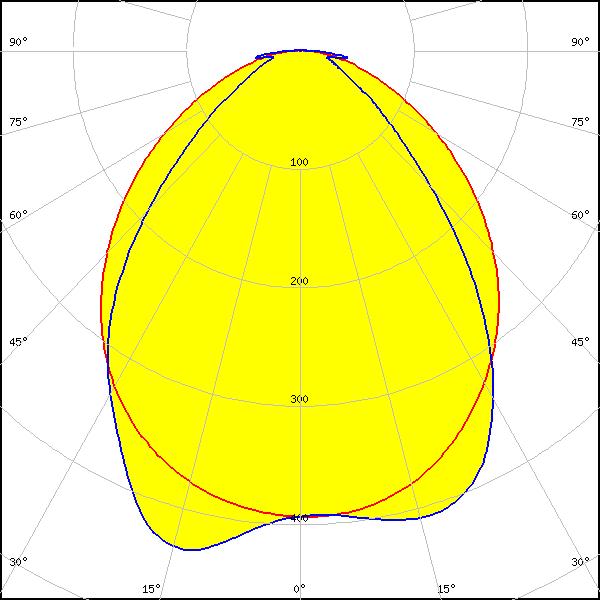

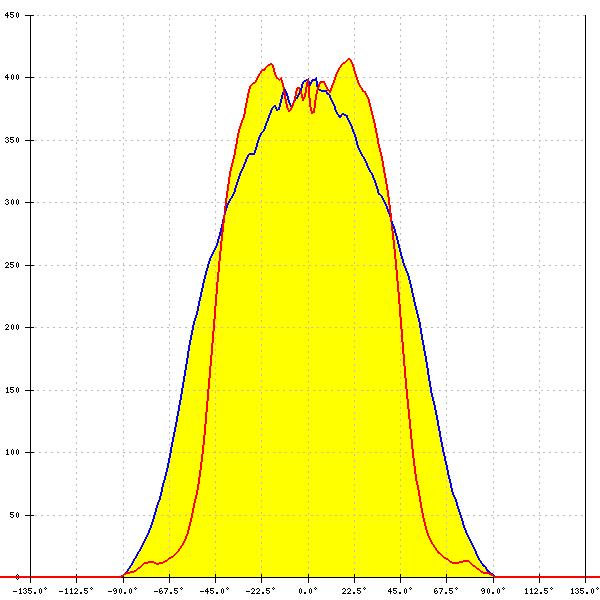

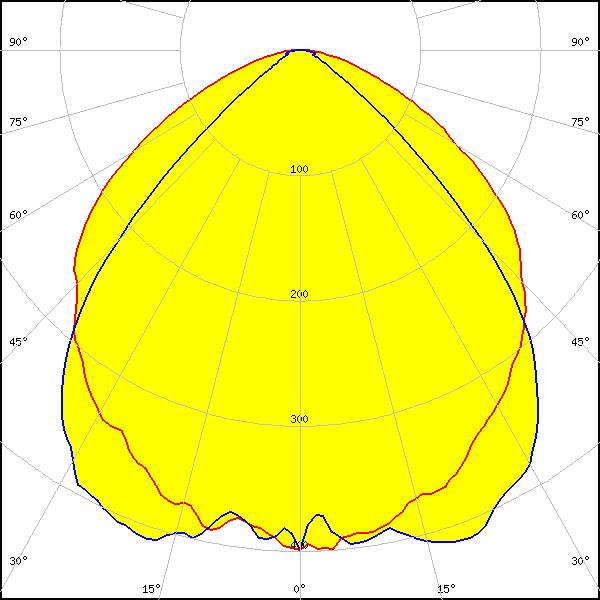

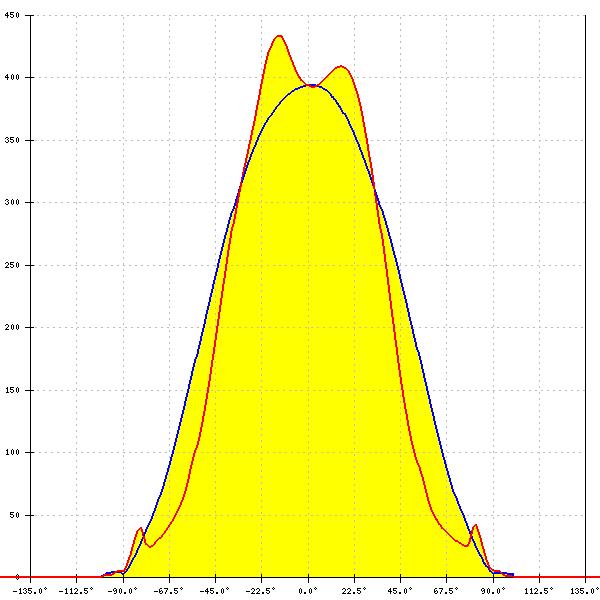

    Optical results

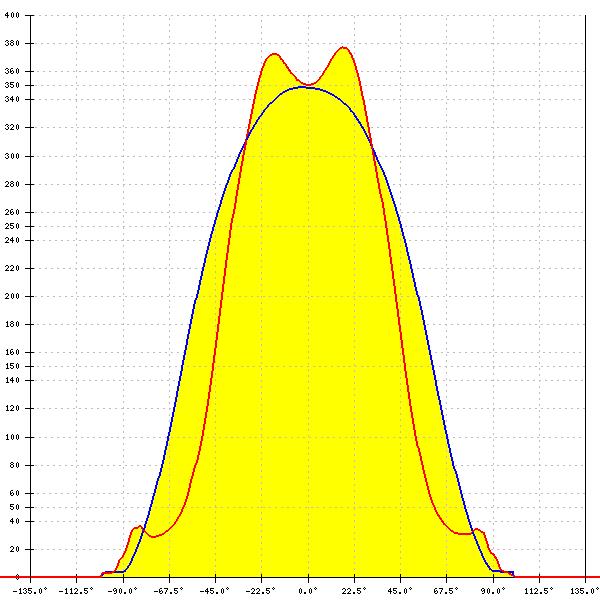

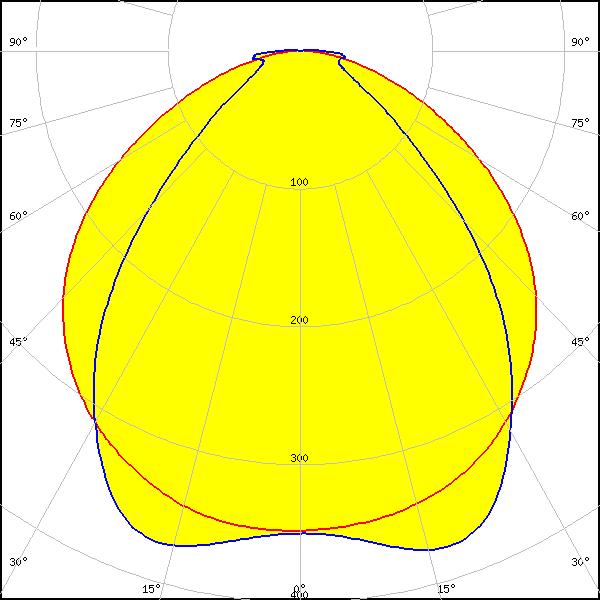

    LED: CALGD0414-M8W1
    FWHM: 89° + 115°
    FWTM: 151° + 159°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

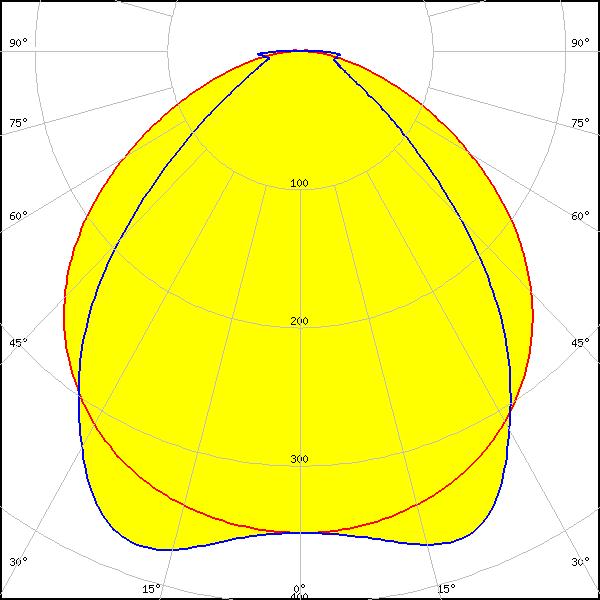

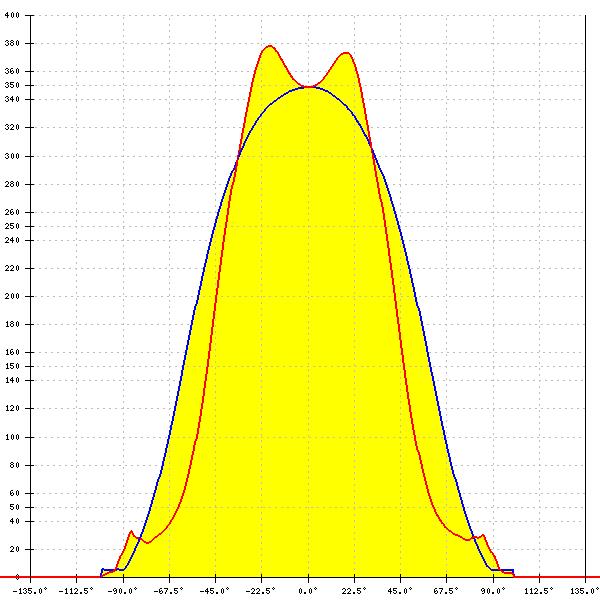

    LED: CALGD0814-M17W1
    FWHM: 90° + 114°
    FWTM: 137° + 159°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White
    LED: L0-280024-xxx-C0800-L267
    FWHM: 88° + 106°
    FWTM: 131° + 156°
    Peak intensity: 0.4 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

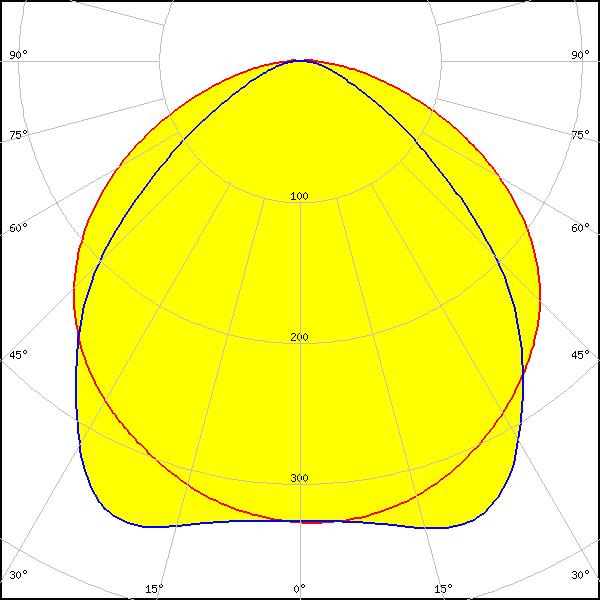

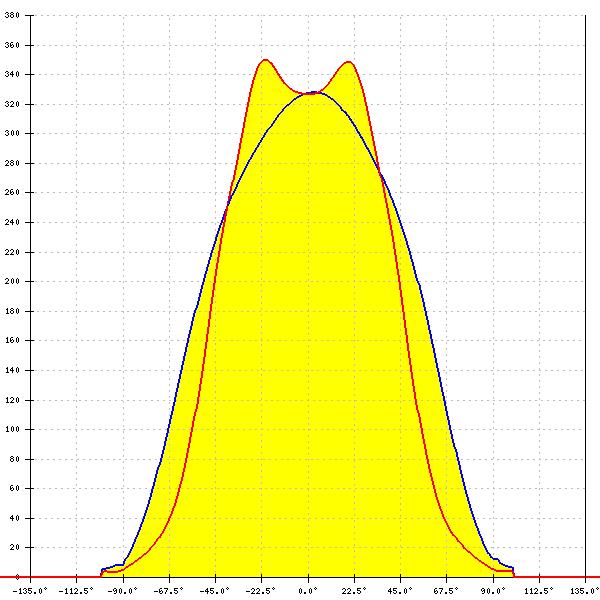

    LED: XH-B/G
    FWHM: 97° + 117°
    FWTM: 139° + 165°
    Peak intensity: 0.4 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White
    LED: LUXEON 2835 Line
    FWHM: 90° + 111°
    FWTM: 114° + 152°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

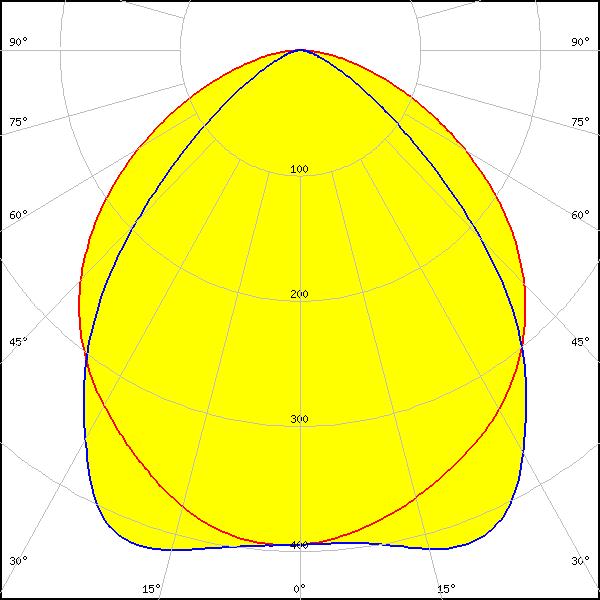

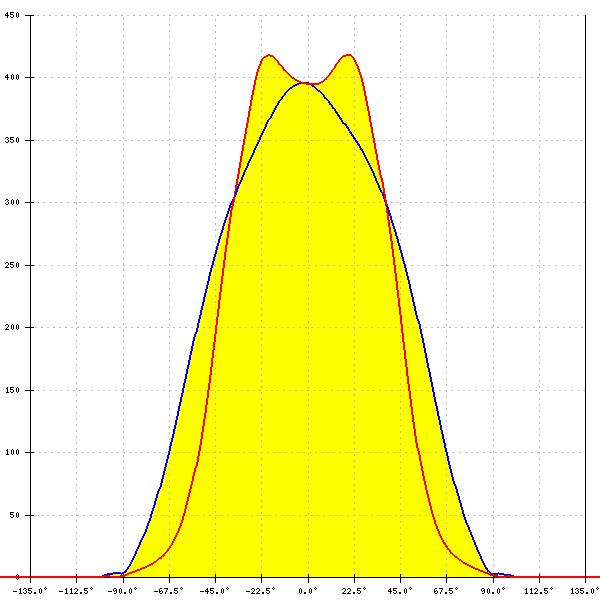

    LED: LUXEON 3014
    FWHM: 91° + 109°
    FWTM: 125° + 156°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

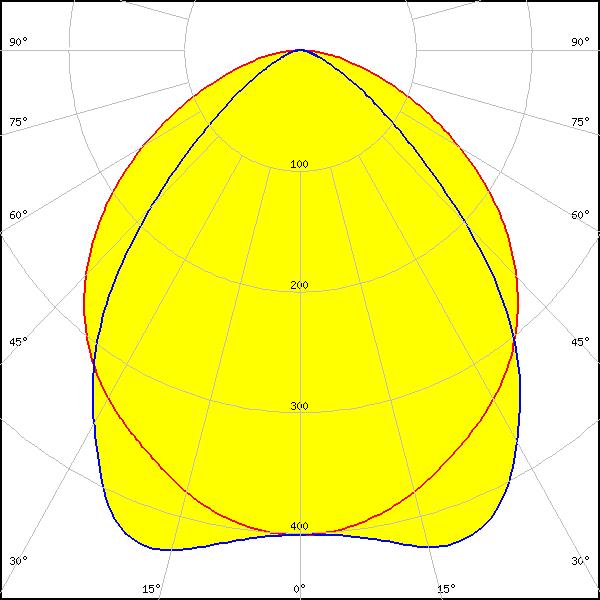

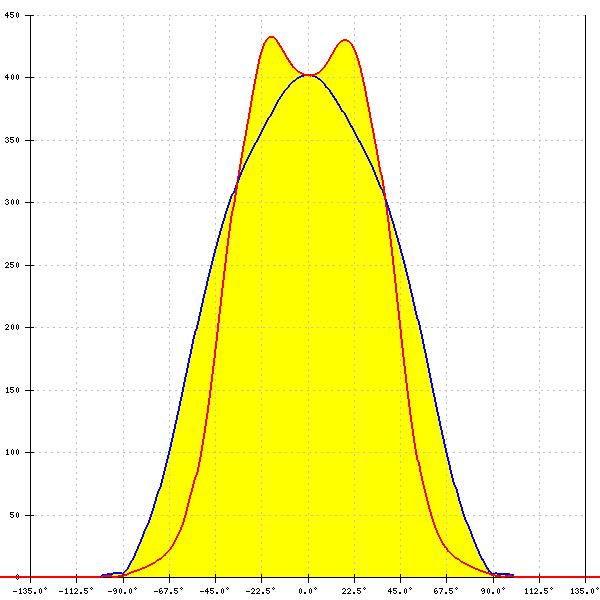

    LED: LUXEON 3020
    FWHM: 89° + 108°
    FWTM: 123° + 157°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

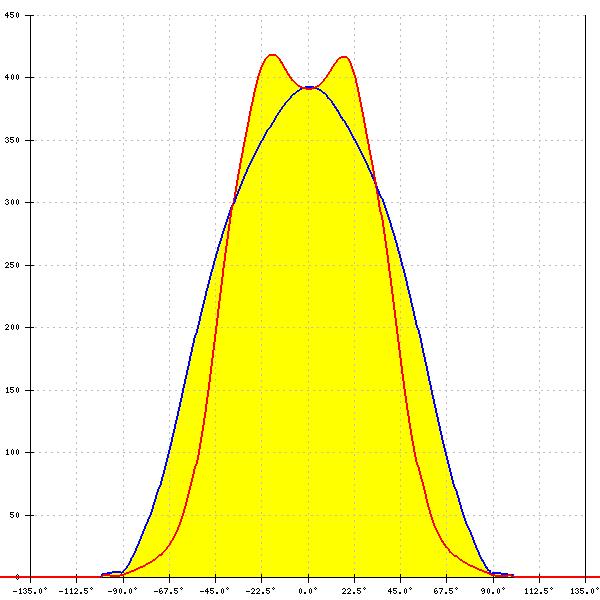

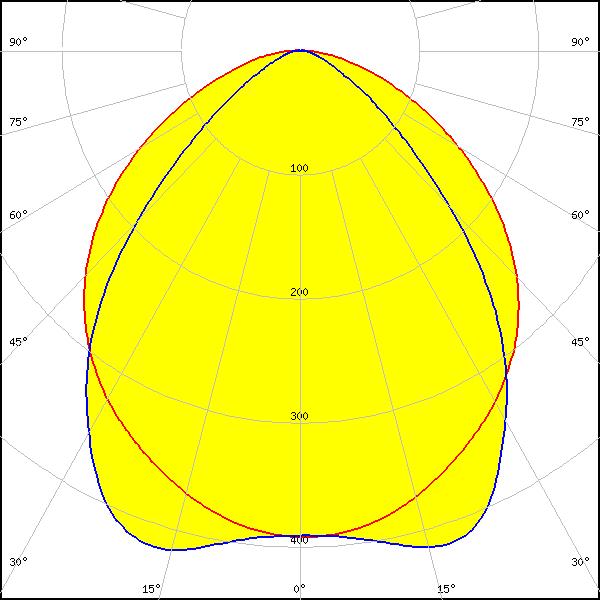

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 88° + 108°
    FWTM: 125° + 157°
    Peak intensity: 0.4 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

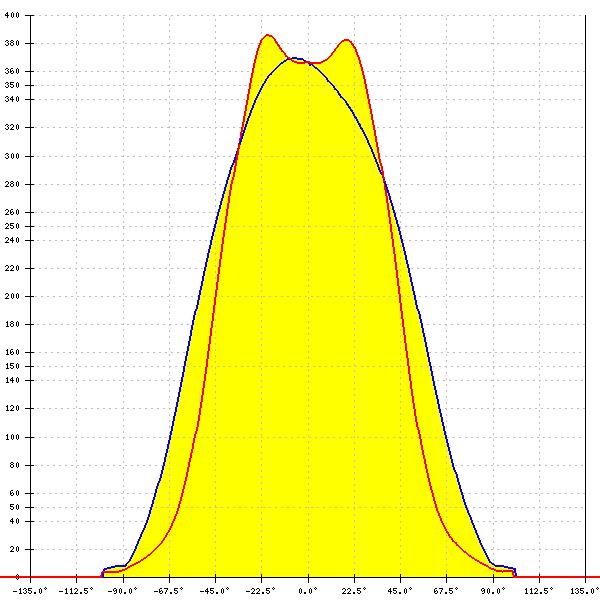

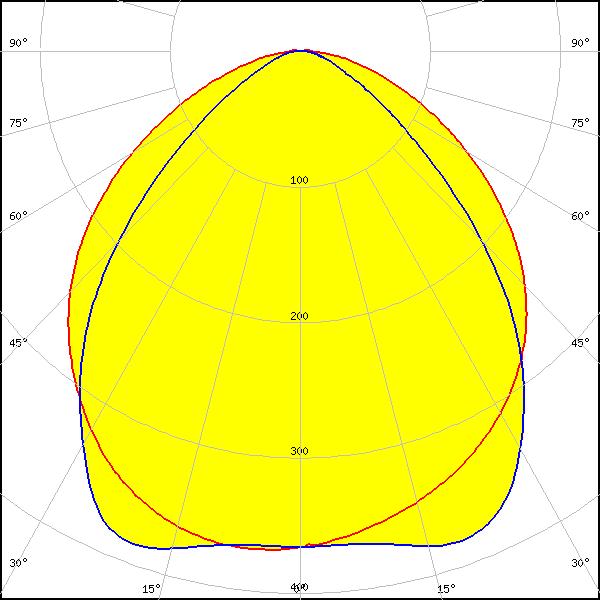

    LED: LUXEON 3535 2D
    FWHM: 92° + 110°
    FWTM: 133° + 160°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

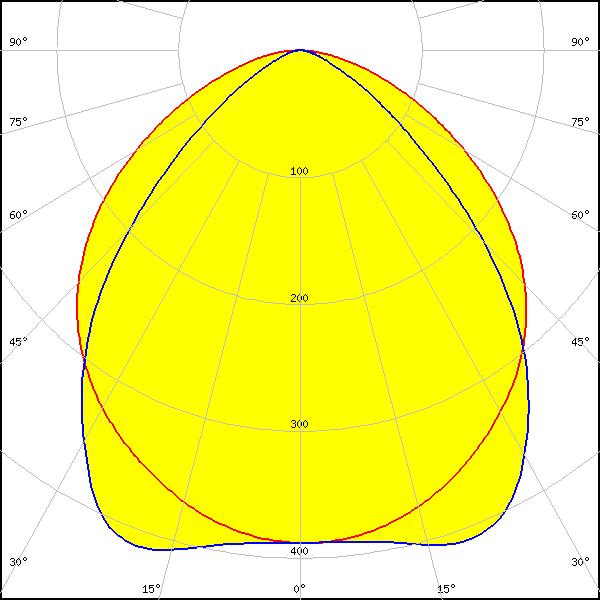

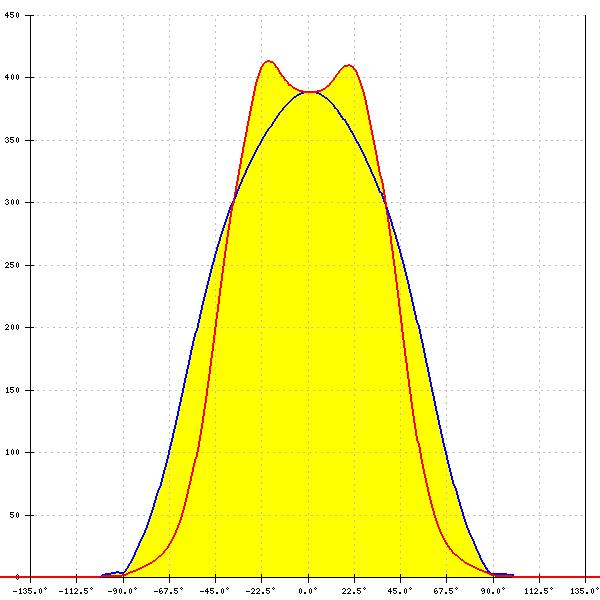

    LED: LUXEON 3535L
    FWHM: 92° + 109°
    FWTM: 128° + 157°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

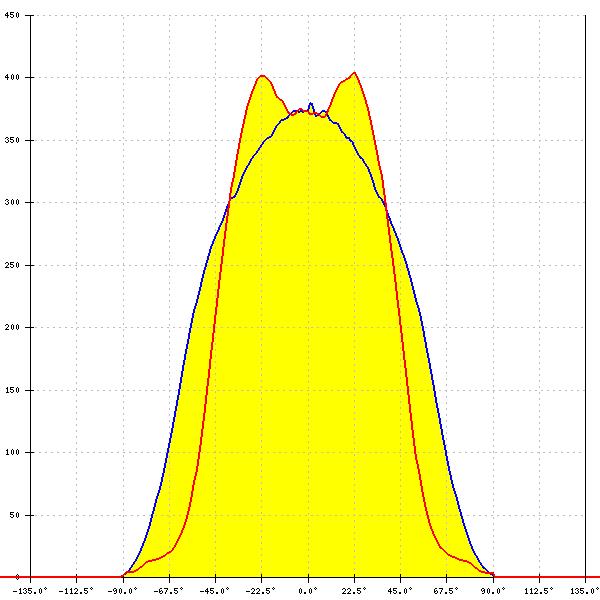

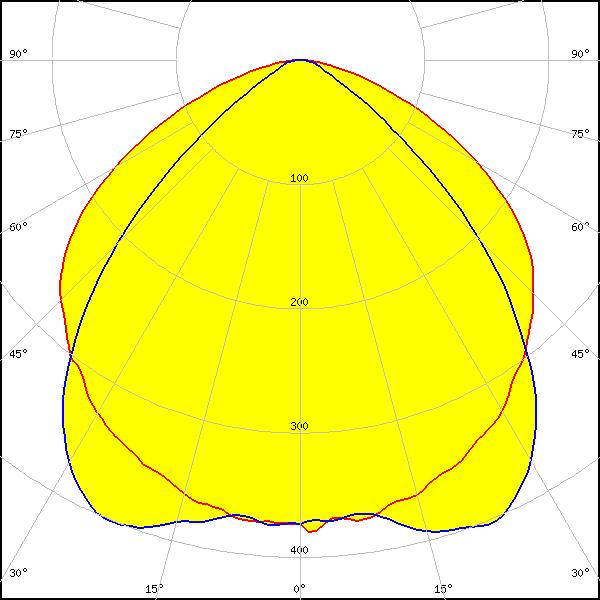

    LED: LUXEON 5050 Round LES
    FWHM: 91° + 111°
    FWTM: 120° + 153°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

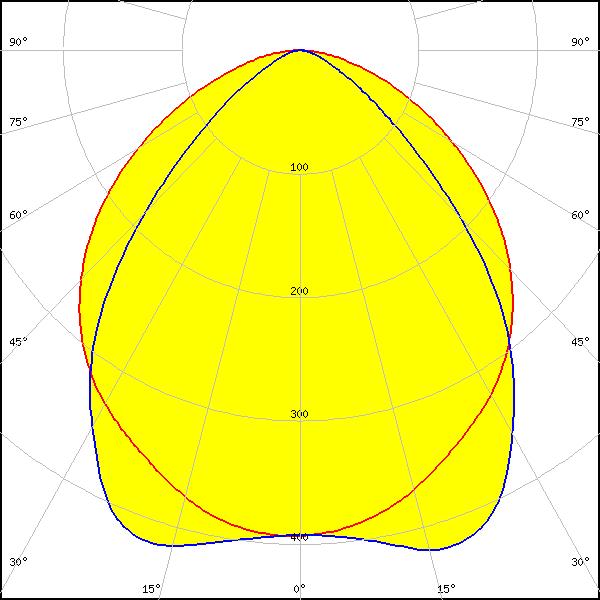

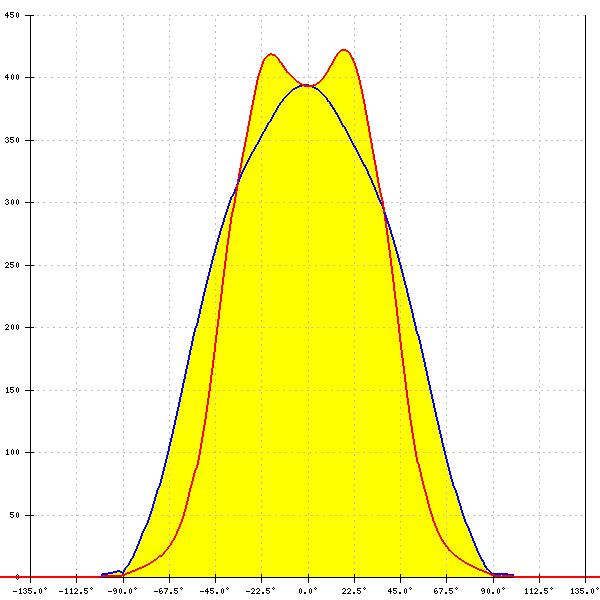

    LED: MP-2016
    FWHM: 89° + 108°
    FWTM: 125° + 157°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

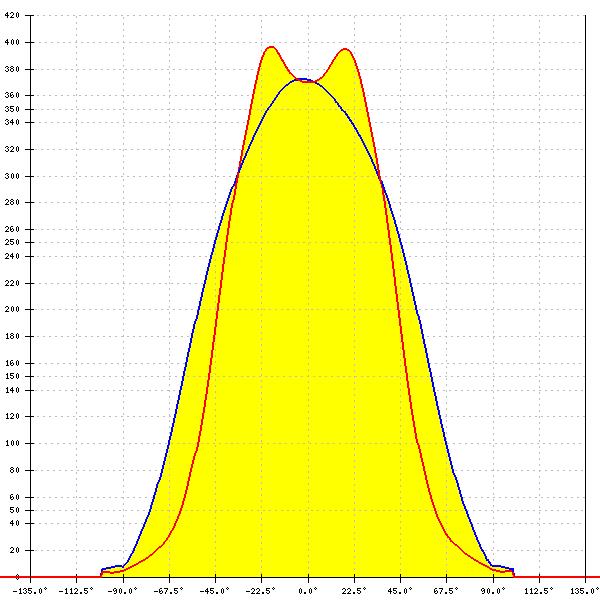

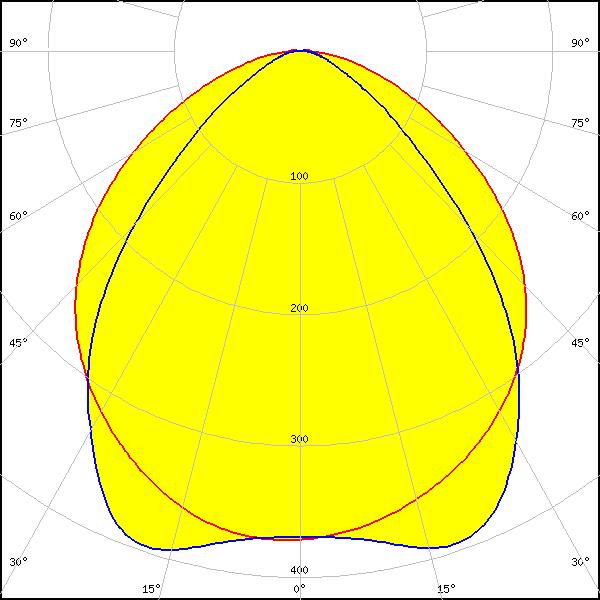

    LED: NF2x757D
    FWHM: 90° + 110°
    FWTM: 131° + 160°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

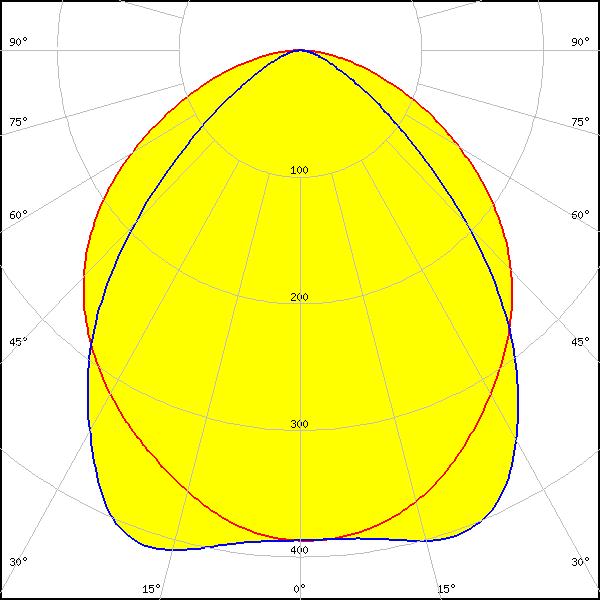

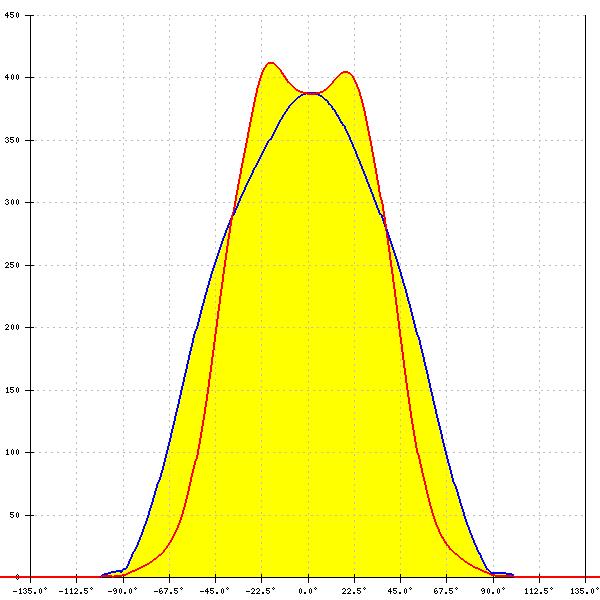

    LED: NF2x757G
    FWHM: 90° + 108°
    FWTM: 127° + 158°
    Peak intensity: 0.4 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

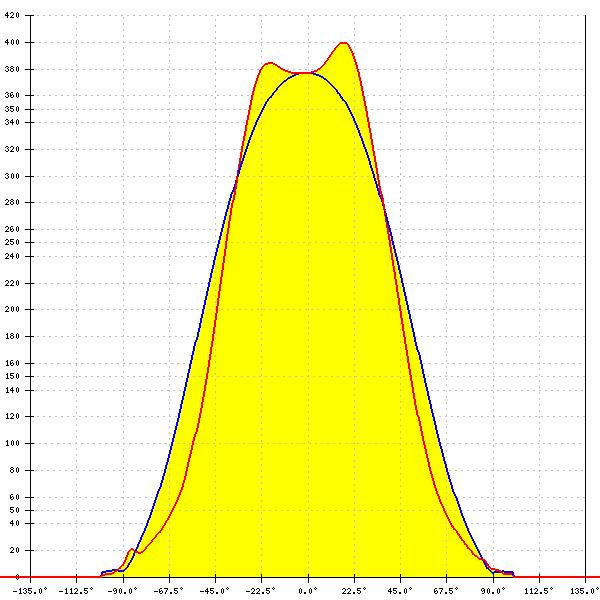

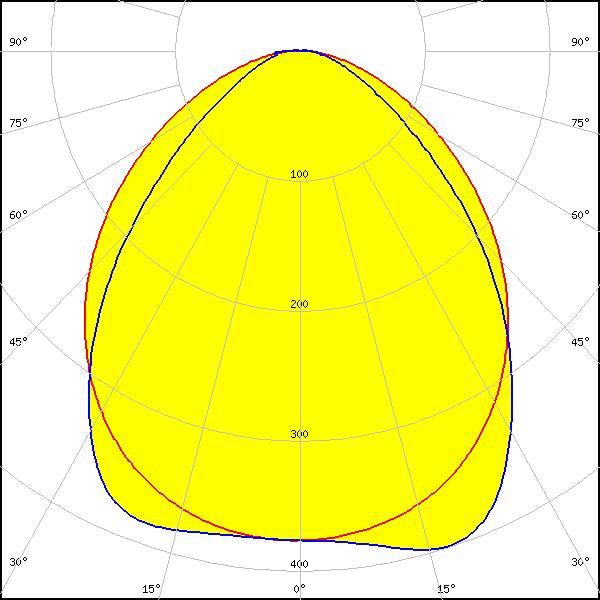

    LED: NFSW757H
    Required components:
    C14353_FLORENCE-1R-CLIP-A
    FWHM: 104° + 89°
    FWTM: 156° + 140°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

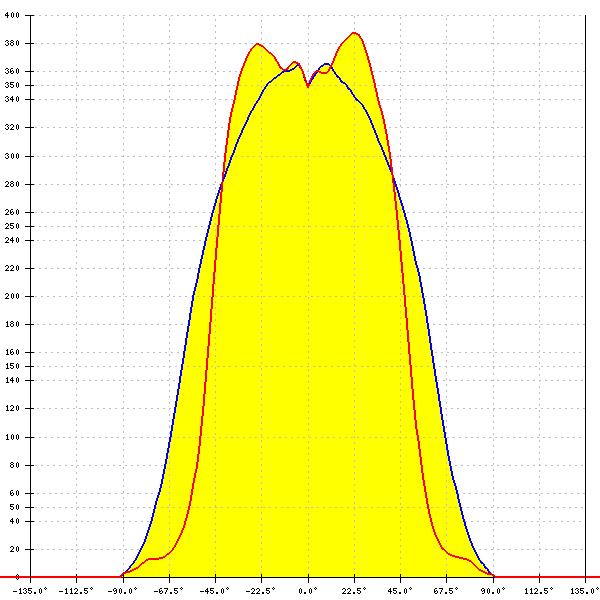

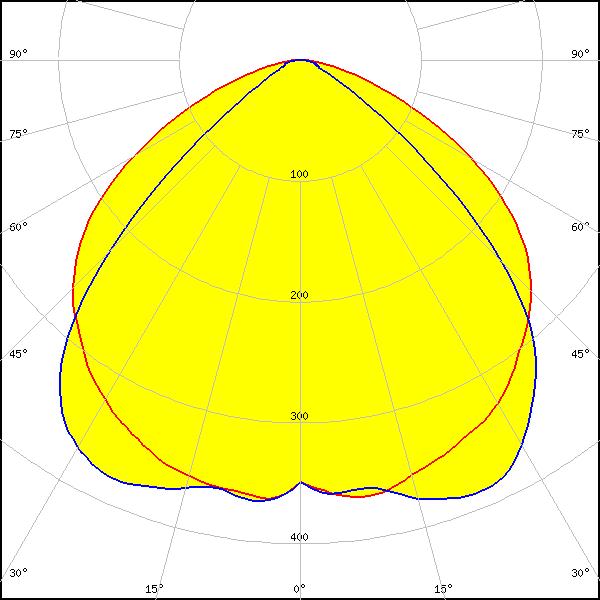

    LED: Duris E 2835
    FWHM: 94° + 106°
    FWTM: 120° + 150°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

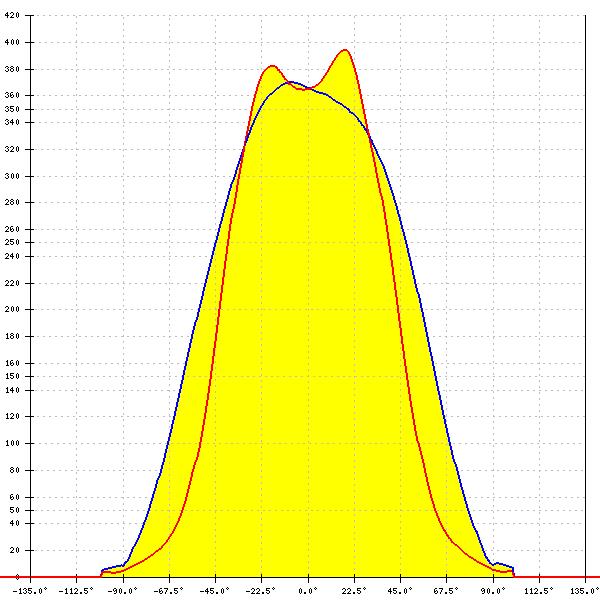

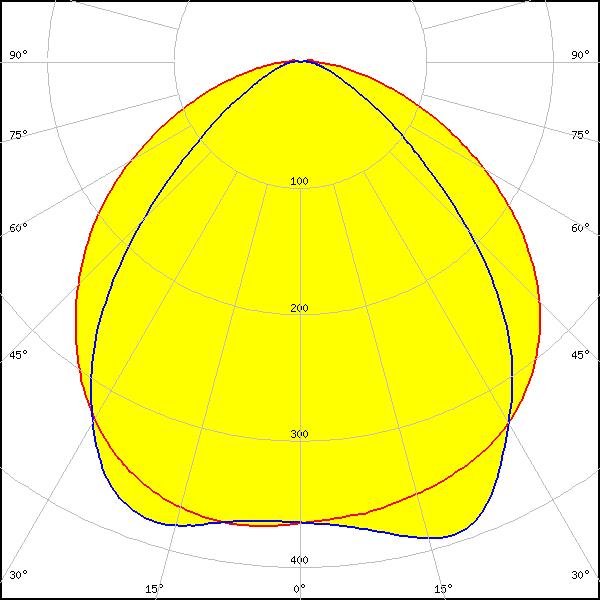

    LED: Duris S5 (2 chip)
    FWHM: 90° + 113°
    FWTM: 131° + 161°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

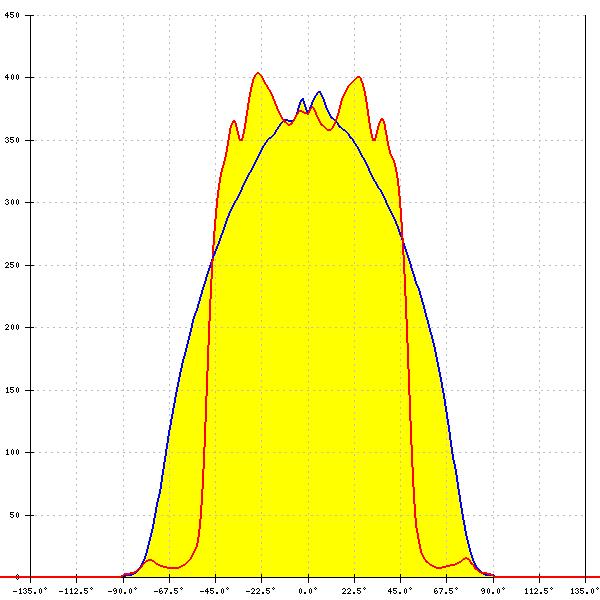

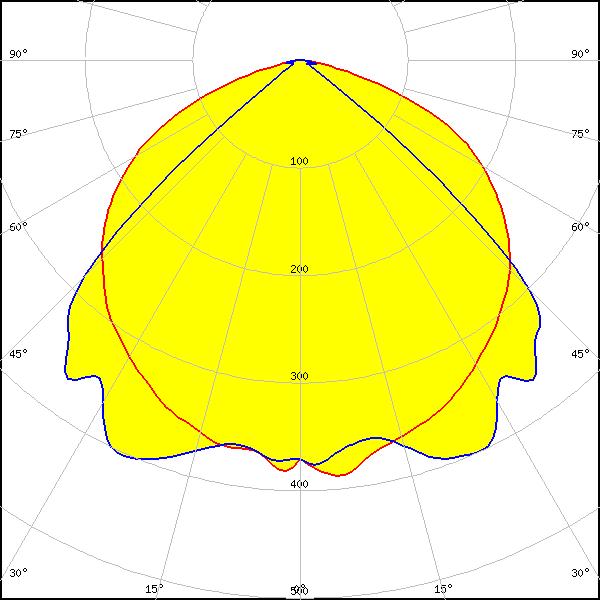

    LED: OSCONIQ C 2424
    FWHM: 117° + 96°
    FWTM: 152° + 106°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

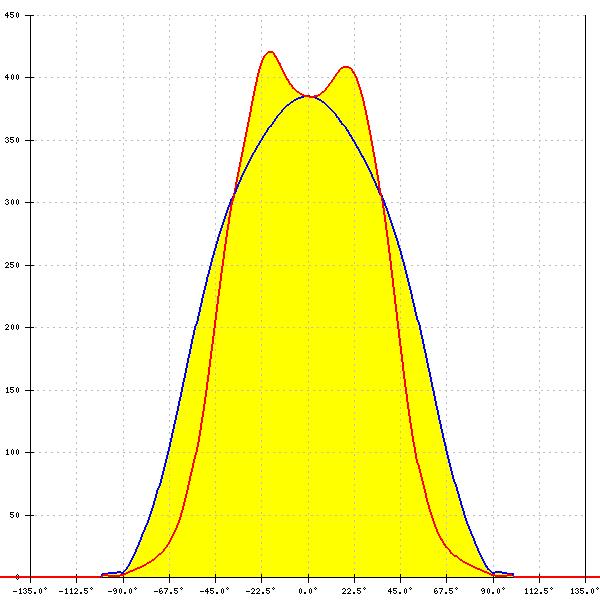

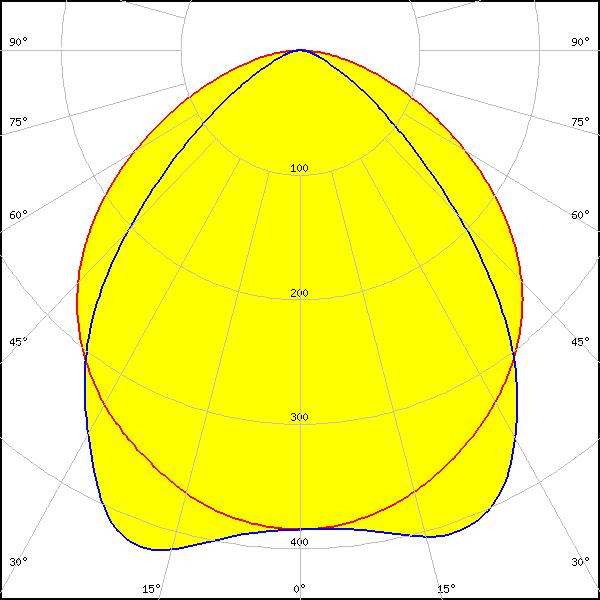

    LED: LM28xB Series
    FWHM: 91° + 111°
    FWTM: 127° + 158°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

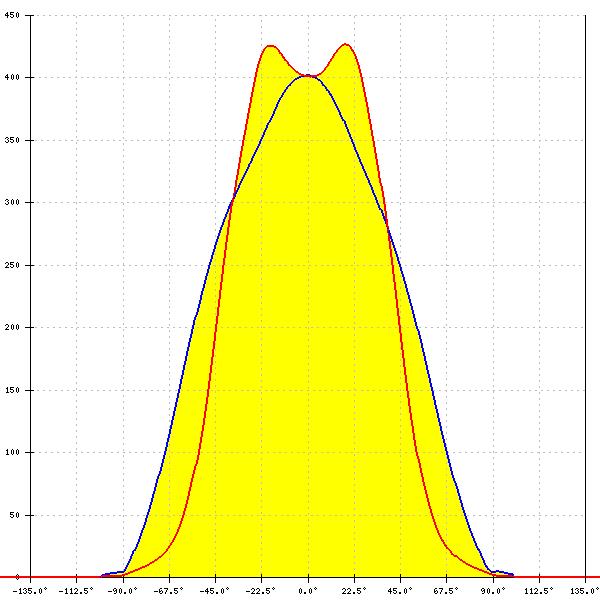

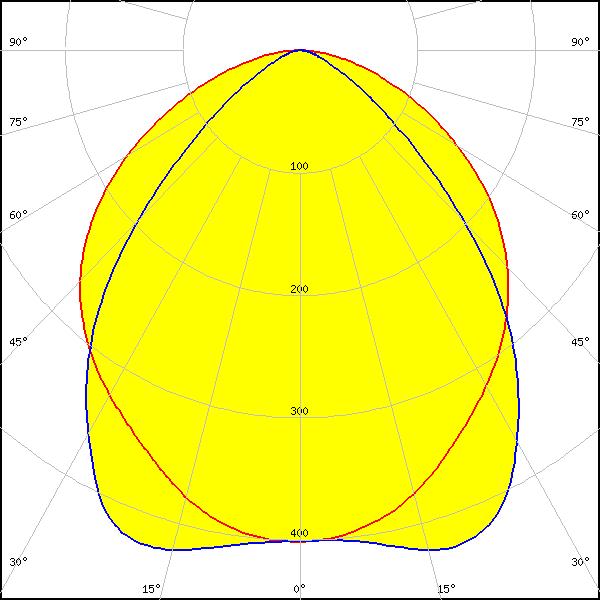

    LED: LM301A
    FWHM: 89° + 109°
    FWTM: 125° + 158°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

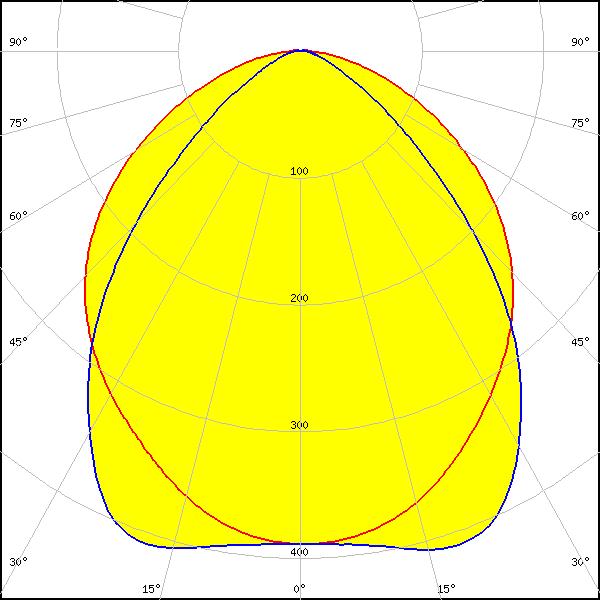

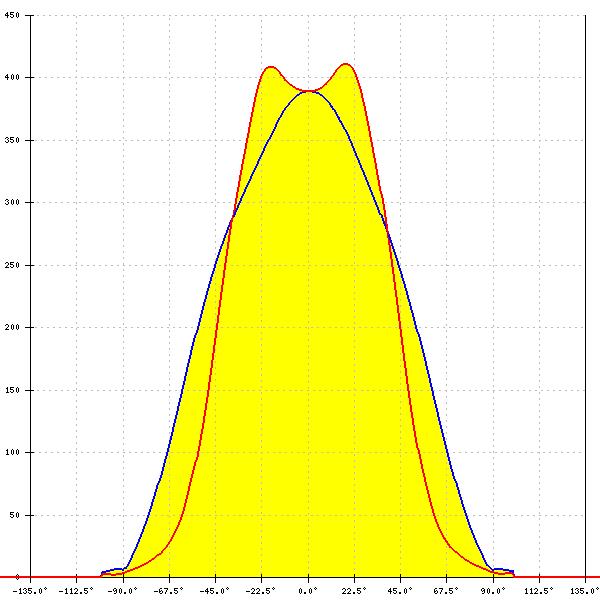

    LED: LM302A
    FWHM: 90° + 108°
    FWTM: 128° + 159°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

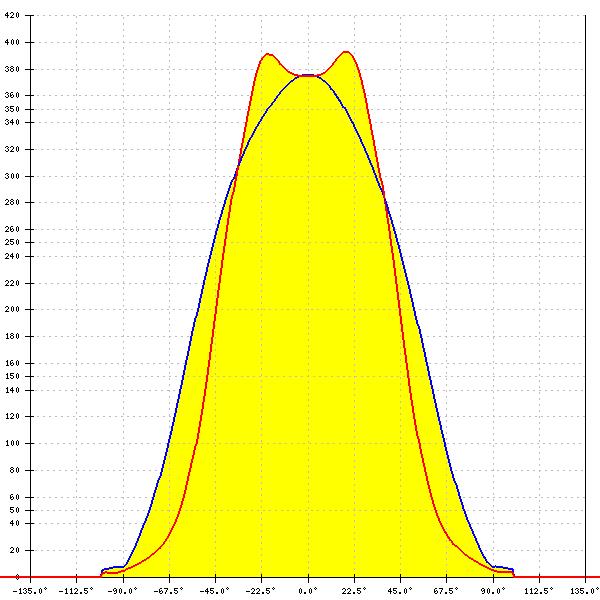

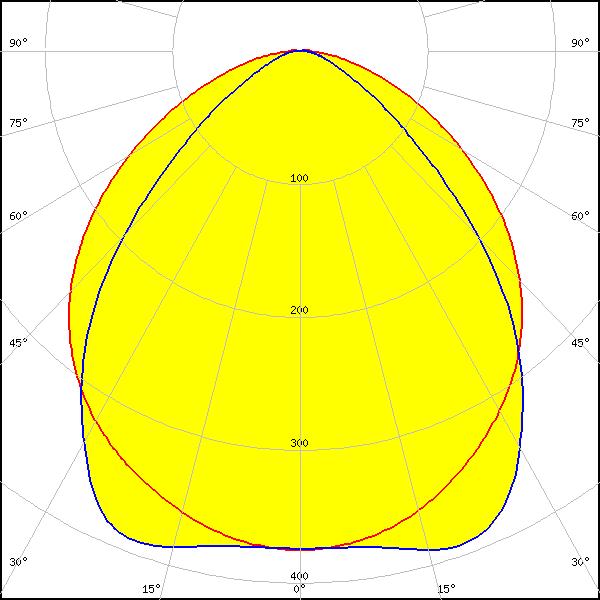

    LED: LM561B
    FWHM: 91° + 109°
    FWTM: 131° + 159°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

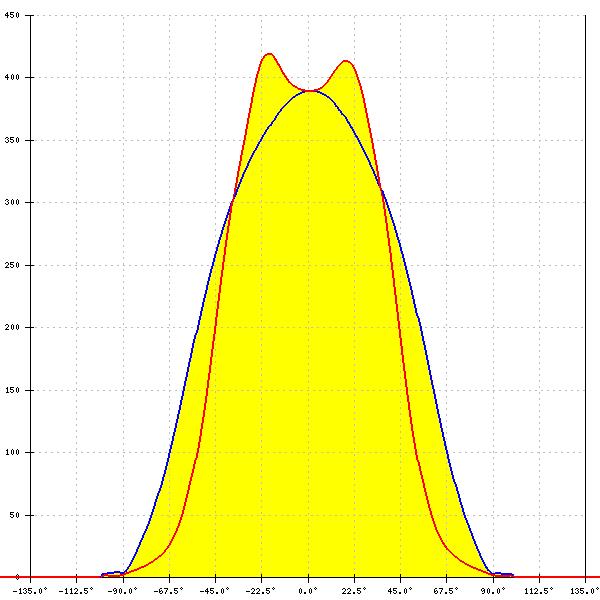

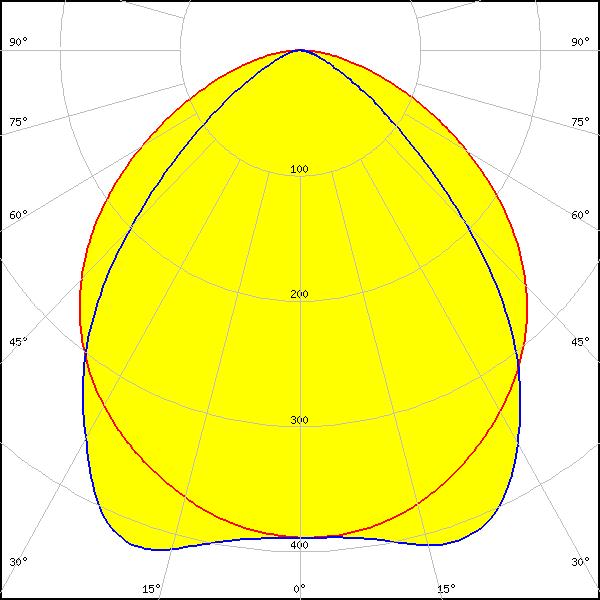

    LED: LM561C
    FWHM: 90° + 110°
    FWTM: 126° + 157°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

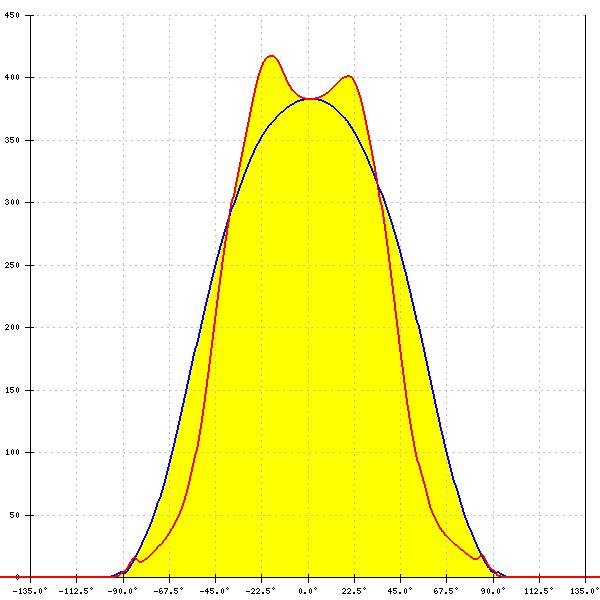

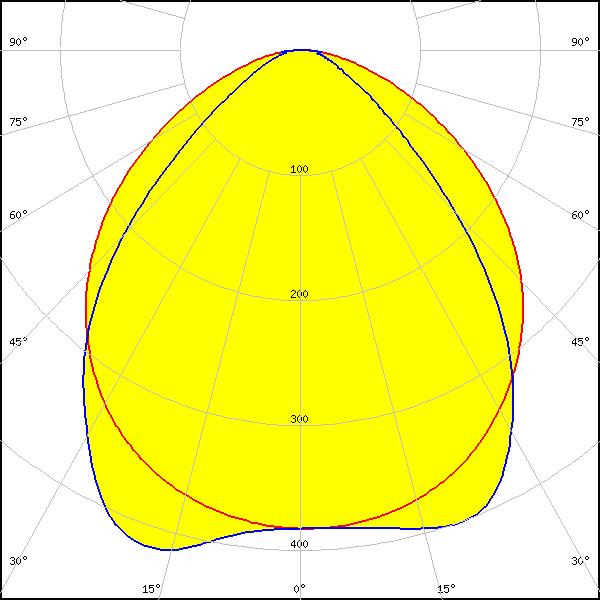

    LED: LT-S282N
    FWHM: 91° + 109°
    FWTM: 156° + 131°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

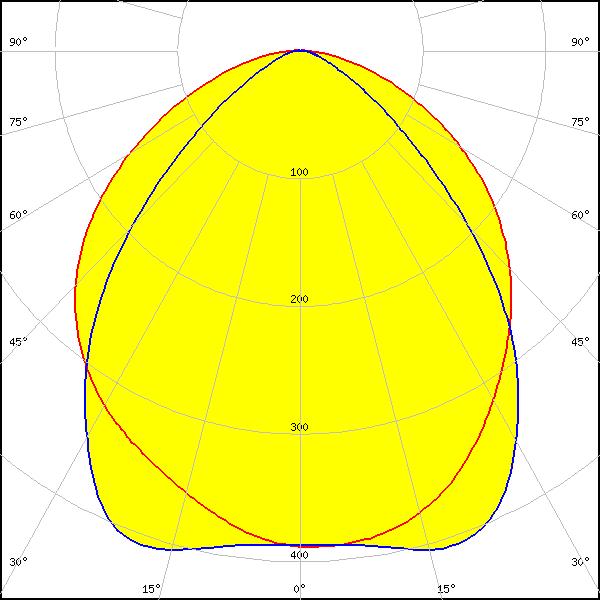

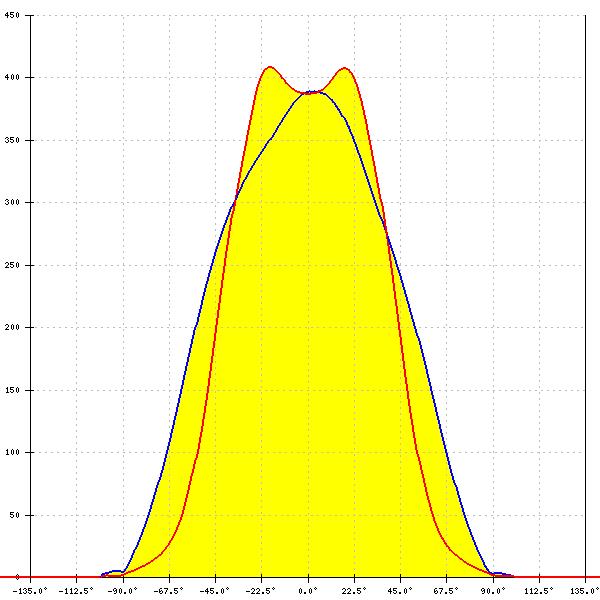

    LED: SEOUL 3030
    FWHM: 90° + 109°
    FWTM: 127° + 158°
    Peak intensity: 0.4 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White
    LED: SEOUL DC 3030
    Required components:
    C14353_FLORENCE-1R-CLIP-A
    FWHM: 103° + 86°
    FWTM: 156° + 151°
    Peak intensity: 0.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

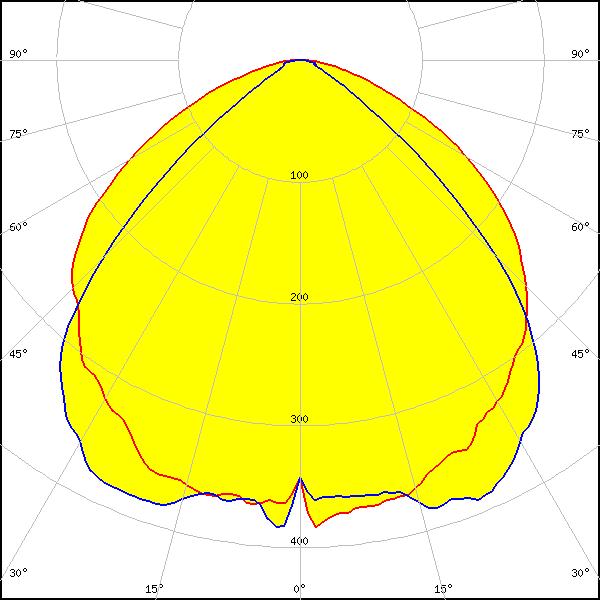

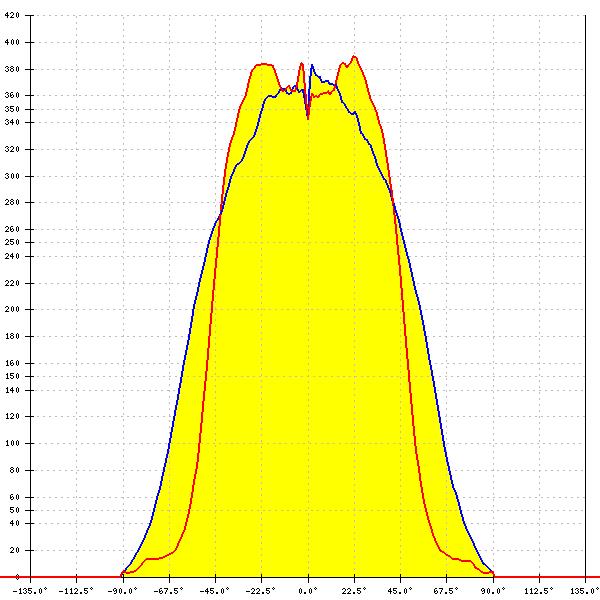

    LED: SEOUL DC 3030C
    FWHM: 112° + 94°
    FWTM: 154° + 119°
    Peak intensity: 0.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White
