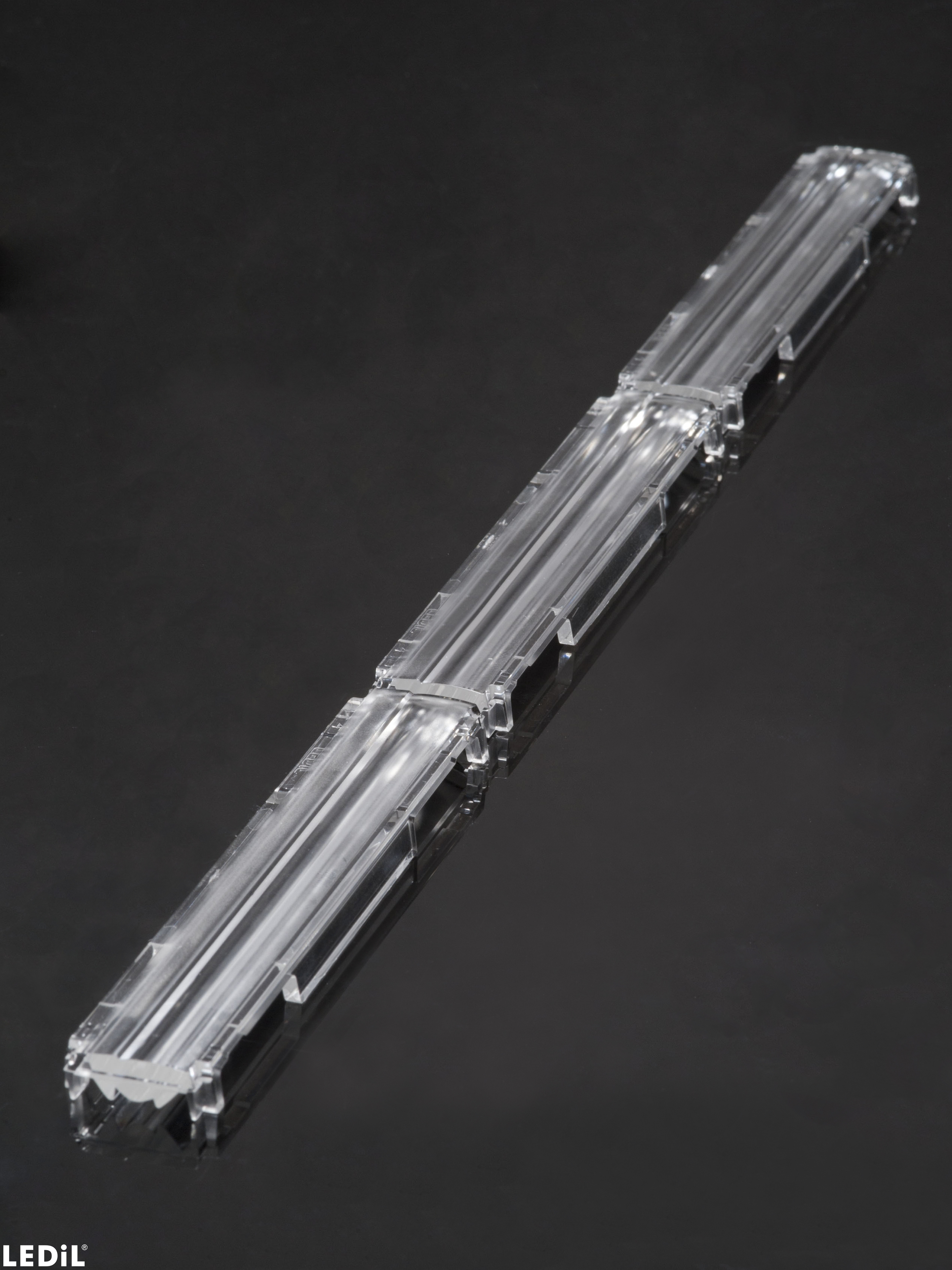

F14344_FLORENCE-1R-ZT25

Print

Asymmetric beam for wall-washing

Specification
  • Dimensions:
    20 x  286 mm
  • Height:
    7.13 mm
  • Fastening:
    glue
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    165 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    6.8 kg
  • MPQ:
    15 pcs
  • MOQ:
    45 pcs
  • MOQ size:
    400 x 300 x 100 mm
  • MOQ weight:
    2.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F14344_FLORENCE-1R-ZT25

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

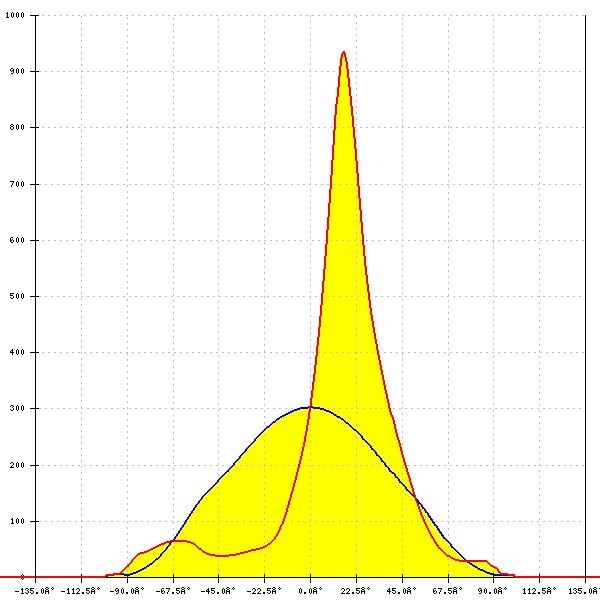

LED: CALGD0414-M8W1
FWHM: asymmetric
Peak intensity: 0.940 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

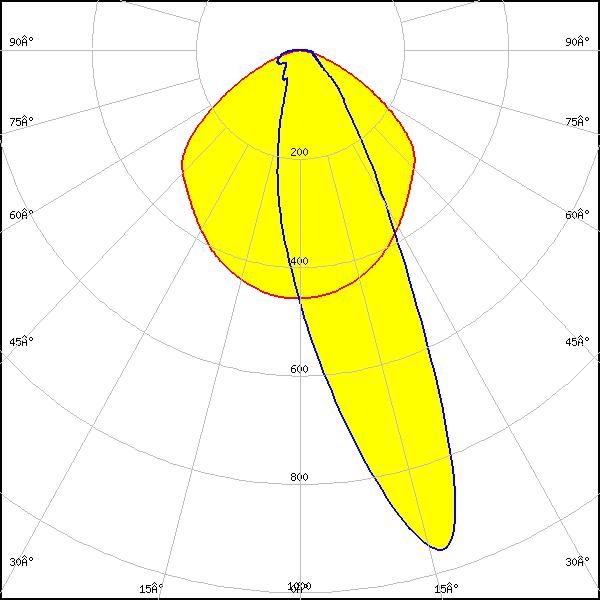

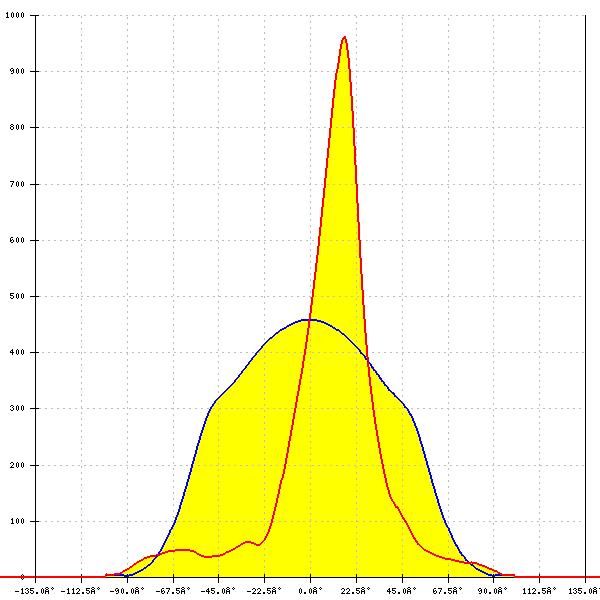

LED: CALGD0814-M17W1
FWHM: asymmetric
Peak intensity: 0.960 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: L0-280024-xxx-C0800-L267
FWHM: asymmetric
Peak intensity: 0.790 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

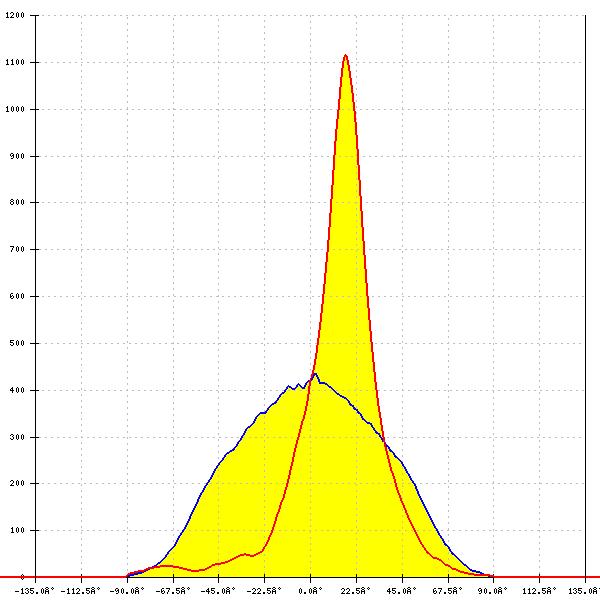

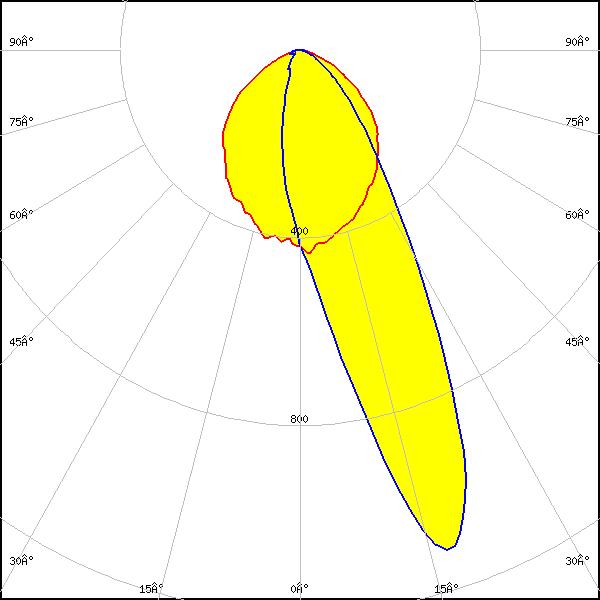

LED: LUXEON 2835 Line
FWHM: asymmetric
Peak intensity: 1.120 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

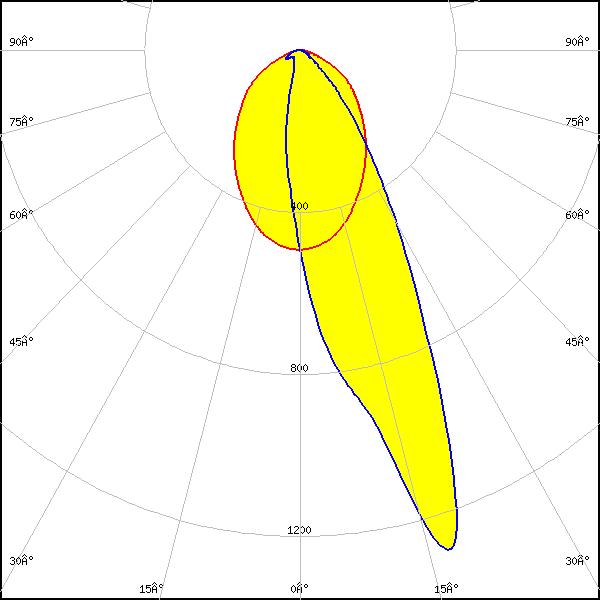

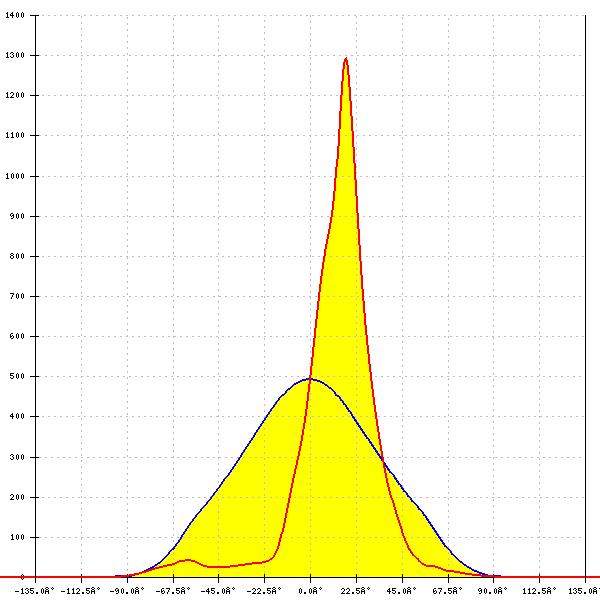

LED: LUXEON 3014
FWHM: asymmetric
Peak intensity: 1.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

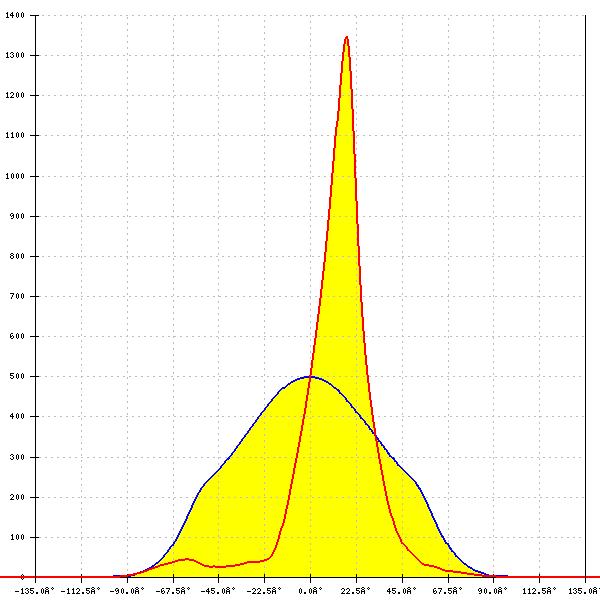

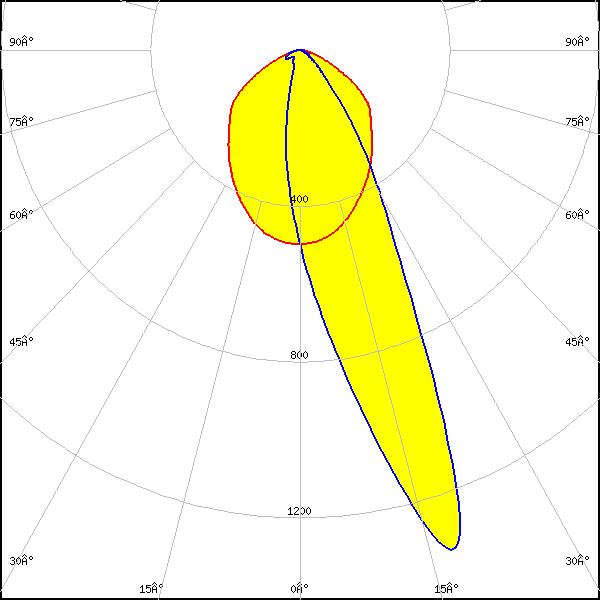

LED: LUXEON 3020
FWHM: asymmetric
Peak intensity: 1.350 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

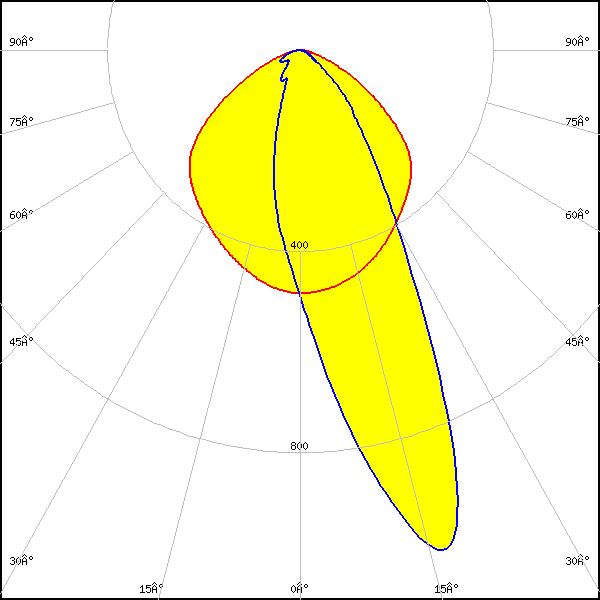

LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

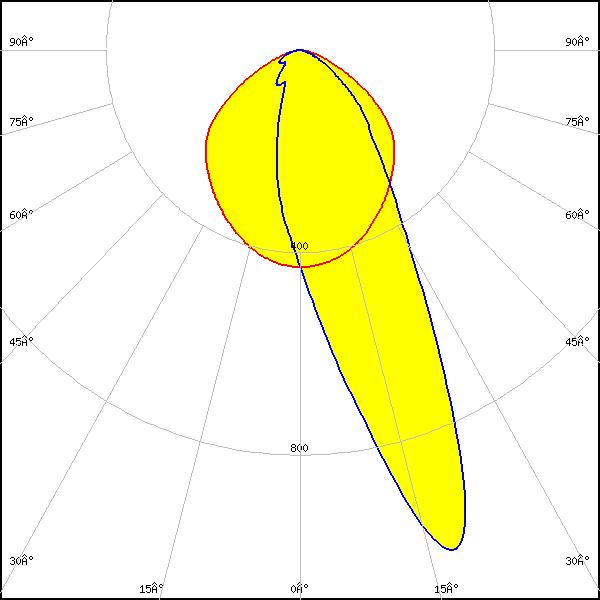

LED: LUXEON 3535L
FWHM: asymmetric
Peak intensity: 1.040 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

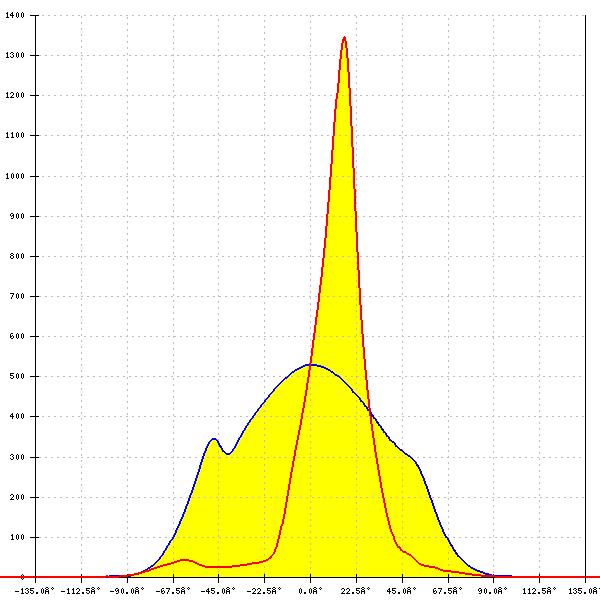

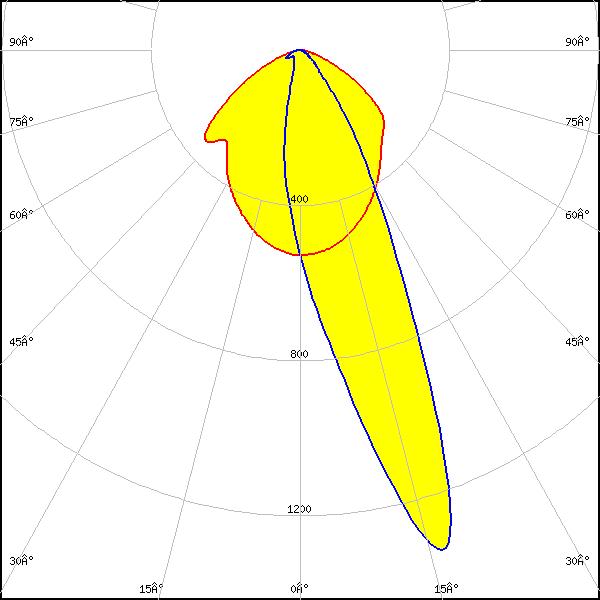

LED: MP-2016
FWHM: asymmetric
Peak intensity: 1.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

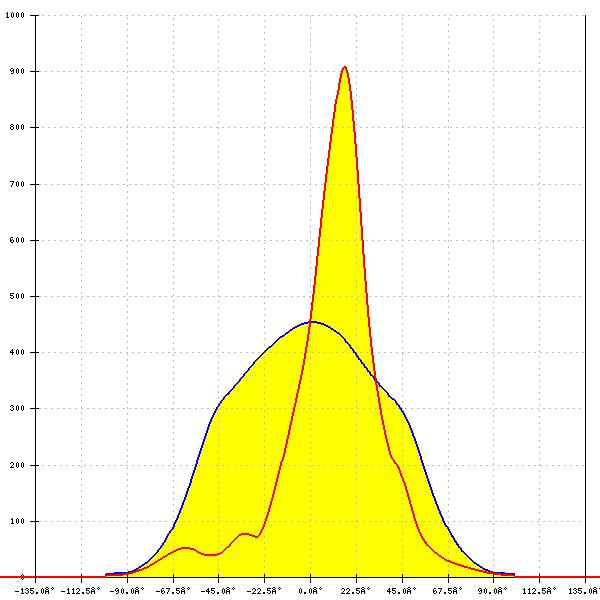

LED: NF2x757D
FWHM: asymmetric
Peak intensity: 0.910 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

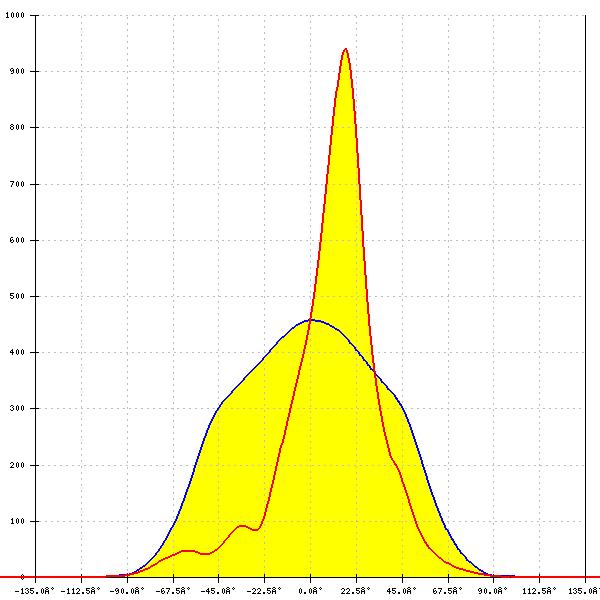

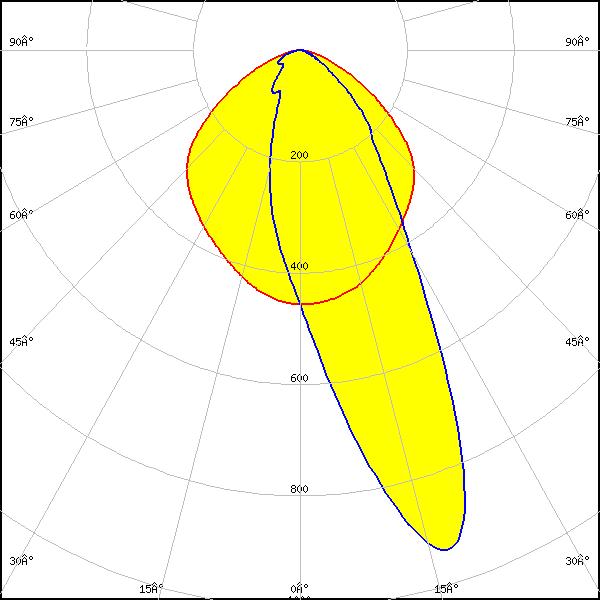

LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.940 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: NFSW757H
Required components:
FWHM: asymmetric
Peak intensity: 1.008 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

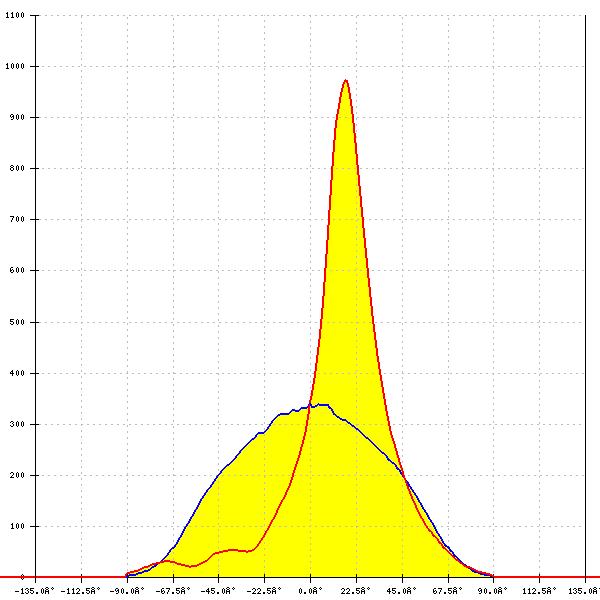

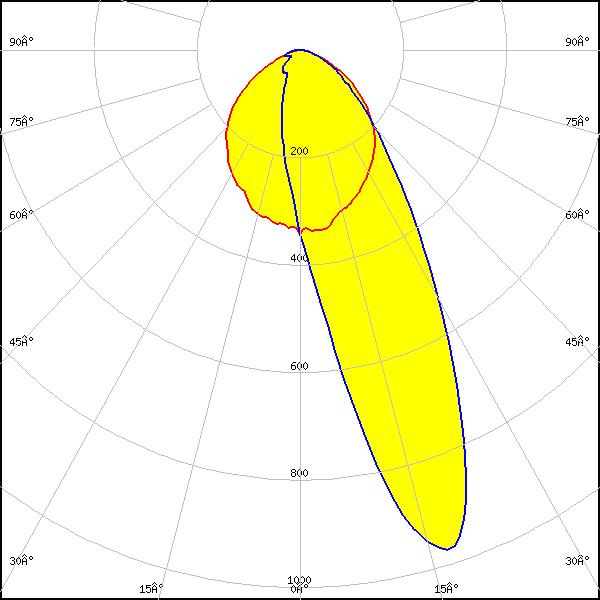

LED: Duris E 2835
FWHM: asymmetric
Peak intensity: 0.980 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

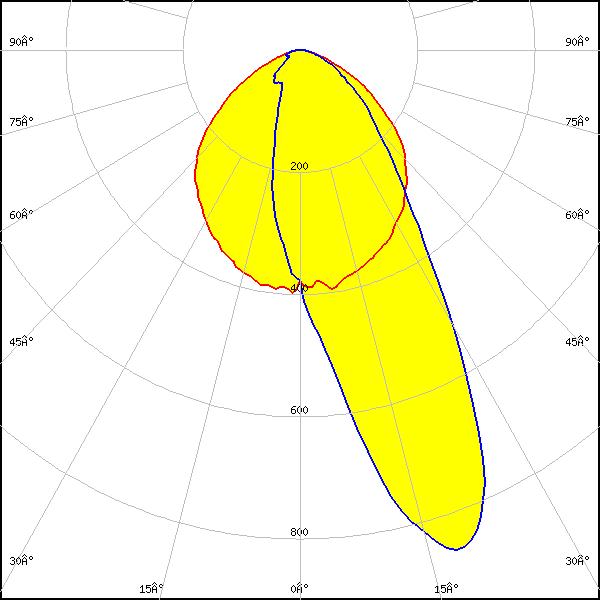

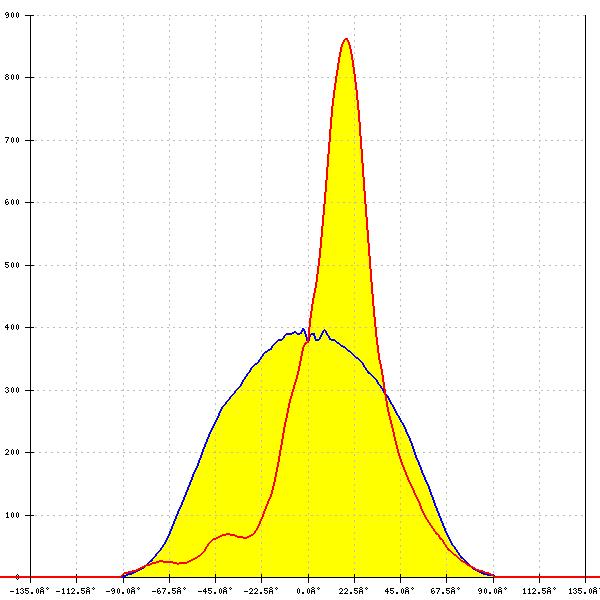

LED: Duris E5
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

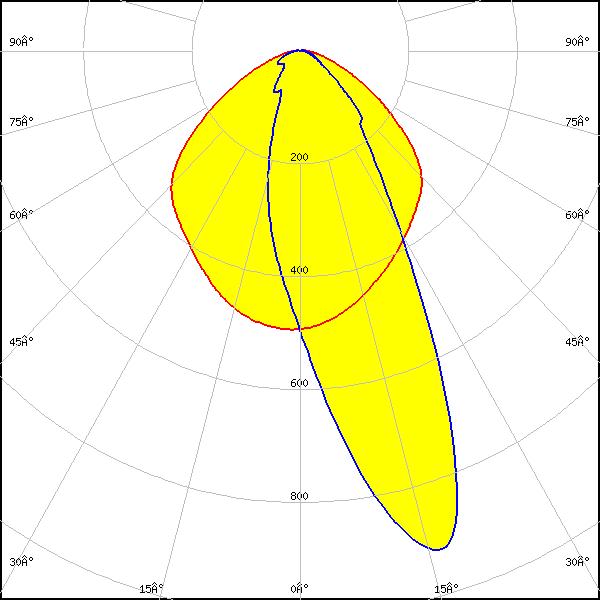

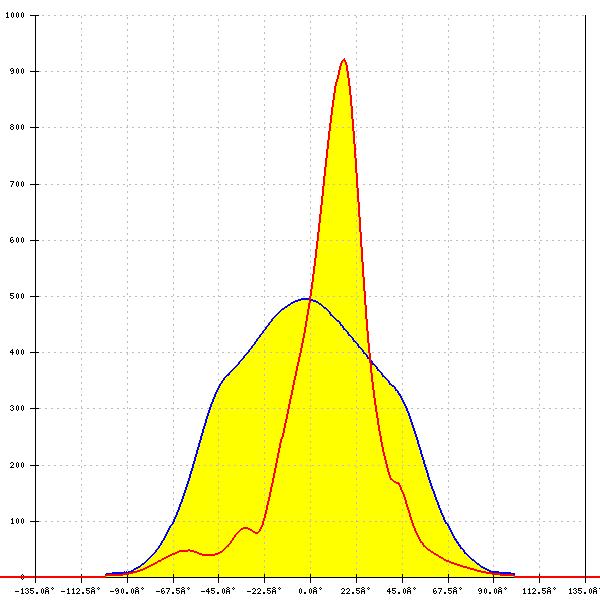

LED: Duris S5 (2 chip)
FWHM: asymmetric
Peak intensity: 0.920 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

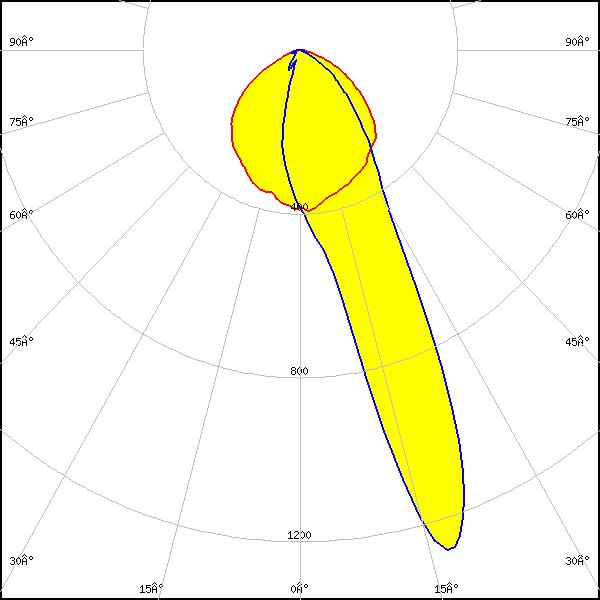

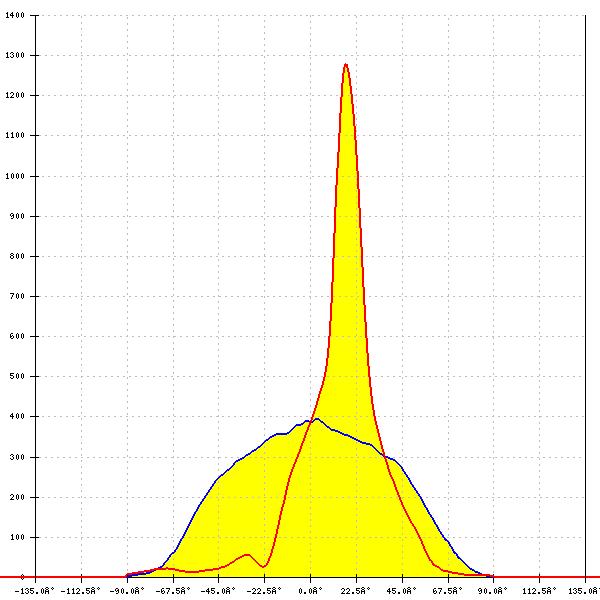

LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 1.279 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft HF 1R HV5
Required components:
FWHM: asymmetric
Peak intensity: 0.984 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Line 1ft MF 1R HV5 & LV5
Required components:
FWHM: asymmetric
Peak intensity: 0.980 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

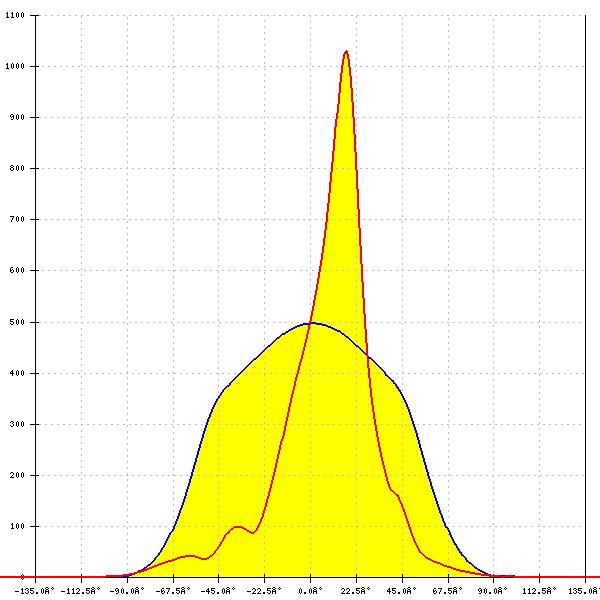

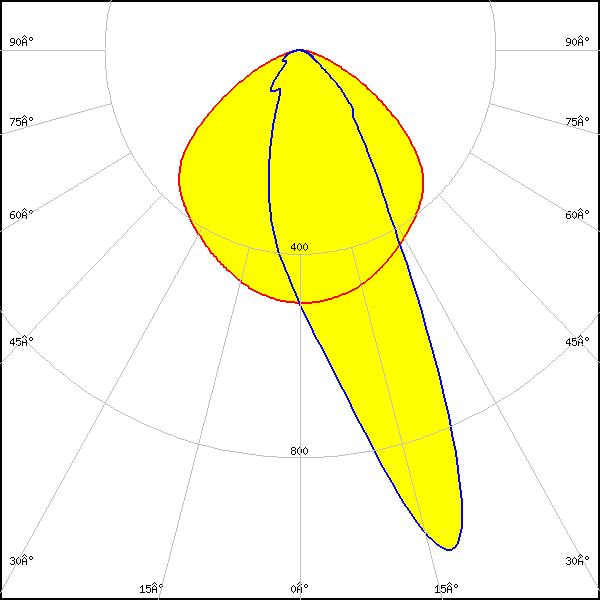

LED: LM28xB Series
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

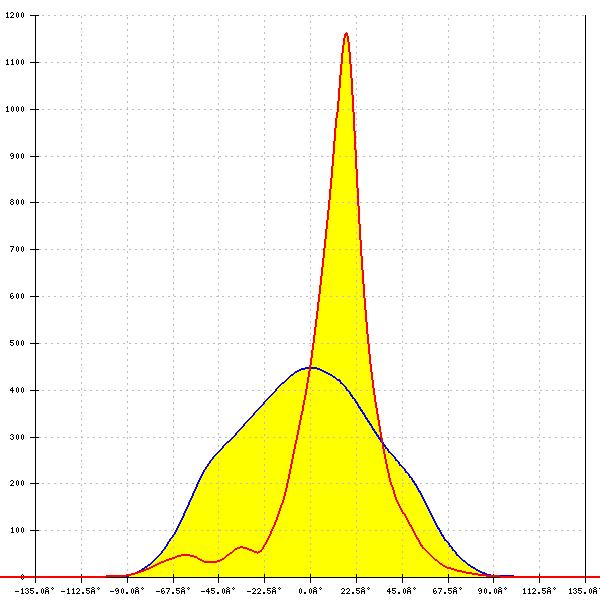

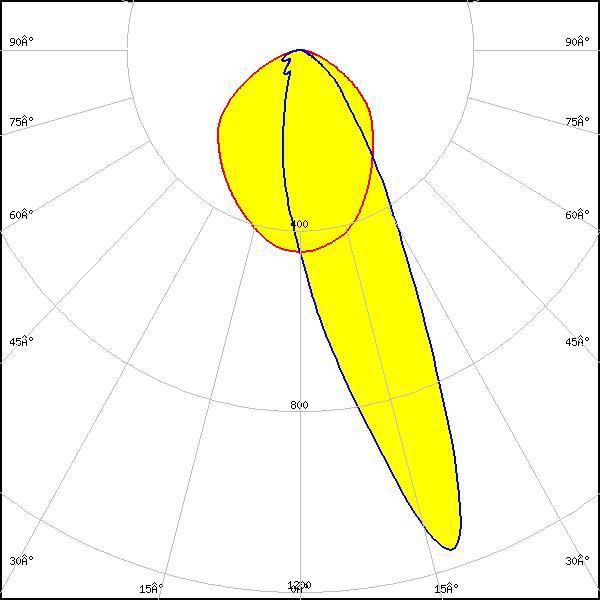

LED: LM301A
FWHM: asymmetric
Peak intensity: 1.200 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

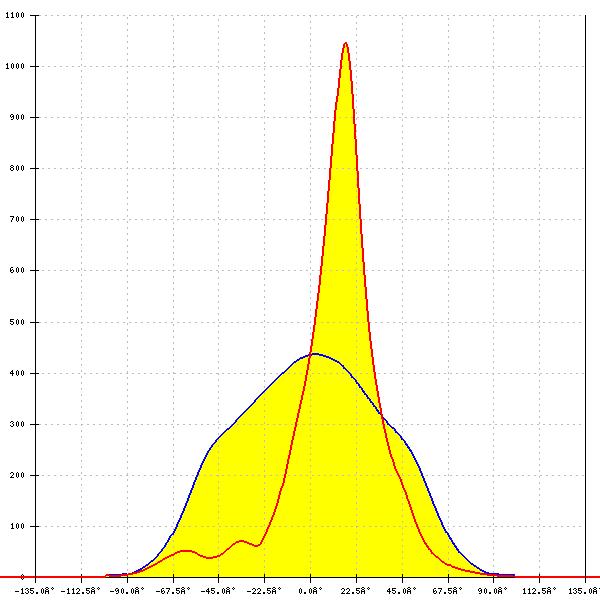

LED: LM302A
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

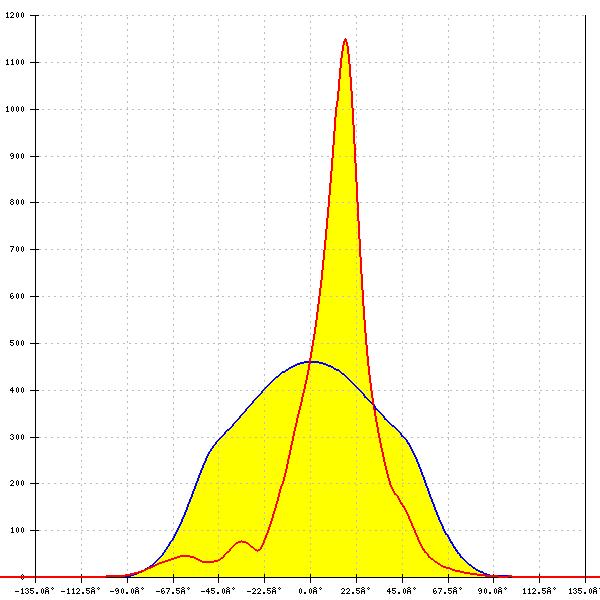

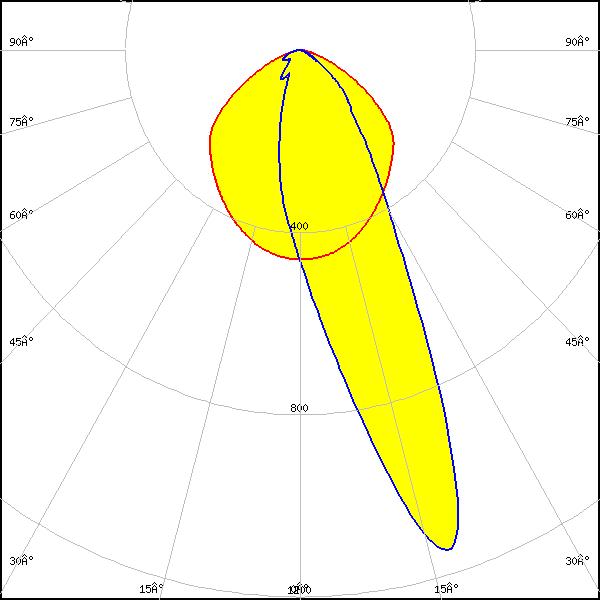

LED: LM561C
FWHM: asymmetric
Peak intensity: 1.150 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

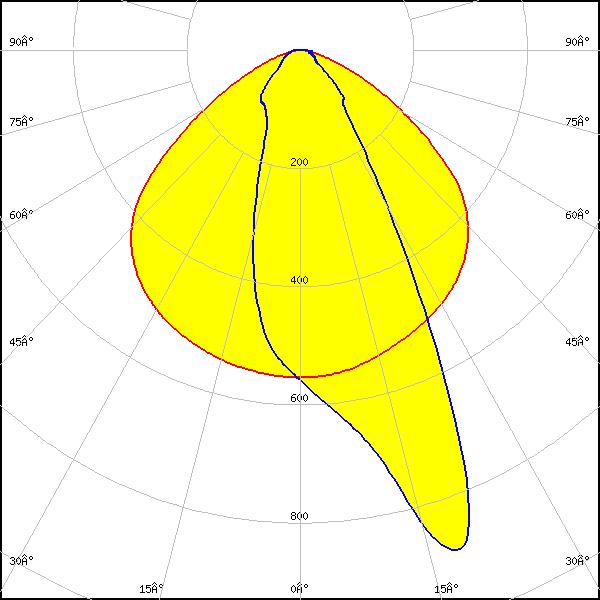

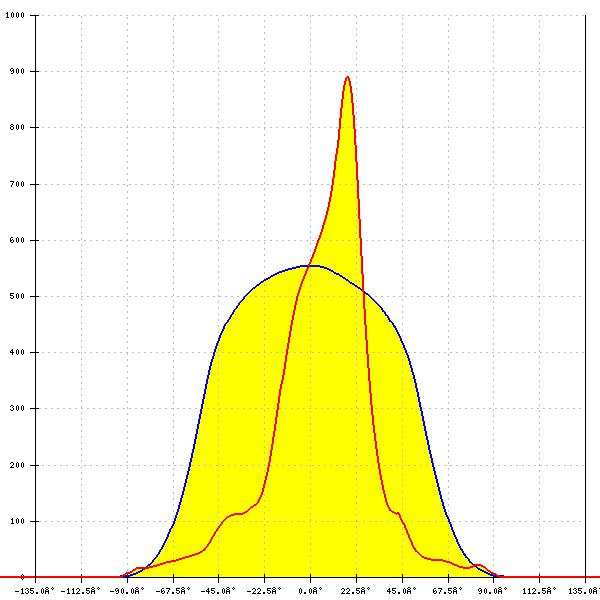

LED: LT-S282N
FWHM: asymmetric
Peak intensity: 0.890 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

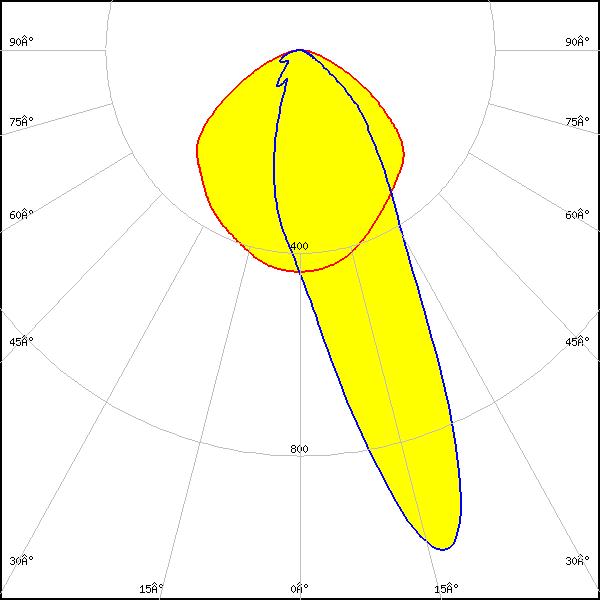

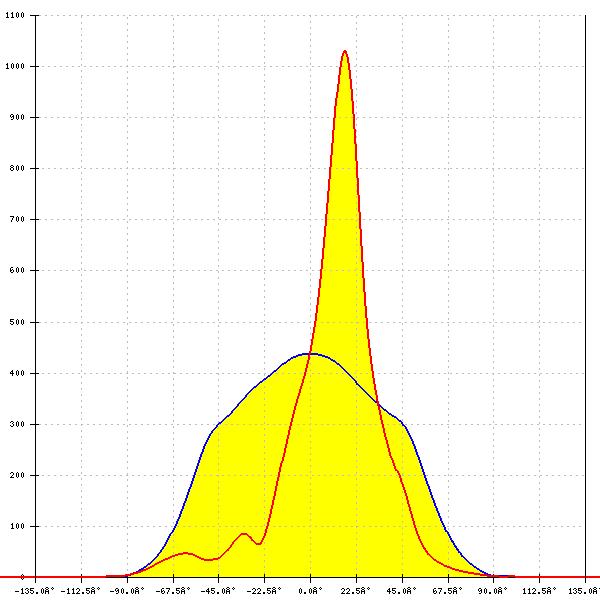

LED: SEOUL 3030
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 3030
Required components:
FWHM: asymmetric
Peak intensity: 0.710 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

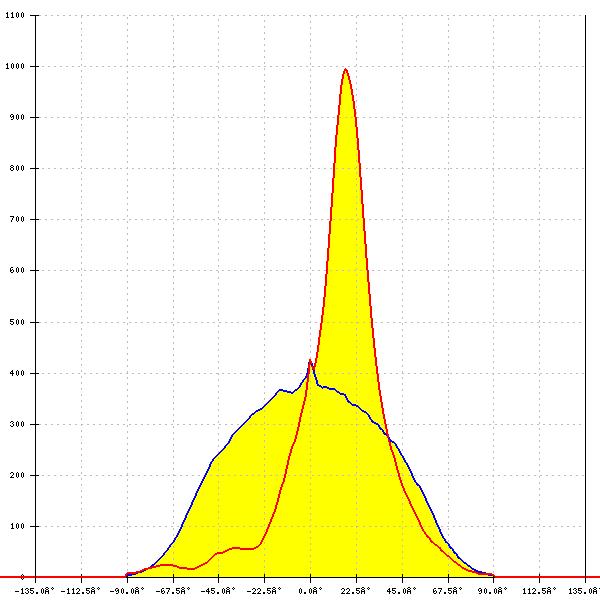

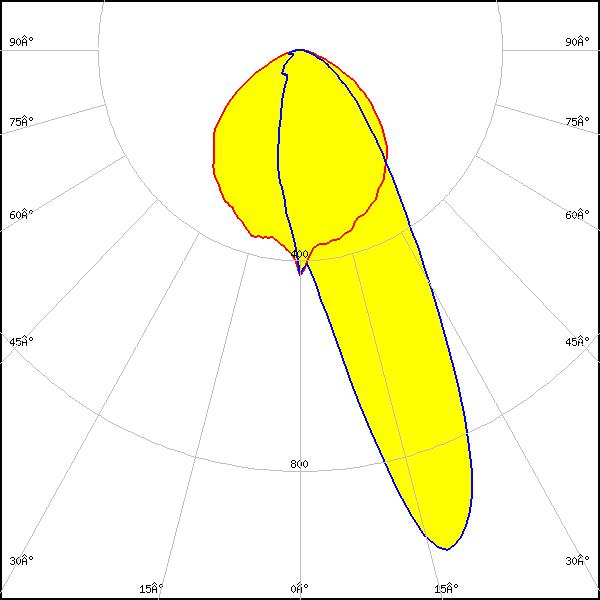

LED: SEOUL DC 3030C
FWHM: asymmetric
Peak intensity: 0.994 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
