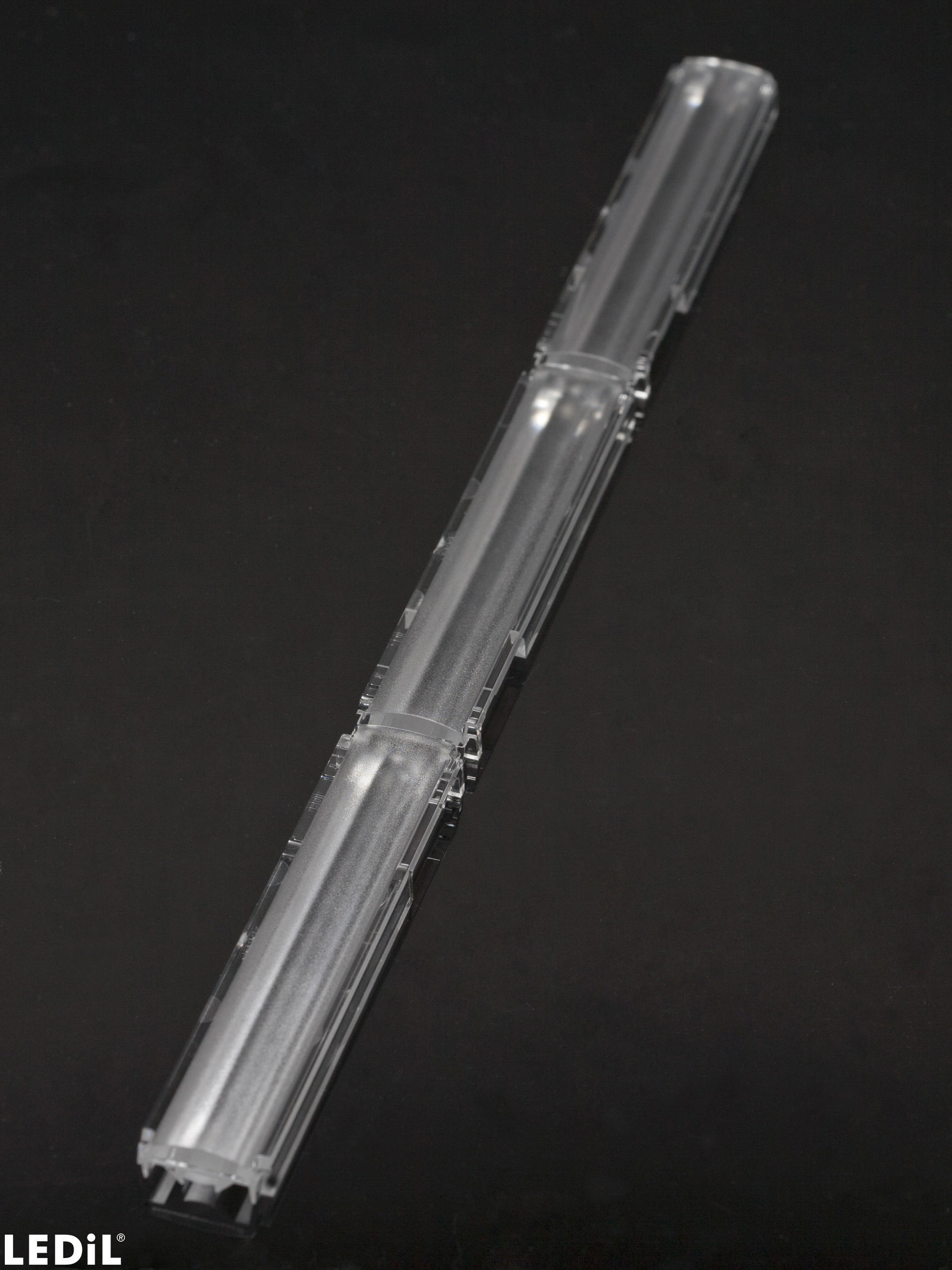

F14468_FLORENCE-1R-Z60

Print

~60° + 110° medium beam

Specification
  • Dimensions:
    20 x  286 mm
  • Height:
    7.55 mm
  • Fastening:
    clips
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    165 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    7.1 kg
  • MPQ:
    15 pcs
  • MOQ:
    45 pcs
  • MOQ size:
    400 x 300 x 100 mm
  • MOQ weight:
    2.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F14468_FLORENCE-1R-Z60

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

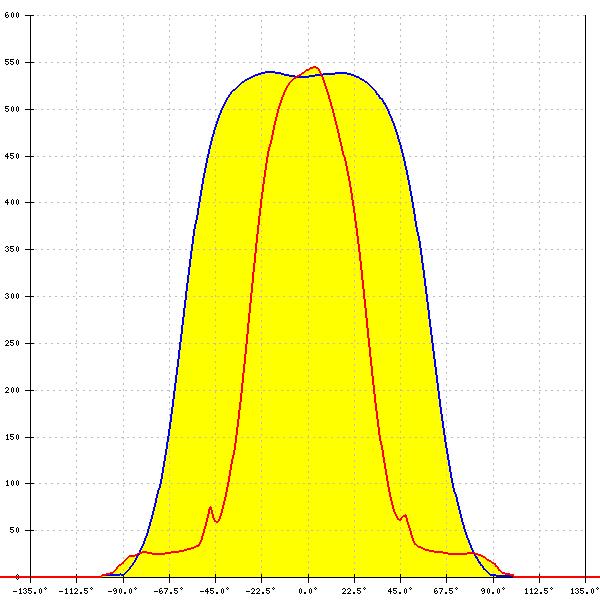

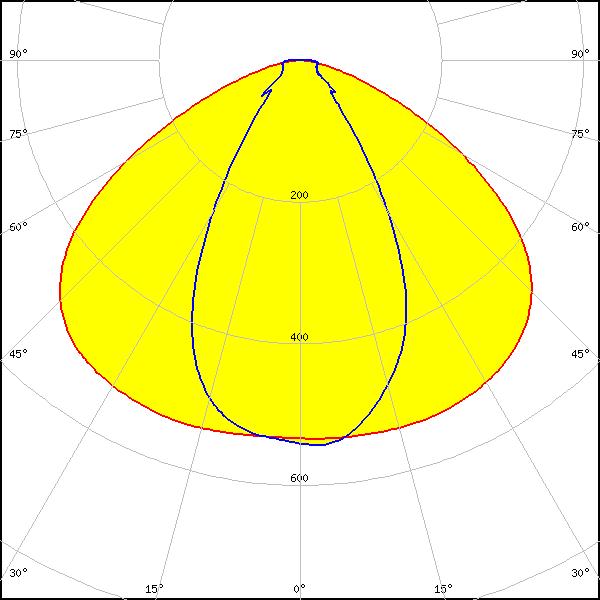

LED: CALGD0414-M8W1
FWHM: 58° + 121°
FWTM: 99° + 153°
Peak intensity: 0.550 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

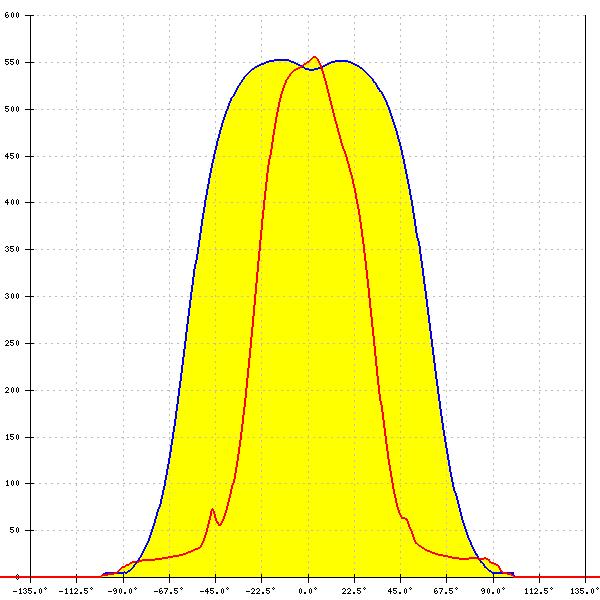

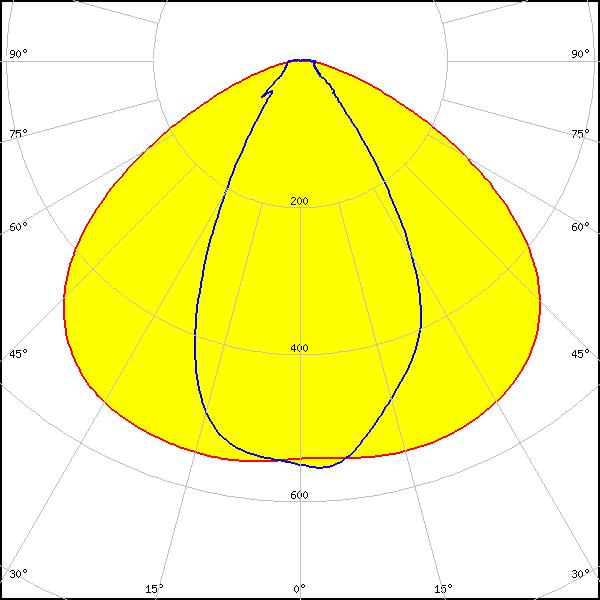

LED: CALGD0814-M17W1
FWHM: 57° + 118°
FWTM: 99° + 152°
Peak intensity: 0.550 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: L0-280024-xxx-C0800-L267
FWHM: 65° + 107°
FWTM: 107° + 148°
Peak intensity: 0.530 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

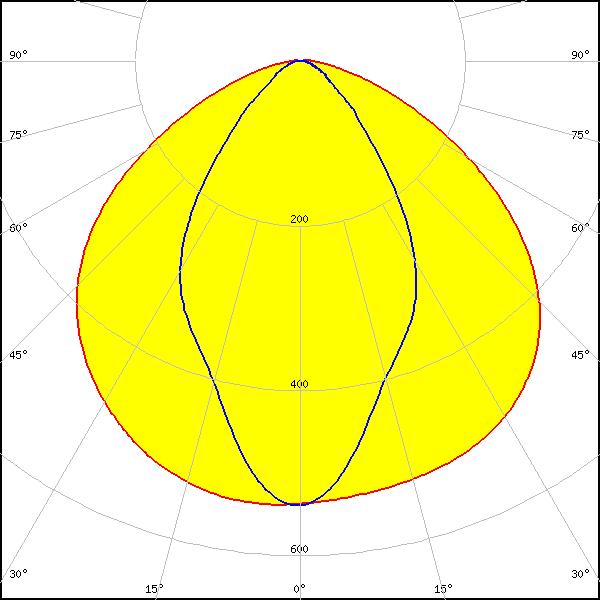

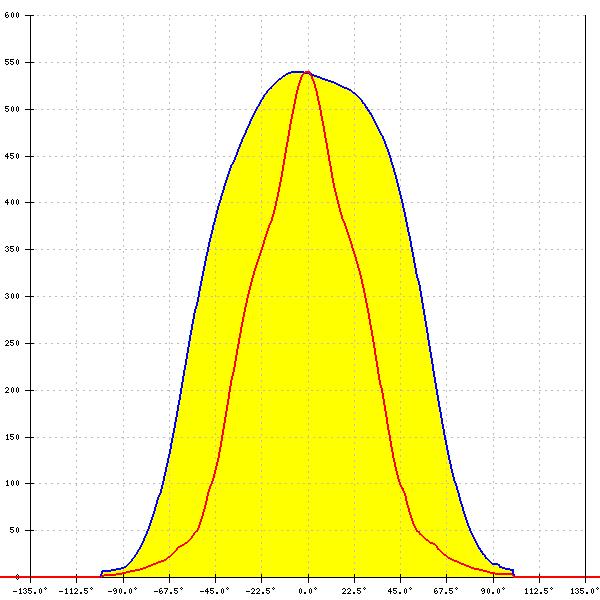

LED: XH-B/G
FWHM: 63° + 113°
FWTM: 105° + 155°
Peak intensity: 0.540 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

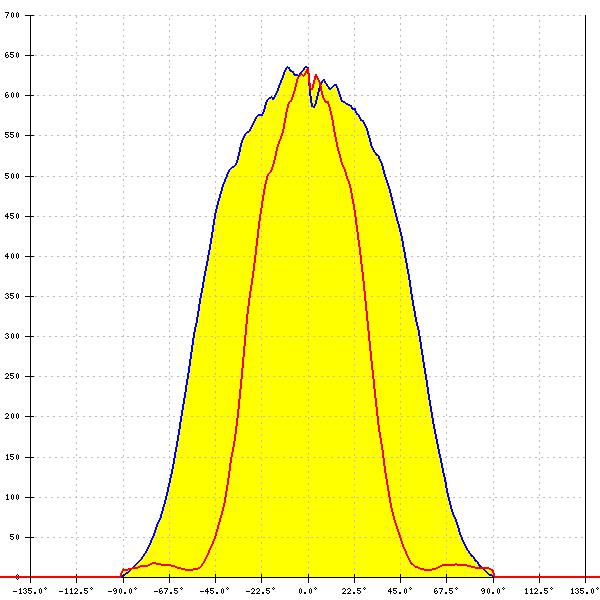

LED: LUXEON 2835 Line
FWHM: 59° + 107°
FWTM: 86° + 146°
Peak intensity: 0.650 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

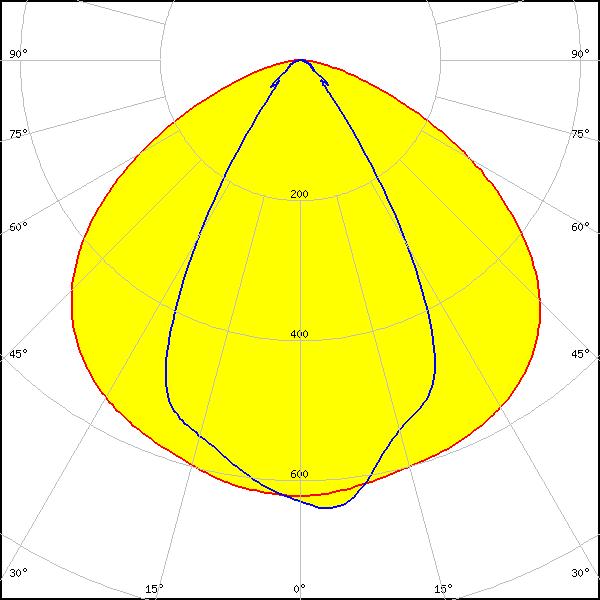

LED: LUXEON 3014
FWHM: 59° + 115°
FWTM: 82° + 151°
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

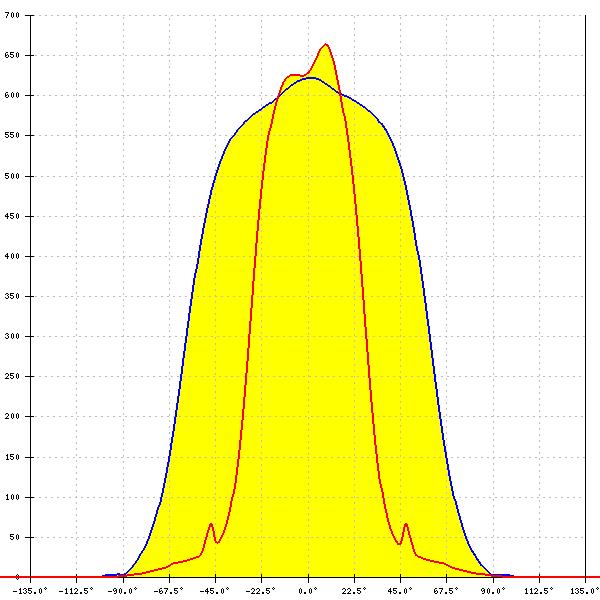

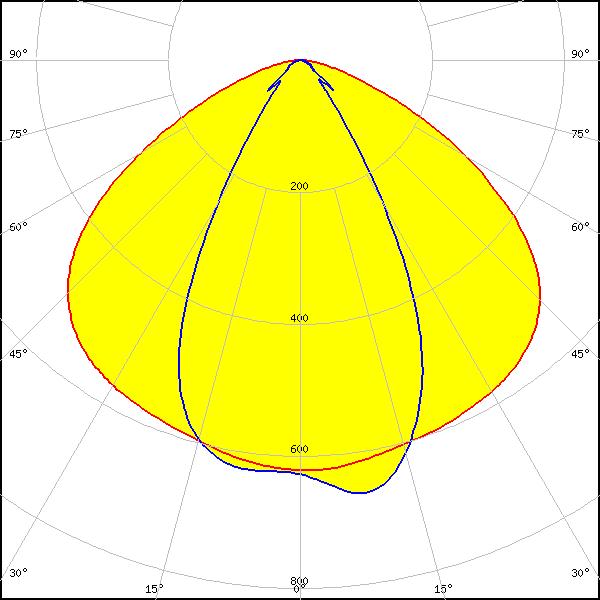

LED: LUXEON 3020
FWHM: 55° + 117°
FWTM: 96° + 151°
Peak intensity: 0.660 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

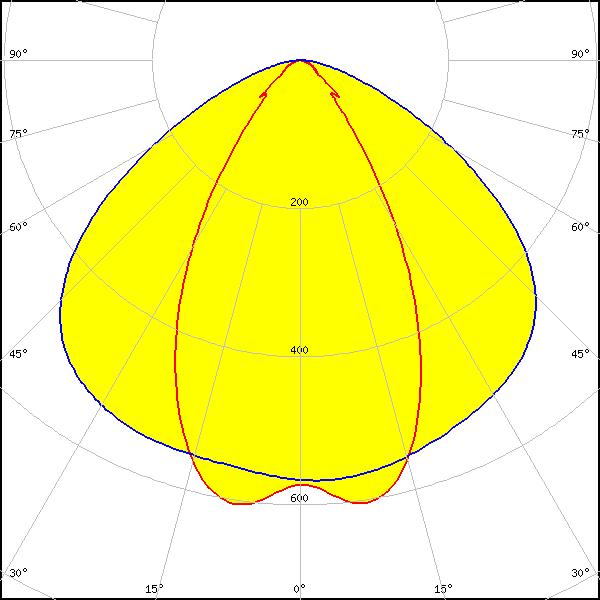

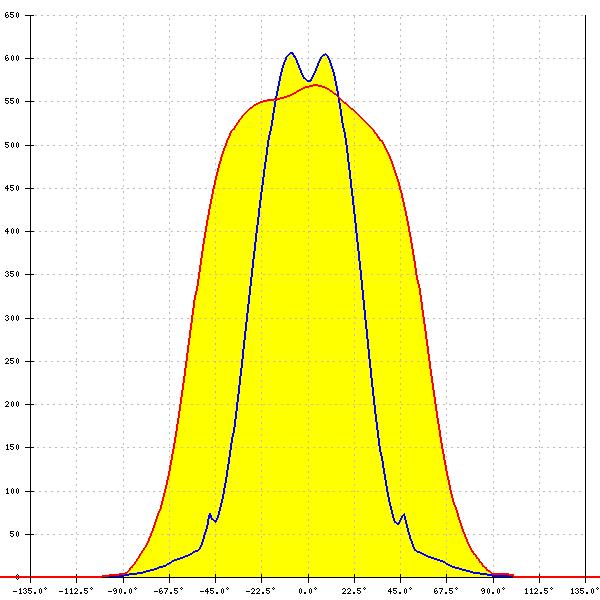

LED: LUXEON 3030 2D (Round LES)
FWHM: 57° + 114°
FWTM: 97° + 150°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

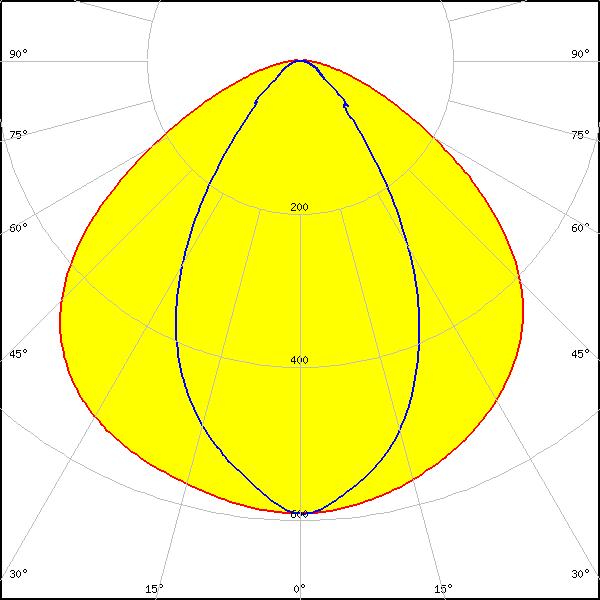

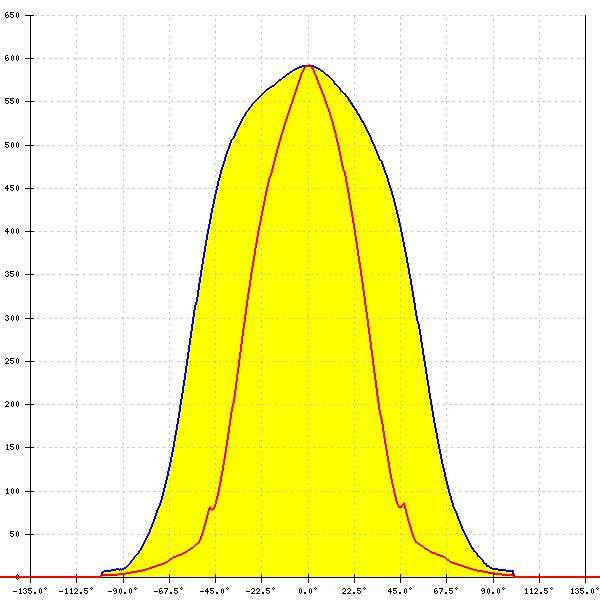

LED: LUXEON 3535 2D
FWHM: 60° + 109°
FWTM: 100° + 150°
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

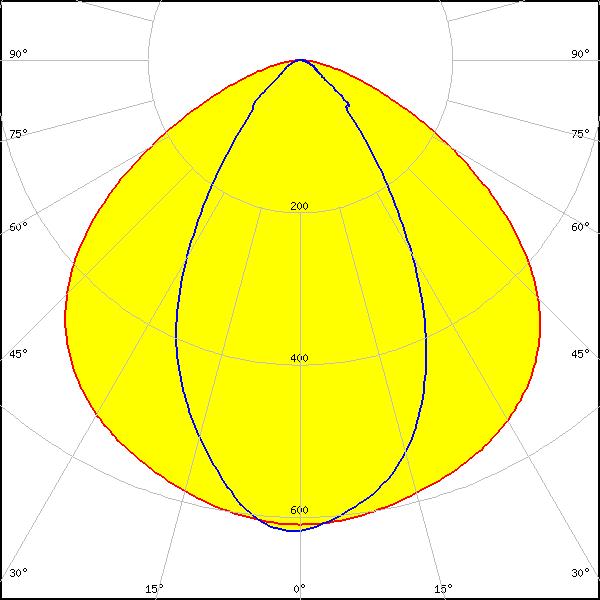

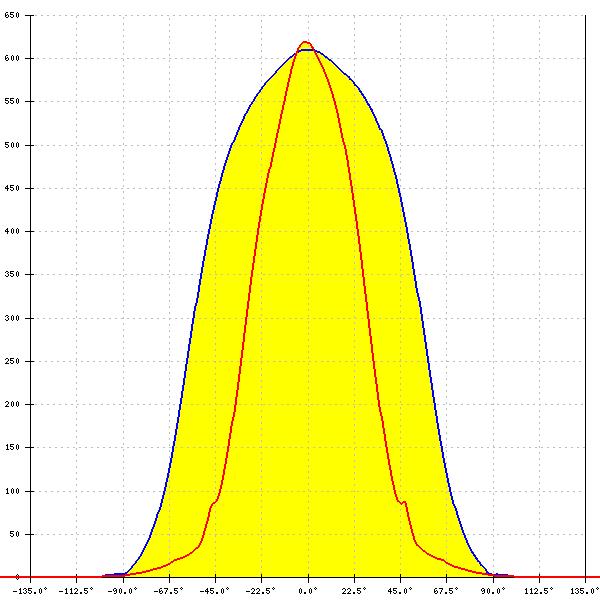

LED: LUXEON 3535L
FWHM: 59° + 110°
FWTM: 99° + 149°
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

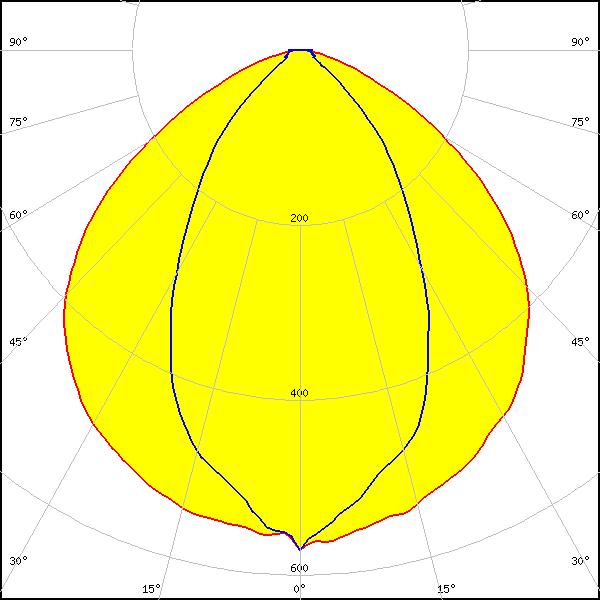

LED: LUXEON 5050 Round LES
FWHM: 61° + 107°
FWTM: 103° + 146°
Peak intensity: 0.570 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

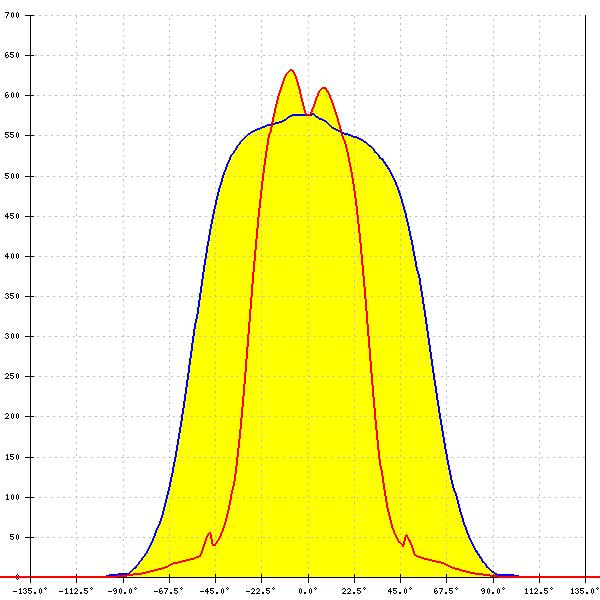

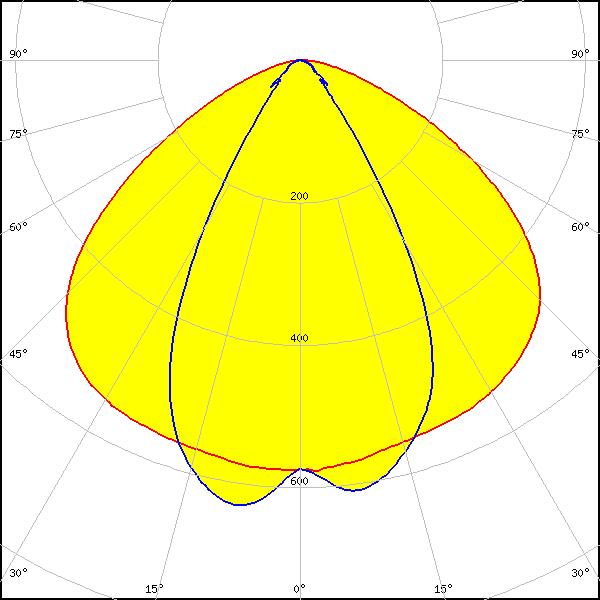

LED: MP-2016
FWHM: 58° + 115°
FWTM: 82° + 157°
Peak intensity: 0.630 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

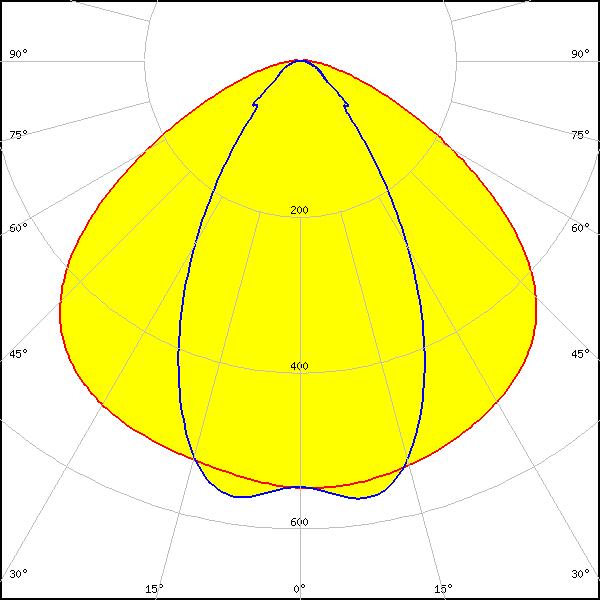

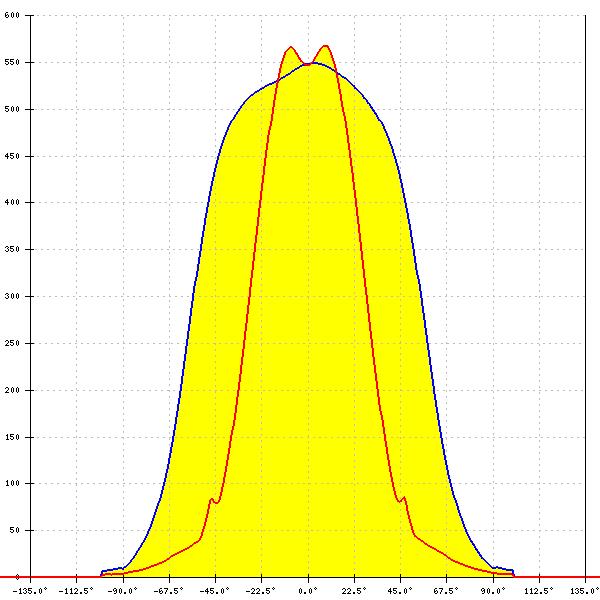

LED: NF2x757D
FWHM: 59° + 114°
FWTM: 101° + 152°
Peak intensity: 0.570 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

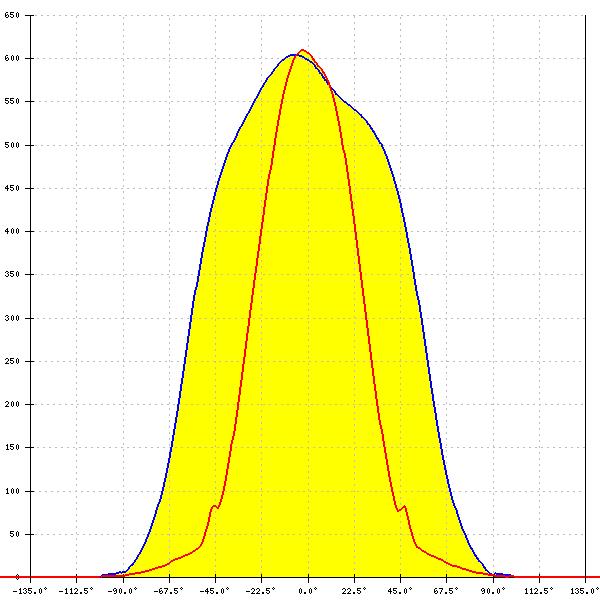

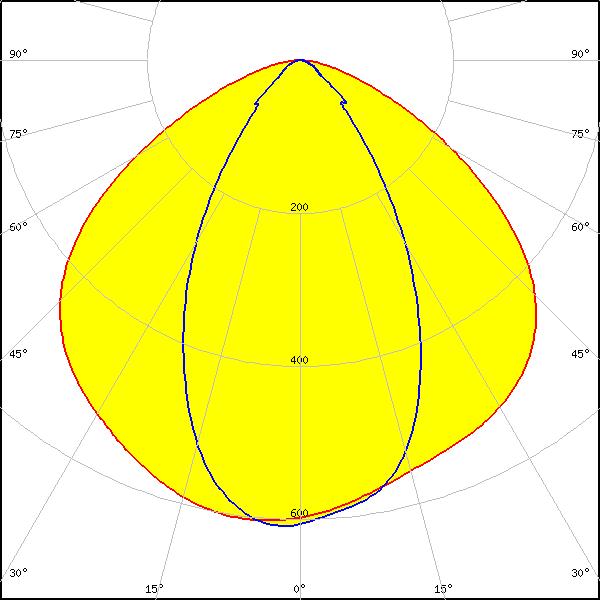

LED: NF2x757G
FWHM: 56° + 111°
FWTM: 98° + 150°
Peak intensity: 0.600 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

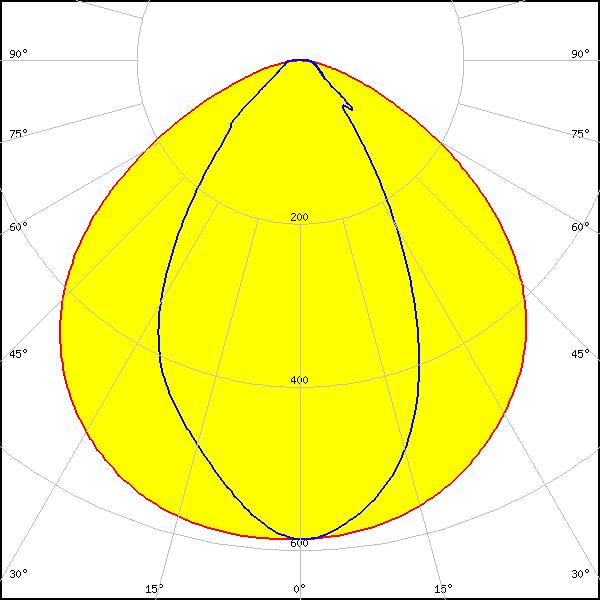

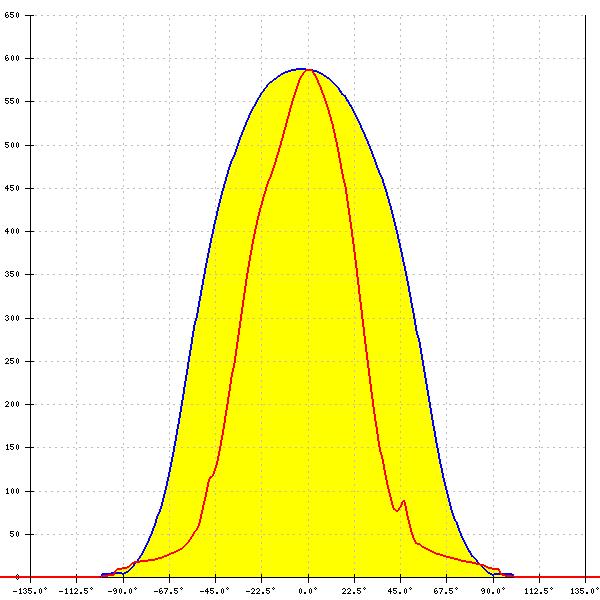

LED: NFSW757H
Required components:
FWHM: 107° + 60°
FWTM: 148° + 104°
Peak intensity: 0.587 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

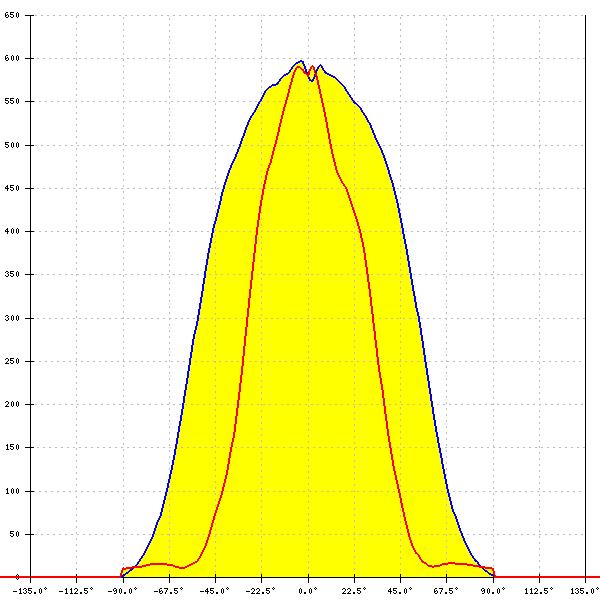

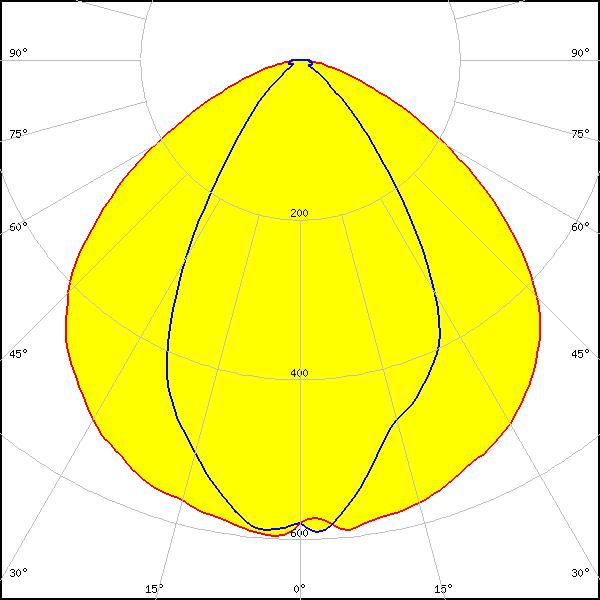

LED: Duris E 2835
FWHM: 61° + 107°
FWTM: 95° + 147°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

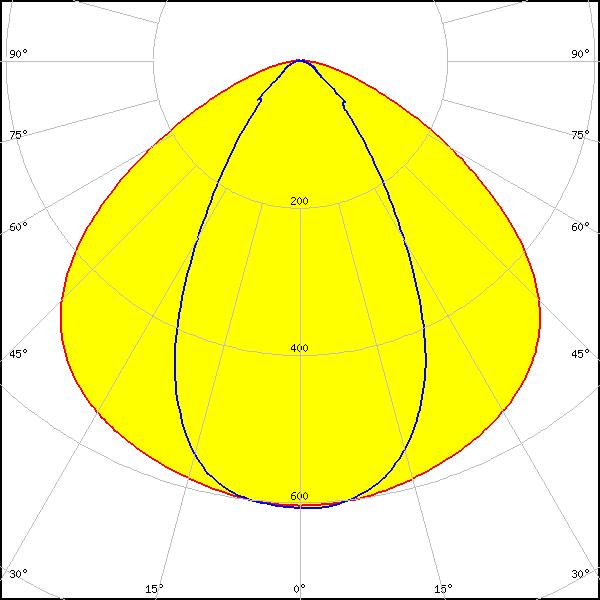

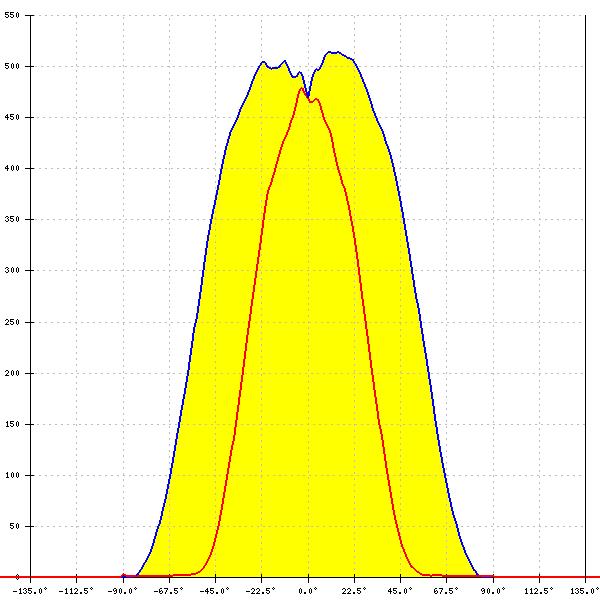

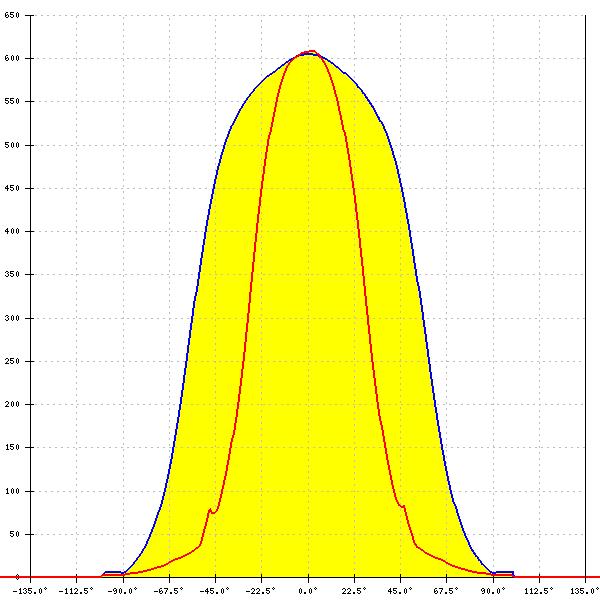

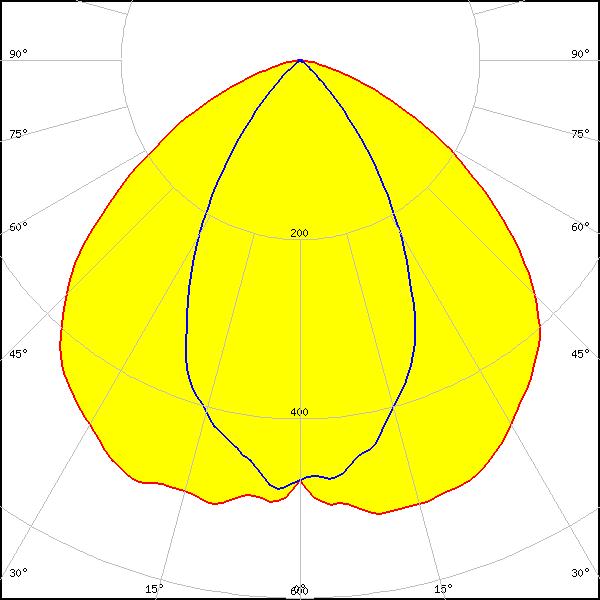

LED: Duris E5
Required components:
FWHM: 108° + 58°
FWTM: 144° + 88°
Peak intensity: 0.516 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris E5
FWHM: 112° + 58°
FWTM: 149° + 99°
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

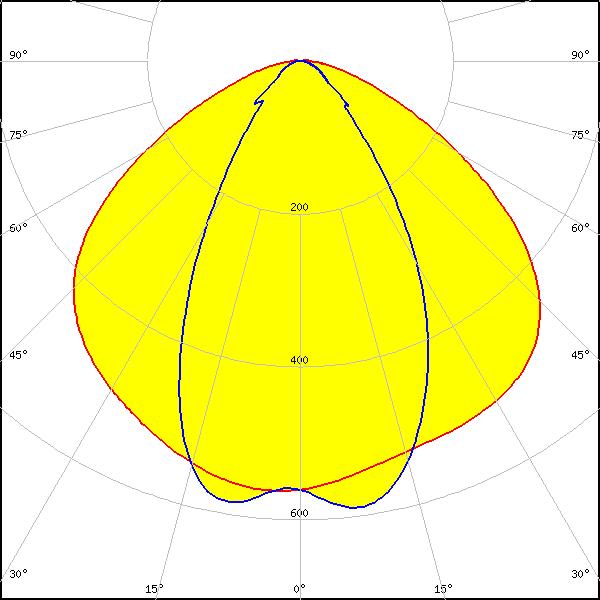

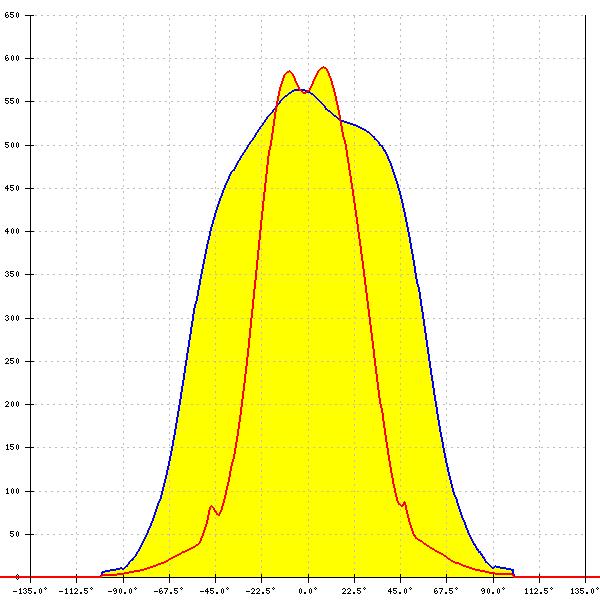

LED: Duris S5 (2 chip)
FWHM: 58° + 114°
FWTM: 100° + 154°
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

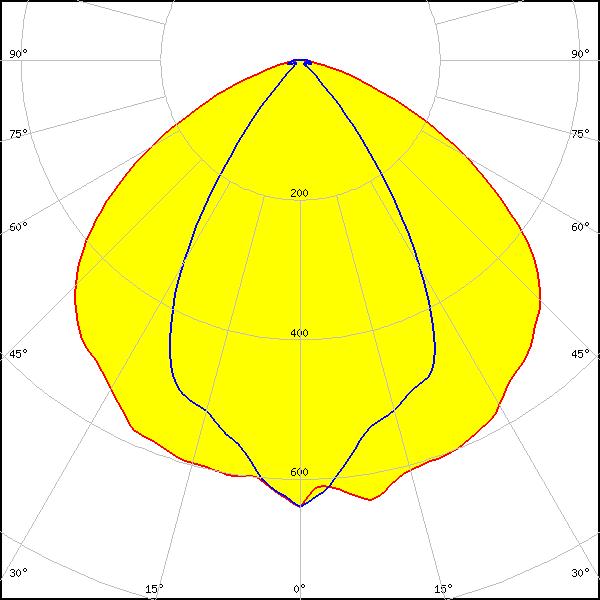

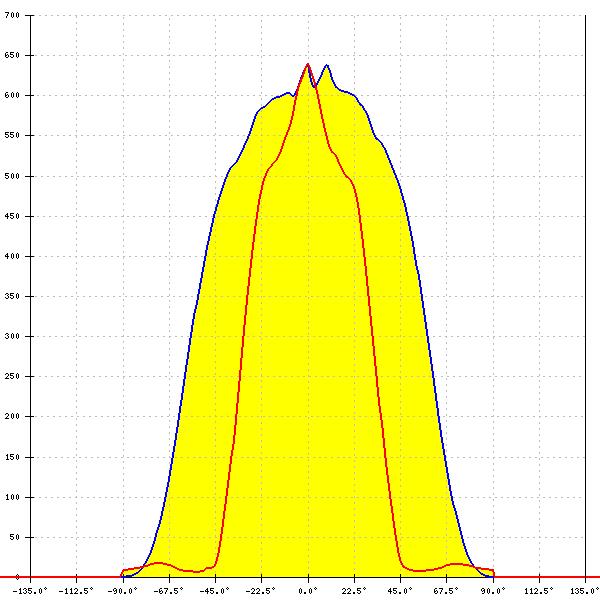

LED: OSCONIQ C 2424
FWHM: 112° + 61°
FWTM: 146° + 83°
Peak intensity: 0.644 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line 1ft HF 1R HV5
Required components:
FWHM: 112° + 58°
FWTM: 151° + 101°
Peak intensity: 0.596 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line 1ft MF 1R HV5 & LV5
Required components:
FWHM: 112° + 59°
FWTM: 151° + 100°
Peak intensity: 0.597 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

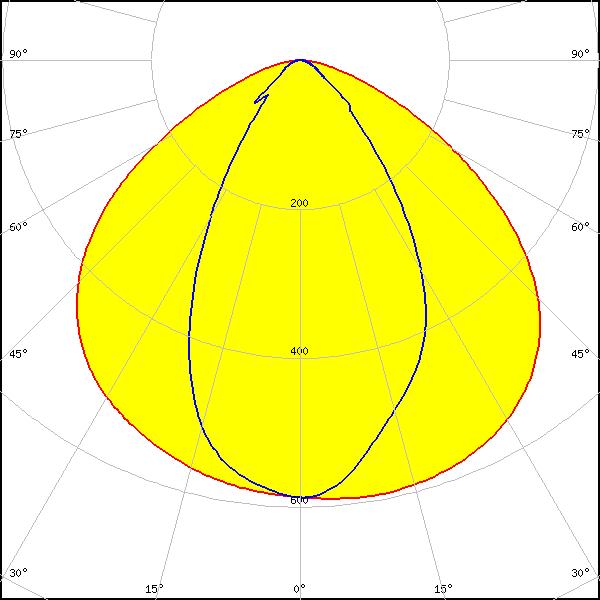

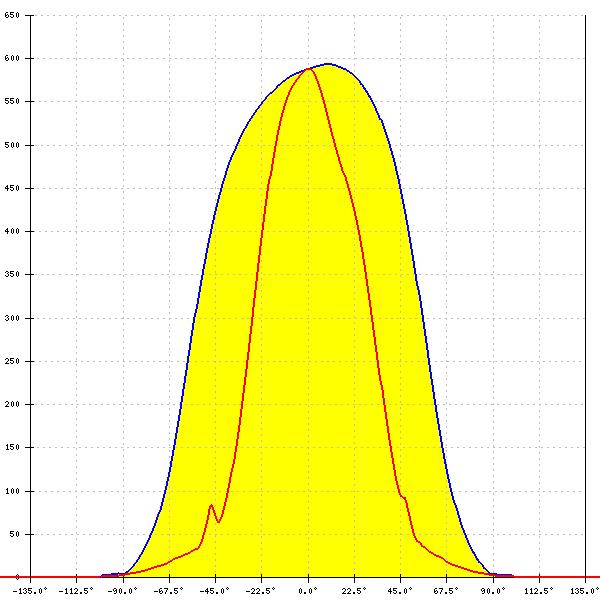

LED: LM28xB Series
FWHM: 57° + 113°
FWTM: 98° + 150°
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LM28xB Series
Required components:
FWHM: 111° + 59°
FWTM: 150° + 101°
Peak intensity: 0.593 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

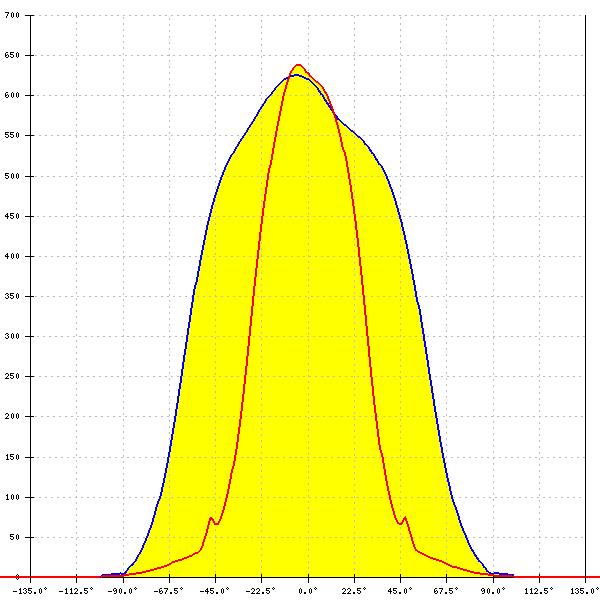

LED: LM301A
FWHM: 56° + 113°
FWTM: 98° + 151°
Peak intensity: 0.640 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

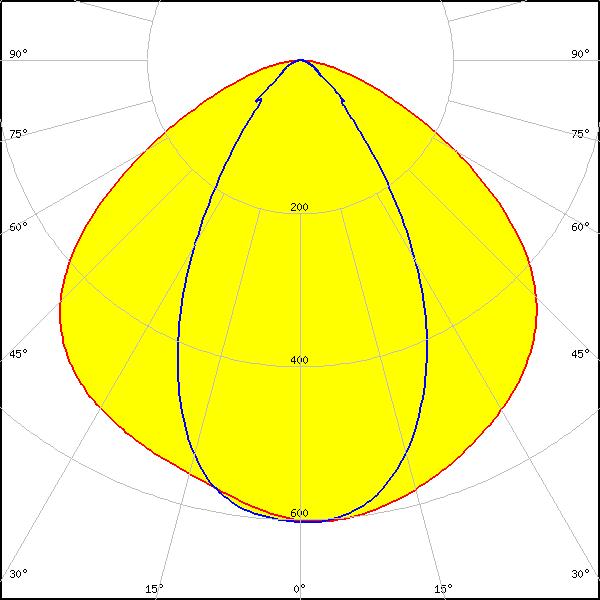

LED: LM302A
FWHM: 59° + 111°
FWTM: 99° + 151°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

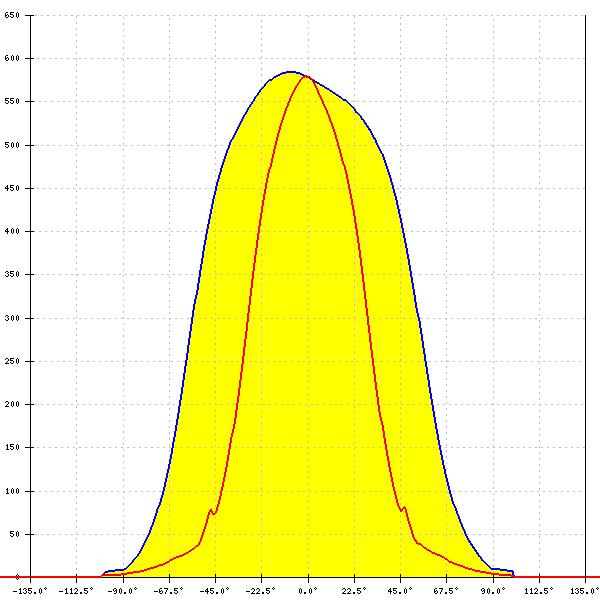

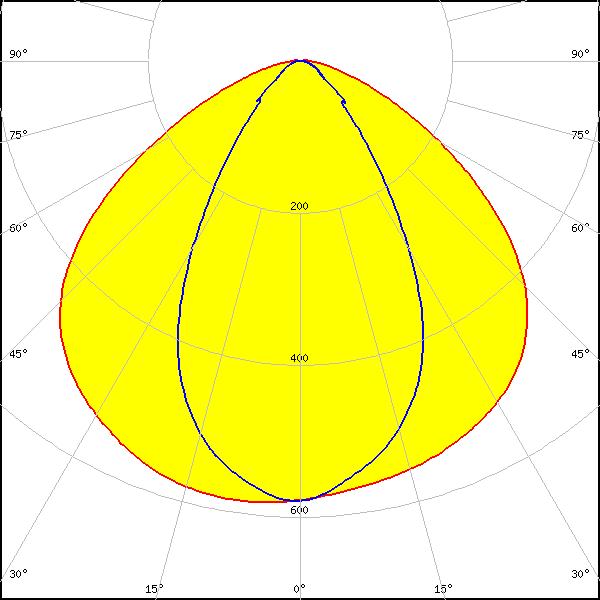

LED: LM561B
FWHM: 59° + 111°
FWTM: 100° + 151°
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

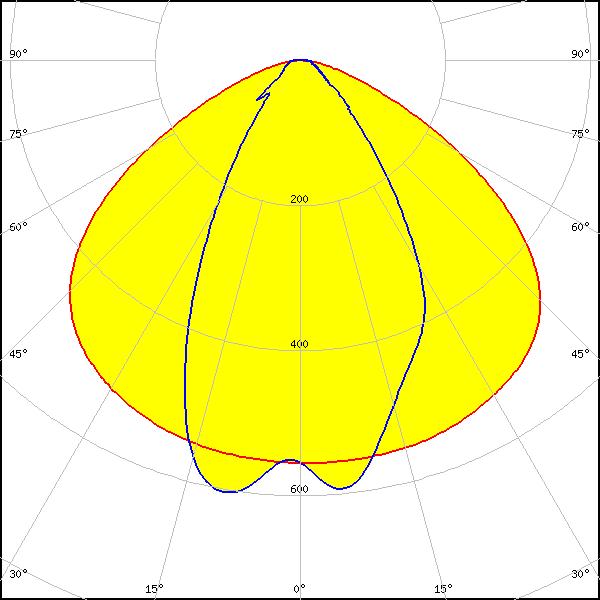

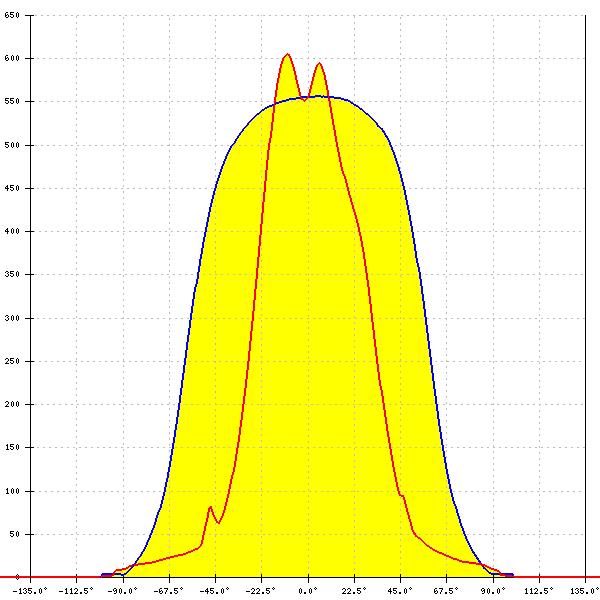

LED: LM561B Plus
Required components:
FWHM: 117° + 58°
FWTM: 151° + 100°
Peak intensity: 0.605 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

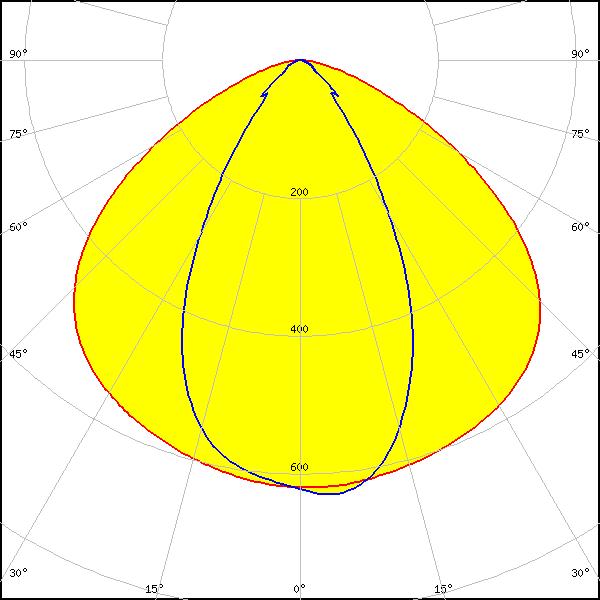

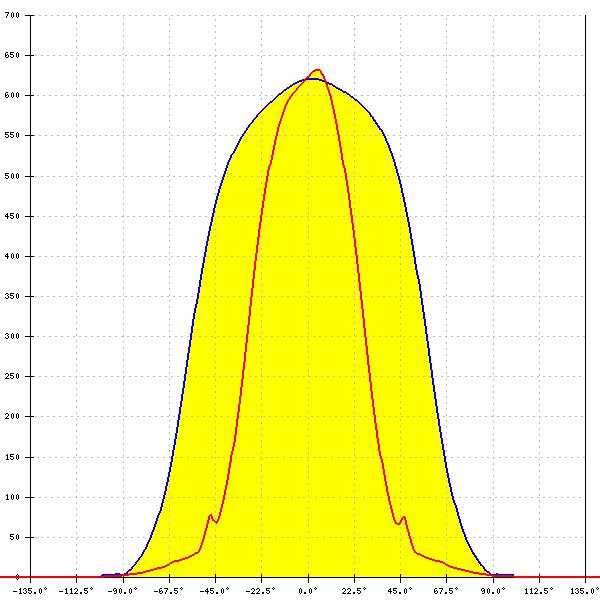

LED: LM561C
FWHM: 56° + 113°
FWTM: 98° + 149°
Peak intensity: 0.630 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

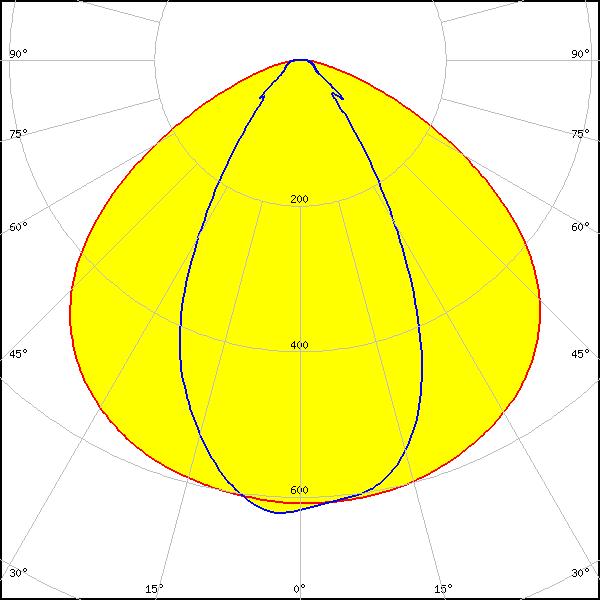

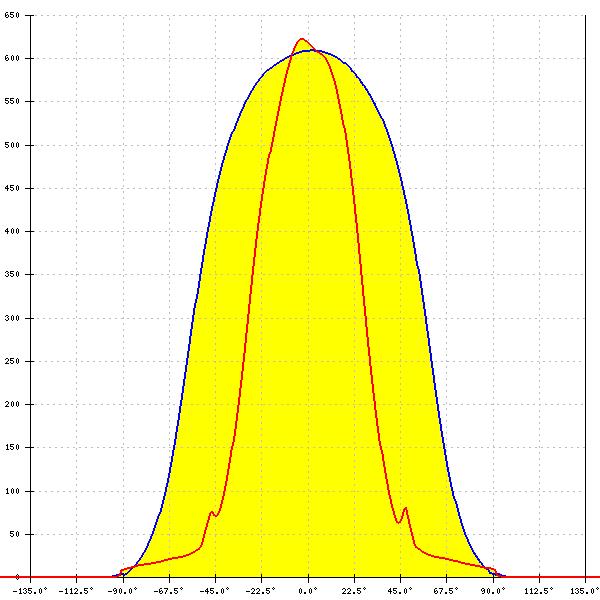

LED: LT-S282N
FWHM: 56° + 112°
FWTM: 99° + 149°
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

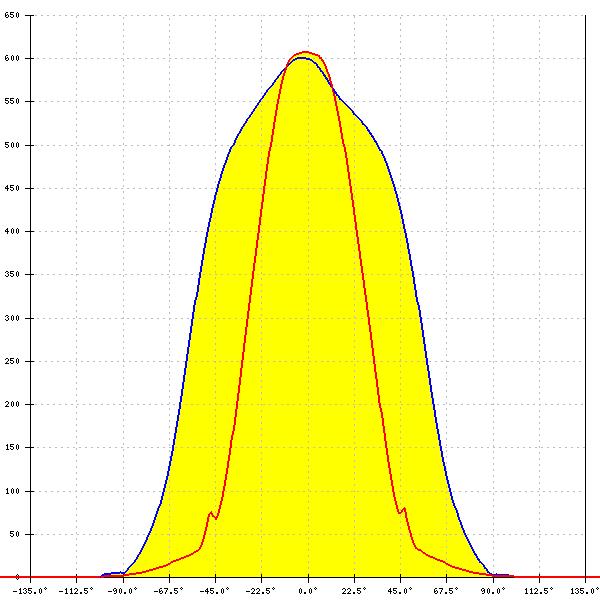

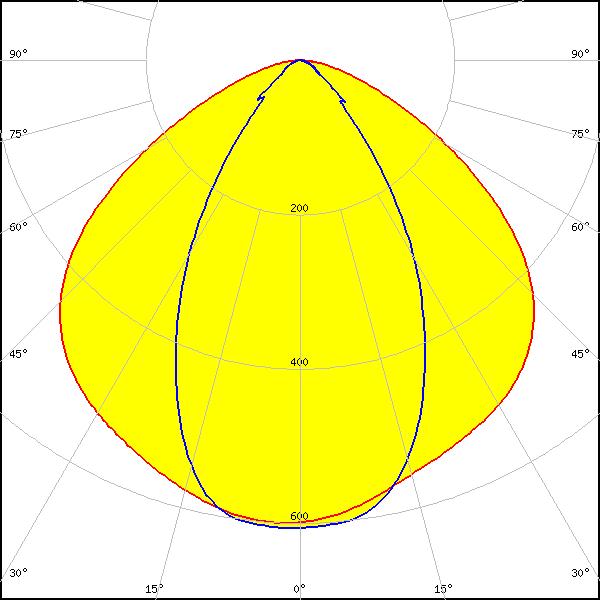

LED: SEOUL 3030
FWHM: 59° + 111°
FWTM: 98° + 150°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3030
Required components:
FWHM: 115° + 55°
FWTM: 150° + 98°
Peak intensity: 0.610 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

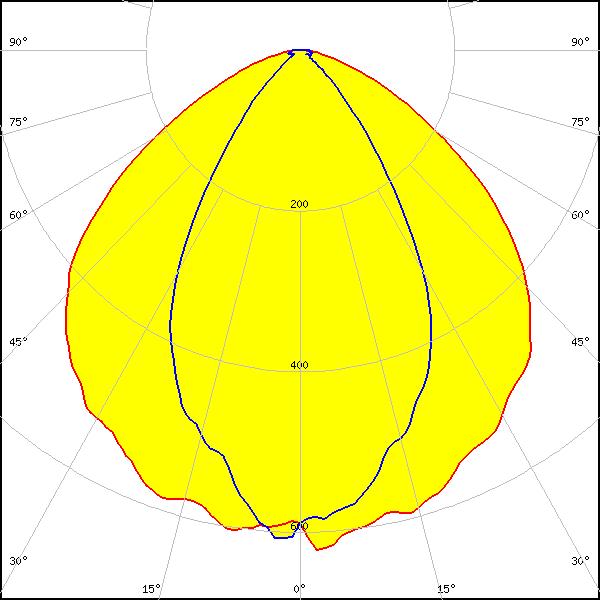

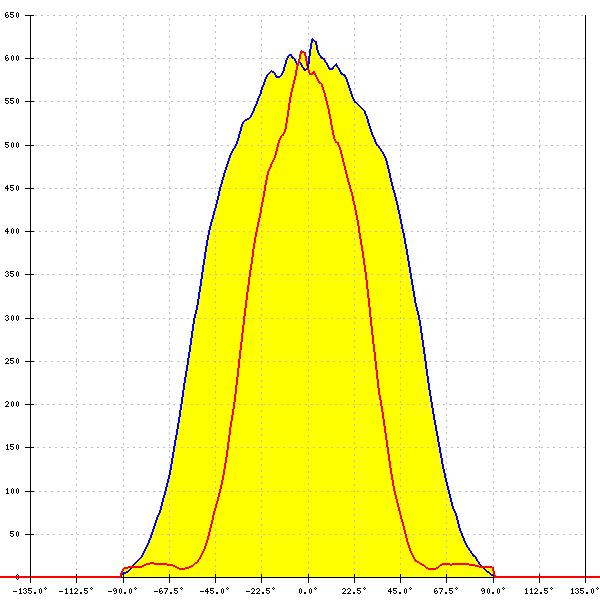

LED: SEOUL DC 3030C
FWHM: 107° + 62°
FWTM: 147° + 94°
Peak intensity: 0.625 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
