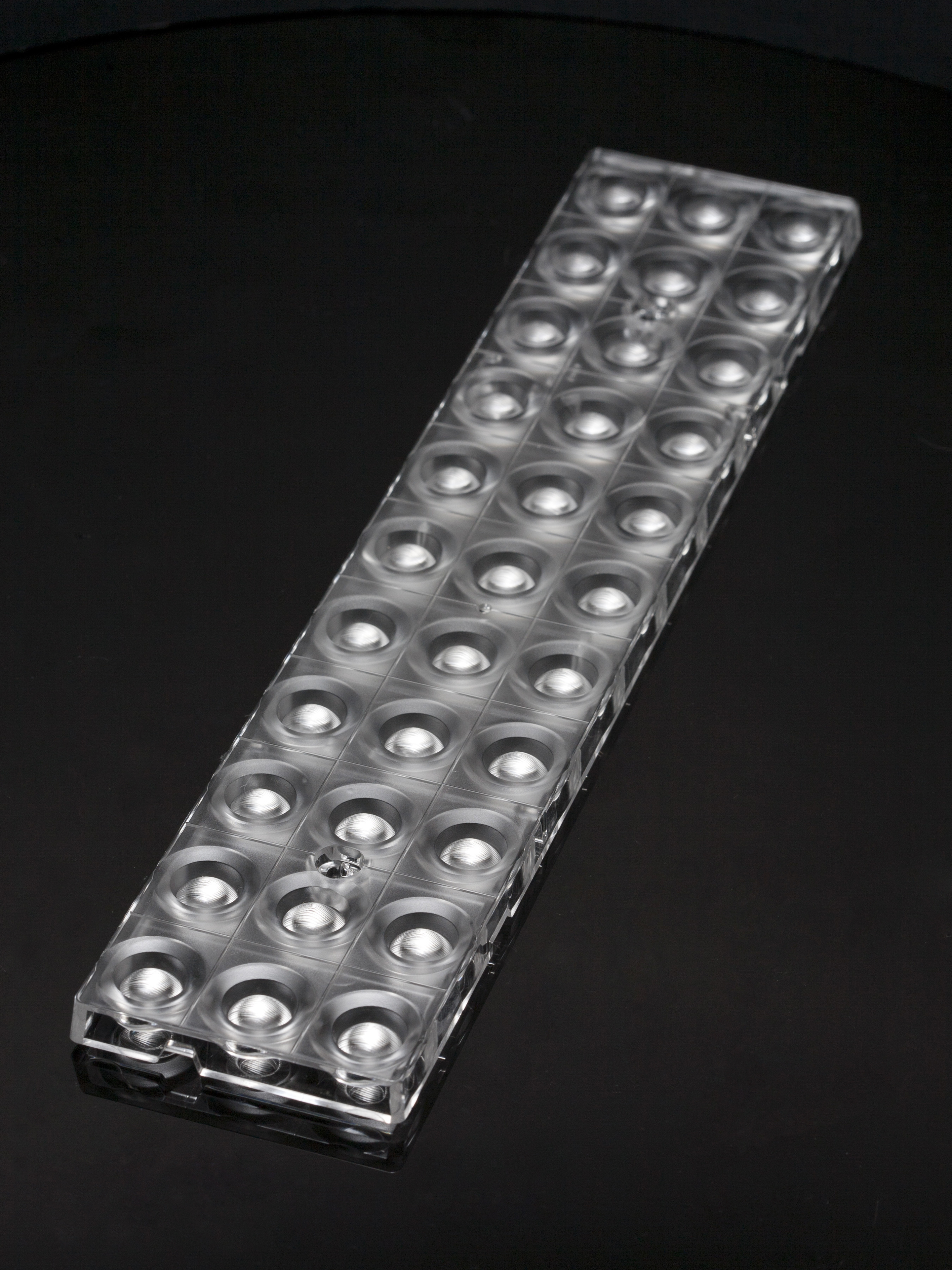

    F14486_FLORENCE-Z30

    Print

    ~30° medium beam

    Specification
    • Dimensions:
      286 x  61 mm
    • Height:
      8.5 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • PMMA
    Ordering information
    • Quantity in box:
      72 pcs
    • Box size:
      398 x 298 x 140 mm
    • Box weight:
      7.1 kg
    • MPQ:
      6 pcs
    • MOQ:
      72 pcs
    • MOQ size:
      390 x 300 x 40 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F14486_FLORENCE-Z30

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    Installation Guide

    General installation guide

    Product video

    FLORENCE-3R presented by Olga Cherepenina

    Luminaire, example

    Track module luminaire with FLORENCE-3R

    Luminaire, example

    Linear luminaire with FLORENCE-3R

    News

    PRODUCT NEWS - FLORENCE-Z30

    Application example

    Industrial lighting with FLORENCE-3R

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    PRODUCT NEWS - FLORENCE

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Application guide

    Guide_for_Retail_Lighting_Optics_v.1.0_2021_WEB

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    AVAILABLE LEDiL ACCESSORIES

    C14592_FLORENCE-3R-SHD-BLK

    Black glare lowering shade for FLORENCE-Z90, Z60 and Z30 optics

    C14453_FLORENCE-3R-SHD-GR

    Grey glare lowering shade for FLORENCE-Z90, Z60 and Z30 optics

    C14646_FLORENCE-3R-SHD-WHT

    White glare lowering shade for FLORENCE-Z90, Z60 and Z30 optics

    C14437_FLORENCE-PF-3R

    Press fit plug for appliances where accessing and opening the product needs to be restricted. Compatible with FLORENCE 3-row optics.

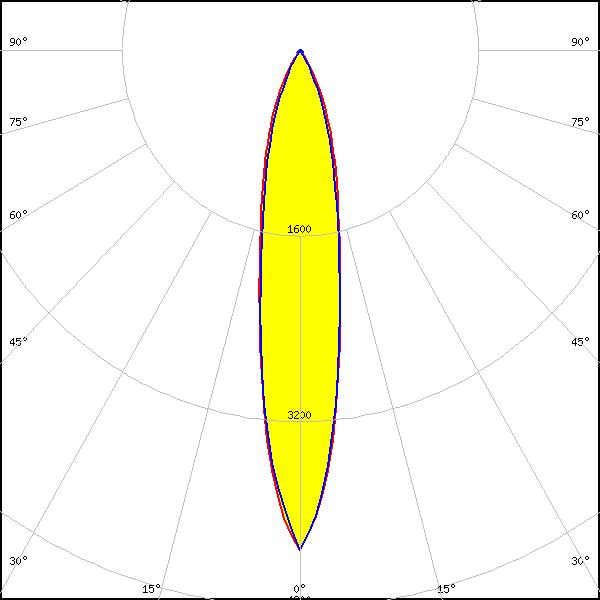

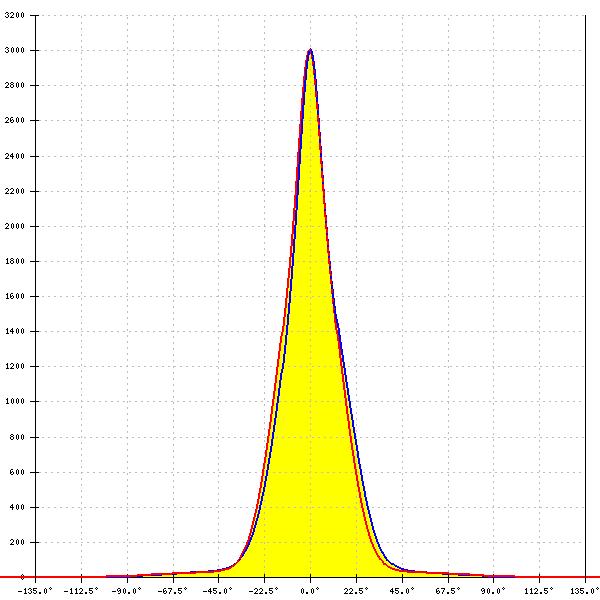

    Optical results

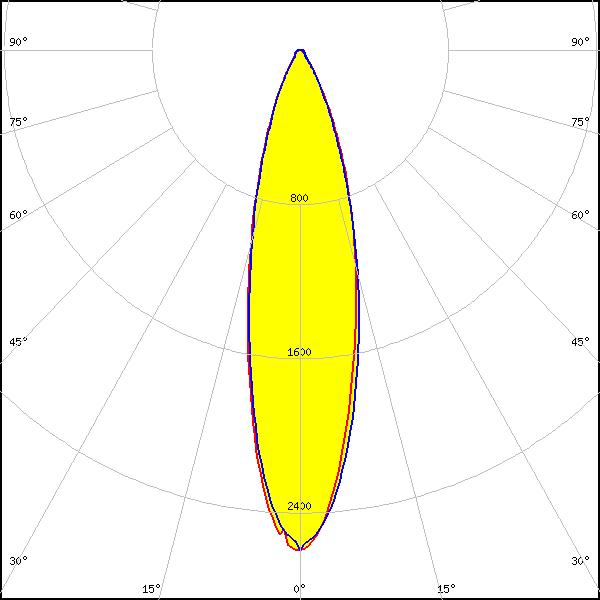

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 26°
    FWTM: 56°
    Peak intensity: 2.6 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White

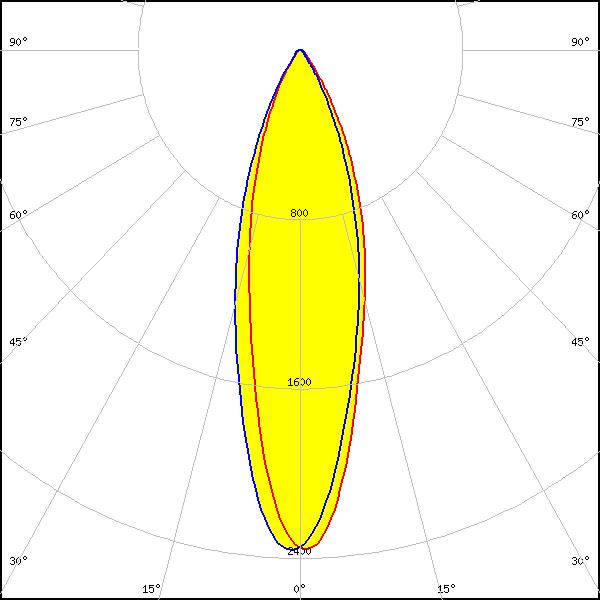

    LED: LUXEON 3535L HE
    FWHM: 29°
    FWTM: 63°
    Peak intensity: 2.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

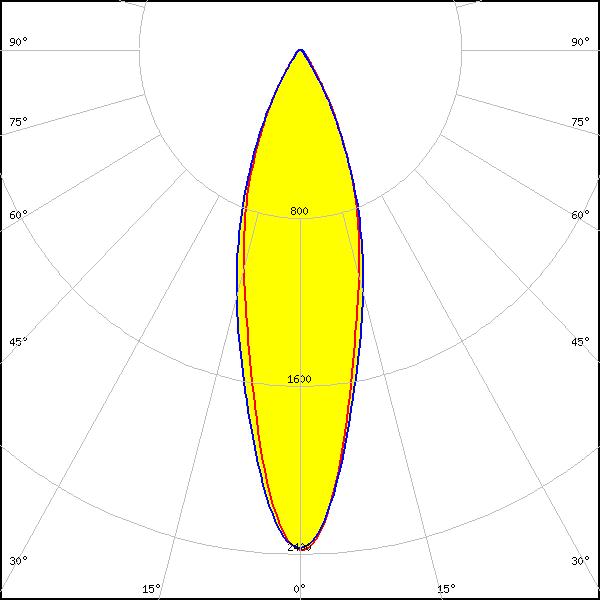

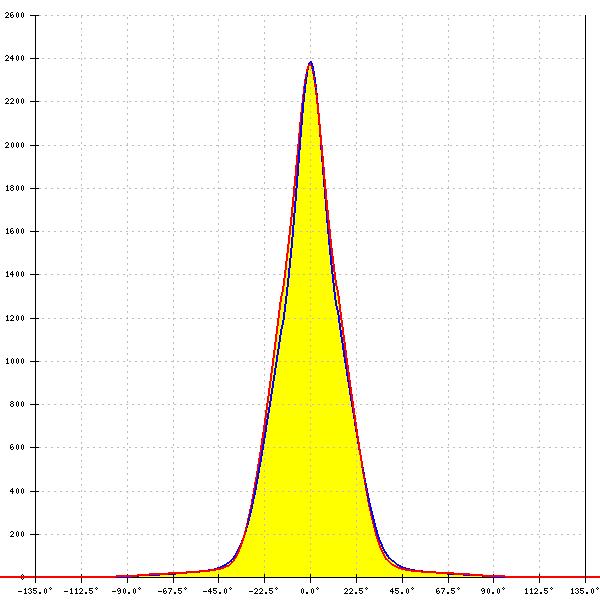

    LED: LUXEON XR-3535L (L202 - xxxx033C30001)
    FWHM: 27°
    FWTM: 63°
    Peak intensity: 2.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

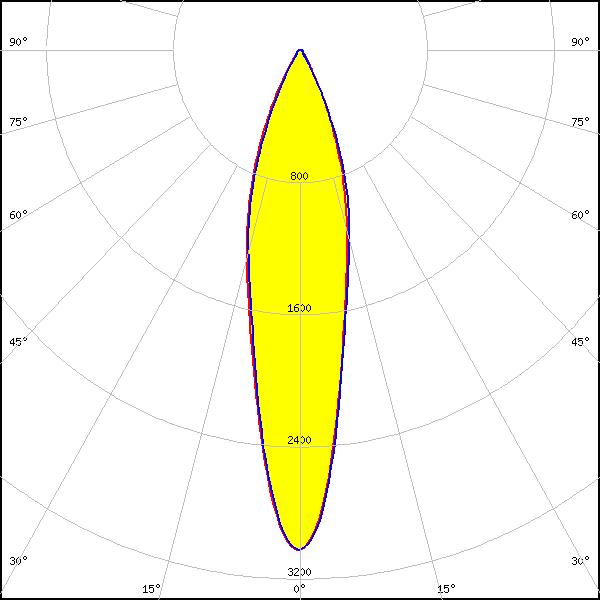

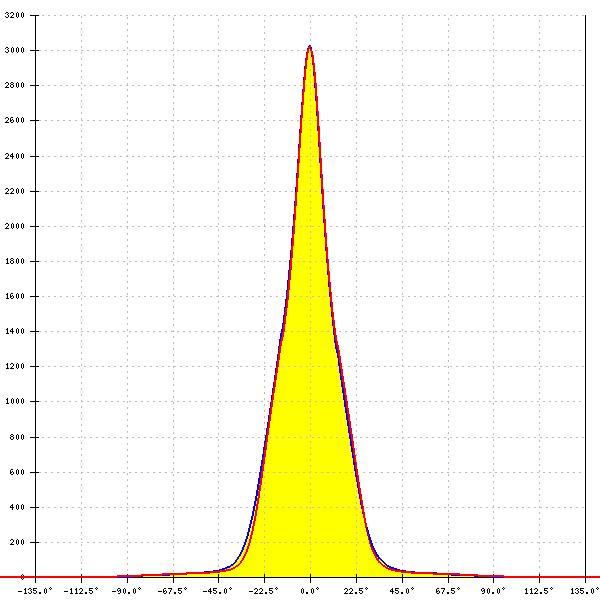

    LED: MP-2016
    FWHM: 24°
    FWTM: 56°
    Peak intensity: 3.0 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour: White

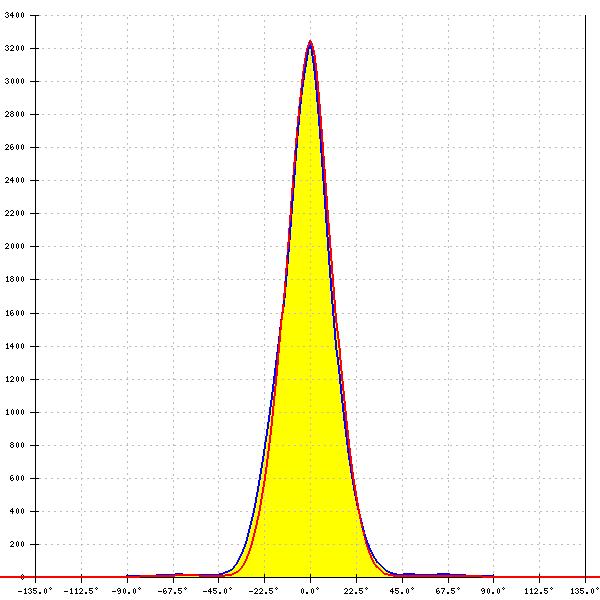

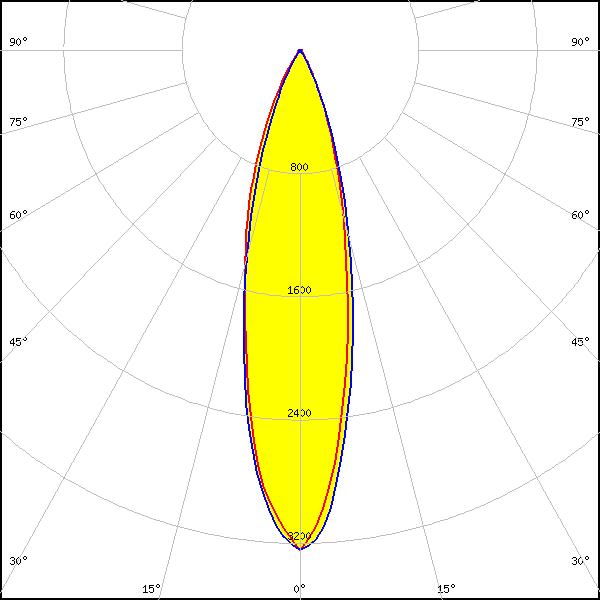

    LED: NF2x757G
    FWHM: 25°
    FWTM: 53°
    Peak intensity: 3.2 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

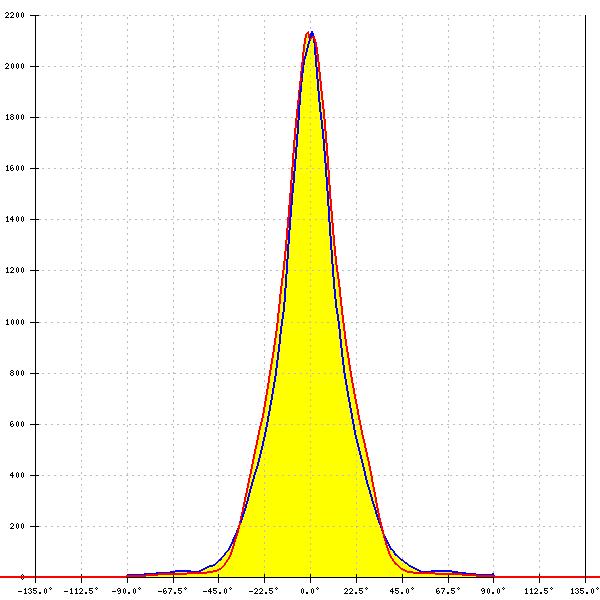

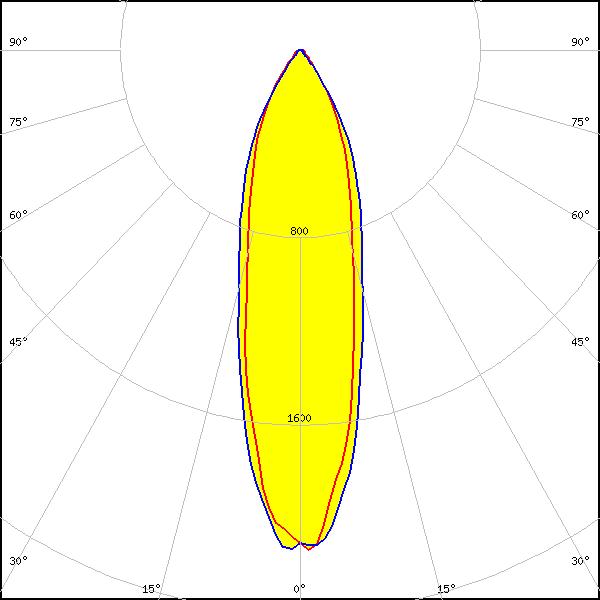

    LED: NFMW48xA
    FWHM: 27°
    FWTM: 69°
    Peak intensity: 2.2 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

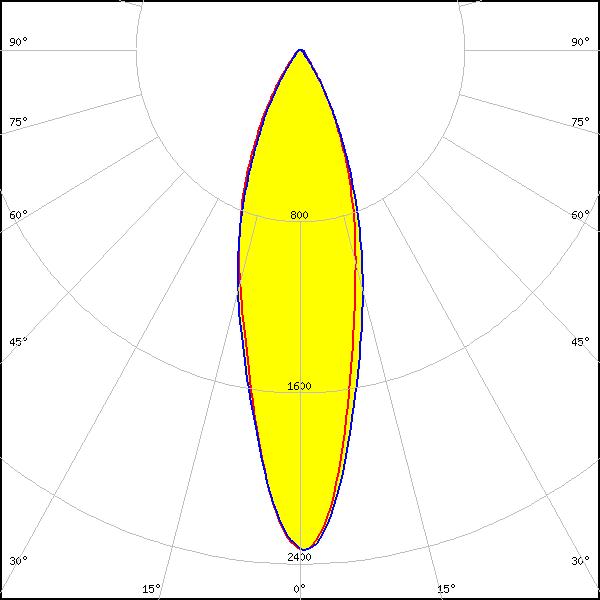

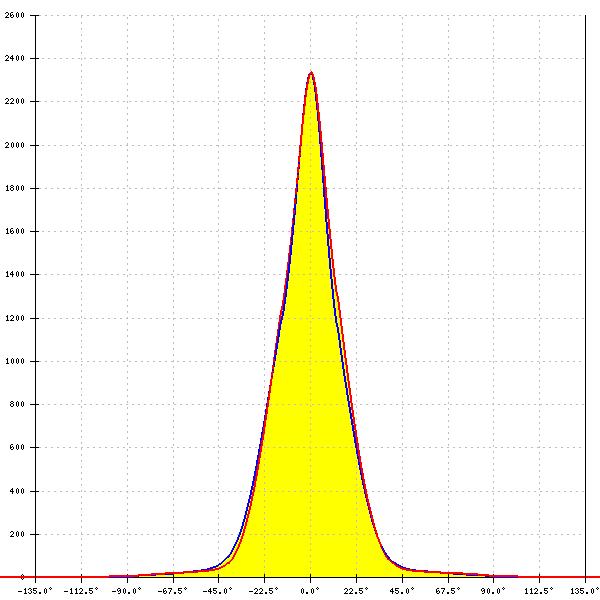

    LED: NFSW757H
    FWHM: 29°
    FWTM: 64°
    Peak intensity: 2.3 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White
    LED: NFSW757H
    Required components:
    C14646_FLORENCE-3R-SHD-WHT
    FWHM: 29°
    FWTM: 64°
    Peak intensity: 2.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

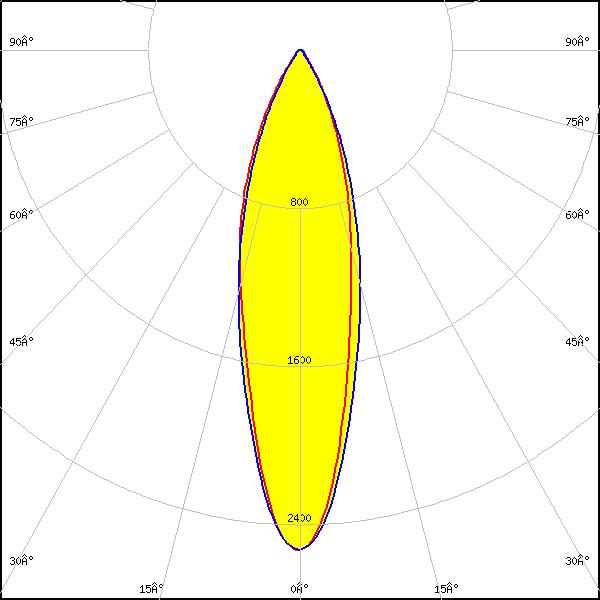

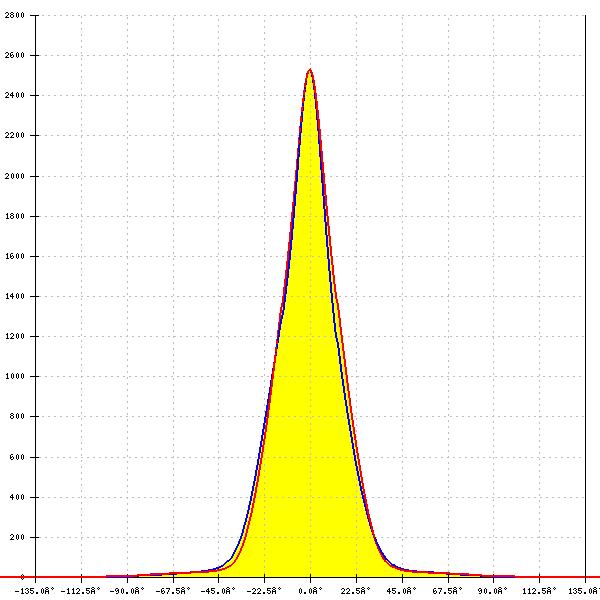

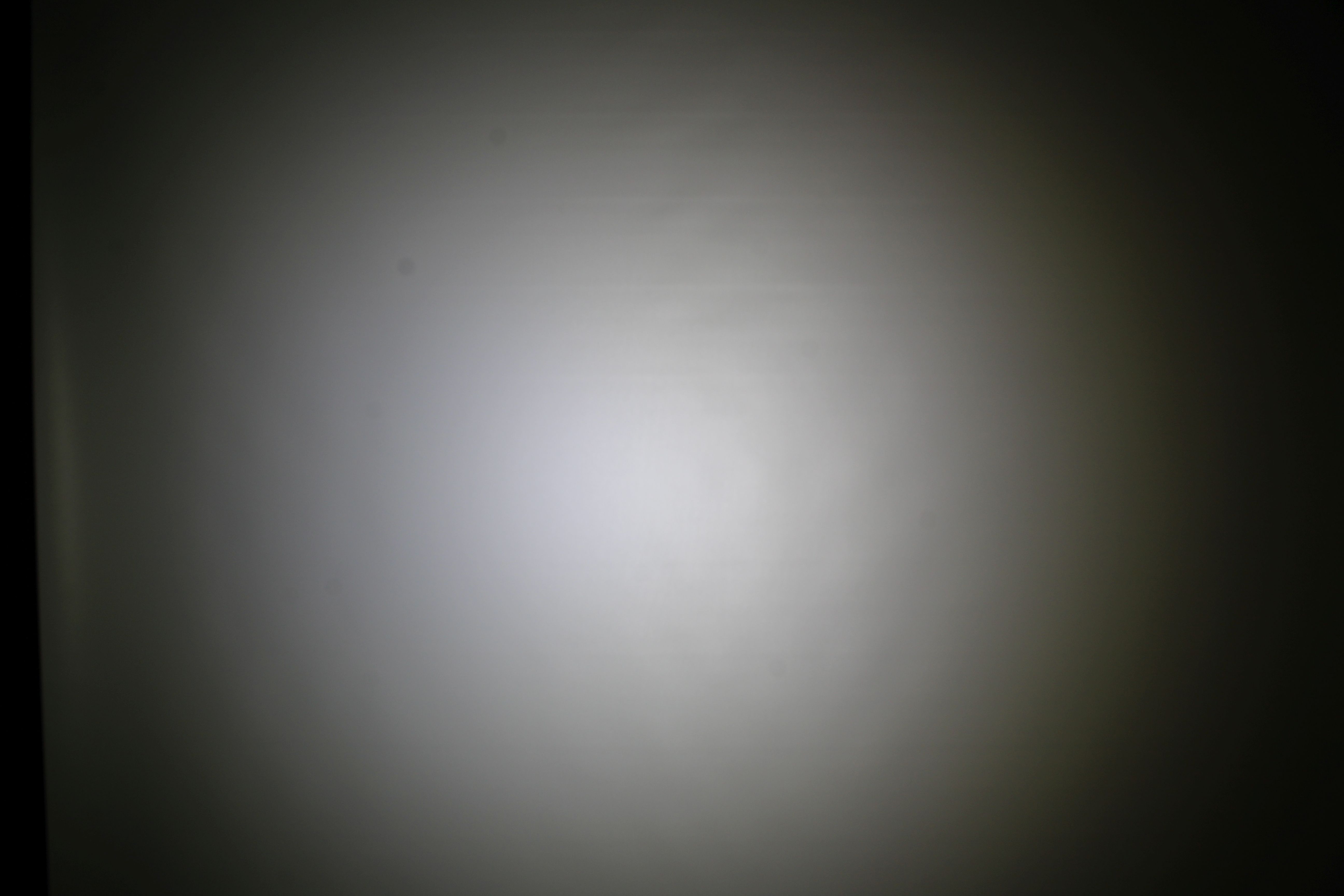

    LED: PL-BAR-G3 1100 280x55
    FWHM: 28°
    FWTM: 61°
    Peak intensity: 2.5 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White
    LED: PLG2-BAR-1100-xxx-280x55-DC
    FWHM: 29°
    FWTM: 64°
    Peak intensity: 2.3 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

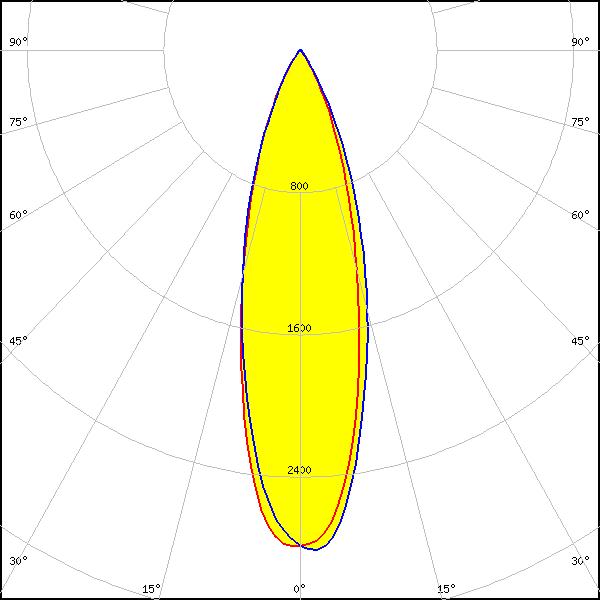

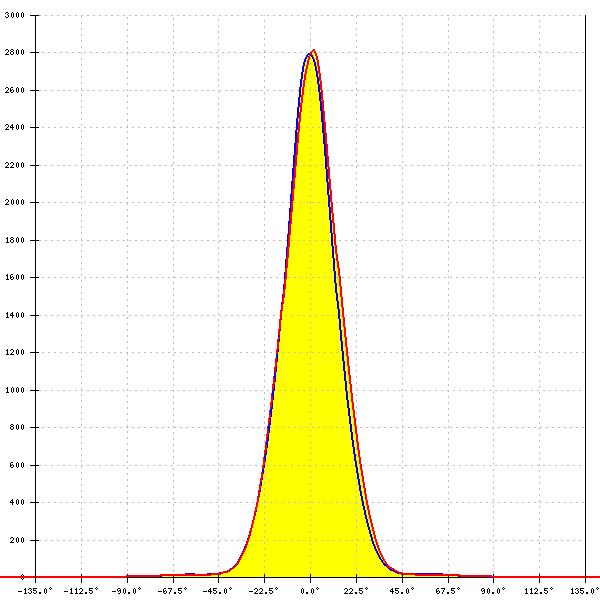

    LED: Duris E 2835
    FWHM: 29°
    FWTM: 58°
    Peak intensity: 2.8 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

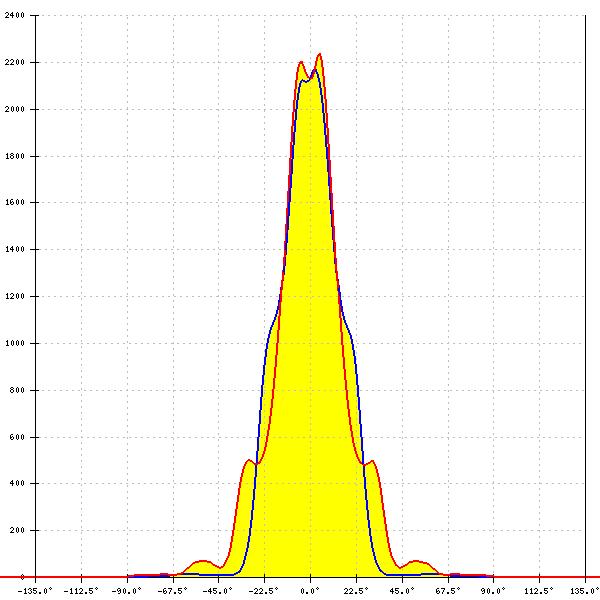

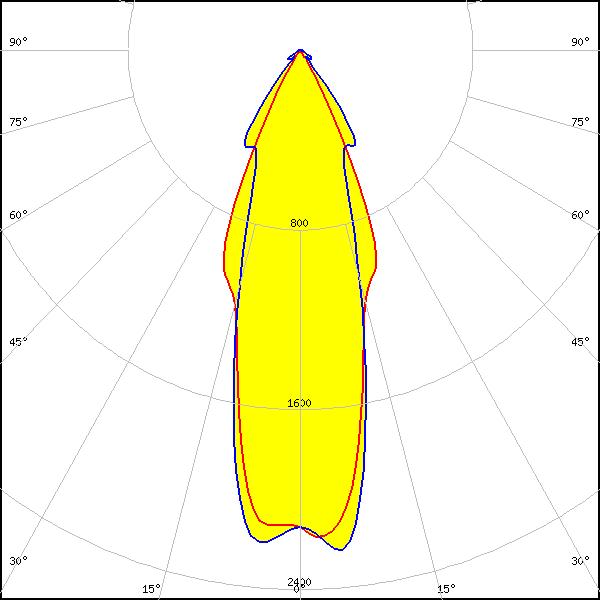

    LED: Duris E 2835
    FWHM: 30°
    FWTM: 75°
    Peak intensity: 2.2 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 2
    Light colour: White

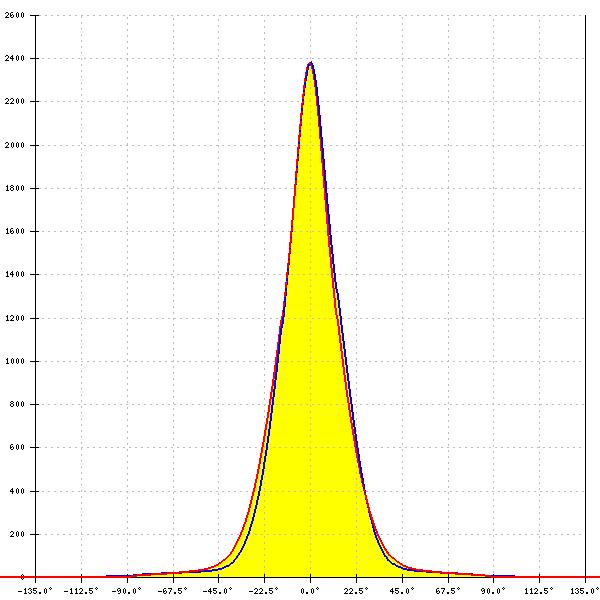

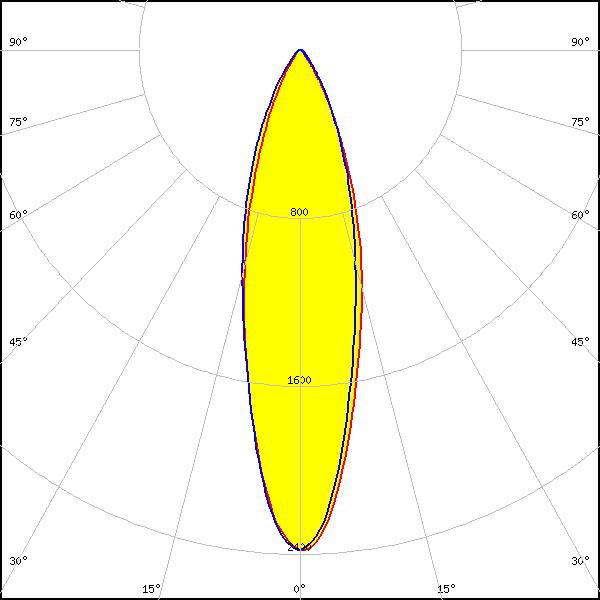

    LED: Duris E5
    FWHM: 28°
    FWTM: 62°
    Peak intensity: 2.4 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour: White

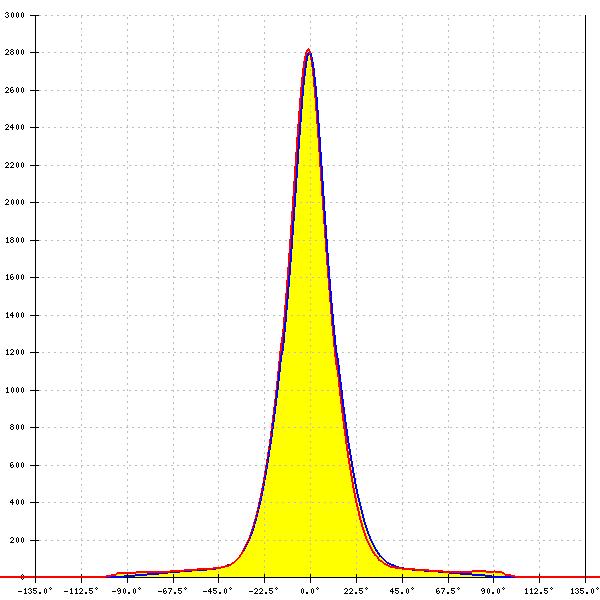

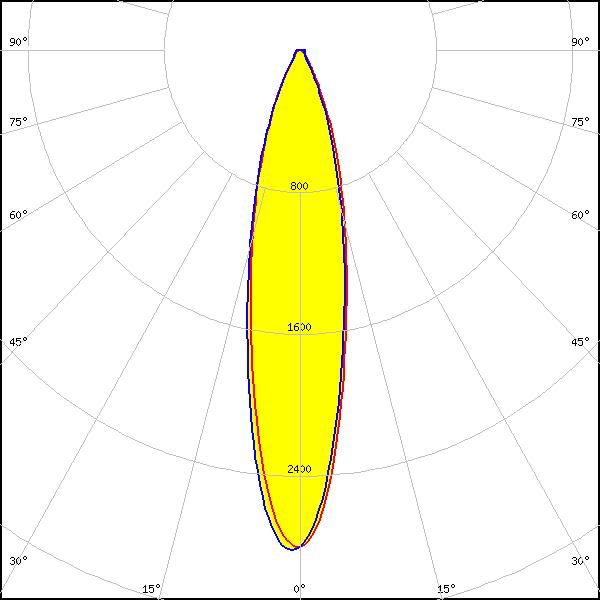

    LED: Duris S2
    FWHM: 23°
    FWTM: 54°
    Peak intensity: 2.8 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White

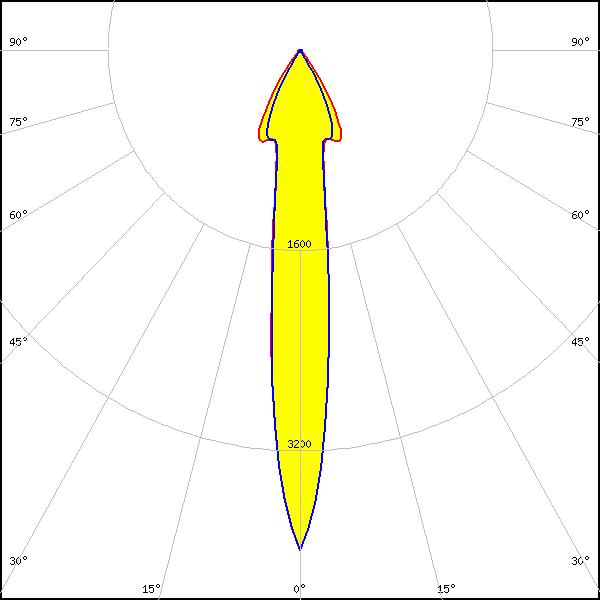

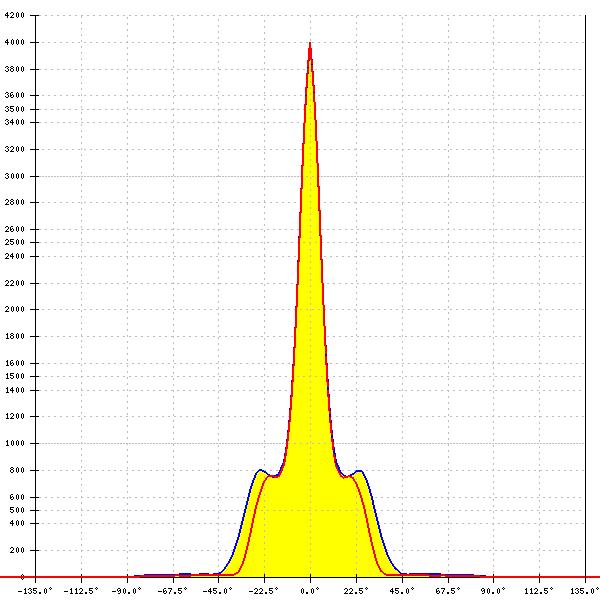

    LED: OSCONIQ C 2424
    FWHM: 14°
    FWTM: 68°
    Peak intensity: 4.0 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White
    LED: Fortimo LED Line 1ft 650lm 3R HV4 & LV4
    FWHM: 26°
    FWTM: 60°
    Peak intensity: 2.7 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

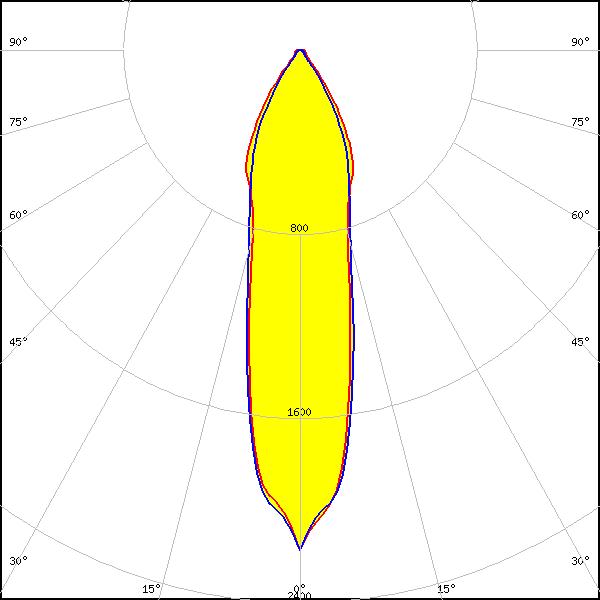

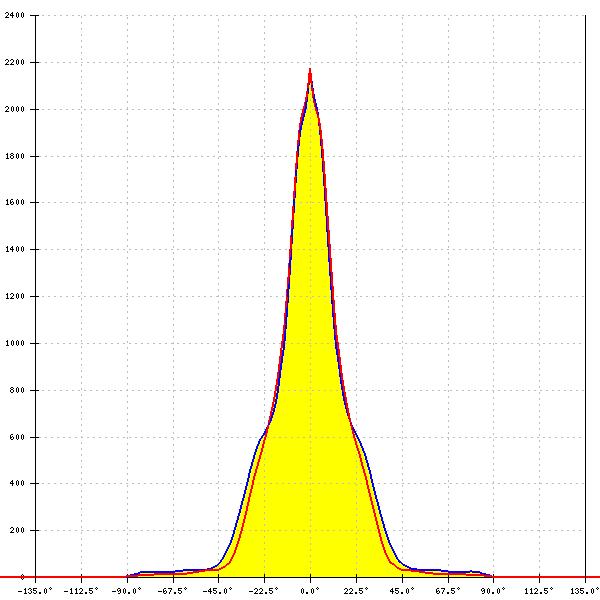

    LED: LM301B
    FWHM: 24° + 26°
    FWTM: 74° + 66°
    Peak intensity: 2.2 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour: White

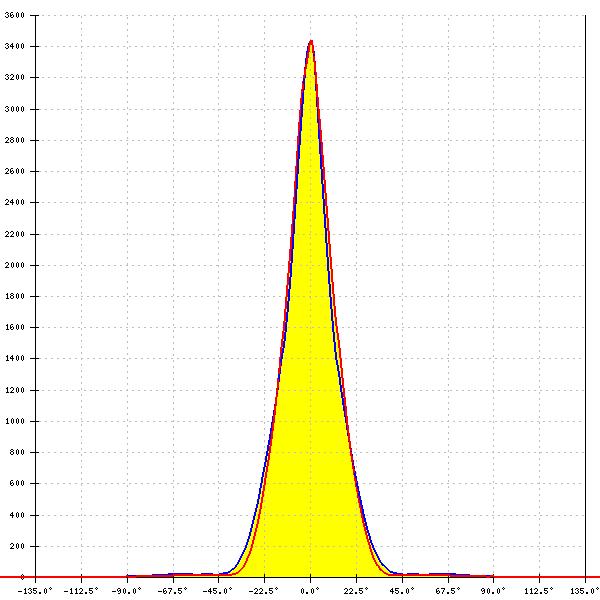

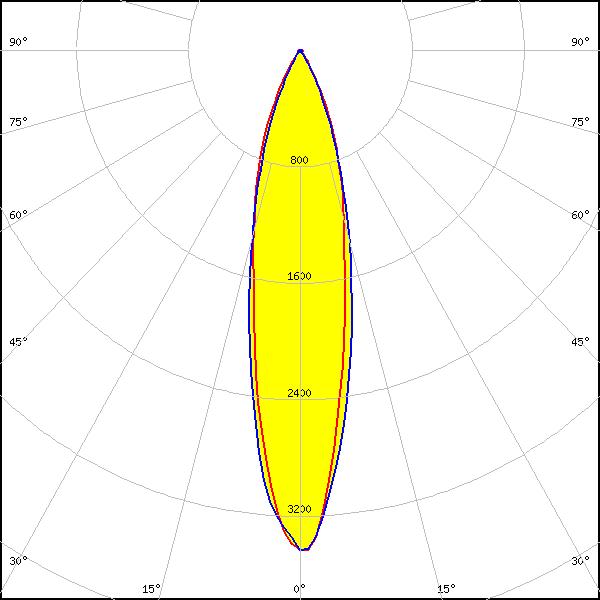

    LED: LM302Z plus
    FWHM: 23°
    FWTM: 54°
    Peak intensity: 3.4 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

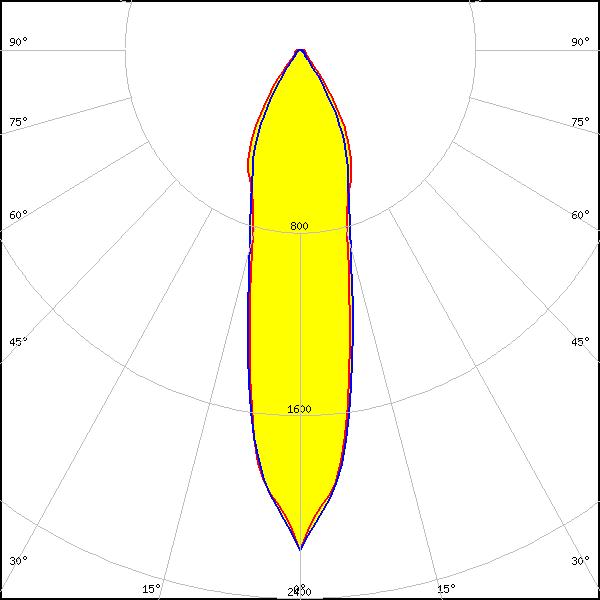

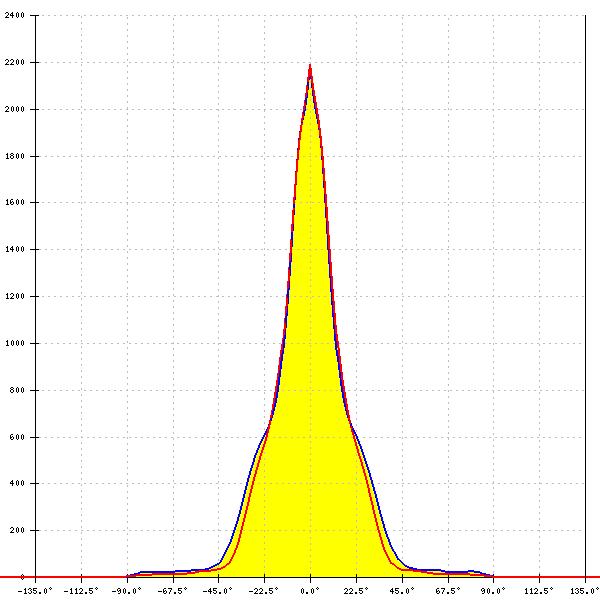

    LED: LM302Z plus
    FWHM: 25°
    FWTM: 70°
    Peak intensity: 2.2 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour: White

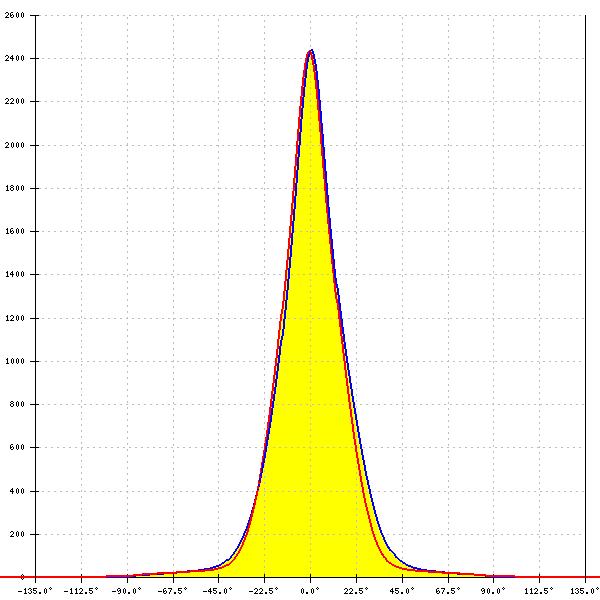

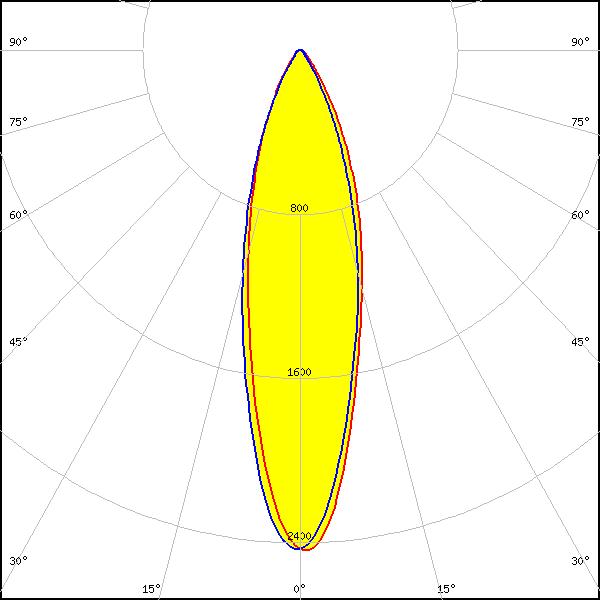

    LED: LM561B
    FWHM: 28°
    FWTM: 62°
    Peak intensity: 2.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

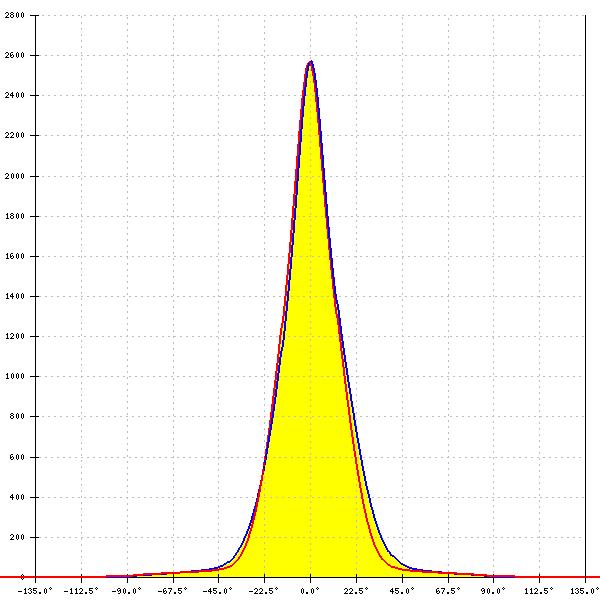

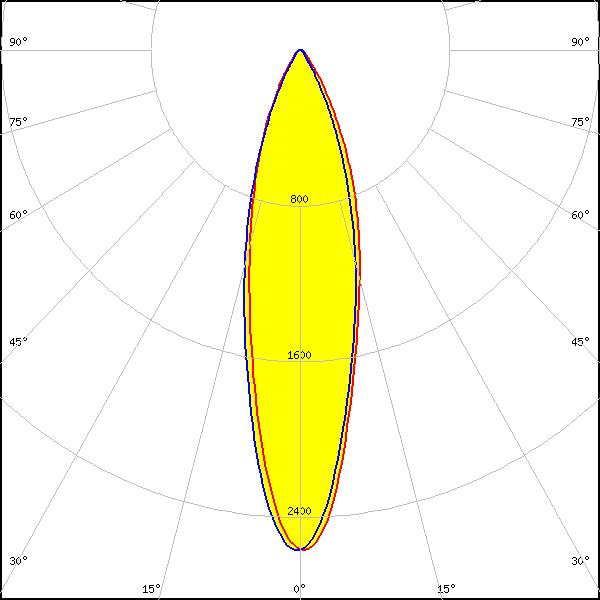

    LED: LM561B Plus
    FWHM: 27°
    FWTM: 60°
    Peak intensity: 2.6 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

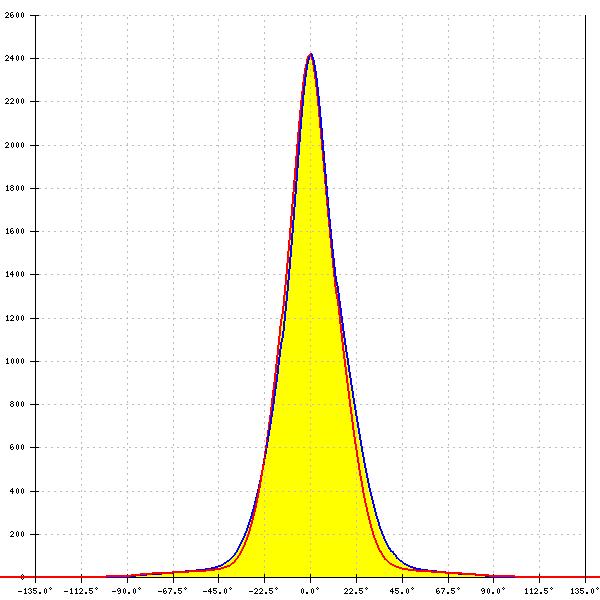

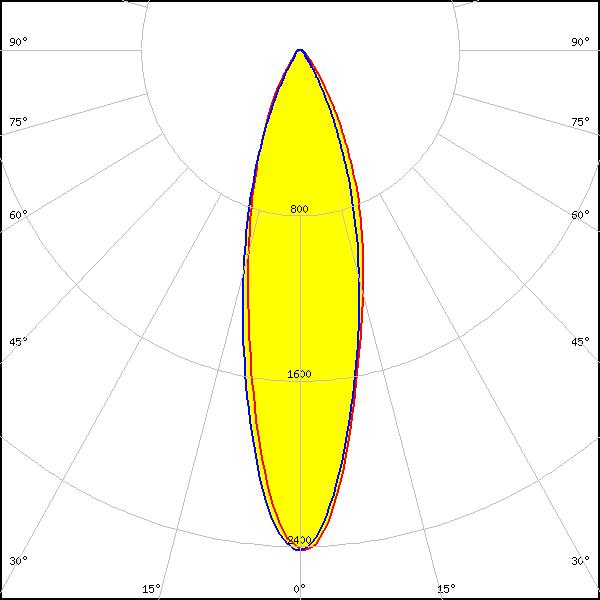

    LED: LM561C
    FWHM: 28°
    FWTM: 62°
    Peak intensity: 2.4 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour: White

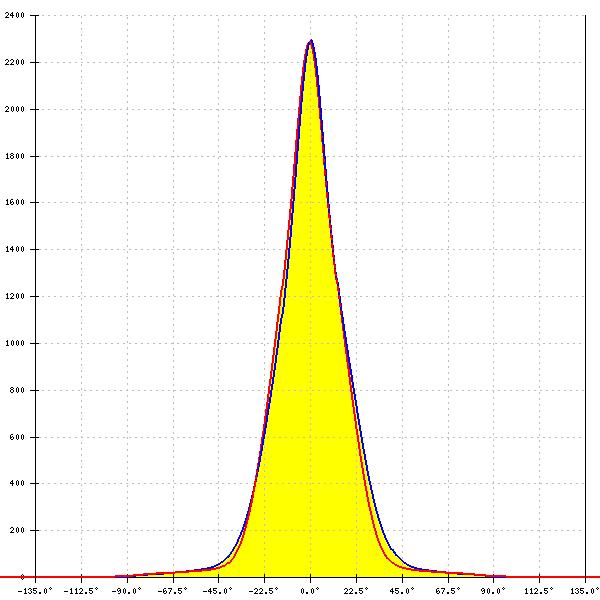

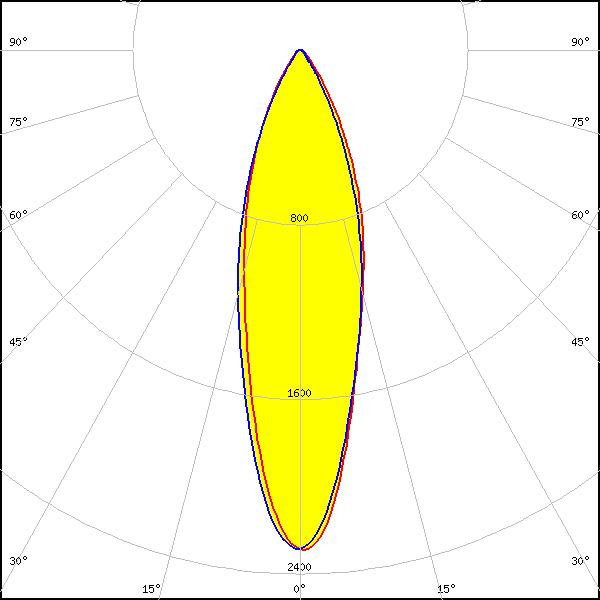

    LED: LT-R286A
    FWHM: 29°
    FWTM: 65°
    Peak intensity: 2.3 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

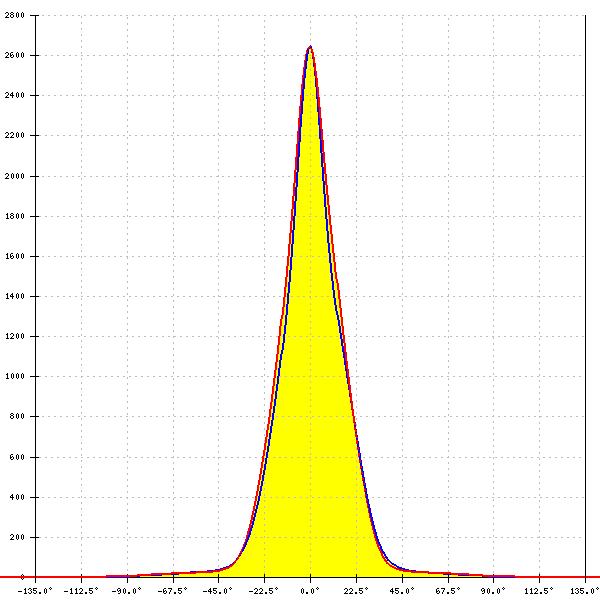

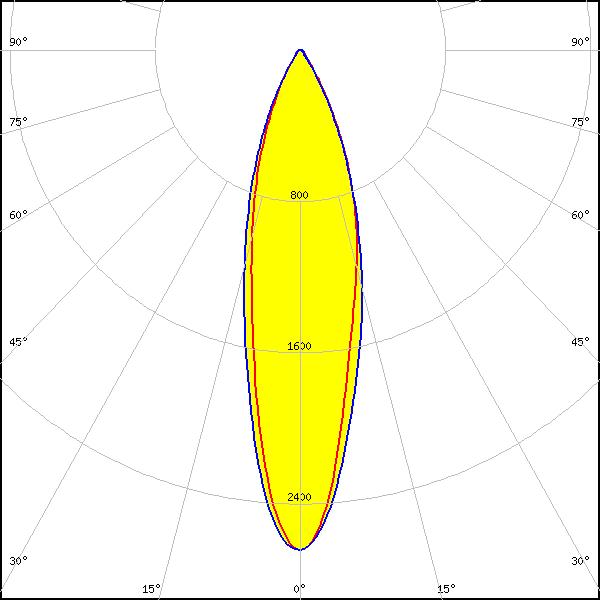

    LED: SEOUL 3030
    FWHM: 27°
    FWTM: 60°
    Peak intensity: 2.6 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

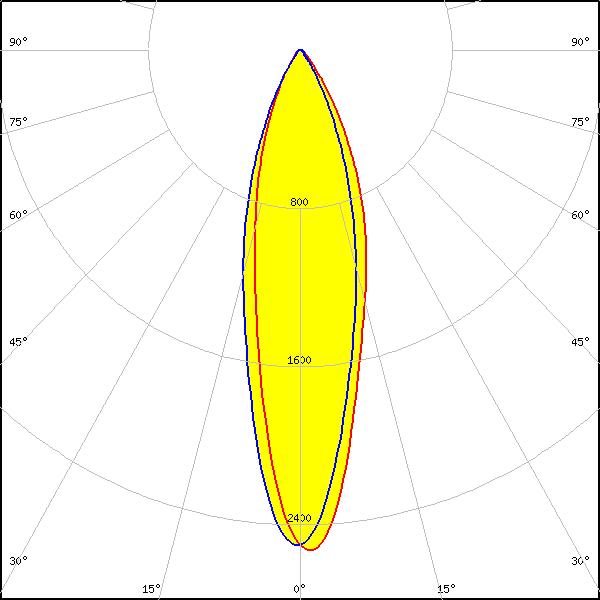

    LED: SEOUL 5630C
    Required components:
    C14646_FLORENCE-3R-SHD-WHT
    LEDs/each optic: 1
    Light colour: White
    LED: SEOUL 5630C
    Required components:
    C14592_FLORENCE-3R-SHD-BLK
    FWHM: 27°
    FWTM: 62°
    Peak intensity: 2.5 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour: White
    LED: SEOUL 5630C
    Required components:
    C14453_FLORENCE-3R-SHD-GR
    FWHM: 27°
    FWTM: 62°
    Peak intensity: 2.5 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour: White

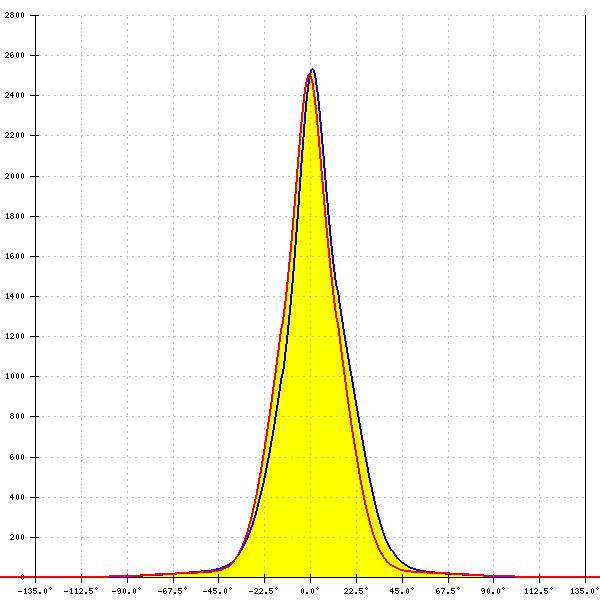

    LED: SEOUL 5630C
    FWHM: 27°
    FWTM: 62°
    Peak intensity: 2.5 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

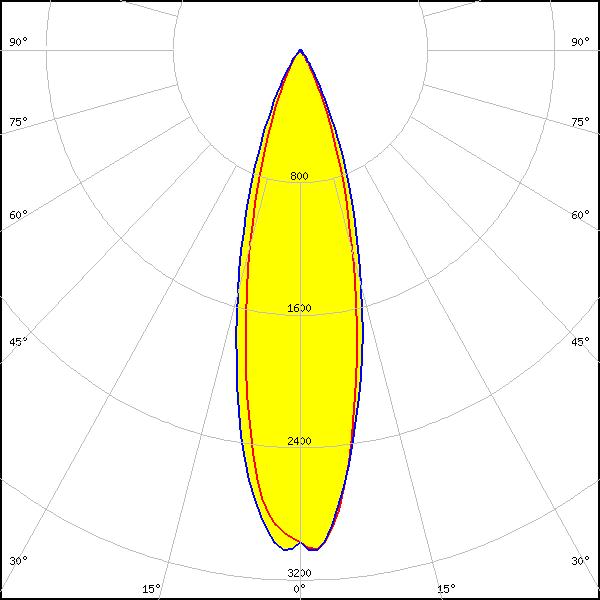

    LED: SEOUL 5630D
    FWHM: 29°
    FWTM: 58°
    Peak intensity: 3.1 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour: White
    LED: SEOUL DC 3030
    FWHM: 23°
    FWTM: 57°
    Peak intensity: 3.0 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

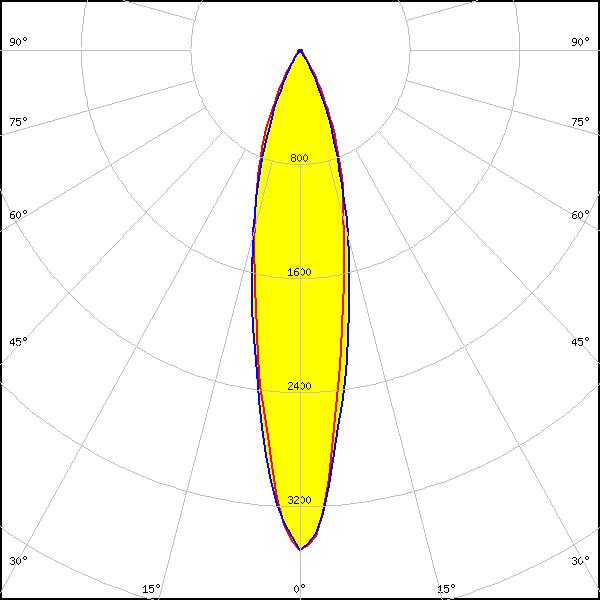

    LED: SEOUL DC 3030C
    FWHM: 23°
    FWTM: 54°
    Peak intensity: 3.5 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White

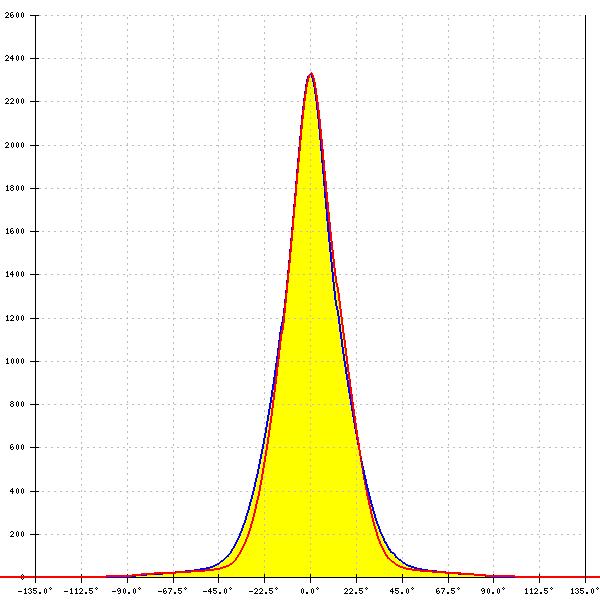

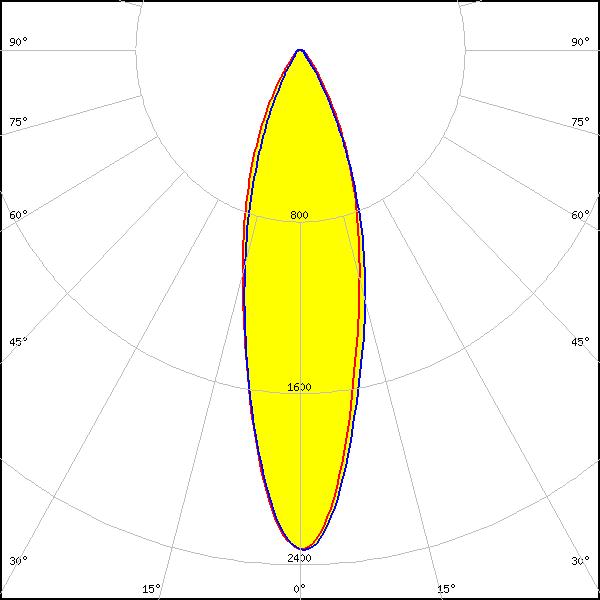

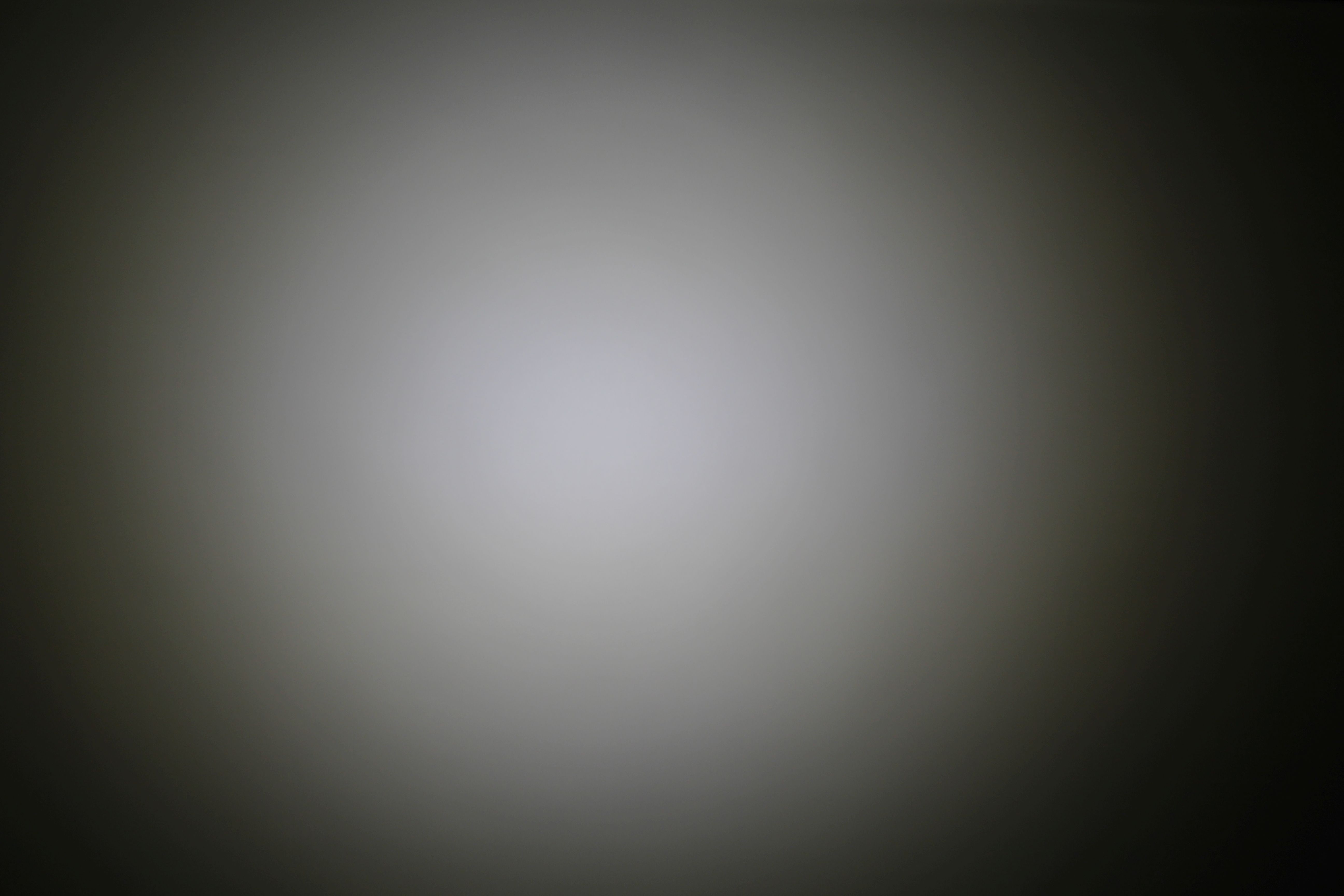

    LED: LLE G2 55x280mm 2000lm
    FWHM: 29°
    FWTM: 64°
    Peak intensity: 2.3 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White
