F14738_BROOKE-G2-S

Print

~20° spot beam compatible with LEDiL HEKLA.

Specification
  • Dimensions:
    45 mm
  • Height:
    18.9 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials
  • PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    720 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.8 kg
  • MPQ:
    45 pcs
  • MOQ:
    45 pcs
  • MOQ size:
    480 x 280 x 40 mm
  • MOQ weight:
    0.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F14738_BROOKE-G2-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

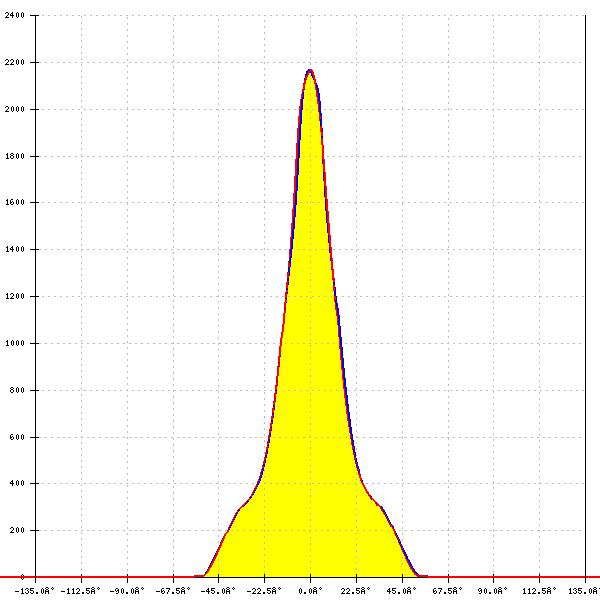

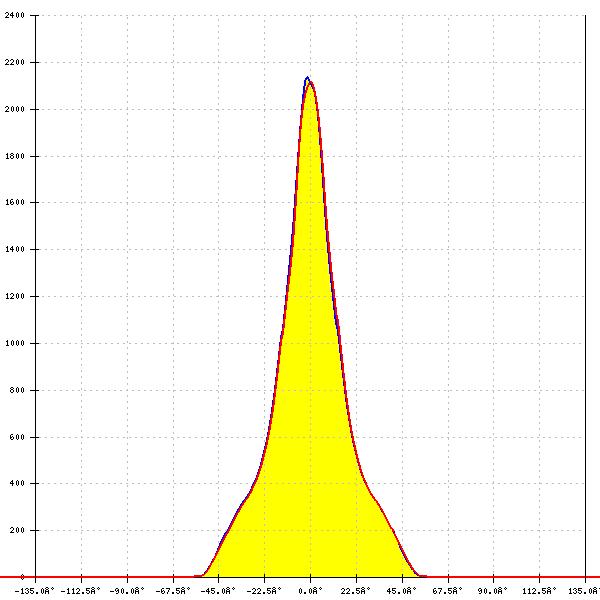

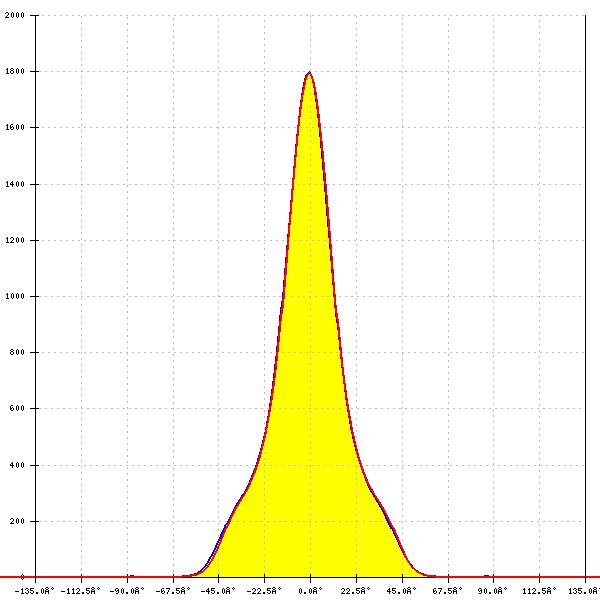

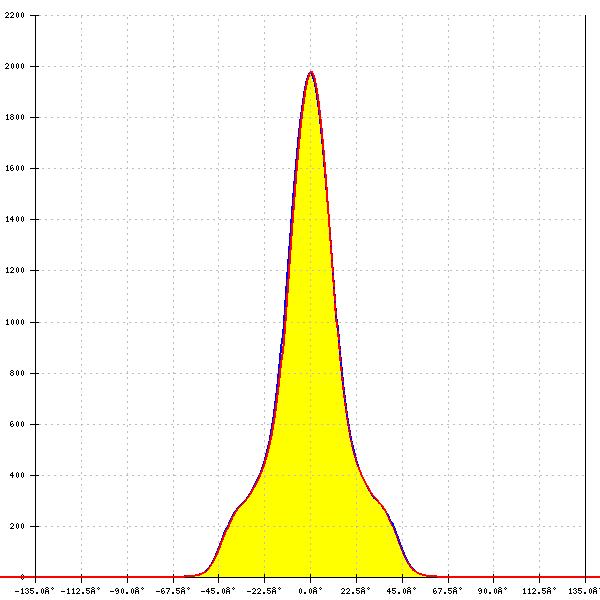

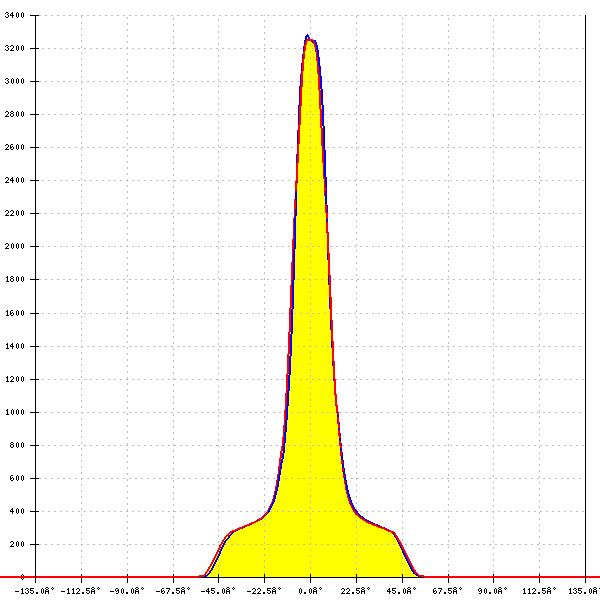

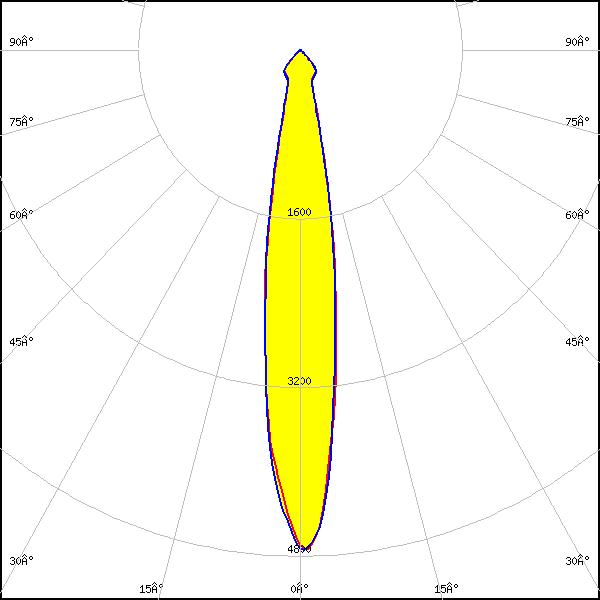

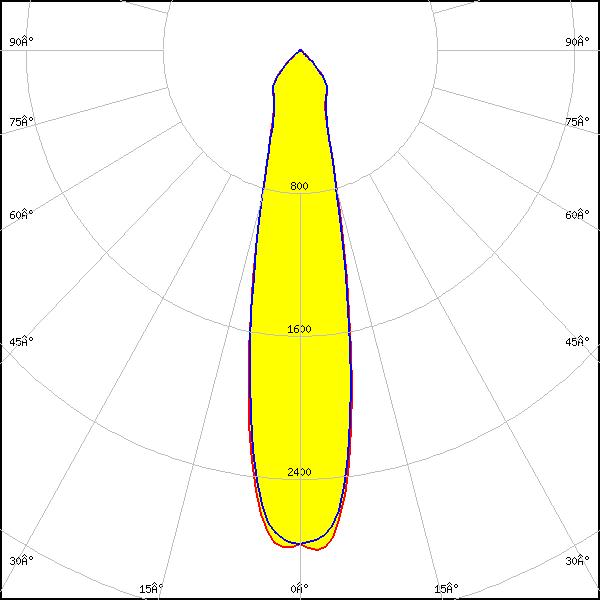

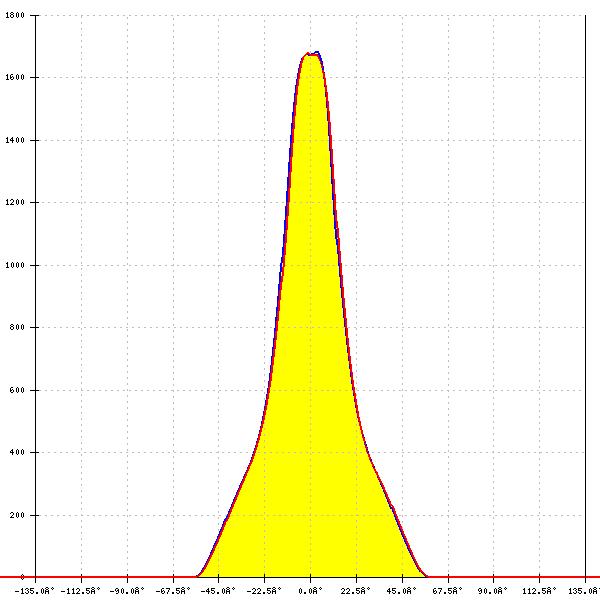

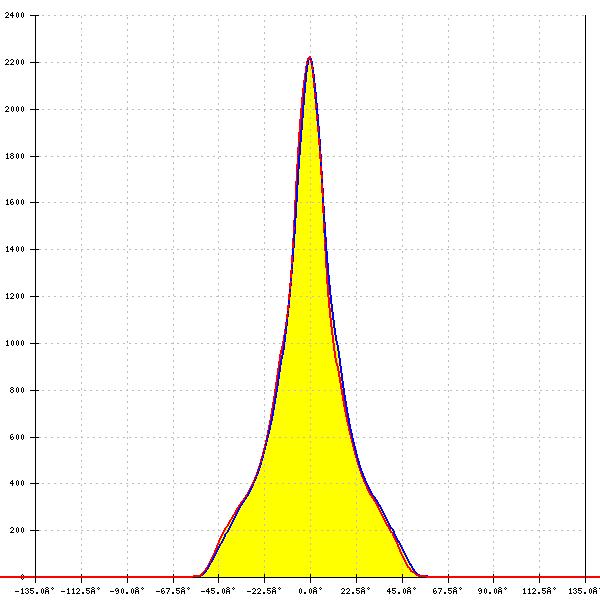

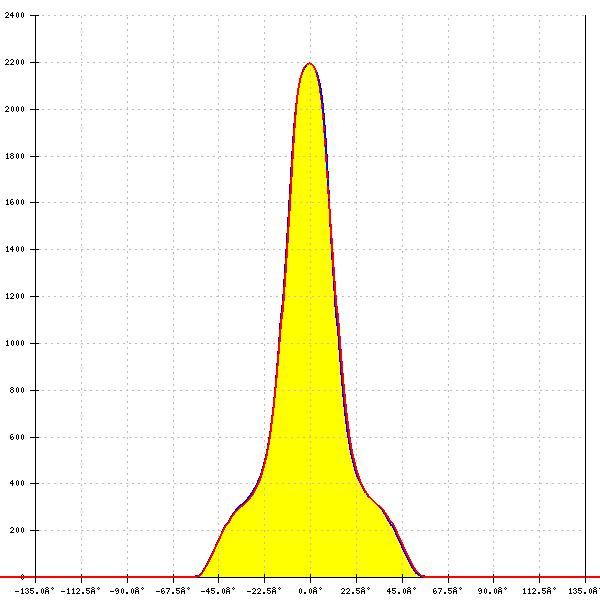

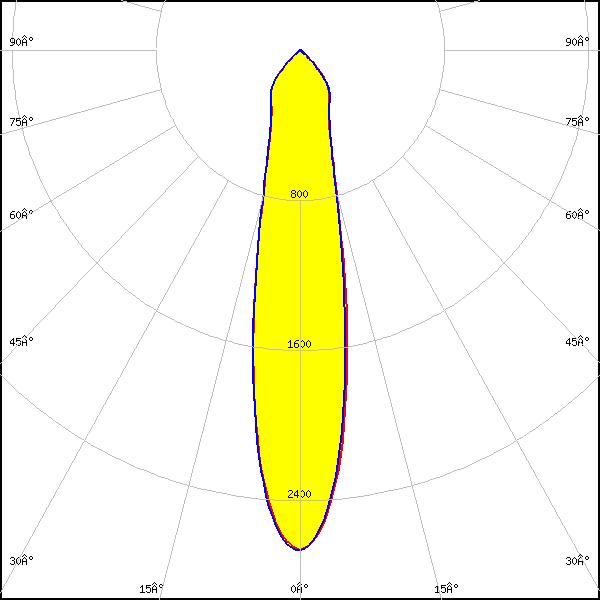

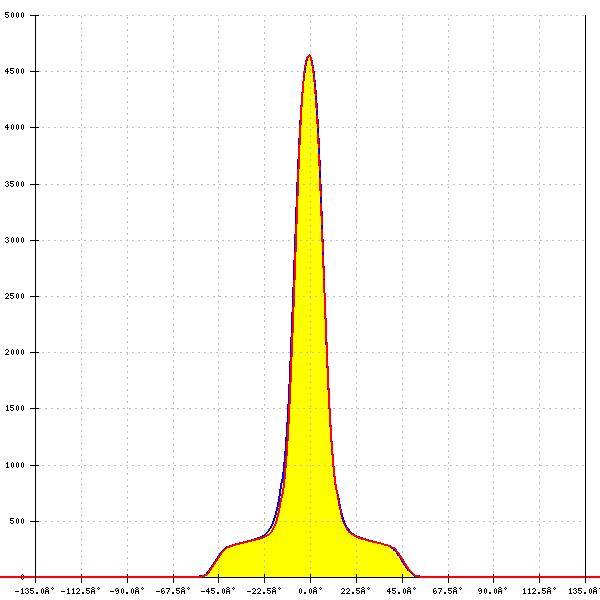

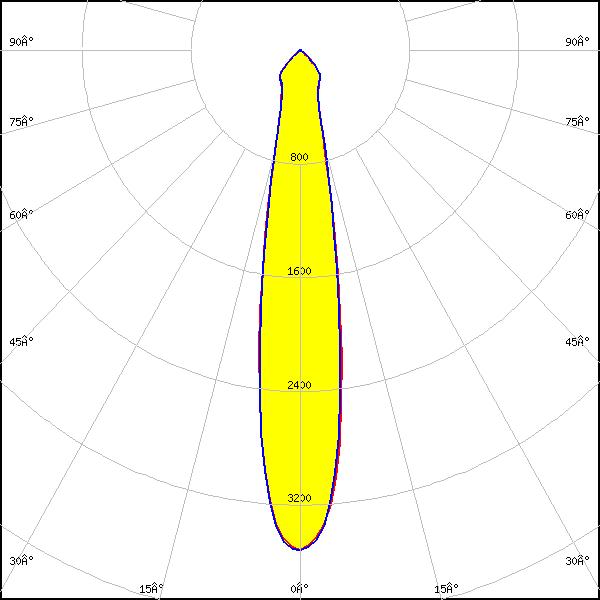

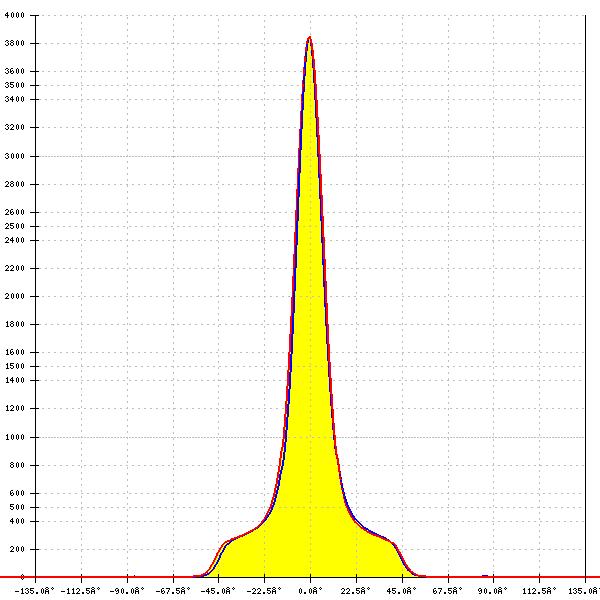

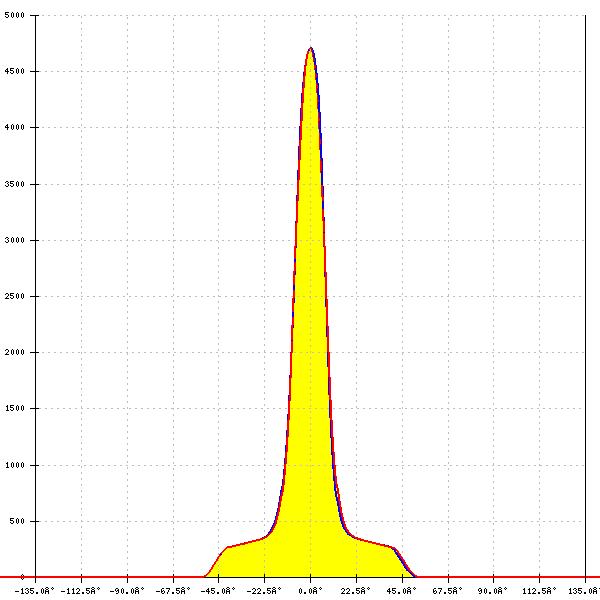

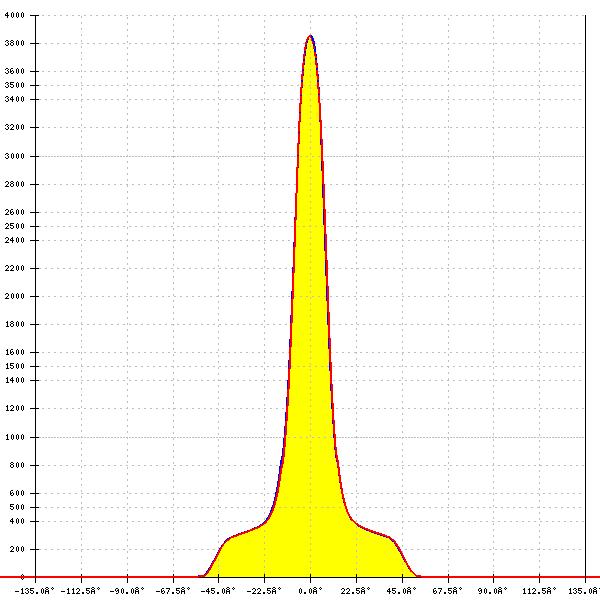

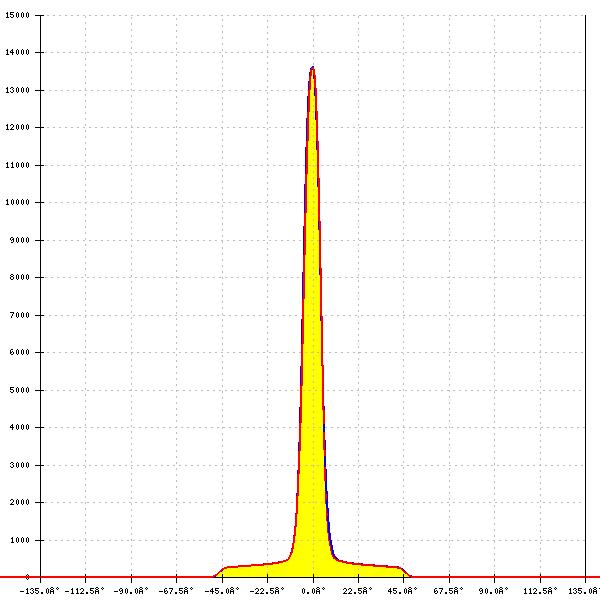

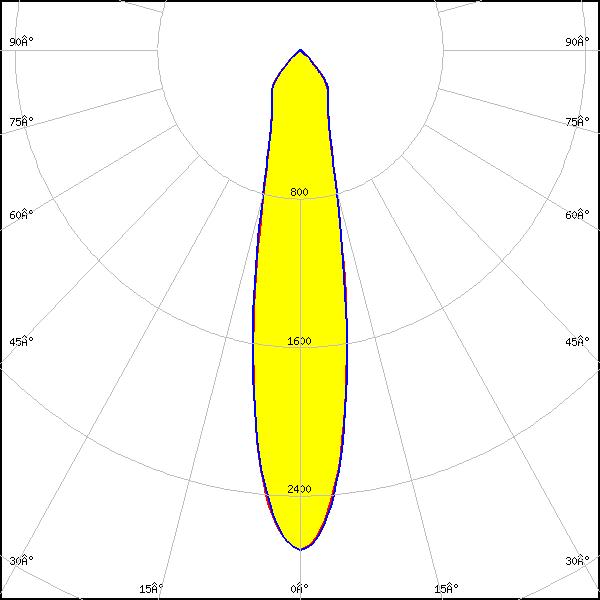

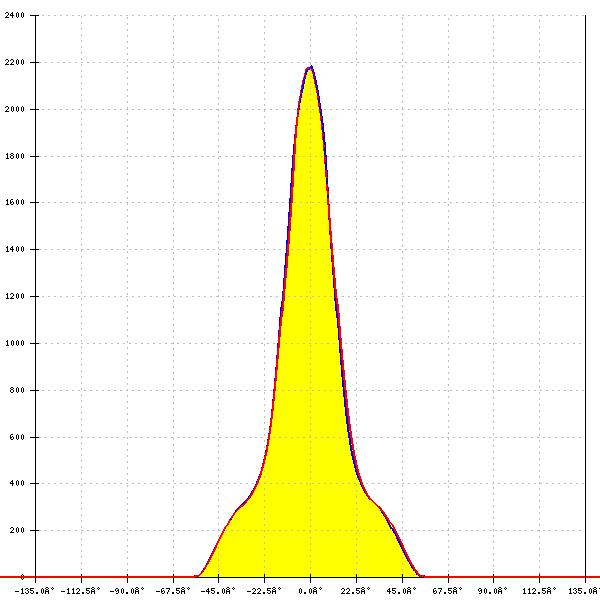

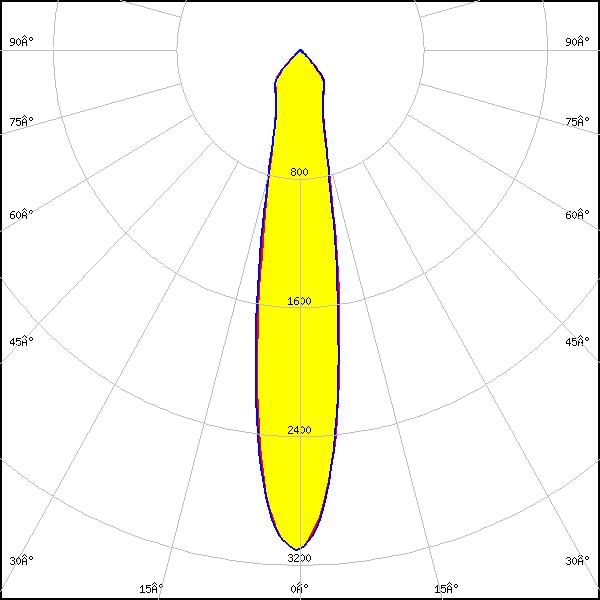

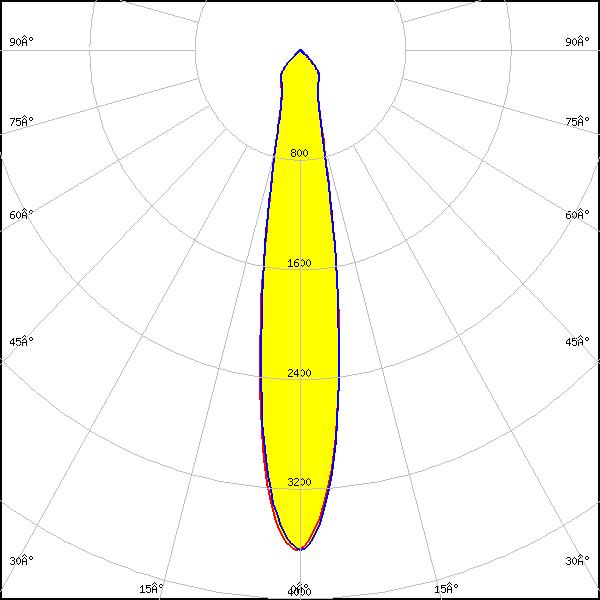

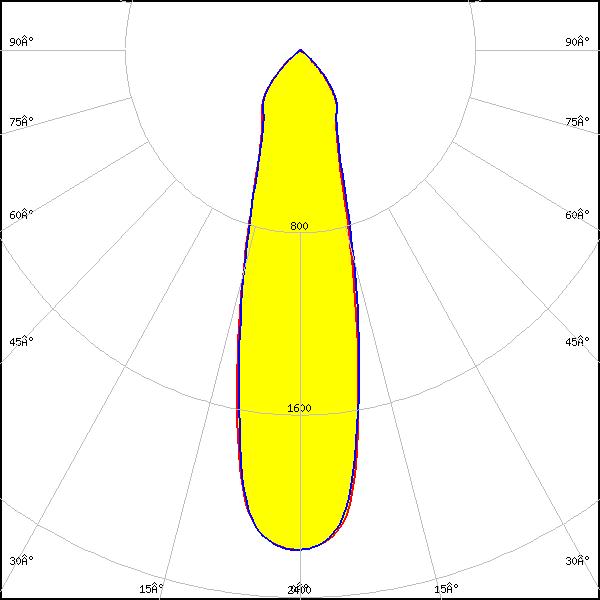

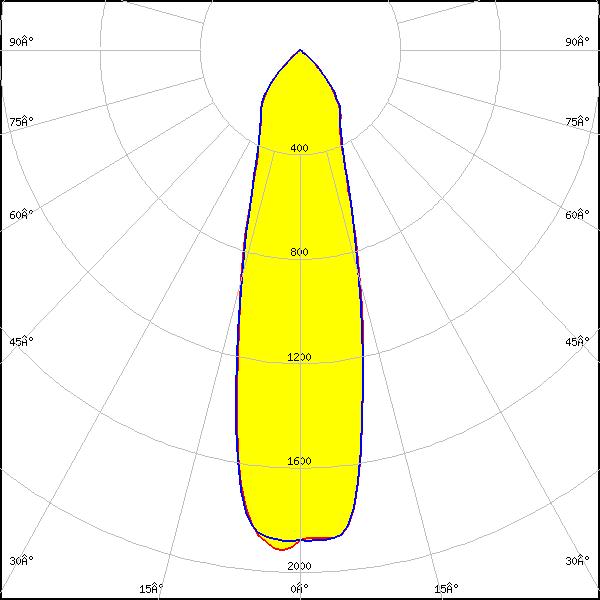

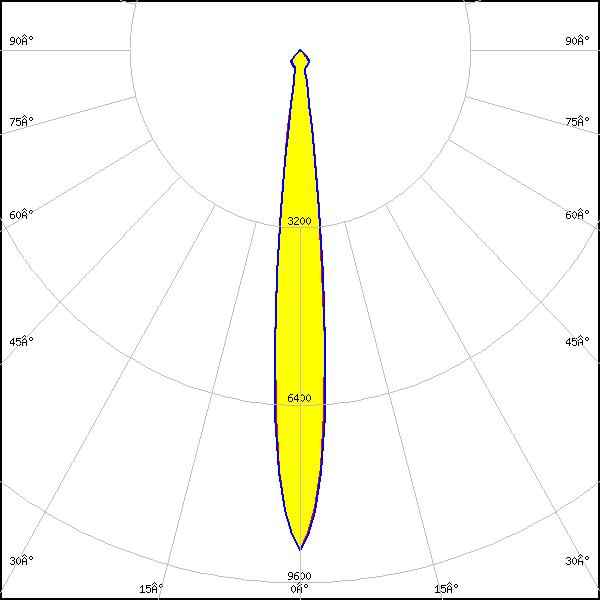

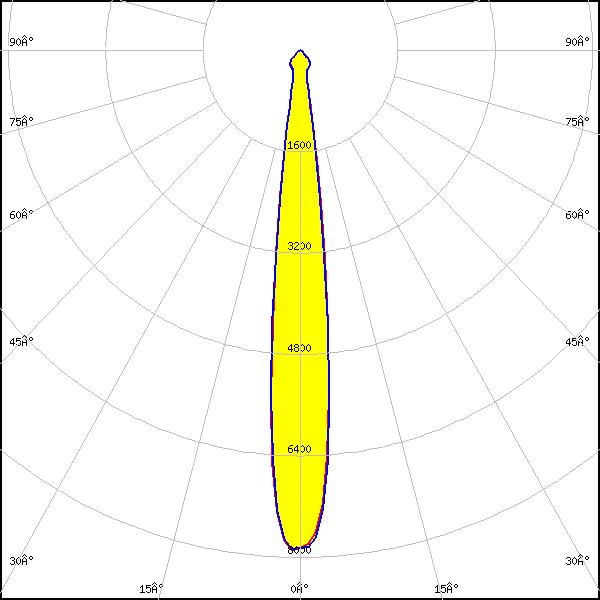

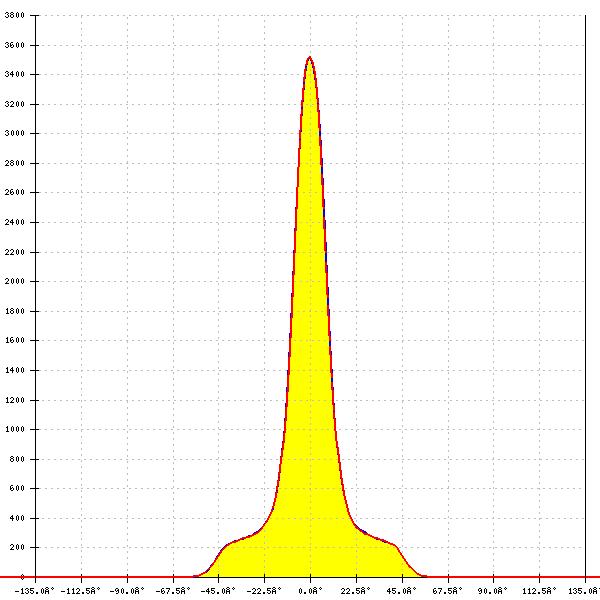

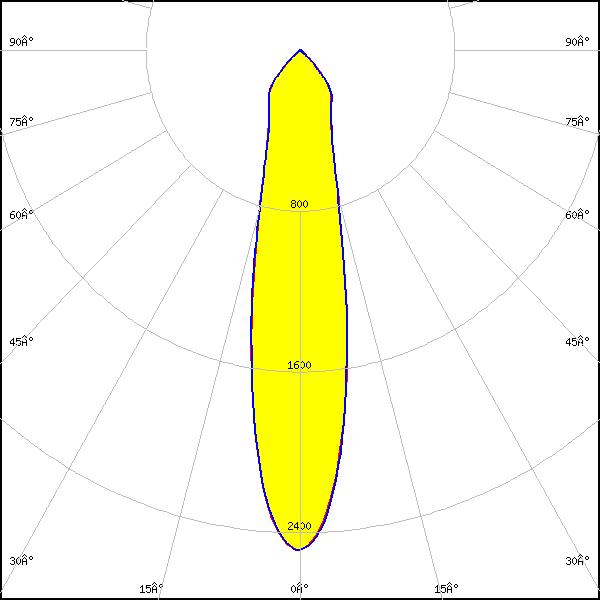

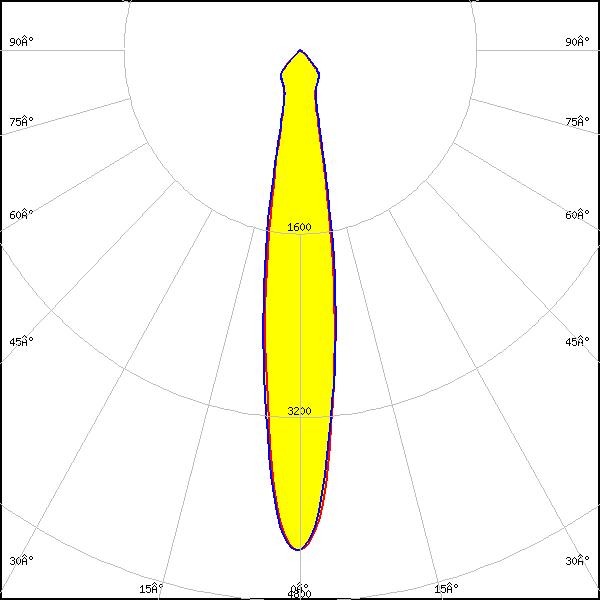

Optical results

LED: V10 Gen6
Required components:
LEDs/each optic: 1
Light colour: White
LED: V10 Gen6
Required components:
FWHM: 15°
LEDs/each optic: 1
Light colour: White
LED: V10 Gen6
Required components:
FWHM: 15°
Peak intensity: 0.0 cd/lm
LEDs/each optic: 1
Light colour: White
LED: V10 Gen7
Required components:
FWHM: 22°
Peak intensity: 2.7 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: V13 Gen6
Required components:
LEDs/each optic: 1
Light colour: White

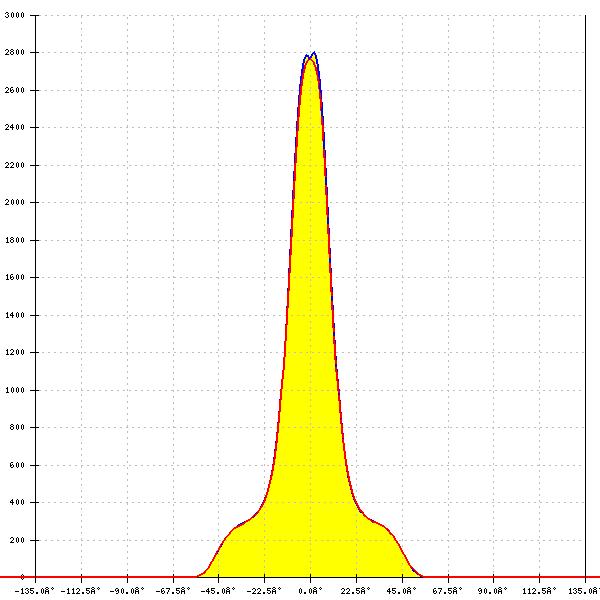

LED: V13 Gen6
Required components:
FWHM: 24°
Peak intensity: 2.8 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

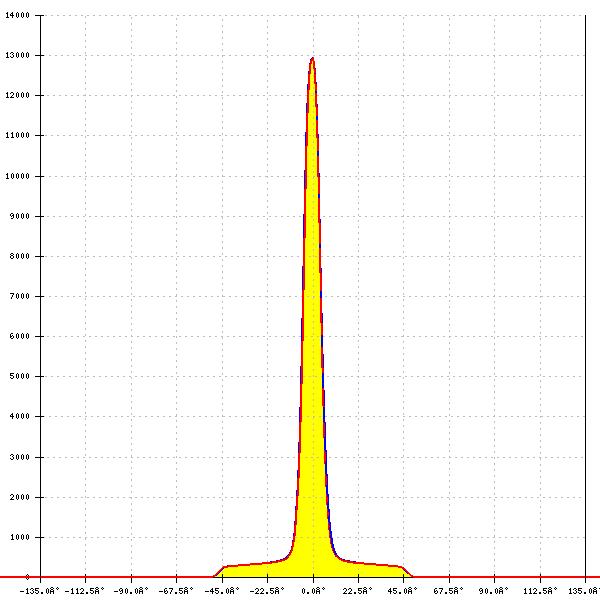

LED: V4 HD
Required components:
FWHM: 9°
Peak intensity: 12.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V4 HD
Required components:
FWHM: 13°
Peak intensity: 5.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

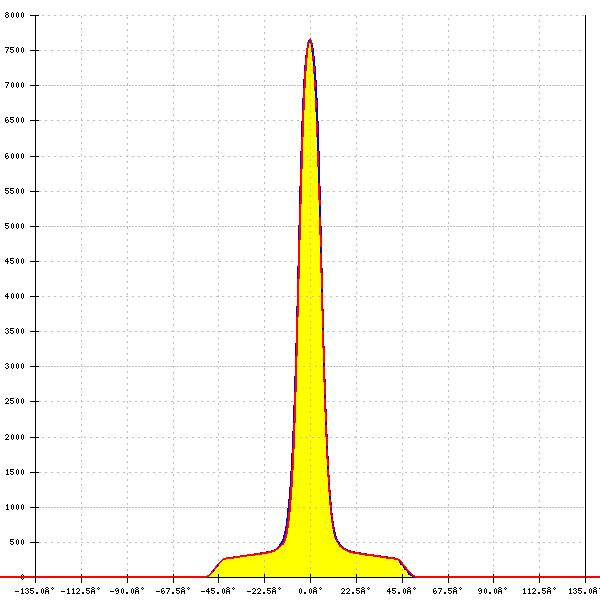

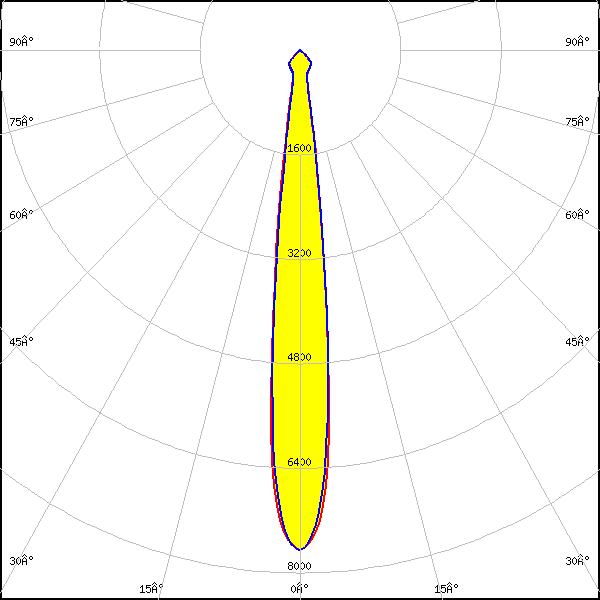

LED: V6 HD
Required components:
FWHM: 12°
Peak intensity: 7.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

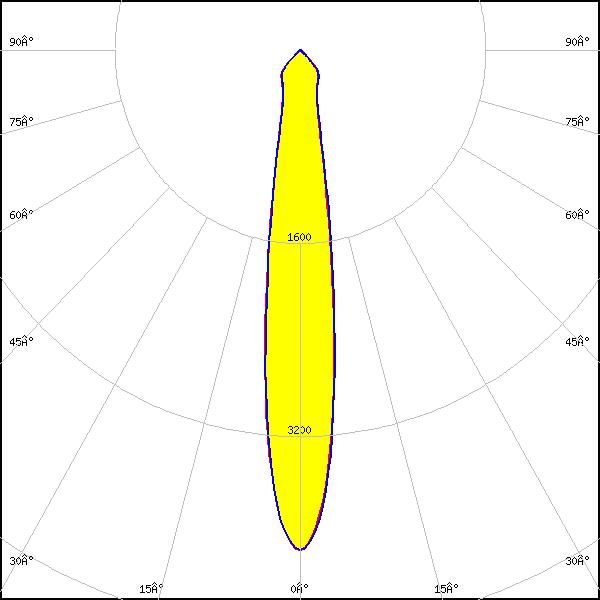

LED: V6 HD
Required components:
FWHM: 16°
Peak intensity: 4.1 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

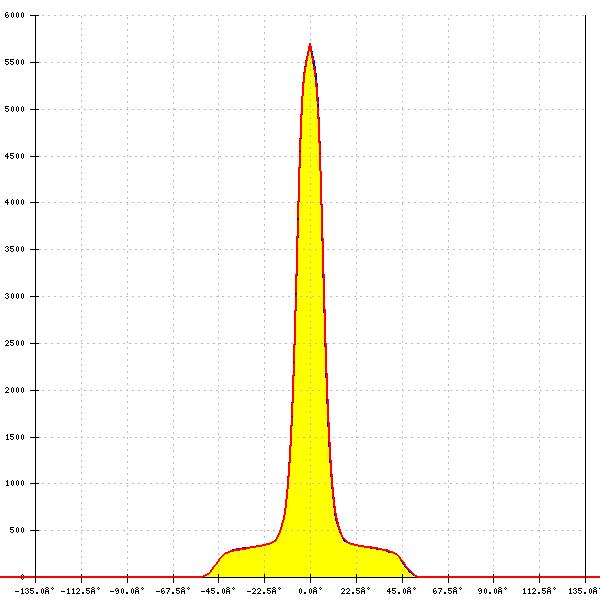

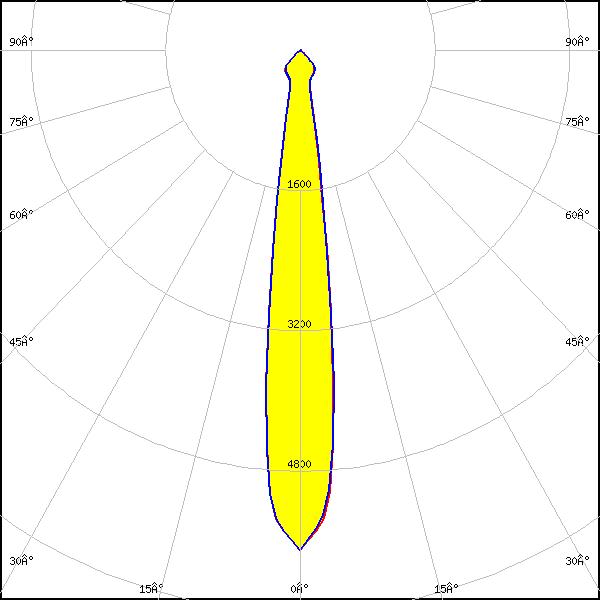

LED: V8 Gen6
Required components:
LEDs/each optic: 1
Light colour: White
LED: V8 Gen6
Required components:
FWHM: 15°
Peak intensity: 0.0 cd/lm
LEDs/each optic: 1
Light colour: White
LED: V8 Gen6
Required components:
FWHM: 15°
Peak intensity: 0.0 cd/lm
LEDs/each optic: 1
Light colour: White
LED: V9 HD
Required components:
FWHM: 17°
Peak intensity: 4.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

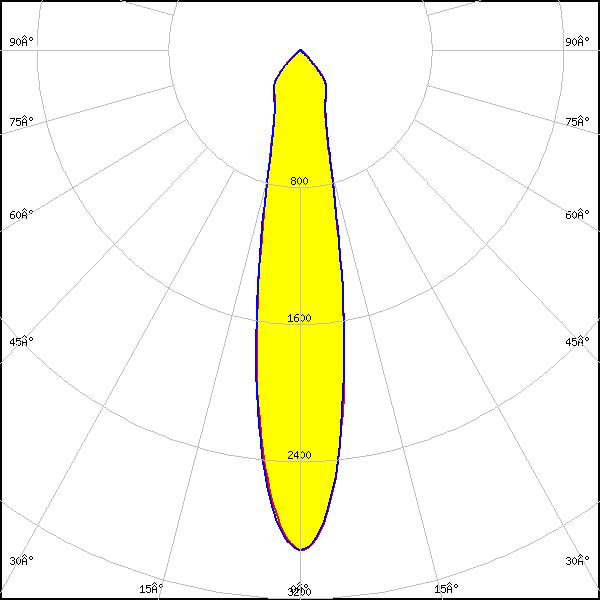

LED: V9 HD
Required components:
FWHM: 21°
Peak intensity: 2.9 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: VERO10
Required components:
FWHM: 16°
Peak intensity: 5.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

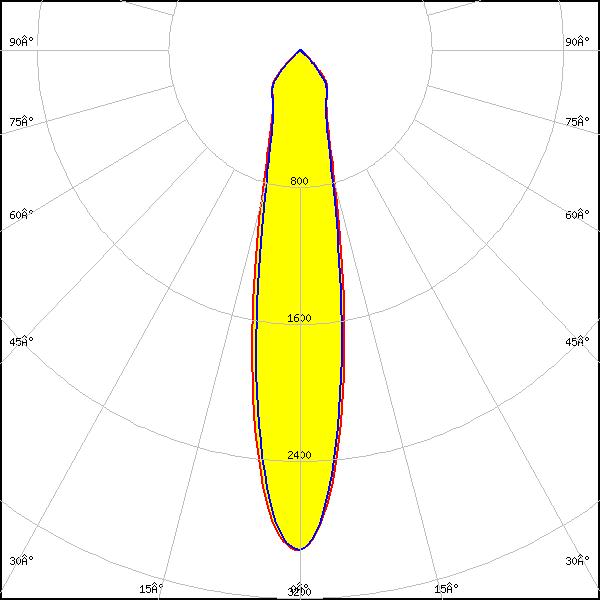

LED: VERO10
Required components:
FWHM: 21°
Peak intensity: 2.9 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

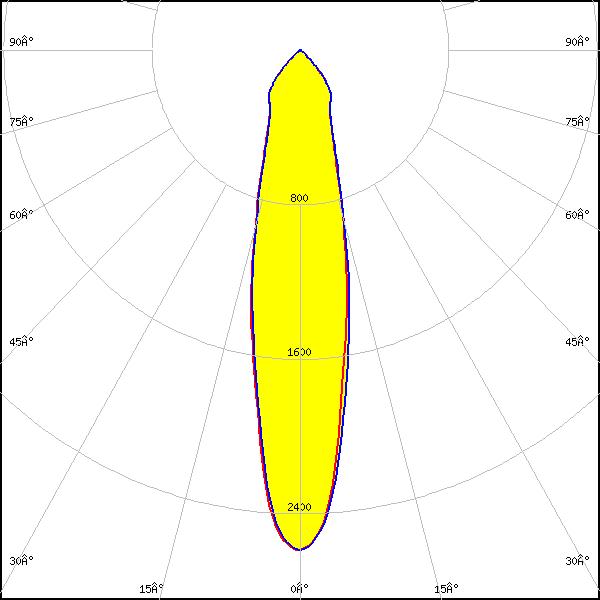

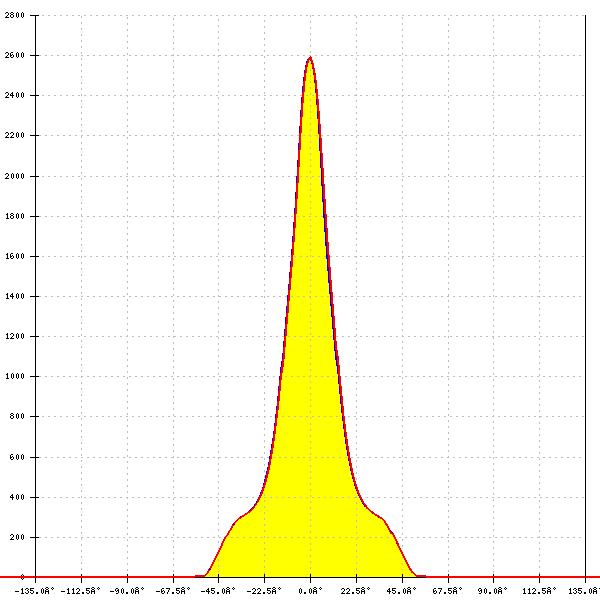

LED: VERO13
Required components:
FWHM: 23°
Peak intensity: 2.6 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

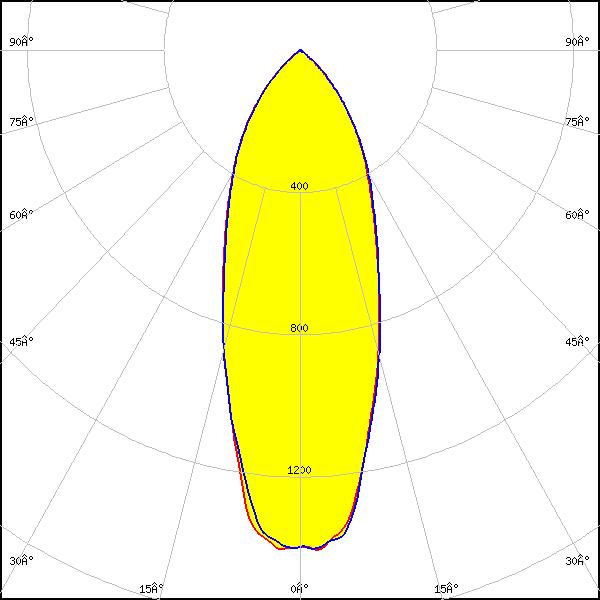

LED: VERO18
Required components:
FWHM: 38°
Peak intensity: 1.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

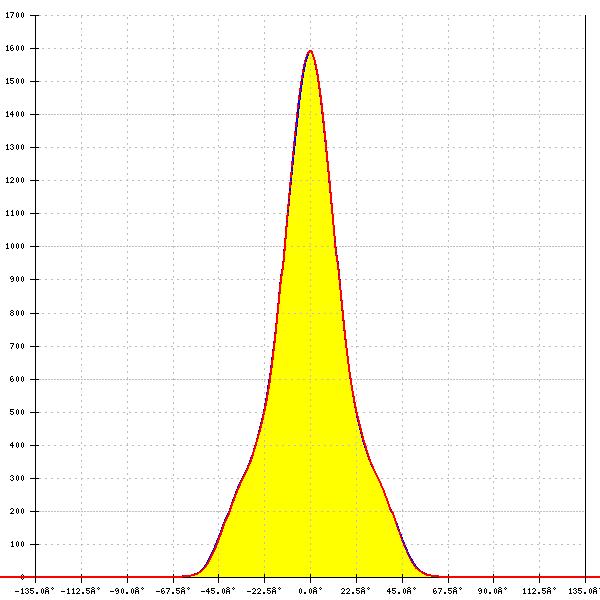

LED: Vesta DTW 13mm (21W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 27°
Peak intensity: 2.2 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: Tunable White
LED: Vesta DTW 13mm (21W)
Required components:
FWHM: 32°
Peak intensity: 1.6 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: Tunable White
LED: Vesta DTW 15mm (33W)
Required components:
FWHM: 33°
Peak intensity: 1.5 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

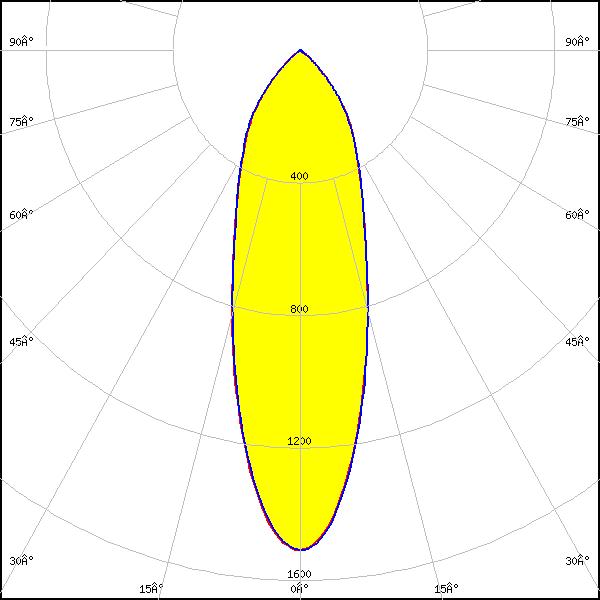

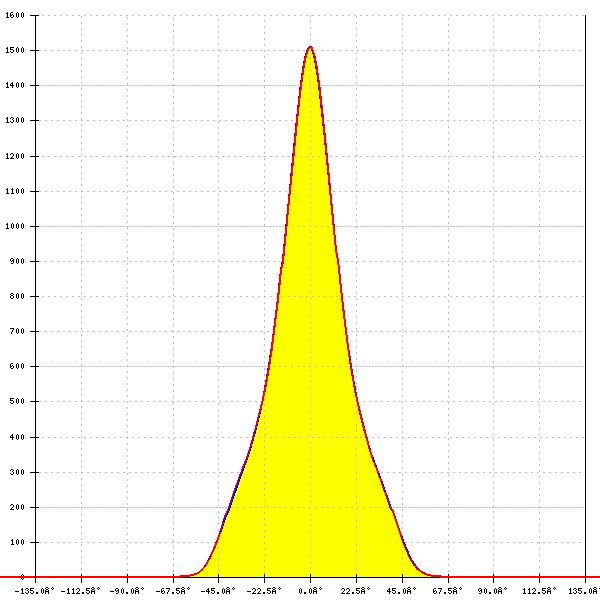

LED: Vesta DTW 15mm (33W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 27°
Peak intensity: 2.1 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

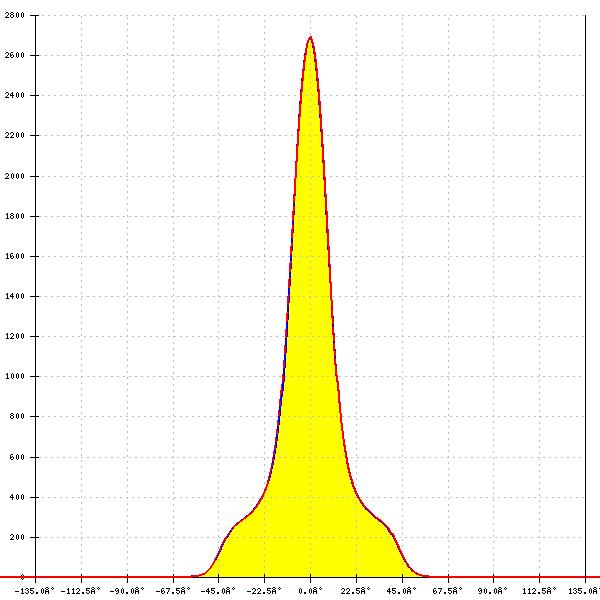

LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
FWHM: 22°
Peak intensity: 2.7 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 18°
Peak intensity: 4.4 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 13mm (25W) CSP
Required components:
FWHM: 30°
Peak intensity: 1.7 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 13°
Peak intensity: 6.8 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
FWHM: 17°
Peak intensity: 3.6 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 9mm (12W) CSP
Required components:
FWHM: 23°
Peak intensity: 2.4 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 9mm (9W) DP
Required components:
FWHM: 18°
Peak intensity: 3.5 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

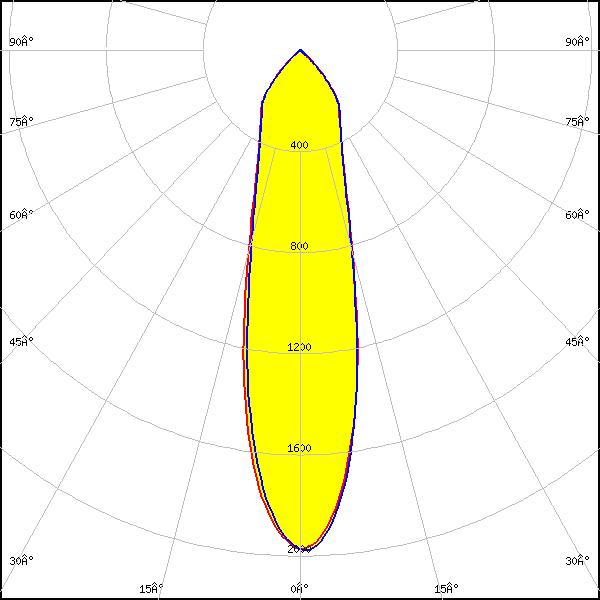

LED: CLC020 Series (Dim-To-Warm)
Required components:
FWHM: 26°
Peak intensity: 2.0 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

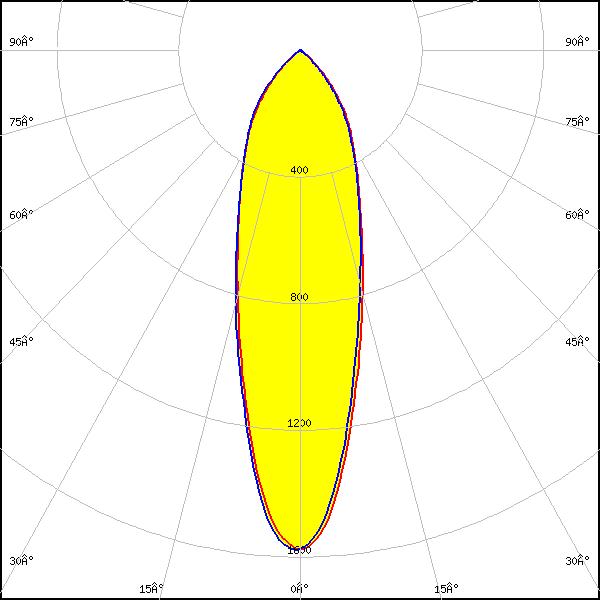

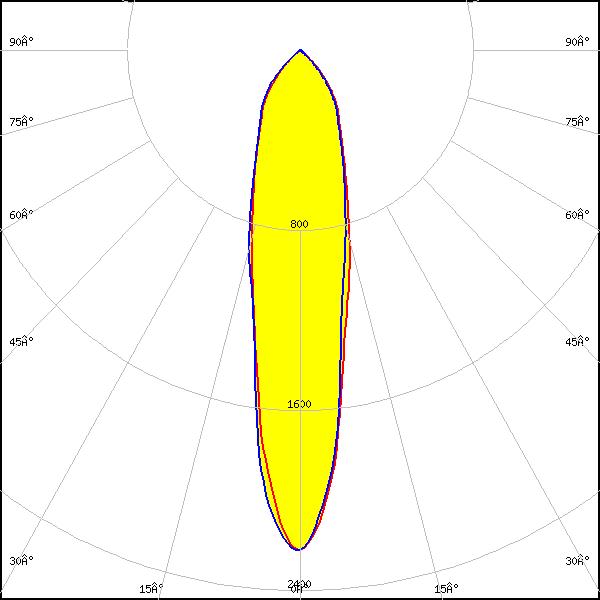

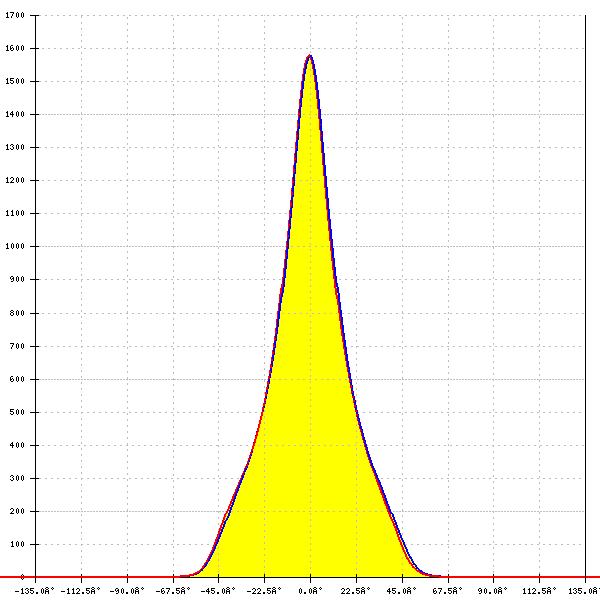

LED: CLC030 Series (Dim-To-Warm)
Required components:
FWHM: 30°
Peak intensity: 1.6 cd/lm
LEDs/each optic: 1
Light colour: White
LED: CLC030 Series (Dim-To-Warm)
Required components:
FWHM: 23°
Peak intensity: 2.2 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

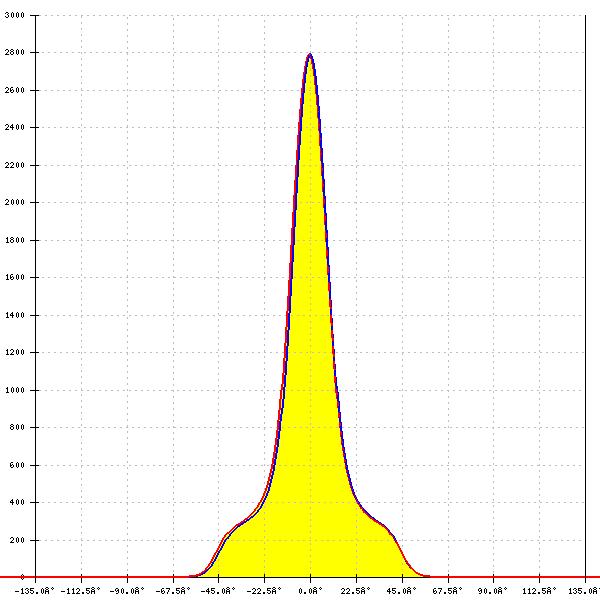

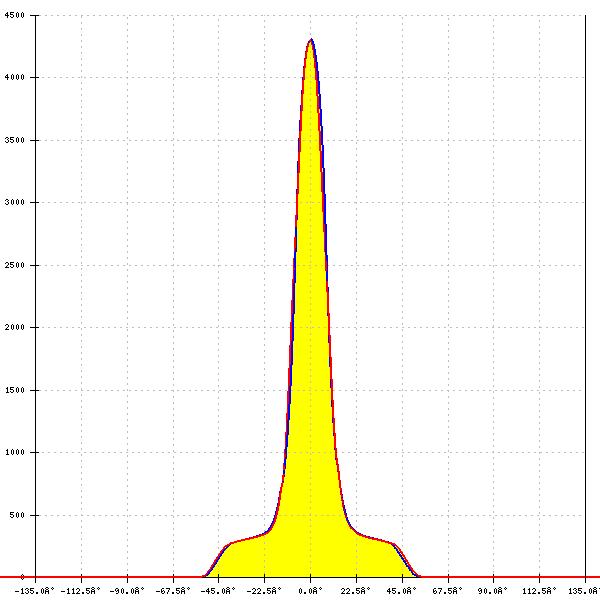

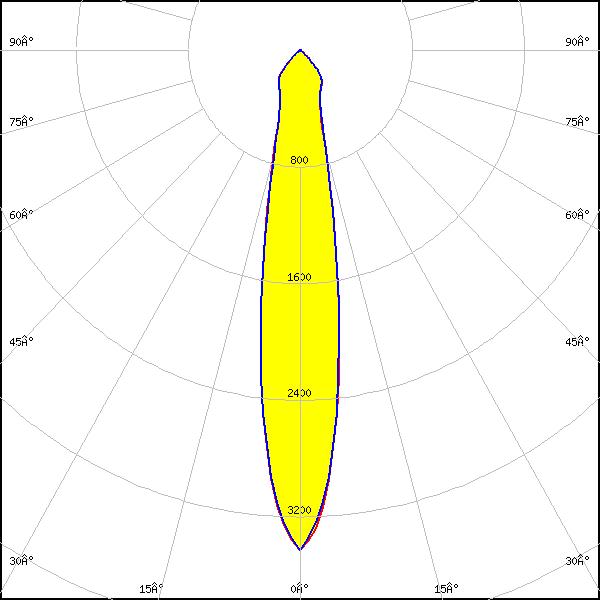

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 16°
Peak intensity: 4.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

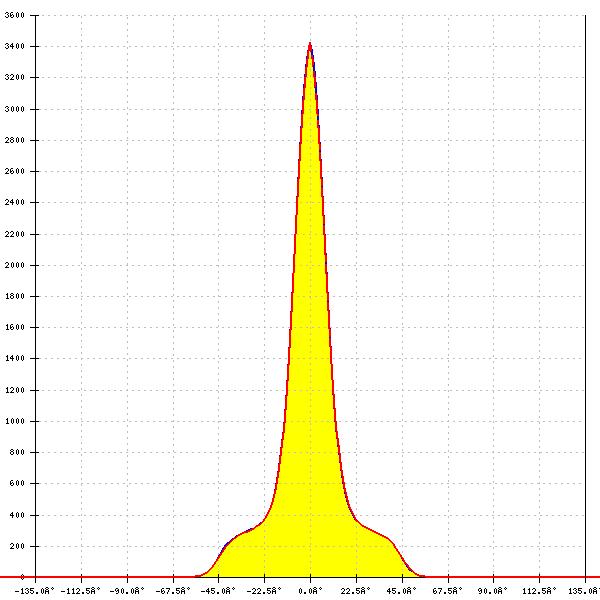

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 16°
Peak intensity: 4.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: CLL03x/CLU03x
Required components:
FWHM: 31°
Peak intensity: 1.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: CLU700/701/702
Required components:
FWHM: 17°
Peak intensity: 3.8 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

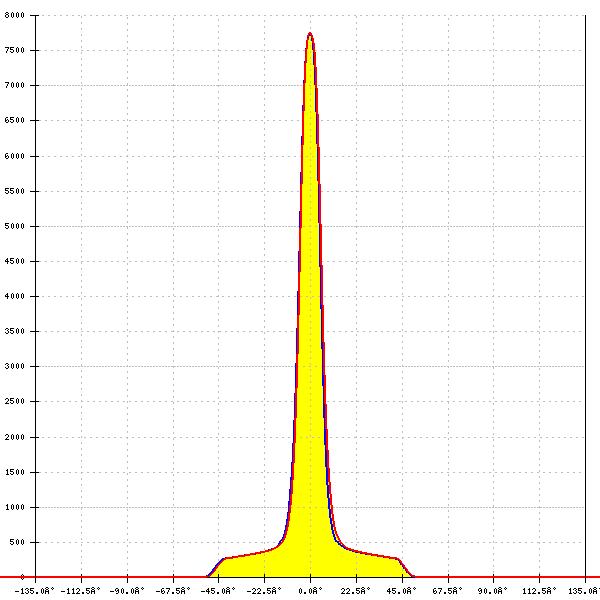

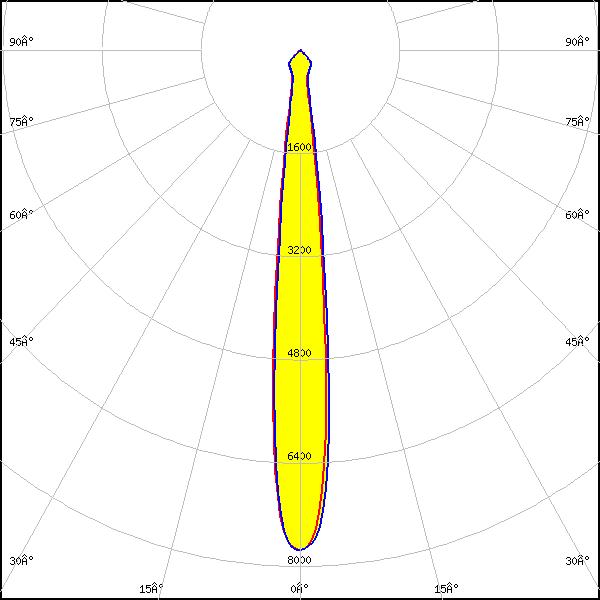

LED: CLU700/701/702
Required components:
FWHM: 12°
Peak intensity: 7.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

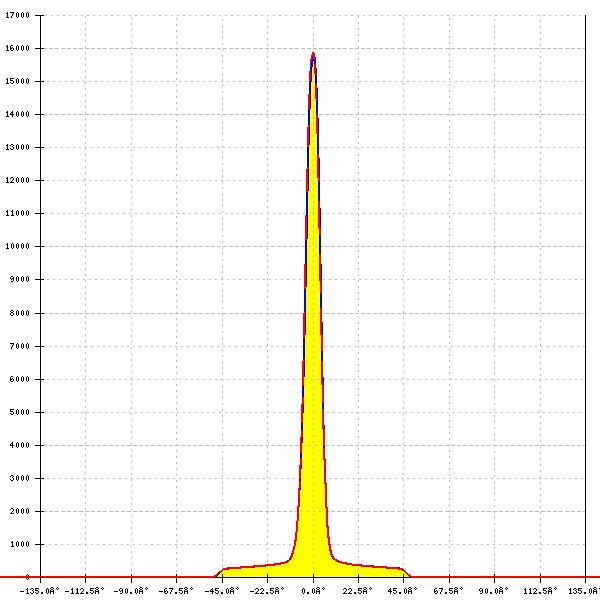

LED: CLU7A2 (LES 4.2mm)
Required components:
FWHM: 8°
Peak intensity: 15.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

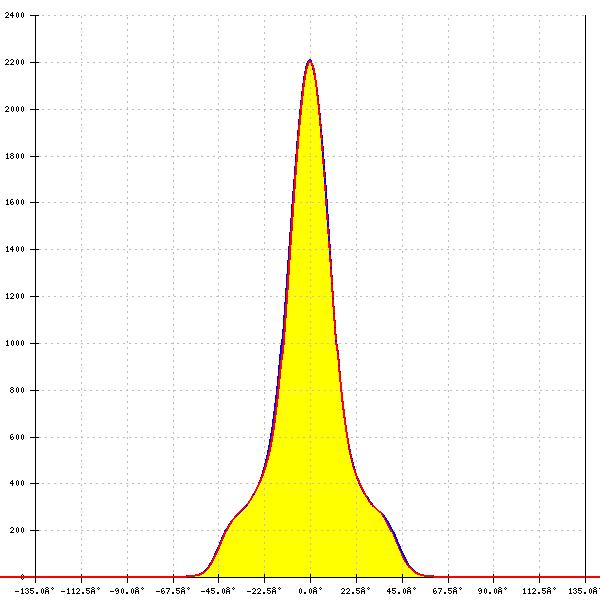

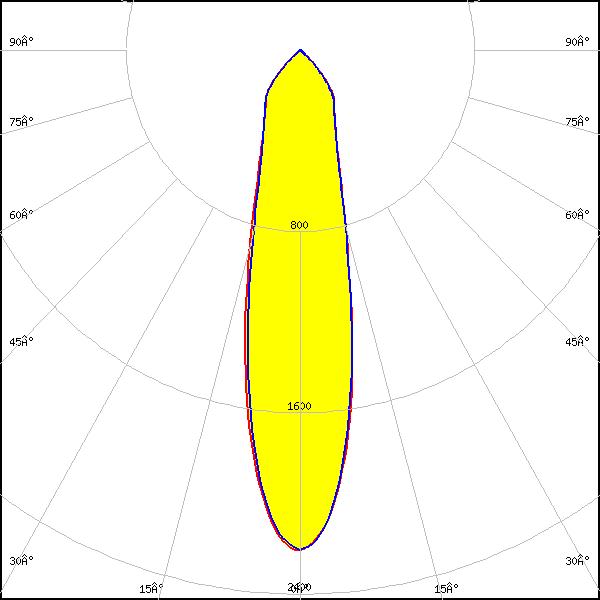

LED: LCN-C01B (Tunable White)
Required components:
FWHM: 25°
Peak intensity: 2.2 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: LCN-C02B (Tunable White)
Required components:
FWHM: 32°
Peak intensity: 1.6 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: LCN-C02B (Tunable White)
Required components:
FWHM: 27°
Peak intensity: 2.3 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

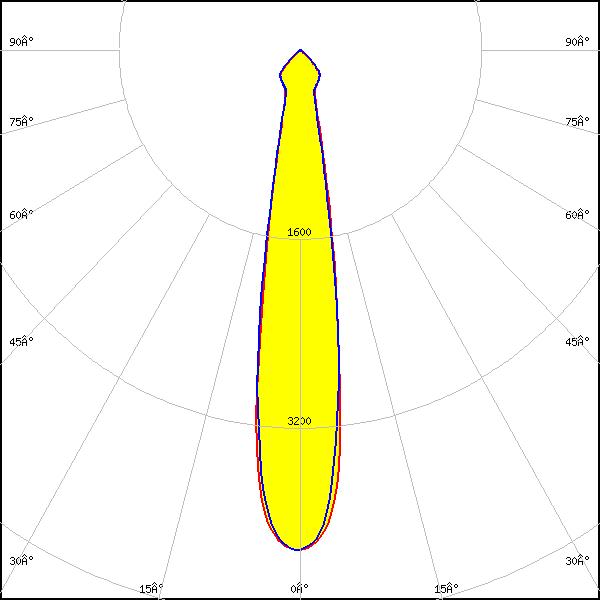

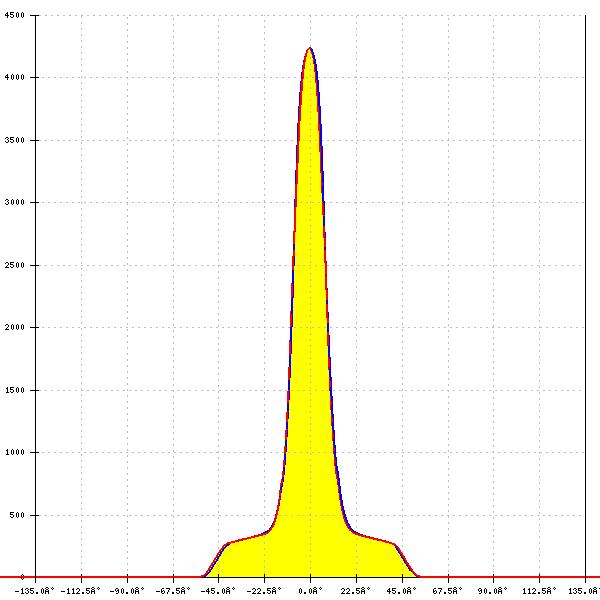

LED: CMA1516
Required components:
FWHM: 18°
Peak intensity: 4.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

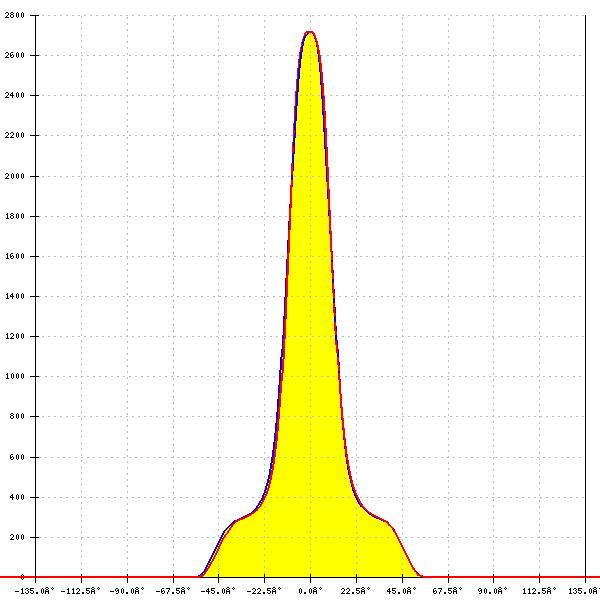

LED: CMA1825
Required components:
FWHM: 24°
Peak intensity: 2.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

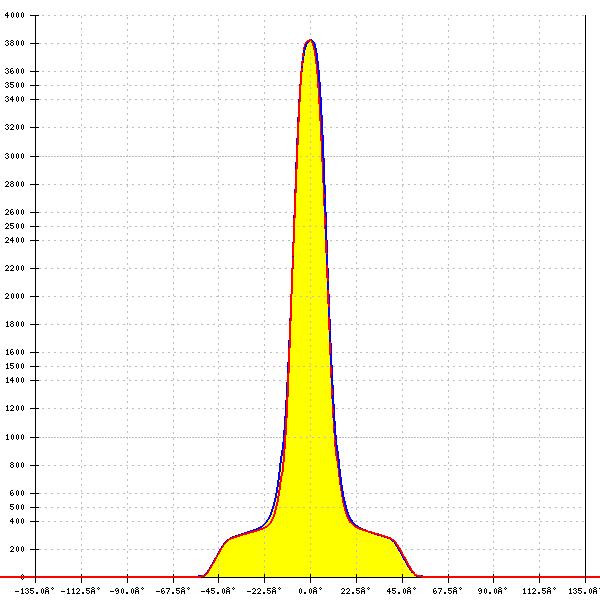

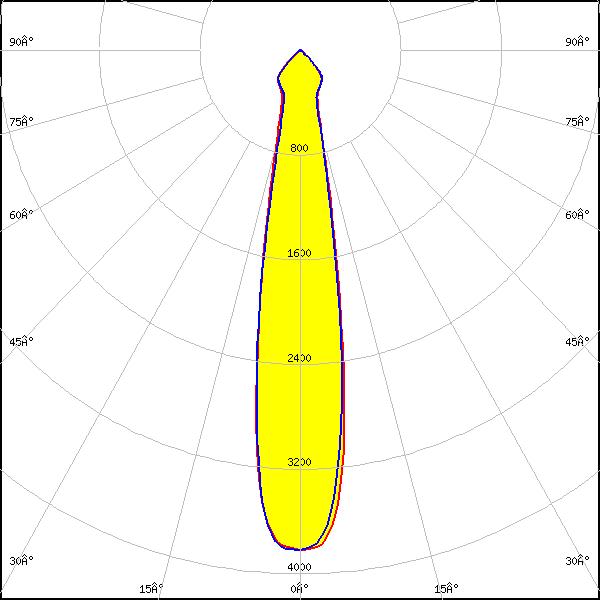

LED: CMT14xx
Required components:
FWHM: 19°
Peak intensity: 3.8 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

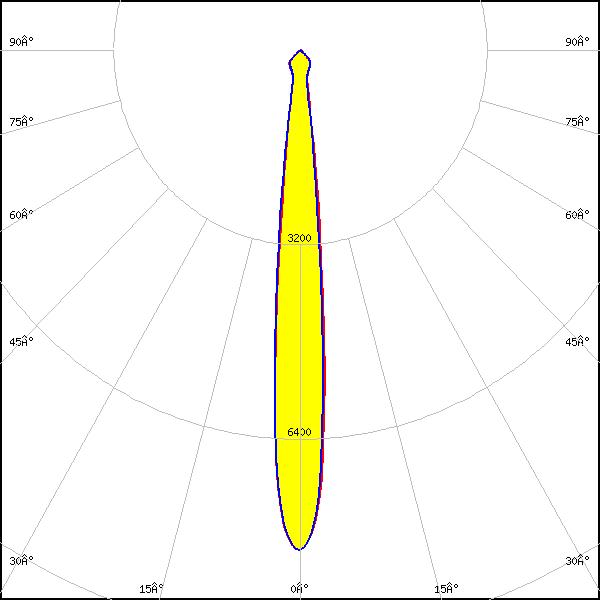

LED: CXA/B 13xx
Required components:
FWHM: 11°
Peak intensity: 8.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

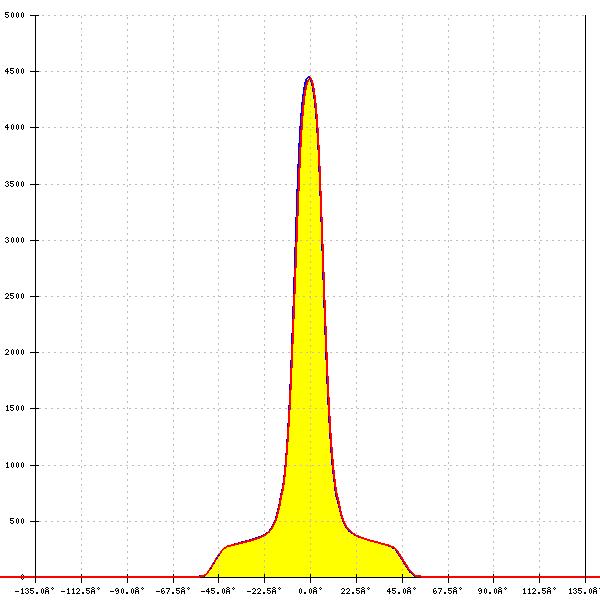

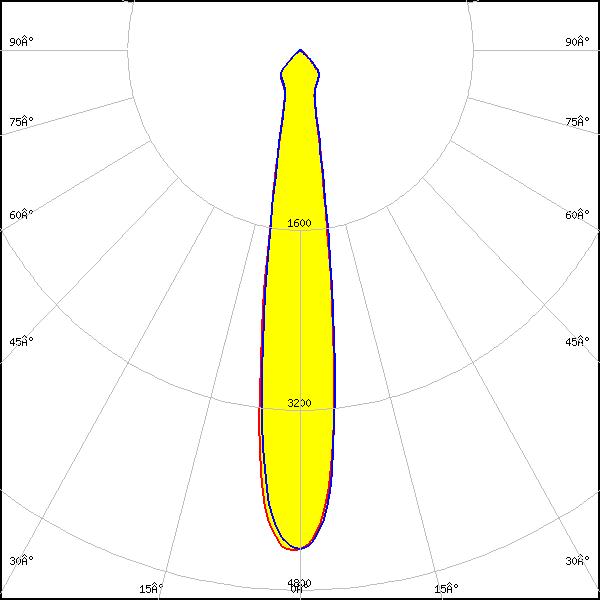

LED: CXA/B 15xx
Required components:
FWHM: 16°
Peak intensity: 4.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
LEDs/each optic: 1
Light colour: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 22°
LEDs/each optic: 1
Light colour: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 22°
Peak intensity: 0.0 cd/lm
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1202HD
Required components:
FWHM: 13°
Peak intensity: 7.5 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

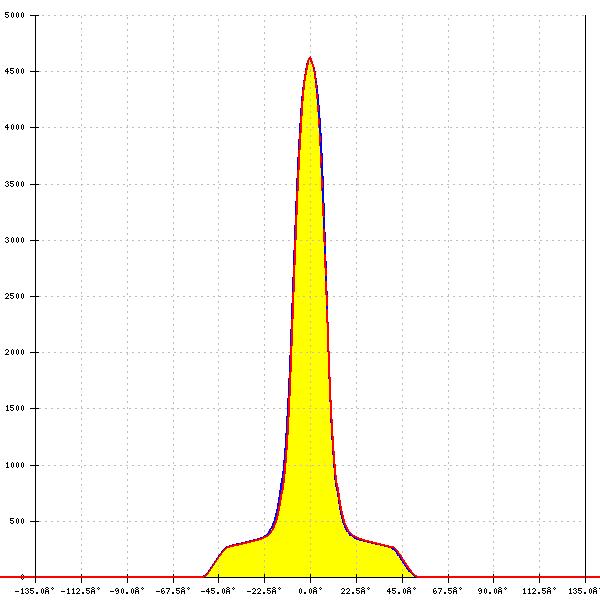

LED: LUXEON CoB 1204HD
Required components:
FWHM: 18°
Peak intensity: 4.6 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

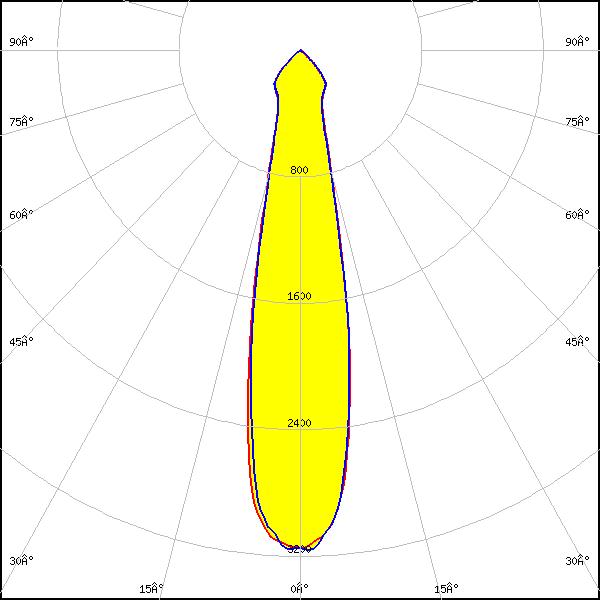

LED: LUXEON CoB 1205HD
Required components:
FWHM: 22°
Peak intensity: 3.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

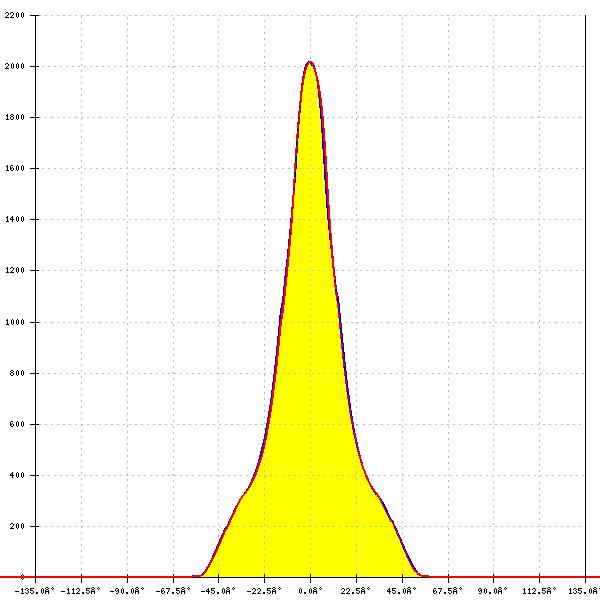

LED: LUXEON CoB 1208
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 29°
Peak intensity: 2.0 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

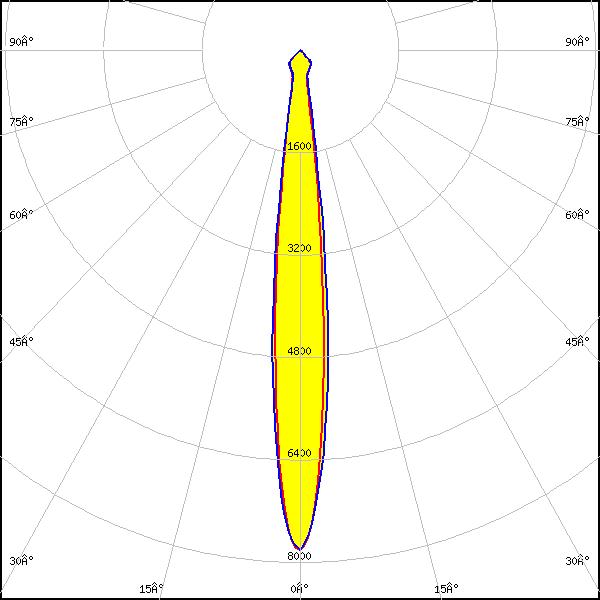

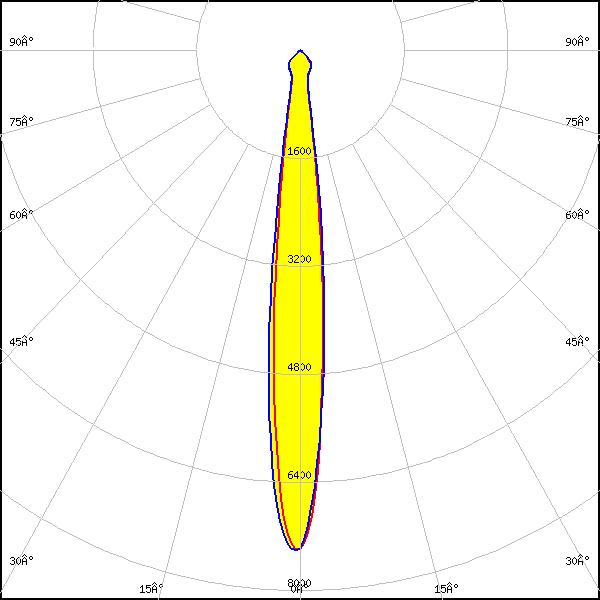

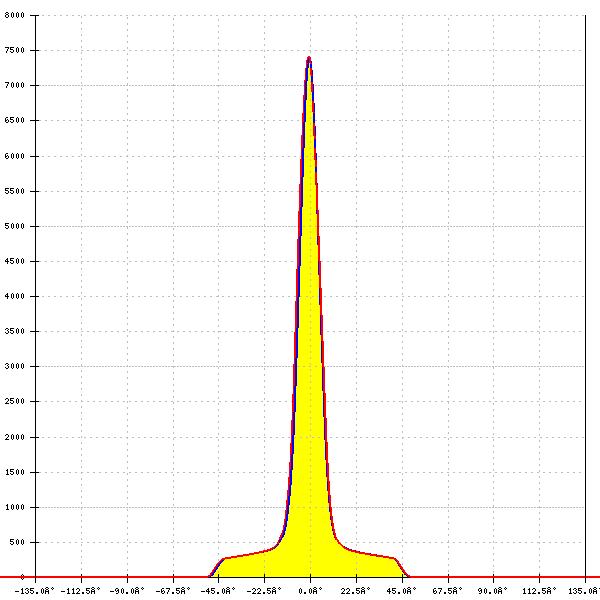

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
FWHM: 13°
Peak intensity: 7.8 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

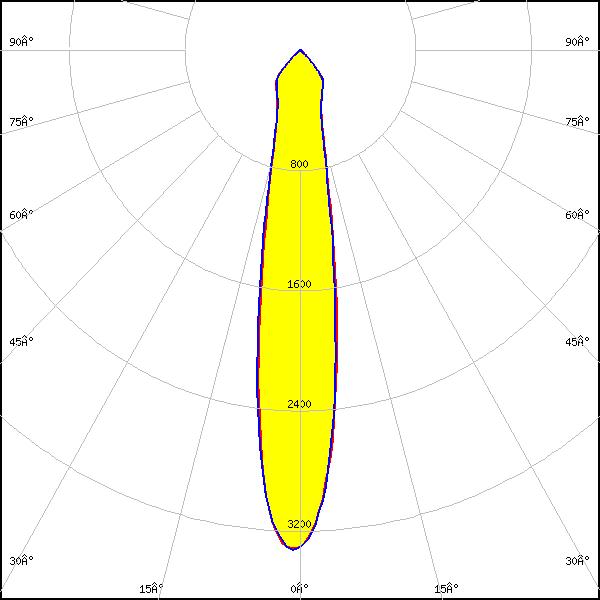

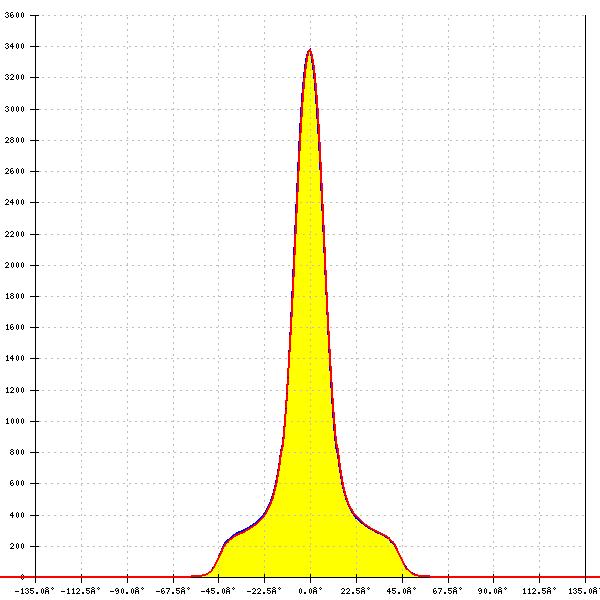

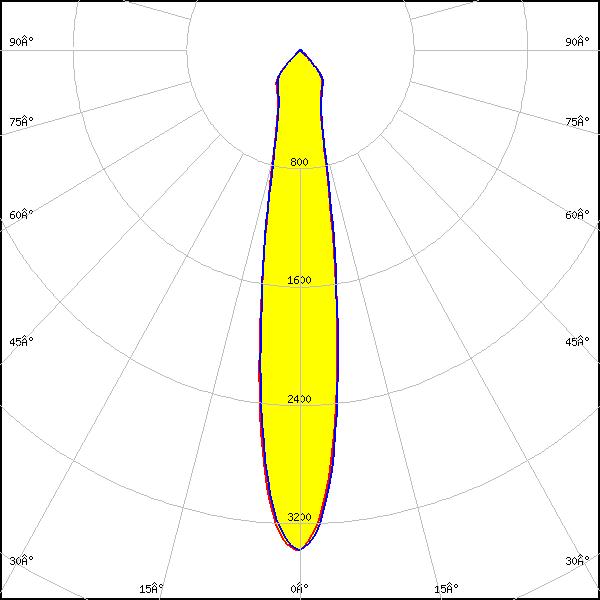

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
C14658_BARBARA-RZ-LENS
FWHM: 18°
Peak intensity: 3.4 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

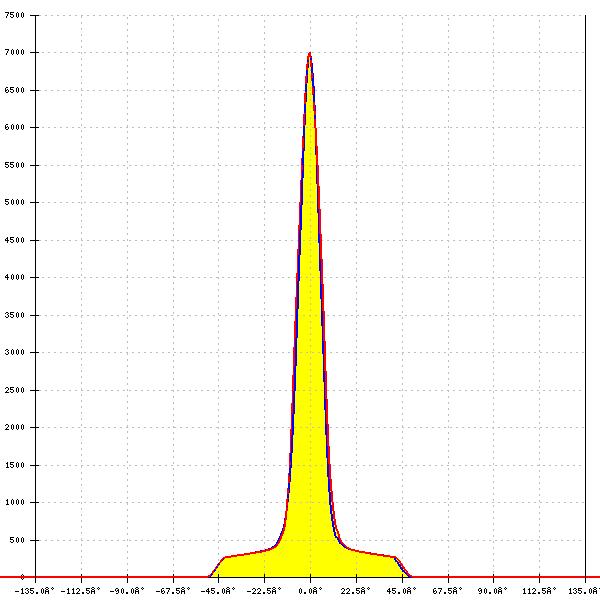

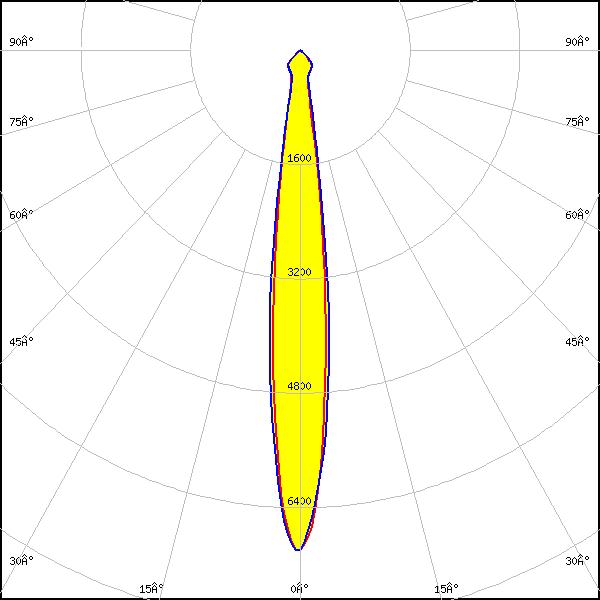

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: 14°
Peak intensity: 7.0 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
C14658_BARBARA-RZ-LENS
FWHM: 20°
Peak intensity: 3.1 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

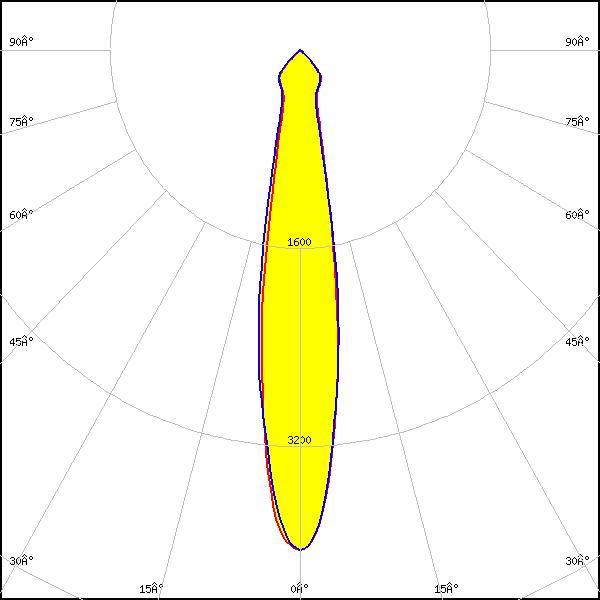

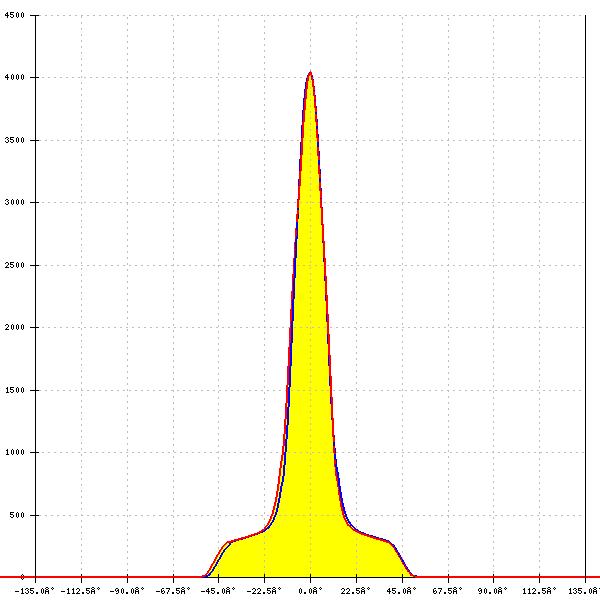

LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: 18°
Peak intensity: 4.0 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
C14658_BARBARA-RZ-LENS
FWHM: 23°
Peak intensity: 2.4 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
C14658_BARBARA-RZ-LENS
FWHM: 28°
Peak intensity: 1.9 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

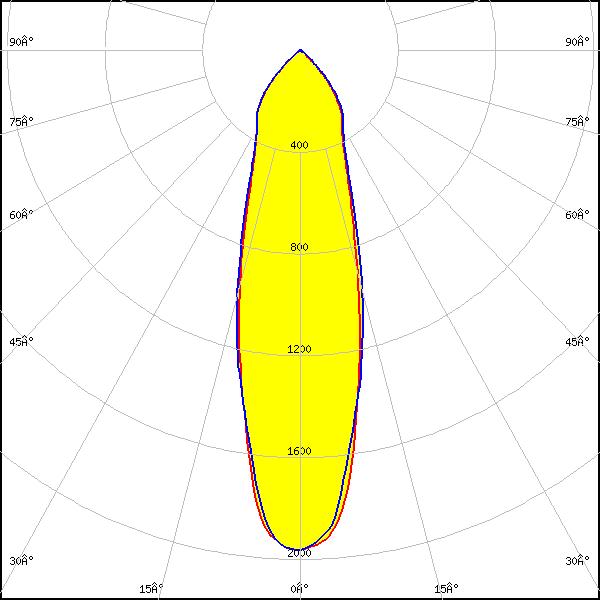

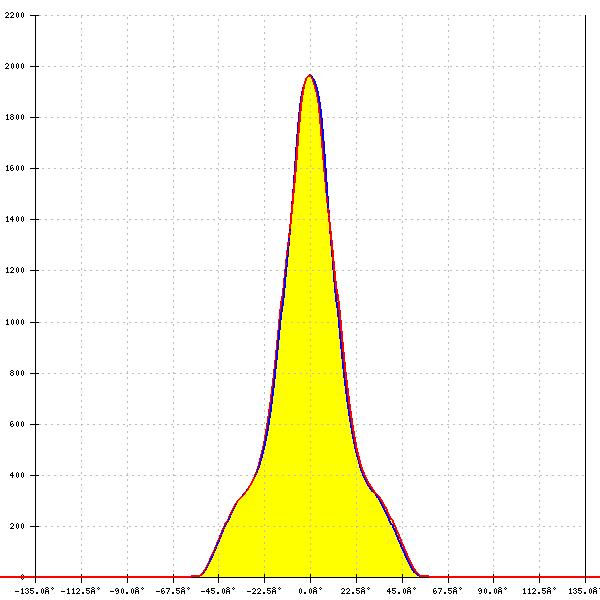

LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 23°
Peak intensity: 2.8 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: CDM-14 (Dim-To-Warm)
Required components:
FWHM: 28°
Peak intensity: 1.8 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: CDM-6 (Dim-To-Warm)
Required components:
FWHM: 18°
Peak intensity: 3.6 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: CDM-9 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 17°
Peak intensity: 4.8 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: CDM-9 (Dim-To-Warm)
Required components:
FWHM: 21°
Peak intensity: 3.1 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

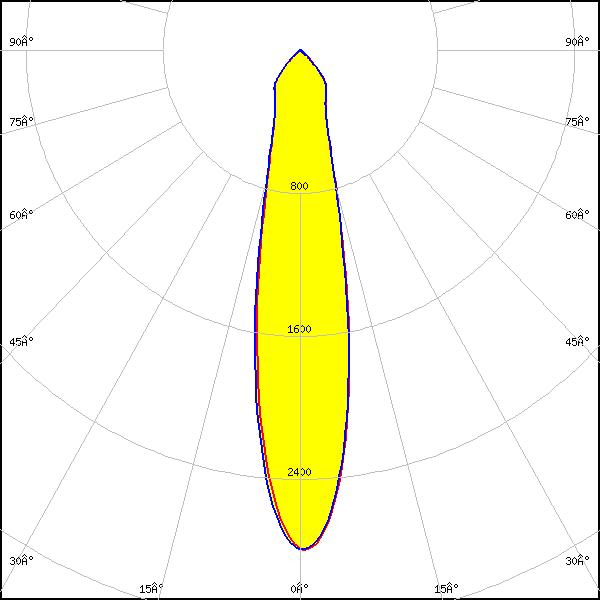

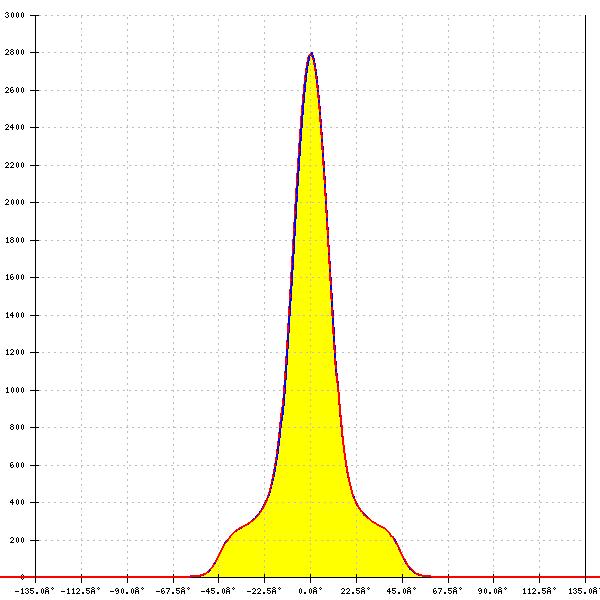

LED: CTM-9 (Tunable White)
Required components:
FWHM: 22°
Peak intensity: 2.8 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

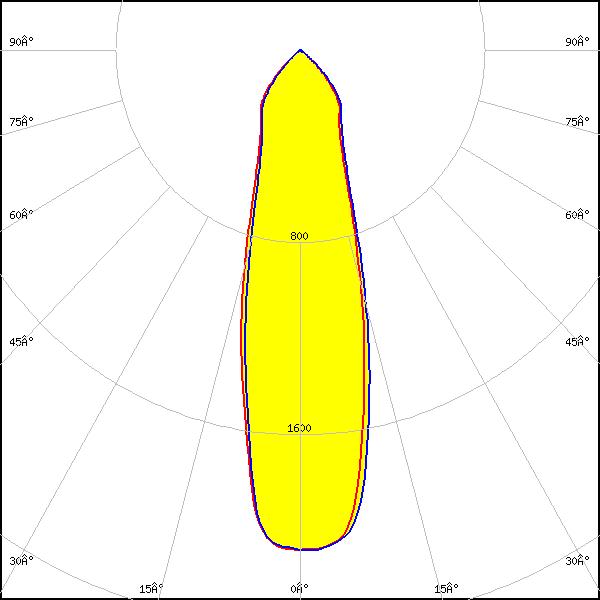

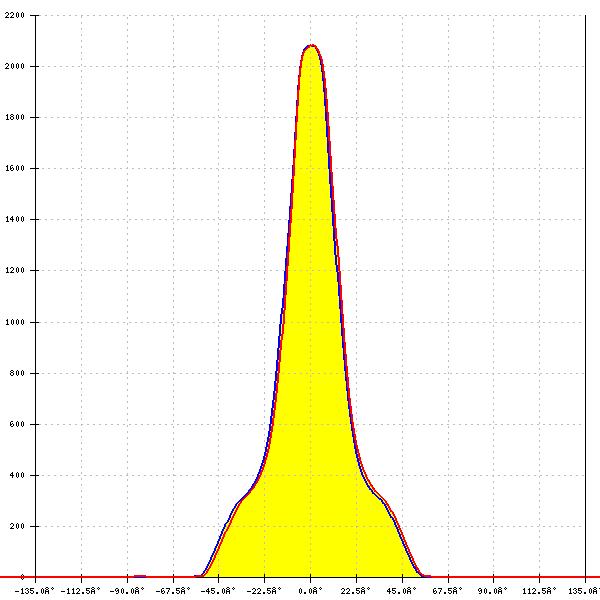

LED: CxM-14 (19x19)
Required components:
FWHM: 29°
Peak intensity: 2.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: CXM-4
Required components:
FWHM: 9°
Peak intensity: 13.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

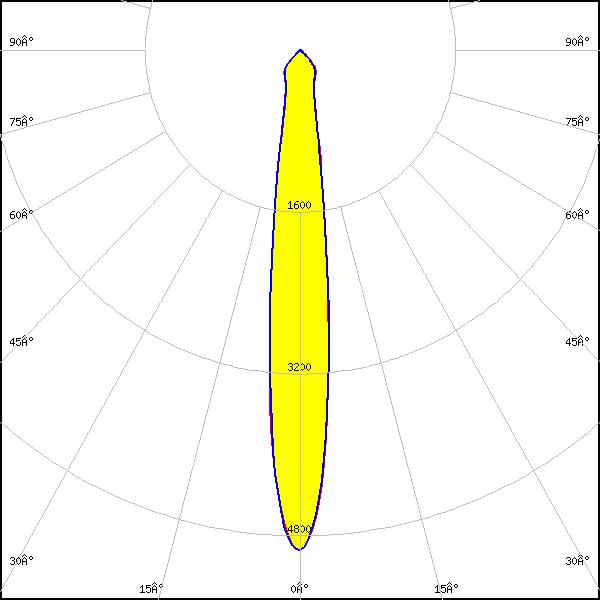

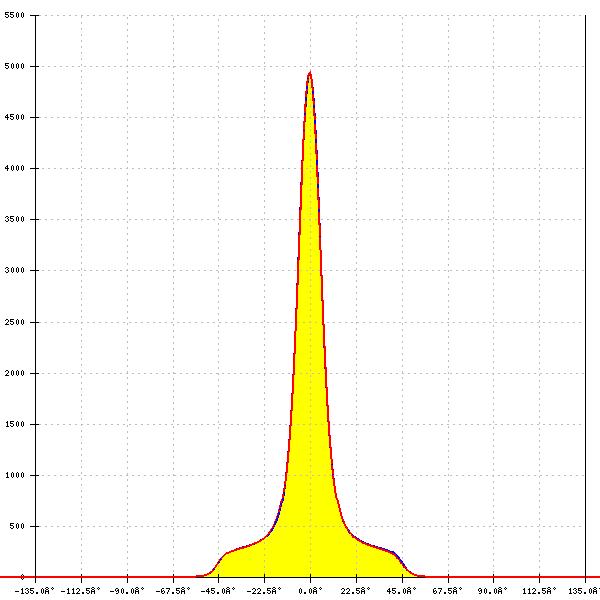

LED: CXM-4
Required components:
FWHM: 14°
Peak intensity: 4.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

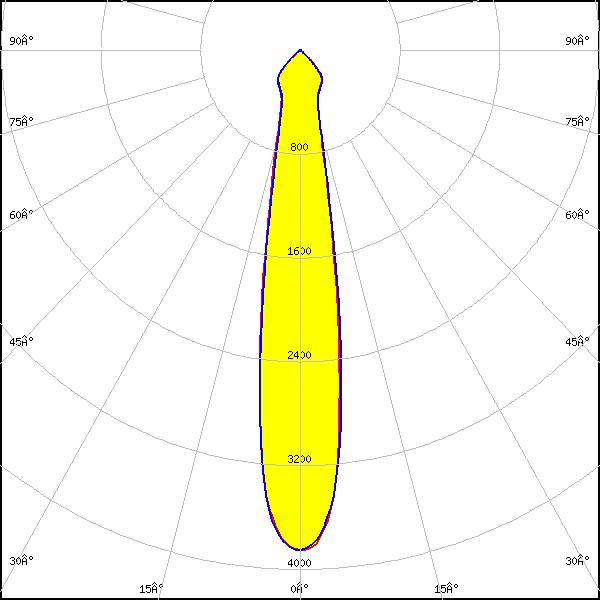

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 18°
Peak intensity: 3.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: COB L-Type (LES 11)
Required components:
FWHM: 20°
Peak intensity: 3.3 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

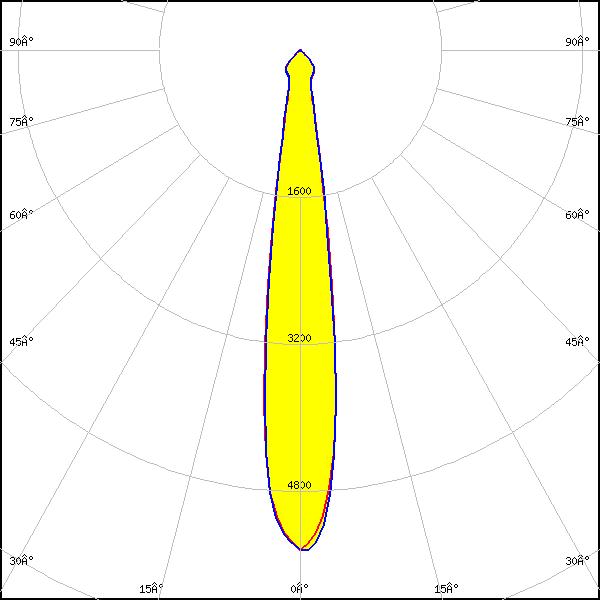

LED: COB L-Type (LES 9)
Required components:
FWHM: 16°
Peak intensity: 5.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

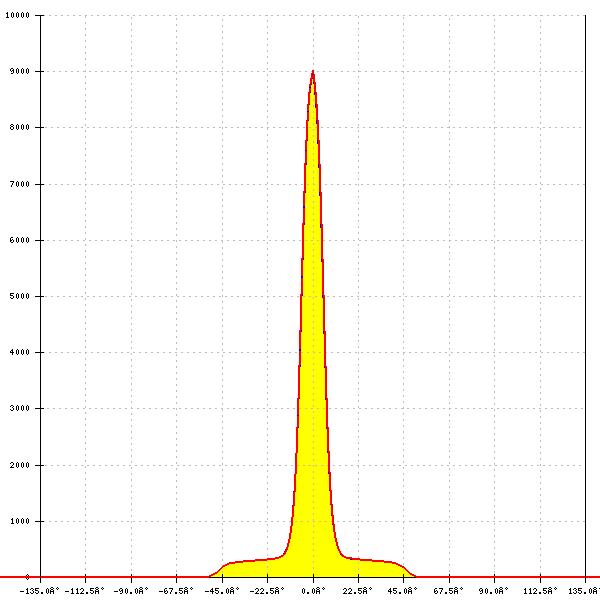

LED: COB T-Type
Required components:
FWHM: 12°
Peak intensity: 9.0 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

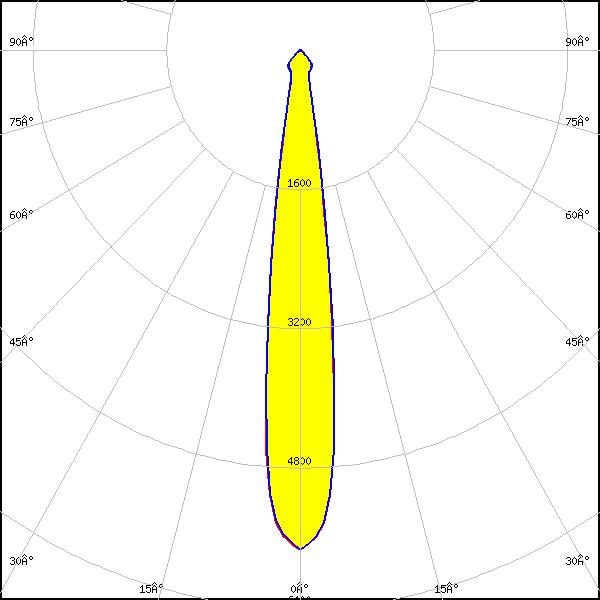

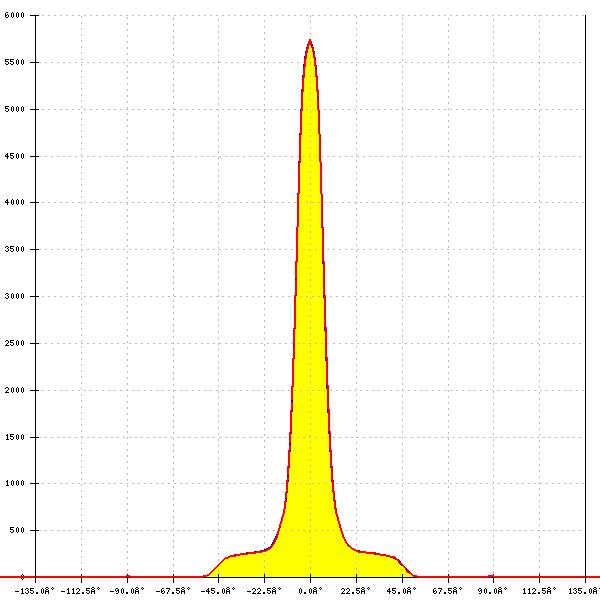

LED: NFSWE11A
Required components:
FWHM: 14°
Peak intensity: 5.7 cd/lm
Efficiency: 86 %
LEDs/each optic: 30
Light colour: White

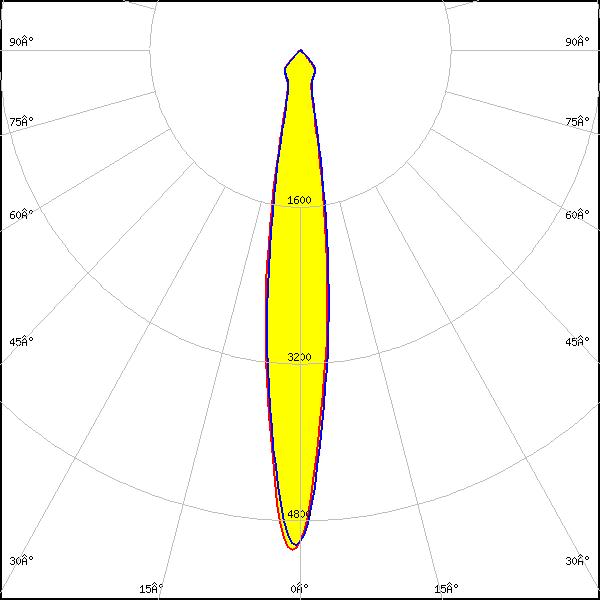

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: 15°
Peak intensity: 5.1 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

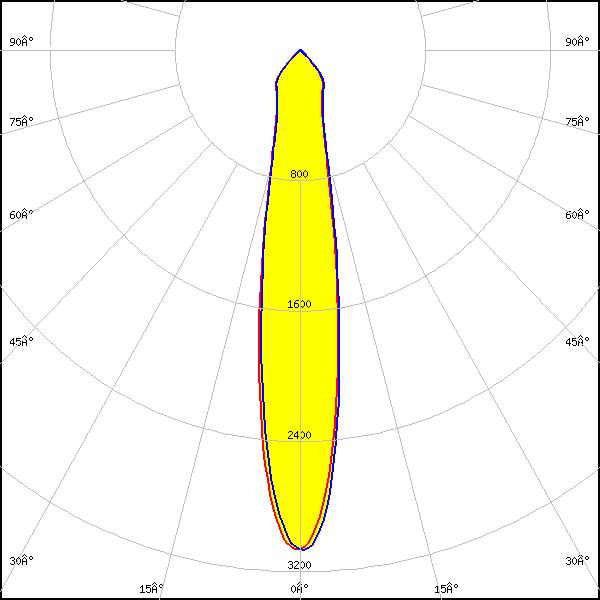

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
FWHM: 18°
Peak intensity: 3.1 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

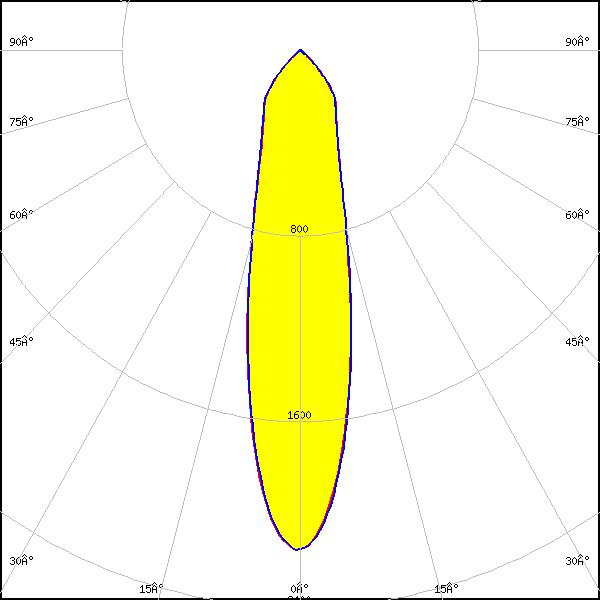

LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
FWHM: 25°
Peak intensity: 2.2 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

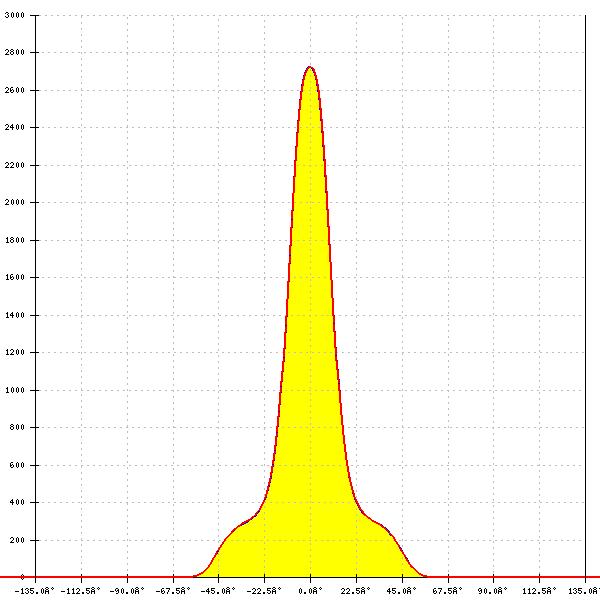

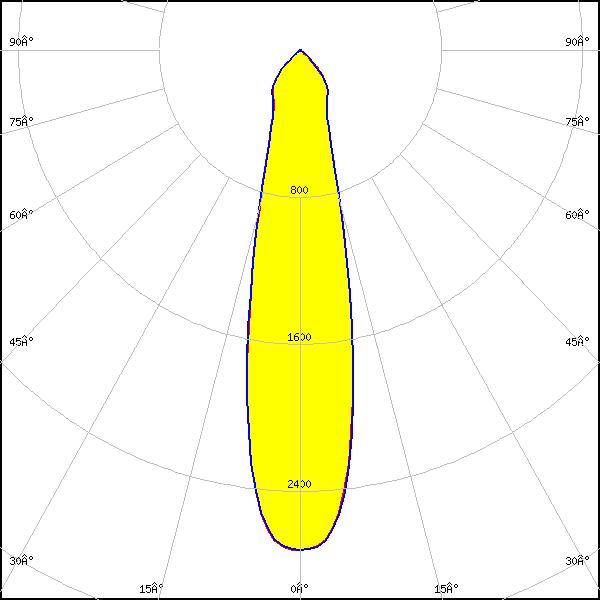

LED: Soleriq S13 19x19
Required components:
FWHM: 24°
Peak intensity: 2.7 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: Soleriq S9
Required components:
FWHM: 17°
Peak intensity: 4.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L09 CoB
Required components:
FWHM: 18°
Peak intensity: 4.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

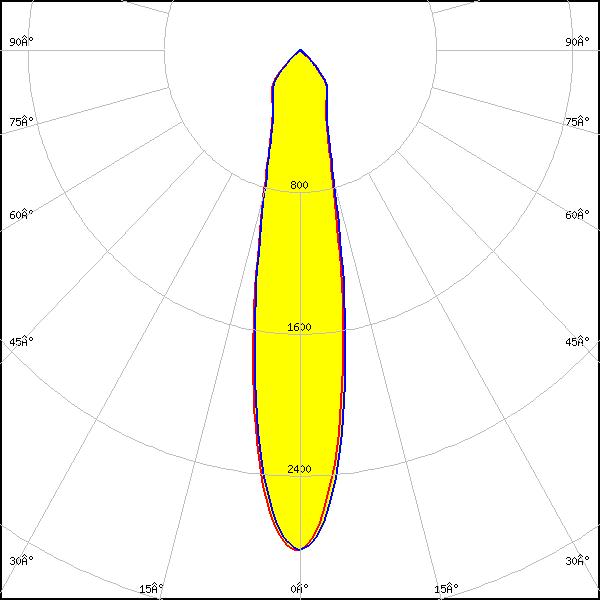

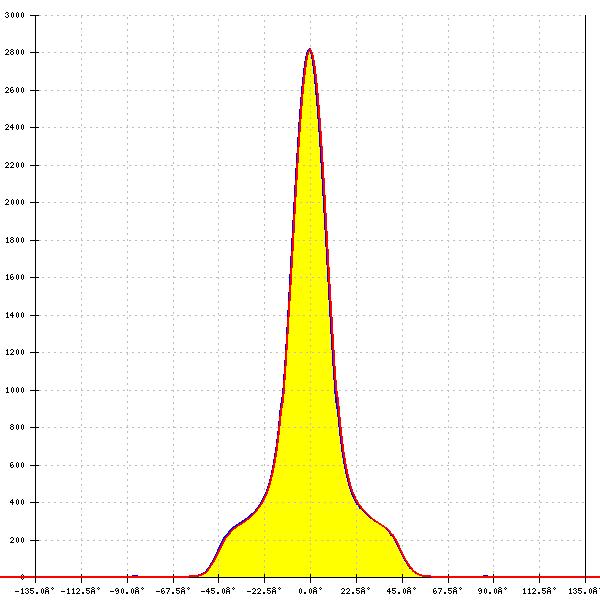

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 21°
Peak intensity: 2.8 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

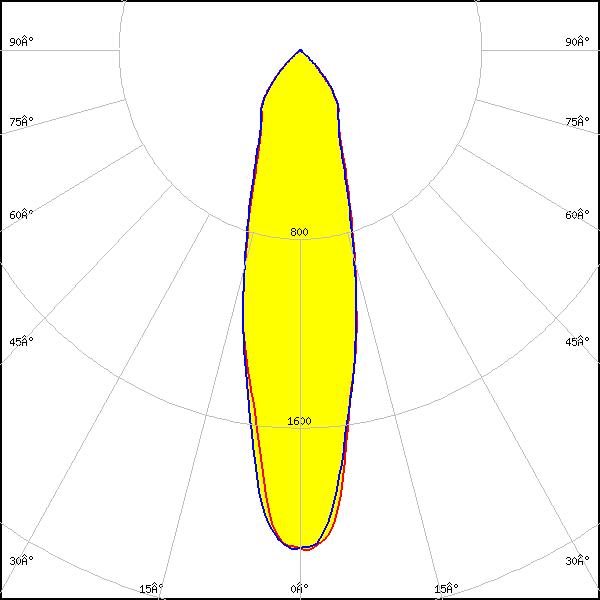

LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 27°
Peak intensity: 2.1 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
FWHM: 32°
Peak intensity: 1.6 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 18°
Peak intensity: 4.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 22°
Peak intensity: 2.8 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 18°
Peak intensity: 4.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

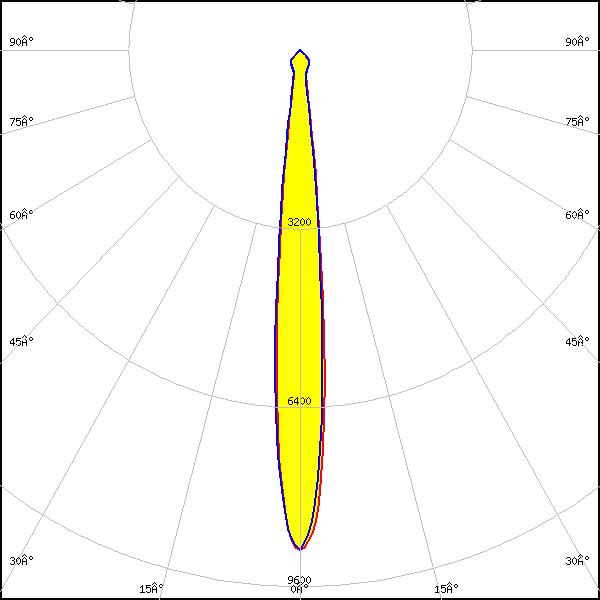

LED: LC010C G2
Required components:
FWHM: 11°
Peak intensity: 9.0 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

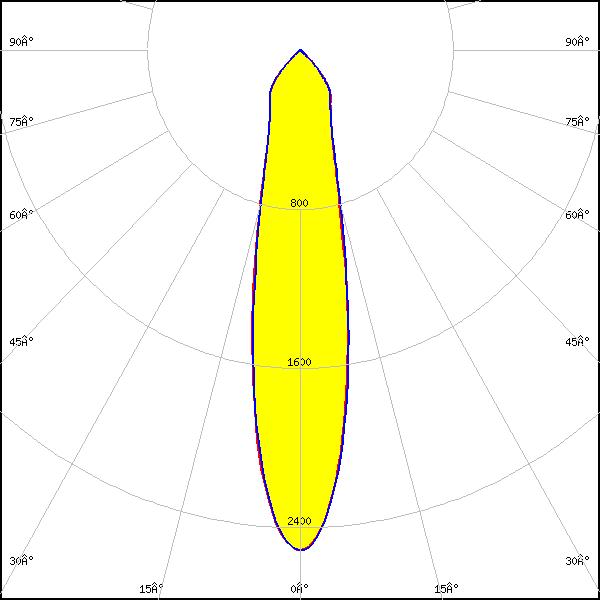

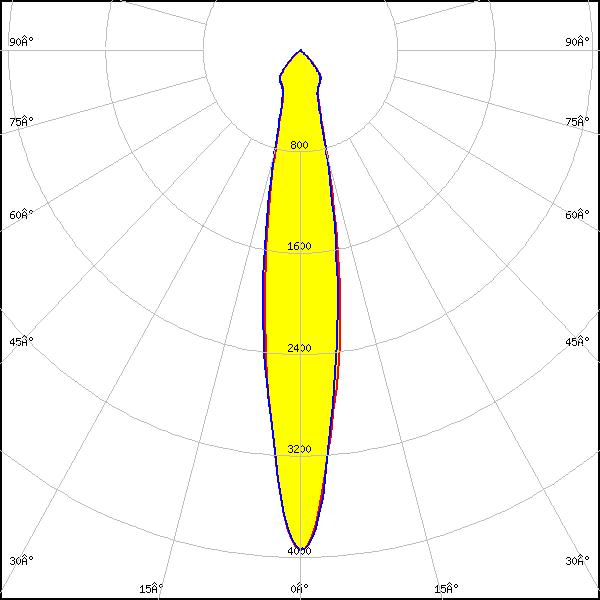

LED: LC010T (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 18°
Peak intensity: 3.9 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: Tunable White

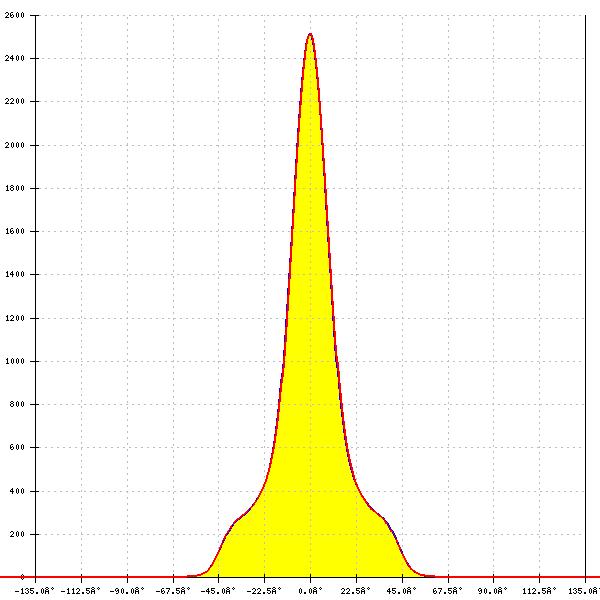

LED: LC010T (Tunable White)
Required components:
FWHM: 23°
Peak intensity: 2.5 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: Tunable White

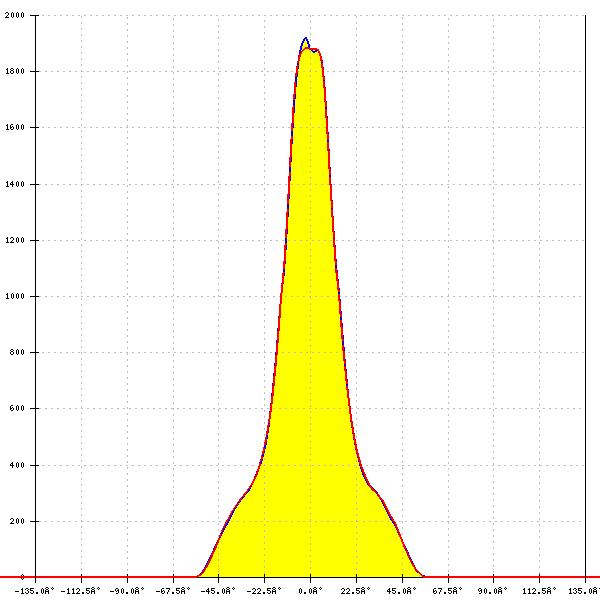

LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 29°
Peak intensity: 1.9 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

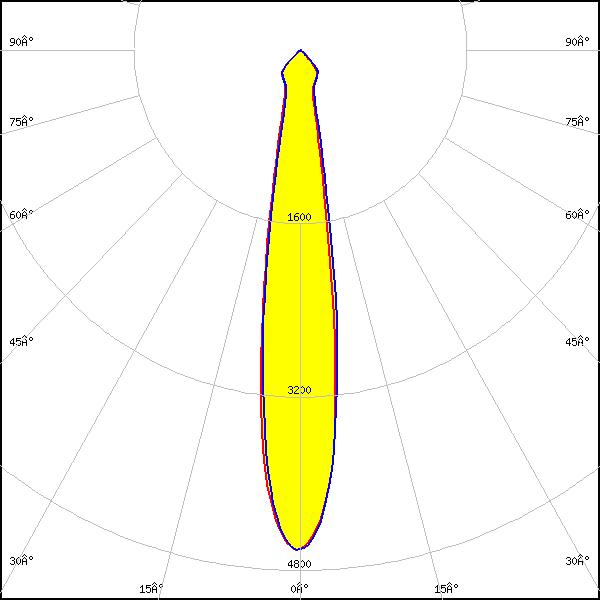

LED: LC020C G2
Required components:
FWHM: 17°
Peak intensity: 4.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

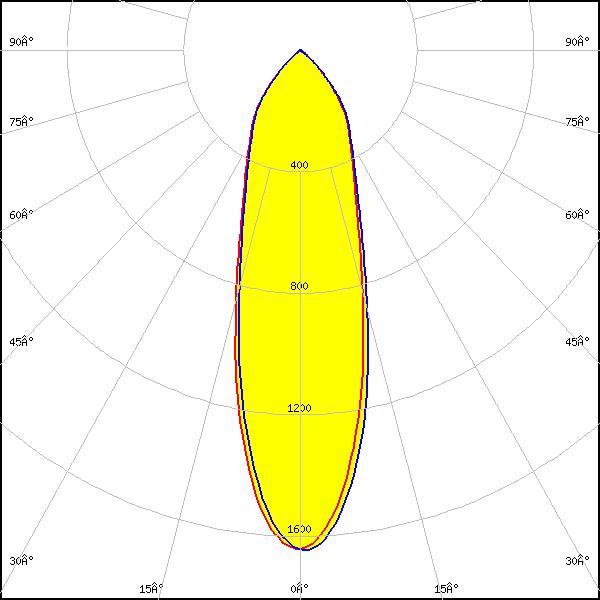

LED: LC020T (Tunable white)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 26°
Peak intensity: 2.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: Tunable White
LED: LC020T (Tunable white)
Required components:
FWHM: 31°
Peak intensity: 1.6 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: Tunable White

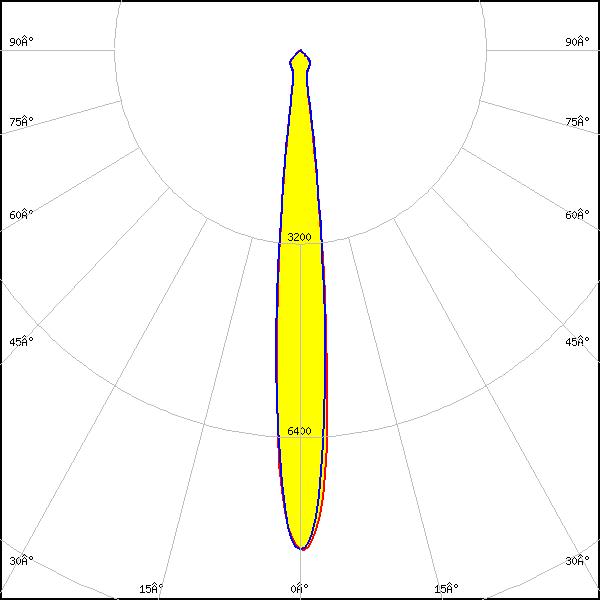

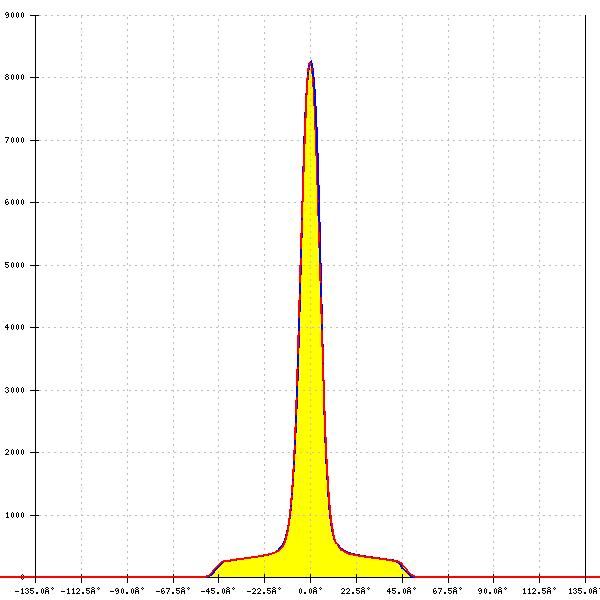

LED: MJT COB LES 6
Required components:
FWHM: 11°
Peak intensity: 8.3 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: MJT COB LES 9.8
Required components:
FWHM: 20°
Peak intensity: 3.3 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

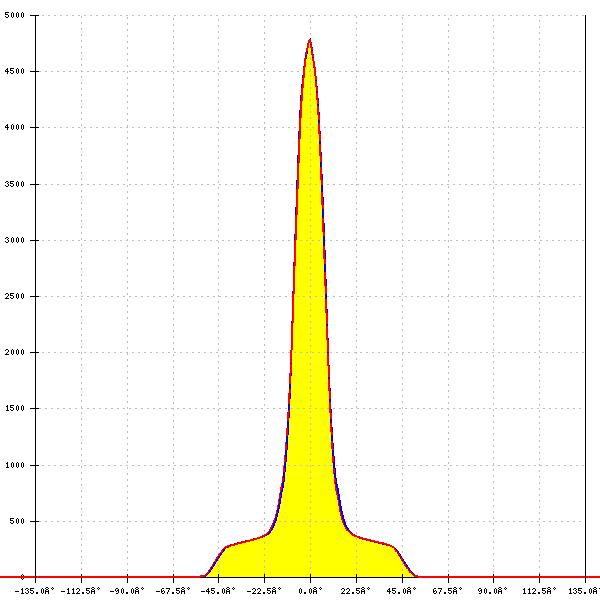

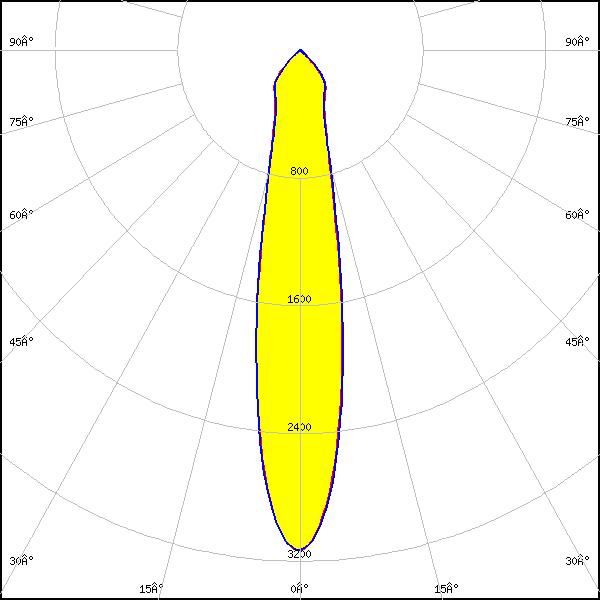

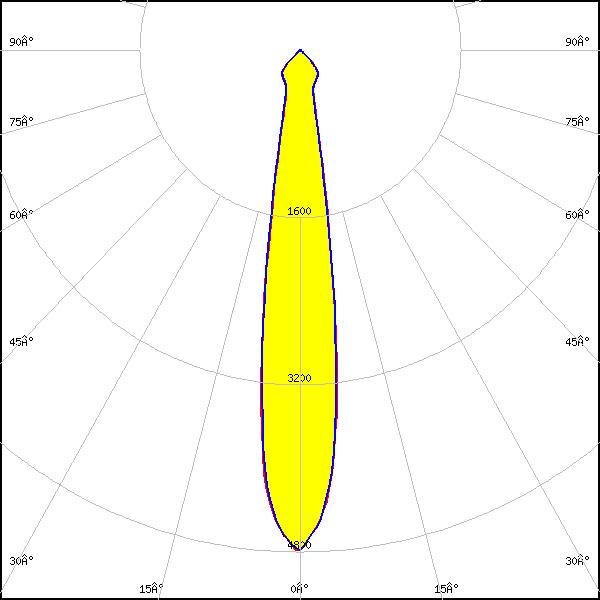

LED: SLE G7 LES09
Required components:
FWHM: 17°
Peak intensity: 4.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: SLE G7 LES09
Required components:
FWHM: 20°
Peak intensity: 3.1 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

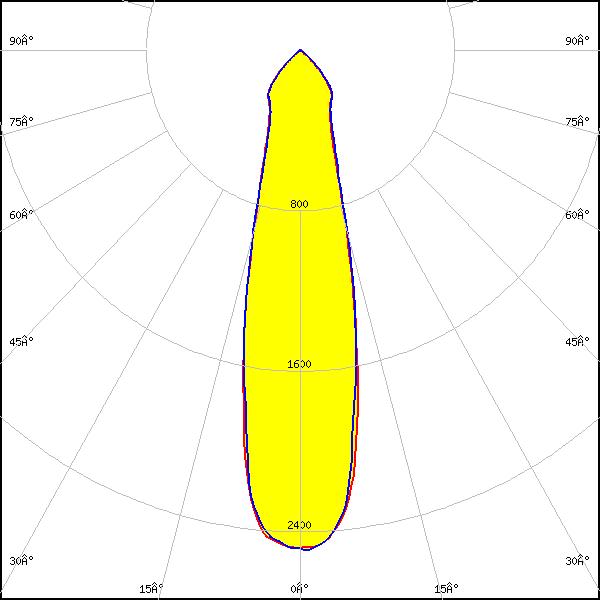

LED: SLE G7 LES13
Required components:
FWHM: 26°
Peak intensity: 2.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: SLE G7 LES13
Required components:
FWHM: 29°
Peak intensity: 1.8 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

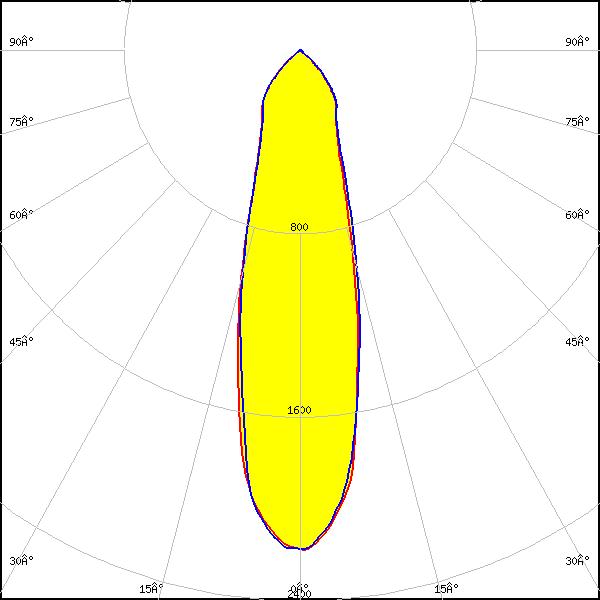

LED: SLE G7 LES15
Required components:
FWHM: 28°
Peak intensity: 2.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XOB 14.5 mm
Required components:
FWHM: 27°
Peak intensity: 2.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XOB 6 mm
Required components:
FWHM: 11°
Peak intensity: 8.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

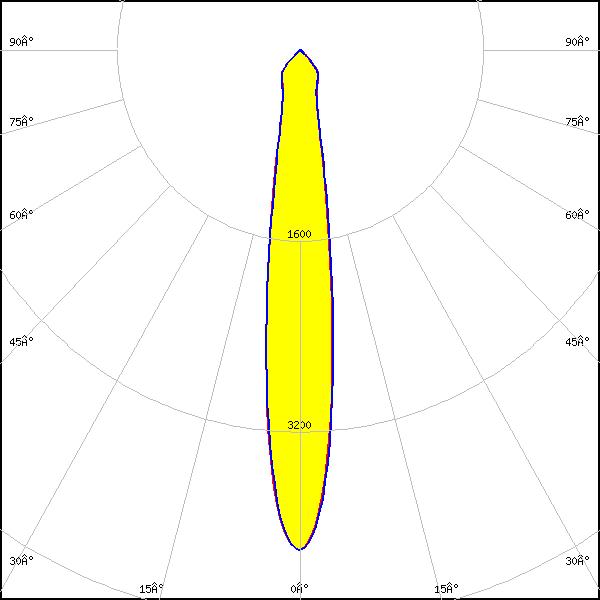

LED: XOB 6 mm
Required components:
FWHM: 15°
Peak intensity: 4.2 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: XOB 9.8 mm
Required components:
FWHM: 16°
Peak intensity: 4.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XOB 9.8 mm
Required components:
FWHM: 21°
Peak intensity: 2.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

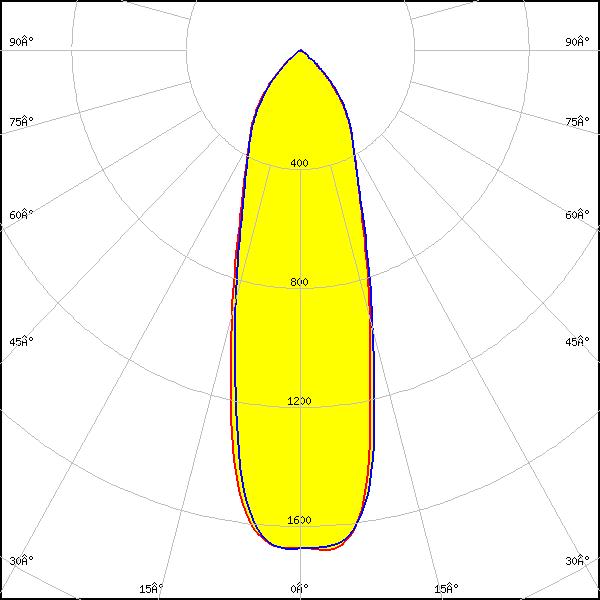

LED: XTM - 19mm LES
Required components:
FWHM: 33°
Peak intensity: 1.7 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

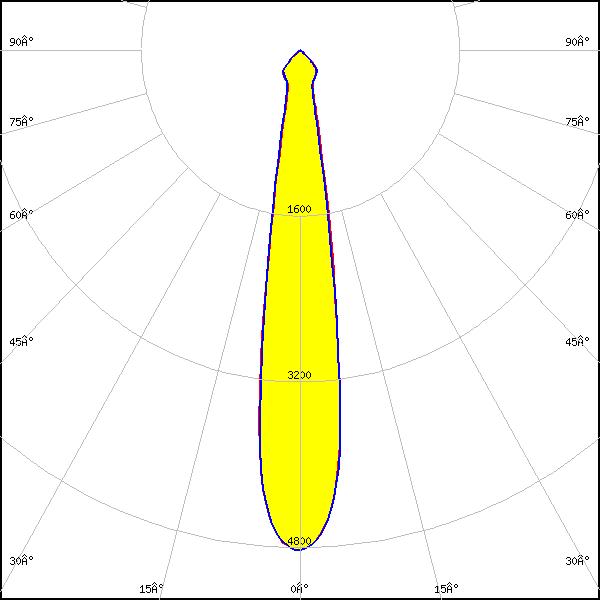

LED: XTM - 9mm LES
Required components:
FWHM: 17°
Peak intensity: 4.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
