    F15074_ZORYA-SC

    Print

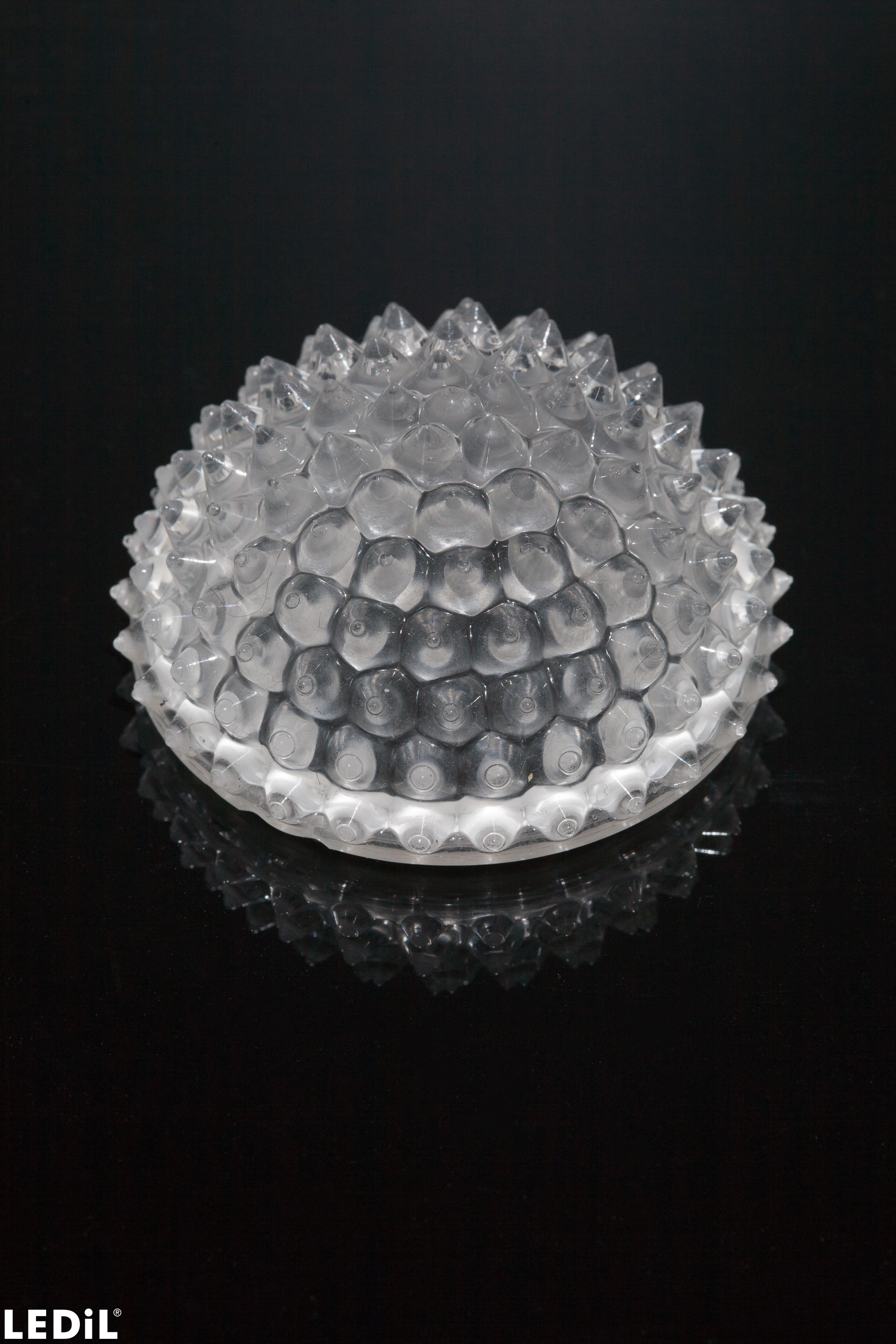

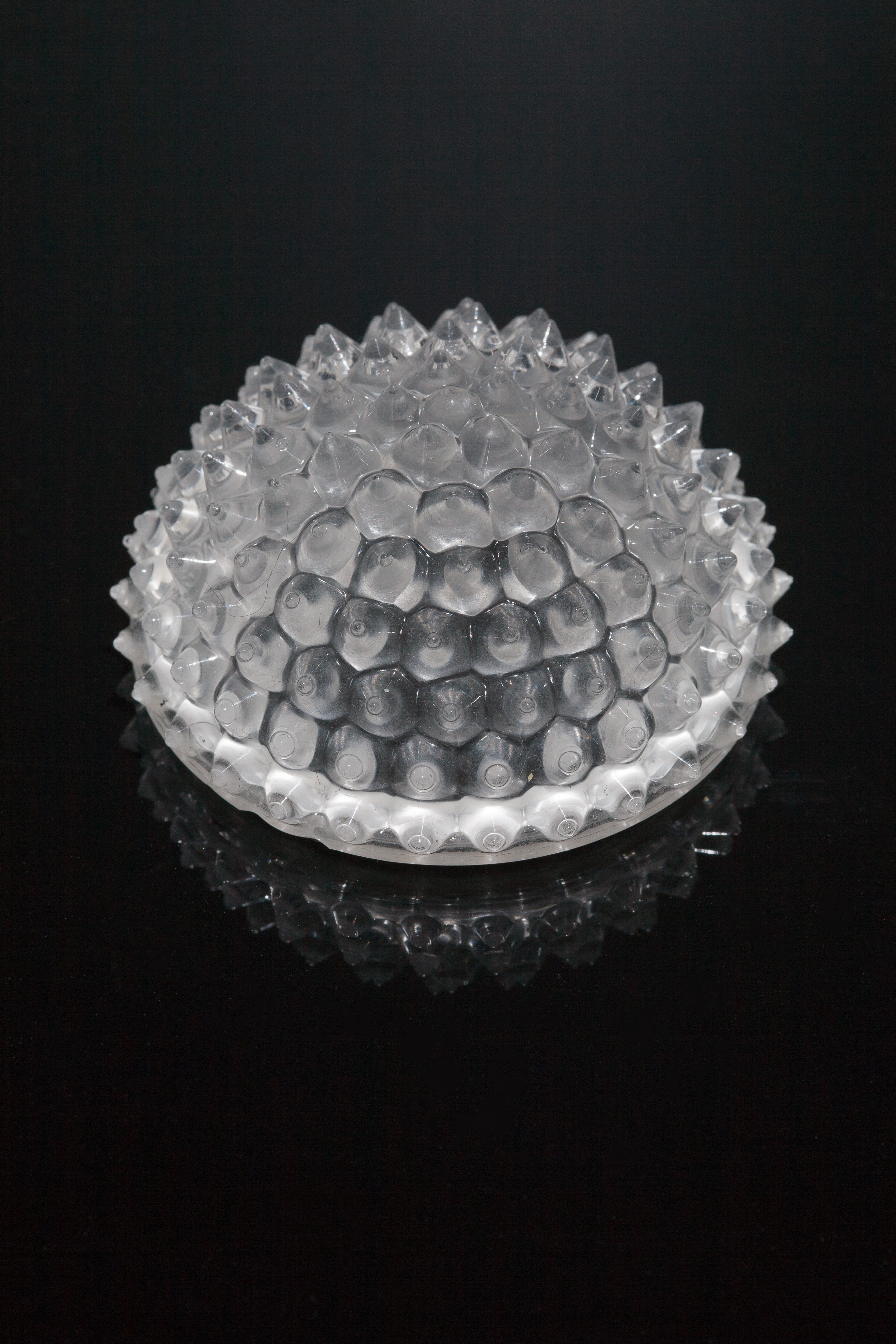

    ~340° omnidirectional decorative beam. Suitable also for UV-C applications.

    Specification
    • Dimensions:
      56 mm
    • Height:
      26.70 mm
    • Fastening:
      glue, socket
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      140 pcs
    • Box size:
      398 x 298 x 140 mm
    • Box weight:
      3.0 kg
    • MPQ:
      35 pcs
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F15074_ZORYA-SC
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application area

    UV-C LIGHTING

    News

    PRODUCT NEWS - ZORYA

    Compatibility guide

    LEDiL C interface HEKLA compatibility guide

    News

    HEKLA-SOCKET-RZ ‒ Your effortless entry to the RGBW world

    Case story

    Catellani&Smith ceiling lamp

    Case story

    Bicycle traffic park in Athens

    Case story

    Estonia 100 lighting installation

    News

    HEKLA - Innovative family of sockets and solderless connectors

    Application area

    Outdoor Special Applications

    Application area

    Indoor Architectural Lighting

    Case story

    The Luneur amusement park

    Optical results

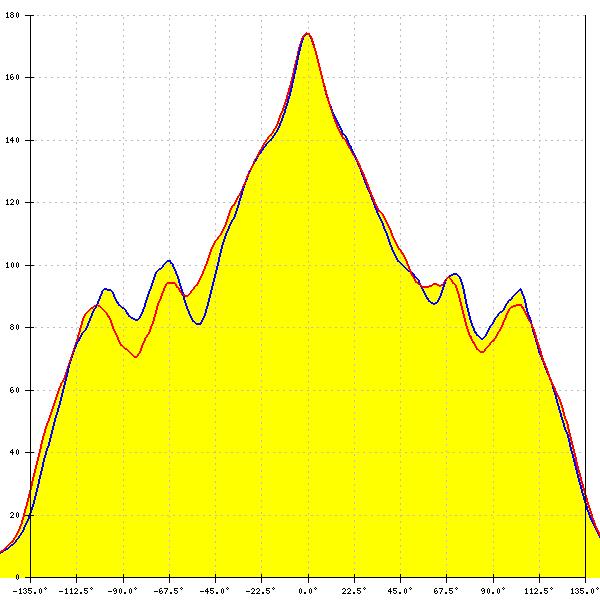

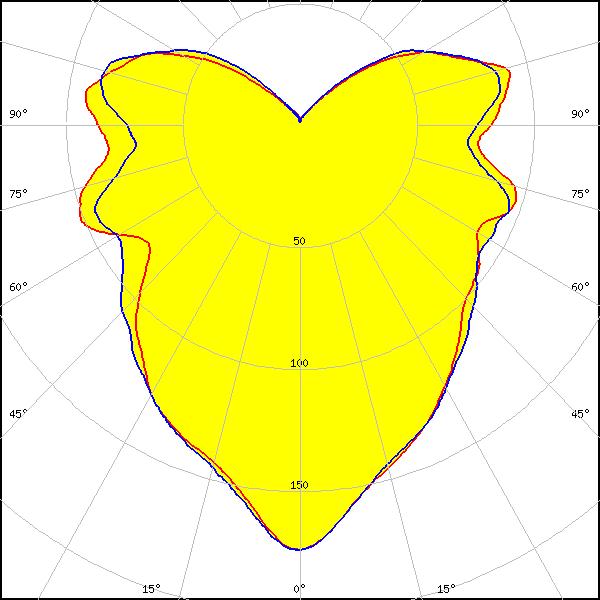

    LED: CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    Bender Wirth: 434 Typ L7
    FWHM: 218°
    FWTM: 278°
    Peak intensity: 0.170 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

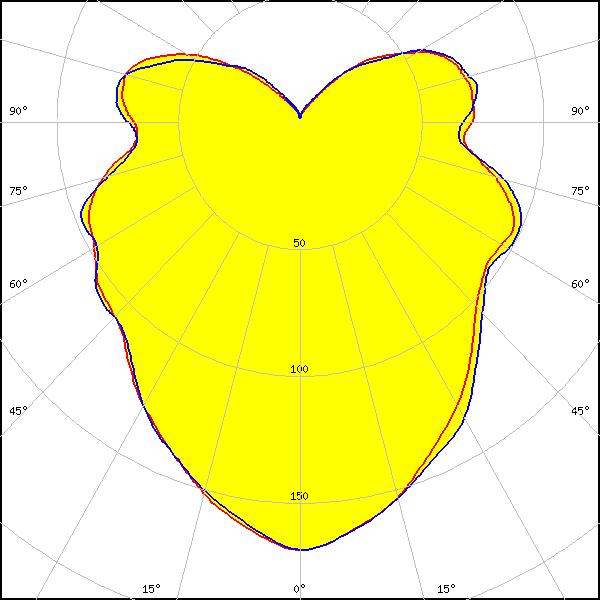

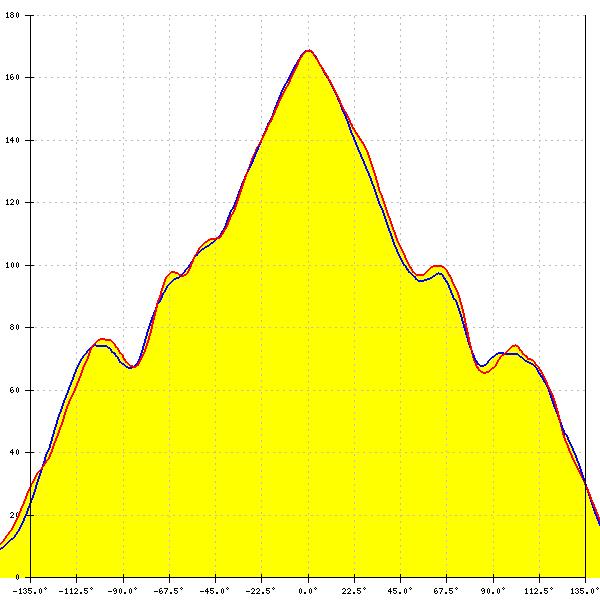

    LED: CLU03x
    LES size: 14.5 mm
    Required components:
    Bender Wirth: 433 Typ L7
    FWHM: 149°
    FWTM: 285°
    Peak intensity: 0.170 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

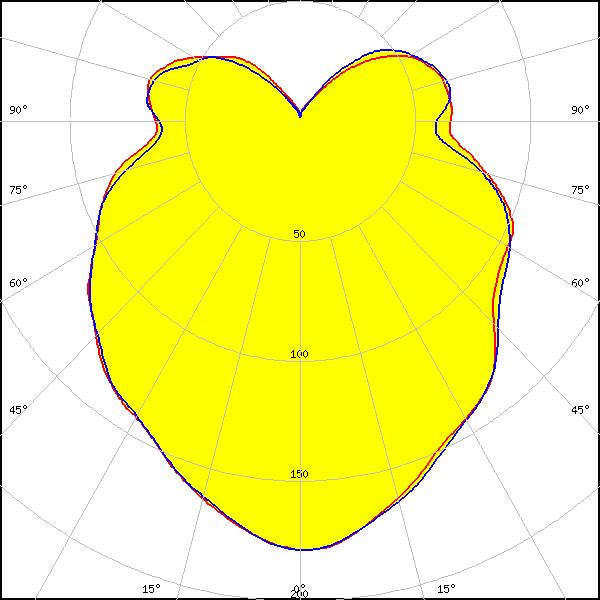

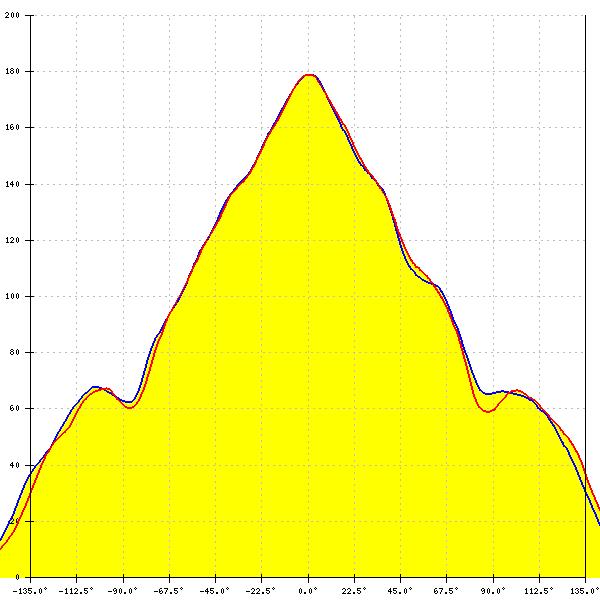

    LED: CXA/B 25xx
    LES size: 19.0 mm
    Required components:
    Bender Wirth: 439 Typ L7
    FWHM: 143°
    FWTM: 289°
    Peak intensity: 0.180 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

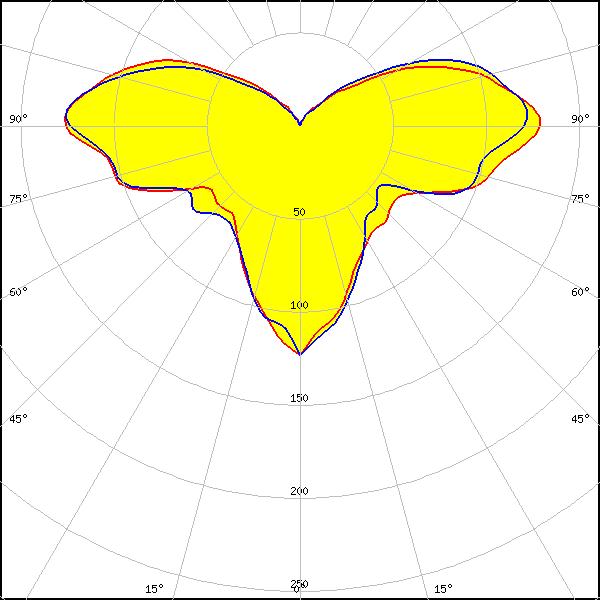

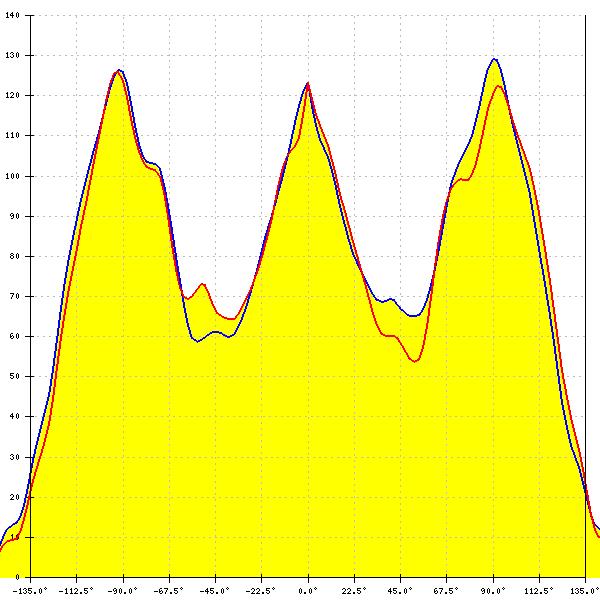

    LED: LUXEON 7070
    LES size: 0.0 mm
    FWHM: 239°
    FWTM: 282°
    Peak intensity: 0.131 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

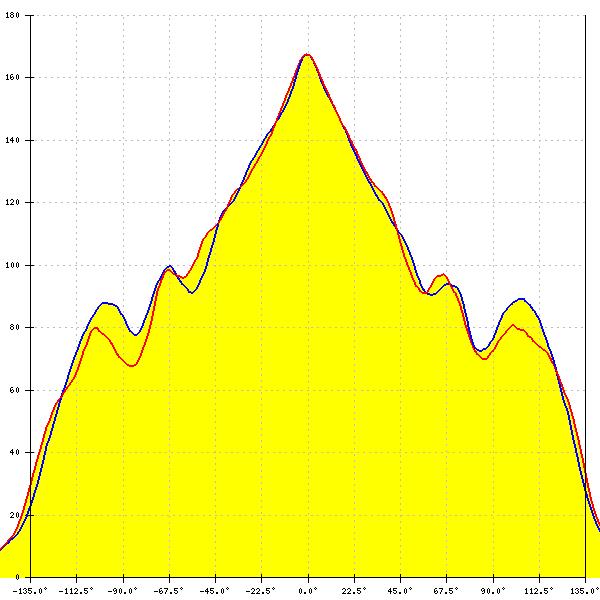

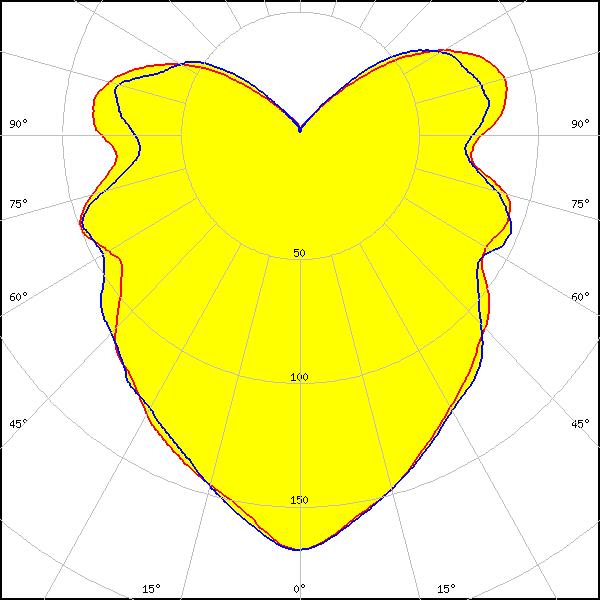

    LED: COB L-Type (LES 11)
    LES size: 11.5 mm
    Required components:
    Bender Wirth: 438 Typ L7
    FWHM: 189°
    FWTM: 280°
    Peak intensity: 0.170 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

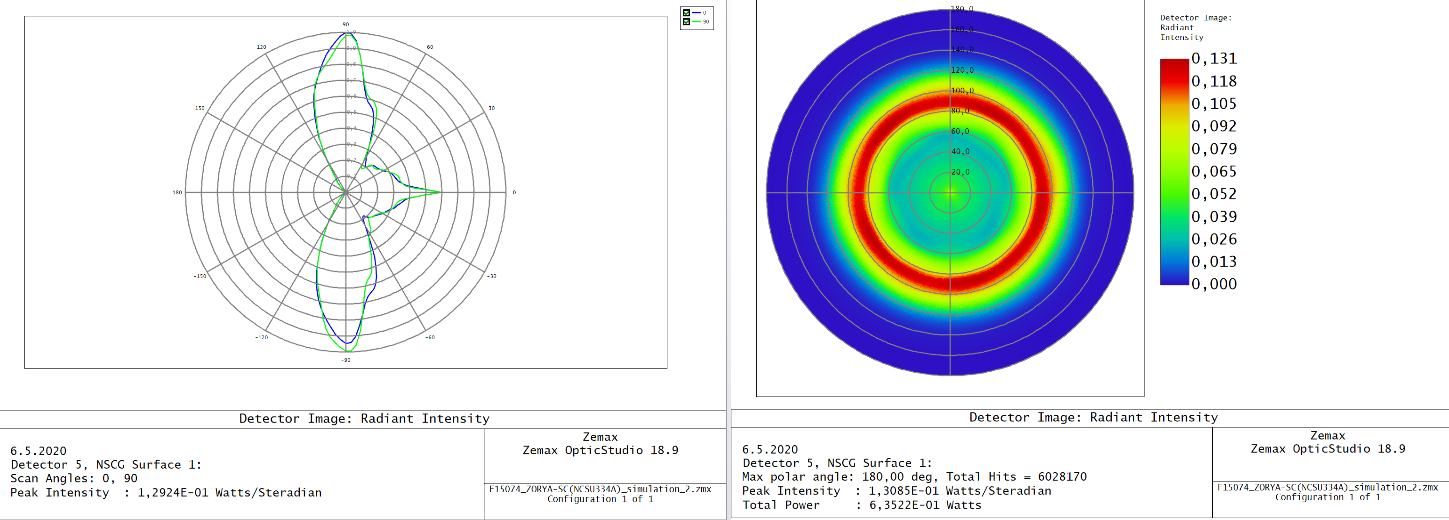

    LED: NCSU334A
    LES size: 0.0 mm
    FWHM: 224°
    FWTM: 254°
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: UV-C

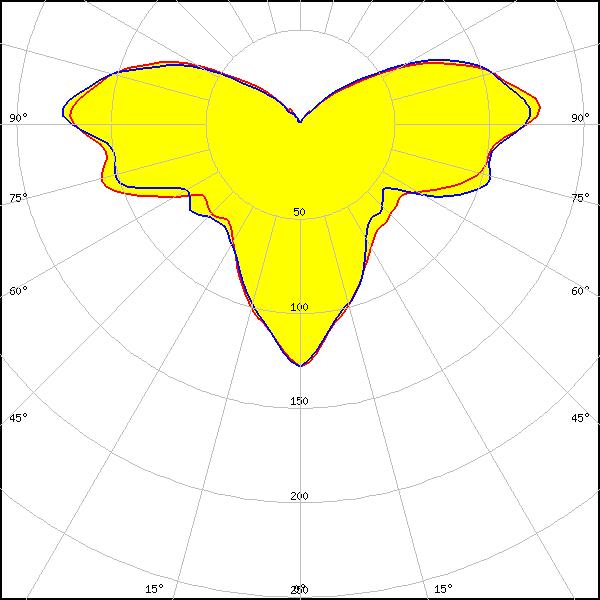

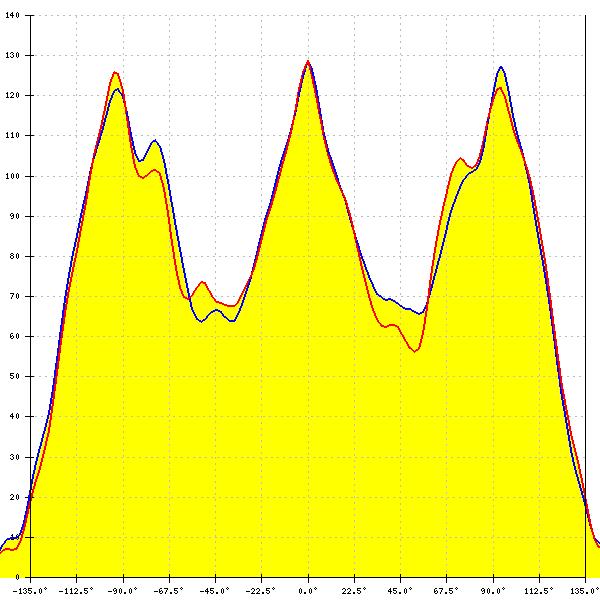

    LED: NF2x757G
    LES size: 0.0 mm
    FWHM: 238°
    FWTM: 276°
    Peak intensity: 0.129 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: White

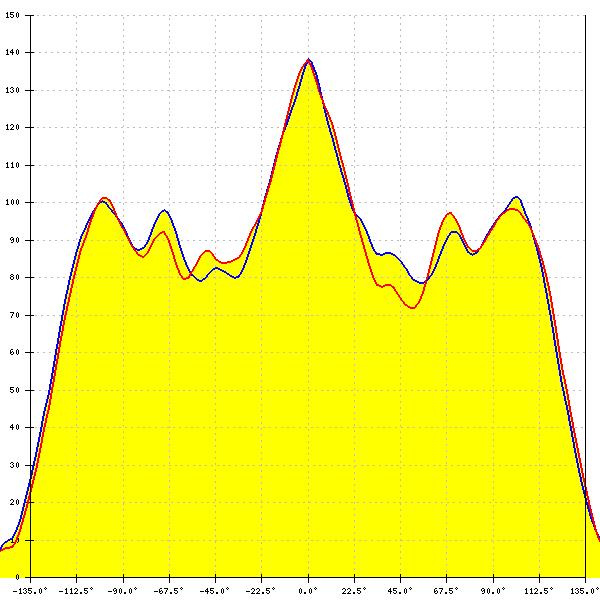

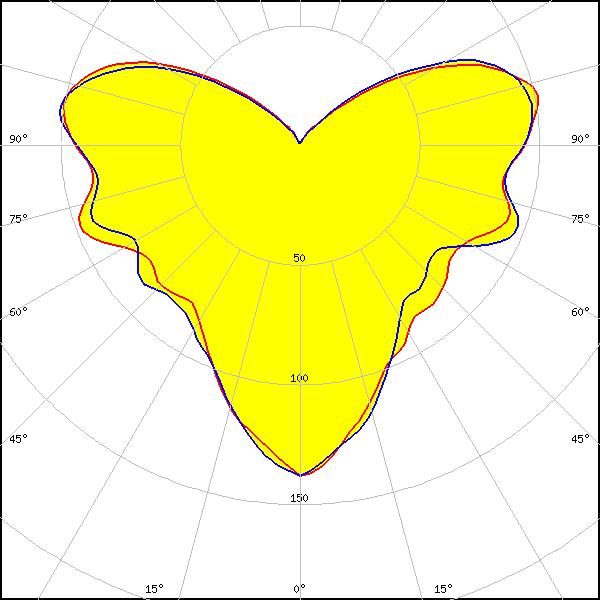

    LED: NF2x757G
    LES size: 0.0 mm
    FWHM: 238°
    FWTM: 280°
    Peak intensity: 0.139 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 9
    Light colour/type: White
    LED: CUD8AF4D
    LES size: 0.0 mm
    FWHM: 226°
    FWTM: 264°
    Efficiency: 59 %
    LEDs/each optic: 1
    Light colour/type: UV-C

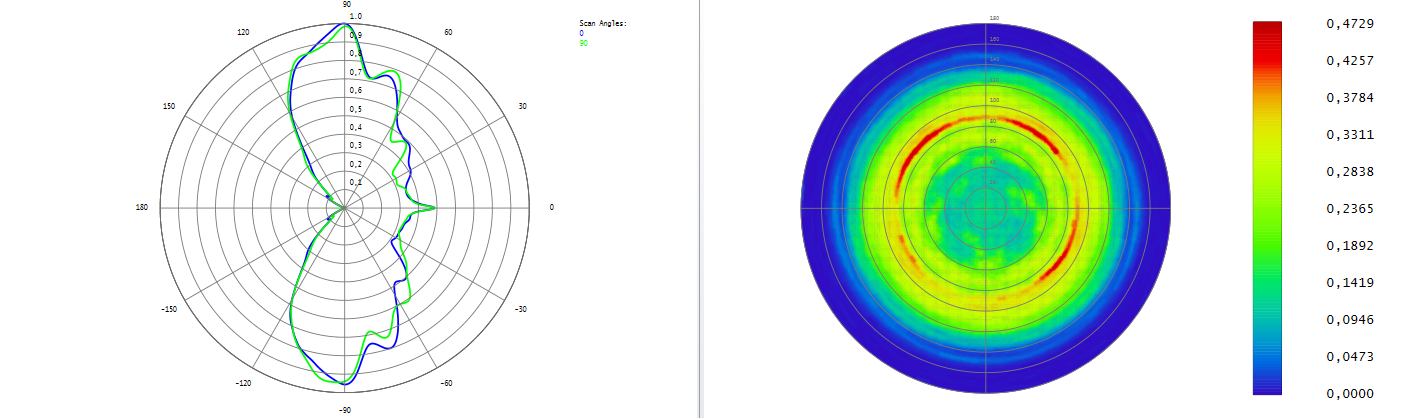

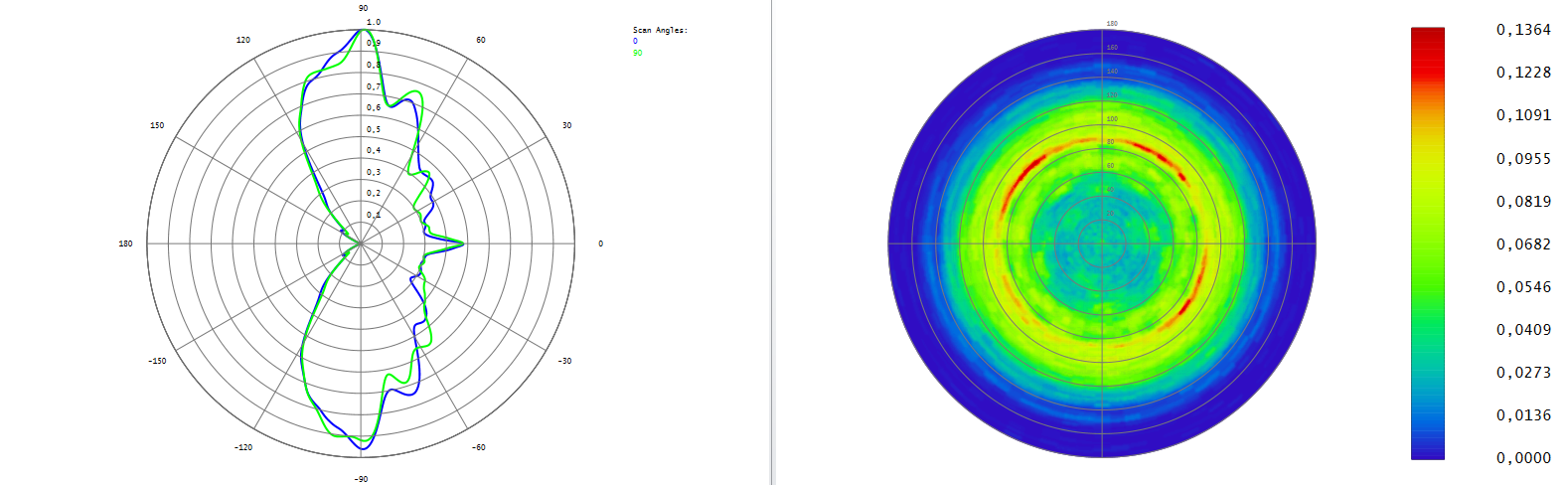

    LED: WICOP DY9560-27
    LES size: 0.0 mm
    FWHM: 245°
    FWTM: 296°
    Efficiency: 60 %
    LEDs/each optic: 4
    Light colour/type: UV-C
    LED: WICOP DY9560-27
    LES size: 0.0 mm
    FWHM: 244°
    FWTM: 280°
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: UV-C

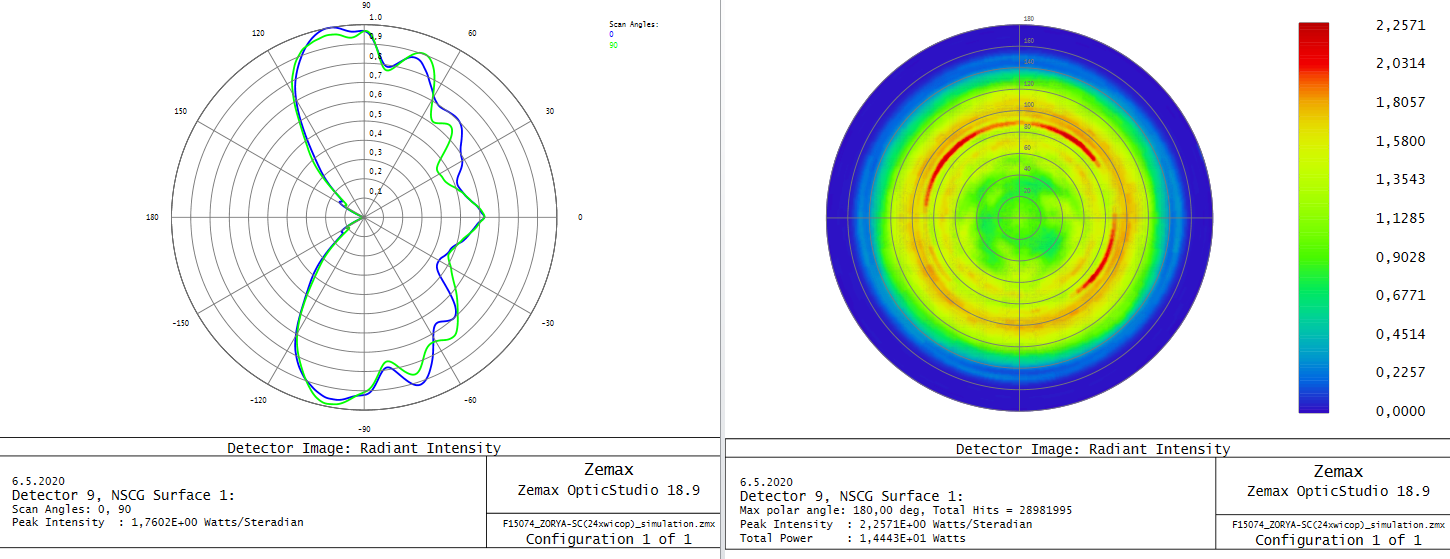

    LED: WICOP DY9560-27
    LES size: 0.0 mm
    FWHM: 254°
    FWTM: 304°
    Efficiency: 58 %
    LEDs/each optic: 24
    Light colour/type: UV-C
