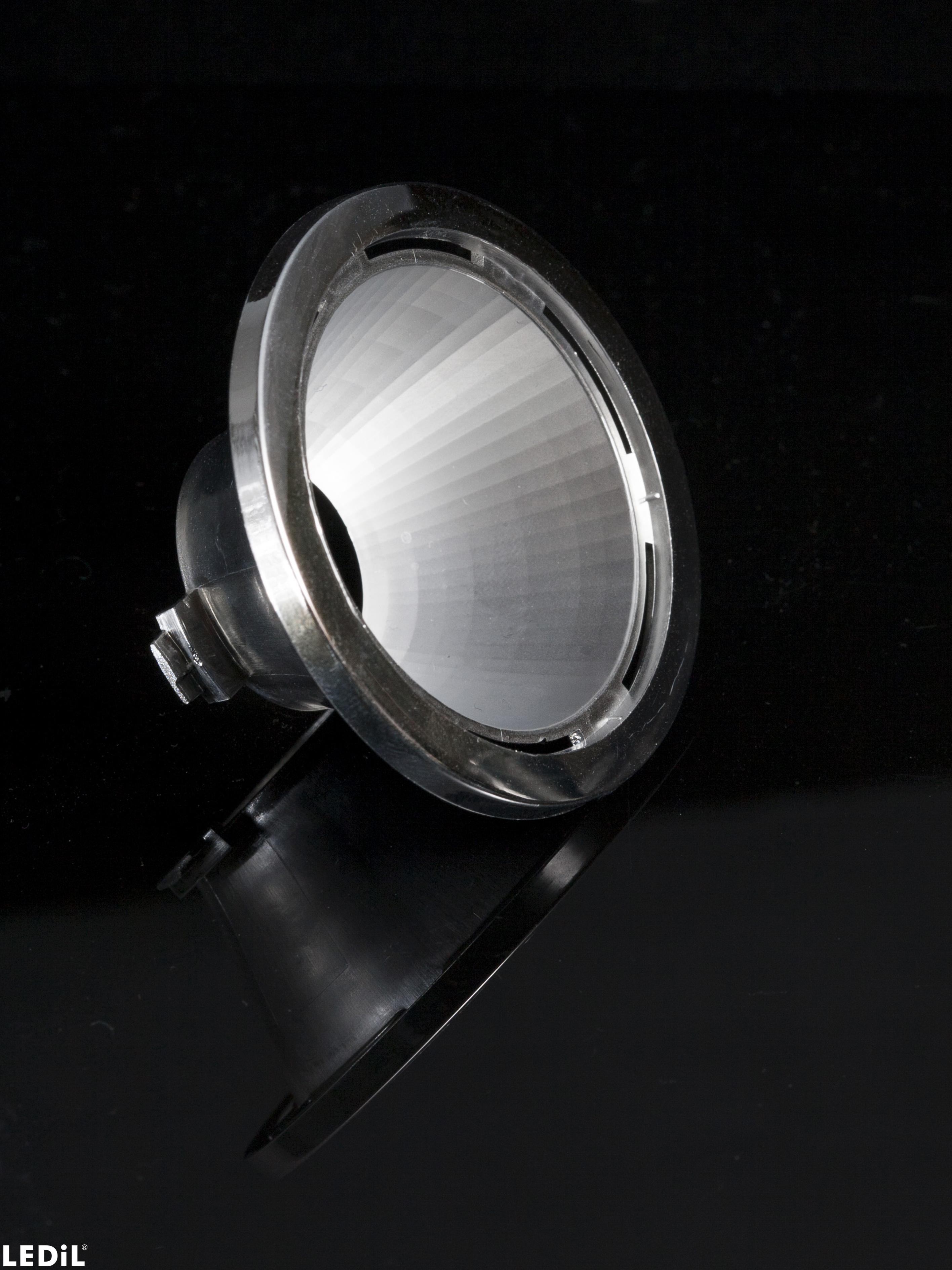

F15558_MIRELLA-G2-S

Print

~15° spot beam. Compatible with LEDiL HEKLA.

Specification
  • Dimensions:
    50 mm
  • Height:
    22.58 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    336 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    3.2 kg
  • MPQ:
    28 pcs
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15558_MIRELLA-G2-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

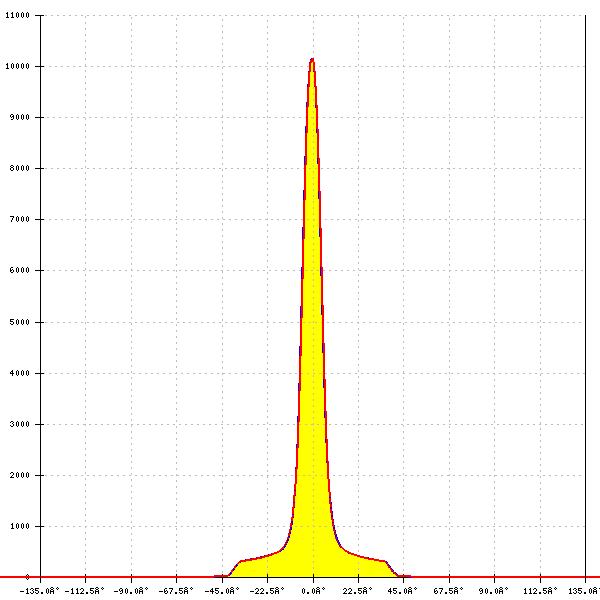

LED: V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM: 10°
FWTM: 21°
Peak intensity: 10.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

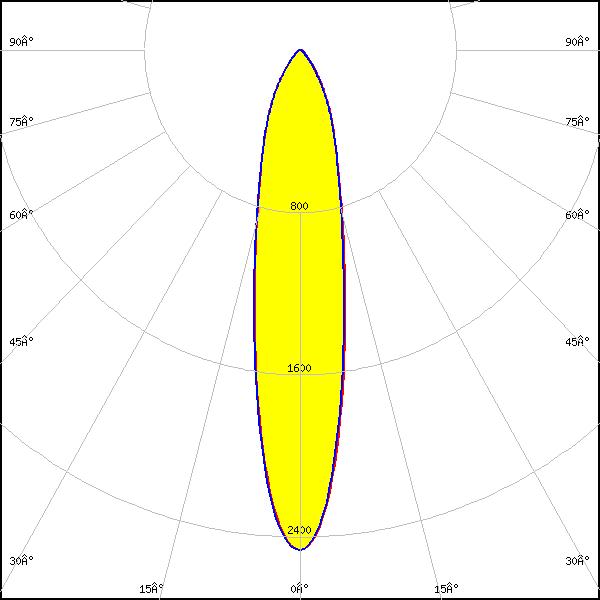

LED: V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM: 22°
FWTM: 62°
Peak intensity: 2.500 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM: 14°
FWTM: 33°
Peak intensity: 5.700 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

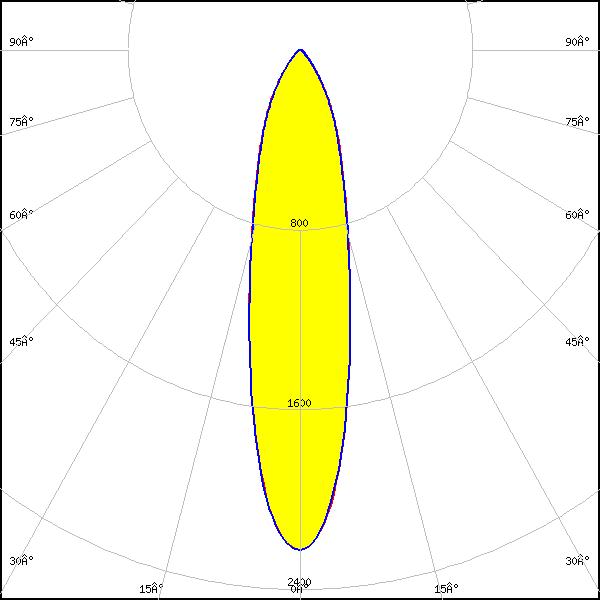

LED: V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM: 24°
FWTM: 65°
Peak intensity: 2.300 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

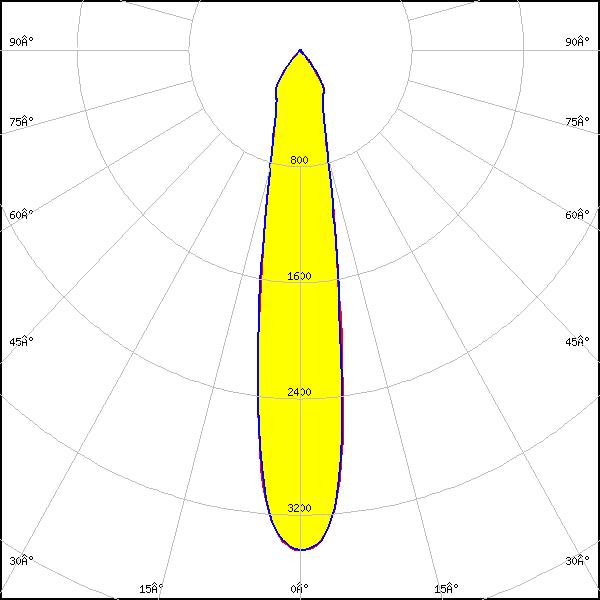

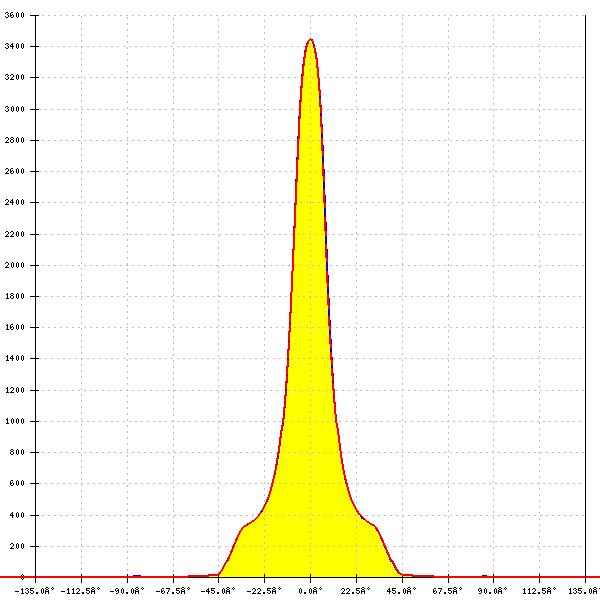

LED: V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM: 19°
FWTM: 59°
Peak intensity: 3.440 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

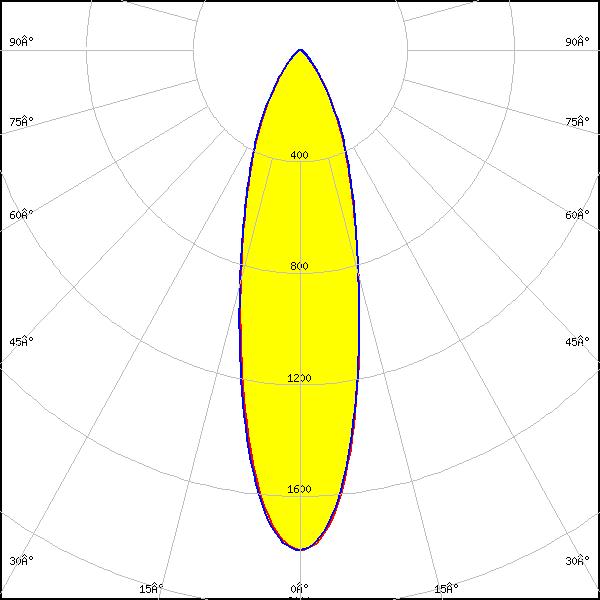

LED: V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM: 29°
FWTM: 69°
Peak intensity: 1.800 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

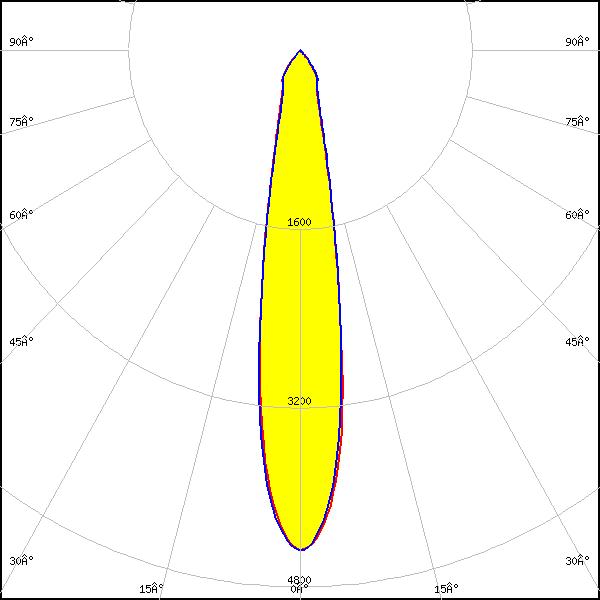

LED: VERO10
LES size: 9.9 mm
Required components:
FWHM: 19°
FWTM: 44°
Peak intensity: 4.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 25°
FWTM: 66°
Peak intensity: 2.300 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

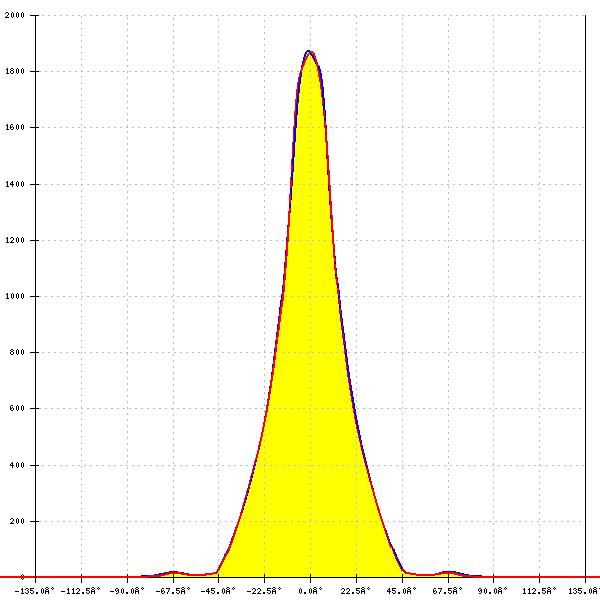

LED: Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 30°
FWTM: 72°
Peak intensity: 1.874 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: Tunable White

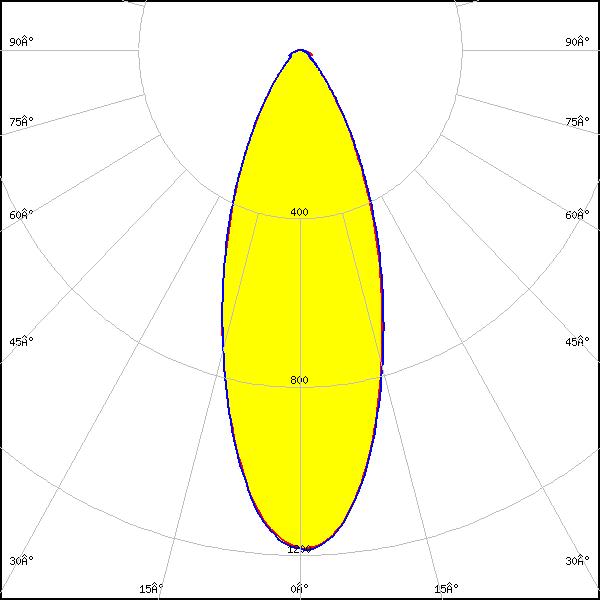

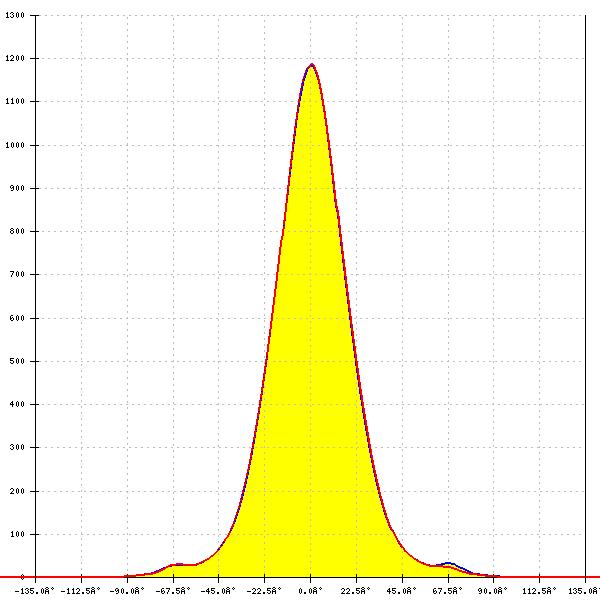

LED: Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM: 39°
FWTM: 78°
Peak intensity: 1.188 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: Tunable White

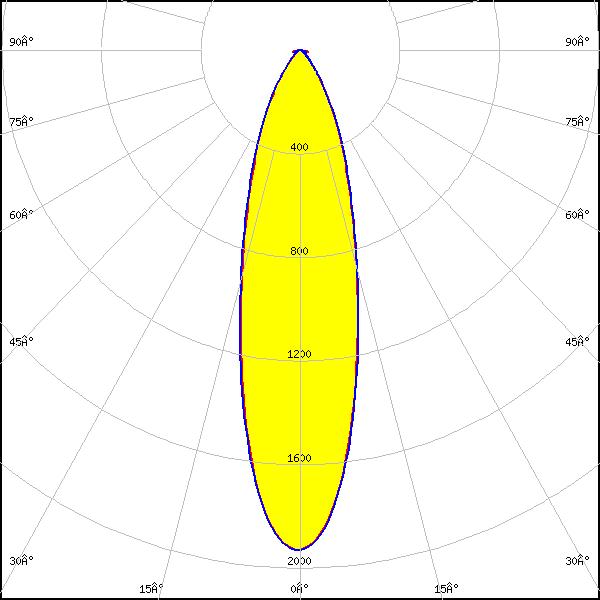

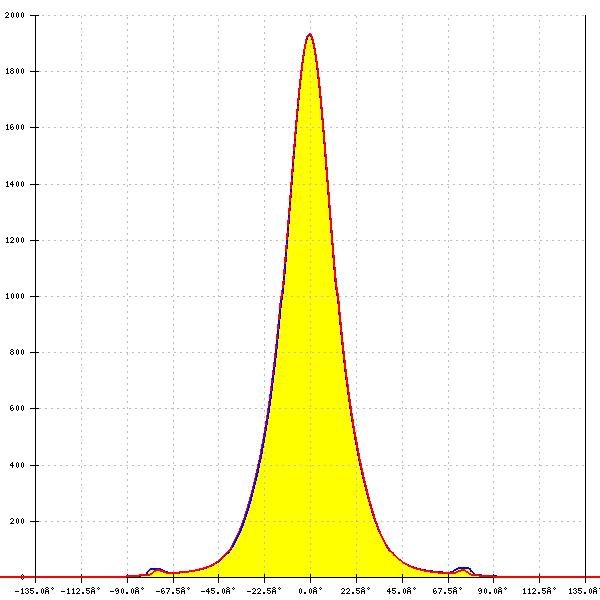

LED: Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
FWHM: 28°
FWTM: 66°
Peak intensity: 1.900 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

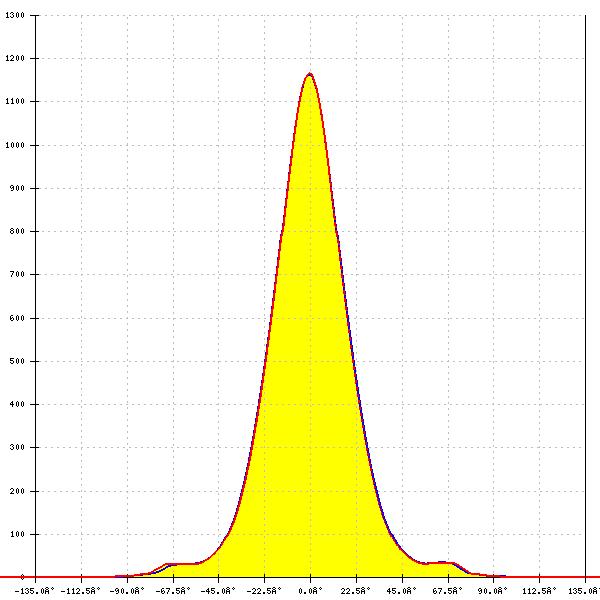

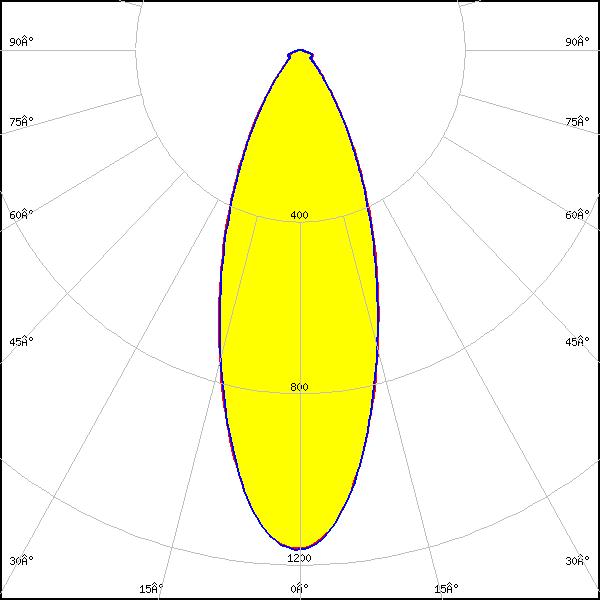

LED: Vesta TW 13mm (25W) CSP
LES size: 14.3 mm
Required components:
FWHM: 39°
FWTM: 77°
Peak intensity: 1.200 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

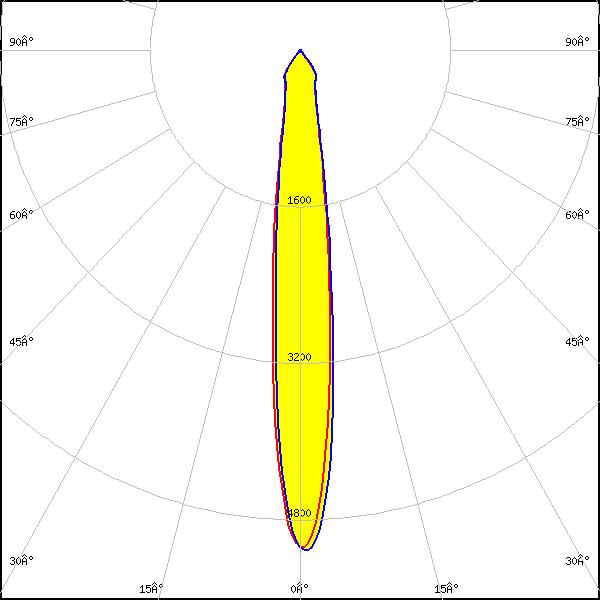

LED: Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 14°
FWTM: 37°
Peak intensity: 5.121 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM: 26°
FWTM: 66°
Peak intensity: 1.897 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

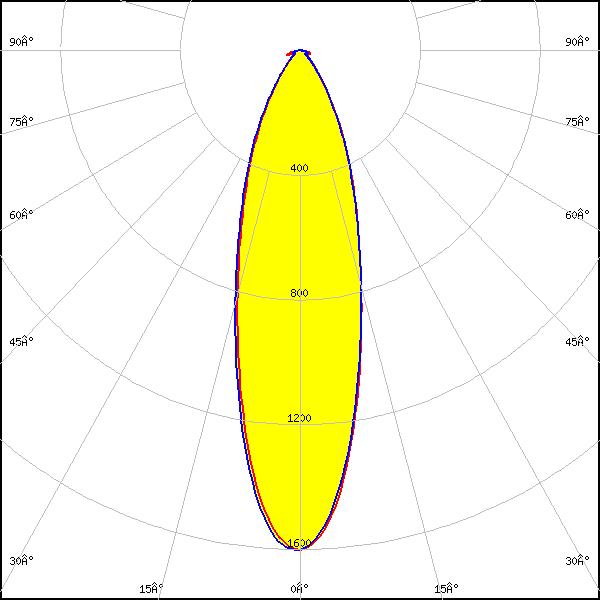

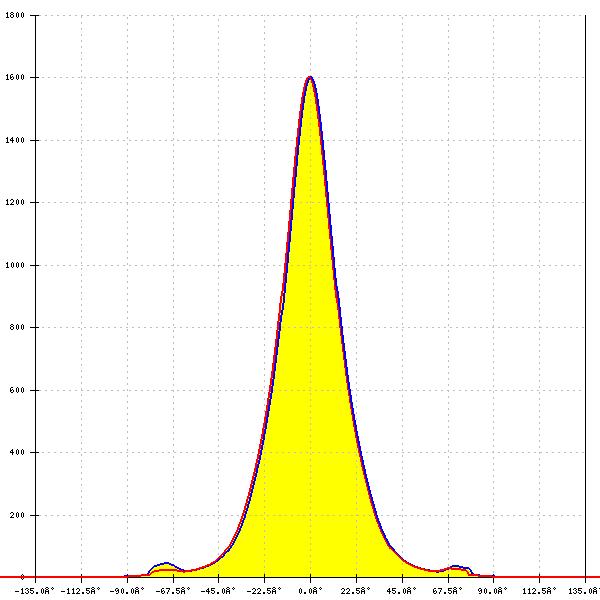

LED: Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 30°
FWTM: 69°
Peak intensity: 1.600 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

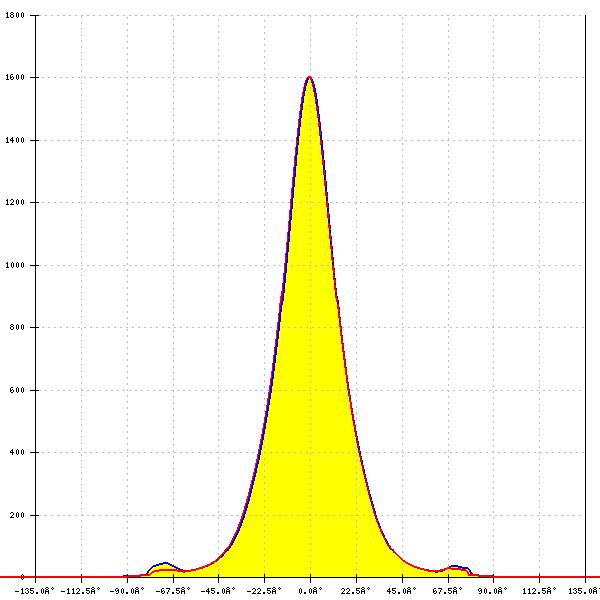

LED: Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM: 30°
FWTM: 69°
Peak intensity: 1.600 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

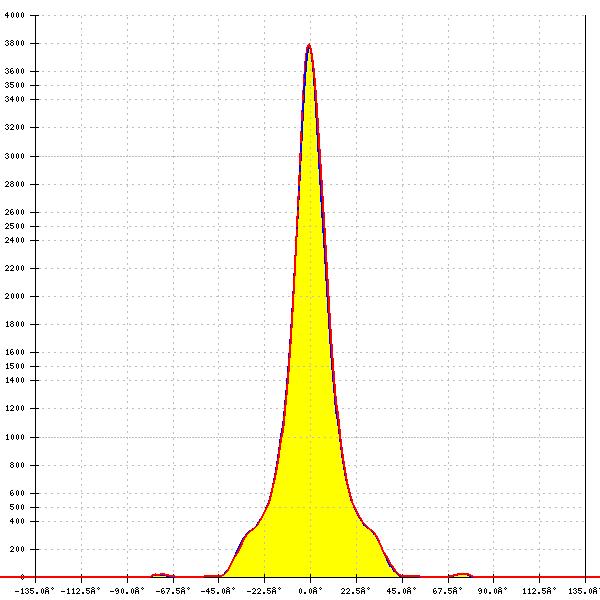

LED: Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 18°
FWTM: 52°
Peak intensity: 3.800 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

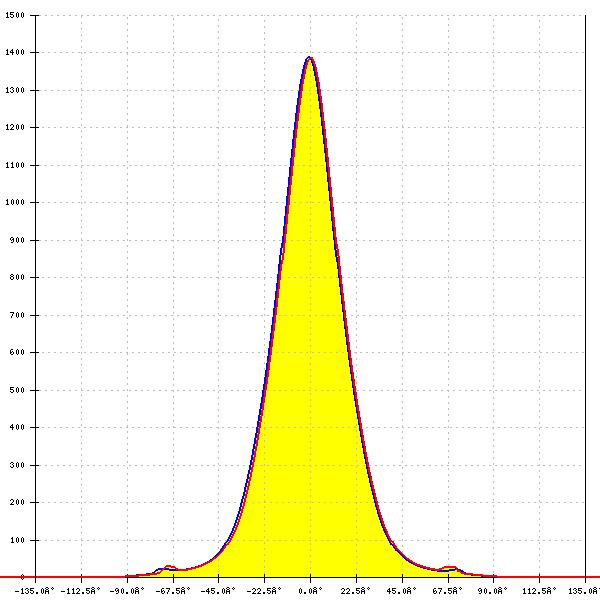

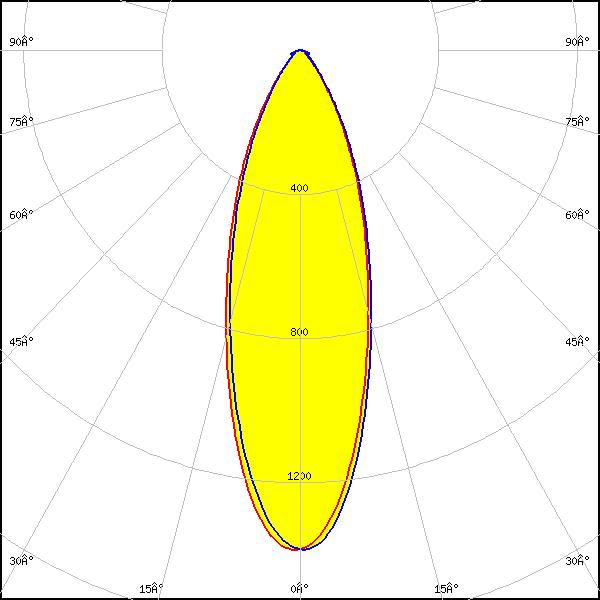

LED: CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM: 34°
FWTM: 73°
Peak intensity: 1.400 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM: 21°
FWTM: 67°
Peak intensity: 2.600 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

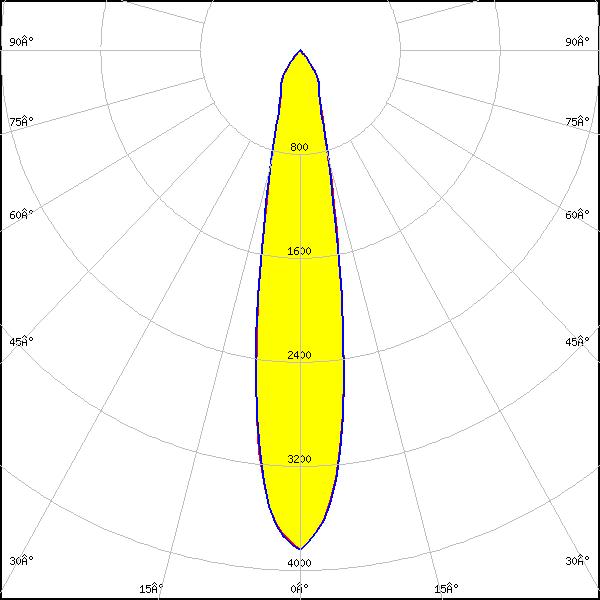

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 20°
FWTM: 48°
Peak intensity: 3.850 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

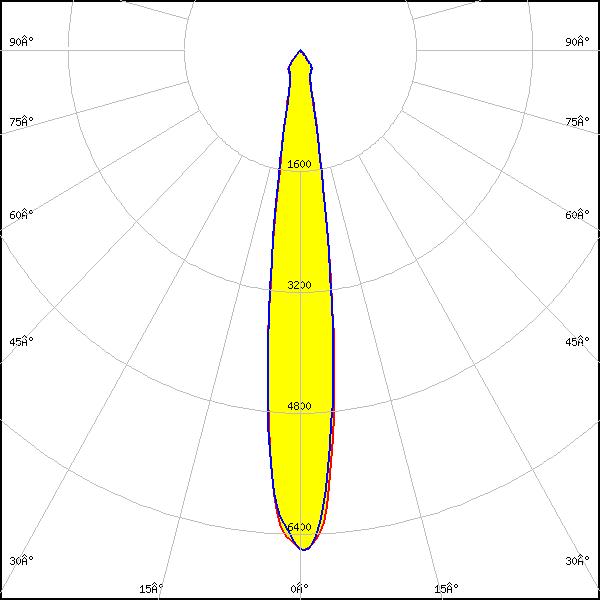

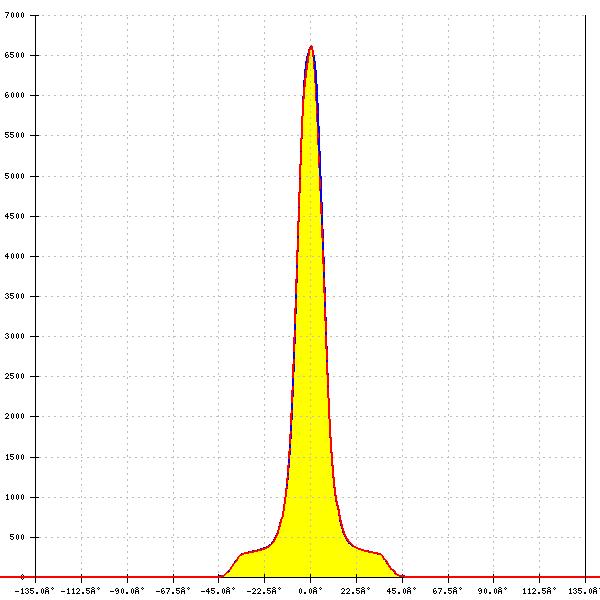

LED: CLU025/CLU027 (LES 6)
LES size: 6.0 mm
Required components:
FWHM: 15°
FWTM: 30°
Peak intensity: 6.600 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

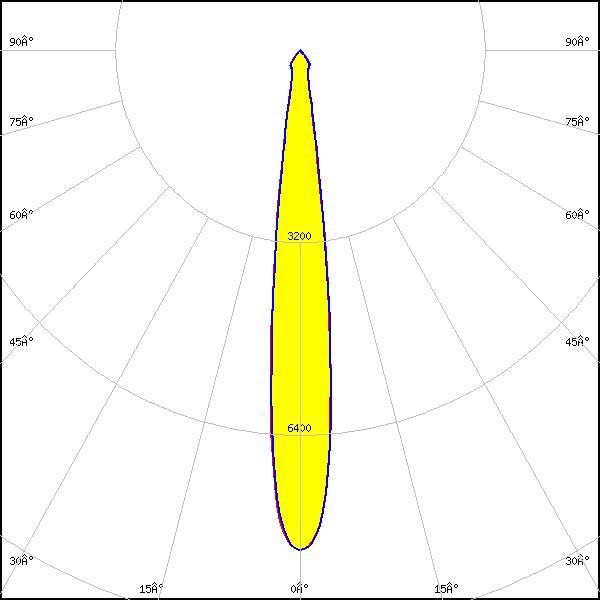

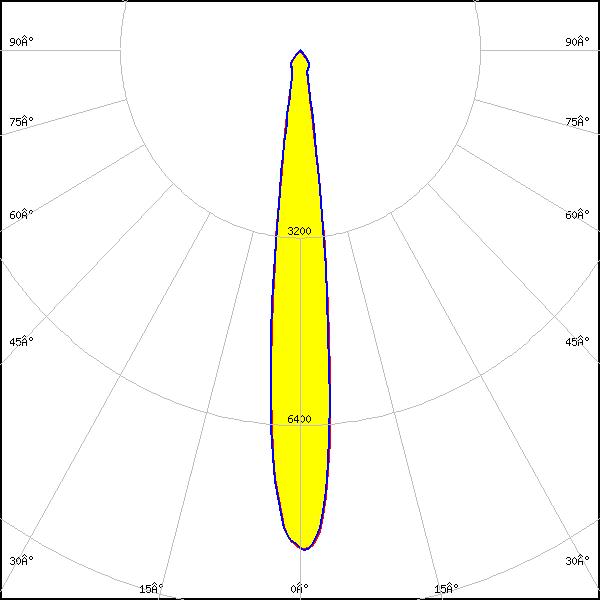

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 13°
FWTM: 25°
Peak intensity: 8.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 13°
FWTM: 26°
Peak intensity: 8.300 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

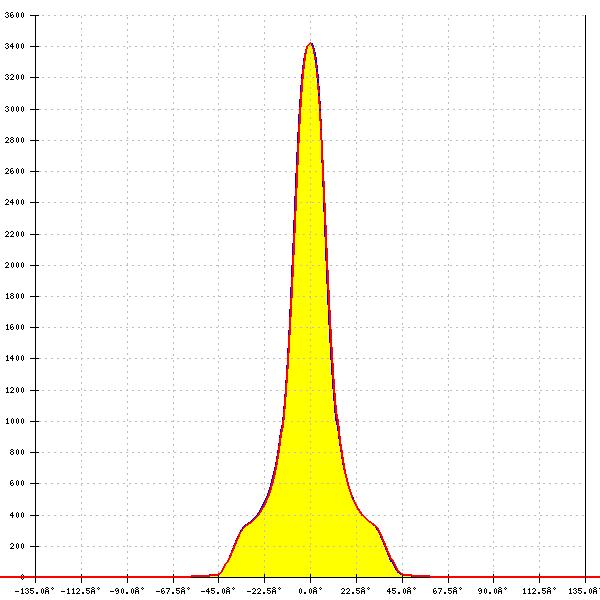

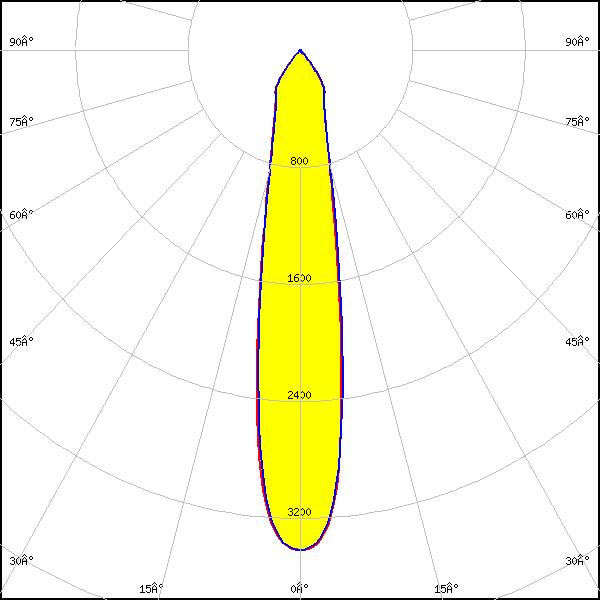

LED: CLU710/711
LES size: 8.5 mm
Required components:
FWHM: 19°
FWTM: 61°
Peak intensity: 3.400 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

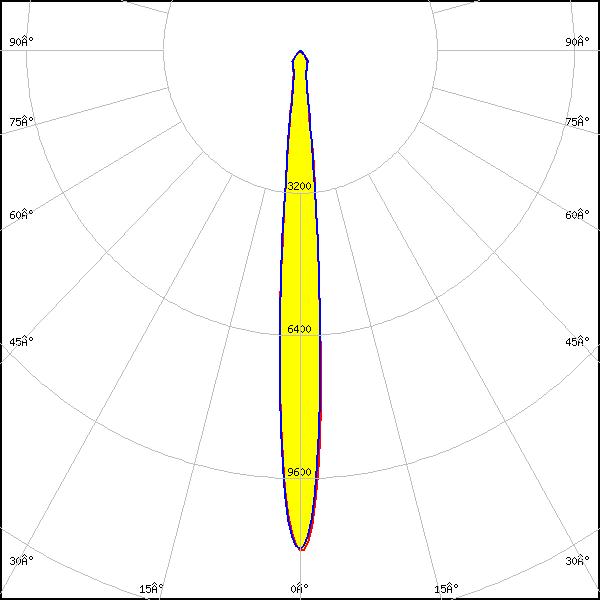

LED: CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM: 9°
FWTM: 20°
Peak intensity: 11.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

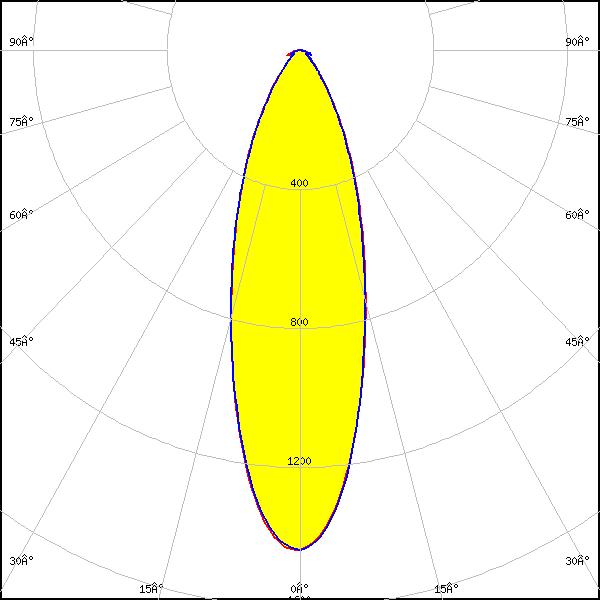

LED: LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
FWHM: 32°
FWTM: 72°
Peak intensity: 1.400 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
FWHM: 32°
FWTM: 72°
Peak intensity: 1.400 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1516
LES size: 9.0 mm
Required components:
FWHM: 21°
FWTM: 65°
Peak intensity: 3.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT14xx
LES size: 9.8 mm
Required components:
FWHM: 22°
FWTM: 67°
Peak intensity: 3.000 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

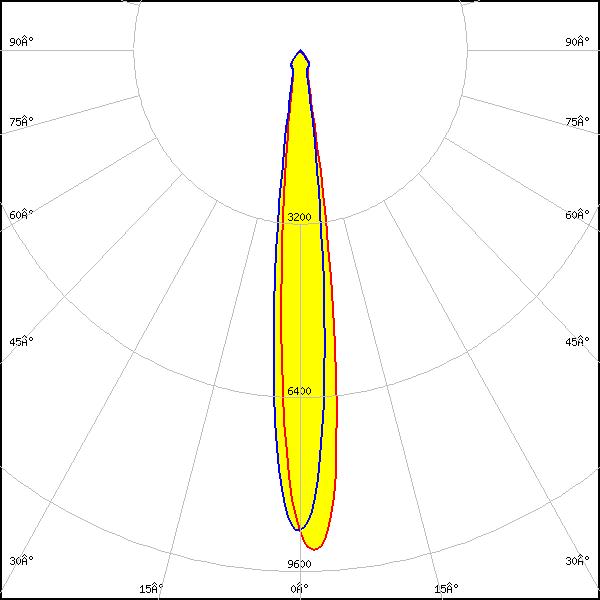

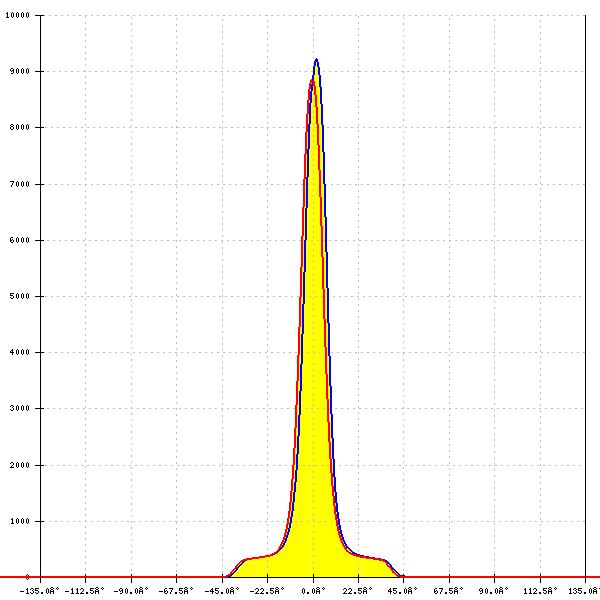

LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM: 12°
FWTM: 25°
Peak intensity: 9.200 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

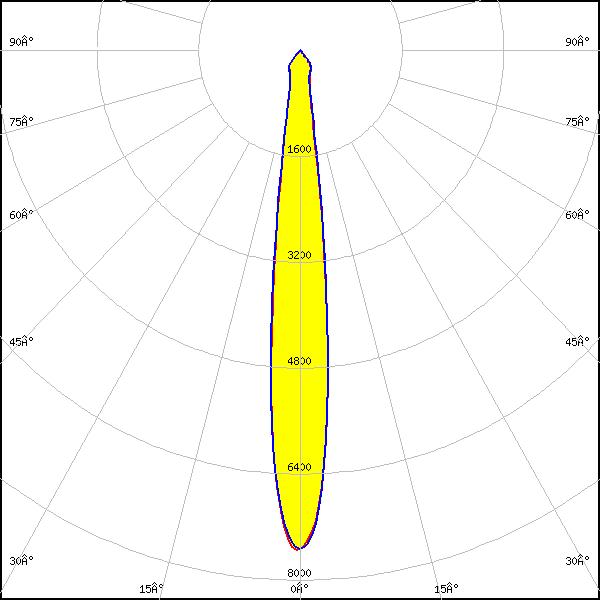

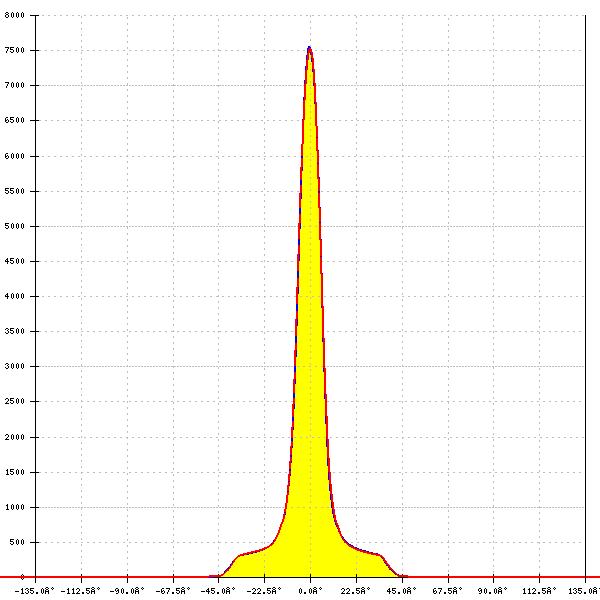

LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM: 13°
FWTM: 27°
Peak intensity: 7.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

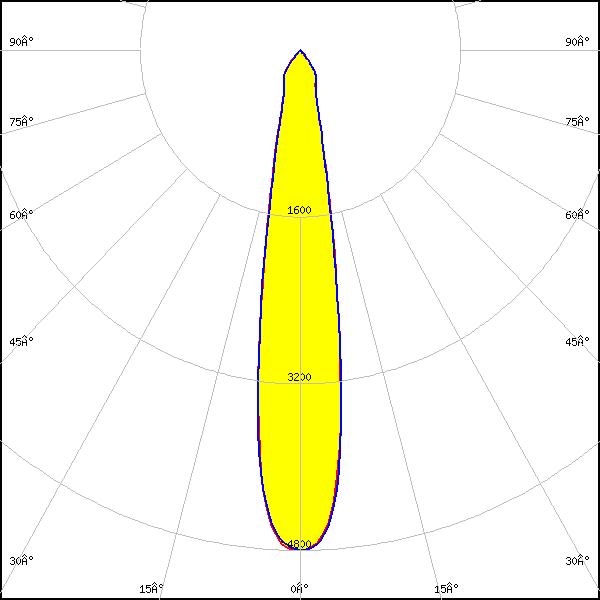

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 18°
FWTM: 40°
Peak intensity: 4.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

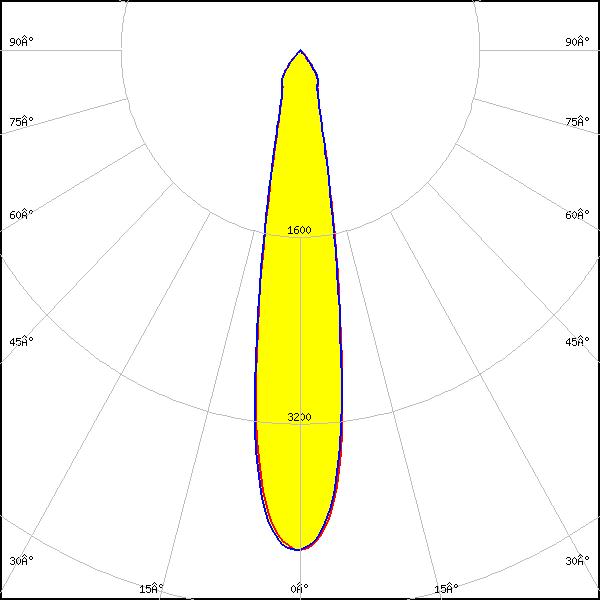

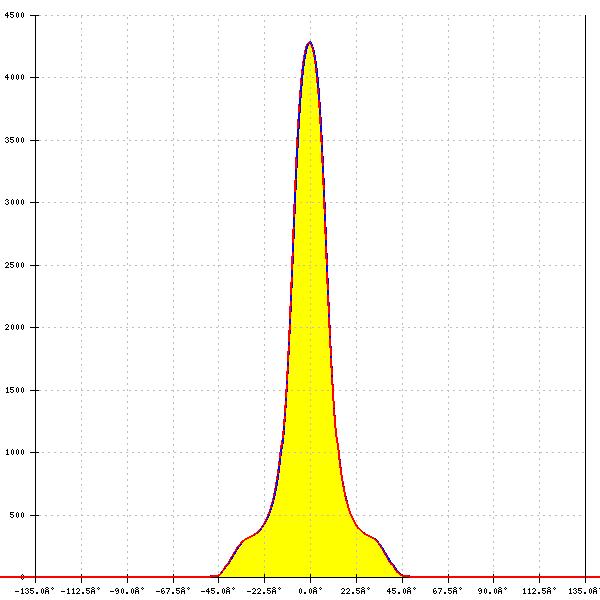

LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM: 19°
FWTM: 44°
Peak intensity: 4.300 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

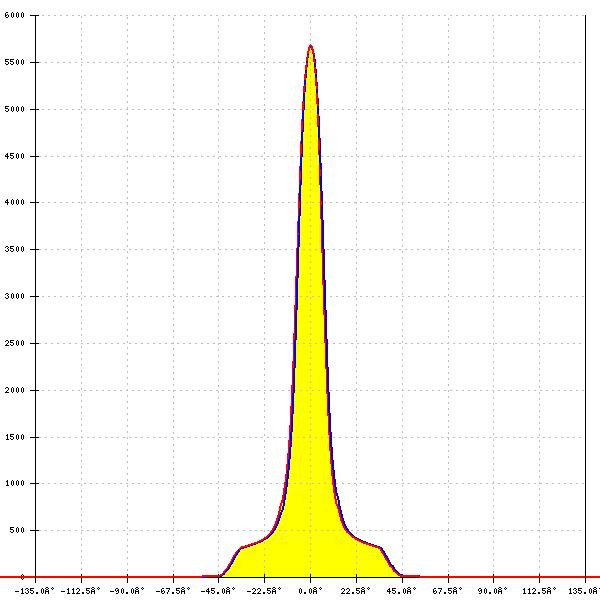

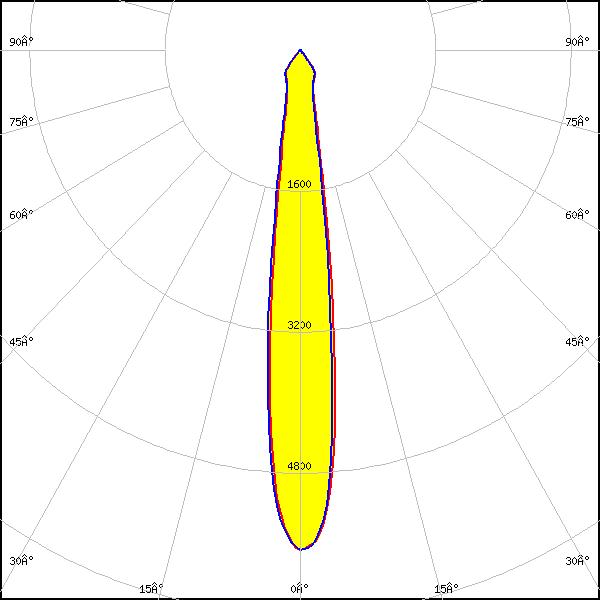

LED: LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM: 15°
FWTM: 33°
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

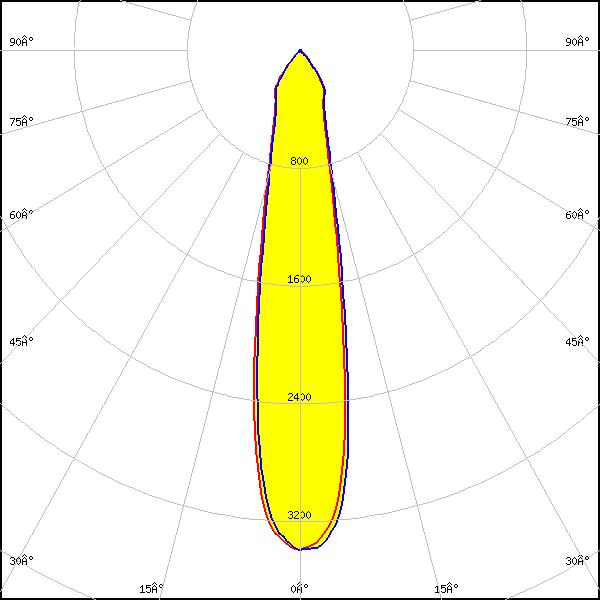

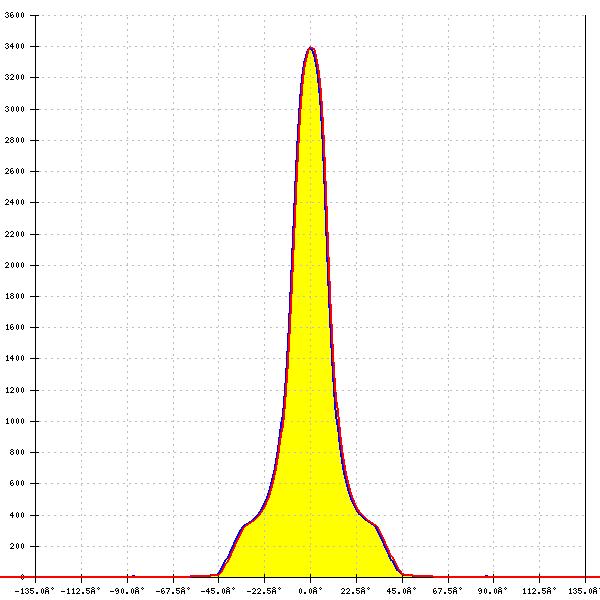

LED: LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM: 20°
FWTM: 62°
Peak intensity: 3.400 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

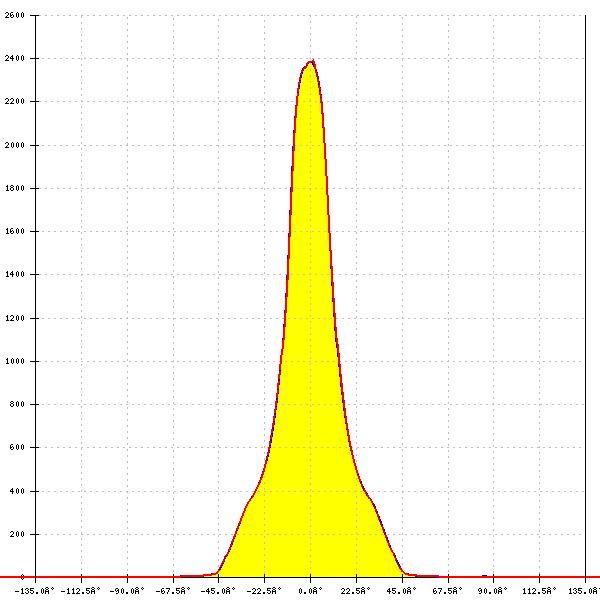

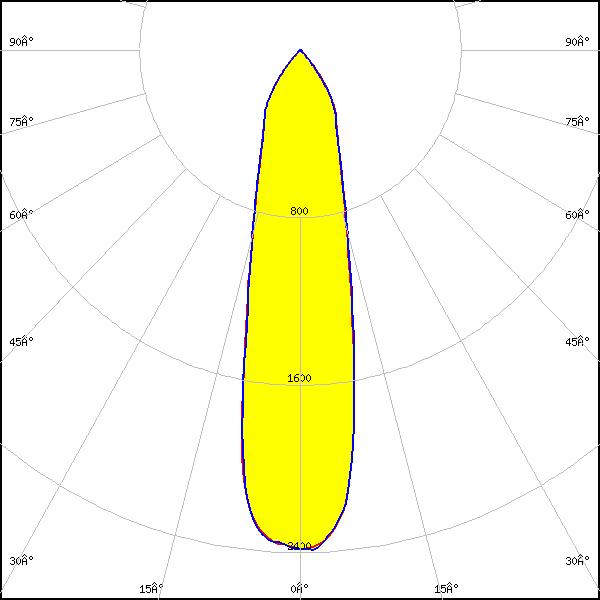

LED: LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM: 25°
FWTM: 71°
Peak intensity: 2.400 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

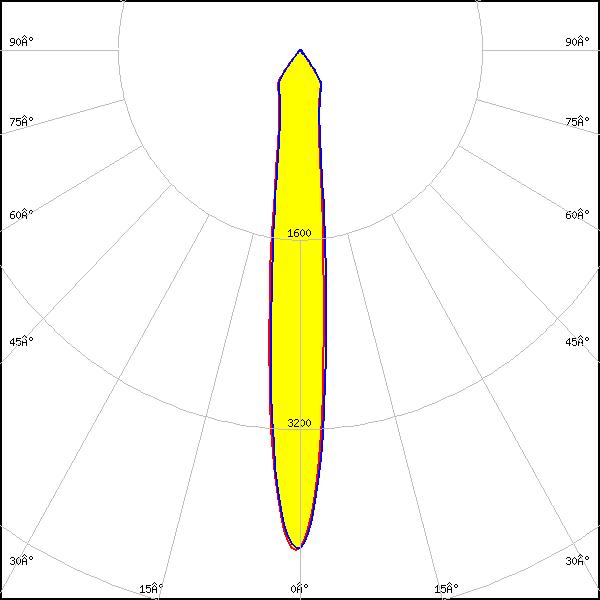

LED: LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 13°
FWTM: 51°
Peak intensity: 4.222 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 28°
FWTM: 72°
Peak intensity: 1.629 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

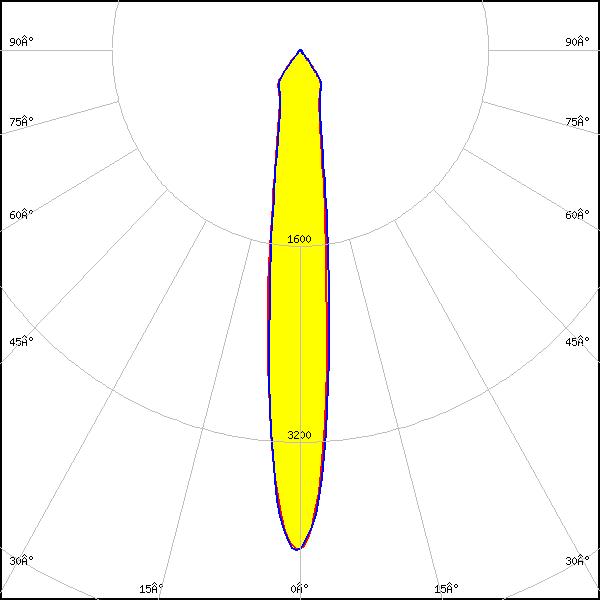

LED: LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 15°
FWTM: 50°
Peak intensity: 4.086 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

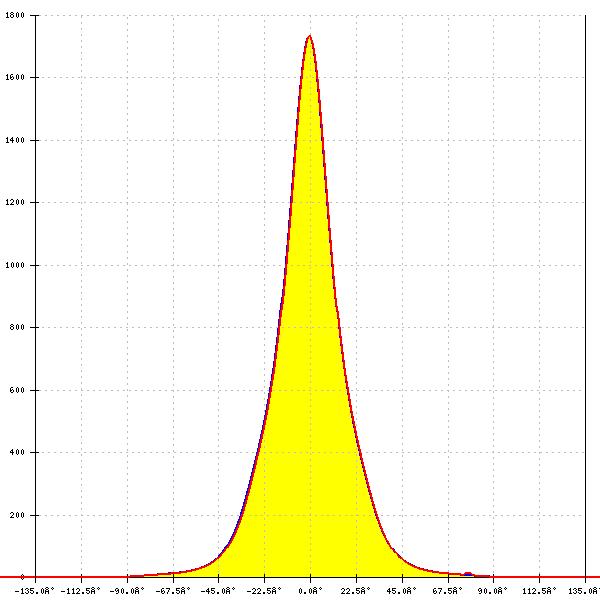

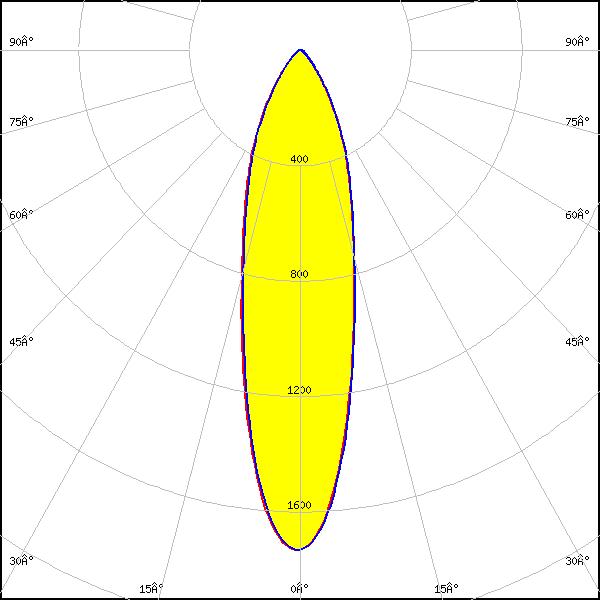

LED: LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 27°
FWTM: 70°
Peak intensity: 1.733 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

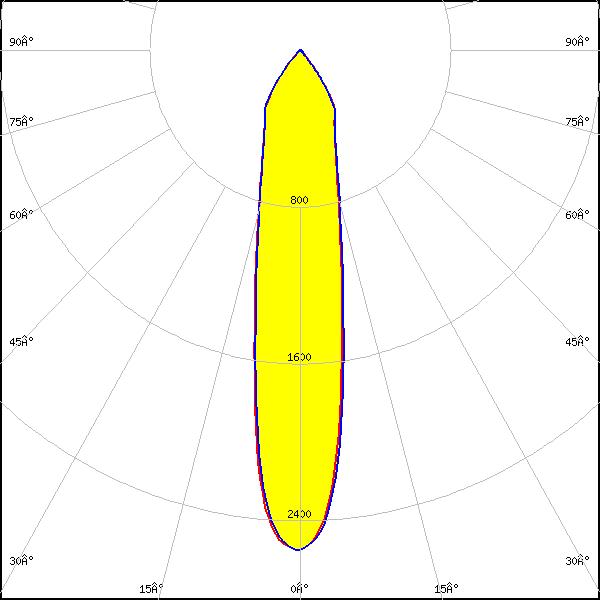

LED: LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 21°
FWTM: 71°
Peak intensity: 2.551 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 32°
FWTM: 74°
Peak intensity: 1.489 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM: 26°
FWTM: 74°
Peak intensity: 1.923 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
C13723_MIRELLA-RZL
FWHM: 38°
FWTM: 77°
Peak intensity: 1.230 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

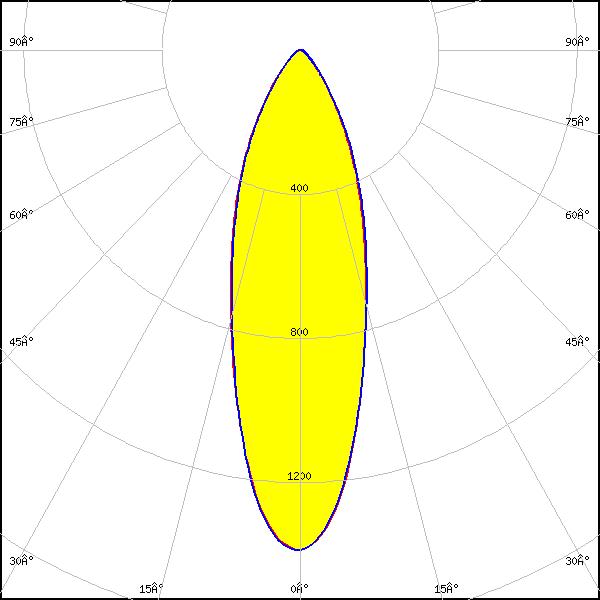

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
C13723_MIRELLA-RZL
FWHM: 33°
FWTM: 75°
Peak intensity: 1.389 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

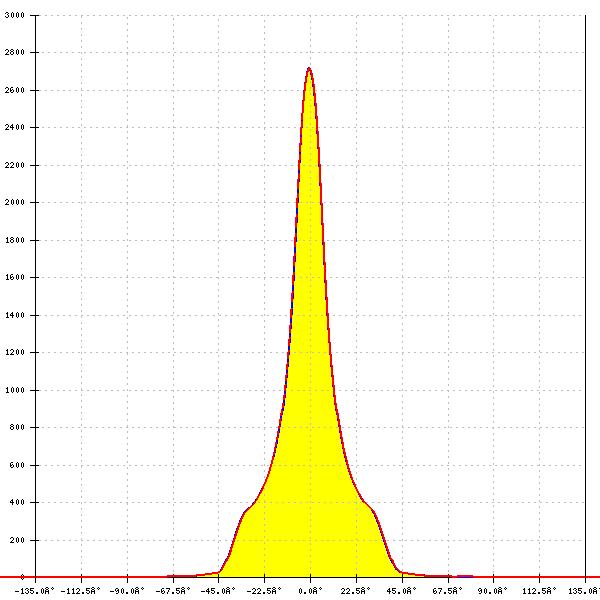

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM: 19°
FWTM: 70°
Peak intensity: 2.722 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

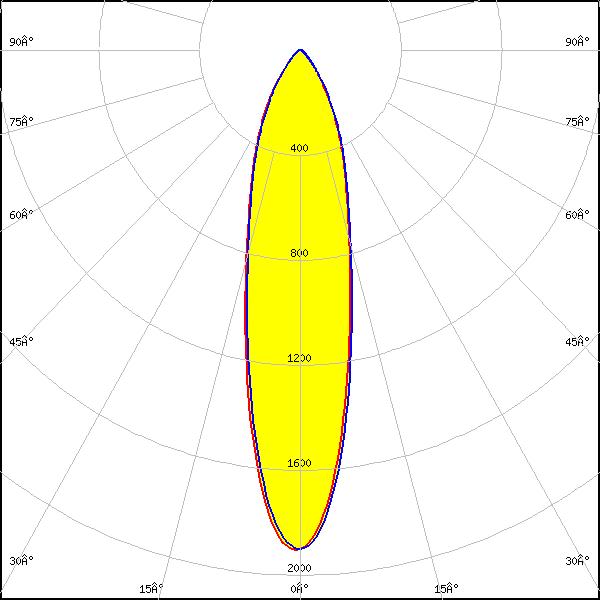

LED: LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 25°
FWTM: 68°
Peak intensity: 1.906 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

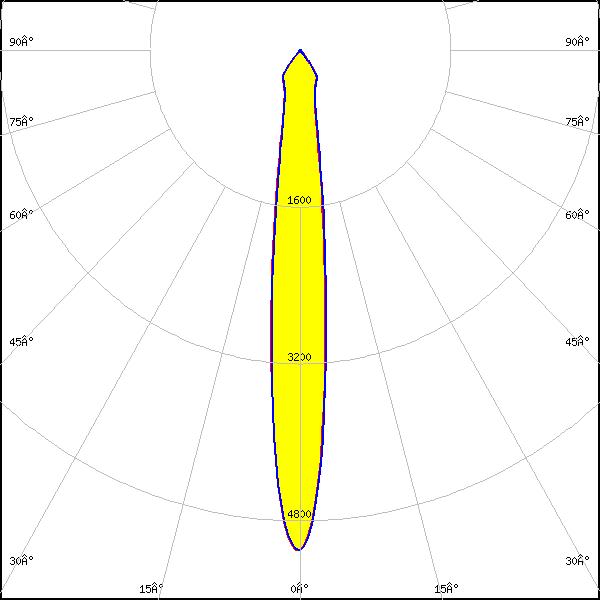

LED: LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 13°
FWTM: 37°
Peak intensity: 5.103 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

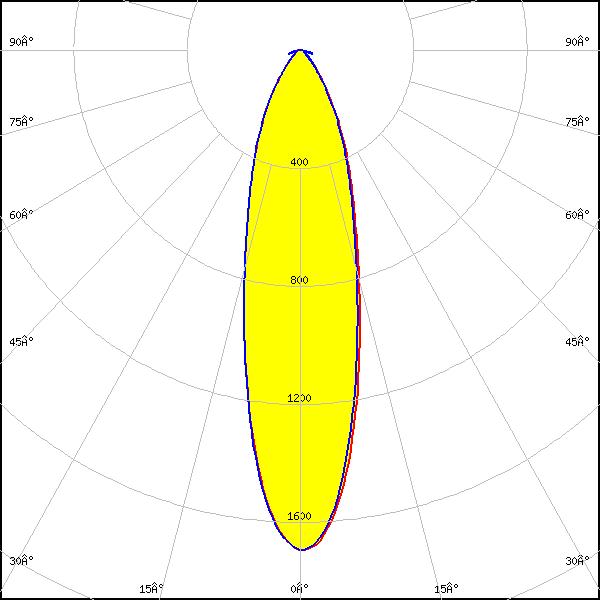

LED: CDM-6 (Dim-To-Warm)
LES size: 6.8 mm
Required components:
FWHM: 28°
FWTM: 69°
Peak intensity: 1.700 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

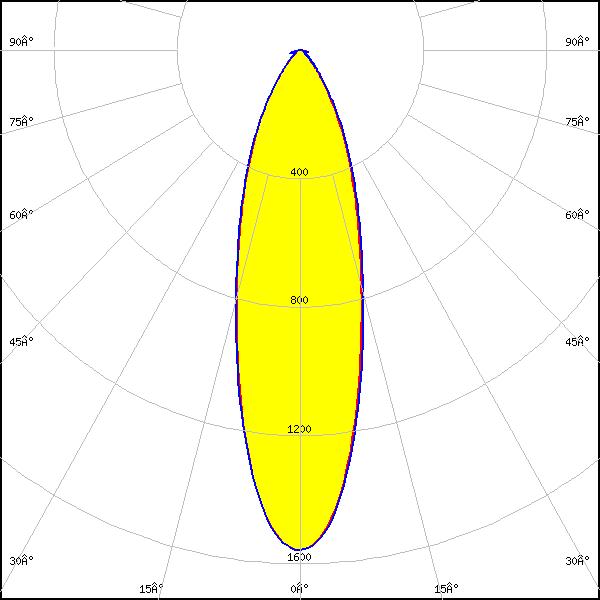

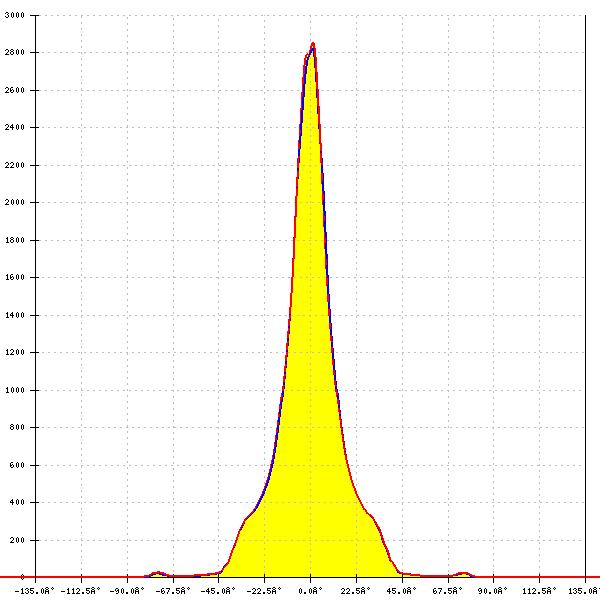

LED: CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 20°
FWTM: 65°
Peak intensity: 2.900 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

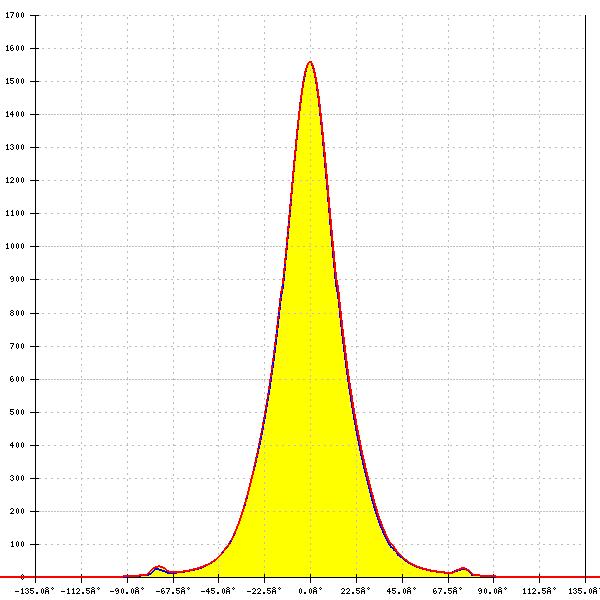

LED: CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM: 30°
FWTM: 71°
Peak intensity: 1.600 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-9 (Tunable White)
LES size: 9.5 mm
Required components:
FWHM: 32°
FWTM: 72°
Peak intensity: 1.500 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
LED: CXM-4
LES size: 4.5 mm
Required components:
FWHM: 11°
FWTM: 19°
Peak intensity: 12.409 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

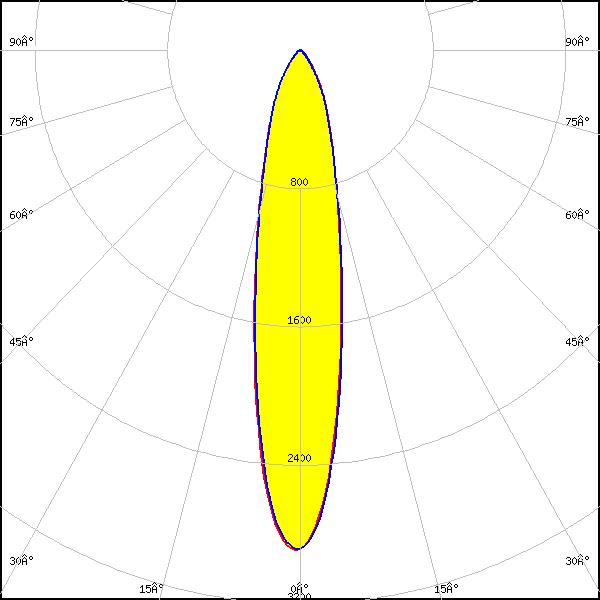

LED: CXM-4
LES size: 4.5 mm
Required components:
FWHM: 21°
FWTM: 57°
Peak intensity: 2.895 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

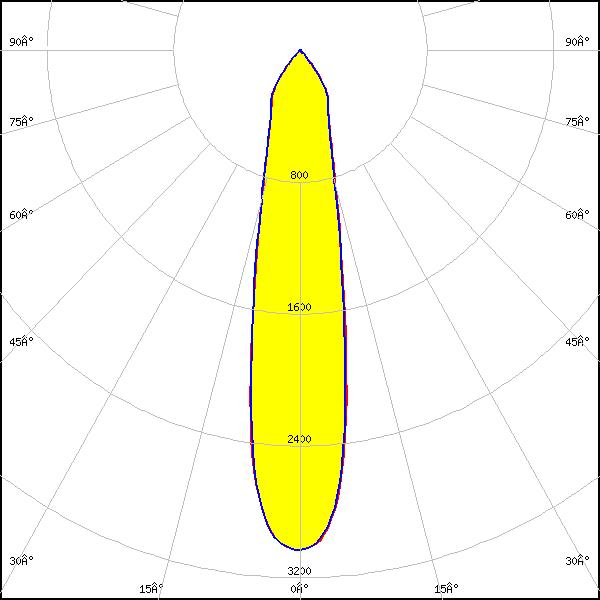

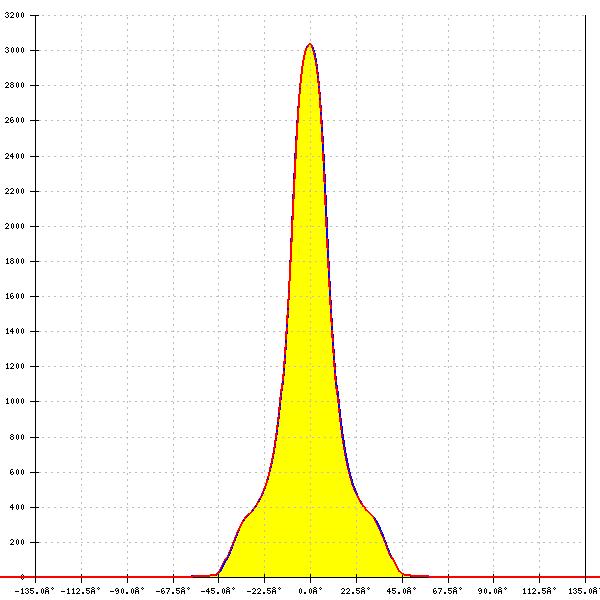

LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 22°
FWTM: 67°
Peak intensity: 3.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

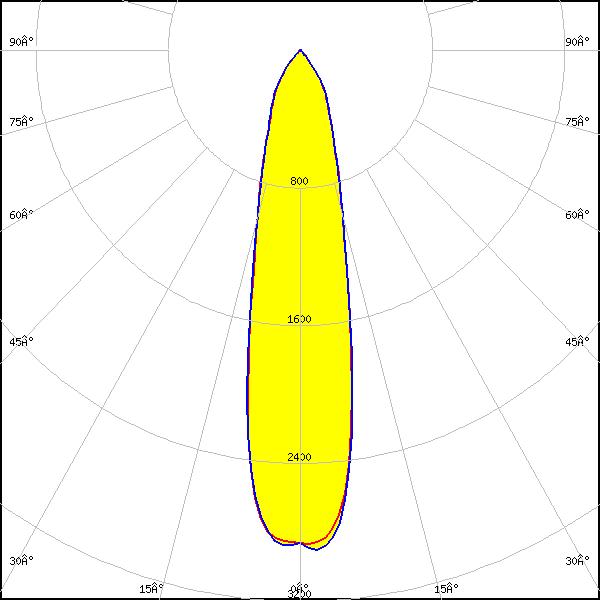

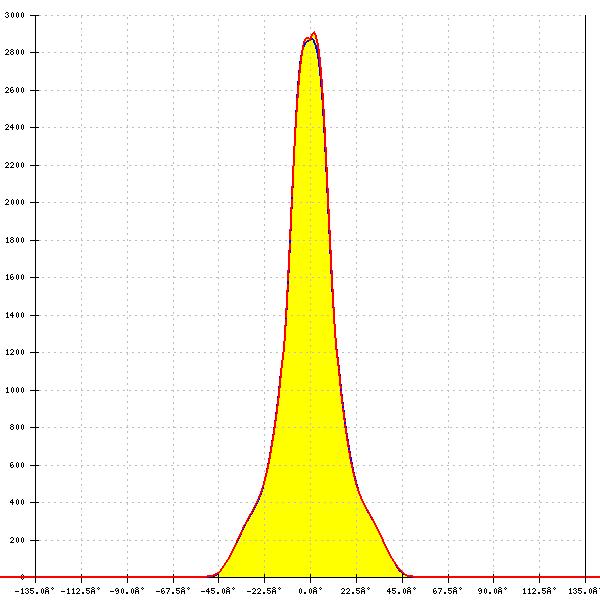

LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: 23°
FWTM: 63°
Peak intensity: 2.910 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
LES size: 5.9 mm
Required components:
FWHM: 14°
FWTM: 29°
Peak intensity: 7.360 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM: 30°
FWTM: 69°
Peak intensity: 1.600 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM: 34°
FWTM: 73°
Peak intensity: 1.400 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

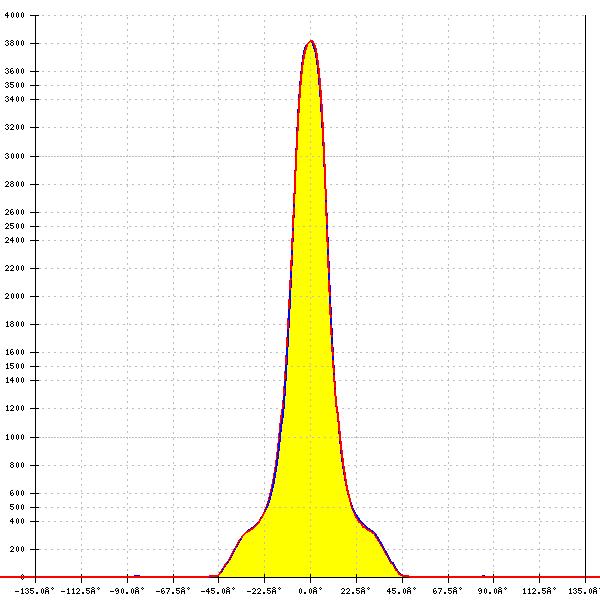

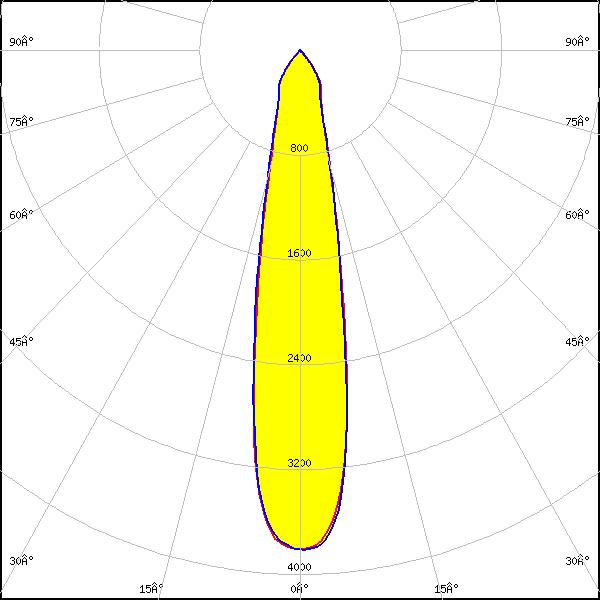

LED: Soleriq S9
LES size: 9.8 mm
Required components:
FWHM: 21°
FWTM: 51°
Peak intensity: 3.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

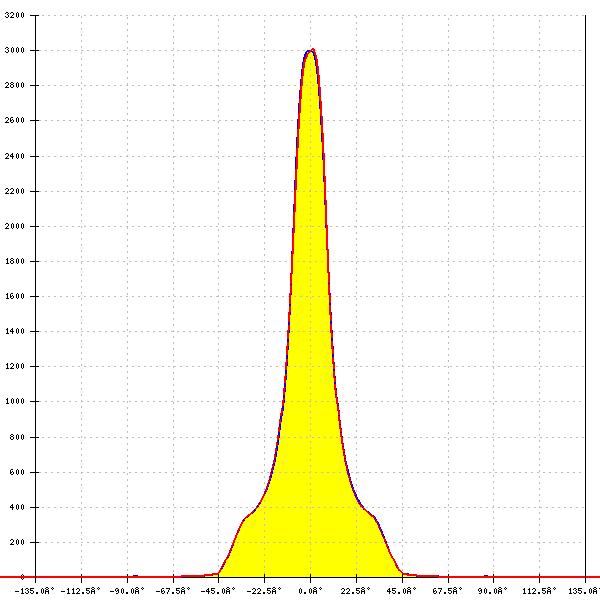

LED: Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM: 20°
FWTM: 67°
Peak intensity: 3.000 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

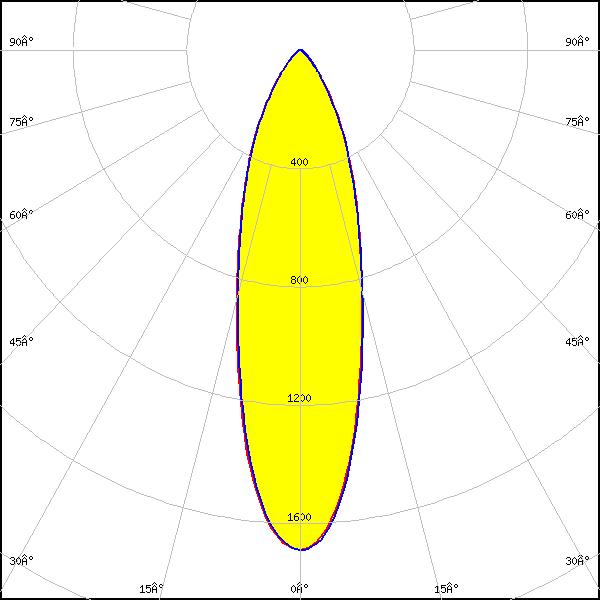

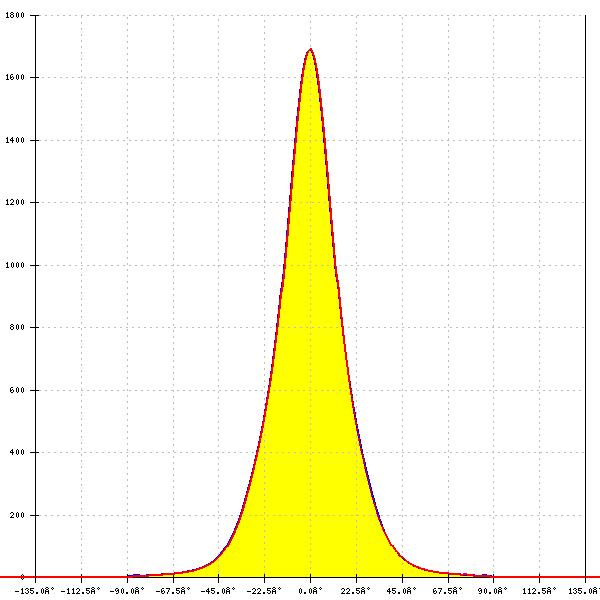

LED: Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM: 30°
FWTM: 71°
Peak intensity: 1.700 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

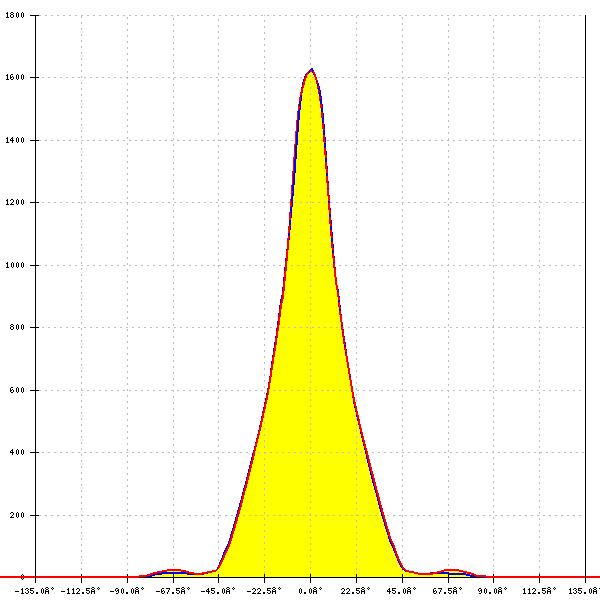

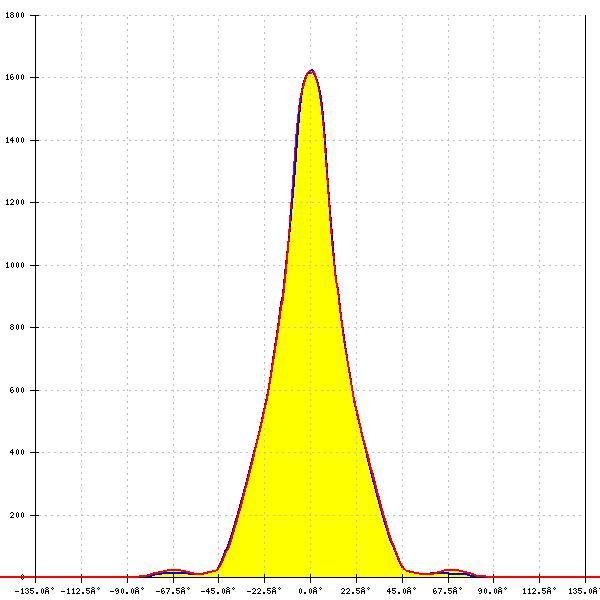

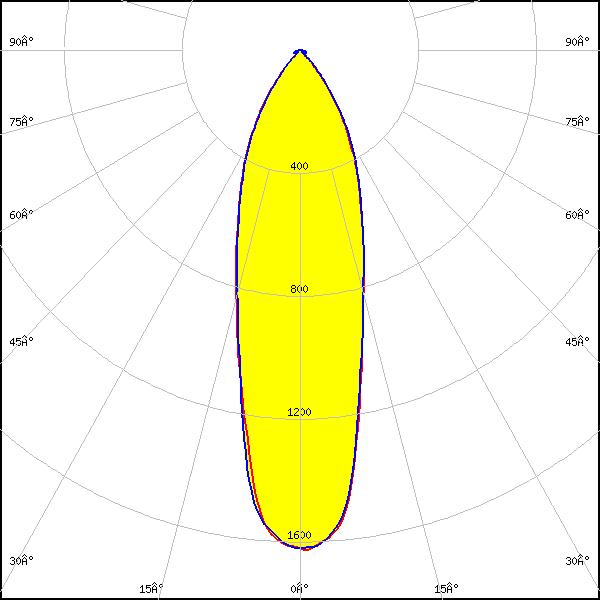

LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 30°
FWTM: 75°
Peak intensity: 1.600 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

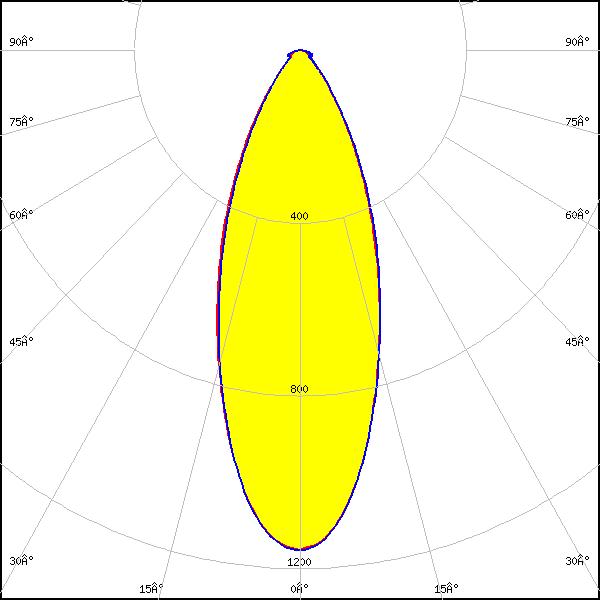

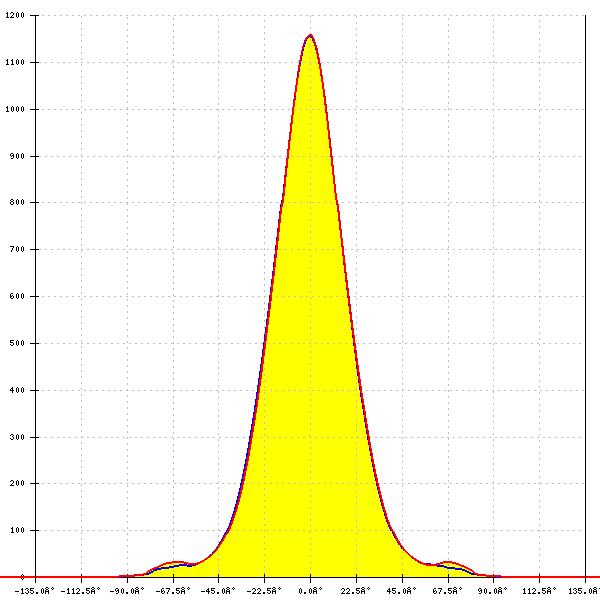

LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM: 39°
FWTM: 78°
Peak intensity: 1.200 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

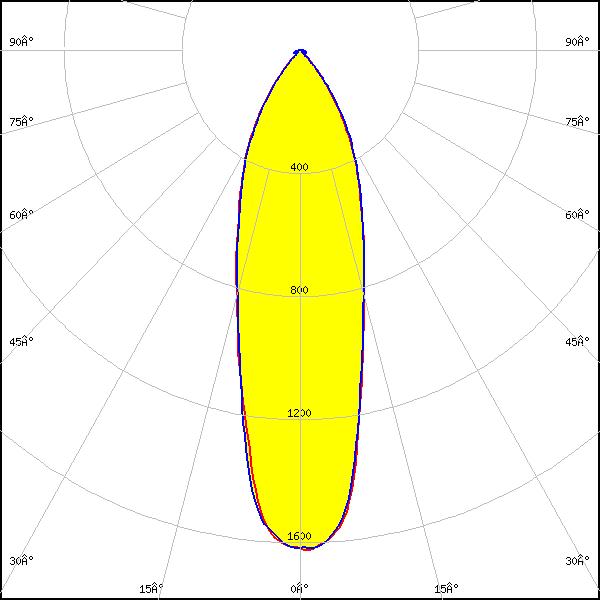

LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 30°
FWTM: 75°
Peak intensity: 1.600 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM: 39°
FWTM: 78°
Peak intensity: 1.200 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

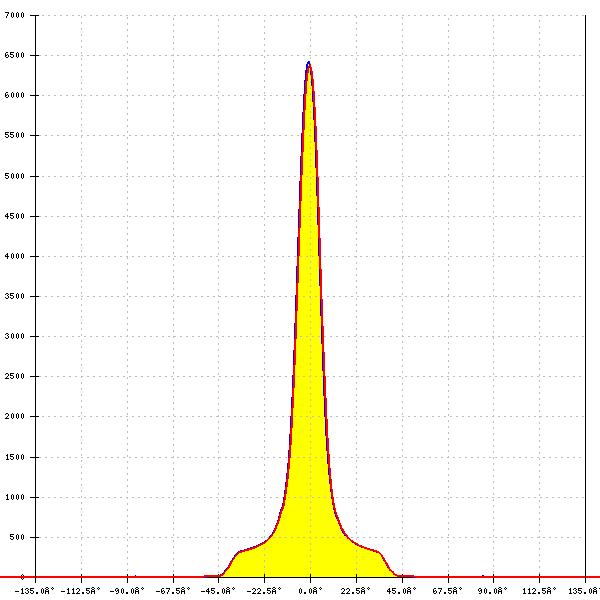

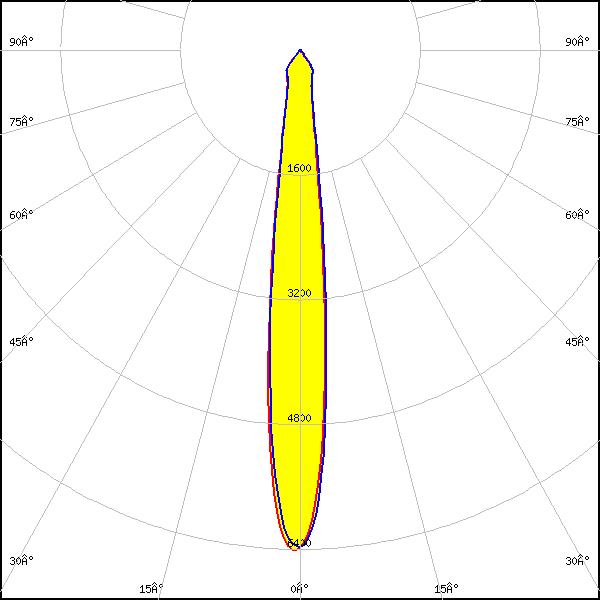

LED: LC010C G2
LES size: 6.0 mm
Required components:
FWHM: 13°
FWTM: 31°
Peak intensity: 6.400 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

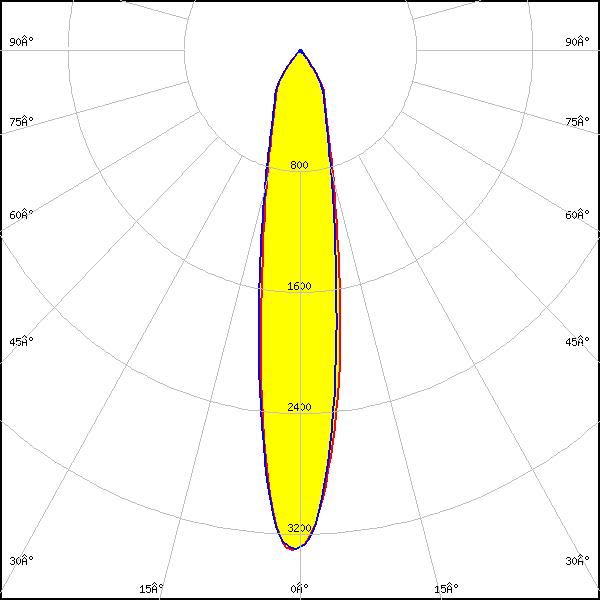

LED: LC010T (Tunable White)
LES size: 9.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 19°
FWTM: 61°
Peak intensity: 3.313 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: Tunable White

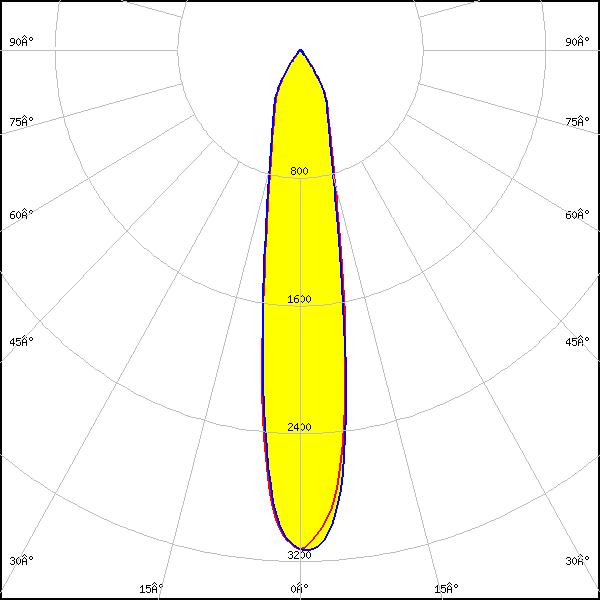

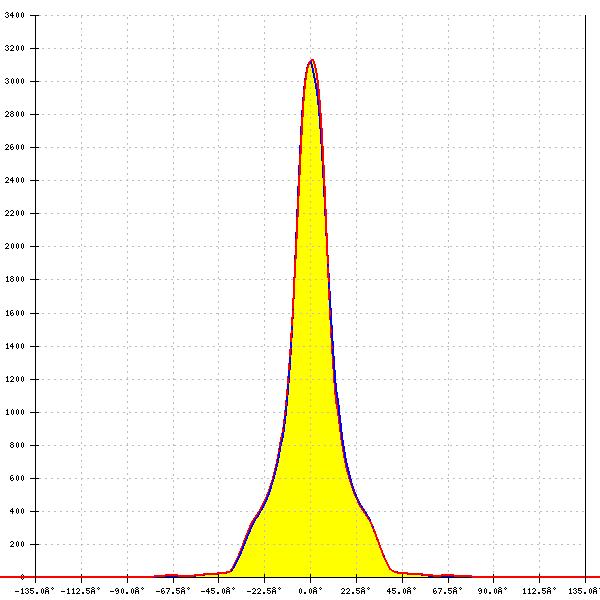

LED: LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM: 19°
FWTM: 59°
Peak intensity: 3.131 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: Tunable White

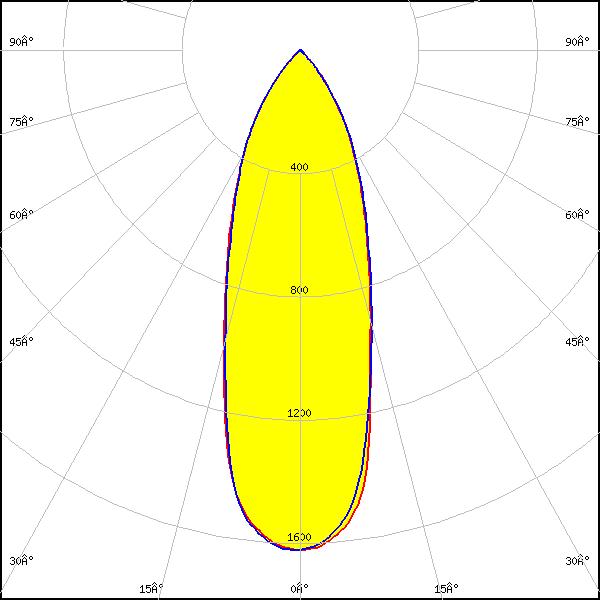

LED: LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM: 39°
FWTM: 76°
Peak intensity: 1.300 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

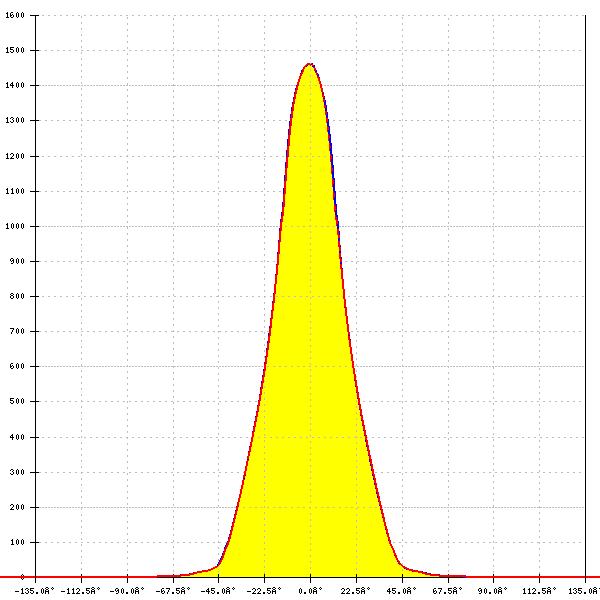

LED: LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM: 37°
FWTM: 75°
Peak intensity: 1.500 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

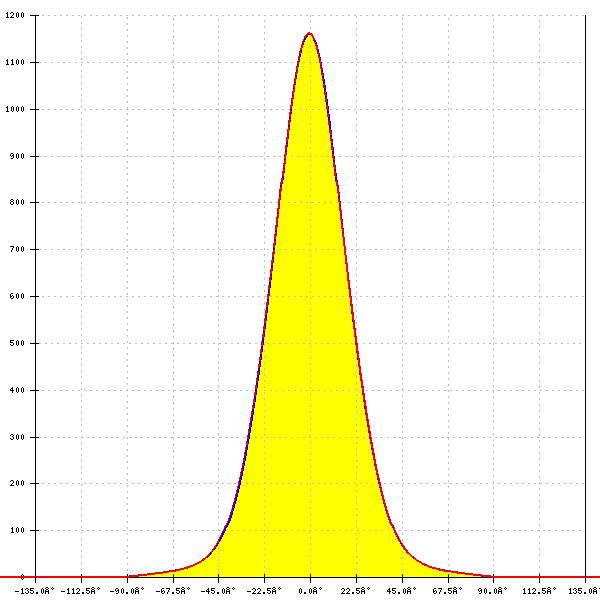

LED: LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM: 41°
FWTM: 80°
Peak intensity: 1.200 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

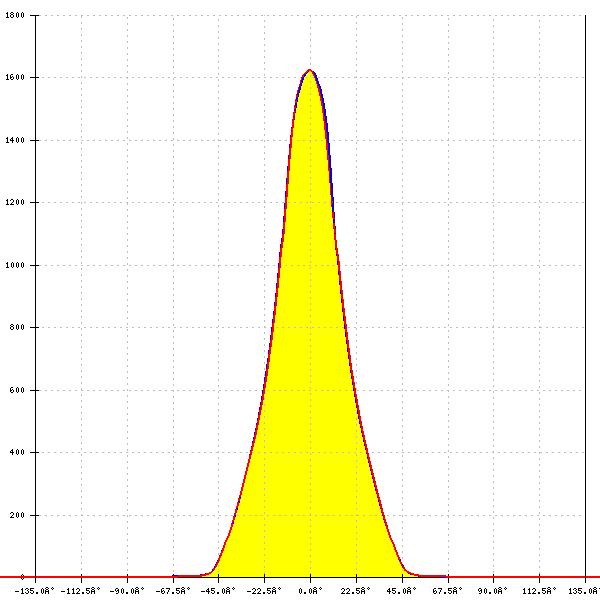

LED: LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM: 35°
FWTM: 77°
Peak intensity: 1.600 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: LC020C
LES size: 8.0 mm
Required components:
FWHM: 18°
FWTM: 44°
Peak intensity: 4.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LC020C G2
LES size: 8.5 mm
Required components:
FWHM: 20°
FWTM: 62°
Peak intensity: 3.400 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

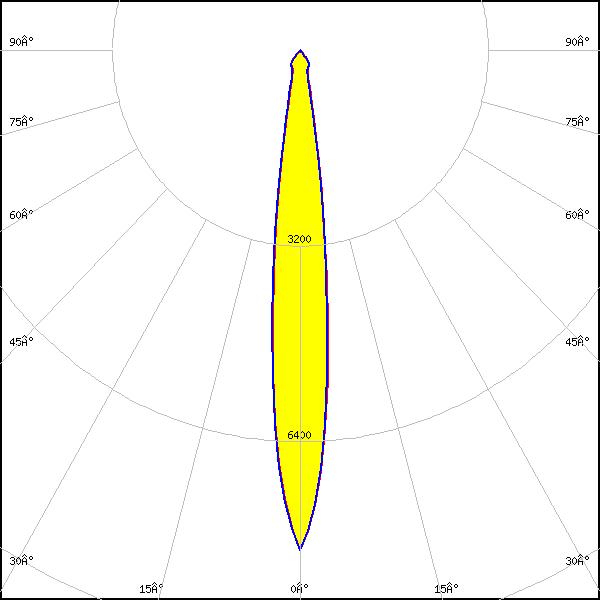

LED: MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM: 13°
FWTM: 27°
Peak intensity: 8.177 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

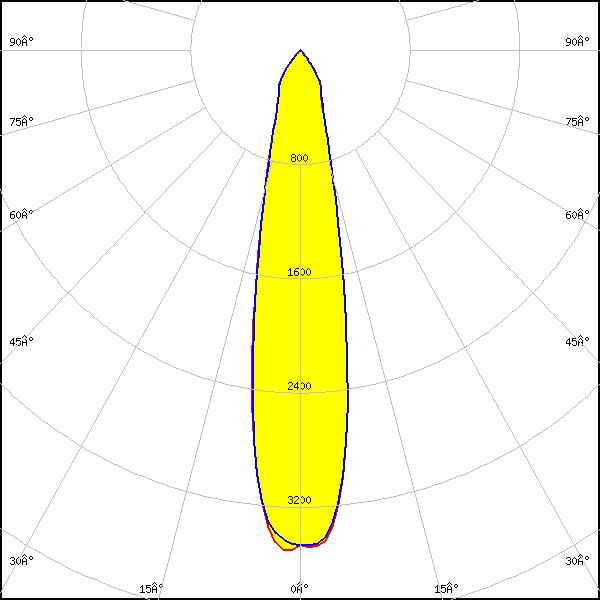

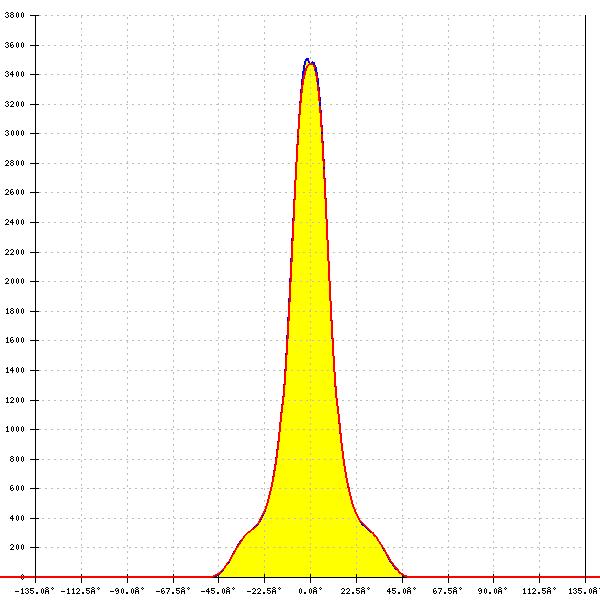

LED: MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM: 22°
FWTM: 53°
Peak intensity: 3.505 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM: 21°
FWTM: 66°
Peak intensity: 3.300 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

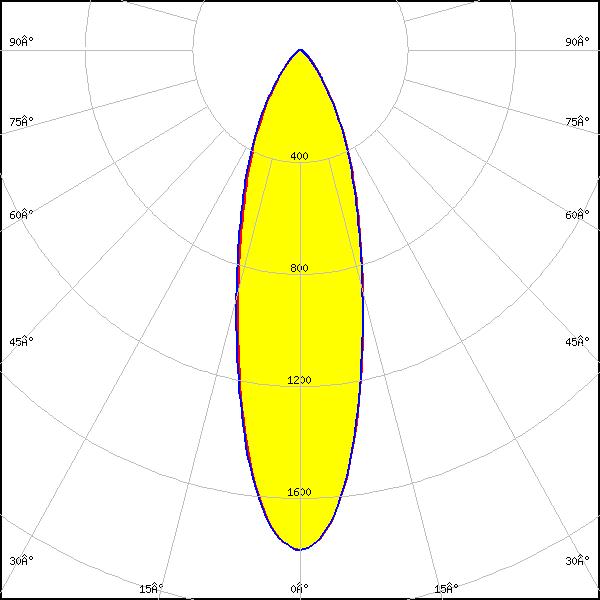

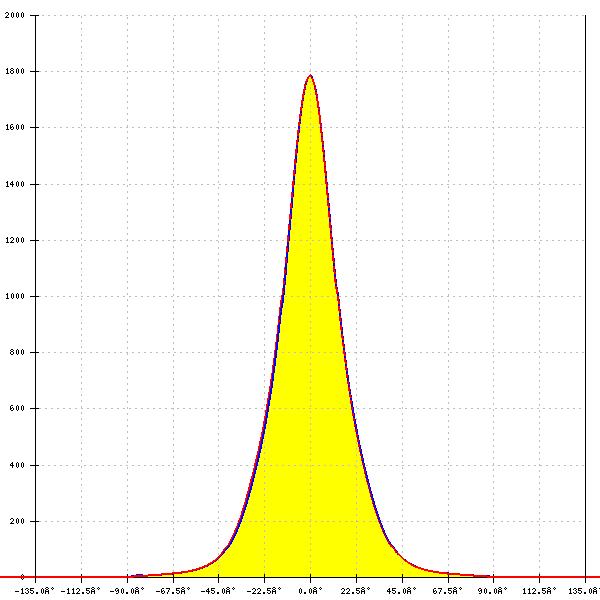

LED: SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM: 30°
FWTM: 71°
Peak intensity: 1.800 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM: 31°
FWTM: 76°
Peak intensity: 1.800 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

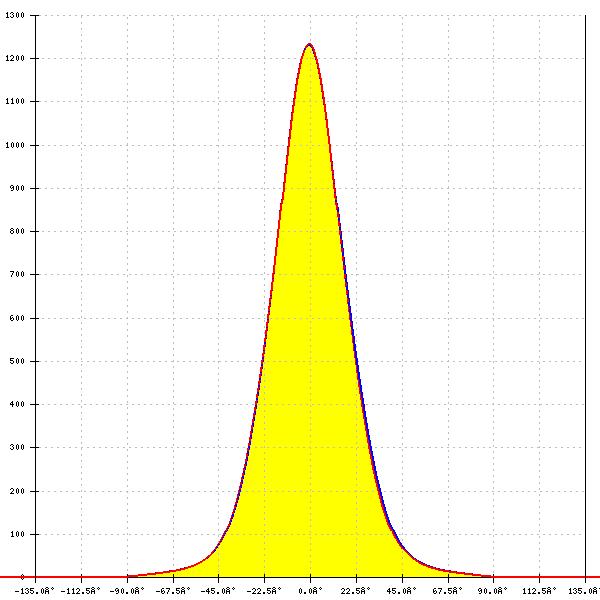

LED: SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM: 39°
FWTM: 79°
Peak intensity: 1.200 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

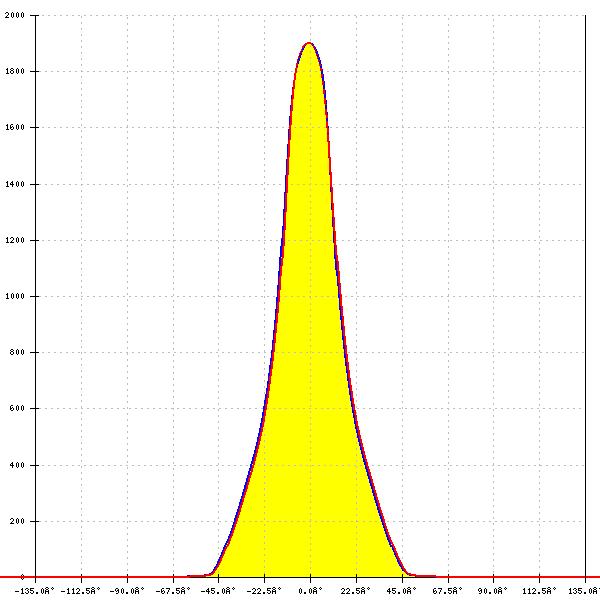

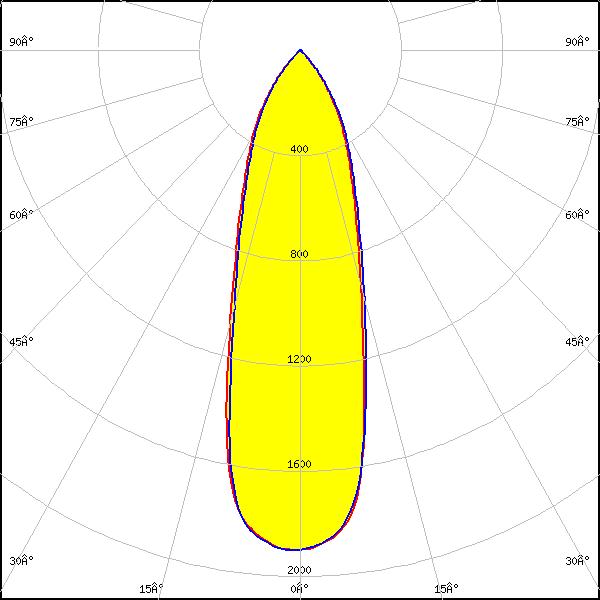

LED: XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM: 31°
FWTM: 74°
Peak intensity: 1.902 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

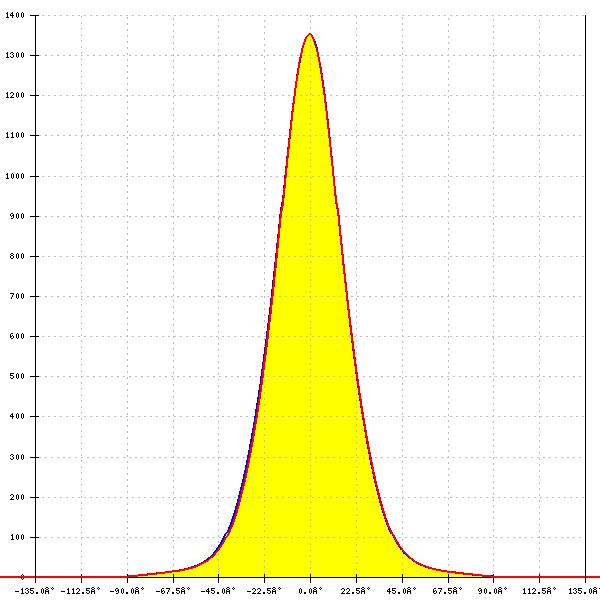

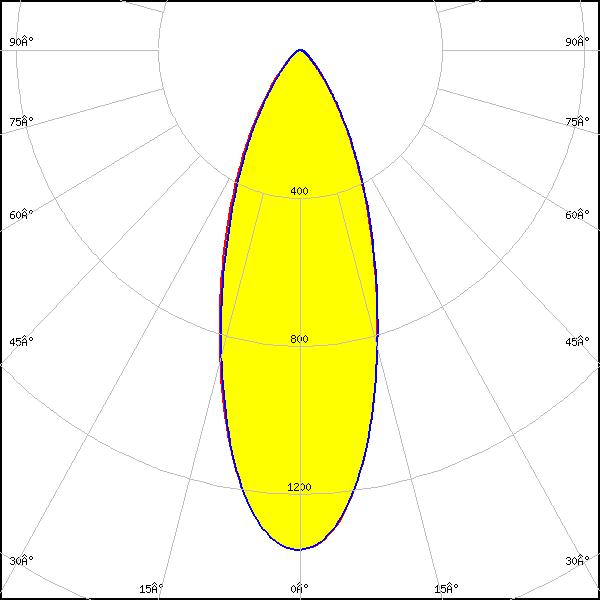

LED: XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM: 38°
FWTM: 77°
Peak intensity: 1.352 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

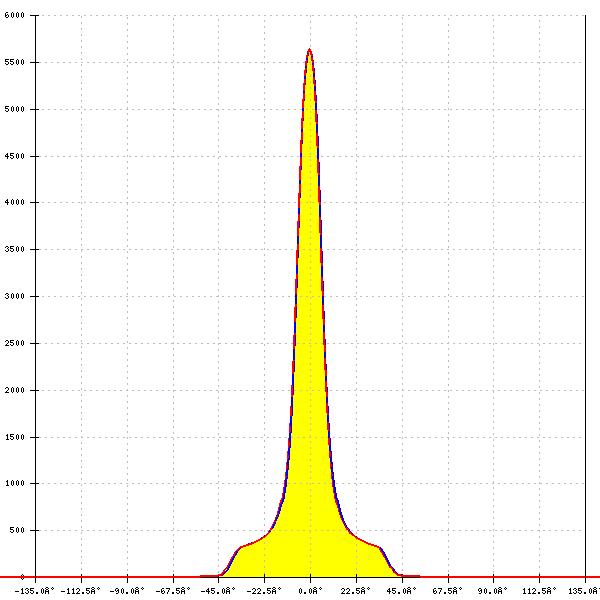

LED: XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM: 14°
FWTM: 34°
Peak intensity: 5.634 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

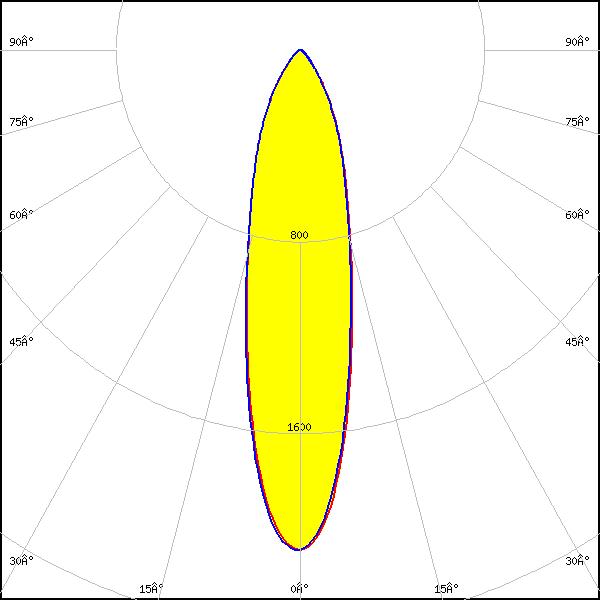

LED: XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM: 25°
FWTM: 66°
Peak intensity: 2.087 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

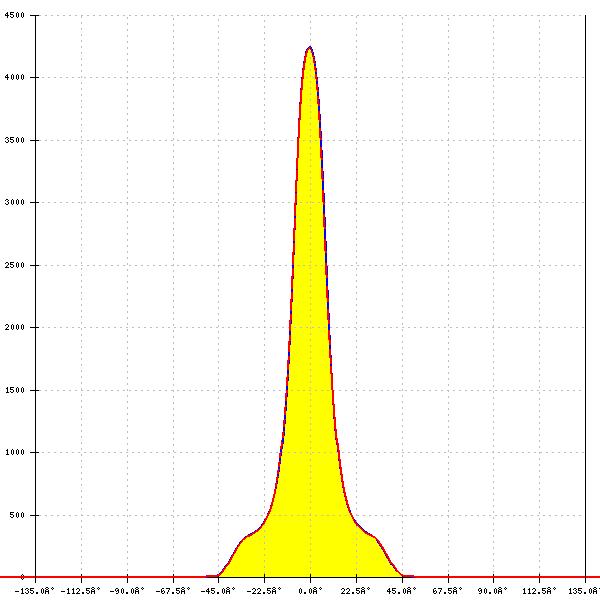

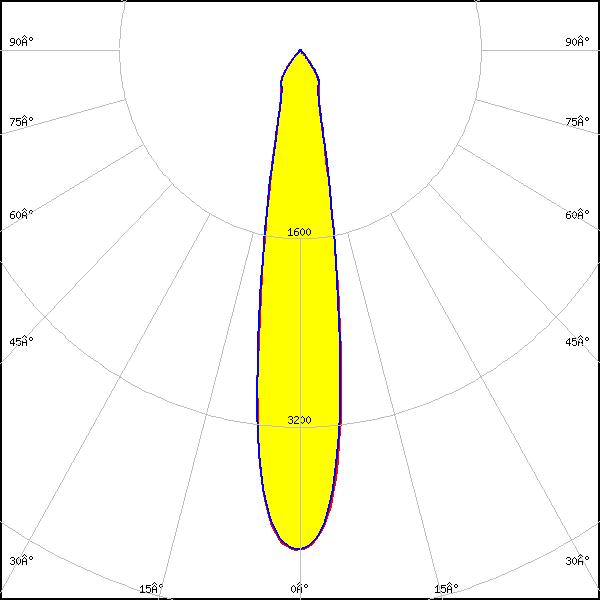

LED: XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM: 19°
FWTM: 46°
Peak intensity: 4.246 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

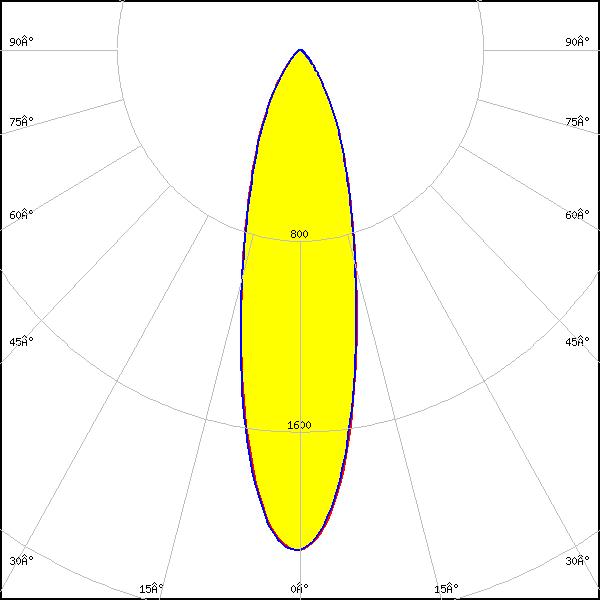

LED: XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM: 28°
FWTM: 67°
Peak intensity: 2.096 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
