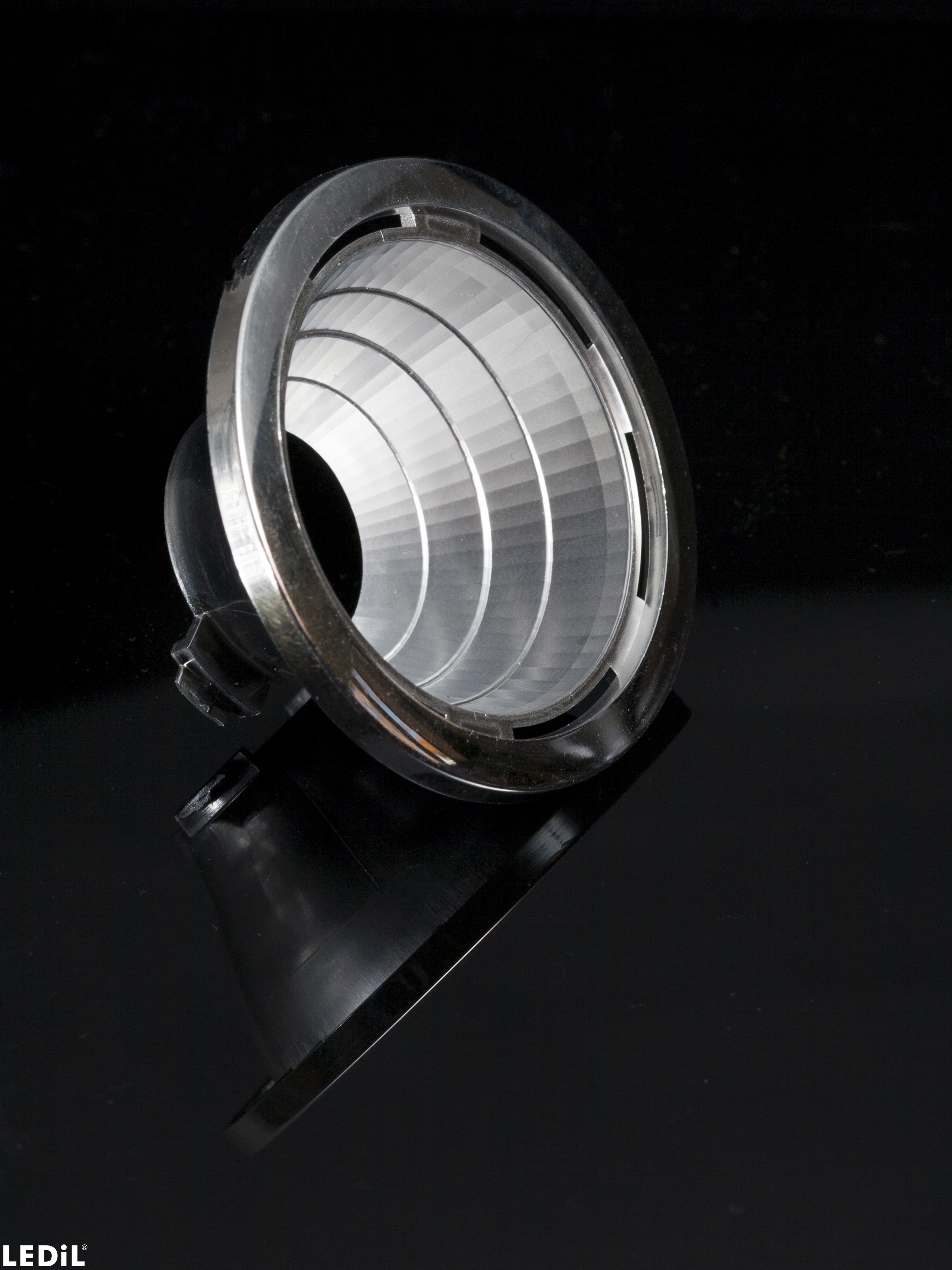

F15559_MIRELLA-G2-M

Print

~25° wide beam. Compatible with LEDiL HEKLA.

Specification
  • Dimensions:
    50 mm
  • Height:
    22.58 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    336 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    3.2 kg
  • MPQ:
    28 pcs
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15559_MIRELLA-G2-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

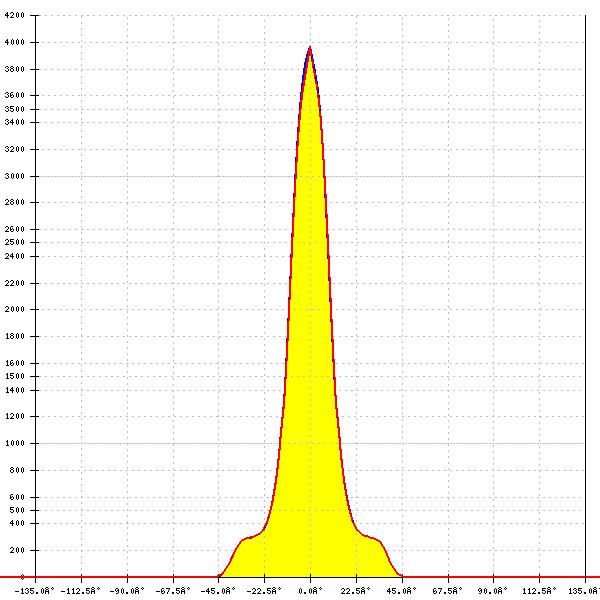

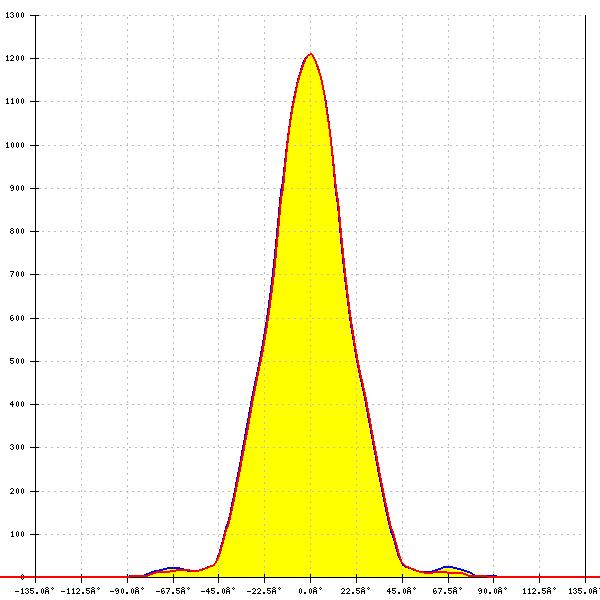

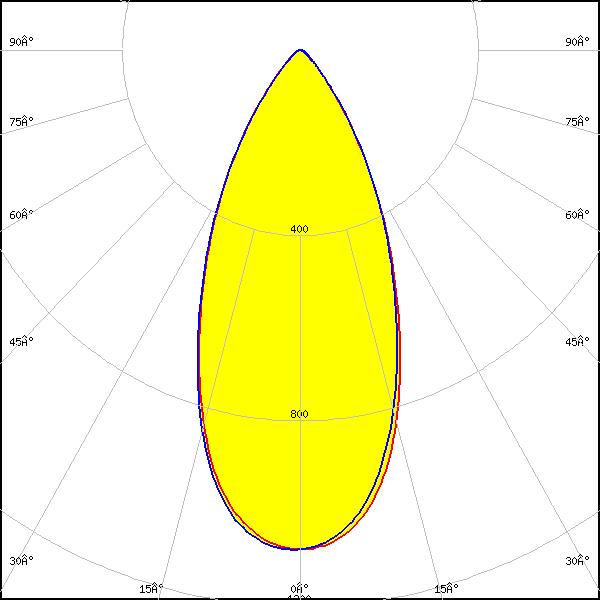

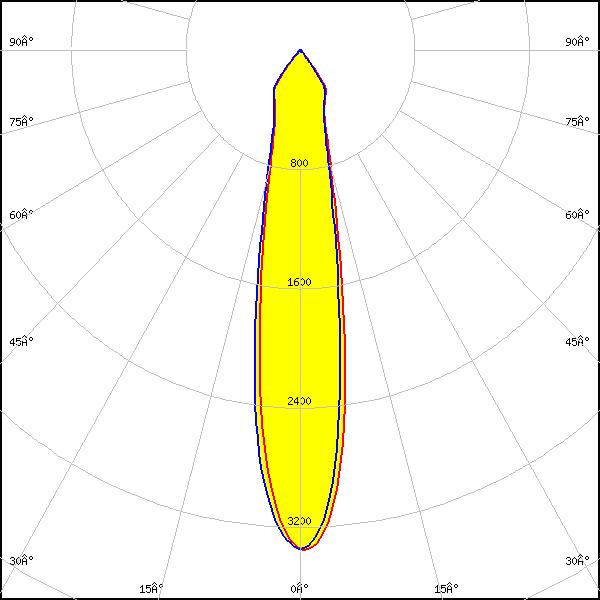

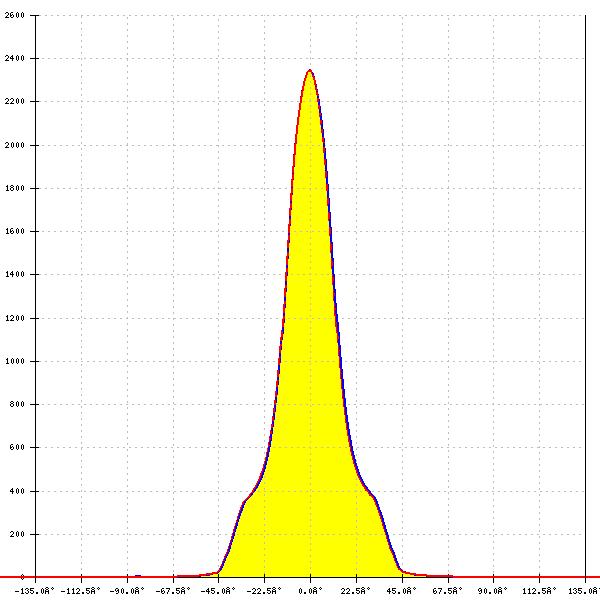

Optical results

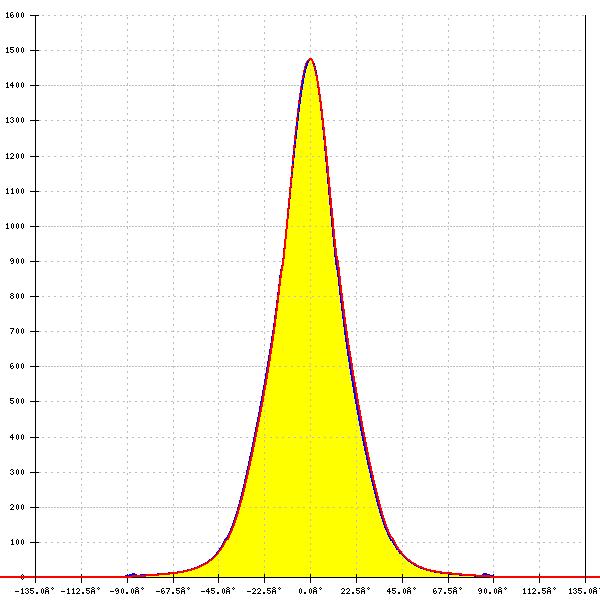

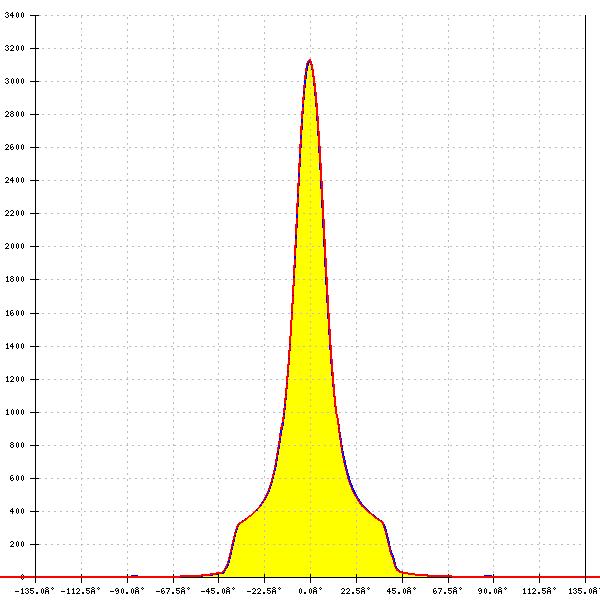

LED: V4 HD Gen 7
Required components:
FWHM: 19°
FWTM: 73°
Peak intensity: 3.130 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

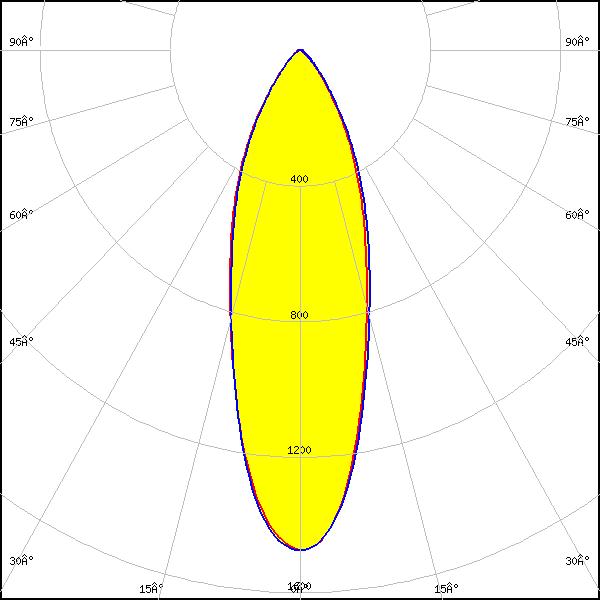

LED: V4 HD Gen 7
Required components:
FWHM: 33°
FWTM: 75°
Peak intensity: 1.480 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

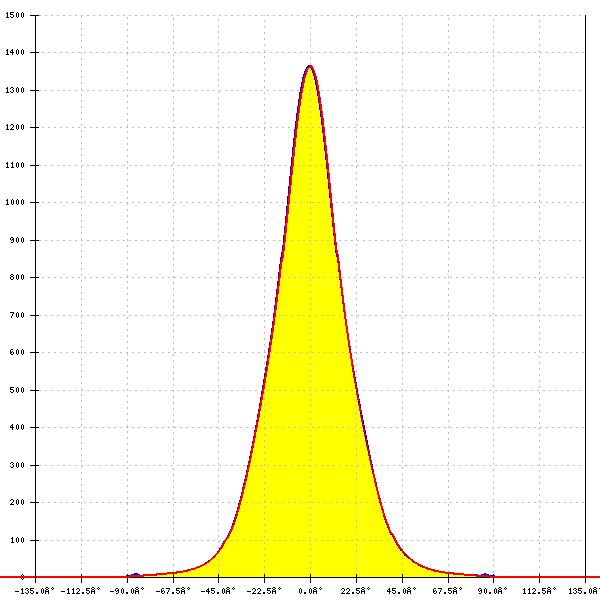

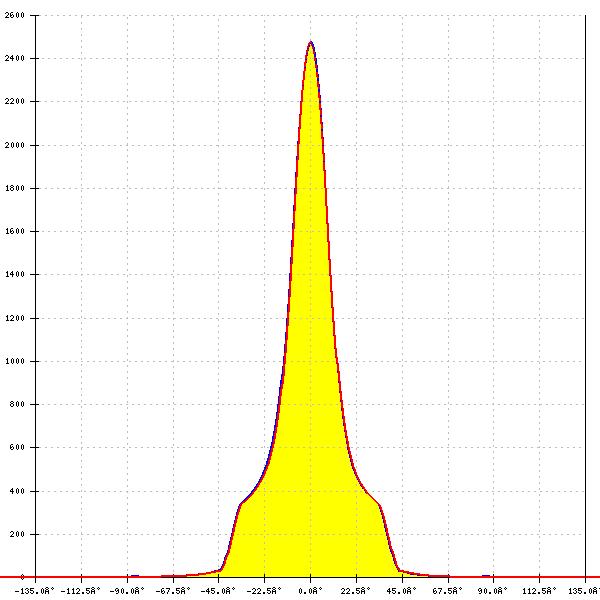

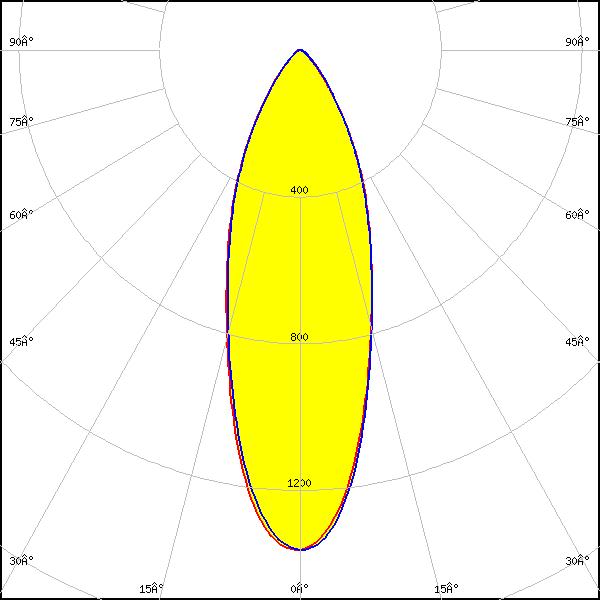

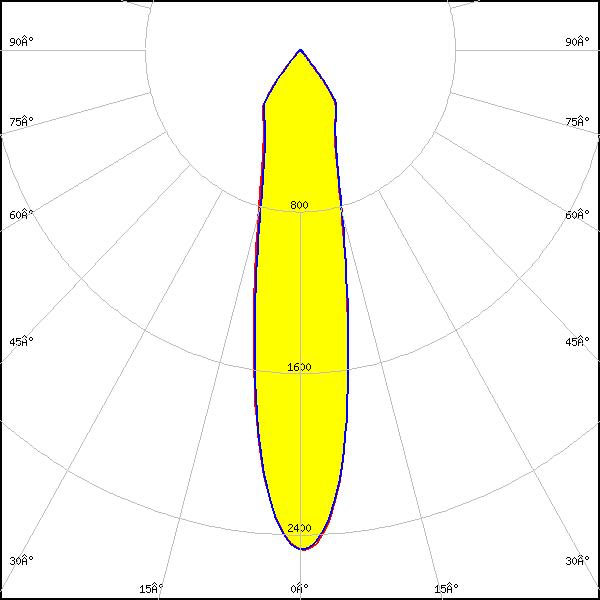

LED: V6 HD Gen 7
Required components:
FWHM: 22°
FWTM: 74°
Peak intensity: 2.480 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: V6 HD Gen 7
Required components:
FWHM: 35°
FWTM: 77°
Peak intensity: 1.360 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

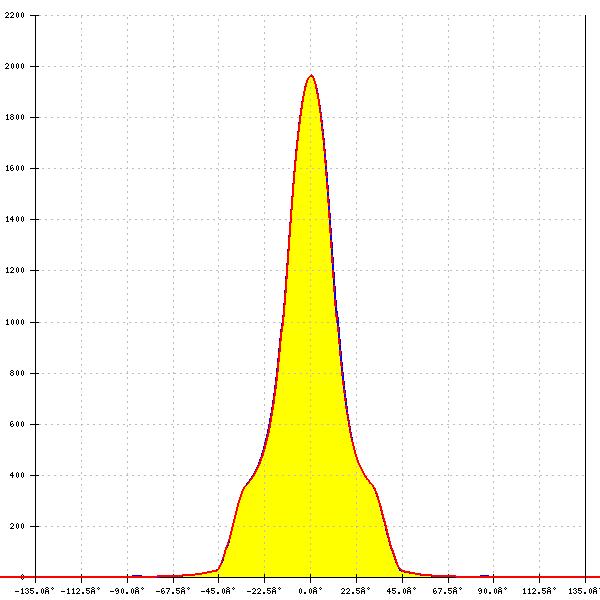

LED: V9 HD Gen7
Required components:
FWHM: 27°
FWTM: 76°
Peak intensity: 1.970 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

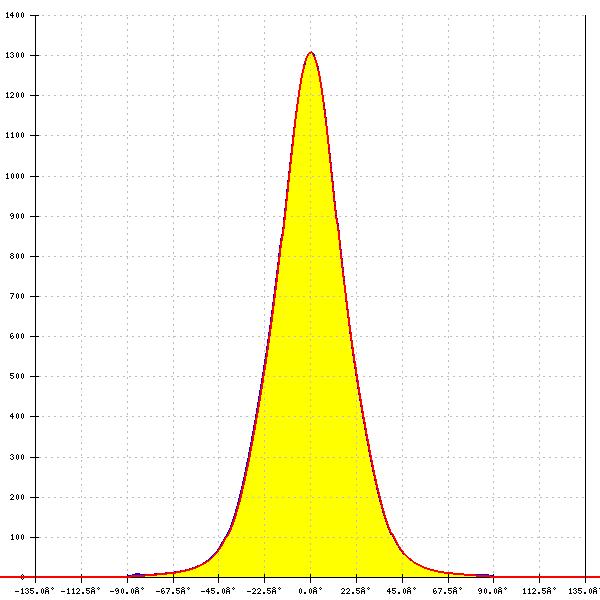

LED: V9 HD Gen7
Required components:
FWHM: 37°
FWTM: 77°
Peak intensity: 1.300 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

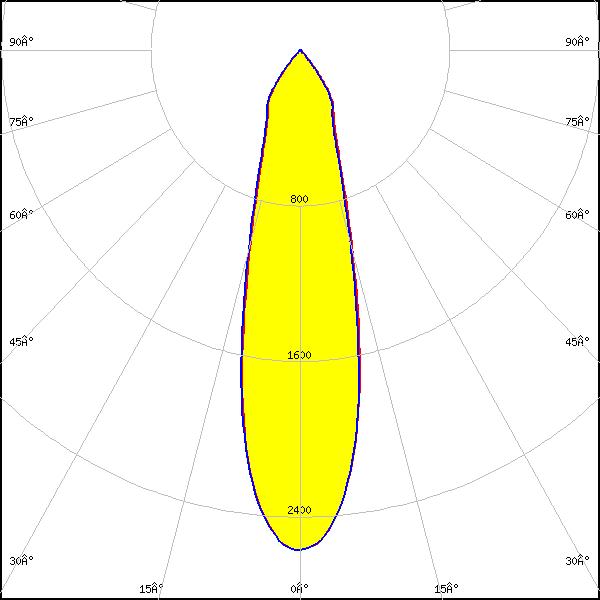

LED: VERO10
Required components:
FWHM: 27°
FWTM: 71°
Peak intensity: 2.600 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

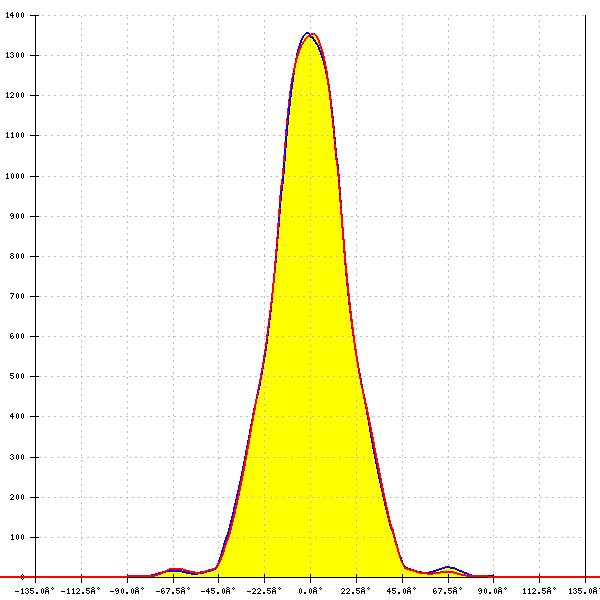

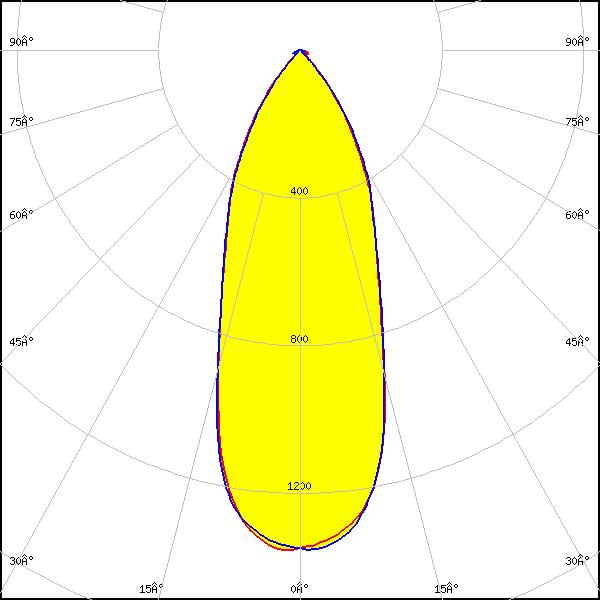

LED: Vesta DTW 13mm (21W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 39°
FWTM: 78°
Peak intensity: 1.357 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: Tunable White
LED: Vesta DTW 13mm (21W)
Required components:
FWHM: 43°
FWTM: 81°
Peak intensity: 1.049 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: Tunable White
LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
FWHM: 33°
FWTM: 70°
Peak intensity: 1.500 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

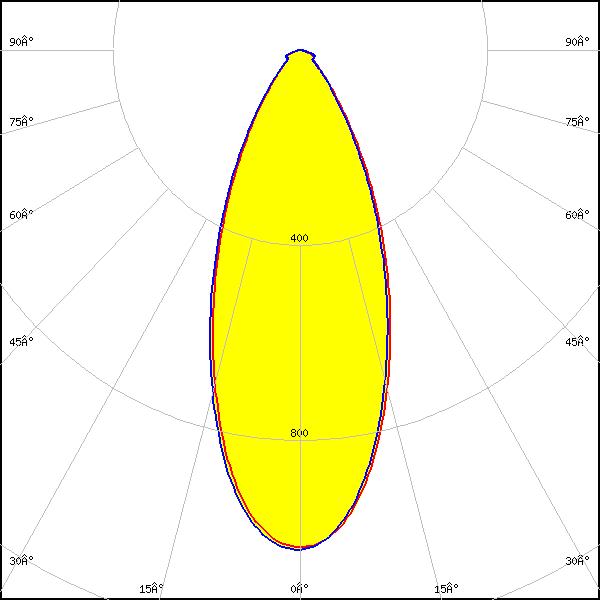

LED: Vesta TW 13mm (25W) CSP
Required components:
FWHM: 43°
FWTM: 81°
Peak intensity: 1.000 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 18°
FWTM: 58°
Peak intensity: 3.545 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
FWHM: 29°
FWTM: 71°
Peak intensity: 1.587 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

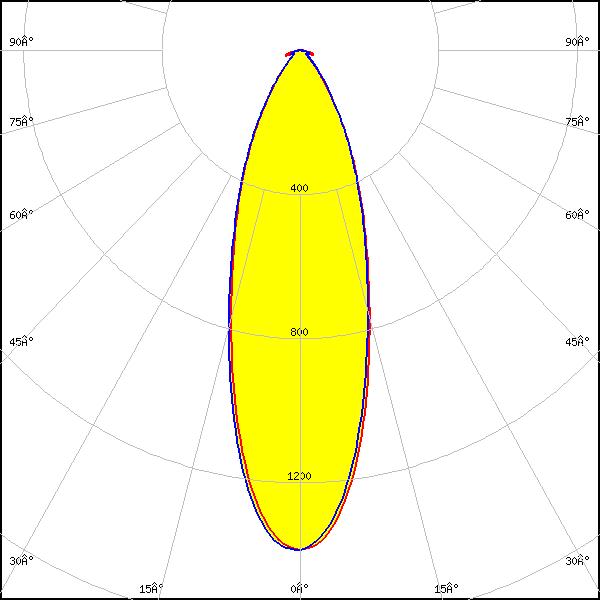

LED: Vesta TW 9mm (12W) CSP
Required components:
FWHM: 33°
FWTM: 73°
Peak intensity: 1.400 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 9mm (12W) CSP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 25°
FWTM: 68°
Peak intensity: 2.600 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

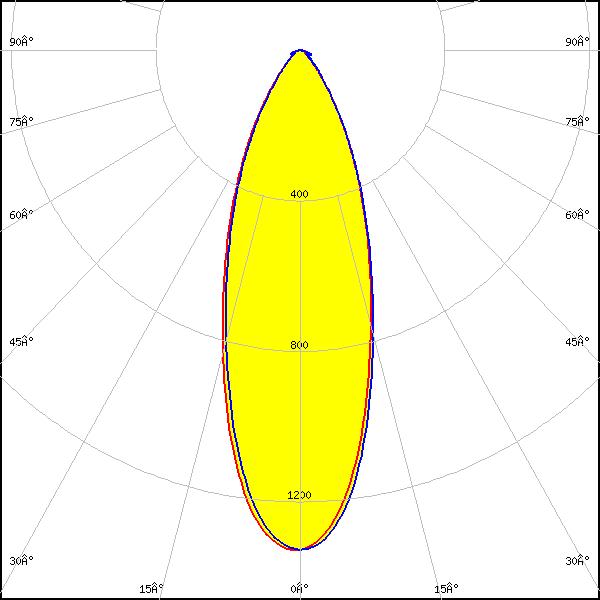

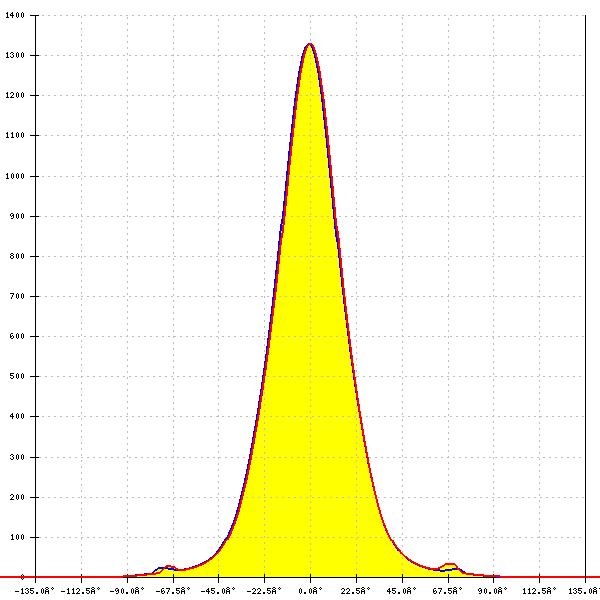

LED: CLC020 Series (Dim-To-Warm)
Required components:
FWHM: 36°
FWTM: 74°
Peak intensity: 1.300 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White
LED: CLC020 Series (Dim-To-Warm)
Required components:
FWHM: 28°
FWTM: 72°
Peak intensity: 2.000 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 27°
FWTM: 65°
Peak intensity: 2.700 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

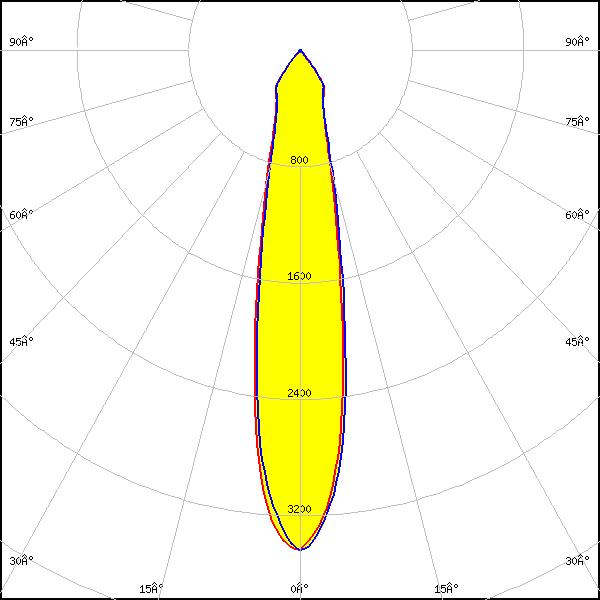

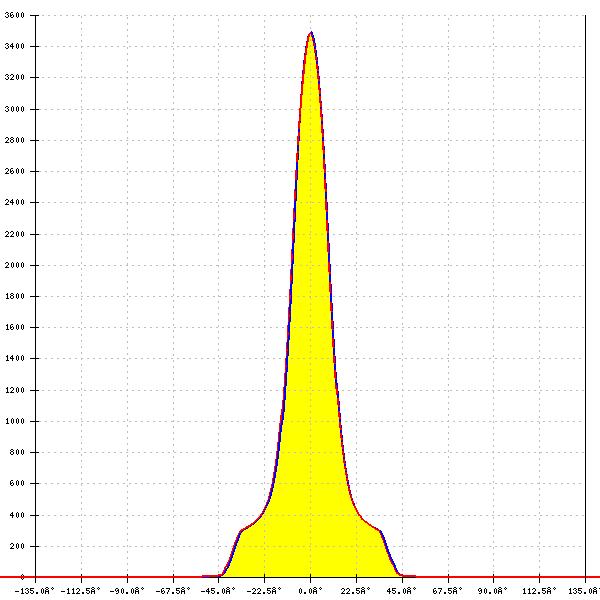

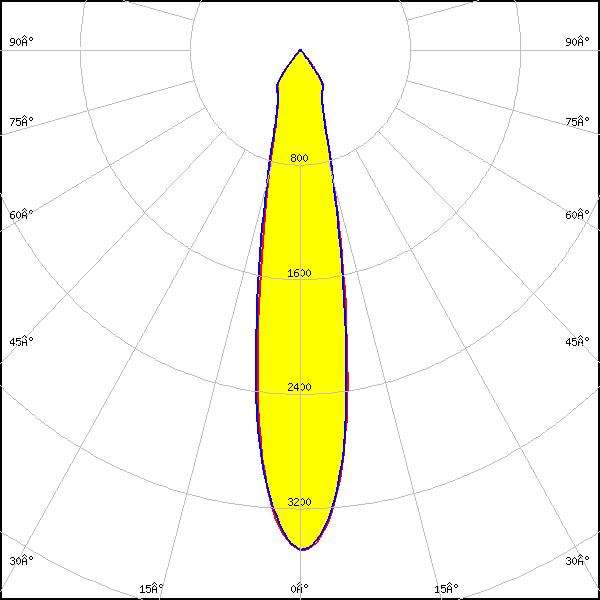

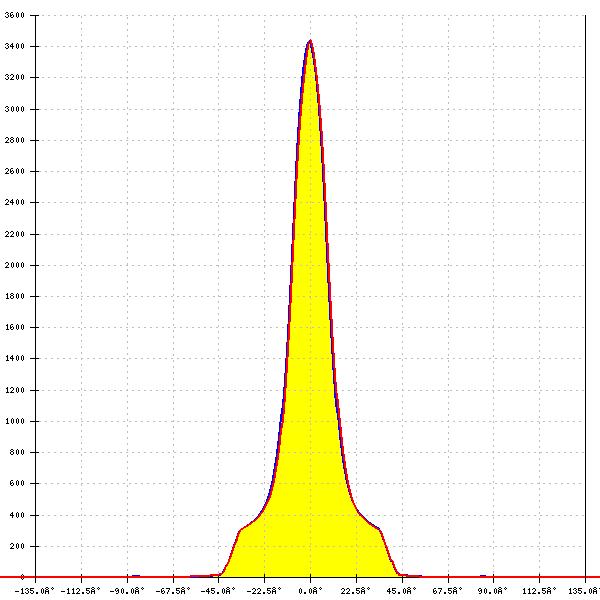

LED: CLU025/CLU027 (LES 6)
Required components:
FWHM: 20°
FWTM: 59°
Peak intensity: 3.400 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: CLU025/CLU027 (LES 6)
Required components:
FWHM: 21°
FWTM: 55°
Peak intensity: 3.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

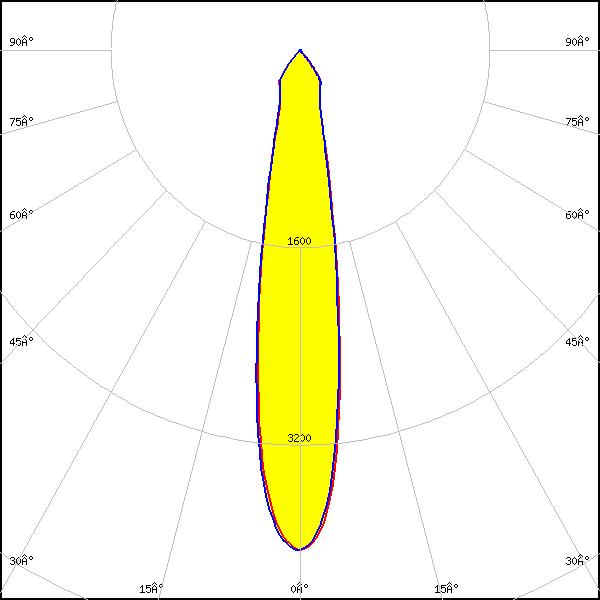

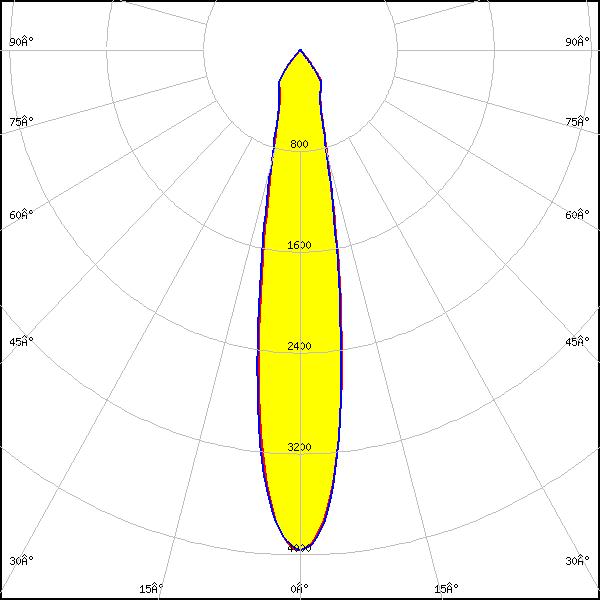

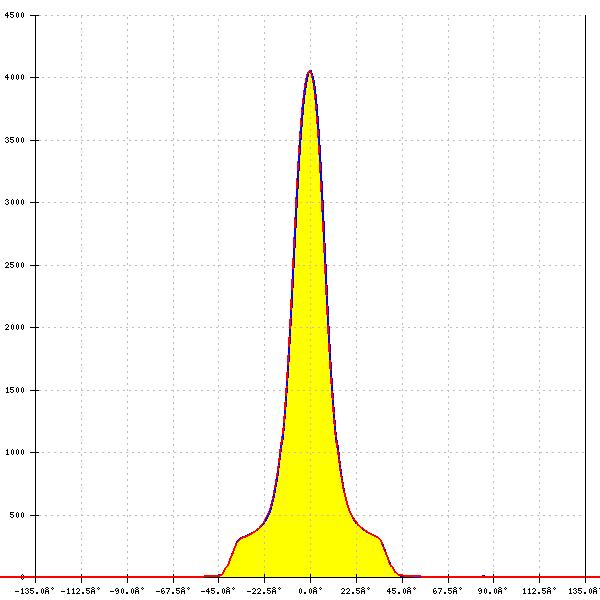

LED: CLU700/701/702
Required components:
FWHM: 19°
FWTM: 49°
Peak intensity: 4.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: CLU700/701/702
Required components:
FWHM: 19°
FWTM: 50°
Peak intensity: 4.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

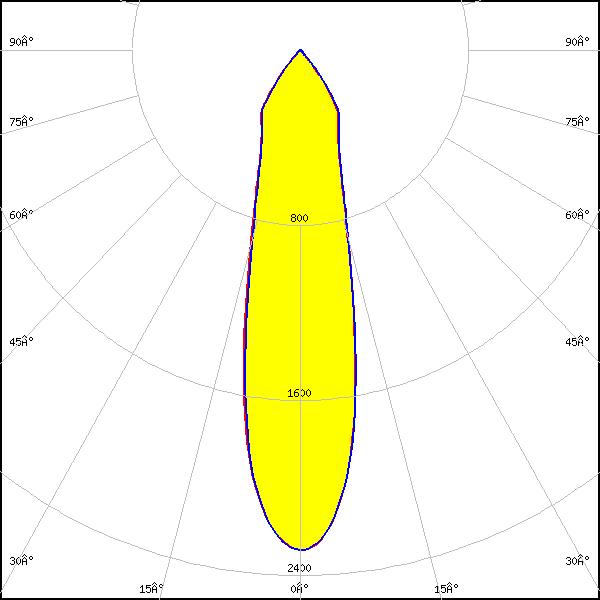

LED: CLU710/711
Required components:
FWHM: 26°
FWTM: 73°
Peak intensity: 2.300 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

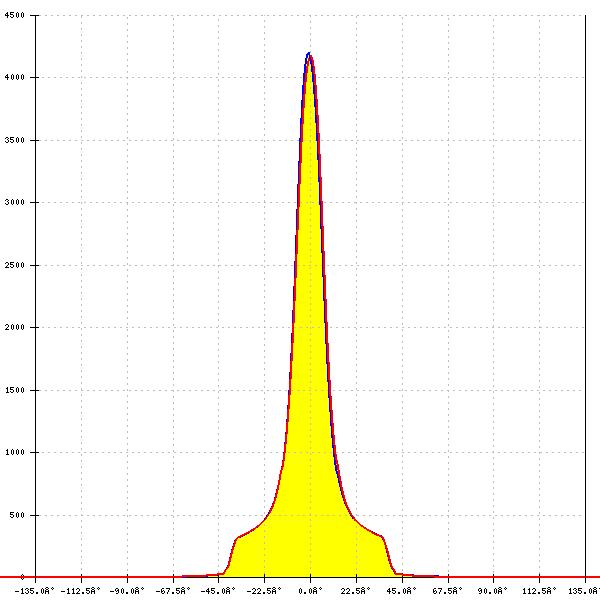

LED: CLU7A2 (LES 4.2mm)
Required components:
FWHM: 16°
FWTM: 49°
Peak intensity: 4.200 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

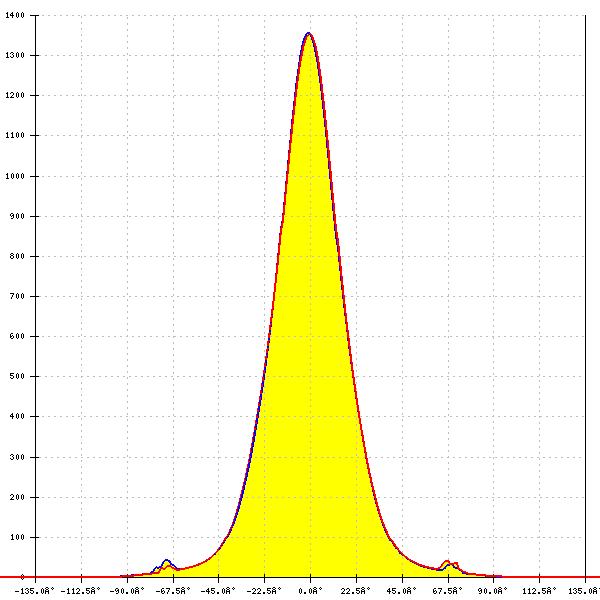

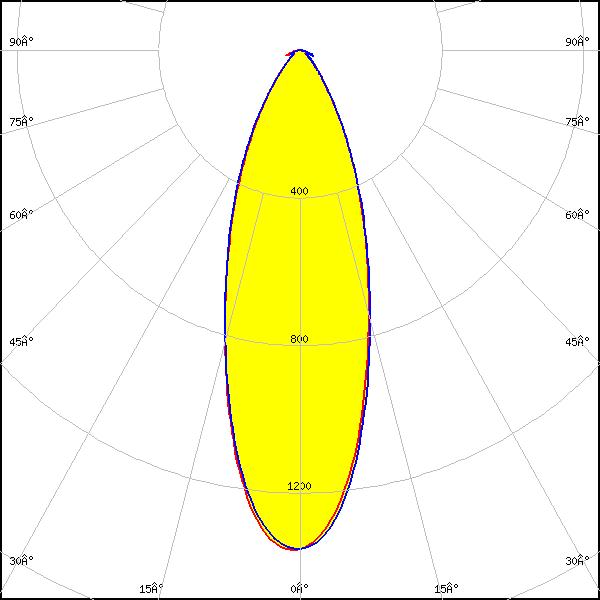

LED: LCN-C01B (Tunable White)
Required components:
FWHM: 35°
FWTM: 70°
Peak intensity: 1.500 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White
LED: LCN-C01B (Tunable White)
Required components:
FWHM: 35°
FWTM: 74°
Peak intensity: 1.400 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

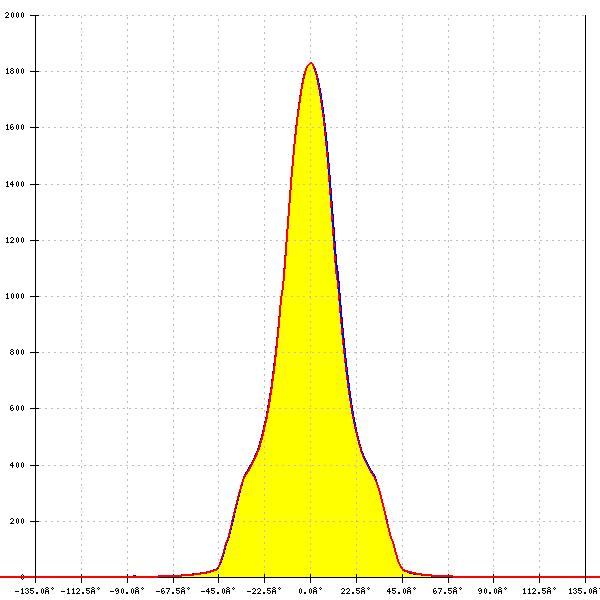

LED: CMA1516
Required components:
FWHM: 30°
FWTM: 77°
Peak intensity: 1.800 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

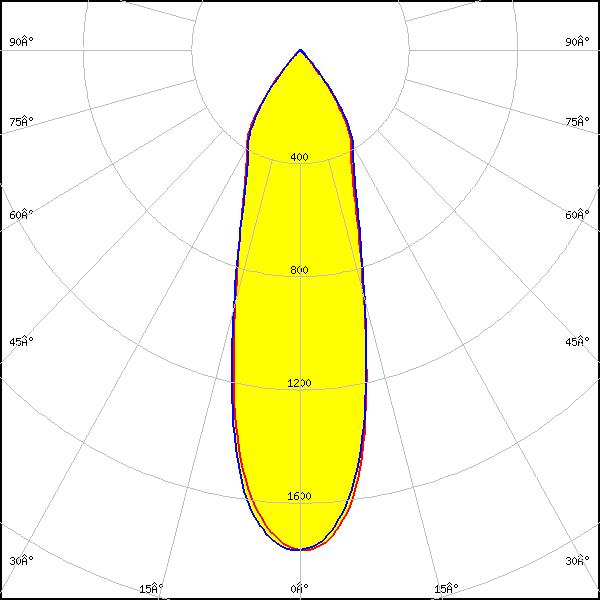

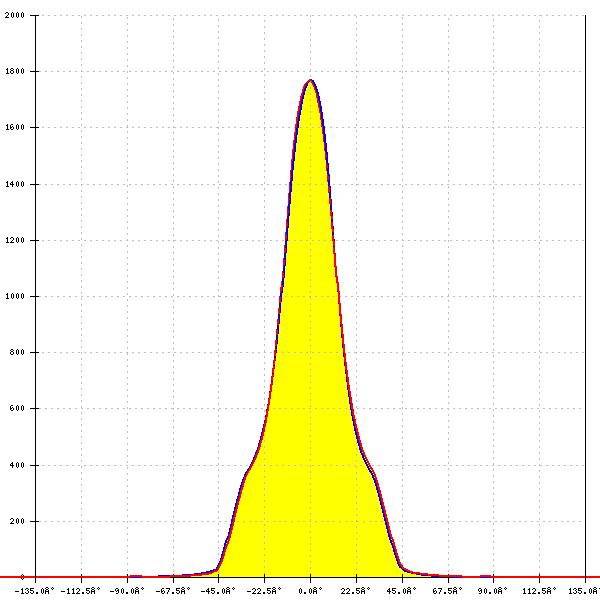

LED: CMT14xx
Required components:
FWHM: 31°
FWTM: 77°
Peak intensity: 1.800 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 13xx
Required components:
FWHM: 19°
FWTM: 50°
Peak intensity: 4.100 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 13xx
Required components:
FWHM: 20°
FWTM: 66°
Peak intensity: 3.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

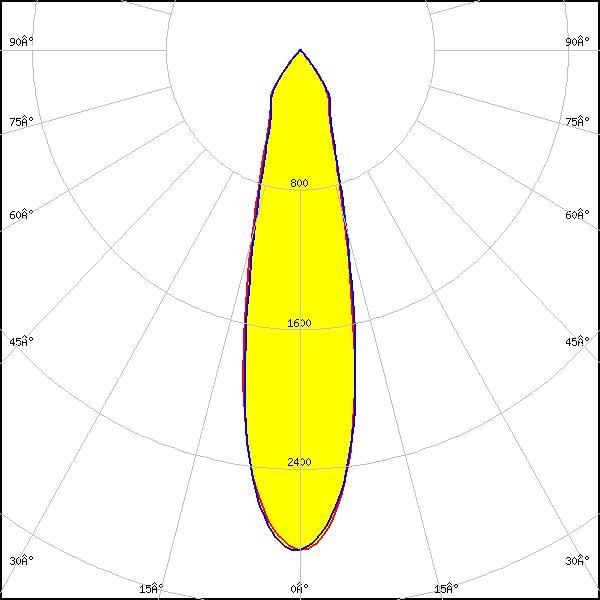

LED: CXA/B 15xx
Required components:
FWHM: 25°
FWTM: 67°
Peak intensity: 2.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

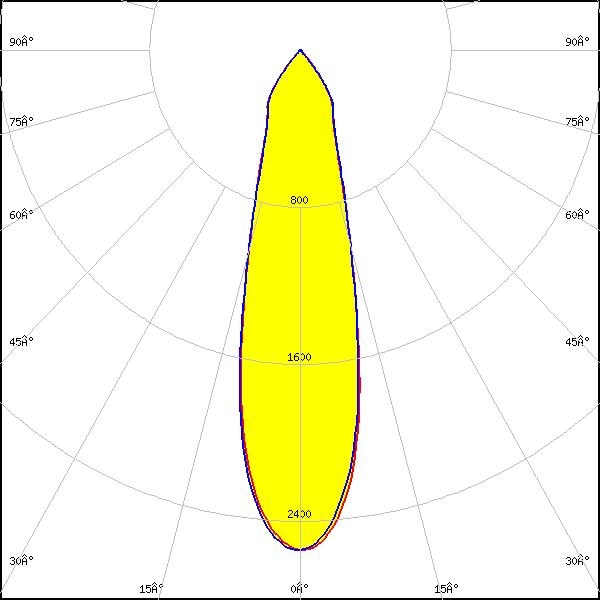

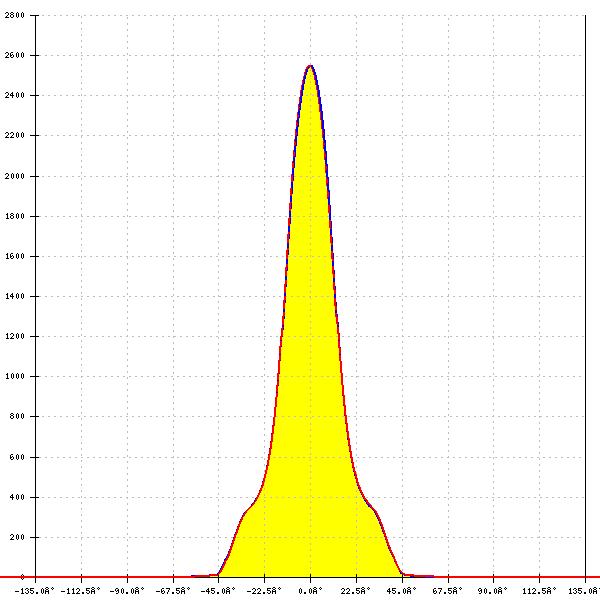

LED: LUXEON CoB 1202/1203
Required components:
FWHM: 27°
FWTM: 71°
Peak intensity: 2.500 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1202/1203
Required components:
FWHM: 27°
FWTM: 71°
Peak intensity: 2.500 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

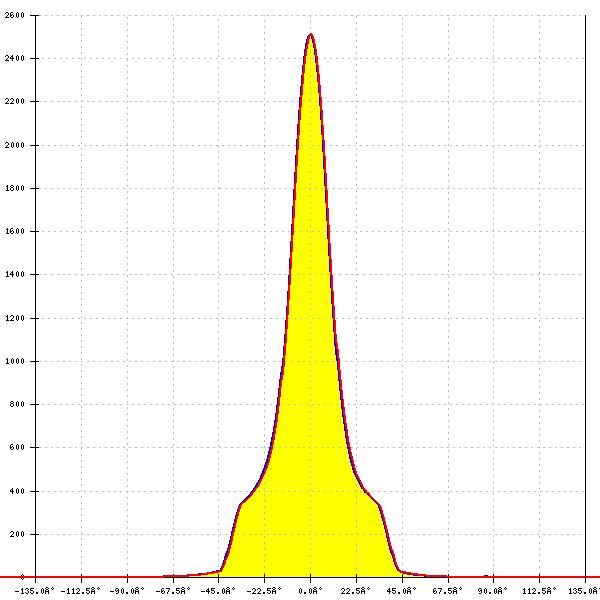

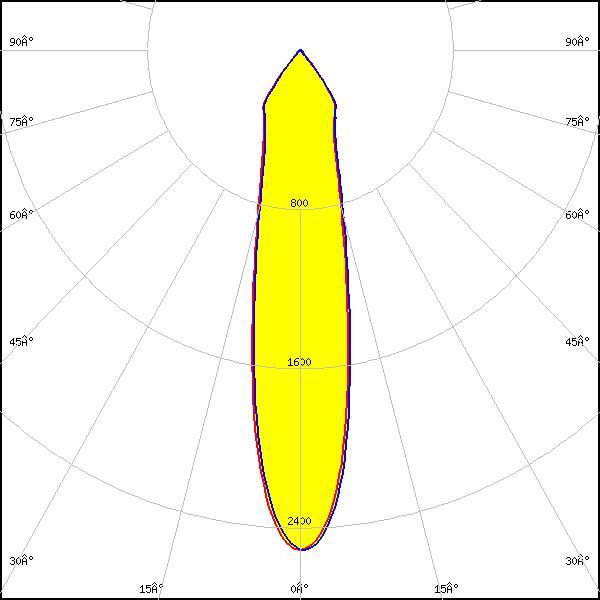

LED: LUXEON CoB 1202HD
Required components:
FWHM: 23°
FWTM: 74°
Peak intensity: 2.520 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1204HD
Required components:
FWHM: 29°
FWTM: 77°
Peak intensity: 1.900 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

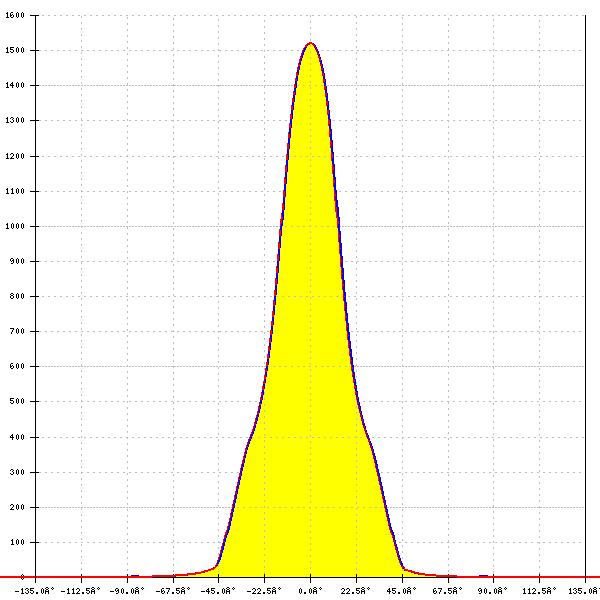

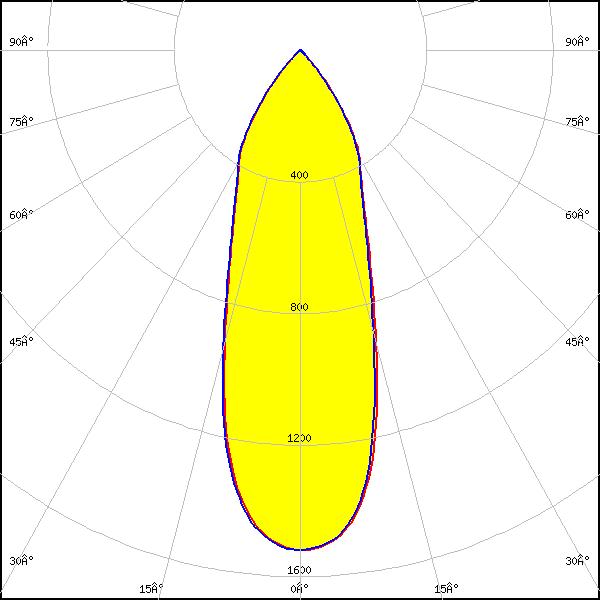

LED: LUXEON CoB 1205HD
Required components:
FWHM: 35°
FWTM: 79°
Peak intensity: 1.520 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

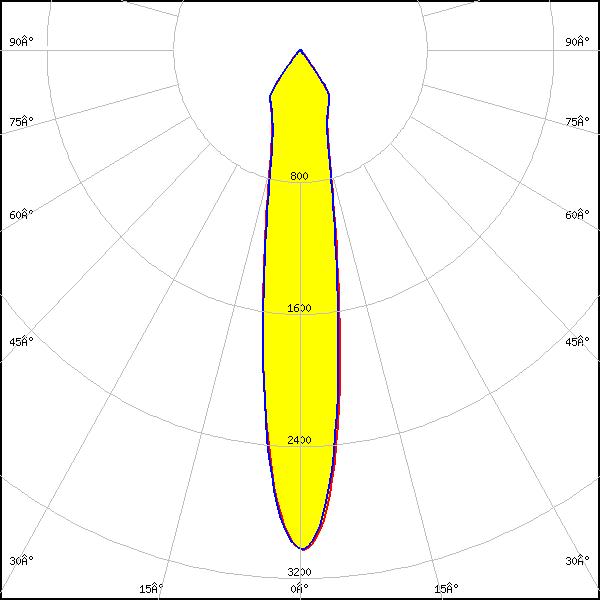

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
FWHM: 19°
FWTM: 70°
Peak intensity: 3.030 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

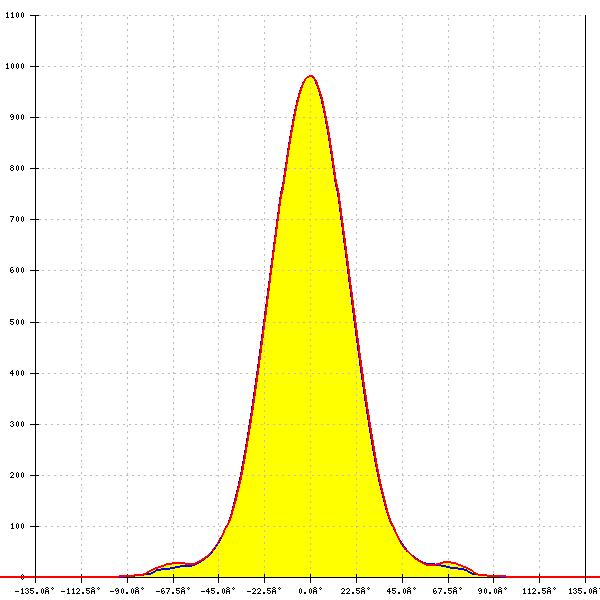

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 31°
FWTM: 74°
Peak intensity: 1.483 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

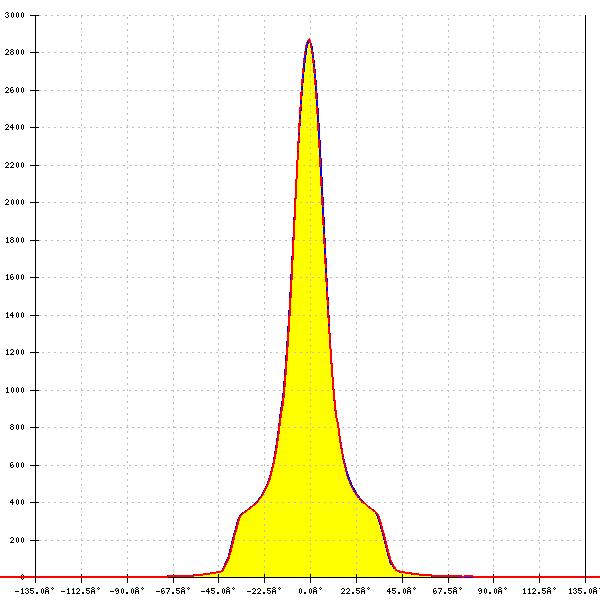

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: 19°
FWTM: 71°
Peak intensity: 2.870 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

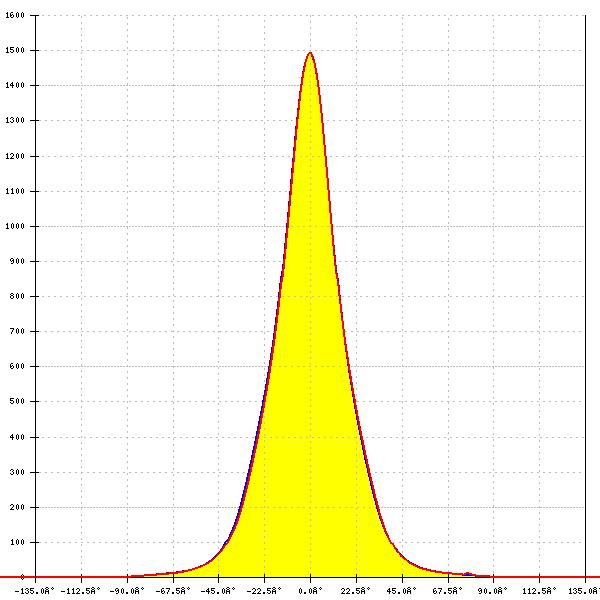

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 32°
FWTM: 74°
Peak intensity: 1.493 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: 28°
FWTM: 75°
Peak intensity: 1.945 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 37°
FWTM: 76°
Peak intensity: 1.322 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 35°
FWTM: 78°
Peak intensity: 1.487 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
C13723_MIRELLA-RZL
FWHM: 42°
FWTM: 81°
Peak intensity: 1.098 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

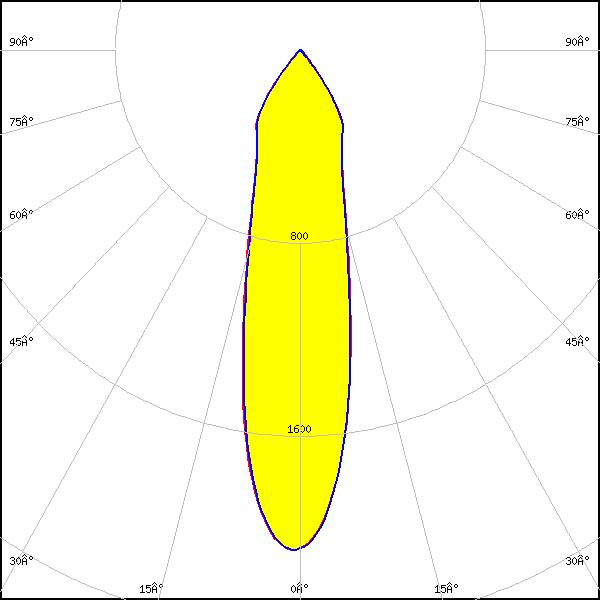

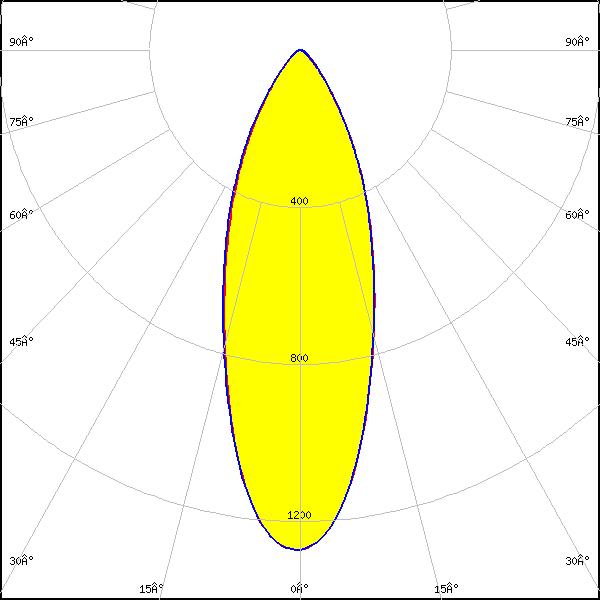

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
C13723_MIRELLA-RZL
FWHM: 37°
FWTM: 77°
Peak intensity: 1.274 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
FWHM: 25°
FWTM: 74°
Peak intensity: 2.077 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

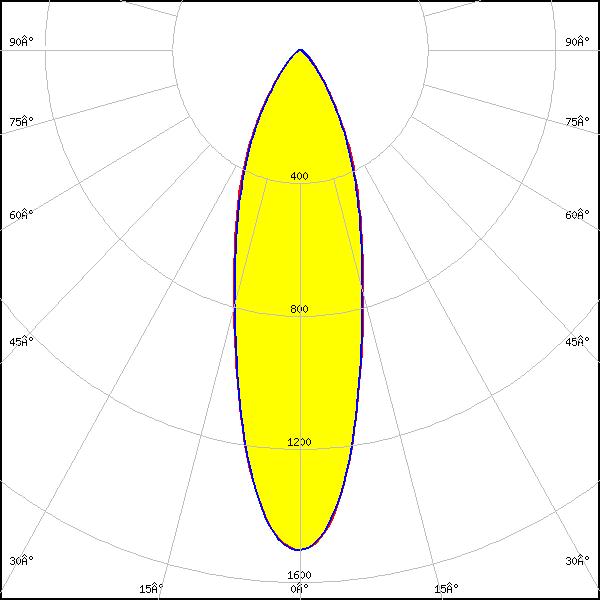

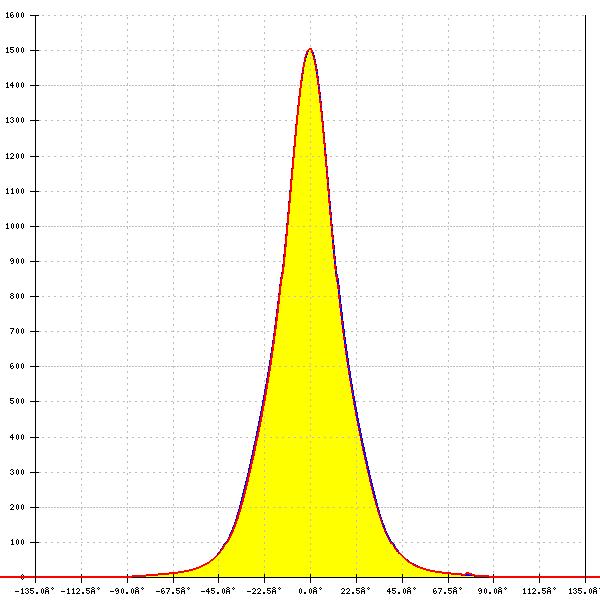

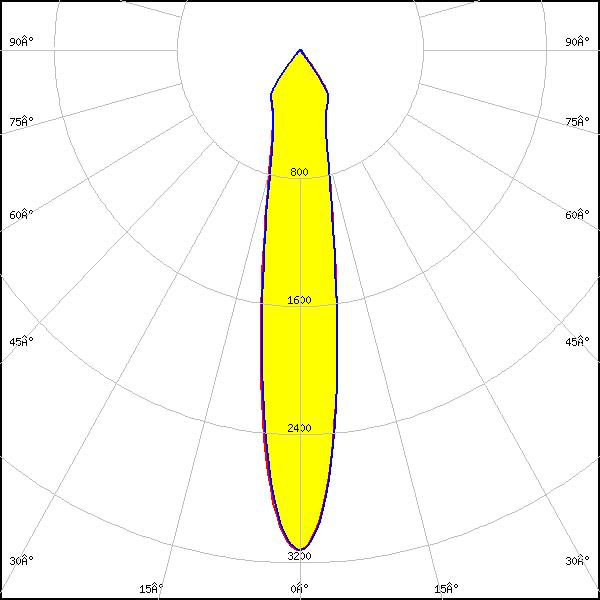

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 31°
FWTM: 73°
Peak intensity: 1.504 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

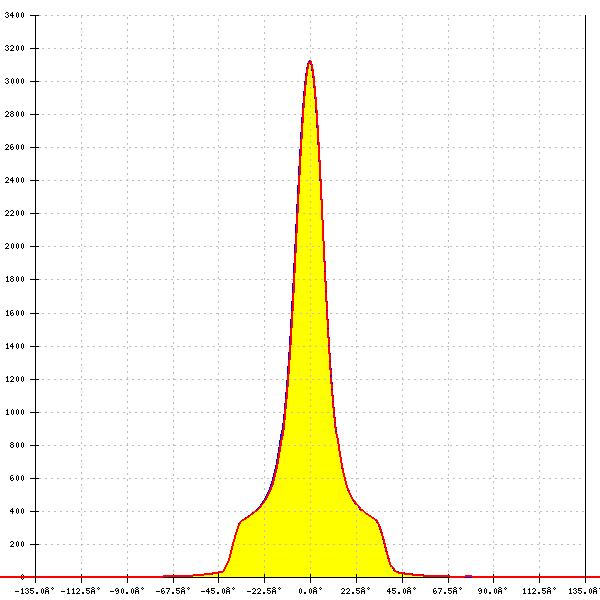

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
FWHM: 18°
FWTM: 69°
Peak intensity: 3.122 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

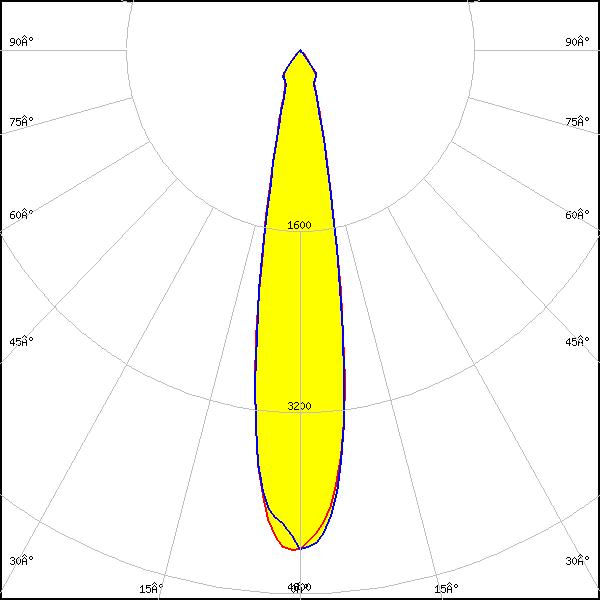

LED: LUXEON M/MX
Required components:
FWHM: 20°
FWTM: 41°
Peak intensity: 4.420 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

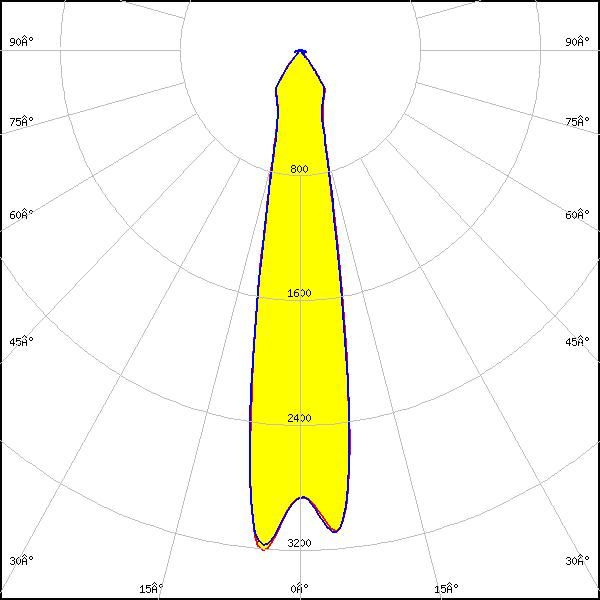

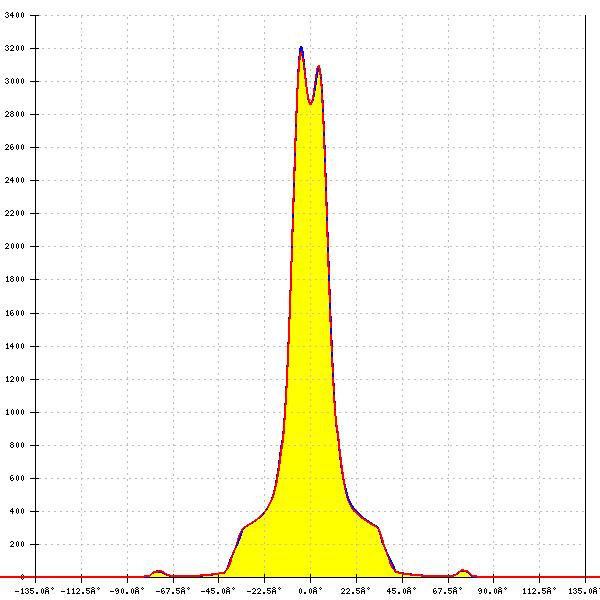

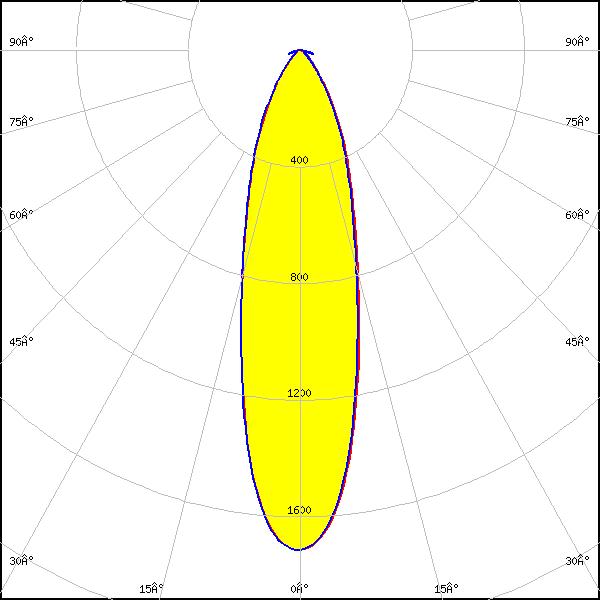

LED: CDM-6 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 20°
FWTM: 60°
Peak intensity: 3.200 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: CDM-6 (Dim-To-Warm)
Required components:
FWHM: 28°
FWTM: 68°
Peak intensity: 1.700 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

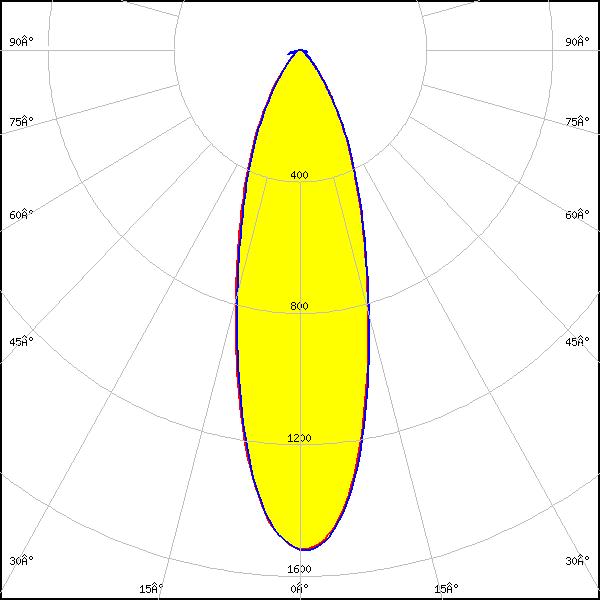

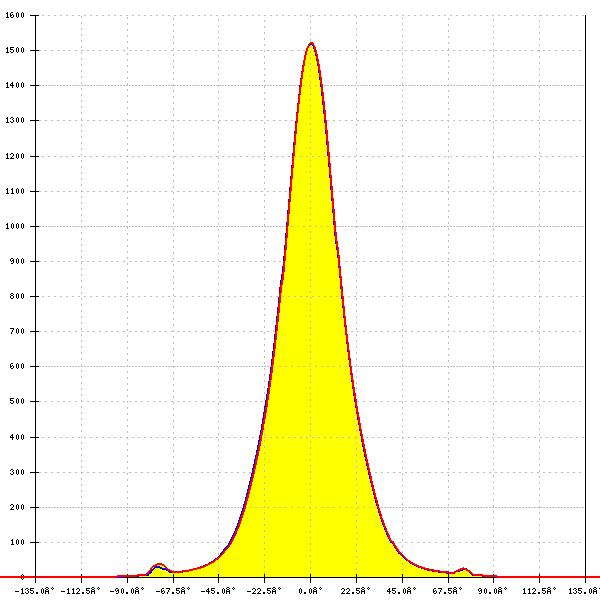

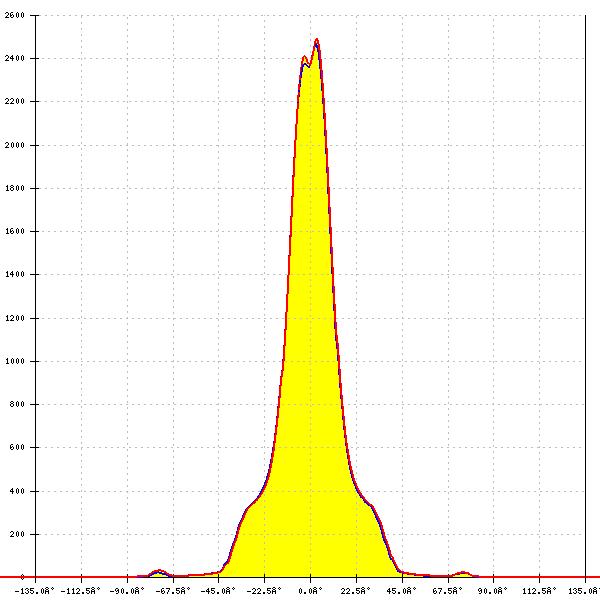

LED: CDM-9 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 24°
FWTM: 69°
Peak intensity: 2.500 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: CDM-9 (Dim-To-Warm)
Required components:
FWHM: 32°
FWTM: 71°
Peak intensity: 1.500 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

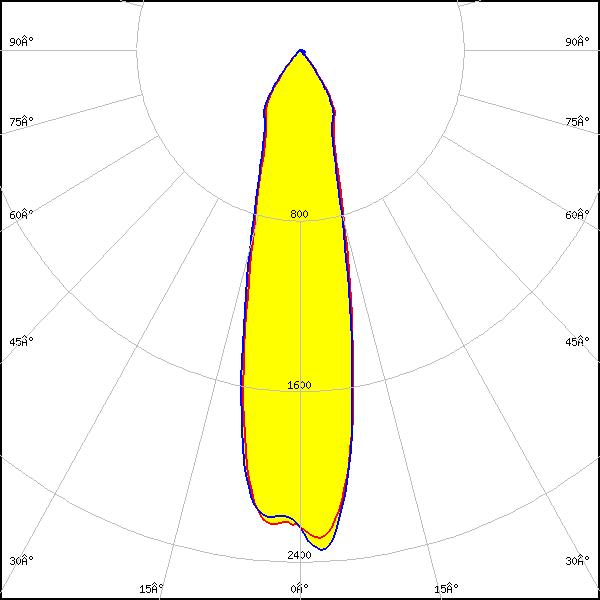

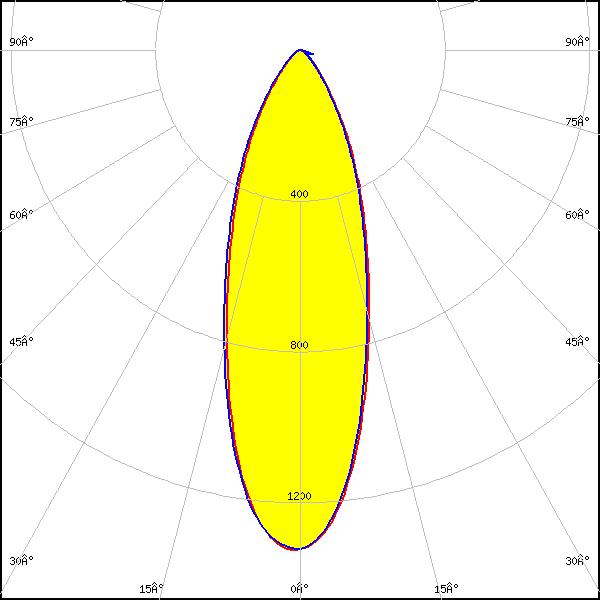

LED: CTM-9 (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8
FWHM: 25°
FWTM: 70°
Peak intensity: 2.400 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: CTM-9 (Tunable White)
Required components:
FWHM: 34°
FWTM: 75°
Peak intensity: 1.300 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

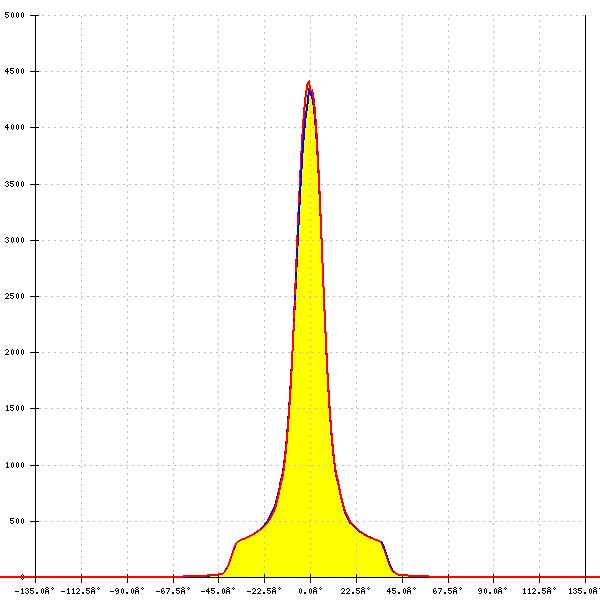

LED: CXM-4
Required components:
FWHM: 16°
FWTM: 46°
Peak intensity: 4.416 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: CXM-4
Required components:
FWHM: 29°
FWTM: 71°
Peak intensity: 1.739 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

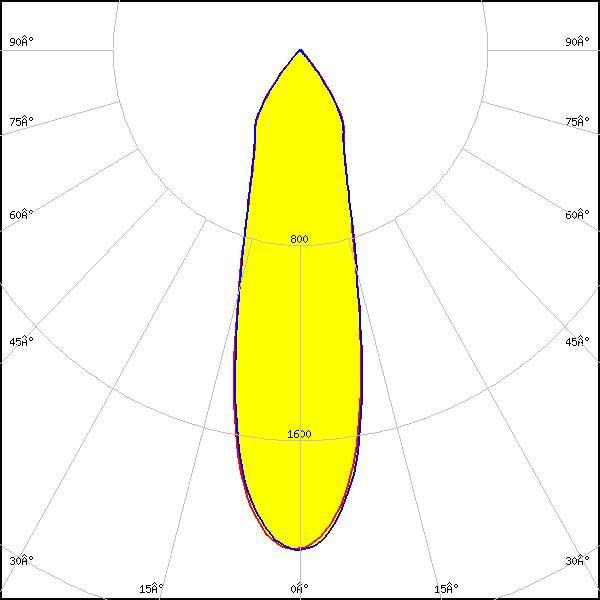

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 29°
FWTM: 75°
Peak intensity: 2.100 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: COB L-Type (LES 11)
Required components:
FWHM: 32°
FWTM: 71°
Peak intensity: 2.130 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: COB T-Type
Required components:
FWHM: 21°
FWTM: 43°
Peak intensity: 3.970 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: 19°
FWTM: 58°
Peak intensity: 3.400 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
FWHM: 30°
FWTM: 69°
Peak intensity: 1.700 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8
FWHM: 28°
FWTM: 73°
Peak intensity: 1.800 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
FWHM: 37°
FWTM: 77°
Peak intensity: 1.200 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White

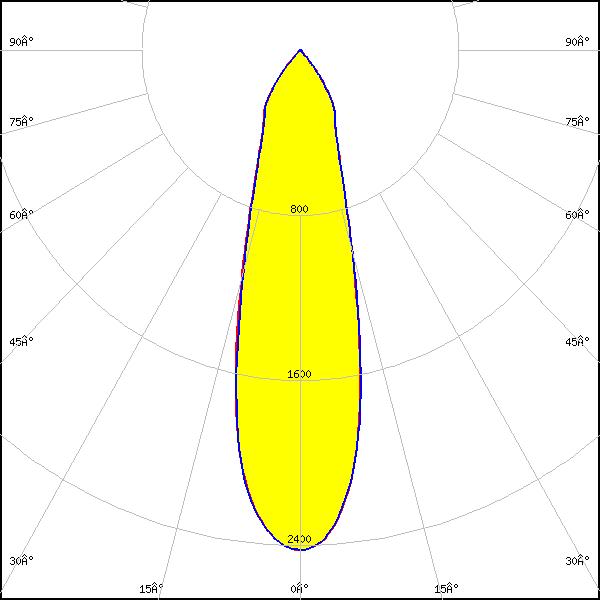

LED: Soleriq S9
Required components:
FWHM: 28°
FWTM: 71°
Peak intensity: 2.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: Soleriq S9
Required components:
FWHM: 28°
FWTM: 71°
Peak intensity: 2.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

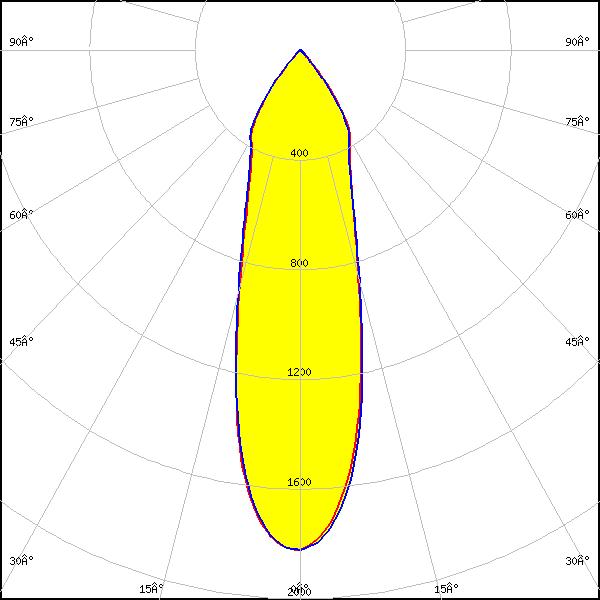

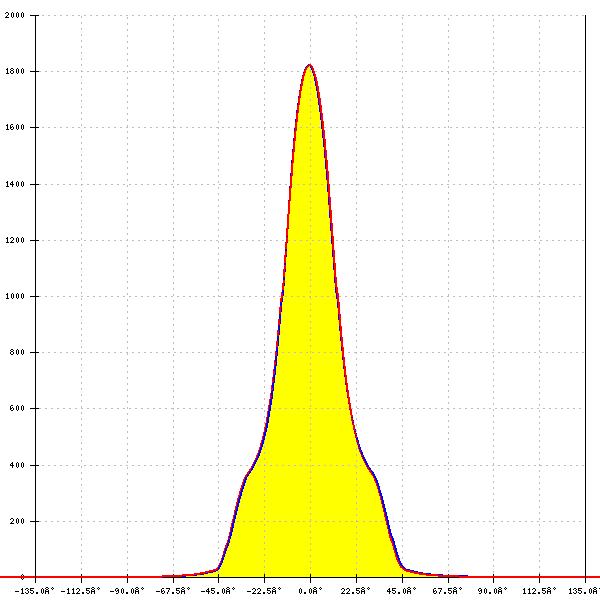

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 29°
FWTM: 77°
Peak intensity: 1.800 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L09 CoB
Required components:
FWHM: 39°
FWTM: 78°
Peak intensity: 1.200 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

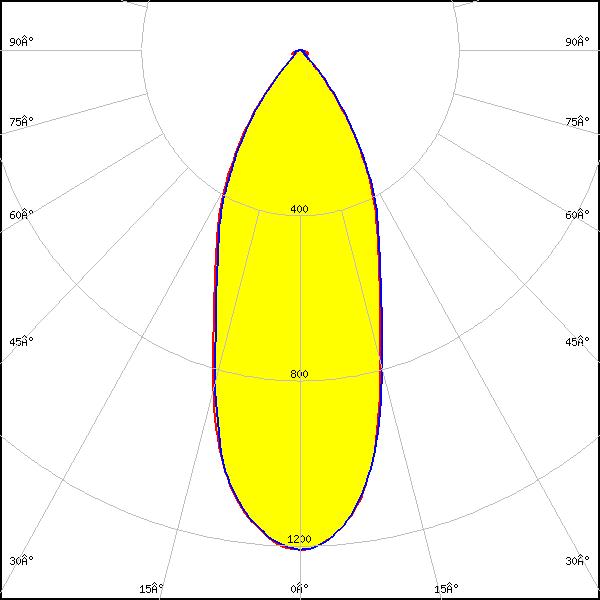

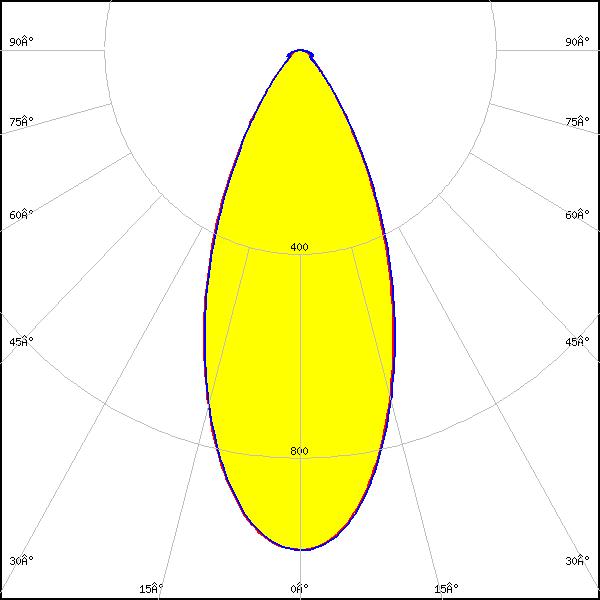

LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 40°
FWTM: 80°
Peak intensity: 1.200 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
FWHM: 45°
FWTM: 82°
Peak intensity: 0.980 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
FWHM: 45°
FWTM: 82°
Peak intensity: 0.980 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 40°
FWTM: 80°
Peak intensity: 1.200 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

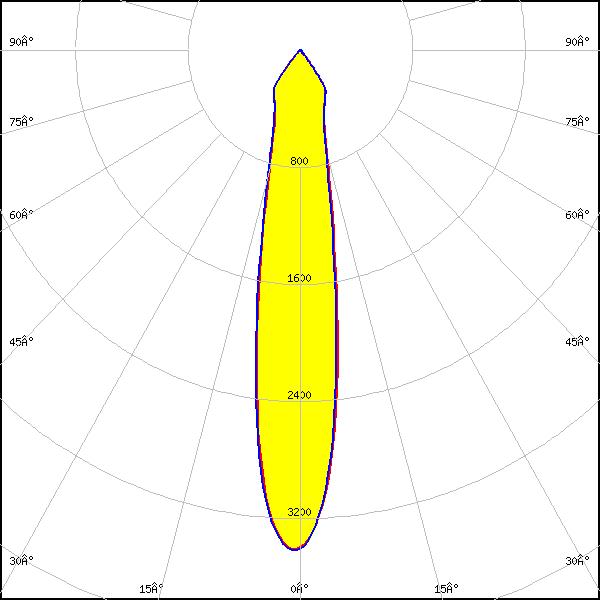

LED: LC010C G2
Required components:
FWHM: 19°
FWTM: 65°
Peak intensity: 3.400 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: LC010T (Tunable White)
Required components:
FWHM: 27°
FWTM: 69°
Peak intensity: 1.976 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

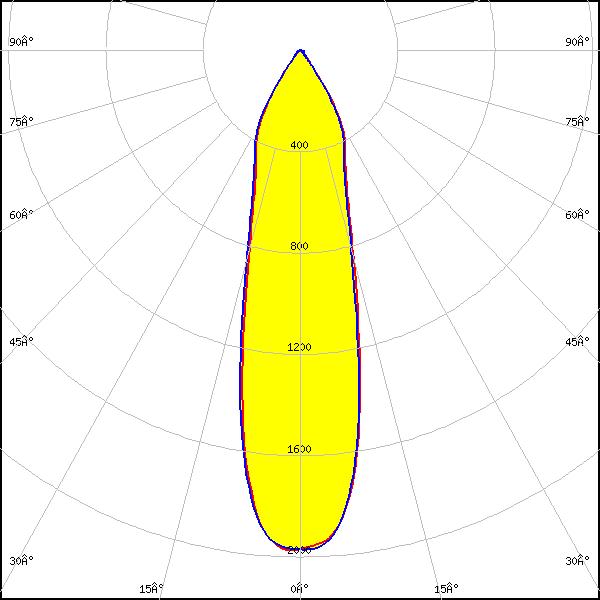

LED: LC010T (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 26°
FWTM: 72°
Peak intensity: 2.176 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: Tunable White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 47°
FWTM: 81°
Peak intensity: 1.100 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 47°
FWTM: 79°
Peak intensity: 1.200 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 47°
FWTM: 85°
Peak intensity: 0.960 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 44°
FWTM: 82°
Peak intensity: 1.200 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

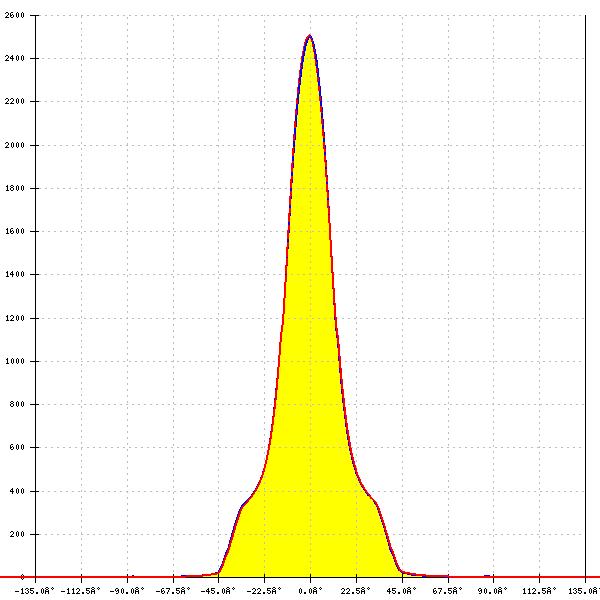

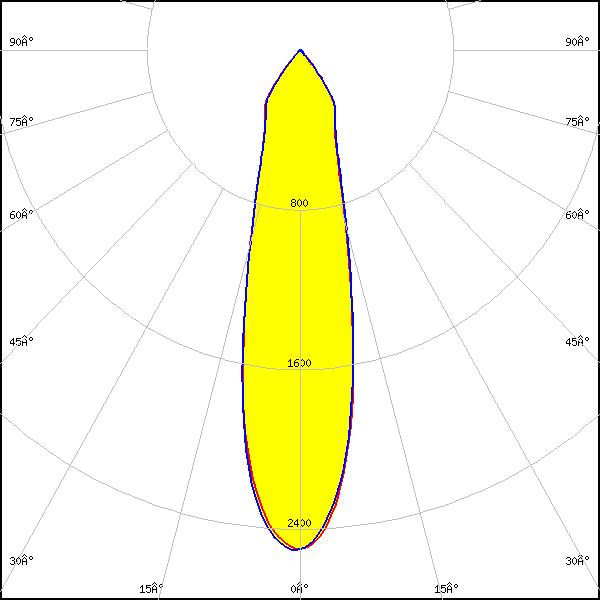

LED: LC020C
Required components:
FWHM: 25°
FWTM: 73°
Peak intensity: 2.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LC020C G2
Required components:
FWHM: 27°
FWTM: 74°
Peak intensity: 2.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

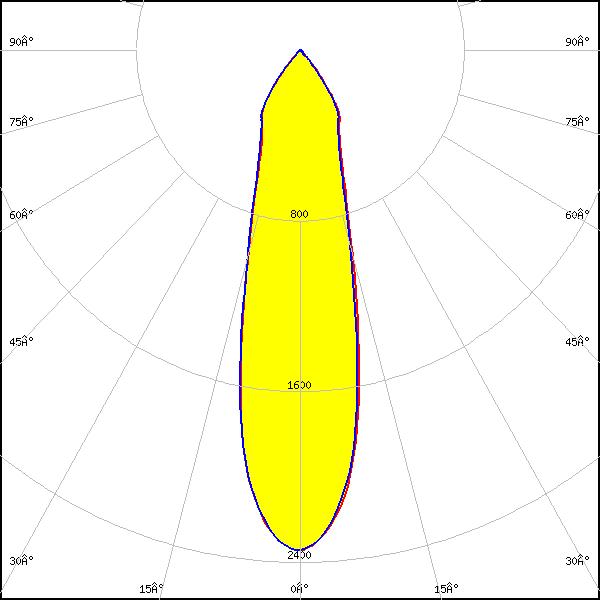

LED: SLE G7 LES09
Required components:
FWHM: 27°
FWTM: 73°
Peak intensity: 2.300 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: SLE G7 LES09
Required components:
FWHM: 36°
FWTM: 75°
Peak intensity: 1.500 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

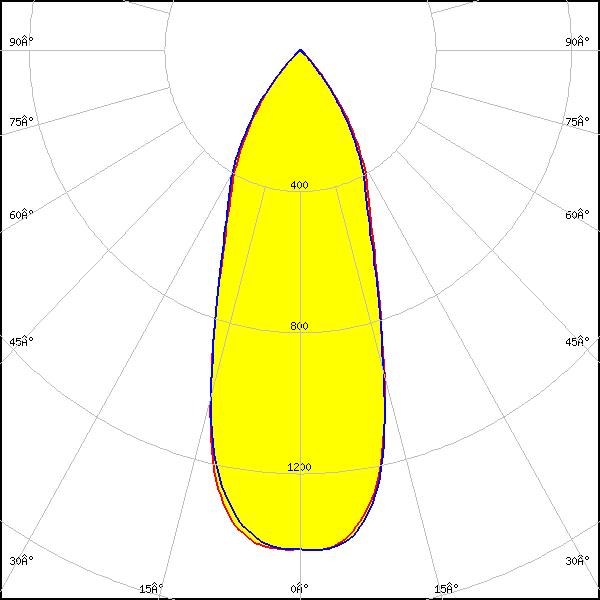

LED: SLE G7 LES13
Required components:
FWHM: 39°
FWTM: 80°
Peak intensity: 1.400 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: SLE G7 LES13
Required components:
FWHM: 44°
FWTM: 82°
Peak intensity: 1.100 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

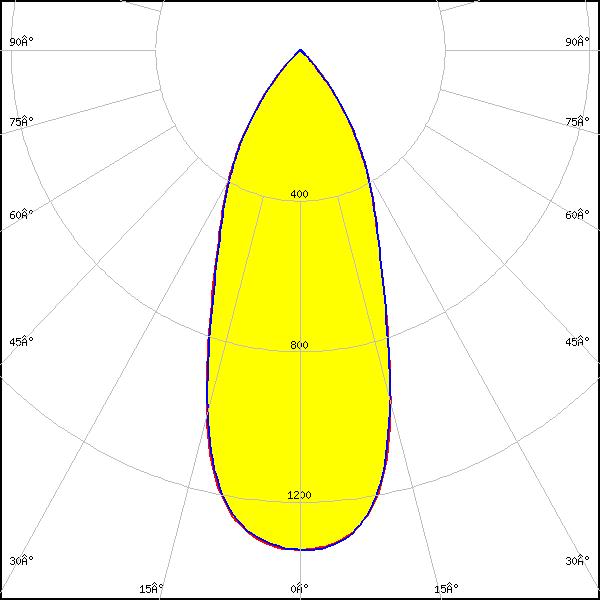

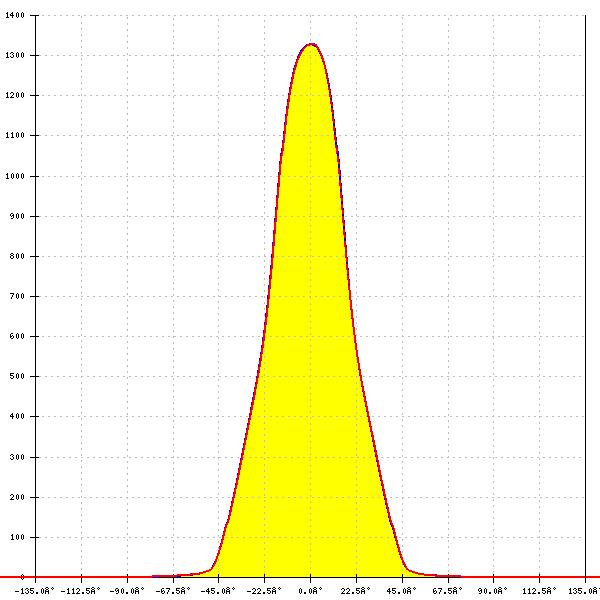

LED: XOB 14.5 mm
Required components:
FWHM: 42°
FWTM: 81°
Peak intensity: 1.328 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

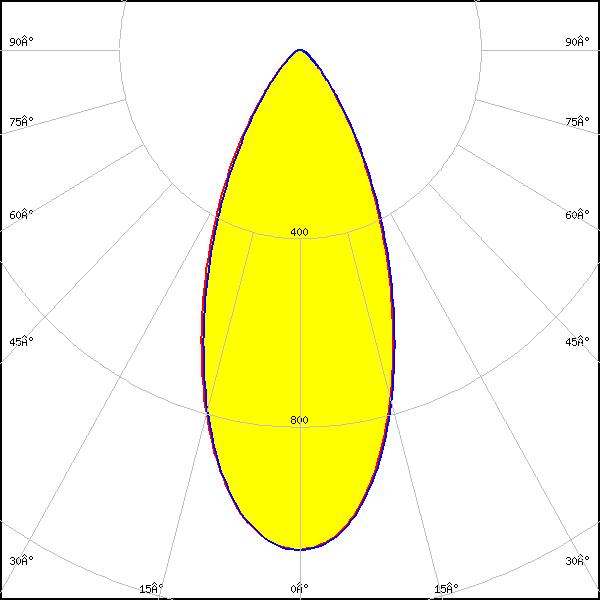

LED: XOB 14.5 mm
Required components:
FWHM: 46°
FWTM: 84°
Peak intensity: 1.062 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: XOB 6 mm
Required components:
FWHM: 20°
FWTM: 65°
Peak intensity: 3.354 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

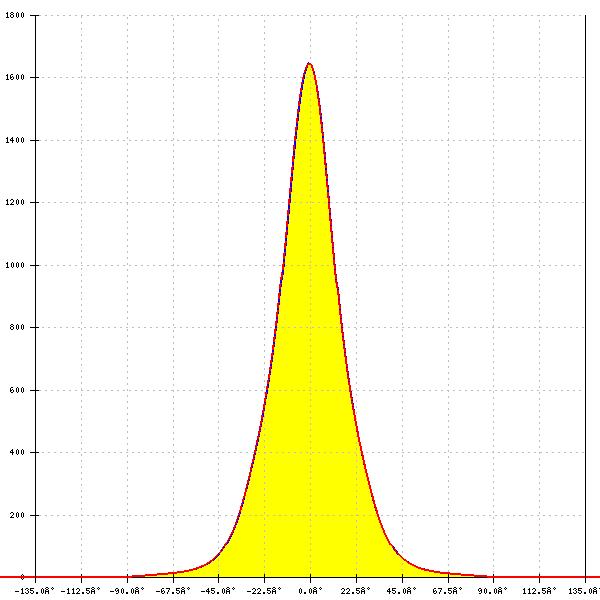

LED: XOB 6 mm
Required components:
FWHM: 31°
FWTM: 72°
Peak intensity: 1.645 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

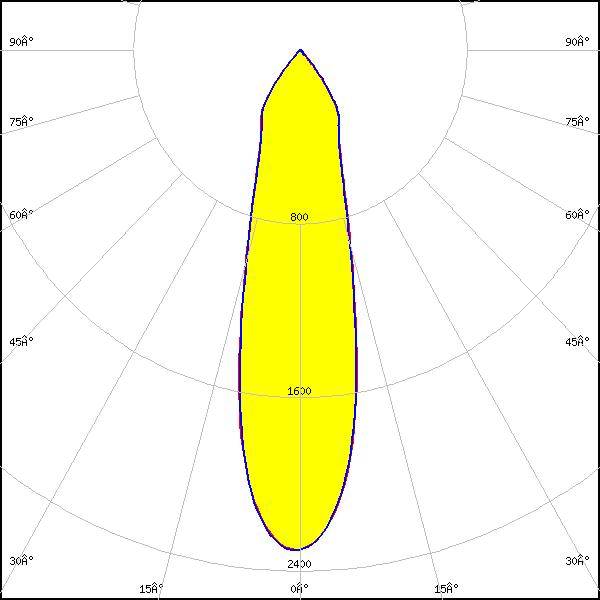

LED: XOB 9.8 mm
Required components:
FWHM: 27°
FWTM: 74°
Peak intensity: 2.306 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: XOB 9.8 mm
Required components:
FWHM: 36°
FWTM: 76°
Peak intensity: 1.444 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
