F15560_MIRELLA-G2-W
Print
~35° wide beam. Compatible with LEDiL HEKLA.
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

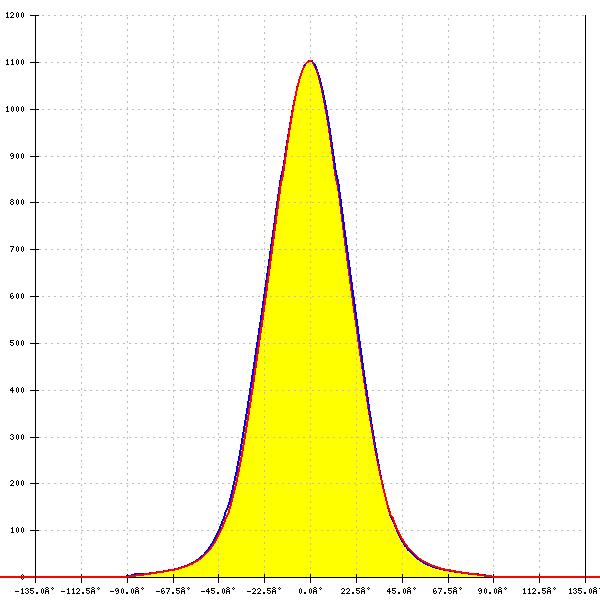

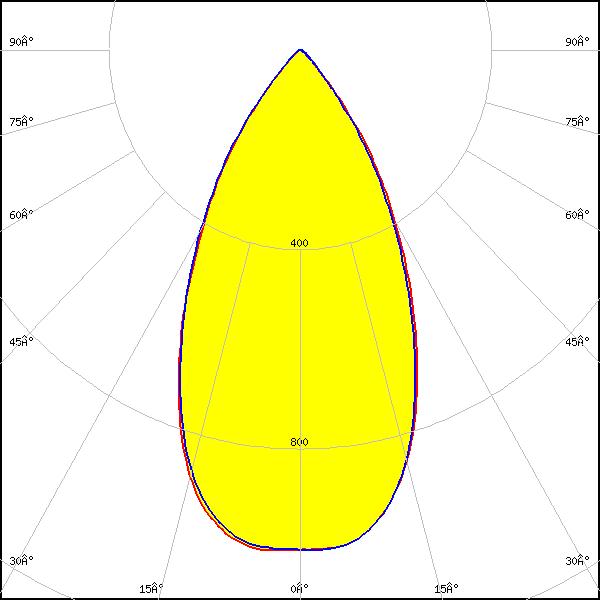

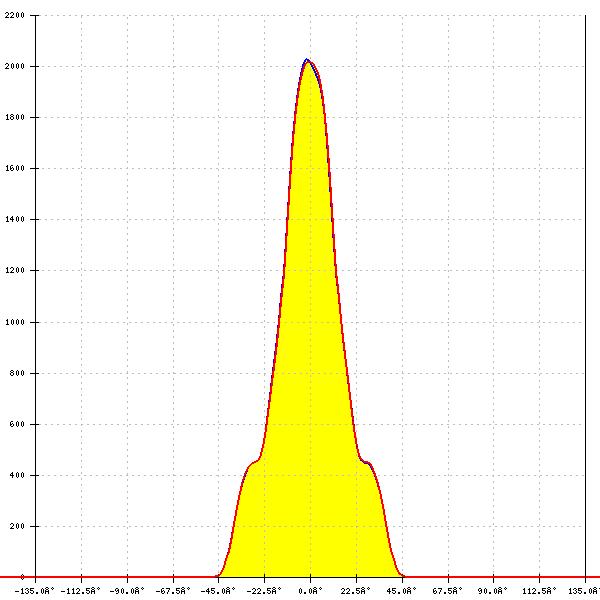

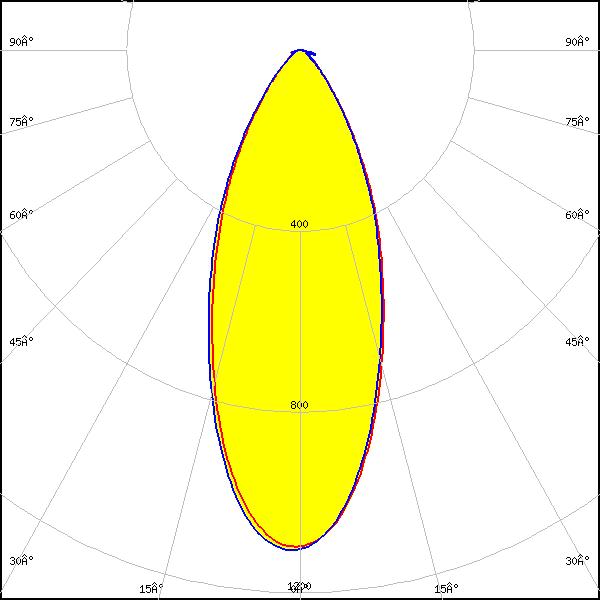

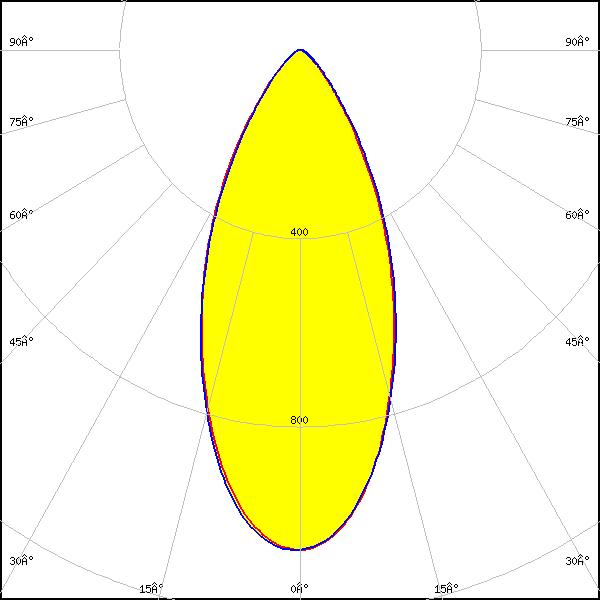

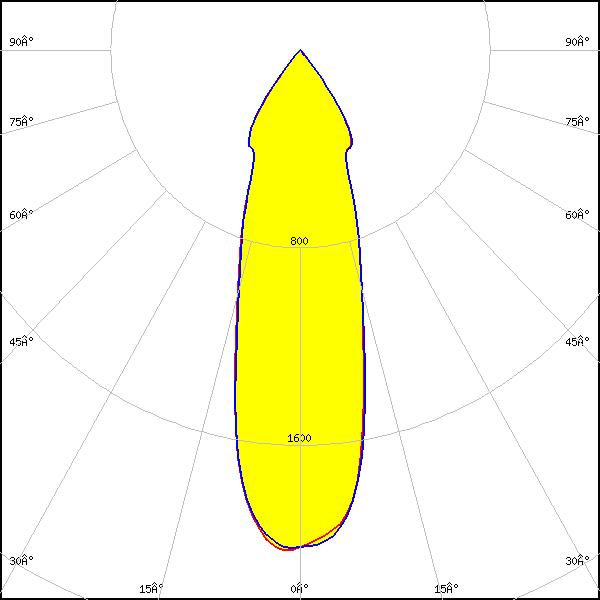

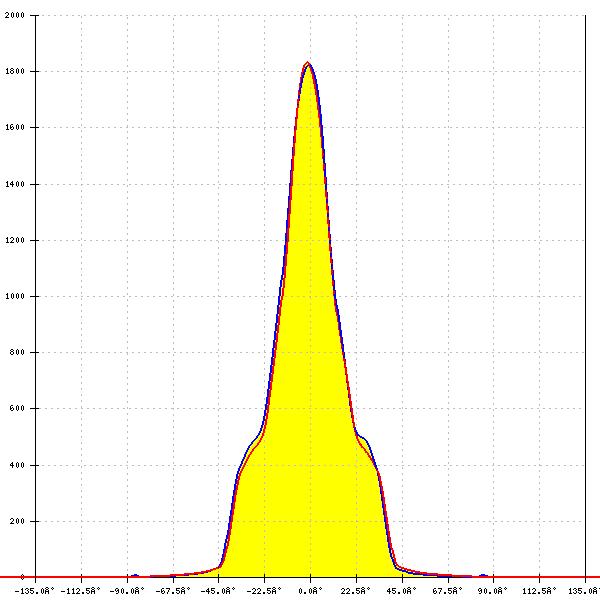

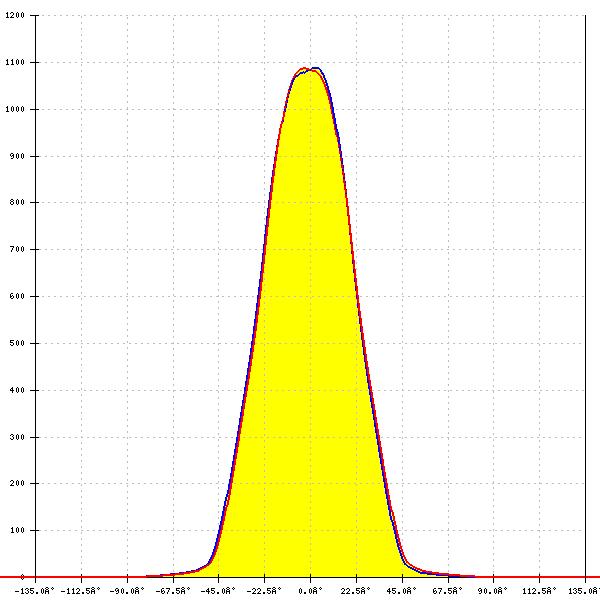

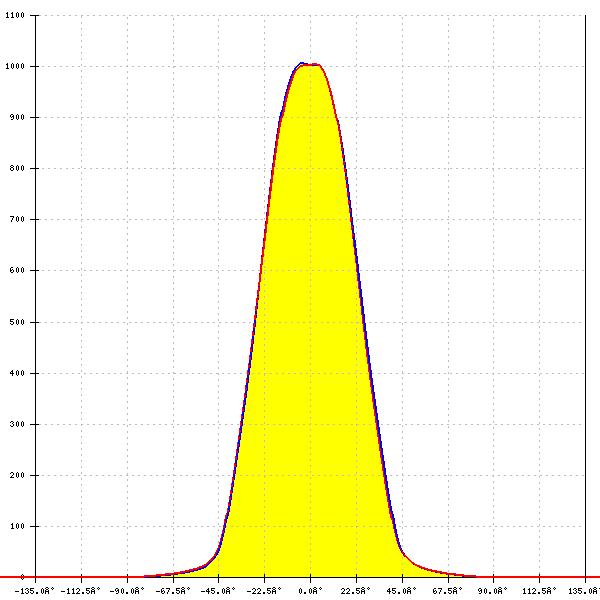

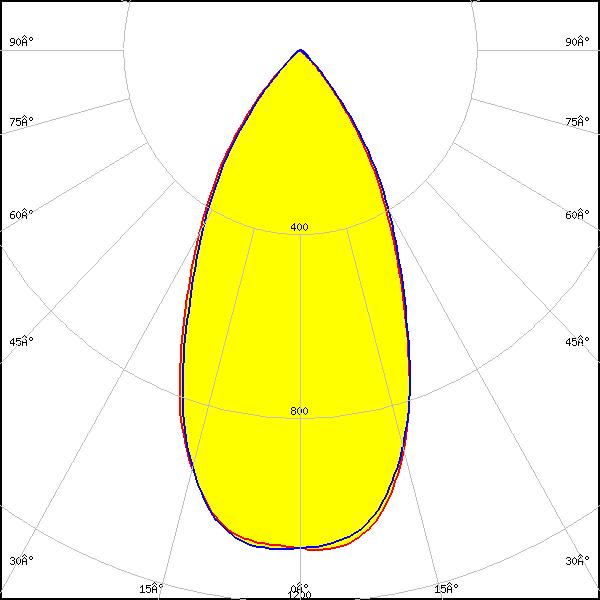

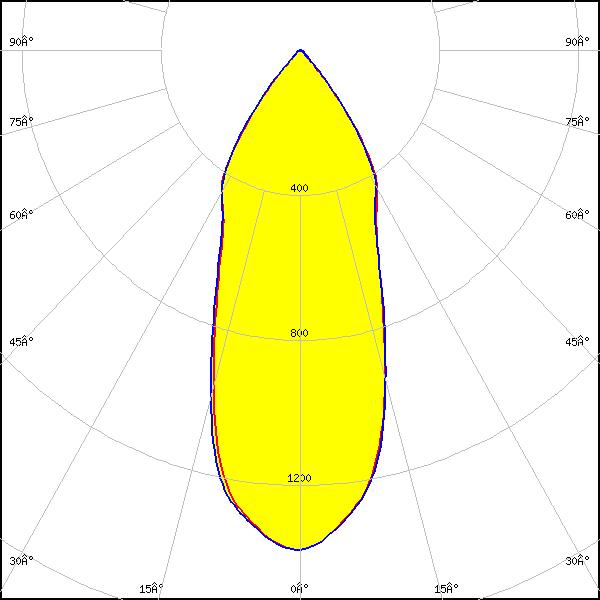

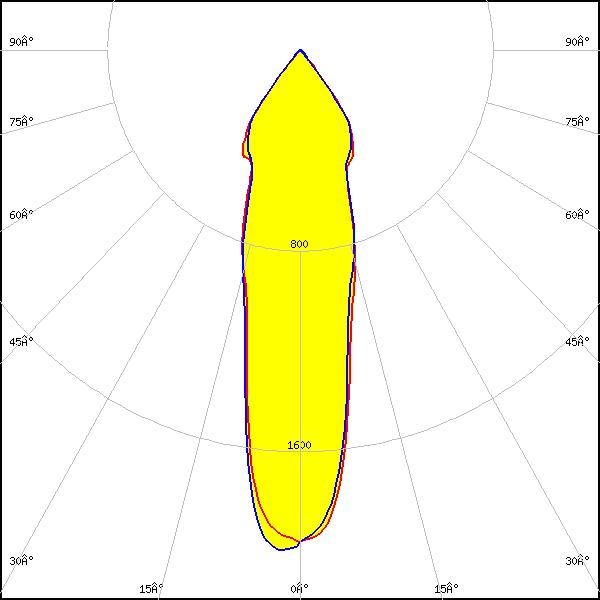

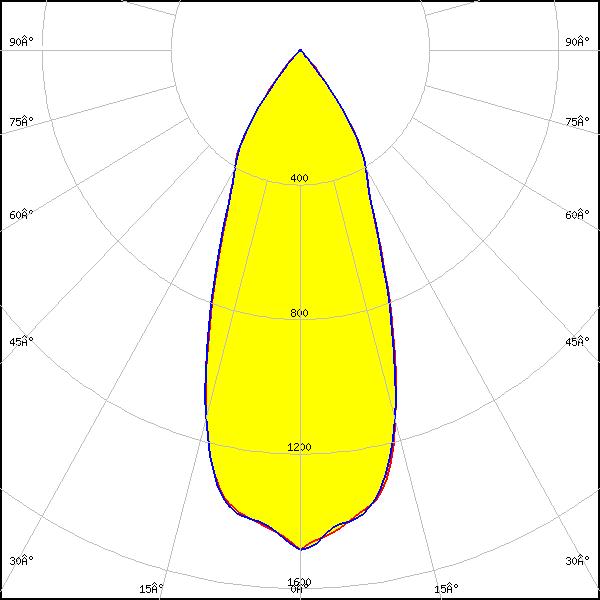

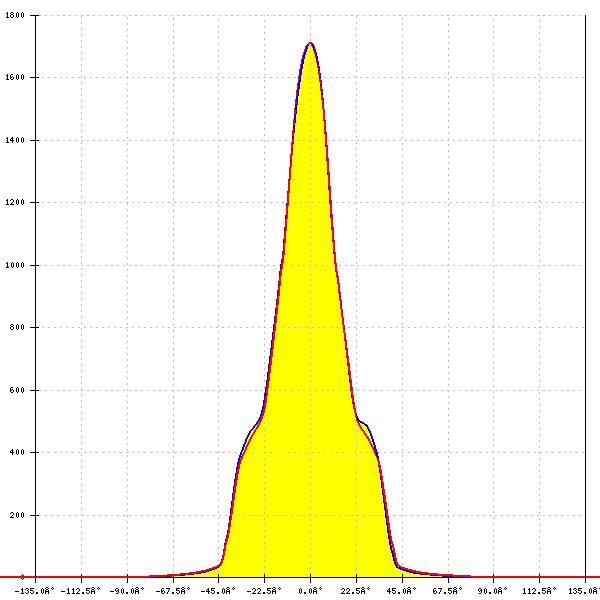

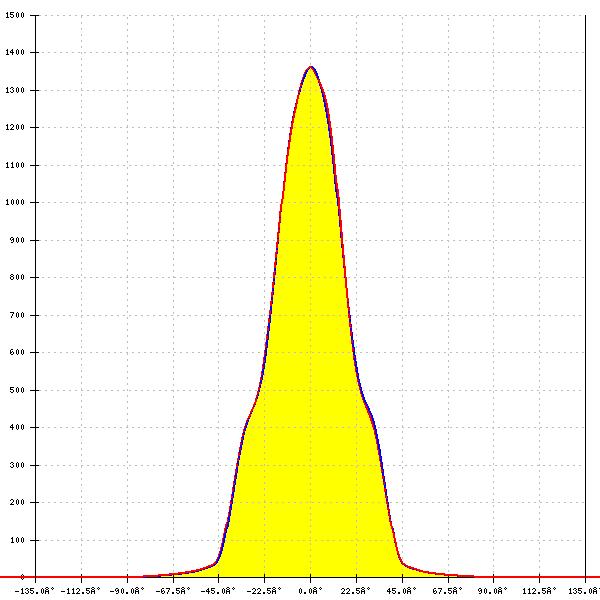

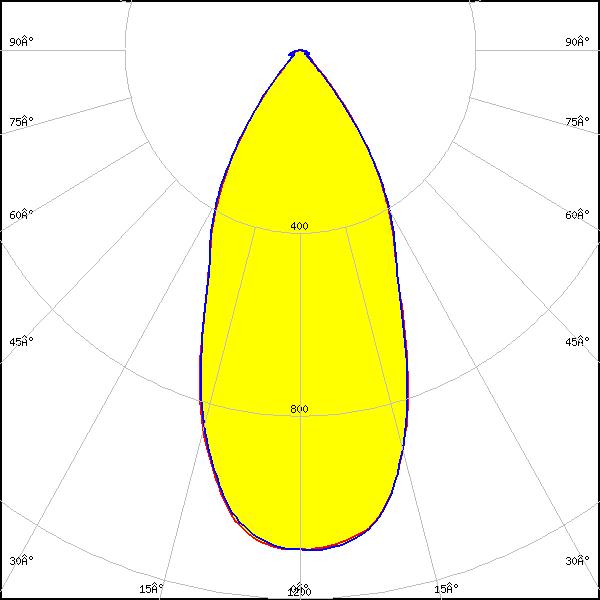

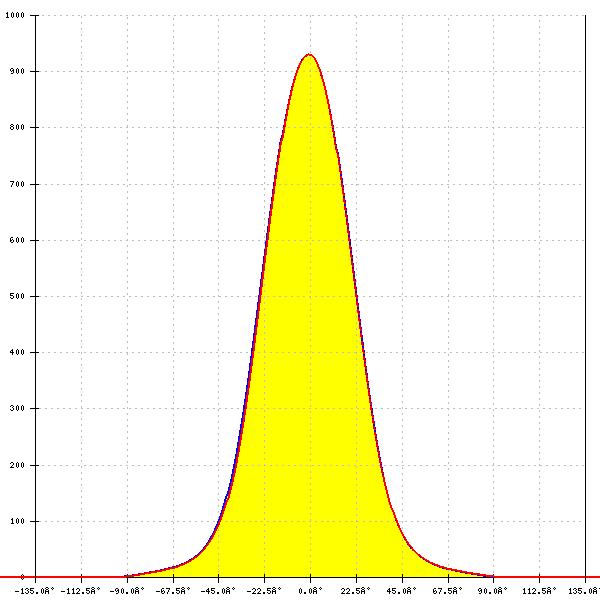

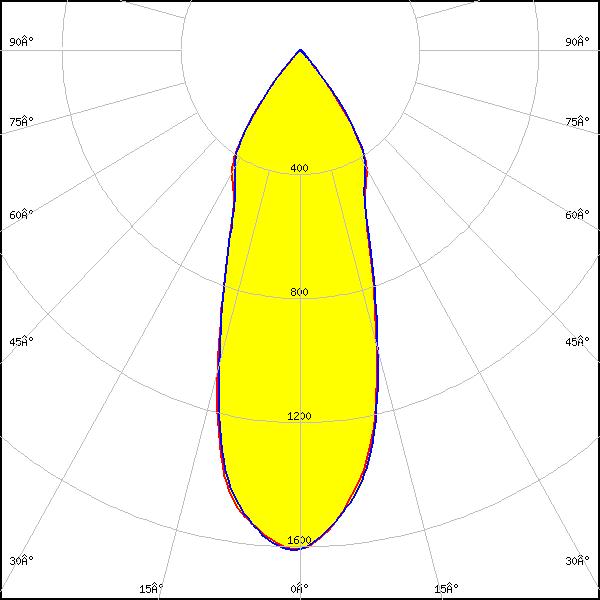

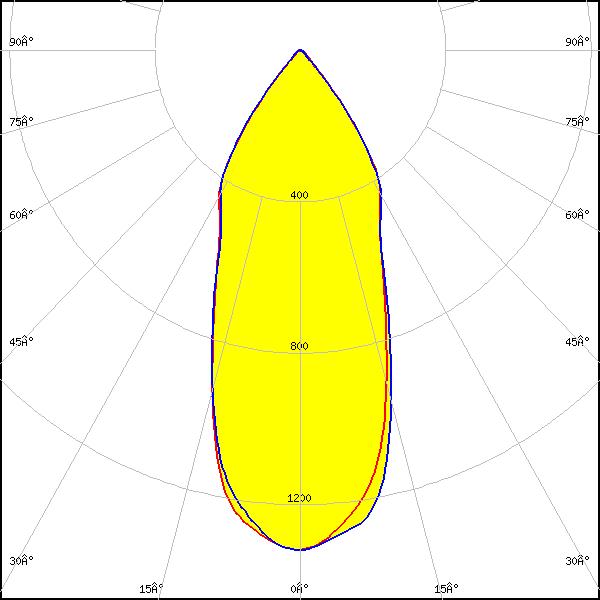

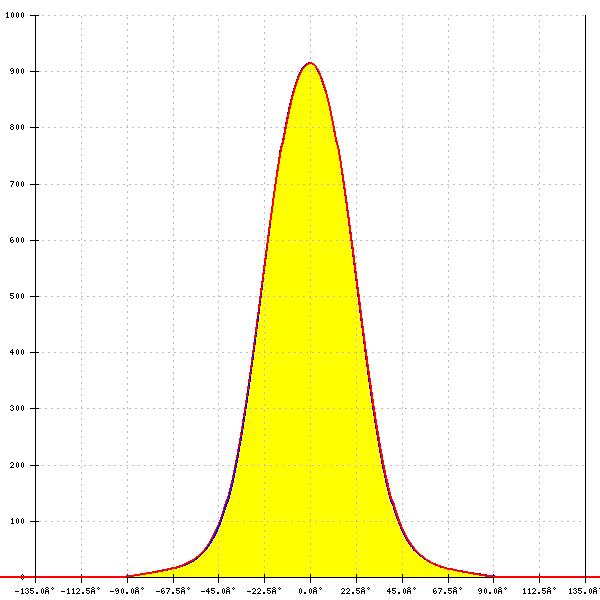

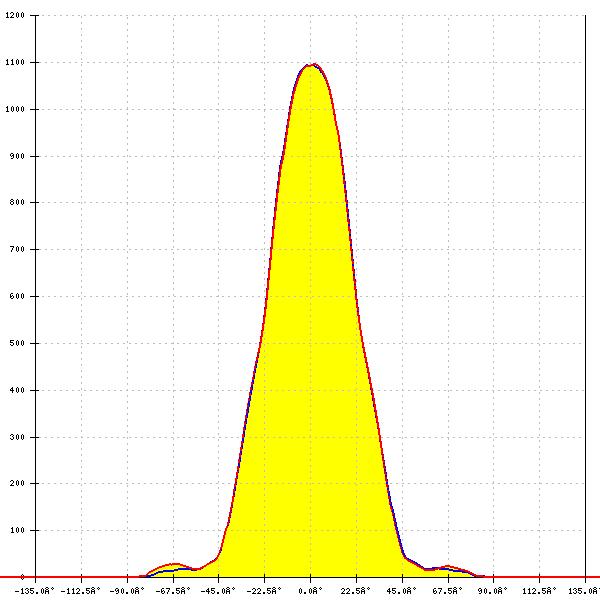

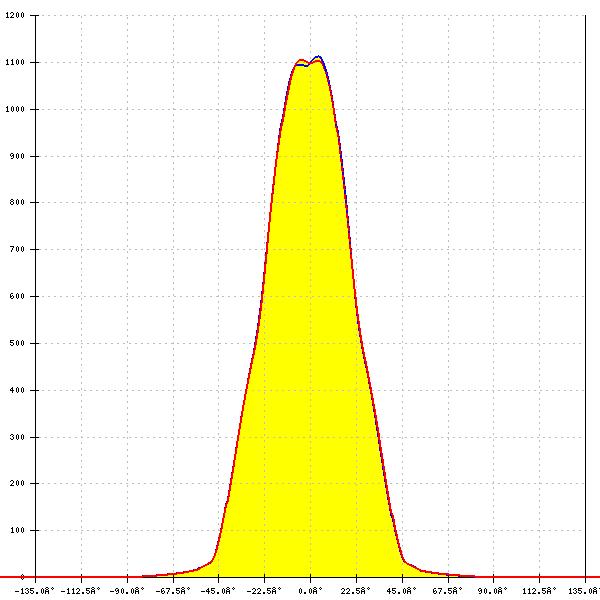

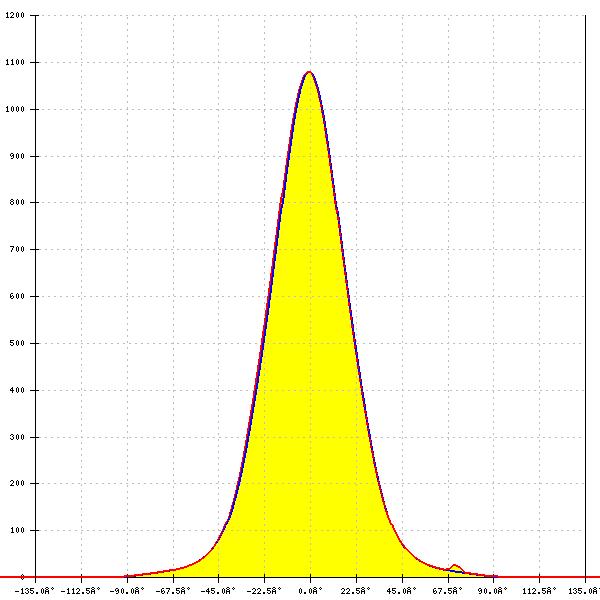

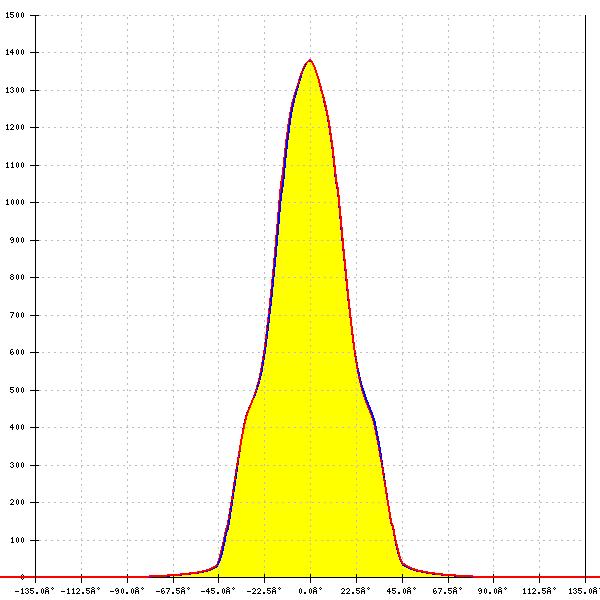

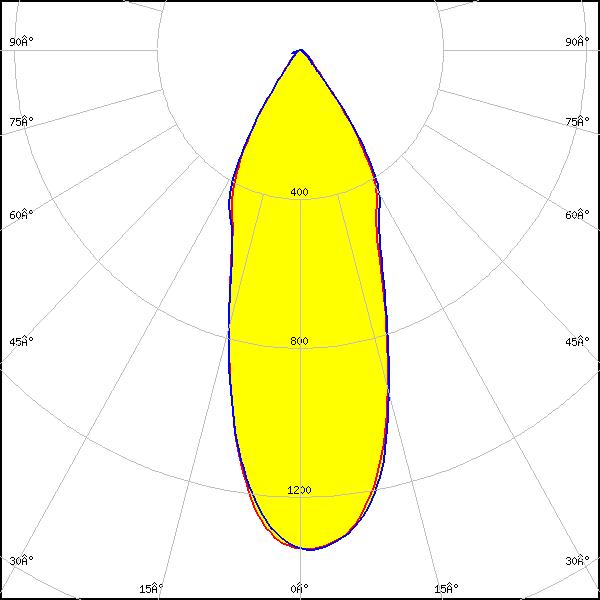

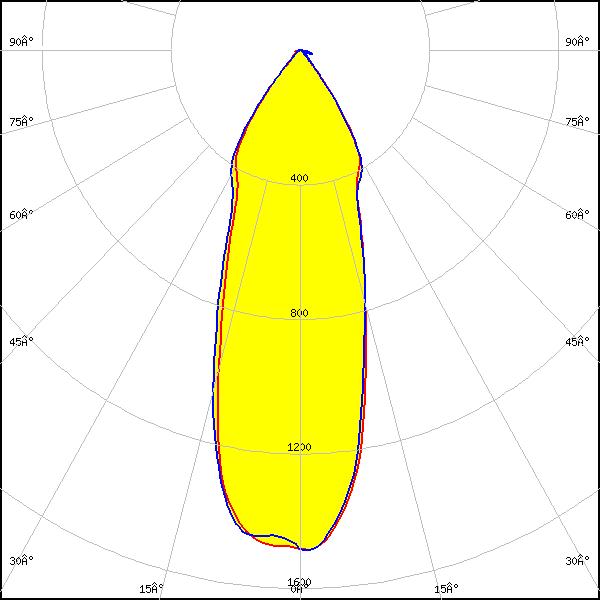

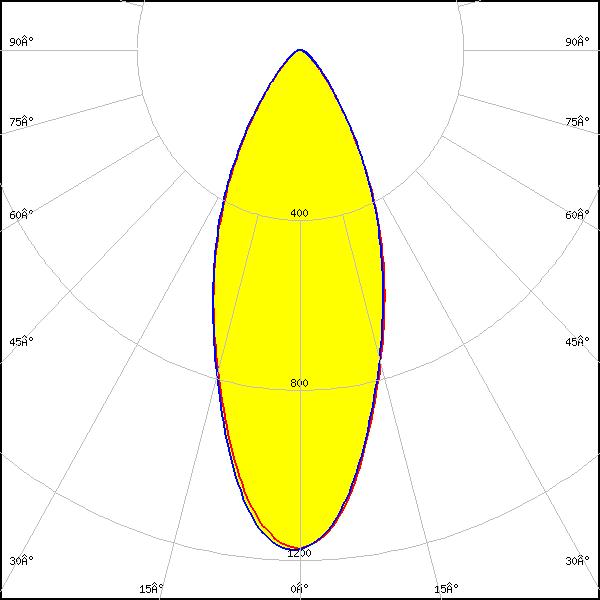

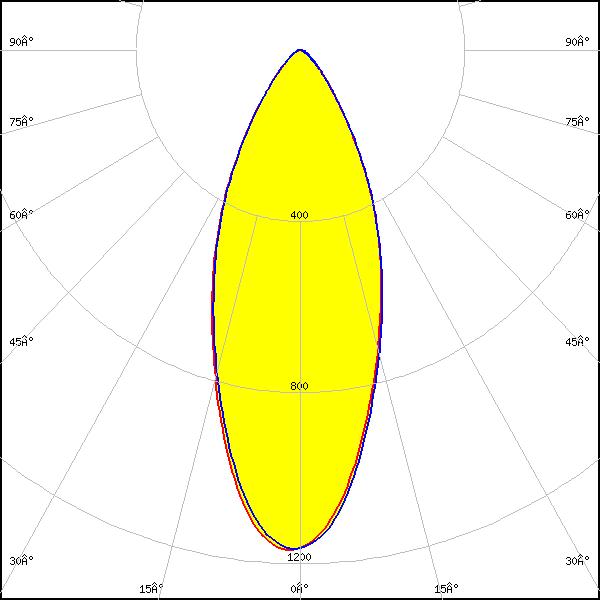

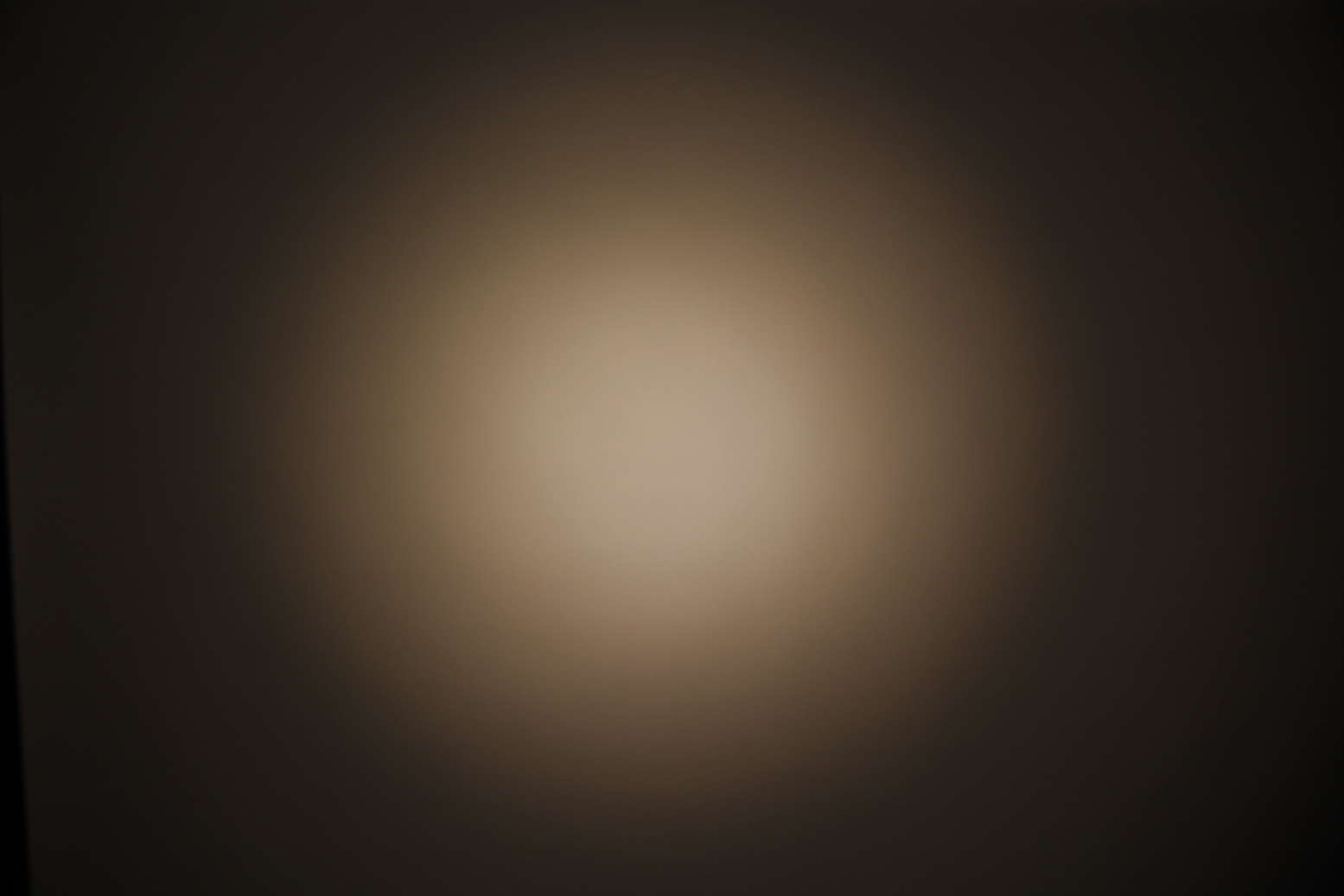

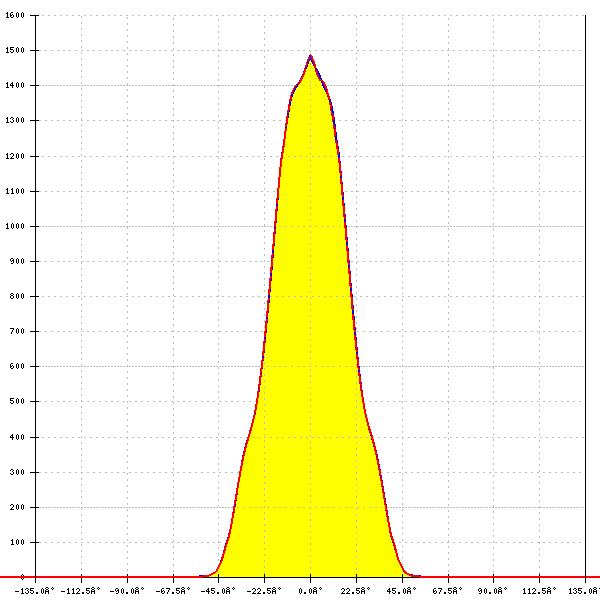

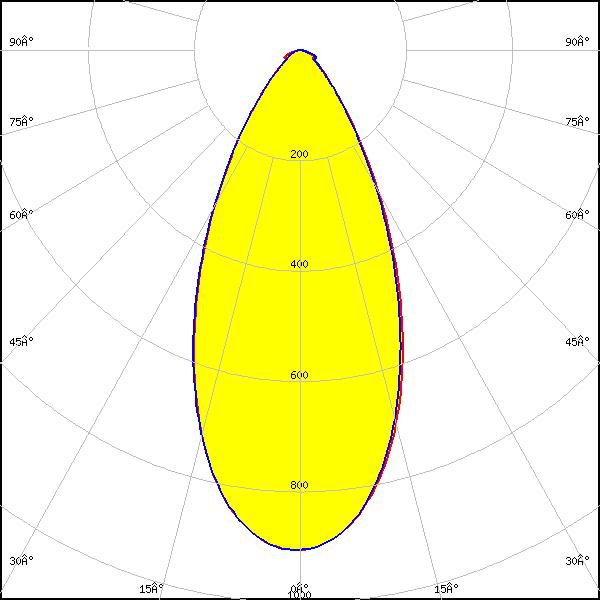

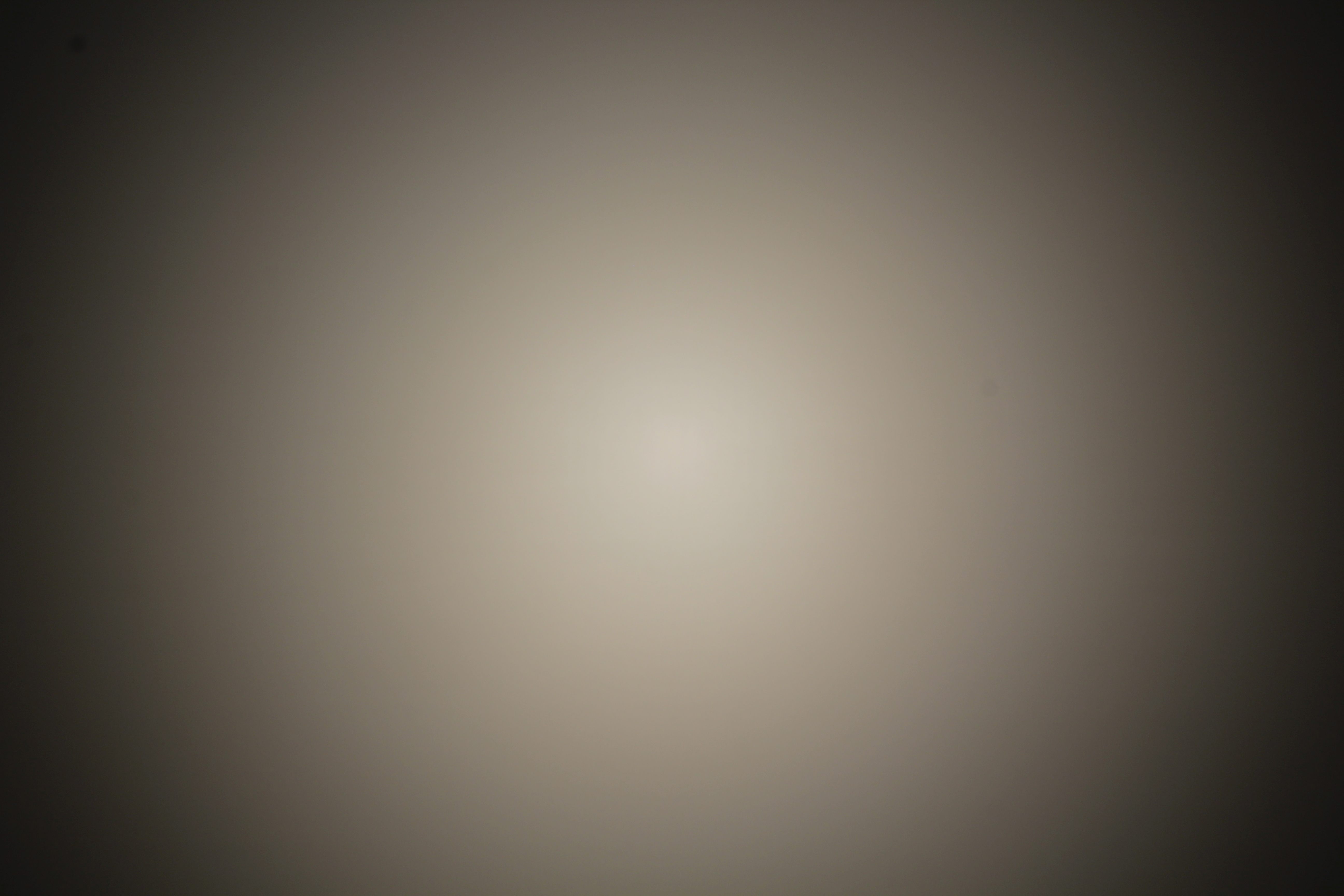

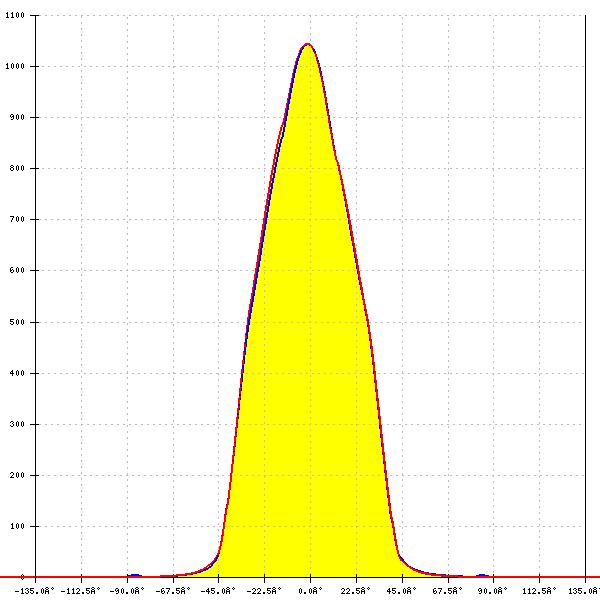

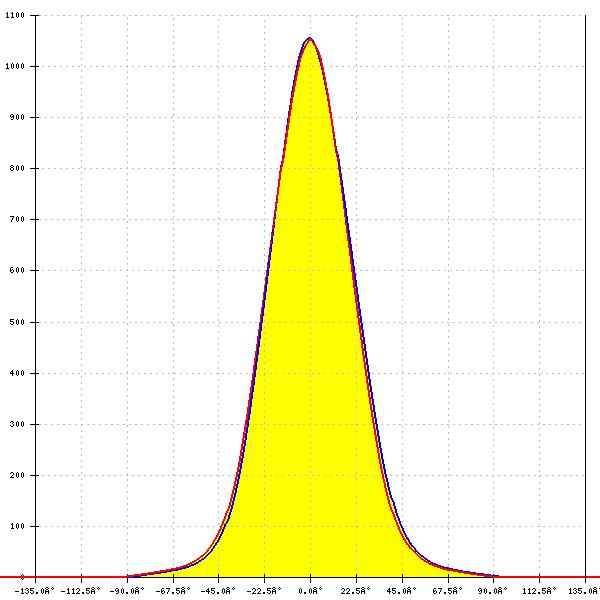

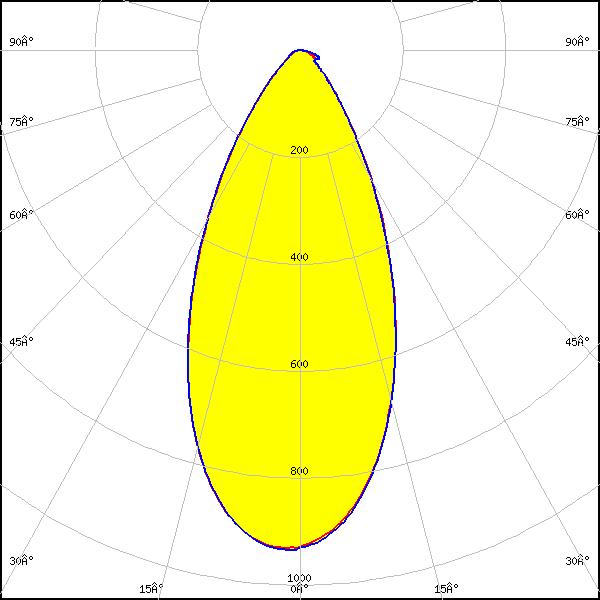

Optical results

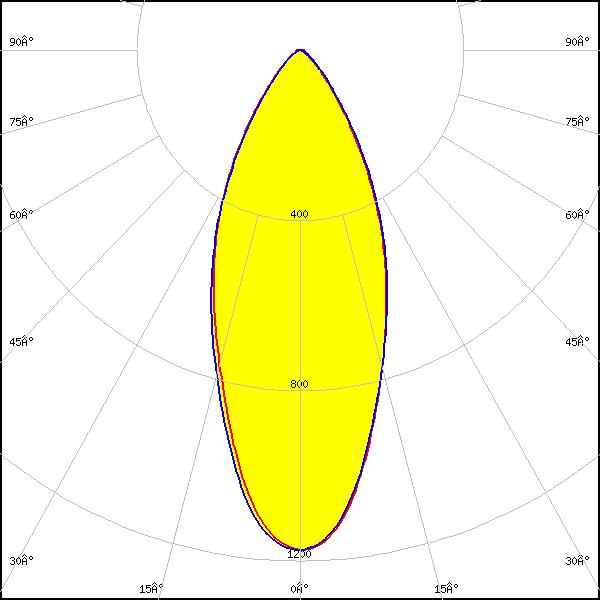

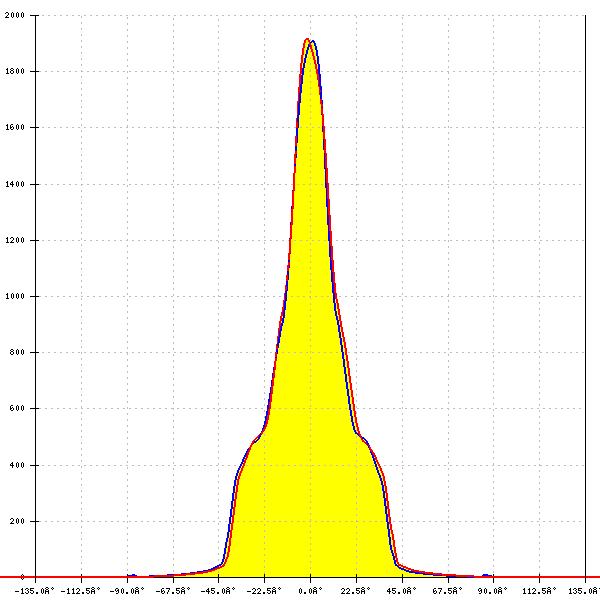

LED:
V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
26°
FWTM:
78°
Peak intensity:
1.920 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

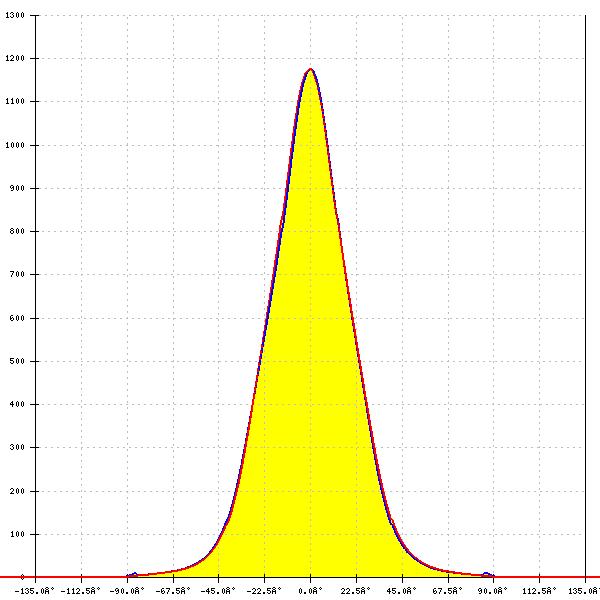

LED:
V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
42°
FWTM:
83°
Peak intensity:
1.180 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

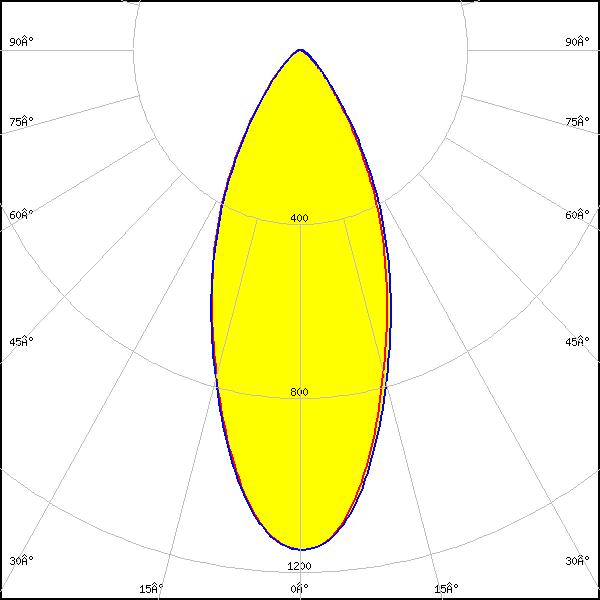

LED:

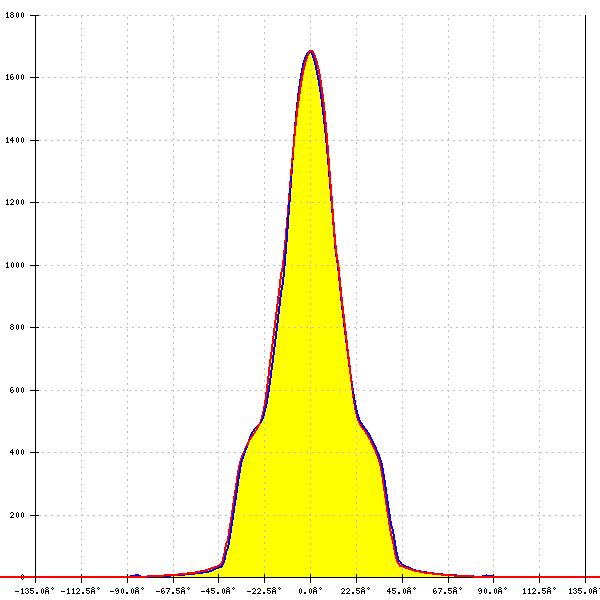

V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
32°
FWTM:
79°
Peak intensity:
1.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM:
43°
FWTM:
83°
Peak intensity:
1.150 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

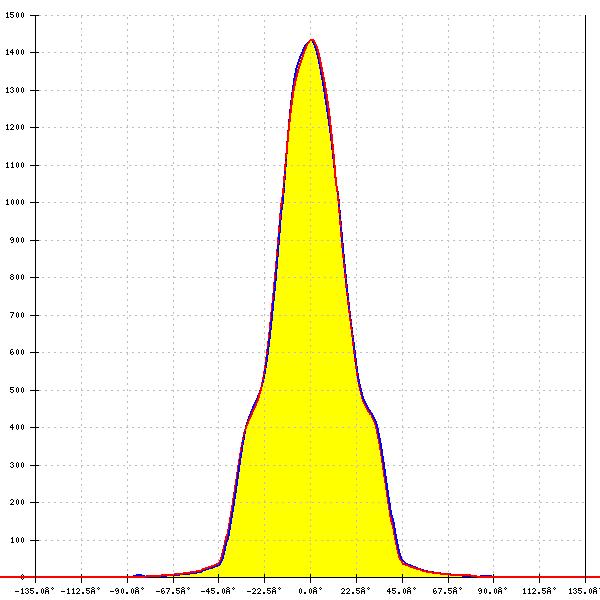

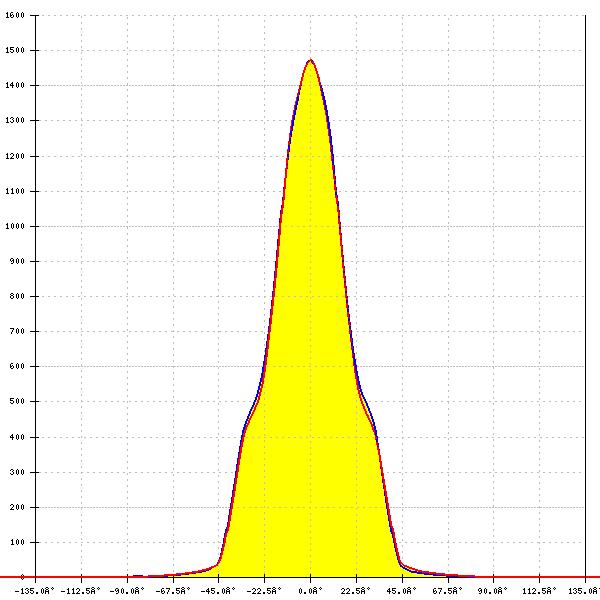

LED:
V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
37°
FWTM:
80°
Peak intensity:
1.440 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

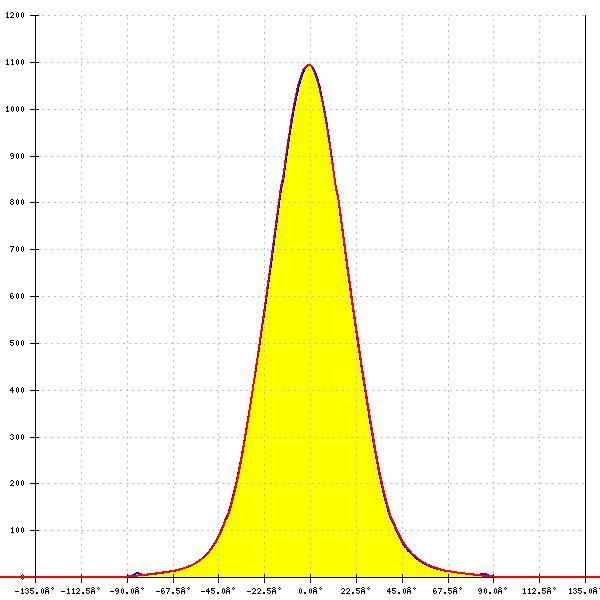

LED:
V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM:
45°
FWTM:
84°
Peak intensity:
1.100 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

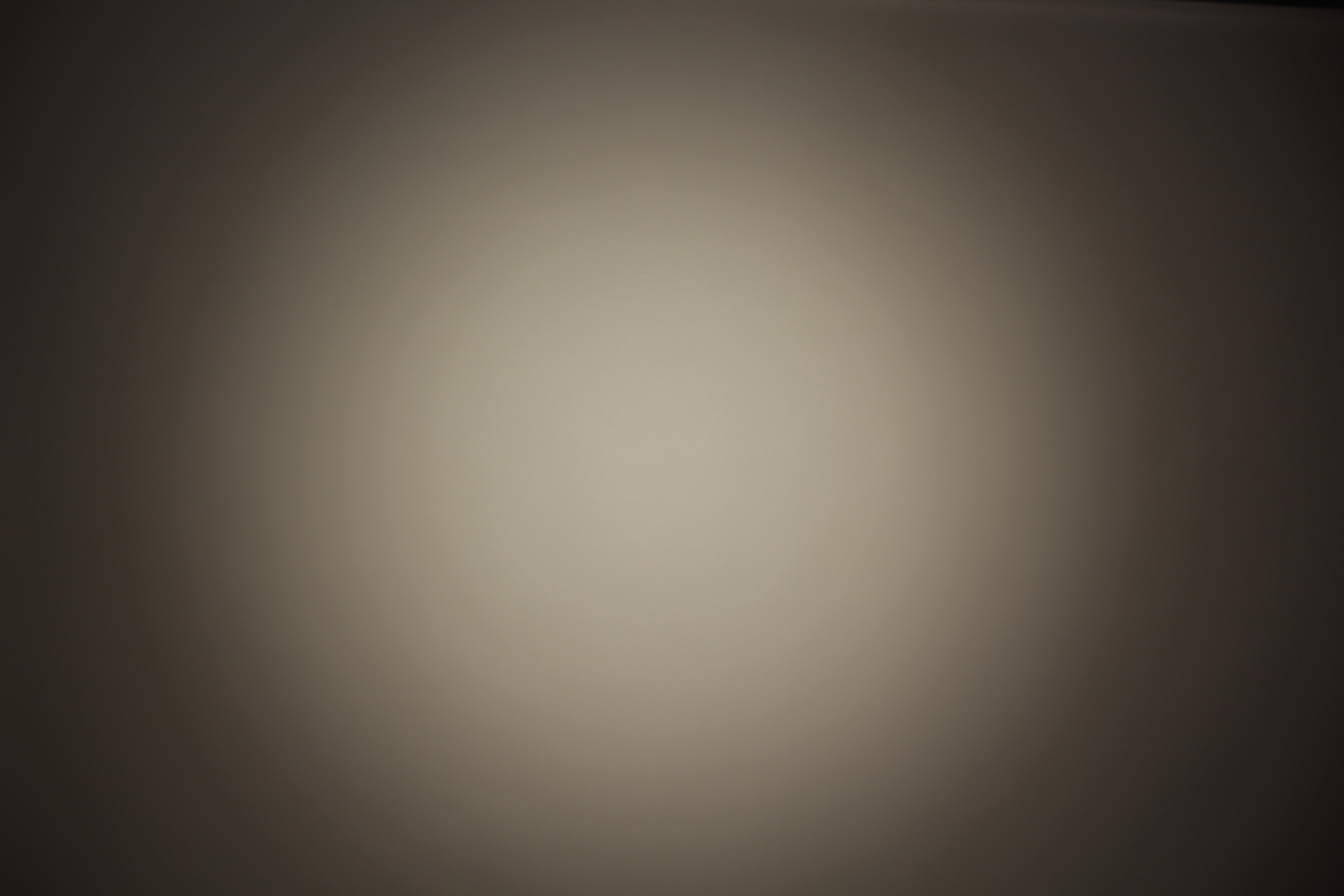

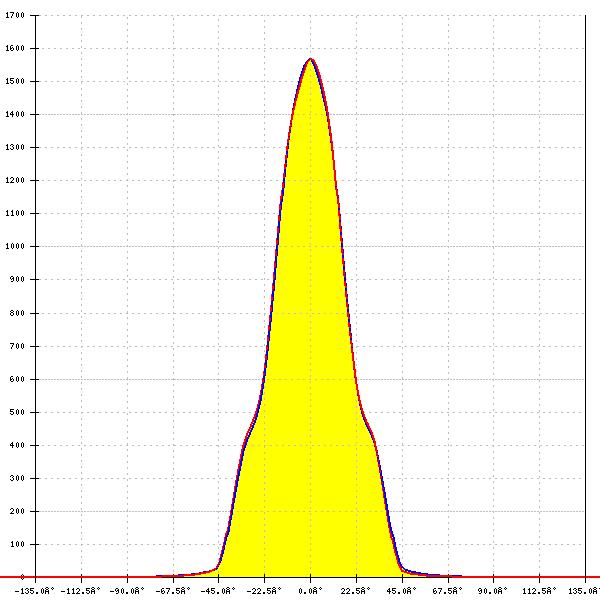

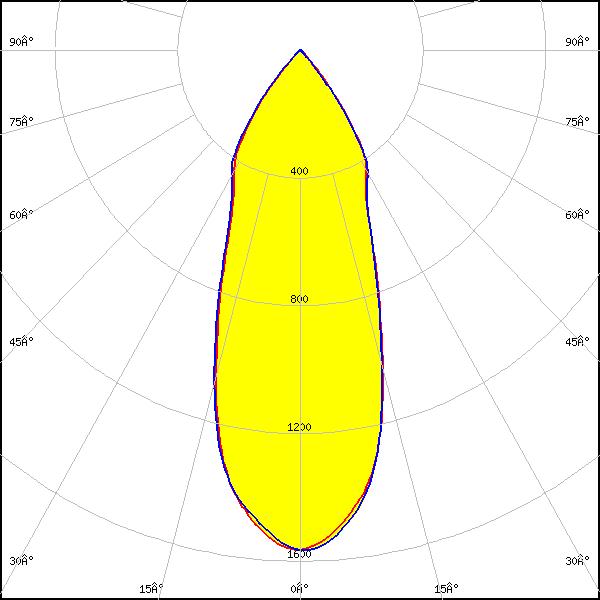

LED:
VERO10
LES size: 9.9 mm
Required components:
FWHM:
38°
FWTM:
79°
Peak intensity:
1.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

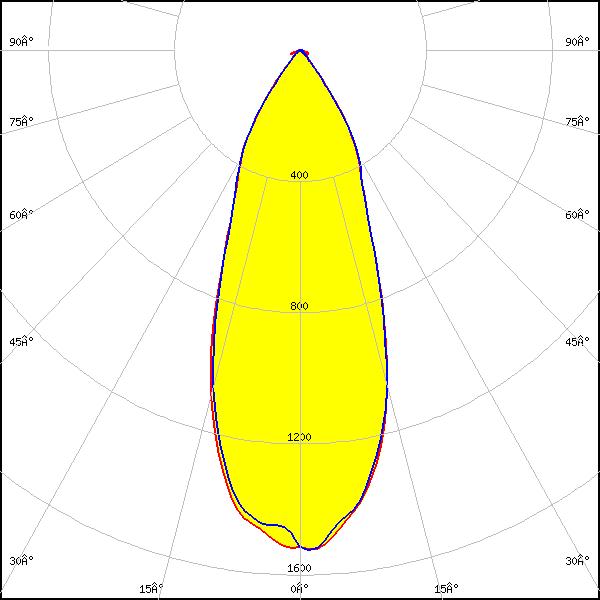

LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
39°
FWTM:
75°
Peak intensity:
1.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

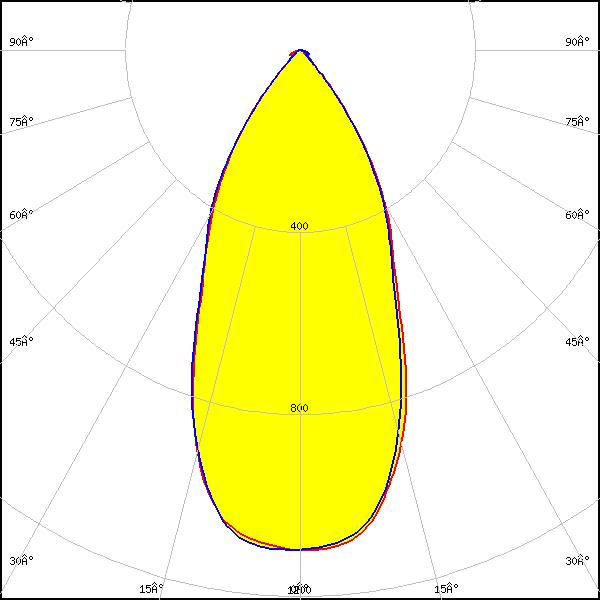

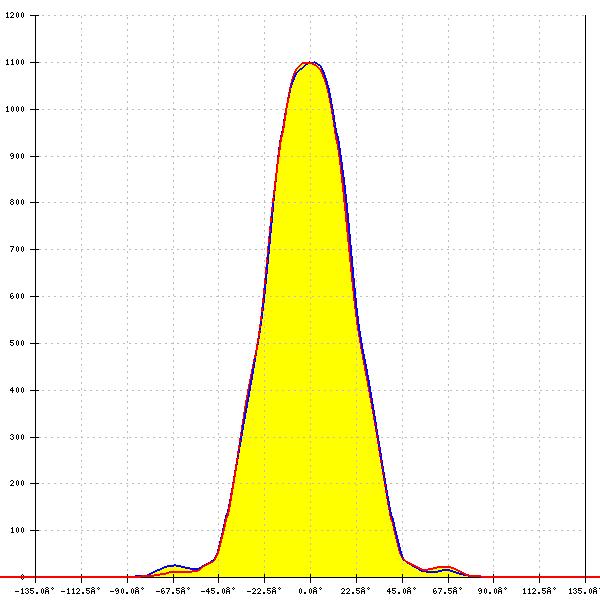

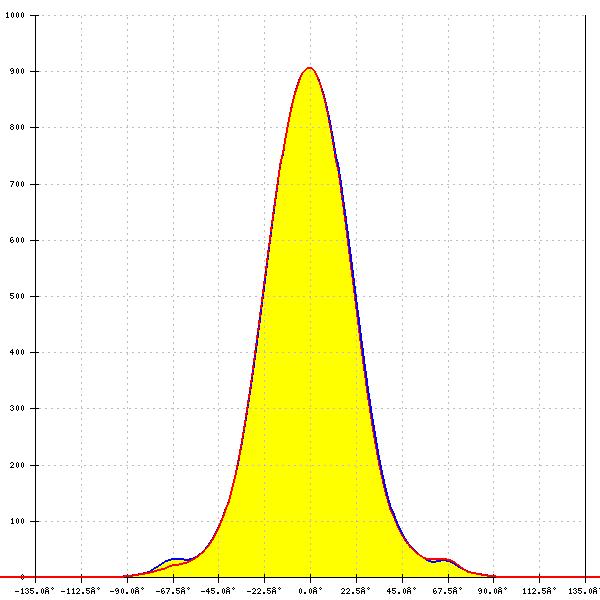

Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
47°
FWTM:
83°
Peak intensity:
1.099 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
49°
FWTM:
88°
Peak intensity:
0.906 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
Tunable White

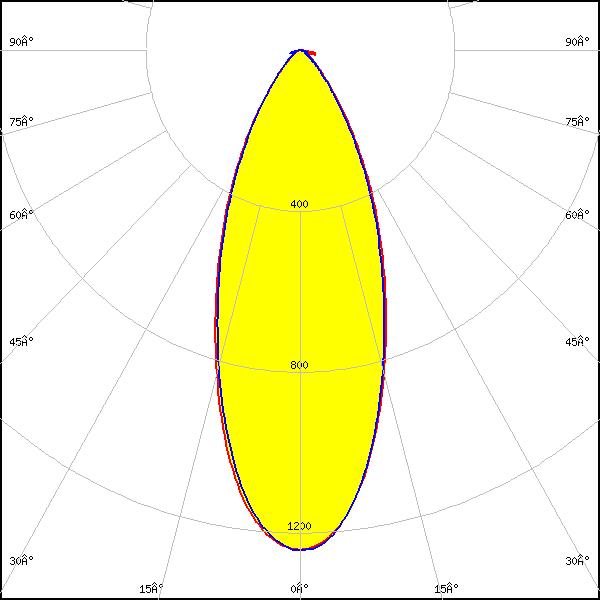

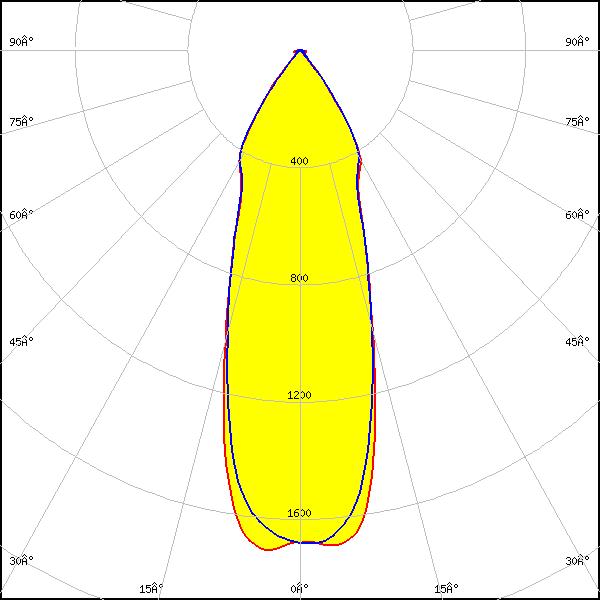

LED:
Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
FWHM:
41°
FWTM:
79°
Peak intensity:
1.200 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

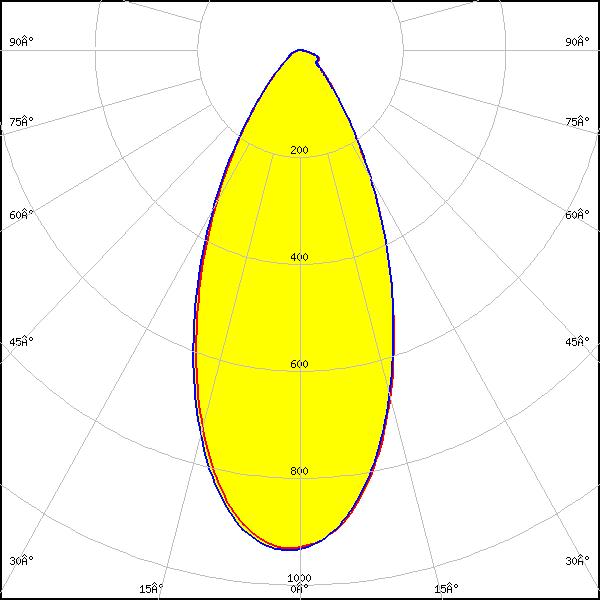

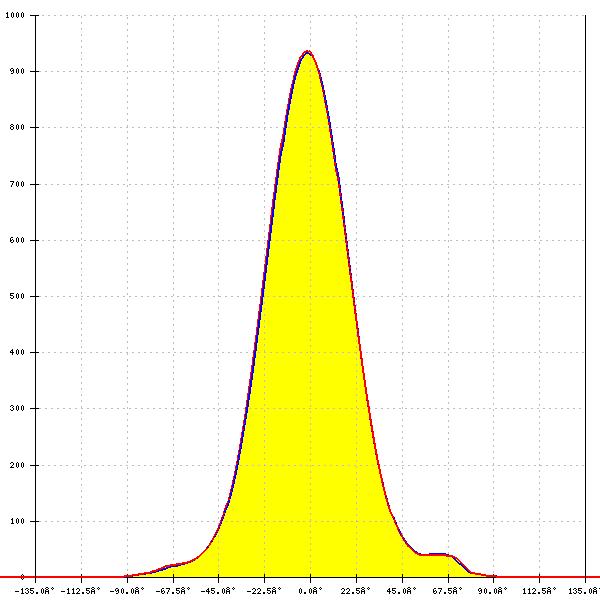

LED:
Vesta TW 13mm (25W) CSP
LES size: 14.3 mm
Required components:
FWHM:
47°
FWTM:
86°
Peak intensity:
0.940 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
29°
FWTM:
75°
Peak intensity:
1.816 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
41°
FWTM:
81°
Peak intensity:
1.149 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

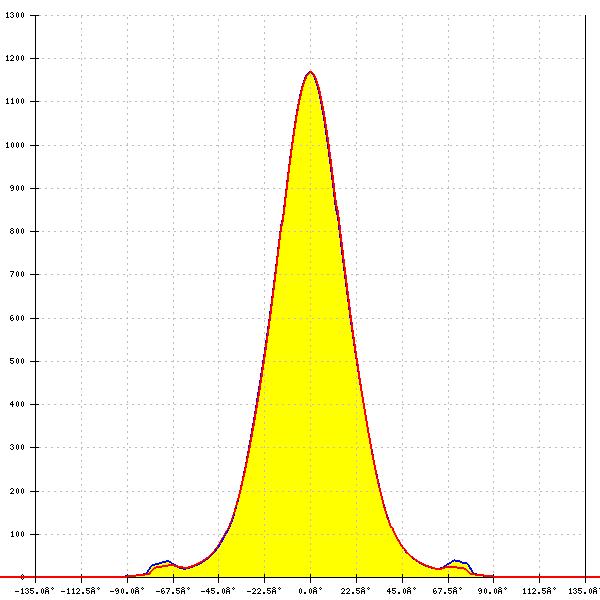

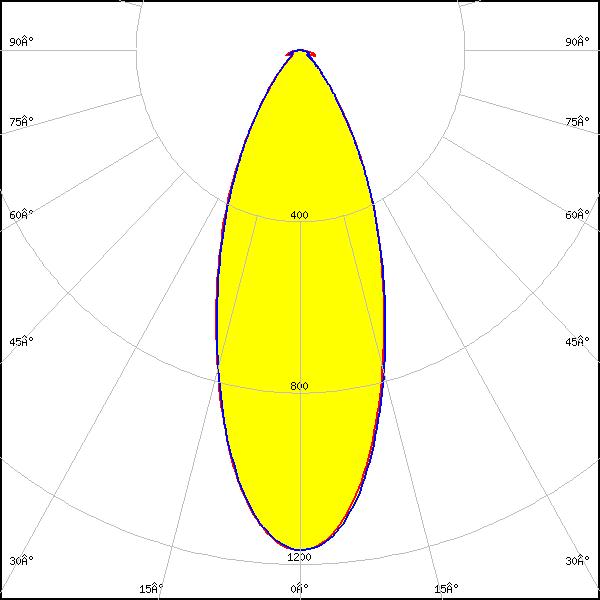

LED:
Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM:
40°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM:
34°
FWTM:
76°
Peak intensity:
1.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

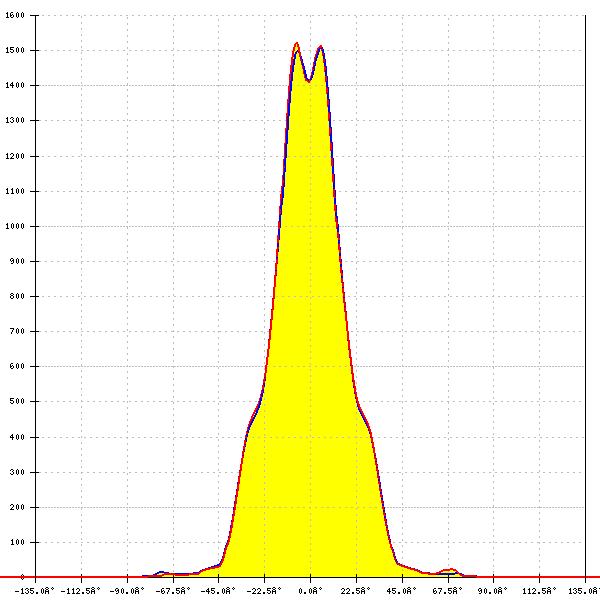

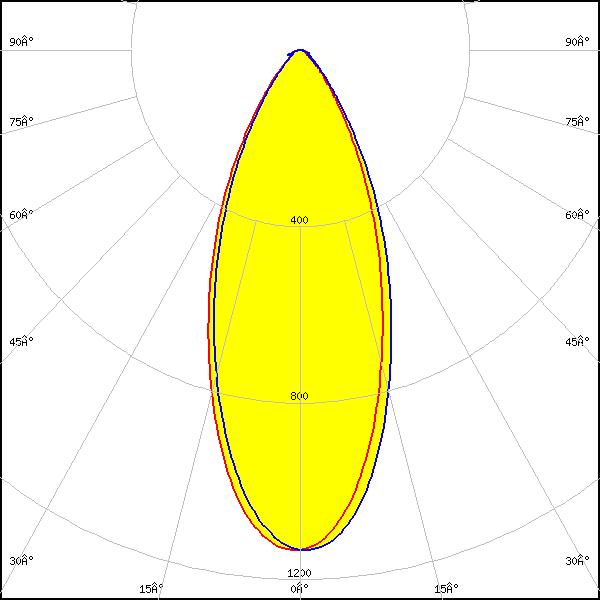

LED:
CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM:
42°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

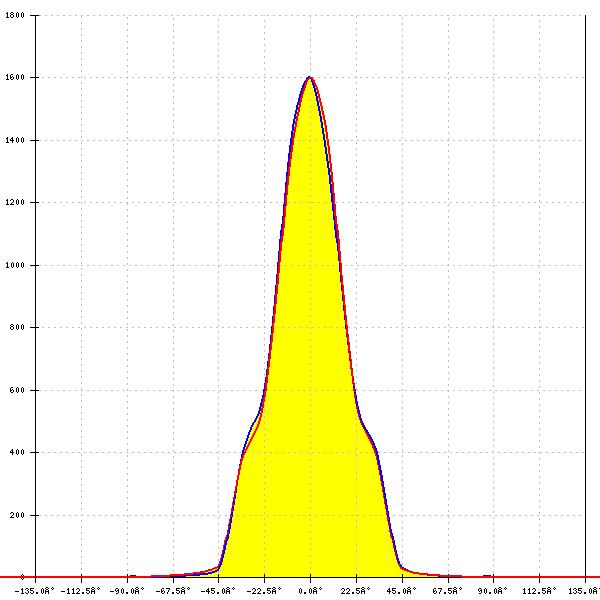

LED:
CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM:
36°
FWTM:
76°
Peak intensity:
1.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
37°
FWTM:
77°
Peak intensity:
1.680 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

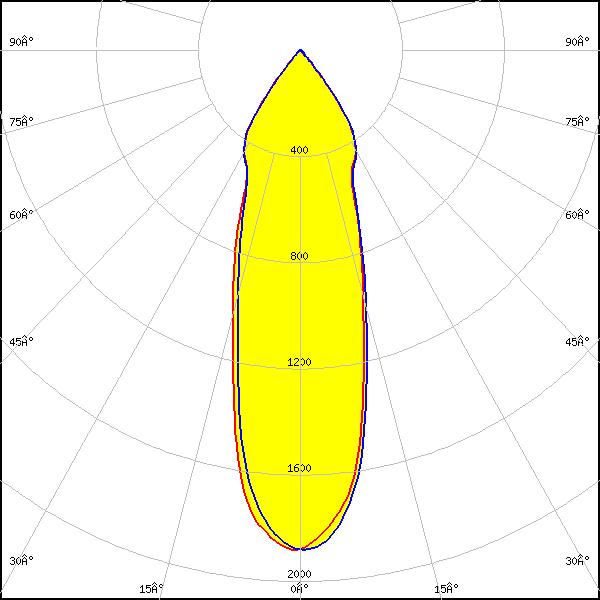

LED:

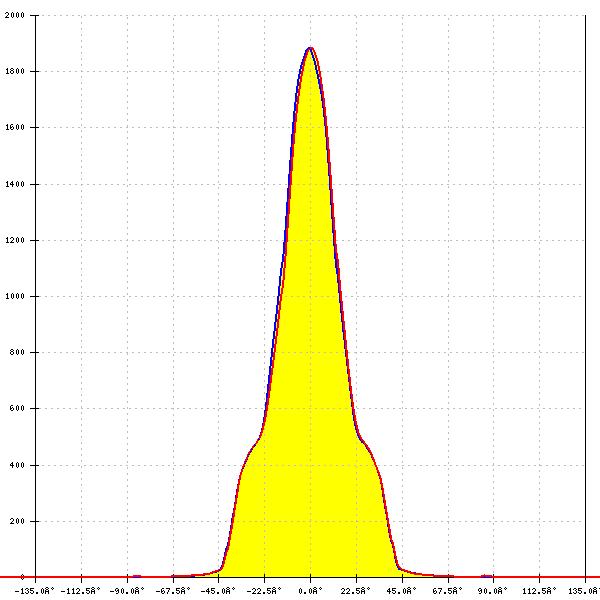

CLU025/CLU027 (LES 6)
LES size: 6.0 mm
Required components:
FWHM:
31°
FWTM:
77°
Peak intensity:
1.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

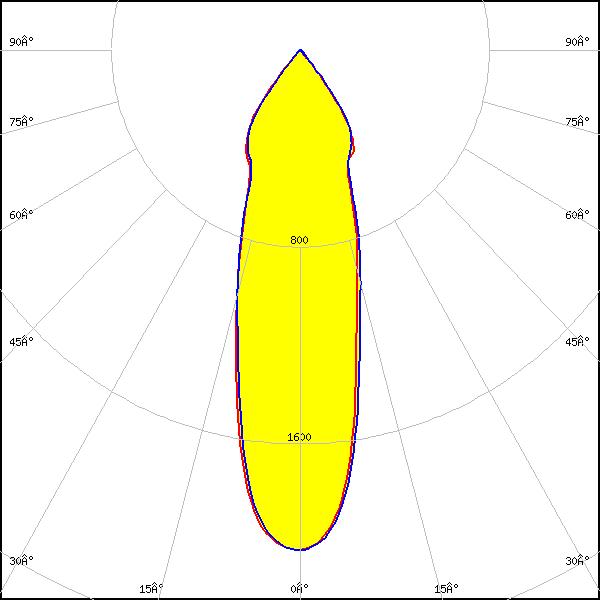

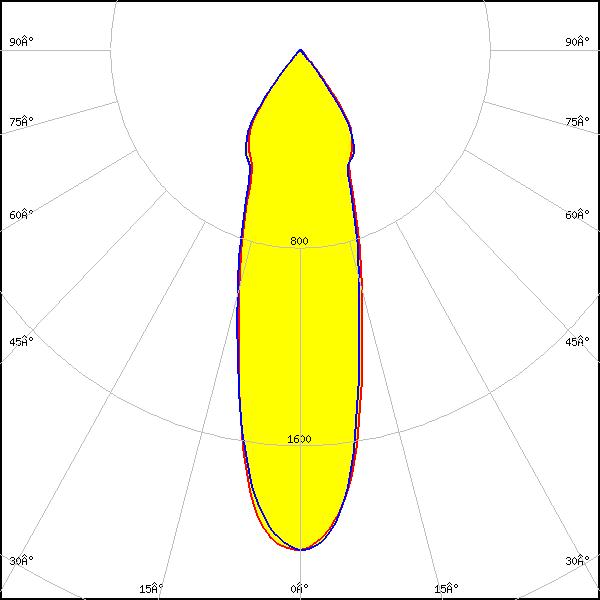

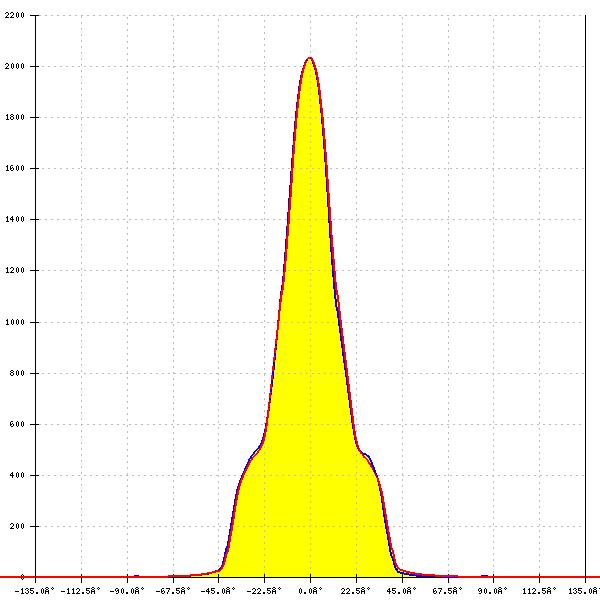

LED:

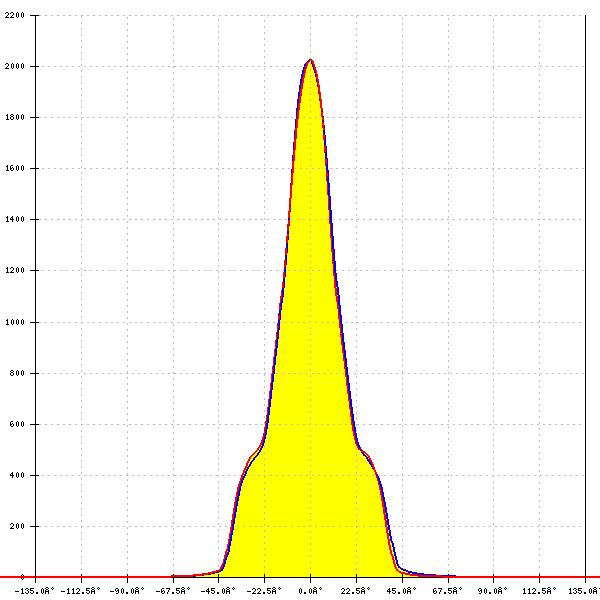

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
29°
FWTM:
77°
Peak intensity:
2.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
29°
FWTM:
77°
Peak intensity:
2.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
37°
FWTM:
79°
Peak intensity:
1.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

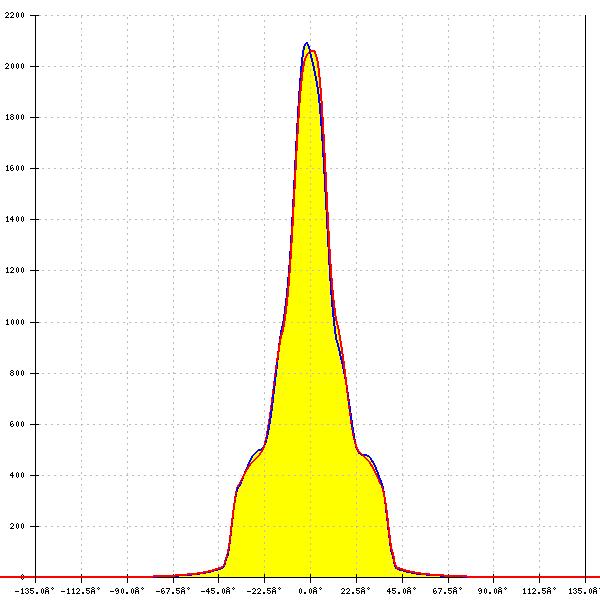

LED:
CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM:
24°
FWTM:
77°
Peak intensity:
2.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

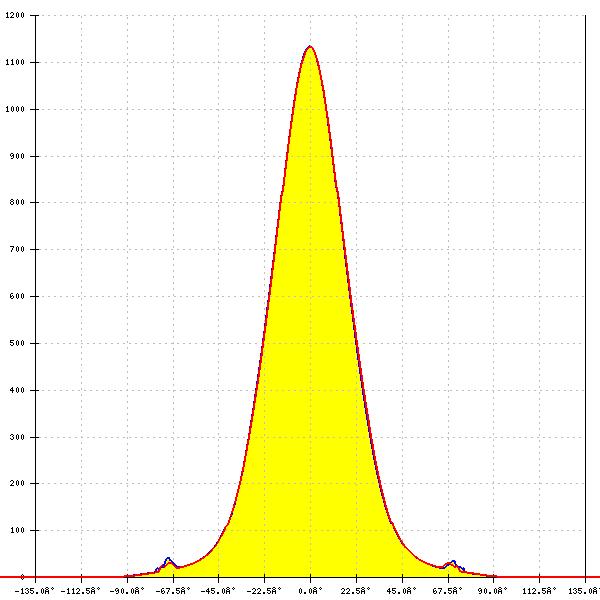

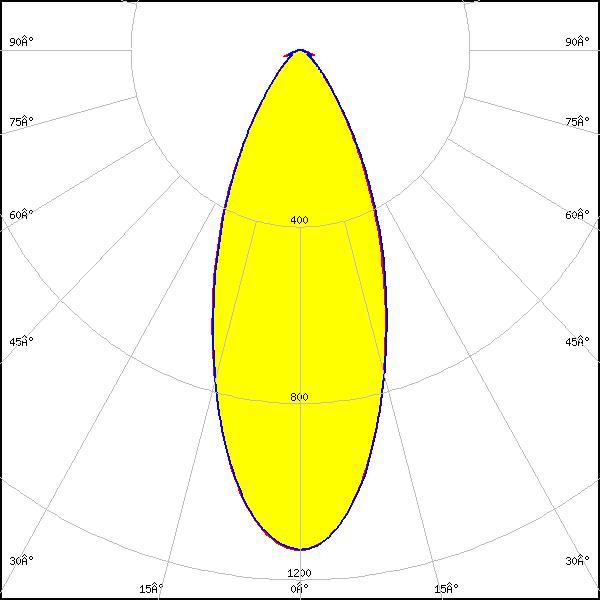

LED:
LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
FWHM:
42°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
FWHM:
42°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

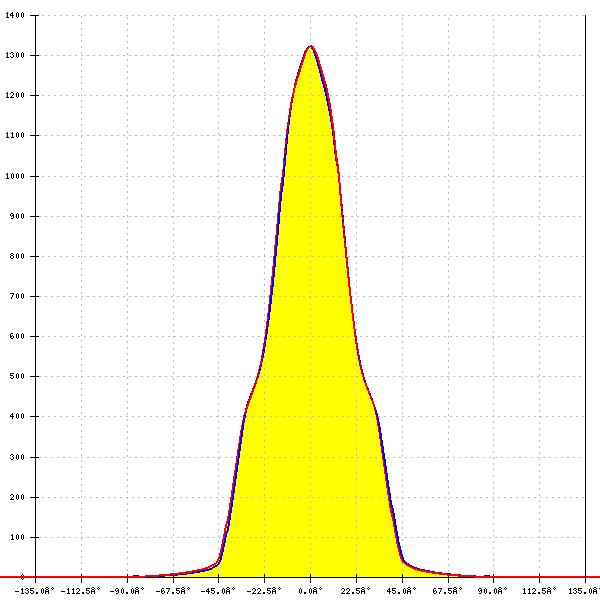

LED:
CMA1516
LES size: 9.0 mm
Required components:
FWHM:
40°
FWTM:
82°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

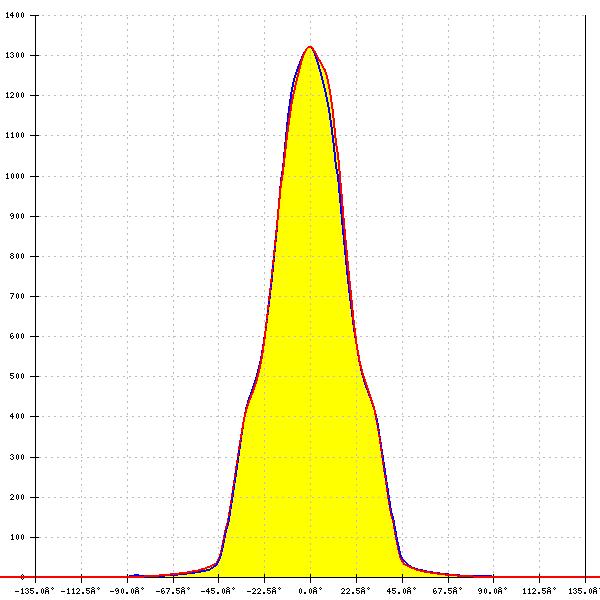

LED:
CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
41°
FWTM:
82°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

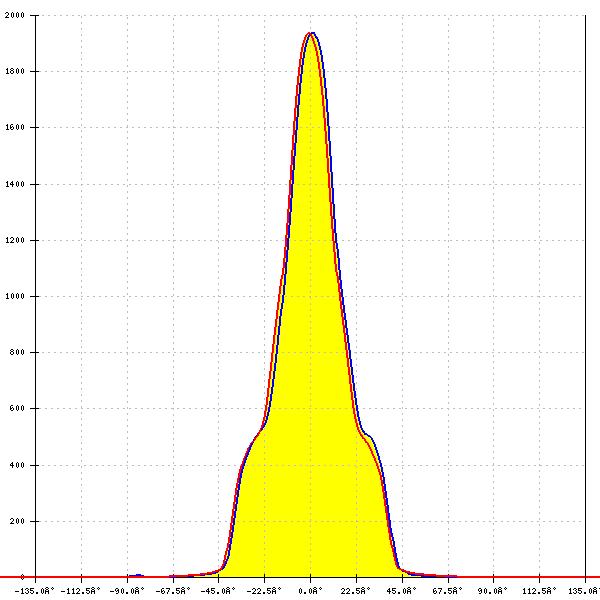

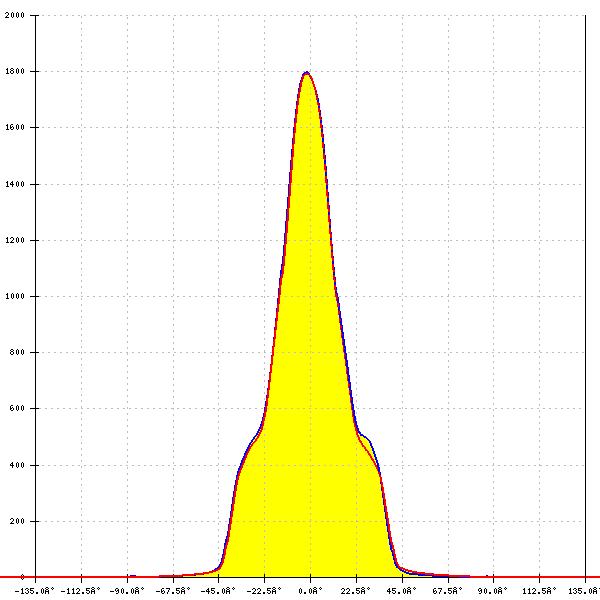

LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
30°
FWTM:
77°
Peak intensity:
1.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
32°
FWTM:
78°
Peak intensity:
1.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

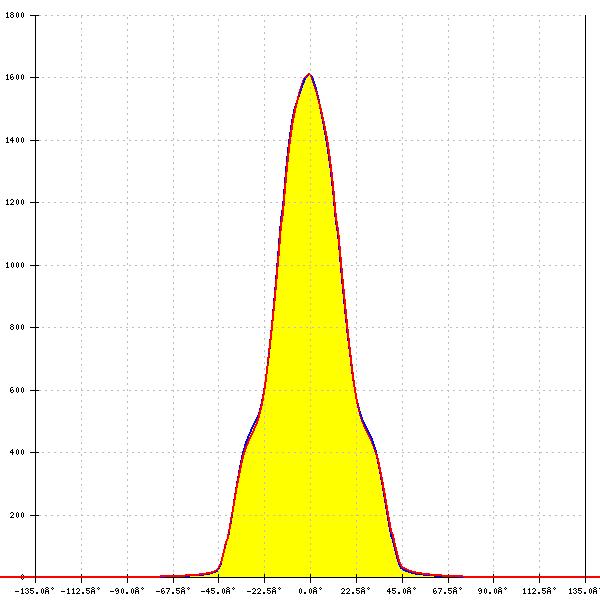

LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
37°
FWTM:
79°
Peak intensity:
1.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

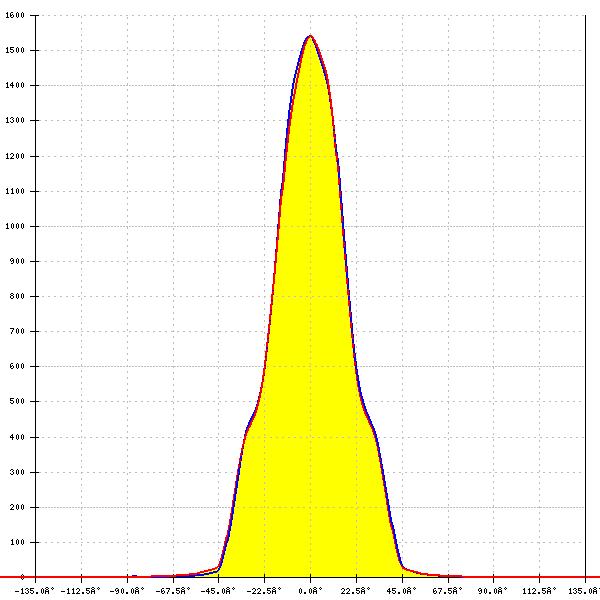

LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
38°
FWTM:
79°
Peak intensity:
1.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

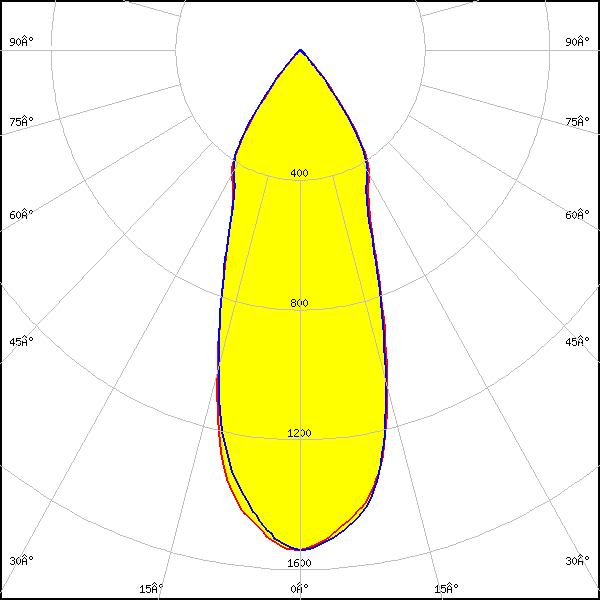

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
38°
FWTM:
79°
Peak intensity:
1.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

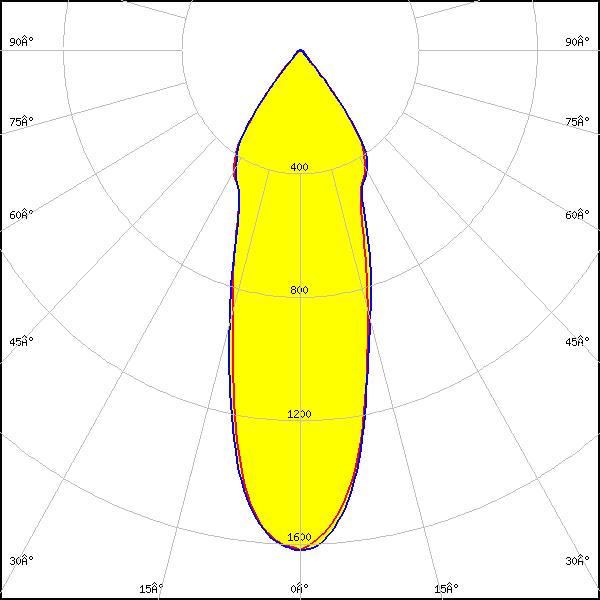

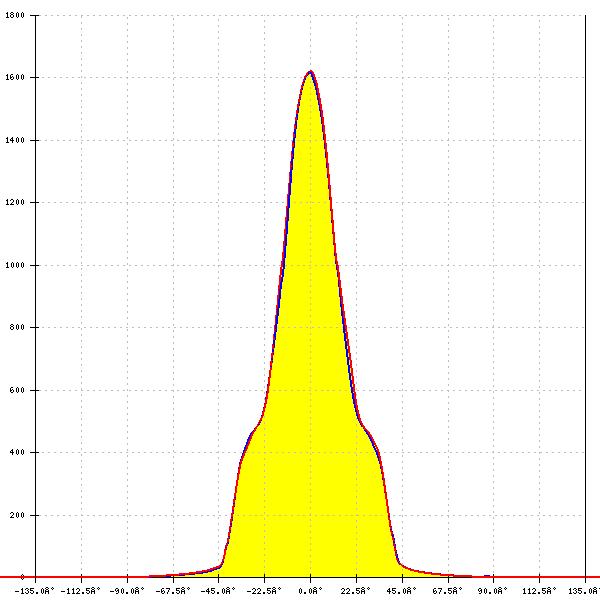

LED:

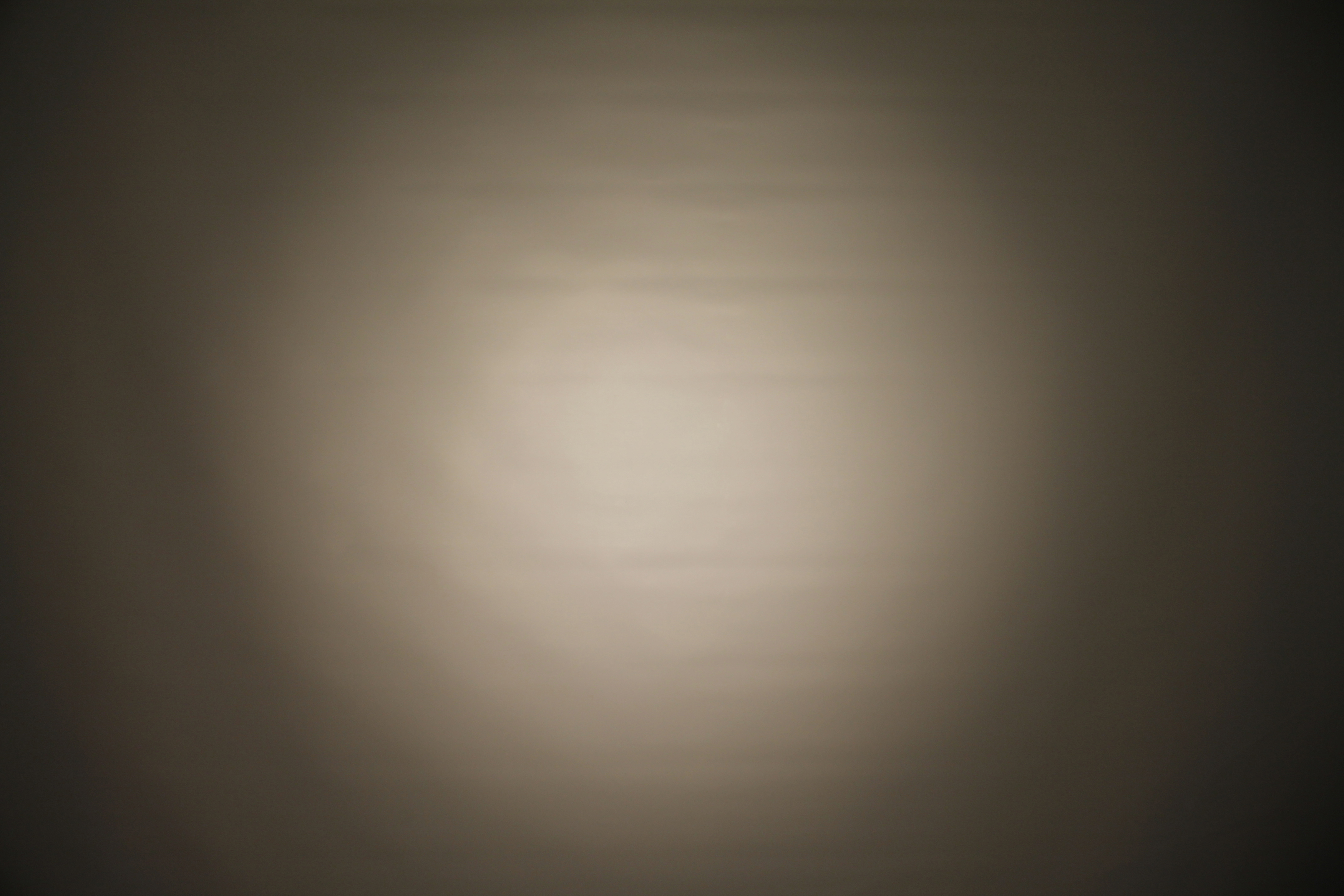

LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM:
33°
FWTM:
79°
Peak intensity:
1.620 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

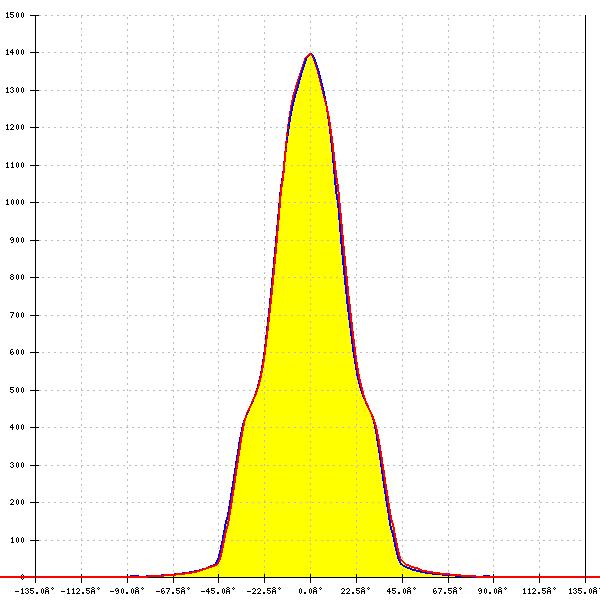

LED:
LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
40°
FWTM:
81°
Peak intensity:
1.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

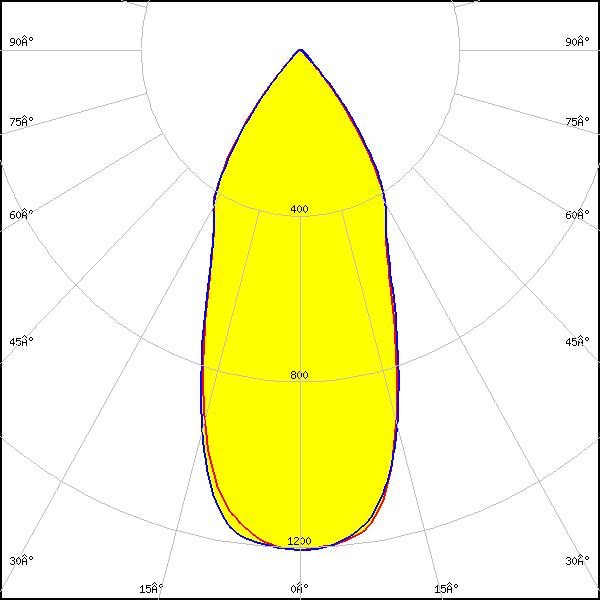

LED:
LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
44°
FWTM:
83°
Peak intensity:
1.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

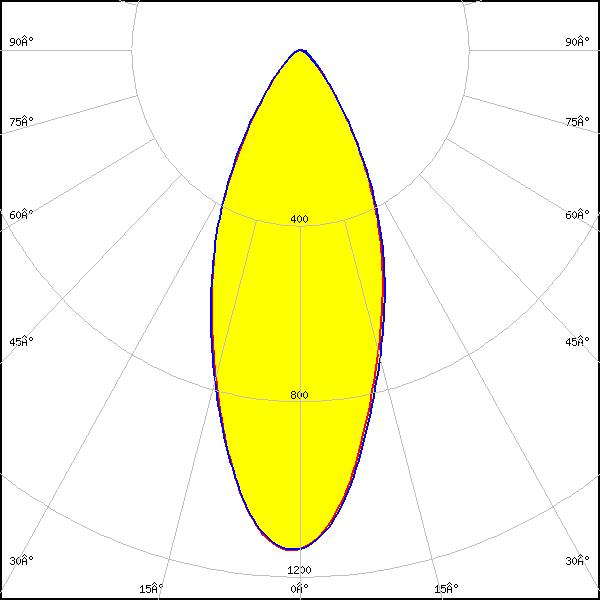

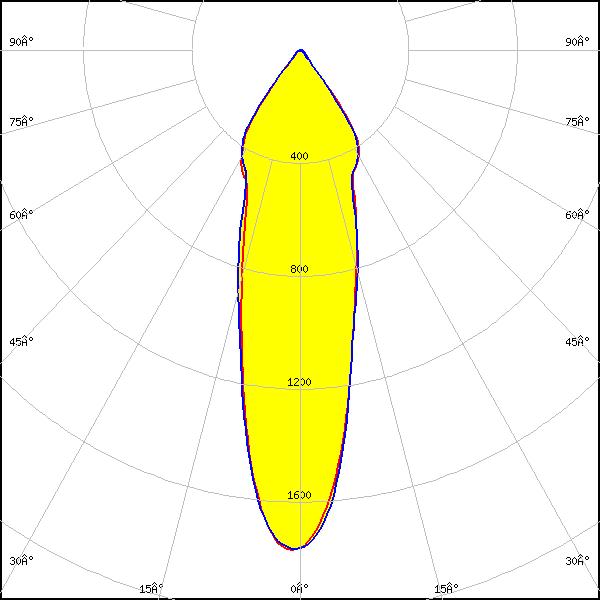

LED:

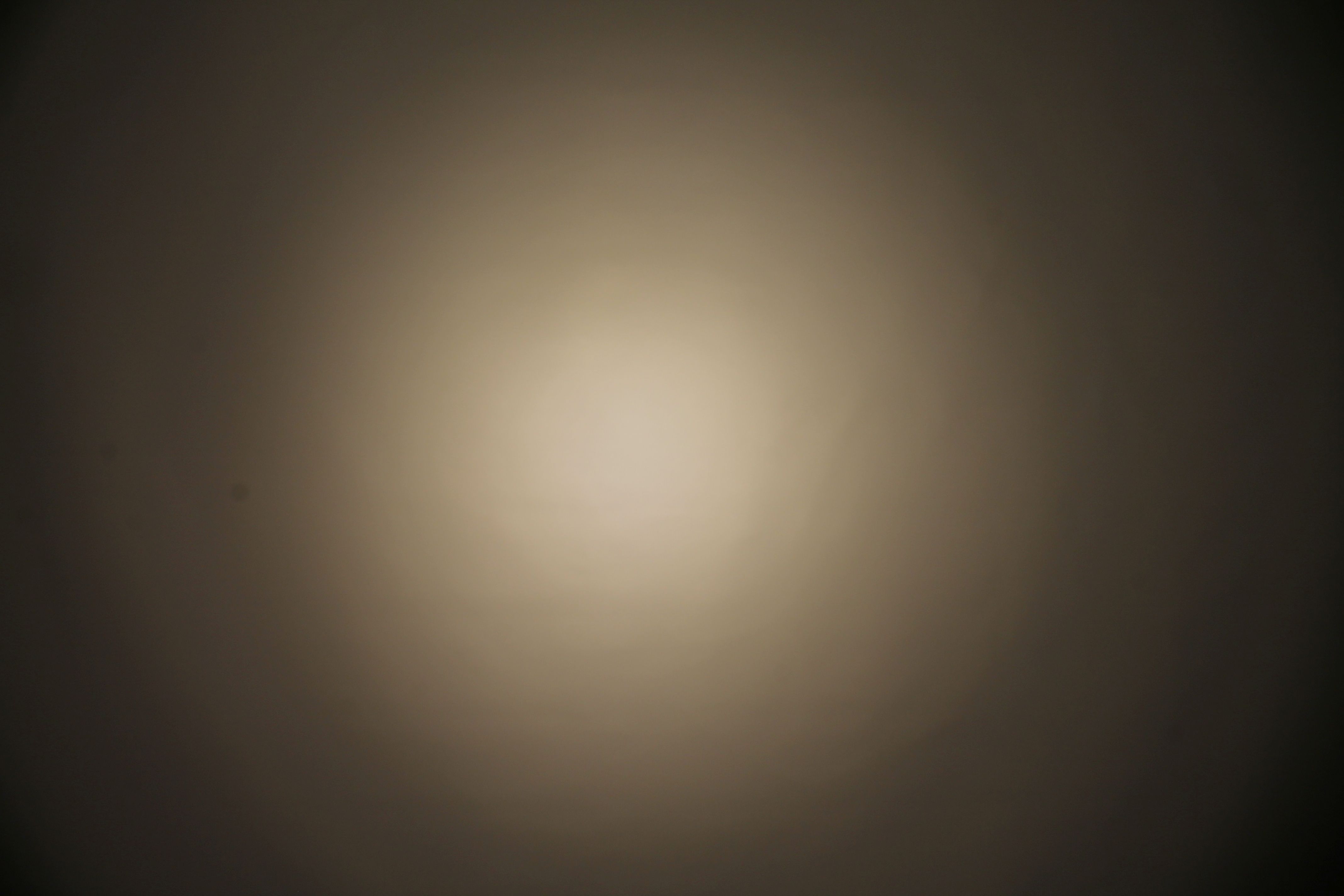

LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
28°
FWTM:
77°
Peak intensity:
1.772 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

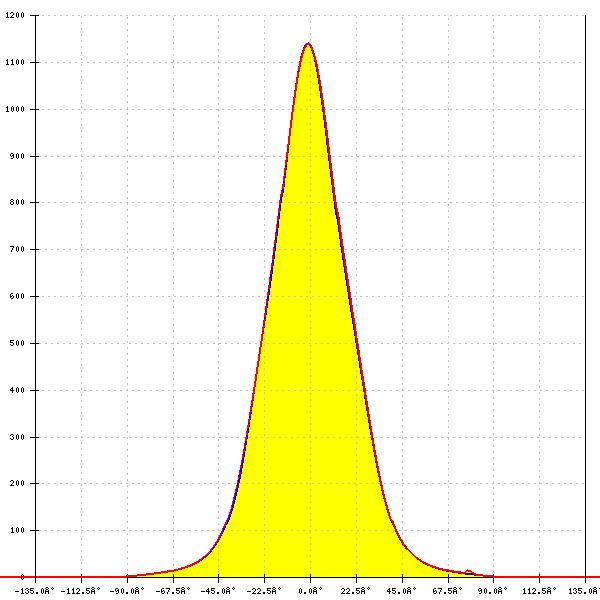

LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
FWHM:
42°
FWTM:
82°
Peak intensity:
1.140 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

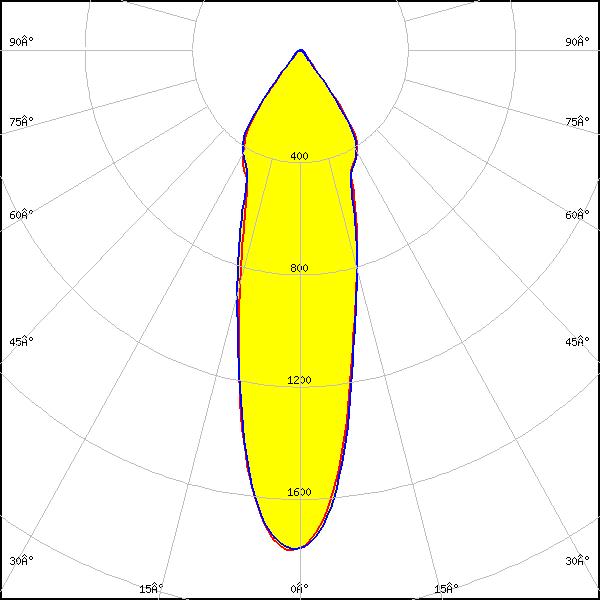

LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
29°
FWTM:
77°
Peak intensity:
1.784 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
FWHM:
42°
FWTM:
81°
Peak intensity:
1.170 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
38°
FWTM:
80°
Peak intensity:
1.358 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
FWHM:
46°
FWTM:
84°
Peak intensity:
1.059 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
44°
FWTM:
82°
Peak intensity:
1.177 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
FWHM:
48°
FWTM:
87°
Peak intensity:
0.964 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:

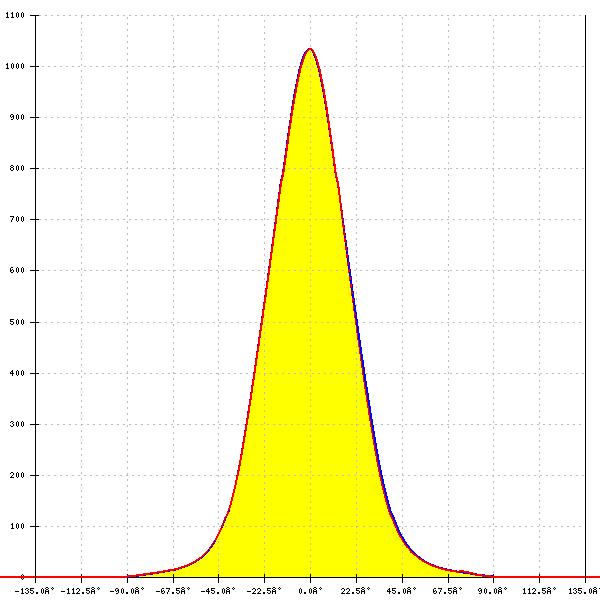

LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
FWHM:
45°
FWTM:
84°
Peak intensity:
1.034 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

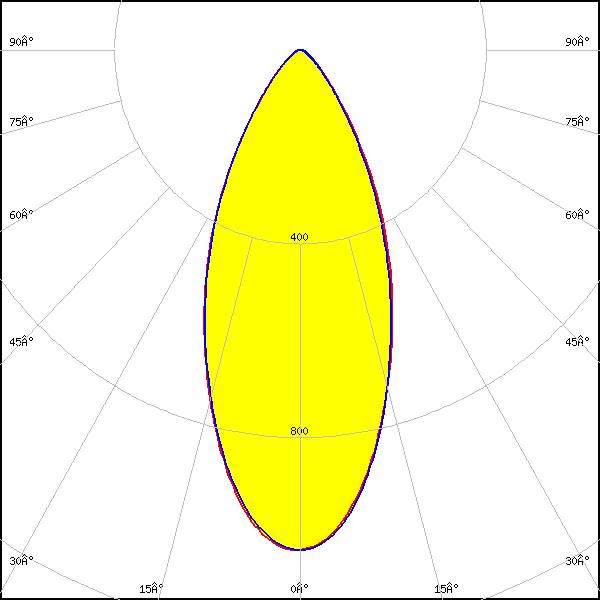

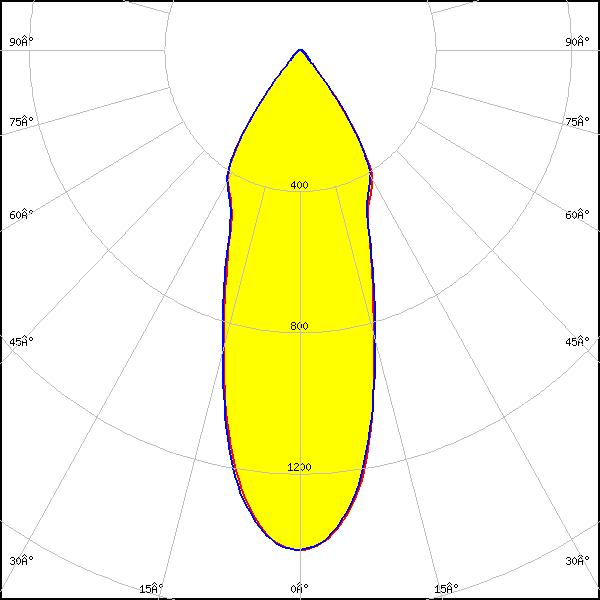

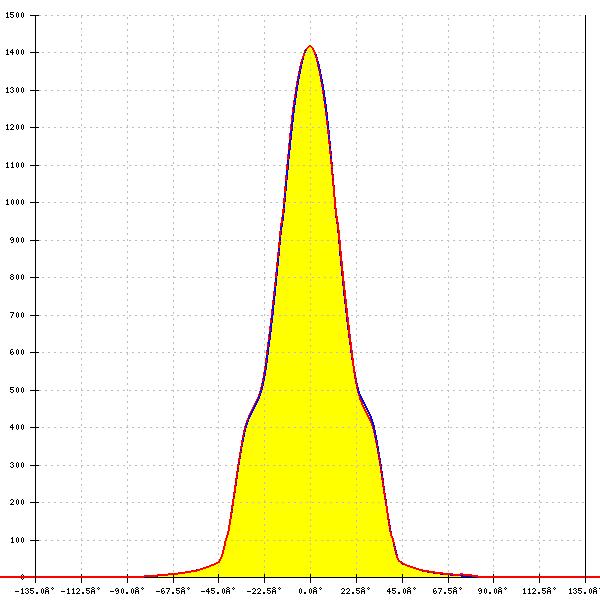

LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
36°
FWTM:
79°
Peak intensity:
1.416 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

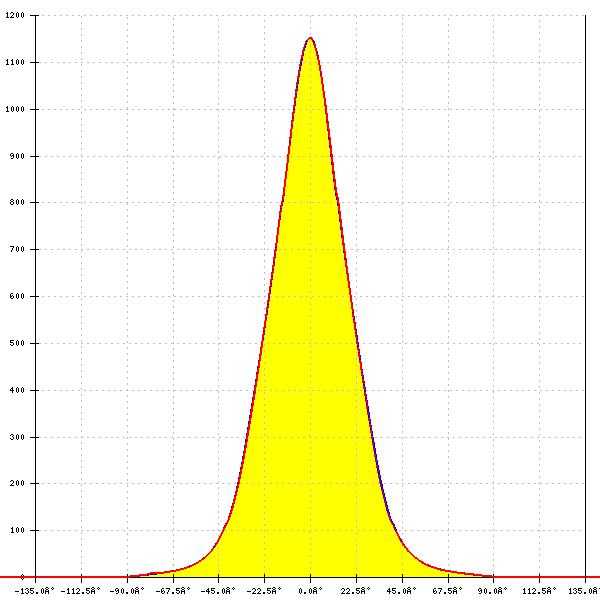

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
FWHM:
41°
FWTM:
82°
Peak intensity:
1.151 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

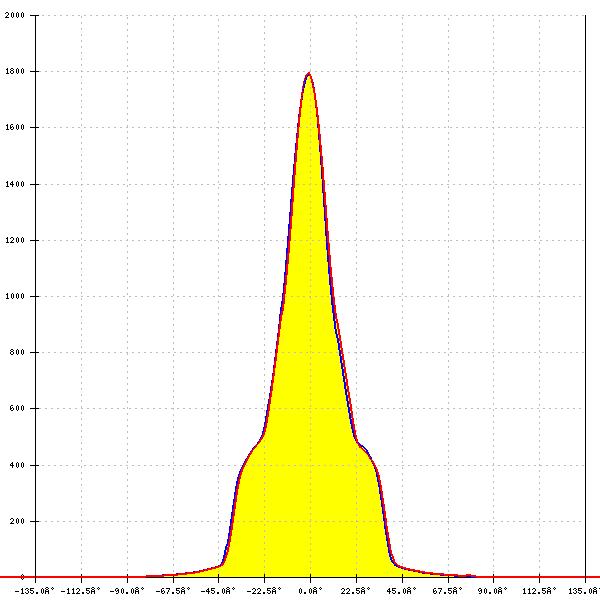

LED:

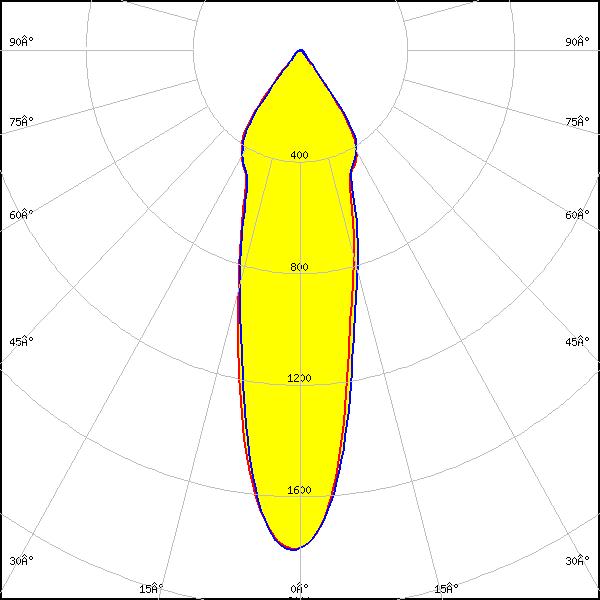

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
28°
FWTM:
77°
Peak intensity:
1.795 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

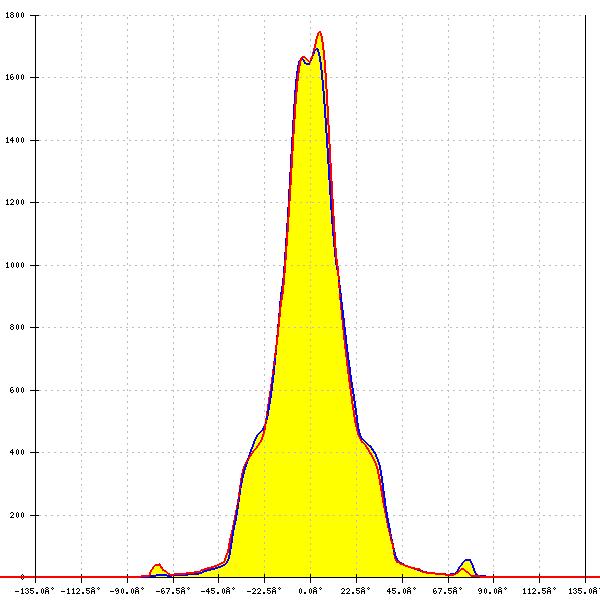

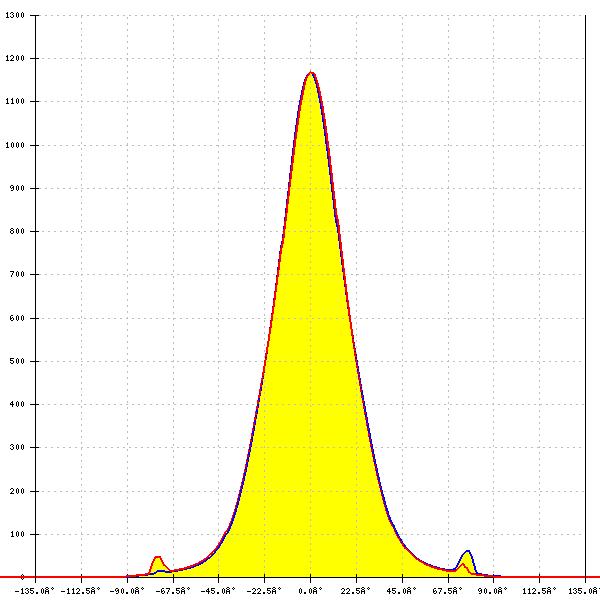

LED:

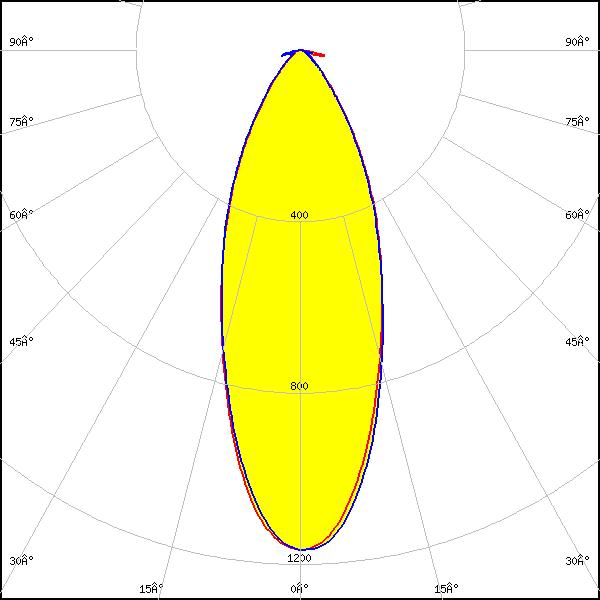

CDM-6 (Dim-To-Warm)
LES size: 6.8 mm
Required components:
FWHM:
30°
FWTM:
76°
Peak intensity:
1.800 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-6 (Dim-To-Warm)
LES size: 6.8 mm
Required components:
FWHM:
39°
FWTM:
81°
Peak intensity:
1.200 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

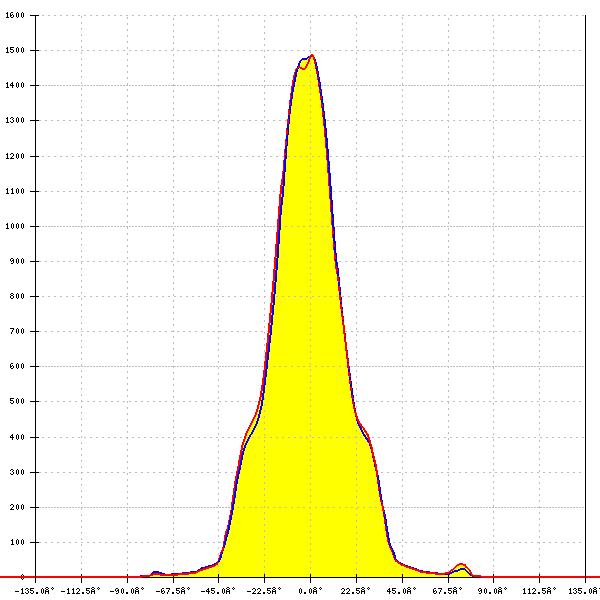

LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
35°
FWTM:
78°
Peak intensity:
1.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

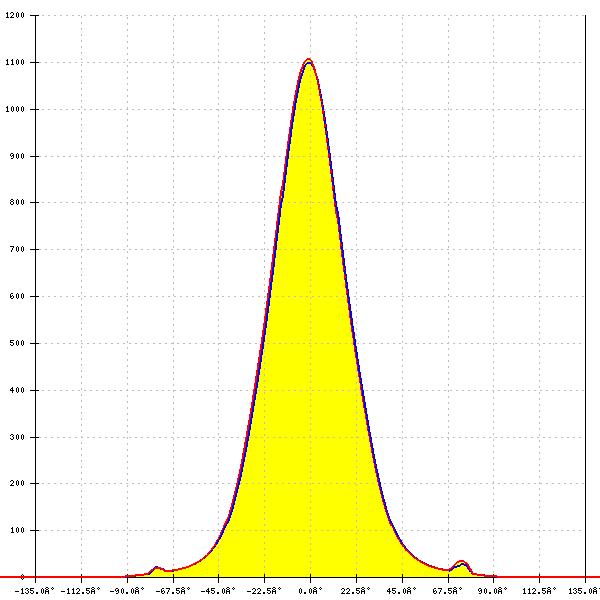

LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
42°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-9 (Tunable White)
LES size: 9.5 mm
Required components:
FWHM:
43°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
LES size: 4.5 mm
Required components:
FWHM:
26°
FWTM:
77°
Peak intensity:
1.994 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-4
LES size: 4.5 mm
Required components:
FWHM:
41°
FWTM:
82°
Peak intensity:
1.177 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
40°
FWTM:
81°
Peak intensity:
1.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
42°
FWTM:
78°
Peak intensity:
1.490 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
LES size: 5.9 mm
Required components:
FWHM:
30°
FWTM:
75°
Peak intensity:
2.040 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
30°
FWTM:
76°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
FWHM:
41°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
39°
FWTM:
79°
Peak intensity:
1.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
45°
FWTM:
85°
Peak intensity:
0.980 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S9
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S9
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

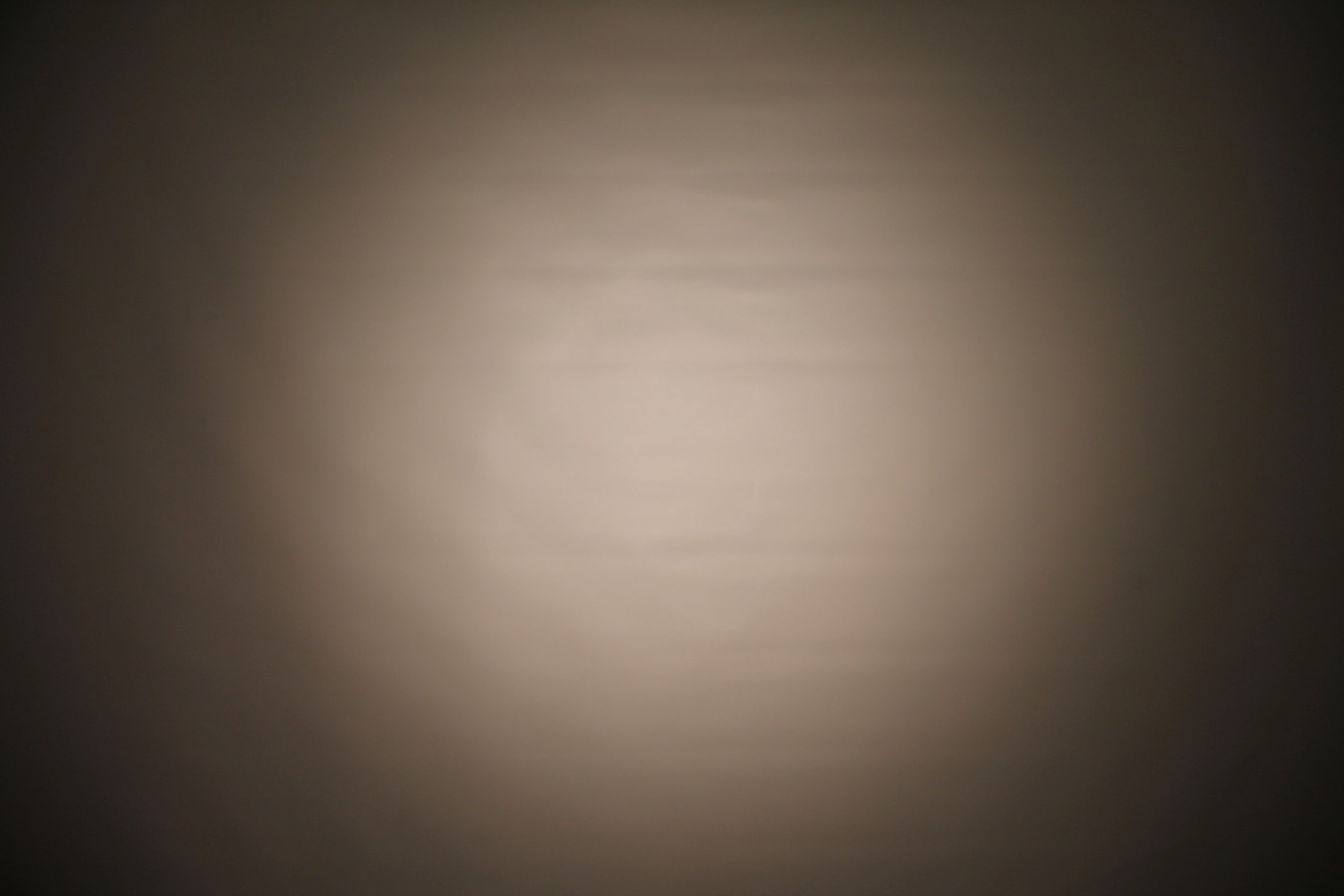

LED:
Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
39°
FWTM:
81°
Peak intensity:
1.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM:
46°
FWTM:
85°
Peak intensity:
1.100 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
47°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
49°
FWTM:
86°
Peak intensity:
0.900 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

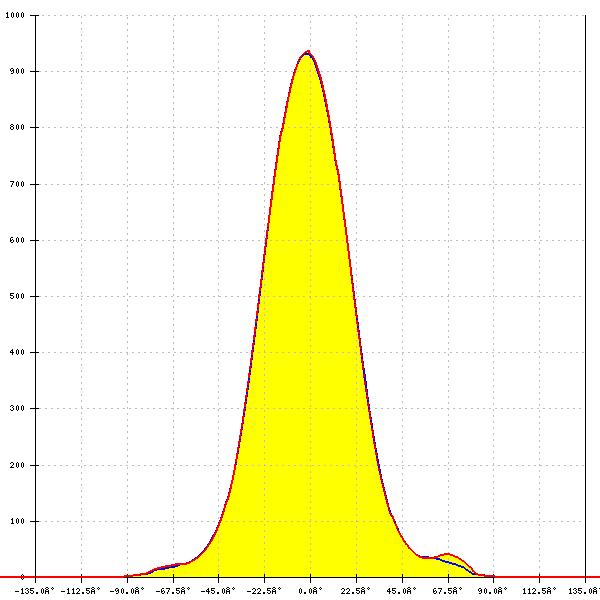

Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
49°
FWTM:
87°
Peak intensity:
0.940 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
47°
FWTM:
83°
Peak intensity:
1.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

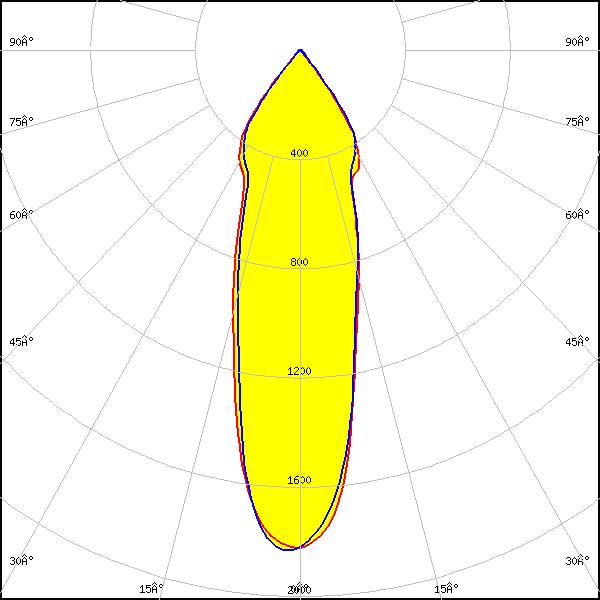

LED:
LC010C G2
LES size: 6.0 mm
Required components:
FWHM:
29°
FWTM:
78°
Peak intensity:
1.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
36°
FWTM:
77°
Peak intensity:
1.435 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
37°
FWTM:
75°
Peak intensity:
1.344 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
Tunable White

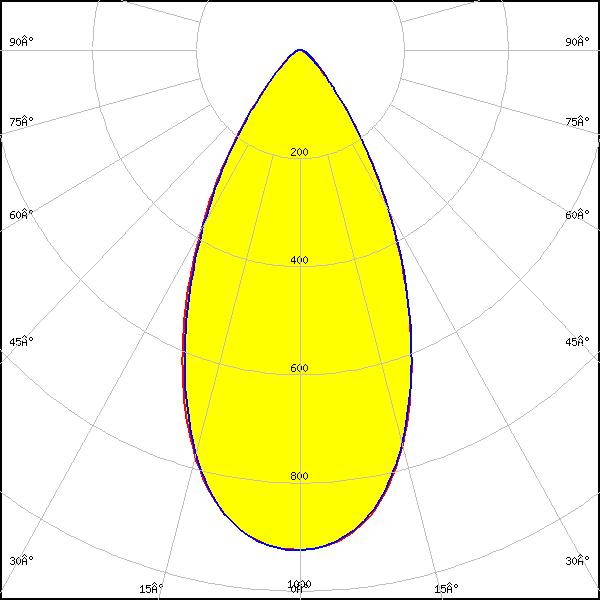

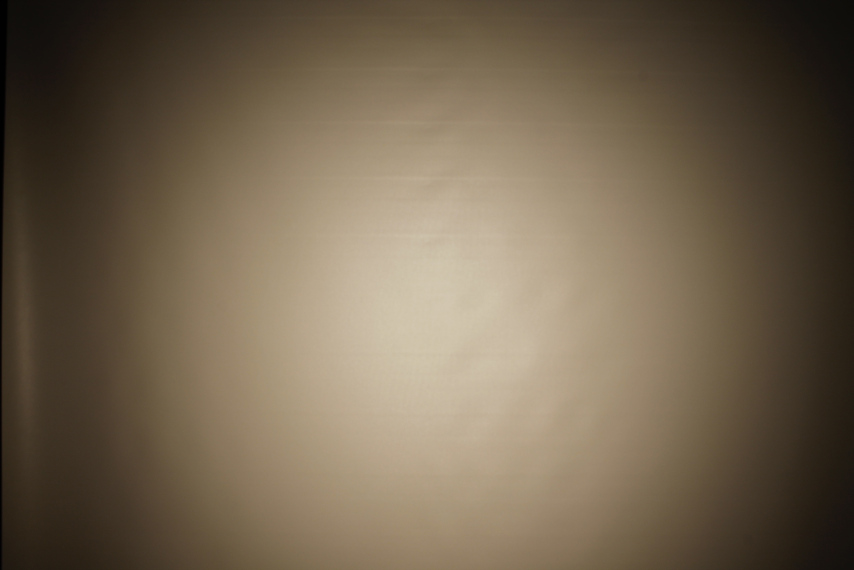

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
53°
FWTM:
87°
Peak intensity:
0.900 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
53°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
51°
FWTM:
90°
Peak intensity:
0.900 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
52°
FWTM:
85°
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

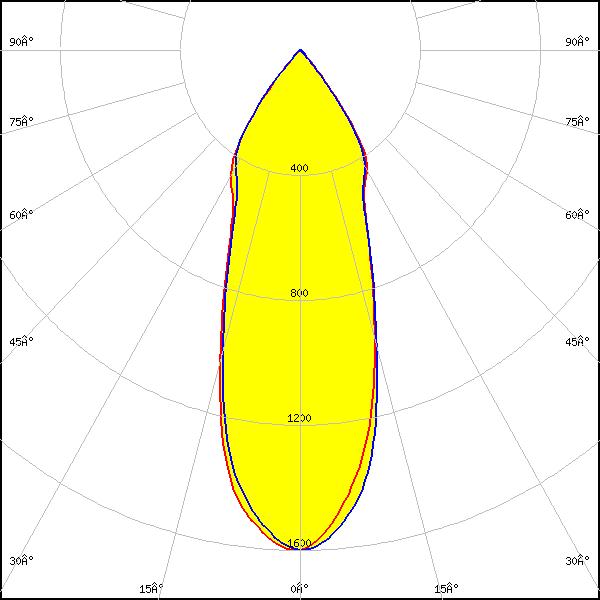

LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
36°
FWTM:
79°
Peak intensity:
1.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

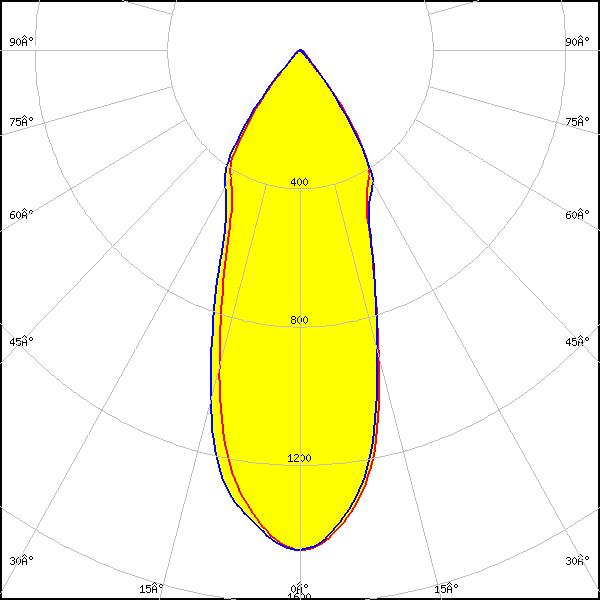

LED:
LC020C G2
LES size: 8.5 mm
Required components:
FWHM:
38°
FWTM:
80°
Peak intensity:
1.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

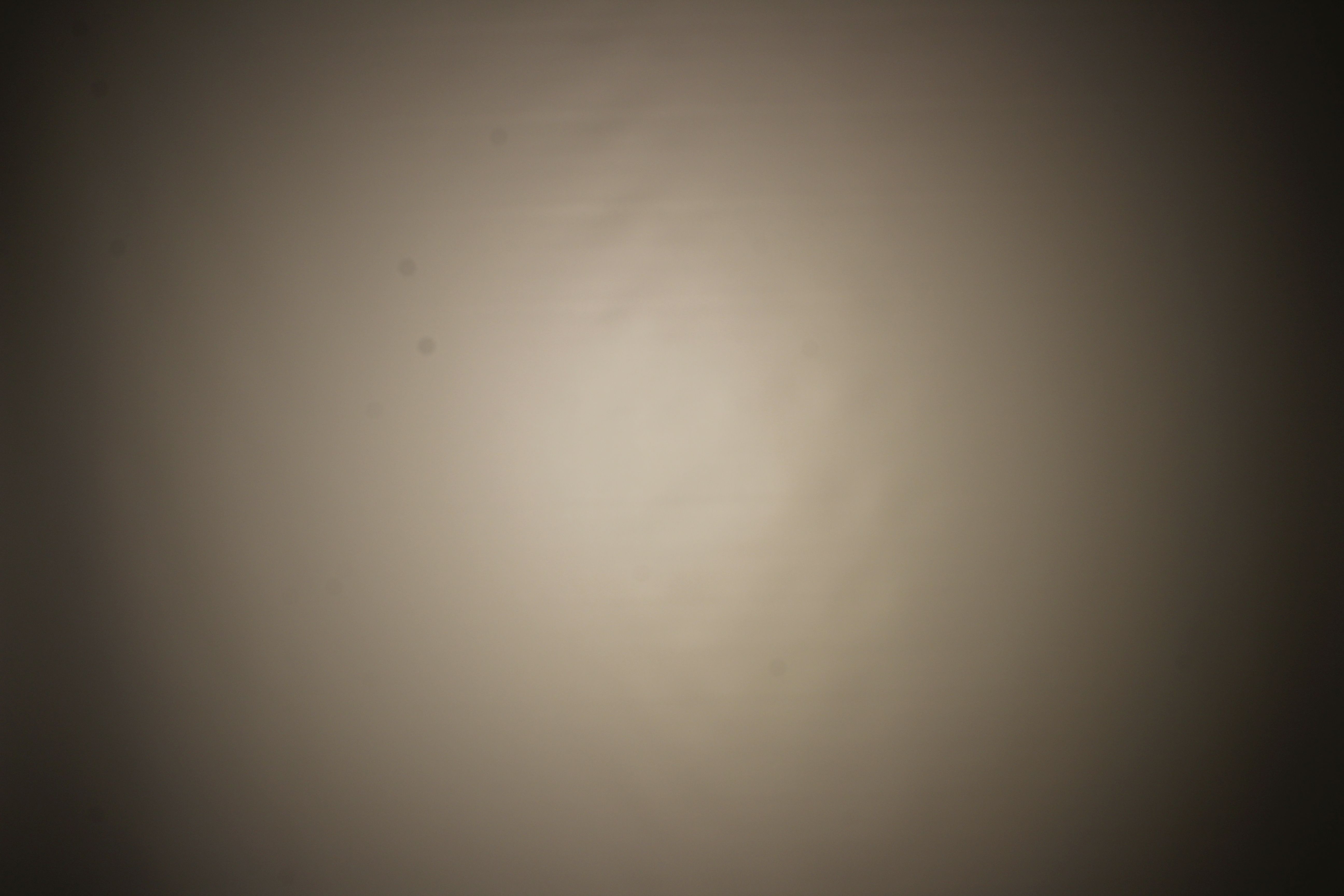

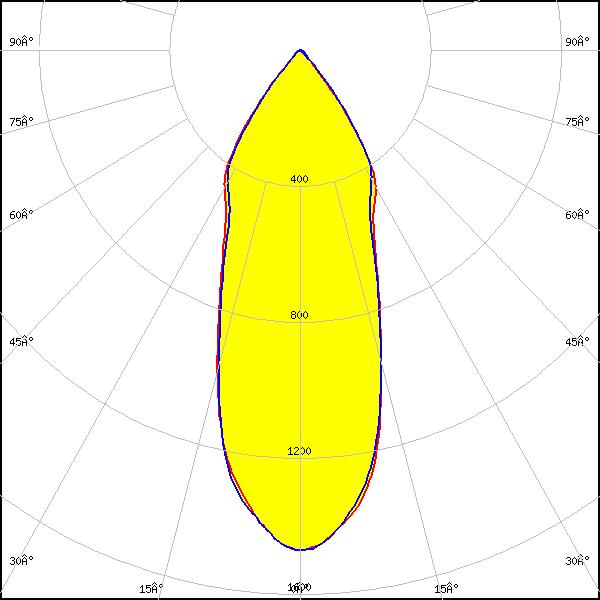

LED:
SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
38°
FWTM:
80°
Peak intensity:
1.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

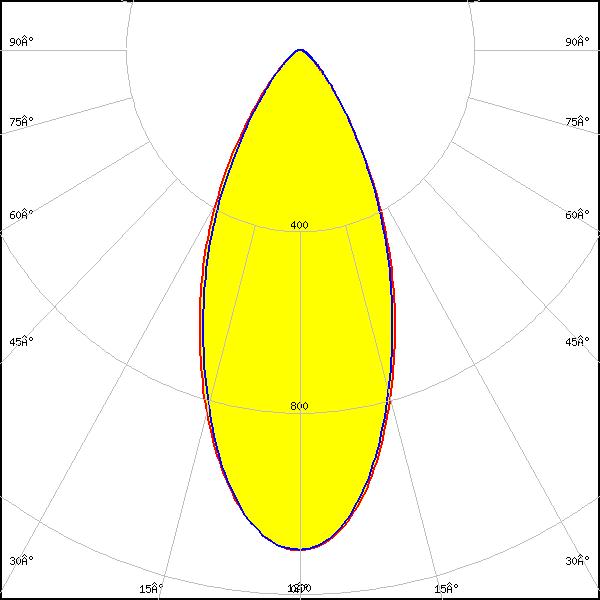

LED:
SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
46°
FWTM:
85°
Peak intensity:
1.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

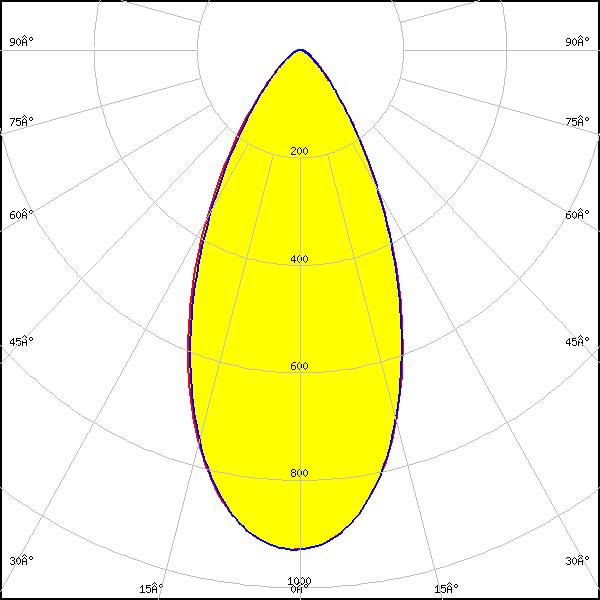

LED:
SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
48°
FWTM:
84°
Peak intensity:
1.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM:
50°
FWTM:
88°
Peak intensity:
0.930 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM:
52°
FWTM:
86°
Peak intensity:
1.064 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM:
51°
FWTM:
89°
Peak intensity:
0.915 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM:
32°
FWTM:
78°
Peak intensity:
1.712 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM:
44°
FWTM:
84°
Peak intensity:
1.091 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

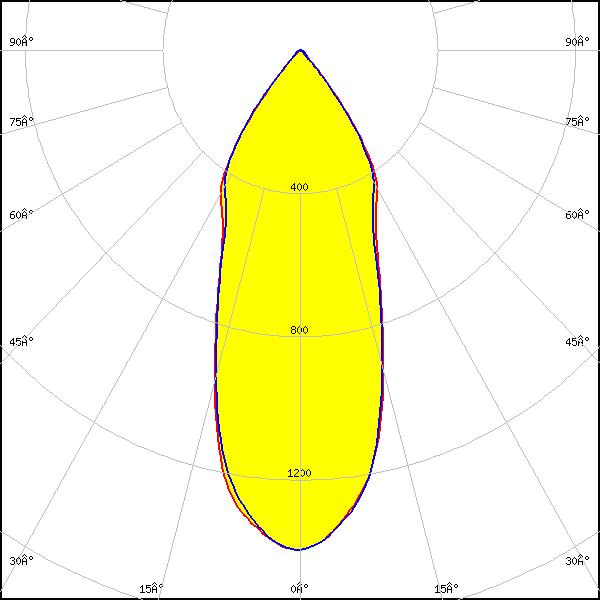

LED:
XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
39°
FWTM:
81°
Peak intensity:
1.396 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
47°
FWTM:
85°
Peak intensity:
1.055 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
