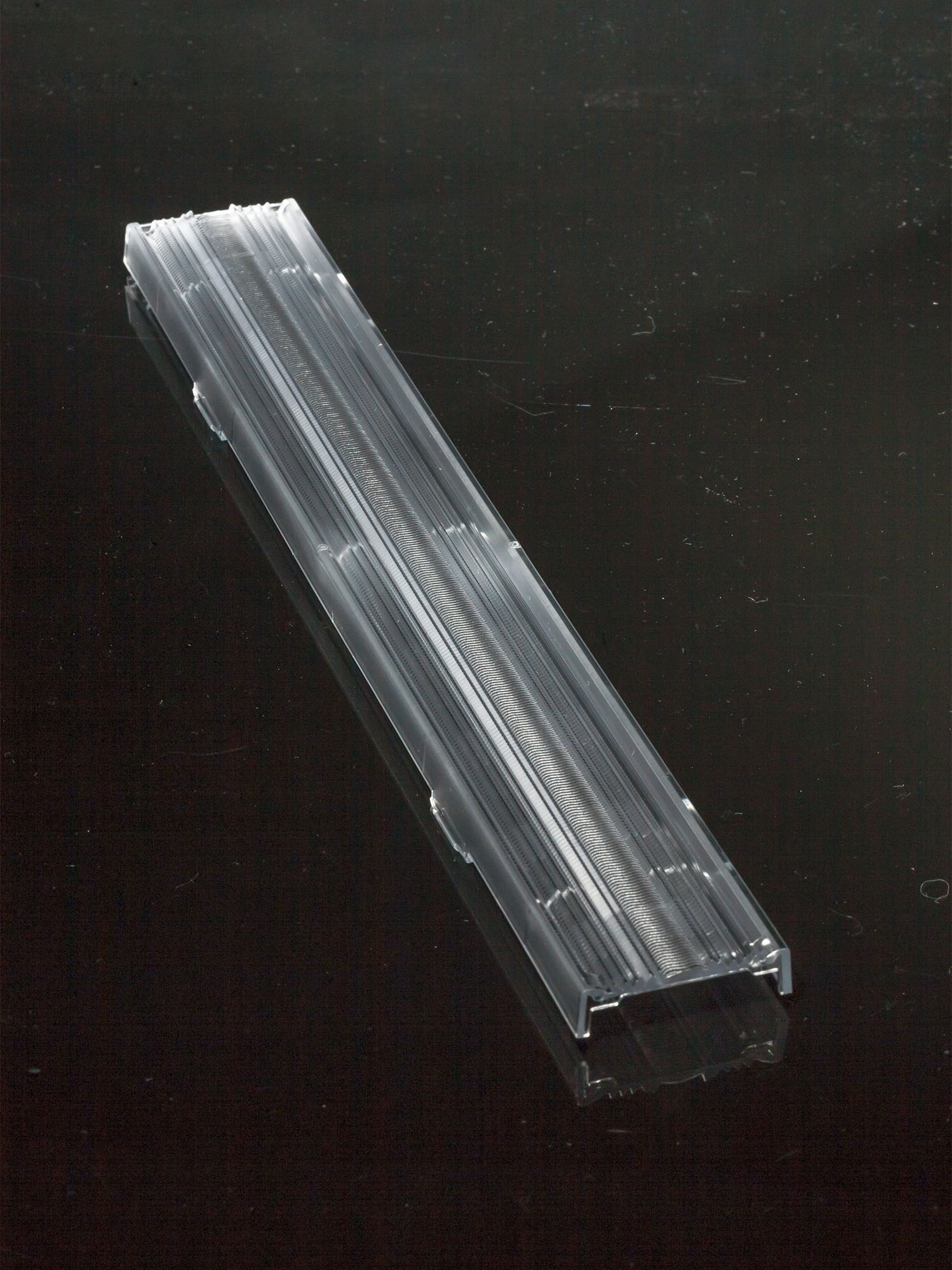

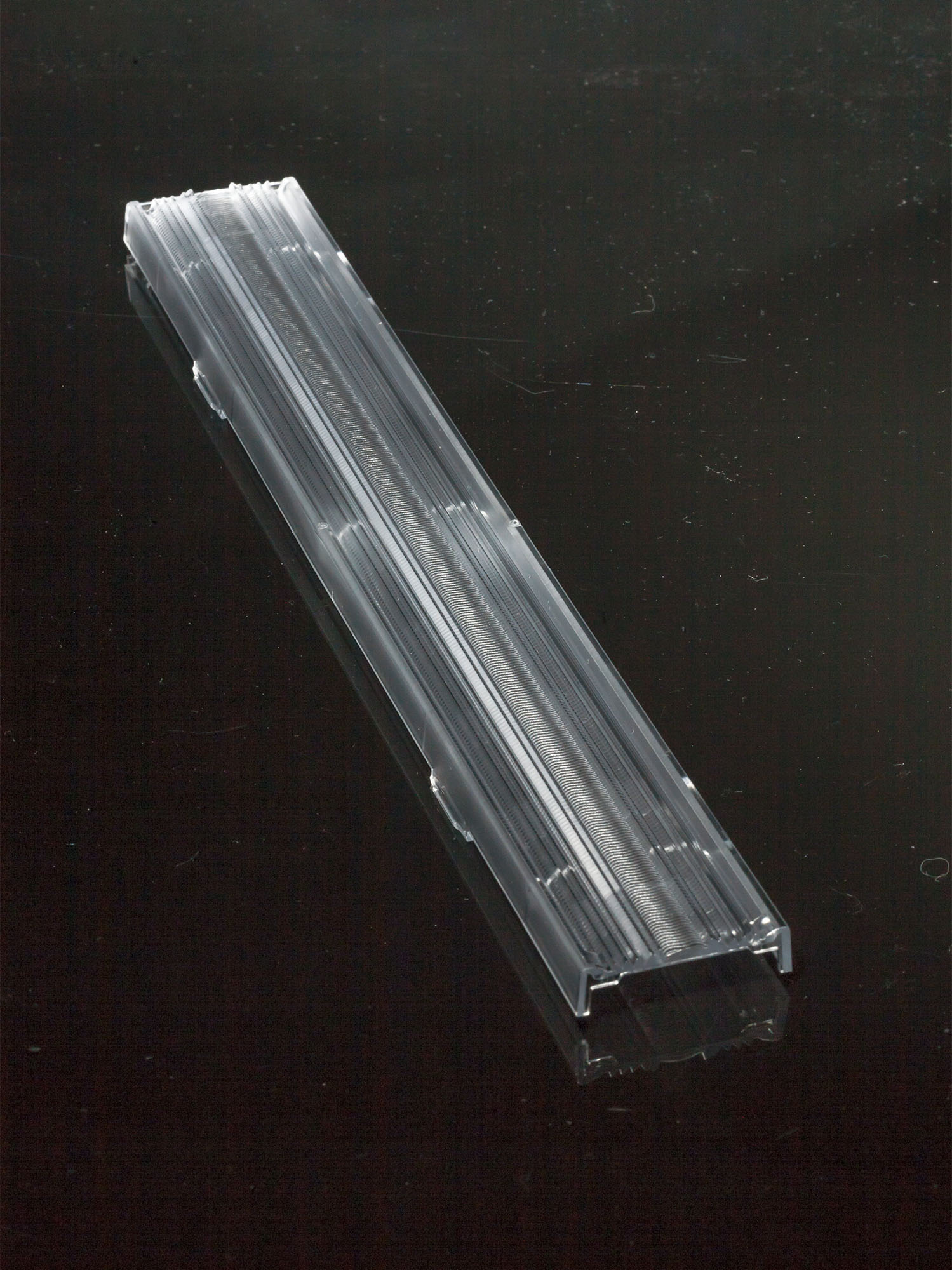

F15952_LINNEA-O-B

Print

~35° + 70° oval beam optimized for 0.5 mm metal sheet or profile. Variant made from PC.

Specification
  • Dimensions:
    285 x  40 mm
  • Height:
    10.50 mm
  • Fastening:
    clips
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    153 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    8.0 kg
  • MPQ:
    9 pcs
  • MOQ:
    36 pcs
  • MOQ size:
    400 x 300 x 70 mm
  • MOQ weight:
    1.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15952_LINNEA-O-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

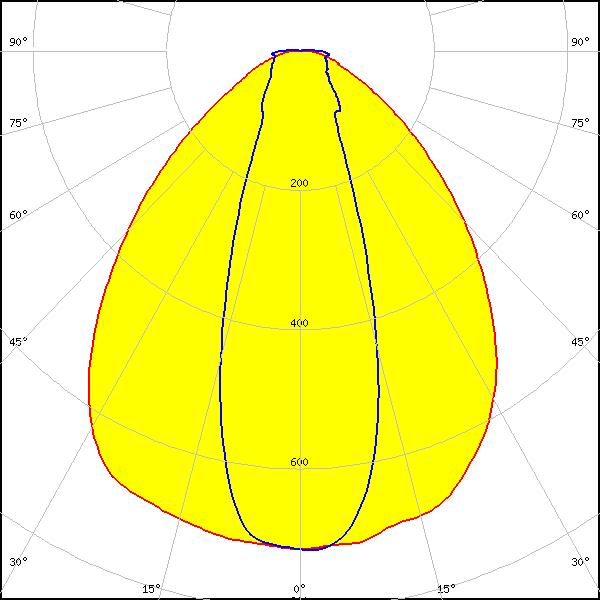

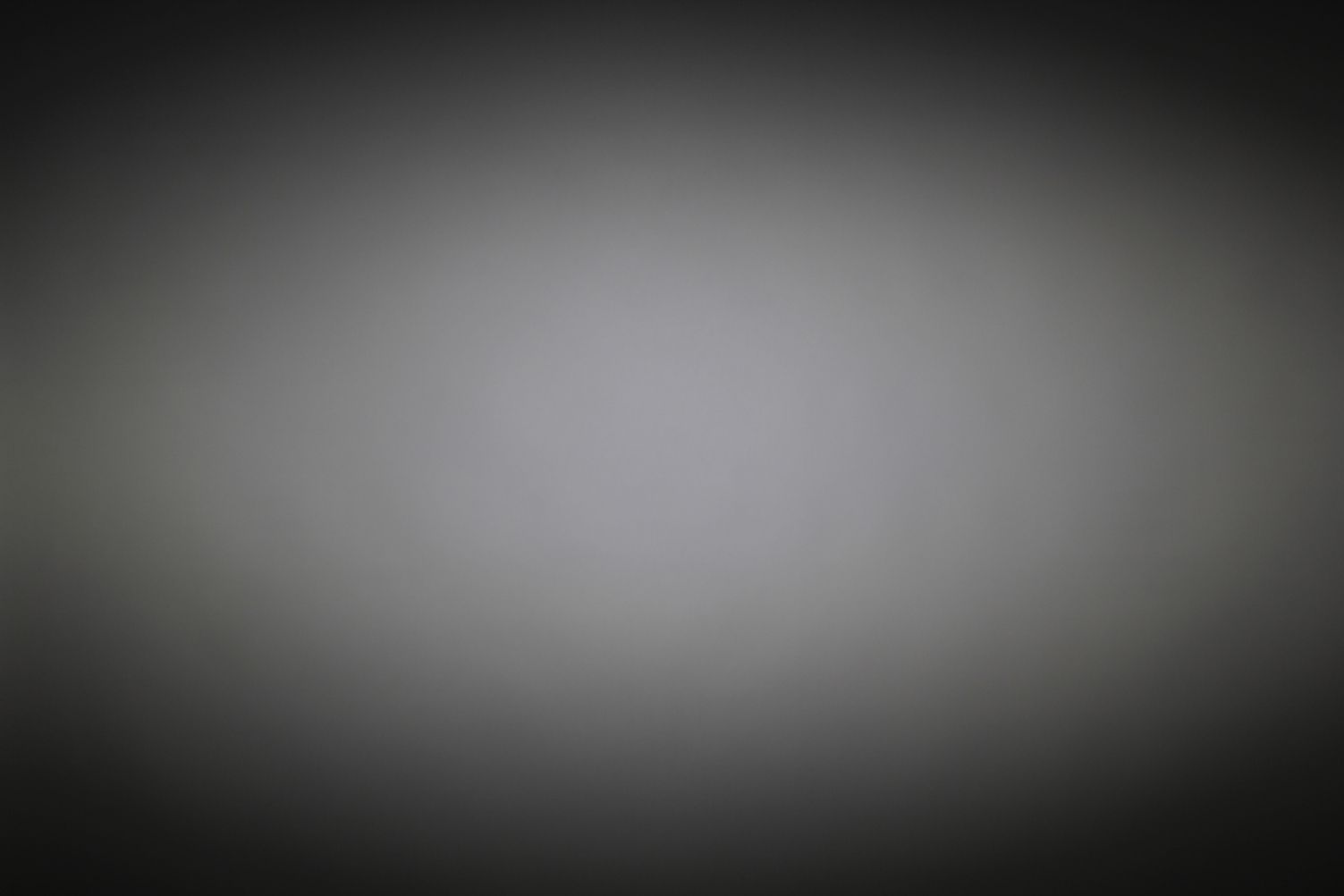

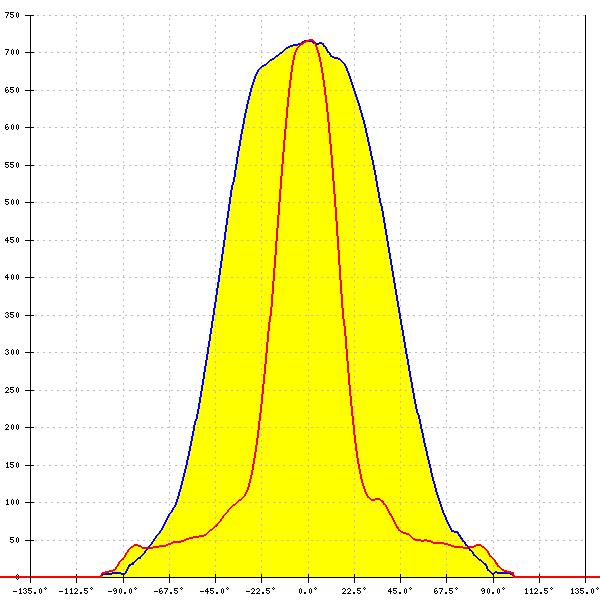

LED: XP-E
FWHM: 90° + 35°
FWTM: 138° + 86°
Peak intensity: 0.720 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

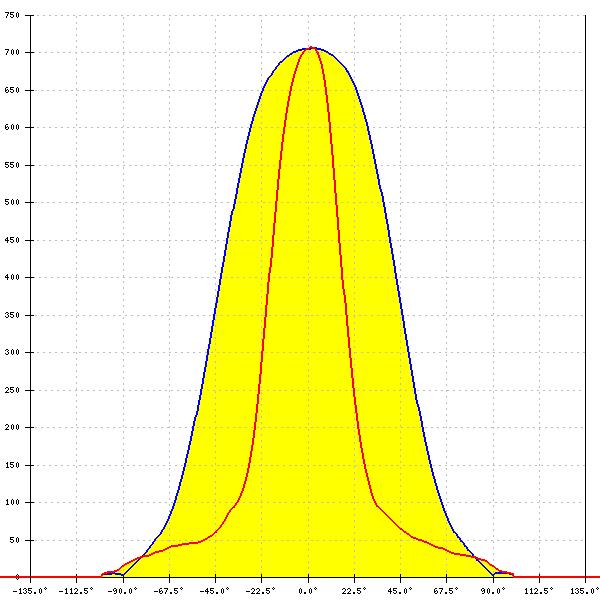

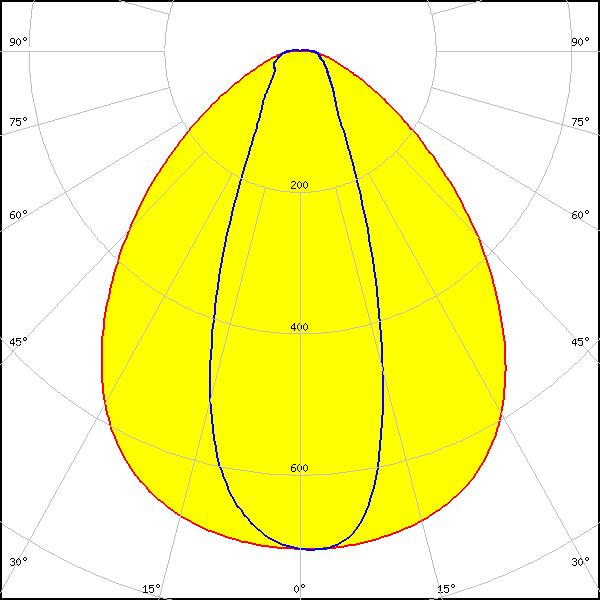

LED: L-iC-282-827-865-011A
FWHM: 91° + 39°
FWTM: 139° + 84°
Peak intensity: 0.710 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

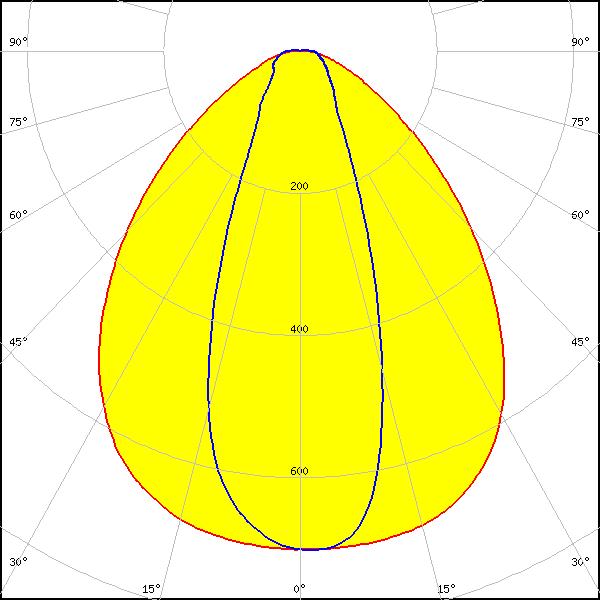

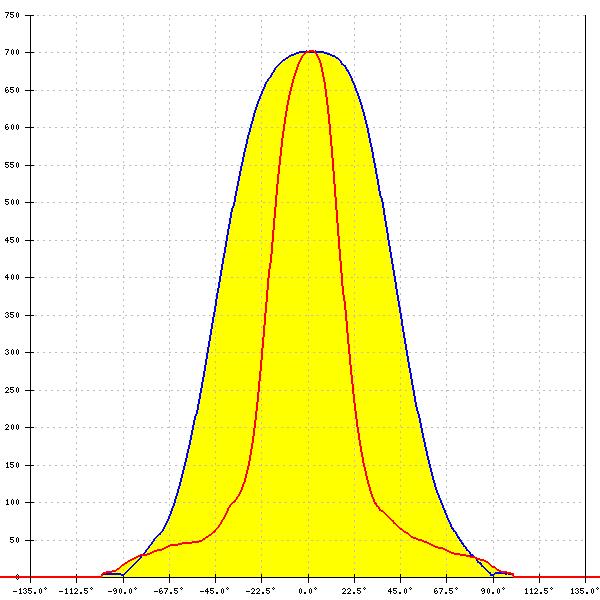

LED: LP-282-840-009A 60/300
FWHM: 91° + 39°
FWTM: 139° + 85°
Peak intensity: 0.700 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

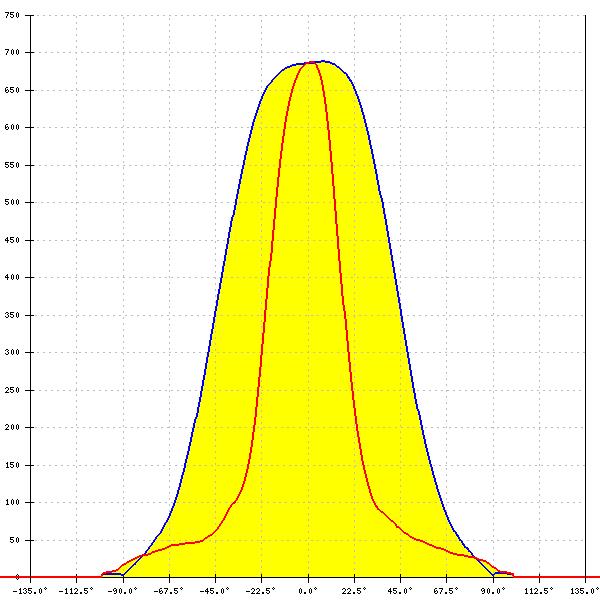

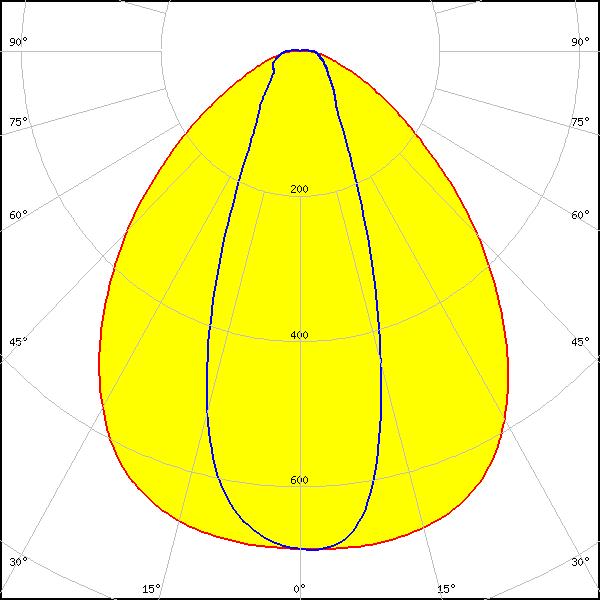

LED: LS-282-840-011A
FWHM: 92° + 39°
FWTM: 140° + 86°
Peak intensity: 0.690 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

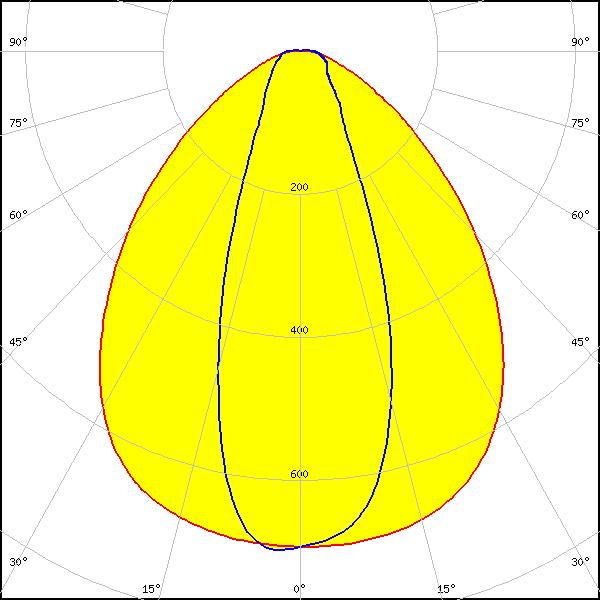

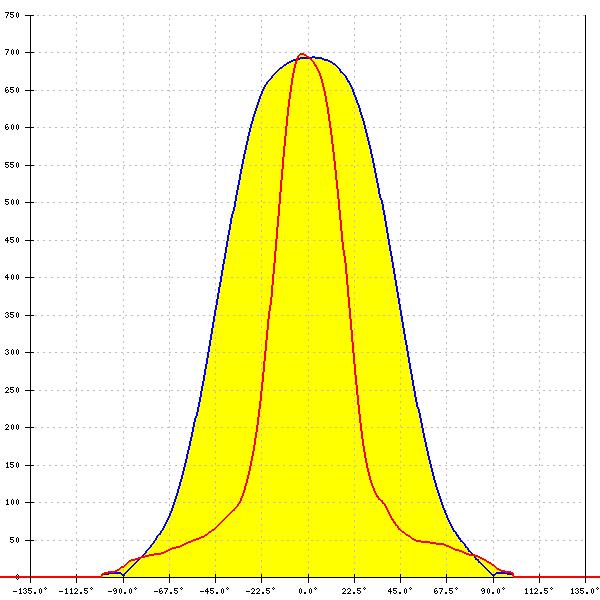

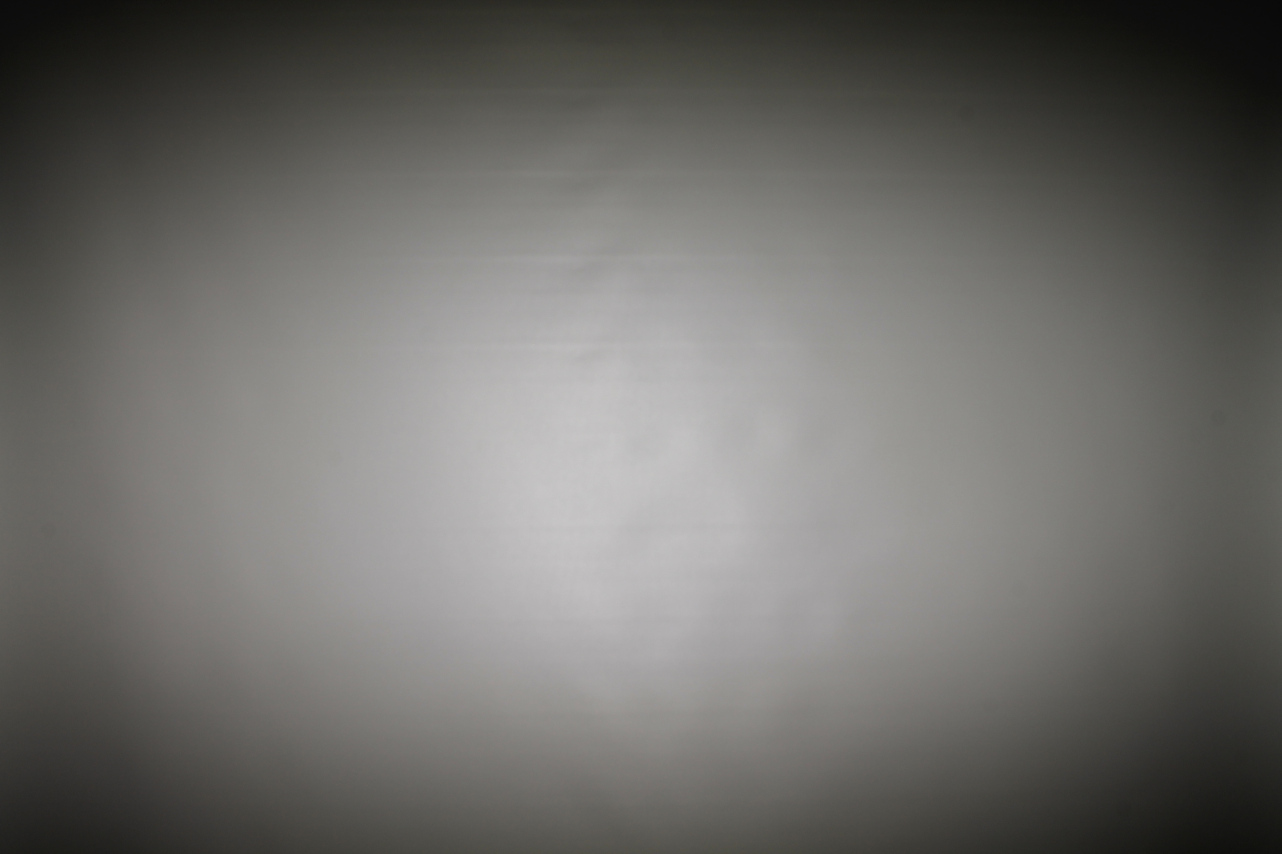

LED: LX-282-840-023A
FWHM: 91° + 39°
FWTM: 139° + 86°
Peak intensity: 0.700 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

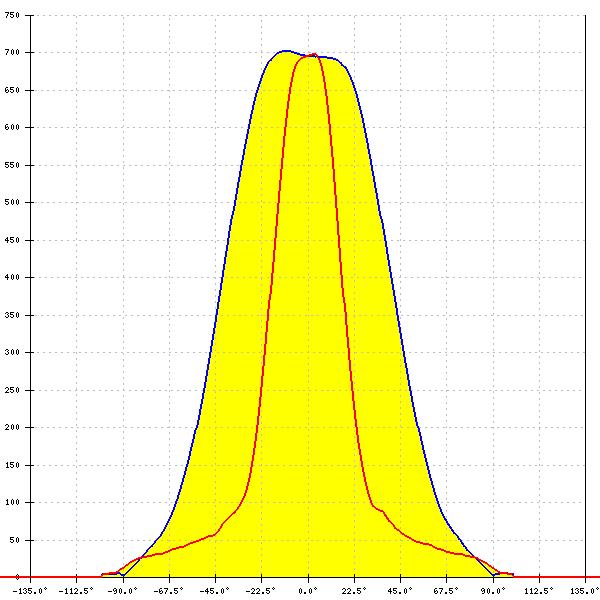

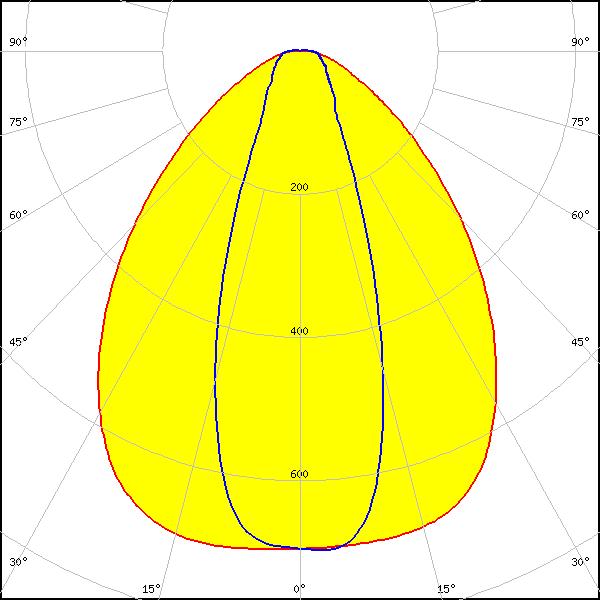

LED: LinLED 280x24mm 1100lm 830 2C 30V LINNEA-GC G1
FWHM: 88° + 37°
FWTM: 137° + 83°
Peak intensity: 0.730 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

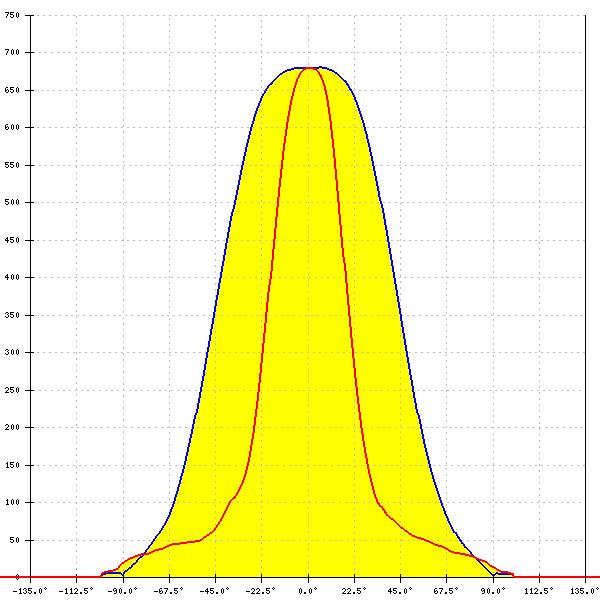

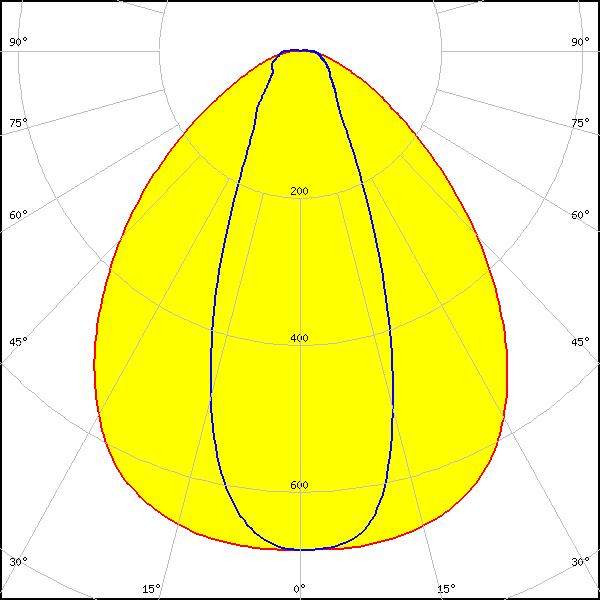

LED: NFSW757H
FWHM: 92° + 41°
FWTM: 140° + 89°
Peak intensity: 0.681 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

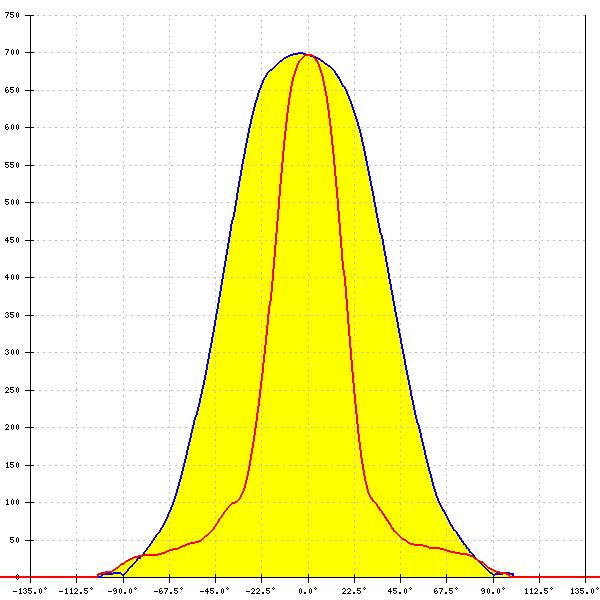

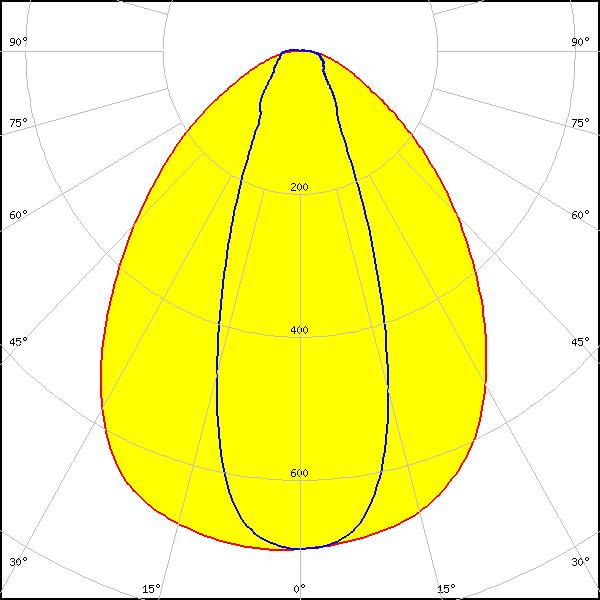

LED: NFSx757G
FWHM: 87° + 38°
FWTM: 140° + 85°
Peak intensity: 0.700 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: PL-LIN-IND-Z1 2800 560x24
FWHM: 91° + 39°
FWTM: 140° + 94°
Peak intensity: 0.736 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

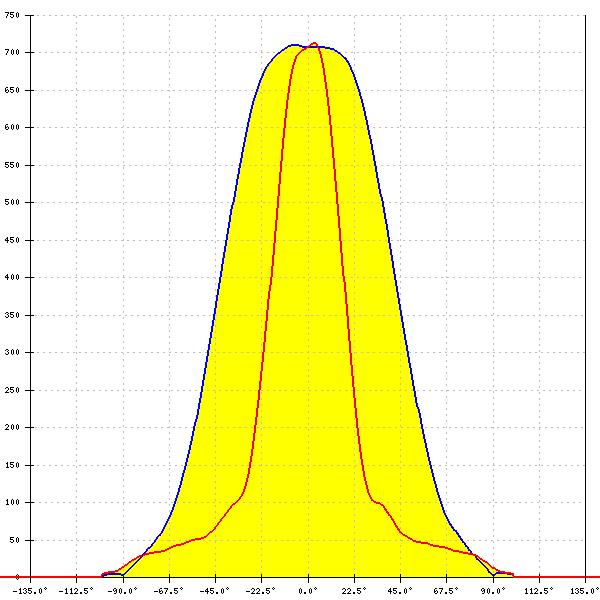

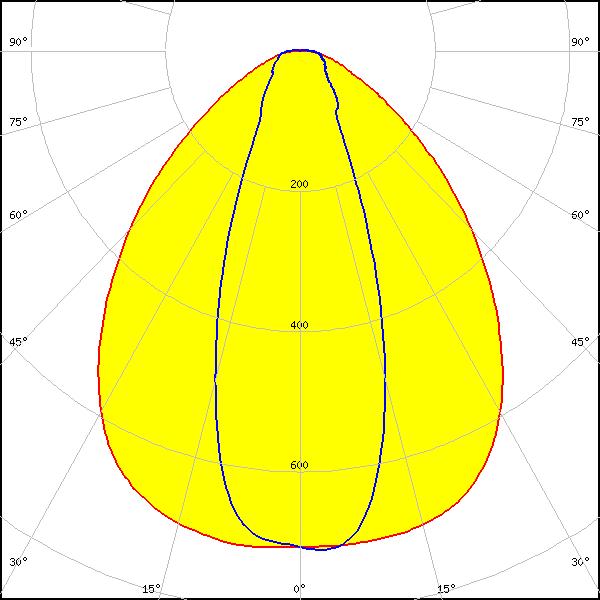

LED: Duris S5 (2 chip)
FWHM: 90° + 38°
FWTM: 138° + 86°
Peak intensity: 0.710 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

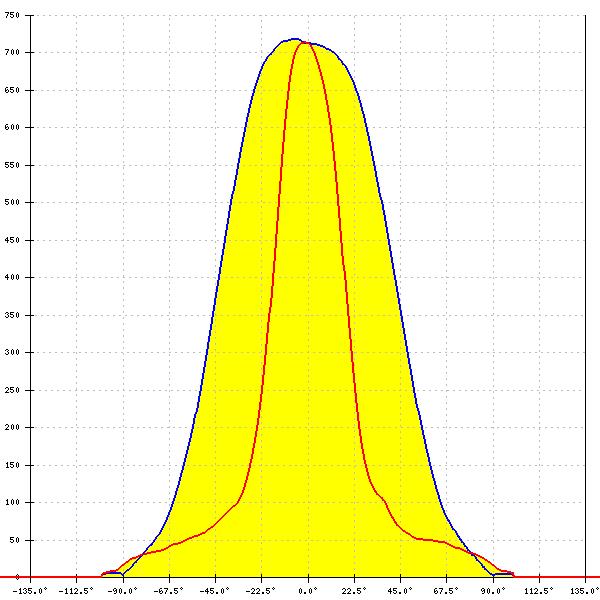

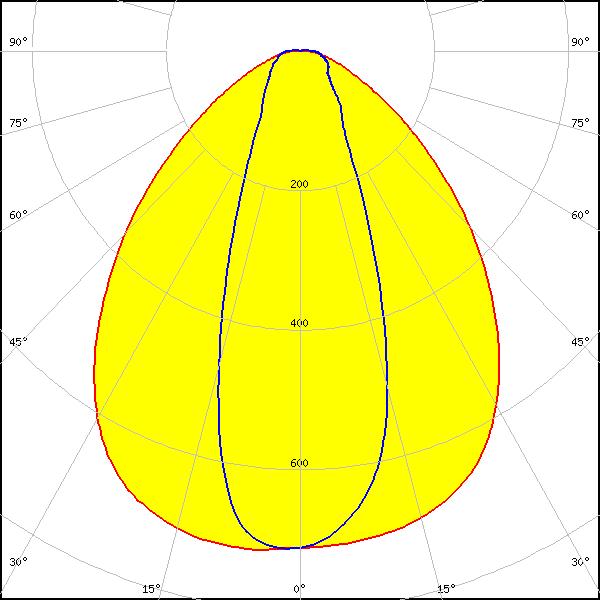

LED: Duris S5 (Single chip)
FWHM: 91° + 38°
FWTM: 139° + 88°
Peak intensity: 0.720 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

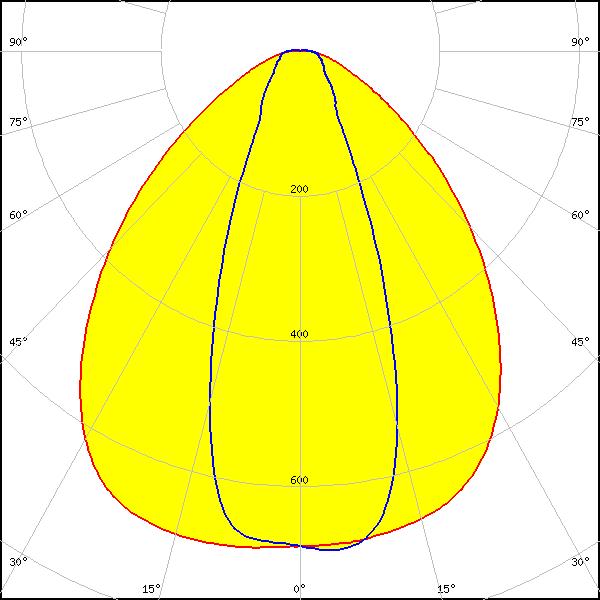

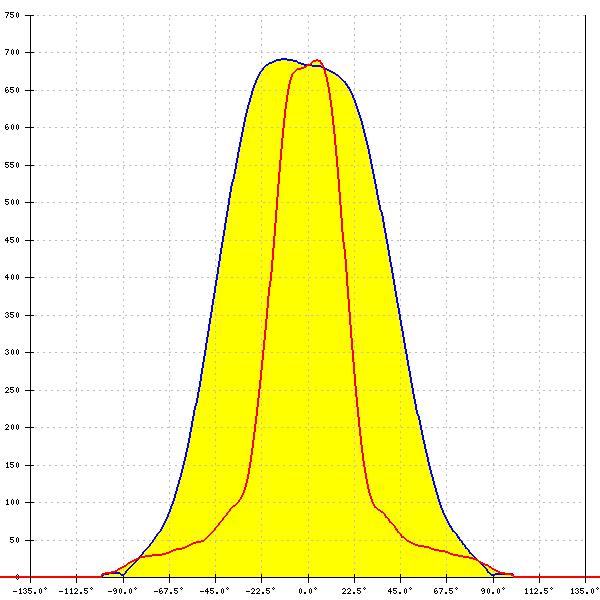

LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM: 92° + 40°
FWTM: 140° + 85°
Peak intensity: 0.690 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Strip 1ft 1100lm FC HV5 & LV5
FWHM: 89° + 38°
FWTM: 140° + 92°
Peak intensity: 0.749 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

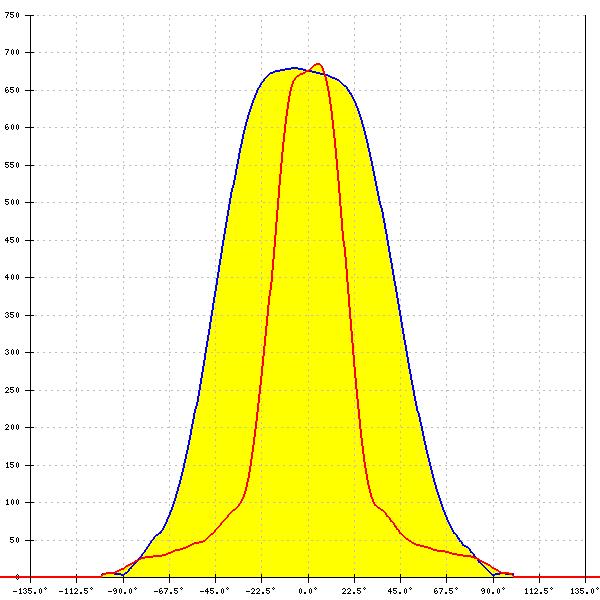

LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM: 93° + 40°
FWTM: 140° + 85°
Peak intensity: 0.690 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Strip 1ft 650lm FC HV5 & LV5
FWHM: 85° + 33°
FWTM: 136° + 90°
Peak intensity: 0.795 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

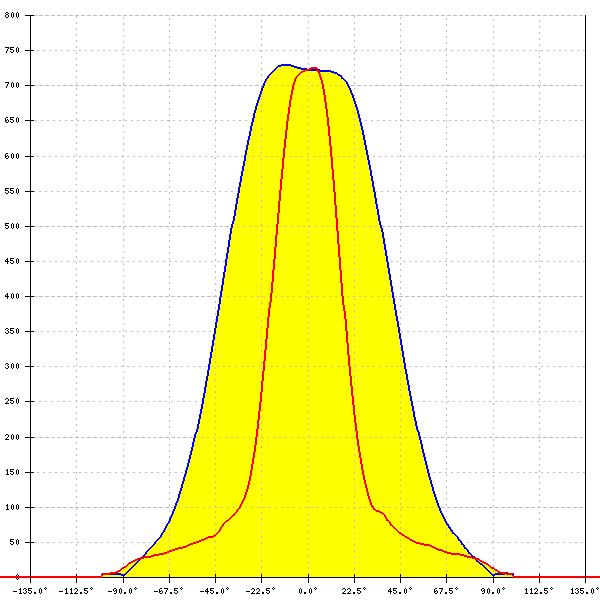

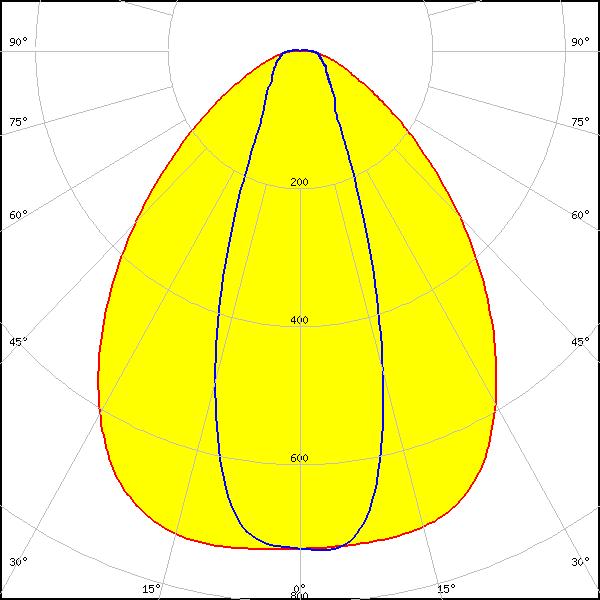

LED: LM561B Plus
FWHM: 88° + 37°
FWTM: 137° + 83°
Peak intensity: 0.730 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

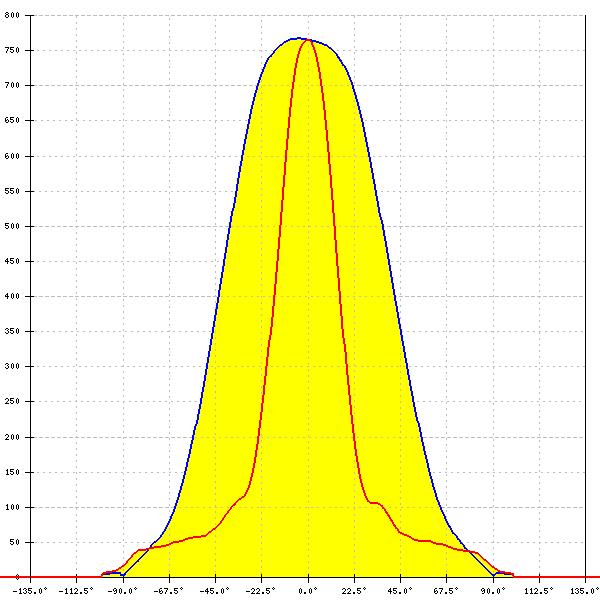

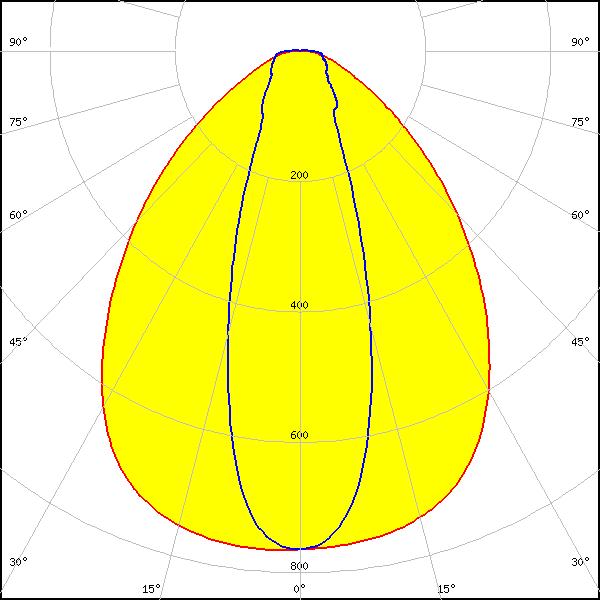

LED: LT-H282C
FWHM: 88° + 33°
FWTM: 136° + 84°
Peak intensity: 0.770 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: LT-H562C
FWHM: 88° + 33°
FWTM: 136° + 84°
Peak intensity: 0.770 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

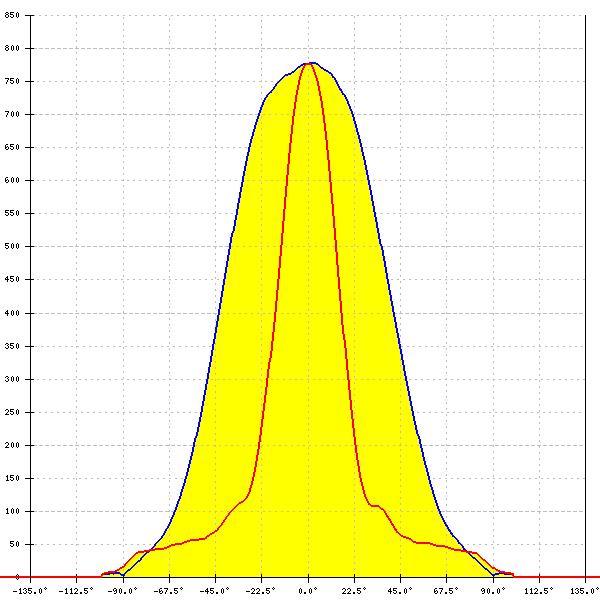

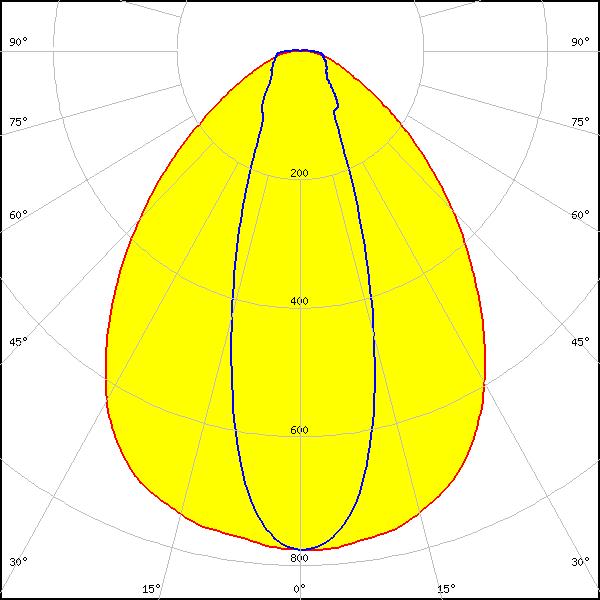

LED: LT-Q282B
FWHM: 86° + 33°
FWTM: 136° + 84°
Peak intensity: 0.800 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: LT-S282H
FWHM: 87° + 33°
FWTM: 136° + 84°
Peak intensity: 0.770 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

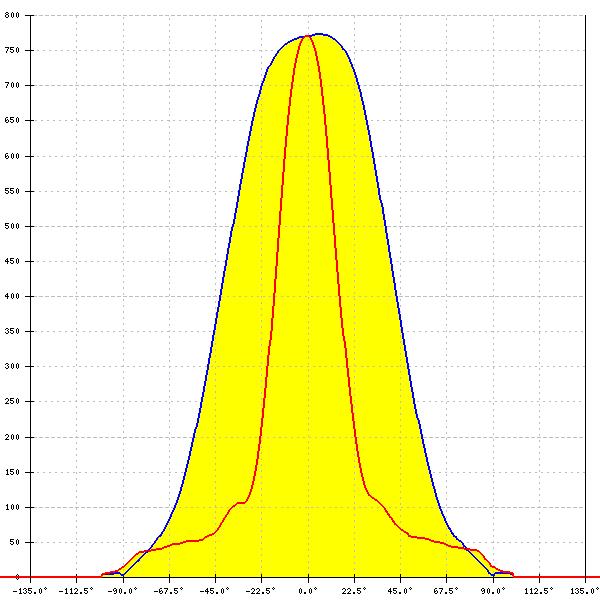

LED: LT-S562H
FWHM: 87° + 33°
FWTM: 136° + 84°
Peak intensity: 0.770 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

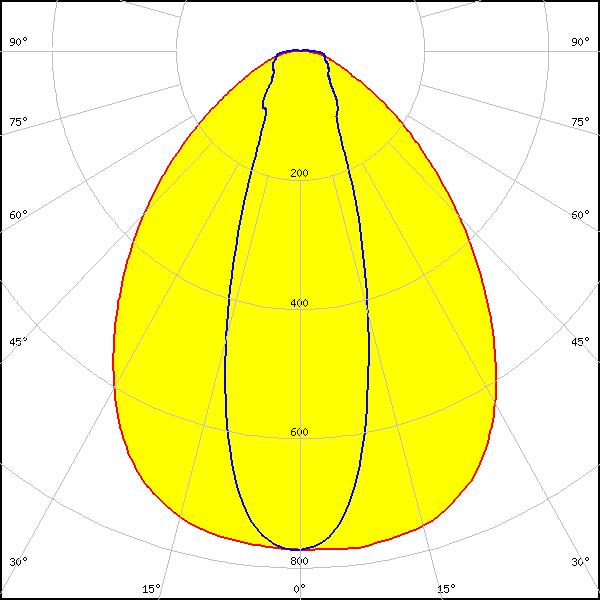

LED: LT-V282E
FWHM: 87° + 33°
FWTM: 136° + 84°
Peak intensity: 0.770 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

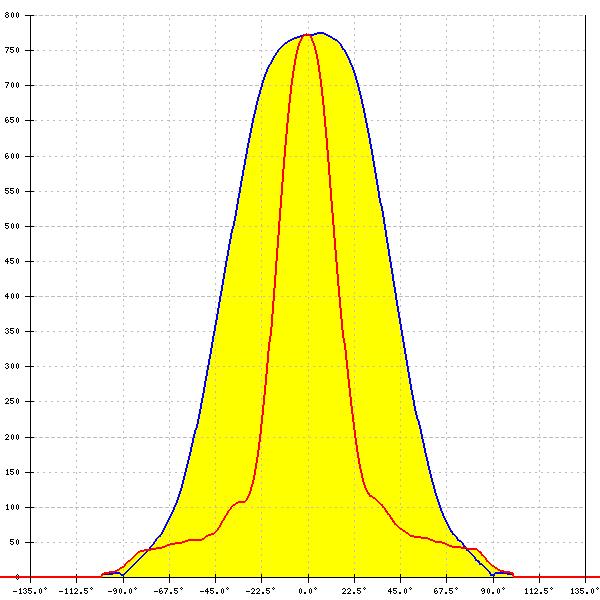

LED: LT-V562E
FWHM: 87° + 33°
FWTM: 136° + 84°
Peak intensity: 0.770 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3030
FWHM: 89° + 37°
FWTM: 138° + 87°
Peak intensity: 0.740 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

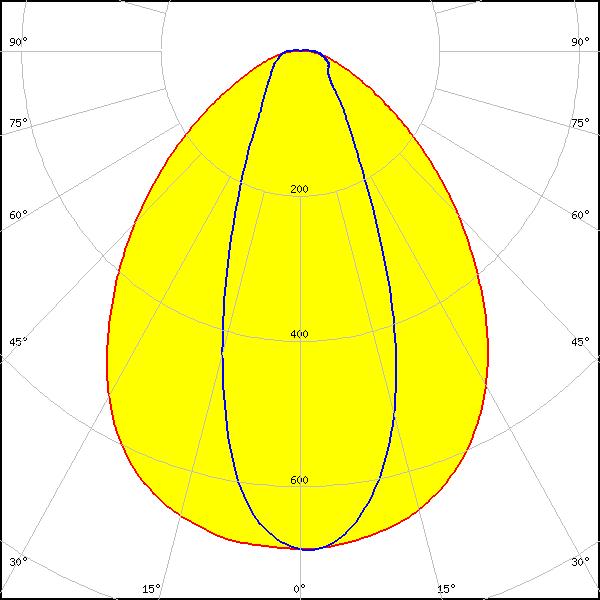

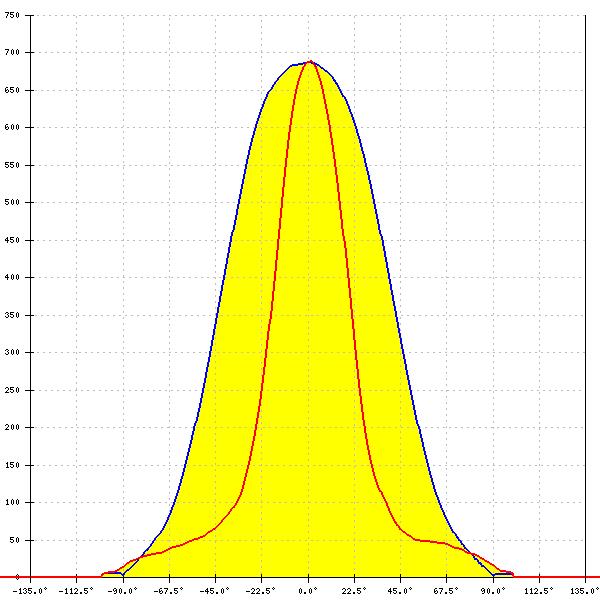

LED: LLE G4 24x280mm 1250lm
FWHM: 89° + 38°
FWTM: 138° + 86°
Peak intensity: 0.720 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: LLE G4 24x280mm 2000lm ADV
FWHM: 88° + 40°
FWTM: 139° + 88°
Peak intensity: 0.690 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

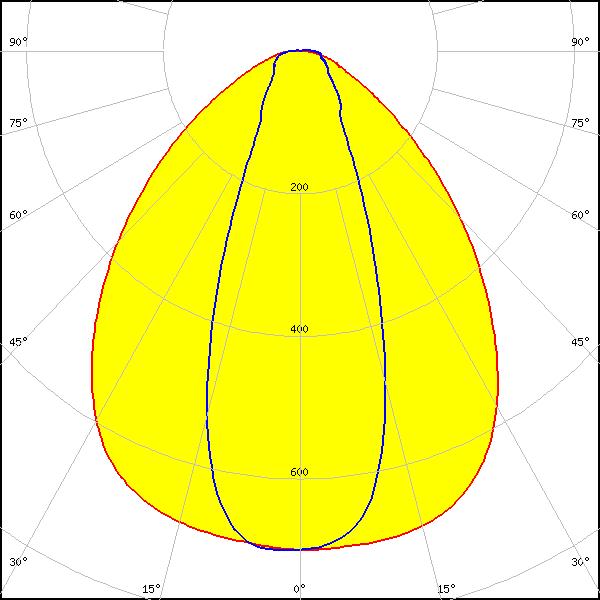

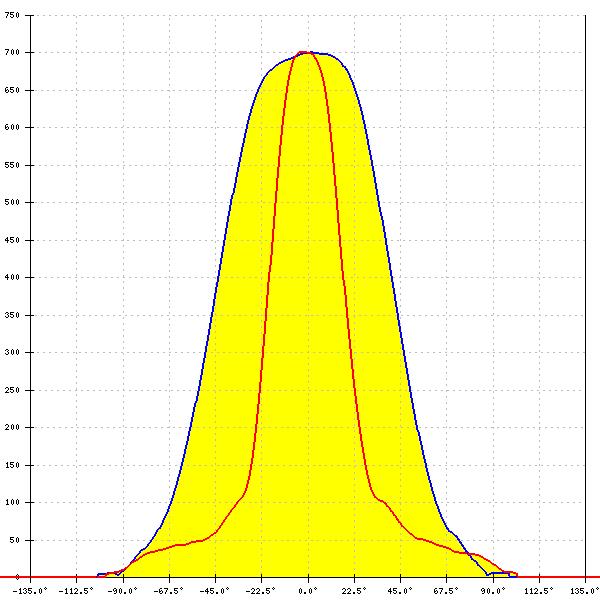

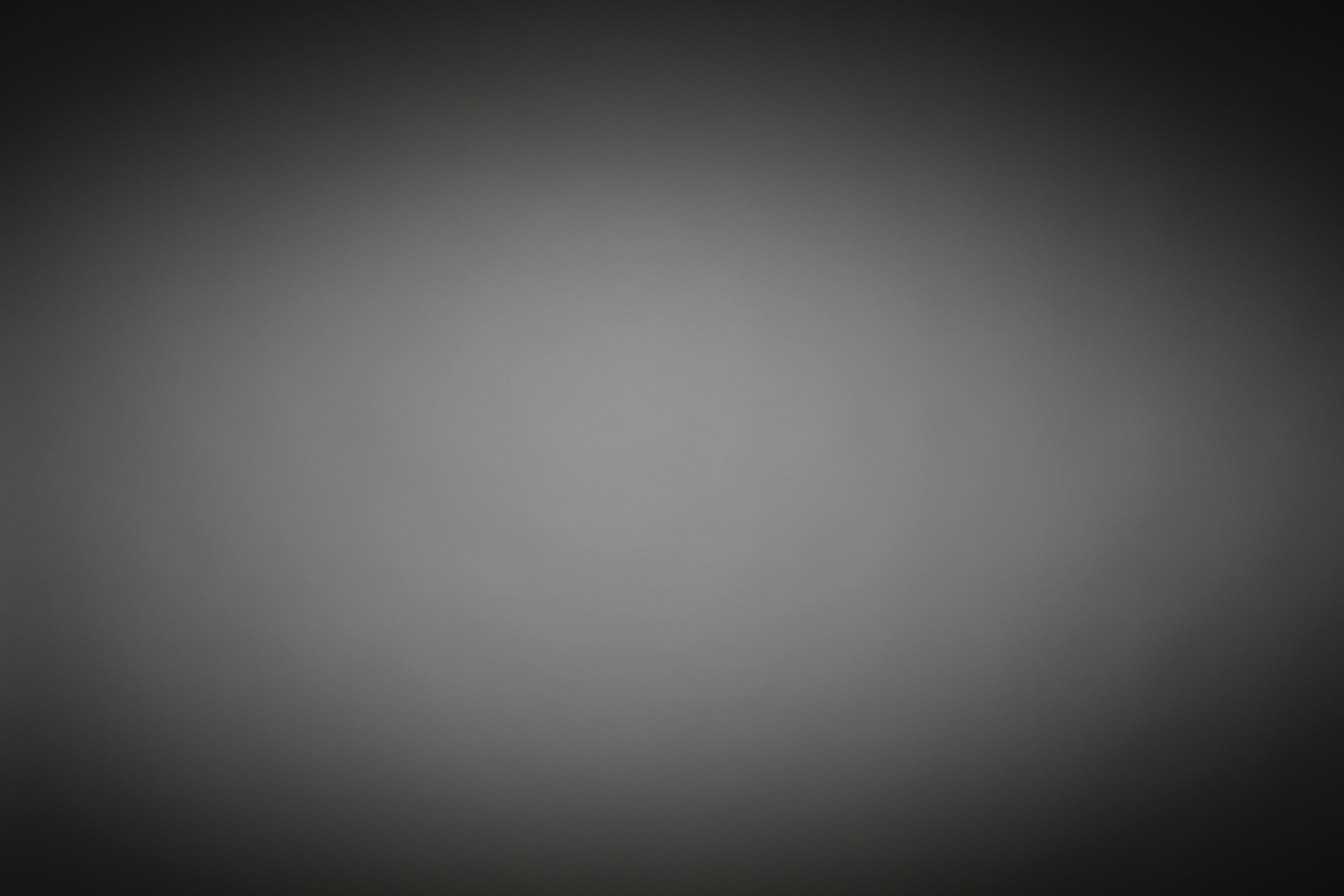

LED: LLE G4 24x280mm 650lm
FWHM: 90° + 39°
FWTM: 138° + 87°
Peak intensity: 0.700 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
