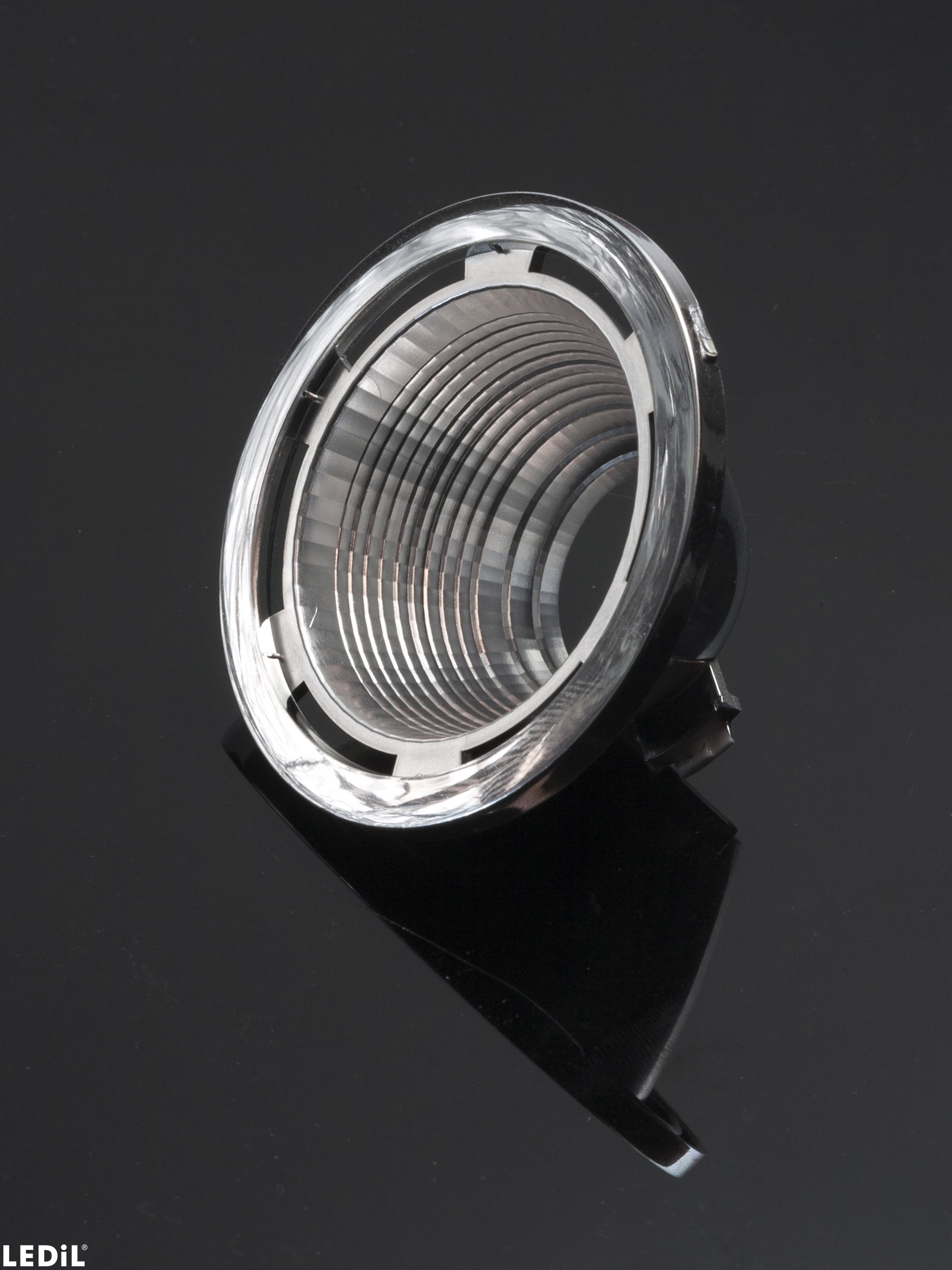

F16002_MIRELLA-G2-WW

Print

~50° wide beam compatible with LEDiL HEKLA

Specification
  • Dimensions:
    50 mm
  • Height:
    22.58 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    336 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    3.7 kg
  • MPQ:
    28 pcs
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F16002_MIRELLA-G2-WW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

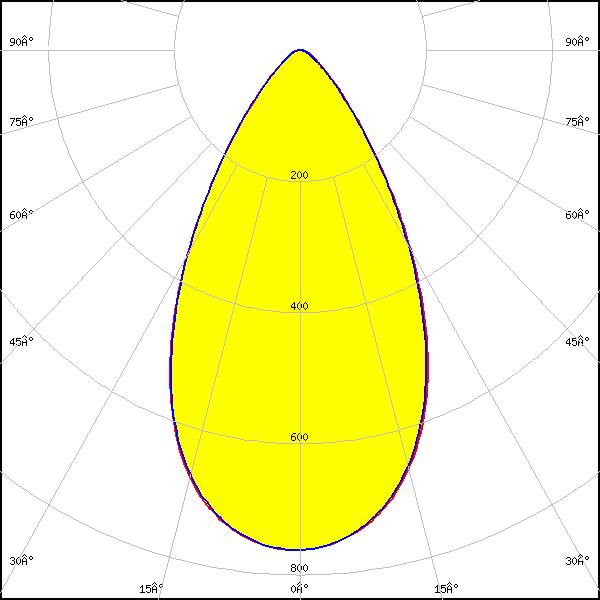

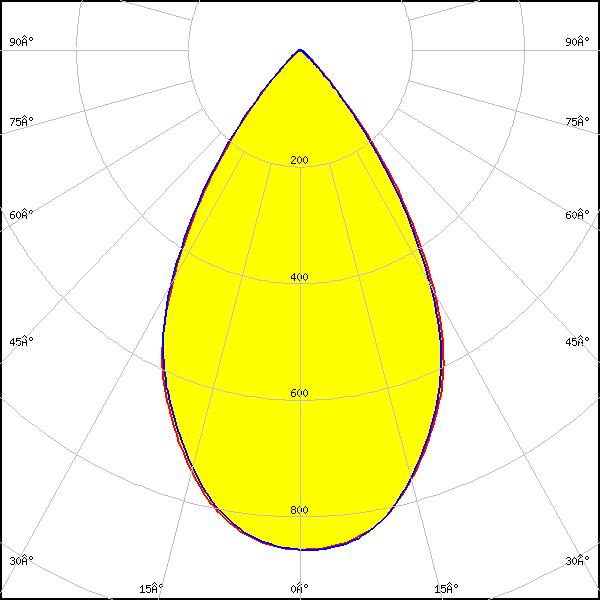

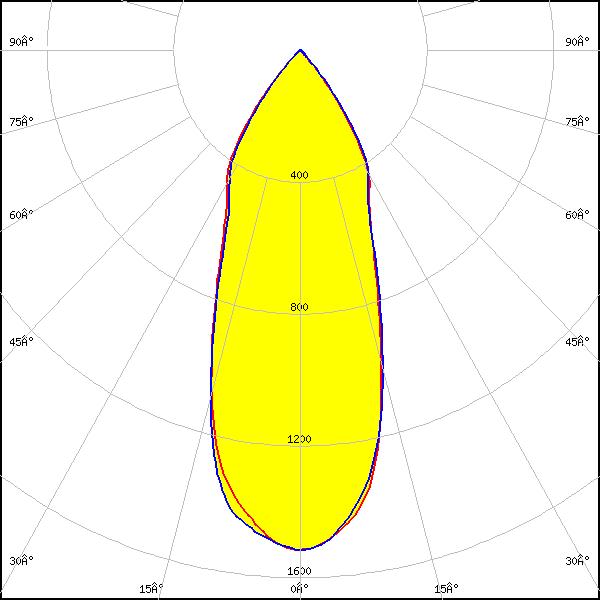

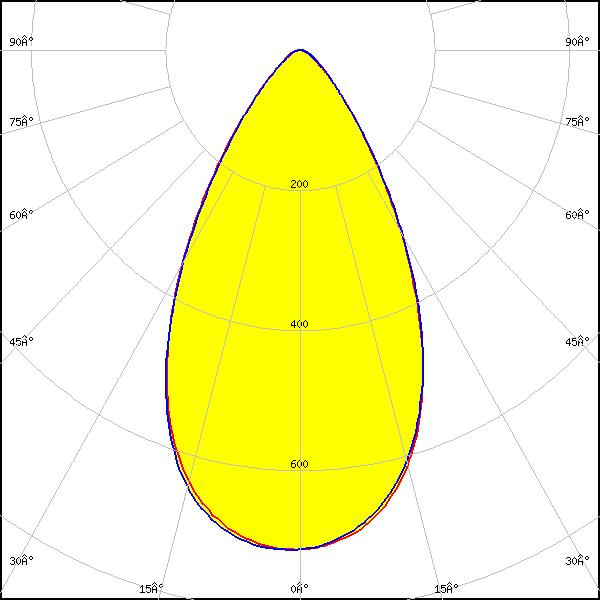

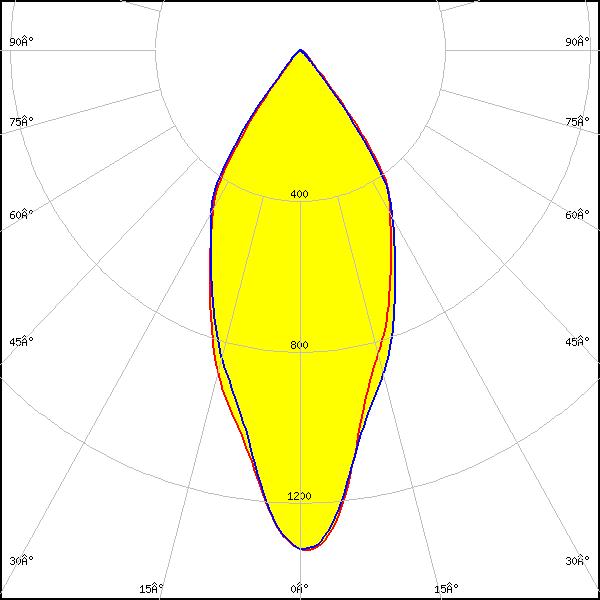

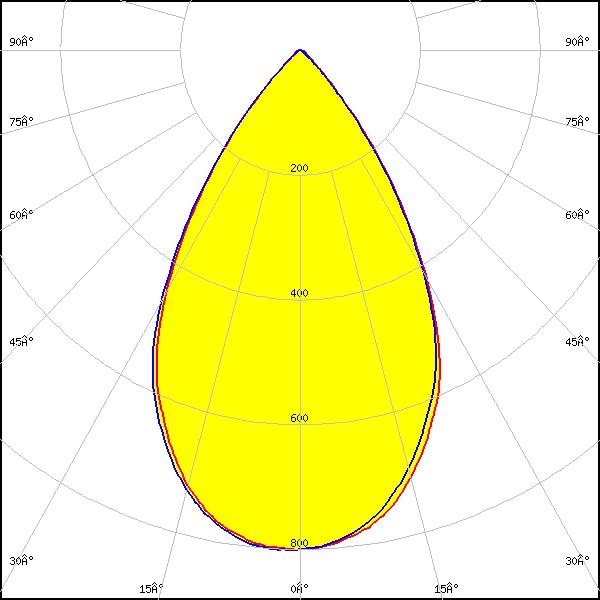

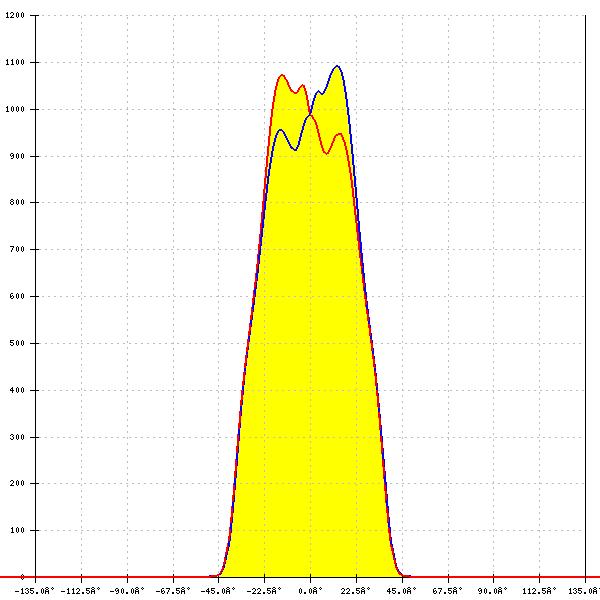

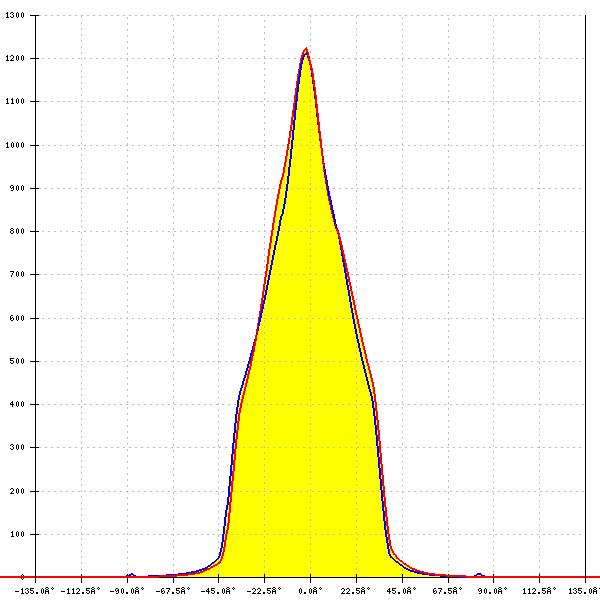

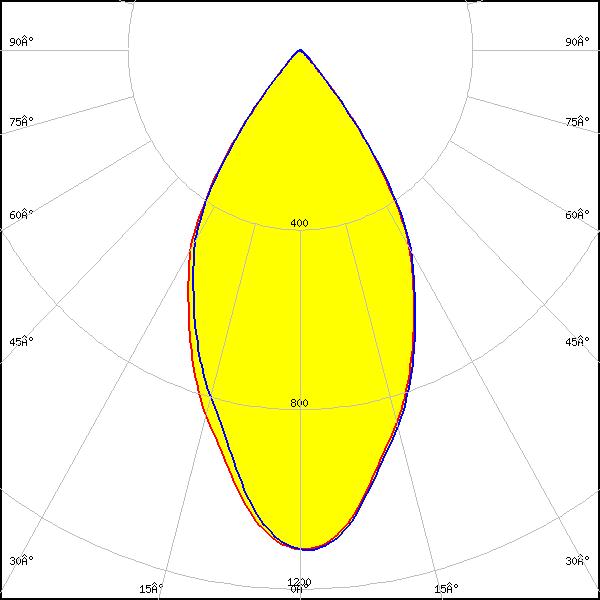

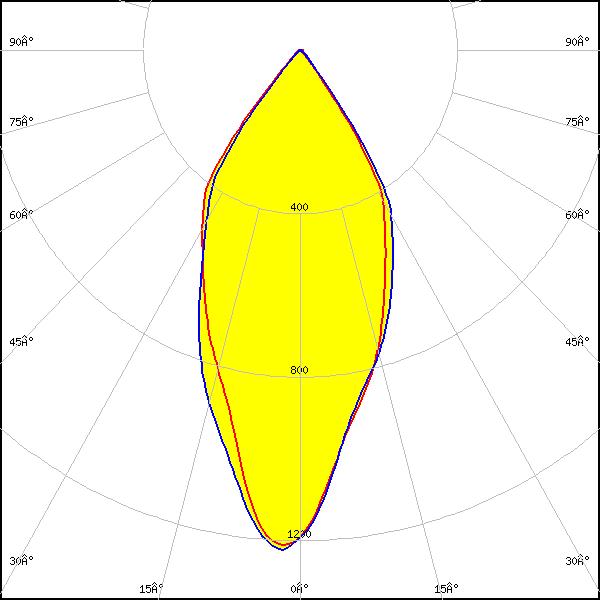

Optical results

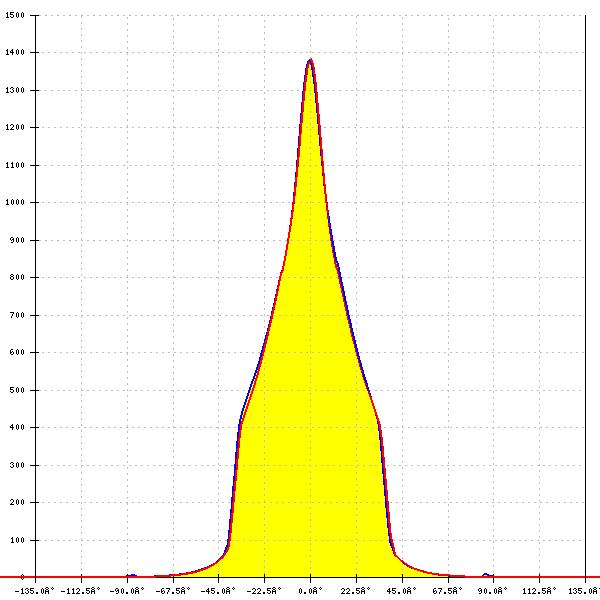

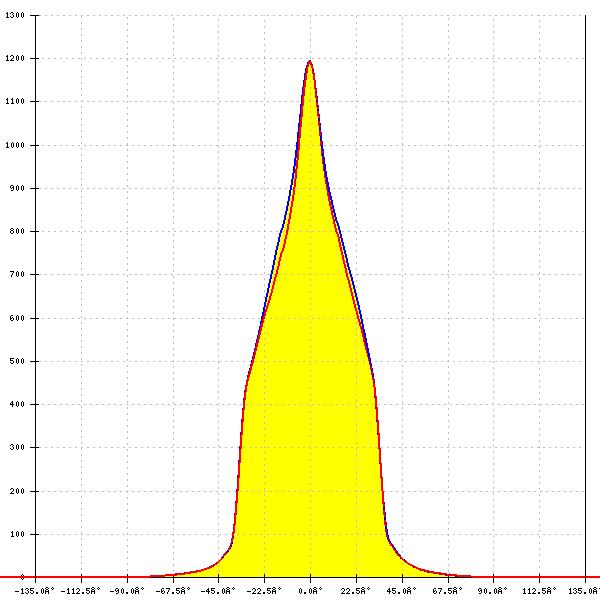

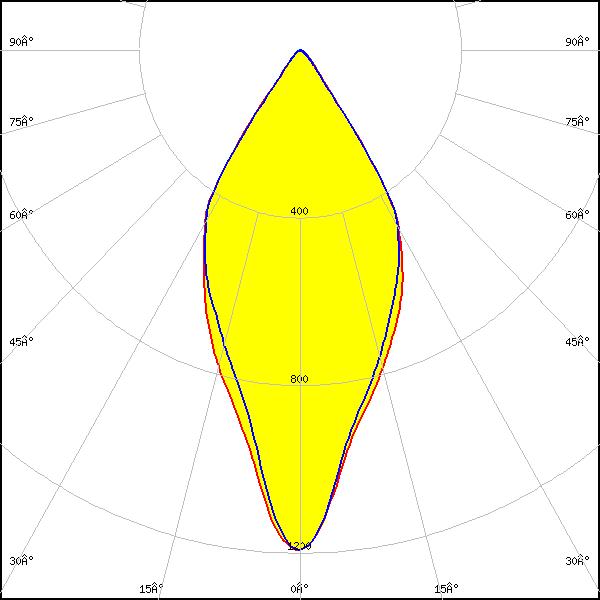

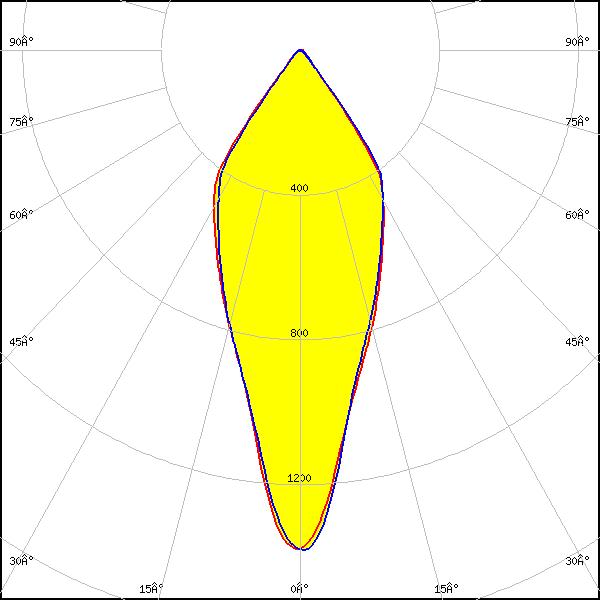

LED: V4 HD Gen 7
Required components:
FWHM: 38°
FWTM: 78°
Peak intensity: 1.380 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: V4 HD Gen 7
Required components:
FWHM: 53°
FWTM: 88°
Peak intensity: 0.910 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: V4 HD Gen 7
Required components:
FWHM: 49°
FWTM: 75°
Peak intensity: 1.200 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

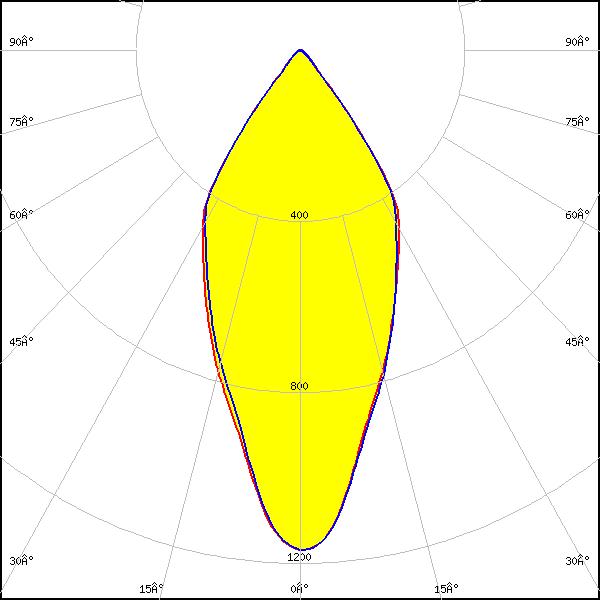

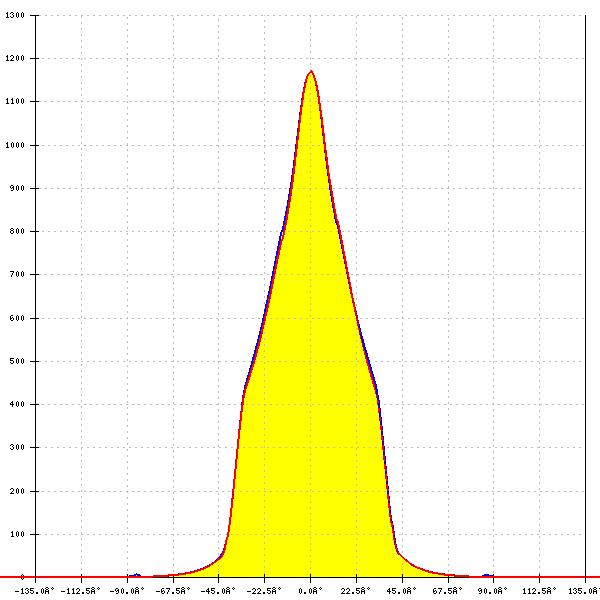

LED: V6 HD Gen 7
Required components:
FWHM: 47°
FWTM: 80°
Peak intensity: 1.170 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

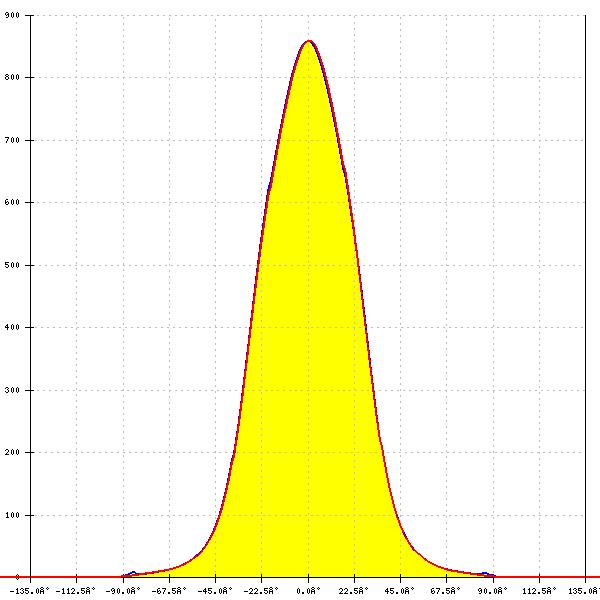

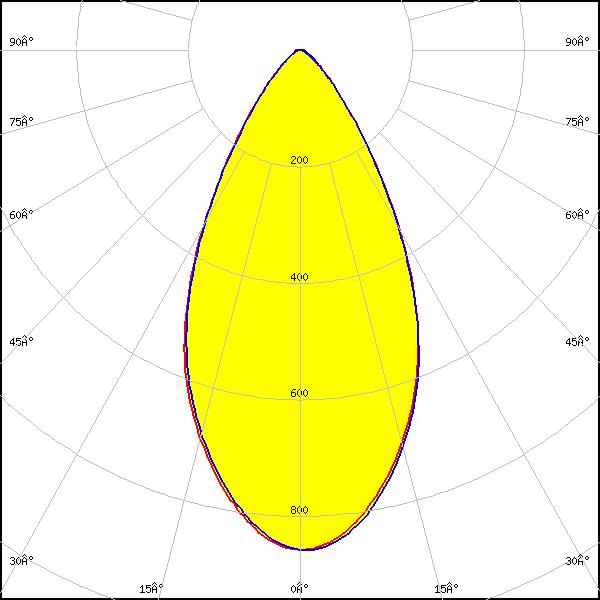

LED: V6 HD Gen 7
Required components:
FWHM: 54°
FWTM: 89°
Peak intensity: 0.860 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

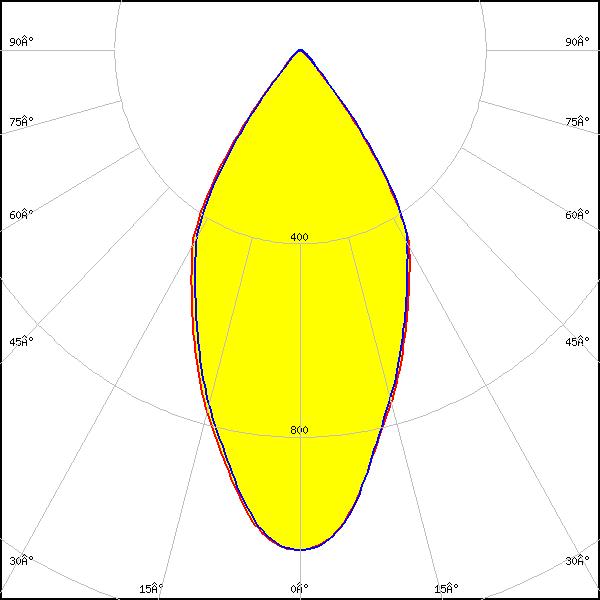

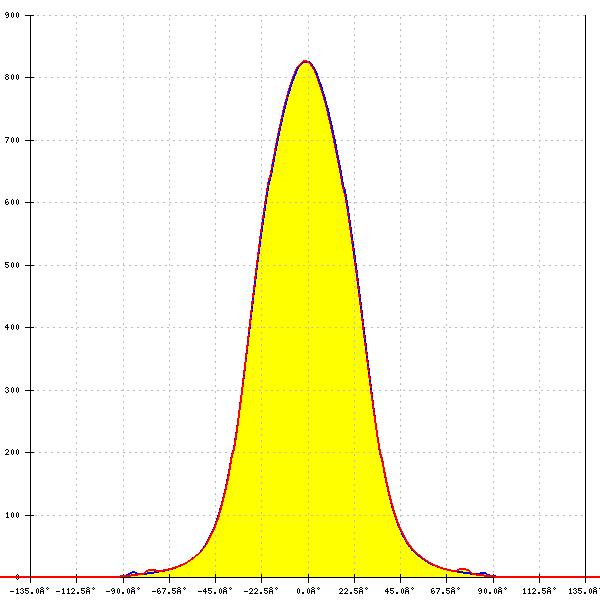

LED: V9 HD Gen7
Required components:
FWHM: 53°
FWTM: 82°
Peak intensity: 1.030 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: V9 HD Gen7
Required components:
FWHM: 55°
FWTM: 89°
Peak intensity: 0.830 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

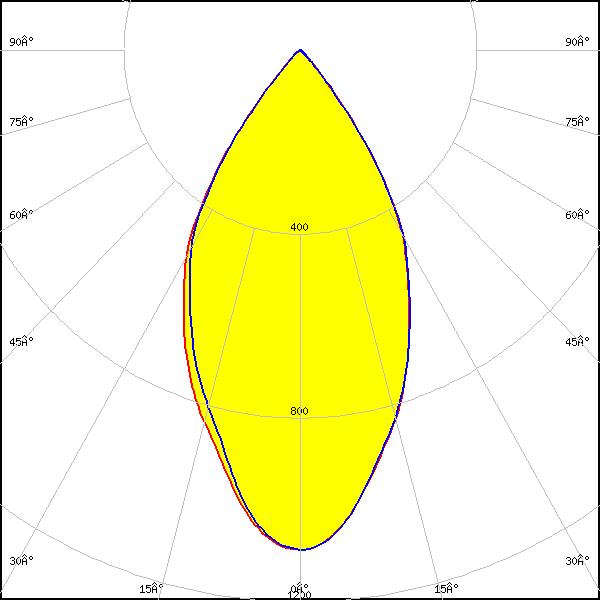

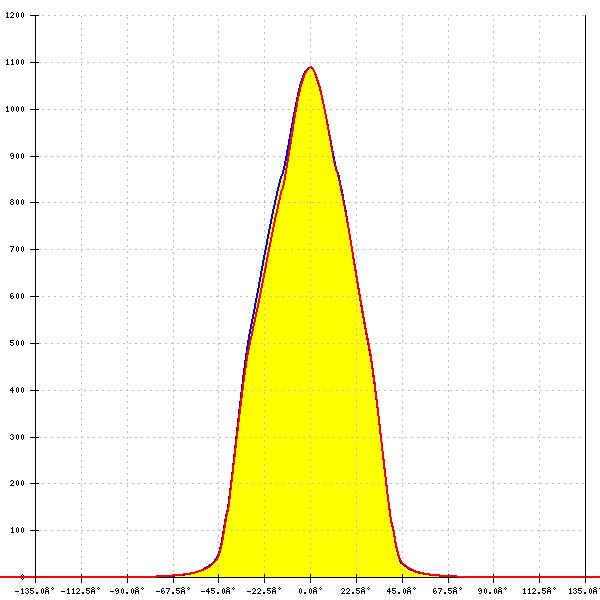

LED: VERO10
Required components:
FWHM: 55°
FWTM: 82°
Peak intensity: 1.100 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

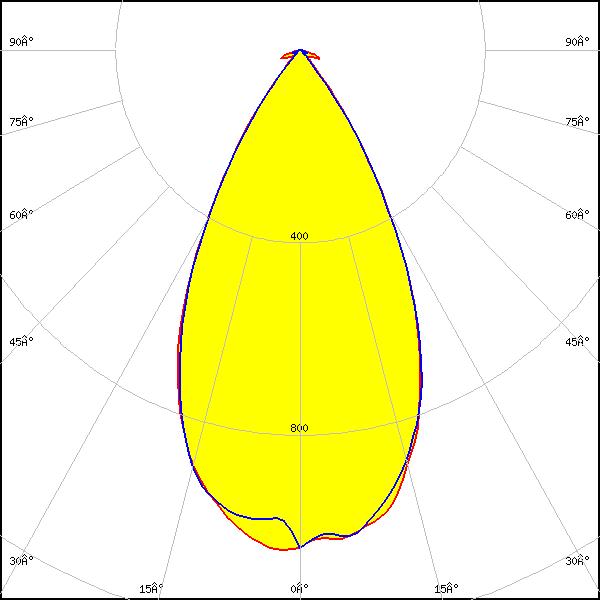

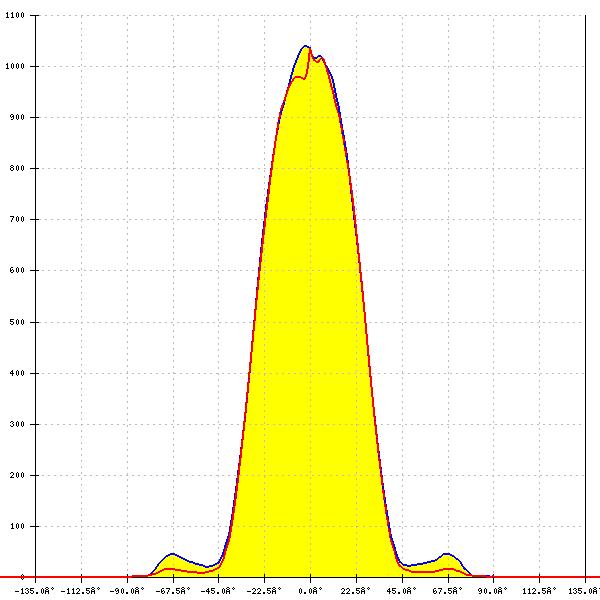

LED: VERO13
Required components:
FWHM: 53°
FWTM: 78°
Peak intensity: 1.100 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

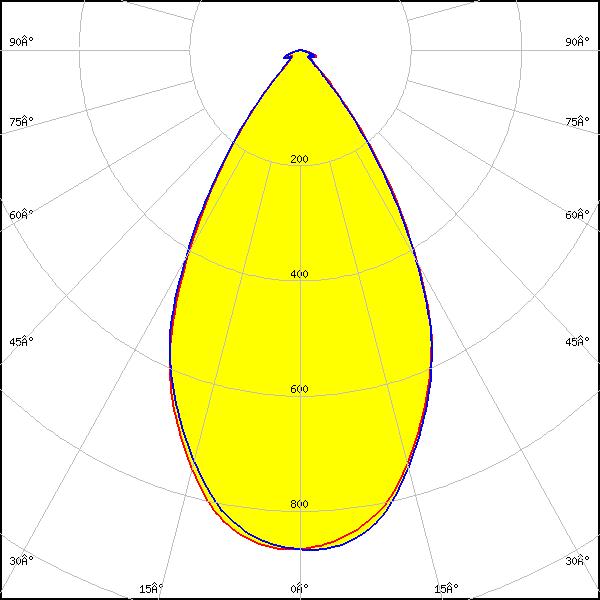

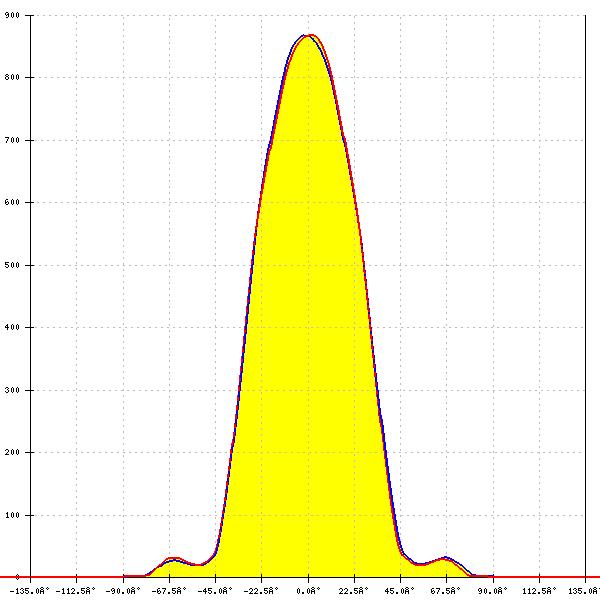

LED: Vesta DTW 13mm (21W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 59°
FWTM: 84°
Peak intensity: 0.869 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: Tunable White

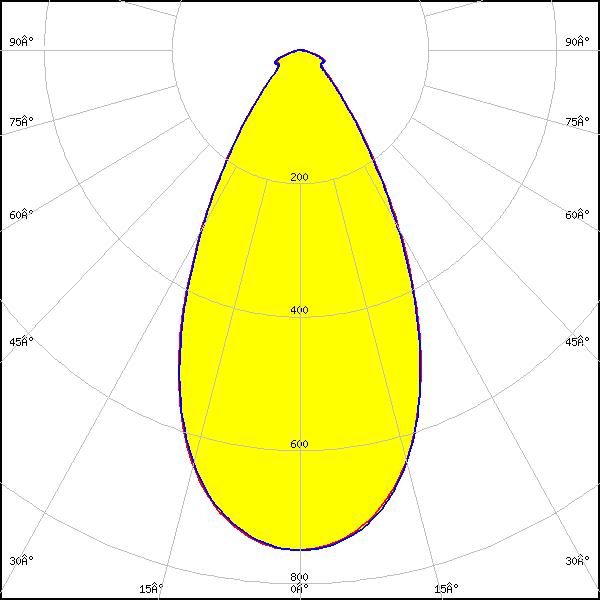

LED: Vesta DTW 13mm (21W)
Required components:
FWHM: 54°
FWTM: 91°
Peak intensity: 0.750 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: Tunable White

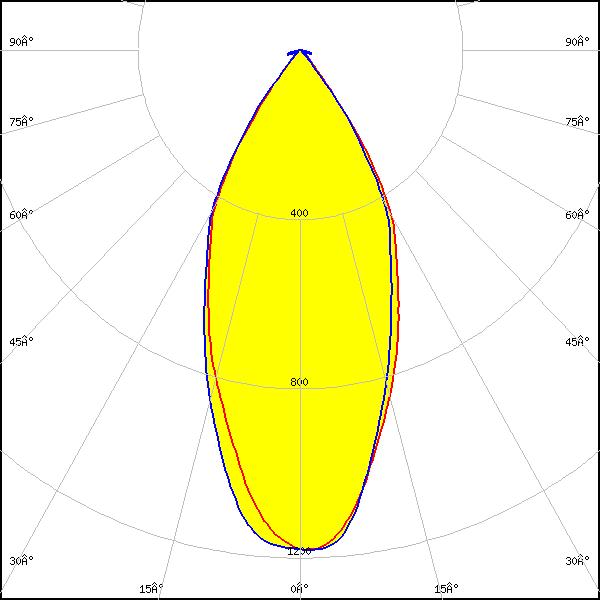

LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
FWHM: 50°
FWTM: 85°
Peak intensity: 0.860 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

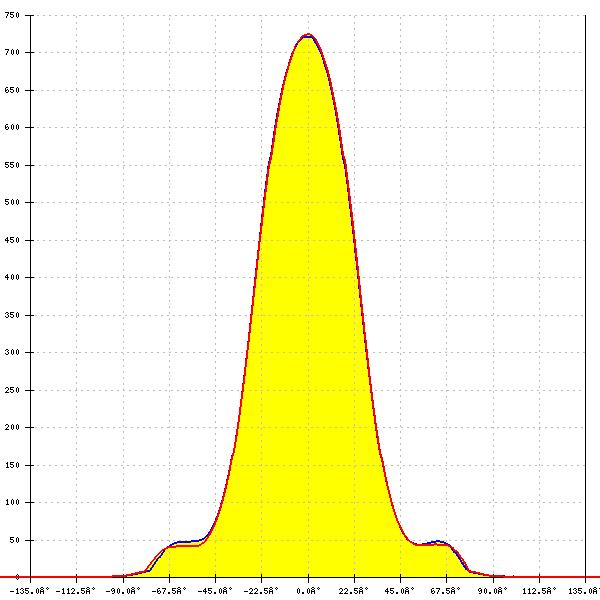

LED: Vesta TW 13mm (25W) CSP
Required components:
FWHM: 53°
FWTM: 90°
Peak intensity: 0.730 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour: White

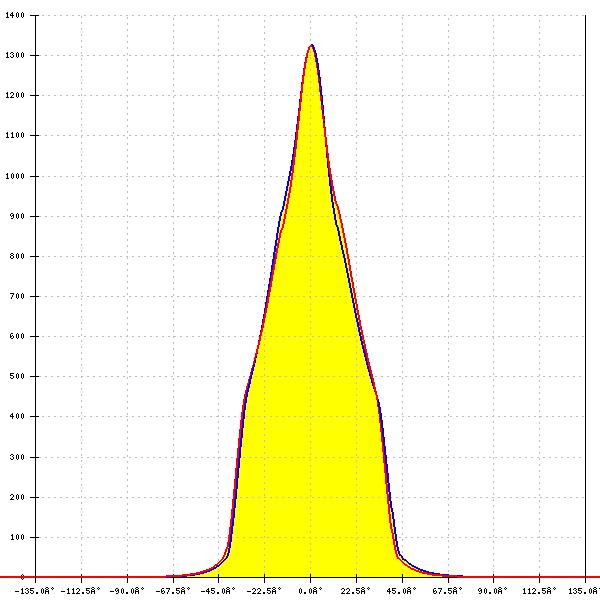

LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 41°
FWTM: 77°
Peak intensity: 1.302 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
FWHM: 50°
FWTM: 85°
Peak intensity: 0.917 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

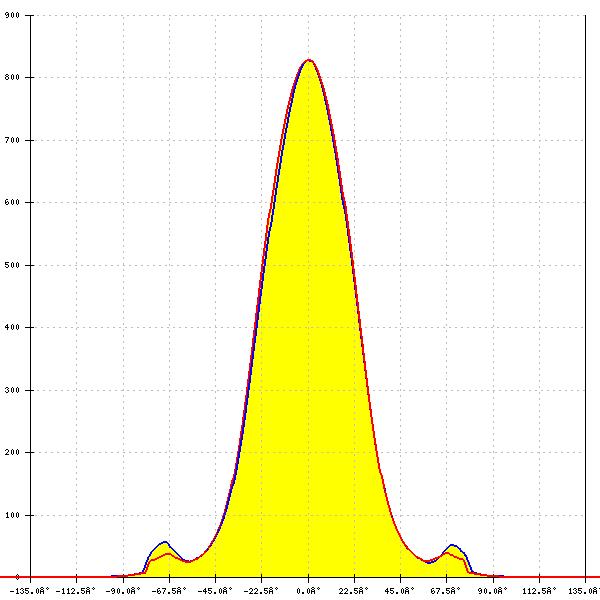

LED: Vesta TW 9mm (12W) CSP
Required components:
FWHM: 50°
FWTM: 85°
Peak intensity: 0.830 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 9mm (12W) CSP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 46°
FWTM: 77°
Peak intensity: 1.200 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

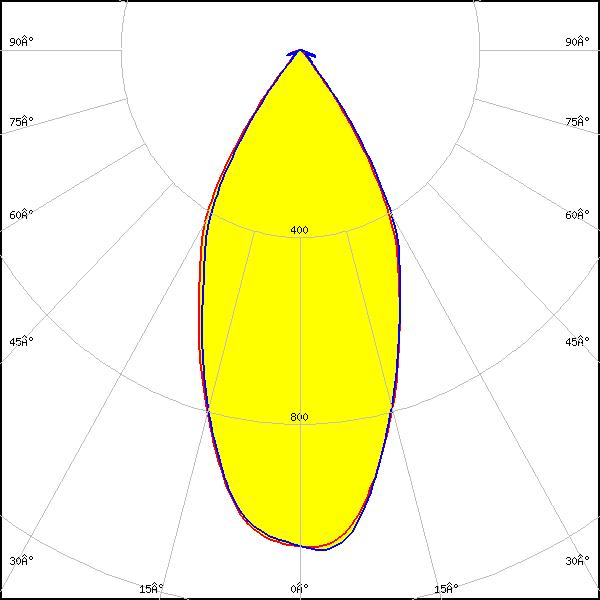

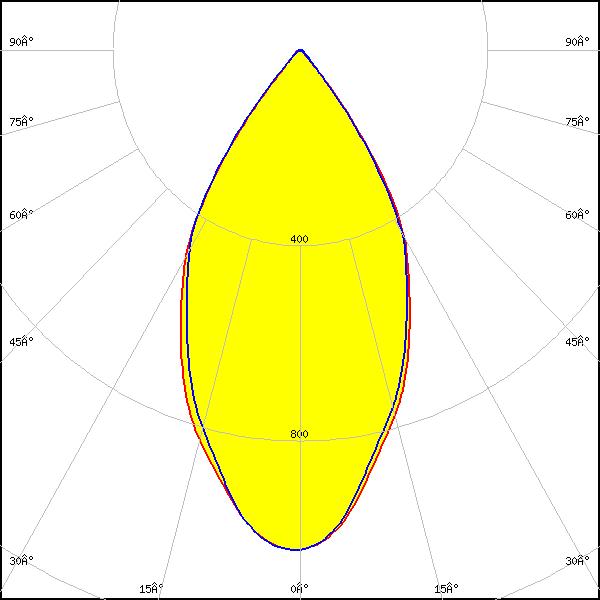

LED: CLC020 Series (Dim-To-Warm)
Required components:
FWHM: 50°
FWTM: 85°
Peak intensity: 0.840 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: White
LED: CLC020 Series (Dim-To-Warm)
Required components:
FWHM: 49°
FWTM: 78°
Peak intensity: 1.100 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

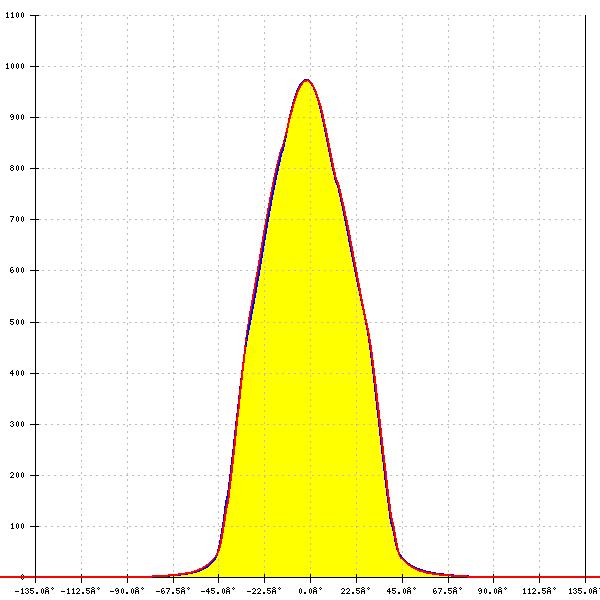

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 59°
FWTM: 83°
Peak intensity: 0.970 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

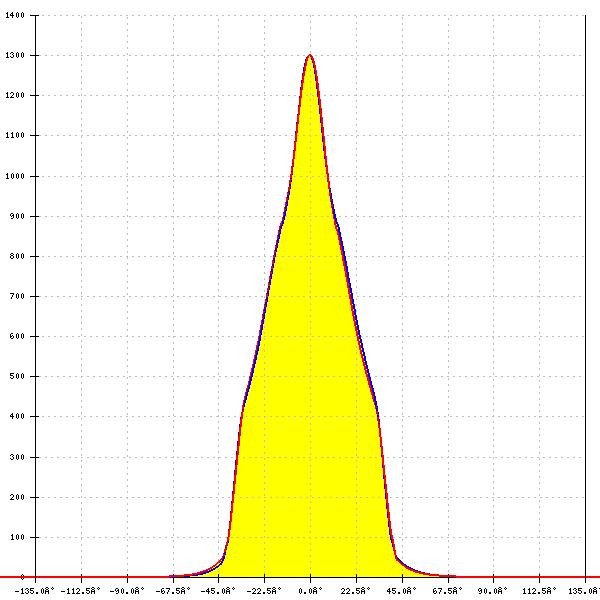

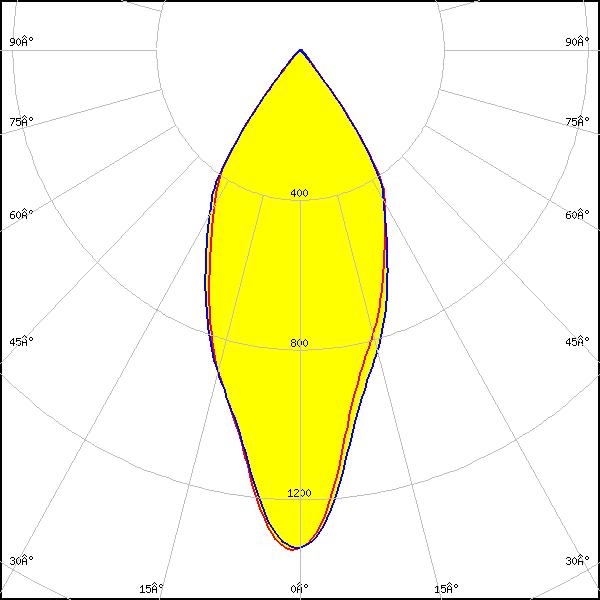

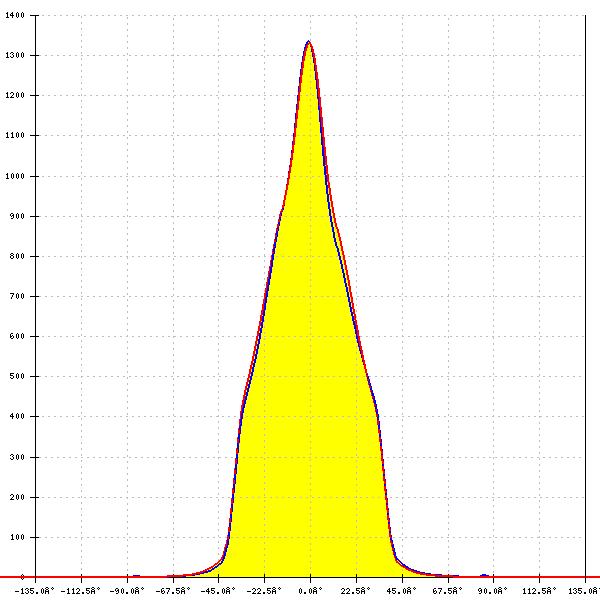

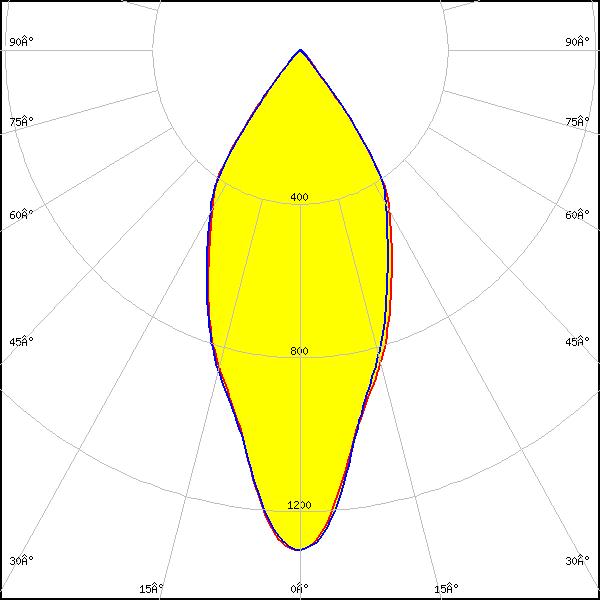

LED: CLU700/701/702
Required components:
FWHM: 44°
FWTM: 79°
Peak intensity: 1.300 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: CLU700/701/702
Required components:
FWHM: 45°
FWTM: 79°
Peak intensity: 1.300 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

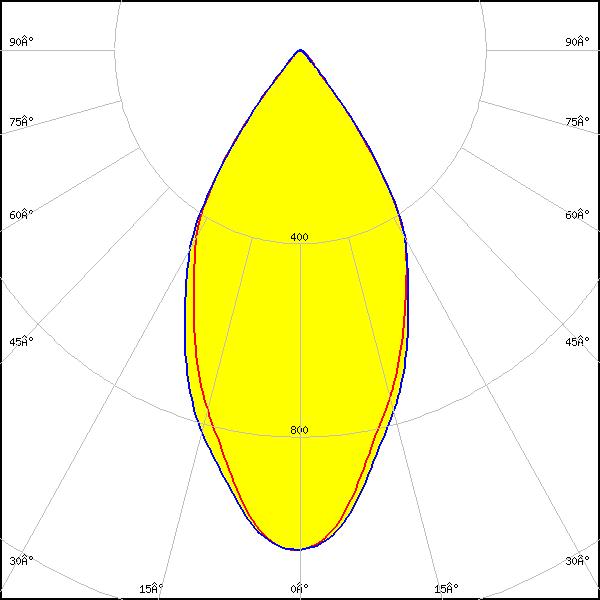

LED: CLU710/711
Required components:
FWHM: 53°
FWTM: 81°
Peak intensity: 1.000 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

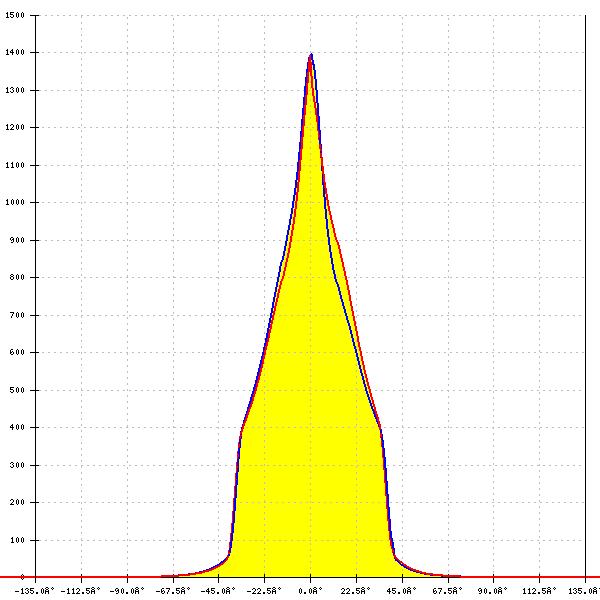

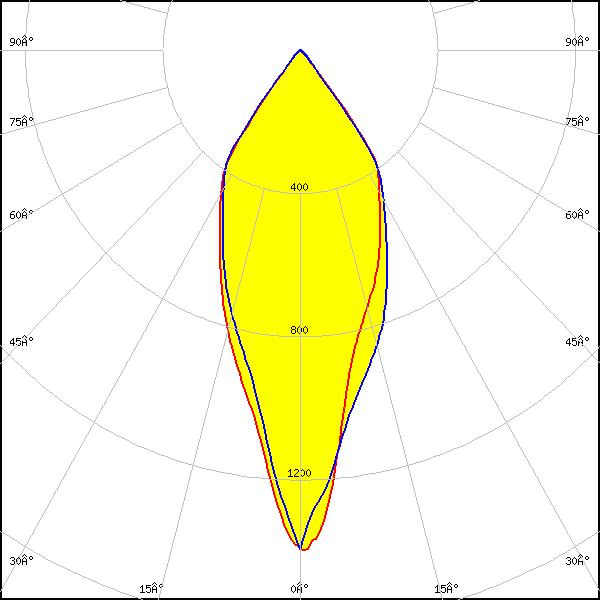

LED: CLU7A2 (LES 4.2mm)
Required components:
FWHM: 38°
FWTM: 77°
Peak intensity: 1.400 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

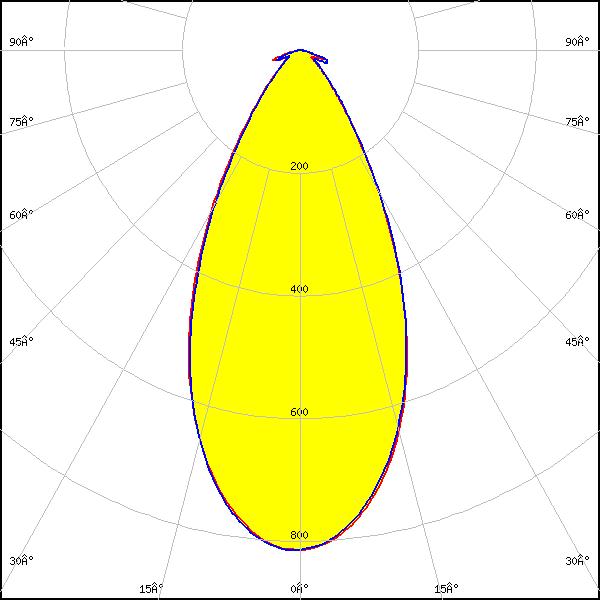

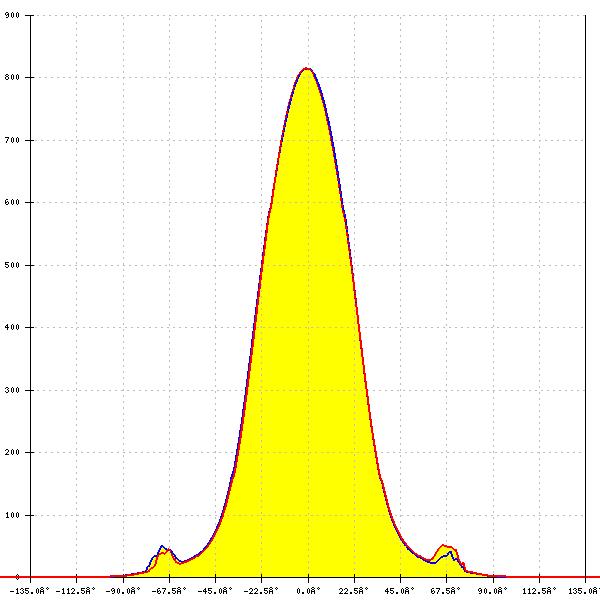

LED: LCN-C01B (Tunable White)
Required components:
FWHM: 50°
FWTM: 86°
Peak intensity: 0.810 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: White

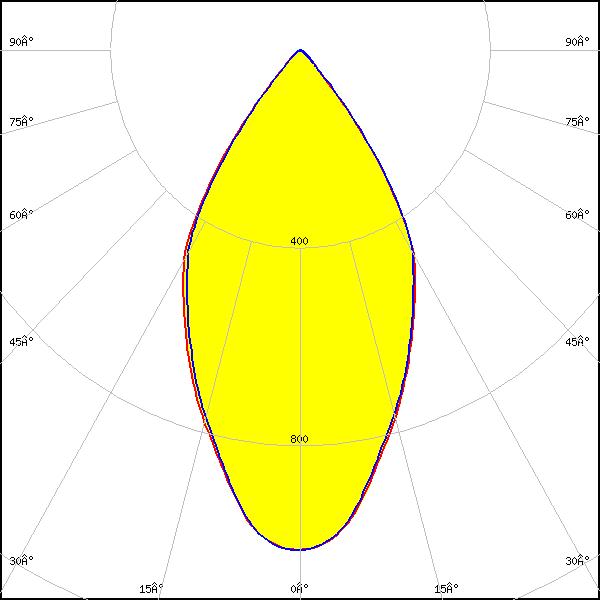

LED: CMA1516
Required components:
FWHM: 57°
FWTM: 83°
Peak intensity: 1.000 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

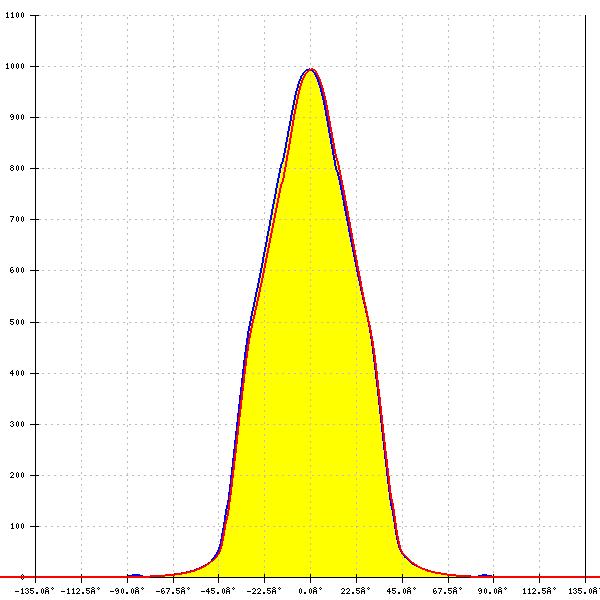

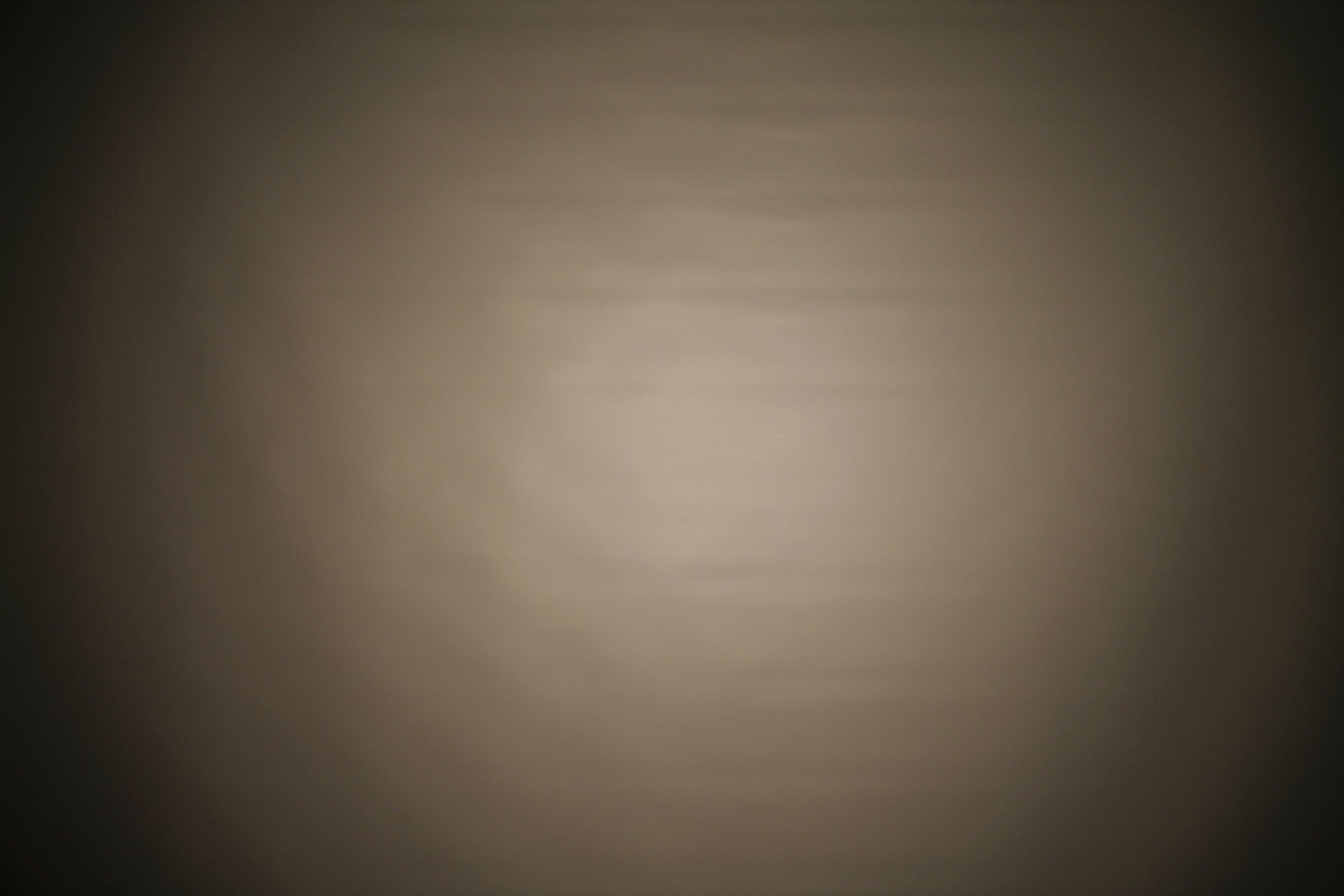

LED: CMT14xx
Required components:
FWHM: 58°
FWTM: 83°
Peak intensity: 1.000 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

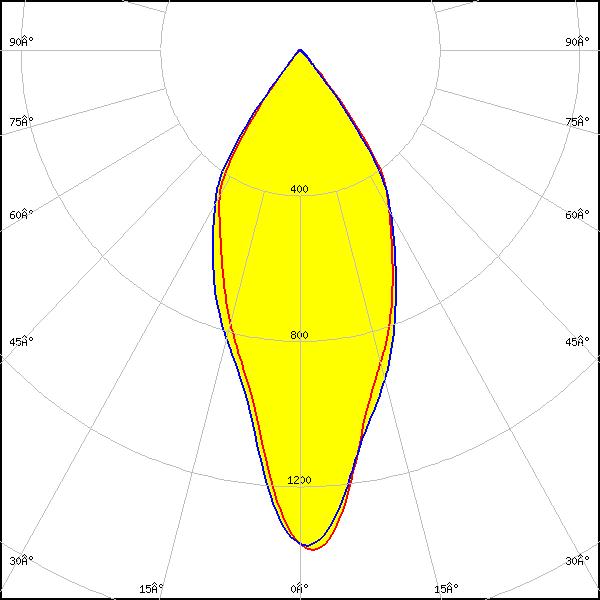

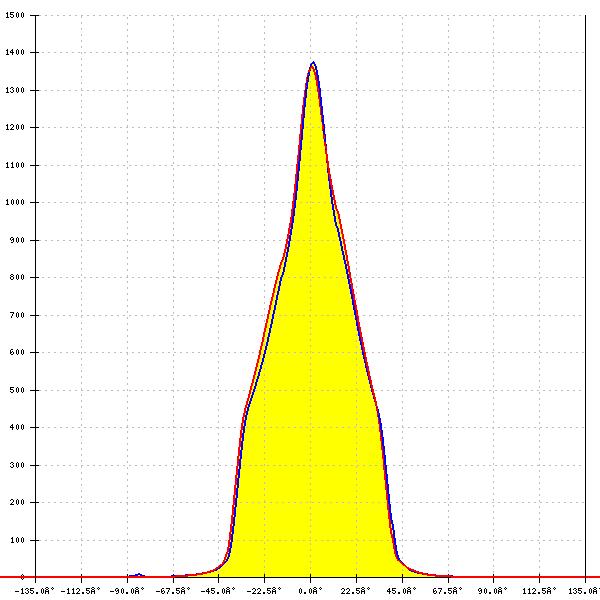

LED: CXA/B 13xx
Required components:
FWHM: 43°
FWTM: 78°
Peak intensity: 1.380 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

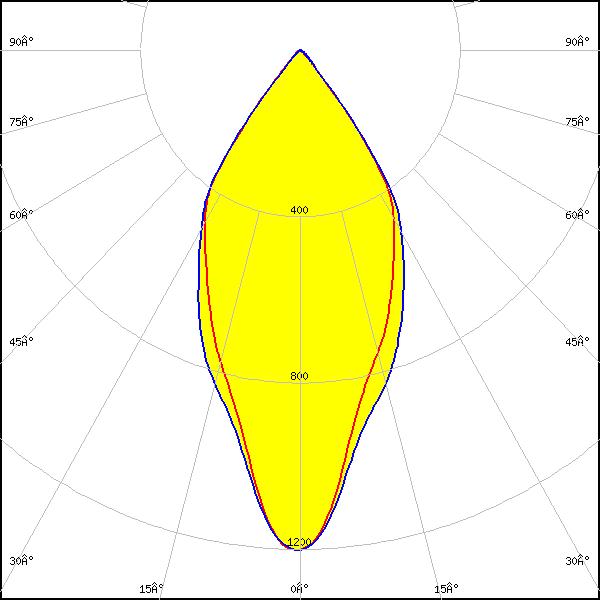

LED: CXA/B 13xx
Required components:
FWHM: 48°
FWTM: 80°
Peak intensity: 1.200 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

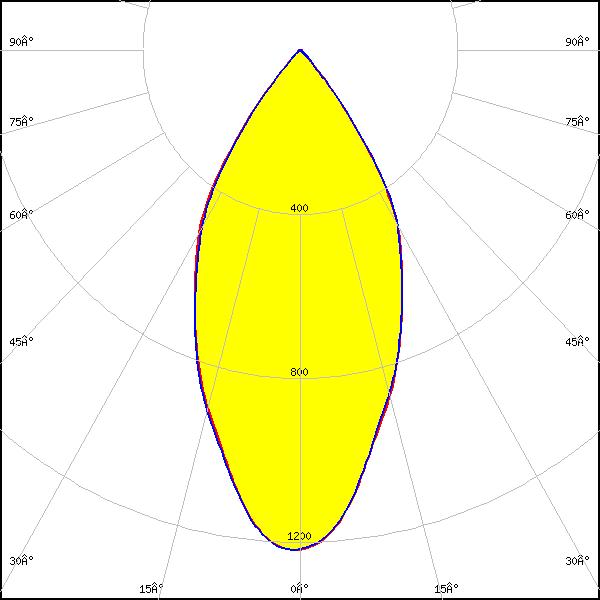

LED: CXA/B 15xx
Required components:
FWHM: 51°
FWTM: 81°
Peak intensity: 1.200 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

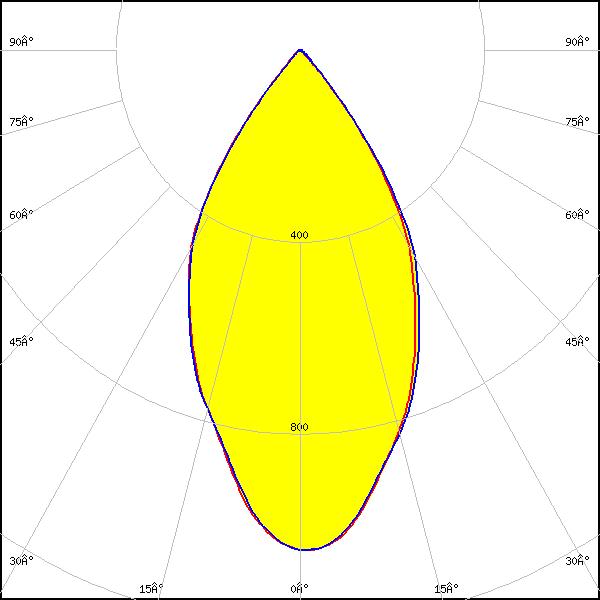

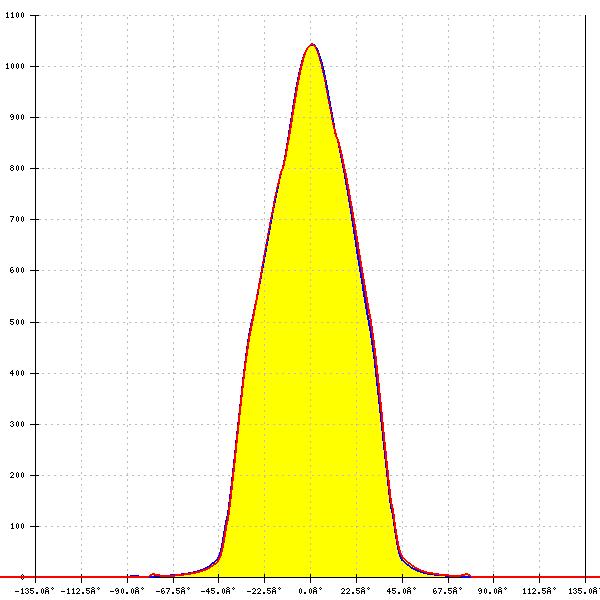

LED: LUXEON CoB 1202/1203
Required components:
FWHM: 56°
FWTM: 82°
Peak intensity: 1.000 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1202/1203
Required components:
FWHM: 56°
FWTM: 82°
Peak intensity: 1.000 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

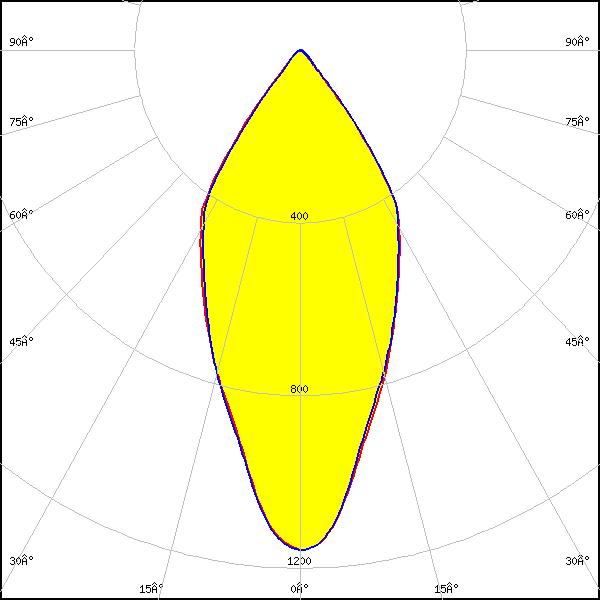

LED: LUXEON CoB 1202HD
Required components:
FWHM: 48°
FWTM: 80°
Peak intensity: 1.160 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

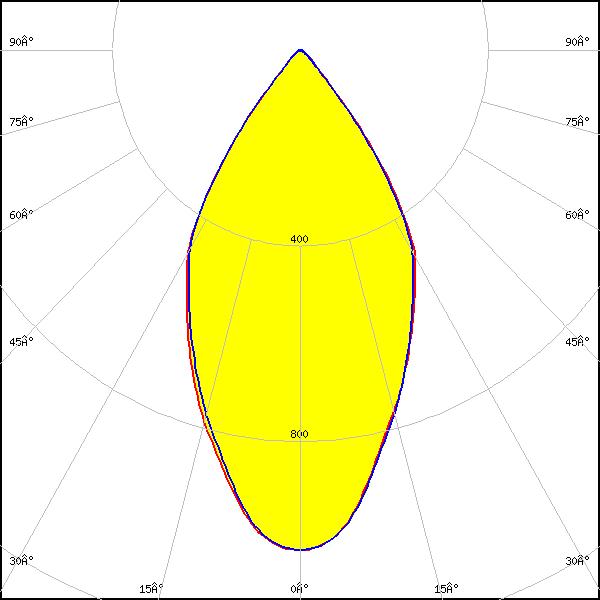

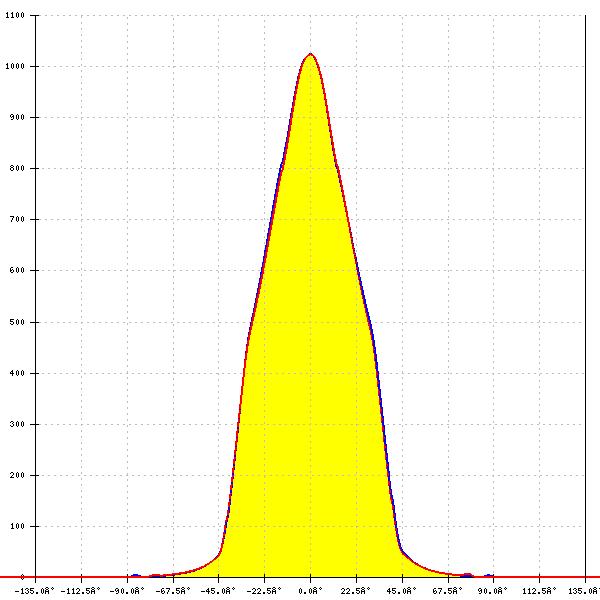

LED: LUXEON CoB 1204HD
Required components:
FWHM: 56°
FWTM: 83°
Peak intensity: 1.020 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

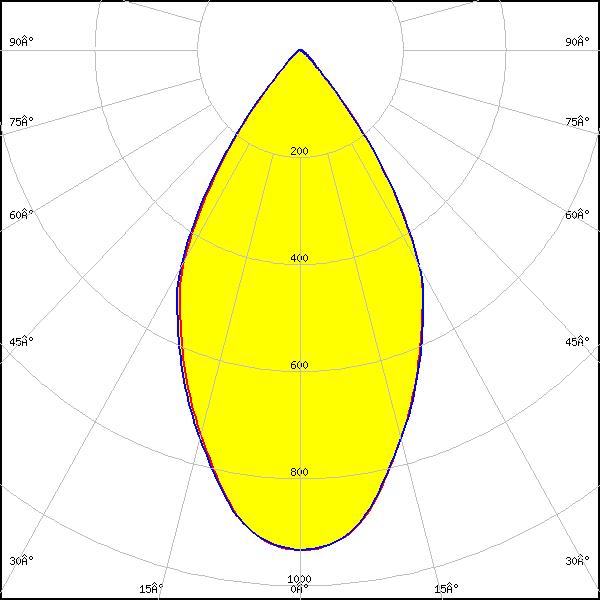

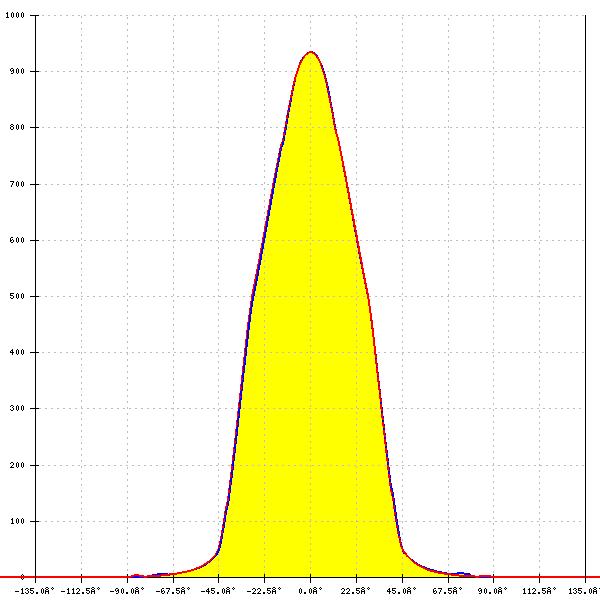

LED: LUXEON CoB 1205HD
Required components:
FWHM: 59°
FWTM: 85°
Peak intensity: 0.930 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

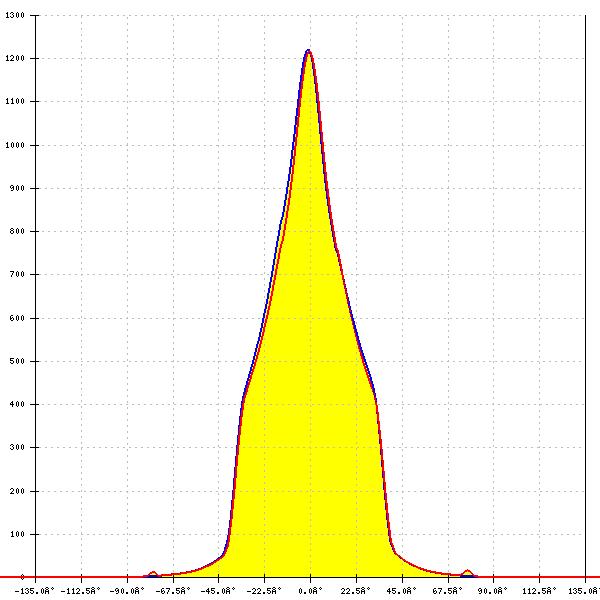

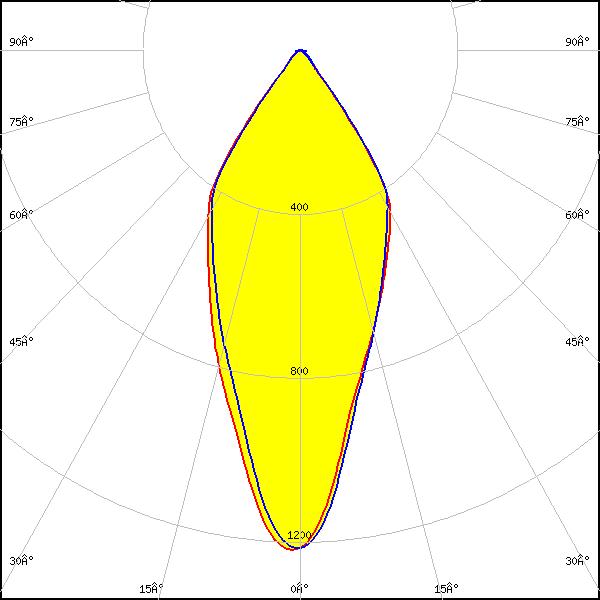

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
FWHM: 42°
FWTM: 78°
Peak intensity: 1.220 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

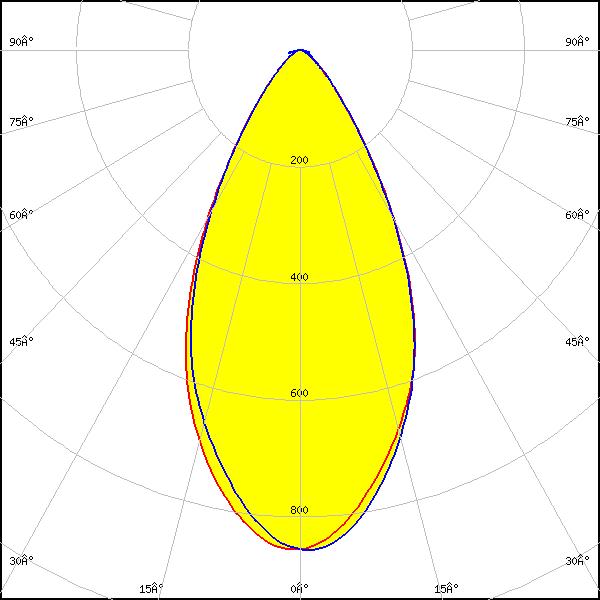

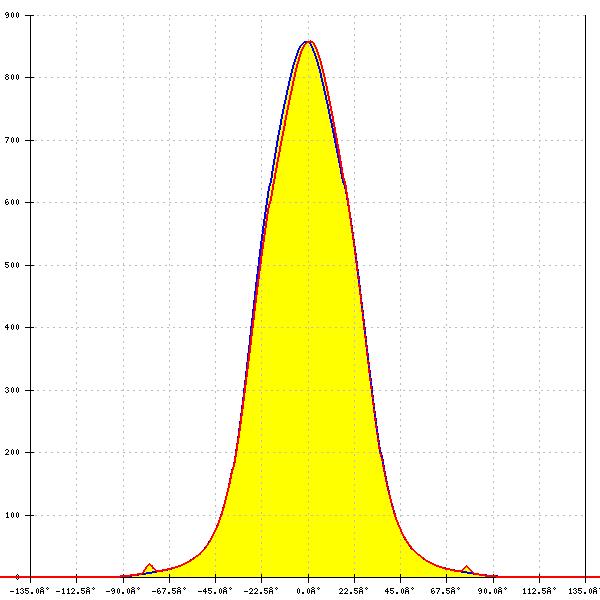

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 53° + 52°
FWTM: 88° + 88°
Peak intensity: 0.858 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White

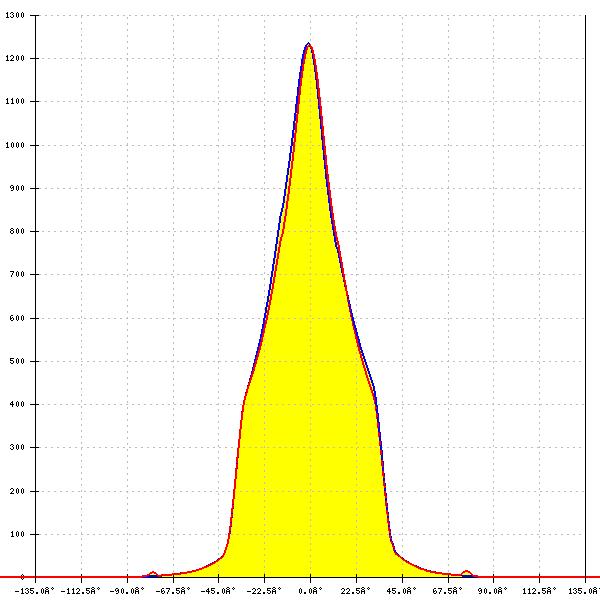

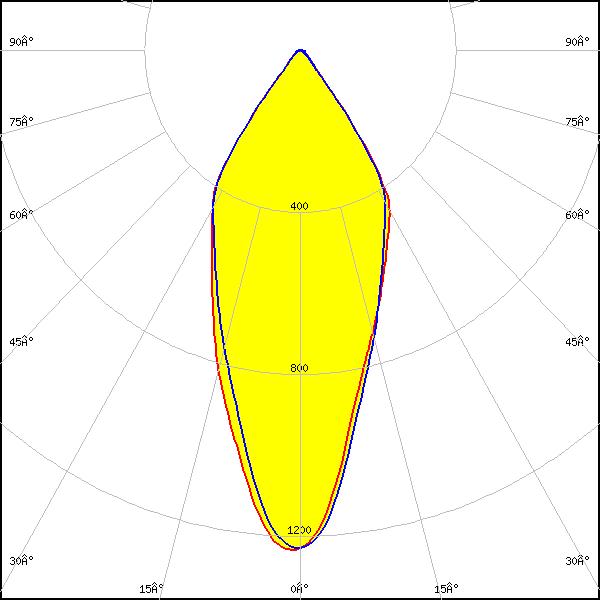

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: 42°
FWTM: 78°
Peak intensity: 1.235 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

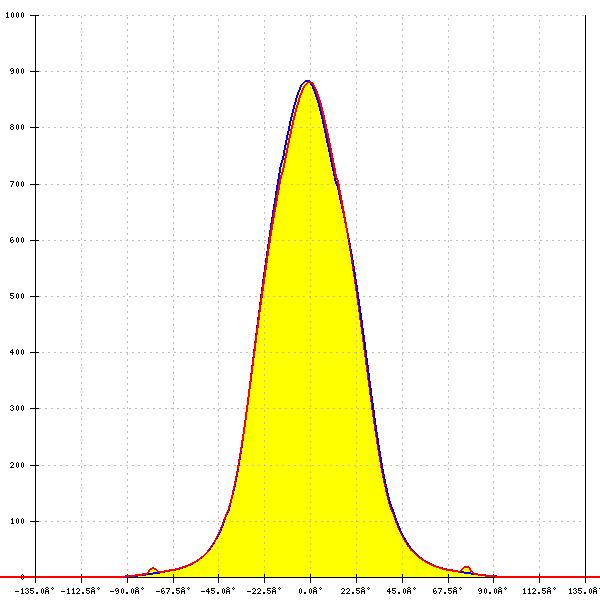

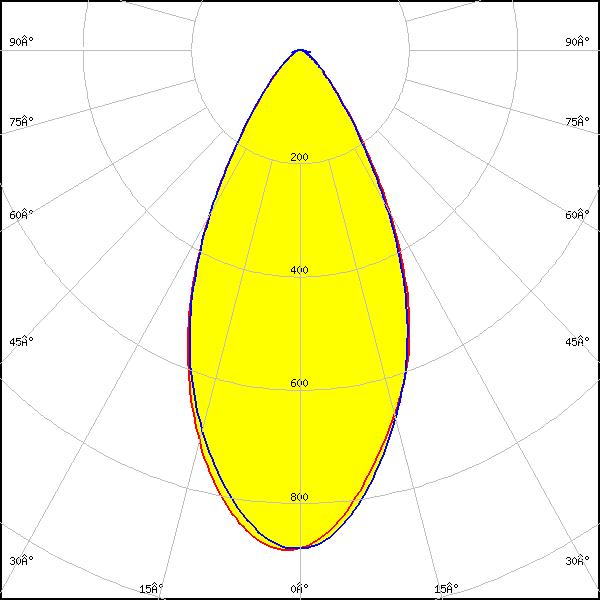

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 52°
FWTM: 87°
Peak intensity: 0.883 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: 53°
FWTM: 81°
Peak intensity: 1.045 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 54°
FWTM: 89°
Peak intensity: 0.840 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 58°
FWTM: 83°
Peak intensity: 0.929 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
C13723_MIRELLA-RZL
FWHM: 54°
FWTM: 91°
Peak intensity: 0.776 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

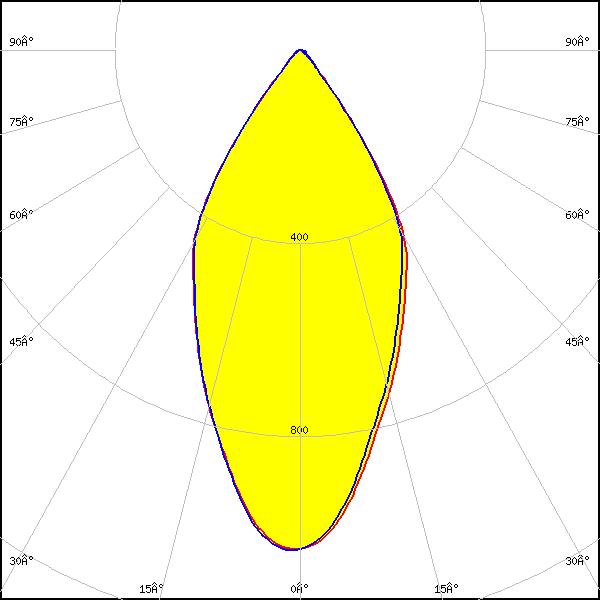

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
C13723_MIRELLA-RZL
FWHM: 53°
FWTM: 89°
Peak intensity: 0.808 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
FWHM: 52°
FWTM: 81°
Peak intensity: 1.036 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

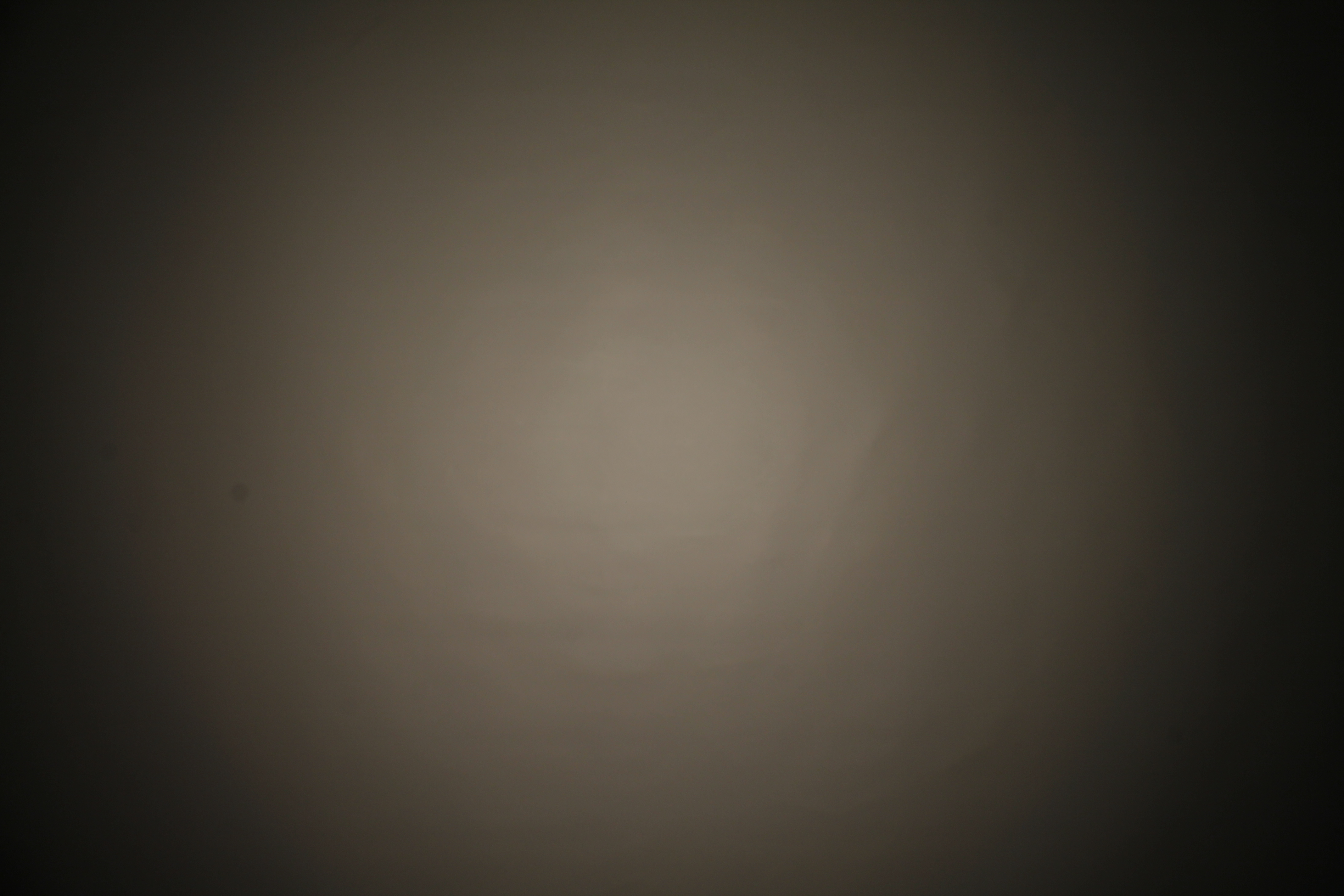

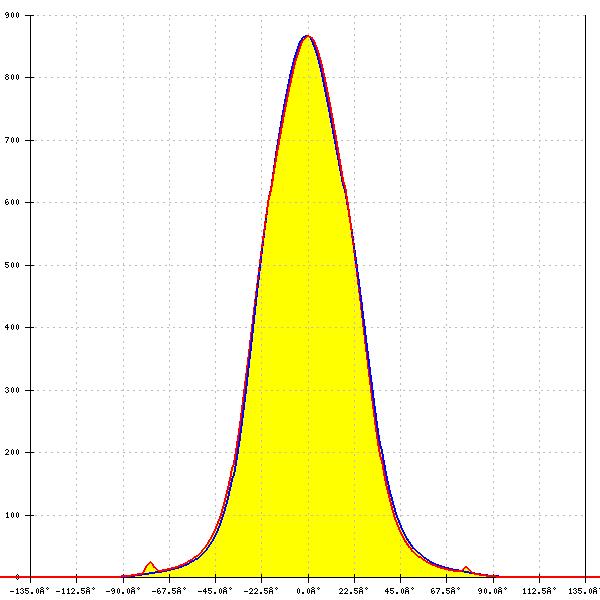

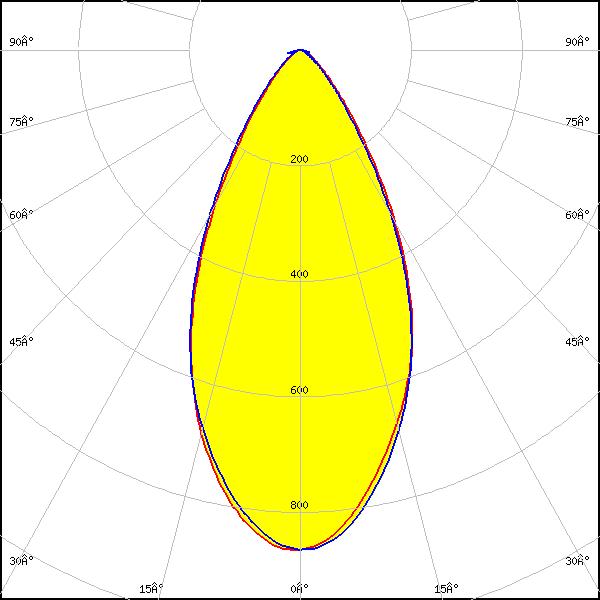

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
C13723_MIRELLA-RZL
FWHM: 52°
FWTM: 87°
Peak intensity: 0.866 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

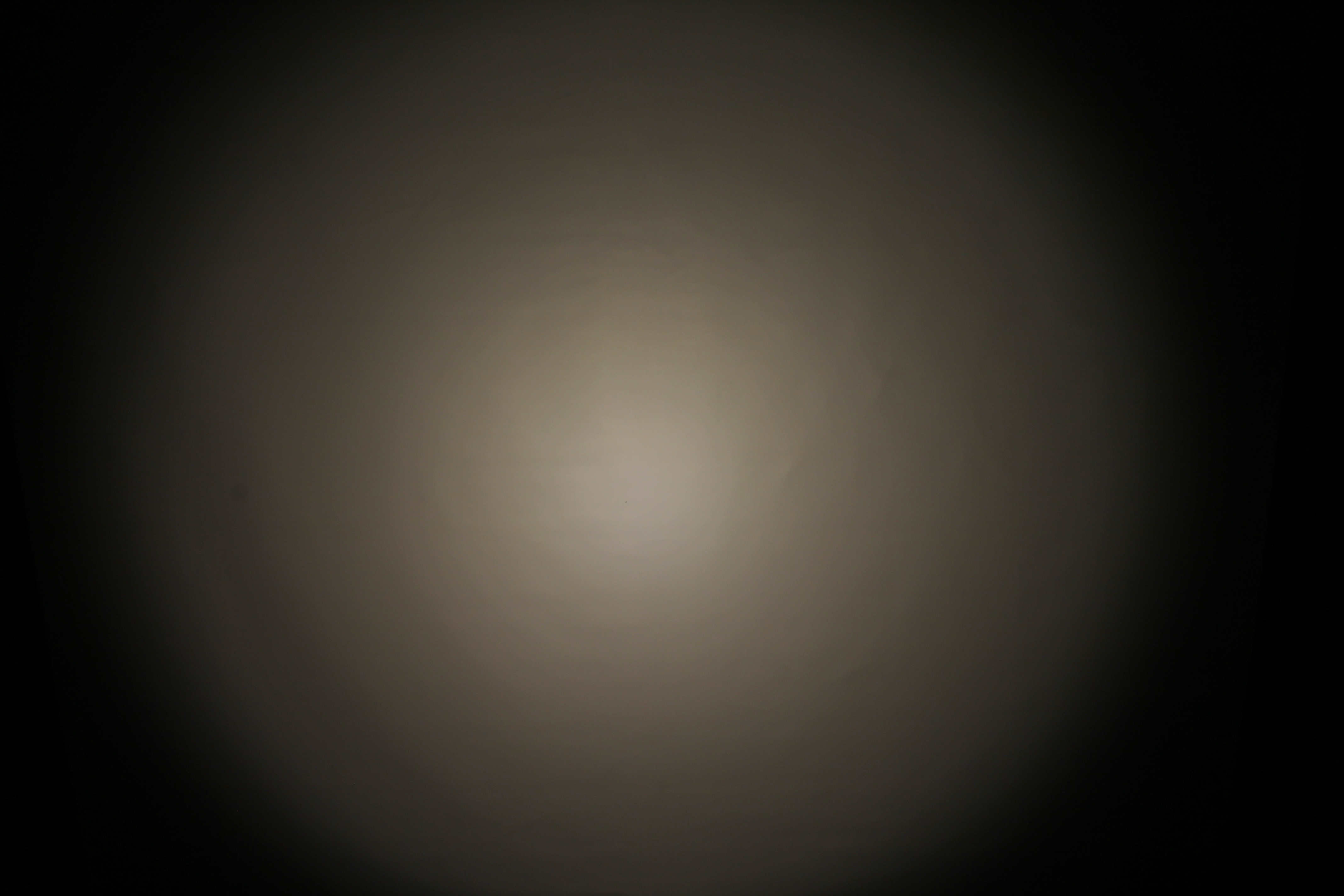

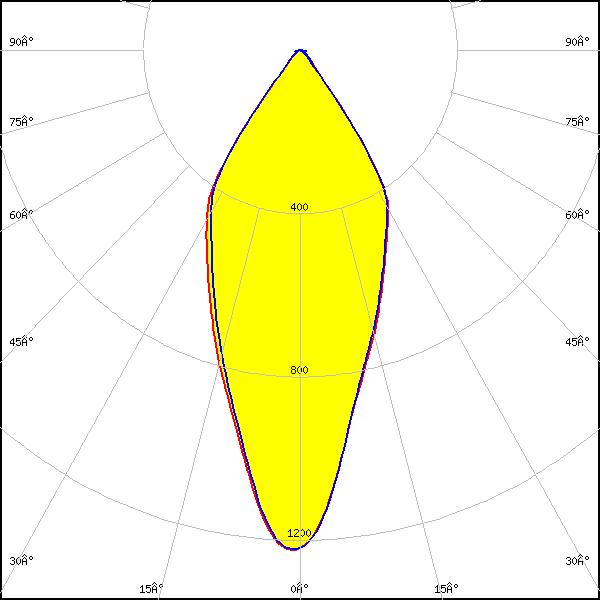

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
FWHM: 42°
FWTM: 78°
Peak intensity: 1.226 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

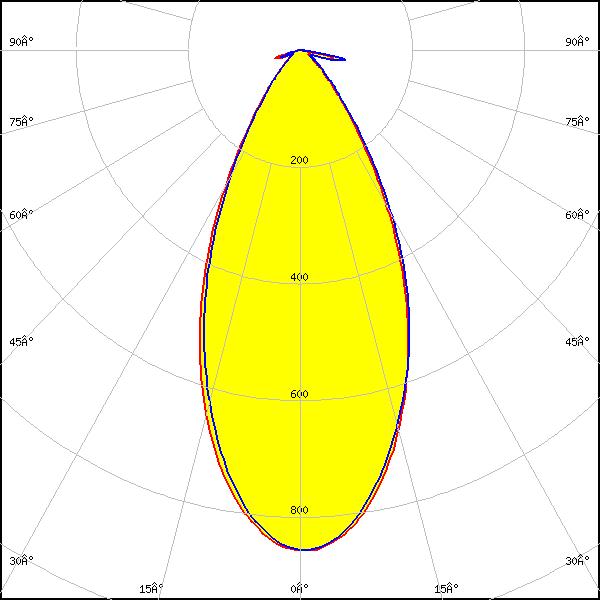

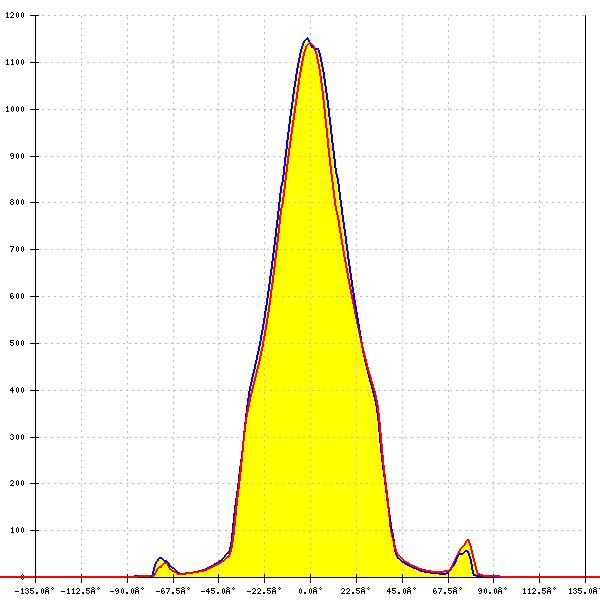

LED: CDM-6 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 43°
FWTM: 77°
Peak intensity: 1.200 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: CDM-6 (Dim-To-Warm)
Required components:
FWHM: 49°
FWTM: 85°
Peak intensity: 0.860 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: White

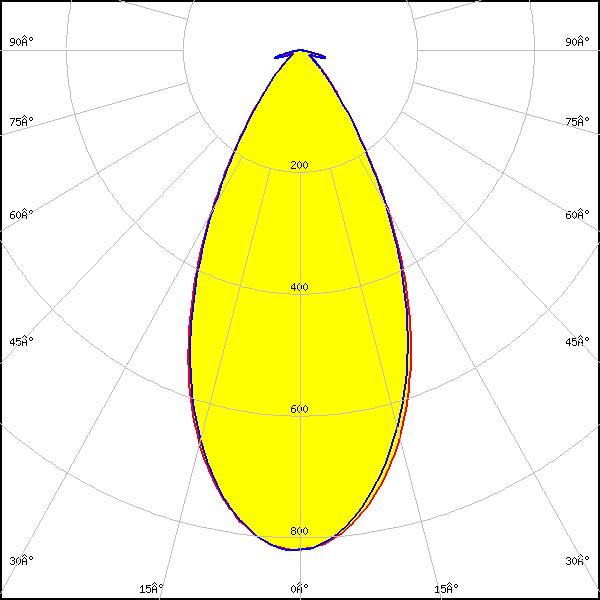

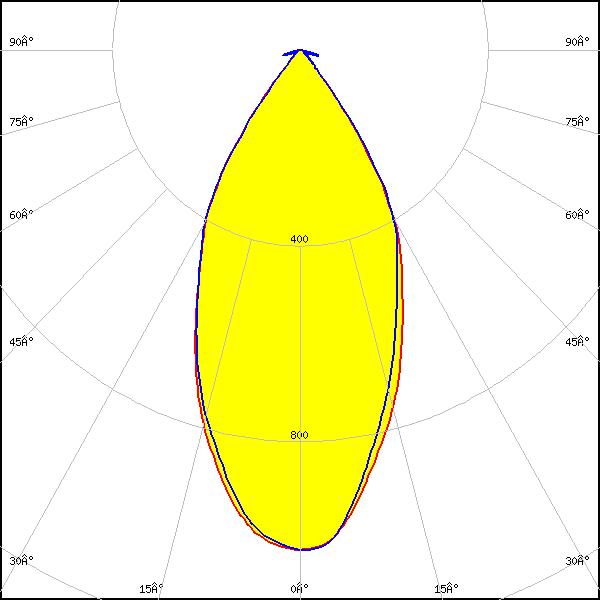

LED: CDM-9 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 49°
FWTM: 79°
Peak intensity: 1.000 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: CDM-9 (Dim-To-Warm)
Required components:
FWHM: 51°
FWTM: 86°
Peak intensity: 0.820 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: White

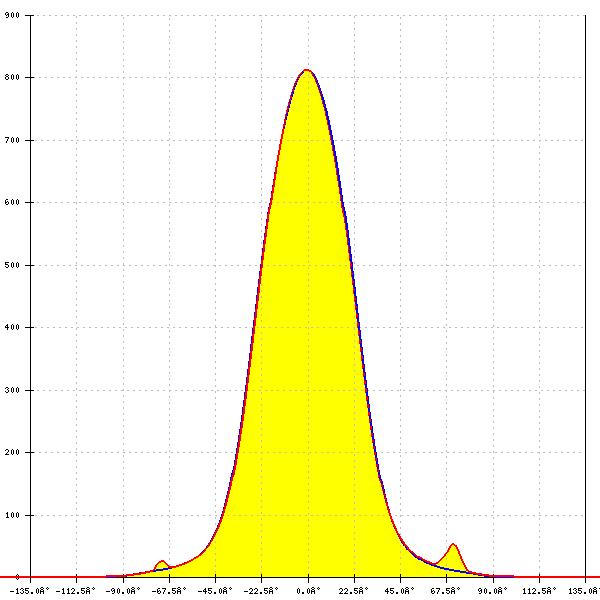

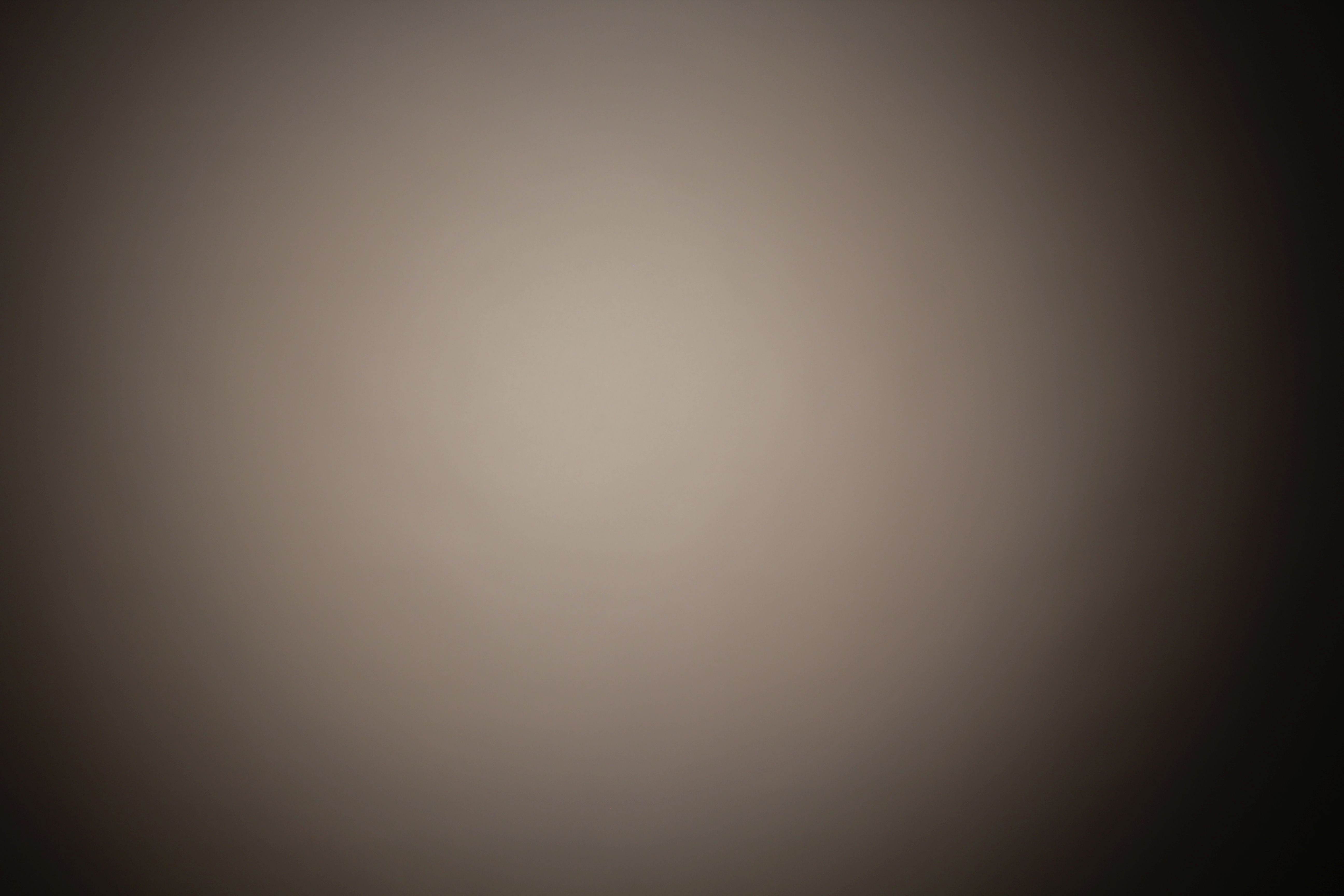

LED: CTM-9 (Tunable White)
Required components:
FWHM: 51°
FWTM: 86°
Peak intensity: 0.800 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour: White

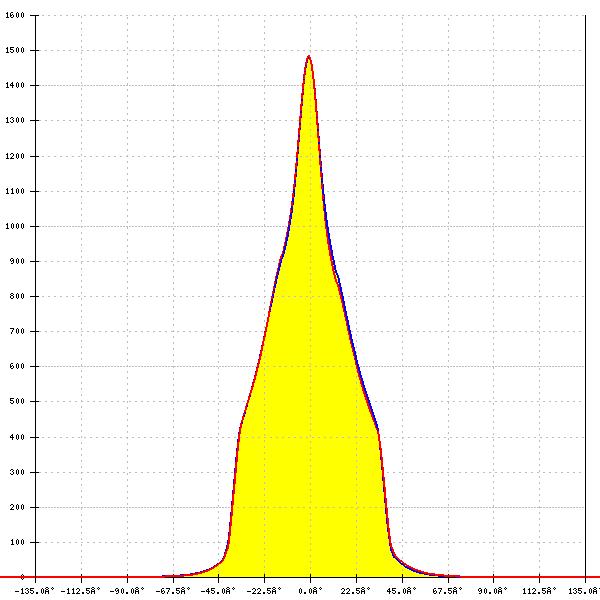

LED: CXM-4
Required components:
FWHM: 38°
FWTM: 78°
Peak intensity: 1.484 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

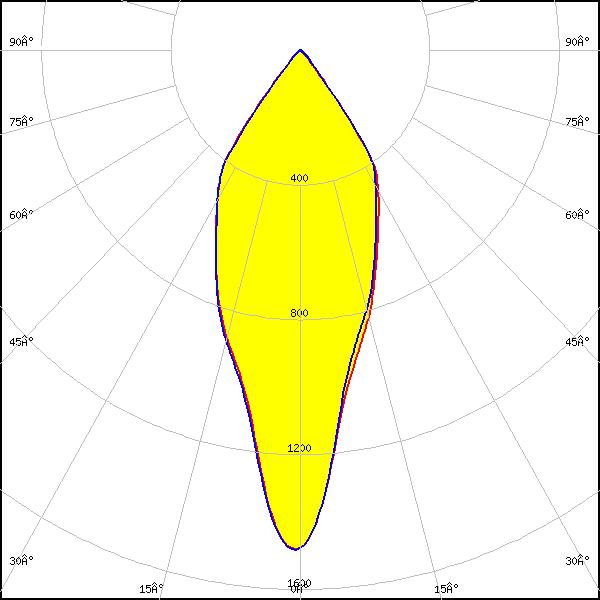

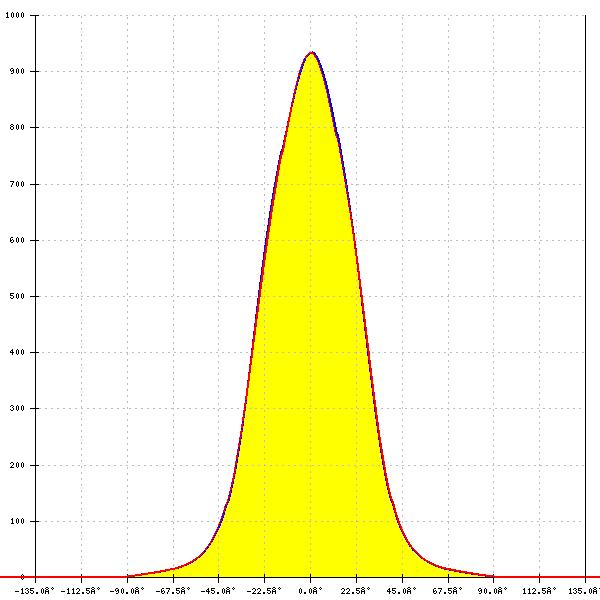

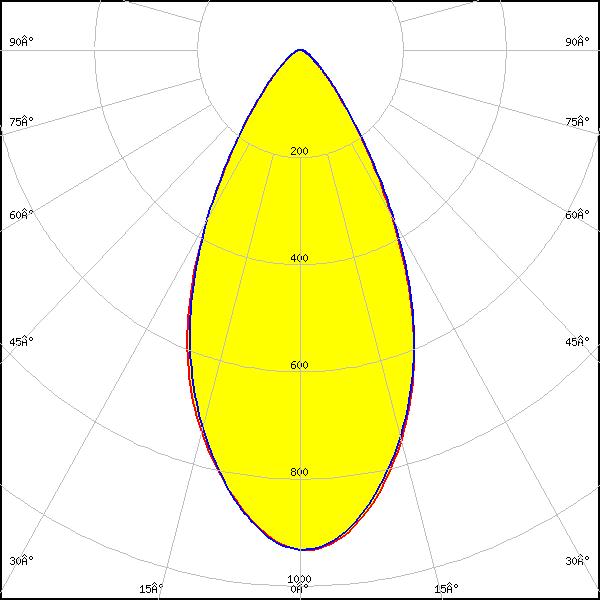

LED: CXM-4
Required components:
FWHM: 53°
FWTM: 88°
Peak intensity: 0.934 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

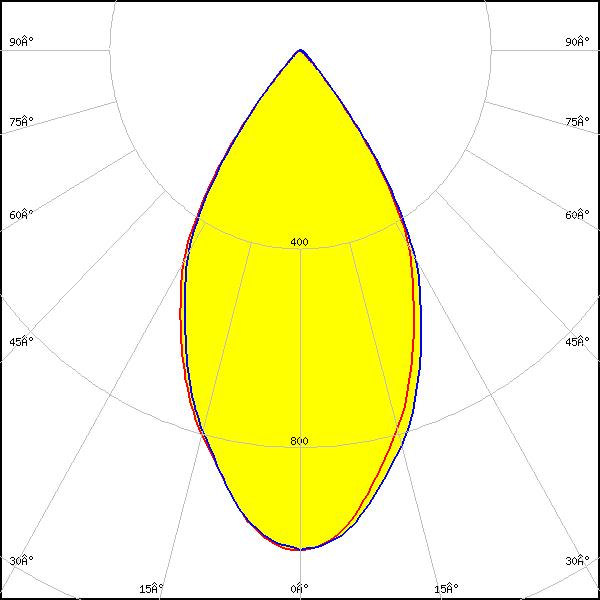

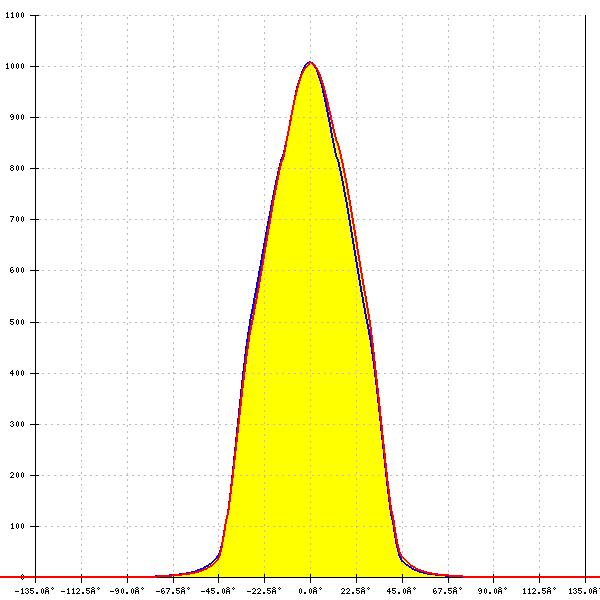

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 57°
FWTM: 82°
Peak intensity: 1.000 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: COB L-Type (LES 11)
Required components:
FWHM: 61°
FWTM: 82°
Peak intensity: 0.990 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: 42°
FWTM: 76°
Peak intensity: 1.200 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
FWHM: 49°
FWTM: 84°
Peak intensity: 0.900 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8
FWHM: 52°
FWTM: 79°
Peak intensity: 1.000 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
FWHM: 51°
FWTM: 86°
Peak intensity: 0.800 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour: White
LED: Soleriq S9
Required components:
LEDs/each optic: 1
Light colour: White
LED: Soleriq S9
Required components:
FWHM: 39°
FWTM: 80°
Peak intensity: 1.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

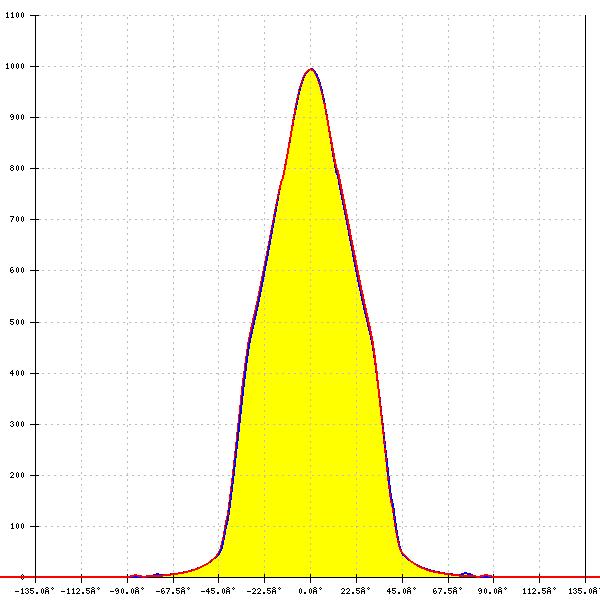

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 57°
FWTM: 83°
Peak intensity: 1.000 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

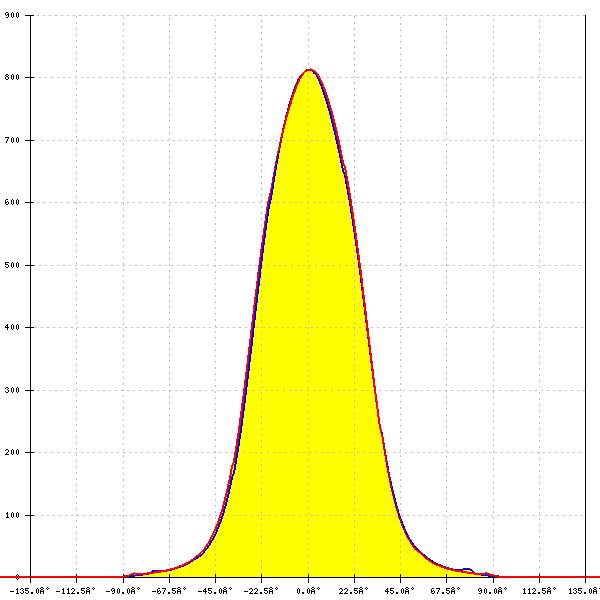

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 55°
FWTM: 90°
Peak intensity: 0.800 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

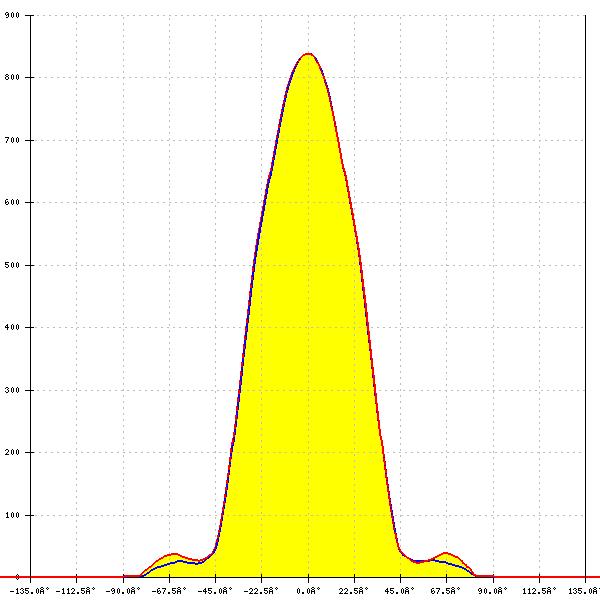

LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 58°
FWTM: 84°
Peak intensity: 0.800 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

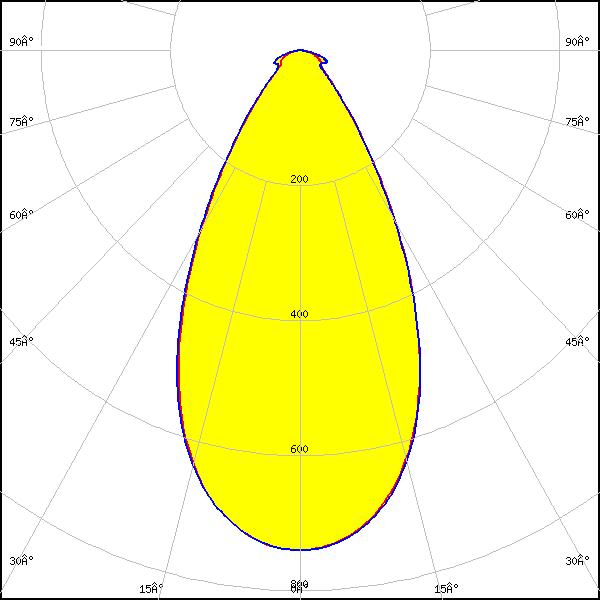

LED: Fortimo SLM L13 CoB
Required components:
FWHM: 54°
FWTM: 90°
Peak intensity: 0.740 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
FWHM: 54°
FWTM: 90°
Peak intensity: 0.740 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 58°
FWTM: 84°
Peak intensity: 0.840 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White
LED: LC010C G2
Required components:
FWHM: 45°
FWTM: 79°
Peak intensity: 1.200 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

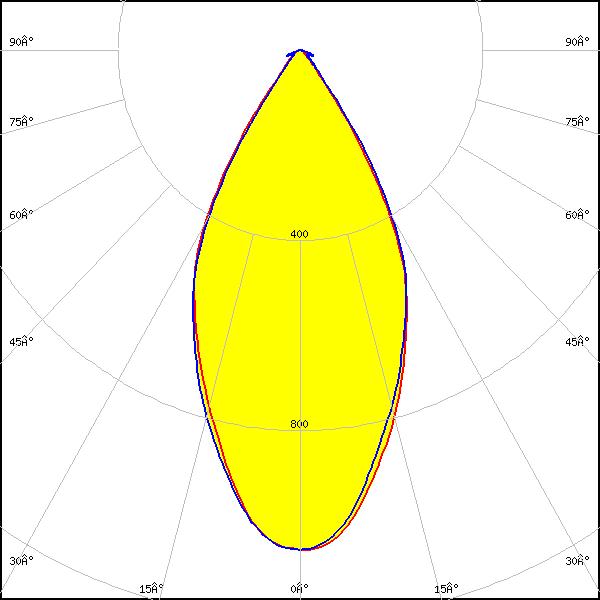

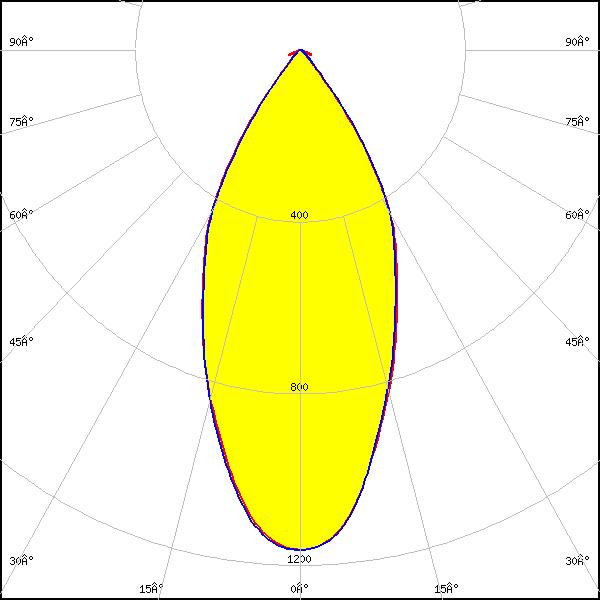

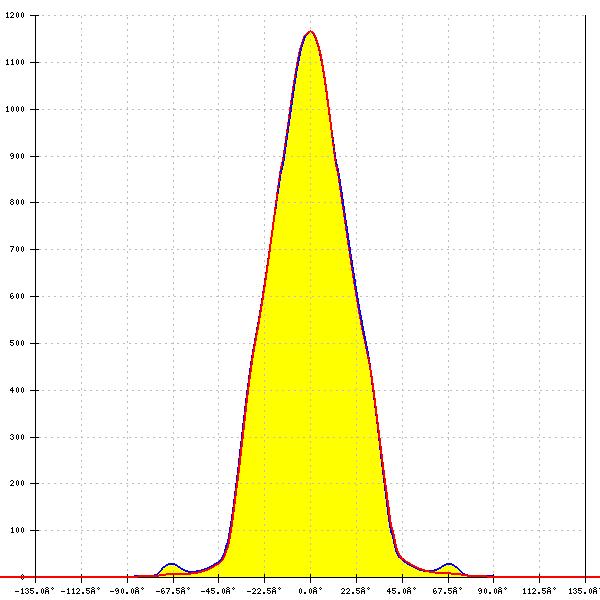

LED: LC010T (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 48°
FWTM: 79°
Peak intensity: 1.165 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: Tunable White
LED: LC010T (Tunable White)
Required components:
FWHM: 52°
FWTM: 76°
Peak intensity: 1.052 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: Tunable White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 62°
FWTM: 86°
Peak intensity: 0.760 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 57°
FWTM: 94°
Peak intensity: 0.710 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 62°
FWTM: 88°
Peak intensity: 0.800 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 60°
FWTM: 90°
Peak intensity: 0.740 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White

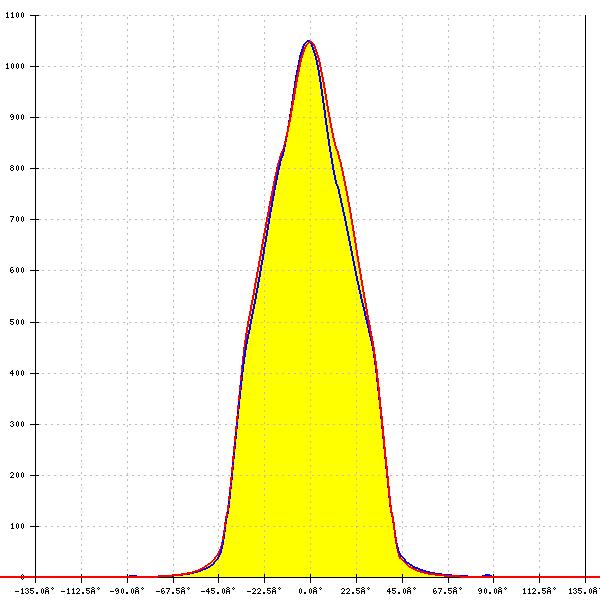

LED: LC020C
Required components:
FWHM: 56°
FWTM: 82°
Peak intensity: 1.000 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: LC020C G2
Required components:
FWHM: 55°
FWTM: 81°
Peak intensity: 1.000 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: MJT COB LES 6
Required components:
FWHM: 58°
FWTM: 78°
Peak intensity: 1.105 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

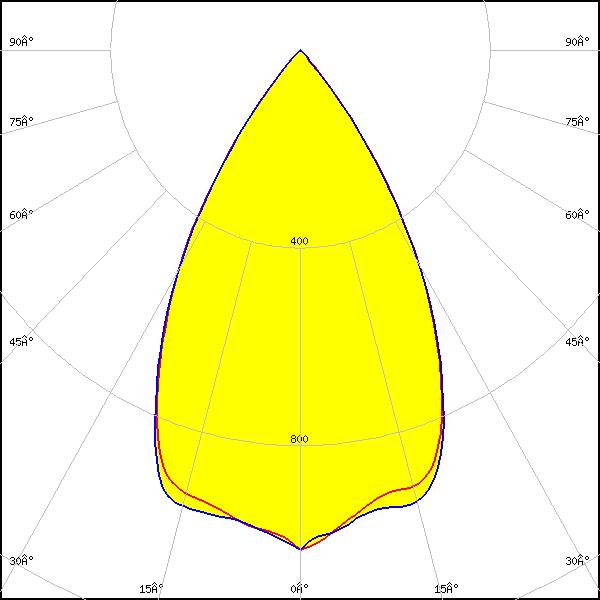

LED: MJT COB LES 9.8
Required components:
FWHM: 60°
FWTM: 80°
Peak intensity: 1.015 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

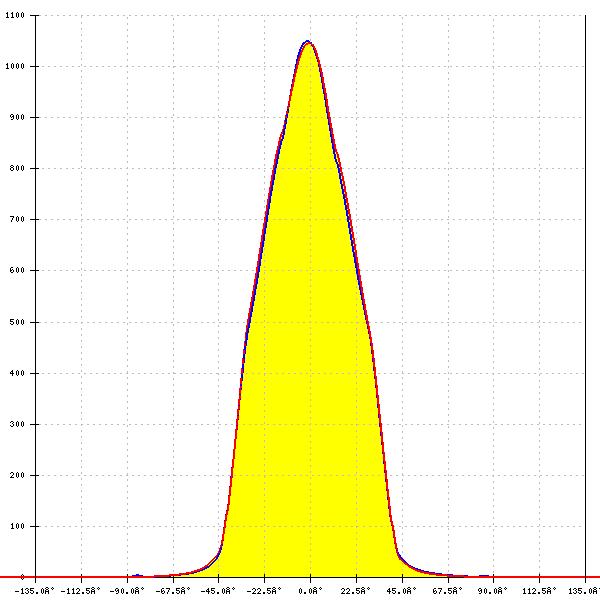

LED: SLE G7 LES09
Required components:
FWHM: 56°
FWTM: 82°
Peak intensity: 1.100 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

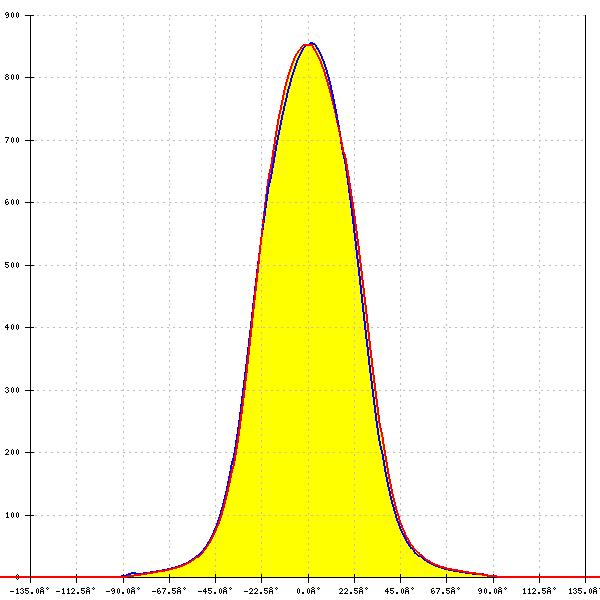

LED: SLE G7 LES09
Required components:
FWHM: 54°
FWTM: 89°
Peak intensity: 0.860 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

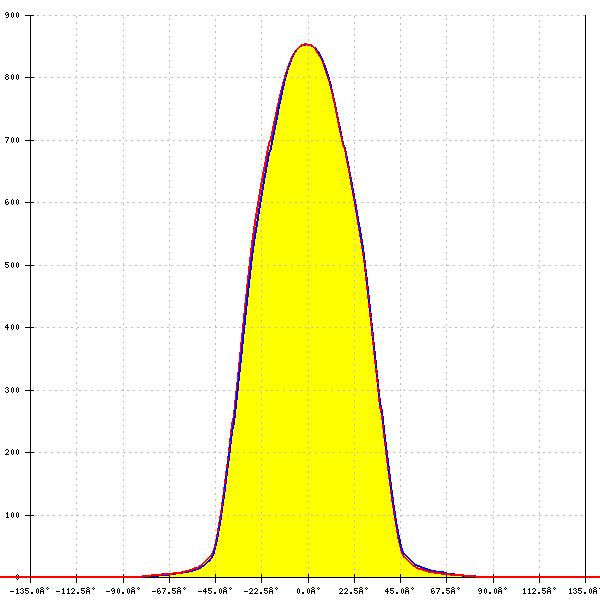

LED: SLE G7 LES13
Required components:
FWHM: 56°
FWTM: 92°
Peak intensity: 0.740 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White
LED: SLE G7 LES13
Required components:
FWHM: 61°
FWTM: 86°
Peak intensity: 0.850 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White
LED: XOB 14.5 mm
Required components:
FWHM: 63°
FWTM: 88°
Peak intensity: 0.858 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

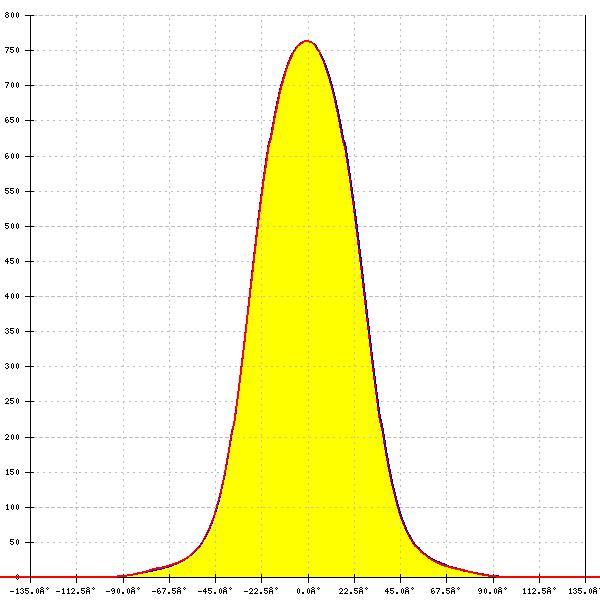

LED: XOB 14.5 mm
Required components:
FWHM: 58°
FWTM: 94°
Peak intensity: 0.763 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: XOB 6 mm
Required components:
FWHM: 44°
FWTM: 79°
Peak intensity: 1.325 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

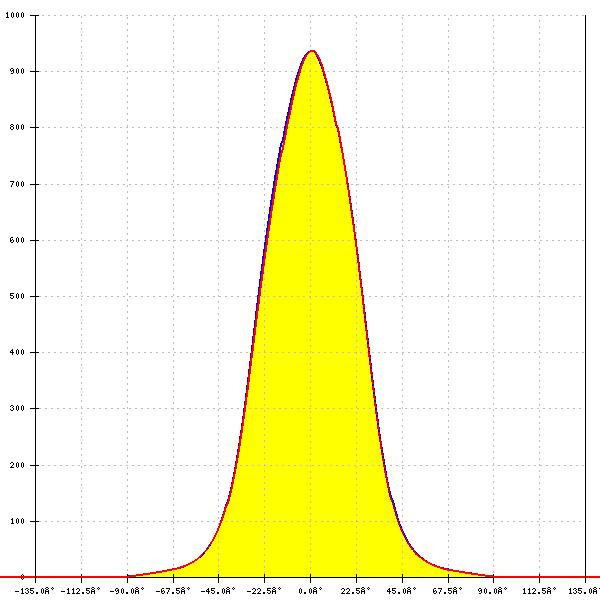

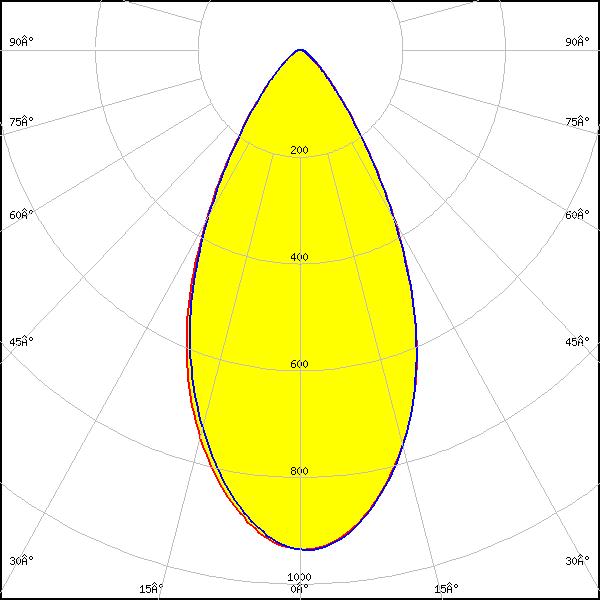

LED: XOB 6 mm
Required components:
FWHM: 53°
FWTM: 88°
Peak intensity: 0.937 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

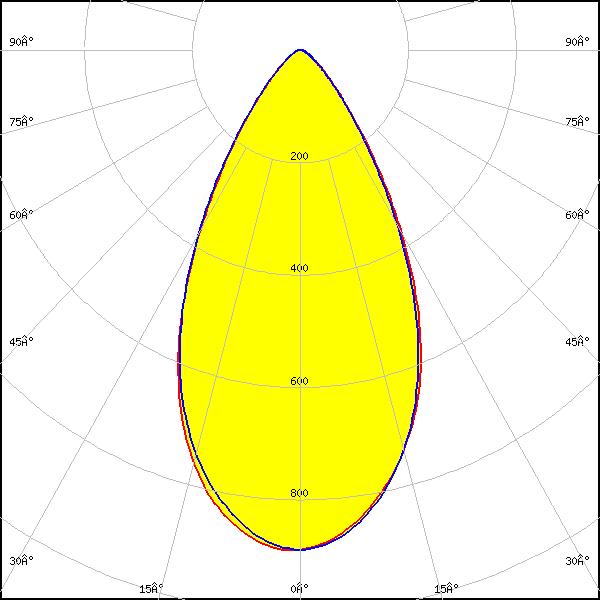

LED: XOB 9.8 mm
FWHM: 55°
FWTM: 82°
Peak intensity: 1.114 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: XOB 9.8 mm
Required components:
FWHM: 55°
FWTM: 90°
Peak intensity: 0.890 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
