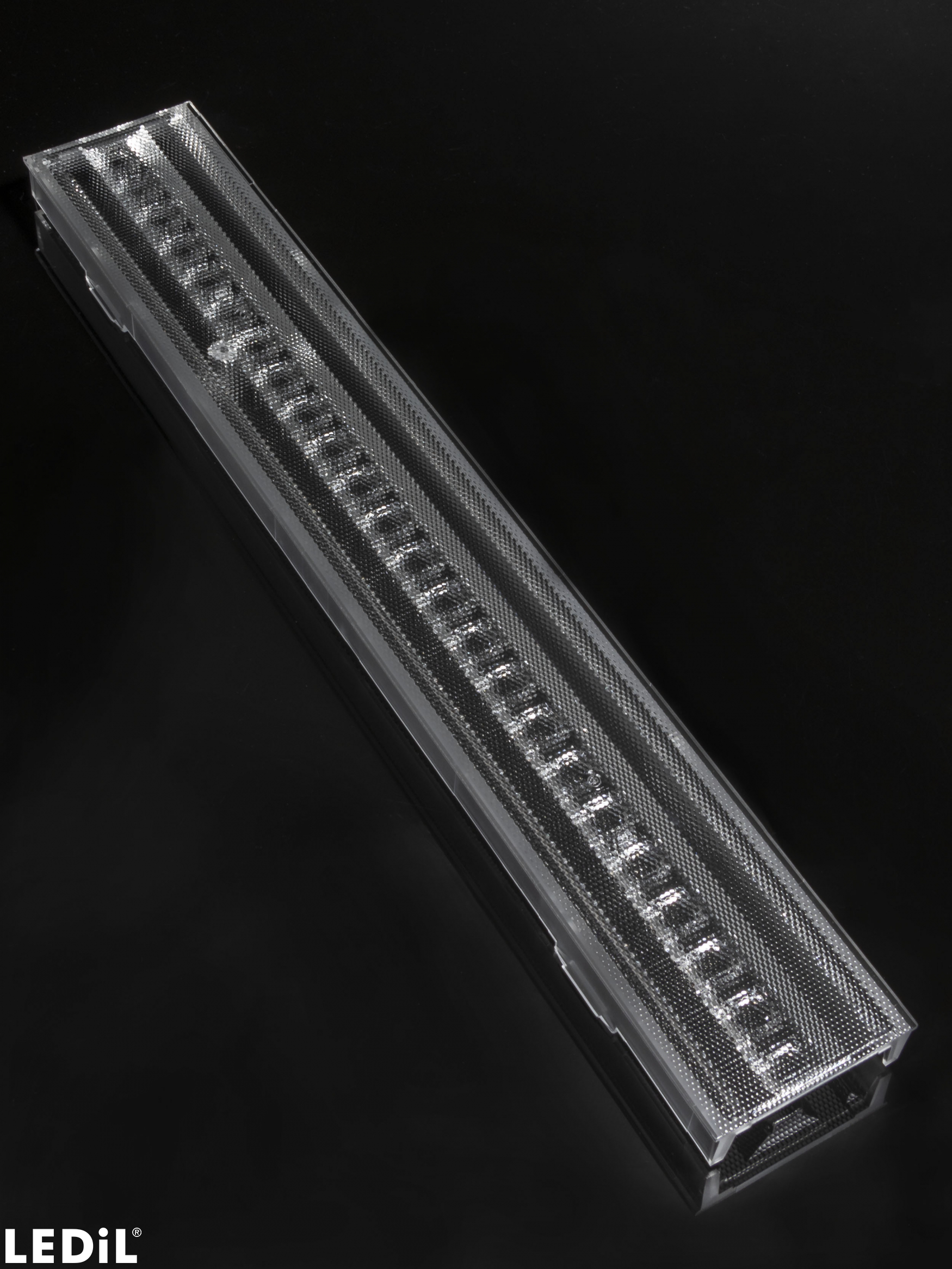

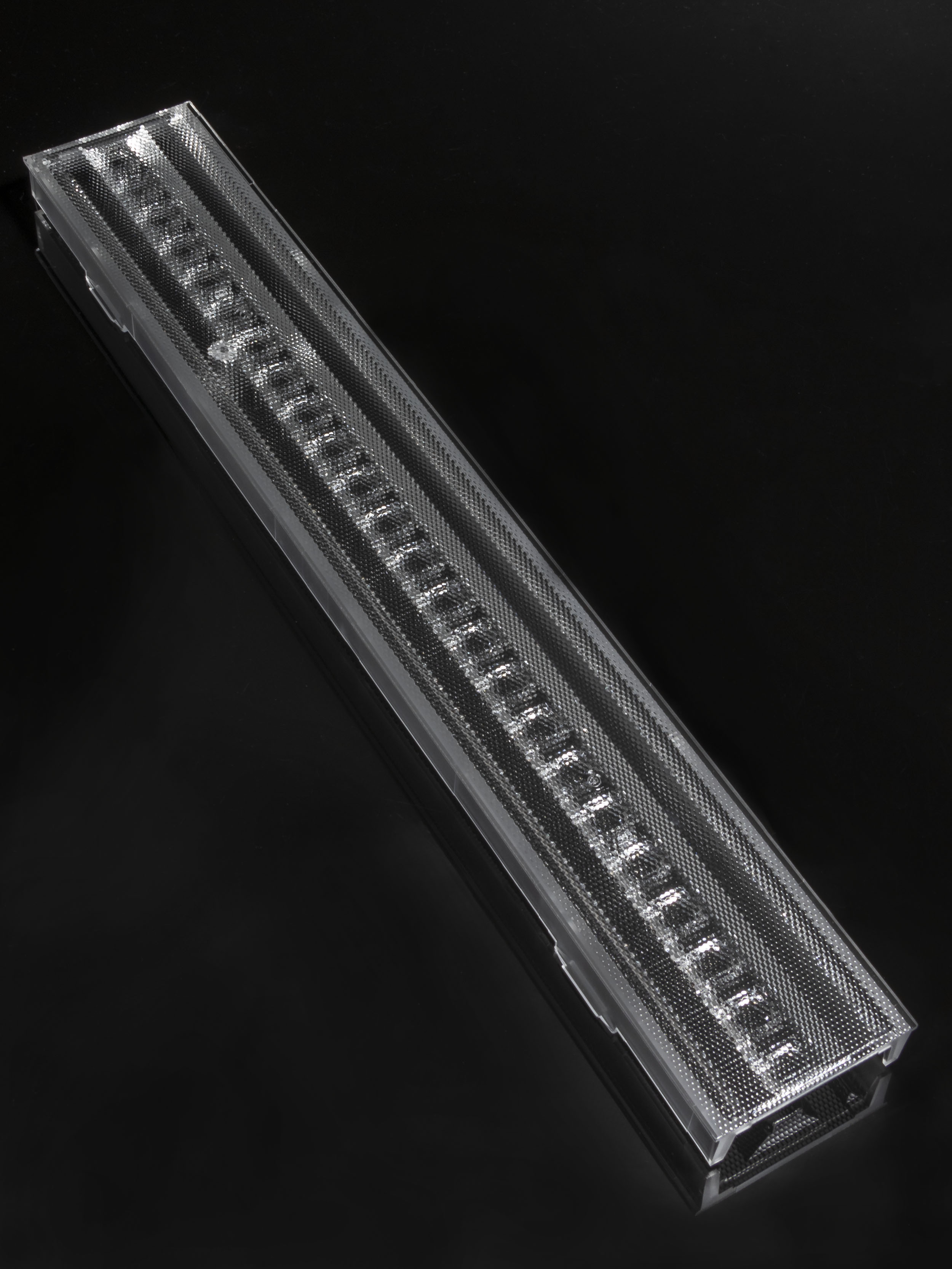

    F17164_LINNEA-GC2-110

    Print

    ~110° wide beam

    Specification
    • Dimensions:
      284 x  43 mm
    • Height:
      15.20 mm
    • Fastening:
      clips
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      9.3 kg
    • MPQ:
      8 pcs
    • MOQ:
      32 pcs
    • MOQ size:
      400 x 300 x 100 mm
    • MOQ weight:
      2.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      F17164_LINNEA-GC2-110

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR 176 - Change of product ordering codes and packaging quantities

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    LINNEA-GC2 – aesthetic low glare linear optic for retail and industrial lighting

    Luminaire, example

    Linear luminaire with LINNEA-GC2

    Application example

    Aisle lighting with LINNEA-GC2

    Application guide

    LEDiL guide for retail lighting optics

    PCN

    Product change notification NR180 – Update for PCN 158-Change of design in LINNEA product family

    News

    Effective fashion retail lighting

    Luminaire, example

    Linear luminaire with LINNEA

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    2D Mechanical drawing

    C16056_LINNEA-METAL-PROFILE_20161215

    3D Mechanical model

    C16056_LINNEA-METAL-PROFILE_20161215

    2D Mechanical drawing

    C16057_ALUMINIUM-EXTRUSION-PROFILE_20161215

    3D Mechanical model

    C16057_ALUMINIUM-EXTRUSION-PROFILE_20161215

    3D Mechanical model

    C16055_LINNEA-METAL-SHEET_20161215

    2D Mechanical drawing

    C16055_LINNEA-METAL-SHEET_20161215

    News

    New Products - 2018-05-09

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Office Lighting

    Customer story

    Greenled

    AVAILABLE LEDiL ACCESSORIES

    LINNEA-GC2-END-FS

    Female end cap compatible with LINNEA-GC2

    LINNEA-GC2-END-MS

    Male end cap compatible with LINNEA-GC2

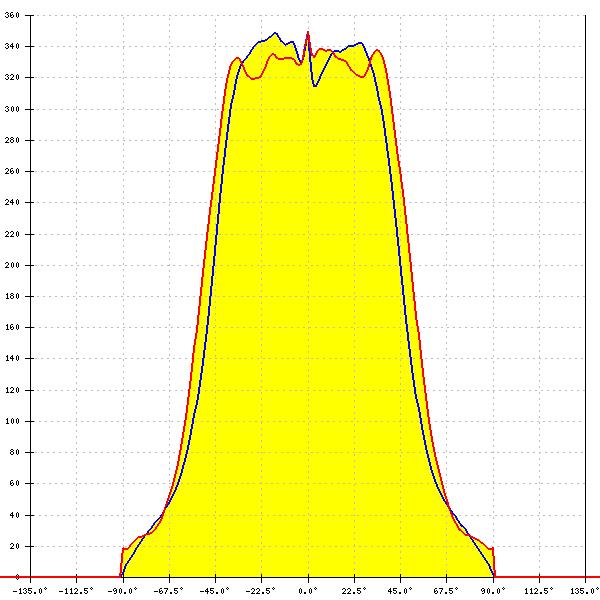

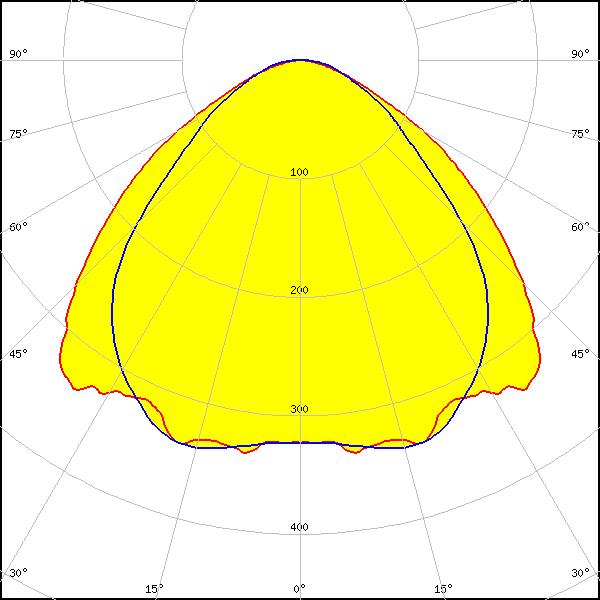

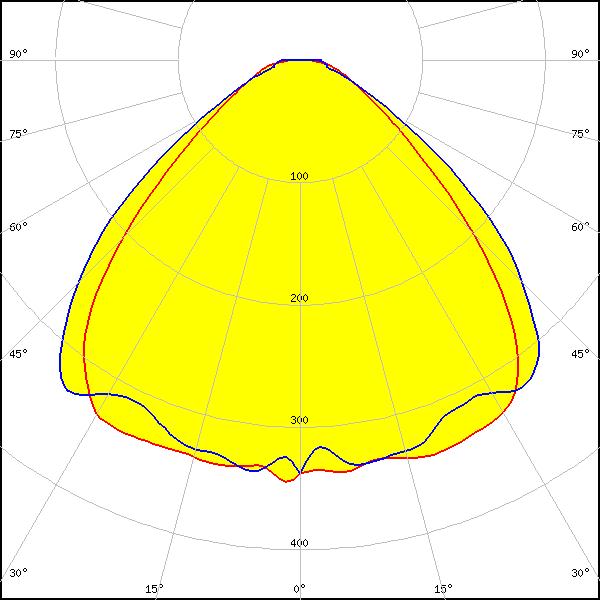

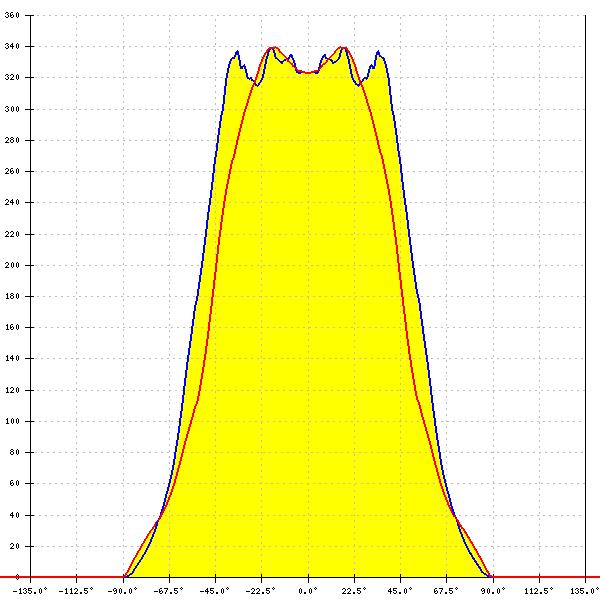

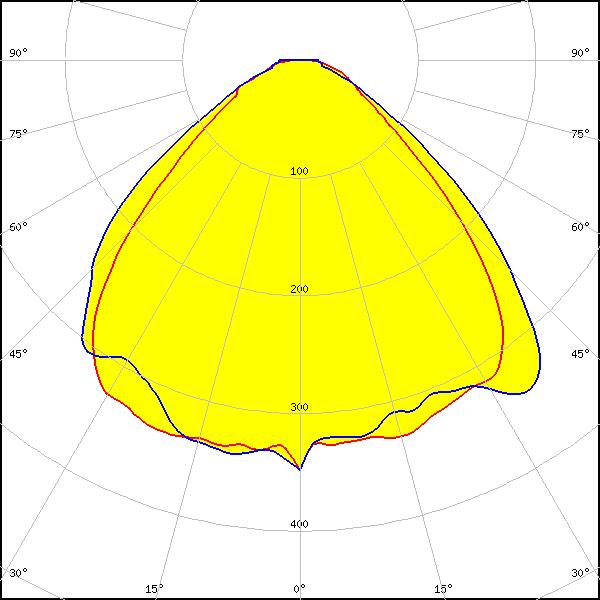

    Optical results

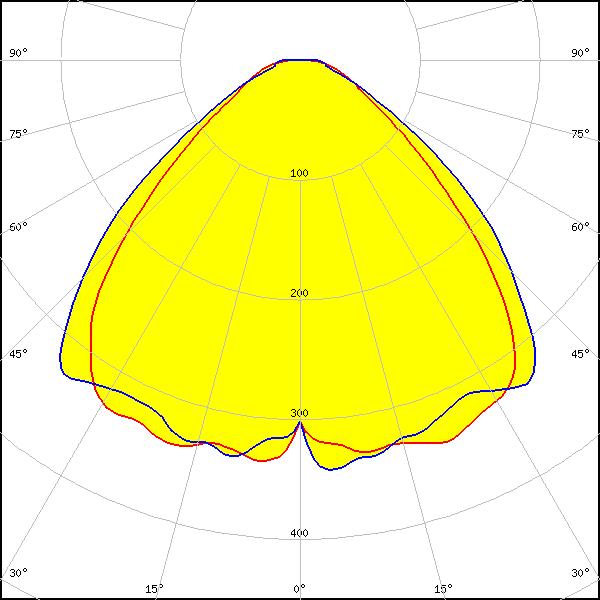

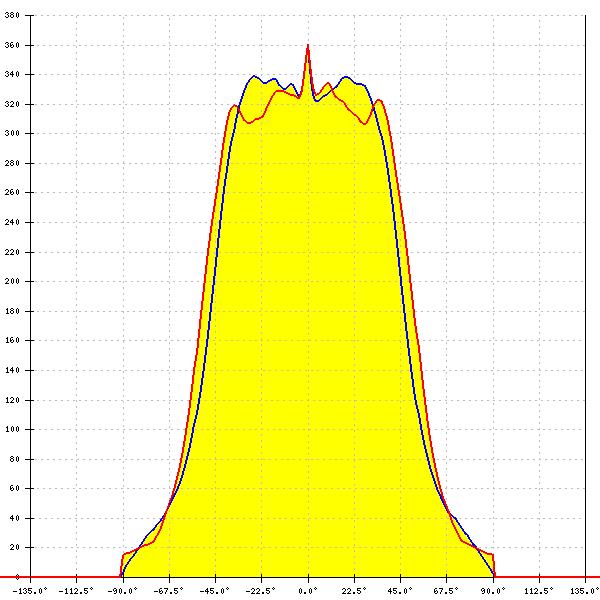

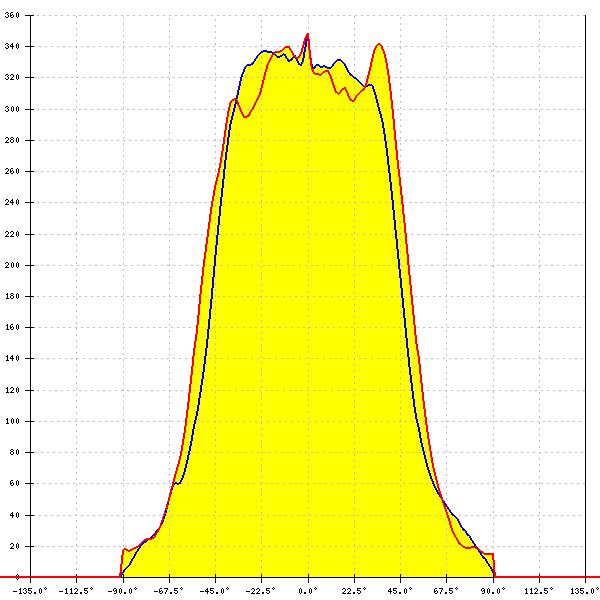

    LED: Bridgelux SMD 2835
    FWHM: 94° + 104°
    FWTM: 145° + 141°
    Peak intensity: 0.354 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

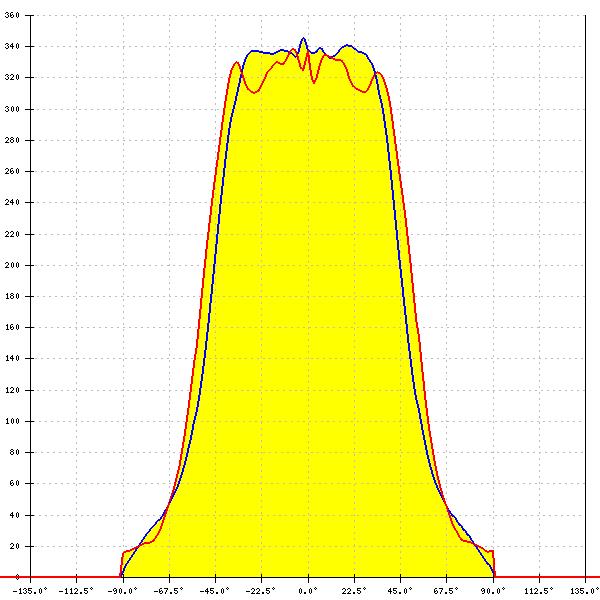

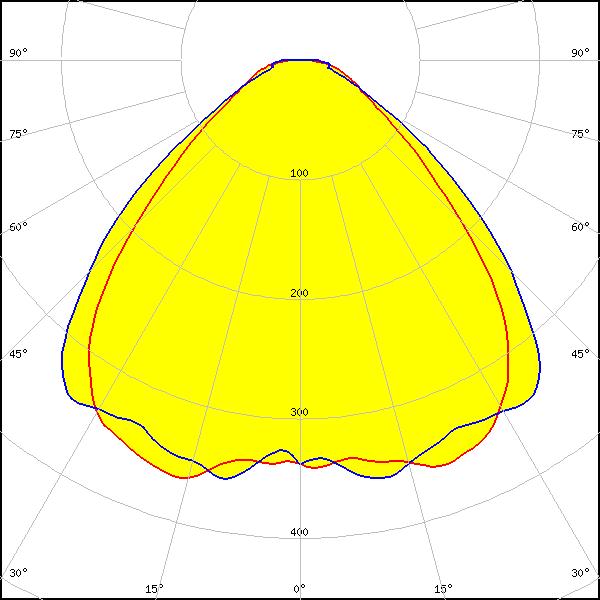

    LED: J Series 2835
    FWHM: 94° + 105°
    FWTM: 147° + 142°
    Peak intensity: 0.356 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

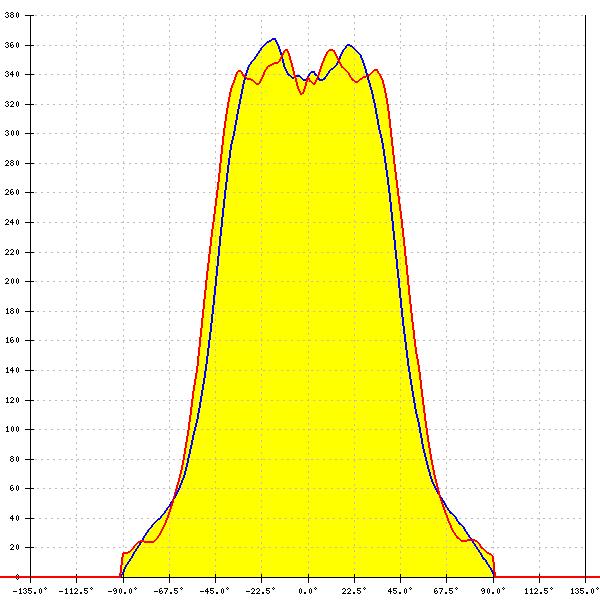

    LED: J Series 3030
    FWHM: 92° + 102°
    FWTM: 149° + 140°
    Peak intensity: 0.366 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

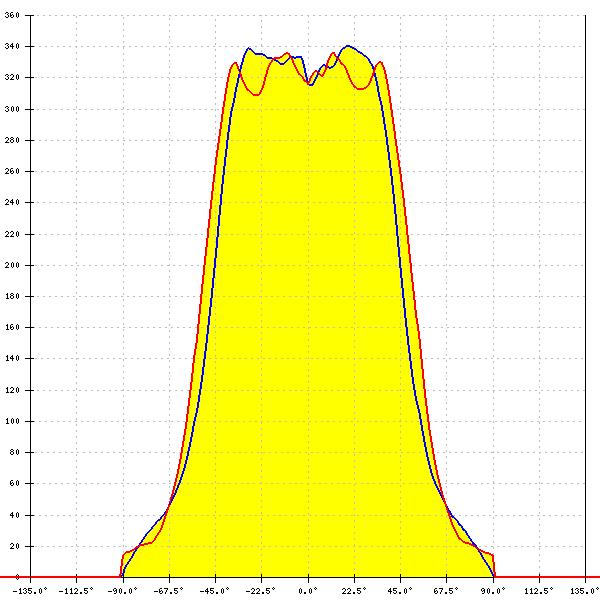

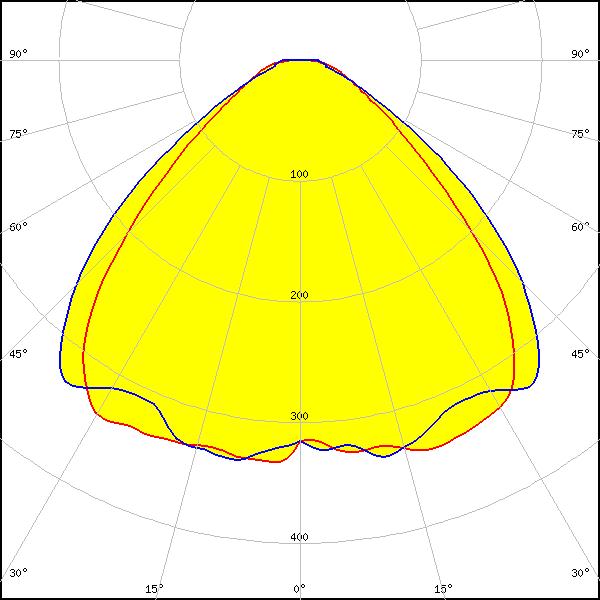

    LED: LUXEON 2835 Line
    FWHM: 95° + 106°
    FWTM: 148° + 142°
    Peak intensity: 0.355 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

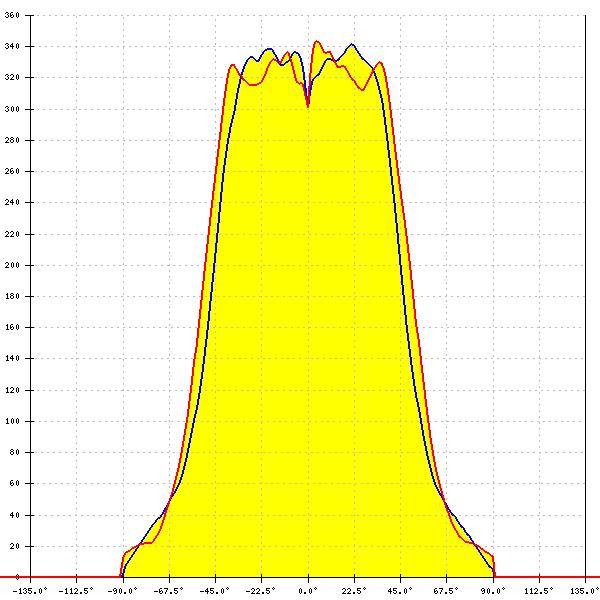

    LED: LUXEON 3030 HE Plus
    FWHM: 96° + 104°
    FWTM: 149° + 142°
    Peak intensity: 0.356 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

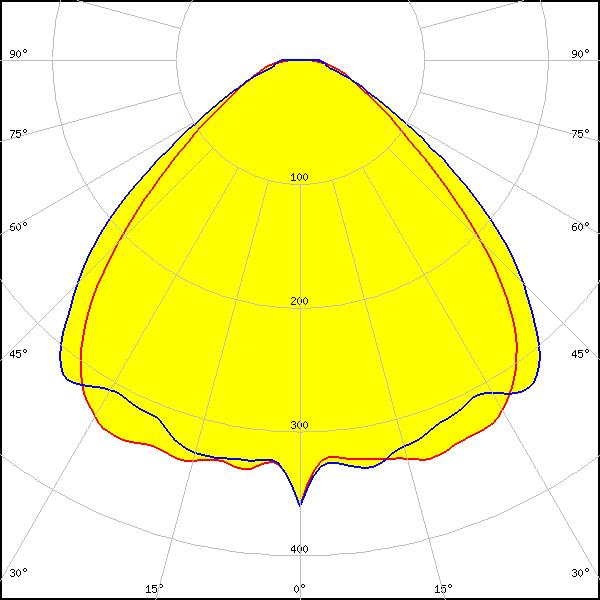

    LED: LUXEON 3535L HE PLUS
    FWHM: 94° + 104°
    FWTM: 147° + 142°
    Peak intensity: 0.360 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

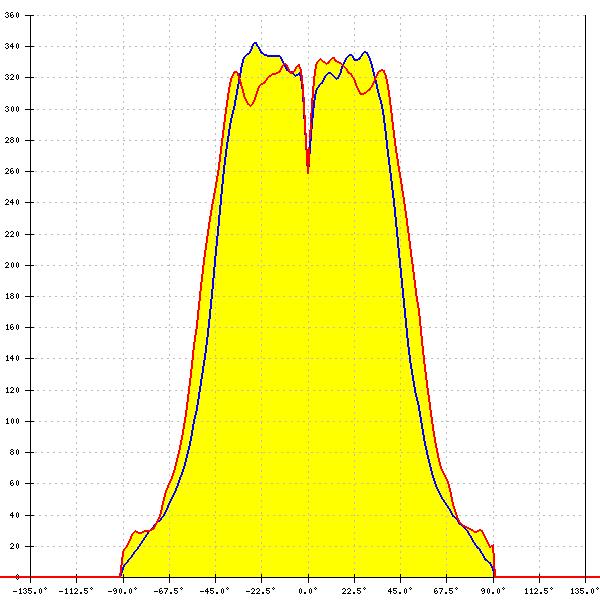

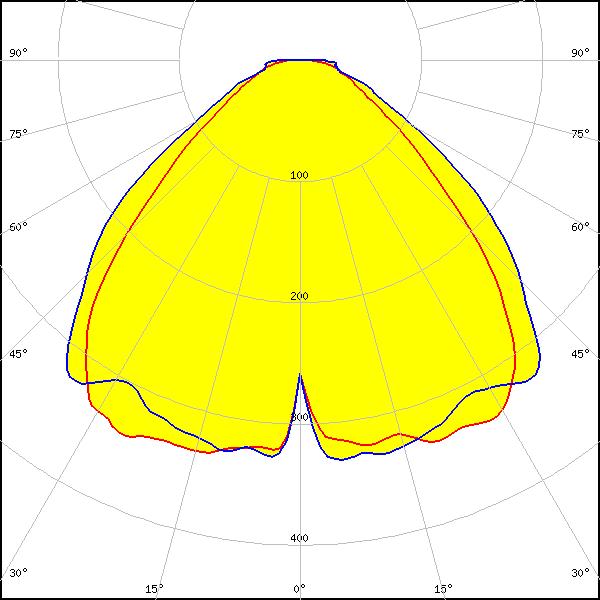

    LED: NF2W585AR-P8
    FWHM: 94° + 108°
    FWTM: 148° + 149°
    Peak intensity: 0.350 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

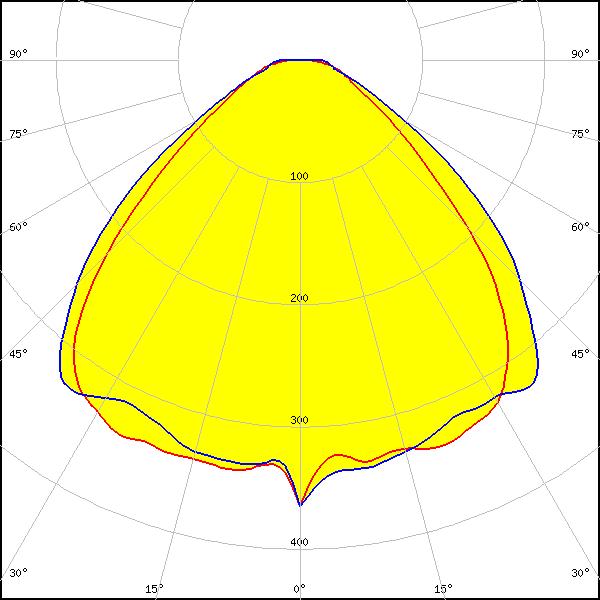

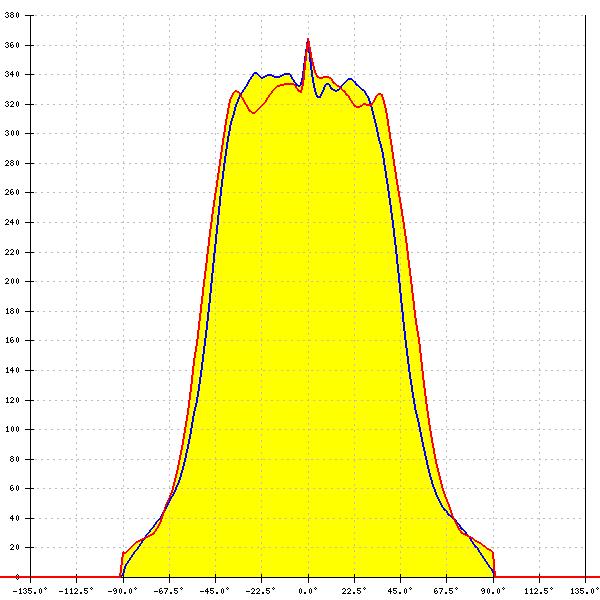

    LED: NF2W757G-MT (Tunable White)
    FWHM: 94° + 104°
    FWTM: 147° + 144°
    Peak intensity: 0.365 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

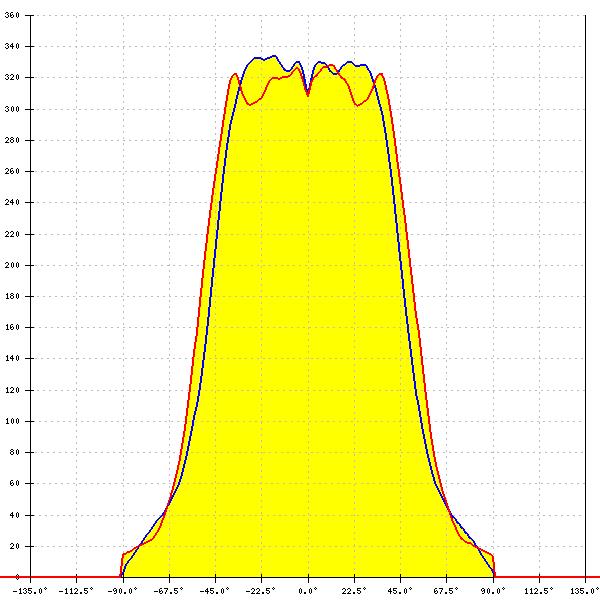

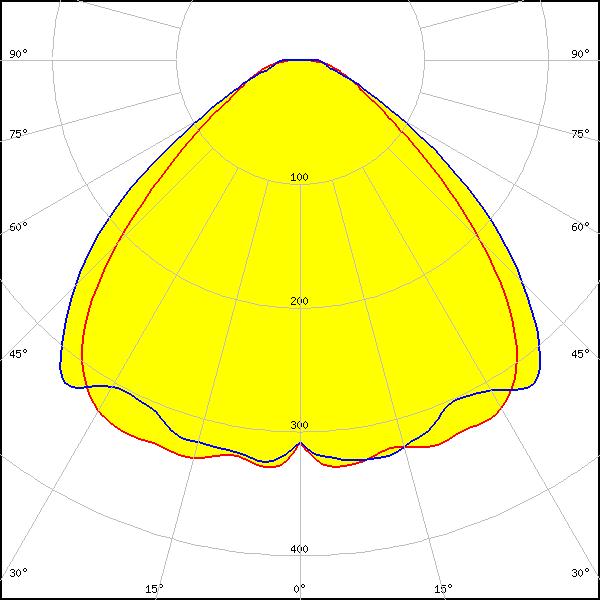

    LED: NFSW757H
    FWHM: 96° + 106°
    FWTM: 149° + 144°
    Peak intensity: 0.344 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

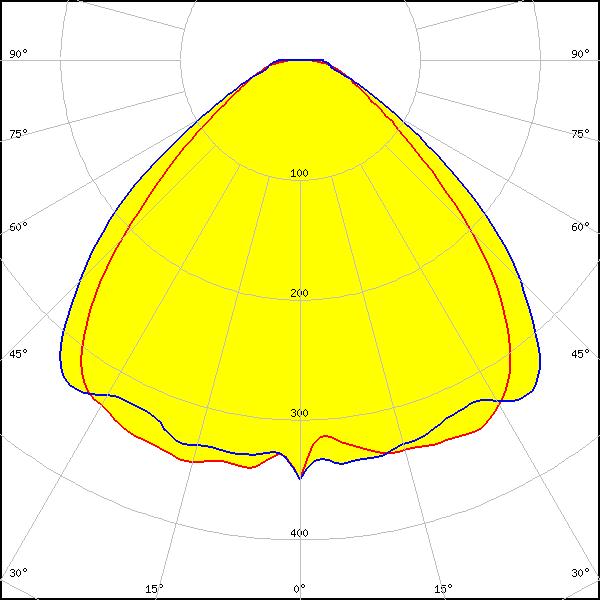

    LED: NFSx757G
    FWHM: 95° + 105°
    FWTM: 148° + 144°
    Peak intensity: 0.358 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

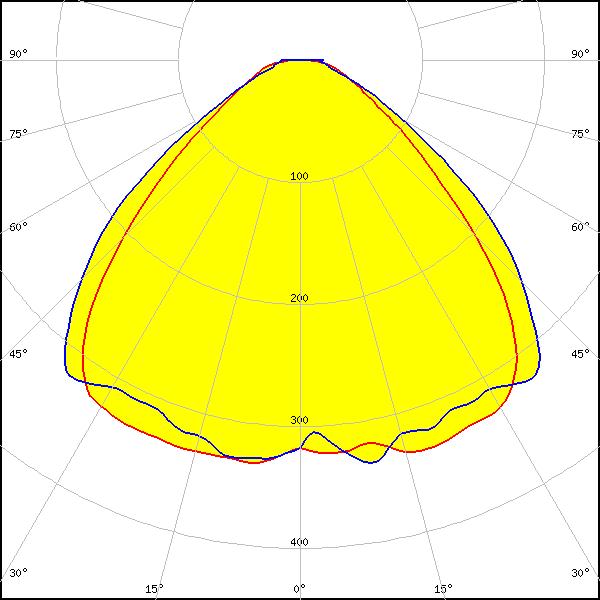

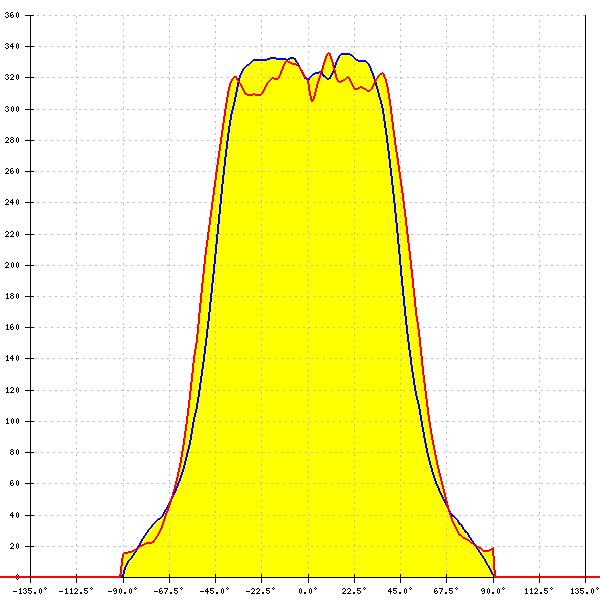

    LED: Duris E 2835
    FWHM: 96° + 106°
    FWTM: 149° + 142°
    Peak intensity: 0.351 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

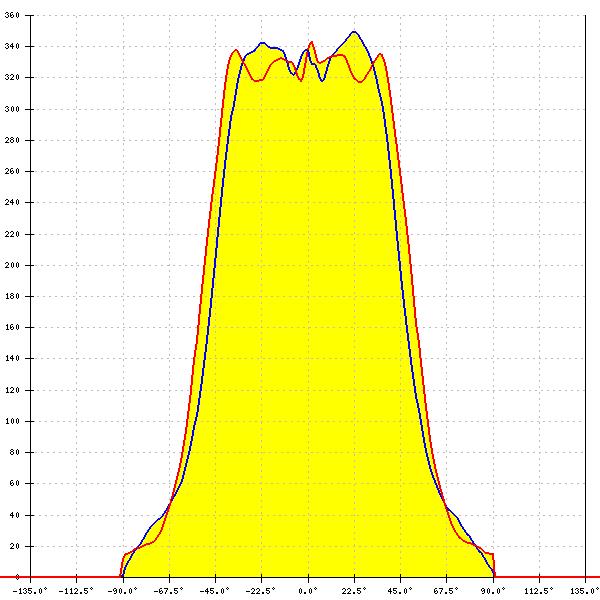

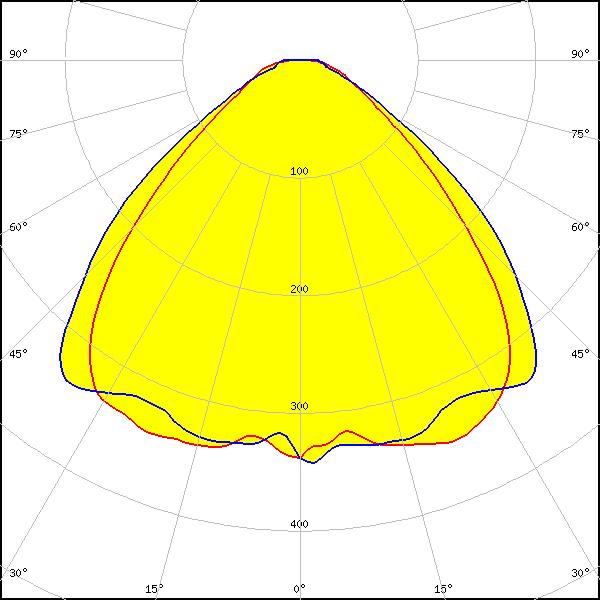

    LED: Duris S5 (2 chip)
    FWHM: 94° + 105°
    FWTM: 148° + 140°
    Peak intensity: 0.360 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

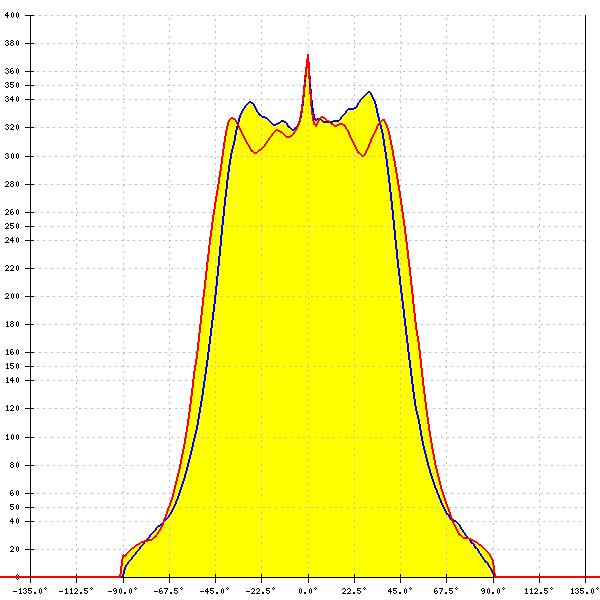

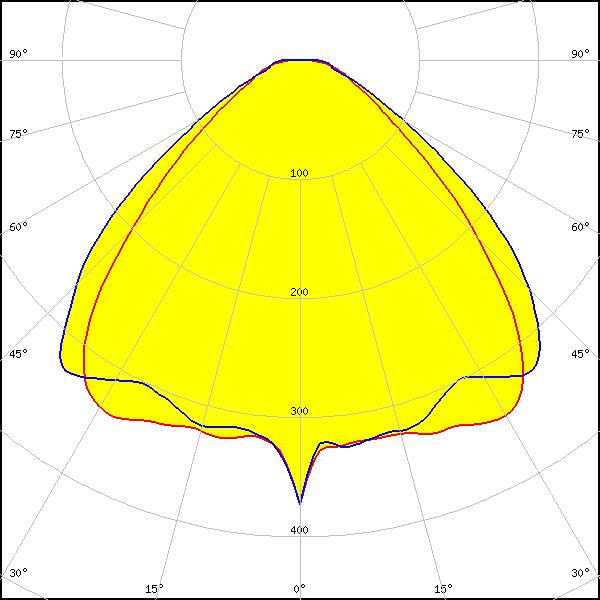

    LED: OSCONIQ C 2424
    FWHM: 93° + 104°
    FWTM: 145° + 143°
    Peak intensity: 0.373 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SYNIOS S2222
    FWHM: 96° + 108°
    FWTM: 147° + 142°
    Peak intensity: 0.352 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

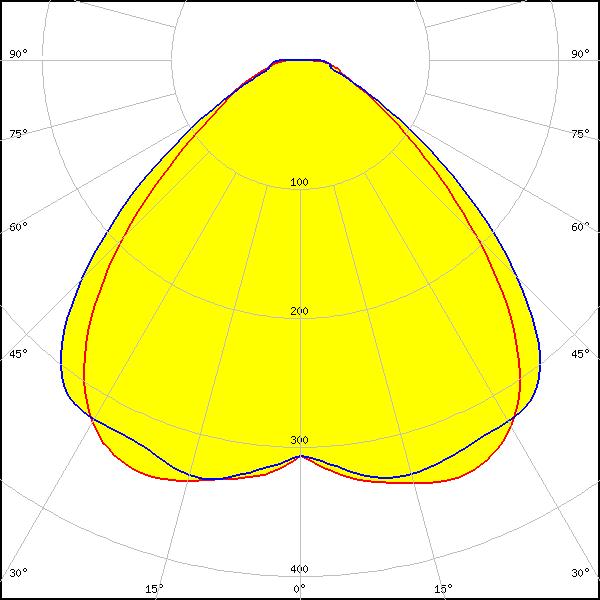

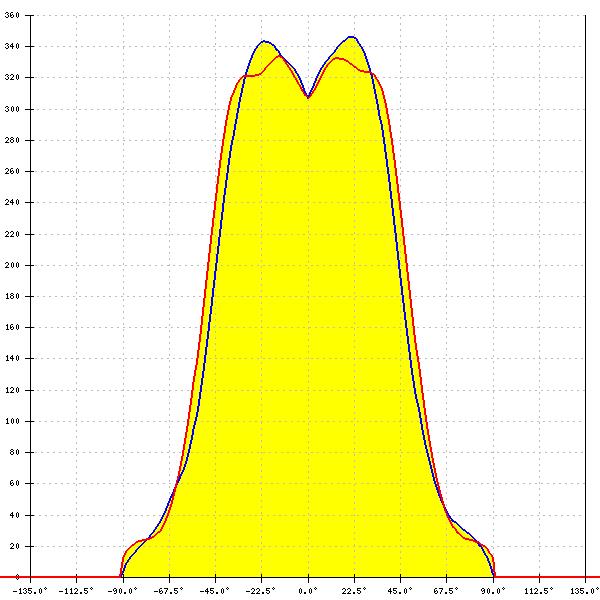

    LED: LM28xB Series
    FWHM: 94° + 102°
    FWTM: 144° + 140°
    Peak intensity: 0.347 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

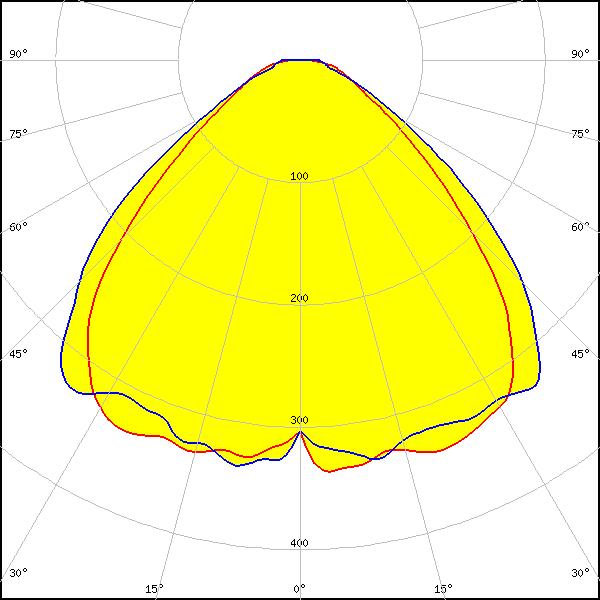

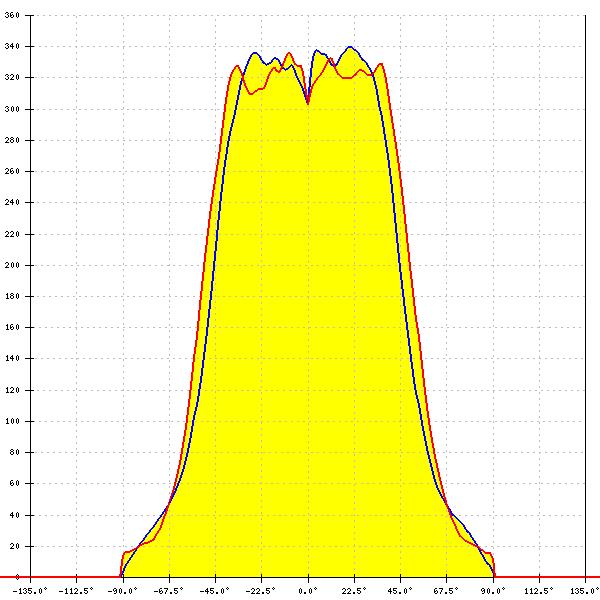

    LED: LM301B
    FWHM: 96° + 106°
    FWTM: 149° + 143°
    Peak intensity: 0.351 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

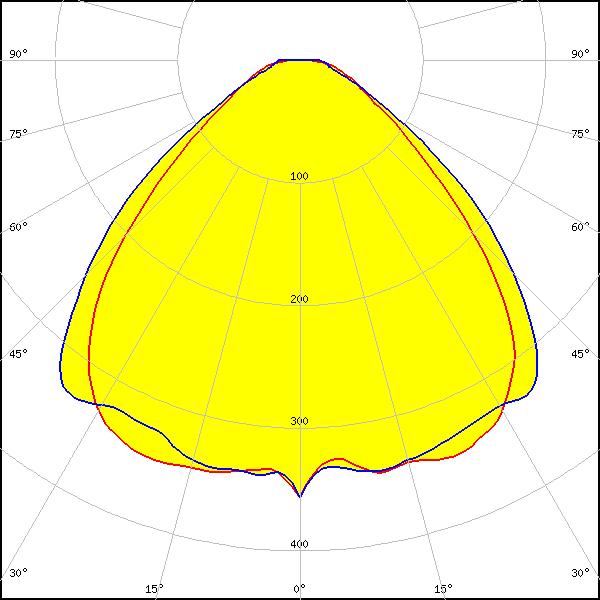

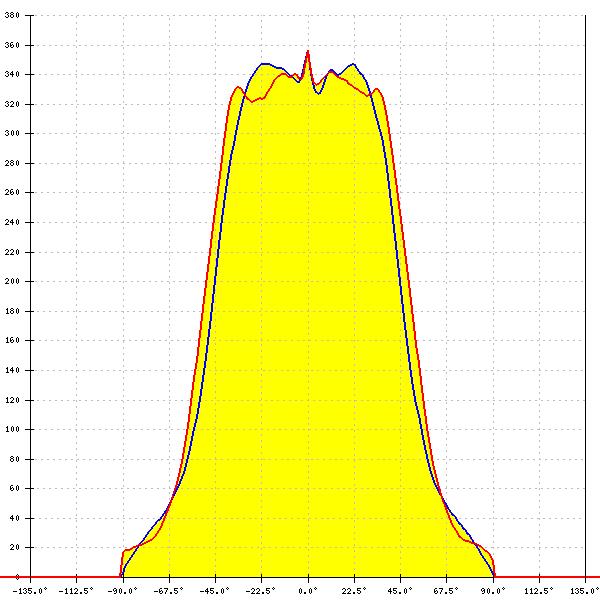

    LED: LM301D
    FWHM: 94° + 102°
    FWTM: 148° + 142°
    Peak intensity: 0.356 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

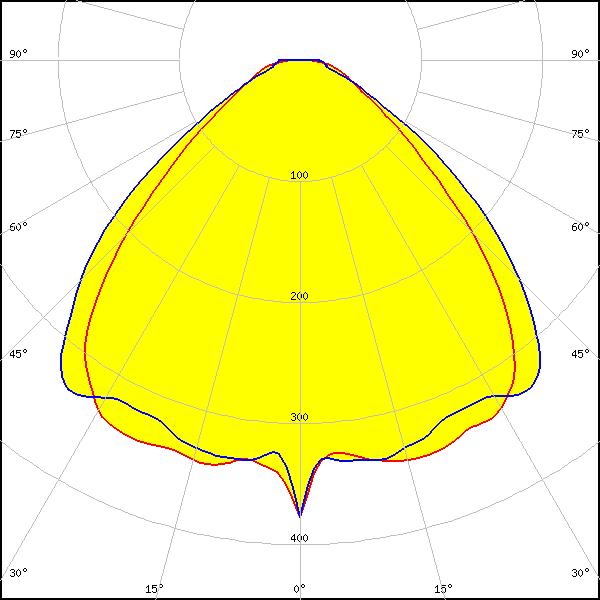

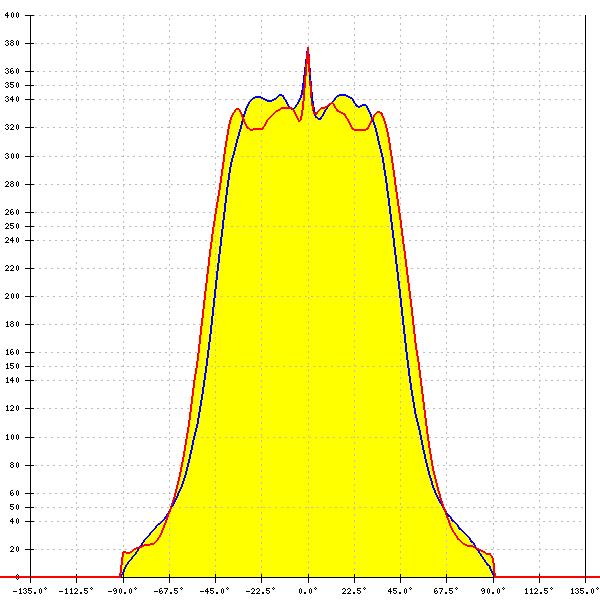

    LED: LM301Z Plus
    FWHM: 92° + 102°
    FWTM: 144° + 140°
    Peak intensity: 0.377 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE 24x280mm 1250lm HV HO ADV1
    FWHM: 94° + 110°
    FWTM: 147° + 146°
    Peak intensity: 0.355 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
