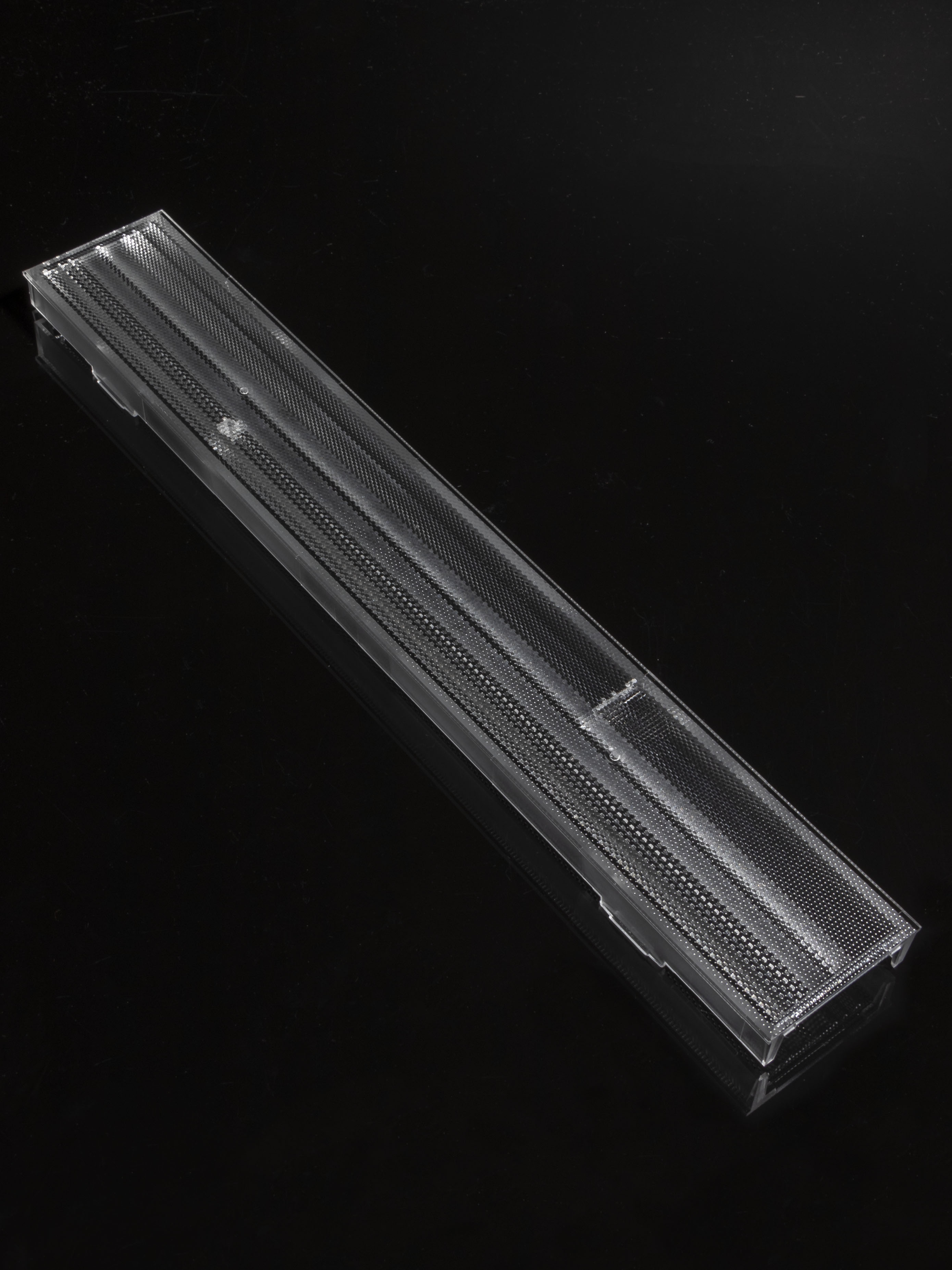

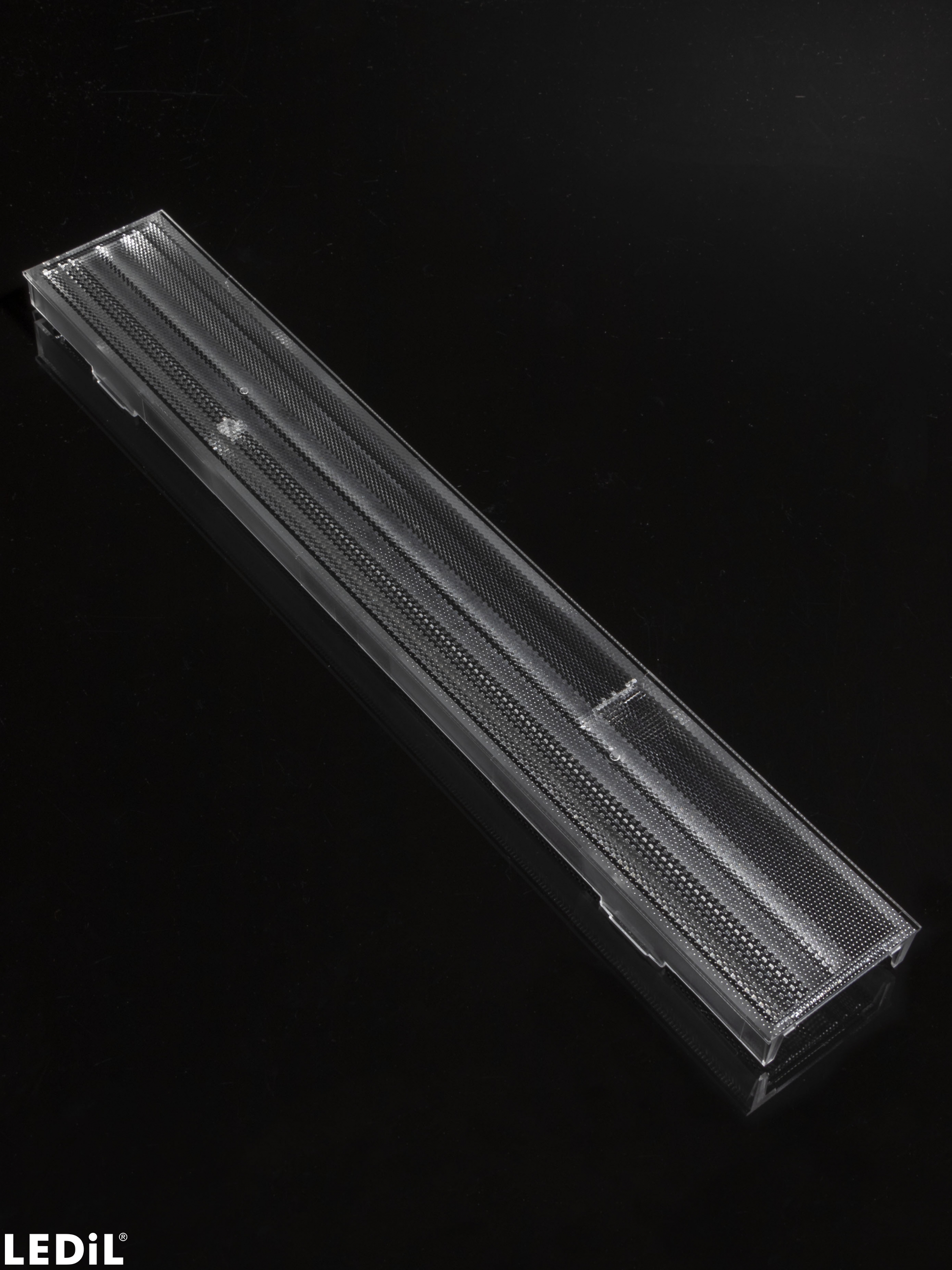

F17170_LINNEA-GC2-Z2T25

Double asymmetric beam for aisle and shelf lighting

Specification

Dimensions:

284 x 43 mm
Height:

15.20 mm
Fastening:

clips
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

120 pcs
Box size:

398 x 298 x 265 mm
Box weight:

8.2 kg
MPQ:

8 pcs
MOQ:

32 pcs
MOQ size:

400 x 300 x 100 mm
MOQ weight:

2.6 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: F17170_LINNEA-GC2-Z2T25

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PCB drawing

PRODUCT NAME(S):

F17170_LINNEA-GC2-Z2T25

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR 176 - Change of product ordering codes and packaging quantities

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

News

LINNEA-GC2 – aesthetic low glare linear optic for retail and industrial lighting

Luminaire, example

Linear luminaire with LINNEA-GC2

Application example

Aisle lighting with LINNEA-GC2

Application guide

LEDiL Guide for Retail Lighting Optics

PCN

Product change notification NR180 – Update for PCN 158-Change of design in LINNEA product family

News

Effective fashion retail lighting

Luminaire, example

Linear luminaire with LINNEA

Article

Illuminating supermarkets with LEDiL optics

News

Linear lighting solutions

Article

Understanding the standards but aiming higher

Article

Stylish yet functional LED office lighting

2D Mechanical drawing

C16056_LINNEA-METAL-PROFILE_20161215

3D Mechanical model

C16056_LINNEA-METAL-PROFILE_20161215

2D Mechanical drawing

C16057_ALUMINIUM-EXTRUSION-PROFILE_20161215

3D Mechanical model

C16057_ALUMINIUM-EXTRUSION-PROFILE_20161215

3D Mechanical model

C16055_LINNEA-METAL-SHEET_20161215

2D Mechanical drawing

C16055_LINNEA-METAL-SHEET_20161215

News

New Products - 2018-05-09

Application area

Indoor Architectural Lighting

Application area

Industrial Lighting

Application area

Office Lighting

Customer story

Greenled

AVAILABLE LEDiL ACCESSORIES

LINNEA-GC2-END-MS

Male end cap compatible with LINNEA-GC2

LINNEA-GC2-END-FS

Female end cap compatible with LINNEA-GC2

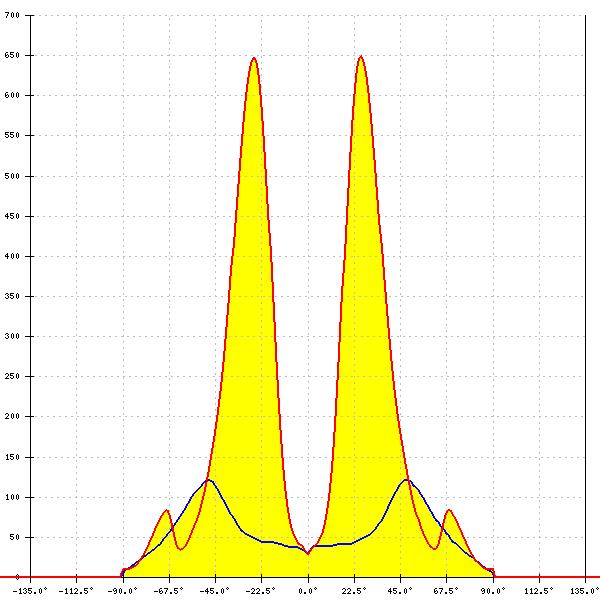

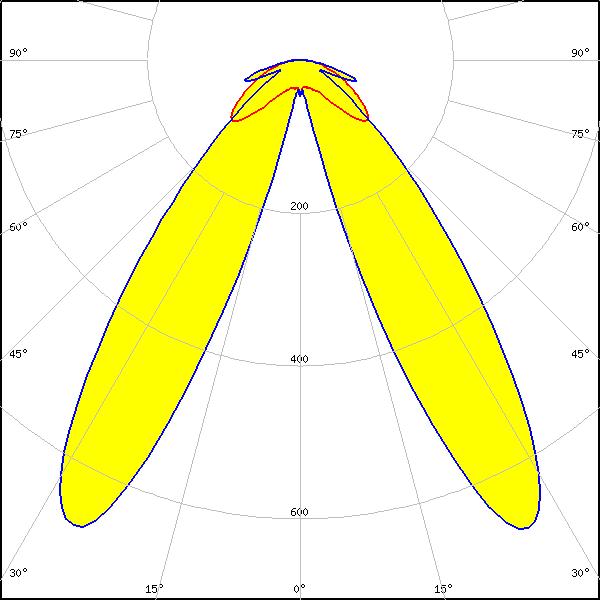

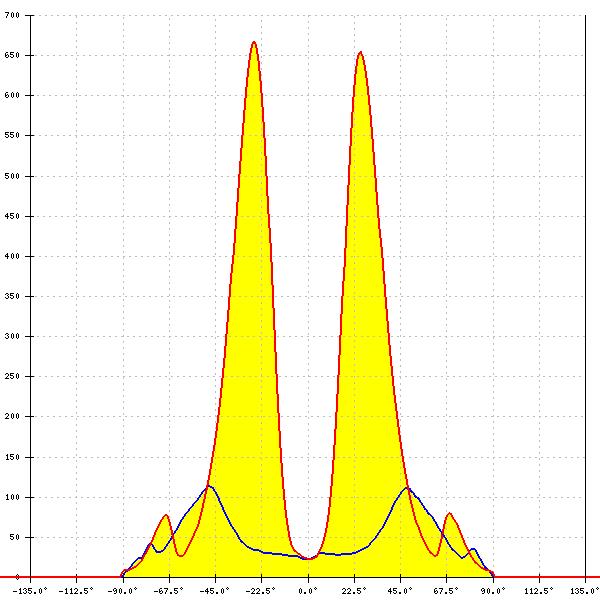

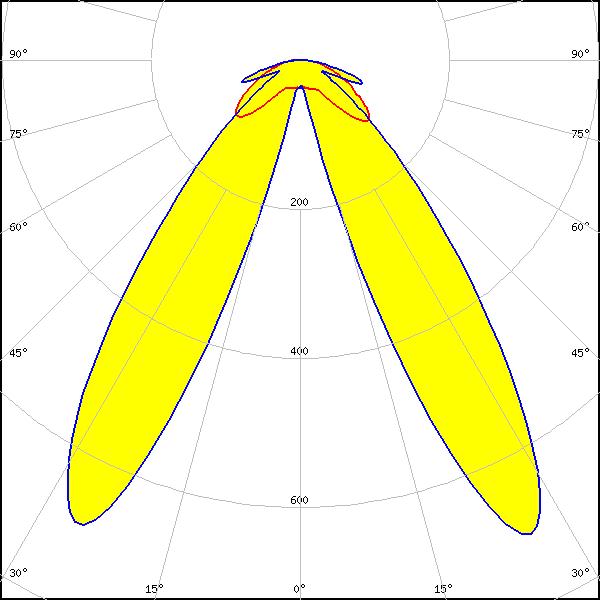

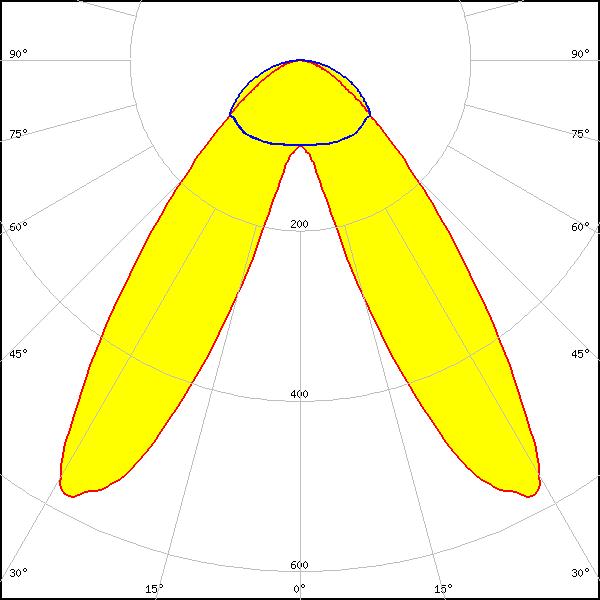

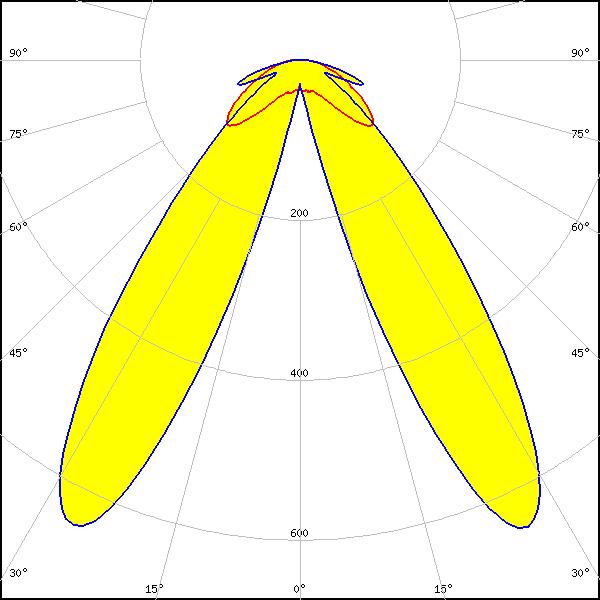

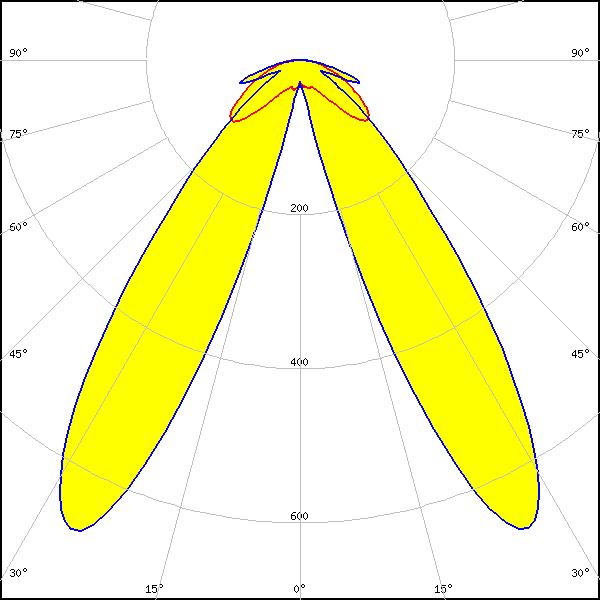

Optical results

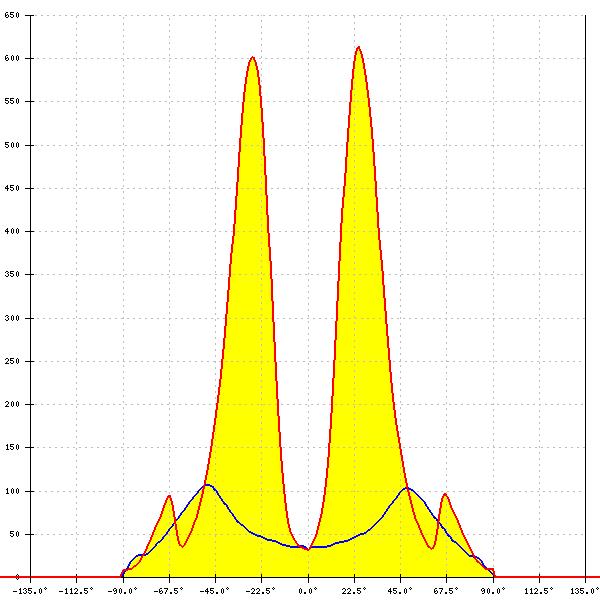

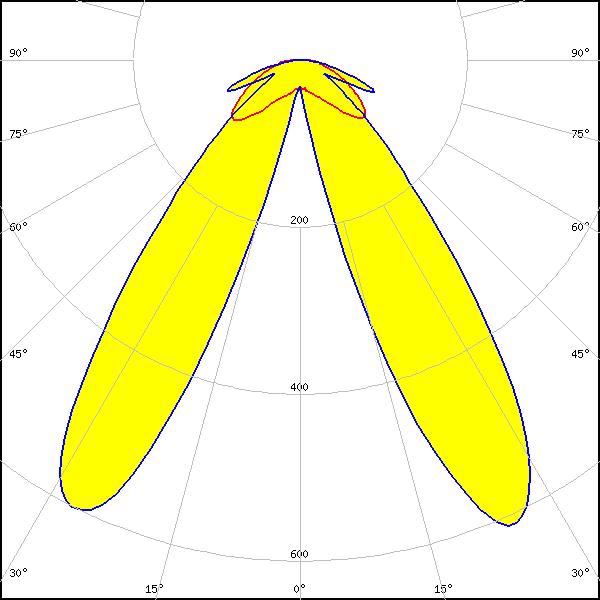

LED: Bridgelux SMD 2835

FWHM: asymmetric

Peak intensity: 0.614 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: J Series 2835

FWHM: asymmetric

Peak intensity: 0.682 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: JB3030 HE B Class

FWHM: asymmetric

Peak intensity: 0.649 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

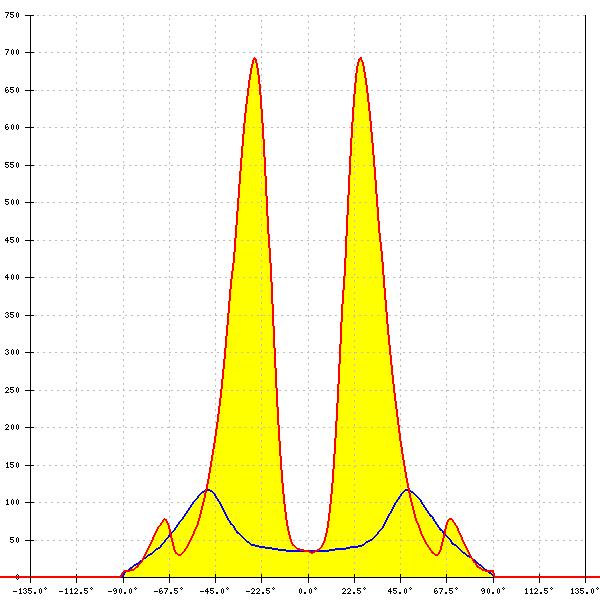

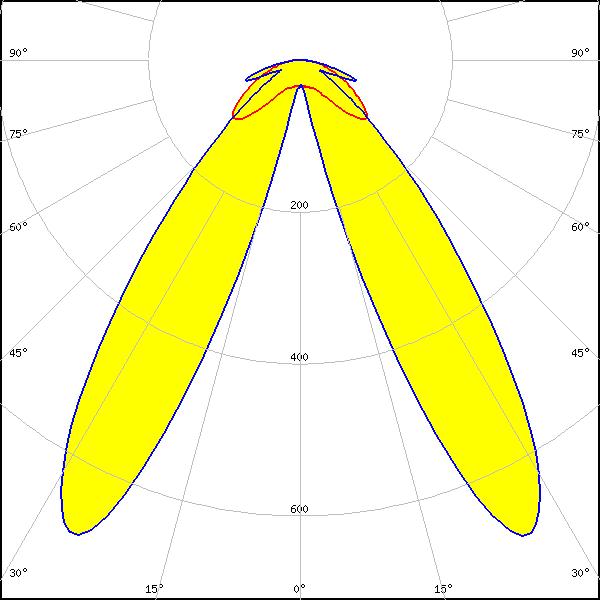

LED: LUXEON 2835 Architectural

FWHM: asymmetric

Peak intensity: 0.693 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

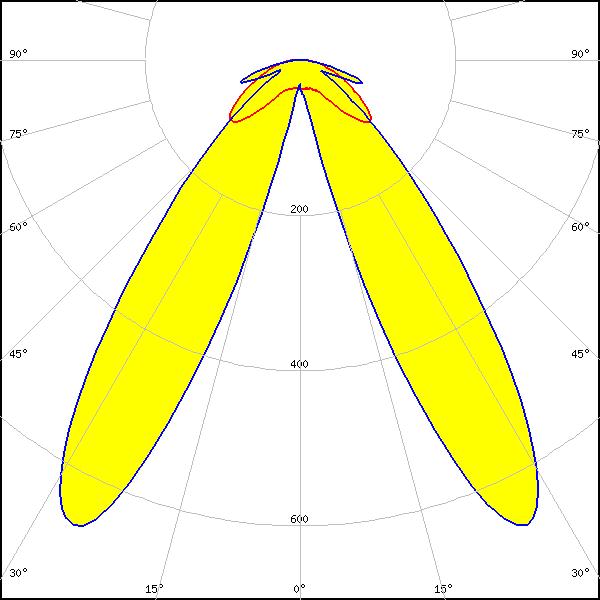

LED: LUXEON 3030 HE Plus

FWHM: asymmetric

Peak intensity: 0.667 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

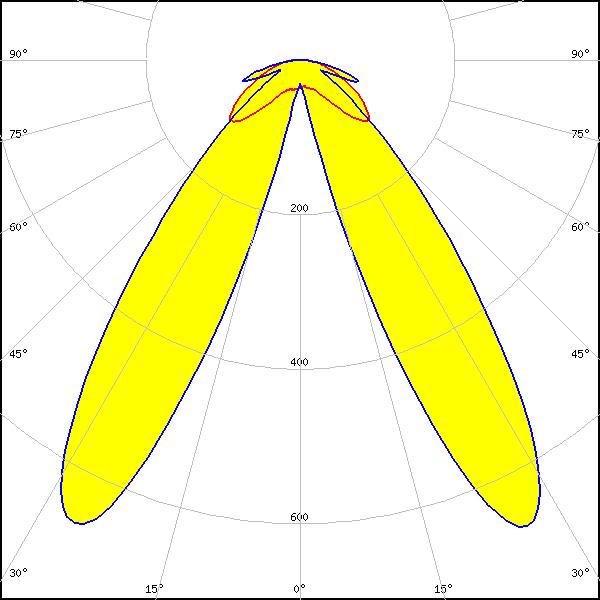

LED: LUXEON 3535L HE PLUS

FWHM: asymmetric

Peak intensity: 0.672 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

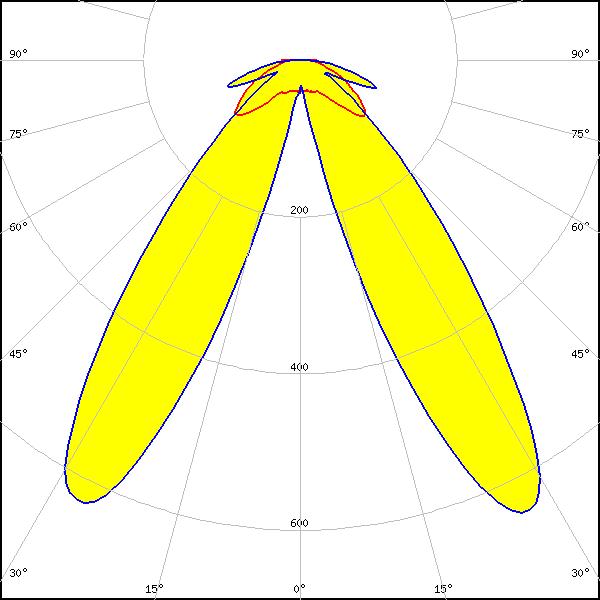

LED: NF2W585AR-P8

FWHM: asymmetric

Peak intensity: 0.645 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

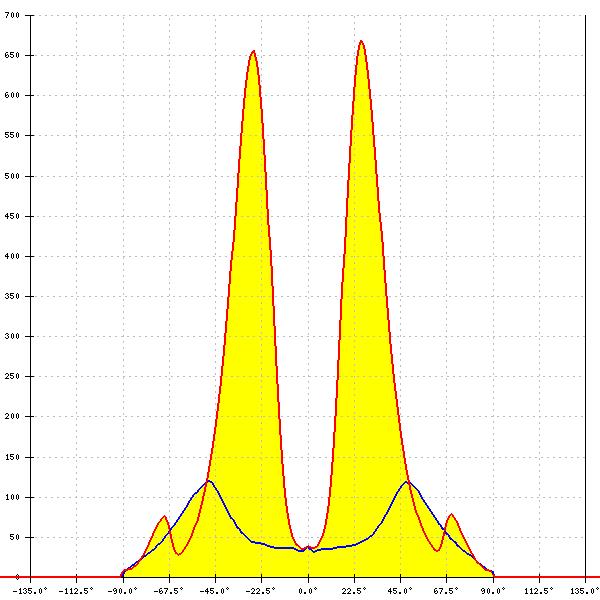

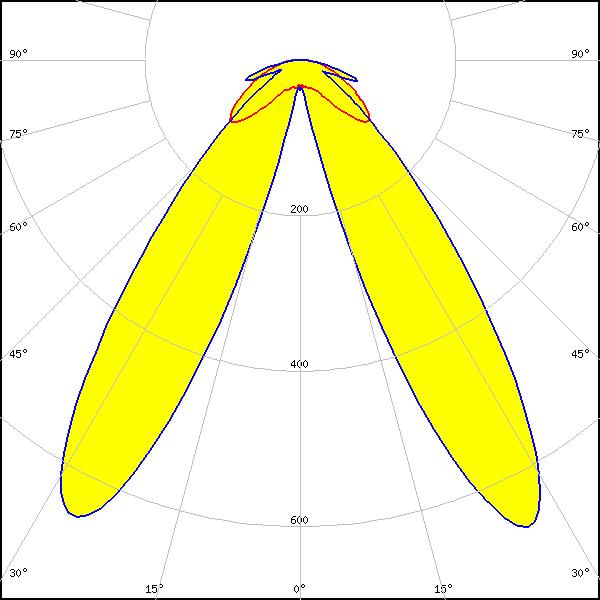

LED: NF2W757G-MT (Tunable White)

FWHM: asymmetric

Peak intensity: 0.669 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: Tunable White

Datasheet

Light distribution files

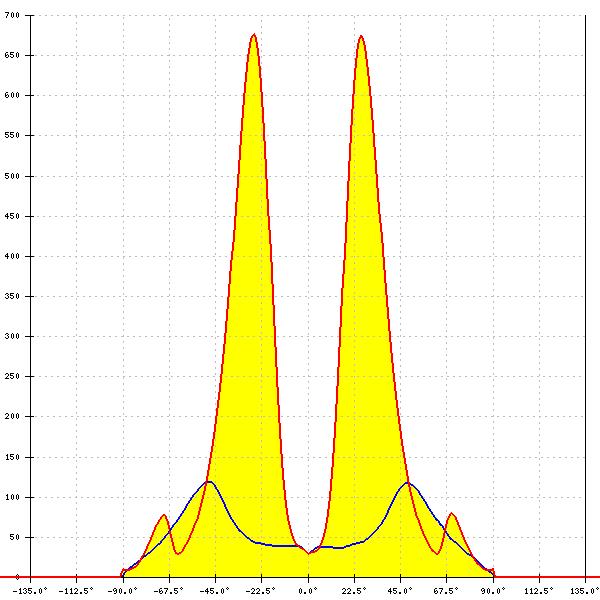

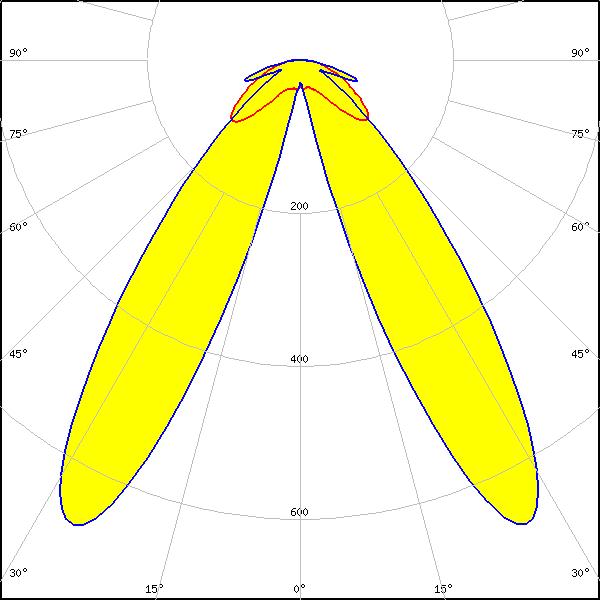

LED: NFSW757H

FWHM: asymmetric

Peak intensity: 0.676 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

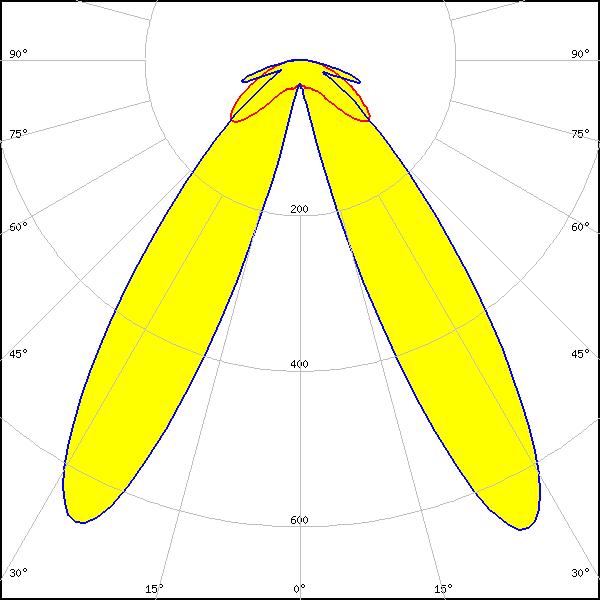

LED: NFSx757G

FWHM: asymmetric

Peak intensity: 0.671 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

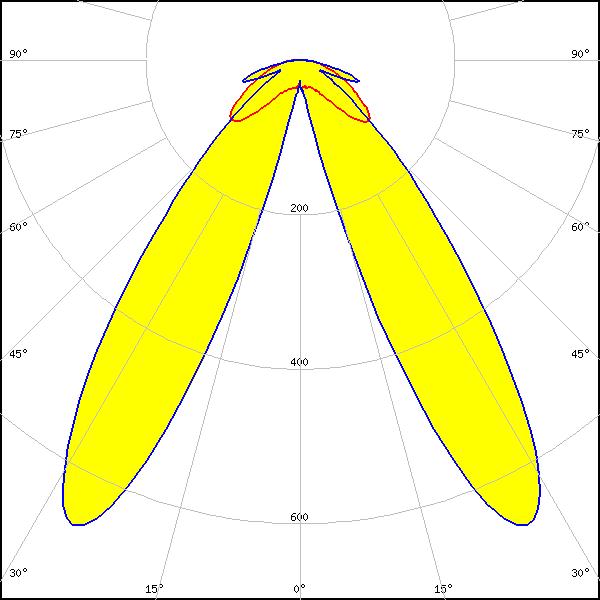

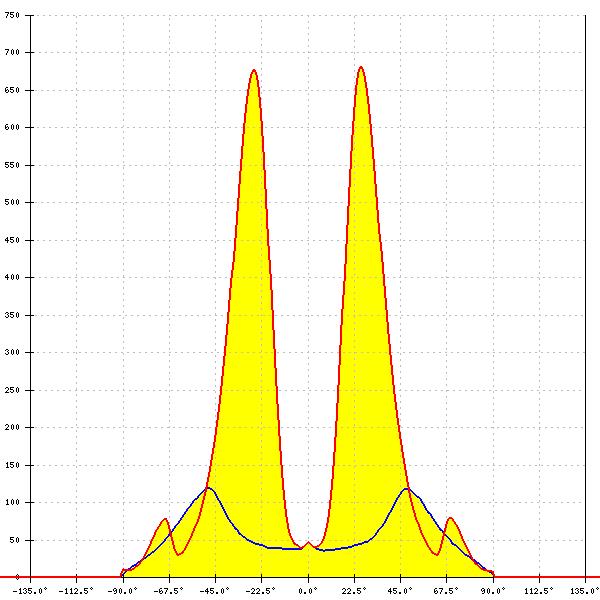

LED: Duris E 2835

FWHM: asymmetric

Peak intensity: 0.671 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

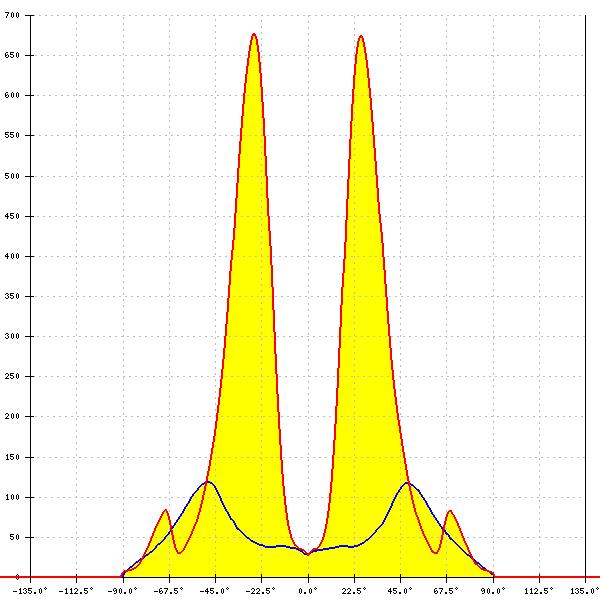

LED: DURIS S5 (2 chip)

FWHM: asymmetric

Peak intensity: 0.679 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSCONIQ C 2424

FWHM: asymmetric

Peak intensity: 0.708 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: SYNIOS S2222

FWHM: asymmetric

Peak intensity: 0.700 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

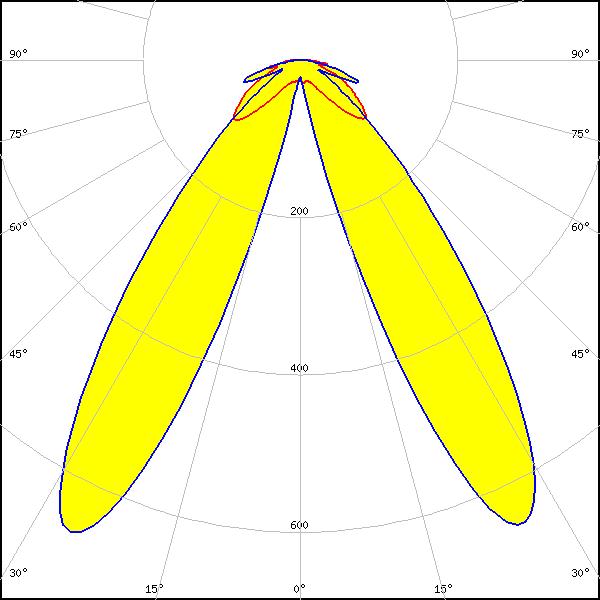

LED: LM28xB Series

FWHM: asymmetric

Peak intensity: 0.669 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LLE 24x280mm 1250lm HV HO ADV1

FWHM: asymmetric

Peak intensity: 0.587 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
