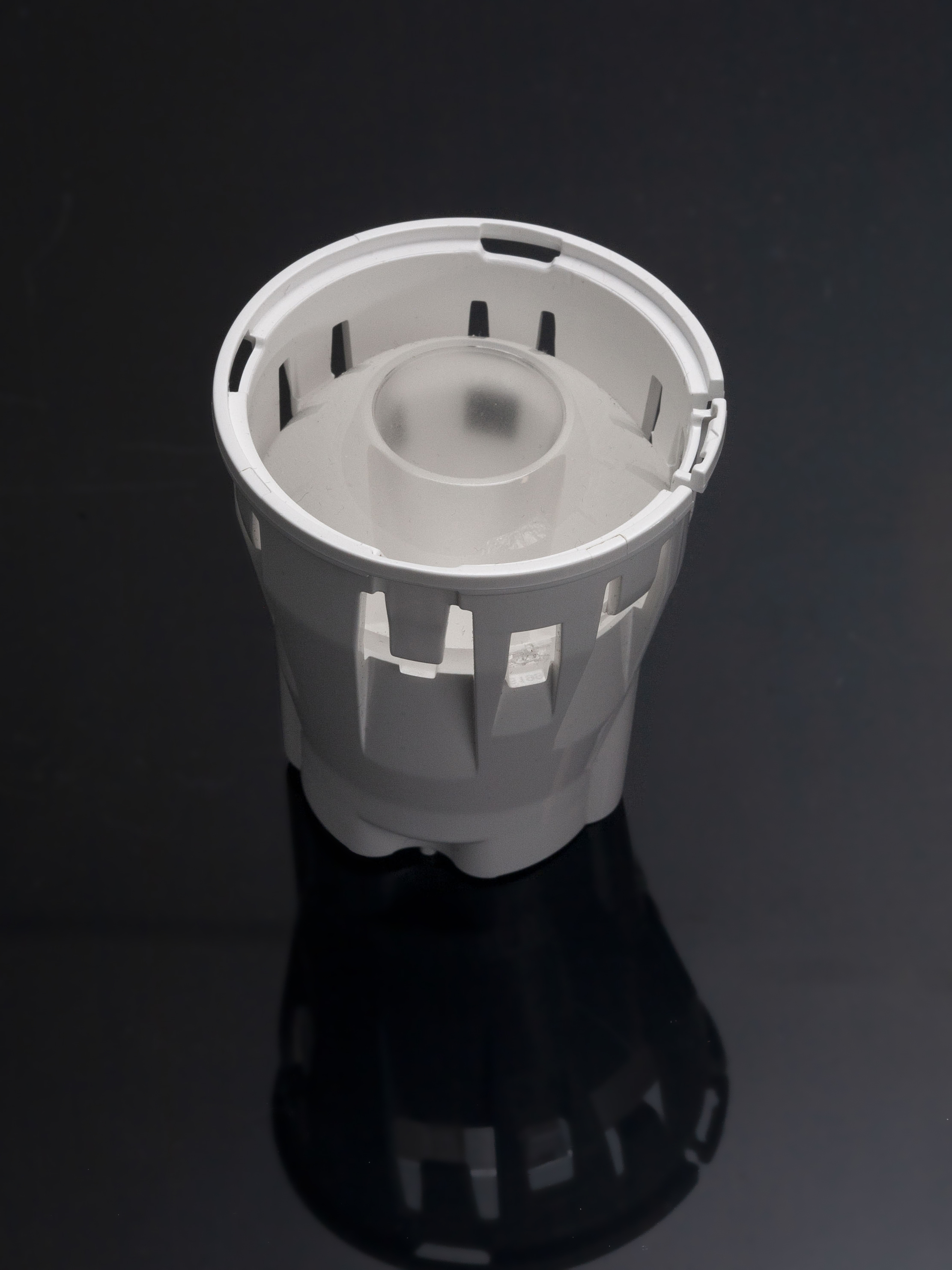

LEIA-S

Print

~3° spot beam

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    50 mm
  • Height:
    53.00 mm
  • Fastening:
    pin, screw
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F16199_LEIA-S
  • Quantity in box:
    240 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.20 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ Size:
    480 x 280 x 50 mm
  • MOQ Weight:
    1.60 kg
  • Holder
  • F16213_LEIA-HLD
    white
  • Quantity in box:
    400 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    5.80 kg
  • MPQ:
    20 pcs
  • MOQ:
    40 pcs
  • MOQ Size:
    480 x 280 x 60 mm
  • MOQ Weight:
    0.80 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F16199_LEIA-S
    F16213_LEIA-HLD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

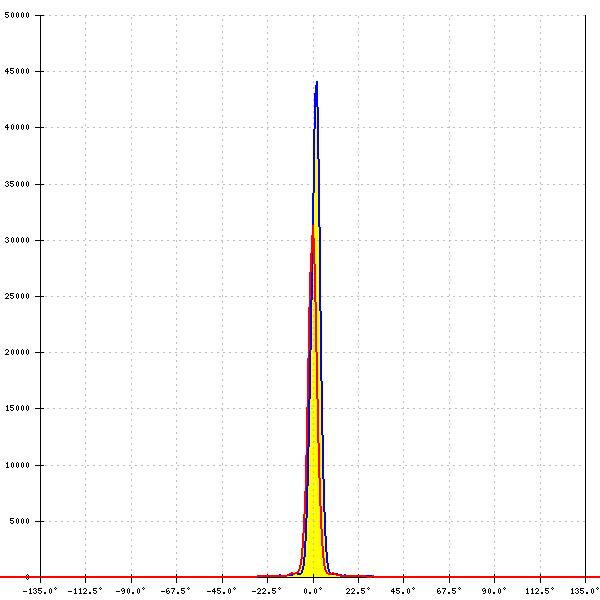

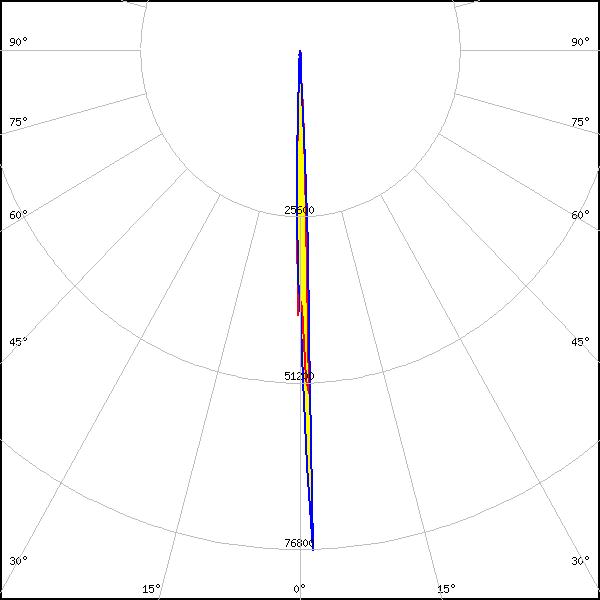

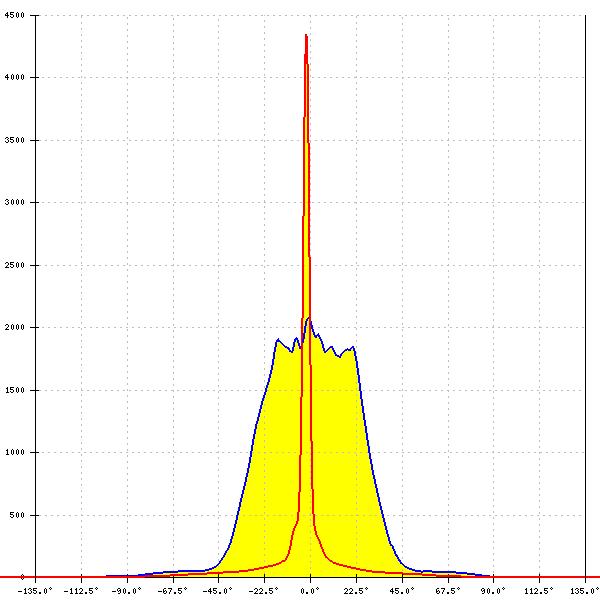

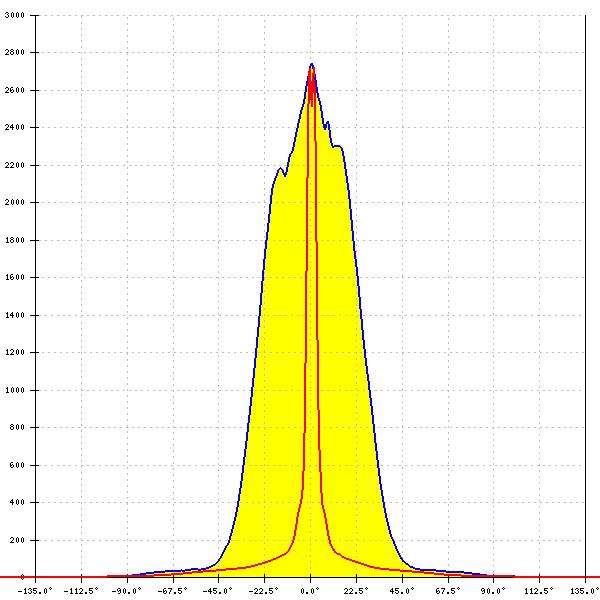

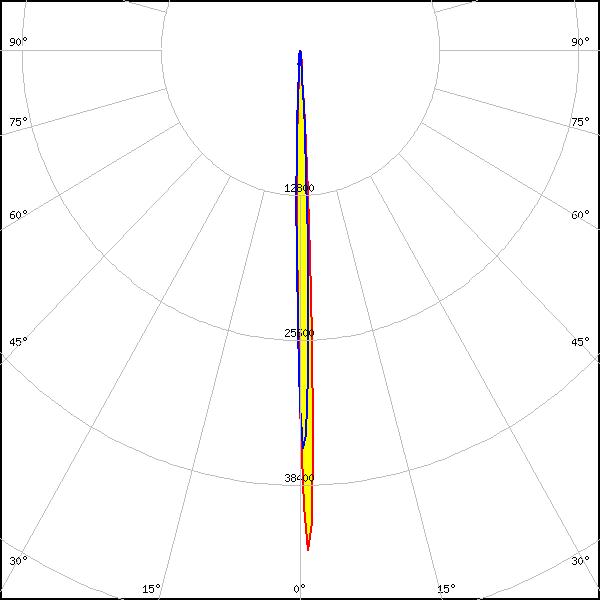

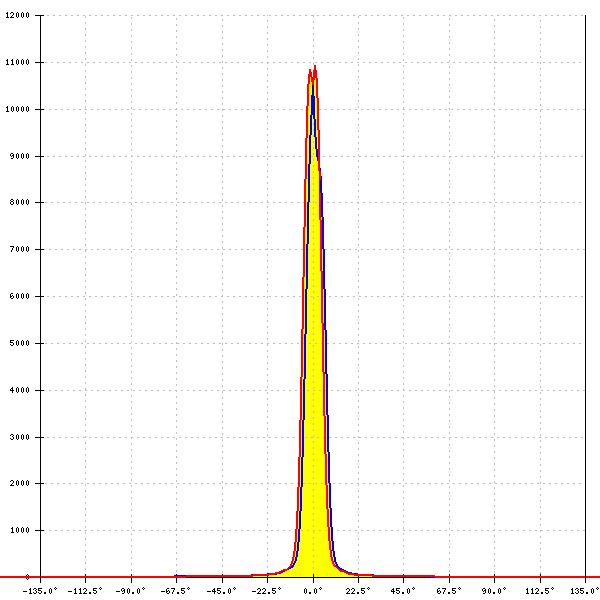

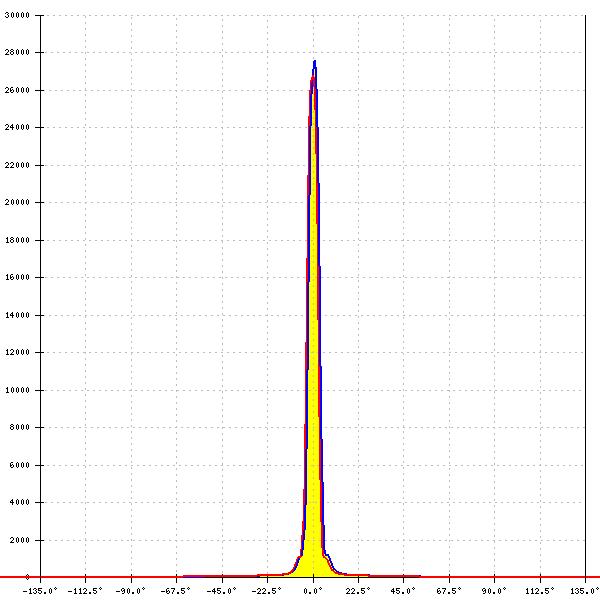

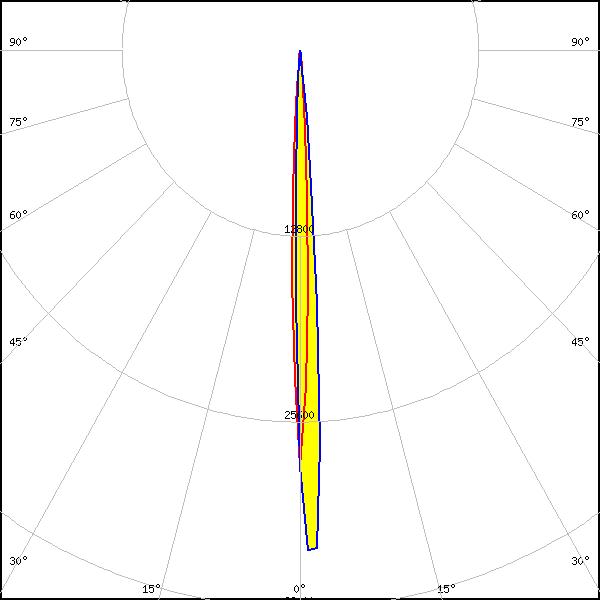

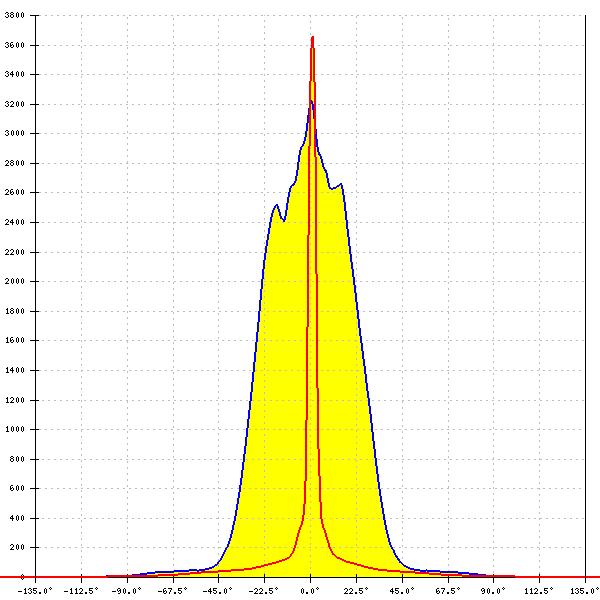

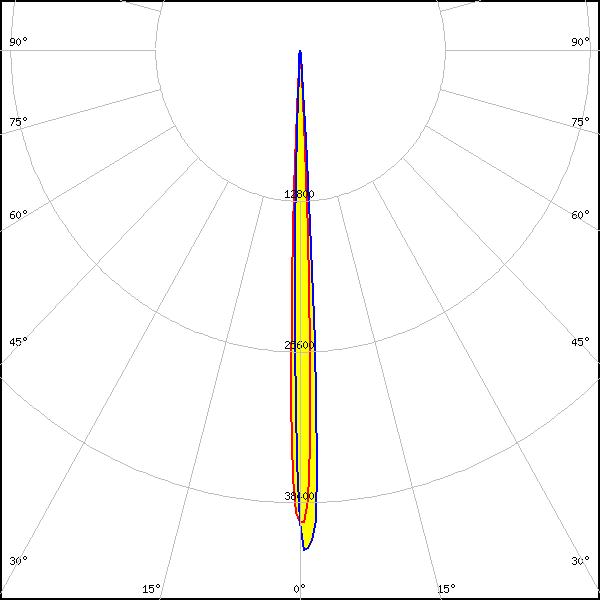

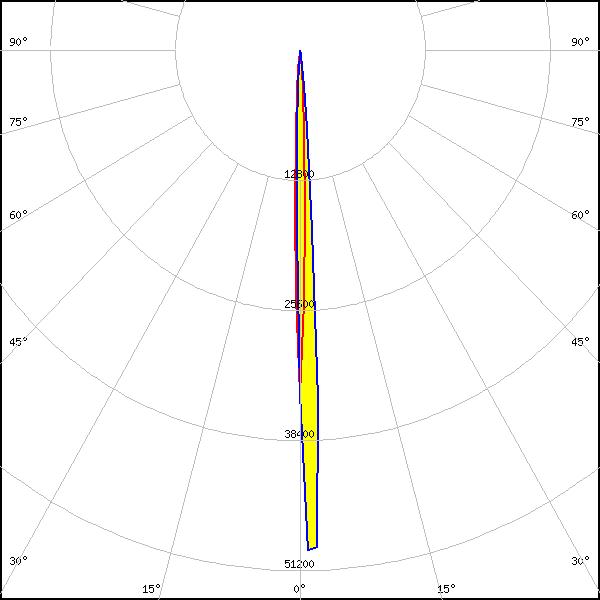

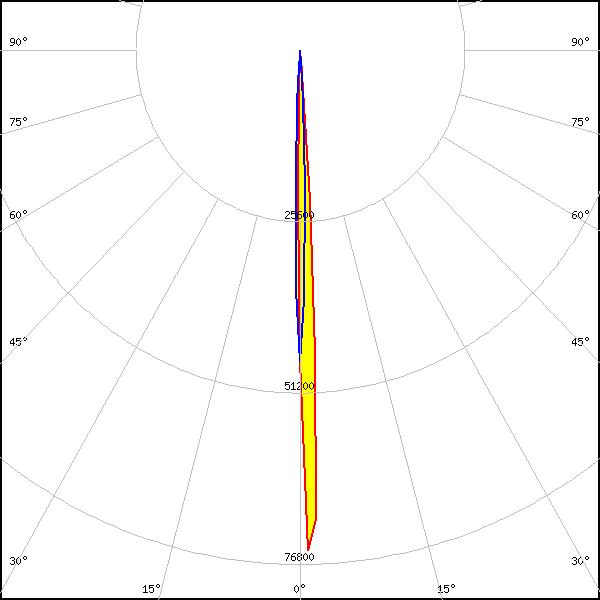

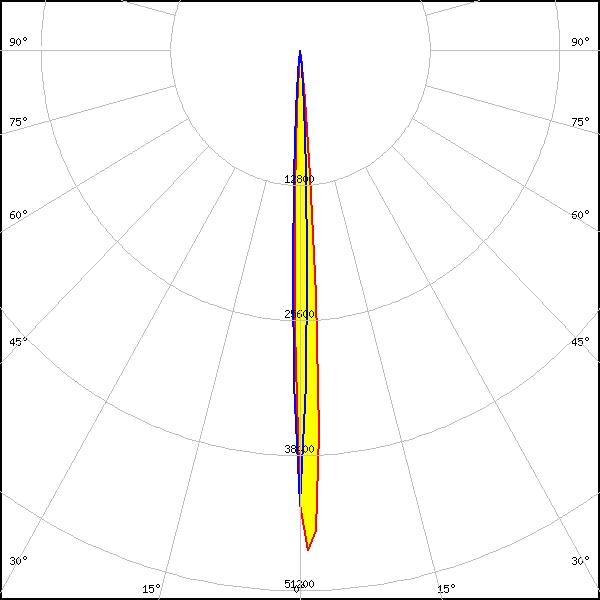

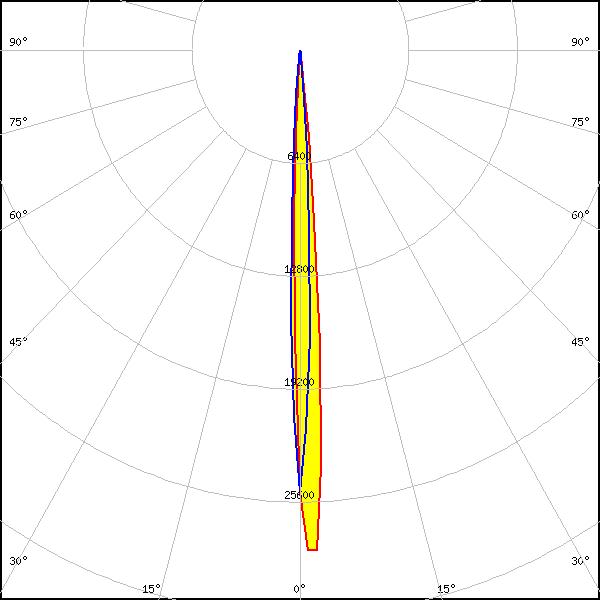

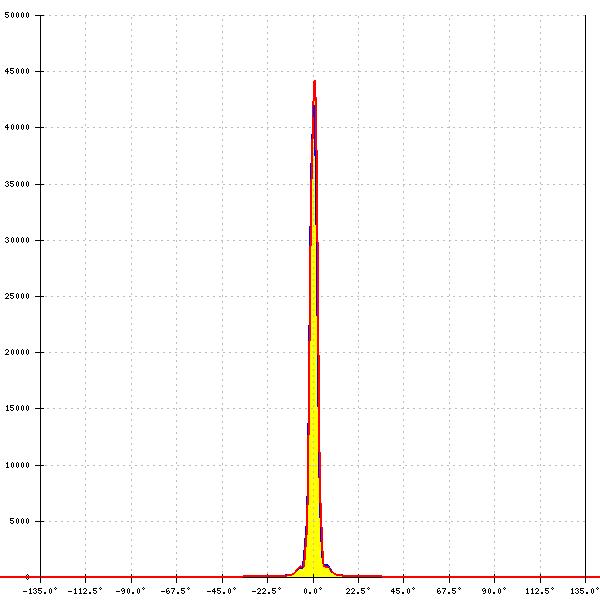

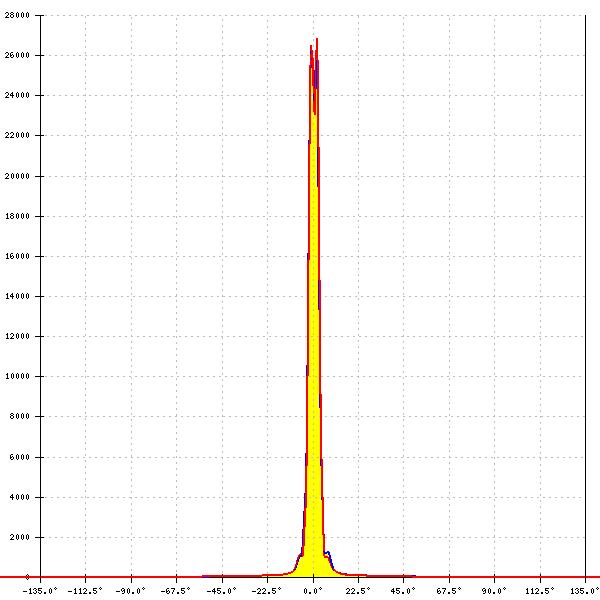

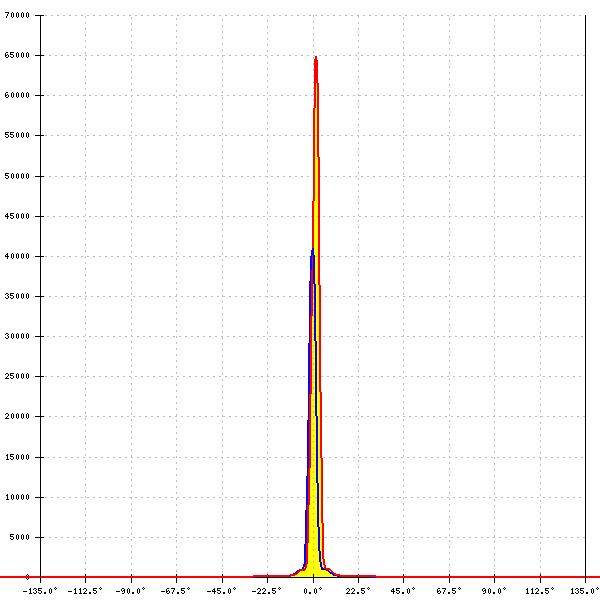

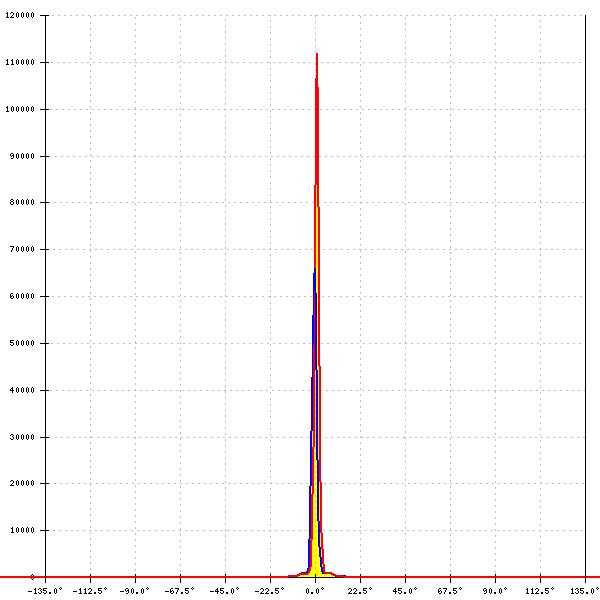

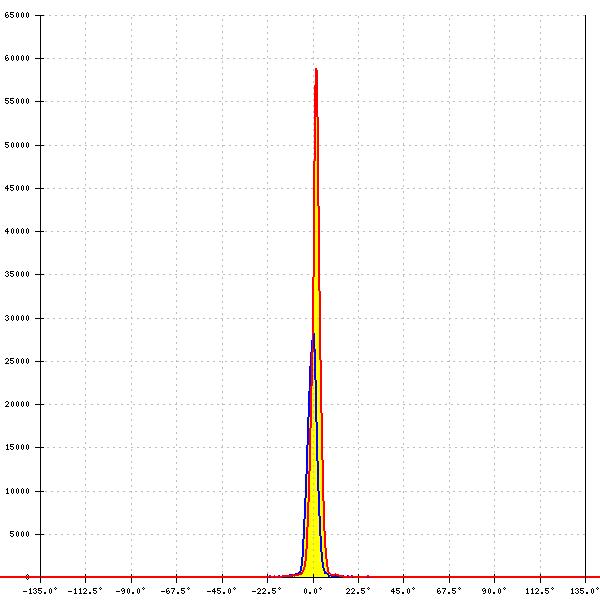

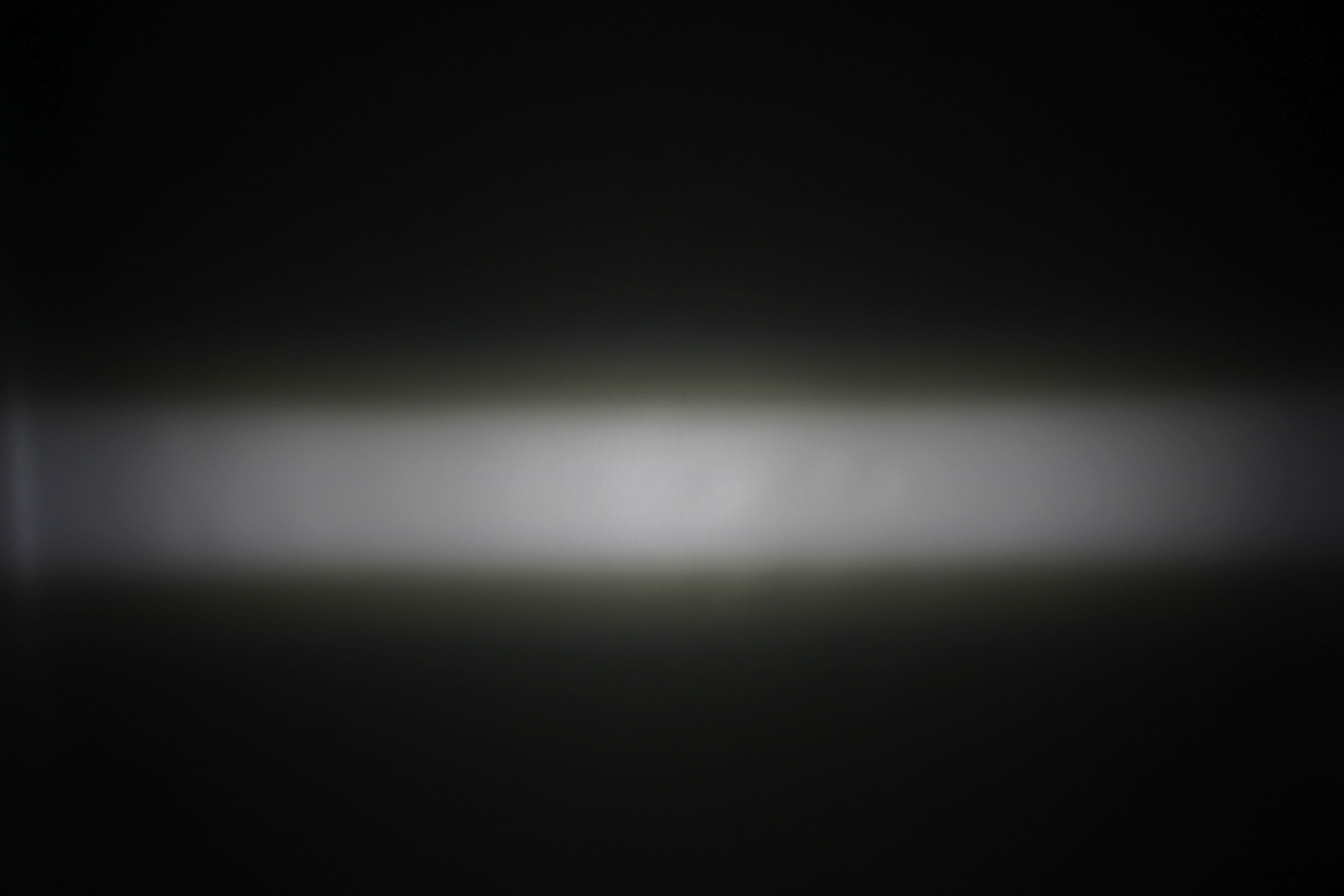

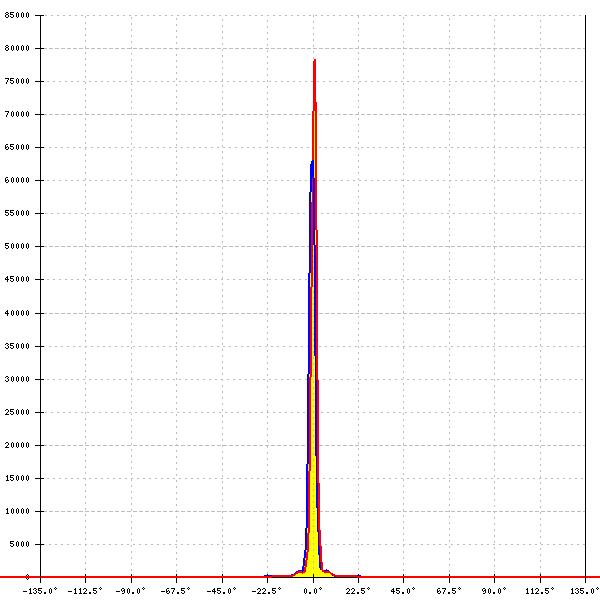

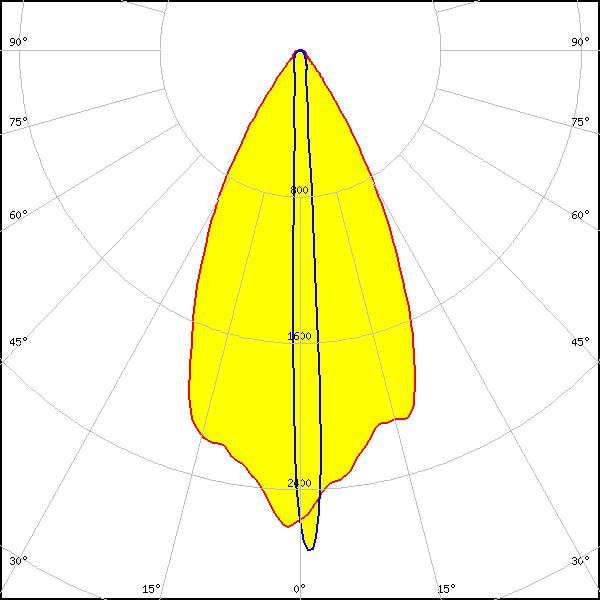

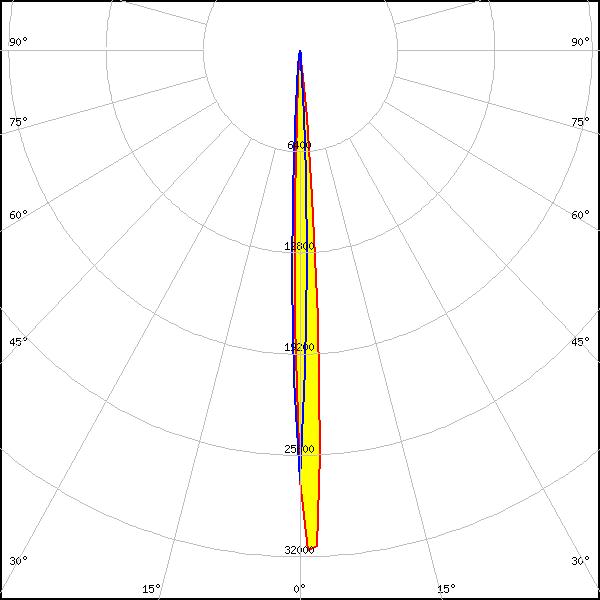

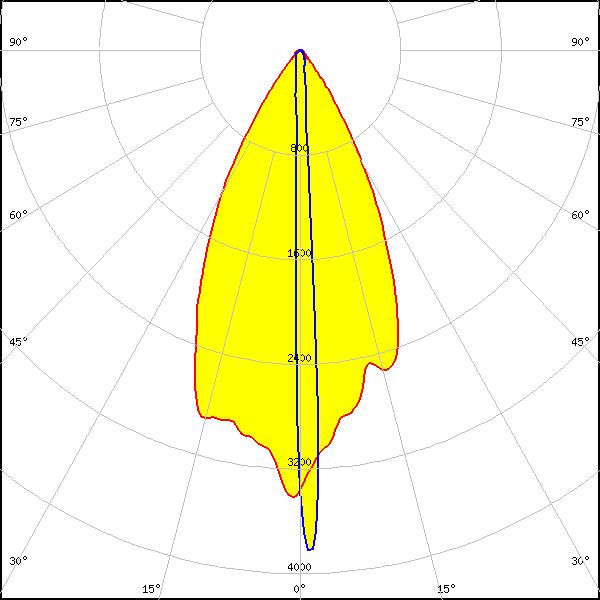

Optical results

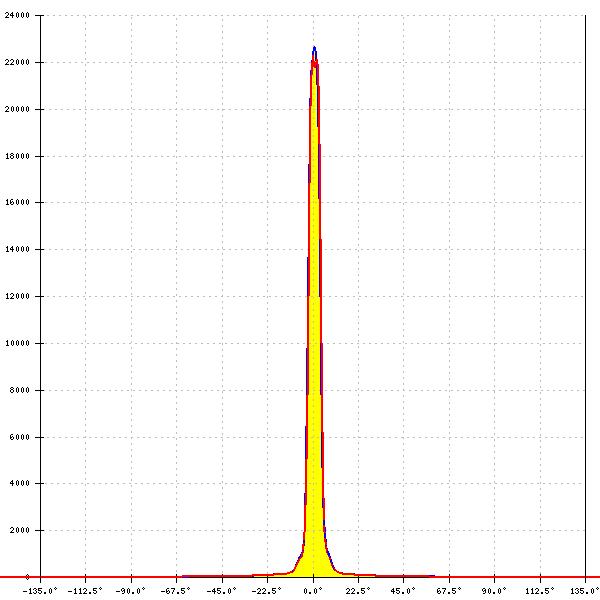

LED: XHP35 HD
FWHM: 6°
FWTM: 9°
Peak intensity: 22.600 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White
LED: XHP35 HD
FWHM: 6°
FWTM: 9°
Peak intensity: 22.800 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White

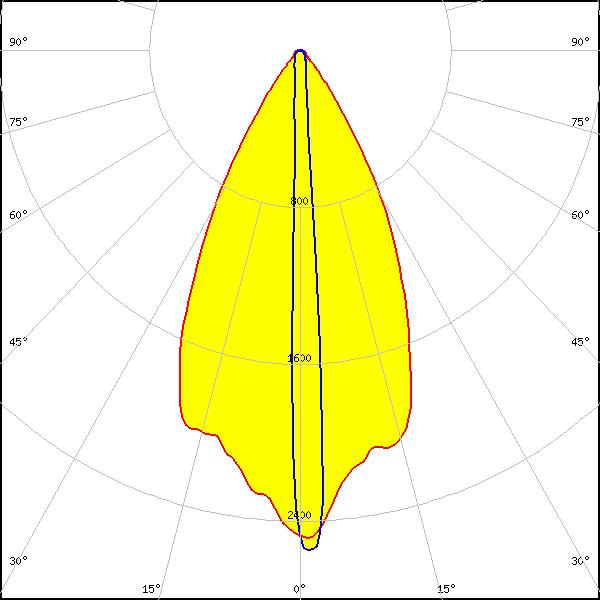

LED: XHP35 HD
Required components:
F16629_LEIA-SUB-O
FWHM: 52° + 6°
FWTM: 77° + 15°
Peak intensity: 2.600 cd/lm
Efficiency: 45 %
LEDs/each optic: 1
Light colour: White
LED: XHP35 HI
FWHM: 4°
FWTM: 9°
Peak intensity: 44.800 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White
LED: XHP35 HI
FWHM: 4°
FWTM: 7°
Peak intensity: 43.200 cd/lm
Efficiency: 52 %
LEDs/each optic: 1
Light colour: White

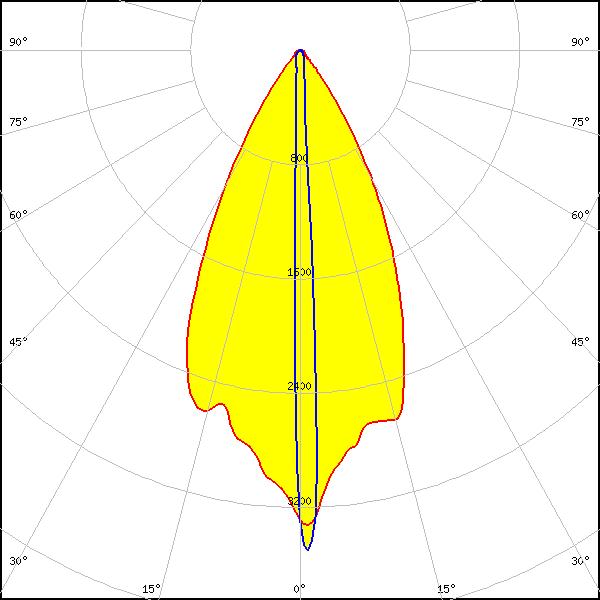

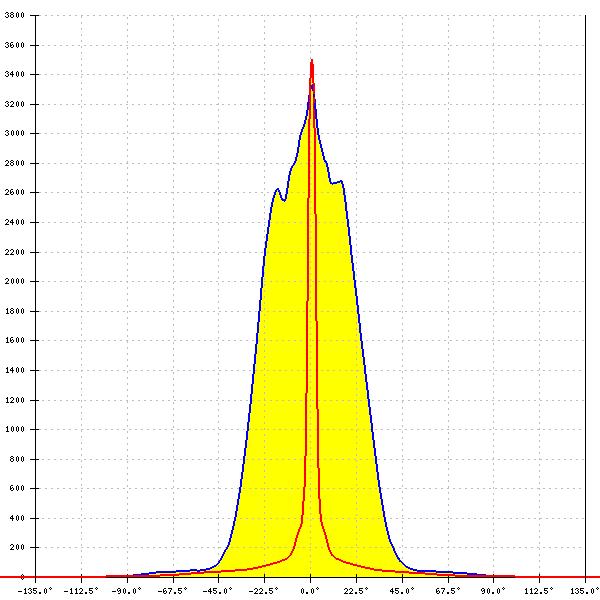

LED: XHP35 HI
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 5°
FWTM: 76° + 11°
Peak intensity: 3.600 cd/lm
Efficiency: 47 %
LEDs/each optic: 1
Light colour: White

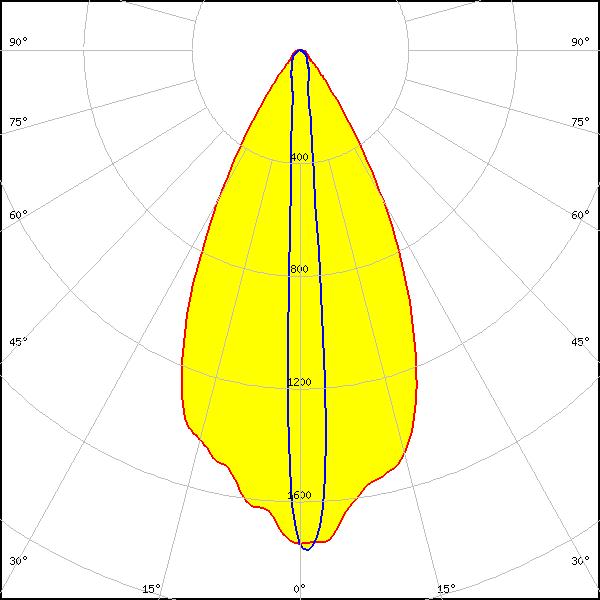

LED: XHP50.2
Required components:
F16629_LEIA-SUB-O
FWHM: 52° + 8°
FWTM: 78° + 20°
Peak intensity: 1.800 cd/lm
Efficiency: 42 %
LEDs/each optic: 1
Light colour: White

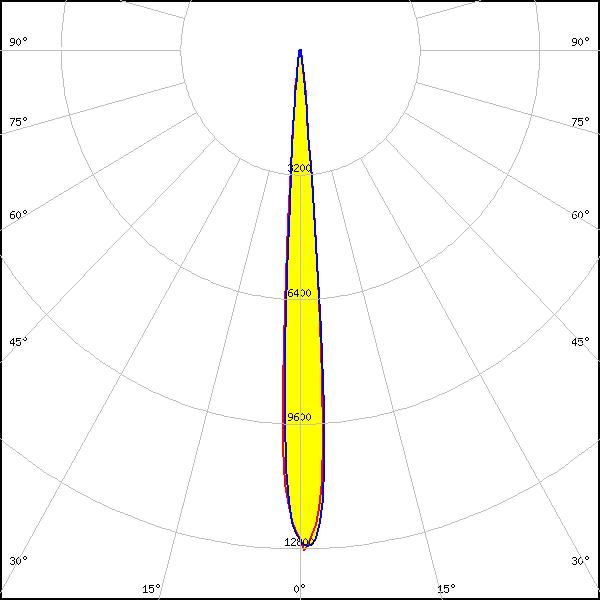

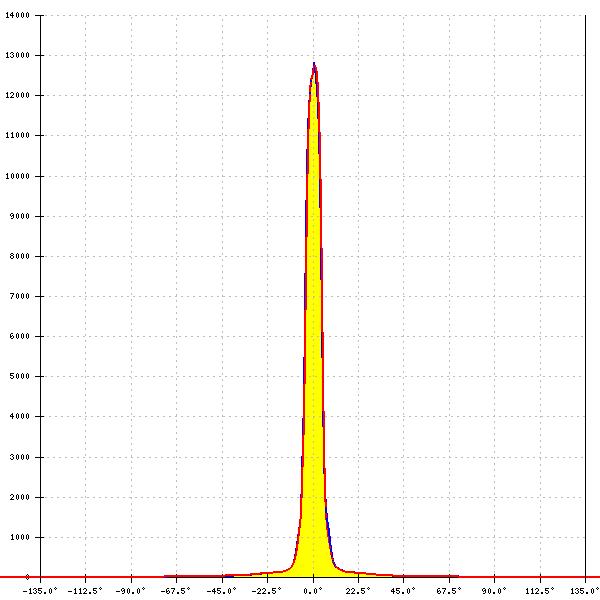

LED: XHP50.2
FWHM: 8°
FWTM: 14°
Peak intensity: 12.980 cd/lm
Efficiency: 48 %
LEDs/each optic: 1
Light colour: White

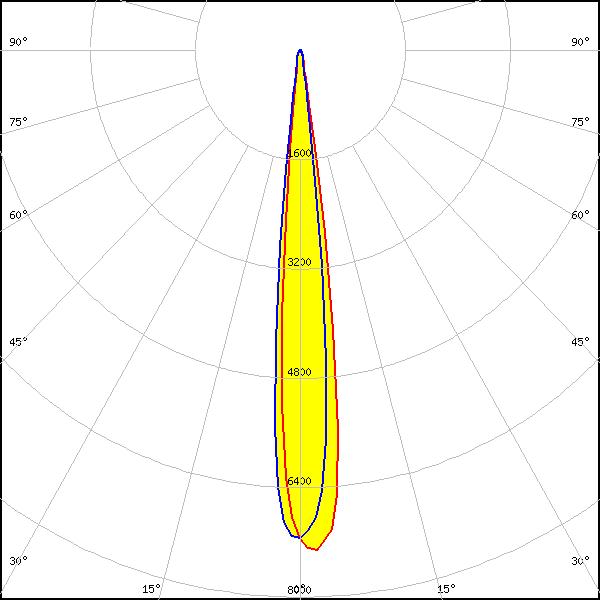

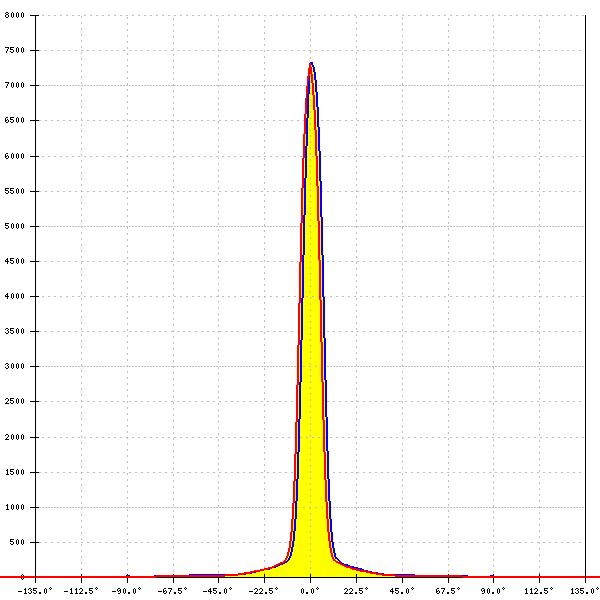

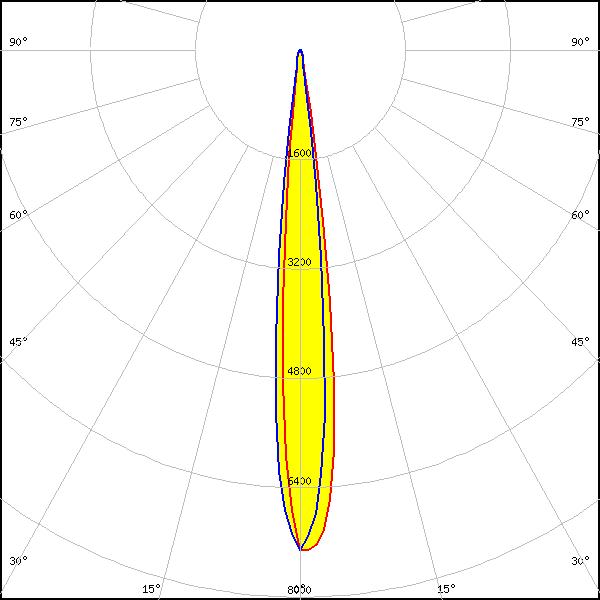

LED: XHP70.2
FWHM: 12°
FWTM: 18°
Peak intensity: 7.409 cd/lm
Efficiency: 48 %
LEDs/each optic: 1
Light colour: White

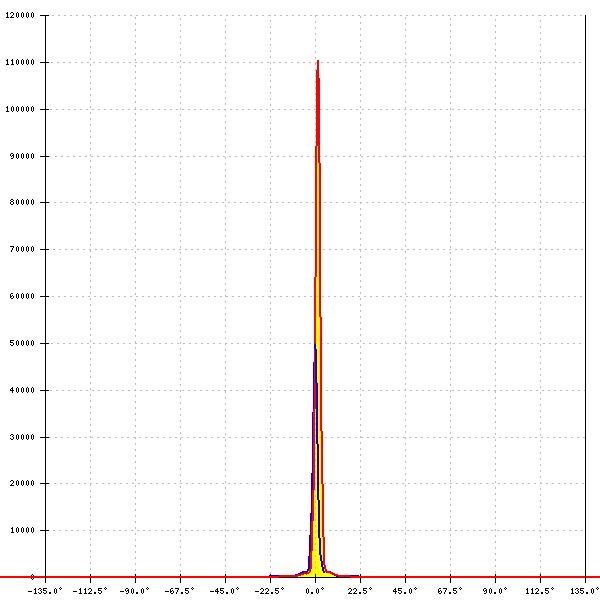

LED: XP-E2
FWHM: 3°
FWTM: 6°
Peak intensity: 128.300 cd/lm
Efficiency: 59 %
LEDs/each optic: 1
Light colour: White

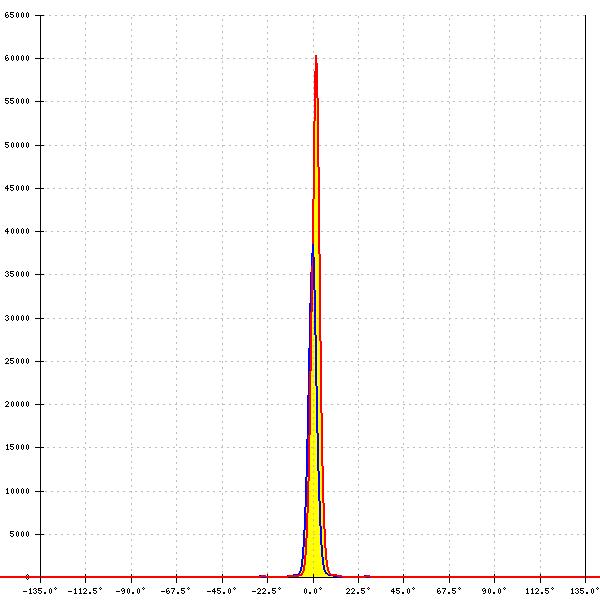

LED: XP-G2
FWHM: 4°
FWTM: 9°
Peak intensity: 57.000 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour: White

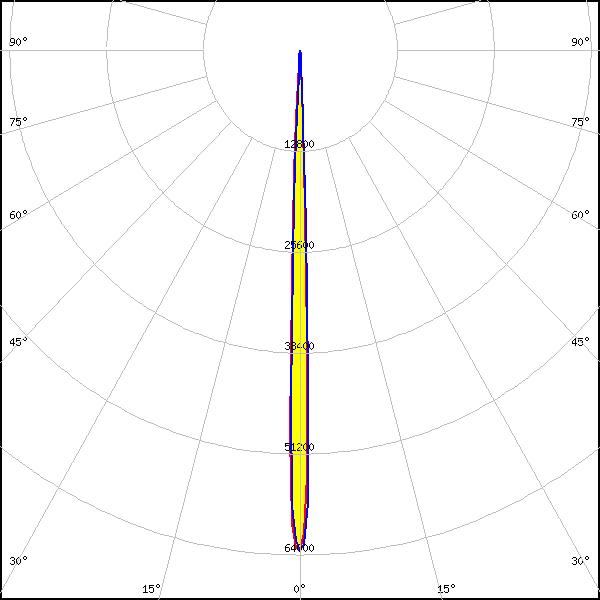

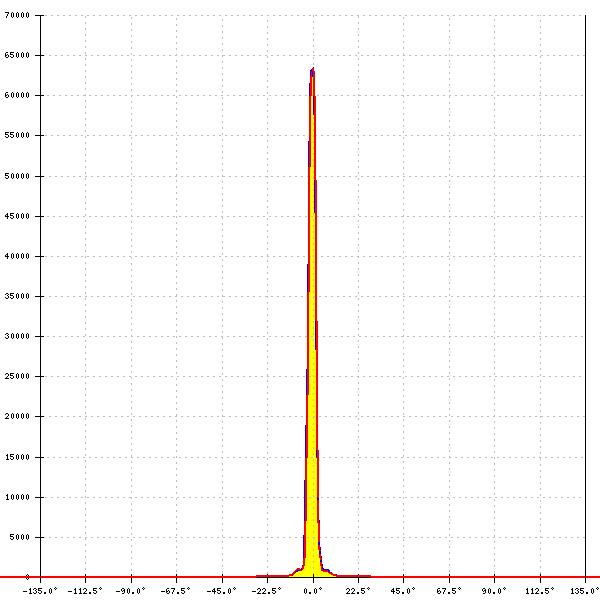

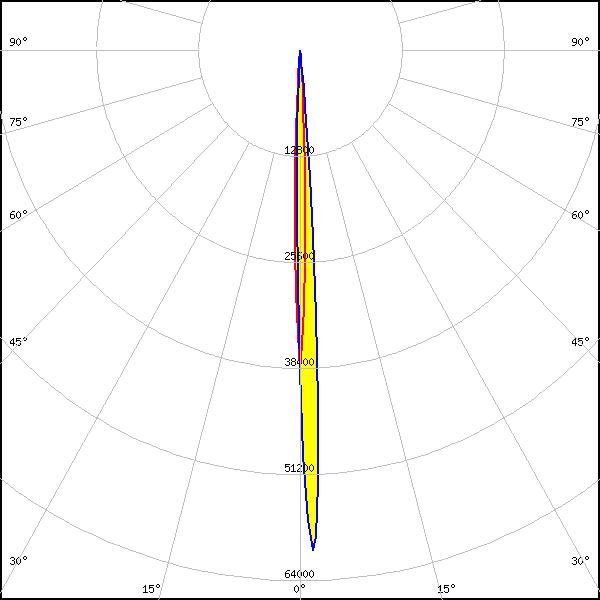

LED: XP-G2
FWHM: 4°
FWTM: 6°
Peak intensity: 63.400 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White

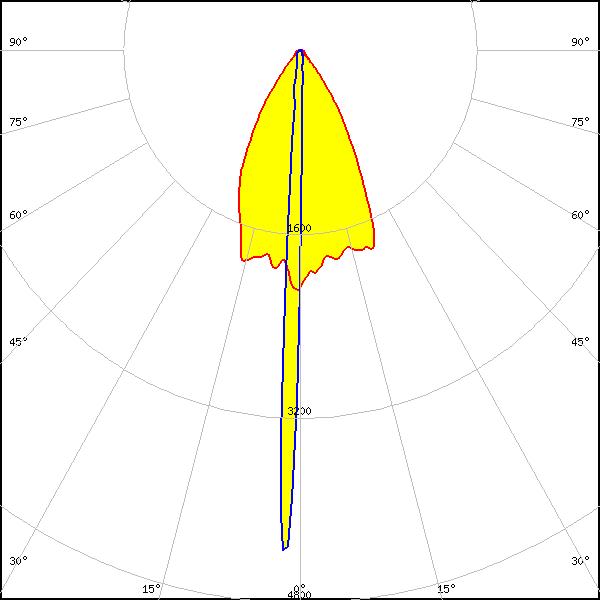

LED: XP-G2
FWHM: 57° + 4°
FWTM: 82° + 9°
Peak intensity: 4.600 cd/lm
Efficiency: 40 %
LEDs/each optic: 1
Light colour: White

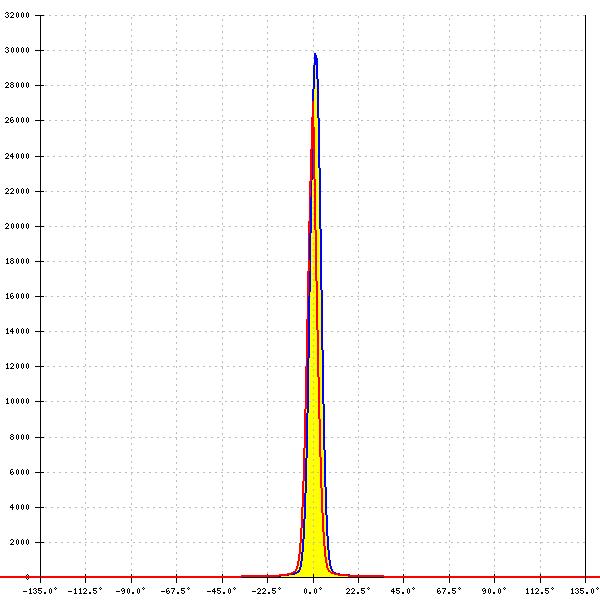

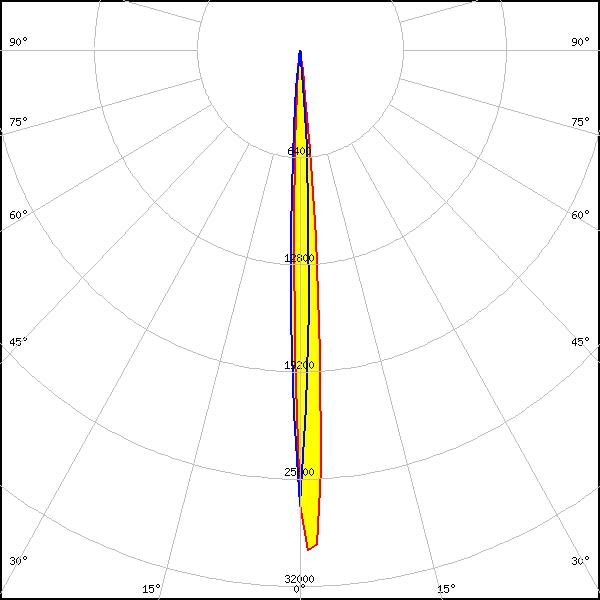

LED: XP-G2 HE
FWHM: 5°
FWTM: 11°
Peak intensity: 29.870 cd/lm
Efficiency: 48 %
LEDs/each optic: 1
Light colour: White

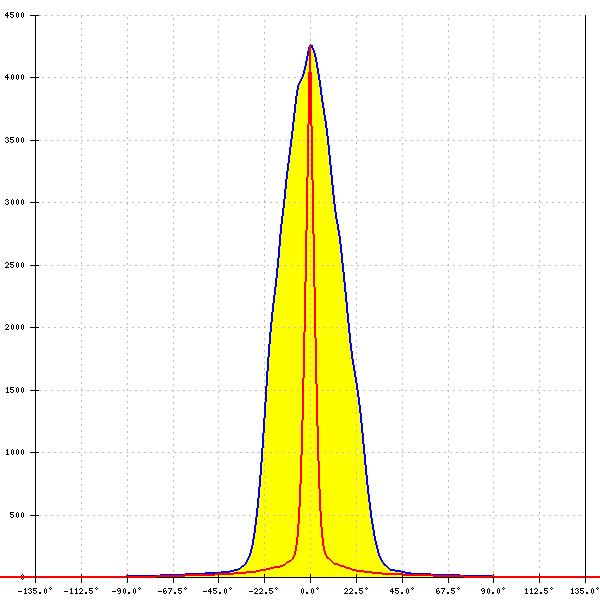

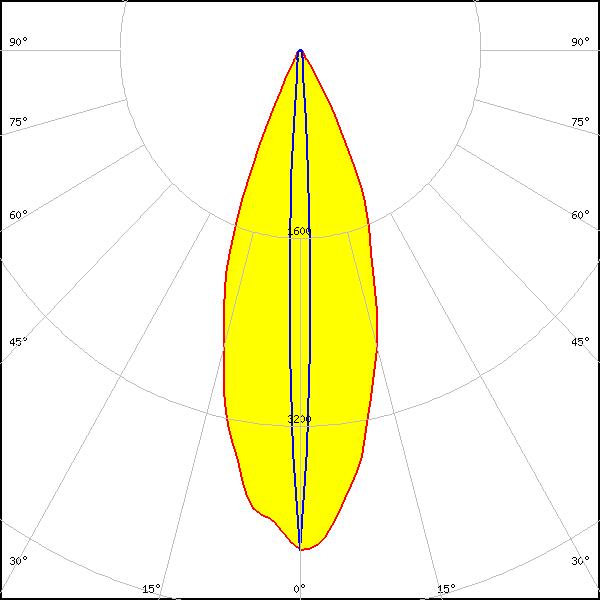

LED: XP-G2 HE
Required components:
F16629_LEIA-SUB-O
FWHM: 36° + 5°
FWTM: 58° + 12°
Peak intensity: 4.258 cd/lm
Efficiency: 44 %
LEDs/each optic: 1
Light colour: White

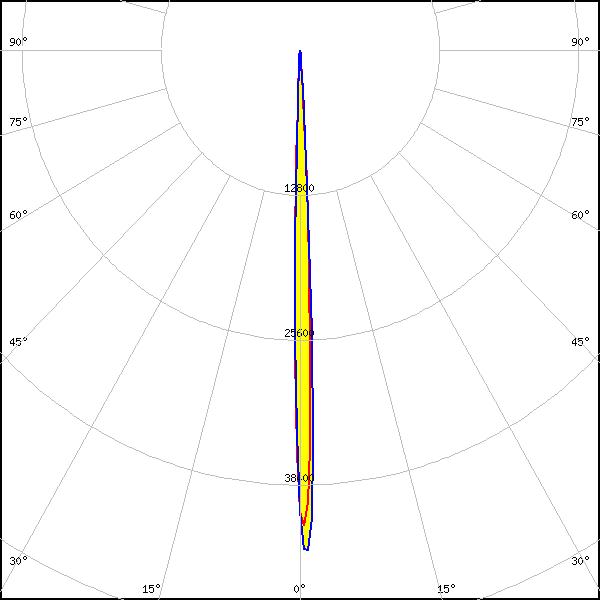

LED: XP-G3
FWHM: 6°
FWTM: 12°
Peak intensity: 24.600 cd/lm
Efficiency: 45 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
FWHM: 4°
FWTM: 7°
Peak intensity: 48.500 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour: White

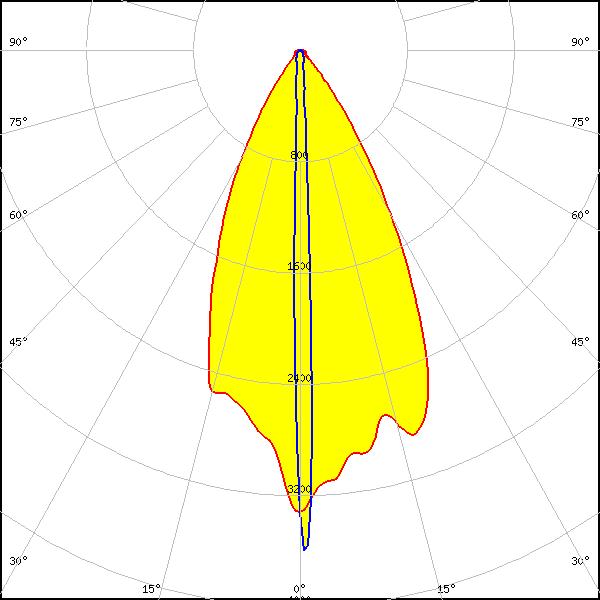

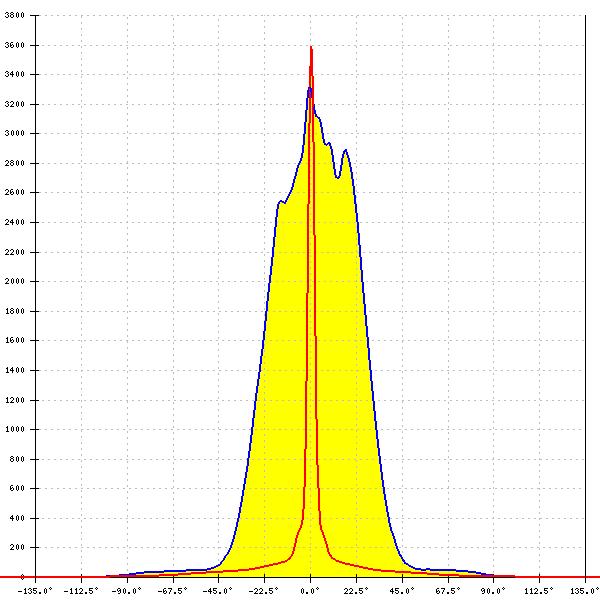

LED: XP-G3
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 4°
FWTM: 76° + 9°
Peak intensity: 3.700 cd/lm
Efficiency: 47 %
LEDs/each optic: 1
Light colour: White

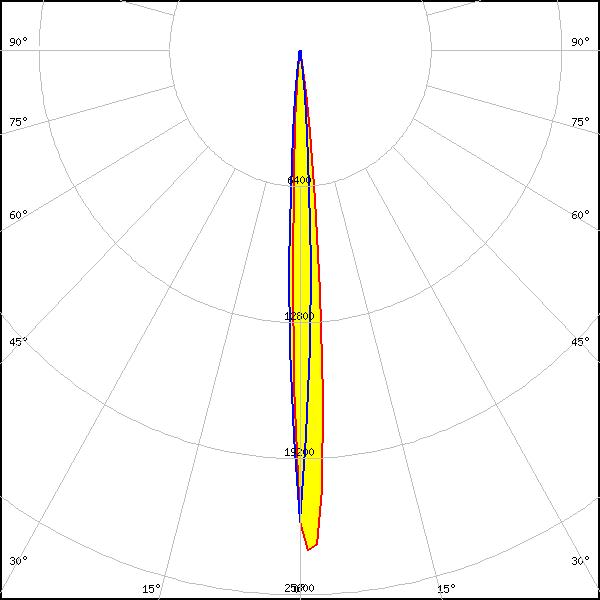

LED: XP-L HD
FWHM: 6°
FWTM: 13°
Peak intensity: 23.510 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour: White

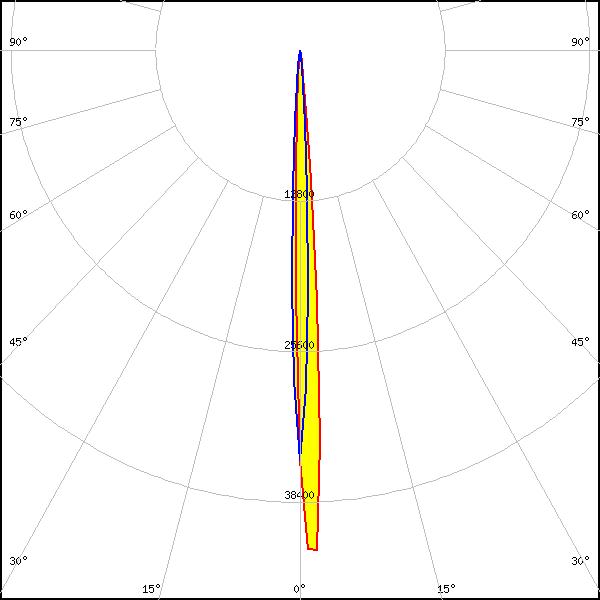

LED: XP-L HI
FWHM: 5°
FWTM: 10°
Peak intensity: 42.600 cd/lm
Efficiency: 53 %
LEDs/each optic: 1
Light colour: White
LED: XP-L2
Required components:
F16629_LEIA-SUB-O
FWHM: 51° + 6°
FWTM: 77° + 16°
Peak intensity: 2.800 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White
LED: XQ-E HD
FWHM: 3°
FWTM: 6°
Peak intensity: 91.000 cd/lm
Efficiency: 47 %
LEDs/each optic: 1
Light colour: White

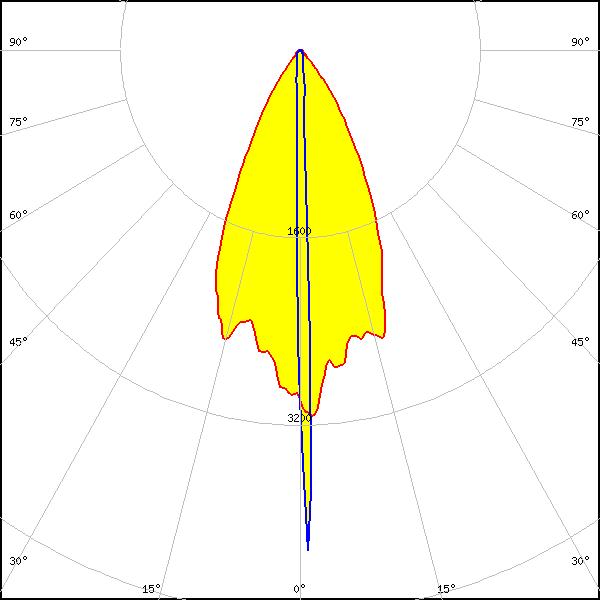

LED: XQ-E HD
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 3°
FWTM: 76° + 9°
Peak intensity: 4.600 cd/lm
Efficiency: 42 %
LEDs/each optic: 1
Light colour: White

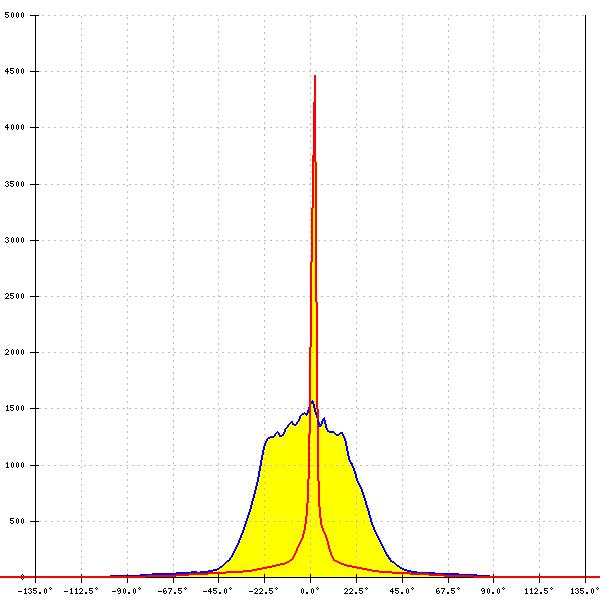

LED: XQ-E HI
Required components:
F16629_LEIA-SUB-O
FWHM: 52° + 3°
FWTM: 79° + 9°
Peak intensity: 6.000 cd/lm
Efficiency: 44 %
LEDs/each optic: 1
Light colour: White

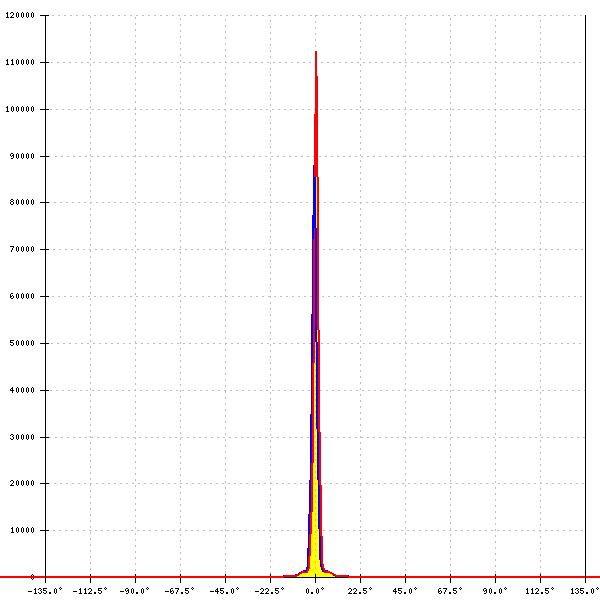

LED: XQ-E HI
FWHM: 2°
FWTM: 4°
Peak intensity: 112.600 cd/lm
Efficiency: 48 %
LEDs/each optic: 1
Light colour: White
LED: XT-E
FWHM: 4°
FWTM: 7°
Peak intensity: 42.900 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White

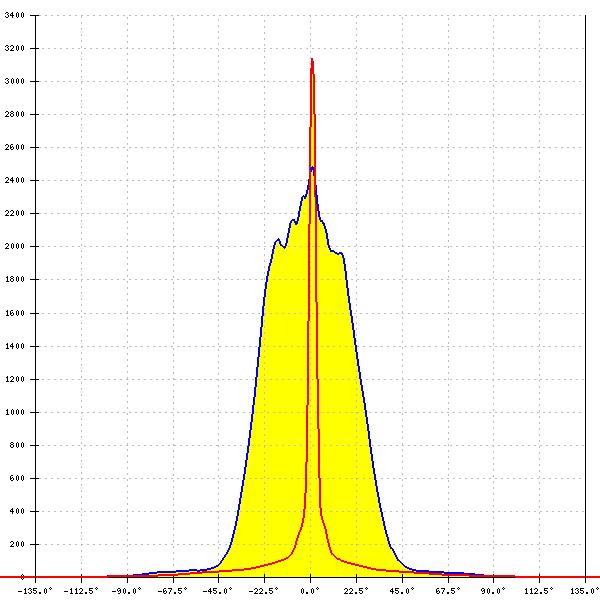

LED: XT-E
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 4°
FWTM: 76° + 11°
Peak intensity: 6.200 cd/lm
Efficiency: 46 %
LEDs/each optic: 1
Light colour: White

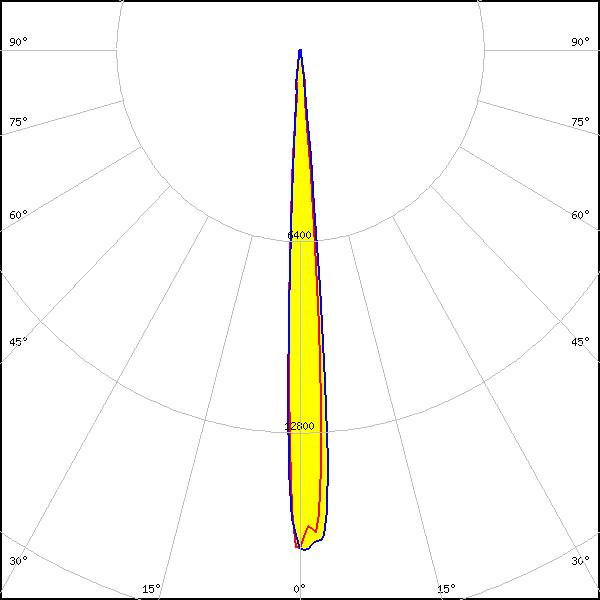

LED: LUXEON 5050 Round LES
FWHM: 7°
FWTM: 11°
Peak intensity: 16.700 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Round LES
Required components:
F16629_LEIA-SUB-O
FWHM: 51° + 7°
FWTM: 78° + 18°
Peak intensity: 2.200 cd/lm
Efficiency: 46 %
LEDs/each optic: 1
Light colour: White

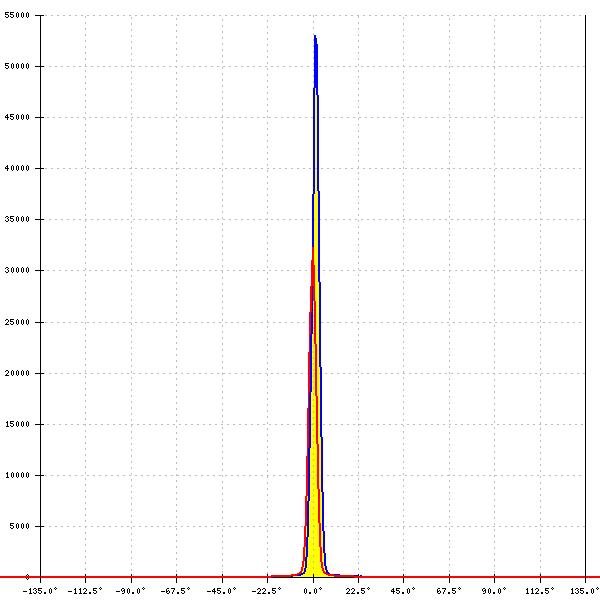

LED: LUXEON C
FWHM: 4°
FWTM: 7°
Peak intensity: 53.700 cd/lm
Efficiency: 36 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CZ
FWHM: 10°
FWTM: 16°
Peak intensity: 11.007 cd/lm
Efficiency: 42 %
LEDs/each optic: 4
Light colour: White

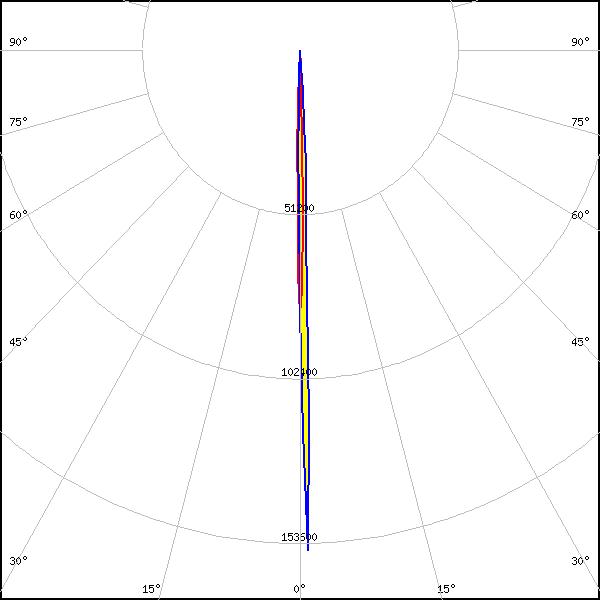

LED: LUXEON CZ
FWHM: 2°
FWTM: 5°
Peak intensity: 157.027 cd/lm
Efficiency: 55 %
LEDs/each optic: 1
Light colour: White

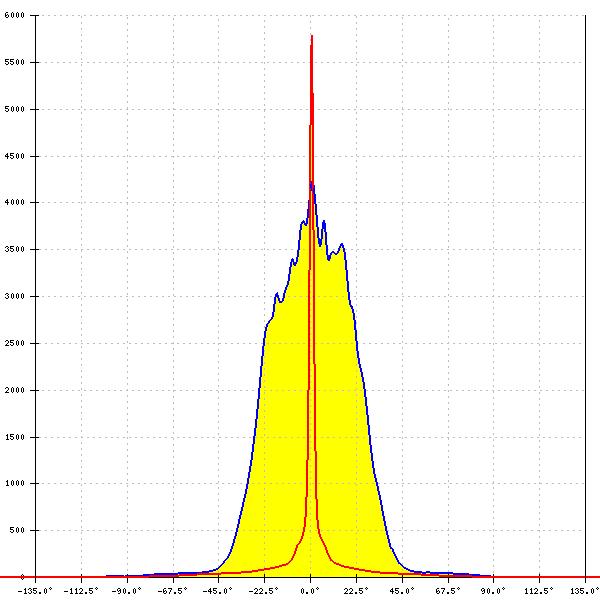

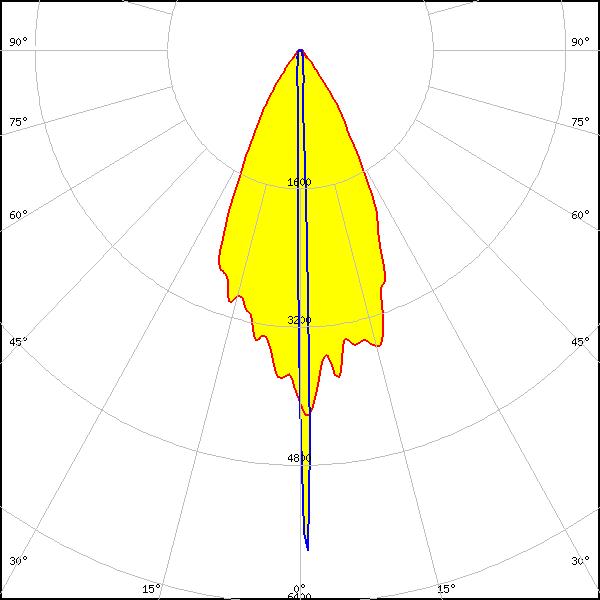

LED: LUXEON CZ
Required components:
F16629_LEIA-SUB-O
FWHM: 51° + 3°
FWTM: 76° + 7°
Peak intensity: 6.917 cd/lm
Efficiency: 48 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON MZ
FWHM: 6°
FWTM: 9°
Peak intensity: 27.500 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON MZ
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 6°
FWTM: 77° + 15°
Peak intensity: 2.800 cd/lm
Efficiency: 45 %
LEDs/each optic: 1
Light colour: White

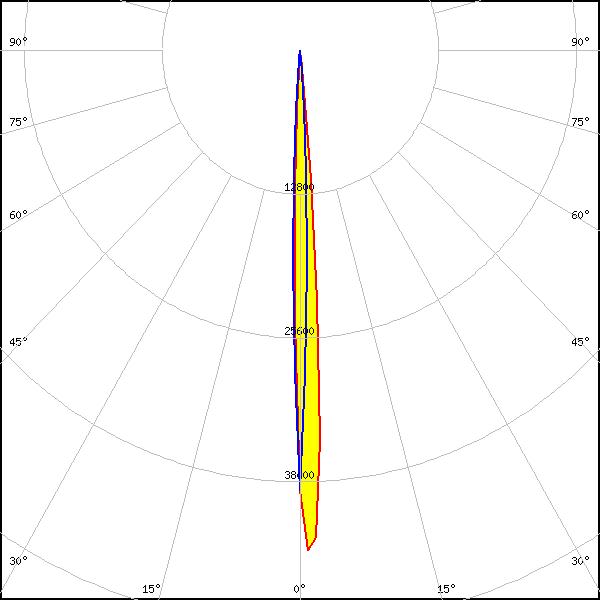

LED: LUXEON Rubix
FWHM: 4°
FWTM: 7°
Peak intensity: 74.742 cd/lm
Efficiency: 45 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON Rubix
FWHM: 5°
FWTM: 9°
Peak intensity: 44.525 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: Blue
LED: LUXEON Rubix
FWHM: 5°
FWTM: 9°
Peak intensity: 44.508 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: Green
LED: LUXEON Rubix
FWHM: 5°
FWTM: 9°
Peak intensity: 47.384 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour: Red

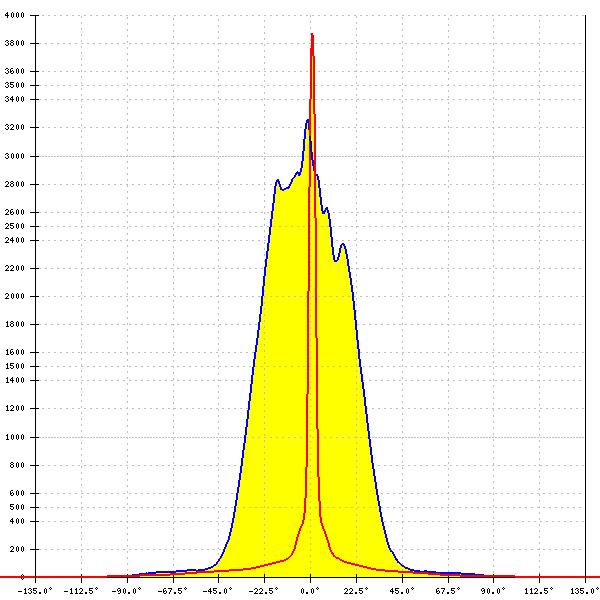

LED: LUXEON TX
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 4°
FWTM: 76° + 9°
Peak intensity: 4.000 cd/lm
Efficiency: 48 %
LEDs/each optic: 1
Light colour: White

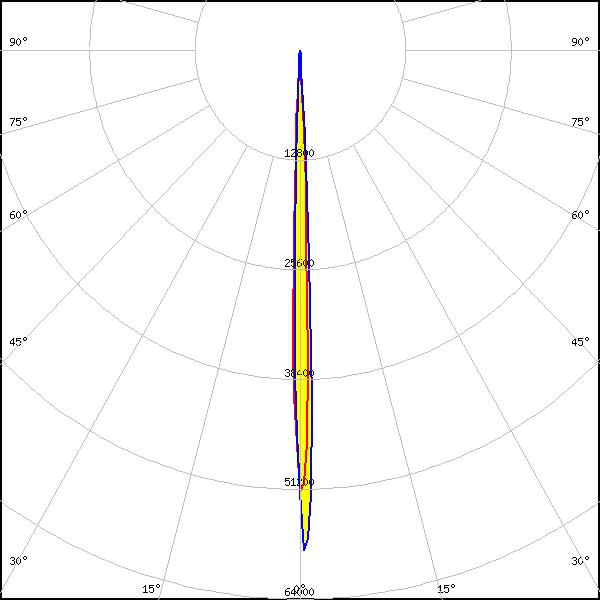

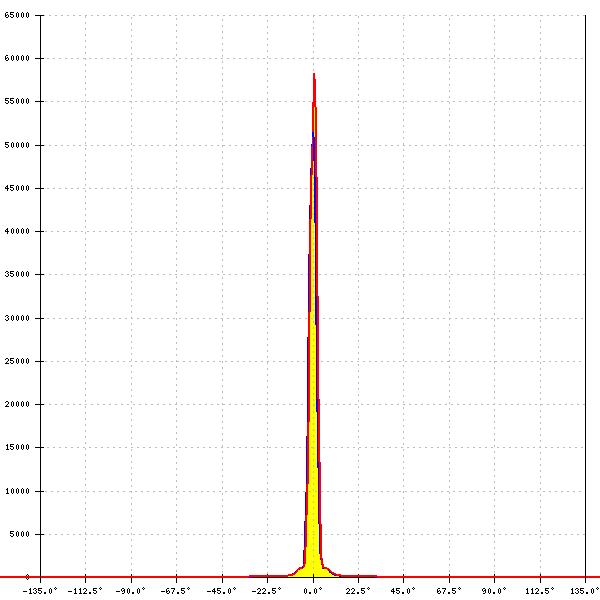

LED: LUXEON TX
FWHM: 4°
FWTM: 7°
Peak intensity: 58.400 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour: White

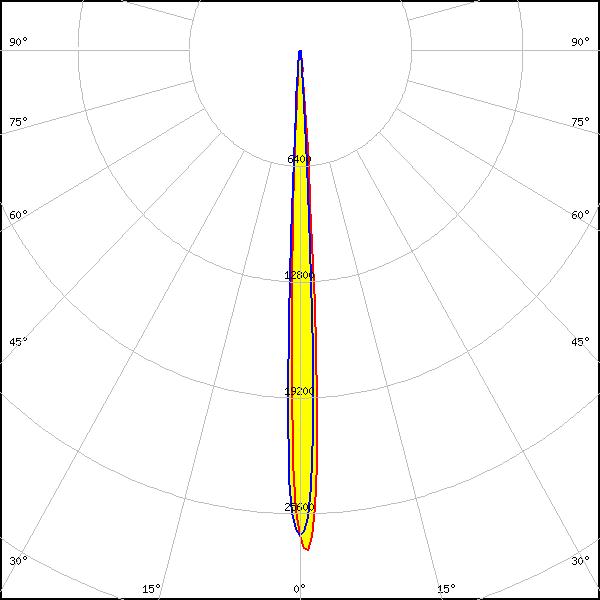

LED: LUXEON V
FWHM: 6°
FWTM: 9°
Peak intensity: 27.700 cd/lm
Efficiency: 53 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON V
Required components:
F16629_LEIA-SUB-O
FWHM: 51° + 6°
FWTM: 77° + 15°
Peak intensity: 2.900 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON V2
FWHM: 5°
FWTM: 10°
Peak intensity: 39.500 cd/lm
Efficiency: 46 %
LEDs/each optic: 1
Light colour: White

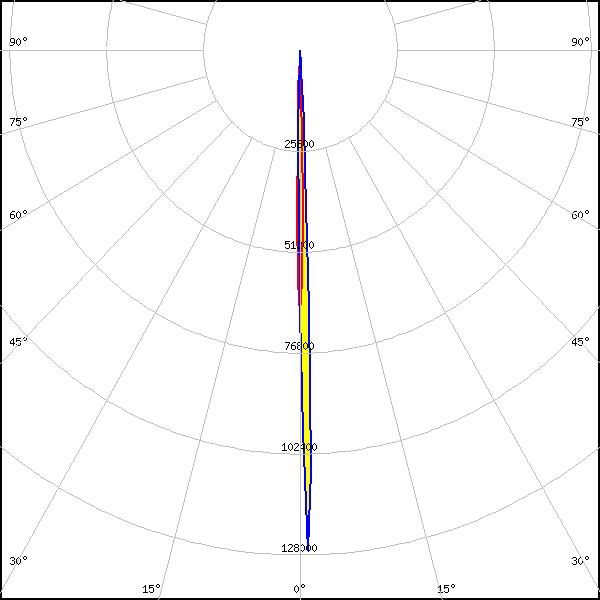

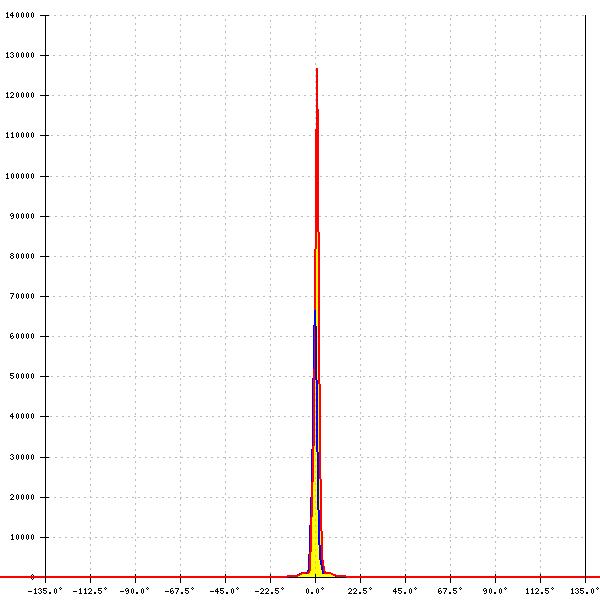

LED: LUXEON Z
FWHM: 2°
FWTM: 5°
Peak intensity: 131.000 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White

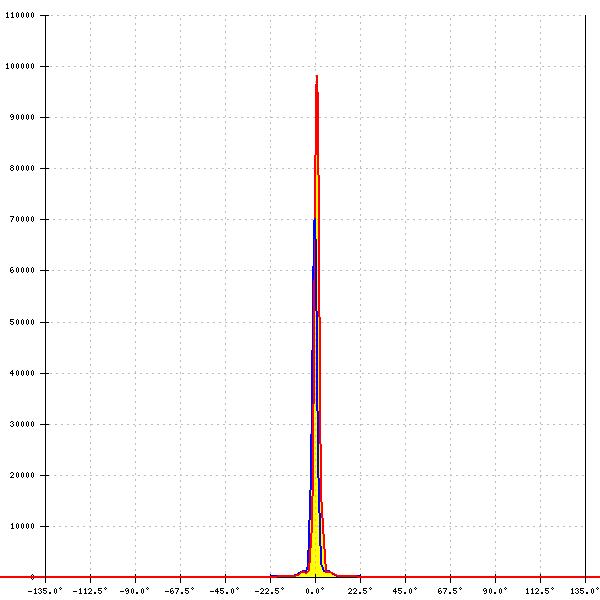

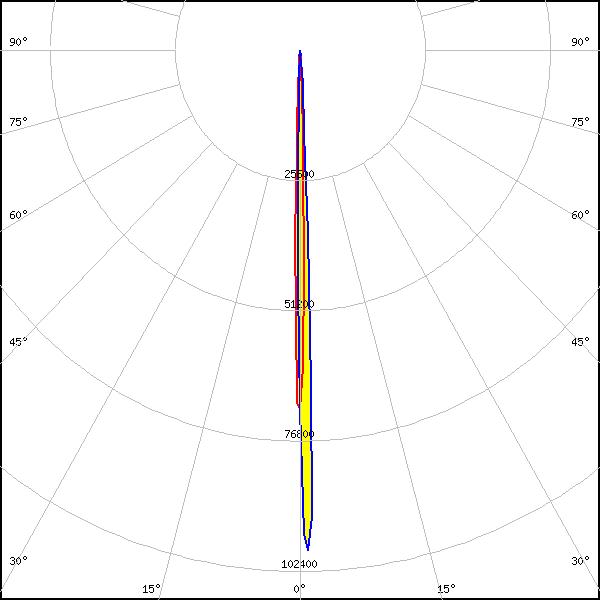

LED: LUXEON Z ES
FWHM: 3°
FWTM: 6°
Peak intensity: 98.200 cd/lm
Efficiency: 55 %
LEDs/each optic: 1
Light colour: White

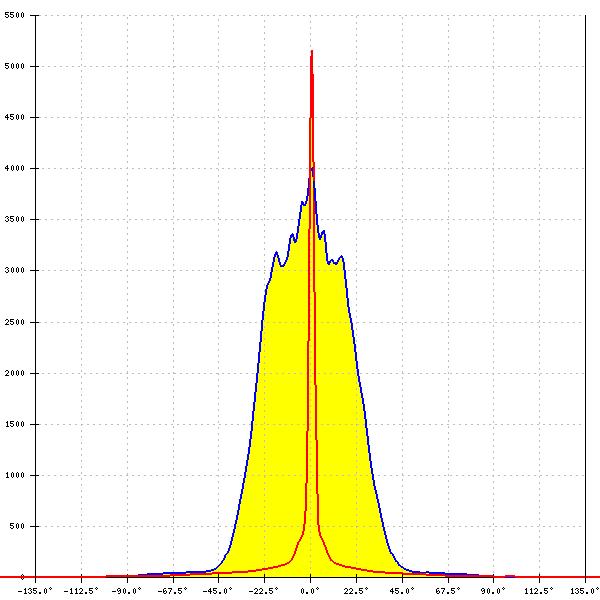

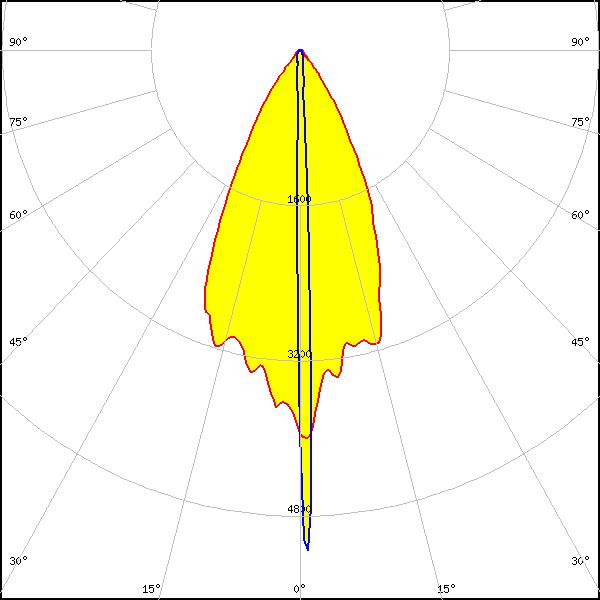

LED: LUXEON Z ES
Required components:
F16629_LEIA-SUB-O
FWHM: 49° + 3°
FWTM: 76° + 7°
Peak intensity: 5.700 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White
LED: SBT-90
FWHM: 6°
FWTM: 11°
Peak intensity: 26.042 cd/lm
Efficiency: 44 %
LEDs/each optic: 1
Light colour: White

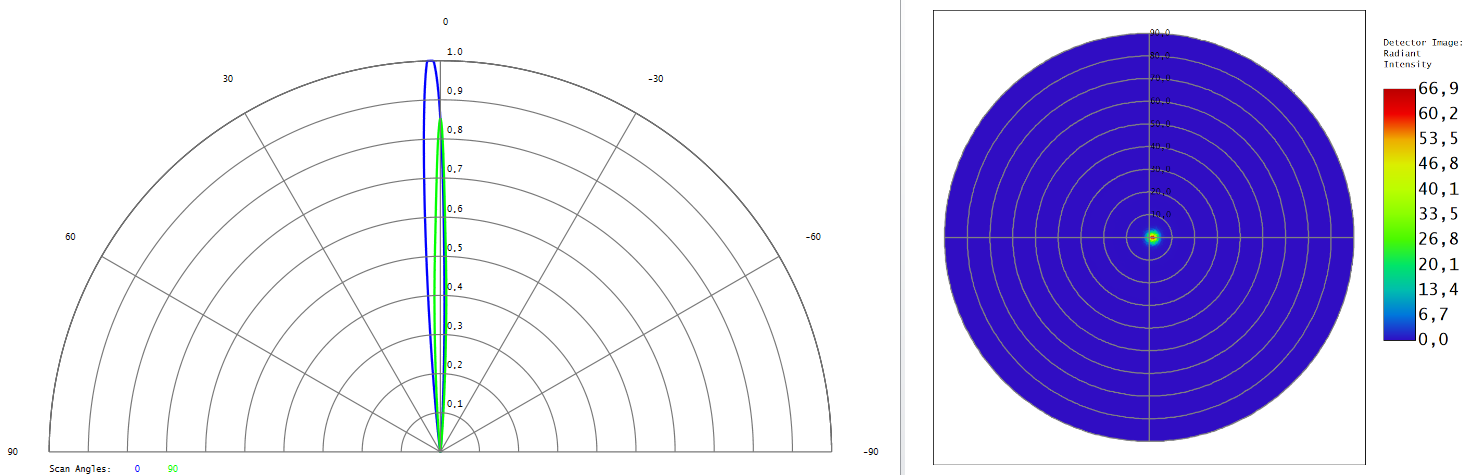

LED: SST-10-B130
FWHM: 4°
FWTM: 9°
Efficiency: 45 %
LEDs/each optic: 1
Light colour: IR
LED: NCSxE17A
FWHM: 4°
FWTM: 8°
Peak intensity: 49.200 cd/lm
Efficiency: 42 %
LEDs/each optic: 1
Light colour: White

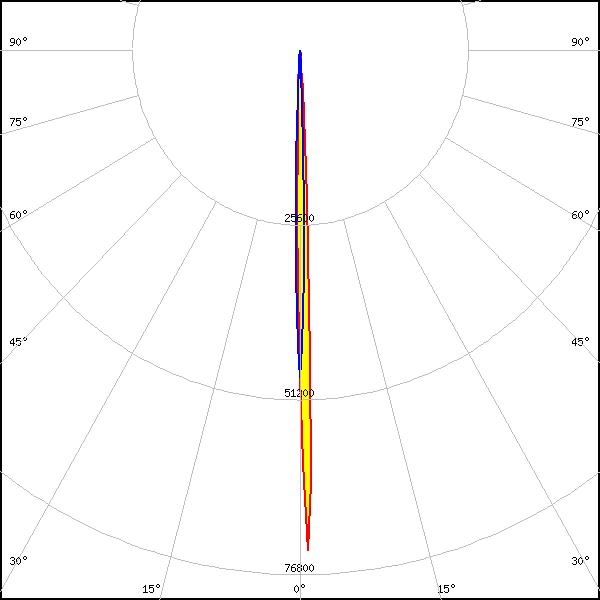

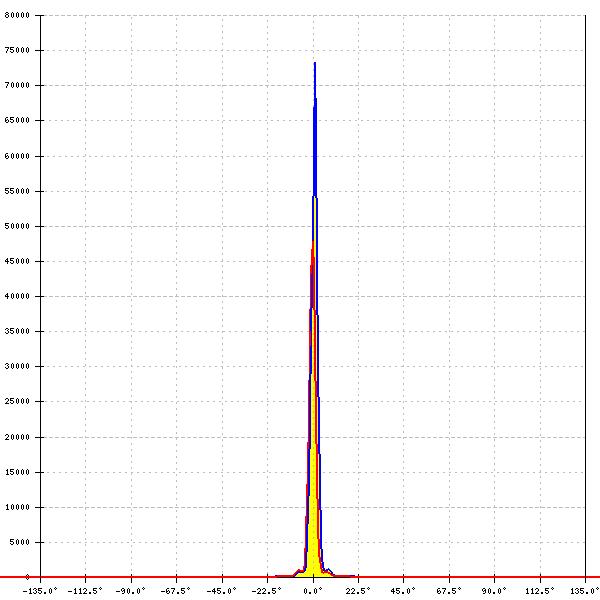

LED: NCSxE17A
FWHM: 3°
FWTM: 6°
Peak intensity: 73.700 cd/lm
Efficiency: 40 %
LEDs/each optic: 1
Light colour: White

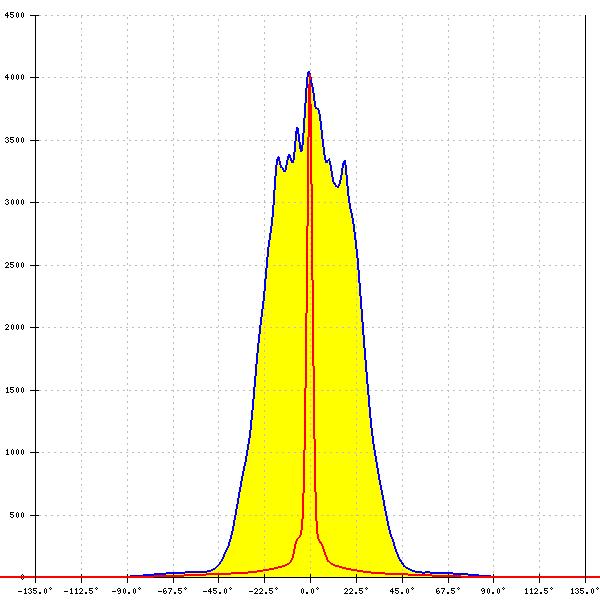

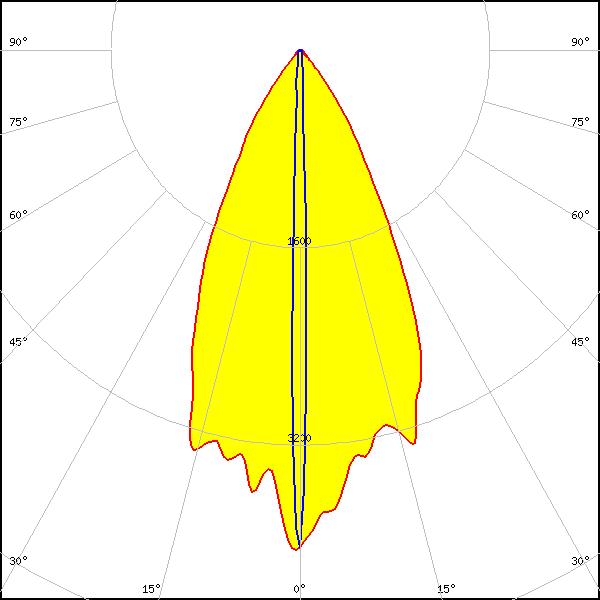

LED: NCSxE17A
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 3°
FWTM: 77° + 7°
Peak intensity: 4.100 cd/lm
Efficiency: 36 %
LEDs/each optic: 1
Light colour: White
LED: NF2x757G
FWHM: 5°
FWTM: 9°
Peak intensity: 52.240 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White

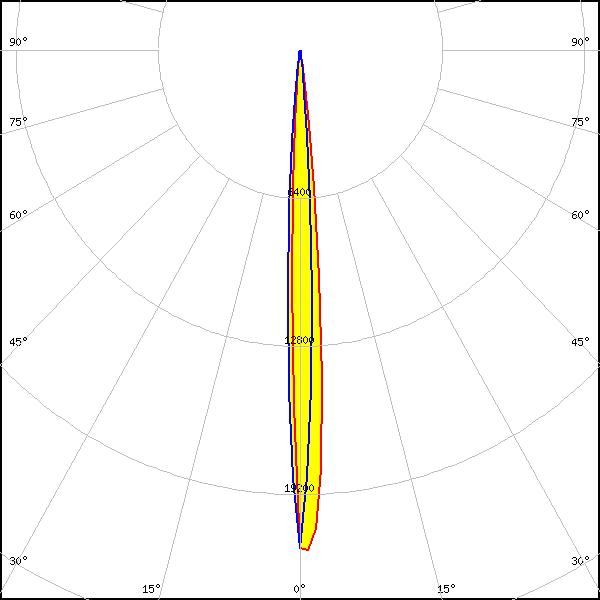

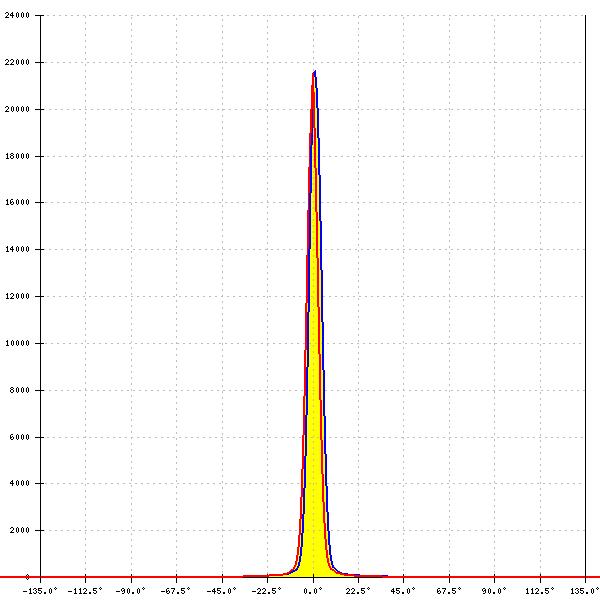

LED: NV4WB35AM
FWHM: 7°
FWTM: 13°
Peak intensity: 21.913 cd/lm
Efficiency: 46 %
LEDs/each optic: 1
Light colour: White

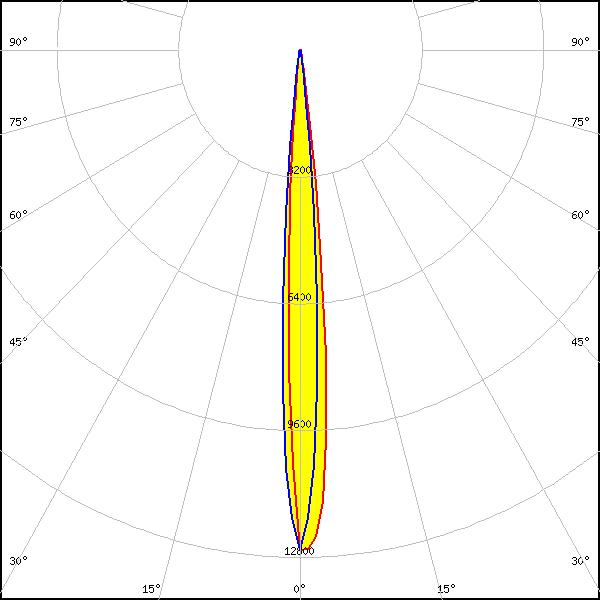

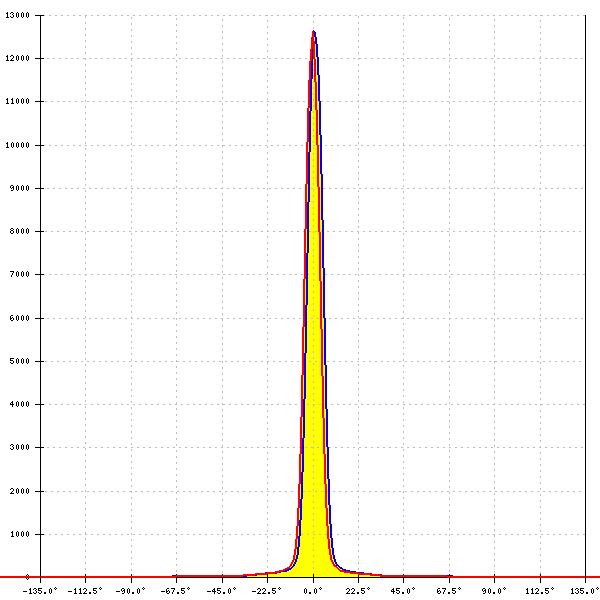

LED: NV4x144A
FWHM: 9°
FWTM: 15°
Peak intensity: 12.621 cd/lm
Efficiency: 44 %
LEDs/each optic: 1
Light colour: White

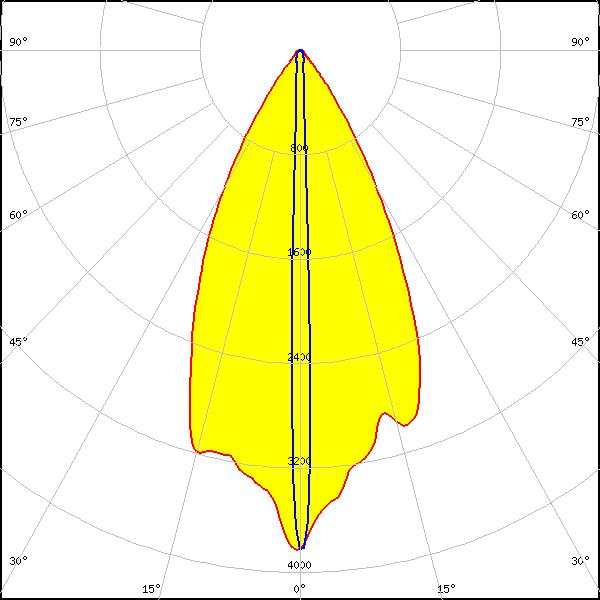

LED: NVSW219F
Required components:
F16629_LEIA-SUB-O
FWHM: 51° + 5°
FWTM: 76° + 10°
Peak intensity: 3.800 cd/lm
Efficiency: 48 %
LEDs/each optic: 1
Light colour: White

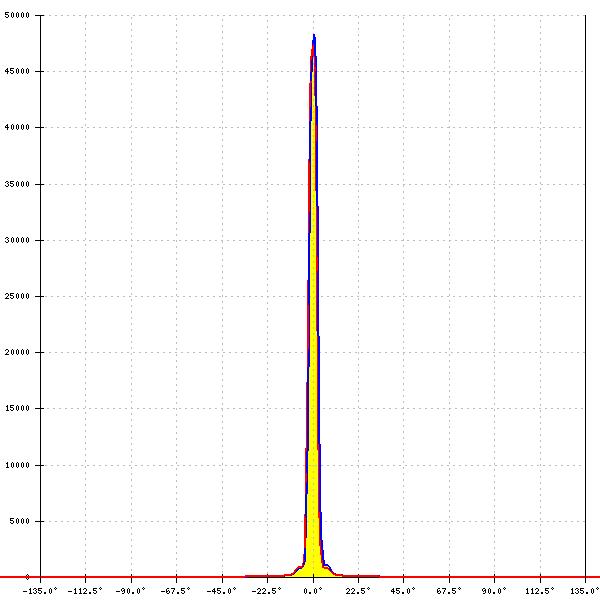

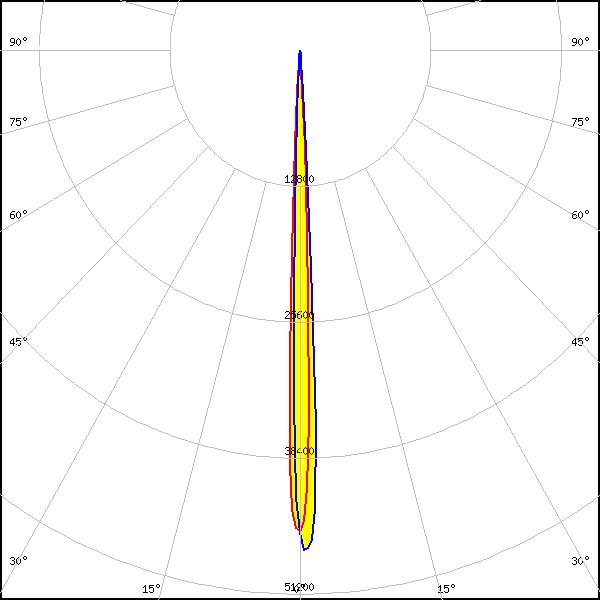

LED: NVSW219F
FWHM: 4°
FWTM: 7°
Peak intensity: 47.500 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White

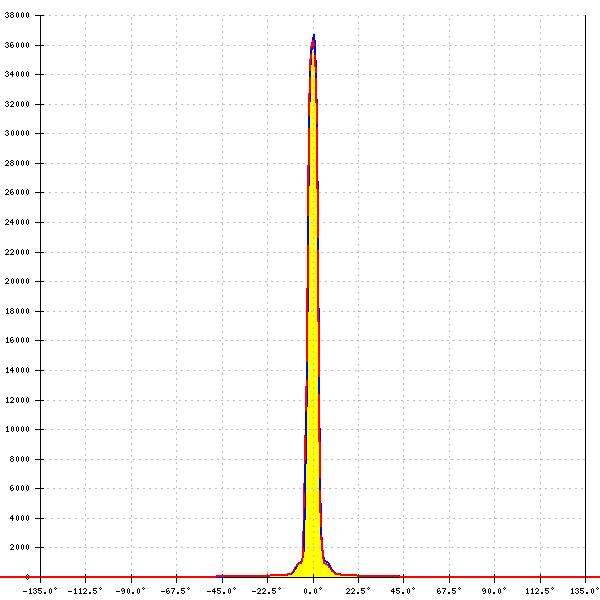

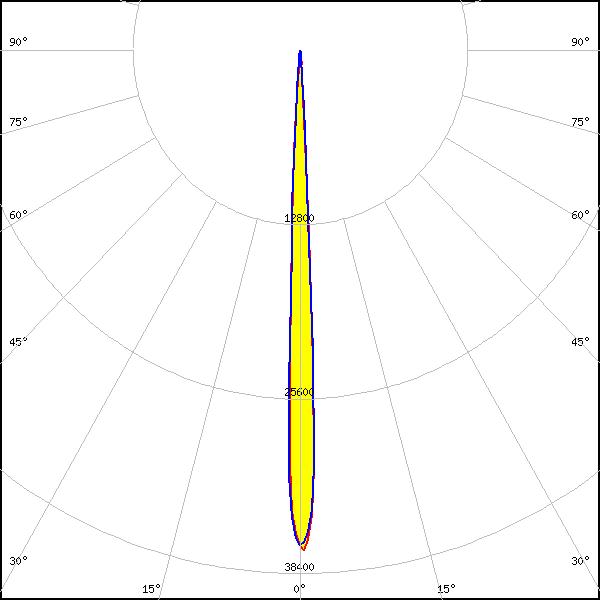

LED: NVSW319B
FWHM: 5°
FWTM: 8°
Peak intensity: 36.800 cd/lm
Efficiency: 52 %
LEDs/each optic: 1
Light colour: White

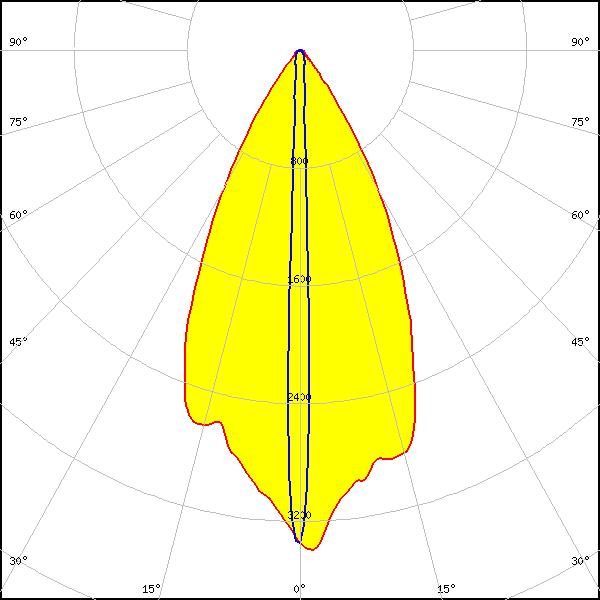

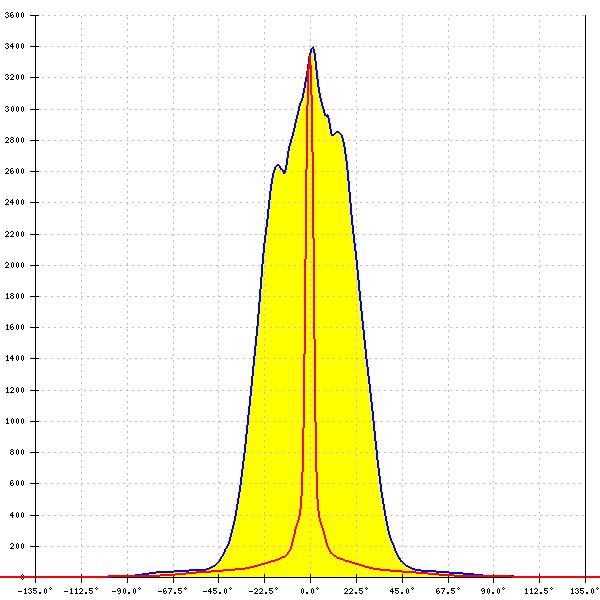

LED: NVSW319B
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 5°
FWTM: 76° + 13°
Peak intensity: 3.400 cd/lm
Efficiency: 46 %
LEDs/each optic: 1
Light colour: White

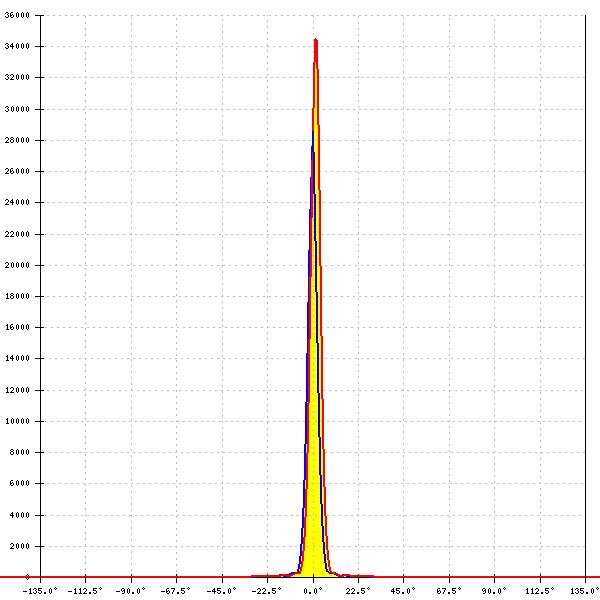

LED: NVSW3x9A
FWHM: 2°
FWTM: 5°
Peak intensity: 34.500 cd/lm
Efficiency: 44 %
LEDs/each optic: 1
Light colour: White
LED: NVSW519A
FWHM: 5°
FWTM: 10°
Peak intensity: 28.355 cd/lm
Efficiency: 45 %
LEDs/each optic: 1
Light colour: White
LED: NVSxE21A
FWHM: 2°
FWTM: 4°
Peak intensity: 34.500 cd/lm
Efficiency: 44 %
LEDs/each optic: 1
Light colour: White

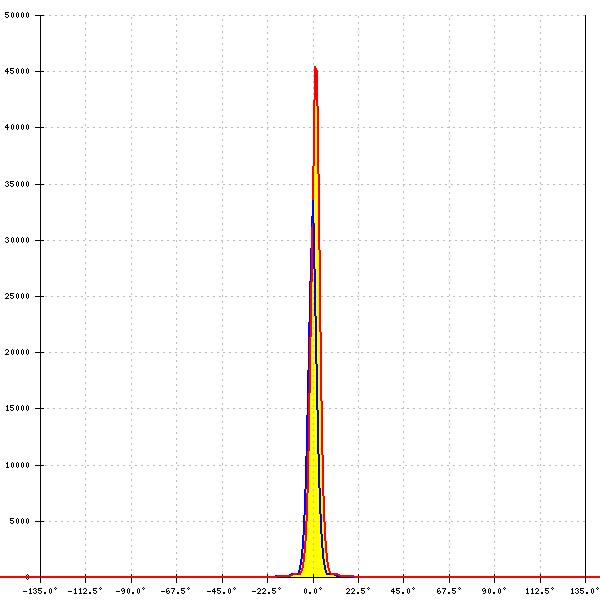

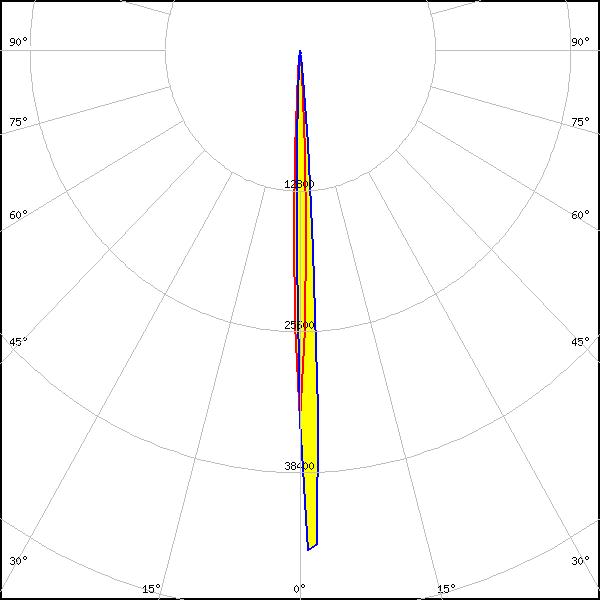

LED: NVSxE21A
FWHM: 3°
FWTM: 7°
Peak intensity: 51.000 cd/lm
Efficiency: 46 %
LEDs/each optic: 1
Light colour: White

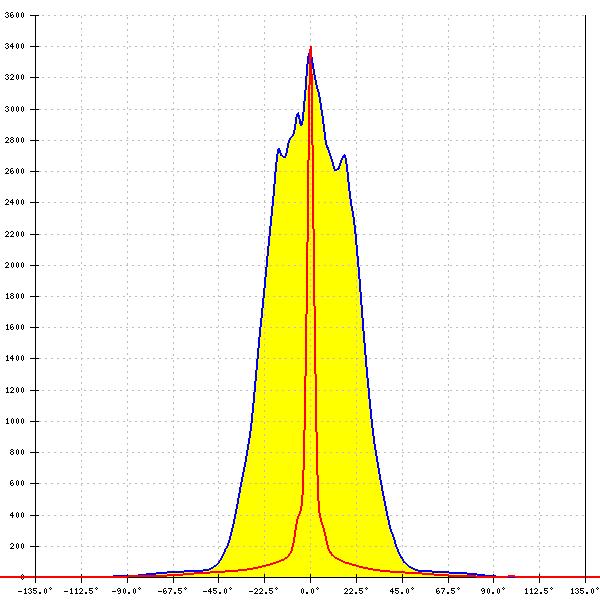

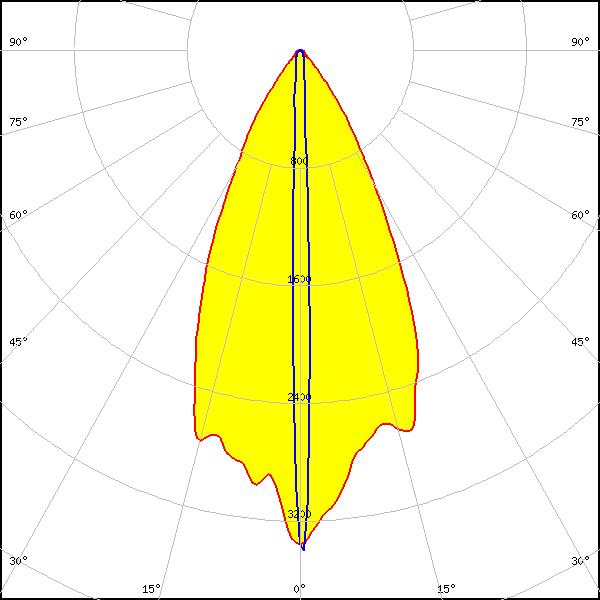

LED: NVSxE21A
Required components:
F16629_LEIA-SUB-O
FWHM: 49° + 4°
FWTM: 77° + 13°
Peak intensity: 3.500 cd/lm
Efficiency: 41 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: 4°
FWTM: 7°
Peak intensity: 48.700 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 4°
FWTM: 76° + 9°
Peak intensity: 3.900 cd/lm
Efficiency: 44 %
LEDs/each optic: 1
Light colour: White

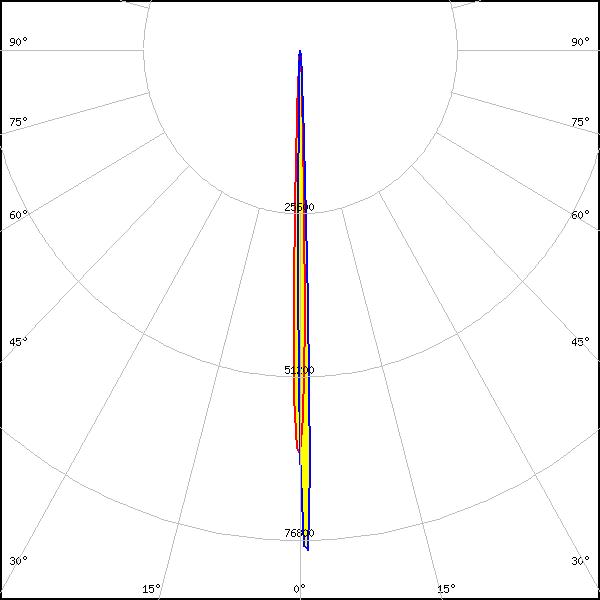

LED: KW CULPM1.TG
FWHM: 3°
FWTM: 5°
Peak intensity: 96.583 cd/lm
Efficiency: 54 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (2W version)
FWHM: 3°
FWTM: 7°
Peak intensity: 62.400 cd/lm
Efficiency: 54 %
LEDs/each optic: 1
Light colour: White

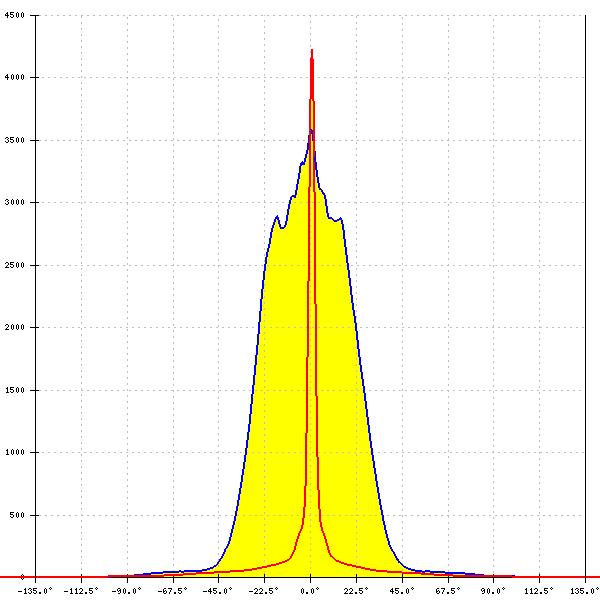

LED: OSCONIQ P 3737 (2W version)
FWHM: 50° + 4°
FWTM: 76° + 9°
Peak intensity: 4.500 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White

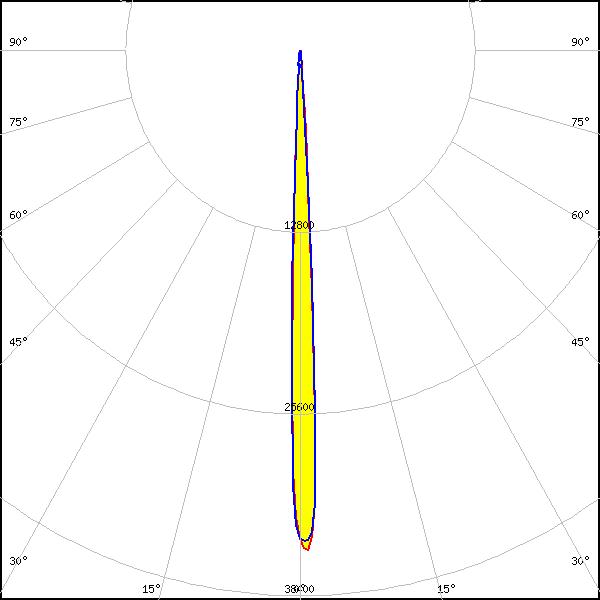

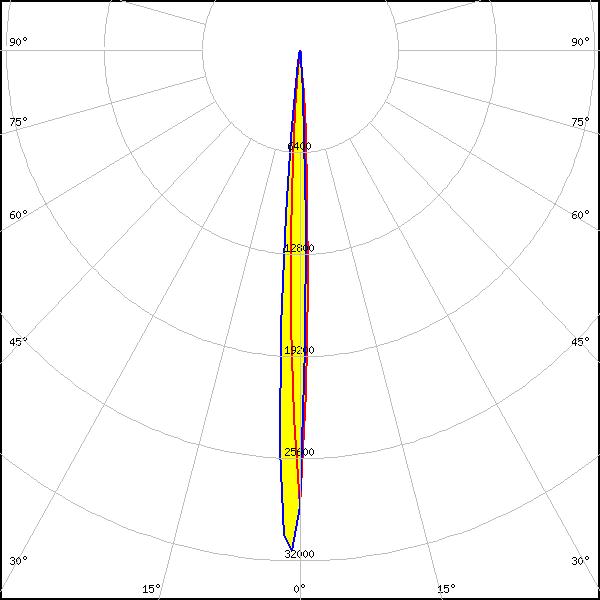

LED: OSCONIQ P 3737 (3W version)
FWHM: 5°
FWTM: 11°
Peak intensity: 31.779 cd/lm
Efficiency: 47 %
LEDs/each optic: 1
Light colour: White

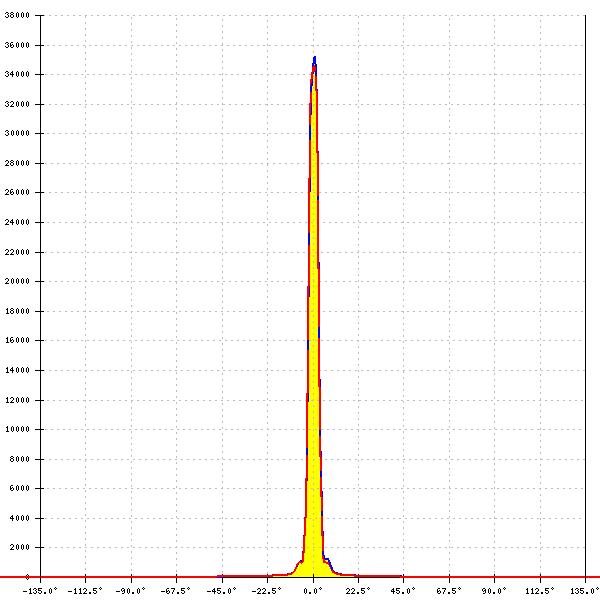

LED: OSCONIQ P 3737 (3W version)
FWHM: 5°
FWTM: 8°
Peak intensity: 36.000 cd/lm
Efficiency: 53 %
LEDs/each optic: 1
Light colour: White

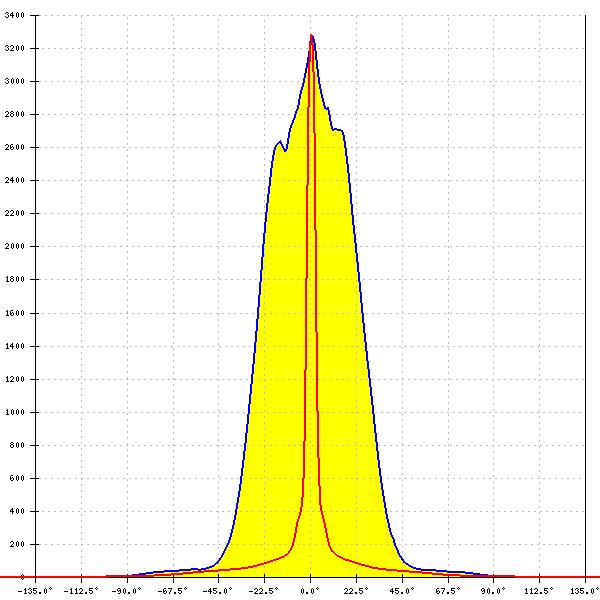

LED: OSCONIQ P 3737 (3W version)
Required components:
F16629_LEIA-SUB-O
FWHM: 51° + 5°
FWTM: 76° + 14°
Peak intensity: 3.400 cd/lm
Efficiency: 48 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Black Flat
FWHM: 5°
FWTM: 11°
Peak intensity: 40.350 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White

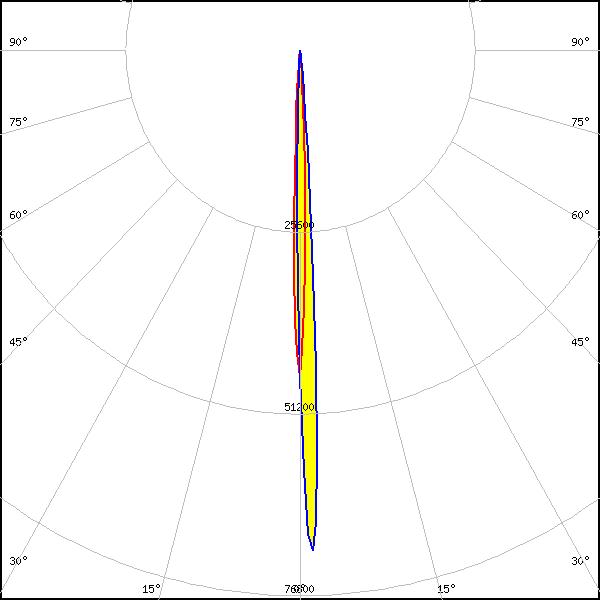

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 4°
FWTM: 9°
Peak intensity: 55.000 cd/lm
Efficiency: 47 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: 4°
FWTM: 7°
Peak intensity: 64.800 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White

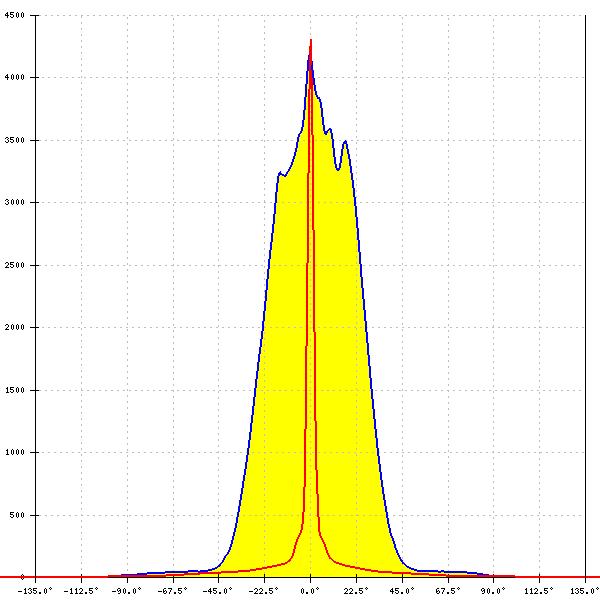

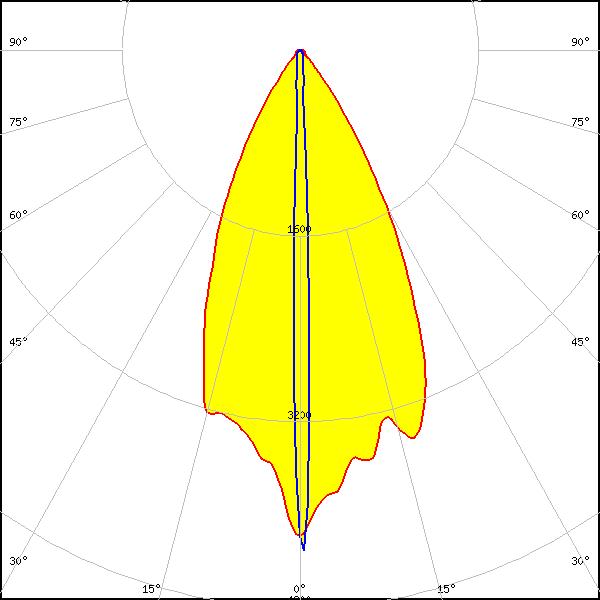

LED: OSLON Square CSSRM2/CSSRM3
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 4°
FWTM: 75° + 8°
Peak intensity: 4.400 cd/lm
Efficiency: 46 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square EC
FWHM: 4°
FWTM: 8°
Peak intensity: 68.000 cd/lm
Efficiency: 57 %
LEDs/each optic: 1
Light colour: White

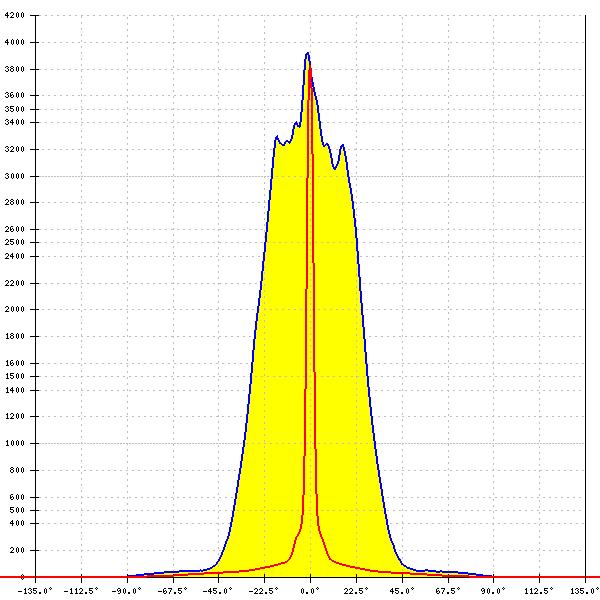

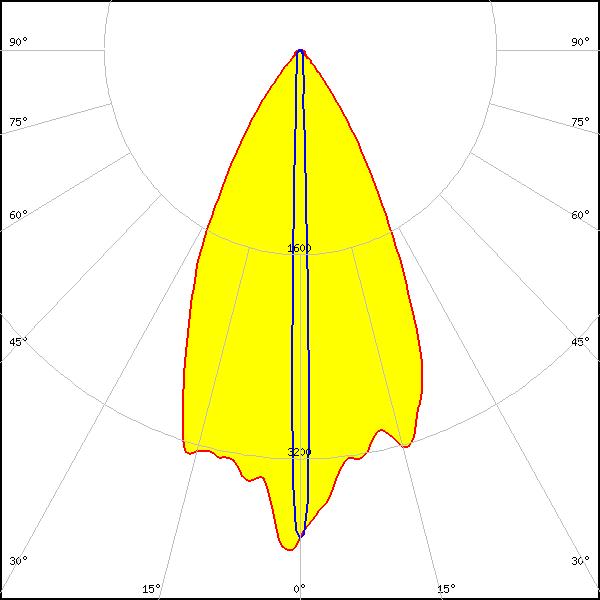

LED: OSLON Square PC
Required components:
F16629_LEIA-SUB-O
FWHM: 52° + 4°
FWTM: 77° + 9°
Peak intensity: 3.900 cd/lm
Efficiency: 42 %
LEDs/each optic: 1
Light colour: White
LED: OSLON SSL 150
FWHM: 5°
FWTM: 10°
Peak intensity: 31.610 cd/lm
Efficiency: 41 %
LEDs/each optic: 1
Light colour: Red

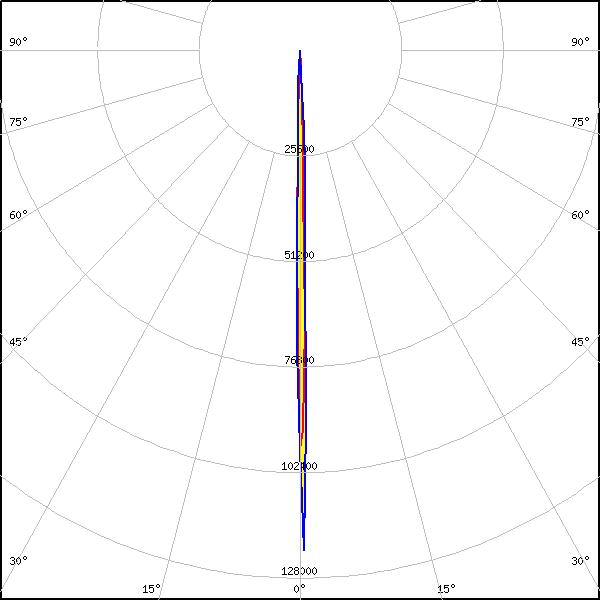

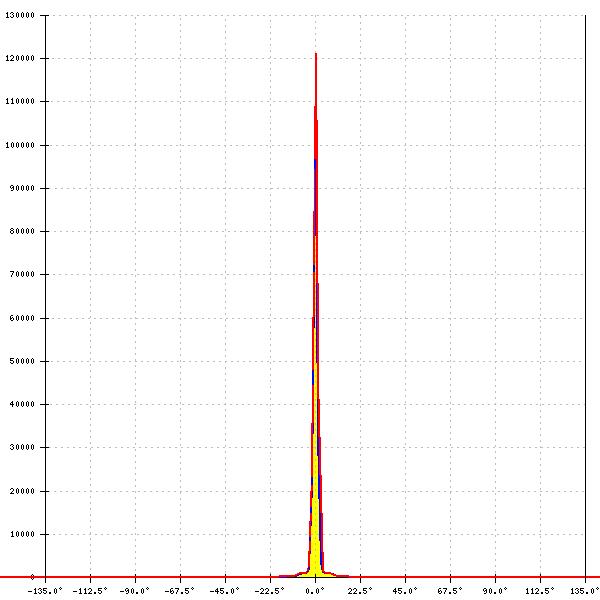

LED: OSLON SSL 150
FWHM: 2°
FWTM: 5°
Peak intensity: 122.000 cd/lm
Efficiency: 46 %
LEDs/each optic: 1
Light colour: White

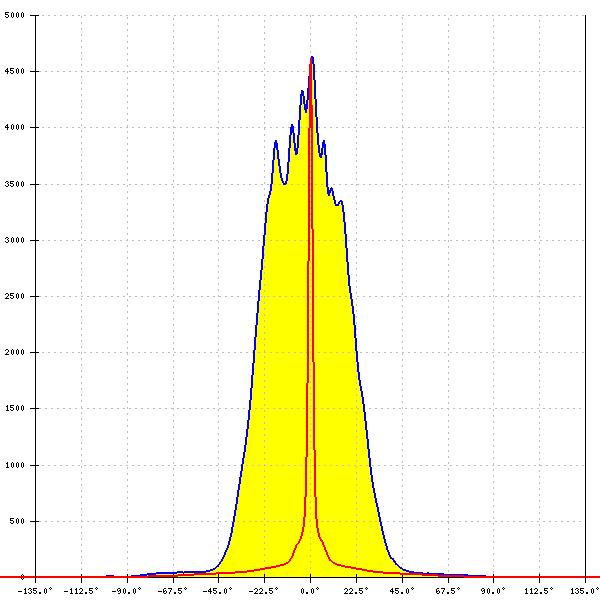

LED: OSLON SSL 150
Required components:
F16629_LEIA-SUB-O
FWHM: 47° + 3°
FWTM: 73° + 7°
Peak intensity: 4.900 cd/lm
Efficiency: 40 %
LEDs/each optic: 1
Light colour: White

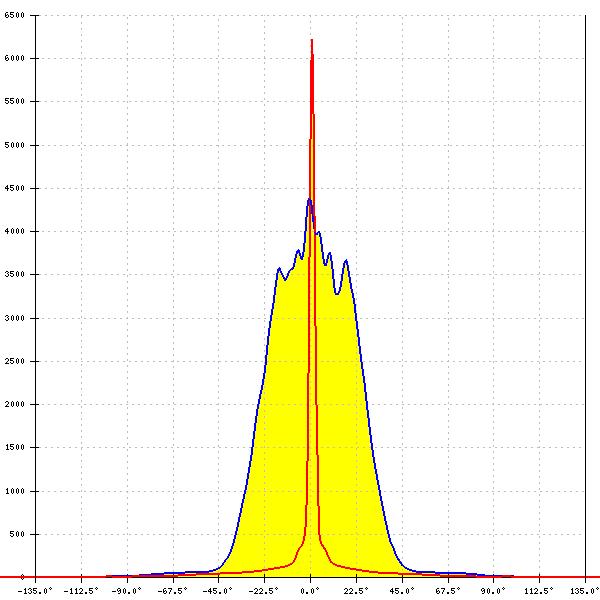

LED: OSLON SSL 80
Required components:
F16629_LEIA-SUB-O
FWHM: 51° + 3°
FWTM: 77° + 7°
Peak intensity: 6.500 cd/lm
Efficiency: 56 %
LEDs/each optic: 1
Light colour: White

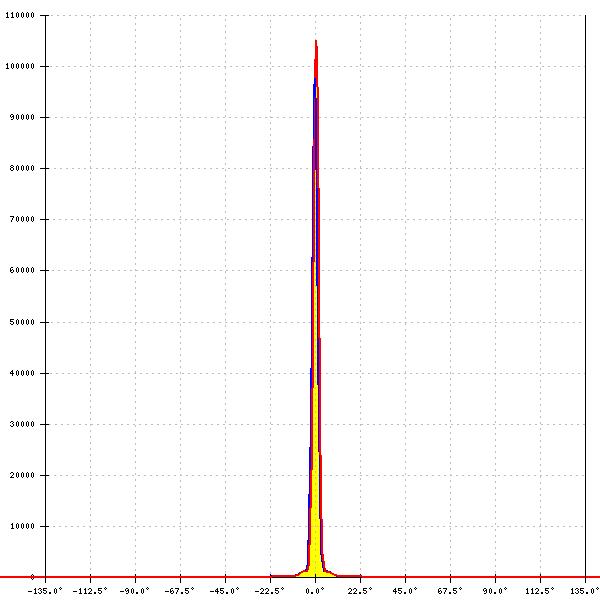

LED: OSLON SSL 80
FWHM: 3°
FWTM: 6°
Peak intensity: 106.700 cd/lm
Efficiency: 62 %
LEDs/each optic: 1
Light colour: White
LED: OSTAR Projection Compact (Kx.CSLNM1.xx)
FWHM: 5°
FWTM: 11°
Peak intensity: 46.091 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

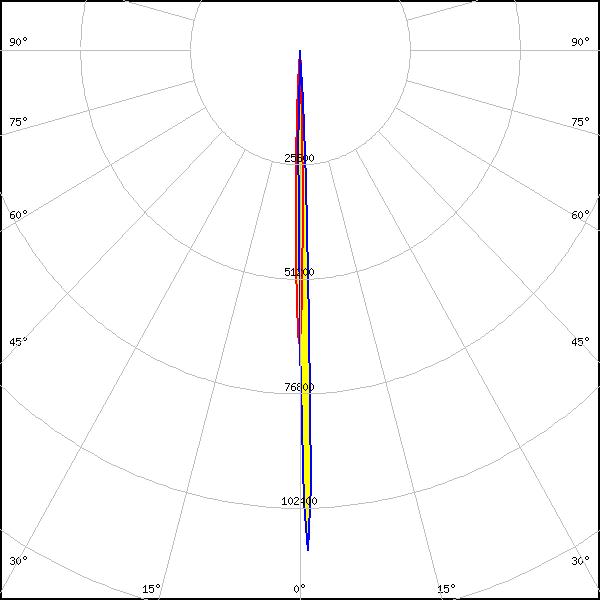

LED: OSTAR Projection Compact (Kx.CSLNM1.xx)
FWHM: 3°
FWTM: 5°
Peak intensity: 120.842 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White
LED: OSTAR Stage (S2WM)
Required components:
F16629_LEIA-SUB-O
FWHM: 32° + 4°
FWTM: 56° + 12°
Peak intensity: 4.851 cd/lm
Efficiency: 47 %
LEDs/each optic: 1
Light colour: White
LED: OSTAR Stage (S2WM)
FWHM: 6°
FWTM: 11°
Peak intensity: 35.219 cd/lm
Efficiency: 49 %
LEDs/each optic: 1
Light colour: White

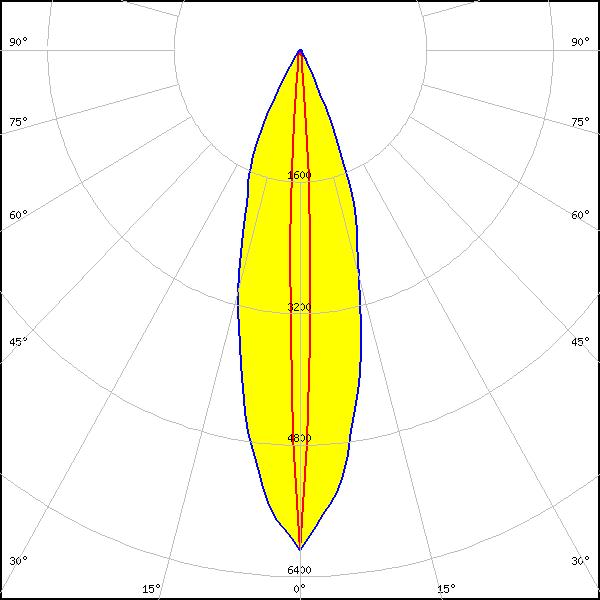

LED: SFH 4715AS
Required components:
F16629_LEIA-SUB-O
FWHM: 29° + 4°
FWTM: 56° + 12°
Peak intensity: 6.079 cd/lm
Efficiency: 53 %
LEDs/each optic: 1
Light colour: White
LED: SFH 4715AS
FWHM: 4°
FWTM: 9°
Efficiency: 47 %
LEDs/each optic: 1
Light colour: IR
LED: SFH 4716AS
FWHM: 5°
FWTM: 9°
Efficiency: 36 %
LEDs/each optic: 1
Light colour: IR

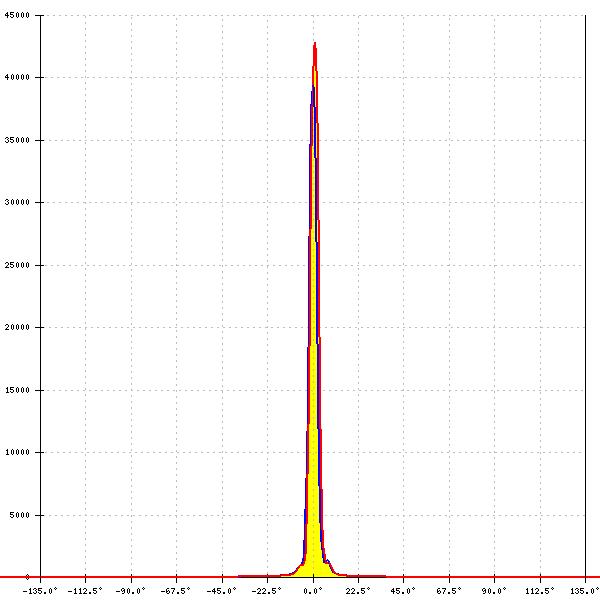

LED: LH231B
FWHM: 4°
FWTM: 7°
Peak intensity: 43.600 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White

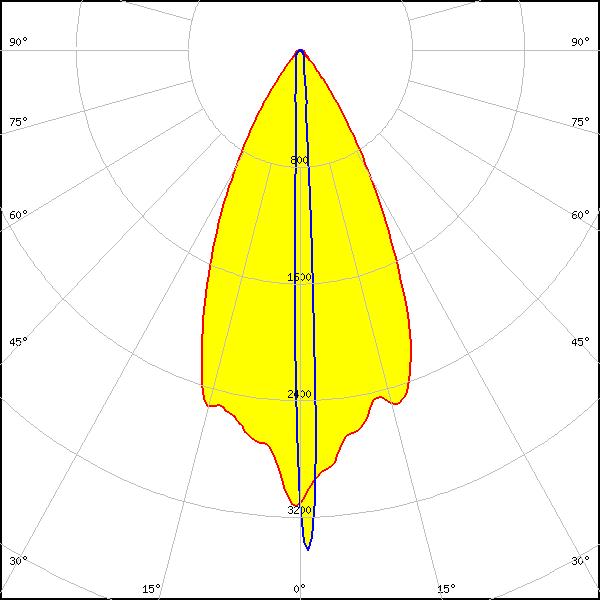

LED: LH231B
Required components:
F16629_LEIA-SUB-O
FWHM: 50° + 4°
FWTM: 76° + 13°
Peak intensity: 3.500 cd/lm
Efficiency: 46 %
LEDs/each optic: 1
Light colour: White

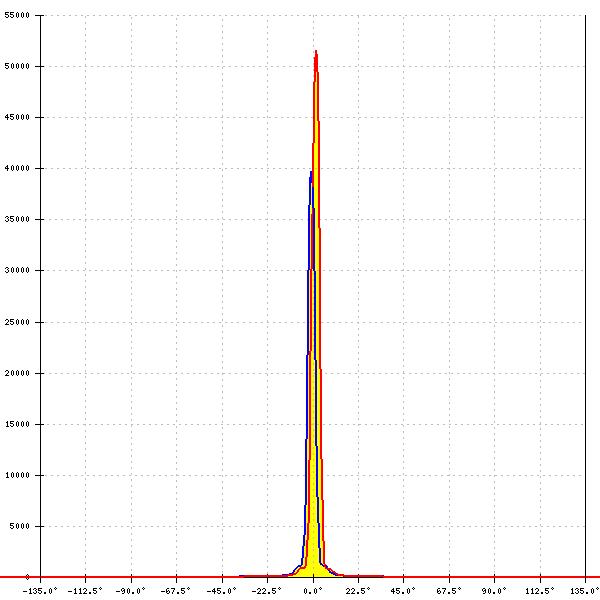

LED: LH351B
FWHM: 4°
FWTM: 7°
Peak intensity: 54.400 cd/lm
Efficiency: 55 %
LEDs/each optic: 1
Light colour: White

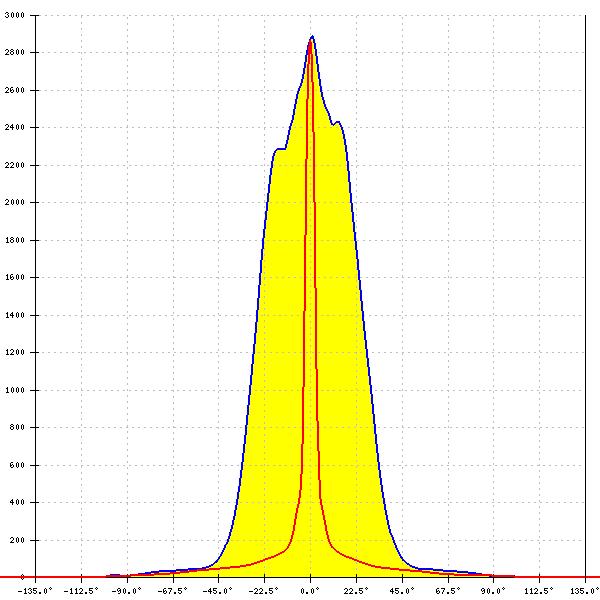

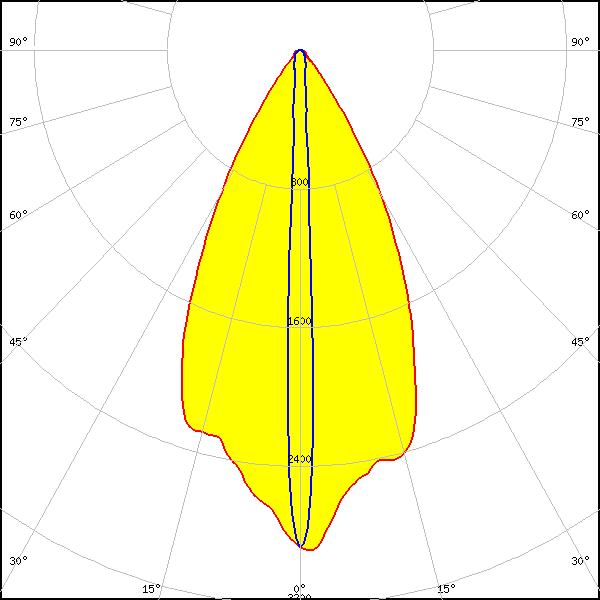

LED: LH351B
Required components:
F16629_LEIA-SUB-O
FWHM: 52° + 4°
FWTM: 77° + 10°
Peak intensity: 4.300 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White
LED: LH351C
FWHM: 50° + 5°
FWTM: 76° + 12°
Peak intensity: 3.900 cd/lm
Efficiency: 52 %
LEDs/each optic: 1
Light colour: White

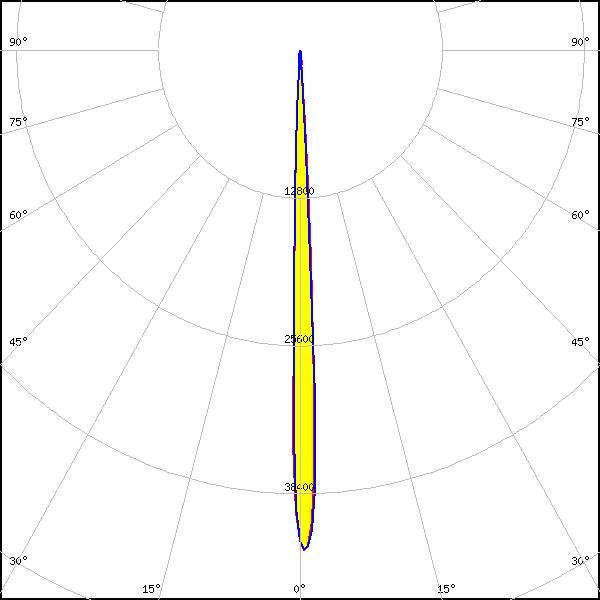

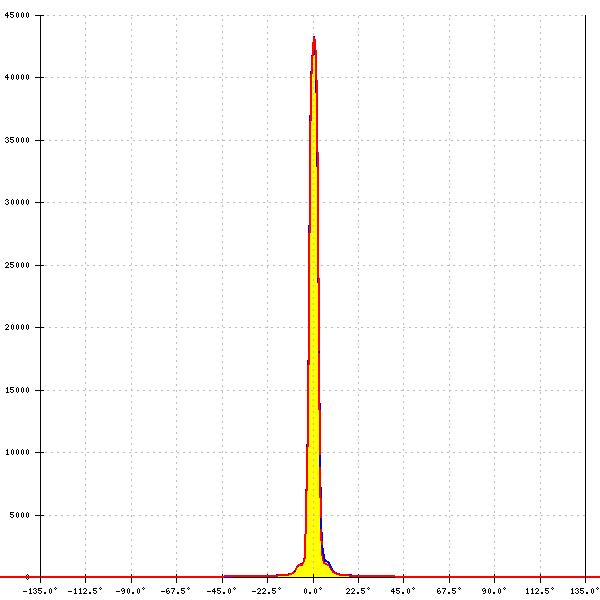

LED: LH351C
FWHM: 4°
FWTM: 7°
Peak intensity: 46.100 cd/lm
Efficiency: 57 %
LEDs/each optic: 1
Light colour: White

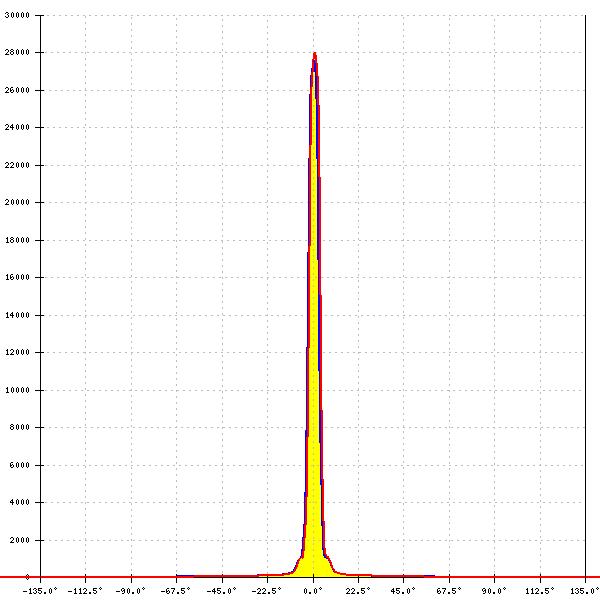

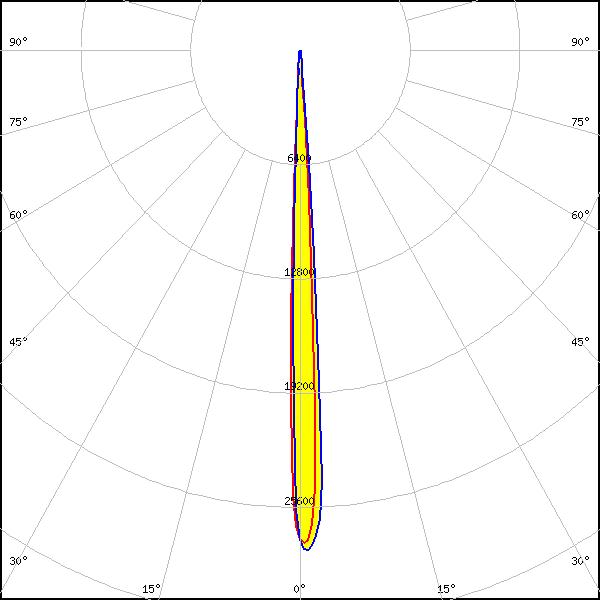

LED: LH351D
FWHM: 5°
FWTM: 9°
Peak intensity: 29.000 cd/lm
Efficiency: 54 %
LEDs/each optic: 1
Light colour: White

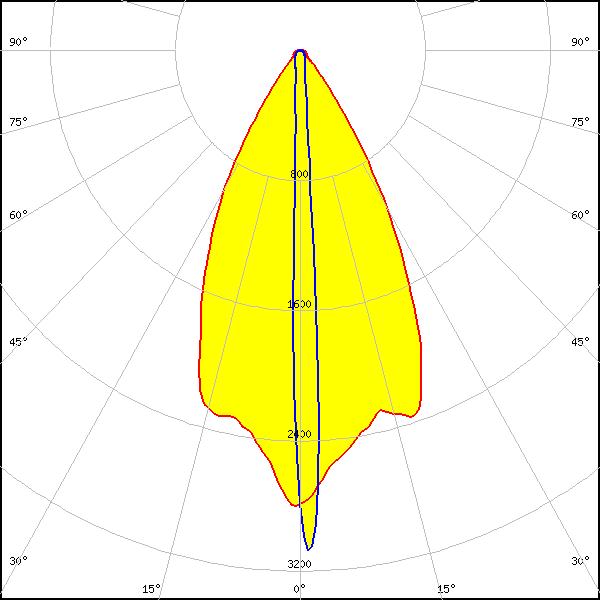

LED: LH351D
Required components:
F16629_LEIA-SUB-O
FWHM: 53° + 5°
FWTM: 77° + 14°
Peak intensity: 3.100 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White

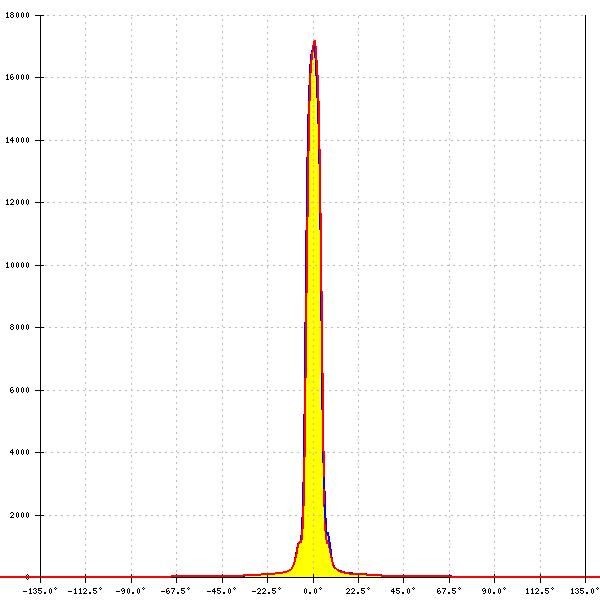

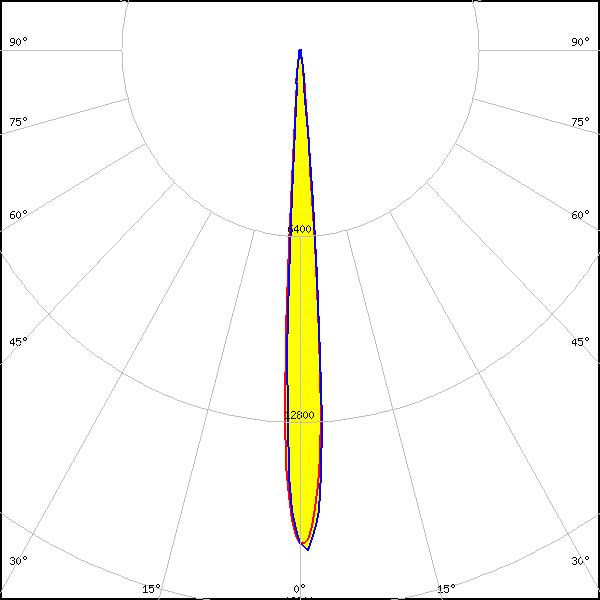

LED: LH508A
FWHM: 7°
FWTM: 11°
Peak intensity: 17.300 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White

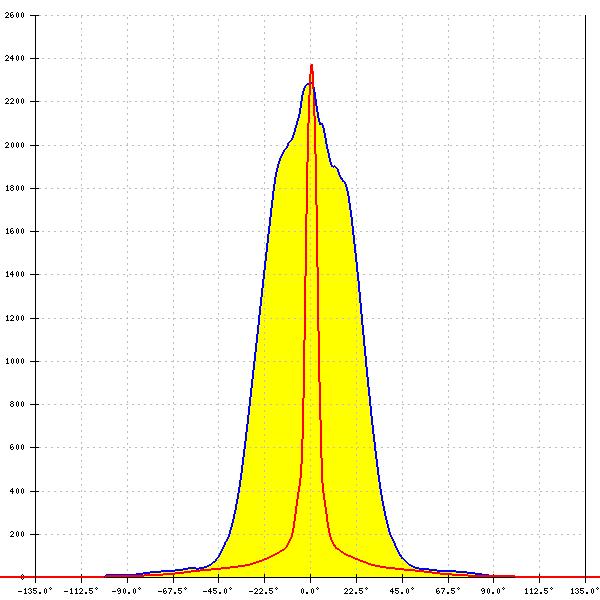

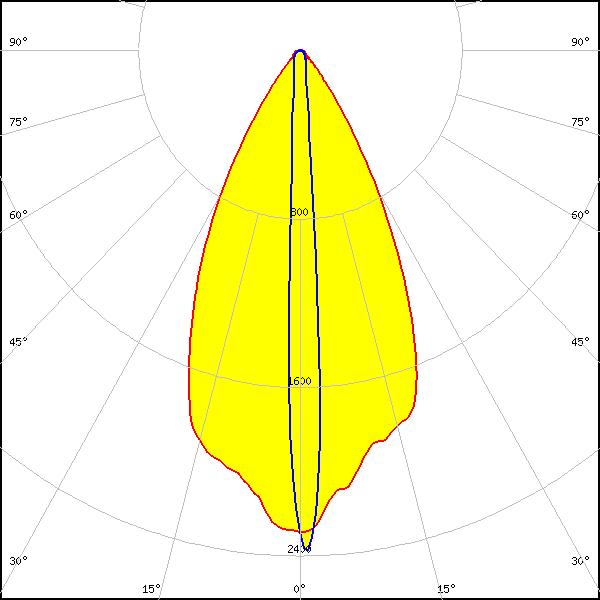

LED: LH508A
Required components:
F16629_LEIA-SUB-O
FWHM: 52° + 7°
FWTM: 78° + 17°
Peak intensity: 2.400 cd/lm
Efficiency: 45 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
