FP10997_LISA2-WW-PIN

Print

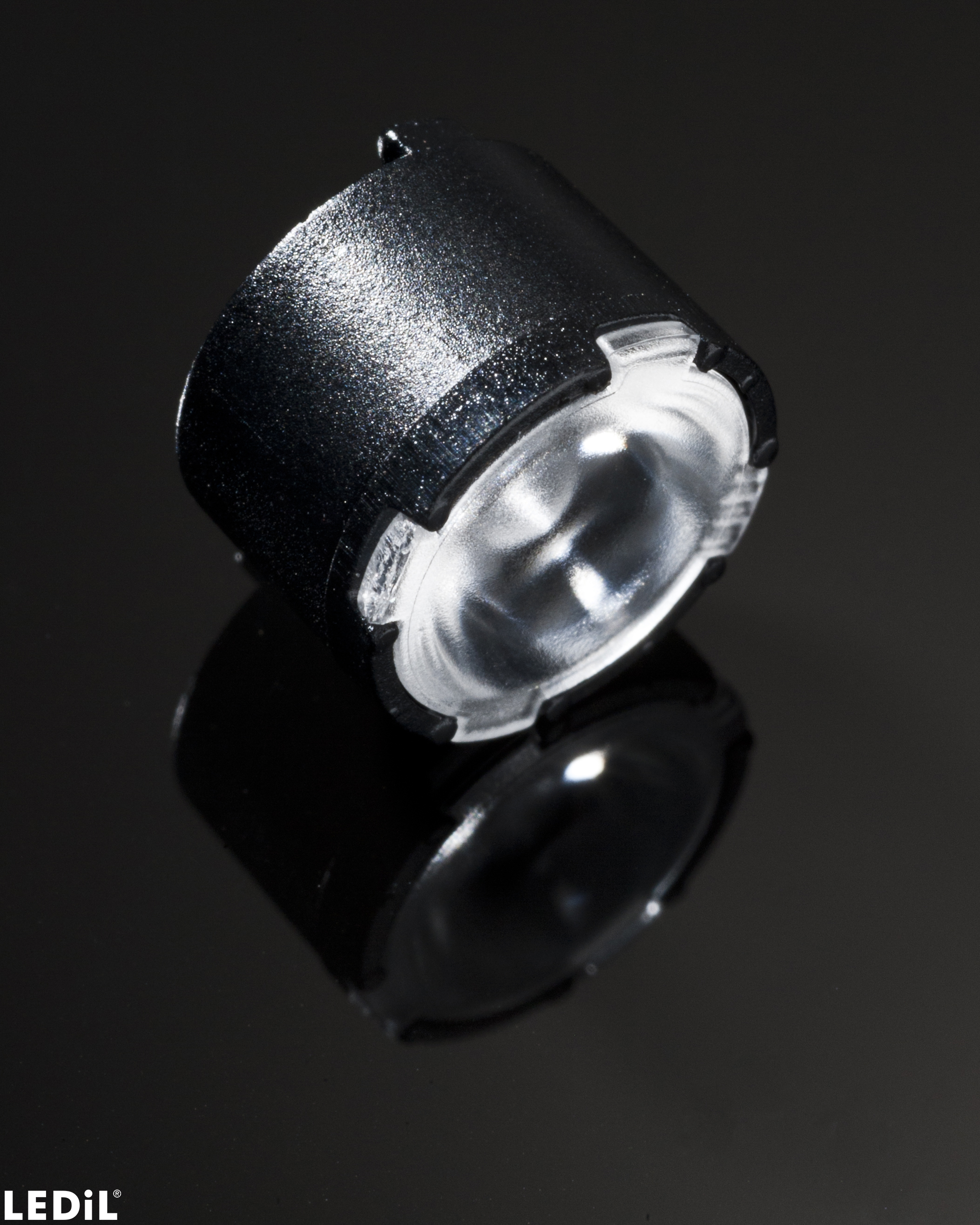

~45° wide beam. 7.0 mm high variant with location pin installation.

Specification
  • Dimensions:
    10 mm
  • Height:
    7.0 mm
  • Fastening:
    glue, pin
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials
  • LISA2-WW, Single lens, PMMA
  • LISA2-HLD-PIN, Holder, PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    2000 pcs
  • Box size:
    310 x 230 x 60 mm
  • Box weight:
    1.4 kg
  • MPQ:
    100 pcs
  • MOQ:
    300 pcs
  • MOQ size:
    230 x 160 x 30 mm
  • MOQ weight:
    0.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FP10997_LISA2-WW-PIN

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

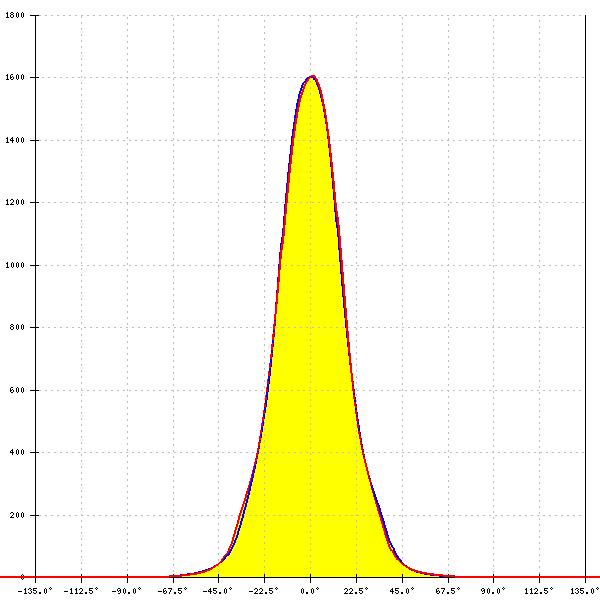

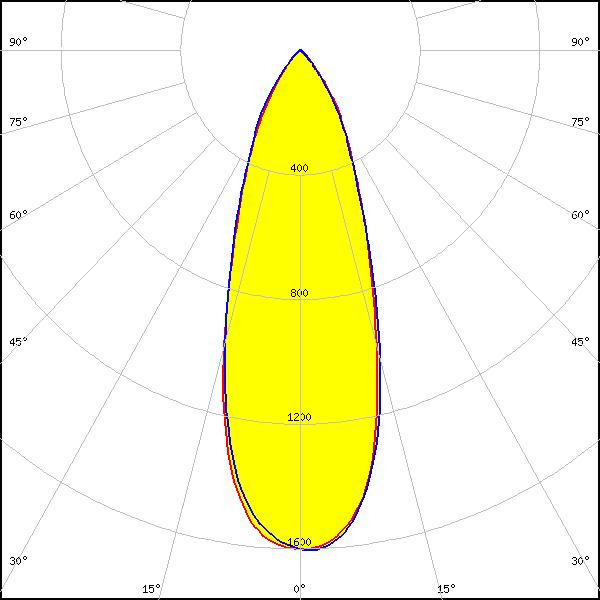

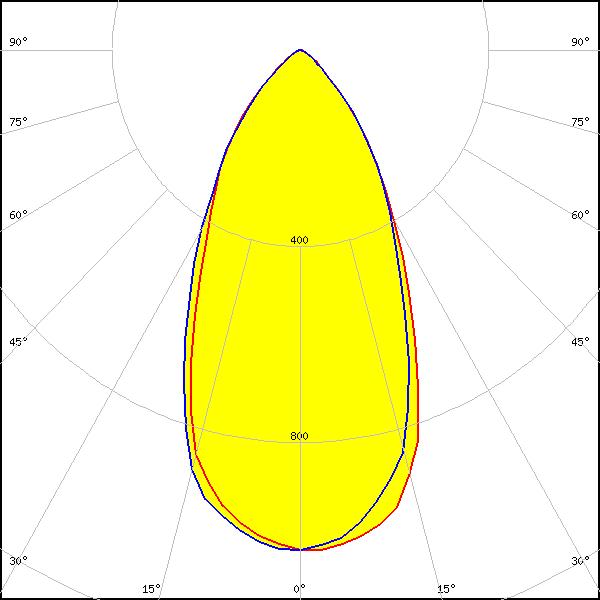

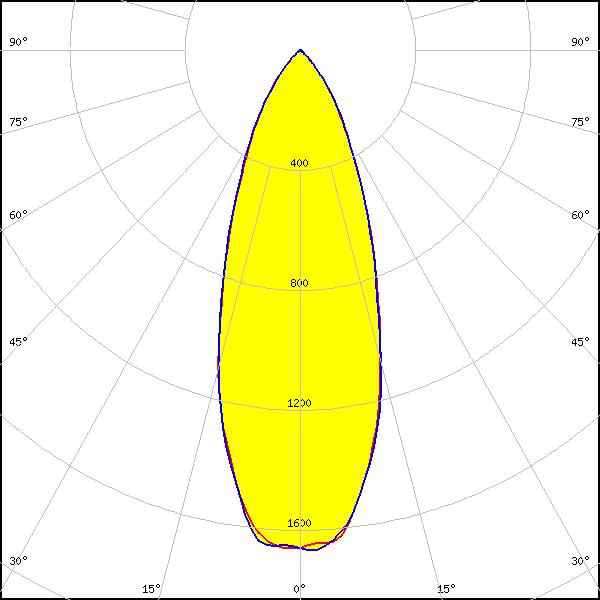

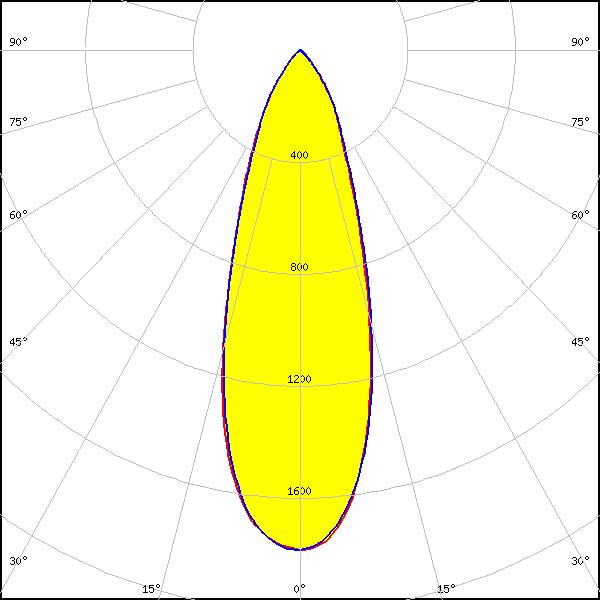

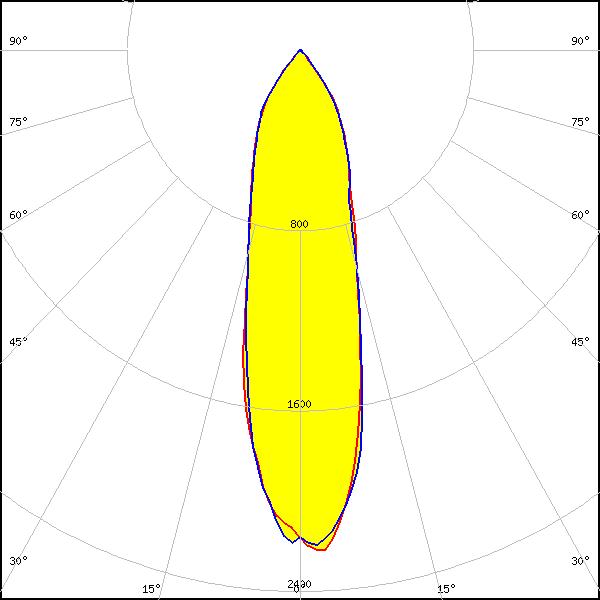

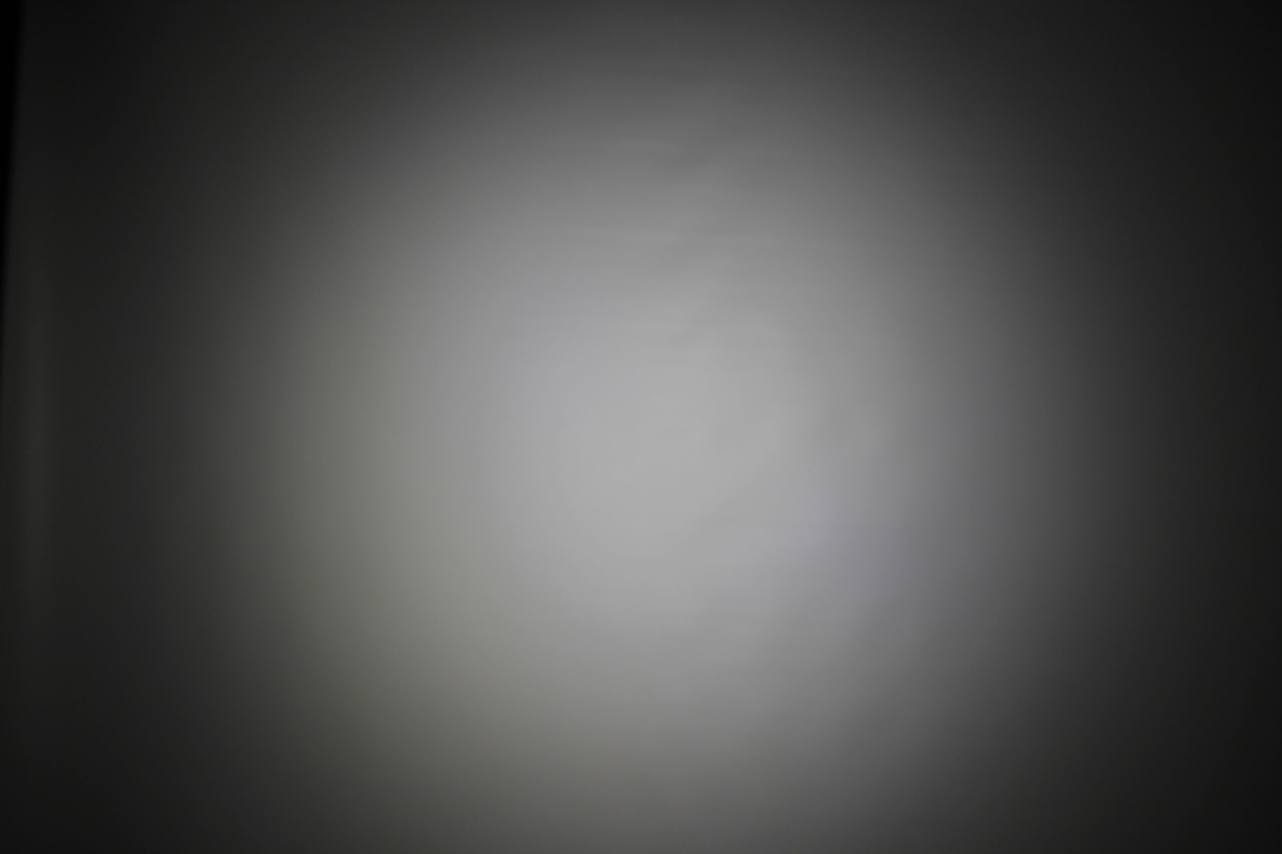

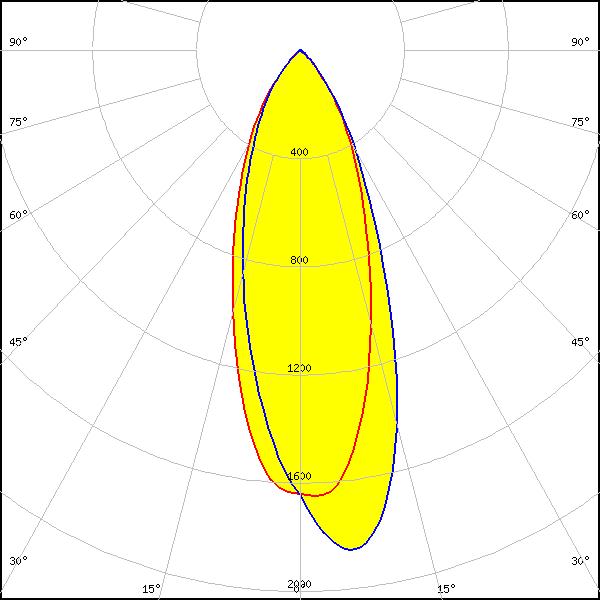

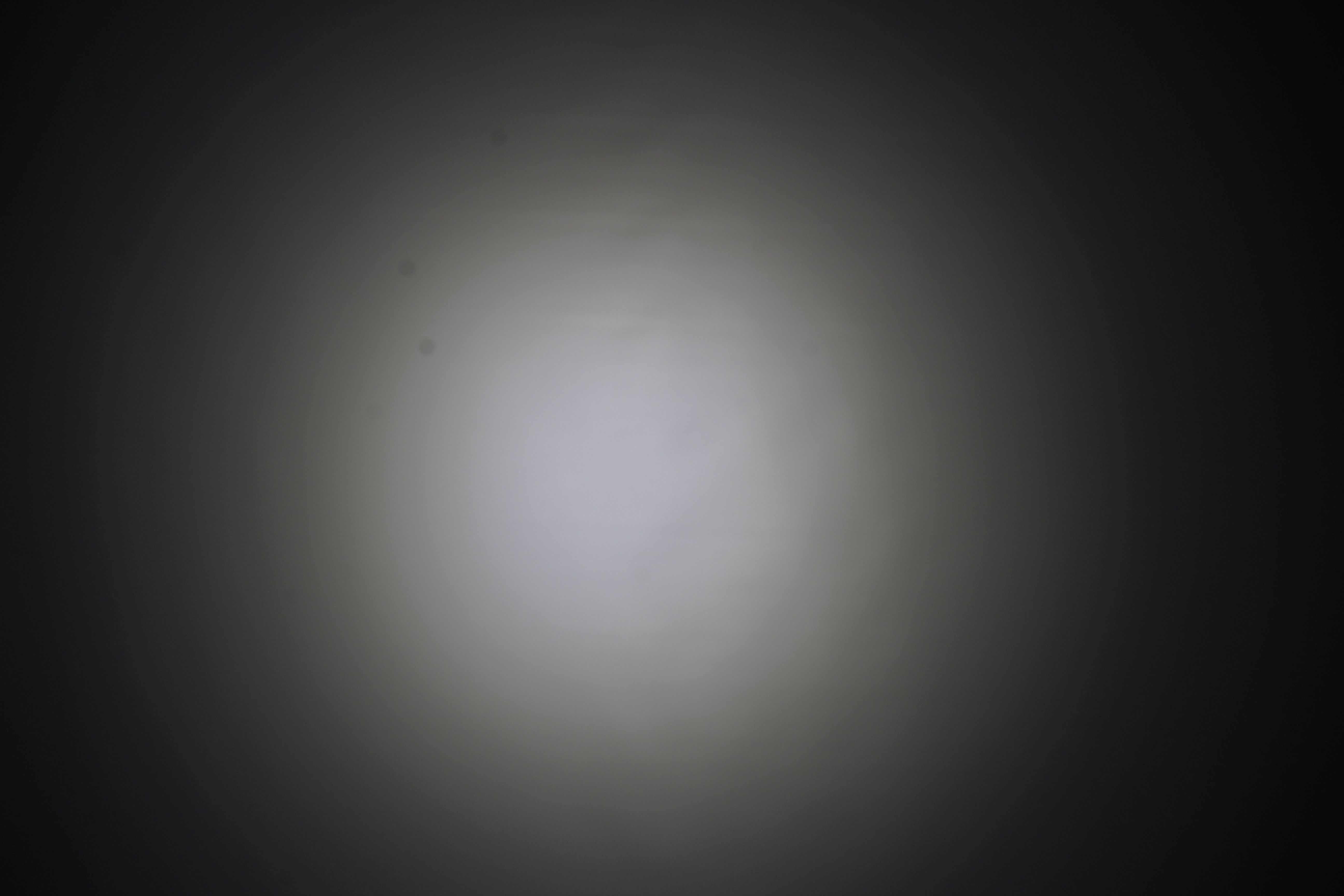

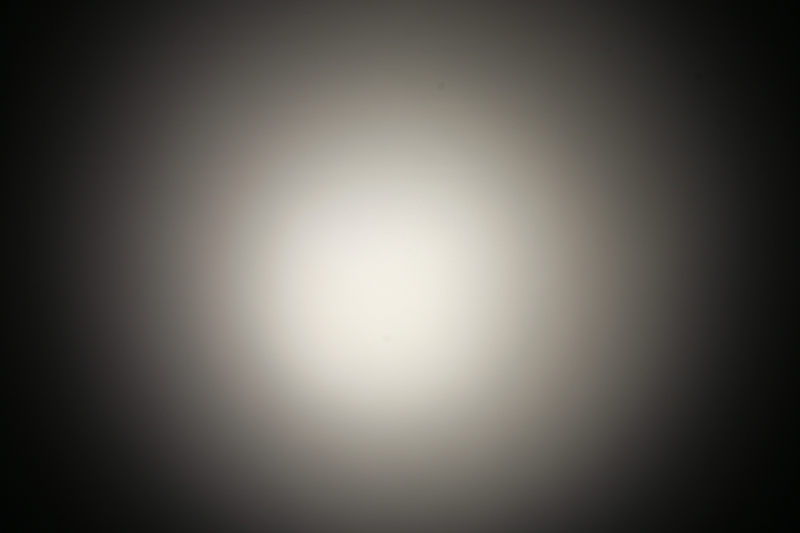

Optical results

LED: XB-D White
FWHM: 38°
FWTM: -
Peak intensity: 1.3 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

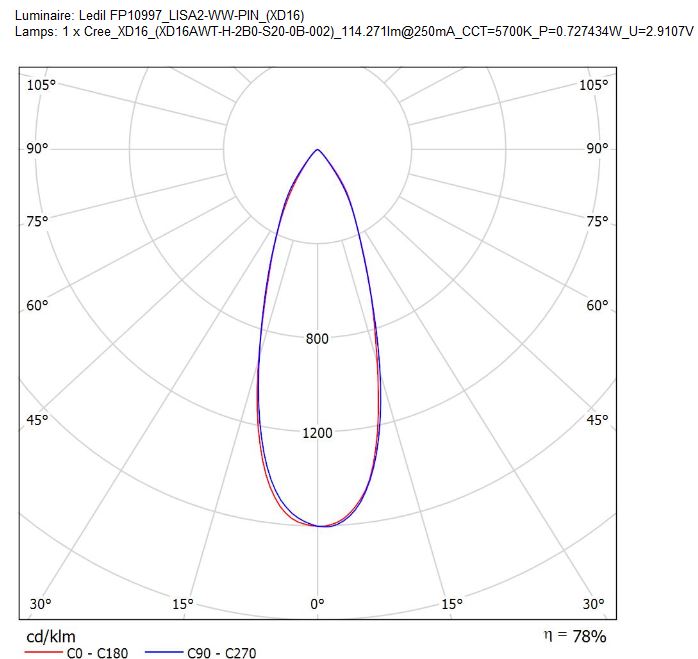

LED: XD16
FWHM: 35°
FWTM: 72°
Peak intensity: 1.6 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

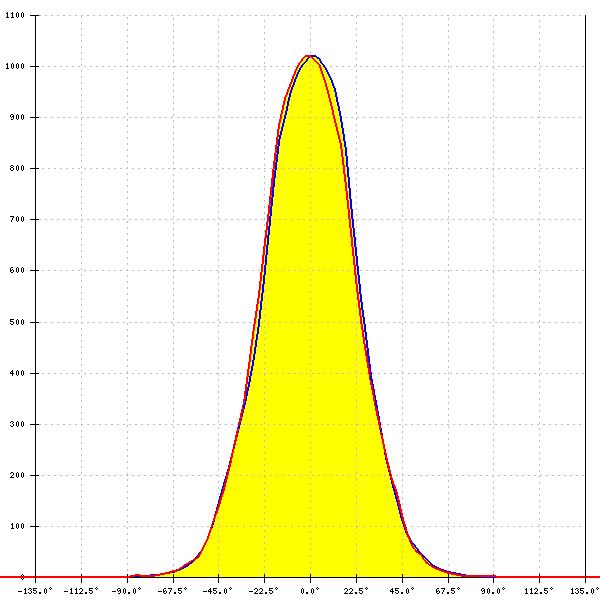

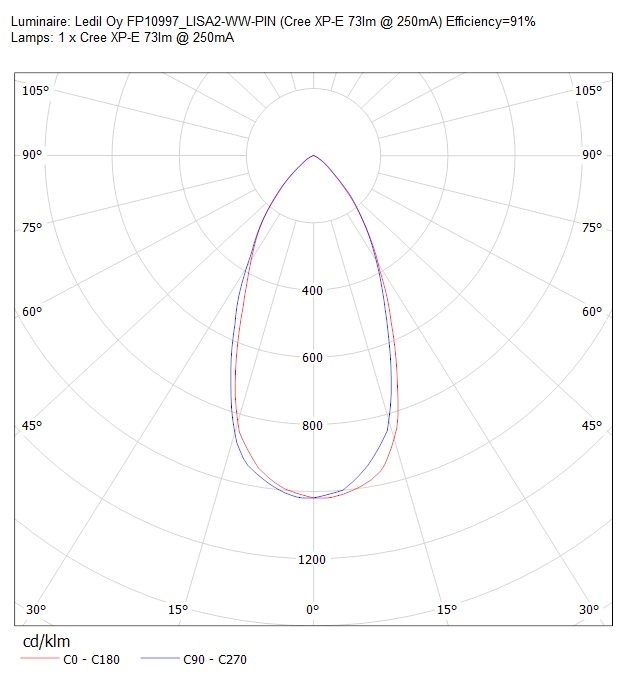

LED: XP-E
FWHM: 42°
FWTM: 78°
Peak intensity: 1.0 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

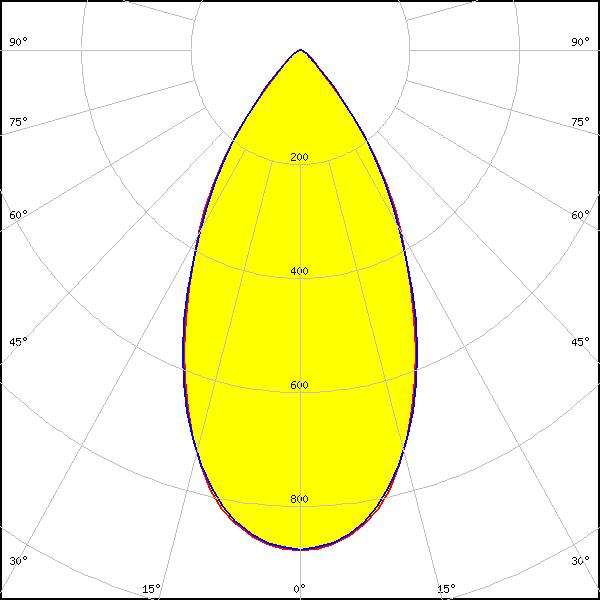

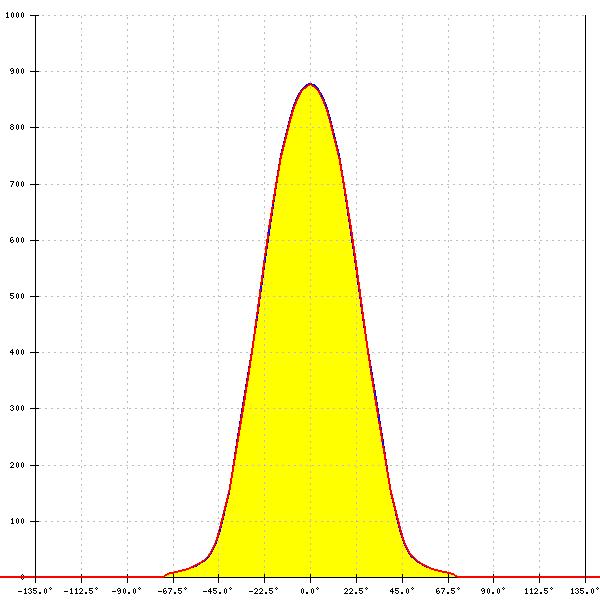

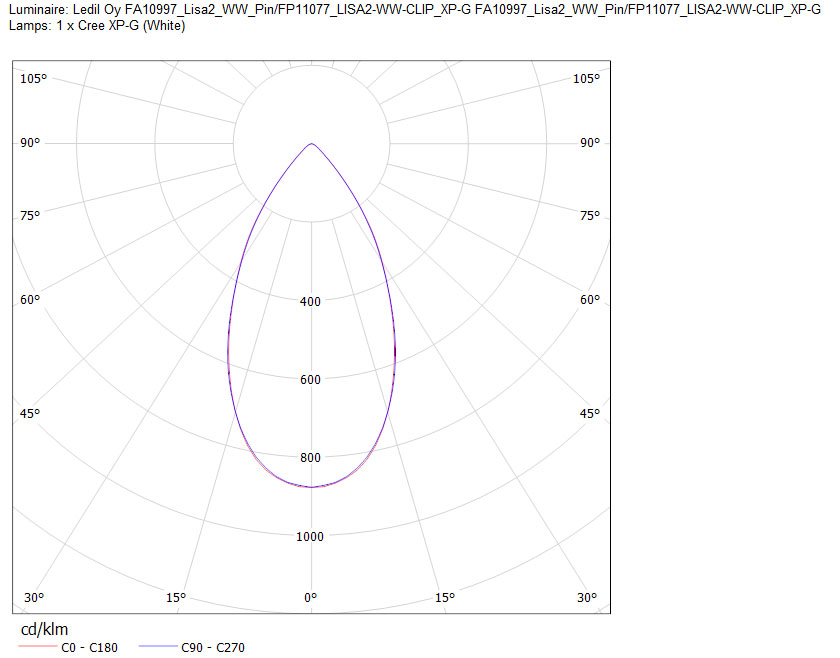

LED: XP-G
FWHM: 54°
FWTM: 88°
Peak intensity: 0.9 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: XQ-E HD
FWHM: 72°
FWTM: 99°
Peak intensity: 0.7 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

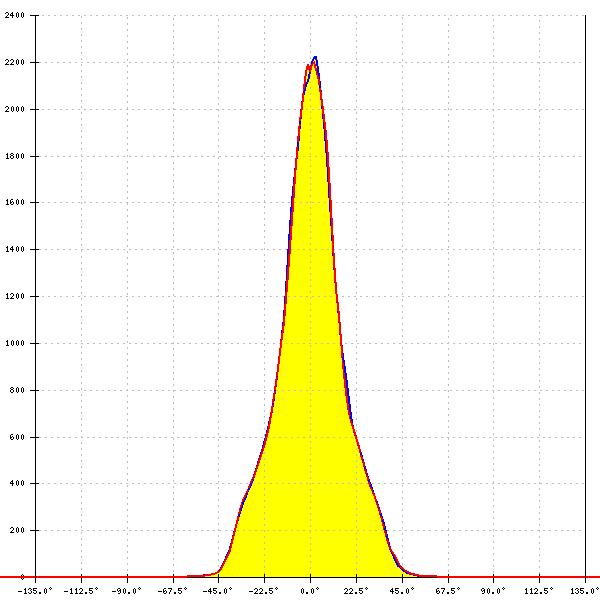

LED: XQ-E HI
FWHM: 27°
FWTM: 72°
Peak intensity: 2.3 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

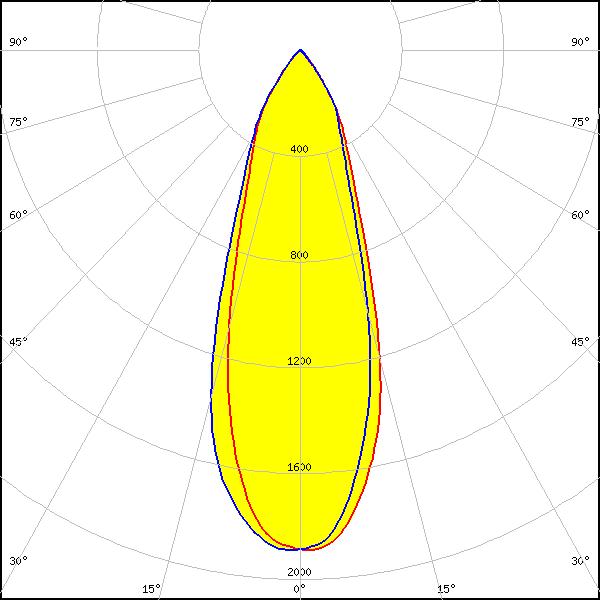

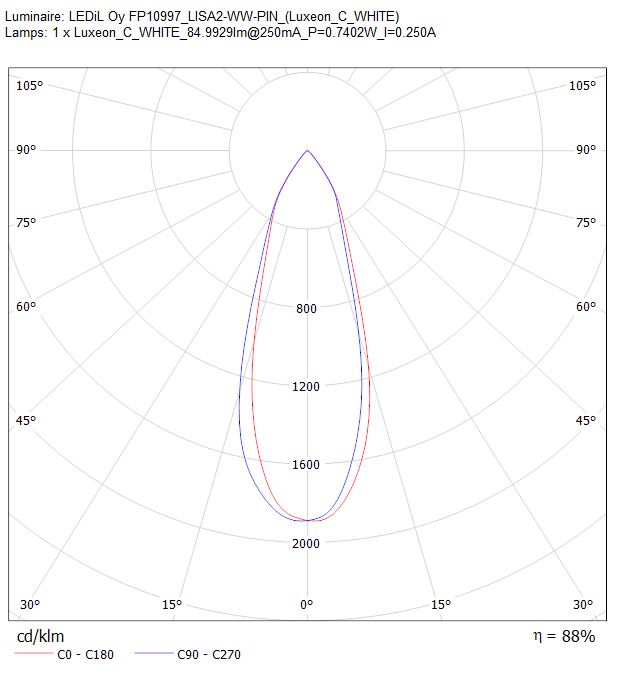

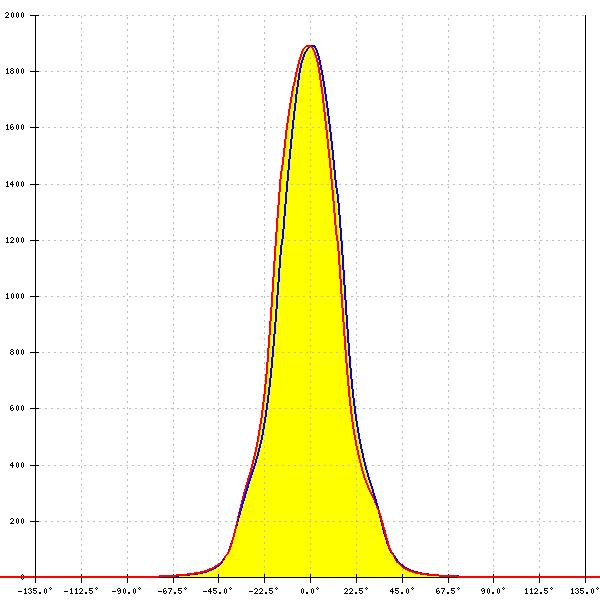

LED: LUXEON C
FWHM: 34°
FWTM: 72°
Peak intensity: 1.9 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON IR 2720
FWHM: 35°
FWTM: 75°
Efficiency: 93 %
LEDs/each optic: 1
Light colour: IR
LED: LUXEON IR 2720
FWHM: 24°
FWTM: 60°
Efficiency: 74 %
LEDs/each optic: 1
Light colour: IR
LED: LUXEON Rebel ES
FWHM: 56°
FWTM: 88°
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON Z
FWHM: 28°
FWTM: 70°
Peak intensity: 2.3 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

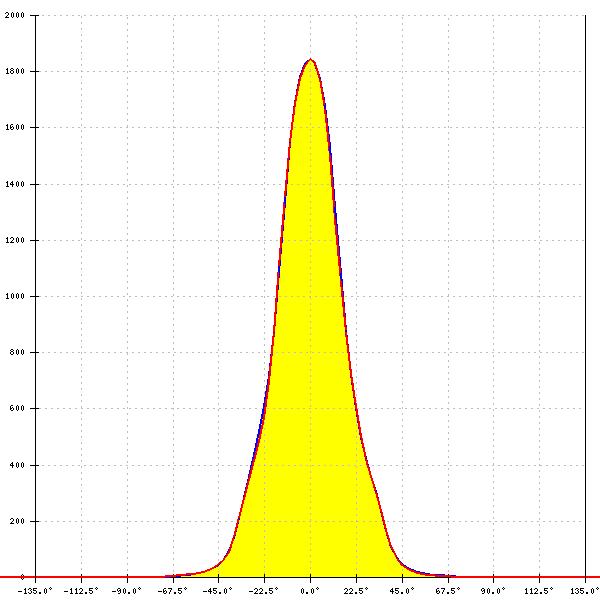

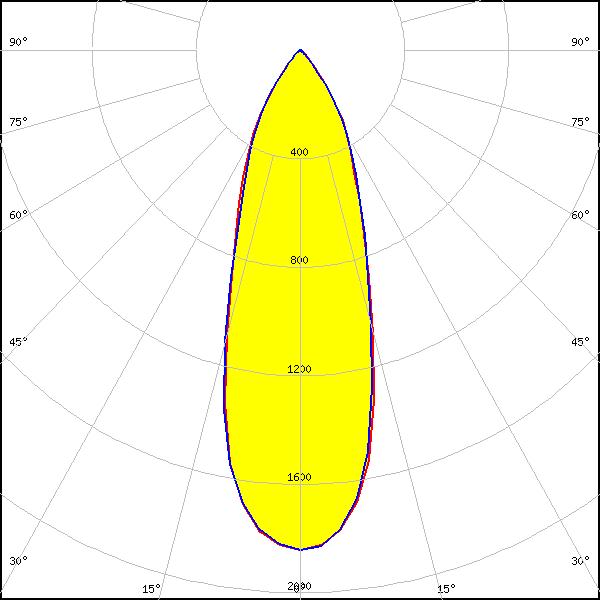

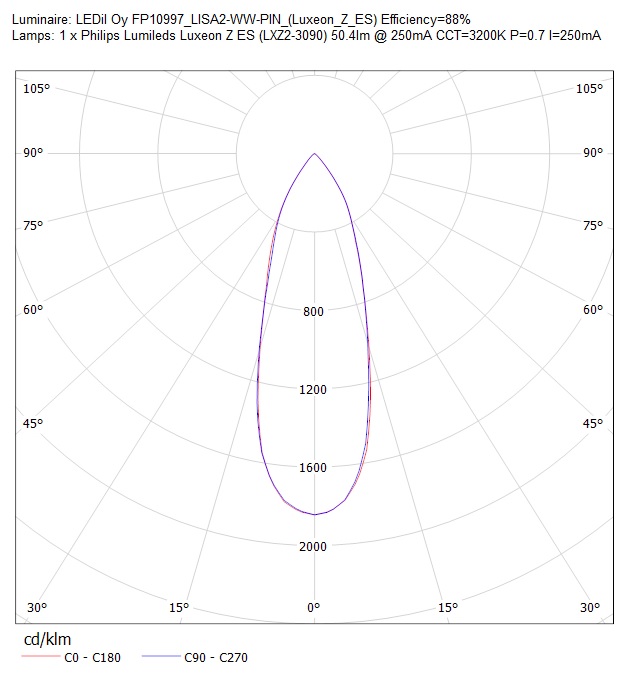

LED: LUXEON Z ES
FWHM: 35°
FWTM: 73°
Peak intensity: 1.8 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

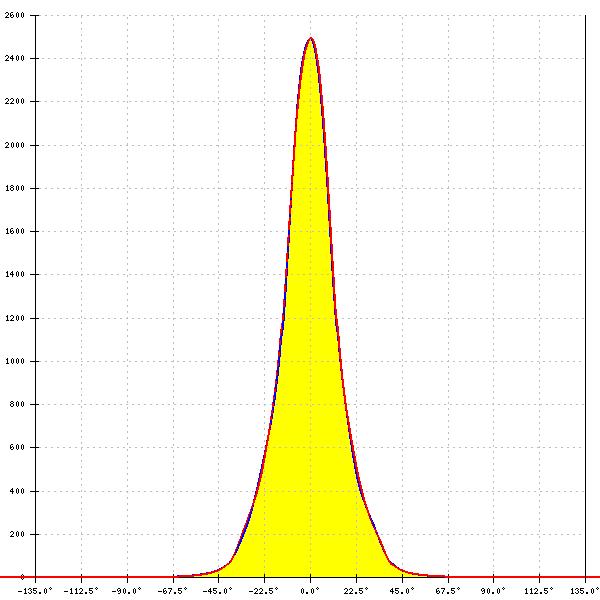

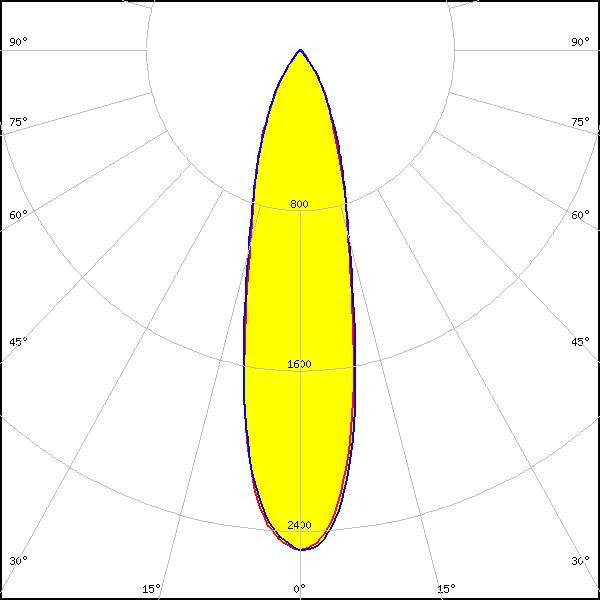

LED: NCSxE17A
FWHM: 25°
FWTM: 62°
Peak intensity: 2.5 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

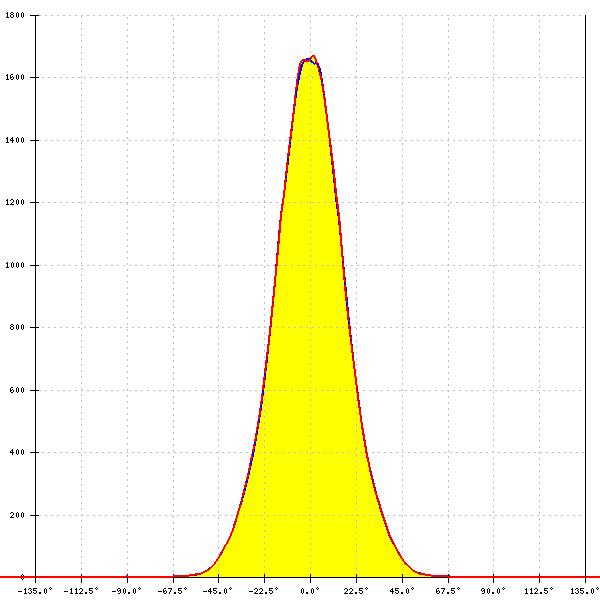

LED: NVSxE21A
FWHM: 37°
FWTM: 75°
Peak intensity: 1.7 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

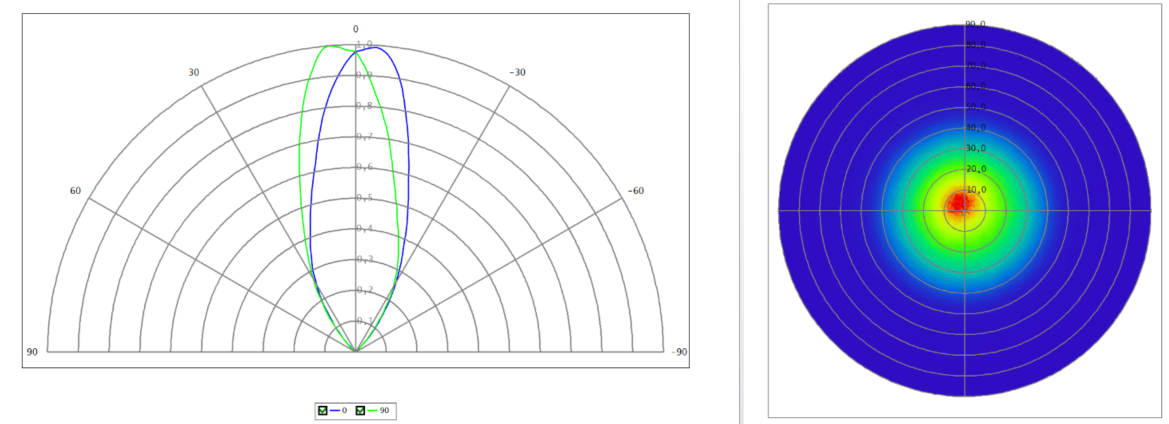

LED: SFH 4170S
FWHM: 25°
FWTM: 69°
LEDs/each optic: 1
Light colour: IR
LED: SFH 4180S
FWHM: 25°
FWTM: 68°
LEDs/each optic: 1
Light colour: IR

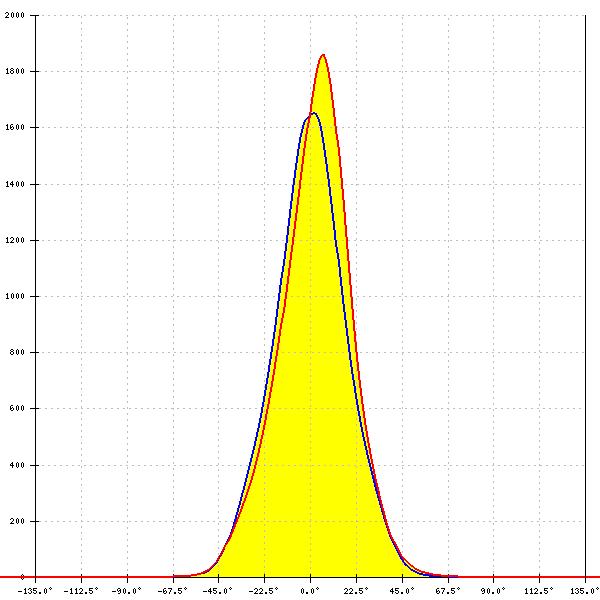

LED: SFH 4770S
FWHM: 34°
FWTM: 75°
Peak intensity: 1.9 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

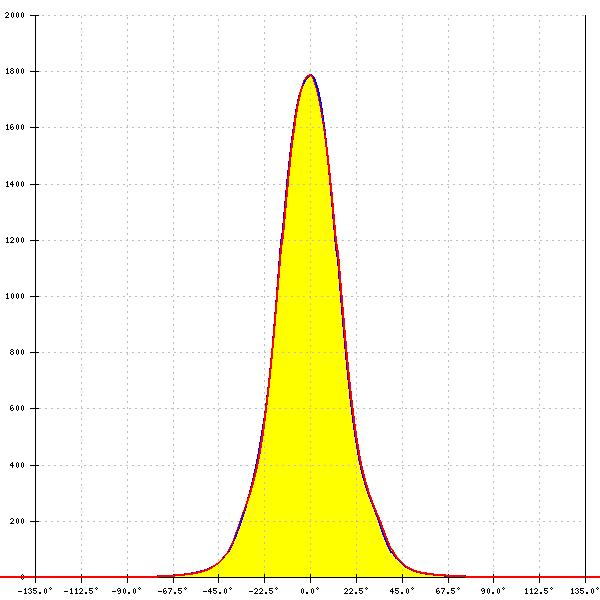

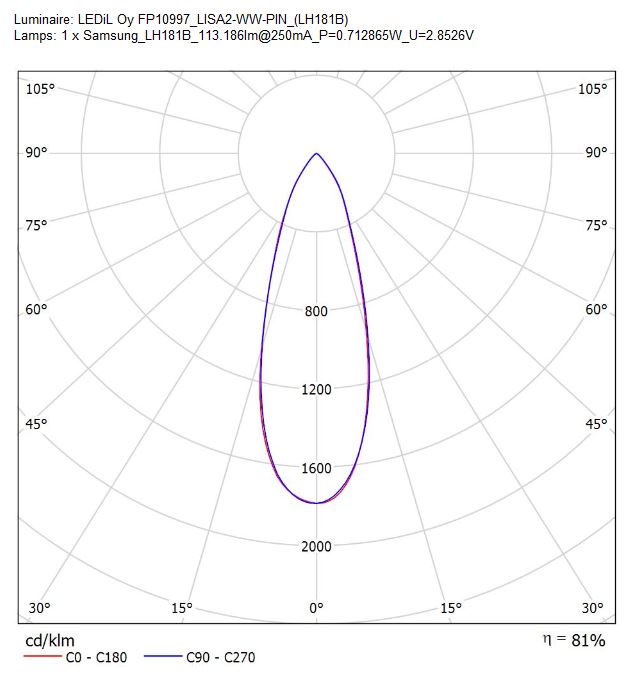

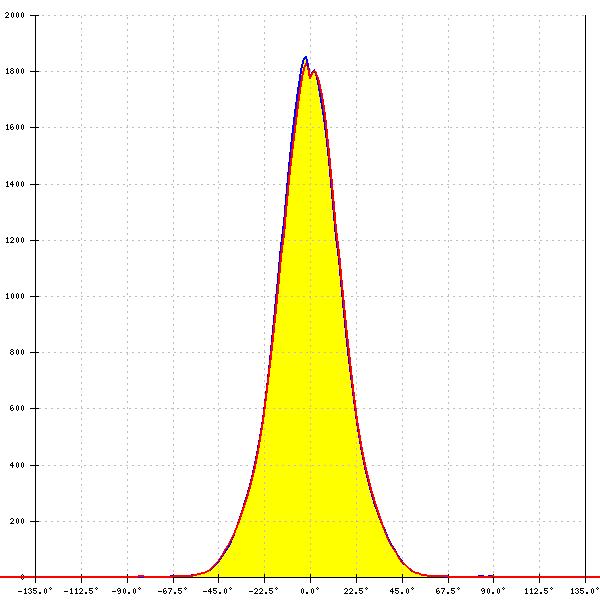

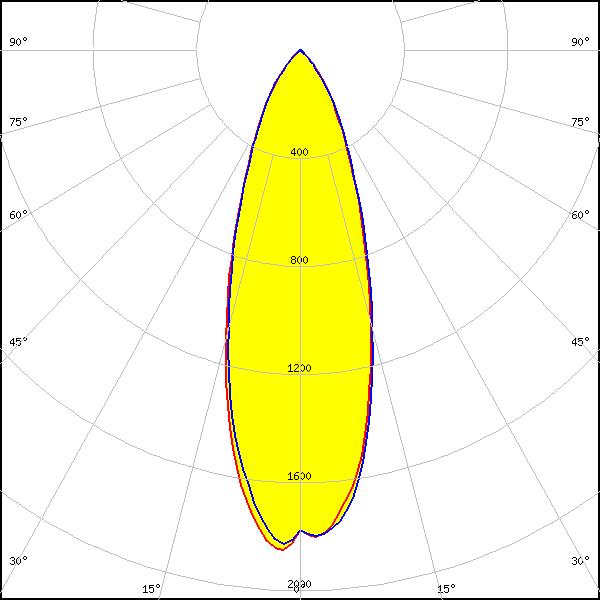

LED: LH181B
FWHM: 34°
FWTM: 69°
Peak intensity: 1.8 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: Double Dome (GM2BB)
FWHM: 60°
FWTM: -
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
