FP11055_LISA2-RS-PIN
Print

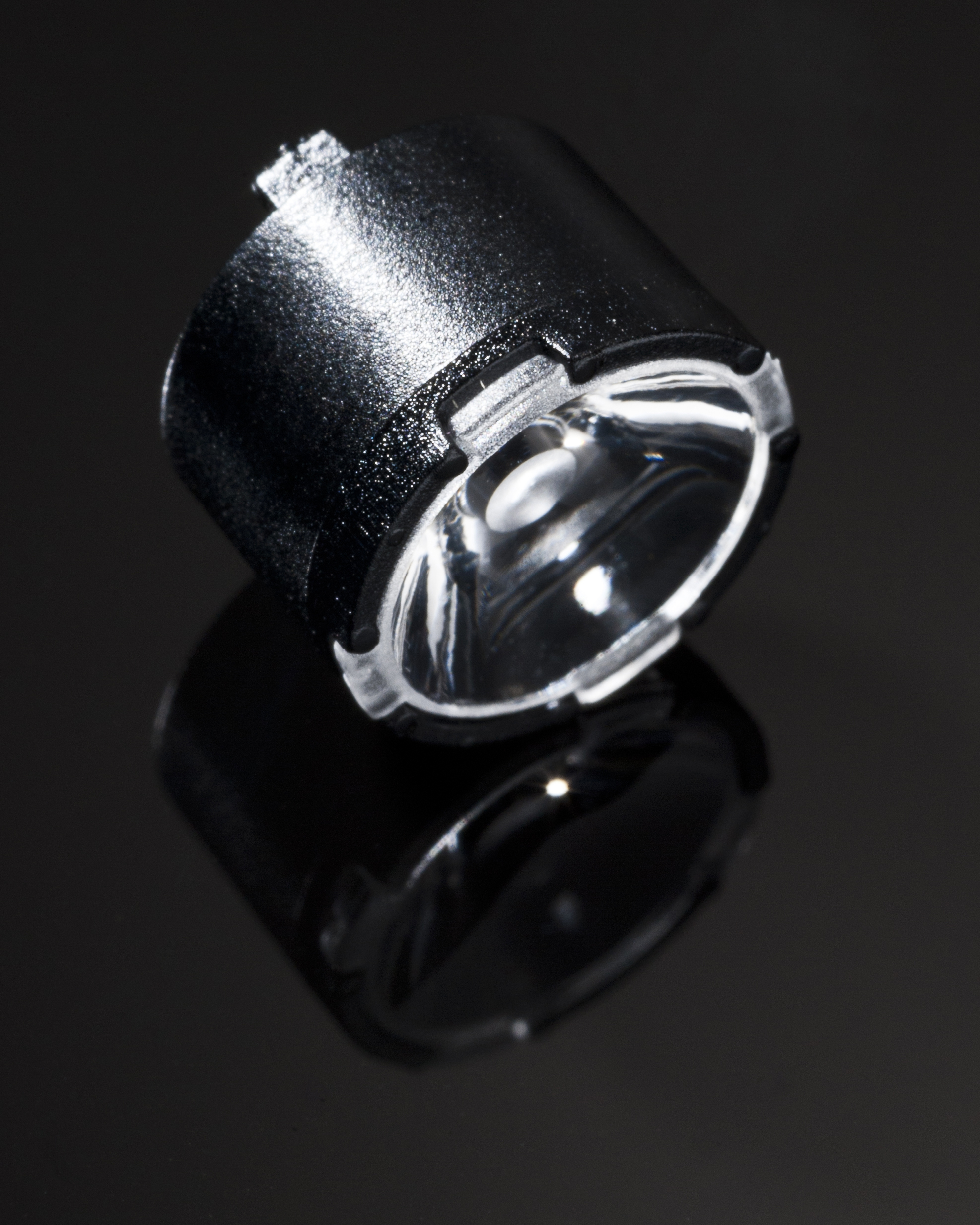

~19° spot beam. 6.8 mm high variant with location pin installation.
Component Materials
- LISA2-RSSingle lensPMMA
- LISA2-HLD-PINHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

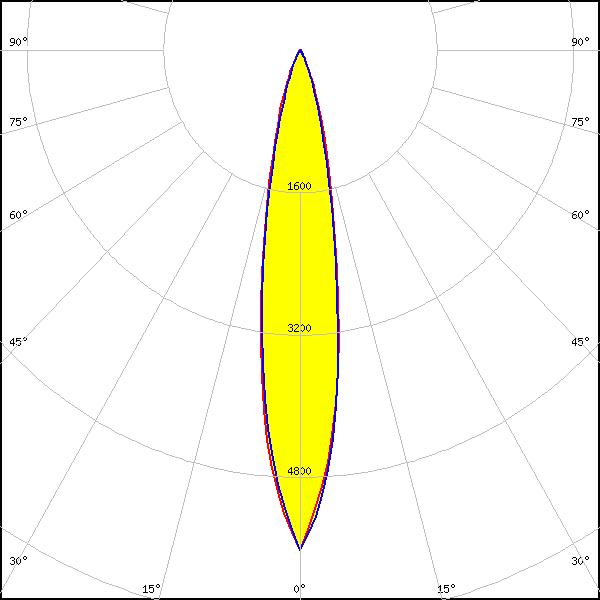

Optical results

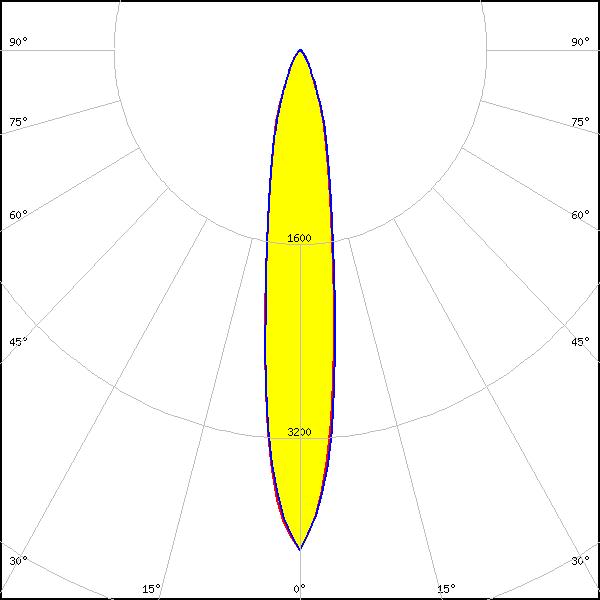

LED:
CSP 2323 (BXCP)
FWHM:
16°
FWTM:
44°
Peak intensity:
4.119 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

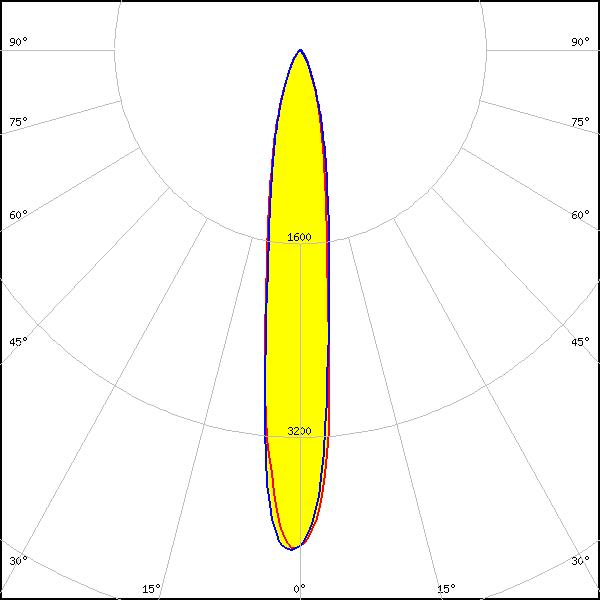

LED:
XD16
FWHM:
15°
FWTM:
42°
Peak intensity:
4.200 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

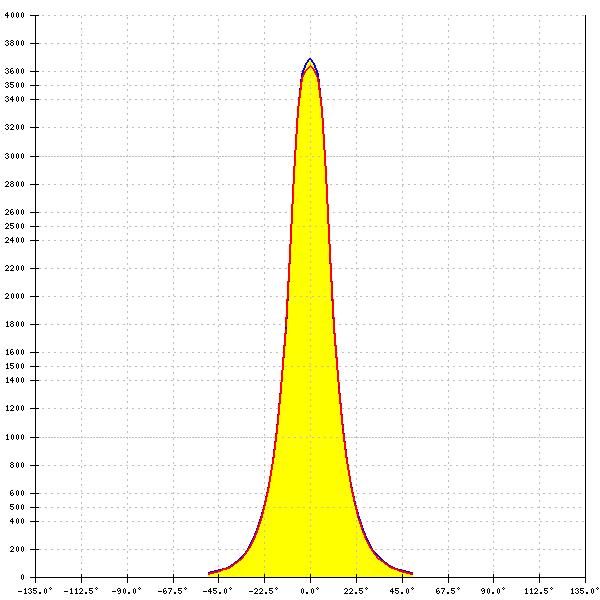

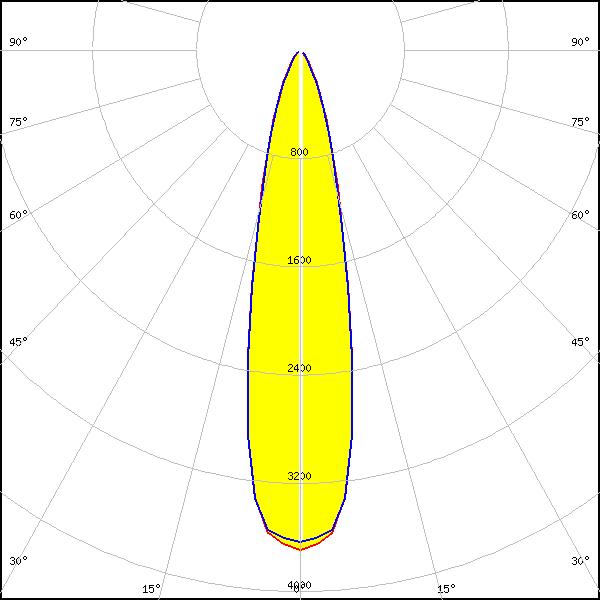

LED:
XP-G
FWHM:
24°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

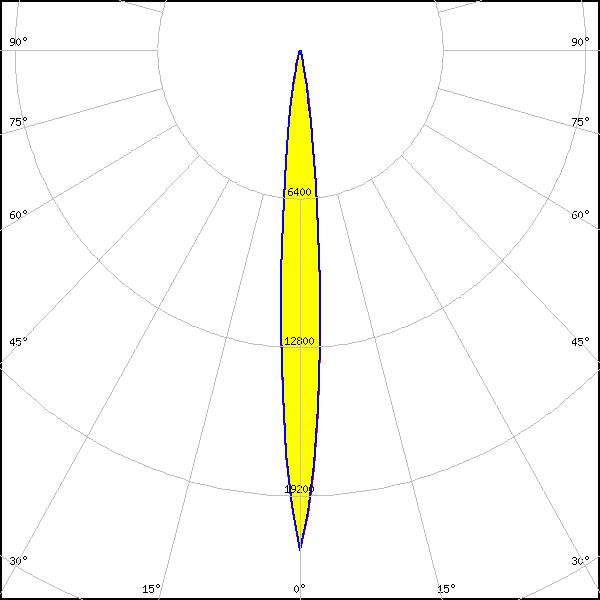

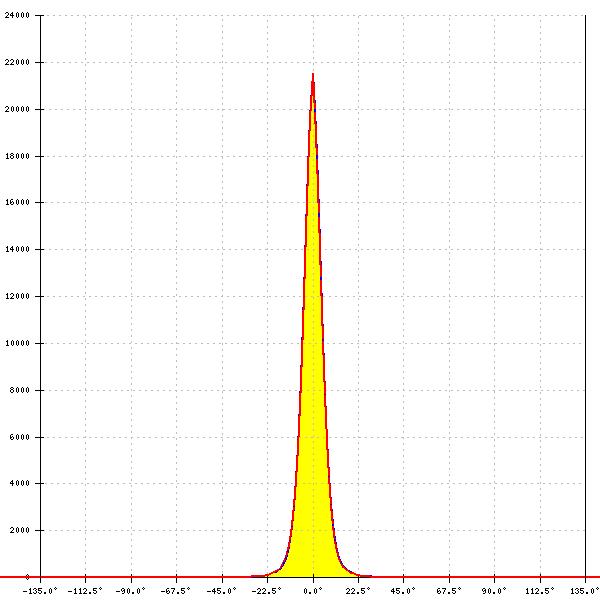

LED:
XQ-A
FWHM:
10°
FWTM:
20°
Peak intensity:
21.537 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

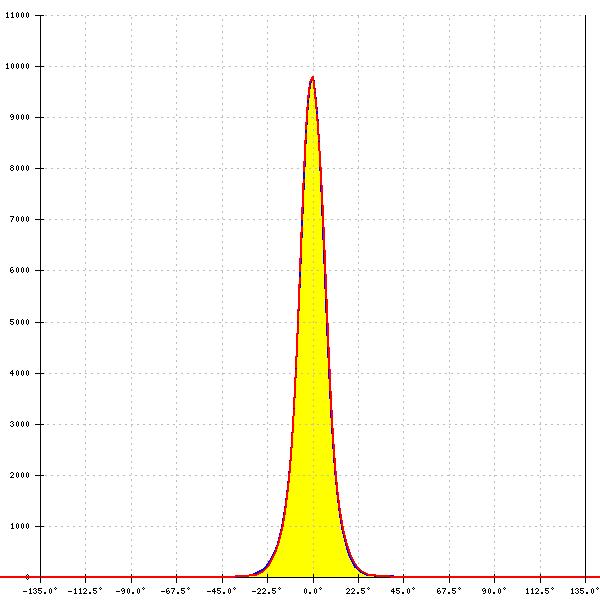

LED:
XQ-E HD
FWHM:
15°
FWTM:
29°
Peak intensity:
10.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

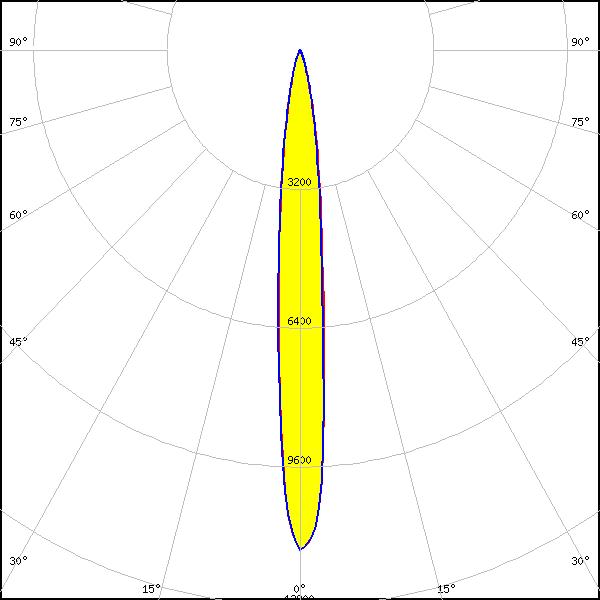

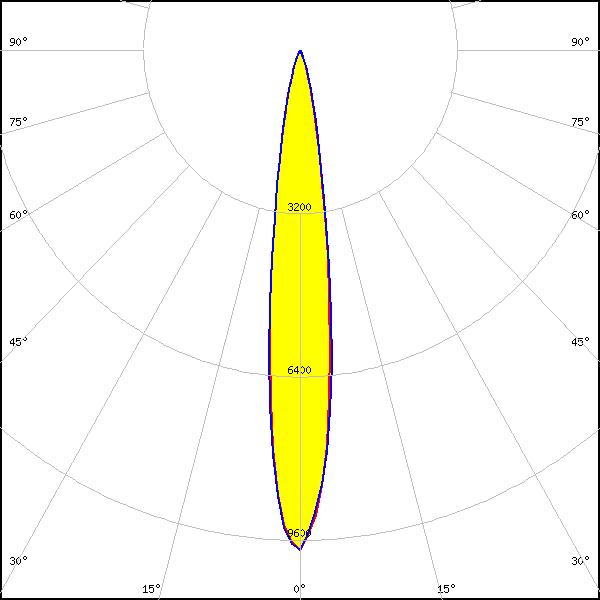

LED:
XQ-E HI
FWHM:
11°
FWTM:
27°
Peak intensity:
11.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR 2720
FWHM:
14°
FWTM:
34°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
IR

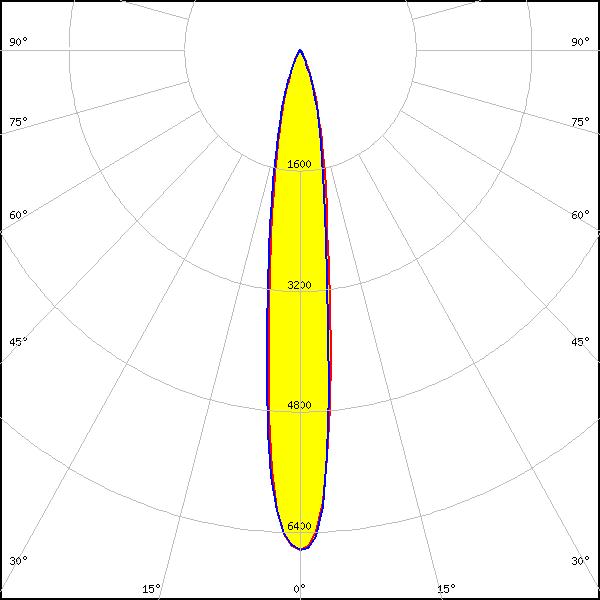

LED:

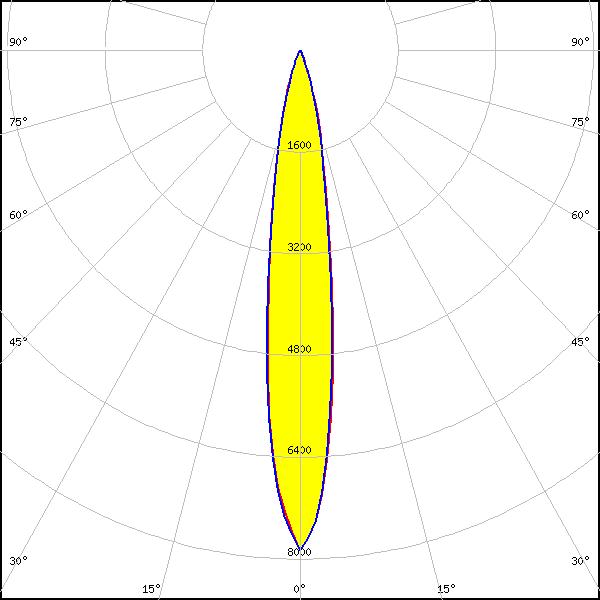

LUXEON Z ES
FWHM:
16°
FWTM:
34°
Peak intensity:
7.863 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Z ES
FWHM:
15°
FWTM:
38°
Peak intensity:
6.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

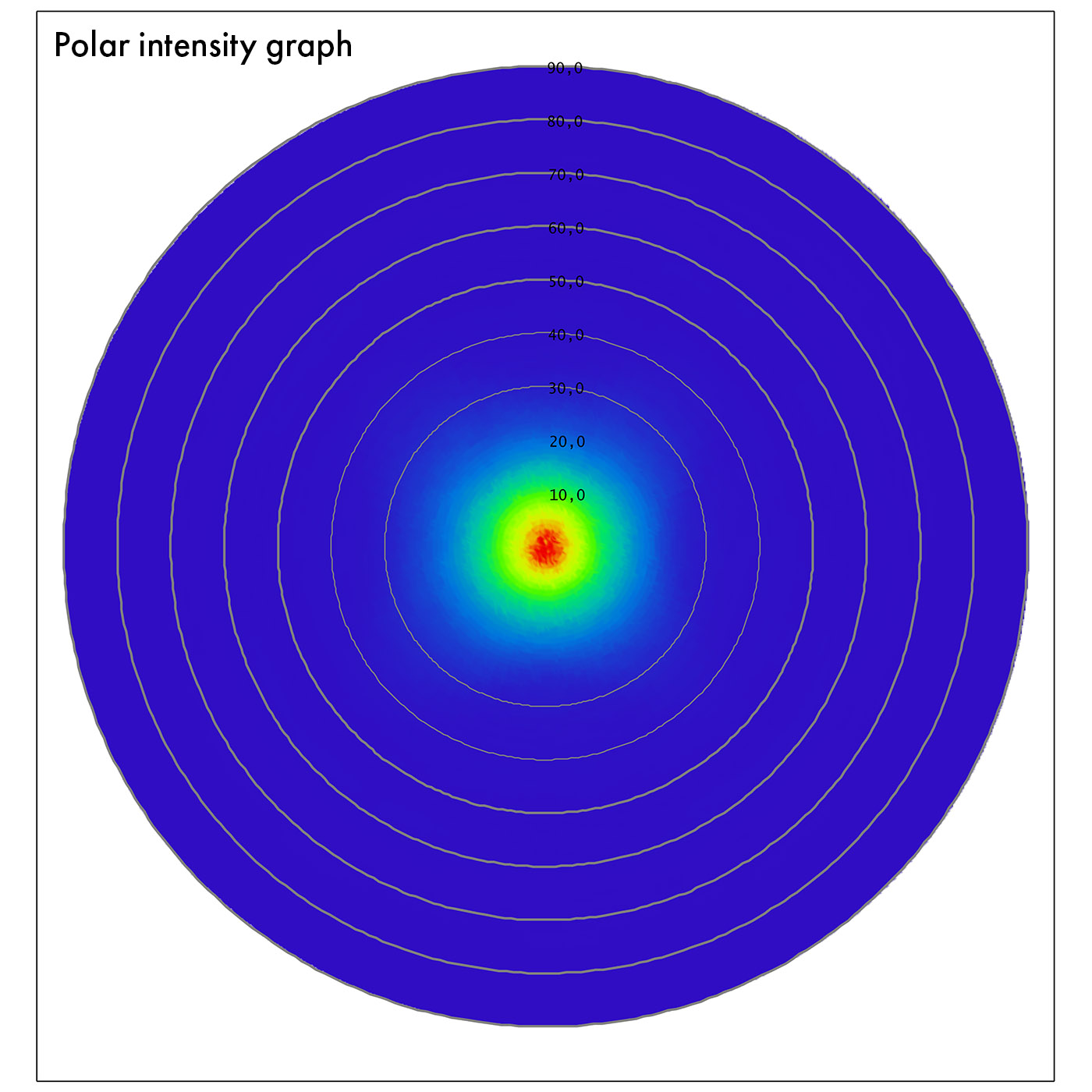

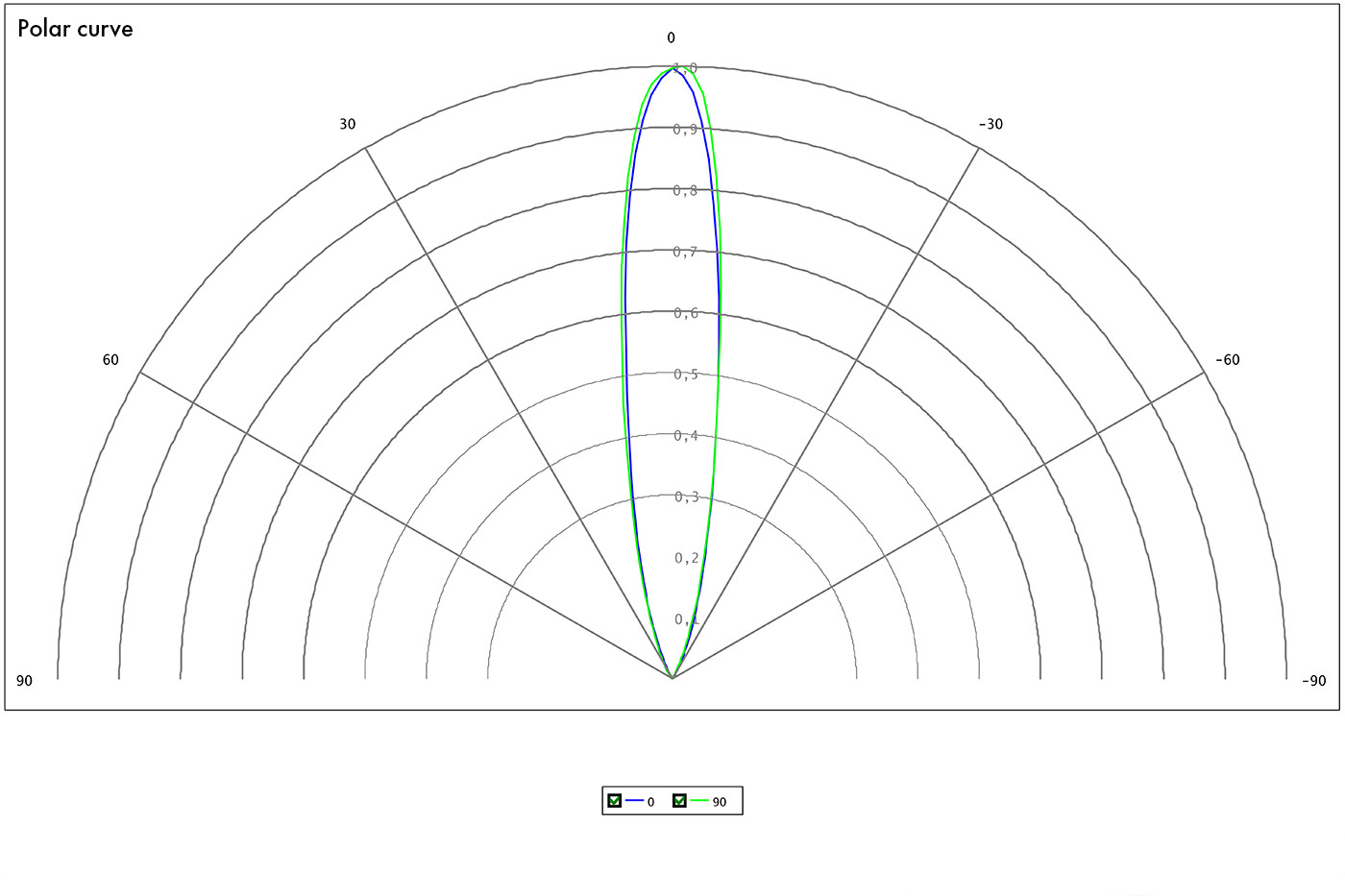

LED:
SST-10-IR-B90
FWHM:
18°
FWTM:
40°
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
IR

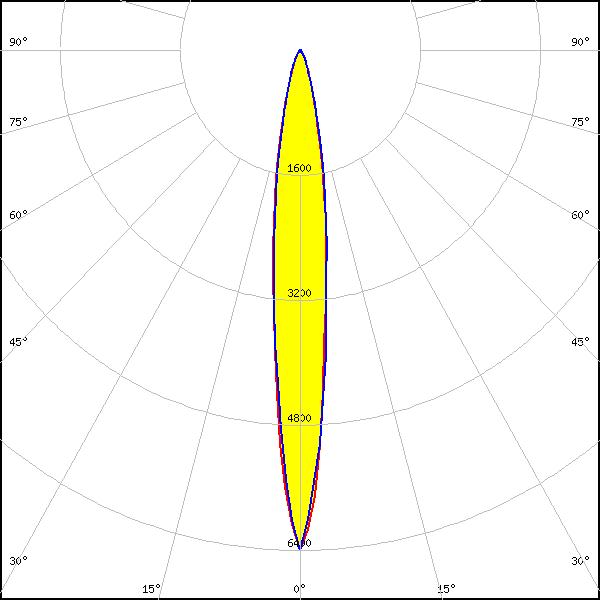

LED:
NCSWE13A
FWHM:
12°
FWTM:
34°
Peak intensity:
6.401 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

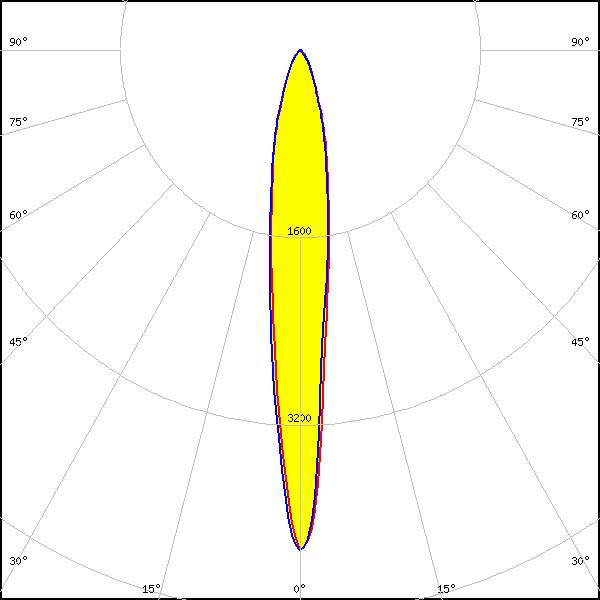

LED:
NCSxE17A
FWHM:
13°
FWTM:
43°
Peak intensity:
4.300 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:

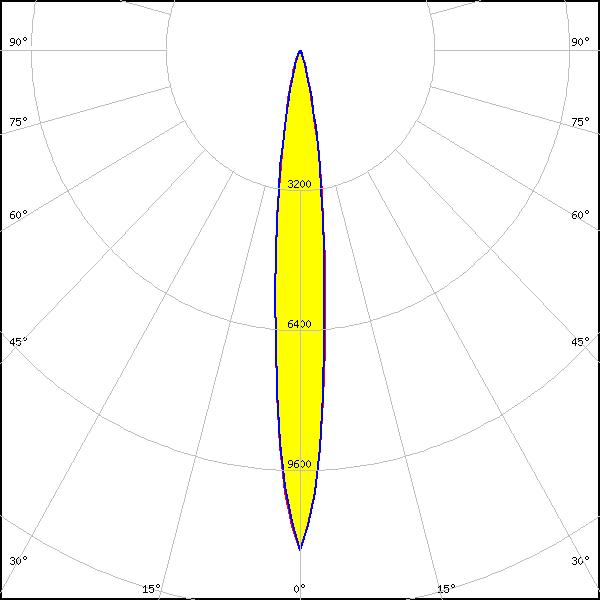

OSLON Black Flat (LUW HWQP)
FWHM:
12°
FWTM:
28°
Peak intensity:
11.421 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

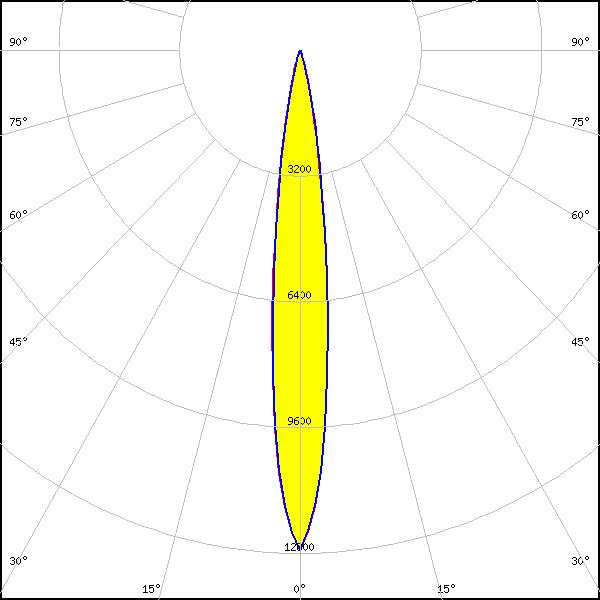

OSLON Pure 1414
FWHM:
14° + 13°
FWTM:
26° + 26°
Peak intensity:
12.723 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
18°
FWTM:
40°
Peak intensity:
5.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

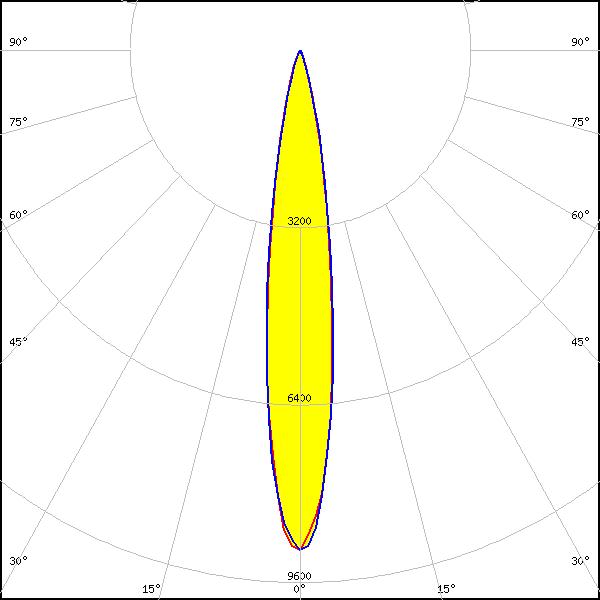

LED:
OSLON SSL 150
FWHM:
16°
FWTM:
32°
Peak intensity:
9.040 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

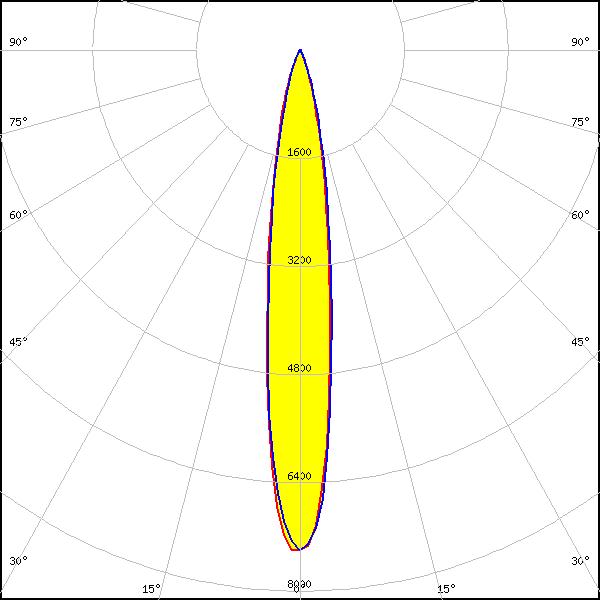

LED:
OSLON SSL 80
FWHM:
16°
FWTM:
35°
Peak intensity:
7.490 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4170S
FWHM:
10°
FWTM:
22°
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4180S
FWHM:
9°
FWTM:
24°
LEDs/each optic:
1
Light colour/type:
IR

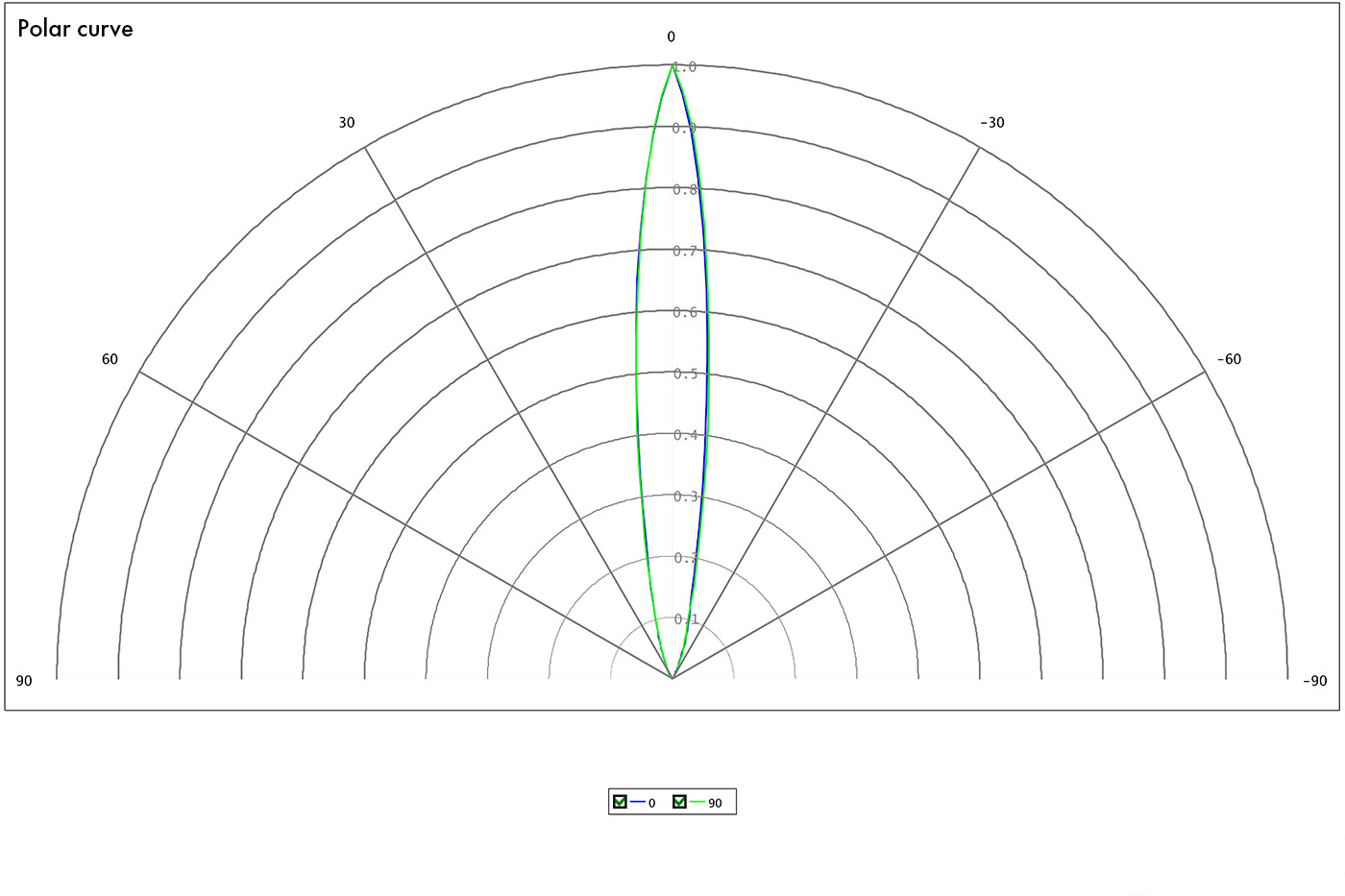

LED:
SFH 4770S
FWHM:
13°
FWTM:
31°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
IR

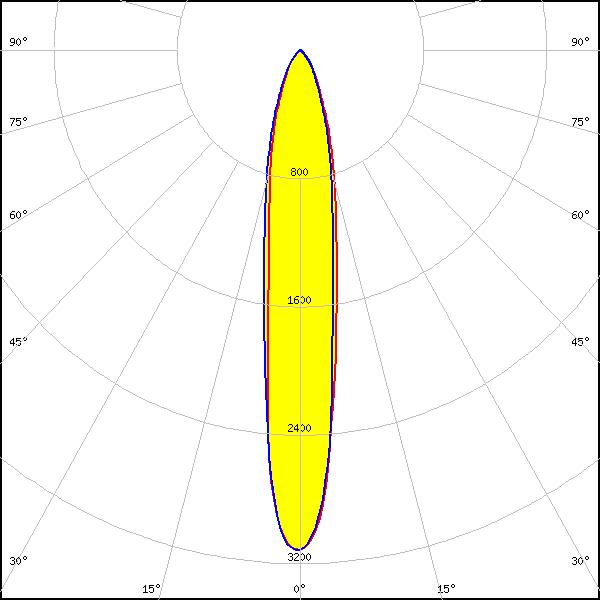

LED:
LH181B
FWHM:
16°
FWTM:
50°
Peak intensity:
3.100 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
FWHM:
18°
FWTM:
-
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
