    FP11126_LISA2-O-PIN

    Print

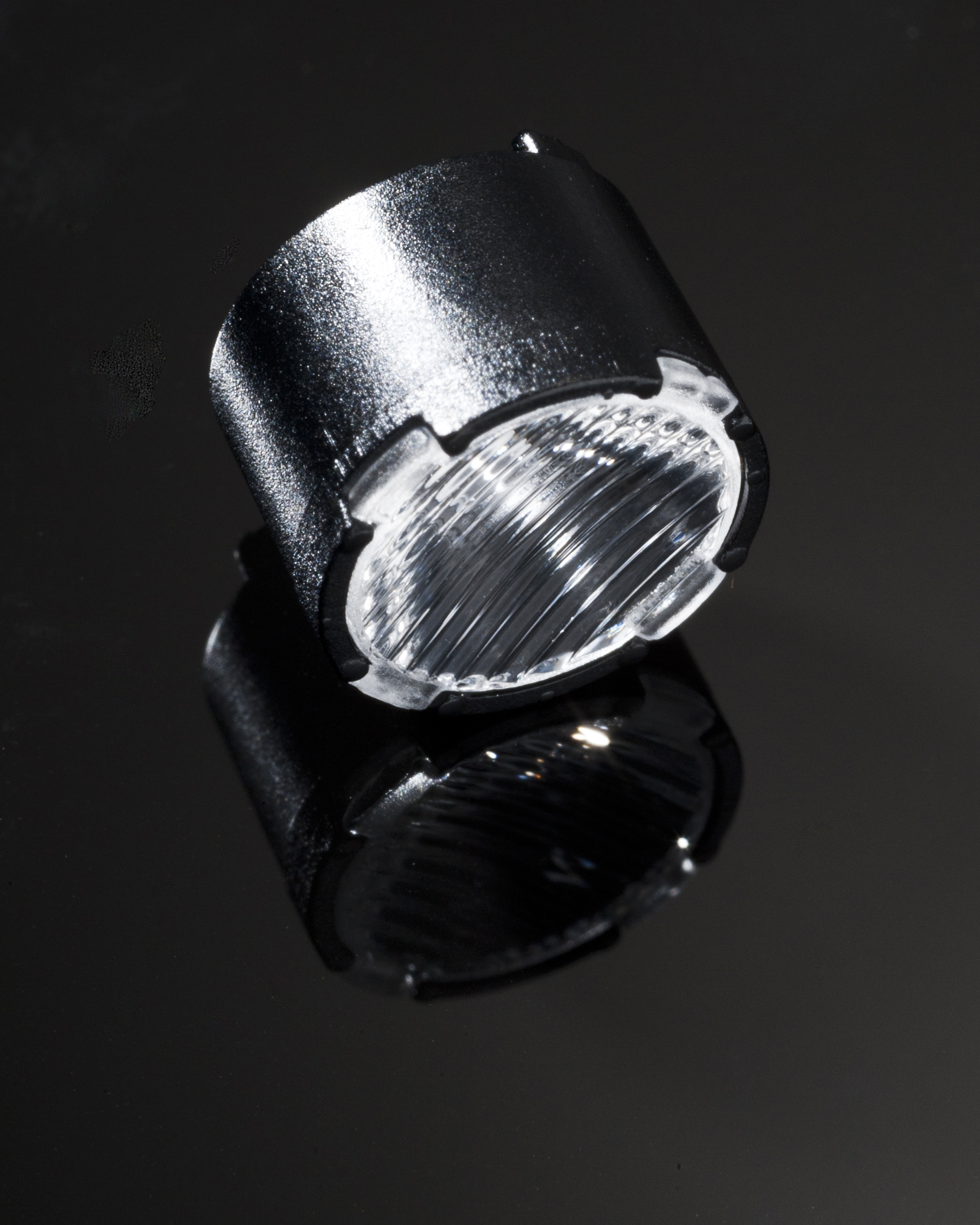

    ~45° x 20° oval beam optimized for LUXEON Rebel. 6.6 mm high variant with location pin installation.

    Specification
    • Dimensions:
      10 mm
    • Height:
      6.60 mm
    • Fastening:
      glue, pin
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2000 pcs
    • Box weight:
      1.4 kg
    • MPQ:
      100 pcs
    • MOQ:
      300 pcs
    • MOQ size:
      230 x 160 x 30 mm
    • MOQ weight:
      0.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FP11126_LISA2-O-PIN
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Training video

    Seeing further with LEDiL´s IR optics

    PCN

    Product change notification NR107 - Discontinuation of duplicate assemblies 100915

    Reference product

    Meganova LED ring light

    Application guide

    Seeing further with LEDiL’s IR optics

    Application area

    Architectural Outdoor Lighting

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    LuxR landscape lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Optical results

    LED: LUXEON A
    FWHM: 44° + 23°
    FWTM: 0° + 0°
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

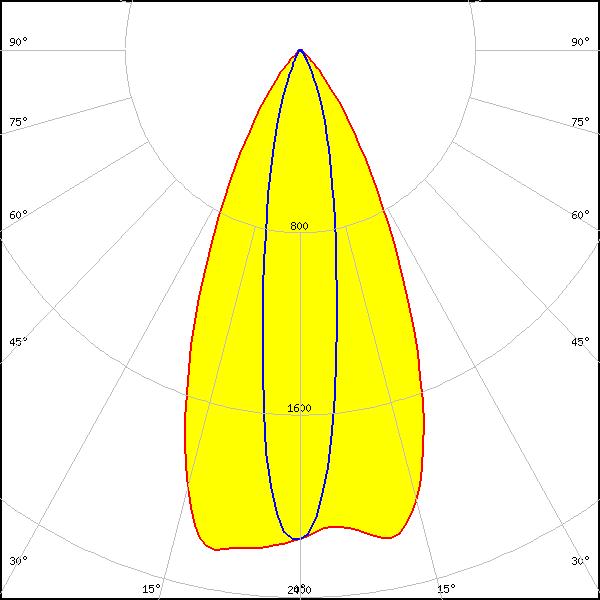

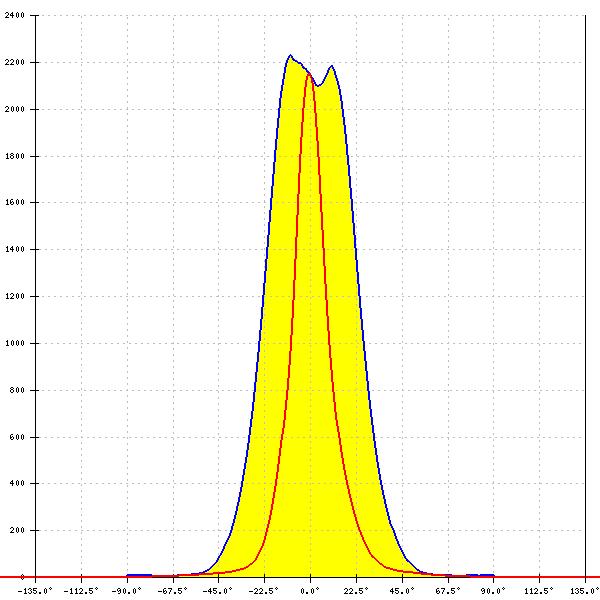

    LED: LUXEON Rebel
    FWHM: 48° + 19°
    FWTM: 0° + 0°
    Peak intensity: 2.150 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel ES
    FWHM: 44° + 23°
    FWTM: 0° + 0°
    Peak intensity: 2.000 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

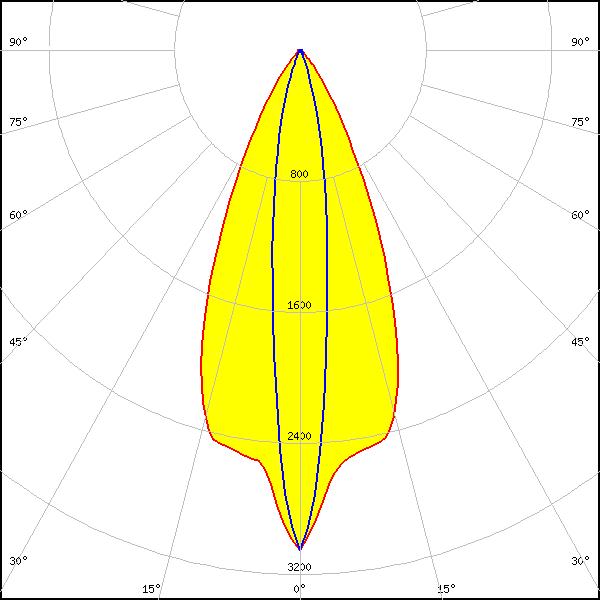

    LED: NCSWE13A
    FWHM: 44° + 13°
    FWTM: 70° + 34°
    Peak intensity: 3.054 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxx19A
    FWHM: 20° + 48°
    FWTM: 0° + 0°
    LEDs/each optic: 1
    Light colour/type: White

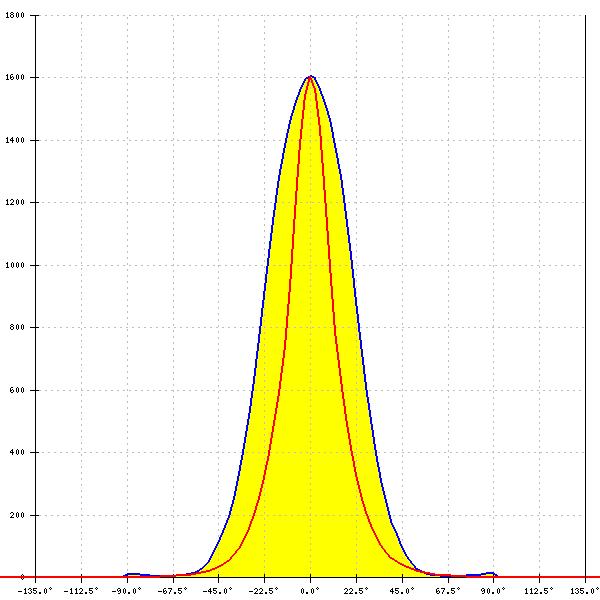

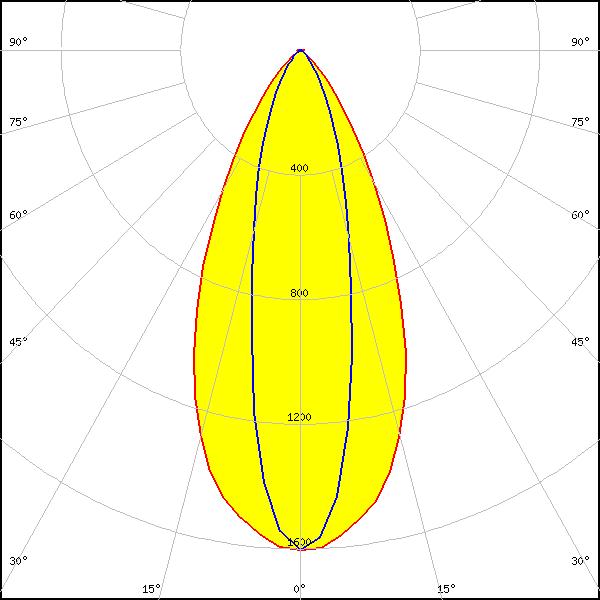

    LED: NVSxx19A
    FWHM: 25° + 48°
    FWTM: 82° + 61°
    Peak intensity: 1.600 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

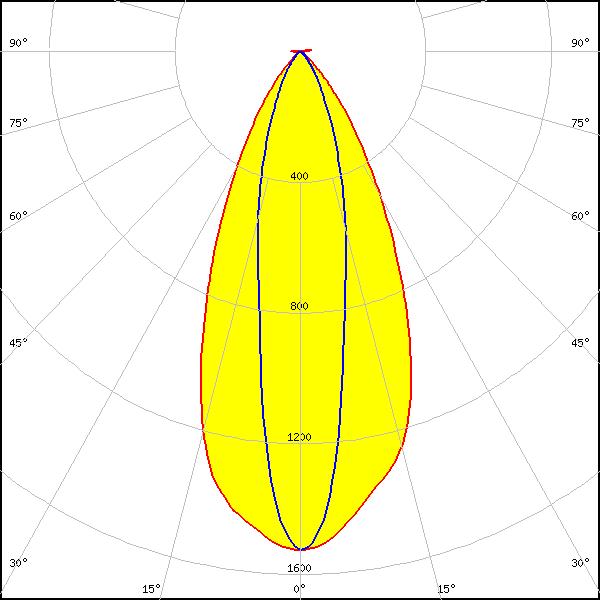

    LED: LH181A
    FWHM: 47° + 21°
    FWTM: 80° + 57°
    Peak intensity: 1.500 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

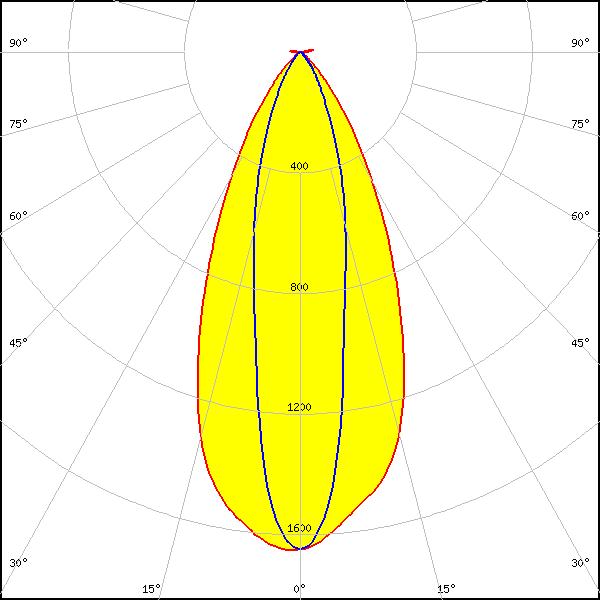

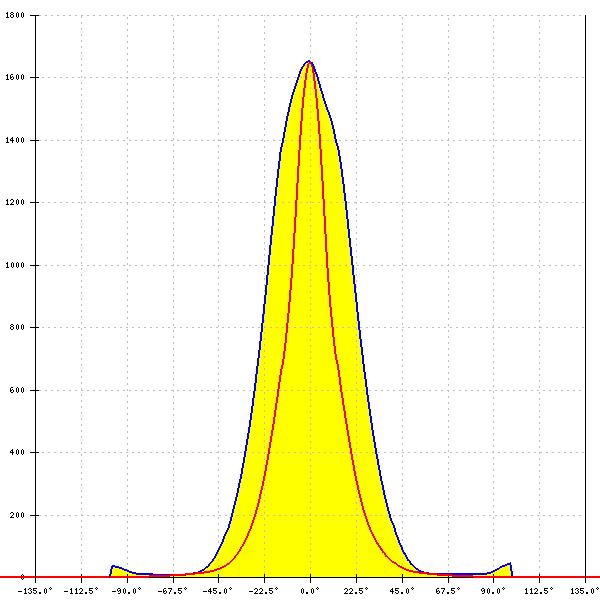

    LED: LH181B
    FWHM: 47° + 22°
    FWTM: 81° + 58°
    Peak intensity: 1.700 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
