FP13029_LISA2-WW-CLIP
Print

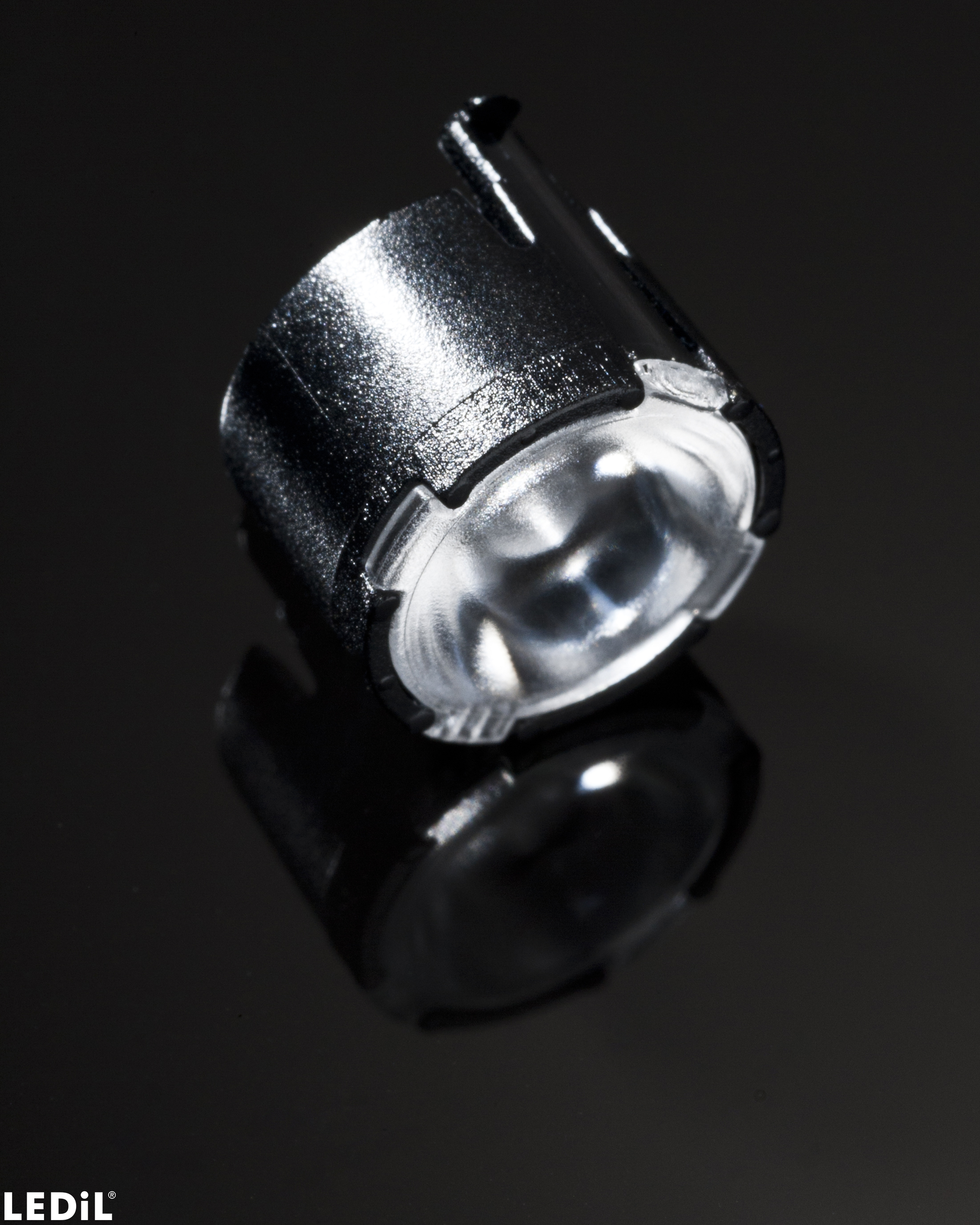

~45° wide beam optimized for CREE XP-E. 6.8 mm high variant with clip installation.
Component Materials
- LISA2-WWSingle lensPMMA
- LISA2-HLD-CLIP16-XPHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

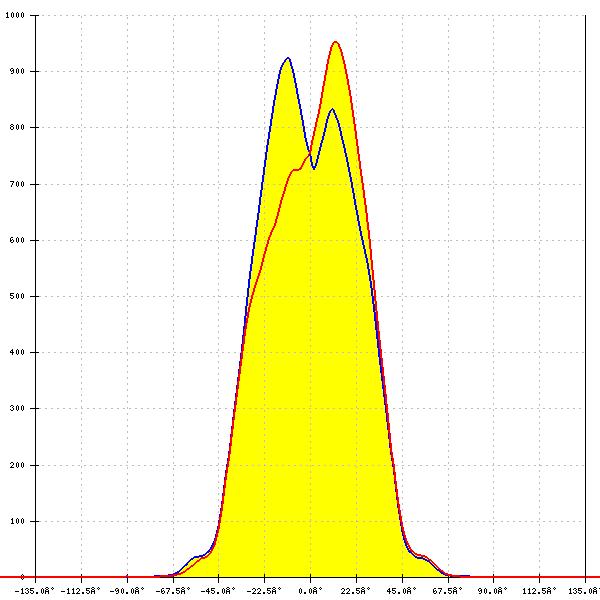

LED:
XP-E2
FWHM:
64°
FWTM:
90°
Peak intensity:
0.992 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
PC Amber

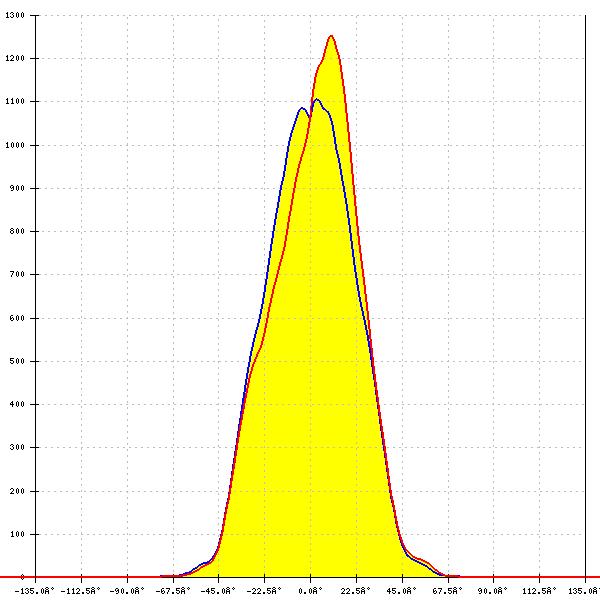

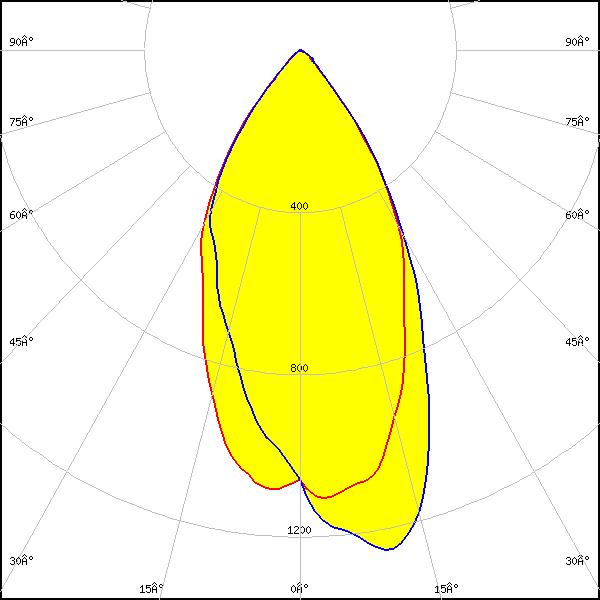

LED:
XP-E2
FWHM:
52°
FWTM:
85°
Peak intensity:
1.269 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Green

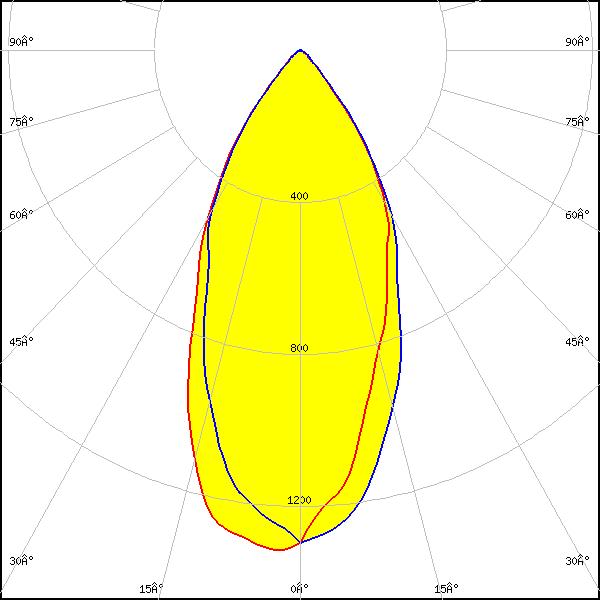

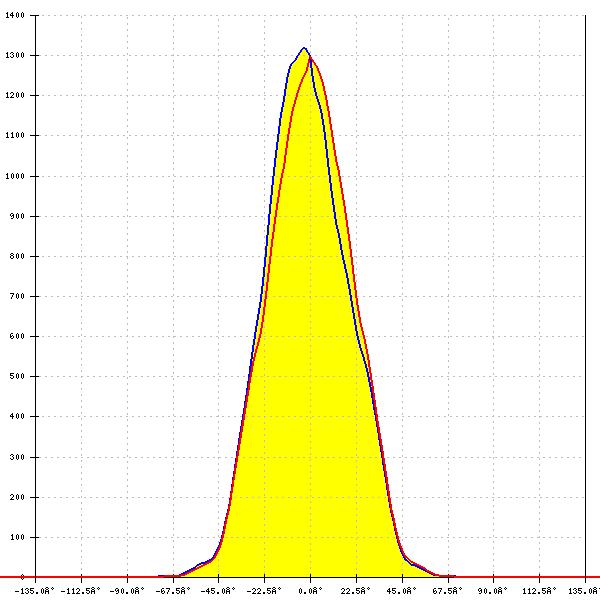

LED:
XP-E2
FWHM:
45°
FWTM:
83°
Peak intensity:
1.327 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Blue

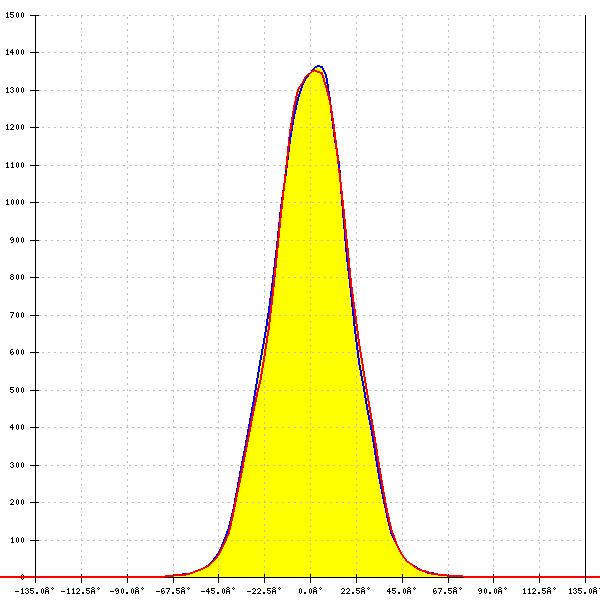

LED:
XP-E2
FWHM:
43°
FWTM:
79°
Peak intensity:
1.350 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

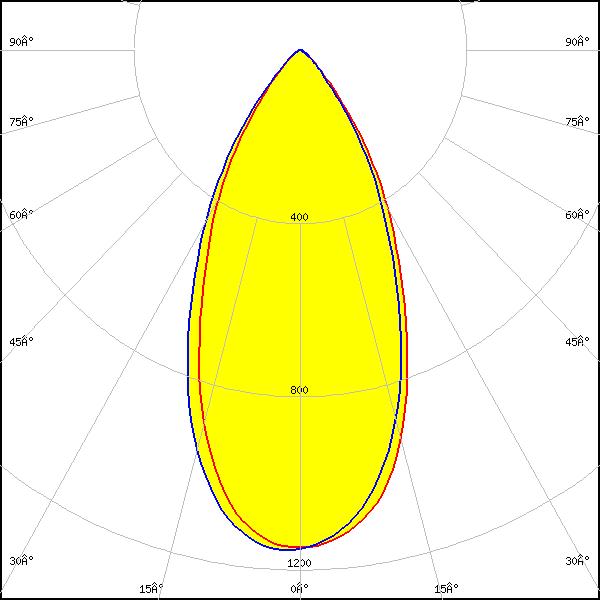

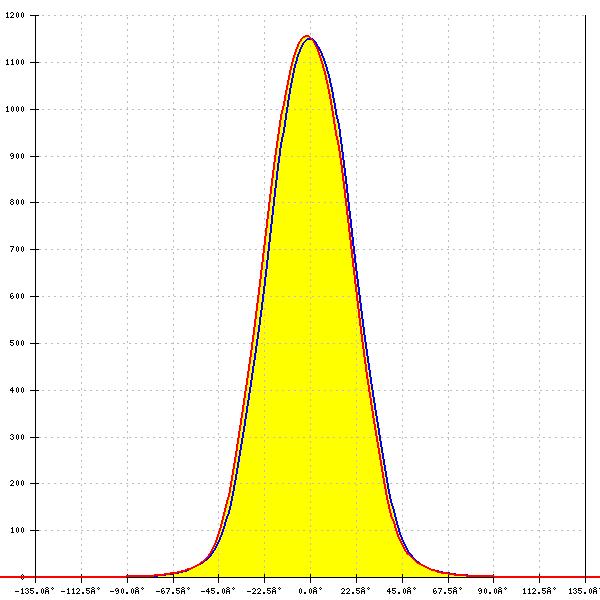

LED:
XP-G2
FWHM:
47°
FWTM:
83°
Peak intensity:
1.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

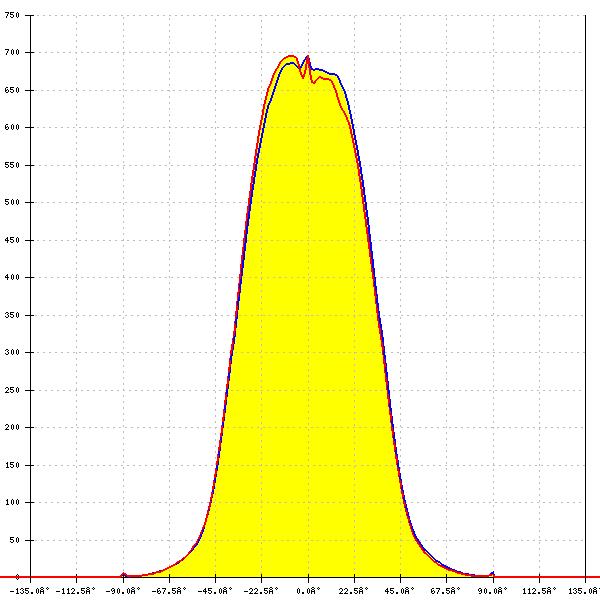

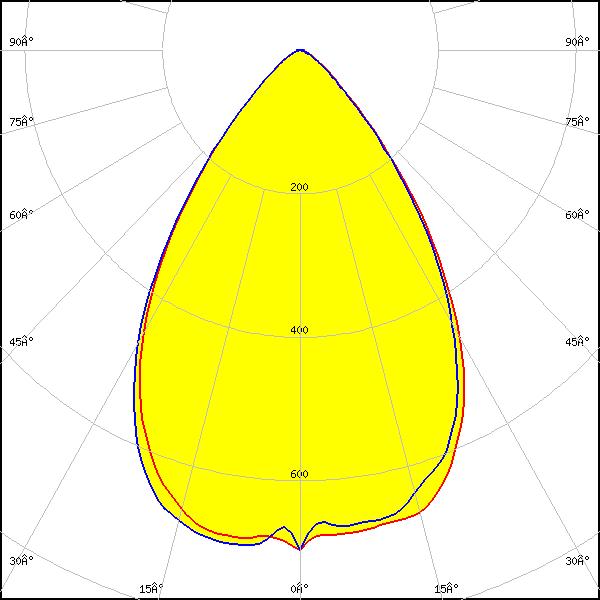

LED:
XP-G2 HE
FWHM:
69°
FWTM:
100°
Peak intensity:
0.702 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

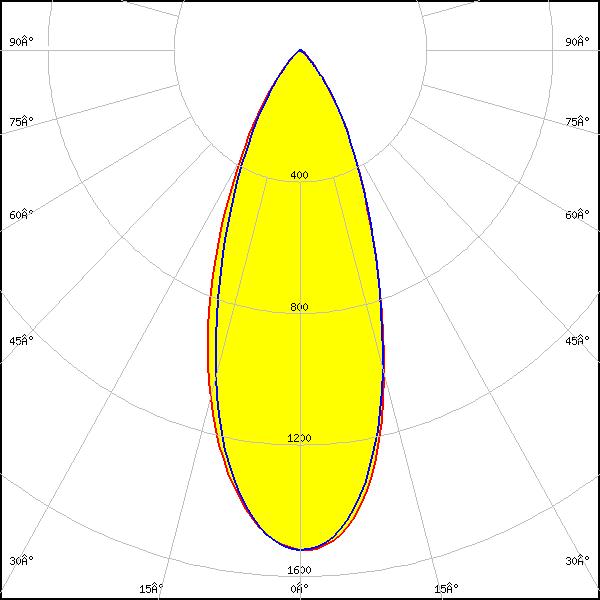

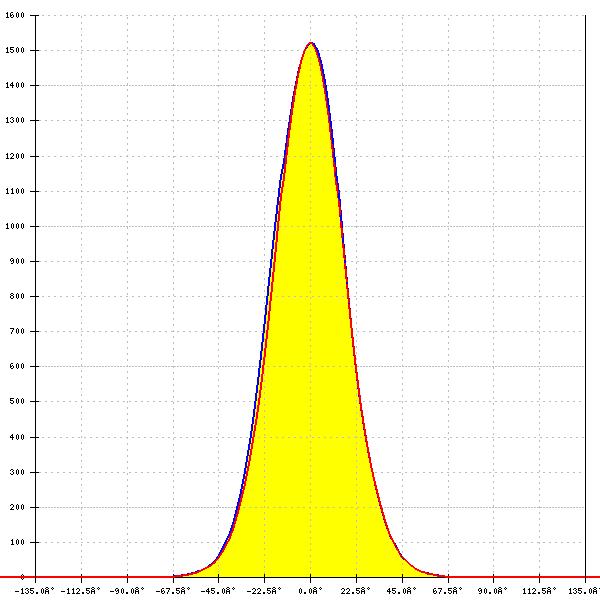

LED:
XP-G3
FWHM:
42°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

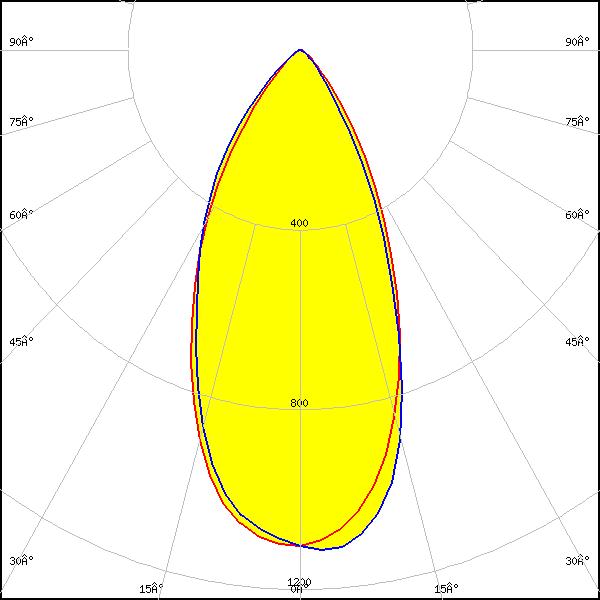

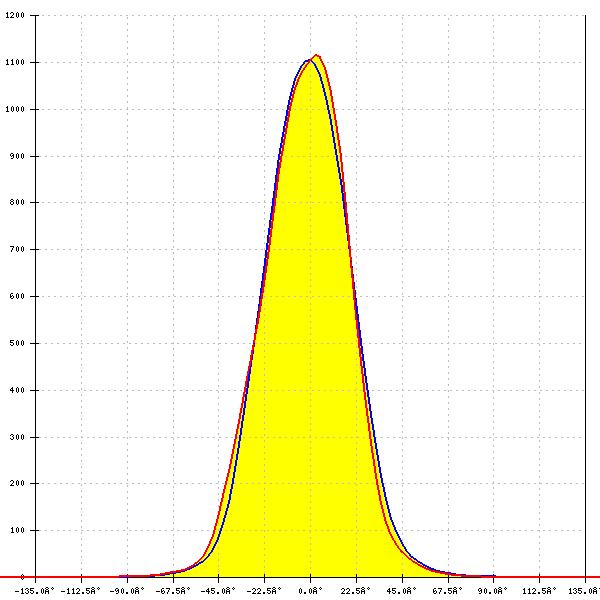

LED:
XT-E
FWHM:
47°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

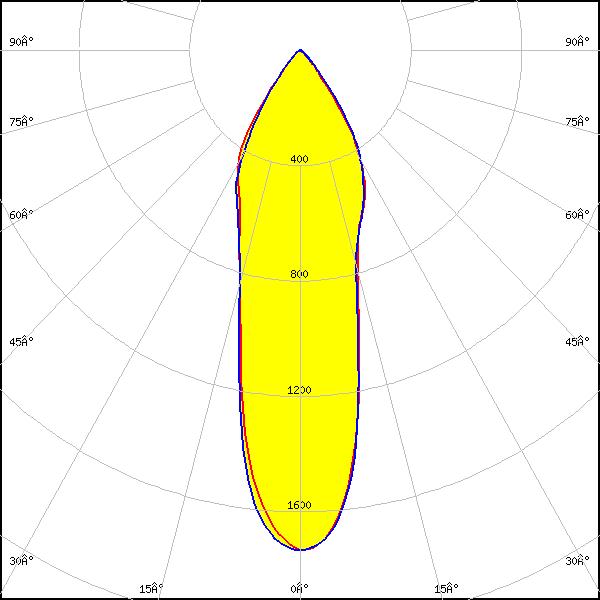

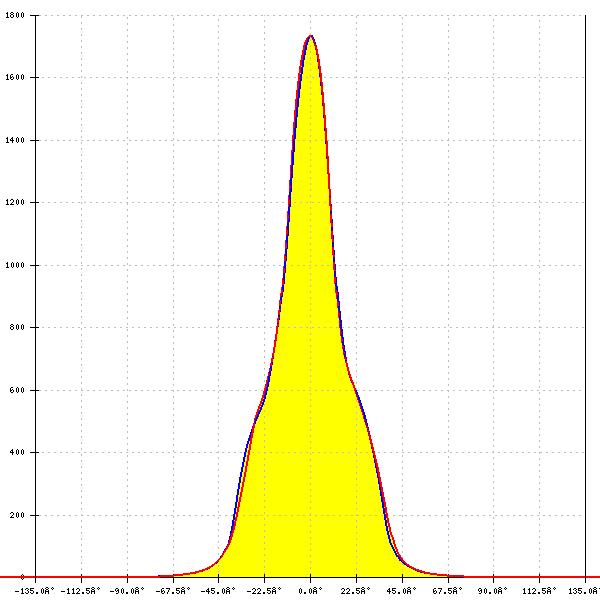

LED:
LUXEON CZ
FWHM:
29°
FWTM:
76°
Peak intensity:
1.734 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR Compact
FWHM:
51°
FWTM:
83°
Peak intensity:
0.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Q
FWHM:
54°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

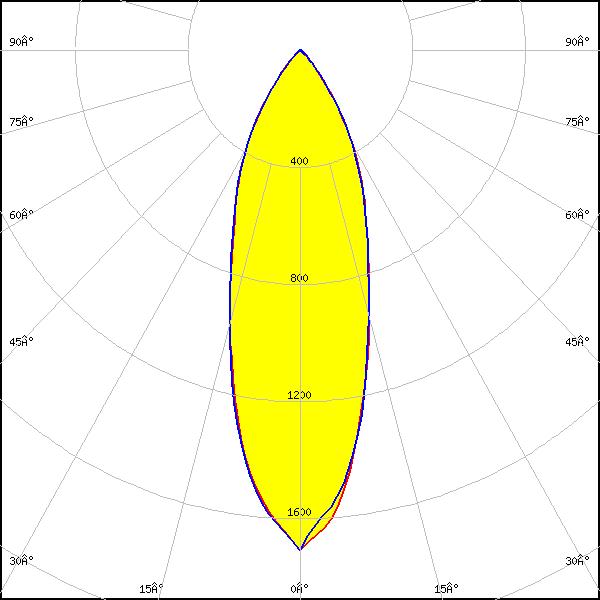

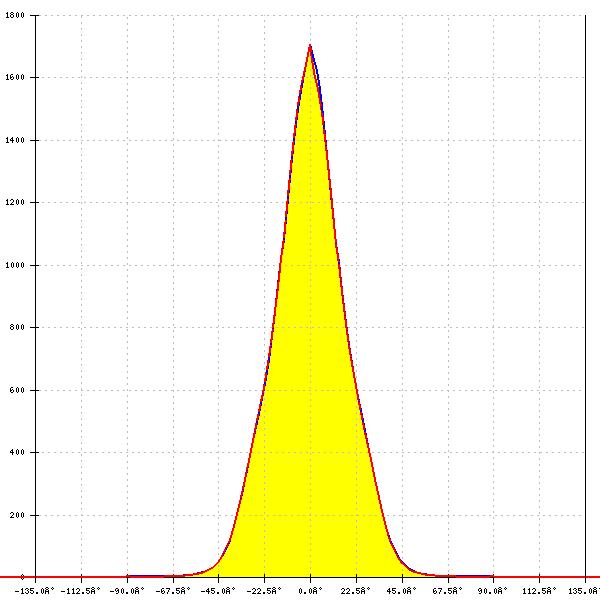

LED:
NCSxE17A
FWHM:
34°
FWTM:
74°
Peak intensity:
1.708 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

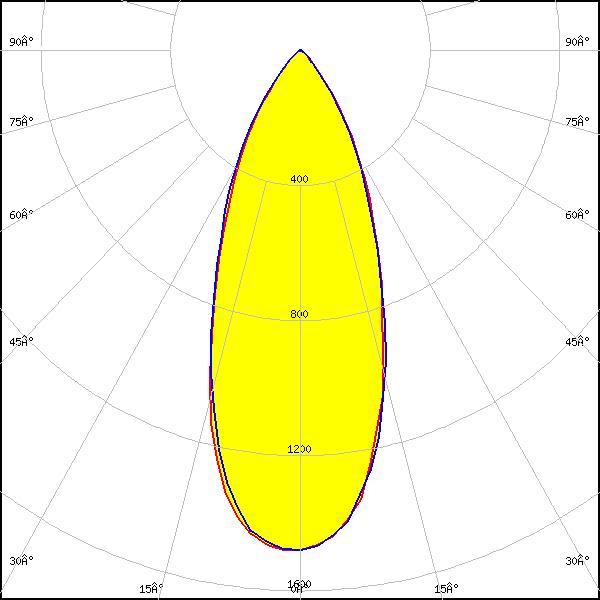

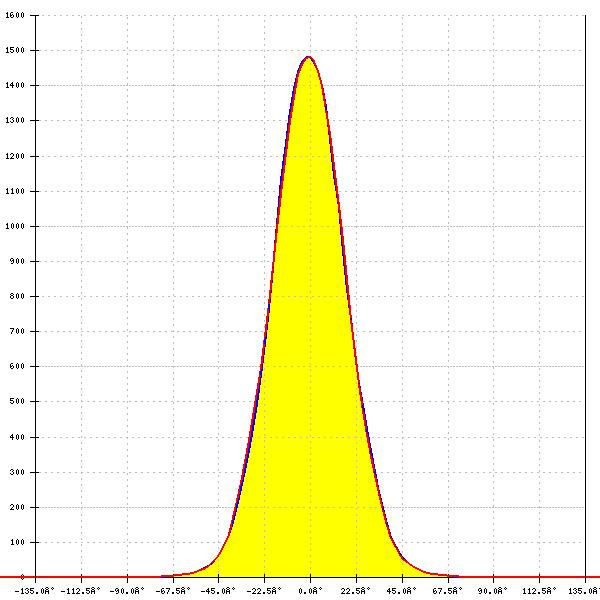

LED:
NCSxx19B
FWHM:
41°
FWTM:
78°
Peak intensity:
1.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

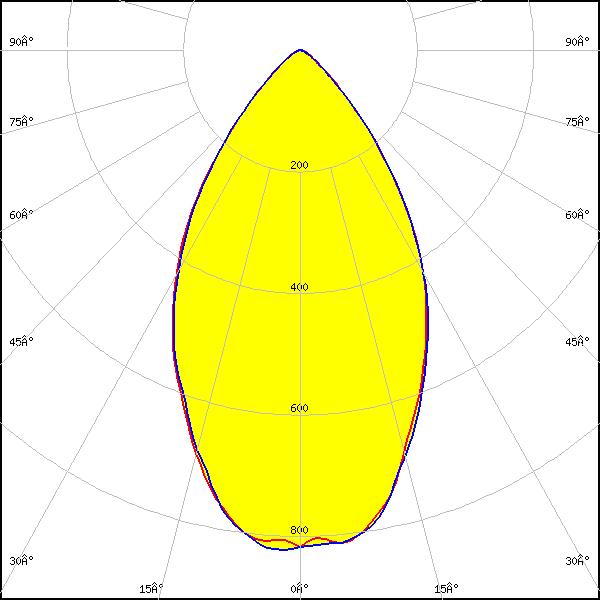

LED:
NVSW519A
FWHM:
62°
FWTM:
96°
Peak intensity:
0.831 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

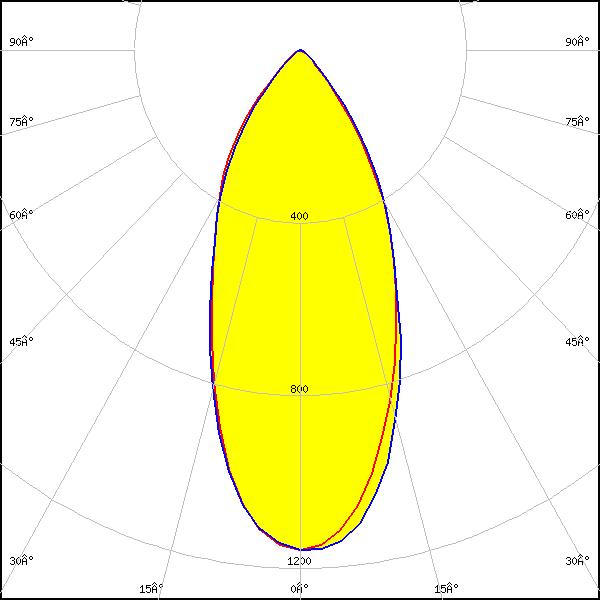

LED:
OSLON Square EC
FWHM:
46°
FWTM:
86°
Peak intensity:
1.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

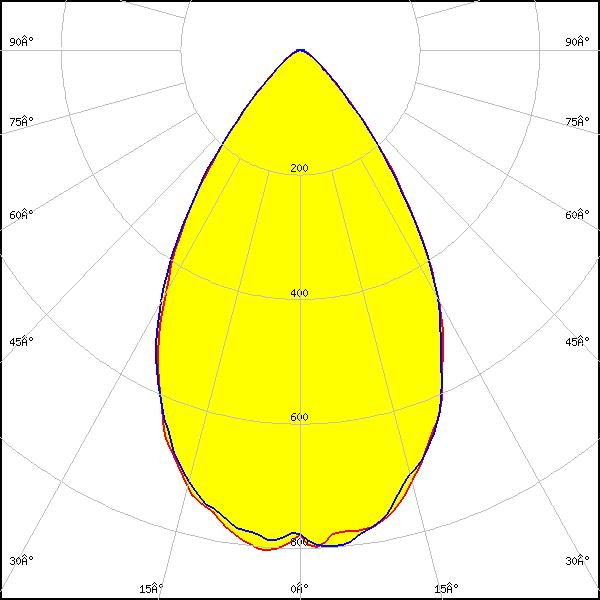

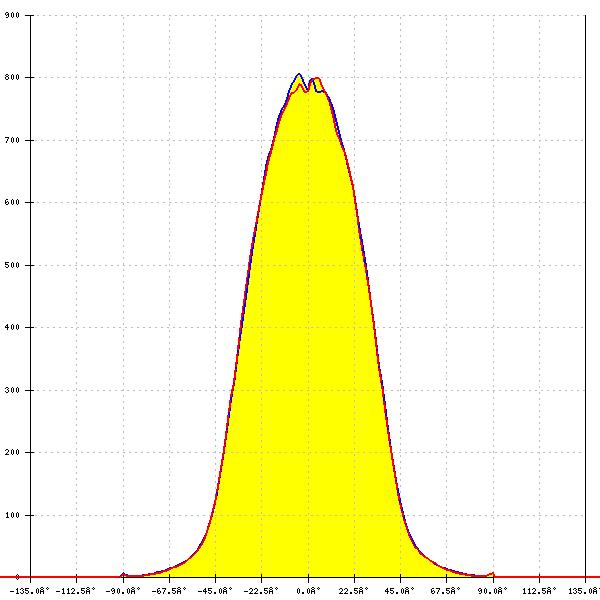

LED:
LH351B
FWHM:
67°
FWTM:
96°
Peak intensity:
0.890 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

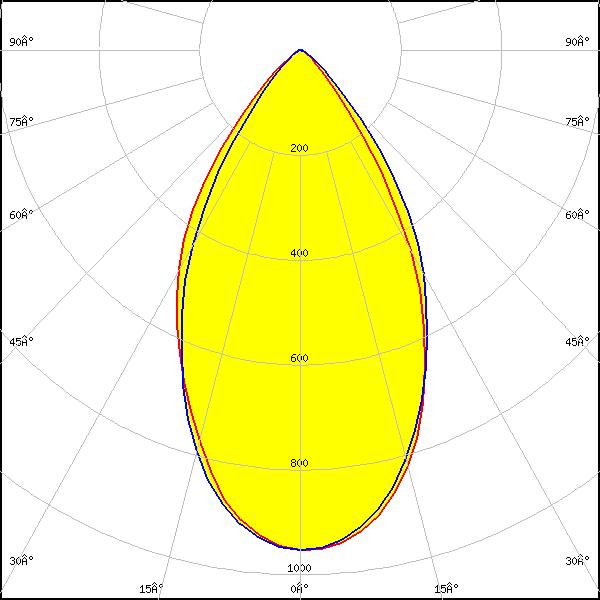

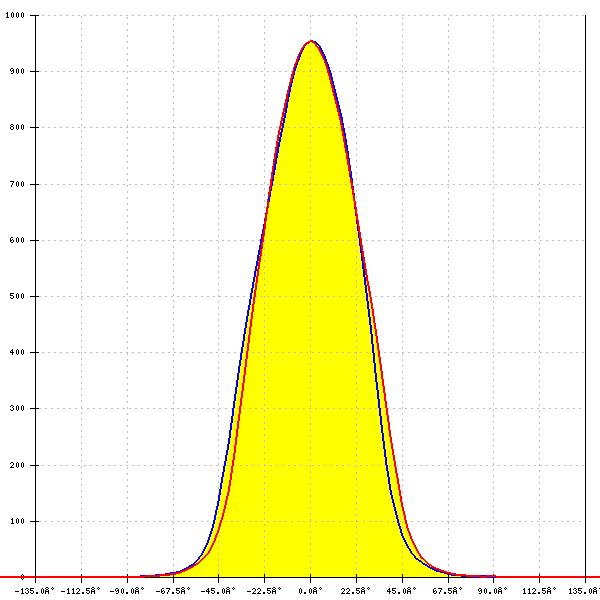

LED:
LH351Z
FWHM:
60°
FWTM:
91°
Peak intensity:
0.950 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

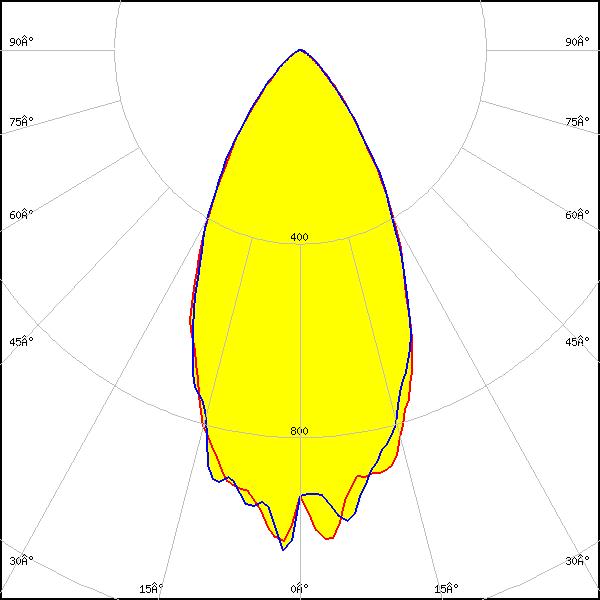

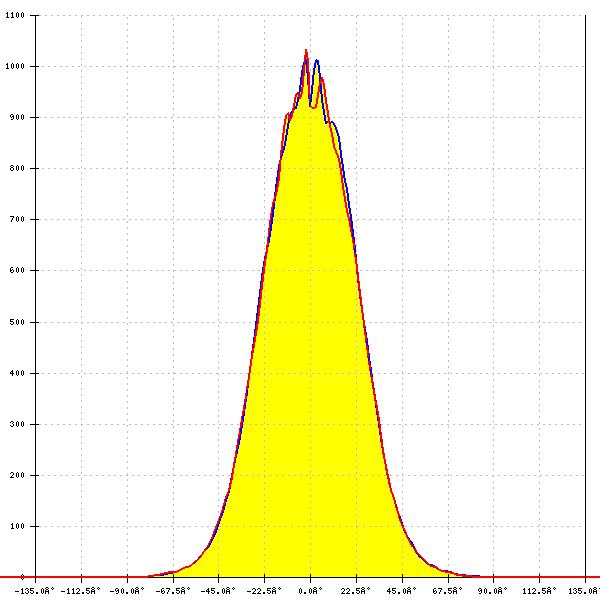

LED:
Z8Y22P
FWHM:
50°
FWTM:
88°
Peak intensity:
1.050 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
