    FP13030_LISA2-M-CLIP

    Print

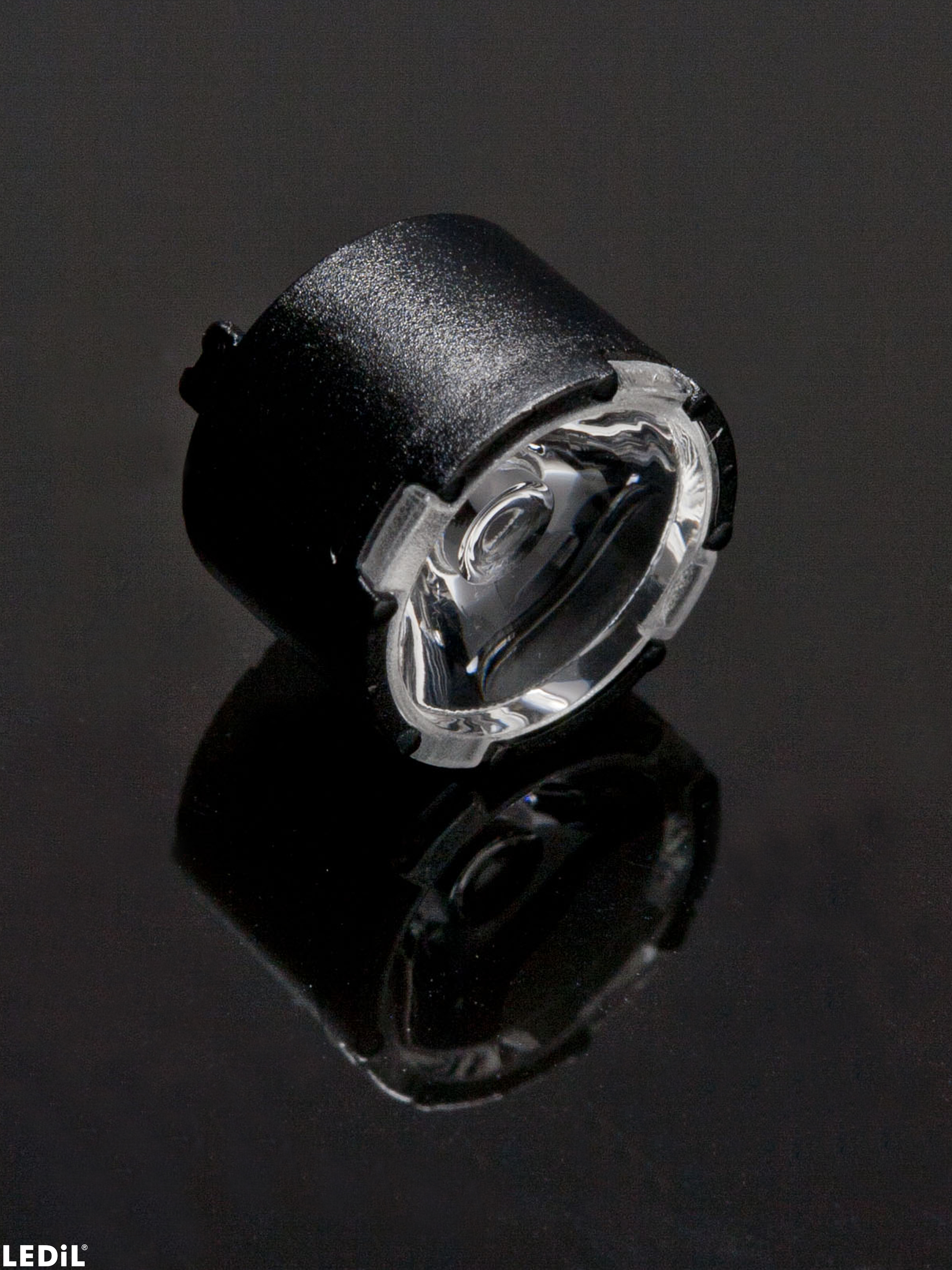

    ~20° medium beam optimized for CREE XP-E. 6.8 mm high variant with clip installation.

    Specification
    • Dimensions:
      10 mm
    • Height:
      6.80 mm
    • Fastening:
      glue, clips
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2000 pcs
    • Box weight:
      1.4 kg
    • MPQ:
      100 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FP13030_LISA2-M-CLIP
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Training video

    Seeing further with LEDiL´s IR optics

    Reference product

    Meganova LED ring light

    Application guide

    Seeing further with LEDiL’s IR optics

    Application area

    Architectural Outdoor Lighting

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    LuxR landscape lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

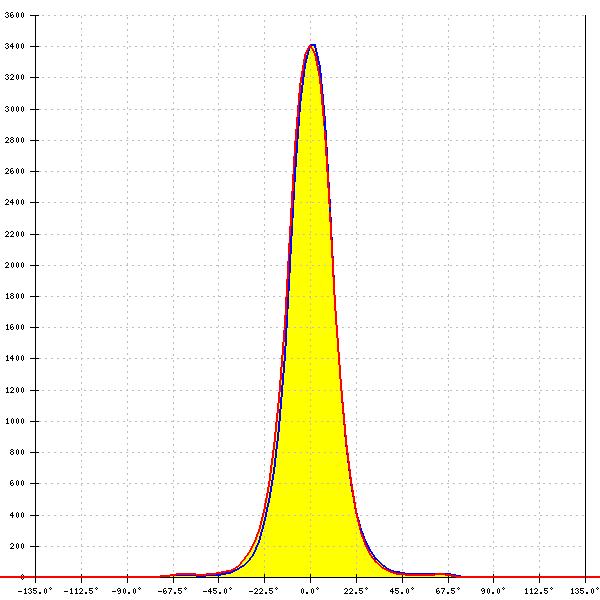

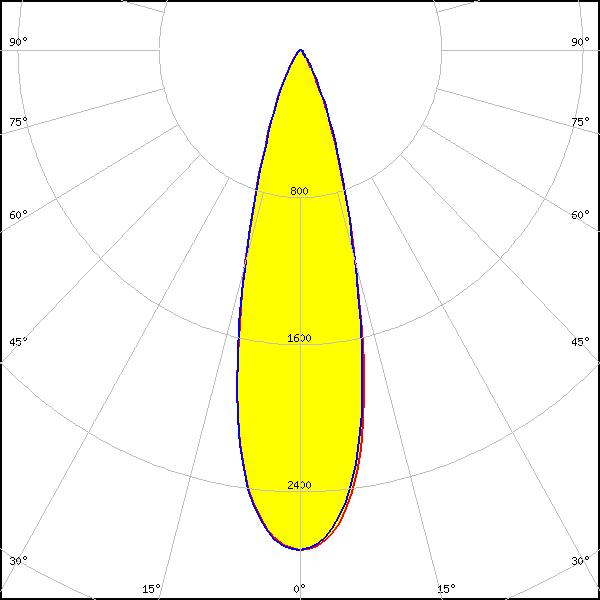

    Optical results

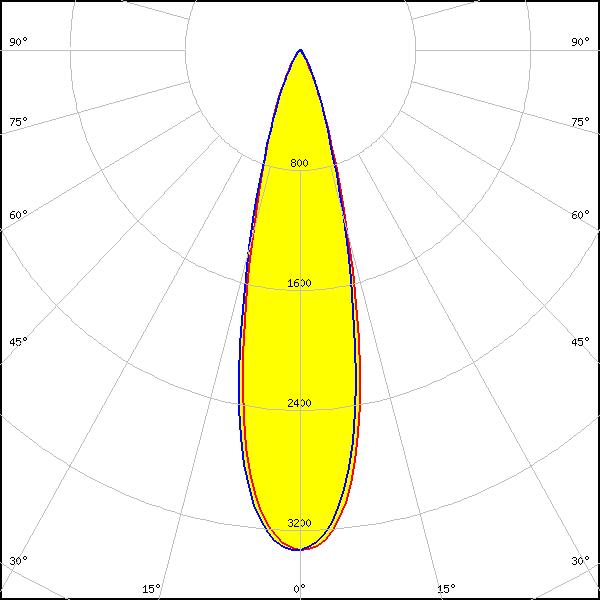

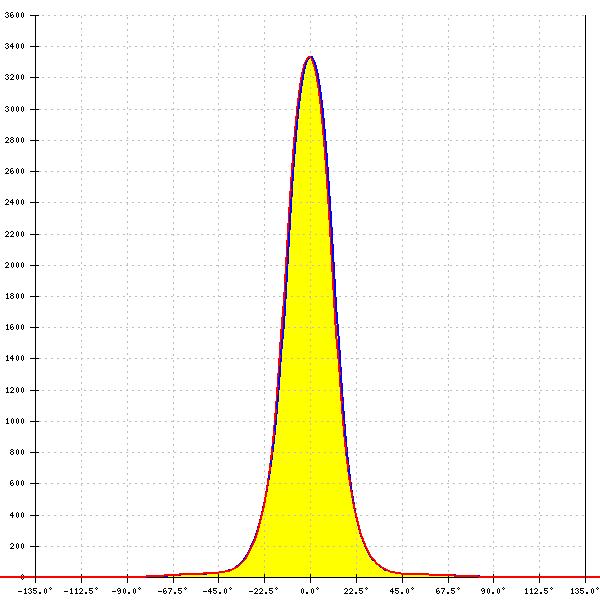

    LED: XP-G2
    FWHM: 25°
    FWTM: 47°
    Peak intensity: 3.500 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.260 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

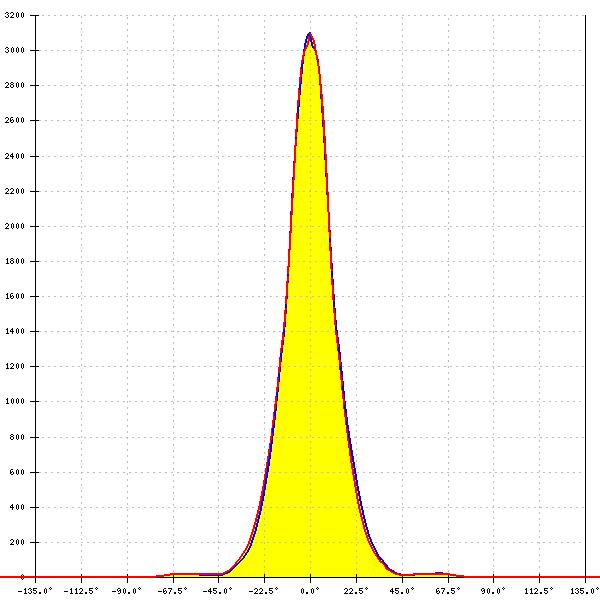

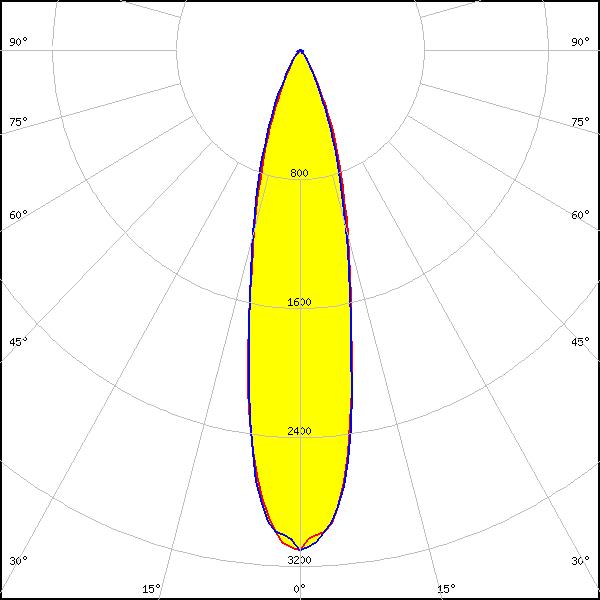

    LED: LUXEON H50-2
    FWHM: 24°
    FWTM: 52°
    Peak intensity: 3.100 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON IR Compact
    FWHM: 14°
    FWTM: 29°
    Peak intensity: 0.000 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

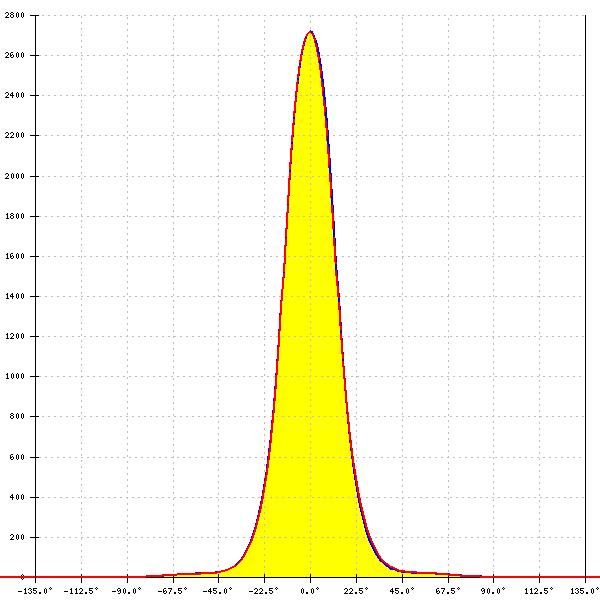

    LED: LUXEON T
    FWHM: 28°
    FWTM: 54°
    Peak intensity: 2.700 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

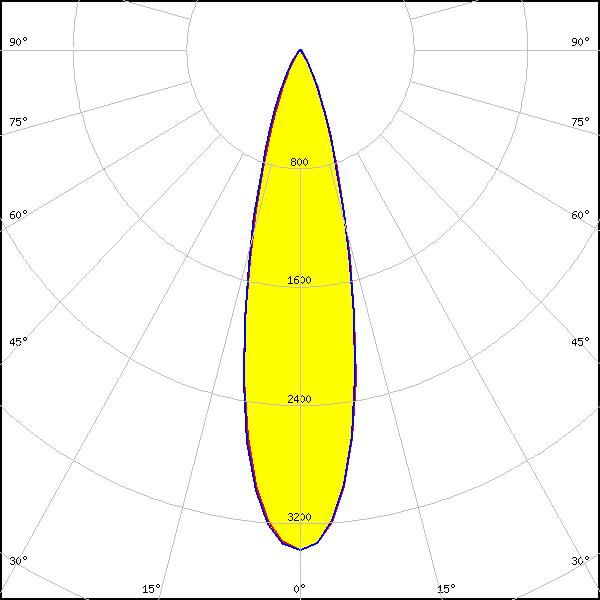

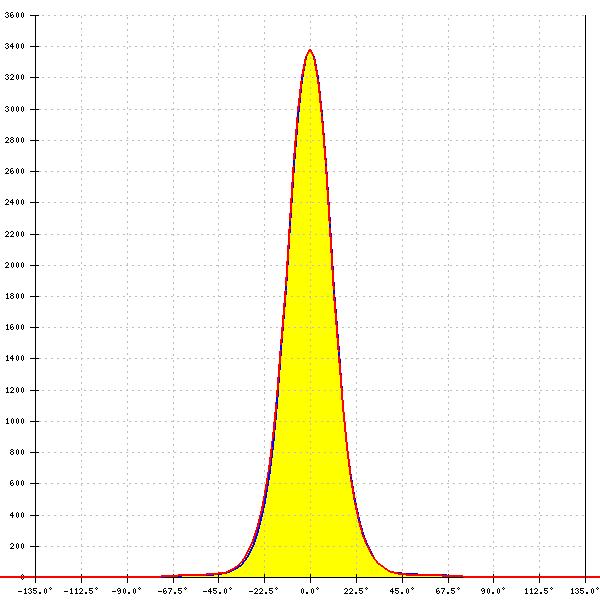

    LED: LUXEON TX
    FWHM: 26°
    FWTM: 51°
    Peak intensity: 3.380 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

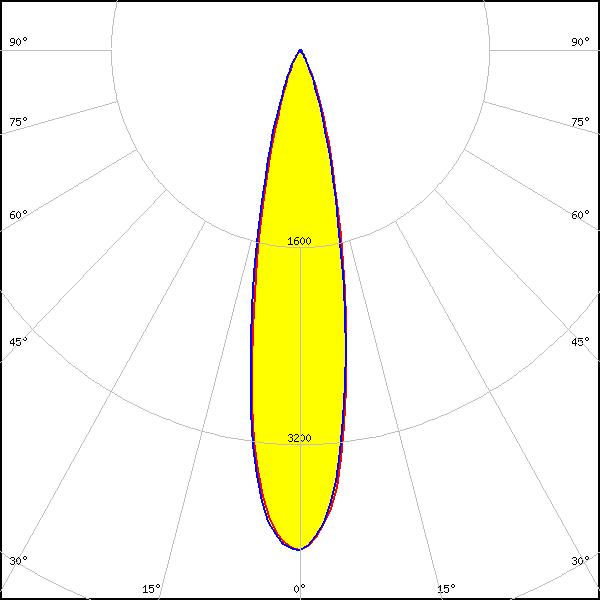

    LED: NCSxx19B
    FWHM: 23°
    FWTM: 46°
    Peak intensity: 4.100 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

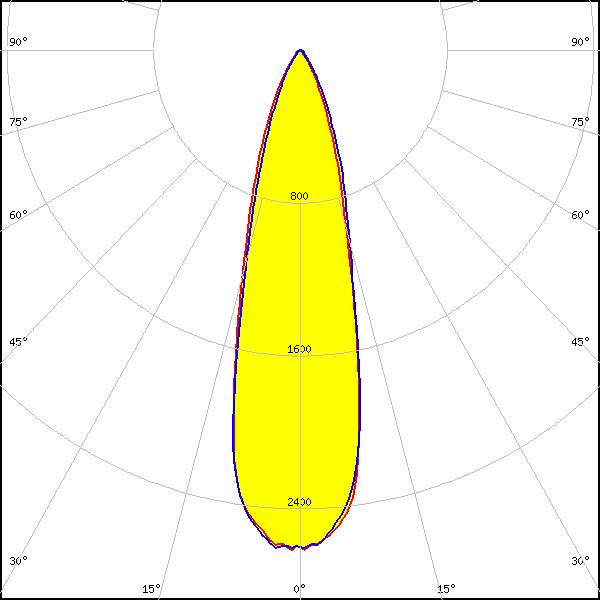

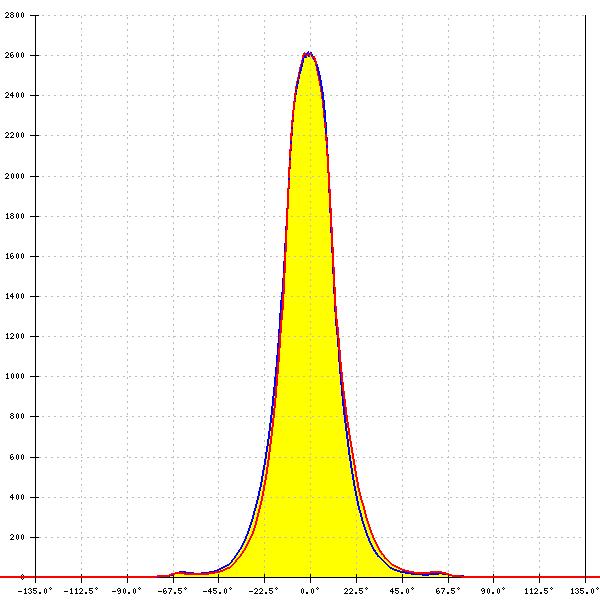

    LED: NVSxx19B/NVSxx19C
    FWHM: 27°
    FWTM: 56°
    Peak intensity: 2.600 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

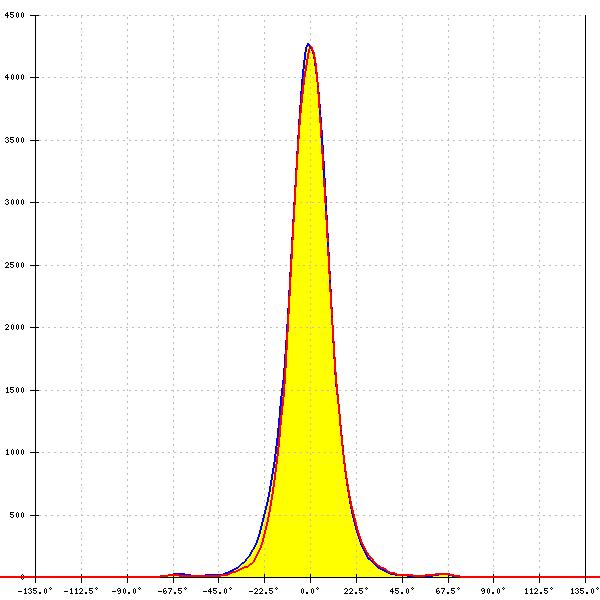

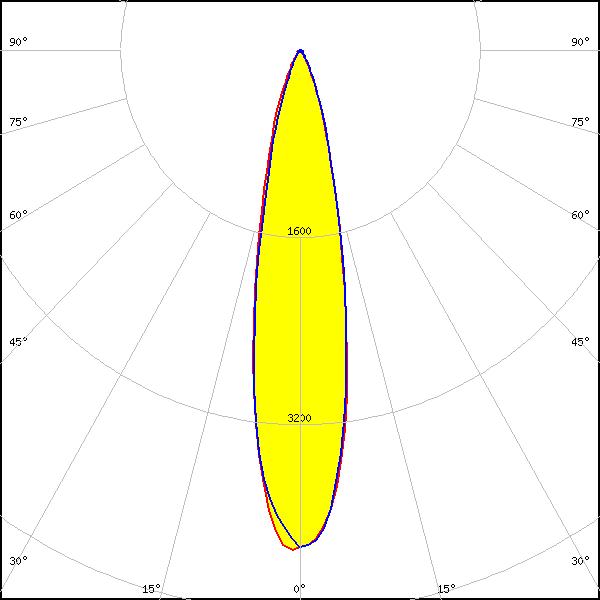

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 21°
    FWTM: 44°
    Peak intensity: 4.440 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.400 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

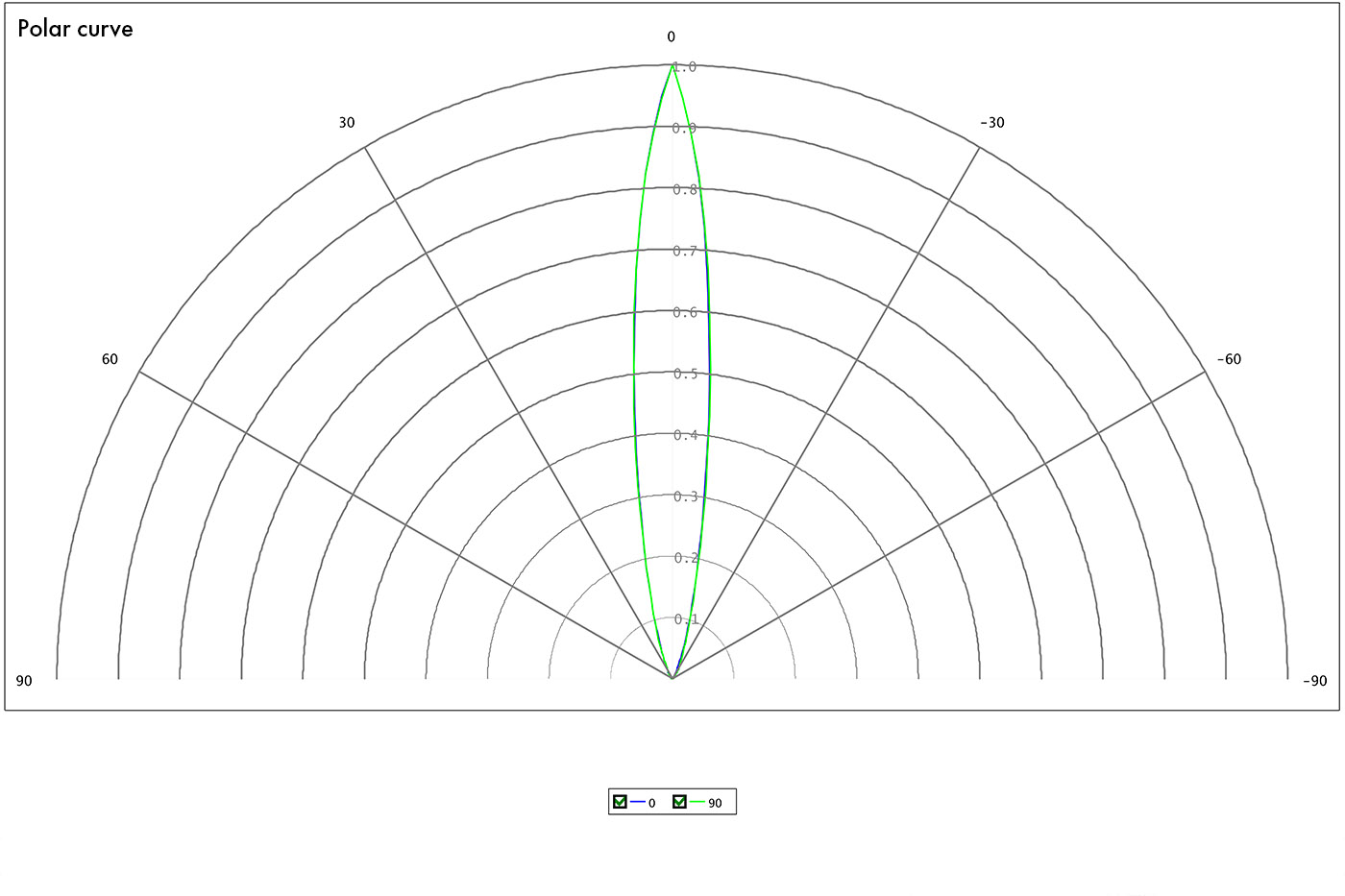

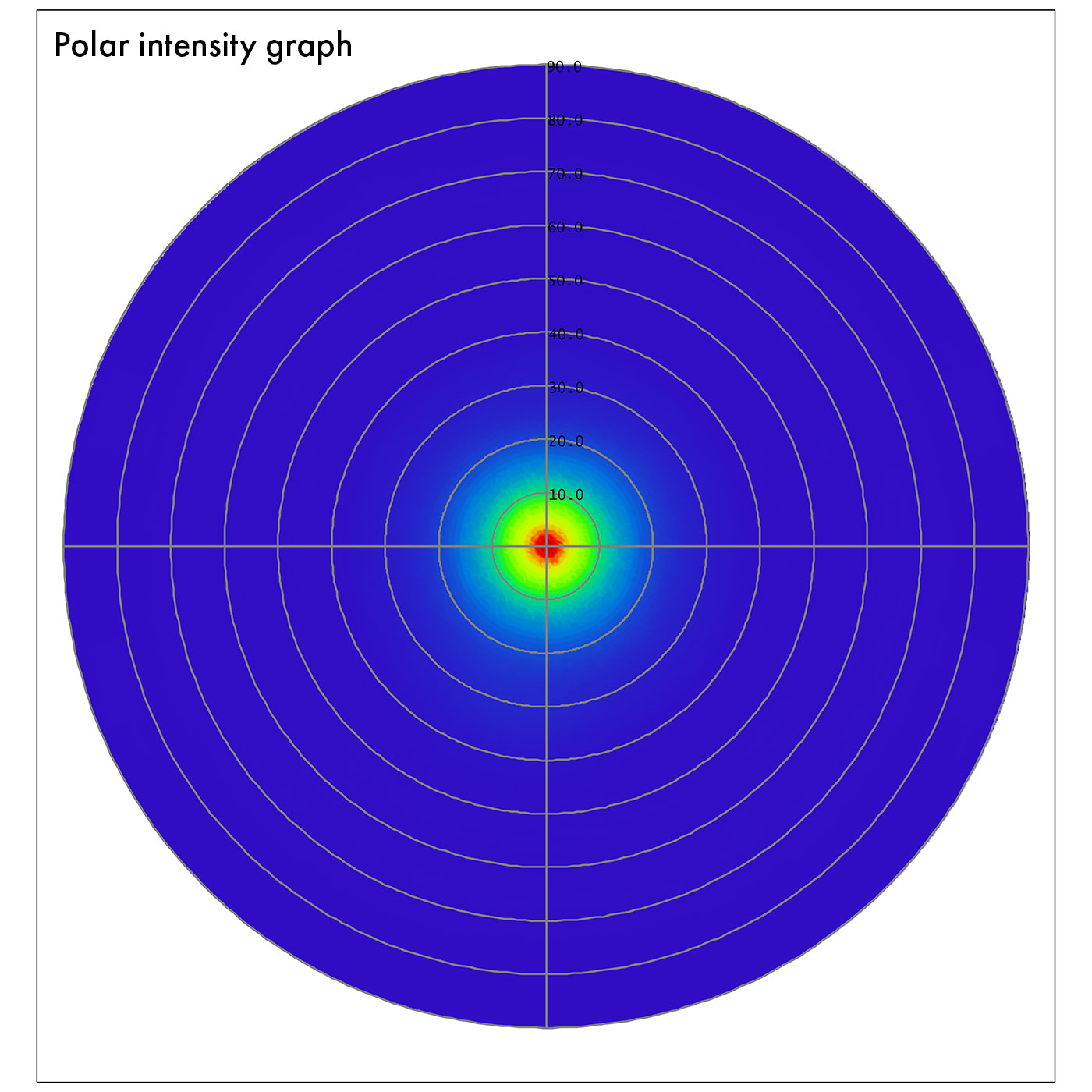

    LED: SFH 4770S
    FWHM: 14°
    FWTM: 33°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: IR

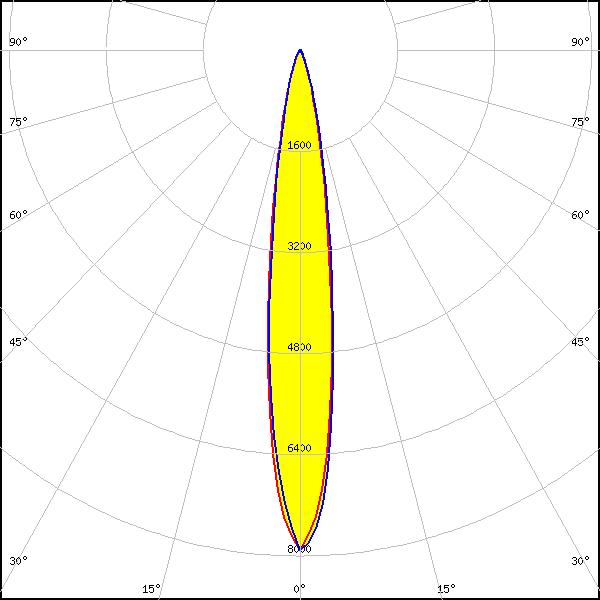

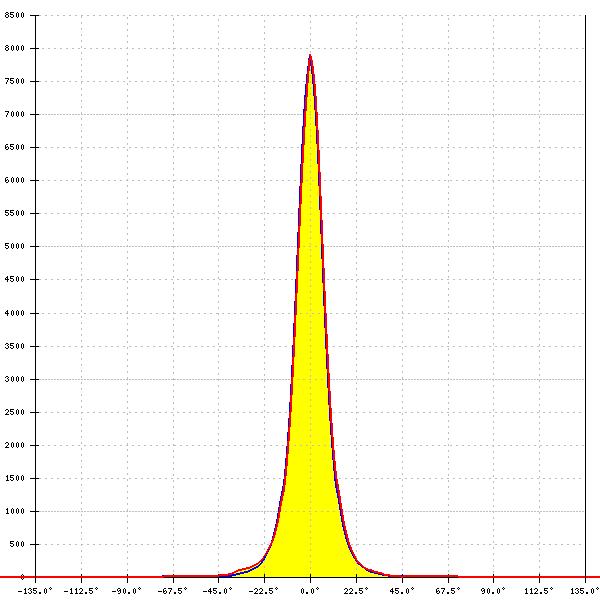

    LED: Synios P2720 1/2 mm
    FWHM: 15°
    FWTM: 33°
    Peak intensity: 7.912 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

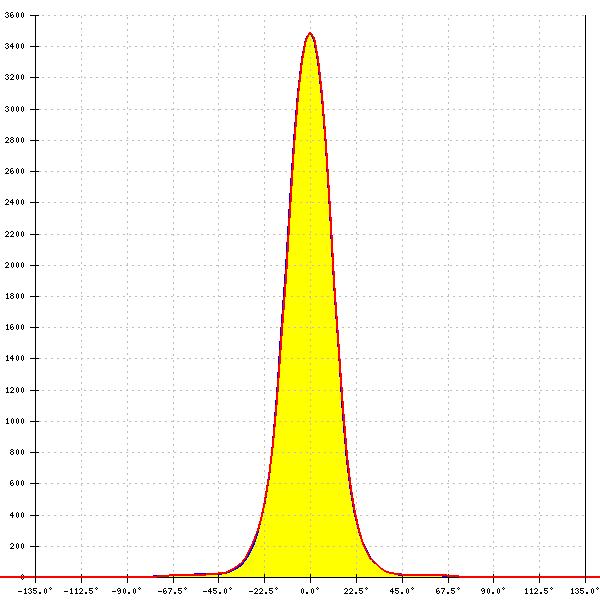

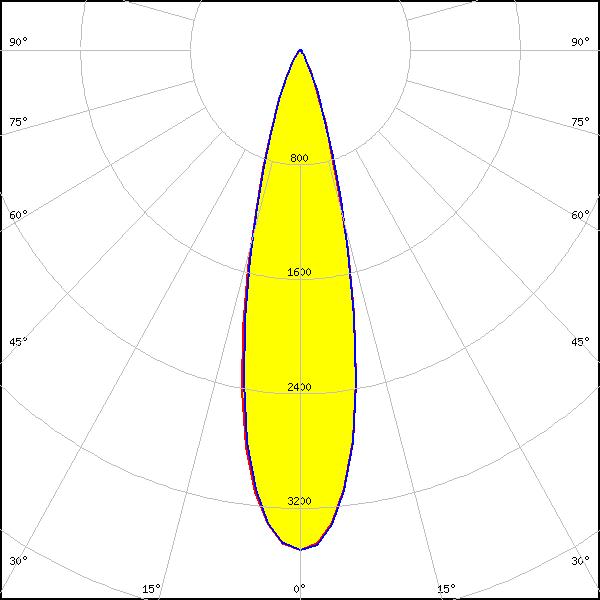

    LED: LH351Z
    FWHM: 26°
    FWTM: 50°
    Peak intensity: 3.500 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

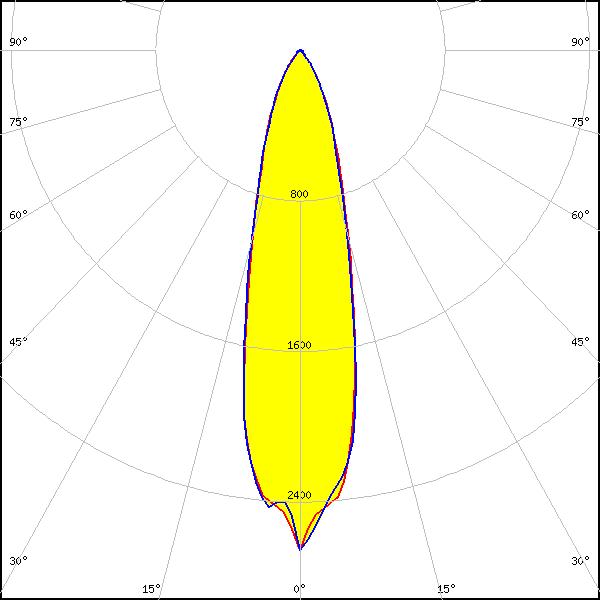

    LED: Z8Y22P
    FWHM: 25°
    FWTM: 56°
    Peak intensity: 2.660 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

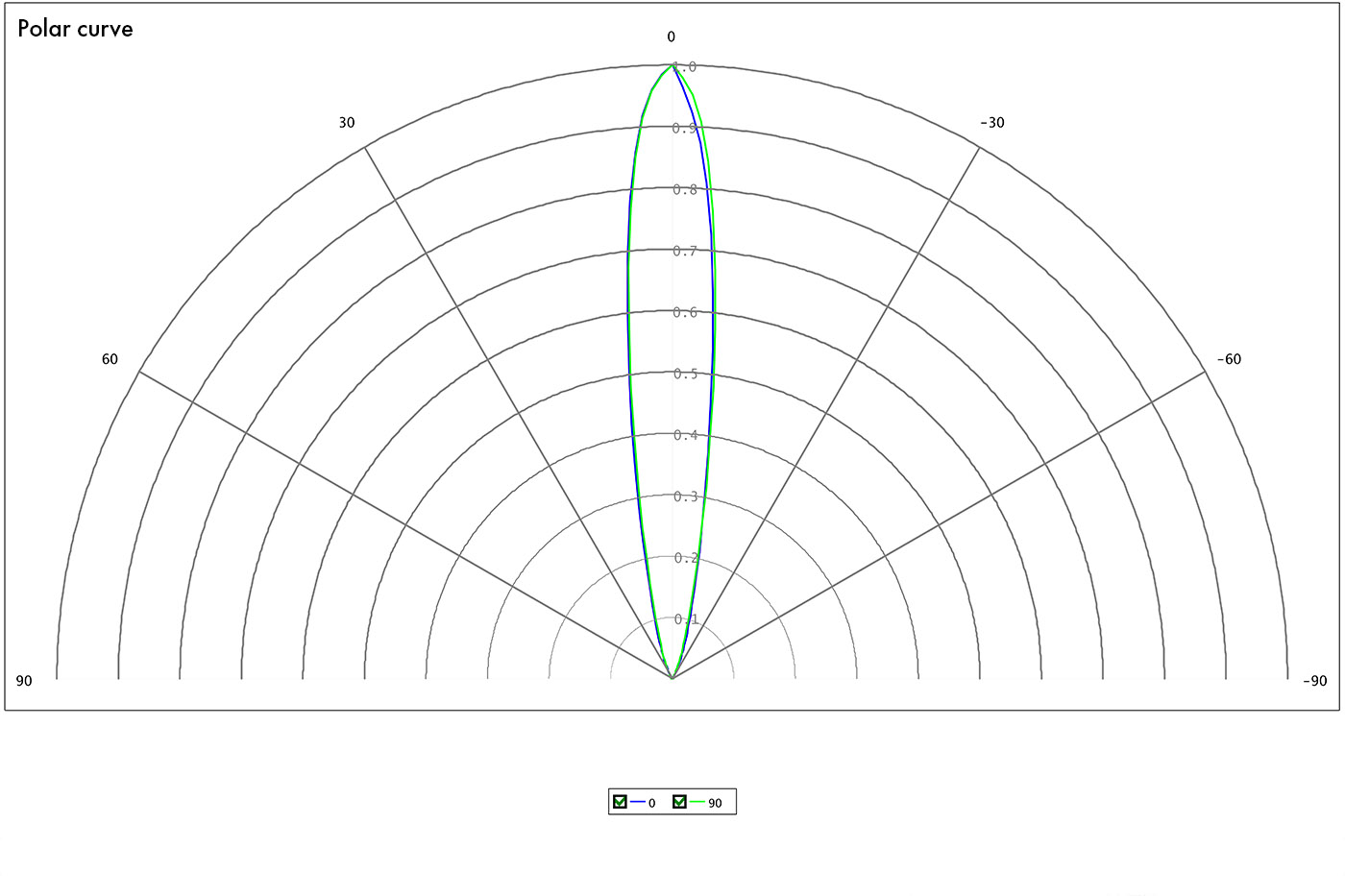

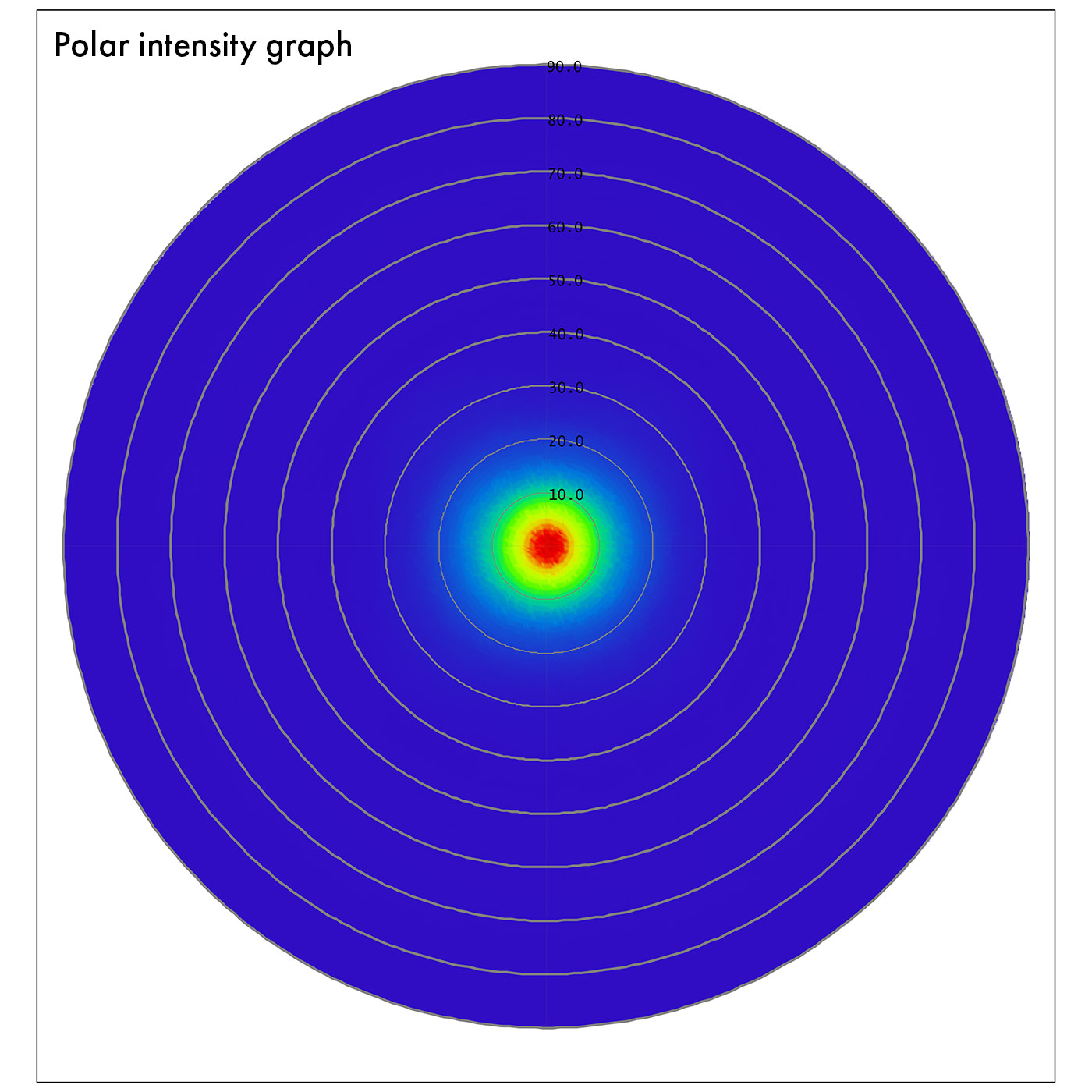

    LED: MGN1108MS
    FWHM: 16°
    FWTM: 32°
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: IR
