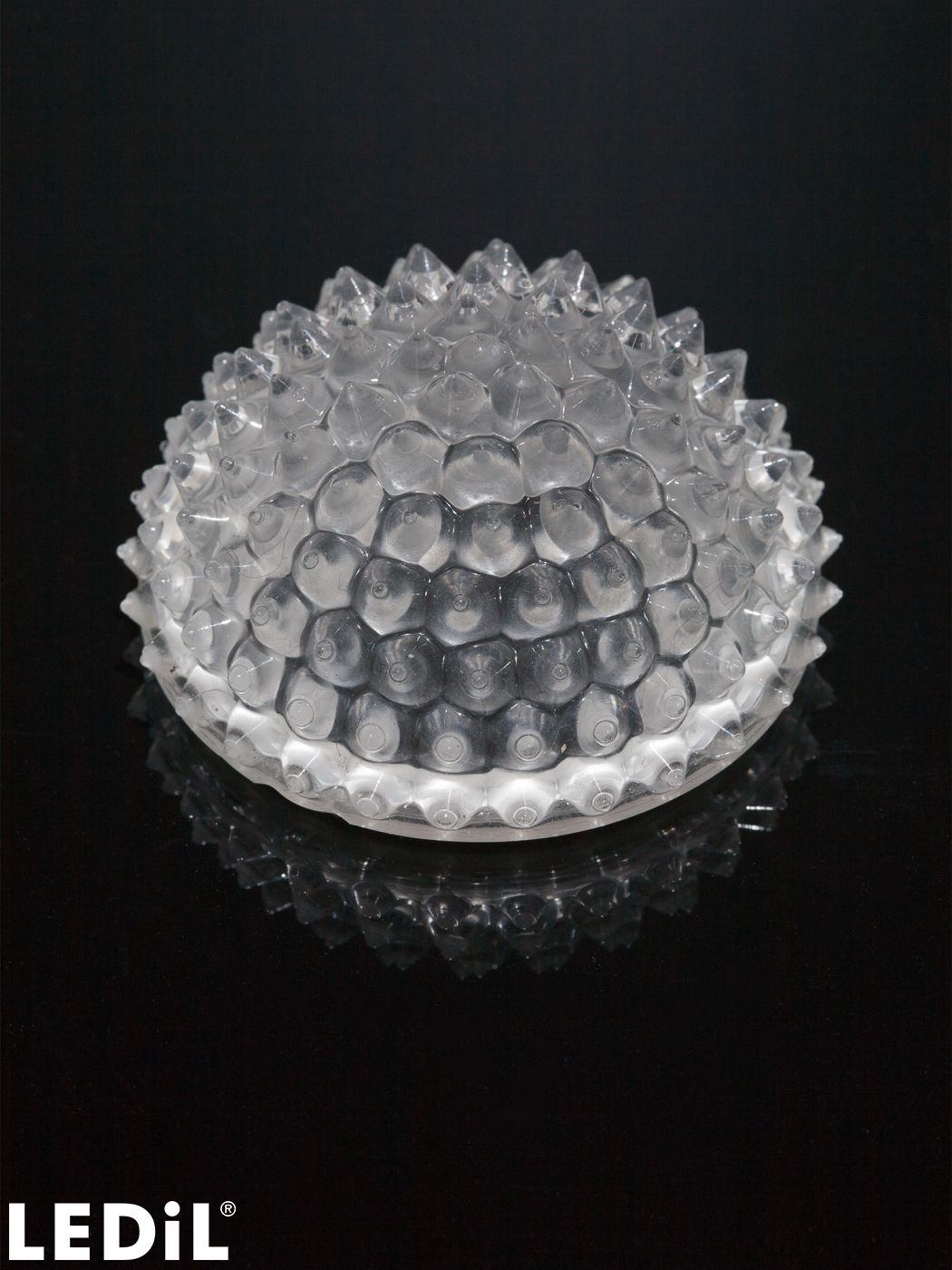

FP15073_ZORYA-SC-B

Print

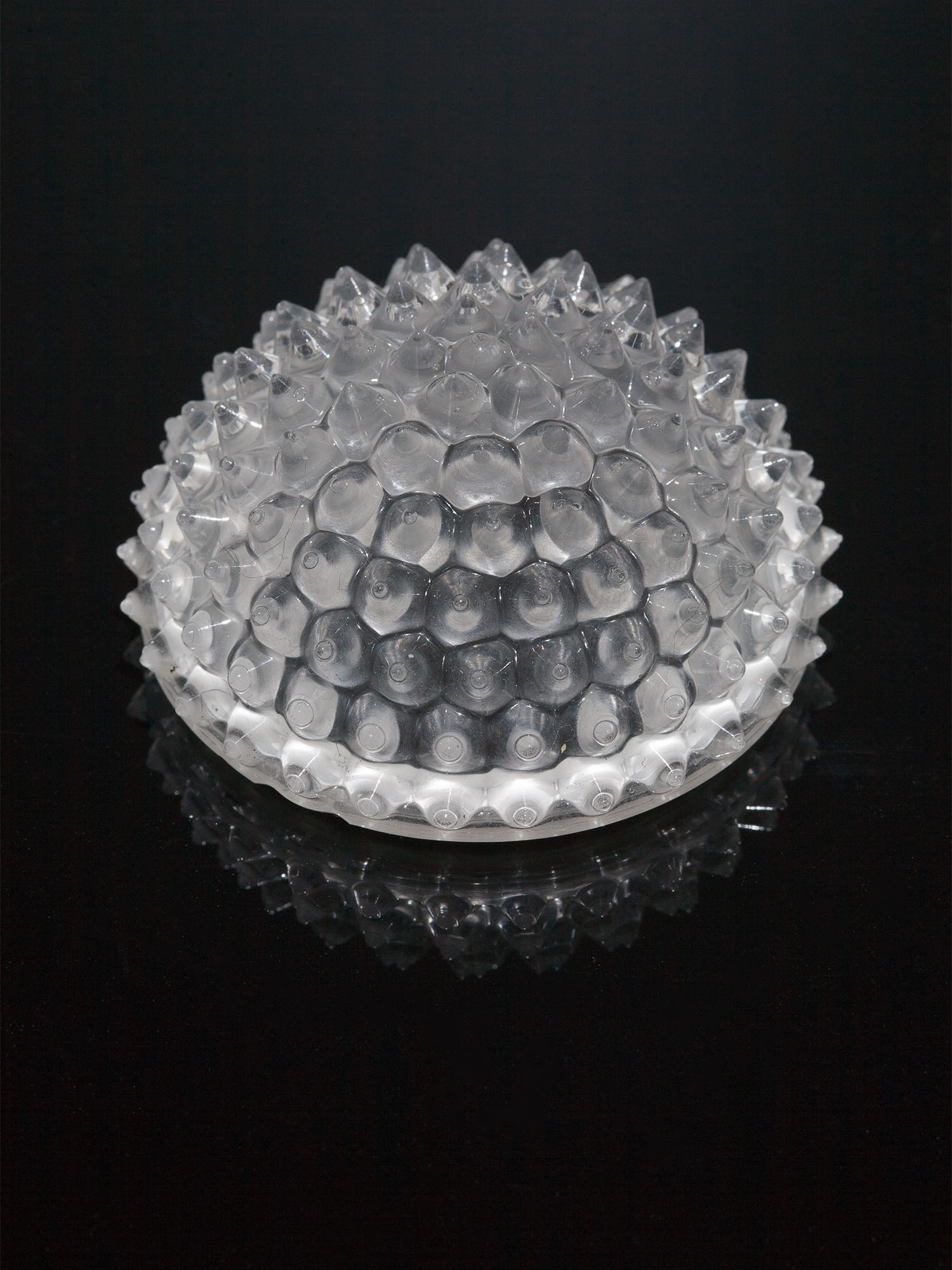

~340° decorative beam. Assembly with ZORYA adapter.

Specification
  • Dimensions:
    56 mm
  • Height:
    27.3 mm
  • Fastening:
    socket
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • ZORYA-SC, Single lens, Silicone
  • ZORYA-SC-ADAPTER-B, Holder, PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    140 pcs
  • Box size:
    398 x 298 x 140 mm
  • Box weight:
    3.1 kg
  • MPQ:
    35 pcs
  • MOQ:
    35 pcs
  • MOQ size:
    400 x 300 x 100 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FP15073_ZORYA-SC-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

BJB 47.319.2xxx compatible

Typical Applications

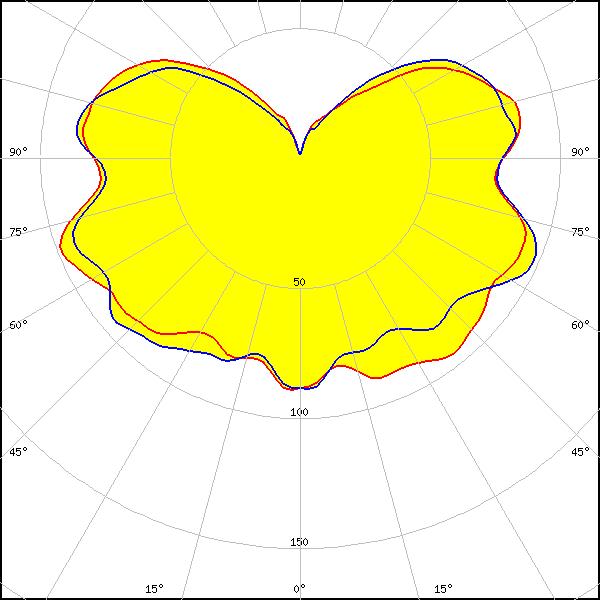

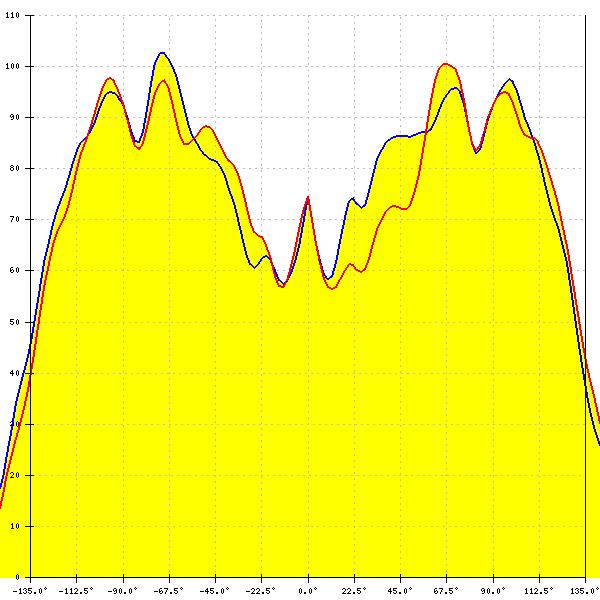

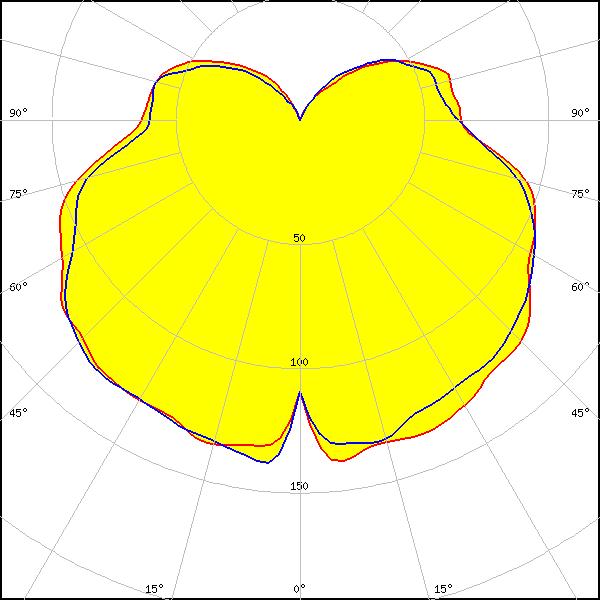

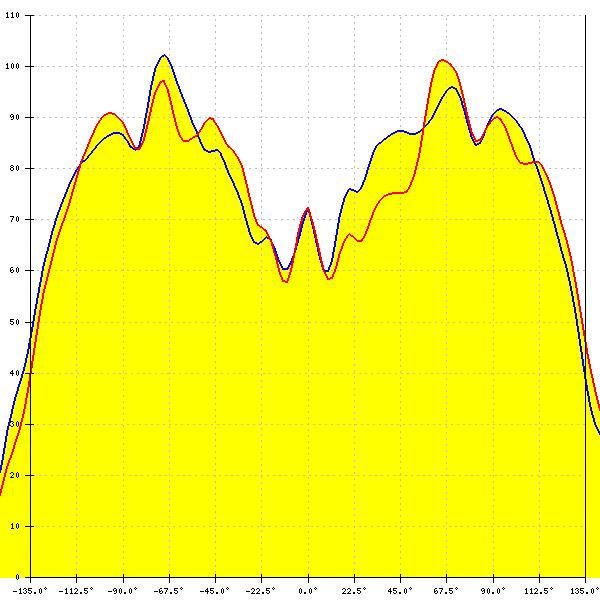

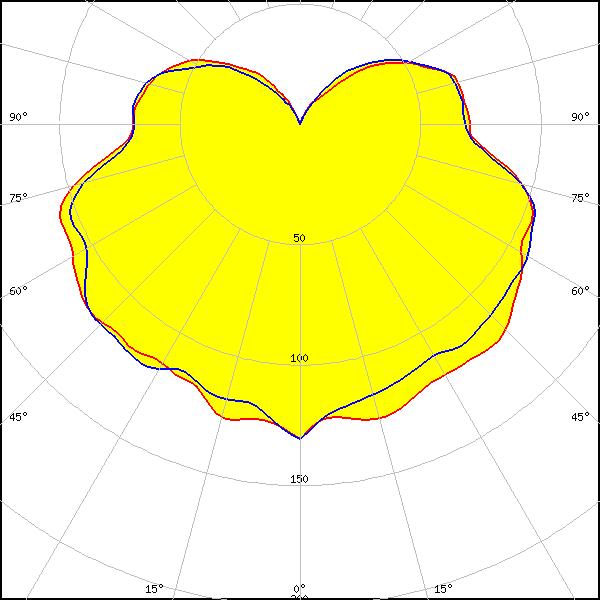

Optical results

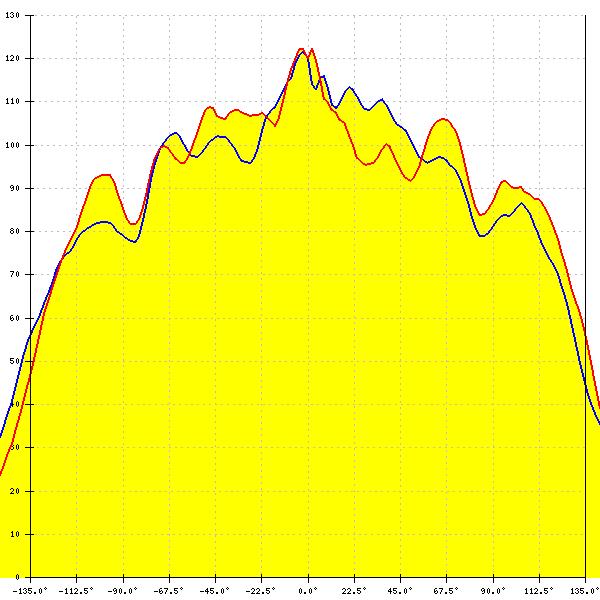

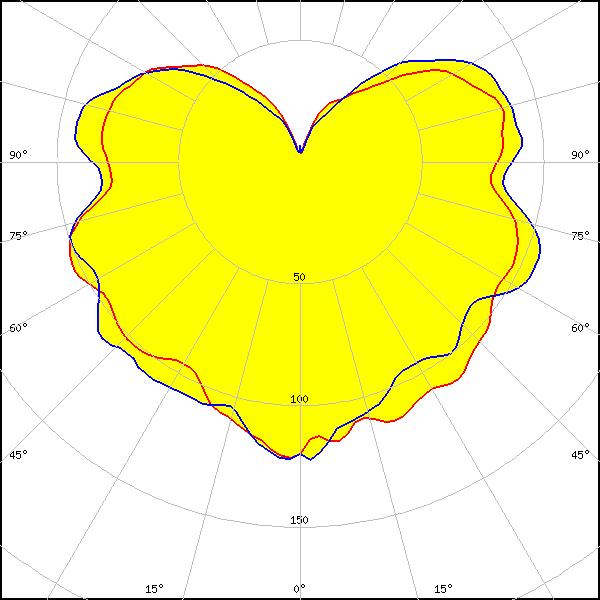

LED: BXRA ES Rectangle
Required components:
BJB: 47.319.2040
FWHM: 256°
Peak intensity: 0.1 cd/lm
LEDs/each optic: 1
Light colour: White

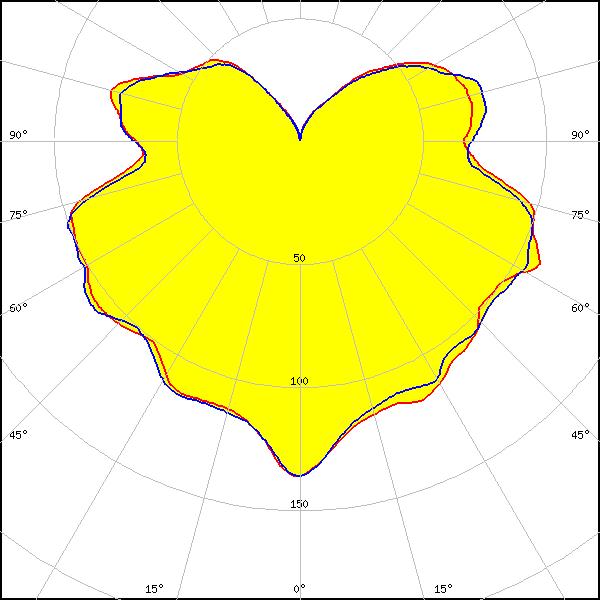

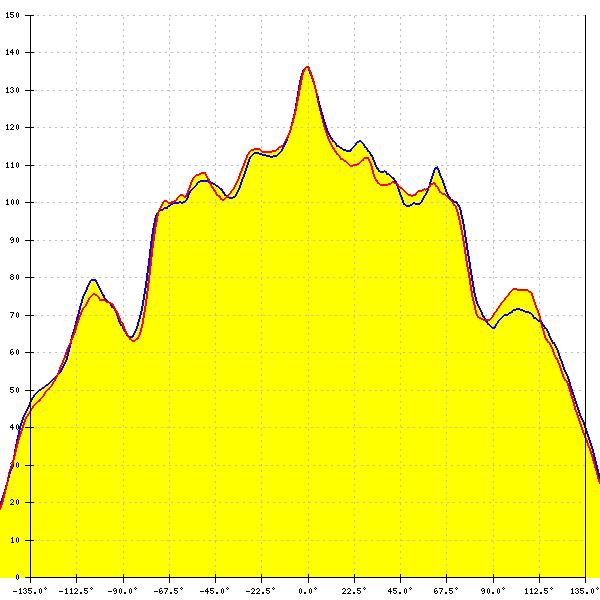

LED: V8 Gen6
Required components:
FWHM: 234°
Peak intensity: 0.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

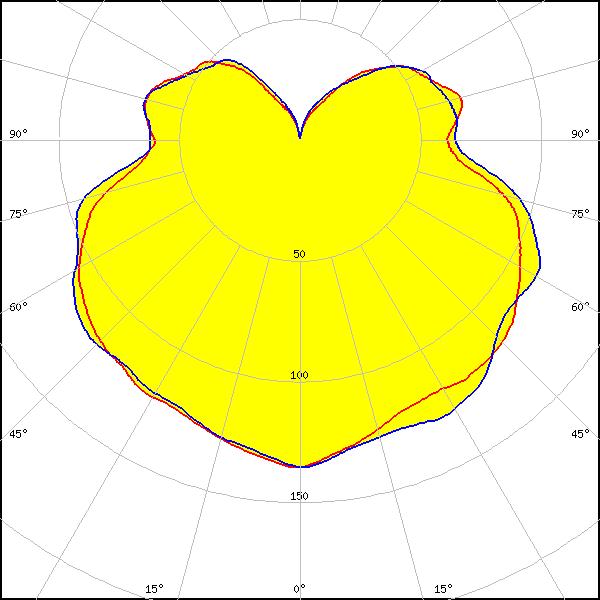

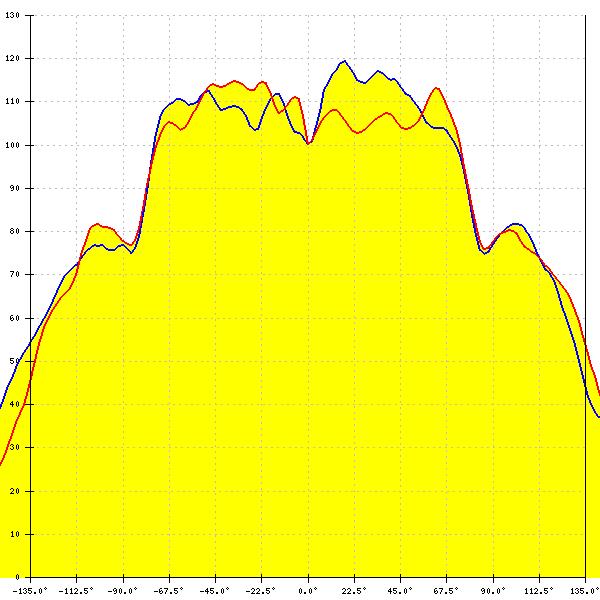

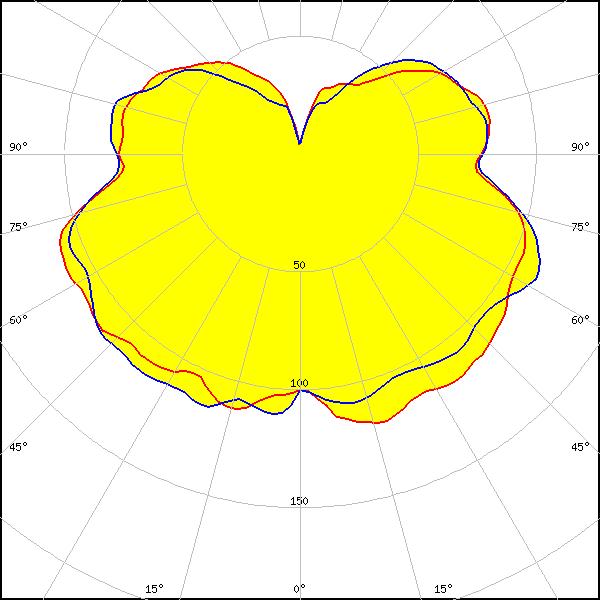

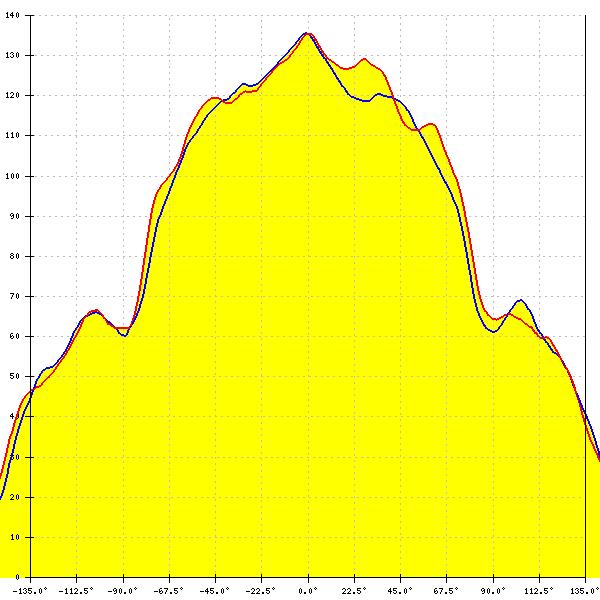

LED: CLL03x/CLU03x
Required components:
FWHM: 171°
Peak intensity: 0.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: CLL03x/CLU03x
Required components:
BJB: 47.319.2021
FWHM: 253°
Peak intensity: 0.1 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

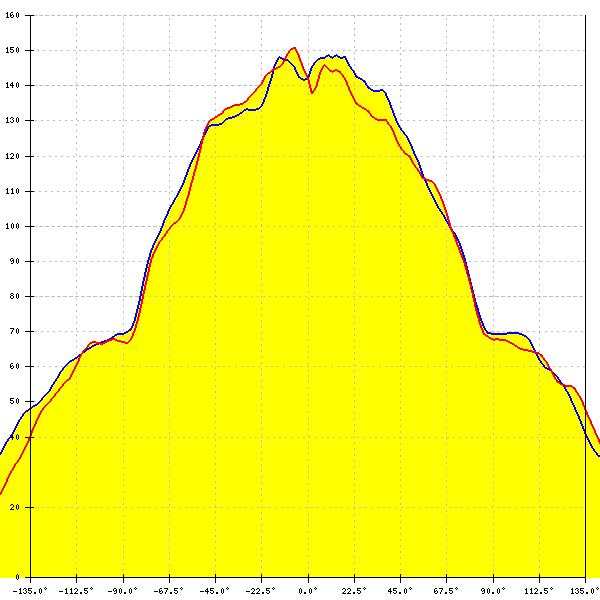

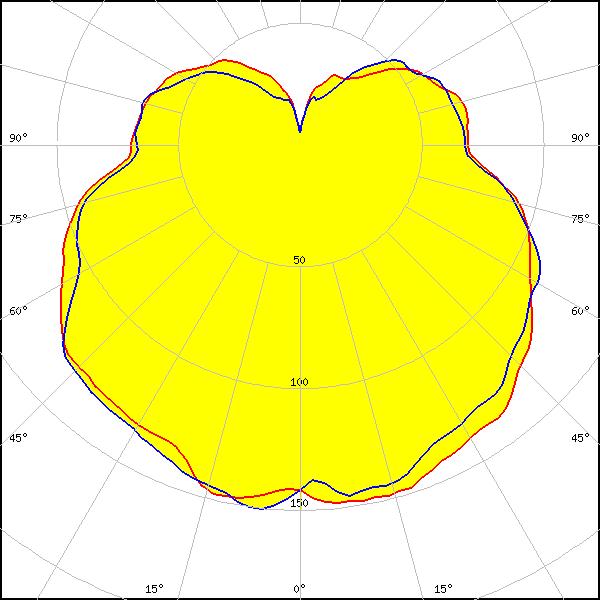

LED: CLL04x/CLU04x
Required components:
BJB: 47.319.2030
FWHM: 165°
Peak intensity: 0.2 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

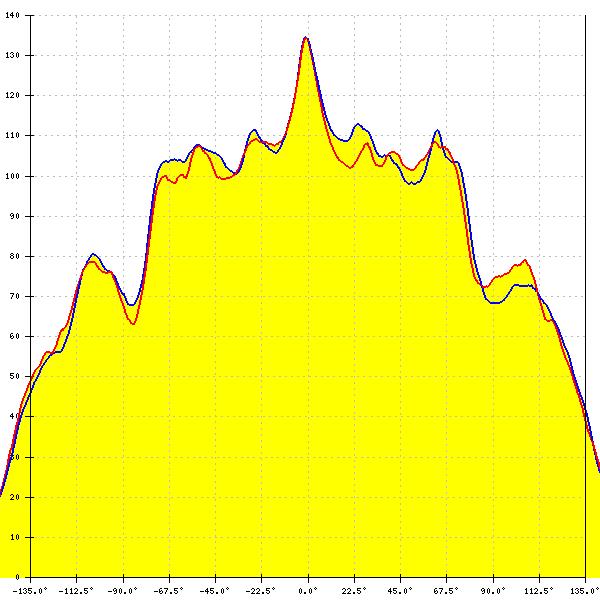

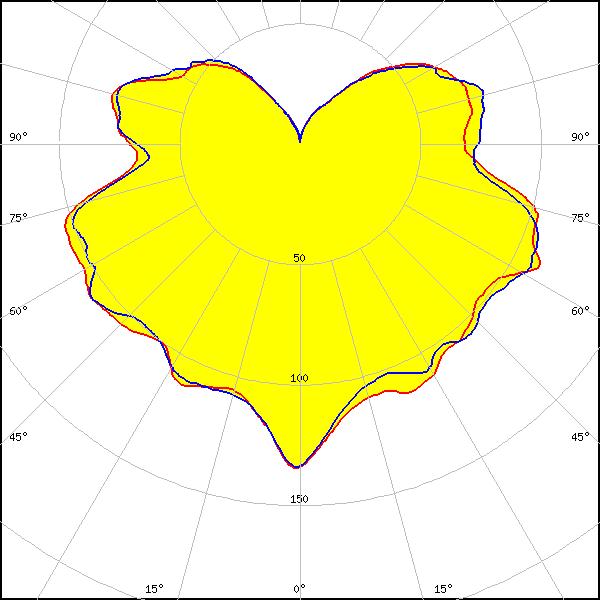

LED: CLU700/701/702
Required components:
FWHM: 230°
Peak intensity: 0.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

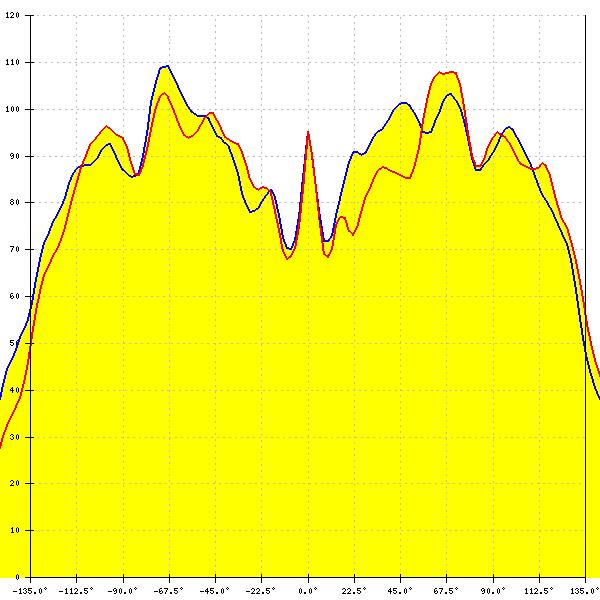

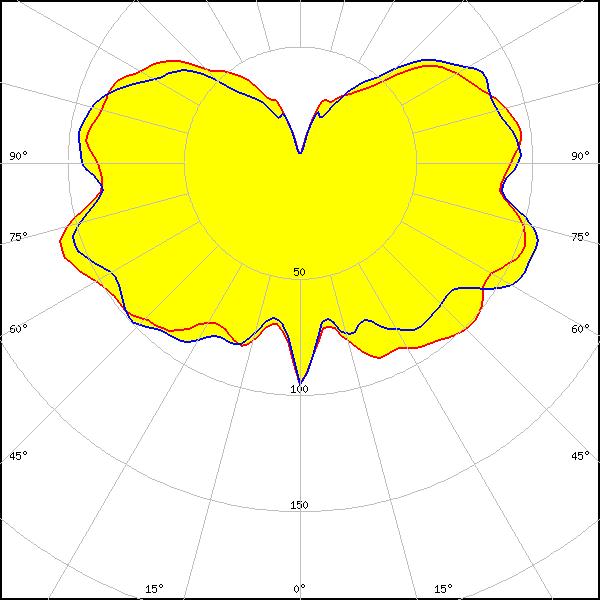

LED: CLU710/711
Required components:
BJB: 47.319.2021
FWHM: 268°
Peak intensity: 0.1 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White

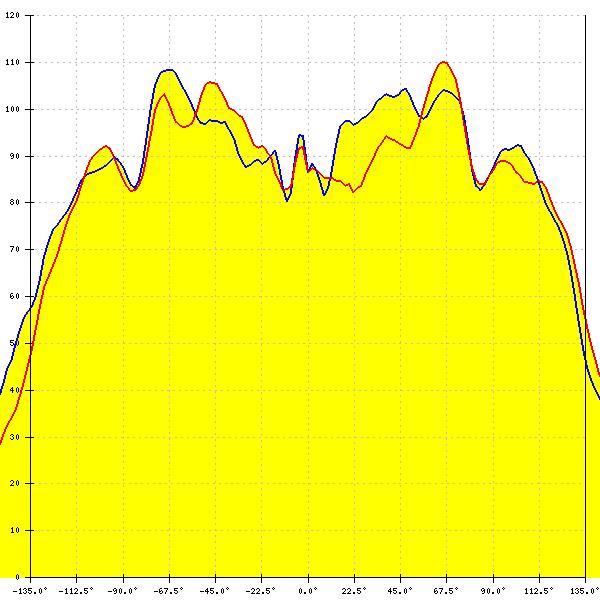

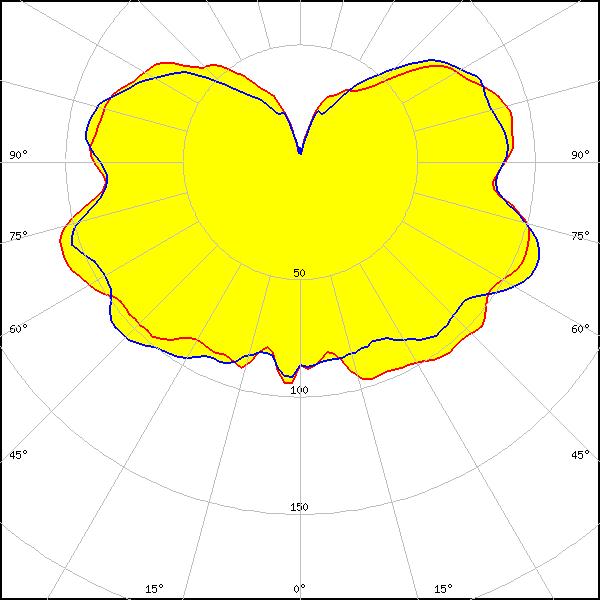

LED: CLU720/721
Required components:
BJB: 47.319.2021
FWHM: 265°
Peak intensity: 0.1 cd/lm
LEDs/each optic: 1
Light colour: White

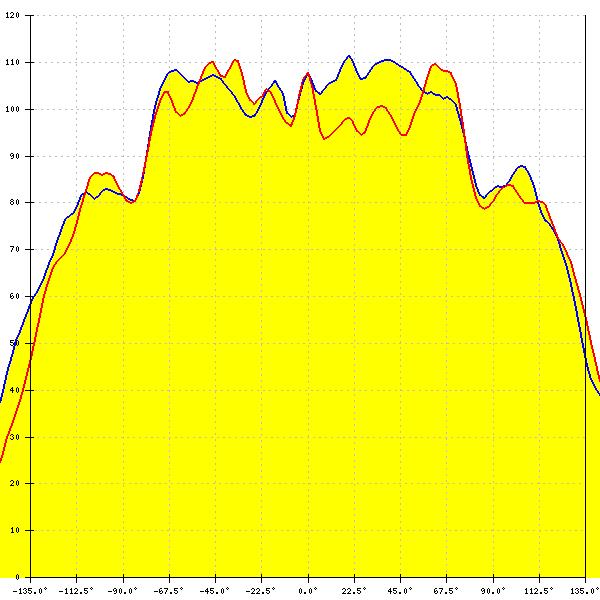

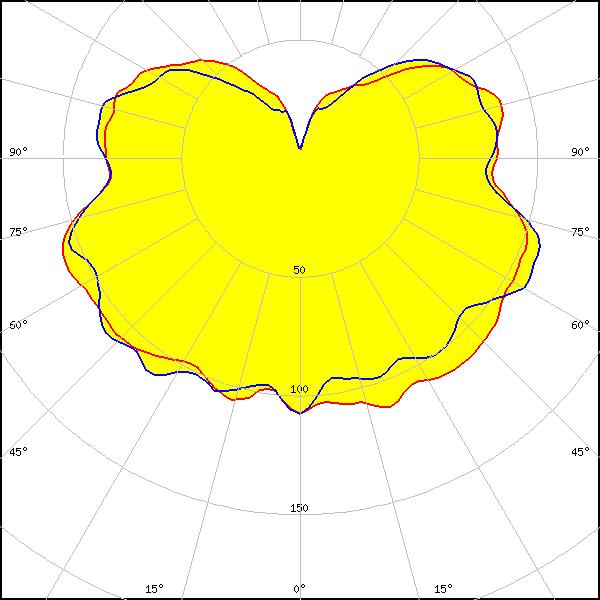

LED: CLU730/731
Required components:
BJB: 47.319.2030
FWHM: 264°
Peak intensity: 0.1 cd/lm
LEDs/each optic: 1
Light colour: White

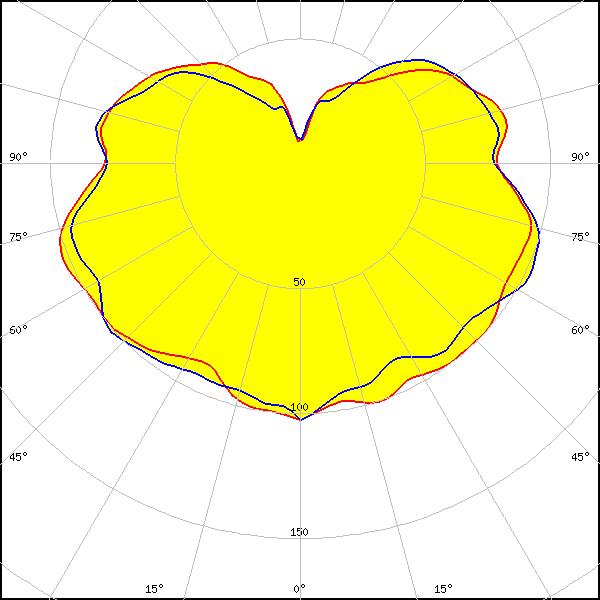

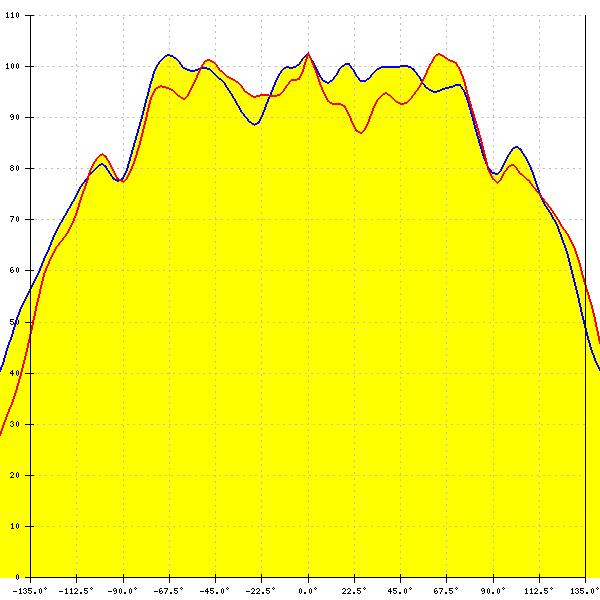

LED: CMT19xx
Required components:
Bender Wirth: 477 Typ L7
FWHM: 273°
Peak intensity: 0.1 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

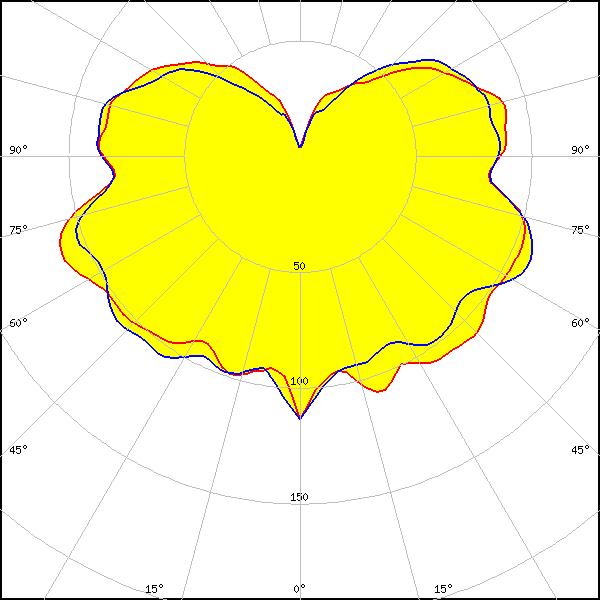

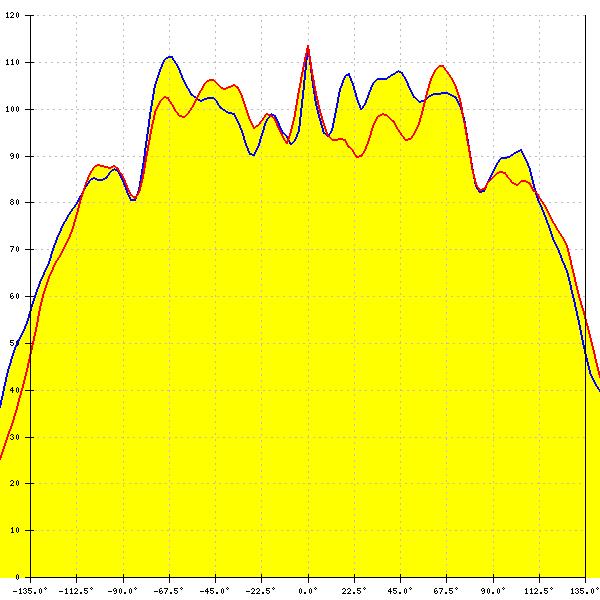

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
BJB: 47.319.2131
FWHM: 266°
Peak intensity: 0.1 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

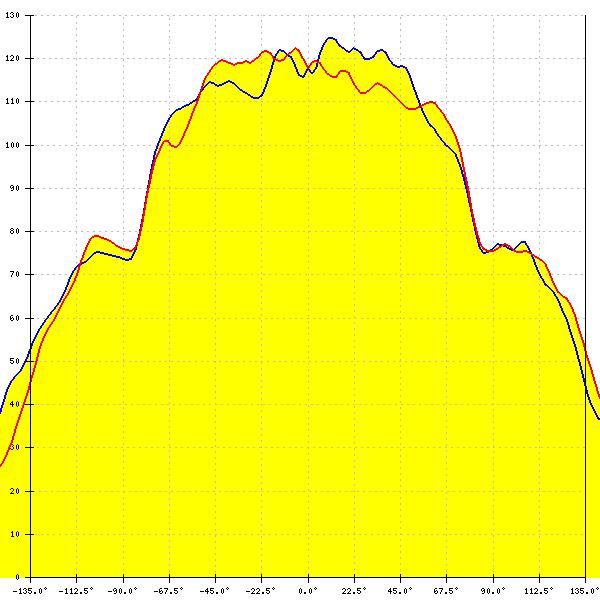

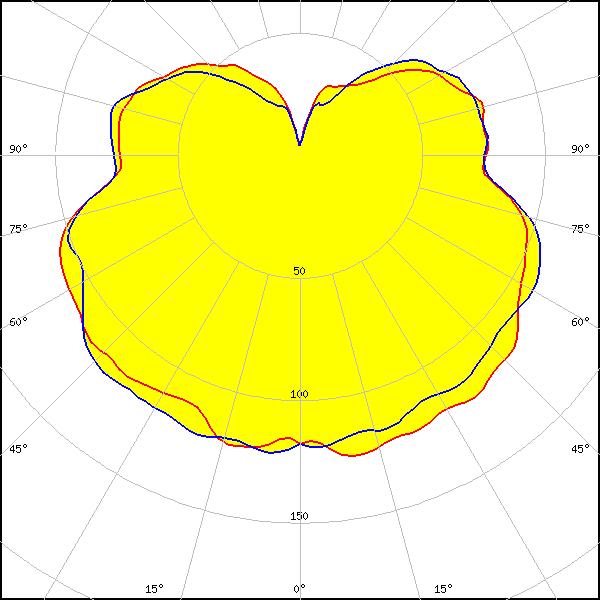

LED: CXA/B 25xx
Required components:
BJB: 47.319.2040
FWHM: 240°
Peak intensity: 0.1 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

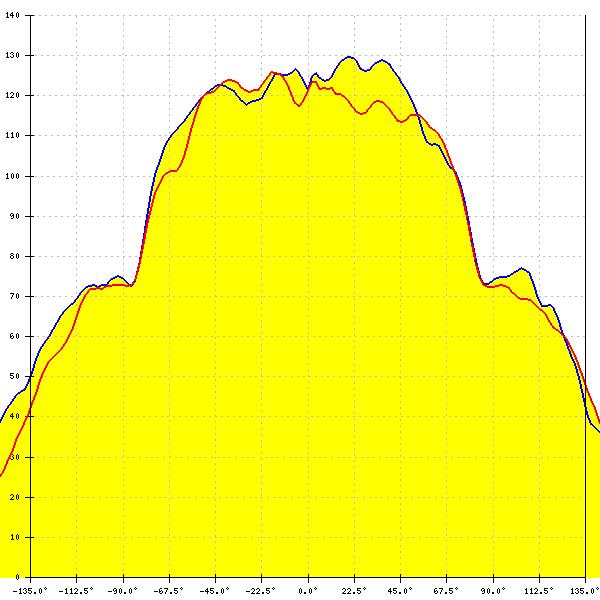

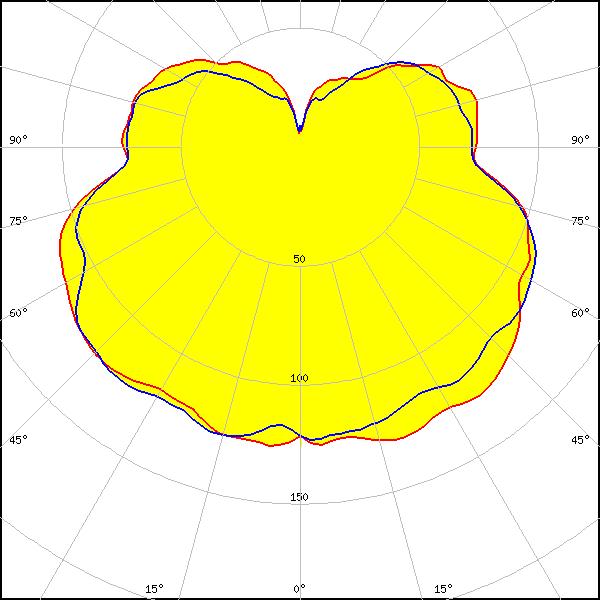

LED: CXA/B 30xx
Required components:
BJB: 47.319.2151
FWHM: 242°
Peak intensity: 0.1 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

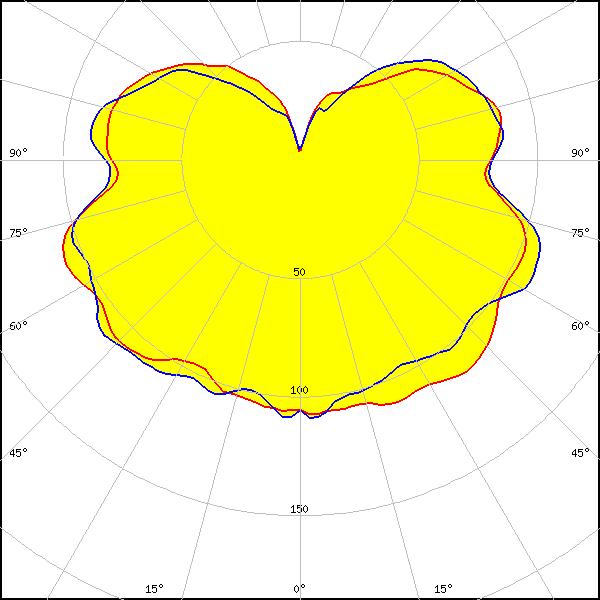

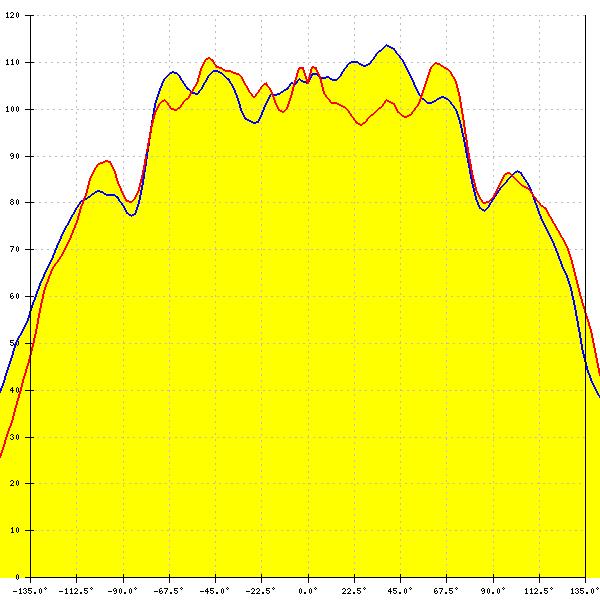

LED: LUXEON CoB 1204/1205
Required components:
BJB: 47.319.2011
FWHM: 263°
Peak intensity: 0.1 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

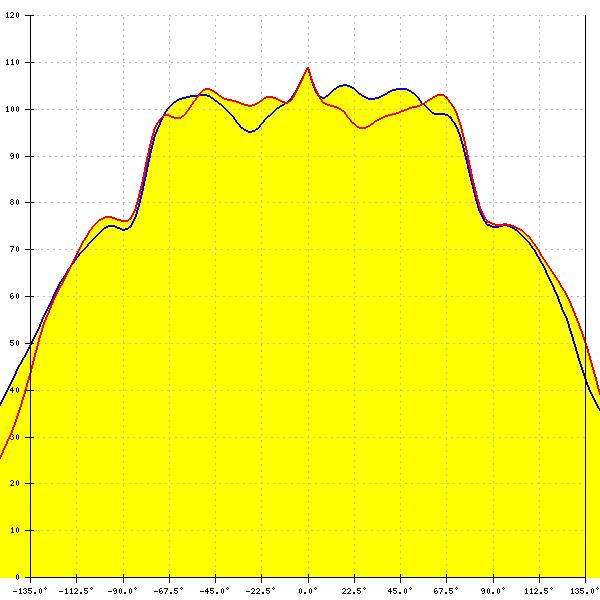

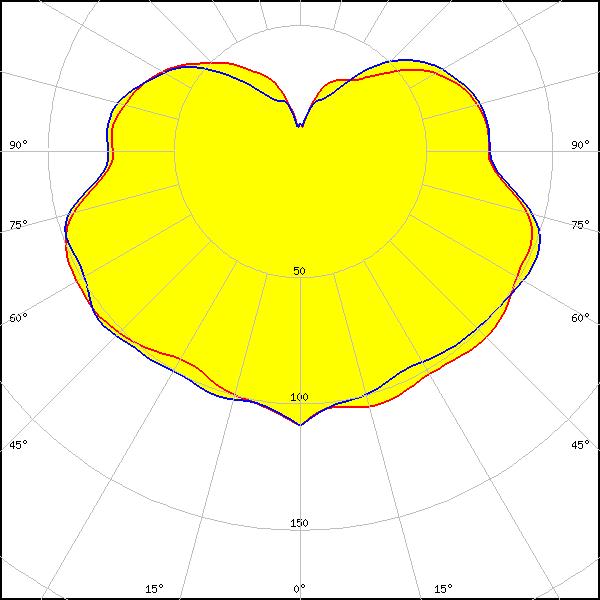

LED: LUXEON CoB 1208
Required components:
BJB: 47.319.2011
FWHM: 253°
Peak intensity: 0.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

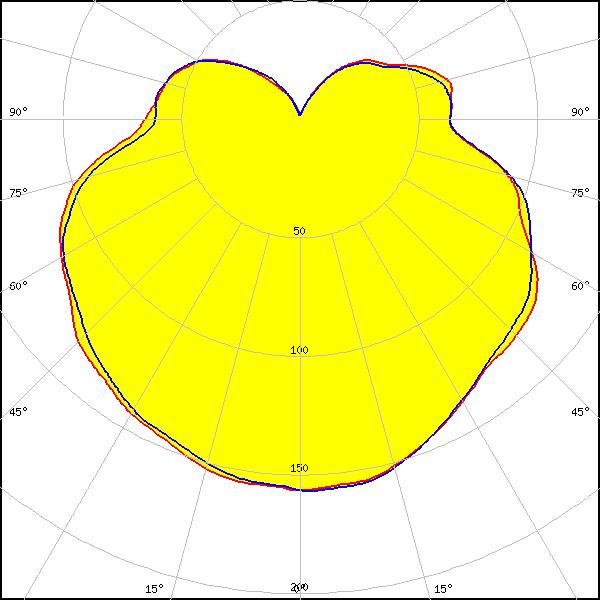

LED: LUXEON CoB 1211
Required components:
A.A.G. STUCCHI: 8102/G2
FWHM: 160°
Peak intensity: 0.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

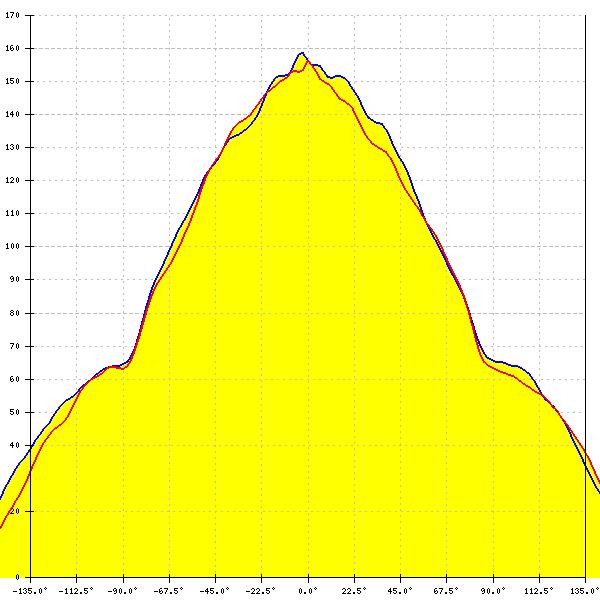

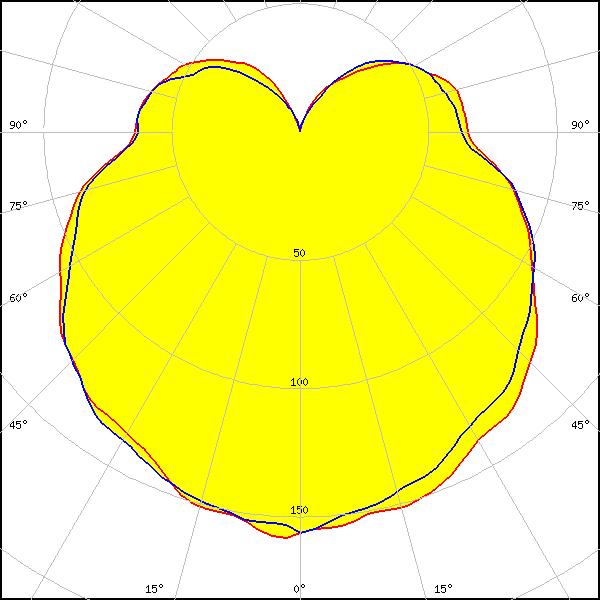

LED: LUXEON CoB 1216/1812
Required components:
A.A.G. STUCCHI: 8102/G2
FWHM: 157°
Peak intensity: 0.2 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

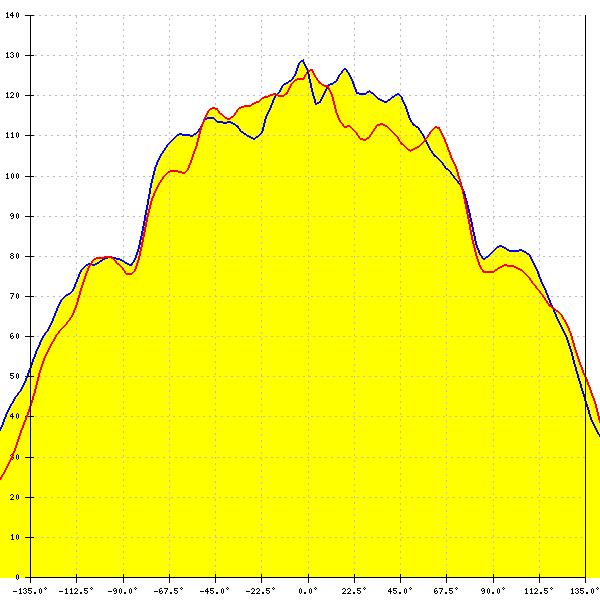

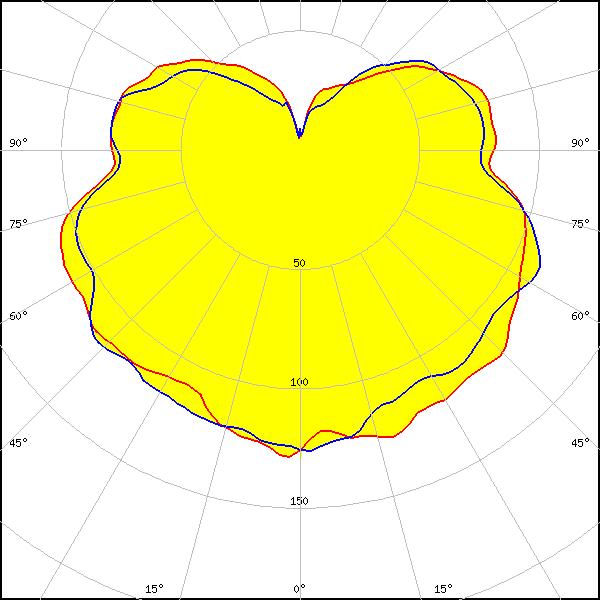

LED: Soleriq S19
Required components:
BJB: 47.319.2170
FWHM: 246°
Peak intensity: 0.1 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

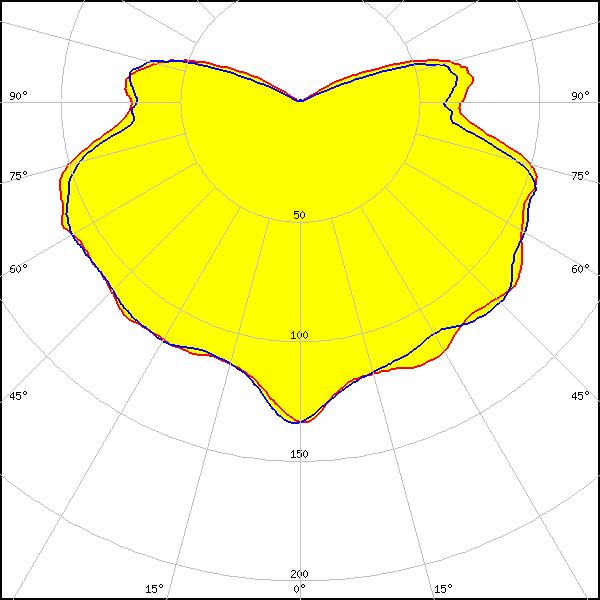

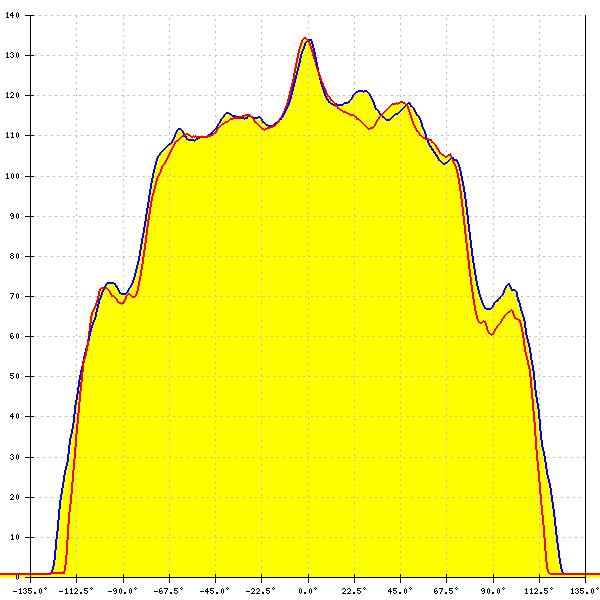

LED: LC020C G2
Required components:
FWHM: 214°
Peak intensity: 0.1 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

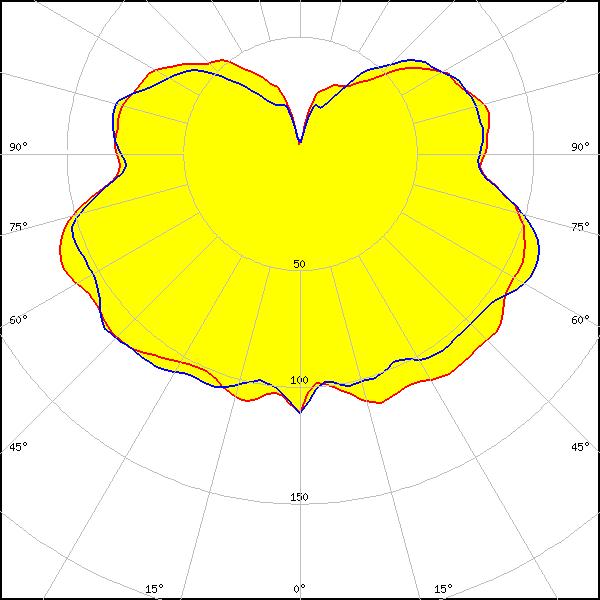

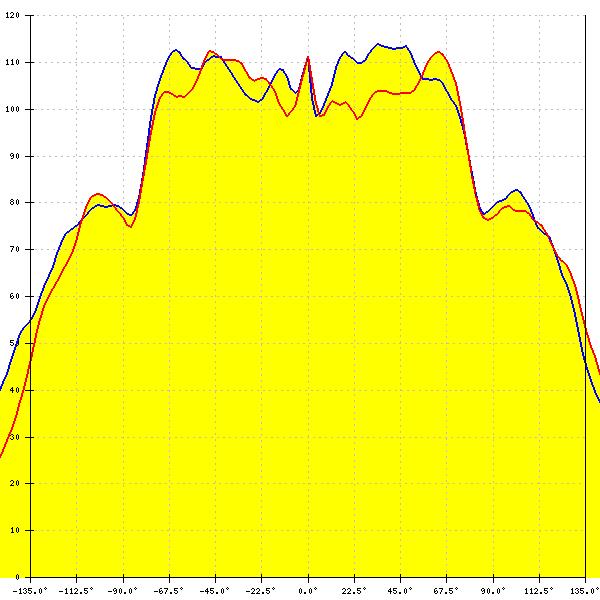

LED: ZC12/18
Required components:
BJB: 47.319.2021
FWHM: 265°
Peak intensity: 0.1 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

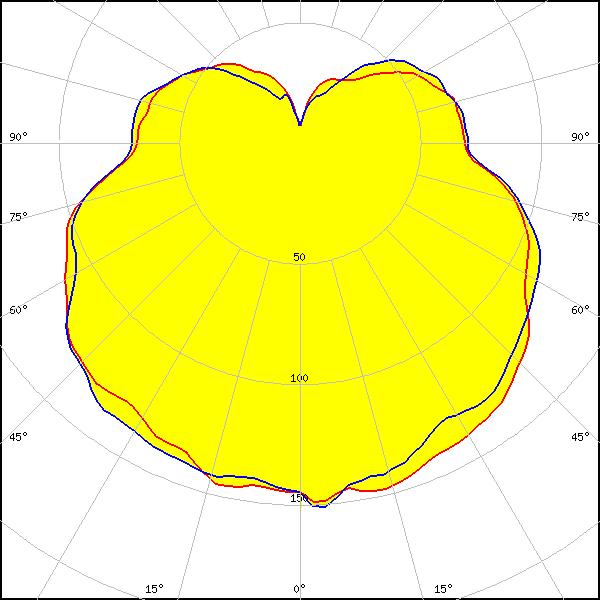

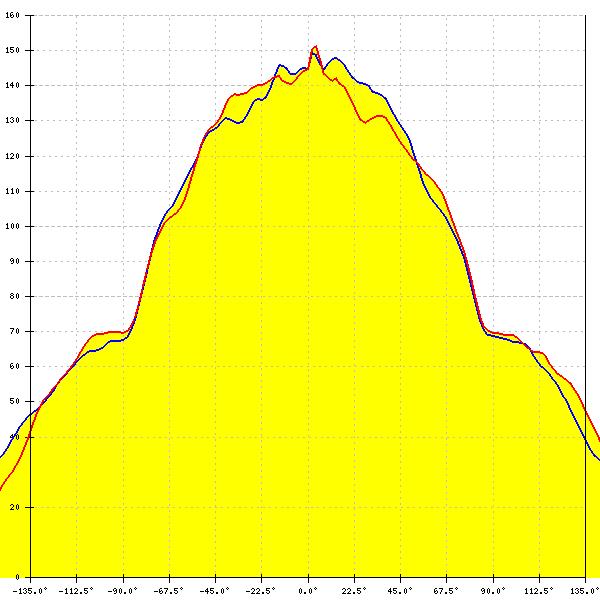

LED: ZC25/40/60
Required components:
BJB: 47.319.2030
FWHM: 166°
Peak intensity: 0.2 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

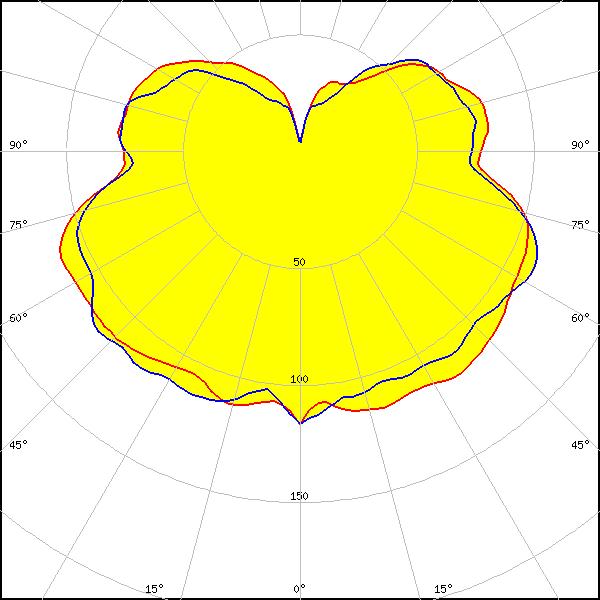

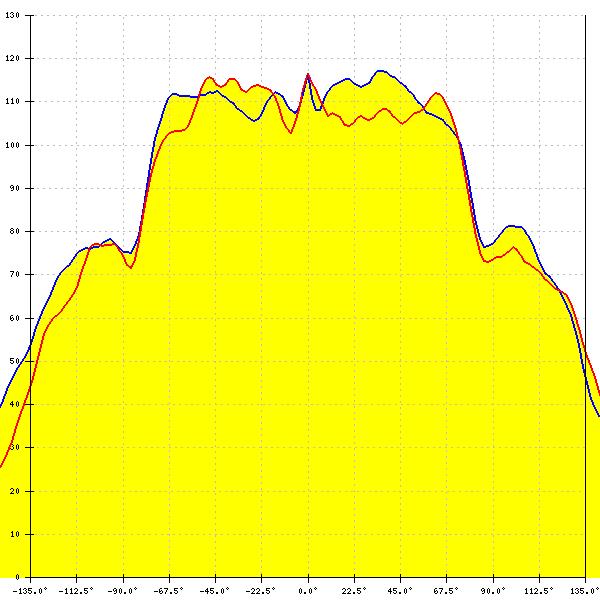

LED: Mega Zenigata (GW5DGC)
Required components:
BJB: 47.319.2011
FWHM: 257°
Peak intensity: 0.1 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

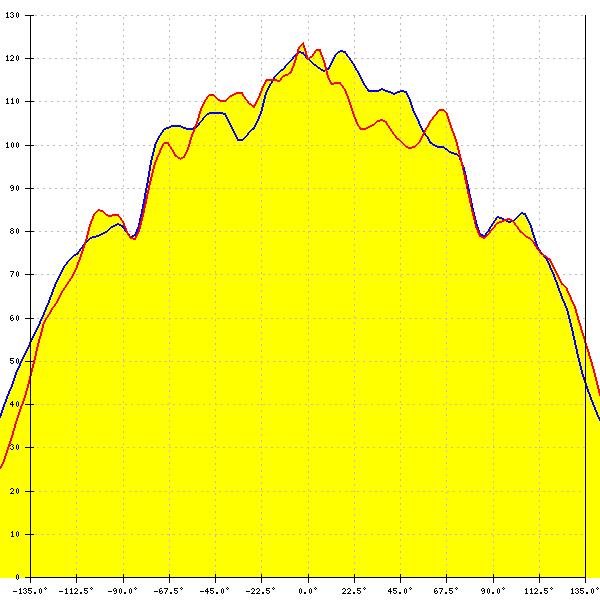

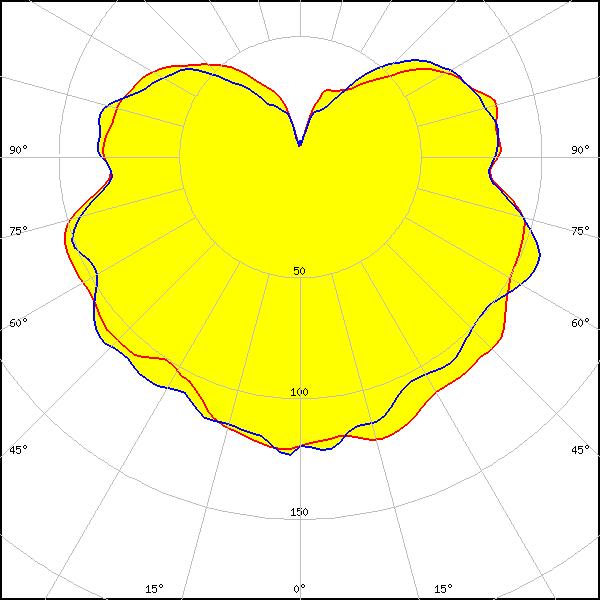

LED: Mega Zenigata (GW6DME)
Required components:
BJB: 47.319.2011
FWHM: 250°
Peak intensity: 0.1 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: DMC 124 / 125
Required components:
BJB: 47.319.2021
LEDs/each optic: 1
Light colour: White
LED: DMC 128
Required components:
BJB: 47.319.2021
LEDs/each optic: 1
Light colour: White
