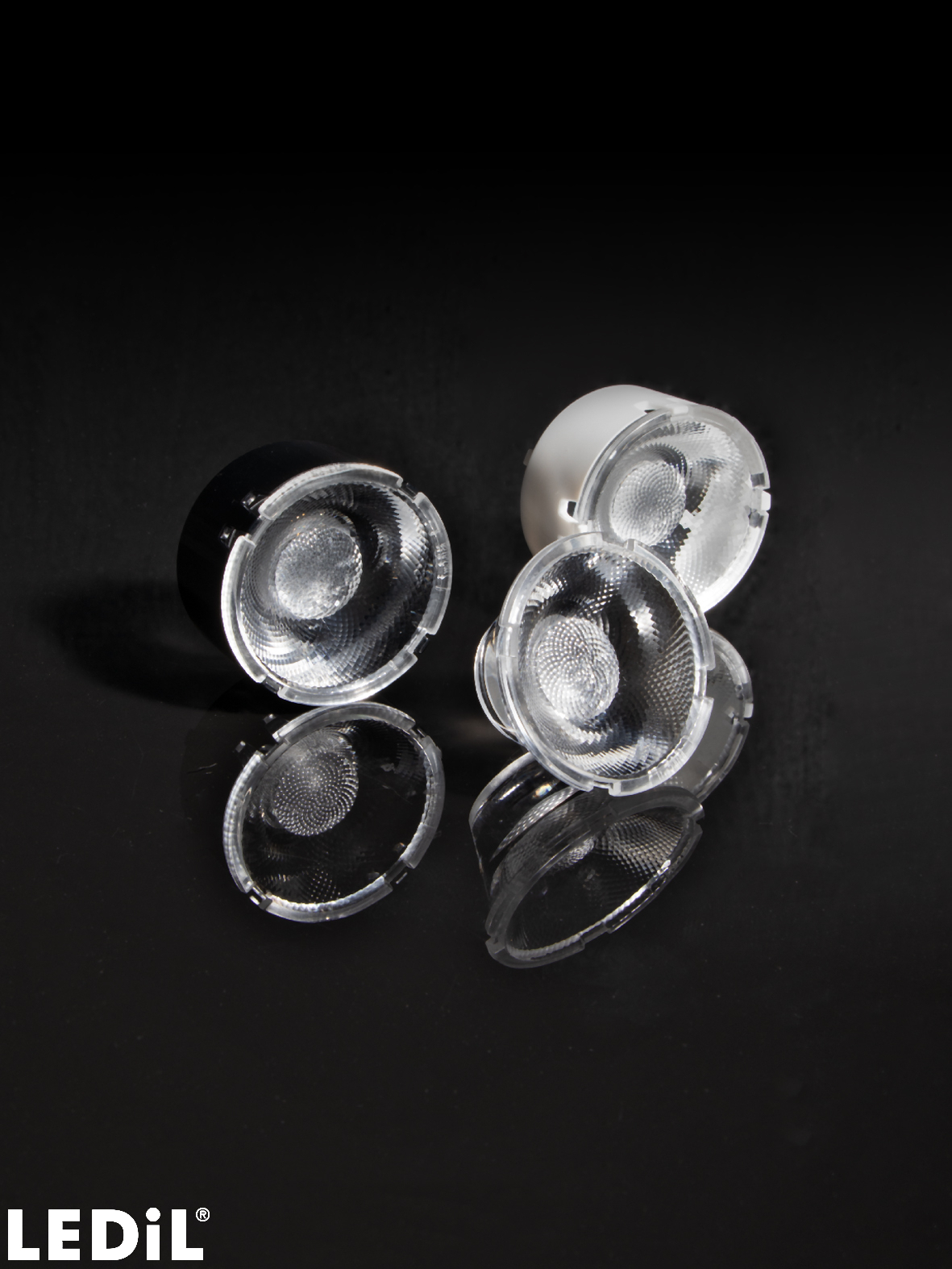

    YASMEEN-35-S

    Print

    ~15° spot beam

    This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.

    Specification
    • Dimensions:
      35 mm
    • Height:
      18.00 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C18518_YASMEEN-35-S
      clear
    • Assembly

      (single lens, holder)

    • CP18523_YASMEEN-35-S-B
      black,Holder B
    • CP19220_YASMEEN-35-S-B-WHT
      white,Holder B
    • Packaging information in the product datasheet
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18518_YASMEEN-35-S
      CP18523_YASMEEN-35-S-B
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    News

    YASMEEN-35 – superior light quality in a petite size

    Compatibility guide

    News

    YASMEEN – redefining track lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – May, 2023

    Application guide

    Guide for Architectural lighting optics

    Application guide

    Guide for Retail Lighting Optics

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

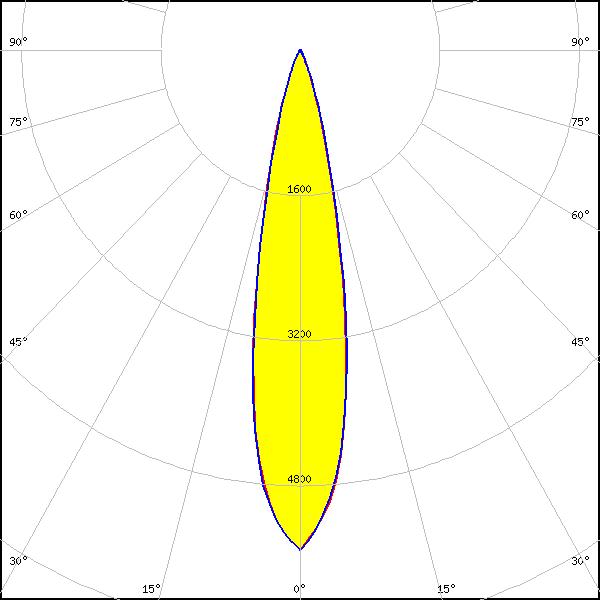

    Optical results

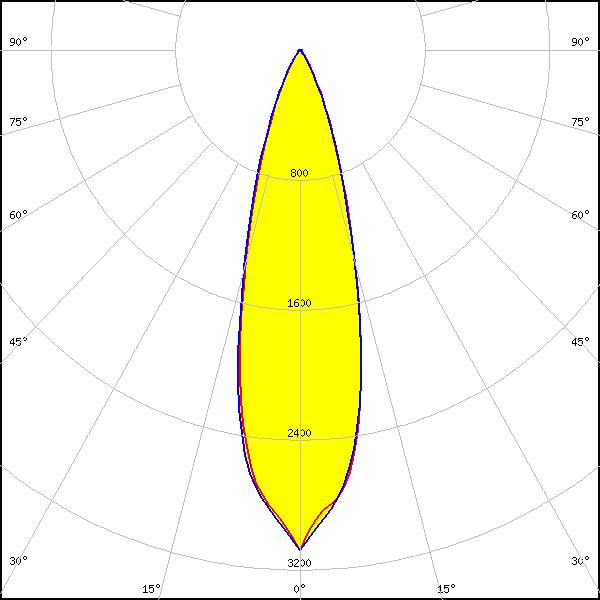

    LED: V10 Gen 8-9
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 10.0 mm
    Required components:
    Bender Wirth: 634b Bayonet35L
    FWHM: 28°
    FWTM: 53°
    Peak intensity: 3.079 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

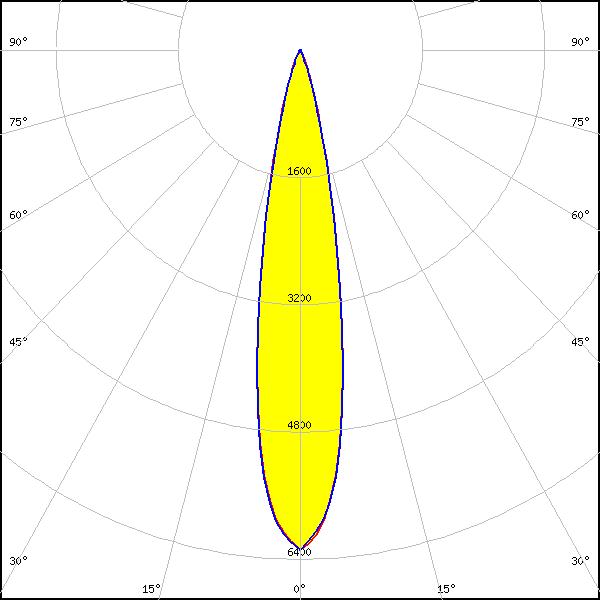

    LED: V6 HD Gen 7
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 7.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 6.289 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

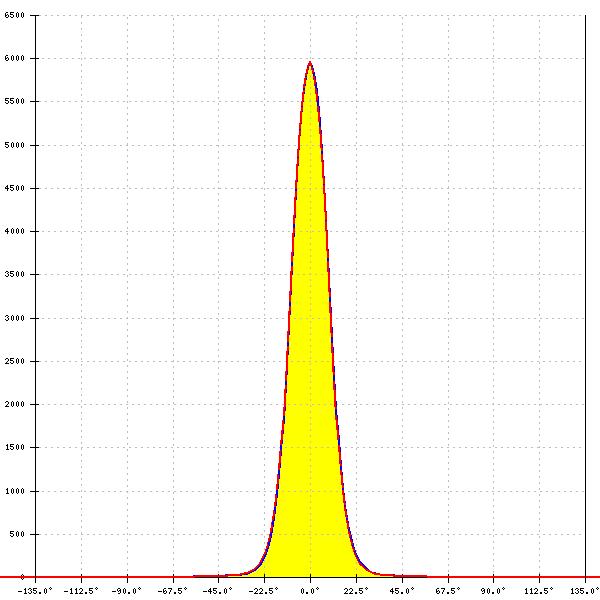

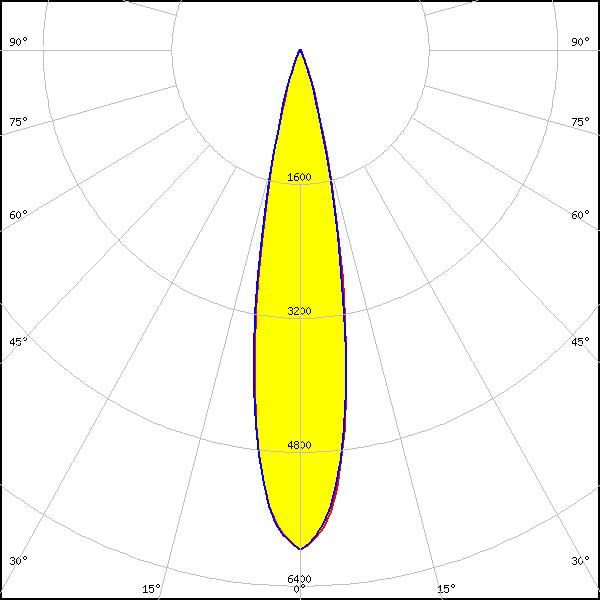

    LED: V6 HD Gen 8
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.6 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 21°
    FWTM: 37°
    Peak intensity: 5.973 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V9 HD Gen 8
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 8.8 mm
    Required components:
    C19308_SOCKET-B-35-I
    FWHM: 24°
    FWTM: 40°
    Peak intensity: 4.766 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 9mm (4W/6W/12W)
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 9.3 mm
    Required components:
    Bender Wirth: 652b Bayonet35L
    FWHM: 28°
    FWTM: 49°
    Peak intensity: 3.349 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

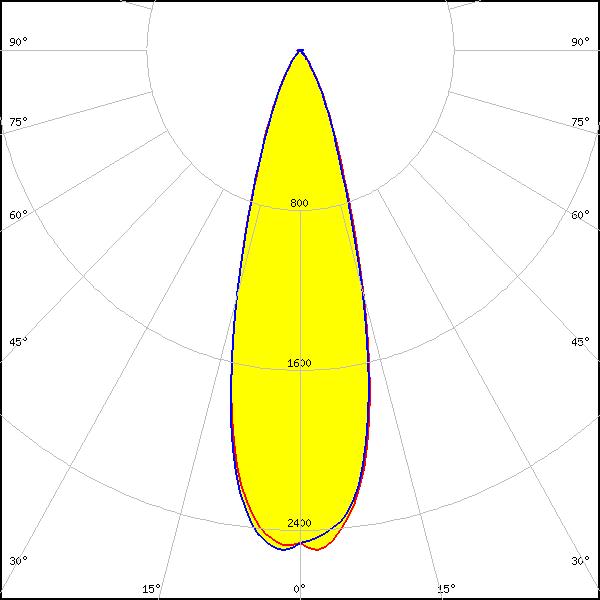

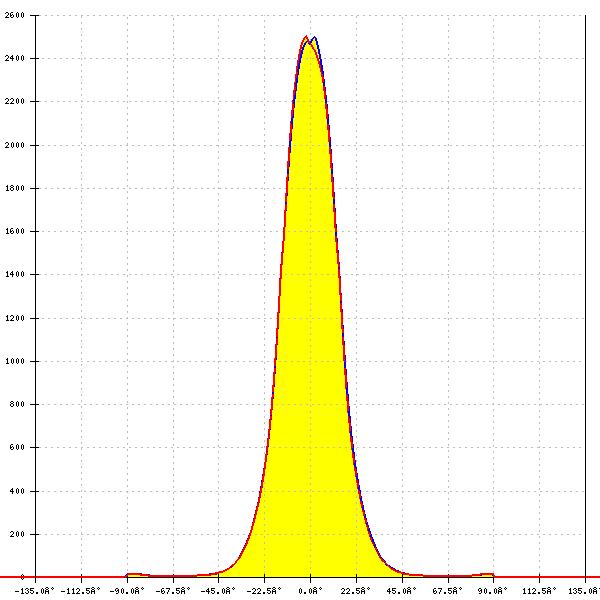

    LED: CLU02Q-1203E1 Type-M
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 9.7 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 22°
    FWTM: 48°
    Peak intensity: 3.781 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

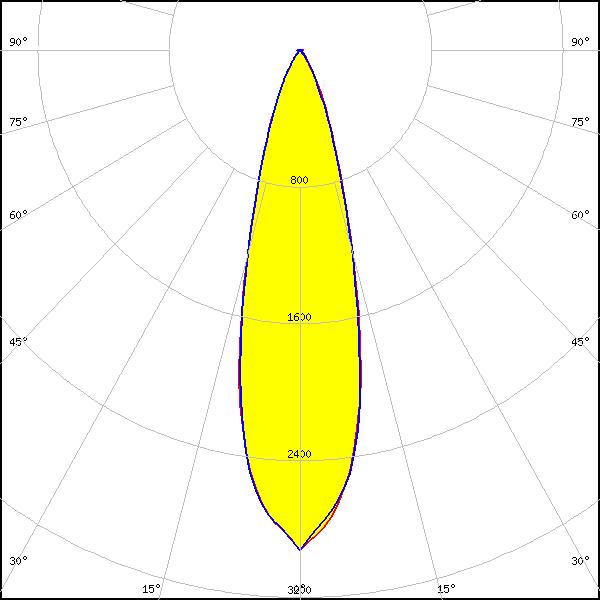

    LED: CLU02x (LES10)
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 9.8 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 30°
    FWTM: 56°
    Peak intensity: 2.511 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 28°
    FWTM: 53°
    Peak intensity: 2.925 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

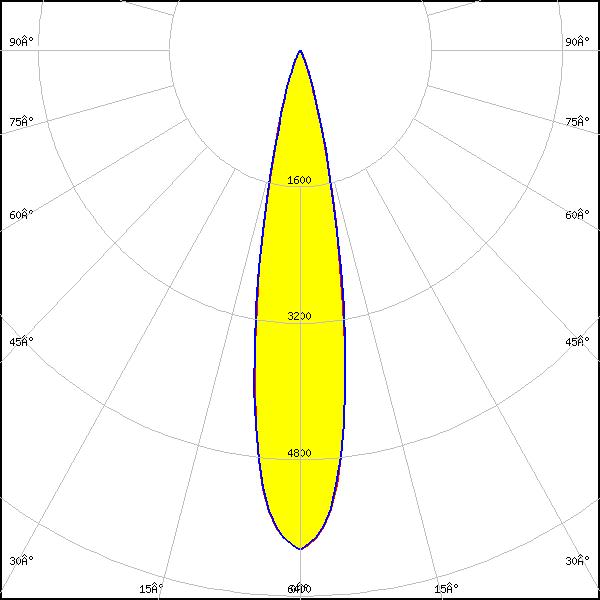

    LED: CLU700/701/702/703
    Ordering code: CP18253_YASMEEN-70-RS-C
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 5.873 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

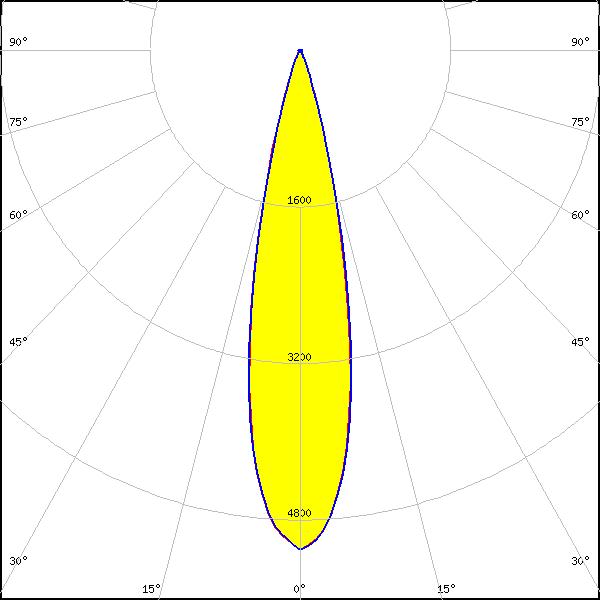

    LED: CLU703 Type-F
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.111 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

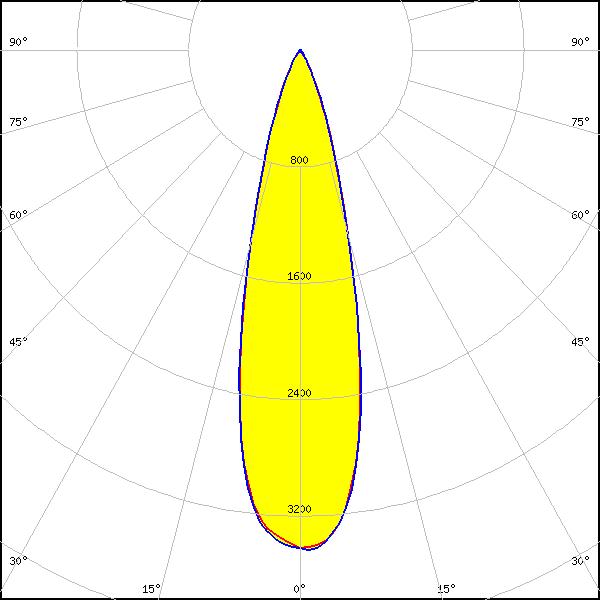

    LED: CLU712/713
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 8.5 mm
    Required components:
    C19308_SOCKET-B-35-I
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.443 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

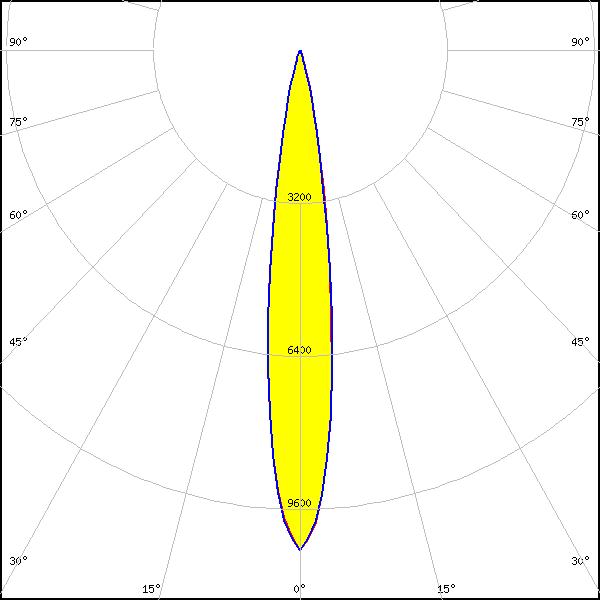

    LED: CLU7A2/7A3
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 4.2 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 10.456 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

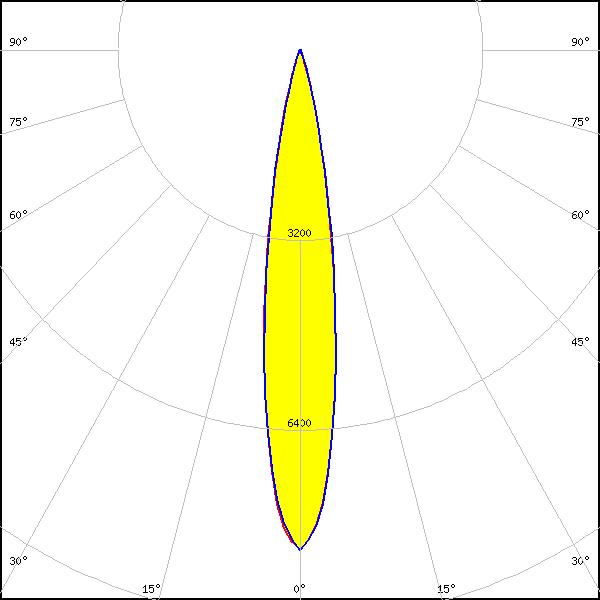

    LED: CLU7A3 Type-F
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 4.2 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 8.423 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

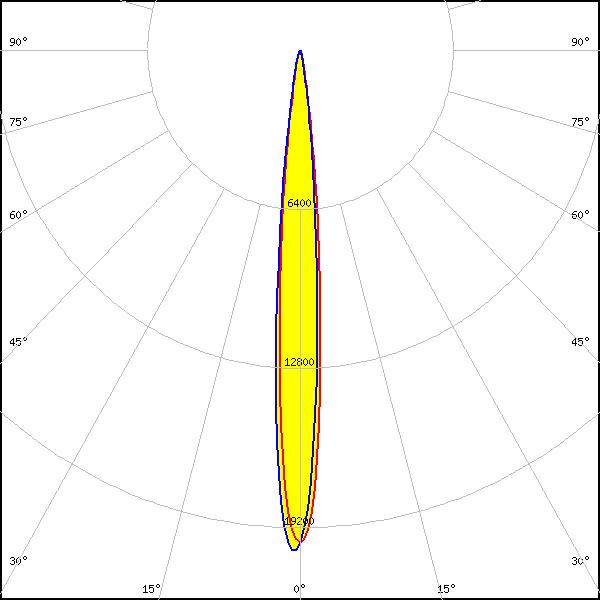

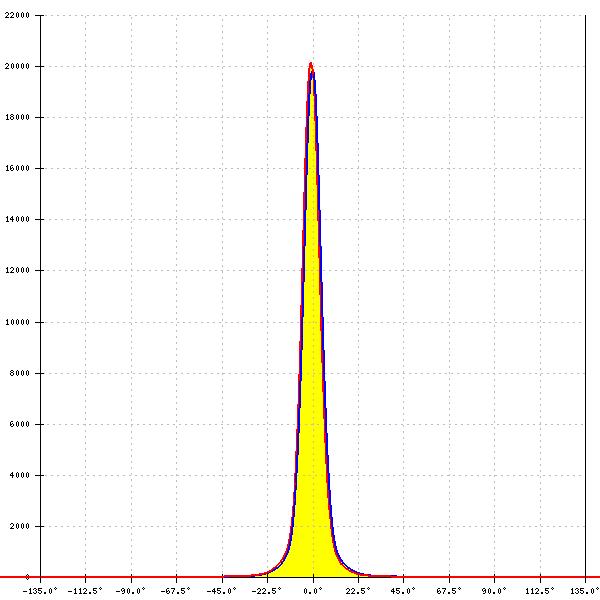

    LED: CLU7L3
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 2.4 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 10°
    FWTM: 19°
    Peak intensity: 20.323 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

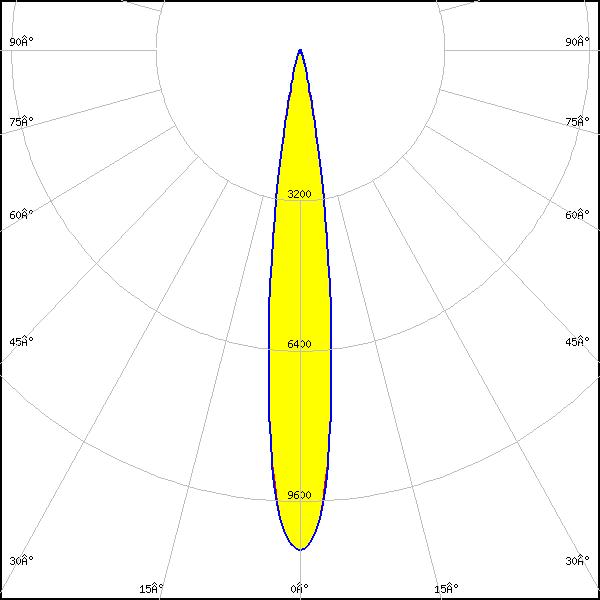

    LED: CLU7R3
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 4.2 mm
    Required components:
    C19424_SOCKET-B-35-M
    FWHM: 15°
    FWTM: 27°
    Peak intensity: 10.643 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

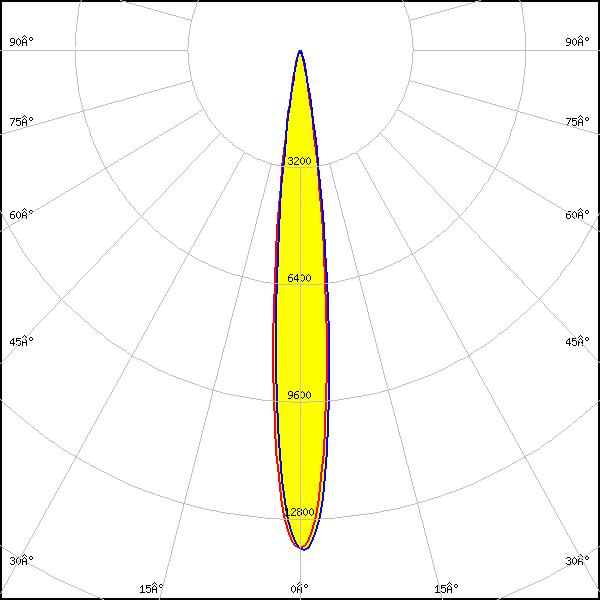

    LED: CLU7S3
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 3.5 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 13.676 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

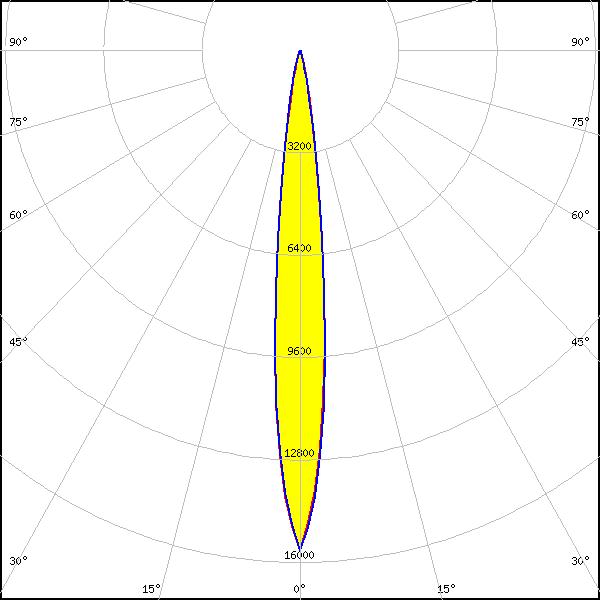

    LED: CHA0304
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 3.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 15.626 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

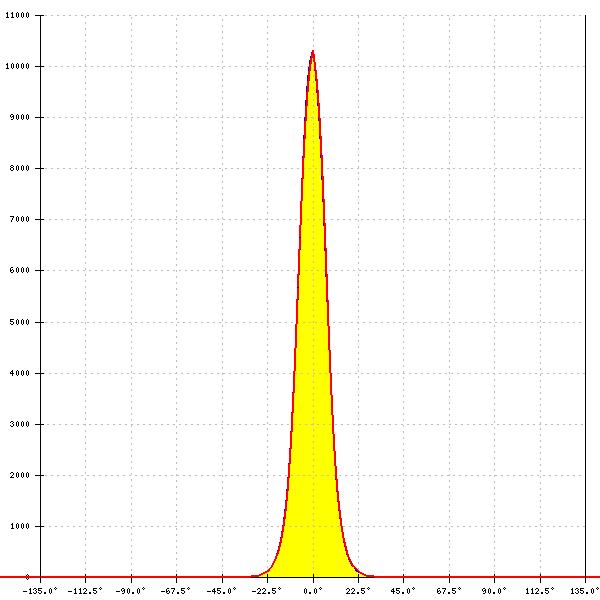

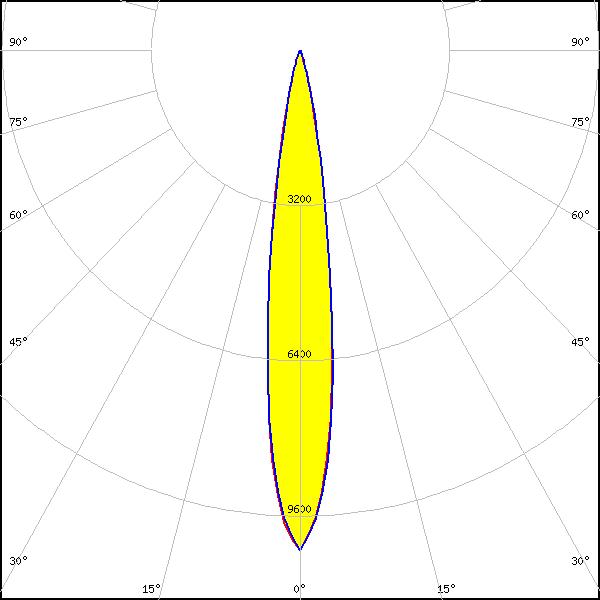

    LED: CHA0410
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 4.2 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 16°
    FWTM: 28°
    Peak intensity: 10.307 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

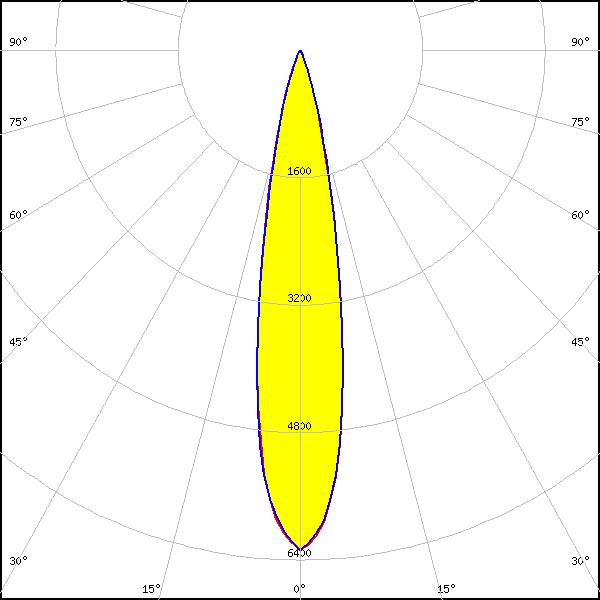

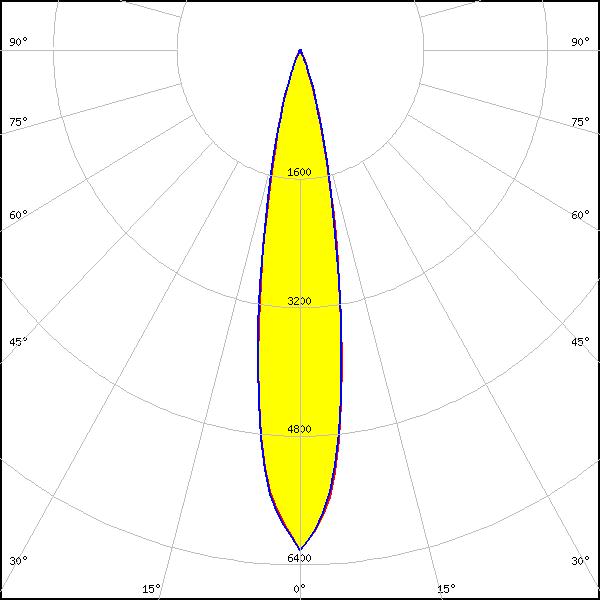

    LED: CHA0612
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 6.280 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

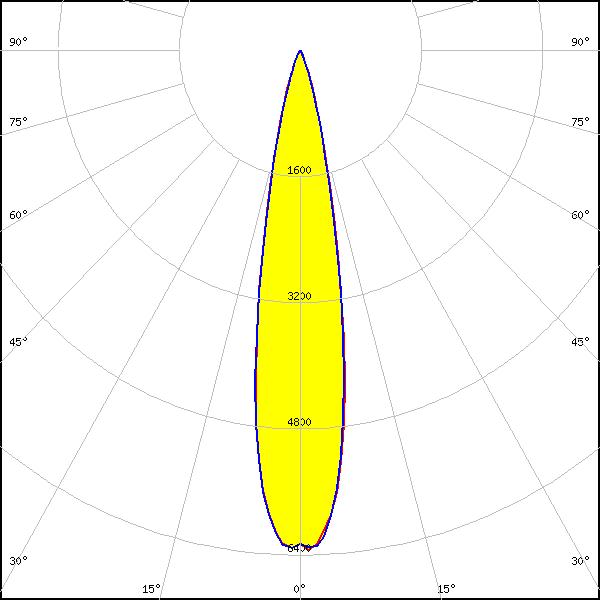

    LED: CMB13xx
    LES size: 6.0 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 6.360 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

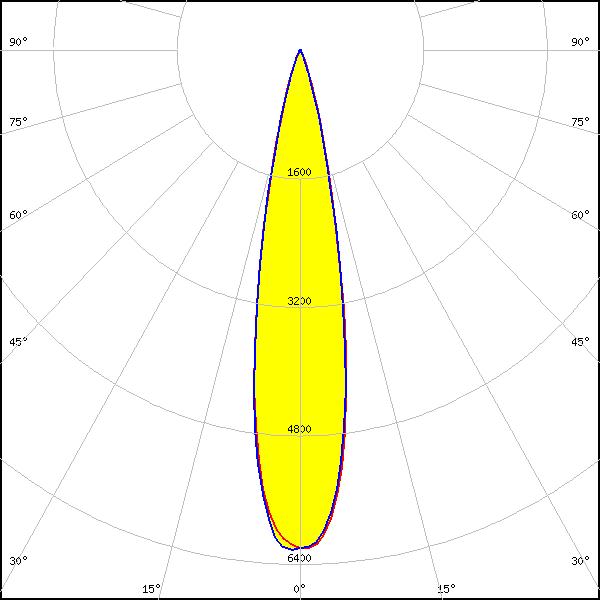

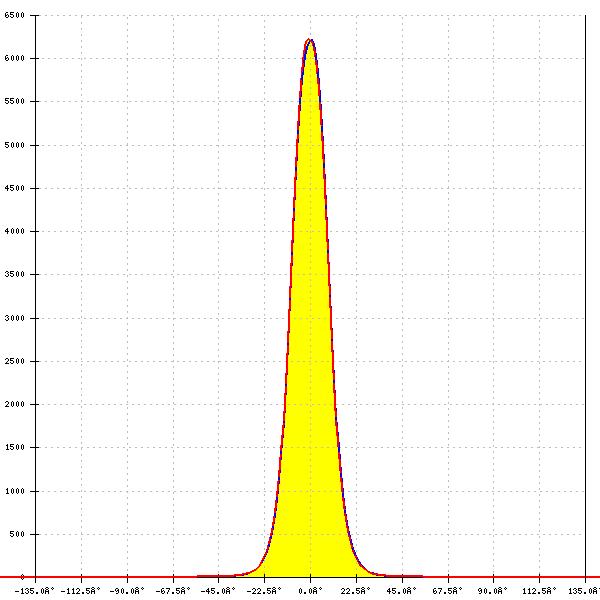

    LED: CMB13xx
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 6.233 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

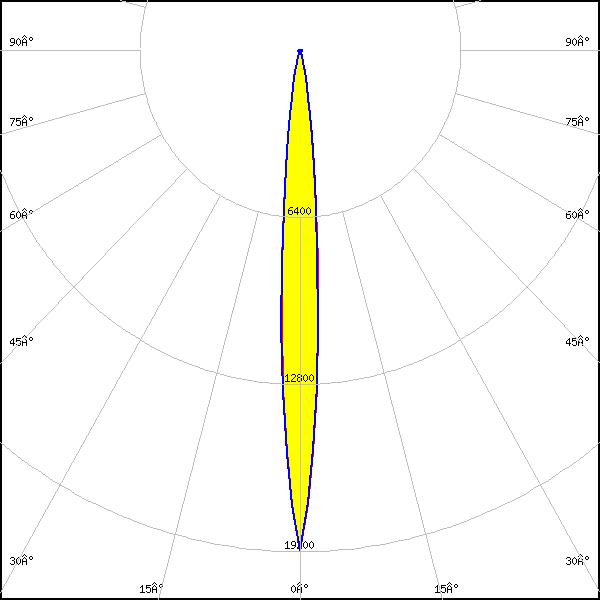

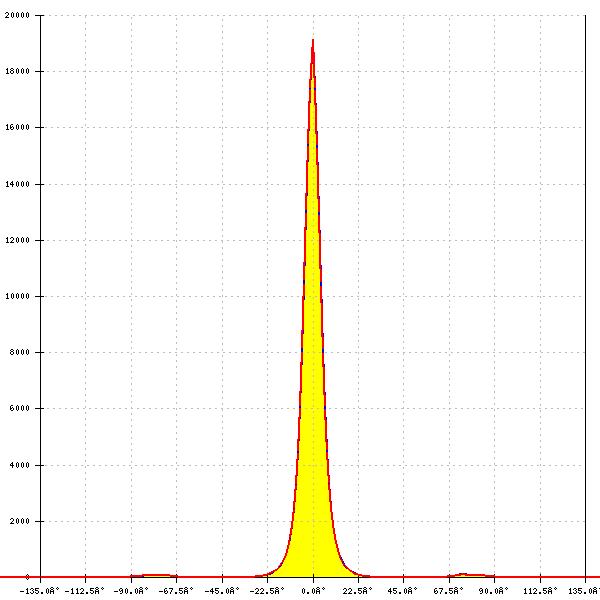

    LED: XD16
    Ordering code: C18518_YASMEEN-35-S
    LES size: 0.0 mm
    FWHM: 8°
    FWTM: 20°
    Peak intensity: 19.148 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

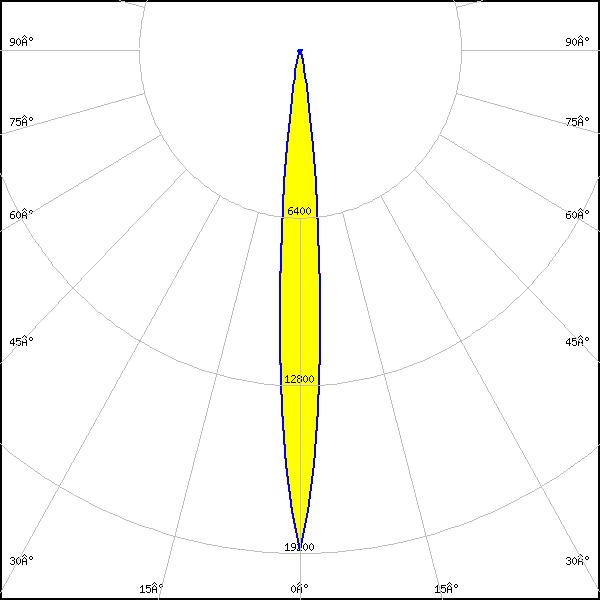

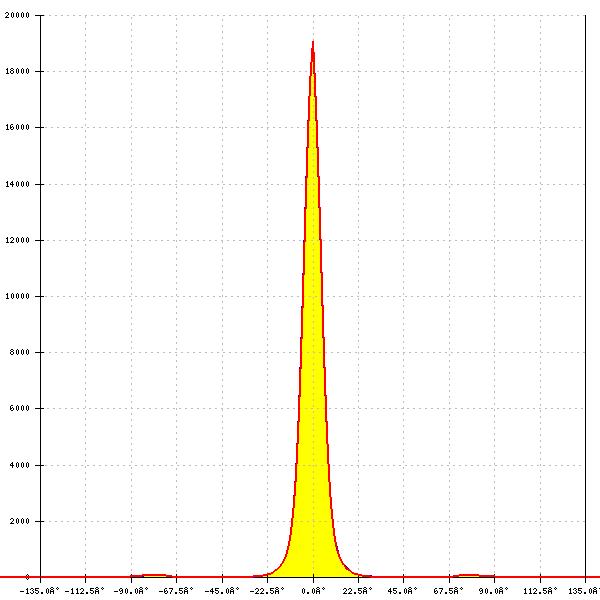

    LED: XP-G3
    Ordering code: C18518_YASMEEN-35-S
    LES size: 0.0 mm
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 19.081 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

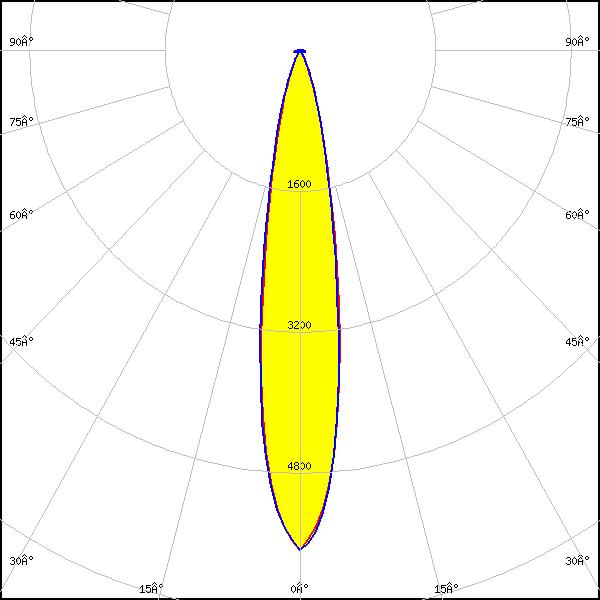

    LED: LUXEON 7070
    Ordering code: C18518_YASMEEN-35-S
    LES size: 0.0 mm
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 5.678 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

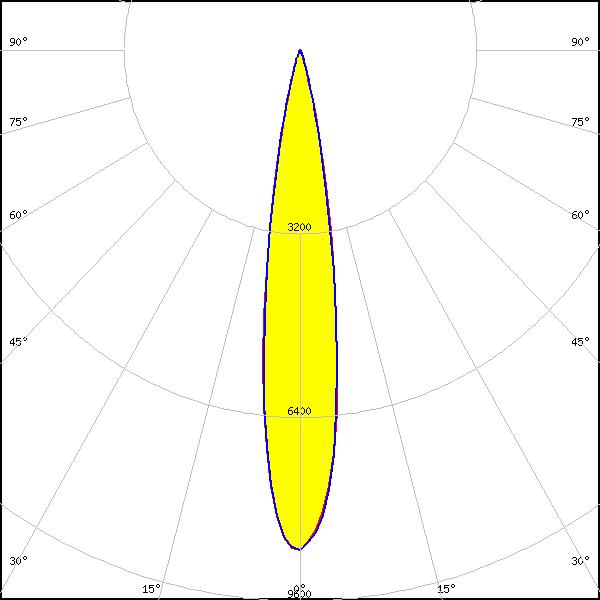

    LED: LUXEON CX Plus CoB - HD S01H4
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 8.760 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

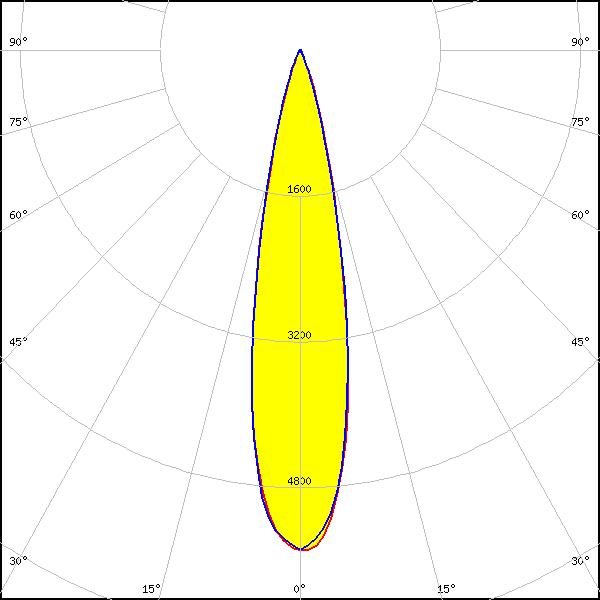

    LED: LUXEON CX Plus CoB - HD S02H6
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 22°
    FWTM: 38°
    Peak intensity: 5.518 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

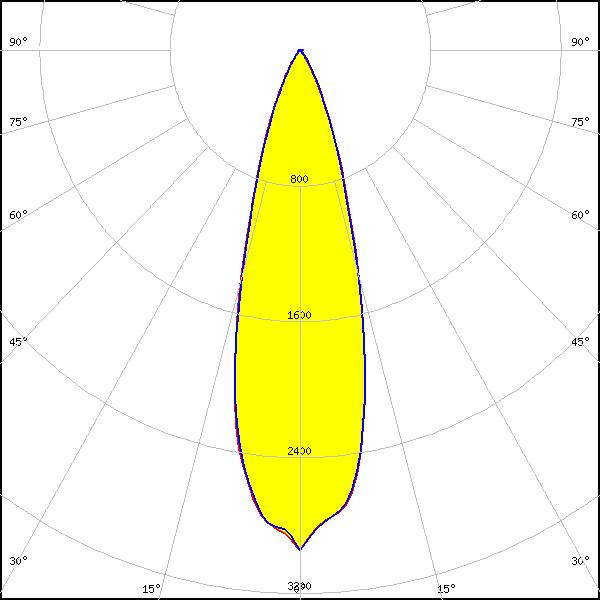

    LED: LUXEON CX Plus CoB - HD S04H9
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 30°
    FWTM: 54°
    Peak intensity: 2.947 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

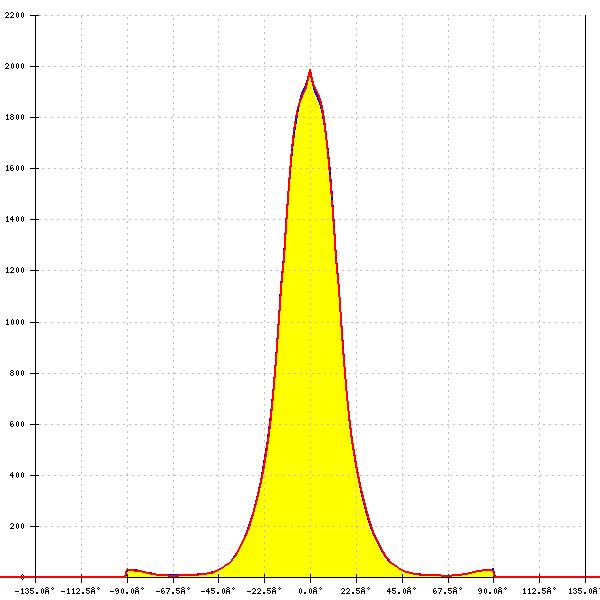

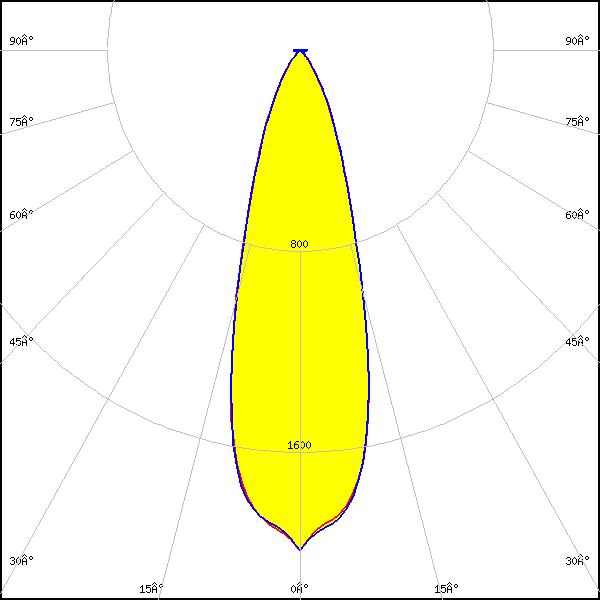

    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 12.0 mm
    Required components:
    BJB: 47.360.1040
    FWHM: 30°
    FWTM: 60°
    Peak intensity: 1.990 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

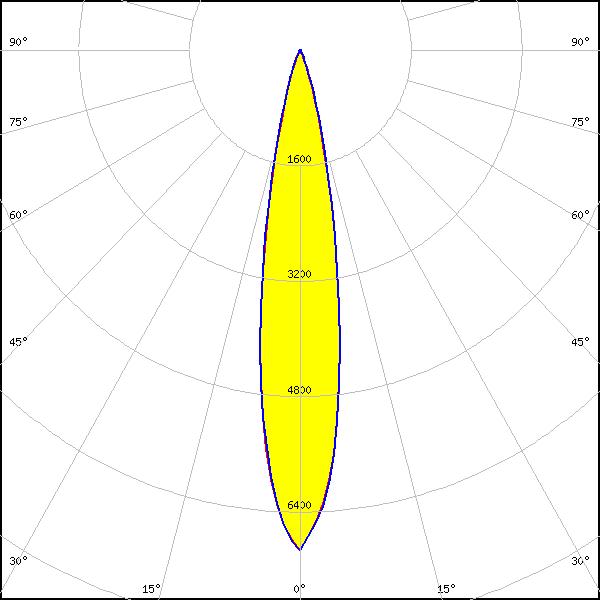

    LED: LUXEON CX Plus CoB S01 (Gen2)
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Bayonet35L
    FWHM: 18°
    FWTM: 35°
    Peak intensity: 6.932 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

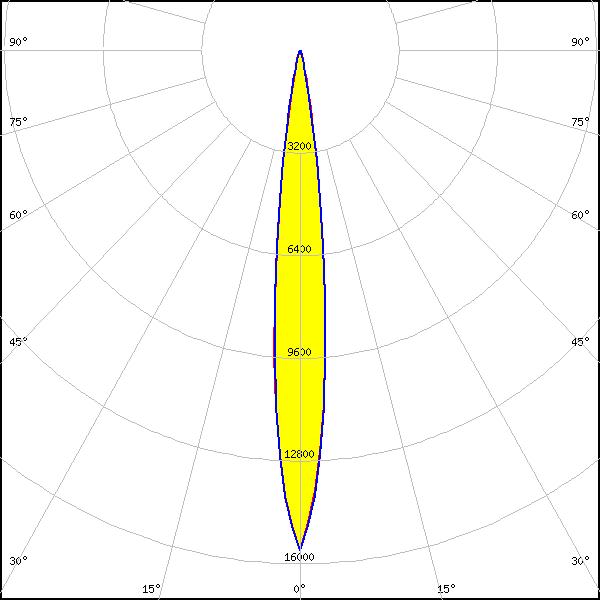

    LED: CXM-3
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 3.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 15.582 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

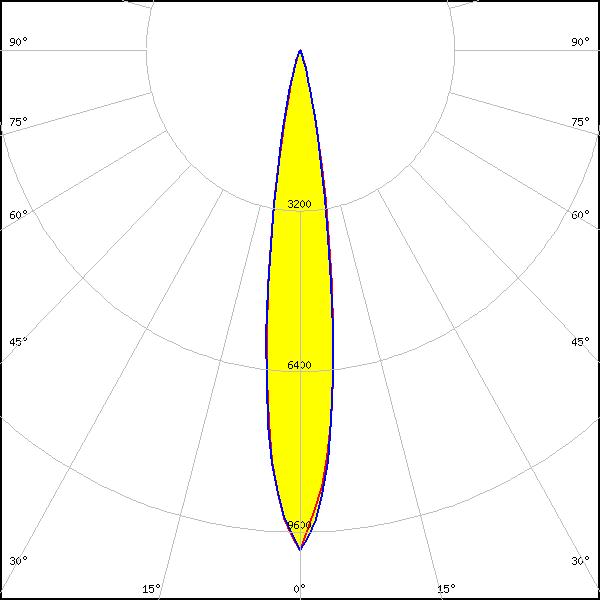

    LED: CXM-4
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 16°
    FWTM: 28°
    Peak intensity: 9.963 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

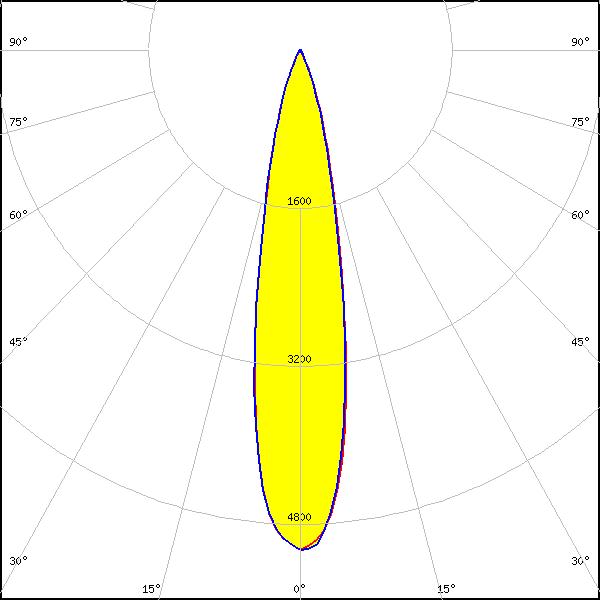

    LED: CxM-6 (13.5x13.5)
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 20°
    FWTM: 38°
    Peak intensity: 6.220 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

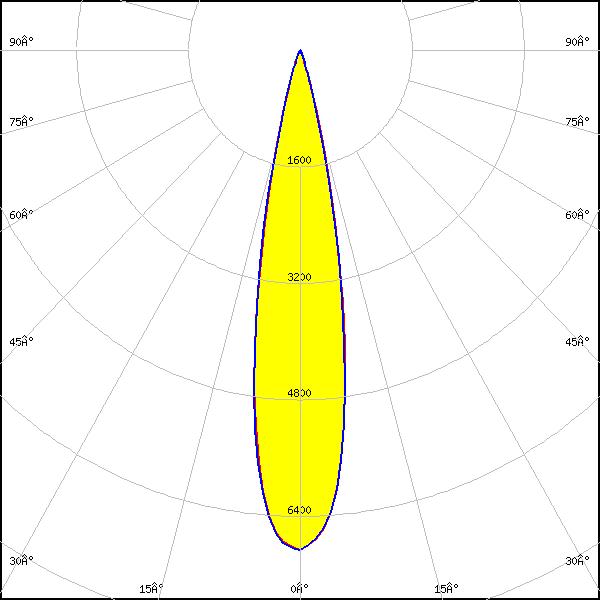

    LED: CxM-6 (13.5x13.5)
    Ordering code: CP19220_YASMEEN-35-S-B-WHT
    LES size: 6.3 mm
    Required components:
    Bender Wirth: 634a Bayonet35L
    FWHM: 20°
    FWTM: 34°
    Peak intensity: 6.888 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CxM-6 (13.5x13.5)
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.3 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 20°
    FWTM: 41°
    Peak intensity: 5.066 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

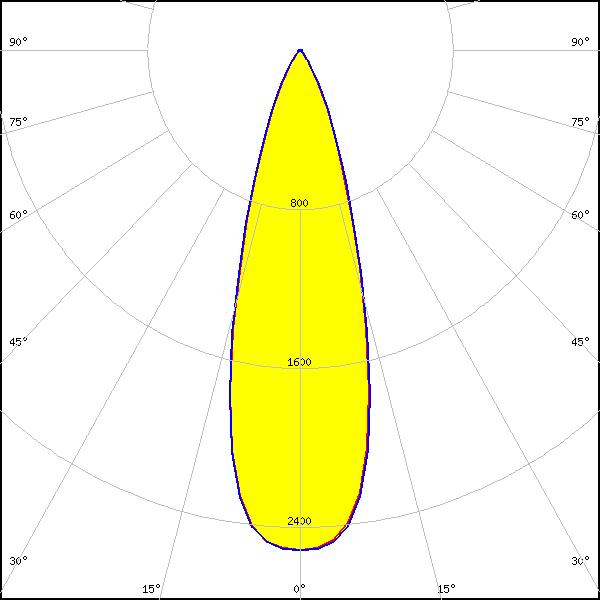

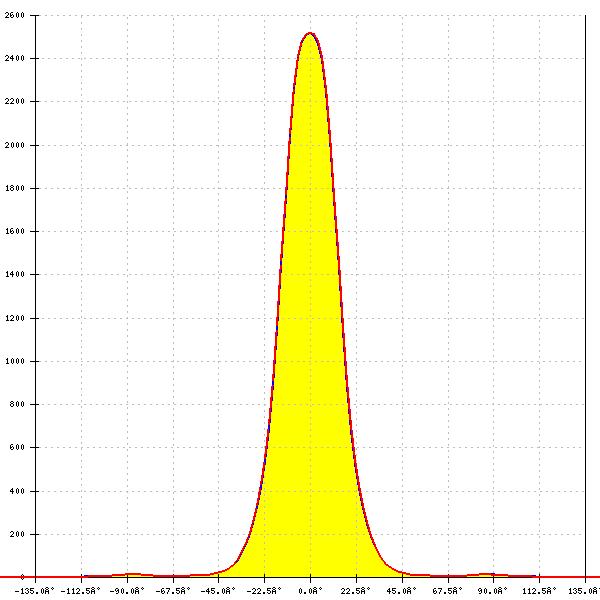

    LED: CxM-9 (13.5x13.5)
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 9.6 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 32°
    FWTM: 56°
    Peak intensity: 2.524 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 6.716 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.7 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 5.510 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB T-Type
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 5.9 mm
    Required components:
    Bender Wirth: 652a Bayonet35L
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 6.139 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

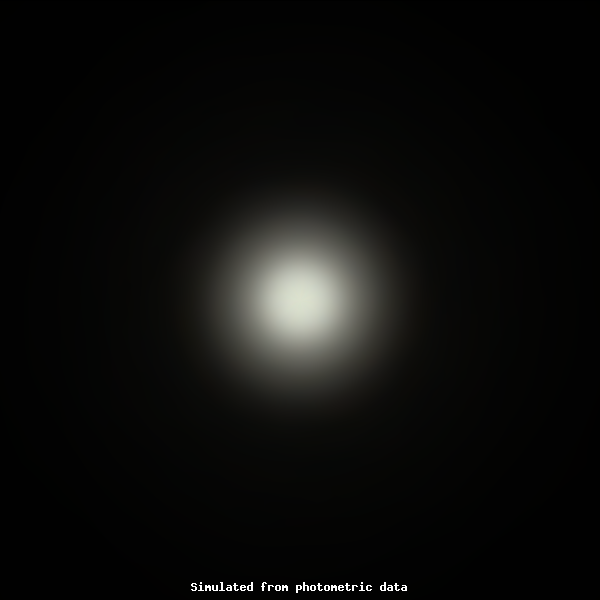

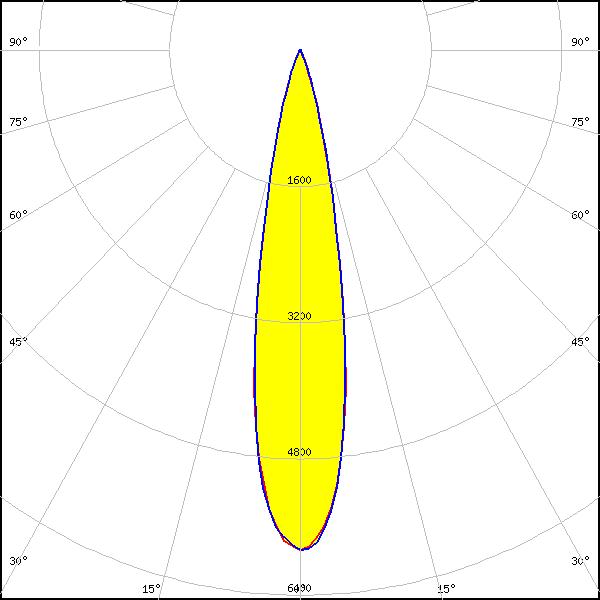

    LED: NF1202EFC-V5
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 20°
    FWTM: 38°
    Peak intensity: 5.897 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

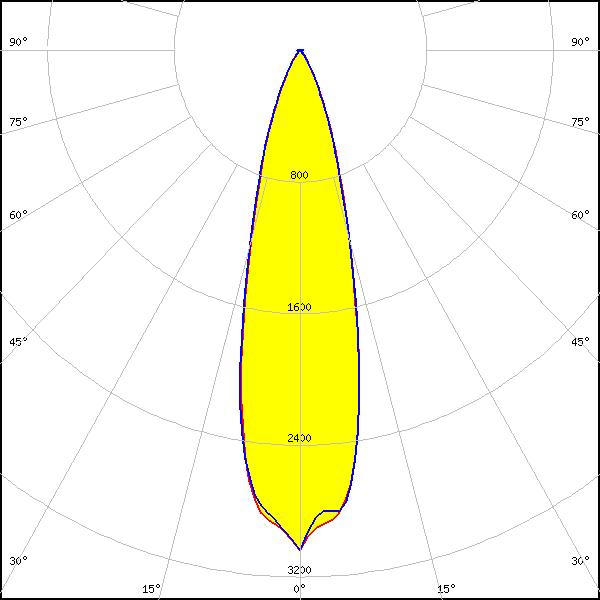

    LED: LC003D / LC006D / LC009D / LC013D
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 9.8 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 26°
    FWTM: 52°
    Peak intensity: 3.039 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

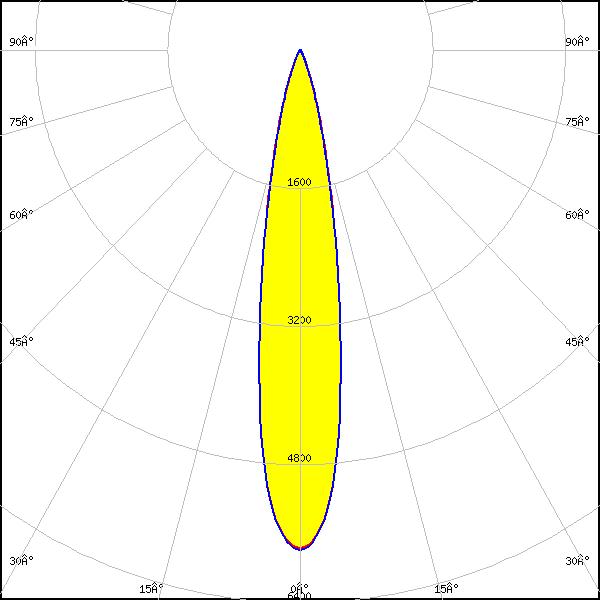

    LED: LC010C G2
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: 19°
    FWTM: 38°
    Peak intensity: 5.806 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

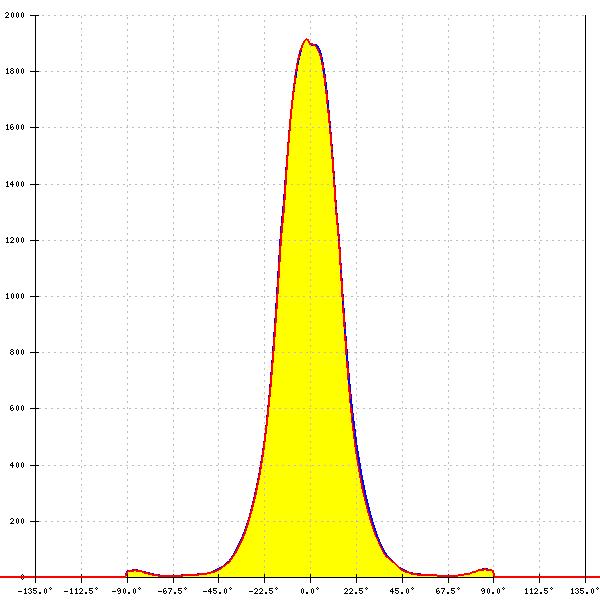

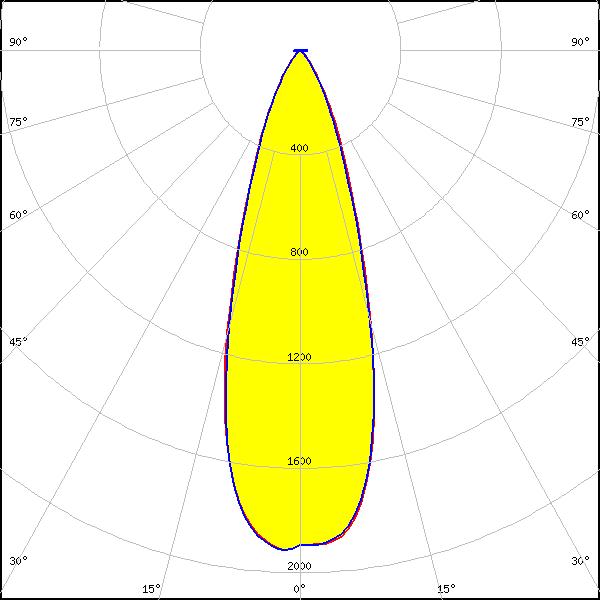

    LED: LC030C/040C G2
    Ordering code: CP18523_YASMEEN-35-S-B
    LES size: 11.5 mm
    Required components:
    BJB: 47.360.1010
    FWHM: 32°
    FWTM: 62°
    Peak intensity: 1.927 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
