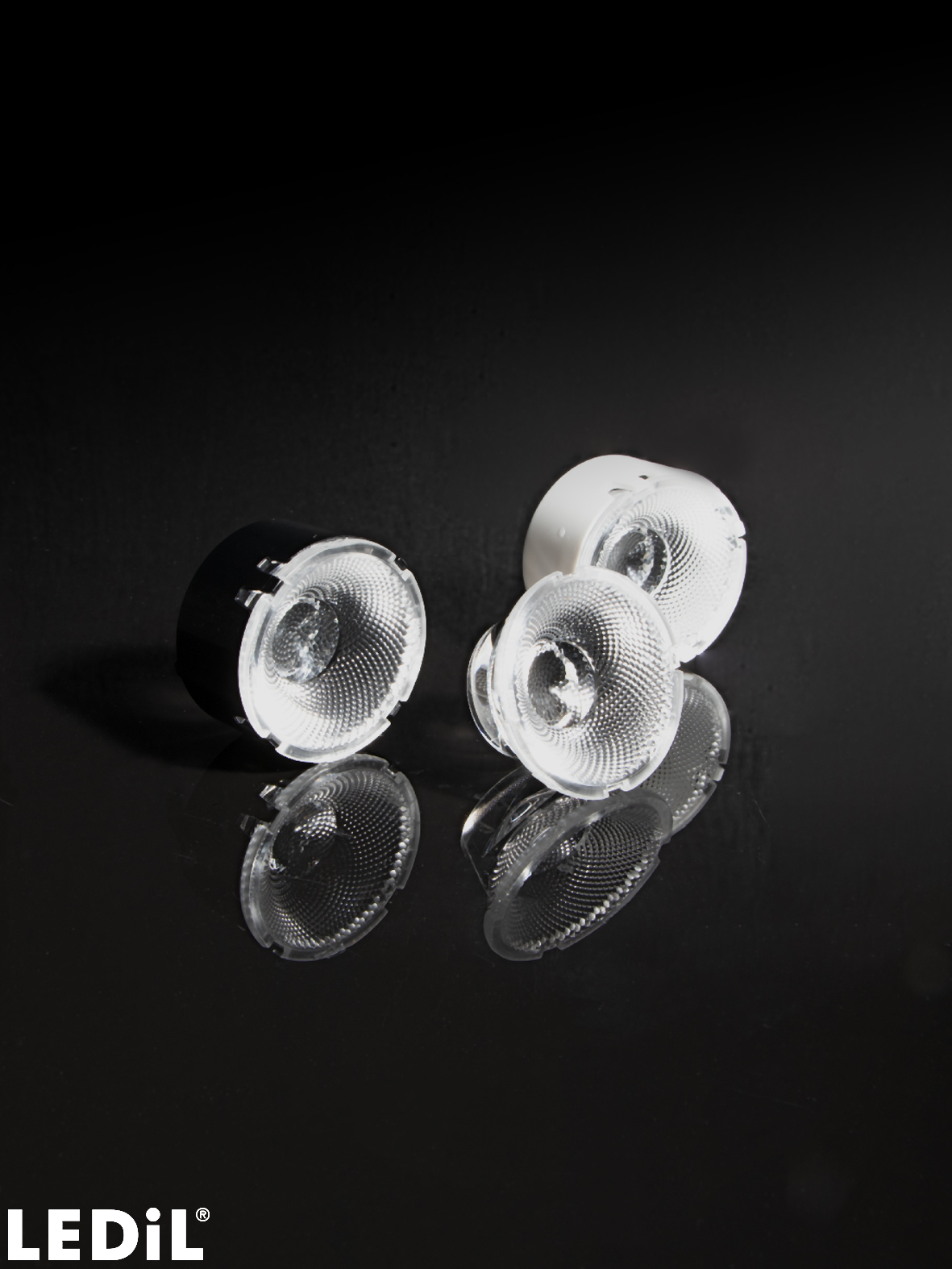

YASMEEN-35-WW
Print~60° wide beam
This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.
Specification
-
Dimensions:35 mm
-
Height:18.00 mm
-
Fastening:socket
-
RoHS and REACH compliant:Yes
Component Materials
- YASMEEN-35-WWSingle lensPMMA
- YASMEEN-35-HLD-B-WHTHolderPC
- YASMEEN-35-HLD-BHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Single lens
- C18521_YASMEEN-35-WWclear
- Assembly
(single lens, holder)
- CP18526_YASMEEN-35-WW-B
black,Holder B- CP19223_YASMEEN-35-WW-B-WHT
white,Holder B- Packaging information in the product datasheet
- Assembly
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

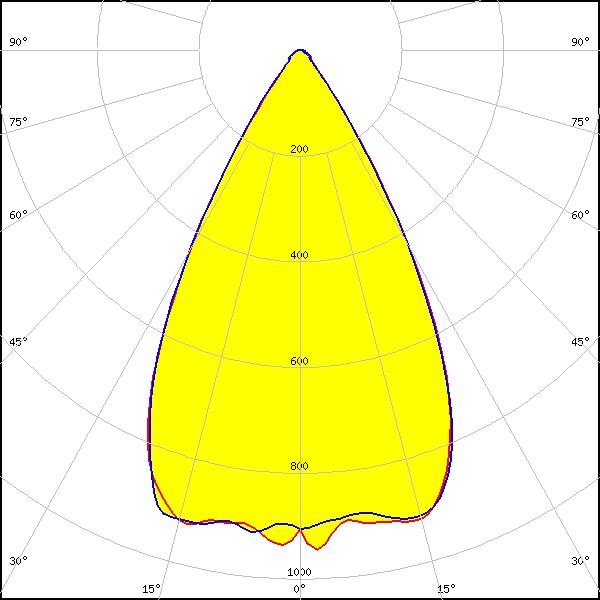

Optical results

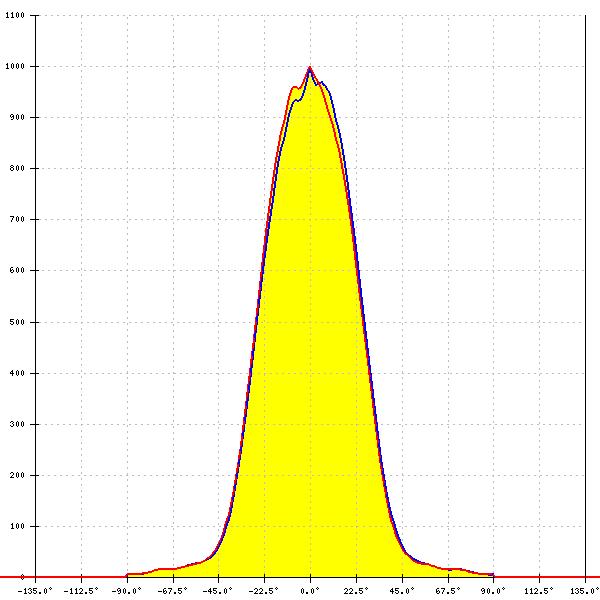

LED:

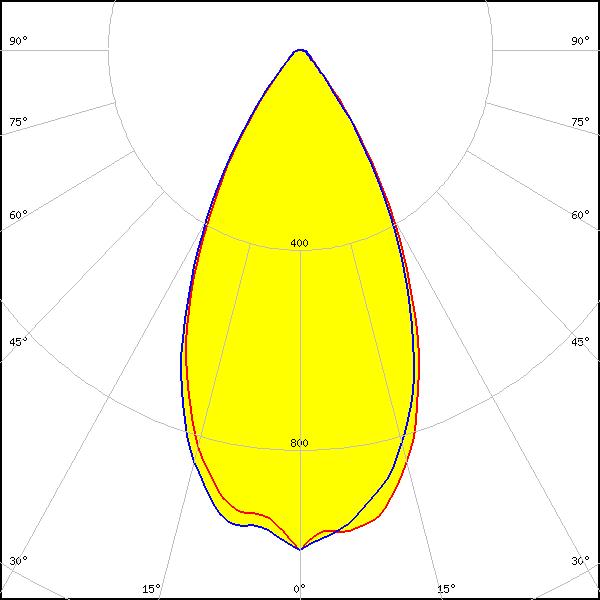

V10 Gen 8-9
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 10.0 mm
Required components:
Bender Wirth: 634b Bayonet35L
FWHM:
53°
FWTM:
83°
Peak intensity:
1.002 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

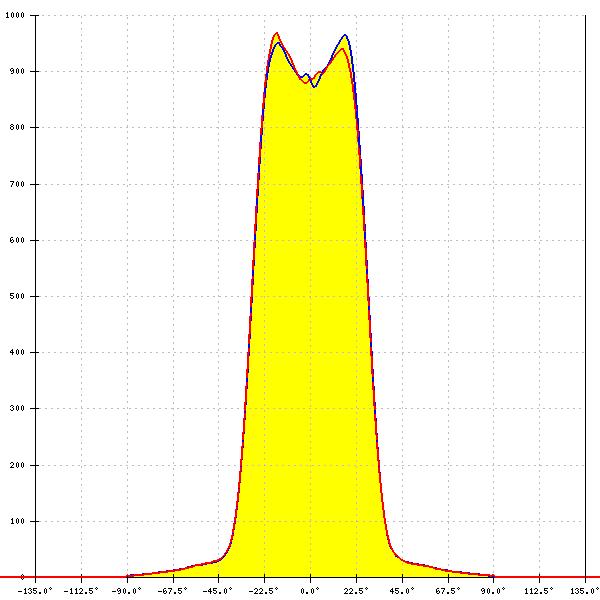

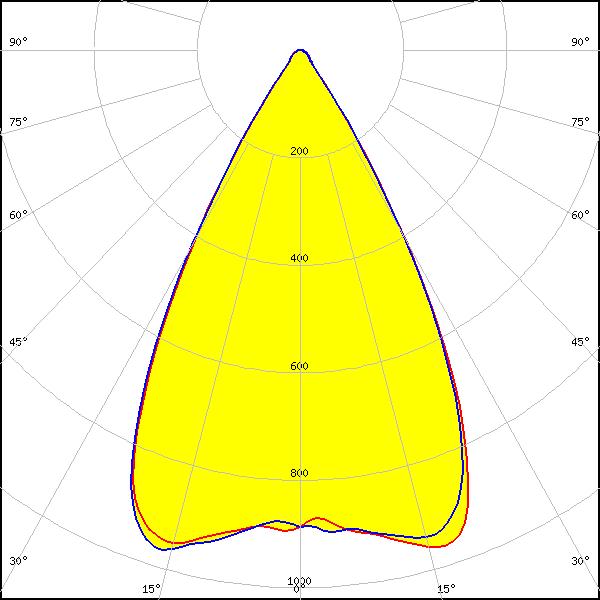

V4 HD Gen 7
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 5.2 mm
Required components:
BJB: 47.360.1020
FWHM:
58°
FWTM:
74°
Peak intensity:
0.971 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

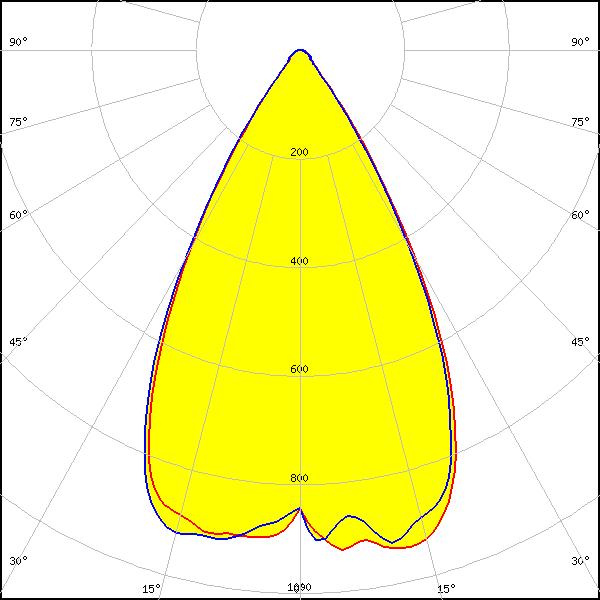

LED:

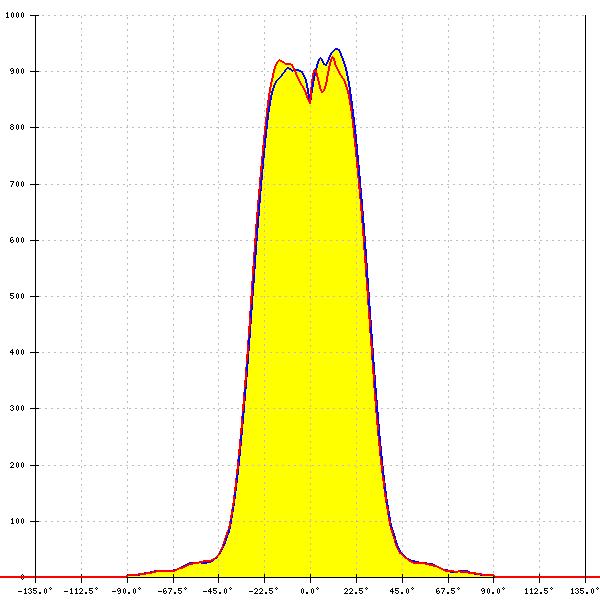

V6 HD Gen 8
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.6 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
59°
FWTM:
80°
Peak intensity:
0.955 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

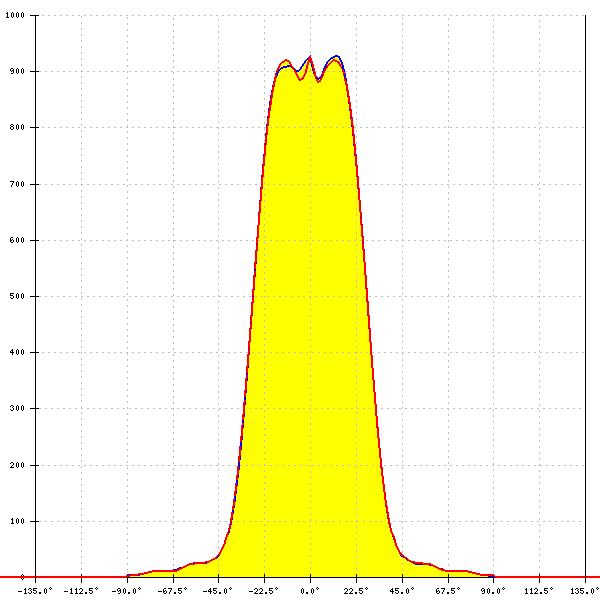

LED:

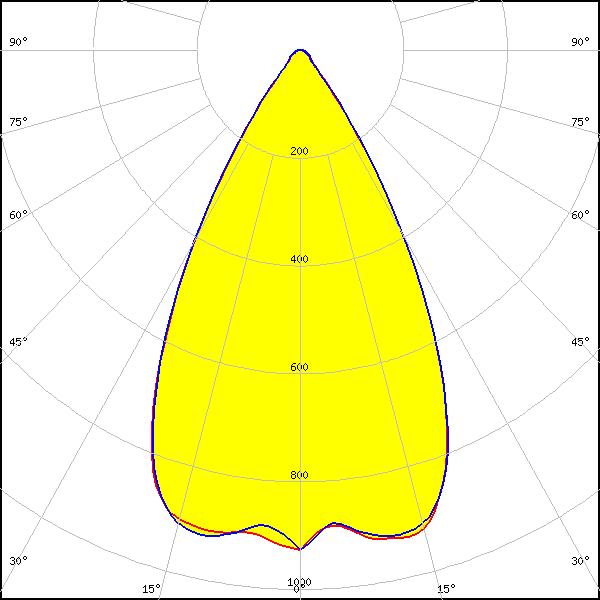

Vesta DTW 6mm
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.8 mm
Required components:
Bender Wirth: 652b Bayonet35L
FWHM:
58°
FWTM:
78°
Peak intensity:
0.929 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta DTW 9mm (4W/6W/12W)
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 9.3 mm
Required components:
Bender Wirth: 652b Bayonet35L
FWHM:
52°
FWTM:
80°
Peak intensity:
1.093 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

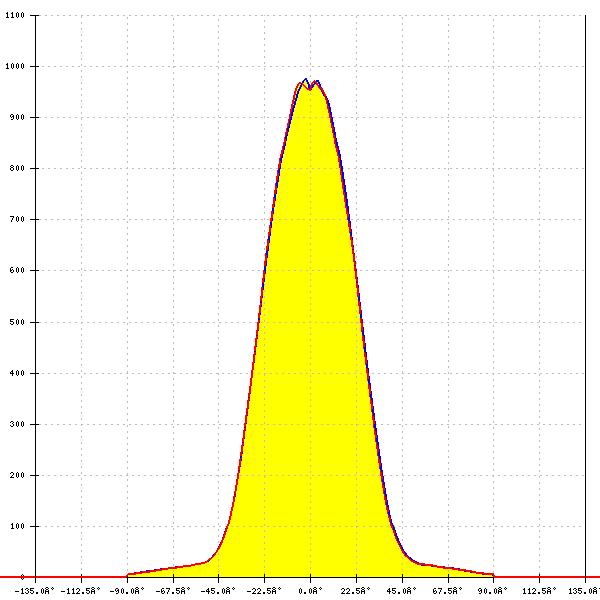

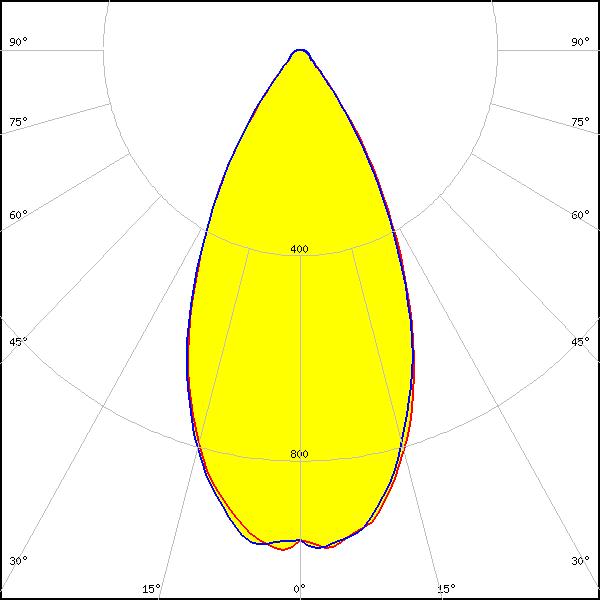

LED:
CLU02Q-1203E1 Type-M
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 9.7 mm
Required components:
FWHM:
52°
FWTM:
80°
Peak intensity:
0.989 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 9.8 mm
Required components:
FWHM:
52°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

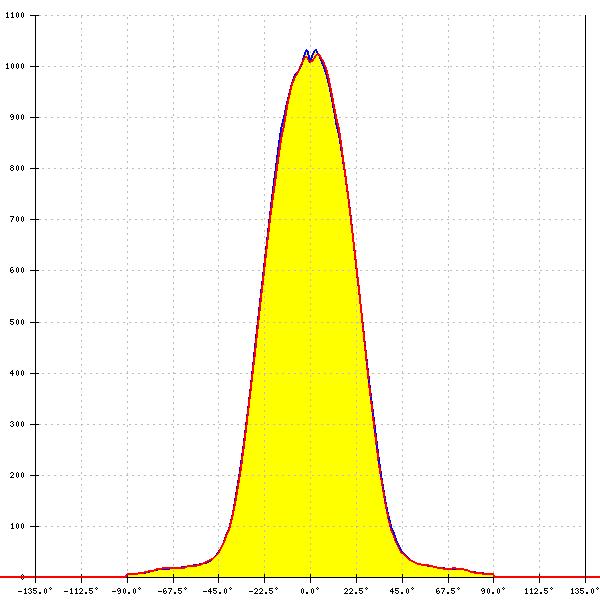

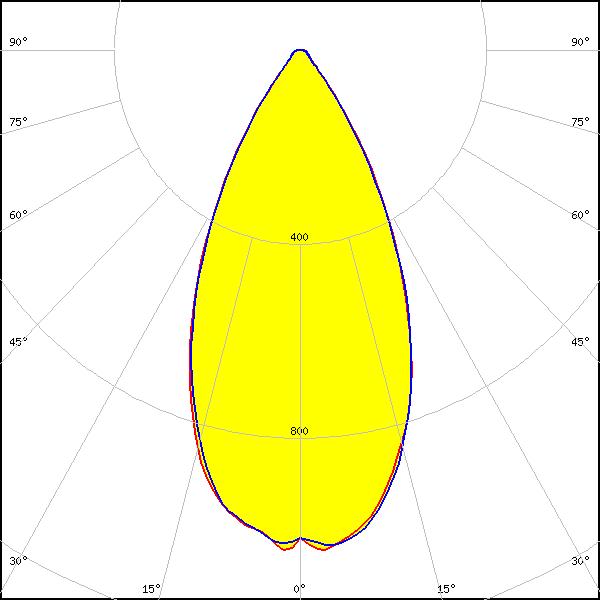

LED:
CLU02x (LES10)
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
50°
FWTM:
79°
Peak intensity:
1.035 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

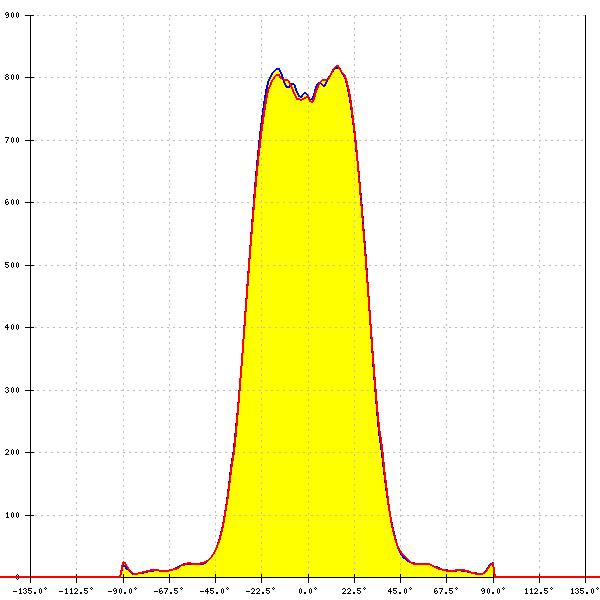

LED:
CLU700/701/702/703
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.0 mm
Required components:
FWHM:
58°
FWTM:
78°
Peak intensity:
0.929 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

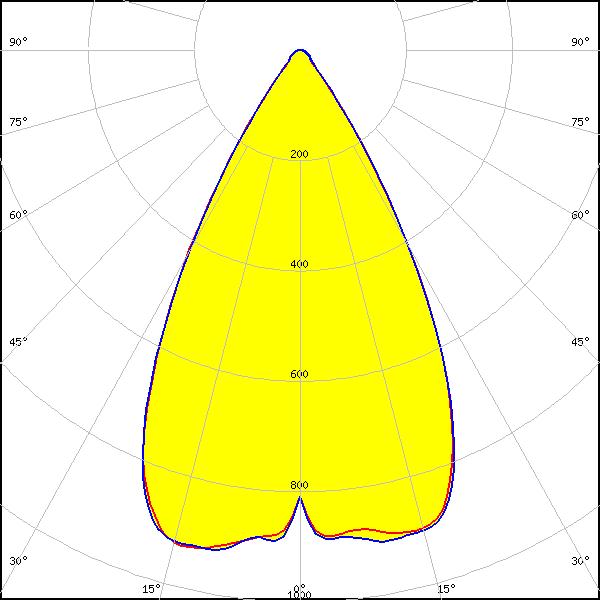

LED:

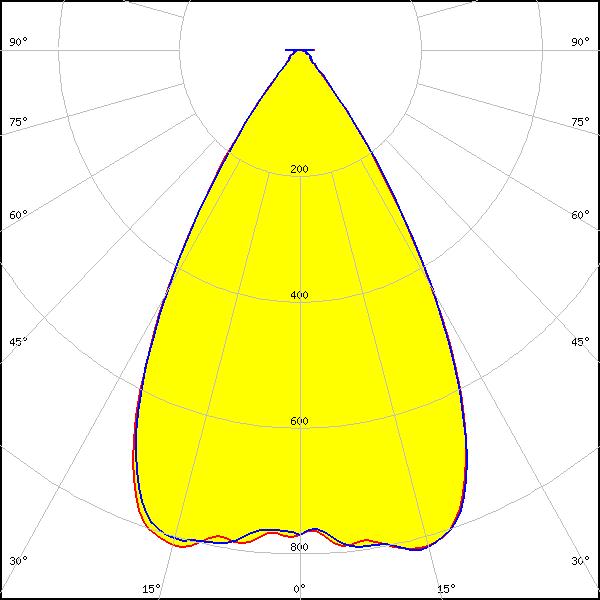

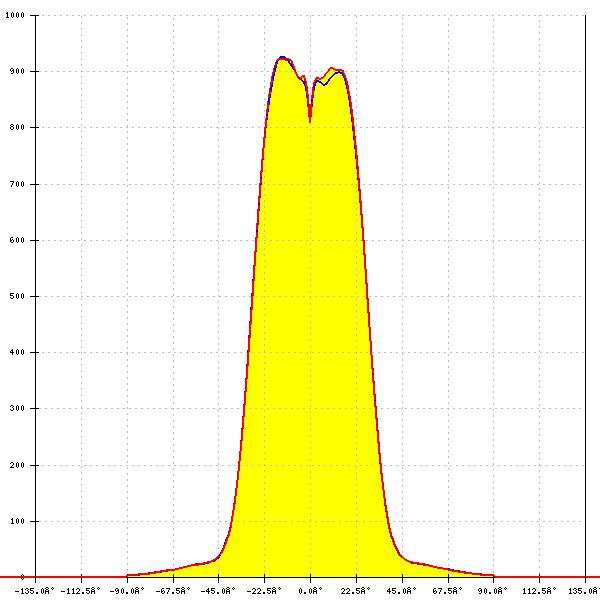

CLU703 Type-F
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
62°
FWTM:
82°
Peak intensity:
0.829 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

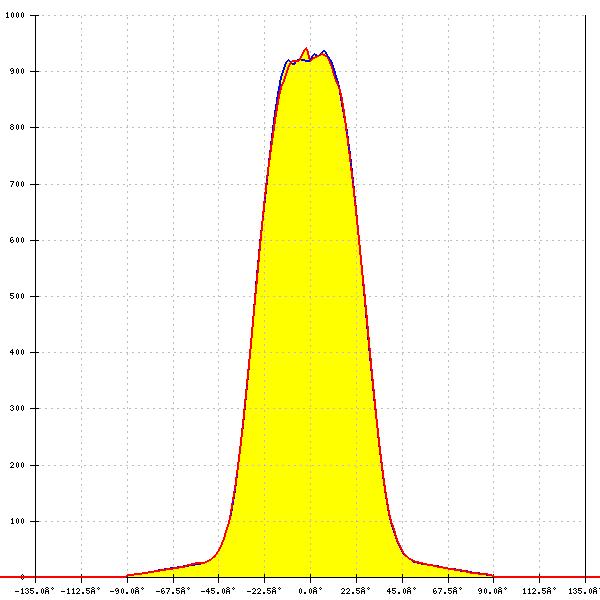

LED:

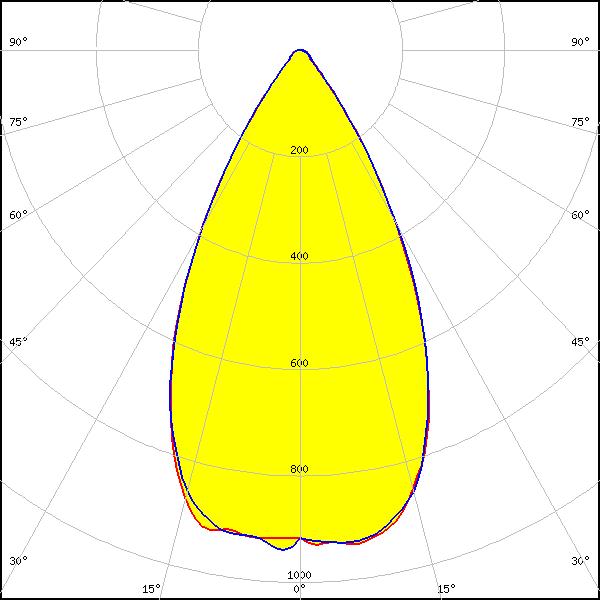

CLU712/713
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 8.5 mm
Required components:
FWHM:
56°
FWTM:
80°
Peak intensity:
0.956 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

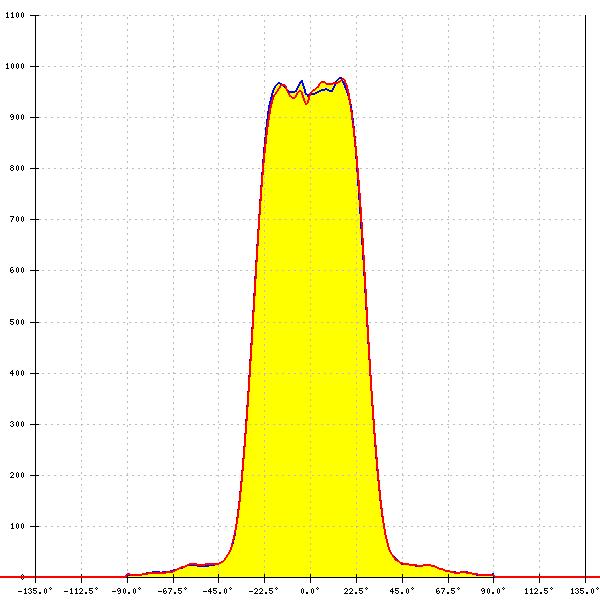

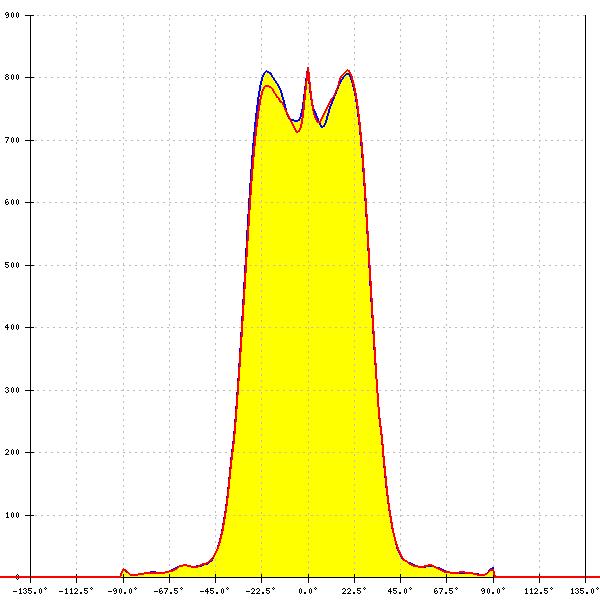

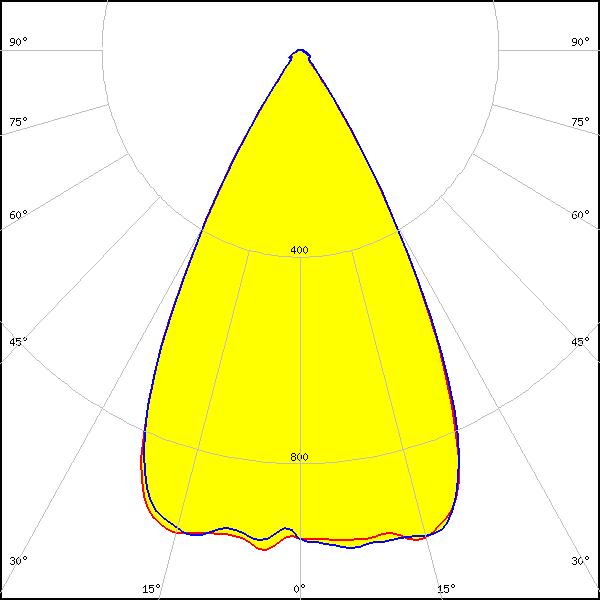

LED:
CLU7A2/7A3
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM:
56°
FWTM:
74°
Peak intensity:
0.987 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

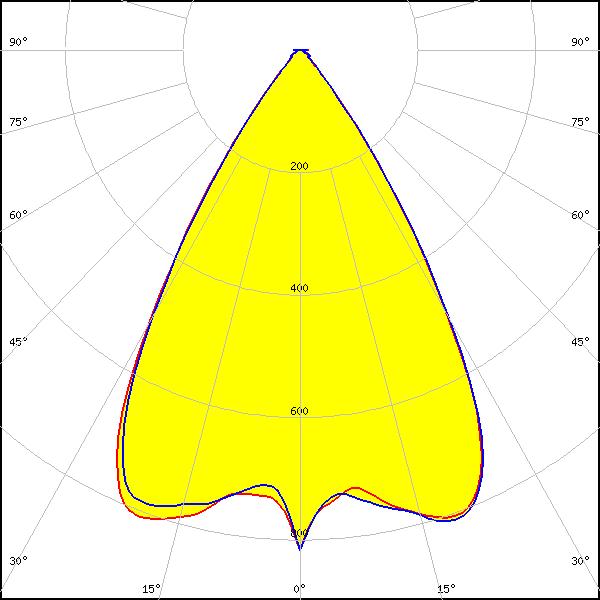

LED:
CLU7A3 Type-F
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM:
64°
FWTM:
82°
Peak intensity:
0.817 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

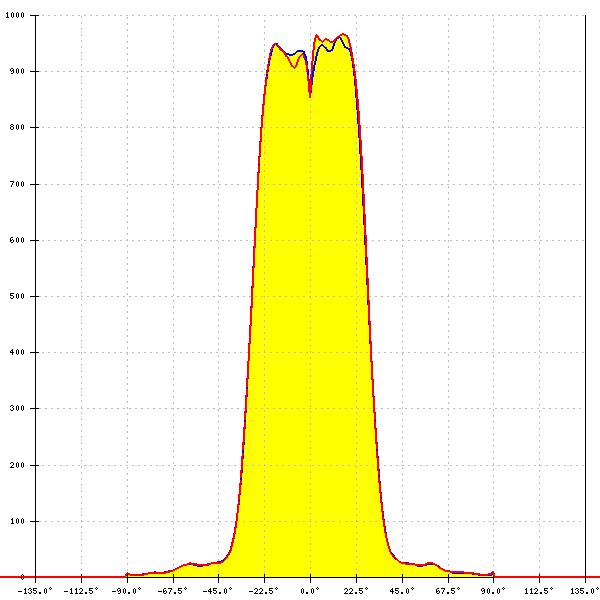

LED:

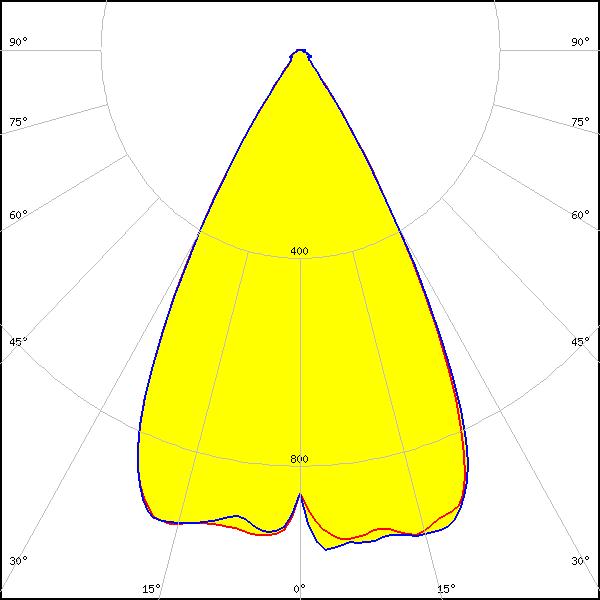

CLU7B2
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM:
58°
FWTM:
73°
Peak intensity:
0.979 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

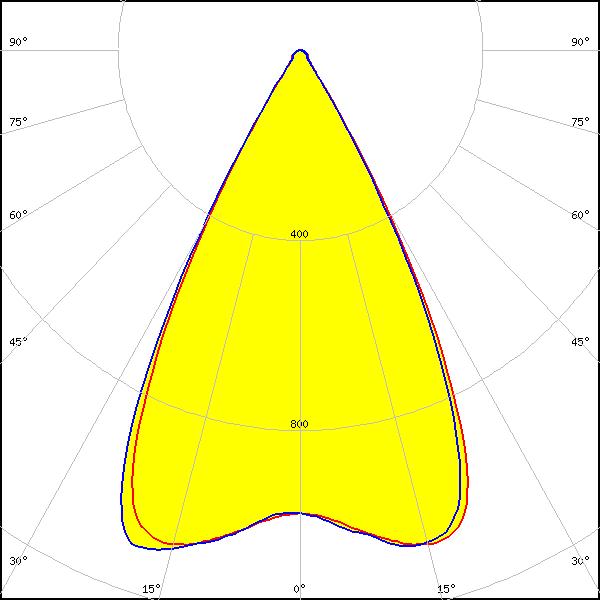

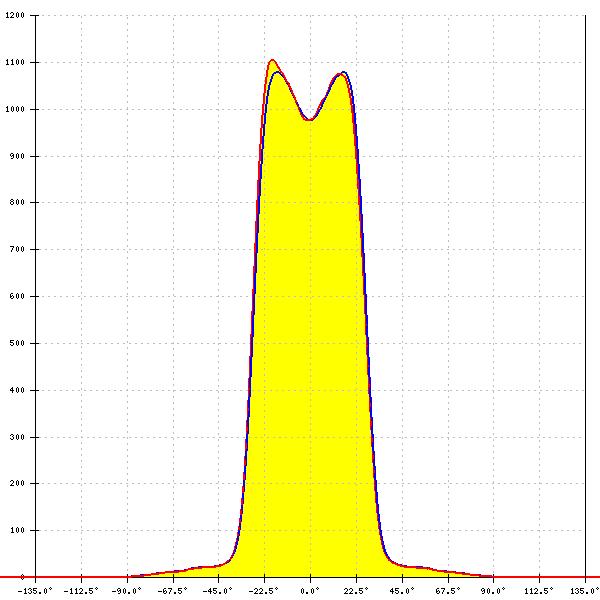

CLU7L3
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 2.4 mm
Required components:
FWHM:
56°
FWTM:
69°
Peak intensity:
1.113 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU7R3
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 4.2 mm
Required components:
FWHM:
57°
FWTM:
74°
Peak intensity:
1.034 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

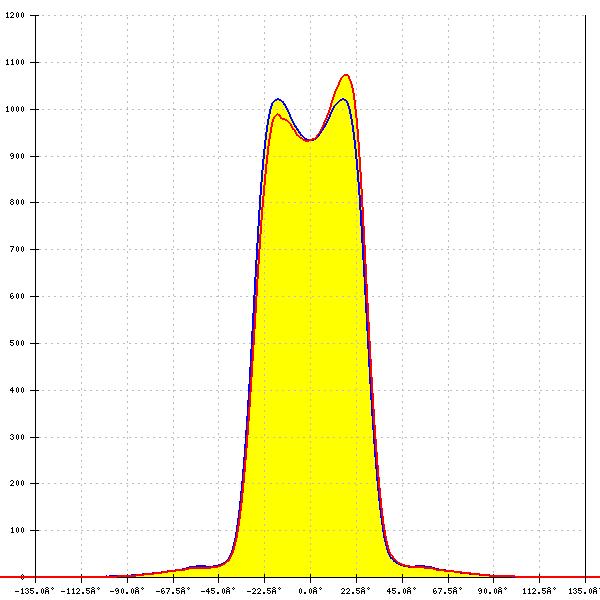

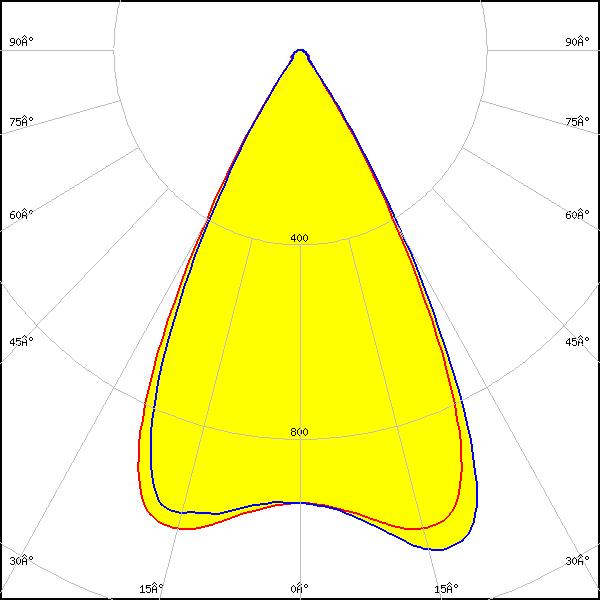

LED:
CLU7S3
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 3.5 mm
Required components:
FWHM:
56°
FWTM:
72°
Peak intensity:
1.085 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

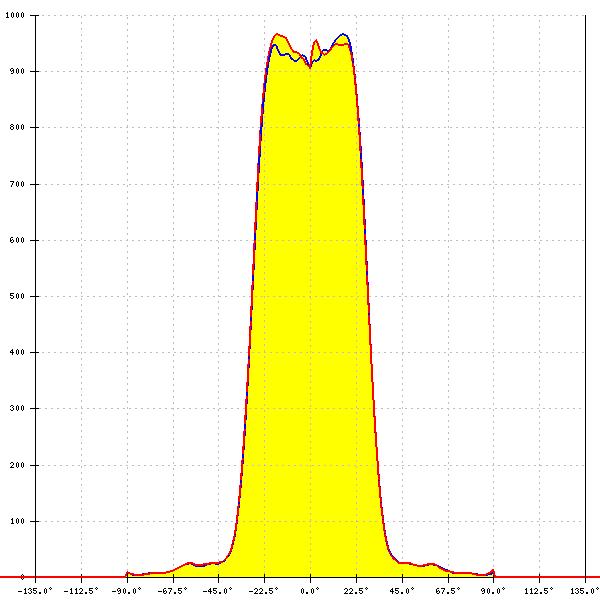

LED:

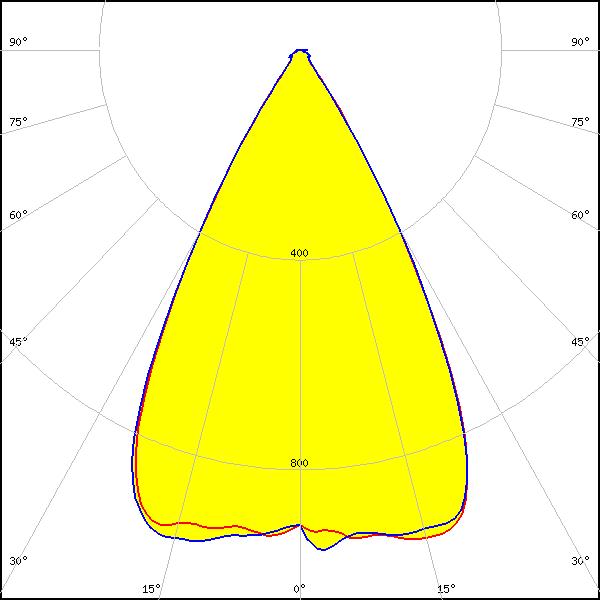

CHA0304
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 3.3 mm
Required components:
BJB: 47.360.1020
FWHM:
58°
FWTM:
72°
Peak intensity:
0.979 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

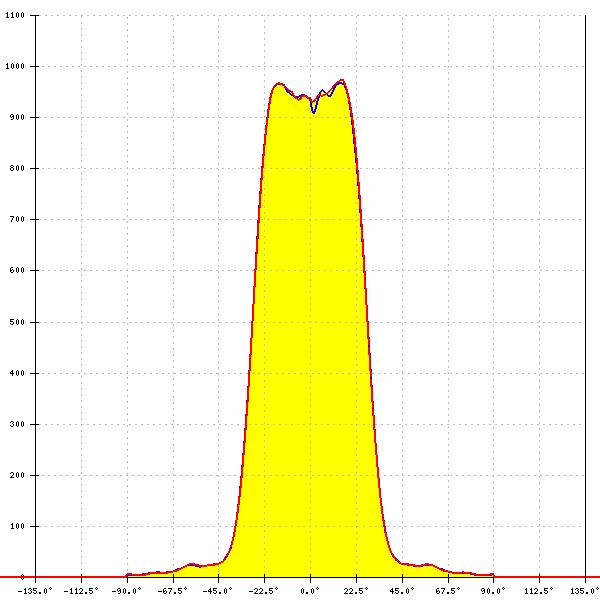

LED:

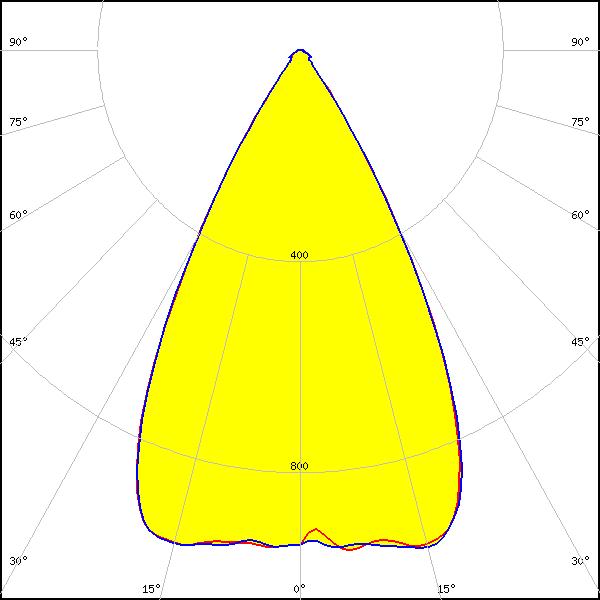

CHA0410
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 4.2 mm
Required components:
BJB: 47.360.1020
FWHM:
57°
FWTM:
74°
Peak intensity:
0.976 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

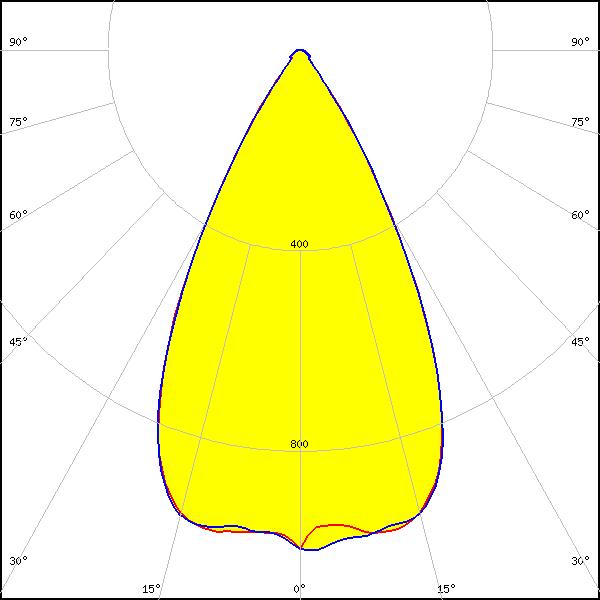

LED:
CHA0612
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
56°
FWTM:
76°
Peak intensity:
1.007 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

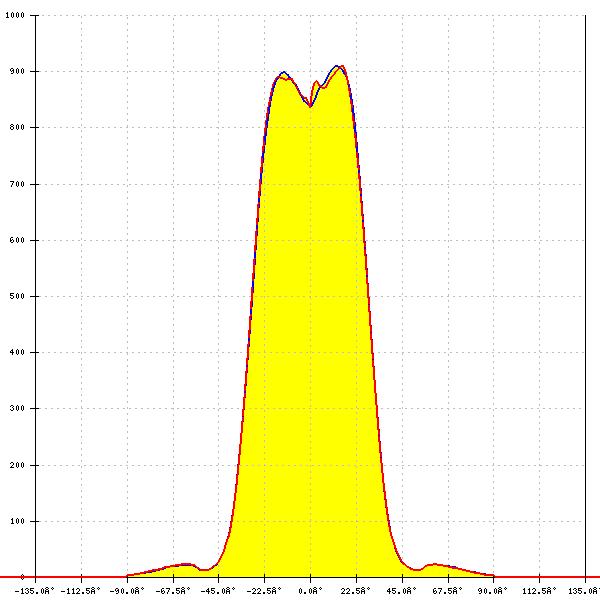

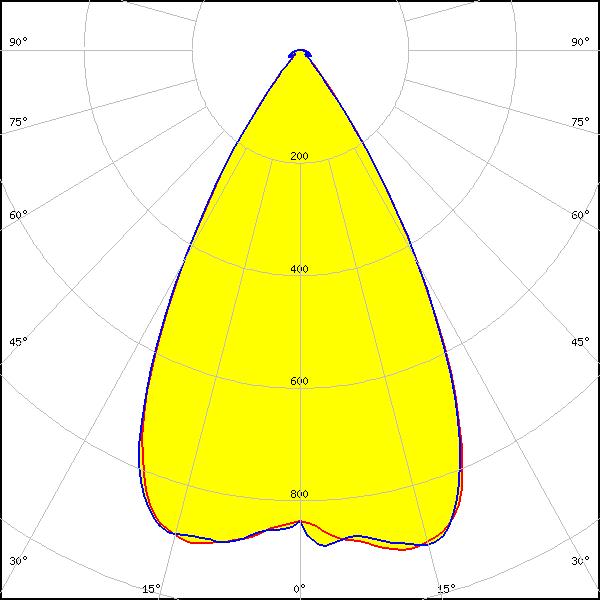

LED:
CMB13xx
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35
FWHM:
59°
FWTM:
78°
Peak intensity:
0.918 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

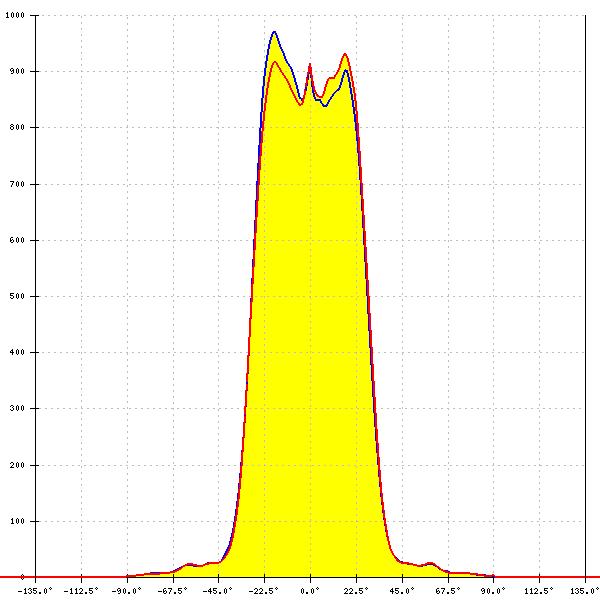

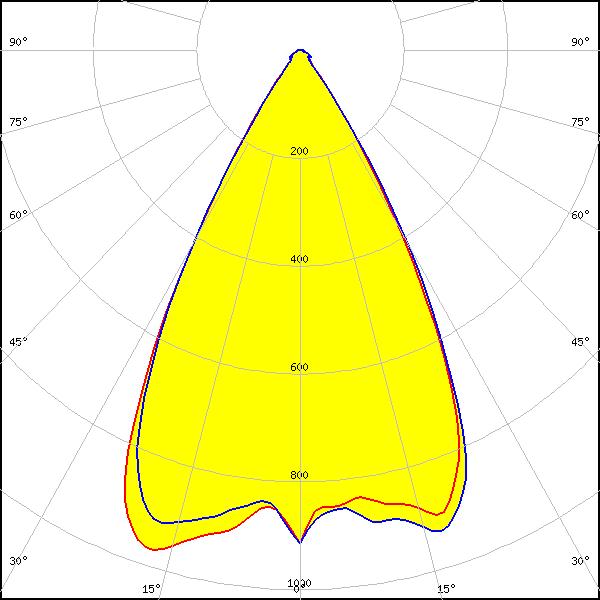

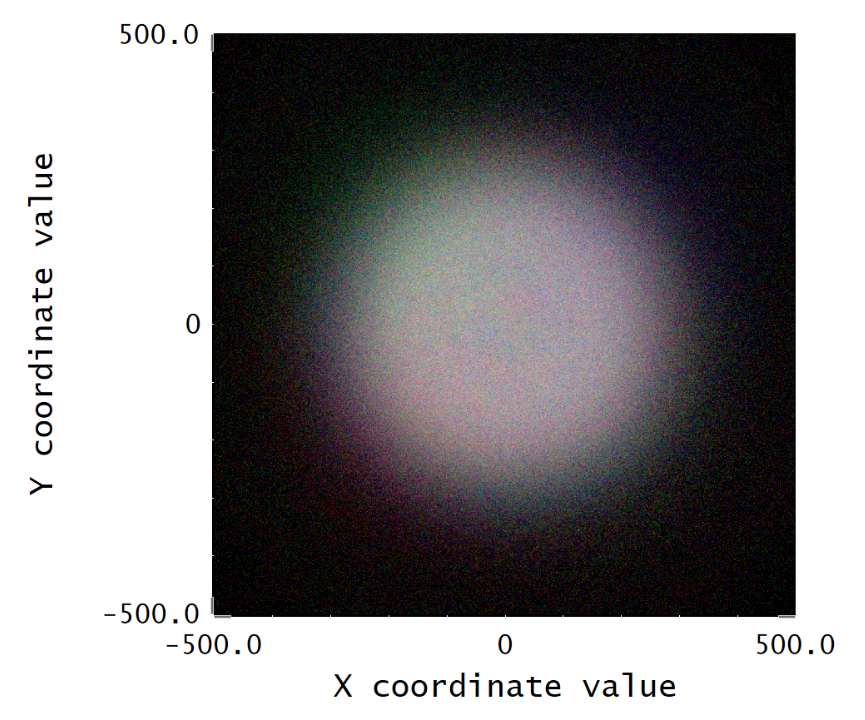

LED:
XM-L RGBW (XMLDCL HD)
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 0.0 mm
Required components:
BJB: 47.360.1010
FWHM:
58°
FWTM:
74°
Peak intensity:
0.993 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

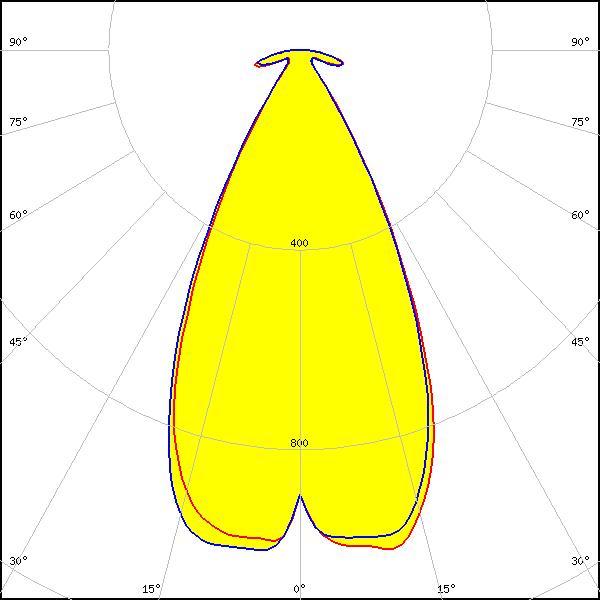

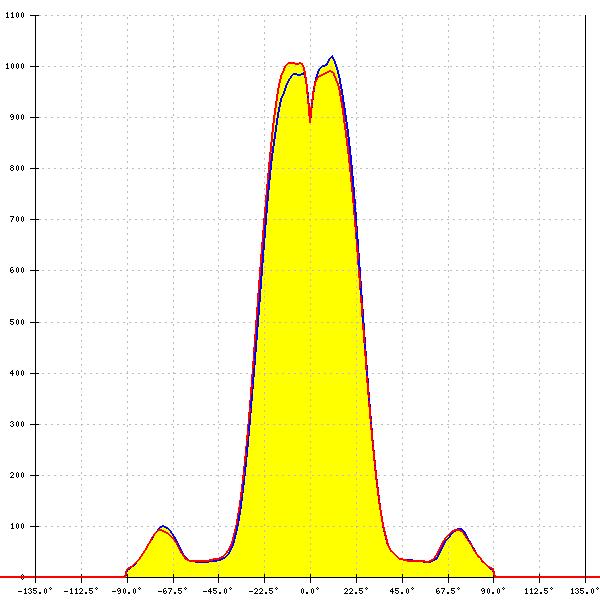

LUXEON 7070
LES size: 0.0 mm
FWHM:
52°
FWTM:
72°
Peak intensity:
1.035 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

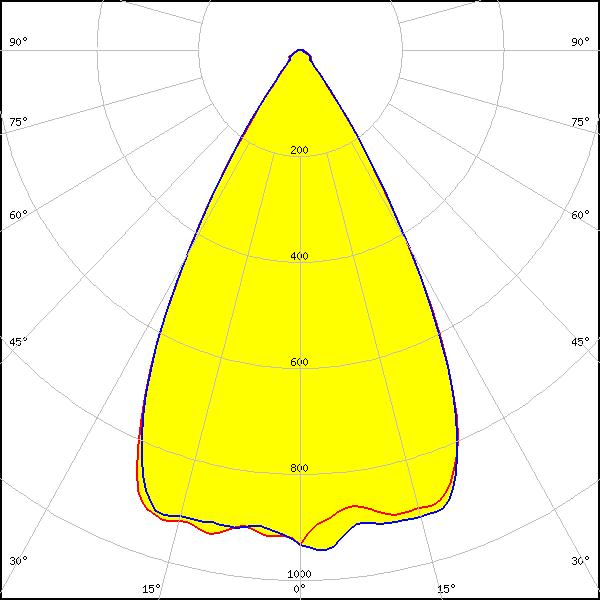

LED:

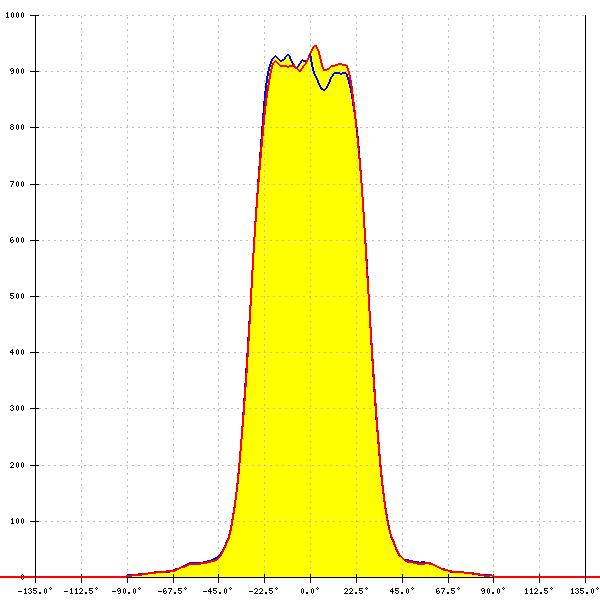

LUXEON CX Plus CoB - HD S01H4
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
59°
FWTM:
78°
Peak intensity:
0.954 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

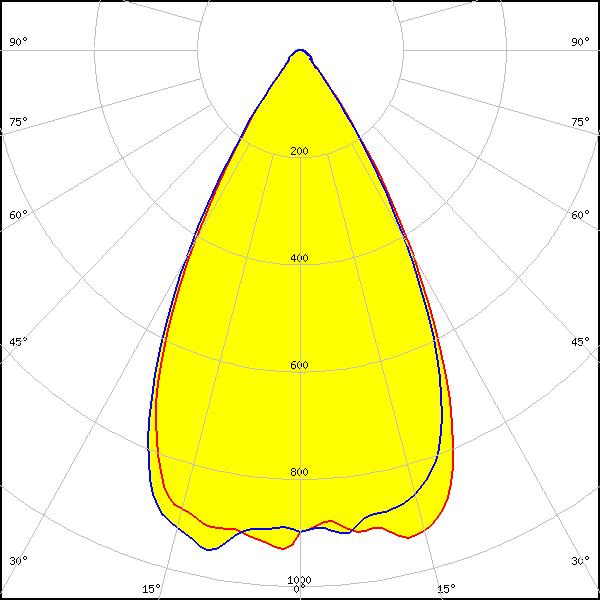

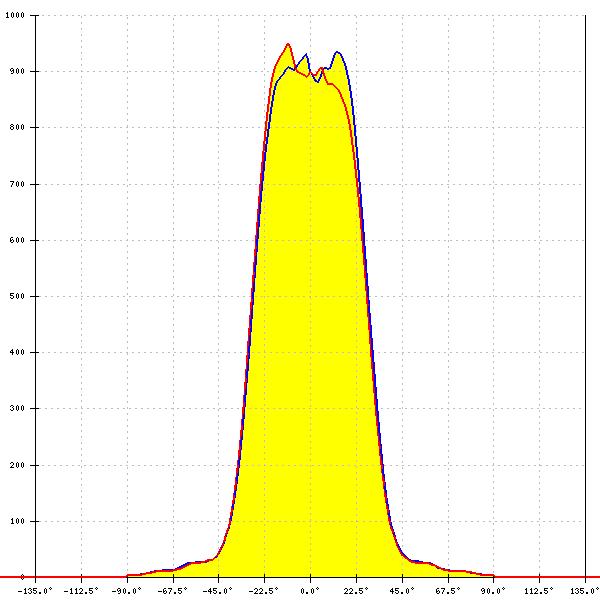

LED:
LUXEON CX Plus CoB - HD S02H6
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
58°
FWTM:
80°
Peak intensity:
0.964 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

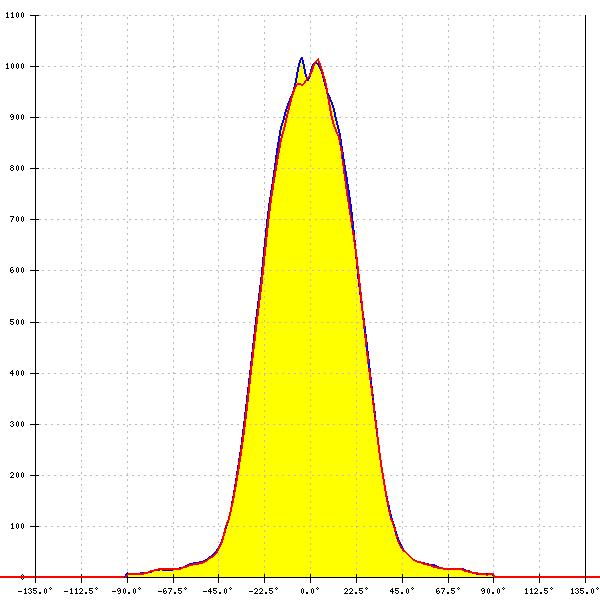

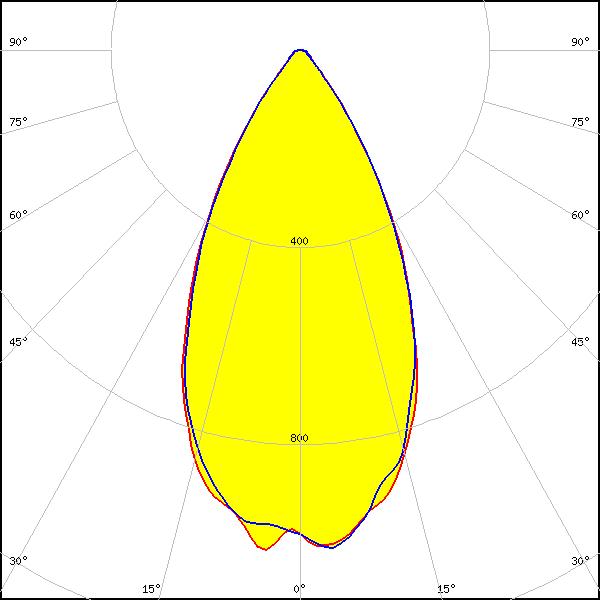

LUXEON CX Plus CoB - HD S04H9
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 9.0 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
52°
FWTM:
82°
Peak intensity:
1.034 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

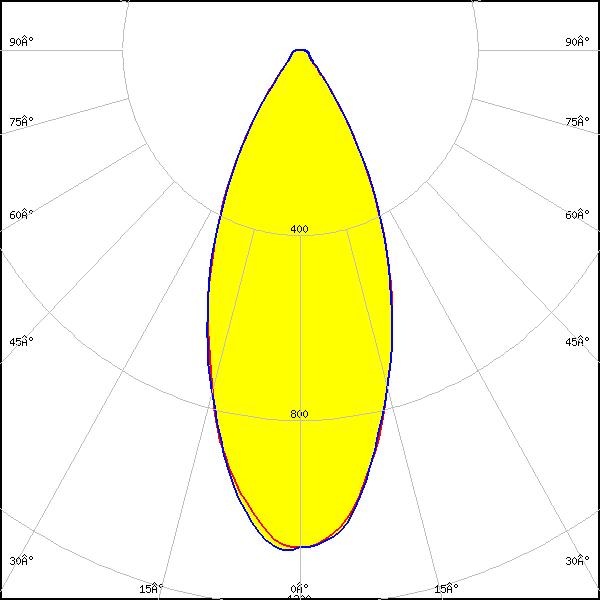

LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 12.0 mm
Required components:
BJB: 47.360.1040
FWHM:
44°
FWTM:
78°
Peak intensity:
1.088 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

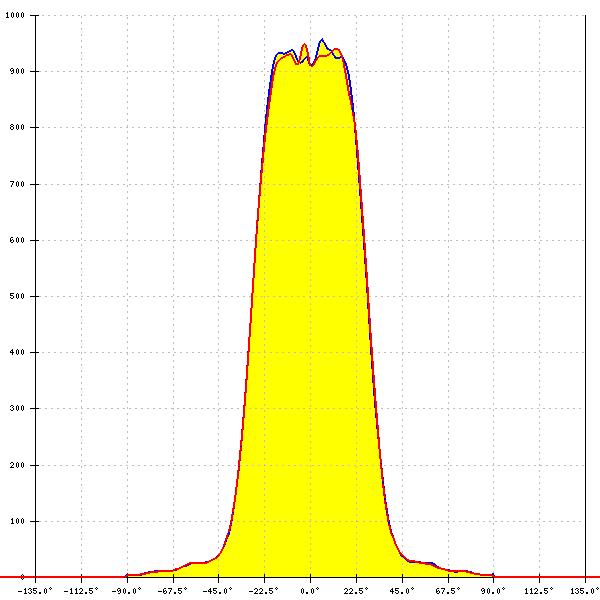

LED:

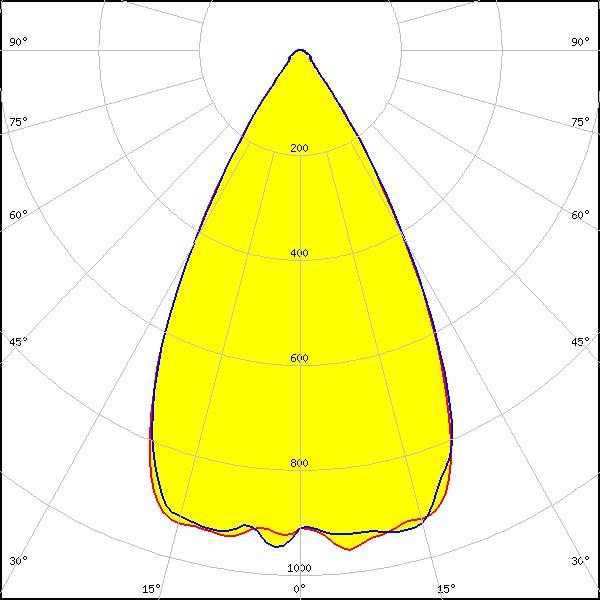

LUXEON CX Plus CoB S01 (Gen2)
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Bayonet35L
FWHM:
58°
FWTM:
78°
Peak intensity:
0.972 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

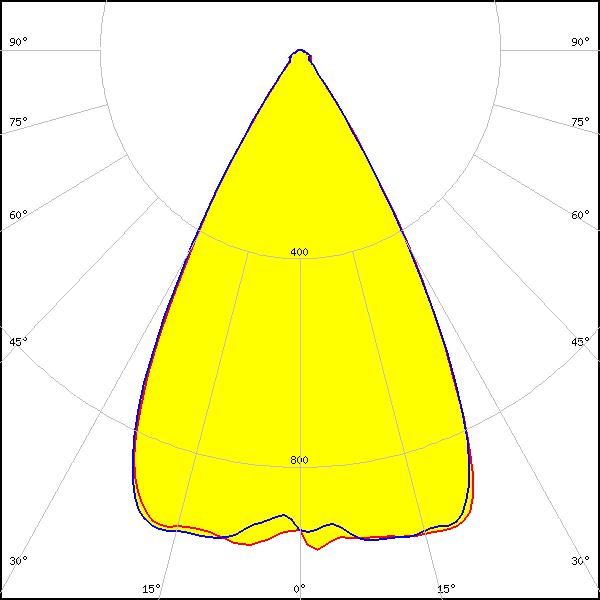

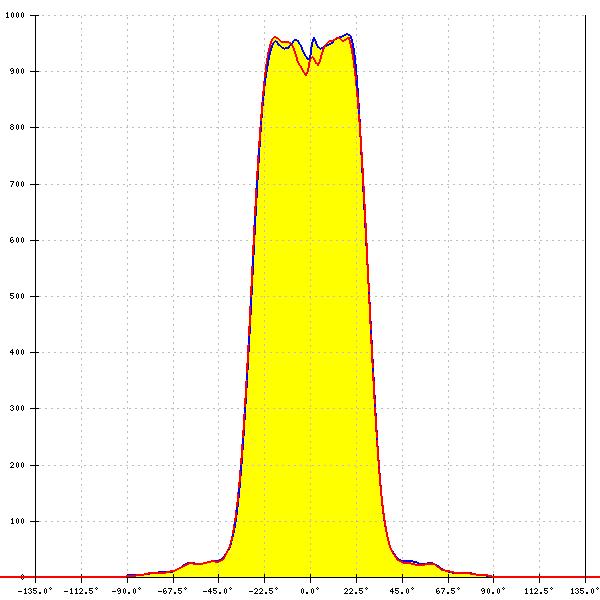

LED:
CXM-3
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 3.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
58°
FWTM:
74°
Peak intensity:
0.982 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

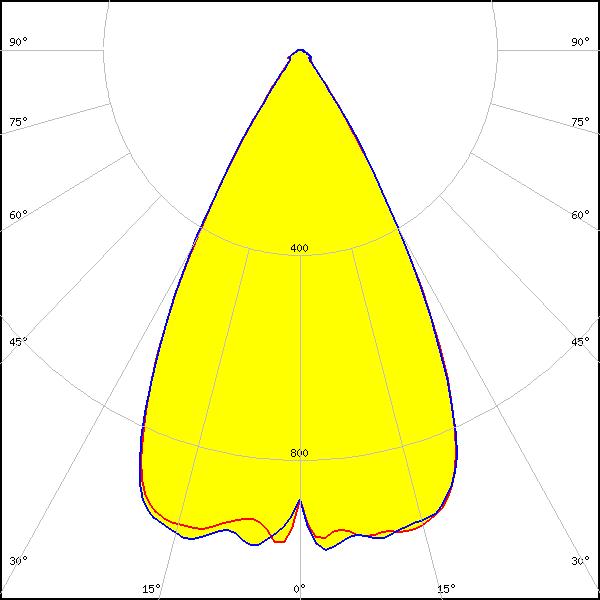

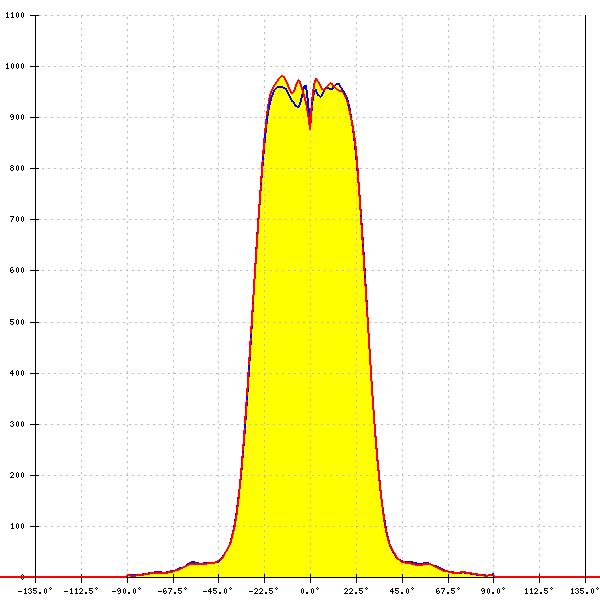

LED:
CXM-4
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 4.5 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
58°
FWTM:
75°
Peak intensity:
0.987 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

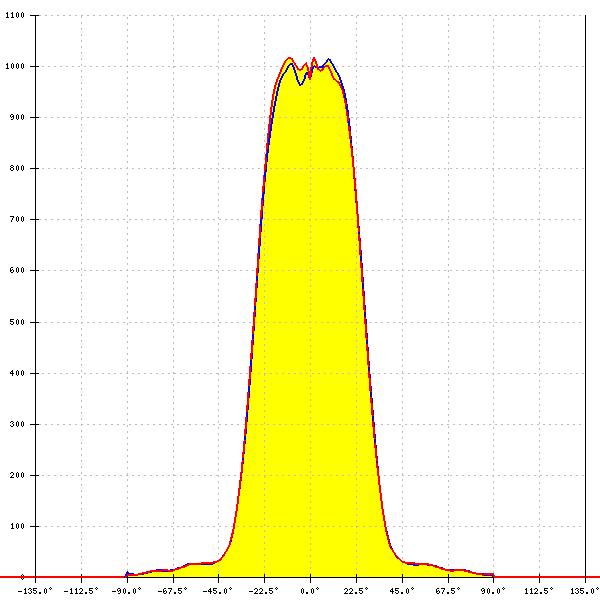

LED:
CxM-6 (13.5x13.5)
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.3 mm
Required components:
BJB: 47.360.1020
FWHM:
54°
FWTM:
74°
Peak intensity:
1.036 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

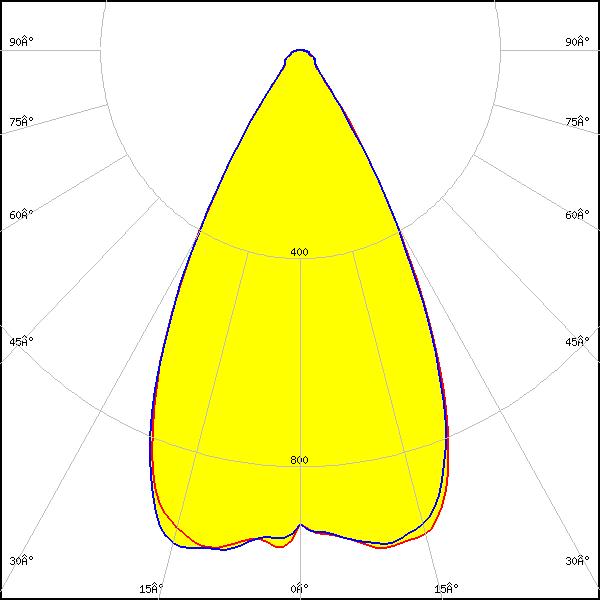

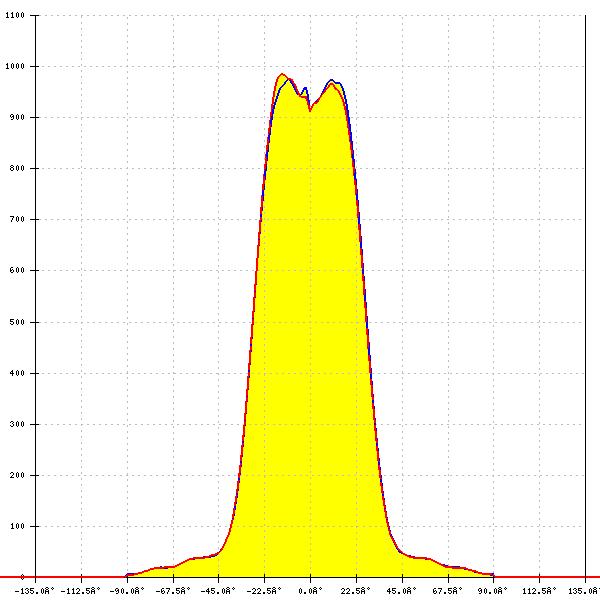

LED:
CxM-6 (13.5x13.5)
Ordering code: CP19223_YASMEEN-35-WW-B-WHT
LES size: 6.3 mm
Required components:
Bender Wirth: 634a Bayonet35L
FWHM:
56°
FWTM:
78°
Peak intensity:
0.984 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

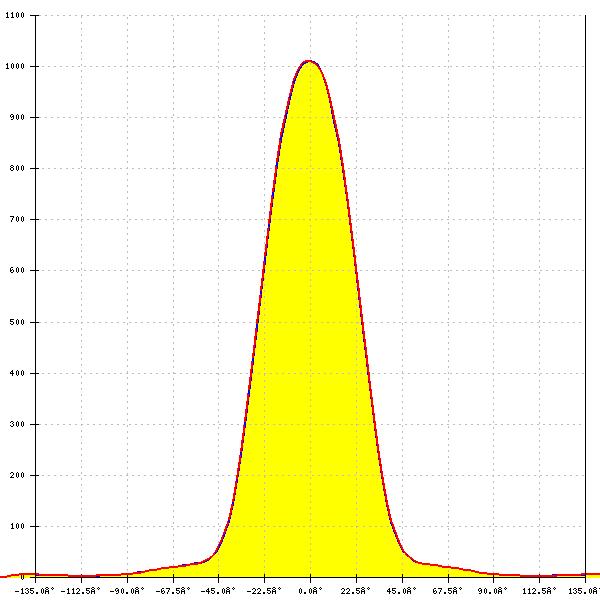

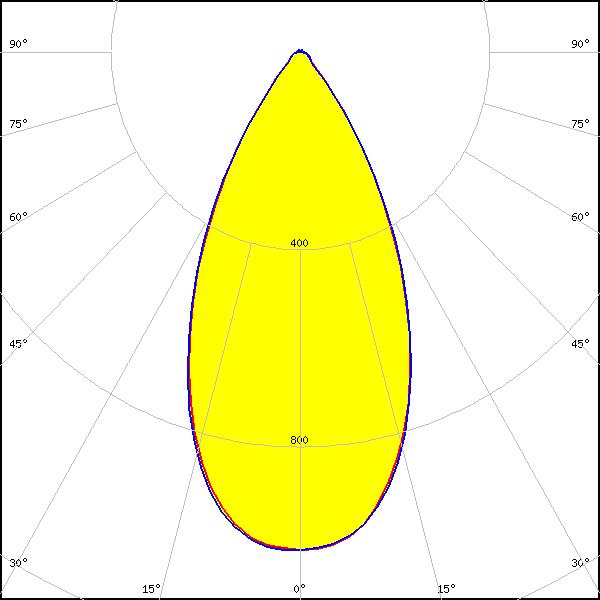

CxM-9 (13.5x13.5)
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 9.6 mm
Required components:
FWHM:
52°
FWTM:
80°
Peak intensity:
1.013 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 6)
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
58°
FWTM:
78°
Peak intensity:
0.968 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.7 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
57°
FWTM:
80°
Peak intensity:
0.981 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB T-Type
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 5.9 mm
Required components:
Bender Wirth: 652a Bayonet35L
FWHM:
58°
FWTM:
78°
Peak intensity:
0.961 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

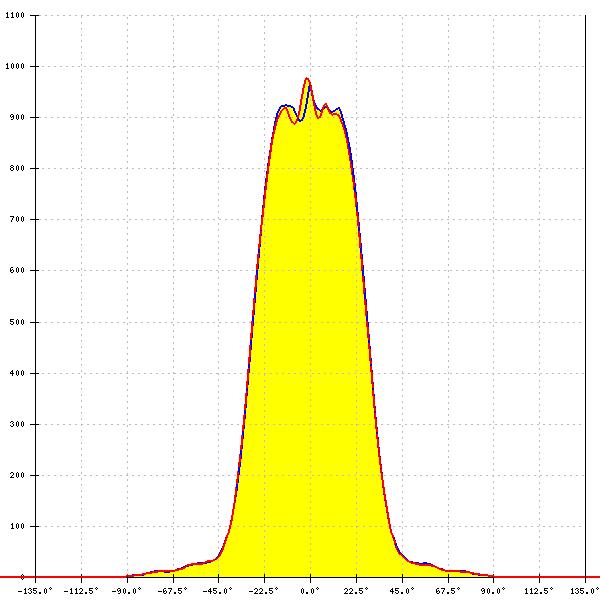

LED:

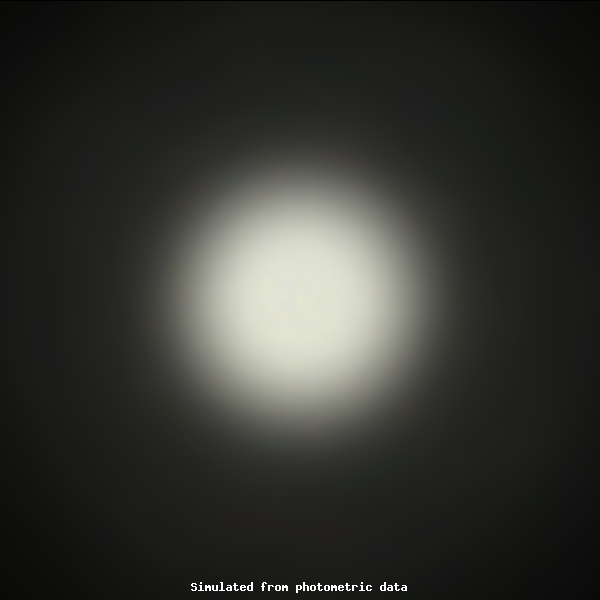

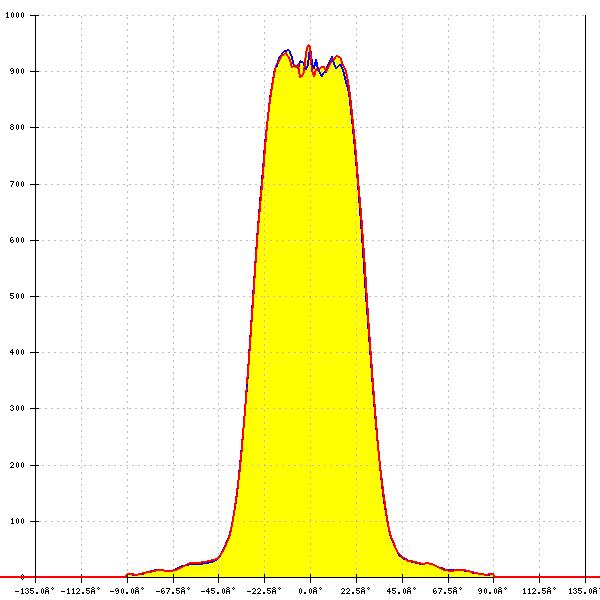

NF1202EFC-V5
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
57° + 56°
FWTM:
77° + 77°
Peak intensity:
0.961 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

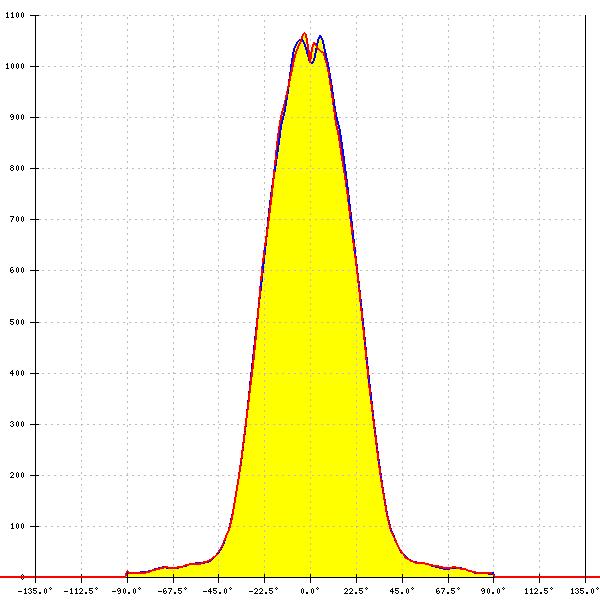

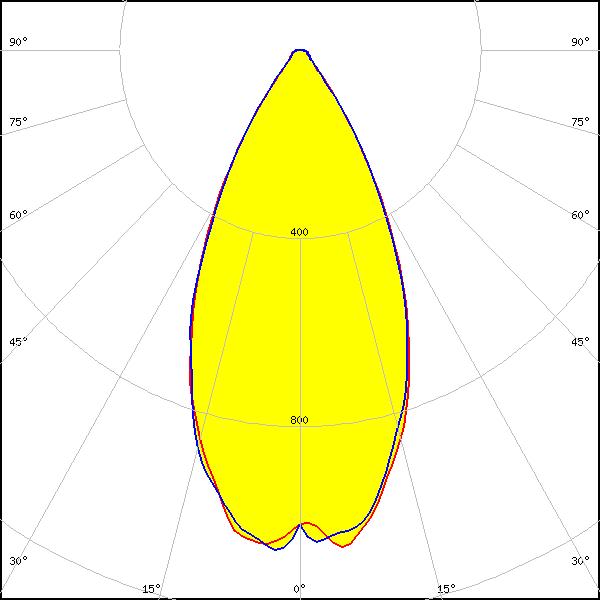

LED:
LC003D / LC006D / LC009D / LC013D
Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 9.8 mm
Required components:
BJB: 47.360.1020
FWHM:
50°
FWTM:
78°
Peak intensity:
1.122 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C G2

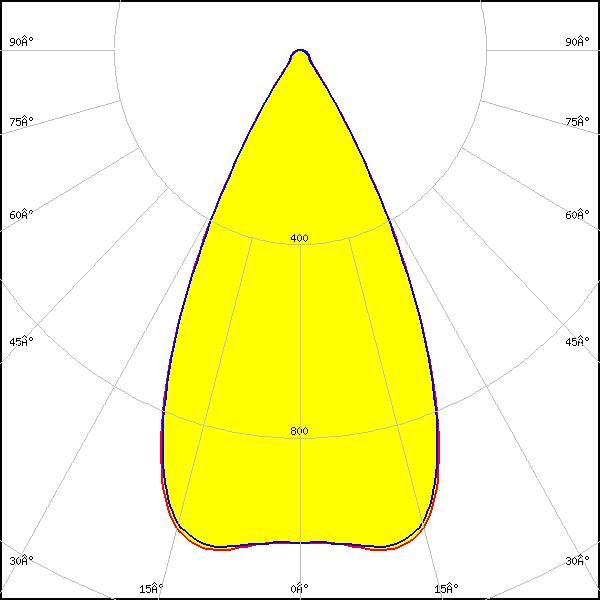

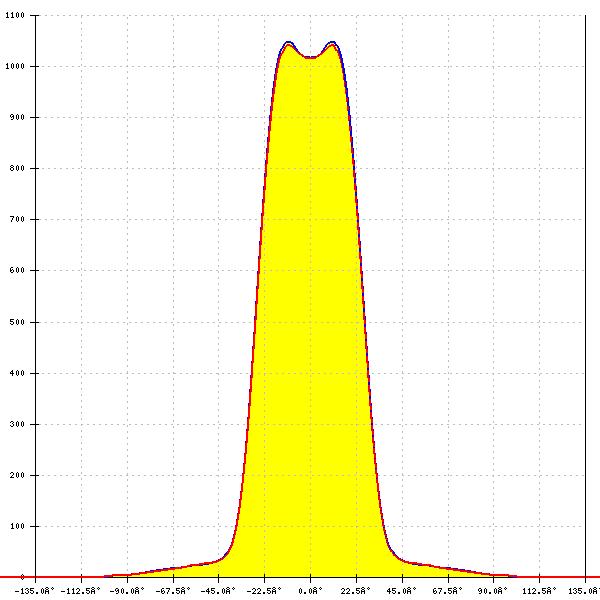

Ordering code: CP18526_YASMEEN-35-WW-B
LES size: 6.0 mm
Required components:
BJB: 47.360.1020
FWHM:
52°
FWTM:
72°
Peak intensity:
1.088 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
Manage Consent
We use necessary cookies to operate and secure our website, and optional technologies for analytics and marketing. You can accept all optional technologies, deny them, or choose your preferences by category.
If you decline optional cookies, limited cookieless measurement signals may still be sent to service providers such as Google for aggregated measurement and modelling. See our Privacy Policy for more information.
Functional Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes.
Used to understand how visitors use our website, measure website performance and improve our services. If you consent, analytics technologies may use cookies or similar identifiers. If you decline, analytics cookies are not enabled, but limited cookieless measurement signals may still be used for aggregated measurement and modelling.
Marketing
Used to measure marketing effectiveness and support relevant advertising and marketing activities. If you consent, marketing technologies may use cookies or similar identifiers. If you decline, marketing cookies, personalised advertising and remarketing are not enabled. Limited cookieless measurement signals may still be used for aggregated measurement and modelling.
