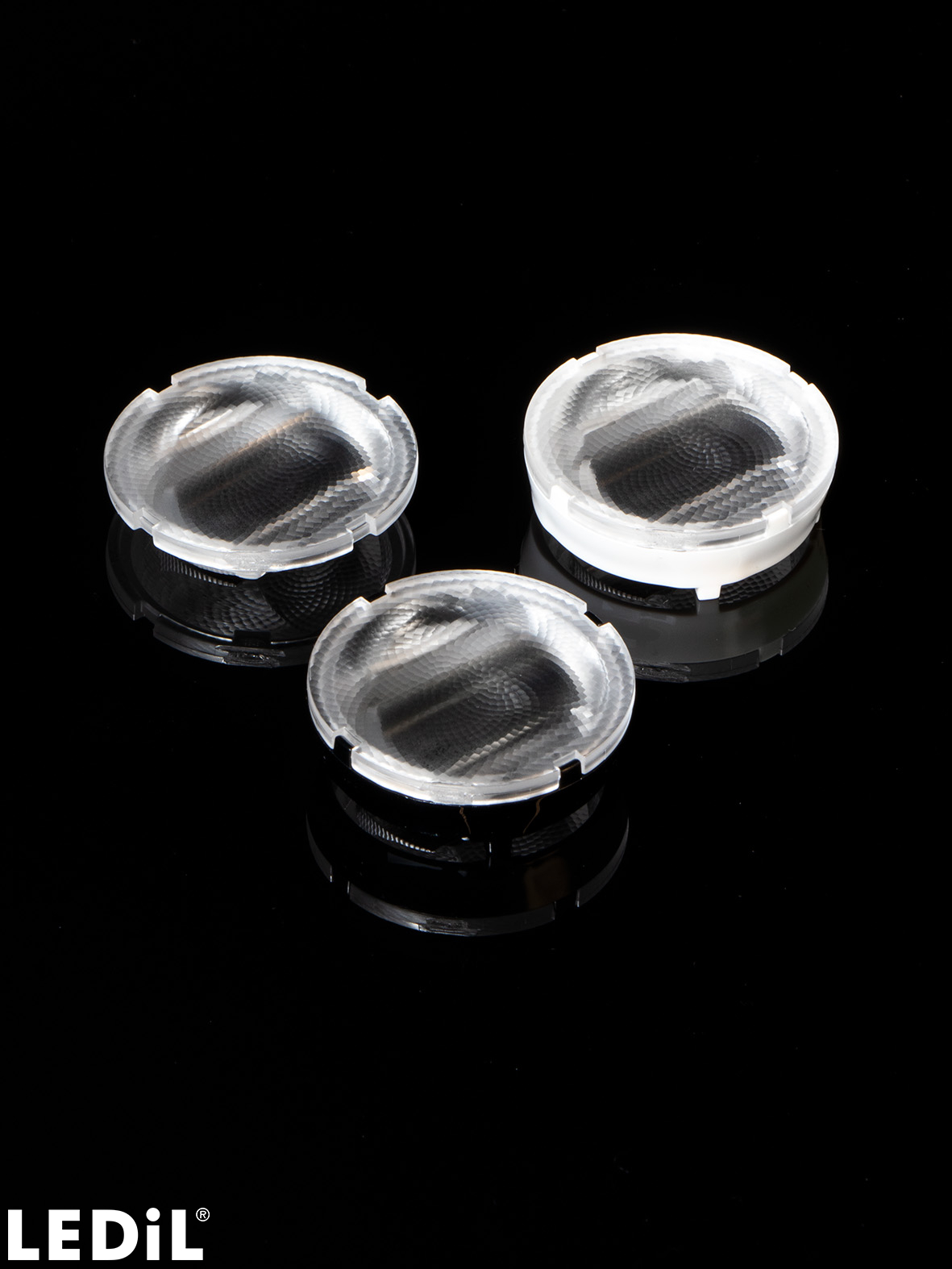

    AMY-35-WAS

    Print

    Asymmetric beam for wall washing

    Specification
    • Dimensions:
      35 mm
    • Height:
      10.75 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • C18439_AMY-35-WAS
    • Quantity in box:
      1650 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.60 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ Size:
      480 x 280 x 50 mm
    • MOQ Weight:
      1.10 kg
    • Assembly

      (single lens, holder)

    • CP18440_AMY-35-WAS-B2
      black,Holder B
    • CP19603_AMY-35-WAS-B2-WHT
      white,Holder B
    • Quantity in box:
      1320 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.00 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ Size:
      480 x 280 x 60 mm
    • MOQ Weight:
      1.20 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18439_AMY-35-WAS
      CP18440_AMY-35-WAS-B2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products – June 2025

    News

    AMY WAS - The best COB wall-washer optics on the market

    Catalogue

    LEDiL Latest products catalogue

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    Illuminate with elegance – discover the versatility of AMY

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR194 - Change of AMY-35-50 and -70 holder design

    Compatible product

    B+W 630 Bayonet35 datasheet

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Luminaire, example

    Track light luminaire with AMY family

    News

    LEDiL AMY, the perfect choice for slim, elegant luminaire designs

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Article

    Explore new retail lighting opportunities

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-L

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

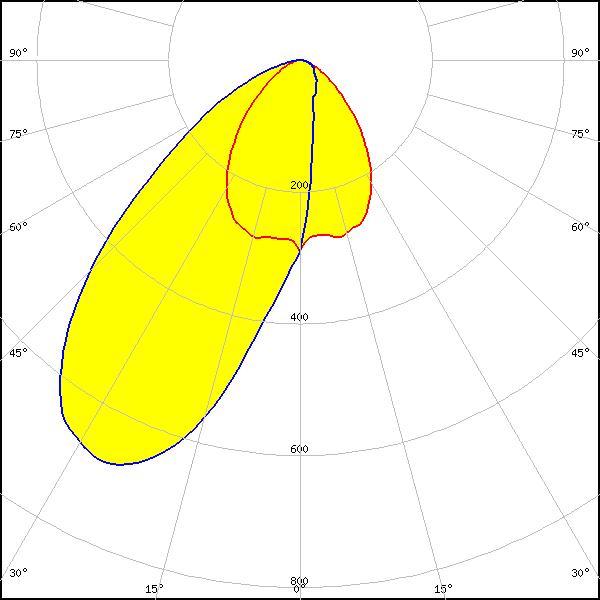

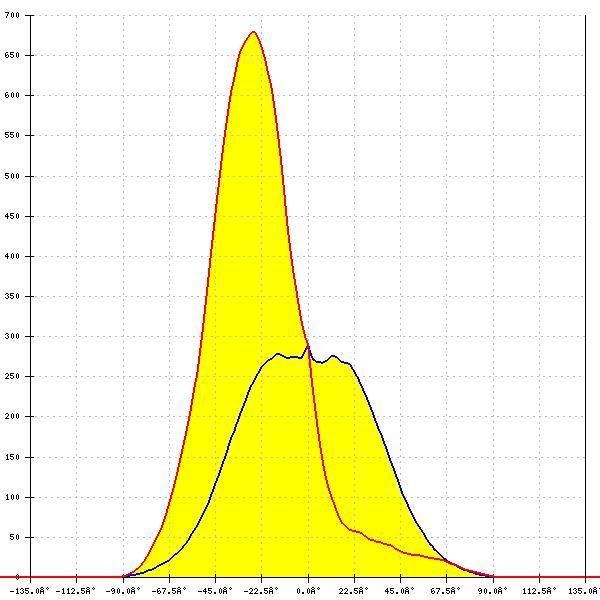

    Optical results

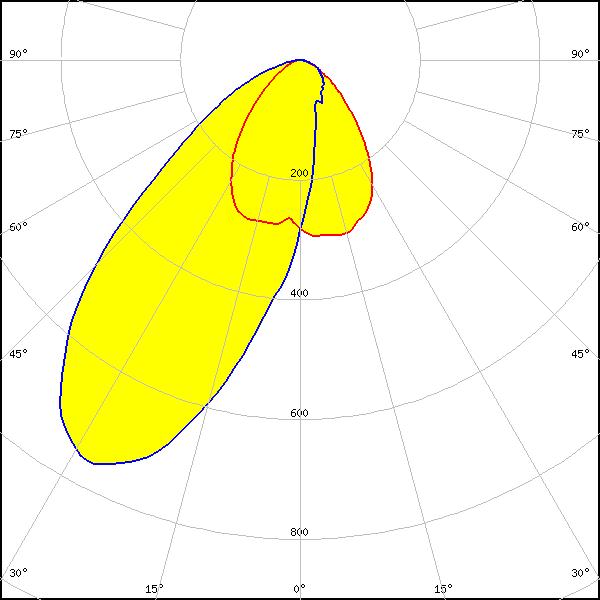

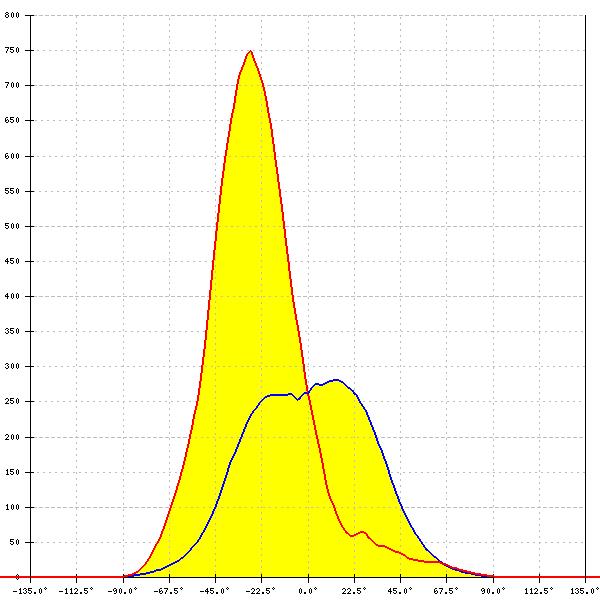

    LED: Vesta TW 6mm DP
    Ordering code: CP18440_AMY-35-WAS-B2
    LES size: 6.3 mm
    Required components:
    C19309_SOCKET-B-35-L
    FWHM: asymmetric
    Peak intensity: 0.753 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

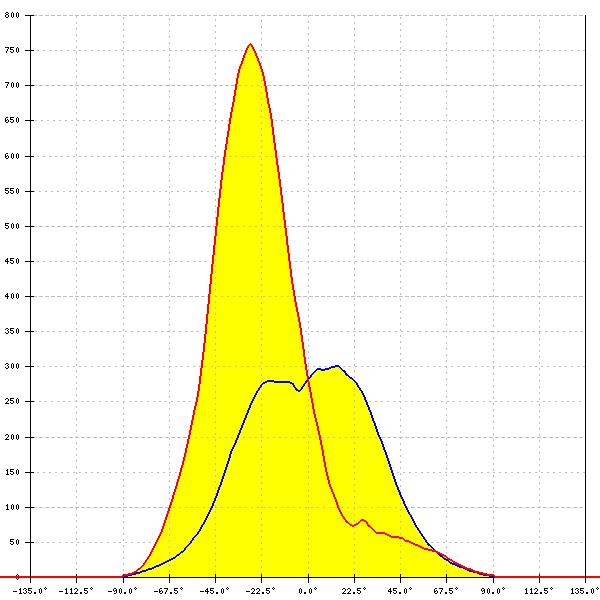

    LED: Vesta TW 6mm DP
    Ordering code: CP19603_AMY-35-WAS-B2-WHT
    LES size: 6.3 mm
    Required components:
    C19309_SOCKET-B-35-L
    FWHM: asymmetric
    Peak intensity: 0.764 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

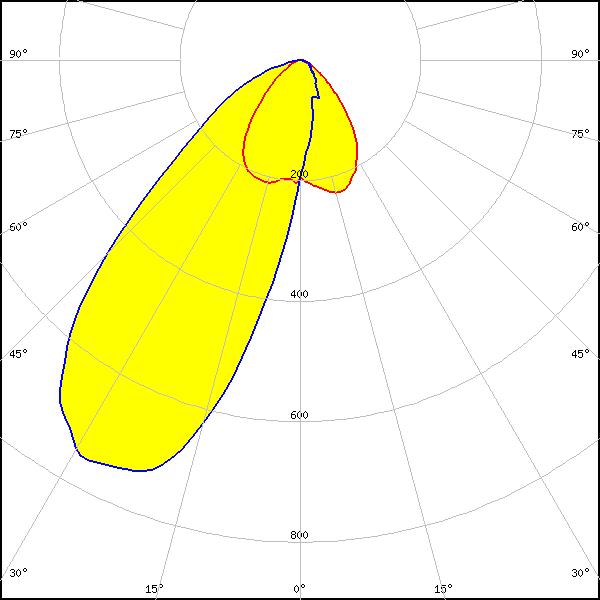

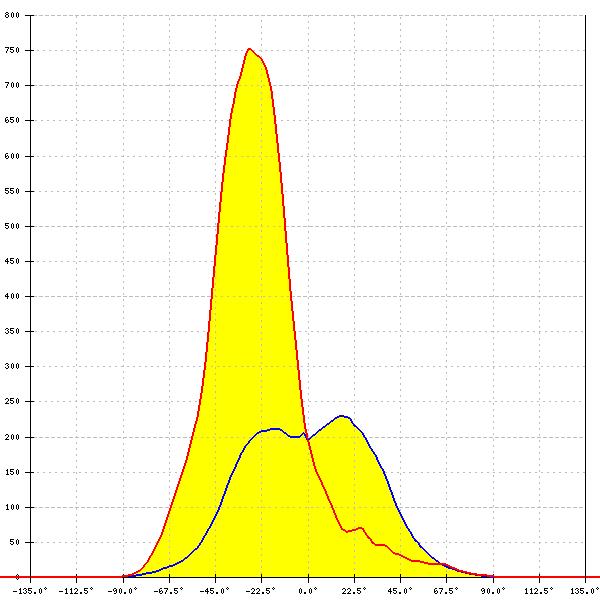

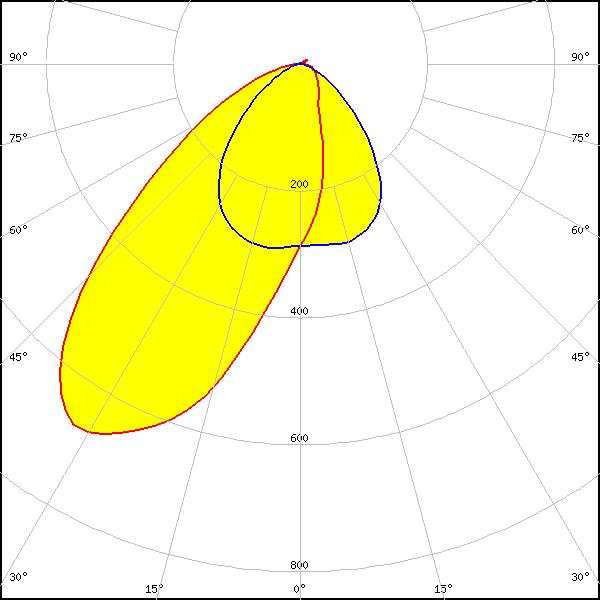

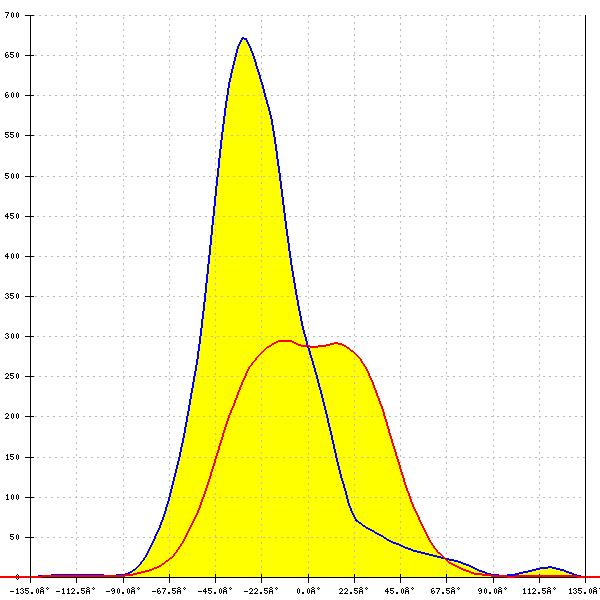

    LED: CLU7A2/7A3
    Ordering code: CP18440_AMY-35-WAS-B2
    LES size: 4.2 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: asymmetric
    Peak intensity: 0.776 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

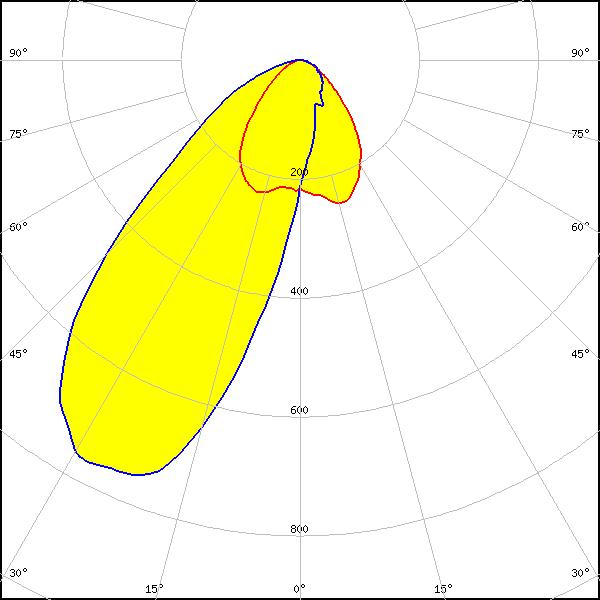

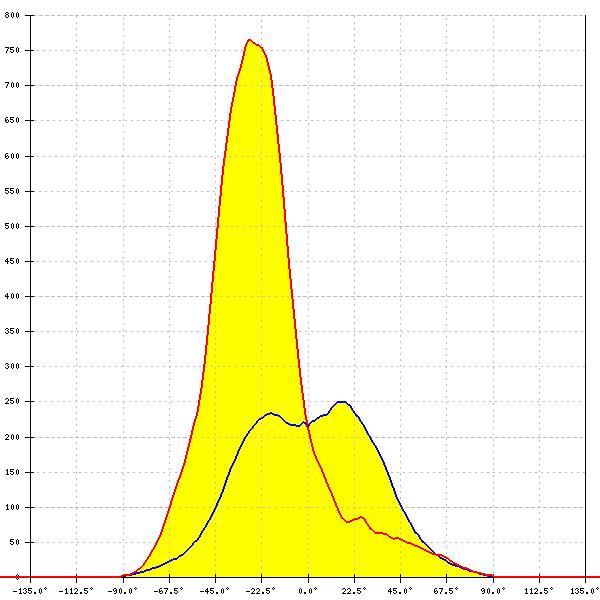

    LED: CLU7A2/7A3
    Ordering code: CP19603_AMY-35-WAS-B2-WHT
    LES size: 4.2 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: asymmetric
    Peak intensity: 0.787 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

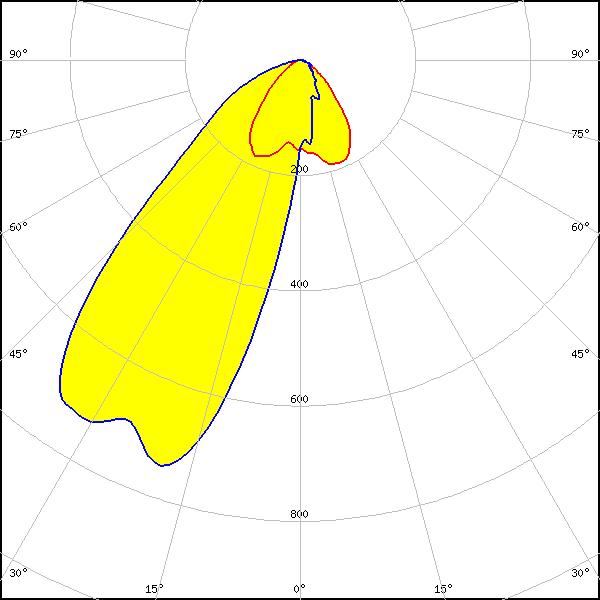

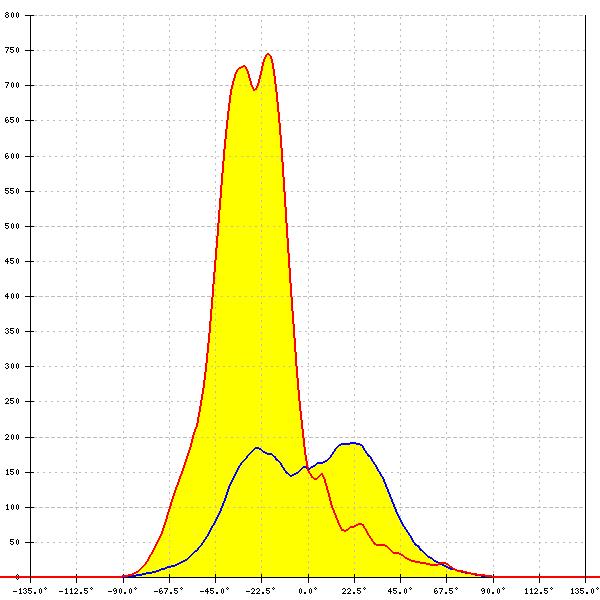

    LED: CLU7B2
    Ordering code: CP18440_AMY-35-WAS-B2
    LES size: 3.3 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

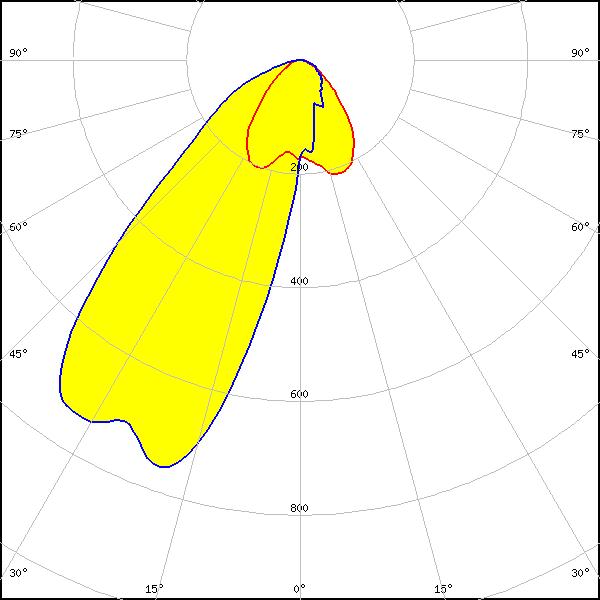

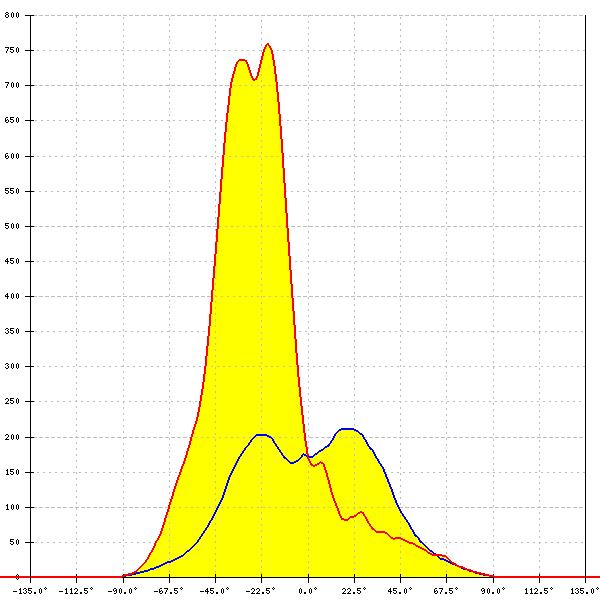

    LED: CLU7B2
    Ordering code: CP19603_AMY-35-WAS-B2-WHT
    LES size: 3.3 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: asymmetric
    Peak intensity: 0.771 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

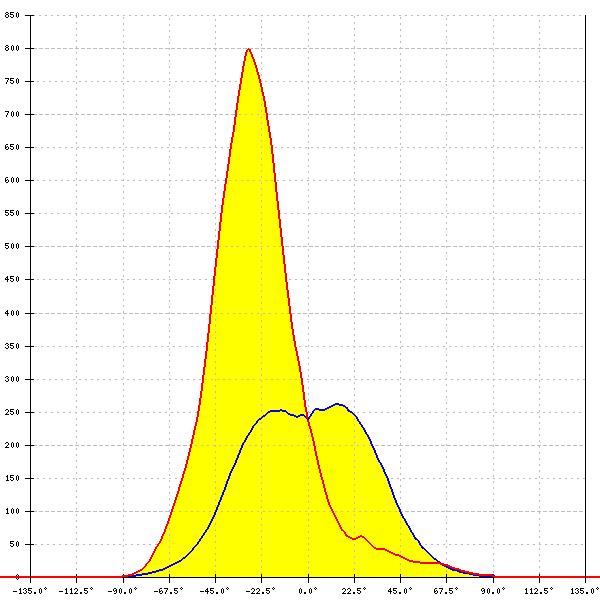

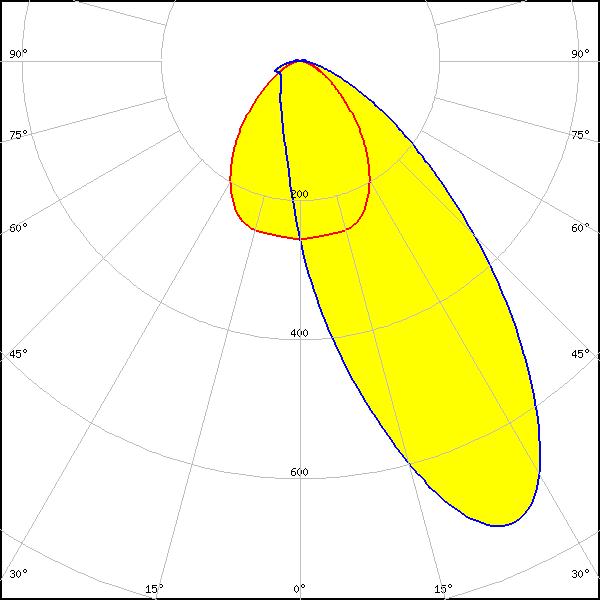

    LED: LC010C G2
    Ordering code: CP18440_AMY-35-WAS-B2
    LES size: 6.0 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: asymmetric
    Peak intensity: 0.804 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

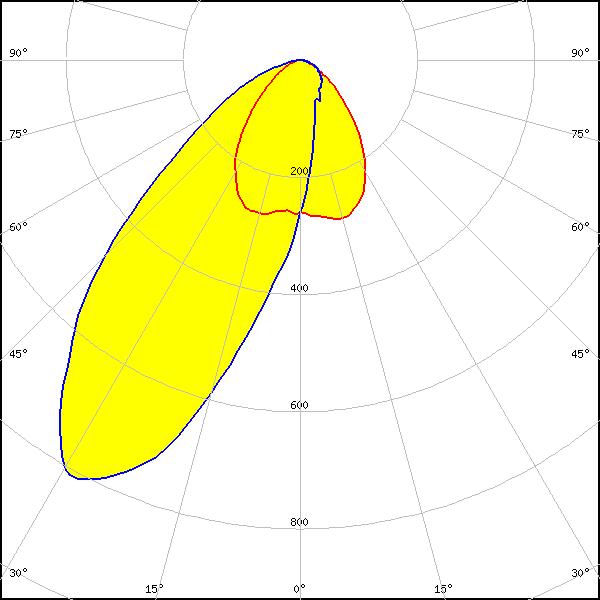

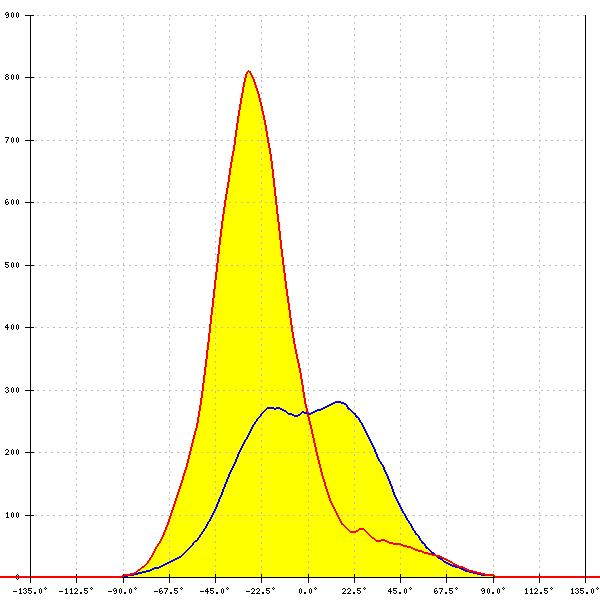

    LED: LC010C G2
    Ordering code: CP19603_AMY-35-WAS-B2-WHT
    LES size: 6.0 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: asymmetric
    Peak intensity: 0.816 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC010C G2
    Ordering code: CP18440_AMY-35-WAS-B2
    LES size: 6.0 mm
    Required components:
    BJB: 47.360.1020
    FWHM: asymmetric
    Peak intensity: 0.738 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
