LEDiL AMY, the perfect choice for slim, elegant luminaire designs

Lenses for track and downlight designs that need to be as flat as possible

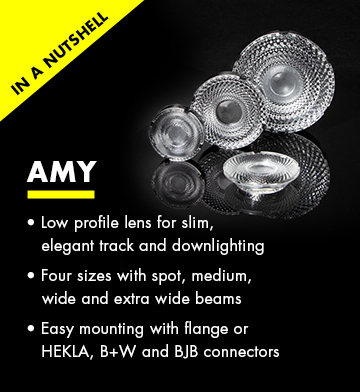

The AMY family is available in 35, 45, 50 and 70 mm diameters with the slim form factor ensuring a consistent look for retail and hospitality applications.



LEDiL_AMY-family-sizes



These COB lenses offer 18-, 24-, 36- and 60-degree beams and are easily attached to the luminaire using the top flange or the two holders for HEKLA, B+W and BJB connectors.


AMY-35, AMY-45 and AMY-50 are optimized for up to 10 mm LES size COBs and AMY-70 is optimized for up to 14.5 mm LES size COBs.


AMY-full-family-track-light

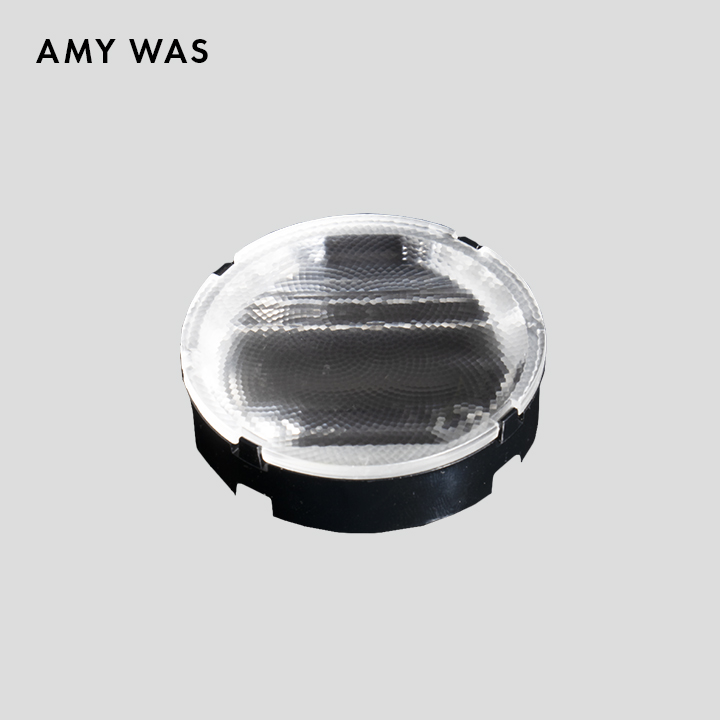

AMY-S-beam AMY-M-beam AMY-W-beam AMY-WW-beam
