    YASMEEN-25-WW

    Print

    ~55° spot beam

    This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.

    Specification
    • Dimensions:
      25 mm
    • Height:
      15.88 mm
    • Fastening:
      socket
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

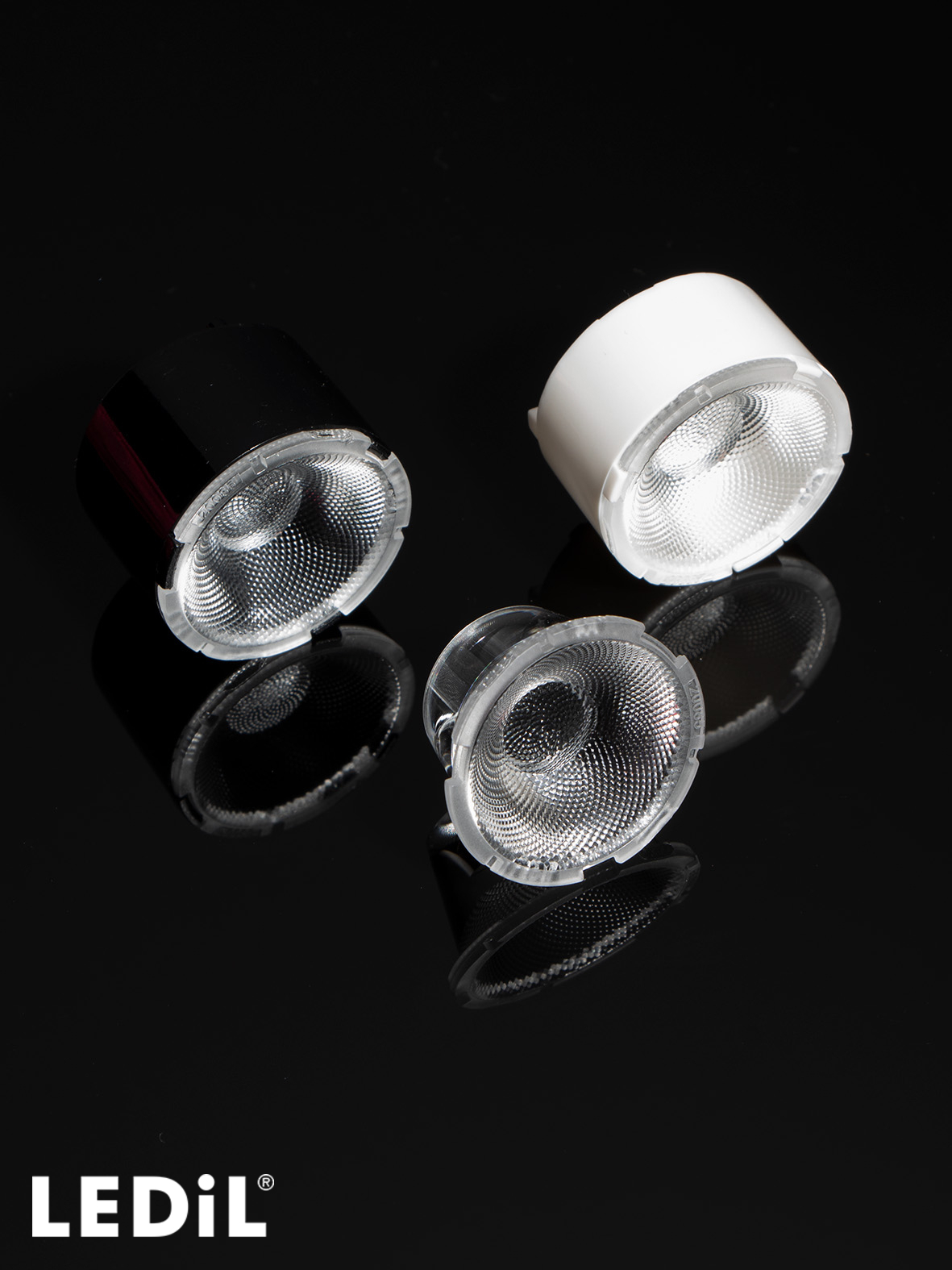

    Ordering information
    • Single lens
    • L20085_YASMEEN-25-WW
      clear
    • Assembly

      (single lens, holder)

    • LP20093_YASMEEN-25-WW-B
      black
    • LP20097_YASMEEN-25-WW-B-WHT
      white,Holder B
    • Packaging information in the product datasheet
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      LP20093_YASMEEN-25-WW-B
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    News

    New beams and products – April 2026

    News

    YASMEEN-25 ‒ 25 mm of pure light mastery

    Catalogue

    LEDiL Latest products catalogue 2026

    News

    YASMEEN – redefining track lighting

    Application guide

    Guide for Architectural lighting optics

    Application guide

    Guide for Retail Lighting Optics

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    TOBA-B-25-N

    Version compatible with 9.5 x 9.5 mm COB packages

    TOBA-B-25-A

    Version compatible with 12.5 x 12.5 mm COB packages

    TOBA-B-25-C

    Version compatible with 13.5 x 13.5 mm COB packages

    SOCKET-B-25-C

    Version compatible with 13.5 x 13.5 mm COB packages

    SOCKET-B-25-A

    Version compatible with 12.5 x 12.5 mm COB packages

    SOCKET-B-25-M

    Version compatible with 11.5 x 11.5 mm COB packages

    SOCKET-B-25-N

    Version compatible with 9.5 x 9.5 mm COB packages

    Optical results

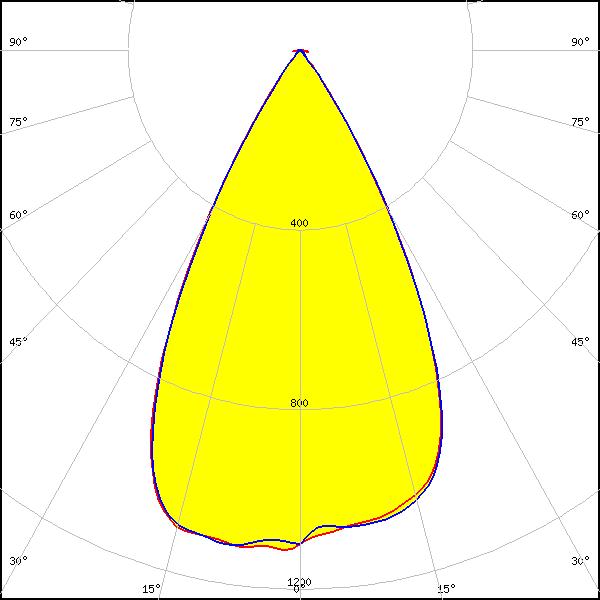

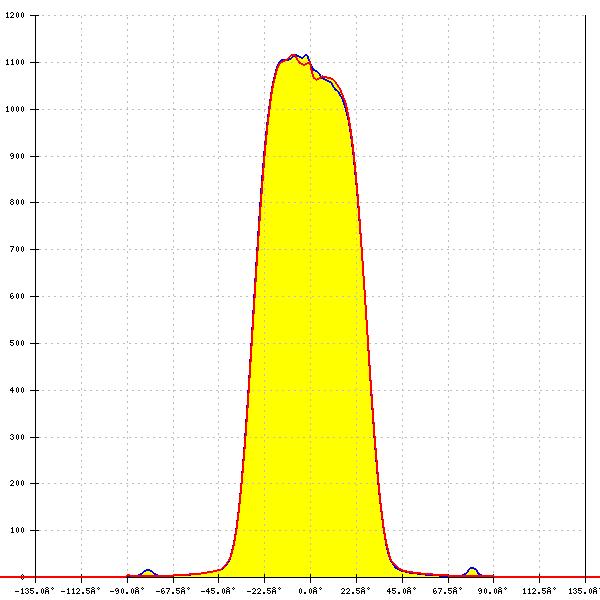

    LED: V3 HD Gen 8
    Ordering code: LP20093_YASMEEN-25-WW-B
    LES size: 3.8 mm
    Required components:
    L20108_SOCKET-B-25-A
    FWHM: 56°
    FWTM: 72°
    Peak intensity: 1.126 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

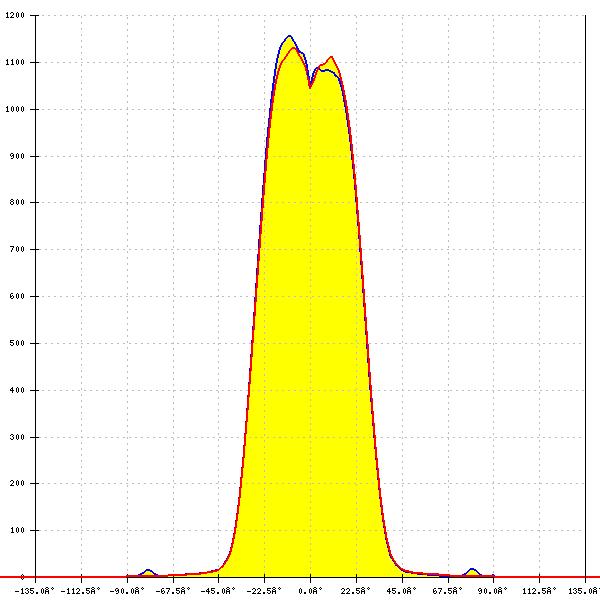

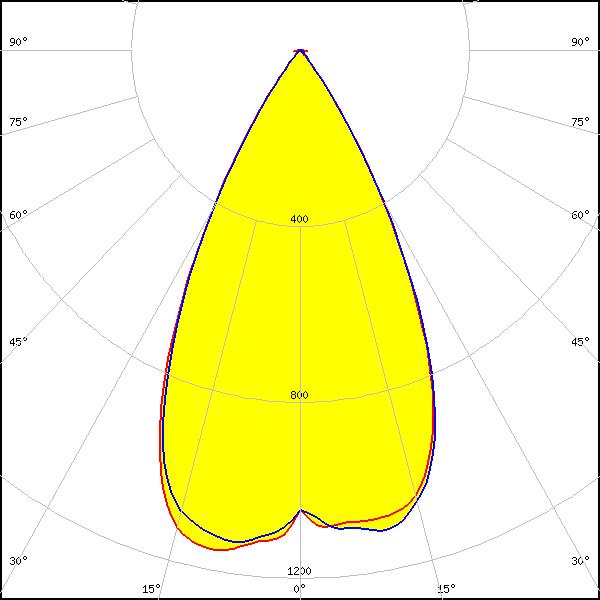

    LED: V4 HD Gen 8
    Ordering code: LP20093_YASMEEN-25-WW-B
    LES size: 4.8 mm
    Required components:
    L20108_SOCKET-B-25-A
    FWHM: 54°
    FWTM: 73°
    Peak intensity: 1.159 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

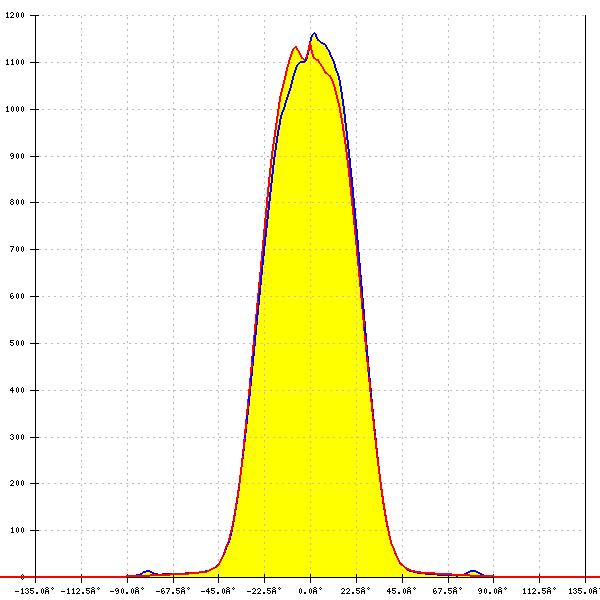

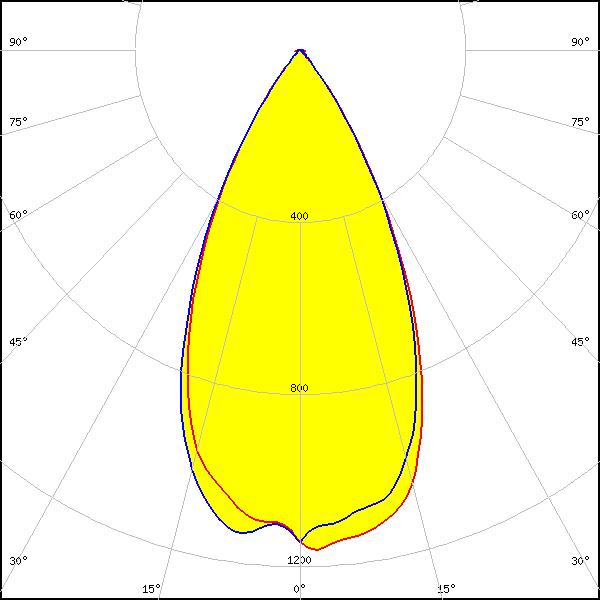

    LED: V6 HD Gen 8
    Ordering code: LP20093_YASMEEN-25-WW-B
    LES size: 6.6 mm
    Required components:
    L20109_SOCKET-B-25-C
    FWHM: 52°
    FWTM: 76°
    Peak intensity: 1.162 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

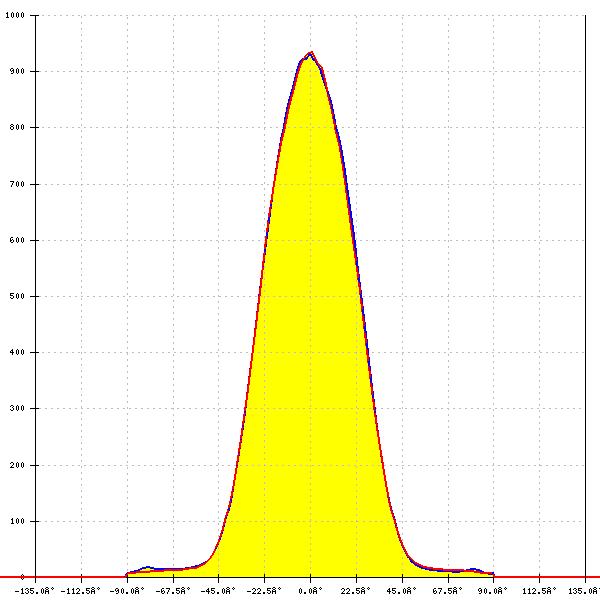

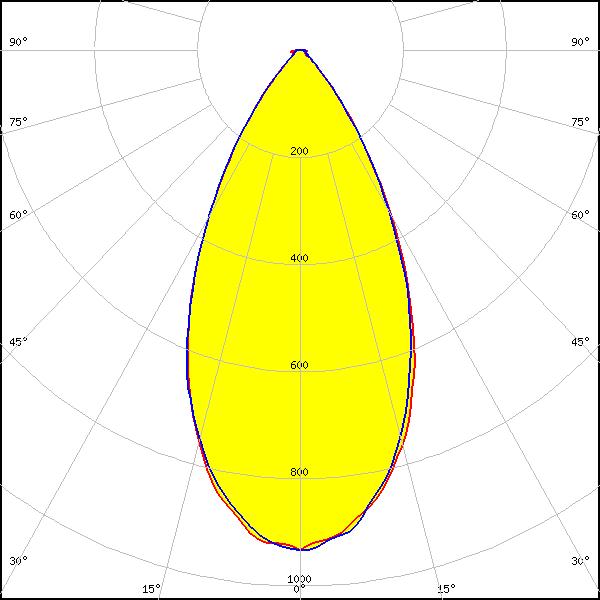

    LED: CLU02Q-1203E1 Type-M
    Ordering code: LP20093_YASMEEN-25-WW-B
    LES size: 9.7 mm
    Required components:
    L20109_SOCKET-B-25-C
    FWHM: 52°
    FWTM: 82°
    Peak intensity: 0.986 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)
    Ordering code: LP20093_YASMEEN-25-WW-B
    LES size: 9.8 mm
    Required components:
    L20109_SOCKET-B-25-C
    FWHM: 52°
    FWTM: 84°
    Peak intensity: 0.947 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

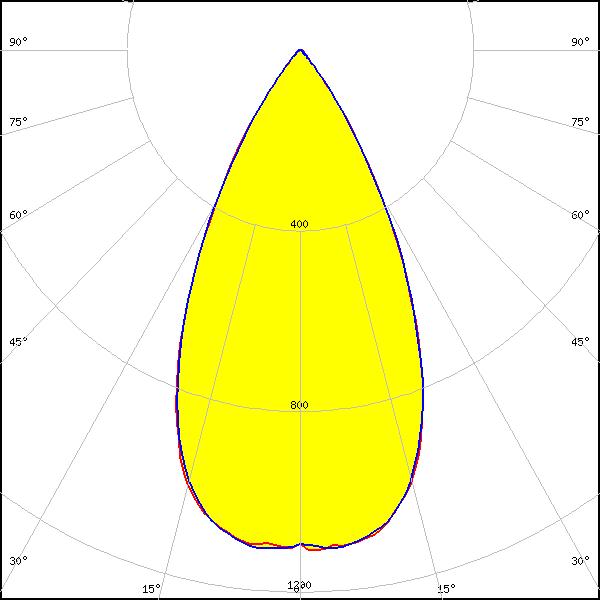

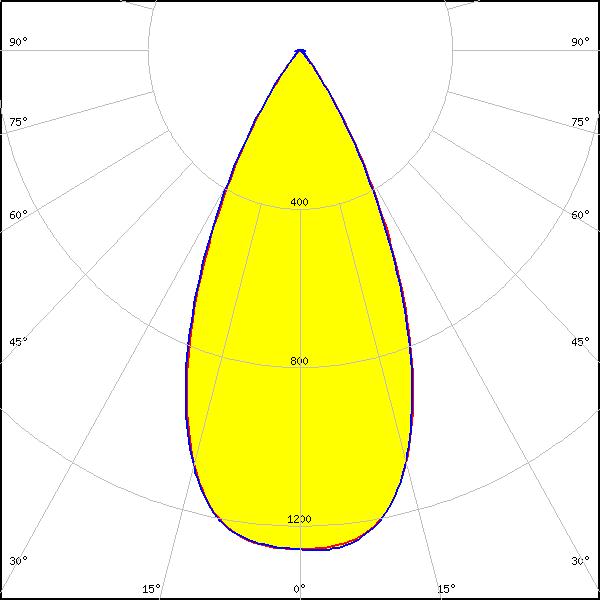

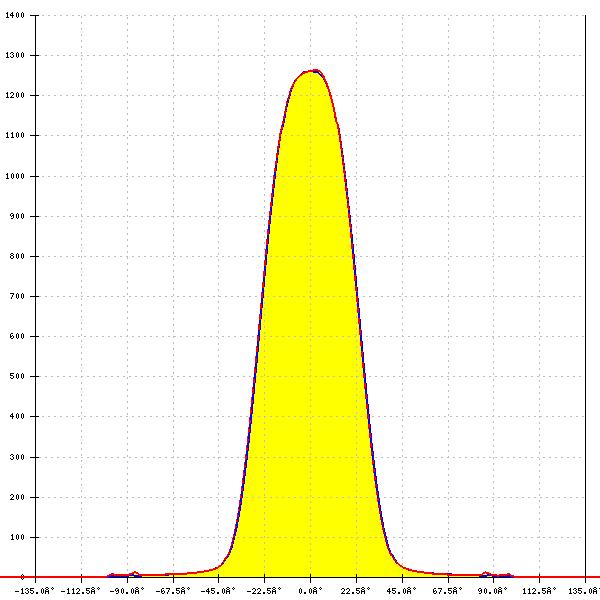

    LED: CLU700/701/702/703
    Ordering code: LP20093_YASMEEN-25-WW-B
    LES size: 6.0 mm
    Required components:
    L20109_SOCKET-B-25-C
    FWHM: 49°
    FWTM: 73°
    Peak intensity: 1.272 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

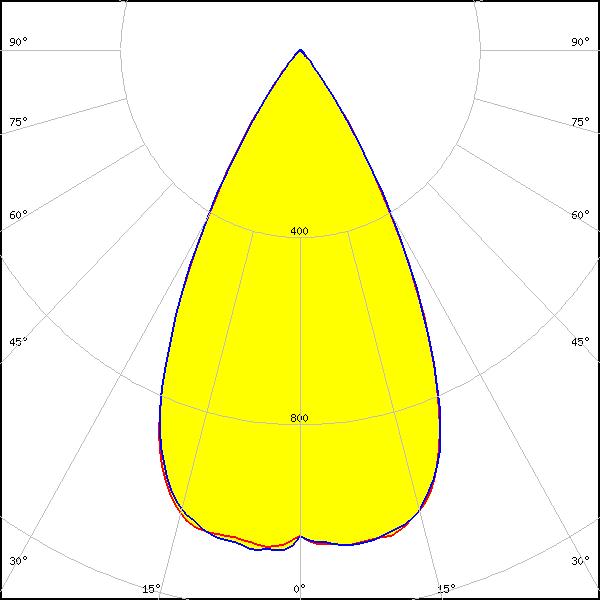

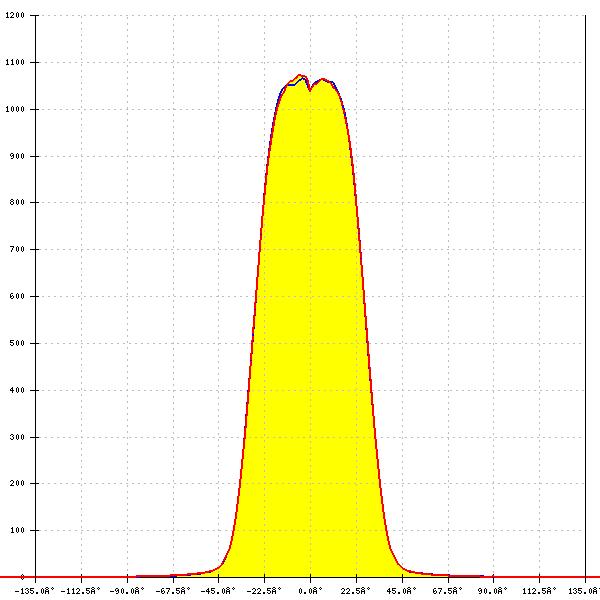

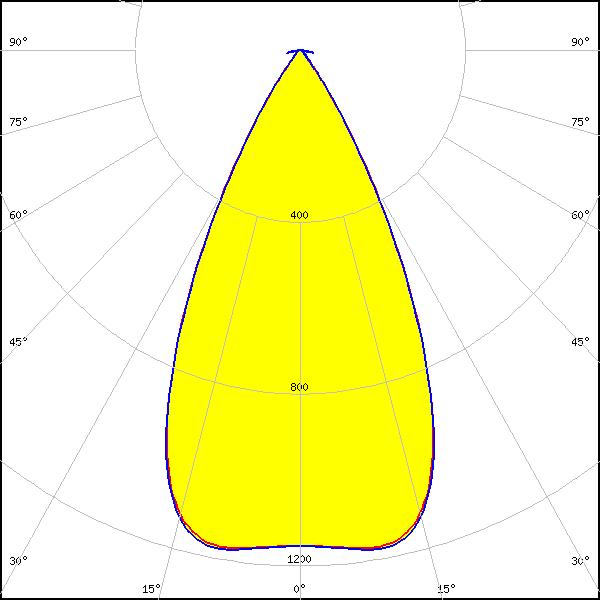

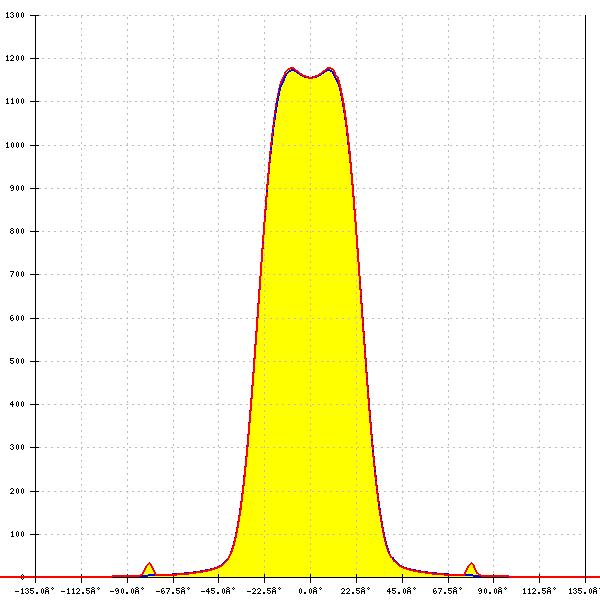

    LED: CLU7A2/7A3
    LES size: 4.2 mm
    Required components:
    L20109_SOCKET-B-25-C
    FWHM: 51°
    FWTM: 71°
    Peak intensity: 1.234 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

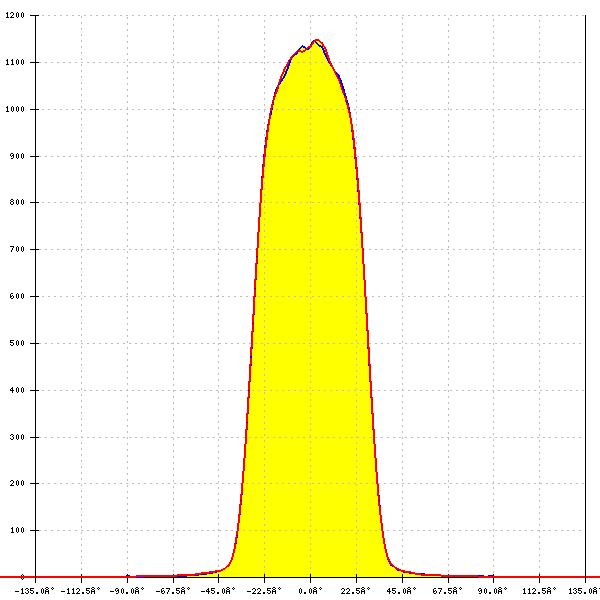

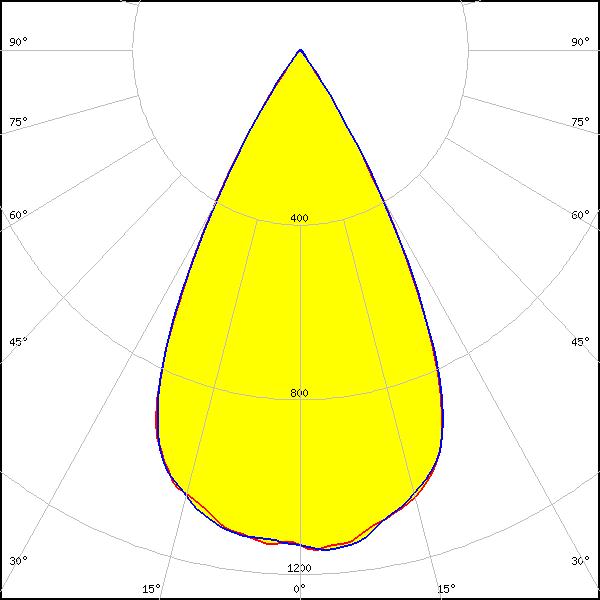

    LED: CLU7L3
    LES size: 2.4 mm
    Required components:
    L20106_SOCKET-B-25-N
    FWHM: 56°
    FWTM: 70°
    Peak intensity: 1.156 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

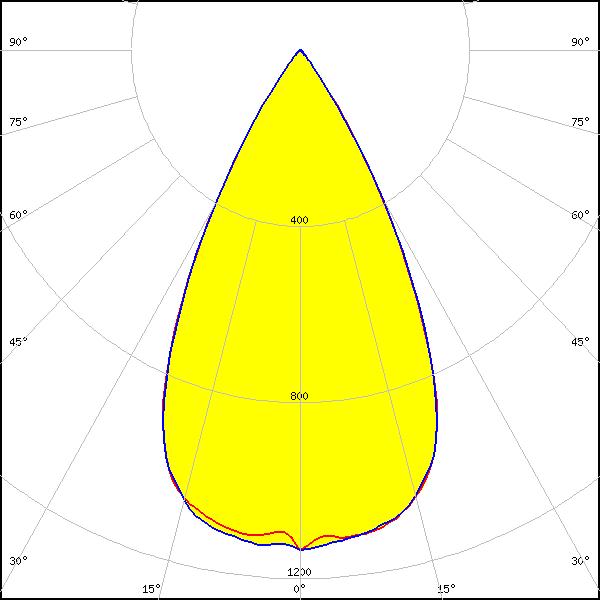

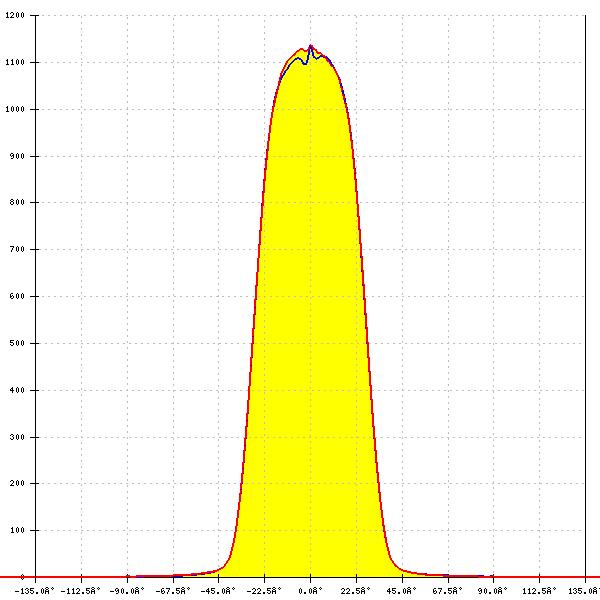

    LED: CLU7S3
    LES size: 3.5 mm
    Required components:
    L20106_SOCKET-B-25-N
    FWHM: 54°
    FWTM: 72°
    Peak intensity: 1.141 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

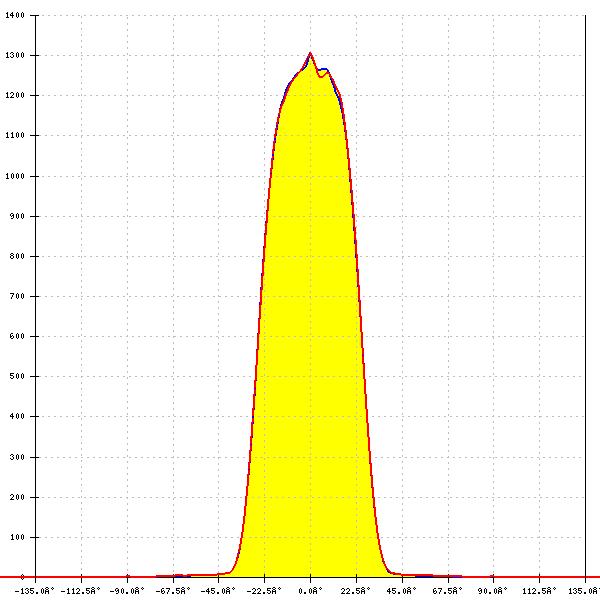

    LED: NV4WB35AM
    Ordering code: LA20101_YASMEEN-25-WW
    LES size: 0.0 mm
    FWHM: 50°
    FWTM: 66°
    Peak intensity: 1.310 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
