    YASMEEN-25-FR-S

    Print

    ~9° ultra-narrow spot beam

    This product consists of multiple buying options, and different options may have different packaging information. Contact us for details.

    Specification
    • Dimensions:
      25 mm
    • Height:
      15.88 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Single lens
    • L20339_YASMEEN-25-FR-S
      clear
    • Quantity in box:
      3380 pcs
    • Box size:
      476 x 273 x 197 mm
    • Box weight:
      5.10 kg
    • MPQ:
      130 pcs
    • MOQ:
      pcs
    • MOQ Size:
    • MOQ Weight:
      0.00 kg

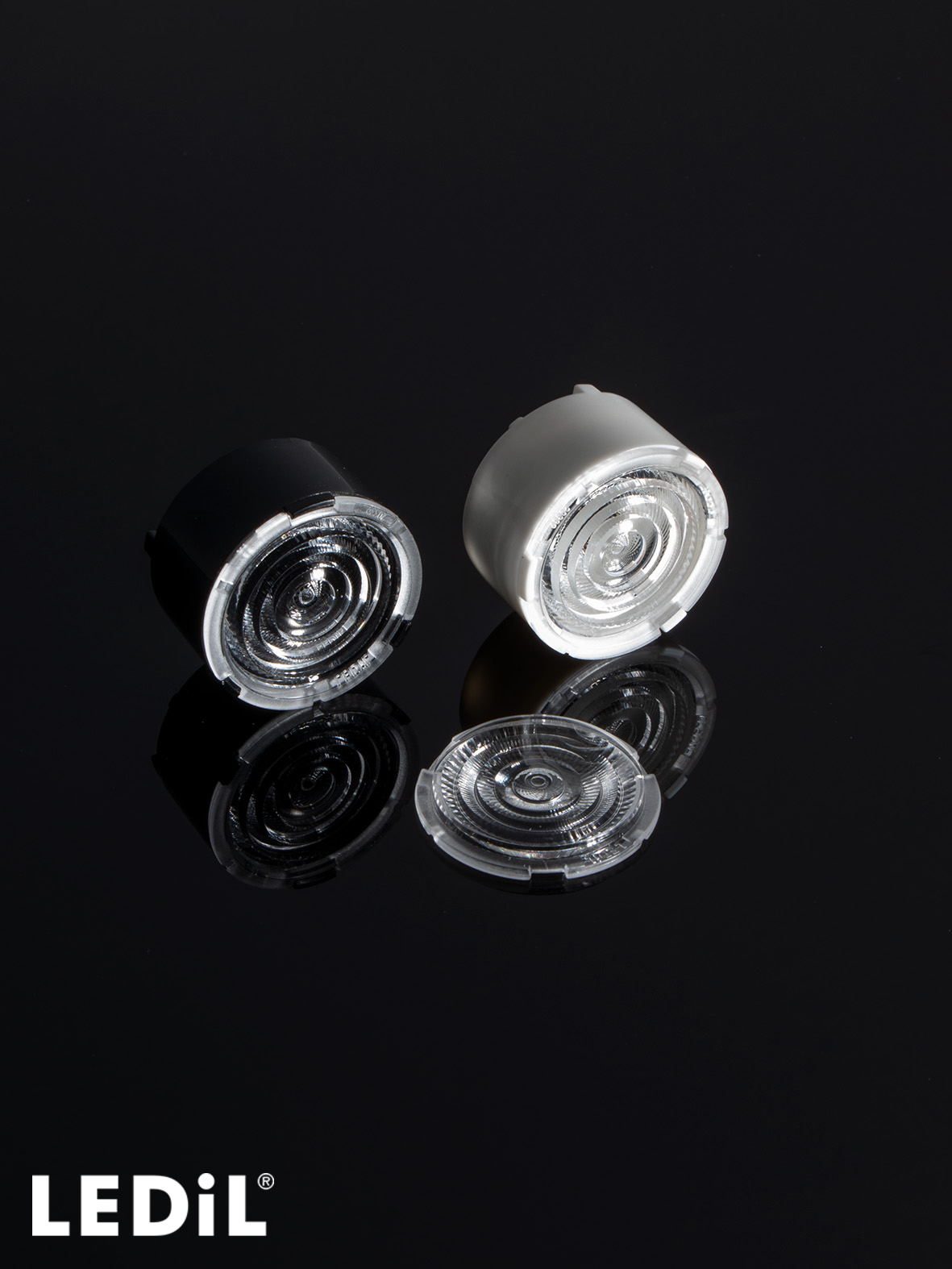

    • Assembly

      (single lens, holder)

    • LP20340_YASMEEN-25-FR-S-B
      black,Holder B
    • LP20341_YASMEEN-25-FR-S-B-WHT
      white,Holder B
    • Quantity in box:
      1690 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.10 kg
    • MPQ:
      130 pcs
    • MOQ:
      pcs
    • MOQ Size:
    • MOQ Weight:
      0.00 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      L20339_YASMEEN-25-FR-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOCKET-B-25-N

    Version compatible with 9.5 x 9.5 mm COB packages

    SOCKET-B-25-M

    Version compatible with 11.5 x 11.5 mm COB packages

    SOCKET-B-25-A

    Version compatible with 12.5 x 12.5 mm COB packages

    SOCKET-B-25-C

    Version compatible with 13.5 x 13.5 mm COB packages

    TOBA-B-25-C

    Version compatible with 13.5 x 13.5 mm COB packages

    TOBA-B-25-A

    Version compatible with 12.5 x 12.5 mm COB packages

    TOBA-B-25-N

    Version compatible with 9.5 x 9.5 mm COB packages

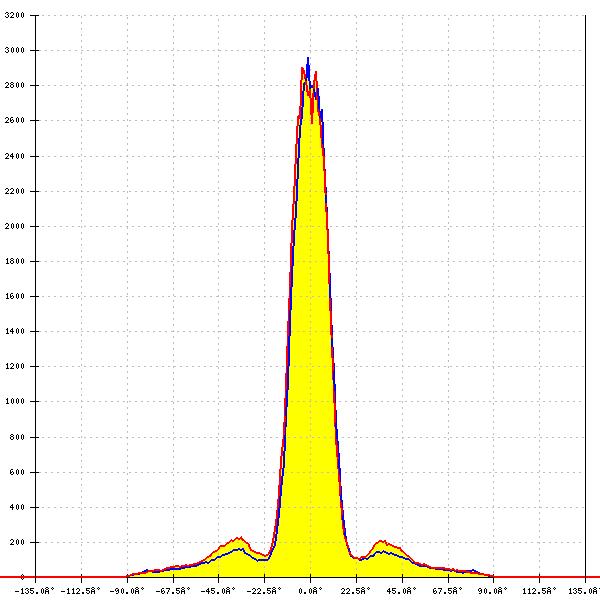

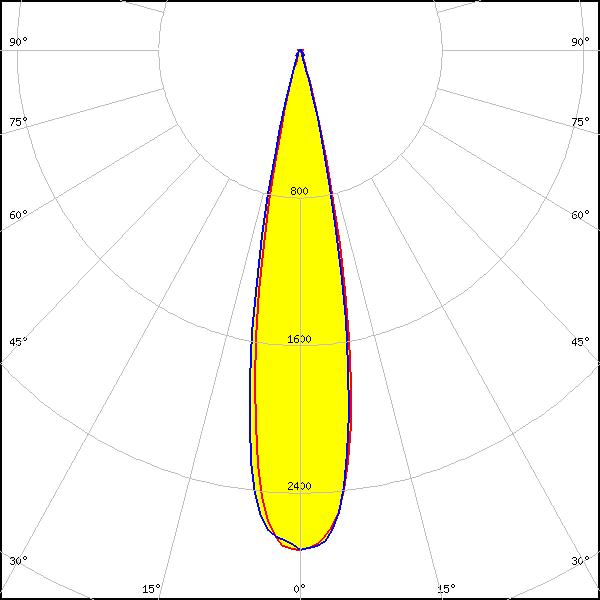

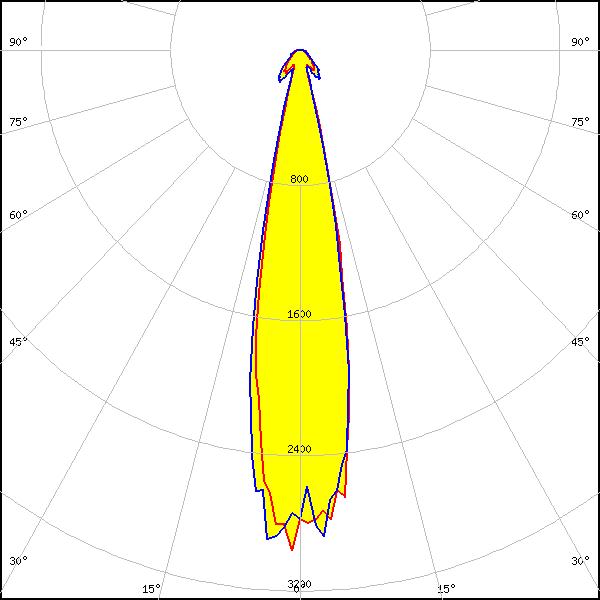

    Optical results

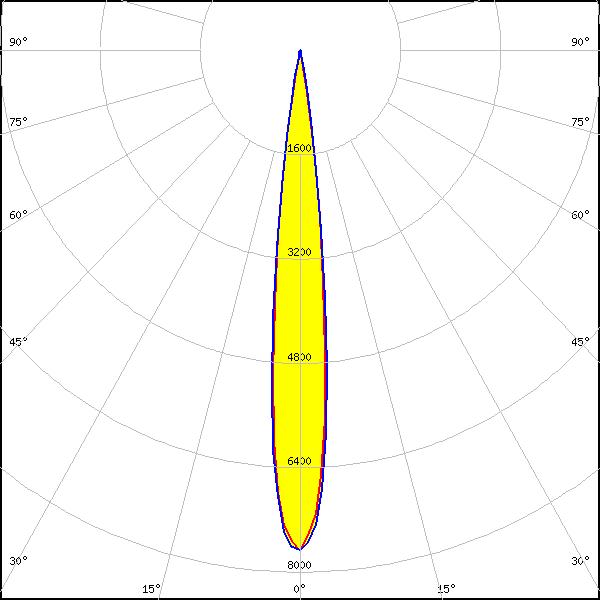

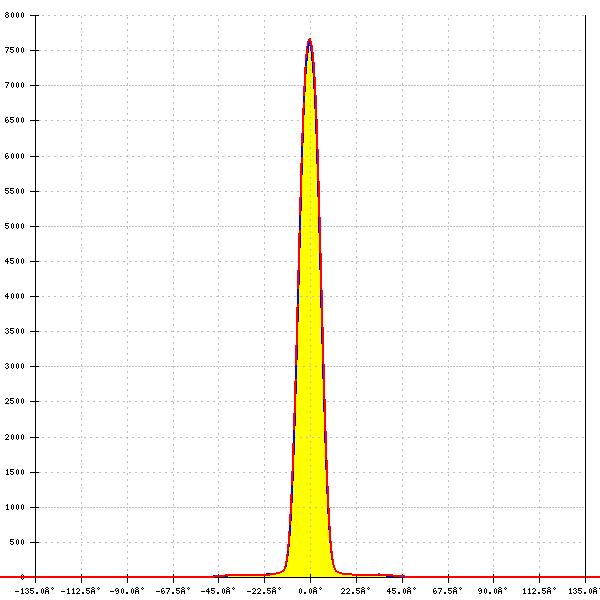

    LED: V3 HD Gen 8
    Ordering code: LP20340_YASMEEN-25-FR-S-B
    LES size: 3.8 mm
    FWHM: 12°
    FWTM: 20°
    Peak intensity: 7.683 cd/lm
    Efficiency: 39 %
    LEDs/each optic: 1
    Light colour/type: White

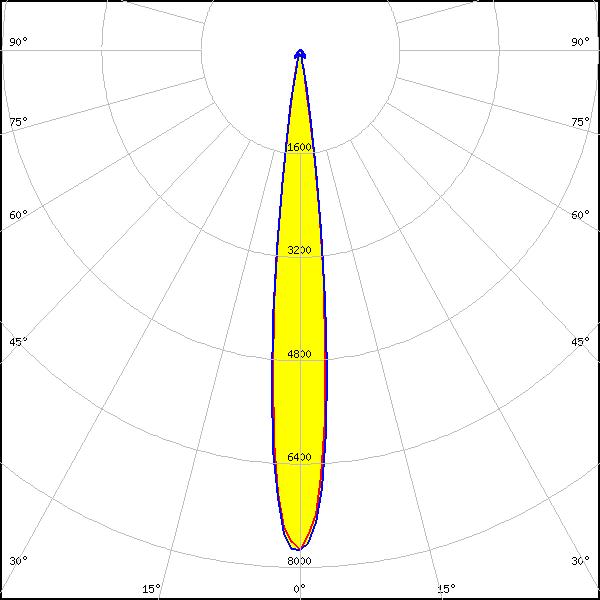

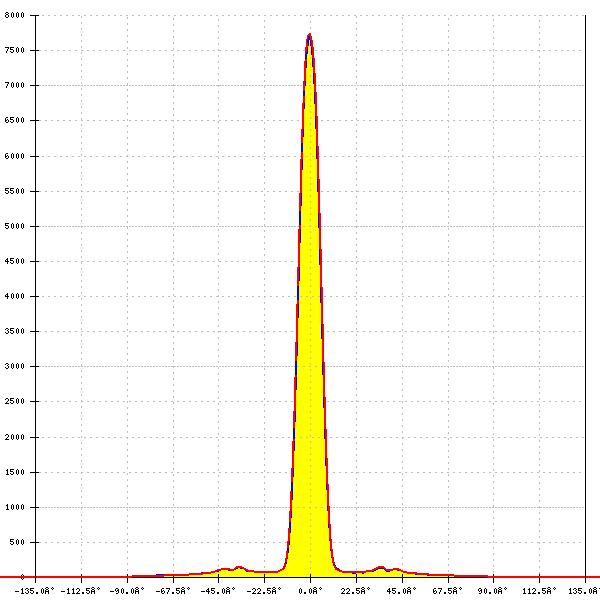

    LED: V3 HD Gen 8
    Ordering code: LP20341_YASMEEN-25-FR-S-B-WHT
    LES size: 3.8 mm
    FWHM: 12°
    FWTM: 20°
    Peak intensity: 7.780 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: White

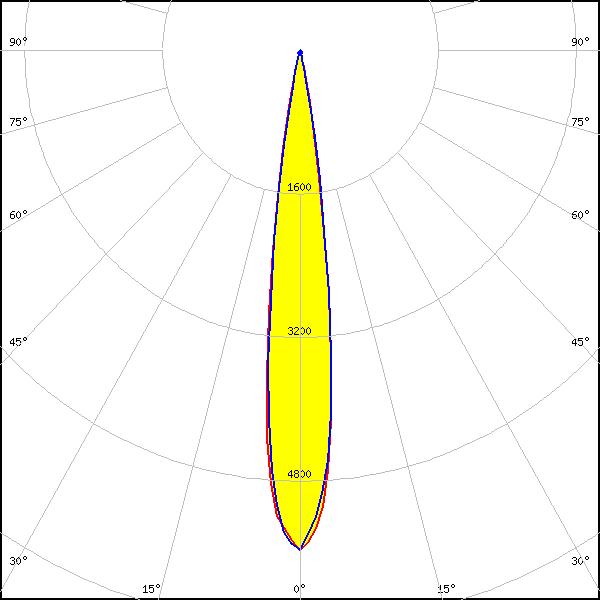

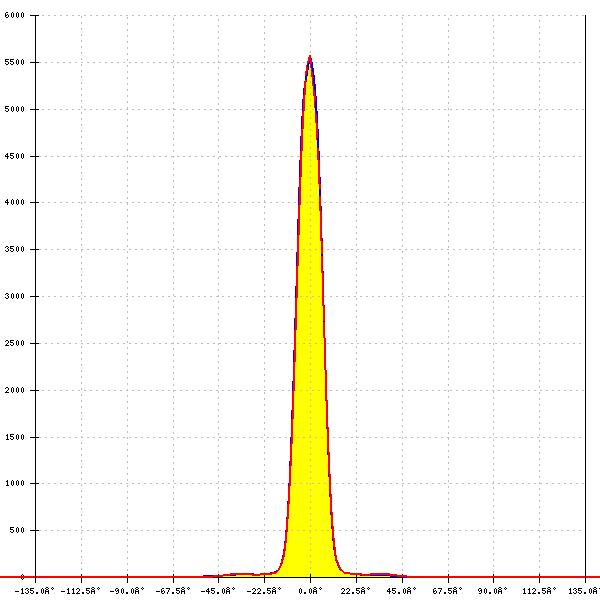

    LED: V4 HD Gen 8
    Ordering code: LP20340_YASMEEN-25-FR-S-B
    LES size: 4.8 mm
    FWHM: 14°
    FWTM: 22°
    Peak intensity: 5.572 cd/lm
    Efficiency: 39 %
    LEDs/each optic: 1
    Light colour/type: White

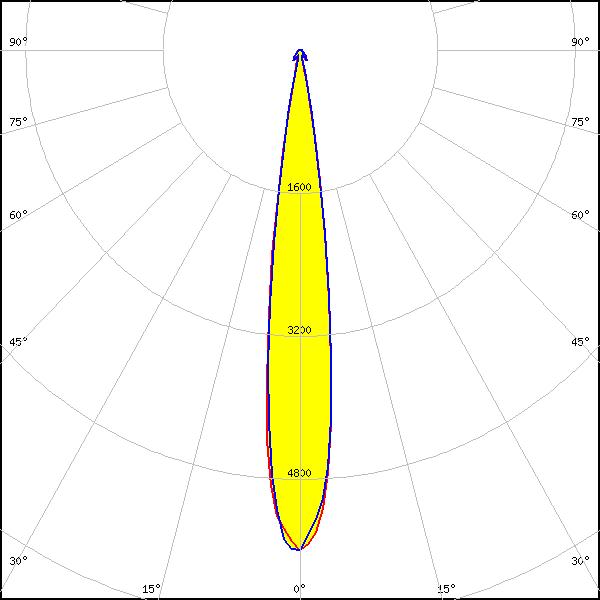

    LED: V4 HD Gen 8
    Ordering code: LP20341_YASMEEN-25-FR-S-B-WHT
    LES size: 4.8 mm
    FWHM: 14°
    FWTM: 23°
    Peak intensity: 5.593 cd/lm
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour/type: White

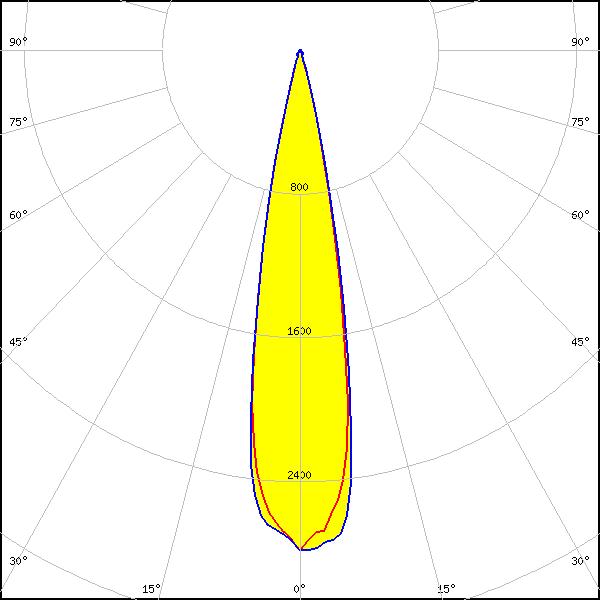

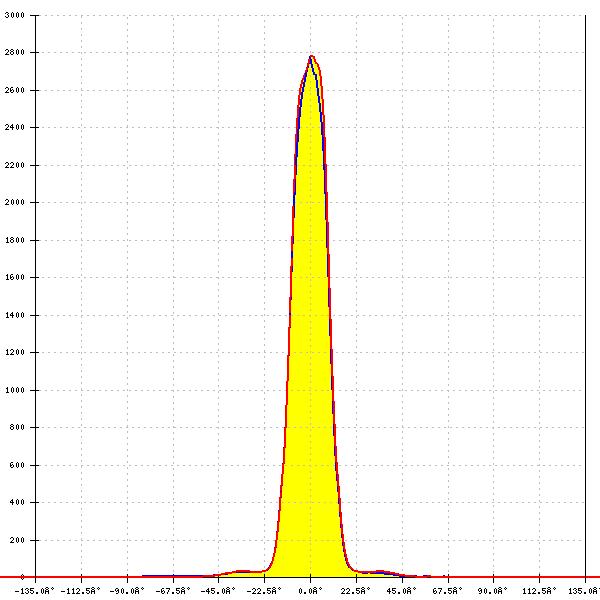

    LED: CLU700/701/702/703
    Ordering code: LP20340_YASMEEN-25-FR-S-B
    LES size: 6.0 mm
    FWHM: 20°
    FWTM: 30°
    Peak intensity: 2.816 cd/lm
    Efficiency: 37 %
    LEDs/each optic: 1
    Light colour/type: White

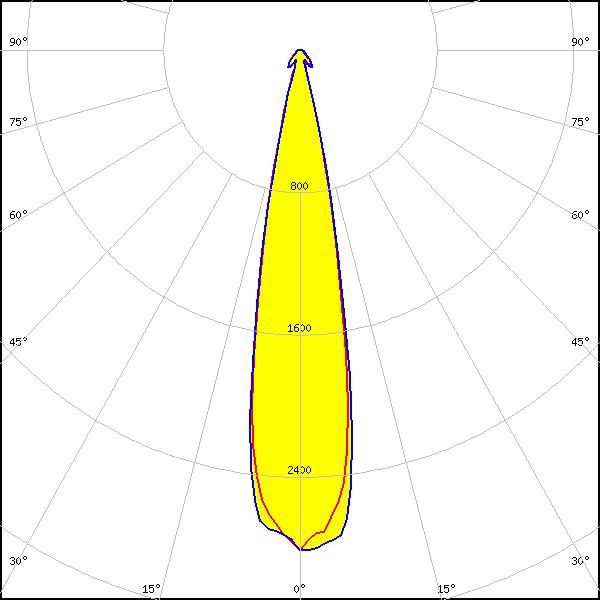

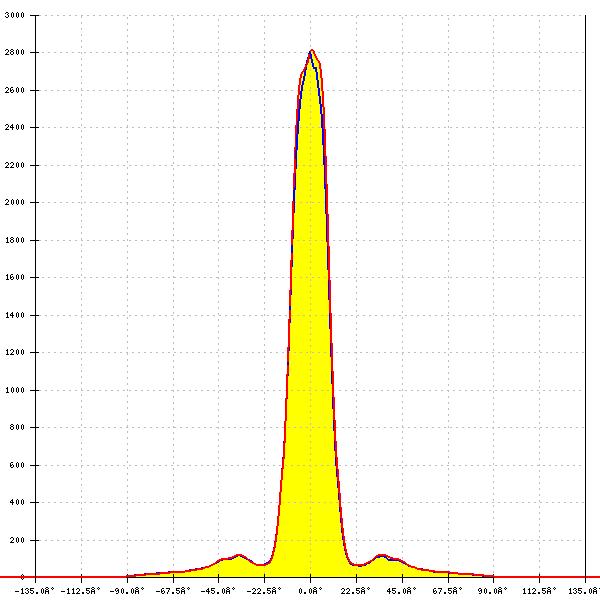

    LED: CLU700/701/702/703
    Ordering code: LP20341_YASMEEN-25-FR-S-B-WHT
    LES size: 6.0 mm
    FWHM: 20°
    FWTM: 31°
    Peak intensity: 2.850 cd/lm
    Efficiency: 58 %
    LEDs/each optic: 1
    Light colour/type: White

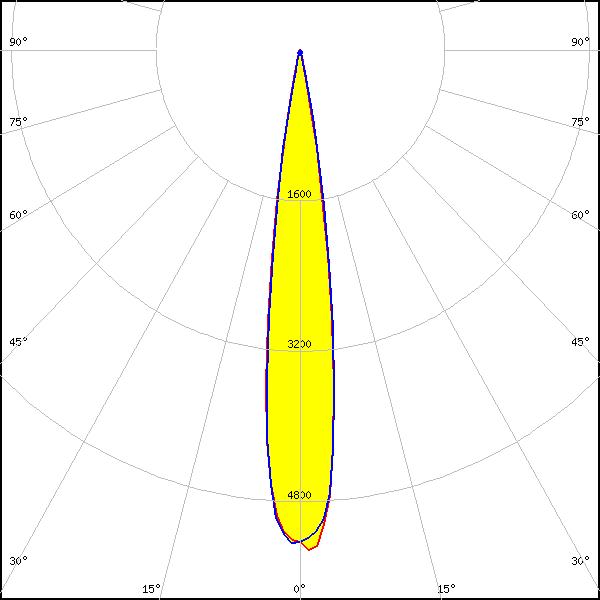

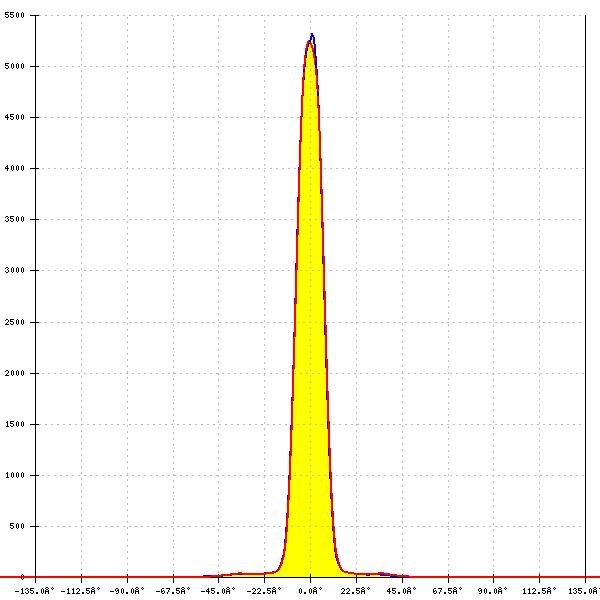

    LED: CLU7A2/7A3
    Ordering code: LP20340_YASMEEN-25-FR-S-B
    LES size: 4.2 mm
    FWHM: 14°
    FWTM: 23°
    Peak intensity: 5.321 cd/lm
    Efficiency: 38 %
    LEDs/each optic: 1
    Light colour/type: White

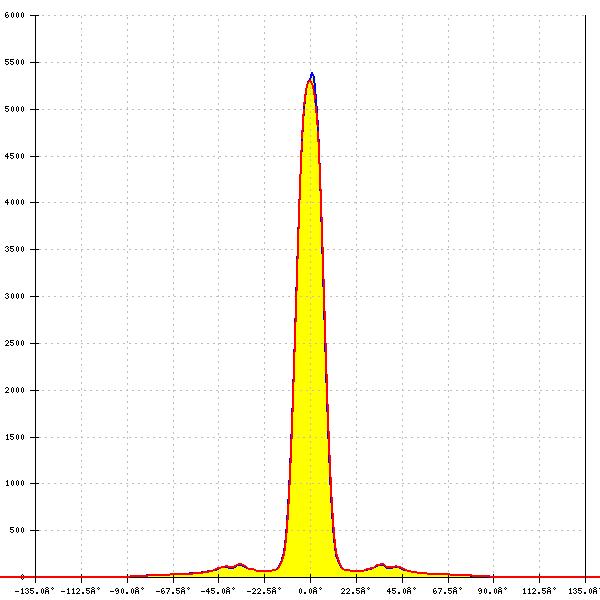

    LED: CLU7A2/7A3
    Ordering code: LP20341_YASMEEN-25-FR-S-B-WHT
    LES size: 4.2 mm
    FWHM: 14°
    FWTM: 24°
    Peak intensity: 5.393 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White

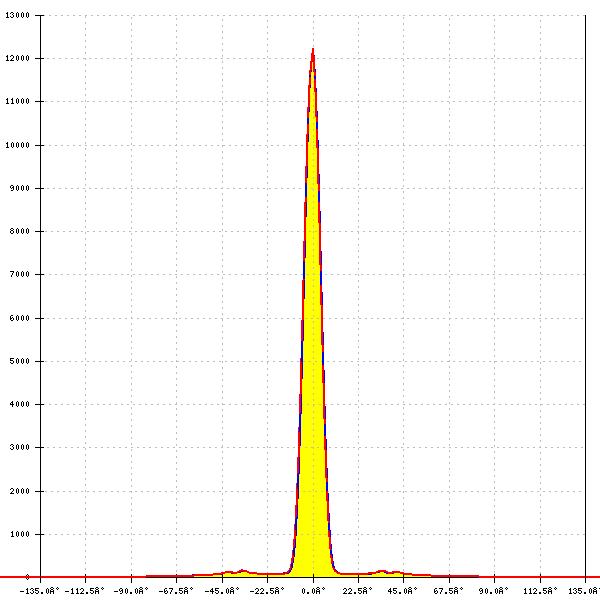

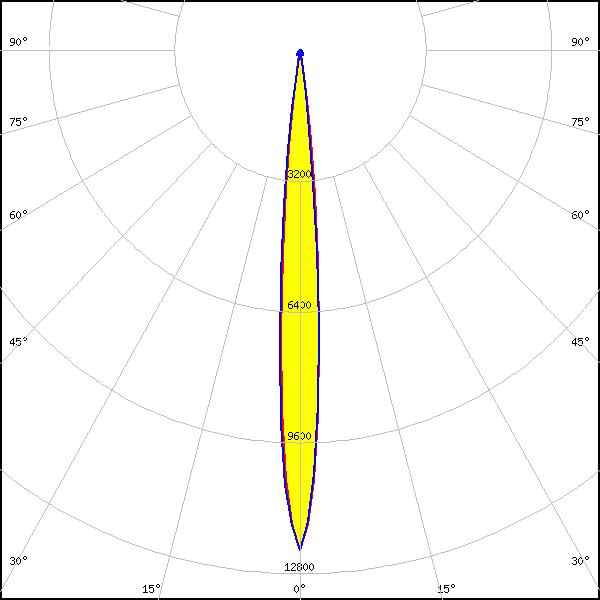

    LED: CLU7L3
    Ordering code: LP20341_YASMEEN-25-FR-S-B-WHT
    LES size: 2.4 mm
    FWHM: 9°
    FWTM: 16°
    Peak intensity: 12.228 cd/lm
    Efficiency: 60 %
    LEDs/each optic: 1
    Light colour/type: White

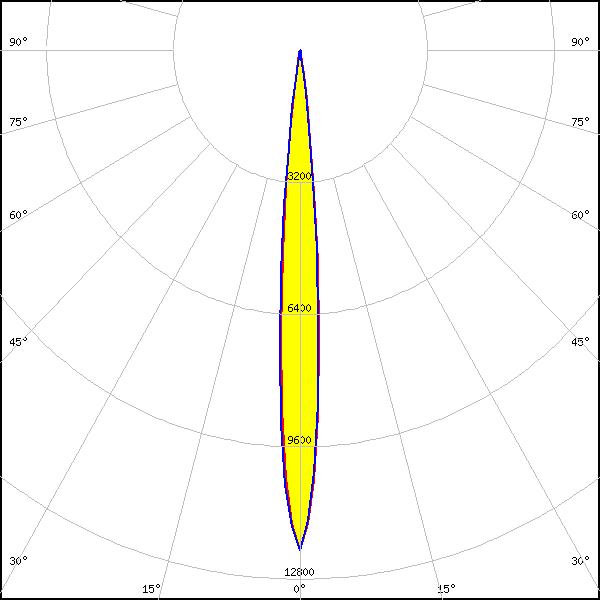

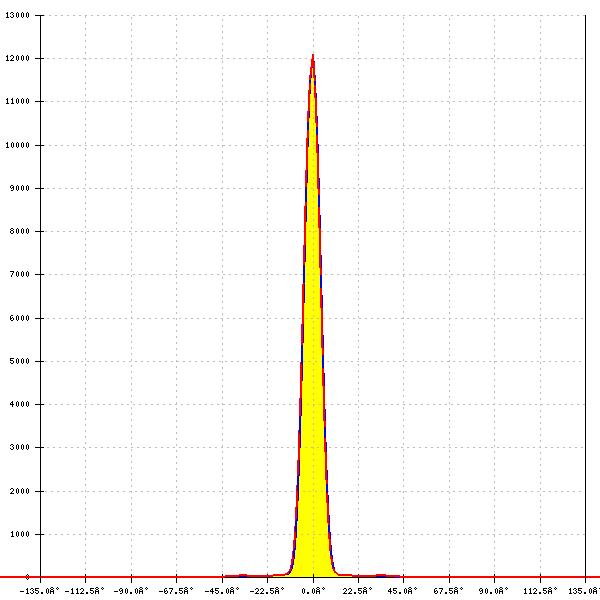

    LED: CLU7L3
    Ordering code: LP20340_YASMEEN-25-FR-S-B
    LES size: 2.4 mm
    FWHM: 9°
    FWTM: 16°
    Peak intensity: 12.106 cd/lm
    Efficiency: 38 %
    LEDs/each optic: 1
    Light colour/type: White

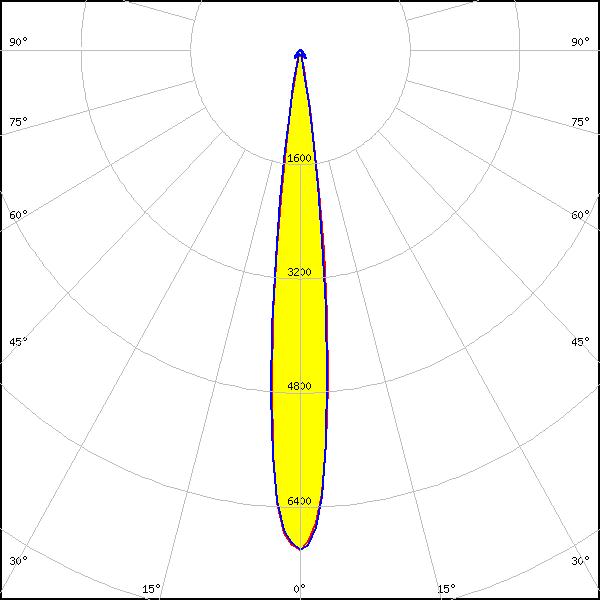

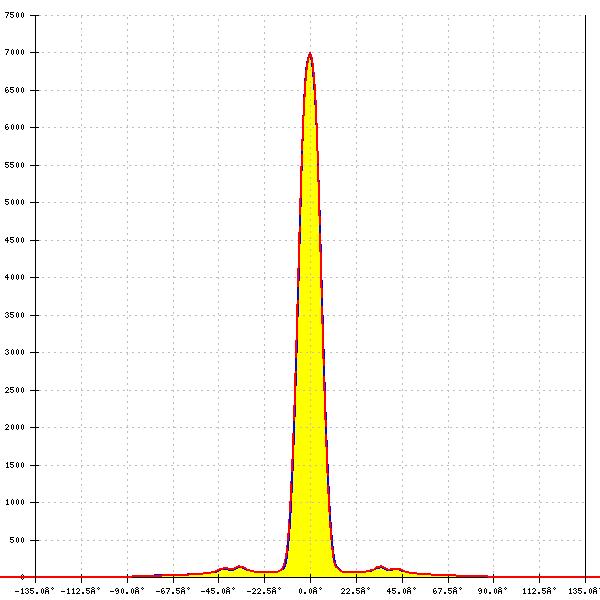

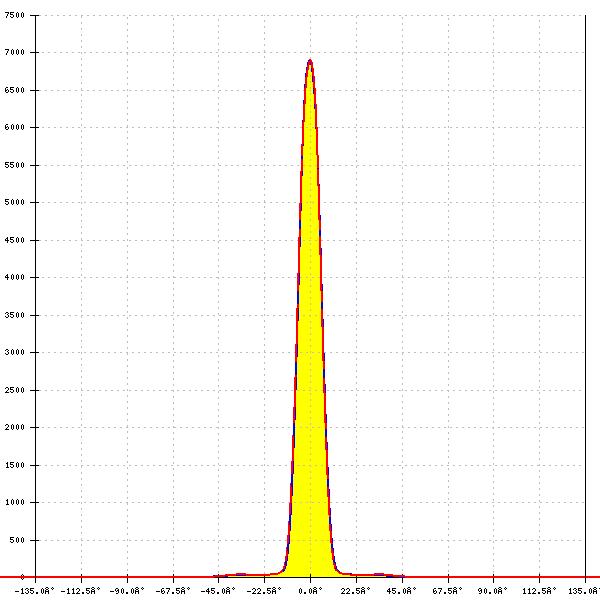

    LED: CLU7S3
    Ordering code: LP20341_YASMEEN-25-FR-S-B-WHT
    LES size: 3.5 mm
    FWHM: 12°
    FWTM: 20°
    Peak intensity: 7.025 cd/lm
    Efficiency: 60 %
    LEDs/each optic: 1
    Light colour/type: White

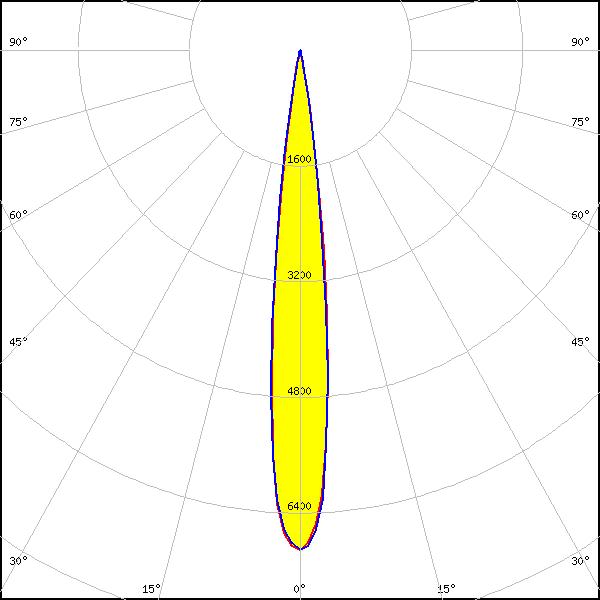

    LED: CLU7S3
    Ordering code: LP20340_YASMEEN-25-FR-S-B
    LES size: 3.5 mm
    FWHM: 12°
    FWTM: 20°
    Peak intensity: 6.982 cd/lm
    Efficiency: 38 %
    LEDs/each optic: 1
    Light colour/type: White

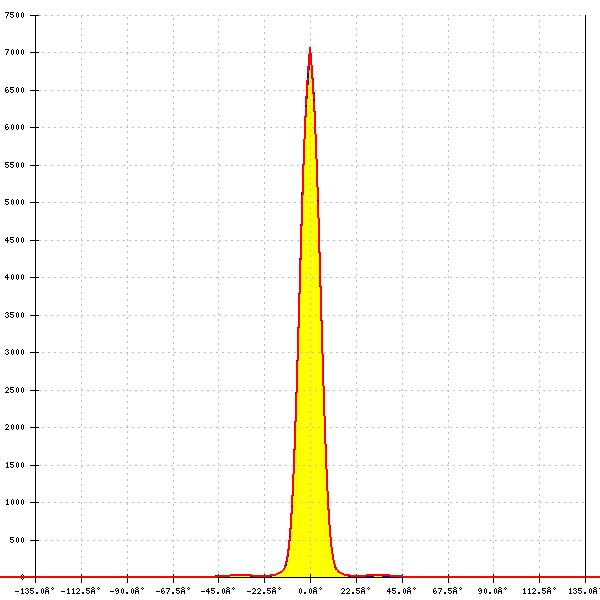

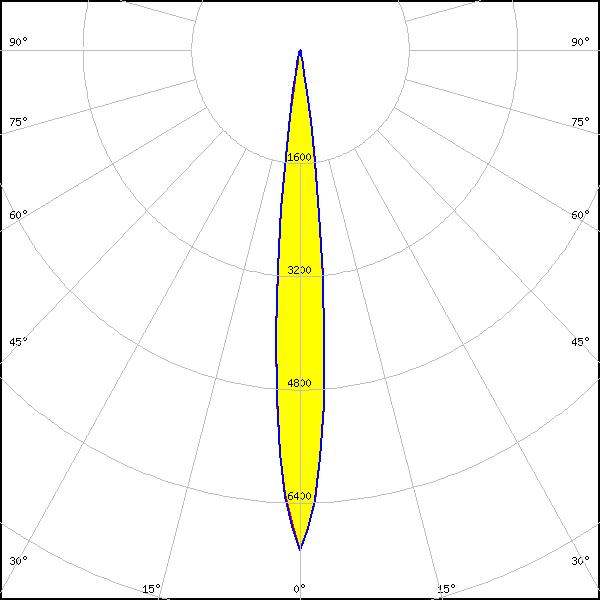

    LED: NV4WB35AM
    Ordering code: LA20342_YASMEEN-25-FR-S
    LES size: 0.0 mm
    FWHM: 12°
    FWTM: 20°
    Peak intensity: 7.068 cd/lm
    Efficiency: 34 %
    LEDs/each optic: 1
    Light colour/type: White
