    YASMEEN-35-FR-S

    Print

    ~8° ultra-narrow spot beam

    This product consists of multiple buying options, and different options may have different packaging information. Check the product datasheet for more details.

    Specification
    • Dimensions:
      35 mm
    • Height:
      20.40 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

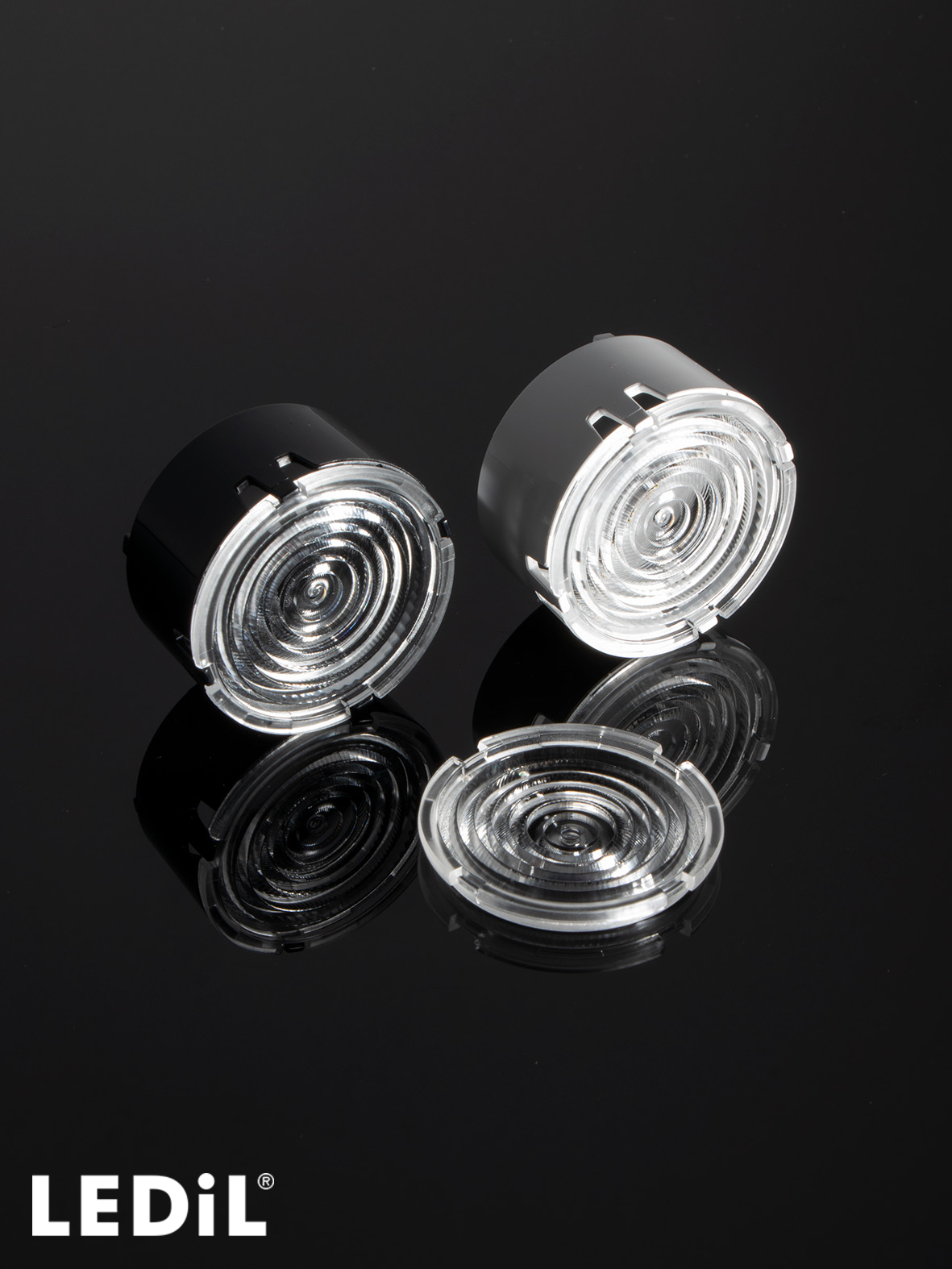

    Ordering information
    • Single lens
    • L20345_YASMEEN-35-FR-S
      clear
    • Assembly

      (single lens, holder)

    • LP20346_YASMEEN-35-FR-S-B
      black,Holder B
    • LP20347_YASMEEN-35-FR-S-B-WHT
      white,Holder B
    • Packaging information in the product datasheet
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      L20345_YASMEEN-35-FR-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    News

    Leading the way in ultra-narrow spot lighting with YASMEEN-FR-S

    Compatibility guide

    LEDiL connector and socket compatibility guide

    News

    YASMEEN – redefining track lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – May, 2023

    News

    YASMEEN-35 – superior light quality in a petite size

    Application guide

    Guide for Architectural lighting optics

    Application guide

    Guide for Retail Lighting Optics

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOCKET-B-35-N

    Version compatible with COBs of 9.5 x 9.5 mm packages

    SOCKET-B-35-M

    Version compatible with COBs of 11.5 x 11.5 mm packages

    SOCKET-B-35-A

    Version compatible with COBs of 12.5 x 12.5 mm packages

    SOCKET-B-35-I

    Version compatible with COBs of 19 x 19 mm packages

    SOCKET-B-35-C

    Version compatible with COBs of 13.5 x 13.5 mm packages

    Optical results

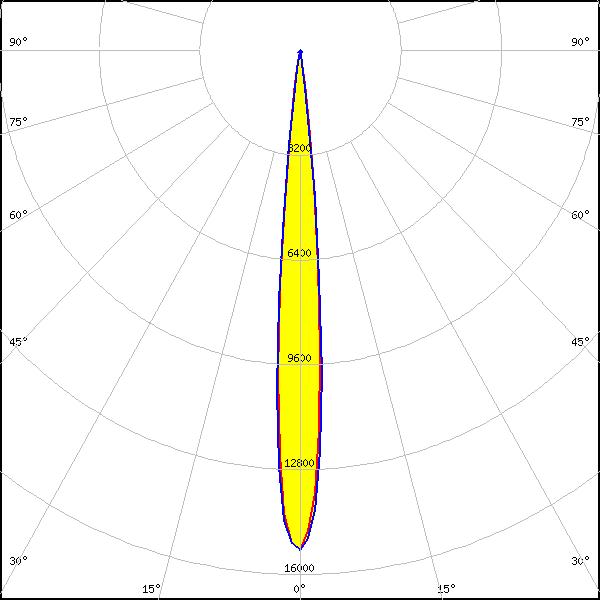

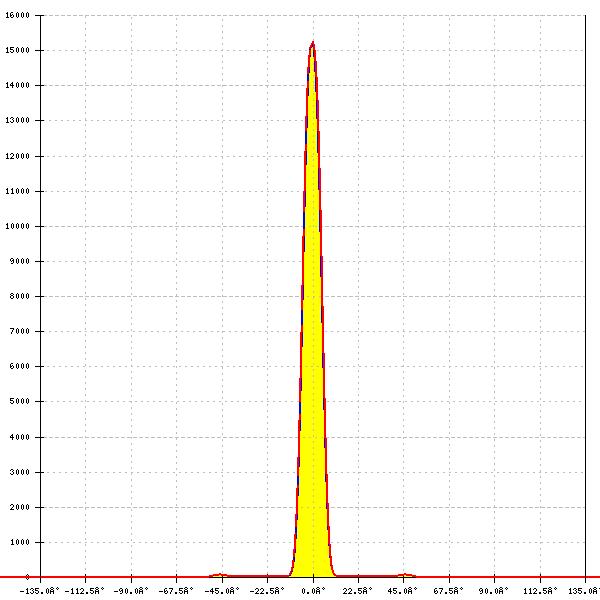

    LED: V3 HD Gen 8
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 3.8 mm
    Required components:
    C19309_SOCKET-B-35-A
    FWHM: 10°
    FWTM: 16°
    Peak intensity: 15.264 cd/lm
    Efficiency: 50 %
    LEDs/each optic: 1
    Light colour/type: White

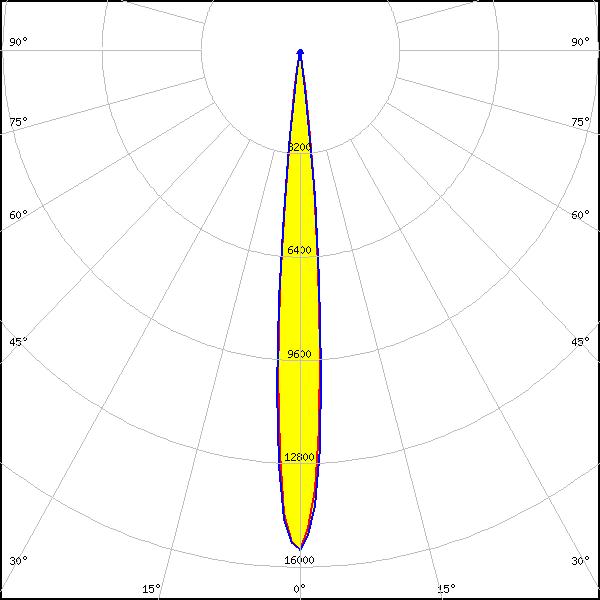

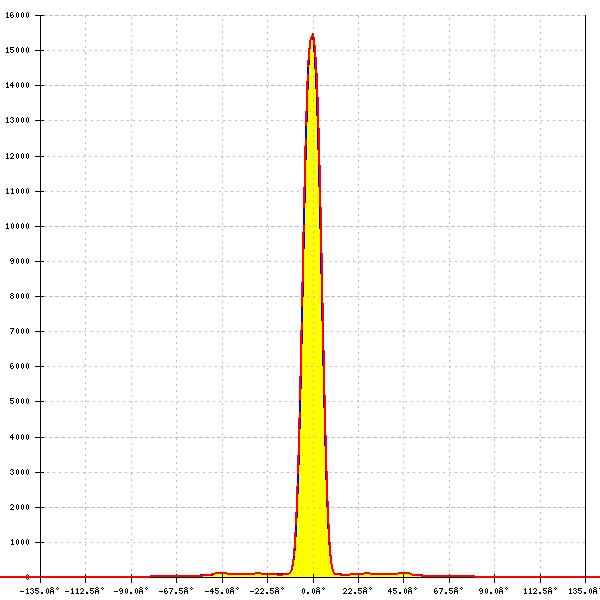

    LED: V3 HD Gen 8
    Ordering code: LP20347_YASMEEN-35-FR-S-B-WHT
    LES size: 3.8 mm
    Required components:
    C19309_SOCKET-B-35-A
    FWHM: 10°
    FWTM: 16°
    Peak intensity: 15.483 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

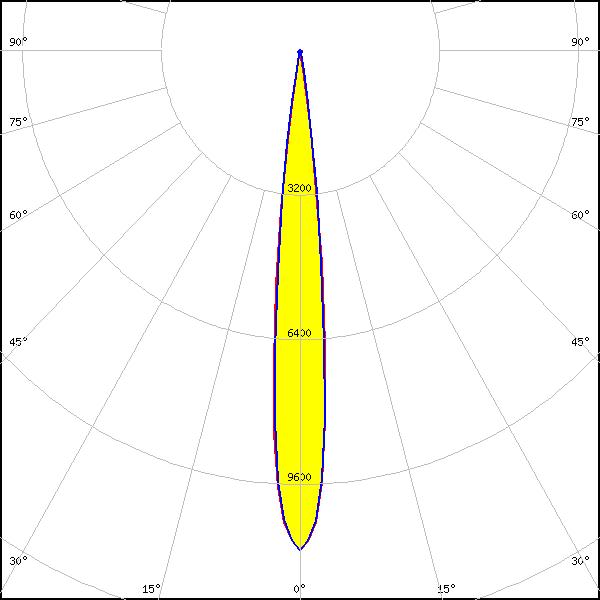

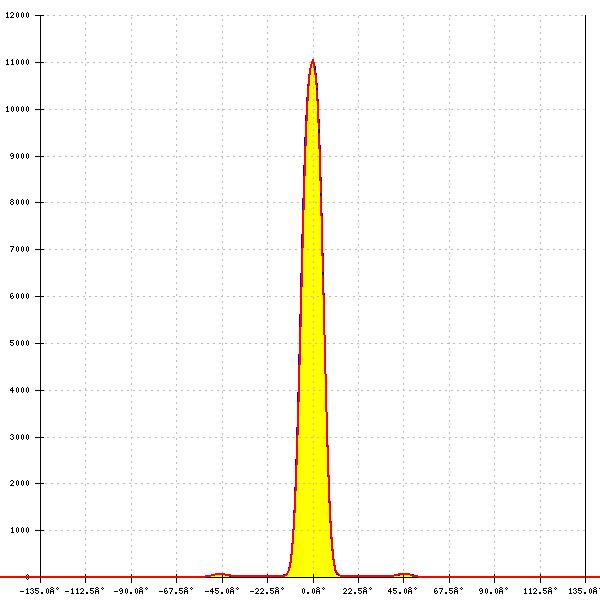

    LED: V4 HD Gen 8
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 4.8 mm
    Required components:
    C19309_SOCKET-B-35-A
    FWHM: 12°
    FWTM: 18°
    Peak intensity: 11.079 cd/lm
    Efficiency: 50 %
    LEDs/each optic: 1
    Light colour/type: White

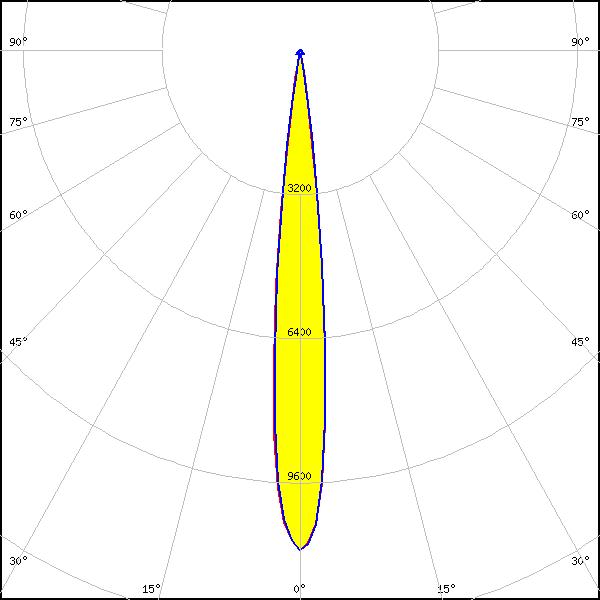

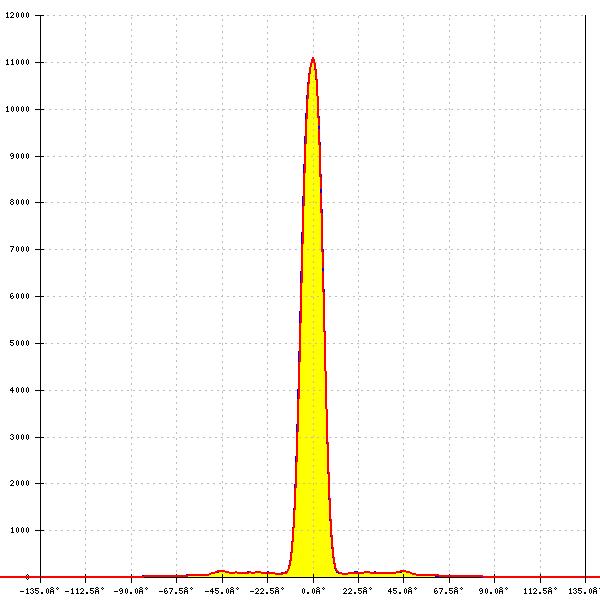

    LED: V4 HD Gen 8
    Ordering code: LP20347_YASMEEN-35-FR-S-B-WHT
    LES size: 4.8 mm
    Required components:
    C19309_SOCKET-B-35-A
    FWHM: 12°
    FWTM: 18°
    Peak intensity: 11.132 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

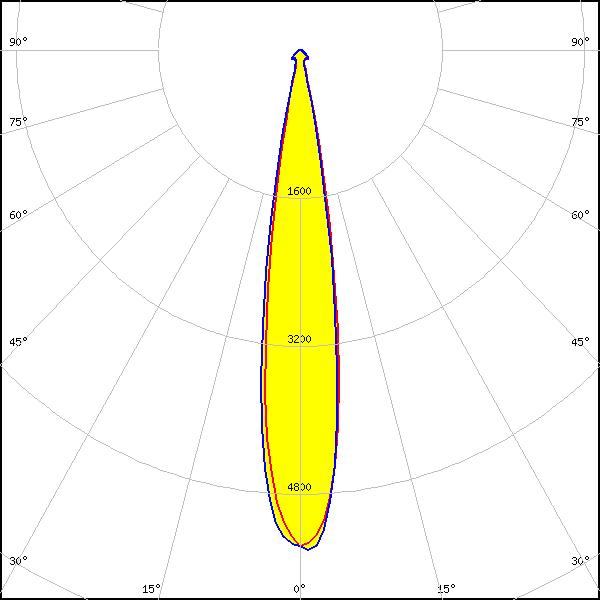

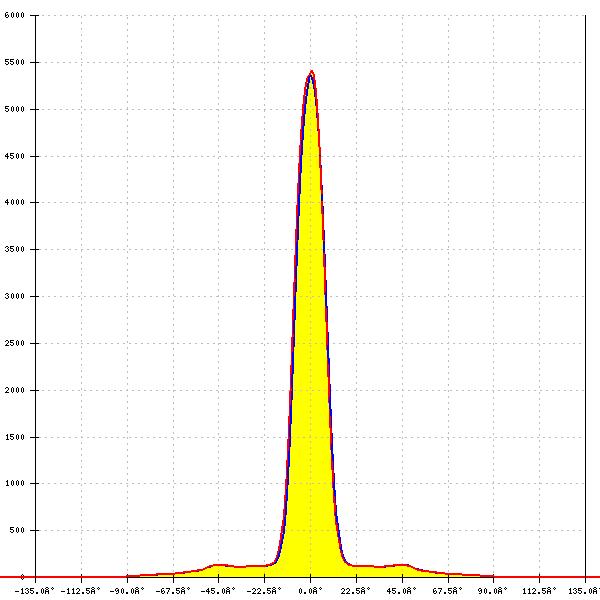

    LED: V6 HD Gen 8
    Ordering code: LP20347_YASMEEN-35-FR-S-B-WHT
    LES size: 6.6 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 17°
    FWTM: 27°
    Peak intensity: 5.408 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

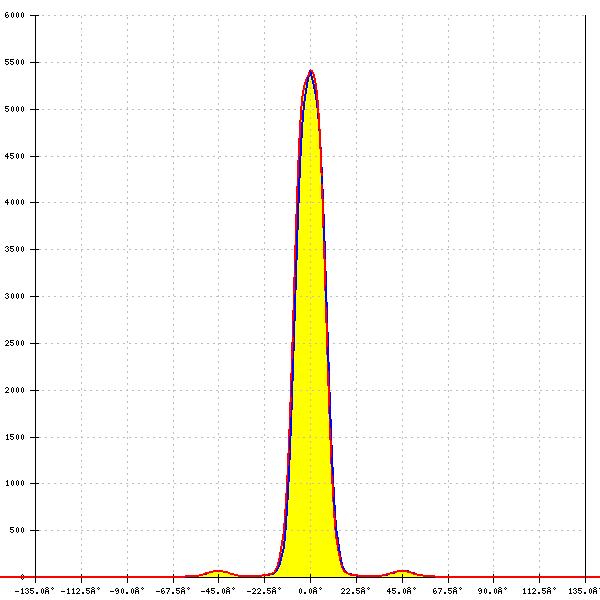

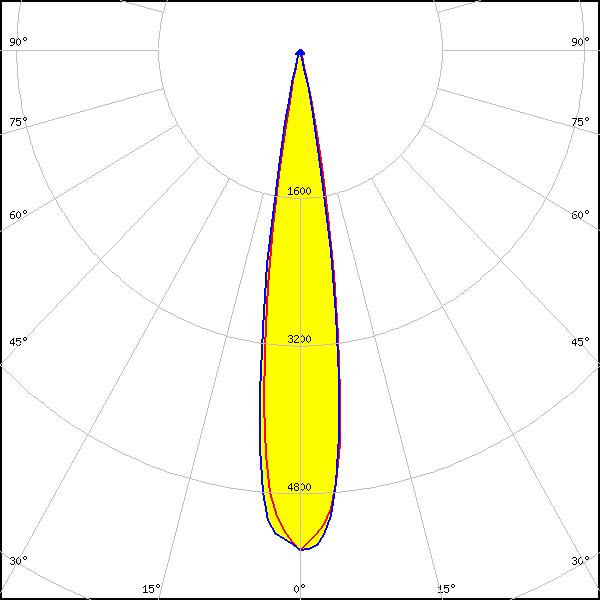

    LED: V6 HD Gen 8
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 6.6 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 17°
    FWTM: 26°
    Peak intensity: 5.413 cd/lm
    Efficiency: 49 %
    LEDs/each optic: 1
    Light colour/type: White

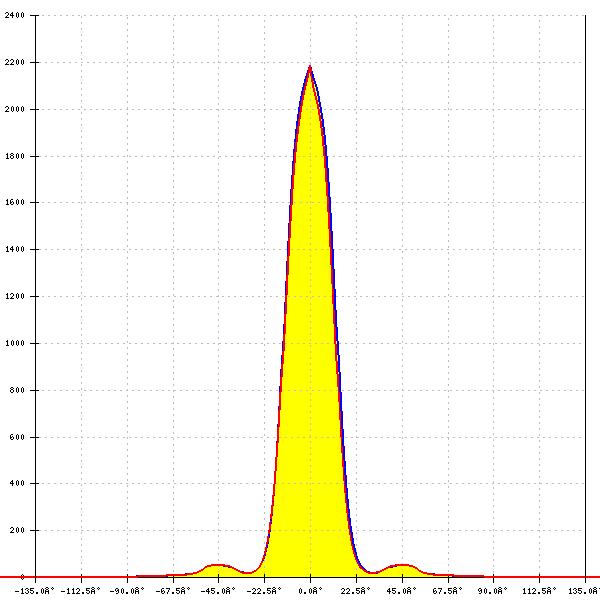

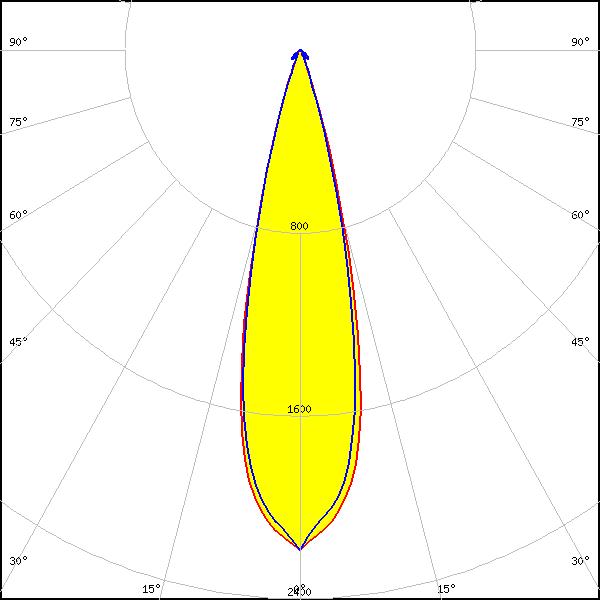

    LED: CLU02Q-1203E1 Type-M
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 9.7 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 18°
    FWTM: 35°
    Peak intensity: 3.183 cd/lm
    Efficiency: 47 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 9.8 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 25°
    FWTM: 39°
    Peak intensity: 2.188 cd/lm
    Efficiency: 47 %
    LEDs/each optic: 1
    Light colour/type: White

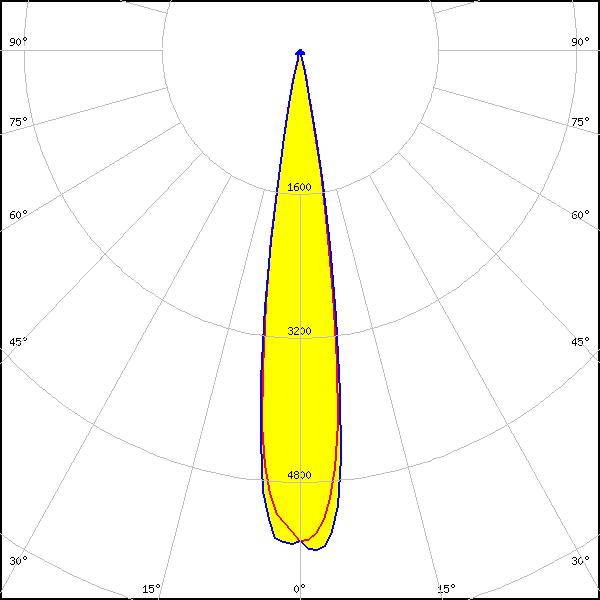

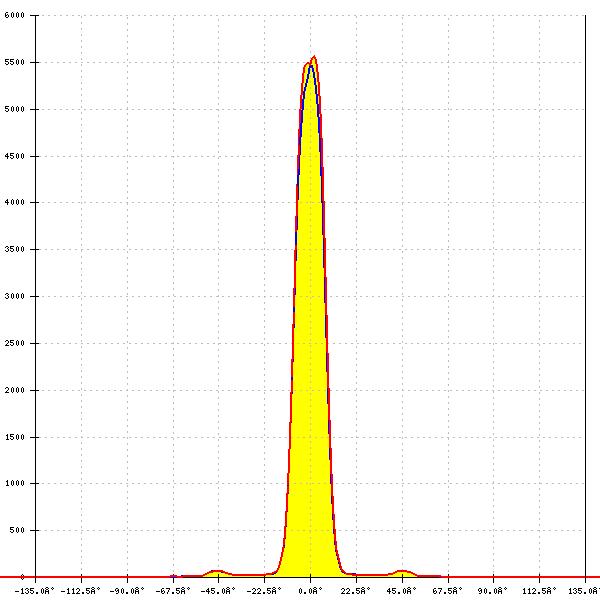

    LED: CLU700/701/702/703
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 6.0 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 16°
    FWTM: 24°
    Peak intensity: 5.561 cd/lm
    Efficiency: 48 %
    LEDs/each optic: 1
    Light colour/type: White

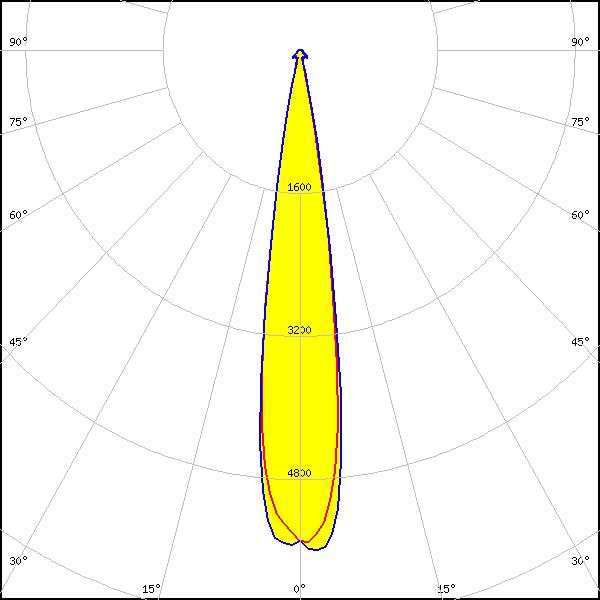

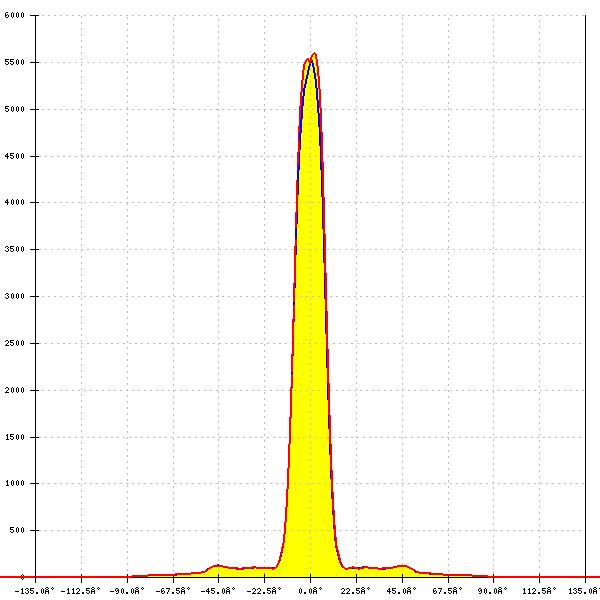

    LED: CLU700/701/702/703
    Ordering code: LP20347_YASMEEN-35-FR-S-B-WHT
    LES size: 6.0 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 16°
    FWTM: 24°
    Peak intensity: 5.596 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White

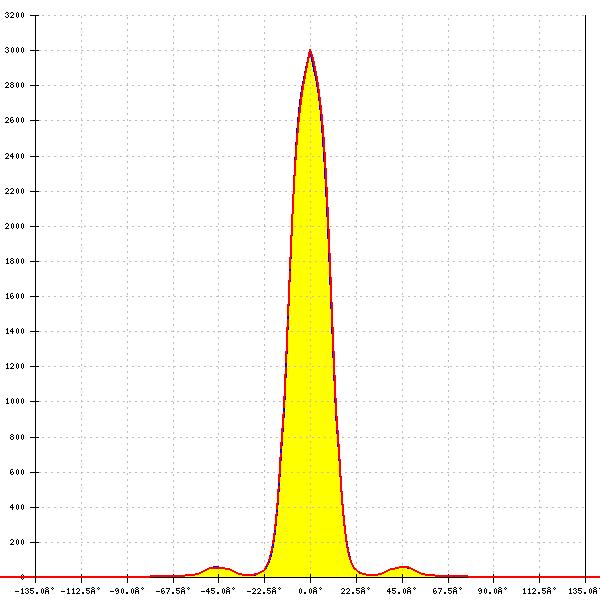

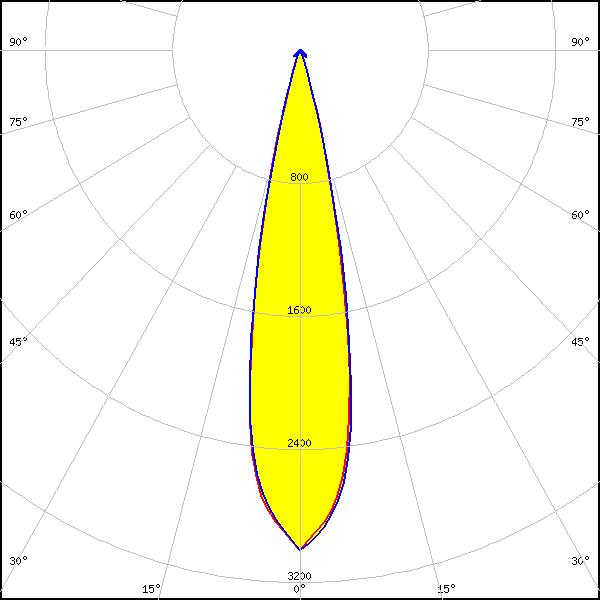

    LED: CLU712/713
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 8.5 mm
    Required components:
    C19308_SOCKET-B-35-I
    FWHM: 22°
    FWTM: 34°
    Peak intensity: 3.007 cd/lm
    Efficiency: 47 %
    LEDs/each optic: 1
    Light colour/type: White

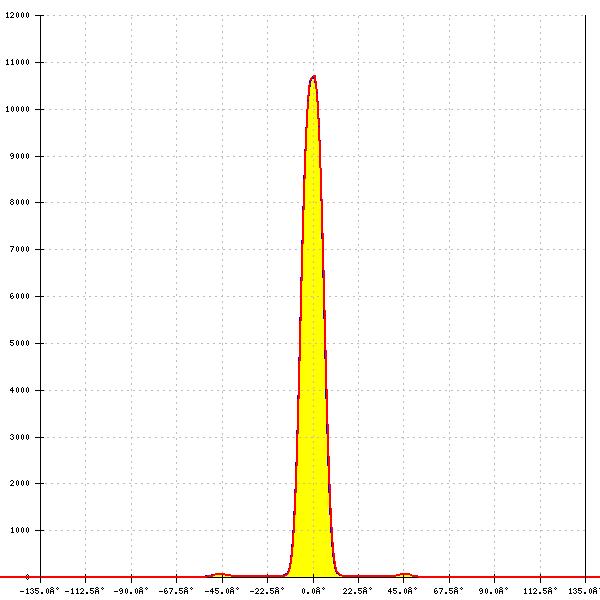

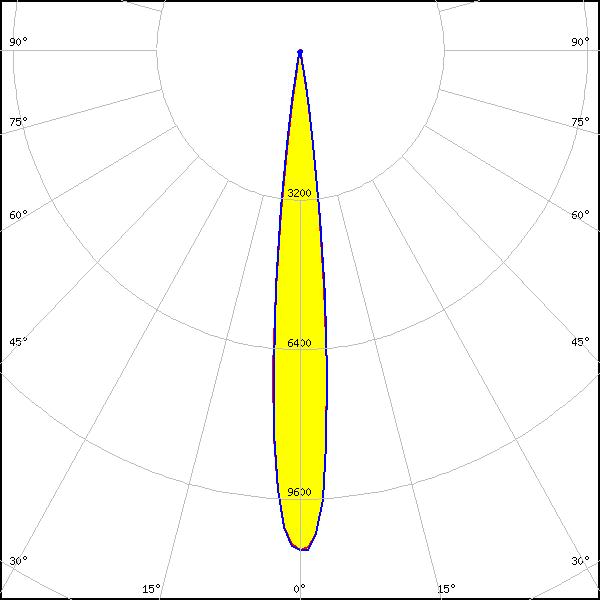

    LED: CLU7A2/7A3
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 4.2 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 12°
    FWTM: 18°
    Peak intensity: 10.720 cd/lm
    Efficiency: 49 %
    LEDs/each optic: 1
    Light colour/type: White

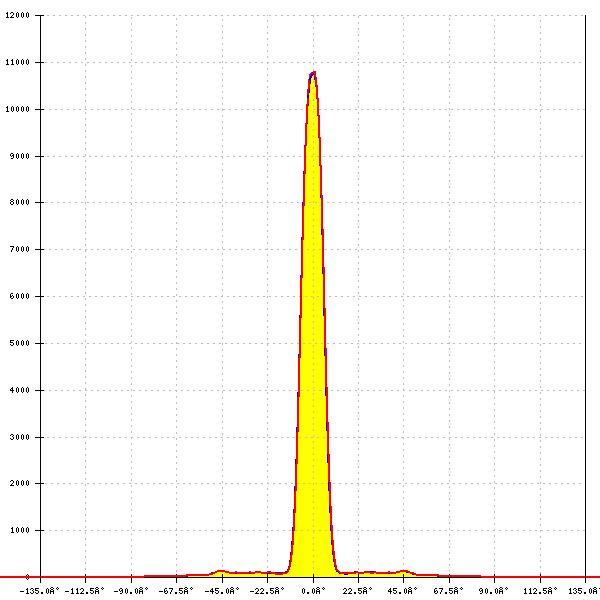

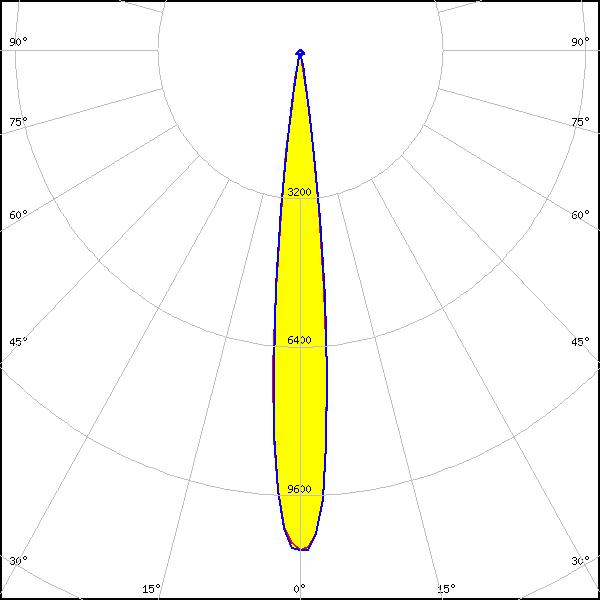

    LED: CLU7A2/7A3
    Ordering code: LP20347_YASMEEN-35-FR-S-B-WHT
    LES size: 4.2 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 12°
    FWTM: 18°
    Peak intensity: 10.810 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

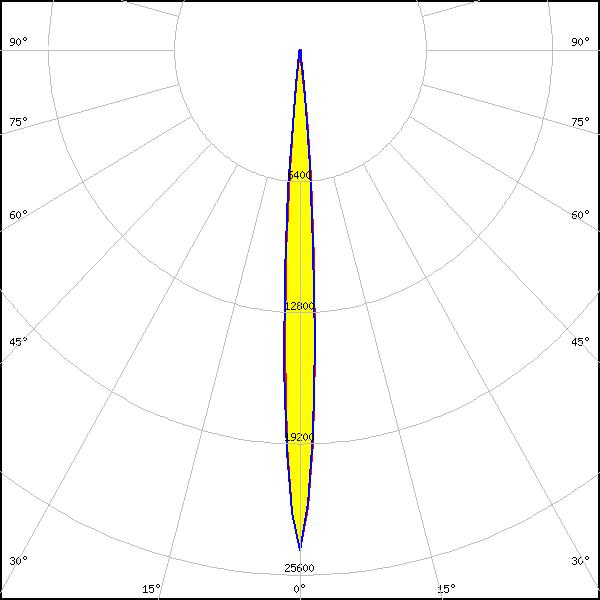

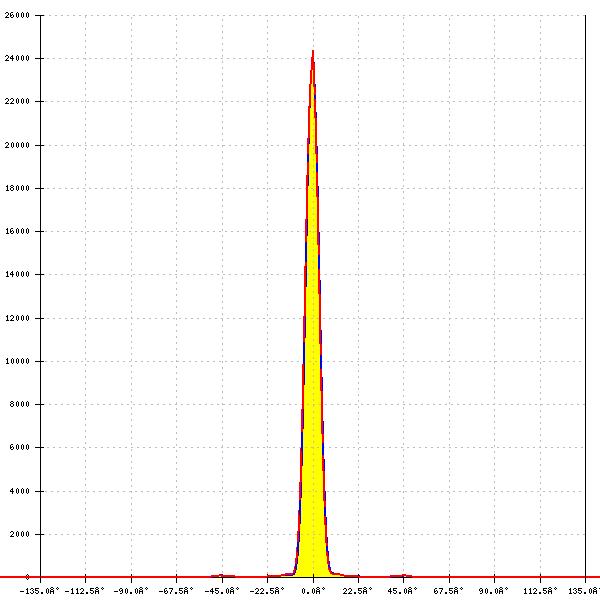

    LED: CLU7L3
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 2.4 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 8° + 7°
    FWTM: 12° + 13°
    Peak intensity: 24.394 cd/lm
    Efficiency: 50 %
    LEDs/each optic: 1
    Light colour/type: White

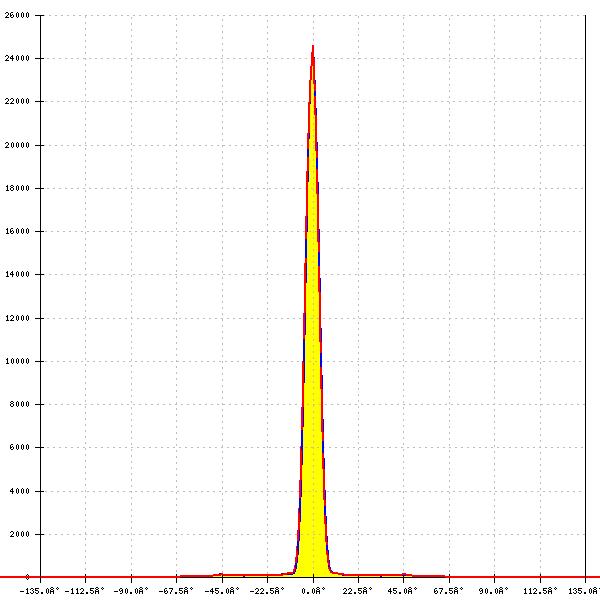

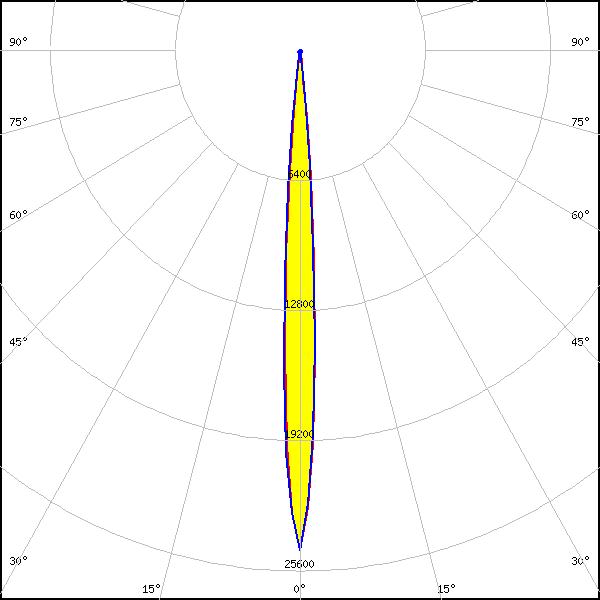

    LED: CLU7L3
    Ordering code: LP20347_YASMEEN-35-FR-S-B-WHT
    LES size: 2.4 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 8°
    FWTM: 13°
    Peak intensity: 24.591 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White

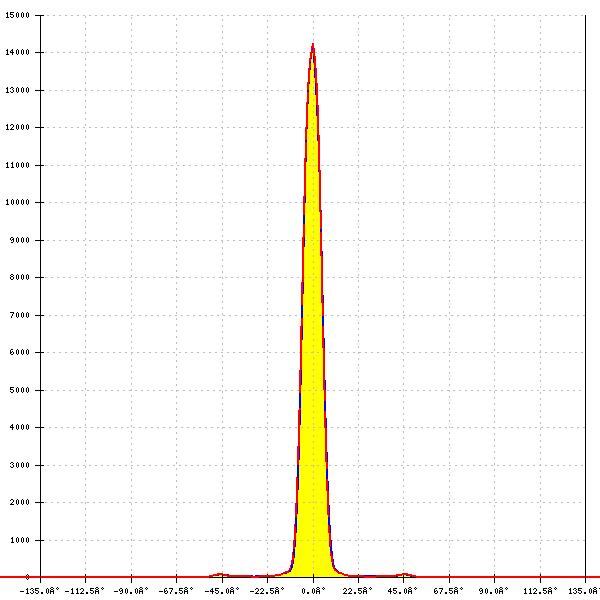

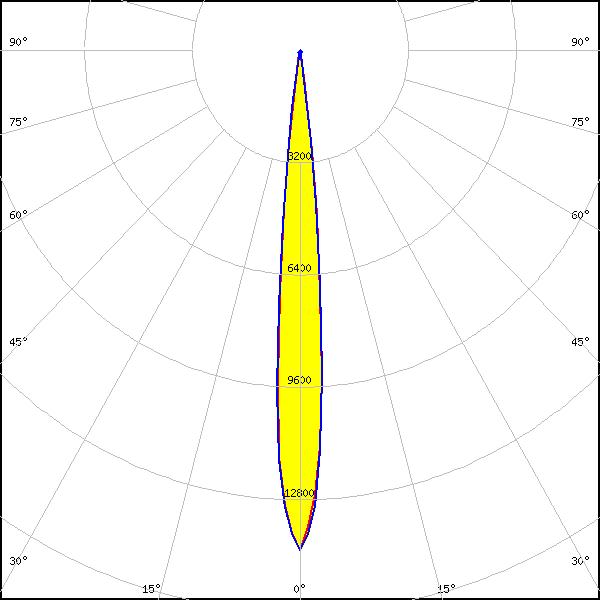

    LED: CLU7S3
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 3.5 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 10°
    FWTM: 16°
    Peak intensity: 14.246 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: White

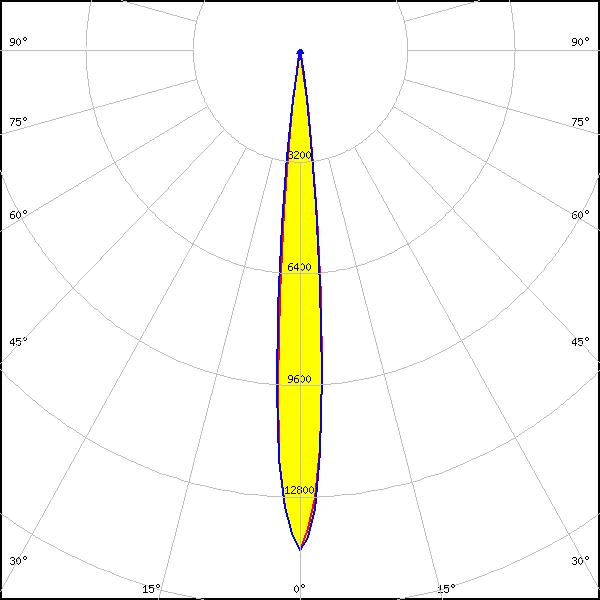

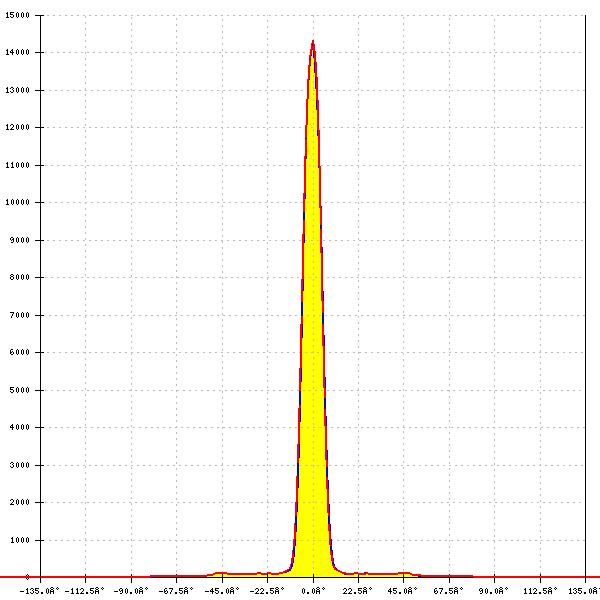

    LED: CLU7S3
    Ordering code: LP20347_YASMEEN-35-FR-S-B-WHT
    LES size: 3.5 mm
    Required components:
    C19425_SOCKET-B-35-N
    FWHM: 10°
    FWTM: 16°
    Peak intensity: 14.322 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White

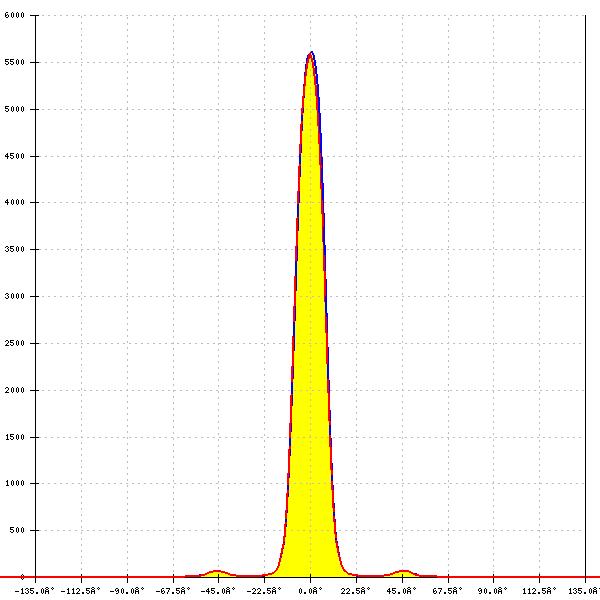

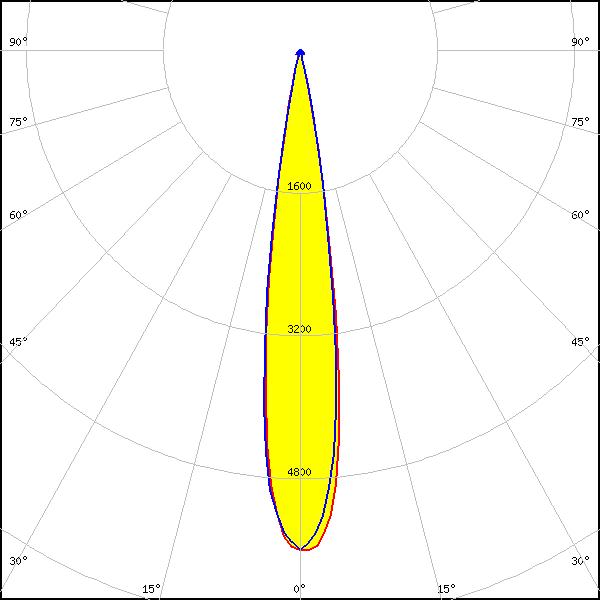

    LED: CMB13xx
    LES size: 6.0 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 16°
    FWTM: 24°
    Peak intensity: 5.643 cd/lm
    Efficiency: 48 %
    LEDs/each optic: 1
    Light colour/type: White

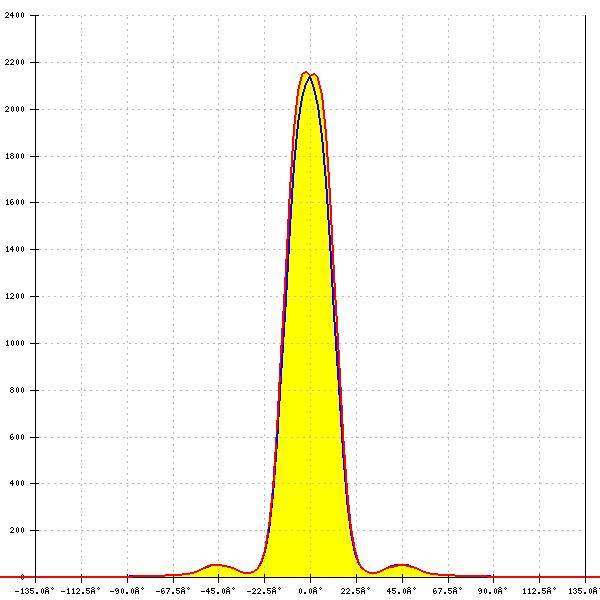

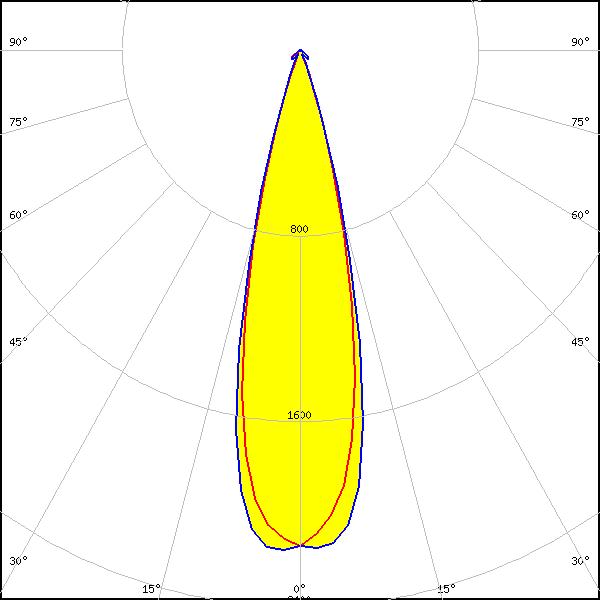

    LED: CxM-9 (13.5x13.5)
    Ordering code: LP20346_YASMEEN-35-FR-S-B
    LES size: 9.6 mm
    Required components:
    C18968_SOCKET-B-35-C
    FWHM: 26°
    FWTM: 40°
    Peak intensity: 2.159 cd/lm
    Efficiency: 49 %
    LEDs/each optic: 1
    Light colour/type: White
