LIANNA ‒ redefining linear lighting excellence

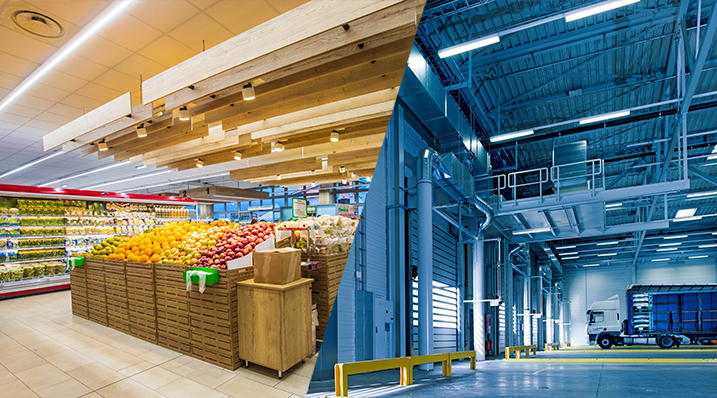

The ultimate solution for industrial and retail lighting



Linear lighting is the preferred option for illuminating industrial and retail spaces, shaping a competitive arena for industry players. By conducting thorough research, we’ve explored the fundamental challenges of linear lighting, including everything from cost constraints to insufficient system efficacy, optic gaps, limited length options, and unsuitability for damp or dusty environments. Addressing these pain points, our new linear lens family – LIANNA – emerges as the solution, offering the most cost and energy-efficient linear lighting available.





LIANNA’s strength lies in its unparalleled flexibility. Whether you’re aiming to optimise for the best efficacy or prioritise the cheapest bill of materials (BOM), LIANNA rises to the occasion. Let’s explore both scenarios in more detail, with the goal of achieving 180 lm/W efficacy in each case using traditional 1-row and 3-row IP solutions, as well as LIANNA IP.

Focus on the best efficacy

When focusing on efficacy and utilising the best efficacy MP LEDs, LIANNA’s advantage becomes evident. With a higher optic count of 36 pcs/ft compared to the standard single-row solution’s 24 pcs/ft, LIANNA achieves an impressive efficacy of 187 lm/W, which is 26 lm/W higher than a typical 1-row IP solution. A similar efficacy can be achieved with a standard 3-row IP solution, but at a 20 % higher cost than the standard 1-row IP solution.

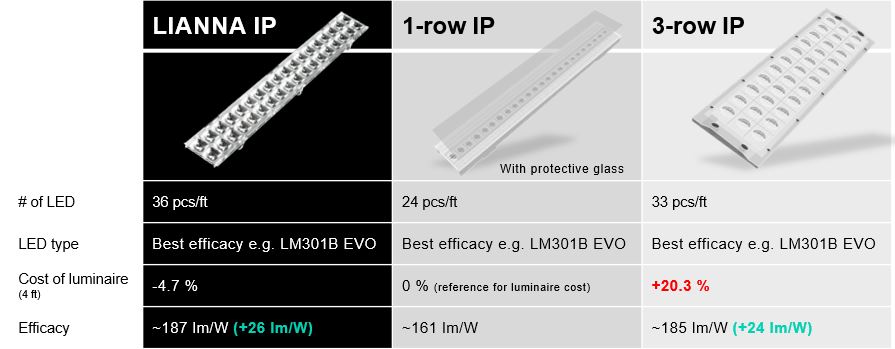

Comparison of LIANNA and 3-row IP solutions with the traditional 1-row IP solution in terms of efficacy.


Focus on the cheapest BOM

If the bill of materials is the primary consideration, LIANNA remains the top choice. Its higher optic count, compared to the traditional 1-row IP solution, allows for the use of more affordable mid-power LEDs without compromising efficacy. While the 3-row solution can also use cheaper LEDs, the total solution is 16 % more expensive than the 1-row option.

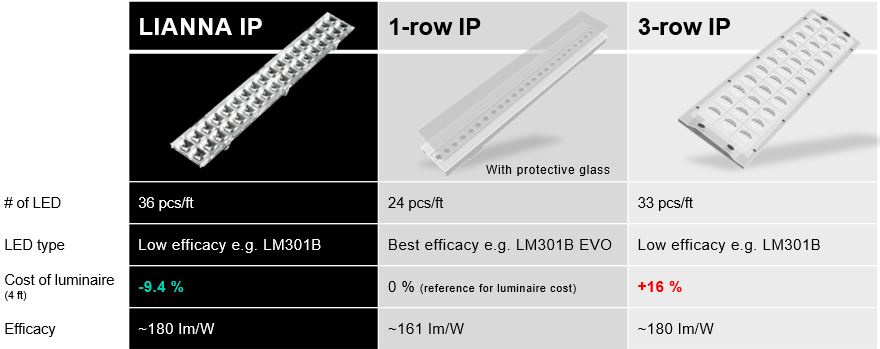

Comparison of LIANNA and 3-row IP solutions with the traditional 1-row IP solution in terms of BOM.


Customisable lengths, UGR, IP

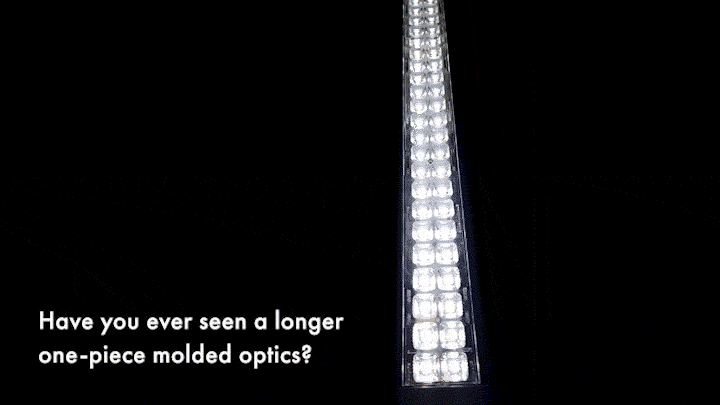

LIANNA features a versatile two-row lens design that can be tailored to any desired length in 1-foot increments. For our initial sales, we offer lengths of 4, 5, and 6 feet, ensuring a seamless aesthetic solution with no gaps. In addition, we offer 60- and 90-degree beams in 2-foot lengths that can be used either as standalone units or in combination with other lengths. Furthermore, attaching LIANNA to the luminaire is effortless thanks to its secure side clips.

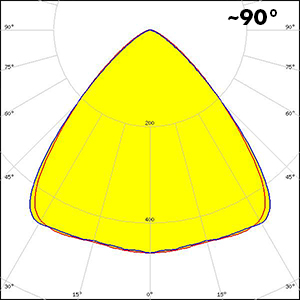

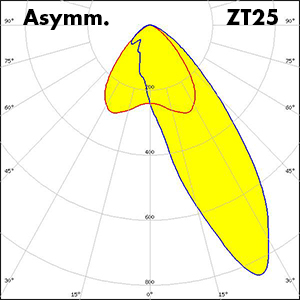

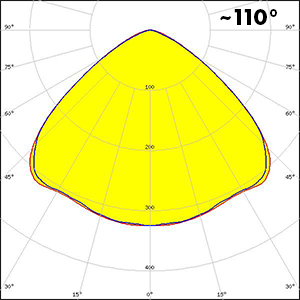

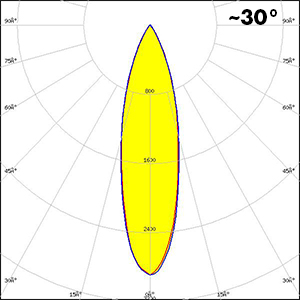

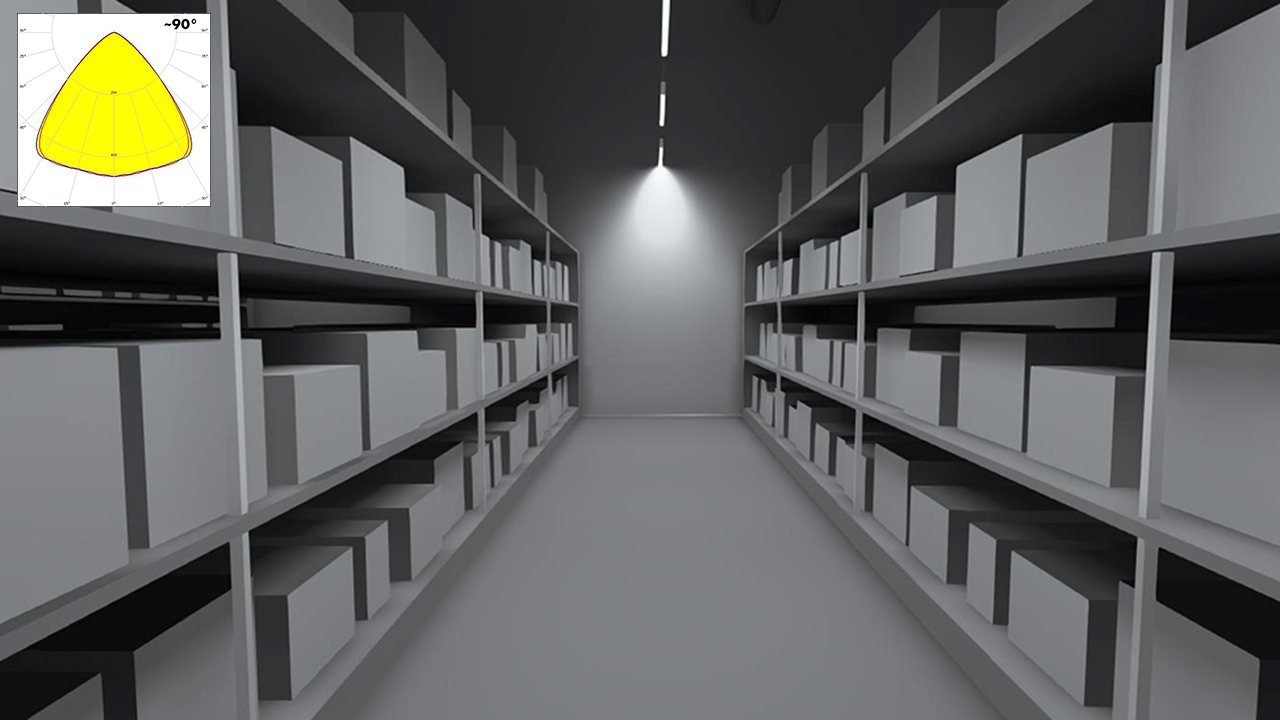

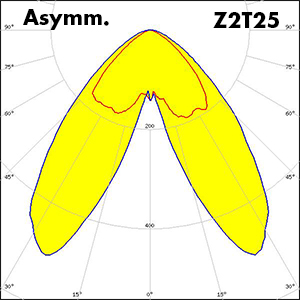

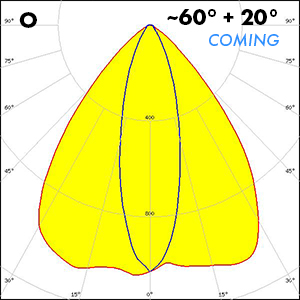

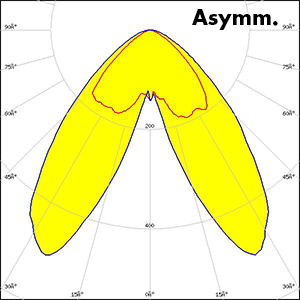

LIANNA offers a variety of beam options, all with optimal UGR values to meet diverse lighting requirements. Starting with 90°, 60°, and 30° beams, followed by asymmetrical beams, with plans to later expand to include 110° and oval options. LIANNA is optimised for two-row PCB modules with 3030 and 2835 LEDs and can also be used with single LEDs or 1×2 clusters.

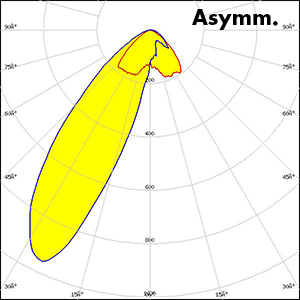

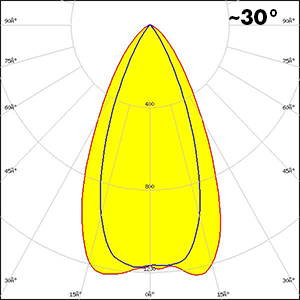

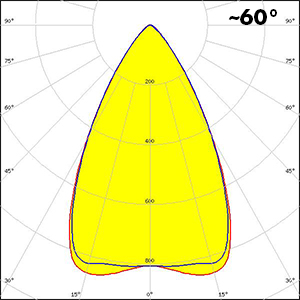

Polar_LIANNA-90Polar_LIANNA-60Polar_LIANNA-30Polar_LIANNA-ZT25Polar_LIANNA-Z2T25


Creating the necessary IP solution for damp and dusty environments becomes remarkably straightforward with LIANNA, eliminating the need for individual cover glass that can reduce efficacy and increase the BOM. The following video demonstrates how to achieve an IP66 solution at the luminaire level.




In conclusion, LIANNA stands as a beacon of innovation in the linear lighting domain. With its unparalleled flexibility, efficiency, and adaptability, LIANNA not only addresses the core challenges of traditional linear lighting but also sets new standards for performance and versatility. Step into the light with LIANNA and revolutionise your illumination journey.
